Flexural Behaviour of Hybrid Fibre-Reinforced Ternary Blend Geopolymer Concrete Beams
Abstract
:1. Introduction
2. Experimental Programme
2.1. Materials
2.1.1. Ternary Blend Source Material
2.1.2. Fine and Coarse Aggregate
2.1.3. Alkaline Activator
2.1.4. Superplasticiser and Water

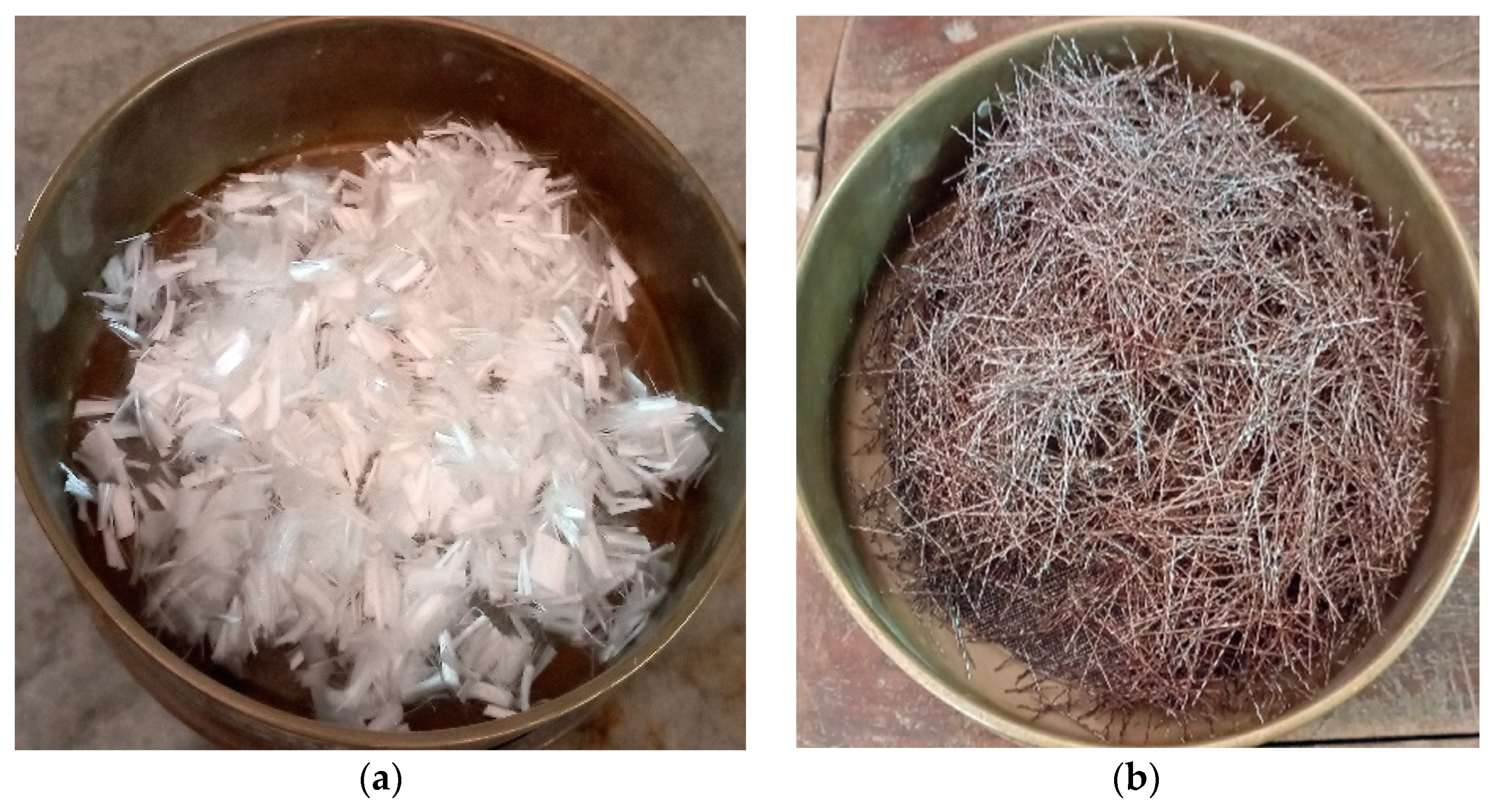

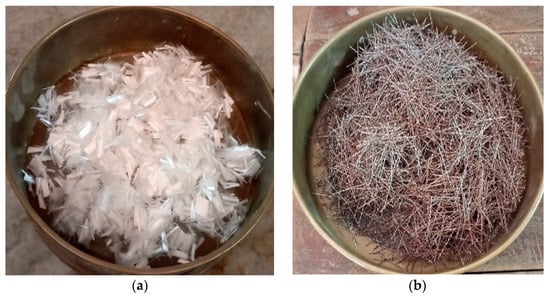

2.1.5. Polypropylene and Steel Fibres
2.2. Mixture Proportions for TGPC

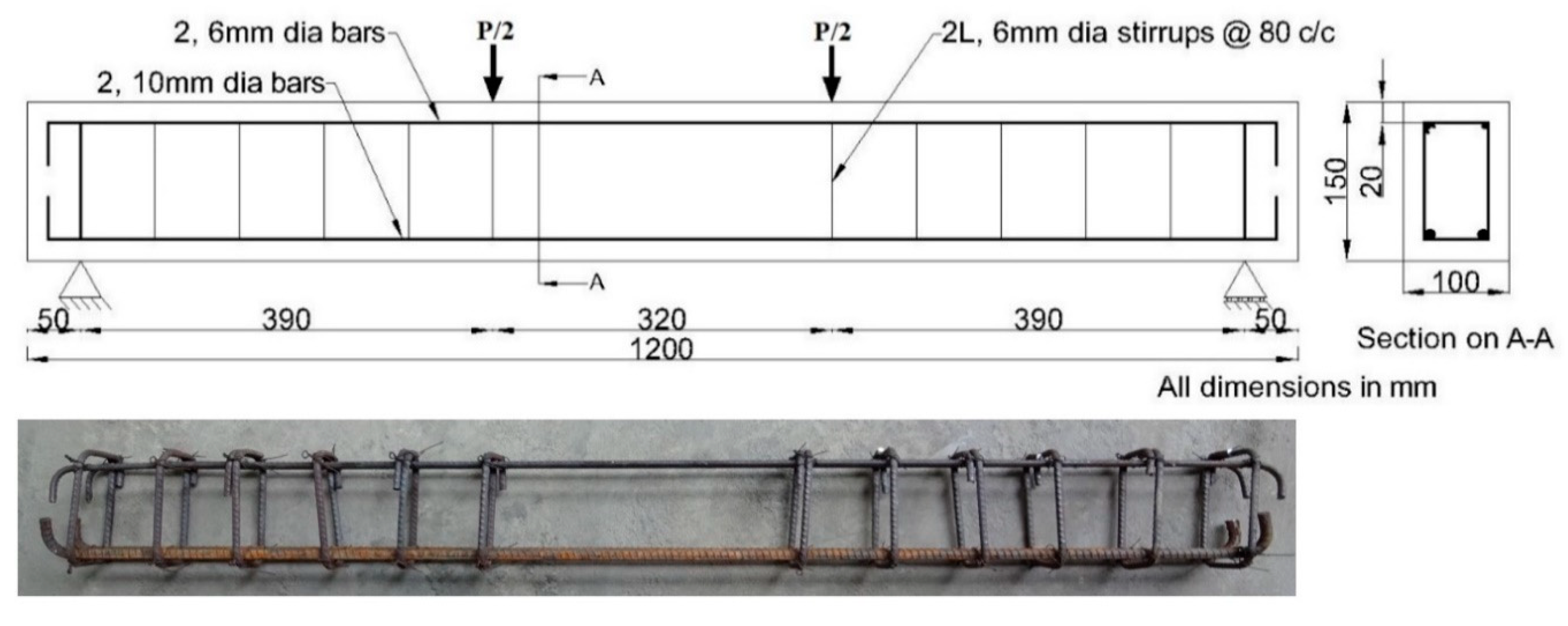

2.3. Details of the Specimen
2.4. Casting and Curing Procedure

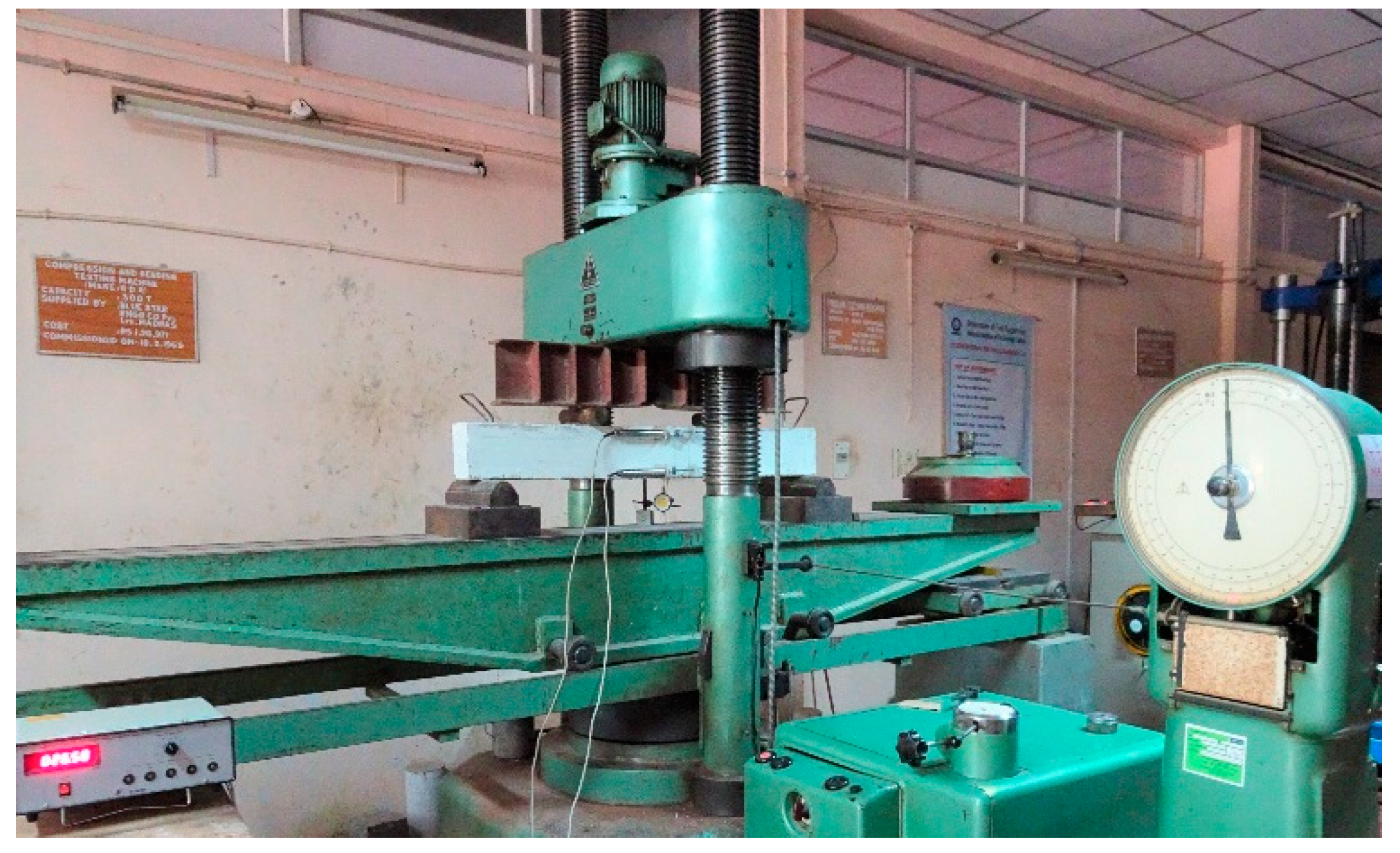

2.5. Testing Procedure
3. Results and Discussions

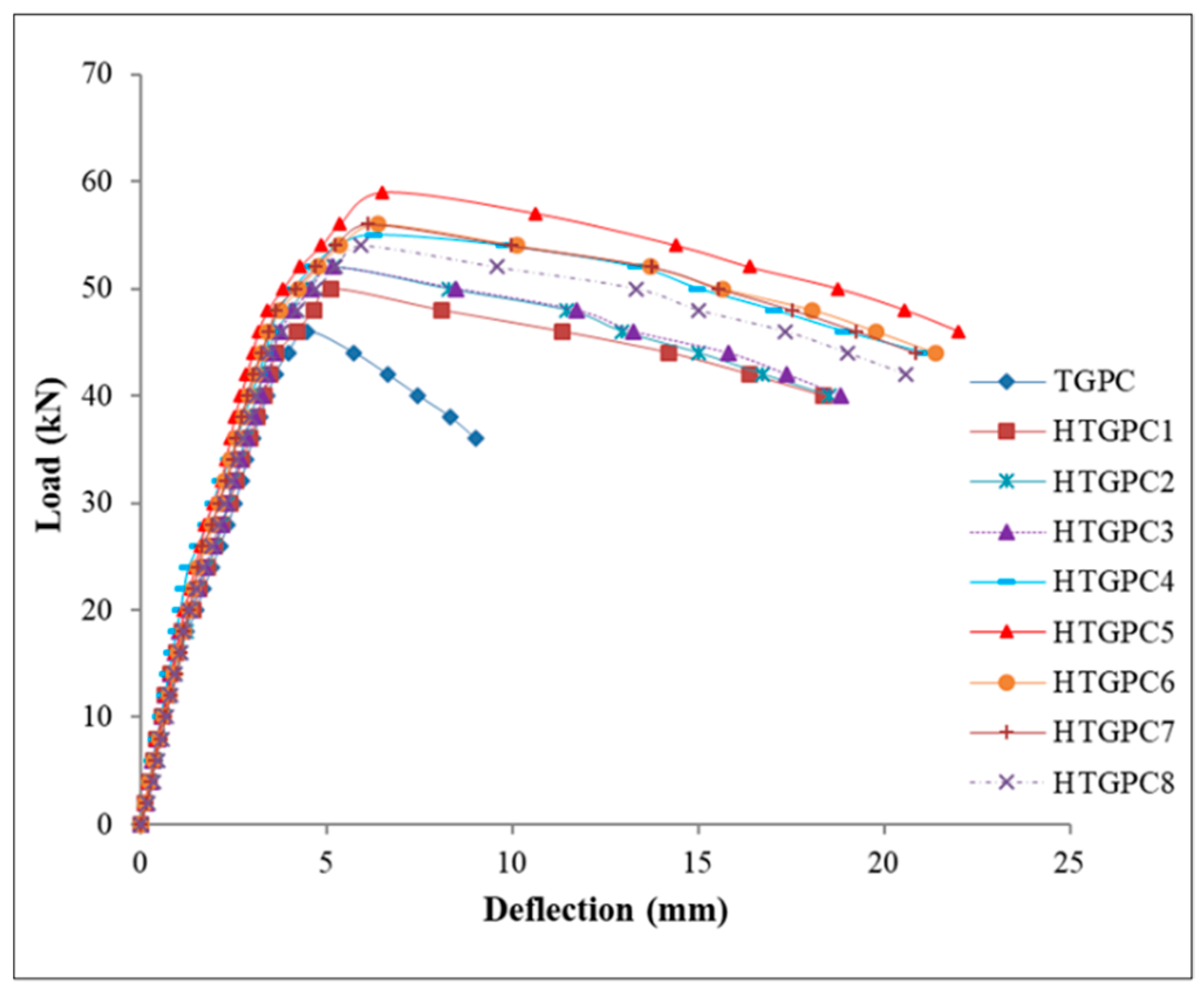

3.1. Load-Deflection Response
3.2. First Crack and Ultimate Crack Load
3.3. Energy Absorption Capacity and Ductility

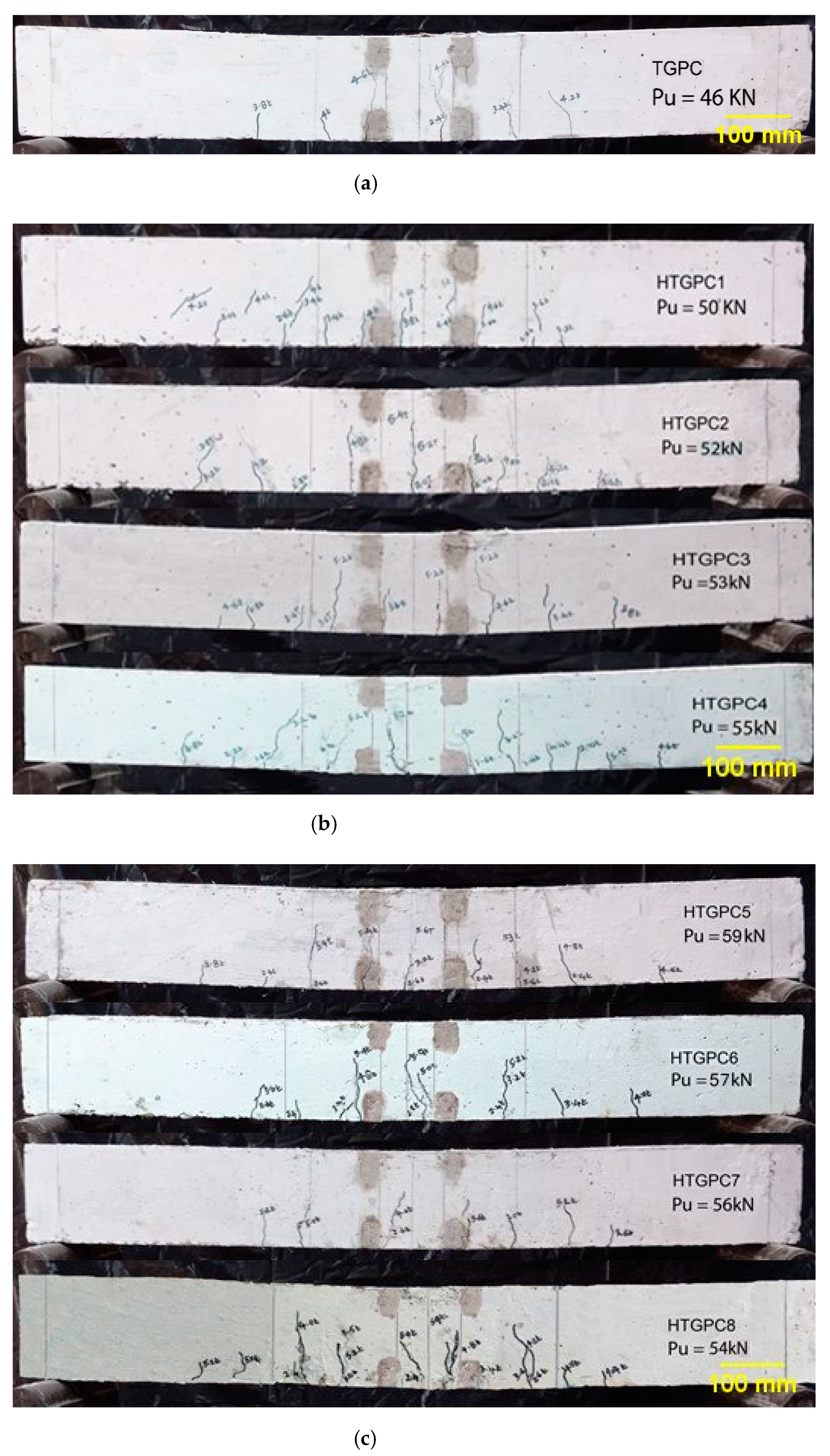

3.4. Cracking Behaviour

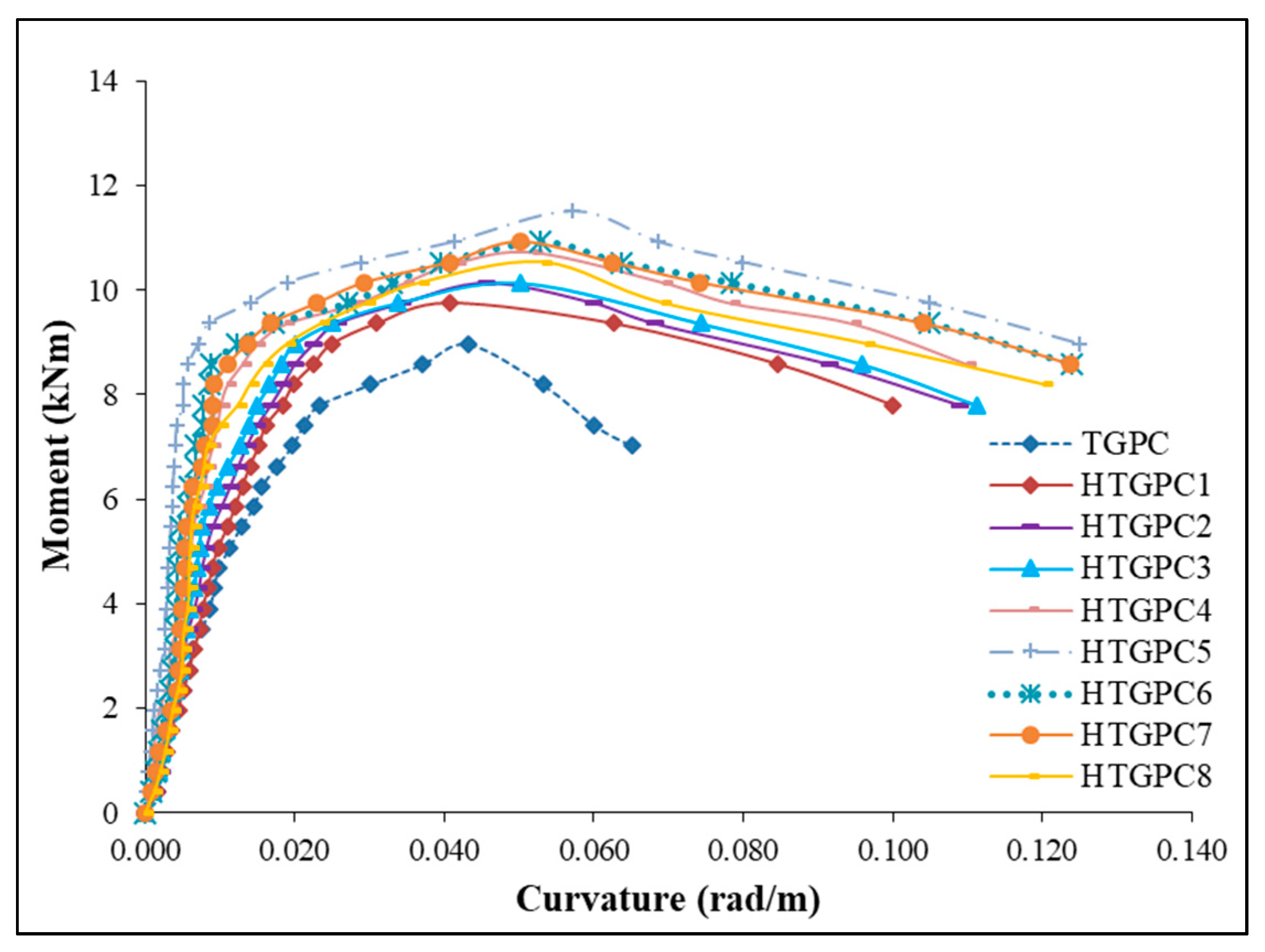

3.5. Moment-Curvature Relationship
- is the deformation obtained from the top LVDT
- is the deformation obtained from the bottom LVDT
- GL is the gauge length of LVDTs
3.6. Prediction of Flexural Strength of HTGPC

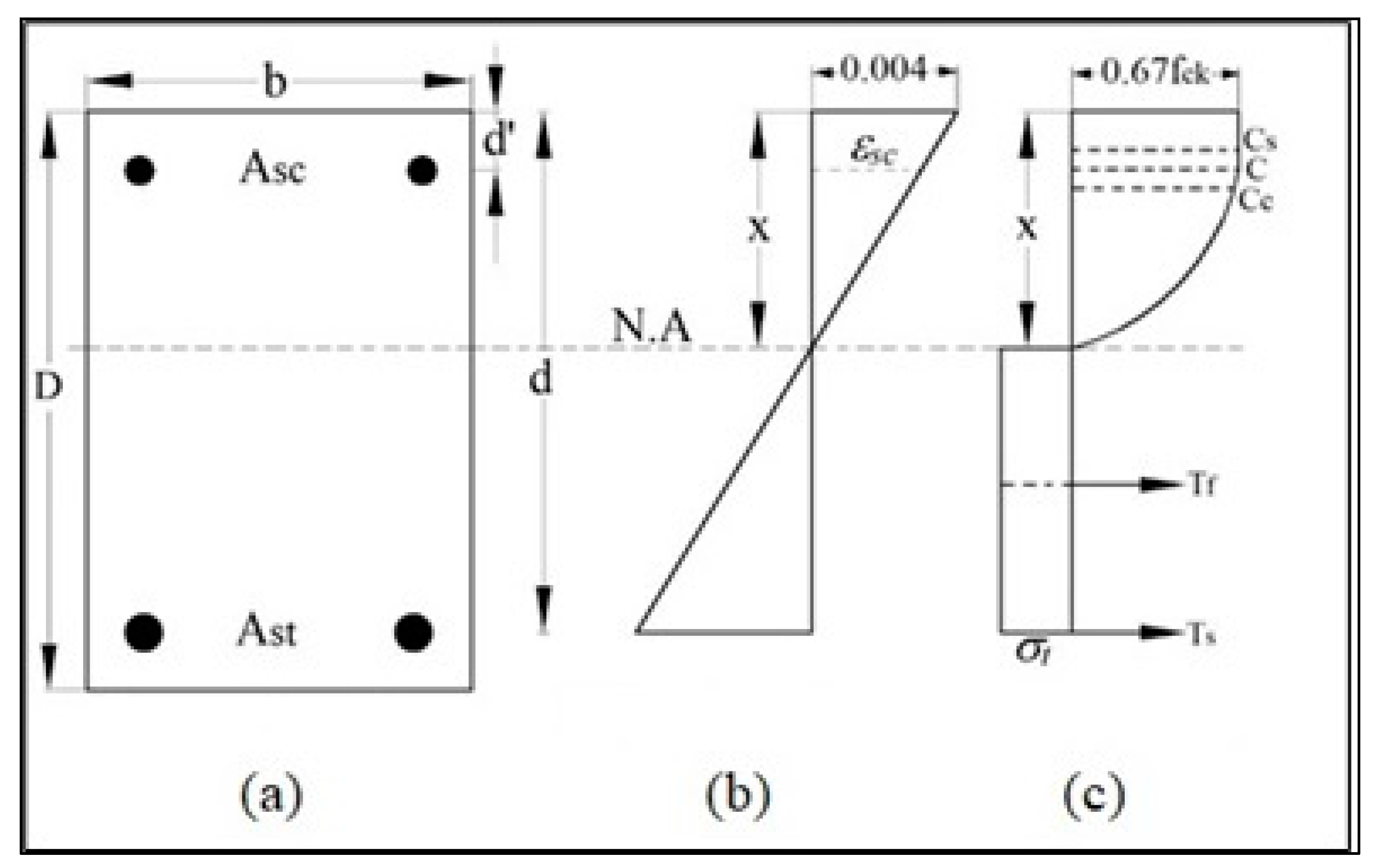

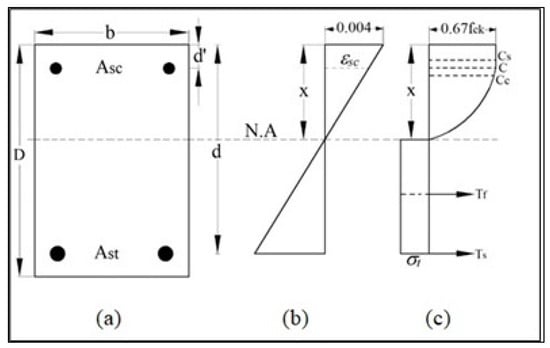

3.6.1. Modification of Stress Block
- The strain diagram is linear.
- A parabolic cum rectangular stress block in the compression zone of the section.
- A rectangular stress distribution represents the contribution of fibres in the tension zone.
- The compressive strength in concrete shall be assumed to be 0.67 times the characteristic strength.
- Cc = compressive force in concrete
- Cs = compressive force in compression steel
- Ts = tensile force in tension steel
- Tf = tensile force in concrete composite below neutral axis due to the tensile strength of fibres.
3.6.2. Determination of Total Compressive Force (C)
- Asc = area of steel in compression
- Esc = modulus of elasticity of compression steel
3.6.3. Determination of Total Tensile Force (T)
- = strength of fibre-reinforced composite
- = strength of fibres
- = strength of the matrix
- Vf = volume of fibres
- Vm = volume of matrix = 1 Vf
3.6.4. Depth of Neutral Axis
3.6.5. Ultimate Flexural Strength
4. Conclusions
- The experimental results revealed that the addition of fibres in TGPC enhances the post-peak performance, showing a softening behaviour of the material. The fibres in hybrid form limit the sudden failure and change to a soft form.
- The fibres in hybrid form impact the load at different levels and improve the deflection corresponding to the load.
- The addition of hybrid fibres improved the specimens’ first crack load and ultimate load. The first crack load was found to increase significantly by 75%, and the ultimate load was found to increase by 28% compared with the specimens without fibres.
- The displacement ductility factor and the energy absorption capacity were increased by 2.64 times and 2.09 times, respectively, for the HTGPC specimen with 1% steel fibres and 0.1% polypropylene fibres compared with the specimens without fibres.
- IS 456:2000 recommend a maximum strain of 0.0035 for the specimens under flexure. However, this value is found to be conservative based on the test results of HTGPC specimens, and a maximum strain of 0.004 could be considered in the stress block for HTGPC.
- The method proposed for estimating the flexural strength of HTGPC was compared satisfactorily with the test results. The effect of the addition of hybrid fibres in the tension zone is considered in this model.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Jena, S.; Panigrahi, R.; Pooja, S. Mechanical and Durability Properties of Fly Ash Geopolymer Concrete with Silica Fume. J. Inst. Eng. Ser. A 2019, 100, 697–705. [Google Scholar] [CrossRef]
- Mclellan, B.C.; Williams, R.P.; Lay, J.; Van Riessen, A.; Corder, G.D. Costs and carbon emissions for geopolymer pastes in comparison to ordinary portland cement. J. Clean. Prod. 2011, 19, 1080–1090. [Google Scholar] [CrossRef] [Green Version]
- Sathish Kumar, V.; Ganesan, N.; Indira, P.V. Engineering Properties of Hybrid Fibre Reinforced Ternary Blend Geopolymer Concrete. J. Compos. Sci. 2021, 5, 203. [Google Scholar] [CrossRef]
- Nurruddin, M.F.; Haruna, S.; Mohammed, B.S.; Galal, I. Methods of curing geopolymer concrete: A review. Int. J. Adv. Appl. Sci. 2018, 5, 31–36. [Google Scholar] [CrossRef]
- Abdul Aleem, M.I.; Arumairaj, P.D. Geopolymer Concrete—A Review. Int. J. Eng. Sci. Emerg. Technol. 2016, 1, 118–122. [Google Scholar] [CrossRef]
- Alftah, R.O.A.; Elbaky, S.A.A.; Ghanem, G.; Sadek, D.M. Production of geo-polymer concrete from GGBS with different ratios of fly ash. Int. J. Adv. Res. Eng. Technol. 2020, 11, 1002–1010. [Google Scholar] [CrossRef]
- Mallikarjuna Rao, G.; Gunneswara Rao, T.D. Effect of fly ash and GGBS combination on mechanical and durability properties of GPC. Adv. Concr. Constr. 2017, 5, 313–330. [Google Scholar] [CrossRef]
- Nagalingam, G.; Chokkalingam, R.B. Strength studies on geopolymer concrete with GGBS and Fly ash. IOP Conf. Ser. Mater. Sci. Eng. 2020, 872, 012107. [Google Scholar] [CrossRef]
- Jawahar, J.G.; Mounika, G. Strength properties of fly ash and GGBS based geo polymer concrete. Asian J. Civ. Eng. 2016, 17, 127–135. [Google Scholar]
- Xie, J.; Wang, J.; Rao, R.; Wang, C.; Fang, C. Effects of combined usage of GGBS and fly ash on workability and mechanical properties of alkali activated geopolymer concrete with recycled aggregate. Compos. Part B Eng. 2019, 164, 179–190. [Google Scholar] [CrossRef]
- Sathish Kumar, V.; Ganesan, N.; Indira, P. V Shear Strength of Hybrid Fibre-Reinforced Ternary Blend Geopolymer Concrete Beams under Flexure. Materials 2021, 14, 6634. [Google Scholar] [CrossRef] [PubMed]
- Sathish Kumar, V.; Ganesan, N.; Indira, P.V. Effect of Molarity of Sodium Hydroxide and Curing Method on the Compressive Strength of Ternary Blend Geopolymer Concrete. IOP Conf. Ser. Earth Environ. Sci. 2017, 80, 012011. [Google Scholar] [CrossRef] [Green Version]
- Gharieb, M.; Mosleh, Y.A.; Rashad, A.M. Properties and corrosion behaviour of applicable binary and ternary geopolymer blends. Int. J. Sustain. Eng. 2021, 14, 1068–1080. [Google Scholar] [CrossRef]
- Holmes, N. Structural Properties of Concrete Materials Containing RoadCem. J. Constr. Eng. 2015, 2015, 795080. [Google Scholar] [CrossRef] [Green Version]
- Bandara, M.M.H.W.; Mampearachchi, W.K.; Anojan, T. Enhance the properties of concrete using pre-developed burnt clay chips as internally curing concrete aggregate. Case Stud. Constr. Mater. 2019, 11, e00284. [Google Scholar] [CrossRef]
- Kiran, T.; Anand, N.; Kumar, S.N.; Andrushia, D.; Arulraj, P. Influence of nano-cementitious materials on improving the corrosion resistance and microstructure characteristics of concrete. J. Adhes. Sci. Technol. 2021, 35, 1995–2022. [Google Scholar] [CrossRef]
- Wu, H.; Lin, X.; Zhou, A. A review of mechanical properties of fibre reinforced concrete at elevated temperatures. Cem. Concr. Res. 2020, 135, 106117. [Google Scholar] [CrossRef]
- Paul, S.C.; Van Zijl, G.P.A.G.; Savija, B. Effect of Fibers on Durability of Concrete: A Practical Review. Materials 2020, 13, 4562. [Google Scholar] [CrossRef]
- Alex, X.I.; Arunachalam, K. Flexural behavior of fiber reinforced lightweight concrete. Rev. Constr. 2019, 18, 536–544. [Google Scholar] [CrossRef]
- Concrete, F.; Toši, N.; Aidarov, S.; Fuente, A. De Systematic Review on the Creep of Fiber-Reinforced Concrete. Materials 2020, 13, 5098. [Google Scholar] [CrossRef]
- Sathish Kumar, V.; Indira, P.V.; Ganesan, N. Tension stiffening and cracking behaviour of hybrid fibre reinforced ternary blend geopolymer concrete. J. Struct. Eng. 2019, 46, 257–266. [Google Scholar]
- Sathish Kumar, V.; Ganesan, N.; Indira, P.V. Effect of Hybrid Fibres on the Durability Characteristics of Ternary Blend Geopolymer Concrete. J. Compos. Sci. 2021, 5, 279. [Google Scholar] [CrossRef]
- Meda, A.; Minelli, F.; Plizzari, G.A. Flexural behaviour of RC beams in fibre reinforced concrete. Compos. Part B 2012, 43, 2930–2937. [Google Scholar] [CrossRef]
- Fatih, I.; Ashour, A.F.; Körog, M.A. Flexural behavior of hybrid FRP/steel reinforced concrete beams. Compos. Struct. 2015, 129, 111–121. [Google Scholar] [CrossRef]
- Yoo, D.; Banthia, N.; Kang, S.; Yoon, Y. Effect of fiber orientation on the rate-dependent flexural behavior of ultra-high-performance fiber-reinforced concrete. Compos. Struct. 2016, 157, 62–70. [Google Scholar] [CrossRef]
- Teo, D.C.L.; Mannan, M.A.; Kurian, J.V. Flexural Behaviour of Reinforced Lightweight Concrete Beams Made with Oil Palm Shell (OPS). J. Adv. Concr. Technol. 2006, 4, 459–468. [Google Scholar] [CrossRef] [Green Version]
- IS 3812:2003; Pulvarized Fuel Ash—Specification. Bureau of Indian Standards: New Delhi, India, 2003.
- BS 6699:1992; Ground Granulated Blast Furnace Slag for Use with Portland Cement—Specification. British Standards Institution: London, UK, 1992.
- IS 383:1970; Specification for Coarse and Fine Aggregates from Natural Sources for Concrete. Bureau of Indian Standards: New Delhi, India, 2002; reaffirmed 2002.
- Lloyd, N.A.; Rangan, B.V. Geopolymer concrete with fly ash. In Proceedings of the Second International Conference on Sustainable Construction Materials and Technologies, Ancona, Italy, 28 June 2010; pp. 1493–1504. [Google Scholar]
- Ganesan, N.; Indira, P.V.; Sathish Kumar, V. Effect of Alkaline Activator to Binder Ratio on the Compressive Strength of Ternary Blend Geopolymer Concrete. ICI J. 2017, 17, 22–27. [Google Scholar]
- Nagalia, G.; Park, Y.; Ph, D.; Asce, M.; Abolmaali, A.; Ph, D.; Asce, M.; Aswath, P.; Ph, D. Compressive Strength and Microstructural Properties of Fly Ash—Based Geopolymer Concrete. J. Mater. Civ. Eng. 2016, 28, 1–11. [Google Scholar] [CrossRef]
- Raj, S.D.; Ramachandran, A. Performance of hybrid fibre reinforced geopolymer concrete beams. SN Appl. Sci. 2019, 1, 1725. [Google Scholar] [CrossRef] [Green Version]
- Varouqa, I.F. Flexural Behavior of Reinforced Concrete Beams with High Performance Fibers. Int. J. Eng. Manuf. 2021, 2, 31–39. [Google Scholar] [CrossRef]
- Ganesan, N.; Indira, P.V.; Sabeena, M.V. Behaviour of hybrid fibre reinforced concrete beam-column joints under reverse cyclic loads. Mater. Des. 2014, 54, 686–693. [Google Scholar] [CrossRef]
- Sivakumar, A.; Santhanam, M. Mechanical properties of high strength concrete reinforced with metallic and non-metallic fibres. Cem. Concr. Compos. 2007, 29, 603–608. [Google Scholar] [CrossRef]
- Ganesan, N.; Indira, P.V.; Sabeena, M.V. Effect of hybrid fibres on the shear and durability behaviour of high performance concrete. Int. J. Struct. Eng. 2015, 6, 44–55. [Google Scholar] [CrossRef]
- SungG-Woo Shin and Jaime Moreno, S.K.G. Flexural Ductility of Ultra-High-Strength Concrete Members. ACI Struct. J. 1989, 86, 394–400. [Google Scholar] [CrossRef]
- Pendyala, R.; Mendis, P.; Patnaikuni, I. Full-range behavior of high-strength concrete flexural members: Comparison of ductility parameters of high and normal-strength concrete members. ACI Struct. J. 1996, 93, 30–35. [Google Scholar]
- Ganesan, N.; Indira, P.V.; Ruby, A. Behaviour of steel fibre reinforced high performance concrete members under flexure. J. Inst. Eng. Civ. Eng. Div. 2007, 88, 20–23. [Google Scholar]
- Wang, H.; Belarbi, A. Ductility characteristics of fiber-reinforced-concrete beams reinforced with FRP rebars. Constr. Build. Mater. 2011, 25, 2391–2401. [Google Scholar] [CrossRef]
- Wei, J.; Li, J.; Wu, C.; Liu, Z.; Li, J. Hybrid fibre reinforced ultra-high performance concrete beams under static and impact loads. Eng. Struct. 2021, 245, 112921. [Google Scholar] [CrossRef]
- Chalioris, C.E.; Kosmidou, P.K.; Karayannis, C.G. Cyclic Response of Steel Fiber Reinforced Concrete Slender Beams: An Experimental Study. Materials 2019, 12, 1398. [Google Scholar] [CrossRef] [Green Version]
- Ganesan, N.; Bindurania, P.; Indira, P. V Flexural strengthening of RCC beams using FRPs and ferrocement—a comparative study. Adv. Concr. Constr. 2020, 10, 35–48. [Google Scholar] [CrossRef]
- IS 456:2000; Plain and Reinforced Concrete—Code of Practice. Bureau of Indian Standards: New Delhi, India, 2021; reaffirmed 2021.
- Lim, T.-Y.; Paramasivam, P.; Lee, S.-L. Behavior of Reinforced Steel-Fiber-Concrete Beams in Flexure. J. Struct. Eng. 1987, 113, 2439–2458. [Google Scholar] [CrossRef]
- Henager, C.H.; Doherty, T.J. Analysis of Reinforced Fibrous Concrete Beams. J. Struct. Div. 1976, 102, 177–188. [Google Scholar] [CrossRef]
- Khalil, W.I.; Tayfur, Y.R. Flexural strength of fibrous ultra high performance reinforced concrete beams. ARPN J. Eng. Appl. Sci. 2013, 8, 200–214. [Google Scholar]
- Markovic, I.; Walraven, J.C.; van Mier, J.G.M. Development of high performance hybrid fibre concrete. In International Workshop High Performance Fiber Reinforced Cement Composites; RILEM Publications SARL: Paris, France, 2003; pp. 277–300. [Google Scholar]
- Swamy, R.N.; AI-Ta’an, S.A. Deformation and Ultimate Strength in Flexure of Reinforced Concrete Beams Made with Steel Fiber Concrete. ACI J. Proc. 1981, 78, 395–405. [Google Scholar] [CrossRef]
- Khuntia, M.; Stojadinovic, B.; Goel, S.C. Shear Strength of Normal and High-Strength Fiber Reinforced Concrete Beams without Stirrups. ACI Struct. J. 1999, 96, 282–289. [Google Scholar] [CrossRef]
Al2O3 | SiO2 | Fe2O3 | TiO2 | K2O | CaO |
---|---|---|---|---|---|
27.75% | 55.36% | 9.74% | 3.54% | 2.55% | 1.07% |
CaO | SiO2 | Al2O3 | MgO | S | FeO | Mn | Cl |
---|---|---|---|---|---|---|---|
37.04% | 32.49% | 20.86% | 7.82% | 0.98% | 0.68% | 0.11% | 0.012% |
SiO2 | Al2O3 | Fe2O3 | Na2O | K2O | MgO | TiO2 | CaO |
---|---|---|---|---|---|---|---|
56.64% | 42.38% | 0.42% | 0.11% | 0.04% | 0.2% | 0.1% | 0.1% |
Type of Fibre | Length | Diameter | Tensile Strength | Density |
---|---|---|---|---|
Polypropylene | 12 mm | 0.04 mm | 550–600 MPa | 950 kg/m3 |
Crimped steel | 30 mm | 0.45 mm | 800 MPa | 7950 kg/m3 |
Materials, kg/m3 | TGPC | HTGPC1 | HTGPC2 | HTGPC3 | HTGPC4 | HTGPC5 | HTGPC6 | HTGPC7 | HTGPC8 |
---|---|---|---|---|---|---|---|---|---|
Fly ash | 237.47 | 237.47 | 237.47 | 237.47 | 237.47 | 237.47 | 237.47 | 237.47 | 237.47 |
GGBS | 122.62 | 122.62 | 122.62 | 122.62 | 122.62 | 122.62 | 122.62 | 122.62 | 122.62 |
Metakaolin | 64.52 | 64.52 | 64.52 | 64.52 | 64.52 | 64.52 | 64.52 | 64.52 | 64.52 |
Fine aggregate | 554.40 | 554.40 | 554.40 | 554.40 | 554.40 | 554.40 | 554.40 | 554.40 | 554.40 |
Coarse aggregate | 1293.60 | 1293.60 | 1293.60 | 1293.60 | 1293.60 | 1293.60 | 1293.60 | 1293.60 | 1293.60 |
Na2SiO3 | 90.99 | 90.99 | 90.99 | 90.99 | 90.99 | 90.99 | 90.99 | 90.99 | 90.99 |
NaOH | 36.40 | 36.40 | 36.40 | 36.40 | 36.40 | 36.40 | 36.40 | 36.40 | 36.40 |
Water | 84.92 | 84.92 | 84.92 | 84.92 | 84.92 | 84.92 | 84.92 | 84.92 | 84.92 |
Superplasticiser | 6.37 | 6.37 | 6.37 | 6.37 | 6.37 | 6.37 | 6.37 | 6.37 | 6.37 |
Steel fibre | - | 39.25 (0.5%) | 39.25 (0.5%) | 39.25 (0.5%) | 39.25 (0.5%) | 78.50 (1%) | 78.50 (1%) | 78.50 (1%) | 78.50 (1%) |
Polypropylene fibre | - | 0.95 (0.1%) | 1.425 (0.15%) | 1.90 (0.2%) | 2.375 (0.25%) | 0.95 (0.1%) | 1.425 (0.15%) | 1.90 (0.2%) | 2.375 (0.25%) |
Nominal Diameter, mm | Actual Diameter, mm | Yield Strength, MPa | Ultimate Strength, MPa | Modulus of Elasticity, GPa |
---|---|---|---|---|
10 | 9.94 | 532 | 580 | 235 |
6 | 6.10 | 525 | 575 | 230 |
Beam ID | First Crack Load, kN | Ultimate Load, Pu, kN | Deflection at Pu, mm | Energy Absorption Capacity, kNm | Deflection at 0.8 Pu, mm | Deflection at Yield Load, mm | Ductility Factor |
---|---|---|---|---|---|---|---|
TGPC | 16 | 46 | 4.48 | 0.155 | 8.60 | 2.92 | 2.94 |
HTGPC1 | 18 | 50 | 5.10 | 0.222 | 18.35 | 3.13 | 5.87 |
HTGPC2 | 19 | 52 | 5.2 | 0.257 | 18.17 | 2.94 | 6.17 |
HTGPC3 | 20 | 53 | 5.25 | 0.261 | 18.55 | 3.07 | 6.04 |
HTGPC4 | 25 | 55 | 6.26 | 0.275 | 21.06 | 3.07 | 6.86 |
HTGPC5 | 28 | 59 | 6.5 | 0.324 | 21.42 | 2.76 | 7.76 |
HTGPC6 | 26 | 57 | 6.37 | 0.301 | 20.42 | 2.99 | 6.83 |
HTGPC7 | 25 | 56 | 6.12 | 0.297 | 19.96 | 2.93 | 6.81 |
HTGPC8 | 21 | 54 | 5.9 | 0.291 | 19.89 | 2.92 | 6.81 |
Beam ID | Mu(exp), kNm | Mu(pre), kNm | Mu(exp)/Mu(pre) |
---|---|---|---|
TGPC | 8.97 | 7.71 | 1.16 |
HTGPC1 | 9.75 | 8.79 | 1.11 |
HTGPC2 | 10.14 | 9.00 | 1.13 |
HTGPC3 | 10.14 | 9.21 | 1.10 |
HTGPC4 | 10.72 | 9.41 | 1.14 |
HTGPC5 | 11.51 | 9.47 | 1.21 |
HTGPC6 | 11.16 | 9.63 | 1.15 |
HTGPC7 | 10.92 | 9.84 | 1.11 |
HTGPC8 | 10.53 | 10.04 | 1.05 |
Average | 1.13 | ||
Standard deviation | 0.05 | ||
Coefficient of variation (%) | 4.12 |
