Effect of the Quasi-Petal Heat Transfer Tube on the Melting Process of the Nano-Enhanced Phase Change Substance in a Thermal Energy Storage Unit

Abstract

The melting heat transfer of nano-enhanced phase change materials was addressed in a thermal energy storage unit. A heated U-shape tube was placed in a cylindrical shell. The cross-section of the tube is a petal-shape, which can have different amplitudes and wave numbers. The shell is filled with capric acid with a fusion temperature of 32 °C. The copper (Cu)/graphene oxide (GO) type nanoparticles were added to capric acid to improve its heat transfer properties. The enthalpy-porosity approach was used to model the phase change heat transfer in the presence of natural convection heat transfer effects. A novel mesh adaptation method was used to track the phase change melting front and produce high-quality mesh at the phase change region. The impacts of the volume fraction of nanoparticles, the amplitude and number of petals, the distance between tubes, and the angle of tube placements were investigated on the thermal energy rate and melting-time in the thermal energy storage unit. An average charging power can be raised by up to 45% by using petal shape tubes compared to a plain tube. The nanoadditives could improve the heat transfer by 7% for Cu and 11% for GO nanoparticles compared to the pure phase change material.

1. Introduction

Thermal energy storage systems have attracted numerous researchers due to their economic and environmental benefits. As the phase change materials can absorb and release latent heat during solidification and melting, they are widely used in thermal energy storage systems. The thermal energy storage adds a buffer to thermal systems to dampen their peak thermal loads or shift their thermal loads. The phase change materials are capable of storing a significant amount of latent energy in a small mass. For example, by using latent heat thermal energy storage, the solar heat can be stored during the daytime and later released during the night times [1]. Two major benefits of latent heat thermal energy storage are the high specific heat of phase change and low-temperature variation during thermal storage [2]. The latent thermal energy storage can also be used to cool photovoltaic panels [3] or load shift in buildings [4]. Various applications of phase change materials have been reviewed in the studies of Cui et al. [5], Kong et al. [6], and Abdolmaleki et al. [7].

The phase change materials (PCMs) are capable of storing a huge amount of thermal energy. However, one of the main drawbacks of PCMs is their low value of thermal conductivity. One way to enhance PCM’s thermal conductivity is to produce nano-enhanced PCMs (NePCMs) by simply adding nanoparticles to the base PCM. Many innovations regarding NePCM [8,9,10,11] and thermal storage system design [12,13] are patented.

Considering NePCMs, Ho and Gao [14] tested the influence of adding nanoparticles of Al₂O₃ to PCM (paraffin) on melting heat transfer experimentally. Different nanoparticle mass fractions were studied under different Rayleigh and Stefan numbers. The results indicated that natural convection in the melting region is obviously degraded when the nanoparticle mass fraction increased. Dhaidan et al. [15] studied the melting of NePCM inside a square cavity by means of experimental work and numerical simulation. Their results indicated that dispersing CuO nanoparticles into PCM effectively increased both the thermal conductivity and temperature of NePCM, and most importantly, the charging time was reduced. Zeng et al. [16] experimentally researched the melting of NePCM in a cylindrical enclosure. NePCM was prepared by dispersing different loading of the carbon nanotubes (CNTs) in 1-dodecanol. They reported that the addition of CNTs led to a significant increase in the viscosity and thermal conductivity, and hence the melting rate was decelerated. Recently, Li et al. [17] used thermochromic liquid crystal to study the melting of NePCM in rectangular enclosures. Their findings were consistent with the literature, that melting rate was decelerated due to the significant increase of viscosity caused by using the NePCM.

Parsazadeh and Duan [18] numerically investigated the melting of NeCPM in a thermal storage unit. One of the main factors of the study was the influence of adding CuO particles to paraffin. The authors concluded that the addition of CuO nanoparticles to paraffin significantly improved heat transfer, however exceeding the critical nanoparticle concentration would result in an adverse effect. Hosseinizadeh et al. [19] explored the melting of NePCM inside a spherical container numerically. They employed RT27 and copper particles as nanoadditives. Their results confirmed that the melting rate of NePCM was enhanced when compared with PCM. Zhang et al. [20] conducted experimental work to investigate the characteristics of NePCM. They covered different nanoadditives, such as Fe₂O₃ and Cu. They observed an increment in the thermal conductivity and a reduction in the thermal storage time.

The performance of the thermal energy system is significantly affected by the geometrical design and parameters. Some of the literature works investigated the influence of adding fins to enhance the conductive heat transfer inside the system. For example, Ji et al. [21] attempted to improve PCM’s melting rate by introducing fins with a tilting angle. They reported that the fin with a downward angle of −15° accelerated the melting of PCM and resulted in 23.8% melting time-saving. Jinlong et al. [22] presented a numerical study on thermal optimization of a tree-shaped metal structure to enhance heat transfer in the PCM cavity. Their results indicated that the proposed optimized structure enhanced the melting fraction of PCM.

Mostafavi et al. [23] analytically modeled PCM melting in a cylinder containing transverse and longitudinal fins. It was reported that thin fins resulted in significant enhancement of heat transfer; however, further increment in fin size led to adverse effects. Pourakabar et al. [24] numerically investigated the influence of shell geometry (circular and elliptical cylinders) and tube arrangement on the phase change rate of PCM inside the cylinder. In total, nine different study cases were considered. The maximum melting rate was achieved by a circular cylinder with two tubes vertically aligned.

Some recent researchers used a combination of fins and NePCMs to improve heat transfer further and accelerate thermal energy storage and release process. Sheikholeslami [25] presented a numerical simulation of NePCM solidification in a cavity containing metallic fins. Nguyen-Thoi et al. [26] analyzed the solidification of NePCM in a thermal storage system with Y-shaped fins. Sheikholeslami et al. [27] numerically simulated melting of NePCM in a finned cavity. The results of all these studies showed that using longer fins reduced both the solidification time and total energy. Mahdi et al. [28] numerically compared the thermal performance of a triplex tube when loaded with NePCM to the same system loaded with PCM and containing inner fins. Considering charging and discharging the system, it was clearly observed that incorporating inner fins is much better than the dispersion of nanoparticles in base PCM.

Another possible effective solution to enhance the solidification and melting rates of the thermal storage system is to increase the surface area of the inner tube. Zhang et al. [29] investigated the discharging of NePCM in a thermal storage system with a triplex tube with different values of sinusoidal amplitudes. They concluded that using higher value sinusoidal amplitude resulted in reducing the discharge time by 7.58%. Alizadeh et al. [30] numerically explored the influence of Koch snowflake fractal-shaped tube on the thermal performance of NePCM thermal storage systems. The study considered four different cross-sectional shapes, where Koch-snowflake-iteration ranges from zero to 3. Their results indicated that using higher values of Koch-snowflake-iteration increased the penetration depth, which consequentially accelerated the solidification process.

Sheikholeslami et al. [31] numerically studied heat transfer of NePCM inside sinusoidal enclosure contacting V-shaped fins. One of the main studied parameters was the effect of the V-shaped angle on the solidification rate. The results indicated that the discharging rate was augmented for high values of fin angle. Li et al. [32] attempted to accelerate the solidification of NePCM in a circular cylindrical thermal energy storage unit by optimizing the shape of the wall of the inner tube. The study considered different shapes of inner tubes that have a different number of undulations (ranges from 3 to 5) and different amplitude values (ranges from 0.1 to 0.5). The research outcome indicated that decreasing the amplitude resulted in increasing the solidification time, whereas increasing the number of petals has a favorable effect. In another investigation, Sheikholeslami [33] numerically investigated the effect of inner tube geometry on NePCM solidification in an elliptic cylindrical thermal storage system. The main geometrical parameters of the inner tube were the number of undulations (3, 4, and 5) and the amplitude (0.1. 0.3, and 0.5). It was observed that solid fraction was directly proportional to the number of undulations, while total energy profiles were inversely proportional to the number of undulations.

Indeed, many researchers are preparing various types of novel NePCMs with im-proved thermophysical properties with the aim of better thermal energy storage and heat transfer. Tariq et al. [34] and Nižetić [1] have reviewed some of the NePCM materials and applications. However, the NePCMs add mixed impacts on a thermal energy storage design. For example, the presence of nanoparticles improves the thermal conductivity of PCM, which consequently enhances the conduction and convection heat transfer. This is while the presence of nanoparticles could also increase the dynamic viscosity, which weakens the natural convection flows in a molten PCM. Moreover, the latent heat of phase change, heat capacity, and other properties could be changed in the presence of the nanoadditives. These aspects impose complex effects on thermal performance of a thermal energy storage unit. Thus, these nanomaterials should be applied in thermal energy storage systems, and then their benefit can be judged.

The literature studies confirm that the undulating shape of the heat transfer tube could increase the heat transfer surface and the natural convection flows. Thus, the wavy enclosures and petal tubes could be promising candidates for the improvement of heat transfer and enhance the rate of energy storage in thermal energy storage units. The present study, for the first time, aims to investigate the impact of using petal heat transfer tubes and NePCMs on the heat transfer performance and energy storage rate of thermal energy storage units. The number and amplitude of the undulations and location of tubes are investigated.

2. Methodology

2.1. Physical Model

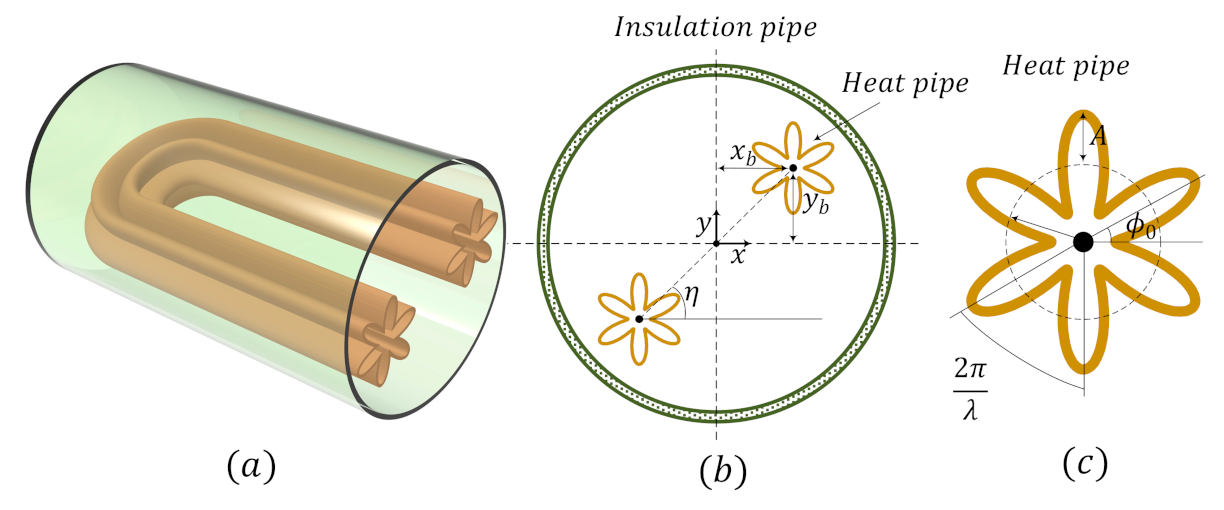

Figure 1 depicts the schematic configuration of a heat exchanger energy storage system. As the schematic view in Figure 1a illustrates, the system includes a shell and a U-shaped tube containing the hot heat transfer fluid (HTF). As can be seen in Figure 1b, the cross-section of the tube is a quasi-petal and the line passing the centers of the heat transfer tube with respect to the x-axis is η.

Since the tube material is thermally high conductive, its thickness is negligible compared to the radius. The void space between the U-shaped tube and the shell is occupied with the NePCM in which the host PCM is capric acid with a nominal melting point of T_m = 32 °C. The shell of the heat exchanger storage system is well insulated, while initially (t = 0), the temperatures of the NePCM and quasi-petal heat transfer tube are T_c = 22 °C. At t = 24 s, the temperature of the heat transfer tube linearly rises so that it reaches T_h = 42 °C at t = 25 s. It is worth noting that the temperature of the heat transfer tube is considered to be constant at T_h during the charging process.

The dispersed nano-additives can be copper (Cu) or graphene oxide (GO) ones. The thermophysical properties of the components of the NePCM are listed in

Table 1. Thermophysical properties of the paraffin wax and the nano-additives [35,36].

Properties	Cu	GO	Capric Acid
Density (kg m−3)	8933	1800	Solid: 1018 Liquid: 888
Latent heat (kJ kg−1)	NA	NA	152.7
Thermal expansion coefficient (K−1)	1.67 × 10−5	28.4 × 10−5	1 × 10−3
Fusion temperature (°C)	NA	NA	32
Thermal conductivity (Wm−1 K−1)	401	5000	Solid: 0.372 Liquid: 0.153
Specific heat (kJ kg−1 K−1)	0.385	0.717	Solid: 1.9 Liquid: 2.4
Kinematic viscosity (m2 s−1)	NA	NA	3 × 10−6

NA: Not applicable.

.

Herein, the density variations of the NePCM during phase change are considered to be zero, and the reference densities are selected to simulate the process. The Boussinesq approximation is valid to model the buoyancy-driven convection of the melted NePCM. The radius of the sinusoidal cross-section of the quasi-petal heat transfer tube is defined by using the following relation:

$$r=r_b+A\times \sin \left(\mathsf{\Lambda }s\right),$$

(1)

As shown in Figure 1c, $r_b$ and A are the radius of the base circle and the sinusoidal amplitude of the quasi-petal heat transfer tube. Λ is the number of petals and s is the angle of the quasi-petal heat transfer tube. The cross-section surface area of the quasi-petal tube (A_p) is calculated as follows:

$$A_p={\displaystyle {\int }_0^{2\pi }\frac{1}{2}{r}^{2}d\varphi }=\frac{\pi }{2}\left(A^2+2r_b^2\right)-\frac{A^2}{8\mathsf{\Lambda }}\sin \left(4\pi \mathsf{\Lambda }\right)+\frac{A{r}_b}{\mathsf{\Lambda }}\left(\cos (2\pi \mathsf{\Lambda })-1\right),$$

(2)

When $\mathsf{\Lambda }\in N$ then:

$$A_p=\frac{\pi }{2}\left(A^2+2r_b^2\right),$$

(3)

which is independent of Λ. It worth noting that A_p is considered to be constant so that $A_p=\pi r_s^2/20$. The radius of the shell, i.e., r_s, is 20 mm, and $r_b$, i.e., the radius of the base circle, is defined by using Equation (3).

2.2. Governing Equations

The governing equations for conservation of mass, flow, and energy in the heat exchanger can be written as [37,38,39]:

$$\frac{\partial u}{\partial x}+\frac{\partial v}{\partial y}=0,$$

(4)

$${\rho }_{NePCM,l}\left(\frac{\partial u}{\partial t}+u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}\right)=-\frac{\partial p}{\partial x}+{\mu }_{NePCM}\left(\frac{{\partial }^{2}u}{\partial x^2}+\frac{{\partial }^{2}u}{\partial y^2}\right)-f\left(T\right)u,$$

(5)

$${\rho }_{NePCM,l}\left(\frac{\partial v}{\partial t}+u\frac{\partial v}{\partial x}+v\frac{\partial v}{\partial y}\right)=-\frac{\partial p}{\partial y}+{\mu }_{NePCM}\left(\frac{{\partial }^{2}v}{\partial x^2}+\frac{{\partial }^{2}v}{\partial y^2}\right)-f\left(T\right)v+{\left(\rho \beta \right)}_{NePCM,l}g\left(T-T_m\right),$$

(6)

$$\begin{array}{l}{(\rho C_p)}_{NePCM}\left(\frac{\partial T}{\partial t}+u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}\right)=\frac{\partial }{\partial x}\left({\kappa }_{NePCM}\frac{\partial T}{\partial x}\right)+\frac{\partial }{\partial y}\left({\kappa }_{NePCM}\frac{\partial T}{\partial y}\right)\\ \hfill -\left(1-{\omega }_{vf}\right){\rho }_{PCM,l}{h}_{sf,PCM}\frac{\partial \chi \left(T\right)}{\partial t}\end{array}$$

(7)

where Equation (4) is the conservation of mass for an incompressible liquid. Equations (5) and (6) are the momentum equations in the x-direction (u) and y-direction (v), respectively. In the y-momentum equation, the buoyancy forces are modeled using the Boussinesq approximation by considering the liquid’s volume expansion coefficient (β). Equation (7) denotes the conservation of energy, including the phase change latent heat and temperature field (T). The phase change is modeled using a temperature-dependent latent heat term, χ(T). The symbols κ, h_sf, C_p, ρ, μ, and ω_vf represent the thermal conductivity, latent heat, heat capacity, density, dynamic viscosity, and volume fraction of nanoparticles. The subscripts, NePCM, PCM, and l show the nano-enhanced phase change material, the base phase change material, and the molten state. Here, f (T), as a function of the liquid fraction of the NePCM, i.e., χ, is the momentum sink term, is defined by using the Kozeny-Carman model.

$$f\left(T\right)=\epsilon \frac{{\left(1-\chi \left(T\right)\right)}^2}{\chi {\left(T\right)}^3+\xi },$$

(8)

It is evident this term is zero and infinity for the completely melted and solid zones. ε, the mushy zone constant, shows the approximate magnitude of damping in the momentum equations. This constant is set to 10⁵. Likewise, ξ is set to a very low value to prevent division by zero at the melted zone. The liquid fraction of the NePCM, which is defined based on the temperature, is:

$$\chi \left(T\right)=\left\{\begin{array}{l}0T<T_m-\frac{\delta T}{2}\\ \frac{T-T_m}{\delta T}+\frac{1}{2}{T}_m-\frac{\delta T}{2}<T<T_m+\frac{\delta T}{2}\\ 1T>T_m+\frac{\delta T}{2}\end{array}\right.,$$

(9)

which T_m is the melting temperature, and δT is the melting temperature window. The density of NePCM is:

$${\rho }_{NePCM}=\left(1-{\omega }_{vf}\right){\rho }_{PCM}+{\omega }_{vf}{\rho }_{na},$$

(10)

$${\rho }_{PCM}\left(T\right)={\rho }_{PCM,l}\chi \left(T\right)+\left(1-\chi \left(T\right)\right){\rho }_{PCM,s},$$

(11)

The dynamic viscosity of the composite can be estimated by Brinkman’s model as:

$${\mu }_{NePCM}=\frac{{\mu }_{PCM}}{{\left(1-{\omega }_{vf}\right)}^{2.5}},$$

(12)

The thermal-volume expansion coefficient of the composite is:

$${\left(\rho \beta \right)}_{NePCM,l}=\left[\left(1-{\omega }_{vf}\right){\left(\rho \beta \right)}_{PCM,l}+{\omega }_{vf}{\left(\rho \beta \right)}_{na}\right],$$

(13)

Furthermore, the effective thermal conductivity of the composite is estimated as the following:

$${\kappa }_{NePCM}\left(T\right)={\kappa }_{NePCM,l}\chi \left(T\right)+\left(1-\chi \left(T\right)\right){\kappa }_{NePCM,s},$$

(14)

in which [40]

$$\frac{{\kappa }_{NePCM,i}}{{\kappa }_{PCM,i}}=\frac{\left({\kappa }_{na}+2{\kappa }_{PCM,i}\right)-2{\omega }_{vf}\left({\kappa }_{PCM,i}-{\kappa }_{na}\right)}{\left({\kappa }_{na}+2{\kappa }_{PCM,i}\right)+{\omega }_{vf}\left({\kappa }_{PCM,i}-{\kappa }_{na}\right)},$$

(15)

i = l, s in the above equation denotes the liquid and solid phase of the PCM, respectively. Additionally, the effective heat capacity of the NePCM was computed by:

$${\left(\rho C\right)}_{p,NePCM}=\left[\left(1-{\omega }_{vf}\right){\left(\rho C_p\right)}_{PCM}+{\omega }_{vf}{\left(\rho C_p\right)}_{na}\right],$$

(16)

$${\left(\rho C_p\right)}_{PCM}\left(T\right)={\left(\rho C_p\right)}_{PCM,l}\chi \left(T\right)+\left(1-\chi \left(T\right)\right){\left(\rho C_p\right)}_{PCM,s},$$

(17)

The energy stored in the composite is calculated as the following:

$$ES={\displaystyle \underset{A}{\int }{\displaystyle \underset{T_{in}}{\overset{T_s}{\int }}{\left(\rho C_p\right)}_{NePCM,s}}}dTdA+{\displaystyle \underset{A}{\int }{\left(\rho h_{sf}\right)}_{NePCM}}dA+{\displaystyle \underset{A}{\int }{\displaystyle \underset{T_l}{\overset{T}{\int }}{\left(\rho C_p\right)}_{NePCM,l}}}dTdA.$$

(18)

3. Numerical Method and Model Verification

3.1. Numerical Approach

The parameters can be studied in this work are $r_d$, A, Λ, ${\omega }_{vf}$, and η with the following ranges: 0.4$r_s$, ≤ $r_d$ ≤ 0.6$r_s$, 0 ≤ A ≤ 0.15$r_s$, 2 ≤ Λ ≤ 8, 0.0 % ≤ ${\omega }_{vf}$ ≤ 8%, and 0 ≤ η ≤ π/2. Moreover ${\varphi }_0$, i.e., the angle of the first petal with respect to the horizontal direction can be varied based on the number of petals. In this simulation, we calculate all the data for 75% of the melting volume fraction (MVF). The models were computed for 2000 s of phase change heat transfer. It should be considered that total energy stored is the summation of the sensible and latent energies. Therefore, the average charging power was computed as the total energy over melting time related when MVF reaches 75% of the total melting.

In order to model the melting procedure, the source terms of momentum and energy conservation equations depended on the formulas of NePCM mentioned above are used. f (T) source term is applied to control the velocity field. Three different areas can be considered for the domain study, solid, liquid, and the mushy zone. The mushy zone helps to separate the two other areas. These three areas are separated by the melting temperature window, δT, and fusion temperature. There is a high-velocity gradient area within the porous part of the mushy zone, including solid and liquid materials. The heat-source of the mushy zone, ${\left(\rho h_{sf}\right)}_{NePCM}\left(\partial \chi \left(T\right)/\partial t\right)$, that is the energy source term, contributes to a high-gradient temperature zone and also controls the melting area. To capture the mushy zone from the high-gradient parameters viewpoint completely, the mesh adoption process as a progressive technique inside the mushy zone is utilized to achieve a quality grid.

Galerkin finite element method [41,42] by using user-defined codes is applied to solve the nonlinear differential equations written above. In this method, a weak form of equations and corresponding initial and boundary conditions are made and are solved afterward. The dependent variables of the study u, v, p, and T are expanded by a shape set, ${\left\{b_v\right\}}_{v=1}^I$.

$$\left(T,p,v,u\right)\approx {\displaystyle \sum }_{v=1}^I\left(T_v,p_v,v_v,u_v\right)b_v\left(x,y\right),$$

(19)

Based on Galerkin finite element method, the residual functions, expressed below, are:

$$Q_t^1\approx {\displaystyle \sum }_{v=1}^I{v}_v\int \frac{\partial b_v}{\partial y}{b}_{t}dxdy+{\displaystyle \sum }_{v=1}^I{u}_v\int \frac{\partial b_v}{\partial x}{b}_{t}dxdy,,$$

(20)

$$\begin{array}{c}{Q}_t^2\approx {\rho }_{NePCM,l}{\displaystyle \sum _{v=1}^I}{u}_v\int \frac{\partial b_v}{\partial t}{b}_{t}dxdy+{\rho }_{NePCM,l}{\displaystyle \sum _{v=1}^I}{u}_v\int \left[\left({\displaystyle \sum _{v=1}^M}{u}_v{b}_v\right) \frac{\partial b_v}{\partial x}+\left({\displaystyle \sum _{z=1}^I}{v}_{v }{b}_v\right) \frac{\partial b_v}{\partial y}\right]b_{t}dxdy\hfill \\ +{\displaystyle \sum _{v=1}^I}\int \left(-{\displaystyle \sum _{v=1}^I}{p}_v{b}_v\right)\frac{\partial b_v}{\partial x}{b}_{t}dxdy+{\mu }_{NePCM}{\displaystyle \sum _{v=1}^I}{u}_v\int \frac{\partial b_v}{\partial x}\frac{\partial b_t}{\partial x}dxdy\hfill \\ +{\mu }_{NePCM}{\displaystyle \sum _{v=1}^I}{u}_v\int \left[\frac{\partial b_v}{\partial y}\frac{\partial b_t}{\partial y}\right]dxdy-{\mu }_{NePCM}\int \left({\displaystyle \sum _{v=1}^I}{u}_v{b}_v\right)b_{t}dxdy-f(T)\int \left({\displaystyle \sum _{v=1}^I}{u}_v{b}_v\right)b_{t}dxdy\hfill \end{array}$$

(21)

$$\begin{array}{c}{Q}_t^3\approx {\rho }_{NePCM,l}{\displaystyle \sum _{v=1}^I}{v}_v\int \frac{\partial b_v}{\partial t}{b}_{t}dxdy+{\rho }_{NePCM,l}{\displaystyle \sum _{v=1}^I}{v}_v\int \left[\left({\displaystyle \sum _{v=1}^M}{u}_v{b}_v\right) \frac{\partial b_v}{\partial x}+\left({\displaystyle \sum _{z=1}^M}{v}_{v }{b}_v\right) \frac{\partial b_v}{\partial y}\right]b_{t}dxdy\hfill \\ +{\displaystyle \sum _{v=1}^I}\int \left(-{\displaystyle \sum _{v=1}^I}{p}_v{b}_v\right)\frac{\partial b_v}{\partial y}{b}_{t}dxdy+{\mu }_{NePCM}{\displaystyle \sum _{v=1}^I}{v}_v\int \frac{\partial b_v}{\partial x}\frac{\partial b_t}{\partial x}dxdy\hfill \\ +{\mu }_{NePCM}{\displaystyle \sum _{v=1}^I}{v}_v\int \left[\frac{\partial b_v}{\partial y}\frac{\partial b_t}{\partial y}\right]dxdy-{\mu }_{NePCM}\int \left({\displaystyle \sum _{v=1}^I}{v}_v{b}_v\right)b_{t}dxdy\hfill \\ -f\left(T\right)\int \left({\displaystyle \sum _{v=1}^M}{v}_v{b}_v\right)b_{t}dxdy+{\left(\rho \beta \right)}_{NePCM,l}g\left(\int \left({\displaystyle \sum _{v=1}^I}{T}_v{b}_v\right)b_{t}dxdy-T_m\right)\hfill \end{array}$$

(22)

$$\begin{array}{l}{Q}_t^4\approx {\left(\rho C_p\right)}_{NePCM}{\displaystyle \sum _{v=1}^I}{{\rm T}}_v \int \frac{\partial b_v}{\partial t}{b}_{t}dxdy\\ +{(\rho C_p)}_{NePCM}{\displaystyle \sum _{v=1}^I}{{\rm T}}_v \int \left[\left({\displaystyle \sum _{v=1}^I}{u}_v{b}_v\right)\frac{\partial b_v}{\partial x}+\left({\displaystyle \sum _{v=1}^I}{v}_v{b}_v\right)\frac{\partial b_v}{\partial y}\right]b_{t}dxdy\\ +k_{NePCM}{\displaystyle \sum _{v=1}^I}{{\rm T}}_v\int \left[\frac{\partial b_v}{\partial x}\frac{\partial b_t}{\partial x}+\frac{\partial b_v}{\partial y}\frac{\partial b_t}{\partial y}\right]dxdy-{\left(\rho h\right)}_{NePCM}{\displaystyle \sum _{v=1}^I}\frac{\partial \chi \left(T\right)}{\partial T}\int \frac{\partial b_b}{\partial t}{b}_{t}dxdy\end{array}$$

(23)

where

$$\frac{\partial \chi \left(T\right)}{\partial T}=\left\{\begin{array}{l}0T\le T_m-\frac{1}{2}\delta T\\ \frac{1}{\delta T}{T}_m-\frac{1}{2}\delta T<T<T_m+\frac{1}{2}\delta T\\ 0T\ge T_m+\frac{1}{2}\delta T\end{array}\right.,$$

(24)

The second-order Gaussian-quadrature approach is employed to integrate residual formulas written above. In the above equations, Q is the residual equations corresponding to the governing equations. The subscript t denotes the time, and the superscript numbers indicate the equation numbers. Integrating each of the residual equations over the domain of solution produces an algebraic equation for each of the domain elements. Then, the set of algebraic equations should be solved numerically to provide the numeric values of the dependent variables. More information around the Galerkin finite element technique is explained in Refs. [41,42]. A phase-field term, χ₀, is a limit for the mesh adoption and χ₀, shows the space-domain for grid adoption. In comparison to the temperature gradient δT, the phase change phenomenon happens at a thicker gradient, 3δT/2. According to this thicker temperature field, known as fusion bond, a smoother transient of the grid around the interface area is achieved due to the wider domain around the melting or solidification interface. The phase-field term, i.e., χ₀(T), is as the following:

$${\chi }_0\left(T\right)=\left\{\begin{array}{l}0T\le T_m-\frac{3}{2}\delta T\\ 1T_m-\frac{3}{2}\delta T<T<T_m+\frac{3}{2}\delta T\\ 0T\ge T_m+\frac{3}{2}\delta T\end{array}\right.,$$

(25)

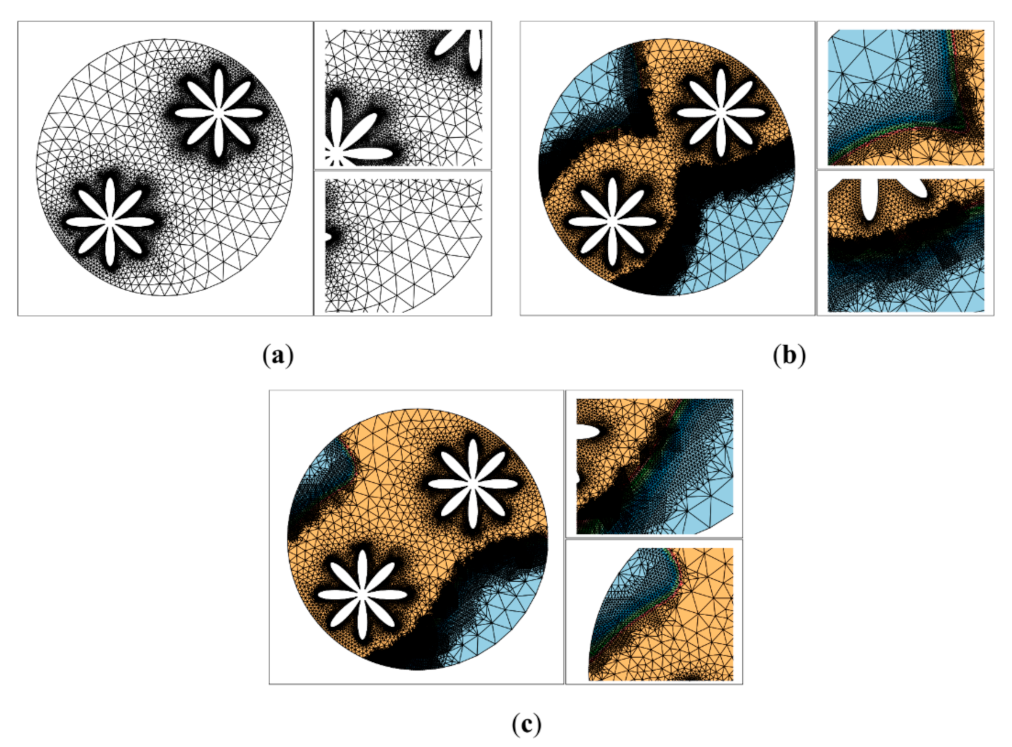

Moreover, by locating the interface inside the grid adoption domain, the elements of mesh will be sufficient. In this regard, the bigger grid adoption zone around the interface leads to a lower adoption procedure. The time step is controlled by employing an automatic approach named backward differentiation formula (BDF) [43]. The residual error O(10⁻⁶) and a Newtonian damping factor of 0.8 in parallel direct solver (PARDISO) [44,45,46] are chosen for solving the residual relations of Equations (20)–(23), iteratively.

3.2. Grid-Independency Test

To achieve accurate results, four various meshes of different element numbers, shown in

Table 2. Specifics of the utilized meshes for the grid dependency test.

Grid Case	1	2 *	3	4
elements	7926	12,385	17,761	23,854
computing time	118	184	215	247

* The second column was adopted for computations.

, are chosen to perform the grid-independency test. The variable of comparison among the different grid cases is the melted volume fraction for η = π/4, ${\omega }_{Cu}=0.04$, Λ = 8, A = 0.15, $r_d=0.6r_s$.

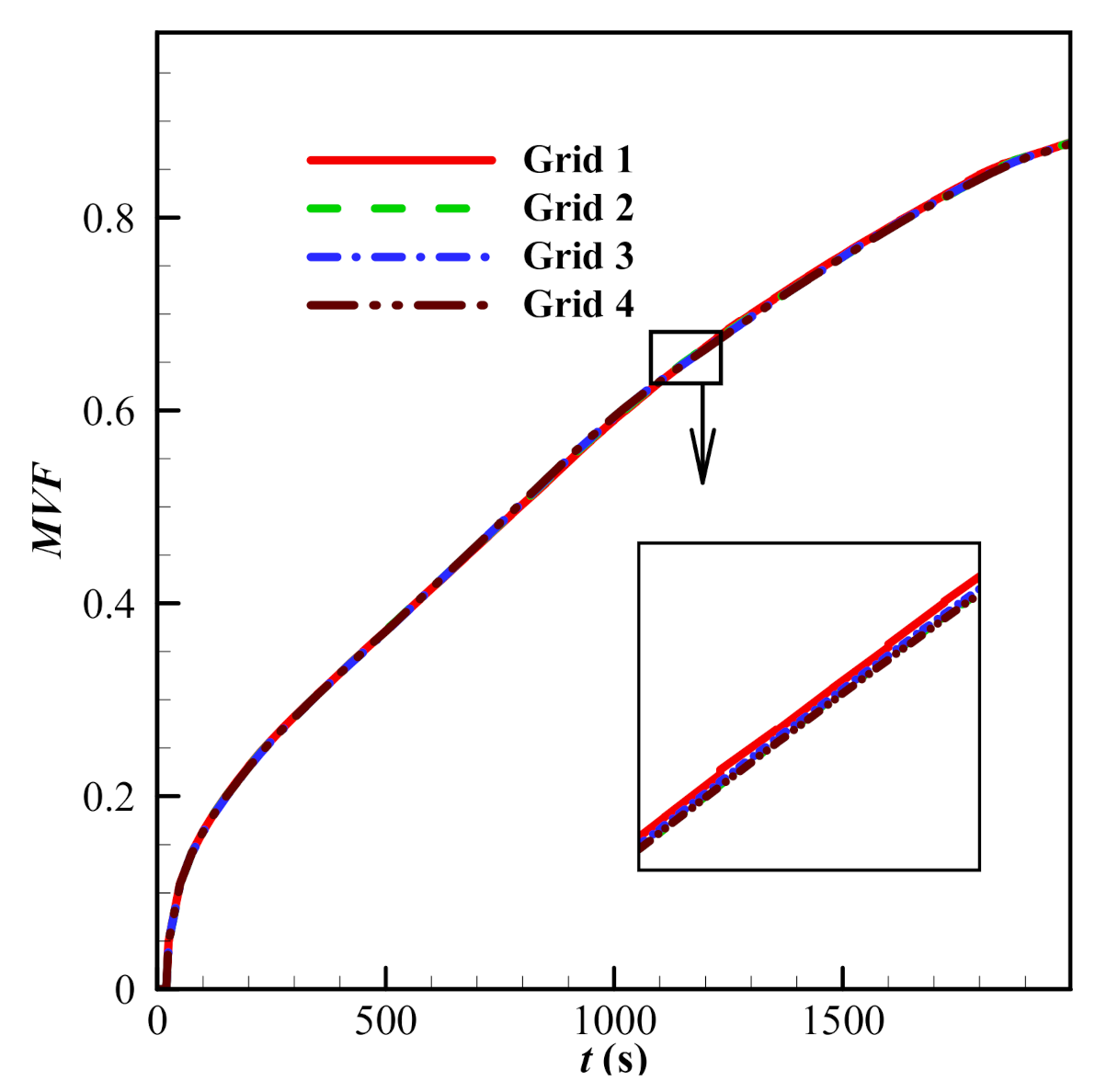

As can be seen from Figure 2, there is not a dramatic difference between the results of the studied meshes; however, the three latest are most similar. Due to experiencing lower cost and number of numerical calculations, case 2 was chosen for studies. In this case, there were 12,385 elements. According to Figure 3a–c, the mesh deformation and the adaptive refinement at t = 0, 1000, and 1500 can be seen. A good transient is evident in figures in which the orange color shows the liquid region and the blue one represents the solid region.

3.3. Model Verification

It is necessary to examine the accuracy of the results of this study by comparing them with the results of related literature. This includes both numerical and experimental investigations. The research of Kumar et al. [47] done experimentally is the first case of validation. The vertical walls of their study were imposed on the constant heat flux, and horizontal walls were adiabatic. The present study’s results and those of [47] around the melting front at Ra = 1.4 × 10⁷, Pr = 0.0236, and Ste = 0.4 are demonstrated in Figure 4a. Here, $Ra=\rho g\beta \left(T_h-T_f\right)H^3/\alpha \mu$, $Ste=C_P\left(T_h-T_f\right)/h_{sf}$, $Pr=\mu /\rho \alpha$, and $Fo=t\alpha /H^2$ where H is the characteristic size, and α = k/(ρC_p). A good agreement is seen between the graphs of the melting front of both studies. Afterward, the study of Ref. [48] is another case of validation. The melting front of a base PCM (without any particle) and its melting process inside a square cavity were the cases of their superior investigations. Two vertical walls with different constant temperatures (T_h > T_c), and two adiabatic horizontal walls were their main boundary conditions. The case of validation was selected for the non-dimensional parameters of Fo. Ste = 0.002 and 0.01 when Ra = 1.25 × 10⁵ and Pr = 50. Moreover, as depicted in Figure 4b, the melting fronts obtained by the current model are compared to the numerical results reported in [49,50]. According to Figure 4b, acceptable agreements are seen between the results of the current study and [49,50,51].

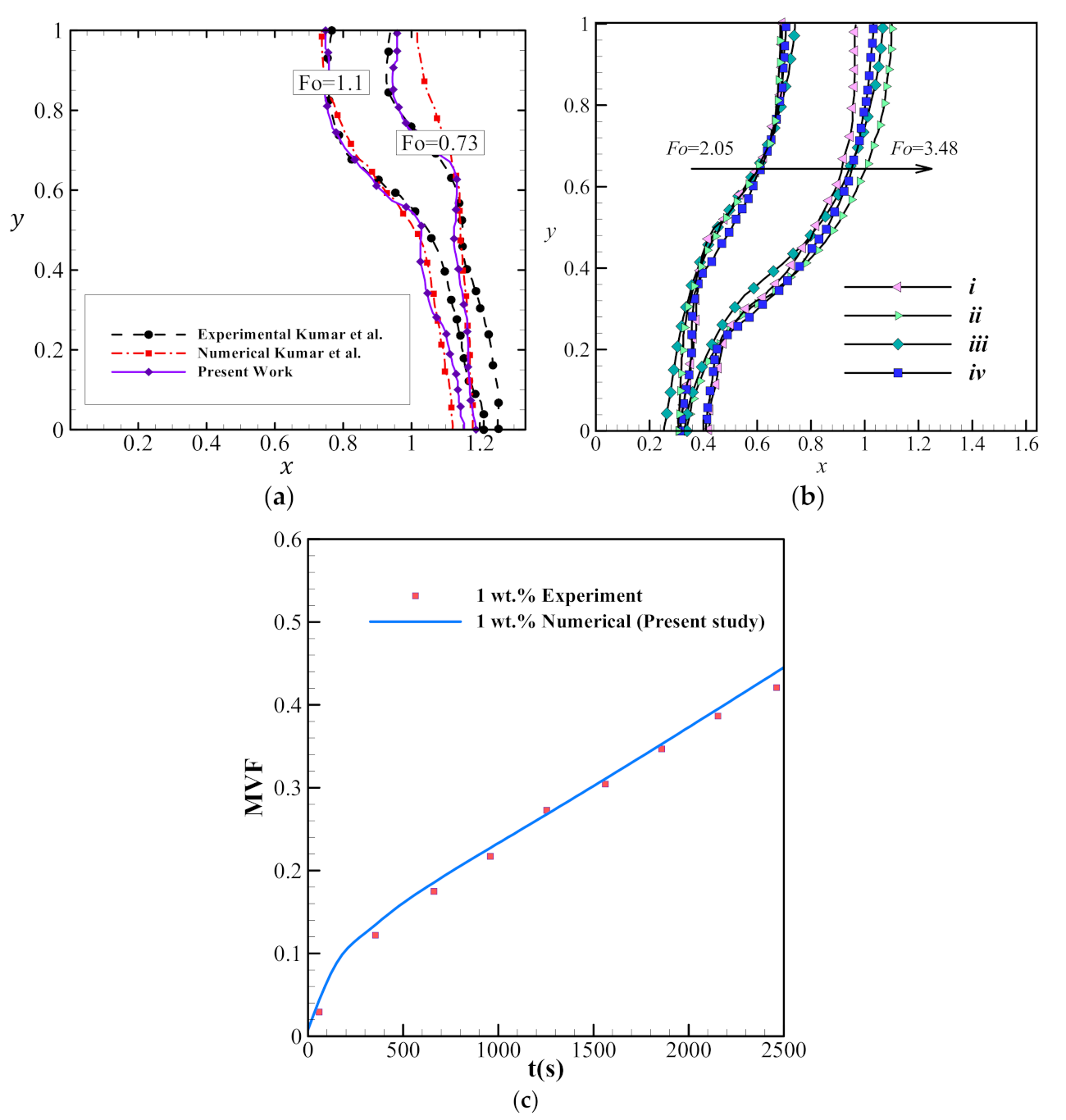

Li et al. [17] examined the melting of graphene nanoparticles-1-tetradecanol NePCM in a rectangular enclosure of height 2.5 cm and width 2.0 cm. The enclosure walls were insulated except a vertical wall which was heated with an isothermal temperature of 47 °C. The initial NePCM temperature and the melting temperature were 36 °C and 37 °C, respectively. The melting process was investigated for 1% wt. Figure 4c compares the variation of MVF during the melting process obtained numerically in the present study and those measured in [17], which shows a good agreement.

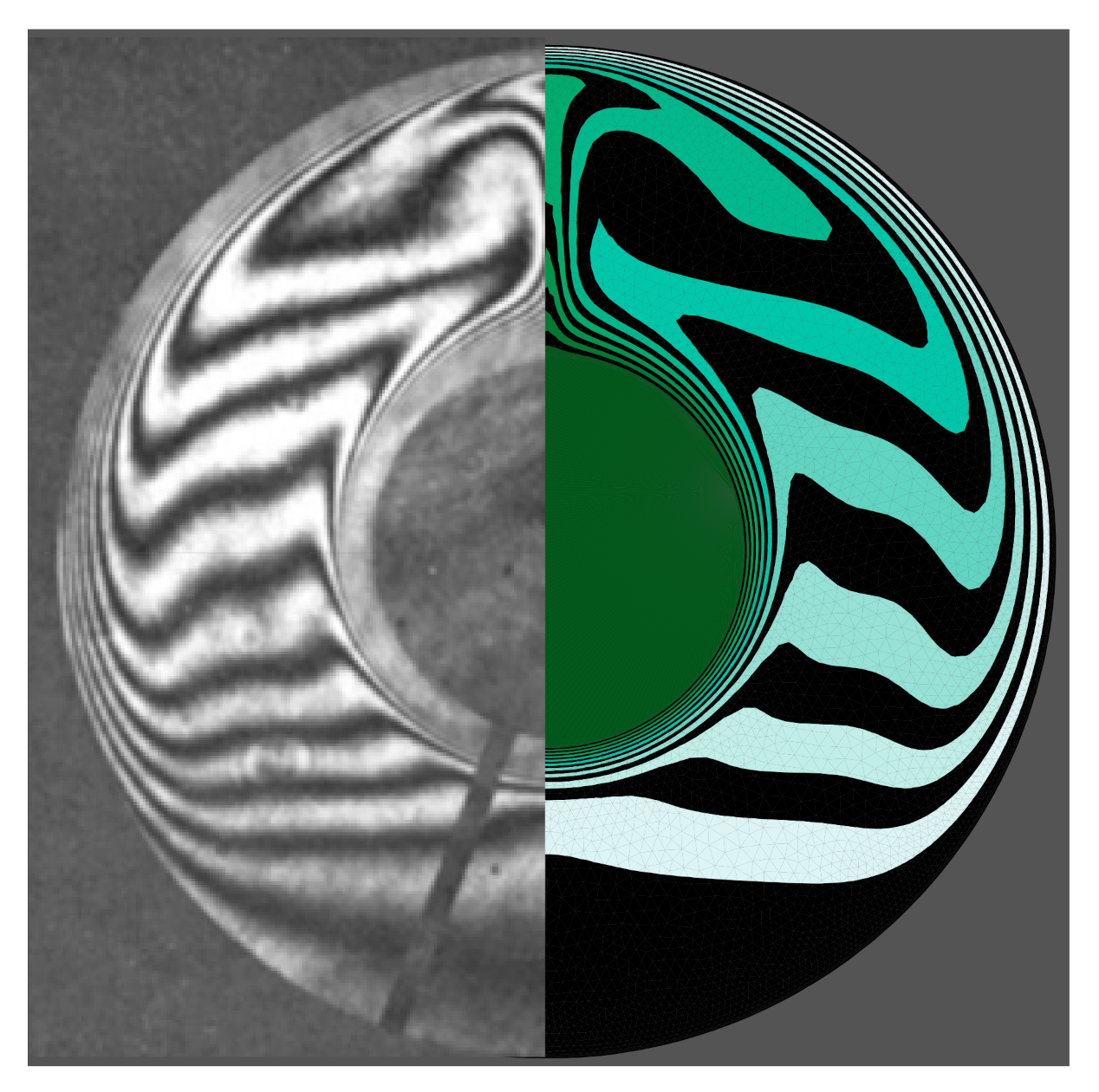

As the last case of validation, the investigation of Kuehn and Goldstein [52] performed experimentally is chosen to check the accuracy of the natural convection heat transfer characteristics. The domain of their study included the area between two horizontal cylinders. According to Figure 5, similar behavior is seen in the case of isotherm contours of two studies when Pr = 6.19 and Ra = 2.33 × 10⁵ demonstrating desirable agreement.

4. Results and Discussion

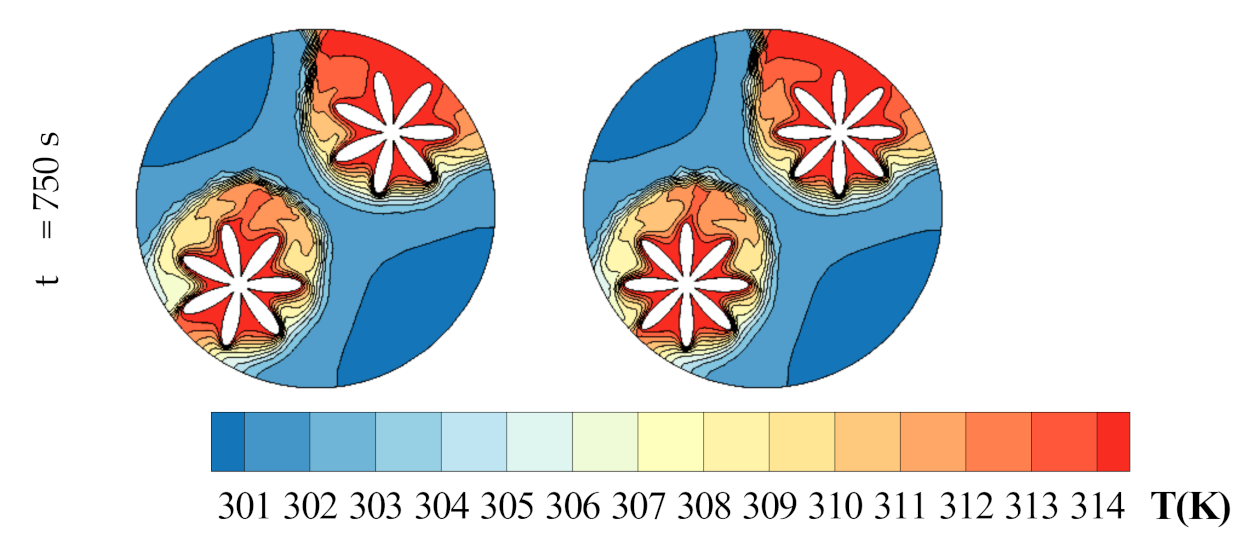

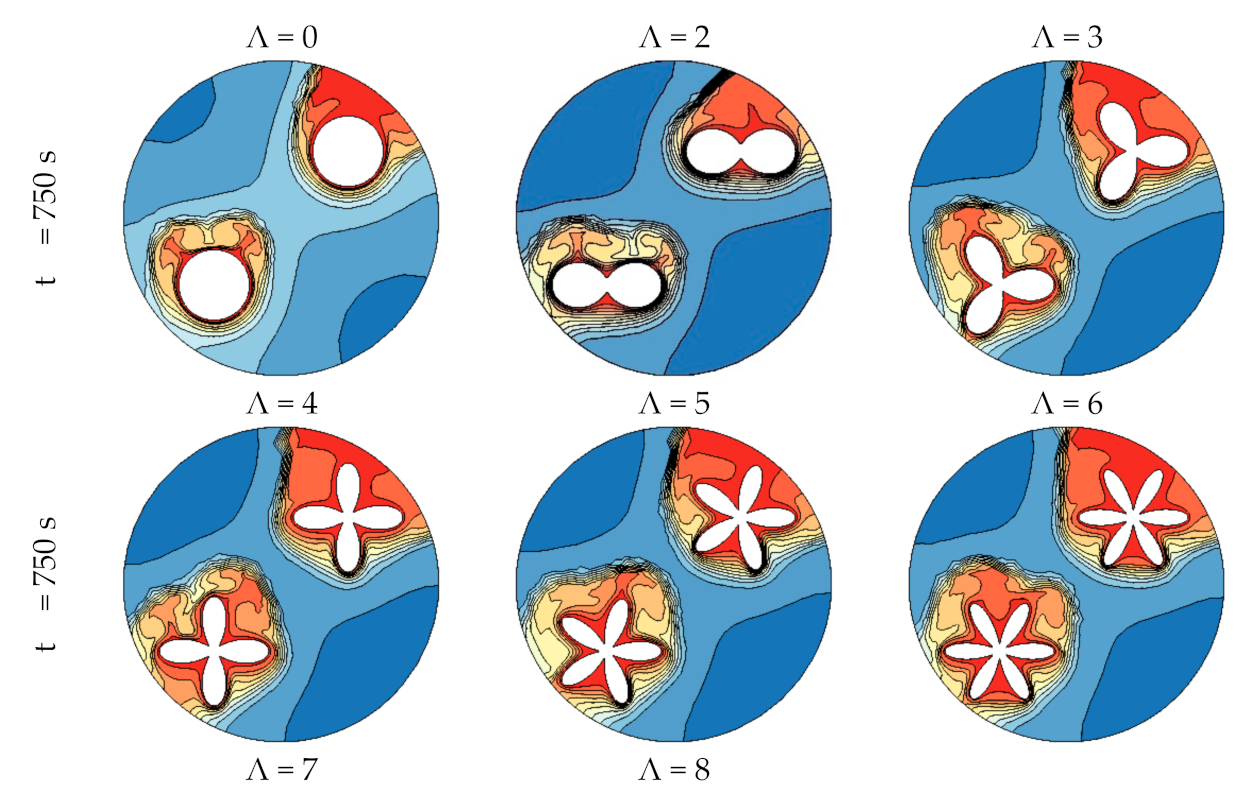

The isotherms and the streamlines in the cavity are depicted in Figure 6 for different values of the number of petals Λ. The fusion temperature of the PCM here is T_m = 305 K. Noting that the PCM remains in the solid-state in the zones where the temperature is lower than T_m, while it melts once the temperature exceeds T_m. It can be seen in Figure 6 that at t = 750 s, the PCM is heated in the regions surrounding the petals of the inner pipe. The effect of the petal shape of the inner pipe is more apparent when the value of Λ is above 2, as it can be seen that the region of the melted PCM around the tube petals is greater compared to a circular tube (Λ = 0). In fact, as the number of the petals increases, the surface contact between the heated tube and the PCM increases and enhances heat transfer, which results in a greater melting zone.

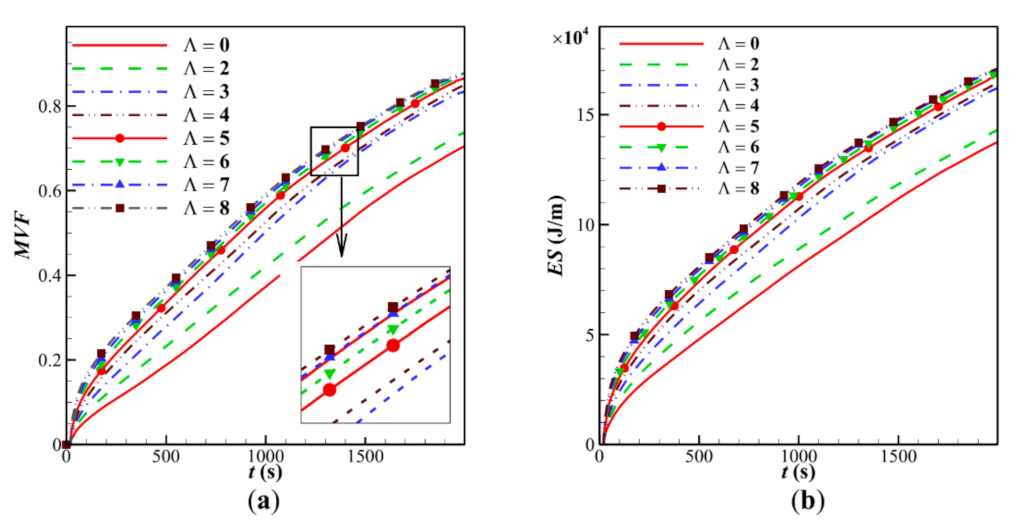

Figure 7 depicts the variations of the melted volume fraction MVF and the total stored energy ES as functions of time. The trend of variation is the same for all the values of Λ, and a rise in both MVF and ES can be observed when Λ is increased. The case of an inner circular tube (Λ = 0) represents the minimum melted volume and stored energy, which is due to the reduced heat transfer in that case compared to a petal cross-section.

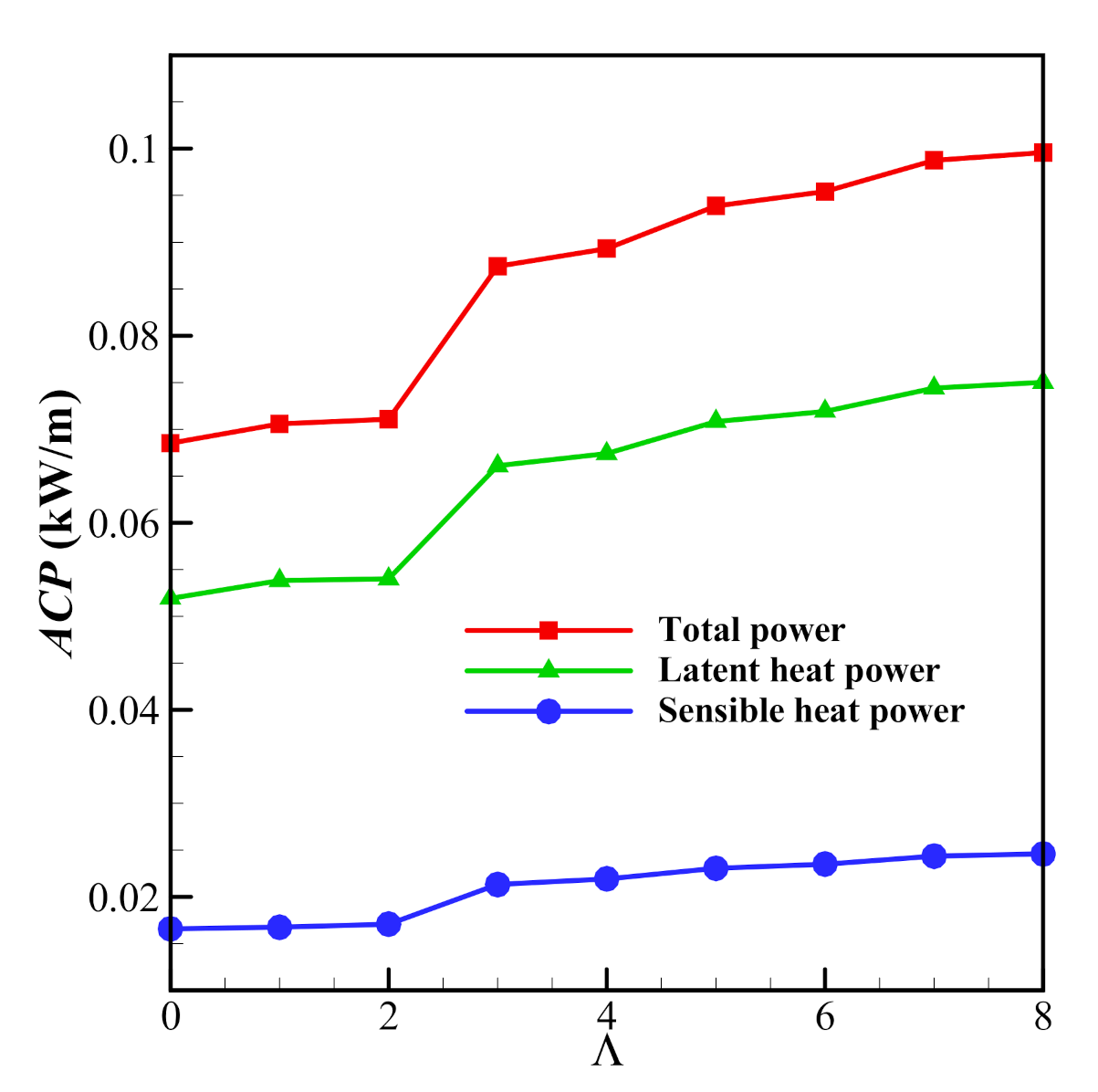

The variation of the average charging power (ACP) as a function of the number of petals Λ is plotted in Figure 8. The ACP is the ratio of the stored energy to the time required for full melting. It is, thus, a combination of the effects of MVF and ES. As MVF increases with Λ, the full melting time decreases. For this reason, it is clear that ACP increases with Λ due to the higher values of ES in that case, as discussed in Figure 7. Moreover, the increase of ACP is for both latent and sensible heat, indicating that raising the number of petals enhances heat transfer and PCM melting. A 45% increase in the total charging power can be obtained when using an inner tube with 8 petals compared to a circular tube.

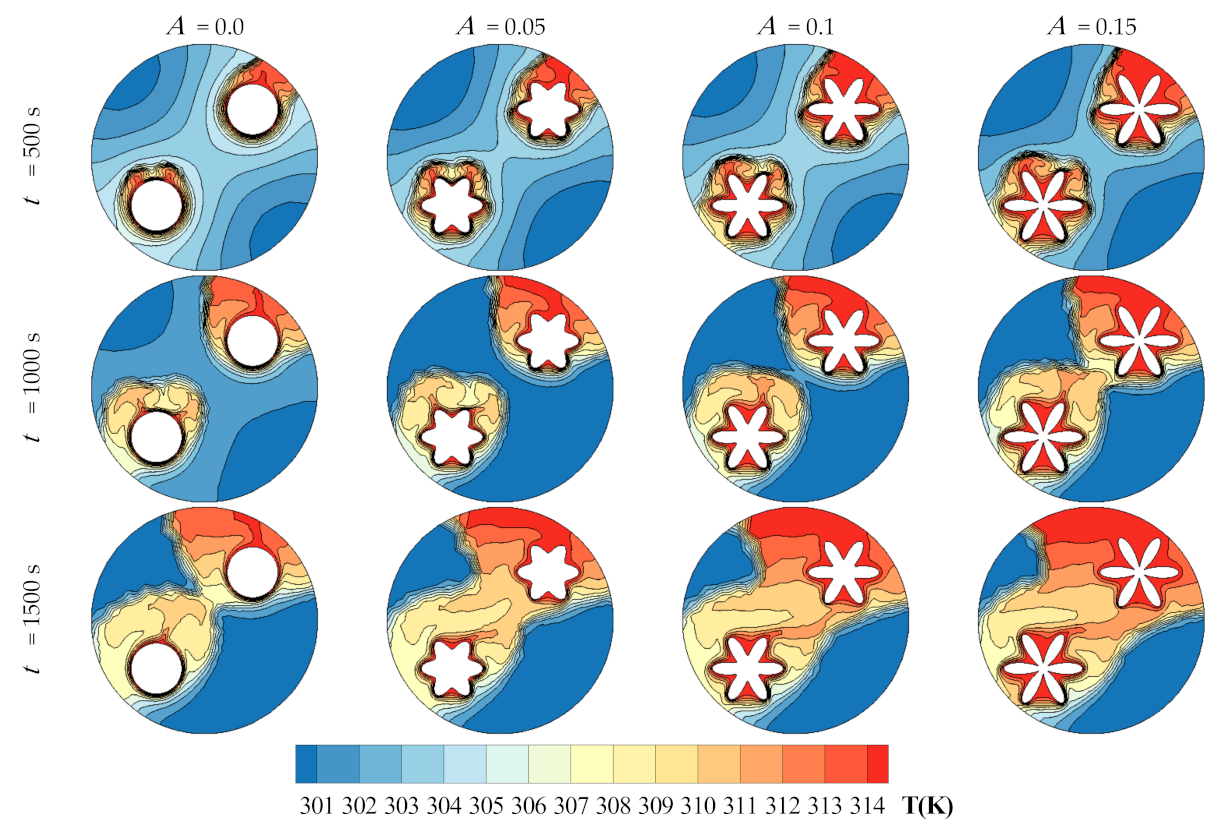

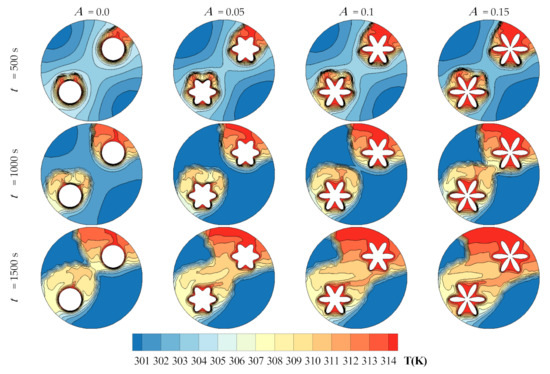

The effect of the petal amplitude A on the time evolution of the isotherms and the streamlines is illustrated in Figure 9. At t = 500 s, the PCM heating is limited to the zone surrounding the inner tube. As time goes, the zone of PCM melting increases in size, and it can be seen that this zone is greater when A is raised. At t = 1500 s, around half of the cavity remains filled with solid PCM in the case of a circular tube (A = 0), while the amount of melted PCM is greater in the case of a petal-shaped cross-section. Similar to the effect of Λ, increasing A enlarges the contact zone between the inner heated-tube and the surrounding PCM, which intensifies heat transfer and boosts PCM melting.

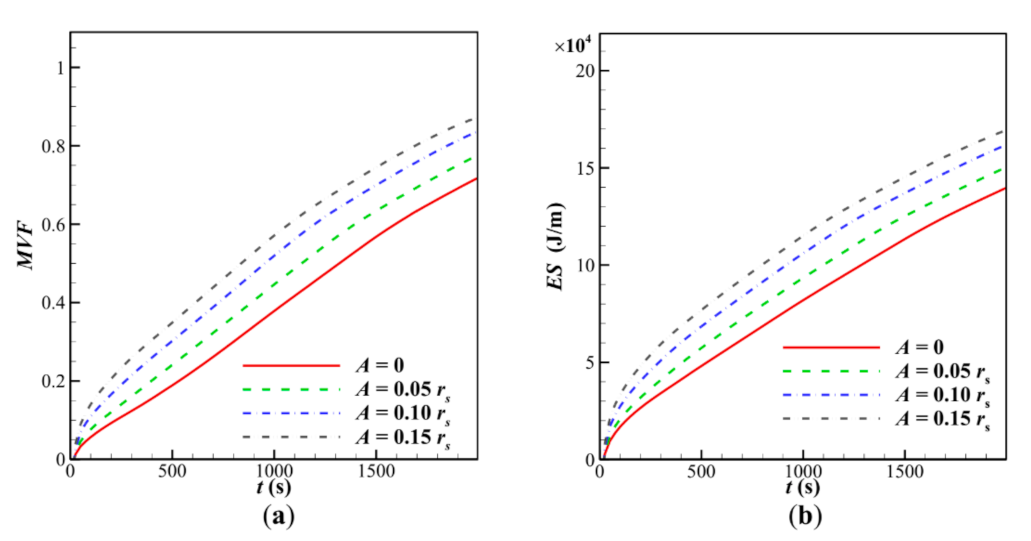

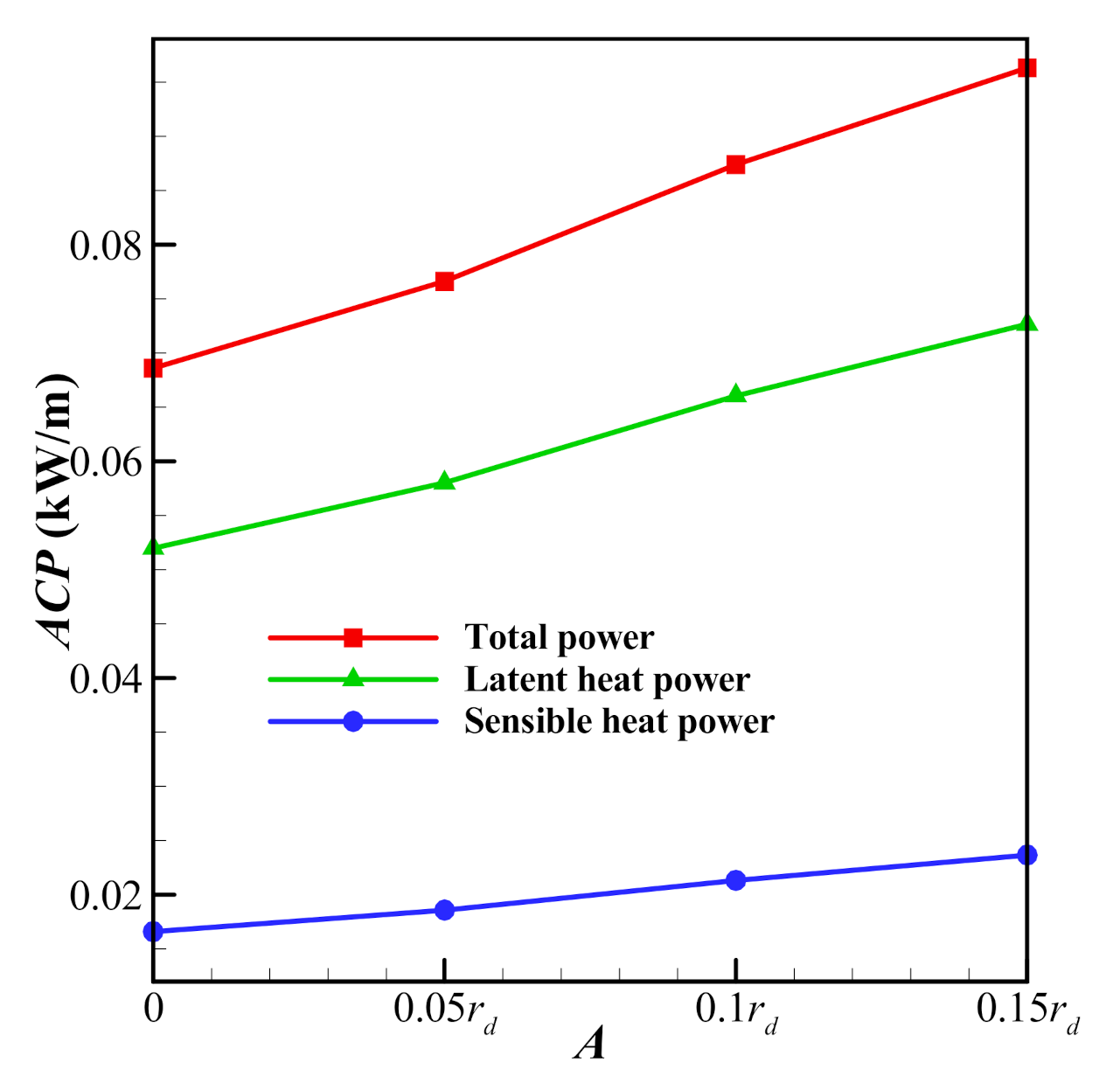

The variations of MVF and ES as functions of time for various values of A are shown in Figure 10. It can be seen that at every instant, MVF and ES are greater when A is increased and are minimum for A = 0. This indicates that the use of a petal-shaped inner tube improved PCM melting and increased the stored energy compared to a circular tube, and that such improvement can be further augmented by employing a higher petal amplitude. Figure 11 depicts the variation of ACP for different values of A. The energy stored rises when A is increased. Simultaneously, the time required for full melting is reduced for higher values of A. For this reason, the ACP shows greater values when A is increased. This result is due, as mentioned earlier, to the increased contact area between the PCM and the inner tube for higher A, which promotes heat transfer and enhances PCM melting. Raising A from 0.05r_d to 0.15r_d can increase the total ACP by 26%. Furthermore, the highest average charging power in latent and sensible heat power corresponds to 0.15r_d.

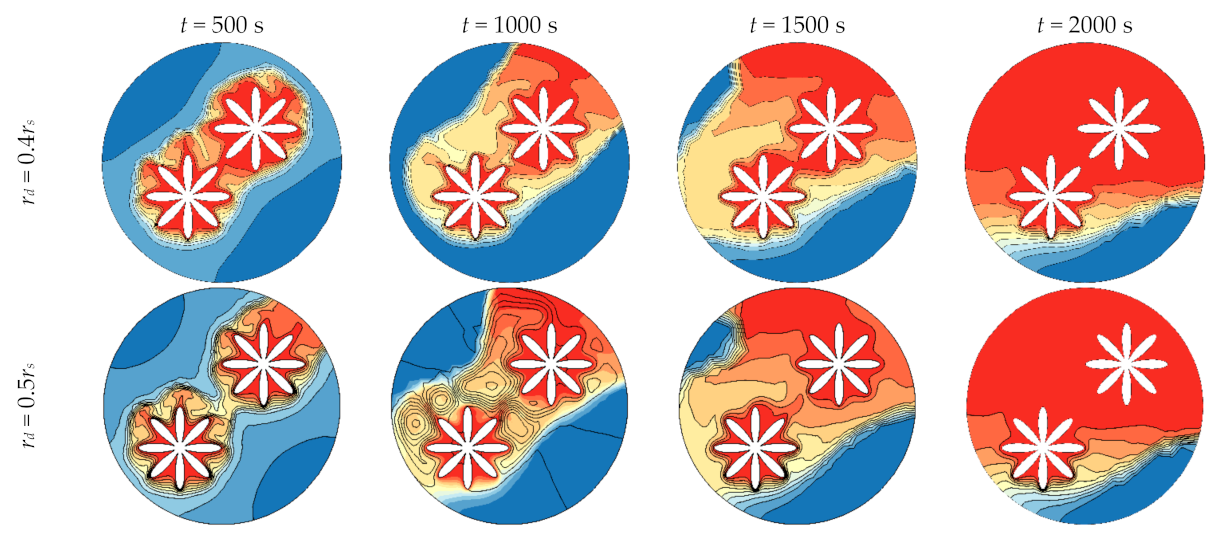

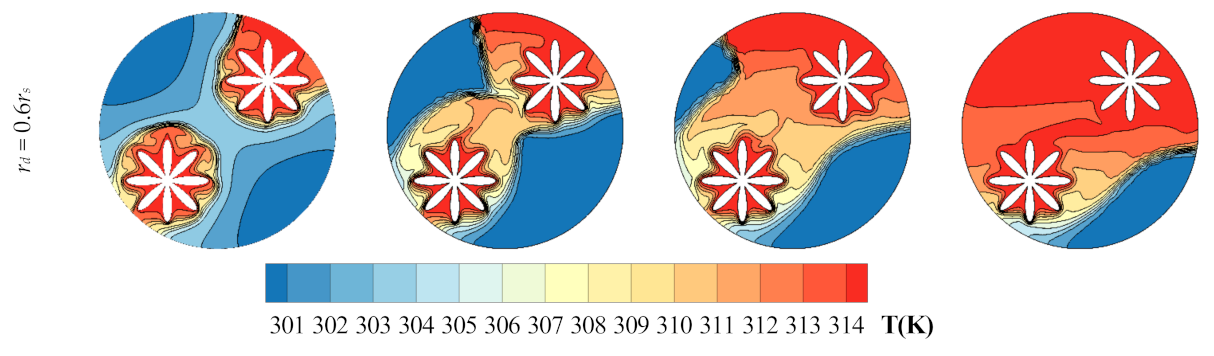

Figure 12 illustrates the streamlines and the isothermal contours for various values of the distance between the two branches of the inner pipe r_d. A higher value of r_d shifts the inner pipe branches toward the shell of the exchanger, while a lower value moves them towards the center. For this reason, it can be seen that for lower r_d, PCM melting starts mainly in the central region of the cavity, while melting occurs mostly near the outer wall when r_d is increased. As time goes, the zone of PCM melting increases in size in all the cases while remaining relatively away from the shell for low r_d. For t = 1000 s, it can be seen that for r_d = 0.4 r_s, some PCM remains in the solid-state near the shell, while for r_d = 0.6 r_s, the PCM melts near the shell, but relatively more solid PCM remains in the central zone. The value of r_d = 0.5 r_s represents a balance between the two previous cases, as the PCM is evenly melted in the center and near the outer walls. Nevertheless, the PCM keeps melting with time, and at the end, the melted zones are close in size for all the values of r_d.

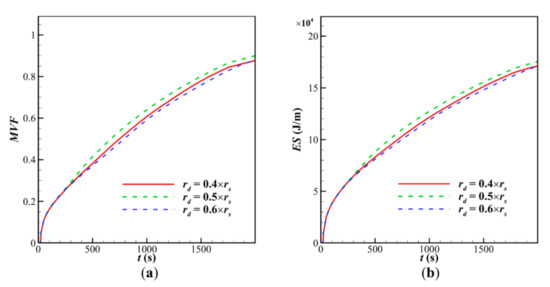

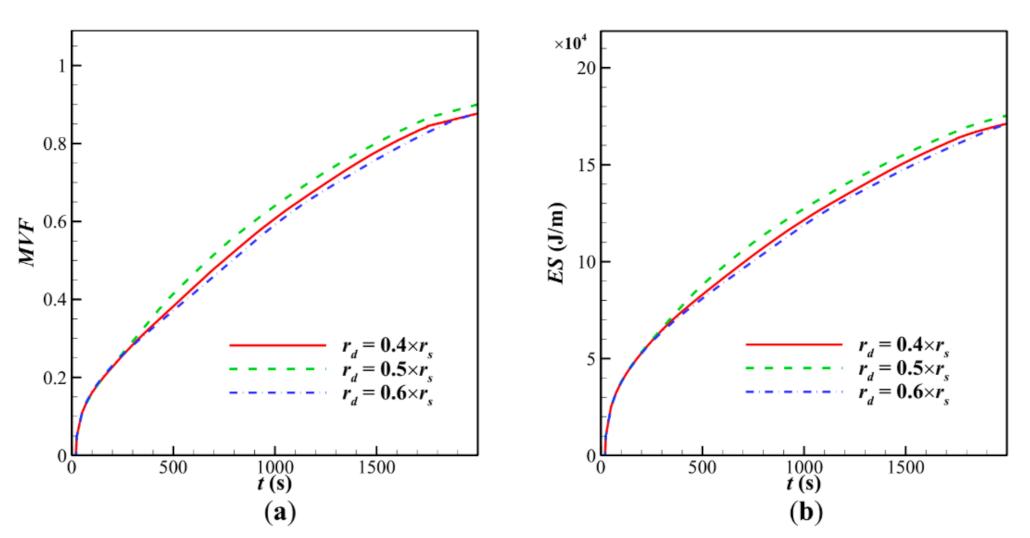

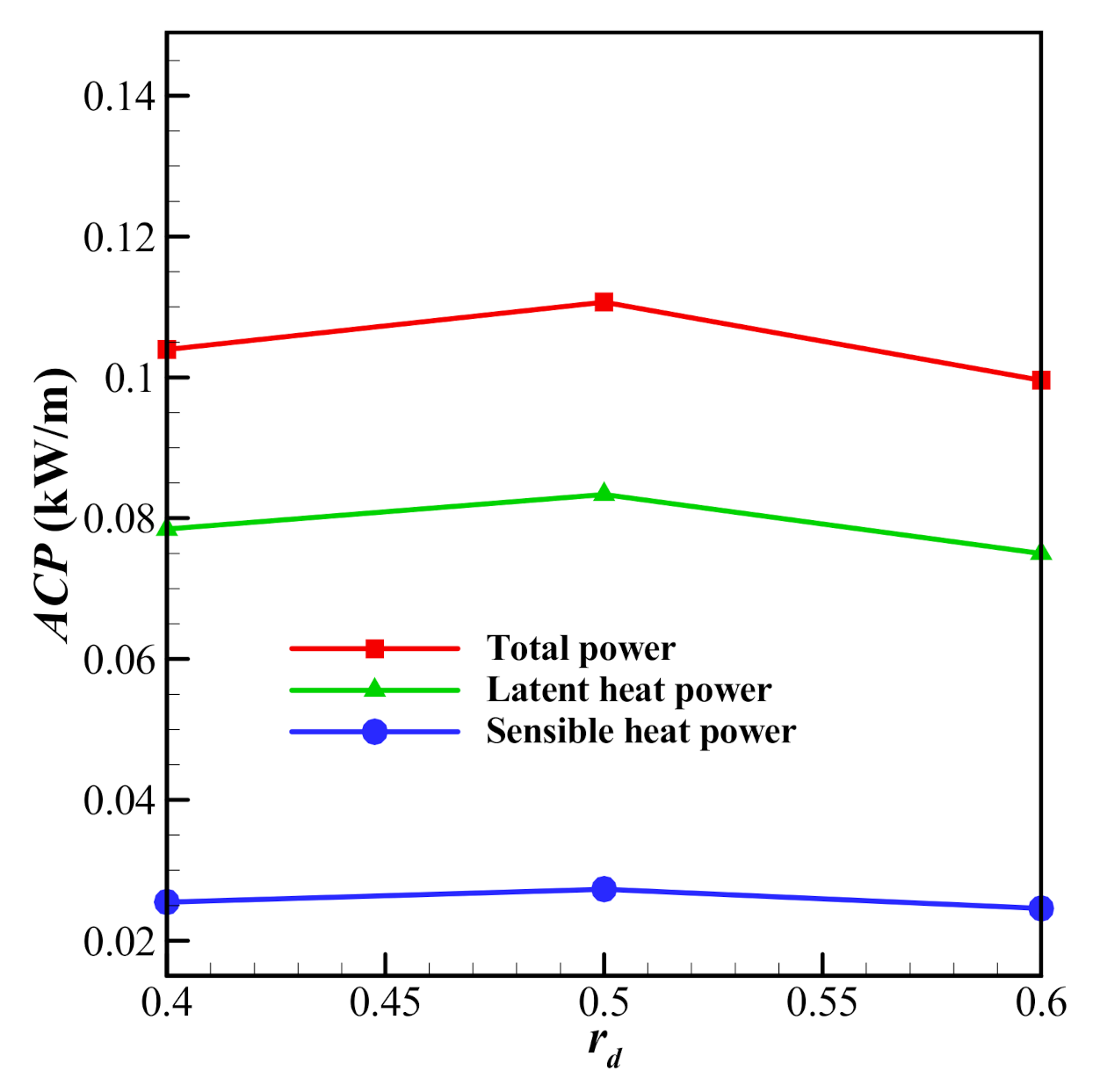

The variations of MVF and ES as functions of time are plotted in Figure 13 for different values of r_d. Initially, the variation is the same for all the values of r_d. Once the PCM starts melting, a slight increase of the MVF and the ES is observed for r_d = 0.5 r_s compared to the two other values. This is related to the observations of Figure 12, in which it was shown that the value of r_d = 0.5 r_s allows an even distribution of PCM melting in the central part and near the outer shell. This, consequently, increases the melting rate and the value of ES. Figure 14 shows the variation of ACP for different values of r_d. As ES and the melting rate are higher for r_d = 0.5 r_s compared to the other values, the ACP shows a maximum for r_d = 0.5 r_s. However, the effect of r_d on the ACP remains limited, as only a 4% increase in the total ACP can be obtained when r_d is changed from 0.4 r_s to 0.5 r_s.

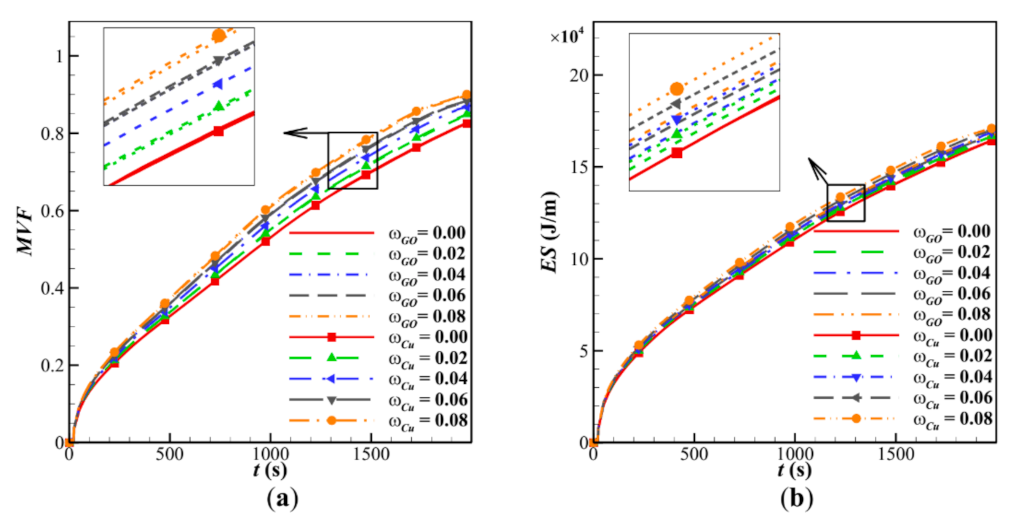

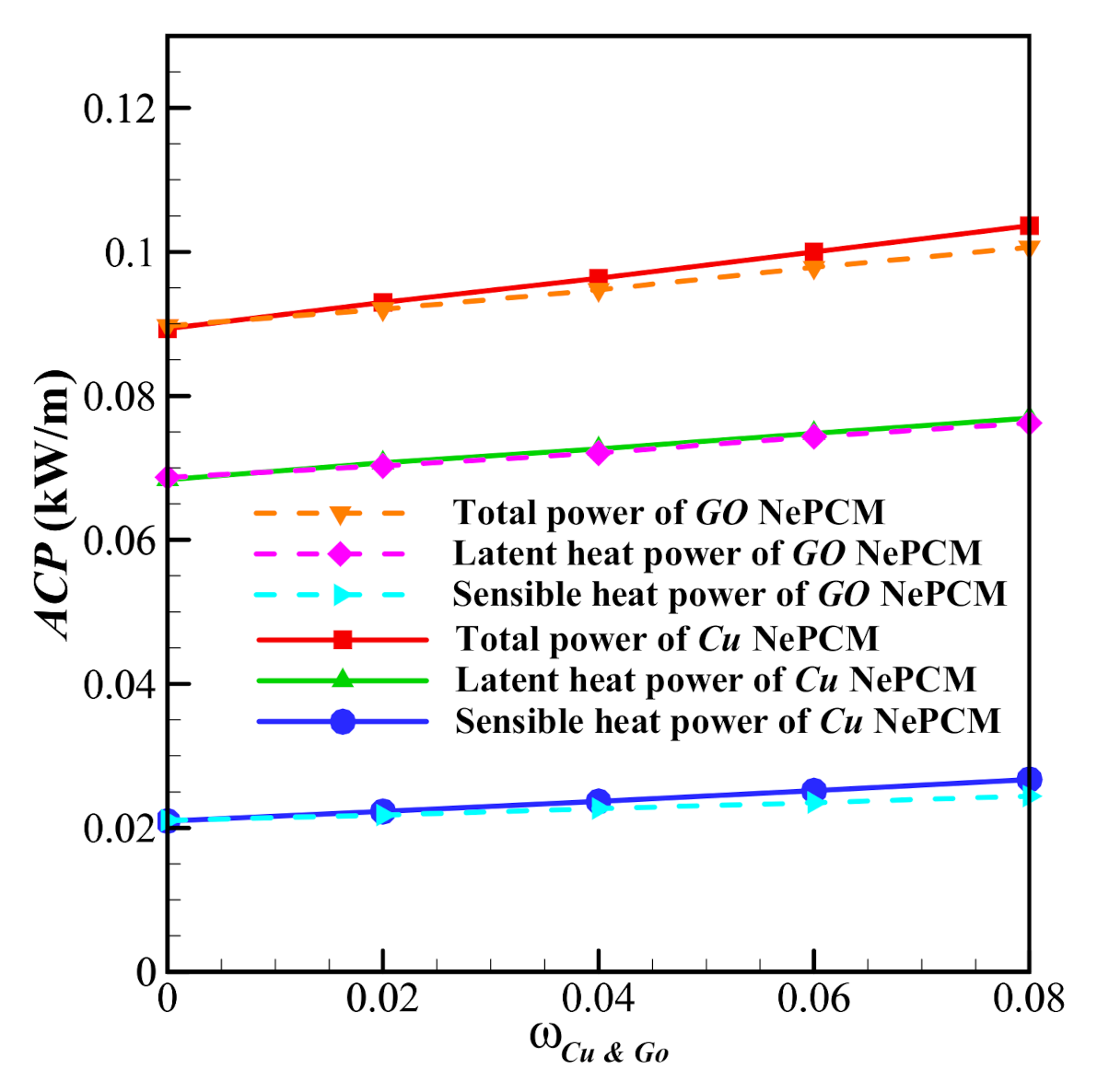

The variations of MVF and ES as functions of time are shown in Figure 15 for various values of the volume fraction of Cu nanoparticles ω_Cu and GO nanoparticles ω_GO. First, it can be seen that the variation of the MVF is almost the same for the same value of ω, regardless of the type of nanoparticle. Second, the presence of nanoparticles, either Cu or GO, shows slightly higher values of MVF and ES compared to a pure fluid. This shows that the dispersion of nanoparticles in the PCM enhances heat transfer by improving the PCM thermal conductivity. A slight increase in the value of ES can also be observed when Cu nanoparticles are used instead of GO for the same value of ω. The impact of ω_Cu and ω_GO on the variation of ACP is illustrated in Figure 16. The ACP increases with the rise of ω following the increase of the melting rate and ES. Moreover, the type of nanoparticles seems to have very little effect on the ACP. Using an 8% volume fraction of Cu and GO nanoparticles provides, respectively, an 11% and 7% rise in the total ACP compared to a pure fluid. Generally, the thermal conductivity and the volumetric heat capacity, i.e., ρC_p, of the nanoparticles play important roles in the total ACP compared to a pure PCM. Although the thermal conductivity of the GO nanoparticles is more than that of the Cu nanoparticles, the volumetric heat capacity of the Cu nanoparticles is almost 2.65 times higher than that of the GO nanoparticles. Therefore, the Cu nanoparticles improve the ACP more than the GO nanoparticles.

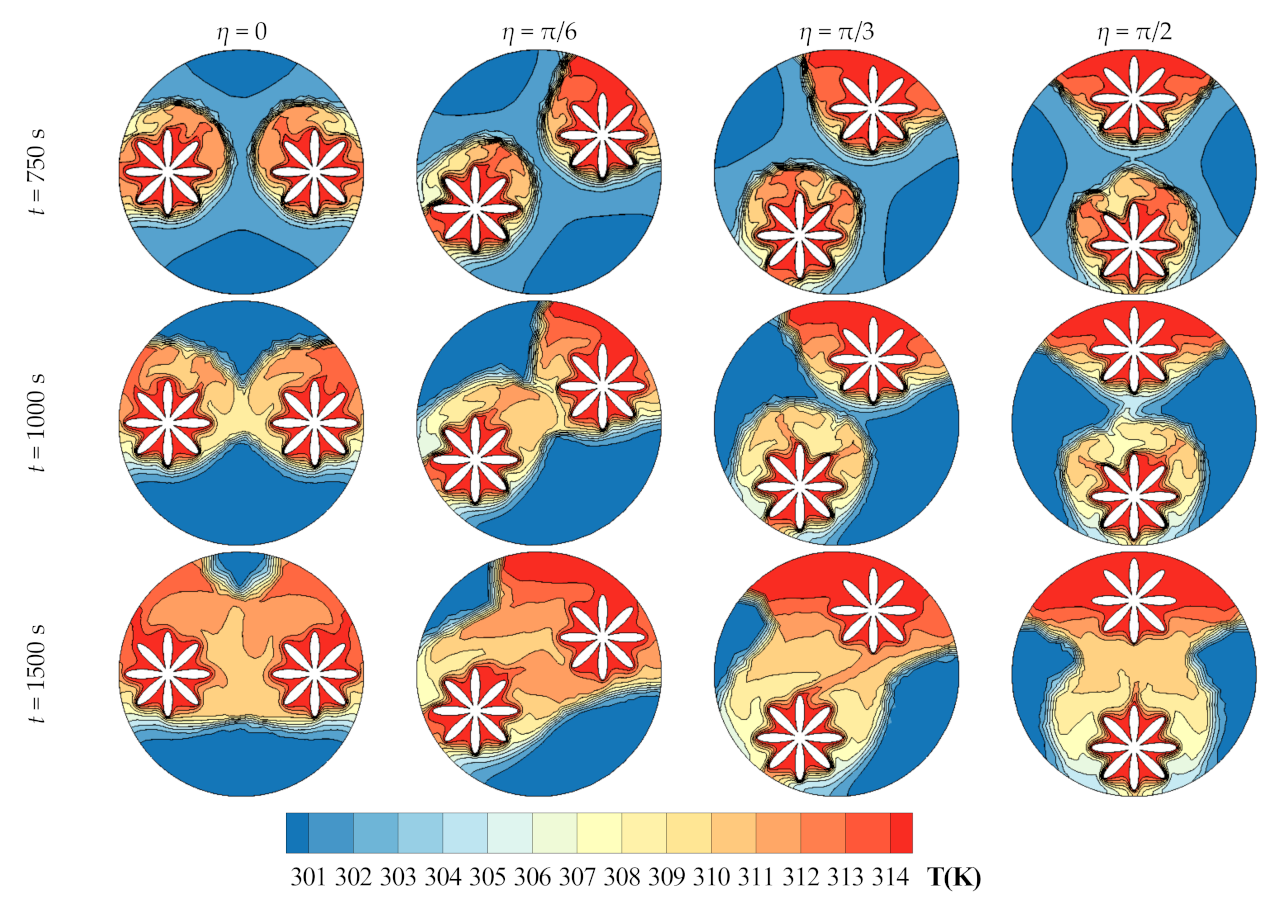

The isotherms and the streamlines are shown in Figure 17 for various values of the inclination angle of the inner tube η. The main impact of η appears once the PCM starts melting. Comparing the case of a horizontal tube (η = 0) to the case of a vertical one (η = π/2) reveals a change in the zone in which the PCM undergoes melting. For η = 0, the bottom of the cavity and a small portion at the top remain filled by solid PCM, while for η = π/2, the PCM melts in the top and bottom regions and remains solid in the left and right side of the bottom part of the cavity.

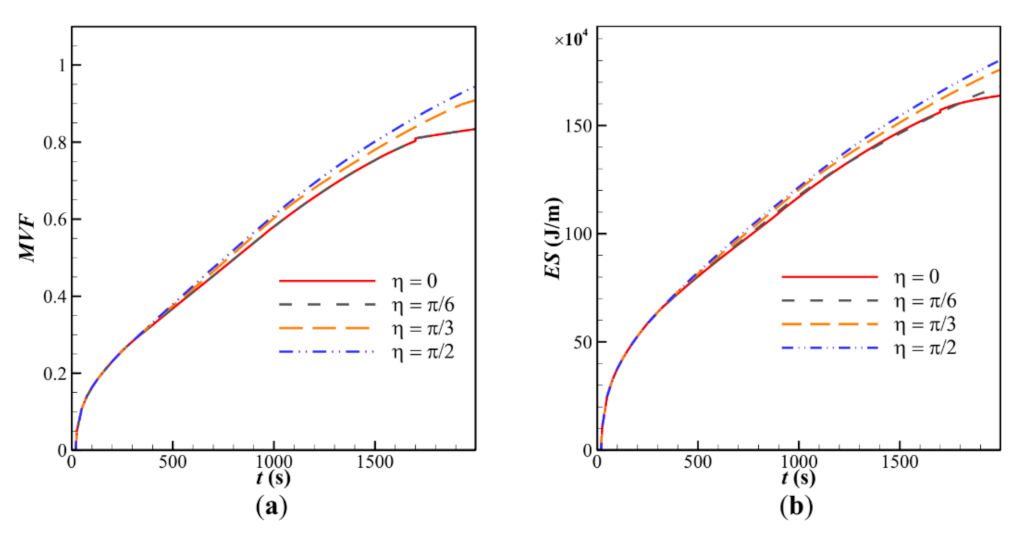

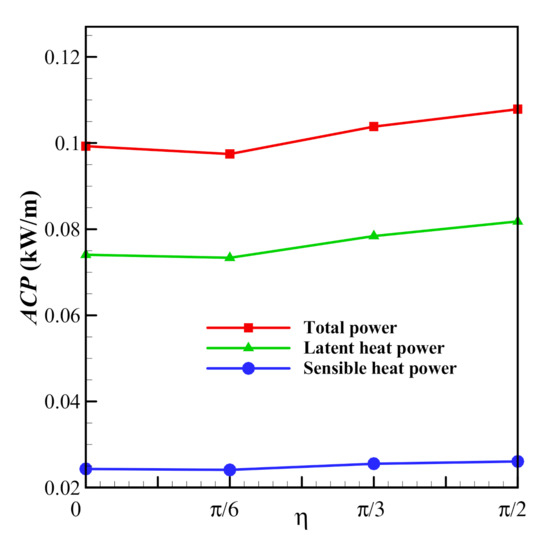

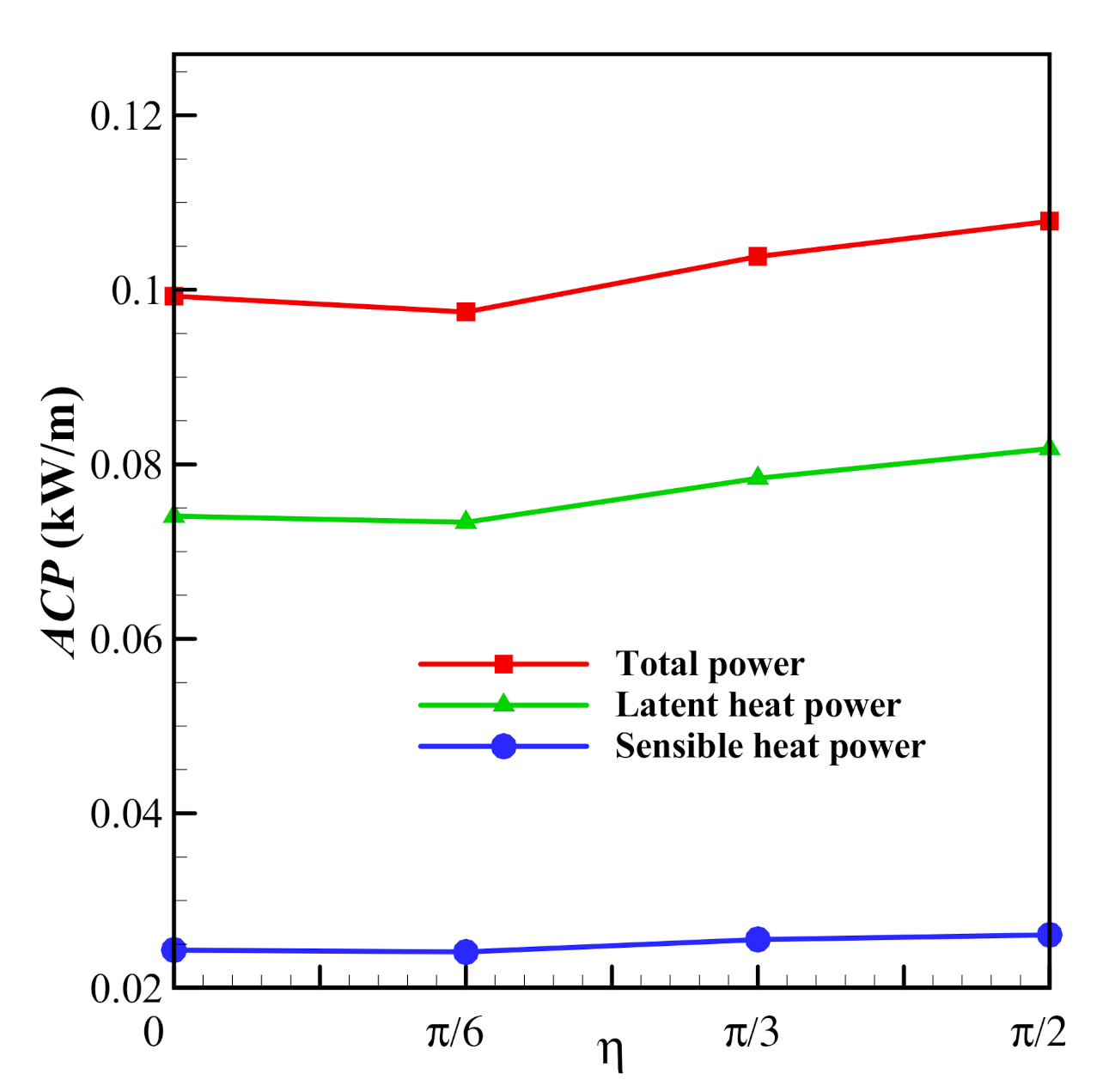

Figure 18 depicts the variations of MVF and ES as functions of time for different values of η. It is shown that as time goes, the values of MVF and ES increase with η and are maximum for η = π/2. The gap between MVF and ES for η = π/2 and η = 0 becomes more important in the last stages when an important amount of PCM is already melted. In that case, the convective effects are more intensified in the case of a vertical tube where the heated PCM at the bottom moves upwards. This aspect is not present in the case of a horizontal tube as no PCM is heated in the bottom of the cavity and the convective effects are relatively diminished. The variation of ACP is plotted in Figure 19 for various values of η. A higher ACP is obtained when η is raised, due to the increased melting rate and stored energy in that case. Using a vertical tube increases the total ACP by 5% compared to a horizontal one.

5. Conclusions

The impacts of the geometrical design of heat transfer tube with a petal shape and using nanoadditives on the energy storage rate and heat transfer of a thermal energy storage shell unit were investigated. The finite element method was applied to solve the phase change heat transfer equation along with natural convection flow. The mesh adaptation approach successfully followed the melting interface. The results were analyzed in the form of the time history of melting volume fraction and energy storage and the temperature distribution in the thermal energy storage unit. The main conclusions of the present investigation are the following:

• The cross-sectional shape of the inner tube is an important parameter in heat transfer and in the energy storage of the PCM. Using a petal-shaped tube instead of a circular one increases the surface contact between the tube and the surrounding PCM, which, consequently, intensifies heat transfer and enhances melting. This effect is further emphasized when the number of petals Λ and/or their amplitude is increased. The average charging power can be increased by up to 45% when a petal-shaped tube with Λ = 8 is used instead of a circular one, and by 26% when the amplitude of the petals is increased by 3 times.
• The distance between the two branches of the inner tube r_d has a slight effect on the thermal and flow behaviors in the heat exchanger. Shifting the inner tube towards the center by reducing r_d or towards the outer shell by raising r_d limits the zone of PCM melting and diminishes energy storage. The optimal value for PCM melting and energy storage is r_d = 0.4 r_s. Nonetheless, the impact of 0.4 r_d remains relatively limited. A 4% reduction in the charging power is observed when r_d is increased from 0.4 r_s to 0.5 r_s.
• The inclination angle of the inner tube impacts the convective effects in the cavity. Using a vertical tube instead of a horizontal one intensifies the convection of the melt and increases the stored energy. As a consequence, a vertical inner tube leads to a 5% increase in the charging power compared to a horizontal one.
• Dispersing conductive nanoparticles in the PCM increases its thermal conductivity, which improves its thermal transfer properties. However, the type of nanoparticles dispersed in the PCM has little effect on the melted volume and the stored energy, as similar results are obtained when either Cu or GO nanoparticles are used, with a little advantage for Cu. On the other hand, raising the concentration of the nanoparticles enhances PCM melting and the corresponding stored energy. Using an 8% nanoparticle, the charging power can be raised by 7% for GO and 11% for Cu nanoparticles than a pure PCM.

The present study aimed to provide a means to model and investigate the thermal performance of NePCMs in a thermal energy storage design. The focus was mainly on the thermal aspect of NePCMs. However, there are many unknowns and uncertainties in applying NePCMs, such as durability, homogeneity, cost, and environmental aspects, that could be subject to future research.
