Combustion, Performance, and Emission Behaviors of Biodiesel Fueled Diesel Engine with the Impact of Alumina Nanoparticle as an Additive

Abstract

The objective of this research work is to evaluate the performance, combustion, and exhaust emissions of a variable compression ratio diesel engine utilizing diesel 25% rubber seed biodiesel mixture (B25) blended with 25 ppm and 50 ppm of alumina nanoparticle running with different operating conditions. An ultrasonicator was used to make uniform dispersion of alumina (Al) nanoparticles in the diesel–biodiesel mixture. Biodiesel mixture blended with nanoparticles has physicochemical characteristics that are comparable to ASTM (American Society for Testing and Materials) D6751 limitations. The results revealed that the B25 exhibited a lower cylinder peak pressure and lower HRR (heat release rate) than diesel at maximum power. BTE (brake thermal efficiency) of B25 is 2.2% lower than diesel, whereas BSFC of B25 is increased by 6% in contrast to diesel. Emissions of HC (hydrocarbon), CO (carbon monoxide), and smoke for B25 were diminished, while emissions of NOx (nitrogen oxide) were higher at maximum power. Further, the combustion and performance of diesel engine were improved with the inclusion of alumina nanoparticles to biodiesel blends. In comparison to B25, BTE of B25 with 50% alumina nanoparticles (B25Al50) mixture was enhanced by 4.8%, and the BSFC was diminished by 8.5%, while HC, CO, and smoke were also diminished by 36%, 20%, and 44%, respectively. At peak load, the maximum cylinder pressure and HRR of B25 were improved by 4.2% and 6.7%, respectively, with the presence of 50% alumina nanoparticles in a biodiesel blend (B25Al50).

1. Introduction

Rapid expansion in the transportation industry as a result of modernization and industrialization raises energy consumption and increases emissions from engines, which degrade the environment internationally. IC (internal combustion) engines are primarily employed in the automotive, power generation, and agricultural industries due to their lower fuel economy. Using fossil fuels results in increasing amounts of HC, CO, and NOx emissions, all of which contribute to global climate change [1,2]. As a result, numerous academic researches has been active in the search for alternatives to diesel fuel, such as alcohols, vegetable oils, and its derivatives. Vegetable oils are biodegradable and non-toxic; however, they have high viscosity and low volatility, which cause poor atomization leading to incomplete combustion, engine deposits, high smoke emissions, and low brake thermal efficiency when used in CI (compression ignition) engines [3]. Transesterification is the process of converting vegetable oil (triglycerides) into monoester. This process results in a significant reduction of viscosity and density, thereby improving thermal efficiency and low smoke levels. Converting these oils into biodiesel further increases the price, making it an unviable fuel for developing countries, such as India. Non-edible oils such as castor, karanja, neem, rubber seed, and jatropha are available in large quantities in India, and they can be easily converted to biodiesel at low cost. In this research, the rubber seed oil is taken as the fuel and alumina nanoparticles as the fuel additive to enhance the combustion in a diesel engine. Rubber seed oil produced from the rubber tree (Hevea brasiliensis) belongs to the Euphorbiaceae family. It originated from South America and has been cultivated in Southeast Asia since the 18th century [4]. It is a prominent plantation crop that holds vital economic importance for India. The tree provides not only rubber latex but also a variety of ancillary products, with rubber seed being one of them. The oil extracted has application limited to soap and lubricating industries. The rubber seed oil has 17–20% saturated fatty acids, 17–22% unsaturated fatty acids, and viscosity of more than 30 cSt. As a result, the rubber seed oil as a fuel has less thermal efficiency and increased smoke emission compared to diesel [5].

Jun Cong Ge et al. [6] studied the performance of CRDI (Common rail direct fuel injection) diesel engines with EGR rates and pilot injection timings using palm oil biodiesel blends under 25% and 75% engine loads. B30 blend with a 10% EGR (exhaust gas recirculation) rate, or with a pilot injection timing of 24° BTDC (Before Top-Dead-Center), can effectively reduce PM (particulate matters) emissions and simultaneously keep NOx emissions at a low level. Jun Cong Ge et al. [7] investigated the volatile organic compounds (VOCs) in the exhaust emissions from a common rail diesel engine fueled with diesel and B20 canola oil biodiesel blends at various engine loads. Results indicated that the regulated emissions of CO, HC, and PM were decreased, and the total VOC emissions of B20 were lower than those with the other test fuels. Jun Cong Ge et al. [8] investigated the soot particle distribution and regulated and unregulated emissions in a CRDI diesel engine using diesel and palm oil biodiesel blends. It was found that all the PM particles were less than 100 nm in diameter observed by TEM (Transmission electron microscopy), and the average diameters of primary particles were distributed between 20 and 26 nm. Unregulated emissions such as trace metals, e.g., Pb, Mn, and Ba, were found in the PM particles, and the xylene, toluene, and benzene unregulated emissions of B100 were reduced compared to diesel.

Many studies have suggested utilizing biofuel as an alternate fuel for diesel engines, which results in a reduction of BTE and poor burning characteristics as compared to diesel [9]. The benefits of biodiesel are compromised by higher NOx emissions and decreased BTE. Vallinayagam et al. [10] tested the pine oil–diesel mixtures in diesel engines and found that pure pine oil lowered the emissions of CO, HC, and smoke. An experimental investigation was carried out by Bajpai et al. [11] with a conventional diesel engine using different blends of Karanja biodiesel such as 5%, 10%, 15%, and 20% by v/v ratio with diesel at varying engine loads. They reported CO, HC, and smoke emission (except NOx) decreases but also BTE decreases with increasing karanja biodiesel blends. By considering performance and emission level, they concluded that 10% biodiesel blend was the optimum blend for biodiesel operation. Similarly, Mahanta et al. [12] also studied the engine performance by using pongamia pinnata methyl ester as a biodiesel blend at 5%, 10%, 15%, 20%, 25%, and 30% v/v ratio. They also experienced similar results for CO, HC, and smoke (except NOx) emission, with all blends suggesting that B20 fuel was the optimum blend. Rajan et al. [13] evaluated the performance of diesel engines using biodiesel at various injection pressures and reported lower levels of exhaust emissions except for NOx at higher Ips (injection pressure). Ravichandran et al. [14] investigated the engine performance by employing a corn oil methyl ester mixture, which produced greater NOx emissions while lowering other pollutants when compared to diesel.

Different researchers and scientists have studied to reduce NOx emissions with an oxygenated substance such as alcohol or ether can be added to diesel/biodiesel mixes [15,16,17]. DEE (Diethyl ether) is a great combustion booster that has a lower auto ignition temperature. Rajan et al. [16] evaluated engine performance under varied loading conditions utilizing pure Karanja biodiesel with 10% and 15% DEE blends. They reported that there is a substantial drop in NO and smoke for pure Karanja biodiesel using 15% DEE mixture as well as a drop in cylinder peak cylinder pressure and HRR contrast to pure biodiesel. It has been suggested that the optimal percentage is 15% since it resulted in the best engine performance [18] analyzed the role of 10% DEE into diesel–biodiesel–ethanol and diesel–biodiesel–methanol mixtures. Introducing DEE to a diesel–biodiesel–ethanol combination boosted the period of combustion, cylinder pressure, and BSFC while lowering the emissions of NOx and smoke, according to their findings [19]. Lee and Kim [20] reported that introducing DEE to diesel in different ratios has no influence on engine BTE. Results also revealed that HC and CO emissions were diminished with increase in emissions of NOx.

Consequently, several scholars have concentrated their efforts on various nanoparticle blended biodiesel to achieve better performance with a decrease in emissions. Working characteristics of biodiesel in the engine were improved by the inclusion of nanoparticles with biodiesel [21,22,23]. Nandhagopal et al. [24] evaluated the performance characteristics of an engine operated on biodiesel utilizing TiO₂ (titanium dioxide) and ZnO (zinc oxide) nanoparticle emulsions. Their findings resulted in higher BTE and a decrease in overall emissions. Nafaji [25] evaluated the impact of varying nanoparticle proportions mixed in biodiesel on the performance behavior of diesel engines and determined that performance and emissions were equivalent to diesel. Patel and Kumar [26] investigated the role of Alumina (Al₂O₃) nanoparticles as additives with Jatropha biodiesel on diesel engines and revealed a significant improvement in BTE as well as a drastic decline in emissions of NO, CO, HC, and smoke. Vellaiyan et al. [27] used an Al₂O₃ nanoparticle additive to study the combustion process of water-emulsified biodiesel used in a diesel engine. Their findings revealed that water-emulsified soybean biodiesel substantially enhances the cylinder pressure and HRR when contrasted to biodiesel. It also diminishes the emissions of NOx, smoke, HC, and CO while increasing total CO₂. Srinivasan et al. [28] studied the combustion process of an engine utilizing neat biodiesel mixed with 25 ppm and 50 ppm alumina and titanium oxide nanoparticles, and their findings indicated that the BTE was raised and the BSFC decreased with 50 ppm TiO₂ nanoparticle blended biodiesel. Emissions of CO, smoke, and HC were declined, but NOx emissions were increased when compared to B25.

Arul Mozhi Selvan et al. [29] evaluated the performance of CI engines utilizing diesel and diesel–biodiesel–ethanol mixtures using CeO (cerium oxide) nanoparticles as an additive. It has been observed that adding CeO to diesel ethanol mixtures enhances the overall BTE while decreasing CO, HC, NO, and smoke. Annamalai et al. [30] tested an engine utilizing a Lemongrass oil (LGO))-CeO nanoparticle emulsion and reported that the BTE was increased with LGO-CeO nanoparticle and its emulsions due to its larger surface area of nanoparticles. There is a substantial reduction in CO, HC, NOx, and smoke emissions when compared to LGO and its emulsion and diesel. Yuvarajan et al. [31] investigated the combustion process of pure biodiesel coupled with an Ag₂O nanoparticle under various operating conditions. There was an increase in BTE with a drop in BSFC and an improvement in all tail pipe emissions using Ag₂O (silver oxide) nanoparticles. Yuvarajan et al. [32] analyzed the performance of mahua biodiesel-fueled diesel engine with 100 ppm of copper oxide nanoparticle (10 and 20 nm) blended with biodiesel and reported that inclusion of 20 nm particle size improves the BSFC (brake specific fuel consumption) and BTE contrast to 100% biodiesel with 10 nm size of copper oxide nanoparticle, whereas CO, smoke and HC were diminished, but NOx was increased.

Based on the literature and experimental studies of various researchers, the analysis of metal oxide nanoparticle additive added with biodiesel revealed that nanoparticle enhance the engine operating characteristics and emission characteristics. CO, HC, and smoke emissions were considerably reduced to an appreciable limit by the use of nanoparticle added biodiesel. Hence, the current research objective is to evaluate the performance characteristics of a CI engine fueled with a B25 combined with alumina nanoparticles in various concentrations such as 25 ppm and 50 ppm (particle per million), and the results were compared to base fuels.

2. Materials and Methods

2.1. Rubber Seed Tree

Rubber tree (Hevea brasiliensis) belongs to Euphorbiaceae family. It originated from South America and has been cultivated in Southeast Asia since 1876. The tree grows rapidly at altitudes below 200 m at temperatures of about 27–30 °C [2]. It is a prominent plantation crop that holds vital economic importance for India. The tree provides not only rubber latex but also a variety of ancillary products, rubber seed being one of them. The production of rubber seed is 150 kg/ha in India. The average oil yield from the seed is from 40% to 60% of the kernel by weight. The oil extracted has application limited to soap and lubricating industries. Rubber seed oil has 17–20% saturated fatty acids, 17–22% unsaturated fatty acids, and viscosity of more than 30 cSt [4].

2.2. Preparation of Rubber Seed Oil Biodiesel

Transesterification is a process of lowering the viscosity of vegetable oil in which raw rubber seed oil (RSO) combines with alcohol in the presence of a catalyst to generate mono ester. In this study, RSO (methanol catalyzed by sodium hydroxide) is used to obtain RSO biodiesel. The amount of sodium hydroxide needed as an impetus for each liter of rubber seed oil was determined to be 10 g (by titration). For each liter of RSO, 200 mL of methanol and 10 g of sodium hydroxide were added, and the chemical reactions were kept at 65 °C, stirring at a constant speed 500 rpm for 60 min. Two layers were formed; solid glycerol sediment in the bottom and the liquid mono ester is on the top the flask. The ester was then rinsed with hot distilled water to remove methanol from biodiesel.

Table 1. Fuel’s properties.

Properties	Diesel	RSO	RSME	ASTM
Density (kg m−3)	830	920	882	D4052
Kinematic viscosity	3.4	52	4.7	D445
Flash point (°C)	52	175	157	D93
Fire point (°C)	60	184	163	D93
Calorific value (MJkg−1)	43	36.55	38.83	D240
Cetane number	48	38	52	D976
Oxygen (wt)	-	11	11	D943

lists the essential characteristics of biodiesel and diesel fuel. The heating value of biodiesel was found by using bomb calorimeter. Rubber seed oil biodiesel has a calorific value of 38,830 kJ/kg, which is 9.4 percent lower than regular diesel. The Redwood viscometer was used to measure the kinematic viscosity, and the value obtained for RSME (root-mean-square error) was 5.19 centistokes, which is 38% higher than diesel. The biodiesel’s flash point and fire point were determined using the Pensky Martin equipment. Because of its high viscosity, biodiesel had a greater flash and fire point than diesel fuel.

2.3. Preparation of Nanoparticles

2.3.1. Alumina Nanoparticles

Alumina nanoparticle was produced using the sol-gel approach. Deionized water and aluminum nitrate were decomposed with citric acid in a concentration ratio of 0.5 (citrate/nitrate = 0.5) during the procedure. Over several hours, the solution was continually agitated at 60 °C until it formed a golden yellow sol. The mixture was then warmed to 80 °C while being constantly stirred until a crystalline gel formed and dried for 12 h in a 90 °C furnace.

2.3.2. Preparation Biodiesel–Nanoparticles Mixtures

The alumina nanoparticles with an average size of 50 nm were procured from Reinste Nano Ventures Private Ltd., New Delhi, India. Nanoparticles, in particular, have a large surface. Figure 1 shows pictures taken using a scanning electron microscope (SEM) to examine the structure of Al₂O₃ nanoparticles. SEM (scanning electron microscope) scans of both nanoparticles show that they are spherical in shape, have a smooth surface, and have an average particle size of 50 nm. Span80 was used as a surfactant and to create a sufficient binding with the base fuel to make nanoparticles stable in liquid fuel. Ultrasonication is a great way to enhance particle dispersion and create more homogeneous and stable mixtures. A measured quantity of nanoparticles (25 ppm and 50 ppm) and a 2 mL Span80 solution were introduced to biodiesel to form a sustainable biodiesel–alumina nanoparticle mixture, which was then stirred for 45 min with an ultrasonicator set to 30 kHz. In this study, the test fuels B25Al25 (25% RSME and 25 ppm Al₂O₃ nanoparticles) and B25Al50 (25% RSME and nanoparticles) were utilized. Figure 1 is an SEM picture of an alumina nanoparticle. The altered biodiesel was analyzed four strokes direct injection air cooled diesel engine at different loads, giving no time for the deposit to form. Hielscher’s ultrasonic processing bath was used to perform proper feasibility tests on the ultrasonicator.

2.4. Test Engine Setup and Procedure

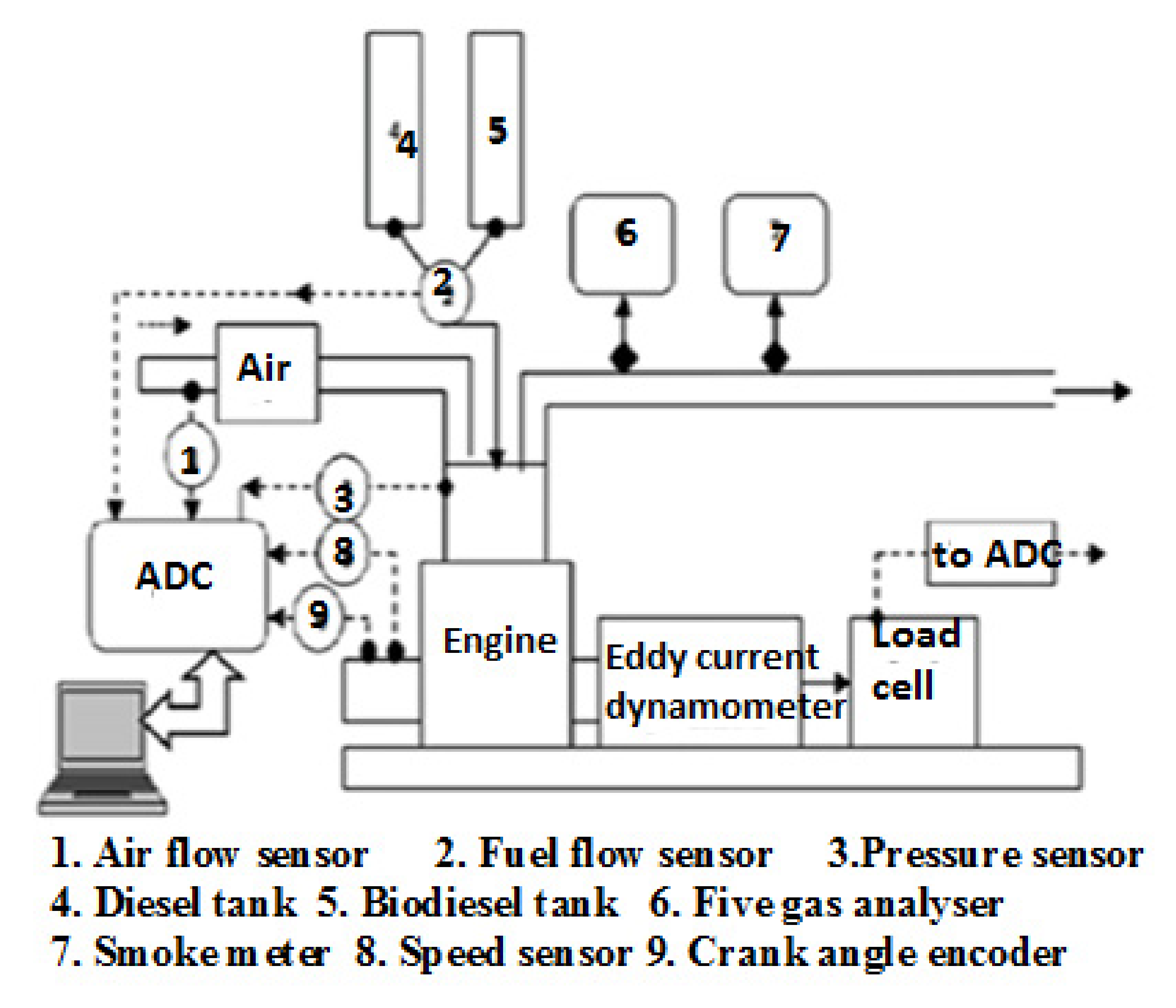

The engine test was conducted on a Kirloskar diesel engine and connected to a dynamometer to apply the load. Figure 2 depicts a schematic diagram of the engine test bed. The loads were provided by changing the current, which created magnetic resistance on the shaft’s movement. The speed of the engine was controlled by a centrifugal governor. The engine speed was regulated by a centrifugal governor.

Table 2. Test engine technical details.

Make	Kirloskar
Type of cooling	Air
Bore diameter	87.5 mm
Stroke length	110 mm
Brake power	4.44 kW
Compression ratio	17.5:1
Speed	1500 rev m−1
Fuel injection timing	23o before TDC
Injection pressure	200 bar

depicts the main specifications of the engine. Two different fuel tanks were utilized to store diesel and biodiesel fuel. The engine’s quantity of fuel consumed by the engine was measured by a stopwatch for the time taken to 10 cc of fuel. To investigate the temperatures at various points on the engine, a K-Type thermocouple was employed. An AVL-444 gas analyzer was used to measure CO, HC, and NO emissions, and an AVL-437C smoke meter was used to measure smoke in the tail pipe.

In the cylinder head, a piezoelectric pressure sensor was fitted to get the combustion pressure-crank angle history, an electro-optical sensor was utilized to determine TDC location, and the crank angle was gauged using a crank angle encoder. Cylinder pressure, crank angle, and TDC position are captured by a high-speed computer-based data acquisition system were employed.

Table 3. Instruments uncertainty.

Instrument	Measurement	Range	Accuracy	Uncertainty
AVL DI Gas 444 C Five gas analyzer	CO	0–10% Vol	±0.03%	±0.2%
	CO2	0–10% Vol	±0.1%	±0.15%
	HC	0–20,000 ppm	±10 ppm	±0.2%
	O2	0–22% Vol	±0.1%	±0.5
	NOx	0–5000 ppm	±50 ppm	±1
AVL 437 C smoke meter	Opacity (%)	0–100%	0.1	±1%
Crank angle encoder		720°	±1%	±0.2%
Pressure sensor		0–250 bar	±1%	±0.2%

represents the range and accuracy of the devices. After 5 min of loading, the performance and emission parameters of each fuel were evaluated to confirm that the measured parameters did not alter. Each test was run three times, and the average readings were obtained for computation. The relevant performance parameters, emissions, and smoke opacity for each load were documented.

2.5. Uncertainty Analysis

The current engine testing included a variety of errors caused by calibration, equipment accuracy, ambient circumstances, and observer error, among other things. Uncertainty analysis is performed in order to acquire correct findings. The propagation of the uncertainty approach, often known as the root mean square approach, was used to calculate the engine system uncertainties [33]. The formula was used to determine the uncertainty of the engine performance parameters.

$$w_R={\left[\left(\frac{\partial R}{\partial x_1}{w}_1\right)+\left(\frac{\partial R}{\partial x_2}{w}_2\right)+\dots +{\left(\frac{\partial R}{\partial x_n}{w}_n\right)}^2\right]}^{\frac{1}{2}}$$

R is a given function that is influenced by independent factors like x₁, x₂, x₃...x_n. Furthermore, w_R is defined as the overall percentage error, whereas w₁, w₂, ... w_n are the errors in the independent variables [33]. The percentages of errors for varying amounts are summarized in Table 3. An error analysis was performed using Taylor’s theorem to verify the accuracy of the test findings. The overall degree of uncertainty is represented by,

$$\begin{gathered} \mathrm{Overall}\mathrm{uncertainty}=\sqrt{\left[{\left(\mathrm{BTE}\right)}^2+{\left(\mathrm{BSFC}\right)}^2+{\left(\mathrm{HC}\right)}^2+{\left(\mathrm{CO}\right)}^2+{\left(\mathrm{NOx}\right)}^2+{\left(\mathrm{Smoke}\right)}^2\right]}= \\ \sqrt{\left[{\left(1.0\right)}^2+{\left(1.0\right)}^2+{\left(0.2\right)}^2+{\left(0.1\right)}^2+{\left(0.2\right)}^2+{\left(1.0\right)}^2\right]}=\pm 1.76\% \end{gathered}$$

3. Results and Discussion

Initially, the test was conducted with diesel and B25, and then, the test was repeated with B25Al25 and B25Al50 fuel blends. The engine performance, emissions, and combustion parameters were measured for fuels, and the results were compared with base fuels.

3.1. Combustion Analysis

3.1.1. Cylinder Pressure

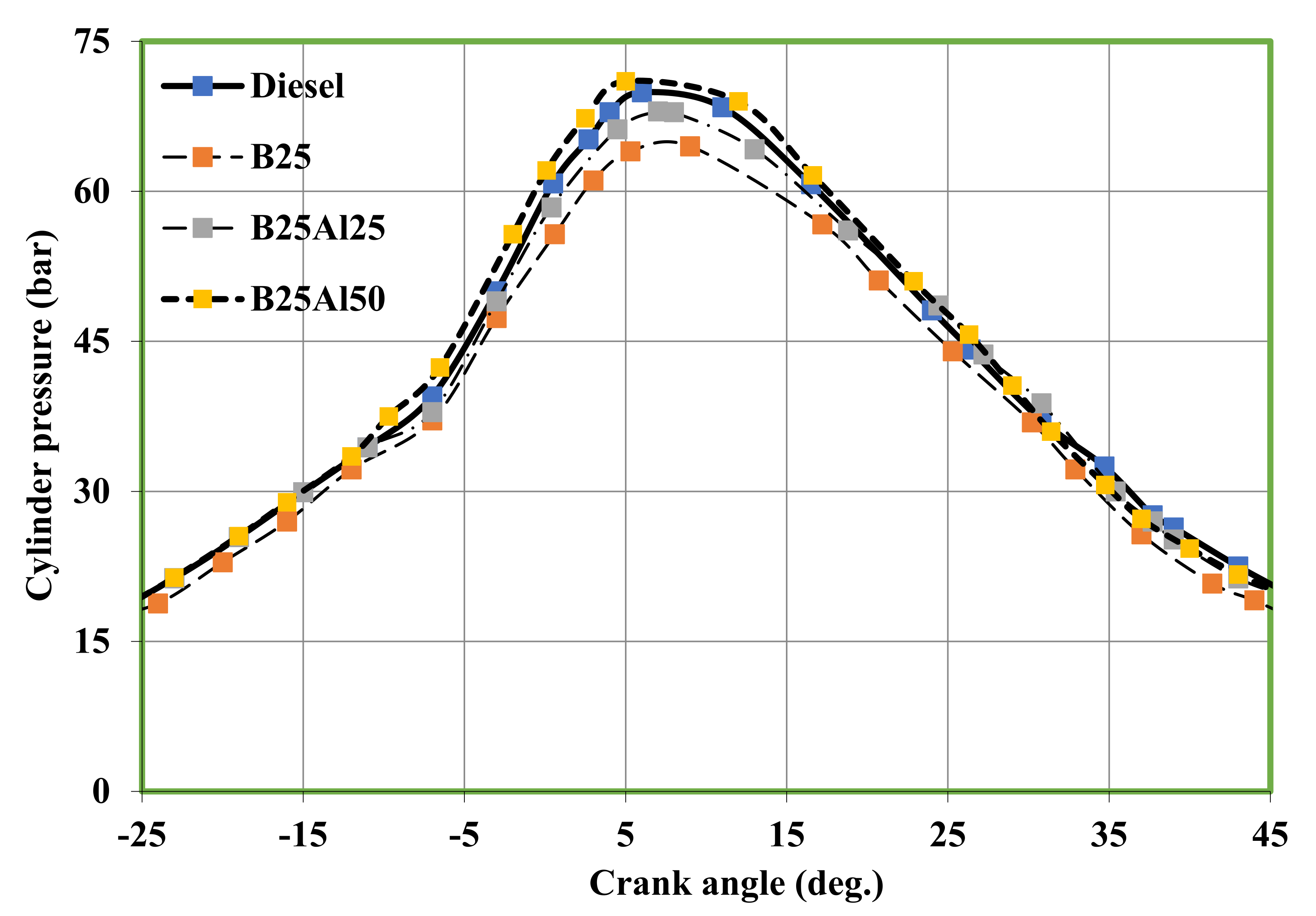

CI engine peak pressure is governed by the beginning of the burning rate and controlled by the quantity of fuel burning during premixed burning stage. Ignition delay interval and mixture preparation also control premixed burning. Figure 3 depicts the differences in cylinder pressure versus crank angle for all test fuels. Peak pressure and occurrence at peak power circumstances for diesel, B25, B25Al25, and B25Al50 are 69 bar at 6° aTDC, 64.5 bar at 9° aTDC, 68 bar at 7° aTDC and 71 bar at 5° aTDC, respectively.

The lower cylinder pressure for B25 is due to its low energy content and greater viscosity when compared to diesel. For biodiesel blended with nanoparticles B25Al25 and B25Al50, the cylinder pressure was increased due to more oxidation of biodiesel–nanoparticle mixture resulting in improved combustion leads to shorter delay period and increased cylinder pressure [30,34]. Furthermore, combining alumina nanoparticles and biodiesel resulted in a significant improvement of cylinder pressure as contrasted to a diesel and biodiesel mixture. This boost in cylinder pressure might be responsible for an increased surface area of nanoparticles and additional O₂ molecules in biodiesel, which helps to speed up biodiesel oxidation. Furthermore, the enhanced air–fuel mixture promotes fuel burning within the cylinder [35]. At peak load, the cylinder pressures for diesel and B25 were 69 bar and 64.5 bar, respectively; however, when alumina nanoparticles were mixed with B25 blend in the fractions of 25 ppm and 50 ppm (B25Al25 and B25Al50), the cylinder pressures were 68 bar and 71 bar, respectively.

3.1.2. Heat Release Rate (HRR)

The HRR is computed as the combination of pressure work and the working fluid’s change in internal energy [36]. The HRR is replicated by computing the chemical energy of fuels and representing the rate of post-combustion heat energy [34]. The HRR achieves its highest value at full load, demonstrating that as load grows, so does the rate of air and fuel mixing, resulting in a higher measure of HRR during the premixed and mixing controlled combustion phases. Due to its greater energy content than B25, diesel has a higher heat release rate than B25.

Figure 4 displays the changes in HRR with a crank angle for all test fuels. At peak power, the HRR reaches its maximum value. Diesel clearly has a larger HRR than B25 due to its higher energy content; an increased HRR is obvious because of the rapid combustion of diesel in the premixed stage, and biodiesel exhibited lower HRR. By incorporating nanoparticles into biodiesel, oxidation is increased, resulting in improved combustion and fewer deposits on the surface of the wall [28,34]. The HRR for nanoparticle–biodiesel blends was also shown to be greater than those of biodiesel and diesel. The incorporation of Al₂O₃ nanoparticles into B25 reduces the delay period and facilitates quicker combustion initiation. At peak power, the HRR for diesel and biodiesel is 70 J/°CA and 65 J/°CA, respectively, but the HRR for nanoparticles–biodiesel blends B25Al25 and B25Al50 is 71 J/°CA and 73 J/°CA, respectively. Basha et al. [35] established a similar pattern of results when combining biodiesel with nanoparticles.

3.1.3. Cumulative Heat Release

Figure 5 depicts the fluctuation in CHRR for various fuels with reference to CA at peak load. The greatest CHRR was reported for B25Al50 (636 J/°CA), which is 11.2%, 7.4%, and 7.6% greater than diesel, B25 and B25Al25, respectively. The CHRR pattern of test fuels revealed substantial fluctuation in the ignition delay period, resulting in excess fuel storage during premixed combustion duration, resulting in higher CHRR levels. Maximum CHRR of diesel and B25 are 572 J/°CA and 592 J/°CA, respectively, and for B25Al25 and B25Al50, it is 617 J/°CA and 663 J/°CA, respectively. These findings were similar to the earlier findings of Basha and Anand (2011) for biodiesel with nanoparticle mixtures.

3.1.4. Ignition Delay

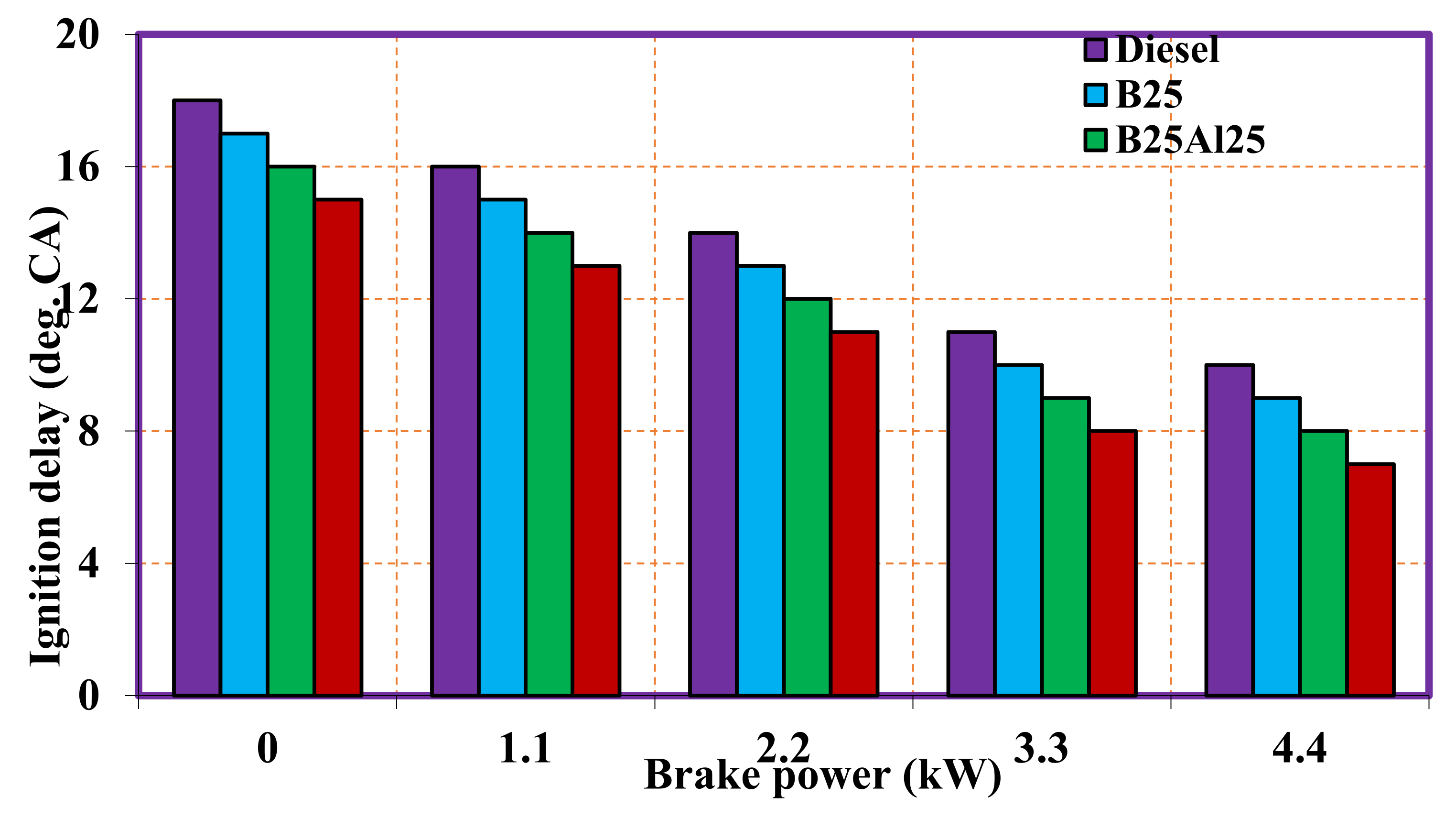

In terms of crank angle, the ignition delay is defined as the time between the start of combustion and the start of injection into the engine. It depicts the whole pre-combustion process at the beginning, and at the end, it shows fuel evaporation and vaporization, a greater combining rate and its atomization of fuel [36]. Change in ignition delay as a function of load for all test fuels are fuels are illustrated in Figure 6. It indicates that, when compared to all other fuel mixtures, diesel has a higher ID under all load conditions. At peak load, the shortest ID is found for B25Al50, which is 3 °CA, 2 °CA, and 1 °CA less than diesel, B25, and B25Al25, respectively. Furthermore, under peak load, B25Al25 has a smaller ID than diesel and B25. Diesel had a longer ignition delay than the other test fuels, whereas the alumina nanoparticles fuel mixtures had a shorter ID [21,34]. This would happen because higher energy content with enhanced surface tension and concentration offers improved atomization, leading to a lower delay period. At peak power, the ID for diesel and B25 are 10 °CA and 9 °CA, respectively, but it is 8 °CA and 7 °CA for B25Al25 and B25Al50.

3.1.5. Combustion Duration (CD)

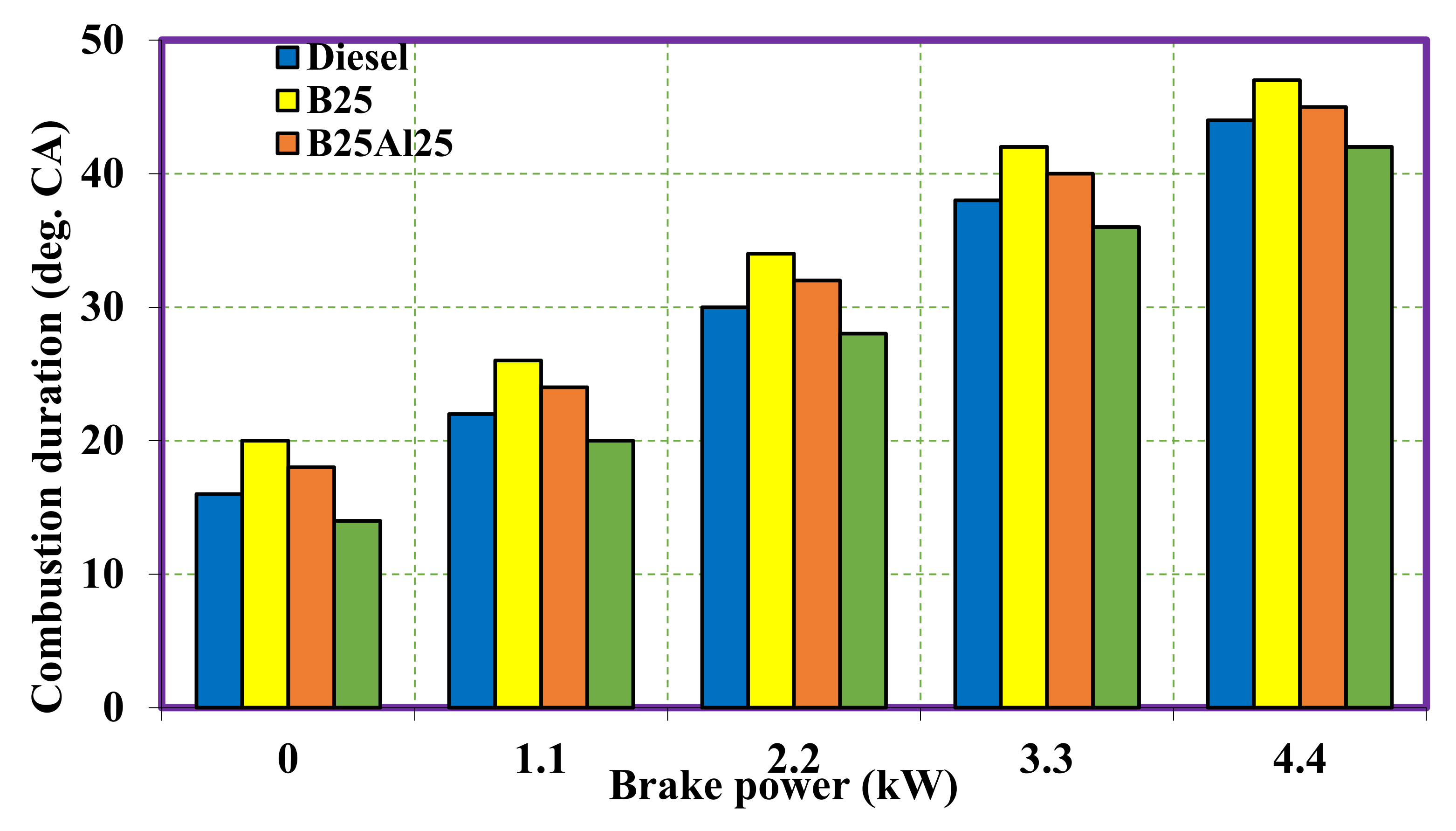

Figure 7 demonstrates the change in CD and brake power for all fuels. Due to the turbulence of air motion throughout the cylinder and fuel properties, the combustion duration was regulated by crank angle duration ranging from 10% to 90% mass burnt (Heywood, 2018). At peak load, the combustion duration for diesel is 44 °CA and for B25 is 47 °CA, but it is 49 °CA and 46 °CA for B25Al25 and B25Al50, respectively. When compared to diesel, B25, and B25Al25, the combustion duration for B25Al50 is shortened by 2 °CA, 5 °CA, and 3 °CA, respectively. It is also worth noting that at peak load, B25Al25 has a lower CD than diesel and B25. This reduction in combustion time might be attributed to the increased surface area, which contributes to more oxidation of alumina nanoparticle mixed biodiesel, resulting in improved combustion [21,28].

3.2. Performance Analysis

3.2.1. Brake Thermal Efficiency

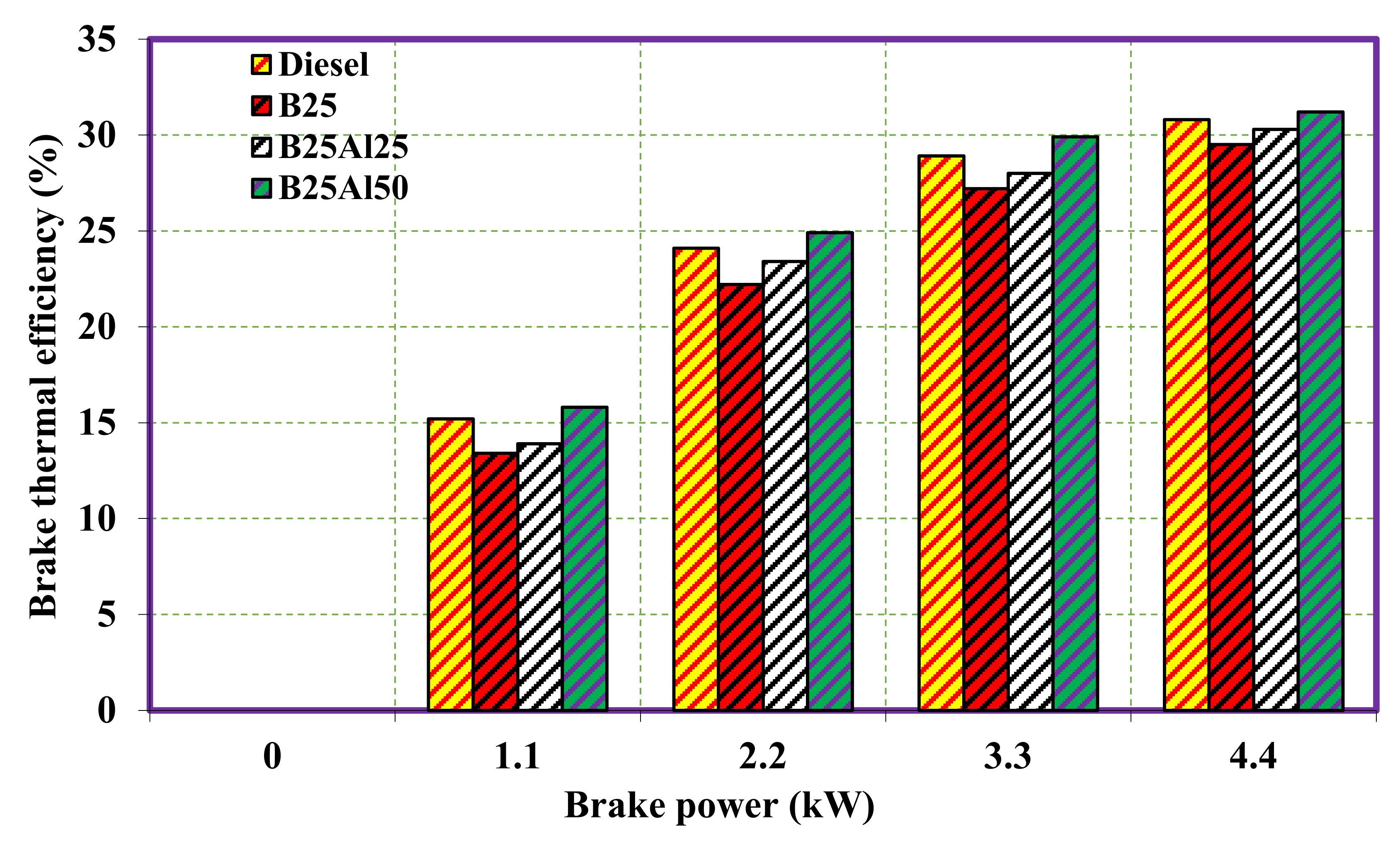

BTE is a measure of the amount of chemical energy of the fuel is converted into productive work (Annamalai et al., 2016). BTE is influenced by heating value, and fuel usage influences BTE [36]. Figure 8 depicts the change in brake thermal efficiency (BTE) with regard to BP for diesel and biodiesel with nanoparticle combinations. It is noted that BTE ranges from 13.4 to 32.5% for tested fuels. BTE for B25 ranges from 13.4 to 29.5% between no load and peak load. BTE for diesel varies from 15.2 to 30.8% and varies from no load and peak load. BTE improves with rises in load due to reduced heat transfer and greater cylinder wall temperature. The BTE of B25 was lower than that of diesel owing to the low energy content and higher viscosity of biodiesel, which leads to poor burning of fuel. Furthermore, all biodiesel–nanoparticle combinations were shown to have greater BTE than biodiesel mix. BTE for B25Al25 rises from 13.9 to 30.3%, whereas BTE for B25Al50 rises from 15.8 to 31.2% at no load to peak load. This could be attributed to nanoparticle absorption in biodiesel mixtures, which causes additional atomization following the nano explosion event of fuel mixing and facilitates entire combustion (Sivakumar et al., 2017). Because nanoparticles–biodiesel mixture has a shorter physical delay, a faster evaporation rate, a longer flame sustained, and a greater flame temperature, they improve BTE [35,37]. Moreover, Al₂O₃ nanoparticles enhance combustion and BTE by lowering ignition latency and boosting cylinder depth of penetration and mixture momentum in the combustion chamber.

3.2.2. Brake Specific Fuel Consumption

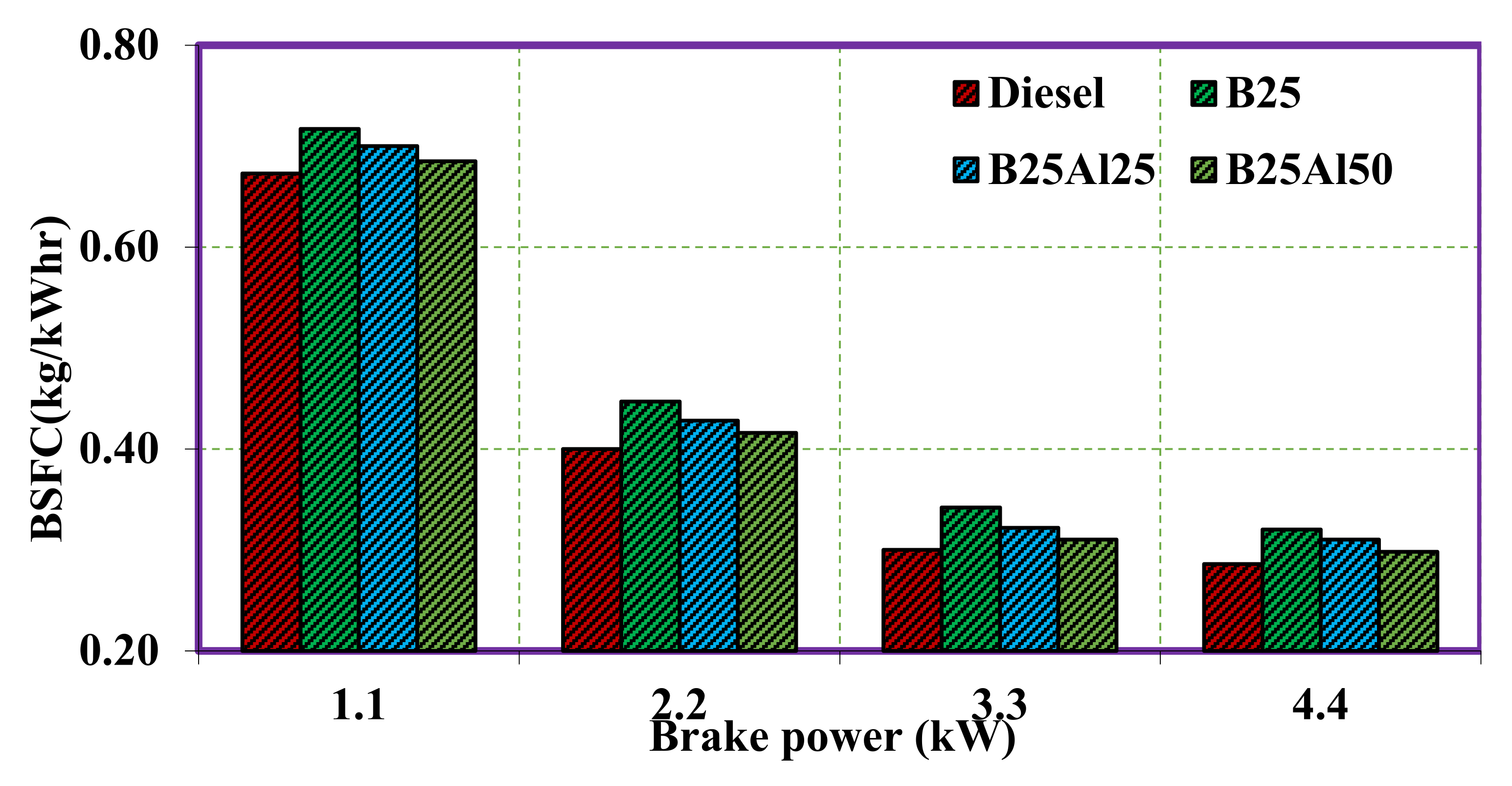

BSFC is a measure of fuel efficiency that indicates the ratio of consumption rate to brake power. For engine operation, a lower BSFC level is preferred. The BSFC is a measuring scale used to evaluate engine efficiency in converting thermal energy from a fuel into required braking power [37]. Because of its lower energy content and higher kinematic viscosity, the B25 biodiesel blend has a greater BSFC than diesel. As a result, more fuel must be used to provide the same amount of power. Figure 9 show that all four biodiesel–nanoparticle combinations had lesser BSFC than biodiesel mixture B25.

The addition of 25 and 50 ppm of alumina nanoparticles with B25 reduces the BSFC to 0.31 kg/kWh and 0.3 kg/kWh, respectively, compared to B25 (0.32 kg/kWh). The physical properties of nanoparticles are responsible for the reduction in BSFC, which provide an excess of oxygen throughout the whole combustion process. The nanoparticles prevent the development of carbon deposits, which reduces cylinder friction and, as a result of the reduction in SFC [34]. Lower BSFC is also owing to the beneficial impact of Al₂O₃ nanoparticles, which undergo catalytic oxidation reactions. Furthermore, the inclusion of alumina nanoparticles in biodiesel mix increases the evaporation rates and improves biodiesel combustion. At full load, the BSFC of diesel, B25, B25Al25, and B25Al50 is 0.29 kg/kWh, 0.32 kg/kWh, 0.31 kg/kWh, and 0.3 kg/kWh, respectively. Moreover, BSFC found for B25Al50 is 0.33% and 6.3% lower than diesel and B25, respectively, at maximum power. Because of the increased oxidation of B25-nanoparticle mixes, these results are equivalent to those reported by Annamalai et al. [30] when nanoparticles were enriched with biodiesel mixture.

3.3. Emission Analysis

3.3.1. Carbon Monoxide Emissions (CO)

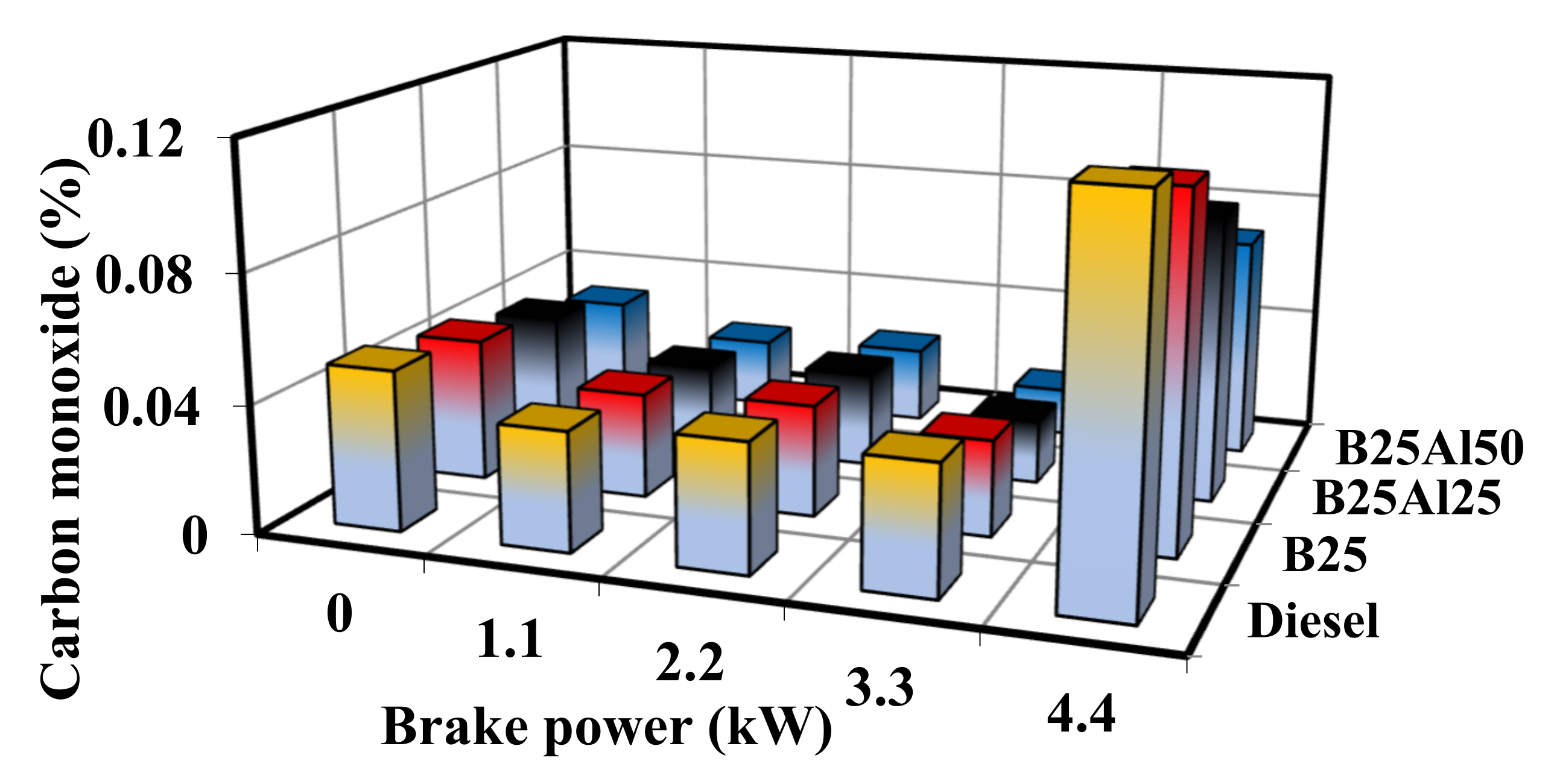

Carbon monoxide emissions are created as a result of the decreased oxygen present during burning [30,34]. Figure 10 indicates the effect of CO emission with BP for diesel, B25 mixture, and nanoparticle fuel mixes. Carbon monoxide is generated as a result of poor fuel-air mixing, concentrated rich zones, and a shortage of readily available oxygen for burning [36]. CO emissions vary between 0.04 and 0.07% from no load to full load for the tested fuels. For B25, CO emissions vary from 0.3 to 0.14% between low loads and peak power. Diesel CO emissions range from 0.05 to 0.14% between low loads and full load. As seen in the graph, CO emission reduces with increasing up to 75% of the load but rapidly jumps at peak load due to an increase in the higher injection of fuel, leading to poor burning. CO emissions produced by the B25 at full load are much lower than those produced by pure diesel. This could be because the oxygen atom present in the fuel accelerates the oxidation, resulting in better burning of biodiesel.

At full load, CO emission of B25Al25 and B25Al50 is 0.09 percent and 0.07 percent, respectively. Furthermore, increasing the concentration of nanoparticles in biodiesel mixes reduces CO emissions owing to the influence of catalytic response, which improves biodiesel oxidation and results in full combustion. Additionally, this is owing to the beneficial impact of Al₂O₃ nanoparticles, which experience catalytic oxidation reaction, therefore empowering the air–fuel mixing rate. Furthermore, at peak load, the diesel engine runs on biodiesel–nanoparticle combinations, which create reduced CO emissions as compared to the B25 blend. This is because of additional oxygen in Al2O3 nanoparticles, which improves oxidation and results in improved combustion and lower CO emissions. [21,30,34]. At peak load, diesel, B25, B25Al25, and B25Al50 had average CO emissions of 0.14%, 0.11%, 0.09%, and 0.07%, respectively. The CO emissions of B25Al50 are 36% and 22% lower than B25 and B25Al25, respectively, at maximum load.

3.3.2. Hydrocarbon Emissions (HC)

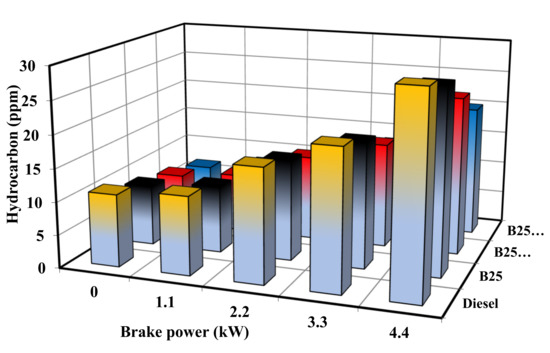

The main factors that influence HC emissions are spray behaviors, fuel qualities, and air–fuel ratio; due to limited oxygen present during burning, HC emissions are generated. Figure 11 illustrates the change of HC emission with brake power for diesel, biodiesel blends, and their nanoparticle mixtures. At peak load, according to the graph, the HC emission for the B25 is 28 ppm, while the diesel emission is 32 ppm. The addition of an extra O2 molecule in the molecular structure promotes oxidation and, therefore, leads to improved combustion, resulting in lower HC emissions. HC emissions from no load to peak load range from 7 to 32 ppm for tested fuels. From no load to peak load, HC emissions for diesel range from 11 to 32 ppm and for B25, it ranges from 9 to 28 ppm, respectively. HC emissions for B25 are diminished by applying 25 and 50 ppm of alumina nanoparticles, lowering them from 8 to 24 ppm and from 7 to 20 ppm, respectively. Alumina nanoparticles performed as oxidation catalysts, which boosted the HC oxidation resulting in lower HC emission [37].

Furthermore, when compared to biodiesel, biodiesel with nanoparticle mixture had lower HC emissions (B25). HC emissions are 24 ppm and 20 ppm for B25 with 25 ppm and 50 ppm alumina nanoparticle mixes, respectively. This is likely owing to an increased surface to volume ratio, enhanced enzymatic performance, and better fuel–air mixing rate, all of which result in a shorter ignition delay. In general, regardless of the proportion of nanoparticles, HC concentrations were lower than diesel and biodiesel mixtures. The inclusion of additional oxygen in the nanoparticles speeds up biodiesel oxidation, resulting in better combustion. The activation energy of nanoparticles in the mixes also burnt the carbon deposits on the wall, leading to decreased HC concentrations (Prabhu and Anand 2016). At peak power, diesel, B25, B25Al25, and B25Al50 had average HC emissions of 32, 28, 24, and 20 ppm, respectively. Additionally, the HC emissions for B25Al50 are 38, 29, and 17 lower than diesel, B25, and B25Al25, respectively, at peak power conditions. Prabhu and Anand [21] discovered comparable HC emissions patterns with biodiesel-nanoparticle combinations.

3.3.3. Nitrogen Oxide Emission (NO)

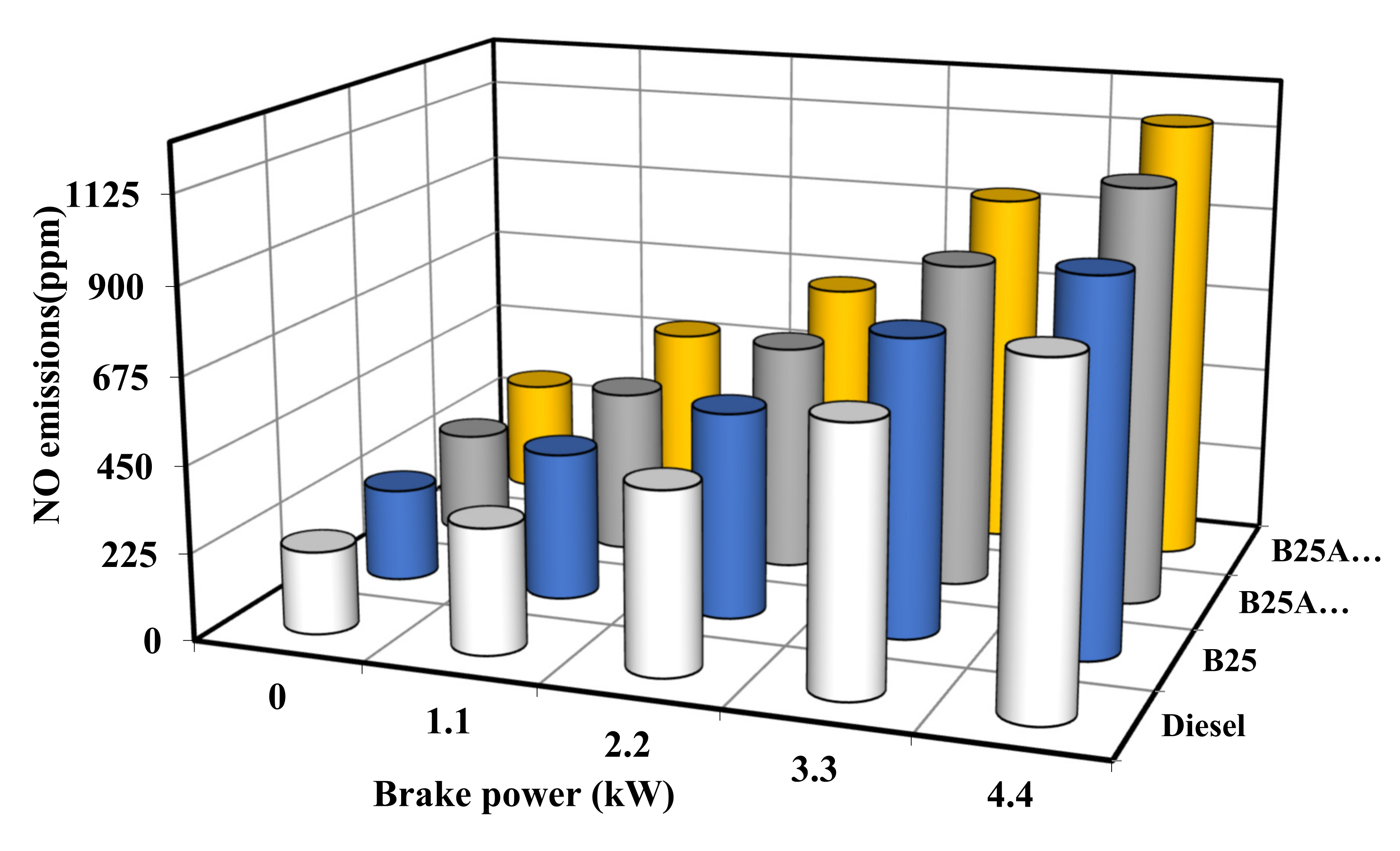

The main reason for NO generation is a longer residence period and a higher combustion temperature [34]. Nitrogen oxides are nitric oxide (NO) and nitrogen dioxide (NO2) gases involved in reacting chemically in the atmospheric air at elevated combustion temperatures (Heywood 1998). Greater NOx emissions were produced as a result of higher fuel injection to achieve high power, and the inherent O₂ concentration contained in biodiesel increases oxidation, resulting in an elevated peak temperature. The fluctuation in NO emission with BP for diesel, biodiesel, and different dosages of nanoparticle mixtures is depicted in Figure 12. For all test fuels, NO emissions were obtained in the range from 214 to 1164 ppm. From the graph, NO emissions obtained for diesel in the ranges from 214 to 872 ppm from 0 kW to 4.4 kW power. NO emissions for B25 range from 242 to 960 ppm between 0 kW and 4.4 kW power.

NO emissions for B25 are reduced by the introduction of 25 and 50 ppm of alumina nanoparticles, resulting in NO concentrations ranging from 268 to 1084 ppm and from 296 to 1164 ppm between no load and peak load conditions. Moreover, NOx concentrations were minimized when the engine was run by biodiesel–alumina nanoparticle mixtures. This is owing to the catalytic characteristic of Al₂O₃ nanoparticles, which allows the interaction to be performed, and the end products to be produced with thermal degradation of hydrocarbon molecules is kept to a minimum. The inclusion of nanoparticles speeds up the combustion process by raising cylinder pressure and leads to higher combustion temperature, which promotes the NO concentration [21,37,38]. At peak power, diesel, B25, B25Al25, and B25Al50 had average NO emissions of 872, 960, 1084, and 1164 ppm, respectively. Moreover, at peak power, the NOx for B25Al50 was improved by 33%, 21%, and 7% as compared to diesel, B25, and B25Al25, respectively.

3.3.4. Smoke Opacity

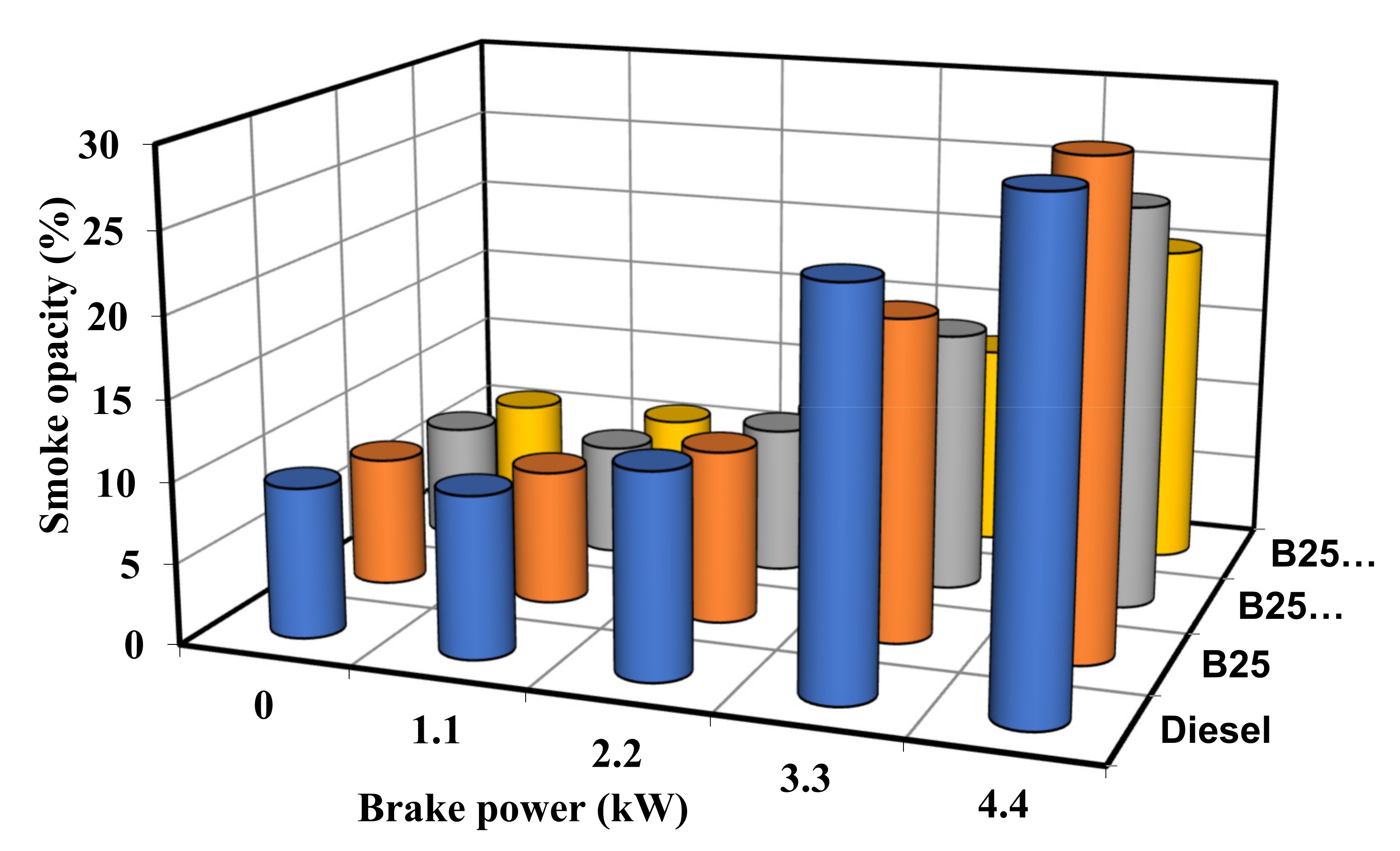

Because of the insufficient quantity of oxygen available for burning, smoke opacity is formed [34,37]. Figure 13 illustrates the fluctuations in smoke with BP for all tested fuels. The smoke opacity varied with increasing load, as shown in the figure, and smoke ranged from 6 to 45% for all tested fuels. Smoke obtained for B25 ranged from 8 to 34% from zero loads to maximum load of 4.4 kW, whereas for diesel smoke emissions ranged from 9 to 45% from low load to maximum load. Because biodiesel provides more fuel-borne oxygen, which promotes oxidation, the smoke obtained for B25 is lower than diesel at peak load [39,40,41,42]. At peak load, the smoke produced by diesel and B25 is 45 and 34%, respectively.

At peak load, combining 25 and 50 ppm of Al₂O₃ nanoparticles to B25 decreased smoke emissions by 7–25% and 6–20%, respectively. The inclusion of alumina nanoparticles to B25 resulted in a reduction in ignition delay, improved evaporation, and enhanced ignition properties [30]. The presence of excess oxygen in Al₂O₃ nanoparticles serves as an oxidation catalyst, resulting in a significant improvement in carbon oxidation and, as a result, a reduction in smoke output. Furthermore, integrating nanoparticles with biodiesel blend reduces the opacity of the smoke, enhances the evaporation, and enhanced fuel–air mixing results in a shorter igniting delay and quicker oxidation of B25 mixture [37,38,39]. At peak load, diesel, B25, B25Al25, and B10025Al50 have average smoke emissions of 45, 34, 25, and 20%, respectively. Moreover, at peak load, smoke for B25Al50 was decreased by 56%, 42%, and 20% when compared to diesel, B25, and B25Al25, respectively [39,43,44,45,46,47].

4. Conclusions

In the present study, rubber seed oil methyl ester–diesel mix was mixed with alumina nanoparticles at different dosage levels. The physical-chemical properties of biodiesel were evaluated. The engine working characteristics of a DI diesel engine were examined. The following conclusions were established obtained from the experimental observations.

Enhancing the BTE of B25 by 25 and 50 ppm of alumina nanoparticles boosts the BTE from 0 to 30.3% and from 0 to 31.2%, respectively. Moreover, the inclusion of 25 and 50 ppm of alumina nanoparticles with B25 decreased BSFC compared to B25.

• Emissions of CO for B25 decreased to 0.09% and 0.07%, respectively, by using 25 and 50 ppm of alumina nanoparticles. Furthermore, introducing 25 and 50 ppm of alumina nanoparticles to B25 diminished HC emissions from 24 ppm and 20 ppm, respectively.
• Applying 50 ppm of alumina nanoparticles to biodiesel mixtures enhanced NO emission due to better heat capacity and enzymatic activity of nanoparticles as compared to B25. The inclusion of alumina nanoparticles to B25 resulted in a shorter ignition delay, improved evaporation, and lower HC emissions.
• Smoke opacity was decreased to 25% and 20%, respectively, by putting 25 and 50 ppm of aluminum nanoparticles to B25. The use of nanoparticles enhanced oxidation stability, heat capacity, and catalytic activity, all of which enhanced biodiesel combustion.
• At peak load, using nanoparticles with biodiesel decreased ignition delay and enhanced the cylinder pressure and HRR. Furthermore, the inclusion of nanoparticles in biodiesel decreased combustion duration owing to the higher surface area, resulting in increased fuel oxidation and hence better combustion.
• Overall, the biodiesel blend with alumina nanoparticle mixed fuel combination may be regarded as potential alternative fuels for usage in diesel engines. Nanoparticles improve engine power while simultaneously lowering the engine’s specific fuel consumption by decreasing the CO, HC, and smoke emissions.
