Article

Non-Linear Microscopy: A Well-Established Technique for Biological Applications towards Serving as a Diagnostic Tool for in situ Cultural Heritage Studies

by
Meropi Mari
* and
George Filippidis
Institute of Electronic Structure & Laser, Foundation for Research and Technology-Hellas, 71110 Heraklion, Greece
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(4), 1409; https://doi.org/10.3390/su12041409
Submission received: 16 December 2019 / Revised: 5 February 2020 / Accepted: 10 February 2020 / Published: 14 February 2020
(This article belongs to the Special Issue Applications of Minimally Invasive Imaging Techniques in Cultural Heritage)
Browse Figures
Versions Notes

Abstract

:
A range of sophisticated imaging techniques have been developed in recent years that can reveal the surface structure of cultural heritage objects with varying precision. In combination with various spectroscopic methods, they allow the study of the chemical composition of the object; thus, conclusions can be drawn about the origin of the object or its initial components, method, or time of creation, authenticity, mechanisms of degradation, and ways of further conservation. At present, different techniques can be applied to a wide range of cultural heritage objects, such as varnishes, paintings, archaeological objects, binding media, paper-based documents, parchments, marbles, frescoes, as well as various objects made of leather, fabric, stone, ceramics and glass, wood, or metal. One of the main needs in the study of cultural heritage (CH) is the transportability/portability of the research equipment, since many pieces under investigation cannot be moved to the laboratory, either because of their size, inseparability (for example, frescoes on walls, mural paintings in caves), or the threat of damage. In this work, we briefly overview the main optical- and laser-based methods used for the study of cultural heritage objects indicating the scope of their application, and we focus on the applications of non-linear microscopic methods for the investigation of a series of artifacts. We also discuss all the requirements for the construction of a prototype transportable non-linear optical system that will be used as a novel diagnostic tool for in situ studies of CH assets. The availability of such a transportable workstation will significantly improve the study and characterization of various types of CH objects and will constitute an extremely useful diagnostic tool for heritage scientists dealing with a variety of investigations.

1. Introduction

Artworks such as paintings consist of a variety of layers with different chemical composition [1]. A painted artwork is a complex multi-layer structure, as shown in Figure 1. A typical layer is the “support” layer, which is the base of the painting and protects it from a range of mechanical impacts. There is a wide range of support layers, which may include paper, fabric or canvas, plaster, glass, wood, metal, or rock (frescoes, petroglyphs). In addition, the support layers are usually covered by various glues to ensure sufficient adhesion. A canvas or fabric support layer is usually attached on stable, knot-free, usually wooden, material called a “stretcher”. There is also the “ground” layer that is between the paint and support layer usually made of gesso, which usually contains chalk or even white lead pigment. The “paint” layer is a mixture of the pigment (fine powder) and a binder (a substance that keeps the powder uniform). Pigments are ground colored materials either of inorganic (e.g., ultramarine blue) or organic (e.g., lakes such as madder, cochineal) origin [2]. Some of them can be found in nature as mixtures in minerals, and others are prepared in the lab. There is a wide range of binders. Widely-used binders are linseed oil, egg tempera, animal glue, and gum arabic. A painted artwork may consist of a variety of paint layers, underdrawings, and underpaintings. Finally, the “varnish” layer is a transparent coating that provides additional protection to the painting or acts as a glazing agent determining the visual perception of the layers underneath. It is often made of natural (dammar, mastic, colophony) or synthetic (Regalrez, Vinavil, Paraloid) resin [2,3].

1.1. Problem Statement: Factors that Cause Degradation of a Cultural Heritage (CH) Object

Cultural heritage objects suffer from various defects and degrade with time. Aging, inappropriate handling, pollution, temperature, light, bacteria or insects, and other factors may affect the color of the object, or may cause cracks, chemical reactions, or layer detachment and lead to damage. Degradation phenomena related to paintings, paper, plaster, glass, wood, and metal have been thoroughly studied [4,5,6,7,8,9,10]. The earlier the restoration begins, the more effective and the less expensive it is. That is the reason why conservators need to have an early diagnosis of any ongoing damage to the painting. For this reason, they require a number of diagnostic methods to be able to recognize any deterioration. Clearly, these methods should be non-destructive; otherwise the diagnostics can be more harmful than the deterioration itself. There has been research on works of art, by computational modeling, and physical and chemical studies, that improve our prediction of artwork appearance before degradation and establish effective preventive conservation strategies [4].
Other factors that can damage culture and history are forgery and art fraud. Art forgery is the act of creating a copy of an existing piece of art or mimicking the style of another artist, employing similar materials to deceitfully assign or date artworks. In this case, such artworks can be identified as original and auctioned for a high price. In such cases, independent scientific techniques are extremely necessary to recognize forgery. This requires deep knowledge of art history and the artists’ work, as well as the materials available at the time the artwork was created [11].
The removal of aged or damaged layers from the surface of paintings is a delicate and crucial intervention in cultural heritage (CH) conservation. This irreversible action gets particularly complicated considering the variety of materials that may be present within a painted work of art, as well as the exceptional sensitivity of the original surfaces to environmental conditions such as heat, light, and pollution. Lasers hold an important role among the available cleaning methodologies, as they enable high control and accuracy and material selectivity. Still, prior to their implementation, it is imperative to optimize the cleaning parameters by employing novel diagnostic techniques, so to ensure that any potential implications to the remaining materials are minimal and well understood [12].

1.2. Diagnostic Imaging Methods in the Service of Cultural Heritage

A number of analytical and diagnostic techniques have been employed, ranging from micro-destructive ones in which sampling is necessary, to non-contact and non-invasive ones. A brief overview of the main optical and laser-based methods that are well established and used for the study of cultural heritage objects are presented in the next section.

1.2.1. Laser-Induced Breakdown Spectroscopy (LIBS)

Laser-Induced Breakdown Spectroscopy (LIBS) is a spectrochemical technique enabling multi-element analysis of the materials that constitute an artwork. It is increasingly employed in archaeological and historical studies [13,14]. LIBS is classified as a micro-invasive technique. Its micro-destructiveness, with ablated sample portions in the order of fractions of micrograms and induced damage are virtually invisible to the naked eye. It has the potential for fast multi-elemental analysis and capability of simultaneous detection of major and trace elements [15]. Moreover, LIBS requires no surface preparation and is capable of in situ depth profile analysis, if spectra on the same spot are recorded individually [16]. Its equipment can be easily converted into portable instruments for in situ analyses of pieces of art [17,18,19]. Finally, the mobile LIBS instruments and experimental modules open up a wide field of opportunities for analytical campaigns carried out on location; at the museum, the conservation laboratory, or even outdoors, such as, for example, at an excavation or historical site [18].

1.2.2. Holography

Holography and holographic-related interferometry are modern tools to art conservators or researchers. These methods are exploited to reveal structural faults and mechanical discontinuities in the bulk of a piece of art. Holographic analysis is based on the study of interference patterns as an effect of controlled surface reflection of diffused laser beams. The surface is kept unaffected during holographic imaging; thus, it is a non-destructive technique [20]. Three-dimensional imaging provided by holography has motivated the development of digital holographic imaging methods based on computer generation of holograms as a holographic display or a holographic printer [21]. The holographic printing technique relies on combining digital 3D object representation and encoding of the holographic data with recording of analog white light viewable reflection holograms.

1.2.3. Multi-spectral Imaging

Multi-spectral and hyperspectral modalities collect images of an object in a series of spectral windows. They are efficient methods for collecting millions of spectra since a spectrum is measured for each spatial pixel. It relies on the recording of sequential images at various spectral bands ranging from ultraviolet (UV)–visible to near-infrared (NIR) [22,23]. Multi-spectral imaging enables efficient capturing of spectral reflectance at millions of pixels simultaneously [24]. Thus far, multi-spectral imaging is the unique technique that has been applied directly to a map [25]. The advantage of such a non-invasive technique is to examine any region on the map and not be restricted to a few spots. The reflectance spectra can contribute to the identification of artists’ materials including pigments and paint binders [26]. The optimization of the implementation of hyperspectral imaging reflectance cameras in the analysis of artworks, paintings, and art on paper is also another research field with high importance [26].

1.2.4. Raman Spectroscopy

Raman spectroscopy has grown to be one of the most employed techniques for the investigation of art objects. The approach has several advantageous properties, and the minimally destructive character of the technique allowed it to be used for in situ investigations for obtaining valuable chemical information [19,27,28]. One of the most common applications is the authentication of a CH object [29]. Another important contribution of Raman spectroscopy to cultural heritage varies from the investigation of the causes of alteration and degradation [29,30] to the subsequent conservation and restoration recommendations [31]. However, compared with laboratory approaches, it would be useful to take advantage of the small spectral footprint of the technique and use Raman spectroscopy to study the spatial distribution of different compounds. An in situ Raman mapping system has been developed to relate chemical information with its spatial distribution. Challenges for the development include the need for stable positioning and proper data treatment [32]. The non-destructive character of Raman spectroscopy strictly depends on the experimental conditions of the analysis.

1.2.5. Fourier-Transformed Infrared Spectroscopy (FTIR)

The FTIR spectroscopy represents a valuable tool for the analysis of different types of historical artifacts due to its sensitivity and specificity [33]. The technique can be successfully applied for characterization of metallic artifacts [34], paper artifacts [35], or historical textiles [36]. Chemical changes because of materials aging can be observed and sometimes quantified using FTIR spectroscopy, which is important especially for art conservation efforts [37].
An FTIR microscope consists of an FTIR spectrometer combined with an optical microscope. Infrared spectroscopy is able to determine both inorganic and organic phases and provide information on the restoration process [38]. The total reflection mode is widely used in portable FTIR equipment [39], since it can acquire in situ spectra without the need to be in contact with the surface under examination and has been implemented in various CH studies. Specifically, Attenuated Total Reflection (ATR) and External Reflection (ER) are proven effective FTIR techniques for polymer identification and are beginning to appear in conservation labs [40]. Furthermore, an ATR-FTIR spectroscopic technique has been developed for the analysis of Chinese handmade papers [41]. The technique has been applied to Chinese handmade papers, followed by papers from ancient books and arts collected in libraries and museums. This study has indicated that FTIR is an efficient analytical method to identify fiber types of library/museum papers of unknown origin. Moreover, information about the degree of crystallinity and state of deterioration of cellulosic fibers can be extracted from FTIR spectra.

1.2.6. Optical Coherence Tomography (OCT)

OCT is a fast, high-resolution 3D scanning method based on a Michelson interferometer. Mapping produces either cross-section images or en-face images at various depths; a series of these can be combined to give 3D information. It is particularly suited to the examination of transparent layers, such as varnishes and glazes, although under certain circumstances it is capable of imaging the layer structure as far as the preparation layer [42]. The OCT examination that is non-invasive and non-contact, includes the subsurface layer of historic paintings at the microscale; paint and varnish layers [42,43], as well as other historic objects [44,45]. The reported applications for cultural heritage objects involve examination of wall paintings [46], paintings on glass support [47], stained glass [48], and semi-precious stones such as jade [44,49] and amber. OCT has the potential to monitor the conservation process—the removal of secondary layers, as well as the consolidation treatment [50], may be observed and evaluated fast. It may be possible to obtain layer structure to a greater depth and higher resolution by varying the parameters of the instrument, such as wavelength and bandwidth of the light source. An optimum spectral window for OCT was found to be ~2.2 µm, through the study of the transparency of pigments as a function of wavelength on various historic pigments in linseed oil and egg tempera [51].

1.2.7. Terahertz Time-Domain imaging (THz-TDI)

Terahertz radiation is capable of deep penetration through numerous and different media; thus, it has been used to identify ancient manuscripts or hidden text in a variety of studies [52,53]. THz radiation lies in the far-infrared region of the electromagnetic spectrum ranging from 0.1 to 10 THz (3.3–333 cm−1). One of the biggest advantages of THz is that, as submillimeter waves, they can penetrate through a wide variety of materials, such as paper, wood, masonry, clothing, plastic, and ceramics, which are usually opaque to both visible and infrared radiation. THz radiation can be used for hidden layer imaging since it trespasses further into the sample than infrared techniques, commonly used in art examination [54]. THz-TDI has been used to study various museum objects around the world. Commercial THz pulsed TDI systems have revealed multi-layer fabric sheets, mummies [55], and underpainting layers [56], but they mainly have investigated the structural information of wall paintings and their preparation layer that is related to the painting technique, which varies according to the origin of the artwork and is crucial for conservation planning [57]. Successive works have demonstrated the high potential of THz pulsed TDI for use as an analytical tool for panel paintings [58,59], Japanese panel paintings and screens [60], and oil paintings on canvas [61].

1.2.8. Laser-Induced Fluorescence Spectroscopy (LIF)

LIF spectroscopy is a non-destructive surface analytical method to identify the chemical composition of organic or inorganic compounds. The fluorescence of every material is unique and specific to its molecular structure. Different materials display differences in the fluorescence curves; their shape and wavelength for maximum fluorescence [62]. It permits a large scanning area; it can identify the binding media on frescoes, but also gives information on the pigment distribution and degradation [63]. Due to limitations concerning the low spectral resolution and the modest distinction in spectral signatures, LIF is being combined with other spectroscopy techniques, such as Raman and LIBS, to investigate model wall paintings and heritage stone samples [64].

1.2.9. Photoacoustic Microscopy (PA)

Photoacoustic microscopy (PA), a rapidly growing imaging method widely employed in biomedical research, exploits the ultrasonic acoustic waves, generated by light from a pulsed or intensity-modulated source interacting with a medium, to map the spatial distribution of absorbing components. Having over three orders of magnitude higher transmission through strongly scattering media, compared to light in the visible and near-infrared, the photoacoustic signal offers substantially improved detection sensitivity and achieves excellent optical absorption contrast at increased penetration depths. Photoacoustic images have been collected from miniature oil paintings on canvas [65,66]. In addition, it can precisely control the material removal on stone objects and determine the substrate’s damage threshold [67]. A simple case application related to the ablation of black graffiti from medium-coarse grained white marble was selected to demonstrate the high potential of this approach [67]. By adjusting the detection bandwidth of the optically induced ultrasonic waves, photoacoustic imaging can be employed to investigate a broad variety of artifacts having diverse optical properties and geometrical profiles, such as manuscripts, glass objects, plastic modern art, or even stone sculpture. PA data statistical analysis and correlation with conventional imaging techniques such as stereomicroscopy, Scanning Electron Microscopy (SEM), and confocal microscopy, has shown accuracy on the prediction of cleaning level, as well as the onsets for effective cleaning and substrate damage [67].

1.2.10. Pump-Probe Spectroscopy

Near-infrared femtosecond pump-probe optical microscopy has expanded the range of detectable molecular signatures [68] to include signals from excited state absorption, ground state depletion, and stimulated emission [69]. This microscopy technique was mainly developed for biomedical imaging. Extension of pump-probe microscopy from biological pigments to samples of artists’ pigments has already yielded promising preliminary results [70]. Pump-probe microscopy offers an exciting alternative to the current techniques used for identifying organic dyes. Work is currently underway to create a pump-probe spectral database for a variety of organic and inorganic pigments [71]. Pump-probe has recently presented its high-resolution mapping ability, through the study on mixtures of pigments, and has proved its potential to resolve individual coloring components in natural pigments [72].

1.3. Non-linear Microscopy

Non-linear imaging microscopy shows many advantages compared to other microscopy methods. It is capable of intrinsic three dimensional (3D) subsurface sectioning increased penetration depths while still avoiding damage to objects through photobleaching or phototoxicity phenomena in the out-of-focus area [73,74]. Second and third harmonic generation ensure minimal sample disturbance, as they are scattering phenomena with little energy being deposited in the sample [73]. However, the same beam that enables second and third harmonic generation may also be absorbed through other non-linear processes, such as Multi-Photon Excitation Fluorescence (MPEF). A significant advantage of non-linear microscopy (NLM) is that all the aforementioned signals are generated simultaneously in the focal volume of the examined object from a single laser source. Thus, they provide unique complementary information related to the chemical composition of the sample, the centrosymmetry of its molecules, and the structural delineation of the material.
The main advantages and limitations of some of the aforementioned techniques are presented in Table 1. Non-linear microscopy (NLM) diagnostic modalities are also included in Table 1.

1.4. Non-linear Imaging as a Tool to Serve Cultural Heritage Studies

Non-linear microscopy techniques (NLM), such as MPEF, second harmonic generation (SHG), and third harmonic generation (THG), are well-established techniques for biological research [109,110,111,112,113,114]. These techniques under different modalities provide new insights for the assessment of appropriate conservation methods that have to be applied for various CH objects of high artistic or cultural significance [79,115]. Recent studies have demonstrated the potential of these techniques for depth resolved imaging of materials in cultural heritage, such as varnishes [79], lining glues [80,81], paintings [75], historical coatings [82], and corrosion layers on metal-based artifacts [84]. Fruitful key information concerning the determination of the different layers, precise thickness or surface topography, nature of the different materials, and cracks in the layers has been extracted.
Furthermore, ancient parchments, which are mainly composed of dermal fibrillar collagen, have been investigated [83]. Key information about collagen and gelatin signatures has been obtained in parchments and assessed by characterizing the denaturation of pure collagen reference samples. Along with denaturation, a strong decrease is observed in SHG signals, which are a structural probe of the fibrillar organization of the collagen at the micrometer scale [116].

1.5. Synergy of Non-linear Techniques with other Imaging Modalities

It is well known in a number of disciplines extending from biomedical science to art conservation and forensic science that there is not a single analytical technique that can give answers to all questions. This is particularly true in the study of historical paintings where the materials involved are numerous and heterogeneous. A multi-modality approach offers new complementary information by combining the strength while overcoming the limitations of individual techniques.
Specifically, NLM and OCT techniques have been combined for the study of model paintings [77]. It has been proved that non-linear imaging techniques can act synergistically with optical coherence tomography measurements providing complementary diagnostic capabilities for the precise in-depth characterization of various model painted artworks. The axial resolution of OCT and NLM are similar, while OCT in general is used with lower spatial resolution and a larger field of view. OCT is typically 3 to 4 orders of magnitude faster in image acquisition and offers extended penetration depths in comparison to NLM. Both OCT and the non-linear modality of THG are sensitive to refractive index discontinuities, while MPEF renders image contrast information between layers with different absorption properties. It has been demonstrated that OCT is capable of providing information from deeper layers of a model painted artwork while it cannot distinguish between two types of equally transparent varnishes. On the other hand, the MPEF modality presents limited penetration depths, while it is capable of discriminating different transparent varnishes based on the detected fluorescence intensity variation of the samples [77].
Furthermore, pump-probe optical microscopy has been combined with multi-photon fluorescence, and second harmonic generation contrasts image modalities to simultaneously investigate pigments in conjunction with their support layers in three dimensions with micrometer-scale spatial resolution. The combination of pump-probe with SHG could be a promising new way to study fibrous-based artworks and provide new insights into the methodology of creating watercolors, illuminated manuscripts, or ancient textiles. It can also shed light on the preparation techniques of the fibrous supports. The application of the pump-probe technique to thick paint layers featuring multiple pigments and heavy binder use was capable of extracting signal from the support at depths up to 90 μm in paper and 300 μm in cloth [117].
In another study, the combination of the non-linear optical modality of MPEF and photoacoustic imaging has proven effective for the high resolution stratigraphic analysis of multilayer art objects with emphasis on paintings. The high contrast complementarity provided by this bimodal approach has additionally been enhanced by post-processing analysis of the acquired MPEF signals using a novel algorithm, which is able to discriminate overlapping layers according to the non-linearity order and the optical parameters of the system. In addition, the combined images have been directly compared with cross-sectional bright field observations, validating the capabilities of the proposed diagnostic method in terms of measurement accuracy and imaging specificity [118].
Moreover, the modality of MPEF in combination with THG has been developed for the assessment of modifications following laser removal of varnish [119]. The structural and in-depth photochemical modifications induced upon ultraviolet laser removal of a dammar varnish coating on a photosensitive substrate have been assessed with NLM imaging. The results acquired through this work serve to understand the phenomena that are induced upon laser ablation and to determine the best operating conditions that ensure controlled removal of the varnish with minimal morphological and chemical modifications to the under-layers.
Additionally, non-linear imaging and terahertz time-domain spectroscopy have been employed as diagnostic tools for studies of works of art. It has been shown that non-linear imaging offers precise in-depth information from the outer layers, while terahertz imaging can reveal hidden objects and uncover information on highly absorbing organic compounds like small polycyclic aromatic hydrocarbons and their halogenated compounds [120].
It has to be noted that the identification of the safe limits for the use of the non-linear techniques for CH studies has been guided so far by the vast experience in biomedical applications. However, there is an increasing attention and need for the determination of the exact specifications for the safe irradiation of various CH objects. There are recent MPEF studies performed on a series of commercial acrylic paints that highlighted the dependence of the emitted fluorescence intensity on material composition and illumination conditions. This work evaluates the damage of near-infrared femtosecond pulsed lasers and establishes safe laser thresholds on a variety of painted artworks [121]. However, further studies employing different excitation wavelengths, pulse durations, and repetition rates are necessary to evaluate and determine the optimum parameters for the safe implementation of NLM on CH objects.

2. Materials and Methods

2.1. Multi-Photon Excitation Fluorescence (MPEF)

The MPEF imaging technique is an ideal, diagnostic tool for the precise (lateral resolution ∼500 nm and axial resolution ∼2 μm) thickness determination of multi-layered samples [75,78]. MPEF is a non-linear optical procedure where the non-linear process depends on the intensity of the incident laser irradiation [73]. MPEF measurements are able to give some indication of the chemical composition of artifacts. The common case of MPEF is Two-Photon Excitation Fluorescence (TPEF). During TPEF, one photon having energy approximately equal to half the energy difference between the excited and the ground state of a fluorescent molecule interacts with the electron in order to excite it to an intermediate virtual state where it will remain for an extremely short time in the order of 1 femtosecond (fs) [73,74]. If the spatial and temporal density of the incident beam is high enough, there is a finite probability that a second photon will interact with the electron of the virtual state resulting in the transition of the electron to the excited state. The consequent de-excitation of the electron returning to the ground state emits a single fluorescent photon of higher energy to the incident photons.

2.2. Second and Third Harmonic Generation (SHG, THG)

NLM techniques are based on physical processes in which a molecule can be excited by simultaneous interaction with two or more photons in the same quantum event [73]. SHG and THG are second and third order non-linear scattering coherent phenomena in which two or three photons of ω angular frequency are simultaneously converted in a photon of 2ω or 3ω angular frequency, respectively. SHG enables the detection of high degree-organized structures without inversion symmetry, such as stacked membranes and arranged proteins (e.g., collagen) [80,111]. THG allows the resolution of transparent interfaces, on the basis of local differences in refractive index and dispersion [79,110,112].

2.3. Experimental Apparatus—Samples

In the next section, two characteristic applications of non-linear microscopy to model painted artworks will be discussed. The experimental set-up used for the performance of the measurements has been described thoroughly in our previous works [76,79] and has been employed for both biomedical and cultural heritage studies.
For the first part of the results, a multi-layered sample that simulates a painted artwork was created. It contained a layer of paint (red lead mixed with linseed oil) and a layer of varnish (dammar dissolved in dichloromethane) on top of it. For the aging measurements (second part), two different varnishes were tested. For the solution preparation of the varnishes, dammar was dissolved in dichloromethane and colophony in white spirit. All the solutions were cast on thin glass coverslips and they were left to dry in atmospheric conditions in order to form solid thin films of even thickness. The samples were artificially aged under low-pressure mercury discharged lamps.

3. Results and Discussion

In our previous works [75,76], the applications of non-linear imaging techniques as diagnostic tools to CH studies were presented. In the current study, we have introduced an overview of the main optical- and laser-based diagnostic methods, such as LIBS, LIF, Raman, OCT, FTIR etc., in the service of CH. Furthermore, except for the analytical presentation of the non-linear techniques, the synergy of these techniques with other well-established imaging modalities as diagnostic tools for CH studies has also been demonstrated. One critical aspect in the study of CH objects is the portability of the employed equipment. In the current work, the construction of a novel, fully transportable system that combines different non-linear techniques for real case applications is discussed and analyzed. The technical details, as well as all the necessary requirements, are thoroughly described. This information comprises the initial crucial step for the development of a fully portable workstation.

3.1. Layer Discrimination in Multi-layered Samples

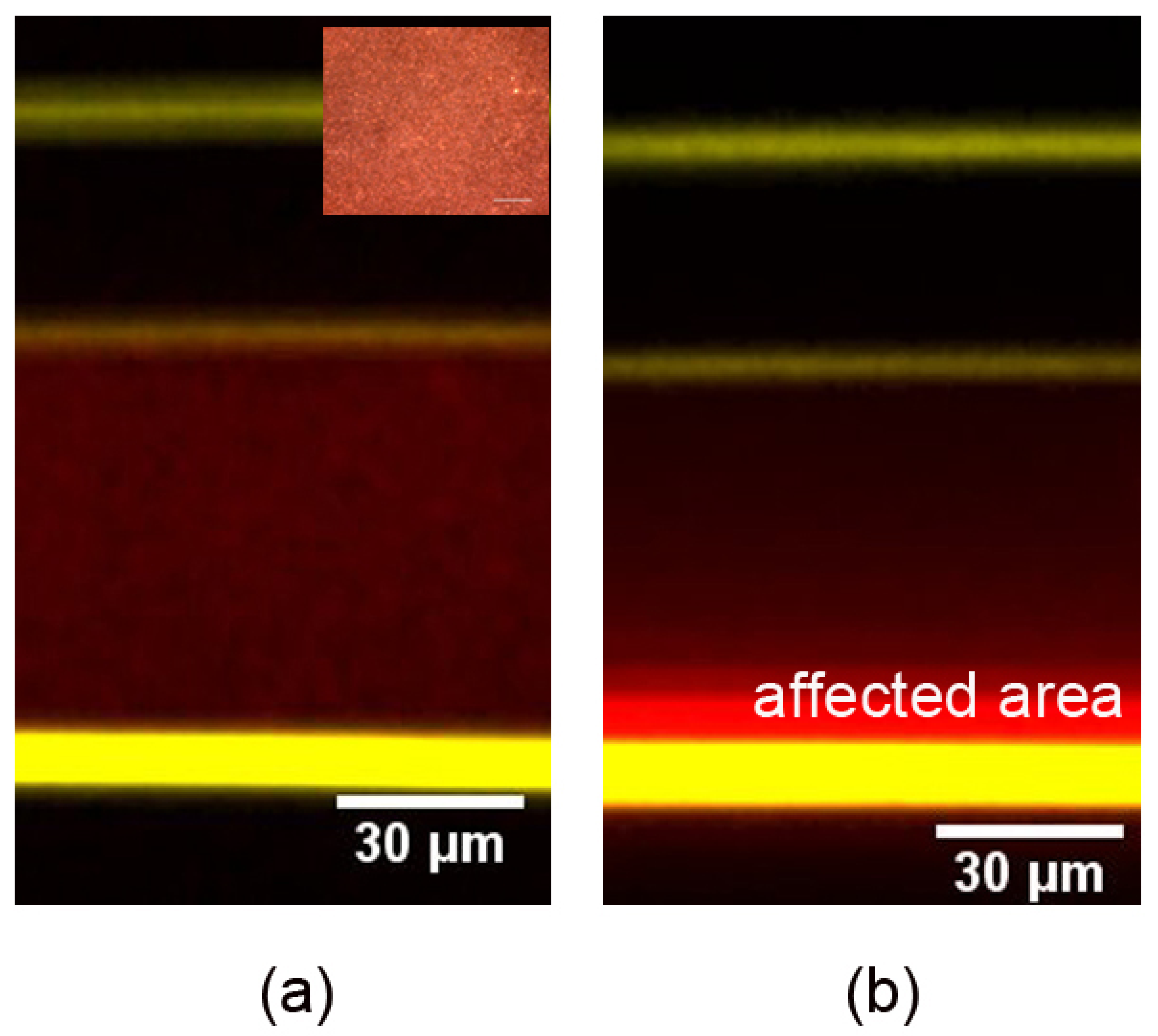

In the first case, the potential of MFEF measurements to distinguish the different layers of model painted artworks has been investigated. The non-linear measurements on this double layer sample reveal the MPEF capability to distinguish the pigment (green/red) from the varnish (blue) layer due to the different fluorescent emission levels, as shown in Figure 2.
The sample was irradiated with tightly focused fs pulses located in the near-infrared region of the spectrum (1030 nm). The investigated fresh varnish presented high transparency in the visible and infrared regions of the spectrum, while it absorbed strongly in the near UV part, thus demonstrating a predominant three-photon excitation mechanism for the employed excitation wavelength. On the other hand, the underlying paint layer presented strong two and one photon absorption properties. A low intensity MPEF arose from the layer of dammar, while the painting layer emitted a higher intensity fluorescence signal, as shown in Figure 2. Analysis and discrimination of the recorded MPEF for the precise layer thickness detection was achieved through the use of an image processing algorithm in the MATLAB programming environment [118]. The thickness of the dammar varnish was 82 μm and the thickness of the red led paint layer was 98 μm. The precise definition of varnish thickness was accomplished due to the transparency of the dammar varnish in the employed excitation wavelength. Information about the maximum penetration depth, rather than the thickness of the pigment layer, was obtained due to the high absorption and scattering of the NIR excitation wavelength from the paint layer. It is worth mentioning that the resulting depth values were corrected for apparent depth distortion due to the refractive index mismatch between air and the measured layers.
The MPEF measurements performed in the reflection mode and the results of the multi-layered model painted sample presented here, prove that it is possible to acquire in-depth information and discriminate the varnish protective layers from the painting substrate based on the intensity levels of the detected fluorescence signals.

3.2. Artificial Aging Studies

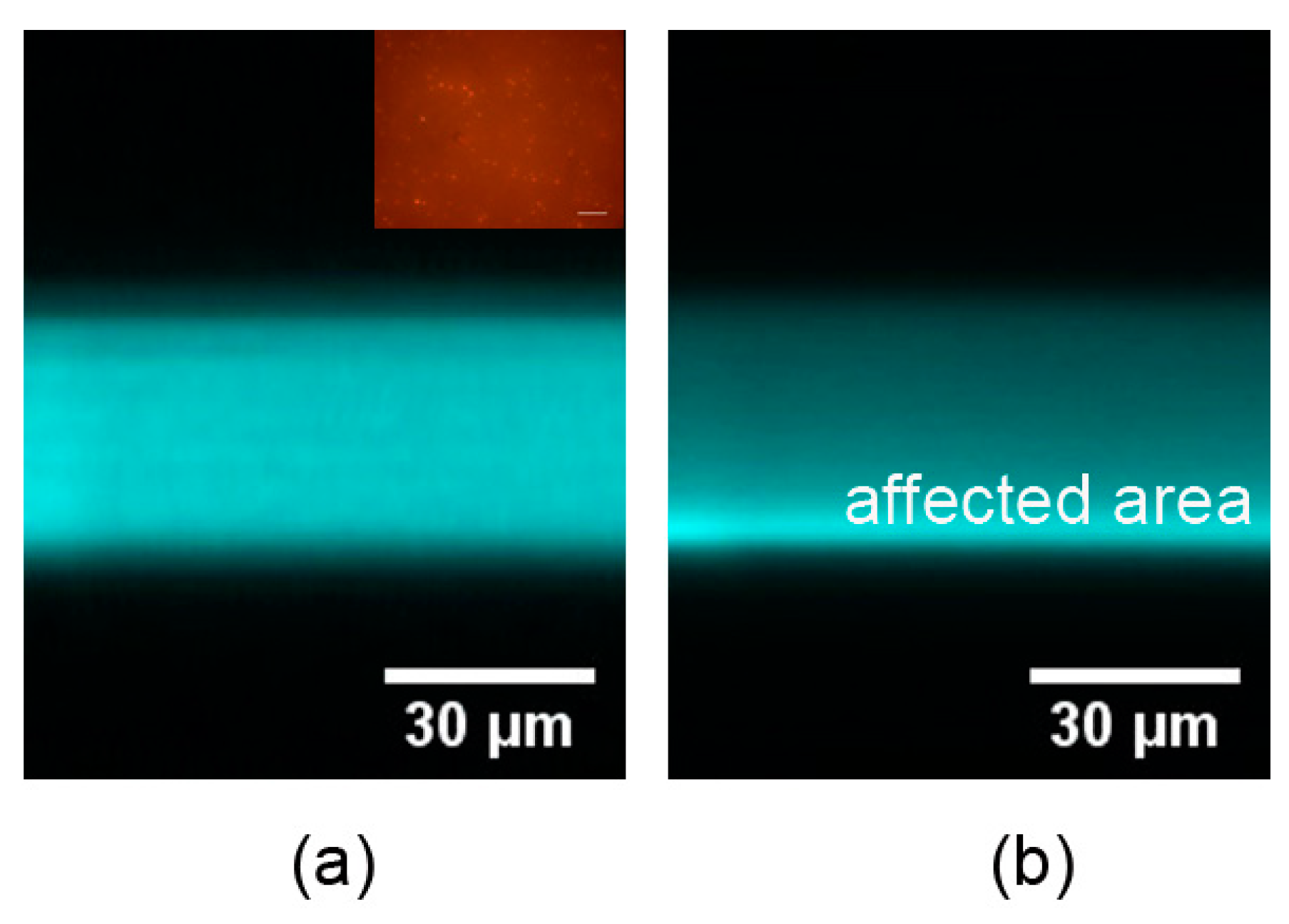

The progressive deterioration of the outer protective layers of the original painted artworks due to aging is a crucial problem with high significance for conservation scientists. In this series of measurements, the use of non-linear methods as an analytical diagnostic tool for the elucidation of this essential problem of aging is described. It is shown that, while THG measurements identified the thickness of the different layers through the simultaneous performance of MPEF imaging, it is feasible to obtain information related to the precise assessment of the degradation of two artificially aged natural varnishes as a function of depth. The triterpenoid varnish of dammar and the diterpenoid varnish of colophony/rosin were tested. The most frequently used natural resin varnishes consist of dammar due to its excellent adhesive properties, good solubility in solvents, and because it yellows to a lesser extent than other varnishes [122]. Colophony has been used in many coating applications, such as adhesives, varnishes, and inks, because of fast drying properties, excellent solubility, and compatibility with other resins and oils, and ready availability. Fresh and artificially aged varnish samples were examined via non-linear imaging measurements.
The employed non-linear imaging microscopy techniques provide, except from thickness determination of the different layers, in-depth unique information related to the estimation of the threshold for the degradation procedure due to aging effects of the varnish protective layers, as shown in Figure 3 and Figure 4. Such information could assist any restoration process and makes possible the implementation of this non-destructive technique for real case studies, such as the removal of the aged varnish layers of original painted artworks.

3.3. Towards the Construction of a Transportable System for in situ Applications

Following the optimization and validation of the various non-linear optical imaging modalities performed in the laboratory on model samples and real CH objects [76,82], the general application of these techniques for in situ studies of CH objects and substrates will require the development of a transportable prototype system. At first, the construction of a transportable system for the investigation of various CH objects in controlled indoor environments, such as museums and galleries, is required. The application of such an innovative system under established conditions will provide all the necessary feedback to determine the advantages and limitations of the non-linear optical microscope for non-invasive, in situ measurements of real CH objects. As a second step, the accumulated knowledge and experience by the development of the transportable set-up will contribute to the design and manufacturing of a fully mobile, user-friendly system for performing in-situ measurements outdoors, i.e., archaeological sites and excavation areas.
The transportable system will consist of a non-linear, custom made upright optical microscope coupled with a compact, stable, sealed, air cooled ultrafast femtosecond (fs) laser source. Appropriate laser sources have advanced technically, while they have dramatically dropped in cost [123] over the last years. For real applications the reflection mode of operation is a prerequisite. The non-linear modalities of SHG and MPEF are usually applied in the reflection mode and it has been demonstrated that the modality of THG is also feasible in this mode of operation [124]. The use of a spectrally tunable laser source will increase the system capabilities enormously by ensuring the best possible transmission of laser light on a wider range of materials. The system will also incorporate capabilities for the detection of very weak signals. Thus, special schemes can be employed to provide amplification of the recorded signals, to reject noise, and to contribute to the measurements in less stringent lighting conditions (e.g., using lock-in detection). The schematic set-up is presented in Figure 5.
The development of a user-friendly, transportable non-linear optical microscope that can be used by conservation scientists is challenging. However, all of the miniaturization technologies needed for such a device are being developed for biomedical applications and can be adapted to the peculiarities of CH and artwork studies.

3.4. Microscope Specifications

The microscope module should include a custom made modified upright microscope, an XYZ high-precision scanning stage for positioning the sample, detection units (photomultipliers), proper spectral filters, a charged coupled device (CCD) camera for direct observation of the object, high numerical aperture (N.A.) objective lenses, and a lock-in amplifier.
Adjustable neutral density filters are required to precisely control the laser power at the sample plane. A telescope system, which expands the laser beam, can be used to fill the back aperture (entrance pupil) of the objective lens. High numerical aperture (N.A. > 0.75) objective lenses have to be employed to achieve tight focusing of the laser beam onto the sample. A half wave plate can be used to control and rotate the orientation of the linear polarization of the excitation laser. Controlled scanning will be performed by movement of the sample placed on a motorized XYZ translation stage with micrometric resolution. Non-linear signals will be collected in the backward direction using a photomultiplier tube (PMT). The adequate filters will be placed in front of the PMT to cut off the reflected laser light and solely detect the desired non-linear signals arising from the samples. A CCD camera will be employed for observation of the specimens. A lock-in amplifier will be also used for good noise rejection and for performing measurements in less stringent lighting conditions. The LabVIEW interface will control both scanning and data acquisition procedures.

4. Conclusions

Non-linear optical microscopy techniques have been at the forefront of biomedical research over the last decades and only recently have they been used as diagnostic and characterization tools for CH studies. Thus far, these techniques have provided interesting results with regard to accurately control any cleaning interventions in artworks. Non-linear microscopy modalities provide new insights for the assessment of the appropriate conservation method that has to be followed for various CH objects of high significance. Multi-photon microscopes are now commercially available and include flexible and easy to use, single femtosecond laser beam systems. It is anticipated that the construction of a state-of-the-art transportable non-linear workstation prototype will significantly improve the restoration outcome of various CH objects. The current study describes analytically the construction of an innovative transportable non-linear optical system and its technical requirements. This information can be used as a base for the future design and manufacture of a user-friendly and transportable non-linear system for in situ CH studies. A developed compact, non-linear optical microscope prototype will be extensively used by CH scientists in museums and galleries and it will provide the necessary feedback for the construction of a fully mobile system to perform in situ measurements outdoors. Furthermore, this prototype workstation can be used in combination with other non-invasive portable imaging techniques (e.g., optical coherence tomography) in order to achieve complementary information from multi-layered CH objects and substrates.

Author Contributions

In the present study, M.M. was the person in charge for the performance of all the experiments and data analysis. G.F. conceived and supervised the project. M.M. and G.F. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the project “BIOIMAGING” (MIS 5002755), which is implemented under the “Action for Strengthening Research and Innovation Infrastructures”, funded by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014–2020) and co-financed by Greece and the European Union (European Regional Development Fund). MM also acknowledges the Hellenic Foundation for Research and Innovation (HFRI) and the General Secretariat for Research and Technology (GSRT), for the financial support under grant agreement No [1357].

Acknowledgments

The authors would like to thank V. Tsafas for the algorithm construction and the fitted model curve on our MPEF data and K. Melessanaki for her assistance in the preparation of the samples.

Conflicts of Interest

The authors declare no conflict of interest.
