Review

Sustainability Considerations in Water–Energy–Food Nexus Research in Irrigated Agriculture

by 1,2,* and 1,3
1
Leibniz Centre for Agricultural Landscape Research (ZALF), Eberswalder Straße 84, 15374 Müncheberg, Germany
2
Tashkent Institute of Irrigation and Agricultural Mechanization Engineers (TIIAME), Kary-Niyaziy 39, Tashkent 100000, Uzbekistan
3
Faculty of Landscape Management and Nature Conservation, Eberswalde University for Sustainable Development (HNEE), Schickler Straße 5, 16225 Eberswalde, Germany
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(15), 6274; https://doi.org/10.3390/su12156274
Received: 8 July 2020 / Revised: 29 July 2020 / Accepted: 31 July 2020 / Published: 4 August 2020

Abstract

:
Irrigated agriculture is essential to satisfying the globally increasing demand for food and bio-based products. Yet, in water scarce regions, water-use for irrigation aggravates the competition for the use of water for other purposes, such as energy production, drinking water and sanitation. Solutions for sustainable food production through irrigated agriculture require a systemic approach to assess benefits and trade-offs across sectors. Here, the water–energy–food (WEF) nexus has become an important concept in natural resource management. It has been conceptualized to analyze linkages and trade-offs between the three sectors, across temporal and spatial scales. However, the concept has so far mainly been conceptual, with little empirical evidence or proof of concept in real world cases. The objective of this paper was to take stock of the rapidly advancing literature on the WEF nexus in irrigated agriculture, and to analyze how the concept was actually implemented in research studies, and how the nexus between water, food and energy was actually dealt with. The study period ranges from 2011 to 2019, and includes 194 articles. Results showed that the WEF nexus is indeed very relevant in irrigated agriculture, and the respective literature makes up one third of all WEF nexus papers. Modeling and empirical research have caught up with conceptual synthesis studies during the last four years, thereby indicating that the WEF nexus concept is indeed increasingly operationalized. However, most studies addressed the WEF nexus from a perspective of either socioeconomic, technological or environmental categories, and they place one of the dimensions of water, food or energy into the foreground. To address sustainable development, there is a need to fully integrate across research disciplines and thematic dimensions. Such studies are only starting to emerge. These findings are an important evidence-base for future WEF nexus research on irrigated agriculture, in support of sustainable solutions for water scarce regions, especially in settings undergoing transformations.

1. Introduction

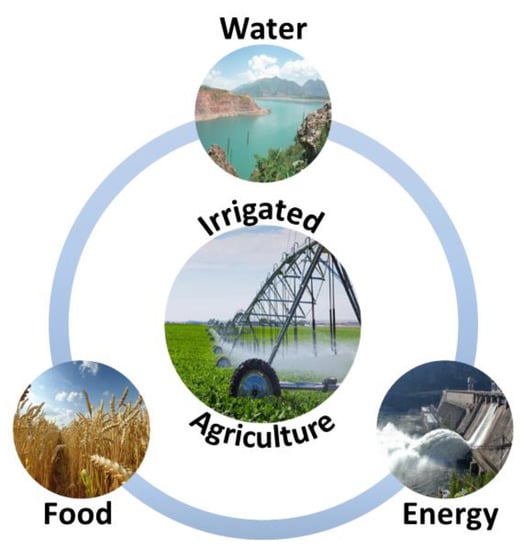

Irrigated agriculture is a key example of the water–energy–food (WEF) nexus, due to the strong competition over water used for energy generation and water used for food production in water-scarce areas of the world [1,2,3]. Societies need to choose, for instance, between using land for food production or for renewable energy production, and between using freshwater for energy production or for irrigating crops. The components of the WEF nexus are intertwined in irrigated agriculture systems, and the sustainable development of the system requires an effective and coordinated management of the nexus [4]. Here, we understand the nexus as an approach whereby improved water, energy and food security can be achieved by integrating management and governance across WEF sectors and scale [5,6].
Seeking to understand the interconnectedness of the three sectors of water, energy and food so as to improve cross-sectoral coordination in support of sustainable development, the WEF nexus has become an important concept in natural resource management. It has especially been operationalized to indicate the importance of the linkages between different sectors, as well as trade-offs across temporal and spatial scales in large river basins. The main findings of these studies indicate the need for robust governance [7], and the importance of state actors and politics at national and transboundary levels in reducing cross-sectoral tensions [8,9], as well as the effectiveness of formal institutions that manage trade-offs and interdependencies within the nexus approach [10]. Integrating different modeling tools has also been proposed to provide a sustainable WEF nexus at a transboundary watershed scale [11]. However, a critique has arisen regarding the rapidly spreading attention that WEF has been attracting, since it is not yet a clearly defined concept with an agreed-upon and tested framework [12]. Existing WEF studies have hardly addressed three key sustainability issues related to irrigated agriculture, namely soil degradation, nutrient loading and the application of pesticides and chemical fertilizers [13,14]. For instance, agricultural soil quality is the cornerstone of food and biomass production, for storing, filtering, transforming and recycling water and nutrients [15], and is the core component of the WEF nexus [16]. The maintenance of quality is particularly important in water-scarce dryland areas, because of these areas’ vulnerability to soil salinization, a soil degradation process that is reinforced by improper irrigation practices. Soil scientists often recognize soil quality as a critical component of water, energy and food security; however, the translation of that awareness into action to enhance public recognition of the importance of soil resources is lacking [17,18].
Since the introduction of the WEF nexus concept in 2011, several important critical review studies have been published focusing on different aspects of the nexus. For instance, taking a quantitative approach, Endo et al. [19] analyzed the current state of nexus research and the involvement of stakeholders from a hydrological perspective. Albrecht et al. [20] provided a comprehensive analysis of the methods employed for nexus assessments and the identification of key features for promising analytical tools. Zhang et al. [21] analyzed the current concepts and methods of the WEF nexus for urban sustainability. Roidt and Avellan [22] assessed the intended goals and features of different integrated management approaches. In this review study, we take a thematic approach, and focus on WEF studies addressing irrigated agriculture.
While scientific studies on the WEF nexus have increased notably in recent years, there are very few scientists who have tried to link the nexus with a number of sustainable development goals (SDGs). For instance, Boas et al. [23] critically examined the SDGs, proposing that the connections between many of the goals are weak and rarely structural, and do not recognize interconnections among different sectors. In contrast, for the case of South Asia, Rasul [24] suggests that the SDGs are critically important for enabling food, water and energy security in ways that do not undermine sustainability for future generations.
The primary objective of this paper was to analyze current international literature on the WEF nexus for irrigated agriculture, and its relevance to SDGs. The paper explores the state of knowledge with regard to the use of the WEF nexus for irrigated agriculture. Through a systematic qualitative review of the literature, the main added value of this research includes a determination of whether the studies follow an integrated approach across WEF sectors and consider sustainable development. Furthermore, the scope of this paper is to adopt a comprehensive viewpoint and integrate additional sustainability challenges related to irrigated agriculture, such as climate change (SDG 13) and terrestrial ecosystems (SDG 15). Finally, by building upon this review, we aim to synthesize existing knowledge, and identify existing knowledge gaps and the need for future research on sustainable WEF nexus for irrigated agriculture.

2. The Water–Energy–Food Nexus in the Context of Irrigated Agriculture and Sustainable Development

Occupying nearly one fifth of the world’s cropland, irrigated agriculture provides more than 40% of global food production, with approximately 280 million hectares of irrigated cropland [25]. The role of irrigated agriculture is increasing in response to increasing food demand, because of an increase in the world’s population and a trend towards more bio-based products. It is essential to maintain agricultural production in water-scarce regions, especially in settings undergoing transformative process, since it is an important source of income in poor rural areas [26,27]. However, in drought prone regions, water-use for irrigation competes with the use of water for agriculture and energy production [28,29]. Irrigation plays an important part in the economic development of many countries. Figure 1 illustrates the conceptualization of WEF nexus relevance to irrigated agriculture. Introduced by the United Nations in 2015, SDGs are intended to be globally applicable, and will need to be implemented by all national governments by 2030. In this vein, developing and improving irrigation are major ways for ensuring food provision, providing rural people with employment, and thus ending poverty in many areas of the world.
Soil salinization is one key drawback of irrigation in regions with a negative climatic water balance [30]. It can completely deteriorate the ecosystem’s functions and services of the soil, and can impede the possibility of food production in the long run. Applying large amounts of water for leaching, as part of soil salinization mitigation, has been practiced on many salt-affected irrigated lands [31,32], but the amount of water required to impede soil salinization and maintain the production function of the soil is far above the water needed for crop growth. This additional water need must be considered when analyzing the WEF nexus for irrigated agriculture in the context of sustainable development. Issues related to soil degradation, including salinization, have also been raised at the forefront of United Nations SDG 15 (using terrestrial ecosystems sustainably).
WEF nexus research has emerged out of the integrated water resources management (IWRM) approach. The IWRM began attracting greater attention following the 1992 international conferences on water and environmental issues in Dublin and Rio de Janeiro [33]. The main aim of the approach was to deal with water issues in a cost-effective and sustainable way. However, the IWRM remained solely water-focused, and failed to gain the necessary cross-sectoral support to move as an integrated management concept beyond water [34]. Thus, the nexus concept has been developed by drawing on various aspects of the IWRM, sustainable agriculture, a green economy and sustainable development. The concept received much attention during the 2011 Bonn Conference titled “The water, energy and food security nexus solutions for the green economy,” at which distinguished speakers presented evidence for how a nexus approach can enhance water, energy and food security by increasing resource-use efficiency, building synergies (mutually beneficial outcomes), minimizing trade-offs (which may potentially include non-optimal outcomes) and improving governance across sectors [5]. As a result of this conference, energy was introduced as a key aspect of the nexus. There are well-known cases where reservoir operations for hydroelectricity production might support irrigation, but hydroelectricity production may also reduce water availability for irrigated food production. This may lead to increased trade-offs between irrigation and hydropower due to reduced water availability in regions with arid and semiarid climates [35].
In terms of sustainable development, the implementation of SDGs has the potential to be a coproduct of science and policy [36,37]. The WEF nexus approach is acknowledged in three specific SDGs—SDG 2 (food security), SDG 6 (clean water) and SDG 7 (modern energy)—thus promoting the consistent integration of the nexus approach in the analysis of sustainable development [38]. In addition, SDG 13 (climate change) and SDG 15 (terrestrial ecosystems) are closely interconnected, and pertain to the use of natural resources.

3. Methods

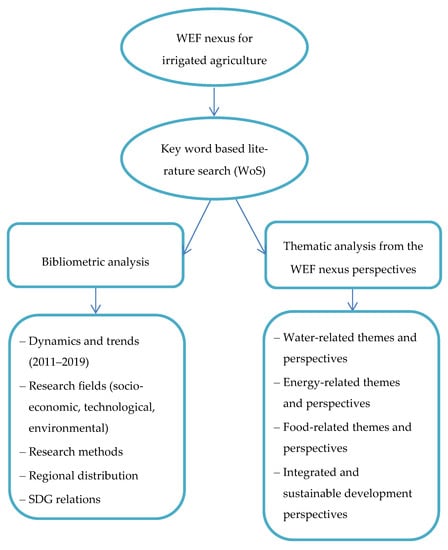

We analyzed scientific publications dealing with the water–energy–food nexus and related to irrigated agriculture around the world. A systematic database search of peer-reviewed articles was conducted using the Science Citation Index Expanded (SCI-Expanded) and Social Sciences Citation Index (SSCI) database of the Web of Science (WoS) from Thomson Reuters. This database was chosen because of its comprehensiveness and high-quality records [39]. The search was conducted in January 2020, and only peer-reviewed journal articles in the English language were considered. We only selected international journal articles, to stay within the boundaries of internationally accepted scientific quality management. The study period covered nine years from 2011 to 2019. The year 2011 was selected as the start year because of the introduction of the concept for the first time. We used the following search terms in the database: “water–energy–food nexus” AND agriculture, irrigation, and soil. The latter term was chosen because of the high importance soil quality has in irrigated food production in the long term. The WEF nexus terms were used in different combinations to obtain all potential nexus-related papers, i.e., “water-energy-food” OR “water, energy, food” OR “water-food-energy” OR “water, food, energy” OR “energy-water-food” OR “energy, water, food” OR “energy-food-water” OR “energy, food, water” OR “food-water-energy” OR “food, water, energy” OR “food-energy-water” OR “food, energy, water” AND “agriculture” OR “irrigation” OR “soil”. Documents were considered relevant if they matched at least one of the search terms in the title, abstract or keywords. Articles were selected if they included all three resource sectors: water, energy and food. Downloaded documents were transferred to an open EndNote library, which included information about authors, titles, abstracts, keywords, publication year, journals, page numbers, contact addresses, countries/territories and institutions. After identifying the relevant papers, we further reviewed all abstracts, and those that were deemed irrelevant to the research themes were discarded from the database. Figure 2 shows the analytical approach on which this study was based.
To understand the types of scientific methods employed in the papers, we analyzed the research methods of each paper. After a detailed review of individual papers, we divided them into two categories: review analysis and original (case study) research (participatory studies, modeling, field experiments and remote sensing analysis). We further reviewed the papers and grouped them into three research perspectives: socioeconomic and institutional perspectives, technological perspectives, and environmental management perspectives. This categorization was chosen based on the suggestion by Albrecht et al. [20] that it helps one to better understand complex interactions among multiple resource systems and policy needs.
The review also included the geographic scope of the studies and SDGs being addressed by the studies. In the former case, we followed the Food and Agriculture Organization of the United Nations’ (FAO) country classification by geographical group (i.e., Australia and New Zealand, central Asia, eastern Asia, Europe, northern Africa, northern America, southern America, southern Asia and Sub-Saharan Africa). We used the SDGs as core narratives to classify the societal perspectives that the papers take. Finally, we carried out a detailed content analysis of the papers.

4. Results and Discussion

4.1. Bibliometric Analysis of WEF Nexus Publications Related to Irrigated Agriculture

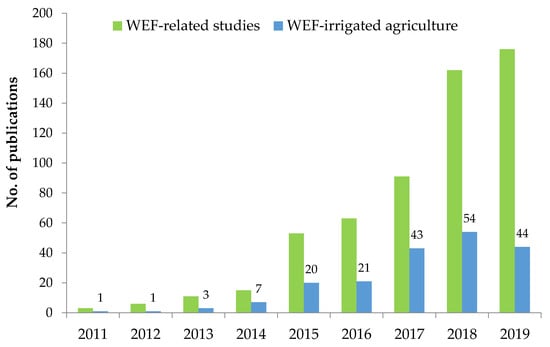

The automated database search provided 580 WEF-related papers in total. Of these, 194 articles (approximately one third) addressed irrigated agriculture and were included in the analysis. In the remaining 66% papers, WEF nexus literature covered topics such as the following: the impacts of global climate change on the hydrological cycle, along with WEF nexus; the role of the IWRM approach at the global level and recent discourses around the WEF nexus and the green economy; the potential of hybrid floatovoltaic technology and aquaculture farming applications for improving WEF nexus sustainability; and the development of a systems framework to analyze the WEF nexus from an urban systems perspective. We noticed an annual increase in the number of selected publications during the study period, indicating that researchers were paying growing attention to the nexus approach (Figure 3). WEF-related publications dealing with irrigated agriculture peaked in 2018. In what follows, we exclusively address the WEF publications dealing with irrigated agriculture.

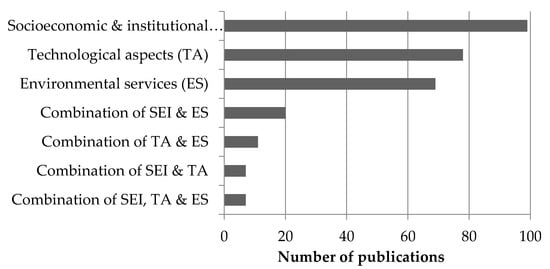

In regard to research themes, about half (approximately 51%) of the 194 papers on irrigated agriculture discuss the WEF nexus from socioeconomic and, in particular, institutional perspectives (Figure 4). Institutional innovations, governance structures, social benefits, economic return, policy design and collective action were among the themes discussed within socioeconomic and institutional perspectives. Water-use, irrigation, agricultural management and power generation were discussed as part of the technological aspects. Soil and water quality, wastewater treatment and reuse, available water quantity, vegetation, resource use efficiency as well as feedstock were discussed as part of the environmental aspects. These results contradict the findings of Albrecht et al. [20] and Keairns et al. [40], who identified the dominance of environmental themes in their reviews of WEF nexus studies. This indicates that WEF studies with a focus on irrigated agriculture are more focused on socioeconomic aspects than those on WEF nexus in general. This corroborates our earlier arguments that the WEF nexus literature addressing irrigated agriculture is less focused on environmental-related issues such as soil salinization, plant stress, nutrient loading or toxic farm chemicals. Combinations of socioeconomic and environmental perspectives were addressed in only 10% of the papers, and only two papers involved a combination of all three research themes, i.e., socioeconomic, environmental and technological. One example of an integrated analysis of the key resources, water, land and energy, is Bekchanov and Lamers [41], who presented the general framework of a system-wide economic–water–energy model that meets the requirements of an effective analytical tool dealing with water–energy–food/livelihood nexus challenges in the Aral Sea Basin in central Asia. The results highlight the essential role of an integrated analysis of WEF nexus in better-informed policy making.

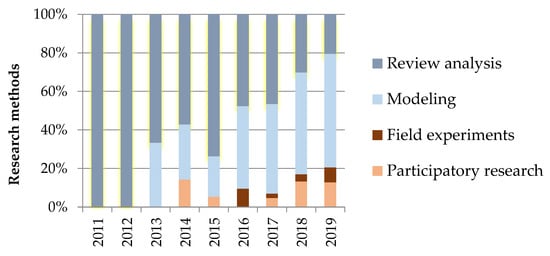

The types of scientific methods used in the WEF nexus papers over time showed that review analyses were dominant in the first years, while modeling approaches emerged in constantly increasing numbers from 2013 onwards (Figure 5). This indicates that the WEF nexus was initially a conceptual approach, with little evidence about its operationalization. During the few last years, papers addressing empirical approaches, including participatory research and field experiments, have emerged in addition to modeling approaches. This follows the suggestion by Leck et al. [42], who reiterated that more sophisticated modeling systems designed to assess and quantify WEF linkage could help in operationalizing the nexus approach. The number of studies employing quantitative modeling approaches increased during the study period. These included a global biosphere management model [43,44], a vadose zone model [45], a hydrological model with a soil and water assessment tool [46], an agent-based model [11], a system-wide economic–water–energy model [41], a WEF Nexus Tool [47], inter alia. Only 8% of the papers employed participatory social science methods, including expert interviews [48], household surveys [49,50] and focus group discussions [51]. This is in line with Hannibal and Portney’s [52] findings that the nexus research, or the connection between water, energy and food, has not been sufficiently addressed in the social sciences. Field experiments were only employed by 4% of the studies, namely, Mortensen et al. [53] on nutrient loops in arid-land rivers, Obade and Lal [54] on soil quality assessment, and Tran et al. [55] on the suitability of a sulfur-based seed solution in the development of WEF nexus technology using sulfur chemicals that contain an air pollutant. These results prove that the WEF concept is starting to be operationalized in research. However, the low number of empirical studies compared to modeling activities reveals the risk of data scarcity in the proper ground-truthing of conceptual and modeling work.

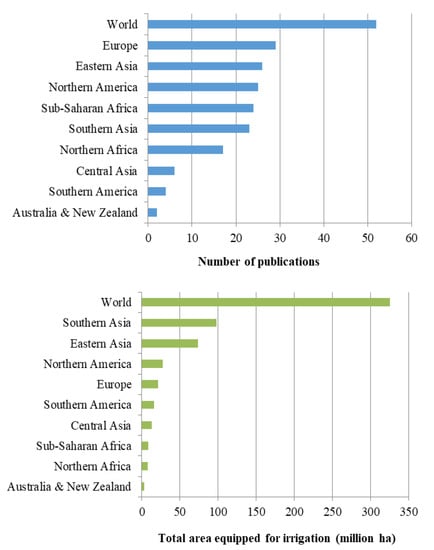

Regarding the geographic scope, approximately 27% of the articles take a global perspective (Figure 6). This is because approximately 40% of the publications carried out review analysis. In terms of specific countries or regions, Europe was mostly addressed (about 15% of publications), followed by eastern Asia (13% of publications). This is in line with the large area of irrigated agriculture in this region. Eastern Asia occupies 73.9 million ha or about 23% of the world’s total irrigated lands [56]. Two thirds of these publications are implemented in China only. North America (Canada and the United States) is the next region where the WEF nexus concept has been important research (12% of publications). Despite the fact that southern Asia (e.g., Bangladesh, India, Nepal, Pakistan and Sri Lanka) has the largest irrigated land area (98 million ha), only approximately 11% (or 23 papers) apply the concept of WEF nexus to this region. In contrast, many WEF nexus-related publications exist in Sub-Saharan Africa (approximately 12%), despite this region having a relatively small proportion of irrigated land area (8.2 million ha). This shows that the published WEF nexus papers relevant to irrigated agriculture are disproportionally represented with regard to total irrigated areas. Despite the fact that central Asia and southern America have relatively larger total irrigated areas, the papers on WEF nexus addressing irrigated agriculture underrepresent these geographical groups.

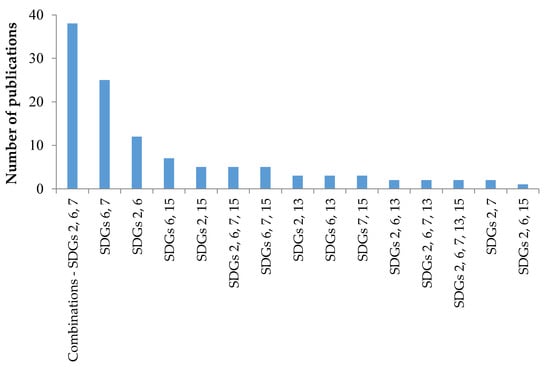

We used the SDGs’ classifications to analyze the thematic perspectives of the papers (Figure 7). SDGs 2, 6 and 7 provide the core narratives for the food, water and energy themes, respectively. In addition, while reviewing the papers we found that SDGs 13 and 15 were also addressed as important themes for the WEF nexus analysis related to irrigated agriculture. We looked at all combinations of different SDGs. The results indicate that even though the papers used WEF nexus terms in their titles, abstracts or keywords, the detailed review of the abstract and, in some cases, the whole paper indicated its poor linkage to all WEF sectors. The approach of WEF nexus literature to realizing a number of SDGs show that a comprehensive approach to all three sectors was implemented in only 20% of the papers. Meanwhile, 13% of papers put emphasis on covering the complex themes of sustainable water resource management (SDG 6) and access to affordable, reliable and sustainable energy (SDG 7). Approximately 6% of papers discuss food security, sustainable agriculture (SDG 2) and SDG 6 in the context of WEF nexus in irrigated agriculture. Two papers analyzed WEF nexus from an integrated management perspective, touching upon aspects of all five SDGs. For instance, the paper by Olsson et al. [57] suggested a novel model for analyzing carbon sequestration activities in dry land agriculture, considering the water–food–energy–climate nexus. Using a grasslands example in China, the authors concluded that the economic water productivity of grassland restoration was low, and that there was a need to include several of the other co-benefits to justify the use of water for climate change mitigation. Those co-benefits included climate change mitigation, water availability, downstream water impact, energy security, food security and moisture recycling [57].

4.2. Content Analysis of WEF Nexus Publications Related to Irrigated Agriculture from Water, Energy and Food Perspectives

This section provides a detailed content analysis of the selected papers so as to understand the thematic focus of each paper with regards to water-related activities, energy-related activities and food-related activities, in the context of WEF nexus for irrigated agriculture. It explores the thematic activities on which the papers focused.

4.2.1. Water-Related Activities within the WEF Nexus Related to Irrigated Agriculture

Water is an essential resource for the human body, and plays an important role in many aspects of life. However, emerging climate change (e.g., drought, heavy rainfall), increasing water demand because of population growth, the projected shrinking of freshwater bodies available for irrigation, as well as the mismanagement of water resources (leading to soil salinization) may threaten the sustainability of the water sector. Water scarcity in agriculture may seriously limit the planet’s ability to meet the growing crop demand [58]. The WEF nexus papers discuss multiple challenges related to water. These challenges include the decreasing availability of water resources, as well as the low level of water-use efficiency, water pollution, groundwater depletion, floods and droughts, outdated water infrastructure, untreated wastewater and water-related diseases (Table 1). For instance, free water and subsidized electricity in South Asia has encouraged farmers to over-exploit water resources, and has led to underinvestment in water-saving technologies [24]. North America faces challenges related to poor irrigation and wastewater quality, as well as virtual water transfer [53,59]. In the case of central Asia and Punjab, transboundary water management and dilapidated water infrastructure conditions were the main focus of the WEF nexus studies [60,61,62]. Jobbins et al. [63] discuss the observation that the adoption of drip irrigation by local farmers in Morocco does not necessarily reduce overall water consumption. Supporting policies for its use should be carefully addressed in order to avoid rebound effects [63]. Recent empirical evidence suggests that efficiency improvements by means of adopting water-saving irrigation technologies may, in fact, increase water consumption per unit area [64,65]. These studies highlight the proposal that the nexus approach can enhance the understanding of the interconnectedness of the sectors, and strengthen coordination among them. A bottom-up perspective, linking households, farmers and industries to WEF systems, can provide useful insights when operationalizing the WEF nexus concept [66].

4.2.2. Energy-Related Activities within the WEF Nexus Related to Irrigated Agriculture

In the energy sector we find an increasing trend in the development of bio-based or renewable energy production. Most bioenergy comes from agricultural crops, forests and waste, while non bio-based renewable sources of energy are the wind, water and sun. In the WEF literature, energy aspects were discussed in the context of the energy requirements of irrigation water supply, sustainable energy solutions for off-grid farmers, the energy footprint of irrigated production, the development of bioenergy technologies, estimation of energy (CO2 kg−1) productivity, the increased use of subsidized energy, and use of energy for wastewater treatment [67,68,69,70]. For instance, Siddiqi and Wescoat [60] analyzed the evolution of on-farm energy use for agriculture in Pakistan’s Indus Basin irrigation system, concluding that over the last 15 years, direct energy intensity for agriculture increased by an estimated 80%. As a result, there is a need to address this issue, since the country is acutely short of energy and has competing demands from industrial and domestic sectors [60]. In another study, a literature review was undertaken to provide insights into the energy implications of scaling up urban agriculture, considering direct/indirect energy pressures and interactions with other components of the WEF nexus [71]. The authors propose that gains in energy efficiency could be realized through the colocation of urban agriculture operations with waste streams (e.g., heat, CO2, graywater, wastewater and compost), which may increase yields and offset lifecycle energy demands. In terms of bioenergy production, Walsh et al. [72] focused on the development of terrestrial bioenergy technologies using algal food production, which can promote reductions in land-use change emissions through the offset of conventional farming.

4.2.3. Food-Related Activities within the WEF Nexus Related to Irrigated Agriculture

The WEF nexus literature discusses a number of issues related to food, including global food supply chains, meeting the food demands of humanity, maintenance of food security, increases in food production, food trade networks, cropping patterns and sustaining livelihoods (Table 1). With a growing population, it is likely that the role of irrigated agriculture in ensuring food security will become more important. Particularly, it will be challenging to increase global food supply during the 21st century given the decreasing water resources and increasing threats from climate change. For instance, meeting growing food demands in a densely populated country such as India is a major challenge [24]. The author highlights that in the context of the WEF nexus, greater policy coherence is critical for increased food production from water and in moving to a sustainable and efficient use of water and energy resources. Integrated approaches to food production are therefore necessary to ensure sustainability, which will also lead to higher benefits per unit of water [73]. Moreover, El-Gafy et al. [74] compared the nexus and non-nexus approaches in order to identify an optimal cropping pattern that considers water, energy and economic parameters. The study concluded that the nexus approach was best for identifying an optimal cropping pattern, because the approach is a holistic method. In another study, using a dynamic simulation model of the WEF nexus in Arizona, Berardy and Chester [75] predict that temperature increases of 1 °C, and disruptions to energy and water systems for irrigation, could decrease yields by up to 12.2% in major Arizona crops, threatening the food security of Phoenix and Tucson, as well as cities that have a significant amount of food imported from Arizona, including Los Angeles, San Diego, Las Vegas and El Paso.

4.3. Relevance of the WEF Nexus Publications to Key Challenges of Irrigated Agriculture: Integrated and Sustainable Development Perspective

Earlier reviews have pointed out that three key sustainability issues in the context of irrigated agriculture have rarely been considered in WEF studies: (a) soil degradation, (b) nutrient loading, and (c) the intensive application of pesticides and chemical fertilizers. Our literature revealed that soil degradation was addressed in nine papers (representing 5% of the sample). For instance, Lal [91] showed the linkage of the nexus approach to soil resources, and highlighted that soil–water–energy–food are interactively linked to peace, prosperity, and ecosystem functions and services. The paper concluded that “myths about the importance of soil must be replaced by facts through research programs which create a strong credible database.” Surprisingly, although soil salinization is one of the most devastating environmental problems affecting arid and semiarid regions of the world, only two studies addressed soil salinization in reference to the WEF nexus for irrigated agriculture. Abumhadi et al. [146] recognized that the impacts of global climate change on water, energy and food production are already visible, and are advancing at a higher rate than previously anticipated. More specifically, the salinization of irrigated areas has caused significant effects on global food production [146]. In another paper, Echchelh et al. [151] acknowledged that water scarcity severely affects drylands, and explored the potential for oil- and gas-produced water to irrigate food crops. The study concluded that the inappropriate use of produced water in irrigation can lead to soil salinization [151]. The issue of nutrient loading in irrigation and/or drainage water was addressed in 6% of the papers. The topic was treated in reference to the capacity of plants to take up nutrients and to filter organic matter, closing nutrient loops in arid-land rivers, the impacts of nutrients on growing fruits and vegetables, the disruption of nutrient cycles caused by agricultural activities, and the nutrient retention potential of biochar-amended soils. Avellan et al. [107] discussed the role of constructed wetlands for biomass production and for integrated management of agricultural water, energy and nutrient cycles. Finally, large applications of fertilizer and pesticides may cause a deterioration in food quality and the accumulation of heavy metals in agricultural soils. Within the WEF nexus research for irrigated agriculture, approximately 6% of papers described a link to the intensive application of pesticides and chemical fertilizers. These papers made scientific recommendations for shifting towards reduced applications of fertilizers and other inputs. However, very few papers provided specific evidence of the achievable economic benefits of reducing pesticides and chemical fertilizers, based on numerical data. Therefore, future research should be devoted to this shortcoming.

5. Conclusions

Since the 2011 Bonn Conference, the notion of a nexus involving water, energy and food has steadily gained attention in the literature, as evidenced by a sharp increase in WEF-related publications during 2018. However, criticism has also risen, since the WEF nexus is not yet a clearly defined concept with a standardized and tested framework. It is still at the conceptual level, with little empirical evidence. The WEF nexus literature that has focused on irrigated agriculture revealed a recently increasing operationalization of the WEF nexus concept in empirical and modeling studies, which thereby mainly take a socioeconomic perspective.
However, we conclude that many of the studies lacked a clear cross-sectoral perspective. Although the WEF nexus research puts emphasis on cross-sectoral integration, most papers had a single-sector-oriented approach. Even though the WEF nexus is de jure a combination of water, energy and food, a detailed review of the papers indicated that a comprehensive and integrated implementation of the WEF concept in empirical research is still rare. In irrigated agriculture, the WEF concept is particularly relevant for the identification of trade-offs between sectors, and for developing solutions at the policy and management level. Here, environmental feedbacks, in particular those related to soil salinization and soil degradation, nutrient loading in irrigation and drainage water, and the spread of pesticides and other chemicals into sensitive ecosystems, need to be better addressed. Given the fact that salt-affected soils occupy about 952.2 million ha of land, or nearly 33% of the potential agricultural land area of the world [152], and is the key sustainability challenge threatening irrigated agriculture, future research studies dealing with the WEF nexus in irrigated agriculture should focus more on this challenge.
This review revealed the underrepresentation of onsite research by means of employing quantitative and/or qualitative methods of collecting data (e.g., participatory research and field experiments). Most papers were based on review and document analysis, and more recently complemented by modeling approaches. The specific understanding of the complexity of local trade-offs and the interconnectedness of the nexus requires in-depth case study research. This direction should clearly be prioritized in future research. Moreover, the published WEF nexus papers relevant to irrigated agriculture are disproportionally representative in terms of total irrigated areas. The inclusion of central Asia and southern America in future studies could further provide a comprehensive overview of the WEF nexus as related to irrigated agriculture in different geographical zones of the world. It will also be interesting to analyze whether the regional share of irrigated land reflects the magnitude of the severity of WEF nexus problems. The inclusion of “ecosystems”, “biodiversity”, “climate” and other relevant terms in the database search in future studies could further provide a comprehensive overview of WEF nexus studies relevant to irrigated agriculture.
Finally, our analysis focused exclusively on peer-reviewed, internationally accepted scientific journals indexed in the Web of Science database, covering the 2011–2019 period. The inclusion of grey literature is suggested in future research, and would help to increase the validity of the study and overcome the potential problems of publication bias. In particular, the authors are aware of substantial synthesis work on the WEF nexus, also in the field of irrigated agriculture, done by international organizations like the United Nations or FAO, as well as UNU Flores.

Author Contributions

A.H.: Conceptualization, Methodology, Analysis, Result interpretation, Writing—original draft preparation. K.H.: Conceptualization, Methodology, Result interpretation, Writing—reviewing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Leibniz Centre for Agricultural Landscape Research (ZALF) and German Research Foundation (DFG) within the frame of WEFUz project (Sustainability assessment of the water–energy–food nexus for irrigated agriculture: Examples from river basins in Uzbekistan [GZ: HA 8522/2-1]).

Conflicts of Interest

The authors declare no conflict of interest.
