One-Stage Calcium Carbonate Oil-Based Filter Cake Removal Using a New Biodegradable Acid System

Abstract

Removal of the oil-based filter cake is a complex task especially in horizontal and multilateral wells. The presence of oil makes the removal process more challenging because the oil coats the weighting materials and prevents acid–filter cake interaction. Therefore, different additives are required to change the wettability of the filter cake to enhance the removal efficiency. This paper introduces a new biodegradable acid system (NBAS) that can efficiently remove oil-based filter cake in horizontal and multilateral wells where calcium carbonate is used as a weighting agent. The new biodegradable acid system (NBAS) consists of 50 vol.% biodegradable acid and 5 vol.% mutual solvent, and the remaining percent is deionized water. High-pressure high-temperature (HPHT) filtration experiments were performed to evaluate the filter cake removal efficiency and the retained permeability. The filtration and removal experiments were conducted using real core samples (Indiana limestone and Berea sandstone) at a temperature of 212 °F and 300 psi differential pressure. Afterward, the NBAS was evaluated by measuring physical properties and conducting corrosion, compatibility, and thermal stability studies. The obtained results showed that the NBAS was compatible and thermally stable for more than 48 h at 212 °F and 300 psi. The NBAS has a density of 1.05 g/cm³, viscosity of 1.47 cP, and surface tension of 32 dynes/cm at room temperature. The corrosion rate of the developed system was 0.03 lb/ft², which is acceptable according to oil and gas industry best practices. Removal experiments showed that the filter cake was completely removed from the core samples. For Berea sandstone, 100% of the permeability was regained, while the retained permeability for Indiana limestone was 122.5%, confirming the complete removal of external and internal filter cake as well as core samples stimulation. The new acid system can be considered as an efficient solution for oil-based filter cake removal that is biodegradable and cost-effective, where the reservoir permeability can be regained in one-stage only.

1. Introduction

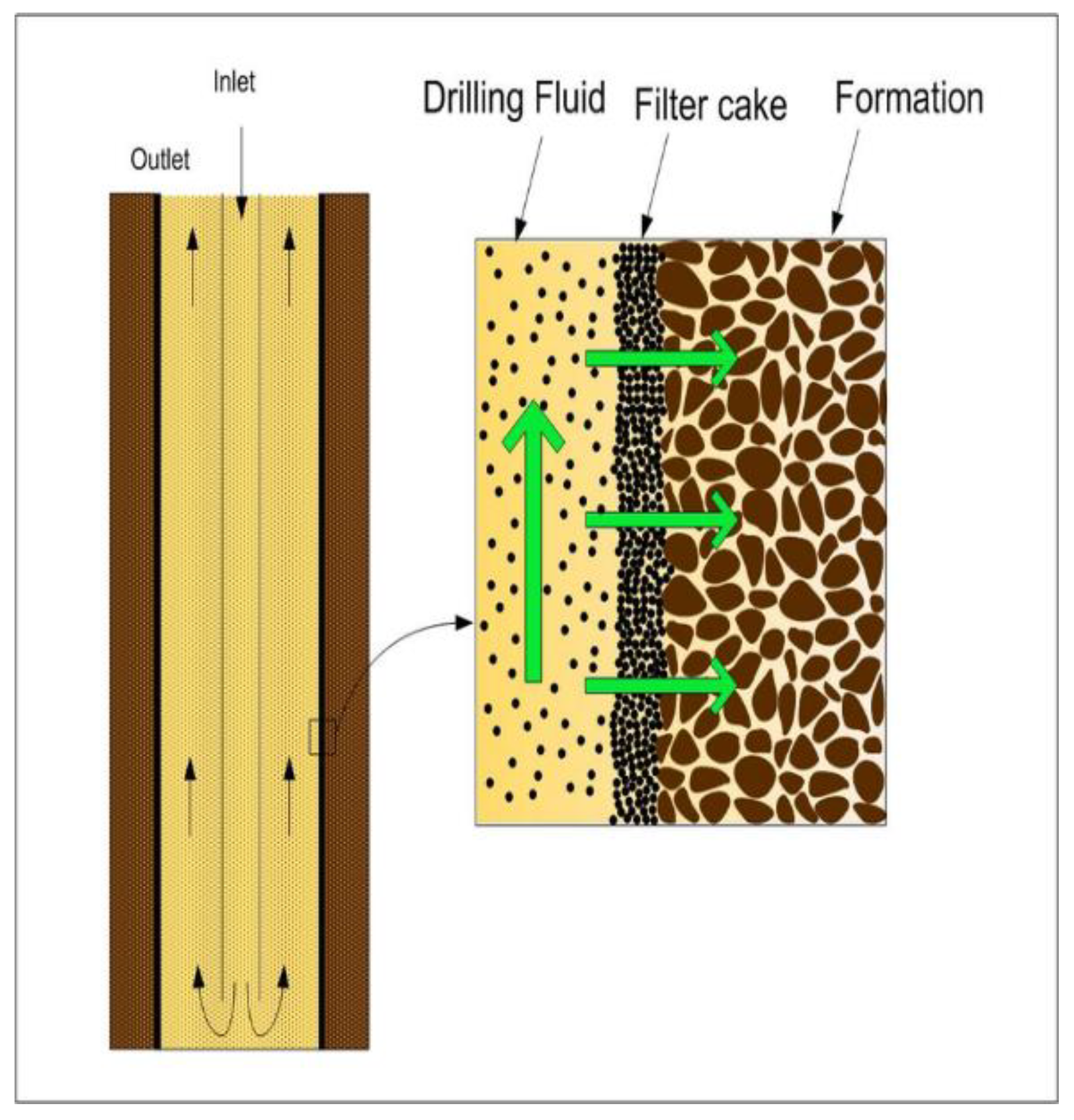

Overbalanced drilling is the most common technique for drilling oil and gas wells, where the hydrostatic pressure of the drilling fluid is kept higher than the formation pressure to prevent any production while drilling. Consequently, the drilling fluid tends to invade the formation, interacting with the solid and fluid components, causing permanent or removable formation damage. To mitigate the formation damage caused by the fluid filtrate invasion, drilling fluid formulation should be optimized by selecting the appropriate loss circulation additives that help form an ideal filter cake, thin and impermeable, on the wall of the drilled well [1,2]. Figure 1 shows a schematic of the filter cake through the wellbore. This filter cake saves the integrity of the wellbore during the drilling operation and reduces the fluid filtrate invasion [3,4,5,6]. To avoid any production restraint, the filter cake must be removed after completing drilling operations and before commencing production [7].

Davidson et al. [8] and Jiao et al. [9] stated that the well productivity can be significantly reduced because of plugging the completion screen by drill-in fluid (DIF) solids, which build a rigid barrier filter cake at the face of the formation. Formation damage is a common issue in the drilling operation because of poor design of the drill-in fluid, variation in the reservoir quality (porosity and permeability), lithology, pore-size distribution, and depletion of formation pressure [8].

Formation damage caused by the drill-in fluid is more pronounced in horizontal wells than in deviated or vertical wells because of the longer exposure to the drilling fluid [10,11]. Removal of the filter cake and mitigation of the formation damage in horizontal carbonate reservoirs using HCl acid is a challenging and expensive task because of the large volume of acid consumed due to fast reaction, the heterogeneity of the horizontal section, and the difficulty of acid placement at the appropriate locations [12,13,14].

Oil-based mud is the most common drilling fluid used to drill the reservoir section [15]. However, removal of a filter cake formed by oil-based drilling fluid is a challenging task as the oily film coating the weighting materials prevents acid–filter cake interaction. Consequently, some additives are required to alter the wettability of the filter cake to have a direct interaction between the acid and bridging agents to enhance the removal efficiency [16].

Many research studies were conducted to remove oil-based filter cake. Al-Anzi et al. [17] stated that the invert-emulsion filter cake can be uniformly removed using a delayed filter cake breaker. The organic acid precursor (OAP) is the main component in the delayed filter cake breaker in addition to water wetting additives [18]. Zubail et al. [19] used an organic acid precursor (OAP) and a water wetting additive to remove the invert-emulsion filter cake after drilling horizontal wells in Safaniya Offshore Field in Saudi Arabia. They concluded that the filter cake breaker which contains OAP and water wetting agents had a uniform distribution in the horizontal section and the breaker was able to remove the filter cake completely. Zubail et al. [19] stated that one of the main disadvantages of the OAP system is that it releases acid that can cause corrosion to the screen and the tubular system.

A microemulsion is a very stable homogenous fluid that was formulated by adding alcohol to surfactant-stabilized oil in water emulsions [20]. It can be used to dissolve the filter cake of synthetic and oil-based filter cakes in open-hole completions [21]. Microemulsion consists of several phases separated by a monolayer of surfactant. The average droplet size of the microemulsion is 10 to 100 nm, which is much smaller than conventional emulsions [22,23,24,25]. There are many factors affecting the behavior of the microemulsion phase, such as oil type, surfactant, co-surfactant, salinity, and temperature. Because wells are not identical, a preliminary study should be conducted in a laboratory considering the specific conditions of each well [26].

Invert emulsion drill-in fluid is commonly used to drill Saudi Arabia sandstone reservoirs to eliminate the formation damage caused by clay swelling. Al-Otaibi et al. [27] developed a single-stage removal fluid for oil-based filter cake in horizontal wells using single-phase microemulsion. They concluded that microemulsion was able to remove the invert-emulsion drill-in fluid filter cake with a high efficiency of 97% in 24 h soaking. They stated that the single-phase microemulsion was compatible with the invert-emulsion drilling fluid. However, the main advantages of microemulsion fluids are a reduction in the interfacial tension to near zero, high diffusion coefficient, and high oil solubilization [26].

Kumar et al. [28] used a single-phase microemulsion fluid where surfactants and co-surfactants were used to co-solubilize oil and water. They concluded that microemulsion fluids were able to effectively remove synthetic and oil-based filter cake and the near-wellbore damage. For successful operations, the microstructure of microemulsion should be characterized to customize the microemulsions for a certain application [29,30].

Zhou et al. [31] developed a new fluid formulation to remove oil-based filter cake. Their formulation consists of an oxidant (persulfate salt) and a nonionic surfactant. They stated that the main parameters that should be optimized are the type and the number of persulfates. They concluded that the new formulation is cost-effective and can be done in one stage only, with a removal efficiency up to 98 wt.%, with a minimal effect on the formation permeability.

This study introduces a new biodegradable acid system to remove oil-based filter cake which contains calcium carbonate as a weighting agent. The new formulation consists of 50 vol.% biodegradable acid, 5 vol.% mutual solvents, and 45 vol.% deionized water. A complete evaluation of the new fluid formulation was performed by assessing the removal efficiency, measuring the retained permeability after the removal process, and conducting compatibility, stability, and corrosion tests.

2. Materials

Invert-emulsion drilling fluid was prepared which contains 210 cm³ of diesel as the continuous phase and 59.5 cm³ of water as the dispersed phase. Calcium carbonate (30 g) was added as a weighting material, Invermul (6 g) as a primary emulsifier, and EZ-Mul as a secondary emulsifier (3 g). Lime (8 g) was used for contamination treatment and to enhance emulsion stability. Geltone (9 g) and duratone (8 g) were used for viscosity and fluid-loss control, respectively.

Table 1. The drilling fluid formula used in this study.

Additive	Quantity
Diesel	210 cm3
INVERMUL NT	6 g
EZ-MUL NT	3 g
LIME	8 g
Water	59.5 cm3
CaCl2	44 g
GELTONE II	9 g
DURATONE HT	8 g
CaCO3	30 g

lists the drilling fluid components used in this study. The drilling fluid has a plastic viscosity of 37.5 cP and a yield point of 30 lb/100 ft², while the gel strength was 17 lb/100 ft² at 10 sec, 20 lb/100 ft² at 10 min, and 23 lb/100 ft² at 30 min. The minor increase in the gel strength value from 10 min to 30 min indicates the flat rheology profile of the drilling fluid.

NBAS (new biodegradable acid system) consists of 50 vol.% biodegradable acid, 5 vol.% mutual solvent, and 45 vol.% deionized water. The biodegradable acid, obtained from a service company, is a green acid solution synthesized by a catalytic-reagent combination added to HCl. The biodegradable acid was used to dissolve the formed filter cake. It has a density of 1.05 gm/cm³, a viscosity of 1.47 cP, surface tension of 32 mN/m, and a pH of −1.29. These properties were measured at ambient temperature. The mutual solvent (Ethylene Glycol Mono Butyl Ether, C₆H₁₄O₂), obtained from a chemical service company, was used to alter the wettability of the filter cake to enhance the acid–filter cake reaction.

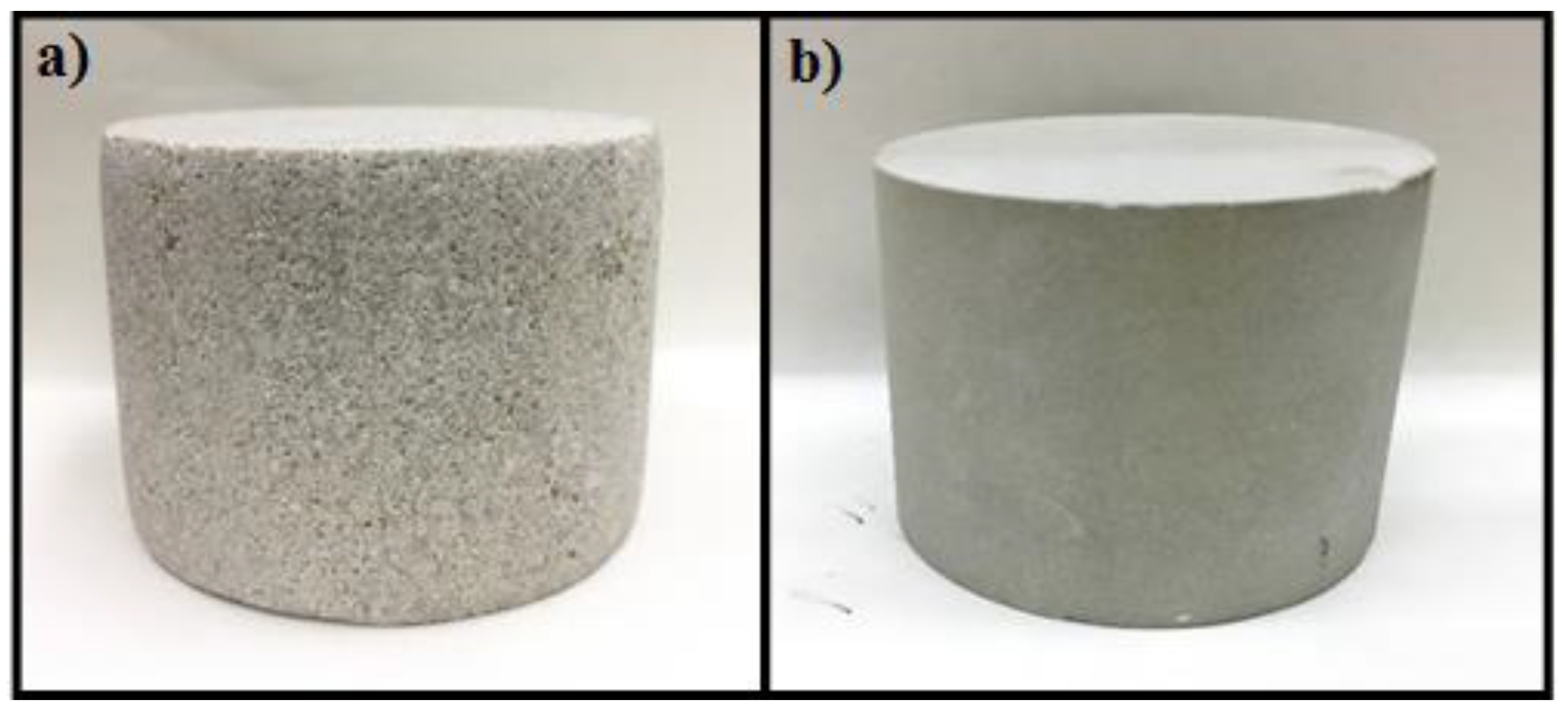

Two different core samples were used as filtration medium to simulate the reservoir condition; Indiana limestone core (2.5” in diameter) with an average diesel permeability of 166.6 mD and average porosity of 14.77%, and Berea sandstone core (2.5” in diameter) with an average diesel permeability of 133.6 mD and an average porosity of 17.9%. The core was dried for three h at 200 °F in the oven, then it was saturated with the diesel for 24 h under vacuum to be sure that it is saturated 100% with diesel. Figure 2 shows the core samples photos, and

Table 2. Core sample properties.

Property	Limestone	Sandstone
Diameter, in	2.5	2.5
Permeability with diesel, mD	166.6	133.6
Porosity, %	14.78	17.90

list the properties of the used core samples.

Experimental Procedure

The following procedure was applied to evaluate the performance of the NBAS in removing the oil-based calcium carbonate filter cake:

• The density, viscosity, and surface tension of the NBAS was measured at ambient temperature.
• Compatibility and thermal stability of the new acid mixture were performed at room temperature and 212 °F for 24 h.
• A corrosion test was conducted at 212 °F and 300 psi using steel coupons for 6 h, and the results were compared with an equivalent concentration of HCl.
• Invert-emulsion drilling fluid was prepared and mixed under ambient conditions using a three-speed mud mixer.
• Drilling fluid rheology was measured at 120 ℉ and atmospheric pressure.
• High-pressure high-temperature (HPHT) filtration tests were performed using 2.5” core samples for 30 min at 212 °F and 300 psi differential pressure.
• HPHT removal tests were performed using 200 cm³ of the new acid system to evaluate the filter cake removal efficiency after 24 h under static conditions.

3. Results and Discussions

3.1. Evaluation of NBAS

The properties of the NBAS were measured at room temperature. These properties are density, viscosity, and surface tension. NBAS has a density of 1.05 g/cm³, viscosity of 1.47 cP, and surface tension of 32 dynes/cm.

Compatibility and stability studies were performed at room temperature to evaluate the stability of the new acid system. A see-through cell was used to evaluate the thermal stability of the acid system at high temperature (212 ℉). The acid system was compatible under room temperature and 212 ℉ for more than 24 h without any change in the fluid system. No evidence of cloud formation was observed.

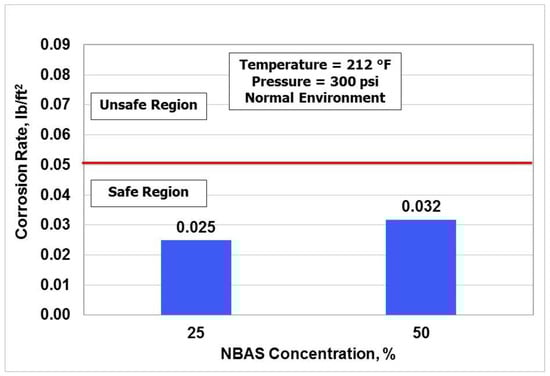

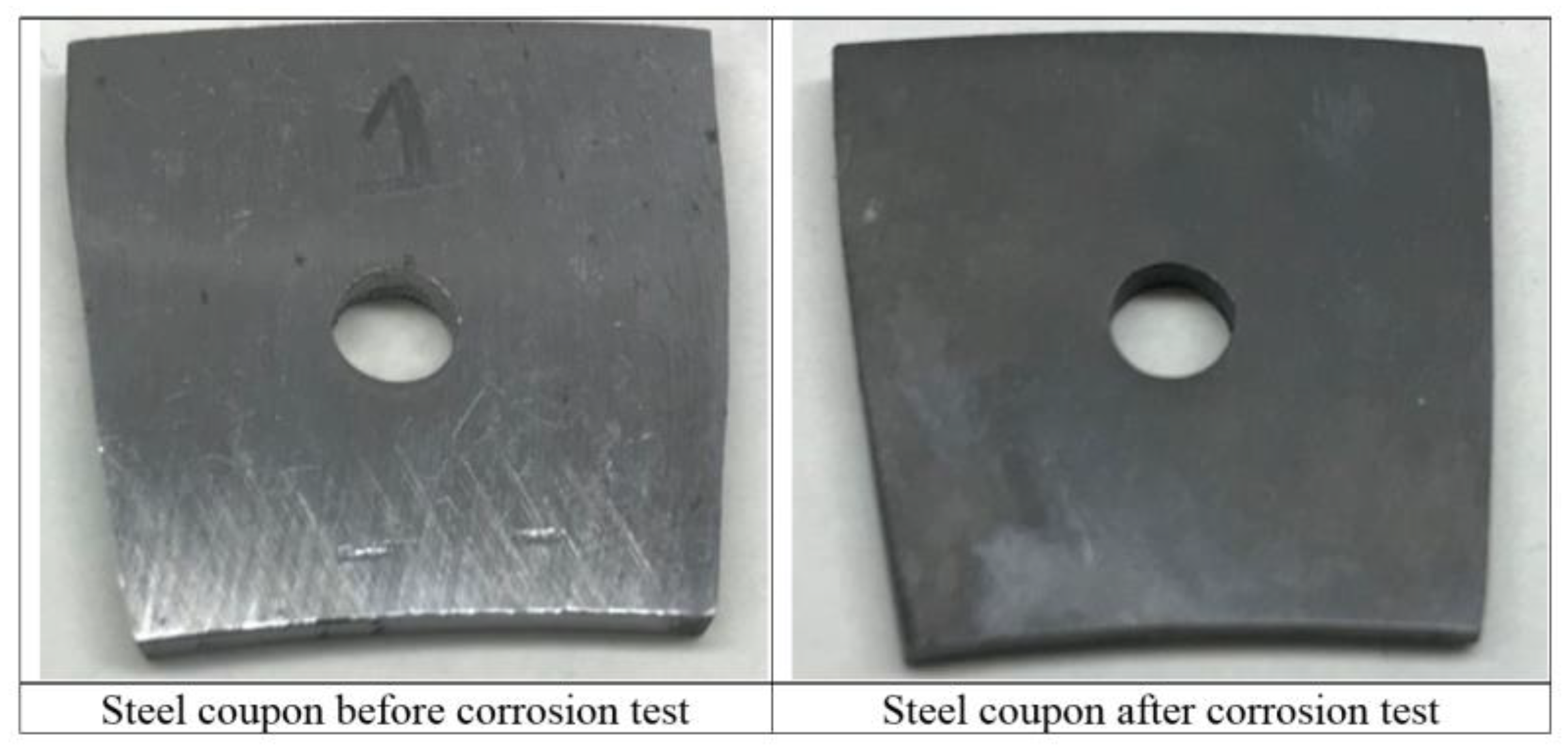

The corrosion rate was performed using a 100 cm³ solution, which contains 25 vol.% and 50 vol.% of NBAS at 212 °F and 300 psi applied presser using aging cell. Figure 3 shows that the corrosion rate was 0.032 lb/ft² when using 50% by volume of NBAS. Whereas it was 0.025 lb/ft² by decreasing the concentration of NBAS to 25 vol.% at 212 °F. Figure 4 shows the steel coupon before and after the corrosion test when using 50% by volume of NBAS.

3.2. Comparison with 10 vol.% HCl

The titration test was performed for the solution of NBAS and it showed that the concentration of the converted HCl is 20 vol.%. In our experiments, 50 vol.% of NBAS was used, which means that the active converted HCl is almost 10 vol.%.

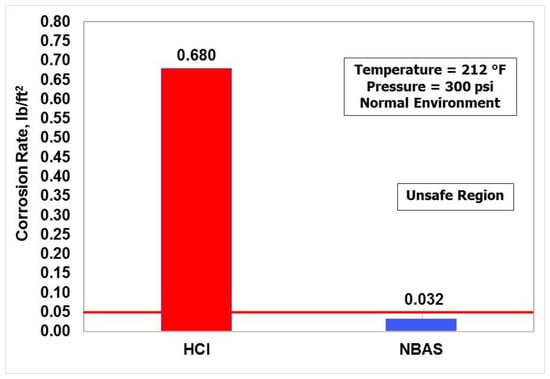

The corrosion rate was conducted at 212 °F and 300 psi applied pressure using 10 vol.% conventional HCl, and the results showed that the corrosion rate was very high and bypassed the unsafe region. Figure 5 shows that the corrosion rate using 10 vol.% HCl was 0.68 lb/ft², which is very high compared with the corrosion rate when using 50 vol.% NBAS at the same condition.

3.3. HPHT Filtration Tests

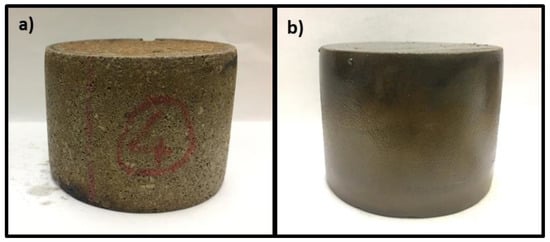

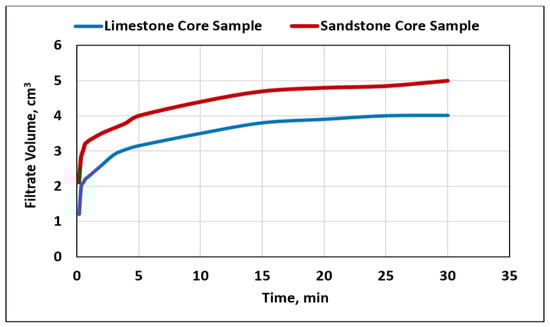

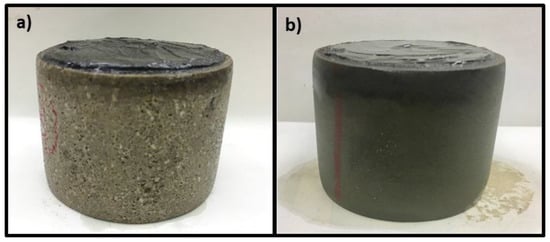

Filtration tests were conducted to form the filter cake for removal tests. The drilling fluid sample was poured into a modified HPHT cell that contained two real core samples (Indiana limestone and Berea sandstone) with 2.5” diameter and around 2” length. Core samples were saturated using diesel. The filtration experiments were performed at a temperature of 212 °F and a differential pressure of 300 psi. The experiment was started, and the filtrate volume was recorded for 30 min. Figure 6 compares the filtrate volume of the invert-emulsion drilling fluid on both Indiana limestone and Berea sandstone during the filtration test. The total fluid filtrate invading the sandstone core sample was 5 cm³, while it was 4 cm³ in case of the limestone core sample. After the filtration tests, a filter cake with a thickness of 1.3 mm was formed on the sandstone core sample, while the filter cake thickness was 1 mm in case of the limestone core sample. Figure 7 shows the core samples with the resulted filter cake after the filtration test.

3.4. Filter Cake Removal and Retained Permeability Calculations

The HPHT removal tests were performed at 212 °F to evaluate the removal efficiency of the filter cake using NBAS on limestone and sandstone core samples. The removal tests were conducted by soaking the core sample with the filter cake in 200 cm³ of NBAS for 24 h. The clean-up fluid contains 50 wt.% NBSA, 5 wt.% mutual solvent, and the remaining percent is de-ionized water. Figure 8 shows the limestone and sandstone core samples after the removal test. It is clear that the filter cake was completely removed after 24 h of soaking with NBAS for both limestone and sandstone core samples. These results confirmed the 100% removal of the external filter cake. To evaluate the removal of the internal filter cake or the damage after the filtration, the return permeability was calculated.

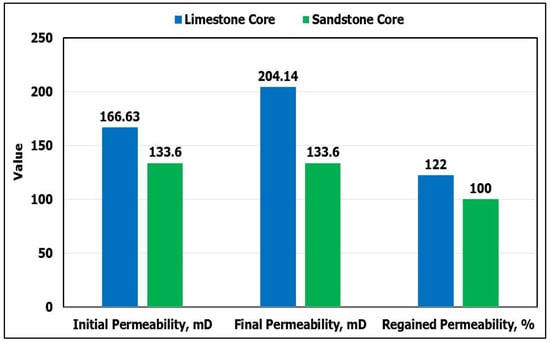

A modified HPHT filter cell was used to measure the initial and final permeability using diesel at room temperature. The final permeability of the sandstone core was 133.6 mD, which is the same value of the initial permeability, indicating the complete removal of the internal damage after the removal process, and the retained permeability was 100%. For the limestone core, the initial permeability was 166.3 mD, while the final permeability was 204.14 mD, and the retained permeability was 122.5% (Figure 9). These results confirmed that the new acid formulation was able to stimulate the limestone core sample after removing the external filter cake completely. The filtration and removal tests were conducted three times to confirm the results.

Table 3. Summary of filtration and removal tests results.

Parameter	Limestone	Sandstone
Filter cake weight, g	3.5	3.9
Filter cake thickness, mm	1	1.3
Removal efficiency, wt.%	125	100
Retained permeability, %	122	100

summarizes the filtration and removal test results.

The mutual solvent (5 wt.%) was used to remove the oil film surrounding the solid particles, and as a result, there was direct contact between the solid particles and NBAS acid. NBAS (50 wt.% concentration of the removable fluid) contains HCl with a concentration of 10 wt.%, which completely removed the calcium carbonate from the filter cake, and the remaining amount of acid interacted and stimulated the core. This explained the increase in retained permeability in the case of limestone.

4. Conclusions

A new biodegradable acid system (NBAS) was used to remove the calcium carbonate filter cake formed from invert-emulsion drilling fluids. Based on the results of this study, the following conclusions can be drawn:

• A new acid formulation was developed to remove calcium carbonate filter cake in invert-emulsion drilling fluids. The new formulation consists of 50 vol.% biodegradable acid, 5 vol.% mutual solvent, and 45 vol.% deionized water.
• The new acid system was found to be very effective in removing calcium carbonate oil-based filter cake in both limestone and sandstone formations, with a removal efficiency of 125% and 100%, respectively. After the acid treatment, the initial permeability of limestone and sandstone core samples was completely regained with further stimulation on limestone core samples (122% retained permeability)
• Compatibility and stability results confirmed that the new acid system is compatible and thermally stable for more than 24 h under a temperature up to 212 °F with an acceptable corrosion rate of 0.03 lb/ft² according to oil industry best practices, which makes this new acid formulation a good candidate for the removal of calcium carbonate filter cake in invert-emulsion drilling fluids.
