Sustainability 2018, 10(4), 948; doi:10.3390/su10040948

Article
Phase Change Material (PCM) Application in a Modernized Korean Traditional House (Hanok)
1
Illinois School of Architecture, University of Illinois at Urbana-Champaign, Champaign, IL 61820, USA
2
Department of Architecture, Inha University, Inharo 100, Namgu, Incheon 22212, Korea
*
Author to whom correspondence should be addressed.
Received: 1 February 2018 / Accepted: 22 March 2018 / Published: 24 March 2018

Abstract

:
Social and policy interest in the modernization and revitalization of the Korean traditional house (Hanok) has increased recently in Korea but its low thermal performance is one of its weaknesses. A feasibility study was conducted to evaluate the suitability of a Phase Change Material (PCM) in a modernized Hanok. The research method involved a test of the heating and cooling load reduction and Predicted Mean Vote (PMV) analysis for human comfort using an Esp-r simulation adopting multi variable PCM types as the building wall composite. The influence of PCMs on reducing the building energy load was assessed as a criterion for upgrading materials and infiltration to the passive house regulation. Compared to the base case, the heating and cooling load reduction ratio were as follows: Case 1 (old-Hanok), 10%; Case 2 (Korean Building Act), 21%; and Case 3 (passive house regulation), 53%. The optimal phase change temperatures of the PCMs were Case 1 (24–26 °C), Case 2 (23–25 °C) and Case 3 (24–26 °C). PMV analysis showed that the use of a PCM can narrow the comfort range and centralize the optimal point. Therefore, the following contents can be presented as the design and material guidelines. First, the optimal PCM temperature can vary according to the combination of materials and local climate. In addition, the infiltration and insulation should be verified and a certain portion of them should be secured. Finally, the addition of insulation to a passive house level should be considered actively using a PCM as a supplement for net zero energy building (nZEB).
Keywords:
Korean traditional house; Hanok; PCM (Phase Change Material), ESP-r; energy simulation; building materials

1. Introduction

In Korea, there has been increasing interest in Hanok, which is the original type of Korean architecture. As the social demand for Hanok is expanding, it has great potential for creating various cityscapes and becoming an alternative to new residential environments. Social and policy interest in the modernization and revitalization of Hanok has increased and recently a technical development research project was initiated by the Korean Government. Consequently, a modernized Hanok, which includes various reinterpretations and recognition of changes to its layout and performance required for modern life, was constructed. The question is whether to accept and apply the characteristics of the traditional Hanok. This is an important part of the modernization of Hanok and its application to the future [1]. Figure 1 presents typical images of traditional and modern Hanok. The main difference is in their construction method. The old-Hanok is built using wet construction methods but the modern Hanok uses mainly dry construction methods.
From this background, some critical issues have emerged, such as narrow space dimensions and the layout for a modern lifestyle, poor insulation, weak fire resistance and expensive construction costs compared to contemporary buildings. In particular, based on a survey dealing with the inconvenience of Hanok, ”hot and cold” sensations were the biggest issues with a reported rate of approximately 18% [4,5]. Moreover, inefficient energy consumption—particularly energy loss through the building envelope—is one of main concerns with Hanok [6,7,8]. Therefore, if hot and cold problems can be solved, it will help reduce energy consumption and carbon dioxide emissions as well as provide indoor human comfort.
One of the easiest ways to improve the thermal performance is to add insulation. The traditional earthen wall made from loess—called Hwangtoh, used to construct the traditional Hanok [9]—is impractical because of the high thermal conductivity of approximately 1–2 W/m·K [10], which is approximately 10 times higher than that of insulation [11]. Therefore, an appropriate amount of insulation is needed but various difficulties are encountered as the walls of Hanok are thickened because of the limitations regarding the thickness and the aesthetic proportions of the wooden pillars.
An additional option is to install a Phase Change Material (PCM), which is a heat storage material. Its basic principle is to absorb a large amount of heat and energy and release it to the indoors or outdoors by melting and solidifying at certain temperatures [12,13,14,15,16]. In addition, its main advantage is to maintain a certain temperature for a long time and improve the energy efficiency in the building energy load.
In previous studies, the PCM for building applications can be classified into two types: the traditional and encapsulated PCM [17]. Based on the classification, a computer simulation and field study were performed to assess the applications of PCMs in walls [18,19,20,21,22,23,24,25], roofs [26,27], windows [28,29] and floors [30,31]. In particular, there are advantages in installing a PCM in wall systems depending on which part is focused on, such as the materials and combinations, which geographic conditions they are testing and whether the tests are conducted under heating or cooling conditions. For example, finite different numeric calculations of a PCM wall system were performed at different melting temperatures and climates for net zero energy buildings (nZEB) based on characteristic days [19,20]. In addition, a thermal comfort test for a PCM wall system was conducted based on lightweight concrete with an encapsulated PCM for residential housing in Hong Kong. The results showed that the application of PCM to lightweight aggregate improved economic feasibility and was expected to have positive results in an environmental evaluation through CO2 reduction [21]. In terms of the experiment with a numerical evaluation, two identical rooms were used to assess the performance and effectiveness of a shaped-stabilized PCM [22]. In addition, they selected different locations to determine the climate differences and its impact on the performance of PCM. Numerical and experimental analyses were performed based on a nano-PCM to evaluate the application of a PCM and gypsum wallboard; this system showed better energy performance in maintaining the indoor temperature [23]. Microencapsulated PCM with copper foam as a medium was simulated for thermal comfort in Malaysia and the system reduced the cooling energy load [24]. A performance test of an insulated concrete block with PCM was conducted in the United Arab Emirates to determine the energy consumption in the cooling season with natural or mechanical ventilation [25].
As one of the main concerns around maintaining and improving the thermal performance, the phase change temperature should be considered. A PCM has inherent properties, such as the melting temperature, heat of fusion, thermal conductivity and density [14]. Selecting a PCM with a specific melting temperature is very important because it can absorb a large amount of energy and release it to the buildings at a specific temperature as the melting temperature changes. In particular, the energy performance can vary greatly depending on which PCM is selected because the melting temperature ranges from −30 to +66 °C [32,33].
Therefore, the application of a PCM not only reduces the total energy consumption but also affects the peak load reduction positively [34]. The thermal storage function of the PCM also positively affects human thermal comfort [35,36]. In addition, fire retardation, long term stability and enhanced heat transfer are important.
In this study, the effects of PCM application for the selection of the material property in a modernized Hanok (so called new-Hanok) were simulated. In previous studies, research on the energy analysis of historical buildings was conducted [37,38]. In addition, the performance of PCM has been evaluated after adding traditional materials, lime mortar with PCM [39], but, few studies have assessed the applicability of PCM to the modernization of traditional architecture and one was initially introduced to conference proceedings in 2001 [40]. Compared to previous studies, there have been major amendments of new contents; the building regulations related to the insulation thickness have changed considerably and the latest codes are reviewed in this paper. In particular, a PCM can play a very important role in the planning of new-Hanok because the main material of traditional housing is soil and wood, which have poor thermal performance. Finally, the following are addressed: (1) identify how the energy (total consumption) aspects and human comfort change when applying several different types of PCM to a building envelope using an energy simulation; (2) predict the appropriate phase change setting temperature for various cases through sensitivity analysis; and (3) propose a material and engineering guide for how PCM can effectively reduce energy consumption and increase human comfort.

2. Methods

The analysis is presented in three steps, as shown in Figure 2:
(1)
select a new-Hanok model, materials and simulation assumptions including infiltration;
(2-1)
analyze the basic heating and cooling energy load to determine the adoptable PCMs;
(2-2)
diversify temperature variables of PCM, which is aimed at minimizing the energy load and the peak-load shift by sensitive analysis; and
(3)
analyze and compare the application of several types of PCM on the building model for minimizing the heating and cooling load and optimize the PMV range for human comfort.
The procedure for basic design of Hanok, material components, simulation settings and criteria for the selection of measures are described below.

2.1. New-Hanok Drawing

As a base model of this study, one of the new-Hanok plans by the ‘Hanok Technical Development Research Institute’ was selected [41]. Figure 3 shows the plan and perspective drawing for the simulation. The main feature of new-Hanok design, ‘Daechung,’ which is the living room space, was considered the indoor space while the semi-outdoor space was the unconditioned area in the original Hanok. In addition, the room and window size were adjusted to be suitable for modern life and furniture arrangement. This model consisted of three bedrooms, a living room, a kitchen and so forth. The length of the building was 15.6 m; the depth was 13.2 m; the floor to ceiling height was 2.4 m; the area was 102.24 m2; the volume was 245.38 m3; and the WWR (Window to Wall Ratio) was 19%.

2.2. Esp-r Computer Simulation and Setting

Esp-r 11.1, which is a dynamic energy simulation tool introduced in 2001, was selected to identify the applications of PCM–Hwangtoh (Hwangtoh is the traditional earthen wall made by loess) composites for thermal comfort in new-Hanok [42,43]. The ‘Active Materials’ option of Esp-r has been used to conduct research related to the application of PCMs [44]. This research was targeted for integrating the energy simulation with PCM and applying a gypsum board-PCM composite in a building. Therefore, there is a function that enables the application of a PCM to the multilayers of a composite in Esp-r. The basic equation for transient heat conduction with thermophysical properties is shown below [44,45]:
t ρ ( T ) h ( T ) = · [ k ( T ) T ( r , t ) ] + q ( r , t )
where T is the temperature; ρ is the density; h is the enthalpy; k is the conductivity; and q the heat-generation rate [44].
The weather data was supported by the Esp-r default climate file, which was set to Seoul, Korea (‘KOR_SeoulAB’_from Korea Institute of Energy Research (KIER)). According to the ASHRAE climate classification, Seoul belongs to Zone 4A, a moderate climate zone. In terms of the annual weather averages, July is the hottest month in Seoul with an average temperature of 24 °C and the coldest month is January at −4 °C. The annual-average daily global solar radiation is 3.58 kWh/m2·day [46]. As a HVAC control, the set points of cooling and heating were 24 and 21 °C, respectively [47,48]. The internal loads for the equipment were calculated to be 8.07 W/m2 (0.75 W/ft2) peak load and the sensible load per person was 297 W, which is 8.07 W sensible/m2 (0.75 W sensible/ft2) [49].
In terms of infiltration, the performance in old-Hanok appears to be poor due to deformation and joint problems with wood and Hwangtoh. Table 1 lists the infiltration input data described by the actual data in old-Hanok [50], ASHRAE standard Leakage Class [51,52] and Passive House Planning Package (PHPP) [53]. The formulation converting from Air Changes per Hour (ACH) (50 Pa) to ACH (0 Pa) is followed by EN 13790 [54].
Based on the simulation setting, the annual heating and cooling loads were evaluated based on the sum of the load in two seasons; winter and summer. In addition, the reduction ratio, which is expressed as the relationship between the value of the base and target cases was used to compare the energy savings with the base case.

2.3. Material Properties

To select the applicable material properties in a new-Hanok, the following three different types were chosen: Case 1, an old traditional Hanok, called Genjaegotaek, built in 1869 [50] with real data; Case 2, a house that uses materials fulfilling the latest Korean Building Act (revised in 2017); and Case 3, a house that respects the passive house building guideline materials (PHPP 2015 [53]) for nZEB. Table 2 lists the conditional U-value properties of the three cases.

2.4. PCM (Phase Change Material)

Among the many techniques for increasing the thermal comfort, PCM has been used for heating-cooling load reduction and peak load shifting. The thermodynamic features of PCM are known as the absorption and release of the phase change latent heat under isothermal condition [55]. Theoretical and numerical analysis were conducted and the integration of PCM modeling with a building dynamic simulation was performed using ESP-r [44,56].
The most critical properties of a PCM for improving the building thermal performance are the melting point, transition temperature range and latent heat of the phase change. Assuming that the normal temperature distribution in Korea is approximately 0 to 30 °C, three PCMs, which range in ambient temperature were chosen [32,57,58,59] for the simulation and are listed in Table 3. These three PCMs were tetrabutylammonium bromide, propyl palmitate and paraffin C13–C24, with melting and solidification temperatures of 10–12 °C, 16–18 °C and 22–24 °C, respectively, with a thickness of 25 mm. To reduce the energy load and maintain a uniform indoor temperature, the PCMs were installed in the inner side of the external wall, as shown in Figure 4. In addition, the basic descriptions and abbreviated terms are as follows: Tm, melting temperature; Ts, solidification temperature; latent heat of fusion, which is the heat absorbed as a substance changes phase from liquid to solid; setting temperature; melting and solidification temperatures; and reduction ratio, the energy savings compared to the base case. In terms of thermal conductivity, density and specific heat capacity, the mean or median values based on commercial product details were used [20].

2.5. Wall Composite with PCM

Three different types of wall configurations were set as the main variables in this experiment, as shown in Figure 4. One common feature of the three cases is that 25 mm PCM-Hwangtoh is used as a component of the wall, the main difference being the value of heat transfer (U-value). Case 1 is composed of a wall of old-Hanok. This assumes a wall composed of pure Hwangtoh. Case 2 assumes a wall that meets the legal standards required by Korean housing. At this time, cellulose which is a pack of cellulose pulp in felt form was used as the thermal insulation material based on the guidelines of the National Hanok Center [1] and its thickness was calculated to be 155 mm to meet the current code (Korean Building Act). Finally, in Case 3, the insulation standard was reinforced to a passive house level and an insulation of 260 mm was used with the other materials remaining the same as in Case 2. In Cases 2 and 3, terracotta was applied as an alternative to Hwangtoh and waterproofing and steel frames were also used [1].

2.6. PMV (Predicted Mean Vote)

Thermal comfort, which is a human’s satisfaction with the thermal environment, can be expressed as the PMV, based on Fanger’s model [63]. The PMV defines how people would be satisfied in a thermal environment and it is standardized as ASHRAE 55-2004 and used to evaluate the thermal comfort [51,64,65,66]. The values range from −3 (too cold) to +3 (too warm) and a range from −0.5 to 0.5 is normally recognized as a comfort zone by ASHRAE [51]. In this paper, the number of hours with ǀPMVǀ <1, that is, PMV values ranging from −1 to 1, which is the cumulative time comfort over a year, was selected to evaluate the thermal comfort.

3. Results and Discussion

The results can be divided into three parts: energy performance evaluation in terms of the infiltration changes, two simulations with a PCM temperature setting and PMV analysis. In the first part, the simulation was performed to determine how the energy performance changes based on the infiltration uncertainty. Second, two simulations were conducted, which are presented as a process to find the optimal PCM temperature according to various material characteristics through sensitivity analysis. Finally, PMV was applied to determine how thermal comfort is achieved at the junction between the various materials and how much energy reduction and human comfort are similar or different.

3.1. Energy Performance According to the Insulation Material and Infiltration Level Change

The annual heating and cooling loads were drawn by varying the material properties and infiltration without applying a PCM. The three infiltration values were taken from Table 1 and are shown in Figure 5. Considering that the ACH of a typical residential building in Korea is approximately 0.4, 0.321 was selected as the infiltration intermediate value in the simulation [67].
Figure 5 shows that strengthening of the insulation performance and infiltration in the Hanok can reduce the energy load by approximately 66%, 21% and 73% from Case 1 to Case 2, Case 2 to Case 3 and Case 1 to Case 3, respectively. For the material properties for a new-Hanok, the addition of thermal insulation materials and strengthening infiltration can improve the energy performance. The next part clarifies how the energy performance (total energy consumption and peak load energy consumption) and thermal human comfort can be improved when a PCM is applied.

3.2. Energy Performance Based on the Variation of the PCM-Hwangtoh Composite

The first simulation was conducted to select the appropriate temperature range in phase change mode. In setting the phase change temperature, three types in the range among the mean ambient temperature 0 to 30 °C were chosen, which are PCMs with a melting and solidification temperature range of 10–12 °C, 16–18 °C and 22–24 °C. A total of 12 simulations were performed based on three types of material properties, Cases 1, 2 and 3, according to the three different types of PCMs and non-PCM. Figure 6 compares the annual heating and cooling loads by applying the three types of PCMs. The reduction ratio is expressed as the relationship between the value of the base case and the target case.
According to the simulation results, setting the phase change temperature range to 10–12 °C and 16–18 °C increases the total heating and cooling loads slightly compared to the base case. In the case when 22–24 °C was used, the PCM decreased the heating and cooling load reduction ratio by 10.2, 21.3 and 53.1 in Cases 1, 2 and 3, respectively, compared to the non-PCM application. This means that selecting the 22–24 °C PCM temperature range, which is the cooling and heating set point, is efficient.
Based on the first simulation, the next simulation as sensitivity analysis, which ranged from 20–26 °C was conducted and the results are shown in Figure 7. Therefore, the second simulation was performed by further dividing the PCM temperature into six different types: none, 20–22 °C, 21–23 °C, 22–24 °C, 23–25 °C and 24–26 °C. The reduction ratio in the figure was calculated based on the PCM not being included in each case, which is the base case. The simulation results showed that the optimal set points of the PCMs for Cases 1, 2 and 3 are 24–26 °C, 23–25 °C and 24–26 °C respectively. This means that the optimal PCM set point should be applied differently according to the change in material properties. In addition, the heating and cooling load reduction ratio increased when the material properties were upgraded from Case 1 to Case 3. Following these results, for the near future in a passive house, PCM can reduce the heating and cooling loads significantly in a new-Hanok by approximately 60% compared to the non PCM applied building.
In terms of the monthly energy reduction, PCM-Hwangtoh composites positively affect the condition not only in spring and autumn but also in summer and winter, as listed in Table 4. The monthly heating load reduction ratio in January, which demands the maximum heating loads, was Case 1 at 2.1%, Case 2 at 11.4% and Case 3 at 94% compared to the non-PCM application. This means that the heating load reduction of the PCM can be maximized in a fully insulated situation, so the effect of the PCM and insulation on the heating energy saving is positive.
On the other hand, the difference in energy reduction between summer and winter is obvious. In Figure 8 and Figure 9, there are two types of days, the hottest and coldest days of the year and the daily ambient temperature and heating and cooling loads are drawn. The x-axis of the figures represents the time and the y-axis represents the temperature and heating and cooling energy load. In addition, the dotted line in the graph indicates the temperature, the thick line indicates the PCM (24–26) applied case and the thin line indicates the base case, which is the non-PCM case. Compared to the non-PCM energy loads, in summer, the gap, which is shaded in gray (darkened), between non-PCM and PCM (24–26) is minor. On the other hand, in winter, the gap between the two material composites is extremely large. The reason for this is during the hottest day, two major factors, both temperature and solar radiation increase the indoor temperature. On the other hand, in winter, temperature and solar radiation have an opposite effect on the indoor temperature.

3.3. Thermal Performance with PMV Analysis Based on the Variation of the PCM-Hwangtoh Composite

Based on the results of the two energy simulations, PMV analysis was performed and the basic input data is as follows: (1) Clothing level, 0.7 (clo); (2) Activity level, 1.46 (MET) and (3) Air velocity, 0.1 (m/s) [64,68,69].
As shown in Figure 7, when applying different PCMs for each case, the range of the PMV value was 73.0–80.3% for Case 2 and 68.6–76.0% for Case 3. Figure 10 presents the results regarding the three optimal energy cases, Case 1, 2 and 3 with 24–26 °C, 23–25 °C and 24–26 °C, respectively. For thermal comfort, Case 2 showed the highest percentage, which is approximately 80.3% followed by Case 3 with approximately 76%. Therefore, Case 2 is superior to Case 3 in terms of the portion where the PMV falls within the range of −1 to 1. The reason why Case 2 shows a higher percentage of PMV than Case 3 is that winter is the season when a PCM is more effective in the Korean climate. In winter, the PMV is measured based on the operating temperature of the PMV of approximately 20–24 °C, that is, an average of 22 °C [70]. The internal heating temperature is set to operate at 24 °C. The set temperature of the PCM is 24–26 °C, which is also higher than the PMV standard ranges. The winter temperature is often maintained above 24 °C because the internal heating system tends to maintain temperatures greater than or equal to 24 °C and in Case 3, the performance of insulation and infiltration is quite good. Therefore, the PMV is relatively higher than the reference value. In addition, the occupant has the advantage of wearing thinner clothes on the inside in winter and staying in a better thermal condition than usual [71].
When the PMV range was subdivided and its frequency was examined, as shown in Figure 10, the absolute value range of the PMV changes was smaller for Case 3 than for Case 2. In other words, the area in Case 3 is displayed at the frequency of 9 stages in total from (−0.65, −0.4) to (1.35, 1.6) compared to the area in Case 2, which is displayed at a frequency of 11 stages in total from (−0.9, −0.65) to (1.6, 1.85). This suggests that Case 3 can maintain the internal temperature of the room more effectively within the appropriate range, resulting in a “flattening effect” [55] on the internal room temperature.

4. Conclusions

This study examined how a PCM combined with a new-Hanok envelope, particularly the wall composite, can affect the building energy and thermal performance. The heating and cooling load reduction and PMV comfort range were measured and evaluated with the variation of infiltration, insulation and PCM properties. The optimal phase change temperature was also investigated in variable types of PCM applications with sensitivity analysis. The results for the design and material guidelines are as follows.
-
Infiltration revealed a significant effect on the energy consumed. In particular, Hanok, which is constructed by mixing various materials, has considerably low infiltration, so it is important to strengthen it.
-
Compared to traditional Hanok materials, strengthening insulation based on passive house regulation for nZEB can reduce the heating and cooling energy by approximately 73%.
-
The PCM helps reduce the energy consumption when it approaches the passive house regulation material property. The heating and cooling load reduction ratio compared to the non-PCM application are as follows: Case 1 (old-Hanok), 10.2%; Case 2 (Korean Building Act), 21.3%; and Case 3 (passive house regulation), 53.1%.
-
The optimal set point of the PCM for energy saving has a different value depending on the material properties. The optimal phase change temperature of a PCM for a new-Hanok is as follows: Case 1, 24–26 °C; Case 2, 23–25 °C; and Case 3, 24–26 °C.
-
In PMV analysis, the use of a PCM can narrow the comfort range and centralize the optimal point, which is 0 point. The results confirm that a PCM has a “flattening” influence inside the zone temperature.
This paper examined the feasibility of applying a PCM to Hanok through the sensitivity survey method. Nevertheless, more advanced research will be needed to address the weak points.
-
PMV is affected significantly by the operation schedule and occupant behavior. Dividing the basic types of the occupant schedule can allow the PMV effect to be measured more accurately by applying a PCM.
-
Studies of the life cycle cost and life cycle CO2 analysis are the major points for economic analysis. The price of the PCM will need to be in the acceptable range and a long-term heating and cooling load calculation will be needed.

Acknowledgments

This study was supported by INHA UNIVERSITY Research Grant.

Author Contributions

The work presented in this article is the result of a collaboration of all authors. Jaewook Lee contributed to writing the manuscript and edited the document. Jiyoung Park critically reviewed the article. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. National Hanok Center Official Website. Available online: http://www.hanokdb.kr (accessed on 25 February 2018).
  2. Image (Myeongjaegotak, Korea). Available online: http://first.designdb.com/imagedata/survey/P/60_6_3_P.jpg (accessed on 25 February 2018).
  3. Image (Hwagyeongdang, Korea). Available online: http://www.dtoday.co.kr/news/articleView.html?idxno=92052 (accessed on 25 February 2018).
  4. Kim, D. The Natural Environment Control System of Korean Traditional Architecture: Comparison with Korean Contemporary Architecture. Build. Environ. 2006, 41, 1905–1912. [Google Scholar] [CrossRef]
  5. Ryu, Y.; Kim, S.; Lee, D. The Influence of Wind Flows on Thermal Comfort in the Daechung of a Traditional Korean House. Build. Environ. 2009, 44, 18–26. [Google Scholar] [CrossRef]
  6. Sadineni, S.B.; Madala, S.; Boehm, R.F. Passive Building Energy Savings: A Review of Building Envelope Components. Renew. Sustain. Energy Rev. 2011, 15, 3617–3631. [Google Scholar] [CrossRef]
  7. Cheung, C.; Fuller, R.; Luther, M. Energy-Efficient Envelope Design for High-Rise Apartments. Energy Build. 2005, 37, 37–48. [Google Scholar] [CrossRef]
  8. Lee, J.; Jung, H.; Park, J.; Lee, J.; Yoon, Y. Optimization of Building Window System in Asian Regions by Analyzing Solar Heat Gain and Daylighting Elements. Renew. Energy 2013, 50, 522–531. [Google Scholar] [CrossRef]
  9. Yang, K.; Hwang, H.; Kim, S.; Song, J. Development of a Cementless Mortar Using Hwangtoh Binder. Build. Environ. 2007, 42, 3717–3725. [Google Scholar] [CrossRef]
  10. Johansen, O. Thermal Conductivity of Soils; Cold Regions Research and Engineering Lab: Hanover, NH, USA, 1977. [Google Scholar]
  11. Abdou, A.A.; Budaiwi, I.M. Comparison of Thermal Conductivity Measurements of Building Insulation Materials under Various Operating Temperatures. J. Build. Phys. 2005, 29, 171–184. [Google Scholar] [CrossRef]
  12. Dincer, I.; Rosen, M. Thermal Energy Storage: Systems and Applications, 2nd ed.; John Wiley & Sons, Inc.: Haboken, NJ, USA, 2010; ISBN 0470747064, 9780470747063. [Google Scholar]
  13. Paksoy, H.Ö. Thermal Energy Storage for Sustainable Energy Consumption: Fundamentals, Case Studies and Design; Springer: Berlin, Germany, 2007; Volume 234, ISBN 1402052901, 9781402052903. [Google Scholar]
  14. Cabeza, L.F.; Castell, A.; Barreneche, C.; De Gracia, A.; Fernández, A. Materials Used as PCM in Thermal Energy Storage in Buildings: A Review. Renew. Sustain. Energy Rev. 2011, 15, 1675–1695. [Google Scholar] [CrossRef]
  15. Akeiber, H.; Nejat, P.; Majid, M.Z.A.; Wahid, M.A.; Jomehzadeh, F.; Famileh, I.Z.; Calautit, J.K.; Hughes, B.R.; Zaki, S.A. A Review on Phase Change Material (PCM) for Sustainable Passive Cooling in Building Envelopes. Renew. Sustain. Energy Rev. 2016, 60, 1470–1497. [Google Scholar] [CrossRef]
  16. Hassan, A.; Shakeel Laghari, M.; Rashid, Y. Micro-Encapsulated Phase Change Materials: A Review of Encapsulation, Safety and Thermal Characteristics. Sustainability 2016, 8, 1046. [Google Scholar] [CrossRef]
  17. Jeon, J.; Lee, J.; Seo, J.; Jeong, S.; Kim, S. Application of PCM Thermal Energy Storage System to Reduce Building Energy Consumption. J. Therm. Anal. Calorim. 2013, 111, 279–288. [Google Scholar] [CrossRef]
  18. Memon, S.A. Phase Change Materials Integrated in Building Walls: A State of the Art Review. Renew. Sustain. Energy Rev. 2014, 31, 870–906. [Google Scholar] [CrossRef]
  19. Mazzeo, D.; Oliveti, G.; De Simone, M.; Arcuri, N. Analytical Model for Solidification and Melting in a Finite PCM in Steady Periodic Regime. Int. J. Heat Mass Transfer 2015, 88, 844–861. [Google Scholar] [CrossRef]
  20. Mazzeo, D.; Oliveti, G.; Arcuri, N. A Method for Thermal Dimensioning and for Energy Behavior Evaluation of a Building Envelope PCM Layer by Using the Characteristic Days. Energies 2017, 10, 659. [Google Scholar] [CrossRef]
  21. Memon, S.A.; Cui, H.; Zhang, H.; Xing, F. Utilization of Macro Encapsulated Phase Change Materials for the Development of Thermal Energy Storage and Structural Lightweight Aggregate Concrete. Appl. Energy 2015, 139, 43–55. [Google Scholar] [CrossRef]
  22. Ye, H.; Long, L.; Zhang, H.; Zou, R. The Performance Evaluation of Shape-Stabilized Phase Change Materials in Building Applications Using Energy Saving Index. Appl. Energy 2014, 113, 1118–1126. [Google Scholar] [CrossRef]
  23. Sayyar, M.; Weerasiri, R.R.; Soroushian, P.; Lu, J. Experimental and Numerical Study of Shape-Stable Phase-Change Nanocomposite toward Energy-Efficient Building Constructions. Energy Build. 2014, 75, 249–255. [Google Scholar] [CrossRef]
  24. Isa, M.H.M.; Zhao, X.; Yoshino, H. Preliminary Study of Passive Cooling Strategy Using a Combination of PCM and Copper Foam to Increase Thermal Heat Storage in Building Facade. Sustainability 2010, 2, 2365–2381. [Google Scholar] [CrossRef]
  25. Hasan, A.; Al-Sallal, K.A.; Alnoman, H.; Rashid, Y.; Abdelbaqi, S. Effect of Phase Change Materials (PCMs) Integrated into a Concrete Block on Heat Gain Prevention in a Hot Climate. Sustainability 2016, 8, 1009. [Google Scholar] [CrossRef]
  26. Kośny, J.; Biswas, K.; Miller, W.; Kriner, S. Field Thermal Performance of Naturally Ventilated Solar Roof with PCM Heat Sink. Sol. Energy 2012, 86, 2504–2514. [Google Scholar] [CrossRef]
  27. Li, D.; Zheng, Y.; Liu, C.; Wu, G. Numerical Analysis on Thermal Performance of Roof Contained PCM of a Single Residential Building. Energy Convers. Manag. 2015, 100, 147–156. [Google Scholar] [CrossRef]
  28. Grynning, S.; Goia, F.; Rognvik, E.; Time, B. Possibilities for Characterization of a PCM Window System Using Large Scale Measurements. Int. J. Sustain. Built Environ. 2013, 2, 56–64. [Google Scholar] [CrossRef]
  29. Koláček, M.; Charvátová, H.; Sehnálek, S. Experimental and Numerical Research of the Thermal Properties of a PCM Window Panel. Sustainability 2017, 9, 1222. [Google Scholar] [CrossRef]
  30. Xu, X.; Zhang, Y.; Lin, K.; Di, H.; Yang, R. Modeling and Simulation on the Thermal Performance of Shape-Stabilized Phase Change Material Floor Used in Passive Solar Buildings. Energy Build. 2005, 37, 1084–1091. [Google Scholar] [CrossRef]
  31. Royon, L.; Karim, L.; Bontemps, A. Optimization of PCM Embedded in a Floor Panel Developed for Thermal Management of the Lightweight Envelope of Buildings. Energy Build. 2014, 82, 385–390. [Google Scholar] [CrossRef]
  32. Mehling, H.; Cabeza, L.F. Heat and Cold Storage with PCM; Springer: Berlin, Germany, 2008; ISBN 3540685561, 9783540685562. [Google Scholar]
  33. Kenisarin, M.; Mahkamov, K. Solar Energy Storage Using Phase Change Materials. Renew. Sustain. Energy Rev. 2007, 11, 1913–1965. [Google Scholar] [CrossRef]
  34. Tyagi, V.; Pandey, A.; Kaushik, S.; Tyagi, S. Thermal Performance Evaluation of a Solar Air Heater with and without Thermal Energy Storage. J. Therm. Anal. Calorim. 2012, 107, 1345–1352. [Google Scholar] [CrossRef]
  35. Kuznik, F.; Virgone, J.; Johannes, K. In-Situ Study of Thermal Comfort Enhancement in a Renovated Building Equipped with Phase Change Material Wallboard. Renew. Energy 2011, 36, 1458–1462. [Google Scholar] [CrossRef]
  36. Evola, G.; Marletta, L.; Sicurella, F. A methodology for Investigating the Effectiveness of PCM Wallboards for Summer Thermal Comfort in Buildings. Build. Environ. 2013, 59, 517–527. [Google Scholar] [CrossRef]
  37. Roberti, F.; Oberegger, U.F.; Gasparella, A. Calibrating Historic Building Energy Models to Hourly Indoor Air and Surface Temperatures: Methodology and Case study. Energy Build. 2015, 108, 236–243. [Google Scholar] [CrossRef]
  38. Mazzarella, L. Energy Retrofit of Historic and Existing Buildings. The Legislative and Regulatory Point of View. Energy Build. 2015, 95, 23–31. [Google Scholar] [CrossRef]
  39. Ventolà, L.; Vendrell, M.; Giraldez, P. Newly-Designed Traditional Lime Mortar with a Phase Change Material as an Additive. Constr. Build. Mater. 2013, 47, 1210–1216. [Google Scholar] [CrossRef]
  40. Lee, J.; Park, J. Application of PCM-Hwangtoh Composites for Thermal Comfort in Newly Proposed Korean Traditional House. In Proceedings of the IAPS International Network Symposium, Daegu, Korea, 10–14 October 2011. [Google Scholar]
  41. Kim, M.; Kim, Y.; Lee, Y.; Jung, Y. Comparative Analysis of Construction Productivity for Modernized Korean Housing (Hanok). Korean J. Covstr. Eng. Manag. 2013, 14, 107–114. [Google Scholar] [CrossRef]
  42. Clarke, J.A. Energy Simulation in Building Design, 2nd ed.; Routledge: Oxford, UK, 2001; ISBN 0750650826, 9780750650823. [Google Scholar]
  43. Strachan, P.; Kokogiannakis, G.; Macdonald, I. History and Development of Validation with the ESP-r Simulation Program. Build. Environ. 2008, 43, 601–609. [Google Scholar] [CrossRef]
  44. Heim, D.; Clarke, J.A. Numerical Modelling and Thermal Simulation of PCM–Gypsum Composites with ESP-r. Energy Build. 2004, 36, 795–805. [Google Scholar] [CrossRef]
  45. Kośny, J. PCM-EnhancedBuilding Components: An Application of Phase Change Materials in Building Envelopes and Internal Structures; Springer: Berlin, Germany, 2015; ISBN 3319142852, 9783319142852. [Google Scholar]
  46. Yoon, K.; Yun, G.; Jeon, J.; Kim, K.S. Evaluation of Hourly Solar Radiation on Inclined Surfaces at Seoul by Photographical Method. Sol. Energy 2014, 100, 203–216. [Google Scholar] [CrossRef]
  47. American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc (ASHRAE). ASHARE Standard 90.2-2007: Energy-Efficient Design of Low-Rise Residential Buildings. 2007. Available online: https://ashrae.iwrapper.com/ViewOnline/Standard_90.2-2007 (accessed on 25 February 2018).
  48. Selkowitz, S.; Hitchcock, R.; Mitchell, R.; McClintock, M.; Settlemyre, K. Comfen—Early Design Tool for Commercial Facades and Fenestration Systems; Building Technologies Department, Lawrence Berkeley National Laboratory: Berkeley, CA, USA, 2014. Available online: https://windows.lbl.gov/sites/default/files/comfen-software-tool.pdf (accessed on 25 February 2018).
  49. Crawley, D.B.; Lawrie, L.K.; Winkelmann, F.C.; Buhl, W.F.; Huang, Y.J.; Pedersen, C.O.; Strand, R.K.; Liesen, R.J.; Fisher, D.E.; Witte, M.J. Energyplus: Creating a New-Generation Building Energy Simulation Program. Energy Build. 2001, 33, 319–331. [Google Scholar] [CrossRef]
  50. Kim, M.; Kim, J.; Park, H. A Study on the Conservative Building Improvements for Indoor Thermal Environment in a Traditional House of Genjaegotaek. J. Korean Inst. Archit. 2004, 20, 251–258. [Google Scholar]
  51. American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc. (ASHRAE). ASHARE Standard 55–2004: Thermal Environmental Conditions for Human Occupancy; ASHRAE: Atlanta, GA, USA, 2004. [Google Scholar]
  52. Sherman, M. The Use of Blower-Door Data. Indoor Air 1995, 5, 215–224. [Google Scholar] [CrossRef]
  53. Feist, W.; Pfluger, R.; Kaufmann, B.; Schnieders, J.; Kah, O. Passive House Planning Package 2007; Passive House Institute: Darmstadt, Germany, 2007; Available online: http://www.passivhaus.org.uk/filelibrary/Contents_Manual.pdf (accessed on 25 February 2018).
  54. International Standard Organisation (ISO). ISO 13790: 2008 Energy Performance of Buildings–Calculation of Energy Use for Space Heating and Cooling. 2008. Available online: https://www.iso.org/standard/41974.html (accessed on 25 February 2018).
  55. Chen, C.; Guo, H.; Liu, Y.; Yue, H.; Wang, C. A New Kind of Phase Change Material (PCM) for Energy-Storing Wallboard. Energy Build. 2008, 40, 882–890. [Google Scholar] [CrossRef]
  56. Ockendon, J.R.; Hodgkins, W. Moving Boundary Problems in Heat Flow and Diffusion, 1st ed.; Oxford Univeristy Press: Oxford, England, 1975; ISBN 0198533454, 9780198533450. [Google Scholar]
  57. Zalba, B.; Marın, J.M.; Cabeza, L.F.; Mehling, H. Review on Thermal Energy Storage with Phase Change: Materials, Heat Transfer Analysis and Applications. Appl. Therm. Eng. 2003, 23, 251–283. [Google Scholar] [CrossRef]
  58. Khudhair, A.M.; Farid, M.M. A Review on Energy Conservation in Building Applications with Thermal Storage by Latent Heat Using Phase Change Materials. Energy Convers. Manag. 2004, 45, 263–275. [Google Scholar] [CrossRef]
  59. Tyagi, V.V.; Buddhi, D. PCM Thermal Storage in Buildings: A State of Art. Renew. Sustain. Energy Rev. 2007, 11, 1146–1166. [Google Scholar] [CrossRef]
  60. Cabeza, L.F.; Mehling, H.; Hiebler, S.; Ziegler, F. Heat Transfer Enhancement in Water When Used as PCM in Thermal Energy Storage. Appl. Therm. Eng. 2002, 22, 1141–1151. [Google Scholar] [CrossRef]
  61. Hawes, D.; Feldman, D.; Banu, D. Latent Heat Storage in Building Materials. Energy Build. 1993, 20, 77–86. [Google Scholar] [CrossRef]
  62. Abhat, A. Low Temperature Latent Heat Thermal Energy Storage: Heat Storage Materials. Sol. Energy 1983, 30, 313–332. [Google Scholar] [CrossRef]
  63. Fanger, P.O. Thermal Comfort. Analysis and Applications in Environmental Engineering; The McGraw-Hill Companies, Inc.: New York, NY, USA, 1972; ISBN 0070199159, 9780070199156. [Google Scholar]
  64. Yang, K.; Su, C. An Approach to Building Energy Savings Using the PMV Index. Build. Environ. 1997, 32, 25–30. [Google Scholar] [CrossRef]
  65. Hwang, R.-L.; Shu, S.-Y. Building Envelope Regulations on Thermal Comfort in Glass Facade Buildings and Energy-Saving Potential for PMV-Based Comfort Control. Build. Environ. 2011, 46, 824–834. [Google Scholar] [CrossRef]
  66. Deng, Y.; Feng, Z.; Fang, J.; Cao, S.-J. Impact of Ventilation Rates on Indoor Thermal Comfort and Energy Efficiency of Ground-Source Heat Pump System. Sustain. Cities Soc. 2018, 37, 154–163. [Google Scholar] [CrossRef]
  67. Yeo, M.; Yang, I.; Kim, K. Historical Changes and Recent Energy Saving Potential of Residential Heating in Korea. Energy Build. 2003, 35, 715–727. [Google Scholar] [CrossRef]
  68. Hasan, M.H.; Alsaleem, F.; Rafaie, M. Sensitivity Study for the PMV Thermal Comfort Model and the Use of Wearable Devices Biometric Data for Metabolic Rate Estimation. Build. Environ. 2016, 110, 173–183. [Google Scholar] [CrossRef]
  69. Ioannou, A.; Itard, L. In-Situ and Real Time Measurements of Thermal Comfort and Its Determinants in Thirty Residential Dwellings in the Netherlands. Energy Build. 2017, 139, 487–505. [Google Scholar] [CrossRef]
  70. De Dear, R.J.; Brager, G.S. Thermal Comfort in Naturally Ventilated Buildings: Revisions to ASHRAE Standard 55. Energy Build. 2002, 34, 549–561. [Google Scholar] [CrossRef]
  71. Saffari, M.; de Gracia, A.; Ushak, S.; Cabeza, L.F. Economic Impact of Integrating PCM as Passive System in Buildings Using Fanger Comfort Model. Energy Build. 2016, 112, 159–172. [Google Scholar] [CrossRef]
Figure 1. Typical Hanok images: (a) old-Hanok (Myeongjaegotak, Nonsan, Korea, 1709) [2]; (b) modernized Hanok (Hwagyeongdang, Seoul, Korea, 2013) [3].
Figure 1. Typical Hanok images: (a) old-Hanok (Myeongjaegotak, Nonsan, Korea, 1709) [2]; (b) modernized Hanok (Hwagyeongdang, Seoul, Korea, 2013) [3].
Sustainability 10 00948 g001

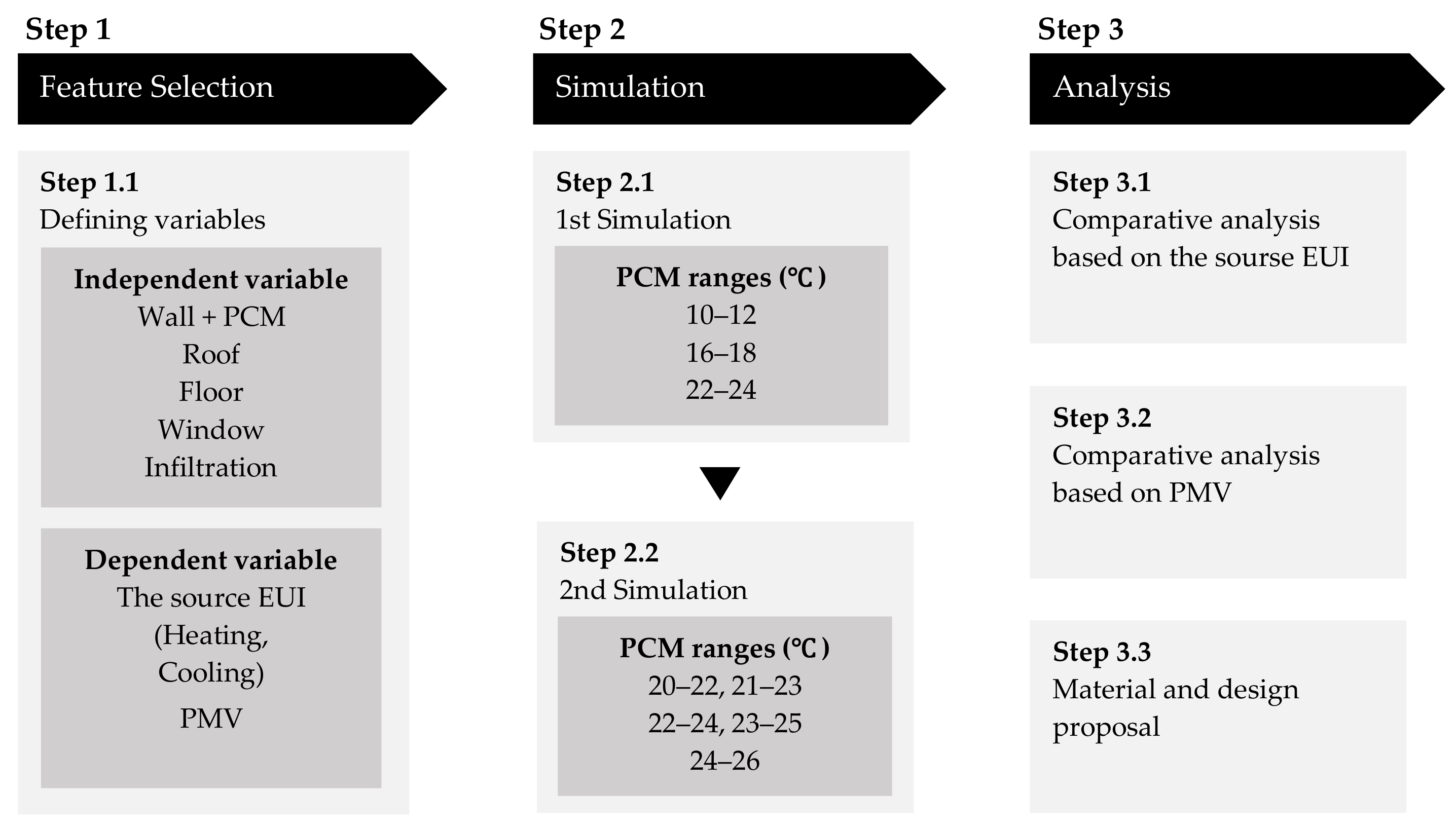

Figure 2. Research diagram.
Figure 2. Research diagram.
Sustainability 10 00948 g002
Figure 3. Drawing of the proposed Hanok (a) Floor Plan [41]; (b) 3-d perspective view of the energy simulation modeling.
Figure 3. Drawing of the proposed Hanok (a) Floor Plan [41]; (b) 3-d perspective view of the energy simulation modeling.
Sustainability 10 00948 g003

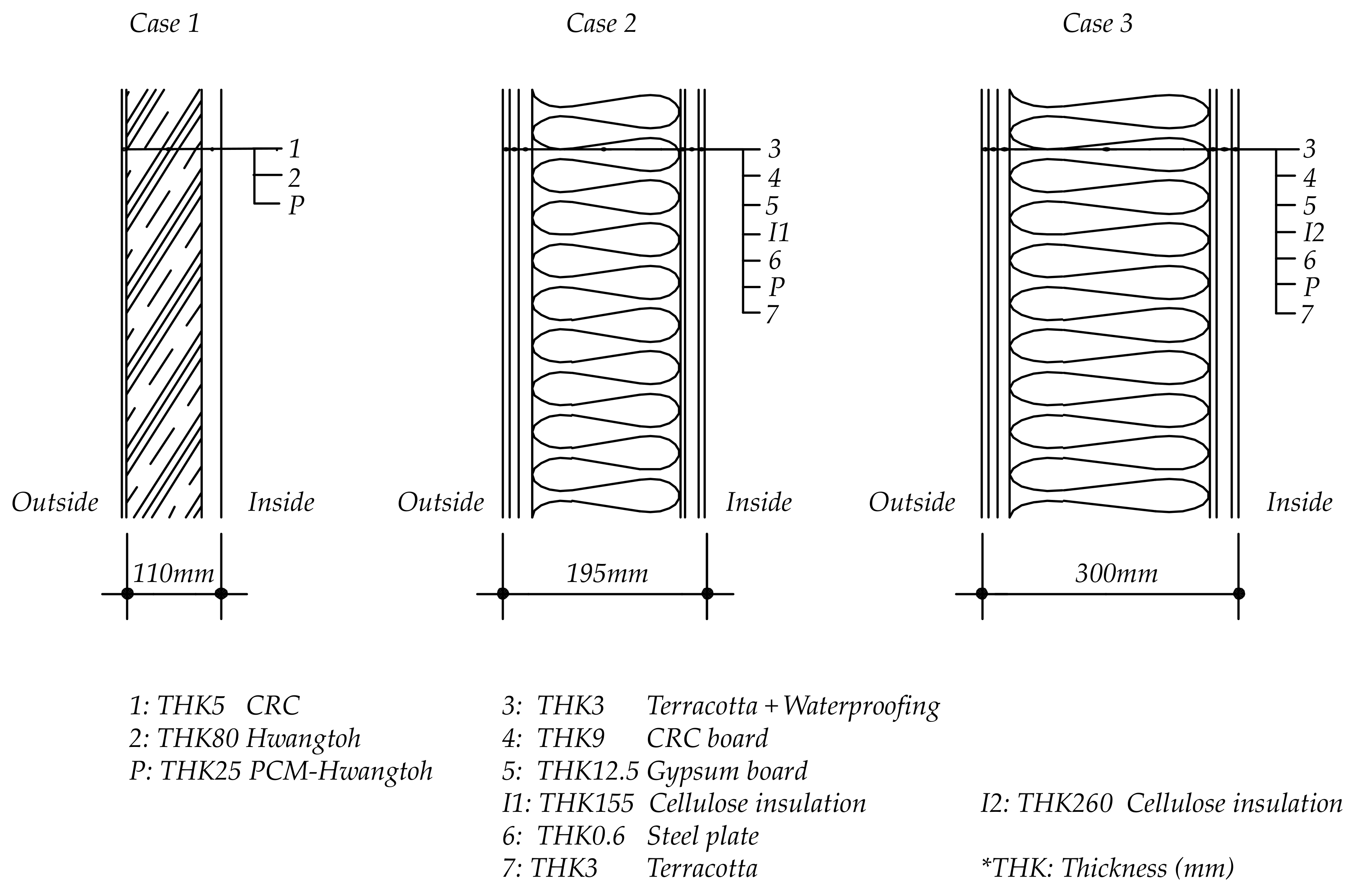

Figure 4. Section drawing detail of PCM-Hwangtoh composites installation.
Figure 4. Section drawing detail of PCM-Hwangtoh composites installation.
Sustainability 10 00948 g004

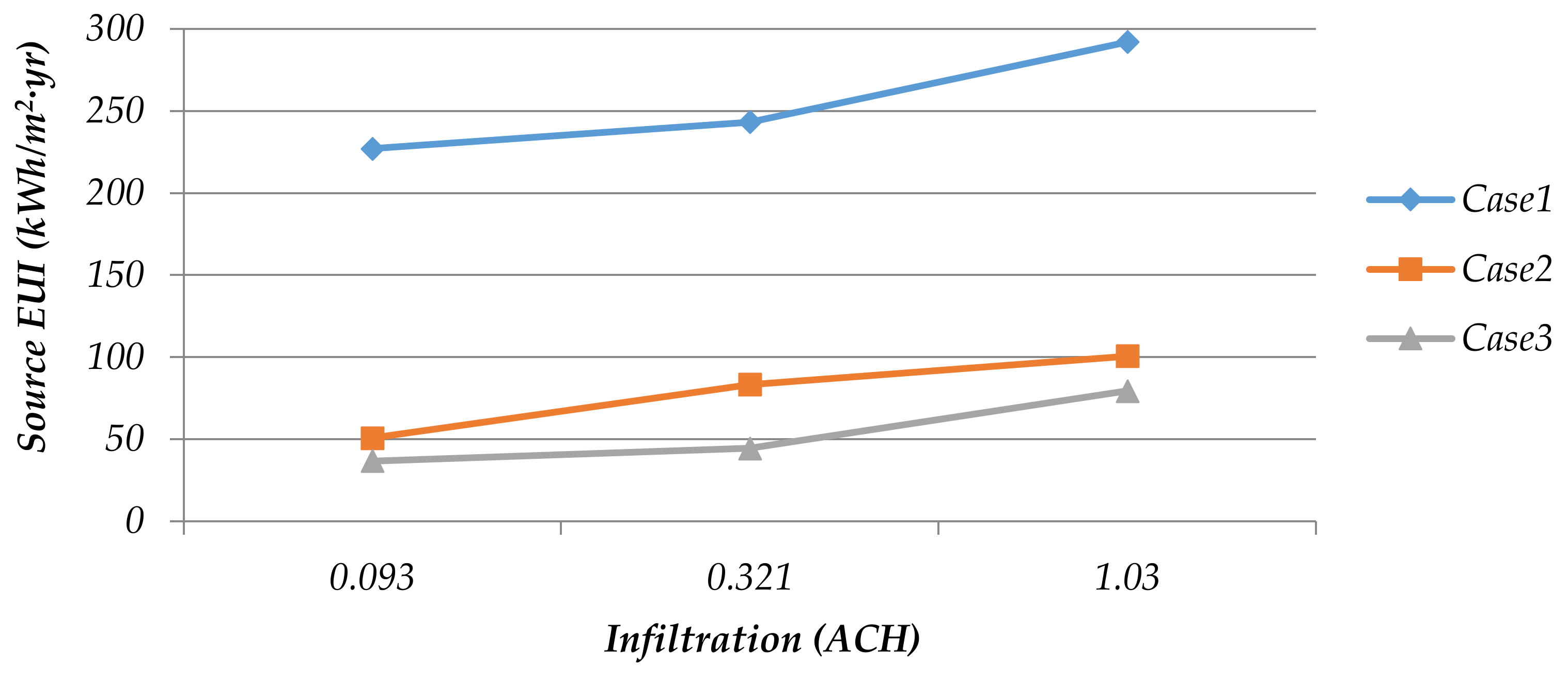

Figure 5. Annual heating and cooling load based on three different cases of insulation.
Figure 5. Annual heating and cooling load based on three different cases of insulation.
Sustainability 10 00948 g005

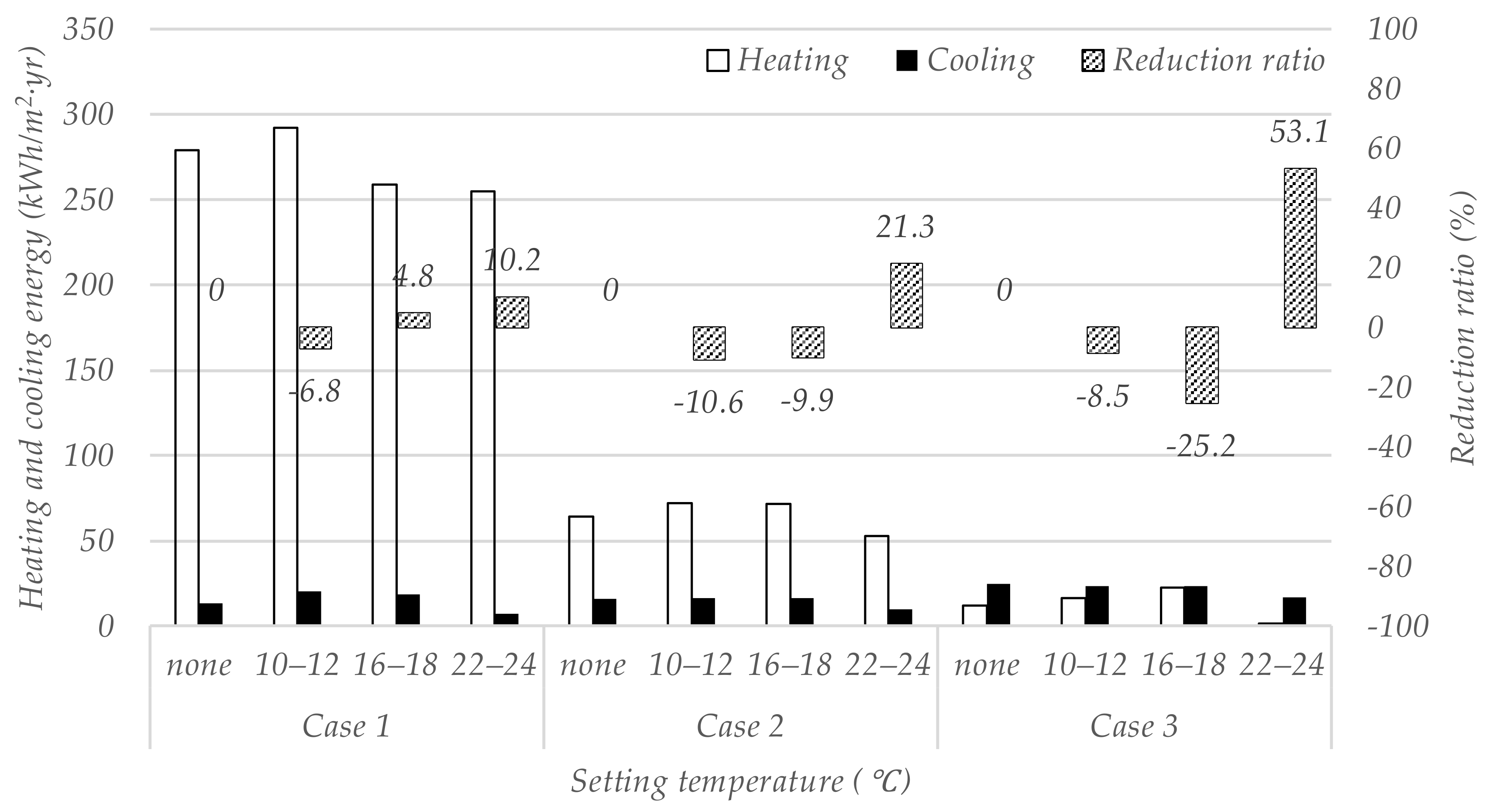

Figure 6. Annual heating and cooling load by the PCMs; 1st simulation.
Figure 6. Annual heating and cooling load by the PCMs; 1st simulation.
Sustainability 10 00948 g006

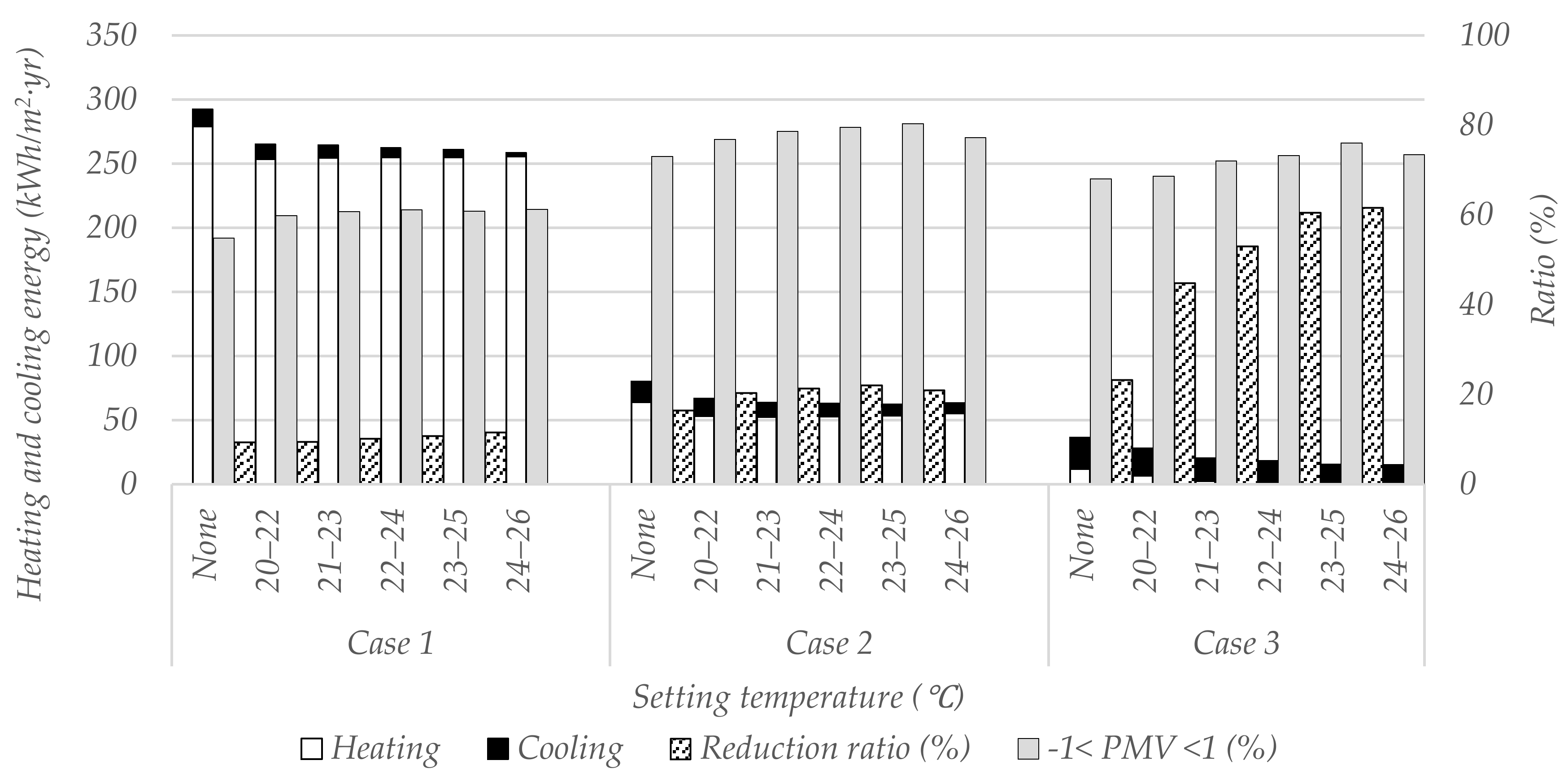

Figure 7. Annual heating and cooling load by the PCMs; 2nd simulation.
Figure 7. Annual heating and cooling load by the PCMs; 2nd simulation.
Sustainability 10 00948 g007

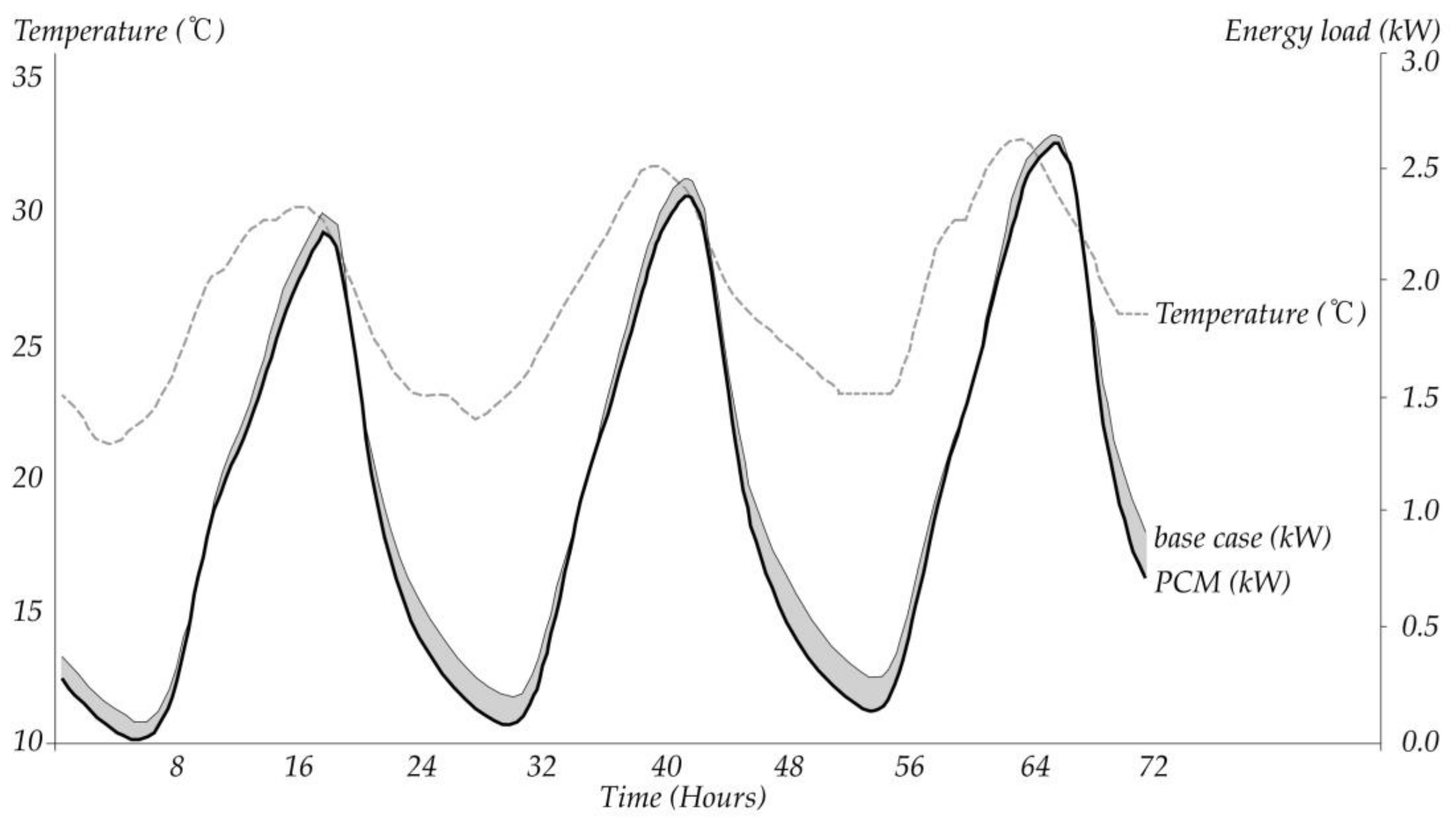

Figure 8. Daily peak load reduction in Case 3 (Hottest days of a year).
Figure 8. Daily peak load reduction in Case 3 (Hottest days of a year).
Sustainability 10 00948 g008

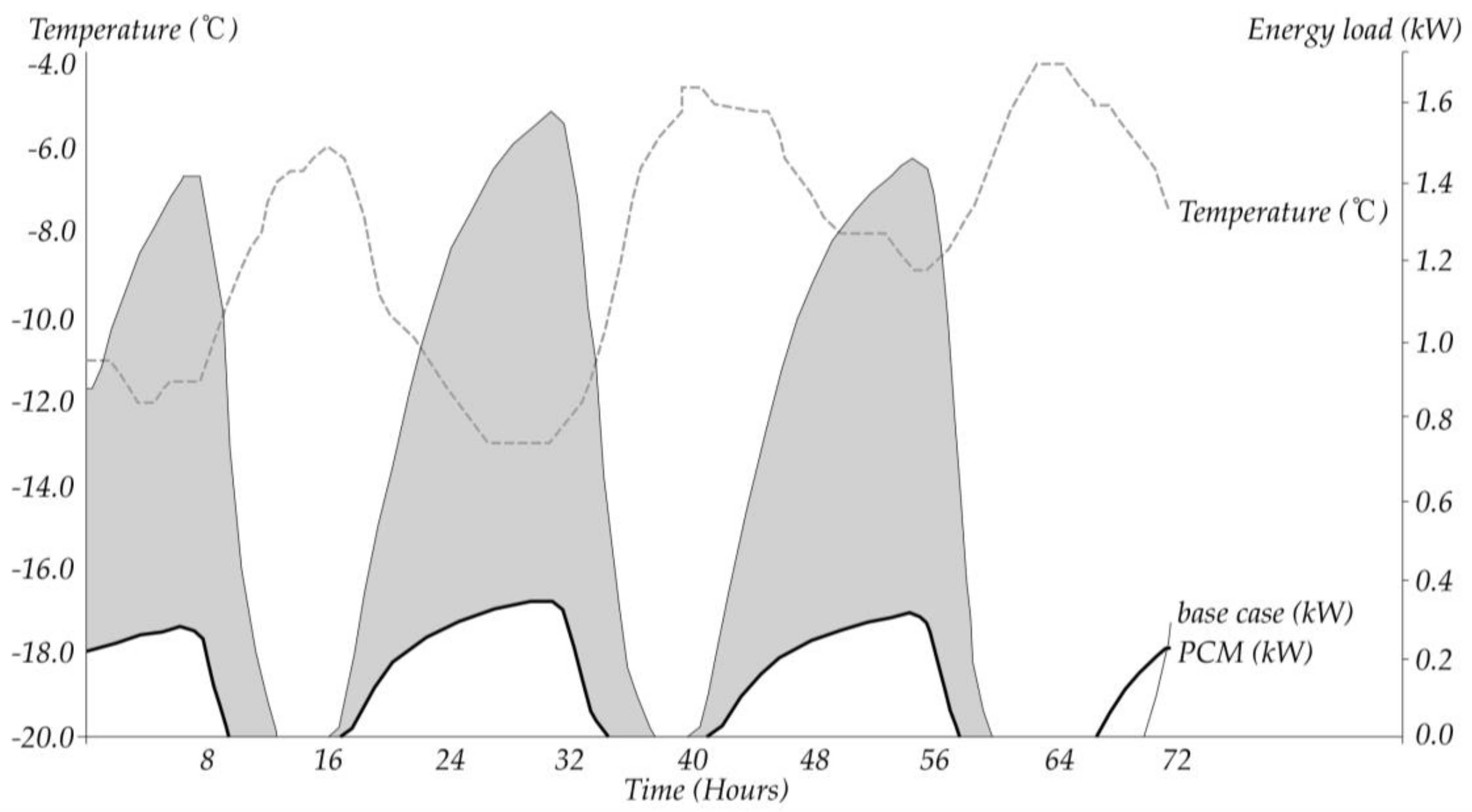

Figure 9. Daily peak load reduction in Case 3 (Coldest days of a year).
Figure 9. Daily peak load reduction in Case 3 (Coldest days of a year).
Sustainability 10 00948 g009
Figure 10. Frequency diagram of PMV in three cases.
Figure 10. Frequency diagram of PMV in three cases.
Sustainability 10 00948 g010
Table 1. Infiltration properties for the simulation.
Table 1. Infiltration properties for the simulation.
TypesACH (50 Pa)ACH
Passive House Planning Package (PHPP)0.60.038
ASHRAEA10.064
B20.128
C30.192
D50.321
old-Hanok--
Table 2. Material properties calculated as the U-value (W/m2K).
Table 2. Material properties calculated as the U-value (W/m2K).
TypesWallRoofFloorWindow
Old-Hanok
(Case 1)
3.2700.7880.5905.879
Korean Building Act
(Case 2)
0.2100.1500.1801.200
Passive house guideline
(Case 3)
0.1500.1500.1500.800
Table 3. Thermophysical properties of the PCMs used in the simulation.
Table 3. Thermophysical properties of the PCMs used in the simulation.
NamesTypeTm (°C)Ts (°C)Latent Heat of Fusion (kJ/kg)Thermal Conductivity (W/m·K)Density (kg/m3)Specific Heat Capacity (J/kg·K)
Tetrabutylammonium bromide [60]Organic10121930.615002000
Propyl palmitate [61]Organic16181860.615002000
Paraffin C13–C24 [62]Organic22241890.615002000
Table 4. Monthly heating and cooling load by the PCMs; 2nd simulation.
Table 4. Monthly heating and cooling load by the PCMs; 2nd simulation.
TypesHeating and Cooling EnergyJanFebMarAprMayJunJulAugSepOctNovDec
Case 1Heating (kWh)65115328360420187291062468111932395794
Cooling (kWh)0000321573335861984300
PCM
(24–26)
Heating (kWh)6370516332471468380700076829485783
Cooling (kWh)000016682004400
Case 2Heating (kWh)164712557854029780011897241459
Cooling (kWh)012642150234299457257142140
PCM
(21–23)
Heating (kWh)14591106569177470000515421328
Cooling (kWh)12107311002304428962140
Case 3Heating (kWh)38223411537100000989336
Cooling (kWh)0365106326384372515423300350
PCM
(24–26)
Heating (kWh)977100000179
Cooling (kWh)25241877179263454183156350

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Sustainability EISSN 2071-1050 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
