Aquatic Ecotoxicology: What Has Been Accomplished and What Lies Ahead? An Eastern Canada Historical Perspective

Abstract

Our recent history shows that degradation of aquatic ecosystems essentially stems from industrialization, urbanization and increasing human populations. After a first industrial boom in the late 19th century, contamination pressures on receiving waters now appear to be continual because of expanding economies and technologies developing at the planetary scale. Given the diversity of issues, problems and challenges facing water quality today because of complex waste and chemical discharges into waterways, aquatic ecotoxicology has blossomed with time into a more mature discipline of the environmental sciences. Its two fundamental pillars, bioassays and biomarkers, have become essential tools that allow the determination of numerous and versatile effects measurements. Herein, we demonstrate some of the ways in which these tools have been applied and how they have evolved over the past decades to appraise the ecotoxicity of contaminants impacting aquatic systems. Examples discussed are largely reflective of work conducted in the Environment Canada (EC) laboratories (Saint-Lawrence Centre, Montréal, Canada). Success stories include improvement of industrial effluent quality contributing to beluga whale population recovery in the Saint-Lawrence River, biomarker field studies conducted with endemic and caged bivalves to more fully comprehend urban effluent adverse effects, and increased discernment on the hazard potential posed by emerging classes of chemicals. Ecotoxicology continues to be confronted with diverse issues and needs related to a myriad of chemical contaminants released to aquatic environments worldwide. To cope with these, ecotoxicology will have to bank on new tools (e.g., toxicogenomics, bio-informatics, modeling) and become more interdisciplinary by taking into account knowledge provided by other disciplines (e.g., ecology, chemistry, climatology, microbiology) in order to more fully understand and adequately interpret hazard. This will be paramount to supply regulators and legislators with the sound and scientifically valid information needed in order to mitigate environmental degradation.

Introduction

Since its modest beginnings in the second half of the 20th century, the field of ecotoxicol- ogy has unquestionably matured and is now positioned to produce knowledge that can be used more reliably to take enlightened deci- sions to safeguard the quality of aquatic envi- ronments. Clearly, activities and expertise in aquatic toxicology, which began in various parts of the world, have differed based on sev- eral types of considerations. For example, spe- cific geographical contaminant issues, access to adequate human and financial resources, presence/absence of national statutes ensur- ing environmental protection, as well as enforcement policies, are factors that weigh markedly in the orientation that applied research laboratories will have taken to facet their (sometimes rather unique) ecotoxicolog- ical know-how. In this review, we essentially present a selection of highlights of ecotoxico- logical investigations conducted in our EC lab- oratories in Montreal (Centre Saint-Laurent, Québec, Canada) aimed at protecting and con- serving the aquatic resources and uses of the Saint-Lawrence River under the aegis of sever- al five-year Saint-Lawrence River Action Plans commencing in 1988. Its contents expose some of the contaminant pressures faced by this major Canadian River composed of both a freshwater and an estuarine stretch. Moreover, the historical background recalled on the early origins of ecotoxicology, and its evolution thereafter, should prove of interest, in general to the scientific community at large, and in part to younger up-and-coming scientists, as it provides time-related information that spans over several generations.

Industrial revolutions and ecotoxicity: historical background

The first industrial revolution of modern times began in England during the latter half of the 19th century when extensive mechaniza- tion, urban concentration of labor and increased use, and transformation of, (non)renewable resources contributed to large-scale production of goods. Rapidly expanding to other parts of Europe and North America, this technology (and profit)-driven economic development was undoubtedly useful to enhance the quality of life of one species on this planet, namely Homo sapiens. Industrial revolutions have been on-going ever since, driven by unrelenting progress, as emerging economies are ever eager to join the global economic bandwagon.

With time, constant growth stimulated by the first 19th century industrial boom created noticeable impacts on aquatic, terrestrial and atmospheric environments. Insidiously, on arrival of the 1950s, massive discharges of untreated wastewaters, and of specific chemi- cal contaminants, led to visibly degraded aquatic environments.[1] While there was an evident awareness of pollution problems, remediation responses were limited owing to lack of knowledge, tools and strategies to tack- le environmental damage. This age of darkness decade, however, was soon followed by one that can be termed the beginning of enlightenment in the ensuing decade. Indeed, the 1960s saw the initial undertaking of fish bioassays whose results confirmed that industrial effluents were clearly deleterious to aquatic life! Owing in part to the generation of these bioanalytical data, which introduced a new concept – that of environmental toxicity – many industrialized countries (notably those regrouped under the Organization for Economic Co-operation and Development banner) found it appropriate to create environmental agencies to cope with rampant aquatic contamination during the reg- ulatory 1970s. Environment Canada, for exam- ple, came into being in 1971, and immediately sought to tackle and resolve the acute toxicity issue linked to industrial point sources of pol- lution in Canada. This was ensured via statutes requiring effluent compliance based on both chemical and toxicity parameters. Indeed, enactment of the Fisheries Act in 1972 indicating that No person shall deposit or per- mit the deposit of a deleterious substance of any type in water frequented by fish… triggered effects-based regulations that proved para- mount in curbing industrial effluent toxicity. Whereas acute lethality toward salmonid fish could occur at extremely low concentrations in the 1970s with reported 96-h 50% lethal con- centrations (LC50) as low as 0.1% v/v for efflu- ents,[2] virtually all industrial discharges in Canada are now devoid of such effects. The 1970s also marked the official birth of the dis- cipline of ecotoxicology. In what is likely the earliest publication featuring the word ecotox- icology, Jean-Michel Jouany, professor of biol- ogy and pharmacy at the University of Rouen who pioneered the field of environmental toxi- cology in France, wrote in a 1971 article that …the study of the influence of nuisances on the relationship existing between an indi idual [species] and his en ironment could simply be termed ‘ecotoxicology’ [translated from French].[3] In the 1980s, several microbiotests (also called small-scale toxicity tests), working alongside combined biological/chemical haz-ard assessment strategies, were developed with (micro)organisms representative of decomposers, primary producers, as well as primary and secondary consumers to augment the ecotoxicity knowledge of contaminants. A concept prevailing during this decade was that all aquatic species would be protected provided the most sensitive one was safeguarded.[4] This decade of holistic thought was followed by one featuring miniaturization and robotization of microbiotests to deal with an ever growing number of environmental samples requiring toxicity appraisal. Indeed, the cost-effecti e 1990s contributed by optimizing sample throughput and reducing cost of testing thanks to the attractive characteristics of these small- scale toxicity assays. Examples of two such tests developed in the authors’ Centre include a Microtox (Vibrio fischeri) microplate bioas- say where the light inhibition toxicity endpoint is read with the help of a microluminometer[5] and a microplate-based trout (Oncorhynchus mykiss) primary hepatocyte bioassay where the cytotoxicity endpoint is read with a micro- fluorometer.[6]

In going from darkness (1950s) to enlight- enment (end of the 1990s), which introduced ecotoxicology into science, two important les- sons clearly stand out: first, that contaminant pressures unquestionably trigger the need for effects-based measurements to assess ecotox- icity and second, that ecotoxicology needs tox- icity tests representative of different levels of biological organization so as to detect the full toxicity potential of chemicals and complex environmental (liquid and solid) media. Conscious of the historical reasons which led to negative environmental impacts brought on by industrialization and the need for ecotoxi- cology, laboratories in different parts of the world began to acquire specific types of expert- ise in this diversified field of the environmen- tal sciences. This was clearly the case in Canada where government cross-country insti- tutions banked on diversified expertise to cope with aquatic ecosystem issues of regional importance (e.g., National Water Research Institute, Burlington, Ontario; Bedford Institute of Oceanography, Dartmouth, Nova Scotia; Freshwater Institute, Fisheries and Oceans Canada, Winnipeg, Manitoba).

What thus follows are descriptions of stud- ies that are largely reflective of work conduct- ed by the authors and their colleagues in the Saint-Lawrence Centre, a research institute of Environment Canada located in Montréal, Canada, with bioassays and biomarkers – the two fundamental pillars of ecotoxicology allow- ing effects-based measurements of contami- nant pressures. Notions of how the use of these two pillars has evolved with time are also intimated as well as issues and needs facing tomorrow’s ecotoxicology.

The St-Lawrence River Action Plan: trying to solve a whale of a problem! ...or integrating bioassays as an aid to decision-making

In the early 1900s, the population of endem- ic beluga whales (Delphinapterus leucas) liv- ing in the estuary of the Saint-Lawrence River (SLR) was estimated to be close to 3000, but by the 1970s it had dwindled to some 300 individ- uals.[7] Biopsies performed on dead whale tis- sues soon revealed that they were laden with various (in)organic contaminants (e.g., heavy metals, polycyclic aromatic hydrocarbons, poly- chlorinated biphenyls) indicating that food chain contamination had occurred stemming from upstream industrial point sources of pol- lution. Because of this bio-magnification of toxicants up to the level of belugas, many ani- mals were found to be dying from immuno- suppressive and/or cancer-related diseases.[8]

This highly covered news story led to the creation of the Saint-Lawrence Centre in 1988 and of several five-year Saint-Lawrence River Action Plans thereafter jointly funded by the governments of Canada and that of the province of Quebec to deal with water quality issues. Hence, the first Saint-Lawrence River Action Plan (SLAP) was enacted in 1988 because of deteriorated water quality in the SLR system and the major objective of the first two SLAPs (1988-1998) sought to reduce toxic impact stemming from industrial point source pollution. To identify harmful emissions to the SLR, an integrative ecotoxicological (cost- effective) tool capable of assessing the poten- tial toxicity of industrial wastes discharging to the SLR on a common comparative basis was developed known as the potential ecotoxic effects probe (PEEP) index. In brief, the PEEP index is the product of the summation of toxic units generated by several bioassays conduct- ed at different taxonomic levels and effluent flow expressed in m3/h.[9,10] For example, a Pulp and Paper effluent discharging to the Saint- Lawrence River was determined to have a toxic loading of 647,982 toxic units per m3/h emitted to the SLR, as reported in Blaise and Férard 2005.[10] The PEEP index value for this effluent, after extracting the log₁₀ of its toxic loading, is one of 5.8. Thus, the PEEP index can also be considered to be an en ironmental Richter scale that evaluates the toxic loading of a series of industrial effluents all discharging to the same aquatic ecosystem. For the first 50 industrial plants investigated, whose effluents were discharging to the SLR and that were selected for priority toxic loading assessment on the basis of their chemical production/ emissions, PEEP index values were shown to vary from 0 (no toxic loading) to 7.8 (very high toxic loading). Application of the PEEP index clearly identified categories of effluents responsible for marked toxic loading to the SLR which then allowed enlightened decision- making to proceed with corrective action (clean up) on (classes of) effluents identified as the most potentially harmful to the SLR receiving aquatic ecosystem. Figure 1 illus- trates the culprit effluents, in terms of high toxic loading to the SLR, as coming from the Pulp and Paper and Inorganic plant industries.

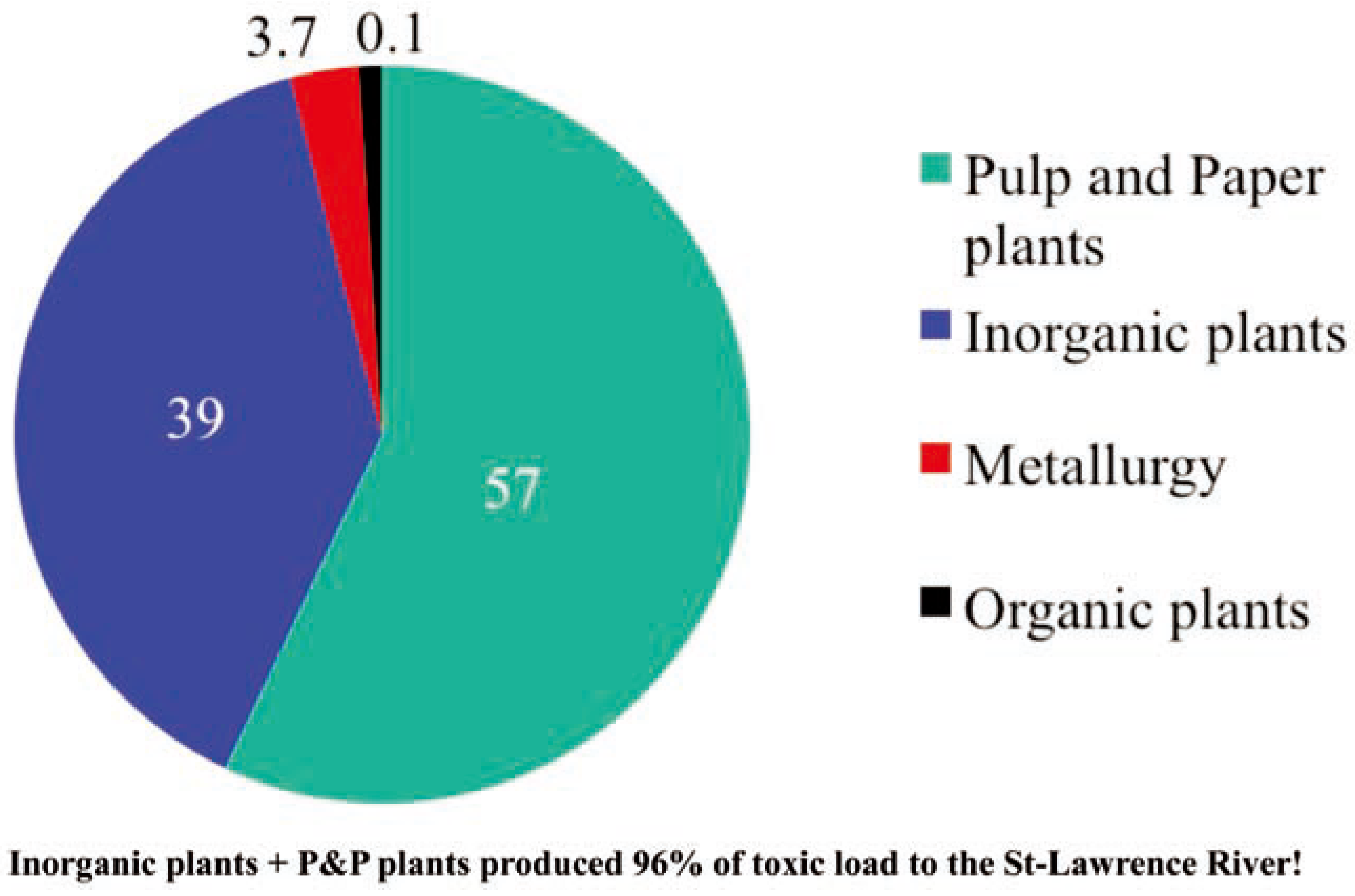

PEEP index characterization of the 50 prior- ity industrial effluents discharging to the SLR by 1993 thus contributed to improved environ- mental protection for the River and to reduc- tion of toxic input to the SLR ecosystem. From 1993-1997, ensuing actions also triggered gov- ernment/industry negotiated clean-up responses, establishment of site-specific wastewater chemical standards for some efflu- ents and enforcement of new Canadian regula- tions for the Pulp and Paper sector in 1995. Furthermore, based on a comparison of the 1988 and 1995 chemical loading (i.e., quantity of end-of-pipe contaminants measured by chemical analysis) of the 50 effluents, toxic loading reduction was estimated at 96%.[11] Overall, this concerted effort aimed at identify- ing toxic effluents and at reducing their toxic loading significantly improved SLR water qual- ity. As mentioned at the start of this section, the beluga population in the SLR estuary was at an all- time low of 300 individuals in the 1970s prior to the SLAP initiative. In 2005, Fisheries and Oceans department biologists (Maurice Lamontagne Institute, Mont-Joli, Quebec, Canada) estimated the whale popula- tion to be back to 1000 individuals.[12] In 2013, despite evidence of contaminant-related pathologies still prevalent in some animals,[8] it is now estimated to be close to 1100 (unpub- lished results of Fisheries and Oceans, Canada, 2013). In conclusion, this is an impor- tant success story linked to the first two SLAPs, enabled in part by PEEP index effects-based (bioassay) measurements of industrial efflu- ents, which proved effective in ameliorating SLR water quality.

A few words on sediment assessment

Lotic and lentic sediments are often the recipients of numerous (in)organic contami- nants stemming from aqueous, terrestrial and/or atmospheric sources owing to both nat- ural and anthropogenic causes. Since their contamination can impact benthic biota with resulting negative consequences that can alter structure and function of habitats, appraising sediment ecotoxicity is paramount to ensure the health of aquatic life.

In much the same way as the PEEP index sought to determine the toxic loading of indus- trial effluents, a similar scale, the sediment- toxicity (SED-TOX) index, was developed in our Centre to assess sediment quality. This index features applying a battery of bioassays suited to measure the toxicity of different sed- iment compartments, namely wet sediment, its interstitial water and that of an organic extract of the whole sediment.[13] The summation of toxic units of the three phases contribute, via a specially-designed formula, a SED-TOX score value (X) varying from 0-2 that identifies four classes of sediment quality, namely no toxicity (X=0), weak toxicity (0<X< 1), moderate toxi- city (1≤X<2) and high toxicity (X≤2).

The SED-TOX index was demonstrated to correlate with contaminant concentrations present in sediments of several geographical areas and was also shown to correlate with a specially designed benthic community index, the ICI-SL (Invertebrate community Index for the St. Lawrence River), thereby confirming its scientific validation as an integrating tool enabling reliable assessment and manage- ment of contaminated sediments.[14] The SED- TOX index continues to be useful for studies seeking to undertake inter-site comparisons, for detection/quantification of sediment con- tamination and extent of impact, for establish- ing management/remediation priorities, as well as for predicting effects on aquatic com- munities.

Biomarkers

While bioassays are essentially conducted in the laboratory to determine classical endpoints based on lethality, growth and reproduction, biomarkers - another key tool of ecotoxicology used to measure ecotoxic effects - comprise relevant biochemical and physiological param- eters to assess (geno)toxicological, immuno- logical and reproductive perturbations at the level of individuals. Employed either in labora- tory or field studies, biomarkers are commonly reported with fish and invertebrate animal models. Following their first modest appear-ances in the scientific literature as of the 1980s, biomarker studies have, with time, taken a prominent place in terms of numbers of published articles related to the field of eco- toxicology. Notions of what a biomarker con- sists of are varied as many definitions have appeared in the literature.[15,16] In fact, Benford et al. (2000)[17] have listed over 20 biomarker definitions, the following being one that the authors of this article particularly adhere to: The term biomarker is used in a broad sense to include almost any measurement reflecting an interaction between a biological system and an en ironmental agent, which may be chemical, physical or biological. Indeed, it is important to appreciate that chemical contaminants are not the only ones capable of modulating biomarker responses, but that physicochemical[18,19] and biological agents[20] can as well.

In a manner similar to bioassays, the appli-cation of biomarkers has gone from single bio- marker use, to multiple-biomarker use, to use in weight-of-evidence approaches. For exam- ple, early environmental studies sought to show exposure of fish to heavy metals by measuring metallothionein,[21] or to show expo- sure of fish to specific classes of organic con- taminants by measuring the CYP4501A enzyme ethoxy-resorufin-ortho-deethylase.[22] Later on, battery applications of biomarkers simultaneously measured in multiple organs/tissues of animals were conducted to maximize ecotoxicity information, which in turn optimized hazard interpretation potential. For example, an environmental survey con- ducted to assess the state of health of endemic Mya arenaria soft-shell clams located in differ- ent intertidal sites of the Saguenay Fjord (Quebec, Canada) measured a large suite of biomarkers including condition factor, energy reserves (glycogen, lipids, proteins), CYP1A1/CYP3A4, metallothioneins, lipid per- oxidation, DNA damage, immunotoxicity as well as endocrine disruption biomarkers that contributed valuable knowledge on pollution sources impacting this ecosystem.[23,24] Nowadays, provided sufficient funding and inter-disciplinary expertise are available, com- prehensive investigations, featuring in part biomarkers, known as weight-of-e idence (WOE) approaches are at times undertaken where multiple parameter measurements are generated. For example, WOE studies can include toxicity testing on whole organisms, multiple biomarker measurements, and chem- istry on water, sediment and tissue, as well as ecological parameters.[25]

With continuing development in ecotoxico-logical research that led to increasing numbers of biomarkers, they have often been grouped into different categories based on the type of ecotoxicity information that they engender (

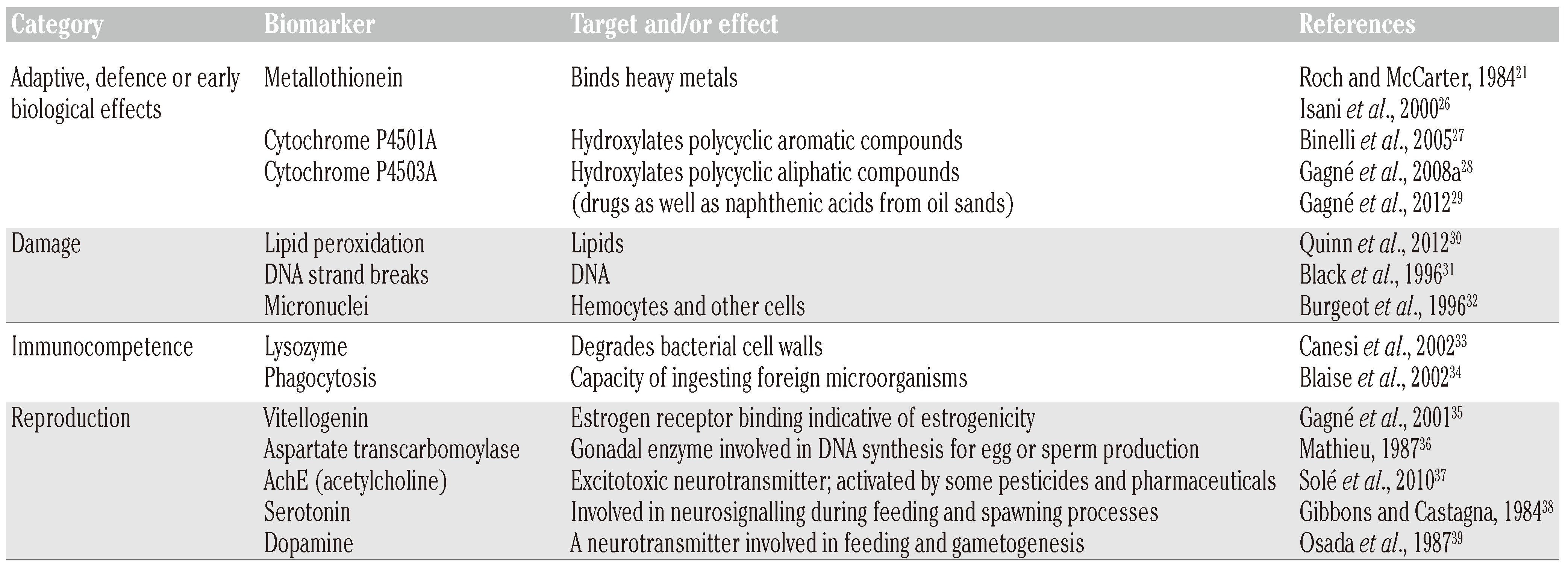

Table 1. Types of biomarkers in use for aquatic ecotoxicological studies.

)[21,26,27,28,29,30,31,32,33,34,35,36,37,38,39]. Of notable interest are bio- markers that can intimate exposure to a spe- cific class of chemicals. In this category, for example, we find MT, P4501A and P4503A, responses of which are respectively linked to heavy metal, polycyclic aromatic compounds and drugs and/or naphthenic acids.[21,22,26,27,28,29] Moreover, biomarkers which can relate to pop- ulation effects on biota are especially impor- tant because of the environmental relevance that they can infer toward specific sources of contamination. Examples include biomarkers such as phagocytosis capacity and vitellogenin induction, both of which have been shown respectively tied to immune-suppressive and reproductive perturbations in bivalves.[40,41,42] While the biomarkers reported in Table 1 are representative of those presently used in eco- toxicology, this list is far from being exhaus-tive. With the dawning of the age of toxico- genomics, there appears to be a huge potential for developing new biomarkers in future that may help to uncover the modes of action of emerging contaminants such as fire retar- dants, new pharmaceuticals and nanoparticles.

Biomarker studies in Eastern Canada

In general, biomarker studies in Canada are conducted for site-specific assessments and/or to undertake large-scale (annual) monitoring programs to investigate long-term trends in water quality. Our research on biomarker measurements in Eastern Canada has largely been conducted with bivalves. The rationale for selecting molluscan shellfish as a bio-indi- cator species rests on two basic factors. For one, bivalves are sessile and thus reflect envi- ronmental water quality conditions that are truly site-specific. For another, as filter feeders they offer good potential to bio-accumulate chemicals from the water column and/or sedi- ments with which they can be in intimate con- tact. These key features thus enable ecotoxico- logical investigations to quantify their expo- sure to contaminants and to measure their effects over space and time. In this section, we briefly discuss selected biomarker results obtained with bivalves impacted by urban effluents, an important point source of mixed (domestic and industrial) pollution impacting receiving waters in Canada[43] and elsewhere.[44] The focus is on the immunosuppressive and reproductive consequences of urban effluents on molluscan shellfish, due to the fact that these biomarkers are linked to population effects as indicated previously.

Under a SLAP-funded Urban Effluent Research Program in place at the St-Lawrence Centre since 1998, Elliptio complanata fresh- water mussels were first exposed in the labora- tory for 96 h to varying concentrations of the Montreal wastewater treatment plant (WWTP) effluent. Afterwards, additional mussels were exposed for two months, upstream and down- stream of this effluent, in the freshwater por- tion of the St-Lawrence River employing a standard caging (i.e. field-deployment) methodology.[45]

By measuring the responses of a microplate- based phagocytosis assay appraising the capacity of mussel hemocytes to ingest fluores- cent bacteria, results showed that phagocyto- sis activity was significantly suppressed in hemocytes after the 96 h-exposure to high con- centrations (25% v/v) of the WWTP effluent, as well as after the two month caging experi- ment for mussels exposed downstream of the WWTP emission.[34] Similarly, phagocytosis measurements generated with endemic Mya arenaria soft-shell clams collected from inter- tidal zones of the Saguenay Fjord, a major affluent of the SLR estuary (Figure 2), also dis- played immunosuppression in animals located in zones impacted by urban effluents.[46] Immunosuppression in hemocytes has also been observed in other urban effluents to which caged bivalves were exposed.42

Under identical exposure and caging condi- tions as described above, increased vitel- logenin (Vg) levels, indicative of estrogen induction, were also observed in both male and female gonads of Elliptio mussels exposed to the Montreal WWTP effluent and following a two-month caging downstream of the effluent plume, suggesting feminization effects brought on by this discharge.[35] A one-year (life cycle) caging experiment of mussels later con- ducted upstream and at two downstream sites of this same effluent again confirmed higher Vg levels downstream as well as demonstrating significant feminization of downstream- exposed (62 and 66% feminization at two sites) over upstream-exposed (43% feminiza- tion) animals.[40] In the Saguenay Fjord, gonads of clams collected in areas subjected to urban effluent exposure also displayed significantly higher Vg levels in their gonads over animals located in reference areas.[46]

Overall, results obtained with these two bio- markers (phagocytosis capacity and Vg induc- tion) showed that urban effluents are consis- tently immunosuppressive and estrogenic with resulting effects at the population level,[40,41] thereby indicating the need for improved treat- ment at source of these hazardous discharges. In this respect, investigations on (dis)advan- tages of applying ozone and ultraviolet treat- ments to reduce environmental impacts of the Montreal WWTP have recently been report-ed.[18,19]

Emerging substances: pharmaceuticals

Urban effluents can be a source of myriads of contaminants among which are pharmaceu- tical residues of all sorts. Their ecotoxicity has been shown to vary from responses ranging from <0.1 mg/L to >100 mg/L based on the most sensitive endpoint values (e.g., LCx, ECx, ICx) generated with suites of bioassays. Overall, micro-algae tend to display more sen- sitivity toward pharmaceuticals, followed by micro-invertebrates and finally fish. Exceptions for the latter group are hormones, such as ethynil estradiol, that are highly estro- genic toward fish.[44,47]

Indeed, several classes of pharmaceuticals are present (NSAIDs or non-steroidal anti- inflammatory drugs, lipid regulators, antibi- otics, anticonvulsants, etc.) in urban effluents in Canada,[48] and particularly in the Montreal WWTP effluent,[49] thus corroborating the fact that these emissions markedly contribute to the discharge of drugs into aquatic environ- ments. However, concentrations released, essentially ranging from a few ng/L to a few dozen g/L, are insufficient to provoke acute toxicity in aquatic biota.[48,49] Nonetheless, chronic toxicity owing to long-term exposure of some drugs cannot be excluded.[50] Neither are hazards stemming from the possible bioac- cumulation and biomagnification of drugs with lipophilic properties. The anticonvulsant carbamazepine (Ko/w=2.6), for example, pres- ent in the Montreal WWTP effluent, bioaccu- mulated in micro-algae (Pseudokirchneriella subcapitata), and biomagnified to the primary (Thamnocephalus platyurus) and secondary (Hydra attenuata) levels, as shown with an experimental trophic chain developed in our Centre.[51] Another potential hazard of environ- mental drug release can be linked to secondary production of oxidative stress resulting from biotransformation. Indeed, we also demon- strated that a 48 h exposure of Hydra attenua- ta to caffeine, a stimulant with very low acute toxicity occurring only at concentrations exceeding 100 mg/L, induced xanthine oxi- doreductase activity, which may in turn lead to production of oxidative stress, at concentra- tions close to those present in urban efflu- ents.[49] There is thus a need for future studies on the ecotoxicity of pharmaceuticals to focus on exploring possible adverse long-term effects to biota resulting from chronic toxicity, from bioaccumulation and biotransformation, as well as from drug biomagnification.

Emerging substances: nanoparticles

Another class of substances that may likely pose threats toward aquatic organisms in years to come comprises nanoparticles. Environmental research in this area is presently skyrocketing. Because of their small size and shape (1-100 nm), as well as compo- sition, nanoparticles (NP) have novel proper- ties that currently have numerous applications in fields such as biomedicine (medical imag- ing, drug delivery) and electronics (faster/smaller computers, semi-conductors).

Unprecedented efforts in R&D to develop novel applications with nanometer-sized mat-ter are growing at a planetary scale and a tril- lion-dollar market is expected to result from this ongoing industrial boom. While informa- tion on release of nanoparticles into the aquat- ic environment is largely an unknown,[52] recent studies suggest health and environmental adverse effects linked to some nanoproducts.[53,54,55,56,57,58]

Since little is yet known about nanotoxicity on living organisms, ecotoxicological research in this area is clearly justified. In our Centre, we examined the ecotoxicity of 11 selected nano-materials (nine metallic and two organ- ic nano-powders) to aquatic biota representa- tive of several taxonomic groups. Toxicity data generated on the 11 NPs reflected a wide spec- trum of sensitivity that was biological level-, test- and endpoint-specific, with the most sen- sitive bioassay responses placing them in haz- ardous classes lying between 0.1 to 100 mg/L.[59] In another study, we conducted testing with the microbial array for risk assessment (MARA) assay, an 11 microbial species 96-well microplate toxicity test measuring growth inhibition, to determine the toxic potential of four metallic nano-powders (MNPs), copper zinc iron oxide, samarium (III) oxide, erbium (III) oxide and holmium (III) oxide). Toxicity testing was also undertaken after the four nano-powdwers were spiked into natural St- Lawrence River freshwater sediments display- ing low, medium and high fines contents. Sediment elutriate toxicity was generally shown to increase as fines contents decreased, suggesting that these metallic nano-powders behave similarly to their non- nanoparticle metal counterparts. Overall, MARA bioassay data indicate that MNP toxici-ty can be modulated by sediment grain size and that resulting adverse effects on aquatic biota will in part depend on such sediment characteristics.[60] These initial investigations suggested that chemicals emerging from nan- otechnology may pose a risk to aquatic life in water column and sediment compartments and that further studies on their adverse effects are to be encouraged.

On the biomarker research side for NPs, current research activities focus on the under- standing of basic toxic properties of NPs. The toxicity of NPs results from four basic toxic properties ascribed to NPs.[61] Indeed, nanotoxic effects arise from i) the dissolution of compo- nents during degradation (e.g., release of Ag+ from nanosilver), ii) the size and form of nanoparticles including agglomeration/aggre- gation, iii) surface reactivity and iv) vectoriza- tion effects. The release of toxic components from NPs occurs especially in uncoated NPs although this cannot explain all toxic effects. For example, the addition of cysteine, a strong Ag+ chelator, only partially blocked micronuclei formation in cells treated with nanosilver.[62] This indicates that factors other than the release of Ag+ were at play in the formation of micronuclei. The second level of toxicity is related to the size or form of the NPs them- selves. Dimensions between 1-100 nm are in the same domain of macromolecules that could lead to potentially harmful steric hindrance interactions. For example, rainbow trout hepa- tocytes exposed to cadmium-based quantum dots led to increased levels of protein chaper- ones (proteins involved in the stabilization of protein folding) which were not entirely explained by the release of labile cadmium.[63] The third level of toxicity involves special prop- erties at the surface of NPs. Properties such as local electrical field, semiconduction, charge density and photochemical properties could lead to important harmful biochemical effects given the very important surface area/volume ratio. For example, the production of an electri- cal field at the surface of NPs could disrupt local biogenic electrical fields involved in mito- chondrial energy production and respiration or depolarization potentials in nerve membranes. Cadmium-based quantum dots were shown to induce oxygen radicals with a characteristic hypsochromic shift in the emission spectra when interacting with thiol-containing pep- tides at the surface of the quantum dots.[64] The fourth and last level of toxic risk is associated with the ability of NPs to transport dissolved molecules in biological systems, hence vector- ization properties. This represents a major area of research in therapeutics were NPs are produced to vector and target various drugs at specific cellular/tissular sites. For example, glyphosate toxicity was enhanced by the pres- ence of drug-carrying cationic dendrimers to Chlamydomonas reinhardtii algae.[65]

Issues and needs confronting ecotoxicology today

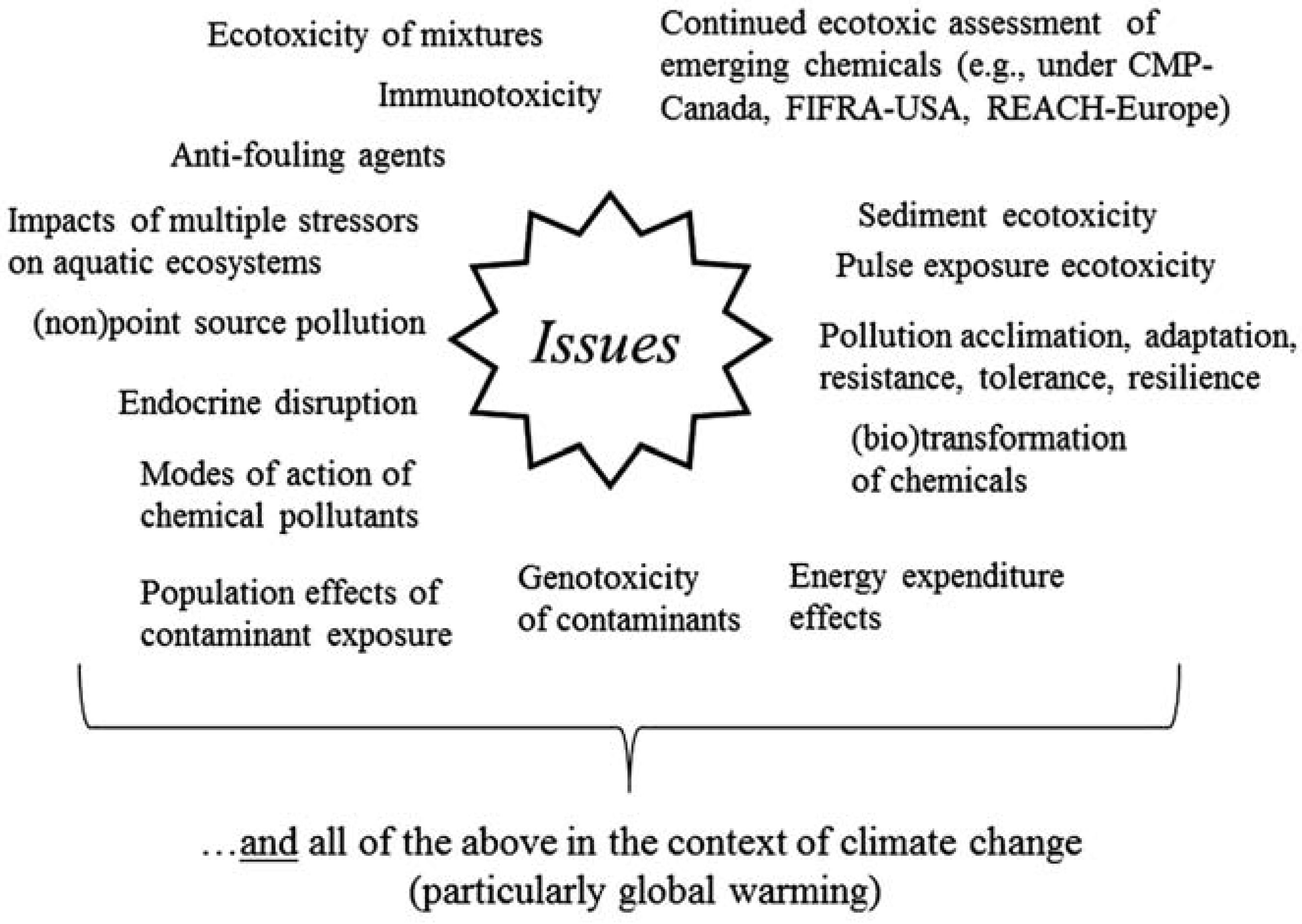

At the dawn of the 21st century, ecotoxicolo- gy continues to be confronted with diverse issues, most of which are essentially linked to lingering problems that are difficult to elimi- nate or deal with. As intimated previously, con- tinuous technology, creation of new molecules, as well as an ever- increasing human popula- tion, all place growing demands on (non)renewable resources of the planet that exacerbate impacts on ecosystems. While cer- tainly non exhaustive, Figure 3 lists some issues of importance that continue to require attention by scientists and decision-makers. On a more contemporary note, we can expect ecotoxiciy to be even more challenging to mas- ter and resolve in the context of climate change. With global warming, for example, more intense effects of contaminants are like- ly possible owing to heat-metabolization inter- actions and decreases in water quantity, as well as increases in water hypoxia conditions, toxic algal blooms and altered geographical distribution of xenobiotics. Additionally, the cumulative effects of chemical and biological stressors, coupled with climate change, are of concern. Invasive parasites and pathogens, for example, are purported to interact with anthro- pogenic stressors to reduce animal health in biota or even to increase mortality events in some situations. Such combined effects could thus reduce resistance or tolerance to infec- tion with possible population impacts.[20] Again, increases in numbers of invasive species linked to global warming are showing that some native predators are shifting their diet toward invasive prey. Such diet shifts may have important parasitological and immuno- logical consequences that could ultimately affect predator fitness via changes in condition and contaminant exposure. Exploring links between invasive prey and parasitism, contam- inants and fitness of their native predators thus merit future attention.[66] Finally, global warming may produce other potential smoking guns via increased release of toxic compounds formed in ice via photo-chemical processes upon melting, thereby adding additional con- taminant pressures on wildlife.[67]

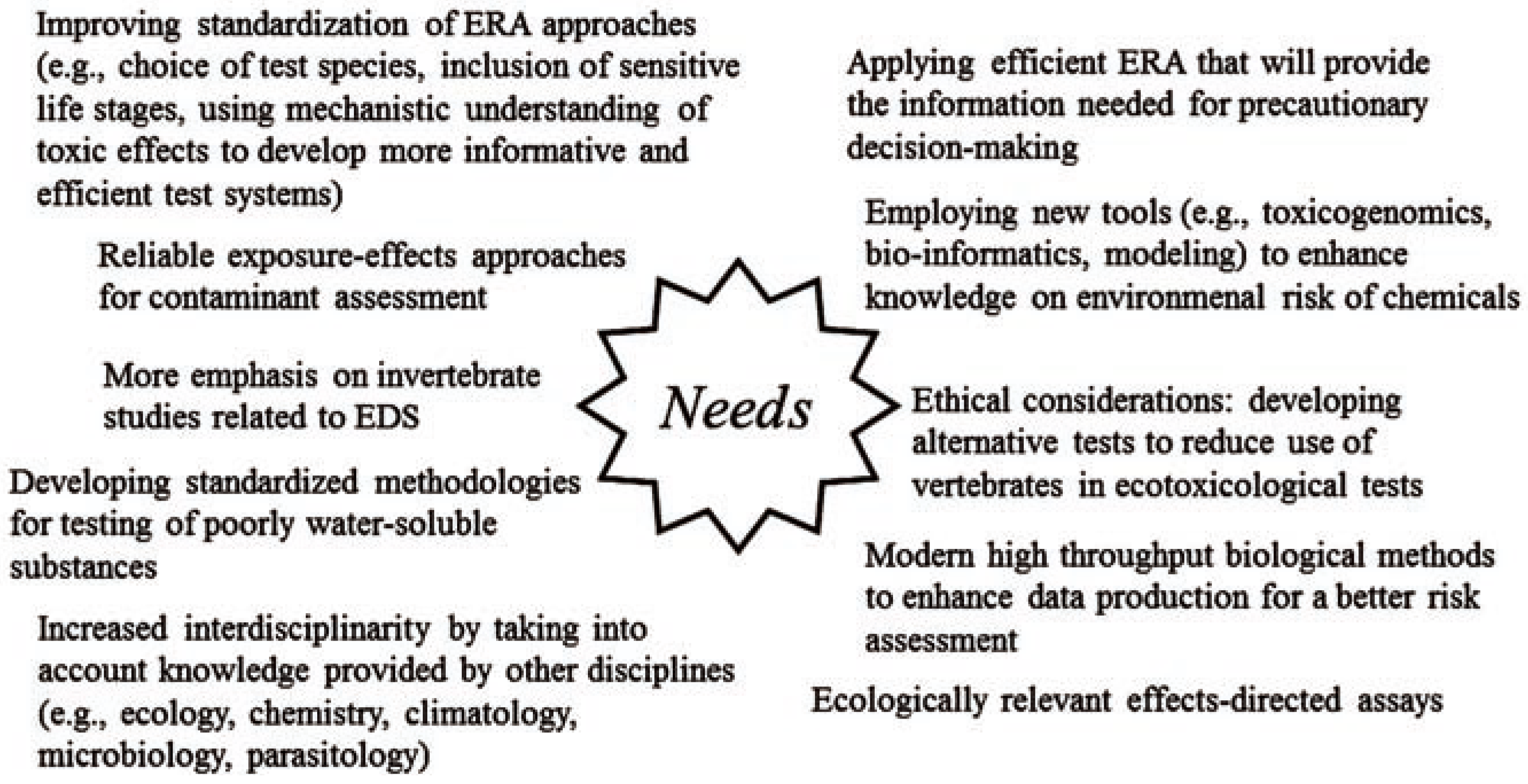

Issues requiring attention by ecotoxicology are thus legion and the needs to be addressed are equally enormous. Figure 4 lists some of these (self-explanatory) demands that have been persuasively described in recent publica- tions.[68,69,70]

General conclusions

Following environmental pressures stem- ming from a first industrial revolution in the latter part of the 19th century, and those result- ing from continuous technological growth worldwide afterwards, aquatic ecotoxicology has forcibly evolved into a more mature disci- pline today because of experience gained in coping with numerous contaminant-based issues. Ecotoxicity research studies presented herein offer a glimpse of environmental con- cerns that were deemed important of appraisal by our EC (Centre Saint-Laurent=Saint- Lawrence Centre) laboratories in Montreal (Québec, Canada) to protect Saint-Lawrence River water quality. Clearly, other priorities in other parts of Canada or elsewhere will dictate the type of ecotoxicological investigations that should be envisaged to preserve specific aquat- ic ecosystems thus stimulating different research approaches and strategies. Despite concerted efforts to reduce ecotoxicity globally in past decades, there continues to be increas- ing environmental issues to deal with now than there were at the time of the first indus- trial boom in the late 19th century! While it appears difficult to ever win the war waged against ecotoxicity, we can certainly do our best to keep on winning battles. To attain this goal, ecotoxicology will gain markedly through interdisciplinarity by working with, and taking into account knowledge provided by, other dis- ciplines (e.g., ecology, chemistry, climatology, microbiology, parasitology).

Conflicts of Interests: the authors declare no potential conflict of interests.
