Domain Adaptation Speech-to-Text for Low-Resource European Portuguese Using Deep Learning

Escola de Ciências e Tecnologia, Universidade de Évora, 7000-671 Évora, Portugal
Centro ALGORITMI, Vista Lab, Universidade de Évora, 7000-671 Évora, Portugal
Authors to whom correspondence should be addressed.
Future Internet 2023, 15(5), 159;
Submission received: 21 March 2023 / Revised: 17 April 2023 / Accepted: 21 April 2023 / Published: 24 April 2023
(This article belongs to the Special Issue Deep Learning and Natural Language Processing II)


Automatic speech recognition (ASR), commonly known as speech-to-text, is the process of transcribing audio recordings into text, i.e., transforming speech into the respective sequence of words. This paper presents a deep learning ASR system optimization and evaluation for the European Portuguese language. We present a pipeline composed of several stages for data acquisition, analysis, pre-processing, model creation, and evaluation. A transfer learning approach is proposed considering an English language-optimized model as starting point; a target composed of European Portuguese; and the contribution to the transfer process by a source from a different domain consisting of a multiple-variant Portuguese language dataset, essentially composed of Brazilian Portuguese. A domain adaptation was investigated between European Portuguese and mixed (mostly Brazilian) Portuguese. The proposed optimization evaluation used the NVIDIA NeMo framework implementing the QuartzNet15×5 architecture based on 1D time-channel separable convolutions. Following this transfer learning data-centric approach, the model was optimized, achieving a state-of-the-art word error rate (WER) of 0.0503.

1. Introduction

Automatic speech recognition (ASR), commonly known as speech-to-text, is the process of converting sounds into text, i.e., transforming speech into the respective sequence of words. In today’s world, most of the writing process is done on computers, tablets, or smartphones. Although typing is predominant, dictation has shown to be faster [1], which opens the opportunity for ASR to become the primary way for writing text. Despite this scenario, some challenges still persist in the ASR field, especially regarding its efficiency in less favorable conditions, e.g., noisy environments, or its application in low-resource languages.
In recent years, the field of artificial intelligence (AI) and related fields, such as machine learning (ML), have seen major growth in popularity and in technological advancements. Deep learning (DL), a subset of ML, makes use of deep neural networks (DNNs), a special type of artificial neural network (ANN), with a large number of layers. This large amount of layers allows features to be extracted from the raw input data without the need for any pre-processing [2]. Alongside a very rapid growth of available data, DNNs have started to be used in a variety of fields, such as computer vision, natural language processing, and speech recognition.
The Portuguese language is one of the most spoken languages in the world and it is divided into different variants, such as Brazilian and European Portuguese [3]. Among other variants, European Portuguese represents a small fraction of Portuguese speakers, and hence has fewer available resources and research. Developing deep neural models requires large datasets, which are scarce or not available for the European variant of the Portuguese language. Thus, transfer learning can be used as a means of creating ASR systems for languages with limited amounts of data. Such can be achieved by transferring the knowledge from models developed for languages with a larger amount of accessible data, such as the English language. The pre-trained models are then tuned for languages with less available data, such as the Portuguese language [4]. The aforementioned state-of-the-art methodology and the scarcity of resources for European Portuguese are the main motivation for the current work. This work aims to develop an ASR model using deep learning techniques for the Portuguese language. Using NVIDIA NeMo [5], we optimized the QuartzNet15×5 [6] architecture to develop a model using a data-centric approach which includes data pre-processing; transfer learning from English language models; and a domain adaptation evaluation, considering a strictly European Portuguese target and mixed (mostly Brazilian) Portuguese sources, which yielded a state-of-the-art word error rate (WER) performance.

2. Literature Review

This section introduces the main topics of the current work: deep learning and its applications (Section 2.1) and ASR for the Portuguese language (Section 2.2).

2.1. Deep Learning in ASR

Recent years have seen a growth in knowledge about the application of ANNs in a variety of research areas, including ASR, computer vision (image processing and recognition), and natural language processing. End-to-end (E2E) methods for ASR systems have increased in popularity due to these developments and the exponential growth in the amount of data available [7].
Approaches to automatic speech recognition systems are largely based on four types of deep neural networks: convolutional neural networks (CNNs) [8]; recurrent neural networks (RNNs) [9]; time-delay neural networks (TDNNs) [10]; and most recently, transformers [11]. These architectures can employ E2E mechanisms such as attention-based encoders and decoders (AED), recurrent neural network transducer (RNN-T), and connectionist temporal classification (CTC) [7].
The CTC algorithm is commonly used in ASR, as well as handwriting and other problems, the output of which consists of a sequence. When speech data only contain the audio and the transcript, there is no direct correlation between them. The correct alignment is possible by applying the CTC loss function on a DNN. This decoding process of aligning speech to words makes use of a tokenizer that contains the vocabulary (or alphabet) of the target audio language.
The Jasper model architecture is a good example of this [12]. It uses a TDNN architecture trained with CTC loss. This model achieved best performance of 2.95% WER on a test clean LibriSpeech dataset and improved over various domains compared to other state-of-the-art models.
Many applications in ASR infer pre-trained models from APIs due to their performance for the English language, as shown in Table 1.
These models can also be fine-tuned to other languages if given new vocabulary and speech data. This process is also known as transfer learning (TL).
These types of DNNs require large quantities of data to be trained and achieve good performance. When the available data are scarce, the transfer learning technique can be applied to these networks to improve their performance. Transferring knowledge on ANN-based systems is the equivalent of reusing layers from previously trained models. This is accomplished by using previously calculated weights to initialize specified layers of new models, followed by training the remaining layers. The reused layers can either be fixed, in which case the pre-calculated weights will not be updated, or flexible, in which case the pre-calculated weights will be able to be updated according to the new data [13]. The weights of the remaining layers are randomly initialized as in a normal ANN.
Sampaio et al. [14] evaluated the APIs from Table 1 using two collaborative and public Portuguese datasets, Mozilla Common Voice ( (accessed on 11 November 2021) and the Voxforge ( (accessed on 11 November 2021). Each had a domain, the former being common words and utterances, while the latter was audiobooks. The result of each API over each dataset can be seen in Table 2.
The model can adapt to new languages or domains if given enough training data for it to transfer to new vocabularies. Transferring knowledge from a high-resource language to a low-resource language, such as Portuguese, has been shown to improve the low-resource ASR model [15,16].

2.2. ASR in the Portuguese Language

The Portuguese language is one of the most spoken in the world, not due to the size of the Portuguese population (10 million), which gives the language its name, but thanks to countries with a much larger number of inhabitants, such as Brazil (214 million), Angola (34 million), and Mozambique (32 million). Despite speaking the same language, the speech varies from country to country and even from region to region, not only in accent but also in vocabulary. The goal of this work is to use European Portuguese (EP), i.e., from Portugal, to develop an ASR system.
As already mentioned, EP has fewer speakers than other variants such as Brazilian Portuguese (BP). However, some research has already been developed in the field of ASR with the goal of transcribing EP speech. Pellegrini et al. [17] and Hämäläinen et al. [18] aimed to transcribe speech from elder and young people since in these age groups people have more difficulties expressing themselves. The goal was to improve the understatement of their speech through the use of ASR systems. Other research aimed to create a speech recognizer for EP based on a corpus obtained from broadcast news and newspapers. The [19] speech recognizer is a hybrid system composed of an ANN, a multilayer perceptron (MLP), which classifies phones according to features extracted by a Perceptual Linear Prediction (PLP), a log-RelAtiveSpecTrAl (Log-RASTA), and Modulation Spectrogram (MSG). These components are then combined and used in an HMM for temporal modeling [20].
In variants with a larger amount of speakers, such as Brazilian Portuguese, there is also a lack of results related to the development of ASR systems. This shortage is mostly due to the lack of data quantity, quality, or detail in public datasets, or lack of public datasets to begin with, though they are desperately needed, especially when creating models based on DNNs.
Lima et al. [21] provided a list of 24 Portuguese language datasets alongside some of the available features, such as size, quality, rate, amount of speakers, speaker’s age, and availability (public or private). Of the twenty-four datasets, only six are public, which leads Lima et al. to state that the amount of datasets available is acceptable to build ASR systems for the Portuguese language. Lima et al. also conclude that the types of data are diverse (noisy, wide age range, medical, commands), but the overall quantity, quality, and standardization are poor.
Nevertheless, some research has shown that it is possible to create models for ASR systems for the Portuguese language using reduced amounts of data, as little as 1 h, and still achieve considerable results in word error rate (WER), as high as 34% [22]. Works regarding ASR systems for Portuguese using DNNs worth mentioning include Gris et al. [23], who make use of Wav2vec 2.0 and pre-trained models in other languages (which are then fine-tuned to BP) and achieve an average WER of 12.4% on seven datasets; and Quintanilha et al. [24,25], who make use of four datasets (three of which are open) and use models based on DeepSpeech 2 [26] with convolutional and bidirectional recurrent layers, making it possible to achieve values of 25.45% WER. Additional work is available regarding ASR systems for the Portuguese language. The app TipTopTalk! [27] by Tejedor-García et al. uses Google’s ASR systems to implement a pronunciation training application for various languages including both European and Brazilian variants of Portuguese.

3. Data

The performance of ASR systems does not rely only on the type of algorithms used; it also depends on the quality and quantity of the available data. Some languages, such as English, are widely present in the majority of the ASR applications of today’s world, e.g., smart assistants, with large amounts of research in the area of ASR, e.g., [28]. To build an ASR system, data may be acquired through private entities, open-access datasets, crowdsourcing, or by creating the dataset from scratch, e.g., collecting audiobooks and their transcriptions. Although scarce, some sources of audio and their transcriptions are available in Portuguese. Nevertheless, the quantity and quality of publicly available datasets are not usually good enough to create high-performance ASR systems. These sources usually lack audio or transcription quality, data quantity, and structure standardization. The following sections describe the data sources used in this project. Section 3.1 describes the LibriSpeech dataset, used to evaluate the effectiveness of the transfer learning technique, and the Multilangual LibriSpeech dataset. Section 3.2 describes the SpeechDat dataset. These datasets were used in the current work to perform the data-driven experiments focused on transfer learning and domain adaptation.

3.1. LibriSpeech and Multilingual LibriSpeech

As the amount of content available online increases, more data can be collected for research purposes. The LibriSpeech (https:/// (accessed on 12 December 2021) dataset is built with data from the LibriVox ( (accessed on 6 January 2022) audiobook catalogue. Composed of 1000 h of audio recordings of English speech, with a sampling rate of 16 kHz, LibriSpeech was created with the purpose of being used to build and test ASR systems. In the work presented in this paper, the training set of 100 h of “clean” speech of the LibriSpeech ( (accessed on 12 December 2021) dataset was used as a control dataset for the English domain [29]. This control was meant to verify the performance of the transfer learning process, i.e., to verify if the models pre-trained in English were properly learning the Portuguese data. The 100 h set contains transcripts with a total of 990,101 words, from which 33,798 are unique words.
Multilingual LibriSpeech (MLS) is an extension of LibriSpeech which increases the amount of English speech to 44,500 h of audio recordings and adds 6000 h of audio recordings from seven other languages, including Portuguese [30].
MLS provides the dataset split into three subsets—train, development, and test—in which there is no speaker overlap. For the last two sets, it is also guaranteed that the gender and duration of the speaker are balanced. Audio recordings are also ensured to unambiguously contain only one speaker. With respect to Portuguese, MLS contains a large number of hours (≃167 h of Brazilian Portuguese and ≃1 h of European Portuguese audio recordings). These hours correspond to a total of 1,321,326 words, of which 77,292 are unique, with an average of 33.68 words per transcription.

3.2. SpeechDat

The SpeechDat European Project ( (accessed on 17 July 2022) was developed between 1996 and 1998 with the goal of providing speech resources to stimulate research and development of automated services, such as speech recognizers. The Portuguese database was collected by Portugal Telecom, now named Altice Portugal, in collaboration with INESC and INESCTEL.
The current work was developed as a collaboration between Universidade de Évora and Altice Labs (Altice Labs is part of Altice Portugal), which enabled the current work to study ASR in Portuguese using the SpeechDat Portuguese dataset. SpeechDat audio recordings consist of 4027 Portugal Telecom employees following prompt sheets. This dataset has a good geographical distribution and a good representation of regional European Portuguese accents of native and non-native, as shown in Table 3.
According to the documentation, speakers from “Portuguese-speaking countries” (which includes Macau and India, since there are speakers from these regions where there were Portuguese colonies and there exist Portuguese-speaking communities) have been living in Portugal for many years, so their dialectal differences are not so easily distinguishable. The speakers born in “other countries” are relatives of Portuguese emigrants.
Table 4 displays the distribution of the speakers’ sexes and age groups. The majority of the speakers belong to the 16–30 and 31–45 age groups. The female sex (≃54%) is slightly more represented than the male sex (≃46%).
The audio recordings, consisting of small sentences, were encoded using A-LAW [31] (an algorithm used for encoding audio signals, in particular voice encoding) with a sampling rate of 8 kHz 8 bit, which was accompanied by an ASCII label file containing the audio recording metadata.
Each label file contained an assessment code regarding the quality of the respective audio. The possible values for the code are the following:
  • OK—clean audio and ready to be used;
  • NOISE—audio with some background noise;
  • GARBAGE—empty audio, missing transcriptions, only background noise, noise produced by others;
  • OTHER—audio containing disfluencies, hesitations, stuttering, or unintelligible speech;
  • NO_PTO—audio files without label file.
Table 5 presents the number of hours of audio recordings of each audio quality label and the total hours of audio recordings of the SpeechDat dataset. The 186 total hours of audio recordings represent a lexicon of approximately 15,000 different words, the smaller recordings being ≃0.5 s and the larger recordings being ≃20 s.
We can observe that the SpeechDat dataset is slightly larger than the Multilingual LibriSpeech, by ≃18 h.

4. Proposed System

The current Section presents the proposed system capable of transcribing Portuguese audio into the respective transcription using deep neural models. Such a system is achieved through the use of a pipeline and a framework that enables the development of deep neural models with the selected neural architecture.

4.1. Architecture

A pipeline was assembled to create models for transcribing Portuguese speech into the respective transcription using deep learning to facilitate connections between each necessary stage of this process. Figure 1 illustrates the pipeline built, whose stages are described below:
  • Dataset Acquisition—explore and acquire new speech datasets in Portuguese (audio recording files and respective transcriptions);
  • Content Analysis—dataset analysis, assessment of the dataset’s initial structure, documentation, content quantity and quality, and audio file encodings;
  • Pre-Processing—dataset restructuring, data pre-processing, and manifest creation;
  • Model Creation—model creation with the pre-processed data;
  • Results Evaluation—testing and evaluation of the created model.

4.2. NVIDIA NeMo

State-of-the-art deep learning frameworks explore hardware features to their full potential. Multi-CPU, multi-GPU, and multi-node frameworks with high-speed interconnectors allow algorithms to perform faster calculations and therefore bring down the training time of models.
NVIDIA NeMo ( (accessed on 28 October 2021) [5] is a framework developed by NVIDIA built on top of the PyTorch and the PyTorch Lightning frameworks and is meant “(…) for building, training, and fine-tuning GPU-accelerated speech and natural language understanding (NLU) models with a simple Python interface.” ( (accessed on 16 April 2023). NeMo provides separate collections for automatic speech recognition, natural language processing, and text-to-speech models. Each collection consists of prebuilt modules that include everything needed to train new models. Every module can easily be customized, extended, and composed to create new conversational AI model architectures ( (accessed on 15 February 2022).
Given the infrastructure in which the present work was developed and the features made available by NeMo, NeMo was the selected framework to develop the current work models.

4.3. Model Architecture

Regarding NeMo’s automatic speech recognition collection, QuartzNet [6] and Jasper [12] are two end-to-end model architectures worth mentioning due to their role in the current work.
Jasper is a block architecture designed to ease fast GPU inference. The block architecture is composed of one convolutional pre-processing block, B × R blocks (where B represents the number of blocks and R the number of sub-blocks), and three convolutional post-processing blocks. Each block input is connected to the last sub-block using a residual connection. Each of the R sub-blocks applies a set of four operations: a 1D convolution, batch normalization, ReLU, and dropout. Models with this architecture are trained using the CTC loss function. Jasper models achieve state-of-the-art results of 2.95% when using a beam-search decoder and an external language model.
QuartzNet derives from Jasper’s B × R block architecture and has the goal of achieving state-of-the-art results while using models with fewer parameters. QuartzNet performs similar operations, the only difference being the replacement of the 1D convolution with a 1D time-channel separable convolution (compared in Figure 2). The 1D time-channel separable convolution is an implementation of depthwise separable convolutions which can be separated into two other convolutions, a 1D depthwise convolution and a pointwise convolution (see Figure 3). The 1D depthwise convolutional layer performs convolutions across time, and a pointwise convolutional layer performs a 1 × 1 convolution across features/channels [6,32], which enables the QuartzNet architecture to achieve state-of-the-art results while drastically reducing the number of parameters.

4.4. Data Pre-Processing

The SpeechDat dataset, composed of ≃186 h of audio recording collected in controlled environments, was divided into two “versions”, defined in Definitions 1 and 2.
Definition 1
(SpeechDat with noise-describing tokens). The data pre-processing carried out in this iteration of the dataset excluded audio recordings labelled as GARBAGE or OTHER, with transcriptions being **, empty, or containing ~ or *.
The remaining audio recordings were re-encoded from A-LAW into WAV and re-sampled from 8 kHz to 16 kHz.
Definition 2
(SpeechDat without noise-describing tokens). In addition to Definition 1, this iteration of the dataset had the noise-describing tokens [sta], [spk], [fil], and [int] removed from the transcriptions.
In Table 6 are shown the splits used for each dataset in the present work. The SpeechDat dataset was divided into 70% (107,158 instances) for training/transfer, 15% (22,960 instances) for validation, and 15% (22,961 instances) for testing. The MLS dataset was already split having 37,498 instances for training, 826 for validation, and 906 for testing.

5. Experiments and Results

5.1. Hardware Infrastructure

The following experiments were run in the Vision Supercomputer ( (accessed on 23 January 2022). Vision is an HPC cluster made of two compute nodes, interconnected with 8 × 200 Gb/s HDR InfiniBand links for parallel processing. The compute nodes are NVIDIA DGX A100 systems, with the following characteristics:
  • GPUS: 8×NVIDIA A100 40 GB Tensor Core GPUs;
  • GPU Memory: 320 GB total;
  • CPU: Dual AMD Rome 7742, 128 cores total;
  • Networking (clustering): 8 × Single-Port NVIDIA ConnectX-6 VPI 200 Gb/s InfiniBand;
  • Networking (storage): 1 × Dual-Port NVIDIA ConnectX-6 VPI 200 Gb/s InfiniBand.
The cluster resources are managed by a Slurm Workload Manager ( (accessed on 23 January 2022) [34], which is responsible for allocating the resources requested by each user for each job. The results presented in this work were obtained in a single compute node: 8×NVIDIA A100 GPUs, 256 CPUs, and 1 TB of RAM.

5.2. Performance Metric

Word error rate (WER) is a metric for evaluating speech-to-text models and is defined as shown in Equation (1). This metric determines the distance between transcripts by evaluating substitutions, insertions, and deletions made to a single word or word sequence in order for the transcripts to match.
WER = Substitutions + Insertions + Deletions Number of Spoken Words
WER results range from 0 to 1 (or 0% to 100%), but these results can be higher than the upper bound if the number of additional insertions, substitutions, or deletions required for the transcripts to match is very large. WER was the selected metric for the experiments of the current work.

5.3. Experiments and Results

In the current work, two methods of developing models were approached, from scratch (Section 5.3.1) and transfer learning (Section 5.3.2). The from scratch method consists of an algorithm fed with data to generate a model. In transfer learning, a previously developed model acts as a starting point to develop a new model. The base model is tuned during training accordingly to new data, which are provided to the algorithm.

5.3.1. Models from Scratch

The MLS dataset contains an unbalanced mix of European (≃1 h of audio recordings) and Brazilian Portuguese (≃167 h of audio recordings). Both Portuguese variants were divided into different subsets. Table 7 shows these experiments, where the European Portuguese subsets are represented by “PT” and the Brazilian Portuguese subsets by “BR”. Experiments were carried out using different combinations of the variants to evaluate how data quantity affects the performance of deep models developed from scratch.
Similar from scratch experiments were performed with the SpeechDat dataset developing models with SpeechDat’s train and validation subsets.
Table 8 and Table 9 present the experiments carried out using the SpeechDat dataset as defined in Definitions 1 and 2, respectively.

5.3.2. Transfer Learning

Being that Portuguese is a low-resource language, experiments using both the SpeechDat and MLS datasets have been developed using the transfer learning approach.
In the current experiments, various combinations of both MLS and SpeechDat were used to develop models. The 100 h “clean” training set (ENG) from the LibriSpeech dataset was used to control the performance of the transfer technique on the English domain. NVIDIA’s NeMo provides a model for the English language pre-trained with a dataset with ≃3300 h of audio recordings ( (accessed on 23 January 2022). This model was used as the starting point for the transfer learning experiments. Table 10 shows the results of the transfer learning experiments to compare the performance of models developed from scratch and using transfer learning.
Based on the previous conclusions, further experiments were conducted by mixing SpeechDat as defined in Definition 2 and the MLS (in these experiments “MLS” represents “PT + BR”, both training and testing subsets) transfer and validation subsets. The goal of these experiments is to evaluate the impact of data quality and quantity on the performance of the models.
The proportion of each subset is defined by a linear variation between 0% and 100% with a step of 25% (Table 11). This is carried out so that the number of instances remains constant across all mixes, 107,158 for training and 22,960 for validation.
For each mix of the datasets, three models were developed and evaluated. Table 12 presents a summarized view of the average performance of each mix.
The performance of the models developed in these experiments was evaluated using the previously used test sets, SpeechDat, MLS (“PT + BR”), and LibriSpeech (ENG). Additionally, a full combination of the SpeechDat and MLS test sets (SpeechDat + MLS) was also used to evaluate the model’s performance. Table 13 displays the number of audio instances present in each of the mentioned test sets.

5.4. Domain Adaptation

Within the problem at hand in this work, transfer learning should be considered not only in order to initialize the model considering a different language (English) for which there is a large volume of data, but also considering that there is limited access to data within our target (European Portuguese) and also to a variant of our target (Brazilian Portuguese). Thus, it could be questioned whether the use of instances from a dataset composed mostly of Brazilian Portuguese can be helpful for the transfer learning process between the English-optimized model and the European Portuguese target.
In order to evaluate this transfer learning domain adaptation, we proceeded with the addition of new combinations of MLS and SpeechDat datasets to add to the mixed datasets present in Table 11. These were used to train models using transfer learning. All combinations of the datasets and the corresponding WER performances can be seen in Table 14. These results correspond to the best performance attained for each (MLS, SpeechDat) mixture and cover 16 different points in the (MLS, SpeechDat) space where the number of MLS instances, n is in the range 0 n 37 , 498 and SpeechDat in the range 69 , 660 n 107 , 158 . The results are depicted in Figure 4 and Figure 5.

6. Discussion

The results in Table 7 reveal that the amount of data available is not enough to generate deep models with acceptable performance. The best results were achieved when training and testing the models using the largest subsets, which leads to the conclusion that larger amounts of data output better performances. Such can be seen in the second and fifth experiments in which the models were trained and tested with the Brazilian Portuguese subsets.
Following this from scratch training approach, results in Table 7, Table 8 and Table 9 reveal that models developed using either version of SpeechDat’s data (controlled environment) outperform models developed with the MLS dataset (recordings of audiobooks). Additional data pre-processing showed an increase in the model’s WER performance from 0.3035 to 0.1945.
Considering the results from Section 5.3.1, it can be concluded that creating deep neural models from scratch would require more data than we have access to.
When comparing both from scratch and transfer learning approaches, some conclusions can be drawn regarding the quantity of data used during the training phase and how it affects performance.
  • The amount of data used during the training phase strongly impacts the model’s performance; transfer learning improves the WER performance from 0.1945 to 0.0557.
  • It has been found that pre-trained models successfully adapt to new data by moving away from the data they were originally trained on.
Although transferring knowledge from previously developed models achieves better scores, it is observable that the transfer set still needs to have a considerable amount of data. This conclusion is supported by the following:
  • Using smaller subsets, i.e., MLS subsets, the best results were achieved when using combinations with the largest subset (“BR”).
  • Models yielded the best results when developed with the largest subsets available, i.e., SpeechDat subsets.
These results are a reinforcement of the statement that data quality can be as important as data quantity and algorithm fine-tuning. Models developed with the SpeechDat dataset have shown an increase in performance with additional data processing even without any model fine-tuning or additional data added.
Additionally, in the mix experiments, it can be concluded that the SpeechDat dataset has the greatest impact on the performance of the models, having its performance on the SpeechDat test set slightly decreased from mix to mix. The increase in the number of instances of the MLS dataset used is reflected in the gain of performance over the MLS and SpeechDat + MLS test sets throughout the different mixes. Nonetheless, in spite of achieving better performances over these test sets, the addition of these instances does not show a negative impact on the performance over the SpeechDat and LibriSpeech (ENG) test sets.

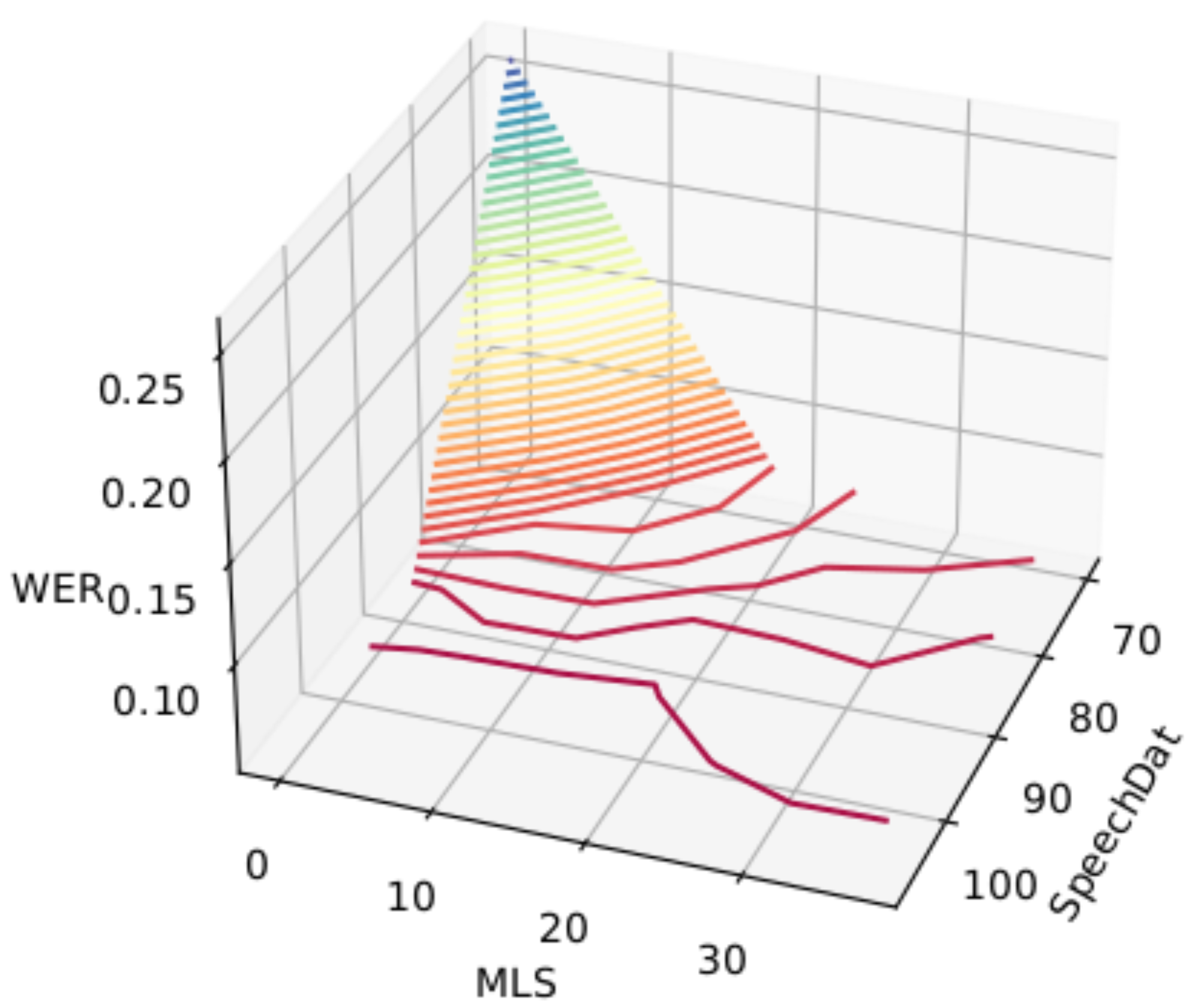

Figure 4 and Figure 5 represent WER as a function of (MLS, SpeechDat) and show that the worse performance (highest WER) corresponds to the minimum number of training instances (69,660). These diagrams also show that compared to point (0.69660) with WER = 0.26626, increasing the number of training instances either from the SpeechDat domain (European Portuguese) or from the MLS domain (mostly Brazilian Portuguese) generates speech-to-text systems with a clear performance increase. Comparing the performance variation per number of training instances from both domains (increasing the number of instances by 18,749) using (0.69660) as a reference, we yield the following results:
Δ M L S = 0.1040 [ Δ W E R / 10.000 M L S ]
Δ S p e e c h D a t = 0.1112 [ Δ W E R / 10.000 S p e e c h D a t ]
This shows similar and relevant contributions from both domains, although this contribution is more important when we increase the source with instances belonging to the same domain as the target SpeechDat (European Portuguese). Nevertheless, in the region where SpeechDat is higher than 90,000 instances, and the performance reaches values close to the maximum performance, the level curves tend to be more aligned with the MLS axis. Thus, in this situation there is some contribution to the performance from SpeechDat but there is no significant contribution from MLS (Brazilian Portuguese).

7. Conclusions

The results in this work show the importance of transfer learning to the optimization of speech-to-text systems with limited data. The results demonstrate the effectiveness of the transfer learning approach to optimize a speech-to-text system with European Portuguese as the target and attain a state-of-the-art performance of WER = 0.0503, which is a clear improvement over existing ASR systems for the Portuguese language previously mentioned in Section 2.2. It was shown that the transfer learning with the SpeechDat dataset has the greatest impact on the performance of the models tested with European Portuguese SpeechDat. Varying the proportion of MLS and SpeechDat, it was clear this proportion directly influences the transfer learning process and performance for MLS and SpeechDat targets, respectively.
The use of data from the Brazilian Portuguese dataset has shown an overall increase in performance relative to situations of mid-range performance (WER = 0.2662) and little impact when in situations of near-maximum performance (WER = 0.0503). Thus, we derive the following conclusions:
  • Data quantity is essential for building deep neural models, either from scratch or using transfer learning.
  • The larger the amount of data from a domain used in the training or transfer process, the better the performance over the test set from the same domain.
  • Data quality also plays an important role in the model’s performance, since the dataset with better data quality (the SpeechDat dataset, as defined in Definition 2) yields the best performance.

Author Contributions

Conceptualization, investigation, methodology, writing and editing—E.M., L.C., L.R., P.Q. and P.S.; Software—E.M., L.C. and P.S. All authors have read and agreed to the published version of the manuscript.


This research has been partially funded by Altice Labs under contract Ref. “Optimized Portuguese Speech to Text”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

3rd Party Data restrictions apply to the availability of these data. Data was obtained from Altice Labs.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ruan, S.; Wobbrock, J.O.; Liou, K.; Ng, A.; Landay, J. Speech Is 3x Faster than Typing for English and Mandarin Text Entry on Mobile Devices. arXiv 2016, arXiv:1608.07323. [Google Scholar]
  2. Amigo, J.M. Data Mining, Machine Learning, Deep Learning, Chemometrics Definitions, Common Points and Trends (Spoiler Alert: VALIDATE your models!). Braz. J. Anal. Chem. 2021, 8, 45–61. [Google Scholar] [CrossRef]
  3. Eberhard, D.M.; Simons, G.F.; Fennig, C.D. Ethnologue: Languages of the World, 26th ed.; SIL International: Dallas, TX, USA, 2023. [Google Scholar]
  4. Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning; MIT Press: Cambridge, MA, USA, 2016. [Google Scholar]
  5. Kuchaiev, O.; Li, J.; Nguyen, H.; Hrinchuk, O.; Leary, R.; Ginsburg, B.; Kriman, S.; Beliaev, S.; Lavrukhin, V.; Cook, J.; et al. NeMo: A toolkit for building AI applications using Neural Modules. arXiv 2019, arXiv:1909.09577. [Google Scholar] [CrossRef]
  6. Kriman, S.; Beliaev, S.; Ginsburg, B.; Huang, J.; Kuchaiev, O.; Lavrukhin, V.; Leary, R.; Li, J.; Zhang, Y. Quartznet: Deep Automatic Speech Recognition with 1D Time-Channel Separable Convolutions. In Proceedings of the ICASSP 2020—2020 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Barcelona, Spain, 4–8 May 2020; pp. 6124–6128. [Google Scholar] [CrossRef]
  7. Li, J. Recent Advances in End-to-End Automatic Speech Recognition. 2022. Available online: (accessed on 16 April 2023).
  8. Zhang, Y.; Pezeshki, M.; Brakel, P.; Zhang, S.; Bengio, C.L.Y.; Courville, A. Towards End-to-End Speech Recognition with Deep Convolutional Neural Networks. 2017. Available online: (accessed on 16 April 2023).
  9. Graves, A.; Jaitly, N. Towards End-To-End Speech Recognition with Recurrent Neural Networks. In Proceedings of Machine Learning Research, Proceedings of the 31st International Conference on Machine Learning, Beijing, China, 21–26 June 2014; Xing, E.P., Jebara, T., Eds.; PMLR: Bejing, China, 2014; Volume 32, pp. 1764–1772. [Google Scholar]
  10. Peddinti, V.; Povey, D.; Khudanpur, S. A time delay neural network architecture for efficient modeling of long temporal contexts. In Proceedings of the Sixteenth Annual Conference of the International Speech Communication Association, Dresden, Germany, 6–10 September 2015; pp. 3214–3218. [Google Scholar] [CrossRef]
  11. Radford, A.; Kim, J.W.; Xu, T.; Brockman, G.; McLeavey, C.; Sutskever, I. Robust Speech Recognition via Large-Scale Weak Supervision. 2022. Available online: (accessed on 16 April 2023).
  12. Li, J.; Lavrukhin, V.; Ginsburg, B.; Leary, R.; Kuchaiev, O.; Cohen, J.M.; Nguyen, H.; Gadde, R.T. Jasper: An End-to-End Convolutional Neural Acoustic Model. arXiv 2019, arXiv:1904.03288. [Google Scholar] [CrossRef]
  13. Buijs, R.; Koch, T.; Dugundji, E. Applying transfer learning and various ANN architectures to predict transportation mode choice in Amsterdam. Procedia Comput. Sci. 2021, 184, 532–540. [Google Scholar] [CrossRef]
  14. Xavier Sampaio, M.; Pires Magalhães, R.; Linhares Coelho da Silva, T.; Almada Cruz, L.; Romero de Vasconcelos, D.; Antônio Fernandes de Macêdo, J.; Gonçalves Fontenele Ferreira, M. Evaluation of Automatic Speech Recognition Systems. In Anais do XXXVI Simpósio Brasileiro de Bancos de Dados; Technical Report; SBC: Porto Alegre, Brazil, 2021. [Google Scholar]
  15. Dalmia, S.; Sanabria, R.; Metze, F.; Black, A.W. Sequence-based Multi-lingual Low Resource Speech Recognition. 2018. Available online: (accessed on 16 April 2023).
  16. Cho, J.; Baskar, M.K.; Li, R.; Wiesner, M.; Mallidi, S.; Yalta, N.; Karafiát, M.; Watanabe, S.; Hori, T. Multilingual Sequence-to-Sequence Speech Recognition: Architecture, Transfer Learning, and Language Modeling. In Proceedings of the 2018 IEEE Spoken Language Technology Workshop (SLT), Athens, Greece, 18–21 December 2018; pp. 521–527. [Google Scholar] [CrossRef]
  17. Pellegrini, T.; Hämäläinen, A.; de Mareüil, P.B.; Tjalve, M.; Trancoso, I.; Candeias, S.; Dias, M.S.; Braga, D. A corpus-based study of elderly and young speakers of European Portuguese: Acoustic correlates and their impact on speech recognition performance. In Proceedings of the Proc. Interspeech 2013, Lyon, France, 25–29 August 2013; pp. 852–856. [Google Scholar] [CrossRef]
  18. Hämäläinen, A.; Cho, H.; Candeias, S.; Pellegrini, T.; Abad, A.; Tjalve, M.; Trancoso, I.; Dias, M.S. Automatically Recognising European Portuguese Children’s Speech. In Computational Processing of the Portuguese Language. PROPOR 2014. Lecture Notes in Computer Science; Baptista, J., Mamede, N., Candeias, S., Paraboni, I., Pardo, T.A.S., Volpe Nunes, M.d.G., Eds.; Springer: Cham, Switzerland, 2014; pp. 1–11. [Google Scholar] [CrossRef]
  19. Meinedo, H.; Caseiro, D.; Neto, J.; Trancoso, I. AUDIMUS.MEDIA: A Broadcast News Speech Recognition System for the European Portuguese Language. In Proceedings of the Computational Processing of the Portuguese Language; Mamede, N.J., Trancoso, I., Baptista, J., das Graças Volpe Nunes, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2003; pp. 9–17. [Google Scholar] [CrossRef]
  20. Meinedo, H.; Abad, A.; Pellegrini, T.; Neto, J.; Trancoso, I. The L2F Broadcast News Speech Recognition System. In Proceedings of the Fala 2010 Conference, Vigo, Spain, 10–12 November 2010. [Google Scholar]
  21. Aguiar de Lima, T.; Da Costa-Abreu, M. A survey on automatic speech recognition systems for Portuguese language and its variations. Comput. Speech Lang. 2020, 62, 101055. [Google Scholar] [CrossRef]
  22. Gris, L.R.S.; Casanova, E.; Oliveira, F.S.d.; Soares, A.d.S.; Candido-Junior, A. Desenvolvimento de um modelo de reconhecimento de voz para o Português Brasileiro com poucos dados utilizando o Wav2vec 2.0. In Anais do Brazilian e-Science Workshop (BreSci); SBC: Porto Alegre, Brazil, 2021; pp. 129–136. [Google Scholar] [CrossRef]
  23. Stefanel Gris, L.R.; Casanova, E.; de Oliveira, F.S.; da Silva Soares, A.; Candido Junior, A. Brazilian Portuguese Speech Recognition Using Wav2vec 2.0. In Proceedings of the Computational Processing of the Portuguese Language; Pinheiro, V., Gamallo, P., Amaro, R., Scarton, C., Batista, F., Silva, D., Magro, C., Pinto, H., Eds.; Springer International Publishing: Cham, Switzerland, 2022; pp. 333–343. [Google Scholar] [CrossRef]
  24. Macedo Quintanilha, I. End-to-End Speech Recognition Applied to Brazilian Portuguese Using Deep Learning. Master’s Thesis, Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil, 2017. [Google Scholar] [CrossRef]
  25. Quintanilha, I.M.; Netto, S.L.; Biscainho, L.W.P. An open-source end-to-end ASR system for Brazilian Portuguese using DNNs built from newly assembled corpora. J. Commun. Inf. Syst. 2020, 35, 230–242. [Google Scholar] [CrossRef]
  26. Amodei, D.; Anubhai, R.; Battenberg, E.; Case, C.; Casper, J.; Catanzaro, B.; Chen, J.; Chrzanowski, M.; Coates, A.; Diamos, G.; et al. Deep Speech 2: End-to-End Speech Recognition in English and Mandarin. In International Conference on Machine Learning; PMLR: London, UK, 2015; pp. 173–182. [Google Scholar] [CrossRef]
  27. Tejedor-García, C.; Escudero-Mancebo, D.; González-Ferreras, C.; Cámara-Arenas, E.; Cardeñoso-Payo, V. TipTopTalk! Mobile Application for Speech Training Using Minimal Pairs and Gamification. 2016. Available online: (accessed on 13 March 2023).
  28. Saon, G.; Kurata, G.; Sercu, T.; Audhkhasi, K.; Thomas, S.; Dimitriadis, D.; Cui, X.; Ramabhadran, B.; Picheny, M.; Lim, L.L.; et al. English Conversational Telephone Speech Recognition by Humans and Machines. arXiv 2017, arXiv:1703.02136. [Google Scholar] [CrossRef]
  29. Panayotov, V.; Chen, G.; Povey, D.; Khudanpur, S. Librispeech: An ASR corpus based on public domain audio books. In Proceedings of the 2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), South Brisbane, Australia, 19–24 April 2015; pp. 5206–5210. [Google Scholar] [CrossRef]
  30. Pratap, V.; Xu, Q.; Sriram, A.; Synnaeve, G.; Collobert, R. MLS: A Large-Scale Multilingual Dataset for Speech Research. In Proceedings of the Interspeech 2020, Shanghai, China, 25–29 October 2020. [Google Scholar] [CrossRef]
  31. G.711 Standard; Pulse Code Modulation (PCM) of Voice Frequencies. International Telecommunication Union: Geneva, Switzerland, 1988.
  32. Mordido, G.; Van Keirsbilck, M.; Keller, A. Compressing 1D Time-Channel Separable Convolutions using Sparse Random Ternary Matrices. arXiv 2021, arXiv:2103.17142. [Google Scholar] [CrossRef]
  33. Guo, Y.; Li, Y.; Feris, R.; Wang, L.; Rosing, T. Depthwise Convolution is All You Need for Learning Multiple Visual Domains. arXiv 2019, arXiv:1902.00927. [Google Scholar] [CrossRef]
  34. Yoo, A.B.; Jette, M.A.; Grondona, M. SLURM: Simple Linux Utility for Resource Management. In Proceedings of the Job Scheduling Strategies for Parallel Processing; Feitelson, D., Rudolph, L., Schwiegelshohn, U., Eds.; Springer: Berlin/Heidelberg, Germany, 2003; pp. 44–60. [Google Scholar] [CrossRef]

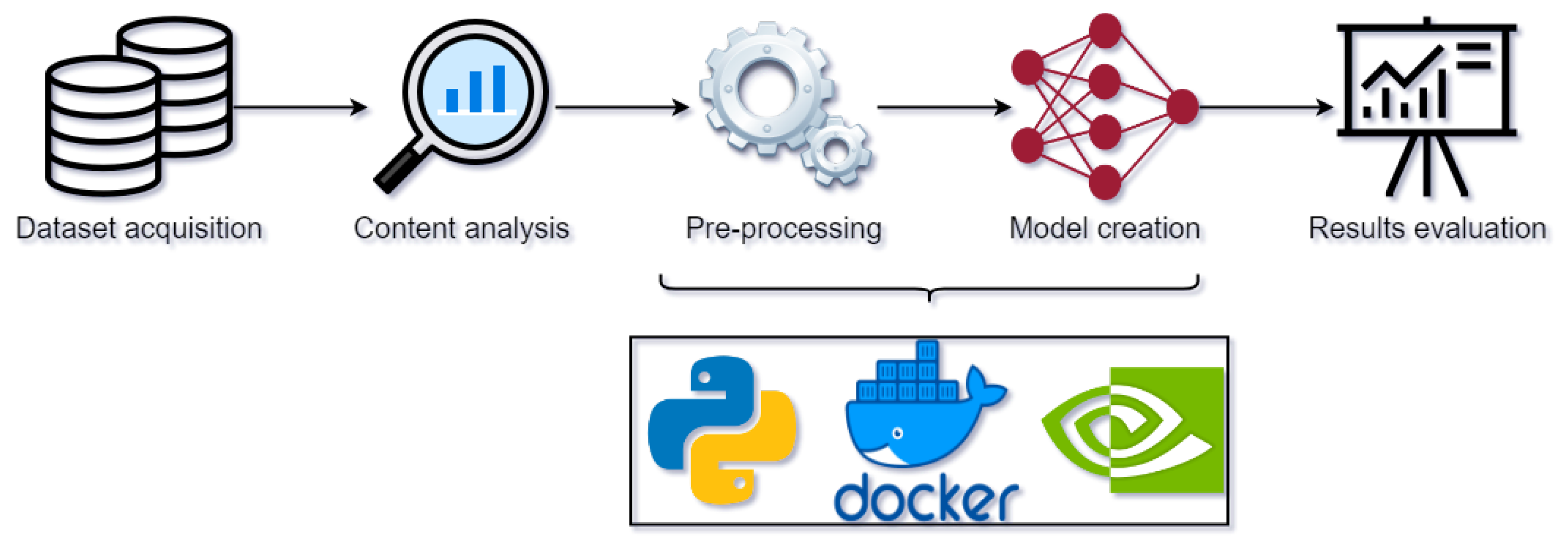

Figure 1. System pipeline and toolkit.
Figure 1. System pipeline and toolkit.
Futureinternet 15 00159 g001

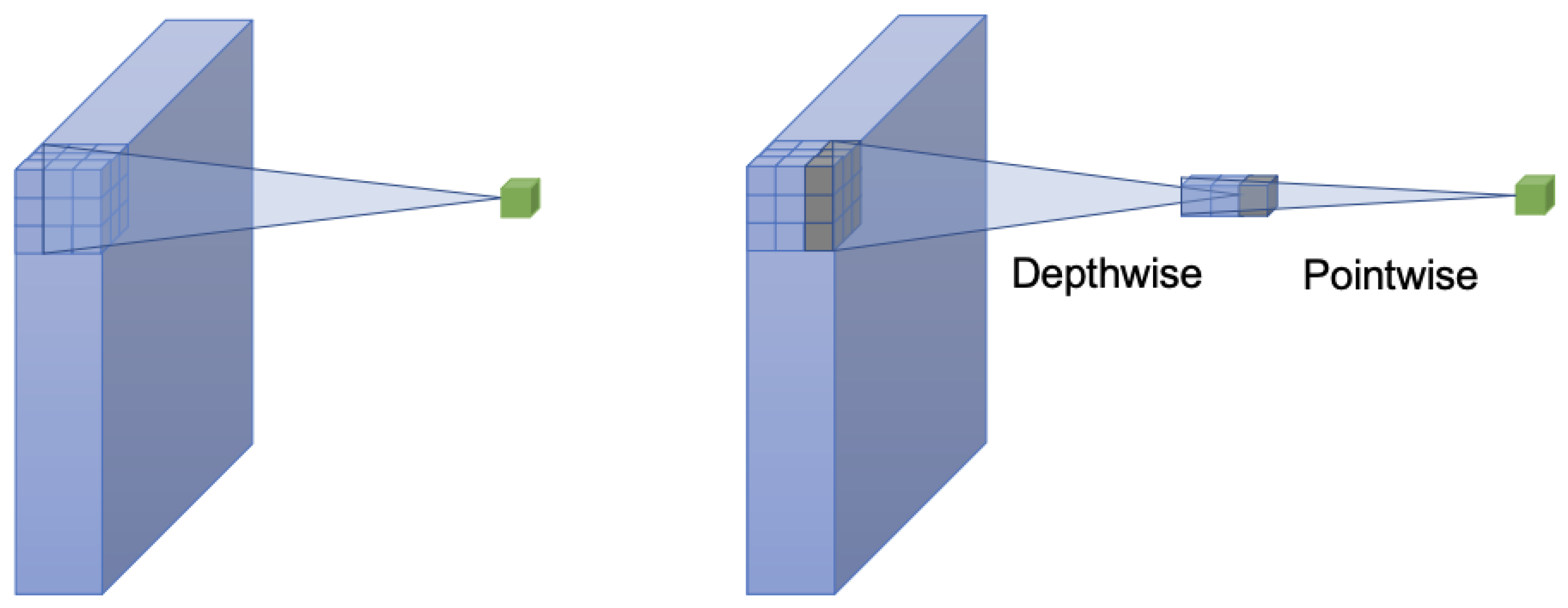

Figure 2. Standard convolution (left) and depthwise separable convolution (right) [33].
Figure 2. Standard convolution (left) and depthwise separable convolution (right) [33].
Futureinternet 15 00159 g002

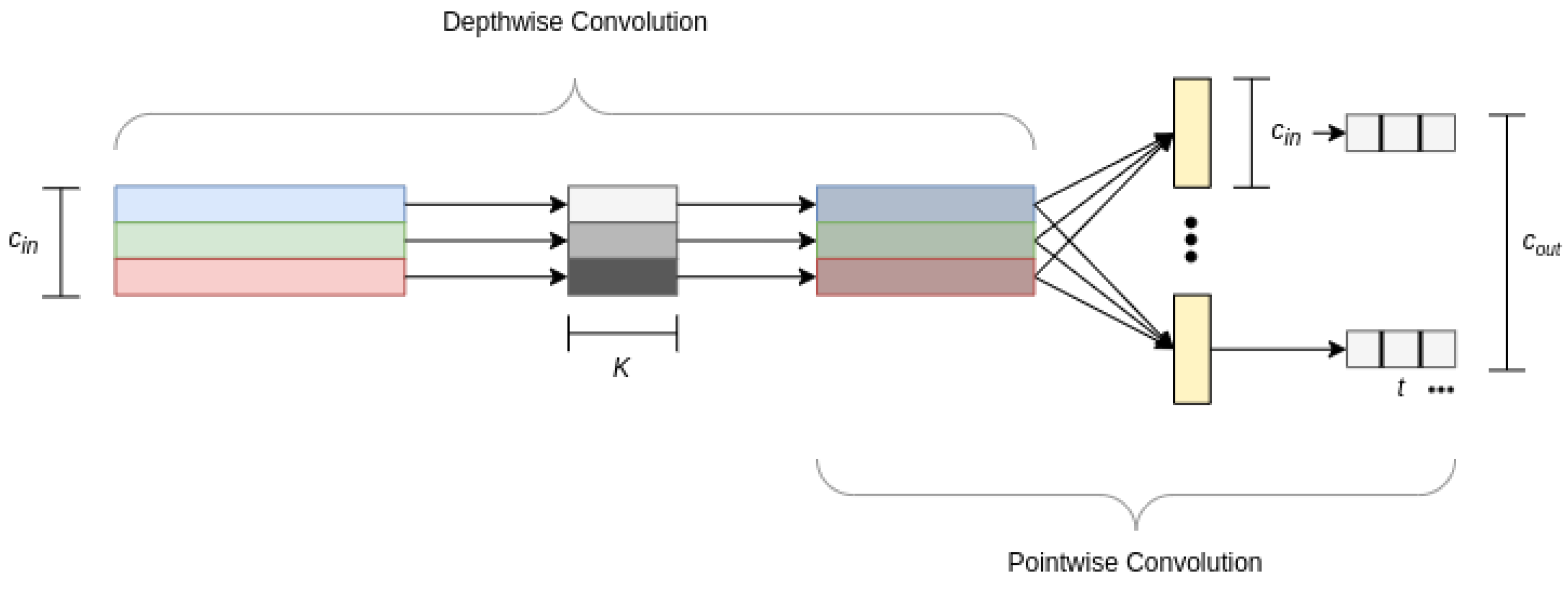

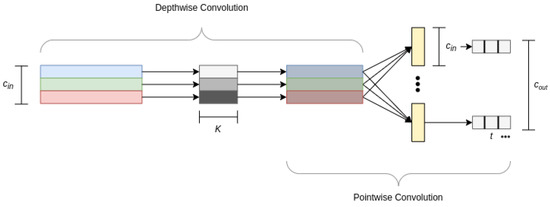

Figure 3. One-dimensional time-channel separable convolution.
Figure 3. One-dimensional time-channel separable convolution.
Futureinternet 15 00159 g003

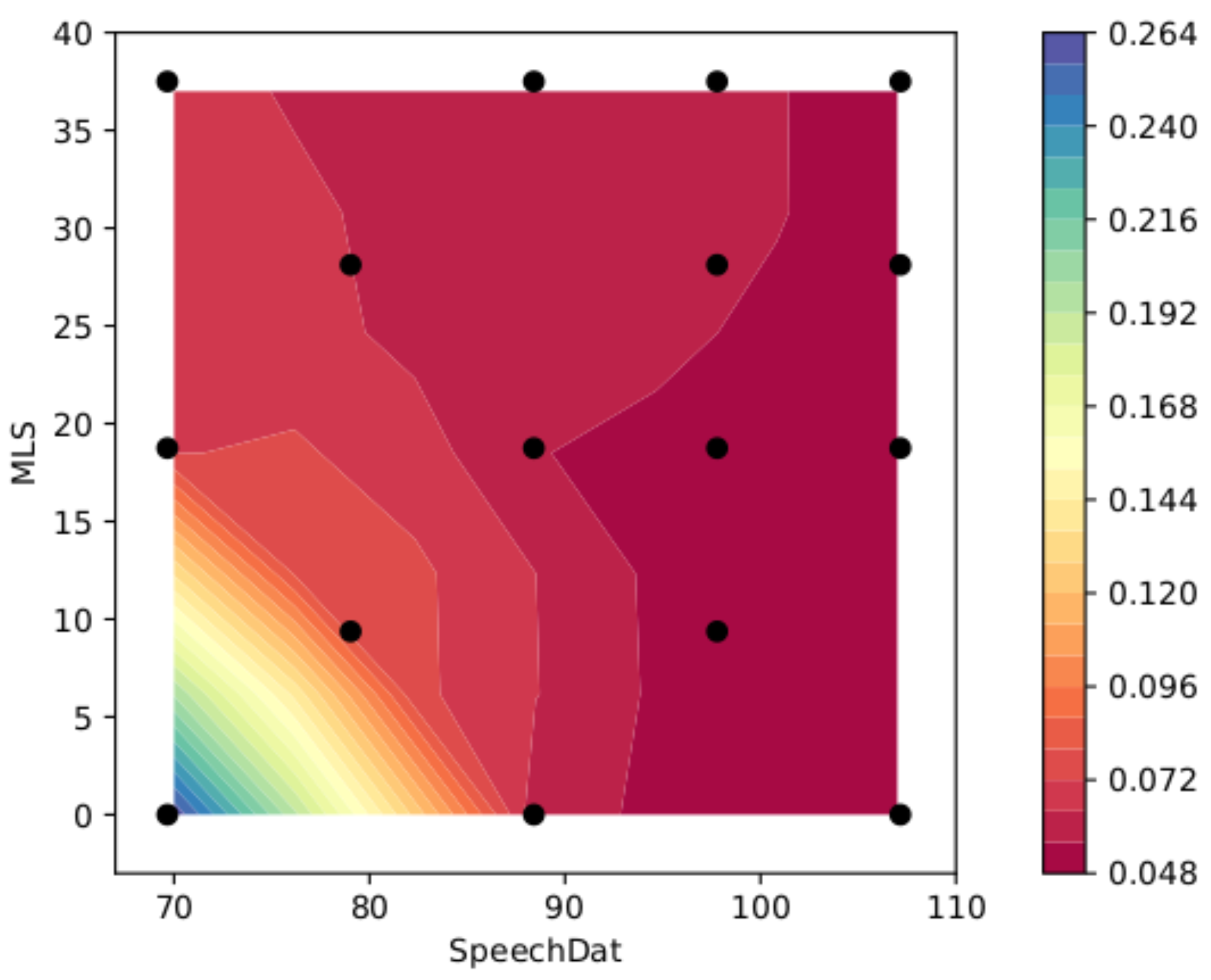

Figure 4. Best WER performance for all tested combinations of MLS and SpeechDat datasets (the MLS and SpeechDat axes are presented in thousands).
Figure 4. Best WER performance for all tested combinations of MLS and SpeechDat datasets (the MLS and SpeechDat axes are presented in thousands).
Futureinternet 15 00159 g004
Figure 5. Best WER performance for all tested combinations of MLS and SpeechDat datasets (the MLS and SpeechDat axes are presented in thousands).
Figure 5. Best WER performance for all tested combinations of MLS and SpeechDat datasets (the MLS and SpeechDat axes are presented in thousands).
Futureinternet 15 00159 g005
Table 1. API architecture and respective training hours.
Table 1. API architecture and respective training hours.
ArchitectureTrain Hours
Facebook wav2vec 2.01041
Google LAS2025
Microsoft ASR System12,500
Table 2. APIs results on Mozilla Common Voice (MCV) Corpus and Voxforge Corpus datasets.
Table 2. APIs results on Mozilla Common Voice (MCV) Corpus and Voxforge Corpus datasets.
ArchitectureMCV WERVoxfoge WER
Facebook wav2vec 2.012.29%11.44%
Google LAS12.58%10.49%
Microsoft ASR System9.56%7.25%
Table 3. Distribution of native and non-native speakers.
Table 3. Distribution of native and non-native speakers.
RegionNumber of SpeakersNumber of Speakers (%)
Portuguese-speaking countries1163
Other countries291
Empty field311
Table 4. Distribution of speakers over age groups and sexes.
Table 4. Distribution of speakers over age groups and sexes.
Age GroupsMale SpeakersFemale SpeakersPercentage of Total
Table 5. Hours of audio recordings for each audio quality label.
Table 5. Hours of audio recordings for each audio quality label.
Quality LabelHours
Table 6. Number of instances of each subset of the MLS and SpeechDat datasets.
Table 6. Number of instances of each subset of the MLS and SpeechDat datasets.
Table 7. Models developed from scratch using subsets of the MLS dataset.
Table 7. Models developed from scratch using subsets of the MLS dataset.
PT + BRPT + BRPT0.8900
PT + BRPT + BRBR0.8065
Table 8. Models developed from scratch with the SpeechDat dataset as defined in Definition 1.
Table 8. Models developed from scratch with the SpeechDat dataset as defined in Definition 1.
PT + BR0.9173
Table 9. Models developed from scratch with the SpeechDat dataset as defined in Definition 2.
Table 9. Models developed from scratch with the SpeechDat dataset as defined in Definition 2.
PT + BR0.9055
Table 10. Performance of models developed using transfer learning with the MLS subsets and SpeechDat, according to Definitions 1 and 2.
Table 10. Performance of models developed using transfer learning with the MLS subsets and SpeechDat, according to Definitions 1 and 2.
PT + BRBR0.5025
PT + BRPT + BR0.5083
SpeechDat 1SpeechDat0.1603
PT + BR0.7912
SpeechDat 2SpeechDat0.0557
PT + BR0.7680
Table 11. Audio instances from each dataset used on each training and validation mix.
Table 11. Audio instances from each dataset used on each training and validation mix.
MIX IDTransferValidation
Table 12. Average performance (WER) of the models of each mix.
Table 12. Average performance (WER) of the models of each mix.
MIX IDTest Set
SpeechDatENGMLSSpeechDat + MLS
Table 13. Audio instances from each test set.
Table 13. Audio instances from each test set.
Test SetInstances
SpeechDat + MLS23,867
Table 14. Best WER performance for all tested combinations of MLS and SpeechDat datasets.
Table 14. Best WER performance for all tested combinations of MLS and SpeechDat datasets.
MLS InstancesSpeechDat InstancesWER
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Medeiros, E.; Corado, L.; Rato, L.; Quaresma, P.; Salgueiro, P. Domain Adaptation Speech-to-Text for Low-Resource European Portuguese Using Deep Learning. Future Internet 2023, 15, 159.

AMA Style

Medeiros E, Corado L, Rato L, Quaresma P, Salgueiro P. Domain Adaptation Speech-to-Text for Low-Resource European Portuguese Using Deep Learning. Future Internet. 2023; 15(5):159.

Chicago/Turabian Style

Medeiros, Eduardo, Leonel Corado, Luís Rato, Paulo Quaresma, and Pedro Salgueiro. 2023. "Domain Adaptation Speech-to-Text for Low-Resource European Portuguese Using Deep Learning" Future Internet 15, no. 5: 159.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
