Systematic Review

Biological Properties and Medical Applications of Carbonate Apatite: A Systematic Review

by
Ralitsa Yotsova
1,* and
Stefan Peev
2
1
Department of Oral Surgery, Faculty of Dental Medicine, Medical University of Varna, bul. Tsar Osvoboditel 84, 9002 Varna, Bulgaria
2
Department of Periodontology and Dental Implantology, Faculty of Dental Medicine, Medical University of Varna, bul. Tsar Osvoboditel 84, 9002 Varna, Bulgaria
*
Author to whom correspondence should be addressed.
Pharmaceutics 2024, 16(2), 291; https://doi.org/10.3390/pharmaceutics16020291
Submission received: 19 January 2024 / Revised: 10 February 2024 / Accepted: 15 February 2024 / Published: 18 February 2024
(This article belongs to the Special Issue Biomedical Applications: Advances in Bioengineering and Drug Delivery)
Browse Figures
Versions Notes

Abstract

:
Bone defects represent an everyday challenge for clinicians who work in the fields of orthopedic surgery, maxillofacial and oral surgery, otorhinolaryngology, and dental implantology. Various bone substitutes have been developed and utilized, according to the needs of bone reconstructive surgery. Carbonate apatite has gained popularity in recent years, due to its excellent tissue behavior and osteoconductive potential. This systematic review aims to evaluate the role of carbonate apatite in bone reconstructive surgery and tissue engineering, analyze its advantages and limitations, and suggest further directions for research and development. The Web of Science, PubMed, and Scopus electronic databases were searched for relevant review articles, published from January 2014 to 21 July 2023. The study was conducted in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. Eighteen studies were included in the present review. The biological properties and medical applications of carbonate apatite (CO3Ap) are discussed and evaluated. The majority of articles demonstrated that CO3Ap has excellent biocompatibility, resorbability, and osteoconductivity. Furthermore, it resembles bone tissue and causes minimal immunological reactions. Therefore, it may be successfully utilized in various medical applications, such as bone substitution, scaffolding, implant coating, drug delivery, and tissue engineering.

1. Introduction

Bone reconstruction surgery has rapidly developed in recent years, due to the advancements in tissue engineering, nanotechnology, and biomaterials science. The aim of bone regeneration is no longer a passive reconstruction with biocompatible and osteoconductive materials but, instead, the utilization of smart and stimuli-responsive biomaterials that closely resemble natural bone, which can guide stem cells for tissue regeneration, and act as drug delivery systems according to the patient’s individual needs [1,2,3].
The regeneration and repair of osseous defects caused by bone disorders, trauma, infections, and tumors represent an everyday challenge for clinicians in the fields of orthopedic surgery, maxillofacial and oral surgery, otorhinolaryngology, plastic surgery, cardiothoracic surgery, and dental implantology [4].
Various bone grafting materials have been developed and utilized according to the needs of bone reconstructive surgery [5,6], and the principles of guided bone regeneration usually require their application together with barrier membranes [7].
Numerous classifications of bone grafts have been suggested over the years [8,9,10]. According to their origin, they are generally divided into autografts, allografts, xenografts, and alloplastic materials [11]. In 2022, a novel enriched classification was introduced [12].
Autogenous bone grafts with their excellent biological properties are still considered the gold standard for the treatment of bone defects [13]. However, their utilization requires a second surgical site (donor site) and is related to increased post-operative morbidity. In addition, only a limited amount of bone can be harvested [14]. Alternatives to autogenous bone are allografts and xenografts; however, they were shown to possess inferior biological properties to autografts and may cause immunologic responses or infectious disease [14,15]. Xenografts and alloplastic materials have been preferentially used in recent years, due to their accessibility [16]. Several biomaterials are currently available for these purposes, such as demineralized freeze-dried bovine bone, deproteinized bovine bone mineral, natural coral, bioactive glass, and calcium phosphate ceramics (CPCs), including hydroxyapatite (HA), α-tricalcium phosphate (α-TCP), β-tricalcium phosphate (β-TCP), and biphasic tricalcium phosphate. Each biomaterial has its own advantages and limitations [17].
Calcium phosphate ceramics are widely utilized in bone reconstructive surgery as single materials or as biphasic calcium phosphate ceramics (BCPCs) [18,19]. Although HA has demonstrated great biocompatibility and osteoconductive potential, it acts as a foreign body in the bone and, thus, could increase the risk of infection [20,21]. In comparison, the resorption rate of β-TCP is much faster and exceeds the rate of bone deposition, which has led to its utilization in combination with HA [22].
The objective of biomaterials research and fabrication is to replicate natural tissues and their properties. The initial goal of tissue engineering is a simulation of the mechanical and chemical properties of the tissues, in order to restore their functionality, while the ultimate goal is the fabrication of materials that promote tissue regeneration and can serve as structural scaffolds, carriers, and drug delivery systems [23].
Successful biomaterials should possess the following biological properties: biocompatibility, bioinertness, bioactivity, and bioresorbability. They should also resemble natural bone and promote osteoinduction and osteoconduction [24].
Metal implants are usually used to fulfill the demands for strength; however, they do not have osteoinductive and osteoconductive properties. A transitional phase is needed to create a stable bond between the implant and the surrounding bone. Therefore, apatitic coatings are utilized to increase the bond at the bone–implant interface [25,26]. Apatites that are used as biomaterials should have appropriate physicochemical properties (e.g., surface properties, composition, porosity, particle size, solubility in a physiological environment), biological properties, and mechanical properties (e.g., hardness, stiffness, wear resistance) [24,27].
Mineralization strategies are regarded as a successful method for the development of biomimetic materials. Mineralized scaffolds resemble the inorganic component of natural bone. They enhance bone regeneration and demonstrate improved properties, which makes them a material with high potential in tissue engineering [28].
The term “biological apatite” is used to describe the HA in bone and teeth (e.g., enamel, dentin, cementum). The International Mineralogical Association’s Commission has adapted the Minerals Nomenclature and Classification, according to which biological apatite is a type of HA (more precisely, carbonated HA) [29].
According to Kono et al., more than half of the hydroxide and phosphate ions in apatite should be substituted with carbonate ions such that it can be referred to as “carbonate apatite”. Nevertheless, such a substitution has not been reported. Therefore, the authors suggest that biological apatite should be called “carbonated hydroxyapatite” instead of “carbonate apatite” [29].
Carbonate could substitute phosphate (B-type) and hydroxide (A-type) and, thus, alter the crystal properties of the material. Carbonate substitution in bone is usually B-type. While concomitant A- and B-type substitution has been reported, the A-type is rare in biological apatites compared to the synthetic representatives [30].
Madupalli et al. [30] prepared AB-type carbonated apatites with variable carbonate content and evaluated them using Fourier transform infrared spectroscopy (FTIR), powder X-ray diffraction, and carbonate assessment. The authors found that the two sites for substitution influence the crystal and domain sizes, as well as the material properties.
Several authors have demonstrated that key prerequisites for osteoconductivity and bone formation rate are the carbonate content of the graft, their porous structure, and the interconnectivity of the pores [31,32,33,34]. The porosity of the material provides an increased surface area and vascularization [33].
To increase the chemical resemblance to natural bone, carbonate was added to calcium-deficient hydroxyapatite (CDHA) through a novel biomimetic approach [35]. Carbonate ions increased the chemical reactivity of the apatites and fostered osteoclastogenesis [36,37,38].
In 2019, Barba et al. evaluated the impacts that the carbonate content and nanocrystal structure of biomimetic apatite have on bone regeneration. They used CDHA scaffolds in canine models and found that carbonate doping of the material promoted osteoinduction and bone regeneration. These findings suggest that the fabrication of bone substitutes with appropriate nanostructural and chemical features could allow for their use in natural bone remodeling [39].
Faster healing and increased bone regeneration of carbonate apatite (CO3Ap) were observed when compared to HA, β-TCP, and deproteinized bovine bone [40], indicating that materials with a composition that resembles natural bone could also demonstrate properties similar to bone [40,41].
The present review focuses on the use of CO3Ap in bone reconstructive surgery, with the aim of summarizing the current knowledge regarding its medical applications; discussing its biological properties, advantages, and limitations; and providing some recommendations for future research and developments.
CO3Ap has recently become a subject of increased interest for researchers in the fields of bone regeneration and materials sciences. It has reached the stage of clinical trials and has, so far, demonstrated promising biological properties. However, some further research is required to confirm its role in bone regeneration and tissue engineering, as well as its supposed superiority over the currently used bioceramics.
To the best of our knowledge, this is the first systematic review of articles discussing both the biological properties and medical applications of CO3Ap. This study aims to draw the attention of researchers in the field to this material which has, so far, demonstrated promising properties. Further investigations and clinical trials could prove or reject its superiority over the materials that are commonly or recently used for bone regeneration.

2. Materials and Methods

Ethical approval for this article is not applicable as it is inclusively based on the previously published literature.

2.1. Eligibility Criteria

The search included only review articles in English, published in the past 10 years (2014–2023), and containing the selected keywords. The inclusion criteria were articles that evaluated the biological properties and/or medical applications of CO3Ap in bone reconstruction and regeneration. The exclusion criteria were as follows: articles that are not reviews, case reports, and abstracts; studies that did not discuss CO3Ap’s biological properties and observed only its non-medical applications; articles before 2013; and articles in languages different from English.

2.2. Information Sources

This systematic review was conducted in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) Statement [42,43].
A comprehensive search for review articles in several electronic databases (Google Scholar, Web of Science, PubMed, and Scopus) was carried out on 21 July 2023.

2.3. Search Strategy

Only full-sized review articles written in English were included. The electronic search strategy comprised an advanced search in the selected databases:
  • In the Web of Science database, the following keywords were used: (carbonate apatite OR carbonated apatite) AND (bone substitute OR bone regeneration OR bone replacement);
  • In the PubMed database: carbonate AND apatite AND (bone AND substitute OR bone AND regeneration OR bone AND replacement);
  • In the Scopus database: carbonate AND apatite AND (bone AND (substitute OR regeneration OR replacement));
  • In Google Scholar, a precise search was not possible. The selected keywords were “carbonate apatite bone” with at least one of the words “regeneration”, “replacement”, or “substitution”.

2.4. Study Selection and Data Collection Process

Titles and abstracts were screened and evaluated for eligibility by two independent reviewers. As the advanced search in Google Scholar does not provide a precise sorting of articles with all the inclusion criteria, as was the case for the advanced search in the other three databases, only the results from Web of Science, PubMed, and Scopus were finally evaluated. The titles, abstracts, authors’ names, journal names, and years of publication of the studies were exported to an MS Excel spreadsheet, and duplicate records were removed. Then, the full-text articles were subjected to the above-mentioned inclusion and exclusion criteria. Discrepancies between the reviewers were resolved by discussion until a consensus was reached.

3. Results

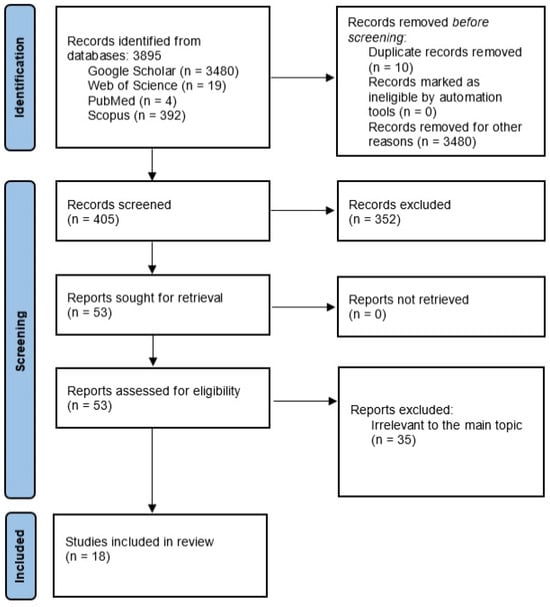

The initial search identified 3895 potentially relevant review articles from the four databases over the last ten years. After the exclusion of the records from Google Scholar, due to the inability to advance the search with all the inclusion criteria and the irrelevance of the suggested articles, 415 studies remained. Ten duplicate records were excluded. This left 405 studies for evaluation. Finally, 18 studies relevant to the topic were included in the present systematic review. Figure 1 illustrates a PRISMA flow chart of the selection process.
Table 1 presents the characteristics of the studies included in this systematic review.
All the biological properties and medical applications listed in Table 1 were supported by in vitro trials, in vivo trials, one ex ovo trial, and human clinical trials. The in vivo studies were based on animal models, including rat, rabbit, dog, and sheep models. Although several review articles included in this study were based on a small amount of evidence, the overall conclusion about the biological properties and medical applications of CO3Ap coincided with the rest of the literature data, based on more in vitro and in vivo experiments.

3.1. Biological Apatites

From a chemical aspect, bone tissue is a composite material whose mineral component is calcium-deficient and non-stoichiometric apatite [21]. A widespread misconception in the medical field is that hydroxyapatite is the mineral phase of bones and teeth. For decades, experiments have been conducted to develop CO3Ap that resembles bone apatite and has similar properties [24,89,90].
Bone tissue regularly undergoes a stress-induced remodeling process. First, osteoclasts dissolve small amounts of bone tissue (collagen and apatite), which is then replaced through the deposition of new bone by osteoblasts [24,91]. Therefore, the apatite should be reactive under the acidic biological conditions created by the osteoclasts [24].
Although there is a chemical similarity between synthetic HA and natural bone, its capability to replace bone apatite is limited [92]. This significant drawback could be related to the absence of osteoinductive and antibacterial properties, low degradability, poor mechanical properties, and so on [93]. On the other hand, biological properties are related to physiochemical parameters such as morphology, crystallinity, porosity, and ionic substitutions [57,94]. Carbonate substitutions in the structure of HA inhibit crystal growth and increase the solubility and resorption rate. Furthermore, carbonate replaces phosphate ions, which decreases the thermal stability of the apatite [57].
Carbonated and hydrated phases in bone apatite significantly differ in structure from HA. This explains the smaller crystallite size, higher solubility, and plate-like morphology in bone apatite compared to HA [24].
Both in vitro and in vivo trials have demonstrated better osteoclast resorption and bone replacement when CO3Ap was used instead of HA [45,95,96].
Stoichiometric HA does not dissolve passively. It requires osteoclast resorption in acidic conditions. Furthermore, its fabrication leads to a highly crystalline material that does not resemble natural bone; it can remain unchanged for more than 10 years [24].
Apatites have osteoconductive potential, the degree of which depends on the type of apatite. There is no osteoclast activity when HA materials are used, [23] and they cannot be replaced with new bone. On the other hand, bone tissue and CO3Ap are resorbed by osteoclasts, which create a weakly acidic environment. Under such conditions (pH 3–5), CO3Ap dissolves whereas HA remains stable. Biocompatibility, bioactivity, and osteoconductivity depend on the surface properties of the material, as the ions in the crystal lattice affect the surface charge and chemical reactivity [24].
The presence of carbonate ions maintains bone remodeling through dissolution–crystallization reactions [50].
There are two distinct types of biological apatite: bone apatite (with 5–8 wt% carbonate substitution) and the apatite in dental hard tissues (with 2–4 wt% carbonates in the enamel) [24,96,97]. Biomaterials used to replace damaged or missing tissues should be selected according to the characteristics and requirements of these structures [98]. Human bones consist of 55–60 wt% apatite, about 30 wt% collagen type I, and 10–15 wt% water. It is a nanocomposite in which bundles of collagen create a scaffold for the nucleation of CO3Ap crystallites [24]. Biological apatites experience fewer ionic substitutions than geological apatites, due to the limited amount of elements in bodily fluids [63].
The major substitution in bone apatite is by carbonate ions (5–8 wt%). There are two general types of substitution—the hydroxyl position (type A) and the phosphate position (type B)—which lead to various geometric configurations. B-type substitution influences the physical properties of the apatite, such as changes in the α- and c-axial lengths, crystallite size, crystallographic microstrain, optical birefringence, and mechanical strength. The increase in solubility is due to the weaker Ca–CO3 bonds in B-type substitution [63].

3.2. Carbonate Apatite

Carbonate apatite is a CPC with a similar carbonate content to that of bone apatite. It was recently utilized as a synthetic bone substitute material in bone reconstructive surgery [20].
The first in-human clinical trials were conducted in patients who underwent sinus floor elevation in three university hospitals in Japan [61,62]. The material was approved for clinical use in the country and became commercially available globally [14,59].
Although CO3Ap resembles natural bone, it cannot be used in powder form as a bone substitute, as it induces inflammatory reactions. Carbonate apatite has demonstrated better thermodynamical stability and reduced solubility than HA; however, it dissolves faster than HA under physiological conditions [20].
High-temperature manufacturing can enhance the strength and crystallinity of the material but reduces its bioactivity and resorption and, thus, its initial biomimetic properties. In contrast, CO3Ap fabricated through dissolution–precipitation reactions presents excellent tissue behavior. The processing also determines the porosity, crystallinity, surface activity, and solubility [24].
Carbonate apatite is resorbed by osteoclasts under weakly acidic conditions and replaced with new bone through bone remodeling. Its resorption rate accompanies the deposition of new bone tissue [12]. It also up-regulates osteoblast differentiation and demonstrates better osteoconductive properties than HA [59]. Carbonate apatite promotes bone deposition without fibrotic tissue formation. Furthermore, microstructural analysis has demonstrated new bone formation within the grafting material [20].
It was suggested that the osteoblast response to CO3Ap could serve as an indicator of osteoconductivity and that CO3Ap may have superior properties to other bone substitutes [20].
Modulation of osteoblast and osteoclast behavior can be achieved by altering the carbonate concentration. Therefore, the specific purpose could determine the carbonate concentration needed [24].
Carbonate substitution in HA causes lower crystallinity and improved solubility and bioactivity. Carbonate apatite is a non-toxic and biocompatible material that promotes osteoblast adhesion and proliferation [71].
The incorporation of carbonate in crystalline apatite structure changes the physiochemical properties, reduces the thermal stability, and increases the solubility of the apatite [73]. Furthermore, the increased carbonate content leads to decreases in the bulk modulus and elastic strain ratio. These findings suggest that the mechanical function of bone could be modulated and biomaterials, biocomposites, and scaffolds could be adapted to specific medical needs.
According to existing knowledge, bone apatite possesses an elastic modulus of about 60–127 GPa. These values were measured on synthetic carbonated hydroxyapatite and depended on the carbonate content [73]. It was suggested that the mechanical properties of bone apatites depend not only on the carbonate substitution but also on additional factors that have not yet been fully documented.
A method for overcoming the bio-inert behavior of metallic implants and promoting osteointegration is coating their surface with materials that mimic natural bone, in terms of composition, crystallinity, Ca/P ratio, and lattice characteristics [71].
Carbonate apatite was shown to increase bone formation around dental implants compared to HA, not only on the bone and implant surfaces but also in the center of the defect [59]. This material could serve as a coating that improves the osteoconductivity of dental and orthopedic titanium implants. It also increases bone–implant contact and adhesion strength and presents an excellent tissue response [20].
The properties of this biomaterial could be improved through co-substitutions of CO3 and other ions with concentrations equal to those in the physiological environment. Such co-substitutions were recently reported, using carbonate ions along with magnesium, yttrium, sodium, strontium, or silicate ions [75]. For instance, coatings of manganese-substituted CO3Ap on titanium promoted metabolism activation, osteoblast differentiation, and proliferation [57]. The topography of the CO3Ap coating also influences its properties. Smooth surfaces promote osteoclast activity, while micro-roughness hinders active ring formation [77].
Further research is necessary to establish the application of multiple-substituted HA and evaluate its biological and mechanical properties [75].
Ishikawa K. (2019) has suggested that “learning from the bone” is a successful strategy to improve the results of bone grafting. This statement corresponds to the biomimetic approaches for bone healing and restoration [14]. Biomimetic deposition aims to fabricate artificial apatite that mimics the biological apatite to improve implant osteointegration. It was demonstrated that CO3Ap could be successfully utilized as a biomimetic material for bone regeneration [79].
It should be noted that osteoconductivity and bone replacement depend not only on the composition but also on the structure of the bone graft. For comparison, the remodeling of cancellous bone is ten times faster than that of cortical bone. Therefore, the interconnected porous structure of bone grafts is a significant feature for rapid bone replacement [14].
Carbonate apatite was suggested as a bone substitute material for sinus floor elevation, ridge preservation, and periodontal regeneration [81].
It can be fabricated as a 3D scaffold with improved porosity, pore size, and percentage weight. An ideal scaffold should meet the following criteria: good mechanical strength and physical properties similar to those of natural bone. It should also have high osteoinductive and osteoconductive potential. The porosity and interconnectivity of the scaffold should resemble the bone structure and allow for angiogenesis. Furthermore, it should be biocompatible and demonstrate biodegradability at a rate similar to that of bone tissue. The objective of bone tissue engineering is the development of a material that replicates the mineral phase of bone. CO3Ap seems to be such a material [28].
Micron and mesoporous CO3Ap microspheres have demonstrated excellent drug-loading efficiency [57]. Several studies have demonstrated that CO3Ap could be used as a carrier for aminoglycosides [83]. Mesoporous microspheres of CO3Ap were used for controlled delivery of gentamycin and vancomycin demonstrating excellent biocompatibility and antibacterial properties [83,85], and the material successfully prevented the adhesion of Staphylococcus epidermidis.
In addition, CO3Ap coatings on implant surfaces not only improve their mechanical and biological properties but may also be loaded with bioactive molecules to serve as carriers [87].
Furthermore, CO3Ap could be used for the fabrication of various composite materials and hybrid scaffolds [50], allowing for the improvement of their properties and tissue behavior.
Scaffolds composed of carbonated hydroxyapatite/polysaccharide were shown to possess excellent biocompatibility, osteogenesis, and manipulation properties. They may be used as carriers for different biological molecules and medical substances [50], and such scaffolds could allow for the simultaneous release of more than one pharmaceutical substance (dual drug delivery).
Moreover, a revolutionary approach to bone regeneration is the incorporation of pro-angiogenic factors that can induce angiogenesis in the scaffold [50].
From biological and mineralogical points of view, bone apatite demonstrates both structural stability and biodegradability. Carbonate apatites could be utilized for various biomedical applications, such as bone substitution, imaging markers, scaffolding, drug delivery, and tissue engineering of biomimetic materials with improved regenerative properties [73].

4. Discussion

Over two million bone grafting procedures are performed annually worldwide, with bone being the second most transplanted tissue [99].
Autogenous bone grafts (autografts) are the gold standard in bone reconstructive surgery, due to their biocompatible, osteoinductive, and osteoconductive properties [13].
This means that they promote bone formation with minimal immunological response. However, they cannot be used for large bone reconstructions, due to the limited amount of donor tissues and concerns regarding postoperative morbidity [14].
Therefore, alternative bone substitutes must be applied. Synthetic bone substitutes have osteoconductive properties and feature the following advantages: abundant resources; cost-effectiveness; and no need for a donor site.
Such already available alternative materials include synthetic grafting materials, CPCs, bioactive glasses, and some biodegradable polymers. However, all of these materials present significant drawbacks and limitations [17], necessitating either their improvement or the development of new materials.
Bone grafting materials should meet the following criteria: biodegradability, biocompatibility, bioresorbability, and osteoconductivity.

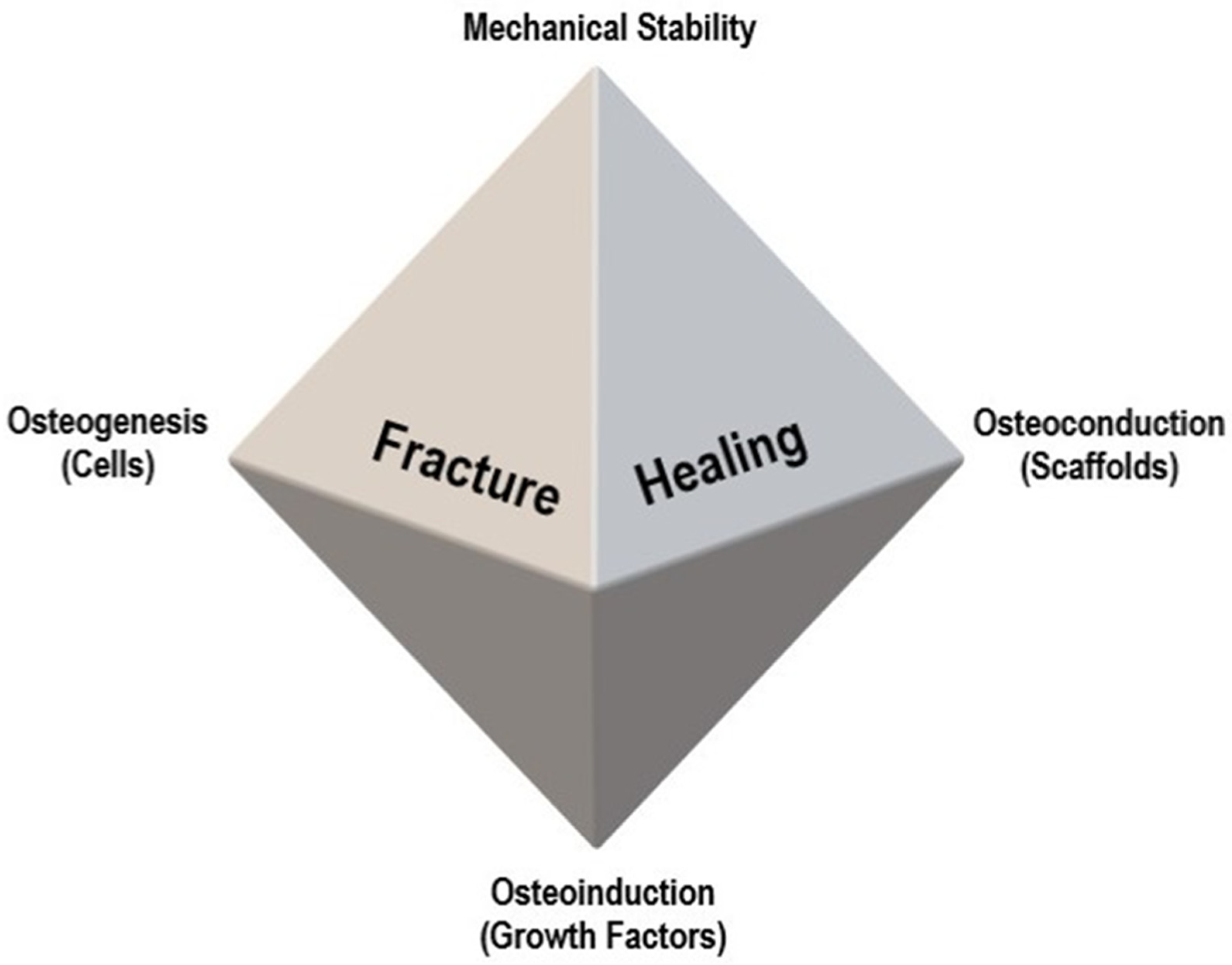

For a proper understanding of bone regeneration and the role of bone grafts, the diamond concept, proposed by Giannoudis et al., [100] should be considered. It demonstrates the four elements necessary for bone fracture healing: osteogenic cells, growth factors (osteoinduction), scaffolds (osteoconduction), and mechanical stability (Figure 2).
Some of the most commonly used biomaterials for bone reconstruction are HA and β-TCP. They act as scaffolds and induce bone deposition in their pores [101]. However, sintered HA exhibits numerous drawbacks, such as its long stability and acting as a foreign body. Its granules were observed to be covered with fibrous tissue two weeks after surgery and its slow resorption poses a risk for secondary infection. In addition, its elasticity differs from that of natural bone. Hydroxyapatite presents poor osteoconductive properties when compared to autologous bone [102]. As for β-TCP, it exhibits fast resorption rates, and still, the results of studies on whether the material could be fully resorbed [103,104] or whether there is a risk of inflammatory responses (similar to HA) remain heterogeneous [20].
Bone mineral belongs to the apatite series; in particular, it is carbonated non-stoichiometric, poor-crystalline, hydroxyl-deficient, and calcium-deficient (with varying Ca/P ratio) apatite, with a carbonate content in the range of 2–9 wt% [73].
A plethora of studies have focused on understanding the composition and formation of bone minerals in order to develop new bone substitutes with improved biological and mechanical properties. Biomaterials such as CO3Ap [41,46,47] resemble the mineral constituency of bone more accurately than stoichiometric HA and β-TCP. Some authors have stated that bone apatite is CO3Ap with 6–9 mass% in its structure [59].

4.1. Biological Properties of CO3Ap

Some of the articles included in this review demonstrated that CO3Ap has superior biological properties to HA. It was shown to present increased bone formation, better osteoconductivity, bioactivity, and bioresorbability [20,59,71,73]. Similarly, other authors have suggested that it promotes osteogenesis with minimal immunological response [46,47,74]. Clinical trials have confirmed its safety and replacement with new bone, while sintered HA remained unchanged [14,59].
Kanazawa et al. [70] compared the in vivo behavior of CO3Ap and sintered HA as bone substitutes for femoral and tibial osseous defects in rabbits. Both materials showed great osteoconductive properties and tissue response. No bone replacement was registered in the HA group 24 weeks after the implantation, while in the CO3Ap group, the material was gradually replaced with new bone; furthermore, the CO3Ap block had been completely resorbed within 1–1.5 years. The replacement of the CO3Ap block with new bone was twice as fast at the metaphyseal part of the proximal tibia than at the epiphyseal side of the distal femur, which could contribute to better blood supply in the area. The fact that the HA remained in the defect for such a long time poses a risk of infection [70,105,106,107].
Ishikawa et al. [41] conducted a study in dogs in order to compare the physical features and tissue behavior of HA, CO3Ap, and β-TCP as bone substitutes. The dissolution of CO3Ap in acidic media (pH = 5.3, similar to that in the Howship’s lacunae) was the fastest, while in a natural solution, β-TCP dissolved first. These results suggest that CO3Ap is stable in a physiological environment and resorbed in the Howship’s lacunae. Among the above-mentioned substitutes, CO3Ap showed the fastest new bone formation.
Hayashi et al. [74] fabricated three types of honeycomb blocks composed of HA, β-TCP, and CO3Ap, and evaluated their effects on bone formation and maturation. The macroporous composition of the blocks was similar (regular, unidirectional pores with a similar size and equal volume of macropores) and were designed to induce cell penetration and tissue ingrowth. They conducted in vitro trials with pre-osteoblast cell cultures and in vivo trials in rabbit femurs. The in vitro experiments demonstrated that CO3Ap was associated with almost twice greater osteoblast maturation than HA and β-TCP. The in vivo trials revealed bone maturation and material resorption at post-operative weeks 4 and 12. The CO3Ap blocks demonstrated markedly faster maturation than HA and β-TCP blocks, which could be due to their different resorption rates (Table 2).
These findings confirm the possible superiority of CO3Ap over other ceramics, which should inspire researchers in the field to conduct further investigations. It was suggested that CO3Ap resembles the mineral composition of bone tissue and initiates bone remodeling similar to that of natural bone. Furthermore, CO3Ap was shown to have a positive effect on the differentiation of osteoblasts and the expression of some early and late osteogenesis markers, such as collagen type 1, osteopontin, osteocalcin, and alkaline phosphatase [67]. Moreover, bone marrow cells cultured on CO3Ap demonstrated earlier osteoblastic differentiation than those cultured on HA. The response of osteoblasts to CO3Ap could serve as an assessment of osteoconductivity [59].
Zhang et al. [108] compared bone replacements in the dental sockets of rats after the utilization of a CO3Ap bone substitute and autogenous bone. The authors investigated the osteoclast precursor cell lines and evaluated bone formation using micro-computed tomography and immunohistochemical analysis. They demonstrated that bone replacement by osteoclasts after CO3Ap insertion resembled the process in the sockets where the autogenous bone was used. The authors even suggested that CO3Ap could eventually replace autologous bone as a bone substitute material.
Carbonate apatite resembles natural apatites, which are non-stoichiometric, carbonated, and calcium-deficient. Ionic substitution causes higher solubility than HA and maintains constant tissue regeneration through dissolution–crystallization reactions. Carbonate apatite provides a better osteogenic response than stoichiometric HA; however, its higher solubility reduces coating stability, which necessitates the development of additional strategies to overcome this drawback [77].

4.2. Medical Applications of CO3Ap

Carbon apatite granules yielded excellent results during simulated tests and clinical trials in Japan. Therefore, the material was approved for clinical applications in the dental field by the Pharmaceuticals and Medical Devices Agency in 2017 [14].
In 2019, Nakagawa et al. [62] conducted a clinical trial and histomorphometric assessment regarding the application of low-crystalline CO3Ap in two-stage sinus floor elevation and implant placement. They reported the excellent osteoconductivity and biocompatibility of the material, without any allergic or immunological response. All implants were osseointegrated and immobile at 31 months after the surgery. Their study aimed to establish the safety and efficacy of CO3Ap granules in sinus floor augmentation with a residual bone height between 1 and 5 mm. They performed the first histological assessment of CO3Ap behavior in humans and observed new bone formation around the substitute granules in all cases. The material was in direct contact with the bone tissue. The authors concluded that CO3Ap granules are a safe and promising material for two-stage sinus floor augmentation.
In 2021, Nagata et al. [109] published a research article comparing the use of low-crystalline CO3Ap with demineralized bovine bone (Bio-Oss) for sinus floor augmentation. They performed a three-dimensional analysis to measure the volume and amount of bone resorption in both groups. In particular, cone-beam computed tomography (CBCT) was performed before, immediately after, and 6 months after the surgery. Their findings demonstrated less bone resorption in the CO3Ap group than in the Bio-Oss group.
Carbonate apatite may be used for the fabrication of various composite materials with improved properties. Such biocomposites (e.g., CO3Ap–polyglycolide, CO3Ap–collagen, CO3Ap–chitosan) have recently demonstrated promising results in bone grafting [110,111,112,113].
Furthermore, some co-substitutions were recently utilized to improve the obtained material properties (e.g., carbonate, fluoride, sodium, magnesium, yttrium, or silicate ions). This co-substitution has led to enhanced bone remodeling, when compared to HA and CO3Ap [63,64,114,115,116,117].
Some anionic–cationic substituted apatites were investigated as well. The most common co-substitution is with Na+, Mg2+, and CO32− ions. The positive influence of Mg–CO3Ap on cell adhesion, proliferation, and metabolic activation was reported [63,118].
Moreover, CO3Ap possesses a massive loading potential, which provides suitable transport properties as a carrier of biologically active substances.
Keiichi et al. [69] assessed the formation of new bone after the implantation of fibroblast growth factor (FGF)-loaded porous CO3Ap in bone defects in rats. The micro-computed tomography showed that FGF successfully promoted bone formation.
Nagai et al. [67] demonstrated that a combination of CO3Ap with a sufficient amount (50 µg) of bone morphogenetic protein-2 induced osteoblastic differentiation and new bone formation. In contrast, in the groups with a small amount (5 µg) or without bone morphogenetic protein-2, no new bone formation was observed.
Coating CO3Ap onto various implant materials improves their mechanical strength, bioactive potential, osteoconductivity, and—when incorporated with additional bioactive substances—osteoinductivity. In addition, the mineral coating could serve as a carrier for different pharmaceutical agents, thus enhancing bone regeneration. This biomimetic approach has obtained promising results in tissue engineering [87].

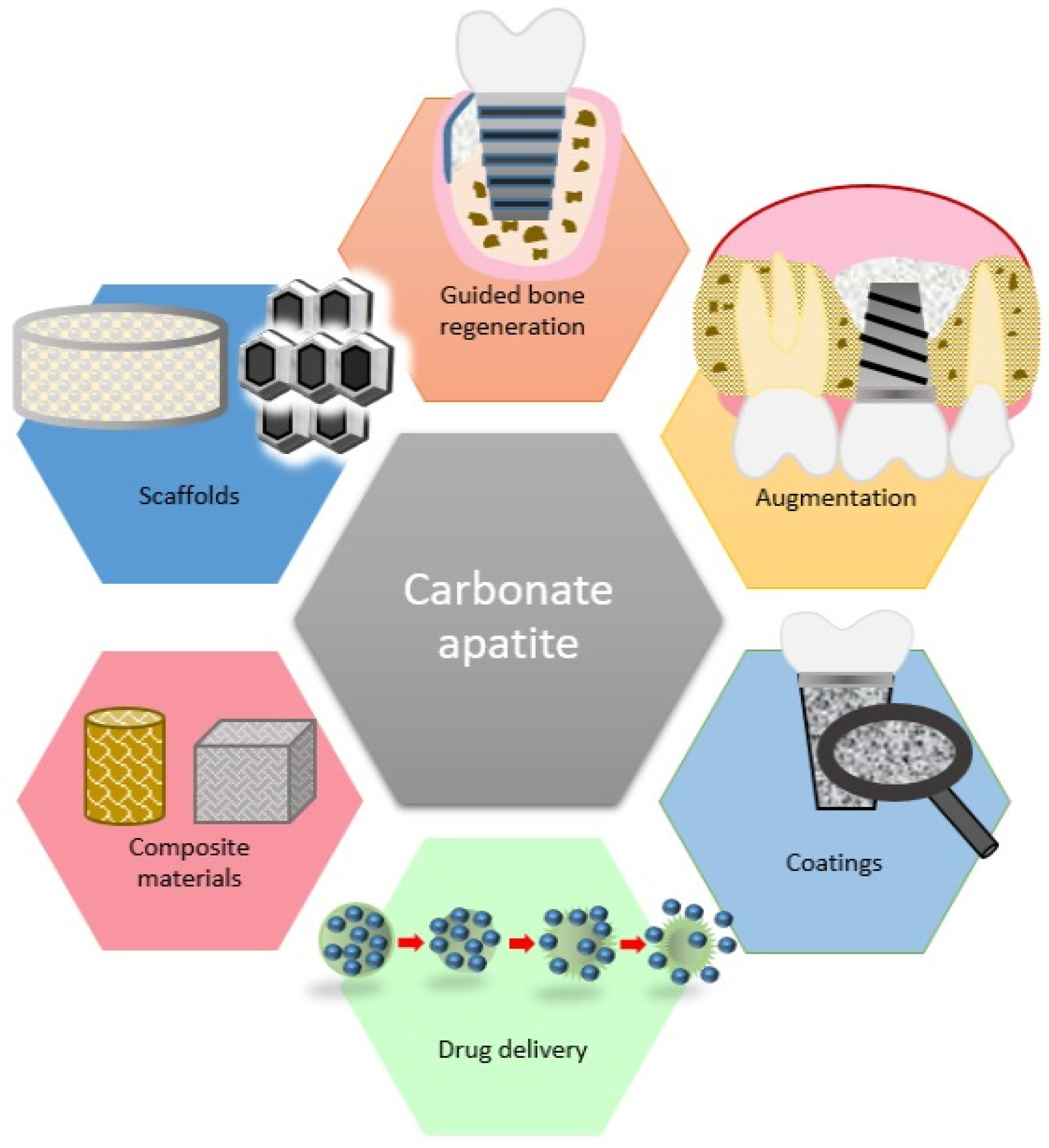

It was suggested that CO3Ap can be utilized for various medical purposes (Figure 3). Further clinical trials are necessary to confirm their safety and efficacy.

4.3. Future Developments

The material science and tissue engineering fields are rapidly developing, allowing for improved bone regeneration. The developed methods involve the application of smart materials, osteogenic cells, scaffolds, and a variety of growth factors.
Carbonate apatite is a ceramic material that was demonstrated to possess promising biological properties and, thus, can be regarded as a prime candidate for a bone grafting material of choice in the future. It has demonstrated better biocompatibility, bioactivity, resorption rate, bone formation, and maturation than HA [14,20,41,59,71,73,74,105,106,107]. However, CO3Ap has some limitations, including its poor mechanical properties (brittleness and unsatisfactory fatigue resistance) and rapid solubility [119]. Modifications of its physicochemical characteristics (e.g., pore size, crystallinity, interconnectivity of the pores, carbonate content) [24,71,73] could successfully adapt the material for the specific needs of certain applications. This requires profound knowledge and understanding of these correlations, as well as technological preparation.
Another limitation of CO3Ap is its relatively expensive and technically challenging fabrication. Different technologies have been suggested, none of which have been widely adopted yet. Efforts should be directed toward the establishment of more efficient and cost-effective fabrication protocols.
Similar to the rest of the CPCs, CO3Ap can be used in various composite materials, including CO3Ap/polymers, CO3Ap/chitosan, CO3Ap/collagen, CO3Ap/autologous platelet concentrates, and so on. [110,111,112,113,120] As CO3Ap has demonstrated superior biological properties to HA and β-TCP, it is expected that this tendency will extend to the composite materials that they are also part of. Further research comparing such composite materials is needed in order to confirm or reject this hypothesis.
In addition, CO3Ap has demonstrated superior performance over HA and β-TCP when honeycomb blocks of these materials were tested in vivo and in vitro [74], suggesting that this material could be utilized in the processing of different standard and customized scaffolds.
Furthermore, this material has great loading potential [57]. Therefore, it should be evaluated as a carrier of biologically active substances, such as drugs, bone morphogenetic proteins, growth factors, stem cells, and so on.
Recently investigated co-substitutions of CO3Ap have exhibited excellent tissue behavior, cell modulation, and metabolic activation. Further experiments and clinical trials are necessary to evaluate their mechanical and biological properties.
Most of the studies in the existing literature have only reached the stage of animal trials [31,36,70,110], while little research has been conducted on the effect of CO3Ap on human tissues and its mechanism of action [44,61,62,109]. In this line, standardized preclinical and long-term clinical trials are necessary to establish its safety and efficacy.
These results should be evaluated using histological, histomorphometric, and CBCT analyses, which are proven diagnostic tools for the assessment of bone structures [121,122,123]. Composite materials or different coatings should be developed and researched in order to prevent rapid dissolution of the material and unwanted cell ingrowth.
It has yet to be confirmed whether CO3Ap may serve as a reliable biomimetic material or as a carrier in bone reconstructive surgery.

5. Conclusions

The increasing need for bone grafting materials with improved biological properties has led to the introduction of carbonate-containing apatites. Carbonate apatite is a calcium phosphate ceramic that resembles bone tissue with respect to reactivity, especially in acidic environments. This systematic review described and evaluated the biological properties and medical applications of CO3Ap.
The material was shown to possess excellent biocompatibility, bioresorbability, bioactivity, and osteoconductivity, allowing for rapid bone replacement and maturation. However, CO3Ap has some major limitations, such as its poor mechanical properties and high solubility. These drawbacks could be compensated for through the modification of its physicochemical properties. Therefore, the development of exact and established fabrication protocols is required.
The considered material has numerous biomedical applications and has demonstrated promising properties; as such, it may become the alloplastic material of choice for bone reconstructive surgery.
Carbonate apatite has already demonstrated its superiority over HA and β-TCP as a bone substitute and scaffold material. Furthermore, it can be used for the synthesis of biomimetic materials, composite materials, and co-substituted apatites that exhibit improved mechanical properties, biological properties, and tissue behavior.
Carbonate apatite may be utilized in tissue engineering, potentially serving as a bioactive coating and/or a drug-delivery system.
Further preclinical and long-term clinical trials are necessary to establish the safety and efficacy of this material, and to confirm its recently reported superiority over other commonly used bioceramics. The existing scientific literature has reported promising results in this regard.

Author Contributions

Conceptualization, S.P.; methodology, R.Y.; software, R.Y.; validation, S.P. and R.Y.; formal analysis, R.Y.; investigation, S.P. and R.Y.; resources, S.P.; data curation, S.P. and R.Y.; writing—original draft preparation, R.Y.; writing—review and editing, S.P. and R.Y.; visualization, R.Y.; supervision, S.P.; project administration, S.P.; funding acquisition, S.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research is financed by the European Union-NextGenerationEU, through the National Recovery and Resilience Plan of the Republic of Bulgaria, Project No. BG-RRP-2.004-0009-C02.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data were extracted to Microsoft Excel spreadsheets and processed there. The data are available on request from the corresponding author.

Acknowledgments

The completion of this work would not have been possible without the expertise and generous help of Tsanka Dikova.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Iqbal, S.; Sohail, M.; Fang, S.; Ding, J.; Shen, L.; Chen, M.; Shu, G.; Du, Y.Z.; Ji, J. Biomaterials evolution: From inert to instructive. Biomater. Sci. 2023, 11, 6109–6115. [Google Scholar] [CrossRef]
  2. Amukarimi, S.; Ramakrishna, S.; Mozafari, M. Smart biomaterials—A proposed definition and overview of the field. Curr. Opin. Biomed. Eng. 2021, 19, 100311. [Google Scholar] [CrossRef]
  3. Montoya, C.; Du, Y.; Gianforcaro, A.L.; Orrego, S.; Yang, M.; Lelkes, P.I. On the road to smart biomaterials for bone research: Definitions, concepts, advances, and outlook. Bone Res. 2021, 9, 12. [Google Scholar] [CrossRef] [PubMed]
  4. Yotsova, R.; Peev, S. Carbonate apatite as a bone substitute material. A review. Scr. Sci. Med. Dent. 2023, 9, 33–42. [Google Scholar] [CrossRef]
  5. Titsinides, S.; Agrogiannis, G.; Karatzas, T. Bone grafting materials in dentoalveolar reconstruction: A comprehensive review. Jpn. Dent. Sci. Rev. 2019, 55, 26–32. [Google Scholar] [CrossRef] [PubMed]
  6. Haugen, H.J.; Lyngstadaas, S.P.; Rossi, F.; Perale, G. Bone grafts: Which is the ideal biomaterial? J. Clin. Periodontol. 2019, 46, 92–102. [Google Scholar] [CrossRef] [PubMed]
  7. Gerova, T.; Miteva, M. Barrier membranes used in guided tissue regeneration-advantages and disadvantages. Int. J. Sci. Res. 2019, 8, 1472–1475. [Google Scholar]
  8. Laurencin, C.; Khan, Y.; El-Amin, S.F. Bone graft substitutes. Expert Rev. Med. Devices 2006, 3, 49–57. [Google Scholar] [CrossRef]
  9. Kolk, A.; Handschel, J.; Drescher, W.; Rothamel, D.; Kloss, F.; Blessmann, M.; Heiland, M.; Wolff, K.D.; Smeets, R. Current trends and future perspectives of bone substitute materials–from space holders to innovative biomaterials. J. Cranio-Maxillofac. Surg. 2012, 40, 706–718. [Google Scholar] [CrossRef]
  10. Bauer, T.W.; Muschler, G.F. Bone graft materials: An overview of the basic science. Clin. Orthop. Relat. Res. 2000, 371, 10–27. [Google Scholar] [CrossRef]
  11. Ferraz, M.P. Bone Grafts in Dental Medicine: An Overview of Autografts, Allografts and Synthetic Materials. Materials 2023, 16, 4117. [Google Scholar] [CrossRef]
  12. Wickramasinghe, M.L.; Dias, G.J.; Premadasa, K.M.G.P. A novel classification of bone graft materials. J. Biomed. Mater. Res. B Appl. Biomater. 2022, 110, 1724–1749. [Google Scholar] [CrossRef]
  13. Battafarano, G.; Rossi, M.; De Martino, V.; Marampon, F.; Borro, L.; Secinaro, A.; Del Fattore, A. Strategies for Bone Regeneration: From Graft to Tissue Engineering. Int. J. Mol. Sci. 2021, 22, 1128. [Google Scholar] [CrossRef] [PubMed]
  14. Ishikawa, K. Carbonate apatite bone replacement: Learn from the bone. J. Ceram. Soc. Jpn. 2019, 127, 595–601. [Google Scholar] [CrossRef]
  15. Nellore, A.; Fishman, J.A. Donor-derived infections and infectious risk in xenotransplantation and allotransplantation. Xenotransplantation 2018, 25, e12423. [Google Scholar] [CrossRef]
  16. Fukuba, S.; Okada, M.; Nohara, K.; Iwata, T. Alloplastic Bone Substitutes for Periodontal and Bone Regeneration in Dentistry: Current Status and Prospects. Materials 2021, 14, 1096. [Google Scholar] [CrossRef] [PubMed]
  17. Miteva, M.; Gerova, T. Bone repair materials used in guided tissue regeneration-advantages and disadvantages. Int. J. Sci. Res. 2019, 8, 1490–1494. [Google Scholar]
  18. Samavedi, S.; Whittington, A.R.; Goldstein, A.S. Calcium phosphate ceramics in bone tissue engineering: A review of properties and their influence on cell behavior. Acta Biomater. 2013, 9, 8037–8045. [Google Scholar] [CrossRef]
  19. Bouler, J.M.; Pilet, P.; Gauthier, O.; Verron, E. Biphasic calcium phosphate ceramics for bone reconstruction: A review of biological response. Acta Biomater. 2017, 53, 1–12. [Google Scholar] [CrossRef]
  20. Rahyussalim, A.J.; Supriadi, S.; Marsetio, A.F.; Pribadi, P.M.; Suharno, B. The potential of carbonate apatite as an alternative bone substitute material. Med. J. Indones. 2019, 28, 92–97. [Google Scholar] [CrossRef]
  21. Pawelke, J.; Vinayahalingam, V.; El Khassawna, T.; Heiss, C.; Eckl, L.; Knapp, G. Complication and Infection Risk Using Bone Substitute Materials to Treat Long Bone Defects in Geriatric Patients: An Observational Study. Medicina 2023, 59, 365. [Google Scholar] [CrossRef] [PubMed]
  22. Ebrahimi, M.; Botelho, M.G.; Dorozhkin, S.V. Biphasic calcium phosphates bioceramics (HA/TCP): Concept, physicochemical properties and the impact of standardization of study protocols in biomaterials research. Mater. Sci. Eng. C 2017, 71, 1293–1312. [Google Scholar] [CrossRef] [PubMed]
  23. Casarin, M.; Morlacco, A.; Dal Moro, F. Tissue Engineering and Regenerative Medicine in Pediatric Urology: Urethral and Urinary Bladder Reconstruction. Int. J. Mol. Sci. 2022, 23, 6360. [Google Scholar] [CrossRef] [PubMed]
  24. Pasteris, J.D. A mineralogical view of apatitic biomaterials. Am. Mineral. 2016, 101, 2594–2610. [Google Scholar] [CrossRef]
  25. Kravanja, K.A.; Finšgar, M. A review of techniques for the application of bioactive coatings on metal-based implants to achieve controlled release of active ingredients. Mater. Des. 2022, 217, 110653. [Google Scholar] [CrossRef]
  26. Cacciotti, I. Multisubstituted hydroxyapatite powders and coatings: The influence of the codoping on the hydroxyapatite performances. Int. J. Appl. Ceram. Technol. 2019, 16, 1864–1884. [Google Scholar] [CrossRef]
  27. Nawawi, N.; Alqap, A.; Sopyan, I. Recent progress on hydroxyapatite-based dense biomaterials for load bearing bone substitutes. Recent Pat. Mater. Sci. 2011, 4, 63–80. [Google Scholar]
  28. Wu, X.; Walsh, K.; Hoff, B.L.; Camci-Unal, G. Mineralization of biomaterials for bone tissue engineering. Bioengineering 2020, 7, 132. [Google Scholar] [CrossRef]
  29. Kono, T.; Sakae, T.; Nakada, H.; Kaneda, T.; Okada, H. Confusion between carbonate apatite and biological apatite (carbonated hydroxyapatite) in bone and teeth. Minerals 2022, 12, 170. [Google Scholar] [CrossRef]
  30. Madupalli, H.; Pavan, B.; Tecklenburg, M.M. Carbonate substitution in the mineral component of bone: Discriminating the structural changes, simultaneously imposed by carbonate in A and B sites of apatite. J. Solid State Chem. 2017, 255, 27–35. [Google Scholar] [CrossRef]
  31. Matsuura, A.; Kubo, T.; Doi, K.; Hayashi, K.; Morita, K.; Yokota, R.; Hayashi, H.; Hirata, I.; Okazaki, M.; Akagawa, Y. Bone formation ability of carbonate apatite-collagen scaffolds with different carbonate contents. Dent. Mater. J. 2009, 28, 234–242. [Google Scholar] [CrossRef] [PubMed]
  32. Mano, T.; Akita, K.; Fukuda, N.; Kamada, K.; Kurio, N.; Ishikawa, K.; Miyamoto, Y. Histological comparison of three apatitic bone substitutes with different carbonate contents in alveolar bone defects in a beagle mandible with simultaneous implant installation. J. Biomed. Mater. Res. B. Appl. Biomater. 2020, 108, 1450–1459. [Google Scholar] [CrossRef]
  33. Elsheikh, M.; Kishida, R.; Hayashi, K.; Tsuchiya, A.; Shimabukuro, M.; Ishikawa, K. Effects of pore interconnectivity on bone regeneration in carbonate apatite blocks. Regen. Biomater. 2022, 9, rbac010. [Google Scholar] [CrossRef]
  34. Akita, K.; Fukuda, N.; Kamada, K.; Kudoh, K.; Kurio, N.; Tsuru, K.; Ishikawa, K.; Miyamoto, Y. Fabrication of porous carbonate apatite granules using microfiber and its histological evaluations in rabbit calvarial bone defects. J. Biomed. Mater. Res. A 2020, 108, 709–721. [Google Scholar] [CrossRef]
  35. Diez-Escudero, A.; Espanol, M.; Beats, S.; Ginebra, M.P. In vitro degradation of calcium phosphates: Effect of multiscale porosity, textural properties and composition. Acta Biomater. 2017, 60, 81–92. [Google Scholar] [CrossRef]
  36. Ayukawa, Y.; Suzuki, Y.; Tsuru, K.; Koyano, K.; Ishikawa, K. Histological comparison in rats between carbonate apatite fabricated from gypsum and sintered hydroxyapatite on bone remodeling. BioMed Res. Int. 2015, 2015, 579541. [Google Scholar] [CrossRef] [PubMed]
  37. Spence, G.; Patel, N.; Brooks, R.; Bonfield, W.; Rushton, N. Osteoclastogenesis on hydroxyapatite ceramics: The effect of carbonate substitution. J. Biomed. Mater. Res. A 2010, 92, 1292–1300. [Google Scholar] [CrossRef] [PubMed]
  38. Pernelle, K.; Imbert, L.; Bosser, C.; Auregan, J.C.; Cruel, M.; Ogier, A.; Jurdic, P.; Hoc, T. Microscale mechanical and mineral heterogeneity of human cortical bone governs osteoclast activity. Bone 2017, 94, 42–49. [Google Scholar] [CrossRef] [PubMed]
  39. Barba, A.; Diez-Escudero, A.; Espanol, M.; Bonany, M.; Sadowska, J.M.; Guillem-Marti, J.; Öhman-Mägi, C.; Persson, C.; Manzanares, M.C.; Franch, J.; et al. Impact of biomimicry in the design of osteoinductive bone substitutes: Nanoscale matters. ACS Appl. Mater. Interfaces 2019, 11, 8818–8830. [Google Scholar] [CrossRef]
  40. Sato, N.; Handa, K.; Venkataiah, V.S.; Hasegawa, T.; Njuguna, M.M.; Yahata, Y.; Saito, M. Comparison of the vertical bone defect healing abilities of carbonate apatite, β-tricalcium phosphate, hydroxyapatite and bovine-derived heterogeneous bone. Dent. Mater. J. 2020, 39, 309–318. [Google Scholar] [CrossRef]
  41. Ishikawa, K.; Miyamoto, Y.; Tsuchiya, A.; Hayashi, K.; Tsuru, K.; Ohe, G. Physical and histological comparison of hydroxyapatite, carbonate apatite, and β-tricalcium phosphate bone substitutes. Materials 2018, 11, 1993. [Google Scholar] [CrossRef] [PubMed]
  42. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. Int. J. Surg. 2021, 88, 105906. [Google Scholar] [CrossRef]
  43. Sarkis-Onofre, R.; Catalá-López, F.; Aromataris, E.; Lockwood, C. How to properly use the PRISMA statement. Syst. Rev. 2021, 10, 117. [Google Scholar] [CrossRef]
  44. Resende, R.F.; Sartoretto, S.C.; Uzeda, M.J.; Alves, A.T.; Calasans-Maia, J.A.; Rossi, A.M.; Granjeiro, J.M.; Calasans-Maia, M.D. Randomized controlled clinical trial of nanostructured carbonated hydroxyapatite for alveolar bone repair. Materials 2019, 12, 3645. [Google Scholar] [CrossRef] [PubMed]
  45. Kanayama, K.; Sriarj, W.; Shimokawa, H.; Ohya, K.; Doi, Y.; Shibutani, T. Osteoclast and osteoblast activities on carbonate apatite plates in cell cultures. J. Biomater. Appl. 2011, 26, 435–449. [Google Scholar] [CrossRef] [PubMed]
  46. Rupani, A.; Hidalgo-Bastida, L.A.; Rutten, F.; Dent, A.; Turner, I.; Cartmell, S. Osteoblast activity on carbonated hydroxyapatite. J. Biomed. Mater. Res. A. 2012, 100, 1089–1096. [Google Scholar] [CrossRef] [PubMed]
  47. Nakamura, M.; Hiratai, R.; Hentunen, T.; Salonen, J.; Yamashita, K. Hydroxyapatite with high carbonate substitutions promotes osteoclast resorption through osteocyte-like cells. ACS Biomater. Sci. Eng. 2016, 2, 259–267. [Google Scholar] [CrossRef]
  48. Ellies, L.G.; Carter, J.M.; Natiella, J.R.; Featherstone, J.D.B.; Nelson, D.G.A. Quantitative analysis of early in vivo tissue response to synthetic apatite implants. J. Biomed. Mater. Res. 1988, 22, 137–148. [Google Scholar] [CrossRef]
  49. Yang, F.; Wolke, J.G.C.; Jansen, J.A. Biomimetic calcium phosphate coating on electrospun poly (ɛ-caprolactone) scaffolds for bone tissue engineering. Chem. Eng. J. 2008, 137, 154–161. [Google Scholar] [CrossRef]
  50. García, A.; Cabañas, M.V.; Peña, J.; Sánchez-Salcedo, S. Design of 3D scaffolds for hard tissue engineering: From apatites to silicon mesoporous materials. Pharmaceutics 2021, 13, 1981. [Google Scholar] [CrossRef]
  51. Honduvilla, N.G.; Coca, A.; Ortega, M.A.; Trejo, C.; Román, J.; Peña, J.; Cabañas, V.; Regi, M.V.; Buján, J. Improved connective integration of a degradable 3D-nano-apatite/agarose scaffold subcutaneously implanted in a rat model. J. Biomater. Appl. 2018, 33, 741–752. [Google Scholar] [CrossRef]
  52. Paris, J.L.; Gomez, N.L.; Cabañas, M.V.; Román, J.; Peña, J.; Vallet-Regí, M. Fabrication of a nanoparticle-containing 3D porous bone scaffold with proangiogenic and antibacterial properties. Acta Biomater. 2019, 86, 441–449. [Google Scholar] [CrossRef] [PubMed]
  53. Cabañas, M.; Peña, J.; Román, J.; Vallet-Regí, M. Tailoring vancomycin release from β-TCP/agarose scaffolds. Eur. J. Pharm. Sci. 2009, 37, 249–256. [Google Scholar] [CrossRef]
  54. Alcaide, M.; Serrano, M.-C.; Román, J.; Cabañas, M.-V.; Peña, J.; Sánchez-Zapardiel, E.; Vallet-Regí, M.; Portolés, M.-T. Suppression of anoikis by collagen coating of interconnected macroporous nanometric carbonated hydroxyapatite/agarose scaffolds. J. Biomed. Mater. Res. A 2010, 95, 793–800. [Google Scholar] [CrossRef]
  55. Cabañas, M.V.; Pena, J.; Roman, J.; Ramírez-Santillán, C.; Matesanz, M.C.; Feito, M.J.; Portolés, M.T.; Vallet-Regí, M.; Cabañas, V. Design of tunable protein-releasing nanoapatite/hydrogel scaffolds for hard tissue engineering. Mater. Chem. Phys. 2014, 144, 409–417. [Google Scholar] [CrossRef]
  56. Paris, J.L.; Román, J.; Manzano, M.; Cabañas, M.V.; Vallet-Regí, M. Tuning dual-drug release from composite scaffolds for bone regeneration. Int. J. Pharm. 2015, 486, 30–37. [Google Scholar] [CrossRef]
  57. Singh, G.; Singh, R.P.; Jolly, S.S. Customized hydroxyapatites for bone-tissue engineering and drug delivery applications: A review. J. Sol-Gel Sci. Technol. 2020, 94, 505–530. [Google Scholar] [CrossRef]
  58. Bigi, A.; Bracci, B.; Cuisinier, F.; Elkaim, R.; Fini, M.; Mayer, I.; Mihailescu, I.N.; Socol, G.; Sturba, L.; Torricelli, P. Human osteoblast response to pulsed laser deposited calcium phosphate coatings. Biomaterials 2005, 26, 2381–2389. [Google Scholar] [CrossRef]
  59. Ishikawa, K.; Hayashi, K. Carbonate apatite artificial bone. Sci. Technol. Adv. Mater. 2021, 22, 683–694. [Google Scholar] [CrossRef]
  60. Shi, R.; Hayashi, K.; Ishikawa, K. Rapid osseointegration bestowed by carbonate apatite coating of rough titanium. Adv. Mater. Interfaces 2020, 7, 2000636. [Google Scholar] [CrossRef]
  61. Kudoh, K.; Fukuda, N.; Kasugai, S.; Tachikawa, N.; Koyano, K.; Matsushita, Y.; Ogino, Y.; Ishikawa, K.; Miyamoto, Y. Maxillary sinus floor augmentation using low-crystalline carbonate apatite granules with simultaneous implant installation: First-in-human clinical trial. J. Oral Maxillofac. Surg. 2019, 77, 985.e1–985.e11. [Google Scholar] [CrossRef]
  62. Nakagawa, T.; Kudoh, K.; Fukuda, N.; Kasugai, S.; Tachikawa, N.; Koyano, K.; Matsushita, Y.; Sasaki, M.; Ishikawa, K.; Miyamoto, Y. Application of low-crystalline carbonate apatite granules in 2-stage sinus floor augmentation: A prospective clinical trial and histomorphometric evaluation. J. Periodontal Implant. Sci. 2019, 49, 382–396. [Google Scholar] [CrossRef]
  63. Šupová, M. Substituted hydroxyapatites for biomedical applications: A review. Ceram. Int. 2015, 41, 9203–9231. [Google Scholar] [CrossRef]
  64. Landi, E.; Uggeri, J.; Sprio, S.; Tampieri, A.; Guizzardi, S. Human osteoblast behavior on as-synthesized SiO4 and B-CO3 co-substituted apatite. J. Biomed. Mater. Res. A 2010, 94, 59–70. [Google Scholar] [CrossRef]
  65. Sakae, T. In vitro interactions of bone marrow cells with carbonate and fluoride containing apatites. Bioceramics 2000, 13, 347–350. [Google Scholar] [CrossRef]
  66. Sakae, T.; Ookubo, A.; LeGeros, R.Z.; Shimogoryou, R.; Sato, Y.; Lin, S.; Yamamoto, H.; Kozawa, Y. Bone formation induced by several carbonate-and fluoride-containing apatite implanted in dog mandible. Key Eng. Mater. 2002, 240, 395–398. [Google Scholar] [CrossRef]
  67. Nagai, H.; Kobayashi-Fujioka, M.; Fujisawa, K.; Ohe, G.; Takamaru, N.; Hara, K.; Uchida, D.; Tamatani, T.; Ishikawa, K.; Miyamoto, Y. Effects of low crystalline carbonate apatite on proliferation and osteoblastic differentiation of human bone marrow cells. J. Mater. Sci. Mater. Med. 2015, 26, 99. [Google Scholar] [CrossRef] [PubMed]
  68. Suh, H.; Han, D.W.; Park, J.C.; Lee, D.H.; Lee, W.S.; Han, C.D. A bone replaceable artificial bone substitute: Osteoinduction by combining with bone inducing agent. Artif. Organs 2001, 25, 459–466. [Google Scholar] [CrossRef] [PubMed]
  69. Keiichi, K.; Mitsunobu, K.; Masafumi, S.; Yutaka, D.; Toshiaki, S. Induction of new bone by basic FGF-loaded porous carbonate apatite implants in femur defects in rats. Clin. Oral Implant. Res. 2009, 20, 560–565. [Google Scholar] [CrossRef]
  70. Kanazawa, M.; Tsuru, K.; Fukuda, N.; Sakemi, Y.; Nakashima, Y.; Ishikawa, K. Evaluation of carbonate apatite blocks fabricated from dicalcium phosphate dihydrate blocks for reconstruction of rabbit femoral and tibial defects. J. Mater. Sci. Mater. Med. 2017, 28, 85. [Google Scholar] [CrossRef]
  71. Graziani, G.; Boi, M.; Bianchi, M. A review on ionic substitutions in hydroxyapatite thin films: Towards complete biomimetism. Coatings 2018, 8, 269. [Google Scholar] [CrossRef]
  72. Sima, L.E.; Stan, G.E.; Morosanu, C.O.; Melinescu, A.; Ianculescu, A.; Melinte, R.; Neamtu, J.; Petrescu, S.M. Differentiation of mesenchymal stem cells onto highly adherent radio frequency-sputtered carbonated hydroxylapatite thin films. J. Biomed. Mater. Res. Part A 2010, 95, 1203–1214. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, B.; Zhang, Z.; Pan, H. Bone Apatite Nanocrystal: Crystalline Structure, Chemical Composition, and Architecture. Biomimetics 2023, 8, 90. [Google Scholar] [CrossRef] [PubMed]
  74. Hayashi, K.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Honeycomb blocks composed of carbonate apatite, β-tricalcium phosphate, and hydroxyapatite for bone regeneration: Effects of composition on biological responses. Mater. Today Bio 2019, 4, 100031. [Google Scholar] [CrossRef]
  75. Ratnayake, J.T.; Mucalo, M.; Dias, G.J. Substituted hydroxyapatites for bone regeneration: A review of current trends. J. Biomed. Mater. Res. Part B Appl. Biomater. 2017, 105, 1285–1299. [Google Scholar] [CrossRef] [PubMed]
  76. Worth, A.; Mucalo, M.; Horne, G.; Bruce, W.; Burbidge, H. The evaluation of processed cancellous bovine bone as a bone graft substitute. Clin. Oral Implant. Res. 2005, 16, 379–386. [Google Scholar] [CrossRef]
  77. Arcos, D.; Vallet-Regí, M. Substituted hydroxyapatite coatings of bone implants. J. Mater. Chem. B 2020, 8, 1781–1800. [Google Scholar] [CrossRef]
  78. Costa, D.O.; Prowse, P.D.; Chrones, T.; Sims, S.M.; Hamilton, D.W.; Rizkalla, A.S.; Dixon, S.J. The differential regulation of osteoblast and osteoclast activity by surface topography of hydroxyapatite coatings. Biomaterials 2013, 34, 7215–7226. [Google Scholar] [CrossRef]
  79. Šupová, M. The significance and utilisation of biomimetic and bioinspired strategies in the field of biomedical material engineering: The case of calcium phosphat—Protein template constructs. Materials 2020, 13, 327. [Google Scholar] [CrossRef]
  80. Sader, M.S.; Martins, V.C.; Gomez, S.; LeGeros, R.Z.; Soares, G.A. Production and in vitro characterization of 3D porous scaffolds made of magnesium carbonate apatite (MCA)/anionic collagen using a biomimetic approach. Mater. Sci. Eng. C 2013, 33, 4188–4196. [Google Scholar] [CrossRef]
  81. Pajor, K.; Pajchel, L.; Kolmas, J. Hydroxyapatite and fluorapatite in conservative dentistry and oral implantology—A review. Materials 2019, 12, 2683. [Google Scholar] [CrossRef]
  82. Arcos, D. Calcium Phosphate Bioceramics. In Bio-Ceramics with Clinical Applications; Wiley Online Library: Hoboken, NJ, USA, 2014; pp. 23–71. [Google Scholar]
  83. Munir, M.U.; Salman, S.; Javed, I.; Bukhari, S.N.A.; Ahmad, N.; Shad, N.A.; Aziz, F. Nano-hydroxyapatite as a delivery system: Overview and advancements. Artif. Cells Nanomed. Biotechnol. 2021, 49, 717–727. [Google Scholar] [CrossRef]
  84. Yu, M.; Zhou, K.; Li, Z.; Zhang, D. Preparation, characterization and in vitro gentamicin release of porous HA microspheres. Mater. Sci. Eng. C 2014, 45, 306–312. [Google Scholar] [CrossRef]
  85. Mondal, S.; Dorozhkin, S.V.; Pal, U. Recent progress on fabrication and drug delivery applications of nanostructured hydroxyapatite. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2018, 10, e1504. [Google Scholar] [CrossRef]
  86. Guo, Y.P.; Guo, L.H.; Yao, Y.B.; Ning, C.Q.; Guo, Y.J. Magnetic mesoporous carbonated hydroxyapatite microspheres with hierarchical nanostructure for drug delivery systems. Chem. Commun. 2011, 47, 12215–12217. [Google Scholar] [CrossRef]
  87. Shin, K.; Acri, T.; Geary, S.; Salem, A.K. Biomimetic mineralization of biomaterials using simulated body fluids for bone tissue engineering and regenerative medicine. Tissue Eng. Part A 2017, 23, 1169–1180. [Google Scholar] [CrossRef]
  88. Stigter, M.; Bezemer, J.; de Groot, K.; Layrolle, P. Incorporation of different antibiotics into carbonated hydroxyapatite coatings on titanium implants, release and antibiotic efficacy. J. Control. Release 2004, 99, 127–137. [Google Scholar] [CrossRef]
  89. Tas, A.C. The use of physiological solutions or media in calcium phosphate synthesis and processing. Acta Biomater. 2014, 10, 1771–1792. [Google Scholar] [CrossRef] [PubMed]
  90. LeGeros, R.Z.; Ito, A.; Ishikawa, K.; Sakae, T.; LeGeros, J.P. Fundamentals of hydroxyapatite and related calcium phosphates. In Advanced Biomaterials: Fundamentals, Processing, and Applications; Wiley Online Library: Hoboken, NJ, USA, 2009; pp. 19–52. [Google Scholar]
  91. Lehmann, G.; Cacciotti, I.; Palmero, P.; Montanaro, L.; Bianco, A.; Campagnolo, L.; Camaioni, A. Differentiation of osteoblast and osteoclast precursors on pure and silicon-substituted synthesized hydroxyapatites. Biomed. Mater. 2012, 7, 055001. [Google Scholar] [CrossRef] [PubMed]
  92. Sheikh, Z.; Sima, C.; Glogauer, M. Bone replacement materials and techniques used for achieving vertical alveolar bone augmentation. Materials 2015, 8, 2953–2993. [Google Scholar] [CrossRef]
  93. Yadav, S.; Singh, P.; Pyare, R. Synthesis, characterization, mechanical and biological properties of biocomposite based on zirconia containing 1393 bioactive glass with hydroxyapatite. Ceram. Int. 2020, 46, 10442–10451. [Google Scholar] [CrossRef]
  94. Figueiredo, M.; Henriques, J.; Martins, G.; Guerra, F.; Judas, F.; Figueiredo, H. Physicochemical characterization of biomaterials commonly used in dentistry as bone substitutes—Comparison with human bone. J. Biomed. Mater. Res. Part B Appl. Biomater. 2010, 92, 409–419. [Google Scholar] [CrossRef] [PubMed]
  95. Bang, L.T.; Long, B.D.; Othman, R. Carbonate hydroxyapatite and silicon-substituted carbonate hydroxyapatite: Synthesis, mechanical properties, and solubility evaluations. Sci. World J. 2014, 2014, 969876. [Google Scholar] [CrossRef] [PubMed]
  96. Spizzirri, P.G.; Cochrane, N.J.; Prawer, S.; Reynolds, E.C. A comparative study of carbonate determination in human teeth using Raman spectroscopy. Caries Res. 2012, 46, 353–360. [Google Scholar] [CrossRef] [PubMed]
  97. McElderry, J.D.P.; Zhu, P.; Mroue, K.H.; Xu, J.; Pavan, B.; Fang, M.; Zhao, G.; McNerny, E.; Kohn, D.H.; Franceschi, R.T.; et al. Crystallinity and compositional changes in carbonated apatites: Evidence from 31P solid-state NMR, Raman, and AFM analysis. J. Solid State Chem. 2013, 206, 192–198. [Google Scholar] [CrossRef] [PubMed]
  98. Murdock, M.H.; Badylak, S.F. Biomaterials-based In Situ Tissue Engineering. Curr. Opin. Biomed. Eng. 2017, 1, 4–7. [Google Scholar] [CrossRef] [PubMed]
  99. Campana, V.; Milano, G.; Pagano, E.; Barba, M.; Cicione, C.; Salonna, G.; Lattanzi, W.; Logroscino, G. Bone substitutes in orthopaedic surgery: From basic science to clinical practice. J. Mater. Sci. Mater. Med. 2014, 25, 2445–2461. [Google Scholar] [CrossRef] [PubMed]
  100. Giannoudis, P.V.; Einhorn, T.A.; Marsh, D. Fracture healing: The diamond concept. Injury 2007, 38 (Suppl. 4), S3–S6. [Google Scholar] [CrossRef] [PubMed]
  101. Kasai, T.; Sato, K.; Kanematsu, Y.; Shikimori, M.; Kanematsu, N.; Doi, Y. Bone tissue engineering using porous carbonate apatite and bone marrow cells. J. Craniofacial Surg. 2010, 21, 473–478. [Google Scholar] [CrossRef]
  102. Giannoudis, P.V.; Dinopoulos, H.; Tsiridis, E. Bone substitutes: An update. Injury 2005, 36, S20–S27. [Google Scholar] [CrossRef]
  103. Friesenbichler, J.; Maurer-Ertl, W.; Sadoghi, P.; Pirker-Fruehauf, U.; Bodo, K.; Leithner, A. Adverse reactions of artificial bone graft substitutes: Lessons learned from using tricalcium phosphate geneX®. Clin. Orthop. Relat. Res. 2014, 472, 976–982. [Google Scholar] [CrossRef]
  104. Ogose, A.; Hotta, T.; Kawashima, H.; Kondo, N.; Gu, W.; Kamura, T.; Endo, N. Comparison of hydroxyapatite and beta tricalcium phosphate as bone substitutes after excision of bone tumors. J. Biomed. Mater. Res. B. Appl. Biomater. 2005, 72, 94–101. [Google Scholar] [CrossRef] [PubMed]
  105. Moore, W.R.; Graves, S.E.; Bain, G.I. Synthetic bone graft substitutes. ANZ J. Surg. 2001, 71, 354–361. [Google Scholar] [CrossRef] [PubMed]
  106. Bohner, M.; Galea, L.; Doebelin, N. Calcium phosphate bone graft substitutes: Failures and hopes. J. Eur. Ceram. Soc. 2012, 32, 2663–2671. [Google Scholar] [CrossRef]
  107. Ishikawa, K. Bone substitute fabrication based on dissolution-precipitation reactions. Materials 2010, 3, 1138–1155. [Google Scholar] [CrossRef]
  108. Zhang, X.; Atsuta, I.; Narimatsu, I.; Ueda, N.; Takahashi, R.; Egashira, Y.; Zhang, J.Q.; Gu, J.Y.; Koyano, K.; Ayukawa, Y. Replacement process of carbonate apatite by alveolar bone in a rat extraction socket. Materials 2021, 14, 4457. [Google Scholar] [CrossRef] [PubMed]
  109. Nagata, K.; Fuchigami, K.; Kitami, R.; Okuhama, Y.; Wakamori, K.; Sumitomo, H.; Kim, H.; Okubo, M.; Kawana, H. Comparison of the performances of low-crystalline carbonate apatite and Bio-Oss in sinus augmentation using three-dimensional image analysis. Int. J. Implant. Dent. 2021, 7, 1–7. [Google Scholar] [CrossRef] [PubMed]
  110. Linhart, W.; Peters, F.; Lehmann, W.; Schwarz, K.; Schilling, A.F.; Amling, M.; Rueger, J.M.; Epple, M. Biologically and chemically optimized composites of carbonated apatite and polyglycolide as bone substitution materials. J. Biomed. Mater. Res. 2001, 54, 162–171. [Google Scholar] [CrossRef]
  111. Liao, S.; Wang, W.; Uo, M.; Ohkawa, S.; Akasaka, T.; Tamura, K.; Cui, F.; Watari, F. A three-layered nano-carbonated hydroxyapatite/collagen/PLGA composite membrane for guided tissue regeneration. Biomaterials 2005, 26, 7564–7571. [Google Scholar] [CrossRef]
  112. Dewi, A.H.; Triawan, A. The newly bone formation with carbonate apatite-chitosan bone substitute in the rat tibia. Indones. J. Dent. Res. 2011, 1, 154–160. [Google Scholar] [CrossRef]
  113. Ariani, M.D.; Matsuura, A.; Hirata, I.; Kubo, T.; Kato, K.; Akagawa, Y. New development of carbonate apatite-chitosan scaffold based on lyophilization technique for bone tissue engineering. Dent. Mater. J. 2013, 32, 317–325. [Google Scholar] [CrossRef]
  114. Kim, S.R.; Lee, J.H.; Kim, Y.T.; Riu, D.H.; Jung, S.J.; Lee, Y.J.; Chung, S.C.; Kim, Y.H. Synthesis of Si, Mg substituted hydroxyapatites and their sintering behaviors. Biomaterials 2003, 24, 1389–1398. [Google Scholar] [CrossRef]
  115. Zyman, Z.Z.; Tkachenko, M.V. Sodium-carbonate co-substituted hydroxyapatite ceramics. Process. Appl. Ceram. 2013, 7, 153–157. [Google Scholar] [CrossRef]
  116. Landi, E.; Sprio, S.; Sandri, M.; Celotti, G.; Tampieri, A. Development of Sr and CO3 co-substituted hydroxyapatites for biomedical applications. Acta Biomater. 2008, 4, 656–663. [Google Scholar] [CrossRef]
  117. Sprio, S.; Tampieri, A.; Landi, E.; Sandri, M.; Martorana, S.; Celotti, G.; Logroscino, G. Physico-chemical properties and solubility behaviour of multi-substituted hydroxyapatite powders containing silicon. Mater. Sci. Eng. C 2008, 28, 179–187. [Google Scholar] [CrossRef]
  118. Landi, E.; Tampieri, A.; Mattioli-Belmonte, M.; Celotti, G.; Sandri, M.; Gigante, A.; Fava, P.; Biagini, G. Biomimetic Mg-and Mg, CO3-substituted hydroxyapatites: Synthesis characterization and in vitro behaviour. J. Eur. Ceram. Soc. 2006, 26, 2593–2601. [Google Scholar] [CrossRef]
  119. Gómez-Morales, J.; Iafisco, M.; Delgado-López, J.M.; Sarda, S.; Drouet, C. Progress on the preparation of nanocrystalline apatites and surface characterization: Overview of fundamental and applied aspects. Prog. Cryst. Growth Charact. Mater. 2013, 59, 1–46. [Google Scholar] [CrossRef]
  120. Alhasyimi, A.A.; Suparwitri, S.; Christnawati, C. Effect of carbonate apatite hydrogel-advanced platelet-rich fibrin injection on osteoblastogenesis during orthodontic relapse in rabbits. Eur. J. Dent. 2020, 15, 412–419. [Google Scholar] [CrossRef] [PubMed]
  121. Gerova, T.; Miteva, M. The role of CBCT-imaging technique in periodontology. Int. J. Sci. Res. 2019, 8, 51–54. [Google Scholar]
  122. Gerova, T.; Miteva, M. Application of two-dimensional radiography and CBCT in periodontology. Int. J. Sci. Res. 2019, 8, 61–65. [Google Scholar]
  123. Yotsova, R.; Peev, S.; Ivanova, N. Bone histomorphometry as a diagnostic tool. A review article. Scr. Sci. Med. Dent. 2023, 9, 1. [Google Scholar]
Pharmaceutics 16 00291 g001
Figure 1. PRISMA flow diagram of the research.
Figure 1. PRISMA flow diagram of the research.
Pharmaceutics 16 00291 g001
Pharmaceutics 16 00291 g002
Figure 2. Diamond concept of fracture healing, proposed by Giannoudis et al. [100].
Figure 2. Diamond concept of fracture healing, proposed by Giannoudis et al. [100].
Pharmaceutics 16 00291 g002
Pharmaceutics 16 00291 g003
Figure 3. Medical applications of carbonate apatite.
Figure 3. Medical applications of carbonate apatite.
Pharmaceutics 16 00291 g003
Table 1. Review articles included in the present study.
Table 1. Review articles included in the present study.
ReferenceYear, CountryAimBiological
Properties		Medical
Applications		Conclusions
Based on *
Wicramasinghe et al. [12]2022, Sri LankaTo summarize the current knowledge within the last 5 years and develop a novel classification of bone grafting materials.Osteoconductivity
Biocompatibility
Biodegradability		Bone grafting
Scaffolding		In vitro (rat cell cultures) and in vivo trials (dog model) [39]
Human clinical trials [44]
Pasteris [24]2016, USATo discuss biological apatites from a mineralogical point of view.Biocompatibility
Bioactivity
Bioresorbability
Osteoconductivity		Bone grafting
Scaffolding
Coatings
Tissue engineering		In vitro [45,46,47] and in vivo studies (rat model) [47,48]
Wu et al. [28]2020,
USA		To discuss the methods of mineralizing tissue engineering constructs.Biocompatibility
Biodegradability
Osteoinductivity
Osteoconductivity		Scaffolding
Tissue engineering
Drug delivery		In vitro trials [49]
García et al. [50]2021,
Spain		To describe different types of materials utilized in 3D scaffolds for hard tissue engineering; summarize the fabrication techniques employed to design an adequate microstructure, a hierarchical porosity (from nano- to macro-scale), a cell-friendly surface; and review the inclusion of different types of biomolecules, drugs, or cells within these scaffolds and the influence on their successful performance.Biocompatibility
Biodegradability
Osteoconductivity		Scaffolding
Tissue engineering
Drug delivery 		In vivo (rat model) [51], ex ovo (chicken embryo’s chorioallantoic membrane model) [52], and in vitro trials [53,54,55,56]
Singh et al. [57]2020,
India		To highlight the customization of desirable properties through controlling particle size, morphology, synthesis parameters, and substitution of mono/multi ions into the HAP structure to obtain a product appropriate for bone-tissue engineering and drug delivery applications.Biocompatibility
Biodegradability
Osteoconductivity		Tissue engineering
Drug delivery
Coatings		In vitro (human osteoblasts) [58]
Ishikawa and Hayashi [59]2021,
Japan		To review the methods for fabricating carbonate apatite artificial bone and their clinical and animal results.Biocompatibility
Biodegradability
Osteoconductivity		Bone substitution Bone augmentation
Tissue engineering
Coatings		In vivo (dog
model [32] and rabbit model [60])
human clinical trials [61,62]
Šupová [63]2015,
Czech Republic		To summarize the recent knowledge on preparing substituted hydroxyapatites. The physicochemical properties of bioapatites and their substitutions with different ions are discussed.Biocompatibility
Bioactivity
Bioresorbability
Osteoconductivity		Bone regeneration
Bioactive coatings
Drug or gene
delivery
Biomagnetic particles and fluorescent
markers		In vitro (human [64] and rabbit [65] bone marrow cells) and in vivo trials (dog model) [66]
Rahyussalim et al. [20]2019,
Indonesia		To reveal the potential of carbonate apatite as a bone substitute material.Biocompatibility
Biodegradability
Osteoinductivity
Osteoconductivity		Bone regeneration
Drug carrier
Coatings
Scaffolds		In vitro (human [67,68] and rat cells [68]) and in vivo animal trials (rat [36,69] and rabbit models [31,70])
Ishikawa [14]2019, JapanNot clearly stated.Biocompatibility
Bioactivity
Bioresorbability
Osteoconductivity		Bone regeneration/
replacement		Human clinical trials [61,62]
Graziani et al. [71]2018,
Italy		To summarize the latest advances in the field of ion-substituted hydroxyapatite thin films.Biocompatibility
Bioactivity
Bioresorbability
Osteoconductivity		CoatingsIn vitro trials (human mesenchymal stem cells) [72]
Wang et al. [73]2023,
China		To provide a profound understanding of the mineralogical account of the bone apatite mineral.Biocompatibility
Bioactivity
Bioresorbability
Osteoconductivity		Bone regeneration
Scaffolding
Tissue engineering		In vitro [46,47,74] and in vivo trials (rat, [48] rabbit, [74] and dog models [41])
Ratnayake et al. [75]2017,
New Zealand		To highlight the effects of different ionic substitutions on the chemical, physical, and biological properties of hydroxyapatite.Biocompatibility Bioresorbability
Osteoconductivity		Bone regeneration
Bone augmentation Coatings		In vivo (sheep) [76] and in vitro (human osteoblasts) [64]
Arcos and Vallet-Regi [77]2020,
Spain		To review the biological behavior of substituted hydroxyapatite coatings.Biocompatibility Osteoconductivity
Biodegradability		CoatingsIn vitro study (rat model [78])
Šupová [79]2020,
Czech Republic		To review methods for the synthesis of protein–calcium phosphate hybrid materials.Not specifiedBone regeneration
Scaffolding
Tissue engineering
Biocomposites
Carriers and delivery systems		In vitro (human cells) [80]
Pajor et al. [81]2019,
Poland		To present the roles of hydroxyapatite and fluorapatite in dentistry.Not specifiedBone regeneration
Bone augmentation		Book chapter [82]
Munir et al. [83]2021,
Saudi Arabia		To summarize the applications of nano-hydroxyapatite as a delivery system of active pharmaceutical agents.Biocompatibility
Antibacterial properties 		Delivery systemsIn vitro study [84]
Mondal et al. [85]2018,
Russia		To review the characteristics of hydroxyapatite and nano-hydroxyapatite drug carriers.Not specifiedDrug deliveryIn vitro trial [86]
Shin et al. [87]2017,
USA		To summarize the methods used to coat carbonated apatite onto various material surfaces.Bioactivity
Osteoinductivity
Osteoconductivity		Bone regeneration
Coatings
Carriers and
delivery systems		In vitro trial [88]
* Note: the references in column 6 were extracted from the corresponding review articles in column 1.
Table 2. Bone maturation and resorption of 3 different honeycomb blocks composed of Carbonate Apatite (CO3Ap), Hydroxyapatite (HA), and β-tricalcium Phosphate (β-TCP)—research by Hayashi et al. [74].
Table 2. Bone maturation and resorption of 3 different honeycomb blocks composed of Carbonate Apatite (CO3Ap), Hydroxyapatite (HA), and β-tricalcium Phosphate (β-TCP)—research by Hayashi et al. [74].
MaterialMature Bone Area (%)Residual Material Area (%)
4 Weeks12 Weeks4 Weeks12 Weeks
CO3Ap14.3 ± 3.819.5 ± 0.873.2 ± 3.145.3 ± 15.9
HA1.0 ± 0.82.6 ± 1.490.0 ± 8.989.5 ± 11.8
β-TCP3.3 ± 1.213.7 ± 2.165.4 ± 2.87.5 ± 1.6
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yotsova, R.; Peev, S. Biological Properties and Medical Applications of Carbonate Apatite: A Systematic Review. Pharmaceutics 2024, 16, 291. https://doi.org/10.3390/pharmaceutics16020291

AMA Style

Yotsova R, Peev S. Biological Properties and Medical Applications of Carbonate Apatite: A Systematic Review. Pharmaceutics. 2024; 16(2):291. https://doi.org/10.3390/pharmaceutics16020291

Chicago/Turabian Style

Yotsova, Ralitsa, and Stefan Peev. 2024. "Biological Properties and Medical Applications of Carbonate Apatite: A Systematic Review" Pharmaceutics 16, no. 2: 291. https://doi.org/10.3390/pharmaceutics16020291

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
