Review

Dendritic Structures Functionalized with Boron Clusters, in Particular Carboranes, and Their Biological Properties †

by
Anne-Marie Caminade
1,2,*,
Max Milewski
1,2,3 and
Evamarie Hey-Hawkins
3
1
Laboratoire de Chimie de Coordination (LCC-CNRS) 205 Route de Narbonne, CEDEX 4, 31077 Toulouse, France
2
LCC-CNRS, Université de Toulouse, CNRS, 31077 Toulouse, France
3
Faculty of Chemistry and Mineralogy, Institute of Inorganic Chemistry, Leipzig University, Johannisallee 29, 04103 Leipzig, Germany
*
Author to whom correspondence should be addressed.
†
Dedicated to the 85th Anniversary of Donald A. Tomalia.
Pharmaceutics 2023, 15(8), 2117; https://doi.org/10.3390/pharmaceutics15082117
Submission received: 11 July 2023 / Revised: 28 July 2023 / Accepted: 4 August 2023 / Published: 10 August 2023
(This article belongs to the Special Issue Dendrimers: A Themed Issue in Honor of Professor Donald A. Tomalia on the Occasion of His 85th Birthday for His Outstanding Achievements in Advancing the Field of Dendrimers)
Browse Figures
Versions Notes

Abstract

:
The presence of a large number of boron atoms in boron clusters make them attractive tools for the treatment of cancer using boron neutron capture therapy (BNCT). Since the quantity of boron atoms present in the target cell directly affects the effectiveness of BNCT, the idea of gathering a high number of boron atoms in a single entity has emerged many years ago. In this perspective, using hyper-branched macromolecules such as dendrimers appears as an interesting solution. In this review, we will first present the synthesis of diverse dendritic entities (dendrimers, dendrons, and Janus dendrimers) that incorporate boron clusters, in particular carboranes, anywhere in their structure. Four parts of this review present the synthesis of dendrimers having boron clusters on the surface, or inside their structure, of dendrons and of Janus dendrimers, bearing boron clusters. Practically all these boronated dendritic structures were synthesized with the objective to study their biological properties, but in fact only a few of them have been tested against cancerous cells, and even a smaller number was tested in BNCT experiments. The biological experiments are discussed in the fifth part of this review. A good efficiency is generally observed with the boronated dendrimers, even in animal models, with an increase in their mean survival time (MST).

1. Introduction

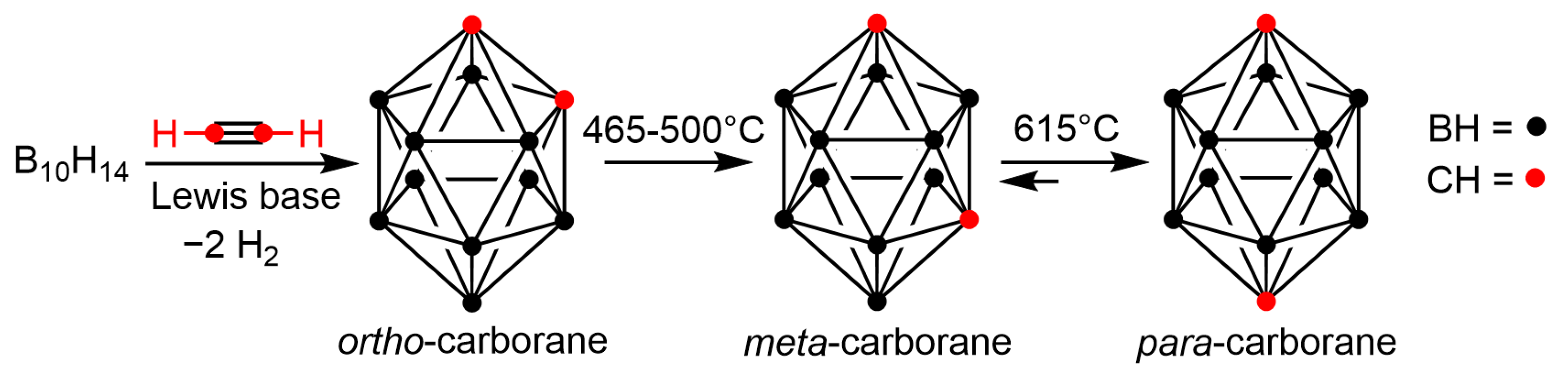

Boron clusters display a wide range of structures and intriguing properties. They have been used as materials, but also as antiseptic, antiviral, antitumor, and antifungal agents [1]. Carboranes (closo-dicarbadodecaboranes, also named carbaboranes) are a special class of boron clusters composed of two CR groups (R = mainly H) included in a B10H10 cluster [2]. The very first papers in the field of carboranes were published in 1963 [3,4]. They displayed the synthesis of ortho-carborane, by reaction of B10H14 with acetylene, in the presence of a Lewis base. Other isomers of B10C2H12 can be obtained by thermal rearrangement of the ortho isomer in an autoclave under inert conditions. The meta isomer is irreversibly obtained upon heating to 465–500 °C [5], whereas the para isomer is obtained at temperatures above 615 °C, but this latter reaction is reversible [6] (Scheme 1).
Carboranes display a rich chemistry, at the level of the C−H groups, but also in some cases at the level of B−H groups. The chemistry of carboranes has been reviewed [7,8], in particular with emphasis on their biological properties [9]. Indeed, the large number of boron atoms present in these boron clusters made them desirable instruments for cancer treatment using boron neutron capture therapy (BNCT). The starting materials for BNCT are based on 10B, which is a nonradioactive constituent of the natural elemental boron. Irradiation of 10B with low energy thermal neutrons yields high linear energy transfer (LET) α particles (4He) and recoiling 7Li nuclei [10] (Scheme 2).

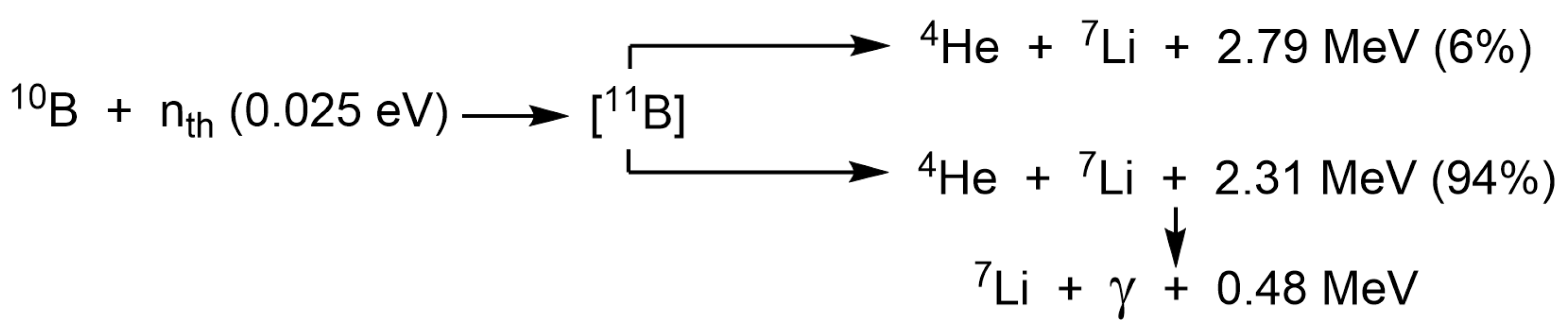

In order to sustain a deadly 10B(n,α)7Li capture reaction, enough thermal neutrons must be captured by 10B (neutron capture cross-section is 3840 barn) to produce the high LET particles due to their constrained path lengths in tissues (5–9 μm). For this reason, a sufficient amount of 10B must be delivered to the tumor (≈20 μg/g or ≈109 atoms/cell), making boron clusters appealing delivery systems for this purpose. In particular, sodium borocaptate (Na2B12H11SH) and p-boronophenylalanine (BPA), have been used in BNCT clinical studies [11].
Having more boron atoms in close proximity should increase the efficiency of BNCT. Dendrimers appear as a perfect solution. Indeed, dendrimers are hyper-branched macromolecules synthesized step-by-step, generally by a divergent process from a multifunctional core [12], having a large number of functions on their surface, which can be modified at will. The name “dendrimer” was coined by Donald A. Tomalia [13], to whom this review is dedicated, in gratitude for his inspiring work. He created the PAMAM dendrimers (PolyAMidoAMine), which are the most popular type of dendrimers [14].
Several reviews have already gathered some aspects of boron clusters linked to dendrimers, especially carboranes, but either the review is limited to the work produced by the authors of the review, and contains small molecules or cobalt derivatives (cobalt bis(dicarbollide) (or COSAN) derivatives) together with dendrimers [15,16,17], or dendrimers are only a part of the review [18,19,20], or only a small part of the review about dendrimers concerns boron clusters [21].
In this original review, we will present boron clusters, especially carboranes, anywhere in the structure of dendritic compounds, i.e., dendrimers and dendrons (dendritic wedges). We will consider only compounds in which the number of terminal functions is superior to the number of branches emanating from the core, as illustrated in Figure 1. This review is organized depending on the location of the boron clusters: on the surface of dendrimers (case A), at one or several layers inside the structure of dendrimers (case B), at the core or the surface of dendrons (case C), and on part of the surface of Janus dendrimers (case D). A last part will concern the biological properties (mainly but not exclusively for BNCT) of the dendritic compounds displayed in the previous parts.

2. Boron Clusters on the Surface of Dendrimers

Different types of dendrimers have been functionalized with boron clusters on their surface. This part will be organized depending on the type of the internal structure. The first, most widely used, and oldest examples concern PAMAM dendrimers. Other examples concern carbosilane dendrimers, dendrimers having a porphyrin or a phenylene core, and miscellaneous types of dendrimers.

2.1. Boronated PAMAM Dendrimers

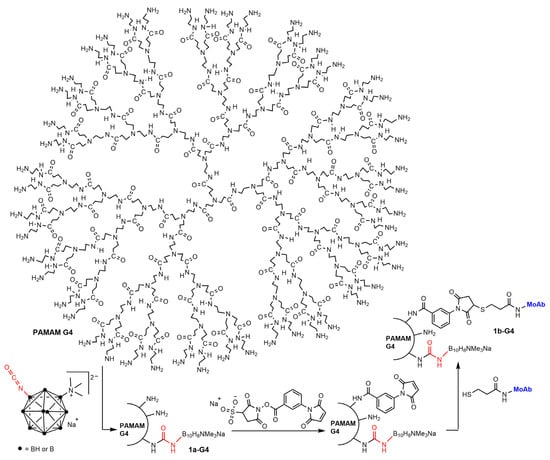

Second and fourth generation PAMAM dendrimers, bearing 12 (generation 2) or 48 (generation 4) NH2 surface functions have been functionalized with the isocyanato polyhedral borane shown in Scheme 3, affording the dendrimer 1a-G4 for the fourth generation. Analyses indicated that only some NH2 groups reacted, thus some of the remaining NH2 groups were used for the stochastic grafting of m-maleimidobenzoyl N-hydroxysulfosuccinimide ester, suitable for further reactions. For instance, the grafting to a monoclonal antibody (MoAb IB 16-6, which is directed against the murine B16 melanoma), afforded dendrimer 1b-G4. A total of 8150 atoms of boron per molecule of antibody were measured, showing that in fact several dendrimers were grafted per MoAb unit [22].
Analogous types of reactions were carried out for the grafting of epidermal growth factor [23], folic acid and PEG (polyethylene glycol of variable length) [24], or vascular endothelial growth factor [25] to boronated PAMAM dendrimers. These dendrimers and related boronated PAMAM dendrimers bearing different types of MoAb were essentially synthesized for studying their biological properties, as will be discussed in Part 5 of this review.

2.2. Boronated Carbosilane Dendrimers

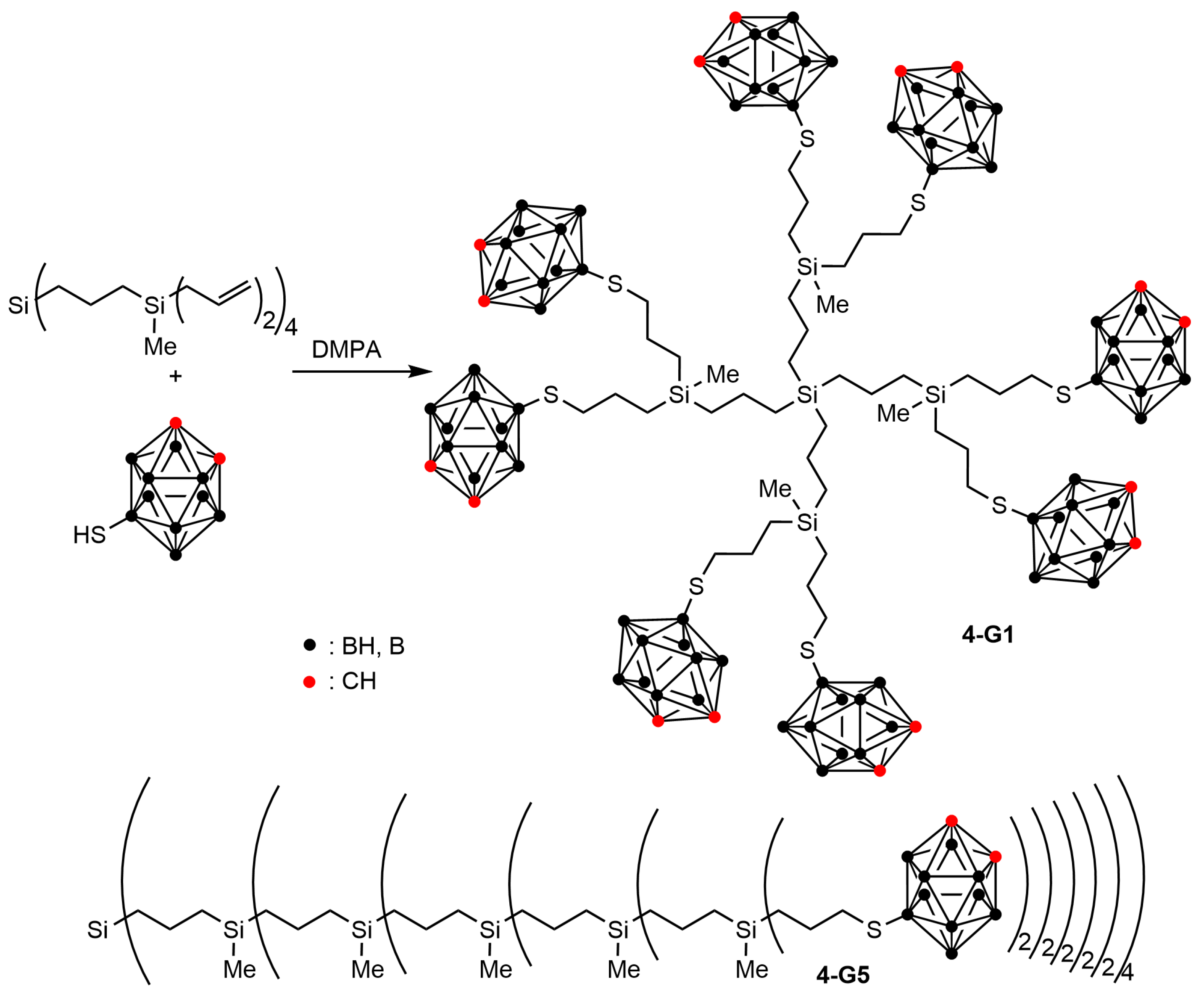

Contrarily to PAMAM dendrimers, which have been functionalized stochastically with boron clusters, carbosilane dendrimers have been functionalized on all their terminal functions with only ortho-carboranes. Different types of reactions have been used. In a first example, the carborane was first functionalized with a methyl or phenyl group on one carbon atom, and then with an alkyl-SiH function, which adds to the vinyl groups of carbosilane dendrimers, using the Karstedt catalyst (platinum derivative of divinyl disiloxane). The first generation 2-G1 was isolated in about 60% yield (Scheme 4) [26].

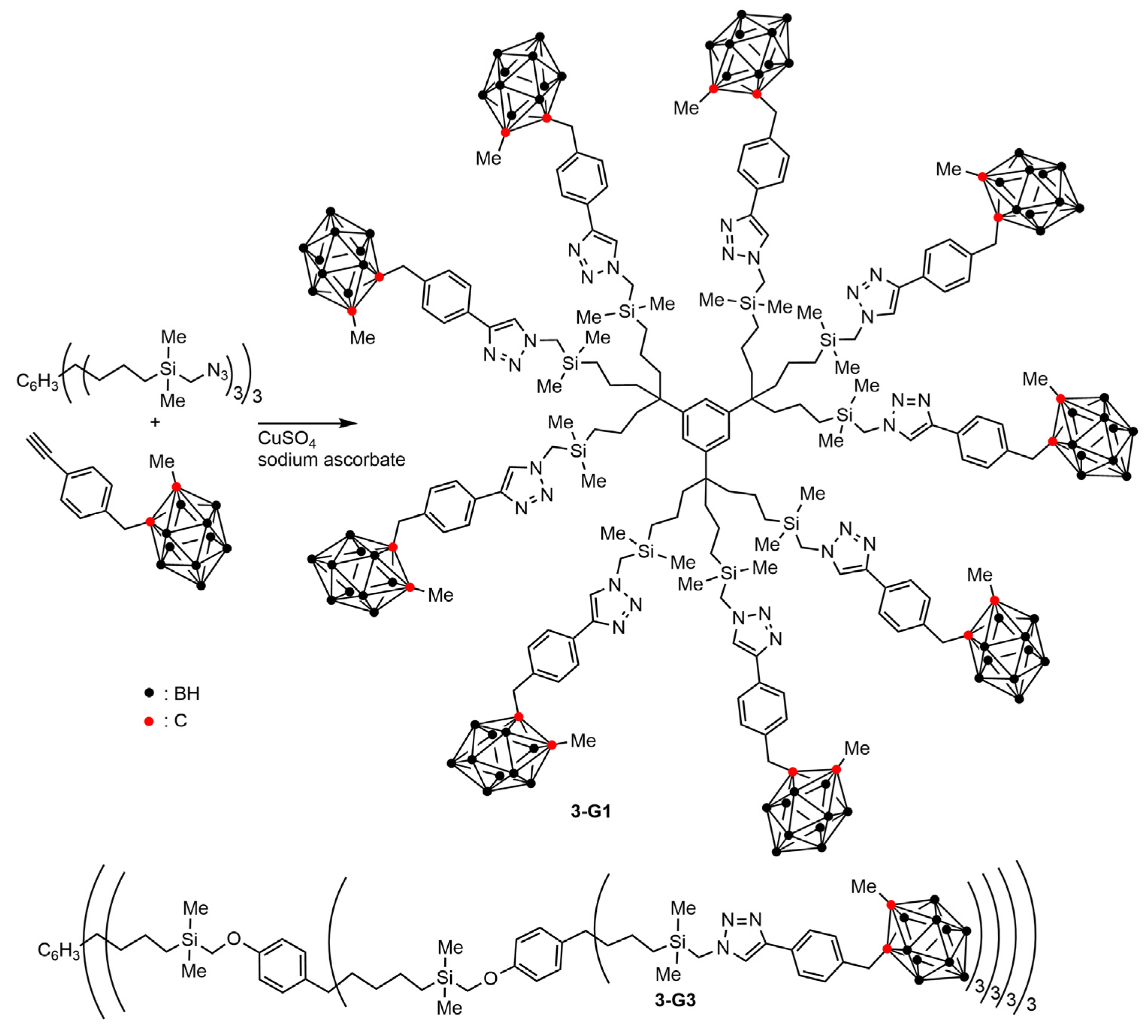

Larger boronated carbosilane dendrimers were synthesized by Copper(I)-catalyzed Huisgen-type azide-alkyne click cycloaddition reactions (CuAAC). The carborane was functionalized with a methyl group and an ethynyl group. The carbosilane dendrimers, from generation 0 to generation 3, were functionalized with azides as terminal functions. The CuAAC reaction afforded the expected dendrimers 3-G1 (nine carboranes) to 3-G3 (eighty-one carboranes) in about 80% yield. Scheme 5 displays the full structure of the first generation, and the linear structure with parentheses after each branching point for the third generation. Attempts to synthesize higher-generation dendrimers yielded insoluble materials. These dendrimers are particularly thermally stable, with only 10% mass loss at temperatures up to 392 °C for dendrimer 3-G3. Low intensity emissions were observed between 280 and 480 nm with these carborane dendrimers [27].

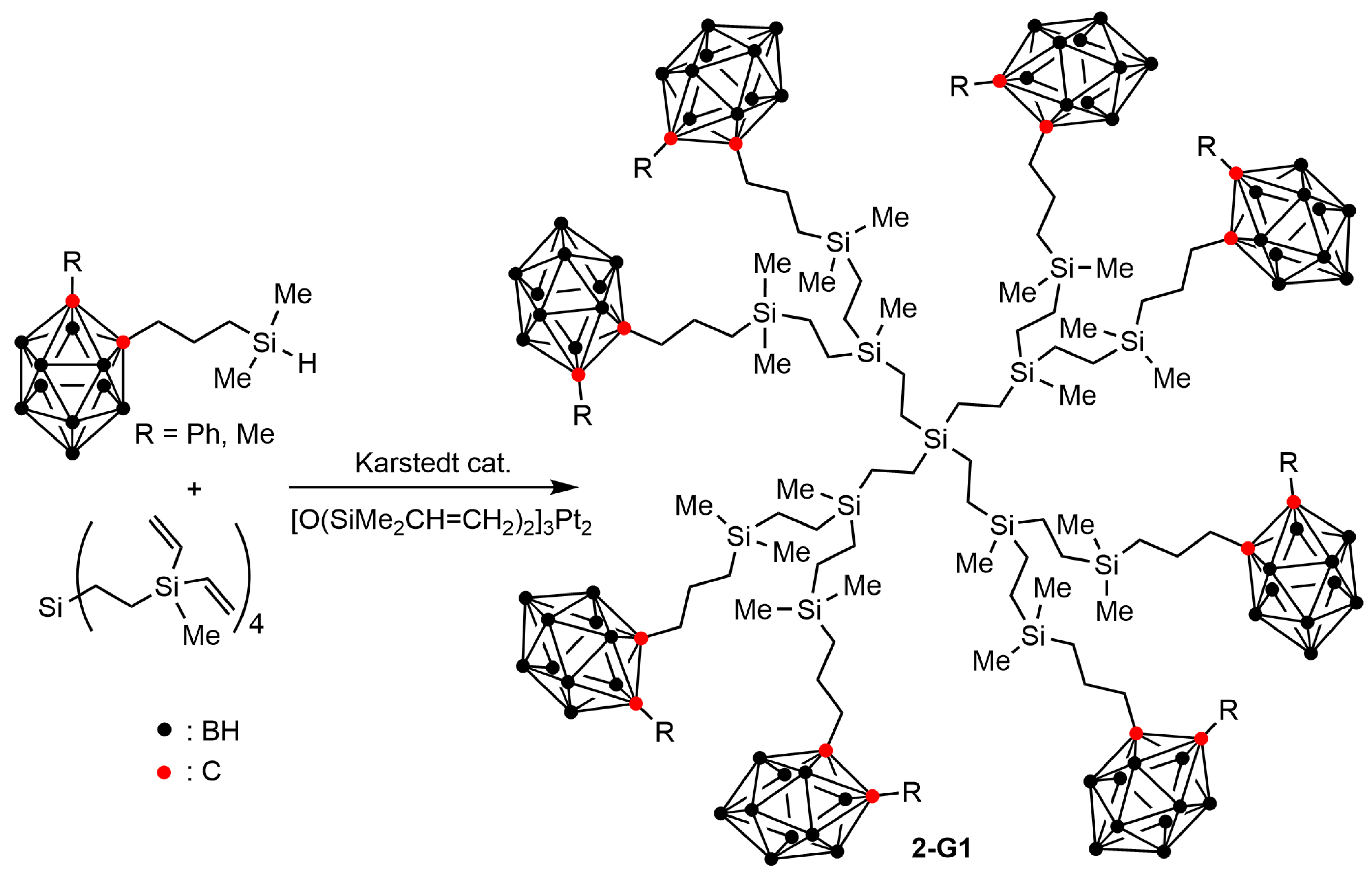

A larger family of boronated carbosilane dendrimers was obtained from a carborane in which the carbon atoms were not used for the grafting to the dendrimers, contrarily to the previous cases. Hydrothiolation of carbosilane dendrimers capped with allyl groups and with 9-mercapto-meta-carborane initiated by UV irradiation in the presence of 2,2-dimethoxy-2-phenylacetophenone (DMPA) afforded carborane−carbosilane dendrimers of the zero, first, third, and fifth generations in about 60% yield. The full structure of the first generation 4-G1 and the linear structure with parentheses of the fifth generation 4-G5 are displayed in Scheme 6 [28]. The thermal properties and the rheological behavior of these dendrimers in relation with analogous polymers were recently compared [29].

2.3. Boronated Dendrimers Having a Porphyrin Core

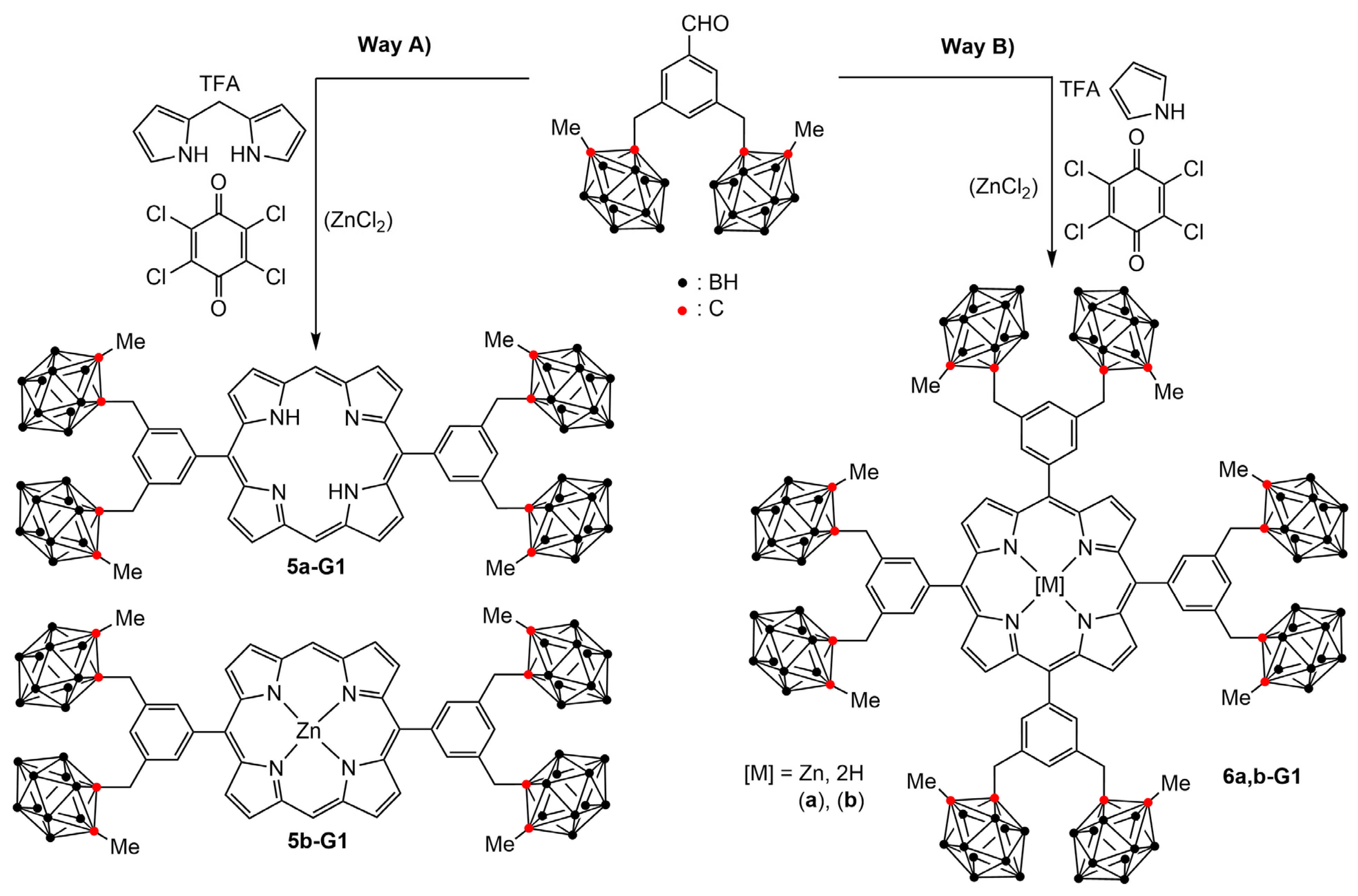

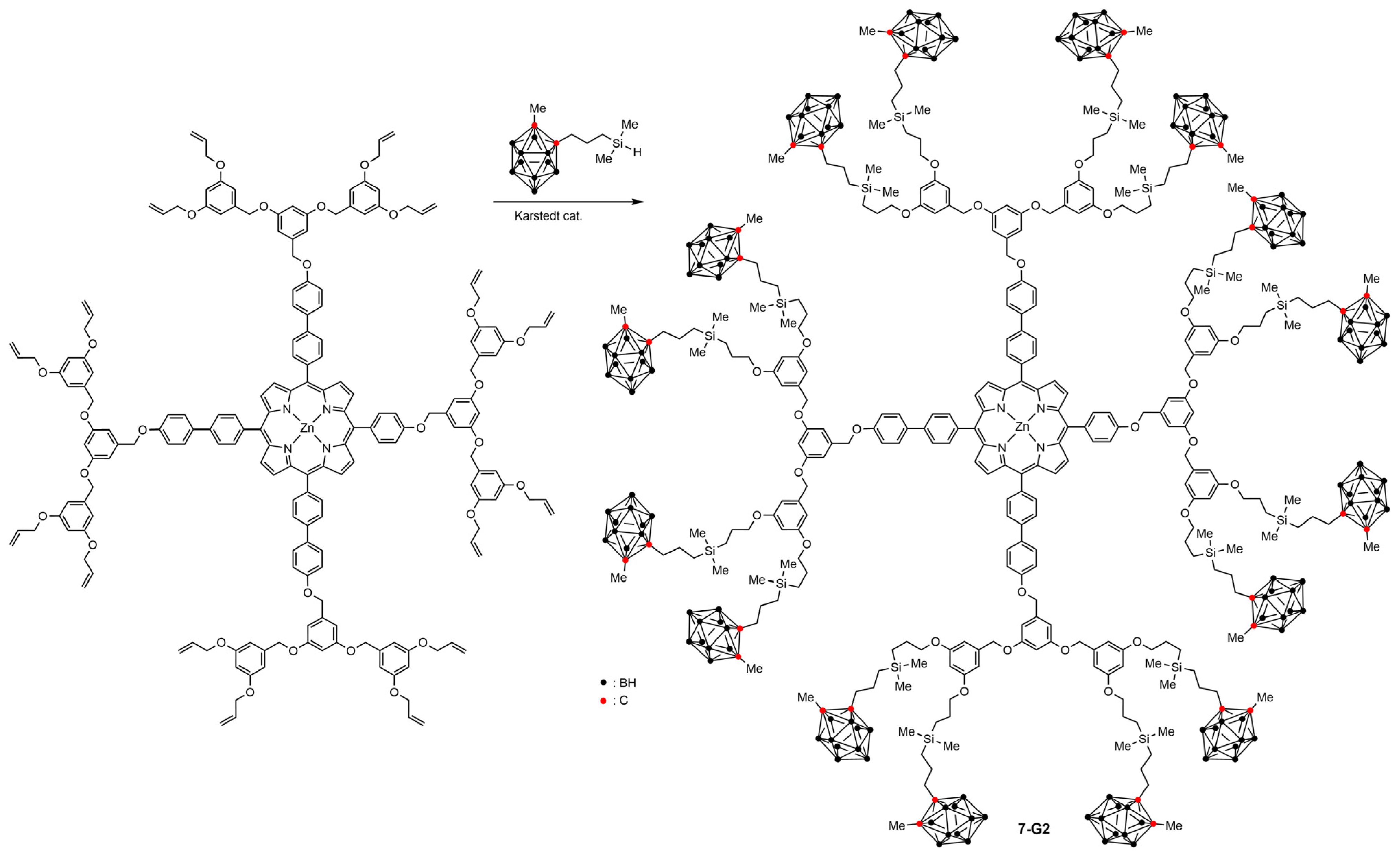

A series of different carborane dendrimers bearing a porphyrin as core were synthesized as shown in Scheme 7. In these cases, a kind of divergent synthetic process was used as two carboranes were first linked to a benzaldehyde derivative. This was then used in condensation reactions with dipyrromethene in the presence of trifluoroacetic acid (TFA), to afford the porphyrin 5a-G1 functionalized with four carboranes, in 34% yield. Addition of ZnCl2 afforded the corresponding zinc complex 5b-G1 (Scheme 7, way A). Both the free porphyrin and the complex are insoluble in water, but they can be easily converted into the corresponding water-soluble nido-carboranylporphyrins by base degradation with pyridine/piperidine, followed by cation exchange with a Dowex resin [30]. An analogous process was applied to pyrrole instead of dipyrromethene, affording the porphyrin 6a-G1 functionalized with eight carboranes, isolated in 15% yield (Scheme 7, way B). The complexation of zinc (compound 6b-G1) and the degradation to obtain water-soluble nido-carborane derivatives was carried out with compounds 6a,b-G1, as was carried out for compound 5-G1 [31].
Another series of porphyrin-cored carborane dendrimers was synthesized in a different way, by grafting the carboranes to the surface of porphyrin dendrimers. Generations 0 (four carboranes), 1 (eight carboranes), 2 (sixteen carboranes), and 3 (thirty-two carboranes) were synthesized by a regioselective hydrosilylation reaction on the allyl functions of the dendrimers, with carboranylsilanes in the presence of the Karstedt catalyst, as illustrated for generation 2 (7-G2) in Scheme 8. All the carboranyl−carbosilane dendrimers were isolated in good to excellent yields in the range of 60–88%. Studying the photoluminescence properties revealed that the photoluminescence characteristics of the porphyrin core are unaffected by the presence of carboranes [32].

2.4. Boronated Dendrimers Having a Phenylene Core

As in the case of the porphyrin core, boronated dendrimers having a phenylene core were synthesized by a convergent method or by a divergent process. In the first method, a trimerization reaction of arylketones bearing two carborane units mediated by silicon tetrachloride afforded the first generation dendrimers 8a,b-G1 in 55% (a) and 40% (b) yield, respectively (Scheme 9). In order to have water-soluble compounds, alcoholic NaOH was used to induce the removal of one of the vertex boron atoms to yield a monoanionic nido-carborane [33].

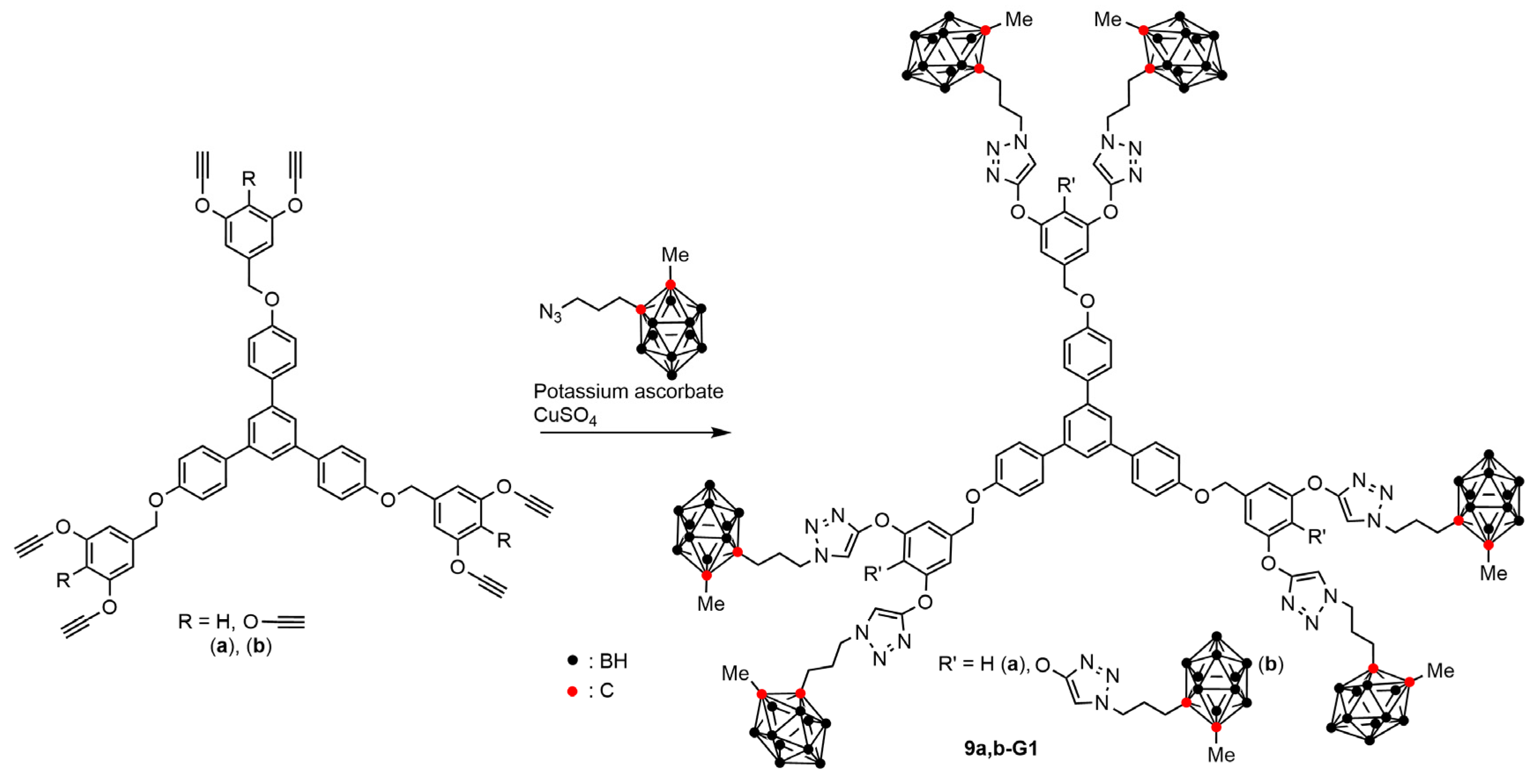

Another family of boronated dendrimers was obtained by CuAAC reactions between a dendrimer having six or nine alkyne functions and a carborane functionalized with an azide. Dendrimer 9a-G1 bearing six carborane units was isolated in 78% yield, whereas dendrimer 9b-G1 bearing nine carborane units was isolated in 76% yield (Scheme 10) [34].

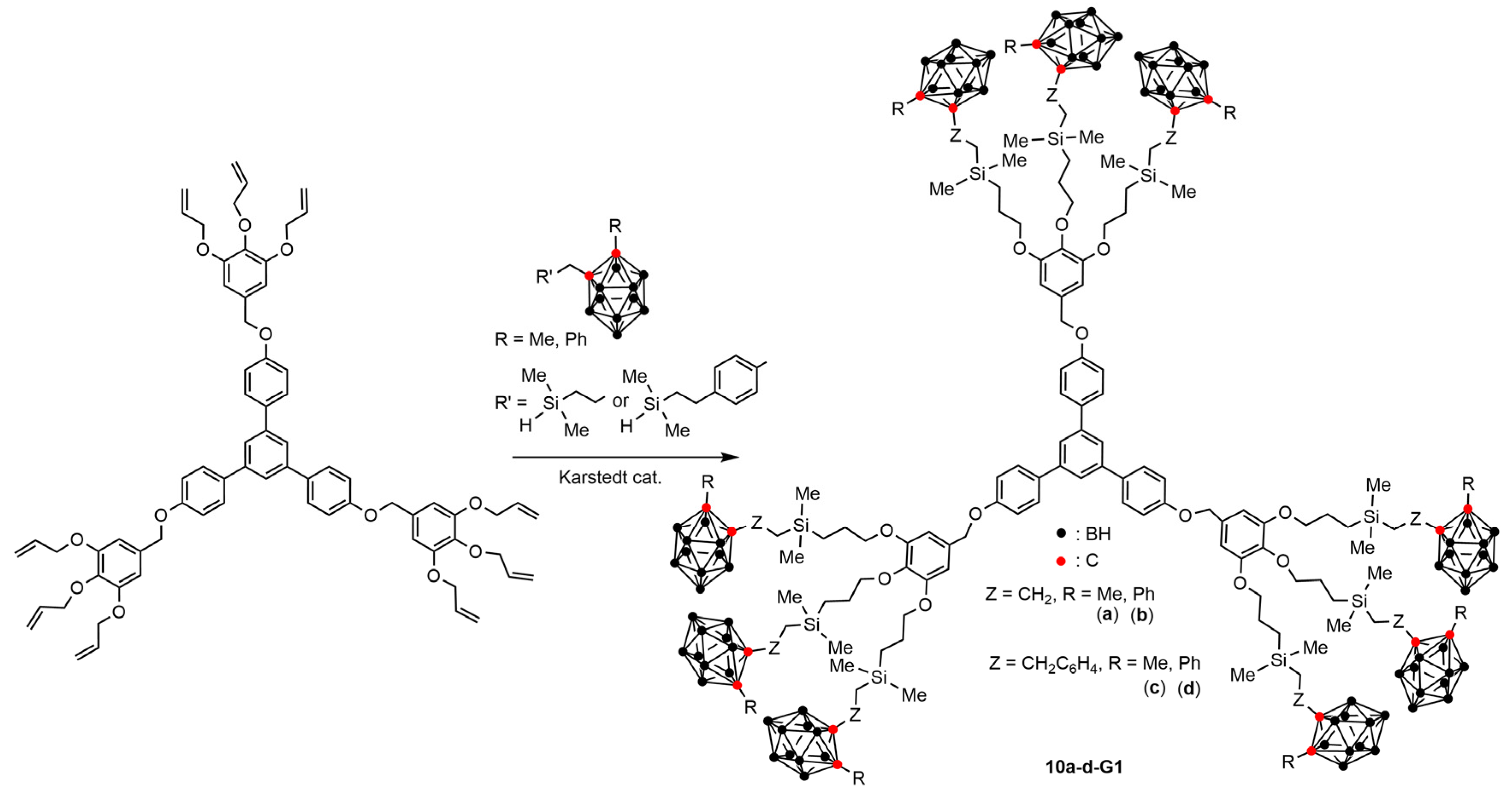

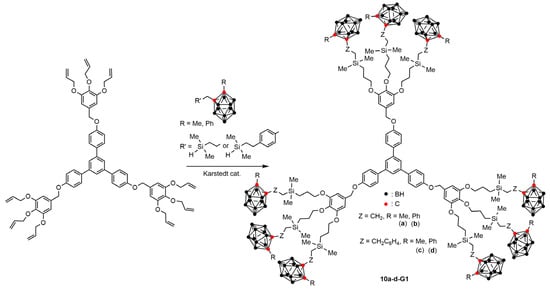

Four different carborane dendrimers (10a-d-G1) were obtained by hydrosilylation reactions between carboranes functionalized with a silane, and a dendrimer bearing nine allyl groups. They were isolated with yields in the range of 60–85% (Scheme 11). The removal of one boron vertex from each cluster leads to water-soluble macromolecules. Photoluminescent properties with high quantum yields, but depending on the nature of the clusters, were observed [35].

2.5. Miscellaneous Boronated Dendrimers

Different other types of carborane dendrimers were built from aliphatic polyester dendrimers, grown from 1,1,1-tris(hydroxyphenyl) ethane (Scheme 12A) or pentaerythritol (Scheme 12B) as core in the presence of EDC (1-[3-(dimethylamino)propyl]-3-ethylcarbodiimide) and DPTS (4-(dimethylamino)pyridinium-p-toluene sulfonate) as coupling agents. The dendrimers were isolated with yields ranging from 79 to 93%. Contrarily to all the previous cases which used ortho-carboranes, para-carboranes were used in these cases. The presence of TBDPS (tert-butyldiphenylsilyl) (11-G2) or benzyl ether (12-G2) as terminal functions enables the growth of new polyester branches as will be shown in Part 3.2. [36].

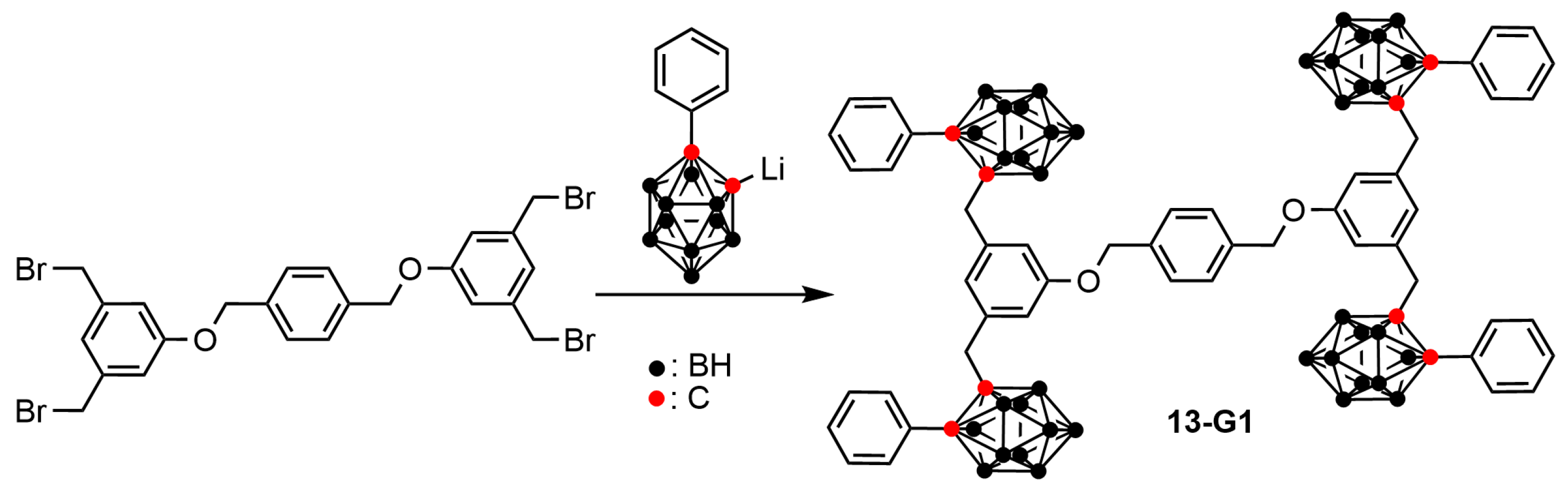

A small carborane dendrimer (13-G1) was obtained from an arylether dendrimer and isolated in 82% yield (Scheme 13). As already indicated for other types of carborane dendrimers, water-soluble compounds were obtained by degrading the closo-cluster to the nido-cluster under basic conditions using KOH in EtOH. All these closo- and nido-carborane dendrimers show strong fluorescence emission in different solvents [37].

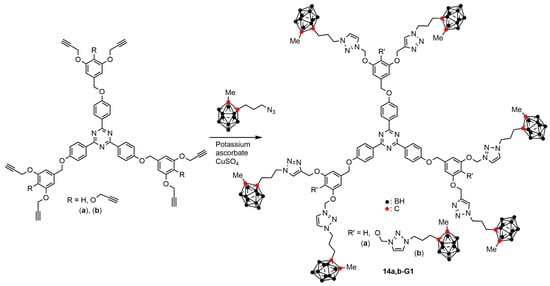

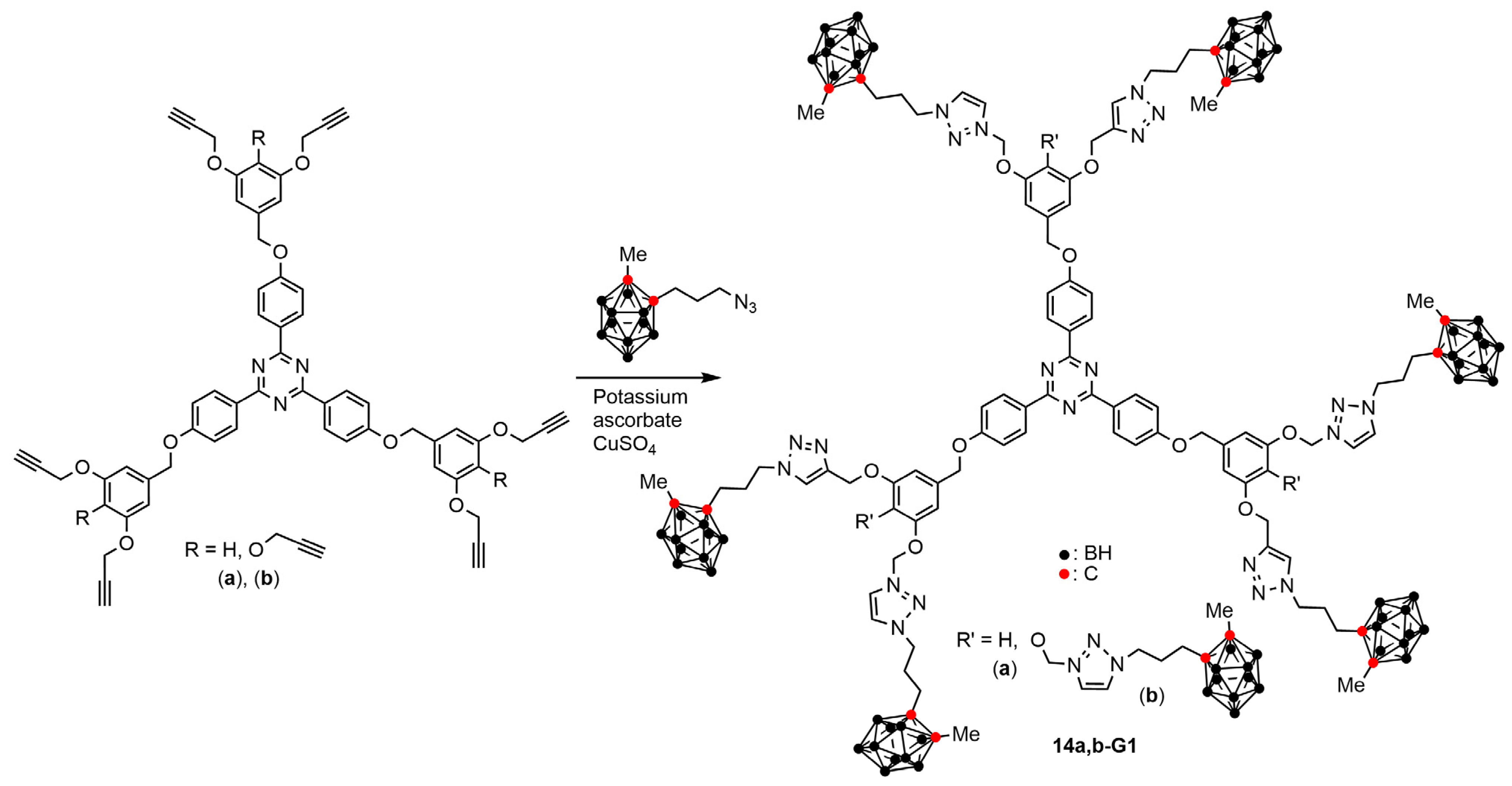

A series of triazine-cored small dendritic molecules containing three (not shown), six (14a-G1), or nine (14b-G1) peripheral carborane clusters were synthesized through CuAAC reactions and isolated in 75%, 71%, and 66% yield, respectively (Scheme 14). Thermal analyses demonstrated that dendrimers 14a-G1 and 14b-G1 maintained 53 and 54 wt% of residue at 700 °C, respectively [38].

3. Boron Clusters inside Dendrimers

As shown in the previous paragraphs, there are numerous examples of dendrimers functionalized on their surface by boron clusters, essentially ortho-carborane derivatives. Less research has been carried out on dendrimers functionalized in the internal structure by boron clusters. The very first example concerned the post-synthetic modification of the internal structure of hydrocarbon dendrimers, but in all the other cases, the borane clusters are introduced during the synthetic process.

3.1. Carboranes inside Hydrocarbon-Based Dendrimers

Hydrocarbon dendrimers equipped with an internal layer of alkyne moieties were reacted with decaborane to afford different 1,2-dicarba-closo-dodecaboranes (Scheme 15), using the method shown in Scheme 1. This process was carried out with both, the first (four carboranes) and the second generation 15a-G2, having twelve carboranes inside its structure, and being isolated in 77% yield. The terminal benzyl ether moieties were converted to peripheral alcohols, which were subsequently transformed to sulfate groups, to afford the water-soluble carborane dendrimer 15b-G2 [39]. The alcohol terminal groups were also converted to carboxylic acids [40].
The post-synthetic modification shown in Scheme 15 is an exception to obtain carboranes inside the structure of dendrimers. In all the other cases, dendritic branches are grown from functionalized carboranes on the surface of dendrimers.

3.2. Carboranes inside Polyester-Based Dendrimers

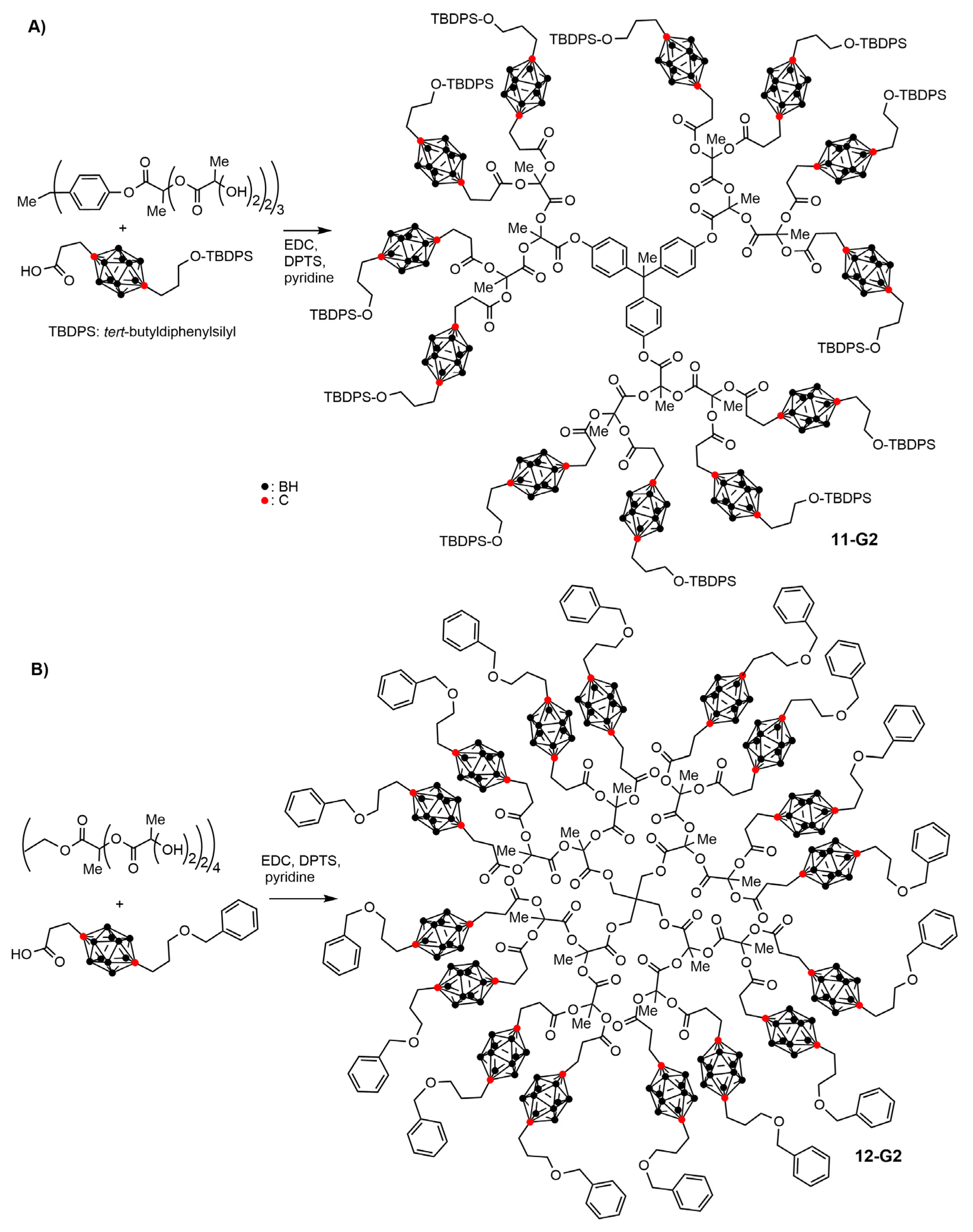

Dendrimer 12-G2 (Scheme 12) possesses benzyl ether terminal functions, which were cleaved with Pd/C in the presence of H2, to obtain alcohol terminal functions, suitable for further divergent growth. Reaction with 2,2-bis(hydroxymethyl)propanoic acid (bis-MPA) was followed by deprotection with Pd/C in the presence of H2, to yield alcohol terminal functions. Repetition of both steps resulted in the growth of the dendritic branches, up to the fifth generation 16-G5 (Scheme 16) [36]. Analogous smaller dendrimers bearing four carboranes (G2) and eight carboranes (G4) were studied together with 16-G5 to determine their thermally-induced phase transition in aqueous media [41].

3.3. Carboranes inside Various Small Dendrimers

A small carborane dendrimer was first obtained by a cyclotrimerization reaction, analogous to the one shown in Scheme 9, and was then functionalized with trivinylsilane, to afford the phenylene-cored dendrimer 17-G1, as shown in Scheme 17. This compound was isolated in 61% yield, and could be a precursor for the synthesis of larger carbosilane dendrimers [42].

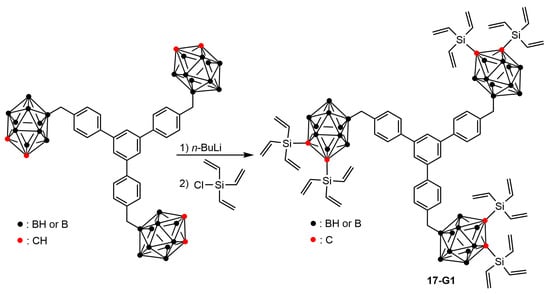

Another carbosilane dendrimer bearing four meta-carboranes linked through a B–S bond was functionalized with chloro(dimethyl) vinylsilane to afford the first generation dendrimer 18-G1, isolated in 90% yield (Scheme 18) [43].
A recent paper displays the grafting of two or three alkynes per carborane on a phenylene-cored dendrimer to obtain dendrimers 19a-G1 and 19b-G1, respectively. Dendrimers 19a,b-G1 were subsequently used in CuAAC reactions with a protected glucosyl azide, isolated in 55–60% yield. Deprotection in the last step afforded the glycodendrimers functionalized with three internal carboranes and six (19c-G1) or nine (19d-G1) glucose derivatives on the surface, isolated in 73–80% yield (Scheme 19) [44].

4. Dendrons and Dendritic Structures Functionalized with Boron Clusters

Even if the largest number of dendritic structures functionalized with boron clusters are dendrimers, the very first examples concerned dendrons having a single carborane at the level of the core.

4.1. Boron Clusters at the Core of Dendrons

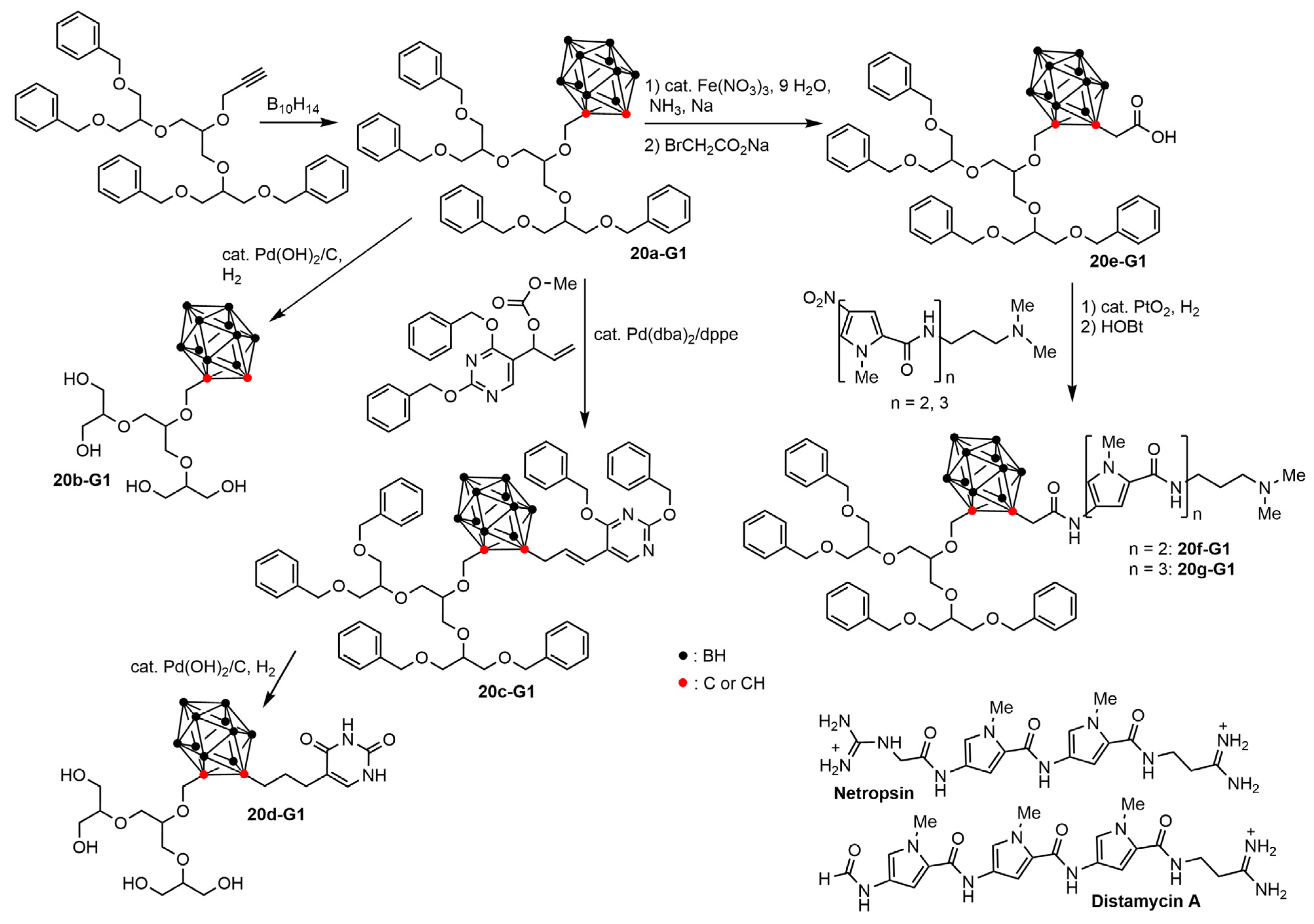

Small polyether dendrons (generations 0 and 1) bearing benzyl groups on the surface and an alkyne function at the core were reacted with decaborane, to afford dendron 20a-G1 for the first generation, isolated in 47% yield (Scheme 20). The benzyl groups were removed by hydrogenation in the presence of Pd(OH)2 on charcoal under acidic conditions in ethanol to afford the deprotected and water-soluble dendron 20b-G1 (solubility 5.44 mol/L), in 63% yield [45]. The presence of a C–H function on the carborane cluster permitted the performance of different types of functionalizations. In a first attempt, a protected uracyl moiety was grafted to 20a-G1 via a palladium-catalyzed reaction with Pd(dba)2/dppe (dba = dibenzylideneacetone, dppe = 1,2-bis(diphenylphosphino)ethane), to afford dendron 20c-G1 in 47% yield (Scheme 20). Hydrogenation of dendron 20c-G1 with palladium hydroxide on charcoal in ethanol afforded the fully deprotected and hydrogenated dendron 20d-G1 in 75% yield [46].
In a second attempt, netropsin and distamycin A analogues were grafted to the carboxylic acid dendron 20e-G1, obtained by coupling the CH of the carborane of dendron 20a-G1 with BrCH2CO2Na. Netropsin and distamycin A (structure in Scheme 20) are natural products, possessing two or three methylpyrrole moieties, respectively. Both compounds are able to bind to the minor groove of double helical DNA. Their analogues were grafted first by reduction of the nitro group to the corresponding amine, followed by condensation with dendron 20e-G1, using HOBt (hydroxybenzotriazole) and DCC (N,N′-dicyclohexylcarbodiimide) to give the desired products 20f-G1 and 20g-G1 both isolated in 65% yield (Scheme 20) [47].
Another series of dendrons having a carborane at the core was synthesized by CuAAC reaction between carborane-cored dendrons bearing three or six alkyne groups (dendron 21a-G1, with six alkyne groups, Scheme 21) and an azide linked to two types of carbohydrates, which are derivatives of protected D-glucose or protected D-galactose. These dendrons were isolated in moderate yields (52–54%). Deprotection of the alcohols with NaOMe in MeOH afforded dendrons functionalized with three (not shown) or six D-glucose (dendron 21b-G1) or six D-galactose moieties (dendron 21c-G1), in good yields (86–93%) (Scheme 21). Only dendrons functionalized with six carbohydrates (21b-G1 and 21c-G1) were fully soluble in water, contrarily with those functionalized with three carbohydrates [48].

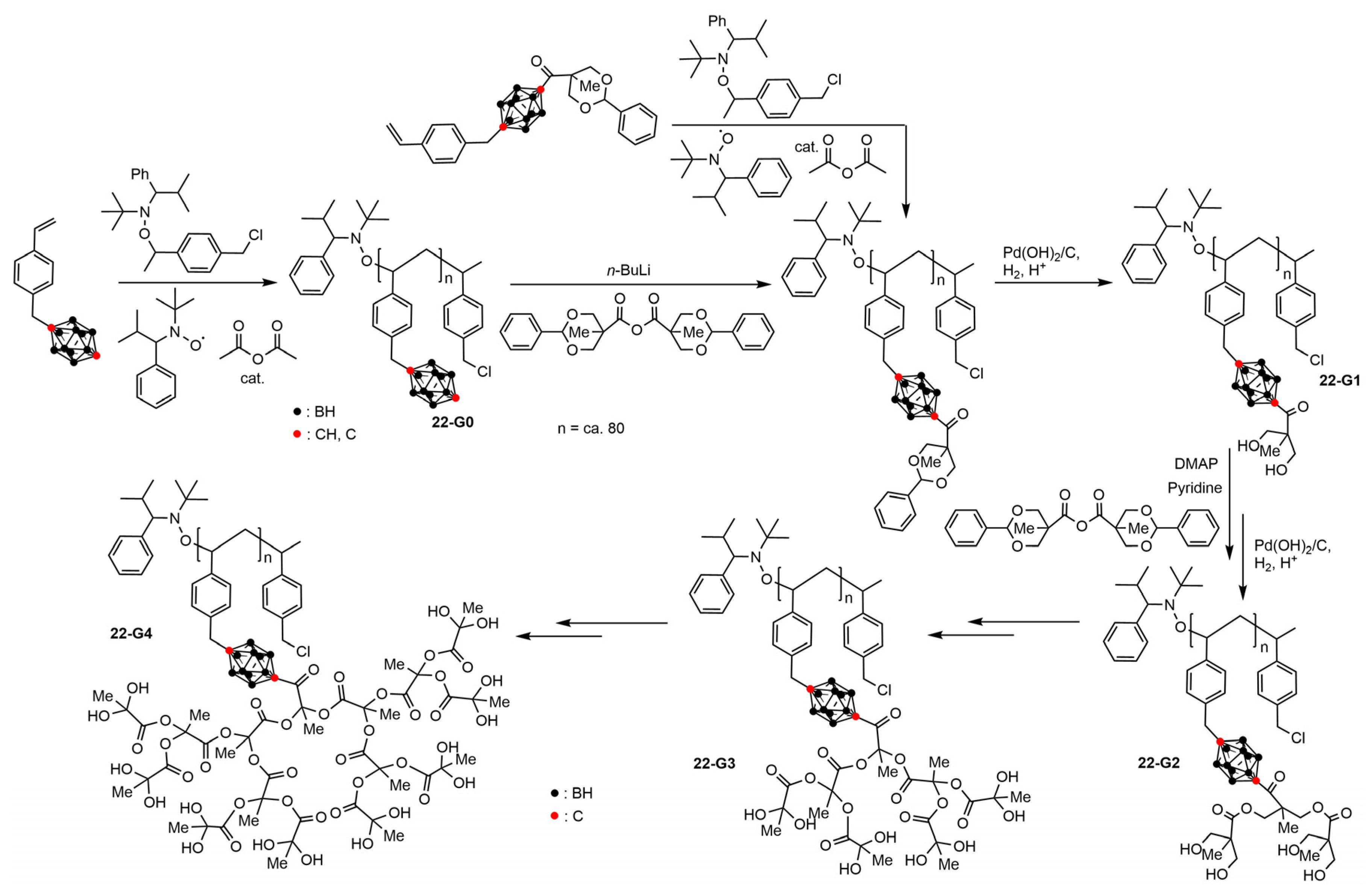

Special types of dendritic structures are the “dendronized polymers”, which are constituted by dendrons grafted to or synthesized on a linear polymer [49]. Two different approaches were used to obtain dendronized carboranyl polymers, using in both cases para-carboranes. In the first approach, the para-carborane monomer functionalized with a styrene group was polymerized by employing a nitroxide-mediated polymerization (NMP) strategy, using an alkoxyamine initiator, a catalytic amount of free nitroxyde radical and acetic acid in chlorobenzene to afford the polymer 22-G0. In order to synthesize the dendrons stepwise, the polymer was first treated with n-BuLi and then with an excess of benzylidene-protected anhydride of bisMPA shown in Scheme 22. About 70% of the carboranes were functionalized in this way. Finally, removal of the benzylidene protecting groups was carried out using a Pd-catalyzed hydrogenolysis with PdOH2/C/H2, followed by an acid-catalyzed deprotection using H2SO4, to afford the first generation 22-G1. In the second method to obtain polymer 22-G1, the starting compound was a carboranyl monomer already functionalized on one carbon atom with a benzylidene-protecting group, and on the other carbon atom with a styrene group. Polymerization using the NMP strategy obtaining the same type of polymer and subsequent deprotection were carried out as indicated above. This approach yields the dendronized polymer 22-G1 that contains 100% functionalized carboranes, as opposed to the previous method yield of 70%. Polymer 22-G1 obtained by both methods was reacted successively in an iterative esterification with the benzylidene-protected anhydride of bisMPA, DMAP (4-dimethylaminopyridine) and pyridine. The second step was the deprotection of the anhydride, as illustrated in Scheme 22. In both cases, the synthesis was carried out up to the fourth generation of the dendrons, i.e., up to the dendronized polymer 22-G4 [50].

4.2. Boron Clusters on the Surface of Dendrons

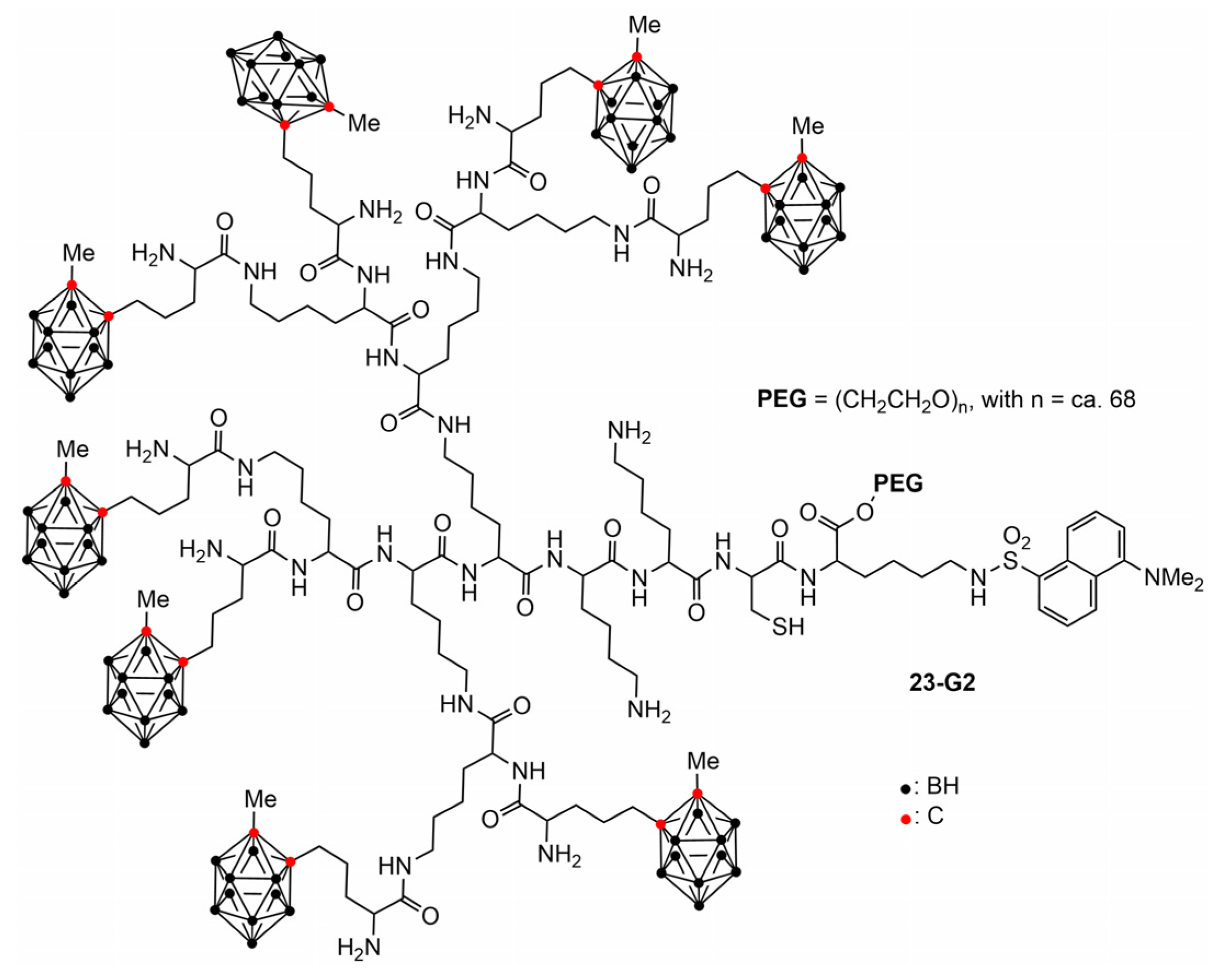

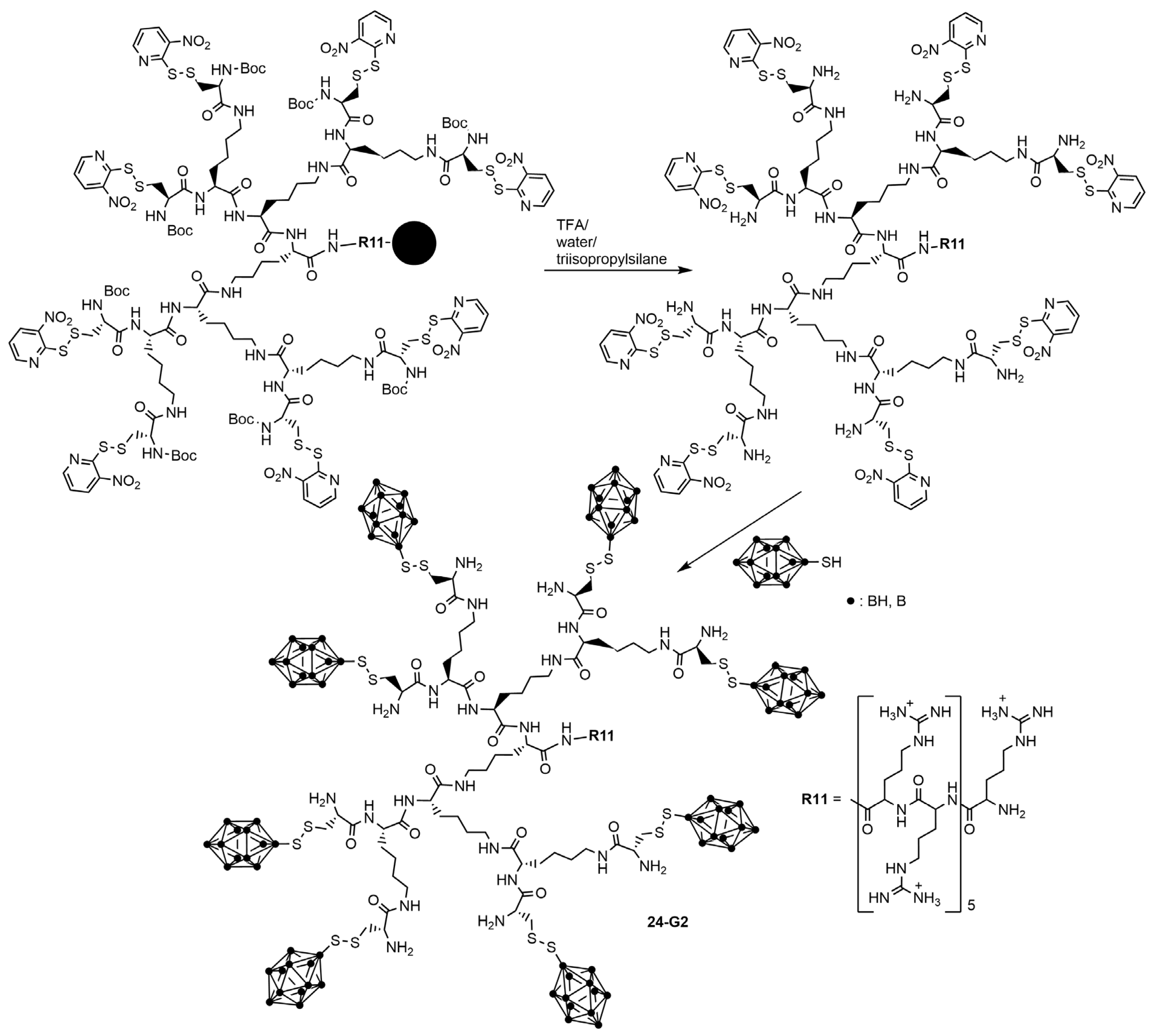

A second generation poly-L-lysine dendron, obtained by solid state synthesis, was reacted in acylation reactions with (S)-5-(2-methyl)-l,2-dicarba-closo-dodecaborane(12)-1-yl)-2-amino pentanoic acid. The resulting dendron 23-G2 was isolated in 81% yield after cleavage and deprotection from the resin. It possesses a relatively long poly (ethyleneglycol) derivative composed of ca. 68 CH2CH2O groups at the core to increase the solubility of this dendron in water (Figure 2) [51].
Another type of peptide dendron functionalized with boron clusters on the surface was first obtained by growing different layers of peptides in the solid phase starting from R11, a cell-penetrating peptide composed of 11 arginine residues, linked to a resin. Prior to the reaction of the surface layer with a Boc-protected cysteine (Boc: tert-butyloxycarbonyl), three layers of lysine were constructed. Full deprotection of cysteine enabled also the cleavage of the dendron from the resin. Finally, eight mercaptoundecahydro-dodecaborate units were grafted on the surface, as illustrated in Scheme 23, to afford dendron 24-G2 isolated in 37% yield [52].

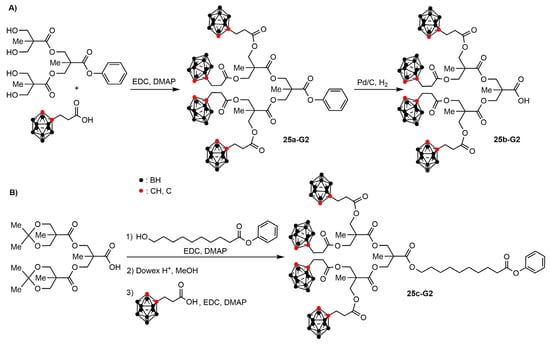

Several types of small polyester dendrons bearing carboranes on their surface were synthesized by a fully divergent process or a mixture of divergent and convergent steps. A first example concerns a generation 2 polyester dendron reacted with a carborane functionalized with a carboxylic acid, in the presence of EDC and DMAP to afford dendron 25a-G2, isolated in 75% yield (Scheme 24A). Deprotection of the benzyl group at the core was carried out with palladium on carbon, under H2, to afford dendron 25b-G2. Attempts to react the carboxylic acid at the core with an alcohol failed, thus another way was used. The starting reagent was a surface-protected small dendron having a carboxylic acid as core, which was first reacted with benzyl-10-hydroxydecanoate, in the presence of EDC and DMAP. The next step was the deprotection of the surface with Dowex H+ in MeOH, followed by the grafting of a carborane functionalized with a carboxylic acid, as in Scheme 24A, to afford the dendron 25c-G2 (Scheme 24B) [53].

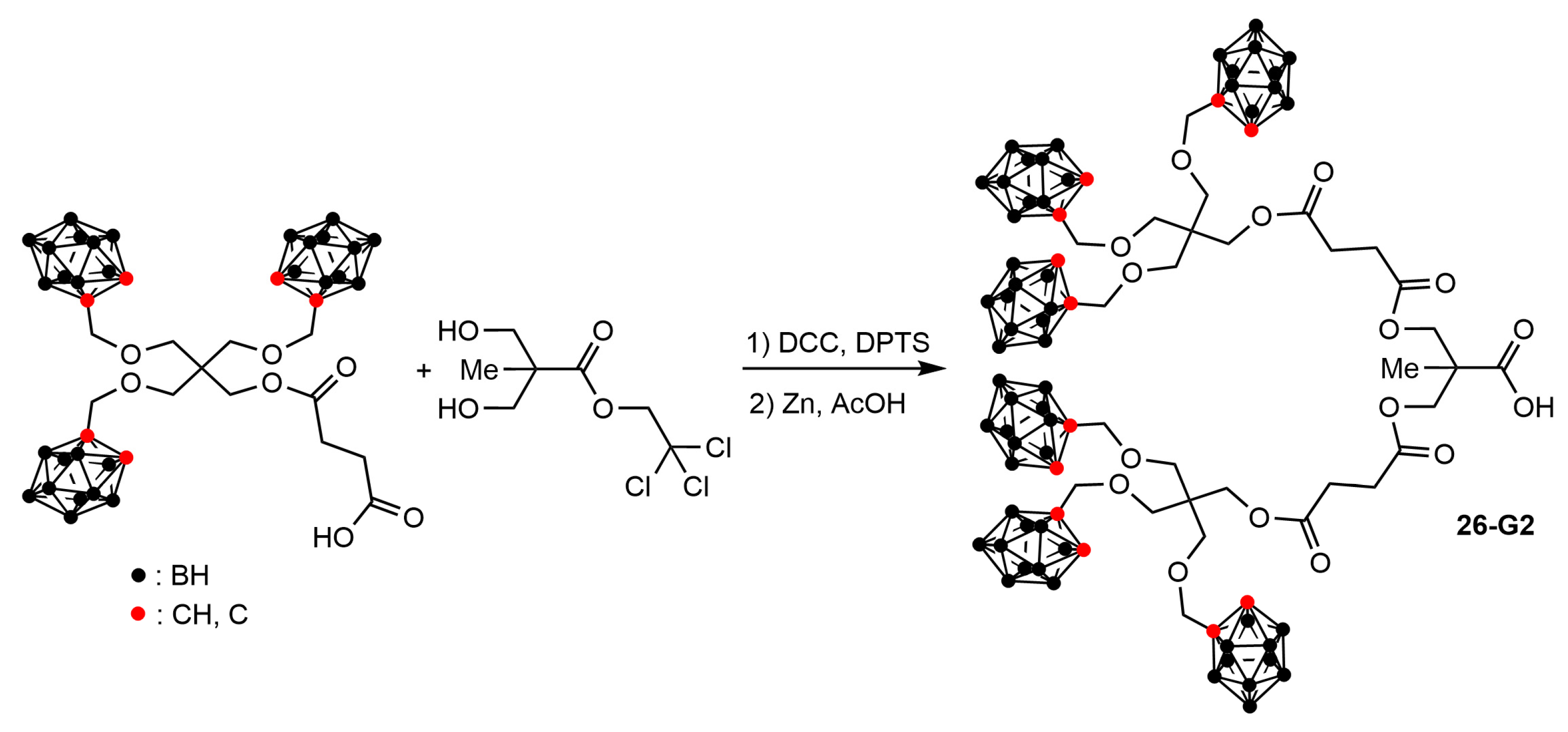

Another type of polyester carborane dendron was obtained by a convergent process, which consisted first in adding the B10H14 cluster to a trialkinyl compound, for which the core was modified to graft a carboxylic acid. In the next step, the carboxylic acid was coupled to a diol, for which the core was modified in the last step to have again a carboxylic acid (see Scheme 25 for the last steps of the process). Dendron 26-G2 was obtained in this way in 90% yield. It is potentially suitable for further reactions, but the synthetic process was stopped at this step [54].

4.3. Carboranes on a Part of the Surface of Janus Dendrimers

Janus dendrimers are constituted of two halves of different compositions at least on the surface [55]. They are frequently obtained by association of two dendrons through their core. Only very few examples of small Janus dendrimers functionalized with carboranes on a part of their surface have been reported. In a first example, a dendron bearing three galatosyl derivatives on the surface and an alkyne at the core was reacted with a dendron bearing three carboranes on the surface and an azide at the core. The association of both dendrons was carried out employing CuAAC, with CuI, CuSO4, sodium ascorbate, and NEt3 to afford compound 27, isolated in 98% yield (Scheme 26) [56].
The second example of a Janus dendrimer bearing carboranes on one side was obtained by a multi-step process, for which the last steps are shown in Scheme 27. The preliminary synthesis of a compound bearing an integrin ligand, two amines protected with Boc, and one amine protected with Cbz (carbobenzyloxy) was the starting point for the grafting of six carboranes. In the very last step, a monomethine cyanine dye for visible-light fluorescent imaging was grafted. Selective and sequential deprotection of the amines, using TFA, HBTU (2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium hexafluoro phosphate) as coupling agent, DIEA (N,N-diisopropylethylamine), and Pd black, H2 in acidic media, permitted the synthesis of the sophisticated Janus dendrimer 28 isolated in 25% yield [57].

5. Biological Properties of Dendritic Compounds Having Boron Clusters Somewhere in Their Structure

Practically all types of dendritic compounds incorporating boron clusters somewhere in their structure, as shown in this review, were synthesized to be used for BNCT. However, BNCT experiments were carried out only in a limited number of cases, due to the necessity to have a nuclear reactor laboratory in close proximity until only recently [58]. On the other hand, the anti-cancer properties of some of the dendritic structures shown in the previous paragraphs were tested in vitro or in vivo, without BNCT experiments.

5.1. Anti-Cancer Properties of Dendritic Structures Functionalized with Boron Clusters

Preliminary experiments concerned the possibility of localizing boron in the DNA of target (cancer) cells. For this purpose, analogs of netropsin and distamycin A that bind in the minor groove of double helical DNA were introduced into dendrons 20f-G1 and 20g-G1 (Scheme 20). It was shown that not only the presence of the methylpyrrole moieties, but also that of dendritic branches enhanced the efficiency of binding to the minor groove of DNA [47]. Other anti-cancer experiments were carried out mostly with dendrimers, and in particular with PAMAM dendrimers.

5.1.1. Anti-Cancer Properties and In Vivo Localization of Boronated PAMAM Dendrimers

The in vivo distribution of the PAMAM dendrimer 1b-G4 (Scheme 3) functionalized with a monoclonal antibody (MoAb) IB 16-6, which is directed against the murine B16 melanoma, was studied in normal and tumor-bearing mice carrying sub-cutaneous implants of the B16 melanoma. Unfortunately, a very limited quantity of 1b-G4 was found in the tumor [22]. Another type of MoAb, the chimeric cetuximab (IMC-C225) directed against the epidermal growth factor receptors EGFR and EGFRvIII, was grafted to the fifth generation of the boronated PAMAM dendrimer, as depicted in Figure 3, and using the method shown in Scheme 3. The in vivo localization of this dendrimer 1c-G5 after injection into the tumor of rats bearing intracerebral implants of F98 wild-type (F98WT) receptor (−) or EGFR gene-transfected F98EGFR glioma cells demonstrated a much larger localization in F98EGFR versus in F98WT gliomas [59].
Another example of boronated PAMAM dendrimer was functionalized with the epidermal growth factor (EGF), since the EGFR gene is found on the cell surface of the majority of high-grade gliomas. It was shown by electron spectroscopic imaging that the dendrimer penetrated in human malignant glioma U-343MG cell line by endocytosis, and accumulated in lysosomes [23]. The third generation boronated PAMAM dendrimer was also reacted with PEGs of varying chain lengths, functionalized on the end with folic acid for targeting the folate receptor on cancer cells. First experiments on KB cells demonstrated a receptor-dependent uptake. However, in vivo experiments in C57BL/6 mice bearing the folate receptor (+) murine 24JK-FBP sarcomas resulted in a slightly selective tumor uptake (6.0% of the injected dose, ID/g tumor), but unwanted high hepatic (38.8% ID/g) and renal (62.8% ID/g) uptake were also observed [24]. A vascular endothelial growth factor (VEGF) was grafted to a boronated fifth generation PAMAM dendrimer, with the aim of targeting upregulated VEGF receptors (VEGFR), which are overexpressed on tumor neovasculature. This dendrimer was also tagged with a near-IR Cy5 dye for bioimaging. Several dendrimers were grafted per VEGF, as illustrated in Figure 4. Imaging of 4T1 mouse breast carcinoma revealed selective accumulation of VEGF-boronated dendrimer/Cy5, particularly at the tumor periphery where angiogenesis is most active [25].

5.1.2. Anti-Cancer Properties and In Vivo Localization of Other Boronated Dendrimers

The biodistribution of the nido-carboranylporphyrins issued from 5a-G1 (free) and 5b-G1 (complexing Zn, see Scheme 7) were studied in BALB/c mice bearing EMT-6 mammary tumors. Both compounds were found to be effective tumor localizers, and the zinc(II) nido-complex was found to deliver 1.2–1.7 times higher amounts of boron to tumors than the free nido-compound [30]. The other nido-carboranylporphyrins issued from 6a-G1 and 6b-G1 were readily taken up by human glioblastoma T98G cells in culture, and were localized preferentially in the cell lysosomes. The metal-free nido-compound was found to accumulate to a higher extent in these cells compared with its zinc(II) nido-complex analog [31].
The dendrimer built from a phenylene core and functionalized with nine carboranes (9b-G1, Scheme 10) was tested toward human liver cancer cells (SK-Hep1). This dendrimer accumulated in the SK-Hep1 cancer cells in a concentration dependent manner, the highest accumulation being observed at a 50 μM concentration in 9b-G1 [34]. The biological properties of the triazine-cored dendrimers shown in Scheme 14, having six (14a-G1) or nine (14b-G1) carboranes on the surface have been evaluated using MCF-7 breast cancer cells. It was shown that the toxicity increased as the number of peripheral carboranes increased. The half maximal inhibitory concentration (IC50) value was found to be 80.67 ng/mL for the largest dendrimer 14b-G1 [38]. Very recently, dendrimers having three carboranes inside the structure and six (19c-G1) or nine (19d-G1) glucose moieties as surface functions (Scheme 19) were evaluated against MCF-7 breast cancer cell lines. The glycodendrimer 19d-G1 having the highest number of glucose moieties has shown the highest cell death potential via apoptosis, with an IC50 value of 41.35 ng/mL (0.01 μM) that is 600 times higher than the cytotoxicity of the chemotherapeutic drug cisplatin (IC50 6 μM) [44].
Besides dendrimers, dendrons bearing a single carborane at the core and functionalized with three or six D-glucose (21b-G1) or D-galactose (21c-G1) (Scheme 21) were tested against two cancer cell lines (MCF-7 human breast carcinoma cells and A431 skin cancer cells) and one normal cell line (HaCaT skin epidermal cell line). All dendrons showed higher cytotoxicities toward cancer cell lines than toward the normal cell line. Compounds bearing only three glucose or galactose moieties were found to be more cytotoxic than the dendrons 21b-G1 and 21c-G1 [48]. The trifunctional theranostic agent 28, comprising six carboranes, a monomethine cyanine dye for fluorescent imaging, and an integrin ligand for efficient tumor targeting (Scheme 27), was first tested toward WM115 (human melanoma) and MCF-7 cell lines. Confocal microscopy images indicated that the Janus dendrimer 28 was localized mainly on the cell membrane and in the lysosomes of both cell lines. The same compound was then used in vivo in T-cell deficient nude mice, which were subcutaneously engrafted with WM115 cells. Images show that compound 28 was already localized in the tumor 30 min after injection. A biodistribution study displayed a consistently higher degree of accumulation of compound 28 in the tumor as compared to the other vital organs, namely, lungs, heart, liver, kidneys, and spleen [57].

5.2. BNCT Properties of Dendritic Structures Functionalized with Boron Clusters

The large majority of dendritic structures used in BNCT experiments were based on PAMAM dendrimers, functionalized with boron clusters on the surface, generally together with tumor-targeting moieties. The early publications in the field were previously reviewed [18], whereas a more recent review concerned the current advancements in the field of BNCT, including one paragraph about dendrimers [60].

5.2.1. BNCT Properties of Boronated PAMAM Dendrimers

A boronated PAMAM dendrimer, functionalized with an EGF was first tested toward F98 wild-type (F98WT) receptor (−) or EGFR gene-transfected F98EGFR cells implanted into the brains of Fischer rats. Biodistribution studies after 24 h demonstrated that 33.2% of injected dose/g of boronated PAMAM−EGF was retained by F98EGFR gliomas compared with 9.4% of injected dose in F98WT gliomas. Boron concentrations in normal brain, blood, liver, kidneys, and spleen were at nondetectable levels (<0.5 ng/g). Rats were irradiated for BNCT 24 h after injection of boronated PAMAM−EGF in the tumor. Untreated control rats had a mean survival time (MST) of 27 ± 1 days, and irradiated controls (without dendrimer) had a MST of 31 ± 1 days. Rats treated with the boronated dendrimer−EGF and which received BNCT had a MST of 33 ± 2 days for animals bearing F98WT tumors, and of 45 ± 5 days for animals bearing F98EGFR tumors [61]. In another paper, two types of injections of the same dendrimer bearing EGF were tested, the normal intratumoral (i.t.) injection, and the convection enhanced delivery (CED). Boron concentrations in F98EGFR gliomas were 22.3 and 11.7 μg/g following CED and i.t. injection, respectively. Based on these results, BNCT experiments were carried out on rats that received the dendrimer injected i.v., or not. The MST was 53 ± 13 days, compared to 31 ± 4 days for irradiated control animals [62].

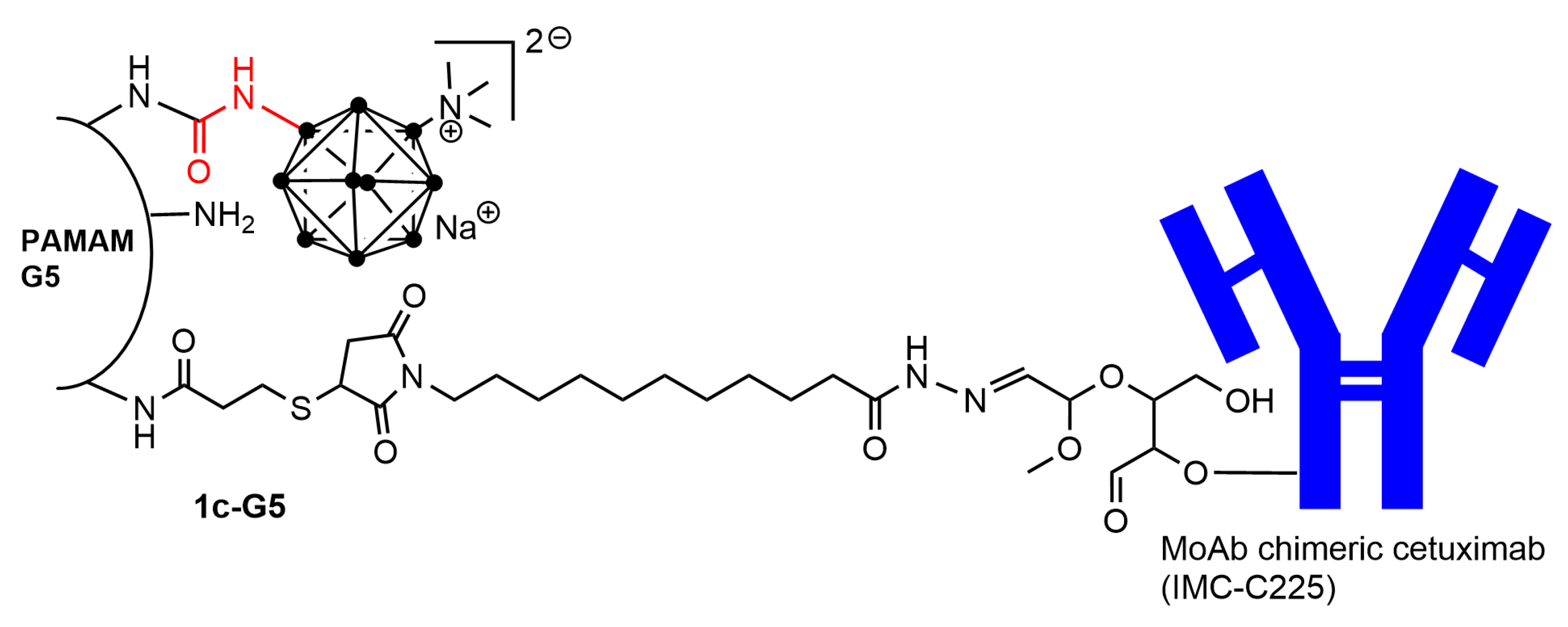

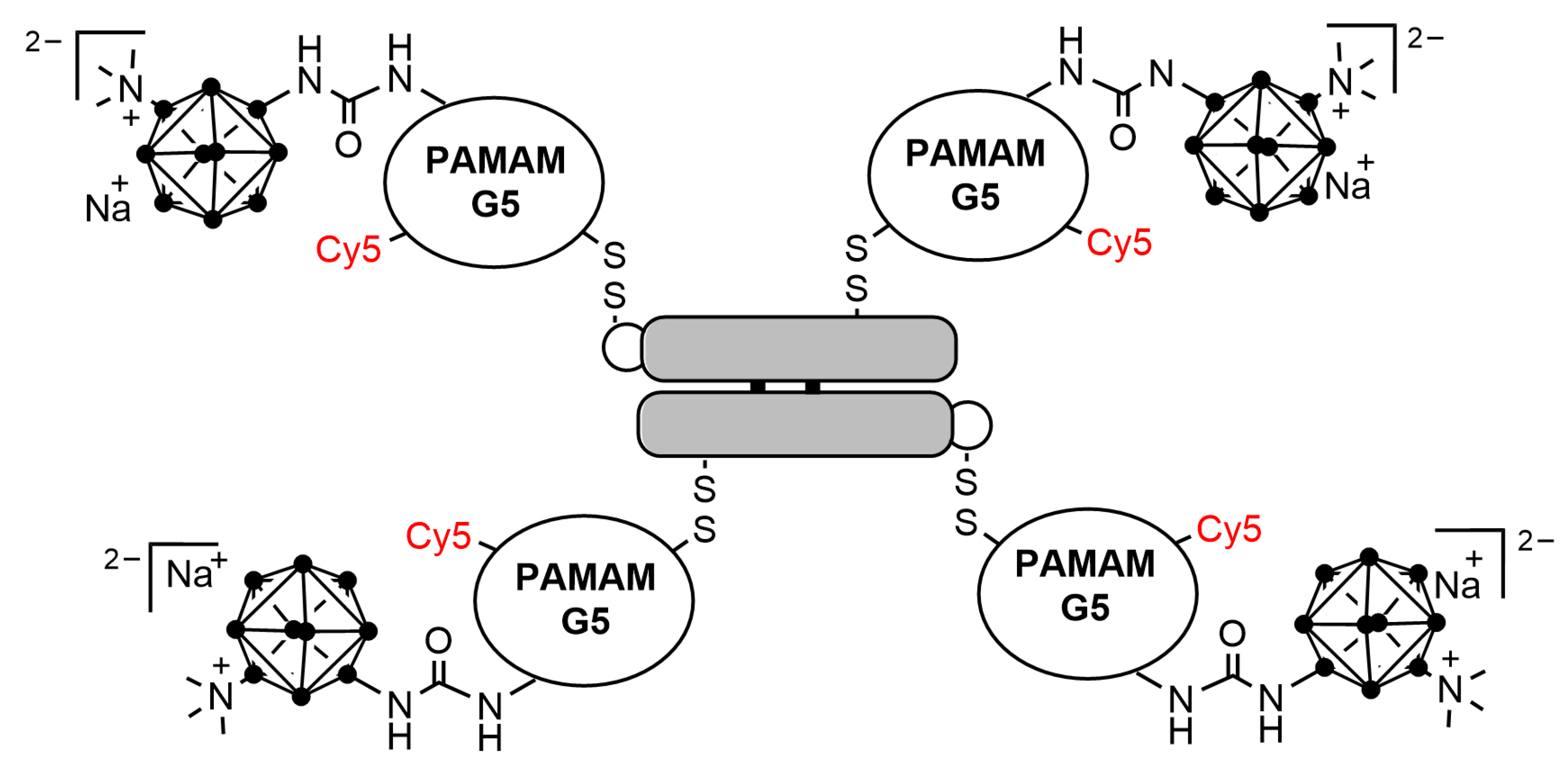

The boronated dendrimer functionalized with cetuximab 1c-G5 (Figure 3) was also injected in rats bearing F98EGFR or F98WT gliomas, resulting in the mean boron concentrations of 92.3 ± 23.3 μg/g and 36.5 ± 18.8 μg/g, respectively. The MST of rats that received 1c-G5 and were irradiated for BNCT was 45 ± 3 days, compared to 25 ± 3 days for untreated control animals [63]. The same dendrimer was also given intracerebrally by CED or direct i.t. injection into the brains of Fischer rats stereotactically implanted with F98EGFR cells. The corresponding MST after BNCT was 54.5 ± 4.3 days, whereas the MSTs of irradiated and untreated controls were 30.3 ± 1.6 and 26.3 ± 1.6 days, respectively [64]. Another paper comparing the efficiency of CED and i.t. injections demonstrated a doubling of the tumor boron concentration (22.3 μg/g for CED vs. 11.7 μg/g for i.t.) [65].
Another monoclonal antibody, L8A4, directed against the receptor EGFRvIII, seems to be a truly tumor-specific target. L8A4 was also linked to the boronated PAMAM dendrimer 1a-G4 or 1a-G5. This compound was injected in rats bearing F98 wild-type receptor (−) or EGFRvIII human gene-transfected receptor (+) F98npEGFRvIII glioma cells. After 24 h, the amounts of dendrimer retained by receptor (+) gliomas were 60.1% following CED and 43.7% following i.t. injection compared with 14.6% by receptor (−) tumors. BNCT was carried out 24 h after administration of the dendrimer. Rats that received the dendrimer had a mean survival time of 70.4 ± 11.1 days with 10% long-term survivors (>6 months) compared with 30.3 ± 1.6 and 26.3 ± 1.1 days for irradiated and untreated controls, respectively [66]. Another paper compared the efficiency of boronated PAMAM dendrimers linked to cetuximab (1c-G5) or L8A4 in a rat glioma composed of a mixture of cells expressing wild-type (F98EGFR) or mutant receptors (F98npEGFRvIII). After BNCT, the mean survival time was 36 ± 1 days for boronated PAMAM−L8A4 and 38 ± 2 days for boronated PAMAM−cetuximab alone, whereas it was 55 ± 4 days when using the mixture of both dendrimers [67]. A short review summarized the work carried out with both types of boronated dendrimer−MoAb [68].

5.2.2. BNCT Properties of Diverse Boronated Dendritic Structures

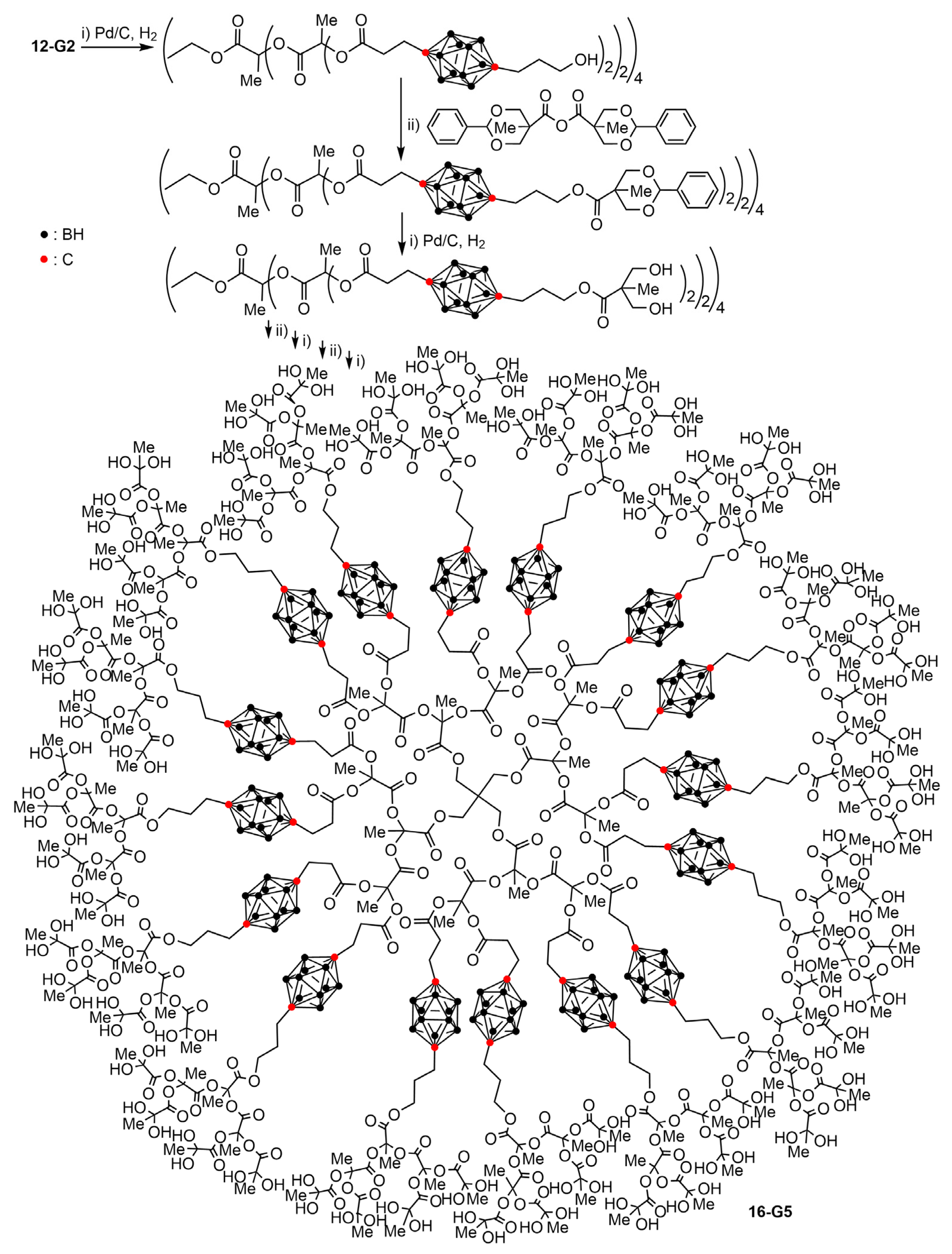

Dendrimers of the 16-Gn series (Scheme 16, n = 3, with four internal carboranes and thirty-two OH terminal functions, and n = 4, with eight or sixteen internal carboranes and sixty-four OH terminal functions) in THF solution were placed in a thermal neutron beam of a nuclear reactor. The characteristic gamma radiation signature at an energy of 480 keV, corresponding to boron neutron capture events was observed in all cases, indicating the possible use of these compounds for BNCT [36].

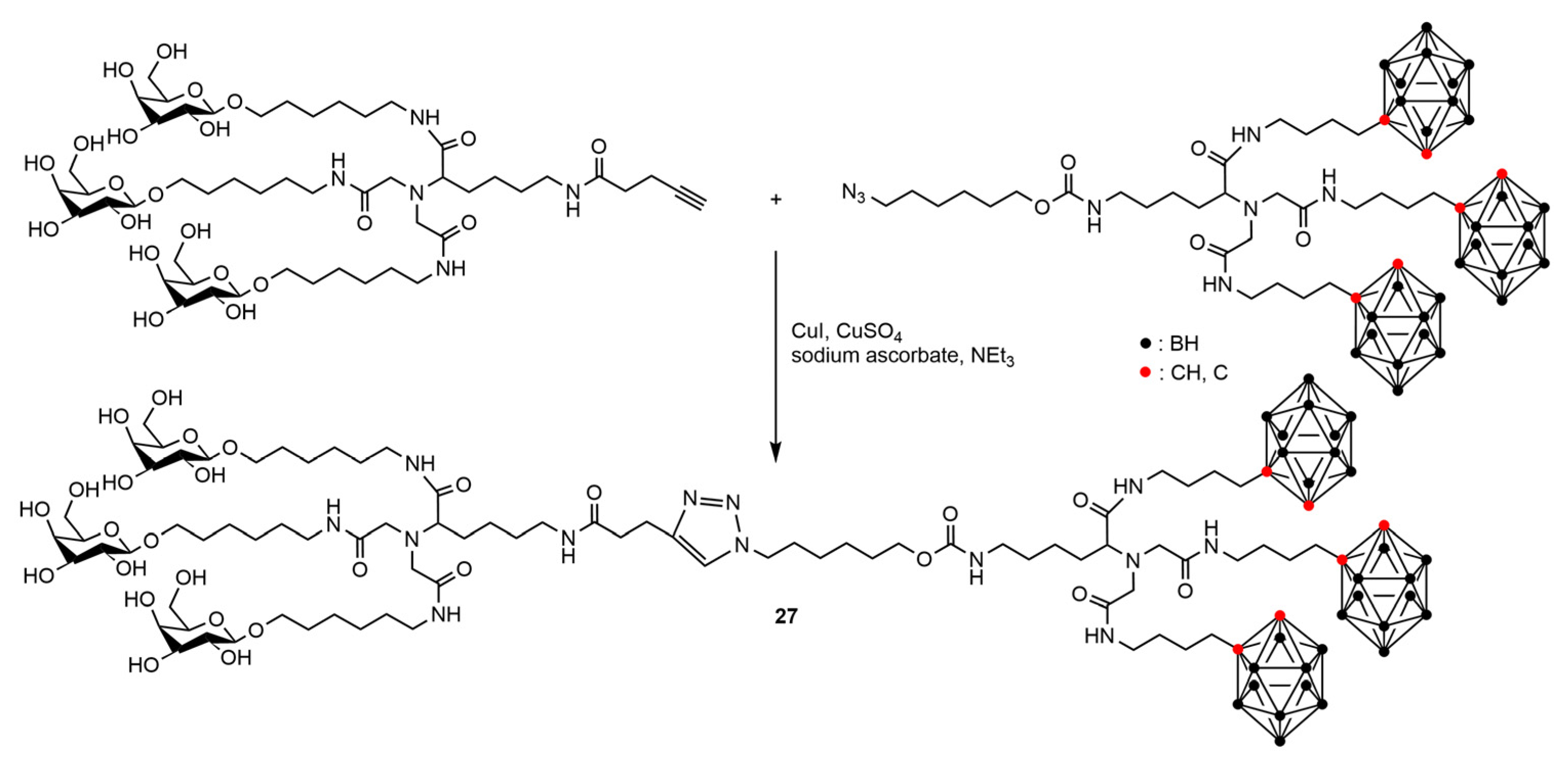

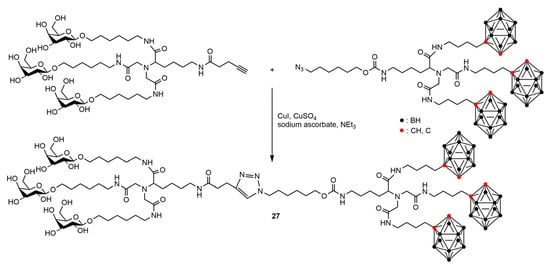

The small Janus dendrimer 27 (Scheme 26) was used to treat HepG2 cells (human liver cancer cell line) by irradiation with thermal neutrons. In these conditions, the cell killing efficiency of dendrimer 27 was 10-fold greater than that of the monomeric BSH (sodium borocaptate, Na2B12H11SH) [56].
Dendron 24-G2 (Scheme 23) was first added to malignant glioma cells and found to localize at the cell nucleus. It was also administered to nude mice bearing a brain tumor after injection of U87 DEGFR cells. With neutron irradiation, the group that was treated with 24-G2 showed a significant cancer killing effect, even when compared to the group that was treated with a 100 times higher concentration of monomeric BSH, illustrating both the effect of the targeting group and of the concentration in boron due to the dendron [52].

6. Conclusions

The inclusion of boron clusters anywhere in the structure of dendrimers or dendrons has generated a rich chemistry, as illustrated in a large part of this review. About half of the dendritic structures synthesized were of first generations, but larger compounds were also synthesized, up to the fifth generation in some cases. Clearly, the small generations are easier to synthesize and to purify, but they accommodate a small number of boron clusters. On the contrary, high generations need time and money to be synthesized, their purity is sometimes questionable, but they can accommodate a large number of boron clusters. Up to now, most of the boronated dendritic structures tested in biological experiments are based on large PAMAM dendrimers of generations 4 or 5. Thus, having a large quantity of boron, and the possibility of accommodating targeting entities seems to be the most suitable solution for practical uses of boronated dendrimers.
The biological properties of some of these dendritic structures, essentially dendrimers have been assessed against cancer cells, and in some cases in BNCT experiments, generally carried out with mice or rats. The relatively low number of boronated dendritic structures tested is certainly due to difficulty in having a nuclear reactor laboratory in close proximity, until recently. A good efficiency of the boronated dendritic structures in vivo in BNCT is generally observed, with a noticeable increase in the mean survival time of the animals. The presence of multiple functional groups on the surface of dendrimers enables the grafting of a targeting peptide, together with the boron clusters, for an improved localization in the cancer cells, and thus a better efficiency of BNCT. However, there is generally no cure of the cancer in these experiments, in particular concerning brain tumors in animals. This is probably the reason why no BNCT clinical trials have been carried out up to now with boronated dendrimers. However, as several accelerator-based BNCT facilities have been constructed in recent years with many still being under construction and planning [69], there is certainly a demand of improved and selective BNCT agents in future.
Besides dendrimers, other types of carriers of boron clusters are known, such as polymers [70], nanoparticles [71], or liposomes [72]. Polymers can be of natural origin, such as dextrans or glucose polymers, but the structure of polymers is less well defined than that of dendrimers, and their functional groups are less easily accessible. Nanoparticles are frequently composed of toxic metals or of polymer balls, whereas liposomes are quite large compared to the size of dendrimers, but several types of liposomes for drug delivery have been approved by the U.S. Food and Drug Administration (FDA) and European Medicines Agency (EMA) [73]. It should be noted that different types of dendrimers have been and are used in different clinical trials [74], but not in the case of boronated dendrimers until now. In the view of state-of-the-art for the delivery of boron clusters, dendrimers appear to have a large potential, but that needs to be further developed.

Author Contributions

Conceptualization, A.-M.C.; resources, A.-M.C. and E.H.-H.; writing—original draft preparation, A.-M.C.; writing—review and editing, A.-M.C., E.H.-H. and M.M.; supervision, A.-M.C. and E.H.-H.; project administration, A.-M.C. and E.H.-H.; funding acquisition, A.-M.C. and E.H.-H. All authors have read and agreed to the published version of the manuscript.

Funding

This project was funded by European Union’s Horizon 2020 Research and Innovation program under the Marie Sklodowska-Curie grant agreement number 860322 for the ITN-EJD “Coordination Chemistry Inspires Molecular Catalysis” CCIMC.

Data Availability Statement

No data available.

Acknowledgments

Thanks are due to the CNRS (Centre National de la Recherche Scientifique) for financial support, to Rinaldo Poli as coordinator of the CCIMC network, and to Alida Lefter as manager of the same network.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sergeeva, A.P.; Popov, I.A.; Piazza, Z.A.; Li, W.L.; Romanescu, C.; Wang, L.S.; Boldyrev, A.I. Understanding Boron through Size-Selected Clusters: Structure, Chemical Bonding, and Fluxionality. Acc. Chem. Res. 2014, 47, 1349–1358. [Google Scholar] [CrossRef] [PubMed]
  2. Grimes, R.N. Carboranes, 3rd ed.; Elsevier Academic Press: London, UK, 2016; pp. 1–1041. [Google Scholar]
  3. Heying, T.L.; Ager, J.W., Jr.; Clark, S.L.; Mangold, D.J.; Goldstein, H.L.; Hillman, M.; Polak, R.J.; Szymanski, J.W. A New Series of Organoboranes. I. Carboranes from the Reaction of Decaborane with Acetylenic Compounds. Inorg. Chem. 1963, 2, 1089–1092. [Google Scholar] [CrossRef]
  4. Zakharkin, L.I.; Stanko, V.I.; Brattsev, V.A.; Chapovskii, Y.A.; Struchkov, Y.T. The structure of B10C2H12 (Barene) and its derivatives. Bull. Acad. Sci. USSR Div. Chem. Sci. 1963, 12, 1911. [Google Scholar] [CrossRef]
  5. Grafstein, D.; Dvorak, J. Neocarboranes, a New Family of Stable Organoboranes Isomeric with the Carboranes. Inorg. Chem. 1963, 2, 1128–1133. [Google Scholar] [CrossRef]
  6. Edvenson, G.M.; Gaines, D.F. Thermal Isomerization of Regiospecifically 10B-Labeled Icosahedral Carboranes. Inorg. Chem. 1990, 29, 1210–1216. [Google Scholar] [CrossRef]
  7. Bregadze, V.I. Fifty years of carborane chemistry: The history of discovery and the first results. Russ. Chem. Bull. 2014, 63, 1021–1026. [Google Scholar] [CrossRef]
  8. Zhu, Y.; Siwei, X.; Maguire, J.A.; Hosmane, N.S. Application of Cycloaddition Reactions to the Syntheses of Novel Boron Compounds. Molecules 2010, 15, 9437–9449. [Google Scholar] [CrossRef] [Green Version]
  9. Scholz, M.; Hey-Hawkins, E. Carbaboranes as Pharmacophores: Properties, Synthesis, and Application Strategies. Chem. Rev. 2011, 111, 7035–7062. [Google Scholar] [CrossRef]
  10. Barth, R.F.; Soloway, A.H. Boron Neutron-Capture Therapy of primary and metastatic brain-tumors. Mol. Chem. Neuropathol. 1994, 21, 139–154. [Google Scholar] [CrossRef]
  11. Barth, R.F.; Coderre, J.A.; Vicente, M.G.H.; Blue, T.E. Boron neutron capture therapy of cancer: Current status and future prospects. Clin. Cancer Res. 2005, 11, 3987–4002. [Google Scholar] [CrossRef] [Green Version]
  12. Caminade, A.M.; Turrin, C.O.; Laurent, R.; Ouali, A.; DelavauxNicot, B. Dendrimers: Towards Catalytic, Material and Biomedical Uses; Wiley: Chichester, UK, 2011; pp. 1–538. [Google Scholar] [CrossRef]
  13. Tomalia, D.A.; Baker, H.; Dewald, J.; Hall, M.; Kallos, G.; Martin, S.; Roeck, J.; Ryder, J.; Smith, P. A new class of polymers—Starburst-dendritic macromolecules. Polym. J. 1985, 17, 117–132. [Google Scholar] [CrossRef] [Green Version]
  14. Tomalia, D.A.; Naylor, A.M.; Goddard, W.A. Starburst dendrimers—Molecular level control of size, shape, surface chemistry, topology, and flexibility from atoms to macroscopic matter. Angew. Chem. Int. Ed. Engl. 1990, 29, 138–175. [Google Scholar] [CrossRef]
  15. Hosmane, N.S.; Zhu, Y.H.; Maguire, J.A.; Kaim, W.; Takagaki, M. Nano and dendritic structured carboranes and metallacarboranes: From materials to cancer therapy. J. Organomet. Chem. 2009, 694, 1690–1697. [Google Scholar] [CrossRef]
  16. Gao, S.M.; Hosmane, N.S. Dendrimer- and nanostructure-supported carboranes and metallacarboranes: An account. Russ. Chem. Bull. 2014, 63, 788–810. [Google Scholar] [CrossRef]
  17. Vinas, C.; Nunez, R.; Bennour, I.; Teixidor, F. Periphery Decorated and Core Initiated Neutral and Polyanionic Borane Large Molecules: Forthcoming and Promising Properties for Medicinal Applications. Curr. Med. Chem. 2019, 26, 5036–5076. [Google Scholar] [CrossRef]
  18. Wu, G.; Barth, R.F.; Yang, W.; Lee, R.J.; Tjark, W.; Backer, M.V.; Backer, J.M. Boron containing macromolecules and nanovehicles as delivery agents for neutron capture therapy. Anti-Cancer Agents Med. Chem. 2006, 6, 167–184. [Google Scholar] [CrossRef]
  19. Hosmane, N.S.; Zhu, Y.; Maguire, J.A.; Hosmane, S.N.; Chakrabarti, A. Boron nanostructures—From materials to cancer therapy: An account. Main Group Chem. 2010, 9, 153–166. [Google Scholar] [CrossRef]
  20. Pitto-Barry, A. Polymers and boron neutron capture therapy (BNCT): A potent combination. Polym. Chem. 2021, 12, 2035–2044. [Google Scholar] [CrossRef]
  21. Liko, F.; Hindre, F.; Fernandez-Megia, E. Dendrimers as Innovative Radiopharmaceuticals in Cancer Radionanotherapy. Biomacromolecules 2016, 17, 3103–3114. [Google Scholar] [CrossRef]
  22. Barth, R.F.; Adams, D.M.; Soloway, A.H.; Alam, F.; Darby, M.V. Boronated starburst dendrimer monoclonal-antibody immunoconjugates—Evaluations as a potential delivery system for Neutron-Capture Therapy. Bioconjug. Chem. 1994, 5, 58–66. [Google Scholar] [CrossRef]
  23. Capala, J.; Barth, R.F.; Bendayan, M.; Lauzon, M.; Adams, D.M.; Soloway, A.H.; Fenstermaker, R.A.; Carlsson, J. Boronated epidermal growth factor as a potential targeting agent for boron neutron capture therapy of brain tumors. Bioconjug. Chem. 1996, 7, 7–15. [Google Scholar] [CrossRef] [PubMed]
  24. Shukla, S.; Wu, G.; Chatterjee, M.; Yang, W.L.; Sekido, M.; Diop, L.A.; Muller, R.; Sudimack, J.J.; Lee, R.J.; Barth, R.F.; et al. Synthesis and biological evaluation of folate receptor-targeted boronated PAMAM dendrimers as potential agents for neutron capture therapy. Bioconjug. Chem. 2003, 14, 158–167. [Google Scholar] [CrossRef] [PubMed]
  25. Backer, M.V.; Gaynutdinov, T.I.; Patel, V.; Bandyopadhyaya, A.K.; Thirumamagal, B.T.S.; Tjarks, W.; Barth, R.F.; Claffey, K.; Backer, J.M. Vascular endothelial growth factor selectively targets boronated dendrimers to tumor vasculature. Mol. Cancer Ther. 2005, 4, 1423–1429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Gonzalez-Campo, A.; Vinas, C.; Teixidor, F.; Nunez, R.; Sillanpaa, R.; Kivekas, R. Modular construction of neutral and anionic carboranyl-containing carbosilane-based dendrimers. Macromolecules 2007, 40, 5644–5652. [Google Scholar] [CrossRef]
  27. Djeda, R.; Ruiz, J.; Astruc, D.; Satapathy, R.; Dash, B.P.; Hosmane, N.S. “Click” Synthesis and Properties of Carborane-Appended Large Dendrimers. Inorg. Chem. 2010, 49, 10702–10709. [Google Scholar] [CrossRef]
  28. Minyaylo, E.O.; Anisimov, A.A.; Zaitsev, A.V.; Milenin, S.A.; Tikhonov, P.A.; Vyshivannaya, O.V.; Ol’shevskaya, V.A.; Nikiforova, G.G.; Buzin, M.I.; Peregudov, A.S.; et al. Boron-substituted carborane-carbosilane dendrimers: Synthesis and properties. React. Funct. Polym. 2020, 157, 104746. [Google Scholar] [CrossRef]
  29. Minyaylo, E.O.; Zubova, V.Y.; Zaitsev, A.V.; Ol’shevskaya, V.A.; Nikiforova, G.G.; Buzin, M.I.; Anisimov, A.A.; Muzafarov, A.M. Studies on the effect of polyhedral carboranes on the physicochemical properties of polycarboranosiloxanes. Polym. Chem. 2023, 14, 1514–1525. [Google Scholar] [CrossRef]
  30. Vicente, M.G.H.; Wickramasinghe, A.; Nurco, D.J.; Wang, H.J.H.; Nawrocky, M.M.; Makar, M.S.; Miura, M. Synthesis, toxicity and biodistribution of two 5,15-di 3,5-(nido-carboranylmethyl)phenyl porphyrins in EMT-6 tumor bearing mice. Bioorg. Med. Chem. 2003, 11, 3101–3108. [Google Scholar] [CrossRef]
  31. Gottumukkala, V.; Luguya, R.; Fronczek, F.R.; Vicente, M.G.H. Synthesis and cellular studies of an octa-anionic 5,10,15,20-tetra 3,5-(nido-carboranylmethyl)phenyl porphyrin (H2OCP) for application in BNCT. Bioorg. Med. Chem. 2005, 13, 1633–1640. [Google Scholar] [CrossRef]
  32. Cabrera-Gonzalez, J.; Xochitiotzi-Flores, E.; Vinas, C.; Teixidor, F.; Garcia-Ortega, H.; Farfan, N.; Santillan, R.; Parella, T.; Nunez, R. High-Boron-Content Porphyrin-Cored Aryl Ether Dendrimers: Controlled Synthesis, Characterization, and Photophysical Properties. Inorg. Chem. 2015, 54, 5021–5031. [Google Scholar] [CrossRef]
  33. Dash, B.P.; Satapathy, R.; Gaillard, E.R.; Maguire, J.A.; Hosmane, N.S. Synthesis and Properties of Carborane-Appended C-3-Symmetrical Extended pi Systems. J. Am. Chem. Soc. 2010, 132, 6578–6587. [Google Scholar] [CrossRef]
  34. Dash, B.P.; Satapathy, R.; Bode, B.P.; Reidl, C.T.; Sawicki, J.W.; Mason, A.J.; Maguire, J.A.; Hosmane, N.S. “Click” Chemistry-Mediated Phenylene-Cored Carborane Dendrimers. Organometallics 2012, 31, 2931–2935. [Google Scholar] [CrossRef]
  35. Gonzalez-Campo, A.; Ferrer-Ugalde, A.; Vinas, C.; Teixidor, F.; Sillanpaa, R.; Rodriguez-Romero, J.; Santillan, R.; Farfan, N.; Nunez, R. A Versatile Methodology for the Controlled Synthesis of Photoluminescent High-Boron-Content Dendrimers. Chem.-Eur. J. 2013, 19, 6299–6312. [Google Scholar] [CrossRef]
  36. Parrott, M.C.; Marchington, E.B.; Valliant, J.F.; Adronov, A. Synthesis and properties of carborane-functionalized aliphatic polyester dendrimers. J. Am. Chem. Soc. 2005, 127, 12081–12089. [Google Scholar] [CrossRef]
  37. Lerouge, F.; Vinas, C.; Teixidor, F.; Nunez, R.; Abreu, A.; Xochitiotzi, E.; Santillan, R.; Farfan, N. High boron content carboranyl-functionalized aryl ether derivatives displaying photoluminescent properties. Dalton Trans. 2007, 1898–1903. [Google Scholar] [CrossRef]
  38. Jena, B.B.; Jena, S.R.; Swain, B.R.; Mahanta, C.S.; Samanta, L.; Dash, B.P.; Satapathy, R. Triazine-cored dendritic molecules containing multiple o-carborane clusters. Appl. Organomet. Chem. 2020, 34, e5754. [Google Scholar] [CrossRef]
  39. Newkome, G.R.; Moorefield, C.N.; Keith, J.M.; Baker, G.R.; Escamilla, G.H. Chemistry within a unimolecular micelle precursor—Boron superclusters by site-specific and depth-specific transformation of dendrimers. 37. Chemistry of micelles. Angew. Chem. Int. Ed. Engl. 1994, 33, 666–668. [Google Scholar] [CrossRef]
  40. Newkome, G.R.; Moorefield, C.N. Metallo- and metalloido-micellane™ derivatives—Incorporation of metals and nonmetals within unimolecular superstructures. Macromol. Symp. 1994, 77, 63–71. [Google Scholar] [CrossRef]
  41. Parrott, M.C.; Valliant, J.F.; Adronov, A. Thermally induced phase transition of carborane-functionalized aliphatic polyester dendrimers in aqueous media. Langmuir 2006, 22, 5251–5255. [Google Scholar] [CrossRef]
  42. Dash, B.P.; Satapathy, R.; Maguire, J.A.; Hosmane, N.S. Synthesis of a new class of carborane-containing star-shaped molecules via silicon tetrachloride promoted cyclotrimerization reactions. Org. Lett. 2008, 10, 2247–2250. [Google Scholar] [CrossRef]
  43. Minyaylo, E.O.; Zaitsev, A.V.; Ol’shevskaya, V.A.; Peregudov, A.S.; Anisimov, A.A. The CH-functionalization of B-substituted organosilicon derivatives of polyhedral carboranes as a way to obtain new materials. Mendeleev Commun. 2023, 33, 47–49. [Google Scholar] [CrossRef]
  44. Swain, B.R.; Jena, S.R.; Beriha, S.K.; Mahanta, C.S.; Jena, B.B.; Prasanth, T.; Samanta, L.; Satapathy, R.; Dash, B.P. Synthesis and anticancer properties of dendritic glycoconjugates containing multiple o-carborane clusters. New J. Chem. 2023, 47, 10296–10308. [Google Scholar] [CrossRef]
  45. Nemoto, H.; Wilson, J.G.; Nakamura, H.; Yamamoto, Y. Polyols of a cascade type as a water-solubilizing element of carborane derivatives for Boron Neutron-Capture Therapy. J. Org. Chem. 1992, 57, 435. [Google Scholar] [CrossRef]
  46. Nemoto, H.; Cai, J.P.; Yamamoto, Y. Synthesis of a water-soluble o-carborane bearing a uracil moiety via a palladium-catalyzed reaction under essential neutral conditions. J. Chem. Soc.-Chem. Commun. 1994, 577–578. [Google Scholar] [CrossRef]
  47. Yamamoto, Y.; Cai, J.P.; Nakamura, H.; Sadayori, N.; Asao, N.; Nemoto, H. Synthesis of Netropsin and Distamycin analogs bearing O-carborane and their DNA recognition. J. Org. Chem. 1995, 60, 3352–3357. [Google Scholar] [CrossRef]
  48. Swain, B.R.; Mahanta, C.S.; Jena, B.B.; Beriha, S.K.; Nayak, B.; Satapathy, R.; Dash, B.P. Preparation of dendritic carboranyl glycoconjugates as potential anticancer therapeutics. RSC Adv. 2020, 10, 34764–34774. [Google Scholar] [CrossRef] [PubMed]
  49. Stocker, W.; Karakaya, B.; Schurmann, B.L.; Rabe, J.P.; Schluter, A.D. Ordered dendritic nanorods with a poly(p-phenylene) backbone. J. Am. Chem. Soc. 1998, 120, 7691–7695. [Google Scholar] [CrossRef]
  50. Benhabbour, S.R.; Parrott, M.C.; Gratton, S.E.A.; Adronov, A. Synthesis and properties of carborane-containing dendronized polymers. Macromolecules 2007, 40, 5678–5688. [Google Scholar] [CrossRef]
  51. Qualmann, B.; Kessels, M.M.; Musiol, H.J.; Sierralta, W.D.; Jungblut, P.W.; Moroder, L. Synthesis of boron-rich lysine dendrimers as protein labels in electron microscopy. Angew. Chem. Int. Ed. Engl. 1996, 35, 909–911. [Google Scholar] [CrossRef]
  52. Michiue, H.; Sakurai, Y.; Kondo, N.; Kitamatsu, M.; Bin, F.; Nakajima, K.; Hirota, Y.; Kawabata, S.; Nishiki, T.-I.; Ohmori, I.; et al. The acceleration of boron neutron capture therapy using multi-linked mercaptoundecahydrododecaborate (BSH) fused cell-penetrating peptide. Biomaterials 2014, 35, 3396–3405. [Google Scholar] [CrossRef]
  53. Galie, K.M.; Mollard, A.; Zharov, I. Polyester-based carborane-containing dendrons. Inorg. Chem. 2006, 45, 7815–7820. [Google Scholar] [CrossRef]
  54. Mollard, A.; Zharov, I. Tricarboranyl pentaerythritol-based building block. Inorg. Chem. 2006, 45, 10172–10179. [Google Scholar] [CrossRef]
  55. Caminade, A.M.; Laurent, R.; Delavaux-Nicot, B.; Majoral, J.P. “Janus” dendrimers: Syntheses and properties. New J. Chem. 2012, 36, 217–226. [Google Scholar] [CrossRef]
  56. Lai, C.H.; Lin, Y.C.; Chou, F.I.; Liang, C.F.; Lin, E.W.; Chuang, Y.J.; Lin, C.C. Design of multivalent galactosyl carborane as a targeting specific agent for potential application to boron neutron capture therapy. Chem. Commun. 2012, 48, 612–614. [Google Scholar] [CrossRef]
  57. Dubey, R.; Kushal, S.; Mollard, A.; Vojtovich, L.; Oh, P.; Levin, M.D.; Schnitzer, J.E.; Zharov, I.; Olenyuk, B.Z. Tumor Targeting, Trifunctional Dendritic Wedge. Bioconjug. Chem. 2015, 26, 78–89. [Google Scholar] [CrossRef] [Green Version]
  58. Hu, N.; Tanaka, H.; Kakino, R.; Yoshikawa, S.; Miyao, M.; Akita, K.; Isohashi, K.; Aihara, T.; Nihei, K.; Ono, K. Evaluation of a treatment planning system developed for clinical boron neutron capture therapy and validation against an independent Monte Carlo dose calculation system. Radiat. Oncol. 2021, 16, 243. [Google Scholar] [CrossRef]
  59. Wu, G.; Barth, R.F.; Yang, W.L.; Chatterjee, M.; Tjarks, W.; Ciesielski, M.J.; Fenstermaker, R.A. Site-specific conjugation of boron-containing dendrimers to anti-EGF receptor monoclonal antibody cetuximab (IMC-C225) and its evaluation as a potential delivery agent for neutron capture therapy. Bioconjug. Chem. 2004, 15, 185–194. [Google Scholar] [CrossRef]
  60. Luderer, M.J.; de la Puente, P.; Azab, A.K. Advancements in Tumor Targeting Strategies for Boron Neutron Capture Therapy. Pharm. Res. 2015, 32, 2824–2836. [Google Scholar] [CrossRef]
  61. Barth, R.F.; Yang, W.L.; Adams, D.M.; Rotaru, J.H.; Shukla, S.; Sekido, M.; Tjarks, W.; Fenstermaker, R.A.; Ciesielski, M.; Nawrocky, M.M.; et al. Molecular targeting of the epidermal growth factor receptor for neutron capture therapy of gliomas. Cancer Res. 2002, 62, 3159–3166. [Google Scholar]
  62. Yang, W.L.; Barth, R.F.; Wu, G.; Bandyopadhyaya, A.K.; Thirumamagal, B.T.S.; Tjarks, W.; Binns, P.J.; Riley, K.; Patel, H.; Coderre, J.A.; et al. Boronated epidermal growth factor as a delivery agent for neutron capture therapy of EGF receptor positive gliomas. Appl. Radiat. Isot. 2004, 61, 981–985. [Google Scholar] [CrossRef]
  63. Barth, R.F.; Wu, G.; Yang, W.L.; Binns, P.J.; Riley, K.J.; Patel, H.; Coderre, J.A.; Tjarks, W.; Bandyopadhyaya, A.K.; Thirumamagal, B.T.S.; et al. Neutron capture therapy of epidermal growth factor (plus) gliomas using boronated cetuximab (IMC-C225) as a delivery agent. Appl. Radiat. Isot. 2004, 61, 899–903. [Google Scholar] [CrossRef] [PubMed]
  64. Wu, G.; Yang, W.L.; Barth, R.F.; Kawabata, S.; Swindall, M.; Bandyopadhyaya, A.K.; Tjarks, W.; Khorsandi, B.; Blue, T.E.; Ferketich, A.K.; et al. Molecular targeting and treatment of an epidermal growth factor receptor-positive glioma using boronated cetuximab. Clin. Cancer Res. 2007, 13, 1260–1268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Yang, W.L.; Barth, R.F.; Wu, G.; Huo, T.Y.; Tjarks, W.; Ciesielski, M.; Fenstermaker, R.A.; Ross, B.D.; Wikstrand, C.J.; Riley, K.J.; et al. Convection enhanced delivery of boronated EGF as a molecular targeting agent for neutron capture therapy of brain tumors. J. Neuro-Oncol. 2009, 95, 355–365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Yang, W.L.; Barth, R.F.; Wu, G.; Kawabata, S.; Sferra, T.J.; Bandyopadhyaya, A.K.; Tjarks, W.; Ferketich, A.K.; Moeschberger, M.L.; Binns, P.J.; et al. Molecular targeting and treatment of EGFRvIII-positive gliomas using boronated monoclonal antibody L8A4. Clin. Cancer Res. 2006, 12, 3792–3802. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Yang, W.L.; Wu, G.; Barth, R.F.; Swindall, M.R.; Bandyopadhyaya, A.K.; Tjarks, W.; Tordoff, K.; Moeschberger, M.; Sferra, T.J.; Binns, P.J.; et al. Molecular targeting and treatment of composite EGFR and EGFRvIII-positive gliomas using boronated monoclonal antibodies. Clin. Cancer Res. 2008, 14, 883–891. [Google Scholar] [CrossRef] [Green Version]
  68. Yang, W.; Barth, R.F.; Wu, G.; Tjarks, W.; Binns, P.; Riley, K. Boron neutron capture therapy of EGFR or EGFRvIII positive gliomas using either boronated monoclonal antibodies or epidermal growth factor as molecular targeting agents. Appl. Radiat. Isot. 2009, 67, S328–S331. [Google Scholar] [CrossRef]
  69. Available online: https://isnct.net/bnct-boron-neutron-capture-therapy/accelerator-based-bnct-projects-2021/ (accessed on 10 July 2023).
  70. Nunez, R.; Romero, I.; Teixidor, F.; Vinas, C. Icosahedral boron clusters: A perfect tool for the enhancement of polymer features. Chem. Soc. Rev. 2016, 45, 5147–5173. [Google Scholar] [CrossRef] [Green Version]
  71. Sumitani, S.; Nagasaki, Y. Boron neutron capture therapy assisted by boron-conjugated nanoparticles. Polym. J. 2012, 44, 522–530. [Google Scholar] [CrossRef] [Green Version]
  72. Carlsson, J.; Kullberg, E.B.; Capala, J.; Sjoberg, S.; Edwards, K.; Gedda, L. Ligand liposomes and boron neutron capture therapy. J. Neuro-Oncol. 2003, 62, 47–59. [Google Scholar] [CrossRef]
  73. Liu, P.; Chen, G.L.; Zhang, J.C. A Review of Liposomes as a Drug Delivery System: Current Status of Approved Products, Regulatory Environments, and Future Perspectives. Molecules 2022, 27, 1372. [Google Scholar] [CrossRef]
  74. Caminade, A.-M. Dendrimers, an Emerging Opportunity in Personalized Medicine? J. Pers. Med. 2022, 12, 1334. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 15 02117 sch001
Scheme 1. Synthesis of ortho-, meta-, and para-carborane (1,2-, 1,7-, and 1,12-closo-dicarbadodecaborane, respectively).
Scheme 1. Synthesis of ortho-, meta-, and para-carborane (1,2-, 1,7-, and 1,12-closo-dicarbadodecaborane, respectively).
Pharmaceutics 15 02117 sch001
Pharmaceutics 15 02117 sch002
Scheme 2. Reaction of 10B with low energy thermal neutrons used in BNCT.
Scheme 2. Reaction of 10B with low energy thermal neutrons used in BNCT.
Pharmaceutics 15 02117 sch002
Pharmaceutics 15 02117 g001

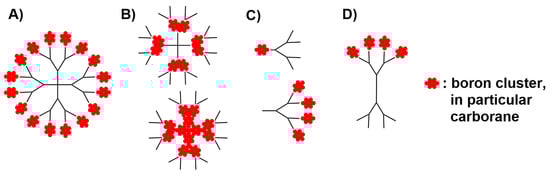

Figure 1. Different locations of boron clusters in dendritic compounds: surface of dendrimers (A), branches of dendrimers (B), core or surface of dendrons (C), and part of the surface of Janus dendrimers (D).
Figure 1. Different locations of boron clusters in dendritic compounds: surface of dendrimers (A), branches of dendrimers (B), core or surface of dendrons (C), and part of the surface of Janus dendrimers (D).
Pharmaceutics 15 02117 g001
Pharmaceutics 15 02117 sch003

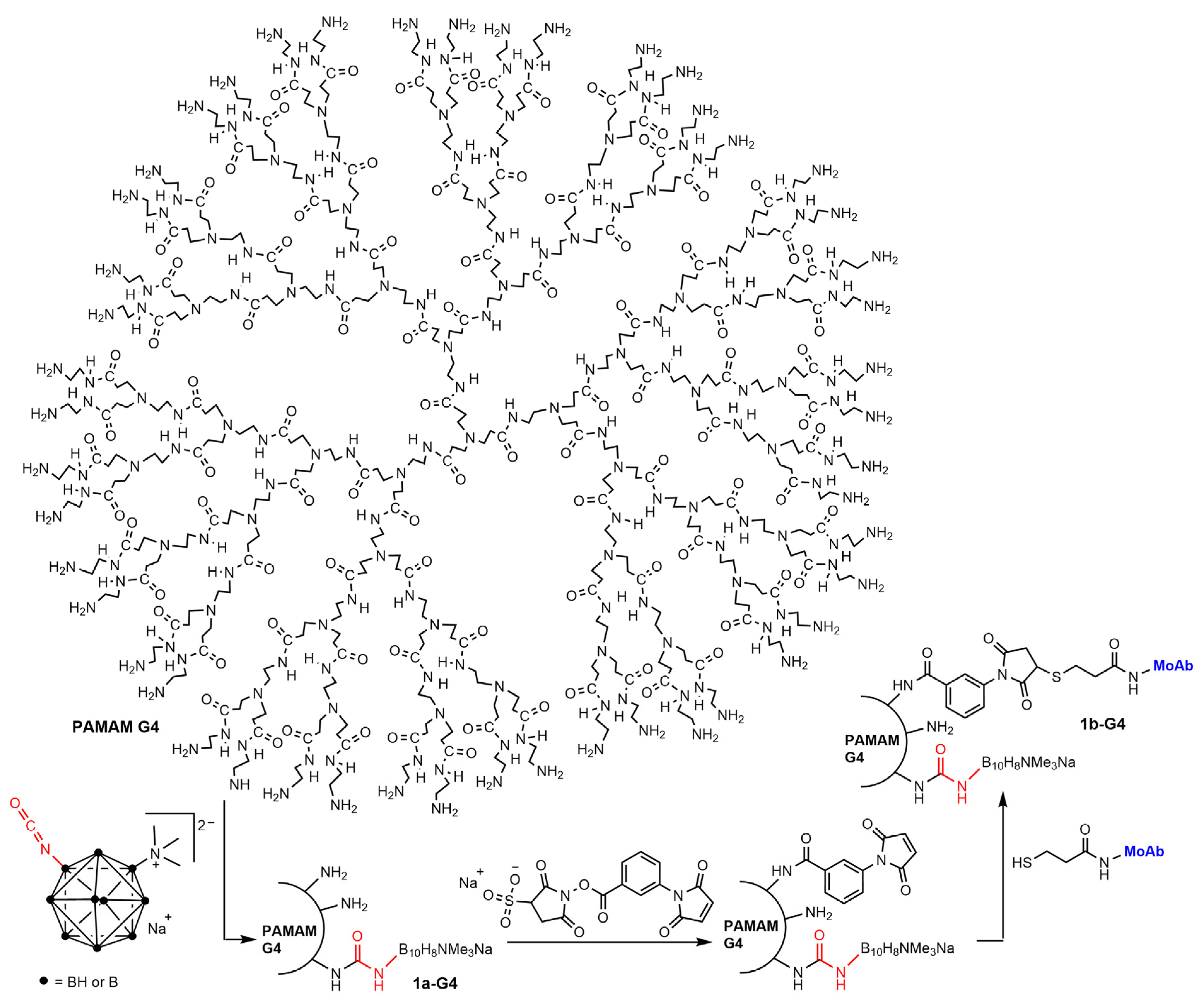

Scheme 3. Full chemical structure of a generation 4 PAMAM dendrimer, and the stochastic grafting of B10 boron clusters and of a monoclonal antibody (MoAb) on its surface.
Scheme 3. Full chemical structure of a generation 4 PAMAM dendrimer, and the stochastic grafting of B10 boron clusters and of a monoclonal antibody (MoAb) on its surface.
Pharmaceutics 15 02117 sch003
Pharmaceutics 15 02117 sch004
Scheme 4. A first generation carbosilane dendrimer functionalized with eight carboranes.
Scheme 4. A first generation carbosilane dendrimer functionalized with eight carboranes.
Pharmaceutics 15 02117 sch004
Pharmaceutics 15 02117 sch005
Scheme 5. Carbosilane dendrimers functionalized with carboranes by CuAAC click reactions.
Scheme 5. Carbosilane dendrimers functionalized with carboranes by CuAAC click reactions.
Pharmaceutics 15 02117 sch005
Pharmaceutics 15 02117 sch006
Scheme 6. Carborane−carbosilane dendrimers functionalized by hydrothiolation.
Scheme 6. Carborane−carbosilane dendrimers functionalized by hydrothiolation.
Pharmaceutics 15 02117 sch006
Pharmaceutics 15 02117 sch007
Scheme 7. Porphyrin-cored first generation carborane dendrimers, either free (b) or complexing Zn (a).
Scheme 7. Porphyrin-cored first generation carborane dendrimers, either free (b) or complexing Zn (a).
Pharmaceutics 15 02117 sch007
Pharmaceutics 15 02117 sch008
Scheme 8. Synthesis of a generation 2 carborane dendrimer built from a porphyrin core. Generations 0, 1, and 3 were also synthesized.
Scheme 8. Synthesis of a generation 2 carborane dendrimer built from a porphyrin core. Generations 0, 1, and 3 were also synthesized.
Pharmaceutics 15 02117 sch008
Pharmaceutics 15 02117 sch009
Scheme 9. Trimerization of a ketone for the synthesis of first generation carborane dendrimers.
Scheme 9. Trimerization of a ketone for the synthesis of first generation carborane dendrimers.
Pharmaceutics 15 02117 sch009
Pharmaceutics 15 02117 sch010
Scheme 10. Synthesis of first generation carborane dendrimers obtained by CuAAC reactions, bearing either six (9a-G1) or nine (9b-G1) carboranes.
Scheme 10. Synthesis of first generation carborane dendrimers obtained by CuAAC reactions, bearing either six (9a-G1) or nine (9b-G1) carboranes.
Pharmaceutics 15 02117 sch010
Pharmaceutics 15 02117 sch011
Scheme 11. Hydrosilylation reactions for the synthesis of first generation carborane dendrimers 10a-G1 (Z = CH2, R = Me), 10b-G1 (Z = CH2, R = Ph), 10c-G1 (Z = CH2C6H4, R = Me), and 10d-G1 (Z = CH2 C6H4, R = Ph).
Scheme 11. Hydrosilylation reactions for the synthesis of first generation carborane dendrimers 10a-G1 (Z = CH2, R = Me), 10b-G1 (Z = CH2, R = Ph), 10c-G1 (Z = CH2C6H4, R = Me), and 10d-G1 (Z = CH2 C6H4, R = Ph).
Pharmaceutics 15 02117 sch011
Pharmaceutics 15 02117 sch012
Scheme 12. Synthesis of two types of para-carborane polyester dendrimers, functionalized on their surface with either TBDPS (A) or benzyl ether (B).
Scheme 12. Synthesis of two types of para-carborane polyester dendrimers, functionalized on their surface with either TBDPS (A) or benzyl ether (B).
Pharmaceutics 15 02117 sch012
Pharmaceutics 15 02117 sch013
Scheme 13. A small arylether dendrimer functionalized with carboranes.
Scheme 13. A small arylether dendrimer functionalized with carboranes.
Pharmaceutics 15 02117 sch013
Pharmaceutics 15 02117 sch014
Scheme 14. Triazine-cored arylether dendrimers functionalized with six (14a-G1) or nine (14b-G1) carborane units.
Scheme 14. Triazine-cored arylether dendrimers functionalized with six (14a-G1) or nine (14b-G1) carborane units.
Pharmaceutics 15 02117 sch014
Pharmaceutics 15 02117 sch015

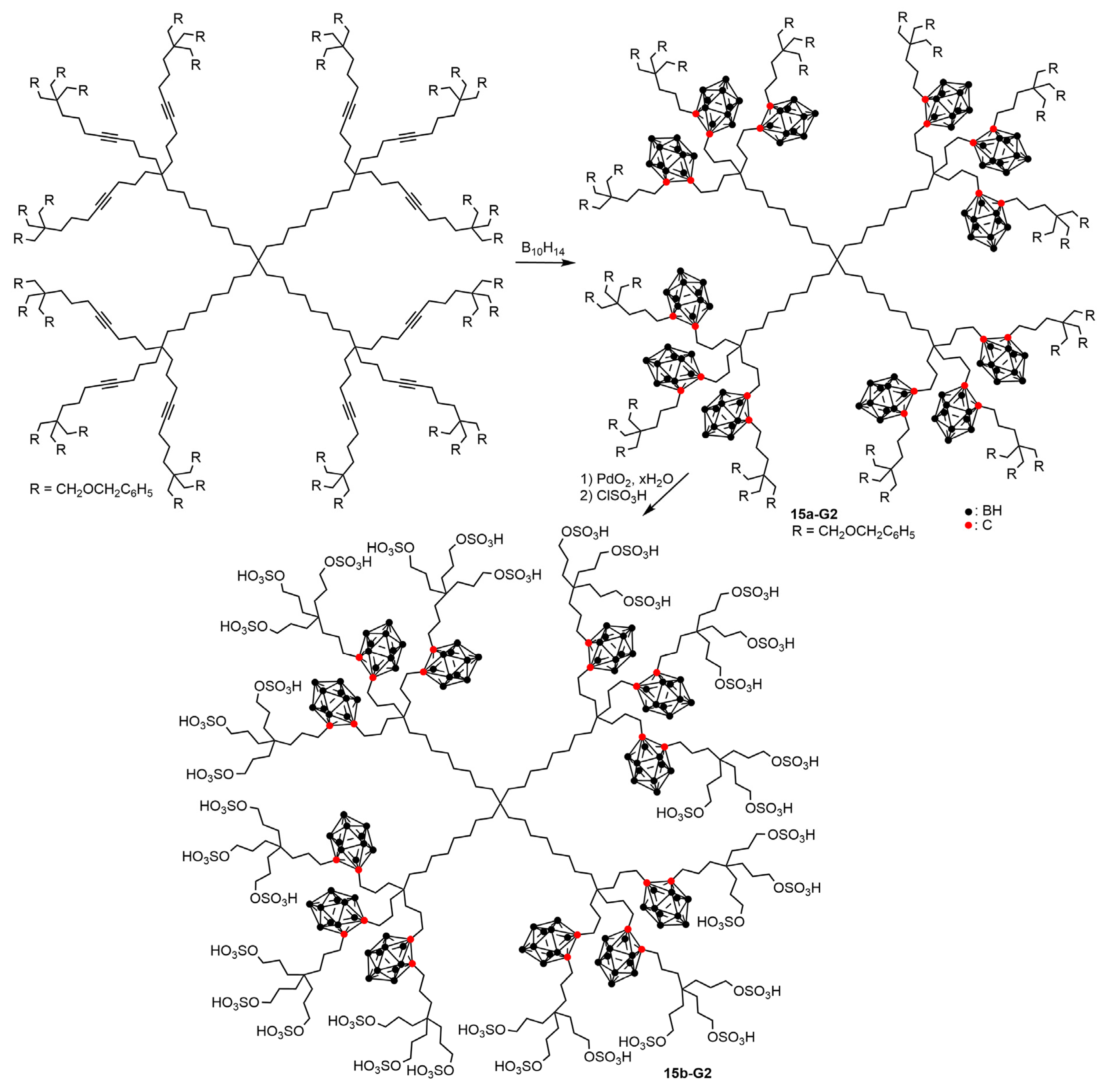

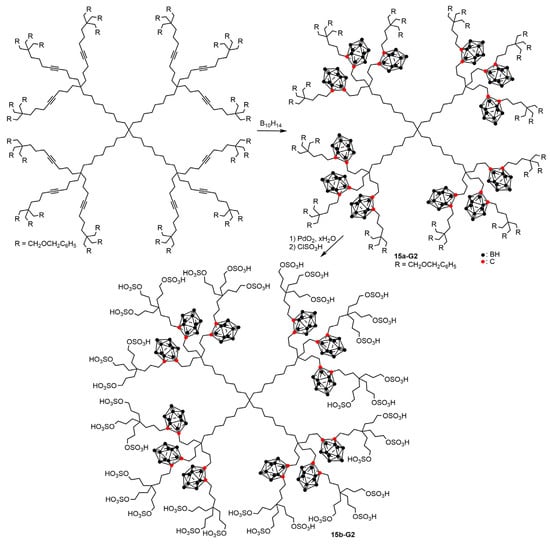

Scheme 15. Addition of decaborane to internal alkynes of hydrocarbon dendrimers, and subsequent transformation of the terminal functions to obtain a water-soluble dendrimer.
Scheme 15. Addition of decaborane to internal alkynes of hydrocarbon dendrimers, and subsequent transformation of the terminal functions to obtain a water-soluble dendrimer.
Pharmaceutics 15 02117 sch015
Pharmaceutics 15 02117 sch016
Scheme 16. Step-by-step synthesis of dendrimer 16-G5 from dendrimer 12-G2 by repetition of step i) Pd/C, H2, and step ii) 2,2-bis(hydroxymethyl)propanoic acid.
Scheme 16. Step-by-step synthesis of dendrimer 16-G5 from dendrimer 12-G2 by repetition of step i) Pd/C, H2, and step ii) 2,2-bis(hydroxymethyl)propanoic acid.
Pharmaceutics 15 02117 sch016
Pharmaceutics 15 02117 sch017
Scheme 17. A small carbosilane dendrimer having carboranes inside its structure.
Scheme 17. A small carbosilane dendrimer having carboranes inside its structure.
Pharmaceutics 15 02117 sch017
Pharmaceutics 15 02117 sch018
Scheme 18. Another example of a small carbosilane–carborane dendrimer.
Scheme 18. Another example of a small carbosilane–carborane dendrimer.
Pharmaceutics 15 02117 sch018
Pharmaceutics 15 02117 sch019

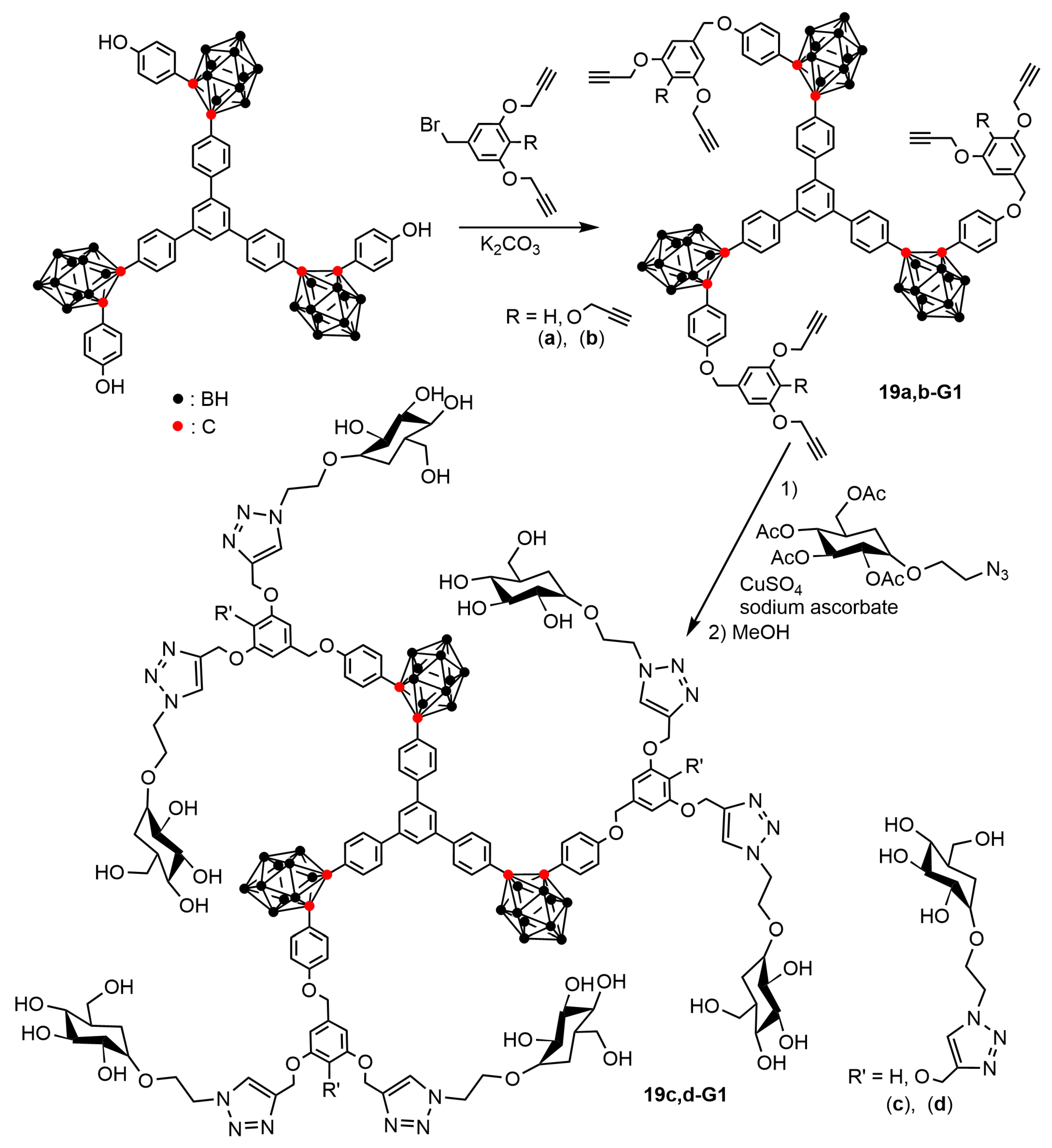

Scheme 19. Dendrimer functionalized with carborane and either 6 (19c-G1) or 9 (19d-G1) glucose derivatives.
Scheme 19. Dendrimer functionalized with carborane and either 6 (19c-G1) or 9 (19d-G1) glucose derivatives.
Pharmaceutics 15 02117 sch019
Pharmaceutics 15 02117 sch020
Scheme 20. Examples of polyether dendrons with one carborane attached to the core and a variety of additional functionalities.
Scheme 20. Examples of polyether dendrons with one carborane attached to the core and a variety of additional functionalities.
Pharmaceutics 15 02117 sch020
Pharmaceutics 15 02117 sch021

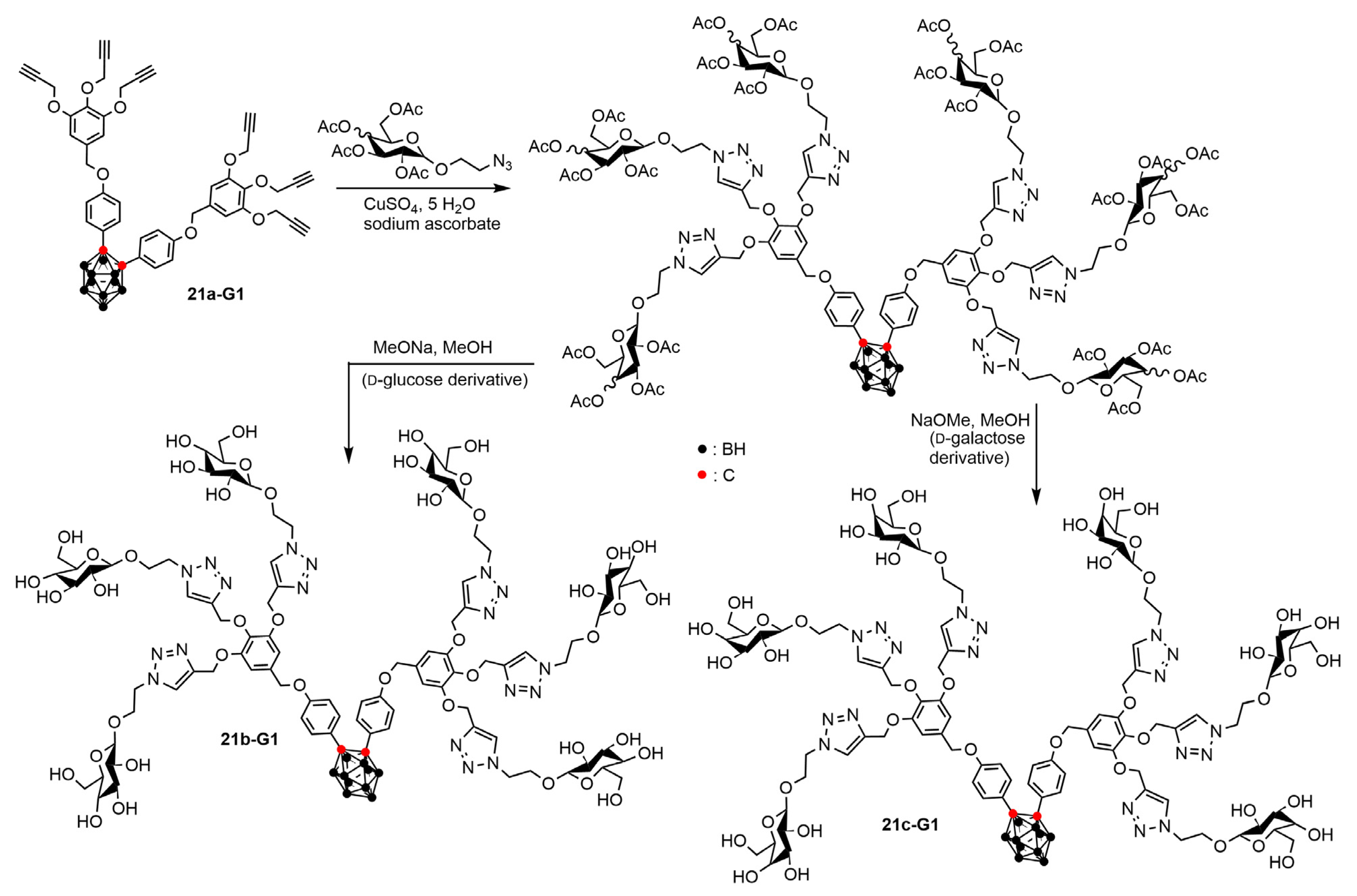

Scheme 21. Carborane dendrons functionalized with D-glucose (21b-G1) or D-galactose (21c-G1) derivatives.
Scheme 21. Carborane dendrons functionalized with D-glucose (21b-G1) or D-galactose (21c-G1) derivatives.
Pharmaceutics 15 02117 sch021
Pharmaceutics 15 02117 sch022

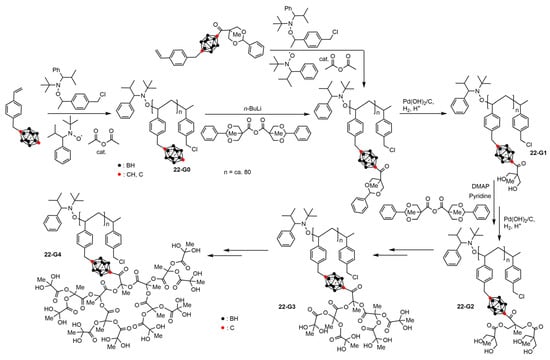

Scheme 22. Synthesis of carborane polymers, followed by the growth of dendritic branches.
Scheme 22. Synthesis of carborane polymers, followed by the growth of dendritic branches.
Pharmaceutics 15 02117 sch022
Pharmaceutics 15 02117 g002
Figure 2. Structure of a poly-L-lysine carborane dendron.
Figure 2. Structure of a poly-L-lysine carborane dendron.
Pharmaceutics 15 02117 g002
Pharmaceutics 15 02117 sch023
Scheme 23. Another lysine-based peptide dendron functionalized with boron clusters on the surface.
Scheme 23. Another lysine-based peptide dendron functionalized with boron clusters on the surface.
Pharmaceutics 15 02117 sch023
Pharmaceutics 15 02117 sch024

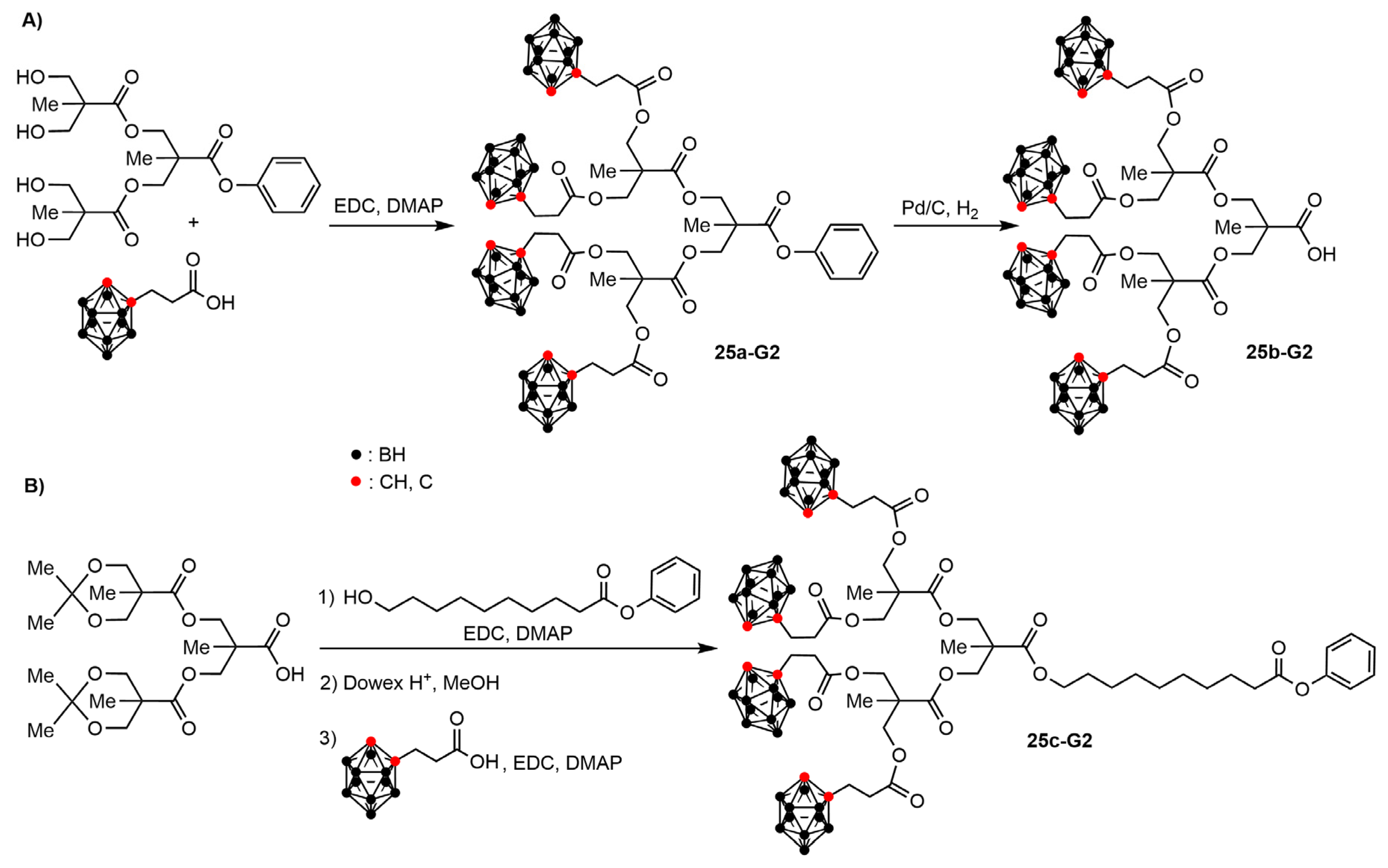

Scheme 24. Several types of polyester carborane dendrons having either a carboxylic acid (A) or a benzyl-10-hydroxydecanoate (B).
Scheme 24. Several types of polyester carborane dendrons having either a carboxylic acid (A) or a benzyl-10-hydroxydecanoate (B).
Pharmaceutics 15 02117 sch024
Pharmaceutics 15 02117 sch025
Scheme 25. Polyester carborane dendron obtained by a convergent process.
Scheme 25. Polyester carborane dendron obtained by a convergent process.
Pharmaceutics 15 02117 sch025
Pharmaceutics 15 02117 sch026
Scheme 26. A small Janus dendrimer bearing carboranes on one side synthesized by CuAAC.
Scheme 26. A small Janus dendrimer bearing carboranes on one side synthesized by CuAAC.
Pharmaceutics 15 02117 sch026
Pharmaceutics 15 02117 sch027

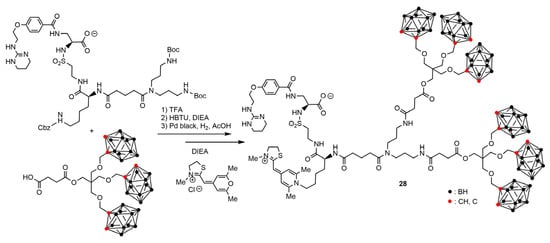

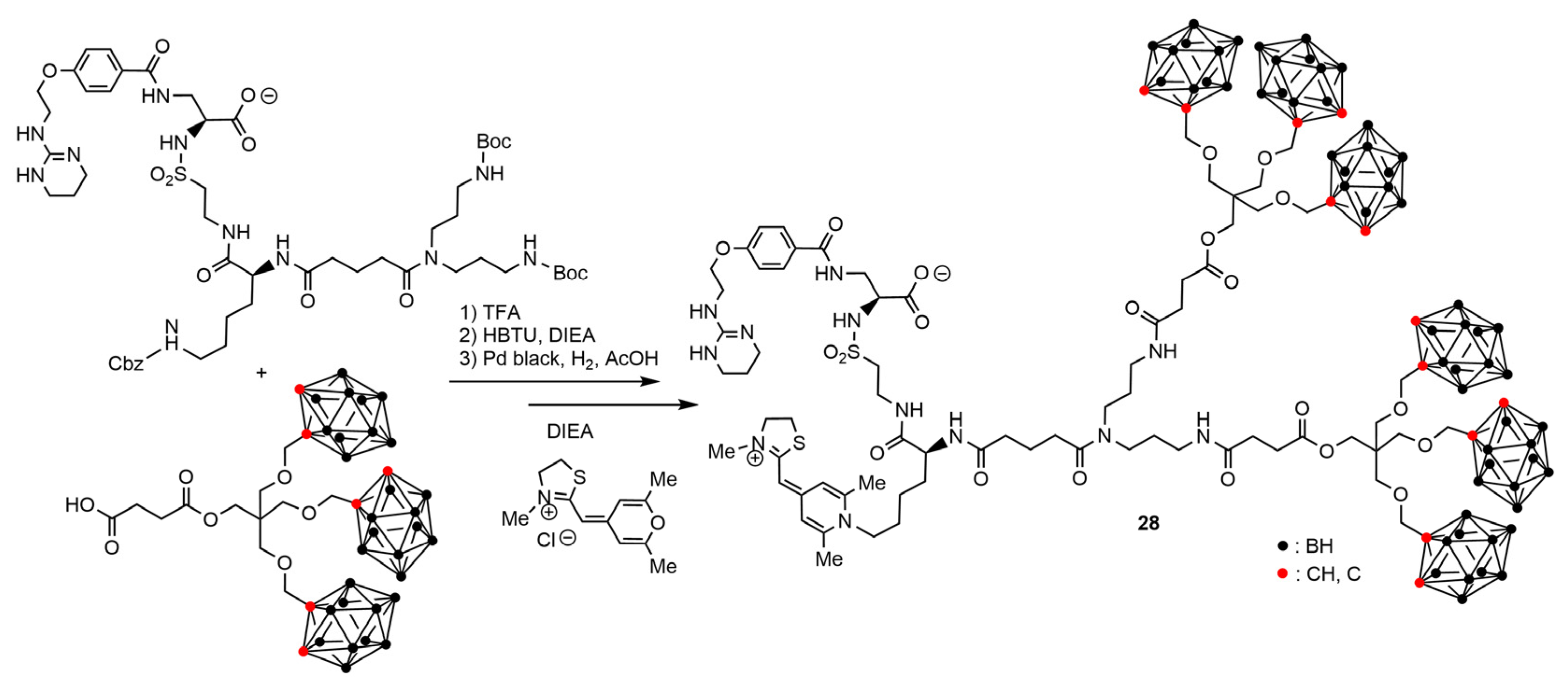

Scheme 27. Last steps of the synthesis of a multifunctional Janus dendrimer.
Scheme 27. Last steps of the synthesis of a multifunctional Janus dendrimer.
Pharmaceutics 15 02117 sch027
Pharmaceutics 15 02117 g003
Figure 3. Schematic structure of boronated PAMAM G5 functionalized with cetuximab.
Figure 3. Schematic structure of boronated PAMAM G5 functionalized with cetuximab.
Pharmaceutics 15 02117 g003
Pharmaceutics 15 02117 g004
Figure 4. Schematic depiction of VEGF (gray rectangles) and its functionalization with several boronated fluorescent PAMAM dendrimers.
Figure 4. Schematic depiction of VEGF (gray rectangles) and its functionalization with several boronated fluorescent PAMAM dendrimers.
Pharmaceutics 15 02117 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Caminade, A.-M.; Milewski, M.; Hey-Hawkins, E. Dendritic Structures Functionalized with Boron Clusters, in Particular Carboranes, and Their Biological Properties. Pharmaceutics 2023, 15, 2117. https://doi.org/10.3390/pharmaceutics15082117

AMA Style

Caminade A-M, Milewski M, Hey-Hawkins E. Dendritic Structures Functionalized with Boron Clusters, in Particular Carboranes, and Their Biological Properties. Pharmaceutics. 2023; 15(8):2117. https://doi.org/10.3390/pharmaceutics15082117

Chicago/Turabian Style

Caminade, Anne-Marie, Max Milewski, and Evamarie Hey-Hawkins. 2023. "Dendritic Structures Functionalized with Boron Clusters, in Particular Carboranes, and Their Biological Properties" Pharmaceutics 15, no. 8: 2117. https://doi.org/10.3390/pharmaceutics15082117

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
