Article

High-Performance Hybrid Phototheranostics for NIR-IIb Fluorescence Imaging and NIR-II-Excitable Photothermal Therapy

by
Qi Wang
1,
Xinmin Zhang
1,
Youguang Tang
1,
Yanwei Xiong
1,
Xu Wang
1,
Chunlai Li
2,*,
Tangxin Xiao
3,
Feng Lu
1,* and
Mengze Xu
4,*
1
State Key Laboratory for Organic Electronics and Information Displays & Institute of Advanced Materials (IAM), Nanjing University of Posts & Telecommunications, Nanjing 210023, China
2
Department of Liver Surgery, Shanghai Institute of Transplantation, Shanghai Engineering Research Center of Transplantation and Immunology, Renji Hospital, School of Medicine, Shanghai Jiao Tong University, Shanghai 200127, China
3
Jiangsu Key Laboratory of Advanced Catalytic Materials and Technology, School of Petrochemical Engineering, Changzhou University, Changzhou 213164, China
4
Center for Cognition and Neuroergonomics, State Key Laboratory of Cognitive Neuroscience and Learning, Beijing Normal University, Zhuhai 519087, China
*
Authors to whom correspondence should be addressed.
Pharmaceutics 2023, 15(8), 2027; https://doi.org/10.3390/pharmaceutics15082027
Submission received: 25 June 2023 / Revised: 20 July 2023 / Accepted: 25 July 2023 / Published: 27 July 2023
(This article belongs to the Special Issue Research on Nanomaterial Applications in Photothermal Therapy for Cancer)
Browse Figures
Versions Notes

Abstract

:
Photothermal therapy operated in the second near-infrared (NIR-II, 1000–1700 nm) window and fluorescence imaging in the NIR-IIb (1500–1700 nm) region have become the most promising techniques in phototheranostics. Their combination enables simultaneous high-resolution optical imaging and deep-penetrating phototherapy, which is essential for high-performance phototheranostics. Herein, carboxyl-functionalized small organic photothermal molecules (Se-TC) and multi-layered NIR-IIb emissive rare-earth-doped nanoparticles (NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4, RENP) were rationally designed and successfully synthesized. Then, high-performance hybrid phototheranostic nanoagents (Se-TC@RENP@F) were easily constructed through the coordination between Se-TC and RENP and followed by subsequent F127 encapsulation. The carboxyl groups of Se-TC can offer strong binding affinity towards rare-earth-doped nanoparticles, which help improving the stability of Se-TC@RENP@F. The multilayered structure of RENP largely enhance the NIR-IIb emission under 808 nm excitation. The obtained Se-TC@RENP@F exhibited high 1064 nm absorption (extinction coefficient: 24.7 L g−1 cm−1), large photothermal conversion efficiency (PCE, 36.9%), good NIR-IIb emission (peak: 1545 nm), as well as great photostability. Upon 1064 nm laser irradiation, high hyperthermia can be achieved to kill tumor cells efficiently. In addition, based on the excellent NIR-IIb emission of Se-TC@RENP@F, in vivo angiography and tumor detection can be realized. This work provides a distinguished paradigm for NIR-IIb-imaging-guided NIR-II photothermal therapy and establishes an artful strategy for high-performance phototheranostics.

1. Introduction

Phototheranostics, which converts absorbed light into diagnosis signals and therapeutic functions, allowing real-time optical imaging and in situ phototherapy, has been considered as one of the burgeoning fields for both fundamental research and clinical applications [1,2,3]. Phototheranostics offers prominent advantages in the aspects of sensitive real-time diagnosis and simultaneous phototherapy with high spatiotemporal accuracy. This technique has been confirmed as an outstanding methodology for cancer theranostics. Indeed, optical imaging provides real-time high-resolution imaging from organelles to organs and has been widely investigated for pathological assay, clinical diagnosis, and imaging-guided surgery [4,5,6]. Meanwhile, phototherapy, including photothermal therapy (PTT), photodynamic therapy (PDT), and photocatalytic therapy, offers wonderful controllability, high treatment specificity, and low damage for normal tissues [7,8,9,10,11]. Therefore, extensive efforts have been dedicated to constructing highly efficient platforms for tumor phototheranostics recently.
Among all the phototherapy methodologies, photothermal therapy (PTT), which adopts photothermal agents (PTAs) to convert absorbed photons into hyperthermia, is an attractive tumor treatment modality [12,13,14,15,16]. Numerous studies have demonstrated that photothermal therapy exhibits remarkable efficacy in cancer treatment [17,18,19]. Compared to the traditional treatments like radiotherapy and chemotherapy, PTT possesses the superiorities of non-invasiveness, remote controllability, minimal side effects, and insignificant drug resistance [20,21,22]. To improve the efficiency of PTT, tremendous efforts have been made on the construction of high-performance PTAs. For instance, a BODIPY-based PTA with ultra-high photothermal conversion efficiency (PCE, 88.3%) was designed by Peng and co-workers via incorporating a barrier-free rotor in the meso-position [23]. However, the excitation wavelengths of the current PTT systems are mostly within the range of 650–900 nm (traditional near-infrared window, NIR-I), which inevitably impair the treatment outcome of deep-seated tumors due to the limited tissue penetration depth and strong background tissue absorption [24,25,26,27]. It is widely known that the absorption and scattering of light in biological tissue decrease as the light wavelength increases, achieving deeper tissue penetration and higher maximum permissible exposure (MPE) [28,29,30,31]. For instance, the MPE for a 1064 nm laser was 1 W/cm2, which was much higher than for a 808 nm laser (0.33 W/cm2). The higher MPE and tissue penetration will lead to significantly improved treatment outcomes of PTT. As a result, the fabrication of second near-infrared (NIR-II, 1000–1700 nm) light-responsive PTAs has great potential to realize outstanding therapeutic effect and become the leading topic of PTT research. Note that a majority of NIR-II-responsive PTAs are inorganic and polymer nanoparticles at present [32,33,34,35], while small-molecule-based NIR-II PTAs would be more promising because of their clear chemical structures, synthetic reproducibility, high biocompatibility, and tunable functional groups [36,37,38,39]. However, the design of NIR-II-responsive small-molecule-based PTAs is rather difficult, and NIR-II-absorbing small molecules with high photothermal efficiency and photostability are very scarce.
For optical imaging, NIR-I fluorescence imaging (FLI) has been proven to be an effective tool for the monitoring of oncotherapy owing to its irreplaceable superiorities of non-invasiveness, rapid feedback, low cost, and high sensitivity [40,41,42]. Nevertheless, the auto-fluorescence and photon scattering from the tissue, and the limited penetration depth of photons (the key issues for FLI) in NIR-I FLI are still huge unmet standards for high-quality bioimaging. To overcome these limitations, NIR-II fluorescence emission has been adopted as a novel FLI technique for in vivo imaging with high spatio-temporal resolution and large signal-to-background ratio (SBR), owing to the low tissue auto-fluorescence, reduced photon scattering, and deep tissue penetration [43,44,45,46,47,48]. NIR-II fluorescence imaging was considered as an unprecedented technique for optical imaging, which enables admirable imaging quality in vivo, especially for deeply buried tissues. This technique has even been applied for imaging-guided liver cancer resection in humans [49]. Despite the fact numerous phototheranostic nanoplatforms have been successfully constructed in the past few years, their therapeutic effect and diagnostic accuracy (mostly using NIR-IIa’ (1000–1300 nm) FLI and NIR-IIa (1300–1400 nm) FLI remain inadequate. Notably, in comparison with NIR-IIa’ and NIR-IIa biowindows, better imaging performance and higher SBR can be achieved by using the photons in the NIR-IIb (1500–1700 nm) sub-window due to the ultra-low signal interference [50,51,52,53]. Due to the energy band theory, the synthesis of NIR-IIb emitting organic fluorophores is tricky. Pb-based quantum dots can provide strong emission in the NIR-IIb region, while their potential biotoxicity hindered their further application. Compared with other materials, rare-earth-based nanoparticles with superior biocompatibility and unique optical properties have emerged as efficient NIR-IIb imaging agents recently [54,55,56,57]. For instance, Er3+- and Tm3+-doped nanoparticles can emit light around 1530 nm and above 1600 nm with high efficiency [58]. Carboxyl, amino, and thiol group functionalized molecules can be easily conjugated with rare-earth-doped nanoparticles to fabricate multifunctional theranostic platforms. For instance, carboxyl-group-modified cyanine dye can offer strong binding affinity towards rare-earth-doped nanoparticles, even in whole blood, 10% fetal bovine serum, and cell culture medium [59]. Nevertheless, to our knowledge, these rare-earth nanoparticles have not been adopted to construct phototheranostic nanoagents with NIR-IIb emission and NIR-II-excitable PTT functions, which could provide both high diagnosis accuracy and therapeutic outcomes.
Herein, a carboxyl-functionalized small organic molecule (Se-TC) with a donor–acceptor–donor (D-A-D)-type core was first synthesized, whose maximum absorption peak was located at 920 nm in tetrahydrofuran (THF). Multilayered rare-earth-based nanoparticles (NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4, RENP) with remarkable NIR-IIb emission were also skillfully designed and successfully prepared. Then, water-soluble organic–inorganic hybrid phototheranostic nanoagents (Se-TC@RENP@F) were easily constructed through the coordination between Se-TC and RENP and followed by subsequent F127 encapsulation (Scheme 1). The carboxyl groups could offer strong binding affinity of Se-TC to the surface of rare-earth-doped nanoparticles, which can improve the stability of Se-TC@RENP@F in aqueous solutions and blood. The Ce3+ ions in the core were doped to enhance the NIR-IIb emission of Er3+ ions by populating their 4I13/2 level through cross relaxation. The NaYF4:Yb,Nd shells were used to adjust the excitation wavelength of RENP from 980 nm to 808 nm due to the strong absorption of Nd3+ ions through 4I9/2 → 4F5/2 transition, which improves the imaging penetration depth and reduces the overheating effect. The resultant Se-TC@RENP@F exhibited excellent NIR-II absorption (extinction coefficient at 1064 nm: 24.7 L g−1 cm−1), bright NIR-IIb emission around 1545 nm, as well as great photostability. Upon 1064 nm laser irradiation, an outstanding photothermal effect with a high PCE value of 36.9% can be achieved, resulting in efficient tumor growth inhibition. Moreover, clear vascular imaging and accurate tumor diagnosis can be realized via NIR-IIb FLI. Overall, this work provides a proof-of-concept design strategy to develop NIR-IIb-imaging-guided, NIR-II-excitable photothermal nanoagents and hold great promise for the development of a variety of powerful phototheranostics.

2. Materials and Methods

2.1. Materials

Living/dead cell double staining kit, MTT assay kit, NIH-3T3 normal cells, HeLa cancer cells, and mice were purchased from Jiangsu KeyGEN BioTECH Corp., Ltd (Nanjing, China). F127 and other commercially available chemical reagents used for synthesizing Se-Tc were obtained from Energy-Chemical (Shanghai, China). Oleic acid, 1-octadecene, NH4F, and NaOH were obtained from Sigma-Aldrich LLC (Delaware, DE, USA). Sodium oleate was supplied by TCI (Tokyo, Japan). Rare-earth acetate hydrates (RE: Yb, Er, Ce, Nd, Y) were purchased from Alfa Aesar (Heysham, UK). In addition, all the chemicals used were not further purified.

2.2. Synthesis of Se-TC

The synthesis route of Se-TC is shown in Scheme 2a. Synthesis of compound 3: Compound 1 [60] (154 mg, 0.281 mmol), compound 2 [61] (72 mg, 0.128 mmol), Pd(PPh3)4 (99 mg), K2CO3 (100 mg) were added in toluene (15 mL)/water (3 mL). The solution was stirred for 24 h at 95 °C under nitrogen, and the solvent was evaporated. Compound 3 could be obtained via column chromatography (84 mg, 52.6%). 1H NMR (400 MHz, CDCl3, δ): 9.11 (d, 2H), 7.85 (d, 2H), 7.80 (s, 2H), 7.74 (t, 4H), 7.64 (d, 2H), 7.43–7.36 (m, 6H), 2.47–2.42 (m, 8H), 1.43–1.33 (m, 8H), 1.31 (s, 36H). MALDI-TOF MS (m/z): [M]+ calcd. for C68H70N4O8S3Se, 1246.352; found, 1246.667.
Synthesis of Se-TC: Compound 3 (80 mg, 0.064 mmol), TFA (3 mL) were added to DCM (15 mL). The solution was stirred for 12 h at room temperature. After extraction and washing, the solvent was evaporated, and a black solid was obtained, and directly used in the following step.

2.3. Synthesis of RENP

Synthesis of NaYF4:Yb,Er,Ce nanoparticles: 0.68 mmol Y(CH3CO2)3, 0.10 mmol Ce(CH3CO2)3, 0.20 mmol Yb(CH3CO2)3, and 0.02 mmol Er(CH3CO2)3 were mixed with 7 mL oleic acid and 15 mL 1-octadecene in a three-necked flask. The mixture was heated to 150 °C under nitrogen flow and maintained at this temperature for 40 min to dissolve the rare-earth acetates. Then, the solution was cooled to 50 °C. Next, 4.0 mmol NH4F and 2.5 mmol sodium oleate were dispersed in 10 mL methanol via sonication and added into the flask. After stirring at 50 °C for 40 min, the methanol was evaporated at 120 °C, and then the solution was heated to 290 °C for 1.5 h under nitrogen flow. The NaYF4:Yb,Er,Ce nanoparticles were precipitated with ethanol and washed with ethanol twice, and finally dispersed in 7 mL chloroform.
Synthesis of NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd core–shell nanoparticles: 0.20 mmol Y(CH3CO2)3, 0.05 mmol Yb(CH3CO2)3, and 0.25 mmol Nd(CH3CO2)3 were dissolved in 7 mL oleic acid and 15 mL 1-octadecene at 150 °C under nitrogen protection. Then, the solution was cooled to 50 °C. An amount of 3.5 mL of the core solution was then added, along with 10 mL methanol containing 2.0 mmol NH4F and 1.25 mmol sodium oleate. The mixture was stirred at 50 °C for 40 min and then heated to 120 °C to remove the methanol. Subsequently, the solution was heated to 280 °C for 1.5 h under nitrogen flow. After cooling down to room temperature, the resulting NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd nanoparticles were precipitated using ethanol, washed with ethanol twice, and re-dispersed in 5 mL chloroform.
Synthesis of NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4 multilayered nanoparticles (RENP): 0.35 mmol Y(CH3CO2)3 was dissolved in 7 mL oleic acid and 15 mL 1-octadecene at 150 °C for 40 min under nitrogen flow. After cooling down to 50 °C, 5 mL of NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd nanoparticles was added along with 10 mL methanol containing 1.4 mmol NH4F and 0.875 mmol sodium oleate. The mixture was stirred at 50 °C for 40 min and then heated to 120 °C to remove the methanol. Subsequently, the solution was heated to 280 °C under nitrogen protection for 1.5 h. After cooling down to room temperature, the RENPs were precipitated using ethanol, washed with ethanol twice, and finally re-dispersed in 7 mL chloroform.

2.4. Characterization

NMR spectra were recorded on a Bruker Ultra Shield Plus 400 MHz spectrometer (Bruker Corporation, Billerica, MA, USA) and referenced to tetramethylsilane (TMS) as the internal standard. Dynamic light scattering (DLS) studies were conducted using ALV/CSG-3 laser light scattering spectrometers (ALV-GmbH Corporation, Langen, Germany). Transmission electron microscopy (TEM) imaging was performed using a HT7700 transmission electron microscope (HITACHI, Tokyo, Japan). The absorption data were recorded using a Shimadzu UV-3600 ultraviolet–visible near-infrared spectrophotometer (Shimadzu Corporation, Kyoto, Japan), and photoluminescence spectra were measured using a Horiba Fluorolog 3 fluorescence spectrophotometer (Jobin Yvon Inc., Jasper, IN, USA) equipped with an 808 nm laser. Confocal laser scanning microscopy (CLSM) images were captured with ZEISS LSM 880 NLO microscope (Carl Zeiss AG, Oberkochen, Germany). In vivo NIR-II fluorescence images were acquired with a NIRvana 640 InGaAs FPA camera from Princeton Instruments (Acton, MA, USA) equipped with a 900 nm and a 1500 nm long pass filter (Thorlabs, Newton, MA, USA). The power density at the animal surface was adjusted to around 60 mW/cm2 for the excitation laser.

2.5. Preparation of Se-TC@RENP@F

First, TFH solution of Se-TC (400 μL, 1 mg/mL) was mixed with chloroform solution of RENP (200 μL, 10 mg/mL) into a glass bottle. After stirring, F127 (60 mg) was further added. Then, the mixed solution was rapidly added into water (10 mL) under ultrasound. After dislodging organic solvent, ultrafiltration, and washing, Se-TC@RENP@F solutions were obtained.

2.6. Photothermal Performance of Se-TC@RENP@F

Six concentrations of Se-TC@RENP@F solutions (0, 12.5, 25, 50, 100, and 200 µg/mL) were prepared and placed in centrifuge tubes. Each solution concentration was irradiated with a 1064 nm laser at a power density of 1.0 W/cm2, and the temperature of the Se-TC@RENP@F solution at different concentrations was measured using an FLIR E50 infrared thermal imager. Subsequently, Se-TC@RENP@F solution with a concentration of 200 µg/mL was irradiated with 1064 nm lasers at power densities of 1.0, 0.75, 0.5, and 0.25 W/cm2, and the temperature changes were measured and recorded. To calculate the PCE of Se-TC@RENP@F, Se-TC@RENP@F was irradiated by a 1064 nm laser for 5 min. After reaching a plateau temperature, the solution was naturally cooled to room temperature without NIR laser irradiation. And the temperature was recorded using an IR thermal camera. Deionized water of the same volume was used as control.
The PCE was calculated using equation [62]:
PCE = h s ( T max − T surr ) − Q 0 I ( 1 − 10 − A λ )
hs can be calculated using the follow equation:
h s = ∑ m i C P . i τ s
τ s = t − ln θ
θ = T − T surr T max − T surr
Q 0 = h s ( T max − T s u r r )
Here, h is the heat transfer coefficient, s represents the surface area of the sample container, Tmax represents the maximum temperature of the sample solution after laser irradiation, Tsurr is the ambient temperature, Q0 is the heat generated by solvent absorption of the laser, I represents the laser power, A is the absorbance of the solution at 1064 nm, T is the temperature during cooling, t represents the corresponding cooling time, C approximate to the specific heat capacity of water, and m is the mass of the sample solution.

2.7. Measurement of Extinction Coefficient

The absorption curves of Se-TC@RENP@F at different concentrations were measured using a UV-Vis-NIR spectrophotometer. The values at the absorption peak of 1064 nm were linearly fitted with their corresponding concentrations, and the slope was calculated using the corresponding formula to obtain the extinction coefficient.

2.8. MTT Assay

HeLa cells were grown in a 96-well plate. After the cells reached confluence, different concentrations of Se-TC@RENP@F (0, 20, 40, 60, 80, and 100 µg/mL) were added into the cells and incubated for 24 h. After washing, MTT solution was added, and the cells were further incubated for 5 h. After that, 120 µL of DMSO was added, and the absorbance at 490 nm was measured using an ELISA reader (Gene Company, Hong Kong, China). This process was used to test the dark toxicity of Se-TC@RENP@F. For phototoxicity testing, the cells were exposed to a 1064 nm laser (1 W/cm2) for 5 min during incubation with Se-TC@RENP@F.

2.9. Live and Dead Cell Assay

HeLa cells were cultured in 35 mm confocal dishes (4 × 105 cells for each dish) for 24 h. Thereafter, HeLa cells were incubated with Se-TC@RENP@F at a concentration of 100 µg/mL for 5 h, and exposed to a 1064 nm (1 W/cm2) laser for 5 min. The cancer cells treated with different formulas were then stained with Calcein AM and PI for CLSM observations.

2.10. In Vivo NIR-IIb FLI

Mice were obtained from KeyGEN BioTECH and used with the approval of the Animal Ethics Committee of Simcere BioTech Corp., Ltd. (Nanjing, China). Se-TC@RENP@F (150 μL, 1 mg/mL) were injected into HeLa tumor-bearing mice via the tail vein. The NIR-IIb images of the mice at different time points were captured using an NIR-II fluorescence imaging instrument equipped with a 1500 nm long pass filter (808 nm laser excitation).

3. Results and Discussion

3.1. Preparation and Characterization of Se-TC@RENP@F

Acceptors benzobisthiadiazole and thiadiazoloquinoxaline are usually used to design organic molecules with D-A-D structures. However, their maximum absorption peaks are only around 700 nm. Introducing stronger acceptors can enhance intramolecular charge transfer, resulting in the red-shifted absorption. Herein, the carboxyl-functionalized small organic molecule Se-TC was first prepared, in which [1,2,5]selenadiazolo[3,4-f]benzo[c][1,2,5]thiadiazole was used as an acceptor unit, and thiophene and fluorene were used as donor units (Scheme 2a and Scheme S1). The UV-vis-NIR survey displayed that Se-TC in THF possessed an evident absorption peak at 920 nm (Figure S3). The carboxyl groups of Se-TC can offer strong binding affinity towards rare-earth-doped nanoparticles, which help improve the stability of the obtained Se-TC@RENP@F in aqueous solution and blood [59]. A novel kind of NIR-IIb emitting fluorescent RENPs (NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4) was then synthesized. The NaYF4:Yb,Er,Ce core was around 18.9 nm, as shown in Figure 1a. Ce3+ doping in the core can significantly populate the 4I13/2 level of Er3+, which leads to an improved down-conversion luminescence around 1550 nm [63]. The core–shell NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd was then obtained as 21.6 nm nanoparticles, as shown in Figure 1b. Here, the Nd3+-doped sensitizing layer makes the nanoparticles excitable at around 800 nm [64]. Finally, the NaYF4 inert shell was coated to reduce the surface defects and the quenching effect from water molecules. Under 808 nm laser excitation, the Nd3+ ions will absorb photons and transfer the energy to Yb3+, and finally to the Er3+ in the core to emit light around 1530 nm (Scheme 2b). Quasi-spherical morphology of RENP (diameter: around 24.4 nm) was observed from the TEM image (Figure 1c). The FL spectrum showed that RENP exhibited evident NIR-IIb emission peak (1531 nm, Figure S4). To obtain a high-performance phototheranostic nanoagent Se-TC@RENP@F, RENPs in chloroform and Se-TC in THF were first mixed together. After stirring for 1 h, F127 was further added. Then, the mixed solution was rapidly added into water under ultrasound. After centrifugation and washing, Se-TC@RENP@F were obtained. As illustrated in the TEM image (Figure 1d), Se-TC@RENP@F exhibited a spherical morphology with a certain degree of aggregation, which is common for amphiphilic polymer-encapsulated nanoparticles [65,66]. The hydrodynamic diameter was determined to be about 110 nm by DLS, which was suitable for biomedical applications (Figure 2a). Notably, Se-TC@RENP@F displayed high stability (Figure 2b). In comparison with Se-TC in THF, the maximum absorption peak of Se-TC@RENP@F was red-shifted by about 58 nm to 978 nm (Figure 2c). Interestingly, the absorption of Se-TC@RENP@F could even extend to 1200 nm, matching well with the 1064 nm NIR-II excitation light. In addition, the small absorbance around 740 nm and 800 nm can be attributed to the absorption of Nd3+ ions in RENP. Moreover, the extinction coefficient of Se-TC@RENP@F at 1064 nm was 24.7 L g−1 cm−1, suggesting their good light absorption ability (Figure S5). Next, we analyzed the FL spectrum of Se-TC@RENP@F (Figure 2c). As anticipated, Se-TC@RENP@F emitted outstanding NIR-IIb fluorescence signals (peak: around 1545 nm), which were similar to those of the RENP. Moreover, the excellent photostability of Se-TC@RENP@F was also corroborated by continuous laser irradiation (Figure 2d), which was much better compared to the commercial NIR imaging agent indocyanine green (ICG).

3.2. Photothermal Performance of Se-TC@RENP@F

Subsequently, the NIR-II-excitable photothermal conversion capability of Se-TC@RENP@F was investigated. As expected, 5 min of illumination with a 1064 nm laser elevated the temperature of Se-TC@RENP@F (200 μg/mL) to 60.3 °C, yet the rise in the temperature of pure water was negligible (Figure 3a). Meanwhile, a higher temperature elevation could be achieved with the increase in concentration. Infrared (IR) thermal images of Se-TC@RENP@F at different concentrations were collected and used to demonstrate the corresponding temperature changes (Figure 3b). In addition, the photothermal effects of Se-TC@RENP@F under 1064 nm laser illumination with different laser intensities were studied (Figure 3c). The photothermal effects of Se-TC@RENP@F showed a laser-intensity-dependent manner; the higher power density of the laser led to a higher sample temperature. In addition, Se-TC@RENP@F preserved negligible temperature alteration after four cycles of heating/cooling, suggesting the excellent photothermal stability of Se-TC@RENP@F under the experimental condition (Figure 3d). Furthermore, the PCE of Se-TC@RENP@F at 1064 nm was calculated as 36.9% based on a cycle of heating/cooling (Figure 3e,f), which is better than many cyanine dyes and gold-nanorod-based photothermal agents [67,68,69].

3.3. Cytotoxicity Assay of Se-TC@RENP@F

The biosafety of Se-TC@RENP@F was investigated next. As illustrated in Figure 4a, Se-TC@RENP@F exhibited negligible cytotoxicity toward NIH-3T3 normal cells with the concentration even up to 100 μg/mL, indicating their good biosafety in vitro. In addition, after injection of Se-TC@RENP@F into healthy mice, insignificant weight loss was found, further suggesting the good biosafety of Se-TC@RENP@F in vivo (Figure S6). Then, we studied the in vitro photothermal ablation against HeLa cancer cells by Se-TC@RENP@F. From the results of the MTT assay (Figure 4b), insignificant toxicity of Se-TC@RENP@F was observed without 1064 nm laser illumination. Nevertheless, upon 1064 laser illumination, the viabilities of HeLa cells reduced obviously in a concentration-dependent manner because of the outstanding photothermal effect of Se-TC@RENP@F. The in vitro treatment effect of Se-TC@RENP@F was further confirmed by live/dead cell staining assay. Calcein AM and PI were used to stain live and dead cells, respectively. As presented in Figure 4c, cells incubated with Se-TC@RENP@F without laser treatment remained alive (broad green fluorescence), whereas cells in Se-TC@RENP@F + laser group were almost totally killed (intensive red fluorescence). These data demonstrated the biocompatibility and the photothermal therapeutic ability of Se-TC@RENP@F.

3.4. In Vivo NIR-IIb FLI

Motivated by the excellent NIR-IIb fluorescence emission performances of Se-TC@RENP@F, the potential of Se-TC@RENP@F as NIR-IIb imaging reagents was then studied. The in vitro NIR-IIb fluorescence intensities of Se-TC@RENP@F at various concentrations were first examined (Figure 5a). As the concentration increased, both NIR-IIb fluorescence intensity and NIR-IIb brightness elevated. Then, the in vivo NIR-IIb FLI capacity of Se-TC@RENP@F was studied in xenograft HeLa-tumor-bearing mice. The vascular structure of mice could be observed upon intravenous administration of Se-TC@RENP@F at 5 min post injection. For example, the “full width at half maximum” and SBR of the selected vessel in hind limb were determined to be 0.53 mm and 2.85, respectively (Figure 5b). The tumor area’s NIR-IIb signal intensities at various time points were further measured by injection of Se-TC@RENP@F into other mice. As shown in Figure 5c,d, tolerable NIR-IIb signals could be found at 3 h post injection, and the intensities of NIR-IIb signal expanded by degrees with time. This observation indicated a passive targeting ability of Se-TC@RENP@F in tumors due to the enhanced permeability and retention (EPR) effect of the nanoparticles. Since nanoparticles were usually eliminated from the blood circulation by the reticulo-endothelial system [70], Se-TC@RENP@F also gradually accumulated in the liver and spleen. As a result, these deeply buried organs could be clearly visualized due to the high penetration of photons in the NIR-IIb region (Figure 5c). After 42 h post injection, the intensities of NIR-IIb signal declined step-wise. Hence, 42 h post injection was considered to be the maximum accumulation time at the tumor site for Se-TC@RENP@F in vivo. These results demonstrated that Se-TC@RENP@F could be used as good NIR-IIb imaging reagents.

4. Conclusions

By utilizing longer wavelengths (1500–1700 nm), NIR-IIb imaging offers deeper tissue penetration, reduced scattering, and eliminated autofluorescence, resulting in enhanced imaging resolution and sensitivity. In addition, photothermal therapy operated with NIR-II light, enhances therapeutic outcomes due to the deeper tissue penetration, reduced scattering, higher maximum permissible exposure, and minimized phototoxicity. As a result, fluorescence imaging in the NIR-IIb region and photothermal therapy in the NIR-II window have become the most heavily explored aspects in phototheranostics at present. And their integration has been considered as the one of the most promising approaches for imaging-guided phototherapy. In this work, we rationally designed and successfully developed high-performance hybrid phototheranostic Se-TC@RENP@F nanoagents, specifically for NIR-IIb FLI guided NIR-II-excitable PTT. The nanoagents were based on the novel carboxyl-functionalized small molecule Se-TC, rare-earth-based NIR-IIb fluorophores RENP, and the amphiphilic block copolymers F127. Compared with Se-TC in THF, the absorption peak of Se-TC@RENP@F red-shifted to 978 nm, and could even extend to 1200 nm with a high extinction coefficient in the NIR-II region (24.7 L g−1 cm−1 at 1064 nm). Upon 1064 nm laser irradiation, high hyperthermia with a large PCE value of 36.9% can be achieved, effectively inhibiting tumor cell growth. Moreover, clear vascular imaging and accurate tumor diagnosis can be materialized via in vivo NIR-IIb FLI of Se-TC@RENP@F. Overall, this study provides a proof-of-concept strategy to design nanoagents for cancer diagnosis and treatment and holds great promise for the development of various high-performance phototheranostic nanoplatforms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics15082027/s1, Scheme S1: Synthesis of Se-TC; Figure S1: 1H NMR spectrum of compound 3; Figure S2: MALDI-TOF MS plot of compound 3; Figure S3: Absorption spectrum of Se-TC in THF; Figure S4: NIR-II emission spectrum of RENP in chloroform; Figure S5: (a) Absorption curves of Se-TC@RENP@F at different concentrations. (b) Linear absorbance versus concentration obtained from (a); Figure S6: The body weight changes of healthy mice treated with PBS and Se-TC@RENP@F.

Author Contributions

Q.W.: writing—original draft, conceptualization, data curation software, funding acquisition; X.Z.: investigation, cell experiments, data curation software; Y.T.: investigation, visualization, methodology; Y.X.: investigation, methodology, formal analysis; X.W.: methodology, visualization; C.L.: writing—review and editing, resources, funding acquisition, methodology; T.X.: formal analysis, resources, writing—review and editing; F.L.: writing—review and editing, supervision, resources, methodology; M.X.: writing—review and editing, visualization, formal analysis, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22175098, 82173042), the Huali Talents Program of Nanjing University of Posts and Telecommunications, the Natural Science Foundation of the Jiangsu Higher Education Institutions (21KJB430031), the Jiangsu Planned Projects for Postdoctoral Research Funds (2021K114B), the Shanghai Pujiang Program (2021PJD040), and the Start-Up Fund for Introduced Talents and Scientific Research at Beijing Normal University (28709-312200502501).

Institutional Review Board Statement

The animal study protocol was approved by the Animal Ethics Committee of Simcere BioTech Corp., Ltd. (IACUC-002-35, 15 December 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are contained within the article or supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mura, S.; Couvreur, P. Nanotheranostics for personalized medicine. Adv. Drug Deliver. Rev. 2012, 64, 1394–1416. [Google Scholar] [CrossRef] [PubMed]
  2. Bariwal, J.; Ma, H.; Altenberg, G.A.; Liang, H. Nanodiscs: A versatile nanocarrier platform for cancer diagnosis and treatment. Chem. Soc. Rev. 2022, 51, 1702–1728. [Google Scholar] [CrossRef]
  3. Wong, X.Y.; Sena-Torralba, A.; Álvarez-Diduk, R.; Muthoosamy, K.; Merkoçi, A. Nanomaterials for Nanotheranostics: Tuning Their Properties According to Disease Needs. ACS Nano 2020, 14, 2585–2627. [Google Scholar] [CrossRef]
  4. Bernal, A.; Calcagno, C.; Mulder, W.J.M.; Pérez-Medina, C. Imaging-guided nanomedicine development. Curr. Opin. Chem. Biol. 2021, 63, 78–85. [Google Scholar] [CrossRef]
  5. Allard, C.; Schue, L.; Fossard, F.; Recher, G.; Nascimento, R.; Flahaut, E.; Loiseau, A.; Desjardins, P.; Martel, R.; Gaufres, E. Confinement of Dyes inside Boron Nitride Nanotubes: Photostable and Shifted Fluorescence down to the Near Infrared. Adv. Mater. 2020, 32, 2001429. [Google Scholar] [CrossRef]
  6. Peterson, J.A.; Wijesooriya, C.; Gehrmann, E.J.; Mahoney, K.M.; Goswami, P.P.; Albright, T.R.; Syed, A.; Dutton, A.S.; Smith, E.A.; Winter, A.H. Family of BODIPY Photocages Cleaved by Single Photons of Visible/Near-Infrared Light. J. Am. Chem. Soc. 2018, 140, 7343–7346. [Google Scholar] [CrossRef]
  7. Sekar, R.; Basavegowda, N.; Thathapudi, J.J.; Sekhar, M.R.; Joshi, P.; Somu, P.; Baek, K.-H. Recent Progress of Gold-Based Nanostructures towards Future Emblem of Photo-Triggered Cancer Theranostics: A Special Focus on Combinatorial Phototherapies. Pharmaceutics 2023, 15, 433. [Google Scholar] [CrossRef]
  8. Mangadlao, J.D.; Wang, X.; McCleese, C.; Escamilla, M.; Ramamurthy, G.; Wang, Z.; Govande, M.; Basilion, J.P.; Burda, C. Prostate-Specific Membrane Antigen Targeted Gold Nanoparticles for Theranostics of Prostate Cancer. ACS Nano 2018, 12, 3714–3725. [Google Scholar] [CrossRef]
  9. Luo, D.; Wang, X.; Walker, E.; Springer, S.; Ramamurthy, G.; Burda, C.; Basilion, J.P. Targeted Chemoradiotherapy of Prostate Cancer Using Gold Nanoclusters with Protease Activatable Monomethyl Auristatin E. ACS Appl. Mater. Interfaces 2022, 14, 14916–14927. [Google Scholar] [CrossRef] [PubMed]
  10. Shahrivarkevishahi, A.; Luzuriaga, M.A.; Herbert, F.C.; Tumac, A.C.; Brohlin, O.R.; Wijesundara, Y.H.; Adlooru, A.V.; Benjamin, C.; Lee, H.; Parsamian, P.; et al. PhotothermalPhage: A Virus-Based Photothermal Therapeutic Agent. J. Am. Chem. Soc. 2021, 143, 16428–16438. [Google Scholar] [CrossRef] [PubMed]
  11. Roque Iii, J.A.; Cole, H.D.; Barrett, P.C.; Lifshits, L.M.; Hodges, R.O.; Kim, S.; Deep, G.; Francés-Monerris, A.; Alberto, M.E.; Cameron, C.G.; et al. Intraligand Excited States Turn a Ruthenium Oligothiophene Complex into a Light-Triggered Ubertoxin with Anticancer Effects in Extreme Hypoxia. J. Am. Chem. Soc. 2022, 144, 8317–8336. [Google Scholar] [CrossRef] [PubMed]
  12. Duan, X.; Zhang, Q.; Jiang, Y.; Wu, X.; Yue, X.; Geng, Y.; Shen, J.; Ding, D. Semiconducting Polymer Nanoparticles with Intramolecular Motion-Induced Photothermy for Tumor Phototheranostics and Tooth Root Canal Therapy. Adv. Mater. 2022, 34, 2200179. [Google Scholar] [CrossRef] [PubMed]
  13. Li, R.; Yang, F.; Zhang, L.; Li, M.; Wang, G.; Wang, W.; Xu, Y.; Wei, W. Manipulating Host-Guest Charge Transfer of a Water-Soluble Double-Cavity Cyclophane for NIR-II Photothermal Therapy. Angew. Chem. Int. Ed. 2023, 62, 202301267. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, B.; Zhang, Z.C.; Ji, Y.C.; Zhou, S.D.; Jia, B.Y.; Zhang, Y.H.; Wang, J.; Ding, Y.; Wang, Y.; Yao, Y.; et al. Icing on the cake: Combining a dual PEG-functionalized pillararene and an A-D-A small molecule photosensitizer for multimodal phototherapy. Sci. China Chem. 2022, 65, 1134–1141. [Google Scholar] [CrossRef]
  15. Jo, G.; Park, Y.; Park, M.H.; Hyun, H. Near-Infrared Fluorescent Hydroxyapatite Nanoparticles for Targeted Photothermal Cancer Therapy. Pharmaceutics 2023, 15, 1374. [Google Scholar] [CrossRef]
  16. Jung, H.S.; Verwilst, P.; Sharma, A.; Shin, J.; Sessler, J.L.; Kim, J.S. Organic molecule-based photothermal agents: An expanding photothermal therapy universe. Chem. Soc. Rev. 2018, 47, 2280–2297. [Google Scholar] [CrossRef]
  17. Jo, G.; Kim, E.J.; Hyun, H. Enhanced Tumor Accumulation of Low-Molecular-Weight Hyaluronic Acid/Chitosan Nanocomplexes for Photothermal Therapy. Pharmaceutics 2023, 15, 613. [Google Scholar] [CrossRef]
  18. Xu, M.; Yang, Y.; Yuan, Z. Breast Cancer Cell Membrane Camouflaged Lipid Nanoparticles for Tumor-Targeted NIR-II Phototheranostics. Pharmaceutics 2022, 14, 1367. [Google Scholar] [CrossRef]
  19. Wang, Q.; Xia, H.; Xiong, Y.; Zhang, X.; Cai, J.; Chen, C.; Gao, Y.; Lu, F.; Fan, Q. Simple Preparation of Near-infrared-II Organic Small Molecule-based Phototheranostics by Manipulation of the Electron-donating Unit. Acta Chim. Sin. 2022, 80, 1485–1493. [Google Scholar] [CrossRef]
  20. Li, H.; Dai, H.; Mei, A.; Ruan, X.; Wang, W.; Yang, D.; Wang, W.; Zhang, Q.; Dong, X.; Shao, J. Triphenylamine flanked boron difluoride formazanate for NIR-II fluorescence imaging-guided photothermal therapy. Dye. Pigment. 2022, 205, 110478. [Google Scholar] [CrossRef]
  21. Xu, M.K.; Zhang, C.; Zeng, Z.L.; Pu, K.Y. Semiconducting Polymer Nanoparticles as Activatable Nanomedicines for Combinational Phototherapy. ACS Appl. Polym. Mater. 2021, 3, 4375–4389. [Google Scholar] [CrossRef]
  22. Xu, C.; Pu, K. Second near-infrared photothermal materials for combinational nanotheranostics. Chem. Soc. Rev. 2021, 50, 1111–1137. [Google Scholar] [CrossRef]
  23. Xi, D.; Xiao, M.; Cao, J.; Zhao, L.; Xu, N.; Long, S.; Fan, J.; Shao, K.; Sun, W.; Yan, X.; et al. NIR Light-Driving Barrier-Free Group Rotation in Nanoparticles with an 88.3% Photothermal Conversion Efficiency for Photothermal Therapy. Adv. Mater. 2020, 32, 1907855. [Google Scholar] [CrossRef] [PubMed]
  24. Shao, W.; Zhao, F.; Xue, J.; Huang, L. NIR-II absorbing organic nanoagents for photoacoustic imaging and photothermal therapy. BMEMat 2023, 1, 12009. [Google Scholar] [CrossRef]
  25. Guo, X.; Yang, J.; Li, M.; Zhang, F.; Bu, W.; Li, H.; Wu, Q.; Yin, D.; Jiao, L.; Hao, E. Unique Double Intramolecular and Intermolecular Exciton Coupling in Ethene-Bridged aza-BODIPY Dimers for High-Efficiency Near-Infrared Photothermal Conversion and Therapy. Angew. Chem. Int. Ed. 2022, 61, 202211081. [Google Scholar] [CrossRef] [PubMed]
  26. Ou, C.; Na, W.; Ge, W.; Huang, H.; Gao, F.; Zhong, L.; Zhao, Y.; Dong, X. Biodegradable Charge-Transfer Complexes for Glutathione Depletion Induced Ferroptosis and NIR-II Photoacoustic Imaging Guided Cancer Photothermal Therapy. Angew. Chem. Int. Ed. 2021, 60, 8157–8163. [Google Scholar] [CrossRef] [PubMed]
  27. Tian, S.; Bai, H.; Li, S.; Xiao, Y.; Cui, X.; Li, X.; Tan, J.; Huang, Z.; Shen, D.; Liu, W.; et al. Water-Soluble Organic Nanoparticles with Programable Intermolecular Charge Transfer for NIR-II Photothermal Anti-Bacterial Therapy. Angew. Chem. Int. Ed. 2021, 60, 11758–11762. [Google Scholar] [CrossRef]
  28. Wu, X.; Suo, Y.; Shi, H.; Liu, R.; Wu, F.; Wang, T.; Ma, L.; Liu, H.; Cheng, Z. Deep-Tissue Photothermal Therapy Using Laser Illumination at NIR-IIa Window. Nano-Micro Lett. 2020, 12, 38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Li, M.; Li, Z.; Yu, D.; Wang, M.; Wang, D.; Wang, B. Quinoid Conjugated Polymer Nanoparticles with NIR-II Absorption Peak Toward Efficient Photothermal Therapy. Chem. Eur. J. 2023, 29, 202202930. [Google Scholar] [CrossRef]
  30. Oliinyk, O.S.; Ma, C.; Pletnev, S.; Baloban, M.; Taboada, C.; Sheng, H.; Yao, J.; Verkhusha, V.V. Deep-tissue SWIR imaging using rationally designed small red-shifted near-infrared fluorescent protein. Nat. Methods 2023, 20, 70–74. [Google Scholar] [CrossRef]
  31. Wen, K.; Tan, H.; Peng, Q.; Chen, H.; Ma, H.; Wang, L.; Peng, A.; Shi, Q.; Cai, X.; Huang, H. Achieving Efficient NIR-II Type-I Photosensitizers for Photodynamic/Photothermal Therapy upon Regulating Chalcogen Elements. Adv. Mater. 2022, 34, 2108146. [Google Scholar] [CrossRef]
  32. Wang, Q.; Qu, B.; Li, J.; Liu, Y.; Dong, J.; Peng, X.; Zhang, R. Multifunctional MnO2/Ag3SbS3 Nanotheranostic Agent for Single-Laser-Triggered Tumor Synergistic Therapy in the NIR-II Biowindow. ACS Appl. Mater. Interfaces 2022, 14, 4980–4994. [Google Scholar] [CrossRef]
  33. Shanmugam, M.; Kuthala, N.; Vankayala, R.; Chiang, C.-S.; Kong, X.; Hwang, K.C. Multifunctional CuO/Cu2O Truncated Nanocubes as Trimodal Image-Guided Near-Infrared-III Photothermal Agents to Combat Multi-Drug-Resistant Lung Carcinoma. ACS Nano 2021, 15, 14404–14418. [Google Scholar] [CrossRef]
  34. Wei, Z.; Wu, M.; Lan, S.; Li, J.; Zhang, X.; Zhang, D.; Liu, X.; Liu, J. Semiconducting polymer-based nanoparticles for photothermal therapy at the second near-infrared window. Chem. Commun. 2018, 54, 13599–13602. [Google Scholar] [CrossRef]
  35. Yu, D.; Wang, Y.; Chen, J.; Liu, S.; Deng, S.; Liu, C.; McCulloch, I.; Yue, W.; Cheng, D. Co-delivery of NIR-II semiconducting polymer and pH-sensitive doxorubicin-conjugated prodrug for photothermal/chemotherapy. Acta Biomater. 2022, 137, 238–251. [Google Scholar] [CrossRef]
  36. Li, S.; Deng, Q.; Zhang, Y.; Li, X.; Wen, G.; Cui, X.; Wan, Y.; Huang, Y.; Chen, J.; Liu, Z.; et al. Rational Design of Conjugated Small Molecules for Superior Photothermal Theranostics in the NIR-II Biowindow. Adv. Mater. 2020, 32, 2001146. [Google Scholar] [CrossRef] [PubMed]
  37. Bian, H.; Ma, D.; Zhang, X.; Xin, K.; Yang, Y.; Peng, X.; Xiao, Y. Tailored Engineering of Novel Xanthonium Polymethine Dyes for Synergetic PDT and PTT Triggered by 1064 nm Laser toward Deep-Seated Tumors. Small 2021, 17, 2100398. [Google Scholar] [CrossRef]
  38. Jiang, Z.; Zhang, C.; Wang, X.; Yan, M.; Ling, Z.; Chen, Y.; Liu, Z. A Borondifluoride-Complex-Based Photothermal Agent with an 80 % Photothermal Conversion Efficiency for Photothermal Therapy in the NIR-II Window. Angew. Chem. Int. Ed. 2021, 60, 22376–22384. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, X.; Jiang, Z.; Liang, Z.; Wang, T.; Chen, Y.; Liu, Z. Discovery of BODIPY J-aggregates with absorption maxima beyond 1200 nm for biophotonics. Sci. Adv. 2022, 8, eadd5660. [Google Scholar] [CrossRef] [PubMed]
  40. Xu, Y.; Li, C.; Lu, S.; Wang, Z.; Liu, S.; Yu, X.; Li, X.; Sun, Y. Construction of emissive ruthenium(II) metallacycle over 1000 nm wavelength for in vivo biomedical applications. Nat. Commun. 2022, 13, 2009. [Google Scholar] [CrossRef]
  41. Cheng, L.; Wang, X.; Gong, F.; Liu, T.; Liu, Z. 2D Nanomaterials for Cancer Theranostic Applications. Adv. Mater. 2020, 32, 1902333. [Google Scholar] [CrossRef] [PubMed]
  42. Shaw, S.K.; Liu, W.; Brennan, S.P.; de Lourdes Betancourt-Mendiola, M.; Smith, B.D. Non-Covalent Assembly Method that Simultaneously Endows a Liposome Surface with Targeting Ligands, Protective PEG Chains, and Deep-Red Fluorescence Reporter Groups. Chem. Eur. J. 2017, 23, 12646–12654. [Google Scholar] [CrossRef] [Green Version]
  43. Yang, Q.; Ma, H.; Liang, Y.; Dai, H. Rational Design of High Brightness NIR-II Organic Dyes with S-D-A-D-S Structure. Acc. Mater. Res. 2021, 2, 170–183. [Google Scholar] [CrossRef]
  44. Feng, G.; Zhang, G.; Ding, D. Design of superior phototheranostic agents guided by Jablonski diagrams. Chem. Soc. Rev. 2020, 49, 8179–8234. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, Y.; Li, Y.; Koo, S.; Sun, Y.; Liu, Y.; Liu, X.; Pan, Y.; Zhang, Z.; Du, M.; Lu, S.; et al. Versatile Types of Inorganic/Organic NIR-IIa/IIb Fluorophores: From Strategic Design toward Molecular Imaging and Theranostics. Chem. Rev. 2022, 122, 209–268. [Google Scholar] [CrossRef]
  46. Zheng, Z.; Duan, A.; Dai, R.; Li, Y.; Chen, X.; Qin, Y.; Ren, S.; Li, R.; Cheng, Z.; Zhang, R. A “Dual-Source, Dual-Activation” Strategy for an NIR-II Window Theranostic Nanosystem Enabling Optimal Photothermal-Ion Combination Therapy. Small 2022, 18, 2201179. [Google Scholar] [CrossRef]
  47. Li, C.; Jiang, G.; Yu, J.; Ji, W.; Liu, L.; Zhang, P.; Du, J.; Zhan, C.; Wang, J.; Tang, B.Z. Fluorination Enhances NIR-II Emission and Photothermal Conversion Efficiency of Phototheranostic Agents for Imaging-Guided Cancer Therapy. Adv. Mater. 2023, 35, 2208229. [Google Scholar] [CrossRef]
  48. Roy, S.; Bag, N.; Bardhan, S.; Hasan, I.; Guo, B. Recent progress in NIR-II fluorescence imaging-guided drug delivery for cancer theranostics. Adv. Drug Deliver. Rev. 2023, 197, 114821. [Google Scholar] [CrossRef]
  49. Hu, Z.; Fang, C.; Li, B.; Zhang, Z.; Cao, C.; Cai, M.; Su, S.; Sun, X.; Shi, X.; Li, C.; et al. First-in-human liver-tumour surgery guided by multispectral fluorescence imaging in the visible and near-infrared-I/II windows. Nat. Biomed. Eng. 2020, 4, 259–271. [Google Scholar] [CrossRef]
  50. Zhang, M.; Wang, Z.; Shao, Y.; Zhao, Y.; Liu, Z. Complement-Opsonized NIR-IIb Emissive Immunotracers for Dynamically Monitoring Neutrophils in Inflammation-Related Diseases. Adv. Mater. 2022, 34, 2203477. [Google Scholar] [CrossRef]
  51. Yuan, Y.; Feng, Z.; Li, S.; Huang, Z.; Wan, Y.; Cao, C.; Lin, S.; Wu, L.; Zhou, J.; Liao, L.S.; et al. Molecular Programming of NIR-IIb-Emissive Semiconducting Small Molecules for In Vivo High-Contrast Bioimaging Beyond 1500 nm. Adv. Mater. 2022, 34, 2201263. [Google Scholar] [CrossRef]
  52. Wanderi, K.; Cui, Z. Organic fluorescent nanoprobes with NIR-IIb characteristics for deep learning. Exploration 2022, 2, 20210097. [Google Scholar] [CrossRef] [PubMed]
  53. Song, S.; Wang, Y.; Zhao, Y.; Huang, W.; Zhang, F.; Zhu, S.; Wu, Q.; Fu, S.; Tang, B.Z.; Wang, D. Molecular engineering of AIE luminogens for NIR-II/IIb bioimaging and surgical navigation of lymph nodes. Matter 2022, 5, 2847–2863. [Google Scholar] [CrossRef]
  54. Li, H.; Wang, X.; Li, X.; Zeng, S.; Chen, G. Clearable Shortwave-Infrared-Emitting NaErF4 Nanoparticles for Noninvasive Dynamic Vascular Imaging. Chem. Mater. 2020, 32, 3365–3375. [Google Scholar] [CrossRef]
  55. Luo, Z.; Hu, D.; Gao, D.; Yi, Z.; Zheng, H.; Sheng, Z.; Liu, X. High-Specificity In Vivo Tumor Imaging Using Bioorthogonal NIR-IIb Nanoparticles. Adv. Mater. 2021, 33, 2102950. [Google Scholar] [CrossRef]
  56. Wang, S.; Liu, L.; Fan, Y.; El-Toni, A.M.; Alhoshan, M.S.; Li, D.; Zhang, F. In Vivo High-resolution Ratiometric Fluorescence Imaging of Inflammation Using NIR-II Nanoprobes with 1550 nm Emission. Nano Lett. 2019, 19, 2418–2427. [Google Scholar] [CrossRef]
  57. Bai, F.; Du, W.; Liu, X.; Su, L.; Li, Z.; Chen, T.; Ge, X.; Li, Q.; Yang, H.; Song, J. A NO-Responsive Ratiometric Fluorescent Nanoprobe for Monitoring Drug-Induced Liver Injury in the Second Near-Infrared Window. Anal. Chem. 2021, 93, 15279–15287. [Google Scholar] [CrossRef]
  58. Chang, Y.; Chen, H.; Xie, X.; Wan, Y.; Li, Q.; Wu, F.; Yang, R.; Wang, W.; Kong, X. Bright Tm3+-based downshifting luminescence nanoprobe operating around 1800 nm for NIR-IIb and c bioimaging. Nat. Commun. 2023, 14, 1079. [Google Scholar] [CrossRef] [PubMed]
  59. Zhao, M.; Li, B.; Wu, Y.; He, H.; Zhu, X.; Zhang, H.; Dou, C.; Feng, L.; Fan, Y.; Zhang, F. A Tumor-Microenvironment-Responsive Lanthanide-Cyanine FRET Sensor for NIR-II Luminescence-Lifetime In Situ Imaging of Hepatocellular Carcinoma. Adv. Mater. 2020, 32, 2001172. [Google Scholar] [CrossRef]
  60. Liu, X.; Zhu, R.; Zhang, Y.; Liu, B.; Ramakrishna, S. Anionic benzothiadiazole containing polyfluorene and oligofluorene as organic sensitizers for dye-sensitized solar cells. Chem. Commun. 2008, 3789–3791. [Google Scholar] [CrossRef]
  61. Cao, Y.; Yang, R.; Yang, W. Polymer Containing Heterocyclic Se Compound and Its Application in Preparing Luminous material. Chinese Patent CN1389488 A, 8 January 2003. [Google Scholar]
  62. Liang, P.; Tang, Q.; Cai, Y.; Liu, G.; Si, W.; Shao, J.; Huang, W.; Zhang, Q.; Dong, X. Self-quenched ferrocenyl diketopyrrolopyrrole organic nanoparticles with amplifying photothermal effect for cancer therapy. Chem. Sci. 2017, 8, 7457–7463. [Google Scholar] [CrossRef] [Green Version]
  63. Zhong, Y.; Ma, Z.; Zhu, S.; Yue, J.; Zhang, M.; Antaris, A.L.; Yuan, J.; Cui, R.; Wan, H.; Zhou, Y.; et al. Boosting the down-shifting luminescence of rare-earth nanocrystals for biological imaging beyond 1500 nm. Nat. Commun. 2017, 8, 737. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Lu, F.; Yang, L.; Ding, Y.; Zhu, J.-J. Highly Emissive Nd3+-Sensitized Multilayered Upconversion Nanoparticles for Efficient 795 nm Operated Photodynamic Therapy. Adv. Funct. Mater. 2016, 26, 4778–4785. [Google Scholar] [CrossRef]
  65. He, J.; Ai, L.; Liu, X.; Huang, H.; Li, Y.; Zhang, M.; Zhao, Q.; Wang, X.; Chen, W.; Gu, H. Plasmonic CuS nanodisk assembly based composite nanocapsules for NIR-laser-driven synergistic chemo-photothermal cancer therapy. J. Mater. Chem. B 2018, 6, 1035–1043. [Google Scholar] [CrossRef]
  66. Tong, S.; Hou, S.; Ren, B.; Zheng, Z.; Bao, G. Self-Assembly of Phospholipid–PEG Coating on Nanoparticles through Dual Solvent Exchange. Nano Lett. 2011, 11, 3720–3726. [Google Scholar] [CrossRef] [Green Version]
  67. Zhao, L.; Chang, M.; He, Z.; Zhao, Y.; Wang, J.; Lu, Y. Photoactive Oligomer with an Acceptor–Donor–Acceptor-Conjugated Structure for Single Near-Infrared Light-Triggered Photothermal/Photodynamic Synergistic Therapy of Tumors. ACS Appl. Polym. Mater. 2023, 5, 1530–1538. [Google Scholar] [CrossRef]
  68. Zhou, J.; Yu, Q.; Song, J.; Li, S.; Li, X.-L.; Kang, B.K.; Chen, H.-Y.; Xu, J.-J. Photothermally Triggered Copper Payload Release for Cuproptosis-Promoted Cancer Synergistic Therapy. Angew. Chem. Int. Ed. 2023, 62, 202213922. [Google Scholar] [CrossRef] [PubMed]
  69. Zou, Y.; Liu, W.; Sun, W.; Du, J.; Fan, J.; Peng, X. Highly Inoxidizable Heptamethine Cyanine–Glucose Oxidase Conjugate Nanoagent for Combination of Enhanced Photothermal Therapy and Tumor Starvation. Adv. Funct. Mater. 2022, 32, 2111853. [Google Scholar] [CrossRef]
  70. Hubbell, J.A.; Chilkoti, A. Nanomaterials for Drug Delivery. Science 2012, 337, 303–305. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 15 02027 sch001 550

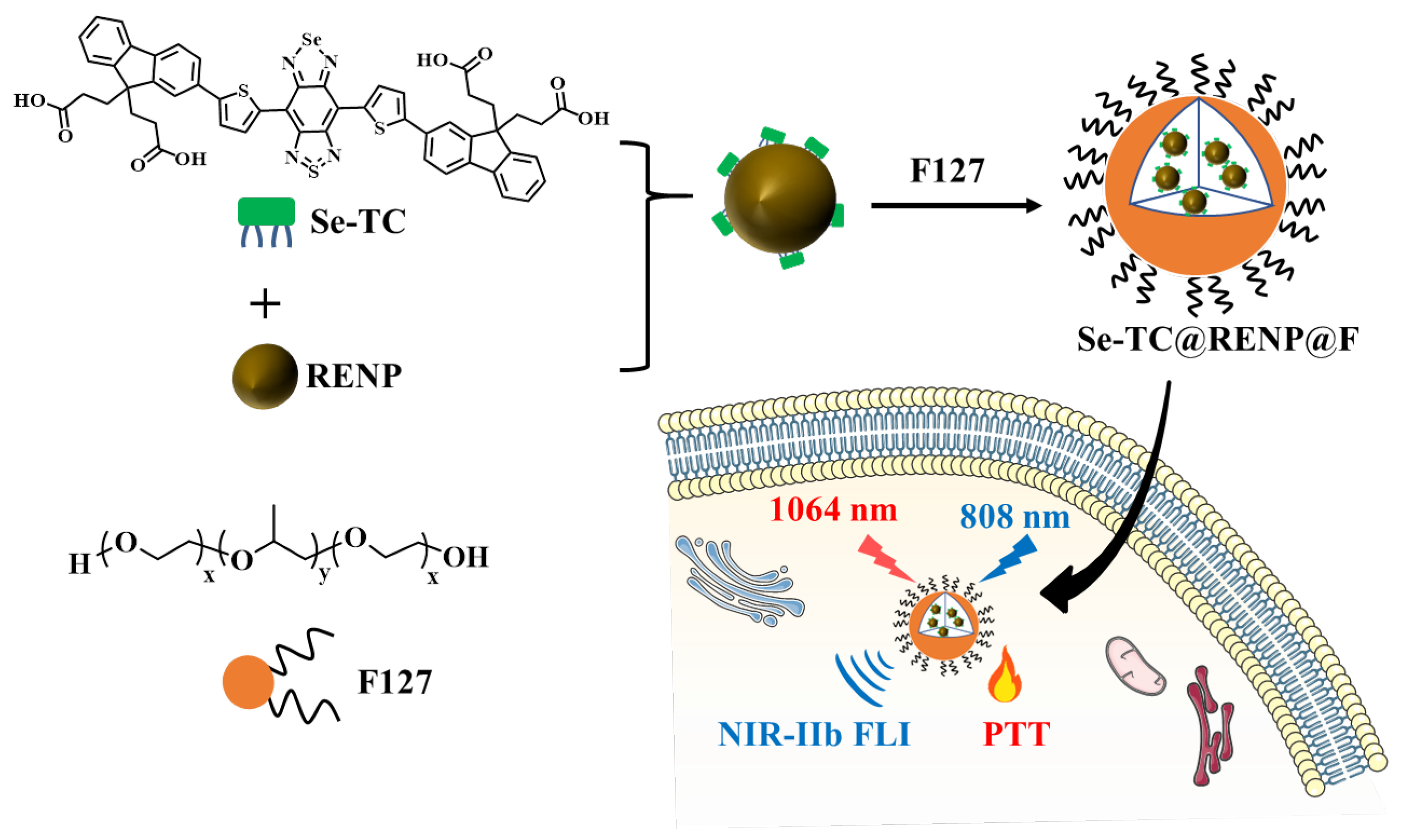

Scheme 1. The chemical structure of Se-TC, and a graphical representation of the fabrication process of Se-TC@RENP@F as well as the application of Se-TC@RENP@F as phototheranostic nanoagents for 808 nm triggered NIR-IIb FLI and 1064 nm triggered PTT.
Scheme 1. The chemical structure of Se-TC, and a graphical representation of the fabrication process of Se-TC@RENP@F as well as the application of Se-TC@RENP@F as phototheranostic nanoagents for 808 nm triggered NIR-IIb FLI and 1064 nm triggered PTT.
Pharmaceutics 15 02027 sch001
Pharmaceutics 15 02027 sch002 550

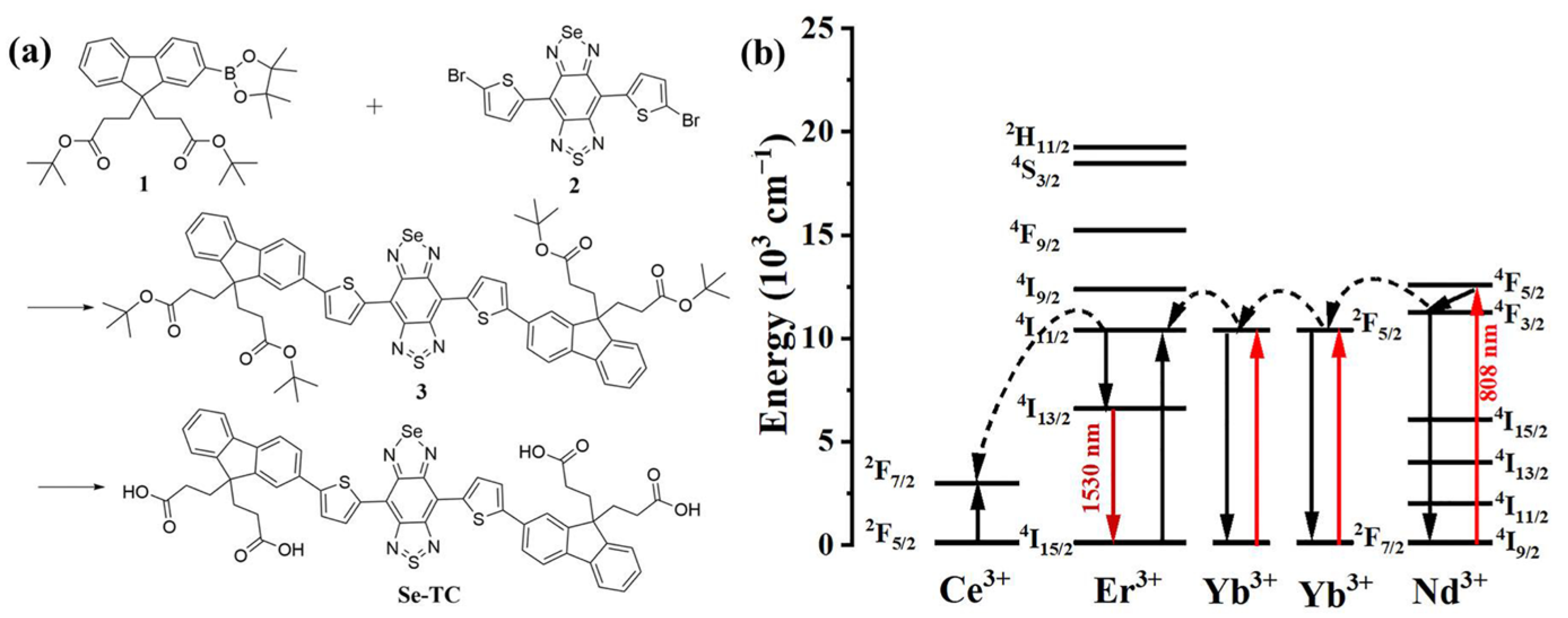

Scheme 2. (a) Synthesis route of Se-TC. (b) Energy-level diagrams of RENPs upon 808 nm excitation.
Scheme 2. (a) Synthesis route of Se-TC. (b) Energy-level diagrams of RENPs upon 808 nm excitation.
Pharmaceutics 15 02027 sch002
Pharmaceutics 15 02027 g001 550

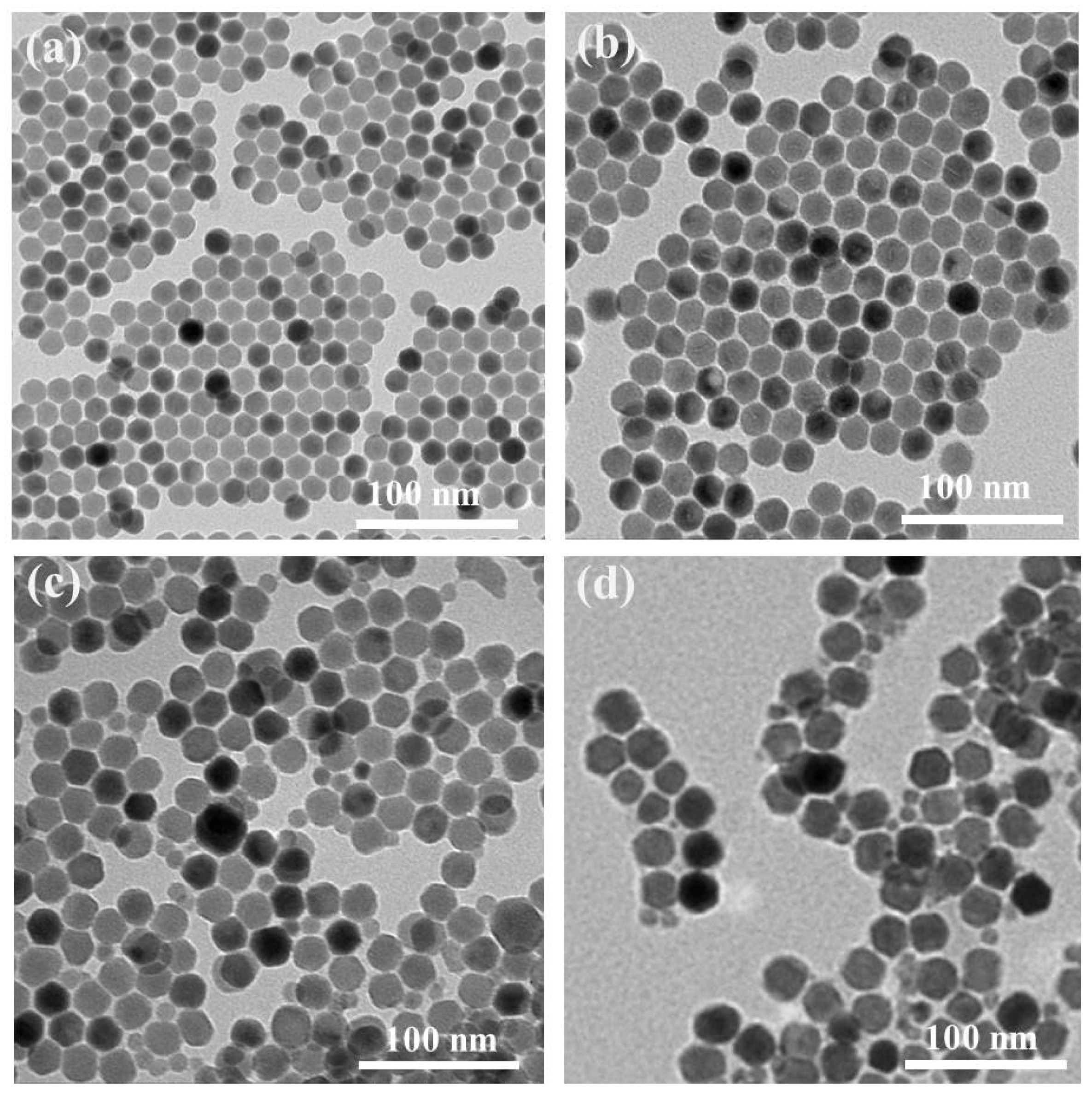

Figure 1. TEM images of (a) NaYF4:Yb,Er,Ce, (b) NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd, (c) NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4 (RENP), and (d) Se-TC@RENP@F.
Figure 1. TEM images of (a) NaYF4:Yb,Er,Ce, (b) NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd, (c) NaYF4:Yb,Er,Ce@NaYF4:Yb,Nd@NaYF4 (RENP), and (d) Se-TC@RENP@F.
Pharmaceutics 15 02027 g001
Pharmaceutics 15 02027 g002 550

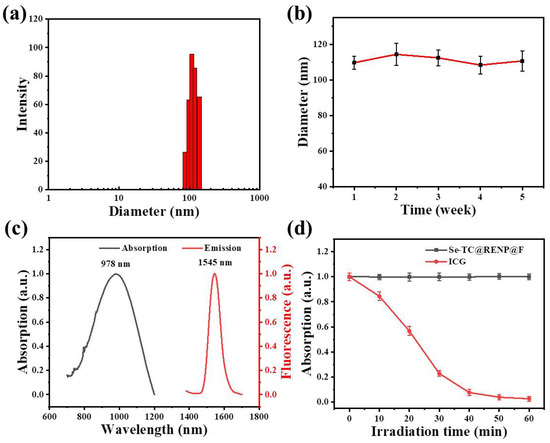

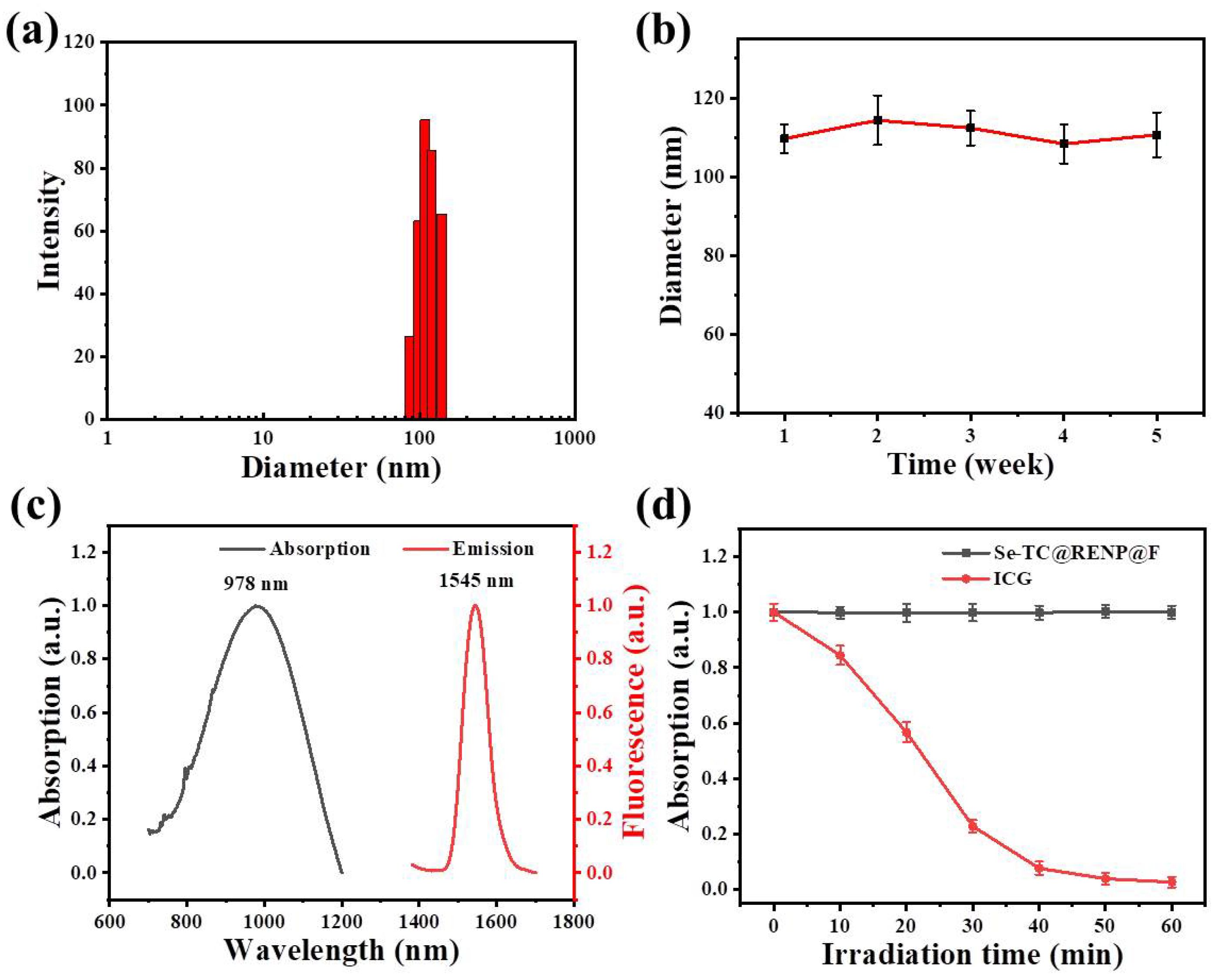

Figure 2. Figure 2. (a) Hydrodynamic size distribution (PDI: 0.319), (b) long-term stability, (c) normalized absorption and emission spectra, (d) photostability characterization of Se-TC@RENP@F in water.
Figure 2. Figure 2. (a) Hydrodynamic size distribution (PDI: 0.319), (b) long-term stability, (c) normalized absorption and emission spectra, (d) photostability characterization of Se-TC@RENP@F in water.
Pharmaceutics 15 02027 g002
Pharmaceutics 15 02027 g003 550

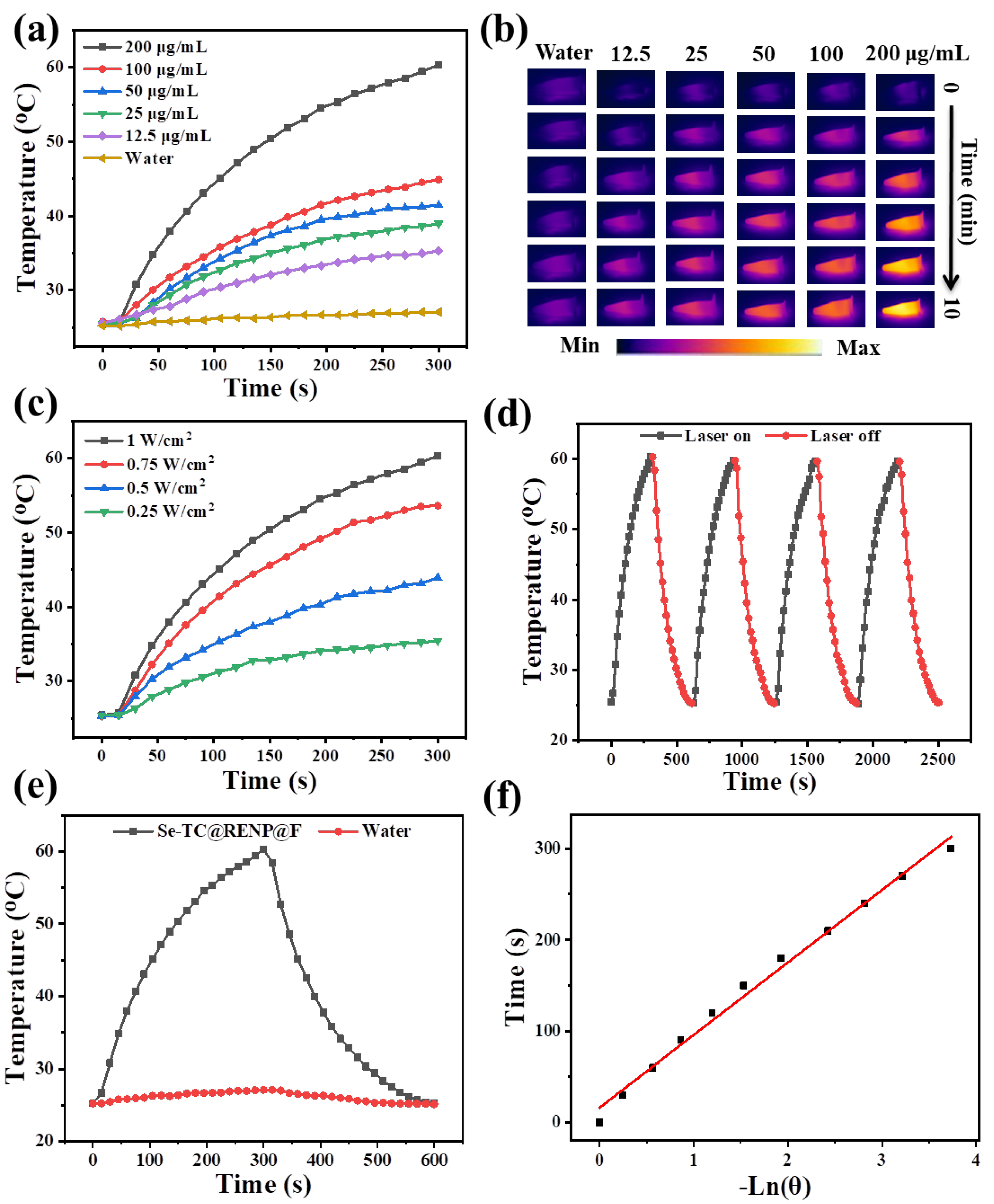

Figure 3. The evaluation of photothermal effects of Se-TC@RENP@F by changing the (a) Se-TC@RENP@F concentration (1064 nm laser illumination, 1 W/cm2) and (c) laser intensity (Se-TC@RENP@F: 200 μg/mL). (b) IR thermal images of Se-TC@RENP@F at different concentrations. The evaluation of the (d) photothermal stability of Se-TC@RENP@F. (e) The temperature variation curves of Se-TC@RENP@F and water under 1064 nm laser irradiation, followed by naturally cooling without the laser. (f) The linear cooling time versus −ln(θ) obtained from the cooling period of (e).
Figure 3. The evaluation of photothermal effects of Se-TC@RENP@F by changing the (a) Se-TC@RENP@F concentration (1064 nm laser illumination, 1 W/cm2) and (c) laser intensity (Se-TC@RENP@F: 200 μg/mL). (b) IR thermal images of Se-TC@RENP@F at different concentrations. The evaluation of the (d) photothermal stability of Se-TC@RENP@F. (e) The temperature variation curves of Se-TC@RENP@F and water under 1064 nm laser irradiation, followed by naturally cooling without the laser. (f) The linear cooling time versus −ln(θ) obtained from the cooling period of (e).
Pharmaceutics 15 02027 g003
Pharmaceutics 15 02027 g004 550

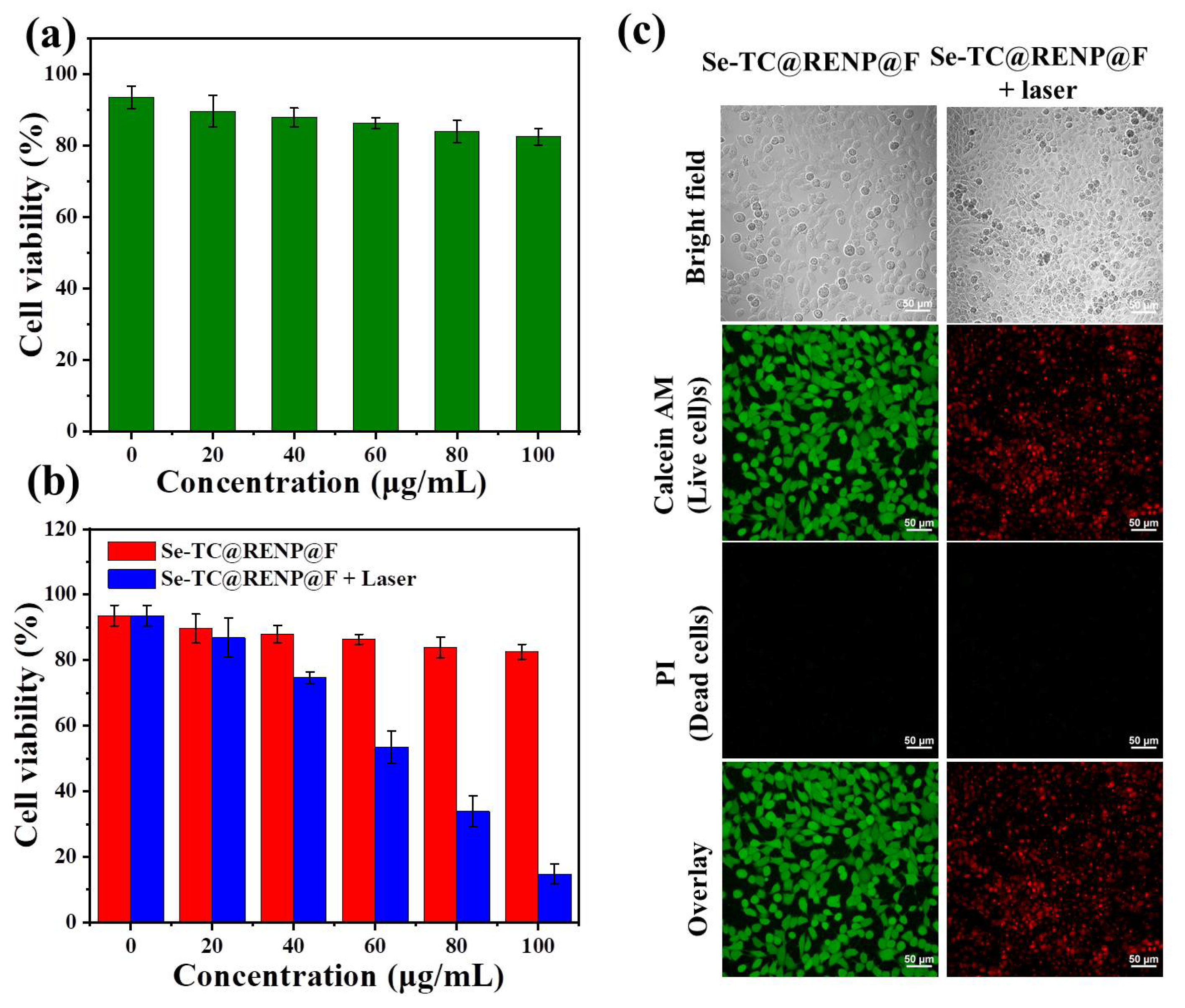

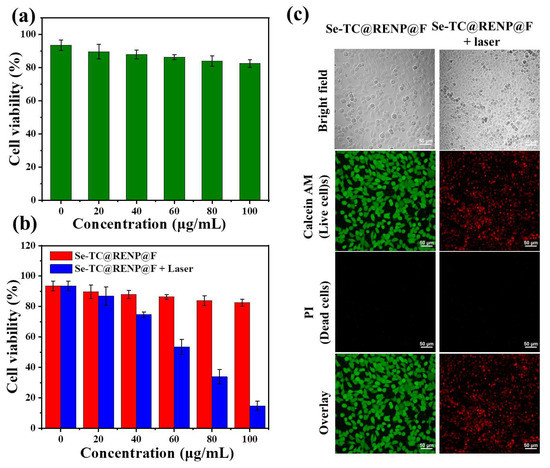

Figure 4. (a) Biocompatibility test of Se-TC@RENP@F by MTT assay. Treatment effect of Se-TC@RENP@F upon 1064 nm laser illumination assessed by (b) MTT and (c) live/dead cell staining assays.
Figure 4. (a) Biocompatibility test of Se-TC@RENP@F by MTT assay. Treatment effect of Se-TC@RENP@F upon 1064 nm laser illumination assessed by (b) MTT and (c) live/dead cell staining assays.
Pharmaceutics 15 02027 g004
Pharmaceutics 15 02027 g005 550

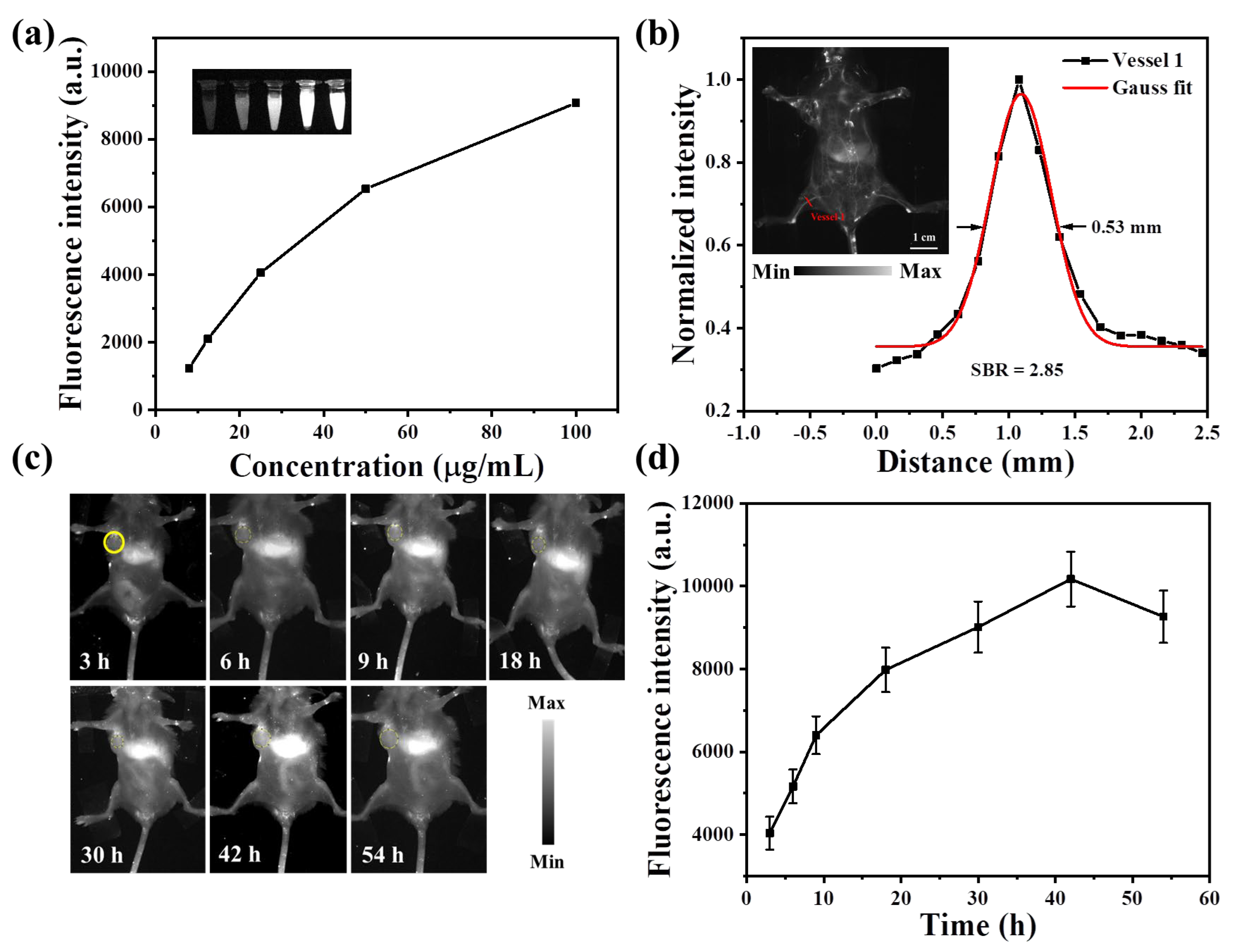

Figure 5. (a) NIR-IIb fluorescence intensity and NIR-IIb brightness of Se-TC@RENP@F at various concentrations. (b) The mensuration of full width at half maximum and SBR of the selected vessel. Inset: NIR-II angiography at 5 min post injection of Se-TC@RENP@F. (c) NIR-IIb FLI of mice at different time points based on Se-TC@RENP@F (the yellow circle represents the tumor area). (d) The tumor area’s NIR-IIb signal intensities at various time points.
Figure 5. (a) NIR-IIb fluorescence intensity and NIR-IIb brightness of Se-TC@RENP@F at various concentrations. (b) The mensuration of full width at half maximum and SBR of the selected vessel. Inset: NIR-II angiography at 5 min post injection of Se-TC@RENP@F. (c) NIR-IIb FLI of mice at different time points based on Se-TC@RENP@F (the yellow circle represents the tumor area). (d) The tumor area’s NIR-IIb signal intensities at various time points.
Pharmaceutics 15 02027 g005
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Q.; Zhang, X.; Tang, Y.; Xiong, Y.; Wang, X.; Li, C.; Xiao, T.; Lu, F.; Xu, M. High-Performance Hybrid Phototheranostics for NIR-IIb Fluorescence Imaging and NIR-II-Excitable Photothermal Therapy. Pharmaceutics 2023, 15, 2027. https://doi.org/10.3390/pharmaceutics15082027

AMA Style

Wang Q, Zhang X, Tang Y, Xiong Y, Wang X, Li C, Xiao T, Lu F, Xu M. High-Performance Hybrid Phototheranostics for NIR-IIb Fluorescence Imaging and NIR-II-Excitable Photothermal Therapy. Pharmaceutics. 2023; 15(8):2027. https://doi.org/10.3390/pharmaceutics15082027

Chicago/Turabian Style

Wang, Qi, Xinmin Zhang, Youguang Tang, Yanwei Xiong, Xu Wang, Chunlai Li, Tangxin Xiao, Feng Lu, and Mengze Xu. 2023. "High-Performance Hybrid Phototheranostics for NIR-IIb Fluorescence Imaging and NIR-II-Excitable Photothermal Therapy" Pharmaceutics 15, no. 8: 2027. https://doi.org/10.3390/pharmaceutics15082027

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
