Antimicrobial Nano-Zinc Oxide Biocomposites for Wound Healing Applications: A Review

Department of Applied Science and Technology, Politecnico di Torino, 10129 Turin, Italy
Author to whom correspondence should be addressed.
Pharmaceutics 2023, 15(3), 970;
Submission received: 21 February 2023 / Revised: 13 March 2023 / Accepted: 15 March 2023 / Published: 17 March 2023
(This article belongs to the Special Issue Nanotechnology-Based Pharmaceutical Treatments)


Chronic wounds are a major concern for global health, affecting millions of individuals worldwide. As their occurrence is correlated with age and age-related comorbidities, their incidence in the population is set to increase in the forthcoming years. This burden is further worsened by the rise of antimicrobial resistance (AMR), which causes wound infections that are increasingly hard to treat with current antibiotics. Antimicrobial bionanocomposites are an emerging class of materials that combine the biocompatibility and tissue-mimicking properties of biomacromolecules with the antimicrobial activity of metal or metal oxide nanoparticles. Among these nanostructured agents, zinc oxide (ZnO) is one of the most promising for its microbicidal effects and its anti-inflammatory properties, and as a source of essential zinc ions. This review analyses the most recent developments in the field of nano-ZnO–bionanocomposite (nZnO-BNC) materials—mainly in the form of films, but also hydrogel or electrospun bandages—from the different preparation techniques to their properties and antibacterial and wound-healing performances. The effect of nanostructured ZnO on the mechanical, water and gas barrier, swelling, optical, thermal, water affinity, and drug-release properties are examined and linked to the preparation methods. Antimicrobial assays over a wide range of bacterial strains are extensively surveyed, and wound-healing studies are finally considered to provide a comprehensive assessment framework. While early results are promising, a systematic and standardised testing procedure for the comparison of antibacterial properties is still lacking, partly because of a not-yet fully understood antimicrobial mechanism. This work, therefore, allowed, on one hand, the determination of the best strategies for the design, engineering, and application of n-ZnO-BNC, and, on the other hand, the identification of the current challenges and opportunities for future research.

1. Introduction

Wounds are a major global healthcare issue that have been defined as a “silent epidemic” [1,2] for their prevalence and profound effects on global health and patients’ lifestyles and psychological wellbeing. Overall, it has been estimated that chronic wounds alone affect 1–2% of the population in developed countries [1]. This problem is set to worsen as the incidence of chronic wounds is correlated with age and other age-related co-morbidities, such as diabetes. In European Union countries, wounds have an annual incidence of 4 million people [3]. In a study carried out across several countries, 65% of which were European, chronic wound prevalence was found to be 1.67 per 1000 individuals [4]. Chronic wounds are also deadly: a study by Eaglstein and co-workers [5] reported that chronic wounds, such as diabetic ischemic ulcers, diabetic foot ulcers, and lower extremities chronic wounds, have mortality rates of 52%, 49%, and 28% respectively, comparable with those of several types of cancer.
The economic implications are also relevant. In developed countries, chronic wound care costs account for 1–6% of total healthcare expenditures [6].
Burns are another type of concerning wound. According to the World Health Organization, 180,000 people die every year because of burn injuries, most frequently in low-income countries [7].
In the United States alone, the annual cost of acute and chronic wound care ranged from USD 28.1 billion to USD 96.8 billion in 2018 [8]. This also implies massive and indirect economic burdens correlated with decreased productivity, early retirement, and wage losses [9].
The severity and mortality of wounds are also expected to increase due to their exposure to antimicrobial-resistant pathogens. A study by Sen [8] reported how wound infections already cause 75% of post-operative deaths. As far as burns are concerned, while the mortality rate has decreased over the years due to improvements in medical techniques (such as fluid resuscitation, nutritional support, early excision of the wound eschar, and skin grafting) [10], infection and sepsis are still common and often fatal: 51% to 75% of patients who experience a major burn die [10,11]. This fact is, in part, attributed to impaired immune system functioning [12]. With the rise of antimicrobial resistance (AMR), treating wound infections is becoming increasingly harder [13]. It has already been discovered that 90% of the S. aureus strains isolated from wounds worldwide in nosocomial environments are resistant to penicillin [14]. S. aureus, E. coli, and P. aeruginosa are the most common pathogens isolated from infected wounds, showing very high rates of single- or multi-drug resistance [15,16].
This calls for advanced wound dressing solutions. In time, the functions and features of wound dressings have evolved from passive protection of the injured site from the external environment to active involvement in the healing process, mediated by the ability of these advanced materials to interact, both physically and biochemically, with the surrounding tissues and environment, for instance, by triggering cellular proliferation pathways or by eradicating bacterial infections [17,18]. In these regards, bionanocomposites (BNCs) are gaining increasing attention owing to their promising biomedical properties. BNCs are composite materials whose matrix is constituted by biomacromolecules, i.e., nature-derived macromolecules with bioactive features and the ability to form films, hydrogels, or fibres. In fact, traditional generic wound dressings, such as sterile gauzes, have been replaced over time by new dressings with enhanced ability to promote healing and that are targeted for specific wound types [19]. For instance, foams and hydrogels have been developed for highly exudating wounds, while hydrocolloids are recommended to support wound debridement. Films are preferred when flexibility, transparency and gas permeability are important, such as in the case of burns [20,21]. Biomacromolecules are very well suited for the fabrication of these devices, and intense research activity is undergoing on the development of films, hydrogels, and fibrous membranes. In many cases, these molecules are also very abundant and easy to source, which makes them a competitive alternative to petroleum-derived compounds, also from an economic standpoint. The dispersed phase of BNCs is instead represented by nanomaterials, materials which have at least one of their dimensions in the nanoscale, i.e., below 100 nm. Under this condition, new properties are, disclosed enabling unprecedented applications. One of these properties is the much higher surface-to-volume ratio and specific surface area compared with that of bulk materials. As materials interact with the outer environment through their surface, a larger surface means a larger number of interactions and a larger surface energy, and, therefore, greater reactivity and efficacy in several applications [22]. The specific surface area can also be largely increased in the presence of pores, which can then be filled with other substances, such as drugs or antibiotics for targeted and controlled delivery. Another important property is the reduced size, which allows nanoparticles (NPs) to diffuse more effectively in the extracellular environment and to get in contact with—or, in some cases, to penetrate—the surrounding cells [22].
During the last few years, many nanomaterials have been obtained, designed, and studied for wound-healing and antimicrobial applications. For the latter, a major parting line can be drawn between carbon-based and metal-based nanomaterials. The first group includes carbon nanomaterials, such as carbon quantum dots, carbon nanotubes, graphene, and fullerenes, which have all shown antimicrobial and skin regeneration-promotion effects [22,23]. Lipid and polymer NPs can also be included in this category, although they are mostly applied as carriers in drug delivery. The second group includes metal NPs—namely silver and gold NPs—and metal oxide NPs, such as iron, copper, titanium, and zinc oxide NPs. These NPs have been proven to be effective in eradicating multi-drug-resistant species and in promoting wound healing and re-epithelialization [22,23]. Nanoparticles are frequently embedded into BNC hydrogels, foams, and films as a strategy to leverage their wound-healing and antimicrobial properties [24], but they can also be used to coat suture materials [25] or be applied in the form of gels and stabilised dispersions [26] or injectable aqueous suspensions [27]. Among these, nanostructured zinc oxide (nZnO) has shown anticancer [28,29], antimicrobial, anti-inflammatory [30], and anti-diabetic properties [31], as well as applications in bioimaging [32], even though some biocompatibility concerns have been recently brought to the attention of the scientific community [33]. Contrary to other antimicrobial materials, such as gold, silver, or titanium dioxide NPs, nZnO shows lower toxicity [23] and acts as a supply of zinc, which is an essential element for the human body owing to its role in the proper functioning of metabolism, immune system, and wound healing processes [34,35,36].
For all these reasons, despite some concerns existing around the toxicity of nanoparticles for human health [37], nZnO has great potential to positively impact wound care. Many nanocomposite films, patches, membranes, and bandages have been designed using nZnO as a filler, and the number of research studies addressing the antimicrobial uses of these materials has been rising steadily over the past 10 years, as shown in Figure 1.

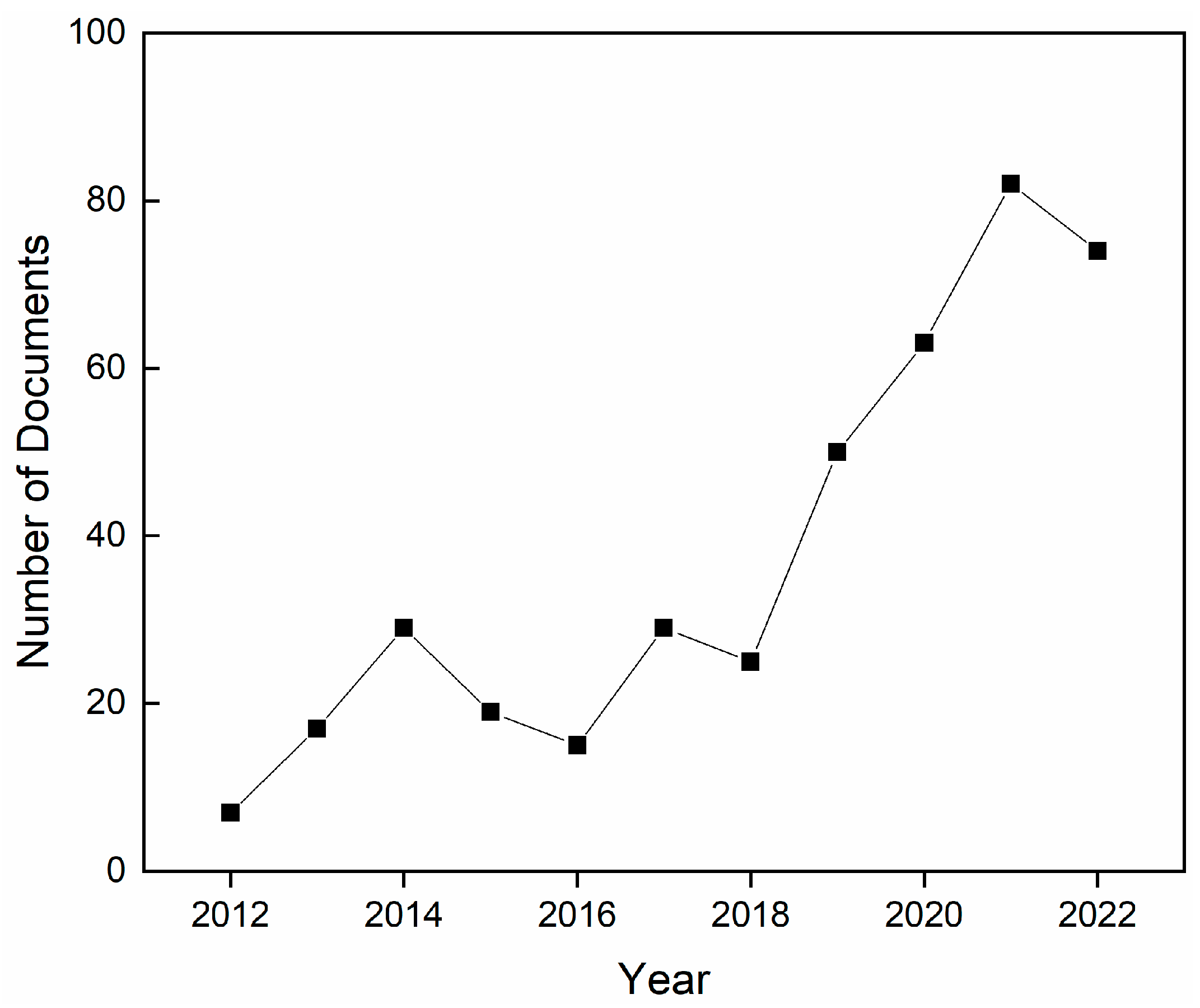

The present review considers the work conducted since 2012 to gain deep insights into the latest advancements in the development of antimicrobial nZnO-BNC films, with the goal of identifying common traits and emerging opportunities, as well as gaps and open questions in research. Films have been considered with particular attention as they do not experience the drawbacks of hydrocolloids and some hydrogels (wound maceration and bad smell) or foams (painful removal and excessive drying of the wound bed) [23]. Previous works have addressed this topic with a particular focus on the most diffused natural polymers used as matrixes in the fabrication of antimicrobial nZnO-BNCs, such as chitosan, alginate, and cellulose [38]. However, other materials are being increasingly used, and more sophisticated combinations of polymers and fillers are being investigated. Similar efforts in this direction have been made by Zahran et al. [39] for nanocomposites containing metal NPs, mostly silver NPs. In this study, biomacromolecules, such as cellulose, starch, chitin, chitosan, dextran, gelatin, alginate, pectin, guar gum, rubber, and fibrin, were considered.
Special attention here is given to the relationships existing between the matrix and the nZnO filler as key factors in the successful design of nanocomposite films, and to their influence on the resulting physico-chemical and antimicrobial properties.

2. Biomacromolecules for Wound Dressings

2.1. Overview

As mentioned in the introduction, biomacromolecules are particularly promising for the fabrication of novel, more effective antimicrobial wound dressings. Contrary to the petroleum-derived synthetic polymers, traditionally utilised, biomacromolecules are more biocompatible and conductive towards re-epithelialization, and can be easily and sustainably processed into films and hydrogels [40]. When these properties are combined with the antibacterial and wound-healing action of nZnO, new biocomposite materials emerge. Biocomposites provide better conditions for injured tissues to re-grow while preventing infections, decreasing healing times, and improving patients’ health. Many biomacromolecules, alone or in a blend, have been used for nZnO-BNC film and dressings obtaining different properties and peculiarities. An overview has been reported in Table 1.
Among these, some have attracted more attention in the scientific communities, which can be classified into two major categories: polysaccharides and proteins.

2.2. Polysaccharide-Based Polymers

Chitin is a natural polycationic polymer of N-acetylglucosamine. It is typically obtained from the cuticles of crustaceans, insects, and cell walls of fungi [88,89]. Chitin deacetylation produces chitosan, a renowned antimicrobial material [90] that is also active against some resistant strains, such as the methicillin-resistant Staphylococcus aureus (MRSA) [91]. Chitosan is biocompatible, non-toxic, haemostatic, and, thus, frequently used in biomedicine, also for wound healing [92,93,94,95] and the delivery of drugs and biomolecules [96]. Owing to these properties and due to its good processability, it is often mixed with other polymers, such as poly(ε-caprolactone) [97,98], polyurethane [99], or poly(vinyl)alcohol [100] to produce advanced wound dressing films, hydrogels, and membranes. It also lends itself very well for use in new techniques, such as electrospinning [101,102].
Cellulose is a polymer of β-bonded D-glucose units that can be obtained from plants or synthesised by bacteria [103,104]. It is non-toxic, biocompatible, and biodegradable. It is water-insoluble and possesses good thermal stability. It is gaining increasing attention, particularly in its nanostructured forms [105,106,107,108], and extensive research exists exploring drug loading and combination with nanomaterials [109,110,111]. Gopi and Zhong offered a wide review of its uses and applications in the medical field, including wound dressing and drug delivery [104,112]. Here, bacterial cellulose emerged as particularly promising for the fabrication of films and fibrous mats for wound therapy [113,114]. Several cellulose derivatives can also be obtained by modifying cellulose molecules with different functional moieties, such as carboxyl [115] and allyl [116] groups. This allows the manipulation of key properties, such as hydrophilicity, or enabling its conjugation with drugs or other medical compounds.
Hyaluronic acid, a glycosaminoglycan, is a component of the extracellular matrix. It is typically extracted from animal tissues or produced by the fermentation of some Streptococcus strains [117,118].
Its biocompatibility and hydrophilicity are valuable for the development of biomedical materials, especially hydrogels [119]. Recently, Graça and coworkers [120] offered a review of its applications in wound dressings, underlying its highly beneficial role in wound repair and cell signalling [121,122]. Another review by Ucm focused on the synthesis of hyaluronic acid by bacteria and its applications—including wound healing [123].
Alginate is a linear co-polymer constituting two monomeric units of D-mannuronic acid and L-guluronic acid. It shares similar properties [124] with hyaluronic acid, namely its high biocompatibility and hydrophilicity. Commercial alginate is isolated from brown seaweeds, and its bacterial production has recently gained interest [125]. Its high water-absorption capacity has been known for a long time; thus, this biomacromolecule has been extensively used in the production of wound dressings for high-exudate wounds. Alginate stimulates macrophages’ activation, supporting the healing process [19]. The abundance of hydroxyl and carboxyl groups in its molecule provides this polymer with high reactivity, which is also useful in the design of encapsulation and drug-delivery systems [124]. Its biocompatibility and printability meet the need for biomaterials for tissue engineering and modern wound dressings [126,127,128].
Starch is an abundant, plant-derived polysaccharide composed of α-bonded glucose units. It is endowed with biodegradability, non-toxicity, and film-forming ability. It can be processed with simple extrusion or solvent casting methods to obtain films [129], as well as with electrospinning [130].
β-glucans are typically found in the cell walls of fungi, yeasts, algae, and plants. They are a heterogeneous group of glucose polymers with a common structure comprising a main chain of β-(1,3) and/or β-(1,4)-glucopyranosyl units, along with side chains with various branches and lengths.
They are known for their immunostimulatory properties [131] and they have been shown to stimulate collagen deposition, fibroblasts and keratinocytes migration, and overall reepithelialisation [132,133,134]. Therefore, these polysaccharides have been recently researched to produce advanced dressings, such as wet gels and nanofibers for hard-to-treat and chronic diabetic wounds, as well as for antimicrobial films [74,135,136].

2.3. Protein-Based Polymers

Protein-based biopolymers, such as collagen and gelatin [83,137], are also very popular. Collagen is the main constituent protein of the extracellular matrix and is extracted from animal skin and hides. It is a source of many bioactive peptides. It favours tissue regeneration, has good moisture-retention properties, and has been used for the controlled release of bioactive molecules [40]. Several collagen films have been described in the literature for wound healing and tissue engineering [138,139,140]. Gelatin is a heterogeneous mixture of peptides derived from collagen. It has good film-forming ability, transparency, and ease of combination with functional and reinforcing additives or other biopolymers [141,142]. It has also been used to fabricate scaffolds [143,144], aerogels [145], and antimicrobial nanofibrous composites [146].
Keratin is a fibrous protein that is usually extracted from feathers, nails, horns, or wool [147]. This has raised concerns around the extraction methods and the environmental issues related to the accumulation of waste keratin-containing biomasses [148,149]. It has been extensively researched for the fabrication of films, hydrogels, and fibres, with uses in wound healing, drug delivery, and tissue engineering owing to its biocompatibility, biodegradability, and self-assembly properties [150,151].
Whey proteins are biocompatible and biodegradable byproducts of the dairy industry and are mostly used as food additives and supplements. Their excellent film-forming ability and gelation properties have been extensively investigated and used for the formulation of edible films and particles for the delivery of nutraceuticals. The combination of whey protein isolate (WPI) with nZnO has been described in a previous study [152].

3. Nanostructured Zinc Oxide (nZnO)

As mentioned in the Introduction section, nZnO has shown many promising biomedical properties, such as anticancer, antibacterial, antifungal, antidiabetic, and anti-inflammatory effects, and has been used for imaging and drug delivery. Owing to the extensive literature and review works available on nZnO [36,153,154], this section aims to briefly recall its main characteristics, with special attention towards its antimicrobial properties.

3.1. Preparation Methods

Nano-ZnO can be produced through a wide variety of techniques. such as thermal evaporation [155], sol-gel [156,157], mechanochemical [158], sonochemical [159], and microfluidics methods [160]. Microwave-assisted syntheses [161,162,163,164] are also gaining increasing attention due to the shorter reaction times and better size and morphology control with respect to conventional chemical routes. Wet chemical precipitation is, however, the most common method for nZnO in nanocomposite preparation, as it is often cheaper, simpler, and yields higher amounts of NPs. It involves the reaction of a zinc precursor—usually zinc nitrate [58,165], zinc sulphate [166], zinc chloride [167], or zinc acetate [66,157]—with a base solution—such as KOH or NaOH. The reaction takes place under very mild conditions, typically at ambient pressure and constant temperatures up to 80 °C [168]. The precipitate is subsequently collected, washed, and finally dried or calcinated [169].
Recently, a growing trend in nanomaterials and nZnO synthesis has been the use of green compounds, such as plant extracts [170,171,172,173,174,175,176,177,178,179,180], to replace NaOH and KOH as reducing and capping agents. The extracts that can also functionalise NPs with phytochemicals possessing anti-inflammatory, antioxidant, or antimicrobial properties, further mitigating potential toxicity issues.

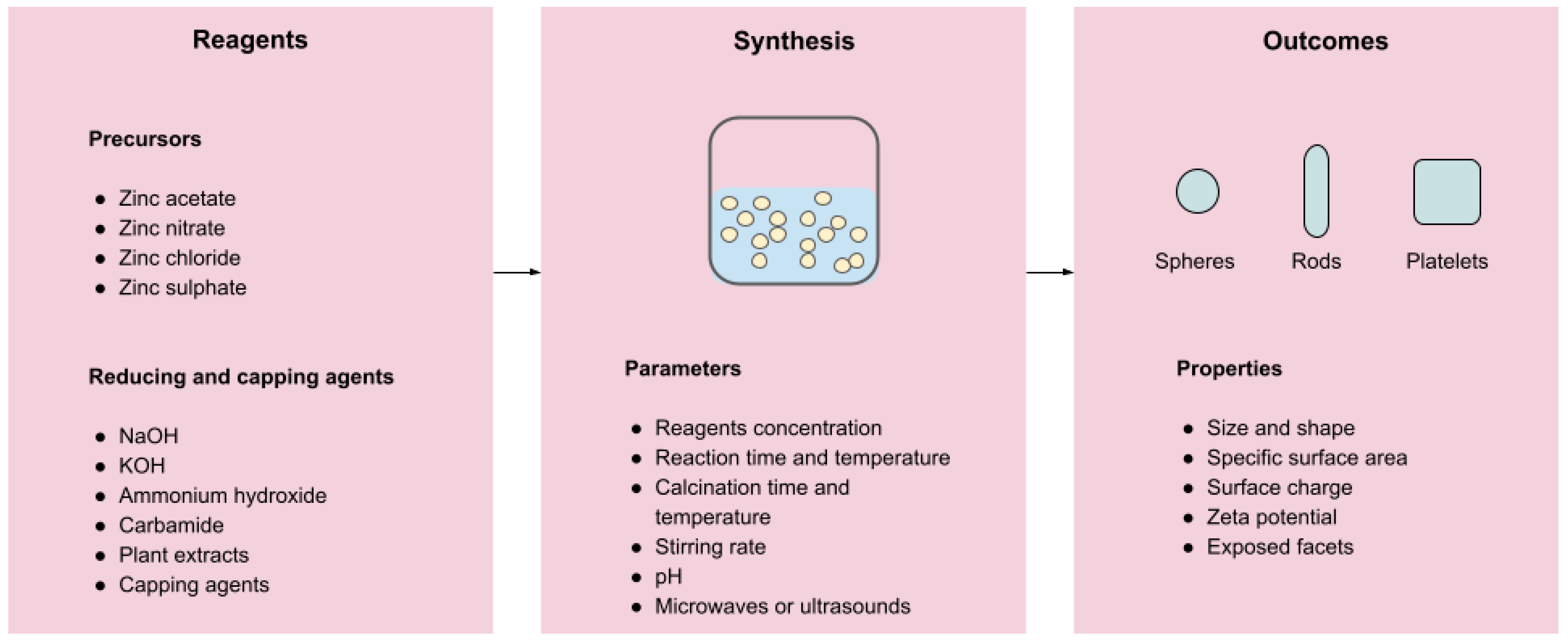

Ultimately, the selection of reagents and synthesis parameters shapes the final product in multiple ways. Parameters, such as the reaction or calcination temperatures, pH, or stirring rate, have all been proven to influence the final size and shape of the nanoparticles, as well as their surface charge, crystallite size, or porosity [156,181]. Figure 2 below summarises how and where these factors are involved in the preparation process.

3.2. Antimicrobial Mechanisms

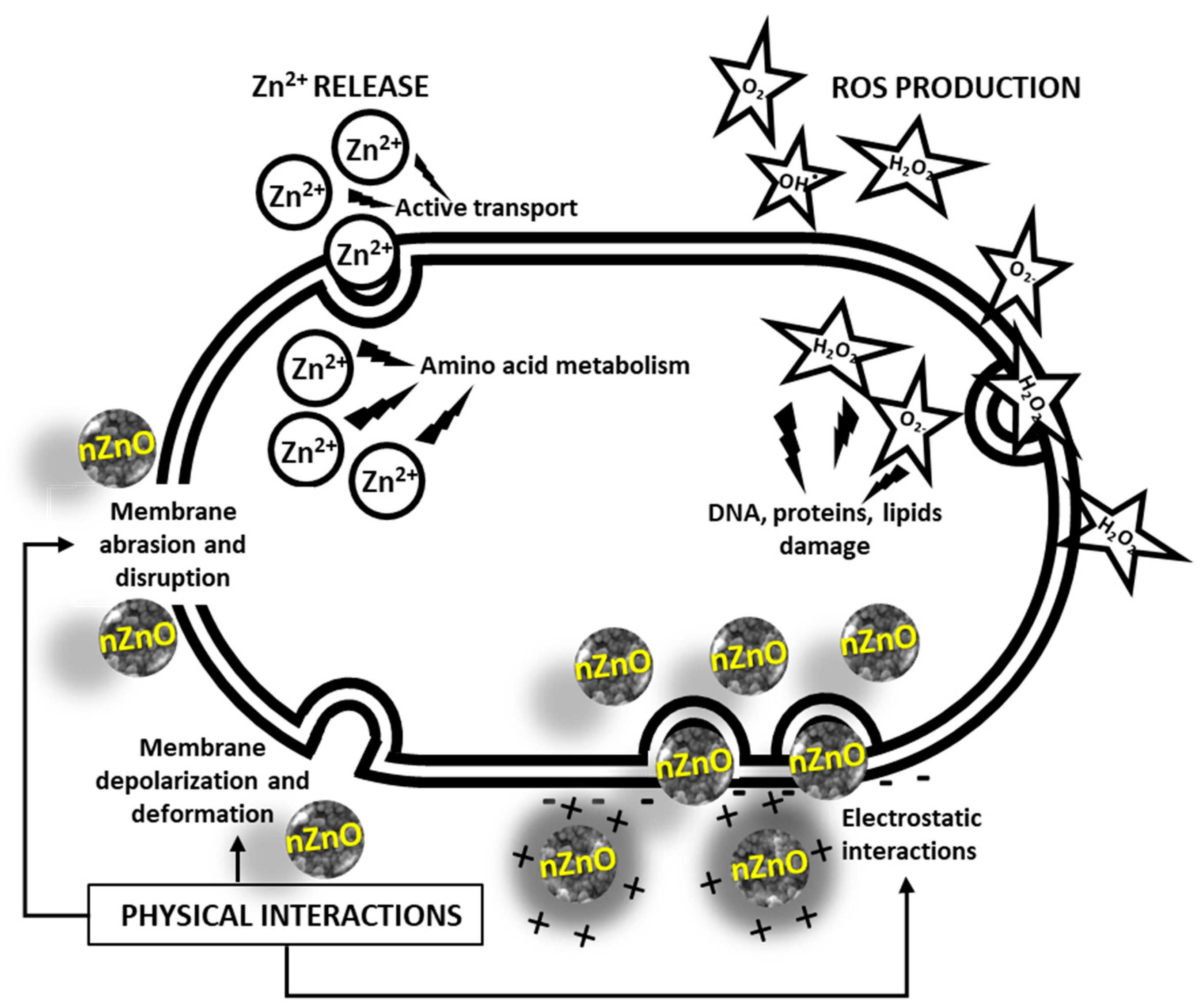

Nano-ZnO fulfils its antimicrobial action through three main mechanisms:
  • Release of Zn2+ ions. These ions bind to the thiol groups of bacterial respiratory enzymes, compromising their activity [36]. They have also been found to inhibit active transport across the plasma membrane and amino acid metabolism [153] in bacteria.
  • Production of Reactive Oxygen Species (ROS). Zinc oxide is a direct, 3.3 eV-bandgap semiconductor. Therefore, electron–hole pairs can be created across its conduction and valence bands upon exposure to UV radiation. In the presence of water and oxygen molecules, these charge carriers subsequently trigger redox reactions at the surface of the material, leading to the production of ROS, such as hydroxyl radicals OH∙, hydrogen peroxide H2O2, and superoxide anion O2. The high reactivity of these species is known to be responsible for the fatal oxidative damage and disruption of DNA, proteins, and lipids, ultimately leading to cell death [153,154].
  • Physical interactions. ZnO NPs accumulate in the proximity of bacterial cells. The contact is promoted by electrostatic interactions. In fact, bacterial cells are negatively charged, while ZnO NPs typically possess a positive charge in aqueous suspensions. In turn, this causes membrane depolarization and deformation, as well as abrasion caused by nZnO’s sharp surface edges, ultimately leading to cell death [153]. A graphical representation of these three mechanisms is offered in Figure 3.
As a rule of thumb that emerged over years of experimental studies on the antimicrobial activity of zinc oxide, nZnO tends to be more effective against Gram-positive species than Gram-negative ones [183,184]. This is attributed to the structural differences in cell walls that characterise the two types of bacteria. Gram-positive bacteria have a thick layer made of peptidoglycans surrounding the cellular membrane. In Gram-negative bacteria, the peptidoglycan layer is thinner, but it is, in turn, surrounded by an additional phospholipid outer membrane. The outer membrane is often considered to be responsible for the highest resistance of Gram-negative bacteria to nZnO, as it is hypothesised to act as a shield against Zn2+ and ROS. It has also been found that small concentrations of ZnO can actually enhance the growth of Gram-negative bacteria [153]. This is a crucial aspect to be considered; on one hand, it restricts the potential use cases of this nanomaterial; on the other hand, it offers a clear direction for improvement.
It is also important to highlight that the features of nZnO determine the contribution of each of these mechanisms to the final antimicrobial action. In other words, nZnO—and nanomaterials more in general—can be designed to maximise its efficacy.
In fact, factors such as the selection of reagents or the stirring rate [156] ensure a good degree of control of the final characteristics of the NPs, leading to a wide variety of sizes and shapes, such as nano-spheres [157], nano-rods [178], nano-platelets [185], and nano-flowers [179]. These morphological features, together with the specific surface area (SSA) and surface electric charge, have all been found to contribute to nZnO antimicrobial activity, as reviewed by several authors [38,153,175,180]. For instance, a smaller size and a spherical shape have been found to increase NPs’ solubility, thus boosting the release of Zn2+ ions. Similarly, the type of facets exposed—e.g., (100) versus (111)—have different antimicrobial activities and can thus be considered when developing new types of nZnO [153].
Here, it is crucial to highlight that toxic effects might also arise against eukaryotic cells. As for fungi, similar mechanisms to those described above for bacteria are considered responsible for the antifungal activity of nano-ZnO [45,186]. Several studies have examined the cytotoxicity of nZnO to human cells [33,158,187]. They attributed the toxic effects to the upregulation of the p53 protein pathway in the presence of nZnO, with the subsequent induction of cellular apoptosis. This is considered a response to the oxidative stress exerted on DNA by ROS, which have been described by several authors as the main toxicity driver in mammalian cells, together with Zn2+ release.
Now that the main features of nZnO and biomacromolecules have been recalled in relation to their antimicrobial and wound-healing applications, it is time to explore their synergies when they are combined to form BNCs.

4. Biomacromolecule—nZnO Composites

4.1. Preparation Methods

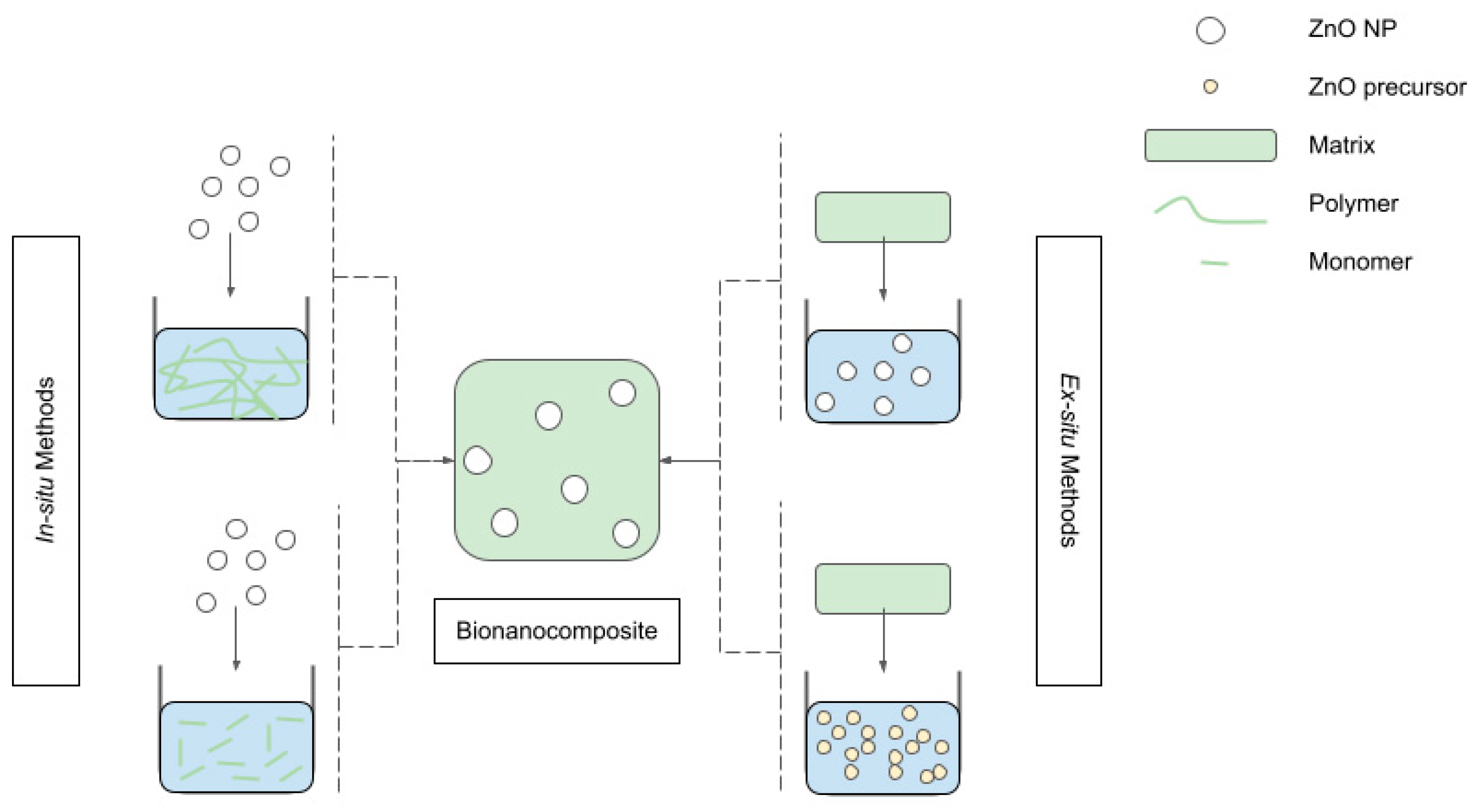

Several preparation processes exist for nZnO-BNC films or hydrogels. Zahran et al. [39] offered a useful overview of the preparation methods for polymer–nanoparticle nanocomposites. Following that classification, two options are found to be most common for nZnO-BNCs, namely in situ and ex situ methods.
In situ methods consist of mixing a suspension of nZnO with a monomer solution or polymeric chain suspension [188]. After sufficient homogenisation of the two components, the BNCs can be obtained by entangling or crosslinking the polymers, or by polymerizing, reticulating, or gelling the monomers. This can be achieved through the addition of a polymerization initiator or crosslinking agent [75], or by solvent evaporation. In this latter case, solvent casting [48,56,65,68,71,84,99,189,190] is the most common technique to produce composite films. Freeze-drying [41,191,192] is more used for hydrogel membranes and patches, while electrospinning [69,193,194], spin-coating, or electrophoretic deposition [195] can be applied to obtain fibrous mats.
In situ methods can be used with low-molecular-weight, well-soluble polymers and facilitate a good dispersion of the filler. They have been successfully used to produce, among others, gelatin/hyaluronic acid/chitosan [83], cellulose [196], starch [62], and keratin [79] composite hydrogels containing nZnO, as well as WPI films [152]. Moreover, they are the most common methods for obtaining polyurethane–ZnO composite films, membranes, and coatings, as demonstrated in the dedicated review work conducted by Rahman [197].
Ex situ methods consist of immersing an already-formed matrix into a nZnO suspension under agitation in order for the nZnO to migrate inside the matrix and to finally interact with it, either physically or chemically. These methods are relatively simple, but are limited to highly porous matrixes with good affinity for the suspension medium, and are capable of significant swelling in that environment. Indeed, poor penetration of NPs in the core region of the matrix is a typical issue. Ex situ methods have been applied to craft, for instance, keratin/chitosan [78] hydrogels, or alginate bandages [41].
Several variations of both the above-described methods have been adopted by researchers. In some cases [75,198], for in situ methods, the direct addition of pre-synthesised nZnO is replaced by the addition of a zinc oxide precursor. This leads to a solution of monomers and zinc ions, which is then brought to basic pH to favour the simultaneous formation of nZnO and polymers. Similarly, in some ex situ routes, the preformed matrix is immersed into a zinc oxide precursor solution [58,64]. This allows Zn2+ ions to diffuse into the polymeric network before the formation of ZnO. Figure 4 summarises the main approaches to BNCs’ fabrication.
Once together, the interaction between nZnO and the matrix is mostly regulated by hydrogen bonds and by van der Waals interactions [65,71,73,75,80,189,192,199]. This plays a significant role in shaping the final nanocomposite and its properties. For instance, a decrease in matrix crystallinity has been reported in several BNCs made from chitosan or cellulose [50,53,100,158,189,191,200,201]. This has been ascribed to the disruption of biomacromolecular order caused by nZnO. In fact, these biomacromolecules are rich in amino and hydroxyl groups, which, upon interaction with (or shielding by) nZnO, are no longer available to mediate the intermolecular interactions governing the spatial organisation and subsequent crystallization of the macromolecular chains.
It is interesting to note how an increase in crystallinity has been reported for some synthetic poly(vinyl alcohol)-based nanocomposites [52,192,202], as well as in composites of non-ionic polymers, such as cellulose acetate, poly(butylene-succinate), and poly(lactic acid) [69,203,204]. In these cases, given the minor contribution of electrostatic phenomena, the stabilizing effect of nanophase might prevail, facilitating molecular organisation and triggering heterogeneous nucleation.
Conversely, when nZnO synthesis is carried out within the BNCs’ preparation process starting from a precursor, either in situ or ex situ, the resulting nanofiller is affected in several ways. The existence of an already-formed matrix or the presence of monomers or macromolecules in the solvent can interfere with nZnO formation by acting as capping agents that constrain the growth of the NPs and regulate their final shape [75,205].

4.2. Mechanical and Functional Properties

Following the above description of preparation methods, we shall now dive into how the inclusion of nZnO inside a biomolecular matrix translates into new or modified properties.

4.2.1. Mechanical Properties

Mechanical properties are critical for antimicrobial BNCs for wound healing. Inadequate mechanical properties can result in low compliance with the skin and in the inability to stretch or bend according to patients’ movements, as well as in poor protection from scratches and punctures. They can also limit the suitable production technologies and drive an increase in the relative costs.
In general, the addition of nZnO typically has a concentration-dependent reinforcing effect translating into an increase in tensile strength and elastic modulus, accompanied by a decrease in elongation at break. A 176% enhancement of tensile strength was reported by Azizi [52] after reinforcing a poly(vinyl alcohol)/chitosan blend film with nZnO and cellulose nanocrystals. The polyurethane/chitosan film made by Indumathi [99] achieved a 56% improvement in tensile strength after a 5% w/w nZnO addition. Similarly, a 5% w/w nZnO loading allowed increases in the tensile strength and the Young’s modulus of a bacterial cellulose composite film of 42% and 30%, respectively, according to Jebel et al. [53]. Arfat and co-workers achieved a 36% tensile strength increase by adding 3% w/w nZnO to a fish protein isolate/fish skin gelatin composite film [81]. Similar results have been obtained by other researchers as well [65,69,80,99,158,190,191,192,203,206]. The reasons underlying this reinforcement are ascribed to the ability of nZnO to limit the movement of polymeric chains by means of physical, chemical, and mechanical interactions. This effect is further enhanced by a high degree of dispersion of the filler and by a high surface area, which increases by decreasing the size of the NPs.
On the other hand, a worsening of mechanical properties has been reported in some cases, occurring above the initial concentration-dependent improvement, at the highest nZnO contents [71,100,189,207]. In fact, after a critical concentration threshold, the agglomeration of nZnO into larger aggregates is triggered, thereby causing a worsened ability to transmit loads across the composite microstructure. The use of a capping agent wrapped around nZnO has been shown to mitigate these side effects by preventing agglomeration and favouring dispersion [56].
Aside from the role of the nZnO content, a weak matrix–filler interaction causes a decrease in the mechanical properties, where the resulting nanocomposite shows higher elongation at the break and decreased tensile strength and elastic modulus, as reported by Kanmani et al. [68] for carrageenan, carboxymethyl cellulose, and agar-based composites obtained in situ via solvent casting. Similar results were obtained by other researchers [66,73,204]. A summary of these findings is offered in Table 2.

4.2.2. Surface Roughness and Wettability

Many of the studies examined in this work found that the incorporation of nZnO into the matrix usually leads to an increase in the surface roughness due to the presence of the nanomaterial in the upper layers of the film and at the interface with the external environment [80,99]. This has an important impact on another important property, that is, wettability.
Wettability is defined as the affinity of a given surface for a liquid, typically water. The traditional measure of wettability is the water contact angle (WCA). There is wide agreement in the community that the addition of nZnO to biopolymeric materials causes an increase in the WCA, meaning an increase in hydrophobicity [66,68,71,99,190,192,208,209]. One of the causes is, indeed, the increase in the surface roughness, which opposes capillary forces to the penetration of water droplets into the material. Another cause is the lower water affinity of nZnO compared with biomacromolecules. A third reason is, in some cases [192], the enhanced crystallinity of the surrounding matrix: more tightly packed crystalline phases are more difficult to be penetrated by water. A high water affinity—and thus a low WCA—is important for wound dressings as it ensures good adhesion to the underlying tissue. In many cases, it goes in parallel with the ability of the dressing to absorb wound exudate. Given that nZnO increases the WCA, it could be argued that its effect is, in fact, detrimental on this important feature of a good dressing. However, the emergence of a hydrophobic behaviour upon the addition of nZnO, i.e., a WCA greater than 90°, is extremely rare. In most cases, hydrophilicity is preserved, as shown in Table 3.

4.2.3. Porosity and Swelling

Porosity is also influenced by the presence of nZnO, and both increases [51,55,75,78] and decreases [41,53,73] in porosity were reported by authors.
A high porosity may be beneficial for the swelling ratio (SR)—defined as the percentage increase in the weight of a specimen after immersion in a liquid medium with respect to the dry weight. SR has been reported to increase in composite films and hydrogels after the addition of nZnO [51,55,58,75,79,192]. In addition to a higher porosity, this was also attributed to the electrostatic charge on the surface of nZnO, which causes ionic osmotic pressure build-up inside the matrix, thereby inducing higher water uptake to counterbalance it. However, high concentrations of nanofiller might too-strongly reduce the intermolecular movements at the basis of the swelling phenomenon—the so-called knot-tying function—thereby reducing the swelling ratio in some cases [41,43,61,64,73,196,211,212]. Another reason for this decrease in the swelling ratio of nanocomposites can be the overall lower water affinity of the system due to the diminished net electrostatic charge of the matrix caused by the shielding effect imparted by nZnO.

4.2.4. Gas Barrier Properties

Barrier properties to oxygen and water vapour can also be very important for wound dressings. A very high water permeability might lead to wound dehydration, whereas limiting oxygen afflux can promote angiogenesis through hypoxia [213].
The diffusion rates of both water and oxygen have been found to decrease with increasing zinc oxide content. Priyadarshi and Negi measured the water-vapour-transmission rate (WVTR) of chitosan/nZnO films [48]. In their study, the measured WVTR of chitosan films was 0.0067 g/m2/day, which decreased to 0.0028 and 0.0011 g/m2/day upon the addition of nZnO in amounts equal to 1% and 2% w/w, respectively. The decrease was attributed to the occupation of pore volume by the nZnO. Arfat and co-workers studied the properties of fish protein isolate/fish skin gelatin–ZnO BNCs [81].
The researchers measured a concentration-dependent decrease in water vapour permeability (WVP) up to a 3% w/w nano-ZnO loading. At 4% loadings, agglomeration determined the loss of matrix integrity, thus causing an increase in WVP. In the gelatin/β-glucan/ZnO nanocomposites prepared by Azari et al. [85], the WVP decreased from 2.15 × 10−8 g m−1 h−1 Pa−1 for neat gelatin films to 1.58 × 10−8 g m−1 h−1 Pa−1 for composite films containing 20% w/w β-glucans and 5% w/w nZnO. The decrease was explained by an increase in matrix compactness induced by the higher number of intermolecular interactions, as well as with the higher tortuosity imposed on the path of water molecules. Peighambardoust et al. [65] found similar results for starch-based BNC films. Furthermore, the authors found that nZnO was more efficient in decreasing WVP compared with CuO and Ag NPs owing to its superior dispersibility, which ultimately translated into maximum path tortuosity. Chu and co-workers [204] measured, instead, an increase in WVP for a polylactic acid film upon the addition of nZnO. However, a possible explanation for that can be found in the microstructural changes imparted to the continuous polymeric phase by the nano-filler that introduced some voids to the matrix, as shown by the SEM images. A higher water vapour permeability was also observed in the study by Shankar et al. [56], and was attributed to the higher porosity of the composite in the proximity of the separation between the gelatin film and the filler phases.
As for oxygen permeability, Indumathi et al. [71] reported a concentration-dependent decrease in the oxygen transmission rate (OTR) in chitosan/cellulose acetate phthalate/nZnO films, with a minimum of 1490.43 cm3 m−2 d−1 in correspondence with the highest nZnO loading of 7.5% w/w. This value was lower than that of traditional synthetic polymeric films, such as polyethene. The same was observed by Petchwattana et al. in poly(butylene succinate)/nZnO-BNC films [203]. The presence of nZnO constitutes an obstacle to oxygen molecules’ migration across the material. Similar results have been observed in numerous other studies [62,66,68,71,80,158,190,192,207,214].

4.2.5. Ultraviolet Light Barrier

Wound dressings shall also be capable of protecting the injured area from harmful radiation. As a semiconductor with a band energy gap of around 3.3 eV, ZnO has excellent UV-blocking properties. Quantum confinement effects at the nanoscale can also increase the energy gap, thereby promoting the absorption of even higher frequencies of the spectrum. This property is always successfully transferred to the nanocomposites [56].

5. Applications in Wound Healing

5.1. Controlled Drug Release

nZnO-BNCs can be a promising platform for the controlled delivery of substances and agents that stimulate the healing process. In fact, the ability to release drugs loaded into the matrix is also modified by the simultaneous presence of nZnO in the system, as shown by Rath [212] for cefazolin-loaded nanofibrous gelatin mats, with incorporated nZnO, for surgical wounds. When designing a drug-delivery device, a controlled release profile is highly desired, as well as an optimal drug-loading capacity. Researchers have found that the nZnO content is an active parameter in optimising the drug-loading capacity [51,196,215] due to its previously discussed ability to influence the water uptake and swelling behaviour of the BNCs. In addition to this, drug release is also found to become slower and more controlled in proportion to the amount of nZnO included in the matrix. This may be due to the higher tortuosity that the nanofiller imposes on the path of the drug molecules upon release [197].

5.2. Antimicrobial Properties

As mentioned in Section 3.2, nZnO acts through three main antimicrobial mechanisms. These shall be reconsidered in the context of the BNCs and their application as a wound dressing.
The matrix can influence the release kinetics of zinc ions or of the nZnO itself, thus regulating the antimicrobial activity of the BNCs. Jebel et al. [53] and Villanueva and co-workers [79] examined the release properties of zinc ions or nZnO from bacterial cellulose (a polysaccharide) and keratin (a protein) BNC film and hydrogel, respectively. In the first case, it was found that greater release occurred in a medium with pH 8 as opposed to a medium with pH 4. This was attributed to the higher SR achieved under basic conditions, which promoted the diffusion of ions and nZnO. In the second case, it was found that two-month-old samples showed significantly lower release, presumably due to a slow rearrangement of molecules occurring during ageing and that translated into greater hindrance to diffusion. Therefore, both the pH and the ageing phenomena of the matrix were shown to play a role. This is relevant not only for the final application, but also for the storage conditions and time prior to use.
Release phenomena—of zinc ions or of nZnO particles—have also been investigated for other BNCs. Sudheesh Kumar [73] showed that 12% of the nZnO contained inside a β-chitin hydrogel was released after 1 week of immersion in phosphate-buffered saline. Azizi and co-workers investigated the release of Zn2+ from a poly(vinyl alcohol)-chitosan BNC film [52] through the inductively coupled plasma technique in water and showed a sustained and nZnO-concentration-dependent release of zinc ions in water throughout a period of 8 days, reaching a final concentration of 0.7 mg/L. In a work by Chu [204], the antimicrobial activity of a polylactic acid/nZnO film against E. coli was measured immediately after exposure to the samples and after 12 h. Inhibition was only reported after 12 h and attributed to the gradual release of nZnO from the porous matrix.
In general, the antimicrobial efficacy of nZnO-BNCs increases with the content of nanofiller [216,217], although in some cases, agglomeration might cause a reduction in the antimicrobial potential of nZnO [100]. In some systems, such as chitosan-based BNCs, the matrix itself possesses antimicrobial properties that can act in synergy with nZnO [48]. Carefully tuning the amounts of nZnO loaded in the composite films is important to maximise the antibacterial action without inducing cytotoxicity side effects to surrounding dermal cells [33]. As will be shown in the next section, nZnO-BNCs have actually been shown to be safe in several in vivo studies.

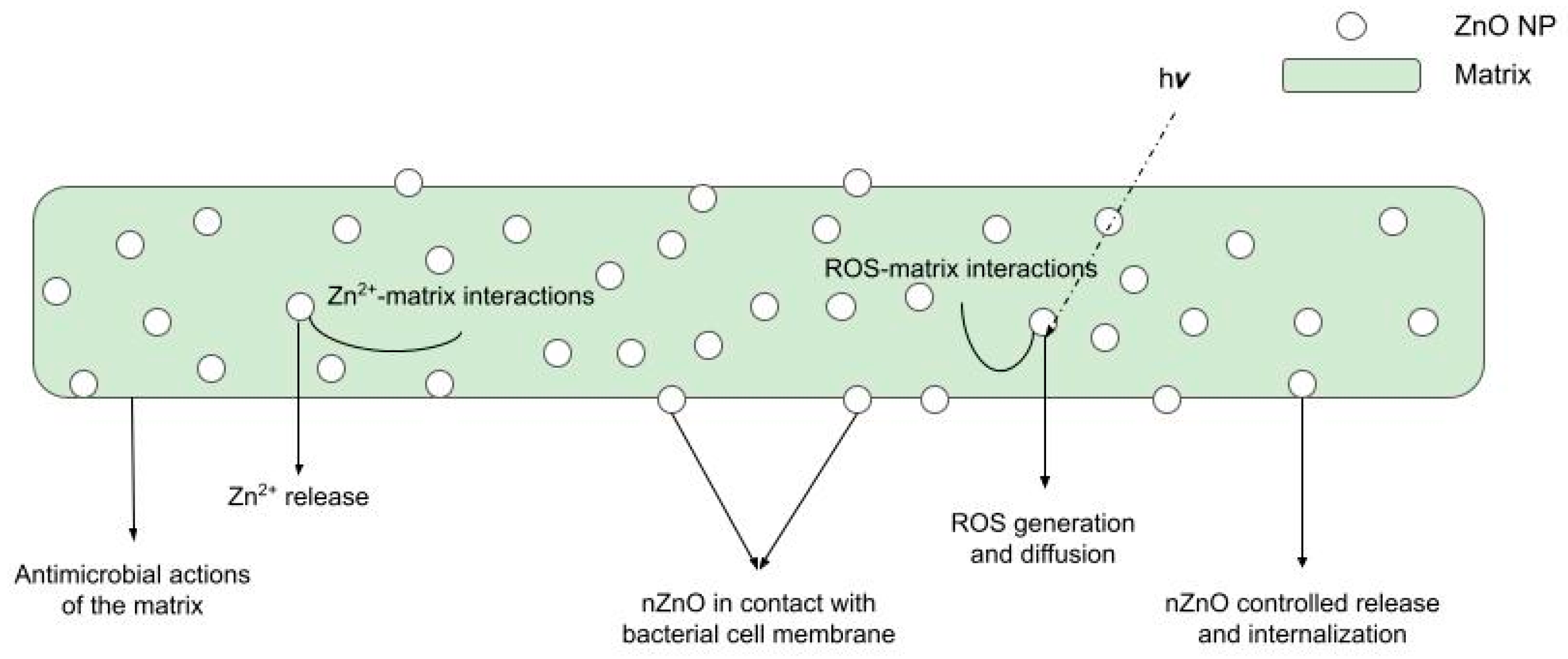

Figure 5 below shows a schematic representation of all these phenomena at work.
Regarding nZnO, most BNCs tend to have greater inhibitory activity against Gram-positive bacteria, while a minority are more effective against Gram-negative bacteria; main results are summarized in Table 4. In particular, around 65% of the studies considered for the present review, employing the disk-diffusion method, reported a more marked effect on Gram-positive species. Examples of these nZnO-BNCs include carboxymethyl–chitosan/ZnO [58], oxidised starch/ZnO [64], cotton–starch/ZnO [63], keratin [79], fish protein isolate–fish skin gelatin/ZnO [80], bacterial cellulose [50], and many other BNCs obtained from either proteins or polysaccharides [47,48,85,194,200,207,210,218,219,220]. Similar to the case of bare nZnO, also in this case, the lower effect against Gram-negative bacteria is attributed to the lipopolysaccharide outer membrane covering their thin peptidoglycan layer, which would protect them from the antimicrobial species released by the nano-oxide.
On the other hand, nZnO-BNCs that are more effective against Gram-negative species than Gram-positive species include hyaluronic acid/nZnO [75] and chitosan/ZnO BNCs [83,100,166,189]. The reported results are attributed to the fact that the thicker peptidoglycan layer of Gram-positive bacteria is more difficult to penetrate by antimicrobial agents.
However, no sufficient evidence has been found to correlate the differences in the experimental conditions or in antimicrobial systems with these asymmetric results. One of the main reasons might be found in the use of different bacterial species and strains in these studies, which could have different susceptibilities to antimicrobials. Ahmed et al. [101] tested the antimicrobial efficacy of a chitosan–poly(vinyl alcohol) nanofibrous blend against E. coli and S. aureus, both in the presence and in the absence of nZnO. The results of the disk-diffusion method for the composite blend showed comparable inhibition zones of 20.2 ± 1 mm and 21.5 ± 0.5 mm, respectively, while the inhibition zones of the neat chitosan-poly(vinyl alcohol) blend were 14 ± 0.5 mm and 5 ± 0.5 mm, suggesting that the matrix may play a role in complementing the weaker effect of nZnO against Gram-negative bacteria. This is supported by several studies on the ability of chitosan to disrupt the Gram-negative cell membrane by means of electrostatic interactions [221,222,223]. Chitosan matrixes are indeed the most frequent among the abovementioned studies reporting greater activity against Gram-negative bacteria [83,100,166,189]. Similar results can be found in [200], which shows how chitosan-only films have greater antimicrobial activity against E. coli than against S. aureus. Data in [71] showed instead that chitosan-only films were more effective against S. aureus than against E. coli in an analogous disk-diffusion test, even though the chitosan used for film preparation had the same molecular weight in both studies and comparable deacetylation degrees. However, neither of the two studies reported the S. aureus and E. coli strains used, which might have explained the different results.
To elucidate the role played by the matrix, Kanmani and Rhim [68] prepared three different BNCs via an in situ method combining the same type of nZnO with three matrixes, namely agar, carrageenan, and carboxymethylcellulose. The matrixes altered the final aggregation and dispersion of the nanofiller. Additionally, the agar/nZnO composite was found to be less transparent to ROS-inducing UV light. The carrageenan/nZnO composite exhibited the lowest moisture content and water vapour permeability. The differences in these three matrixes did not result in any significant relative differences in the antimicrobial activity of the nanocomposites against the pathogens E. coli O157:H7 ATCC 43895 and L. monocytogenes ATCC 1531. However, Gram-positive L. monocytogenes was always found to be more susceptible to the BNC than E. coli.
On the other hand, to evaluate the role of morphologically different ZnO nanostructures coupled with the same matrix, Shankar et al. [56] tested nZnO obtained from different precursors in the same gelatin matrix against E. coli (Gram-negative) and L. monocytogenes (Gram-positive). Additionally, in this case, no significant difference in antimicrobial efficacy was observed, even though it could be noticed that the nZnO obtained from zinc acetate was slightly more effective against L. monocytogenes than the nZnO obtained from zinc nitrate.
These studies confirm that BNCs are effective against a wide variety of bacterial strains. This is fundamental to prevent wound infection and subsequent delayed or impaired healing, with potentially fatal consequences for patients. Still, many questions remain open about their actual mechanism of action. Moreover, it shall be noted here that most of the antimicrobial studies conducted did not test the BNCs against biofilms, which are the most common form in which bacteria are found in wounds [224]. This stands as another important gap that research should address to make a significant leap forward. Gaining insights into these aspects will, therefore, make a great contribution to a more rational design of better solutions. Additionally, research is also advancing to answer another important question: are BNCs effective in healing wounds?
Table 4. Antimicrobial efficacy of different nZnO-BNCs against different strains measured either via disk-diffusion tests or end-point assays.
Table 4. Antimicrobial efficacy of different nZnO-BNCs against different strains measured either via disk-diffusion tests or end-point assays.
Matrix TypenZnO (% wt)Test Type *Tested MicroorganismsTest Results **Ref.
Polyurethane/chitosan with mahua oil5Disk diffusion (10)S. aureus20[99]
E. coli25
Chitosan/Poly(vinyl alcohol)5Disk diffusionS. aureus14[100]
E. coli17
C. albicans2
A. niger2
Gelatin/hyaluronic acid/chitosan and asiatic acid-Disk diffusion (3)S. aureus4.9 ± 0.6[83]
E. coli5.3 ± 0.2
Alginate 5Disk diffusion (13)MRSA15 ± 2 [41]
Chitosan2End-point assayB. subtilis3 mg/mL [48]
E. coli6 mg/mL
Bacterial cellulose-Disk diffusion (20)E. coli27 ± 0 [50]
P. aeruginosa25 ± 1
S. aureus28.6 ± 1.15
C. freundii26 ± 0
Chitosan–cellulose 10–30 (% w/v)Disk diffusion S. aureus13.75 ± 1.50[51]
T. rubrum12.00 ± 1.82
PVA/chitosan/CNC5Disk diffusionS. aureus6.3[52]
S. choleraesuis4.9
Bacterial cellulose 5Disk diffusion (5)S. aureus11.8[53]
E. coli5.6
Carboxymethylcellulose-Disk diffusion (10)S. aureus13[54]
B. subtilis16
P. aeruginosa20
E. coli16
Gelatin-End-point assayL. monocytogenes1 LogCFU/mL after 12 h[56]
E. colic.a. 5.3 LogCFU/mL after 12 h
Carboxymethylchitosan-End-point assayS. aureus99% reduction in viability after 4 h[58]
E. coli99% reduction in viability after 6 h
Chitosan–carboxymethyl cellulose–oleic acid2Disk diffusion (4)A. niger30.10 ± 1.50[59]
Gelatin-chitosan nanofibers5Disk diffusion (12)E. coli25.06 ± 0.24[84]
S. aureus33.13 ± 0.67
P. aeruginosa12.95 ± 0.18
Gelatin/β-glucan-Disk diffusion (12)S. typhimurium13.2 ± 1.72[85]
E. coli15.0 ± 1.52
S. aureus17.0 ± 2.10
P. aeruginosa14.2 ± 1.32
Gum acacia/poly(acrylate)-Disk diffusion E. coli32 ± 0.7[61]
Hyaluronic acid-Disk diffusion (6)E. coli19[75]
S. aureus11
Methacrylated hyaluronic acid/elastin-like polypeptide0.2End-point assayMRSA28.3 ± 4.7 CFU[76]
Keratin5Disk diffusion (5)E. coli7.7 ± 1[79]
S. aureus13.5 ± 1.3
Sago-starch5Disk diffusion S. aureus80 mm2 [62]
Oxidised starch-Disk diffusion (5)S. aureus100% inhibition[64]
E. coli8–11 mm
Carrageenan-End-point assayL. monocytogenes9 LogCFU/mL after 12 h[66]
E. coli0 LogCFU/mL after 12 h
Chitosan/cellulose/acetate phthalate5Disk diffusion (10)S. aureus23 ± 0.35[71]
E. coli24 ± 0. 47
Poly(lactic acid)-End-point assayE. coli3.31 LogCFU/mL after 12 h[204]
Poly(vinyl alcohol)/chitosan1Disk diffusion (20)S. aureus26[192]
E. coli25
Poly(caprolactone) nanofibers5Disk diffusion (6)E. coli8.76 ± 1.2[194]
S. aureus9.98 ± 0.6
Chitosan-End-point assayE. coli2.5 ± 0.421 × 107 CFU/g[189]
S. aureus9 ± 0.367 × 107
Regenerated bacterial cellulose2Disk diffusion (15)E. coli41[191]
Cellulose-Disk diffusion S. aureus10.40 ± 0.50[196]
T. rubrum9.20 ± 0.20
Starch5End-point assayE. coli~65% inhibitory rate[207]
S. aureus100% inhibitory rate
Chitosan–cellulose-Disk diffusion S. aureus13.75 ± 1.50 [51]
T. rubrum12.00 ± 1.82
Gelatin nanofibers3Disk diffusion (10) S. aureus27 ± 1[212]
Hydroxyethylcellulose0.2End-point assayE. coli60.2% inhibition[225]
S. aureus91.5% inhibition
Poly(lactic acid)/acetylated cellulose nanocrystals5End-point assayS. aureus100% growth inhibition rate[226]
E. coli100% growth inhibition rate
Carboxymethylcellulose-Disk diffusion (5)E. coli20 ± 2[227]
S. aureus28 ± 2
Chitosan/poly(vinyl alcohol) nanofiber-Disk diffusion (15)E. coli20.2 ± 1.0[101]
B. subtilis15.5 ± 0.8
S. aureus21.5 ± 0.5
P. aeruginosa21.8 ± 1.5
Cellulose/chitosan nanofibers5Disk diffusion (12)E. coli25.06 ± 0.24[228]
S. aureus33.13 ± 0.67
P. aeruginosa12.95 ± 0.18
Ultrasonicated poly(lactic acid)1Disk diffusion (10)E. coli21.17 ± 0.07[229]
S. aureus18.13 ± 0.08
Bacterial cellulose-Disk diffusion (6)E. coli0[230]
B. subtilis4 ± 0.13
C. albicans0
* For disk-diffusion tests, the number between parentheses indicates the diameter of the disk reported in the reference study, expressed in millimetres. ** For disk-diffusion tests, the number indicates the diameter of the inhibition zone, expressed in millimetres unless otherwise specified.

5.3. Wound-Healing Properties

Zinc oxide and biomacromolecules have been combined in different ways to promote wound healing. Blinov and co-workers formulated different gels by combining nano- and micro-ZnO with several biomacromolecules, namely maltodextrin, agar–agar, methylcellulose, amylopectin, and hydroxyethylcellulose [231]. The latter was found to be optimal for gel preparation and was used to treat burns on mongrel white rats, either alone or in combination with micro- or nano-zinc oxide. The researchers found that adding micro-ZnO to a hydroxyethylcellulose gel could boost the healing rate of burns in rats by 16.23% compared with the sole polysaccharide gel. These improvements increased to 24.33% when micro-ZnO was replaced with nZnO, confirming the promising properties of this oxide in its nanostructured form.
Biomacromolecules and nZnO have also been used to functionalise cotton pads, as reported in Hasanin [232]. Cotton pads functionalised with chitosan, glycogen, and nZnO led to a 99.73 ± 0.24% reduction in wound area in Wistar rats after 17 days, compared with an 89.14 ± 0.97% reduction in the control group treated only with a cotton pad.
In 2013, Kumar et al. [73] tested the wound-healing potential of a β-chitin hydrogel/nZnO composite bandage as a potential solution for different types of infected wounds with large volumes of exudate. Bandages were tested on Sprague–Dawley rats, facilitating a 100% skin wound closure after 3 weeks, together with good antimicrobial activity and collagen deposition.
Rakhshaei and Namazi [233] prepared a nanocomposite hydrogel based on carboxymethyl cellulose filled with nZnO-impregnated MCM-41 mesoporous silica, loaded with tetracycline, a broad-spectrum antibiotic. In addition to the enhancement of the antimicrobial properties against E. coli brought by nZnO, a cytotoxicity test was carried out using adipose tissue-derived stem cells. The tests showed 63% cell viability after 24 h of the nZnO-containing hydrogels, compared with 81% in nZnO-free hydrogels. However, the viability continued increasing for the next 7 days in both cases. Similar results were obtained by Khorasani et al. [192] for a heparinised nZnO/poly(vinyl alcohol)/carboxymethyl cellulose hydrogel tested on mouse fibroblast cells (L-929). These results led to the conclusion that the BNCs were, in fact, biocompatible.
Along the same line, Raguvaran et al. [234] demonstrated that embedding nZnO into sodium alginate–gum acacia hydrogels yielded remarkably lower cytotoxicity than the bare nano-oxide while retaining good wound-healing properties. In fact, the hydrogel matrix was able to effectively reduce the contact between nZnO and the cells, and to control Zn2+ release. This is reassuring evidence, considering the existing concerns about the toxicity of nZnO.
Burn wounds on Bagg’s albino (BALB) mice were treated with bacterial cellulose/nZnO composites by Khalid et al. [50], who reported wound-healing activity comparable to that of a commercial silver sulfadiazine cream. Histopathological analyses revealed regenerated epithelium in the wound beds treated with the BNC. After 15 days, the average wound area was 98.3 ± 7.6 mm2 after treatment with the BNCs, compared with 143 ± 7.5 mm2 for the bacterial cellulose dressing alone and 66 ± 5.7 mm2 for the positive control.
In a similar study, re-epithelialisation, dense keratinocytes proliferation, and organised fibrous connective tissue were observed by Lu and coworkers [44] after wound treatment with a chitosan/nZnO composite. The composite performed better than a commercial ZnO ointment gauze. Promising results were also obtained by Amhed and co-workers [101] on diabetic rabbits treated with an electrospun chitosan/poly(vinyl alcohol) nanofiber mat loaded with nZnO. The BNC induced a 44.8 ± 4.9% wound contraction by day 4, whereas the ZnO-free mat only led to a 22.5 ± 3.0% contraction.

6. Conclusions

In the present review, the overview of findings clearly shows the promising role of BNCs containing nZnO in wound-healing applications. It provides an extensive examination of nZnO-BNCs’ preparations and applications, showing how biomacromolecules and nZnO interact based on their type and on the preparation processes employed, and how such factors determine their final properties. At the same time, this work highlights the main challenges to be addressed in order to develop these materials to an advanced stage. Among the main concerns, the comprehension of the antibacterial mechanism, influenced by different variables, has to be carefully investigated. To this end, the chosen antimicrobial test protocol, as well as the bacterial strains tested, are fundamental. For instance, the presence of an outer membrane in Gram-negative bacteria is likely not sufficient to provide satisfactory answers to the different results reported in antibacterial tests.
Gaining a deeper understanding of all these aspects through an extensive review is essential to enable the scientific community to cooperate and work towards better and more effective wound therapies. A fundamental aspect is the development of new and affordable medical devices that are able to improve and accelerate the wound-healing process, particularly in patients affected by burns or chronic wounds. In fact, among the skin wound types, burns or chronic wounds imply long hospitalization because they are often worsened by antimicrobial-resistant pathogens. These kinds of wounds have to be treated with dressings characterised by good water retention, gas permeability, flexibility, and antibacterial action, such as nZnO-BNCs dressings. The vast range of biomacromolecules and types of nanostructured zinc oxides, the ease of fabrication, and the possibility of tuning properties, such as the swelling ratio, stiffness and elongation, permeability, and antimicrobial action, offers unprecedented opportunities to craft targeted solutions and to deliver significant progress to wound care.

Author Contributions

P.P. conceived, performed the literature search, and wrote the manuscript; C.M. contributed to the literature search and to writing the manuscript; F.B. and B.O. critically revised the manuscript. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Järbrink, K.; Ni, G.; Sönnergren, H.; Schmidtchen, A.; Pang, C.; Bajpai, R.; Car, J. Prevalence and incidence of chronic wounds and related complications: A protocol for a systematic review. Syst. Rev. 2016, 5, 152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Tottoli, E.M.; Dorati, R.; Genta, I.; Chiesa, E.; Pisani, S.; Conti, B. Skin Wound Healing Process and New Emerging Technologies for Skin Wound Care and Regeneration. Pharmaceutics 2020, 12, 735. [Google Scholar] [CrossRef] [PubMed]
  3. Medtech Europe. The Burden of Wounds on EU Healthcare Systems. Available online: (accessed on 1 December 2022).
  4. EWMA. The Impact of Patient Health and Lifestyle Factors on Wound Healing. 2022. Available online: (accessed on 1 December 2022).
  5. Eaglstein, W.H.; Kirsner, R.S.; Robson, M.C. Food and Drug Administration (FDA) drug approval end points for chronic cutaneous ulcer studies. Wound Repair Regen. 2012, 20, 793–796. [Google Scholar] [CrossRef] [PubMed]
  6. Olsson, M.; Järbrink, K.; Divakar, U.; Bajpai, R.; Upton, Z.; Schmidtchen, A.; Car, J. The humanistic and economic burden of chronic wounds: A systematic review. Wound Repair Regen. 2018, 27, 114–125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Burns. Available online: (accessed on 1 December 2022).
  8. Sen, C.K. Human Wounds and Its Burden: An Updated Compendium of Estimates. Adv. Wound Care 2019, 8, 39–48. [Google Scholar] [CrossRef] [Green Version]
  9. Sen, C.K.; Gordillo, G.M.; Roy, S.; Kirsner, R.; Lambert, L.; Hunt, T.K.; Gottrup, F.; Gurtner, G.C.; Longaker, M.T. Human skin wounds: A major and snowballing threat to public health and the economy: Perspective article. Wound Repair Regen. 2009, 17, 763–771. [Google Scholar] [CrossRef] [Green Version]
  10. Church, D.; Elsayed, S.; Reid, O.; Winston, B.; Lindsay, R. Burn wound infections. Clin. Microbiol. Rev. 2006, 19, 403–434. [Google Scholar] [CrossRef] [Green Version]
  11. Krishnan, P.; Frew, Q.; Green, A.; Martin, R.; Dziewulski, P. Cause of death and correlation with autopsy findings in burns patients. Burns 2013, 39, 583–588. [Google Scholar] [CrossRef]
  12. Baker, C.C.M.; Miller, C.L.; Trunkey, D.D.M. Predicting Fatal Sepsis in Burn Patients. J. Trauma Inj. Infect. Crit. Care 1979, 19, 641–648. [Google Scholar] [CrossRef]
  13. Wangoye, K.; Mwesigye, J.; Tungotyo, M.; Samba, S.T. Chronic wound isolates and their minimum inhibitory concentrations against third generation cephalosporins at a tertiary hospital in Uganda. Sci. Rep. 2022, 12, 1195. [Google Scholar] [CrossRef]
  14. Filius, P.M.; Gyssens, I.C. Impact of Increasing Antimicrobial Resistance on Wound Management. Am. J. Clin. Dermatol. 2002, 3, 1–7. [Google Scholar] [CrossRef]
  15. Puca, V.; Marulli, R.Z.; Grande, R.; Vitale, I.; Niro, A.; Molinaro, G.; Prezioso, S.; Muraro, R.; Di Giovanni, P. Microbial Species Isolated from Infected Wounds and Antimicrobial Resistance Analysis: Data Emerging from a Three-Years Retrospective Study. Antibiotics 2021, 10, 1162. [Google Scholar] [CrossRef]
  16. Guan, H.; Dong, W.; Lu, Y.; Jiang, M.; Zhang, D.; Aobuliaximu, Y.; Dong, J.; Niu, Y.; Liu, Y.; Guan, B.; et al. Distribution and Antibiotic Resistance Patterns of Pathogenic Bacteria in Patients With Chronic Cutaneous Wounds in China. Front. Med. 2021, 8, 609584. [Google Scholar] [CrossRef]
  17. Boateng, J.; Catanzano, O. Advanced Therapeutic Dressings for Effective Wound Healing—A Review. J. Pharm. Sci. 2015, 104, 3653–3680. [Google Scholar] [CrossRef] [Green Version]
  18. Dong, R.; Guo, B. Smart wound dressings for wound healing. Nano Today 2021, 41, 101290. [Google Scholar] [CrossRef]
  19. Dhivya, S.; Padma, V.V.; Santhini, E. Wound dressings—A review. BioMedicine 2015, 5, 24–28. [Google Scholar] [CrossRef]
  20. Broussard, K.C.; Powers, J.G. Wound Dressings: Selecting the Most Appropriate Type. Am. J. Clin. Dermatol. 2013, 14, 449–459. [Google Scholar] [CrossRef]
  21. Holloway, S.; Harding, K.G. Wound dressings. Surgery 2022, 40, 25–32. [Google Scholar] [CrossRef]
  22. Pormohammad, A.; Monych, N.; Ghosh, S.; Turner, D.; Turner, R. Nanomaterials in Wound Healing and Infection Control. Antibiotics 2021, 10, 473. [Google Scholar] [CrossRef]
  23. Shalaby, M.A.; Anwar, M.M.; Saeed, H. Nanomaterials for application in wound Healing: Current state-of-the-art and future perspectives. J. Polym. Res. 2022, 29, 91. [Google Scholar] [CrossRef]
  24. Batool, Z.; Muhammad, G.; Iqbal, M.M.; Aslam, M.S.; Raza, M.A.; Sajjad, N.; Abdullah, M.; Akhtar, N.; Syed, A.; Elgorban, A.M.; et al. Hydrogel assisted synthesis of gold nanoparticles with enhanced microbicidal and in vivo wound healing potential. Sci. Rep. 2022, 12, 6575. [Google Scholar] [CrossRef] [PubMed]
  25. Blinov, A.V.; Nagdalian, A.A.; Povetkin, S.N.; Gvozdenko, A.A.; Verevkina, M.N.; Rzhepakovsky, I.V.; Lopteva, M.S.; Maglakelidze, D.G.; Kataeva, T.S.; Blinova, A.A.; et al. Surface-Oxidized Polymer-Stabilized Silver Nanoparticles as a Covering Component of Suture Materials. Micromachines 2022, 13, 1105. [Google Scholar] [CrossRef] [PubMed]
  26. Blanco-Fernandez, B.; Castaño, O.; Mateos-Timoneda, M.; Engel, E.; Pérez-Amodio, S. Nanotechnology Approaches in Chronic Wound Healing. Adv. Wound Care 2021, 10, 234–256. [Google Scholar] [CrossRef] [PubMed]
  27. Pati, R.; Mehta, R.K.; Mohanty, S.; Padhi, A.; Sengupta, M.; Vaseeharan, B.; Goswami, C.; Sonawane, A. Topical application of zinc oxide nanoparticles reduces bacterial skin infection in mice and exhibits antibacterial activity by inducing oxidative stress response and cell membrane disintegration in macrophages. Nanomed. Nanotechnol. Biol. Med. 2014, 10, 1195–1208. [Google Scholar] [CrossRef]
  28. Vimala, K.; Shanthi, K.; Sundarraj, S.; Kannan, S. Synergistic effect of chemo-photothermal for breast cancer therapy using folic acid (FA) modified zinc oxide nanosheet. J. Colloid Interface Sci. 2017, 488, 92–108. [Google Scholar] [CrossRef]
  29. Sadhukhan, P.; Kundu, M.; Chatterjee, S.; Ghosh, N.; Manna, P.; Das, J.; Sil, P.C. Targeted delivery of quercetin via pH-responsive zinc oxide nanoparticles for breast cancer therapy. Mater. Sci. Eng. C 2019, 100, 129–140. [Google Scholar] [CrossRef]
  30. Nagajyothi, P.; Cha, S.J.; Yang, I.J.; Sreekanth, T.; Kim, K.J.; Shin, H.M. Antioxidant and anti-inflammatory activities of zinc oxide nanoparticles synthesized using Polygala tenuifolia root extract. J. Photochem. Photobiol. B Biol. 2015, 146, 10–17. [Google Scholar] [CrossRef]
  31. Nazarizadeh, A.; Asri-Rezaie, S. Comparative Study of Antidiabetic Activity and Oxidative Stress Induced by Zinc Oxide Nanoparticles and Zinc Sulfate in Diabetic Rats. AAPS PharmSciTech 2015, 17, 834–843. [Google Scholar] [CrossRef] [Green Version]
  32. Jiang, H.; Wang, H.; Wang, X. Facile and mild preparation of fluorescent ZnO nanosheets and their bioimaging applications. Appl. Surf. Sci. 2011, 257, 6991–6995. [Google Scholar] [CrossRef]
  33. Sruthi, S.; Ashtami, J.; Mohanan, P. Biomedical application and hidden toxicity of Zinc oxide nanoparticles. Mater. Today Chem. 2018, 10, 175–186. [Google Scholar] [CrossRef]
  34. Gupta, M.; Mahajan, V.K.; Mehta, K.S.; Chauhan, P.S. Zinc Therapy in Dermatology: A Review. Dermatol. Res. Pract. 2014, 2014, 709152. [Google Scholar] [CrossRef]
  35. Wessels, I.; Maywald, M.; Rink, L. Zinc as a Gatekeeper of Immune Function. Nutrients 2017, 9, 1286. [Google Scholar] [CrossRef] [Green Version]
  36. Mishra, P.K.; Mishra, H.; Ekielski, A.; Talegaonkar, S.; Vaidya, B. Zinc oxide nanoparticles: A promising nanomaterial for biomedical applications. Drug Discov. Today 2017, 22, 1825–1834. [Google Scholar] [CrossRef]
  37. Sengul, A.B.; Asmatulu, E. Toxicity of metal and metal oxide nanoparticles: A review. Environ. Chem. Lett. 2020, 18, 1659–1683. [Google Scholar] [CrossRef]
  38. Alavi, M.; Nokhodchi, A. An overview on antimicrobial and wound healing properties of ZnO nanobiofilms, hydrogels, and bionanocomposites based on cellulose, chitosan, and alginate polymers. Carbohydr. Polym. 2019, 227, 115349. [Google Scholar] [CrossRef]
  39. Zahran, M.; Marei, A.H. Innovative natural polymer metal nanocomposites and their antimicrobial activity. Int. J. Biol. Macromol. 2019, 136, 586–596. [Google Scholar] [CrossRef]
  40. Selvan, N.K.; Shanmugarajan, T.; Uppuluri, V.N.V.A. Hydrogel based scaffolding polymeric biomaterials: Approaches towards skin tissue regeneration. J. Drug Deliv. Sci. Technol. 2019, 55, 101456. [Google Scholar] [CrossRef]
  41. Jayakumar, R.; Sudheesh Kumar, P.; Mohandas, A.; Lakshmanan, V.-K.; Biswas, R. Exploration of alginate hydrogel/nano zinc oxide composite bandages for infected wounds. Int. J. Nanomed. 2015, 10, 53. [Google Scholar] [CrossRef] [Green Version]
  42. Koehler, J.; Brandl, F.P.; Goepferich, A.M. Hydrogel wound dressings for bioactive treatment of acute and chronic wounds. Eur. Polym. J. 2018, 100, 1–11. [Google Scholar] [CrossRef]
  43. Wang, H.; Gong, X.; Guo, X.; Liu, C.; Fan, Y.-Y.; Zhang, J.; Niu, B.; Li, W. Characterization, release, and antioxidant activity of curcumin-loaded sodium alginate/ZnO hydrogel beads. Int. J. Biol. Macromol. 2018, 121, 1118–1125. [Google Scholar] [CrossRef]
  44. Lu, Z.; Gao, J.; He, Q.; Wu, J.; Liang, D.; Yang, H.; Chen, R. Enhanced antibacterial and wound healing activities of microporous chitosan-Ag/ZnO composite dressing. Carbohydr. Polym. 2017, 156, 460–469. [Google Scholar] [CrossRef] [PubMed]
  45. Dananjaya, S.H.; Kumar, R.S.; Yang, M.; Nikapitiya, C.; Lee, J.; De Zoysa, M. Synthesis, characterization of ZnO-chitosan nanocomposites and evaluation of its antifungal activity against pathogenic Candida albicans. Int. J. Biol. Macromol. 2018, 108, 1281–1288. [Google Scholar] [CrossRef]
  46. Kumar, P.T.S.; Lakshmanan, V.-K.; Anilkumar, T.; Ramya, C.; Reshmi, P.; Unnikrishnan, A.; Nair, S.V.; Jayakumar, R. Flexible and Microporous Chitosan Hydrogel/Nano ZnO Composite Bandages for Wound Dressing: In Vitro and In Vivo Evaluation. ACS Appl. Mater. Interfaces 2012, 4, 2618–2629. [Google Scholar] [CrossRef] [PubMed]
  47. Taghizadeh, M.T.; Siyahi, V.; Ashassi-Sorkhabi, H.; Zarrini, G. ZnO, AgCl and AgCl/ZnO nanocomposites incorporated chitosan in the form of hydrogel beads for photocatalytic degradation of MB, E. coli and S. aureus. Int. J. Biol. Macromol. 2019, 147, 1018–1028. [Google Scholar] [CrossRef] [PubMed]
  48. Priyadarshi, R.; Negi, Y.S. Effect of Varying Filler Concentration on Zinc Oxide Nanoparticle Embedded Chitosan Films as Potential Food Packaging Material. J. Polym. Environ. 2016, 25, 1087–1098. [Google Scholar] [CrossRef]
  49. Zhang, M.; Qiao, X.; Han, W.; Jiang, T.; Liu, F.; Zhao, X. Alginate-chitosan oligosaccharide-ZnO composite hydrogel for accelerating wound healing. Carbohydr. Polym. 2021, 266, 118100. [Google Scholar] [CrossRef]
  50. Khalid, A.; Khan, R.; Ul-Islam, M.; Khan, T.; Wahid, F. Bacterial cellulose-zinc oxide nanocomposites as a novel dressing system for burn wounds. Carbohydr. Polym. 2017, 164, 214–221. [Google Scholar] [CrossRef]
  51. George, D.; Maheswari, P.U.; Begum, K.M.S. Chitosan-cellulose hydrogel conjugated with L-histidine and zinc oxide nanoparticles for sustained drug delivery: Kinetics and in-vitro biological studies. Carbohydr. Polym. 2020, 236, 116101. [Google Scholar] [CrossRef]
  52. Azizi, S.; Ahmad, M.B.; Ibrahim, N.A.; Hussein, M.Z.; Namvar, F. Cellulose nanocrystals/ZnO as a bifunctional reinforcing nanocomposite for poly(vinyl alcohol)/chitosan blend films: Fabrication, characterization and properties. Int. J. Mol. Sci. 2014, 15, 11040–11053. [Google Scholar] [CrossRef] [Green Version]
  53. Jebel, F.S.; Almasi, H. Morphological, physical, antimicrobial and release properties of ZnO nanoparticles-loaded bacterial cellulose films. Carbohydr. Polym. 2016, 149, 8–19. [Google Scholar] [CrossRef]
  54. Hashem, M.; Sharaf, S.; Abd El-Hady, M.M.; Hebeish, A. Synthesis and characterization of novel carboxymethylcellulose hydrogels and carboxymethylcellulolse-hydrogel-ZnO-nanocomposites. Carbohydr. Polym. 2013, 95, 421–427. [Google Scholar] [CrossRef]
  55. Zare-Akbari, Z.; Farhadnejad, H.; Furughi-Nia, B.; Abedin, S.; Yadollahi, M.; Khorsand-Ghayeni, M. PH-sensitive bionanocomposite hydrogel beads based on caborboxymethyl cellulose/ZnO nanoparticle as drug carrier. Int. J. Biol. Macromol. 2016, 93, 1317–1327. [Google Scholar] [CrossRef]
  56. Shankar, S.; Teng, X.; Li, G.; Rhim, J.-W. Preparation, characterization, and antimicrobial activity of gelatin/ZnO nanocomposite films. Food Hydrocoll. 2015, 45, 264–271. [Google Scholar] [CrossRef]
  57. Naserian, F.; Mesgar, A.S. Development of antibacterial and superabsorbent wound composite sponges containing carboxymethyl cellulose/gelatin/Cu-doped ZnO nanoparticles. Colloids Surf. B Biointerfaces 2022, 218, 112729. [Google Scholar] [CrossRef]
  58. Wahid, F.; Yin, J.-J.; Xue, D.-D.; Xue, H.; Lu, Y.-S.; Zhong, C.; Chu, L.-Q. Synthesis and characterization of antibacterial carboxymethyl Chitosan/ZnO nanocomposite hydrogels. Int. J. Biol. Macromol. 2016, 88, 273–279. [Google Scholar] [CrossRef]
  59. Noshirvani, N.; Ghanbarzadeh, B.; Mokarram, R.R.; Hashemi, M.; Coma, V. Preparation and characterization of active emulsified films based on chitosan-carboxymethyl cellulose containing zinc oxide nano particles. Int. J. Biol. Macromol. 2017, 99, 530–538. [Google Scholar] [CrossRef]
  60. Hu, T.; Wu, G.-P.; Bu, H.; Zhang, H.; Li, W.-X.; Song, K.; Jiang, G.-B. An injectable, adhesive, and self-healable composite hydrogel wound dressing with excellent antibacterial activity. Chem. Eng. J. 2022, 450, 138201. [Google Scholar] [CrossRef]
  61. Bajpai, S.; Jadaun, M.; Tiwari, S. Synthesis, characterization and antimicrobial applications of zinc oxide nanoparticles loaded gum acacia/poly(SA) hydrogels. Carbohydr. Polym. 2016, 153, 60–65. [Google Scholar] [CrossRef]
  62. Nafchi, A.M.; Alias, A.K.; Mahmud, S.; Robal, M. Antimicrobial, rheological, and physicochemical properties of sago starch films filled with nanorod-rich zinc oxide. J. Food Eng. 2012, 113, 511–519. [Google Scholar] [CrossRef]
  63. El-Nahhal, I.M.; Salem, J.; Anbar, R.; Kodeh, F.S.; Elmanama, A. Preparation and antimicrobial activity of ZnO-NPs coated cotton/starch and their functionalized ZnO-Ag/cotton and Zn(II) curcumin/cotton materials. Sci. Rep. 2020, 10, 5410. [Google Scholar] [CrossRef] [Green Version]
  64. Namazi, H.; Hasani, M.; Yadollahi, M. Antibacterial oxidized starch/ZnO nanocomposite hydrogel: Synthesis and evaluation of its swelling behaviours in various pHs and salt solutions. Int. J. Biol. Macromol. 2018, 126, 578–584. [Google Scholar] [CrossRef] [PubMed]
  65. Peighambardoust, S.J.; Peighambardoust, S.H.; Pournasir, N.; Pakdel, P.M. Properties of active starch-based films incorporating a combination of Ag, ZnO and CuO nanoparticles for potential use in food packaging applications. Food Packag. Shelf Life 2019, 22, 100420. [Google Scholar] [CrossRef]
  66. Roy, S.; Rhim, J.-W. Carrageenan-based antimicrobial bionanocomposite films incorporated with ZnO nanoparticles stabilized by melanin. Food Hydrocoll. 2019, 90, 500–507. [Google Scholar] [CrossRef]
  67. Saputri, A.E.; Praseptiangga, D.; Rochima, E.; Panatarani, C.; Joni, I.M. Mechanical and solubility properties of bio-nanocomposite film of semi refined kappa carrageenan/ZnO nanoparticles. In AIP Conference Proceedings; American Institute of Physics Inc.: College Park, MD, USA, 2018; Volume 1927, p. 030040. [Google Scholar]
  68. Kanmani, P.; Rhim, J.-W. Properties and characterization of bionanocomposite films prepared with various biopolymers and ZnO nanoparticles. Carbohydr. Polym. 2014, 106, 190–199. [Google Scholar] [CrossRef]
  69. Pittarate, C.; Yoovidhya, T.; Srichumpuang, W.; Intasanta, N.; Wongsasulak, S. Effects of poly(ethylene oxide) and ZnO nanoparticles on the morphology, tensile and thermal properties of cellulose acetate nanocomposite fibrous film. Polym. J. 2011, 43, 978–986. [Google Scholar] [CrossRef] [Green Version]
  70. Aly, A.A.; Ahmed, M. Nanofibers of cellulose acetate containing ZnO nanoparticles/graphene oxide for wound healing applications. Int. J. Pharm. 2021, 598, 120325. [Google Scholar] [CrossRef]
  71. Indumathi, M.; Sarojini, K.S.; Rajarajeswari, G. Antimicrobial and biodegradable chitosan/cellulose acetate phthalate/ZnO nano composite films with optimal oxygen permeability and hydrophobicity for extending the shelf life of black grape fruits. Int. J. Biol. Macromol. 2019, 132, 1112–1120. [Google Scholar] [CrossRef]
  72. Zhou, L.; Zhou, L.; Wei, C.; Guo, R. A bioactive dextran-based hydrogel promote the healing of infected wounds via antibacterial and immunomodulatory. Carbohydr. Polym. 2022, 291, 119558. [Google Scholar] [CrossRef]
  73. Sudheesh Kumar, P.T.; Lakshmanan, V.K.; Raj, M.; Biswas, R.; Hiroshi, T.; Nair, S.V.; Jayakumar, R. Evaluation of wound healing potential of β-chitin hydrogel/nano zinc oxide composite bandage. Pharm. Res. 2013, 30, 523–537. [Google Scholar]
  74. Razzaq, H.A.; D’Ayala, G.G.; Santagata, G.; Bosco, F.; Mollea, C.; Larsen, N.; Duraccio, D. Bioactive films based on barley β-glucans and ZnO for wound healing applications. Carbohydr. Polym. 2021, 272, 118442. [Google Scholar] [CrossRef]
  75. Rao, K.M.; Suneetha, M.; Zo, S.; Duck, K.H.; Han, S.S. One-pot synthesis of ZnO nanobelt-like structures in hyaluronan hydrogels for wound dressing applications. Carbohydr. Polym. 2019, 223, 115124. [Google Scholar] [CrossRef]
  76. Sani, E.S.; Portillo-Lara, R.; Spencer, A.; Yu, W.; Geilich, B.M.; Noshadi, I.; Webster, T.J.; Annabi, N. Engineering Adhesive and Antimicrobial Hyaluronic Acid/Elastin-like Polypeptide Hybrid Hydrogels for Tissue Engineering Applications. ACS Biomater. Sci. Eng. 2018, 4, 2528–2540. [Google Scholar] [CrossRef] [Green Version]
  77. Păunica-Panea, G.; Ficai, A.; Marin, M.M.; Marin, Ş.; Albu, M.G.; Constantin, V.D.; Dinu-Pîrvu, C.; Vuluga, Z.; Corobea, M.C.; Ghica, M.V. New Collagen-Dextran-Zinc Oxide Composites for Wound Dressing. J. Nanomater. 2016, 2016, 34. [Google Scholar] [CrossRef] [Green Version]
  78. Zhai, M.; Xu, Y.; Zhou, B.; Jing, W. Keratin-chitosan/n-ZnO nanocomposite hydrogel for antimicrobial treatment of burn wound healing: Characterization and biomedical application. J. Photochem. Photobiol. B 2018, 180, 253–258. [Google Scholar] [CrossRef]
  79. Villanueva, M.E.; Cuestas, M.L.; Pérez, C.J.; Campo Dall′ Orto, V.; Copello, G.J. Smart release of antimicrobial ZnO nanoplates from a pH-responsive keratin hydrogel. J. Colloid. Interface Sci. 2019, 536, 372–380. [Google Scholar] [CrossRef]
  80. Arfat, Y.A.; Benjakul, S.; Prodpran, T.; Sumpavapol, P.; Songtipya, P. Properties and antimicrobial activity of fish protein isolate/fish skin gelatin film containing basil leaf essential oil and zinc oxide nanoparticles. Food Hydrocoll. 2014, 41, 265–273. [Google Scholar] [CrossRef]
  81. Arfat, Y.A.; Benjakul, S.; Prodpran, T.; Sumpavapol, P.; Songtipya, P. Physico-Mechanical Characterization and Antimicrobial Properties of Fish Protein Isolate/Fish Skin Gelatin-Zinc Oxide (ZnO) Nanocomposite Films. Food Bioprocess Technol. 2015, 9, 101–112. [Google Scholar] [CrossRef]
  82. Arfat, Y.A.; Benjakul, S.; Vongkamjan, K.; Sumpavapol, P.; Yarnpakdee, S. Shelf-life extension of refrigerated sea bass slices wrapped with fish protein isolate/fish skin gelatin-ZnO nanocomposite film incorporated with basil leaf essential oil. J. Food Sci. Technol. 2015, 52, 6182–6193. [Google Scholar] [CrossRef] [Green Version]
  83. Thanusha, A.V.; Dinda, A.K.; Koul, V. Evaluation of nano hydrogel composite based on gelatin/HA/CS suffused with Asiatic acid/ZnO and CuO nanoparticles for second degree burns. Mater. Sci. Eng. C 2018, 89, 378–386. [Google Scholar]
  84. Amjadi, S.; Emaminia, S.; Nazari, M.; Davudian, S.H.; Roufegarinejad, L.; Hamishehkar, H. Application of Reinforced ZnO Nanoparticle-Incorporated Gelatin Bionanocomposite Film with Chitosan Nanofiber for Packaging of Chicken Fillet and Cheese as Food Models. Food Bioprocess Technol. 2019, 12, 1205–1219. [Google Scholar] [CrossRef]
  85. Azari, S.S.; Alizadeh, A.; Roufegarinejad, L.; Asefi, N.; Hamishehkar, H. Preparation and characterization of gelatin/β-glucan nanocomposite film incorporated with ZnO nanoparticles as an active food packaging system. J. Polym. Environ. 2020, 29, 1143–1152. [Google Scholar] [CrossRef]
  86. Jaberifard, F.; Ramezani, S.; Ghorbani, M.; Arsalani, N.; Moghadam, F.M. Investigation of wound healing efficiency of multifunctional eudragit/soy protein isolate electrospun nanofiber incorporated with ZnO loaded halloysite nanotubes and allantoin. Int. J. Pharm. 2023, 630, 122434. [Google Scholar] [CrossRef] [PubMed]
  87. Cao, F.; Zeng, B.; Zhu, Y.; Yu, F.; Wang, M.; Song, X.; Cheng, X.; Chen, L.; Wang, X. Porous ZnO modified silk sutures with dual light defined antibacterial, healing promotion and controlled self-degradation capabilities. Biomater. Sci. 2019, 8, 250–255. [Google Scholar] [CrossRef] [PubMed]
  88. Younes, I.; Rinaudo, M. Chitin and Chitosan Preparation from Marine Sources. Structure, Properties and Applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [Green Version]
  89. Elieh-Ali-Komi, D.; Hamblin, M.R. Chitin and Chitosan: Production and Application of Versatile Biomedical Nanomaterials. Int. J. Adv. Res. 2016, 4, 411–427. [Google Scholar]
  90. El-Hack, M.E.A.; El-Saadony, M.T.; Shafi, M.E.; Zabermawi, N.M.; Arif, M.; Batiha, G.E.; Khafaga, A.F.; El-Hakim, Y.M.A.; Al-Sagheer, A.A. Antimicrobial and antioxidant properties of chitosan and its derivatives and their applications: A review. Int. J. Biol. Macromol. 2020, 164, 2726–2744. [Google Scholar] [CrossRef]
  91. Costa, E.; Silva, S.; Vicente, S.; Neto, C.; Castro, P.; Veiga, M.; Madureira, R.; Tavaria, F.; Pintado, M. Chitosan nanoparticles as alternative anti-staphylococci agents: Bactericidal, antibiofilm and antiadhesive effects. Mater. Sci. Eng. C 2017, 79, 221–226. [Google Scholar] [CrossRef]
  92. Torkaman, S.; Rahmani, H.; Ashori, A.; Najafi, S.H.M. Modification of chitosan using amino acids for wound healing purposes: A review. Carbohydr. Polym. 2021, 258, 117675. [Google Scholar] [CrossRef]
  93. Moeini, A.; Pedram, P.; Makvandi, P.; Malinconico, M.; Gomez d’Ayala, G. Wound healing and antimicrobial effect of active secondary metabolites in chitosan-based wound dressings: A review. Carbohydr. Polym. 2020, 233, 115839. [Google Scholar] [CrossRef]
  94. Deng, P.; Jin, W.; Liu, Z.; Gao, M.; Zhou, J. Novel multifunctional adenine-modified chitosan dressings for promoting wound healing. Carbohydr. Polym. 2021, 260, 117767. [Google Scholar] [CrossRef]
  95. Miguel, S.P.; Moreira, A.F.; Correia, I.J. Chitosan based-asymmetric membranes for wound healing: A review. Int. J. Biol. Macromol. 2019, 127, 460–475. [Google Scholar] [CrossRef]
  96. Mohammadi, Z.; Eini, M.; Rastegari, A.; Tehrani, M.R. Chitosan as a machine for biomolecule delivery: A review. Carbohydr. Polym. 2020, 256, 117414. [Google Scholar] [CrossRef]
  97. Shahrousvand, M.; Haddadi-Asl, V.; Shahrousvand, M. Step-by-step design of poly (ε-caprolactone)/chitosan/Melilotus officinalis extract electrospun nanofibers for wound dressing applications. Int. J. Biol. Macromol. 2021, 180, 36–50. [Google Scholar] [CrossRef]
  98. Ho, T.T.-P.; Doan, V.K.; Tran, N.M.-P.; Nguyen, L.K.-K.; Le, A.N.-M.; Ho, M.H.; Trinh, N.-T.; Van Vo, T.; Tran, L.D.; Nguyen, T.-H. Fabrication of chitosan oligomer-coated electrospun polycaprolactone membrane for wound dressing application. Mater. Sci. Eng. C 2020, 120, 111724. [Google Scholar] [CrossRef]
  99. Saral Sarojini, K.; Indumathi, M.P.; Rajarajeswari, G.R. Mahua oil-based polyurethane/chitosan/nano ZnO composite films for biodegradable food packaging applications. Int. J. Biol. Macromol. 2019, 124, 163–174. [Google Scholar] [CrossRef]
  100. Hezma, A.; Rajeh, A.; Mannaa, M.A. An insight into the effect of zinc oxide nanoparticles on the structural, thermal, mechanical properties and antimicrobial activity of Cs/PVA composite. Colloids Surf. A Physicochem. Eng. Asp. 2019, 581, 123821. [Google Scholar] [CrossRef]
  101. Ahmed, R.; Tariq, M.; Ali, I.; Asghar, R.; Khanam, P.N.; Augustine, R.; Hasan, A. Novel electrospun chitosan/polyvinyl alcohol/zinc oxide nanofibrous mats with antibacterial and antioxidant properties for diabetic wound healing. Int. J. Biol. Macromol. 2018, 120, 385–393. [Google Scholar] [CrossRef]
  102. Zhou, L.; Cai, L.; Ruan, H.; Zhang, L.; Wang, J.; Jiang, H.; Wu, Y.; Feng, S.; Chen, J. Electrospun chitosan oligosaccharide/polycaprolactone nanofibers loaded with wound-healing compounds of Rutin and Quercetin as antibacterial dressings. Int. J. Biol. Macromol. 2021, 183, 1145–1154. [Google Scholar] [CrossRef]
  103. Cacicedo, M.L.; Castro, M.C.; Servetas, I.; Bosnea, L.; Boura, K.; Tsafrakidou, P.; Dima, A.; Terpou, A.; Koutinas, A.; Castro, G.R. Progress in bacterial cellulose matrices for biotechnological applications. Bioresour. Technol. 2016, 213, 172–180. [Google Scholar] [CrossRef]
  104. Zhong, C. Industrial-Scale Production and Applications of Bacterial Cellulose. Front. Bioeng. Biotechnol. 2020, 8, 605374. [Google Scholar] [CrossRef]
  105. Klemm, D.; Petzold-Welcke, K.; Kramer, F.; Richter, T.; Raddatz, V.; Fried, W.; Nietzsche, S.; Bellmann, T.; Fischer, D. Biotech nanocellulose: A review on progress in product design and today’s state of technical and medical applications. Carbohydr. Polym. 2020, 254, 117313. [Google Scholar] [CrossRef] [PubMed]
  106. Raghav, N.; Sharma, M.R.; Kennedy, J.F. Nanocellulose: A mini-review on types and use in drug delivery systems. Carbohydr. Polym. Technol. Appl. 2021, 2, 100031. [Google Scholar] [CrossRef]
  107. Dhali, K.; Ghasemlou, M.; Daver, F.; Cass, P.; Adhikari, B. A review of nanocellulose as a new material towards environmental sustainability. Sci. Total Environ. 2021, 775, 145871. [Google Scholar] [CrossRef] [PubMed]
  108. Ho, N.A.D.; Leo, C. A review on the emerging applications of cellulose, cellulose derivatives and nanocellulose in carbon capture. Environ. Res. 2021, 197, 111100. [Google Scholar] [CrossRef] [PubMed]
  109. Gupta, A.; Keddie, D.; Kannappan, V.; Gibson, H.; Khalil, I.; Kowalczuk, M.; Martin, C.; Shuai, X.; Radecka, I. Production and characterisation of bacterial cellulose hydrogels loaded with curcumin encapsulated in cyclodextrins as wound dressings. Eur. Polym. J. 2019, 118, 437–450. [Google Scholar] [CrossRef]
  110. Wang, Q.; Barnes, L.-M.; Maslakov, K.I.; Howell, C.A.; Illsley, M.J.; Dyer, P.; Savina, I.N. In situ synthesis of silver or selenium nanoparticles on cationized cellulose fabrics for antimicrobial application. Mater. Sci. Eng. C 2021, 121, 111859. [Google Scholar] [CrossRef]
  111. Jin, T.; Yan, L.; Liu, W.; Liu, S.; Liu, C.; Zheng, L. Preparation and physicochemical/antimicrobial characteristics of asparagus cellulose films containing quercetin. Food Sci. Hum. Wellness 2021, 10, 251–257. [Google Scholar] [CrossRef]
  112. Gopi, S.; Balakrishnan, P.; Chandradhara, D.; Poovathankandy, D.; Thomas, S. General scenarios of cellulose and its use in the biomedical field. Mater. Today Chem. 2019, 13, 59–78. [Google Scholar] [CrossRef]
  113. Park, S.U.; Lee, B.K.; Kim, M.S.; Park, K.K.; Sung, W.J.; Kim, H.Y.; Gil Han, D.; Shim, J.S.; Lee, Y.J.; Kim, S.H.; et al. The possibility of microbial cellulose for dressing and scaffold materials. Int. Wound J. 2012, 11, 35–43. [Google Scholar] [CrossRef]
  114. Wen, X.; Zheng, Y.; Wu, J.; Yue, L.; Wang, C.; Luan, J.; Wu, Z.; Wang, K. In vitro and in vivo investigation of bacterial cellulose dressing containing uniform silver sulfadiazine nanoparticles for burn wound healing. Prog. Nat. Sci. 2015, 25, 197–203. [Google Scholar] [CrossRef] [Green Version]
  115. Tavakolian, M.; Gil Munguia-Lopez, J.; Valiei, A.; Islam, S.; Kinsella, J.M.; Tufenkji, N.; van de Ven, T.G.M. Highly absorbent antibacterial and biofilm-disrupting hydrogels from cellulose for wound dressing application. ACS Appl. Mater. Interfaces 2020, 12, 39991–40001. [Google Scholar] [CrossRef]
  116. Lu, S.; Zhang, X.; Tang, Z.; Xiao, H.; Zhang, M.; Liu, K.; Chen, L.; Huang, L.; Ni, Y.; Wu, H. Mussel-inspired blue-light-activated cellulose-based adhesive hydrogel with fast gelation, rapid haemostasis and antibacterial property for wound healing. Chem. Eng. J. 2021, 417, 129329. [Google Scholar] [CrossRef]
  117. Sze, J.H.; Brownlie, J.C.; Love, C.A. Biotechnological production of hyaluronic acid: A mini review. 3 Biotech 2016, 6, 67. [Google Scholar] [CrossRef] [Green Version]
  118. Cerminati, S.; Leroux, M.; Anselmi, P.; Peirú, S.; Alonso, J.C.; Priem, B.; Menzella, H.G. Low cost and sustainable hyaluronic acid production in a manufacturing platform based on Bacillus subtilis 3NA strain. Appl. Microbiol. Biotechnol. 2021, 105, 3075–3086. [Google Scholar] [CrossRef]
  119. Burdick, J.A.; Prestwich, G.D. Hyaluronic acid hydrogels for biomedical applications. Adv. Mater. 2011, 23, H41–H56. [Google Scholar] [CrossRef]
  120. Graça, M.F.P.; Miguel, S.P.; Cabral, C.S.D.; Correia, I.J. Hyaluronic acid—Based wound dressings: A review. Carbohydr. Polym. 2020, 241, 116364. [Google Scholar] [CrossRef]
  121. Dovedytis, M.; Liu, Z.J.; Bartlett, S. Hyaluronic acid and its biomedical applications: A review. Eng. Regen. 2020, 1, 102–113. [Google Scholar] [CrossRef]
  122. Agarwal, G.; Agiwal, S.; Srivastava, A. Hyaluronic acid containing scaffolds ameliorate stem cell function for tissue repair and regeneration. Int. J. Biol. Macromol. 2020, 165, 388–401. [Google Scholar] [CrossRef]
  123. Ucm, R.; Aem, M.; Lhb, Z.; Kumar, V.; Taherzadeh, M.J.; Garlapati, V.K.; Chandel, A.K. Comprehensive review on biotechnological production of hyaluronic acid: Status, innovation, market and applications. Bioengineered 2022, 13, 9645–9661. [Google Scholar] [CrossRef]
  124. Reig-Vano, B.; Tylkowski, B.; Montané, X.; Giamberini, M. Alginate-based hydrogels for cancer therapy and research. Int. J. Biol. Macromol. 2020, 170, 424–436. [Google Scholar] [CrossRef]
  125. Urtuvia, V.; Maturana, N.; Acevedo, F.; Peña, C.; Díaz-Barrera, A. Bacterial alginate production: An overview of its biosynthesis and potential industrial production. World J. Microbiol. Biotechnol. 2017, 33, 198. [Google Scholar] [CrossRef] [PubMed]
  126. Raus, R.A.; Nawawi, W.M.F.W.; Nasaruddin, R.R. Alginate and alginate composites for biomedical applications. Asian J. Pharm. Sci. 2020, 16, 280–306. [Google Scholar] [CrossRef] [PubMed]
  127. Mallakpour, S.; Azadi, E.; Hussain, C.M. State-of-the-art of 3D printing technology of alginate-based hydrogels—An emerging technique for industrial applications. Adv. Colloid Interface Sci. 2021, 293, 102436. [Google Scholar] [CrossRef] [PubMed]
  128. Tavassoli-Kafrani, E.; Shekarchizadeh, H.; Masoudpour-Behabadi, M. Development of edible films and coatings from alginates and carrageenans. Carbohydr. Polym. 2016, 137, 360–374. [Google Scholar] [CrossRef]
  129. Cheng, H.; Chen, L.; McClements, D.J.; Yang, T.; Zhang, Z.; Ren, F.; Miao, M.; Tian, Y.; Jin, Z. Starch-based biodegradable packaging materials: A review of their preparation, characterization and diverse applications in the food industry. Trends Food Sci. Technol. 2021, 114, 70–82. [Google Scholar] [CrossRef]
  130. Hemamalini, T.; Dev, V.R.G. Comprehensive review on electrospinning of starch polymer for biomedical applications. Int. J. Biol. Macromol. 2018, 106, 712–718. [Google Scholar] [CrossRef]
  131. Ma, J.; Underhill, D.M. β-glucan signaling connects phagocytosis to autophagy. Glycobiology 2013, 23, 1047–1051. [Google Scholar] [CrossRef] [Green Version]
  132. Wei, D.; Zhang, L.; Williams, D.L.; Browder, I.W. Glucan stimulates human dermal fibroblast collagen biosynthesis through a nuclear factor-1 dependent mechanism. Wound Repair Regen. 2002, 10, 161–168. [Google Scholar] [CrossRef]
  133. Majtan, J.; Jesenak, M. β-Glucans: Multi-Functional Modulator of Wound Healing. Molecules 2018, 23, 806. [Google Scholar] [CrossRef] [Green Version]
  134. Seo, G.; Hyun, C.; Choi, S.; Kim, Y.M.; Cho, M. The wound healing effect of four types of beta-glucan. Appl. Biol. Chem. 2019, 62, 20. [Google Scholar] [CrossRef] [Green Version]
  135. King, B.; Barrett, S.; Cutting, K. Clinical evaluation of a bioactive beta-glucan gel in the treatment of ‘hard-to-heal’ wounds. J. Wound Care 2017, 26, 58–63. [Google Scholar] [CrossRef] [Green Version]
  136. Grip, J.; Engstad, R.E.; Skjæveland, I.; Škalko-Basnet, N.; Isaksson, J.; Basnet, P.; Holsæter, A.M. Beta-glucan-loaded nanofiber dressing improves wound healing in diabetic mice. Eur. J. Pharm. Sci. 2018, 121, 269–280. [Google Scholar] [CrossRef] [Green Version]
  137. Yoon, D.; Yoon, D.; Cha, H.-J.; Lee, J.-S.; Chun, W. Enhancement of wound healing efficiency mediated by artificial dermis functionalized with EGF or NRG1. Biomed. Mater. 2018, 13, 045007. [Google Scholar] [CrossRef]
  138. Gopinath, D.; Ahmed, M.R.; Gomathi, K.; Chitra, K.; Sehgal, P.K.; Jayakumar, R. Dermal wound healing processes with curcumin incorporated collagen films. Biomaterials 2004, 25, 1911–1917. [Google Scholar] [CrossRef]
  139. Taraballi, F.; Zanini, S.; Lupo, C.; Panseri, S.; Cunha, C.; Riccardi, C.; Marcacci, M.; Campione, M.; Cipolla, L. Amino and carboxyl plasma functionalization of collagen films for tissue engineering applications. J. Colloid Interface Sci. 2012, 394, 590–597. [Google Scholar] [CrossRef]
  140. Irastorza, A.; Zarandona, I.; Andonegi, M.; Guerrero, P.; de la Caba, K. The versatility of collagen and chitosan: From food to biomedical applications. Food Hydrocoll. 2021, 116, 106633. [Google Scholar] [CrossRef]
  141. Tavassoli, M.; Sani, M.A.; Khezerlou, A.; Ehsani, A.; McClements, D.J. Multifunctional nanocomposite active packaging materials: Immobilization of quercetin, lactoferrin, and chitosan nanofiber particles in gelatin films. Food Hydrocoll. 2021, 118, 106747. [Google Scholar] [CrossRef]
  142. Wang, H.; Ding, F.; Ma, L.; Zhang, Y. Edible films from chitosan-gelatin: Physical properties and food packaging application. Food Biosci. 2021, 40, 100871. [Google Scholar] [CrossRef]
  143. Sarika, P.; Cinthya, K.; Jayakrishnan, A.; Anilkumar, P.; James, N.R. Modified gum arabic cross-linked gelatin scaffold for biomedical applications. Mater. Sci. Eng. C 2014, 43, 272–279. [Google Scholar] [CrossRef]
  144. Jalaja, K.; Kumar, P.A.; Dey, T.; Kundu, S.C.; James, N.R. Modified dextran cross-linked electrospun gelatin nanofibres for biomedical applications. Carbohydr. Polym. 2014, 114, 467–475. [Google Scholar] [CrossRef]
  145. Mao, Z.; Bai, J.; Jin, X.; Mao, W.; Dong, Y. Construction of a multifunctional 3D nanofiber aerogel loaded with ZnO for wound healing. Colloids Surf. B Biointerfaces 2021, 208, 112070. [Google Scholar] [CrossRef] [PubMed]
  146. Kwak, H.W.; Kim, J.E.; Lee, K.H. Green fabrication of antibacterial gelatin fiber for biomedical application. React. Funct. Polym. 2019, 136, 86–94. [Google Scholar] [CrossRef]
  147. Chilakamarry, C.R.; Mahmood, S.; Saffe, S.N.B.M.; Bin Arifin, M.A.; Gupta, A.; Sikkandar, M.Y.; Begum, S.S.; Narasaiah, B. Extraction and application of keratin from natural resources: A review. 3 Biotech 2021, 11, 220. [Google Scholar] [CrossRef] [PubMed]
  148. Suarato, G.; Bertorelli, R.; Athanassiou, A. Borrowing From Nature: Biopolymers and Biocomposites as Smart Wound Care Materials. Front. Bioeng. Biotechnol. 2018, 6, 137. [Google Scholar] [CrossRef] [Green Version]
  149. Sharma, S.; Gupta, A. Sustainable Management of Keratin Waste Biomass: Applications and Future Perspectives. Braz. Arch. Biol. Technol. 2016, 59. [Google Scholar] [CrossRef] [Green Version]
  150. Feroz, S.; Muhammad, N.; Ratnayake, J.; Dias, G. Keratin-Based materials for biomedical applications. Bioact. Mater. 2020, 5, 496–509. [Google Scholar] [CrossRef]
  151. McLellan, J.; Thornhill, S.G.; Shelton, S.; Kumar, M. Keratin-Based Biofilms, Hydrogels, and Biofibers. In Keratin as a Protein Biopolymer; Springer: Berlin/Heidelberg, Germany, 2018; pp. 187–200. [Google Scholar] [CrossRef]
  152. Pino, P.; Ronchetti, S.; Mollea, C.; Sangermano, M.; Onida, B.; Bosco, F. Whey Proteins–Zinc Oxide Bionanocomposite as Antibacterial Films. Pharmaceutics 2021, 13, 1426. [Google Scholar] [CrossRef]
  153. Sirelkhatim, A.; Mahmud, S.; Seeni, A.; Kaus, N.H.M.; Ann, L.C.; Bakhori, S.K.M.; Hasan, H.; Mohamad, D. Review on Zinc Oxide Nanoparticles: Antibacterial Activity and Toxicity Mechanism. Nano-Micro Lett. 2015, 7, 219–242. [Google Scholar] [CrossRef] [Green Version]
  154. Jiang, J.; Pi, J.; Cai, J. The Advancing of Zinc Oxide Nanoparticles for Biomedical Applications. Bioinorg. Chem. Appl. 2018, 2018, 1062562. [Google Scholar] [CrossRef]
  155. Zou, C.; Liang, F.; Xue, S. Synthesis and oxygen vacancy-related photocatalytic properties of ZnO nanotubes grown by thermal evaporation. Res. Chem. Intermed. 2014, 41, 5167–5176. [Google Scholar] [CrossRef]
  156. Khan, M.F.; Ansari, A.H.; Hameedullah, M.; Ahmad, E.; Husain, F.M.; Zia, Q.; Baig, U.; Zaheer, M.R.; Alam, M.M.; Khan, A.M.; et al. Sol-gel synthesis of thorn-like ZnO nanoparticles endorsing mechanical stirring effect and their antimicrobial activities: Potential role as nano-antibiotics. Sci. Rep. 2016, 6, 27689. [Google Scholar] [CrossRef] [Green Version]
  157. Paper, N.; Submission, P. Synthesis of Zinc Oxide Nanoparticles via Sol—Gel Route and Their Characterization. Nanosci. Nanotechnol. 2016, 5, 2010–2014. [Google Scholar]
  158. Espitia, P.J.P.; de Fátima Ferreira Soares, N.; dos Reis Coimbra, J.S.; De Andrade, N.J.; Cruz, R.S.; Medeiros, E.A.A. Zinc Oxide Nanoparticles: Synthesis, Antimicrobial Activity and Food Packaging Applications. Food Bioprocess Technol. 2012, 5, 1447–1464. [Google Scholar] [CrossRef]
  159. Ponnamma, D.; Cabibihan, J.-J.; Rajan, M.; Pethaiah, S.S.; Deshmukh, K.; Gogoi, J.P.; Pasha, S.K.K.; Ahamed, M.B.; Krishnegowda, J.; Chandrashekar, B.N.; et al. Synthesis, optimization and applications of ZnO/polymer nanocomposites. Mater. Sci. Eng. C 2019, 98, 1210–1240. [Google Scholar] [CrossRef]
  160. Zukas, B.G.; Gupta, N.R. Interphase Synthesis of Zinc Oxide Nanoparticles in a Droplet Flow Reactor. Ind. Eng. Chem. Res. 2017, 56, 7184–7191. [Google Scholar] [CrossRef]
  161. Garino, N.; Sanvitale, P.; Dumontel, B.; Laurenti, M.; Colilla, M.; Izquierdo-Barba, I.; Cauda, V.; Vallet-Regì, M. Zinc oxide nanocrystals as a nanoantibiotic and osteoinductive agent. RSC Adv. 2019, 9, 11312–11321. [Google Scholar] [CrossRef]
  162. Kajbafvala, A.; Zanganeh, S.; Kajbafvala, E.; Zargar, H.; Bayati, M.; Sadrnezhaad, S. Microwave-assisted synthesis of narcis-like zinc oxide nanostructures. J. Alloys Compd. 2010, 497, 325–329. [Google Scholar] [CrossRef]
  163. Garino, N.; Limongi, T.; Dumontel, B.; Canta, M.; Racca, L.; Laurenti, M.; Castellino, M.; Casu, A.; Falqui, A.; Cauda, V. A Microwave-Assisted Synthesis of Zinc Oxide Nanocrystals Finely Tuned for Biological Applications. Nanomaterials 2019, 9, 212. [Google Scholar] [CrossRef] [Green Version]
  164. Wojnarowicz, J.; Chudoba, T.; Lojkowski, W. A Review of Microwave Synthesis of Zinc Oxide Nanomaterials: Reactants, Process Parameters and Morphologies. Nanomaterials 2020, 10, 1086. [Google Scholar] [CrossRef]
  165. Chittofrati, A.; Matijević, E. Uniform particles of zinc oxide of different morphologies. Colloids Surf. 1990, 48, 65–78. [Google Scholar] [CrossRef]
  166. Bharathi, D.; Ranjithkumar, R.; Chandarshekar, B.; Bhuvaneshwari, V. Preparation of chitosan coated zinc oxide nanocomposite for enhanced antibacterial and photocatalytic activity: As a bionanocomposite. Int. J. Biol. Macromol. 2019, 129, 989–996. [Google Scholar] [CrossRef] [PubMed]
  167. Phan, D.-N.; Rebia, R.A.; Saito, Y.; Kharaghani, D.; Khatri, M.; Tanaka, T.; Lee, H.; Kim, I.-S. Zinc oxide nanoparticles attached to polyacrylonitrile nanofibers with hinokitiol as gluing agent for synergistic antibacterial activities and effective dye removal. J. Ind. Eng. Chem. 2020, 85, 258–268. [Google Scholar] [CrossRef]
  168. Kakiuchi, K.; Hosono, E.; Kimura, T.; Imai, H.; Fujihara, S. Fabrication of mesoporous ZnO nanosheets from precursor templates grown in aqueous solutions. J. Sol-Gel Sci. Technol. 2006, 39, 63–72. [Google Scholar] [CrossRef]
  169. Wang, Y.; Zhang, C.; Bi, S.; Luo, G. Preparation of ZnO nanoparticles using the direct precipitation method in a membrane dispersion micro-structured reactor. Powder Technol. 2010, 202, 130–136. [Google Scholar] [CrossRef]
  170. Gunalan, S.; Sivaraj, R.; Rajendran, V. Green synthesized ZnO nanoparticles against bacterial and fungal pathogens. Prog. Nat. Sci. 2012, 22, 693–700. [Google Scholar] [CrossRef] [Green Version]
  171. Agarwal, H.; Nakara, A.; Menon, S.; Shanmugam, V. Eco-friendly synthesis of zinc oxide nanoparticles using Cinnamomum Tamala leaf extract and its promising effect towards the antibacterial activity. J. Drug Deliv. Sci. Technol. 2019, 53, 101212. [Google Scholar] [CrossRef]
  172. Dhandapani, K.V.; Anbumani, D.; Gandhi, A.D.; Annamalai, P.; Muthuvenkatachalam, B.S.; Kavitha, P.; Ranganathan, B. Green route for the synthesis of zinc oxide nanoparticles from Melia azedarach leaf extract and evaluation of their antioxidant and antibacterial activities. Biocatal. Agric. Biotechnol. 2020, 24, 101517. [Google Scholar] [CrossRef]
  173. Singhal, U.; Pendurthi, R.; Khanuja, M. Prunus: A natural source for synthesis of zinc oxide nanoparticles towards photocatalytic and antibacterial applications. Mater. Today Proc. 2020, 28, 261–265. [Google Scholar] [CrossRef]
  174. Darvishi, E.; Kahrizi, D.; Arkan, E. Comparison of different properties of zinc oxide nanoparticles synthesized by the green (using Juglans regia L. leaf extract) and chemical methods. J. Mol. Liq. 2019, 286, 110831. [Google Scholar] [CrossRef]
  175. Agarwal, H.; Menon, S.; Kumar, S.V.; RajeshKumar, S. Mechanistic study on antibacterial action of zinc oxide nanoparticles synthesized using green route. Chem. Interact. 2018, 286, 60–70. [Google Scholar] [CrossRef]
  176. Elumalai, K.; Velmurugan, S.; Ravi, S.; Kathiravan, V.; Raj, G.A. Bio-approach: Plant mediated synthesis of ZnO nanoparticles and their catalytic reduction of methylene blue and antimicrobial activity. Adv. Powder Technol. 2015, 26, 1639–1651. [Google Scholar] [CrossRef]
  177. Ahmed, B.; Solanki, B.; Zaidi, A.; Khan, M.S.; Musarrat, J. Bacterial toxicity of biomimetic green zinc oxide nanoantibiotic: Insights into ZnONP uptake and nanocolloid–bacteria interface. Toxicol. Res. 2019, 8, 246–261. [Google Scholar] [CrossRef] [Green Version]
  178. Zanni, E.; Chandraiahgari, C.R.; De Bellis, G.; Montereali, M.R.; Armiento, G.; Ballirano, P.; Polimeni, A.; Sarto, M.S.; Uccelletti, D. Zinc Oxide Nanorods-Decorated Graphene Nanoplatelets: A Promising Antimicrobial Agent against the Cariogenic Bacterium Streptococcus mutans. Nanomaterials 2016, 6, 179. [Google Scholar] [CrossRef]
  179. Li, M.; Li, G.; Jiang, J.; Tao, Y.; Mai, K. Preparation, antimicrobial, crystallization and mechanical properties of nano-ZnO-supported zeolite filled polypropylene random copolymer composites. Compos. Sci. Technol. 2013, 81, 30–36. [Google Scholar] [CrossRef]
  180. Tiwari, V.; Mishra, N.; Gadani, K.; Solanki, P.; Shah, N.A.; Tiwari, M. Mechanism of Anti-bacterial Activity of Zinc Oxide Nanoparticle Against Carbapenem-Resistant Acinetobacter baumannii. Front. Microbiol. 2018, 9, 1218. [Google Scholar] [CrossRef] [Green Version]
  181. Shaba, E.Y.; Jacob, J.O.; Tijani, J.O.; Suleiman, M.A.T. A critical review of synthesis parameters affecting the properties of zinc oxide nanoparticle and its application in wastewater treatment. Appl. Water Sci. 2021, 11, 48. [Google Scholar] [CrossRef]
  182. Singh, A.; Singh, N.B.; Afzal, S.; Singh, T.; Hussain, I. Zinc oxide nanoparticles: A review of their biological synthesis, antimicrobial activity, uptake, translocation and biotransformation in plants. J. Mater. Sci. 2017, 53, 185–201. [Google Scholar] [CrossRef]
  183. da Silva, B.L.; Abuçafy, M.P.; Manaia, E.B.; Junior, J.A.O.; Chiari-Andréo, B.G.; Pietro, R.C.R.; Chiavacci, L.A. Relationship Between Structure And Antimicrobial Activity Of Zinc Oxide Nanoparticles: An Overview. Int. J. Nanomed. 2019, 14, 9395–9410. [Google Scholar] [CrossRef] [Green Version]
  184. Matusoiu, F.; Negrea, A.; Nemes, N.S.; Ianasi, C.; Ciopec, M.; Negrea, P.; Duteanu, N.; Ianasi, P.; Duda-Seiman, D.; Muntean, D. Antimicrobial Perspectives of Active SiO2FexOy/ZnO Composites. Pharmaceutics 2022, 14, 2063. [Google Scholar] [CrossRef]
  185. Alwin, S.; Shajan, X.S. Facile synthesis of 3-D nanostructured zinc oxide aerogel and its application as photoanode material for dye-sensitized solar cells. Surf. Interfaces 2017, 7, 14–19. [Google Scholar] [CrossRef]
  186. Kairyte, K.; Kadys, A.; Luksiene, Z. Antibacterial and antifungal activity of photoactivated ZnO nanoparticles in suspension. J. Photochem. Photobiol. B Biol. 2013, 128, 78–84. [Google Scholar] [CrossRef] [PubMed]
  187. Chong, C.L.; Fang, C.M.; Pung, S.Y.; Ong, C.E.; Pung, Y.F.; Kong, C.; Pan, Y. Current Updates On the In vivo Assessment of Zinc Oxide Nanoparticles Toxicity Using Animal Models. Bionanoscience 2021, 11, 590–620. [Google Scholar] [CrossRef]
  188. Waghmode, B.J.; Husain, Z.; Joshi, M.; Sathaye, S.D.; Patil, K.R.; Malkhede, D.D. Synthesis and study of calixarene-doped polypyrrole-TiO2/ZnO composites: Antimicrobial activity and electrochemical sensors. J. Polym. Res. 2016, 23, 35. [Google Scholar] [CrossRef]
  189. Rahman, P.M.; Mujeeb, V.A.; Muraleedharan, K.; Thomas, S.K. Chitosan/nano ZnO composite films: Enhanced mechanical, antimicrobial and dielectric properties. Arab. J. Chem. 2018, 11, 120–127. [Google Scholar] [CrossRef] [Green Version]
  190. Shankar, S.; Rhim, J.-W. Effect of types of zinc oxide nanoparticles on structural, mechanical and antibacterial properties of poly(lactide)/poly(butylene adipate-co-terephthalate) composite films. Food Packag. Shelf Life 2019, 21, 100327. [Google Scholar] [CrossRef]
  191. Ul-Islam, M.; Khattak, W.A.; Ullah, M.W.; Khan, S.; Park, J.K. Synthesis of regenerated bacterial cellulose-zinc oxide nanocomposite films for biomedical applications. Cellulose 2013, 21, 433–447. [Google Scholar] [CrossRef]
  192. Khorasani, M.T.; Joorabloo, A.; Moghaddam, A.; Shamsi, H.; MansooriMoghadam, Z. Incorporation of ZnO nanoparticles into heparinised polyvinyl alcohol/chitosan hydrogels for wound dressing application. Int. J. Biol. Macromol. 2018, 114, 1203–1215. [Google Scholar] [CrossRef]
  193. Kim, J.H.; Joshi, M.K.; Lee, J.; Park, C.H.; Kim, C.S. Polydopamine-assisted immobilization of hierarchical zinc oxide nanostructures on electrospun nanofibrous membrane for photocatalysis and antimicrobial activity. J. Colloid Interface Sci. 2018, 513, 566–574. [Google Scholar] [CrossRef]
  194. Augustine, R.; Malik, H.; Singhal, D.K.; Mukherjee, A.; Malakar, D.; Kalarikkal, N.; Thomas, S. Electrospun polycaprolactone/ZnO nanocomposite membranes as biomaterials with antibacterial and cell adhesion properties. J. Polym. Res. 2014, 21, 347. [Google Scholar] [CrossRef]
  195. Cordero-Arias, L.; Cabanas-Polo, S.; Goudouri, O.M.; Misra, S.K.; Gilabert, J.; Valsami-Jones, E.; Sanchez, E.; Virtanen, S.; Boccaccini, A.R. Electrophoretic deposition of ZnO/alginate and ZnO-bioactive glass/alginate composite coatings for antimicrobial applications. Mater. Sci. Eng. C 2015, 55, 137–144. [Google Scholar] [CrossRef] [Green Version]
  196. Anagha, B.; George, D.; Maheswari, P.U.; Begum, K.M.M.S. Biomass Derived Antimicrobial Hybrid Cellulose Hydrogel with Green ZnO Nanoparticles for Curcumin Delivery and its Kinetic Modelling. J. Polym. Environ. 2019, 27, 2054–2067. [Google Scholar] [CrossRef]
  197. Rahman, M.M. Polyurethane/Zinc Oxide (PU/ZnO) Composite—Synthesis, Protective Propertyand Application. Polymers 2020, 12, 1535. [Google Scholar] [CrossRef]
  198. Pandiselvi, K.; Thambidurai, S. Synthesis, characterization, and antimicrobial activity of chitosan-zinc oxide/polyaniline composites. Mater. Sci. Semicond. Process 2015, 31, 573–581. [Google Scholar] [CrossRef]
  199. Zanini, N.C.; Souza, A.G.; Barbosa RF, S.; Rosa, D.S.; Mulinari, D.R. A novel hybrid polyurethane composites with ZnO particles and sheath palm residues: Synergistic effect. Polym. Compos. 2021, 42, 532–542. [Google Scholar] [CrossRef]
  200. Li, L.-H.; Deng, J.-C.; Deng, H.-R.; Liu, Z.-L.; Li, X.-L. Preparation, characterization and antimicrobial activities of chitosan/Ag/ZnO blend films. Chem. Eng. J. 2010, 160, 378–382. [Google Scholar] [CrossRef]
  201. Rahman, P.M.; Mujeeb, V.A.; Muraleedharan, K. Flexible chitosan-nano ZnO antimicrobial pouches as a new material for extending the shelf life of raw meat. Int. J. Biol. Macromol. 2017, 97, 382–391. [Google Scholar] [CrossRef]
  202. Gong, X.; Tang, C.Y.; Pan, L.; Hao, Z.; Tsui, C.P. Characterization of poly(vinyl alcohol) (PVA)/ZnO nanocomposites prepared by a one-pot method. Compos. B Eng. 2014, 60, 144–149. [Google Scholar] [CrossRef]
  203. Petchwattana, N.; Covavisaruch, S.; Wibooranawong, S.; Naknaen, P. Antimicrobial food packaging prepared from poly(butylene succinate) and zinc oxide. Measurement 2016, 93, 442–448. [Google Scholar] [CrossRef]
  204. Chu, Z.; Zhao, T.; Li, L.; Fan, J.; Qin, Y. Characterization of Antimicrobial Poly (Lactic Acid)/Nano-Composite Films with Silver and Zinc Oxide Nanoparticles. Materials 2017, 10, 659. [Google Scholar] [CrossRef] [Green Version]
  205. Steffy, K.; Shanthi, G.; Maroky Anson, S.; Selvakumar, S. Potential bactericidal activity of S. nux-vomica–ZnO nanocomposite against multidrug-resistant bacterial pathogens and wound-healing properties. J. Trace Elem. Med. Biol. 2018, 50, 229–239. [Google Scholar] [CrossRef]
  206. Prasert, A.; Sontikaew, S.; Sriprapai, D.; Chuangchote, S. Polypropylene/ZnO Nanocomposites: Mechanical Properties, Photocatalytic Dye Degradation, and Antibacterial Property. Materials 2020, 13, 914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  207. Hu, X.; Jia, X.; Zhi, C.; Jin, Z.; Miao, M. Improving the properties of starch-based antimicrobial composite films using ZnO-chitosan nanoparticles. Carbohydr. Polym. 2019, 210, 204–209. [Google Scholar] [CrossRef] [PubMed]
  208. Dhapte, V.; Gaikwad, N.; More, P.V.; Banerjee, S.; Dhapte, V.V.; Kadam, S.; Khanna, P.K. Transparent ZnO/polycarbonate nanocomposite for food packaging application. Nanocomposites 2015, 1, 106–112. [Google Scholar] [CrossRef]
  209. El Saeed, A.M.; Abd El-Fattah, M.; Azzam, A.M. Synthesis of ZnO nanoparticles and studying its influence on the antimicrobial, anticorrosion and mechanical behavior of polyurethane composite for surface coating. Dye. Pigment. 2015, 121, 282–289. [Google Scholar] [CrossRef]
  210. Anitha, S.; Brabu, B.; Thiruvadigal, D.J.; Gopalakrishnan, C.; Natarajan, T. Optical, bactericidal and water repellent properties of electrospun nano-composite membranes of cellulose acetate and ZnO. Carbohydr. Polym. 2012, 87, 1065–1072. [Google Scholar] [CrossRef]
  211. Al-Naamani, L.; Dobretsov, S.; Dutta, J. Chitosan-zinc oxide nanoparticle composite coating for active food packaging applications. Innov. Food Sci. Emerg. Technol. 2016, 38, 231–237. [Google Scholar] [CrossRef]
  212. Rath, G.; Hussain, T.; Chauhan, G.; Garg, T.; Goyal, A.K. Development and characterization of cefazolin loaded zinc oxide nanoparticles composite gelatin nanofiber mats for postoperative surgical wounds. Mater. Sci. Eng. C 2016, 58, 242–253. [Google Scholar] [CrossRef]
  213. Tan, S.T.; Winarto, N.; Dosan, R.; Aisyah, P.B. The Benefits Of Occlusive Dressings In Wound Healing. Open Dermatol. J. 2019, 13, 27–33. [Google Scholar] [CrossRef]
  214. Vaezi, K.; Asadpour, G.; Sharifi, H. Effect of ZnO nanoparticles on the mechanical, barrier and optical properties of thermoplastic cationic starch/montmorillonite biodegradable films. Int. J. Biol. Macromol. 2018, 124, 519–529. [Google Scholar] [CrossRef]
  215. George, D.; Maheswari, P.U.; Begum, K.M.S. Synergic formulation of onion peel quercetin loaded chitosan-cellulose hydrogel with green zinc oxide nanoparticles towards controlled release, biocompatibility, antimicrobial and anticancer activity. Int. J. Biol. Macromol. 2019, 132, 784–794. [Google Scholar] [CrossRef]
  216. Siyanbola, T.O.; Sasidhar, K.; Rao, B.V.; Narayan, R.; Olaofe, O.; Akintayo, E.T.; Raju, K.V. Development of functional polyurethane-ZnO hybrid nanocomposite coatings from Thevetia peruviana seed oil. JAOCS. J. Am. Oil Chem. Soc. 2015, 92, 267–275. [Google Scholar] [CrossRef]
  217. Ma, X.-Y.; Zhang, W.-D. Effects of flower-like ZnO nanowhiskers on the mechanical, thermal and antibacterial properties of waterborne polyurethane. Polym. Degrad. Stab. 2009, 94, 1103–1109. [Google Scholar] [CrossRef]
  218. Dural Erem, A.; Ozcan, G.; Skrifvars, M. Antibacterial activity of PA6/ZnO nanocomposite fibers. Text. Res. J. 2011, 81, 1638–1646. [Google Scholar] [CrossRef]
  219. Sirohi, S.; Singh, R.; Jain, N.; Pani, B.; Dutt, K.; Nain, R. Synthesis and characterization of multifunctional ZnO/polyester green composite films. J. Polym. Res. 2017, 24, 193. [Google Scholar] [CrossRef]
  220. Shekh, M.I.; Patel, K.P.; Patel, R.M. Electrospun ZnO Nanoparticles Doped Core–Sheath Nanofibers: Characterization and Antimicrobial Properties. J. Polym. Environ. 2018, 26, 4376–4387. [Google Scholar] [CrossRef]
  221. Li, X.-F.; Feng, X.-Q.; Yang, S.; Fu, G.-Q.; Wang, T.-P.; Su, Z.-X. Chitosan kills Escherichia coli through damage to be of cell membrane mechanism. Carbohydr. Polym. 2010, 79, 493–499. [Google Scholar] [CrossRef]
  222. Liu, H.; Du, Y.; Wang, X.; Sun, L. Chitosan kills bacteria through cell membrane damage. Int. J. Food Microbiol. 2004, 95, 147–155. [Google Scholar] [CrossRef]
  223. Helander, I.; Nurmiaho-Lassila, E.-L.; Ahvenainen, R.; Rhoades, J.; Roller, S. Chitosan disrupts the barrier properties of the outer membrane of Gram-negative bacteria. Int. J. Food Microbiol. 2001, 71, 235–244. [Google Scholar] [CrossRef]
  224. Zhao, G.; Usui, M.L.; Lippman, S.I.; James, G.A.; Stewart, P.S.; Fleckman, P.; Olerud, J.E. Biofilms and Inflammation in Chronic Wounds. Adv. Wound Care 2013, 2, 389–399. [Google Scholar] [CrossRef] [Green Version]
  225. El Fawal, G.; Hong, H.; Song, X.; Wu, J.; Sun, M.; He, C.; Mo, X.; Jiang, Y.; Wang, H. Fabrication of antimicrobial films based on hydroxyethylcellulose and ZnO for food packaging application. Food Packag. Shelf Life 2020, 23, 100462. [Google Scholar] [CrossRef]
  226. Yu, F.; Fei, X.; He, Y.; Li, H. Poly(lactic acid)-based composite film reinforced with acetylated cellulose nanocrystals and ZnO nanoparticles for active food packaging. Int. J. Biol. Macromol. 2021, 186, 770–779. [Google Scholar] [CrossRef] [PubMed]
  227. Yadollahi, M.; Gholamali, I.; Namazi, H.; Aghazadeh, M. Synthesis and characterization of antibacterial carboxymethyl cellulose/ZnO nanocomposite hydrogels. Int. J. Biol. Macromol. 2015, 74, 136–141. [Google Scholar] [CrossRef] [PubMed]
  228. Amjadi, S.; Emaminia, S.; Davudian, S.H.; Pourmohammad, S.; Hamishehkar, H.; Roufegarinejad, L. Preparation and characterization of gelatin-based nanocomposite containing chitosan nanofiber and ZnO nanoparticles. Carbohydr. Polym. 2019, 216, 376–384. [Google Scholar] [CrossRef] [PubMed]
  229. Zhang, R.; Lan, W.; Ji, T.; Sameen, D.E.; Ahmed, S.; Qin, W.; Liu, Y. Development of polylactic acid/ZnO composite membranes prepared by ultrasonication and electrospinning for food packaging. LWT 2020, 135, 110072. [Google Scholar] [CrossRef]
  230. Mocanu, A.; Isopencu, G.; Busuioc, C.; Popa, O.-M.; Dietrich, P.; Socaciu-Siebert, L. Bacterial cellulose films with ZnO nanoparticles and propolis extracts: Synergistic antimicrobial effect. Sci. Rep. 2019, 9, 17687. [Google Scholar] [CrossRef] [Green Version]
  231. Blinov, A.V.; Kachanov, M.D.; Gvozdenko, A.A.; Nagdalian, A.A.; Blinova, A.A.; Rekhman, Z.A.; Golik, A.B.; Vakalov, D.S.; Maglakelidze, D.G.; Nagapetova, A.G.; et al. Synthesis and Characterization of Zinc Oxide Nanoparticles Stabilized with Biopolymers for Application in Wound-Healing Mixed Gels. Gels 2023, 9, 57. [Google Scholar] [CrossRef]
  232. Hasanin, M.; Swielam, E.M.; Atwa, N.A.; Agwa, M.M. Novel design of bandages using cotton pads, doped with chitosan, glycogen and ZnO nanoparticles, having enhanced antimicrobial and wounds healing effects. Int. J. Biol. Macromol. 2021, 197, 121–130. [Google Scholar] [CrossRef]
  233. Rakhshaei, R.; Namazi, H. A potential bioactive wound dressing based on carboxymethyl cellulose/ZnO impregnated MCM-41 nanocomposite hydrogel. Mater. Sci. Eng. C 2017, 73, 456–464. [Google Scholar] [CrossRef]
  234. Raguvaran, R.; Manuja, B.K.; Chopra, M.; Thakur, R.; Anand, T.; Kalia, A.; Manuja, A. Sodium alginate and gum acacia hydrogels of ZnO nanoparticles show wound healing effect on fibroblast cells. Int. J. Biol. Macromol. 2017, 96, 185–191. [Google Scholar] [CrossRef]
Figure 1. Number of published scientific articles, reviews, and book chapters on the topic of antimicrobial zinc oxide composite films and membranes for wound healing from 2012 to 2022. Source: Scopus.
Figure 1. Number of published scientific articles, reviews, and book chapters on the topic of antimicrobial zinc oxide composite films and membranes for wound healing from 2012 to 2022. Source: Scopus.
Pharmaceutics 15 00970 g001
Figure 2. nZnO design through the selection of reagents and synthesis parameters.
Figure 2. nZnO design through the selection of reagents and synthesis parameters.
Pharmaceutics 15 00970 g002
Figure 3. Antibacterial mechanisms of nZnO. Modified from [182].
Figure 3. Antibacterial mechanisms of nZnO. Modified from [182].
Pharmaceutics 15 00970 g003
Figure 4. Schematic representation of BNCs’ preparation techniques.
Figure 4. Schematic representation of BNCs’ preparation techniques.
Pharmaceutics 15 00970 g004
Figure 5. Possible antibacterial action mechanisms of BNCs.
Figure 5. Possible antibacterial action mechanisms of BNCs.
Pharmaceutics 15 00970 g005
Table 1. Overview of biomacromolecules for wound dressing films.
Table 1. Overview of biomacromolecules for wound dressing films.
AlginateBiocompatible, non-toxic, non-immunogenic, biodegradable, antimicrobial, and haemostatic[39,41,42,43]
ChitosanNon-toxic, biocompatible, biodegradable, moisture retentive, and haemostatic[44,45,46,47,48]
Chitosan oligosaccharideAntibacterial, anti-inflammatory, and immune-stimulating[49]
CelluloseBiocompatible, hydrophilic, microporous, transparent, and non-toxic[50,51,52,53]
Carboxymethyl-celluloseBiocompatible and biodegradable[54,55,56,57]
Carboxymethyl-chitosanAmphoteric and hydrophilic[58,59,60]
Gum acaciaBiocompatible, nontoxic, and water-soluble[61]
StarchLow-cost, biocompatible, biodegradable, easy preparation, and good film-forming properties[62,63,64,65]
CarrageenanWater-soluble, and good film-forming abilities and mechanical properties[66,67,68]
Cellulose acetateWater-insoluble, high transparency, and good mechanical and chemical resistance[69,70]
Cellulose acetate phthalateHydrophilic and biodegradable[71]
Oxidised starchLow viscosity, and high stability and transparency[64]
DextranActive in wound healing and controls bacterial growth [39,72]
ChitinBiodegradable, haemostatic, and cytocompatible[73]
β-glucans Immunostimulatory, and biodegradable[74]
Hyaluronic AcidPrimary component of connective tissue, safe long-term, and reduces bacterial adhesion[75,76]
CollagenHigh biocompatibility and biodegradability. Bioactive[77]
KeratinLow-cost and highly suitable for hydrogels, but concerns about wastes[78,79]
Fish protein isolateHigh film-forming ability[80,81,82]
GelatinBiodegradable, biocompatible, and cell-recognizable[39,56,81,83,84,85]
Soy protein isolateBiocompatible, non-immunogenic, non-toxic, low-cost, biodegradable, and highly stable[86]
Silk fibroinBiocompatible, biodegradable, and minimum inflammatory reactions[87]
Table 2. Effect of nZnO on the elastic modulus (EM) and tensile strength (TS) of films.
Table 2. Effect of nZnO on the elastic modulus (EM) and tensile strength (TS) of films.
Matrix TypeEM (mPa)TS (Mpa)nZnO (% wt)Refs.
Poly(lactic acid)/poly(butyleneadipate-co-terephthalate800970–122014.516.8–26.93[190]
Bacterial cellulose93.8132.1126.345.215[53]
Poly(lactic acid)3118.82610.6447.7839.963[204]
Poly(caprolactone) nanofibers3.705.25–3.781.401.60–0.981–6[194]
Table 3. Effect of nZnO’s presence on the WCA of different films.
Table 3. Effect of nZnO’s presence on the WCA of different films.
Matrix TypeWCA (deg)nZnO (% wt)Refs.
Poly(lactic acid)/poly(butyleneadipate-co-terephthalate8278.1–88.33[190]
Chitosan-cellulose acetate phthalate57815[71]
Cellulose acetate nanofibers47124-[210]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pino, P.; Bosco, F.; Mollea, C.; Onida, B. Antimicrobial Nano-Zinc Oxide Biocomposites for Wound Healing Applications: A Review. Pharmaceutics 2023, 15, 970.

AMA Style

Pino P, Bosco F, Mollea C, Onida B. Antimicrobial Nano-Zinc Oxide Biocomposites for Wound Healing Applications: A Review. Pharmaceutics. 2023; 15(3):970.

Chicago/Turabian Style

Pino, Paolo, Francesca Bosco, Chiara Mollea, and Barbara Onida. 2023. "Antimicrobial Nano-Zinc Oxide Biocomposites for Wound Healing Applications: A Review" Pharmaceutics 15, no. 3: 970.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
