Biotinylated Polymer-Ruthenium Conjugates: In Vitro and In Vivo Studies in a Triple-Negative Breast Cancer Model

1
Centro de Química Estrutural, Institute of Molecular Sciences and Departamento de Química e Bioquímica, Faculdade de Ciências, Universidade de Lisboa, Campo Grande, 1749-016 Lisboa, Portugal
2
Centre of Molecular and Environmental Biology, Department of Biology, University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal
3
Institute of Science and Innovation for Bio-Sustainability, University of Minho, Campus de Gualtar, Edifício 18, 4710-057 Braga, Portugal
4
i3S—Instituto de Investigação e Inovação em Saúde, Universidade do Porto, 4200-135 Porto, Portugal
5
Centro de Química Estrutural, Institute of Molecular Sciences and Department of Chemical Engineering, Instituto Superior Técnico, Universidade de Lisboa, Av. Rovisco Pais, 1049-001 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Pharmaceutics 2022, 14(7), 1388; https://doi.org/10.3390/pharmaceutics14071388
Submission received: 24 April 2022 / Revised: 15 June 2022 / Accepted: 28 June 2022 / Published: 30 June 2022
(This article belongs to the Special Issue Polymer-Based Micro- and Nanocarriers for Drug Delivery and Targeting)

Abstract

:
The need for new therapeutic approaches for triple-negative breast cancer is a clinically relevant problem that needs to be solved. Using a multi-targeting approach to enhance cancer cell uptake, we synthesized a new family of ruthenium(II) organometallic complexes envisaging simultaneous active and passive targeting, using biotin and polylactide (PLA), respectively. All compounds with the general formula, [Ru(η5-CpR)(P)(2,2′-bipy-4,4′-PLA-biotin)][CF3SO3], where R is -H or -CH3 and P is P(C6H5)3, P(C6H4F)3 or P(C6H4OCH3)3, were tested against triple-negative breast cancer cells MDA-MB-231 showing IC50 values between 2.3–14.6 µM, much better than cisplatin, a classical chemotherapeutic drug, in the same experimental conditions. We selected compound 1 (where R is H and P is P(C6H5)3), for further studies as it was the one showing the best biological effect. In a competitive assay with biotin, we showed that cell uptake via SMVT receptors seems to be the main transport route into the cells for this compound, validating the strategy of including biotin in the design of the compound. The effects of the compound on the hallmarks of cancer show that the compound leads to apoptosis, interferes with proliferation by affecting the formation of cell colonies in a dose-dependent manner and disrupts the cell cytoskeleton. Preliminary in vivo assays in N: NIH(S)II-nu/nu mice show that the concentrations of compound 1 used in this experiment (maximum 4 mg/kg) are safe to use in vivo, although some signs of liver toxicity are already found. In addition, the new compound shows a tendency to control tumor growth, although not significantly. In sum, we showed that compound 1 shows promising anti-cancer effects, bringing a new avenue for triple-negative breast cancer therapy.

1. Introduction

Cancer is the second-leading cause of death worldwide, accounting for more than 10 million deaths in 2020 (World Health Organization data). Breast cancer is among the most common diseases, whereas triple negative breast cancer still lacks effective treatments.
One of the key challenges in the treatment of cancer lies in engineering drug delivery systems capable of specifically and efficiently targeting the diseased cells without affecting healthy cells/tissues [1,2,3,4]. This might be achievable using a multi-targeting approach that is able to enhance the presence of the drug in tumor tissues with target-specific and localized action. Over the past several decades, remarkable progress has been made in the development of delivery systems to treat cancer more effectively [5]. Of these systems, polymer–drug conjugates are emerging as an important class of anti-cancer drugs [6,7,8,9,10]. Indeed, the use of polymer–drug conjugates has already proven to be a successful strategy to overcome some limitations of the free drug [11]. For example, polymer–drug conjugates can improve drug uptake by cancer cells and tumors due to an enhanced permeation and retention (EPR) effect [12] while the addition of tumor-targeting vectors allows ligand-mediated targeting through specific ligand–receptor interactions (active targeting) maximizing the drug-loading into the cancer cells/tumors [13].
There are several physical encapsulation strategies using polymer micelles [14,15,16,17,18], nanoparticles [19,20,21,22] or polymer-decorated liposomes and lipid hybrids [23,24,25,26,27]. In these approaches, a fine balance between stability and drug release must be achieved in order to release the drug at its site of action. An alternative strategy consists of the covalent conjugation of the drug to the polymer. In this frame, several examples have emerged in the last years [28,29,30,31,32]. In particular, since ruthenium compounds have consistently presented lower systemic toxicity, inherent selectivity for cancer and different mechanisms of action (that can involve multiple targets) than the traditional platinum-based drugs, several polymer–ruthenium conjugates have been developed. For example, the NAMI-A copolymer conjugate based on poly(4-vinyl imidazole) and poly(ethylene glycol)methyl ether acrylate increased the cytotoxicity and cell uptake of this drug [14]. The cytotoxicity of the micelles was tested on ovarian (A2780 and Ovcar-3) and pancreatic (AsPC-1) cancer cell lines and, on average, a 1.5-fold increase in cytotoxicity was found for NAMI-A copolymer micelles when compared to NAMI-A alone. Furthermore, the NAMI-A micelles were shown to have an improved in vitro antimetastatic potential in comparison to free NAMI-A [14].
Another example of a ruthenium-metal conjugate is a drug carrier for RAPTA-C, developed by Stenzel et al., based on poly(2-hydroxyethyl acrylate) (PHEA) and poly(D,L-lactic acid) (PLA) capable of self-assembling into polymeric micelles encapsulating the ruthenium drug [33]. In terms of cytotoxicity, RAPTA-C based micelles were 10-fold more cytotoxic than the free RAPTA-C molecule in three ovarian cancer cell lines (A2780, A2780CisR and Ovcar-3) [33]. Furthermore, a significant increase in the cell uptake of ruthenium was found for the micelles compared to RAPTA-C. The same group has later reported the use of D-fructose micelles [34]. They observed that the micelles lead to an increased uptake by breast cancer cells (MCF-7 and MDA-MB-231) in comparison to mouse macrophages (RAW264.7) and that this uptake was higher for the glycol-based micelles than for the glycol-free micelles. These differences were attributed to the presence of GLUT5 transporters that would facilitate the uptake of the glycol-coated micelles. The authors also showed that the fructose-coated micelles presented improved antimetastatic activity.
In addition, in the frame of photodynamic therapy (a therapy that involves a photosensitizer and a light source to kill abnormal cells), the conjugation of the Ru-cytotoxic drug to a polymer has been proven to be advantageous [35,36,37,38]. In particular, Chao and Gilles and co-workers reported the encapsulation of a Ru(II) polypyridyl complex ([Ru(2,2′-bipyridine)2((E,E)-4,4′-bis[p-methoxystyryl]-2,2′-bipyridine)]2+) into polymeric nanoparticles with terminal biotin groups (1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[biotin(poly(ethyleneglycol))-2000][ammonium salt] (DSPE-PEG2000-biotin)) [38]. The particles showed much higher selectivity for cancer cells in comparison to noncancerous cells in 2D and 3D tumor models. Upon intravenous injection, an improved accumulation (up to 8.7) of the particles vs. the Ru complex inside an adenocarcinoma human alveolar basal epithelial tumor (A549) of a mouse was observed.
Our research group has been actively engaged in the design of second-generation compounds that adopt active and/or passive targeting strategies. It started with the development of a new family of polymer ‘RuCp’ conjugates (RuPMC’s) as potential anti-cancer agents [39,40]. These complexes were developed based on promising in vitro results obtained for their low molecular weight parent compound TM34, [Ru(η5-C5H5)(bipy)(PPh3)][CF3SO3] [41,42]. The rationale behind the design of this family of compounds was to use the TM34′s very stable scaffold and incorporate polylactide, a well-established and FDA approved biodegradable and biocompatible polymer for drug delivery applications [43], to potentially benefit from the EPR effect—passive targeting [39] (Figure 1A, PMC78) or to benefit from both effects (passive and active targeting), using a D-glucose end-capped polylactide [39,40] (Figure 1B, PMC1 and 2).
Recently, we have reported a new family of compounds incorporating biotin (vitamin B7) into the bipyridine ligand [23,44]. From this family, LCR134 (Figure 1C) stands out as a very promising candidate that presents a dual effect rarely found in cancer drugs, i.e., the ability to overcome multidrug resistance (through P-gp inhibition) and act as a cytotoxic agent in metastatic breast cancer cells. Importantly, we could recapitulate in vivo (zebrafish model) the compound’s ability to inhibit P-gp efflux [45].
In this work, we report the synthesis, characterization, and biological studies of the high-molecular weight analogues of the previously described family of biotinylated compounds. The rationale behind this work is to improve the already excellent properties of these complexes, particularly of LCR134, by the addition of a polymeric chain to benefit from both targeting strategies.

2. Experimental Section

All reactions and purifications were performed under nitrogen atmosphere using Schlenk techniques. All solvents were used as purchased, except for dichloromethane and n-hexane used for the synthetic procedures and purification that were dried using an MBRAUN solvent purification system (MB SPS-800, M Braun Inertgas-Systeme GmbH, Garching, Germany). All commercial reagents (except for D,L-lactide) were used as received and without further purification. D,L-lactide was purified by recrystallization in toluene (three times) and dried overnight in the vacuum line. NMR spectra were recorded on a Bruker Avance 400 spectrometer (Fällanden, Switzerland) at probe temperature using commercially available deuterated solvents. Chemical shifts (δ) are reported in parts per million (ppm) referenced to tetramethylsilane (δ 0.00 ppm) using the residual proton solvent peaks as internal standards. 31P{1H} NMR chemical shifts were reported downfield from external standard 85% H3PO4. The peaks multiplicity is abbreviated as follows: s (singlet), d (doublet), t (triplet), m (multiplet). Coupling constants (J) are reported in Hertz (Hz). All assignments were attributed using APT-13C{1H} or 13C{1H}, COSY, HMBC and HMQC NMR techniques. Infrared spectra were recorded on KBr pellets using a Mattson Satellite FT-IR spectrophotometer (Kyoto, Japan) and only relevant bands were cited in the text. Electronic spectra were obtained at room temperature on a Jasco V-660 spectrometer (Elnor, Porto, Portugal) from solutions of 10−4–10−5 M in quartz cuvettes (1 cm optical path). Electrospray Ionization High Resolution Mass Spectrometry analysis were performed at Instituto Superior Técnico, using a QqTOF Impact II mass spectrometer equipped with an ESI source (Bruker Daltonics, Bremen, Germany). The methanolic solutions of the complexes were acquired by direct infusion (DI) using a flow rate of 150 µL/h, and a lock mass as internal calibrant was used. The full scan mass spectra were acquired over a mass range of 300–3000 m/z, at a spectra rate of 1 Hz. Data acquisition and processing were performed using the Data Analysis 5.1 software (Bruker Daltonics).
MALDI-TOF MS analyses of polymers were performed at Unidade de Espectrometría de Masas e Proteómica (Área de Infraestruturas de Investigación—Universidade de Santiago de Compostela), using a Bruker Ultraflex III TOF/TOF mass spectrometer equipped with a Smartbeam laser. Acquisitions were performed on Lineal Positive mode. The mass spectrometer was externally calibrated using Protein1 Calib Standard. DCTB was used as the matrix for MALDI-TOF MS.
The hydrodynamic diameter of complex 1 nanoparticles was measured by DLS using a Zetasizer Nano ZS (Malvern Instruments, Brookhaven, NY, USA). The nanoparticle aqueous dispersions were diluted as required and measured at room temperature.

2.1. Synthesis

The starting materials used in the synthesis of the organometallic complexes were prepared following the methods previously described in the literature; [RuCp(PPh3)2Cl] [46], [RuCp(P(C6H4F)3)2Cl] [23], [RuCp(P(C6H4OCH3)3)2Cl] [23] and [Ru(MeCp)(PPh3)2Cl] [47].

2.1.1. General Procedure for the Polymerization of D,L-Lactide (Bipy-PLA-OH)

Purified D,L-lactide (1.00 g, 13.9 mmol), 4,4′-bis(hydroxymethyl)-2,2′-bipyridine (bipy-OH; 0.05 g, 0.23 mmol) and 4-dimethylaminopyridine (DMAP; 0.06 g, 0.50 mol) were added to a Schlenk vessel. The reaction vessel was placed in an oil bath at 135 °C for 15 min. with constant magnetic stirring. After that period, quenching of the reaction was performed with some drops of a water/methanol mixture (50/50 (% v/v)). Dichloromethane was then added to completely dissolve the polymer and the solution was transferred back to the water/methanol mixture. The polymeric compound was precipitated, under reduced pressure, until the solution became translucent. The solution was then decanted, and the residue was washed with diethyl ether (2 × 10 mL) and dried overnight, under vacuum, originating bipy-PLA-OH polymer (white foam) with 82-95 % yield (Table 1). 1H NMR [(CDCl3), Me4Si, δ/ppm]: 8.67 (d, 2, 3JHH = 4.00, H1); 8.36 (s, 2, H3); 7.28 (under the signal of the solvent, H2); 5.16 (m, 63, H6+HA); 4.36 (m, 2, HA’); 1.56 (m, 189, HB); 1.48 (m, 6, HB’).

2.1.2. General Procedure for the Synthesis of 2,2′-Bipyridine-4,4′-PLA-Biotin (L1)

To a stirred and degassed solution of bipy-PLA-OH (0.16 mmol) in a dichloromethane (10 mL)/DMF (3 mL) mixture, 5-[(3aS,4S,6aR)-2-oxohexahydro-1H-thieno [3,4-d] imidazole-4-yl]pentanoic acid (biotin) (0.10 g, 0.4 mmol), 4-dimethylamino-pyridine (DMAP) (0.02 g, 0.16 mmol) and N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC) (0.08 g, 0.4 mmol) were added. The esterification reaction was followed by 1H-NMR spectroscopy until the terminal signal (HA’) of the PLA chain completely disappeared. After a 15 h reflux the reaction mixture was cooled down to room temperature and the solvent was removed under vacuum. The oily residue was dissolved in dichloromethane (40 mL) and extracted with MQ water (2 × 40 mL) in a separating funnel. The organic layers were collected in a round bottom flask and the solvent was evaporated under reduced pressure. The residue was washed with diethyl ether (2 × 10 mL) and dried overnight, under vacuum, originating L1 (white foam) with 90 % yield (Table 2). 1H NMR [(CD3)2CO, Me4Si, δ/ppm]: 8.71 (d, 2, 3JHH = 4, H1); 8.49 (s, 2, H4); 7.45 (d, 2, 3JHH = 4.0 Hz, H2); 5.77 (s, 2, NH); 5.65 (s, 2, NH); 5.38 (m, 4, H6); 5.21 (m, 61, HA, PLA); 4.49 (m, 4, H15); 4.34 (m, 4, H13); 3.22 (m, 2, H12); 2.94 (m, 2, H16); 2.71 (m, 2, H16); 2.40 (m, 4, H8); 1.56 (m, 207, H9 + H10 + H11 + HB, PLA). 13C NMR [(CD3)2CO, δ/ppm]: 173.18 (C7); 170.09 (CC, PLA); 156.81 (C14); 150.43 (C5); 150.43 (C1); 146.79 (C3); 123.08 (C2); 119.75 (C4); 69.84 (CA, PLA); 65.92 (C6); 62.29 (C13); 60.71 (C15); 56.38 (C12); 41.03 (C16); 34.01 (C8); 29.84 (under the signal of the solvent, C10, C11); 25.55 (C9); 17.05 (CB, PLA). UV-vis [DMSO, λmax/nm (ε × 103/M−1cm−1)]: 285 (11.6). FTIR [KBr, cm−1]: 3244 (υN-H amine), 3069 (υC-H aromatic rings); 2995-2878 (υC-H alkanes), 1757 (υC=O PLA and υC=O ester), 1705 (υC=O ketone), 1458 (υC=C aromatic rings); 1186 (υC-O ester).

2.1.3. General Procedure for the Synthesis of [Ru(CpR)(P(C6H4R’)3)(2,2′-Bipyridine-4,4′-PLA-Biotin][CF3SO3] R = H; R’ = H (1) or R = H; R’ = F (2) or R = H; R’ = OCH3 (3) or R = CH3; R’ = H (4)

To a stirred and degassed solution of [Ru(η5-Cp)(PPh3)2Cl], [Ru(Cp)(P(C6H4F)3)2Cl], [Ru(Cp)(P(C6H4OCH3)3)2Cl] or [Ru(CpMe)(P(C6H5)3)2Cl] (0.16 g, 0.22 mmol; 0.08 g, 0.09 mmol; 0.10 g, 0.11 mmol or 0.05 g, 0.06 mmol, respectively) in dichloromethane (40 mL), L1 (L1_PLA1: 0.57 g, L1_PLA2: 0.18 mmol; L1_PLA1: 0.35 g, 0.08 mmol; L1_PLA3: 0.30 g, 0.08 mmol and 0.23 g, 0.05 mmol for 1, 2, 3 and 4, respectively) and AgCF3SO3 (0.07 g, 0.27 mmol; 0.03 g, 0.12 mmol; 0.03 g, 0.12 mmol and 0.02 g, 0.08 mmol for 1, 2, 3 and 4, respectively) were added. After a 14, 19, 16 or 7 h reflux (for 1, 2, 3 or 4, respectively) the reaction mixture was cooled down to room temperature, filtered and the solvent was removed under vacuum. The orange/brown residue was recrystallized several times from CH2Cl2/n-hexane until full confirmation of its purity by 1H-NMR, originating complexes 1, 2, 3 and 4 in 43, 63, 59 and 47 % yield, respectively (Table 3).
  • Complex 1: 1H NMR [(CD3)2CO, Me4Si, δ/ppm]: 9.52 (m, 2, H1); 8.09 (m, 2, H4); 7.45 (m, 3, HparaPPh3); 7.34 (m, 8, H2+HmetaPPh3); 7.12 (m, 6, HorthoPPh3); 5.35 (m, 4, H6); 5.20 (m, 99, HA, PLA); 4.95 (s, 5, η5-C5H5); 4.77 (m, 2, H15); 4.69 (m, 2, H13); 3.36 (m, 2, H12); 2.86 (m, under de signal of the water of solvent, H16); 2.42 (m, 4, H8); 1.79 (m, 4, H9); 1.55 (m, 179, H10+H11+HB, PLA). 13C NMR [(CD3)2CO, δ/ppm]: 173.25 (C7); 170.10 (CC, PLA); 156.94 (C1); 156.29 (C5); 146.64 (C3); 133.82 (d, 2JCP = 11.1, CHorthoPPh3); 132.12 (d, 1JCP = 42.3, Cq, PPh3); 131.09 (CHparaPPh3); 129.42 (d, 3JCP = 10.1, CHmetaPPh3); 123.95 (C2); 122.04 (C4); 79.42 (Cp); 69.82 (CA, PLA); 65.02 (C6); 62.55 (C13); 60.58 (C15); 58.14 (C12); 42.65 (C16); 33.90 (C8); 29.84 (under the signal of the solvent, C10, C11); 25.32 (C9); 17.06 (CB, PLA). 31P NMR [(CD3)2CO, δ/ppm]: 51.13 (s, PPh3). UV-vis [CH2Cl2, λmax/nm (ε × 103/M−1cm−1)]: 295 (29.5), 336 (8.1), 430 (4.8), 481 (Sh). [DMSO, λmax/nm (ε × 103/M−1cm−1)]: 296 (35.5), 361 (Sh), 426 (5.7), 477 (Sh). FTIR [KBr, cm−1]: 3416 (υN-H amine), 3075 (υC-H Cp and aromatic rings); 2995-2878 (υC-H alkanes), 1757 (υC=O PLA and υC=O ester), 1454 (υC=C Cp and aromatic rings), 1273, 1186, 1030 (υ(CF3SO3)), 1186 (υC-O ester). Mn, calculated by NMR: 6233.7 g/mol.
  • Complex 2: 1H NMR [(CD3)2CO, Me4Si, δ/ppm]: 9.54 (m, 2, H1); 8.21 (m, 2, H4); 7.41 (m, 2, H2); 7.15 (m, 12, P(PhF)3); 5.36 (m, 4, H6); 5.20 (m, 85, HA, PLA); 5.00 (s, 5, η5-C5H5); 4.69 (m, 2, H15); 4.61 (m, 2, H13); 3.24 (m, 2, H12); 2.85 (m, under de signal of the water of solvent, H16); 2.41 (m, 4, H8); 1.70 (m, 4, H9); 1.55 (m, 278, H10+H11+HB, PLA). 13C NMR [(CD3)2CO, δ/ppm]: 173.11 (C7); 170.10 (CC, PLA); 164.76 (dd, 1JCF = 250.5; Cq, P(PhF)3); 157.14 (C1); 156.32 (C5); 147.03 (C3); 136.22 (dd, 3JCP = 12.6; 2JCF = 9.0, CHmetaP(PhF)3); 128.20 (dd, 1JCP = 42.3, Cq, P(PhF)3); 124.35 (C2); 122.42 (C4); 116.64 (dd, 2JCP = 21.1; 3JCF = 11.1 Hz, CHorthoP(PhF)3); 79.66 (Cp); 69.82 (CA, PLA); 65.07 (C6); 62.60 (C13); 60.57 (C15); 58.21 (d, C12); 43.11 (C16); 33.91 (C8); 29.84 (under the signal of the solvent, C10, C11); 25.33 (d, C9); 17.06 (CB, PLA). 31P NMR [(CD3)2CO, δ/ppm]: 50.09 (s, P(PhF)3. UV-Vis [CH2Cl2, λmax/nm (ε × 103/M−1cm−1)]: 295 (30.2); 336 (7.3); 427 (4.9); 479 (Sh). [DMSO, λmax/nm (ε × 103/M−1cm−1)]: 296 (27.0); 346 (Sh); 426 (4.2); 478 (Sh). FTIR [KBr, cm−1]: 3420 (υN-H amine); 3069 (υC-H Cp and aromatic rings); 2997–2876 (υC-H alkanes), 1757 (υC=O PLA and υC=O ester), 1454 (υC=C Cp and aromatic rings), 1284, 1186, 1028 (υ(CF3SO3)), 1186 (υC-O ester). Mn, calculated by NMR: 5941.6 g/mol.
  • Complex 3: 1H NMR [(CD3)2CO, Me4Si, δ/ppm]: 9.52 (d, 2, 3JHH = 8.0, H1); 8.14 (s, 2, H4); 7.37 (m, 2, H2); 7.02 (m, 6, HorthoP(PhOCH3)3); 6.87 (m, 6, HmetaP(PhOCH3)3); 5.35 (m, 4, H6); 5.22 (m, 86, HA, PLA); 4.93 (s, 5, η5-C5H5); 4.52 (m, 2, H15); 4.36 (m, 2, H13); 3.83 (s, 9, OCH3); 3.26 (m, 2, H12); 2.85 (m, under the signal of the water of solvent, H16) 2.40 (m, 4, H8), 1.55 (m, 278, H9+H10+H11+HB, PLA). 13C NMR [(CD3)2CO, δ/ppm]: 173.20 (C7); 170.10 (CC, PLA); 161.78 (Cq, P(PhOCH3)3); 156.91 (C1); 156.31 (C5); 146.12 (C3); 135.29 (d, 2JCP = 13.1, CHorthoP(PhOCH3)3); 123.87 (C2); 123.52 (d, 1JCP = 47.3, Cq, P(PhOCH3)3); 122.36 (C4); 114.76 (d, 3JCP = 10.1, CHmetaP(PhOCH3)3); 79.20 (Cp); 69.82 (CA, PLA); 65.08 (C6); 62.36 (C13); 60.73 (C15); 58.01 (C12); 55.70 (OCH3); 39.75 (C16); 33.97 (C8); 29.84 (under the signal of the solvent, C10, C11); 25.49 (C9); 17.05 (CB, PLA). 31P NMR [(CD3)2CO, δ/ppm]: 47.02 (s, P(PhOCH3)3). UV-vis [CH2Cl2, λmax/nm (ε × 103/M−1cm−1)]: 246 (53.8); 295 (20.2); 336 (5.9); 435 (3.2); 492 (Sh). [DMSO, λmax/nm (ε × 103/M−1cm−1)]: 294 (18.9); 341 (Sh); 433 (2.9); 492 (Sh). FTIR [KBr, cm−1]: 3410 (υN-H amine); 3073 (υC-H Cp and aromatic rings); 2995–2878 (υC-H alkanes); 1757 (υC=O PLA and υC=O ester), 1456 (υC=C Cp and aromatic rings), 1278, 1186, 1028 (υ(CF3SO3)), 1186 (υC-O ester). Mn, calculated by NMR: 4319.4 g/mol.
  • Complex 4: 1H NMR [(CD3)2CO, Me4Si, δ/ppm]: 9.47 (m, 2, H1); 8.11 (m, 2, H4); 7.42 (m, 4, H2+HparaPPh3); 7.33 (m, 7, HmetaPPh3); 7.11 (m, 6, HorthoPPh3); 5.36 (m, 4, H6); 5.20 (m, 64, HA, PLA); 4.77 (s, 2, Hd, Cp); 4.71 (m, 2, H15); 4.67 (m, 2, Hc, Cp); 4.55 (m, 2, H13); 3.39 (m, 2, H12); 3.05 (m, 2, H16); 2.88 (m, 2, H16); 2.40 (m, 4, H8); 1.68 (m, 7, H9 + Ha, Cp); 1.55 (m, 211, H10+H11+HB, PLA). 13C NMR [(CD3)2CO, δ/ppm]: 173.14 (C7); 170.09 (CC, PLA); 156.49 (C1); 156.22 (C5); 146.44 (C3); 133.75 (d, 2JCP = 11.1, CHorthoPPh3); 132.29 (d, 1JCP = 41.3, Cq, PPh3); 131.01 (CHparaPPh3); 129.40 (d, 3JCP = 10.1, CHmetaPPh3); 124.32 (C2); 123.72 (C4); 103.38 (Cb, Cp); 77.00 (Cc + Cd, Cp); 69.81 (CA, PLA); 64.99 (C6); 63.27 (C13); 61.74 (C15); 56.47 (C12); 40.89 (C16); 33.95 (C8); 29.84 (under the signal of the solvent, C10, C11); 25.41 (C9); 17.05 (CB, PLA); 11.69 (Ca, Cp). 31P NMR [(CD3)2CO, δ/ppm]: 51.63 (s, PPh3). UV-vis [CH2Cl2, λmax/nm (ε × 103/M−1cm−1)]: 294 (27.1), 334 (9.0), 435 (4.8), 489 (Sh). [DMSO, λmax/nm (ε × 103/M−1cm−1)]: 296 (12.6), 343 (3.8), 431 (2.1), 493 (Sh). FTIR [KBr, cm−1]: 3307 (υN-H amine), 3069 (υC-H Cp and aromatic rings); 2997–2878 (υC-H alkanes); 2878 (υC-H Cp and aromatic rings); 1753 (υC=O PLA and υC=O ester), 1456 (υC=C Cp and aromatic rings), 1277, 1186, 1028 (υ(CF3SO3-)), 1186 (υC-O ester). Mn, calculated by NMR: 5296.0 g/mol.

2.2. Biological Studies

2.2.1. Cell Lines and Culture Conditions

MDA-MB-231 cells were grown at 37 °C in 5% CO2 in Dulbecco’s modified Eagle’s medium (DMEM high glucose) (Capricorn Scientific, Ebsdorfergrund, Germany) supplemented with 10% fetal bovine serum (Capricorn Scientific) and 1% penicillin/streptomycin (Capricorn Scientific).

2.2.2. Compounds Dilution and Storage

All compounds were dissolved in 30% DMSO/70% MQ H2O and filtered (40 μm filters), followed by a serial dilution to the corresponding tested concentrations of the Ru-PLA conjugates (compounds 14). The stock solutions of the compounds were divided in aliquots of 10 μL each and stored at −80 °C until further use.

2.2.3. MTT Assay

The cells were adherent in monolayers and, upon confluency, were harvested by digestion with trypsin-EDTA. The cytotoxicity of the complexes against MDA-MB-231 was assessed using the colorimetric assay MTT (3-(4,5-2-yl)-2,5-ditetrazolium bromide), which measures the conversion of the yellow tetrazolium into purple formazan by mitochondrial redox activity in living cells. For this purpose, cells (10–20 × 103 in 200 µL of medium) were seeded into 96-well plates and incubated in a 5% CO2 incubator at 37 °C. Cells settled for 24 h followed by the addition of a dilution series of the complexes in medium (200 µL). The complexes and ligand were first solubilized in 100% DMSO, given a 10 mM stock solution, then in medium within the concentration range 0.01–50 µM for the complexes and 10–200 µM for the ligand. DMSO did not exceed 1% even for the higher concentration used and was without cytotoxic effect. After 48 h incubation, the treatment solutions were removed by aspiration and MTT solution (200 µL, 0.5 mg/mL in PBS) was added to each well. After 3–4 h at 37 °C/5% CO2, the solution was removed, and the purple formazan crystals formed inside the cells were dissolved in DMSO (200 µL) by thorough shaking. The cellular viability was evaluated by measuring the absorbance at 570 nm by using a microplate spectrophotometer.

2.2.4. Intracellular Distribution

For the cellular uptake experiments, MDA-MB-231 cells (ca. 1 × 106 in 5 mL medium) were seeded into t25 flasks and incubated in a 5% CO2 incubator at 37 °C. Cells settled for 24 h, followed by the addition of complex 1 at a concentration equivalent to its IC50 value found for 48 h challenge at 37 °C, with or without a pre-incubation with free biotin (1 mg/mL) for 1 h. After complex incubation for 3 h, cells were washed with ice-cold PBS and treated in order to obtain a cellular pellet. The cytosol, membrane/particulate, cytoskeletal and nuclear fractions were extracted using a FractionPREPTM (BioVision, Milpitas, CA, USA) cell fractionation kit according to the manufacturer’s protocol. The Ru (101Ru) content in each fraction was measured by a Thermo X-Series Quadrupole ICPMS (Thermo Scientific, Waltham, MA, USA) after digestion of the samples and using the same procedure previously described [49].

2.2.5. Colony Formation Assay

MDA-MB-231 cells were seeded at a concentration of 300 cells/mL, in six-well plates. After 24 h of seeding, cells were incubated with different concentrations of compound 1 and cisplatin for 48 h. The negative control cells were treated with DMSO (maximum of 0.1% of DMSO per well (v/v)) and H2O (maximum of 0.3% H2O per well (v/v)). After 48 h of incubation, the medium was replaced by fresh medium without compound 1. The medium was renewed every 3 days. Eleven days after removing the treatments, cells were stained as previously described [23].

2.2.6. F-Actin Immunofluorescence Assay

MDA-MB-231 cell line was seeded at a concentration of 4.2 × 104 cells/mL, in 12-well plates with one coverslip per well. After 24 h, cells were exposed to the IC50 values of compound 1 and cisplatin. The negative control cells were treated with DMSO (maximum of 0.1% of DMSO per well (v/v)) and H2O (maximum of 0.3% H2O per well (v/v)). After 48 h of incubation, the cells were washed twice with PBS and fixed with paraformaldehyde 4% (w/v) for 10 min. After fixation, cells were incubated with NH4Cl 50 mM and washed twice with PBS, for five minutes. The cells were permeabilized using Triton X-100 0.2%, for five minutes, and blocked with PBS–BSA 3% for 20 min. Subsequently, cells were incubated with Alexa FluorTM 488 Phalloidin (ThermoFisher Scientific®, Waltham, MA, USA), diluted in PBS (1:40), for one hour in the dark, and washed twice with PBS. To finalize, coverslips were mounted using 5 μL of VECTASHIELD Antifade Mounting Medium with DAPI (Vector Laboratories®, Peterborough, UK) in microscope slides. Representative images were obtained in a fluorescence microscope (Olympus motorized BX63F Upright Microscope) (Olympus©, Tokyo, Japan) at a magnification of 600×.

2.2.7. Evaluation of the Cell Death Mechanism by Flow Cytometry

The triple-negative breast cancer cell line MDA-MB-231 was seeded in 6-well test plates at a concentration of 4.2 × 104 cells/mL. 24 h later, cells were incubated with different concentrations of compound 1 and cisplatin for 48 h. After the incubation period, cells were collected and stained as previously described [23] Samples were analyzed using FlowJo 7.6 software.

2.2.8. Statistical Analysis for In Vitro Studies

The results were obtained from at least three independent experiments and expressed as mean ± SD. For analyzing the results were used a one-way or two-way ANOVA with Dunnett’s post-test. p-values lower than 0.05 were considered statistically significant. All statistical analyses were performed using GraphPad Prism version 8 for macOS, GraphPad Software, San Diego, CA, USA, www.graphpad.com.

2.3. In Vivo Studies

For this assay, the nude mice strain produced, housed and bred at i3S animal House (N: NIH(S)II-nu/nu mice) was maintained in a pathogen-free environment, under controlled conditions of light and humidity. The current experimental set-up was conducted with the application of the 3Rs (replacement, reduction, and refinement) and determined group of animals was established to use the minimal number of animals needed for a correct statistical analysis of the data. This project has been previously approved by the animal ethics committee and animal welfare body of i3S (Project FG-2016-01.
For the toxicity assay, the mice (3 per group) were treated, twice a week, by intraperitoneal (IP) injection with a mixture of 30% DMSO and 20% of an aqueous solution of Captisol® for complex LCR134 and a mixture of 30% DMSO/70% MQ water for complex 1 (vortexed before each administration) at 4 different drug dosages (0.5 mg/kg, 1.5 mg/kg, 3 mg/kg and 4 mg/kg). Two weeks after, blood was collected from all mice groups by intracardiac puncture and after cervical dislocation, a necropsy was performed on all mice in order to collect target organs for further histological analysis to search for signs of cytotoxic effects.
For the spontaneous tumor growth, orthotopic injection into the mammary fat pad of female mice, with 6–8 weeks of age, with 5 × 106 MDA-MB-231 cells re-suspended in DMEM cell culture media, using a 25 G needle was performed. Mice were weighed and tumor width and length were measured with calipers, twice a week. Tumor volume was estimated by using the equation, V = 0.5 × a × b2, where V is the volume, a is the length of the major axis of the tumor, and b is the length of its minor axis. Whenever the tumors reached a mean volume of 500–1000 mm3, they were surgically removed, fixed in 10% buffered formalin and then embedded in paraffin, sectioned, and stained with hematoxylin and eosin.
At the end of the experiment, mice were euthanized, and a necropsy was performed to collect target metastatic organs (lymph nodes, lung and liver). All the collected organs were immediately fixed in 10% buffered formalin, histologically processed and embedded in paraffin, sectioned, and stained with hematoxylin and eosin (H&E) for histopathological evaluation.

Statistical Analysis

Statistical analysis was carried out using SPSS statistics V.17.0 software package for Windows (SPSS, Inc., Chicago, IL, USA) and Graph Pad Prism version 9.0c software (Graph Pad Software, San Diego, CA, USA). P-values lower than 0.05 will be considered statistically significant. All statistical tests will be two-sided.

3. Results and Discussion

3.1. Synthesis and Characterization of Ruthenium Compounds

Given the successful results previously obtained for a series of biotinylated ruthenium−cyclopentadienyl complexes [23,44,45] aimed for the active targeting of cancer cells, a new family of ruthenium(II) organometallic complexes was designed envisaging simultaneous active and passive targeting, using biotin and polylactide (PLA), respectively. All compounds have the general formula, [Ru(η5-CpR)(P)(2,2′-bipy-4,4′-PLA-biotin)][CF3SO3], where R is -H or -CH3 and P is P(C6H5)3, P(C6H4F)3 or P(C6H4OCH3)3, and were successfully synthesized and isolated as triflate salts. The ligand 2,2′-bipyridine-4,4′-PLA-biotin (bipy-PLA-biotin), L1, was obtained in two steps. First, the macromolecular ligand 2,2′-bipyridine-4,4′-PLA-OH (bipy-PLA-OH) was obtained by ring-opening polymerization (ROP) of D,L-lactide (rac-lactide) in bulk, using 4,4′-bis(hydroxymethyl)-2,2′-bipyridine (bipy-OH) as initiator and 4-dimethylaminopyridine (DMAP) as catalyst, at 135 °C for 15 min (Scheme 1) [39]. The size of the polymer can be controlled by the monomer:initiator (bipy-OH) ratio. Ligand L1 was later obtained by an esterification reaction between bipy-PLA-OH and biotin, using N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC) and DMAP as coupling agent and catalyst, respectively, as shown in Scheme 2, in high yield (90%).
The complexes were obtained by σ coordination of the bidentate ligand, L1 to ruthenium. The compounds were achieved in moderate to good yields (43–63%) by halide abstraction from the precursors (Scheme 3).
Analysis of the overall 1H NMR data show that the resonances of the Cp ring appear as one signal corresponding to the equivalent protons of the non-substituted η5-Cp ligand for complexes 13 (δ 4.93–5.00 ppm) or as two singlets (δ 4.67 and 4.77 ppm) for complex 4, due to the two nonequivalent protons of the η5-MeCp ligand. A deshielding effect on the Cp upon coordination of L1 ligand was observed, as expected for monocationic ruthenium(II) complexes. An evident deshielding on the H1 protons (δ 0.76–0.83 ppm) and a shielding on the H4 protons (δ 0.28–0.40 ppm) for all complexes is also observed, clear evidence of successful coordination of L1. The downfield shift of H1 protons is slightly less pronounced (δ 0.76 vs. ~0.81 ppm) for compound 4 due to the influence of the donating methyl group on the Cp ring. The shielding effect on the H4 protons is due to the π-backdonation of the organometallic fragment to the bipyridyl ligand and is slightly less shielded (δ 0.28 vs. ~0.40 ppm) for compound 2 due to the withdrawing character of the fluorine at para position of the phosphane ligand. The 31P NMR spectra showed a unique sharp singlet for all the compounds at ~50 ppm. Complex 3 containing 4-(methoxyphenyl)phosphane has the most shielded signal (δ 47.02 ppm), due to the presence of the strong electron donating group, -OCH3 at the para position of the benzene ring.
The APT-13C{1H} and 13C{1H} NMR data are in accordance with the aforementioned effects in the 1H NMR analysis.
Experimental average molecular weights were calculated by NMR end group analysis (integral of the 1H NMR peak of proton A vs. integral of the 1H NMR peak of proton 1) [48]. The MALDI-TOF analysis reveals a distribution of peaks, spaced by the expected Dm/z = 72.02 (Figures S18–S21). Besides this, the isotopic pattern of each peak clearly shows the presence of ruthenium. As reported elsewhere, these polymers cannot be analyzed by size exclusion chromatography (SEC) with refractive index detector (RID), possibly by the interaction of the metal ions and nitrogen atoms with the SEC column material [37,50]. As such, to complete the polymer-metal conjugates characterization, methanolic solutions of the complexes were also analyzed by QTOFMS with an ESI ion source. The high-resolution mass spectra displayed series of double charged ions exhibiting the characteristic m/z 72.02 spacing of the catalyst-bound PLA, the measured isotopic patterns in agreement with those calculated for the proposed polymer–metal conjugates (Figures S22–S25).

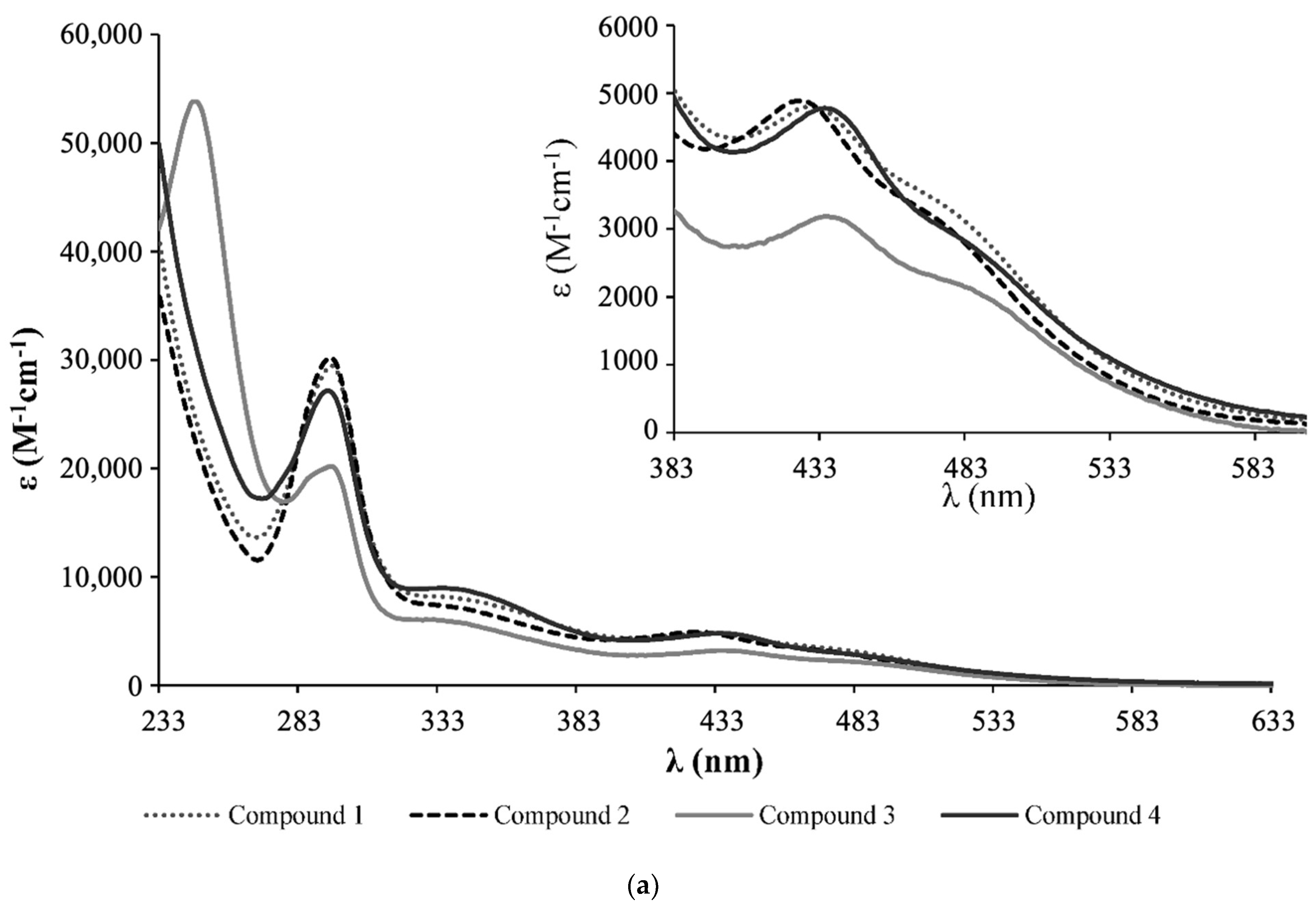

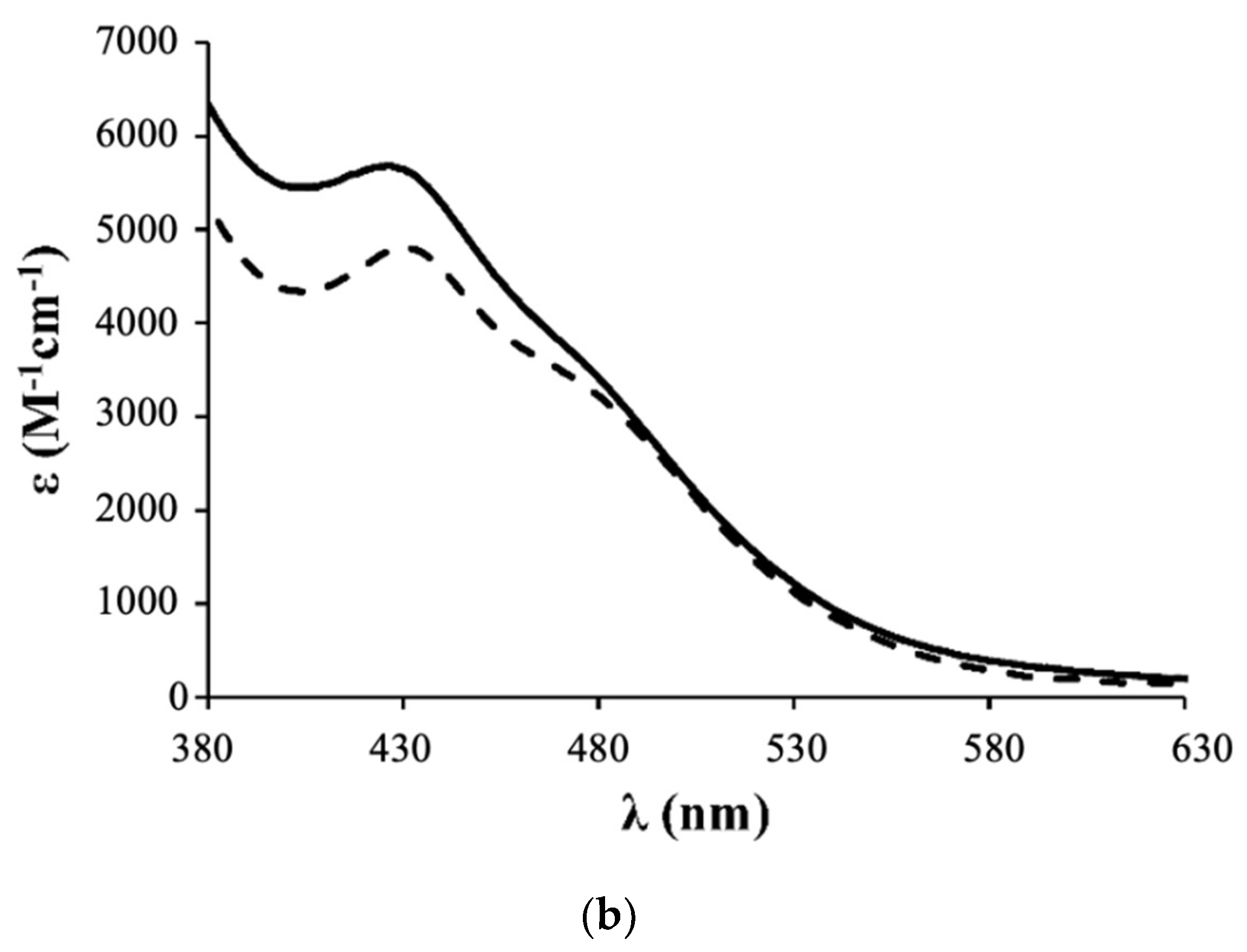

The optical absorption spectra of complexes 14 were recorded in 10−4 to 10−5 M in dichloromethane and dimethyl sulfoxide solutions. All compounds present an intense UV band below 250 nm attributed to π→π* transitions occurring at the organometallic fragment {RuCp(phosphane)}+, with a maximum wavelength at ~246 nm for complex 3, containing 4-(methoxyphenyl)phosphane (Figure 2a); this band is below the cut-off of the solvent for the remaining compounds. A second strong absorption band in the UV region is observed, appearing at λ ~295 nm and can be attributed to the π→π* transitions that take place in the coordinated bipy-PLA-biotin ligand. There is also a low-intensity band for the same complexes, appearing at λ = ~336 nm, that may be attributed to a π(Ru + Cp) →π*(bipyridyl+phosphane) transition. In addition to these bands, two maximum absorption bands (427–435 nm and 479–492 nm) were found. Due to their intensity and position, they may be attributed to metal-to-ligand charge transfer bands (MLCT), from Ru 4d orbitals to π* orbitals of N-heteroaromatic rings and to phosphane, as previously reported for related compounds [51]. Electronic spectra in DMSO were performed in order to infer about the charge transfer character of these bands. A hypsochromic shift of ca. 4 nm at the MLCT band can be observed, confirming the charge transfer nature of it, as exemplified in Figure 2b for compound 1.
The solid-state FT-IR spectra (KBr pellets) of L1 and complexes 14 show the presence of the typical bands attributed to υN-H stretching of amines in the range 3244–3420 cm−1 and the bands for the υC-H aromatic and υC-H alkanes stretching in the range 3069–3075 cm−1 and 2995–2878 cm−1, respectively. The υC=O stretching of the ester and ketone at ~1757 cm−1 was also present as well as the typical bands attributed to the triflate counterion at ~1273, 1186 and 1029 cm−1.

3.2. Biological Evaluation of the Compounds

3.2.1. Analysis of the Anti-Cancer Effect in MDA-MB-231 Breast Cancer Cells

The effect on cell viability of compounds 14 and of L1 was assessed in MDA-MB-231 breast cancer cell line, using the colorimetric MTT assay. This cell line was chosen since it displays many phenotypic/genotypic resemblances with the triple-negative breast cancer model (TNBC), such as the lack of expression of estrogen receptor (ER), progesterone receptor (PR) and the absence of human epidermal growth factor Receptor-2 (HER2). This high-incidence and prevalent type of cancer has no currently available treatments and the mortality rates are very high, highlighting the urgent need to find novel therapeutic strategies.
Cells were treated with the compounds within the concentration range of 0.01−50 μM (or 10−200 μM for L1), for a period of 48 h (Table 4). The IC50 values of the non-polymeric analogues (determined using the same method) [Ru(η5-CpR)(P(C6H4R’)3)(bipy-biotin)]+ (LCR134: R = Cp and R’ = H; LCR222: R = Cp and R’ = F; LCR239: R = Cp and R’ = OCH3) [23] and CDDP were also included for comparison. We can observe that all the organometallic compounds display very low IC50 values (<15 μM), being much more potent than the organic ligands (L1 and phosphanes [23]). Furthermore, all compounds exhibit lower IC50 values than CDDP by ~5−31 fold. Interestingly, compound 1 is the most potent, following the same trend as its low-molecular weight analogue (LCR134). Overall, these results show that the introduction of the PLA ligand as well as the synergy between all co-ligands have an important influence on the compounds’ final anticancer effect, suggesting that these compounds might be potent anti-cancer drugs as the dose that shows inhibition of cell viability is low.

3.2.2. Intracellular Distribution

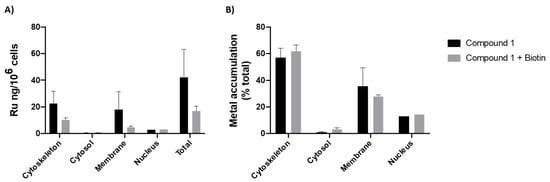

Since compound 1 was the one presenting the best anti-cancer effect, it was selected for further studies regarding its possible mechanism of action.
In order to infer about the potential role of the sodium-dependent multivitamin transporters (SMVT) on the uptake of compound 1, the intracellular distribution of this complex was determined in the presence or absence of free biotin. For that, MDA-MB-231 cells (that express SMVT [52]) were subjected to 1 h pre-incubation with free biotin before the addition of complex 1. This assay was performed for a 3 h incubation period where cell death is negligible. We have simultaneously run the same experiment without the pre-incubation period with biotin, i.e., by adding complex 1 directly. Thus, to assess a possible competitive displacement for SMVT, cells were pre-treated with biotin competitor at a 1 mg/mL concentration (4.1 mM) in order to saturate the transporters and thus reduce their availability for complex 1. Cytoskeletal, cytosol, membrane and nucleus fractions were extracted using a commercial kit as described in the Experimental Section.
As it can be observed in Figure 3, in the absence of biotin, complex 1 is mainly retained at the cytoskeleton (64%) and at the membrane (21%) of cancer cells, correlating well with that observed for the previously synthesized polymer–ruthenium conjugate, PMC78 [39]. As for the preliminary competitive study for SMVT, the Ru accumulation inside the cells after a 3 h challenge, is much lower after biotin pre-incubation (43.5 vs. 18.4 ng Ru/million cells), possibly indicating that the SMVT receptors are saturated with free biotin which decreases complex 1 uptake, thus suggesting that SMVT is the main transport route for this compound.

3.2.3. Determination of the Type of Cell Death Induced by Compound 1

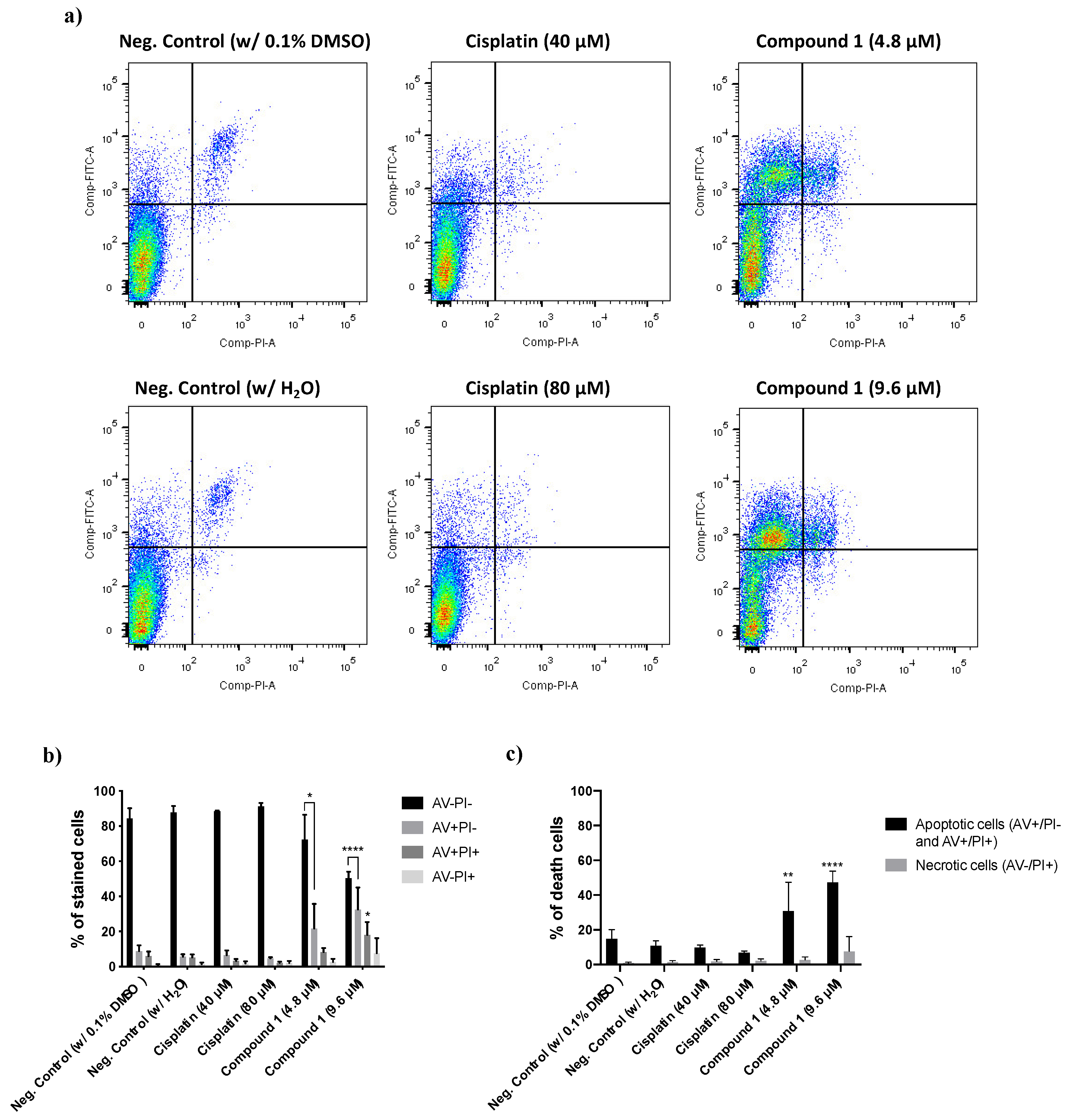

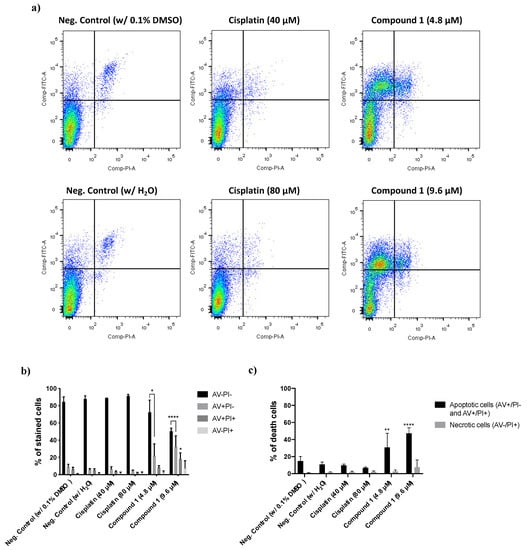

The cell death mechanism was assessed using Annexin V/PI assay by flow cytometry. MDA-MB-231 cells were incubated with compound 1, for 48 h, at its IC50 and 2 × IC50 values, using cisplatin as a positive control. The results showed that the incubation with Ru compound 1 led to a significant increase in the percentage of Annexin V (AV+/PI- and AV+/PI+) stained cells in comparison to the negative control and cisplatin. These results indicate that the type of cell death induced by compound 1 is apoptosis instead of necrosis (Figure 4).

3.2.4. Effect of Compound 1 in the Clonogenic Potential of MDA-MB-231 Breast Cancer Cells

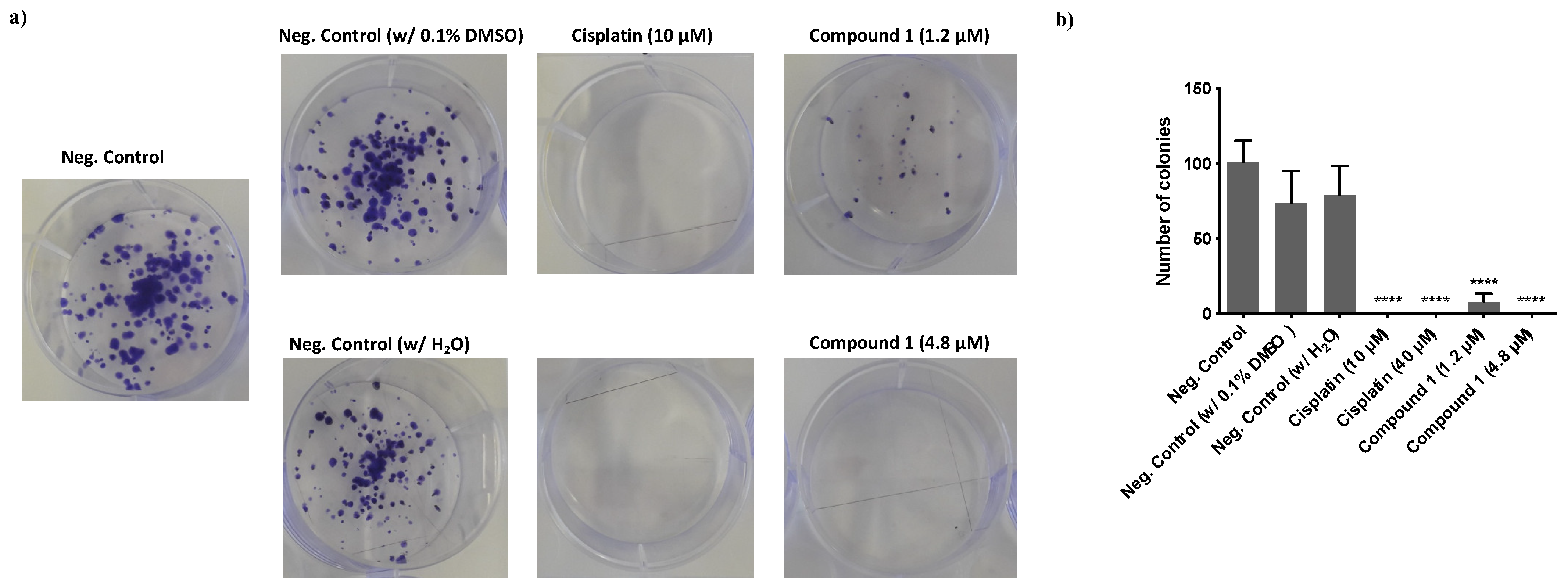

The clonogenic ability of compound 1 was evaluated through colony formation assay. This technique allows for determining the cellular ability to survive to the exposure of an exogenous agent for a short period of time and produce colonies after that agent is removed. The colony formation assay gives us information about the true long-term effect that an agent has, even when it is not present, simulating in vitro what happens during cycles of chemotherapy. The MDA-MB-231 cell line was incubated with ¼ IC50 (1.2 μM) and IC50 (4.8 μM) values for 48 h, after which the medium was removed, and cells were maintained in culture for 8 days. The results showed that the Ru compound affected the ability to form colonies in a dose-dependent manner. The results were very similar to those of cisplatin in the condition with the IC50. In the case of ¼ IC50 of compound 1, the formation of a small number of colonies was observed. Both concentrations of Ru compounds significantly prevented the formation of colonies (Figure 5).

3.2.5. Evaluation of the Effect of Compound 1 on the Actin Cytoskeleton

The evaluation of the intracellular distribution of compound 1 in the MDA-MB-231 breast cancer-derived cell line demonstrated that this compound is mainly distributed in the cytoskeleton. This cellular fraction is essentially constituted by actin, and α- and β-tubulin proteins. Previous results from the group showed that Ru compounds induce changes in F-actin structure [28]. Taking this into consideration, we evaluated the effects of compound 1 in the actin cytoskeleton structure through observation of alterations in F-actin organization, using phalloidin. Cells were treated with IC50 concentrations of Ru compound, for 48 h, and then stained with Phalloidin-AlexaFluor® 488 and DAPI (for staining the nucleic acids at the nucleus). The results showed that compound 1 affects the actin cytoskeleton, decreasing the size of the cells (Figure 6), although this effect is more visible with cisplatin. Besides that, cisplatin also led to a rounding of the cells and a decrease in the number of cells. In both conditions, we observed a decrease in the number of cell–cell adhesions, filipodia and lamellipodia like structures and intercellular contacts establishment. Compound 1 also led to the formation of evident actin belts at the cell periphery.

3.3. In Vivo Studies

As previously mentioned, compound 1 is the high-molecular weight version of LCR134 (Figure 1C), designed having in view both active and passive targeting through the presence of biotin and PLA, respectively. Thus, we have performed preliminary testing of both compounds in vivo, aiming at clarifying whether the introduction of PLA is advantageous.

3.3.1. Compounds’ Preparation

Since LCR134 is not fairly soluble in DMSO and given the fact that the in vivo studies demand higher doses for the toxicity assessment, we used a modified patented cyclodextrin (Captisol®) to increase the administered dose. Therefore, a stock solution of 8 mg/mL of LCR134 was prepared by first dissolving the complex in 30% DMSO and then slowly adding 20% of an aqueous solution of Captisol®. The final solution was placed in a mechanical shaker with continuous stirring overnight and was subsequently filtered with 20 μm filters and stored in aliquots at −80 °C.
As for the polymeric complex 1, a stock solution of 8 mg/mL in 30% DMSO/70% MQ water was prepared by first dissolving the compound in DMSO and then slowly adding MQ water. The solution was filtered (40 μm filters) and diluted to the corresponding tested concentrations. The instantaneous diffusion of the organic solvent into the aqueous solution resulted in the formation of polymeric NPs as characterized by their hydrodynamic diameter of ca. 77 ± 10 nm with a polydispersity index (PdI) of 0.26 (Figure S27). However, the formation of aggregates with time was also observed. Yet, since the purpose of the in vivo studies was just a preliminary assessment on the compound’s potential, no further optimizations were performed.

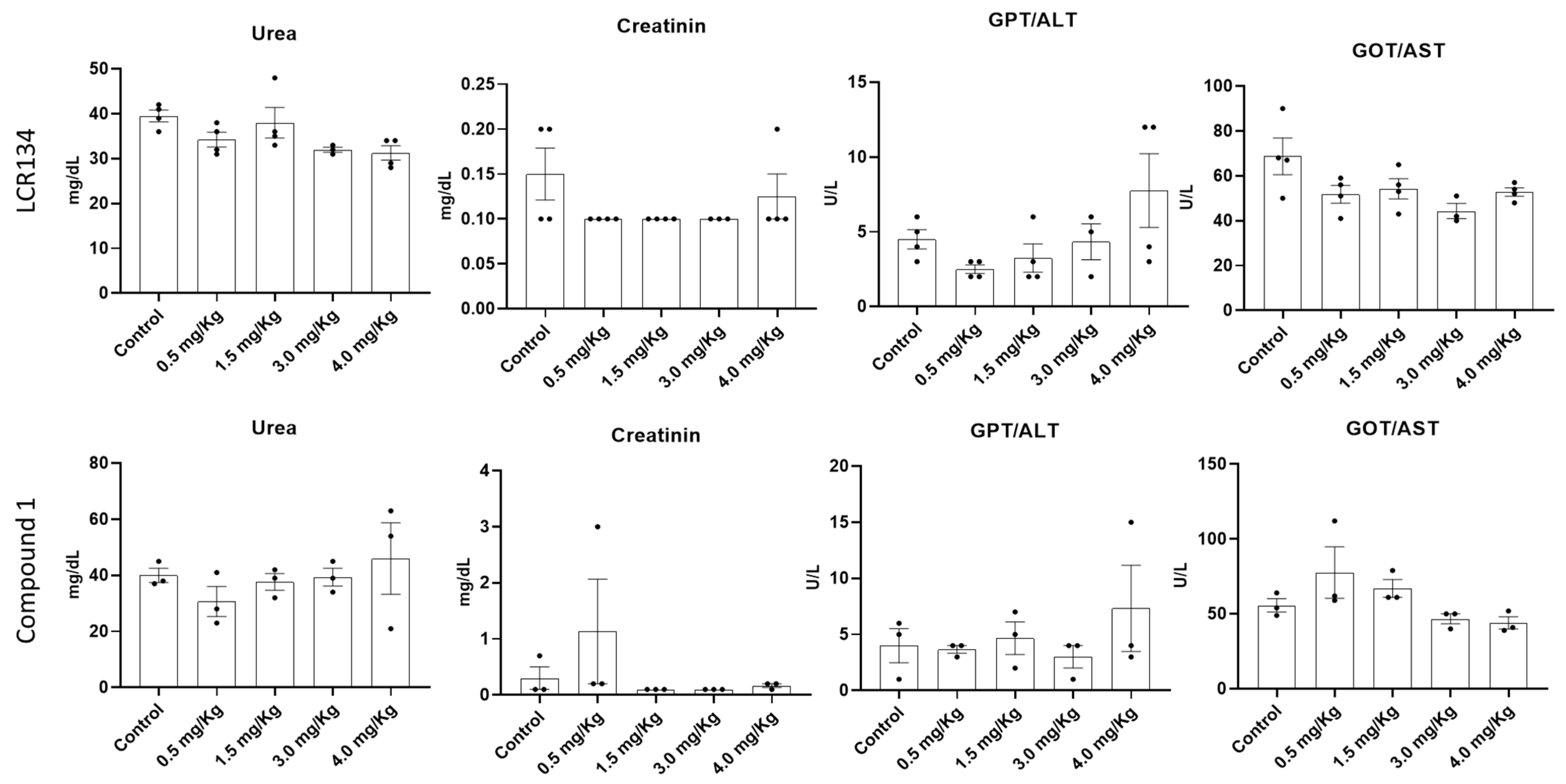

3.3.2. Toxicology Assay

The main goal of this initial toxicity assay was to evaluate the toxic impact of the drug and to find the maximum tolerated dose in mice. For that, we treated the mice (3–4 per group), twice a week, for 15 days, by IP injection with four different drug dosages (0.5 mg/kg, 1.5 mg/kg, 3 mg/kg and 4 mg/kg) and followed the design scheme represented on Figure S28.

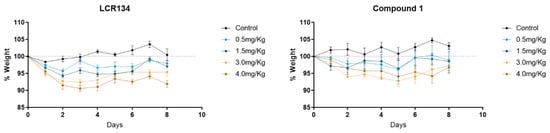

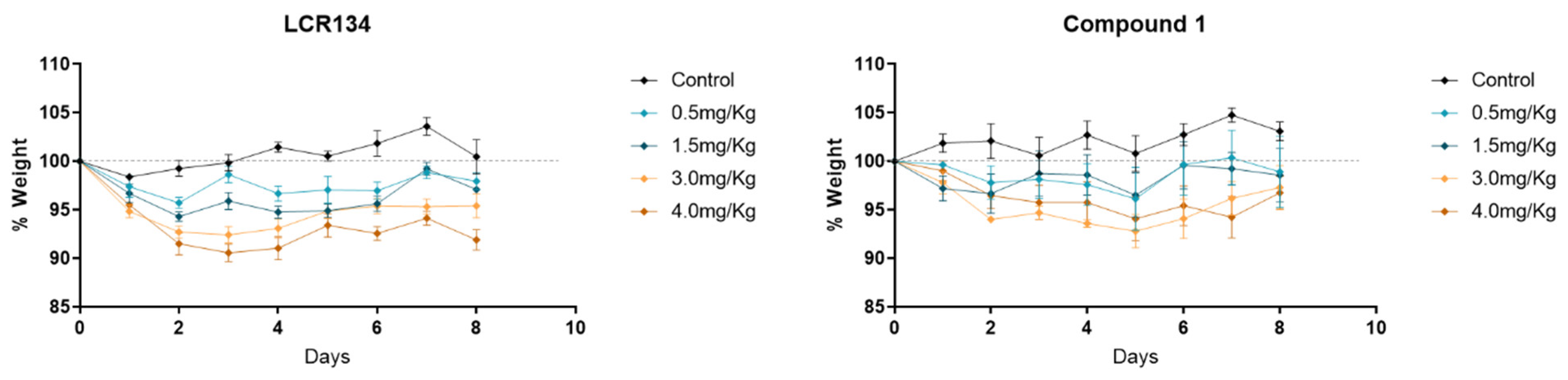

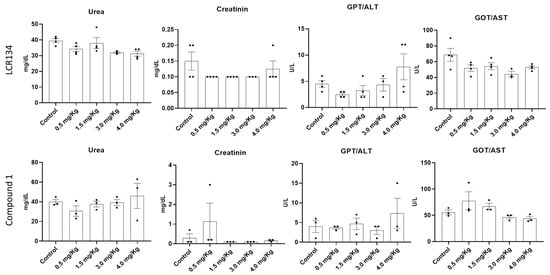

As observed in Figure 7, LCR134 and compound 1 showed a tendency towards a decrease in body weight. Although not significant, it was interesting to observe that LCR134 had a more pronounced effect on mice weight when compared with compound 1. These results were further confirmed by the quantification of liver and kidney functions, through analysis of AST and ALT enzymes and urea and creatinine waste products, respectively (Figure 8). Although not significant, both LCR134 and compound 1 showed lower creatinine levels for the three higher concentrations and concomitantly, the highest 4 mg/kg concentration also showed a tendency for an increase in ALT function, usually associated with liver toxicity.
These results show that the mice were tolerant to the maximum tested dose for the ruthenium-based compounds LCR134 and 1 (4 mg/kg), although it already shows some liver toxicity. Considering this data, further experiments will be useful to determine the maximum tolerated dose, as well as to better define the impact of ruthenium-based compounds in hepatic function.

3.3.3. Tumour Growth

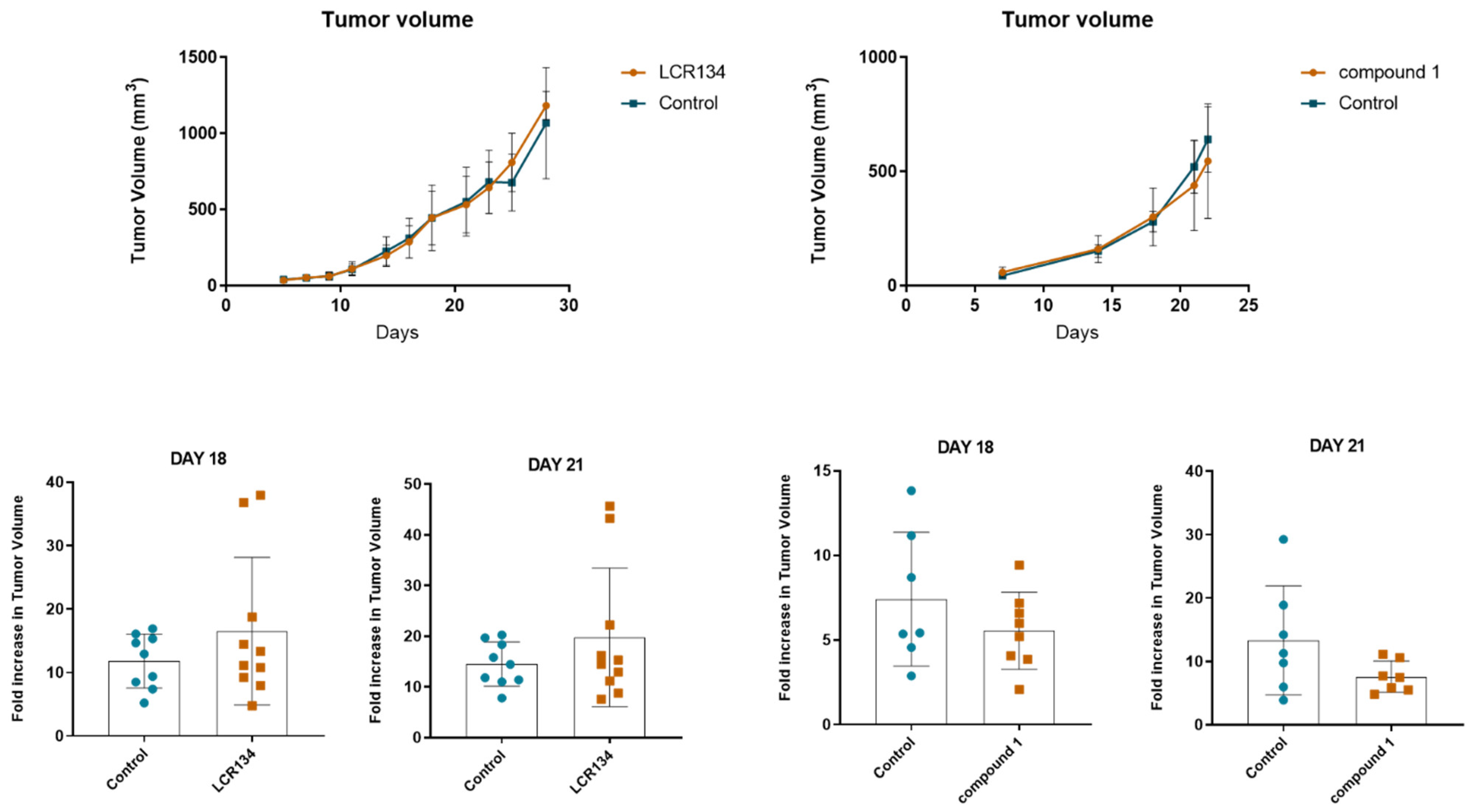

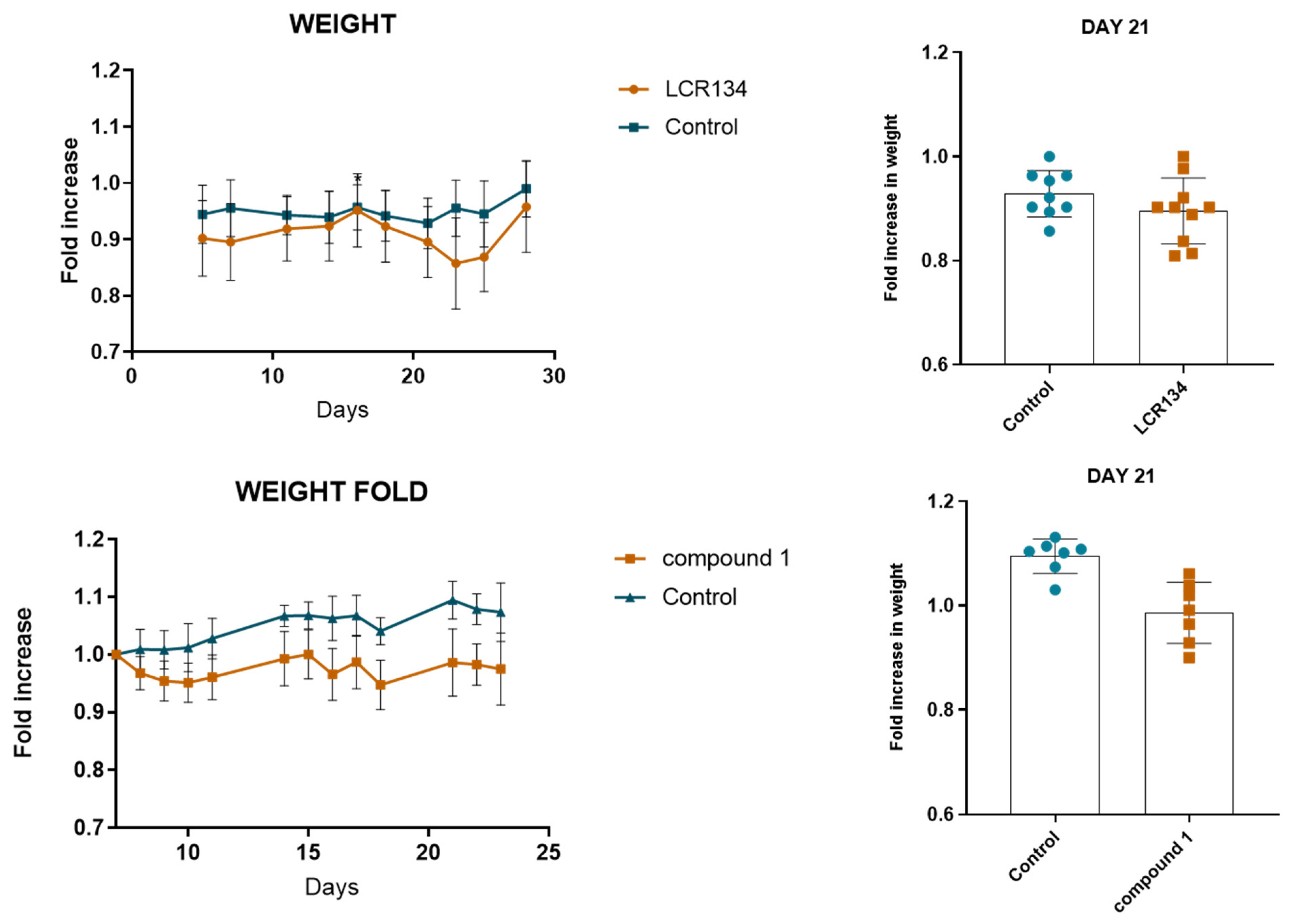

The next step was to evaluate the potential therapeutic effect of LCR134 and compound 1 in tumorigenesis, using the maximum tolerated dose of 4 mg/kg, in a breast cancer orthotopic model, and following the experimental design depicted in Figure S29, detailed in the experimental section.
Our results show that there are no significant differences in the mice weight (Figure 9) and in tumor volume (Figure 10) between the control and the treated groups (LCR134 and compound 1). Nevertheless, for compound 1 a tendency towards a decrease in tumor growth was clearly seen. These data demonstrate that, under these experimental conditions, the LCR134 and compound 1 did not promote a significant toxicity to the mice, nor significantly affected the primary tumor growth in mice. Still, a more pronounced effect on tumor growth was achieved with compound 1, suggesting that it has improved in vivo functions when compared with LCR134. Further studies such as the impact on metastasis prevention and/or treatment and the optimization of compound’s formulation to allow higher treatment doses would be useful to really determine its effect in vivo.

4. Conclusions

A family of four polymer-ruthenium conjugates was newly synthesized and completely characterized by spectroscopic and analytical techniques. Among them, compound 1, [Ru(η5-Cp)(P(C6H5)3)(bipy-PLA-biotin)]+, presented the best cytotoxicity against the triple-negative breast cancer cells MDA-MB-231 and was selected for further studies. We showed that internalization via SMVT receptors was probably the major transport route for cells uptake of compound 1, indicating that biotin is playing its role for the active targeting. Regarding its mechanism of action, compound 1 causes apoptosis, affects proliferation by decreasing the formation of cancer cell colonies and interferes with cells cytoskeleton. Ruthenium cellular distribution indicates that compound 1 targets are probably located at cell cytoskeleton and/or cell membrane.
For the preliminary in vivo assays in N: NIH(S)II-nu/nu mice, besides testing compound 1, we included LCR134, aimed only at active targeting, to check the influence of the PLA chains on the activity. Even though some formulation optimization will be needed for the future, compound 1 shows a tendency to control tumor growth, contrarily to LCR134. We could establish a pre-clinical proof of concept for compound 1 in the treatment of triple-negative breast cancer.
To sum up, compound 1 shows promising anti-cancer effects that should be further explored in the frame of triple-negative breast cancer therapy.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics14071388/s1, Figures S1–S5: FT-IR spectra; Figures S6–S17: NMR spectra; Figures S18–S21: MALDI-TOF MS spectra; Figures S22–S25: Partial HR-MS spectra; Figure S26: Dose-response curves; Figure S27: Hydrodynamic diameter distribution (obtained by DLS) of complex 1; Figure S28: Experimental design of toxicology assay performed; Figure S29: Experimental design of tumor growth assay.

Author Contributions

Conceptualization, L.C.-R., N.M., A.S.R., F.G., M.H.G., A.P. (Ana Preto) and A.V.; methodology, N.M., A.S.R., J.P.S.F., M.C.O., F.G., A.P. (Ana Preto) and A.V.; formal analysis, L.C.-R., A.R.B., A.P. (Adhan Pilon), N.M., A.S.R., T.D.M. and M.C.O.; investigation, L.C.-R., A.R.B., A.P. (Adhan Pilon), N.M., A.S.R., T.D.M. and M.C.O.; resources, J.P.S.F., M.C.O., F.G., M.H.G., A.P. (Ana Preto) and A.V.; writing—original draft preparation, L.C.-R., A.R.B., N.M., A.S.R., A.P. (Ana Preto) and A.V.; writing—review and editing, L.C.-R., A.R.B., A.P. (Adhan Pilon), N.M., A.S.R., T.D.M., J.P.S.F., M.C.O., F.G., M.H.G., A.P. (Ana Preto) and A.V.; supervision, J.P.S.F., F.G., M.H.G., A.P. (Ana Preto) and A.V.; project administration, F.G., A.P. (Ana Preto) and A.V.; funding acquisition, J.P.S.F., M.C.O., F.G., M.H.G., A.P. (Ana Preto) and A.V. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Fundação para a Ciência e a Tecnologia (FCT), I.P./MCTES through national funds (PIDDAC)—UIDB/00100/2020 and LA/P/0056/2020. This work was also funded in the scope of the project PTDC/QUI-QIN/28662/2017 (FCT). Andreia Valente acknowledges CEEC-IND 2017 (CEECIND/01974/2017; acknowledging FCT, as well as POPH and FSE—European Social Fund). Leonor Côrte-Real, Ana Rita Brás and Adhan Pilon thank FCT for their Ph.D. Grants (SFRH/BD/100515/2014, SFRH/BD/139271/2018 and SFRH/BD/139412/2018, respectively).

Institutional Review Board Statement

Animal experimentation was performed in accordance with the Portuguese National Regulation established by Decreto-Lei n.° 113/2013, which is the national transposition of the European Directive 2010/63/EU for the Care and Use of Laboratory Animals. Procedures were evaluated and approved by the i3S Animal Welfare and Ethics Review Body and by the Portuguese National Authority for Animal Health (DGAV) - project license code 20014/2017-09-06.

Acknowledgments

Unidade de Espectrometría de Masas e Proteómica (Área de Infraestruturas de Investigación—Universidade de Santiago de Compostela) and RNEM (Portuguese Mass Spectrometry Network) (LISBOA-01-0145-FEDER-022125—IST) are gratefully acknowledged. The authors thank Tiago Moreira for the IC50 determination of cisplatin.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hafeez, M.N.; Celia, C.; Petrikaite, V. Challenges towards targeted drug delivery in cancer nanomedicines. Processes 2021, 9, 1527. [Google Scholar] [CrossRef]
  2. Yao, Y.; Zhou, Y.; Liu, L.; Xu, Y.; Chen, Q.; Wang, Y.; Wu, S.; Deng, Y.; Zhang, J.; Shao, A. Nanoparticle-based drug delivery in cancer therapy and its role in overcoming drug resistance. Front. Mol. Biosci. 2020, 7, 193. [Google Scholar] [CrossRef] [PubMed]
  3. Rosenblum, D.; Joshi, N.; Tao, W.; Karp, J.M.; Peer, D. Progress and challenges towards targeted delivery of cancer therapeutics. Nat. Commun. 2018, 9, 1410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Senapati, S.; Mahanta, A.K.; Kumar, S.; Maiti, P. Controlled drug delivery vehicles for cancer treatment and their performance. Signal Transduct. Target. Ther. 2018, 3, 7. [Google Scholar] [CrossRef] [Green Version]
  5. Liu, G.; Yang, L.; Chen, G.; Xu, F.; Yang, F.; Yu, H.; Li, L.; Dong, X.; Han, J.; Cao, C.; et al. A Review on drug delivery system for tumor therapy. Front. Pharmacol. 2021, 12, 1–12. [Google Scholar] [CrossRef]
  6. Elvira, C.; Gallardo, A.; Roman, J.S.; Cifuentes, A. Covalent polymer-drug conjugates. Molecules 2005, 10, 114–125. [Google Scholar] [CrossRef] [Green Version]
  7. Hu, X.; Jing, X. Biodegradable amphiphilic polymer–drug conjugate micelles. Expert Opin. Drug Deliv. 2009, 6, 1079–1090. [Google Scholar] [CrossRef] [PubMed]
  8. Seifu, M.F.; Nath, L.K. Polymer-drug conjugates: Novel carriers for cancer chemotherapy. Polym. Technol. Mater. 2019, 58, 158–171. [Google Scholar] [CrossRef]
  9. Girase, M.L.; Patil, P.G.; Ige, P.P. Polymer-drug conjugates as nanomedicine: A review. Int. J. Polym. Mater. Polym. Biomater. 2020, 69, 990–1014. [Google Scholar] [CrossRef]
  10. Larson, N.; Ghandehari, H. Polymeric conjugates for drug delivery. Chem. Mater. 2012, 24, 840–853. [Google Scholar] [CrossRef] [Green Version]
  11. Kedar, U.; Phutane, P.; Shidhaye, S.; Kadam, V. Advances in polymeric micelles for drug delivery and tumor targeting. Nanomed. Nanotechnol. Biol. Med. 2010, 6, 714–729. [Google Scholar] [CrossRef] [PubMed]
  12. Maeda, H.; Wu, J.; Sawa, T.; Matsumura, Y.; Hori, K. Tumor vascular permeability and the EPR effect in macromolecular therapeutics: A review. J. Control. Release 2000, 65, 271–284. [Google Scholar] [CrossRef]
  13. Sun, T.; Zhang, Y.S.; Pang, B.; Hyun, D.C.; Yang, M.; Xia, Y. Engineered Nanoparticles for Drug Delivery in Cancer Therapy. Angew. Chem.-Int. Ed. 2014, 53, 12320–12364. [Google Scholar] [CrossRef] [PubMed]
  14. Blunden, B.M.; Rawal, A.; Lu, H.; Stenzel, M.H. Superior chemotherapeutic benefits from the ruthenium-based anti-metastatic drug NAMI-A through conjugation to polymeric micelles. Macromolecules 2014, 47, 1646–1655. [Google Scholar] [CrossRef]
  15. Rios-Doria, J.; Carie, A.; Costich, T.; Burke, B.; Skaff, H.; Panicucci, R.; Sill, K.J. A Versatile Polymer Micelle Drug Delivery System for Encapsulation and InVivo Stabilization of Hydrophobic Anticancer Drugs. J. Drug Deliv. 2012, 2012, 1–8. [Google Scholar] [CrossRef] [Green Version]
  16. Hussein, Y.H.A.; Youssry, M. Polymeric micelles of biodegradable diblock copolymers: Enhanced encapsulation of hydrophobic drugs. Materials 2018, 11, 688. [Google Scholar] [CrossRef] [Green Version]
  17. Majumder, N.; Das, N.G.; Das, S.K. Polymeric micelles for anticancer drug delivery. Ther. Deliv. 2020, 11, 613–635. [Google Scholar] [CrossRef]
  18. Cabral, H.; Kataoka, K. Progress of drug-loaded polymeric micelles into clinical studies. J. Control. Release 2014, 190, 465–476. [Google Scholar] [CrossRef] [Green Version]
  19. Sadhukha, T.; Prabha, S. Encapsulation in nanoparticles improves anti-cancer efficacy of carboplatin. AAPS Pharmscitech 2014, 15, 1029–1038. [Google Scholar] [CrossRef]
  20. McNamara, K.; Tofail, S.A.M. Nanoparticles in biomedical applications. Adv. Phys. X 2017, 2, 54–88. [Google Scholar] [CrossRef]
  21. Gavas, S.; Quazi, S.; Karpiński, T.M. Nanoparticles for Cancer Therapy: Current Progress and Challenges. Nanoscale Res. Lett. 2021, 16, 1–21. [Google Scholar] [CrossRef] [PubMed]
  22. Yu, Z.; Gao, L.; Chen, K.; Zhang, W.; Zhang, Q.; Li, Q.; Hu, K. Nanoparticles: A new approach to upgrade cancer diagnosis and treatment. Nanoscale Res. Lett. 2021, 16, 88. [Google Scholar] [CrossRef] [PubMed]
  23. Côrte-Real, L.; Karas, B.; Brás, A.R.; Pilon, A.; Avecilla, F.; Marques, F.; Preto, A.; Buckley, B.T.; Cooper, K.R.; Doherty, C.; et al. Ruthenium–Cyclopentadienyl Bipyridine–Biotin Based Compounds: Synthesis and Biological Effect. Inorg. Chem. 2019, 58, 9135–9149. [Google Scholar] [CrossRef] [PubMed]
  24. Bozzuto, G.; Molinari, A. Liposomes as nanomedical devices. Int. J. Nanomed. 2015, 10, 975–999. [Google Scholar] [CrossRef] [Green Version]
  25. Allen, T.M.; Cullis, P.R. Liposomal drug delivery systems: From concept to clinical applications. Adv. Drug Deliv. Rev. 2013, 65, 36–48. [Google Scholar] [CrossRef]
  26. Sercombe, L.; Veerati, T.; Moheimani, F.; Wu, S.Y.; Sood, A.K.; Hua, S. Advances and challenges of liposome assisted drug delivery. Front. Pharmacol. 2015, 6, 286. [Google Scholar] [CrossRef] [Green Version]
  27. Kim, M.W.; Kwon, S.H.; Choi, J.H.; Lee, A. A promising biocompatible platform: Lipid-based and bio-inspired smart drug delivery systems for cancer therapy. Int. J. Mol. Sci. 2018, 19, 3859. [Google Scholar] [CrossRef] [Green Version]
  28. Qian, Q.; Zhu, L.; Zhu, X.; Sun, M.; Yan, D. Drug-polymer hybrid macromolecular engineering: Degradable PEG integrated by platinum (IV) for cancer therapy. Matter 2019, 1, 1618–1630. [Google Scholar] [CrossRef] [Green Version]
  29. Karim, K.J.A.; Utama, R.H.; Lua, H.; Stenzel, M.H. Enhanced drug toxicity by conjugation of platinum drugs to polymers with guanidine containing zwitterionic functional groups that mimic cell-penetrating peptides. Polym. Chem. 2014, 5, 6600–6610. [Google Scholar] [CrossRef]
  30. Aderibigbe, B.A.; Mugogodi, A.; Nwamadi, M.; Ray, S.S.; Steenkamp, V.; Balogun, M.O.; Matshe, W.M.R. Polyamidoamine-drug conjugates containing metal-based anticancer compounds. J. Inorg. Organomet. Polym. Mater. 2020, 30, 1503–1518. [Google Scholar] [CrossRef]
  31. Uivarosi, V.; Olar, R.; Badea, M. Nanoformulation as a tool for improve the pharmacological profile of platinum and ruthenium anticancer drugs. In Descriptive Inorganic Chemistry Researches of Metal Compounds; IntechOpen: London, UK, 2017; Chapter 1; pp. 1–26. [Google Scholar]
  32. Alven, S.; Nqoro, X.; Buyana, B.; Aderibigbe, B.A. Polymer-drug conjugate, a potential therapeutic to combat breast and lung cancer. Pharmaceutics 2020, 12, 406. [Google Scholar] [CrossRef] [PubMed]
  33. Blunden, B.M.; Lu, H.; Stenzel, M.H. Enhanced delivery of the RAPTA-C macromolecular chemotherapeutic by conjugation to degradable polymeric micelles. Biomacromolecules 2013, 14, 4177–4188. [Google Scholar] [CrossRef] [PubMed]
  34. Lu, M.; Chen, F.; Noy, J.M.; Lu, H.; Stenzel, M.H. Enhanced Antimetastatic Activity of the Ruthenium Anticancer Drug RAPTA-C Delivered in Fructose-Coated Micelles. Macromol. Biosci. 2017, 17, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Sun, W.; Li, S.; Häupler, B.; Liu, J.; Jin, S.; Steffen, W.; Schubert, U.S.; Butt, H.J.; Liang, X.J.; Wu, S. An Amphiphilic Ruthenium Polymetallodrug for Combined Photodynamic Therapy and Photochemotherapy In Vivo. Adv. Mater. 2017, 29, 1603702. [Google Scholar] [CrossRef]
  36. Wang, D.; Wang, J.; Huang, H.; Zhao, Z.; Gunatillake, P.A.; Hao, X. Brush-shaped RAFT polymer micelles as nanocarriers for a ruthenium (II) complex photodynamic anticancer drug. Eur. Polym. J. 2019, 113, 267–275. [Google Scholar] [CrossRef]
  37. Soliman, N.; McKenzie, L.K.; Karges, J.; Bertrand, E.; Tharaud, M.; Jakubaszek, M.; Guérineau, V.; Goud, B.; Hollenstein, M.; Gasser, G.; et al. Ruthenium-initiated polymerization of lactide: A route to remarkable cellular uptake for photodynamic therapy of cancer. Chem. Sci. 2020, 11, 2657–2663. [Google Scholar] [CrossRef] [Green Version]
  38. Karges, J.; Li, J.; Zeng, L.; Chao, H.; Gasser, G. Polymeric encapsulation of a ruthenium polypyridine complex for tumor targeted one-and two-photon photodynamic therapy. ACS Appl. Mater. Interfaces 2020, 12, 54433–54444. [Google Scholar] [CrossRef]
  39. Moreira, T.; Francisco, R.; Comsa, E.; Duban-Deweer, S.; Labas, V.; Teixeira-Gomes, A.-P.; Combes-Soia, L.; Marques, F.; Matos, A.; Favrelle, A.; et al. Polymer “ruthenium-cyclopentadienyl” conjugates-New emerging anti-cancer drugs. Eur. J. Med. Chem. 2019, 168, 373–384. [Google Scholar] [CrossRef]
  40. Valente, A.; Helena, M.; Marques, F.; Miao, Y.; Rousseau, C.; Zinck, P. First polymer “ruthenium-cyclopentadienyl” complex as potential anticancer agent. J. Inorg. Biochem. 2013, 127, 79–81. [Google Scholar] [CrossRef]
  41. Moreno, V.; Font-Bardia, M.; Calvet, T.; Lorenzo, J.; Avilés, F.X.; Garcia, M.H.; Morais, T.S.; Valente, A.; Robalo, M.P. DNA interaction and cytotoxicity studies of new ruthenium (II) cyclopentadienyl derivative complexes containing heteroaromatic ligands. J. Inorg. Biochem. 2011, 105, 241–249. [Google Scholar] [CrossRef]
  42. Isabel, A.; Jakusch, T.; Morais, T.S.; Marques, F.; de Almeida, R.F.M.; Mendes, F.; Enyedy, É.A.; Santos, I.; Costa, J.; Kiss, T.; et al. [RuII (η5-C5H5)(bipy)(PPh3)]+, a promising large spectrum antitumor agent: Cytotoxic activity and interaction with human serum albumin. J. Inorg. Biochem. 2012, 117, 261–269. [Google Scholar]
  43. Tyler, B.; Gullotti, D.; Mangraviti, A.; Utsuki, T.; Brem, H. Polylactic acid (PLA) controlled delivery carriers for biomedical applications. Adv. Drug Deliv. Rev. 2016, 107, 163–175. [Google Scholar] [CrossRef] [PubMed]
  44. Côrte-Real, L.; Karas, B.; Gírio, P.; Moreno, A.; Avecilla, F.; Marques, F.; Buckley, B.T.; Cooper, K.R.; Doherty, C.; Falson, P.; et al. Unprecedented inhibition of P-gp activity by a novel ruthenium-cyclopentadienyl compound bearing a bipyridine-biotin ligand. Eur. J. Med. Chem. 2019, 163, 853–863. [Google Scholar] [CrossRef] [PubMed]
  45. Karas, B.F.; Hotz, J.M.; Gural, B.M.; Terez, K.R.; DiBona, V.L.; Côrte-Real, L.; Valente, A.; Buckley, B.T.; Cooper, K.R. Anti-cancer activity and in vitro to in vivo mechanistic recapitulation of novel ruthenium-based metallodrugs in the zebrafish model. Toxicol. Sci. 2021, 182, 29–43. [Google Scholar] [CrossRef]
  46. Bruce, M.I.; Windsor, N.J. Cyclopentadienyl-ruthenium and-osmium chemistry. IV. Convenient high-yield synthesis of some cyclopentadienyl ruthenium or osmium tertiary phosphine halide complexes. Aust. J. Chem. 1977, 30, 1601–1604. [Google Scholar] [CrossRef]
  47. Teixeira, R.G.; Brás, A.R.; Côrte-Real, L.; Tatikonda, R.; Sanches, A.; Robalo, M.P.; Avecilla, F.; Moreira, T.; Garcia, M.H.; Haukka, M.; et al. Novel ruthenium methylcyclopentadienyl complex bearing a bipyridine perfluorinated ligand shows strong activity towards colorectal cancer cells. Eur. J. Med. Chem. 2018, 143, 503–514. [Google Scholar] [CrossRef]
  48. Izunobi, J.U.; Higginbotham, C.L. Polymer molecular weight analysis by 1H NMR spectroscopy. J. Chem. Educ. 2011, 88, 1098–1104. [Google Scholar] [CrossRef]
  49. Côrte-Real, L.; Matos, A.P.; Alho, I.; Morais, T.S.; Tomaz, A.I.; Garcia, M.H.; Santos, I.; Bicho, M.P.; Marques, F. Cellular uptake mechanisms of an antitumor ruthenium compound: The endosomal/lysosomal system as a target for anticancer metal-based drugs. Microsc. Microanal. 2013, 19, 1122–1130. [Google Scholar] [CrossRef]
  50. Meier, M.A.R.; Lohmeijer, B.G.G.; Schubert, U.S. Characterization of defined metal-containing supramolecular block copolymers. Macromol. Rapid Commun. 2003, 24, 852–857. [Google Scholar] [CrossRef]
  51. Côrte-Real, L.; Teixeira, R.G.; Gírio, P.; Comsa, E.; Moreno, A.; Nasr, R.; Baubichon-Cortay, H.; Avecilla, F.; Marques, F.; Robalo, M.P.; et al. Methyl-cyclopentadienyl ruthenium compounds with 2, 2′-bipyridine derivatives display strong anticancer activity and multidrug resistance potential. Inorg. Chem. 2018, 57, 4629–4639. [Google Scholar] [CrossRef] [Green Version]
  52. Ren, W.X.; Han, J.; Uhm, S.; Jang, Y.J.; Kang, C.; Kim, J.H.; Kim, J.S. Recent development of biotin conjugation in biological imaging, sensing, and target delivery. Chem. Commun. 2015, 51, 10403–10418. [Google Scholar] [CrossRef] [PubMed]

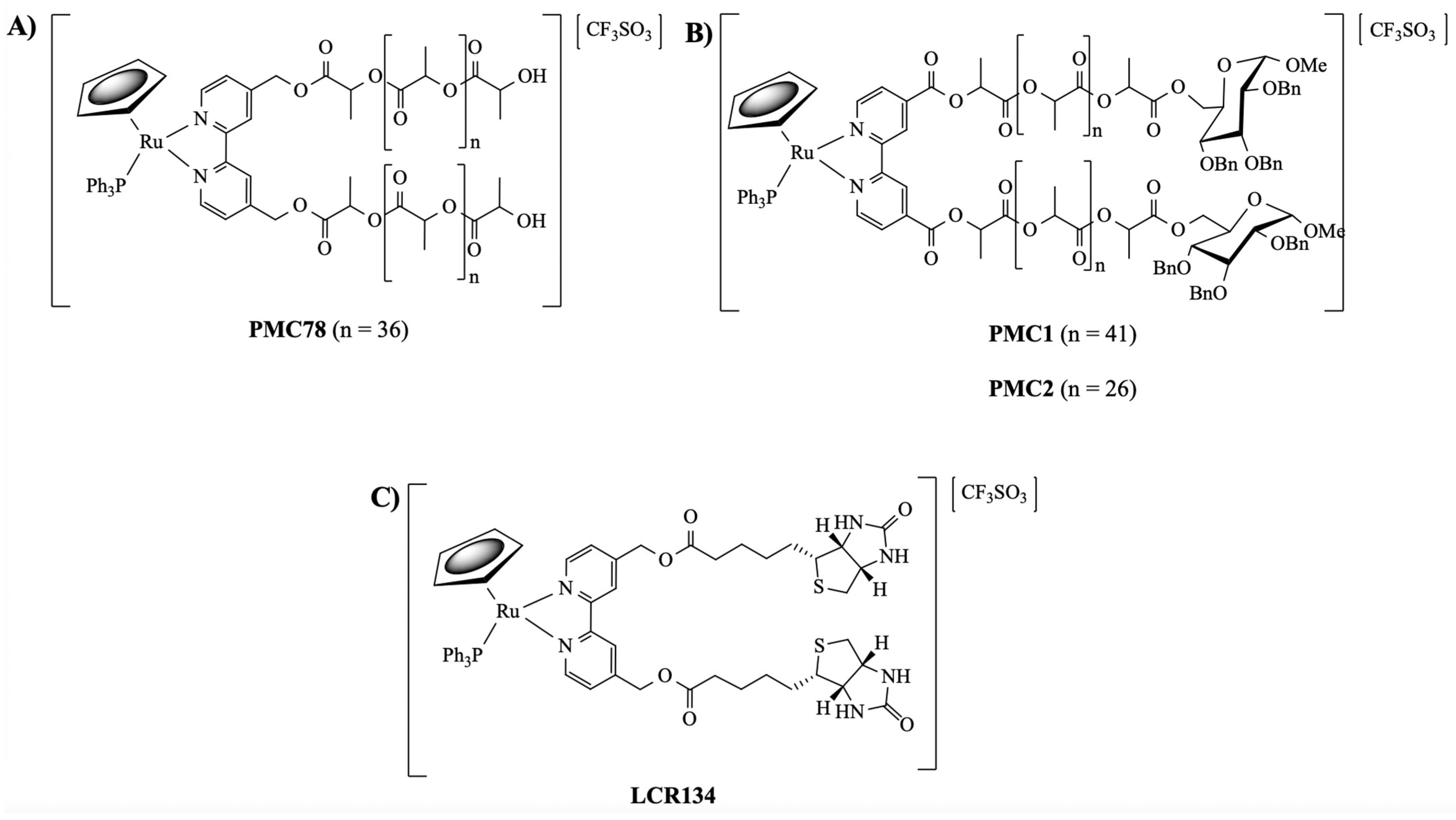

Figure 1. Structures of second-generation RuPMC’s. (A): Passive targeting effect—PMC78; (B): Dual targeting effect—PMC1 and PMC2 and (C): Active targeting effect—LCR134.
Figure 1. Structures of second-generation RuPMC’s. (A): Passive targeting effect—PMC78; (B): Dual targeting effect—PMC1 and PMC2 and (C): Active targeting effect—LCR134.
Pharmaceutics 14 01388 g001

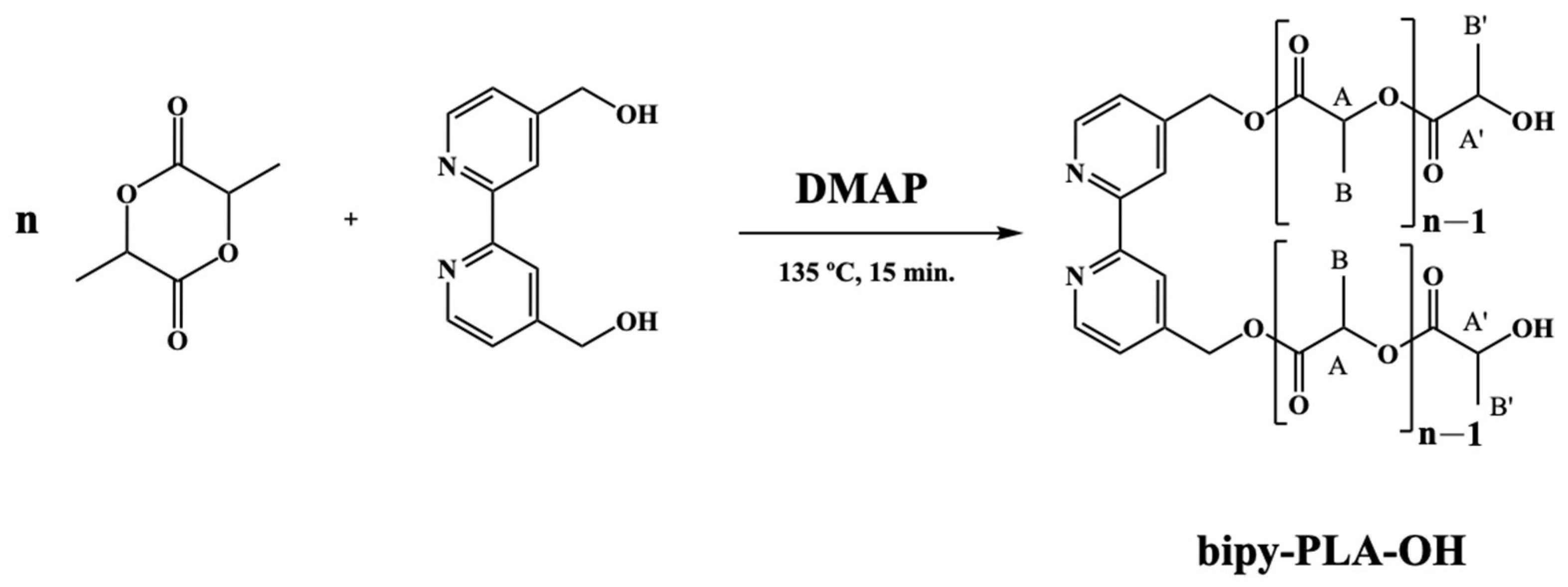

Scheme 1. Ring-opening polymerization (ROP) of D,L-lactide, using bipy-OH as initiator and DMAP as catalyst, originating ligand bipy-PLA-OH.
Scheme 1. Ring-opening polymerization (ROP) of D,L-lactide, using bipy-OH as initiator and DMAP as catalyst, originating ligand bipy-PLA-OH.
Pharmaceutics 14 01388 sch001

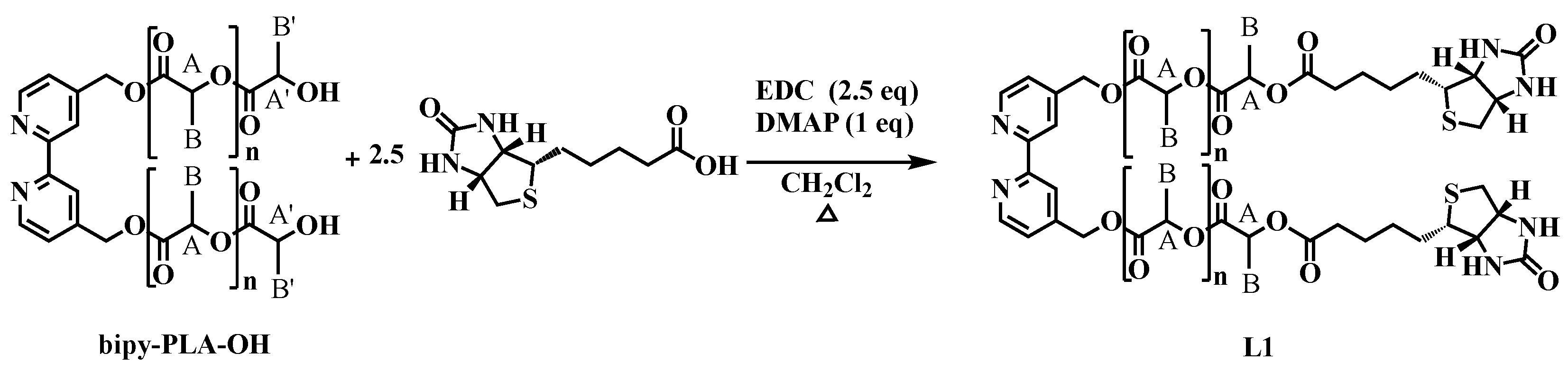

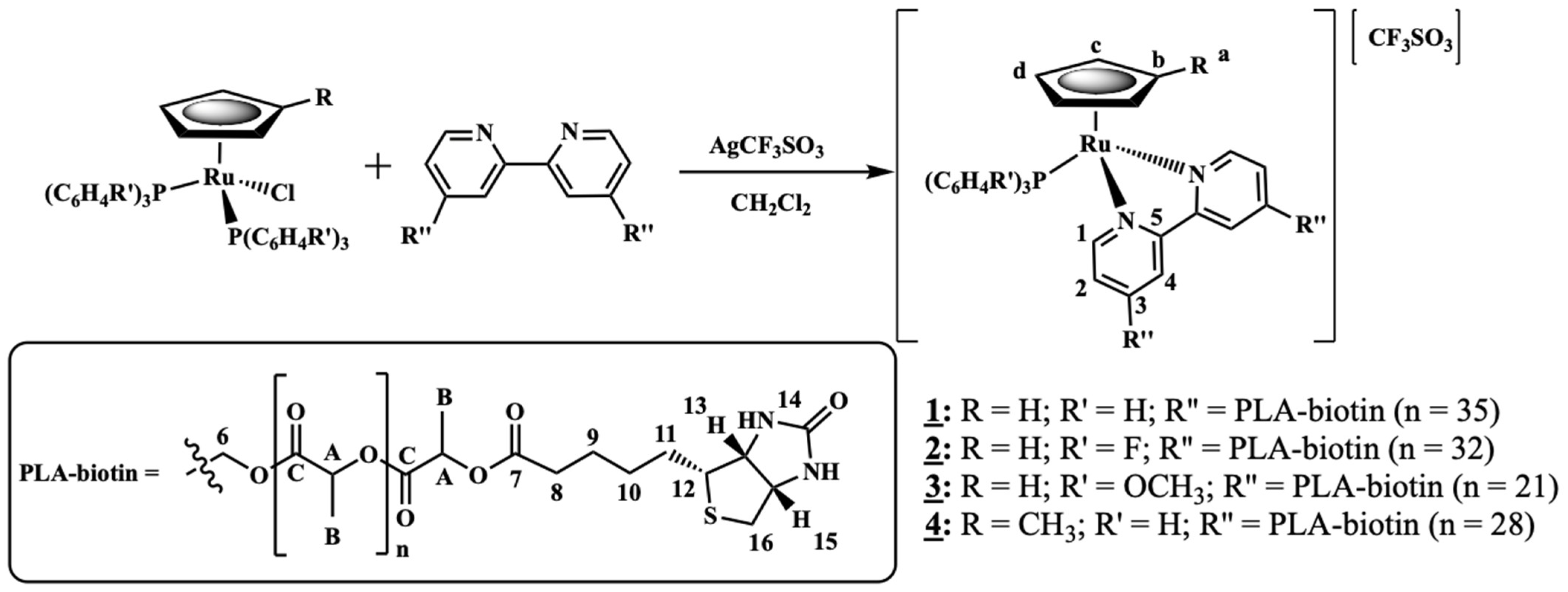

Scheme 2. Esterification reaction between bipy-PLA-OH and biotin, using EDC and DMAP as coupling agent and catalyst, respectively, originating ligand L1.
Scheme 2. Esterification reaction between bipy-PLA-OH and biotin, using EDC and DMAP as coupling agent and catalyst, respectively, originating ligand L1.
Pharmaceutics 14 01388 sch002
Scheme 3. Synthetic route of the new Ru(II)-PMC-biotin complexes 14. Compounds are numbered for NMR assignment.
Scheme 3. Synthetic route of the new Ru(II)-PMC-biotin complexes 14. Compounds are numbered for NMR assignment.
Pharmaceutics 14 01388 sch003
Figure 2. Electronic spectra of complexes (a) 1 (dotted line), 2 (dashed line), 3 (grey solid line) and 4 (black solid line) in dichloromethane solutions. Expansion of the spectra in the region of the CT transitions (b) of complex 1 in DMSO (solid line) and in dichloromethane (dashed line) solutions, showing the hypsochromic shift.
Figure 2. Electronic spectra of complexes (a) 1 (dotted line), 2 (dashed line), 3 (grey solid line) and 4 (black solid line) in dichloromethane solutions. Expansion of the spectra in the region of the CT transitions (b) of complex 1 in DMSO (solid line) and in dichloromethane (dashed line) solutions, showing the hypsochromic shift.
Pharmaceutics 14 01388 g002aPharmaceutics 14 01388 g002b
Figure 3. Cellular Ru distribution in the MDA-MB-231 cell line treated with compound 1 with or without a pre-incubation with biotin (1 mg/mL) at a concentration equivalent to the IC50 value found at 48 h challenge, 37 °C. Results are expressed in ng of Ru per million of cells (A) or in total percentage (B). Results are expressed as mean ± SD of two independent experiments.
Figure 3. Cellular Ru distribution in the MDA-MB-231 cell line treated with compound 1 with or without a pre-incubation with biotin (1 mg/mL) at a concentration equivalent to the IC50 value found at 48 h challenge, 37 °C. Results are expressed in ng of Ru per million of cells (A) or in total percentage (B). Results are expressed as mean ± SD of two independent experiments.
Pharmaceutics 14 01388 g003
Figure 4. Apoptotic cell-death analysis by Annexin V-PI assay in MDA-MB-231 cells, using IC50 and 2 × IC50 concentrations for 48 h. (a) Representative histograms of MDA-MB-231 cell line double-stained with AV and PI. (b) Graphical representation of the Annexin V/PI dot plots. (c) Graphical representation of apoptotic (AV+/PI− and AV+/PI+) and necrotic (AV−/PI+) data analysis. * p ≤ 0.05; ** p ≤ 0.01; **** p ≤ 0.0001 compared with negative control (w/0.1% DMSO).
Figure 4. Apoptotic cell-death analysis by Annexin V-PI assay in MDA-MB-231 cells, using IC50 and 2 × IC50 concentrations for 48 h. (a) Representative histograms of MDA-MB-231 cell line double-stained with AV and PI. (b) Graphical representation of the Annexin V/PI dot plots. (c) Graphical representation of apoptotic (AV+/PI− and AV+/PI+) and necrotic (AV−/PI+) data analysis. * p ≤ 0.05; ** p ≤ 0.01; **** p ≤ 0.0001 compared with negative control (w/0.1% DMSO).
Pharmaceutics 14 01388 g004
Figure 5. Colony formation capacity of MDA-MB-231 after 48 h of incubation with ¼ IC50 and IC50 of compound 1 in MDA-MB-231 cell line. (a) Representative images of colony formation assay in MDA-MB-231 cell line. (b) Graphical representation of clonogenic ability. **** p ≤ 0.0001 compared with negative control/w/0.1% DMSO).
Figure 5. Colony formation capacity of MDA-MB-231 after 48 h of incubation with ¼ IC50 and IC50 of compound 1 in MDA-MB-231 cell line. (a) Representative images of colony formation assay in MDA-MB-231 cell line. (b) Graphical representation of clonogenic ability. **** p ≤ 0.0001 compared with negative control/w/0.1% DMSO).
Pharmaceutics 14 01388 g005
Figure 6. Compound 1 affects the cytoskeleton of MDA-MB-231 breast cancer cells. The analysis of F-actin staining was performed using the IC50 value of the compound, for 48 h. Representative images (×600) of DAPI (4′,6diamidino-2-phenylindole), Phalloidin-AlexaFluor® 488 and merged were obtained by microscopy. The results were obtained from at least two independent experiments. Scale bar for all images is 1.67 inches.
Figure 6. Compound 1 affects the cytoskeleton of MDA-MB-231 breast cancer cells. The analysis of F-actin staining was performed using the IC50 value of the compound, for 48 h. Representative images (×600) of DAPI (4′,6diamidino-2-phenylindole), Phalloidin-AlexaFluor® 488 and merged were obtained by microscopy. The results were obtained from at least two independent experiments. Scale bar for all images is 1.67 inches.
Pharmaceutics 14 01388 g006
Figure 7. Effect of LCR134 and compound 1 in animal health, measured in terms of body weight. Body weight was measured once a day during toxicology assay.
Figure 7. Effect of LCR134 and compound 1 in animal health, measured in terms of body weight. Body weight was measured once a day during toxicology assay.
Pharmaceutics 14 01388 g007
Figure 8. Quantification of kidney and liver function. Urea, creatinine, AST and ALT enzymes concentrations detected in the plasma of the LCR134 and compound 1 treated mice. Each dot represents one tested blood sample per animal.
Figure 8. Quantification of kidney and liver function. Urea, creatinine, AST and ALT enzymes concentrations detected in the plasma of the LCR134 and compound 1 treated mice. Each dot represents one tested blood sample per animal.
Pharmaceutics 14 01388 g008
Figure 9. Effect of compounds in animal health, measured in terms of body weight. Body weight was measured twice a week. Each dot and square represent one animal.
Figure 9. Effect of compounds in animal health, measured in terms of body weight. Body weight was measured twice a week. Each dot and square represent one animal.
Pharmaceutics 14 01388 g009
Figure 10. Effect of ruthenium-based compounds LCR134 and 1 in tumor volume evolution of MDA-MB-231 orthotopically inoculated in the mammary fat pad of N:NIH(s)II-nu/nu nude female mice from day 1 to day 23. Each dot and square represent one animal.
Figure 10. Effect of ruthenium-based compounds LCR134 and 1 in tumor volume evolution of MDA-MB-231 orthotopically inoculated in the mammary fat pad of N:NIH(s)II-nu/nu nude female mice from day 1 to day 23. Each dot and square represent one animal.
Pharmaceutics 14 01388 g010
Table 1. Experimental data for the bipy-PLA-OH synthesized.
Table 1. Experimental data for the bipy-PLA-OH synthesized.
Yield (%) aDPbMn,NMRc
(g/mol)
Bipy-PLA-OH (PLA1)95584392.2
Bipy-PLA-OH (PLA2)88664968.2
Bipy-PLA-OH (PLA3)86624680.2
a After purification; b Degree of polymerization (DP) after purification of the polymer was calculated by 1H-NMR dividing the relative proton peak intensity of the bipyridine moiety (H1 proton) to that of the repeating polymer chain unit of interest (HA proton) according to [48]. c Number-average molecular weight Mn determined by 1H-NMR.
Table 2. Degree of polymerization (DP) for the 2,2′-Bipyridine-4,4′-PLA-Biotin (L1) synthesized.
Table 2. Degree of polymerization (DP) for the 2,2′-Bipyridine-4,4′-PLA-Biotin (L1) synthesized.
DP a
L1_PLA168
L1_PLA260
L1_PLA358
a Degree of polymerization (DP) after purification of the polymer was calculated by 1H-NMR dividing the relative proton peak intensity of the bipyridine moiety (H1 proton) to that of the repeating polymer chain unit of interest (HA proton) according to [48].
Table 3. Experimental data regarding the degree of polymerization (DP) and molecular weight of complexes 14.
Table 3. Experimental data regarding the degree of polymerization (DP) and molecular weight of complexes 14.
DP aMn (1H-NMR) b
Complex 1706233.9 g/mol
Complex 2645941.6 g/mol
Complex 3424319.4 g/mol
Complex 4565296.0 g/mol
a Degree of polymerization (DP) after purification of the polymer was calculated by 1H-NMR dividing the relative proton peak intensity of the bipyridine moiety (H1 proton) to that of the repeating polymer chain unit of interest (HA proton) according to [48]. b Number-average molecular weight Mn determined by 1H-NMR.
Table 4. IC50 Values (μM) for Complexes 14, LCR134, LCR205, LCR234, CDDP, and bipy-PLA-biotin based ligand (L1) at 48 h incubation, in MDA-MB-231 breast cancer cell line. Values are mean ± SD of three independent experiments.
Table 4. IC50 Values (μM) for Complexes 14, LCR134, LCR205, LCR234, CDDP, and bipy-PLA-biotin based ligand (L1) at 48 h incubation, in MDA-MB-231 breast cancer cell line. Values are mean ± SD of three independent experiments.
CompoundMDA-MB-231 (μM)
[Ru(η5-Cp)(P(C6H5)3)(bipy-biotin)]+ (LCR134)3.2 ± 1.1 [23]
[Ru(η5-Cp)(P(C6H5)3)(bipy-PLA-biotin)]+ (1)2.3 ± 0.1
[Ru(η5-Cp)(P(C6H4F)3)(bipy-biotin)]+ (LCR205)7.1 ± 0.6 [23]
[Ru(η5-Cp)(P(C6H4F)3)(bipy-PLA-biotin)]+ (2)14.6 ± 0.4
[Ru(η5-Cp)(P(C6H4OCH3)3)(bipy-biotin)]+ (LCR234)4.0 ± 0.2 [23]
[Ru(η5-Cp)(P(C6H4OCH3)3)(bipy-PLA-biotin)]+ (3)6.5 ± 0.3
[Ru(η5-MeCp)(P(C6H5)3)(bipy-PLA-biotin)]+ (4)3.4 ± 0.1
CDDP40 ± 3.7
bipy-PLA-biotin (L1)>100
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Côrte-Real, L.; Brás, A.R.; Pilon, A.; Mendes, N.; Ribeiro, A.S.; Martins, T.D.; Farinha, J.P.S.; Oliveira, M.C.; Gärtner, F.; Garcia, M.H.; et al. Biotinylated Polymer-Ruthenium Conjugates: In Vitro and In Vivo Studies in a Triple-Negative Breast Cancer Model. Pharmaceutics 2022, 14, 1388. https://doi.org/10.3390/pharmaceutics14071388

AMA Style

Côrte-Real L, Brás AR, Pilon A, Mendes N, Ribeiro AS, Martins TD, Farinha JPS, Oliveira MC, Gärtner F, Garcia MH, et al. Biotinylated Polymer-Ruthenium Conjugates: In Vitro and In Vivo Studies in a Triple-Negative Breast Cancer Model. Pharmaceutics. 2022; 14(7):1388. https://doi.org/10.3390/pharmaceutics14071388

Chicago/Turabian Style

Côrte-Real, Leonor, Ana Rita Brás, Adhan Pilon, Nuno Mendes, Ana Sofia Ribeiro, Tiago D. Martins, José Paulo S. Farinha, M. Conceição Oliveira, Fátima Gärtner, M. Helena Garcia, and et al. 2022. "Biotinylated Polymer-Ruthenium Conjugates: In Vitro and In Vivo Studies in a Triple-Negative Breast Cancer Model" Pharmaceutics 14, no. 7: 1388. https://doi.org/10.3390/pharmaceutics14071388

APA Style

Côrte-Real, L., Brás, A. R., Pilon, A., Mendes, N., Ribeiro, A. S., Martins, T. D., Farinha, J. P. S., Oliveira, M. C., Gärtner, F., Garcia, M. H., Preto, A., & Valente, A. (2022). Biotinylated Polymer-Ruthenium Conjugates: In Vitro and In Vivo Studies in a Triple-Negative Breast Cancer Model. Pharmaceutics, 14(7), 1388. https://doi.org/10.3390/pharmaceutics14071388

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
