Polymeric Lipid Hybrid Nanoparticles (PLNs) as Emerging Drug Delivery Platform—A Comprehensive Review of Their Properties, Preparation Methods, and Therapeutic Applications
Abstract

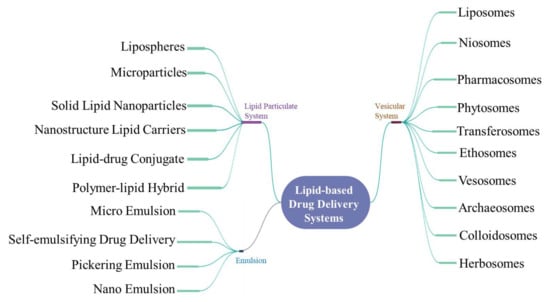

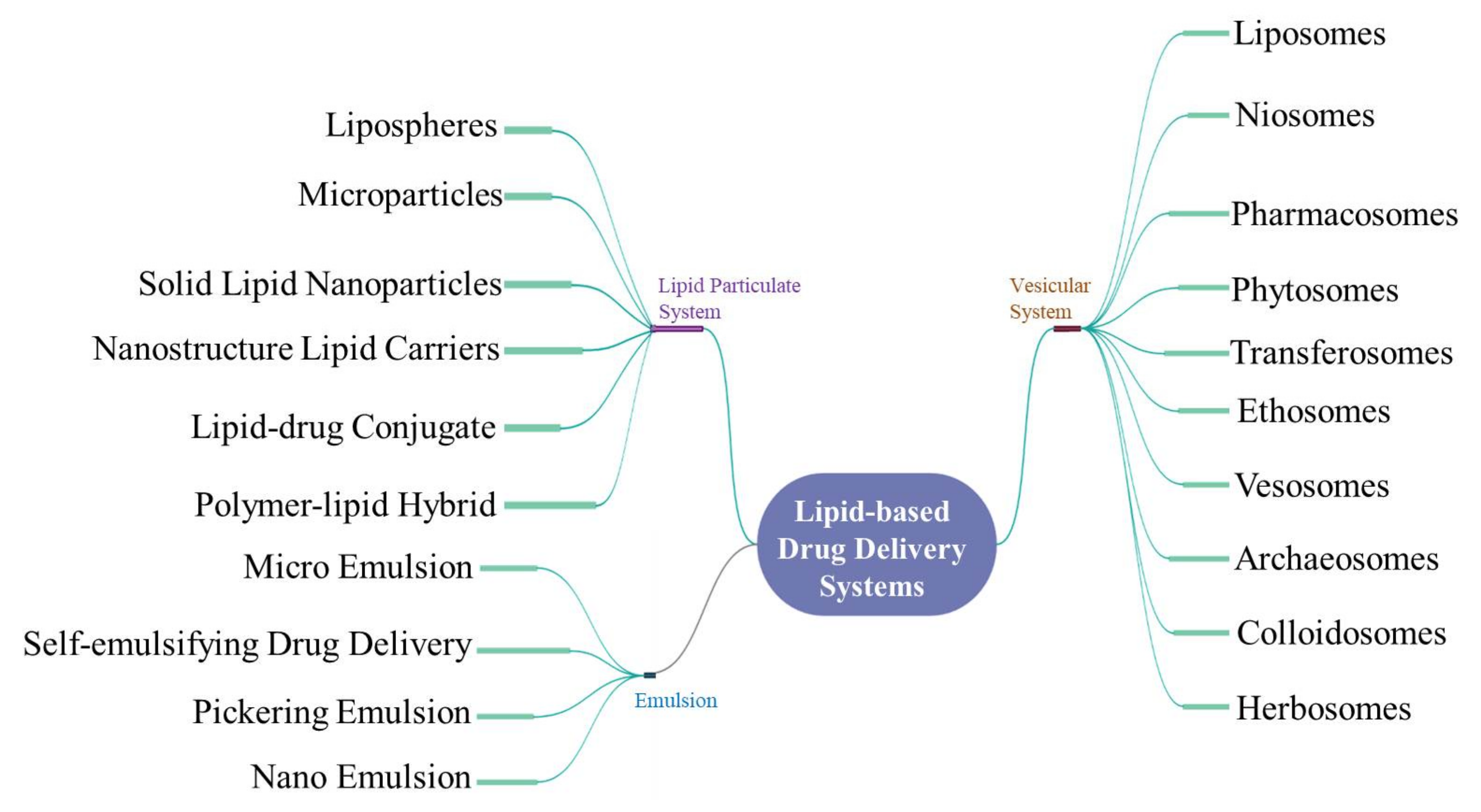

:1. Introduction of Lipid-Based Drug Delivery Systems
2. The Polymeric Lipid Hybrid Nanoparticles (PLNs)

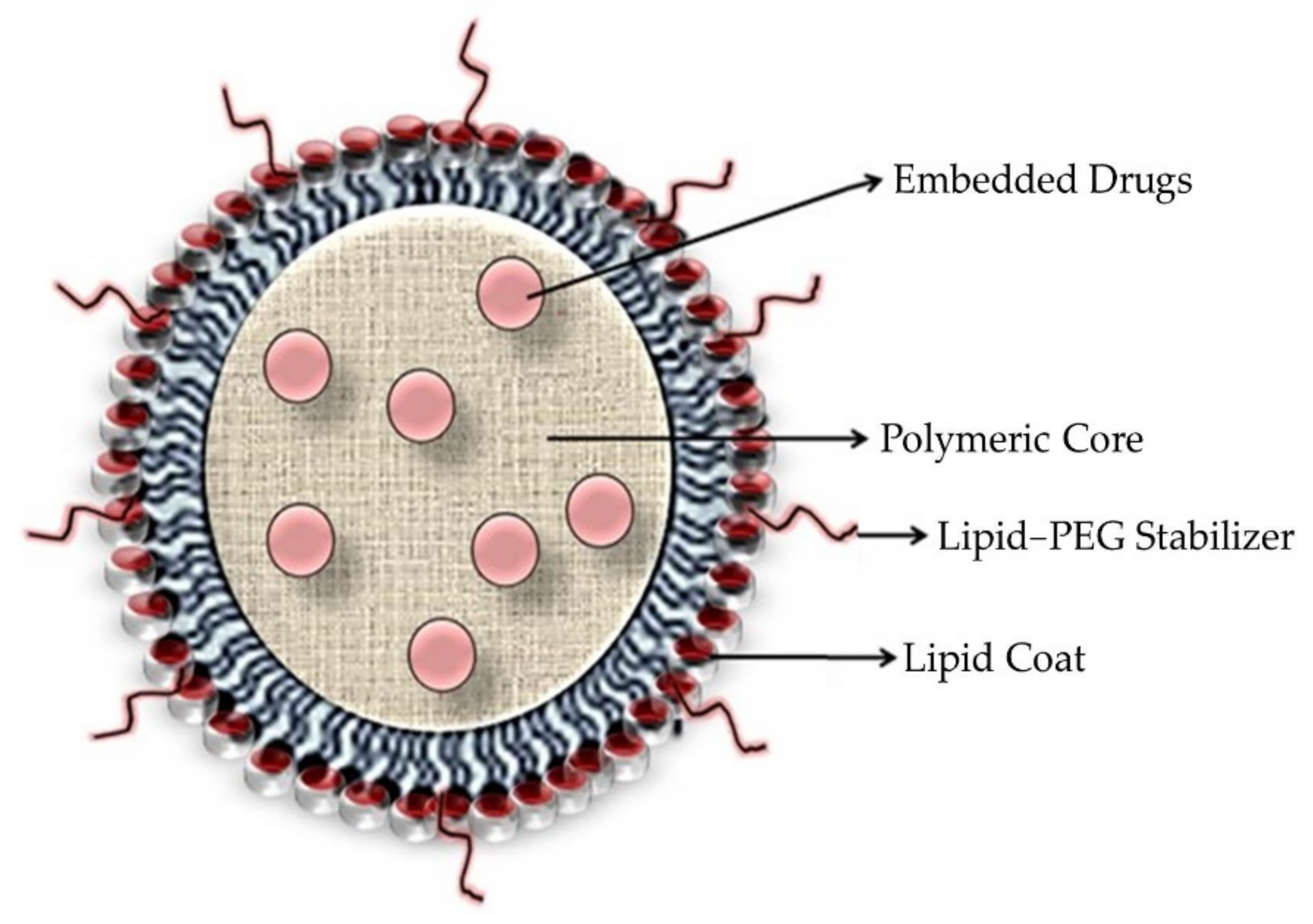

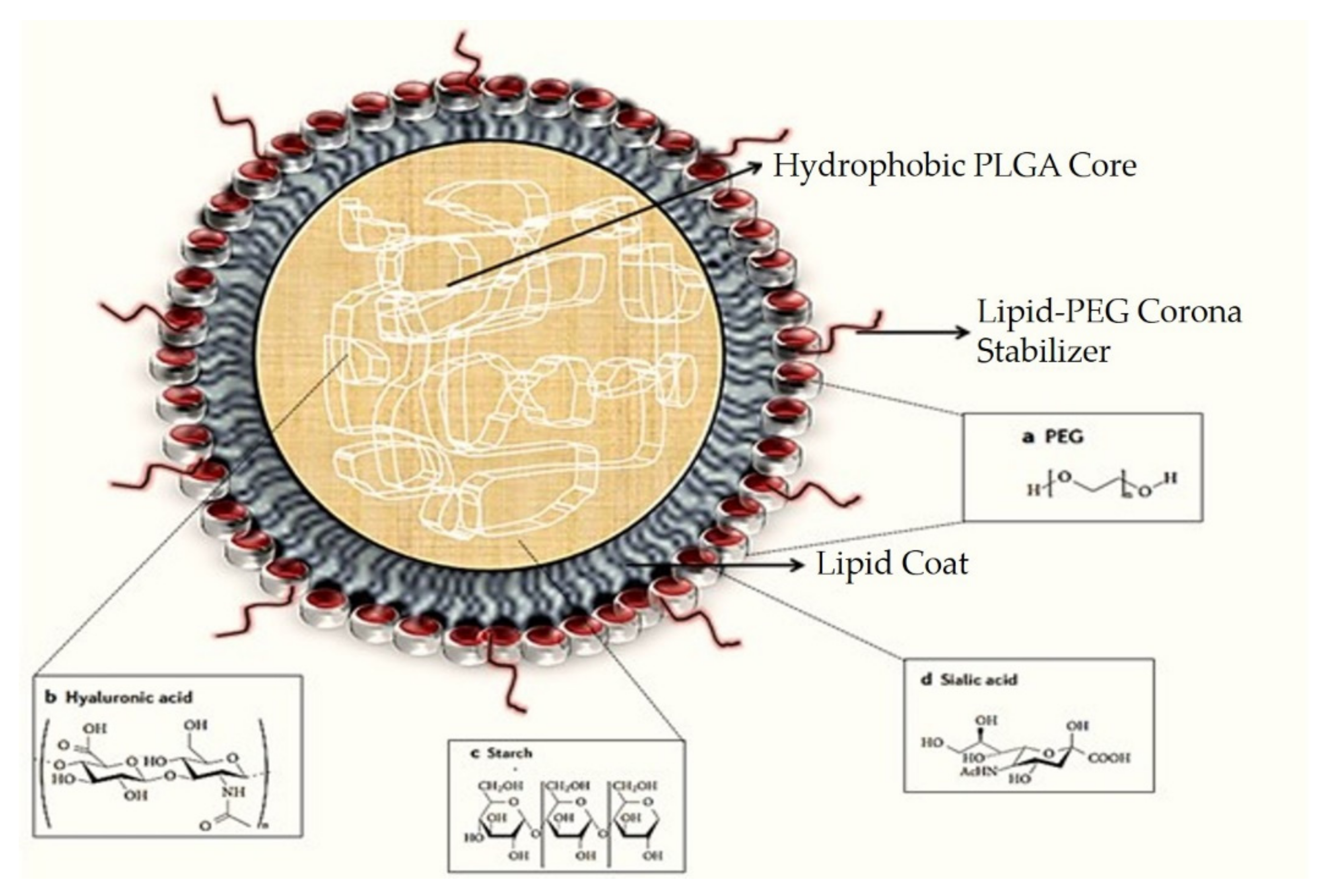

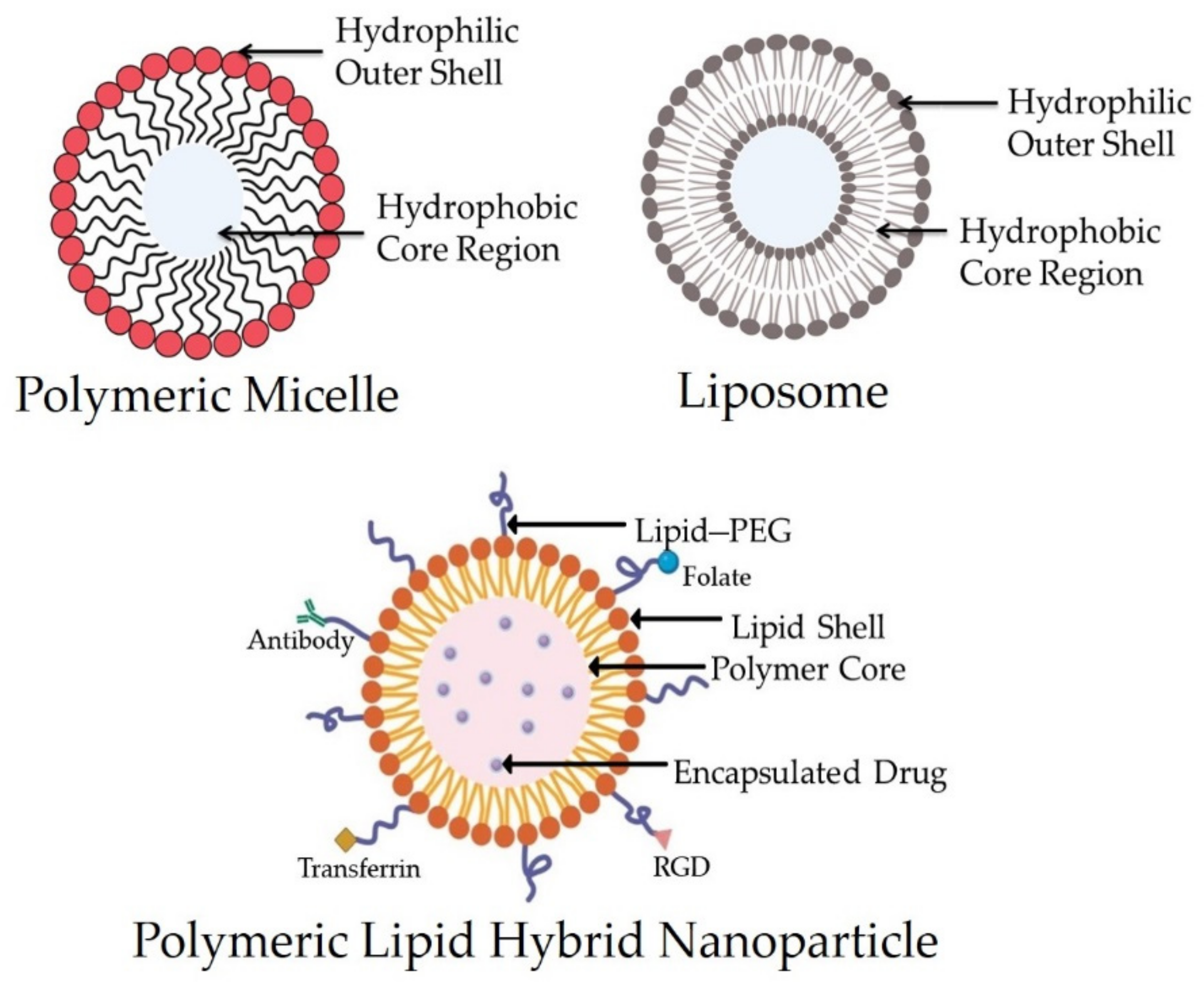

2.1. Structure and Components of PLNs

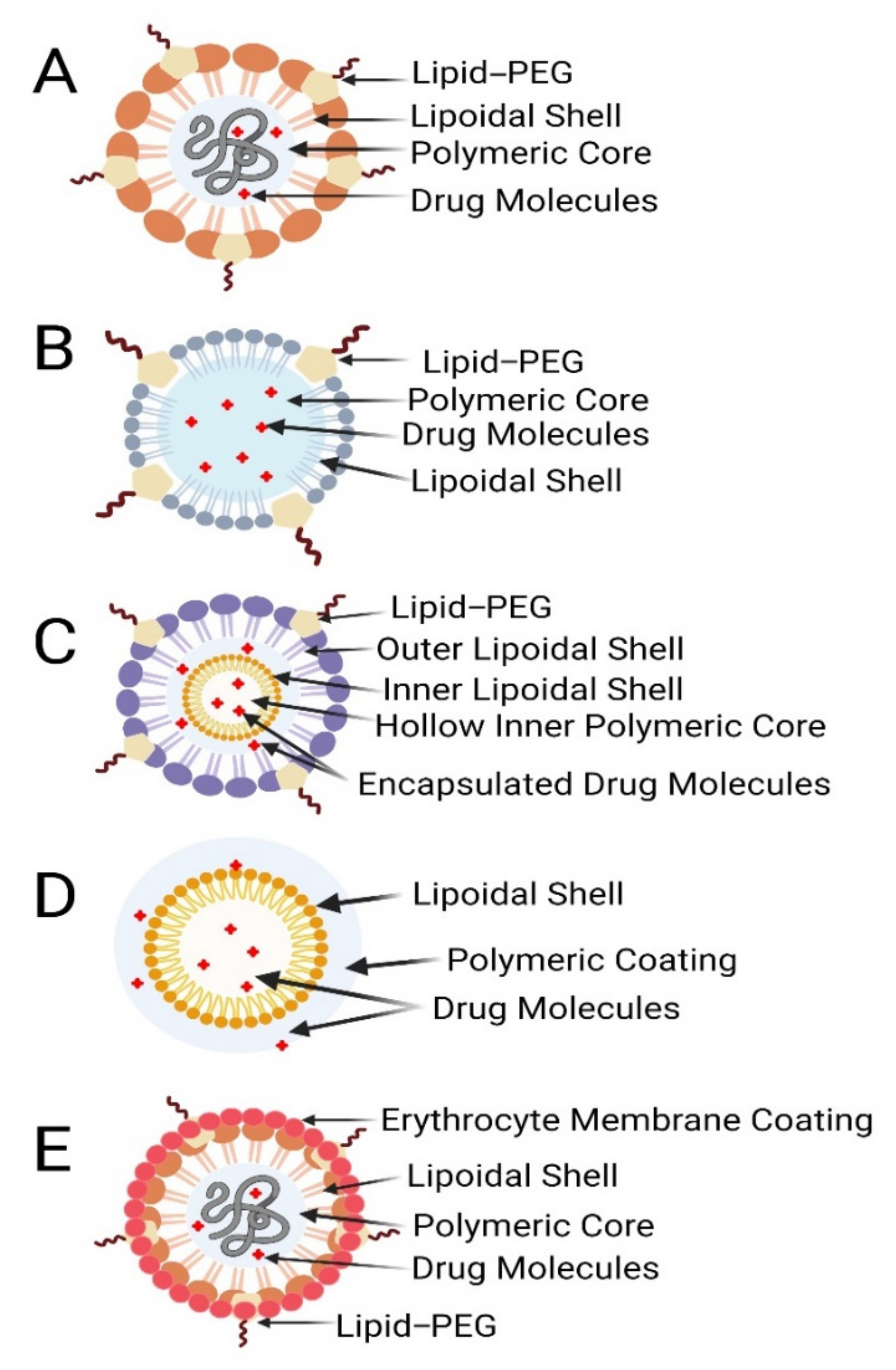

2.2. Advantages and Classification of PLNs
- Enhanced stability and better biocompatibility owing to the lipid–PEG shell;
- Controlled or regulated delivery because of the polymeric core.
- Polymer core–lipid shell hybrid NPs;
- Lipid-bilayer-coated NPs;
- Polymer-caged nanobins;
- Monolithic PLN/mixed polymer–lipid hybrid NPs;
- Hollow-core NP/lipid–polymer–lipid NPs.
Type of PLNs | Advantages | Disadvantages |
---|---|---|
Polymer core–lipid shell type | Improved encapsulation efficiency over liposomes. Optimization of core–shell layer will promote sustained release profile of drugs. Lipophilic and hydrophilic drugs can be easily entrapped | Poor drug-loading and entrapment efficiency |
Core–shell-type hollow lipid–polymer nanoparticles | Delivery of si-RNA and mRNA by reducing its susceptibility to serum nucleases and phagocytic uptake | Toxicity of cationic lipids arises due to inflammation and tissue damage, rapid inactivation of cationic lipids in the presence of serum |
Polymer-caged nanobins | Deliver cytotoxic chemotherapeutic agents to the targeted site, thereby reducing the systemic toxicity | Scale-up of polymer-caged nanobins is in its primitive stage |
Glued cell membrane camouflaged polymeric nanoparticles | Promote extensive systemic circulation, active targeting of drugs to the site of action | Large-scale production with batch- to-batch variation is a concern; quality control is another major challenge |

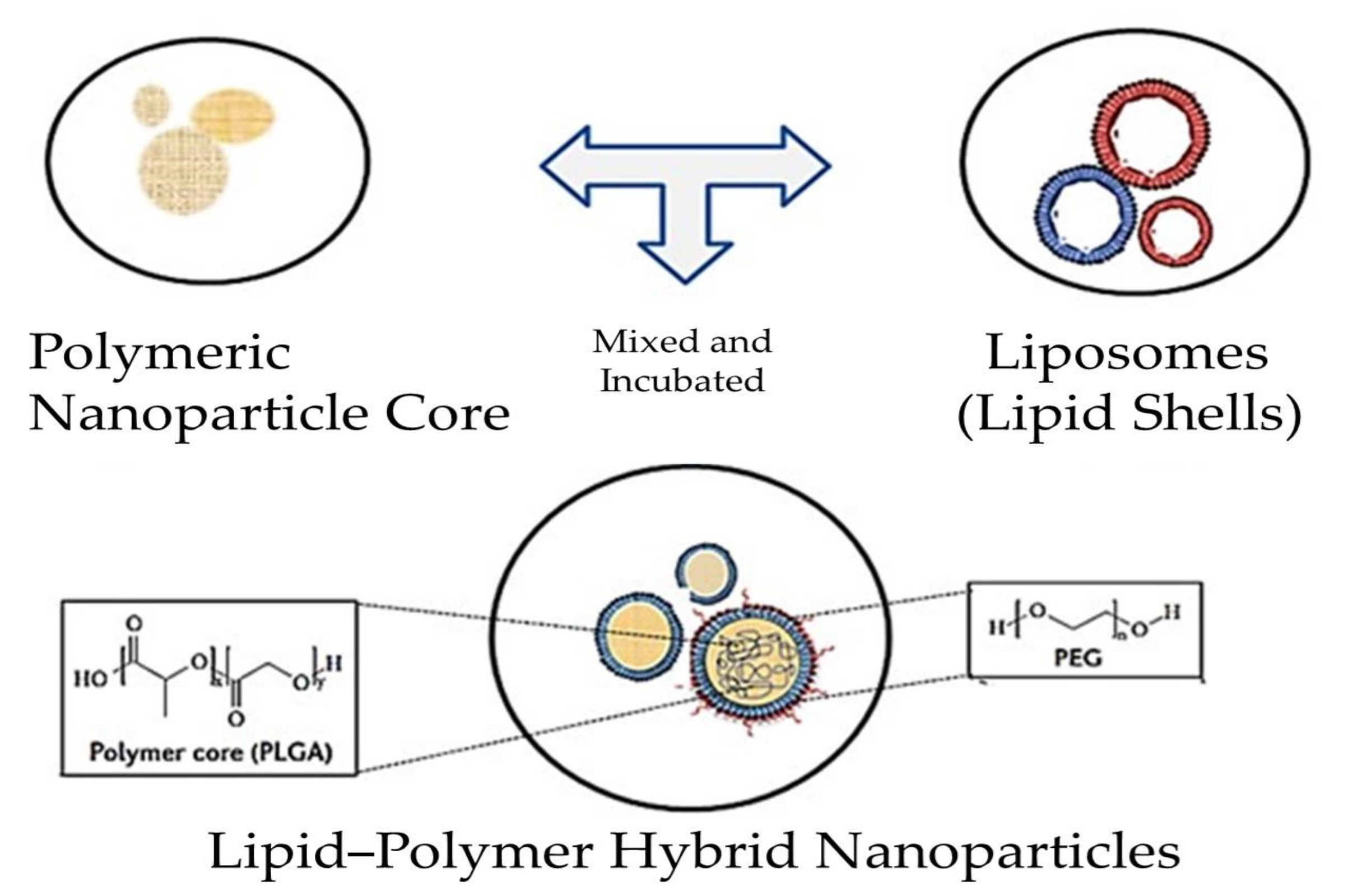

2.3. Methods of Preparation of PLNs
2.4. Characterization of PLNs

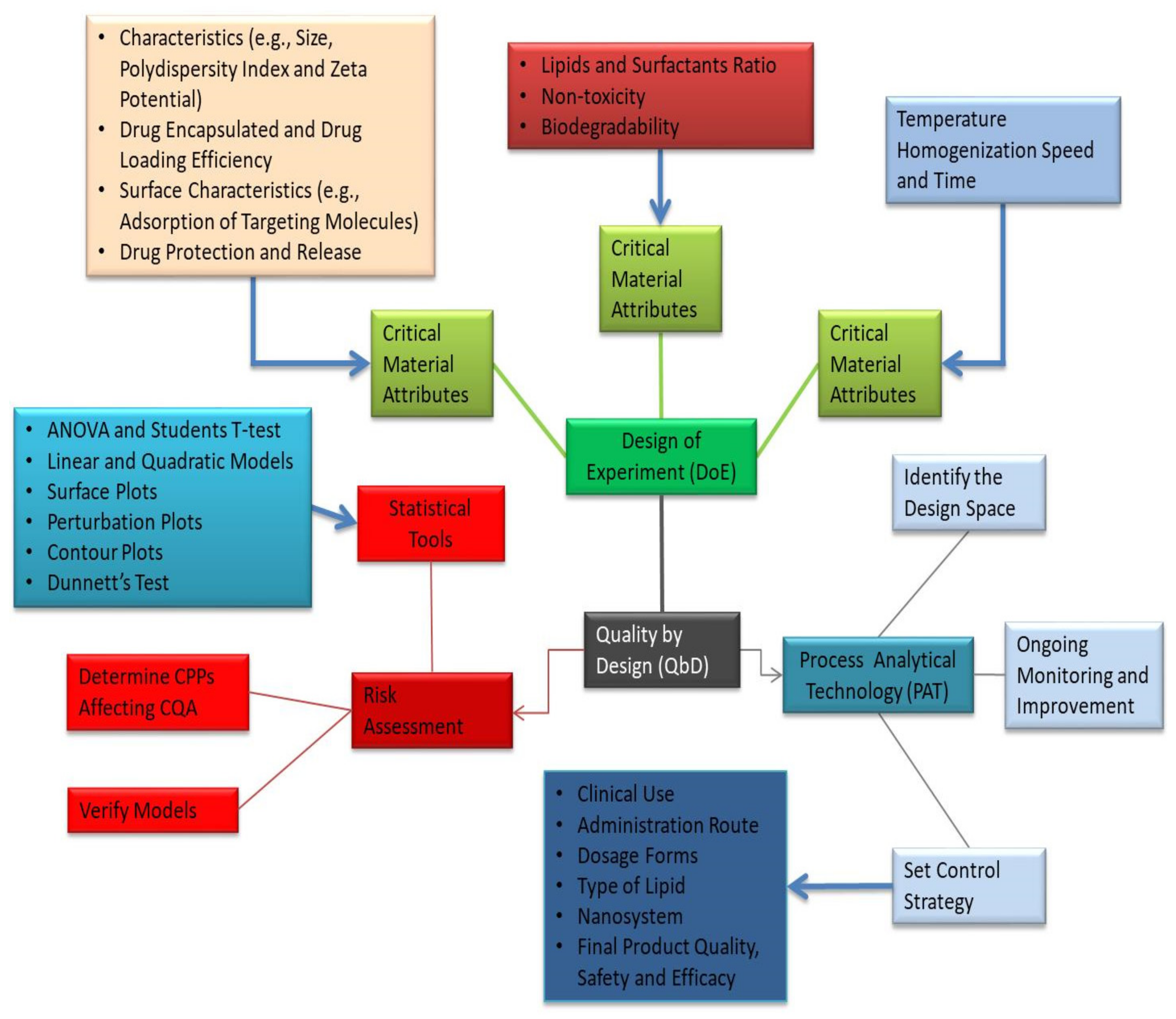

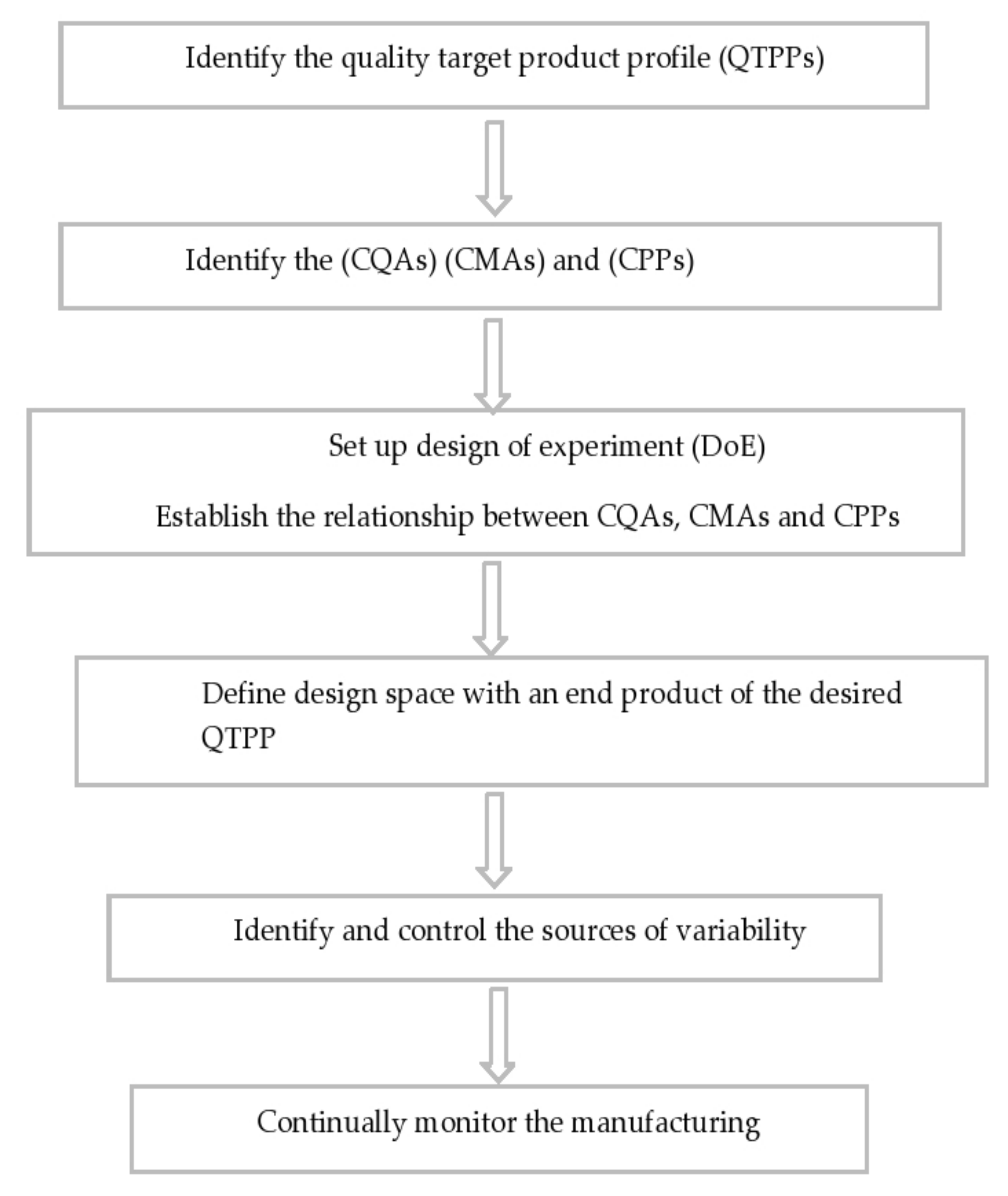

3. Optimization of Formulation Parameters by Quality by Design Approach (QbD) in the Development of PLNs
4. Drug Delivery Mechanisms of PLNs

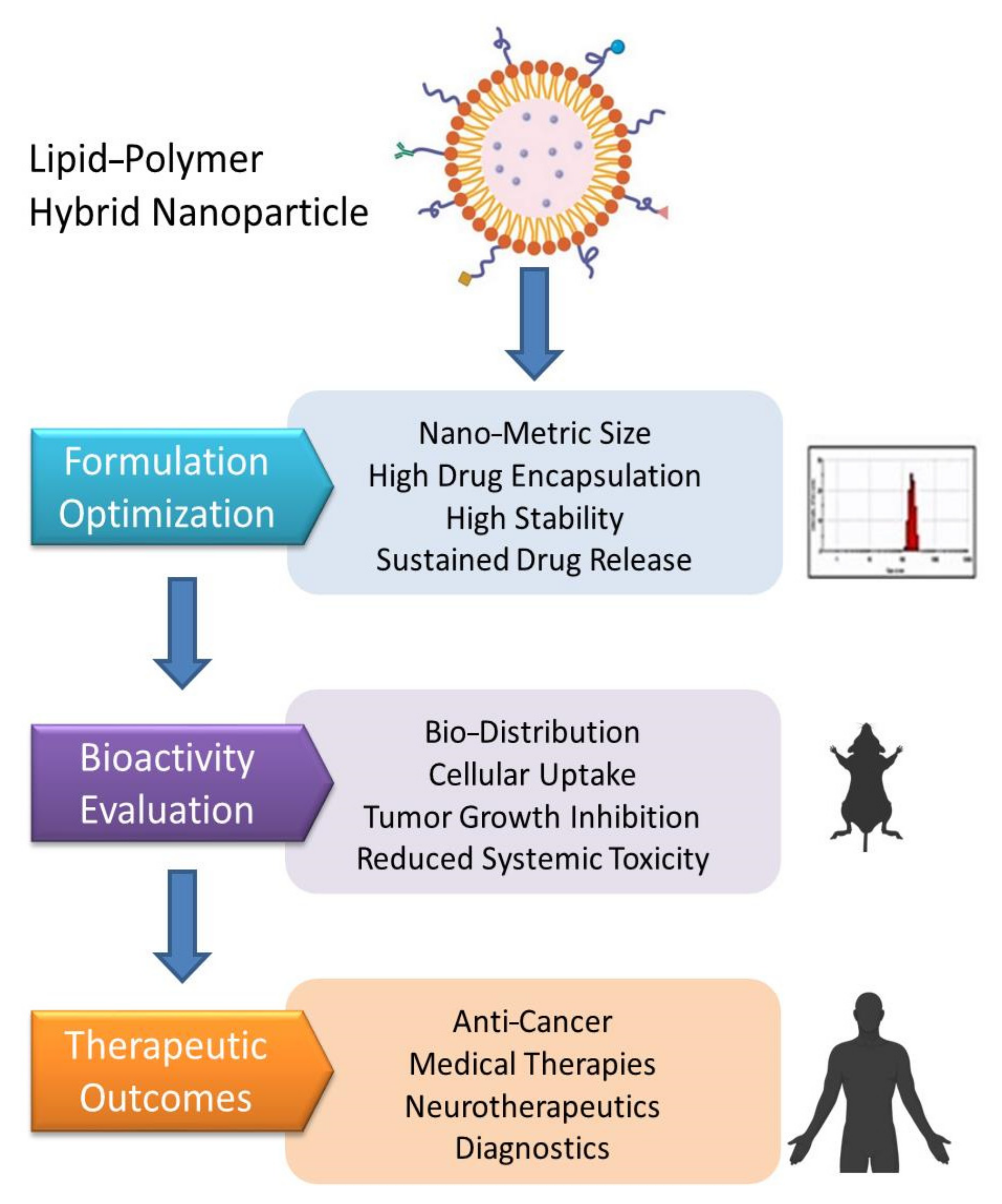

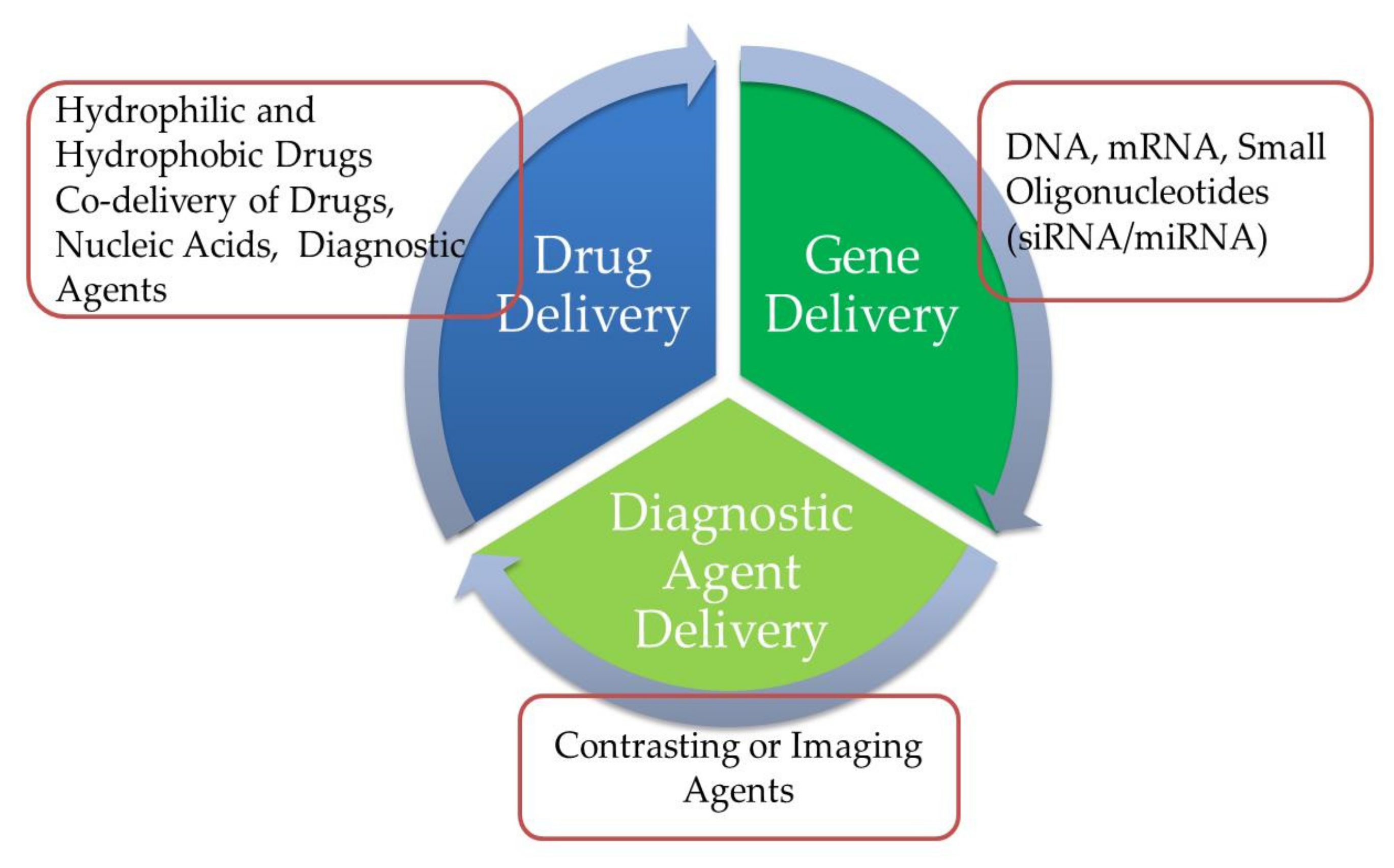

5. Therapeutic Applications of PLNs
6. Recent Clinical Trials in PLN and Liposomal Nanocarrier-Based Therapy
7. Biopharmaceutical Aspects of PLNs
8. Pharmacokinetic Properties of PLNs
9. Limitation of PLNs
10. Conclusions and Future Perspectives
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
