Article

A Physiologically Based Pharmacokinetic Model for In Vivo Alpha Particle Generators Targeting Neuroendocrine Tumors in Mice

by
Nouran R. R. Zaid
1,2,*,
Peter Kletting
1,3,
Gordon Winter
3,
Vikas Prasad
3,
Ambros J. Beer
3 and
Gerhard Glatting
1,3
1
Medical Radiation Physics, Department of Nuclear Medicine, Ulm University, 89081 Ulm, Germany
2
Biophysics and Medical Imaging Program, Department of Biomedical Sciences, Faculty of Medicine and Health Sciences, An-Najah National University, Nablus 44839, Palestine
3
Department of Nuclear Medicine, Ulm University, 89081 Ulm, Germany
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(12), 2132; https://doi.org/10.3390/pharmaceutics13122132
Submission received: 15 October 2021 / Revised: 4 December 2021 / Accepted: 7 December 2021 / Published: 10 December 2021
(This article belongs to the Special Issue Physiologically-Based Pharmacokinetics (PBPK) and Biopharmaceutics (PBBM) Modeling)
Browse Figures
Versions Notes

Abstract

:
In vivo alpha particle generators have great potential for the treatment of neuroendocrine tumors in alpha-emitter-based peptide receptor radionuclide therapy (α-PRRT). Quantitative pharmacokinetic analyses of the in vivo alpha particle generator and its radioactive decay products are required to address concerns about the efficacy and safety of α-PRRT. A murine whole-body physiologically based pharmacokinetic (PBPK) model was developed for 212Pb-labeled somatostatin analogs (212Pb-SSTA). The model describes pharmacokinetics of 212Pb-SSTA and its decay products, including specific and non-specific glomerular and tubular uptake. Absorbed dose coefficients (ADC) were calculated for bound and unbound radiolabeled SSTA and its decay products. Kidneys received the highest ADC (134 Gy/MBq) among non-target tissues. The alpha-emitting 212Po contributes more than 50% to absorbed doses in most tissues. Using this model, it is demonstrated that α-PRRT based on 212Pb-SSTA results in lower absorbed doses in non-target tissue than α-PRRT based on 212Bi-SSTA for a given kidneys absorbed dose. In both approaches, the energies released in the glomeruli and proximal tubules account for 54% and 46%, respectively, of the total energy absorbed in kidneys. The 212Pb-SSTA-PBPK model accelerates the translation from bench to bedside by enabling better experimental design and by improving the understanding of the underlying mechanisms.

1. Introduction

Alpha-emitter-based peptide receptor radionuclide therapy (α-PRRT) using alpha-emitter-labeled somatostatin analogs (α-SSTA) is an efficacious treatment for metastatic inoperable neuroendocrine tumors (NET) [1]. Due to the high linear energy transfer (80–100 keV/µm), alpha particles have the potential to eradicate somatostatin receptor subtype 2 (SSTR2) expressing tumor cells by producing irreparable DNA double-strand breaks while sparing normal tissue [2]. As a consequence, α-PRRT has demonstrated its potential to reduce nephrotoxicity and bypass the radioresistance of NET to beta emitters in beta-emitter-based PRRT [3].
Several SSTA coupled to short-(213Bi) or long-lived alpha emitters (225Ac and 212Pb) are explored in preclinical and clinical settings to evaluate the efficacy and safety of α-SSTA for NET [1]. Studying the pharmacokinetics (PK) of in vivo alpha particle generators is challenging, especially with regard to the fate of the released radioactive products that are not easily accessible to direct measurements. A number of pharmacokinetic studies were based on blood samples [4], urine excretion, portable detectors and planar images to measure the effect of redistributed free radioactive decay products in the body [5,6,7]. As the injected therapeutic activity is much lower than the one used in diagnosis, quantitative imaging of short-lived alpha emitting daughters is limited by low spatial resolution and poor signal-to-noise ratio [8]. The use of theranostic pairs consisting of two chemically similar radionuclides (La+3 ions for Ac+3) or chemically identical radioisotopes (203Pb for 212Pb) represents a great advance, albeit more data are required to validate that concept [9,10]. For example, the biodistribution of the theranostic pairs may vary due to their different ionic radii [11,12], injected amounts [13] and half-lives [14].
Mathematical modeling may be the method of choice to describe the PK of each of the decay products of the in vivo alpha particle generators separately and simultaneously [15,16]. For this purpose, we developed a whole-body physiologically based pharmacokinetic (PBPK) model for mice to describe the PK of the in vivo alpha particle generator 212Pb-SSTA and its radioactive decay products in α-PRRT. The 212Pb-SSTA-PBPK model was evaluated using published biokinetic data of [212Pb]Pb-DOTAMTATE in mice bearing AR42J xenografts [4]. The absorbed doses due to bound and unbound radiolabeled SSTA in target and non-target tissues were calculated for different injected amounts and activities. In addition, the optimal tumor-to-kidneys ratio of long-lived conjugated 212Pb were calculated and compared to that of short-lived conjugated 212Bi.

2. Materials and Methods

2.1. 212Pb-SSTA-PBPK Model Structure

A whole-body PBPK model of 212Pb-SSTA in mice was developed and implemented using software tools SAAM II version 2.3 [17] (The Epsilon Group, TEG, Charlottesville, VA, USA) and Simbiology/MATLAB (MATLAB R2020a, The MathWorks, Inc., Natick, MA, USA). The structure of the 212Pb-SSTA-PBPK model describing the distribution of 212Pb-SSTA in mouse tissues via blood flow is illustrated in Figure 1. Relevant differential equations of the developed mathematical model maintain mass and blood flow conservation and are provided in supplement A. The transfer rates are described and their values are given in detail in Supplementary Material Table S1.
The compartmental model comprises (1) SSTR2-expressing tissues such as tumor, pancreas, kidneys, spleen, liver, adrenal gland (Ad), lung and gastrointestinal (GI) tract [18,19,20,21], (2) non-SSTR2-expressing tissues, namely muscle, heart, skin, brain, fat and remainder of body (RB).
The parameters of the 212Pb-SSTA-PBPK model are classified into mice-specific and 212Pb-SSTA-specific parameters with values taken from literature (Supplementary Material Table S1) [4,16,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37]. Briefly, the main mice-specific parameters considered in the model are blood flow, tissue volumes, relevant volumes of tissue compartments (vascular, interstitial, early endosomes and sorting (late endosomes) compartments) and SSTR2 expression on cell membranes. Relevant biological mechanisms of 212Pb-SSTA (diffusion, SSTR2-specific and non-specific binding, internalization, recycling, sorting and excretion) are included in the model. In addition, the model takes into account the physicochemical properties of 212Pb-SSTA, such as physical decay rates and the chemical stability of the 212Bi-chelator complexes after beta decay of conjugated 212Pb [23]. The distribution of 212Pb-SSTA and unlabeled SSTA is described using two similar systems sharing the same physiological parameter values [16]. The two systems are linked by the competition of 212Pb-SSTA and unlabeled SSTA for free binding sites and the physical decay rates as shown in Figure 2.
Each compartment in the 212Pb-SSTA-PBPK model represents the in vivo alpha particle generator model described before [23]. The biodistribution of free 212Bi is described by integrating a PBPK model for free 212Bi into the 212Pb-SSTA-PBPK model [29]. In short, the 212Bi-PBPK model describes the interaction of free 212Bi with red blood cells (RBC), high molecular weight plasma proteins (HWPP) and intracellular biological thiols. The detailed compartmental structure of SSTR2-expressing tissues is presented in Figure 3.
The bound 212Pb-SSTA-SSTR2 complexes on cells surfaces are internalized to early endosomes (Figure 1) with a rate of 0.17 min−1 [35]. After internalization, a fraction of 212Pb-SSTA-SSTR2 complexes in early endosomes are dissociated followed by the recycling of SSTR2 to cell surfaces and the release of intact 212Pb-SSTA to the interstitial compartment with a transfer rate 0.05 min−1 [36]. The remaining 212Pb-SSTA-SSTR2 complexes in early endosomes are directed to the sorting compartment for degradation. The release rates of residualizing radiolabels or radiolabeled catabolites from cells were estimated (as described below).
A kidney model was developed to adequately describe the kinetics of 212Pb-SSTA in kidneys as the main excretion organ (upper right corner of Figure 1) [28]. As SSTR2 expression sites in mice kidneys were found in epithelial cells (podocytes) of the glomeruli and collecting ducts [18,38,39,40], the specific uptake of 212Pb-SSTA is modeled by connecting the compartment of bound 212Pb-SSTA-SSTR2 complexes directly to the vascular compartment of kidneys. The localization of SSTR2 in the collecting ducts was not considered in the kidney model because the reabsorption of the radiolabeled peptides beyond the convoluted proximal tubules is either small or absent [41]. Post-glomerular peritubular elimination was also not considered because proteins are not appreciably extracted through this elimination route as compared to the filtration pathway. Additionally, the post-glomerular elimination route is specific for small proteins, which have hormone-specific receptors located in the basolateral tubular cells [28,41]. As the non-specific uptake of radiolabeled peptides in the proximal tubule is mainly due to charge-related binding to megalin and/or cubilin receptors [42], fluid- and receptor-based endocytosis were integrated in the kidney model as a single compartment connected to the proximal tubules with a transfer rate 0.03 min−1 [43]. Although Behr et al. reported that some of the degradation products in renal tubules are transferred back into the bloodstream [44,45], this is not included in the model because of the limited number of data points and the relative short half-lives of 212Pb and all its daughters.

2.2. Model Evaluation, Parameters Estimation and Sensitivity Analyses

The performance of the developed 212Pb-SSTA-PBPK model was compared in SAAM II and Simbiology by running different simulations using the same parameterization and model inputs. The values of the 212Pb-SSTA-PBPK model parameters were estimated in both software tools by fitting the time–activity curves to [212Pb]Pb-DOTAMTATE biokinetics in AR42J-tumor bearing mice after injecting 0.0013 nmol (185 kBq) of [212Pb]Pb-DOTAMTATE to match the experimental condition (Supplementary Material Table S2) [4]. The computational settings in SAAM II were the Rosenbrock least-squares algorithm and a convergence criterion of 10−4. Model-based relative weighting was assigned for all data. The goodness-of-fit criteria were evaluated based on standard criteria reported, such as visual inspection of the fitted curves, coefficient of variation (CV < 50%) and off-diagonal values of the correlation matrix (−0.8 < CM < 0.8 for most elements) [46]. In Simbiology’s fitting settings, proportional error was used with the fminsearch function. The FunctionTolerance was 10−14, that is, the lower limit for the change in the value of the objective function during the fitting. Sensitivity analyses and a first evaluation of the predictive performance of the model were performed as described in detail in supplement D and supplement E, respectively.

2.3. Dosimetry and Simulations

The absorbed doses were calculated using the developed 212Pb-SSTA-PBPK model in Simbiology, because the number of compartments required for the absorbed dose calculations exceeds what could be practically provided by SAAM II. Absorbed dose coefficients (ADC) were calculated for the mouse tissues based on the MIRD formalism as follows [47]:
A D C i ( T D ) = ∑ x D i ( T D ) A 0 = a ˜ i ( T D ) · ∑ x ∆ i x · φ i ( E i x ) M i ,
where D i ( T D ) is the absorbed dose to tissue i of mass M i from emission type x ; a ˜ i ( T D ) is the total number of nuclear transitions in tissue i over the integration period T D   (10 · t1/2(212Pb) = 6384 min) divided by the administered activity A 0 (185 kBq of [212Pb]Pb-DOTAMTATE to match the experimental condition [4]),   ∆ i x is the mean energy absorbed in tissue i per nuclear transition of type x , φ i ( E i x ) is the fraction of emitted energy per nuclear transition absorbed in tissue i . φ i ( E i x ) is assumed to be equal to 1 as the target tissue is considered as the source tissue so that the emitted radiation is locally deposited [47]. Subsequently, the contributions of each radioactive decay product of [212Pb]Pb-DOTAMTATE to the total ADC were also determined for each tissue.
In addition, the absorbed doses were simulated for injected amounts of 0.017 × 10−3–0.079 nmol in steps of 101/6 of [212Pb]Pb-DOTAMTATE, with injected activities chosen to lead to 23 Gy in kidneys. By injecting [212Bi]Bi-DOTAMTATE into the corresponding venous compartment in the 212Pb-SSTA-PBPK model with the same amounts, the doses absorbed by the tissues were calculated based on the non-generator equivalent [212Bi]Bi-DOTAMTATE. Additionally, total energies released in the glomeruli (the sum of energies released in renal vascular, bound SSTA-SSTR2 complexes, early endosomes, and sorting compartments) and proximal tubules (the sum of energies released in renal proximal tubules and tubular endosomal compartments) to deposit 23 Gy in kidneys were calculated following the administration of [212Pb]Pb-DOTAMTATE and [212Bi]Bi-DOTAMTATE.

3. Results

The fitted time-activity curves generated by SAAM II and Simbiology for tumor, kidneys, pancreas, lung, spleen and liver show good fits. The results of the two software tools are in agreement and are equivalent for each tissue as shown in Figure 4. The values of the pharmacokinetic parameters estimated by fitting to the experimental data are given in Table 1. The CVs of the fitted parameters were less than 50% for all tissues. All elements of the correlation matrix of the fitted parameters were less than 0.8 except for tumor (perfusion rate and receptor density) and kidneys (release rate). Kidneys had the highest ADC among other non-target tissues (134 Gy/MBq) followed by pancreas (116 Gy/MBq) (Table 2). The contribution of 212Po to the total ADC was the highest in all tissues (more than 50% except in fat).
For a given value of 23 Gy in kidneys, the maximum absorbed dose in the tumor (49.8 Gy) was reached with the administration of 0.03 nmol of [212Pb]Pb-DOTAMTATE as shown in Figure 5. For the non-generator equivalent [212Bi]Bi-DOTAMTATE, only 36.6 Gy can be reached in the tumor at the optimal amount of 0.05 nmol of [212Bi]Bi-DOTAMTATE. Figure 6 shows that the energies released in the glomeruli and proximal tubules account for 54% and 46%, respectively, of the total energy absorbed in kidneys at the simulated optimal amounts of both [212Pb]Pb-DOTAMTATE and [212Bi]Bi-DOTAMTATE.

4. Discussion

In this study, a 212Pb-SSTA-PBPK model was developed to investigate the PK and the dosimetry of 212Pb-SSTA and its cytotoxic radioactive products targeting SSTR2-expressing tissues. The main aim of this work was to describe a first developed complex whole-body PBPK model for 212Pb-based in vivo alpha particle generators and its radioactive decay products. The complexity of the model arises from combining different mathematical models, that is, a 212Pb-PBPK model for conjugated 212Pb, a PBPK model for free 212Bi, and the in vivo alpha particle generator model. The acceptable initial evaluations of the model (sensitivity analysis and predictive performance) in supplements D and E place the model in context of generating hypotheses that support next/future studies. The developed 212Pb-SSTA-PBPK model underpins the higher potential of the in vivo alpha particle generator [212Pb]Pb-DOTAMTATE in α-PRRT in comparison to its non-generator equivalent [212Bi]Bi-DOTAMTATE as demonstrated in Figure 5 and Figure 6. For a given value of 23 Gy in kidneys, [212Pb]Pb-DOTAMTATE delivers a higher dose using a lower optimal amount (49.8 Gy within 0.03 nmol) than [212Bi]Bi-DOTAMTATE (36.6 Gy within 0.05 nmol). In addition, for [212Pb]Pb-DOTAMTATE, all absorbed doses in non-target tissues are less than kidneys absorbed dose.
The distinction between absorbed doses to glomeruli (the radiation-sensitive functional unit for late damage [48]) and proximal tubules is important for renal toxicity [49,50]. Figure 6 shows that the specific uptake in the kidneys results in more energy being released in the glomeruli than in the proximal tubules, except for larger amounts when SSTR2 is saturated. Due to the shorter half-life, [212Bi]Bi-DOTAMTATE injection results in higher energies released in the glomeruli than by [212Pb]Pb-DOTAMTATE injection.
For mice, pancreas can be the second organ at risk after kidneys in α-PRRT because of its high ADC (116 Gy/MBq, Table 2), which is in line with the findings of Norenberg et al. and Kimura et al. [38,51]. Additionally, Table 2 demonstrates the ability of the 212Pb-SSTA-PBPK model to address the concerns regarding the fate of the redistributed radioactive product of [212Pb]Pb-DOTAMTATE (conjugated and free radionuclides). The largest contribution to the total tissue absorbed dose is related to conjugated alpha emitters, mainly conjugated 212Po. The absorbed doses in non-SSTR2 expressing tissues are due to the distribution of [212Pb]Pb-DOTAMTATE and its progeny mainly in the vascular and interstitial compartments. Of note, the reported high uptake rate of free 212Bi in bone explains the high contribution of free radionuclides to total absorbed dose in Table 2 [29].
Sites and levels of SSTR2 expression differ between species [38]. Intriguingly, the estimated SSTR2 densities in kidneys (3.52 ± 0.07 nmol/L) and tumor (11.7 ± 3.0 nmol/L) in AR42J-tumor bearing mice were in the reported ranges of renal (2.3–7.1 nmol/L) and tumor (7–16 nmol/L) SSTR2 densities in humans [16]. The relatively high SSTR2 density in pancreas, which is not observed in humans, can be related to the additional expression of SSTR2A in murine pancreatic acinar cells [38]. In addition, the difference in the microanatomical structure of spleen in mice and humans may contribute to the difference in the estimated SSTR2 densities in mice (0.73 ± 0.07 nmol/L) and the reported range in humans (3.9–8.7 nmol/L) [16]. In contrast to mice, the red pulp in human spleen has sheathed capillaries, composed of macrophages and B lymphocytes which are reported to express SSTR2 mRNA [52,53]. These differences in the levels of SSTR2 expression should be considered in the translation from mice to human PBPK models.
Incorporating internalization, recycling, and sorting mechanisms is important to adequately reflect the SSTR2 densities and to describe the concentrations of radiolabeled peptides both inside and outside of cells [36]. It is important to highlight that the fraction of intact [212Pb]Pb-SSTA-SSTR2 complexes in early endosomes is sorted for degradation with a rate that solely depends on the type of receptors and targeting vectors. Preliminary fits revealed that the release rates of the degradation products of [212Pb]Pb-DOTAMTATE were zero except for kidneys and pancreas. Therefore, [212Pb]Pb-DOTAMTATE as a radiometal-chelated SSTA was assumed to be retained inside the cells after being routed to lysosomes in the investigated time interval. Vegt et al. and others showed that some residualizing radiolabels or radiolabeled catabolites cannot cross the lysosomal membrane, thus stay trapped in lysosomes delivering high radiation doses in the renal tubules and glomeruli [36,54,55,56]. On the other hand, because of the relatively short half-life of 212Pb (t1/2 = 10 h) in comparison to beta emitters used in PRRT, such as 177Lu (t1/2 = 6.6 d), the experimental data do not provide enough information to fit the release rate. However, as the time scale of the release rate is very small compared to the half-life of 212Pb, setting the release rate to zero does not affect the results of the simulations. The fitted release rate of pancreas was high and that may be because secretory acinar pancreatic cells have distinct functions that may require a specific and polarized SSTR2 distribution and trafficking as reported by Waser et al. [57].
The developed 212Pb-SSTA-PBPK model for mice can be employed for broad future investigations. Simulating concentration–time profiles can help in the selection of optimal sampling schedules and optimize dose regimens in different study populations, including humans [16]. The separation between radiopharmaceutical-specific and physiological parameters in the 212Pb-SSTA-PBPK model allows optimal activities to be administered for individualized dosimetry, thereby minimizing risks [15]. Additionally, the 212Pb-SSTA-PBPK model enables to calculate the absorbed doses in tissue compartments, that is, sub-organ doses. Therefore, using virtual preclinical studies based on mathematical modeling can be a first step for optimizing treatment planning in α-PRRT.
In addition, optimal values for global pharmacokinetic parameters, such as ligand affinities, internalization and sorting rates, can be simulated using the 212Pb-SSTA-PBPK model for newly developed in vivo alpha particle generators in α-PRRT. The model can be used to study the effect of using different chelators with different dissociation fractions of 212Bi-chelator complexes after beta decay of conjugated 212Pb [23].
Notably, the kidney model provides a full description of the relevant mechanisms underlying SSTA uptake in kidneys. The specific and non-specific renal uptake implemented in the model may explain the partial blocking of renal uptake achieved by the co-administration of amino acids lysine and arginine or unlabeled SSTA [37]. The kidney model structure can be integrated in a human PBPK model and contribute to future work aiming to reduce the probability of long-term renal toxicity in PRRT for NET.
Although strong background information was integrated during model development, and the initial evaluation of the model was acceptable, clearly, more well-characterized data will be required in the future for further improvements and testing of the predictive performance in order to achieve regulatory impact.

5. Conclusions

The developed 212Pb-SSTA-PBPK model quantitatively determines the non-measurable PK of 212Pb-SSTA and its radioactive decay products in mice and describes the specific and non-specific renal uptakes by the kidney model. The model allows absorbed doses to be calculated from unbound, bound, and internalized 212Pb-SSTA and the radioactive decay products in the whole body. Additionally, optimal injected amounts and activities can be determined using simulations to better design preclinical experiments in α-PRRT. Furthermore, the 212Pb-SSTA-PBPK model shows that 212Pb-SSTA-based α-PRRT results in a higher tumor-to-kidneys ratio than 212Bi-SSTA-based α-PRRT for a given kidneys absorbed dose.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pharmaceutics13122132/s1, Figure S1: Comparison of the therapeutic potency of the in vivo alpha generator [212Pb]Pb-SSTA (upper panel) and [212Bi]Bi-SSTA (lower panel), Figure S2: Kidneys sensitivity plots, Figure S3: Tumor sensitivity plots, Figure S4: Pancreas sensitivity plots, Table S1: [212Pb]Pb-SSTA-PBPK model parameters, Table S2: Non-decay corrected %ID/g for [212Pb]Pb-DOTAMTATE in different tissues of unanesthetized AR42J-bearing mice at different time points, Table S3: The predicted values of %ID/g for relevant tissues after injecting 5 µCi of 212Pb-DOTAMTATE with a specific activity of 2.4 µCi/ng.

Author Contributions

Conceptualization, N.R.R.Z., P.K. and G.G.; methodology, N.R.R.Z., P.K. and G.G.; formal analysis, N.R.R.Z., P.K., G.W., V.P., A.J.B. and G.G.; investigation, N.R.R.Z., P.K. and G.G.; writing—original draft preparation, N.R.R.Z.; writing—review and editing, N.R.R.Z., P.K., G.W., V.P., A.J.B. and G.G.; supervision, G.G.; project administration, A.J.B. and G.G.; funding acquisition, N.R.R.Z. and G.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the DAAD (German Academic Exchange Service, Research Grants, Doctoral Programs in Germany 2018/19-57381412) and the Research Campus M2OLIE (German Federal Ministry of Education and Research (BMBF) within the Framework “Forschungscampus–public-private partnership for Innovations” funding code 13GW0389B).

Data Availability Statement

The used data, additional to those in the supplement are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Kunikowska, J.; Królicki, L. Targeted α-Emitter Therapy of Neuroendocrine Tumors. Semin. Nucl. Med. 2020, 50, 171–176. [Google Scholar] [CrossRef]
  2. Sgouros, G. Dosimetry, Radiobiology and Synthetic Lethality: Radiopharmaceutical Therapy (RPT) With Alpha-Particle-Emitters. Semin. Nucl. Med. 2020, 50, 124–132. [Google Scholar] [CrossRef]
  3. Ballal, S.; Yadav, M.P.; Bal, C.; Sahoo, R.K.; Tripathi, M. Broadening horizons with 225Ac-DOTATATE targeted alpha therapy for gastroenteropancreatic neuroendocrine tumour patients stable or refractory to 177Lu-DOTATATE PRRT: First clinical experience on the efficacy and safety. Eur. J. Nucl. Med. Mol. Imaging 2020, 47, 934–946. [Google Scholar] [CrossRef]
  4. Stallons, T.A.R.; Saidi, A.; Tworowska, I.; Delpassand, E.S.; Torgue, J.J. Preclinical Investigation of 212Pb-DOTAMTATE for Peptide Receptor Radionuclide Therapy in a Neuroendocrine Tumor Model. Mol. Cancer Ther. 2019, 18, 1012–1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Andersson, H.; Cederkrantz, E.; Bäck, T.; Divgi, C.; Elgqvist, J.; Himmelman, J.; Horvath, G.; Jacobsson, L.; Jensen, H.; Lindegren, S.; et al. Intraperitoneal α-Particle Radioimmunotherapy of Ovarian Cancer Patients: Pharmacokinetics and Dosimetry of 211At-MX35 F(ab′)2—A Phase I Study. J. Nucl. Med. 2009, 50, 1153–1160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Meredith, R.F.; Torgue, J.; Azure, M.T.; Shen, S.; Saddekni, S.; Banaga, E.; Carlise, R.; Bunch, P.; Yoder, D.; Alvarez, R. Pharmacokinetics and Imaging of 212Pb-TCMC-Trastuzumab after Intraperitoneal Administration in Ovarian Cancer Patients. Cancer Biother. Radiopharm. 2014, 29, 12–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Meredith, R.; Torgue, J.; Shen, S.; Fisher, D.R.; Banaga, E.; Bunch, P.; Morgan, D.; Fan, J.; Straughn, J.M. Dose Escalation and Dosimetry of First-in-Human α Radioimmunotherapy with 212Pb-TCMC-Trastuzumab. J. Nucl. Med. 2014, 55, 1636–1642. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Elgqvist, J.; Frost, S.; Pouget, J.-P.; Albertsson, P. The potential and hurdles of targeted alpha therapy—clinical trials and beyond. Front. Oncol. 2014, 3, 324. [Google Scholar] [CrossRef] [Green Version]
  9. Li, L.; Rousseau, J.; Jaraquemada-Peláez, M.d.G.; Wang, X.; Robertson, A.; Radchenko, V.; Schaffer, P.; Lin, K.-S.; Bénard, F.; Orvig, C. 225Ac-H4py4pa for Targeted Alpha Therapy. Bioconjug. Chem. 2021, 32, 1348–1363. [Google Scholar] [CrossRef] [PubMed]
  10. Mengshi, L.; Edwin, A.S.; Dongyoul, L.; Daniel, M.; Anthony, J.D.; Keith, R.O.; Stephen, G.; Roy, C.; Saed, M.; Brian, E.Z.; et al. 203/212Pb Theranostic Radiopharmaceuticals for Image-guided Radionuclide Therapy for Cancer. Curr. Med. Chem. 2020, 27, 7003–7031. [Google Scholar] [CrossRef]
  11. Brechbiel, M.W. Bifunctional chelates for metal nuclides. Q. J. Nucl. Med. Mol. Imaging 2008, 52, 166–173. [Google Scholar] [PubMed]
  12. Thiele, N.A.; Wilson, J.J. Actinium-225 for Targeted α Therapy: Coordination Chemistry and Current Chelation Approaches. Cancer Biother. Radiopharm. 2018, 33, 336–348. [Google Scholar] [CrossRef]
  13. Begum, N.J.; Glatting, G.; Wester, H.-J.; Eiber, M.; Beer, A.J.; Kletting, P. The effect of ligand amount, affinity and internalization on PSMA-targeted imaging and therapy: A simulation study using a PBPK model. Sci. Rep. 2019, 9, 20041. [Google Scholar] [CrossRef]
  14. Begum, N.J.; Glatting, G.; Eiber, M.; Beer, A.J.; Kletting, P. An in silico study on the effect of the radionuclide half-life on PET/CT imaging with PSMA-targeting radioligands. Nuklearmedizin 2021, 60, 33–37. [Google Scholar] [CrossRef] [PubMed]
  15. Jiménez-Franco, L.D.; Glatting, G.; Prasad, V.; Weber, W.A.; Beer, A.J.; Kletting, P. Effect of Tumor Perfusion and Receptor Density on Tumor Control Probability in 177Lu-DOTATATE Therapy: An In Silico Analysis for Standard and Optimized Treatment. J. Nucl. Med. 2021, 62, 92–98. [Google Scholar] [CrossRef] [PubMed]
  16. Kletting, P.; Kull, T.; Maaß, C.; Malik, N.; Luster, M.; Beer, A.J.; Glatting, G. Optimized peptide amount and activity for 90Y-Labeled DOTATATE therapy. J. Nucl. Med. 2016, 57, 503–508. [Google Scholar] [CrossRef] [Green Version]
  17. Barrett, P.H.; Bell, B.M.; Cobelli, C.; Golde, H.; Schumitzky, A.; Vicini, P.; Foster, D.M. SAAM II: Simulation, Analysis, and Modeling Software for tracer and pharmacokinetic studies. Metabolism 1998, 47, 484–492. [Google Scholar] [CrossRef]
  18. Bates, C.M.; Kegg, H.; Grady, S. Expression of somatostatin receptors 1 and 2 in the adult mouse kidney. Regul. Pept. 2004, 119, 11–20. [Google Scholar] [CrossRef] [PubMed]
  19. Storch, D.; Behe, M.; Walter, M.A.; Chen, J.H.; Powell, P.; Mikolajczak, R. Evaluation of [99mTc/EDDA/HYNIC0]octreotide derivatives compared with [111In-DOTA0,Tyr3,Thr8]octreotide and [111In-DTPA0]octreotide: Does tumor or pancreas uptake correlate with the rate of internalization? J. Nucl. Med. 2005, 46, 1561–1569. [Google Scholar]
  20. Hunyady, B.l.; Hipkin, R.W.; Schonbrunn, A.; Mezey, E.v. Immunohistochemical Localization of Somatostatin Receptor SST2A in the Rat Pancreas. Endocrinology 1997, 138, 2632–2635. [Google Scholar] [CrossRef]
  21. Borie, R.; Fabre, A.; Prost, F.; Marchal-Somme, J.; Lebtahi, R.; Marchand-Adam, S.; Aubier, M.; Soler, P.; Crestani, B. Activation of somatostatin receptors attenuates pulmonary fibrosis. Thorax 2008, 63, 251–258. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Schupp, G.; Daniel, H.; Eakins, G.W.; Jensen, E.N. Transition Intensities in the Tl208 Beta Decay, the Bi212 ->Po212 Decay Scheme, and the Bi212 Branching Ratio. Phys. Rev. 1960, 120, 189–198. [Google Scholar] [CrossRef]
  23. Zaid, N.R.R.; Kletting, P.; Beer, A.J.; Rozgaja Stallons, T.A.; Torgue, J.J.; Glatting, G. Mathematical modeling of in vivo alpha particle generators and chelator stability. Cancer Biother. Radiopharm. 2021. [Google Scholar] [CrossRef]
  24. Davies, B.; Morris, T. Physiological Parameters in Laboratory Animals and Humans. Pharm. Res. 1993, 10, 1093–1095. [Google Scholar] [CrossRef]
  25. Riches, A.C.; Sharp, J.G.; Thomas, D.B.; Smith, S.V. Blood volume determination in the mouse. J. Physiol. 1973, 228, 279–284. [Google Scholar] [CrossRef]
  26. Brown, R.P.; Delp, M.D.; Lindstedt, S.L.; Rhomberg, L.R.; Beliles, R.P. Physiological parameter values for physiologically based pharmacokinetic models. Toxicol. Ind. Health 1997, 13, 407–484. [Google Scholar] [CrossRef]
  27. Schmidt, M.M.; Wittrup, K.D. A modeling analysis of the effects of molecular size and binding affinity on tumor targeting. Mol. Cancer Ther. 2009, 8, 2861–2871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Rabkin, R.; Dahl, D.C. Renal Uptake and Disposal of Proteins and Peptides. In Biological Barriers to Protein Delivery; Andus, K.L., Raub, T.L., Eds.; Pharmaceutical Biotechnology; Springer Science+Business Media, LLC: New York, NY, USA, 1993; Volume 4, pp. 299–338. [Google Scholar]
  29. Zaid, N.R.R.; Kletting, P.; Winter, G.; Beer, A.J.; Glatting, G. A Whole-Body Physiologically Based Pharmacokinetic Model for Alpha Particle Emitting Bismuth in Rats. Cancer Biother. Radiopharm. 2021. [Google Scholar] [CrossRef] [PubMed]
  30. Shah, D.K.; Betts, A.M. Towards a platform PBPK model to characterize the plasma and tissue disposition of monoclonal antibodies in preclinical species and human. J. Pharmacokinet. Pharmacodyn. 2011, 39, 67–86. [Google Scholar] [CrossRef]
  31. Delaney, M.A.; Kowalewska, J.; Treuting, P.M. 16—Urinary System. In Comparative Anatomy and Histology, 2nd ed.; Treuting, P.M., Dintzis, S.M., Montine, K.S., Eds.; Academic Press: San Diego, CA, USA, 2018; pp. 275–301. [Google Scholar]
  32. Letts, R.F.R.; Zhai, X.-Y.; Bhikha, C.; Grann, B.L.; Blom, N.B.; Thomsen, J.S.; Rubin, D.M.; Christensen, E.I.; Andreasen, A. Nephron morphometry in mice and rats using tomographic microscopy. Am. J. Physiol. Renal Physiol. 2017, 312, F210–F229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sparrow, R.A.; Coupland, R.E. Blood flow to the adrenal gland of the rat: Its distribution between the cortex and the medulla before and after haemorrhage. J. Anat. 1987, 155, 51–61. [Google Scholar] [PubMed]
  34. Groothuis, D.R. The blood-brain and blood-tumor barriers: A review of strategies for increasing drug delivery. Neuro-Oncology 2000, 2, 45–59. [Google Scholar] [CrossRef] [PubMed]
  35. Hipkin, R.W.; Friedman, J.; Clark, R.B.; Eppler, C.M.; Schonbrunn, A. Agonist-induced desensitization, internalization, and phosphorylation of the sst2A somatostatin receptor. J. Biol. Chem. 1997, 272, 13869–13876. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Koenig, J.A.; Kaur, R.; Dodgeon, I.; Edwardson, J.M.; Humphrey, P.P.A. Fates of endocytosed somatostatin sst2 receptors and associated agonists. Biochem. J. 1998, 336, 291–298. [Google Scholar] [CrossRef] [Green Version]
  37. Chan, H.S.; Konijnenberg, M.W.; Daniels, T.; Nysus, M.; Makvandi, M.; de Blois, E.; Breeman, W.A.; Atcher, R.W.; de Jong, M.; Norenberg, J.P. Improved safety and efficacy of 213Bi-DOTATATE-targeted alpha therapy of somatostatin receptor-expressing neuroendocrine tumors in mice pre-treated with L-lysine. EJNMMI Res. 2016, 6, 83. [Google Scholar] [CrossRef] [Green Version]
  38. Kimura, N.; Schindler, M.; Kasai, N.; Kimura, I. Immunohistochemical localization of somatostatin receptor type 2A in rat and human tissues. Endocr. J. 2001, 48, 95–102. [Google Scholar] [CrossRef] [Green Version]
  39. Miederer, M.; Henriksen, G.; Alke, A.; Mossbrugger, I.; Quintanilla-Martinez, L.; Senekowitsch-Schmidtke, R.; Essler, M. Preclinical Evaluation of the α-Particle Generator Nuclide 225Ac for Somatostatin Receptor Radiotherapy of Neuroendocrine Tumors. Clin. Cancer Res. 2008, 14, 3555–3561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Geenen, L.; Nonnekens, J.; Konijnenberg, M.; Baatout, S.; De Jong, M.; Aerts, A. Overcoming nephrotoxicity in peptide receptor radionuclide therapy using [177Lu]Lu-DOTA-TATE for the treatment of neuroendocrine tumours. Nucl. Med. Biol. 2021, 102, 1–11. [Google Scholar] [CrossRef] [PubMed]
  41. Maack, T.; Johnson, V.; Kau, S.T.; Figueiredo, J.; Sigulem, D. Renal filtration, transport, and metabolism of low-molecular-weight proteins: A review. Kidney Int. 1979, 16, 251–270. [Google Scholar] [CrossRef] [Green Version]
  42. Vegt, E.; Eek, A.; Oyen, W.J.; de Jong, M.; Gotthardt, M.; Boerman, O.C. Albumin-derived peptides efficiently reduce renal uptake of radiolabelled peptides. Eur. J. Nucl. Med. Mol. Imaging 2010, 37, 226–234. [Google Scholar] [CrossRef] [Green Version]
  43. Barone, R.; Van Der Smissen, P.; Devuyst, O.; Beaujean, V.; Pauwels, S.; Courtoy, P.J.; Jamar, F. Endocytosis of the somatostatin analogue, octreotide, by the proximal tubule-derived opossum kidney (OK) cell line. Kidney Int. 2005, 67, 969–976. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Behr, T.M.; Goldenberg, D.M.; Becker, W. Reducing the renal uptake of radiolabeled antibody fragments and peptides for diagnosis and therapy: Present status, future prospects and limitations. Eur. J. Nucl. Med. 1998, 25, 201–212. [Google Scholar] [CrossRef] [PubMed]
  45. Behr, T.M.; Sharkey, R.M.; Juweid, M.E.; Blumenthal, R.D.; Dunn, R.M.; Griffiths, G.L.; Bair, H.J.; Wolf, F.G.; Becker, W.S.; Goldenberg, D.M. Reduction of the renal uptake of radiolabeled monoclonal antibody fragments by cationic amino acids and their derivatives. Cancer Res. 1995, 55, 3825–3834. [Google Scholar] [PubMed]
  46. Kletting, P.; Schimmel, S.; Kestler, H.A.; Hänscheid, H.; Luster, M.; Fernández, M.; Bröer, J.H.; Nosske, D.; Lassmann, M.; Glatting, G. Molecular radiotherapy: The NUKFIT software for calculating the time-integrated activity coefficient. Med. Phys. 2013, 40, 102504. [Google Scholar] [CrossRef] [PubMed]
  47. Sgouros, G.; Roeske, J.C.; McDevitt, M.R.; Palm, S.; Allen, B.J.; Fisher, D.R.; Brill, A.B.; Song, H.; Howell, R.W.; Akabani, G. MIRD Pamphlet No. 22 (Abridged): Radiobiology and Dosimetry of a-Particle Emitters for Targeted Radionuclide Therapy. J. Nucl. Med. 2010, 51, 311–328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Konijnenberg, M.W.; Bijster, M.; Krenning, E.P.; De Jong, M. A stylized computational model of the rat for organ dosimetry in support of preclinical evaluations of peptide receptor radionuclide therapy with 90Y, 111In, or 177Lu. J. Nucl. Med. 2004, 45, 1260–1269. [Google Scholar] [PubMed]
  49. Banerjee, S.R.; Lisok, A.; Minn, I.; Josefsson, A.; Kumar, V.; Brummet, M.; Boinapally, S.; Brayton, C.; Mease, R.C.; Sgouros, G.; et al. Preclinical Evaluation of 213Bi- and 225Ac-Labeled Low-Molecular-Weight Compounds for Radiopharmaceutical Therapy of Prostate Cancer. J. Nucl. Med. 2021, 62, 980–988. [Google Scholar] [CrossRef]
  50. Banerjee, S.R.; Minn, I.; Kumar, V.; Josefsson, A.; Lisok, A.; Brummet, M.; Chen, J.; Kiess, A.P.; Baidoo, K.; Brayton, C.; et al. Preclinical Evaluation of 203/212Pb-Labeled Low-Molecular-Weight Compounds for Targeted Radiopharmaceutical Therapy of Prostate Cancer. J. Nucl. Med. 2020, 61, 80–88. [Google Scholar] [CrossRef]
  51. Norenberg, J.P.; Krenning, B.J.; Konings, I.R.H.M.; Kusewitt, D.F.; Nayak, T.K.; Anderson, T.L.; de Jong, M.; Garmestani, K.; Brechbiel, M.W.; Kvols, L.K. 213Bi-[DOTA0,Tyr3]Octreotide Peptide Receptor Radionuclide Therapy of Pancreatic Tumors in a Preclinical Animal Model. Clin. Cancer Res. 2006, 12, 897–903. [Google Scholar] [CrossRef] [Green Version]
  52. Steiniger, B.S. Human spleen microanatomy: Why mice do not suffice. Immunology 2015, 145, 334–346. [Google Scholar] [CrossRef]
  53. Elliott, D.E.; Li, J.; Blum, A.M.; Metwali, A.; Patel, Y.C.; Weinstock, J.V. SSTR2A is the dominant somatostatin receptor subtype expressed by inflammatory cells, is widely expressed and directly regulates T cell IFN-gamma release. Eur. J. Immunol. 1999, 29, 2454–2463. [Google Scholar] [CrossRef]
  54. Vegt, E.; Melis, M.; Eek, A.; de Visser, M.; Brom, M.; Oyen, W.J.; Gotthardt, M.; de Jong, M.; Boerman, O.C. Renal uptake of different radiolabelled peptides is mediated by megalin: SPECT and biodistribution studies in megalin-deficient mice. Eur. J. Nucl. Med. Mol. Imaging 2011, 38, 623–632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Vegt, E.; de Jong, M.; Wetzels, J.F.M.; Masereeuw, R.; Melis, M.; Oyen, W.J.G.; Gotthardt, M.; Boerman, O.C. Renal Toxicity of Radiolabeled Peptides and Antibody Fragments: Mechanisms, Impact on Radionuclide Therapy, and Strategies for Prevention. J. Nucl. Med. 2010, 51, 1049–1058. [Google Scholar] [CrossRef] [Green Version]
  56. Wang, M.; Caruano, A.L.; Lewis, M.R.; Meyer, L.A.; VanderWaal, R.P.; Anderson, C.J. Subcellular localization of radiolabeled somatostatin analogues: Implications for targeted radiotherapy of cancer. Cancer Res. 2003, 63, 6864–6869. [Google Scholar] [PubMed]
  57. Waser, B.; Tamma, M.L.; Cescato, R.; Maecke, H.R.; Reubi, J.C. Highly efficient in vivo agonist-induced internalization of sst2 receptors in somatostatin target tissues. J. Nucl. Med. 2009, 50, 936–941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Pharmaceutics 13 02132 g001 550

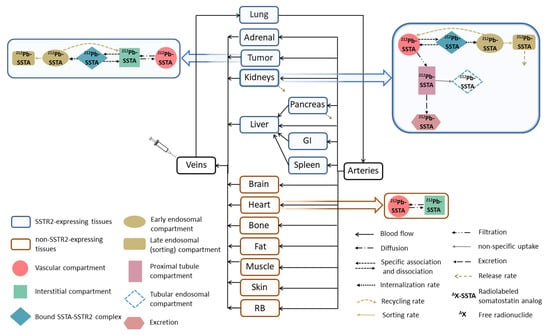

Figure 1. Scheme of the 212Pb-SSTA-PBPK model for mice. The model describes the PK of [212Pb]Pb-SSTA and the fate of its decay products in tissues. [212Pb]Pb-SSTA are distributed in the circulation to the vascular compartments of SSTR2-expressing and non-SSTR2-expressing tissues. After the diffusion of [212Pb]Pb-SSTA to the interstitial compartments, [212Pb]Pb-SSTA undergo specific binding followed by internalization to early endosomes where [212Pb]Pb-SSTA are either recycled back to the interstitial compartments or directed to the sorting compartments for degradation. Non-SSTR2-expressing tissues include only vascular and interstitial compartments. Each compartment in the 212Pb-SSTA-PBPK model represents the in vivo alpha particle generator model.
Figure 1. Scheme of the 212Pb-SSTA-PBPK model for mice. The model describes the PK of [212Pb]Pb-SSTA and the fate of its decay products in tissues. [212Pb]Pb-SSTA are distributed in the circulation to the vascular compartments of SSTR2-expressing and non-SSTR2-expressing tissues. After the diffusion of [212Pb]Pb-SSTA to the interstitial compartments, [212Pb]Pb-SSTA undergo specific binding followed by internalization to early endosomes where [212Pb]Pb-SSTA are either recycled back to the interstitial compartments or directed to the sorting compartments for degradation. Non-SSTR2-expressing tissues include only vascular and interstitial compartments. Each compartment in the 212Pb-SSTA-PBPK model represents the in vivo alpha particle generator model.
Pharmaceutics 13 02132 g001
Pharmaceutics 13 02132 g002 550

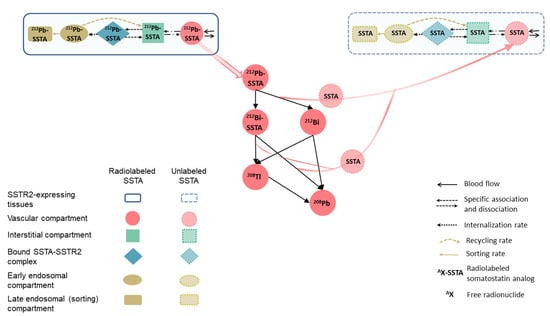

Figure 2. Scheme of the distribution of unlabeled SSTA in SSTR2-expressing tissue in the 212Pb-SSTA-PBPK model. The injected SSTA with radiolabeled SSTA, the SSTA produced after the dissociation of a fraction of 212Bi-chelator complexes after beta decay of 212Pb and the SSTA produced after alpha decay of 212Bi and 212Po are distributed in tissues via blood flow. The distributed SSTA were assumed to follow the same PK of radiolabeled SSTA and both compete on free binding sites. The structure of non-SSTR2-expressing tissues for unlabeled SSTA is the same as the one for radiolabeled SSTA.
Figure 2. Scheme of the distribution of unlabeled SSTA in SSTR2-expressing tissue in the 212Pb-SSTA-PBPK model. The injected SSTA with radiolabeled SSTA, the SSTA produced after the dissociation of a fraction of 212Bi-chelator complexes after beta decay of 212Pb and the SSTA produced after alpha decay of 212Bi and 212Po are distributed in tissues via blood flow. The distributed SSTA were assumed to follow the same PK of radiolabeled SSTA and both compete on free binding sites. The structure of non-SSTR2-expressing tissues for unlabeled SSTA is the same as the one for radiolabeled SSTA.
Pharmaceutics 13 02132 g002
Pharmaceutics 13 02132 g003 550

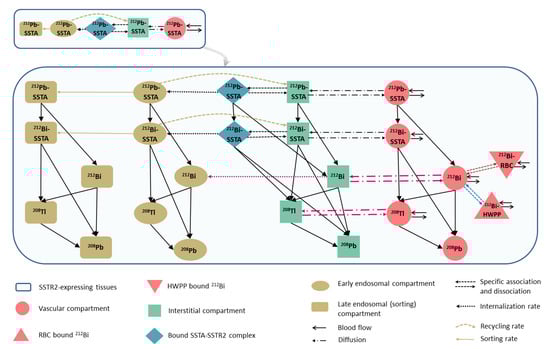

Figure 3. Detailed scheme of the structure of SSTR2-expressing tissue incorporating the in vivo alpha particle generator model and relevant pharmacokinetic parameters of free 212Bi. [212Pb]Pb-SSTA and [212Bi]Bi-SSTA are assumed to follow the same PK throughout the tissue. Free 212Bi in the vasculature binds linearly with RBC and HWPP followed by free 212Bi diffusion and uptake by tissue cells. The free daughter 208Tl is assumed to have the same permeability surface area product as that for free 212Bi so that it diffuses between interstitial and vascular compartments and redistributes in the circulation. The alpha-emitting 212Po decays at the site of its production.
Figure 3. Detailed scheme of the structure of SSTR2-expressing tissue incorporating the in vivo alpha particle generator model and relevant pharmacokinetic parameters of free 212Bi. [212Pb]Pb-SSTA and [212Bi]Bi-SSTA are assumed to follow the same PK throughout the tissue. Free 212Bi in the vasculature binds linearly with RBC and HWPP followed by free 212Bi diffusion and uptake by tissue cells. The free daughter 208Tl is assumed to have the same permeability surface area product as that for free 212Bi so that it diffuses between interstitial and vascular compartments and redistributes in the circulation. The alpha-emitting 212Po decays at the site of its production.
Pharmaceutics 13 02132 g003
Pharmaceutics 13 02132 g004 550

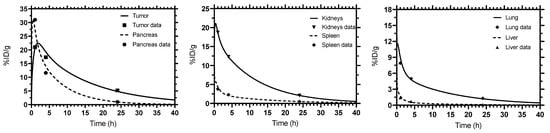

Figure 4. Fitted time–activity curves. Simbiology and SAAM II gave identical results.
Figure 4. Fitted time–activity curves. Simbiology and SAAM II gave identical results.
Pharmaceutics 13 02132 g004
Pharmaceutics 13 02132 g005 550

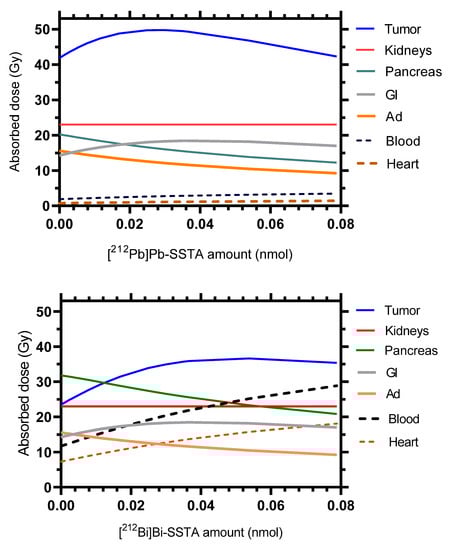

Figure 5. Therapeutic potencies of the in vivo alpha generator [212Pb]Pb-SSTA (upper panel) and [212Bi]Bi-SSTA (lower panel). The absorbed doses in different mouse tissues were calculated for different injected amounts, with activity chosen such that kidneys always received a dose of 23 Gy. The absorbed doses in the other tissues of the model are presented in Supplementary Material Figure S1.
Figure 5. Therapeutic potencies of the in vivo alpha generator [212Pb]Pb-SSTA (upper panel) and [212Bi]Bi-SSTA (lower panel). The absorbed doses in different mouse tissues were calculated for different injected amounts, with activity chosen such that kidneys always received a dose of 23 Gy. The absorbed doses in the other tissues of the model are presented in Supplementary Material Figure S1.
Pharmaceutics 13 02132 g005
Pharmaceutics 13 02132 g006 550

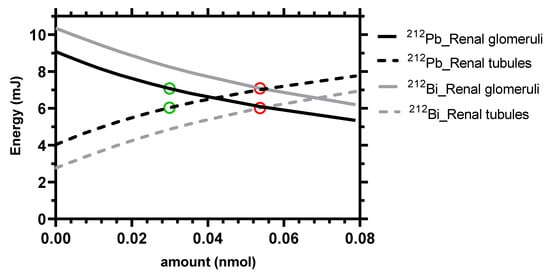

Figure 6. Energy absorbed in the renal glomeruli and proximal tubules resulting in 23 Gy in the kidneys depending on the administered amounts of [212Pb]Pb-SSTA or [212Bi]Bi-SSTA. The green and red circles indicate the energies released at the optimal amounts of [212Pb]Pb-SSTA and [212Bi]Bi-SSTA, respectively.
Figure 6. Energy absorbed in the renal glomeruli and proximal tubules resulting in 23 Gy in the kidneys depending on the administered amounts of [212Pb]Pb-SSTA or [212Bi]Bi-SSTA. The green and red circles indicate the energies released at the optimal amounts of [212Pb]Pb-SSTA and [212Bi]Bi-SSTA, respectively.
Pharmaceutics 13 02132 g006
Table
Table 1. Pharmacokinetic parameter values obtained from the 212Pb-SSTA-PBPK model fit to experimental data [4].
Table 1. Pharmacokinetic parameter values obtained from the 212Pb-SSTA-PBPK model fit to experimental data [4].
Parameter (Unit)TissueSAAM IISimbiology
Estimated Value
SSTR2 density (nmol·L−1)Kidneys3.52 ± 0.073.52
Liver0.17 ± 0.040.16
Spleen0.73 ± 0.070.73
Lung1.77 ± 0.141.77
Pancreas6.18 ± 0.946.18
Tumor11.73 ± 2.9711.73
Perfusion (mL·min−1·g−1)Tumor0.09 ± 0.030.09
Sorting rate (min−1)SSTR2-expressing tissues0.0076 ± 0.00030.0076
Release rate (min−1)Pancreas0.0011 ± 0.00020.0011
Kidneys0.000380 ± 0.0000010.000380
Table
Table 2. Total absorbed dose coefficients (ADC) and the contributions of the in vivo alpha particle generator [212Pb]Pb-DOTAMTATE and its radioactive decay products to the total absorbed doses in SSTR2-expressing and non-SSTR2-expressing tissues.
Table 2. Total absorbed dose coefficients (ADC) and the contributions of the in vivo alpha particle generator [212Pb]Pb-DOTAMTATE and its radioactive decay products to the total absorbed doses in SSTR2-expressing and non-SSTR2-expressing tissues.
TissueADC (Gy/MBq)Contribution to the Total Absorbed Dose per Tissue (%)
Conjugated RadionuclidesFree Radionuclides
212Pb212Bi212Bi212Po212Bi208Tl212Bi212Po
BetaAlphaBetaAlpha
SSTR2-expressing tissuesTumor24851118452638
Kidneys13461118452638
Pancreas11661117442649
Liver959143556719
Lung6561118452638
Spleen28611174426410
Ad8961118452639
GI8551118452639
Non-SSTR2-expressing tissuesSkin1.891116422649
Bone2.7335141071641
Muscle0.6111118461724
Heart3.621423580101
Brain0.1121117432637
Fat1.099143612813
RB1.0111118451625
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zaid, N.R.R.; Kletting, P.; Winter, G.; Prasad, V.; Beer, A.J.; Glatting, G. A Physiologically Based Pharmacokinetic Model for In Vivo Alpha Particle Generators Targeting Neuroendocrine Tumors in Mice. Pharmaceutics 2021, 13, 2132. https://doi.org/10.3390/pharmaceutics13122132

AMA Style

Zaid NRR, Kletting P, Winter G, Prasad V, Beer AJ, Glatting G. A Physiologically Based Pharmacokinetic Model for In Vivo Alpha Particle Generators Targeting Neuroendocrine Tumors in Mice. Pharmaceutics. 2021; 13(12):2132. https://doi.org/10.3390/pharmaceutics13122132

Chicago/Turabian Style

Zaid, Nouran R. R., Peter Kletting, Gordon Winter, Vikas Prasad, Ambros J. Beer, and Gerhard Glatting. 2021. "A Physiologically Based Pharmacokinetic Model for In Vivo Alpha Particle Generators Targeting Neuroendocrine Tumors in Mice" Pharmaceutics 13, no. 12: 2132. https://doi.org/10.3390/pharmaceutics13122132

APA Style

Zaid, N. R. R., Kletting, P., Winter, G., Prasad, V., Beer, A. J., & Glatting, G. (2021). A Physiologically Based Pharmacokinetic Model for In Vivo Alpha Particle Generators Targeting Neuroendocrine Tumors in Mice. Pharmaceutics, 13(12), 2132. https://doi.org/10.3390/pharmaceutics13122132

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
