Article

Amorphous Solid Dispersions and the Contribution of Nanoparticles to In Vitro Dissolution and In Vivo Testing: Niclosamide as a Case Study

Molecular Pharmaceutics and Drug Delivery Division, College of Pharmacy, The University of Texas at Austin, 2409 University Avenue, Austin, TX 78712, USA
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(1), 97; https://doi.org/10.3390/pharmaceutics13010097
Received: 22 December 2020 / Revised: 7 January 2021 / Accepted: 11 January 2021 / Published: 14 January 2021
(This article belongs to the Special Issue Hot-Melt Extrusion: Applications in Pharmaceutics)

Abstract

:
We developed an amorphous solid dispersion (ASD) of the poorly water-soluble molecule niclosamide that achieved a more than two-fold increase in bioavailability. Notably, this niclosamide ASD formulation increased the apparent drug solubility about 60-fold relative to the crystalline material due to the generation of nanoparticles. Niclosamide is a weakly acidic drug, Biopharmaceutics Classification System (BCS) class II, and a poor glass former with low bioavailability in vivo. Hot-melt extrusion is a high-throughput manufacturing method commonly used in the development of ASDs for increasing the apparent solubility and bioavailability of poorly water-soluble compounds. We utilized the polymer poly(1-vinylpyrrolidone-co-vinyl acetate) (PVP–VA) to manufacture niclosamide ASDs by extrusion. Samples were analyzed based on their microscopic and macroscopic behavior and their intermolecular interactions, using differential scanning calorimetry (DSC), X-ray diffraction (XRD), nuclear magnetic resonance (NMR), Fourier-transform infrared (FTIR), and dynamic light scattering (DLS). The niclosamide ASD generated nanoparticles with a mean particle size of about 100 nm in FaSSIF media. In a side-by-side diffusion test, these nanoparticles produced a four-fold increase in niclosamide diffusion. We successfully manufactured amorphous extrudates of the poor glass former niclosamide that showed remarkable in vitro dissolution and diffusion performance. These in vitro tests were translated to a rat model that also showed an increase in oral bioavailability.

Graphical Abstract

1. Introduction

Niclosamide is an FDA-approved anthelmintic drug that is one of the Model List of Essential Medicines produced by the World Health Organization (WHO) [1,2]. Some have advocated repurposing this drug for the treatment of various types of cancer and for use as a broad-spectrum antibacterial or antiviral drug, among other possible applications [3,4,5,6]. However, the repurposing of niclosamide is particularly challenging because it is a poorly water-soluble molecule and a poor glass former, which limits its oral absorption [7,8]. The water solubility of niclosamide has been reported to be about 13.32 µg/mL in its anhydrous form, but this falls to about 0.61 or 0.96 µg/mL for its monohydrate forms [9].
Several clinical trials have attempted to repurpose niclosamide. One of the clearest examples is the clinical trial NCT02532114, which was terminated early due to the low oral bioavailability of niclosamide, which exhibited Cmax values between 35.7 and 182 ng/mL after the oral administration of 500 mg three times daily. Furthermore, the authors stated that any attempt to repurpose the previously approved niclosamide product as a cancer therapy should be avoided, and efforts should be directed toward developing analogs that have higher bioavailability [10]. The efforts to increase niclosamide’s bioavailability include the use of co-crystals [8,11,12], solid lipid nanoparticles [13], dendrimer-like materials [14], micelles [15], nanosuspensions [16], nanoparticles [17], lipid emulsions [18], and nanocrystals [19].
The use of amorphous solid dispersions (ASDs) is a favorable formulation technique designed to increase the water solubility and bioavailability of poorly water-soluble drugs such as niclosamide. ASDs are, in general, dispersions in which the drug is dissolved in a solid matrix, usually a polymer [20]. These amorphous materials enhance apparent drug solubility by increasing the thermodynamic activity of the drug when it is molecularly and randomly dispersed in the polymer [21,22].
The tendency of a drug to become amorphous is evaluated using the concept of glass forming ability (GFA). The GFA of a drug falls into three categories: class 1 (poor), class 2 (modest), and class 3 (good) [23]. Unfortunately, niclosamide is a GFA class 1 drug with a high propensity for recrystallization, which means it cannot form an amorphous solid on its own (i.e., a neat drug) [7]. However, niclosamide could form an ASD or a glass solution when it is dissolved in a solid matrix such as a polymer [24]. However, poor glass formers alone tend to recrystallize faster during dissolution [25].
In order to understand the mechanism of solubility and bioavailability improvement of niclosamide ASD, we evaluated the in vitro and in vivo performance of a niclosamide ASD prepared using hot-melt extrusion (HME). We assessed (1) the dissolution of the formulation in biorelevant media, (2) the polymer–niclosamide solid-state miscibility and intermolecular interactions, (3) the characterization of the nanoparticles generated by the ASD, (4) the in vitro permeation of the niclosamide ASD, and (5) the in vivo testing in a rat model using various strategies of administration.

2. Materials and Methods

2.1. Hot-Melt Extrusion (HME)

The polymer Kollindon® VA64 (PVP–VA) and d-α-tocopheryl polyethylene glycol succinate (TPGS) were obtained from BASF, Germany. Niclosamide anhydrate was purchased from Shenzhen Nexconn Pharmatechs LTD (Shenzhen, China). In the preparation of niclosamide ASD, a PVP–VA–niclosamide–TPGS blend in a 60:35:5 ratio was ground using a mortar and pestle until the mixture was homogeneous. Then, the mixture was processed using a HAAKE MiniLab II Micro Compounder (Thermo Electron Corporation, Waltham, MA, USA) set at 150 rpm and 180 °C. Thereafter, the extrudate was milled using a Tube Mill Control (IKA, Staufen, Germany) and sieved to the range 45–125 µm. The solid-state characterization of the material was performed using powder X-ray diffraction (XRD) and differential scanning calorimetry (DSC). XRD studies were conducted using a Rigaku MiniFlex 600 II (Rigaku Americas, The Woodlands, TX, USA). The 2-theta angle was set at 5–40° (0.05° step, 2°/min, 40 kV, 15 mA). DSC was performed using a Model Q20 differential scanning calorimeter (TA Instruments, New Castle, DE, USA), increasing the temperature from 35 °C to 240 °C with a ramp temperature of 10 °C/min and a nitrogen purge of 50 mL/min.

2.2. Dissolution Testing

Dissolution tests of niclosamide ASD granules were conducted using FaSSIF (Biorelevant.com, London, UK) and the buffer (pH 6.5) required for its preparation. The FaSSIF medium was prepared according to the manufacturer’s specifications using the salts sodium hydroxide, monobasic sodium phosphate (Fisher Scientific, Pittsburgh, PA, USA), and sodium chloride (Sigma Aldrich, Saint Louis, MO, USA). The dissolution tests were performed in a Hanson SR8-Plus apparatus (Hanson Research Co., Chatsworth, CA, USA) using the 200 mL vessels and their paddles. Dissolution tests were conducted by adding the equivalent of 80 mg of niclosamide drug content into 150 mL of FaSSIF or buffer pH 6.5 media at 37.0 ± 0.5 °C and a paddle speed of 100 rpm. The sample points were measured at 5, 10, 15, 30, 60, and 120 min. When recollecting the samples, they were passed through polyethersulfone 0.2 µm filters. Then, 0.5 mL of the samples were mixed with 1 mL of acetone and 0.5 mL of acetonitrile for HPLC analysis. The samples were measured at 331 nm using a Dionex HPLC system (Thermo Fisher Scientific Inc., Sunnyvale, CA, USA) with a ZORBAX SB-C18 column (4.6 × 250 mm, 5 µm) (Agilent, Palo Alto, CA, USA) at a flow rate of 1 mL/min. Two mobile phases were used. The mobile phase A was a formic acid aqueous solution at 0.3%, and the mobile phase B was acetonitrile (Thermo Fisher Scientific Inc.). They were mixed in a 40:60 ratio.
The pH-shift dissolution tests were performed using the same equipment in two stages. First, 230 mg of niclosamide ASD was poured in 30 mL of HCl 0.01 M for 30 min. Thereafter, 150 mL of FaSSIF was added into the vessel, completing a volume of 180 mL, and the samples were taken at the same time points of the previously described dissolution test.
When required, to separate the particles and the unbound drug from the samples, an AirfugeTM Air-Driven Ultracentrifuge (Beckman Coulter, Palo Alto, CA, USA) was used at 30 psi for 30 min. Then, the supernatant was measured using HPLC.

2.3. Side-by-Side Diffusion Cell

Side-by-side diffusion cells (PermeGear, Hellertown, PA, USA) were employed to evaluate the diffusion of the niclosamide ASD through a 0.03 µm polyethersulfone membrane (Sterlitech Corp., Kent, WA, USA). A similar method was used by Meng et al. (2019) [26]. The donor and receiver cells were filled with 34 mL of FaSSIF and decanol, respectively. We added 52.1 mg of the niclosamide ASD and 18.2 mg of niclosamide anhydrate to the donor cell at 37 °C and 850 rpm. The samples were collected from the receiver cell at 5, 10, 15, 30, 60, 120, and 180 min. Samples were measured using the same HPLC method described above.

2.4. Polarized Light Microscopy (PLM)

Samples were taken directly from the dissolution vessel and then placed on a glass slide. They were analyzed using an Olympus BX-53 polarized light microscope (Olympus Corporation of the Americas, Center Valley, PA, USA) with a first-order red compensator and 200× objective. The pictures were taken using a QImaging QICAM digital camera (QImaging, Surrey, BC, Canada).

2.5. Particle Size and Zeta Potential Analysis

Samples taken from the dissolution vessel were centrifuged at 13,000 rpm (14,300 rcf) for 10 min using a Microfuge®18 Centrifuge (Beckman Coulter, Palo Alto, CA, USA). Then, the supernatant was measured using a Zetasizer Nano ZS (Malvern Instruments Ltd., Worcestershire, UK) with the Dip cell ZEN1002. The dispersant was water, and the samples were equilibrated at 37 °C before being measured using the 173° backscatter with automatic measurement duration in triplicate.

2.6. Fourier-Transform Infrared Spectroscopy (FTIR)

Powder samples were measured using a Nicolet iS50 spectrometer (Thermo Scientific, Waltham, MA, USA) and analyze with the software OMNIC. The samples underwent 64 scans with a 4 cm−1 resolution from 4000 to 700 cm−1 at room temperature.

2.7. Solid-State 13C Nuclear Magnetic Resonance (NMR) (ssNMR) Spectroscopy

We performed 13C nuclear magnetic resonance (NMR) spectroscopy using a Bruker AVANCE III HD 400 MHz spectrometer (Bruker, Billerica, MA, USA). One-dimensional 13C spectra were acquired using ramped cross-polarization of 70–100% on the 1H channel, with a magic angle spinning at 8 kHz and a total sideband suppression (TOSS) and high-power SPINAL64 proton decoupling. The acquisition parameters included a 2 ms contact time, a 60 s relaxation delay, and 256 scans.

2.8. Solution 1H NMR Spectroscopy

1H NMR was conducted using an Agilent VNMRS 600 (600 MHz) (Agilent Technologies Inc., Palo Alto, CA, USA) at 25 °C. One dimensional 1H spectra were obtained using an acquisition time of 4 s, 2-s relaxation delay, and 64 scans. Samples were prepared by dissolving the drug, polymer, and drug-polymer mixtures in DMSO-d6. Initially, we tried to analyze samples in D2O. However, the low solubility of niclosamide in aqueous environments generated poor quality NMRs. As Baghel et al. (2018), we selected DMSO because of its high dielectric constant, closer to water than other organic solvents that can solubilize niclosamide and PVP–VA. By doing this, we could get some idea of interactions between niclosamide and the polymers in a solution [27].

2.9. Animal Studies

The oral pharmacokinetic analysis was conducted at Pharmaron (Ningbo, China). The study protocol was approved and conducted in accordance with the Institutional Animal Care and Use Committee (IACUC) guidelines at Pharmaron. (IACUC; Protocol Number AUP-PK-R-06012019 (Approved date: 27 May 2019). In this study, niclosamide anhydrate and niclosamide ASD were administered to five rats per group (weight = 205.8 ± 2.9 g each) at a niclosamide dose of 10 mg/kg by oral gavage. The groups received a FaSSIF suspension of niclosamide anhydrate at 1.5 mg/mL, a FaSSIF suspension of niclosamide ASD at 1.5 mg/mL, and size 9 mini capsules (Braintree Scientific, Braintree, MA, USA) containing niclosamide ASD, respectively (three groups in total). In this last group, the capsule size 9 contained 60% niclosamide ASD, 15% EXPLOTAB©, and 25% sodium bicarbonate. The powders were blended by mortar and pestle, and loaded into the capsules using the capsule filling funnel for size 9 (Torpac, Fairfield, NJ, USA).
The samples were measured using an AB Sciex Triple Quad 5500 LC/MS/MS with an Agilent Eclipse XDB-C18 column (2.1 × 150 mm, 5 µm) (Agilent, Palo Alto, CA, USA) at a flow rate of 0.6 mL/min. Two mobile phases were used. The mobile phase A was a 0.1% formic acid aqueous solution, and the mobile phase B was a mixture of 5% water and 95% acetonitrile (0.1% formic acid). They were mixed as shown in the supplemental materials (Table S1). Then, 50 µL of plasma with 5 µL of methanol were added to 200 μL of methanol containing an internal standard mixture for protein precipitation. The samples were vortexed for 30 s and underwent centrifugation for 15 min at 4000 rpm and 4 °C. Thereafter, the supernatant was diluted three times with water, and 2 µL were injected into the HPLC.

2.10. Statistical Analyses

Student t-test (p < 0.05) was used for statistical analysis when comparing two groups. One-way ANOVA analysis (p < 0.05) with post hoc Tukey’s multiple comparison test was used when comparing three groups. The analyses were performed using JMP Pro 15 software.

3. Results

3.1. Hot-Melt Extrusion Successfully Prepared Amorphous Extrudates of Niclosamide

Niclosamide ASD formulations were characterized using DSC and XRD to confirm their amorphous nature. Figure 1A depicts niclosamide’s solid dispersion as amorphous, based on the lack of diffraction peaks associated with the crystalline niclosamide anhydrate material. Moreover, the thermogram of niclosamide ASD did not exhibit the melting point of the drug at 230 °C (Figure 1A). However, the niclosamide’s melting endotherm was not observed in physical mixture blends of niclosamide and PVP–VA, as a result of the drug dissolving in the polymer before reaching 230 °C (data not shown). As such, the niclosamide was considered amorphous at the limit of XRD sensitivity. Thus, niclosamide dissolved at a molecular level in the PVP–VA matrix during HME manufacturing.

3.2. The Amorphous Extrudates Increased Niclosamide’s Apparent Solubility

The dissolution tests using the biorelevant FaSSIF media showed a notable increase in the apparent solubility of niclosamide, as shown in Figure 2A. Notably, the granules of the niclosamide ASD reached a plateau more than 60 times higher than the crystalline niclosamide anhydrate after 2 h of dissolution testing (420.2 ± 19.0 vs. 6.6 ± 0.4 µg/mL, p < 0.001). This plateau was found to persist for more than 24 h, even with some signs of crystallization under polarized light microscopy (PLM) (Figure S1). As the formulation design screenings were performed using the solvent shift methods and 0.2 µm filters, it was relevant to measure the samples using dynamic light scattering (DLS) to identify the existence of nanoparticles in the system. The Zetasizer Nano ZS was able to detect nanoparticles with a mean particle size of about 100 nm and a zeta potential of −13.6 ± 1.0 mV (Figure 2B). Evidently, this formulation was able to enhance the apparent solubility 60-fold by generating nanoparticles that could not be removed by the filter. After these findings, ultracentrifugation was used to concentrate the particles and measure the supernatant. Surprisingly, the niclosamide concentration was just 11.4 ± 8.5 µg/mL after being subjected to the dissolution test for 120 min (Figure S3), which is lower than the two-fold increase when compared with the anhydrate in FaSSIF (measured after filtration). In Table S2, the mean particle size, PDI, and zeta potential of FaSSIF medium, niclosamide ASD in buffer, and FaSSiF are provided.
In summary, the apparent increase in niclosamide solubility from the ASD was largely attributable to the generation of nanoparticles as opposed to increased drug supersaturation. Side-by-side diffusion cells were used to evaluate both dissolution and permeation of the drug across a membrane in order to determine whether the apparent solubility increase resulting from the presence of the nanoparticles can increase niclosamide’s diffusion.

3.3. The Amorphous Extrudates Increased Niclosamide Diffusion in Side-by-Side Diffusion Cells

Side-by-side diffusion cells confirmed that the increase in apparent solubility translates to increased diffusion of niclosamide through a membrane into the receiver cell (decanol), as shown in Figure 3. The niclosamide ASD formulation achieved a concentration of 53.8 ± 13.1 µg/mL. In contrast, niclosamide anhydrate reached a concentration of only 12.1 ± 1.3 µg/mL in the receiver cell (p = 0.005).

3.4. FTIR

The peaks of niclosamide and PVP–VA were assigned as described in previous studies [8,28,29,30]. As can be seen Figure 4, noticeable changes were observed when comparing niclosamide ASD and its physical mixture throughout the spectra. These differences indicate interactions between niclosamide and PVP–VA [31]. One example of these interactions can be seen in the C=O stretchings of niclosamide and PVP–VA, which are highlighted in the figure with dotted lines. It is known that the 2-pyrrolidinone group acts as a hydrogen bond acceptor group capable of stabilizing –NH and –OH hydrogen bond donors, moieties present in niclosamide [32]. Interestingly, this PVP–VA carbonyl stretching (amide) even shifted in the physical mixture. This indicates a strong interaction, a phenomenon that has been seen in other studies with niclosamide and other excipients [28]. Solid-state NMR was conducted to gather further evidence about these interactions between niclosamide and PVP–VA.

3.5. Solid-State NMR Shows the Importance of the Phenolic Group in the Amorphous Dispersion

We used ssNMR to analyze niclosamide anhydrate, PVP–VA, and an amorphous extrudate at 35% drug loading (without TPGS) as well as its physical mixture. The carbon peaks of the ssNMR were assigned according to previous literature [11,12]. Noticeably, the niclosamide phenolic carbon showed a downfield shift in the physical mixture and even more so in the extrudate, which confirms the observations from FTIR (i.e., the glass material) (Figure 5). Moreover, a broadening peak was observed in the niclosamide ASD sample. Peak broadening is characteristic of reduced or eliminated crystalline structure due to a higher disorder of the drug–polymer interactions [33]. Figure 5 shows that niclosamide aromatic carbons were disrupted by the presence of the polymer due to peak broadening, reinforcing the observations from XRD and DSC in regards to the amorphous nature of the formulation and the disorganization of the near planar conformation of niclosamide (i.e., the ASD versus the physical mixture) [8,32,33]. Interestingly, the chemical shift (dotted line) involving the phenolic carbon could be pH dependent in a water solution. Experimental confirmation is needed.

3.6. Solution NMR Showed the Relevance of the 2-Pyrrolidinone Group for Niclosamide’s Stabilization after Dissolution

Due to niclosamide’s poor water solubility, DMSO-d6 was used for qualitative purposes instead of D2O. Initially, we screened several polymers, such as PVP and PVP–VA, for the development of the niclosamide ASD formulation (without TPGS). PVP–VA was observed to be superior in increasing the apparent solubility of niclosamide (data not shown). We hypothesized that the vinyl acetate groups (VA) in PVP–VA were mainly responsible for these differences, as was observed in another drug–polymer system previously reported [34].
To test our hypothesis, we conducted 1H NMR for both systems (i.e., the niclosamide–PVP and the niclosamide–PVP–VA) to see whether the VA groups play a key role in interacting with the drug. The solution 1H NMR showed interactions between niclosamide and the polymers (Figure 6). Interestingly, the more noticeable downfield shifts were seen in the niclosamide–PVP sample. According to Ueda et al. (2020), peak broadening is related to mobility suppression [35]. This means that, contrary to our previous dissolution observations, PVP interacts more strongly with niclosamide than with PVP–VA in solution. Once again, there is a shift of the phenolic –OH (smaller than –NH group); this interaction probably plays a significant role in aqueous environments due to ionization (pKa = 6.89). In the case of the niclosamide–PVP–VA, there was a small upfield shift in the amide hydrogen from niclosamide. Kawakami et al. (2018) observed that even the most favorable interaction could be secondary to avoid the drug’s crystallization if the polymer–drug system does not disintegrate or fails to dissolve properly [36]. This seems to be true in the case of the PVP–niclosamide ASD, because we observed differences in wettability while conducting the dissolution tests using niclosamide–PVP and niclosamide–PVP–VA extrudates (data not shown).

3.7. pH Shift Dissolution Testing Confirms that the Amorphous Extrudates Crystallize in Acidic Conditions

NMR and FTIR showed the relevance of niclosamide’s phenolic group in the ASD, which may ionize at gastrointestinal pH levels. A dissolution test with pH shifting was performed to determine the behavior of the niclosamide ASD at pH 2 for 30 min, then at pH 6.5 (in FaSSIF medium) for 120 min. The dissolution results show a major reduction in apparent solubility, even after the pH shift with FaSSIF. PLM confirms that the niclosamide ASD crystallized under acidic conditions (Figure 7). Even after the pH shift, the niclosamide ASD could not achieve the increase in apparent solubility that was seen in the FaSSIF medium alone (Figure S2). This reinforces the concerns raised by spectroscopy and confirms the importance of the phenolic group interaction with the polymer. We propose that this is due to niclosamide’s pKa and its changes in solubility. Our results support the limitations of conducting a pharmacokinetic study in animals due to the lack of enteric-coated options to administer the formulations.

3.8. The Amorphous Extrudates Increased the Bioavailability of Niclosamide

The method of administration of niclosamide was designed in such a way that it considered the limitation of using a rat model. McConnell et al. (2008) previously reported an in-depth study of the gastrointestinal tract of rats, and they found that the rat stomach has a pH of 3.2 ± 1.0 and 3.9 ± 1.0 in the fed and fasted state, respectively [37]. The pH level of the rat intestine never exceeds 6.6. They concluded that rats are not a suitable model for the study of pH-sensitive dosage forms that require pH values that mimic the human gastrointestinal tract [37]. We worked to overcome these limitations by administering an oral gavage of the formulation already dispersed in FaSSIF with double the buffer strength in order to neutralize the rat stomach pH. In the experiment, the salts and FaSSIF comprised the suspension medium used to disperse the niclosamide ASD by vortexing.
The niclosamide ASD administered using the 2× buffer capacity FaSSIF suspension and the capsules (containing sodium bicarbonate and EXPLOTAB®) achieved similar bioavailability (see Table 1 and Figure 8, p > 0.75). We observed a more than two-fold increase in bioavailability from the niclosamide ASD suspension compared to niclosamide anhydrate (p < 0.05). As expected, the capsules increased the Tmax because the formulation underwent disintegration and dissolution. The administration of the niclosamide ASD using capsules did not achieve a statistically significant increase in bioavailability (p = 0.15).

4. Discussion

The selection of the formulation composition was made using the solvent-shift method and FaSSIF, as described by Palmelund et al. (2017), but employing 0.2 µm filters for quantification in order to measure an apparent solubility that included the presence of nanoparticles [38]. It is common to find studies in the literature that report dissolution testing using HPLC- or UV-Vis-based methodologies after a filtration step, similar to our present study [39,40].
It is known that some ASDs can generate nanometric drug-rich colloids, which act as drug reservoirs for fast dissolution [21,36]. These colloids can lead to a confounding supersaturation measurement above the amorphous drug’s solubility if they are small enough to pass through filters and resist precipitation after conventional centrifugation [41]. In our development of a niclosamide ASD, we acknowledged the potential confounding factor of nanoparticles, and we used this to create a formulation that could avoid the crystallization of niclosamide, which is a poor glass former. Moreover, there is evidence that ASDs that generate drug-rich colloids can increase bioavailability compared to ASDs that do not form them [42]. The generation of nanoparticles can be misleading when determining the supersaturation advantage. However, they can function as drug reservoirs that maintain a supersaturated concentration that drives absorption [42]. According to our results from the side-by-side diffusion cells, there was an in situ formation of nanoparticles and a supersaturate solution of niclosamide in the donor cell, proved by combining previous dissolution tests, ultracentrifugation, and DLS (Figure 2). The molecularly dissolved and unbound molecules of niclosamide (BCSII) easily permeated through the membrane, and in a dynamic equilibrium between the nanoparticles and the surrounding solution, the nanoparticles released niclosamide and maintained the supersaturation in the donor cell. The contribution of the nanoparticles to the final performance is specifically supported by the comparison of the free drug concentration during dissolution, measured after 1 h using ultracentrifugation to remove the nanoparticles from the solution, and the dissolved niclosamide from crystalline niclosamide anhydrous material. This presented a supersaturation during dissolution of just under two-fold while the side-by-side test found around a three-fold improvement compared to the crystalline material after 1 h of testing. The continuously provided concentration gradient provided by the nanoparticles led to an overall increase of niclosamide diffusion into the receiver cell (Figure 3). These nanoparticles can also reduce the tendency to crystallize by inhibiting drug nucleation due to specific polymer–drug intermolecular interactions [43].
The formation of nanoparticles depends on the presence of FaSSIF as the bile salts serving as a stabilizer reduce the mean particle size and confer an adequate zeta potential for electrostatic stabilization (Table S2) [44,45]. To our surprise, this suspension remained stable for long periods of time. This drug behavior is similar to what was previously described as the “spring and hover” effect, in which a noticeable increase in apparent solubility reaches a plateau and persists over a long period of time [40]. Interestingly, in their work with nicotinamide–ibuprofen co-crystals, they achieved a 70-fold increase in supersaturation, and they measured the drug supersaturation using 0.22 μm filters (similar to our work).
Several studies show that specific drug–polymer interactions are critical for increasing supersaturation, apparent drug solubility, and even solid-state miscibility/stability. FTIR and ssNMR showed changes in all niclosamide signals, including the physical mixture and the extrudates (i.e., the glassy material). This confirms intimate interactions between niclosamide and the polymer. The ssNMR in particular showed not only peak broadening but also a phenolic carbon shift, which indicates specific molecular interactions after ionization at intestinal pH (pKa of niclosamide = 6.89).
It was not possible to obtain a suitable 1H NMR using D2O as a solvent with all the components of the composition (i.e., the niclosamide ASD and FaSSIF). Therefore, we selected DMSO as a solvent for qualitative purposes because its dielectric constant is closer to water than other organic solvents. Interestingly, this experiment showed that, in solution, the 2-pyrrolidinone group from PVP–VA seems to be critical for niclosamide stabilization. These groups are good hydrogen acceptors, especially for the –OH and the –NH groups of niclosamide that experienced chemical shifting and peak broadening.
These results suggest a potential threat for the oral administration of the formulation due to pH changes in the stomach. Niclosamide is a BCSII and weakly acidic drug that remains mostly un-ionized at stomach pH levels. The dissolution data with a pH shift confirm that our concerns about crystallization were warranted, as shown in Figure 7. Kawakami et al. (2018) encountered a similar situation when working with fenofibrate ASDs using various polymers in acidic media. They explained that these polymers dissolved and left behind drug-rich domains that crystallized [36].
In our pharmacokinetic study in rats, we acknowledged the challenge of the gastrointestinal pH in rats. We administered the formulations as a suspension using FaSSIF and as capsules containing sodium bicarbonate to counteract the acid pH of the stomach. The niclosamide ASD suspension resulted in an AUClast (last time point) more than double the administration of niclosamide anhydrate suspension (Table 1). Administration by capsule did not achieve a statistically significant increase in bioavailability.
It is important to note that all our initial studies were conducted with the intent of simulating the human fasting intestine environment using biorelevant media in terms of pH, osmolarity, and bile salts [46]. Unfortunately, rats have different gastrointestinal pH values than humans, and reliable enteric-coated capsules are not commercially available for administering pH-sensitive formulations. The differences in pH and bile salt concentrations between the rat model and in vitro testing can generate substantial discrepancies in formulation performance, rendering it difficult to predict [47].
When contrasted with the literature, the performance of the niclosamide ASD was similar to the administration of dissolved niclosamide using DMSO–cremophor EL–water mixtures (429 ± 100 ng/mL·h) [48]. Dosing solubilized niclosamide (a BCS class II molecule with a stable crystalline structure) using solvents or oils increased bioavailability because the drug was already available for oral absorption in molecular form [1,49,50]. Based on our results, a niclosamide ASD should now be formulated as an enteric-coated dosage form to protect it from gastric acid and subsequent crystallization.

5. Conclusions

This study demonstrates that an amorphous solid dispersion of niclosamide increased the drug’s bioavailability in a rat model. This model was particularly challenging for the formulation due to the differences between the in vitro and in vivo models. The results indicate that the repurposing of niclosamide as an oral dosage form is viable, and a greater increase in bioavailability is expected if the drug is formulated as an enteric-coated product. Overall, it is feasible to use HME manufacturing to increase niclosamide’s bioavailability. This will pave the way for new applications of the drug as an antibacterial/antiviral or as an oral therapy for cancer or COVID-19, among others.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4923/13/1/97/s1, Figure S1: PLM of niclosamide ASD at 24 h without pH-shift. Signs of crystallization were observed (white arrows), Figure S2: The image shows the appearance of samples for HPLC after filtration. The samples in the right are with pH-shift (transparent) and in the left without pH-shift after 24 h. The laser beam shows the presence of colloidal species. The yellow color is related to higher concentrations of niclosamide, Figure S3: (A) Shows a sample directly taken from the dissolution vessel after passing through the 0.2 µm filter (420 μg/mL). (B) Shows a sample like Figure A after undergoing ultracentrifugation (11 μg/mL), Table S1: Mobile phase gradient that was used for analyzing plasma sample.

Author Contributions

Conceptualization, M.O.J., Z.N.W., R.O.W.III; methodology, M.O.J., Z.N.W., R.O.W.III; formal analysis, Z.N.W.; investigation, M.O.J., Z.N.W.; resources, R.O.W.III; writing—original draft preparation, M.O.J.; writing—review and editing, Z.N.W., R.O.W.III; visualization, M.O.J., Z.N.W.; supervision, Z.N.W., R.O.W.III; project administration, R.O.W.III; funding acquisition R.O.W.III. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by TFF Pharmaceuticals, Inc. through a sponsored research agreement with the University of Texas at Austin. Miguel O. Jara acknowledges the funding support from the Equal Opportunities Fulbright—CONICYT Scholarship 56170009.

Institutional Review Board Statement

Pharmaron’s programs and facilities are subject to unannounced regulatory reviews and inspection by the federal government. Our corporate standard for animal welfare is compliance with laws and regulations for animal research; specifically compliance with the guidelines of the Guide for the Care and Use of Laboratory Animals ("The Guide"). Additionally, our US programs are accredited by the AAALAC, International and our Canadian programs are accredited by the Canadian Council on Animal Care (CCAC). AAALAC, International and CCAC accreditations are voluntary, peer review assessments and evaluations by private nonprofit organizations that promote the humane treatment of animals in science. AAALAC, International and CCAC accreditation are considered by many the "gold standard" for the care and use of laboratory animals in biomedical research.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The data presented in this study are available in the paper or in the Supplementary Material here.

Acknowledgments

We thank Steve Sorey and Garrett Blake for their help with the NMR spectra.

Conflicts of Interest

The authors are co-inventors on IP related to this paper. The University of Texas System has licensed this IP to TFF Pharmaceuticals, Inc. Williams owns equity in TFF Pharmaceuticals, Inc. Williams acknowledges financial support by TFF Pharmaceuticals Inc. via a sponsored research agreement Warnken is partially supported by a sponsored research agreement with TFF Pharmaceuticals Inc. Parts of this work were presented as a poster abstract at the American Association of Pharmaceutical Scientists Annual Meeting and Exposition (AAPS), 2020. TFF Pharmaceuticals, Inc. had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Barbosa, E.J.; Löbenberg, R.; de Araujo, G.L.B.; Bou-Chacra, N.A. Niclosamide Repositioning for Treating Cancer: Challenges and Nano-Based Drug Delivery Opportunities. Eur. J. Pharm. Biopharm. Off. J. Arb. Pharm. Verfahr. EV 2019, 141, 58–69. [Google Scholar] [CrossRef] [PubMed]
  2. WHO Model List of Essential Medicines. Available online: https://www.who.int/publications-detail-redirect/WHOMVPEMPIAU2019.06 (accessed on 3 January 2021).
  3. Xu, J.; Shi, P.-Y.; Li, H.; Zhou, J. Broad Spectrum Antiviral Agent Niclosamide and Its Therapeutic Potential. ACS Infect. Dis. 2020. [Google Scholar] [CrossRef] [PubMed]
  4. Li, Y.; Li, P.-K.; Roberts, M.J.; Arend, R.C.; Samant, R.S.; Buchsbaum, D.J. Multi-Targeted Therapy of Cancer by Niclosamide: A New Application for an Old Drug. Cancer Lett. 2014, 349, 8–14. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Chen, W.; Mook, R.A.; Premont, R.T.; Wang, J. Niclosamide: Beyond an Antihelminthic Drug. Cell. Signal. 2018, 41, 89–96. [Google Scholar] [CrossRef] [PubMed]
  6. Tam, J.; Hamza, T.; Ma, B.; Chen, K.; Beilhartz, G.L.; Ravel, J.; Feng, H.; Melnyk, R.A. Host-Targeted Niclosamide Inhibits C. Difficile Virulence and Prevents Disease in Mice without Disrupting the Gut Microbiota. Nat. Commun. 2018, 9, 1–11. [Google Scholar] [CrossRef] [PubMed]
  7. Alhalaweh, A.; Alzghoul, A.; Kaialy, W.; Mahlin, D.; Bergström, C.A.S. Computational Predictions of Glass-Forming Ability and Crystallization Tendency of Drug Molecules. Mol. Pharm. 2014, 11, 3123–3132. [Google Scholar] [CrossRef] [PubMed]
  8. Sanphui, P.; Kumar, S.S.; Nangia, A. Pharmaceutical Cocrystals of Niclosamide. Cryst. Growth Des. 2012, 12, 4588–4599. [Google Scholar] [CrossRef]
  9. van Tonder, E.C.; Maleka, T.S.P.; Liebenberg, W.; Song, M.; Wurster, D.E.; de Villiers, M.M. Preparation and Physicochemical Properties of Niclosamide Anhydrate and Two Monohydrates. Int. J. Pharm. 2004, 269, 417–432. [Google Scholar] [CrossRef]
  10. Schweizer, M.T.; Haugk, K.; McKiernan, J.S.; Gulati, R.; Cheng, H.H.; Maes, J.L.; Dumpit, R.F.; Nelson, P.S.; Montgomery, B.; McCune, J.S.; et al. A Phase I Study of Niclosamide in Combination with Enzalutamide in Men with Castration-Resistant Prostate Cancer. PLoS ONE 2018, 13, e0198389. [Google Scholar] [CrossRef][Green Version]
  11. Grifasi, F.; Chierotti, M.R.; Gaglioti, K.; Gobetto, R.; Maini, L.; Braga, D.; Dichiarante, E.; Curzi, M. Using Salt Cocrystals to Improve the Solubility of Niclosamide. Cryst. Growth Des. 2015, 15, 1939–1948. [Google Scholar] [CrossRef]
  12. Luedeker, D.; Gossmann, R.; Langer, K.; Brunklaus, G. Crystal Engineering of Pharmaceutical Co-Crystals: “NMR Crystallography” of Niclosamide Co-Crystals. Cryst. Growth Des. 2016, 16, 3087–3100. [Google Scholar] [CrossRef]
  13. Rehman, M.U.; Khan, M.A.; Khan, W.S.; Shafique, M.; Khan, M. Fabrication of Niclosamide Loaded Solid Lipid Nanoparticles: In Vitro Characterization and Comparative in Vivo Evaluation. Artif. Cells Nanomed. Biotechnol. 2018, 46, 1926–1934. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Xie, Y.; Yao, Y. Octenylsuccinate Hydroxypropyl Phytoglycogen Enhances the Solubility and In-Vitro Antitumor Efficacy of Niclosamide. Int. J. Pharm. 2018, 535, 157–163. [Google Scholar] [CrossRef] [PubMed]
  15. Russo, A.; Pellosi, D.S.; Pagliara, V.; Milone, M.R.; Pucci, B.; Caetano, W.; Hioka, N.; Budillon, A.; Ungaro, F.; Russo, G.; et al. Biotin-Targeted Pluronic® P123/F127 Mixed Micelles Delivering Niclosamide: A Repositioning Strategy to Treat Drug-Resistant Lung Cancer Cells. Int. J. Pharm. 2016, 511, 127–139. [Google Scholar] [CrossRef][Green Version]
  16. Costabile, G.; d’Angelo, I.; Rampioni, G.; Bondì, R.; Pompili, B.; Ascenzioni, F.; Mitidieri, E.; d’Emmanuele di Villa Bianca, R.; Sorrentino, R.; Miro, A.; et al. Toward Repositioning Niclosamide for Antivirulence Therapy of Pseudomonas Aeruginosa Lung Infections: Development of Inhalable Formulations through Nanosuspension Technology. Mol. Pharm. 2015, 12, 2604–2617. [Google Scholar] [CrossRef]
  17. Naqvi, S.; Mohiyuddin, S.; Gopinath, P. Niclosamide Loaded Biodegradable Chitosan Nanocargoes: An in Vitro Study for Potential Application in Cancer Therapy. R. Soc. Open Sci. 2017, 4, 170611. [Google Scholar] [CrossRef][Green Version]
  18. Zhang, X.; Zhang, Y.; Zhang, T.; Zhang, J.; Wu, B. Significantly Enhanced Bioavailability of Niclosamide through Submicron Lipid Emulsions with or without PEG-Lipid: A Comparative Study. J. Microencapsul. 2015, 32, 496–502. [Google Scholar] [CrossRef]
  19. Ye, Y.; Zhang, X.; Zhang, T.; Wang, H.; Wu, B. Design and Evaluation of Injectable Niclosamide Nanocrystals Prepared by Wet Media Milling Technique. Drug Dev. Ind. Pharm. 2015, 41, 1416–1424. [Google Scholar] [CrossRef]
  20. Schittny, A.; Huwyler, J.; Puchkov, M. Mechanisms of Increased Bioavailability through Amorphous Solid Dispersions: A Review. Drug Deliv. 2019, 27, 110–127. [Google Scholar] [CrossRef]
  21. Indulkar, A.S.; Lou, X.; Zhang, G.G.Z.; Taylor, L.S. Insights into the Dissolution Mechanism of Ritonavir—Copovidone Amorphous Solid Dispersions: Importance of Congruent Release for Enhanced Performance. Mol. Pharm. 2019, 16, 1327–1339. [Google Scholar] [CrossRef]
  22. Thakkar, R.; Pillai, A.; Ashour, E.A.; Repka, M.A. Systematic Screening of Pharmaceutical Polymers for Hot Melt Extrusion Processing: A Comprehensive Review. Int. J. Pharm. 2020, 576, 118989. [Google Scholar] [CrossRef] [PubMed]
  23. Blaabjerg, L.I.; Bulduk, B.; Lindenberg, E.; Löbmann, K.; Rades, T.; Grohganz, H. Influence of Glass Forming Ability on the Physical Stability of Supersaturated Amorphous Solid Dispersions. J. Pharm. Sci. 2019, 108, 2561–2569. [Google Scholar] [CrossRef] [PubMed]
  24. Blaabjerg, L.I.; Grohganz, H.; Lindenberg, E.; Löbmann, K.; Müllertz, A.; Rades, T. The Influence of Polymers on the Supersaturation Potential of Poor and Good Glass Formers. Pharmaceutics 2018, 10, 164. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Blaabjerg, L.I.; Lindenberg, E.; Löbmann, K.; Grohganz, H.; Rades, T. Is There a Correlation between the Glass Forming Ability of a Drug and Its Supersaturation Propensity? Int. J. Pharm. 2018, 538, 243–249. [Google Scholar] [CrossRef] [PubMed]
  26. Meng, F.; Ferreira, R.; Zhang, F. Effect of Surfactant Level on Properties of Celecoxib Amorphous Solid Dispersions. J. Drug Deliv. Sci. Technol. 2019, 49, 301–307. [Google Scholar] [CrossRef]
  27. Baghel, S.; Cathcart, H.; O’Reilly, N.J. Understanding the Generation and Maintenance of Supersaturation during the Dissolution of Amorphous Solid Dispersions Using Modulated DSC and 1H NMR. Int. J. Pharm. 2018, 536, 414–425. [Google Scholar] [CrossRef]
  28. Ray, E.; Vaghasiya, K.; Sharma, A.; Shukla, R.; Khan, R.; Kumar, A.; Verma, R.K. Autophagy-Inducing Inhalable Co-Crystal Formulation of Niclosamide-Nicotinamide for Lung Cancer Therapy. AAPS PharmSciTech 2020, 21, 260. [Google Scholar] [CrossRef] [PubMed]
  29. van Tonder, E.C.; Mahlatji, M.D.; Malan, S.F.; Liebenberg, W.; Caira, M.R.; Song, M.; de Villiers, M.M. Preparation and Physicochemical Characterization of 5 Niclosamide Solvates and 1 Hemisolvate. AAPS PharmSciTech 2004, 5, E12. [Google Scholar] [CrossRef]
  30. Worku, Z.A.; Aarts, J.; Singh, A.; Van den Mooter, G. Drug—Polymer Miscibility across a Spray Dryer: A Case Study of Naproxen and Miconazole Solid Dispersions. Mol. Pharm. 2014, 11, 1094–1101. [Google Scholar] [CrossRef]
  31. Lodagekar, A.; Borkar, R.M.; Thatikonda, S.; Chavan, R.B.; Naidu, V.G.M.; Shastri, N.R.; Srinivas, R.; Chella, N. Formulation and Evaluation of Cyclodextrin Complexes for Improved Anticancer Activity of Repurposed Drug: Niclosamide. Carbohydr. Polym. 2019, 212, 252–259. [Google Scholar] [CrossRef]
  32. Song, Y.; Yang, X.; Chen, X.; Nie, H.; Byrn, S.; Lubach, J.W. Investigation of Drug–Excipient Interactions in Lapatinib Amorphous Solid Dispersions Using Solid-State NMR Spectroscopy. Mol. Pharm. 2015, 12, 857–866. [Google Scholar] [CrossRef] [PubMed]
  33. Egami, K.; Higashi, K.; Yamamoto, K.; Moribe, K. Crystallization of Probucol in Nanoparticles Revealed by AFM Analysis in Aqueous Solution. Mol. Pharm. 2015, 12, 2972–2980. [Google Scholar] [CrossRef] [PubMed]
  34. Que, C.; Lou, X.; Zemlyanov, D.Y.; Mo, H.; Indulkar, A.S.; Gao, Y.; Zhang, G.G.Z.; Taylor, L.S. Insights into the Dissolution Behavior of Ledipasvir–Copovidone Amorphous Solid Dispersions: Role of Drug Loading and Intermolecular Interactions. Mol. Pharm. 2019, 16, 5054–5067. [Google Scholar] [CrossRef] [PubMed]
  35. Ueda, K.; Taylor, L.S. Polymer Type Impacts Amorphous Solubility and Drug-Rich Phase Colloidal Stability: A Mechanistic Study Using Nuclear Magnetic Resonance Spectroscopy. Mol. Pharm. 2020, 17, 1352–1362. [Google Scholar] [CrossRef] [PubMed]
  36. Kawakami, K.; Sato, K.; Fukushima, M.; Miyazaki, A.; Yamamura, Y.; Sakuma, S. Phase Separation of Supersaturated Solution Created from Amorphous Solid Dispersions: Relevance to Oral Absorption. Eur. J. Pharm. Biopharm. 2018, 132, 146–156. [Google Scholar] [CrossRef]
  37. McConnell, E.L.; Basit, A.W.; Murdan, S. Measurements of Rat and Mouse Gastrointestinal PH, Fluid and Lymphoid Tissue, and Implications for in-Vivo Experiments. J. Pharm. Pharmacol. 2008, 60, 63–70. [Google Scholar] [CrossRef]
  38. Palmelund, H.; Madsen, C.M.; Plum, J.; Müllertz, A.; Rades, T. Studying the Propensity of Compounds to Supersaturate: A Practical and Broadly Applicable Approach. J. Pharm. Sci. 2016, 105, 3021–3029. [Google Scholar] [CrossRef]
  39. Wang, X.; Liu, Y.; Shen, C.; Shen, B.; Zhong, R.; Yuan, H. Effect of Particle Size on in Vitro and in Vivo Behavior of Astilbin Nanosuspensions. J. Drug Deliv. Sci. Technol. 2019, 52, 778–783. [Google Scholar] [CrossRef]
  40. Wei, Y.; Zhang, L.; Wang, N.; Shen, P.; Dou, H.; Ma, K.; Gao, Y.; Zhang, J.; Qian, S. Mechanistic Study on Complexation-Induced Spring and Hover Dissolution Behavior of Ibuprofen-Nicotinamide Cocrystal. Cryst. Growth Des. 2018, 18, 7343–7355. [Google Scholar] [CrossRef]
  41. Harmon, P.; Galipeau, K.; Xu, W.; Brown, C.; Wuelfing, W.P. Mechanism of Dissolution-Induced Nanoparticle Formation from a Copovidone-Based Amorphous Solid Dispersion. Mol. Pharm. 2016, 13, 1467–1481. [Google Scholar] [CrossRef]
  42. Stewart, A.M.; Grass, M.E.; Brodeur, T.J.; Goodwin, A.K.; Morgen, M.M.; Friesen, D.T.; Vodak, D.T. Impact of Drug-Rich Colloids of Itraconazole and HPMCAS on Membrane Flux in Vitro and Oral Bioavailability in Rats. Mol. Pharm. 2017, 14, 2437–2449. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Ricarte, R.G.; Van Zee, N.J.; Li, Z.; Johnson, L.M.; Lodge, T.P.; Hillmyer, M.A. Recent Advances in Understanding the Micro- and Nanoscale Phenomena of Amorphous Solid Dispersions. Mol. Pharm. 2019, 16, 4089–4103. [Google Scholar] [CrossRef] [PubMed]
  44. Denninger, A.; Westedt, U.; Rosenberg, J.; Wagner, K.G. A Rational Design of a Biphasic Dissolution Setup—Modelling of Biorelevant Kinetics for a Ritonavir Hot-Melt Extruded Amorphous Solid Dispersion. Pharmaceutics 2020, 12, 237. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Tho, I.; Liepold, B.; Rosenberg, J.; Maegerlein, M.; Brandl, M.; Fricker, G. Formation of Nano/Micro-Dispersions with Improved Dissolution Properties upon Dispersion of Ritonavir Melt Extrudate in Aqueous Media. Eur. J. Pharm. Sci. 2010, 40, 25–32. [Google Scholar] [CrossRef]
  46. Klumpp, L.; Leigh, M.; Dressman, J. Dissolution Behavior of Various Drugs in Different FaSSIF Versions. Eur. J. Pharm. Sci. 2020, 142, 105138. [Google Scholar] [CrossRef]
  47. Sarnes, A.; Kovalainen, M.; Häkkinen, M.R.; Laaksonen, T.; Laru, J.; Kiesvaara, J.; Ilkka, J.; Oksala, O.; Rönkkö, S.; Järvinen, K.; et al. Nanocrystal-Based per-Oral Itraconazole Delivery: Superior in Vitro Dissolution Enhancement versus Sporanox® Is Not Realized in in Vivo Drug Absorption. J. Control. Release 2014, 180, 109–116. [Google Scholar] [CrossRef]
  48. Chang, Y.-W.; Yeh, T.-K.; Lin, K.-T.; Chen, W.-C.; Yao, H.-T.; Lan, S.-J.; Wu, Y.-S.; Hsieh, H.-P.; Chen, C.-M.; Chen, C.-T. Pharmacokinetics of Anti-SARS-CoV Agent Niclosamide and Its Analogs in Rats. J. Food Drug Anal. 2006, 14, 6. [Google Scholar]
  49. Bergström, C.A.S.; Wassvik, C.M.; Johansson, K.; Hubatsch, I. Poorly Soluble Marketed Drugs Display Solvation Limited Solubility. J. Med. Chem. 2007, 50, 5858–5862. [Google Scholar] [CrossRef]
  50. Pardhi, V.; Chavan, R.B.; Thipparaboina, R.; Thatikonda, S.; Naidu, V.; Shastri, N.R. Preparation, Characterization, and Cytotoxicity Studies of Niclosamide Loaded Mesoporous Drug Delivery Systems. Int. J. Pharm. 2017, 528, 202–214. [Google Scholar] [CrossRef]

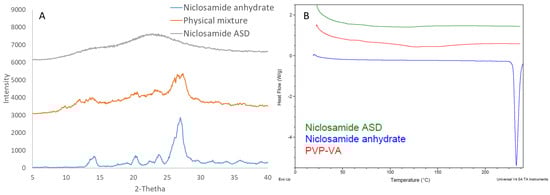

Figure 1. (A) X-ray diffraction (XRD) pattern. (B) differential scanning calorimetry (DSC) thermogram of niclosamide amorphous solid dispersion (ASD) (extrudate), its physical mixture, and niclosamide anhydrate.
Figure 1. (A) X-ray diffraction (XRD) pattern. (B) differential scanning calorimetry (DSC) thermogram of niclosamide amorphous solid dispersion (ASD) (extrudate), its physical mixture, and niclosamide anhydrate.
Pharmaceutics 13 00097 g001

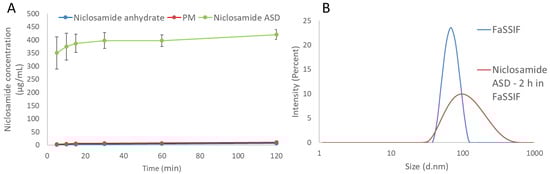

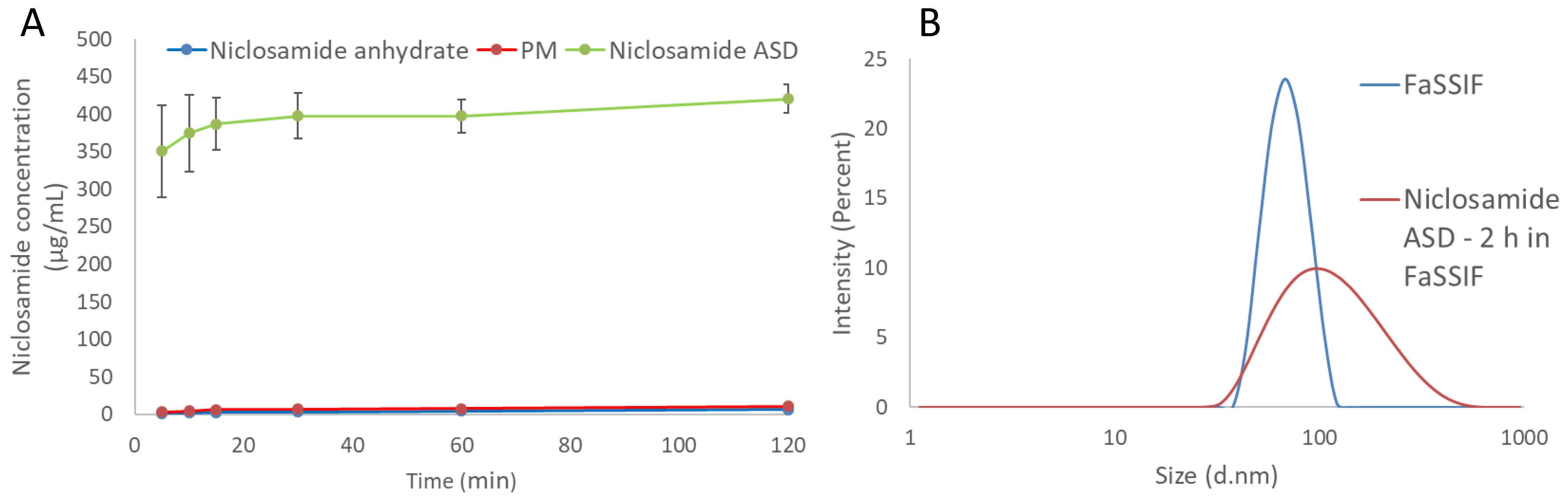

Figure 2. (A) The dissolution profile of niclosamide ASD, its physical mixture (PM), and niclosamide anhydrate in FaSSIF medium. The samples were taken and passed through 0.2 µm filters. (B) The particle size distribution of niclosamide ASD after 2 h in FaSSIF and a FaSSIF control.
Figure 2. (A) The dissolution profile of niclosamide ASD, its physical mixture (PM), and niclosamide anhydrate in FaSSIF medium. The samples were taken and passed through 0.2 µm filters. (B) The particle size distribution of niclosamide ASD after 2 h in FaSSIF and a FaSSIF control.
Pharmaceutics 13 00097 g002

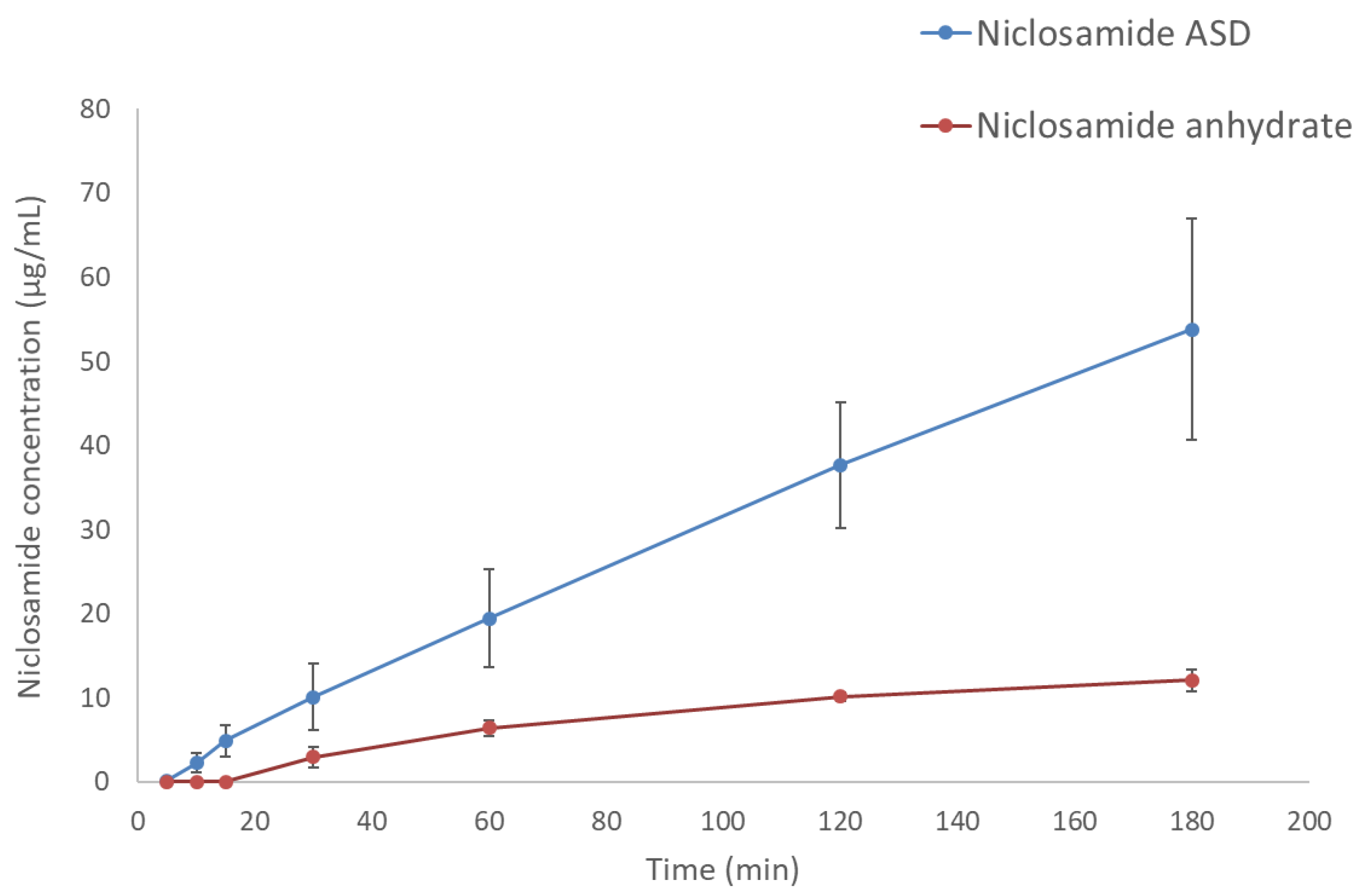

Figure 3. Diffusion profiles of niclosamide ASD and niclosamide anhydrate. The donor and receiver cells were filled with FaSSIF and decanol, respectively.
Figure 3. Diffusion profiles of niclosamide ASD and niclosamide anhydrate. The donor and receiver cells were filled with FaSSIF and decanol, respectively.
Pharmaceutics 13 00097 g003

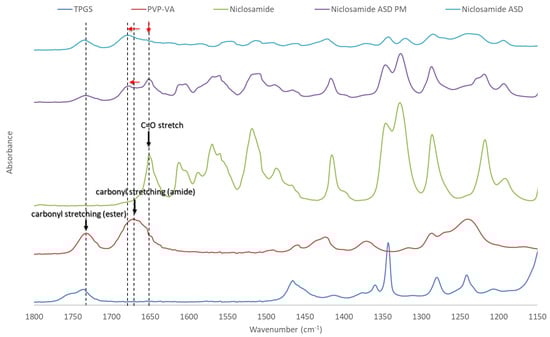

Figure 4. Fourier-transform infrared (FTIR) spectra of niclosamide ASD, its physical mixture, and its constituents. The carbonyl stretchings are highlighted with dotted lines. Red arrows indicate their peak shifts.
Figure 4. Fourier-transform infrared (FTIR) spectra of niclosamide ASD, its physical mixture, and its constituents. The carbonyl stretchings are highlighted with dotted lines. Red arrows indicate their peak shifts.
Pharmaceutics 13 00097 g004

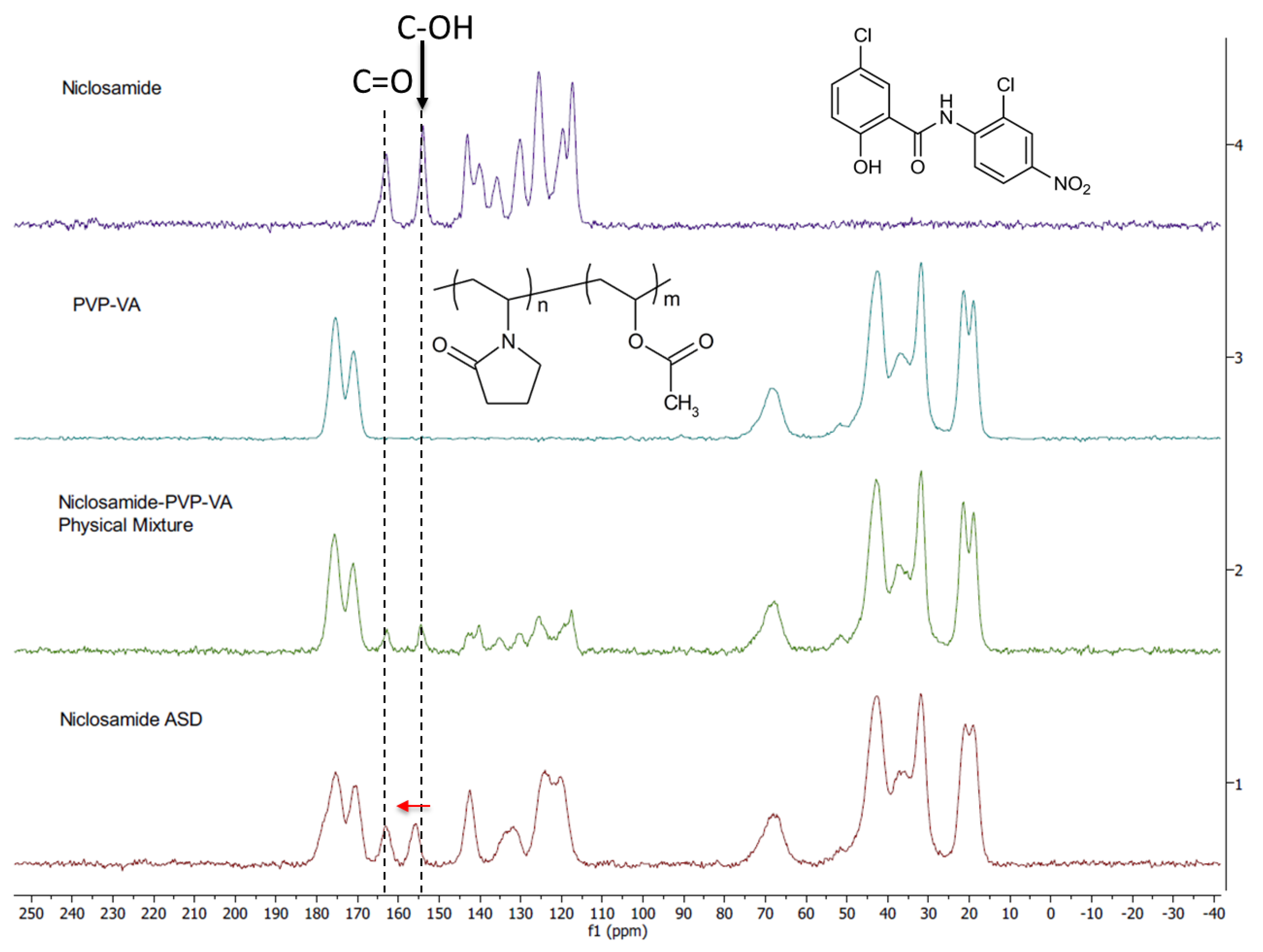

Figure 5. Solid-state 13C nuclear magnetic resonance (NMR) spectra of niclosamide anhydrate, PVP–VA, 35% niclosamide—65% PVP–VA physical mixture and extrudate. The phenolic and carbonyl carbons are highlighted with dotted lines. The red arrow indicates the peak shift of phenolic carbon.
Figure 5. Solid-state 13C nuclear magnetic resonance (NMR) spectra of niclosamide anhydrate, PVP–VA, 35% niclosamide—65% PVP–VA physical mixture and extrudate. The phenolic and carbonyl carbons are highlighted with dotted lines. The red arrow indicates the peak shift of phenolic carbon.
Pharmaceutics 13 00097 g005

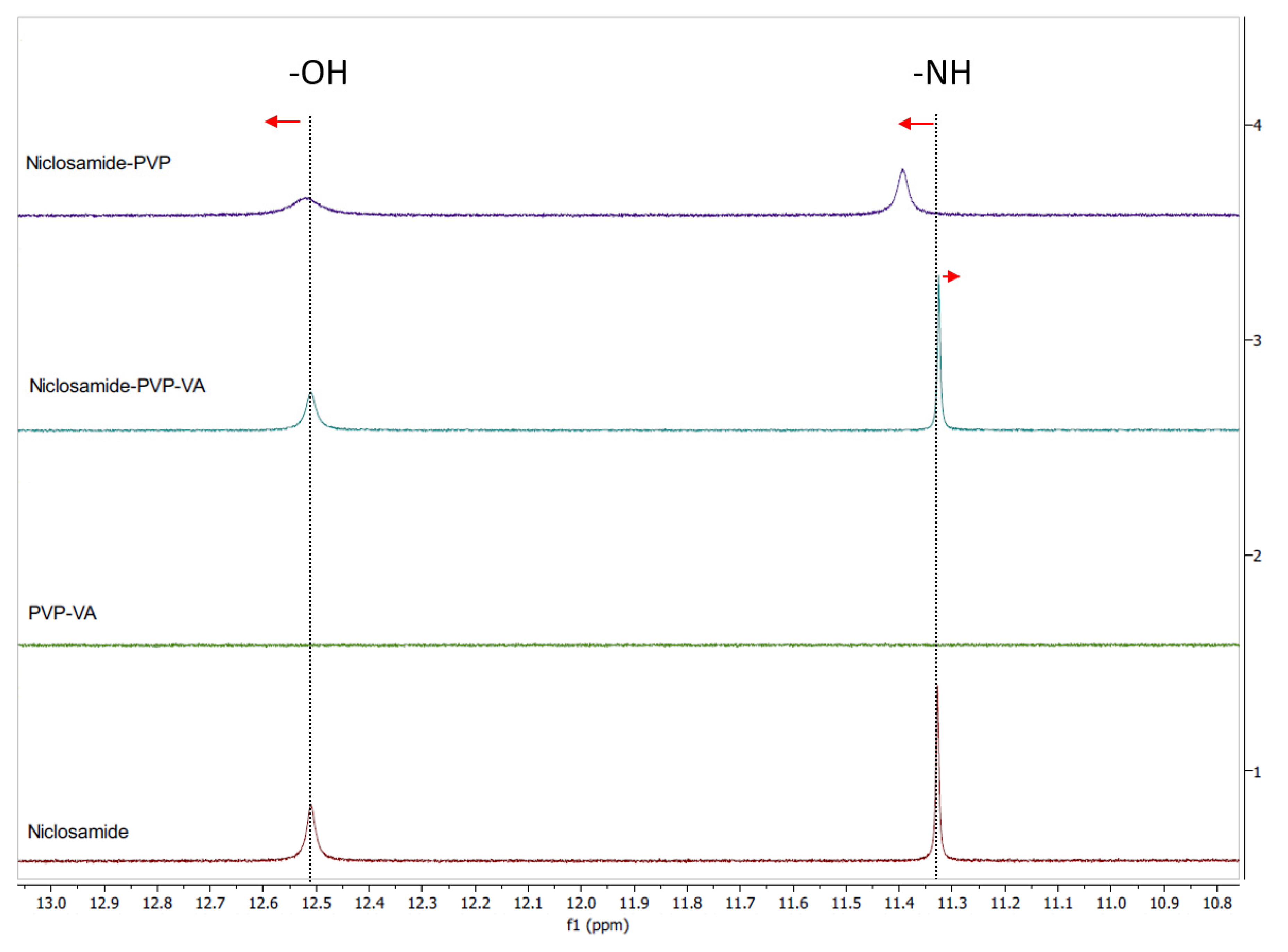

Figure 6. Solution 1H NMR spectra of niclosamide anhydrate, PVP, PVP–VA, and a mixture of 35% niclosamide and 65% PVP–VA. The phenolic and amide hydrogens are highlighted with dotted lines. The red arrows indicate peak shifts of phenolic and amide hydrogen.
Figure 6. Solution 1H NMR spectra of niclosamide anhydrate, PVP, PVP–VA, and a mixture of 35% niclosamide and 65% PVP–VA. The phenolic and amide hydrogens are highlighted with dotted lines. The red arrows indicate peak shifts of phenolic and amide hydrogen.
Pharmaceutics 13 00097 g006

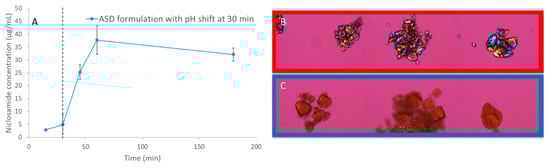

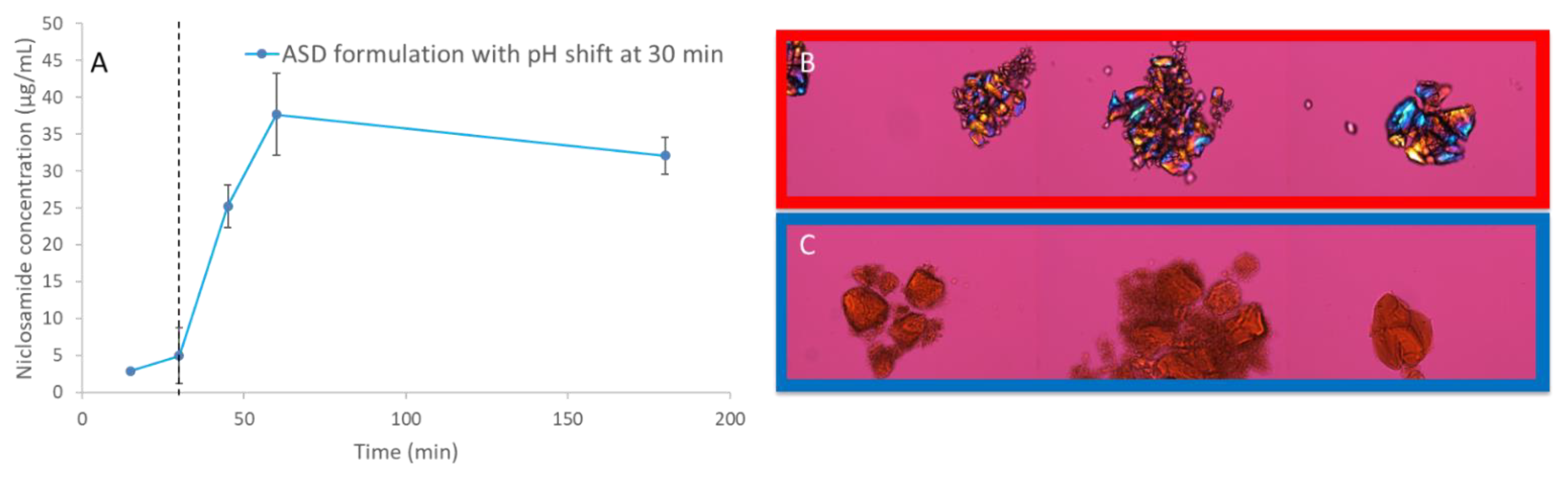

Figure 7. (A) pH-shift dissolution test of niclosamide ASD. (B) Polarized light microscopy (PLM) images at 200× (30 min). The dotted line shows the pH-shift at 30 min. (C) PLM of niclosamide ASD at 120 min without pH shift. Signs of crystallization were not observed.
Figure 7. (A) pH-shift dissolution test of niclosamide ASD. (B) Polarized light microscopy (PLM) images at 200× (30 min). The dotted line shows the pH-shift at 30 min. (C) PLM of niclosamide ASD at 120 min without pH shift. Signs of crystallization were not observed.
Pharmaceutics 13 00097 g007

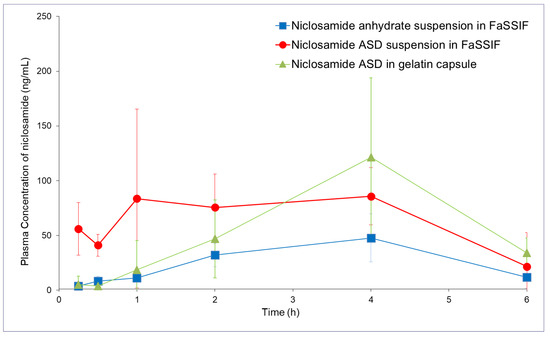

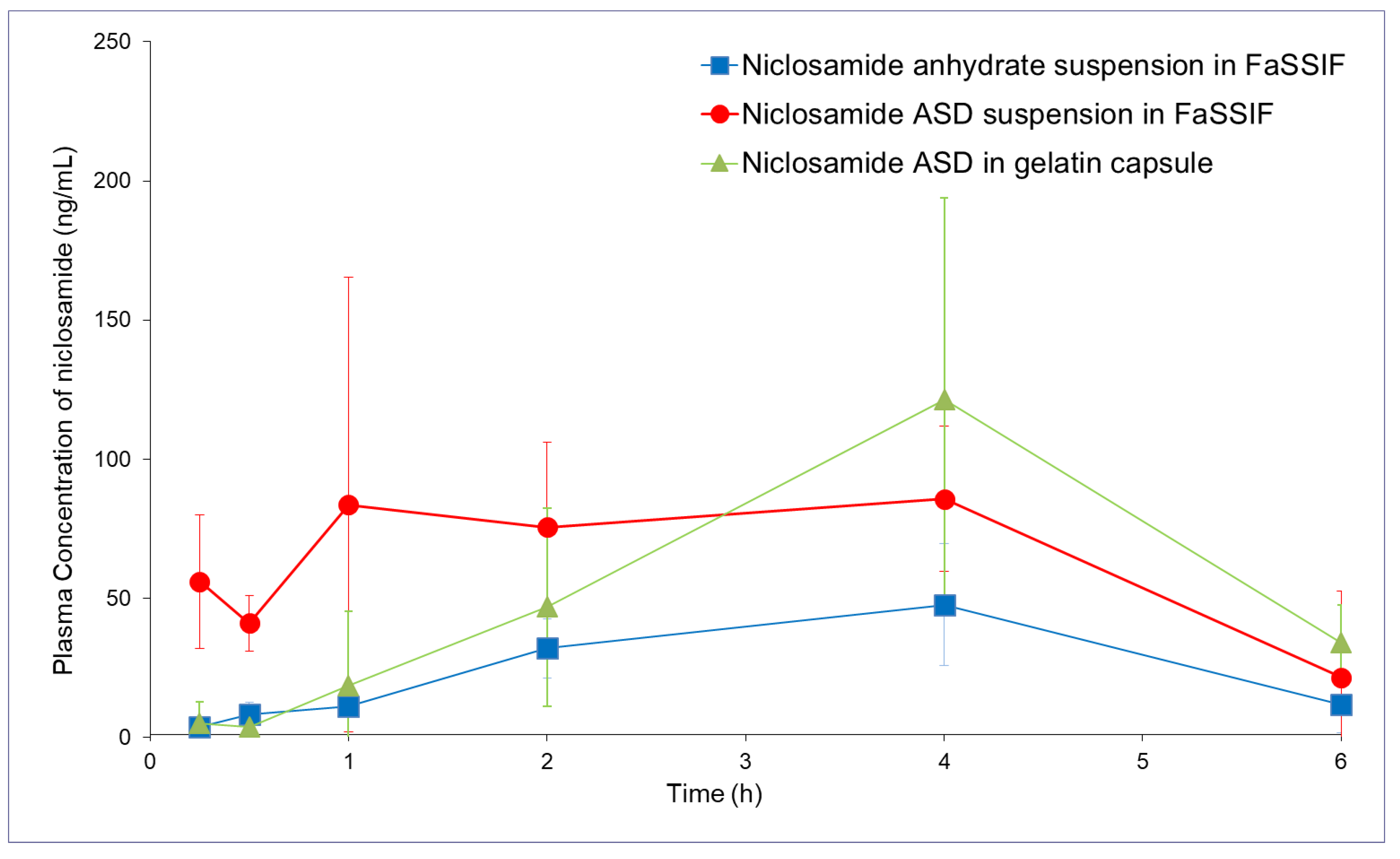

Figure 8. Pharmacokinetic profiles (in rats) of niclosamide anhydrate suspended in FaSSIF, niclosamide ASD suspended in FaSSIF, and niclosamide ASD in capsules (n = 5).
Figure 8. Pharmacokinetic profiles (in rats) of niclosamide anhydrate suspended in FaSSIF, niclosamide ASD suspended in FaSSIF, and niclosamide ASD in capsules (n = 5).
Pharmaceutics 13 00097 g008
Table 1. Pharmacokinetic parameter profiles (in rats) of niclosamide anhydrate suspended in FaSSIF, niclosamide ASD suspended in FaSSIF, and niclosamide ASD in capsules (n = 5).
Table 1. Pharmacokinetic parameter profiles (in rats) of niclosamide anhydrate suspended in FaSSIF, niclosamide ASD suspended in FaSSIF, and niclosamide ASD in capsules (n = 5).
PK ParametersNiclosamide Anhydrate Suspension in FaSSIFNiclosamide ASD Suspension in FaSSIFNiclosamide ASD in Capsules
T ½ (h)1.00 (0.3.0)1.59 (1.34)0.84 (0.01)
T max (h)3.60 (0.89)2.40 (1.52)4.40 (0.89)
C max (ng/mL)48.3 (20.6)123 (56)122 (71)
AUC last (h × ng/mL) 168 (64)398 (115)338 (193)
AUC Inf (h × ng/mL)188 (84)495 (239)463 (224)
AUC_%Extrap_obs (%)8.4 (7.0)12.2 (21.4)7.98 (0.48)
MRT Inf_obs (%)3.56 (0.70)3.71 (2.20)4.04 (0.12)
AUC last/D (h × mg/mL) 16.8 (6.4)39.8 (11.5)33.8 (19.3)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jara, M.O.; Warnken, Z.N.; Williams, R.O., III. Amorphous Solid Dispersions and the Contribution of Nanoparticles to In Vitro Dissolution and In Vivo Testing: Niclosamide as a Case Study. Pharmaceutics 2021, 13, 97. https://doi.org/10.3390/pharmaceutics13010097

AMA Style

Jara MO, Warnken ZN, Williams RO III. Amorphous Solid Dispersions and the Contribution of Nanoparticles to In Vitro Dissolution and In Vivo Testing: Niclosamide as a Case Study. Pharmaceutics. 2021; 13(1):97. https://doi.org/10.3390/pharmaceutics13010097

Chicago/Turabian Style

Jara, Miguel O., Zachary N. Warnken, and Robert O. Williams III. 2021. "Amorphous Solid Dispersions and the Contribution of Nanoparticles to In Vitro Dissolution and In Vivo Testing: Niclosamide as a Case Study" Pharmaceutics 13, no. 1: 97. https://doi.org/10.3390/pharmaceutics13010097

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
