Review

PLA/PLGA-Based Drug Delivery Systems Produced with Supercritical CO2—A Green Future for Particle Formulation?

1
Laboratory of Organic and Macromolecular Chemistry (IOMC), Friedrich Schiller University Jena, Fürstengraben 1, 07743 Jena, Germany
2
Jena Center for Soft Matter (JCSM), Friedrich Schiller University Jena, Philosophenweg 7, 07743 Jena, Germany
3
POLYMAT and Kimika Aplikatua Saila, Kimika Fakultatea, University of the Basque Country UPV/EHU, Joxe Mari Korta Zentroa, Tolosa Hiribidea 72, 20018 Donostia-San Sebastián, Spain
*
Author to whom correspondence should be addressed.
Pharmaceutics 2020, 12(11), 1118; https://doi.org/10.3390/pharmaceutics12111118
Submission received: 23 October 2020 / Revised: 16 November 2020 / Accepted: 18 November 2020 / Published: 20 November 2020
(This article belongs to the Section Pharmaceutical Technology, Manufacturing and Devices)

Abstract

:
Supercritical carbon dioxide (SC-CO2) can serve as solvent, anti-solvent and solute, among others, in the field of drug delivery applications, e.g., for the formulation of polymeric nanocarriers in combination with different drug molecules. With its tunable properties above critical pressure and temperature, SC-CO2 offers control of the particle size, the particle morphology, and their drug loading. Moreover, the SC-CO2-based techniques overcome the limitations of conventional formulation techniques e.g., post purification steps. One of the widely used polymers for drug delivery systems with excellent mechanical (Tg, crystallinity) and chemical properties (controlled drug release, biodegradability) is poly (lactic acid) (PLA), which is used either as a homopolymer or as a copolymer, such as poly(lactic-co-glycolic) acid (PLGA). Over the last 30 years, extensive research has been conducted to exploit SC-CO2-based processes for the formulation of PLA carriers. This review provides an overview of these research studies, including a brief description of the SC-CO2 processes that are widely exploited for the production of PLA and PLGA-based drug-loaded particles. Finally, recent work shows progress in the development of SC-CO2 techniques for particulate drug delivery systems is discussed in detail. Additionally, future perspectives and limitations of SC-CO2-based techniques in industrial applications are examined.

Graphical Abstract

1. Introduction

The targeted treatment of diseases with drug-loaded carriers is becoming a substantial reality in clinical practice [1]. Diverse nano- and micrometer-sized systems based on liposomes, polymeric nanoparticles (NPs), dendrimers, and micelles are on their way to change modern medicine. The sustainability of the production of these systems, however, is still a challenge.
Conventional production strategies for the preparation of drug-loaded liposomes [2,3] or particles [4,5] usually involve organic solvents, such as tetrahydrofuran or ethyl acetate, which are often considered a health risk and contribute to environmental risks [6]. Thus, they have to be removed from the final product, together with the excess of stabilizers, by additional purification or cleaning procedures [7] which is usually followed by freeze-drying or lyophilization that leads to dry powdered product [8]. Consequently, there is an increasing demand for efficient alternative strategies that rely on sustainable chemistry and can replace (potentially) toxic organic solvents, and which additionally, offer advantages in biodegradation, waste reduction, time and energy efficiency, and in the use of renewable raw materials [9,10]. One method that is attracting significant attention in recent years is the supercritical fluid (SCF) technology, in particular the liposome and particle formulation with supercritical carbon dioxide (SC-CO2) [11]. SC-CO2 is the most economical, chemically stable, and benign compound in its supercritical state, and of high interest to replace common organic solvents.
This review describes the properties and applications of SC-CO2 as solvent, anti-solvent, and extraction compound for the production of drug-loaded particles, focusing on poly (lactic acid) (PLA) and its copolymer system, poly (lactide-co-glycolide) (PLGA). These are among the most established polymers in the pharmaceutical field [12,13]. PLA is a biocompatible aliphatic homopolymer that is approved by the food and drug association agency (FDA) for a wide range of biomedical and pharmaceutical applications, such as bone replacements scaffolds, sutures and stable particle systems [14,15]. It has two enantiomeric forms, L- and D-, along with an optically inactive meso-form. PLA can directly be synthesized via different methods such as polycondensation, ring-opening polymerization or enzymatic polymerization of the lactic acid monomer, whereby the ring-opening polymerization provides the best control over the polymerization, yielding higher molar mass PLA [16]. The latter allows tuning the stereo-chemistry of the L- and D- forms in the final polymer, which influences the molar mass and dispersity, the mechanical and thermal properties of PLA, particularly crystallinity, and the degradation behavior [16]. Additionally, it also can facilitate the tuning of the melting temperature (Tm) and the glass transition temperature (Tg) by varying the content of L-form of PLA [16]. The pure L-PLA (so-called PLLA) has attracted much attention from the pharmaceutical industry because of its high crystallinity. The naturally occurring degradation of PLA occurs via hydrolysis and by breaking of the ester bonds due to enzymatic degradation. This property renders it as a suitable polymeric carrier for drug molecules in nanomedicine. Furthermore, its high elasticity and tensile strength make it suitable for biomedical replacement devices and tissue engineering [16].
The use of lactic acid in combination with glycolic acid (GA) yields PLGA, which also has a contribution in this review as copolymer derivative of PLA. PLGA systems are extensively studied as sustainable drug delivery systems, thanks to their biocompatibility, biodegradability, particle size, morphology, and drug release properties in various in vivo and in vitro systems [17]. Its polymeric properties, such as the degradation rate and Tg, can be fine-tuned by adjusting the LA:GA content ratio [7,18,19].
This review provides an overview of PLA/PLGA-based drug delivery particle systems produced with SC-CO2 techniques till the present date (November 2020), including a detailed description of the latest studies published since 2014 with details of polymer characteristics, encapsulated drugs, and rationales of the studies.

2. Carbon Dioxide as Supercritical Fluid

SC-CO2 is presently very popular as a green alternative for several applications including extraction, production of polymers, removal of residual solvents or monomers and formulation of polymeric particles, foams or scaffolds [20]. The word “supercritical” defines the state of the solvent, which is a prerequisite for using it in the areas mentioned above. This physical state was already described in 1822 by Cagnaird de la Tour, who observed the disappearance of the boundaries between the liquid and gaseous phases when increasing the temperature far above the boiling point of water [21]. The author described the critical pressure and critical temperature concepts, including the critical point (Figure 1). SCFs impart valuable physicochemical properties such as low viscosity, high diffusivity, and high compressibility that are a combination of the liquid and gaseous states of the compound and are largely influenced by a slight change in pressure and temperature. The generation of SCFs is a reversible process; i.e., SCF goes back to liquid or gaseous phase depending on the pressure and temperature of the system. Examples of commonly known SCFs are CO2, acetone, chlorodifluoromethane, ethanol, hexane, propane, pentane, toluene as well as water. The supercritical conditions for acetone, ethanol, propane, toluene, and water are hard to achieve due to the high pressure and temperature required. Moreover, water in its supercritical state is highly corrosive and harsh [22]. On the contrary, CO2 can achieve its supercritical state at “mild” conditions, T = 31 °C and P = 73 bar. Additionally, it is non-toxic, chemically stable, non-flammable, presents low surface tension and is cost-effective.

3. Solubility of Polyesters in SC-CO2

In the light of prior research and studies, SC-CO2 is an established solvent for small molecules but not for organic polymers. Also, SC-CO2 is nonpolar and aprotic and hence exhibits certain selective solubility for ionic and polar compounds as well as for higher molar mass polymers [23]. The solubility of a polymer in SC-CO2 depends on its chemical structure as well as on its physicochemical and mechanical properties, e.g., molar mass, end groups (e.g., fluorine, amine), the architecture (branched or linear), Tg and crystallinity. However, it also depends on the experimental conditions, such as pressure, temperature, and the use or not of a co-solvent in the system. The most important parameters influencing the solubility of a polymer in SC-CO2 are presented in Figure 2. Moreover, the main parameters for the solubility of polyesters are briefly discussed in the following.
Compared to other polymer classes such as fluoropolymers, polyesters such as PLA generally reveal a limited solubility in SC-CO2, which was explained among other factors by their lower chain flexibility [23]. Nevertheless, the solubility of the polyesters can be positively influenced, e.g., by decreasing the molar mass and dispersity of the polymer. It was demonstrated that a high molar mass PLA with Mw = 128 kDa was not soluble in SC-CO2 even at high-pressure conditions, above P = 1398 bar [24]. However, it was possible to process a low molar mass PLA with Mw = 5.5 kDa in SC-CO2 at P = 250 bar and T = 65 °C without the addition of any co-solvent, e.g., for the formulation of particles [25]. Additionally, the introduction of terminal groups, such as carboxyl, hydroxyl, acetate, or fluorine groups that modify the interactions between the polymer and the CO2 molecule, plays an important role in the solubility properties of the polymer. For instance, J. Gregorowicz et al. confirmed that there is an influence of molar masses and terminal groups on the solubility by illustrating the difference of solubility between two different molar mass PLLA polymers with two different terminal groups. The study suggests that for low molar mass systems, the solubility is predominantly controlled by the end groups rather than by the molar mass [25].
Furthermore, the architecture of the polymer and subsequently its free volume plays a vital role in the solubility in SC-CO2. The free volume refers hereby to the free spaces left in the solid state of the polymeric chain at the molecular level [26]. The free volume of the polymer chain is directly proportional to the polymer chain flexibility, and leads to higher solvent diffusion and enhanced solubility in the SC-solvent. Influenced by the architecture, the free volume of a highly branched polymer is higher and, thus, it is more likely to be soluble compared to a linear polymer [27,28]. However, even if the polymer is branched, it was found that with increasing dispersity the solubility decreases, independent of the molar mass [23]. The solubility difference between linear and hyperbranched polymers, including polyesters, is not yet studied with similar molar masses. However, it is reported that the solubility of hyperbranched polymers can be positively influenced by a shorter chain length including the addition of several acetate or fluorine moieties as terminal groups [29,30].
Prior literature also emphasized that the Tg and the crystallinity are both related to the free volume of the polymer (T-Tg). Therefore, lower Tg corresponds to higher chain flexibility of the polymer and a higher free volume which in turn, corresponds to an increased solubility [27]. Additionally, the stereochemistry represents an important factor for the solubility: semi-crystalline PLLA presenting a Tg of 55 to 60 °C and amorphous PDLA with a Tg of 50 to 60 °C have different mechanical properties and different solubility behavior. Some authors have also recognized that the Tg tends to decrease with increasing the pressure and the temperature, which makes the polymer more susceptible to solvation by SC-CO2 [16]. Moreover, the self-interactions within the polymer structure also contribute whereby, the solubility in SC-CO2 is higher if the self-interactions are weaker compared to the interactions between the SC-CO2 and the polymer [23,27]. In principle, the intermolecular and intramolecular interactions are controlling the process of mixing and solubility. Finally, the solubility of a polymer is determined by the density of SC-CO2, which is dependent on the process parameters and tends to elevate with pressure. With increasing pressure, the polymer solubility is likely to be enhanced.
However, if the polymer remains insoluble in SC-CO2, even under high-pressure conditions, polar co-solvents such as ethanol or acetone are used. The addition of these solvents contributes to decrease the difference in the free volume between the polymer and the SCF solvent and, hence, to increase the solubility of the polymer in the system [27].
Moreover, the thermodynamic equations of state (EOS) (e.g., Sanchez-Lacombe EOS) are extensively applied, in combination with the experimental protocols, to predict the solubility of polymers in SC-CO2 [31,32]. Predicting the conditions under which the polymer will dissolve might help to obtain a basic understanding of the solubility and SC-CO2/polymer interactions. Likewise, efforts to study the phase behavior of various polymers-SCF have been attempted [28,33].
At this point, there are still open questions about the solubility of polymers in SC-CO2. However, the SC-CO2 is exploited for PLA and its copolymer PLGA to obtain drug-loaded carriers. In the next sections, various processes using SC-CO2 to produce polymeric particles will be described in detail.

4. SC-CO2 Techniques and Important Formulation Parameters

4.1. Rapid Expansion of Supercritical Solution (RESS)

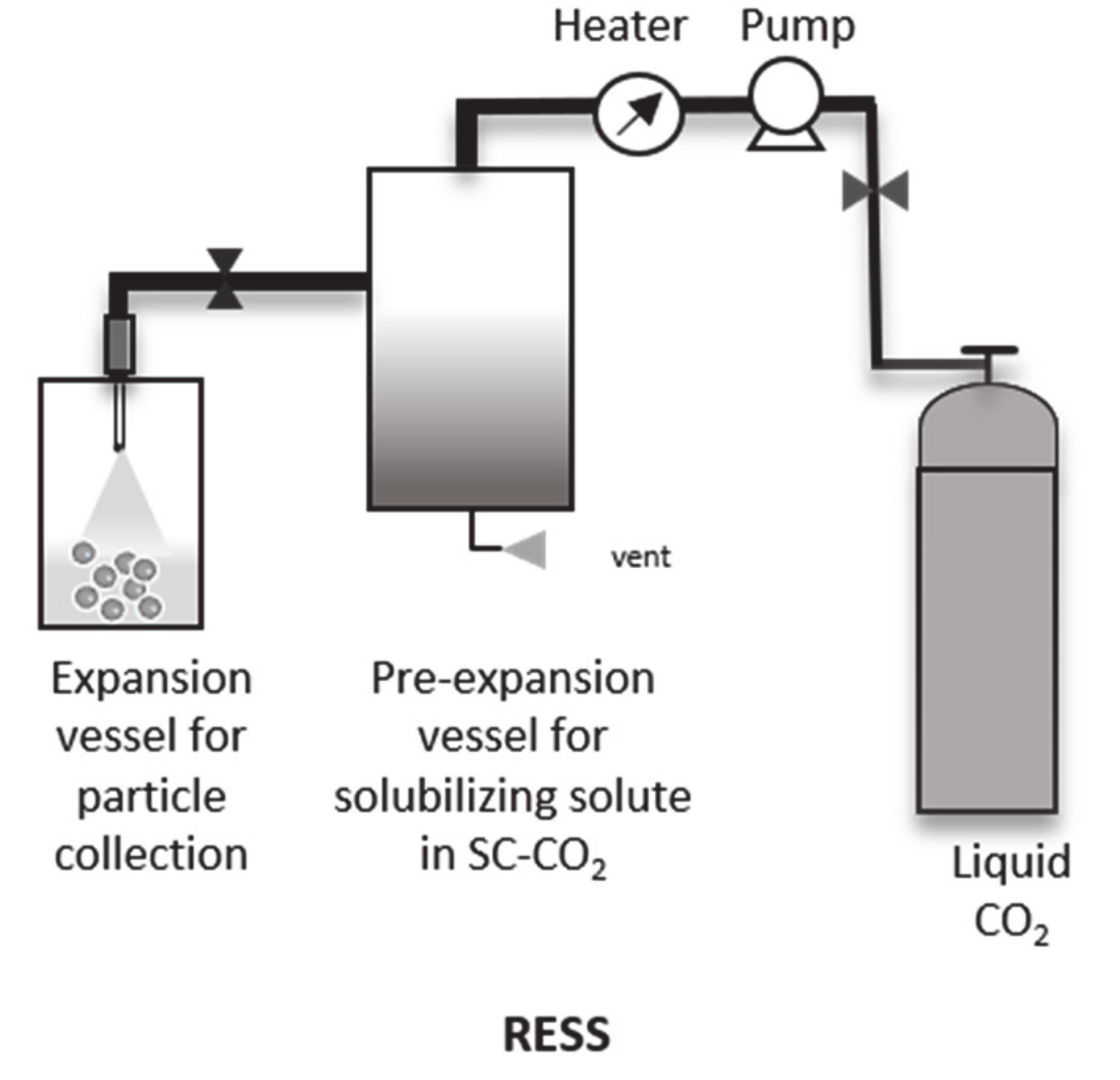

Early studies on the RESS process were reported already in the late 1980s. This technique is based on the rapid depressurization of supercritical solutions containing the solute, SC-CO2 acts as a solvent. The solute in the process can be either inorganic or organic materials, from which morphologies such as particles, thin films and powders can be attained [34,35]. The development of the process was supported by mathematical modelling and experimentally proven by J. W. Tom and P. Debendetti, who confirmed its potential to formulate polymeric monodisperse particles [31,36]. Kim et al. further illustrated the possibilities to use the RESS technique for the formulation of drug-loaded particles by the co-precipitation of biodegradable PLLA with drugs, such as naproxen. A wide range of sizes from 10 to 75 µm and especially, naproxen microparticles of 2 to 5 µm attached to >20 µm sized PLLA particles were obtained [37]. Additionally, seminal contributions made in the past twenty years suggest that the RESS technique can be exploited for the micronization of various hydrophobic pharmaceuticals to improve their dissolution behavior with the advantage of no residual solvent in the final product [38,39].
The RESS technique is, theoretically, a single-step solvent free (or minimal amount of organic co-solvent) particle production process, based on the high-speed expansion of the solubilized mixture of solute (polymer or polymer + drug) and the supercritical solvent (Figure 3). The process thermodynamically favors adiabatic conditions within the system [31]. However, the theoretical principle can be divided into two significant steps. At first the solute (e.g., drug or polymer) is supersaturated under supercritical conditions with SC-CO2. In the second step, the supersaturated solute solution is expanded rapidly through a small orifice into a vessel under depressurized conditions. The density of the solute and the solvent power of the CO2 rapidly decreases, resulting in particles/precipitate formation (polymer or drug). The solubility of the solute is of vital importance since supersaturation is the main factor for the initiation of particle nucleation and growth, and influences the final size and morphology of the particles. Therefore, and as mentioned previously in this manuscript, for some poorly soluble solutes a co-solvent can be used to improve the interaction between the solute and the solvent [40,41].
The final particle properties in the system can be controlled by varying the process parameters. Among many process parameters, one of the most widely used approaches in the existing literature is the study of the effect of pre-expansion variables, which include pressure and temperature [42,43]. Another important process variable that can influence the properties of the particles is the size of the nozzle, which is located in the expansion vessel. In particular, the nozzle length to nozzle diameter ratio (L/D ratio) is important [44]. Previous theoretical modelling investigations have shown that increasing the nozzle diameter (D) the particle size decreases at constant pressure [45].
A recent modification of RESS is the expansion of the supercritical solution directly in liquid solvents, so-called RESOLV [46,47,48]. In this process, the SC-CO2 solution containing the solute is directly expanded in a liquid to prevent aggregation of the precipitated product. The liquid in which it is expanded may or may not contain a stabilizer.

4.2. Supercritical Anti-Solvent (SAS), Gas Anti-Solvent (GAS) and Modifications

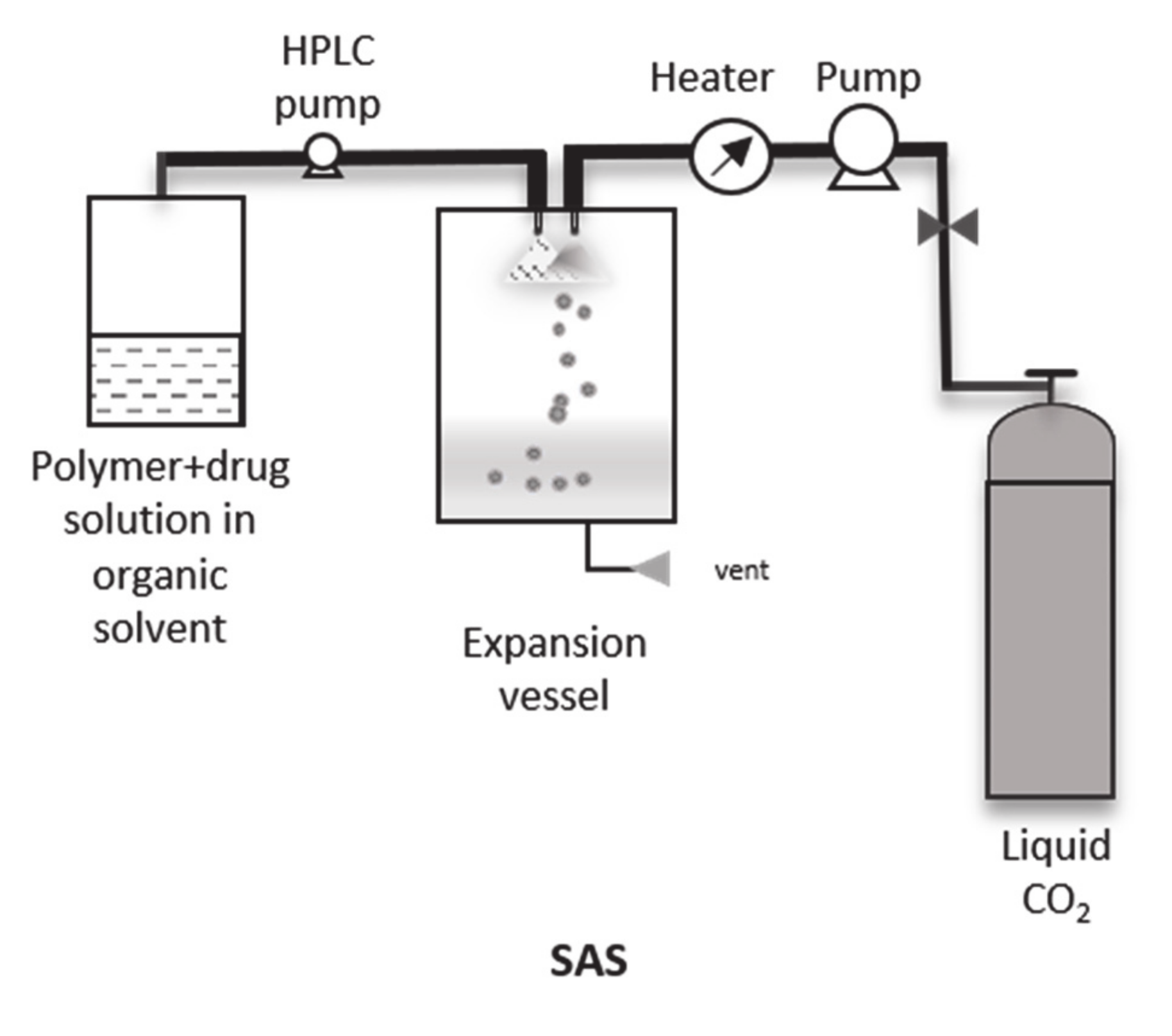

The application of SC-CO2 as an anti-solvent was introduced in the early 1990s, to obtain particles from drugs and to encapsulate active agents like such as into polymeric carriers, which limits the RESS process [49]. Examples of anti-solvent processes are SAS, GAS, and solution-enhanced dispersion by supercritical fluid (SEDS). The principle of all anti-solvent-based processes is similar, they depend on the diffusivity of SC-CO2 into the organic solvent in which the solute is solubilized. Therefore, these methods exploit the low solubility of the solute in SC-CO2, in which the solute precipitates, and the high affinity between the organic solvent and SC-CO2, obtaining high mass transfer rates [50]. This causes a decrease in the density of the organic solvent containing the solute which in turn, leads to a decrease in the solvation power of the solvent and causes nucleation and precipitation of the solute in the form of particles. The organic solvent is eliminated from the system along with the SC-CO2 [50].
On one hand, in GAS (batch mode) the solute-solvent mixture is poured in a high-pressure vessel and subsequently, the SC-CO2 is injected until the desired pressure is achieved. On the other hand, in SAS (semi-continuous mode) the organic solvent-solute mixture and the SC-CO2 are injected simultaneously [46,51] (Figure 4). Unlike RESS, in these cases, the mixture of phases and the precipitation of the final particles occurs in the same vessel. M. Kalani et al. and Reverchon et al. explained in depth the influence of the pressure, temperature, initial concentration of the solution, the type of organic solvent and the polymer:drug ratio on the process and final product [50,51,52]. In particular, small drug molecules can be easily processed using SAS. For example, various antibiotics (griseofulvin, ampicillin, amoxicillin, and tetracycline) and organic solvent combinations (N-methyl pyrrolidone, dimethyl sulfoxide, ethyl alcohol and methylene chloride) were tested [39,53]. The authors demonstrated that the choice of the organic solvent is one of the crucial factors for the success of particle formation via anti-solvent techniques. However, these techniques are not limited to the pure drug application and can be also applied for the formulation of drug-loaded polymer particles, as shown by Salmaso et al. and M. Kalani et al. [54,55]. Similar to the RESOLV modification for RESS, is the supercritical assisted injection in liquid anti-solvent (SAILA) process for SAS since the final product is obtained in suspension [56].
Finally, in the solution-enhanced dispersion by supercritical fluids (SEDS) method two co-axial nozzles are used and SC-CO2 is employed as both anti-solvent and dispersing agent [57]. This allows the possibility of using two types of solutions (aqueous and organic) simultaneously, facilitating the encapsulation of water-soluble drugs, such as 5-fluorouracil (5-Fu) or morphine, in a polymeric system [58,59]. The miscibility between the aqueous phase and SC-CO2 during the process can be increased by adding an aqueous phase-miscible modifier (e.g., ethanol) soluble in SC-CO2. However, one of the most important factors in the process is the ratio between the flow rates of the organic solution, the aqueous solution and the modifier which has to be fine-tuned [59].

4.3. Particles from Gas Saturated Solutions (PGSS)

PGSS is a well-established technique for the production of particles or drug carriers from polymers that are capable of absorbing SC-CO2 but are not easily soluble as solutes. Few commonly known solutes include polyesters (e.g., PLLA and PLGA), poly(vinylpyrrolidone) and poly(ethylene glycol) (PEG) [57]. In this case, the SC-CO2 acts as solute and is supersaturated by the melted mixture of the polymer and the drug [29,60] (Figure 5). The supersaturated gas is expanded and the molten polymer-drug material is precipitated based on the Joule–Thompson effect [61].

4.4. Supercritical Fluid Extraction Emulsions with SC-CO2 (SFEE)

Finally, the SFEE method exploits the solubility of organic solvents in SC-CO2, whereby the diffusion and solubility depend on several parameters, including the temperature and pressure of the system [62]. In this process, a polymer-drug emulsion is formed, and the organic solvent is extracted with SC-CO2 (Figure 6). The advantage of this process relies on the combination of the conventional emulsion process followed by subsequent solvent extraction using SC-CO2. The final particle size depends on the emulsion droplet size which at the same time, depends on the technique used for generating the droplets, sonicator, or homogenizer [63,64].

4.5. Advantages and Limitations of the SCF Techniques

In the previous sections, the techniques in which SC-CO2 can be used as solvent, anti-solvent or solute were described in detail together with some representative examples. To complete this analysis, Table 1 shows a comparison of all these techniques focusing on the advantages and limitations of each of them.

5. Drug-Loaded PLA/PLGA Particles Using SC-CO2

The previous section was intended to provide a basic understanding of the principles of SC-CO2-based techniques. This section, on the other hand, serves as an overview of completed studies related to the production of drug delivery systems consisting of PLA/PLGA-based polymers until recently. The use of SC-CO2 for the formulation of polyester particles was first attempted by J. W. Tom and P. G. Debenedetti in 1991. Since then, many advances have been made in the formulation of drug-loaded polymeric systems. A summary of drug-loaded PLA and PLGA-based particles prepared via SC-CO2 is shown in Table 2. Furthermore, those studies that were published from 2014 are described in detail in the following pages.

5.1. Drug-Loaded Particles Using SAS

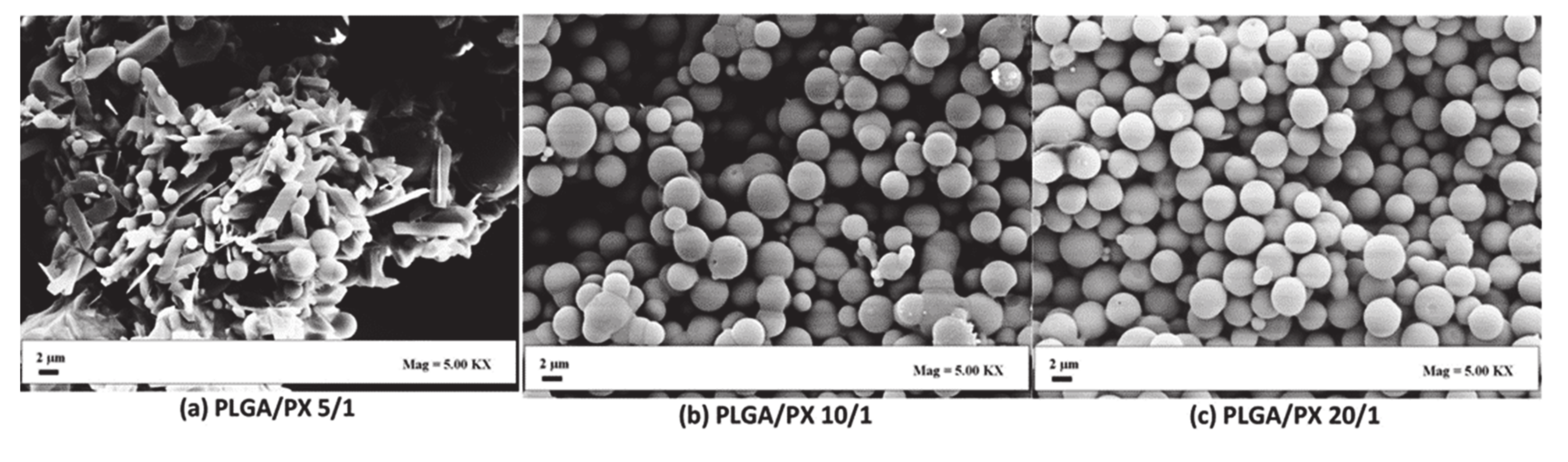

In 2014, A. Montes et al. exploited SAS for the encapsulation of the anti-inflammatory drugs ibuprofen and naproxen into PLLA and Eudragit (a methacrylate-based copolymer) particles using dichloromethane (CH2Cl2) and acetone as solvents, respectively [97]. For ibuprofen-loaded particles, mild operating conditions with P = 120 to 200 bar and T = 40 to 50 °C were applied. Although the conditions were similar, the Eudragit particles revealed a much smaller size, in the range of 160 ± 0.03 nm, compared to the loaded PLLA particles, with a size of 1.3 ± 0.7 µm. The maximum achieved ibuprofen loading was similar in both cases with 10% for PLLA and 8% for Eudragit. It was further observed that as the polymer to drug ratio increased (from 1:1 to 1:5), the final drug load decreased and the particle size increased. Similar results were shown for naproxen-loaded PLLA and Eudragit particles [98]. For PLLA particles, sizes between 600 nm to 1.43 µm and 13% as the highest drug loading were reported.
In a further development of the SAS process, F. Zahibi and co-workers aimed for uniform particles with smaller size distribution and an increased drug loading along with a high particle yield. The authors proposed a sonication step before the expansion of the mixture, during the mixing of SC-CO2 and the solvent [100]. The intermediate mixing supported the mutual diffusion and combination of the solvent and the solute achieving a higher supersaturation, which resulted in smaller and more uniform particles. The authors investigated the influence of several variables, such as the flow rate of the organic mixture, the polymer:drug ratio and the ultrasonication power (W), on the yield, the drug loading, and the size of the final product. They observed that an increase in the solution flow rate resulted in a decrease in the mean size of the particles but in an increase of the drug loading. A similar effect was observed when the ultrasonic power increased from 120 to 240 W. This increase in the ultrasonic power enabled an efficient mixing that led to a higher mass transfer. However, if the ultrasonic power was further increased to 300 W, the opposite effect occurred and the average size of the particles increased and the drug loading decreased. This was explained as a result of the heat generation due to the high ultrasonic power. Further influencing parameters such as the static agitation time or the influence of the molar ratio of CO2 to organic solvent were explored. The increase of the static agitation time to six seconds considerably affected the loading compared to non-static agitation. In addition, a higher molar ratio of CO2 to solvent led to smaller and more uniform particles due to higher supersaturation.
In 2015 and 2018, anti-solvent techniques similar to SAS were applied to produce insulin-loaded PLLA porous microspheres, as reported by A.-Z. Chen et al. and Lin et al. [103,110]. The former group used a modification of a process described in 2007. This procedure was based on the spraying through a coaxial nozzle of the polymer-drug solution, previously pressurized with SC-CO2 in a second high-pressure vessel, causing the formation of droplets due to supersaturation [112]. In the work reported here, the authors first formed an emulsion with PLLA dissolved in CH2Cl2 and insulin dissolved in the water phase. The authors obtained particles with an aerodynamic diameter of 4.31 µm. In the latter study, an insulin loading of around 5% and encapsulation efficiency (EE) of 97% was reported by subjecting the INS-PLLA emulsion to the process described above. The conditions applied for the process were P = 80 bar and T = 35 °C using a flow rate of 4 mL/min. The resulting particles revealed a rough surface and a mean diameter of 16 ± 3 µm if no drug was present, whereas they were found to be slightly larger, with a size of 19 ± 3 µm, when insulin was encapsulated. Subsequent in vitro and in vivo studies proved the biocompatibility and the desired hypoglycemic effects for pulmonary delivery of the prepared insulin-PLLA particles with a sustained drug release.
In another study, anti-retroviral drugs presenting low permeability, high dissolution rate and low bioavailability such as zidovudine (3′-azido-2′3′-dideoxythymidine) were considered for their encapsulation into PLLA using SAS, to obtain solid dispersions that improve intestinal absorption [102]. Briefly described, three different zidovudine:PLLA ratios (2:1, 1:1 and 1:2) were formulated in ethanol using three different pressures (P = 135, 100 and 85 bar) while keeping the temperature constant at 45 °C for all runs. At 85 bar the loading capacity (LC) of the particles was calculated to 13%, 23% and 7%, respectively. Although the EE was higher for the drug:polymer ratio of 1:2, ex vivo experiments that evaluated the intestinal permeability proved higher zidovudine permeation for the 1:1 ratio. This result indicates that the use of SAS method allows the modification of suitable polymeric carrier systems in terms of absorption and dissolution properties of the drug [102].

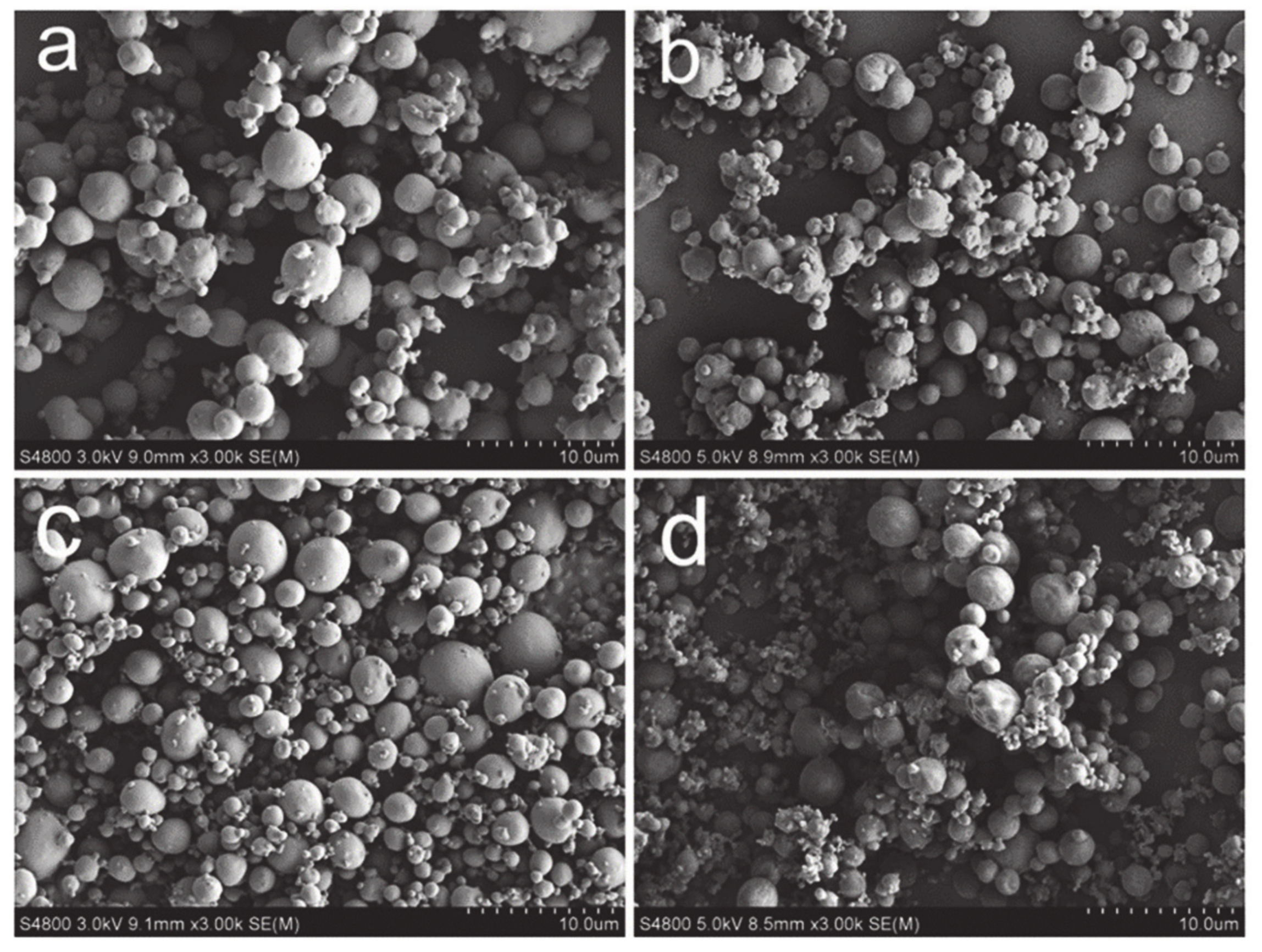

More recently, P. S. C. Sacchetin et al. attempted the production of PCL/PLA particles for the controlled release of the hydrophobic steroidal drug 17α-methyltestosterone with SAS [104]. The influence of the PCL content in the PCL/PLA particles and of different ratios of steroidal drug to PCL/PLA ratio were studied at P = 800 bar and T = 40 °C. With increasing the amount of PCL from 1:9 to 1:1 (ratio related to PLA) the size of particles increased up to 53 µm. Likewise, the EE increased from 20 to 51%. On the other hand, a higher amount of 17α-methyltestosterone in the system led to amorphous powder formation with an increase in the mean diameter from 23 to 54 µm. The release of the steroid from the particles was proven at different pH values simulating gastrointestinal conditions.
The successful production of a controlled delivery system with tamoxifen (TAM) as payload using SAS at P = 130 bar and T = 38 °C was further reported by D. Alias and co-workers [107]. To confirm the chemical and physical stability of the drug before and after the process, the authors compared the characteristics of unprocessed TAM, encapsulated TAM, and micronized TAM. The Fourier transform-infrared (FTIR) data revealed that the SAS process did not affect the chemical composition of TAM and that no free TAM was observed in the encapsulated sample. Regarding the morphology, TAM loaded particles were spherical with a smooth surface and amorphous compared to the unprocessed TAM, indicating an improvement of the NP dissolution in water. Finally, the product was free of residual solvent confirming the potential of SC-CO2 in the production of drug delivery systems with no post formulation purification steps needed. Similar studies with gefitinib as anti-cancer drug have been attempted using SAS to obtain gefitinib loaded dry powdered inhalers [109]. Lin et al. optimized thereby various system parameters, such as the solvent:co-solvent ratio of CH2Cl2 and EtOH (ranging from 0 to 0.5), the concentration of PLLA, the flow rate of the polymer-drug solution (F = 0.5 to 1.6 mL/min), as well as the pressure (P = 90 to 120 bar) and the temperature (T = 33 to 48 °C). The flow rate revealed the highest impact on the final gefitinib loading, and at optimized conditions (CH2Cl2/EtOH ratio = 0.2, c= 5 mg/mL, F = 1.2 min/mL, T = 48 °C and P = 90 bar) spherical particles with an average diameter of 2.5 µm, a LC of 16% and an EE of 94% were obtained. It was further shown that the crystallinity decreased compared to unprocessed gefitinib and that no solvent traces were left in the final product. Gefitinib loaded PLLA MPs revealed that a sustained release over the time was more effective at lower concentrations compared to raw gefitinib.
A recent study used a mixture of dimethyl sulfoxide (DMSO) and CH2Cl2 (ratio 1:1 v/v %) within the SAS process for the production of PLLA-coated 5-Fu [111]. The temperature-pressure conditions for various runs were 35 and 50 °C and 120, 150 and 180 bar, keeping the other process parameters such as the solution concentration and flow rates, unchanged. The obtained size for the coated particles varied from 0.6 to 1.2 µm (at 35 and 50 °C respectively) and the drug load ranged from 32 to 42%, whereby the best results were observed at 50 °C and 180 bar. The dissolution profile clearly showed a slower release rate from the PLLA-coated 5-Fu particles compared to the micronized particles.

5.2. Drug-Loaded Particles Using Modified SAS

Although the conventional SAS technique proved to be promising over the years for drug-loaded PLA-based delivery systems, many authors also used SEDS and the modified SAS technique SAILA for this goal. The SEDS technique that uses two co-axial nozzles and enables the simultaneous introduction of two different solutions was used to formulate PLLA-based particles with and without the presence of drugs, e.g., morphine, 5-Fu and paclitaxel [59,91,101]. Paclitaxel was encapsulated into PEG-PLLA and folate (FA) conjugated FA-PEG-PLLA polymer with varying the content of FA (0.3, 0.60 or 0.9 to 1.0) using CH2Cl2 as organic solvent [101]. Scanning electron microscopy (SEM) images of paclitaxel-loaded and -unloaded particles are displayed in Figure 7. The final particle sizes ranged between 2.3 and 3.5 µm. The highest EE was 23% and was obtained with the lowest drug:FA-PEG-PLLA ratio of 0.3:1. However, it was reported that the ratio of 0.6:1 with encapsulated paclitaxel proved to be more effective in vivo due to the targeting effect.
On the other hand, SAILA was applied by Campardelli et al. to demonstrate the successful production of an aqueous suspension of PLGA MPs loaded with the anti-inflammatory lipophilic drug piroxicam [105]. In preliminary experiments, the authors used PLGA and PLA as carriers and studied different process parameters, such as temperature (T = 60 to 80 °C), gas to liquid ratio (G/L ratio = 1 to 2.6) as well as various polymer concentrations at constant pressure (P = 80 bar). Spherical, smooth particles of both polymers in the sub-micron region (d = 0.4 ± 0.1 μm) and micron region (2.1 ± 0.8 μm) were produced, whereby the final particle size decreased from the micro-region just by increasing the G/L ratio to 2.6. Piroxicam-loaded PLGA particles with a size of 1.3 µm ± 0.3 and an EE of 60% could be produced by using a PLGA concentration of 2.5 mg/mL and a polymer: drug ratio of 1:20 (settings: P = 80 bar, T= 80 °C, G/L ratio = 1.6). R. Campardelli et al. also proposed the same technique to co-precipitate the anti-inflammatory drugs indomethacin and diclofenac, additionally to piroxicam with PLGA at 80 bar, 60 °C and using a gas to liquid ratio of 1.4 [108]. Particles in the range of 2 to 3 µm with an EE between 64% and 86% were obtained for all active payloads. The piroxicam-loaded PLGA system was further studied with varying the polymer:drug ratio and the concentration of the polymer solution. With increasing the polymer:drug ratio (5:1, 10:1 and 20:1) the size and dispersity of the particles decreased, as represented in Figure 8. The particle size could be further decreased by reducing the initial polymer concentration from 10 mg/mL to 2.5 mg/mL. However, it was noticed that the larger particles revealed slower release rates.

5.3. Drug-Loaded Particles Using Supercritical Fluid Emulsion Extraction (SFEE)

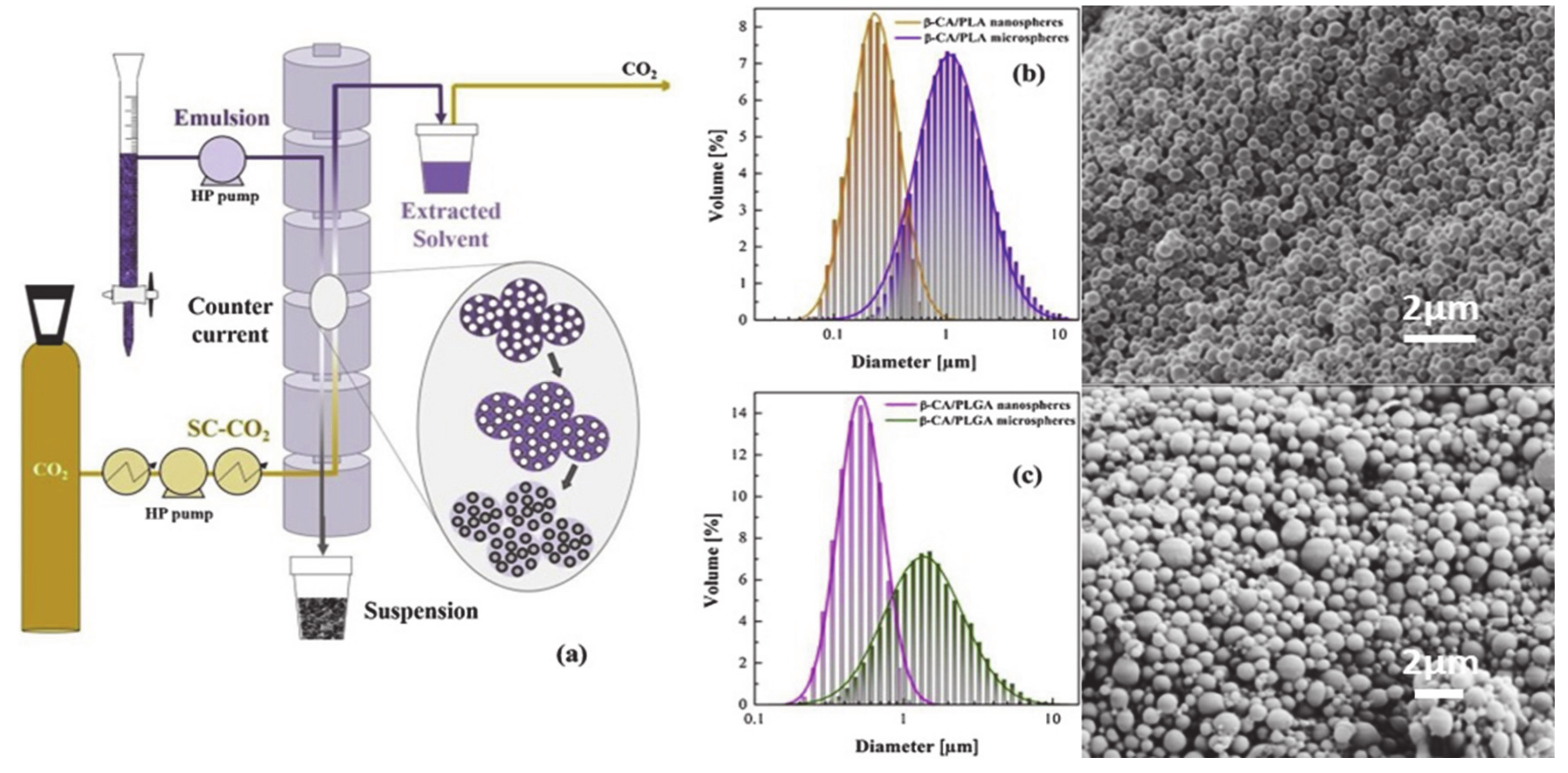

Another SC-CO2 assisted approach adopted at present and often used to obtain drug-loaded particles, with no or low residual solvent content, is the supercritical fluid emulsion extraction (SFEE) technique that was already mentioned earlier in Section 4.4. The SFEE process is based on the formation of an emulsion and posterior subjection to SC-CO2 in atomized form. The event increases the contact opportunities between SC-CO2 and the oil phase, causing the precipitation of the polymer-drug mixture in particle form due to a mass transfer mechanism [63]. Thus, critical aspects concerning the solvent removal after formulation in conventional emulsion method can be avoided [61].
The most recent study using SFEE was published in 2019 by C. Gimenez-Rota et al. [113]. In this report, β-carotene is encapsulated together with the anti-oxidants α-tocopherol and rosmarinic acid into PLLA and PLGA particles [113]. Experiments with several different double emulsions and various external phases were shown in this study. The SFEE process was carried out at 80 bar and 37 °C throughout all the experiments with a constant liquid-gas ratio of 0.1. The final sizes for the loaded PLLA particles ranged from 0.5 to 1.4 µm, whereby the influence of the droplet size of the emulsion on the final particle size was successfully demonstrated (see Figure 9). If the droplet size in the PLLA emulsion was about 2.1 µm, a final particle size of 1.4 µm was obtained. For a droplet size of 1.2 µm in the emulsion, the final PLLA particles revealed a size of 0.3 µm. The EE was calculated to be 72% and 62%, respectively. For PLGA, the same droplet sizes (2.1 and 1.2 µm) were tested and particles of 2 and 0.3 µm with an EE of 52% and 62%, respectively, were reported. The authors also mention that the use of a water-miscible solvent such as acetone failed to provide a stable emulsion and concluded that the SFEE process depends on the solvent and the carrier selected in the system. An overview of further research studies which used the SFEE technique for the removal of the organic solvents is presented in Table 3.

6. Industrial Application of Using SC-CO2 Processes for the Production of Drug-Loaded Particles

The supercritical fluid-based technologies are categorized as the bottoms-up approaches for the formulation of drug delivery systems in environmentally friendly conditions. Although the process seems simple, previous work has shown that there cannot be universally applicable conditions and that they must be specifically optimized for each polymer/drugs system. To date, SC-CO2 is the best choice as SCF for the pharmaceutical industry, but the SC-CO2-based techniques raise questions that are not yet answered for scale-up processes, e.g., the GMP cost estimation, calculation for estimation of parts of GMP equipment, together with the above-mentioned lack of standard processing conditions [121].
Theoretical modelling predictions try to find the answer to understand the phase equilibria of a system with multiple components. These studies could also answer the questions of the compatibility/solubility of the solutes in the SCF, make hydrodynamic modelling of the fluid flow through the capillary and microparticle nucleation and help in the development to have better control over the final product properties. However, this is still in progress and additionally, these theoretical answers also need experimental data to correlate the predictions with the experimental results and in the end, offer a suitable process for practical use [122].
So far, only a few processes such as SFEE were implemented and patented for the production of fine particles, and certainly more intensive and rigorous research is required [123,124]. A review from P. Sheth et al. has focused on the application of the SCF technologies for NP systems in the pharmaceutical industry. The authors nicely presented various industrial-scale leaders for the production of NPs which also includes SFC-based industries [57]. Nevertheless, it is obvious that although the advantages of the SC-CO2-based processes are numerous, many gaps in knowledge still need to be bridged. Thus, further investigations and evaluations of the process parameters are urgently needed to realize a broad and successful application of this technology in the near future.

7. Conclusions

The techniques described above demonstrate the enormous potential of SC-CO2 for the production of PLA and PLGA-based drug delivery systems, including solid dispersions, formulations for oral delivery as well as inhalations. SC-CO2 offers the advantages of being non-toxic and inexpensive and is the right step in the direction of green chemistry for the production of drug carrier systems. PLA and PLGA particles in the micro-and nanometer range can be produced by techniques that involve SC-CO2 as solvent (RESS, RESOLV), anti-solvent (SAS, SEDS, SAILA) or extractant (SFEE), depending on the SC-CO2 compatibility with the system materials and the desired product [61,79]. However, after the study of the various scientific articles, it is evident that the anti-solvent techniques are a popular choice for particle formulations. The low solubility (and low polarity) of PLA and its copolymer in SC-CO2 can be blamed for this challenge in techniques based on SC-CO2 acting as a solvent, such as RESS. Hence, the inclination toward anti-solvent techniques such as SAS, SAILA, and along with PGSS are explored and investigated owing to the advantages of SC-CO2.
The design and formulation of drug-loaded biodegradable particles with improved control over the system are still in progress. Exploiting the solvent/anti-solvent properties of SC-CO2 for the particle formation is thereby challenging. The major obstacles for wide-scale applications of SC-CO2-based techniques are the limited choice of soluble biopolymers, the tendency of some polymers to plasticize during processing, the compatibility of organic solvents and the technical apparatus. At the same time, the principles of the particle formation and size distributions are dependent on the solute-solvent properties and the thermodynamics of the system. There are numerous unknown variables involved in the system, which indicates the necessity for solutions for the transfer of technology or upscaling. The application of theoretical modelling tools to understand phase equilibria, which are not covered in this overview, is expected to fill the gaps in the present research [125,126].
With thorough experimental investigations and correlating the findings with appropriate theoretical modelling predictions, the SC-CO2-based processes can be a reality in the coming years for the production of polymer-based drug delivery systems if enough energy and focus is set on this technology.

Funding

This work was supported by the Deutsche Forschungsgemeinschaft (DFG) via the Collaborative Research Center SFB 1278 “PolyTarget” project number 316213987, A04 and Basque Government (Programa postdoctoral de perfeccionamiento de personal investigator doctor 2018–2019).

Acknowledgments

This work was supported by the Deutsche Forschungsgemeinschaft (DFG) via the Collaborative Research Center SFB 1278 “PolyTarget” project number 316213987, A04. Furthermore, Alicia De San Luis acknowledges the financial support from the Basque Government (Programa postdoctoral de perfeccionamiento de personal investigator doctor 2018–2019).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CO2Carbon dioxide
CH2Cl2Dichloromethane
DMSODimethyl sulfoxide
DSCDifferential scanning calorimetry
EEEncapsulation efficiency
FAFolate
FDAFood and drugs association
FTIRFourier transform infrared spectroscopy
5-FU5-Florouracil
GAGlycolic acid
GASGas antisolvent solution
G/LGas/liquid
GMSGlyceryl monostearate
L/DLength/diameter
LALactic acid
LCLoading capacity
MPMicroparticle
μmMicrometer
MnMolar mass
NPNanoparticle
NmNanometer
kDaKilodalton
PPressure
PCLPoly(caprolactone)
PCAPressure compressed antisolvent
PEGPoly (ethylene glycol)
PDLAPoly (D-lactic acid)
PLLAPoly (L-lactic acid)
PLGAPoly (lactic-co-glycolic acid)
PCCritical pressure
RESSRapid expansion of supercritical solution
RESOLVRapid expansion of supercritical solution in liquid
SAASupercritical assisted atomization
SASSupercritical antisolvent
SAILASupercritical antisolvent in liquid
SAS-EMSupercritical antisolvent- enhanced mass transfer
SC-CO2Supercritical carbon dioxide
SCFSupercritical fluid
SDSSodium dodecyl sulfate
SEDSSolution-enhanced dispersion solvent
SEMScanning electron microscopy
SFEESupercritical fluid emulsion extraction
TTemperature
TgGlass transition temperature
TmMelting temperature
TAMTamoxifen
TEMTransmission electron microscopy
