Polymer Distribution and Mechanism Conversion in Multiple Media of Phase-Separated Controlled-Release Film-Coating
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Solubility of Metoprolol Succinate
2.3. Preparation of Coated Pellets
2.3.1. Drug-Layered Starter Cores
2.3.2. Film-Coated Controlled Release Pellets
2.4. Characterization of Coated Pellets
2.4.1. In Vitro Drug Release Measurement
2.4.2. Pellet Swelling Monitoring
2.4.3. Osmotic Pressure Determination
2.5. HPC Leaching and Viscosity in Different Media
2.6. Preparation of Free Films
2.7. Water Uptake and Microstructure of Free Films
2.8. Mathematical Modeling
3. Results and Discussion

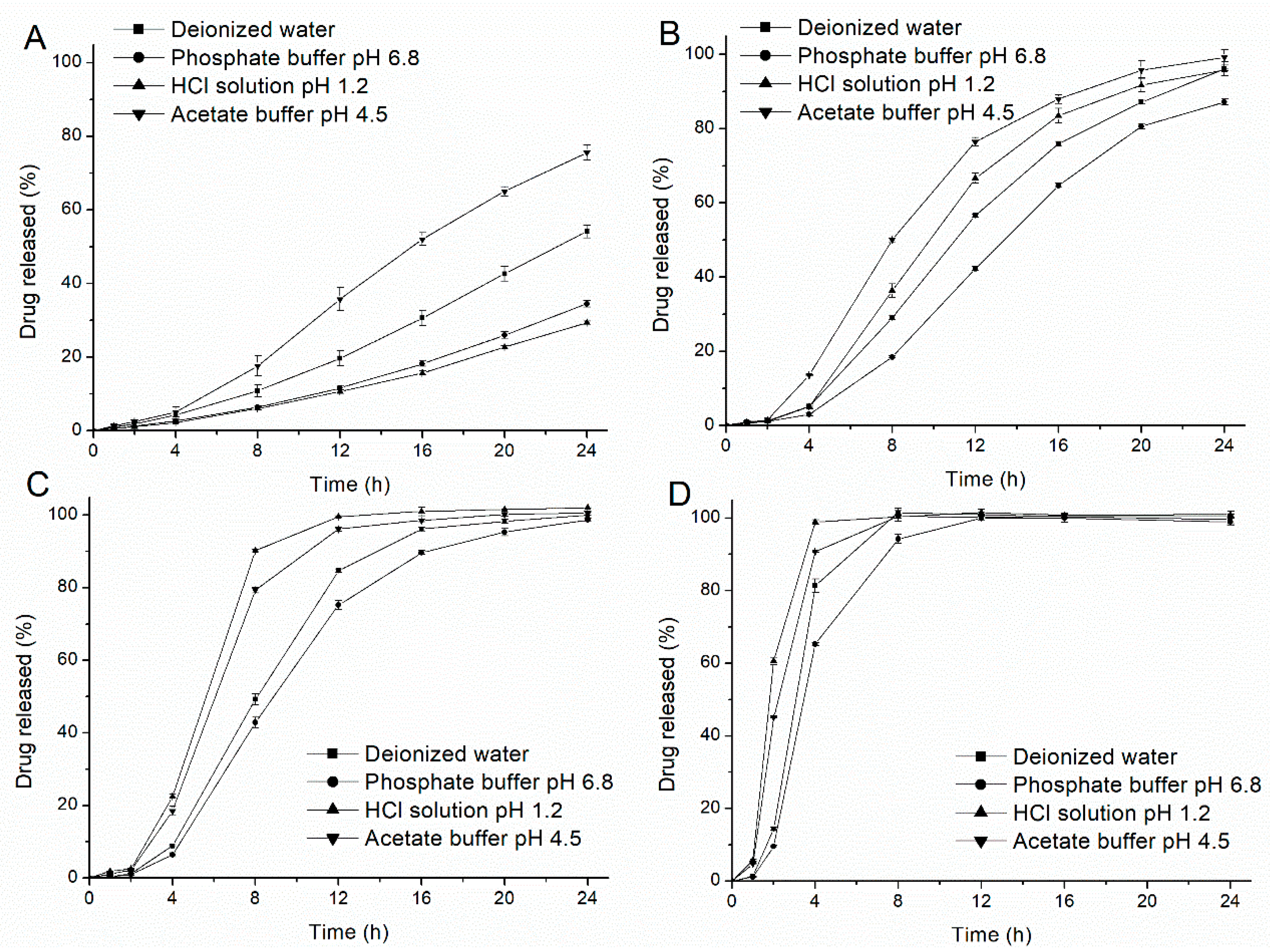

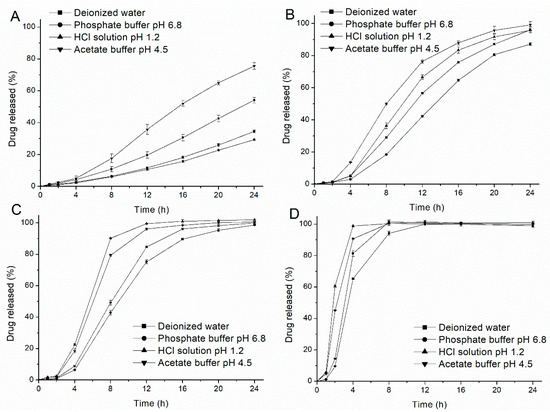

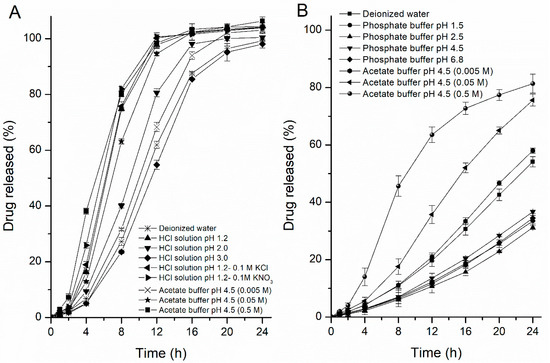

3.1. Drug Release from EC/HPC Film-Coated Pellets
3.1.1. Effects of the Media pH
3.1.2. Effects of Media Composition

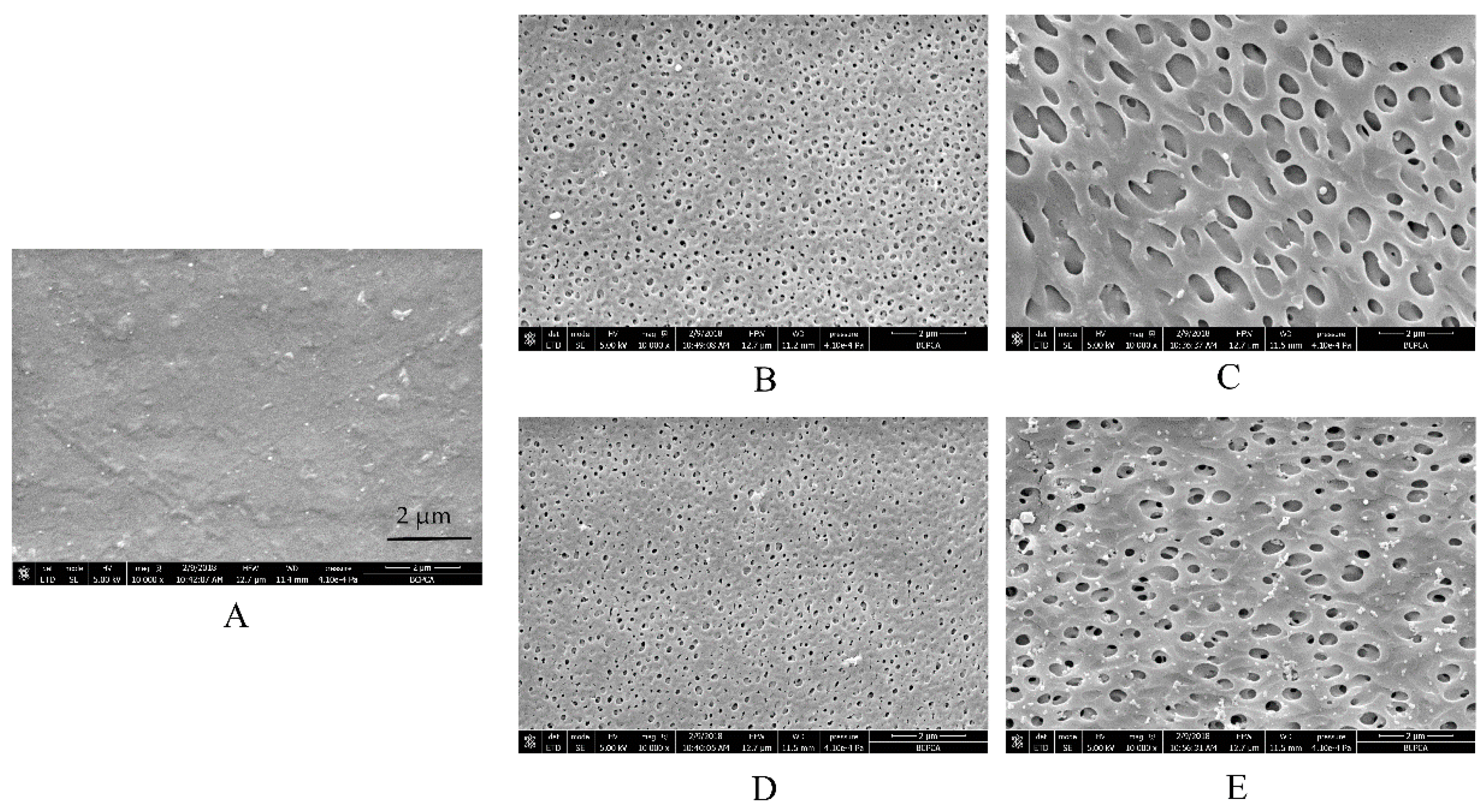

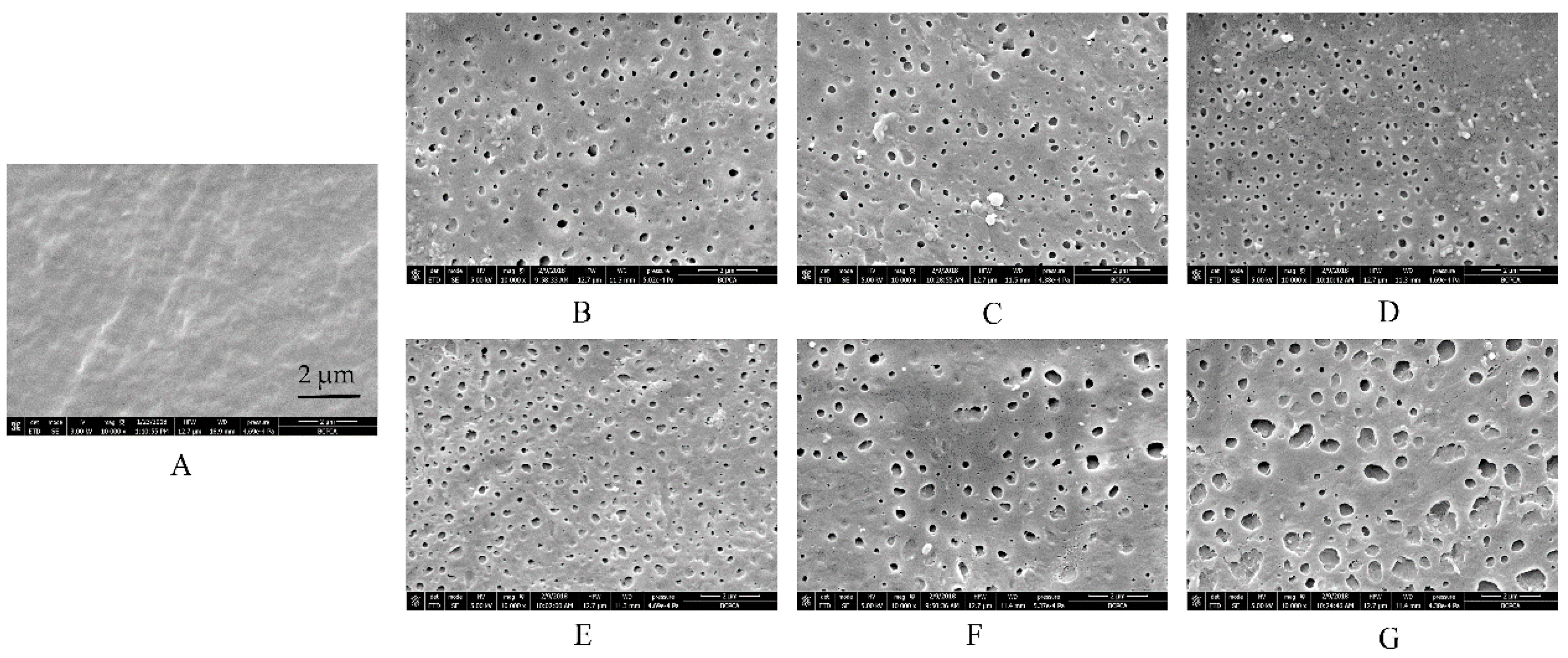

3.2. Microstructure of Free EC/HPC Film
3.3. Influence of Media on HPC Properties

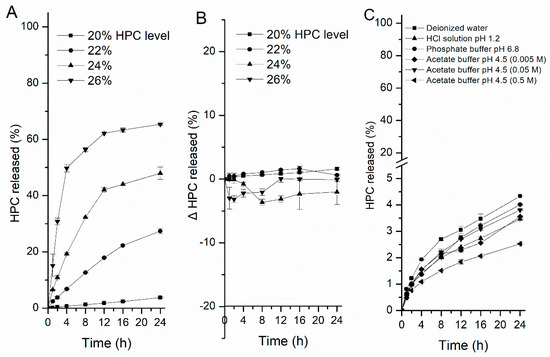

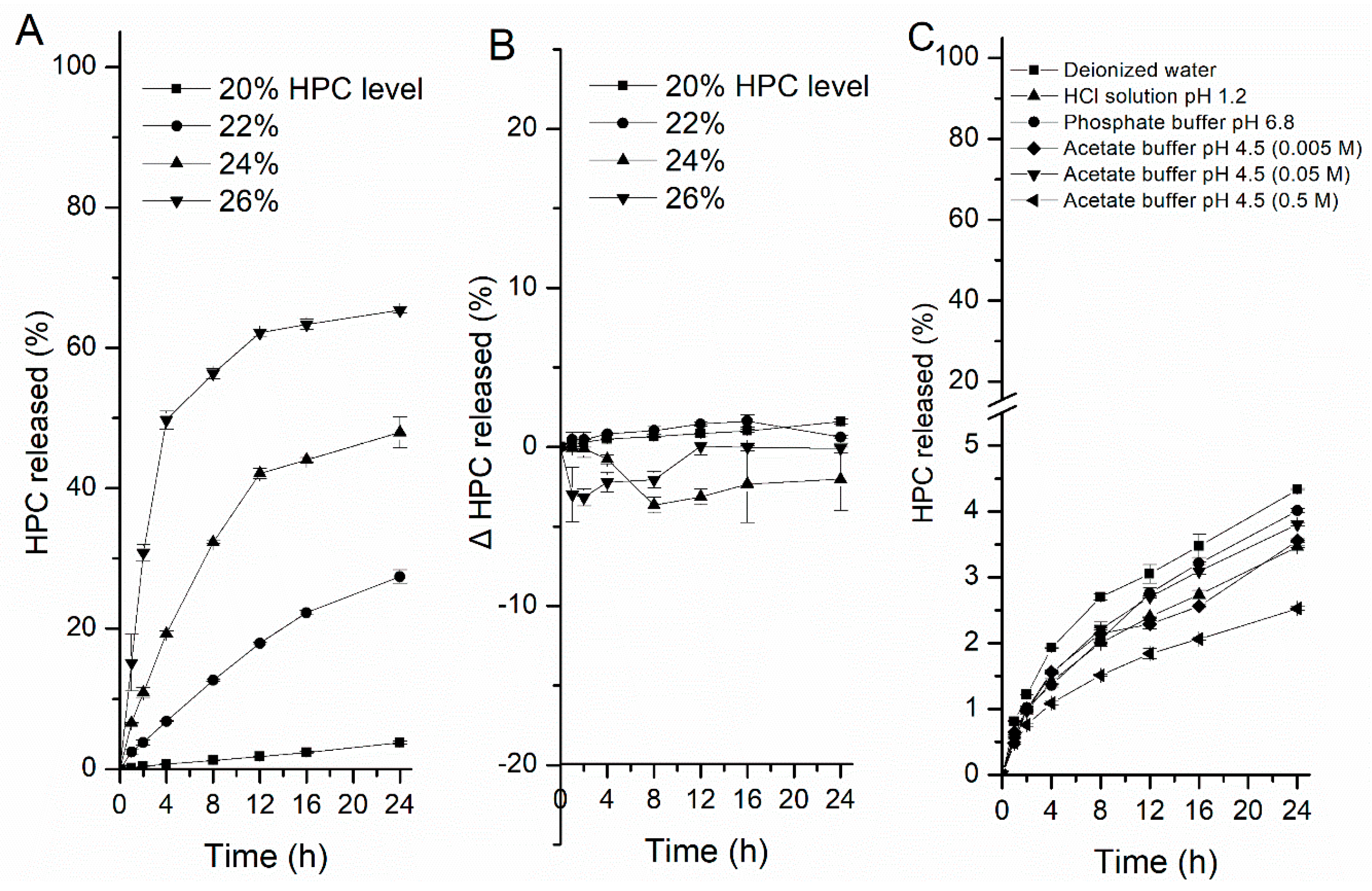

3.3.1. HPC Leaching from Coated Pellet

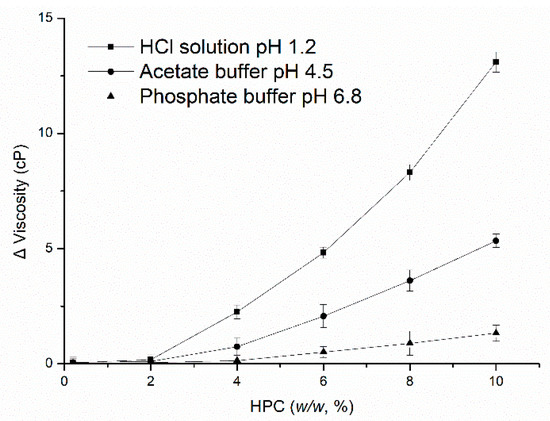

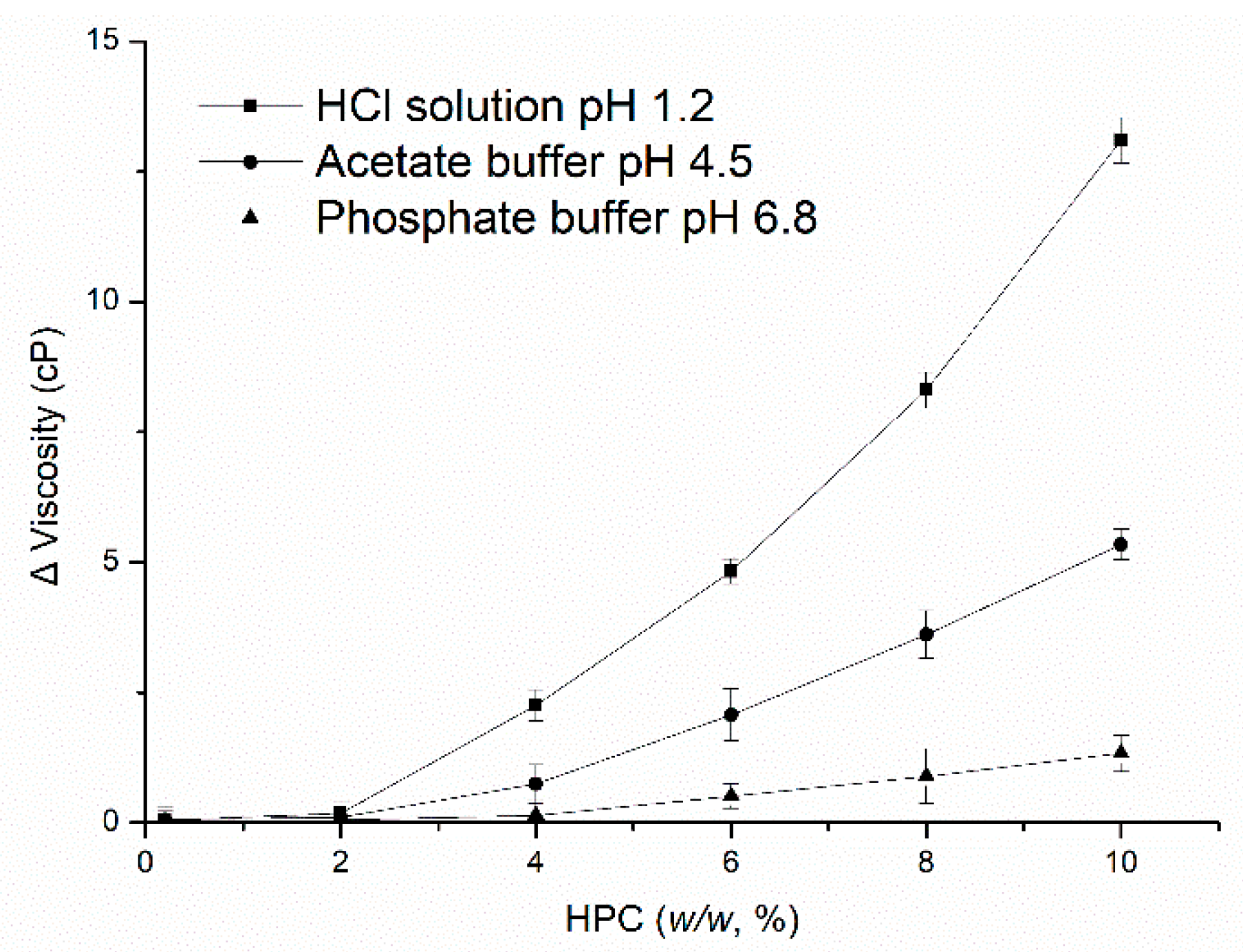

3.3.2. Viscosity of HPC Solution
3.4. Influence of Media on EC-Coating Film Properties
3.4.1. Drug Release From Pellets

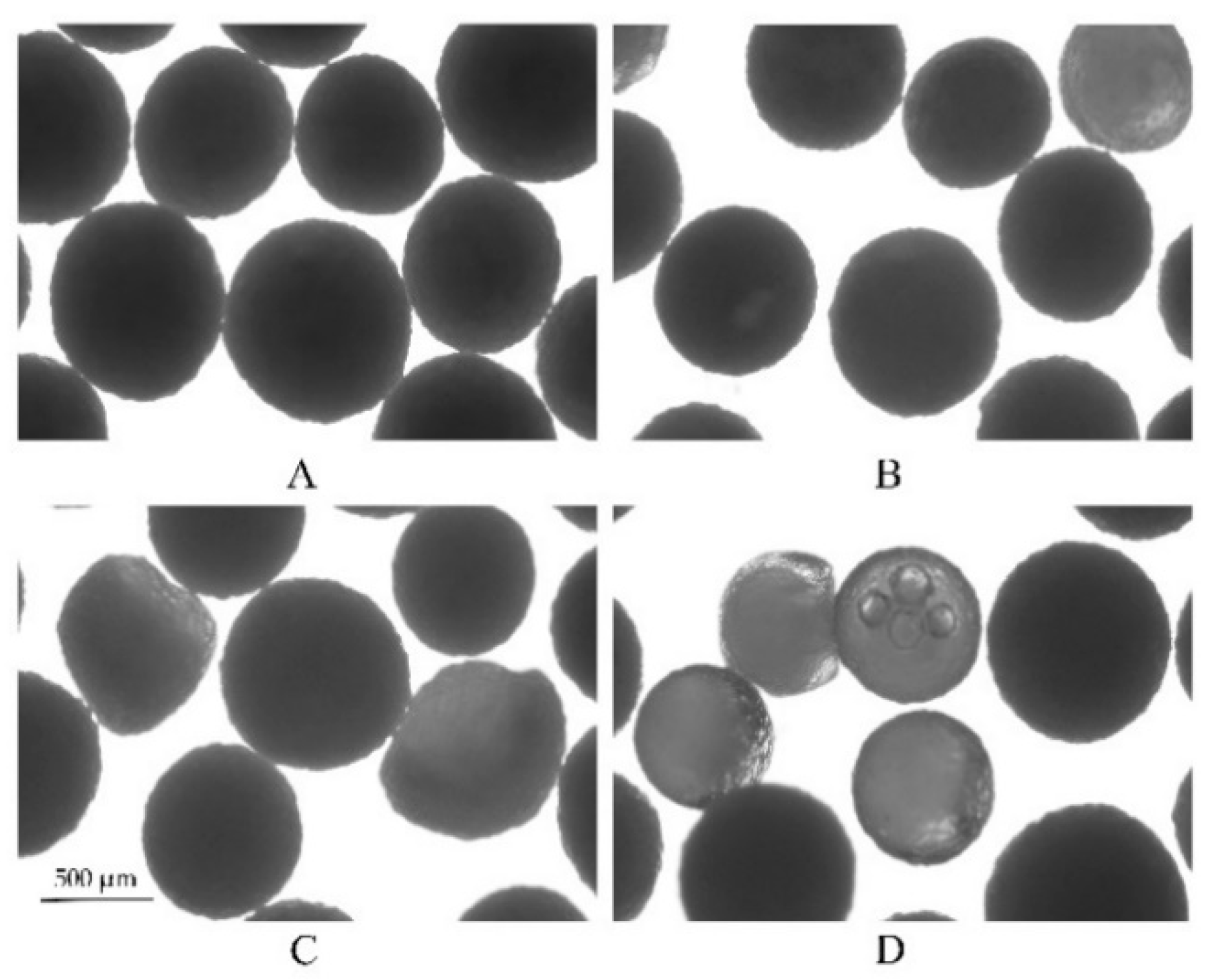

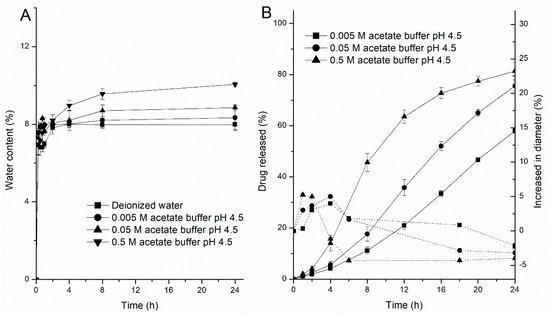

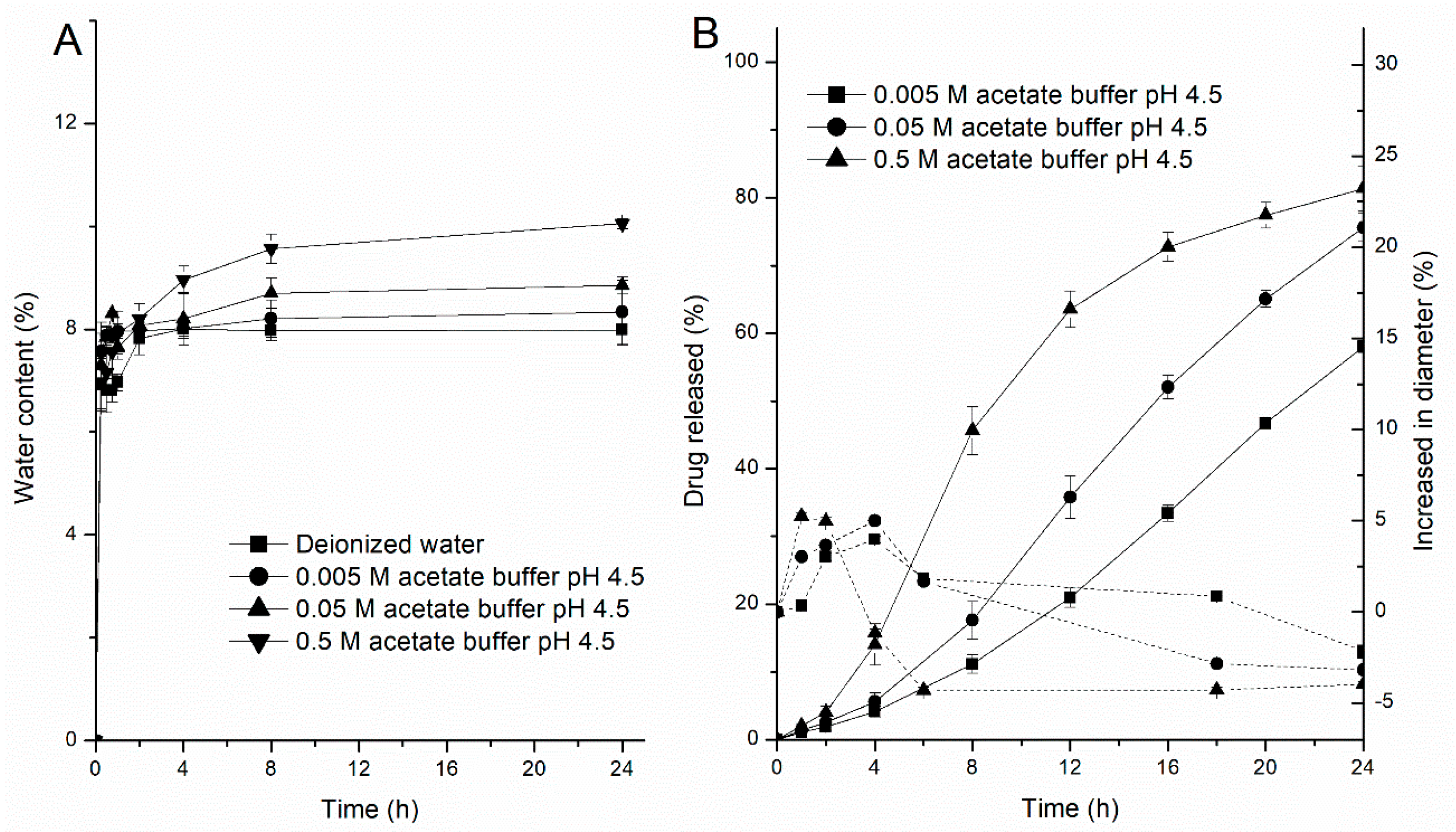

3.4.2. Water Uptake and Swelling Study
3.4.3. Microstructure

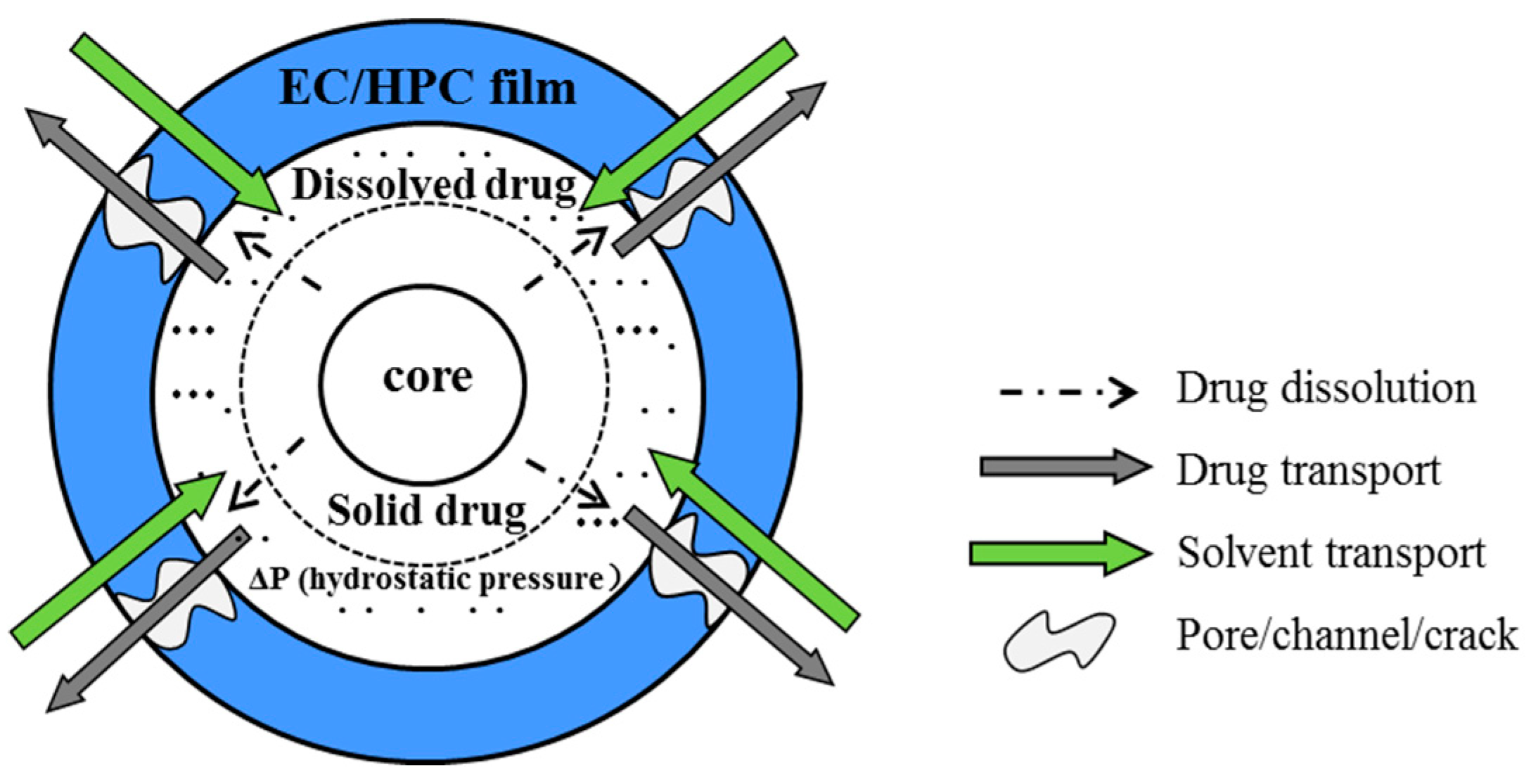

3.5. Release Mechanism
3.5.1. Deionized Water and Phosphate Buffer at pH 6.8
3.5.2. HCl Solution at pH 1.2
3.5.3. Acetate Buffer at pH 4.5
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Andersson, H.; Häbel, H.; Olsson, A.; Sandhagen, S.; Corswant, C.V.; Hjärtstam, J.; Persson, M.; Stading, M.; Larsson, A. The influence of the molecular weight of the water-soluble polymer on phase-separated films for controlled release. Int. J. Pharm. 2016, 511, 223–235. [Google Scholar] [CrossRef] [PubMed]
- Marucci, M.; Andersson, H.; Hjartstam, J.; Stevenson, G.; Baderstedt, J.; Stading, M.; Larsson, A.; von Corswant, C. New insights on how to adjust the release profile from coated pellets by varying the molecular weight of ethyl cellulose in the coating film. Int. J. Pharm. 2013, 458, 218–223. [Google Scholar] [CrossRef] [PubMed]
- Marucci, M.; Ragnarsson, G.; von Corswant, C.; Welinder, A.; Jarke, A.; Iselau, F.; Axelsson, A. Polymer leaching from film coating: Effects on the coating transport properties. Int. J. Pharm. 2011, 411, 43–48. [Google Scholar] [CrossRef]
- Siepmann, F.; Siepmann, J.; Walther, M.; Macrae, R.J.; Bodmeier, R. Polymer blends for controlled release coatings. J. Control. Release 2008, 125, 1–15. [Google Scholar] [CrossRef] [PubMed]
- Marucci, M.; Hjärtstam, J.; Ragnarsson, G.; Iselau, F.; Axelsson, A. Coated formulations: New insights into the release mechanism and changes in the film properties with a novel release cell. J. Control. Release 2009, 136, 206–212. [Google Scholar] [CrossRef] [PubMed]
- Mariagrazia, M.; Gert, R.; Bernt, N.; Anders, A. Osmotic pumping release from ethyl-hydroxypropyl-cellulose-coated pellets: A new mechanistic model. J. Control. Release 2010, 142, 53–60. [Google Scholar]
- Karrout, Y.; Siepmann, F.; Benzine, Y.; Paccou, L.; Guinet, Y.; Hedoux, A.; Siepmann, J. When drugs plasticize film coatings: Unusual formulation effects observed with metoprolol and eudragit rs. Int. J. Pharm. 2018, 539, 39–49. [Google Scholar] [CrossRef]
- Fahier, J.; Muschert, S.; Fayard, B.; Velghe, C.; Byrne, G.; Doucet, J.; Siepmann, F.; Siepmann, J. Importance of air bubbles in the core of coated pellets: Synchrotron x-ray microtomography allows for new insights. J. Control. Release 2016, 237, 125–137. [Google Scholar] [CrossRef]
- Nokhodchi, A.; Raja, S.; Patel, P.; Asareaddo, K. The role of oral controlled release matrix tablets in drug delivery systems. Bioimpacts 2012, 2, 175. [Google Scholar]
- Marucci, M.; Arnehed, J.; Jarke, A.; Matic, H.; Nicholas, M.; Boissier, C.; von Corswant, C. Effect of the manufacturing conditions on the structure and permeability of polymer films intended for coating undergoing phase separation. Eur. J. Pharm. Biopharm. 2013, 83, 301–306. [Google Scholar] [CrossRef]
- Bhatt, B.; Kumar, V. Regenerated cellulose capsules for controlled drug delivery: Part iv. In-vitro evaluation of novel self-pore forming regenerated cellulose capsules. Eur. J. Pharm. Sci. 2016, 97, 227. [Google Scholar] [CrossRef] [PubMed]
- Andersson, H.; Hjärtstam, J.; Stading, M.; von Corswant, C.; Larsson, A. Effects of molecular weight on permeability and microstructure of mixed;ethyl-hydroxypropyl-cellulose films. Eur. J. Pharm. Sci. 2013, 48, 240–248. [Google Scholar] [CrossRef] [PubMed]
- Kazlauske, J.; Cafaro, M.M.; Caccavo, D.; Marucci, M.; Lamberti, G.; Barba, A.A.; Larsson, A. Determination of the release mechanism of theophylline from pellets coated with surelease((r))-a water dispersion of ethyl cellulose. Int. J. Pharm. 2017, 528, 345–353. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Yang, J.; Yong, Q.; Yang, M.; Yan, Q.; Wei, H.; Li, S.; Gao, C. Novel ethylcellulose-coated pellets for controlled release of metoprolol succinate without lag phase: Characterization, optimization and in vivo evaluation. Drug Dev. Ind. Pharm. 2015, 41, 1120. [Google Scholar] [CrossRef] [PubMed]
- Larssonab, M.; Stadingcda, M. Effect of ethanol on the water permeability of controlled release films composed of ethyl cellulose and hydroxypropyl cellulose. Eur. J. Pharm. Biopharm. 2010, 76, 428–432. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Maderuelo, C.; Zarzuelo, A.; Lanao, J.M. Critical factors in the release of drugs from sustained release hydrophilic matrices. J. Control. Release 2011, 154, 2–19. [Google Scholar] [CrossRef]
- Faisant, N.; Akiki, J.; Siepmann, F.; Benoit, J.P.; Siepmann, J. Effects of the type of release medium on drug release from plga-based microparticles: Experiment and theory. Int. J. Pharm. 2006, 314, 189–197. [Google Scholar] [CrossRef]
- Corrigan, O.I.; Devlin, Y.; Butler, J. Influence of dissolution medium buffer composition on ketoprofen release from er products and in vitro–in vivo correlation. Int. J. Pharm. 2003, 254, 147–154. [Google Scholar] [CrossRef]
- Assifaoui, A.; Chambin, O.; Cayot, P. Drug release from calcium and zinc pectinate beads: Impact of dissolution medium composition. Carbohydr. Polym. 2011, 85, 388–393. [Google Scholar] [CrossRef]
- Asare-Addo, K.; Conway, B.R.; Larhrib, H.; Levina, M.; Rajabi-Siahboomi, A.R.; Tetteh, J.; Boateng, J.; Nokhodchi, A. The effect of ph and ionic strength of dissolution media on in-vitro release of two model drugs of different solubilities from hpmc matrices. Colloids Surf. B Biointerf. 2013, 111, 384–391. [Google Scholar] [CrossRef]
- Johnson, J.L.; Holinej, J.; Williams, M.D. Influence of ionic strength on matrix integrity and drug release from hydroxypropyl cellulose compacts. Int. J. Pharm. 1993, 90, 151–159. [Google Scholar] [CrossRef]
- Bassi, P.; Kaur, G. Ph modulation: A mechanism to obtain ph-independent drug release. Exp. Opin. Drug Deliv. 2010, 7, 845–857. [Google Scholar] [CrossRef]
- Wesseling, M.; Bodmeier, R. Drug release from beads coated with an aqueous colloidal ethylcellulose dispersion, aquacoat, or an organic ethylcellulose solution. Eur. J. Pharm. Biopharm. 1999, 47, 33–38. [Google Scholar] [CrossRef]
- Ebube, N.K.; Jones, A.B. Sustained release of acetaminophen from a heterogeneous mixture of two hydrophilic non-ionic cellulose ether polymers. Int. J. Pharm. 2004, 272, 19–27. [Google Scholar] [CrossRef] [PubMed]
- Prasad, V.K.; Shah, V.P.; Knight, P.; Malinowski, H.; Cabana, B.E.; Meyer, M.C. Importance of media selection in establishment of in vitro-in vivo relationships for quinidine gluconate. Int. J. Pharm. 1982, 13, 1–8. [Google Scholar] [CrossRef]
- Varma, M.V.S.; Panchagnula, R. Prediction of in vivo intestinal absorption enhancement on p-glycoprotein inhibition, from rat in situ permeability. J. Pharma. Sci. 2005, 94, 1694–1704. [Google Scholar] [CrossRef] [PubMed]
- Fadda, H.M.; Merchant, H.A.; Arafat, B.T.; Basit, A.W. Physiological bicarbonate buffers: Stabilisation and use as dissolution media for modified release systems. Int. J. Pharm. 2009, 382, 56–60. [Google Scholar] [CrossRef] [PubMed]
- Scheubel, E.; Adamy, L.; Hoffart, V.; Cardot, J.M. Selection of the most suitable dissolution method for an extended release formulation based on ivivc level a obtained on cynomolgus monkey. Drug Dev. Ind. Pharm. 2010, 36, 1320. [Google Scholar] [CrossRef] [PubMed]
- Ravishankar, H.; Patil, P.; Samel, A.; Petereit, H.U.; Lizio, R.; Iyer-Chavan, J. Modulated release metoprolol succinate formulation based on ionic interactions: In vivo proof of concept. J. Control. Release 2006, 111, 65–72. [Google Scholar] [CrossRef] [PubMed]
- Kendall, M.J.; Maxwell, S.R.; Sandberg, A.; Westergren, G. Controlled release metoprolol. Clinical pharmacokinetic and therapeutic implications. Clin. Pharm. 1991, 21, 319. [Google Scholar] [CrossRef] [PubMed]
- Kiyosawa, K. Theoretical and experimental studies on freezing point depression and vapor pressure deficit as methods to measure osmotic pressure of aqueous polyethylene glycol and bovine serum albumin solutions. Biophys. Chem. 2003, 104, 171–188. [Google Scholar] [CrossRef]
- Kedem, O.; Katchalsky, A. A physical interpretation of the phenomenological coefficients of membrane permeability. J. Gener. Physiol. 1961, 45, 143–179. [Google Scholar] [CrossRef]
- Häbel, H.; Andersson, H.; Olsson, A.; Olsson, E.; Larsson, A.; Särkkä, A. Characterization of pore structure of polymer blended films used for controlled drug release. J. Control. Release 2015, 222, 151–158. [Google Scholar] [CrossRef] [PubMed]
- Wilson, C.G.; Siegel, R.A.; Rathbone, M.J.; Abu-Diak, O.A.; Andrews, G.P.; Jones, D.S.; Omidian, H.; Park, K.; Tsung, J.; Burgess, D.J. Fundamentals and Applications of Controlled Release Drug Delivery; Springer US: Boston, MA, USA, 2012; pp. 47–73. [Google Scholar]
- Fukui, E.; Uemura, K.; Kobayashi, M. Studies on applicability of press-coated tablets using hydroxypropylcellulose (hpc) in the outer shell for timed-release preparations. J. Control. Release 2000, 68, 215–223. [Google Scholar] [CrossRef]
- Mehta, R.Y.; Missaghi, S.; Tiwari, S.B.; Rajabi-Siahboomi, A.R. Application of ethylcellulose coating to hydrophilic matrices: A strategy to modulate drug release profile and reduce drug release variability. AAPS PharmSciTech 2014, 15, 1049–1059. [Google Scholar] [CrossRef] [PubMed]
- Siepmann, J.; Siepmann, F. Modeling of diffusion controlled drug delivery. J. Control. Release 2012, 161, 351–362. [Google Scholar] [CrossRef] [PubMed]
- Hiremath, P.S.; Saha, R.N. Oral controlled release formulations of rifampicin. Part ii: Effect of formulation variables and process parameters on in vitro release. Drug Deliv. 2008, 15, 159. [Google Scholar] [CrossRef] [PubMed]
- Lee, B.; Ryu, S.G.; Cui, J.H. Formulation and release characteristics of hydroxypropyl methylcellulose matrix tablet containing melatonin. Drug Dev. Ind. Pharm. 1999, 25, 493–501. [Google Scholar] [CrossRef] [PubMed]
- Yang, M.; Xie, S.; Li, Q.; Wang, Y.; Chang, X.; Li, S.; Sun, L.; Huang, X.; Gao, C. Effects of polyvinylpyrrolidone both as a binder and pore-former on the release of sparingly water-soluble topiramate from ethylcellulose coated pellets. Int. J. Pharm. 2014, 465, 187–196. [Google Scholar] [CrossRef] [PubMed]
- Tiwari, S.B.; T Krishna, M.; M Raveendra, P.; Mehta, P.R.; Chowdary, P.B. Controlled release formulation of tramadol hydrochloride using hydrophilic and hydrophobic matrix system. Aaps Pharmscitech 2003, 4, 18–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Theeuwes, F.; Higuchi, T. Osmotic Dispensing Device with Maximum and Minimum Sizes for the Passageway. U.S. Patent US3916899A, 4 December 1975. [Google Scholar]
- Herrlich, S.; Spieth, S.; Messner, S.; Zengerle, R. Osmotic micropumps for drug delivery. Adv. Drug. Deliv. Rev. 2012, 64, 1617–1627. [Google Scholar] [CrossRef] [PubMed]
Solute | Solubility (mg/mL) | Osmolarity (π) of the Solution (mOsmol/kg) |
---|---|---|
Deionized water | 276.05 ± 3.27 | 0 |
HCl solution, pH 1.2 | 303.53 ± 2.84 | 174 ± 1.64 |
Phosphate buffer pH 6.8 | 249.20 ± 8.69 | 105 ± 1.81 |
Acetate buffer pH 4.5 (0.05 M) | 268.82 ± 9.21 | 70 ± 2.13 |
Acetate buffer pH 4.5 (0.005 M) | 259.93 ± 2.24 | 7 ± 1.12 |
Acetate buffer pH 4.5 (0.5 M) | 304.79 ± 9.62 | 730 ± 0.95 |
MS (Saturated solution-water) | - | 1050 ± 2.34 |
MS (Saturated solution-HCl) | - | 1294 ± 1.85 |
MS (Saturated solution-phosphate buffer) | - | 1160 ± 2.01 |
MS (Saturated solution-acetate buffer) | - | 1152 ± 2.16 |
Medium | RT (pure EC)-%-h | RT (80% EC)-%-h | RT (pure EC)/RT (80% EC) |
---|---|---|---|
Deionized water | 0.758 | 2.318 | 0.32 |
0.005 M, acetate buffer pH 4.5 | 1.025 | 2.987 | 0.34 |
0.05 M, acetate buffer pH 4.5 | 2.276 | 3.632 | 0.63 |

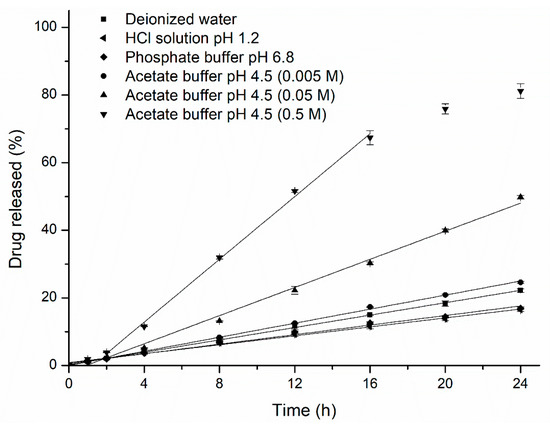

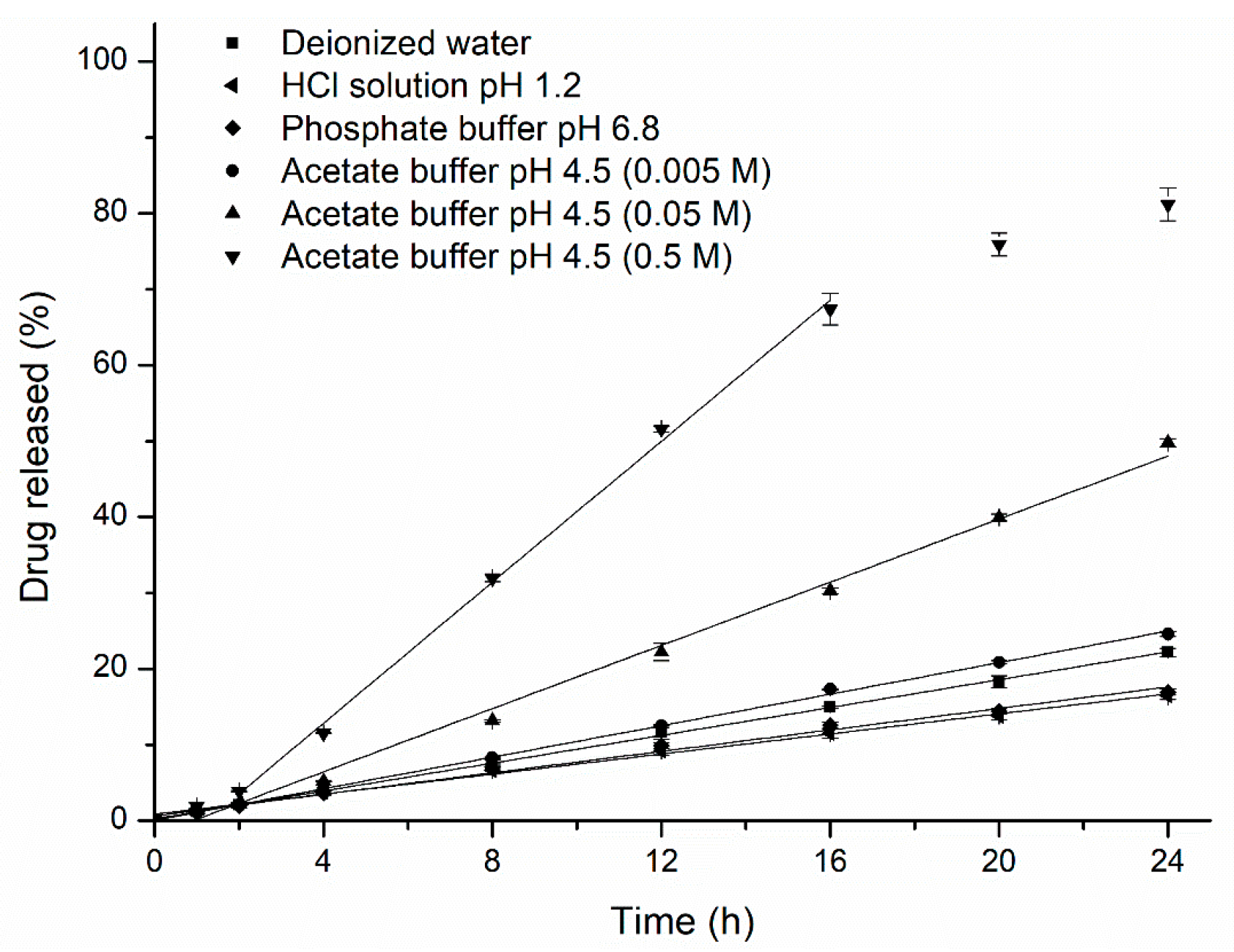

0.5 M, acetate buffer pH 4.5 | 4.680 | 6.189 | 0.76 |

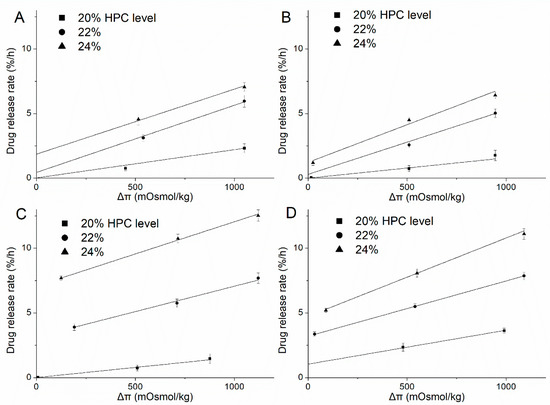

Deionized Water | RT-%/h | %/h-(mOsmol/kg) | RD-%/h | Ro (RT-RD) | Ro/RT |
---|---|---|---|---|---|
20% | 2.318 | 0.002 | −0.056 * | 2.318 | 1.00 |
22% | 5.966 | 0.005 | 0.491 | 5.475 | 0.92 |
24% | 7.064 | 0.006 | 1.481 | 5.583 | 0.79 |
Phosphate buffer pH 6.8 | |||||
20% | 1.762 | 0.002 | −0.055 * | 1.762 | 1.00 |
22% | 5.033 | 0.005 | 0.241 | 4.792 | 0.95 |
24% | 6.418 | 0.006 | 1.226 | 5.192 | 0.81 |
HCl solution pH 1.2 | |||||
20% | 1.465 | 0.002 | −0.011 * | 1.465 | 1.00 |
22% | 7.694 | 0.004 | 3.050 | 4.644 | 0.60 |
24% | 12.53 | 0.005 | 7.135 | 5.395 | 0.43 |
Acetate buffer pH 4.5 | |||||
20% | 3.632 | 0.003 | 1.018 | 2.614 | 0.72 |
22% | 7.864 | 0.004 | 3.201 | 4.663 | 0.59 |
24% | 11.11 | 0.006 | 4.954 | 6.156 | 0.55 |
