Concept Paper

Prospects and Challenges of Phospholipid-Based Prodrugs

Department of Clinical Pharmacology, School of Pharmacy, Faculty of Health Sciences, Ben-Gurion University of the Negev, Beer-Sheva 8410501, Israel
Cloud Pharmaceuticals Inc., Durham, NC 27709, USA
Department of Chemistry, University of Florida, Gainesville, FL 32603, USA
Department of Medicine, Division of Gastroenterology, University of Florida, Gainesville, FL 32610, USA
Author to whom correspondence should be addressed.
Pharmaceutics 2018, 10(4), 210;
Submission received: 10 October 2018 / Revised: 24 October 2018 / Accepted: 26 October 2018 / Published: 1 November 2018
(This article belongs to the Special Issue Feature Papers for 10th Anniversary of Pharmaceutics)


Nowadays, the prodrug approach is used already at the early stages of drug development. Lipidic prodrug approach is a growing field for improving a number of drug properties/delivery/therapy aspects, and can offer solutions for various unmet needs. This approach includes drug moiety bound to the lipid carrier, which can be triglyceride, fatty acids, steroid, or phospholipid (PL). The focus of this article is PL-based prodrugs, which includes a PL carrier covalently bound to the active drug moiety. An overview of relevant physiological lipid processing pathways and absorption barriers is provided, followed by drug delivery/therapeutic application of PL-drug conjugates, as well as computational modeling techniques, and a modern bioinformatics tool that can aid in the optimization of PL conjugates. PL-based prodrugs have increased lipophilicity comparing to the parent drug, and can therefore significantly improve the pharmacokinetic profile and overall bioavailability of the parent drug, join the endogenous lipid processing pathways and therefore accomplish drug targeting, e.g., by lymphatic transport, drug release at specific target site(s), or passing the blood-brain barrier. Moreover, an exciting gateway for treating inflammatory diseases and cancer is presented, by utilizing the PL sn-2 position in the prodrug design, aiming for PLA2-mediated activation. Overall, a PL-based prodrug approach shows great potential in improving different drug delivery/therapy aspects, and is expected to grow.

Graphical Abstract

1. Introduction

Prodrugs are bioreversible derivatives of active drug molecules used to overcome certain physiological barriers [1]. Prodrugs are used to optimize the features of the parent drug, such as physicochemical, ADME (absorption, distribution, metabolism, excretion) and pharmacological properties. The prodrug approach can facilitate formulation and administration, drug efficacy, improves site specificity, and/or decrease toxicity [2,3].
The prodrug design encompases two different approaches: Hydrophilic prodrugs (where the prodrug has lower lipophilicity than the parent drug) [4] and lipophilic prodrugs (where the prodrug is more lipophilic than the parent drug) [5]. Lipidic prodrugs consist of two main parts: The drug moiety covalently attached to the lipid carrier, where the lipid carrier can be a fatty acid (FA), glyceride, steroid, or phospholipid (PL) [6]. A major strength of lipidic prodrug approach is that a carefully designed lipidic prodrug can take advantage of physiological lipid metabolic pathways and efficiently deliver the prodrug across barriers that are difficult to overcome otherwise [7].
The focus of this work is the PL-based prodrugs approach; it is aimed to overview trends and uses, prospects and challenges, promising therapeutic applications, as well as modelling methods for improving their design. The traditional prodrug approach focuses on altering the physicochemical drug properties by covalently binding the drug to hydrophilic or lipophilic moiety thereby increasing drug solubility [4] or passive permeability [8]. In contrast, the modern prodrug approach focuses on enabling site specificity, by targeting a specific membrane transporter or an enzyme. This “targeted” prodrug approach accounts for molecular and cellular factors such as influx/efflux of membrane transporters or cellular protein expression and distribution, thereby providing the opportunity for drug targeting, improving oral bioavailability, or selective organ/tissue activation [8,9,10,11,12,13]. The PL-prodrug approach is often based on targeting phospholipase A2 (PLA2), an enzyme that hydrolyzes the sn-2 fatty acyl bond of PL, thereby liberating lysophospholipid (LPL) and a free FA. Secretory phospholipase A2 (sPLA2) is overexpressed in the tissues of various inflammatory and malignant diseases [14,15,16,17,18,19], and PL-based prodrugs susceptible to sPLA2 is one of the main foci of this work. PLA2 does not have specific fatty acid selectivity, hence an intelligent design of PL-drug conjugate can result in successful PLA2-mediated activation and consequent release of the parent drug from the conjugate complex at the site of overexpression. On the other hand, in some cases it may be desired to avoid PLA2-mediated prodrug activation, therefore the phosphate group of the PL is subjected to conjugation, offering different pharmacological profile, possibility of passing the blood-brain barrier (BBB), and bypassing multidrug resistance mechanisms in antiviral and cancer treatment, but at the same time bypassing GI activation by PLA2. The use of PLs in lipid-based delivery systems are outside of the scope on this paper.
The design and structure of different PL-based conjugates, and the relevant physiological PL-processing pathways, will be covered hereinafter. Next, we will focus on innovations and therapeutic applications that were shown as promising up to date, including structure-activity relationship and computational modeling. Overall, we aim to provide insights into the use of this approach that continuously grows and may aid in the development of better drug products.

2. Processing Pathways of Phospholipids and Phospholipid-Based Prodrugs

PLs within the intestinal lumen are originated from nutritional and biliary sources. PLs are not absorbed intact; prior to absorption, the stereospecific enzyme PLA2 hydrolyses the sn-2 positioned fatty acid of the PL thereby releasing the free FA and sn-1 LPL, which are then ready for absorption. Once they are absorbed into the enterocytes, LPL is re-acylated to PL by the action of the enzyme lysophosphatidylcholine acyltransferase, and due to the amphiphilic nature of the PL it is now involved with stabilization of the surface of lipoproteins, produced in-situ within the enterocyte [20,21]. Lipoproteins constitute of triglyceride and cholesterol ester hydrophobic core, and a more hydrophilic surface which constitutes primarily of PL, free cholesterol and apolipoproteins. The main classes of lipoproteins are chylomicrons and very low-density lipoproteins [21]. Lipoproteins are synthetized in the rough endoplasmic reticulum, packaged in the Golgi apparatus, and undergo exocytosis by fusion with the basolateral enterocyte membrane and release into the interstitial space. After reaching the lamina propria, it favors transport into the open capillaries of the mesenteric lymphatic vessel called lacteals, rather than blood capillaries [22].
Attributable to structure/configuration similarity to LPL, highly lipophilic prodrugs may be conveyed into the intestinal lymphatic system as well [23]. It is estimated that log P value above 5, and solubility in TG of >50 mg/g are prerequisites for intestinal lymphatic transport [24]. Similarly to LPs, the PL-drug complex, which is now part of the lipoprotein surface, can be absorbed from the lamina propria into the porous mesenteric lymphatic vessel capillary lacteal, rather than blood capillaries; the porous structure of the lacteal and the absence of basal membrane allows permeation of large colloids (200–800 mm), whereas blood capillaries have tight junctions and continuous basal membrane that limits the permeation of large colloids [25]. Lacteals and submucosal lymphatic vessels make up the lymphatic efferent trunks and consequently the thoracic duct, which enters the systemic blood circulation at the junction of left internal jugular and subclavian veins, and by doing so bypasses the portal blood [26]. This allows highly lipophilic drugs/prodrugs to bypass first-pass hepatic metabolism and makes them orally bioavailable, allowing the possibility of altering the drug delivery rate to the blood and controlled drug delivery. The study with dipalmitoylphosphatidylfluorouridine prodrug demonstrated that after oral administration, the prodrug is absorbed from the intestinal tract via the deacylation-reacylation cycle for the uptake of phospholipids, and is then selectively delivered through the lymphatic route [27]. In some cases prodrugs that include direct conjugation between PL and the drug moiety, can be absorbed into enterocytes intact and undergo lymphatic transport [28].
The structure and design of the PL prodrugs can highly influence their fate within the body. Careful design can direct the complex to the desired processing pathway, aiming to achieve different purposes, e.g., lymphatic transport [28], controlled release [29], local effect at the site of inflammation [30,31,32], and others.

3. Phospholipid-Based Prodrugs: Structures and Applications

The design of PL-based prodrugs includes either the active drug moiety linked to the phosphate group, or the drug moiety attached to the glyceride backbone replacing the sn-2 positioned FA, or less commonly, to the sn-1 position (Figure 1) [7]. Attaching the drug moiety to the phosphate group was used with the aim to avoid PL-prodrug hydrolysis by the enzyme PLA2 [33,34], and hence allowing the PL-drug conjugate to be absorbed and incorporated into the metabolic PL processing pathways. Conjugation strategy in this case usually involves hydroxyl group of the drug for linking to the phosphate group. In contrast, a different design, using the PL sn-2 position of the prodrug and taking advantage of PLA2-mediated prodrug activation became increasingly employed [28,29,30,35,36,37,38]. When linking the drug to the sn-2 position of the PL several synthetic techniques can be applied; a common method involves protecting the amino group of the linker, and connecting it to the sn-2 position of lysophospholipid, followed by removal of the protection and conjugation to the drug moiety. An optimal linker may result in a PLA2-sensitive prodrug [30,35]. In the following section, we will provide insights into promising therapeutic applications of the different PL-drug conjugates.
Conjugation of the active drug moiety to the sn-2 position of the PL results in PL-based conjugate that has similar surface properties and aggregation performance like natural PL [39]. Such an approach was taken with valproic acid that was directly conjugated to the sn-2 position of the PL (Figure 2a) [28]. The prodrug of valproic acid and PL (named DP-VPA) was designed to pass the BBB as an intact prodrug, and since brain PLA2 is increased during epileptic seizure activity, to allow the release of free valproic acid at the site of epileptic focus by the action of PLA2 [28,40,41]. Targeting the drug to the exact site of seizure could decrease the drug dose required to accomplish pharmacological effect, and by doing so improve the systemic toxicity of VPA. As mentioned earlier, direct conjugation sometimes leads to lymphatic drug transport that bypasses portal blood flow. In the case of DP-VPA 10–18% of the postprandial orally administered dose in dogs was lymphatically transported [25]. Consequent study in rats revealed that up to 5% of the DP-VPA dose was transported via the lymphatics (Figure 2b). Taking into account that the systemic bioavailability was 8.8%, the portion of absorbed DP-VPA associated with lymphatic transport was determined to be 60%. In addition, since the presence of long chain triglyceride (LCT) in the GI lumen encourages chylomicron synthesis and overall lymphatic transport [24,42,43], the absorption of DP-VPA from LCT vs. medium chain triglyceride (MCT) vehicles, as well as food effect, was studied. DP-VPA demonstrated 3-fold increased oral absorption from LCT formulation compared to MCT, validating the importance of chylomicrons and lymphatic transport in the absorption of DP-VPA. Postprandial state resulted in 3-fold increased absorption as well, which further confirms the lymphatic transport route. This significant drug transport via the intestinal lymphatic system reveals the importance of the structural similarity between the PL-prodrug and natural PL [28].
This approach included direct conjugation between the valproic acid and the PL, without linker in the middle of the two moieties, which resulted in very low hydrolysis rate by the PLA2 (Figure 2c); this feature greatly influences the fate and traffic of the PL prodrugs in the body. This was also evident in-vivo by similar PK profile of DP-VPA in PLA2 knockout mice (C57BL/6) vs. control animals (BALB/c), indicative of the prodrug resistance to PLA2 hydrolysis [28]. It was demonstrated that the prodrug enters the enterocyte as the intact complex, associates with chylomicrons within the enterocyte, and undergoes lymphatic transport [28].
Secretory PLA2 enzyme was shown to be considerably overexpressed in areas of inflamed intestinal tissues of IBD patients [15,16,44,45]. Our group proposed to exploit this PLA2 overexpression for drug targeting by PL-based prodrug; orally administered conjugates can travel along the intestinal lumen until they reach the PLA2-rich inflamed tissue(s) where they will be activated by PLA2 and will release a free drug at the specific site(s) of action (Figure 3). Besides IBD, this approach can be utilized for different conditions with overexpression of PLA2, e.g., atherosclerosis [46], rheumatoid arthritis [47] and colon cancer [48].
Absence of PL prodrug activation by the PLA2 is attributable to steric hindrance between the drug moiety and the PL [39]. Using a particular linker that would increase the distance between the drug moiety and the PL could resolve this lack of activation. Previously, this approach was demonstrated for PL-indomethacin [29,49] and PL-diclofenac [30,50] conjugates with several different linker lengths between the sn-2 carbon atom of the PL and the drug. In contrast to valproic acid, following oral administration to rats of the PL-indomethacin with 5-carbon linker (DP-155), free drug was released from the prodrug by the action of PLA2 within the intestinal lumen (with no absorption of intact DP-155); indomethacin terminal slope following oral administration of prodrug vs. the free drug (Figure 4) demonstrated that liberation of free indomethacin from the prodrug complex, and not the elimination half-life from the body, is the rate-controlling step [29]. This flip-flop kinetics in which the drug release from the prodrug is slower than the rate of elimination results in a controlled release (CR) drug profile in the systemic circulation; after oral administration of DP-155, the AUC of free indomethacin decreased 2-fold, Cmax 5-fold and Tmax was delayed 2-fold, resulting in less fluctuations in the drug plasma concentrations, which can be advantageous in cases of concentration-dependent side effects [29]. In contrast, following the administration of a prodrug with shorter linker (2-carbon length; DP-157), the liberation of free indomethacin was 20-fold lower [29].
The PL-diclofenac conjugates demonstrated similar trend: 2- and 4-carbon linker PL-diclofenac conjugates were hydrolyzed to a lower extent than the 6-carbon conjugate, whereas longer linker reduced the affinity towards PLA2 (Figure 5). The 6-carbon linker released ~95% of the free drug after in-vitro incubation with bee venom PLA2, whereas the 2-carbon linker prodrug released only ~20% of the free diclofenac post-incubation, showing that the 6-carbon linker is the optimal linker length in case of diclofenac PL-based prodrugs (Figure 5) [30]. These studies demonstrated that the activation of the PL-indomethacin and PL-diclofenac prodrugs by PLA2 enzyme is highly dependent upon linker length.
Recently, PL conjugates of antiviral oligopeptides in the sn-2 position of the PL, were studied [38]. These PL-prodrugs were entirely hydrolyzed by bee venom PLA2, releasing the free oligopeptides in the same rate of reaction as physiological PL. It was shown that the α-methylene group (a part of the oligopeptides structure) attached to the PL sn-2 position, has a crucial role in PLA2 activation, as peptidophospholipids that do not contain this functional group failed to be activated by the enzyme. When it comes to PL-prodrugs, this α-methylene group adjacent to the sn-2-ester functional group of the substrate can be viewed as a spacer/linker that enables conjugate-enzyme binding, required to achieve PLA2-mediated hydrolysis and oligopeptide liberation. The same group synthesized sn-2 substituted PL-prodrugs with oligo(ethylene glycol) derivatives with chain-terminal groups of NSAID drugs (sulindac, diclofenac and indomethacin) [51]. Bee venom PLA2 hydrolysis resulted in a series of oligo(ethylene glycol) conjugates of the NSAID drug. Once again, it was shown that a particular spacer between the PL and the drug moieties is needed for PLA2-mediated activation of the prodrug.
The prodrug of PL and anti-angiogenesis mycotoxin, fumagilin was designed and synthesized in order to overcome fumagilins’ poor photo-stability, poor retention in the blood and to achieve efficient intracellular transport via contact-facilitated drug delivery [32,36,52]. Fumagilin contains highly reactive epoxide groups, responsible for its pharmacological activity, which were conserved by saponifying fumagilin to fumagiol in the process of prodrug synthesis. Chemical instability is the reason for poor retention of fumagilin in the circulation and it is due to the photosensitive decatetraenedioic tail; this was resolved by substituting the tail with the 7-carbon acyl linker at the sn-2 position of the PL. Native fumagillin was delivered using a nanocarrier system targeted to angiogenic endothelium expressing αvβ3-integrin. Fusion of the fumagilin prodrug inside a αvβ3-targeted perfluorocarbon (PFC) nanocarrier system enabled the endocytosis and drug delivery followed by passive transfer to the targeted cell [32]. Once inside the cell, the intracellular PLA2 is responsible for prodrug activation and release of the free drug from the sn-2 position (Figure 6). In-vivo studies demonstrated decreased angiogenesis with nanoparticles containing fumagilin prodrug compared to the control nanoparticles [32]. In addition, the contact-facilitated drug delivery approach has been utilized in development of enhanced treatment of multiple myeloma [53]. A novel PL conjugate of small molecule inhibitor of MYC-MAX dimerization (MYC-b-HLHZIP transcription factor c-Myc; MAX- bHLHZIP protein) was synthesized. Developed inhibitors are small molecules that have difficulties inhibiting protein-protein/protein-DNA interactions. The prodrug itself had upgraded potency towards myeloma cell cultures comparing to the free drug. After incorporating such molecules in integrin-targeted nanoparticles, the prodrug effect was tested on mice model of myeloid leukemia. Nanoparticles carrying the prodrug showed substantially longer animal survival when compared to controlled nanoparticles (both targeted and untargeted) [53]. When administered systemically as free compounds neither the Myc-inhibitor 1, nor the PL-prodrug exhibited any effect. Even more recently, prodrugs of docetaxel and fumagilin incorporated in αvβ3-micellar nanotherapy demonstrated direct anti-angiogenesis effect and can ameliorate asthma in the rat model. Most common symptoms of asthma airway hyper-responsiveness and increased microvascularity, were considerably reduced with both treatments [54]. The combination of PL-prodrugs and targeted formulation approaches in these cases is crucial. An interesting utilization of PL in a formulation approach was recently demonstrated using cell membrane-coated nanoparticles for achieving targeting, long blood circulation, and immune escaping [55,56,57]. Cell membrane-coated nanoparticles are a biomimetic tool consisting of a nanoparticle core coated with membrane derived from natural cells, i.e., erythrocytes [58,59,60], platelets [61], white blood cells [62], cancer cells [63], stem cells [64], or microbial cells [65]. Recent study describes the combination of prodrug approach (dimeric paclitaxel prodrug) and nanoparticles coated with red blood cell membrane [66]. Although the formulation approach is beyond the scope of this article, this research field is worth mentioning since it can be used together with the PL prodrug approach, allowing higher success than one approach by itself.
As mentioned above, drugs can also be linked to PL through the phosphate group. Majority of the drugs conjugated this way are nucleosides with antiviral or antineoplastic pharmacological effect, which are characterized by poor absorption and suboptimal pharmacokinetic behavior. Resistance towards nucleoside analogs is very common, attributable to either decreased expression of transport proteins, which leads to lower uptake of drugs (i.e., human equilibrative nucleoside transporter 1 (hENT1), loss of deoxycytidine kinase (dCK) expression and consequent decrease in drug activation, P-glycoprotein (P-gp) increased efflux activity, and cytidine deaminase loss of function (cytarabine, gemcitabine) or nuclear exonucleases/ribonucleotide reductase (fludarabine) [67,68]. Conjugation with PL can improve passive permeability of such hydrophilic drugs, and bypass active ligand transport mechanisms and transport resistance barriers [5,68]. One way to overcome drug resistance is reducing the drug efflux via transporters e.g., the multi drug resistance (MDR) transporters, resulting in increased accumulation within the cell [33]. In some cases PL-nucleoside conjugates can overcome possible deficiencies in nucleoside kinase activity by liberating the drug moiety in a monophosphate form inside the cell, to avoid dependency on dCK activation [67,68].
PL-gemcitabine prodrugs, with the drug conjugated through the phosphate group were investigated; the aim of the design of these conjugates was to bypass multiple resistance pathways, inhibit protein kinase C (PKC), improve pharmacokinetic profile and increase brain penetration. Kucera et al. designed PL prodrug with gemcitabine conjugated through the phosphate group with thioether functional group in the sn-1 position and oxyether group in the sn-2 position of the PL [33,69]. PL-gemcitabine prodrugs, in contrast to the free drug, did not enter the cell via hENT1 transporter, was not substrate for MDR-1 efflux pump, and dCK was not needed for gemcitabine prodrug activation, thereby bypassing three resistance mechanisms of gemcitabine, that are largely responsible for its ineffectiveness in cancer therapy [33]. Consequently, a similar prodrug of gemcitabine was synthesized with an amido functional group in the sn-1 position of the phospholipid (KPC34), which resulted in more potent cytotoxicity [70]. The advantage of KPC34 in comparison to gemcitabine is that it can be given orally, whereas gemcitabine is only effective once given intraperitonealy. In a recent study involving preclinical models of Philadelphia chromosome positive B cell acute lymphoblastic leukemia, KPC34 was shown to be orally bioavailable, overcome multiple resistance mechanisms, inhibit the various PKC isoforms and cross the BBB [71]. KPC34 administration following doxorubicin and cytarabine treatment in animal models achieved reversed hind limb paresis (multiple times), showing the KPC34 effect in CNS leukemia [71]. It has been suggested that KPC34 enters lipoprotein complexes, which may pass the BBB in CNS involved leukemia [72,73,74]. Promising results have been shown in animal model of acute myeloid leukemia (AML) as well as improved CNS leukemic burden [75].
The use of the sn-1 bond of PL was demonstrated for anticancer ether lipids (ProAELs) where drug was linked to the sn-1 position of PL through an ether bond [76]. Such lipids can be formulated as liposomes, which are subjected to sPLA2-mediated activation, where proAELs release anticancer ether lipids (AELs) thereby producing a free hydroxyl group in the sn-2 position [77]. Since such lipids do not support structure of liposomes, the liposomes collapse and the ether lipids are released specifically in the site of cancer tissue. This approach leads to increased chemical stability, and demonstrates cleavage with PLA2, but somewhat modest efficacy in tumor growth reduction [31]. Additionally, proAELs with a thio-ester bond in the sn-2 position of the PL were synthesized. PLA2-mediated activation was shown to be slower, and hence the cytotoxicity was lower as well, than the above mentioned proAELs [78]. The rationale for this decreased activation by the enzyme is explained by molecular dynamics simulations, presented hereinafter (Section 4). Clinical studies of PL-ether analog for multiple myeloma and other hematologic malignancies are currently conducted [79].
Altogether, the key advantages of designing PL-based prodrugs are based on their ability to incorporate certain PL processing pathways, resulting in lymphatic transport, controlled release profile of tested drugs, brain permeation, overcoming resistance mechanisms by bypassing transport proteins, and providing an opportunity for exploiting PLA2 that is overexpressed in certain diseased tissues, thereby providing an opportunity for site-specific drug release.

4. Computational Modeling of PL-Based Prodrugs

Nowadays, novel molecular modeling technologies are available at aiming to evaluate PLA2-mediated activity towards different PL-drug conjugates, as well as to predict which structural conjugate modifications are a prerequisite for the prodrug to undergo enzymatic hydrolysis, thereby reducing the time needed for experimentation [37,50]. Molecular dynamics (MD) simulation was previously used to explain why PLA2 specifically catalyzes the hydrolysis of the fatty acid ester bond at position sn-2, but not at sn-1 position, of the PL and as a valuable mean for assessing sPLA2 activity toward different PL-drug substrates [80,81]. MD simulations technique is well established for elucidation of macromolecular structure-to-function relationships [82]. Explaining the dynamic macromolecular features enables successful analysis of conformational ensembles. MD simulations are proven to be useful and biologically relevant.
Using the modern computational methodology based on Thermodynamic integration and Weighted Histogram Analysis Method (WHAM)/Umbrella Sampling method, our group designed several PL-diclofenac and PL-indomethacin conjugates with different linker lengths between the sn-2 positioned carbon in the PL and the drug moiety [49,50]. This in-silico approach was established to predict the alterations in the PLA2 transition state binding free energy of the prodrugs while the linker length is increased/decreased (Figure 7). We gained an excellent correlation between computational simulations and experimentally obtained results for both PL-indomethacin and PL-diclofenac prodrugs. For PL-indomethacin, it was confirmed that the prodrug with linker length 5-carbon atoms has the greatest extent of activation by PLA2, and hence is considered optimal for this prodrug. Similarly, for PL-diclofenac prodrugs the optimal linker length, with highest rate of activation was 6-carbon linker, whereas linker with 2-carbon atoms had lowest degree of activation.
It should be noted that optimal length of the linker can be determined only on a case-by-case basis, since the drug structure affects the steric interactions with the enzyme. Altogether, this further demonstrates that the length of the linker plays a crucial role in the successful activation by PLA2, and determines the amount of the free drug that will be released from the complex.
A similar approach was used for retinoic acid (ATRA) [37]. Direct conjugation between ATRA and sn-2 position of the PL resulted in the lack of PLA2-mediated activity. This is explained by the rigid structure of ATRA, which contains methyl group next to the carboxyl functional group, which is in contrast to physiologically-occurring FAs (flexible molecules, usually without branching). Consequently, a 6-carbonic linker was incorporated between the PL and ATRA, and hydrolysis was demonstrated by MD simulations. It was demonstrated that the prerequisite for sPLA2-mediated hydrolysis is stable Michaelis-Menten complex and a water molecule, that acts as a nucleophile and is free to enter the catalytic site [37]. Introduction of 6-carbon linker between ATRA and the PL resulted in stability of Michaelis-Menten complex and presence of water molecule, as opposed to the prodrug with direct conjugation. This computational prediction was further confirmed experimentally, and incorporation of 6-carbon linker enabled retinoids to overcome the lack of PLA2 activity, that originated from the rigid nature of ATRA [83,84].
To gain further insight into the mechanism behind the lower PLA2 activity in-vitro towards proAELs with a thioester bond in the sn-2 position, MD simulations and density functional theory calculations were conducted [78]. The MD simulations demonstrated perfect fit of both natural substrate with ester bond and proAELs with a thioester within the active site of PLA2; water molecule was able to reach the active site freely for both substrates. However, density functional theory described the variance in the hydrolysis rate between the two substrates as an inherit electronic difference among sulfur and oxygen atom [78].
Overall, computational modeling allows the structural optimization of the PL-prodrugs, providing the development process that is less empirical and more efficient. Correlation between in-vitro and in-silico studies encourages the utilization of molecular modeling techniques for activity predictions of newly designed compounds prior to conducting experiments.

5. Discussion

Phospholipid prodrugs present a diverse and promising class of carriers, whose future utilizations holds a promise for various optimization and developing approaches (Figure 8). One of the main advantages of creating a PL prodrug is the capability to taking advantage of endogenous metabolic pathways of PL, hence a good understanding of physiological pathways is a necessary prerequisite for efficient prodrug design.
In contrast to triglyceride and certain formulation approaches, directing the PL-drug conjugates to lymphatic transport is rare, however we believe this is still underexplored field with great prospective. PL-prodrug can undergo lymphatic transport thereby bypassing extensive first-pass hepatic metabolism. This allows prodrugs to avoid presystemic metabolism and reach higher systemic bioavailability. Lymphatically transported prodrugs could be crucial for drug targeting exclusively to diseased lymphatic tissue, or preventing/treating tumor metastases dissemination. PL-prodrugs can allow non-absorbable drugs to be orally bioavailable, as well as allowing manipulation of delivery rate to the blood, e.g., controlled drug delivery. However, it should be noted that in specific disease the uptake of lipoproteins from the lymphatics can vary, as well as PL-drug conjugate partitioning from lipoproteins to target cells [20].
An important advantage that was achieved by PL-based prodrugs is overcoming cancer resistant to chemotherapeutic agents. PL-nucleoside analogs were able to overcome chemoresistance, turning the drug penetration into the cells a passive process (diffusion), as opposed to active drug uptake, where carrier-mediated uptake is one of the main reasons of resistance. Additional advantages of these prodrugs include longer blood circulation and increased stability. However further research is needed for understanding the pharmacokinetics and intracellular activation. In the future, methods for increasing cytotoxicity and reducing side effects should be investigated, e.g., by conjugation with antibodies, or creating multi-drug complexes. Rational drug/prodrug combination, and improved understanding of pharmacokinetics, mechanism of action and safety profile is a key for improved clinical outcomes.
As presented above, PL-based prodrugs can be designed to take advantage of PLA2, and since this enzyme is not selective toward specific FA, successful PLA2-mediated activation may be achieved with careful design. The PL-indomethacin study clearly shows controlled release of the free drug. This ability of the PL prodrugs could be clinically relevant for patient compliance, since it can allow to less frequent dosing of the drug. In addition, such prodrugs can be formulated even as a liquid dosage form, and still provide a controlled-release drug profile. This could be especially advantageous for pediatric/elderly populations in which swallowing of a solid dosage form is impossible or painful.
PL-drug design may include various conjugation strategies and employment of linkers between the PL and the drug, which may significantly affect the prodrug properties, together with the release of the free drug from the complex, GI stability, and targeting specific enzymes. It is important to understand the significance of the spacer between the drug and the PL moieties in order to accomplish effective activation by PLA2. Combination of optimal prodrug design and a smart choice of delivery system may provide successful drug targeting and sufficient quantity of drugs at the site of action.
Optimal prodrug design and development involve numerous steps and variables, and as such, empirical approach can be time and effort-consuming to significant degree. Modern computational approaches can be used for more intelligent design of advanced prodrugs. The novel molecular modeling approach presented in this work has been shown to have the potential to predict the optimal structural design of prodrugs intended to be activated by PLA2. Modern computational modeling can allow prediction of the optimal prodrug design and may help to achieve the desired properties, meanwhile significantly decreasing the number of syntheses and/or experiments needed.
In summary, different approaches in the design of PL-prodrugs may be taken, aiming to achieve specific goals. As illustrated in Figure 8, a number of applications can be pursued: targeting inflamed/cancerous tissues, lymphatic transport, passing the BBB, overcoming resistance to nucleoside analogs, or modify PK profile. When lymphatic transport/targeting is aimed for, resistance to PLA2-mediated hydrolysis is desired. This can be achieved by direct linking of the drug moiety to the glyceride backbone, with no (or very short) linker, that prevent prodrug hydrolysis due to steric hindrance. When cancer resistance is relevant, conjugating the drug to the phosphate group was shown beneficial for PL prodrugs of nucleoside analogs; however slight alteration in the PL moiety demonstrated different anticancer effect (for instance, amido group showed higher potency then tio ether group in the sn-1 position of the PL) [70]. The effect of structural changes was also shown in a recent study of the isoprenoid acids prodrugs for anticancer activity, where the drug was incorporated to sn-1 and sn-2 position of the PL; short chain isoprenoids were more potent when occupy only one position, whereas longer ones were active when both sn-1 and sn-2 positions are occupied [85]. In addition to this, the number of unsaturated bonds in the isoprenoid moiety also has an effect on the prodrug activity. Conjugating the drug to the phosphate group may allow enhanced BBB penetration [71]. In cases when PLA2-mediated activation is desired for targeting cancer or sites of inflammation, a specific linker/spacer should be used, in order to yield optimal release profile. Numerous linker types can be used from carbonic linkers, peptides, PEGs, or other synthetic spacers, adjusted for specific therapeutic need. A good example of this is that ProAELs synthesized with thio-ester bond in the linker achieve lower rate of hydrolysis when compared to natural substrate of PLA2 [78]. A ligand conjugated to PL through a PEG linker was used to develop long-lasting ligands that could bind to the proteins of the cell membrane, by constraining the subcellular localization of the ligand [86].
Altogether, a careful design of PL-prodrugs targeted for particular disease/condition gives rise to novel therapeutic tools that can improve overall patient care.

6. Conclusions

This work presents an overview of PL-based prodrugs, their recent applications, prospects and challenges, and molecular modeling approaches for optimization of the prodrug design. Conjugation with PLs allows the prodrug to incorporate into certain PL processing pathways, undergo lymphatic transport, pass BBB, deliver controlled release blood profile, overcome resistance mechanisms by bypassing transport proteins, and may exploit PLA2-mediated activation, resulting in site-specific drug release. The research and use of this promising approach is expected to grow in the coming years.

Author Contributions

M.M., S.B.-S., A.A., S.K., E.M.Z. and A.D. worked on conceptualization, analyzed the data, and outlined the manuscript. M.M. and A.D. wrote the skeleton of the paper, and S.B.-S., A.A., S.K. and E.M.Z. contributed to the writing-review and editing of the full version. All authors read and approved the final manuscript.


This work was funded through the US-Israel Binational Science Foundation (BSF) grant number 2015365.


This work is a part of Milica Markovic Ph.D. dissertation.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Stella, V.J. Prodrugs as therapeutics. Expert Opin. Ther. Patents 2004, 14, 277–280. [Google Scholar] [CrossRef]
  2. Rautio, J.; Kumpulainen, H.; Heimbach, T.; Oliyai, R.; Oh, D.; Jarvinen, T.; Savolainen, J. Prodrugs: Design and clinical applications. Nat. Rev. Drug Discov. 2008, 7, 255–270. [Google Scholar] [CrossRef] [PubMed]
  3. Stella, V.J.; Nti-Addae, K.W. Prodrug strategies to overcome poor water solubility. Adv. Drug Deliv. Rev. 2007, 59, 677–694. [Google Scholar] [CrossRef] [PubMed]
  4. Amidon, G.L.; Leesman, G.D.; Elliott, R.L. Improving intestinal absorption of water-insoluble compounds: A membrane metabolism strategy. J. Pharm. Sci. 1980, 69, 1363–1368. [Google Scholar] [CrossRef] [PubMed]
  5. Lambert, D.M. Rationale and applications of lipids as prodrug carriers. Eur. J. Pharm. Sci. 2000, 11, S15–S27. [Google Scholar] [CrossRef]
  6. Irby, D.; Du, C.; Li, F. Lipid–Drug Conjugate for Enhancing Drug Delivery. Mol. Pharm. 2017, 14, 1325–1338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Markovic, M.; Ben-Shabat, S.; Keinan, S.; Aponick, A.; Zimmermann, E.M.; Dahan, A. Lipidic prodrug approach for improved oral drug delivery and therapy. Med. Res. Rev. 2018. [Google Scholar] [CrossRef] [PubMed]
  8. Ettmayer, P.; Amidon, G.L.; Clement, B.; Testa, B. Lessons learned from marketed and investigational prodrugs. J. Med. Chem. 2004, 47, 2393–2404. [Google Scholar] [CrossRef] [PubMed]
  9. Dahan, A.; Khamis, M.; Agbaria, R.; Karaman, R. Targeted prodrugs in oral drug delivery: The modern molecular biopharmaceutical approach. Expert Opin. Drug Deliv. 2012, 9, 1001–1013. [Google Scholar] [CrossRef] [PubMed]
  10. Dahan, A.; Zimmermann, E.M.; Ben-Shabat, S. Modern prodrug design for targeted oral drug delivery. Molecules 2014, 19, 16489–16505. [Google Scholar] [CrossRef] [PubMed]
  11. Han, H.K.; Amidon, G.L. Targeted prodrug design to optimize drug delivery. AAPS Pharm. Sci. 2000, 2, E6. [Google Scholar] [CrossRef]
  12. Sun, K.; Xu, H.; Hilfinger, J.L.; Lee, K.D.; Provoda, C.J.; Sabit, H.; Amidon, G.L. Improved Protease-Targeting and Biopharmaceutical Properties of Novel Prodrugs of Ganciclovir. Mol. Pharm. 2018, 15, 410–419. [Google Scholar] [CrossRef] [PubMed]
  13. Tsume, Y.; Amidon, G.L. The feasibility of enzyme targeted activation for amino acid/dipeptide monoester prodrugs of floxuridine; cathepsin D as a potential targeted enzyme. Molecules 2012, 17, 3672–3689. [Google Scholar] [CrossRef] [PubMed]
  14. Arouri, A.; Hansen, A.H.; Rasmussen, T.E.; Mouritsen, O.G. Lipases, liposomes and lipid-prodrugs. Curr. Opin. Colloid Interface Sci. 2013, 18, 419–431. [Google Scholar] [CrossRef]
  15. Haapamaki, M.M.; Gronroos, J.M.; Nurmi, H.; Alanen, K.; Kallajoki, M.; Nevalainen, T.J. Gene expression of group II phospholipase A2 in intestine in ulcerative colitis. Gut 1997, 40, 95–101. [Google Scholar] [CrossRef] [PubMed]
  16. Haapamaki, M.M.; Gronroos, J.M.; Nurmi, H.; Irjala, K.; Alanen, K.A.; Nevalainen, T.J. Phospholipase A2 in serum and colonic mucosa in ulcerative colitis. Scand. J. Clin. Lab. Invest. 1999, 59, 279–287. [Google Scholar] [PubMed]
  17. Kennedy, B.P.; Soravia, C.; Moffat, J.; Xia, L.; Hiruki, T.; Collins, S.; Gallinger, S.; Bapat, B. Overexpression of the nonpancreatic secretory group II PLA2 messenger RNA and protein in colorectal adenomas from familial adenomatous polyposis patients. Cancer Res. 1998, 58, 500–503. [Google Scholar] [PubMed]
  18. Laye, J.P.; Gill, J.H. Phospholipase A2 expression in tumours: A target for therapeutic intervention? Drug Discov. Today 2003, 8, 710–716. [Google Scholar] [CrossRef]
  19. Minami, T.; Tojo, H.; Shinomura, Y.; Komatsubara, T.; Matsuzawa, Y.; Okamoto, M. Elevation of phospholipase A2 protein in sera of patients with Crohn's disease and ulcerative colitis. Am. J. Gastroenterol. 1993, 88, 1076–1080. [Google Scholar] [PubMed]
  20. Charman, W.N.; Porter, C.J.H. Lipophilic prodrugs designed for intestinal lymphatic transport. Adv. Drug Deliv. Rev. 1996, 19, 149–169. [Google Scholar] [CrossRef]
  21. Porter, C.J.; Trevaskis, N.L.; Charman, W.N. Lipids and lipid-based formulations: Optimizing the oral delivery of lipophilic drugs. Nat. Rev. Drug Discov. 2007, 6, 231–248. [Google Scholar] [CrossRef] [PubMed]
  22. Porter, C.J.; Charman, W.N. Intestinal lymphatic drug transport: An update. Adv. Drug Deliv. Rev. 2001, 50, 61–80. [Google Scholar] [CrossRef]
  23. Tauber, U.; Schroder, K.; Dusterberg, B.; Matthes, H. Absolute bioavailability of testosterone after oral administration of testosterone-undecanoate and testosterone. Eur. J. Drug Metab. Pharmacokinet. 1986, 11, 145–149. [Google Scholar] [CrossRef] [PubMed]
  24. Trevaskis, N.L.; Charman, W.N.; Porter, C.J. Lipid-based delivery systems and intestinal lymphatic drug transport: A mechanistic update. Adv. Drug Deliv. Rev. 2008, 60, 702–716. [Google Scholar] [CrossRef] [PubMed]
  25. Shackleford, D.M.; Porter, C.J.H.; Charman, W.N. Lymphatic Absorption of Orally Administered Prodrugs. In Prodrugs: Challenges and Rewards Part 1; Stella, V.J., Borchardt, R.T., Hageman, M.J., Oliyai, R., Maag, H., Tilley, J.W., Eds.; Springer: New York, NY, USA, 2007; pp. 653–682. [Google Scholar]
  26. Bernier-Latmani, J.; Petrova, T.V. Intestinal lymphatic vasculature: Structure, mechanisms and functions. Nat. Rev. Gastroenterol. Hepatol. 2017, 14, 510–526. [Google Scholar] [CrossRef] [PubMed]
  27. Sakai, A.; Mori, N.; Shuto, S.; Suzuki, T. Deacylation-reacylation cycle: A possible absorption mechanism for the novel lymphotropic antitumor agent dipalmitoylphosphatidylfluorouridine in rats. J. Pharm. Sci. 1993, 82, 575–578. [Google Scholar] [CrossRef] [PubMed]
  28. Dahan, A.; Duvdevani, R.; Shapiro, I.; Elmann, A.; Finkelstein, E.; Hoffman, A. The oral absorption of phospholipid prodrugs: In vivo and in vitro mechanistic investigation of trafficking of a lecithin-valproic acid conjugate following oral administration. J. Control Release 2008, 126, 1–9. [Google Scholar] [CrossRef] [PubMed]
  29. Dahan, A.; Duvdevani, R.; Dvir, E.; Elmann, A.; Hoffman, A. A novel mechanism for oral controlled release of drugs by continuous degradation of a phospholipid prodrug along the intestine: In-vivo and in-vitro evaluation of an indomethacin-lecithin conjugate. J. Control Release 2007, 119, 86–93. [Google Scholar] [CrossRef] [PubMed]
  30. Dahan, A.; Markovic, M.; Epstein, S.; Cohen, N.; Zimmermann, E.M.; Aponick, A.; Ben-Shabat, S. Phospholipid-drug conjugates as a novel oral drug targeting approach for the treatment of inflammatory bowel disease. Eur. J. Pharm. Sci. 2017, 108, 78–85. [Google Scholar] [CrossRef] [PubMed]
  31. Jensen, S.S.; Andresen, T.L.; Davidsen, J.; Hoyrup, P.; Shnyder, S.D.; Bibby, M.C.; Gill, J.H.; Jorgensen, K. Secretory phospholipase A2 as a tumor-specific trigger for targeted delivery of a novel class of liposomal prodrug anticancer etherlipids. Mol. Cancer Ther. 2004, 3, 1451–1458. [Google Scholar] [PubMed]
  32. Pan, D.; Sanyal, N.; Schmieder, A.H.; Senpan, A.; Kim, B.; Yang, X.; Hu, G.; Allen, J.S.; Gross, R.W.; Wickline, S.A.; et al. Antiangiogenic nanotherapy with lipase-labile Sn-2 fumagillin prodrug. Nanomedicine 2012, 7, 1507–1519. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Alexander, R.L.; Greene, B.T.; Torti, S.V.; Kucera, G.L. A novel phospholipid gemcitabine conjugate is able to bypass three drug-resistance mechanisms. Cancer Chemother. Pharmacol. 2005, 56, 15–21. [Google Scholar] [CrossRef] [PubMed]
  34. Kucera, G.L.; Goff, C.L.; Iyer, N.; Morris-Natschke, S.; Ishaq, K.S.; Wyrick, S.D.; Fleming, R.A.; Kucera, L.S. Cellular metabolism in lymphocytes of a novel thioether-phospholipid-AZT conjugate with anti-HIV-1 activity. Antivir. Res. 2001, 50, 129–137. [Google Scholar] [CrossRef]
  35. Dvir, E.; Elman, A.; Simmons, D.; Shapiro, I.; Duvdevani, R.; Dahan, A.; Hoffman, A.; Friedman, J.E. DP-155, a lecithin derivative of indomethacin, is a novel nonsteroidal antiinflammatory drug for analgesia and Alzheimer's disease therapy. CNS Drug Rev. 2007, 13, 260–277. [Google Scholar] [CrossRef] [PubMed]
  36. Pan, D.; Pham, C.T.N.; Weilbaecher, K.N.; Tomasson, M.H.; Wickline, S.A.; Lanza, G.M. Contact-facilitated drug delivery with Sn2 lipase labile prodrugs optimize targeted lipid nanoparticle drug delivery. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2016, 8, 85–106. [Google Scholar] [CrossRef] [PubMed]
  37. Pedersen, P.J.; Adolph, S.K.; Subramanian, A.K.; Arouri, A.; Andresen, T.L.; Mouritsen, O.G.; Madsen, R.; Madsen, M.W.; Peters, G.H.; Clausen, M.H. Liposomal Formulation of Retinoids Designed for Enzyme Triggered Release. J. Med. Chem. 2010, 53, 3782–3792. [Google Scholar] [CrossRef] [PubMed]
  38. Rosseto, R.; Hajdu, J. Peptidophospholipids: Synthesis, phospholipase A2 catalyzed hydrolysis, and application to development of phospholipid prodrugs. Chem. Phys. Lipids 2014, 183, 110–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Kurz, M.; Scriba, G.K. Drug-phospholipid conjugates as potential prodrugs: Synthesis, characterization, and degradation by pancreatic phospholipase A(2). Chem. Phys. Lipids 2000, 107, 143–157. [Google Scholar] [CrossRef]
  40. Isoherranen, N.; Yagen, B.; Bialer, M. New CNS-active drugs which are second-generation valproic acid: Can they lead to the development of a magic bullet? Curr. Opin. Neurol. 2003, 16, 203–211. [Google Scholar] [CrossRef] [PubMed]
  41. Labiner, D.M. DP-VPA D-Pharm. Curr. Opin. Investig. Drugs 2002, 3, 921–923. [Google Scholar] [PubMed]
  42. Dahan, A.; Hoffman, A. Evaluation of a chylomicron flow blocking approach to investigate the intestinal lymphatic transport of lipophilic drugs. Eur. J. Pharm. Sci. 2005, 24, 381–388. [Google Scholar] [CrossRef] [PubMed]
  43. Dahan, A.; Hoffman, A. Use of a dynamic in vitro lipolysis model to rationalize oral formulation development for poor water soluble drugs: Correlation with in vivo data and the relationship to intra-enterocyte processes in rats. Pharm. Res. 2006, 23, 2165–2174. [Google Scholar] [CrossRef] [PubMed]
  44. Minami, T.; Tojo, H.; Shinomura, Y.; Matsuzawa, Y.; Okamoto, M. Increased group II phospholipase A2 in colonic mucosa of patients with Crohn’s disease and ulcerative colitis. Gut 1994, 35, 1593–1598. [Google Scholar] [CrossRef] [PubMed]
  45. Peterson, J.W.; Dickey, W.D.; Saini, S.S.; Gourley, W.; Klimpel, G.R.; Chopra, A.K. Phospholipase A2 activating protein and idiopathic inflammatory bowel disease. Gut 1996, 39, 698–704. [Google Scholar] [CrossRef] [PubMed]
  46. Goncalves, I.; Edsfeldt, A.; Ko, N.Y.; Grufman, H.; Berg, K.; Bjorkbacka, H.; Nitulescu, M.; Persson, A.; Nilsson, M.; Prehn, C.; et al. Evidence supporting a key role of Lp-PLA2-generated lysophosphatidylcholine in human atherosclerotic plaque inflammation. Arterioscler. Thromb. Vasc. Biol. 2012, 32, 1505–1512. [Google Scholar] [CrossRef] [PubMed]
  47. Pruzanski, W.; Vadas, P.; Stefanski, E.; Urowitz, M.B. Phospholipase A2 activity in sera and synovial fluids in rheumatoid arthritis and osteoarthritis. Its possible role as a proinflammatory enzyme. J. Rheumatol. 1985, 12, 211–216. [Google Scholar] [PubMed]
  48. Tribler, L.; Jensen, L.T.; Jorgensen, K.; Brunner, N.; Gelb, M.H.; Nielsen, H.J.; Jensen, S.S. Increased expression and activity of group IIA and X secretory phospholipase A2 in peritumoral versus central colon carcinoma tissue. Anticancer Res. 2007, 27, 3179–3185. [Google Scholar] [PubMed]
  49. Dahan, A.; Ben-Shabat, S.; Cohen, N.; Keinan, S.; Kurnikov, I.; Aponick, A.; Zimmermann, E.M. Phospholipid-Based Prodrugs for Drug Targeting in Inflammatory Bowel Disease: Computational Optimization and In-Vitro Correlation. Curr. Top. Med. Chem. 2016, 16, 2543–2548. [Google Scholar] [CrossRef] [PubMed]
  50. Dahan, A.; Markovic, M.; Keinan, S.; Kurnikov, I.; Aponick, A.; Zimmermann, E.M.; Ben-Shabat, S. Computational modeling and in-vitro/in-silico correlation of phospholipid-based prodrugs for targeted drug delivery in inflammatory bowel disease. J. Comput. Aided Mol. Des. 2017, 31, 1021–1028. [Google Scholar] [CrossRef] [PubMed]
  51. Rosseto, R.; Hajdu, J. Synthesis of oligo(ethylene glycol) substituted phosphatidylcholines: Secretory PLA2-targeted precursors of NSAID prodrugs. Chem. Phys. Lipids 2010, 163, 110–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zhou, H.F.; Yan, H.; Senpan, A.; Wickline, S.A.; Pan, D.; Lanza, G.M.; Pham, C.T. Suppression of inflammation in a mouse model of rheumatoid arthritis using targeted lipase-labile fumagillin prodrug nanoparticles. Biomaterials 2012, 33, 8632–8640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Soodgupta, D.; Pan, D.; Cui, G.; Senpan, A.; Yang, X.; Lu, L.; Weilbaecher, K.N.; Prochownik, E.V.; Lanza, G.M.; Tomasson, M.H. Small Molecule MYC Inhibitor Conjugated to Integrin-Targeted Nanoparticles Extends Survival in a Mouse Model of Disseminated Multiple Myeloma. Mol. Cancer Ther. 2015, 14, 1286–1294. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Lanza, G.M.; Jenkins, J.; Schmieder, A.H.; Moldobaeva, A.; Cui, G.; Zhang, H.; Yang, X.; Zhong, Q.; Keupp, J.; Sergin, I.; et al. Anti-angiogenic Nanotherapy Inhibits Airway Remodeling and Hyper-responsiveness of Dust Mite Triggered Asthma in the Brown Norway Rat. Theranostics 2017, 7, 377–389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Li, R.; He, Y.; Zhang, S.; Qin, J.; Wang, J. Cell membrane-based nanoparticles: A new biomimetic platform for tumor diagnosis and treatment. Acta Pharm. Sin. B 2018, 8, 14–22. [Google Scholar] [CrossRef] [PubMed]
  56. Luk, B.T.; Zhang, L. Cell membrane-camouflaged nanoparticles for drug delivery. J. Control Release 2015, 220, 600–607. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Narain, A.; Asawa, S.; Chhabria, V.; Patil-Sen, Y. Cell membrane coated nanoparticles: Next-generation therapeutics. Nanomedicine 2017, 12, 2677–2692. [Google Scholar] [CrossRef] [PubMed]
  58. Hu, C.-M.J.; Zhang, L.; Aryal, S.; Cheung, C.; Fang, R.H.; Zhang, L. Erythrocyte membrane-camouflaged polymeric nanoparticles as a biomimetic delivery platform. Proc. Natl. Acad. Sci. USA 2011, 108, 10980. [Google Scholar] [CrossRef] [PubMed]
  59. Merkel, T.J.; Jones, S.W.; Herlihy, K.P.; Kersey, F.R.; Shields, A.R.; Napier, M.; Luft, J.C.; Wu, H.; Zamboni, W.C.; Wang, A.Z.; et al. Using mechanobiological mimicry of red blood cells to extend circulation times of hydrogel microparticles. Proc. Natl. Acad. Sci. USA 2011, 108, 586. [Google Scholar] [CrossRef] [PubMed]
  60. Rodriguez, P.L.; Harada, T.; Christian, D.A.; Pantano, D.A.; Tsai, R.K.; Discher, D.E. Minimal “Self” Peptides That Inhibit Phagocytic Clearance and Enhance Delivery of Nanoparticles. Science 2013, 339, 971–975. [Google Scholar] [CrossRef] [PubMed]
  61. Rao, L.; Bu, L.-L.; Meng, Q.-F.; Cai, B.; Deng, W.-W.; Li, A.; Li, K.; Guo, S.-S.; Zhang, W.-F.; Liu, W.; et al. Antitumor Platelet-Mimicking Magnetic Nanoparticles. Adv. Funct. Mater. 2017, 27, 1604774. [Google Scholar] [CrossRef]
  62. Parodi, A.; Quattrocchi, N.; van de Ven, A.L.; Chiappini, C.; Evangelopoulos, M.; Martinez, J.O.; Brown, B.S.; Khaled, S.Z.; Yazdi, I.K.; Enzo, M.V.; et al. Synthetic nanoparticles functionalized with biomimetic leukocyte membranes possess cell-like functions. Nat. Nanotechnol. 2012, 8, 61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Chen, Z.; Zhao, P.; Luo, Z.; Zheng, M.; Tian, H.; Gong, P.; Gao, G.; Pan, H.; Liu, L.; Ma, A.; et al. Cancer Cell Membrane–Biomimetic Nanoparticles for Homologous-Targeting Dual-Modal Imaging and Photothermal Therapy. ACS Nano 2016, 10, 10049–10057. [Google Scholar] [CrossRef] [PubMed]
  64. Gao, C.; Lin, Z.; Jurado-Sánchez, B.; Lin, X.; Wu, Z.; He, Q. Stem Cell Membrane-Coated Nanogels for Highly Efficient In Vivo Tumor Targeted Drug Delivery. Small 2016, 12, 4056–4062. [Google Scholar] [CrossRef] [PubMed]
  65. Gao, W.; Fang, R.H.; Thamphiwatana, S.; Luk, B.T.; Li, J.; Angsantikul, P.; Zhang, Q.; Hu, C.M.; Zhang, L. Modulating antibacterial immunity via bacterial membrane-coated nanoparticles. Nano Lett. 2015, 15, 1403–1409. [Google Scholar] [CrossRef] [PubMed]
  66. Pei, Q.; Hu, X.; Zheng, X.; Liu, S.; Li, Y.; Jing, X.; Xie, Z. Light-Activatable Red Blood Cell Membrane-Camouflaged Dimeric Prodrug Nanoparticles for Synergistic Photodynamic/Chemotherapy. ACS Nano 2018, 12, 1630–1641. [Google Scholar] [CrossRef] [PubMed]
  67. Alexander, P.; Kucera, G.; Pardee, T.S. Improving nucleoside analogs via lipid conjugation: Is fatter any better? Crit. Rev. Oncol. Hematol. 2016, 100, 46–56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Zaro, J.L. Lipid-based drug carriers for prodrugs to enhance drug delivery. AAPS J. 2015, 17, 83–92. [Google Scholar] [CrossRef] [PubMed]
  69. Alexander, R.L.; Morris-Natschke, S.L.; Ishaq, K.S.; Fleming, R.A.; Kucera, G.L. Synthesis and Cytotoxic Activity of Two Novel 1-Dodecylthio-2-decyloxypropyl-3-phosphatidic Acid Conjugates with Gemcitabine and Cytosine Arabinoside. J. Med. Chem. 2003, 46, 4205–4208. [Google Scholar] [CrossRef] [PubMed]
  70. Pickin, K.A.; Alexander, R.L.; Morrow, C.S.; Morris-Natschke, S.L.; Ishaq, K.S.; Fleming, R.A.; Kucera, G.L. Phospholipid/deoxycytidine analogue prodrugs for the treatment of cancer. J. Drug Deliv. Sci. Technol. 2009, 19, 31–36. [Google Scholar] [CrossRef]
  71. Alexander, P.M.; Caudell, D.L.; Kucera, G.L.; Pladna, K.M.; Pardee, T.S. The novel phospholipid mimetic KPC34 is highly active against preclinical models of Philadelphia chromosome positive acute lymphoblastic leukemia. PLoS ONE 2017, 12, e0179798. [Google Scholar] [CrossRef] [PubMed]
  72. Brankatschk, M.; Eaton, S. Lipoprotein particles cross the blood-brain barrier in Drosophila. J. Neurosci. 2010, 30, 10441–10447. [Google Scholar] [CrossRef] [PubMed]
  73. Goncalves, R.P.; Rodrigues, D.G.; Maranhao, R.C. Uptake of high density lipoprotein (HDL) cholesteryl esters by human acute leukemia cells. Leuk Res. 2005, 29, 955–959. [Google Scholar] [CrossRef] [PubMed]
  74. Zensi, A.; Begley, D.; Pontikis, C.; Legros, C.; Mihoreanu, L.; Buchel, C.; Kreuter, J. Human serum albumin nanoparticles modified with apolipoprotein A-I cross the blood-brain barrier and enter the rodent brain. J. Drug Target 2010, 18, 842–848. [Google Scholar] [CrossRef] [PubMed]
  75. Kucera, G.L.; Alexander, P.; Pladna, K.; Pardee, T.S. Abstract 4059: KPC34: A co-drug that combines a DNA damaging agent with a targeted therapy for the treatment of AML. Cancer Res. 2017, 77, 4059. [Google Scholar] [CrossRef]
  76. Andresen, T.L.; Jensen, S.S.; Madsen, R.; Jorgensen, K. Synthesis and biological activity of anticancer ether lipids that are specifically released by phospholipase A2 in tumor tissue. J. Med. Chem. 2005, 48, 7305–7314. [Google Scholar] [CrossRef] [PubMed]
  77. Andresen, T.L.; Davidsen, J.; Begtrup, M.; Mouritsen, O.G.; Jorgensen, K. Enzymatic release of antitumor ether lipids by specific phospholipase A2 activation of liposome-forming prodrugs. J. Med. Chem. 2004, 47, 1694–1703. [Google Scholar] [CrossRef] [PubMed]
  78. Linderoth, L.; Fristrup, P.; Hansen, M.; Melander, F.; Madsen, R.; Andresen, T.L.; Peters, G.H. Mechanistic Study of the sPLA2-Mediated Hydrolysis of a Thio-ester Pro Anticancer Ether Lipid. J. Am. Chem. Soc. 2009, 131, 12193–12200. [Google Scholar] [CrossRef] [PubMed]
  79. National Cancer Institute. Available online: (accessed on 9 October 2018).
  80. Linderoth, L.; Andresen, T.L.; Jørgensen, K.; Madsen, R.; Peters, G.H. Molecular Basis of Phospholipase A(2) Activity toward Phospholipids with sn-1 Substitutions. Biophys. J. 2008, 94, 14–26. [Google Scholar] [CrossRef] [PubMed]
  81. Ohishi, H.; Fujii, S.; Tomoo, K.; Ishida, T.; Ikeda, K.; Tanabe, K.; Kitamura, K. Molecular dynamics simulation of 1,2-dilauroyl-L-phosphatidylethanolamine binding to phospholipase A2: An attempt to explain the selective hydrolysis of substrate fatty acid ester at position 2. J. Biochem. 1993, 114, 210–214. [Google Scholar] [CrossRef] [PubMed]
  82. Hospital, A.; Goni, J.R.; Orozco, M.; Gelpi, J.L. Molecular dynamics simulations: Advances and applications. Adv. Appl. Bioinform. Chem. 2015, 8, 37–47. [Google Scholar] [PubMed]
  83. Arouri, A.; Mouritsen, O.G. Anticancer double lipid prodrugs: Liposomal preparation and characterization. J. Liposome Res. 2011, 21, 296–305. [Google Scholar] [CrossRef] [PubMed]
  84. Arouri, A.; Mouritsen, O.G. Phospholipase A(2)-susceptible liposomes of anticancer double lipid-prodrugs. Eur. J. Pharm. Sci. 2012, 45, 408–420. [Google Scholar] [CrossRef] [PubMed]
  85. Gliszczyńska, A.; Niezgoda, N.; Gładkowski, W.; Świtalska, M.; Wietrzyk, J. Isoprenoid-phospholipid conjugates as potential therapeutic agents: Synthesis, characterization and antiproliferative studies. PLoS ONE 2017, 12, e0172238. [Google Scholar] [CrossRef] [PubMed]
  86. Kawamura, S.; Ito, Y.; Hirokawa, T.; Hikiyama, E.; Yamada, S.; Shuto, S. Ligand-Phospholipid Conjugation: A Versatile Strategy for Developing Long-Acting Ligands That Bind to Membrane Proteins by Restricting the Subcellular Localization of the Ligand. J. Med. Chem. 2018, 61, 4020–4029. [Google Scholar] [CrossRef] [PubMed]

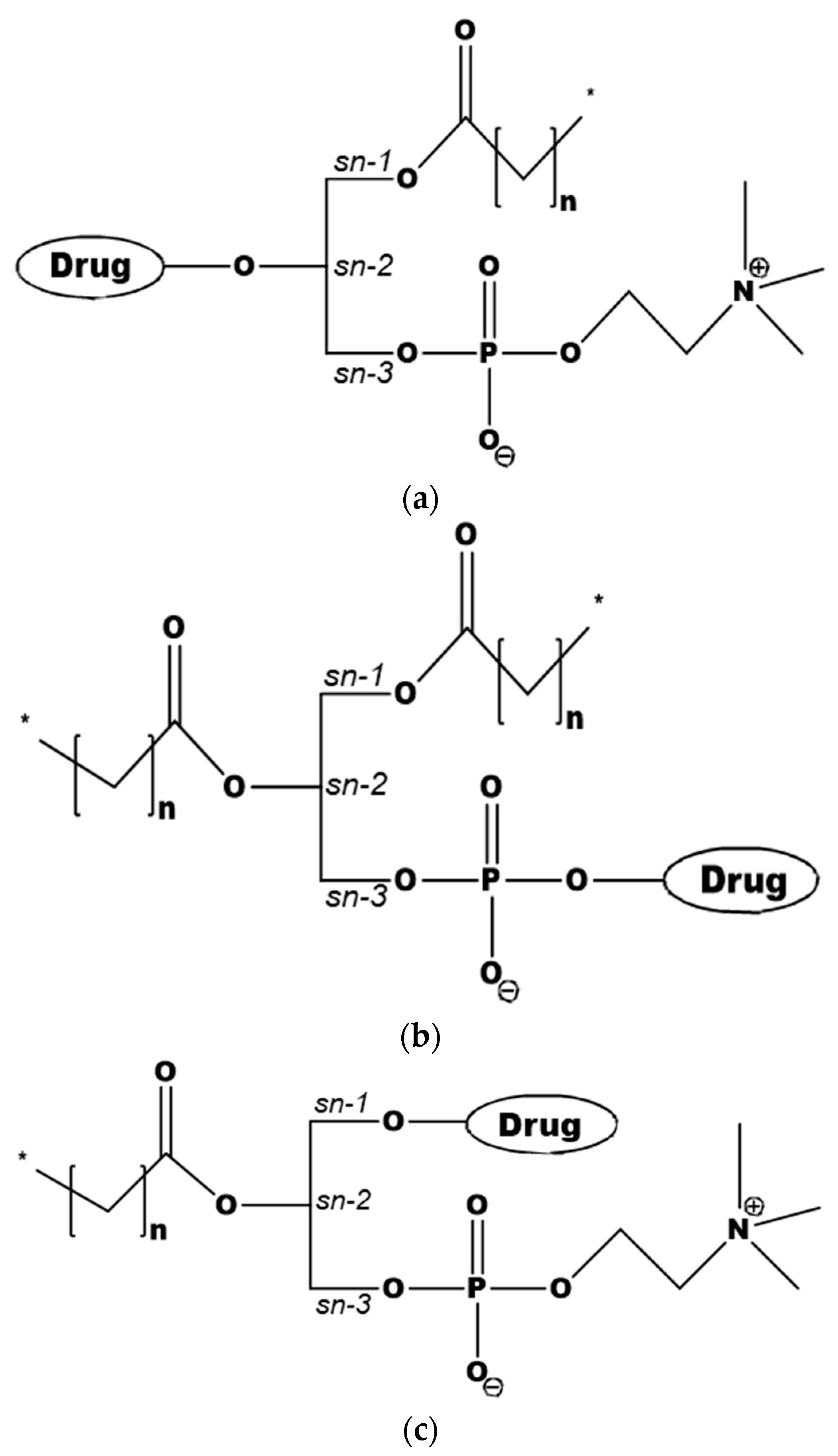

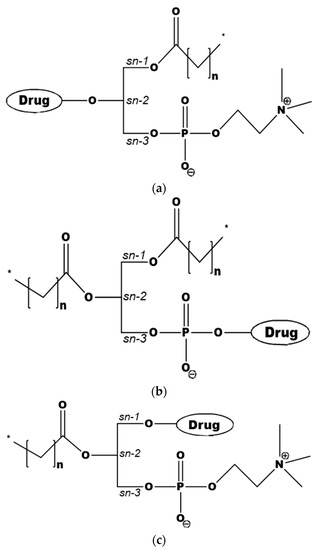

Figure 1. PL-drug conjugates, with the drug moiety attached to the sn-2 position of the glycerol backbone (a), to the phosphate group (b), or to the sn-1 position (c).
Figure 1. PL-drug conjugates, with the drug moiety attached to the sn-2 position of the glycerol backbone (a), to the phosphate group (b), or to the sn-1 position (c).
Pharmaceutics 10 00210 g001

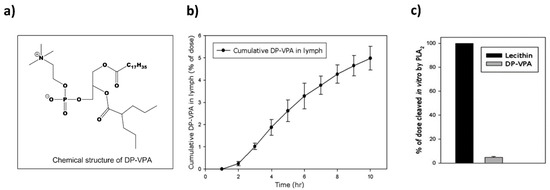

Figure 2. (a) structure of valproic acid prodrug (DP-VPA); (b) % of DP-VPA dose recovered in the rat lymph following oral DP-VPA dose (100 mg/kg) in LCT formulation; (c) PLA2-mediated activation of DP-VPA vs. phosphatidylcholine in-vitro. Reproduced with permission from reference [28], Elsevier, 2008.
Figure 2. (a) structure of valproic acid prodrug (DP-VPA); (b) % of DP-VPA dose recovered in the rat lymph following oral DP-VPA dose (100 mg/kg) in LCT formulation; (c) PLA2-mediated activation of DP-VPA vs. phosphatidylcholine in-vitro. Reproduced with permission from reference [28], Elsevier, 2008.
Pharmaceutics 10 00210 g002

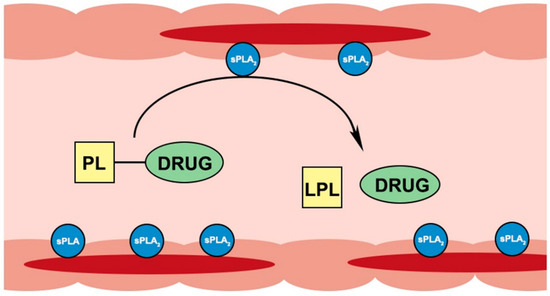

Figure 3. Illustration of PL-drug conjugates activation in the sPLA2 overexpressing inflamed intestinal tissues of IBD patients.
Figure 3. Illustration of PL-drug conjugates activation in the sPLA2 overexpressing inflamed intestinal tissues of IBD patients.
Pharmaceutics 10 00210 g003

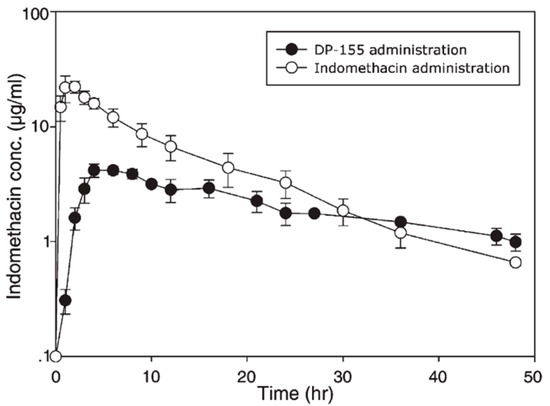

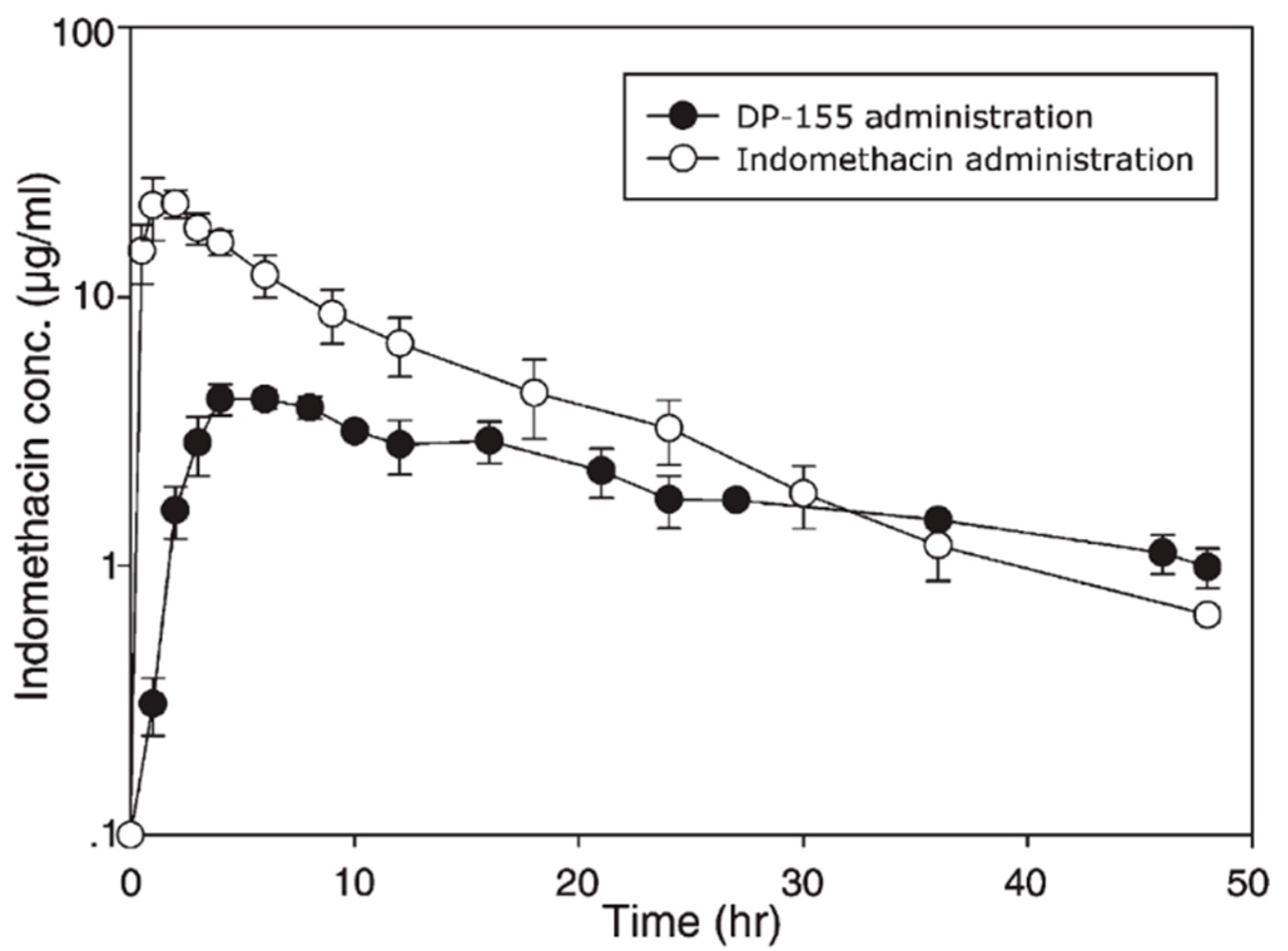

Figure 4. Indomethacin plasma profiles following oral administration of PL-prodrug DP-155 (●) vs. free indomethacin (○). Reproduced with permission from reference [29], Elsevier, 2007.
Figure 4. Indomethacin plasma profiles following oral administration of PL-prodrug DP-155 (●) vs. free indomethacin (○). Reproduced with permission from reference [29], Elsevier, 2007.
Pharmaceutics 10 00210 g004

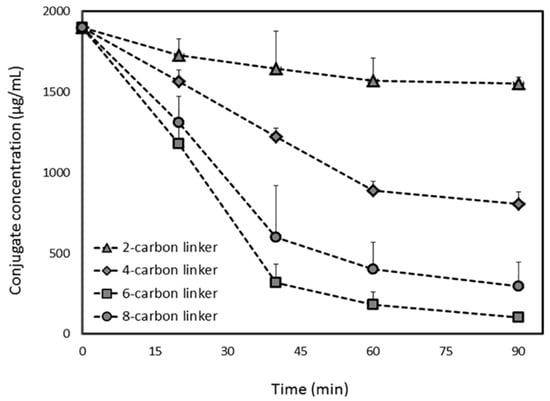

Figure 5. PLA2-mediated in-vitro activation of PL-diclofenac conjugates with linker lengths of 2, 4, 6 and 8-carbons. Reproduced with permission from reference [30], Elsevier, 2017.
Figure 5. PLA2-mediated in-vitro activation of PL-diclofenac conjugates with linker lengths of 2, 4, 6 and 8-carbons. Reproduced with permission from reference [30], Elsevier, 2017.
Pharmaceutics 10 00210 g005

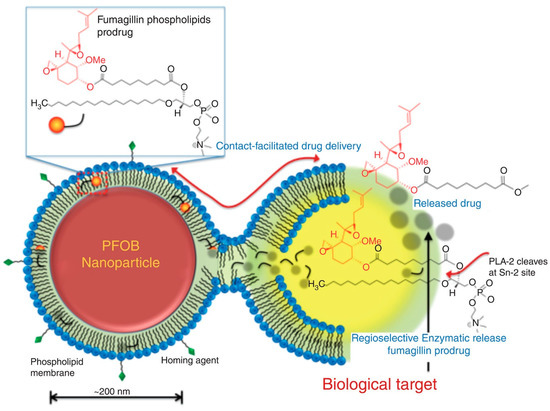

Figure 6. Illustration of contact-facilitated drug delivery mechanism where lipid membrane of PL-fumagillin containing nanoparticles. Binding of the nanoparticle to the targeted cell creates hemifusion complex between the two membranes, and PL-fumagilin prodrug is released into the cell, where local PLA2 liberates the free drug into the cytosol. Reproduced with permission from reference [36], John Wiley and Sons, 2015.
Figure 6. Illustration of contact-facilitated drug delivery mechanism where lipid membrane of PL-fumagillin containing nanoparticles. Binding of the nanoparticle to the targeted cell creates hemifusion complex between the two membranes, and PL-fumagilin prodrug is released into the cell, where local PLA2 liberates the free drug into the cytosol. Reproduced with permission from reference [36], John Wiley and Sons, 2015.
Pharmaceutics 10 00210 g006

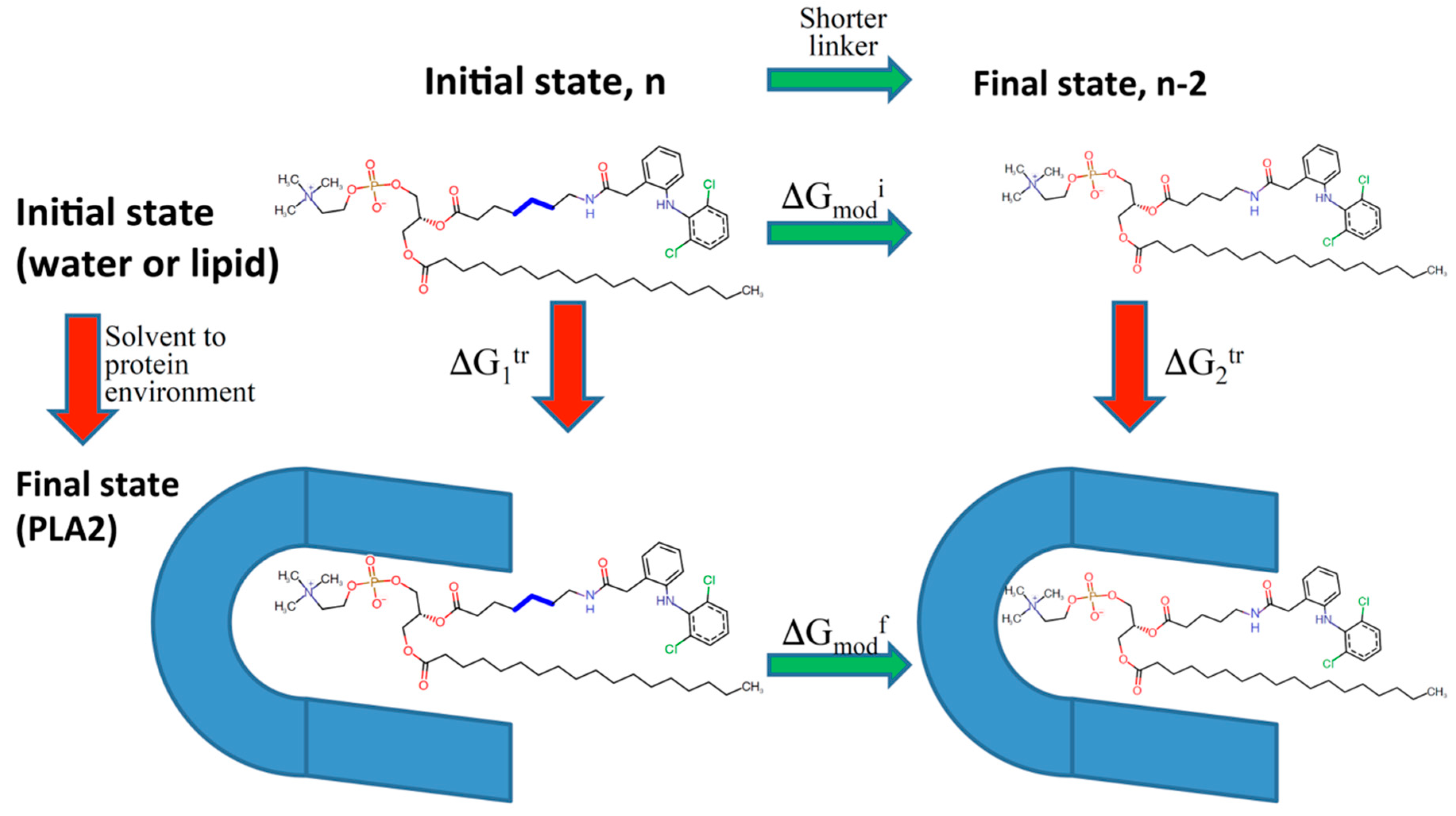

Figure 7. Thermodynamic cycle diagram used in the computational modeling of relative binding free energy of PL-diclofenac conjugates to the PLA2 enzyme, using the difference between the final state (conjugate in PLA2, ΔGmodf) and the initial state free energy (conjugate in water/lipid, ΔGmodi). ΔG1tr and ΔG2tr represent free energies of adding/removing –CH2 units from the linker. Reproduced with permission from reference [50], Springer Nature, 2017.
Figure 7. Thermodynamic cycle diagram used in the computational modeling of relative binding free energy of PL-diclofenac conjugates to the PLA2 enzyme, using the difference between the final state (conjugate in PLA2, ΔGmodf) and the initial state free energy (conjugate in water/lipid, ΔGmodi). ΔG1tr and ΔG2tr represent free energies of adding/removing –CH2 units from the linker. Reproduced with permission from reference [50], Springer Nature, 2017.
Pharmaceutics 10 00210 g007

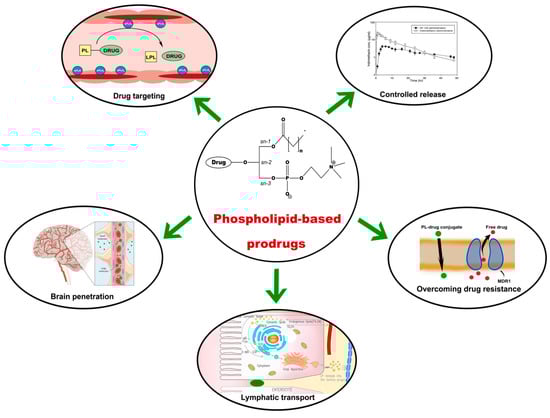

Figure 8. Illustration of the major challenges and potential solutions afforded by the PL-based prodrug approach.
Figure 8. Illustration of the major challenges and potential solutions afforded by the PL-based prodrug approach.
Pharmaceutics 10 00210 g008

Share and Cite

MDPI and ACS Style

Markovic, M.; Ben-Shabat, S.; Keinan, S.; Aponick, A.; Zimmermann, E.M.; Dahan, A. Prospects and Challenges of Phospholipid-Based Prodrugs. Pharmaceutics 2018, 10, 210.

AMA Style

Markovic M, Ben-Shabat S, Keinan S, Aponick A, Zimmermann EM, Dahan A. Prospects and Challenges of Phospholipid-Based Prodrugs. Pharmaceutics. 2018; 10(4):210.

Chicago/Turabian Style

Markovic, Milica, Shimon Ben-Shabat, Shahar Keinan, Aaron Aponick, Ellen M. Zimmermann, and Arik Dahan. 2018. "Prospects and Challenges of Phospholipid-Based Prodrugs" Pharmaceutics 10, no. 4: 210.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
