Review

Endoplasmic Reticulum: The Favorite Intracellular Niche for Viral Replication and Assembly

by
Inés Romero-Brey
1,* and
Ralf Bartenschlager
1,2,*
1
Department of Infectious Diseases, Molecular Virology, Heidelberg University, Im Neuenheimer Feld 345, Heidelberg 69120, Germany
2
German Center for Infection Research, Heidelberg University, Heidelberg 69120, Germany
*
Authors to whom correspondence should be addressed.
Viruses 2016, 8(6), 160; https://doi.org/10.3390/v8060160
Submission received: 16 April 2016 / Revised: 23 May 2016 / Accepted: 26 May 2016 / Published: 7 June 2016
(This article belongs to the Special Issue Host Membranes and the Viral Infection Cycle)
Browse Figures
Versions Notes

Abstract

:
The endoplasmic reticulum (ER) is the largest intracellular organelle. It forms a complex network of continuous sheets and tubules, extending from the nuclear envelope (NE) to the plasma membrane. This network is frequently perturbed by positive-strand RNA viruses utilizing the ER to create membranous replication factories (RFs), where amplification of their genomes occurs. In addition, many enveloped viruses assemble progeny virions in association with ER membranes, and viruses replicating in the nucleus need to overcome the NE barrier, requiring transient changes of the NE morphology. This review first summarizes some key aspects of ER morphology and then focuses on the exploitation of the ER by viruses for the sake of promoting the different steps of their replication cycles.

1. Introduction

Upon infection of a host cell, viruses frequently induce alterations of intracellular organelles which serve multiple purposes, including the formation of replication factories (RFs) or the assembly of infectious virus progeny. The endoplasmic reticulum (ER) is the largest cellular organelle and the most commonly hijacked “niche” during viral infection. In this review we briefly summarize our current knowledge about the ER architecture and its functions and then discuss how viruses exploit ER membranes to promote the different steps of the viral replication cycle.

2. The Endoplasmic Reticulum (ER)

2.1. ER Morphology

The ER was one of the last large cell organelles to be discovered [1]. More than 100 years ago, Emilio Veratti, a student of Camillo Golgi, described a new subcellular structure, distinct from the Golgi apparatus [2] already known at that time. Fifty years later, this new organelle was first visualized through electron microscopy (EM) by Keith Porter, who observed a complex, lace-like pattern of fine strands that he designated “endoplasmic reticulum” [3]. Further EM studies by George Palade, together with Keith Porter, revealed the intricate structure of this tubular membrane network [4,5]. The ER is a highly dynamic cytoplasmic membrane system composed of two structurally distinct subdomains: the nuclear envelope (NE), enclosing the nucleus, and a polygonal network called the peripheral ER, composed of branched flattened sheets and tubules [6] (Figure 1). In the following sections we briefly summarize the morphologies and properties of these ER subdomains.

2.1.1. Nuclear Envelope (NE)

The nuclear envelope consists of two flat ER membrane bilayers, the inner nuclear membrane (INM) and the outer nuclear membrane (ONM). The NE morphology is maintained via protein linkers within the perinuclear space (PNS), keeping a constant distance of 50 nm between the two membrane layers [10,11]. In addition, interactions of the INM proteins with chromatin and the lamin and of the ONM with nuclear pores and the cytoskeleton (reviewed in [12,13,14]) are required for the maintenance of the NE structure. This double membrane separates the intranuclear space from the cytoplasmic compartment and is only interrupted by nuclear pores, composed of nuclear pore complexes (NPCs) responsible for nucleocytoplasmic transport. Molecules up to 9 nm in diameter can passively diffuse through their inner channel [15], while molecules up to 39 nm in diameter in most cases require active nuclear import/export. Efficient translocation is carried out by transport receptors (karyopherins) that recognize cargos carrying specific recognition signals: nuclear localization and nuclear export signals (NLS and NES, respectively) [16].

2.1.2. ER Sheets

ER sheets are a series of stacked flat cisternae which, save for the edges, have low membrane curvature [8,17,18] and can be studded with ribosomes [19,20] (Figure 1B). The structure of sheets is governed by integral membrane proteins such as CLIMP63 (cytoskeleton-linking membrane protein of 63 kDa; formally p63), which is a type II integral membrane protein [21,22,23], composed of an extended luminal coiled-coil domain, a transmembrane (TM) domain and an N-terminal cytoplasmic segment that can bind microtubules [21,24]. CLIMP63 forms oligomers via interactions between the charged coiled-coil domain that might act as a bridge between the two flat membrane sheets, thus creating a constant sheet luminal distance of 50 nm in animal cells [8,20]. Indeed, CLIMP63 depletion reduces the luminal spacing of the sheets to 30 nm, similar to the spacing observed in cell types that do not express CLIMP63, such as yeast [8].
Ribosomes and large polyribosomes preferentially localize to ER sheets. The high density of ribosomes (~1000 ribosomes/μm2) on ER sheets [20] might regulate their shape. Furthermore, ER membrane-bound microtubules may stabilize the rough ER by physically limiting the lateral mobility of polysomes [25,26]. Thus, two microtubule-binding proteins are enriched in ER sheets, CLIMP63 [26] and p180, which also bind ribosomes to create a platform for high-rate protein synthesis [27,28,29]. While ribosome and microtubule binding might stabilize the low-curvature ER membrane sheets, their edges owe their high curvature to the presence of wedge-shaped proteins, called reticulons (RTNs) that are also involved in shaping ER tubules [8] (described below).
A recent publication resolved for the first time the long-standing question how rough ER sheets are stacked [7]. In contrast to Golgi cisternae that are connected through protein bridges [30], ER sheets are connected by a motif that is characterized by a twisted flat membrane surface. The 3D structure is a continuous membrane system resembling a “parking garage” in which the different levels are connected by helicoidal ramps. This architecture allows an efficient and energetically favorable packing of a maximum amount of membrane sheets. This is especially important for “professional” secretory cells that have a particular requirement for membrane-bound polysomes, where the proteins to be secreted have to be synthesized. Furthermore, the variability of the helical pitch and of the corresponding distance between sheets allows the cell to adjust to different demands of its secretory capacity: when more secretory proteins are needed, more membranes can be packed into the same space by decreasing the distance between sheets. Thus, in neurons, sheets are stacked with an average distance of ~270 nm, while in cells of the salivary gland this distance is on average ~84 nm [7].

2.1.3. ER Tubules

Tubules are highly dynamic structures, continually forming and rearranging and interconnecting at three-way junctions, resulting in loosely polygonal arrays that are spread throughout the cytoplasm (Figure 1C). They radiate from the NE and from ER sheets and interconnect all together, reaching various parts of the cells [31]. Tubules differ from sheets mainly by their higher membrane curvature, with a higher surface-to-volume ratio in comparison to sheets. Furthermore, tubules have a lower ribosome density than sheets and are built mainly of smooth ER membranes [19]. A shared feature of sheets and tubules, however, is their luminal space [8,20].
As for sheets, tubules are also shaped mainly by membrane-associated proteins that are involved in tubule formation and maintenance, as well as in branch point generation. Among them, RTNs, a family of highly conserved hairpin-forming membrane proteins, play a critical role in structurally shaping ER tubules [32,33,34,35,36,37]. In fact, depletion of RTN proteins reduces ER tubules and increases peripheral ER sheets, indicating that RTNs alone are sufficient to control ER tubule levels [33,36,38]. As stated above, RTNs are also found at the edges of ER sheets, generating highly curved membranes, but are excluded from flat ER regions and the NE [33]. The membrane-sculpting properties of RTNs rely on their topology, comprising two unusually short membrane-associated hairpins [9,33,39], and their ability to form immobile oligomers in the ER membrane [35] that might determine tubule diameter [6], as well as the width of the sheets. Yeast cells have two RTN genes (RTN1 and RTN2), each encoding for a single protein, whereas mammals have four (RTN1, RTN2, RTN3, RTN4/Nogo) [32,40,41,42,43,44,45] encoding eleven isoforms. Different RTN isoforms might be specialized for distinct trafficking functions [6].
Another hairpin-forming membrane protein, DP1 (defective in polyposis 1), also known as TB2 or REEP5 (receptor expression enhancing protein 5), as well as the yeast ortholog Yop1p (yeast homolog of the polyposis locus protein 1) is also involved in maintaining ER tubule structure [33]. Like RTNs, these proteins form homo-oligomers that are predicted to form arc-like structures [34,35], stabilizing high membrane curvature. Mathematical calculations support the idea that cylindrical tubules can be generated and maintained when only ~10% of the surface of the ER tubules is occupied by hairpin-forming membrane proteins [34].
Although very dynamic, ER tubules always remain continuous. Proteins with other functions, including nucleases and GTPases, play a crucial role in the formation of this continuous network. For example, dynamin-like integral membrane GTPases such as atlastins/Sey1p (synthetic enhancer of Yop1 protein) interact with the tubule-shaping proteins and enable tubule interconnections via homotypic ER-ER fusion [46,47]. Interestingly, the structure of atlastins resembles that of the mitofusins, another family of large GTPases promoting the fusion of neighboring mitochondria [48,49], with the C–termini exposed to the cytoplasm. The current fusion model assumes that atlastins regulate ER shape in a GTP-dependent manner. Fusion occurs upon dimerization of two atlastins residing in neighboring membranes. Dimerization occurs via interaction between their N-terminal GTPases, which are bound to GDP. Conversion of GDP to GTP generates conformational changes in the atlastins, pulling both ER membranes together until they fuse [50,51].
Two ER-enriched Rab GTPases (Rab10 and Rab18) were found recently to be involved in regulating ER dynamics (reviewed in [6]) and ER-ER tubule fusion ([52,53], respectively). Their role in determining the ER shape has been suggested to occur via their interaction with molecular motors (e.g., kinesin-1 and dynein) during ER sliding that would facilitate rapid ER-ER fusion [54].

2.2. ER Functions

The ER plays a crucial role in synthesis, modification and transport of secretory and membrane proteins, and is the site for the biosynthesis, processing and transport of several lipids (recently reviewed in [55]). In addition, the ER regulates the intracellular calcium level and forms specialized regions such as sites for vesicular export (ERES, ER exit sites) as well as contact areas with other membrane-bound organelles [52], including mitochondria [56], endosomes [57,58], peroxisomes [59], lipid droplets [60,61], phagophores [62] and the plasma membrane [20,63,64,65,66].
ER domains adopt distinct morphologies likely reflecting different functions. For instance, owing to their high curvature, tubules are better suited for surface-dependent functions, such as vesicular transport and inter-organelle signaling, whereas ER sheets immobilize polysomes on their flattened membranes and are thus specialized in protein synthesis, including protein translocation through the ER membrane, proteolytic processing, protein folding and secretion [19,33]. In fact, it has been reported that the translocation machinery is more enriched on ER sheets than in tubules [31]. The flat ER sheets might also be more stable platforms than tubules, which would allow them to better support the bulky membrane-bound polyribosomes required for protein synthesis [6]. Alternatively, differences in the morphologies of tubules and sheets might contribute to different distribution of proteins in the ER, generating bulk flow movements that would favor the retention of luminal proteins within the sheets, while membrane-bound proteins would be retained in ER tubules [6]. Moreover, ER tubules might also be involved in lipid synthesis [6]. For instance, it is known that phosphatidylserine is synthesized at ER regions called MAMs (mitochondria-associated membranes) [67] that might have a tubular morphology.
The ER is a highly dynamic organelle changing its organization in relation to multiple conditions such as the cell cycle [68,69]. In fact, during division of mammalian cells the ER undergoes spatial reorganization and a sheet-to-tubule transformation, starting with intact or fenestrated sheets (interphase ER) and changing into structures resembling tubular networks (mitotic ER). This transformation is accompanied by a reduction in membrane-bound ribosomes [68] and its extent varies between different cell lines [69]. Tubulation of the ER network might provide a simple, yet effective, mechanism for partitioning of the ER during mitosis [68]. Similar changes of the ER structure were observed upon ribosomal stripping and inhibition of RNA translation, suggesting that tubulation might be linked to translation activity on ER membranes [68]. Consistently, the level of the ribosome-binding ER protein p180 is reduced prior to cell division and knockdown of p180 expression leads to reduced ribosome density on ER membranes [28] and to fenestrated ER sheets [68]. Furthermore, overexpression of RTN4a eliminated sheet structures from the interphase ER and created long, non-branching tubules arguing that RTN abundance at the onset of cell division might contribute to the loss of sheets from the mitotic ER [68].
Depending on the cell type, the ER can adopt a wide range of organizations to adapt to different functions. Thus, the sheet-to-tubule ratio varies in different cell types reflecting the need for biosynthetic processes occurring in these two structures. In general, cells involved in synthesis and secretion of large amounts of protein (e.g., pancreatic or salivary gland cells) possess many ribosome–studded sheets [7,19], whereas poorly secreting cells (e.g., neurons, muscle cells, epithelial cells) contain an abundant tubular network [7,70].

3. ER Remodeling Induced upon Viral Infection

During viral infection cell membranes are co-opted for virtually every step of the viral life cycle, i.e., virus entry, replication of the genome, assembly and release of virions. In many cases, cellular membranes are remodeled and utilized to build up so-called replication factories (RFs). In these cases, the membranes serve as physical support for the coordinated accumulation of viral and cellular components required for efficient replication. Moreover, membranes might ensure minimal or no exposure of viral nucleic acids to the host immune system, by shielding the viral genome from cellular pattern-recognition receptors and nucleases.
Amongst the intracellular organelles targeted by viruses for productive replication, the ER is most often usurped, resulting in a dramatic change of its morphology. In the case of viruses replicating in the nucleus, viral entry into and exit out of the nucleus results in transient modifications of the NE. Furthermore, viruses replicating in the cytoplasm, most notably positive-strand RNA viruses and a few DNA viruses, must create their replication and assembly factories, which requires extensive growth and expansion of ER membranes.
In the following sections we will describe the different strategies utilized by viruses to modify ER membranes, with a focus on viral changes affecting the peripheral ER. A comprehensive summary of virus groups remodeling this compartment is given in Table 1.

3.1. Transient Interactions of DNA and RNA Viruses with the Nuclear Envelope (NE)

DNA and RNA viruses replicating their genomes in the nucleus have to pass the NE (recently reviewed in [15,108,109,110,111]) to deliver the viral genome to the site of viral genome amplification [112]. In many cases, this delivery follows the classical nuclear entry pathway via the NPC. However, in some cases, the NPC can be altered. For instance, alphabaculoviruses propel the nucleocapsid through the NPC after triggering a widening of the NPC channel [113], whereas adenoviruses alter the NPC structure to release their DNA into the nucleus [114]. A much more drastic, NPC–independent nuclear entry pathway has been observed with parvoviruses [115]. These viruses utilize host cell caspases, which are proteases involved in NE breakdown during apoptosis, giving rise to 100–200 nm diameter local disruptions [116]. NE breakdown occurring during cell division is also required for most retroviruses and papillomaviruses to deliver their genome into the nucleus ([117,118], respectively).
Interestingly, polyomaviruses utilize a “detour” prior to nuclear entry via the NPC: uptake of the nucleocapsid by endocytosis, endosomal transport to the ER where the capsid is partially disassembled and transfer of the genome via the PNS into the nucleus through holes in the INM [119].
Like nuclear entry, release of newly synthesized viral genomes can also occur via the NPC as long as the size of the nucleocapsid allows NPC passage. However, the nucleocapsids of herpesviruses are too large (120 nm) to pass through the NPC [108]. Therefore, they have developed an envelopment/de-envelopment strategy to cross the NE, starting with budding of the nucleocapsid at the INM to form an enveloped particle within the PNS that is subsequently released into the cytosol by fusing with the ONM [120,121,122,123] (reviewed in [124,125]). A similar strategy is used by baculoviruses [126,127,128]. Other viruses such as polyoma- and papillomaviruses appear to leave the nucleus by disrupting the NE [129,130,131]. Although not proven, disruption or destabilization of the NE might also be used by herpesviruses, parvoviruses and adenoviruses [108].

3.2. Replication and Assembly of DNA Viruses at the Peripheral ER

Nucleocytoplasmic large DNA viruses (NCLDVs) are a group of dsDNA viruses encompassing the families Poxviridae, Mimiviridae, Asfarviridae, Iridoviridae and Phycodnaviridae [132]. These viruses replicate their DNA partly or entirely in the cytoplasm of infected cells where they induce massive membrane rearrangements giving rise to nucleus-like structures designated viral factories (VFs) (Figure 2A and Figure 3A; Table 1). These elaborate structures enable a spatio-temporal coordination of viral replication and assembly of new virions.
One of the most critical processes is formation of inner virion membranes that are present in all NCLDVs. This is best studied, but most controversially discussed, for vaccinia virus (VACV, family Poxviridae) (reviewed in [123]). The absence of an obvious membrane continuity between a cellular organelle and the viral membrane led to the idea of de novo formation of the crescent membrane (the precursor of the inner virion membrane) [133]. Alternatively, crescent membranes might originate from the ER-Golgi intermediate compartment (ERGIC) [134,135,136,137]. Smooth ER membranes labeled with protein disulfide isomerase (PDI) and viral proteins were found close to crescents arguing that they originate from the ER [71,72,73,74,75]. Thus, the current model proposes that fragmentation of the ER membrane precedes crescent formation. As a result, crescents consisting of a single-membrane bilayer, derived from fragmented ER, and an external protein scaffold are formed towards the ER lumen, implying that the outer surface of the virion is derived from the luminal side of the ER membrane (reviewed in [138]). This is in agreement with previous data showing that, late in infection, the ER around the viral factories disassembles, coinciding with a dramatic decrease of DNA synthesis and the formation of virion precursors [139].
Likewise, the mimivirus Acanthamoeba polyphaga (family Mimiviridae) acquires its inner membrane from open membrane intermediates that correspond to crescents and accumulate at the periphery of the cytoplasmic VF [76]. Membrane biogenesis is initiated by fusion of multiple ER–derived vesicles (~70 nm diameter) allowing continuous lipid supply to the membrane-assembly zone. The resulting membrane structures subsequently rupture to form large, open, single-layered membrane sheets from which viral membranes are generated. The visualization of cell membranes studded with ribosomes at the periphery of the VF from which the vesicles seem to bud and the fact that mimivirus infection is accompanied by massive redistribution of ER markers suggest that mimivirus membranes are derived from the ER, but this remains to be confirmed. A similar process might operate in the case of the African swine fever virus (ASFV) (family Asfarviridae) [77].
Iridoviruses like frog virus 3 (FV3) and Singapore grouper iridovirus (SGIV, genus Ranavirus) replicate their genome via a similar mechanism ([140,141], respectively) whereas assembly follows a distinct pathway. The assembly site of these viruses, also known as “viromatrix,” is surrounded by mitochondria and presumably ER-derived linear and circular membranous structures [78]. These viral assembly sites have channels connecting to the nucleus possibly to facilitate the transport of newly synthesized DNA from the nucleus to the assembly site [78].
In sharp contrast to these NCLDV factories, the viral factories of Paramecium bursaria chlorella virus 1 (PBCV-1, family Phycodnaviridae) [79] are very different. While the central region consists of a network of single-membrane bilayers acting as scaffold for capsid formation, the viral genomes localize to the periphery of the factories and are excluded from the membrane-containing cores. As for ASFV [142], DNA replication of PBCV-1 is supposed to occur in the nucleus [143,144,145] prior to induction of nucleus-derived rough cisternae at the ONM. These cisternae serve as precursors for viral membranes and are recruited to the VFs, where they are ruptured into a dense network of open, single-bilayer membrane sheets accumulating in the center of the PBCV-1 factories. These open sheets interact with the capsid protein to form pre-capsids [79].
Taken together, these data reveal a common principle of all members of the NCLDV clade, the formation of an internal viral envelope during their assembly, originating at the VFs by a mechanism involving ruptured ER membranes.

3.3. Replication and Assembly of Positive-Strand RNA Viruses in Association with ER Membranes

The best known virus-induced ER modifications are those generated upon infection with positive-strand RNA viruses (reviewed in [146]). Numerous members of this virus group remodel ER membranes to form their replication factories (RFs) (Figure 2B–E and Figure 3B–E; Table 1). In the following sections, we will discuss the biogenesis of these factories according to their morphologies.

3.3.1. ER Invaginations

A strategy frequently used by positive-strand RNA viruses to remodel ER membranes is the induction of membrane invaginations towards the ER lumen (Figure 2B). For instance, many plant positive-strand RNA viruses use ER membranes to build up RFs, named spherules (families Bromoviridae and Tombusviridae) or vesicles (family Flaviviridae). One well-studied example is brome mosaic virus (BMV, family Bromoviridae) replicating its RNA on ER-derived spherules (~60 nm diameter) in close proximity to the nucleus [82,83] (Figure 3B). Another bromovirus, cowpea chlorotic mottle virus (CCMV), also induces the formation of spherules in the lumen of the perinuclear and peripheral ER [81]. This is also the case of red clover necrosis mosaic virus (RCNMV, Tombusviridae) that also induces invaginations at the NE [84]. Another example is beet black scorch virus (BBSV; Tombusviridae) inducing distinct cytopathological changes typical of ER aggregation and vesiculation in infected cells [85]. Three-dimensional electron tomographic analysis revealed the formation of multiple ER-originated vesicle packets (VPs), each VP enclosing a few to hundreds of independent spherules. Strikingly, these VPs were connected to each other via tubules, a rearrangement event that is rare among other virus-induced vesicles.
Positive-strand RNA viruses infecting animals and humans also induce ER invaginations as part of their RF. Best studied are members of the genus Flavivirus (family Flaviviridae) (Figure 2C). Vesicles with a diameter between 80–150 nm have been found in the lumen of ER sheets of mammalian cells infected with dengue virus (DENV) [90,91,92] (Figure 3C), West Nile virus (WNV) [87,88,147], tick-borne encephalitis virus (TBEV) [94], Langat virus (LGTV) [96], Murray Valley encephalitis virus (MVEV) [93], Japanese encephalitis virus (JEV) [89,148], St. Louis encephalitis virus (SLEV) [149] and yellow fever virus (YFV) [86]. Owing to their array-like alignment in ER sheets, these vesicles have also been called VPs. Moreover, because of the vesiculation of the ER lumen, the membrane sheets become dilated giving rise to swollen ER sacs.
The localization of dsRNA, a presumed replication intermediate, and viral replicase proteins in these vesicles as determined with immuno-EM argue that VPs might be the site of RNA replication (e.g., [87,92,95,96,147,151]). In addition, the presence of ~10 nm wide pores (e.g., [88,92,95]) linking the vesicle interior to the cytosol—as found also in BMV-infected cells [83]—ensures efficient exchange of cellular and viral components, including newly synthesized RNA with the cytoplasm.
Flaviviruses are arthropod-borne viruses (“arboviruses”) and thus also replicate in insect cells where they induce the same type of ER invaginations [96,152]. Apart from these vesicles, in TBEV–infected tick cells, elongated vesicles or tubules (up to 800 nm in length) were found that were much more abundant in persistently than in acutely infected cells. Of note, these tubules were only occasionally observed in TBEV-infected or DENV-infected mammalian cells [92]. The function of these tubules is not known, but the absence of pores suggests that the tubules might represent aberrant RFs resulting from incorrect membrane remodeling or represent an antiviral cellular defense mechanism restricting infection [96].
Based on available data we can assume that all members of the genus Flavivirus utilize the ER as membrane source for the formation of their RFs, whereas assembly of progeny virions seems to occur via budding into the ER lumen in close proximity to the VPs [92]. Whereas in the case of DENV, progeny virions accumulate in the ER sacs, in the case of TBEV, particles were observed in the same compartment where replication takes place [95], thus creating an optimized membranous environment to coordinate viral replication and assembly.
Structures morphologically reminiscent to those induced by flaviviruses were also found in cells infected with pestiviruses (Flaviviridae family). This includes dilated ER cisternae and tubules [153,154,155,156], as well as virions budding into the ER [157]. However, the precise site of RNA replication remains to be determined. Vacuoles enclosing vesicles of various sizes have been also found in bovine viral diarrhea virus (BVDV)-infected cells [158]. These structures that resemble multivesicular bodies (MVBs) might represent the site of pestiviral replication. In that case, pestiviruses appear to use a different strategy to form their RF.
Remodeling of intracellular membranes that serve as building blocks of viral RFs is not limited to the ER, but might affect other intracellular organelles such as mitochondria [159,160], lysosomes [161,162], chloroplasts [163] or peroxisomes [164]. Interestingly, in the absence of peroxisomes, tombusvirus replication switches to the ER [165]. Moreover, plant potyviruses (family Potyviridae) sequentially recruit ER and chloroplast membranes [166]. These observations suggest that RNA viruses have remarkable flexibility with respect to the source of membranes utilized for the construction of their RF.

3.3.2. ER Exvaginations: Single- and Double-Membrane Vesicles (DMVs)

In early studies conducted with poliovirus, the prototype member of the family Picornaviridae (genus Enterovirus) identified putative replication organelles with a horseshoe-like shape designated “U bodies” [167]. Subsequent studies reported elongated single-membrane vesicles or tubules [97,168] as well as double-membrane vesicles (DMVs) in poliovirus-infected cells [98,99] (Figure 2C). Two recent publications suggest that these distinct membranous structures are induced in a time-dependent manner in poliovirus and coxsackievirus B3 (CVB3)-infected cells ([169,170], respectively). Early in infection, single-membrane tubular clusters that are transformed into bigger irregularly shaped single-membrane structures (possibly corresponding to the “U bodies”) predominate. Late in infection, they are replaced by vesicles with a much more complex structure, with two lipid bilayers tightly apposed to each other, thus giving rise to the name DMVs [169]. The exponential phase of viral RNA synthesis coincides with the predominance of single-membrane tubules, suggesting that these structures are involved in viral RNA replication, consistent with previous observations localizing active replication to the outer surface of these structures [97]. However, since DMVs originate from tubules and form during the phase when viral RNA replication increases, it is very possible that DMVs might also play an active role in viral RNA synthesis. Alternatively, DMVs might represent a dead-end structure of RFs that in the course of the CVB3 replication cycle transform into complex multi-membraned vesicles [170]. In any case, the observation that in cells infected with the foot and mouth disease virus (FMDV; genus Aphthovirus) single- and double-membrane structures are also induced, albeit with low efficiency, suggests that the formation of both types of membrane rearrangements might be a general property of the Picornaviridae family members [171].
The source of membranes used by these viruses to build up their RFs is a matter of debate. Golgi–derived membranes might serve as initial site of poliovirus replication [172,173], whereas late in infection, markers of the ER, Golgi and lysosomes were all found to be associated with the poliovirus RF [97,98,168,174]. Furthermore, it is known that enterovirus infection causes a strong inhibition of the anterograde ER-Golgi transport [175,176] and treatment with Brefeldin A, a well-known inhibitor of the secretory pathway, abrogates enterovirus replication [177,178]. These findings, together with the reported role of COPII [174,179] and COPI vesicles [180], as well as other components of the secretory pathway [181,182,183] and the ERES [184] argue that membranes from multiple cellular sources, mainly from ER and Golgi, are used by picornaviruses to build up their RFs [98].
Members of the families Arteriviridae and Coronaviridae, included in the order Nidovirales, usurp ER membranes to generate DMVs as well (Figure 2C). These can remain connected to ER membranes via their outer membrane and are interconnected to form a reticulovesicular network. DMVs were found in cells infected with equine arterivirus (EAV) [100,101], mouse hepatitis virus (MHV) [185,186], severe acute respiratory syndrome (SARS)-coronavirus (CoV) [102,103] and Middle East respiratory syndrome coronavirus (MERS-CoV) [187]. Similar DMVs have also been found in cells infected with hepatitis C virus (HCV, family Flaviviridae) [104,105,106] (Figure 3D). This observation was surprising because flaviviruses (e.g., DENV and TBEV) belonging to the same family induce RFs with a very different morphology (ER membrane invaginations; see above) suggesting that even closely related viruses can utilize distinct cellular pathways to build up their RFs.
How the DMVs are formed remains enigmatic. They might originate from a single-membrane vesicle or tubule budding from its donor organelle (the ER) that might undergo secondary invagination. While this pathway would be similar to the one utilized by picornaviruses, a “pre–DMV” structure has not yet been proven to exist in the case of HCV. We note that Ferraris and colleagues reported single-membraned structures, along with DMVs, in HCV-infected cells [106], but it remains to be determined whether these single-membrane structures are precursors of DMVs.
Several lines of evidence suggest that DMVs might be the site of viral RNA replication. First, the kinetics of DMV appearance correlates with viral replication [105,186]. Second, immuno-EM studies identified dsRNA in the DMV lumen [101,103,185,188]. Third, DMVs isolated from HCV-replicating cells contain an active replicase allowing metabolic labeling of viral RNA [188]. While these findings argue for DMVs as sites of RNA replication, the exact localization of the replicase remains unclear. It might be localized on the DMV surface or in its interior. In the latter case, newly synthesized viral RNA has to be released from these double–sheltered organelles. However, DMVs found in arterivirus- and coronavirus-infected cells are not connected to the cytosol [101,103] and in the case of HCV, only ~10% of DMVs have an opening towards the cytosol [105]. These results favor the assumption that only a minority of DMVs are actively engaged in RNA replication at a given time.

3.3.3. Zippered-ER, Spherules and DMVs

As described above, members of the family Coronaviridae induce the formation of DMVs. This is also the case for infectious bronchitis virus (IBV), an important poultry pathogen belonging to the genus Gammacoronavirus. However, the most striking structures induced by IBV are zippered ER membranes [107] that distinguish this virus from the members of the genus Betacoronavirus, e.g., MHV, SARS-CoV or MERS-CoV. The zippered ER was associated with 60–80 nm diameter spherules (Figure 2D and Figure 3E). Their interior is connected through a 4.4 nm long channel with the cytoplasm, making them the ideal sites for the synthesis of viral RNA. In contrast, DMVs might be a by-product not directly involved in RNA synthesis or corresponding to inactive remnants of active RFs [189].

3.3.4. Convoluted Membranes (CMs)

Branching networks of membranes known as convoluted membranes (CMs) have been observed in cells infected with several positive-strand RNA viruses, notably members of the families Coronaviridae [103,186,187] and Flaviviridae [91,92,151,190] (Figure 2E). These structures form a continuous network with the VPs induced by DENV [92] or with the DMVs induced by SARS-CoV [103]. CMs are frequently connected with the ER [103] from which they seem to originate [92], most likely smooth ER as indicated by the lack of ribosomes. Viral and cellular proteins localize to these structures [92,103,151,186,190] and they are induced by the sole expression of individual viral proteins such as NS4A in the case of DENV [191,192].
It has been suggested that CMs might correspond to storage sites for proteins and lipids required for replication and assembly. The fact that CMs are physically linked with ER-containing invaginations and contain NS3 would be consistent with this assumption [92]. Alternatively, CMs might represent sites of polyprotein processing [151,190]. This conclusion is based primarily on the strong immunolabeling for NS2B and NS3 and the lack of NS1 and NS4B detection. Since polyprotein cleavage occurs co-translationally and thus should happen at the rough ER, this model would require the formation of rather stable processing intermediates that are transferred from the rough ER to the CMs where further cleavage would occur.
CMs appear to have a distinct lipid composition, most notably high amounts of cholesterol. Of note in cells of insects that are cholesterol auxotrophs and lack several enzymes of the cholesterol biosynthesis pathway [193], CMs are absent, which might be due to the lack of cholesterol [152].

3.4. Replication and Assembly dsRNA Viruses at ER-Related Inclusions

Reoviruses are non-enveloped, dsRNA viruses. Upon their entry into cells, the viral proteins form distinct inclusions (Figure 2F and Figure 3F), i.e., large cytoplasmic structures, also known as “viroplasms” providing a physical scaffold to coordinate RNA replication and virion assembly. Although the inclusions were thought to be membrane-free structures, a recent study identified membranes within the inclusions that appear to be derived from ER, Golgi or from an as yet undefined cellular source [80]. Furthermore, rough ER cisternae were found in contact with reovirus inclusions [80] reminiscent to the architecture of rubella virus RFs [162]. Although the latter are derived from lysosomal membranes, the rough ER cisternae provide the framework for newly synthesized viral proteins to facilitate their incorporation into viral replication organelles [162]. A similar mechanism might also operate with reovirus factories. Alternatively, since reoviruses are non–enveloped, the ER might be used as a membranous scaffold to facilitate virus particle trafficking to the cell periphery, thus bypassing the Golgi apparatus [80]. Rotavirus, another member of the family Reoviridae, also induces the formation of cytoplasmic viroplasms [194]. To acquire the outer shell proteins VP4 and VP7, immature rotavirus particles have to bud in the ER to allow the assembly of mature particles [195].

4. Cross-Talk between Viral and ER Proteins

Only few proteins involved in the regulation of the ER shape are known to be highjacked by viral proteins to create membranous RFs, and even less is known in the case of cellular ER-shaping proteins. One example is the RTNs that are usurped by several positive-strand RNA viruses (reviewed in [196]). Interestingly, the positive-curving RTNs seem to play a role in the formation of the negative curvature invaginations induced by BMV on ER membranes [197]. Although in principle counterintuitive, RTNs might be involved in stabilizing the neck of the invaginations, which has a positive curvature (Figure 3G). Furthermore, depletion of RTNs results in the formation of smaller vesicles, thereby indicating that RTNs might be involved in partially cancelling the negative membrane curvature induced by viral proteins [196].
RTN3 has been shown to interact with proteins of enteroviruses (2C) and HCV (NS4B) that are known to induce the formation of tubules and vesicles with positive curvature ([198] and [199], respectively). While in the case of enteroviruses these interactions enhance viral replication [198], possibly by promoting the formation of positively curved tubules [196], in the case of HCV these interactions are inhibitory. In fact, RTN3 was found to bind to HCV NS4B and impair viral replication [199]. Conversely to enteroviruses, HCV does not induce membrane tubules, but primarily DMVs. Whether the antagonistic effects of RTNs for enteroviruses and HCV are related to the use of alternative cellular pathways for RF formation remains to be determined.
Another ER-resident protein that plays a critical role in the life cycle of flavi- and hepaciviruses is Rab18. This protein not only localizes on ER membranes, but is also located at lipid-droplet (LD)–associated membranes [200,201]. Both organelles, ER and LDs, play a crucial role for these virus groups with Rab18 acting as a “linker” tethering LDs to the cytosolic side of the ER. In HCV-infected cells, Rab18 interacts with HCV nonstructural protein 5A (NS5A) [202,203], which is involved both in RNA replication and virion assembly. Interestingly, the viral core protein accumulates on the surface of LDs. Thus, Rab18 is used by HCV for recruitment of LDs in close proximity to the replication sites, thereby also recruiting the capsid protein. Since HCV assembly is tightly linked to LDs, Rab18 appears to be exploited to facilitate the coordination of RNA replication and virus assembly [202,203]. Consistent with this assumption it was found that Rab18 is required for HCV particle formation [204]. In the case of DENV, Rab18 is involved in the interaction of fatty acid synthase (FASN) with NS3, contributing to the recruitment of FASN to the ER and LDs. This recruitment is thought to promote fatty acid biosynthesis, required for membrane proliferation [205].
A critical role of ER-resident proteins has also been reported for tombusvirus replication. Proteins of this virus bind to the ER resident VAMP-associated protein (VAP) [206]. These interactions likely facilitate the formation of membrane contact sites (MCS) between the ER and peroxisomal and mitochondrial membranes, where tombusviruses build up their RFs. Furthermore, these interactions also promote the recruitment of oxysterol-binding protein-related proteins (ORPs), resulting in an enrichment of sterols at the MCS, required for the formation of tombusvirus-induced spherules.
Similarly, the oxysterol-binding protein-like 1 protein (OSBP1), found at ER-Golgi MCS, plays a critical role in the formation of the rhinovirus RFs on Golgi-derived membranes, in close proximity to the ER. OSBP1 binding to the ER-resident protein VAP-A appears to trigger a phosphatidylinositol 4-phosphate (PI4P)-cholesterol flux [207] at MCSs to drive the formation of the viral RFs. This flux is mediated by several proteins: OSBP1, shuttling PI4P and cholesterol; the ER-associated PI4P phosphatase Sac1, hydrolyzing PI4P, and the phosphatidylinositol (PI) transfer protein beta (PITPb), shuttling PI. Of note, OSBP is also required for the replication of enteroviruses in general including poliovirus, coxsackievirus and enterovirus-71 [208].
Interestingly, the DMVs induced by HCV are also enriched in VAP-A and VAP-B [188]. Moreover, OSBP is required for HCV replication, too [209]. These findings suggest that HCV exploits VAPs and OSBP to remodel ER membranes by mediating lipid exchange in order to create or stabilize the RFs.

5. Conclusions and Future Perspectives

The morphology of cellular organelles is a fundamental question in cell biology and its elucidation has only become possible with the development of high-resolution imaging techniques, most notably EM and more recently developed 3D-EM methods (reviewed in [210]). Taking advantage of these approaches, important information on the 3D architecture of the endoplasmic reticulum (ER) has become available [20,68]. However, even though the complete ER of a cell has been visualized [69,211,212] our knowledge of the homeostasis of ER morphology and the proteins that “sculpt” the ER shape into a dynamic network of sheets and tubules is still rather limited. Gaining further insight into these aspects requires a more comprehensive identification and characterization of involved proteins. It is interesting to note that mutations in some ER-shaping proteins are linked to neurological diseases such as Alzheimer’s and hereditary spastic paraplegia (HSP) (reviewed in [6]). This example underscores how important the integrity of ER morphology is for proper cell and organ function.
Given the central role of the ER in maintenance of cellular homeostasis, it is frequently targeted by viruses to promote the individual steps of their life cycles. Yet, many aspects of how viruses usurp ER function to promote these different steps are poorly understood. For instance, double-membrane vesicles (DMVs) are the most predominant membranous structures detectable in hepatitis C virus (HCV)-infected cells. However, we still do not know how these vesicles are formed. Given their striking morphological resemblance to autophagosomes, DMV biogenesis might be linked to the autophagy machinery. Indeed, several studies reported an involvement of autophagy in the HCV life cycle [213], but neither the precise step of the viral life cycle depending on autophagy nor the molecular details of the process have been defined. It is also unclear what is the function of CMs that most likely correspond to modified smooth ER and are frequently detected in flavivirus-infected cells. For many viruses utilizing the ER and replicating in the cytoplasm, we also do not know the exact site of RNA replication. For SARS-CoV, evidence has been presented that RNA replication might occur inside closed DMVs [103]. If that is the case, the question arises how newly produced progeny RNA is released into the cytoplasm to be used for the assembly of infectious progeny virus. One possibility is a proteinaceous channel formed by viral or cellular proteins. Another possibility is that RNA replication occurs at “precursor” sites and DMVs correspond to remnants of formerly active replicases that are on their way to degradation or removal out of the cell.
Addressing these and several other questions requires a comprehensive strategy that combines biochemical and cell biological approaches with cutting-edge imaging methods, most notably correlative light and electron microscopy [214]. It is clear that combining these methods with the use of ER-dependent viruses as sensitive and targeted probes will provide new and important insights into ER biology and its exploitation by pathogens.

Acknowledgments

We are very grateful to Abraham Minsky and Yael Mutsafi (The Weizmann Institute of Science, Rehovot, Israel), Paul G. Ahlquist and Wai-Ming Lee (Howard Hughes Medical Institute, Madison, WI, USA), Paul Britton (The Pirbright Institute, Compton, UK), Cristina Risco (Centro Nacional de Biotecnología, Madrid, Spain) and Terence Dermody (University School of Medicine, Nashville, Tennessee, USA) for their permission to reproduce the EM images depicted in Figure 3A,B,E,F, as well as in the graphical abstract. Work in the authors’ laboratory was supported by the Deutsche Forschungsgemeinschaft (DFG) (TRR83, TP13 and SFB1129, TP11).

Author Contributions

I.R.-B. wrote the manuscript and designed the figures; R.B. commented and edited the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schuldiner, M.; Schwappach, B. From rags to riches—The history of the endoplasmic reticulum. Biochim. Biophys. Acta 2013, 1833, 2389–2391. [Google Scholar] [CrossRef] [PubMed]
  2. Veratti, E. Investigations on the fine structure of striated muscle fiber read before the reale istituto lombardo, 13 March 1902. J. Biophys. Biochem. Cytol. 1961, 10, 1–59. [Google Scholar] [CrossRef] [PubMed]
  3. Porter, K.R. Observations on a submicroscopic basophilic component of cytoplasm. J. Exp. Med. 1953, 97, 727–750. [Google Scholar] [CrossRef] [PubMed]
  4. Palade, G.E.; Porter, K.R. Studies on the endoplasmic reticulum. I. Its identification in cells in situ. J. Exp. Med. 1954, 100, 641–656. [Google Scholar] [CrossRef] [PubMed]
  5. Porter, K.R.; Palade, G.E. Studies on the endoplasmic reticulum. III. Its form and distribution in striated muscle cells. J. Biophys. Biochem. Cytol. 1957, 3, 269–300. [Google Scholar] [CrossRef] [PubMed]
  6. Westrate, L.M.; Lee, J.E.; Prinz, W.A.; Voeltz, G.K. Form follows function: The importance of endoplasmic reticulum shape. Annu. Rev. Biochem. 2015, 84, 791–811. [Google Scholar] [CrossRef] [PubMed]
  7. Terasaki, M.; Shemesh, T.; Kasthuri, N.; Klemm, R.W.; Schalek, R.; Hayworth, K.J.; Hand, A.R.; Yankova, M.; Huber, G.; Lichtman, J.W.; et al. Stacked endoplasmic reticulum sheets are connected by helicoidal membrane motifs. Cell 2013, 154, 285–296. [Google Scholar] [CrossRef] [PubMed]
  8. Shibata, Y.; Shemesh, T.; Prinz, W.A.; Palazzo, A.F.; Kozlov, M.M.; Rapoport, T.A. Mechanisms determining the morphology of the peripheral ER. Cell 2010, 143, 774–788. [Google Scholar] [CrossRef] [PubMed]
  9. Lin, S.; Sun, S.; Hu, J. Molecular basis for sculpting the endoplasmic reticulum membrane. Int. J. Biochem. Cell Biol. 2012, 44, 1436–1443. [Google Scholar] [CrossRef] [PubMed]
  10. Razafsky, D.; Hodzic, D. Nuclear envelope: Positioning nuclei and organizing synapses. Curr. Opin. Cell Biol. 2015, 34, 84–93. [Google Scholar] [CrossRef] [PubMed]
  11. Meinke, P.; Schirmer, E.C. Linc’ing form and function at the nuclear envelope. FEBS Lett. 2015, 589, 2514–2521. [Google Scholar] [CrossRef] [PubMed]
  12. Burke, B.; Ellenberg, J. Remodelling the walls of the nucleus. Nat. Rev. Mol. Cell Biol. 2002, 3, 487–497. [Google Scholar] [CrossRef] [PubMed]
  13. Hetzer, M.W.; Walther, T.C.; Mattaj, I.W. Pushing the envelope: Structure, function, and dynamics of the nuclear periphery. Annu. Rev. Cell Dev. Biol. 2005, 21, 347–380. [Google Scholar] [CrossRef] [PubMed]
  14. D’Angelo, M.A.; Hetzer, M.W. The role of the nuclear envelope in cellular organization. Cell. Mol. Life Sci. 2006, 63, 316–332. [Google Scholar] [CrossRef] [PubMed]
  15. Yamauchi, Y.; Helenius, A. Virus entry at a glance. J. Cell Sci. 2013, 126, 1289–1295. [Google Scholar] [CrossRef] [PubMed]
  16. Pante, N.; Kann, M. Nuclear pore complex is able to transport macromolecules with diameters of about 39 nm. Mol. Biol. Cell 2002, 13, 425–434. [Google Scholar] [CrossRef] [PubMed]
  17. Kiseleva, E.; Morozova, K.N.; Voeltz, G.K.; Allen, T.D.; Goldberg, M.W. Reticulon 4a/NogoA locates to regions of high membrane curvature and may have a role in nuclear envelope growth. J. Struct. Biol. 2007, 160, 224–235. [Google Scholar] [CrossRef] [PubMed]
  18. Sparkes, I.; Tolley, N.; Aller, I.; Svozil, J.; Osterrieder, A.; Botchway, S.; Mueller, C.; Frigerio, L.; Hawes, C. Five arabidopsis reticulon isoforms share endoplasmic reticulum location, topology, and membrane-shaping properties. Plant Cell 2010, 22, 1333–1343. [Google Scholar] [CrossRef] [PubMed]
  19. Shibata, Y.; Voeltz, G.K.; Rapoport, T.A. Rough sheets and smooth tubules. Cell 2006, 126, 435–439. [Google Scholar] [CrossRef] [PubMed]
  20. West, M.; Zurek, N.; Hoenger, A.; Voeltz, G.K. A 3D analysis of yeast ER structure reveals how ER domains are organized by membrane curvature. J. Cell Biol. 2011, 193, 333–346. [Google Scholar] [CrossRef] [PubMed]
  21. Schweizer, A.; Ericsson, M.; Bachi, T.; Griffiths, G.; Hauri, H.P. Characterization of a novel 63 kDa membrane protein. Implications for the organization of the ER-to-Golgi pathway. J. Cell Sci. 1993, 104, 671–683. [Google Scholar] [PubMed]
  22. Schweizer, A.; Rohrer, J.; Slot, J.W.; Geuze, H.J.; Kornfeld, S. Reassessment of the subcellular localization of p63. J. Cell Sci. 1995, 108, 2477–2485. [Google Scholar] [PubMed]
  23. Klopfenstein, D.R.; Klumperman, J.; Lustig, A.; Kammerer, R.A.; Oorschot, V.; Hauri, H.P. Subdomain-specific localization of climp-63 (p63) in the endoplasmic reticulum is mediated by its luminal alpha-helical segment. J. Cell Biol. 2001, 153, 1287–1300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Klopfenstein, D.R.; Kappeler, F.; Hauri, H.P. A novel direct interaction of endoplasmic reticulum with microtubules. EMBO J. 1998, 17, 6168–6177. [Google Scholar] [CrossRef] [PubMed]
  25. Nikonov, A.V.; Snapp, E.; Lippincott-Schwartz, J.; Kreibich, G. Active translocon complexes labeled with GFP-Dad1 diffuse slowly as large polysome arrays in the endoplasmic reticulum. J. Cell Biol. 2002, 158, 497–506. [Google Scholar] [CrossRef] [PubMed]
  26. Nikonov, A.V.; Hauri, H.P.; Lauring, B.; Kreibich, G. Climp-63-mediated binding of microtubules to the ER affects the lateral mobility of translocon complexes. J. Cell Sci. 2007, 120, 2248–2258. [Google Scholar] [CrossRef] [PubMed]
  27. Ogawa-Goto, K.; Tanaka, K.; Ueno, T.; Tanaka, K.; Kurata, T.; Sata, T.; Irie, S. P180 is involved in the interaction between the endoplasmic reticulum and microtubules through a novel microtubule-binding and bundling domain. Mol. Biol. Cell 2007, 18, 3741–3751. [Google Scholar] [CrossRef] [PubMed]
  28. Benyamini, P.; Webster, P.; Meyer, D.I. Knockdown of p180 eliminates the terminal differentiation of a secretory cell line. Mol. Biol. Cell 2009, 20, 732–744. [Google Scholar] [CrossRef] [PubMed]
  29. Ueno, T.; Tanaka, K.; Kaneko, K.; Taga, Y.; Sata, T.; Irie, S.; Hattori, S.; Ogawa-Goto, K. Enhancement of procollagen biosynthesis by p180 through augmented ribosome association on the endoplasmic reticulum in response to stimulated secretion. J. Biol. Chem. 2010, 285, 29941–29950. [Google Scholar] [CrossRef] [PubMed]
  30. Short, B.; Haas, A.; Barr, F.A. Golgins and GTPases, giving identity and structure to the Golgi apparatus. Biochim. Biophys. Acta 2005, 1744, 383–395. [Google Scholar] [CrossRef] [PubMed]
  31. Friedman, J.R.; Voeltz, G.K. The ER in 3D: A multifunctional dynamic membrane network. Trends Cell Biol. 2011, 21, 709–717. [Google Scholar] [CrossRef] [PubMed]
  32. Oertle, T.; Klinger, M.; Stuermer, C.A.; Schwab, M.E. A reticular rhapsody: Phylogenic evolution and nomenclature of the RNT/Nogo gene family. FASEB J. 2003, 17, 1238–1247. [Google Scholar] [CrossRef] [PubMed]
  33. Voeltz, G.K.; Prinz, W.A.; Shibata, Y.; Rist, J.M.; Rapoport, T.A. A class of membrane proteins shaping the tubular endoplasmic reticulum. Cell 2006, 124, 573–586. [Google Scholar] [CrossRef] [PubMed]
  34. Hu, J.; Shibata, Y.; Voss, C.; Shemesh, T.; Li, Z.; Coughlin, M.; Kozlov, M.M.; Rapoport, T.A.; Prinz, W.A. Membrane proteins of the endoplasmic reticulum induce high-curvature tubules. Science 2008, 319, 1247–1250. [Google Scholar] [CrossRef] [PubMed]
  35. Shibata, Y.; Voss, C.; Rist, J.M.; Hu, J.; Rapoport, T.A.; Prinz, W.A.; Voeltz, G.K. The reticulon and DP1/Yop1p proteins form immobile oligomers in the tubular endoplasmic reticulum. J. Biol. Chem. 2008, 283, 18892–18904. [Google Scholar] [CrossRef] [PubMed]
  36. Tolley, N.; Sparkes, I.; Craddock, C.P.; Eastmond, P.J.; Runions, J.; Hawes, C.; Frigerio, L. Transmembrane domain length is responsible for the ability of a plant reticulon to shape endoplasmic reticulum tubules in vivo. Plant J. 2010, 64, 411–418. [Google Scholar] [CrossRef] [PubMed]
  37. Di Sano, F.; Bernardoni, P.; Piacentini, M. The reticulons: Guardians of the structure and function of the endoplasmic reticulum. Exp. Cell Res. 2012, 318, 1201–1207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Tolley, N.; Sparkes, I.A.; Hunter, P.R.; Craddock, C.P.; Nuttall, J.; Roberts, L.M.; Hawes, C.; Pedrazzini, E.; Frigerio, L. Overexpression of a plant reticulon remodels the lumen of the cortical endoplasmic reticulum but does not perturb protein transport. Traffic 2008, 9, 94–102. [Google Scholar] [CrossRef] [PubMed]
  39. Yang, Y.S.; Strittmatter, S.M. The reticulons: A family of proteins with diverse functions. Genome Biol. 2007, 8, 234. [Google Scholar] [CrossRef] [PubMed]
  40. Roebroek, A.J.; van de Velde, H.J.; van Bokhoven, A.; Broers, J.L.; Ramaekers, F.C.; van de Ven, W.J. Cloning and expression of alternative transcripts of a novel neuroendocrine-specific gene and identification of its 135-kDa translational product. J. Biol. Chem. 1993, 268, 13439–13447. [Google Scholar] [PubMed]
  41. Roebroek, A.J.; Ayoubi, T.A.; van de Velde, H.J.; Schoenmakers, E.F.; Pauli, I.G.; van de Ven, W.J. Genomic organization of the human NSP gene, prototype of a novel gene family encoding reticulons. Genomics 1996, 32, 191–199. [Google Scholar] [CrossRef] [PubMed]
  42. Roebroek, A.J.; Contreras, B.; Pauli, I.G.; van de Ven, W.J. Cdna cloning, genomic organization, and expression of the human rtn2 gene, a member of a gene family encoding reticulons. Genomics 1998, 51, 98–106. [Google Scholar] [CrossRef] [PubMed]
  43. Moreira, E.F.; Jaworski, C.J.; Rodriguez, I.R. Cloning of a novel member of the reticulon gene family (rtn3): Gene structure and chromosomal localization to 11q13. Genomics 1999, 58, 73–81. [Google Scholar] [CrossRef] [PubMed]
  44. GrandPre, T.; Nakamura, F.; Vartanian, T.; Strittmatter, S.M. Identification of the nogo inhibitor of axon regeneration as a reticulon protein. Nature 2000, 403, 439–444. [Google Scholar] [PubMed]
  45. Oertle, T.; Huber, C.; van der Putten, H.; Schwab, M.E. Genomic structure and functional characterisation of the promoters of human and mouse nogo/rtn4. J. Mol. Biol. 2003, 325, 299–323. [Google Scholar] [CrossRef]
  46. Hu, J.; Shibata, Y.; Zhu, P.P.; Voss, C.; Rismanchi, N.; Prinz, W.A.; Rapoport, T.A.; Blackstone, C. A class of dynamin-like GTPases involved in the generation of the tubular ER network. Cell 2009, 138, 549–561. [Google Scholar] [CrossRef] [PubMed]
  47. Anwar, K.; Klemm, R.W.; Condon, A.; Severin, K.N.; Zhang, M.; Ghirlando, R.; Hu, J.; Rapoport, T.A.; Prinz, W.A. The dynamin-like gtpase sey1p mediates homotypic ER fusion in s. Cerevisiae. J. Cell Biol. 2012, 197, 209–217. [Google Scholar] [CrossRef] [PubMed]
  48. Zhu, P.P.; Patterson, A.; Lavoie, B.; Stadler, J.; Shoeb, M.; Patel, R.; Blackstone, C. Cellular localization, oligomerization, and membrane association of the hereditary spastic paraplegia 3a (spg3a) protein atlastin. J. Biol. Chem. 2003, 278, 49063–49071. [Google Scholar] [CrossRef] [PubMed]
  49. Chan, D.C. Mitochondrial fusion and fission in mammals. Annu. Rev. Cell Dev. Biol. 2006, 22, 79–99. [Google Scholar] [CrossRef] [PubMed]
  50. Byrnes, L.J.; Sondermann, H. Structural basis for the nucleotide-dependent dimerization of the large g protein atlastin-1/spg3a. Proc. Natl. Acad. Sci. USA 2011, 108, 2216–2221. [Google Scholar] [CrossRef] [PubMed]
  51. Bian, X.; Klemm, R.W.; Liu, T.Y.; Zhang, M.; Sun, S.; Sui, X.; Liu, X.; Rapoport, T.A.; Hu, J. Structures of the atlastin gtpase provide insight into homotypic fusion of endoplasmic reticulum membranes. Proc. Natl. Acad. Sci. USA 2011, 108, 3976–3981. [Google Scholar] [CrossRef] [PubMed]
  52. English, A.R.; Voeltz, G.K. Endoplasmic reticulum structure and interconnections with other organelles. Cold Spring Harb. Perspect. Biol. 2013, 5, a013227. [Google Scholar] [CrossRef] [PubMed]
  53. Gerondopoulos, A.; Bastos, R.N.; Yoshimura, S.; Anderson, R.; Carpanini, S.; Aligianis, I.; Handley, M.T.; Barr, F.A. Rab18 and a rab18 gef complex are required for normal ER structure. J. Cell Biol. 2014, 205, 707–720. [Google Scholar] [CrossRef] [PubMed]
  54. Wagner, W.; Brenowitz, S.D.; Hammer, J.A., 3rd. Myosin-va transports the endoplasmic reticulum into the dendritic spines of purkinje neurons. Nat. Cell Biol. 2011, 13, 40–48. [Google Scholar] [CrossRef] [PubMed]
  55. Schwarz, D.S.; Blower, M.D. The endoplasmic reticulum: Structure, function and response to cellular signaling. Cell. Mol. Life Sci. 2016, 73, 79–94. [Google Scholar] [CrossRef] [PubMed]
  56. Friedman, J.R.; Lackner, L.L.; West, M.; DiBenedetto, J.R.; Nunnari, J.; Voeltz, G.K. ER tubules mark sites of mitochondrial division. Science 2011, 334, 358–362. [Google Scholar] [CrossRef] [PubMed]
  57. Friedman, J.R.; Dibenedetto, J.R.; West, M.; Rowland, A.A.; Voeltz, G.K. Endoplasmic reticulum-endosome contact increases as endosomes traffic and mature. Mol. Biol. Cell 2013, 24, 1030–1040. [Google Scholar] [CrossRef] [PubMed]
  58. Rowland, A.A.; Chitwood, P.J.; Phillips, M.J.; Voeltz, G.K. ER contact sites define the position and timing of endosome fission. Cell 2014, 159, 1027–1041. [Google Scholar] [CrossRef] [PubMed]
  59. Shai, N.; Schuldiner, M.; Zalckvar, E. No peroxisome is an island—Peroxisome contact sites. Biochim. Biophys. Acta 2016, 1863, 1061–1069. [Google Scholar] [CrossRef] [PubMed]
  60. Goodman, J.M. The gregarious lipid droplet. J. Biol. Chem. 2008, 283, 28005–28009. [Google Scholar] [CrossRef] [PubMed]
  61. Murphy, S.; Martin, S.; Parton, R.G. Lipid droplet-organelle interactions; sharing the fats. Biochim. Biophys. Acta 2009, 1791, 441–447. [Google Scholar] [CrossRef] [PubMed]
  62. Yla-Anttila, P.; Vihinen, H.; Jokitalo, E.; Eskelinen, E.L. 3D tomography reveals connections between the phagophore and endoplasmic reticulum. Autophagy 2009, 5, 1180–1185. [Google Scholar] [CrossRef] [PubMed]
  63. Schneider, M.F. Control of calcium release in functioning skeletal muscle fibers. Annu. Rev. Physiol. 1994, 56, 463–484. [Google Scholar] [CrossRef] [PubMed]
  64. Takeshima, H.; Komazaki, S.; Nishi, M.; Iino, M.; Kangawa, K. Junctophilins: A novel family of junctional membrane complex proteins. Mol. Cell 2000, 6, 11–22. [Google Scholar] [CrossRef]
  65. Zhang, D.; Vjestica, A.; Oliferenko, S. Plasma membrane tethering of the cortical ER necessitates its finely reticulated architecture. Curr. Biol. 2012, 22, 2048–2052. [Google Scholar] [CrossRef] [PubMed]
  66. Stefan, C.J.; Manford, A.G.; Emr, S.D. ER-PM connections: Sites of information transfer and inter-organelle communication. Curr. Opin. Cell Biol. 2013, 25, 434–442. [Google Scholar] [CrossRef] [PubMed]
  67. Vance, J.E. Phospholipid synthesis and transport in mammalian cells. Traffic 2015, 16, 1–18. [Google Scholar] [CrossRef] [PubMed]
  68. Puhka, M.; Vihinen, H.; Joensuu, M.; Jokitalo, E. Endoplasmic reticulum remains continuous and undergoes sheet-to-tubule transformation during cell division in mammalian cells. J. Cell Biol. 2007, 179, 895–909. [Google Scholar] [CrossRef] [PubMed]
  69. Puhka, M.; Joensuu, M.; Vihinen, H.; Belevich, I.; Jokitalo, E. Progressive sheet-to-tubule transformation is a general mechanism for endoplasmic reticulum partitioning in dividing mammalian cells. Mol. Biol. Cell 2012, 23, 2424–2432. [Google Scholar] [CrossRef] [PubMed]
  70. Baumann, O.; Walz, B. Endoplasmic reticulum of animal cells and its organization into structural and functional domains. Int. Rev. Cytol. 2001, 205, 149–214. [Google Scholar] [PubMed]
  71. Husain, M.; Weisberg, A.S.; Moss, B. Existence of an operative pathway from the endoplasmic reticulum to the immature poxvirus membrane. Proc. Natl. Acad. Sci. USA 2006, 103, 19506–19511. [Google Scholar] [CrossRef] [PubMed]
  72. Chlanda, P.; Carbajal, M.A.; Cyrklaff, M.; Griffiths, G.; Krijnse-Locker, J. Membrane rupture generates single open membrane sheets during vaccinia virus assembly. Cell Host Microbe 2009, 6, 81–90. [Google Scholar] [CrossRef] [PubMed]
  73. Maruri-Avidal, L.; Weisberg, A.S.; Bisht, H.; Moss, B. Analysis of viral membranes formed in cells infected by a vaccinia virus l2-deletion mutant suggests their origin from the endoplasmic reticulum. J. Virol. 2013, 87, 1861–1871. [Google Scholar] [CrossRef] [PubMed]
  74. Maruri-Avidal, L.; Weisberg, A.S.; Moss, B. Association of the vaccinia virus A11 protein with the endoplasmic reticulum and crescent precursors of immature virions. J. Virol. 2013, 87, 10195–10206. [Google Scholar] [CrossRef] [PubMed]
  75. Maruri-Avidal, L.; Weisberg, A.S.; Moss, B. Direct formation of vaccinia virus membranes from the endoplasmic reticulum in the absence of the newly characterized l2-interacting protein a30.5. J. Virol. 2013, 87, 12313–12326. [Google Scholar] [CrossRef] [PubMed]
  76. Mutsafi, Y.; Shimoni, E.; Shimon, A.; Minsky, A. Membrane assembly during the infection cycle of the giant mimivirus. PLoS Pathog. 2013, 9, e1003367. [Google Scholar] [CrossRef] [PubMed]
  77. Suarez, C.; Andres, G.; Kolovou, A.; Hoppe, S.; Salas, M.L.; Walther, P.; Krijnse Locker, J. African swine fever virus assembles a single membrane derived from rupture of the endoplasmic reticulum. Cell. Microbiol. 2015, 17, 1683–1698. [Google Scholar] [CrossRef] [PubMed]
  78. Liu, Y.; Tran, B.N.; Wang, F.; Ounjai, P.; Wu, J.; Hew, C.L. Visualization of assembly intermediates and budding vacuoles of singapore grouper iridovirus in grouper embryonic cells. Sci. Rep. 2016, 6, 18696. [Google Scholar] [CrossRef] [PubMed]
  79. Milrot, E.; Mutsafi, Y.; Fridmann-Sirkis, Y.; Shimoni, E.; Rechav, K.; Gurnon, J.R.; van Etten, J.L.; Minsky, A. Virus-host interactions: Insights from the replication cycle of the large paramecium bursaria chlorella virus. Cell. Microbiol. 2016, 18, 3–16. [Google Scholar] [CrossRef] [PubMed]
  80. Fernandez de Castro, I.; Zamora, P.F.; Ooms, L.; Fernandez, J.J.; Lai, C.M.; Mainou, B.A.; Dermody, T.S.; Risco, C. Reovirus forms neo-organelles for progeny particle assembly within reorganized cell membranes. MBIO 2014, 5, e00931–e00913. [Google Scholar] [CrossRef] [PubMed]
  81. Kim, K.S. An ultrastructural study of inclusions and disease development in plant cells infected by cowpea chlorotic mottle virus. J. Gen. Virol. 1977, 35, 535–543. [Google Scholar] [CrossRef]
  82. Restrepo-Hartwig, M.A.; Ahlquist, P. Brome mosaic virus helicase- and polymerase-like proteins colocalize on the endoplasmic reticulum at sites of viral RNA synthesis. J. Virol. 1996, 70, 8908–8916. [Google Scholar] [PubMed]
  83. Schwartz, M.; Chen, J.; Janda, M.; Sullivan, M.; den Boon, J.; Ahlquist, P. A positive-strand RNA virus replication complex parallels form and function of retrovirus capsids. Mol. Cell 2002, 9, 505–514. [Google Scholar] [CrossRef]
  84. Turner, K.A.; Sit, T.L.; Callaway, A.S.; Allen, N.S.; Lommel, S.A. Red clover necrotic mosaic virus replication proteins accumulate at the endoplasmic reticulum. Virology 2004, 320, 276–290. [Google Scholar] [CrossRef] [PubMed]
  85. Cao, X.; Jin, X.; Zhang, X.; Li, Y.; Wang, C.; Wang, X.; Hong, J.; Wang, X.; Li, D.; Zhang, Y. Morphogenesis of endoplasmic reticulum membrane-invaginated vesicles during beet black scorch virus infection: Role of auxiliary replication protein and new implications of three-dimensional architecture. J. Virol. 2015, 89, 6184–6195. [Google Scholar] [CrossRef] [PubMed]
  86. McGavran, M.H.; White, J.D. Electron microscopic and immunofluorescent observations on monkey liver and tissue culture cells infected with the asibi strain of yellow fever virus. Am. J. Pathol. 1964, 45, 501–517. [Google Scholar] [PubMed]
  87. Mackenzie, J.M.; Westaway, E.G. Assembly and maturation of the flavivirus kunjin virus appear to occur in the rough endoplasmic reticulum and along the secretory pathway, respectively. J. Virol. 2001, 75, 10787–10799. [Google Scholar] [CrossRef] [PubMed]
  88. Gillespie, L.K.; Hoenen, A.; Morgan, G.; Mackenzie, J.M. The endoplasmic reticulum provides the membrane platform for biogenesis of the flavivirus replication complex. J. Virol. 2010, 84, 10438–10447. [Google Scholar] [CrossRef] [PubMed]
  89. Hase, T.; Summers, P.L.; Dubois, D.R. Ultrastructural changes of mouse brain neurons infected with japanese encephalitis virus. Int. J. Exp. Pathol. 1990, 71, 493–505. [Google Scholar] [PubMed]
  90. Mackenzie, J.M.; Jones, M.K.; Young, P.R. Improved membrane preservation of flavivirus-infected cells with cryosectioning. J. Virol. Methods 1996, 56, 67–75. [Google Scholar] [CrossRef]
  91. Grief, C.; Galler, R.; Cortes, L.M.; Barth, O.M. Intracellular localisation of dengue-2 RNA in mosquito cell culture using electron microscopic in situ hybridisation. Arch. Virol. 1997, 142, 2347–2357. [Google Scholar] [CrossRef] [PubMed]
  92. Welsch, S.; Miller, S.; Romero-Brey, I.; Merz, A.; Bleck, C.K.; Walther, P.; Fuller, S.D.; Antony, C.; Krijnse-Locker, J.; Bartenschlager, R. Composition and three-dimensional architecture of the dengue virus replication and assembly sites. Cell Host Microbe 2009, 5, 365–375. [Google Scholar] [CrossRef] [PubMed]
  93. Matthews, V.; Robertson, T.; Kendrick, T.; Abdo, M.; Papadimitriou, J.; McMinn, P. Morphological features of murray valley encephalitis virus infection in the central nervous system of swiss mice. Int. J. Exp. Pathol. 2000, 81, 31–40. [Google Scholar] [CrossRef] [PubMed]
  94. Overby, A.K.; Popov, V.L.; Niedrig, M.; Weber, F. Tick-borne encephalitis virus delays interferon induction and hides its double-stranded RNA in intracellular membrane vesicles. J. Virol. 2010, 84, 8470–8483. [Google Scholar] [CrossRef] [PubMed]
  95. Miorin, L.; Romero-Brey, I.; Maiuri, P.; Hoppe, S.; Krijnse-Locker, J.; Bartenschlager, R.; Marcello, A. Three-dimensional architecture of tick-borne encephalitis virus replication sites and trafficking of the replicated RNA. J. Virol. 2013, 87, 6469–6481. [Google Scholar] [CrossRef] [PubMed]
  96. Offerdahl, D.K.; Dorward, D.W.; Hansen, B.T.; Bloom, M.E. A three-dimensional comparison of tick-borne flavivirus infection in mammalian and tick cell lines. PLoS ONE 2012, 7, e47912. [Google Scholar] [CrossRef] [PubMed]
  97. Bienz, K.; Egger, D.; Pasamontes, L. Association of polioviral proteins of the P2 genomic region with the viral replication complex and virus-induced membrane synthesis as visualized by electron microscopic immunocytochemistry and autoradiography. Virology 1987, 160, 220–226. [Google Scholar] [CrossRef]
  98. Schlegel, A.; Giddings, T.H., Jr.; Ladinsky, M.S.; Kirkegaard, K. Cellular origin and ultrastructure of membranes induced during poliovirus infection. J. Virol. 1996, 70, 6576–6588. [Google Scholar] [PubMed]
  99. Suhy, D.A.; Giddings, T.H., Jr.; Kirkegaard, K. Remodeling the endoplasmic reticulum by poliovirus infection and by individual viral proteins: An autophagy-like origin for virus-induced vesicles. J. Virol. 2000, 74, 8953–8965. [Google Scholar] [CrossRef] [PubMed]
  100. Pedersen, K.W.; van der Meer, Y.; Roos, N.; Snijder, E.J. Open reading frame 1A-encoded subunits of the arterivirus replicase induce endoplasmic reticulum-derived double-membrane vesicles which carry the viral replication complex. J. Virol. 1999, 73, 2016–2026. [Google Scholar] [PubMed]
  101. Knoops, K.; Barcena, M.; Limpens, R.W.; Koster, A.J.; Mommaas, A.M.; Snijder, E.J. Ultrastructural characterization of arterivirus replication structures: Reshaping the endoplasmic reticulum to accommodate viral RNA synthesis. J. Virol. 2012, 86, 2474–2487. [Google Scholar] [CrossRef] [PubMed]
  102. Snijder, E.J.; van der Meer, Y.; Zevenhoven-Dobbe, J.; Onderwater, J.J.; van der Meulen, J.; Koerten, H.K.; Mommaas, A.M. Ultrastructure and origin of membrane vesicles associated with the severe acute respiratory syndrome coronavirus replication complex. J. Virol. 2006, 80, 5927–5940. [Google Scholar] [CrossRef] [PubMed]
  103. Knoops, K.; Kikkert, M.; Worm, S.H.; Zevenhoven-Dobbe, J.C.; van der Meer, Y.; Koster, A.J.; Mommaas, A.M.; Snijder, E.J. Sars-coronavirus replication is supported by a reticulovesicular network of modified endoplasmic reticulum. PLoS Biol. 2008, 6, e226. [Google Scholar] [CrossRef] [PubMed]
  104. Ferraris, P.; Blanchard, E.; Roingeard, P. Ultrastructural and biochemical analyses of hepatitis C virus-associated host cell membranes. J. Gen. Virol. 2010, 91, 2230–2237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Romero-Brey, I.; Merz, A.; Chiramel, A.; Lee, J.Y.; Chlanda, P.; Haselman, U.; Santarella-Mellwig, R.; Habermann, A.; Hoppe, S.; Kallis, S.; et al. Three-dimensional architecture and biogenesis of membrane structures associated with hepatitis C virus replication. PLoS Pathog. 2012, 8, e1003056. [Google Scholar] [CrossRef] [PubMed]
  106. Ferraris, P.; Beaumont, E.; Uzbekov, R.; Brand, D.; Gaillard, J.; Blanchard, E.; Roingeard, P. Sequential biogenesis of host cell membrane rearrangements induced by hepatitis C virus infection. Cell. Mol. Life Sci. 2013, 70, 1297–1306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Maier, H.J.; Hawes, P.C.; Cottam, E.M.; Mantell, J.; Verkade, P.; Monaghan, P.; Wileman, T.; Britton, P. Infectious bronchitis virus generates spherules from zippered endoplasmic reticulum membranes. MBIO 2013, 4, e00801–e00813. [Google Scholar] [CrossRef] [PubMed]
  108. Mettenleiter, T.C. Breaching the barrier-the nuclear envelope in virus infection. J. Mol. Biol. 2015, 10, 1949–1961. [Google Scholar] [CrossRef] [PubMed]
  109. Hennig, T.; O’Hare, P. Viruses and the nuclear envelope. Curr. Opin. Cell Biol. 2015, 34, 113–121. [Google Scholar] [CrossRef] [PubMed]
  110. Fay, N.; Pante, N. Nuclear entry of DNA viruses. Front. Microbiol. 2015, 6, 467. [Google Scholar] [CrossRef] [PubMed]
  111. Fay, N.; Pante, N. Old foes, new understandings: Nuclear entry of small non-enveloped DNA viruses. Curr. Opin. Virol. 2015, 12, 59–65. [Google Scholar] [CrossRef] [PubMed]
  112. Flatt, J.W.; Greber, U.F. Misdelivery at the nuclear pore complex-stopping a virus dead in its tracks. Cells 2015, 4, 277–296. [Google Scholar] [CrossRef] [PubMed]
  113. Au, S.; Pante, N. Nuclear transport of baculovirus: Revealing the nuclear pore complex passage. J. Struct. Biol. 2012, 177, 90–98. [Google Scholar] [CrossRef] [PubMed]
  114. Strunze, S.; Engelke, M.F.; Wang, I.H.; Puntener, D.; Boucke, K.; Schleich, S.; Way, M.; Schoenenberger, P.; Burckhardt, C.J.; Greber, U.F. Kinesin-1-mediated capsid disassembly and disruption of the nuclear pore complex promote virus infection. Cell Host Microbe 2011, 10, 210–223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  115. Cohen, S.; Behzad, A.R.; Carroll, J.B.; Pante, N. Parvoviral nuclear import: Bypassing the host nuclear-transport machinery. J. Gen. Virol. 2006, 87, 3209–3213. [Google Scholar] [CrossRef] [PubMed]
  116. Cohen, S.; Marr, A.K.; Garcin, P.; Pante, N. Nuclear envelope disruption involving host caspases plays a role in the parvovirus replication cycle. J. Virol. 2011, 85, 4863–4874. [Google Scholar] [CrossRef] [PubMed]
  117. Goff, S.P. Host factors exploited by retroviruses. Nat. Rev. Microbiol. 2007, 5, 253–263. [Google Scholar] [CrossRef] [PubMed]
  118. Aydin, I.; Weber, S.; Snijder, B.; Samperio Ventayol, P.; Kuhbacher, A.; Becker, M.; Day, P.M.; Schiller, J.T.; Kann, M.; Pelkmans, L.; et al. Large scale RNAi reveals the requirement of nuclear envelope breakdown for nuclear import of human papillomaviruses. PLoS Pathog. 2014, 10, e1004162. [Google Scholar] [CrossRef] [PubMed]
  119. Butin-Israeli, V.; Ben-nun-Shaul, O.; Kopatz, I.; Adam, S.A.; Shimi, T.; Goldman, R.D.; Oppenheim, A. Simian virus 40 induces lamin A/C fluctuations and nuclear envelope deformation during cell entry. Nucleus 2011, 2, 320–330. [Google Scholar] [CrossRef] [PubMed]
  120. Skepper, J.N.; Whiteley, A.; Browne, H.; Minson, A. Herpes simplex virus nucleocapsids mature to progeny virions by an envelopment --> deenvelopment --> reenvelopment pathway. J. Virol. 2001, 75, 5697–5702. [Google Scholar] [CrossRef] [PubMed]
  121. Baines, J.D.; Hsieh, C.E.; Wills, E.; Mannella, C.; Marko, M. Electron tomography of nascent herpes simplex virus virions. J. Virol. 2007, 81, 2726–2735. [Google Scholar] [CrossRef] [PubMed]
  122. Peng, L.; Ryazantsev, S.; Sun, R.; Zhou, Z.H. Three-dimensional visualization of gammaherpesvirus life cycle in host cells by electron tomography. Structure 2010, 18, 47–58. [Google Scholar] [CrossRef] [PubMed]
  123. Hagen, C.; Dent, K.C.; Zeev-Ben-Mordehai, T.; Grange, M.; Bosse, J.B.; Whittle, C.; Klupp, B.G.; Siebert, C.A.; Vasishtan, D.; Bauerlein, F.J.; et al. Structural basis of vesicle formation at the inner nuclear membrane. Cell 2015, 163, 1692–1701. [Google Scholar] [CrossRef] [PubMed]
  124. Johnson, D.C.; Baines, J.D. Herpesviruses remodel host membranes for virus egress. Nat. Rev. Microbiol. 2011, 9, 382–394. [Google Scholar] [CrossRef] [PubMed]
  125. Mettenleiter, T.C.; Muller, F.; Granzow, H.; Klupp, B.G. The way out: What we know and do not know about herpesvirus nuclear egress. Cell. Microbiol. 2013, 15, 170–178. [Google Scholar] [CrossRef] [PubMed]
  126. Williams, G.V.; Faulkner, P. Cytological changes and viral morphogenesis during baculovirus infection. In The Baculoviruses; Miller, L.K., Ed.; Plenum Press, Inc.: New York, NY, USA, 1997; pp. 61–107. [Google Scholar]
  127. Shen, H.; Chen, K. Bm61 of bombyx mori nucleopolyhedrovirus: Its involvement in the egress of nucleocapsids from the nucleus. FEBS Lett. 2012, 586, 990–995. [Google Scholar] [CrossRef] [PubMed]
  128. Yuan, M.; Huang, Z.; Wei, D.; Hu, Z.; Yang, K.; Pang, Y. Identification of autographa californica nucleopolyhedrovirus ac93 as a core gene and its requirement for intranuclear microvesicle formation and nuclear egress of nucleocapsids. J. Virol. 2011, 85, 11664–11674. [Google Scholar] [CrossRef] [PubMed]
  129. Raghava, S.; Giorda, K.M.; Romano, F.B.; Heuck, A.P.; Hebert, D.N. Sv40 late protein VP4 forms toroidal pores to disrupt membranes for viral release. Biochemistry 2013, 52, 3939–3948. [Google Scholar] [CrossRef] [PubMed]
  130. McIntosh, P.B.; Laskey, P.; Sullivan, K.; Davy, C.; Wang, Q.; Jackson, D.J.; Griffin, H.M.; Doorbar, J. E1-e4-mediated keratin phosphorylation and ubiquitylation: A mechanism for keratin depletion in HPV16-infected epithelium. J. Cell Sci. 2010, 123, 2810–2822. [Google Scholar] [CrossRef] [PubMed]
  131. Wang, Q.; Griffin, H.; Southern, S.; Jackson, D.; Martin, A.; McIntosh, P.; Davy, C.; Masterson, P.J.; Walker, P.A.; Laskey, P.; et al. Functional analysis of the human papillomavirus type 16 E1^E4 protein provides a mechanism for in vivo and in vitro keratin filament reorganization. J. Virol. 2004, 78, 821–833. [Google Scholar] [CrossRef] [PubMed]
  132. Iyer, L.M.; Balaji, S.; Koonin, E.V.; Aravind, L. Evolutionary genomics of nucleo-cytoplasmic large DNA viruses. Virus Res. 2006, 117, 156–184. [Google Scholar] [CrossRef] [PubMed]
  133. Dales, S.; Mosbach, E.H. Vaccinia as a model for membrane biogenesis. Virology 1968, 35, 564–583. [Google Scholar] [CrossRef]
  134. Risco, C.; Rodriguez, J.R.; Lopez-Iglesias, C.; Carrascosa, J.L.; Esteban, M.; Rodriguez, D. Endoplasmic reticulum-golgi intermediate compartment membranes and vimentin filaments participate in vaccinia virus assembly. J. Virol. 2002, 76, 1839–1855. [Google Scholar] [CrossRef] [PubMed]
  135. Sodeik, B.; Doms, R.W.; Ericsson, M.; Hiller, G.; Machamer, C.E.; van ’t Hof, W.; van Meer, G.; Moss, B.; Griffiths, G. Assembly of vaccinia virus: Role of the intermediate compartment between the endoplasmic reticulum and the Golgi stacks. J. Cell Biol. 1993, 121, 521–541. [Google Scholar] [CrossRef] [PubMed]
  136. Alzhanova, D.; Hruby, D.E. A trans-golgi network resident protein, Golgin-97, accumulates in viral factories and incorporates into virions during poxvirus infection. J. Virol. 2006, 80, 11520–11527. [Google Scholar] [CrossRef] [PubMed]
  137. Sodeik, B.; Krijnse-Locker, J. Assembly of vaccinia virus revisited: De novo membrane synthesis or acquisition from the host? Trends Microbiol. 2002, 10, 15–24. [Google Scholar] [CrossRef]
  138. Moss, B. Poxvirus membrane biogenesis. Virology 2015, 479–480, 619–626. [Google Scholar] [CrossRef] [PubMed]
  139. Tolonen, N.; Doglio, L.; Schleich, S.; Krijnse Locker, J. Vaccinia virus DNA replication occurs in endoplasmic reticulum-enclosed cytoplasmic mini-nuclei. Mol. Biol. Cell 2001, 12, 2031–2046. [Google Scholar] [CrossRef] [PubMed]
  140. Chinchar, V.G.; Yu, K.H.; Jancovich, J.K. The molecular biology of frog virus 3 and other iridoviruses infecting cold-blooded vertebrates. Viruses 2011, 3, 1959–1985. [Google Scholar] [CrossRef] [PubMed]
  141. Ma, J.; Zeng, L.; Zhou, Y.; Jiang, N.; Zhang, H.; Fan, Y.; Meng, Y.; Xu, J. Ultrastructural morphogenesis of an amphibian iridovirus isolated from chinese giant salamander (andrias davidianus). J. Comp. Pathol. 2014, 150, 325–331. [Google Scholar] [CrossRef] [PubMed]
  142. Garcia-Beato, R.; Salas, M.L.; Vinuela, E.; Salas, J. Role of the host cell nucleus in the replication of african swine fever virus DNA. Virology 1992, 188, 637–649. [Google Scholar] [CrossRef]
  143. Meints, R.H.; Lee, K.; van Etten, J.L. Assembly site of the virus PBCV-1 in a chlorella-like green alga: Ultrastructural studies. Virology 1986, 154, 240–245. [Google Scholar] [CrossRef]
  144. Van Etten, J.L. Unusual life style of giant chlorella viruses. Annu. Rev. Genet. 2003, 37, 153–195. [Google Scholar] [CrossRef] [PubMed]
  145. Yamada, T.; Onimatsu, H.; van Etten, J.L. Chlorella viruses. Adv. Virus Res. 2006, 66, 293–336. [Google Scholar] [PubMed]
  146. Romero-Brey, I.; Bartenschlager, R. Membranous replication factories induced by plus-strand RNA viruses. Viruses 2014, 6, 2826–2857. [Google Scholar] [CrossRef] [PubMed]
  147. Mackenzie, J.M.; Jones, M.K.; Young, P.R. Immunolocalization of the dengue virus nonstructural glycoprotein NS1 suggests a role in viral RNA replication. Virology 1996, 220, 232–240. [Google Scholar] [CrossRef] [PubMed]
  148. Hase, T.; Summers, P.L.; Ray, P. Entry and replication of japanese encephalitis virus in cultured neurogenic cells. J. Virol. Methods 1990, 30, 205–214. [Google Scholar] [CrossRef]
  149. Murphy, F.A.; Harrison, A.K.; Gary, G.W., Jr.; Whitfield, S.G.; Forrester, F.T. St. Louis encephalitis virus infection in mice. Electron microscopic studies of central nervous system. Lab. Investig. 1968, 19, 652–662. [Google Scholar] [PubMed]
  150. Lee, W.M.; Ahlquist, P. Membrane synthesis, specific lipid requirements, and localized lipid composition changes associated with a positive-strand RNA virus RNA replication protein. J. Virol. 2003, 77, 12819–12828. [Google Scholar] [CrossRef] [PubMed]
  151. Westaway, E.G.; Mackenzie, J.M.; Kenney, M.T.; Jones, M.K.; Khromykh, A.A. Ultrastructure of kunjin virus-infected cells: Colocalization of NS1 and NS3 with double-stranded RNA, and of NS2B with NS3, in virus-induced membrane structures. J. Virol. 1997, 71, 6650–6661. [Google Scholar] [PubMed]
  152. Junjhon, J.; Pennington, J.G.; Edwards, T.J.; Perera, R.; Lanman, J.; Kuhn, R.J. Ultrastructural characterization and three-dimensional architecture of replication sites in dengue virus-infected mosquito cells. J. Virol. 2014, 88, 4687–4697. [Google Scholar] [CrossRef] [PubMed]
  153. Chasey, D.; Roeder, P.L. Virus-like particles in bovine turbinate cells infected with bovine virus diarrhoea/mucosal disease virus. Arch. Virol. 1981, 67, 325–332. [Google Scholar] [CrossRef] [PubMed]
  154. Gray, E.W.; Nettleton, P.F. The ultrastructure of cell cultures infected with border disease and bovine virus diarrhoea viruses. J. Gen. Virol. 1987, 68, 2339–2346. [Google Scholar] [CrossRef] [PubMed]
  155. Kubovicova, E.; Makarevich, A.V.; Pivko, J.; Chrenek, P.; Grafenau, P.; Riha, L.; Sirotkin, A.V.; Louda, F. Alteration in ultrastructural morphology of bovine embryos following subzonal microinjection of bovine viral diarrhea virus (bvdv). Zygote 2008, 16, 187–193. [Google Scholar] [CrossRef] [PubMed]
  156. Birk, A.V.; Dubovi, E.J.; Cohen-Gould, L.; Donis, R.; Szeto, H.H. Cytoplasmic vacuolization responses to cytopathic bovine viral diarrhoea virus. Virus Res. 2008, 132, 76–85. [Google Scholar] [CrossRef] [PubMed]
  157. Schmeiser, S.; Mast, J.; Thiel, H.J.; Konig, M. Morphogenesis of pestiviruses: New insights from ultrastructural studies of strain giraffe-1. J. Virol. 2014, 88, 2717–2724. [Google Scholar] [CrossRef] [PubMed]
  158. Weiskircher, E.; Aligo, J.; Ning, G.; Konan, K.V. Bovine viral diarrhea virus ns4b protein is an integral membrane protein associated with Golgi markers and rearranged host membranes. Virol. J. 2009, 6, 185. [Google Scholar] [CrossRef] [PubMed]
  159. Kopek, B.G.; Perkins, G.; Miller, D.J.; Ellisman, M.H.; Ahlquist, P. Three-dimensional analysis of a viral RNA replication complex reveals a virus-induced mini-organelle. PLoS Biol. 2007, 5, e220. [Google Scholar] [CrossRef] [PubMed]
  160. Weber-Lotfi, F.; Dietrich, A.; Russo, M.; Rubino, L. Mitochondrial targeting and membrane anchoring of a viral replicase in plant and yeast cells. J. Virol. 2002, 76, 10485–10496. [Google Scholar] [CrossRef] [PubMed]
  161. Magliano, D.; Marshall, J.A.; Bowden, D.S.; Vardaxis, N.; Meanger, J.; Lee, J.Y. Rubella virus replication complexes are virus-modified lysosomes. Virology 1998, 240, 57–63. [Google Scholar] [CrossRef] [PubMed]
  162. Fontana, J.; Lopez-Iglesias, C.; Tzeng, W.P.; Frey, T.K.; Fernandez, J.J.; Risco, C. Three-dimensional structure of rubella virus factories. Virology 2010, 405, 579–591. [Google Scholar] [CrossRef] [PubMed]
  163. Hrsel, I.; Brcak, J. Ultrastructural changes in chloroplasts and cytoplasm caused by local infection of tobacco with tobacco mosaic virus and cucumber virus 4. Virology 1964, 23, 252–258. [Google Scholar] [CrossRef]
  164. Panavas, T.; Hawkins, C.M.; Panaviene, Z.; Nagy, P.D. The role of the p33:P33/p92 interaction domain in RNA replication and intracellular localization of p33 and p92 proteins of cucumber necrosis tombusvirus. Virology 2005, 338, 81–95. [Google Scholar] [CrossRef] [PubMed]
  165. Jonczyk, M.; Pathak, K.B.; Sharma, M.; Nagy, P.D. Exploiting alternative subcellular location for replication: Tombusvirus replication switches to the endoplasmic reticulum in the absence of peroxisomes. Virology 2007, 362, 320–330. [Google Scholar] [CrossRef] [PubMed]
  166. Wei, T.; Huang, T.S.; McNeil, J.; Laliberte, J.F.; Hong, J.; Nelson, R.S.; Wang, A. Sequential recruitment of the endoplasmic reticulum and chloroplasts for plant potyvirus replication. J. Virol. 2010, 84, 799–809. [Google Scholar] [CrossRef] [PubMed]
  167. Kallman, F.; Williams, R.C.; Dulbecco, R.; Vogt, M. Fine structure of changes produced in cultured cells sampled at specified intervals during a single growth cycle of polio virus. J. Biophys. Biochem. Cytol. 1958, 4, 301–308. [Google Scholar] [CrossRef] [PubMed]
  168. Egger, D.; Bienz, K. Intracellular location and translocation of silent and active poliovirus replication complexes. J. Gen. Virol. 2005, 86, 707–718. [Google Scholar] [CrossRef] [PubMed]
  169. Belov, G.A.; Nair, V.; Hansen, B.T.; Hoyt, F.H.; Fischer, E.R.; Ehrenfeld, E. Complex dynamic development of poliovirus membranous replication complexes. J. Virol. 2012, 86, 302–312. [Google Scholar] [CrossRef] [PubMed]
  170. Limpens, R.W.; van der Schaar, H.M.; Kumar, D.; Koster, A.J.; Snijder, E.J.; van Kuppeveld, F.J.; Barcena, M. The transformation of enterovirus replication structures: A three-dimensional study of single- and double-membrane compartments. MBIO 2011, 2, e00166–e00111. [Google Scholar] [CrossRef] [PubMed]
  171. Monaghan, P.; Cook, H.; Jackson, T.; Ryan, M.; Wileman, T. The ultrastructure of the developing replication site in foot-and-mouth disease virus-infected bhk-38 cells. J. Gen. Virol. 2004, 85, 933–946. [Google Scholar] [CrossRef] [PubMed]
  172. Bienz, K.; Egger, D.; Rasser, Y.; Bossart, W. Intracellular distribution of poliovirus proteins and the induction of virus-specific cytoplasmic structures. Virology 1983, 131, 39–48. [Google Scholar] [CrossRef]
  173. Hsu, N.Y.; Ilnytska, O.; Belov, G.; Santiana, M.; Chen, Y.H.; Takvorian, P.M.; Pau, C.; van der Schaar, H.; Kaushik-Basu, N.; Balla, T.; et al. Viral reorganization of the secretory pathway generates distinct organelles for RNA replication. Cell 2010, 141, 799–811. [Google Scholar] [CrossRef] [PubMed]
  174. Rust, R.C.; Landmann, L.; Gosert, R.; Tang, B.L.; Hong, W.; Hauri, H.P.; Egger, D.; Bienz, K. Cellular COPII proteins are involved in production of the vesicles that form the poliovirus replication complex. J. Virol. 2001, 75, 9808–9818. [Google Scholar] [CrossRef] [PubMed]
  175. Doedens, J.R.; Kirkegaard, K. Inhibition of cellular protein secretion by poliovirus proteins 2B and 3A. EMBO J. 1995, 14, 894–907. [Google Scholar] [PubMed]
  176. Wessels, E.; Duijsings, D.; Notebaart, R.A.; Melchers, W.J.; van Kuppeveld, F.J. A proline-rich region in the coxsackievirus 3A protein is required for the protein to inhibit endoplasmic reticulum-to-Golgi transport. J. Virol. 2005, 79, 5163–5173. [Google Scholar] [CrossRef] [PubMed]
  177. Irurzun, A.; Perez, L.; Carrasco, L. Involvement of membrane traffic in the replication of poliovirus genomes: Effects of brefeldin a. Virology 1992, 191, 166–175. [Google Scholar] [CrossRef]
  178. Maynell, L.A.; Kirkegaard, K.; Klymkowsky, M.W. Inhibition of poliovirus RNA synthesis by brefeldin a. J. Virol. 1992, 66, 1985–1994. [Google Scholar] [PubMed]
  179. Trahey, M.; Oh, H.S.; Cameron, C.E.; Hay, J.C. Poliovirus infection transiently increases COPII vesicle budding. J. Virol. 2012, 86, 9675–9682. [Google Scholar] [CrossRef] [PubMed]
  180. Gazina, E.V.; Mackenzie, J.M.; Gorrell, R.J.; Anderson, D.A. Differential requirements for copi coats in formation of replication complexes among three genera of picornaviridae. J. Virol. 2002, 76, 11113–11122. [Google Scholar] [CrossRef] [PubMed]
  181. Belov, G.A.; Altan-Bonnet, N.; Kovtunovych, G.; Jackson, C.L.; Lippincott-Schwartz, J.; Ehrenfeld, E. Hijacking components of the cellular secretory pathway for replication of poliovirus RNA. J. Virol. 2007, 81, 558–567. [Google Scholar] [CrossRef] [PubMed]
  182. Belov, G.A.; Feng, Q.; Nikovics, K.; Jackson, C.L.; Ehrenfeld, E. A critical role of a cellular membrane traffic protein in poliovirus RNA replication. PLoS Pathog. 2008, 4, e1000216. [Google Scholar] [CrossRef] [PubMed]
  183. Belov, G.A.; Habbersett, C.; Franco, D.; Ehrenfeld, E. Activation of cellular arf GTPases by poliovirus protein 3cd correlates with virus replication. J. Virol. 2007, 81, 9259–9267. [Google Scholar] [CrossRef] [PubMed]
  184. Midgley, R.; Moffat, K.; Berryman, S.; Hawes, P.; Simpson, J.; Fullen, D.; Stephens, D.J.; Burman, A.; Jackson, T. A role for endoplasmic reticulum exit sites in foot-and-mouth disease virus infection. J. Gen. Virol. 2013, 94, 2636–2646. [Google Scholar] [CrossRef] [PubMed]
  185. Gosert, R.; Kanjanahaluethai, A.; Egger, D.; Bienz, K.; Baker, S.C. RNA replication of mouse hepatitis virus takes place at double-membrane vesicles. J. Virol. 2002, 76, 3697–3708. [Google Scholar] [CrossRef] [PubMed]
  186. Ulasli, M.; Verheije, M.H.; de Haan, C.A.; Reggiori, F. Qualitative and quantitative ultrastructural analysis of the membrane rearrangements induced by coronavirus. Cell. Microbiol. 2010, 12, 844–861. [Google Scholar] [CrossRef] [PubMed]
  187. De Wilde, A.H.; Raj, V.S.; Oudshoorn, D.; Bestebroer, T.M.; van Nieuwkoop, S.; Limpens, R.W.; Posthuma, C.C.; van der Meer, Y.; Barcena, M.; Haagmans, B.L.; et al. MERS-coronavirus replication induces severe in vitro cytopathology and is strongly inhibited by cyclosporin A or interferon-alpha treatment. J. Gen. Virol. 2013, 94, 1749–1760. [Google Scholar] [CrossRef] [PubMed]
  188. Paul, D.; Hoppe, S.; Saher, G.; Krijnse-Locker, J.; Bartenschlager, R. Morphological and biochemical characterization of the membranous hepatitis C virus replication compartment. J. Virol. 2013, 87, 10612–10627. [Google Scholar] [CrossRef] [PubMed]
  189. Maier, H.J.; Hawes, P.C.; Keep, S.M.; Britton, P. Spherules and ibv. Bioengineered 2014, 5, 288–292. [Google Scholar] [CrossRef] [PubMed]
  190. Westaway, E.G.; Khromykh, A.A.; Kenney, M.T.; Mackenzie, J.M.; Jones, M.K. Proteins C and NS4B of the flavivirus kunjin translocate independently into the nucleus. Virology 1997, 234, 31–41. [Google Scholar] [CrossRef] [PubMed]
  191. Roosendaal, J.; Westaway, E.G.; Khromykh, A.; Mackenzie, J.M. Regulated cleavages at the west nile virus NS4A-2k-NS4B junctions play a major role in rearranging cytoplasmic membranes and Golgi trafficking of the NS4A protein. J. Virol. 2006, 80, 4623–4632. [Google Scholar] [CrossRef] [PubMed]
  192. Miller, S.; Kastner, S.; Krijnse-Locker, J.; Buhler, S.; Bartenschlager, R. The non-structural protein 4A of dengue virus is an integral membrane protein inducing membrane alterations in a 2K-regulated manner. J. Biol. Chem. 2007, 282, 8873–8882. [Google Scholar] [CrossRef] [PubMed]
  193. Rawson, R.B. The srebp pathway—Insights from insigs and insects. Nat. Rev. Mol. Cell Biol. 2003, 4, 631–640. [Google Scholar] [CrossRef] [PubMed]
  194. Eichwald, C.; Arnoldi, F.; Laimbacher, A.S.; Schraner, E.M.; Fraefel, C.; Wild, P.; Burrone, O.R.; Ackermann, M. Rotavirus viroplasm fusion and perinuclear localization are dynamic processes requiring stabilized microtubules. PLoS ONE 2012, 7, e47947. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  195. Poruchynsky, M.S.; Maass, D.R.; Atkinson, P.H. Calcium depletion blocks the maturation of rotavirus by altering the oligomerization of virus-encoded proteins in the er. J. Cell Biol. 1991, 114, 651–656. [Google Scholar] [CrossRef] [PubMed]
  196. Diaz, A.; Ahlquist, P. Role of host reticulon proteins in rearranging membranes for positive-strand RNA virus replication. Curr. Opin. Microbiol. 2012, 15, 519–524. [Google Scholar] [CrossRef] [PubMed]
  197. Diaz, A.; Wang, X.; Ahlquist, P. Membrane-shaping host reticulon proteins play crucial roles in viral RNA replication compartment formation and function. Proc. Natl. Acad. Sci. USA 2010, 107, 16291–16296. [Google Scholar] [CrossRef] [PubMed]
  198. Tang, W.F.; Yang, S.Y.; Wu, B.W.; Jheng, J.R.; Chen, Y.L.; Shih, C.H.; Lin, K.H.; Lai, H.C.; Tang, P.; Horng, J.T. Reticulon 3 binds the 2C protein of enterovirus 71 and is required for viral replication. J. Biol. Chem. 2007, 282, 5888–5898. [Google Scholar] [CrossRef] [PubMed]
  199. Wu, M.J.; Ke, P.Y.; Hsu, J.T.; Yeh, C.T.; Horng, J.T. Reticulon 3 interacts with NS4B of the hepatitis C virus and negatively regulates viral replication by disrupting NS4B self-interaction. Cell. Microbiol. 2014, 16, 1603–1618. [Google Scholar] [CrossRef] [PubMed]
  200. Ozeki, S.; Cheng, J.; Tauchi-Sato, K.; Hatano, N.; Taniguchi, H.; Fujimoto, T. Rab18 localizes to lipid droplets and induces their close apposition to the endoplasmic reticulum-derived membrane. J. Cell Sci. 2005, 118, 2601–2611. [Google Scholar] [CrossRef] [PubMed]
  201. Martin, S.; Driessen, K.; Nixon, S.J.; Zerial, M.; Parton, R.G. Regulated localization of rab18 to lipid droplets: Effects of lipolytic stimulation and inhibition of lipid droplet catabolism. J. Biol. Chem. 2005, 280, 42325–42335. [Google Scholar] [CrossRef] [PubMed]
  202. Salloum, S.; Wang, H.; Ferguson, C.; Parton, R.G.; Tai, A.W. Rab18 binds to hepatitis C virus NS5A and promotes interaction between sites of viral replication and lipid droplets. PLoS Pathog. 2013, 9, e1003513. [Google Scholar] [CrossRef] [PubMed]
  203. Miyanari, Y.; Atsuzawa, K.; Usuda, N.; Watashi, K.; Hishiki, T.; Zayas, M.; Bartenschlager, R.; Wakita, T.; Hijikata, M.; Shimotohno, K. The lipid droplet is an important organelle for hepatitis C virus production. Nat. Cell Biol. 2007, 9, 1089–1097. [Google Scholar] [CrossRef] [PubMed]
  204. Dansako, H.; Hiramoto, H.; Ikeda, M.; Wakita, T.; Kato, N. Rab18 is required for viral assembly of hepatitis C virus through trafficking of the core protein to lipid droplets. Virology 2014, 462–463, 166–174. [Google Scholar] [CrossRef] [PubMed]
  205. Tang, W.C.; Lin, R.J.; Liao, C.L.; Lin, Y.L. Rab18 facilitates dengue virus infection by targeting fatty acid synthase to sites of viral replication. J. Virol. 2014, 88, 6793–6804. [Google Scholar] [CrossRef] [PubMed]
  206. Barajas, D.; Xu, K.; de Castro Martin, I.F.; Sasvari, Z.; Brandizzi, F.; Risco, C.; Nagy, P.D. Co-opted oxysterol-binding ORP and VAP proteins channel sterols to RNA virus replication sites via membrane contact sites. PLoS Pathog. 2014, 10, e1004388. [Google Scholar] [CrossRef] [PubMed]
  207. Roulin, P.S.; Lotzerich, M.; Torta, F.; Tanner, L.B.; van Kuppeveld, F.J.; Wenk, M.R.; Greber, U.F. Rhinovirus uses a phosphatidylinositol 4-phosphate/cholesterol counter-current for the formation of replication compartments at the ER-Golgi interface. Cell Host Microbe 2014, 16, 677–690. [Google Scholar] [CrossRef] [PubMed]
  208. Strating, J.R.; van der Linden, L.; Albulescu, L.; Bigay, J.; Arita, M.; Delang, L.; Leyssen, P.; van der Schaar, H.M.; Lanke, K.H.; Thibaut, H.J.; et al. Itraconazole inhibits enterovirus replication by targeting the oxysterol-binding protein. Cell Rep. 2015, 10, 600–615. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  209. Wang, H.; Perry, J.W.; Lauring, A.S.; Neddermann, P.; de Francesco, R.; Tai, A.W. Oxysterol-binding protein is a phosphatidylinositol 4-kinase effector required for HCV replication membrane integrity and cholesterol trafficking. Gastroenterology 2014, 146, e1371–e1311. [Google Scholar] [CrossRef] [PubMed]
  210. Romero-Brey, I.; Bartenschlager, R. Viral infection at high magnification: 3D electron microscopy methods to analyze the architecture of infected cells. Viruses 2015, 7, 6316–6345. [Google Scholar] [CrossRef] [PubMed]
  211. Pinali, C.; Bennett, H.; Davenport, J.B.; Trafford, A.W.; Kitmitto, A. Three-dimensional reconstruction of cardiac sarcoplasmic reticulum reveals a continuous network linking transverse-tubules: This organization is perturbed in heart failure. Circ. Res. 2013, 113, 1219–1230. [Google Scholar] [CrossRef] [PubMed]
  212. Joensuu, M.; Belevich, I.; Ramo, O.; Nevzorov, I.; Vihinen, H.; Puhka, M.; Witkos, T.M.; Lowe, M.; Vartiainen, M.K.; Jokitalo, E. ER sheet persistence is coupled to myosin 1c-regulated dynamic actin filament arrays. Mol. Biol. Cell 2014, 25, 1111–1126. [Google Scholar] [CrossRef] [PubMed]
  213. Wang, L.; James Ou, J.H. Hepatitis C virus and autophagy. Biol. Chem. 2015, 396, 1215–1222. [Google Scholar] [CrossRef] [PubMed]
  214. Bykov, Y.S.; Cortese, M.; Briggs, J.A.; Bartenschlager, R. Correlative light and electron microscopy methods for the study of virus-cell interactions. FEBS Lett. 2016. [Google Scholar] [CrossRef] [PubMed]
Viruses 08 00160 g001 1024

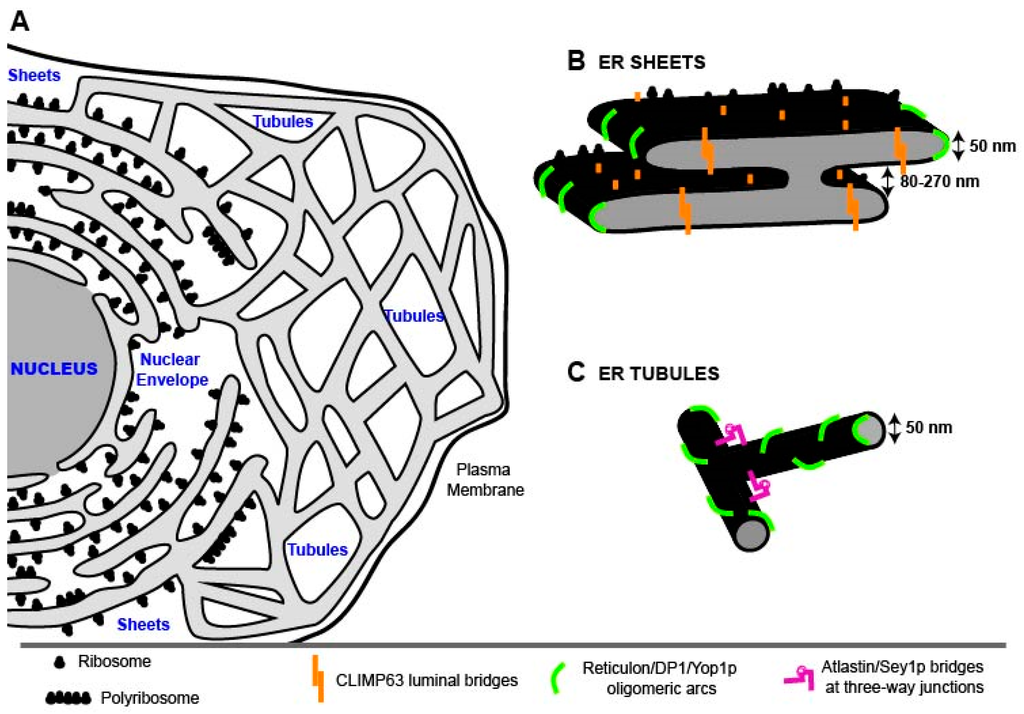

Figure 1. Schematic representation of the endoplasmic reticulum (ER) network organization. (A) The ER network comprises the nuclear envelope (NE) and the peripheral ER. The peripheral ER is composed of stacked sheets, studded with ribosomes, and tubules extending the reticular network to the plasma membrane; (B) Schematic of an ER sheet, depicting its multidimensional properties and the ER-shaping proteins that are responsible for the characteristic, flattened morphology. CLIMP63 is a coiled-coil protein forming oligomers bridging across the luminal space of the sheets that are also studded with ribosomes. High membrane curvature at the edges of the sheets is stabilized by reticulon/DP1/Yop1p proteins, forming wedges inside the bilayer and arc-like scaffolds around the edge. Sheets are also connected to neighboring sheets by membranous twists (“Parking garage model”, [7]); (C) Schematic of two ER tubules. Reticulon/DP1/Yop1p oligomers might not only determine the size of the sheet edges, but also the diameter of the tubules. These are interconnected through proteins such as atlastins/Sey1p residing at three-way junctions. The models in (B) and (C) are adapted from [8,9]. Dimensions of ER sheets and tubules refer to those found in mammalian cells.
Figure 1. Schematic representation of the endoplasmic reticulum (ER) network organization. (A) The ER network comprises the nuclear envelope (NE) and the peripheral ER. The peripheral ER is composed of stacked sheets, studded with ribosomes, and tubules extending the reticular network to the plasma membrane; (B) Schematic of an ER sheet, depicting its multidimensional properties and the ER-shaping proteins that are responsible for the characteristic, flattened morphology. CLIMP63 is a coiled-coil protein forming oligomers bridging across the luminal space of the sheets that are also studded with ribosomes. High membrane curvature at the edges of the sheets is stabilized by reticulon/DP1/Yop1p proteins, forming wedges inside the bilayer and arc-like scaffolds around the edge. Sheets are also connected to neighboring sheets by membranous twists (“Parking garage model”, [7]); (C) Schematic of two ER tubules. Reticulon/DP1/Yop1p oligomers might not only determine the size of the sheet edges, but also the diameter of the tubules. These are interconnected through proteins such as atlastins/Sey1p residing at three-way junctions. The models in (B) and (C) are adapted from [8,9]. Dimensions of ER sheets and tubules refer to those found in mammalian cells.
Viruses 08 00160 g001
Viruses 08 00160 g002 1024

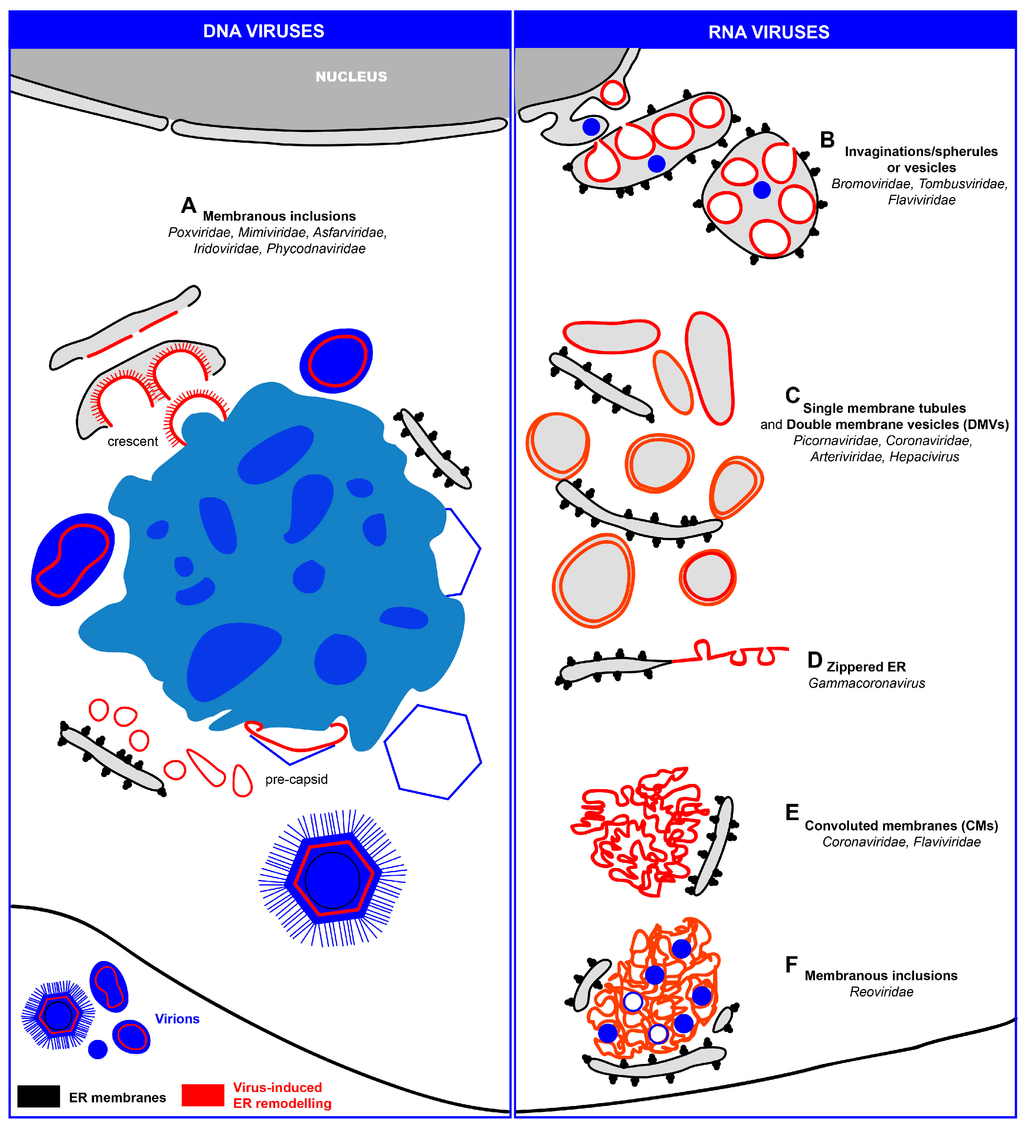

Figure 2. Schematic representation of ER modifications induced by DNA and RNA viruses (left and right panel, respectively). (A) Some DNA viruses (e.g., Poxviridae, Mimiviridae, Asfarviridae, Iridoviridae and Phycodnaviridae) replicate their genomes in the cytoplasm in close association with ER-derived membranes that are part of the replication and assembly factory. The single internal membrane bilayer of these viruses is generated through an unusual mechanism, comprising the generation of membrane sheets by rupture of ER cisternae in close proximity to the viral factories. There the single bilayers interact with capsid proteins to generate crescents and eventually pre-capsids. These factories have an ordered organization, with a preference to accumulate the viral genomes in the factory center to facilitate continuous generation of virus progeny. The only exception known so far is PBCV-1 (not shown) that accumulates the viral genome at the periphery, while the single-membrane bilayers localize to the center of the viral factory; (B) Some RNA viruses replicate their genomes in spherules (families Bromoviridae and Tombusviridae) or vesicles (family Flaviviridae), that are formed as invaginations towards the ER lumen; (C) Replication factories originating from “exvaginations” from the ER, giving rise to large single-membrane tubules or double-membrane vesicles (DMVs) (e.g., several members of the families Picornaviridae, Coronaviridae, Arteriviriridae, Hepacivirus); (D) Infectious bronchitis virus (IBV, genus Gammacoronavirus) induces mainly zippered ER membranes comprising tethered spherules. IBV also induces DMVs, albeit to low numbers; (E) ER-derived convoluted membranes (CMs) are also found in cells infected with members of the Coronaviridae and Flaviviridae. Since these structures are devoid of ribosomes, they are most likely modified smooth ER membranes; (F) In reovirus-infected cells, filled and empty virions (Reoviridae) are found embedded in a membranous inclusion of cellular origin (also called “viroplasm”) and closely surrounded by rough ER cisternae. Both ER elements and virus particles are in contact with the cytosolic face of the plasma membrane. Note that for reasons of simplicity, non-ER intracellular organelles are not shown in this schematic.
Figure 2. Schematic representation of ER modifications induced by DNA and RNA viruses (left and right panel, respectively). (A) Some DNA viruses (e.g., Poxviridae, Mimiviridae, Asfarviridae, Iridoviridae and Phycodnaviridae) replicate their genomes in the cytoplasm in close association with ER-derived membranes that are part of the replication and assembly factory. The single internal membrane bilayer of these viruses is generated through an unusual mechanism, comprising the generation of membrane sheets by rupture of ER cisternae in close proximity to the viral factories. There the single bilayers interact with capsid proteins to generate crescents and eventually pre-capsids. These factories have an ordered organization, with a preference to accumulate the viral genomes in the factory center to facilitate continuous generation of virus progeny. The only exception known so far is PBCV-1 (not shown) that accumulates the viral genome at the periphery, while the single-membrane bilayers localize to the center of the viral factory; (B) Some RNA viruses replicate their genomes in spherules (families Bromoviridae and Tombusviridae) or vesicles (family Flaviviridae), that are formed as invaginations towards the ER lumen; (C) Replication factories originating from “exvaginations” from the ER, giving rise to large single-membrane tubules or double-membrane vesicles (DMVs) (e.g., several members of the families Picornaviridae, Coronaviridae, Arteriviriridae, Hepacivirus); (D) Infectious bronchitis virus (IBV, genus Gammacoronavirus) induces mainly zippered ER membranes comprising tethered spherules. IBV also induces DMVs, albeit to low numbers; (E) ER-derived convoluted membranes (CMs) are also found in cells infected with members of the Coronaviridae and Flaviviridae. Since these structures are devoid of ribosomes, they are most likely modified smooth ER membranes; (F) In reovirus-infected cells, filled and empty virions (Reoviridae) are found embedded in a membranous inclusion of cellular origin (also called “viroplasm”) and closely surrounded by rough ER cisternae. Both ER elements and virus particles are in contact with the cytosolic face of the plasma membrane. Note that for reasons of simplicity, non-ER intracellular organelles are not shown in this schematic.
Viruses 08 00160 g002
Viruses 08 00160 g003 1024

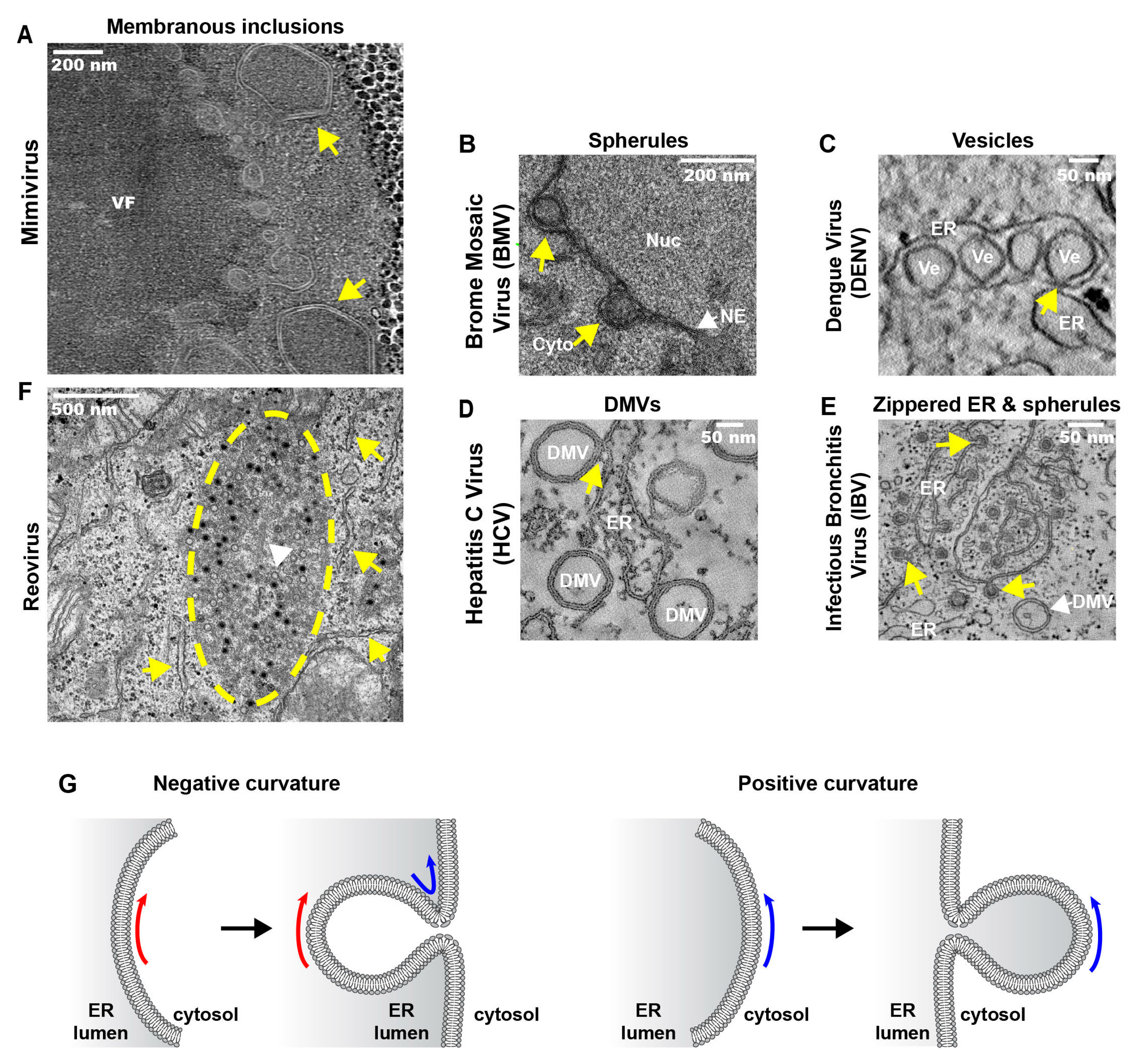

Figure 3. Representative electron micrographs of specialized virus-induced ER modifications. (A) Cytoplasmic viral factory (VF) of Acanthamoeba polyphaga mimivirus, 8 hpi, showing icosahedral capsids (yellow arrows) at the factory periphery; (B) The replication factor 1A of brome mosaic virus (BMV) localizes to outer perinuclear ER membranes in yeast cells, where it induces the formation of luminal spherules (yellow arrows) (60–80 nm) between the nucleoplasm (Nuc) and the cytoplasm (Cyto); (C) Dengue virus (DENV) induces the formation of invaginations of ER membranes, generating arrays of vesicles (Ve) that are known as vesicle packets (VPs). These vesicles remain connected to the cytosol through 10 nm diameter pores (yellow arrow). Shown are Huh7 cells 24 hpi; (D) DMVs are abundantly found in Huh 7.5 cells infected with hepatitis C virus (HCV), 16 hpi. Some of them remain connected to their source organelle, the ER (yellow arrow); (E) Zippered ER membranes are found in CK cells infected with the gammacoronavirus infectious bronchitis virus (IBV), 16 hpi. The zippered membranes fold to form individual spherules with a channel connecting the cytosol (yellow arrows). DMVs are also found, but to a lesser extent; (F) Membranous inclusions (yellow dashed line) found in HeLa cells infected with the reovirus strain T3-T1M1, 12 hpi. Rough ER cisternae (yellow arrows) are found surrounding the inclusions that contain many virions and coated microtubuli inside (white arrowhead); (G) Schematic representation of membrane curvature types. Negative membrane curvature results in the formation of invaginations towards the ER lumen, generating spherules or luminal vesicles. Positive membrane curvature generates exvaginations of ER membranes towards the cytosol, giving rise to cytoplasmic vesicles, tubules or DMVs. Electron micrographs are reproduced with permission from [76] (A), [150] (B), [146] (C,D) [107] (E) and [80] (F).
Figure 3. Representative electron micrographs of specialized virus-induced ER modifications. (A) Cytoplasmic viral factory (VF) of Acanthamoeba polyphaga mimivirus, 8 hpi, showing icosahedral capsids (yellow arrows) at the factory periphery; (B) The replication factor 1A of brome mosaic virus (BMV) localizes to outer perinuclear ER membranes in yeast cells, where it induces the formation of luminal spherules (yellow arrows) (60–80 nm) between the nucleoplasm (Nuc) and the cytoplasm (Cyto); (C) Dengue virus (DENV) induces the formation of invaginations of ER membranes, generating arrays of vesicles (Ve) that are known as vesicle packets (VPs). These vesicles remain connected to the cytosol through 10 nm diameter pores (yellow arrow). Shown are Huh7 cells 24 hpi; (D) DMVs are abundantly found in Huh 7.5 cells infected with hepatitis C virus (HCV), 16 hpi. Some of them remain connected to their source organelle, the ER (yellow arrow); (E) Zippered ER membranes are found in CK cells infected with the gammacoronavirus infectious bronchitis virus (IBV), 16 hpi. The zippered membranes fold to form individual spherules with a channel connecting the cytosol (yellow arrows). DMVs are also found, but to a lesser extent; (F) Membranous inclusions (yellow dashed line) found in HeLa cells infected with the reovirus strain T3-T1M1, 12 hpi. Rough ER cisternae (yellow arrows) are found surrounding the inclusions that contain many virions and coated microtubuli inside (white arrowhead); (G) Schematic representation of membrane curvature types. Negative membrane curvature results in the formation of invaginations towards the ER lumen, generating spherules or luminal vesicles. Positive membrane curvature generates exvaginations of ER membranes towards the cytosol, giving rise to cytoplasmic vesicles, tubules or DMVs. Electron micrographs are reproduced with permission from [76] (A), [150] (B), [146] (C,D) [107] (E) and [80] (F).
Viruses 08 00160 g003
Table
Table 1. Virus-induced endoplasmic reticulum (ER) modifications.
Table 1. Virus-induced endoplasmic reticulum (ER) modifications.
Induced-ER Modification VirusReferenceMethod Used to Detect
Membrane RemodelingER Origin
Membranous inclusionsVaccinia Virus (VACV)[71]TEMIF, IEM
[72]ET, CEMOVISIEM
[73]TEMIF, IEM
[74]TEMIF, IEM, Western blot
[75]TEMIF
Acanthamoeba polyphaga Mimivirus[76]IF, TEM, STEM-T*
African Swine Fever Virus (ASFV)[77]TEM, ET, CEMOVIS, STEM-TWestern blot
Frog Virus 3 (FV3)[78]TEM, ET*
Paramecium Bursaria Chlorella Virus 1 (PBCV-1)[79]STEM-T, FIB-SEM*
Reovirus[80]IF, TEM*
Invaginations/Spherules or vesiclesCowpea Chlorotic Mottle Virus (CCMV)[81]TEMTEM
Brome Mosaic Virus (BMV)[82]n.s.IF
[83]TEMTEM
Red Clover Necrosis Mosaic Virus (RCNMV)[84]Confocal microscopyConfocal microscopy, Western blot
Beet Black Scorch Virus (BBSV)[85]Confocal microscopy, TEM, ETConfocal microscopy, IEM
Yellow Fever Virus (YFV)[86]TEMTEM
West Nile Virus (WNV)[87]TEMIF, IEM
[88]ETIF
Japanese Encephalitis Virus (JEV)[89]TEMTEM
Dengue Virus (DENV)[90]TEMTEM
[91]TEMTEM
[92]TEM, ETIF, IEM
Murray Valley Encephalitis Virus (MVEV)[93]TEMTEM
Tick Borne Encephalitis Virus (TBEV)[94]TEMn.s.
[95]ETIEM
Langat Virus (LGTV)[96]TEM, ETIF
Single-membrane tubules and double-membrane vesicles (DMVs)Poliovirus type 1[97]TEMIEM
[98]TEMWestern blot
[99]TEMDensity gradient fractionation
DMVsEquine Arterivirus (EAV)[100]TEMTEM, IF, IEM
[101]TEMET
SARS-Coronavirus[102]TEMIEM
[103]TEM, ETET
Hepatitis C Virus (HCV)[104,105]TEMWestern blot
[76]TEM, ETIF, ET
[106]TEMn.s.
Zippered ERInfectious Bronchitis Virus (IBV)[107]TEM, ETTEM, ET
Plant viruses are highlighted in green. TEM, transmission electron microscopy; IF, immunofluorescence; IEM, immuno-EM; ET, electron tomography; CEMOVIS, cryo-EM of vitreous sections; STEM-T, scanning transmission electron microscopy-tomography; FIB-SEM, focus ion beam-scanning electron microscopy; * the origin from ER membranes has only been suggested; not shown (n.s.). References are given in chronological order.

Share and Cite

MDPI and ACS Style

Romero-Brey, I.; Bartenschlager, R. Endoplasmic Reticulum: The Favorite Intracellular Niche for Viral Replication and Assembly. Viruses 2016, 8, 160. https://doi.org/10.3390/v8060160

AMA Style

Romero-Brey I, Bartenschlager R. Endoplasmic Reticulum: The Favorite Intracellular Niche for Viral Replication and Assembly. Viruses. 2016; 8(6):160. https://doi.org/10.3390/v8060160

Chicago/Turabian Style

Romero-Brey, Inés, and Ralf Bartenschlager. 2016. "Endoplasmic Reticulum: The Favorite Intracellular Niche for Viral Replication and Assembly" Viruses 8, no. 6: 160. https://doi.org/10.3390/v8060160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
