History and Current Status of Development and Use of Viral Insecticides in China

Key Laboratory of Agricultural and Environmental Microbiology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan 430071, China
Viruses 2015, 7(1), 306-319;
Submission received: 1 December 2014 / Revised: 29 December 2014 / Accepted: 14 January 2015 / Published: 20 January 2015
(This article belongs to the Special Issue Insect Viruses and Their Use for Microbial Pest Control)


The use of insect viruses as biological control agents started in the early 1960s in China. To date, more than 32 viruses have been used to control insect pests in agriculture, forestry, pastures, and domestic gardens in China. In 2014, 57 products from 11 viruses were authorized as commercial viral insecticides by the Ministry of Agriculture of China. Approximately 1600 tons of viral insecticidal formulations have been produced annually in recent years, accounting for about 0.2% of the total insecticide output of China. The development and use of Helicoverpa armigera nucleopolyhedrovirus, Mamestra brassicae nucleopolyhedrovirus, Spodoptera litura nucleopolyhedrovirus, and Periplaneta fuliginosa densovirus are discussed as case studies. Additionally, some baculoviruses have been genetically modified to improve their killing rate, infectivity, and ultraviolet resistance. In this context, the biosafety assessment of a genetically modified Helicoverpa armigera nucleopolyhedrovirus is discussed.

1. Introduction

Research on insect viruses in China started with the Bombyx mori nucleopolyhedrovirus in the mid-1950s [1] and, to date, more than 200 insect virus isolates have been recorded in China. Viruses from several families, such as Baculoviridae, Reoviridae, Densoviridae, and Entomopoxvirinae can cause epizootics in natural populations of insects. Therefore, such viruses are attractive biological agents for the control of insect pests in agriculture, forestry, pasture, and domestic gardens. Here, the history and current status of the development and use of viral insecticides in China over the past 50 years are reviewed.

2. Development and Commercialization of Wild-Type Viruses as Bioinsecticides

The earliest experiments investigating the use of insect viruses as biological control agents in China started in the early 1960s, e.g., two baculoviruses were inoculated into their noctuid hosts, Agrotis segetum and Apamea sordens [2]. These experiments were followed by in-depth field efficacy studies where the A. segetum granulovirus (AgseGV) was used to infect its A. segetum host and to test its biosafety in silkworms, mice, and rabbits [3]. The studies included formulation tests [4] and virus production and application [5]. Since then, more than 32 insect viruses have been investigated as potential bioinsecticides (Table 1).
Of the heliothine insects, Helicoverpa armigera causes the most serious damage to agricultural crops. Its larval stage attacks a wide variety of agricultural crops including cotton, pepper, tomato, tobacco, maize, sorghum, sunflower, pigeon pea, chickpea, groundnut, soybean, and okra. In 1975, a Helicoverpa armigera nucleopolyhedrovirus (HearNPV) was isolated from diseased H. armigera larvae in Hubei Province of China [6]. It has been subsequently subjected to toxological and pathogenicity tests on vertebrates [7]. HearNPV has been mass produced as a viral pesticide via continuous rearing of H. armigera on an artificial diet (Figure 1, modified from [8]). HearNPV emulsifiable suspension was authorized as the first commercialized viral insecticide in 1993 by the Institute for the Control of Agrochemicals, the Ministry of Agriculture of China (ICAMA) [9]. In 2014, there were 17 products that included HearNPV as the main insecticidal component and these products were made by 10 different companies (Table 2). The products were formulated as emulsifiable concentrates (ECs) containing 2 × 109 occlusion bodies (OBs)/mL, wettable powders (WPs) containing 2 × 109 OBs/g, or water-dispersible granules (WDG) containing 6 × 1010 OBs/g (ICAMA, 2014). One product contained HearNPV at 1 × 109 OBs/g and 16% phoxim, an organophosphate insecticide with low toxicity to experimental animals. For bollworm control, the products were used at 1.2–2.25 × 1012 OBs/ha as a foliar spray for cotton, pepper, or tobacco plants. According to a questionnaire survey of insecticide producers conducted by ICAMA, total production of HearNPV formulations was 968 tons in 2012 [10], making it the most produced viral insecticide in China (Table 2).
Table 1. Insect viruses evaluated as potential bioinsecticides in China.
Table 1. Insect viruses evaluated as potential bioinsecticides in China.
No.Virus NameTarget Insect (s)Host CropsReferences
1Agrotis segetum GVA. segetumMaize, beet, tomato, tobacco, cotton, cabbage[2,3,4,5]
2Andraca bipunctata GVA. bipunctataTea[11,12,13]
3Apocheima cinerarius NPVA. cinerariusPoplar[14,15,16]
4Aporia crataegi NPVA. crataegiHawthorn, apple[17,18,19]
5Autographa californica NPVS. exigua, Hellulo undalis, Pectinophora gossypiellaCabbage, cotton[20,21]
6Buzura suppressaria NPVB. suppressariaTea, metasequoia[22,23,24]
7Clostera anastomosis GVC. anastomosisPoplar, willow[25,26,27]
8Clostera anachoreta GVC. anachoretaPoplar[28,29]
9Cydia pomonella GVC. pomonellaApple[30,31,32]
10Dendrolimus punctatus CPVD. punctatus, D. kikuchii, D. spectabilis, D. supreansPine[33,34,35,36]
11Ectropis oblique NPVE. obliquaTea[37,38,39,40]
12Ectropis grisescens NPVE. grisescensTea[41,42,43]
13Eranhis ankeraria NPVE. ankerariaLarch[44,45]
14Euproctis pseudoconspersa NPVE. pseudoconspersaTea[46,47,48]
15Euproctis similis NPVE. similisMulberry[49,50]
16Gynaephora ruoergensis NPVG. ruoergensisGrass[51,52,53,54]
17Helicoverpa armigera NPVH. armigera, Heliothis assultaCotton, pepper, tobacco[6,7,8]
18Hyphantria cunea NPVH. cuneaAsh, heaven tree, chinar[55,56,57,58]
19Lymantria dispar NPVL. disparOak, larch, birch[59,60,61]
20Lymantria xylina NPVL. xylinaCoast oak[62,63,64,65]
21Iragoides fasciata NPVI. fasciataTea[66,67,68]
22Mamestra brassicae NPVM. brassicae, H. armigera, S. exiguaCabbage, cowpea[69,70]
23Mythimna separata NPVM. separataWheat, rice, corn[71,72,73]
24Parocneria orienta NPVP. orientaCypress[74,75,76]
25Periplaneta fuliginosa DNVP. fuliginosaHouse[77,78]
26Pieris brassicae GVP. brassicaeCabbage[79,80]
27Pieris rapae GVP. rapaeCabbage, broccoli[81,82,83]
28Plusia agnate NPVP. agnateSoybean, rape, broccoli[84,85,86]
29Plutella Xylostella GVP. xylostellaRadish, cabbage, mustard[87,88]
30Spodoptera exigua NPVS. exiguaBeet, cabbage[89,90,91]
31Spodoptera litura NPVS. lituraCabbage, tobacco[92,93,94,95]
32Sucra jujube NPVS. jujubaJujube[96,97,98,99]
Table 2. Viruses authorized by the Ministry of Agriculture of China as commercial insecticide.
Table 2. Viruses authorized by the Ministry of Agriculture of China as commercial insecticide.
Virus NameTarget InsectCropsNo. of Producers [9]No. of Products [9]Production in 2012 (tons) [10]
Helicoverpa armigera NPVCotton bollwormCotton1017968
Mamestra brassicae NPVCabbage mothVegetables11220
Autographa californica NPVBeet armywormVegetables33175
Spodoptera exigua NPVBeet armywormVegetables3470
Spodoptera litura NPVCotton leafwormVegetables2253
Plutella xylostella GVDiamondback mothVegetables1111
Dendrolimus punctatus CPVMasson pine mothPine246
Ectropis oblique NPVTea geometridTea11-
Euproctis pseudoconspersa NPVTea caterpillarTea11-
Pieris rapae GVCabbage white butterflyVegetables11-
Periplaneta fuliginosa DNVCockroachSanitation11-

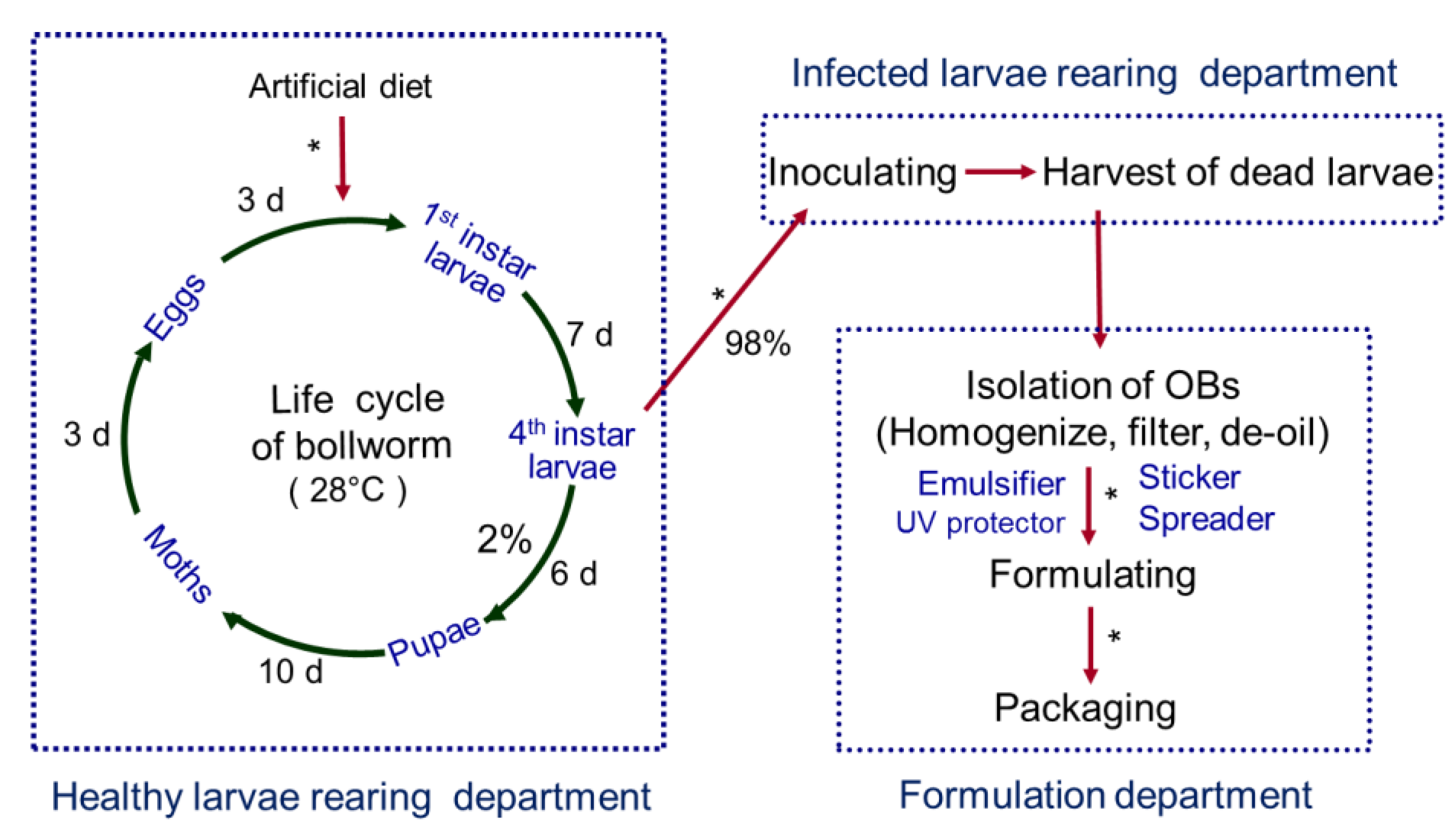

Figure 1. Schematic representation of the production of HearNPV insecticide. The steps with an asterisk (*) can be implemented by robotics.
Figure 1. Schematic representation of the production of HearNPV insecticide. The steps with an asterisk (*) can be implemented by robotics.
Viruses 07 00306 g001
Spodoptera litura (Fab.) is a serious pest to vegetables such as broccoli, beans, cabbage, and dasheen in Southern China. Following its discovery in Guangzhou Province [92], Spodoptera litura nucleopolyhedrovirus (SpliNPV) has been studied extensively to determine its infectivity levels [93], mass production potential [94], and biosafety towards bees, fish, silkworm, mice, rabbits, and monkeys [95]. Since 1997, SpliNPV has been produced as a commercialized insecticide via continuous rearing of the host larvae on an artificial diet [94]. The products were formulated as ECs at 1 × 109 OBs/g or WDGs at 2 × 1010 OBs/g. The formulations were applied to vegetables at 6.0 × 1011–1.2 × 1012 OBs/ha to control leafworm. Production of SpliNPV formulations was 53 tons in 2012 [10].
Mamestra brassicae nucleopolyhedrovirus (MabrNPV) has a wide host range, including 32 species spanning five Lepidoptera families [100]. Some of its targets are important pests, such as Plutella xylostella, H. armigera, S. exigua, and Xestia c-nigrum. A MabrNPV, originally isolated from M. brassicae larval cadavers on oilseed rape in Tai’an, Shandong in 1979 [69], was successfully developed as an insecticide produced in either H. armigera or S. exigua reared on an artificial diet [70]. The product, formulated as a WP at 2 × 1010 OBs/g, met the EU standard 889/2008 and was certified as an organic product by ECOCERT INPUTS (France) in 2013. It was applied to vegetables to control various insect pests at 2.7 × 1012–3.6 × 1012 OBs/ha. A MabrNPV production line with a 2000-ton formulation capacity was built in Yichun, Jiangxi Province, China (Figure 2) and enabled production of 220 tons of MabrNPV formulations in 2012 [10] and 400 tons in 2013 [101].
Two other NPVs that have also undergone large-scale production are Autographa californica multiple nucleopolyhedrovirus (AcMNPV) and Spodoptera exigua MNPV (SeMNPV); both of these were used to control vegetable-eating insect pests in China on a large scale. In 2012, production of AcMNPV and SeMNPV was 175 and 70 tons, respectively [10].
Cockroach infestation is a serious problem in most urban areas of China. The smoky brown cockroach, Periplaneta fuliginosa (Serville), is an increasingly important peridomestic pest throughout much of the Southeastern United States, Japan, and Southeast Asia. Periplaneta fuliginosa densovirus (PefuDNV), purified from diseased smoky-brown cockroaches in China [77], has been commercially produceed since 2008 [78]. The product was formulated in combination with a sex pheromone as a paste containing 6 × 103 particles/g. The paste was used in commercially important areas where the cockroaches were found at high frequency. In 2013, a total of 5500 kg of PefuDNV paste was produced, which treats an area of about 5.5 million m2 [102].

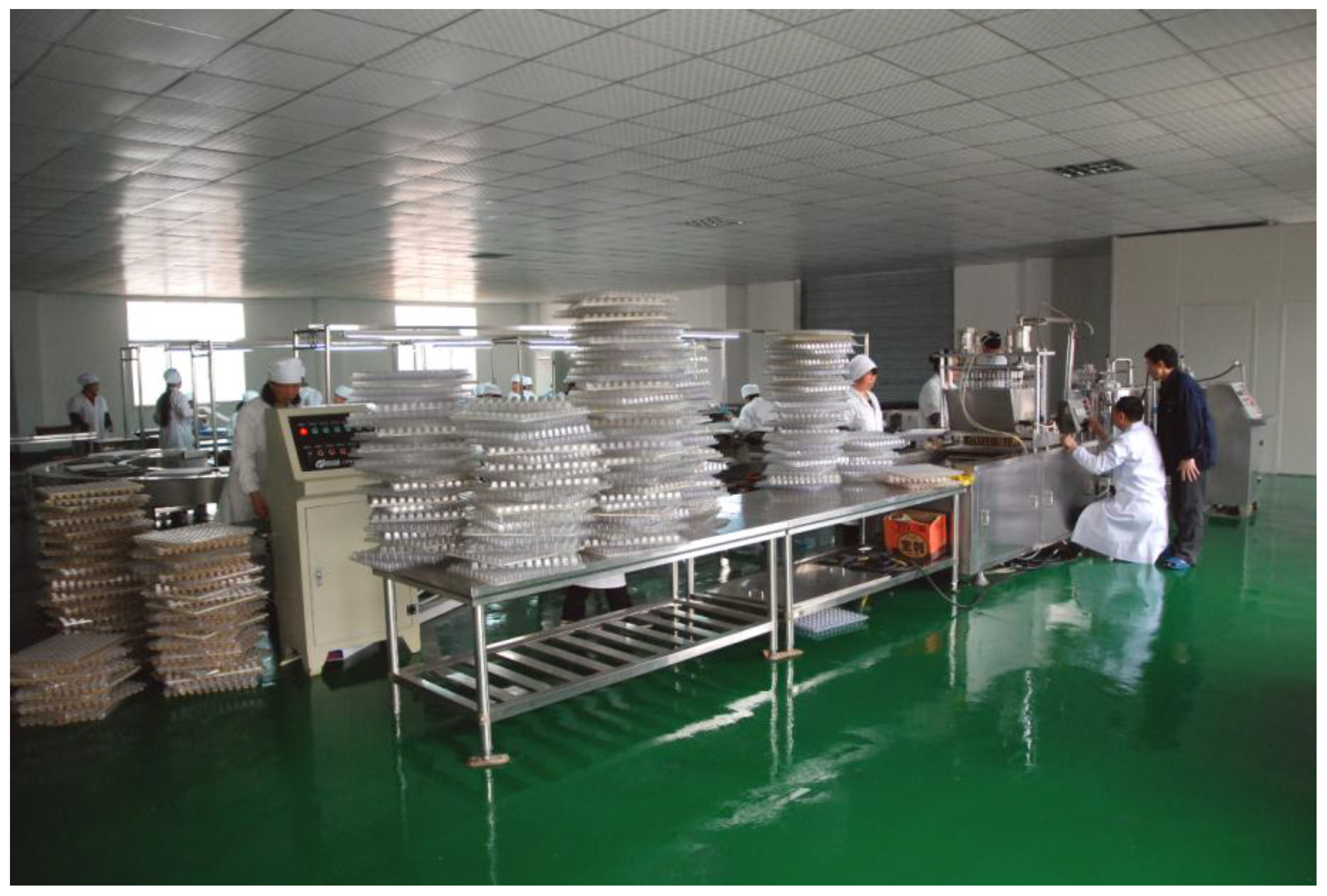

Figure 2. A diet distributing line for rearing H. armigera larvae established in Yichun, Jiangxi Province, China.
Figure 2. A diet distributing line for rearing H. armigera larvae established in Yichun, Jiangxi Province, China.
Viruses 07 00306 g002

3. Development of Recombinant Viruses as Bioinsecticides

Despite several cases of successful viral insecticide use in China, insecticide failures were also frequently documented. The main problems related to their relatively slow speed of action, low virulence against older insect instars, and ultraviolet radiation sensitivity. Subsequently, genetic techniques were adopted to overcome such issues. For example, genetic modification was used to improve the efficacy of HearNPV by inserting an insect-specific scorpion toxin (AaIT) gene, resulting in the recombinant virus, HearNPV-AaIT [103]. Later on, HearNPV was similarly modified by inserting the basement membrane-degrading protease into its genome [104]. Application of HearNPV-AaIT on cotton protected the fruit from damage by the bollworm better than the application of wild-type HearNPV over the cotton seasons of 2000 and 2001. Indeed, the yield of cotton lint from HearNPV-AaIT-treated plants was about 22% higher than that from plantations treated with the wild-type virus alone in 2000 and 2001 [103].
To assess the risk of releasing recombinant HearNPV into the environment, the following were investigated: the effect of HearNPV-AaIT on non-target species, the possibility of AaIT gene flow to other organisms, and the environmental fitness of HearNPV-AaIT. HearNPV-AaIT was non-toxic to rats, with a median lethal dose >2 g/kg against female and male rats administered either intradermally or orally. Furthermore, there were no pathological responses when rats were inoculated with the recombinant virus, and followed by bone marrow polychromatic erythrocyte micronucleus test [105]. The recombinant virus was also found to be non-toxic to bobwhite quail, zebra fish, silkworm, and bees by oral administration. It was not anaphylactic to guinea pigs by percutaneous administration [105]. The AaIT toxin expressed in yeast was biologically active against S. exigua and Argyrogramma agnata larvae when injected into the hemocoele, whereas it was non-toxic to the two insects when it was administered orally [106], implying that the AaIT toxin expressed in H. armigera larvae infected by HearNPV-AaIT are safe to the predatory insects. The possibility that the AaIT gene from recombinant HearNPV might be transferred to other organisms, such as cotton-pathogenic fungus (Verticillium dahliae), ladybeetles (Propylaea japonica), and aphids (Rhopalosiphum pseudobrassicae), was very low when detected by polymerase chain reaction and dot-blot hybridization [107]. Based on these results, there was no evidence that this recombinant baculovirus posed an increased hazard to non-target organisms or had a deleterious effect on the environment when compared with wild-type viruses. As part of the registration process for commercial use of HearNPV-AaIT in China, a safety data package for the virus has been submitted to the Ministry of Agriculture, P.R. China.
In addition to baculovirus killing rates, the degree of infectivity and ultraviolet resistance of these viruses are also important factors affecting their performance in the field [108]. A recombinant HearNPV expressing GP64 from AcMNPV had been constructed. Bioassays showed that the LC50 (median lethal concentration) of this recombinant virus reduced to 20% of that of the control virus [109]. In terms of ultraviolet resistance, improvements have been made by constructing AcMNPV recombinants displaying nano-material binding peptides [110], and [Jin Li, unpublished data]. These constructs have the potential to improve baculovirus insecticides for future use in the field.

4. Perspectives on Use of Insect Viruses for Pest Control in China

In 2012, about 1600 tons of viral insecticidal formulations were produced, accounting for about 0.2% of the total insecticide output in China (derived from [10]). Currently, increasing demand for healthy food and environmentally friendly pesticides drives the market for biopesticide production. Improved viral products, a program of farmer education, prohibitively low acceptable chemical pesticide residues and robust government policies on viral pesticide use were important in enabling large-scale uptake of viral insecticides. To date, 34 government standards for chemical pesticidal residues on agricultural and food products have been employed in China. In recent years, ICAMA adopted a series of favorable policies on the registration process of biopesticides, e.g., remission of the request of pesticide residue data. Meanwhile, ICAMA also issued a serial of regulations to prohibit re-registration of high-toxic chemical pesticides. According to the ICAMA questionnaire survey in 2012, 67% of biopesticide producers planned to increase their input into the research and development of biopesticides, including viruses [10]. Since 2014, the Central Agricultural Broadcasting and Television School has organized a series of courses to teach farmers and agricultural technicians how to correctly use bio-insecticides. In 2012, the State Council of China issued a bio-industry development project, which indicated that government at all levels would give allowance on biopesticides producers and establish relative regulations to ensure the development of biopesticides [111]. Some local governments, such as that in Shanghai, also gave an allowance to farmers who applied biopesticides. The farmers received the allowance via dealers sustained by government agencies. These measures promote the future use of insect viruses in China.

5. Conclusions

During past 50 years, more than 32 viruses had been developed and used as insecticides in China and 11 viral insecticides had been successfully commercialized. As demands for the healthy food and environmental protection increase, it could be predicted more and intensiver viral pesticides are used in China in future.


I gratefully acknowledge support from the 863 Project of China (2011AA10A204).

Conflicts of Interest

The authors declare no conflict of interest.
