Development and Application of a Rapid Field Detection Technology for DENV-2 Based on the HUDSON Nucleic Acid Extraction-Free/RT-RAA/CRISPR-Cas12a System

by
Chang Tan
1,2,†,
Siyu Xing
2,†,
Xiaoxue Xie
2,
Xiaoli Chen
2,
Xiaohui Liu
2,
Wenhao Wang
2,
Lifang Liu
2,
Xinyu Zhou
2,*,
Jiahong Wu
1,* and
Chunxiao Li
1,2,*
1
Characteristic Key Laboratory of Modern Pathogen Biology, School of Basic Medicine Sciences, Guizhou Medical University, Guian New Area, Guiyang 561113, China
2
State Key Laboratory of Pathogen and Biosecurity, Beijing 100071, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Viruses 2025, 17(12), 1579; https://doi.org/10.3390/v17121579
Submission received: 27 October 2025 / Revised: 27 November 2025 / Accepted: 30 November 2025 / Published: 2 December 2025
(This article belongs to the Section General Virology)
Browse Figures
Versions Notes

Abstract

Dengue fever has become a major global public health challenge due to its rapidly in-creasing incidence. Rapid on-site detection of dengue virus (DENV) is critical for early diagnosis, timely patient isolation, and outbreak control. In this study, dengue virus serotype 2 (DENV-2), the predominant strain circulating in tropical and subtropical regions, was selected as the target pathogen. We established a one-tube rapid detection assay that integrates the HUDSON nucleic acid extraction-free protocol, reverse transcription recombinase-aided amplification (RT-RAA), and CRISPR/Cas12a-mediated trans cleavage activity. The method achieved a detection limit of 1 × 102 copies/μL for simulated infected samples and exhibited no cross-reactivity with other DENV serotypes (DENV-1, DENV-3, DENV-4) or with other arboviruses, including Zika, Japanese encephalitis, yellow fever, and chikungunya viruses. The assay demonstrated high sensitivity and specificity across various sample types, including mosquitoes, rodents, blood, and cultured cells, with results consistent with quantitative PCR (qPCR). Requiring only basic equipment such as a water bath, the system enables on-site detection of DENV-2 within 1 h. This simple, cost-effective, and reliable assay provides a practical tool for field-based DENV-2 surveillance and supports effective public health responses in resource-limited settings.

1. Introduction

Dengue fever is a serious mosquito-borne infectious disease that poses a significant global public health threat; the virus continues to circulate in more than 100 countries, putting approximately 4 billion people at risk of infection [1,2,3]. Dengue virus (DENV), a member of the Flavivirus genus, comprises four antigenically distinct serotypes (DENV-1 to DENV-4), among which DENV-2 is considered the most virulent and is the predominant serotype in tropical and subtropical regions [4,5,6]. The virus is transmitted primarily through the bite of Aedes mosquitoes. Following infection, patients may develop symptoms such as fever and thrombocytopenia, and severe cases can progress to life-threatening complications, including plasma leakage and dengue shock syndrome [7,8,9]. Secondary infections with a heterologous serotype are known to markedly increase the risk of severe disease and also complicate vaccine development [10,11]. Currently, no specific antiviral drugs or broadly effective vaccines are available, making early and accurate diagnosis a critical component of dengue surveillance, prevention, and epidemic control [12,13].
The early symptoms of dengue fever are non-specific and can easily be confused with those of chikungunya fever, Zika virus disease, and other conditions—thus making diagnosis challenging [14]. Existing detection methods, including virus isolation, ELISA, and RT-PCR, are contingent on specialized equipment and personnel, which hinders their feasibility at the grassroots level [15,16]. The CRISPR/Cas system, an immune mechanism found in prokaryotic organisms, has been adapted for use in a novel nucleic acid detection tool. The Cas12a protein, guided by crRNA, has been demonstrated to cleave double-stranded DNA with a high degree of specificity, and subsequently induces non-specific single-stranded DNA trans-cleavage. This property facilitates a remarkably sensitive detection mechanism [17,18,19]. However, most CRISPR-based detection strategies still require preliminary nucleic acid amplification steps such as PCR, which depend on sophisticated laboratory equipment and are therefore unsuitable for field deployment [20,21]. To meet the growing demands of point-of-care testing (POCT), isothermal nucleic acid amplification technologies (iNAATs) have gained widespread attention, with recombinase polymerase amplification (RPA), recombinase-aided amplification (RAA), and enzyme recombination amplification (ERA) being among the most representative systems. RPA relies on phage-derived recombinases [22] and therefore requires a highly stable reaction system. ERA employs engineered enzymes to modulate reaction kinetics, whereas RAA utilizes recombinant enzymes of bacterial or fungal origin. In RAA, the coordinated activity of the recombinase, single-strand binding protein (SSB), and DNA polymerase enables rapid strand displacement amplification at 37–42 °C without the need for a high-temperature denaturation step [23]. Owing to its low-temperature operation, rapid amplification, and user-friendly workflow, RAA has been widely integrated into freeze-dried reagent formats and portable point-of-care testing (POCT) platforms [24,25,26]. In recent years, the combination of RT-RAA with CRISPR/Cas systems has further enabled the successful detection of multiple viral pathogens, including SARS-CoV-2 [27], nervous necrosis virus (NNV) [28], and maize chlorotic mottle virus (MCMV) [29].
Among the various CRISPR systems, Cas12a is a double-stranded DNA (dsDNA) targeting nuclease that retains robust activity at low temperatures of approximately 37 °C [30], making it highly compatible with the optimal reaction conditions of RAA. Moreover, the combination of RAAs low tolerance for primer–template mismatches and the high single-nucleotide discrimination capability of Cas12a–crRNA provides a unique advantage, enabling dual-level specificity for viral sequence and serotype identification [31]. In contrast, Cas12b and Cas13a are less suitable for low-temperature, rapid detection scenarios due to their higher optimal reaction temperatures and more complex assay workflows [32,33]. Although RAA has been employed for rapid visual detection of dengue virus (e.g., RT-RAA-LFD) [34], systematic studies focusing on DENV-2 serotype-specific detection platforms that use RAA as the core amplification module and are tightly integrated with Cas12a remain limited.
Building on these findings, this study established an integrated RAA–Cas12a detection platform. To address the contamination risks associated with opening reaction tubes and the laborious nucleic acid extraction procedures required by conventional two-step workflows, we further developed a single-tube “one-pot” system. In this design, the RT-RAA reaction mixture is placed at the bottom of the tube, while the CRISPR/Cas12a components are pre-loaded into the lid. After amplification, a brief centrifugation initiates the CRISPR detection process, eliminating the need to open the tube and thereby reducing the risk of aerosol contamination. Additionally, this study incorporates the HUDSON (Heating Unextracted Diagnostic Samples to Obliterate Nucleases) sample-processing method, first introduced by Myhrvold et al. [35] in 2018. HUDSON uses TCEP/EDTA-assisted heat treatment to directly lyse viral particles and inactivate RNases, enabling the use of unpurified samples for subsequent amplification and detection. This system integrates sample processing, nucleic acid amplification, and CRISPR-based detection into a single cohesive platform, providing a simple, rapid, and field-deployable point-of-care testing solution for dengue virus and mosquito vector samples.

2. Materials and Methods

2.1. Virus and Cells

The Dengue virus serotype 2(DENV-2, NGC strain GenBank accession no. KM204118.1), Zika virus (ZIKV, SZ01 strain, GenBank accession no. KU866423), Japanese encephalitis virus (JEV, SA-14-14-2 strain, GenBank accession no. JN604986.1), Yellow fever virus (YFV, 17D-204 strain, GenBank accession no. KF769015.1), and Chikungunya virus (CHIKV, QZ0823 strain, GenBank accession no. MH400249) used in this study were previously obtained and stored at –80 °C in the State Key Laboratory of Pathogens and Biosecurity.
The nucleic acids of Dengue virus serotype 1 (DENV-1, JH545 strain, GenBank accession no. OP919589.1), Dengue virus serotype 3 (DENV-3, 01442/00 strain, GenBank accession no. MW946892.1), and Dengue virus serotype 4 (DENV-4, YGH_16_18 consensus strain, GenBank accession no. MW788998.1) were kindly provided by the Nanjing Bioengineering (Gene) Technology Center for Medicines (Nanjing, China). All viral nucleic acid samples were stored at –80 °C.
BHK-21 cells and Vero cells were obtained from the State Key Laboratory of Pathogens and Biosecurity. The cells were maintained in Dulbecco’s modified Eagle’s Medium (DMEM; Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (FBS; Gibco, Carlsbad, CA, USA) and cultured at 37 °C in a 5% CO2 incubator (Thermo Fisher Scientific, Waltham, MA, USA).

2.2. Conventional Nucleic Acid Extraction and HUDSON Nucleic Acid Extraction

Conventional nucleic acid extraction was performed using the commercial QIAamp RNA Extraction Kit (Qiagen, Hilden, Germany) to isolate viral nucleic acids from DENV-2 virus suspensions.
The HUDSON nucleic acid extraction process involved adding TCEP (MackLin, Shanghai, China) and EDTA (Thermo Fisher Scientific, Waltham, MA, USA) to the DENV-2 virus suspension at final concentrations of 100 mM and 1 mM, respectively. The mixture was then incubated at 42 °C for 20 min, and subsequently at 64 °C for 5 min in a PCR instrument (Thermo Fisher Scientific, Waltham, MA, USA) to release nucleic acids through heat-induced denaturation.
A seven-step serial dilution of the DENV-2 virus suspension was prepared using nuclease-free water (Zoman, Beijing, China), starting from 1 × 108 copies/μL and diluted at a 1:9 ratio down to 1 × 101 copies/μL. Nucleic acids from each dilution were released using both the commercial extraction kit and the HUDSON method. The extracted nucleic acids were subsequently amplified using the HiScript II One Step qRT-PCR SYBR Green Kit (Vazyme, Nanjing, China), and the Ct values were determined on an Applied Biosystems QuantStudio 7 Real-Time PCR (Thermo Fisher Scientific, Waltham, MA, USA). The total reaction volume was 20 μL and consisted of 10 μL of 2× One Step SYBR Green Mix, 1 μL of One Step SYBR Green Enzyme Mix, 0.2 μL of 50× ROX Reference Dye, 0.4 μL of the forward primer (10 μM), 0.4 μL of the reverse primer (10 μM), and 2 μL of template RNA. The remaining volume (5.8 μL) was filled with nuclease-free water to reach a final volume of 20 μL. The primer sequences were identical to those used in the RT-RAA DENV-2 amplification system and targeted the E1 coding region of dengue virus serotype 2 (DENV-2). The detailed qRT-PCR protocol is provided in Table 1. The performance of the two nucleic acid extraction methods was then compared.

2.3. One-Pot RT-RAA-CRISPR/Cas12a DENV-2 Detection System

The Reverse Transcription Recombinase-Aided Amplification (RT-RAA) reaction was performed using a commercial isothermal RNA rapid amplification kit (Qitian Gene Biotech, Wuxi, China). Each reaction was carried out in a final volume of 25 μL. The reaction mixture contained 12.5 μL of Buffer V, 1 μL each of the F1 and R1 primers (10 μM), 2.5 μL of magnesium acetate, 7 μL of nuclease-free water, and 1 μL of viral nucleic acid. The reaction was incubated at 39 °C for 25 min, and the amplification products were verified by gel electrophoresis.
For CRISPR/Cas12a detection, a 10 μL reaction mixture was prepared in the tube cap. The mixture contained 3.5 μL of HOLMES buffer (10×, ToLo Biotech, Shanghai, China), 1 μL of LbCas12a (ToLo Biotech, Shanghai, China), 1 μL of ssDNA reporter (Bio-Lifesci, Guangzhou, China), 1 μL of crRNA (EditGene, Guangzhou, China), and 3.5 μL of nuclease-free water (Zoman, Beijing, China). After amplification, the CRISPR/Cas12a reaction mixture was spun down into the RT-RAA reaction using a mini high-speed centrifuge (Yooning Instrument, Hangzhou, China). The reaction was then incubated at 39 °C for 20 min in an Applied Biosystems QuantStudio 7 real-time PCR system (Thermo Fisher Scientific, Waltham, MA, USA), during which dynamic FAM fluorescence signals were recorded at 30-s intervals.

2.4. Design of DENV-2-Specific RT-RAA Amplification Detection Primers and Cas12a crRNA

Multiple sets of DENV-specific primers for RT-RAA detection were designed to target six coding regions of the DENV-2 genome (C1/E1/NS1/NS2/NS3/NS5), comprising six forward primers and six reverse primers, all synthesized by Sango Biotech (Shanghai, China). In addition, six crRNAs targeting the corresponding genomic regions were designed using the Benchling online platform (Benchling, San Francisco, CA, USA; https://benchling.com (accessed on 23 January 2025)), based on the LbCas12a PAM sequence (TTTV). All crRNAs were synthesized by EditGene (Guangzhou, China). The complete sequences of the primers and crRNAs are listed in Table 2 and Table 3, respectively.

2.5. Effects of Amplification Time, Temperature, Probe Concentration, and Other Reaction Conditions

Using viral nucleic acid (1 × 108 copies/μL) as the template and following a single variable experimental design, fluorescence intensity was measured under different reaction conditions. These conditions included RT-RAA amplification times (15, 20, 25, and 30 min), CRISPR/Cas12a detection system reaction temperatures (35, 37, 39, 41, and 43 °C), Cas12a concentrations (125, 250, 500, and 1000 nM), Cas12a/crRNA molar ratios (2:1, 1:1, 1:2, and 4:1), and ssDNA probe concentrations (1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 μM).

2.6. Sensitivity and Specificity Analysis

A DENV-2 virus suspension at 1 × 108 copies/μL was serially diluted seven times using nuclease-free water at a 1:9 ratio to obtain dilutions down to 1 × 101 copies/μL. Viral suspensions at each dilution level were subjected to nucleic acid extraction and subsequently used as templates for RT-RAA amplification under the conditions described above. Following amplification, CRISPR/Cas12a detection was performed, with nuclease-free water serving as the negative control. The sensitivity of the assay was assessed based on fluorescence intensity measurements.
The amplification and detection process was carried out under the reaction conditions described above, using nucleic acids from other arboviruses, including ZIKV, JEV, YFV, and CHIKV, as well as from the other three DENV serotypes, as templates. Nuclease-free water was used as the negative control to assess the specificity of the assay.

2.7. Construction and Detection of Virus-Infected Simulation Samples

In this study, a series of DENV-2–infected materials were prepared. First, the BHK-21 and Vero cells were inoculated with DENV-2 and incubated for 72 h at 37 °C in a 5% CO2 atmosphere. The culture supernatant was collected after a centrifugation process at 3000 rpm (1000× g) for 5 min using a Sartorius centrifuge (Göttingen, Germany), and the viral RNA extracted from the supernatant was used as the cell infection sample. Second, 6-week-old SPF BALB/c mice (Charles River, Beijing, China) were inoculated intramuscularly in the thigh with 500 μL of DENV-2 suspension using a sterile 1 mL syringe (WEGO, Weihai, China). Blood samples were collected from the orbital venous plexus using a capillary tube (Sutter Instrument, Novato, CA, USA) followed by centrifugation at 3000 rpm (1000× g) for 10 min to obtain serum. The extracted serum RNA was used as the mammalian infection sample. Third, laboratory-infected Aedes aegypti (Xishuangbanna strain) and Aedes albopictus (Guangzhou strain) mosquitoes were mixed with uninfected mosquitoes at ratios of 1:9, 1:19, 1:29, 1:39, and 1:49. Each mosquito pool was homogenized and centrifuged at 12,000 rpm for 10 min. The resulting supernatants were collected for RNA extraction and served as simulated field-collected mosquito infection samples. All RNA extraction procedures were performed under identical conditions, followed by RT-RAA amplification. The amplified products were subsequently analyzed using the LFA test strip (Bio-Lifesci, Guangzhou, China) in combination with the CRISPR-Cas12a system. In parallel, each sample was quantitatively analyzed using the HiScript II One Step qRT-PCR Probe Kit with an RT-qPCR instrument.

3. Results

3.1. Establishment of the Nucleic Acid Extraction Method Based on the HUDSON Protocol

This study conducted a parallel comparison of the HUDSON method and a commercial extraction kit. The RT-qPCR results (Figure 1A,B) show that the HUDSON method effectively releases viral nucleic acids. Although the HUDSON method exhibited slightly lower sensitivity than the commercial kit, the Ct values and the amplification obtained by the two methods were highly consistent, indicating no meaningful difference in overall extraction efficiency. Therefore, the HUDSON method was selected for nucleic acid extraction in all subsequent experiments.

3.2. Establishment of a One-Pot RT-RAA-CRISPR/Cas12a Assay for DENV-2 Detection

The workflow of the RT-RAA CRISPR/Cas12a assay for DENV-2 detection is shown in Figure 2. Briefly, nucleic acids were first extracted from different types of DENV-2-infected samples using the HUDSON method and then used as templates for RT-RAA amplification. The amplification reaction was performed at 39 °C for 25 min at the bottom of the tube, while the CRISPR/Cas12a detection mixture was prepared separately in the tube cap. After RT-RAA amplification was complete, the two components were combined by brief centrifugation and incubated at 39 °C for an additional 20 min. Detection was achieved using an FAM-labelled single-stranded DNA reporter. Upon recognition of the target nucleic acid by a specific crRNA, the CRISPR/Cas12a complex became activated and cleaved the reporter, generating a measurable fluorescent signal. This closed-tube format enables contamination-free and universal DENV-2 detection without the need for tube opening or additional manipulation. Furthermore, a lateral flow detection (LFD) platform was developed, which also exhibited excellent performance for detecting a wide range of DENV-2–infected samples.

3.3. Validation of the RT-RAA-Cas12a Fluorescence Reaction System and Selection of RT-RAA Primers and crRNA

To evaluate the performance of the DENV-2 RT-RAA-Cas12a fluorescence detection system and identify the optimal target sequence, two sets of experiments were designed: component integrity validation and multi-target sequence comparison. These experiments aimed to verify system specificity and maximize detection sensitivity. In the first experiment, individual components including Cas12a protein, crRNA, the ssDNA-FQ reporter probe, and the target amplification product were systematically omitted to examine their impact on fluorescence output. In the second experiment, Cas12a-mediated fluorescence detection was conducted for 20 min under identical conditions using primer–crRNA pairs targeting six conserved regions (C, E, NS1, NS2, NS3, and NS5), based on previously designed RT-RAA primers and 5′-TTTN PAM crRNAs. As shown in Figure 3A, a marked increase in fluorescence signal occurred only when all components—Cas12a protein, crRNA, ssDNA-FQ reporter probe, and the target amplicon—were present, indicating that complete system integrity is required for signal generation. Among the six target regions tested, the primer–crRNA pair targeting the E gene produced the strongest fluorescence signal, significantly surpassing the other five groups (Figure 3B). Therefore, the E-gene target was selected for all subsequent experiments.

3.4. Optimization of the One-Pot RT-RAA-CRISPR/Cas12a Detection Reaction Conditions

To improve the sensitivity and signal-to-noise ratio of the DENV-2 RT-RAA-Cas12a fluorescence detection system while minimizing reaction time and reagent consumption and maintaining maximal fluorescence output, five key parameters were systematically optimized using a single-factor rotation strategy: RT-RAA incubation time, CRISPR reaction temperature, Cas12a concentration, Cas12a-to-crRNA molar ratio, and ssDNA probe concentration. Endpoint fluorescence intensity was measured after a 20-minCRISPR/Cas12a reaction. As shown in Figure 4A, fluorescence intensity reached a plateau at an RT-RAA incubation time of 25 min, with no further increase upon extending the reaction time. Cas12a exhibited maximal cleavage activity at 39 °C, whereas either higher or lower temperatures resulted in decreased fluorescence output (Figure 4B). The strongest fluorescence signal was obtained at a final Cas12a concentration of 500 nM and a Cas12a-to-crRNA molar ratio of 1:2, while deviations from this ratio resulted in reduced signal intensity (Figure 4C,D). Additionally, the ssDNA-FQ probe produced saturated fluorescence at a concentration of 10 μM; further increases in probe concentration elevated background fluorescence without improving signal intensity (Figure 4E).

3.5. Sensitivity and Specificity Analysis of the One-Pot RT-RAA-CRISPR/Cas12a Detection Method

To assess the sensitivity and specificity of the DENV-2 RT-RAA-Cas12a fluorescence detection system, and to verify its ability to accurately identify DENV-2 in mixed arbovirus samples without cross-reactivity, gradient-diluted DENV-2 nucleic acid samples (108–101 copies/μL) were tested alongside nucleic acids from other arboviruses, including DENV-1/3/4, ZIKV, CHIKV, YFV, and JEV under the optimized reaction conditions. As shown in Figure 5A, the cleavage kinetics of Cas12a targeting the E gene progressively slowed as the DENV-2 copy number decreased, and the detection limit of the assay was determined to be 1 × 102 copies/μL. In addition, DENV-2 nucleic acids were accurately distinguished from those of other DENV serotypes and other arboviruses, with no detectable cross-reactivity (Figure 5B,C), indicating that the assay exhibits 100% specificity for DENV-2.

3.6. Detection of Simulated Virus-Infected Samples

The objective of this study is to evaluate the applicability of the RT-RAA/CRISPR detection method across multiple sample types and its potential use in field vector surveillance. Cell samples (BHK, Vero), serum samples, and mosquito samples (Aedes aegypti and Aedes albopictus) were analyzed and compared with qPCR quantification results (Figure 6A–F). The corresponding copy numbers are summarized in Table 4. All test samples yielded positive signals, whereas the negative controls showed no detectable fluorescence. In general, strong positive bands corresponded to higher viral loads (103–105 copies), while weak positive bands were primarily observed in samples with low viral copy numbers (<103). These findings presented herein demonstrate that the RT-RAA/CRISPR assay reliably detects target RNA in both cellular and mosquito samples. Its sensitivity and specificity are comparable to those of qPCR, while offering additional advantages such as operational simplicity and intuitive result interpretation. Overall, the system shows strong potential for field-based vector surveillance applications.

4. Discussion

Dengue virus (DENV) is a mosquito-borne flavivirus and one of the most prevalent vector-borne viral pathogens in tropical and subtropical regions [36], posing a substantial threat to global public health [37]. Given the current lack of specific antiviral therapies and broadly effective vaccines, the development of rapid and accurate early detection technologies for DENV is essential for epidemic prevention and for strengthening public health responses.
In recent years, CRISPR-Cas-based nucleic acid detection platforms have shown substantial potential for pathogen diagnostics [38]. In this study, we successfully established an RAA-CRISPR-Cas12a assay for the rapid detection of DENV-2, achieving a sensitivity of 100 copies/μL. This detection limit is consistent with that of the one-step DENV assay reported by Zhang et al. [16] and surpasses that of conventional PCR methods, which typically detect 102–103 copies/μL. These findings highlight the promising applicability of this assay for field-based dengue surveillance. After system optimization and performance evaluation, several clear advantages of this approach were demonstrated. First, the assay allows visual result interpretation using lateral flow test strips, eliminating the need for complex instrumentation or specialized personnel. Second, unlike the strategy used by Wang et al. [39], who employed RAA or PCR alone, our method integrates RAA amplification with CRISPR detection, leveraging the high specificity of Cas12a. This design minimizes the loss of trace nucleic acids during handling and thereby enhances detection accuracy. Third, the entire workflow operates as a closed, single-tube reaction. In contrast to methods reported by Kellner et al. [40] for ZIKV detection and by Ma et al. [41] for gonococcal detection, which require opening the reaction tube during amplification, this closed-tube format markedly reduces the risk of aerosol contamination. This study also integrated the HUDSON nucleic acid release procedure with RT-RAA amplification and CRISPR/Cas12a detection into a unified diagnostic system. The HUDSON method releases nucleic acids by heating small sample volumes mixed with TCEP and EDTA (for example, serum samples at 42 °C for 20 min, followed by 64 °C for 5 min, and urine samples at 95 °C for 10 min). Compared with traditional kit-based extraction methods, which generally require over 140 μL of sample, involve cumbersome procedures, and incur high costs, HUDSON is simple, rapid, and cost-effective. Although reverse transcription quantitative PCR (RT-qPCR) remains the diagnostic gold standard, it requires expensive instrumentation [42] and well-equipped laboratories [43] and is typically time-consuming. By incorporating the HUDSON method, our assay reduced the overall sample-to-result time to approximately 55–70 min, offering clear advantages in both cost and turnaround time (Figure 7). Regarding specificity, our method was compared with existing commercial assays, such as PanBio Capture IgM ELISA, which has a reported sensitivity and specificity of 86% and 87%, respectively [44]. In contrast our system exhibited no cross-reactivity when tested against multiple arboviruses, including DENV-1/3/4, ZIKV, JEV, CHIKV, and YFV, effectively avoiding false-positive results caused by serological or genetic cross-reactivity and thereby substantially enhancing diagnostic specificity. The results from simulated sample testing indicate that this method exhibits high sensitivity and robust operability under conditions representative of field surveillance. When combined with lateral flow strip-based visual readouts, it is particularly well suited for vector monitoring of dengue fever and for on-site prevention and control efforts in resource-limited settings. In addition, the method is highly economical, with an estimated cost of only USD 4.53 per test, making it feasible for large-scale deployment. In summary, the nucleic acid-free/RT-RAA/CRISPR-Cas12a–based on-site rapid detection method for DENV-2, developed in this study, offers the combined advantages of speed, accuracy, and cost-effectiveness, making it suitable as a promising tool for large-scale screening and field vector surveillance applications.

5. Conclusions

In this study, we developed a rapid point-of-care detection technology system for DENV-2 based on the HUDSON nucleic acid-free procedure, RT-RAA amplification, and CRISPR-Cas12a detection. The system demonstrated high specificity and sensitivity for DENV-2, with no false-positive results observed. Moreover, the assay requires only minimal instrumentation, making it particularly suitable for large-scale population screening and field-based vector surveillance. Overall, this technology provides an efficient tool for the early diagnosis of DENV-2 infection and offers reliable technical support for dengue surveillance, prevention, and public health response efforts.

Author Contributions

C.T.: data curation, formal analysis, visualization, and writing—original draft. S.X.: investigation, data curation, and formal analysis. X.X.: investigation and data curation. X.C.: investigation and data curation. X.L.: investigation and validation. W.W.: investigation. L.L.: investigation. X.Z.: data curation, project administration, supervision, and writing—review and editing. J.W.: data curation, project administration, supervision, and writing—review and editing. C.L.: data curation, project administration, supervision, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (Grant No. 2024YFC2607800).

Institutional Review Board Statement

The animal study was reviewed and approved by the Institutional Animal Care and Use Committee of the State Key Laboratory of Pathogen and Biosecurity, Beijing Institute of Microbiology and Epidemiology (2025-A084), approval date: 20 August 2025.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, W.H.; Urbina, A.N.; Chang, M.R. Dengue hemorrhagic fever-A systemic literature review of current perspectives on pathogenesis, prevention and control. J. Microbiol. Immunol. Infect. Wei Mian Yu Gan Ran Za Zhi 2020, 53, 963–978. [Google Scholar] [CrossRef]
  2. Guzman, M.G.; Halstead, S.B.; Artsob, H. Dengue: A continuing global threat. Nat. Rev. Microbiol. 2010, 8 (Suppl. S12), S7–S16. [Google Scholar] [CrossRef] [PubMed]
  3. Guo, C.; Zhou, Z.; Wen, Z. Global Epidemiology of Dengue Outbreaks in 1990–2015: A Systematic Review and Meta-Analysis. Front. Cell. Infect. Microbiol. 2017, 7, 317. [Google Scholar] [CrossRef] [PubMed]
  4. Daep, C.A.; Muñoz-Jordán, J.L.; Eugenin, E.A. Flaviviruses, an expanding threat in public health: Focus on dengue, West Nile, and Japanese encephalitis virus. J. Neurovirol. 2014, 20, 539–560. [Google Scholar] [CrossRef] [PubMed]
  5. Katzelnick, L.C.; Coello Escoto, A.; Huang, A.T.; Garcia-Carreras, B.; Chowdhury, N.; Maljkovic Berry, I.; Chavez, C.; Buchy, P.; Duong, V.; Dussart, P.; et al. Antigenic evolution of dengue viruses over 20 years. Science 2021, 374, 999–1004. [Google Scholar] [CrossRef]
  6. Balmaseda, A.; Hammond, S.N.; Pérez, L.; Tellez, Y.; Saborío, S.I.; Mercado, J.C.; Cuadra, R.; Rocha, J.; Pérez, M.A.; Silva, S.; et al. Serotype-specific differences in clinical manifestations of dengue. Am. J. Trop. Med. Hyg. 2006, 74, 449–456. [Google Scholar] [CrossRef]
  7. Bhardwaj, P.; Dhangur, P.; Kalichamy, A.; Singh, R. RT-RPA Assisted CRISPR/Cas12a Based One-Pot Rapid and Visual Detection of the Pan-Dengue Virus. J. Med. Virol. 2025, 97, e70219. [Google Scholar] [CrossRef]
  8. Lim, S.P.; Noble, C.G.; Shi, P.Y. The dengue virus NS5 protein as a target for drug discovery. Antivir. Res. 2015, 119, 57–67. [Google Scholar] [CrossRef]
  9. WHO Guidelines Approved by the Guidelines Review Committee. In Dengue: Guidelines for Diagnosis, Treatment, Prevention and Control: New Edition; World Health Organization: Geneva, Switzerland, 2009.
  10. Guzman, M.G.; Alvarez, M.; Halstead, S.B. Secondary infection as a risk factor for dengue hemorrhagic fever/dengue shock syndrome: An historical perspective and role of antibody-dependent enhancement of infection. Arch. Virol. 2013, 158, 1445–1459. [Google Scholar] [CrossRef]
  11. Thomas, S.J.; Endy, T.P. Critical issues in dengue vaccine development. Curr. Opin. Infect. Dis. 2011, 24, 442–450. [Google Scholar] [CrossRef]
  12. Thisyakorn, U.; Thisyakorn, C. Latest developments and future directions in dengue vaccines. Ther. Adv. Vaccines 2014, 2, 3–9. [Google Scholar] [CrossRef]
  13. Stewart Ibarra, A.M.; Luzadis, V.A.; Borbor Cordova, M.J.; Silva, M.; Ordoñez, T.; Beltrán Ayala, E.; Ryan, S.J. A social-ecological analysis of community perceptions of dengue fever and Aedes aegypti in Machala, Ecuador. BMC Public Health 2014, 14, 1135. [Google Scholar] [CrossRef]
  14. Paniz-Mondolfi, A.E.; Rodriguez-Morales, A.J.; Blohm, G. ChikDenMaZika Syndrome: The challenge of diagnosing arboviral infections in the midst of concurrent epidemics. Ann. Clin. Microbiol. Antimicrob. 2016, 15, 42. [Google Scholar] [CrossRef]
  15. Park, G.; Park, H.; Park, S.C. Recent Developments in DNA-Nanotechnology-Powered Biosensors for Zika/Dengue Virus Molecular Diagnostics. Nanomaterials 2023, 13, 361. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Xiang, Y.; Hou, D. A one-pot method for universal Dengue virus detection by combining RT-RPA amplification and CRISPR/Cas12a assay. BMC Microbiol. 2025, 25, 163. [Google Scholar] [CrossRef]
  17. Zetsche, B.; Gootenberg, J.S.; Abudayyeh, O.O.; Slaymaker, I.M.; Makarova, K.S.; Essletzbichler, P.; Volz, S.E.; Joung, J.; van der Oost, J.; Regev, A.; et al. Cpf1 is a single RNA-guided endonuclease of a class 2 CRISPR-Cas system. Cell 2015, 163, 759–771. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, J.S.; Ma, E.; Harrington, L.B.; Da Costa, M.; Tian, X.; Palefsky, J.M.; Doudna, J.A. CRISPR-Cas12a target binding unleashes indiscriminate single-stranded DNase activity. Science 2018, 360, 436–439. [Google Scholar] [CrossRef] [PubMed]
  19. Gootenberg, J.S.; Abudayyeh, O.O.; Kellner, M.J. Multiplexed and portable nucleic acid detection platform with Cas13, Cas12a, and Csm6. Science 2018, 360, 439–444. [Google Scholar] [CrossRef] [PubMed]
  20. Shen, Y.; Hu, K.; Yuan, M.; Duan, G.; Guo, Y.; Chen, S. Progress and bioapplication of CRISPR-based one-step, quantitative and multiplexed infectious disease diagnostics. J. Appl. Microbiol. 2023, 134, lxad035. [Google Scholar] [CrossRef]
  21. Zhang, Y.; Yu, W.; Wang, M.; Zhang, L.; Li, P. Nanozyme-assisted amplification-free CRISPR/Cas system realizes visual detection. Front. Bioeng. Biotechnol. 2023, 11, 1327498. [Google Scholar] [CrossRef]
  22. Lobato, I.M.; O’Sullivan, C.K. Recombinase polymerase amplification: Basics, applications and recent advances. Trends Anal. Chem. TRAC 2018, 98, 19–35. [Google Scholar] [CrossRef]
  23. Mao, X.; Xu, M.; Luo, S.; Yang, Y.; Zhong, J.; Zhou, J.; Fan, H.; Li, X.; Chen, Z. Advancements in the synergy of isothermal amplification and CRISPR-cas technologies for pathogen detection. Front. Bioeng. Biotechnol. 2023, 11, 1273988. [Google Scholar] [CrossRef]
  24. Li, X.; Zhu, S.; Zhang, X.; Ren, Y.; He, J.; Zhou, J.; Yin, L.; Wang, G.; Zhong, T.; Wang, L.; et al. Advances in the application of recombinase-aided amplification combined with CRISPR-Cas technology in quick detection of pathogenic microbes. Front. Bioeng. Biotechnol. 2023, 11, 1215466. [Google Scholar] [CrossRef]
  25. Cao, Y.; Wang, J.; Fan, Z.; Xu, L.; Pan, Z.; Mo, Y.; Yang, Q.; Huang, J.; Ren, F. An extraction-free, lyophilized one-pot RAA-CRISPR assay for point-of-care testing of Haemophilus influenzae. J. Clin. Microbiol. 2025, 63, e0053525. [Google Scholar] [CrossRef]
  26. Chen, Y.; Mei, Y.; Zhao, X.; Jiang, X. Reagents-Loaded, Automated Assay that Integrates Recombinase-Aided Amplification and Cas12a Nucleic Acid Detection for a Point-of-Care Test. Anal. Chem. 2020, 92, 14846–14852. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, Y.; Zong, N.; Ye, F.; Mei, Y.; Qu, J.; Jiang, X. Dual-CRISPR/Cas12a-Assisted RT-RAA for Ultrasensitive SARS-CoV-2 Detection on Automated Centrifugal Microfluidics. Anal. Chem. 2022, 94, 9603–9609. [Google Scholar] [CrossRef]
  28. Gao, J.; Huang, S.; Jiang, J.; Miao, Q.; Zheng, R.; Kang, Y.; Tang, W.; Zuo, H.; He, J.; Xie, J. Dual-CRISPR/Cas12a-assisted RT-RAA visualization system for rapid on-site detection of nervous necrosis virus (NNV). Anal. Chim. Acta 2025, 1335, 343469. [Google Scholar] [CrossRef]
  29. Duan, X.; Ma, W.; Jiao, Z.; Tian, Y.; Ismail, R.G.; Zhou, T.; Fan, Z. Reverse transcription-recombinase-aided amplification and CRISPR/Cas12a-based visual detection of maize chlorotic mottle virus. Phytopathol. Res. 2022, 4, 23. [Google Scholar] [CrossRef]
  30. Li, S.Y.; Cheng, Q.X.; Wang, J.M.; Li, X.Y.; Zhang, Z.L.; Gao, S.; Cao, R.B.; Zhao, G.P.; Wang, J. CRISPR-Cas12a-assisted nucleic acid detection. Cell Discov. 2018, 4, 20. [Google Scholar] [CrossRef]
  31. Chen, J.; Wang, Y.; Aikebaier, R.; Liu, H.; Li, Y.; Yang, L.; Haiyilati, A.; Wang, L.; Fu, Q.; Shi, H. RAA-CRISPR/Cas12a-based visual field detection system for rapid and sensitive diagnosis of major viral pathogens in calf diarrhea. Front. Cell. Infect. Microbiol. 2025, 15, 1616161. [Google Scholar] [CrossRef]
  32. Nguyen, L.T.; Macaluso, N.C.; Pizzano, B.L.M.; Cash, M.N.; Spacek, J.; Karasek, J.; Miller, M.R.; Lednicky, J.A.; Dinglasan, R.R.; Salemi, M.; et al. A thermostable Cas12b from Brevibacillus leverages one-pot discrimination of SARS-CoV-2 variants of concern. EBioMedicine 2022, 77, 103926. [Google Scholar] [CrossRef]
  33. Abudayyeh, O.O.; Gootenberg, J.S.; Essletzbichler, P.; Han, S.; Joung, J.; Belanto, J.J.; Verdine, V.; Cox, D.B.T.; Kellner, M.J.; Regev, A.; et al. RNA targeting with CRISPR-Cas13. Nature 2017, 550, 280–284. [Google Scholar] [CrossRef]
  34. Xiong, Y.; Luo, Y.; Li, H.; Wu, W.; Ruan, X.; Mu, X. Rapid visual detection of dengue virus by combining reverse transcription recombinase-aided amplification with lateral-flow dipstick assay. Int. J. Infect. Dis. IJID Off. Publ. Int. Soc. Infect. Dis. 2020, 95, 406–412. [Google Scholar] [CrossRef]
  35. Myhrvold, C.; Freije, C.A.; Gootenberg, J.S. Field-deployable viral diagnostics using CRISPR-Cas13. Science 2018, 360, 444–448. [Google Scholar] [CrossRef]
  36. Ramzan, M.; Yadav, S.P.; Dinand, V. Dengue fever causing febrile neutropenia in children with acute lymphoblastic leukemia: An unknown entity. Hematol. Oncol. Stem Cell Ther. 2013, 6, 65–67. [Google Scholar] [CrossRef]
  37. Zhao, T.; Li, B.Q.; Gao, H.T. Metagenome Sequencing Reveals the Microbiome of Aedes albopictus and Its Possible Relationship With Dengue Virus Susceptibility. Front. Microbiol. 2022, 13, 891151. [Google Scholar] [CrossRef]
  38. Li, S.; Wang, X.; Yu, Y. Establishment and application of a CRISPR-Cas12a-based RPA-LFS and fluorescence for the detection of Trichomonas vaginalis. Parasites Vectors 2022, 15, 350. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, S.; Li, H.; Kou, Z. Highly sensitive and specific detection of hepatitis B virus DNA and drug resistance mutations utilizing the PCR-based CRISPR-Cas13a system. Clin. Microbiol. Infect. Off. Publ. Eur. Soc. Clin. Microbiol. Infect. Dis. 2021, 27, 443–450. [Google Scholar] [CrossRef]
  40. Kellner, M.J.; Koob, J.G.; Gootenberg, J.S.; Abudayyeh, O.O.; Zhang, F. SHERLOCK: Nucleic acid detection with CRISPR nucleases. Nat. Protoc. 2019, 14, 2986–3012. [Google Scholar] [CrossRef] [PubMed]
  41. Ma, Q.N.; Wang, M.; Zheng, L.B.; Lin, Z.Q.; Ehsan, M.; Xiao, X.X.; Zhu, X.Q. RAA-Cas12a-Tg: A Nucleic Acid Detection System for Toxoplasma gondii Based on CRISPR-Cas12a Combined with Recombinase-Aided Amplification (RAA). Microorganisms 2021, 9, 1644. [Google Scholar] [CrossRef] [PubMed]
  42. Faria, N.R.; Quick, J.; Claro, I.M. Establishment and cryptic transmission of Zika virus in Brazil and the Americas. Nature 2017, 546, 406–410. [Google Scholar] [CrossRef] [PubMed]
  43. Kabir, M.A.; Zilouchian, H.; Younas, M.A.; Asghar, W. Dengue Detection: Advances in Diagnostic Tools from Conventional Technology to Point of Care. Biosensors 2021, 11, 206. [Google Scholar] [CrossRef] [PubMed]
  44. Pillay, K.; Keddie, S.H.; Fitchett, E.; Akinde, C.; Bärenbold, O.; Bradley, J.; Falconer, J.; Keogh, R.H.; Lim, Z.N.; Nezafat Maldonado, B.; et al. Evaluating the performance of common reference laboratory tests for acute dengue diagnosis: A systematic review and meta-analysis of RT-PCR, NS1 ELISA, and IgM ELISA. Lancet. Microbe 2025, 6, 101088. [Google Scholar] [CrossRef] [PubMed]
Viruses 17 01579 g001

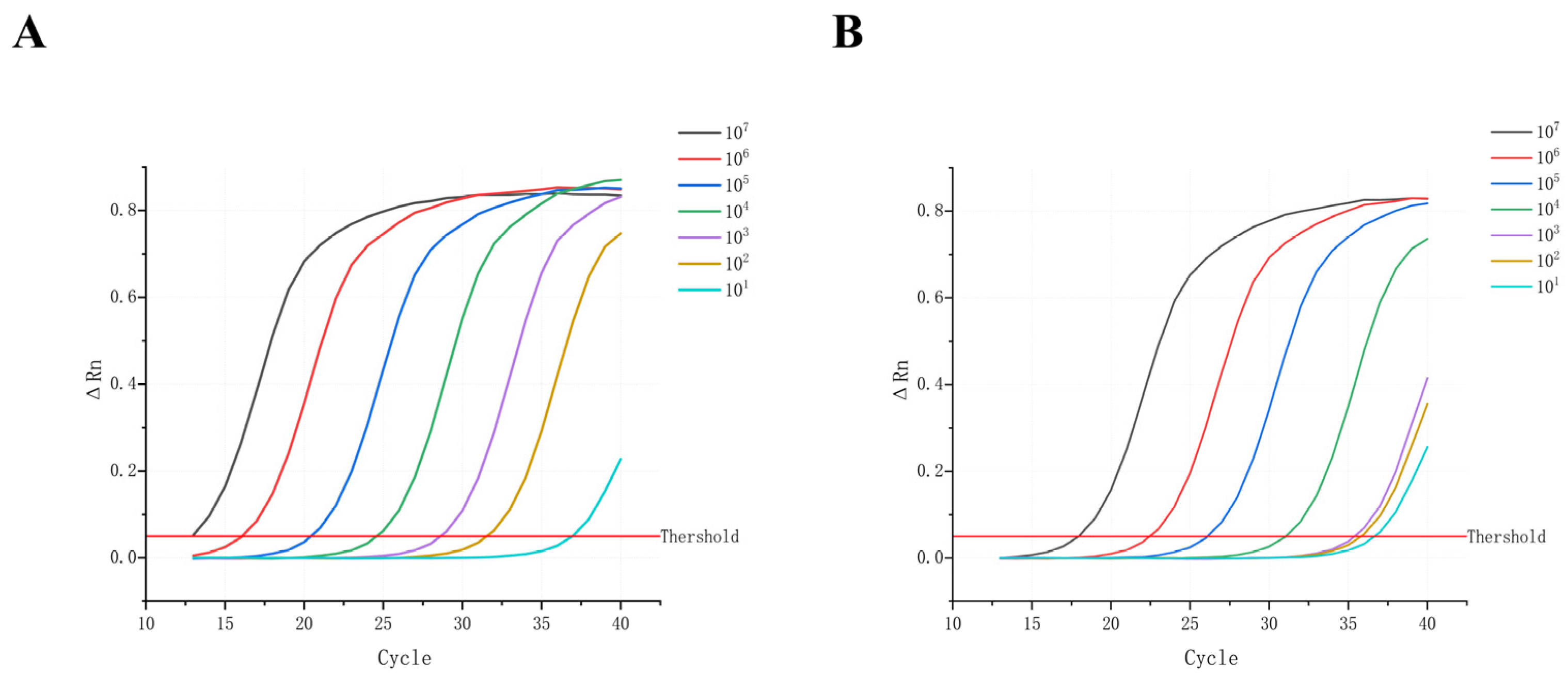

Figure 1. Comparison of nucleic acid extraction efficiency between the commercial kit and the HUDSON method. (A) RT-qPCR detection results for nucleic acids extracted using the commercial kit method. (B) RT-qPCR detection results for nucleic acids released using the HUDSON method.
Figure 1. Comparison of nucleic acid extraction efficiency between the commercial kit and the HUDSON method. (A) RT-qPCR detection results for nucleic acids extracted using the commercial kit method. (B) RT-qPCR detection results for nucleic acids released using the HUDSON method.
Viruses 17 01579 g001
Viruses 17 01579 g002

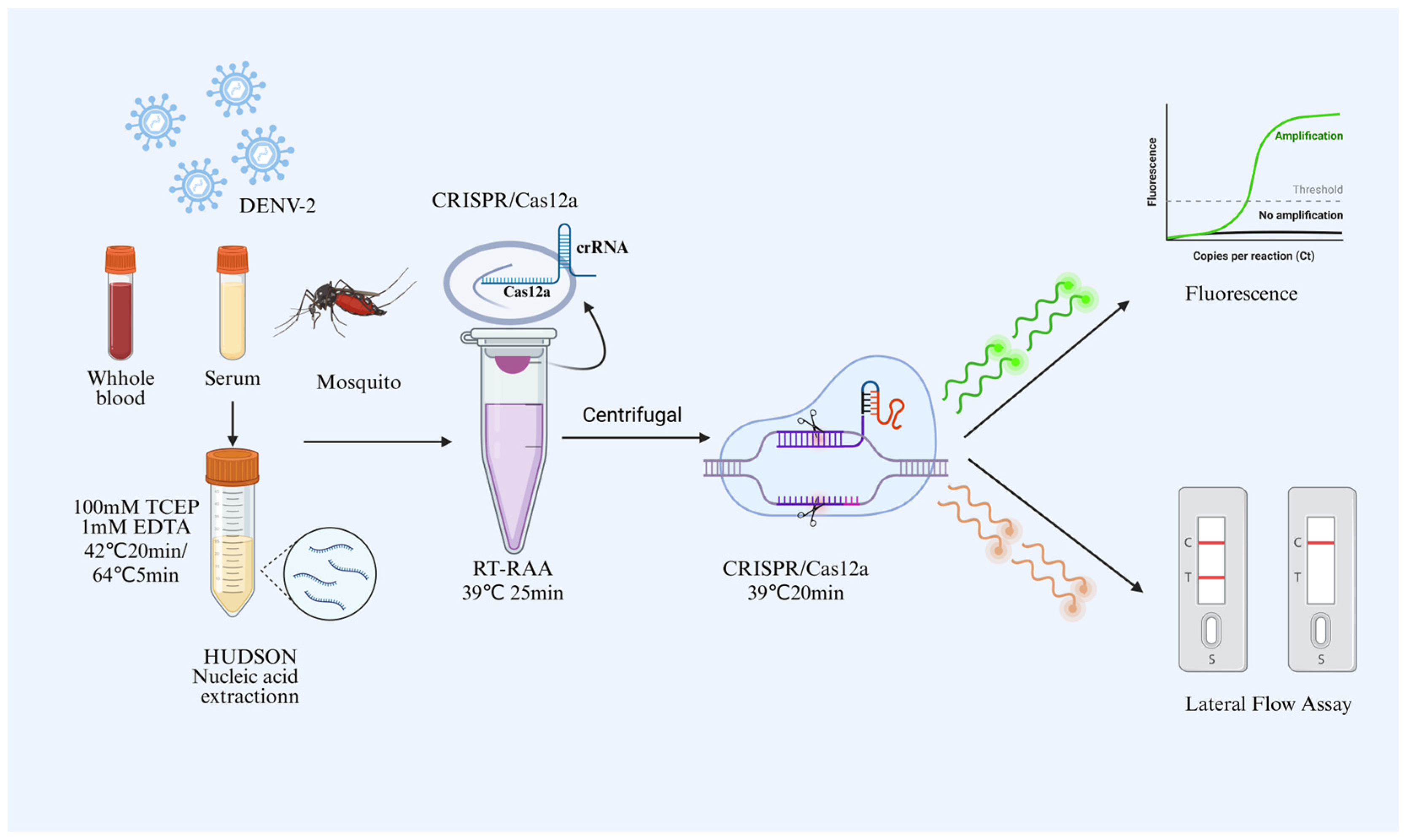

Figure 2. Workflow diagram of the one-pot assay. Color elements in the schematic are used solely for illustration and to distinguish different components; they do not represent experimental differences.
Figure 2. Workflow diagram of the one-pot assay. Color elements in the schematic are used solely for illustration and to distinguish different components; they do not represent experimental differences.
Viruses 17 01579 g002
Viruses 17 01579 g003

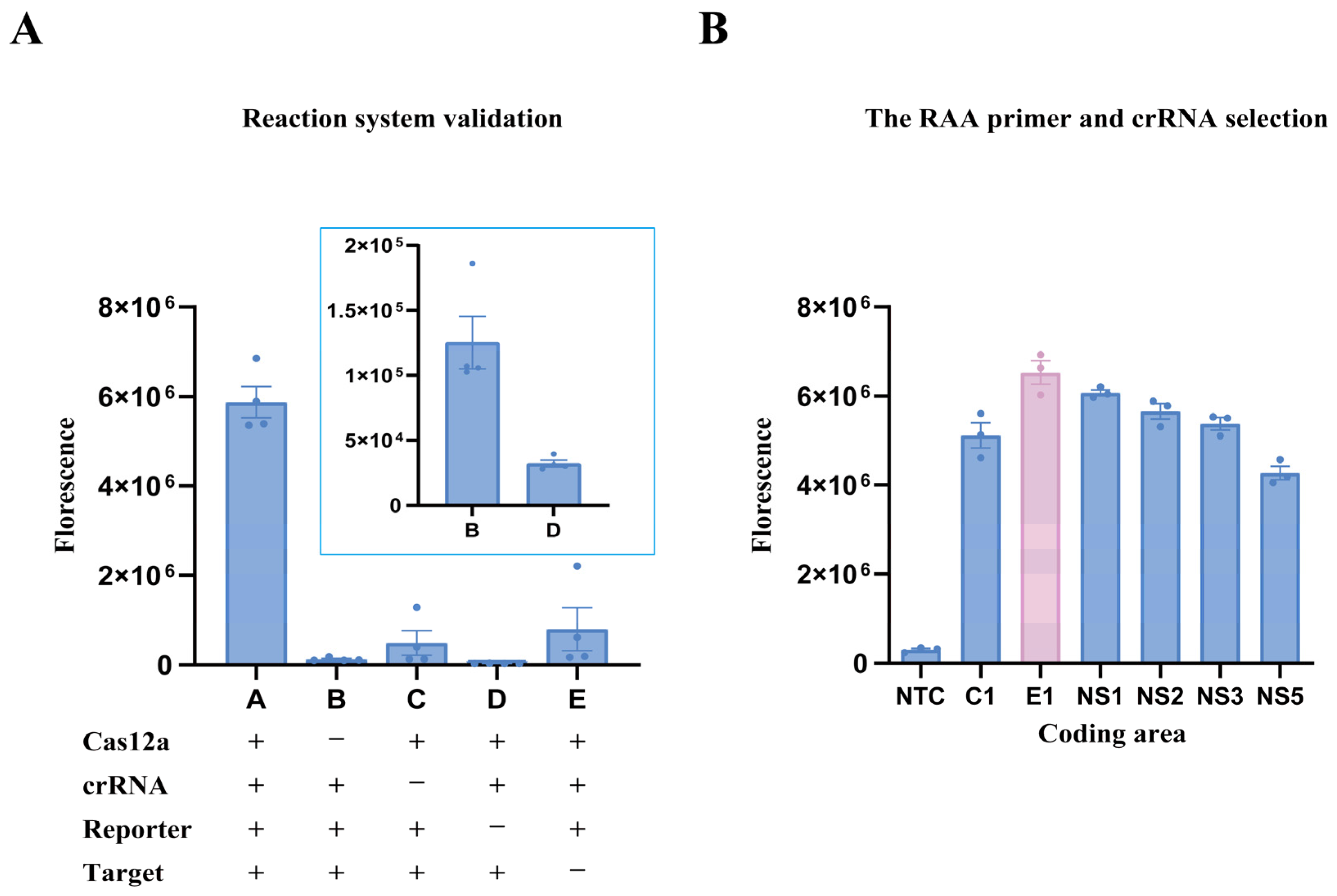

Figure 3. Validation of the RT-RAA-Cas12a fluorescence reaction system and reaction results for six loci within the DENV-2 genome. (A) Component integrity validation of the DENV-2 RT-RAA-Cas12a fluorescence system. Fluorescence signals appeared only when all components (Cas12a, crRNA, ssDNA-FQ reporter, and target amplicon) were present, confirming the necessity of complete system integrity for signal generation. Fluorescence output was quantified under reaction conditions in which individual components were systematically omitted to assess their necessity for Cas12a activation. Reaction groups A–E correspond to the following compositions: A, complete reaction containing Cas12a, crRNA, reporter, and target; B, absence of Cas12a; C, absence of crRNA; D, absence of reporter; E, absence of target. (B) Comparison of six DENV-2 genomic targets in the RT-RAA-Cas12a assay. Among the C, E, NS1, NS2, NS3, and NS5 targets, the E-gene primer–crRNA pair yielded the strongest fluorescence, indicating the highest detection sensitivity and serving as the optimal target for subsequent analyses.
Figure 3. Validation of the RT-RAA-Cas12a fluorescence reaction system and reaction results for six loci within the DENV-2 genome. (A) Component integrity validation of the DENV-2 RT-RAA-Cas12a fluorescence system. Fluorescence signals appeared only when all components (Cas12a, crRNA, ssDNA-FQ reporter, and target amplicon) were present, confirming the necessity of complete system integrity for signal generation. Fluorescence output was quantified under reaction conditions in which individual components were systematically omitted to assess their necessity for Cas12a activation. Reaction groups A–E correspond to the following compositions: A, complete reaction containing Cas12a, crRNA, reporter, and target; B, absence of Cas12a; C, absence of crRNA; D, absence of reporter; E, absence of target. (B) Comparison of six DENV-2 genomic targets in the RT-RAA-Cas12a assay. Among the C, E, NS1, NS2, NS3, and NS5 targets, the E-gene primer–crRNA pair yielded the strongest fluorescence, indicating the highest detection sensitivity and serving as the optimal target for subsequent analyses.
Viruses 17 01579 g003
Viruses 17 01579 g004

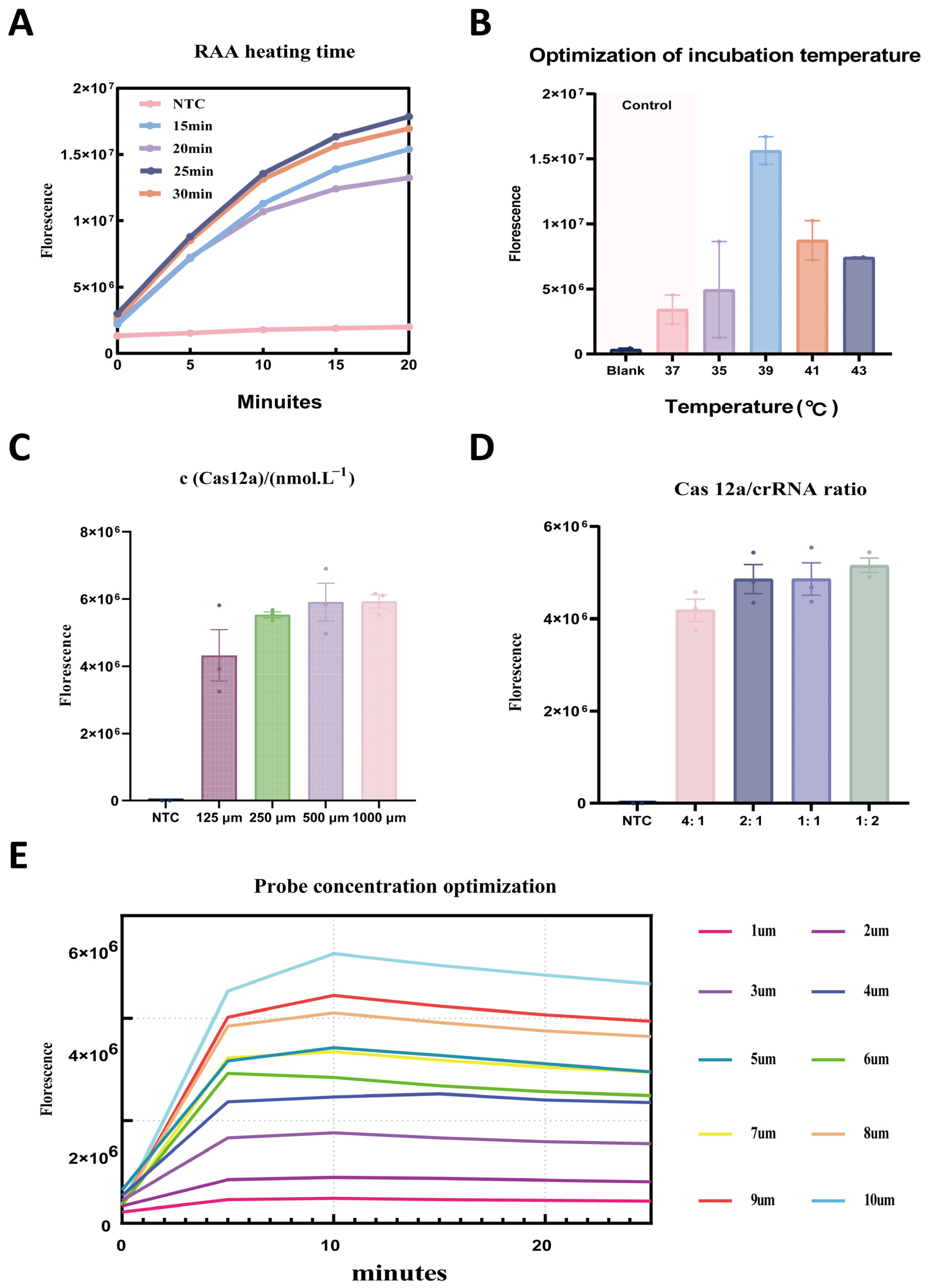

Figure 4. Optimization of a Single-Pot RAA CRISPR/Cas12a System for the Detection of DENV-2. (A) Optimization of RT-RAA incubation time for the DENV-2 RT-RAA-Cas12a fluorescence assay. (B) Effect of CRISPR reaction temperature on Cas12a cleavage activity. (C) Effect of Cas12a concentration on fluorescence signal intensity. (D) Effect of the Cas12a-to-crRNA molar ratio on fluorescence signal. (E) Optimization of ssDNA-FQ probe concentration.
Figure 4. Optimization of a Single-Pot RAA CRISPR/Cas12a System for the Detection of DENV-2. (A) Optimization of RT-RAA incubation time for the DENV-2 RT-RAA-Cas12a fluorescence assay. (B) Effect of CRISPR reaction temperature on Cas12a cleavage activity. (C) Effect of Cas12a concentration on fluorescence signal intensity. (D) Effect of the Cas12a-to-crRNA molar ratio on fluorescence signal. (E) Optimization of ssDNA-FQ probe concentration.
Viruses 17 01579 g004
Viruses 17 01579 g005

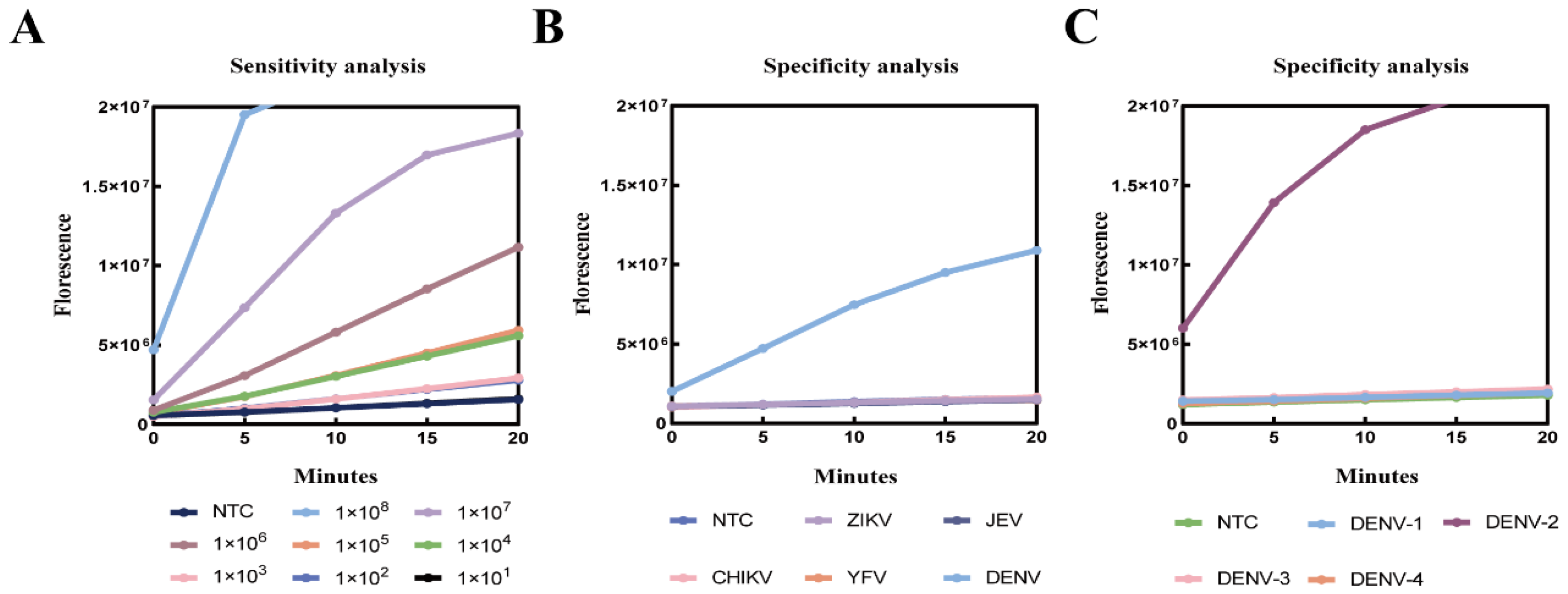

Figure 5. Test Results for Sensitivity and Specificity of the CRISPR/Cas12a System. (A) Sensitivity analysis of the DENV-2 RT-RAA-Cas12a fluorescence detection system. (B) Cross-reactivity analysis with other arboviruses. (C) Specificity evaluation of the DENV-2 RT-RAA-Cas12a fluorescence detection system against different DENV serotypes.
Figure 5. Test Results for Sensitivity and Specificity of the CRISPR/Cas12a System. (A) Sensitivity analysis of the DENV-2 RT-RAA-Cas12a fluorescence detection system. (B) Cross-reactivity analysis with other arboviruses. (C) Specificity evaluation of the DENV-2 RT-RAA-Cas12a fluorescence detection system against different DENV serotypes.
Viruses 17 01579 g005
Viruses 17 01579 g006

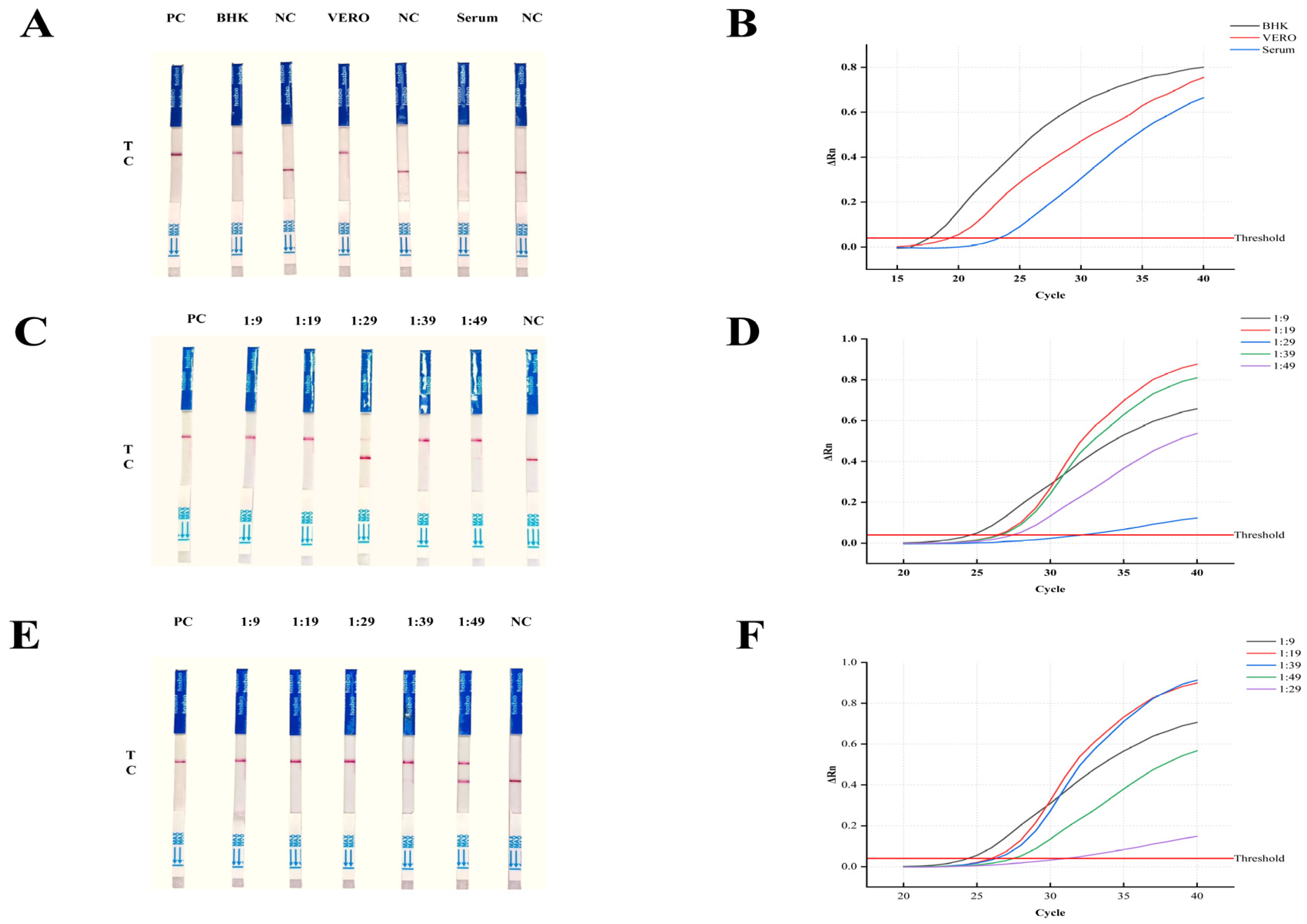

Figure 6. Target RNA detection results obtained using the RT-RAA/CRISPR and qPCR assays. (A,B) Test results for cell samples. (A) RT-RAA/CRISPR Lateral Flow Test Strips. PC: Positive control; BHK: BHK-21 cell; Vero: Vero cell; Serum: Serum sample; NC: Negative control. (B) qPCR amplification curve for the corresponding sample. (C,D) Test results for Aedes aegypti Samples. (C) RT-RAA/CRISPR test strips (samples 1:9–1:49) along with positive and negative controls. (D) qPCR amplification curve for the corresponding sample. (E,F) Test results for Aedes albopictus samples. (E) RT-RAA/CRISPR test strips (samples 1:9–1:49) along with positive and negative controls. (F) qPCR amplification curve for the corresponding sample. The blue arrows and the “MAX” label indicate the correct sample-loading end of the strip and mark the maximum immersion depth during dipping.
Figure 6. Target RNA detection results obtained using the RT-RAA/CRISPR and qPCR assays. (A,B) Test results for cell samples. (A) RT-RAA/CRISPR Lateral Flow Test Strips. PC: Positive control; BHK: BHK-21 cell; Vero: Vero cell; Serum: Serum sample; NC: Negative control. (B) qPCR amplification curve for the corresponding sample. (C,D) Test results for Aedes aegypti Samples. (C) RT-RAA/CRISPR test strips (samples 1:9–1:49) along with positive and negative controls. (D) qPCR amplification curve for the corresponding sample. (E,F) Test results for Aedes albopictus samples. (E) RT-RAA/CRISPR test strips (samples 1:9–1:49) along with positive and negative controls. (F) qPCR amplification curve for the corresponding sample. The blue arrows and the “MAX” label indicate the correct sample-loading end of the strip and mark the maximum immersion depth during dipping.
Viruses 17 01579 g006
Viruses 17 01579 g007

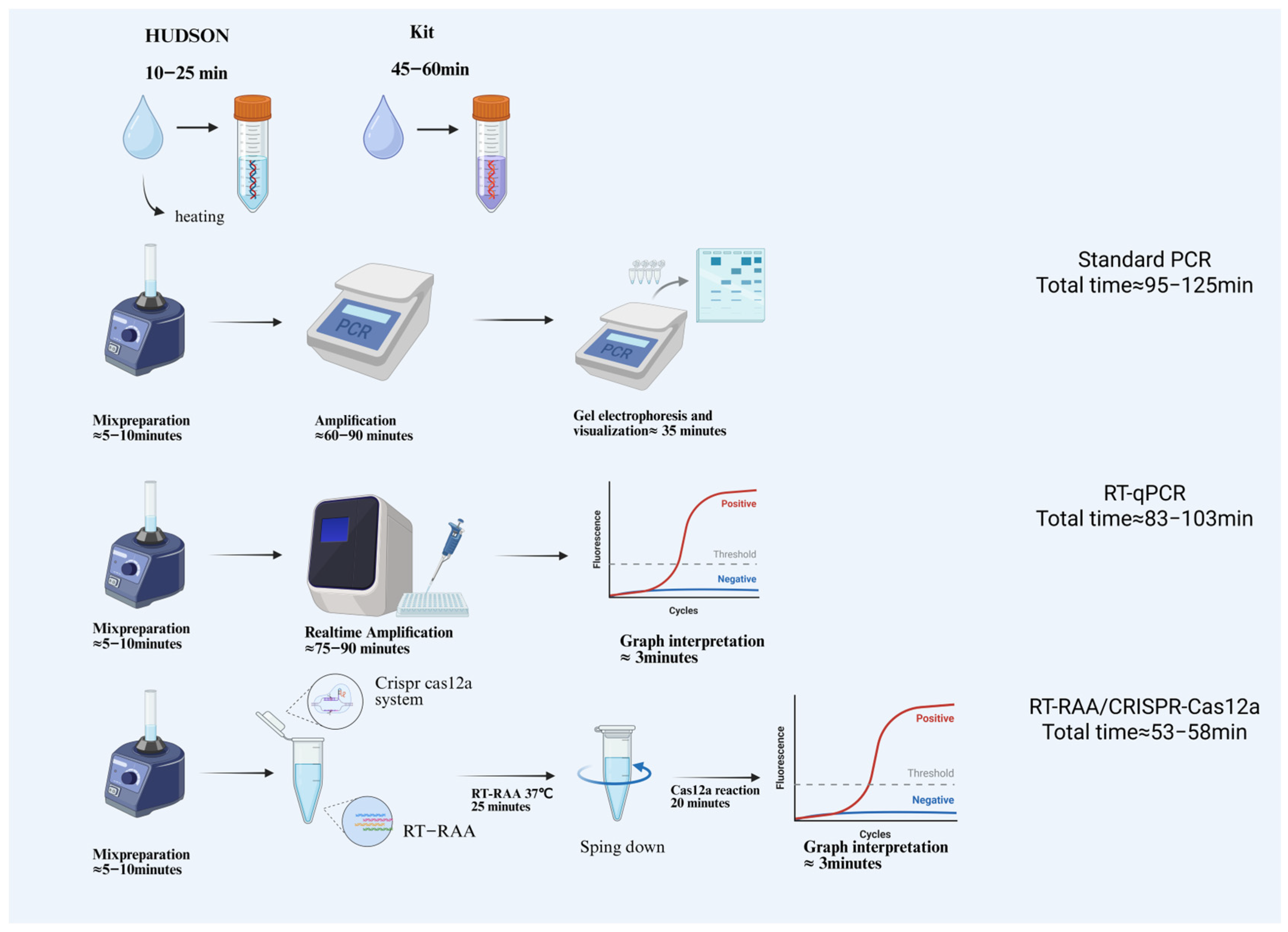

Figure 7. Comparison of HUDSON with Kit-Based PCR/RT-qPCR and One-Pot RT-RAA-CRISPR/Cas12a Detection Workflows. The schematic illustrates the major steps and overall assay time for three nucleic-acid detection workflows. The time required for sample processing—using either HUDSON or a commercial kit—is shown separately to highlight differences in pretreatment duration. After sample preparation, each detection method proceeds through its specific workflow, with the total assay time displayed on the right. Standard PCR includes reaction mixture preparation, thermal cycling amplification, and gel electrophoresis. RT-qPCR involves reaction setup, real-time amplification, and automated fluorescence interpretation. The RT-RAA/CRISPR-Cas12a assay comprises reaction preparation, isothermal amplification, brief centrifugation, and Cas12a-based fluorescence detection. Colors are for visualization only and have no experimental meaning.
Figure 7. Comparison of HUDSON with Kit-Based PCR/RT-qPCR and One-Pot RT-RAA-CRISPR/Cas12a Detection Workflows. The schematic illustrates the major steps and overall assay time for three nucleic-acid detection workflows. The time required for sample processing—using either HUDSON or a commercial kit—is shown separately to highlight differences in pretreatment duration. After sample preparation, each detection method proceeds through its specific workflow, with the total assay time displayed on the right. Standard PCR includes reaction mixture preparation, thermal cycling amplification, and gel electrophoresis. RT-qPCR involves reaction setup, real-time amplification, and automated fluorescence interpretation. The RT-RAA/CRISPR-Cas12a assay comprises reaction preparation, isothermal amplification, brief centrifugation, and Cas12a-based fluorescence detection. Colors are for visualization only and have no experimental meaning.
Viruses 17 01579 g007
Table 1. The One Step qRT-PCR program, run as follows.
Table 1. The One Step qRT-PCR program, run as follows.
Stage 1Reverse TranscriptionRep:150 °C3 min
Stage 2Initial DenaturationRep:195 °C30 s
Stage 3AmplificationRep:4095 °C10 s
60 °C30 s
Stage 4MeltCurve AnalysisRep:195 °C15 s
60 °C60 s
95 °C15 s
Table 2. The RAA primers used in this study include six forward primers (F) and six reverse primers (R).
Table 2. The RAA primers used in this study include six forward primers (F) and six reverse primers (R).
PrimerSequence (5′-3′)
DENV C-F1aaaggcgagaaatacgcctttcaatatgct
DENV C-R1tctgcgtctcctgttcaagatgttcagcat
DENV E-F1tttcaggaggaagctgggttgacatagtcttagaa
DENV E-R1tcacaatgcctccttttccaaataatccac
DENV NS1-F1aacaaagaactgaagtgtggcagtgggatt
DENV NS1-R1ttctgatagaatgtgattcaattctggtgt
DENV NS2-F1gggaagatcaggcagagatatcaggaagca
DENV NS2-R1tcttcacttcccacaggtaccatgctgctg
DENV NS3-F1gattgaaccatcatgggcggacgttaagaa
DENV NS3-R1atatgctccactccttgtaacaacaccatt
DENV NS5 -F1aacaaggtggtgcgtgtgcaaagaccaacaccaag
DENV NS5-R1aatcatctccactgatggccattcttgataacctt
Table 3. The six sets of Cas12a crRNAs used in this study.
Table 3. The six sets of Cas12a crRNAs used in this study.
PrimerSequence (5′-3′)
C crRNAcuaacaaucccaccaacagcaggg
E crRNAaacUgaUaaaaacagaagccaaa
NS1 crRNAaucacagacaacgugcacaca
NS2 crRNAacuaggagucuugggaauggca
NS3 crRNAuccuggaaccucaggaucucc
NS5 crRNAaccaauauggaagcccaacuaa
Table 4. Comparison of RT-RAA/CRISPR detection results and qPCR copy numbers across different sample types.
Table 4. Comparison of RT-RAA/CRISPR detection results and qPCR copy numbers across different sample types.
Sample TypeRT-RAA-CRISPR/Cas12aqPCR (Copies/μL)
BHK cellsPositive275,422.87
Vero cellsPositive141,253.75
SerumPositive31,622.78
Aedes aegypti (1:9)Positive5754
Aedes aegypti (1:19)Positive2949
Aedes aegypti (1:29)Positive308
Aedes aegypti (1:39)Positive1096
Aedes aegypti (1:49)Positive734
Aedes albopictus (1:9)Positive5495
Aedes albopictus (1:19)Positive2691
Aedes albopictus (1:29)Positive2454
Aedes albopictus (1:39)Positive831
Aedes albopictus (1:49)Positive504
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tan, C.; Xing, S.; Xie, X.; Chen, X.; Liu, X.; Wang, W.; Liu, L.; Zhou, X.; Wu, J.; Li, C. Development and Application of a Rapid Field Detection Technology for DENV-2 Based on the HUDSON Nucleic Acid Extraction-Free/RT-RAA/CRISPR-Cas12a System. Viruses 2025, 17, 1579. https://doi.org/10.3390/v17121579

AMA Style

Tan C, Xing S, Xie X, Chen X, Liu X, Wang W, Liu L, Zhou X, Wu J, Li C. Development and Application of a Rapid Field Detection Technology for DENV-2 Based on the HUDSON Nucleic Acid Extraction-Free/RT-RAA/CRISPR-Cas12a System. Viruses. 2025; 17(12):1579. https://doi.org/10.3390/v17121579

Chicago/Turabian Style

Tan, Chang, Siyu Xing, Xiaoxue Xie, Xiaoli Chen, Xiaohui Liu, Wenhao Wang, Lifang Liu, Xinyu Zhou, Jiahong Wu, and Chunxiao Li. 2025. "Development and Application of a Rapid Field Detection Technology for DENV-2 Based on the HUDSON Nucleic Acid Extraction-Free/RT-RAA/CRISPR-Cas12a System" Viruses 17, no. 12: 1579. https://doi.org/10.3390/v17121579

APA Style

Tan, C., Xing, S., Xie, X., Chen, X., Liu, X., Wang, W., Liu, L., Zhou, X., Wu, J., & Li, C. (2025). Development and Application of a Rapid Field Detection Technology for DENV-2 Based on the HUDSON Nucleic Acid Extraction-Free/RT-RAA/CRISPR-Cas12a System. Viruses, 17(12), 1579. https://doi.org/10.3390/v17121579

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
