Article

Comparison of CRISPR–Cas9 Tools for Transcriptional Repression and Gene Disruption in the BEVS

by
Mark R. Bruder
,
Sadru-Dean Walji
and
Marc G. Aucoin
*
Department of Chemical Engineering, University of Waterloo, Waterloo, ON N2L 3G1, Canada
*
Author to whom correspondence should be addressed.
Viruses 2021, 13(10), 1925; https://doi.org/10.3390/v13101925
Submission received: 19 July 2021 / Revised: 14 September 2021 / Accepted: 21 September 2021 / Published: 24 September 2021
(This article belongs to the Special Issue CRISPR/Cas in Viral Research)
Browse Figures
Review Reports Versions Notes

Abstract

The generation of knock-out viruses using recombineering of bacmids has greatly accelerated scrutiny of baculovirus genes for a variety of applications. However, the CRISPR–Cas9 system is a powerful tool that simplifies sequence-specific genome editing and effective transcriptional regulation of genes compared to traditional recombineering and RNAi approaches. Here, the effectiveness of the CRISPR–Cas9 system for gene disruption and transcriptional repression in the BEVS was compared. Cell lines constitutively expressing the cas9 or dcas9 gene were developed, and recombinant baculoviruses delivering the sgRNA were evaluated for disruption or repression of a reporter green fluorescent protein gene. Finally, endogenous AcMNPV genes were targeted for disruption or downregulation to affect gene expression and baculovirus replication. This study provides a proof-of-concept that CRISPR–Cas9 technology may be an effective tool for efficient scrutiny of baculovirus genes through targeted gene disruption and transcriptional repression.

1. Introduction

Baculoviruses are a diverse group of enveloped viruses that contain large, double-stranded DNA (dsDNA) genomes. The insect-specific infection cycle is complex and biphasic; primary infection of the midgut cells of the insect requires occlusion-derived virus (ODVs), which are virions encapsulated in a proteinaceous matrix, while cell–cell transmission is established by the budded virus (BV) phenotype [1]. Initial interest in baculoviruses nearly 100 years ago was for their promise as safe and selective bioinsecticides [2]; however, a recombinant baculovirus Autographa californica multiple nucleopolyhedrovirus (AcMNPV; rBEV) was used to produce human IFN-β in 1983, marking the inception of the baculovirus expression vector system (BEVS) as a platform for recombinant protein production [3]. Recombinant AcMNPV and its permissive cell lines Sf9 or High Five is the most common format of the BEVS [4]. A major milestone of BEVS biotechnology was the development of the bacmid system, which allowed site-specific integration of foreign genes in the AcMNPV genome propagated in E. coli [5]. Coupled with the λ-red or RecET recombineering systems [6,7], mutant AcMNPV genomes with sequence-specific deletions (i.e., knock-out viruses, KOVs) were efficiently obtained, allowing functional studies of many of the ~150 annotated open reading frames (ORFs) of AcMNPV [8,9,10,11,12,13]. Studies identifying per os infectivity factors, genes with insecticidal properties, and gene disruptions that improved recombinant protein production, have also been conducted using bacmid technology [14,15,16,17].
Bacmid technology has undeniably propelled baculovirus biotechnology, but like all genetic engineering approaches, it has drawbacks; even with recombineering, targeted gene disruption requires multiple experimental steps to achieve, and genetic instability has been reported during the ‘hyper-recombination’ state (i.e., during phage recombinase gene expression), resulting in intramolecular rearrangements in E. coli [18]. While this is largely abrogated by recombination of the bacmid and transfer vector in insect cells, isolation of the desired mutant rBEV is challenging with this approach [19]. The evaluation of KOVs is typically conducted by transfecting Sf9 cells with the bacmid and observing the spread of infection, which can be impacted by transfection efficiency, and it may fail to identify ORFs that are amenable to downregulation but not disruption. For example, the disruption of the AcMNPV ORF34 ORF resulted in its categorization as an essential gene; however, its downregulation by RNA interference (RNAi) not only permitted virus replication but improved heterologous gene expression [20]. Finally, trans-complementing cell lines may be required to enable the production of infective virions when essential genes are targeted for disruption [21,22].
Gene silencing via RNAi involves the production of double strand RNA (dsRNA) molecules that inhibit gene expression by triggering the degradation of messenger RNA (mRNA) through the RNA-induced silencing complex (RISC). The dsRNA molecules are typically introduced by the transfection of small interfering RNAs (siRNAs) directly or plasmids from which short hairpin RNAs (shRNA) are transcribed. While less prominently employed compared to gene disruption, RNAi has found utility in the BEVS [23]. Target sequence selection, however, often requires extensive empirical validation to identify high silencing efficiency targets, and the effectiveness may be limited by low transfection efficiency and relatively high cytotoxicity of the transfection reagent [24,25].
The CRISPR–Cas9 system has seen development for precision genome editing and targeted transcriptome engineering in a multitude of biological organisms over the past decade [26,27,28,29]. Genome editing was recently reported in Sf9 and High Five cells, and for genome editing of AcMNPV itself [30,31]. Here, we have extended upon these recent advancements by implementing and comparing strategies based on Cas9 and its nuclease deficient variant dCas9 for targeted gene disruption (CRISPRd) and transcriptional repression (CRISPRi), respectively. Using cell lines developed for expression of the cas9 or dcas9 genes and sgRNAs delivered by the rBEV, 4 genes on the rBEV were targeted for gene disruption and transcriptional repression. In each case, the expected phenotype was observed. Importantly, virus seed stocks could be produced in parental Sf9 cells, and the same rBEVs could be used for evaluating gene disruption and transcriptional repression. Target gene selection is achieved by exchanging the spacer sequence of the sgRNA, which can be done using conventional PCR. Accordingly, this approach simplifies the generation of KOVs by reducing the experimental steps required and allows for investigation of gene function using gene disruption and transcriptional repression using the same rBEV.

2. Materials and Methods

2.1. Cells

Sf9 cells were maintained in suspension culture in Gibco SF900 III serum-free medium (Fisher Scientific, Whitby, ON, Canada) as described previously [32]. Sf9 cells were transfected as adherent cultures in tissue culture treated 6-well plates (VWR, Mississauga, ON, Canada) with Escort IV transfection reagent (Sigma-Aldrich, Oakville, ON, Canada) according to manufacturer’s directions. To derive the transgenic Sf9-Cas9 and Sf9-dCas9 cell lines, parental Sf9 cells were transfected with the plasmid pOpIE2-Cas9-puro or pOpIE2-dCas9-puro, respectively. Approximately 48 h post transfection (hpt), growth medium was aspirated and replaced with fresh medium containing 5 µg/mL puromycin (Sigma-Aldrich). Selective pressure was maintained for at least 2 weeks, and resistant cells were pooled and adapted back to suspension culture. The recombinant cells were maintained in suspension culture for ~10–15 additional passages in medium containing puromycin prior to further analysis.

2.2. Plasmid Construction

All plasmids used in this study were constructed using NEBuilder HiFi DNA Assembly master mix (New England Biolabs, Whitby, ON, Canada) according to the manufacturer’s directions. Primers used for construction of all plasmids and retargeting sgRNAs were purchased from Integrated DNA Technologies (IDT; Coralville, IA, USA) and are listed in Table S1.
To construct plasmid pOpIE2-Cas9-puro, the cas9-T2A-pac region from pAc-sgRNA-Cas9 [33] (Addgene #49330, Cambridge, MA, USA) and a fragment containing the Orgyia pseudotsugata MNPV immediate-early 2 promoter (OpIE2) and 3’ untranslated region (UTR) [34], origin of replication (ori), and ampicillin resistance gene (ampR) for propagation in E. coli were amplified via PCR, and the 2 PCR fragments were used in a Gibson assembly reaction [35]. The resulting plasmid placed the cas9-T2A-puro expression cassette under the control of the constitutive OpIE2 promoter. To generate plasmid pOpIE2-dCas9-puro, the dcas9 ORF was amplified from pdCas9::BFP-humanized [28] (Addgene #44247) and used in a Gibson assembly reaction along with a PCR fragment containing the OpIE2 promoter, T2A-puro cassette, and OpIE2 3’ UTR to place the dCas9 gene under the constitutive control of the OpIE2 promoter.
For plasmids containing the OpIE2-GFP cassette and SfU6 sgRNA, the mAzami-Green gene (Addgene #54798; herein referred to as gfp) encoding a monomeric green-emitting fluorescent protein [36] gene was PCR amplified and placed between the OpIE2 promoter region and 3’ UTR. Separately, the S. frugiperda U6-3 (SfU6) small nuclear RNA (snRNA) promoter [30] was synthesized as a gblock (IDT), and PCR amplified along with the single guide RNA (sgRNA) and transcriptional terminator from plasmid pCFD4-U6:1_U6:3tandemgRNAs [37] (Addgene #49411). The OpIE2-GFP fragments were inserted along with the SfU6-sgRNA DNA fragment into pACUW51 to derive plasmid pOpIE2GFP-sgRNA.
To construct p10-GFP and p6.9-GFP-encoding CRISPR plasmids, first, the coding region of the p10 gene, including upstream and downstream sequences to include its endogenous promoter and 3’ UTR, was amplified from AcMNPV genomic DNA and inserted into pACUW51. The p10 ORF was then replaced with the gfp gene, and the SfU6-sgRNA fragment was inserted downstream to derive p10GFP-sgRNA. Finally, the p6.9 promoter region was amplified from AcMNPV genomic DNA and inserted in place of the p10 promoter sequence in p10GFP-sgRNA to yield p6.9GFP-sgRNA.
The spacer sequences used to target Cas9 and dCas9 to specific AcMNPV genomic loci were selected using the sgRNA scorer 2.0 software [38]. Briefly, the coding sequence for the target gene was submitted to the sgRNA scorer 2.0 software which generated a list of putative target sites scored according to their predicted activity. For each gene target, 2–4 target sequences were selected based on two criteria: predicted activity and the strand (template or nontemplate) the target sequence resided on. Inverse PCR was used to retarget sgRNA spacer sequences to the target of interest [39]. Two primers were designed to anneal to the cas9 handle of the sgRNA sequence and to the U6 promoter sequence and extend in opposite directions. The desired targeting spacer sequence was appended to these primer sequences, which were used to amplify the entire plasmid as a linear fragment. The spacer sequence served as the homologous sequence required for Gibson assembly to ligate and re-circularize the new plasmid. The spacer sequences used in this study are presented in Table 1.

2.3. Virus Generation, Amplification, and Quantification

Plasmids for homologous recombination at the polyhedrin locus in the AcMNPV genome were co-transfected with flashBACGOLD™ (Oxford Expression Technologies Ltd., Oxford, UK) genomic DNA according to manufacturer’s directions. Supernatant from each transfection was harvested 4–5 days post transfection and used to infect early exponential phase (~1.5–2 × 106 cells/mL) suspension Sf9 cultures at low multiplicity of infection (MOI; MOI = ~0.01–0.1) to amplify the rBEVs for 3–4 days or until the viable cell density dropped to ~80%. After 2 sequential rounds of amplification, the rBEV titer was quantified using end-point dilution assay (EPDA). Briefly, Sf9 cells were diluted to ~2.0 × 105 cells/mL, and 100 µL was used to seed each well of a 96-well plate (VWR). The virus was serially diluted (10−2 to 10−8), and 10 µL of each dilution was added, in 12 replicates, to the 96-well plate. Plates were incubated for seven days at 27 °C, after which they were checked for green fluorescence using a fluorescence microscope. Results were converted from TCID50 and reported as plaque forming units per ml (pfu/mL). Where appropriate, tests for statistical significance of differences in infectious virus titer were performed using Student’s t-test, with a significance level value of 5%.

2.4. Infections

Sf9-dCas9, Sf9-Cas9, or the parental Sf9 cells were infected with rBEVs at a density of ~1.5–2 × 106 cells/mL and MOI of 3. Samples were taken at 24, 48, and 72 h post infection (hpi), and cells were fixed with 2% paraformaldehyde for ~30 min prior to further analysis.

2.5. Flow Cytometry and Analysis

Samples were analyzed using a FACSCalibur™ flow cytometer (BD Biosciences, San Jose, CA, USA) equipped with a 15 mW air-cooled argon-ion laser with an excitation frequency of 488 nm. Samples were run at the low flow setting (12 µL/min), and 10,000 events were collected. The analysis of flow cytometry data was performed using FlowJo® V10 flow cytometry analysis software (FlowJo LLC, Ashland, OR, USA). Briefly, after applying gates to remove debris and intrinsic cellular fluorescence from the analysis, median fluorescence intensity in FL1 was calculated. Where appropriate, tests for statistical significance of differences in fluorescence intensity were performed using Student’s t-test, with a significance level value of 5%.

2.6. Real-Time Reverse Transcription Polymerase Chain Reaction (RT-PCR)

Infected cells (~1.5–2 × 106 cells/mL, MOI = 3) were collected at 0, 24, 48, and 72 hpi by centrifugation at 1000× g for 10 min at 4 °C. RNA was extracted using the Geneaid Total RNA Mini kit (FroggaBio, Concord, ON, Canada), and 500 ng was used as template for first-strand cDNA synthesis using the SensiFAST cDNA synthesis kit (FroggaBio) according to manufacturer’s directions. Real-time PCR was performed using the SensiFAST SYBR Hi-ROX kit (FroggaBio) according to manufacturer’s directions on an Applied Biosystems StepOnePlus™ Real-Time PCR System (Fisher Scientific). Primer pairs used are given in Table S1.

2.7. Western Blot

Infected cells (~1.5–2 × 106 cells/mL, MOI = 3) were collected at 0, 24, 48, and 72 hpi by centrifugation at 1000× g for 10 min at 4 °C. The cells were lysed in RIPA buffer (Fisher Scientific), quantified by BCA assay (Fisher Scientific), and ~10 µg of protein was separated by electrophoresis in 10% TGX Stain-Free precast mini SDS-PAGE gels (Bio-Rad, Mississauga, ON, Canada) according to manufacturer’s directions. After transfer to PVDF membranes, Western blot analysis was performed with anti-Cas9 (MAC133; Sigma-Aldrich) or anti-GP64 (AcV5, Fisher Scientific) as primary antibodies and goat anti-mouse IgG HRP secondary (Bio-Rad) and imaged on a ChemiDoc MP Imager (Bio-Rad). The Image Lab software was used for further image processing (Bio-Rad).

2.8. Quantification of Baculovirus Particles Using Flow Cytometry

Sample preparation for analysis via flow cytometry was described previously [40]. Briefly, samples were diluted in D-PBS and fixed with paraformaldehyde for ~1 h, after which the samples were subjected to one freeze–thaw cycle followed by incubation with Triton X-100 to permeabilize the membrane. The nucleic acid stain SYBR Green I was added and incubated at 80 °C for 10 min in the dark to stain double stranded DNA. After cooling on ice, the samples were analyzed via flow cytometry. Flow-Set Fluorospheres (Beckman Coulter, Mississauga, ON, Canada) were used for calibration, and all samples were run in triplicate. The statistical significance was evaluated using Student’s t-test with a significance value of 5%.

3. Results

3.1. Development of Recombinant Sf9 Cell Lines for Constitutive Expression of Cas9 and dCas9

Expression of the Cas9 and dCas9 proteins were conferred via the development of transgenic Sf9 cell lines transfected with plasmids pOpIE2-Cas9-puro and pOpIE2-dCas9-puro, which include either the cas9 or dcas9 gene and the pac gene sequences separated by the viral T2A element [41]. After selection with puromycin for at least 2 weeks, resistant cells were pooled and maintained in suspension culture for an additional ~10–15 passages under selective pressure before removing the puromycin from the medium. Although routine maintenance of these cell lines with or without puromycin provided no evidence that ectopic expression of either Cas9 protein had any effect on their growth (data not shown), prior to performing any gene disruption or transcriptional repression experiments, the cell lines were characterized with infection experiments to determine whether there were any distinguishable differences between them and parental Sf9 cells. As shown in Figure 1A, transcription of the gfp reporter and the viral capsid protein vp39 genes were similar, indicating that there were no discernable differences in progression of the infection. Similarly, the production of GFP from the viral late gene promoter p6.9 and progeny virus appeared unimpaired (Figure 1B,C). Interestingly, RT-PCR (Figure 1A) and Western blot data (Figure S1) indicated that transcription of cas9 and dcas9 were significantly downregulated by 24 hpi and protein was undetectable on Western blot by 48 hpi.

3.2. Evaluation of CRISPR-Mediated Repression and Disruption on GFP Production

Initial experiments sought to establish transcriptional repression of the rBEV-encoded gfp gene. Individual rBEVs with sgRNAs targeting the template (GFP1 and GFP4) and nontemplate (GFP2 and GFP3) strands within the gfp ORF were constructed, and repression of gfp transcribed with immediate early (OpIE2), late (p6.9), and very late (p10) promoters was assessed. Sf9-dCas9 cells infected with rBEVs encoding nontemplate strand-targeting sgRNAs showed a marked decrease in the proportion of GFP-positive cells and fluorescence intensity compared to the control at 48 hpi for OpIE2-GFP (Figure S2A). For p6.9-GFP and p10-GFP, there appeared to be a slight (p6.9-GFP) or significant (p10-GFP) reduction in GFP-positive cells compared to the control at 24 hpi; however, there was no difference at 48 and 72 hpi (Figure 2A and Figure S2B). Nevertheless, the fluorescence intensity for GFP2 and GFP3 targets was reduced compared to the control at all time points for p6.9-GFP and at 48 and 72 hpi for p10-GFP. The fluorescence intensity of rBEVs encoding strand targeting sgRNAs (GFP1 and GFP4) were indistinguishable from the control in all experiments, however, indicating potential strand bias for CRISPRi.
For CRISPRd experiments, p6.9-GFP rBEVs encoding sgRNAs GFP2, GFP3, and GFP4 were used to infect Sf9-Cas9 cells. For all three sgRNAs, the proportion of GFP-positive cells was significantly reduced compared to the control at all time points. The GFP2 sgRNA resulted in the lowest GFP-positive phenotype compared to GFP3 and GFP4. Significantly, whereas the proportion of GFP-positive cells was higher at 24 hpi and increased by 48 hpi for GFP3 and GFP4, GFP2 was less than 10% GFP-positive at 24 hpi and did not increase as the infection progressed. For the fluorescence intensity measurements of the GFP-positive cells, though, the GFP2 sgRNA rBEV was only slightly reduced compared to the untargeted control rBEV. Conversely, the GFP3 and GFP4 sgRNAs had significantly reduced fluorescence intensity compared to both GFP2 and control (Figure 2C,D).
Importantly, parental Sf9 cells infected with each of the p10-GFP (data not shown) and p6.9-GFP rBEVs produced fluorescence intensity measurements that were both increased compared to the same infections in either Sf9-Cas9 or Sf9-dCas9 cells and were also all similar to the control (i.e., untargeted) rBEV. Finally, the release of progeny BV was not statistically different for any of the viruses replicating in any cell line (Figure S3). Taken together, these data indicate that the production of GFP was influenced by the presence of both (d)Cas9 and sgRNA and was unaffected in the absence of either of these molecules, and is therefore consistent with CRISPR-mediated targeting of the gfp gene.

3.3. Extension of CRISPRi and CRISPRd to Endogenous AcMNPV ie-1 and vlf-1

Next, the ability of the CRISPRi and CRISPRd systems to affect the production of endogenous AcMNPV genes was assessed (Figure 3). Spacer sequences were selected to target the ie-1 and vlf-1 genes encoding immediate-early protein 1 (IE-1) and very late factor 1 (VLF-1), respectively. The ie-1 gene encodes a transcriptional activator and is essential for viral DNA replication, late gene expression, and subsequent progeny virus production. The vlf-1 gene encodes a transcriptional activator for the very late class of genes but has no effect on late gene promoters. The production of progeny virus and GFP transcribed from the p10 promoter was measured to assess the phenotypic impact of these targets in Sf9-dCas9 cells. Similar to previous experiments, the proportion of GFP-positive cells was reduced at 24 hpi for the IE1 sgRNA; however, it increased by 48 hpi and was indistinguishable from the control. The proportion of GFP-positive cells was not affected for either IE2, VL1, or VL2. Reduced fluorescence for the rBEVs encoding nontemplate-targeting sgRNAs (IE1 and VL1), but not the sgRNAs targeting the template strand (IE2 and VL2) was observed. Finally, the analysis of progeny virus production showed that the IE1 sgRNA reduced the infectious virus titer (IVT) ~90% compared to the control at 48 hpi. The difference in IVT for the other targets was not statistically significant (Figure 3A).
For CRISPRd in Sf9-Cas9 cells, a marked reduction in GFP-positive cells was observed for both IE1 and IE2 sgRNA rBEVs, but not VL1 or VL2, at all time points. Fluorescence intensity was also significantly reduced for each sgRNA compared to the untargeted control. Since VLF-1 stimulates transcription from very late promoters but has no effect on late genes, rBEVs encoding the VL1 and VL2 sgRNAs and the p6.9-GFP expression cassette were prepared and used to infect Sf9-Cas9 cells. Importantly, the analysis of fluorescence indicated no difference compared to the control rBEV for both VL1 and VL2 (data not shown). Finally, the IVT was reduced by ~99% compared to the control for IE1 and IE2, and ~64% for VL2. The measured IVT for VL1 was not statistically different from that of the control (Figure 3B).
Parental Sf9 cells infected with each of ie-1 and vlf-1-targeted sgRNAs showed fluorescence and IVT levels that were consistent with those of the control (i.e., nondisrupted/repressed), indicating that both (d)Cas9 and sgRNA are required for disruption or downregulation of ie-1 and vlf-1 (Figure 3C). Additionally, since both fluorescence intensity and IVT were similar for all the rBEV infections in Sf9 cells, it is unlikely that the phenotypes observed in Sf9-Cas9 or Sf9-dCas9 are the result of genetic heterogeneity between the rBEVs or differences in late gene expression and/or virus replication.

3.4. CRISPRd Is More Effective Than CRISPRi for Obstructing Progeny BV Release

Finally, rBEVs with sgRNAs targeting the vp80 gene were prepared. The vp80 gene encodes the capsid-associated protein VP80, and its disruption prevents capsid assembly but has no effect on late gene expression. The fluorescence intensity of GFP transcribed from the late p6.9 promoter and progeny virus production were used to assess the effectiveness of CRISPRi and CRISPRd, and four sgRNAs were tested for CRISPRi and two for CRISPRd. The fluorescence intensity was similar for each vp80-targeting rBEV compared to the untargeted control in each cell line, and showed no differences when used to infect either Sf9, Sf9-Cas9, or Sf9-dCas9 cells (Figure 4A). Similarly, the IVT of infected Sf9 cell culture supernatants for each rBEV were similar, indicating unimpaired BV release in the absence of Cas9 or dCas9. The VP2, VP3, and VP4 rBEVs reduced IVT ~79%, ~68%, and ~57% compared to the control rBEV, respectively, in Sf9-dCas9 cells, while VP1 was similar to the control and to the IVT yielded from its infection of parental Sf9 cells. Infection with VP1 to Sf9-Cas9 cells, on the other hand, reduced the IVT by ~98% compared to the untargeted control, and VP2 by ~96% (Figure 4C). The latter result represents an ~85% improvement over the result in Sf9-dCas9 cells. Finally, flow cytometry analysis indicated a reduction in total number of particles in culture supernatant for VP80 targets as compared to nontargeted control experiments in Sf9-Cas9 cells (Figure 4B).

4. Discussion

The present study sought to develop an efficient technology for targeted genome engineering that would be capable of scrutinizing the effect of gene disruption or repression on viral gene expression and replication. To this end, transgenic Sf9 cell lines constitutively expressing the cas9 or dcas9 gene were developed. To test the efficacy of gene disruption and transcriptional repression using this approach, Sf9-Cas9 and Sf9-dCas9 cells were infected with rBEVs encoding both the sgRNA and the genetic target for disruption or repression.
Since downregulation of host protein expression due to infection with AcMNPV is a characteristic of the BEVS [42], experiments to assess expression of (d)Cas9 using RT-PCR and Western blot were conducted. Consistent with prior studies, downregulation of dcas9 and cas9 transcription was observed by 24 hpi; however, the baculovirus immediate-early promoter supported transgene expression until 72 hpi [43,44]. As the amount of dCas9 protein present could impact the effectiveness of CRISPRi, the repression of gfp transcribed from immediate-early (OpIE2), late (p6.9), and very late (p10) promoters were evaluated to establish the efficiency of repression for promoters differing in temporal and relative strength expression characteristics. A significant reduction in fluorescence intensity was observed for each promoter. Additionally, the possibility of a ‘strand bias’ was observed in the BEVS system, in which transcriptional repression can only be achieved by targeting the sgRNA/dCas9 RNP to the nontemplate strand. This phenomenon has been observed in various other prokaryotic and eukaryotic systems previously [26,28]. The experiments conducted with Sf9-Cas9 cells (CRISPRd) showed decreased fluorescence intensity measurements compared to the control, and the population of GFP-positive cells was significantly reduced. Notably, GFP2 was less than 5% GFP-positive; however, fluorescence intensity was higher in Sf9-Cas9 cells than in Sf9-dCas9 cells with the same rBEV. This observation is presumably due to the mechanisms by which CRISPRd and CRISPRi function; for CRISPRi, successful targeting blocks transcript elongation and leads to a reduction in mRNA produced and translated by the cell. This ultimately leads to an overall, but typically incomplete, reduction in fluorescence intensity without introducing irreversible mutations in the genome. On the other hand, gene disruption mediated by CRISPRd results in indel mutations from dsDNA break repair, which are irreversible and often result in loss-of-function mutations in the encoded protein [28,29]. Consequently, gene copies with indel mutations in the ORF are transcribed, but the encoded protein is nonfunctional, whereas gene copies that are not successfully targeted or the indel mutation is silent would be transcribed and function protein is translated at wildtype levels.
Finally, endogenous AcMNPV ie-1, vlf-1 and vp80 genes were targeted for transcriptional repression and gene disruption. The IE-1 protein is the major transcriptional regulator of AcMNPV and is responsible for trans-activation of several known early genes [45,46]. Importantly, it is required for late gene expression and viral genome replication [47], and its deletion results in loss of infectivity [11]. The VLF-1 protein is a regulator of very late gene transcription and is responsible for the ‘transcriptional burst’ observed for the very late class of genes but has no effect on the late class of genes [48,49]. Complete deletion of the vlf-1 gene may also impair assembly of BVs, although DNA replication and late gene transcription appeared to be reduced but permitted [13]. On the other hand, the vp80 gene encodes a capsid-associated protein that is essential for BV production but not for viral late gene expression [21]. Selection of these endogenous genes provided the ability to observe the efficacy of CRISPRi and CRISPRd in several ways; repression/disruption of ie-1 should impact the entire infection cycle of the rBEV, while targeting vlf-1 should reduce expression from the very late p10 promoter but not the p6.9 promoter. Finally, disruption of vp80 expression should impact the production of progeny BV but not inhibit late gene expression.
Infections with rBEVs encoding sgRNAs targeting each of these genes yielded the expected result in all three cases; significant reduction in GFP and BV release for IE-1 targets, reduced BV production but unimpaired late gene expression for VP80 targets, and targeting VLF-1 led to a reduction in fluorescence intensity for GFP expressed from the p10 promoter but not p6.9. Interestingly, although there appears to be a reduced IVT for VL1 and VL2 rBEVs in Sf9-Cas9 cells (~42% and ~64%, respectively) and for VL1 in Sf9-dCas9 cells (~50%), only the VL2 rBEV IVT was statistically different from the control. This could indicate that either the resolution in the assay is not sensitive enough to detect this difference or that enough VLF-1 was produced to permit replication and production of progeny virus to near wildtype levels. Unsurprisingly, the template-targeting sgRNA VP1 did not result in reduced progeny virus production in Sf9-dCas9 cells. Targeting the vp80 gene with sgRNAs VP2, VP3, and VP4, however, reduced IVT by ~79%, ~68%, and ~57%, respectively; however, the result with VP4 was not statistically significant. Given that transcriptional repression efficiency has been observed to be inversely correlated to the distance of the target spacer sequence from the transcriptional start site [28], it may not be entirely surprising that this sgRNA was less effective.
In addition to the apparent strand bias in the experiments with Sf9-dCas9 cells, the proportion of cells displaying a GFP-positive phenotype at 24 hpi was substantially reduced for the IE1 rBEV, while fluorescence was significantly lower at all time points and for both targets in Sf9-Cas9 cells compared to control infections. The analysis of BV release at 48 hpi also showed a ~90% decrease in the IVT for IE1 compared to controls for CRISPRi and ~99% for CRISPRd. This latter result is significant since a report in which transformed Sf9 cells expressing a ~470 bp dsRNA molecule targeting the AcMNPV ie-1 gene exhibited strong viral repression at early stages of infection, but subsequent recovery of viral proliferation was observed by the late stages of the infection cycle [50].
Deletion of the vp80 gene has previously been shown to prevent BV production whilst permitting replication of viral DNA and transcription of viral late genes at or near wildtype levels [21]. The results presented here support these conclusions: production of GFP was similar for each virus in Sf9-dCas9, Sf9-Cas9 and the parental Sf9 cells; however, BV release was decreased by >90% in Sf9-Cas9 cells. Interestingly, the supernatant from Sf9 cells infected with the Δvp80-rBEV in that study appeared to have undetectable IVT [21]. The assessment of infected culture supernatants at 4, 8, and 12 hpi here and previously [32], however, revealed IVT ~104–105 pfu/mL at each time point (data not shown), indicating incomplete viral uptake before the onset of progeny BV release. Further, the trans-complementation strategy resulted in a ~25-fold decrease in BV seed production and constitutive expression of the vp80 gene appeared unstable or toxic to Sf9 cells. Finally, higher MOI (MOI = 10) was required to produce recombinant protein at the same level as the wildtype rBEV [21]. In this study, there was no difference in GFP production at MOI = 3 and each of the rBEVs displayed no indication of impaired replication in Sf9 cells. Taken together, this strategy may contribute to reduced downstream processing complexity by minimizing rBEV contamination. Nevertheless, targeted disruption of vp80 reduced the IVT by ~98% and ~96% for VP1 and VP2, respectively. Compared to CRISPRi, these results indicate that CRISPRd may be more effective for reducing progeny virus production. Finally, to ensure that targeting vp80 resulted in a reduction in particles released to the culture supernatant as opposed to the release of defective particles that are not infectious, flow cytometry was used to analyze supernatants from several control and VP80-targeted infections in Sf9-Cas9 cells. The results indicated a ~90% reduction in particle concentration in the VP80-disrupted infections compared to the control. Consistent with previous reports in which the ratio of total particles quantified using flow cytometry to IVT measured using EPDA ranged from 1 to 10 [40], the FC:IVT ratio in the samples analyzed was ~5–10 as well.

5. Conclusions

Taken together, the phenotypes observed in this report are consistent with disruption or repression of the endogenous AcMNPV ie-1, vlf-1, vp80 genes. The results indicate that CRISPRd may be more effective than CRISPRi for total disruption of target genes, whereas CRISPRi allows expression of the targeted gene at levels that are lower than the wildtype, suggesting it may be more appropriate for targets that are not amenable to deletion. Consequently, the CRISPRd tool developed here may be more useful for evaluating the essentiality of endogenous AcMNPV genes and reducing BV contamination in culture supernatants, whereas CRISPRi may be more effective for use in prolonging the infection cycle and accompanying bioprocess in order to increase yield of the target recombinant molecule. This report serves as a foundation for further improvement of the BEVS as a platform for recombinant protein therapeutics.

Supplementary Materials

The following are available online at www.mdpi.com/article/10.3390/v13101925/s1, Table S1: Primers, Figure S1: (d)Cas9, GP64 Western blots, Figure S2: CRISPRi for OpIE2 and p10 promoters, Figure S3: Control infections in gfp-targeting rBEVs in Sf9 cells and IVT for all cell lines.

Author Contributions

Conceptualization, M.R.B. and M.G.A.; methodology, M.R.B.; validation, M.R.B. and M.G.A.; formal analysis, M.R.B.; investigation, M.R.B. and S.-D.W.; resources, M.G.A.; data curation, M.R.B.; writing—original draft preparation, M.R.B.; writing—review and editing, M.R.B., S.-D.W., and M.G.A.; supervision, M.G.A.; project administration, M.G.A.; funding acquisition, M.R.B. and M.G.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Sciences and Engineering Research Council of Canada (NSERC) post-graduate scholarship to M.R.B, and NSERC Discovery (RGPIN 355513-2017) and Strategic Project Grants (STPGP 462995-14) to M.G.A.

Data Availability Statement

All data generated and analyzed during this study are included in this article and its supplementary information files.

Acknowledgments

We thank D. Theilmann for kindly donating the plasmid pOpIE2E2.3 and A. Frenette for help with Western blotting.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miele, S.A.B.; Garavaglia, M.J.; Belaich, M.N.; Ghiringhelli, P.D. Baculovirus: Molecular Insights on Their Diversity and Conservation. Int. J. Evol. Biol. 2011, 2011, 379424. [Google Scholar] [CrossRef]
  2. Moscardi, F. Assessment of the Application of Baculoviruses for Control of Lepidoptera. Annu. Rev. Entomol. 1999, 44, 257–289. [Google Scholar] [CrossRef]
  3. Smith, G.E.; Summers, M.D.; Fraser, M.J. Production of Human Beta Interferon in Insect Cells Infected with a Baculovirus Expression Vector. Mol. Cell. Biol. 1983, 3, 2156–2165. [Google Scholar] [CrossRef]
  4. van Oers, M.M.; Pijlman, G.P.; Vlak, J.M. Thirty Years of Baculovirus-Insect Cell Protein Expression: From Dark Horse to Mainstream Technology. J. Gen. Virol. 2015, 96, 6–23. [Google Scholar] [CrossRef]
  5. Luckow, V.A.; Lee, S.C.; Barry, G.F.; Olins, P.O. Efficient Generation of Infectious Recombinant Baculoviruses by Site-Specific Transposon-Mediated Insertion of Foreign Genes into a Baculovirus Genome Propagated in Escherichia Coli. J. Virol. 1993, 67, 4566–4579. [Google Scholar] [CrossRef] [PubMed]
  6. Datsenko, K.A.; Wanner, B.L. One-Step Inactivation of Chromosomal Genes in Escherichia Coli K-12 Using PCR Products. Proc. Natl. Acad. Sci. USA 2000, 97, 6640–6645. [Google Scholar] [CrossRef] [PubMed]
  7. Muyrers, J.P.P.; Zhang, Y.; Testa, G.; Stewart, A.F. Rapid Modification of Bacterial Artificial Chromosomes by ET-Recombination. Nucleic Acids Res. 1999, 27, 1555–1557. [Google Scholar] [CrossRef] [PubMed]
  8. Cohen, D.P.A.; Marek, M.; Davies, B.G.; Vlak, J.M.; van Oers, M.M. Encyclopedia of Autographa Californica Nucleopolyhedrovirus Genes. Virol. Sin. 2009, 24, 359–414. [Google Scholar] [CrossRef]
  9. McCarthy, C.B.; Theilmann, D.A. AcMNPV Ac143 (Odv-E18) Is Essential for Mediating Budded Virus Production and Is the 30th Baculovirus Core Gene. Virology 2008, 375, 277–291. [Google Scholar] [CrossRef] [PubMed]
  10. Fang, M.; Dai, X.; Theilmann, D.A. Autographa Californica Multiple Nucleopolyhedrovirus EXON0 (ORF141) Is Required for Efficient Egress of Nucleocapsids from the Nucleus. J. Virol. 2007, 81, 9859–9869. [Google Scholar] [CrossRef]
  11. Stewart, T.M.; Huijskens, I.; Willis, L.G.; Theilmann, D.A. The Autographa Californica Multiple Nucleopolyhedrovirus Ie0-Ie1 Gene Complex Is Essential for Wild-Type Virus Replication, but Either IE0 or IE1 Can Support Virus Growth. J. Virol. 2005, 79, 4619–4629. [Google Scholar] [CrossRef] [PubMed]
  12. Lin, G.; Blissard, G.W. Analysis of an Autographa Californica Multicapsid Nucleopolyhedrovirus Lef-6-Null Virus: LEF-6 Is Not Essential for Viral Replication but Appears to Accelerate Late Gene Transcription. J. Virol. 2002, 76, 5503–5514. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Vanarsdall, A.L.; Okano, K.; Rohrmann, G.F. Characterization of a Baculovirus with a Deletion of Vlf-1. Virology 2004, 326, 191–201. [Google Scholar] [CrossRef] [PubMed]
  14. Kaba, S.A.; Salcedo, A.M.; Wafula, P.O.; Vlak, J.M.; Oers, M.M. van Development of a Chitinase and V-Cathepsin Negative Bacmid for Improved Integrity of Secreted Recombinant Proteins. J. Virol. Methods 2004, 122, 113–118. [Google Scholar] [CrossRef] [PubMed]
  15. Boogaard, B.; Evers, F.; van Lent, J.W.M.; van Oers, M.M. The Baculovirus Ac108 Protein Is a per Os Infectivity Factor and a Component of the ODV Entry Complex. J. Gen. Virol. 2019, 100, 669–678. [Google Scholar] [CrossRef]
  16. Zhu, S.; Wang, W.; Wang, Y.; Yuan, M.; Yang, K. The Baculovirus Core Gene Ac83 Is Required for Nucleocapsid Assembly and Per Os Infectivity of Autographa Californica Nucleopolyhedrovirus. J. Virol. 2013, 87, 10573–10586. [Google Scholar] [CrossRef]
  17. Ros, V.I.D.; Houte, S.; Hemerik, L.; van Oers, M.M. Baculovirus-induced Tree-top Disease: How Extended Is the Role of Egt as a Gene for the Extended Phenotype? Mol. Ecol. 2015, 24, 249–258. [Google Scholar] [CrossRef]
  18. Westenberg, M.; Soedling, H.M.; Mann, D.A.; Nicholson, L.J.; Dolphin, C.T. Counter-Selection Recombineering of the Baculovirus Genome: A Strategy for Seamless Modification of Repeat-Containing BACs. Nucleic Acids Res. 2010, 38, e166. [Google Scholar] [CrossRef]
  19. van Oers, M.M. Opportunities and Challenges for the Baculovirus Expression System. J. Invertebr. Pathol. 2011, 107, S3–S15. [Google Scholar] [CrossRef]
  20. Salem, T.Z.; Zhang, F.; Thiem, S.M. Reduced Expression of Autographa Californica Nucleopolyhedrovirus ORF34, an Essential Gene, Enhances Heterologous Gene Expression. Virology 2013, 435, 225–238. [Google Scholar] [CrossRef]
  21. Marek, M.; van Oers, M.M.; Devaraj, F.F.; Vlak, J.M.; Merten, O.-W. Engineering of Baculovirus Vectors for the Manufacture of Virion-Free Biopharmaceuticals. Biotechnol. Bioeng. 2011, 108, 1056–1067. [Google Scholar] [CrossRef]
  22. Monsma, S.A.; Oomens, A.G.; Blissard, G.W. The GP64 Envelope Fusion Protein Is an Essential Baculovirus Protein Required for Cell-to-Cell Transmission of Infection. J. Virol. 1996, 70, 4607–4616. [Google Scholar] [CrossRef]
  23. Chavez-Pena, C.; Kamen, A.A. RNA Interference Technology to Improve the Baculovirus-Insect Cell Expression System. Biotechnol. Adv. 2018, 36, 443–451. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, J.; Nagata, Y.; Mon, H.; Li, Z.; Zhu, L.; Iiyama, K.; Kusakabe, T.; Lee, J.M. Soaking RNAi-Mediated Modification of Sf9 Cells for Baculovirus Expression System by Ectopic Expression of Caenorhabditis Elegans SID-1. Appl. Microbiol. Biotechnol. 2013, 97, 5921–5931. [Google Scholar] [CrossRef] [PubMed]
  25. Zhao, H.-F.; L’Abbé, D.; Jolicoeur, N.; Wu, M.; Li, Z.; Yu, Z.; Shen, S.-H. High-Throughput Screening of Effective SiRNAs from RNAi Libraries Delivered via Bacterial Invasion. Nat. Methods 2005, 2, 967–973. [Google Scholar] [CrossRef] [PubMed]
  26. Bruder, M.R.; Pyne, M.E.; Moo-Young, M.; Chung, D.A.; Chou, C.P. Extending CRISPR-Cas9 Technology from Genome Editing to Transcriptional Engineering in the Genus Clostridium. Appl. Environ. Microbiol. 2016, 82, 6109–6119. [Google Scholar] [CrossRef]
  27. Doudna, J.A.; Charpentier, E. The New Frontier of Genome Engineering with CRISPR-Cas9. Science 2014, 346, 1258096. [Google Scholar] [CrossRef]
  28. Qi, L.S.; Larson, M.H.; Gilbert, L.A.; Doudna, J.A.; Weissman, J.S.; Arkin, A.P.; Lim, W.A. Repurposing CRISPR as an RNA-Guided Platform for Sequence-Specific Control of Gene Expression. Cell 2013, 152, 1173–1183. [Google Scholar] [CrossRef] [PubMed]
  29. Hsu, P.D.; Lander, E.S.; Zhang, F. Development and Applications of CRISPR-Cas9 for Genome Engineering. Cell 2014, 157, 1262–1278. [Google Scholar] [CrossRef] [PubMed]
  30. Mabashi-Asazuma, H.; Jarvis, D.L. CRISPR-Cas9 Vectors for Genome Editing and Host Engineering in the Baculovirus-Insect Cell System. Proc. Natl. Acad. Sci. USA 2017, 114, 9068–9073. [Google Scholar] [CrossRef]
  31. Pazmiño-Ibarra, V.; Mengual-Martí, A.; Targovnik, A.M.; Herrero, S. Improvement of Baculovirus as Protein Expression Vector and as Biopesticide by CRISPR/Cas9 Editing. Biotechnol. Bioeng. 2019, 116, 2823–2833. [Google Scholar] [CrossRef]
  32. George, S.; Jauhar, A.M.; Mackenzie, J.; Kieβlich, S.; Aucoin, M.G. Temporal Characterization of Protein Production Levels from Baculovirus Vectors Coding for GFP and RFP Genes under Non-Conventional Promoter Control. Biotechnol. Bioeng. 2015, 112, 1822–1831. [Google Scholar] [CrossRef]
  33. Bassett, A.R.; Tibbit, C.; Ponting, C.P.; Liu, J.L. Mutagenesis and Homologous Recombination in Drosophila Cell Lines Using CRISPR/Cas9. Biol. Open 2014, 3, 42–49. [Google Scholar] [CrossRef]
  34. Theilmann, D.A.; Stewart, S. Molecular Analysis of the Trans-Activating IE-2 Gene of Orgyia Pseudotsugata Multicapsid Nuclear Polyhedrosis Virus. Virology 1992, 187, 84–96. [Google Scholar] [CrossRef]
  35. Gibson, D.G.; Young, L.; Chuang, R.-Y.; Venter, J.C.; Hutchison, C.A.I.; Smith, H.O. Enzymatic Assembly of DNA Molecules up to Several Hundred Kilobases. Nat. Methods 2009, 6, 343–345. [Google Scholar] [CrossRef] [PubMed]
  36. Karasawa, S.; Araki, T.; Yamamoto-Hino, M.; Miyawaki, A. A Green-Emitting Fluorescent Protein from Galaxeidae Coral and Its Monomeric Version for Use in Fluorescent Labeling. J. Biol. Chem. 2003, 278, 34167–34171. [Google Scholar] [CrossRef]
  37. Port, F.; Chen, H.-M.; Lee, T.; Bullock, S.L. Optimized CRISPR/Cas Tools for Efficient Germline and Somatic Genome Engineering in Drosophila. Proc. Natl. Acad. Sci. USA 2014, 111, E2967–E2976. [Google Scholar] [CrossRef] [PubMed]
  38. Chari, R.; Yeo, N.C.; Chavez, A.; Church, G.M. SgRNA Scorer 2.0: A Species-Independent Model to Predict CRISPR/Cas9 Activity. ACS Synth. Biol. 2017, 6, 902–904. [Google Scholar] [CrossRef] [PubMed]
  39. Stemmer, W.P.; Morris, S.K. Enzymatic Inverse PCR: A Restriction Site Independent, Single-Fragment Method for High-Efficiency, Site-Directed Mutagenesis. Biotechniques 1992, 13, 214–220. [Google Scholar] [PubMed]
  40. Shen, C.F.; Meghrous, J.; Kamen, A. Quantitation of Baculovirus Particles by Flow Cytometry. J. Virol. Methods 2002, 105, 321–330. [Google Scholar] [CrossRef]
  41. Wang, Y.; Wang, F.; Wang, R.; Zhao, P.; Xia, Q. 2A Self-Cleaving Peptide-Based Multi-Gene Expression System in the Silkworm Bombyx Mori. Sci. Rep. 2015, 5, 16273. [Google Scholar] [CrossRef]
  42. Ooi, B.G.; Miller, L.K. Regulation of Host RNA Levels during Baculovirus Infection. Virology 1988, 166, 515–523. [Google Scholar] [CrossRef]
  43. Lin, C.-H.; Jarvis, D.L. Utility of Temporally Distinct Baculovirus Promoters for Constitutive and Baculovirus-Inducible Transgene Expression in Transformed Insect Cells. J. Biotechnol. 2013, 165, 11–17. [Google Scholar] [CrossRef]
  44. Chen, Y.-R.; Zhong, S.; Fei, Z.; Hashimoto, Y.; Xiang, J.Z.; Zhang, S.; Blissard, G.W. The Transcriptome of the Baculovirus Autographa Californica Multiple Nucleopolyhedrovirus in Trichoplusia Ni Cells. J. Virol. 2013, 87, 6391–6405. [Google Scholar] [CrossRef]
  45. Guarino, L.A.; Summers, M.D. Functional Mapping of a Trans-Activating Gene Required for Expression of a Baculovirus Delayed-Early Gene. J. Virol. 1986, 57, 563–571. [Google Scholar] [CrossRef]
  46. Passarelli, A.L.; Miller, L.K. Three Baculovirus Genes Involved in Late and Very Late Gene Expression: Ie-1, Ie-n, and Lef-2. J. Virol. 1993, 67, 2149–2158. [Google Scholar] [CrossRef]
  47. Rapp, J.C.; Wilson, J.A.; Miller, L.K. Nineteen Baculovirus Open Reading Frames, Including LEF-12, Support Late Gene Expression. J. Virol. 1998, 72, 10197–10206. [Google Scholar] [CrossRef]
  48. Mistretta, T.-A.; Guarino, L.A. Transcriptional Activity of Baculovirus Very Late Factor 1. J. Virol. 2005, 79, 1958–1960. [Google Scholar] [CrossRef] [PubMed]
  49. Yang, S.; Miller, L.K. Activation of Baculovirus Very Late Promoters by Interaction with Very Late Factor 1. J. Virol. 1999, 73, 3404–3409. [Google Scholar] [CrossRef] [PubMed]
  50. Kanginakudru, S.; Royer, C.; Edupalli, S.V.; Jalabert, A.; Mauchamp, B.; Chandrashekaraiah; Prasad, S.V.; Chavancy, G.; Couble, P.; Nagaraju, J. Targeting Ie-1 Gene by RNAi Induces Baculoviral Resistance in Lepidopteran Cell Lines and in Transgenic Silkworms. Insect Mol. Biol. 2007, 16, 635–644. [Google Scholar] [CrossRef] [PubMed]
Viruses 13 01925 g001
Figure 1. Sf9-Cas9 and Sf9-dCas9 cells are indistinguishable from the parental Sf9 cell line. (A). QPCR threshold cycle (Ct)values of the Sf9-encoded 28S rRNA housekeeping gene, (d)cas9 gene, and virus-encoded vp39 and p6.9 promoter-expressed gfp reporter gene in baculovirus-infected Sf9 (squares), Sf9-Cas9 (circles), and Sf9-dCas9 (triangles) cells at 0, 24, 48, and 72 hpi. NTC: no template control (B). GFP fluorescence intensity of baculovirus-infected Sf9 (squares), Sf9-Cas9 (circles), and Sf9-dCas9 (triangles) cells at 24, 48, and 72 hpi and (C). infectious virus titer of supernatants from infected Sf9, Sf9-Cas9, and Sf9-dCas9 cells at 72 hpi. NS indicates non-significant differences in means according to Student’s t-test.
Figure 1. Sf9-Cas9 and Sf9-dCas9 cells are indistinguishable from the parental Sf9 cell line. (A). QPCR threshold cycle (Ct)values of the Sf9-encoded 28S rRNA housekeeping gene, (d)cas9 gene, and virus-encoded vp39 and p6.9 promoter-expressed gfp reporter gene in baculovirus-infected Sf9 (squares), Sf9-Cas9 (circles), and Sf9-dCas9 (triangles) cells at 0, 24, 48, and 72 hpi. NTC: no template control (B). GFP fluorescence intensity of baculovirus-infected Sf9 (squares), Sf9-Cas9 (circles), and Sf9-dCas9 (triangles) cells at 24, 48, and 72 hpi and (C). infectious virus titer of supernatants from infected Sf9, Sf9-Cas9, and Sf9-dCas9 cells at 72 hpi. NS indicates non-significant differences in means according to Student’s t-test.
Viruses 13 01925 g001
Viruses 13 01925 g002

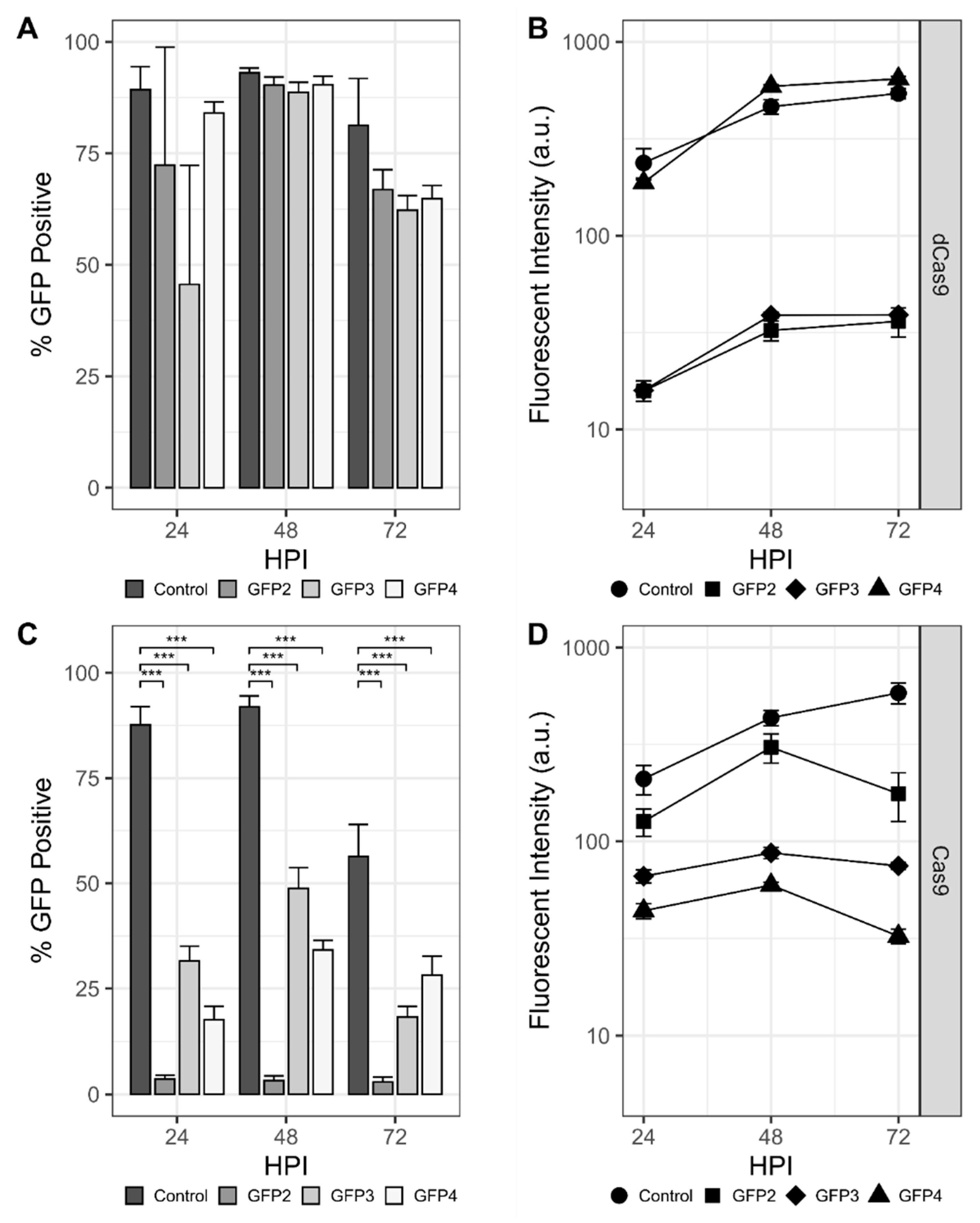

Figure 2. CRISPR-mediated targeting of mAzami-Green (gfp) transcribed from the late p6.9 promoter. Percentage of the population that is GFP-positive and fluorescence intensity of gfp- targeting rBEVS in Sf9-dCas9 cells (A,B) and Sf9-Cas9 cells (C,D), respectively. *** denotes p < 0.001.
Figure 2. CRISPR-mediated targeting of mAzami-Green (gfp) transcribed from the late p6.9 promoter. Percentage of the population that is GFP-positive and fluorescence intensity of gfp- targeting rBEVS in Sf9-dCas9 cells (A,B) and Sf9-Cas9 cells (C,D), respectively. *** denotes p < 0.001.
Viruses 13 01925 g002
Viruses 13 01925 g003

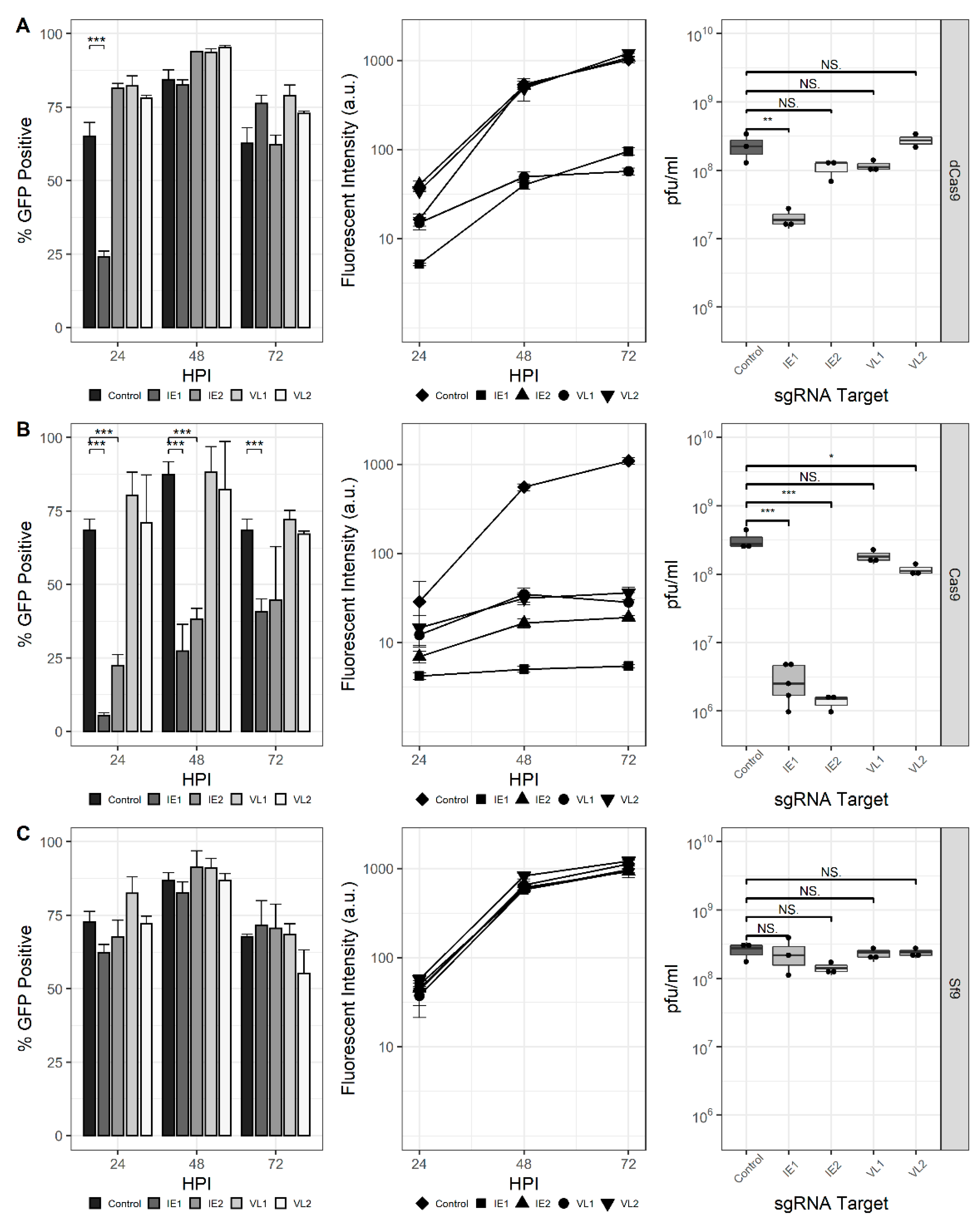

Figure 3. CRISPR-mediated targeting of the AcMNPV ie-1 and vlf-1 genes. Percent GFP-positive, fluorescence intensity, and IVT for rBEVs in (A) Sf-dCas9, (B) Sf9-Cas9, and (C) parental Sf9 cells. ***: p < 0.001; **: p < 0.01; *: p < 0.05; NS: non-significant.
Figure 3. CRISPR-mediated targeting of the AcMNPV ie-1 and vlf-1 genes. Percent GFP-positive, fluorescence intensity, and IVT for rBEVs in (A) Sf-dCas9, (B) Sf9-Cas9, and (C) parental Sf9 cells. ***: p < 0.001; **: p < 0.01; *: p < 0.05; NS: non-significant.
Viruses 13 01925 g003
Viruses 13 01925 g004

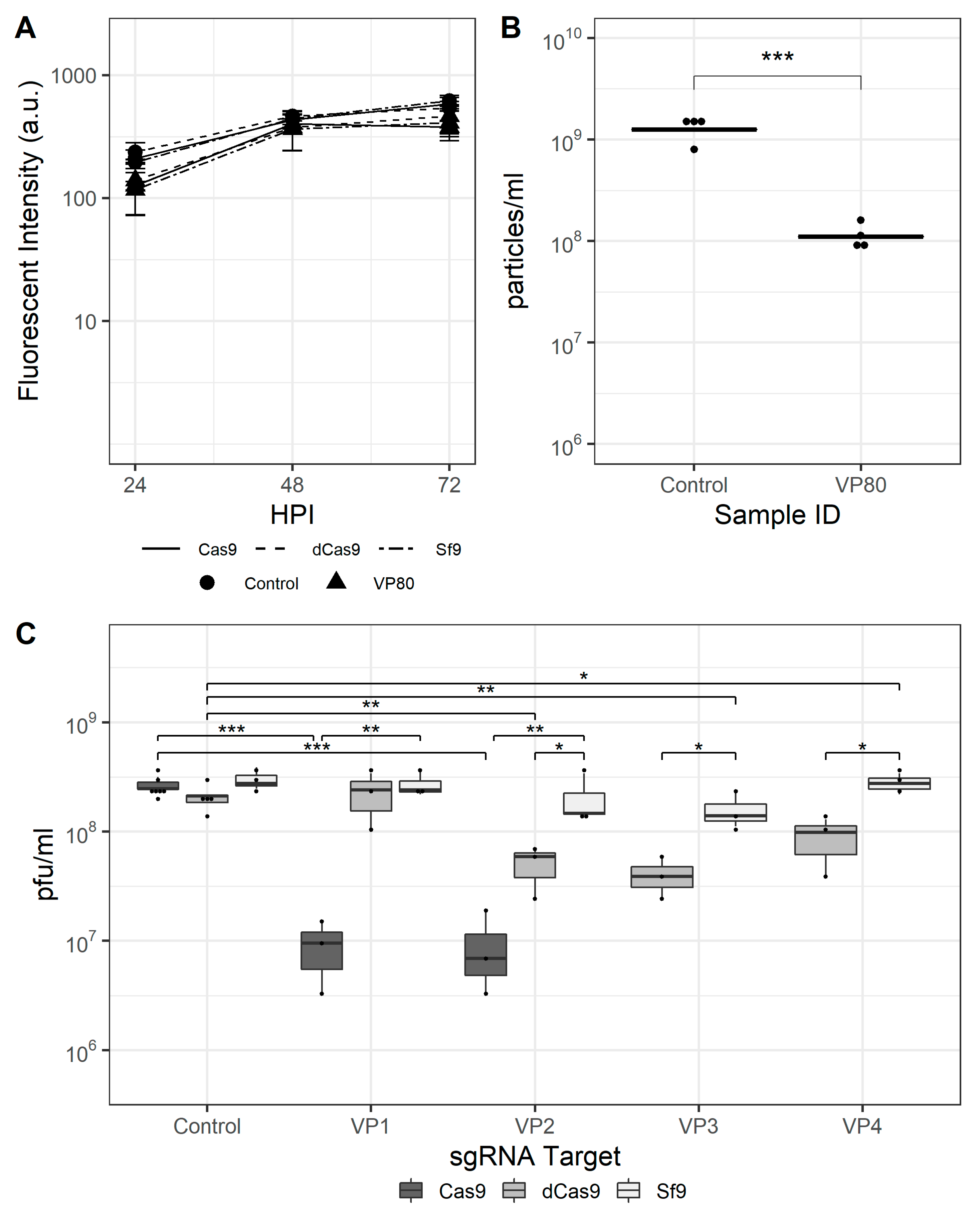

Figure 4. CRISPR-mediated targeting of the AcMNPV vp80 gene. (A) Mean fluorescence intensity for vp80-targeting and control rBEVs in Sf9-Cas9, Sf9-dCas9, and parental Sf9 cells. (B) Total particles in culture supernatants of infected Sf9-Cas9 cells and (C) IVT for control and vp80-targeting rBEVs in each cell line at 48 hpi. ***: p < 0.001; **: p < 0.01; *: p < 0.05.
Figure 4. CRISPR-mediated targeting of the AcMNPV vp80 gene. (A) Mean fluorescence intensity for vp80-targeting and control rBEVs in Sf9-Cas9, Sf9-dCas9, and parental Sf9 cells. (B) Total particles in culture supernatants of infected Sf9-Cas9 cells and (C) IVT for control and vp80-targeting rBEVs in each cell line at 48 hpi. ***: p < 0.001; **: p < 0.01; *: p < 0.05.
Viruses 13 01925 g004
Table 1. Protospacer sequences for sgRNA targets.
Table 1. Protospacer sequences for sgRNA targets.
rBEVTargetProtospacer Sequence (5’–3’)PAMStrand
Controln/acaccttgaagcgcatgaactn/an/a
GFP1gfpgggcaagggcaacccctacgaggTemplate
GFP2gfpgtcgtaggcgaagggcaggggggNontemplate
GFP3gfpgttgccgtactggaacacggtggNontemplate
GFP4gfpccgagggctaccactgggagaggTemplate
IE1ie-1accgtgtcggctccatccggggtggNontemplate
IE2ie-1tgatatctgacagcgagactgcggTemplate
VL1vlf-1acacggactcgaaccggggagcggNontemplate
VL2vlf-1ggcaacgatgcacgcccgacgaggTemplate
VP1vp80gcccgccgcaatcgccgccgcggTemplate
VP2vp80gctggatgttacccgcggcggNontemplate
VP3vp80tcgatgcggccaggtcgctggNontemplate
VP4vp80gcggatcgctaaatgccgtggNontemplate
