Profiling Transcripts of Vector Competence between Two Different Aedes aegypti Populations in Florida

by
Dongyoung Shin
1,*,†,
Seokyoung Kang
2 and
Chelsea T. Smartt
1,*,†
1
Florida Medical Entomology Laboratory, Department of Entomology and Nematology, Institute of Food and Agricultural Science, University of Florida, Vero Beach, FL 32962, USA
2
Department of Infectious Disease and Immunology, College of Veterinary Medicine, University of Florida, Gainesville, FL 32611, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Viruses 2020, 12(8), 823; https://doi.org/10.3390/v12080823
Submission received: 27 May 2020 / Revised: 17 July 2020 / Accepted: 26 July 2020 / Published: 29 July 2020
(This article belongs to the Special Issue Alphaviruses: Interactions between Arboviruses and Mosquitoes)
Browse Figures
Versions Notes

Abstract

:
A Chikungunya virus (CHIKV) outbreak in Italy in 2007 spread to include the islands of the Caribbean and most of the Americas and still circulates in Europe and Africa. Florida being close in distance to the Caribbean islands experienced a CHIKV outbreak in 2014 and continues to have a few travel-related cases each year. It is known that different environmental conditions in different regions can result in genetic variation that favor changes in competence to arbovirus. We evaluated the vector competence of Florida Aedes aegypti for CHIKV and determined if there is a geographic component that influences genes involved in CHIKV competence. We utilized a genomic approach to identify the candidate genes using RNA sequencing. The infection and dissemination results showed that field populations were more competent vectors for CHIKV than a lab population. The differentially expressed genes in the two field-collected CHIKV-infected populations, compared to the Rockefeller strain, were related to the Wnt/Notch signaling pathway, with similarity to genes scattered throughout the signaling pathway. This result suggested the possibility of identifying genes involved in the determination of vector competence in different gene pools of Ae. aegypti.

1. Introduction

Chikungunya virus (CHIKV) is an emerging mosquito-borne virus discovered in Tanzania in 1952, and the symptoms of the infection in humans are fever and joint pain [1]. CHIKV outbreaks have occurred in the coastal region of Kenya and in the Indian Ocean Islands and India. In addition, it recently spread, following an outbreak in Italy in 2007, to an outbreak in the islands of the Caribbean, Europe and Africa. Later a CHIKV outbreak in St. Martin Island spread to the Americas [2]. Florida experienced a CHIKV outbreak in 2014 and a few travel-related cases of CHIKV infection have been reported since then in each year [3,4]. With the consistent travel-related CHIKV cases in the U.S., including Florida [4], and the presence of the well-established competent mosquito vectors for CHIKV, Florida is well placed for frequent outbreaks. In fact, we have shown that Ae. aegypti mosquitoes collected in Florida can effectively vector CHIKV, and that temperature change influenced both infection and dissemination [5,6]. There exists an immediate need to understand CHIKV and its interaction with local competent mosquito vectors.
During the last decade, CHIKV outbreaks were mainly vectored by Ae. aegypti [7]. The warmer tropical environments seemed to favor outbreaks driven by competent Ae. aegypti [2,8]. Studies on an outbreak that occurred in 2007 revealed that Aedes populations along the coastal regions of Kenya were highly susceptible to infection following an unusually warm dry spell [9]. During that same year, a new genetic variant of CHIKV emerged, which resulted in increased vector competence for Ae. albopictus mosquitoes. Ae. albopictus are adaptable to temperate environments leading to the spread of CHIKV through Europe [8,10]. In fact, studies on the recent Ae. albopictus-driven CHIKV outbreak in Europe implicated the involvement of climate alterations on the success of this invasion [8]. These few studies suggest that the CHIKV–mosquito interaction is highly influenced by environmental alterations. It is also known that biotic and abiotic conditions in different regions and sub-regions of the world result in genetic variation that favor changes in competence to arbovirus including West Nile and dengue virus [11,12,13]. These regional differences may be due to the microbiome or climate under which the mosquitoes developed, exposure to different xenobiotics, or due to genetic isolation [14,15].
In this study, we utilized a genomic approach to identify the candidate genes that might be responsible for vector competence in Ae. aegypti to CHIKV using RNA sequencing (RNAseq). The expression profiling was evaluated in Ae. aegypti populations from different geographic areas of Florida for competence for CHIKV, and pathways related to competence for CHIKV mapped in an effort to interfere with CHIKV transmission.

2. Materials and Methods

2.1. Mosquitoes

Ae. aegypti populations were collected from two geographic areas in Florida—Key West and Vero Beach—working with the appropriate Mosquito Control District. The collected mosquito larvae were reared under standard insectary conditions. Adult mosquitoes (F1–2; 800 mosquitoes each) were maintained at 28 °C (14/10 h light/dark period, 70% relative humidity) [6] and fed 20% sucrose solution ad libitum. Parental females from field collections were blood fed bovine blood in sausage casings [16] for first generation (F1) offspring (egg) production. We used the F2 generation to ensure that there would be enough sample numbers for this study. A lab strain of Ae. aegypti (Rockefeller strain) was also included as a control population to juxtapose field populations for vector competence. Rockefeller strain (ROCK), Vero Beach (Vero) and Key West (KW) populations were subjected to CHIKV infection.

2.2. Infection of Adult Female Ae. aegypti

Five- to six-day-old female Ae. aegypti from the three different populations (300 females/population) were fed defibrinated bovine blood (Hemostat, Dixon, CA, USA) containing CHIKV (6.82 log10 plaque-forming units (pfu)/mL). This sample size has been shown in past experiments to have sufficient statistical power to detect treatment effects [6]. For vector competence experiments, we utilized the CHIKV strain LR2006-OPY1 (GenBank accession # DQ443544; [6,17]). Infectious blood meals were delivered to Ae. aegypti using an artificial feeding apparatus (Hemotek, Lancashire, UK) following previously established methods [6,17,18]. The fully engorged specimens were transferred to 16 oz cardboard cages with mesh screening, maintained in incubators at 28 °C, and provided a 20% sucrose solution ad libitum.

2.3. Infection and Dissemination Rates in Different Ae. aegypti Populations

Approximately 15 female mosquitoes from the CHIKV-infected females in each population were collected at 4 days post infection (dpi) for RNAseq. The extrinsic incubation for CHIKV is known to take 2–9 days and the CHIKV dissemination rates were determined within 5 days post infection (dpi), based on previous studies showing the temporal progression of infection in Ae. aegypti under these conditions [5,19]. Therefore, gene expression profiling at 4 dpi in this study should allow immediate detection of responses in mosquitoes in each population to enable screens for the main signaling pathway targeted by CHIKV. Each biological replicate contained 5 mosquitoes and the total RNA was extracted separately. At 10 dpi, the remaining mosquito samples (~50 mosquitoes/group) were collected individually and immediately frozen for CHIKV detection assays (Table 1). Bodies and legs of each individual were tested separately for CHIKV RNA by qRT-PCR (forward primer: 5-ACC CGG TAA GAG CGA TGA ACT-3; reverse primer: 5-ACG CCG CAT CCG GTA TGT-3) for determining infection and dissemination rate of each population, respectively. All samples were homogenized using a Tissue Lyser (Qiagen, Valencia, CA, USA) and RNA extracted using Trizol Reagent (Invitrogen, Carlsbad, CA, USA) following previously established methods [13,20]. Quantitative RT-PCR was performed using SsoAdvanced SYBR Green Supermix (Bio-Rad, Hercules, CA, USA) on the Bio-Rad CFX96™ Real-Time PCR Detection System and following the included protocols. The standard curve was generated based on 10-fold serial dilutions of CHIKV and quantified by qRT-PCR, as described above. Chikungunya titer was determined from triplicate quantification cycle (Cq) values using Bio-Rad CFX manager software. The raw data was normalized by Log10 transformation and regression analysis used to determine a qRT-PCR-derived titer (Qpfu/mL) [13].
The different physiological responses, resulting in vector competence of each population from different geographic regions for CHIKV infection and dissemination, were analyzed using analysis of variance (ANOVA) and maximum likelihood categorical analyses of contingency tables (JMP pro13). Separate maximum likelihood tests were used for each measure of infection and dissemination rate, in order to more clearly identify viral barriers that may be modified in different populations from different areas of Florida. Titers in body and leg among three populations were analyzed with ANOVA Dunn’s multiple test (Prism 7).

2.4. High-Throughput RNA Sequencing

The extracted total RNA (~1ug/ sample) with three biological replications from each treatment group at 4 dpi was sent to the Center for Genome Technology Sequencing Core, John P. Hussman Institute for Human Genomics in University of Miami Miller School of Medicine for library generation and illumina RNA sequencing.
Nine RNAseq libraries were generated from three populations with three biological replicates for RNA sequencing. The RNA samples were qualified with Agilent BioAnalyzer RNA integrity number (RIN) Score >7. Cluster generation took place on the Illumina cBot. Sequencing took place on the Illumina HiSeq2000 using the reagents provided in the Illumina TruSeq PE Cluster Kit v3 and the TruSeq SBS Kit–HS kit. The FASTQs were processed to remove Illumina adaptors using the TrimGalore! software package and the STAR aligner v2.5.0a with default mapping parameters [21]. Aligned reads in SAM format were quantified using the count function of HT-Seq using the AaegL3.3 gene set GTF obtained from VectorBase (www.vectorbase.org). Differential expression between genes was calculated using the EdgeR software package [22]. Normalization for sample-to-sample variability is accounted for by correcting the raw counts for a gene to counts per gene per million bases of sequencing library.
The differentially expressed genes (adjust p value < 0.05) were subjected to the GO term Functional analysis using Biomart tool from Vectorbase database (Vectorbase.org), in order to find the enriched function in the differentially expressed genes among three populations. The changed gene expression level can result in either over-expressed or under-expressed genes. The enriched functions in the up-regulated genes and down-regulated genes from the Vero and KW populations were compared to the ROCK population and are represented in Figures 2 and 3.

2.5. Validation of Expression Differences between CHIKV in Two Populations of Ae. aegypti

For validation of the RNAseq data, four genes were selected from the differentially expressed gene list (p < 0.05). These genes were related to signaling pathway and show different expression levels among populations in this study. The exon sequences of each gene were exported from Ae. aegypti complete transcript database (www.vectorbase.org). The primer sets for the four selected genes were designed based on the exon sequences, using IDT PrimerQuest Tool (https://www.idtdna.com/Primerquest/Home/Index) (Table S1). Ribosomal protein gene S7 was used as an endogenous control gene and the selected genes were quantified with qRT-PCR.

3. Results

The different Ae. aegypti populations presented significantly different proportions of mosquitoes with infected bodies (Chi square = 7.185, degrees of freedom (df) = 2, p = 0.0275; Table 1 and Table 2) and disseminated infections (Chi square = 19.262, (df) = 2, p < 0.0001; Table 1 and Table 2) on day 10 following a CHIKV infectious blood-meal. The field populations of Ae. aegypti from Florida were significantly more likely to be infected than the ROCK population, and infection rates between the two field populations were not significantly different (Table 1 and Table 2). Vero Beach population of Ae. aegypti was more likely to have a disseminated infection than either the ROCK or KW population statistically, with no significant difference between ROCK and KW (Table 1 and Table 2). Two field populations had significantly higher body titers at 10 dpi than the ROCK population (p < 0.0001; Table 3) but there was no significant difference between body titers of the two field populations. All populations of Ae. aegypti had significantly different leg titers for disseminated infection and Vero and KW populations showed higher titers than the ROCK population (p < 0.0001; Table 3).
A total of 216,859,828 reads were generated from triplicate samples from the three populations (Table 4). The obtained reads were archived in GenBank (accession#: SRP136008). We found 145 and 743 differentially expressed genes between the Vero and ROCK and KW and ROCK, respectively (adjusted p value <0.05) (Table S2). There were 62 genes with overlapping expression in the two comparison analyses (Vero vs. Rock and KW vs. Rock; Figure 1, Table S3). Two field populations were compared to each other and nine genes were differentially expressed (Table 5). The enriched gene functions were analyzed and compared between each pair of the three populations (Figure 2). Since there were only nine differentially expressed genes between Vero and KW populations, the proportion of enriched functions included in the nine genes were not comparable with the enriched functions in the other pairs used in the analysis. The enriched functions in Vero and KW populations compared to ROCK population were similar in most of the 19 categories searched except for signal transduction, response to stimulus, and structural constituent of cuticle (Figure 2). The up-regulated genes and down-regulated genes of the two field populations were analyzed and compared to the ROCK population (Figure 3). Approximately half of the differentially expressed genes in this study did not have annotated function or annotated as hypothetical genes because the genome project for Ae. aegypti has not been completed [23]. The most enriched functions in the differentially expressed genes in Vero and KW populations compared to ROCK population are catalytic activity, transport, and signal transduction (Figure 3, Table 6). Response to stimulus category, which is mainly a general defense function, was a notable difference between the ROCK and Vero populations (Figure 3). The regulation of genes in transport and signal transduction function differs between Vero and KW, where both functions are positively regulated in KW and negatively in Vero (Figure 3, Table 6). Validation of a subset of these genes by qRT-PCR supported the RNAseq results (Table 7), as the expression of all the tested genes corresponded with the RNAseq results (p < 0.05).

4. Discussion

The infection rates and detection of disseminated infection in mosquito body showed that Vero and KW populations are more competent vectors for CHIKV than ROCK, used widely as a laboratory experimental strain, (Table 1, Table 2 and Table 3), although without transmission rate data overall competence cannot be assessed. The vector competence study results showing different disseminated infection rates of CHIKV support the assumption that vector competence for CHIKV of the Vero and KW population is conferred by differences in the gene pool, because the two populations were collected from geographically different regions [24]. The dissemination rates between the KW and Vero populations were significantly different (<0.05), while both are notably higher than ROCK (Table 1 and Table 2). The infection rate and body titer between the two field populations were not significantly different unlike dissemination rate and leg titer (Table 1, Table 2 and Table 3). Significant differences in disseminated infection rates between field populations suggest any differentially expressed genes discovered by RNAseq analysis could be involved in the dissemination of CHIKV. Although the titer difference in disseminated infection seems small unlike cell culture data (around 10-fold), this can be a biological difference because the results came from RNA from legs pulled from individual mosquitoes and statistically supported with sufficient sample sizes (38–73). Direct comparison analysis between CHIKV infected Vero and KW populations showed expression differences of nine genes and the functional analysis results failed to implicate any specific enriched function known to influence variation in dissemination rate and titer, such as immune response (Table 5). Similarity in infection rates at 4pdi for CHIKV in the Vero and KW populations likely contributed to the smaller number of gene expression differences (Table 1). Although RNAseq data showed only nine genes by comparison analysis between KW and Vero populations, the differentially expressed genes between KW and Vero populations compared to ROCK also represent the variation between KW and Vero populations.
Comparisons between ROCK and other populations with different vector competence to CHIKV should reveal vector competence genes to CHIKV in Ae. aegypti. The most enriched gene functions in KW and Vero compared to ROCK are catalytic activity, binding, metabolic process, transport, and signal transduction (Figure 2). These enriched functions in each population can contribute to mosquito vector competence to CHIKV [6]. Catalytic activity and binding categories represent the first and second largest portion in the assigned functions. The catalytic activity group is comprised of enzymes active during blood meal digestion and the binding category includes protein and nucleic acid binding, which is broadly defined as interaction with nucleic acid and protein. These two functions have been commonly shown in studies investigating blood digestion [25], also these functions can be enriched as downstream of the metabolic process cascade. Thus, catalytic activity and the binding categories were likely chosen because of the inclusion of the highly enriched metabolic process category. Metabolic processes were highly enriched in both field populations compared to ROCK. This may happen because the field populations were likely exposed to biotic threats and/or xenobiotics including pesticides, which have inheritable effects on offspring, unlike ROCK, a longstanding lab population. Although this experiment did not test detoxification effects directly, the Vero and KW populations may increase metabolic functions to detoxify or destroy the xenobiotics around the field environment [26], as supported by findings from this study showing many up-regulated cytochrome P450 genes (~2%) in the KW and Vero populations (Table S2). Consequently, field-collected populations may allocate more energy to detoxification and general defense mechanisms for bacterial infection at the expense of either keeping general immune response genes suppressed under the normal condition or induced following pathogen infection [27]. Genes involved in metabolic functions are also known to be involved in mosquito blood digestion [28]. These CHIKV-induced, differentially expressed genes related to detoxification and metabolism can elicit different responses due to the introduction of a pathogen and contribute to vector competence, as has been shown for dengue infection in Ae. aegypti mosquitoes [29]. In the midgut tissue of Ae. aegypti, differentially regulated genes were involved in several metabolic processes such as protein, lipid and carbohydrate metabolism. Two such genes, transferrin and heat shock protein 60, were reported to play a role in CHIKV survival and replication in the midgut [30].
Response to stimulus category was a notably up-regulated function in the Vero population compared to the KW population (Figure 3). The largest number of genes in the response to stimulus category of the KW population was related to stress from environmental issues. An innate immunity related gene, cecropin, was down regulated in this population. Two different cecropin genes were over expressed and three types of defensin were down regulated within this category in the Vero population. The defensin genes have previously been profiled in this Key West population after CHIKV and DENV infection; thus the defensin family might have an antiviral role in CHIKV infections [31]. Both defensin and cecropin are anti-microbial peptides and they are also involved in innate immunity to DENV and Sindbis virus, suggesting that defensin and cecropin peptides are also related to immunity against CHIKV in Ae. aegypti (Table S2).
Signal transduction category showed slightly dissimilar expression in KW and Vero populations, where a notable signaling pathway was present in both, but the proportion of expressed pathway related genes is larger in the KW population. At the same time the KW population showed lower leg titer and low dissemination rates for CHIKV compared to the Vero population (Table 3). This difference in the signal transduction category may be attributed to variability in vector competence between the two field populations. Functional analysis of the RNAseq data revealed the majority of genes in the signaling pathway categories were involved in Notch and Wnt signaling (Table 6). It is well known that the wingless gene is one of the main genes in the Wnt signaling pathway and that the Wnt and Rho signaling pathways closely interact in cell development [32,33,34,35,36]. Based on gene description, functional analysis, and literature review, the differentially expressed genes that relate to Wnt and Notch signaling pathways and identified in the RNAseq analysis in this study are listed in Table 6. Both KW and Vero populations possess differentially expressed Wnt and Notch signaling pathway related genes after CHIKV infection compared to ROCK (Table 6). The Notch signaling pathway has a role in neuronal function and development [37] and silencing the Notch pathway component Delta has been shown to control susceptibility to dengue virus infection in mosquito midguts [38]. In the enriched functions identified in this study, transport and signal transduction included several genes involved in the Wnt pathway including the Rho signaling pathway, which functions in development, motility, and immunity to DENV (Table 7) [34]. Disruption of the Wnt signaling pathway causes many diseases, tumors, and genetic disorders in mammalian systems [34]. Having upregulated Notch signaling pathway expression in Ae. aegypti infected with CHIKV in this study suggests involvement in interactions between this mosquito species and CHIKV [38]. In addition to Notch signaling pathway, genes in the Wnt signaling pathway were over-expressed in a Sindbis virus-infected Drosophila cell line [39,40]. Additionally, the expression of one of the main components of the Wnt signaling pathway decreased by 41% in Anopheles gambiae after infection with O’nyong-nyong virus (ONNV) [41]. The Wnt signaling pathway antagonistically interacts with the Notch signaling pathway for embryonic development in D. melanogaster [32].
CHIKV, ONNV, and Sindbis virus belong to the Alphavirus family and Sindbis virus has been used as a model system to study Alphaviruses. Additionally, Drosophila has been used as a model system for mosquito research to explore various aspects of mosquito biology, including the immune system, genetics and genomics [42]. A Drosophila cell line revealed that the up-regulated Notch signaling pathway was involved in cell growth rate after Sindbis virus infection [40]. In our study, genes involved in the Notch signaling pathway, such as rab GTPase activating protein and neuronal function and development gene, were included in the differentially expressed gene list, showing a similar gene expression pattern with the Sindbis virus model system (Table 6).
Compared to Notch signaling pathway, Wnt signaling pathway related genes were more remarkable in this study. The Rho protein and wingless protein are major regulators of the cytoskeleton in the Wnt signaling pathway and approximately 1.5% of the differentially expressed genes in both Vero and KW populations, directly and indirectly involved in the Wnt pathway, were dissimilar in expression in response to CHIKV infection, supporting Wnt signaling pathway involvement in mosquito vector competence to CHIKV. The Rho GTPase gene in the Wnt pathway was revealed to activate the c-Jun N-terminal kinases (JNK) pathway in vertebrates [43] (Table 6) and the JNK pathway was shown to play a role in immunity in mosquitoes and in mosquito-virus interactions [44,45]. Taken together the results suggest possible co-expression of the JNK signaling pathway with Wnt and Notch signaling pathways as a correlated pathway in vector competence to CHIKV.
The biological difference including metabolism rate and response to various stimuli from the environment can increase mosquito susceptibility to CHIKV. The differentially expressed genes in KW and Vero populations compared to ROCK are related to the Wnt/Notch signaling pathway. Involvement of these pathway genes suggests that Wnt/Notch signaling pathway may play a role in vector competence in Florida populations of Ae. aegypti to CHIKV. The Wnt/Notch signaling pathways could be the pathway targeted by alphavirus infections in Ae. aegypti. The RNAseq analysis in this study did not include a group fed a non-infectious blood-meal and thus these signaling pathways may also be involved in blood feeding. Further studies including silencing Wnt/Notch signaling pathways along with vector competence studies, with CHIKV and comparison between groups fed infectious and naïve blood meals, will reveal the characteristics of these signaling pathways. Therefore, it is necessary to investigate the mechanism and effector genes in the Wnt/ Notch signaling pathway that interact with CHIKV in Ae. aegypti. Additionally, results from this study suggest the possibility of identifying genes involved in determination of vector competence in different gene pools from different populations of Ae. aegypti.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4915/12/8/823/s1. Table S1: Selected genes and primer sequences for RNAseq validation; Table S2: List of differentially expressed genes between Rockefeller and Vero Beach populations related to CHIKV infection; Table S3: List of the overlapped genes in KW and Vero populations compared to ROCK.

Author Contributions

Conceived and designed the experiments: D.S. and C.T.S. Performed the experiments: D.S., C.T.S., and S.K. Analyzed the data: D.S. and S.K. Wrote the paper: D.S. and C.T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported in part by the Florida Department of Agriculture and Consumer Services grant 021797 to C.T.S. This study was also supported in part by the Applied Mosquito Research fund for D.S. (Contract number P0014951).

Acknowledgments

The authors thank A. Civana for sample processing and assisting experiment. Chikungunya virus strain LR2006-OPY1 from La Réunion (GenBank accession # DQ443544) was provided by the Centers for Disease Control and Prevention.

Conflicts of Interest

The authors have declared that no competing interests exist. The funding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Staples, J.E.; Breiman, R.F.; Powers, A.M. Chikungunya fever: An epidemiological review of a re-emerging infectious disease. Clin. Infect. Dis. 2009, 49, 942–948. [Google Scholar] [CrossRef]
  2. WHO. Chikungunya. Available online: https://www.who.int/news-room/fact-sheets/detail/chikungunya (accessed on 15 December 2019).
  3. Cassadou, S.; Boucau, S.; Petit-Sinturel, M.; Huc, P.; Leparc-Goffart, I.; Ledrans, M. Emergence of chikungunya fever on the french side of saint martin island, october to december 2013. Euro Surveill 2014, 19, 20752. [Google Scholar] [CrossRef] [Green Version]
  4. CDC. Chikungunya Virus in the United States. Available online: https://www.cdc.gov/chikungunya/geo/united-states.html (accessed on 21 December 2019).
  5. Darsie, R.F.; Ward, R.A. Identification and Geographical Distribution of the Mosquitoes of North America, North of Mexico; University of Florida Press: Gainesville, FL, USA, 2005; p. 383. [Google Scholar]
  6. Richards, S.L.; Anderson, S.L.; Smartt, C.T. Vector competence of florida mosquitoes for chikungunya virus. J. Vector Ecol. 2010, 35, 439–443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Pialoux, G.; Gaüzère, B.A.; Jauréguiberry, S.; Strobel, M. Chikungunya, an epidemic arbovirosis. Lancet Infect. Dis. 2007, 7, 319–327. [Google Scholar] [CrossRef]
  8. Fischer, D.; Thomas, S.M.; Suk, J.E.; Sudre, B.; Hess, A.; Tjaden, N.B.; Beierkuhnlein, C.; Semenza, J.C. Climate change effects on chikungunya transmission in europe: Geospatial analysis of vector’s climatic suitability and virus’ temperature requirements. Int. J. Health Geogr. 2013, 12, 51. [Google Scholar] [CrossRef] [Green Version]
  9. Chretien, J.P.; Anyamba, A.; Bedno, S.A.; Breiman, R.F.; Sang, R.; Sergon, K.; Powers, A.M.; Onyango, C.O.; Small, J.; Tucker, C.J.; et al. Drought-associated chikungunya emergence along coastal east africa. Am. J. Trop. Med. Hyg. 2007, 76, 405–407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Rezza, G.; Nicoletti, L.; Angelini, R.; Romi, R.; Finarelli, A.C.; Panning, M.; Cordioli, P.; Fortuna, C.; Boros, S.; Magurano, F.; et al. Infection with chikungunya virus in italy: An outbreak in a temperate region. Lancet 2007, 370, 1840–1846. [Google Scholar] [CrossRef]
  11. Endersby, N.M.; Hoffmann, A.A.; White, V.L.; Ritchie, S.A.; Johnson, P.H.; Weeks, A.R. Changes in the genetic structure of aedes aegypti (diptera: Culicidae) populations in queensland, australia, across two seasons: Implications for potential mosquito releases. J. Med. Entomol. 2011, 48, 999–1007. [Google Scholar] [CrossRef] [Green Version]
  12. Tabachnick, W.J. Nature, nurture and evolution of intra-species variation in mosquito arbovirus transmission competence. Int. J. Environ. Res. Public Health 2013, 10, 249–277. [Google Scholar] [CrossRef] [Green Version]
  13. Shin, D.; Civana, A.; Acevedo, C.; Smartt, C.T. Transcriptomics of differential vector competence: West nile virus infection in two populations of culex pipiens quinquefasciatus linked to ovary development. BMC Genom. 2014, 15, 513. [Google Scholar] [CrossRef] [Green Version]
  14. Brown, J.E.; Obas, V.; Morley, V.; Powell, J.R. Phylogeography and spatio-temporal genetic variation of aedes aegypti (diptera: Culicidae) populations in the florida keys. J. Med. Entomol. 2013, 50, 294–299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Sim, S.; Jupatanakul, N.; Ramirez, J.L.; Kang, S.; Romero-Vivas, C.M.; Mohammed, H.; Dimopoulos, G. Transcriptomic profiling of diverse aedes aegypti strains reveals increased basal-level immune activation in dengue virus-refractory populations and identifies novel virus-vector molecular interactions. PLoS Negl. Trop. Dis. 2013, 7, e2295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Lyski, Z.L.; Saredy, J.J.; Ciano, K.A.; Stem, J.; Bowers, D.F. Blood feeding position increases success of recalcitrant mosquitoes. Vector Borne Zoonotic Dis. 2011, 11, 1165–1171. [Google Scholar] [CrossRef] [PubMed]
  17. Reiskind, M.H.; Pesko, K.; Westbrook, C.J.; Mores, C.N. Susceptibility of florida mosquitoes to infection with chikungunya virus. Am. J. Trop. Med. Hyg. 2008, 78, 422–425. [Google Scholar] [CrossRef] [PubMed]
  18. Smartt, C.T.; Shin, D.; Alto, B.W. Dengue serotype-specific immune response in aedes aegypti and aedes albopictus. Mem. Inst. Oswaldo Cruz 2017, 112, 829–837. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Dubrulle, M.; Mousson, L.; Moutailler, S.; Vazeille, M.; Failloux, A.B. Chikungunya virus and aedes mosquitoes: Saliva is infectious as soon as two days after oral infection. PLoS ONE 2009, 4, e5895. [Google Scholar] [CrossRef]
  20. Shin, D.; Richards, S.L.; Alto, B.W.; Bettinardi, D.J.; Smartt, C.T. Genome sequence analysis of dengue virus 1 isolated in key west, florida. PLoS ONE 2013, 8, e74582. [Google Scholar] [CrossRef]
  21. Dobin, A.; Davis, C.A.; Schlesinger, F.; Drenkow, J.; Zaleski, C.; Jha, S.; Batut, P.; Chaisson, M.; Gingeras, T.R. Star: Ultrafast universal rna-seq aligner. Bioinformatics 2013, 29, 15–21. [Google Scholar] [CrossRef]
  22. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. Edger: A bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [Green Version]
  23. Nene, V.; Wortman, J.R.; Lawson, D.; Haas, B.; Kodira, C.; Tu, Z.J.; Loftus, B.; Xi, Z.; Megy, K.; Grabherr, M.; et al. Genome sequence of aedes aegypti, a major arbovirus vector. Science 2007, 316, 1718–1723. [Google Scholar] [CrossRef] [Green Version]
  24. Richards, S.L.; Lord, C.C.; Pesko, K.; Tabachnick, W.J. Environmental and biological factors influencing culex pipiens quinquefasciatus say (diptera: Culicidae) vector competence for saint louis encephalitis virus. Am. J. Trop. Med. Hyg. 2009, 81, 264–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bonizzoni, M.; Dunn, W.A.; Campbell, C.L.; Olson, K.E.; Dimon, M.T.; Marinotti, O.; James, A.A. Rna-seq analyses of blood-induced changes in gene expression in the mosquito vector species, aedes aegypti. BMC Genom. 2011, 12, 82. [Google Scholar] [CrossRef] [Green Version]
  26. Mallet, J. The evolution of insecticide resistance: Have the insects won? Trends Ecol. Evol. 1989, 4, 336–340. [Google Scholar] [CrossRef]
  27. Souza-Neto, J.A.; Powell, J.R.; Bonizzoni, M. Aedes aegypti vector competence studies: A review. Infect. Genet. Evol. 2019, 67, 191–209. [Google Scholar] [CrossRef] [PubMed]
  28. Borovsky, D. Biosynthesis and control of mosquito gut proteases. IUBMB Life 2003, 55, 435–441. [Google Scholar] [CrossRef]
  29. Bosio, C.F.; Fulton, R.E.; Salasek, M.L.; Beaty, B.J.; Black, W.C. Quantitative trait loci that control vector competence for dengue-2 virus in the mosquito aedes aegypti. Genetics 2000, 156, 687–698. [Google Scholar] [PubMed]
  30. Tchankouo-Nguetcheu, S.; Khun, H.; Pincet, L.; Roux, P.; Bahut, M.; Huerre, M.; Guette, C.; Choumet, V. Differential protein modulation in midguts of aedes aegypti infected with chikungunya and dengue 2 viruses. PLoS ONE 2010, 5, e13149. [Google Scholar] [CrossRef] [Green Version]
  31. Zhao, L.; Alto, B.W.; Shin, D.; Yu, F. The effect of permethrin resistance on Aedes aegypti transcriptome following ingestion of Zika virus infected blood. Viruses 2018, 10, 470. [Google Scholar] [CrossRef] [Green Version]
  32. Hayward, P.; Kalmar, T.; Arias, A.M. Wnt/notch signalling and information processing during development. Development 2008, 135, 411–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Schlessinger, K.; Hall, A.; Tolwinski, N. Wnt signaling pathways meet rho gtpases. Genes Dev. 2009, 23, 265–277. [Google Scholar] [CrossRef] [Green Version]
  34. Yang, Y. Wnt signaling in development and disease. Cell Biosci. 2012, 2, 14. [Google Scholar] [CrossRef] [Green Version]
  35. Collu, G.M.; Hidalgo-Sastre, A.; Brennan, K. Wnt-notch signalling crosstalk in development and disease. Cell Mol. Life Sci. 2014, 71, 3553–3567. [Google Scholar] [CrossRef]
  36. Stypulkowski, E.; Asangani, I.A.; Witze, E.S. The depalmitoylase apt1 directs the asymmetric partitioning of notch and wnt signaling during cell division. Sci. Signal. 2018, 11, 511. [Google Scholar] [CrossRef] [Green Version]
  37. Louvi, A.; Artavanis-Tsakonas, S. Notch signalling in vertebrate neural development. Nat. Rev. Neurosci. 2006, 7, 93–102. [Google Scholar] [CrossRef] [PubMed]
  38. Taracena, M.L.; Bottino-Rojas, V.; Talyuli, O.A.C.; Walter-Nuno, A.B.; Oliveira, J.H.M.; Angleró-Rodriguez, Y.I.; Wells, M.B.; Dimopoulos, G.; Oliveira, P.L.; Paiva-Silva, G.O. Regulation of midgut cell proliferation impacts aedes aegypti susceptibility to dengue virus. PLoS Negl Trop Dis 2018, 12, e0006498. [Google Scholar] [CrossRef] [Green Version]
  39. Karpf, A.R.; Blake, J.M.; Brown, D.T. Characterization of the infection of aedes albopictus cell clones by sindbis virus. Virus Res. 1997, 50, 1–13. [Google Scholar] [CrossRef]
  40. Mudiganti, U.; Hernandez, R.; Brown, D.T. Insect response to alphavirus infection—Establishment of alphavirus persistence in insect cells involves inhibition of viral polyprotein cleavage. Virus Res. 2010, 150, 73–84. [Google Scholar] [CrossRef]
  41. Rider, M.A.; Zou, J.; Vanlandingham, D.; Nuckols, J.T.; Higgs, S.; Zhang, Q.; Lacey, M.; Kim, J.; Wang, G.; Hong, Y.S. Quantitative proteomic analysis of the anopheles gambiae (diptera: Culicidae) midgut infected with o’nyong-nyong virus. J. Med. Entomol. 2013, 50, 1077–1088. [Google Scholar] [CrossRef] [Green Version]
  42. Hales, K.G.; Korey, C.A.; Larracuente, A.M.; Roberts, D.M. Genetics on the fly: A primer on the drosophila model system. Genetics 2015, 201, 815–842. [Google Scholar] [CrossRef] [Green Version]
  43. Komiya, Y.; Habas, R. Wnt signal transduction pathways. Organogenesis 2008, 4, 68–75. [Google Scholar] [CrossRef] [Green Version]
  44. Ceballos-Olvera, I.; Chávez-Salinas, S.; Medina, F.; Ludert, J.E.; del Angel, R.M. Jnk phosphorylation, induced during dengue virus infection, is important for viral infection and requires the presence of cholesterol. Virology 2010, 396, 30–36. [Google Scholar] [CrossRef] [Green Version]
  45. Mizutani, T.; Kobayashi, M.; Eshita, Y.; Shirato, K.; Kimura, T.; Ako, Y.; Miyoshi, H.; Takasaki, T.; Kurane, I.; Kariwa, H.; et al. Involvement of the jnk-like protein of the aedes albopictus mosquito cell line, c6/36, in phagocytosis, endocytosis and infection of west nile virus. Insect Mol. Biol. 2003, 12, 491–499. [Google Scholar] [CrossRef]
Viruses 12 00823 g001 550

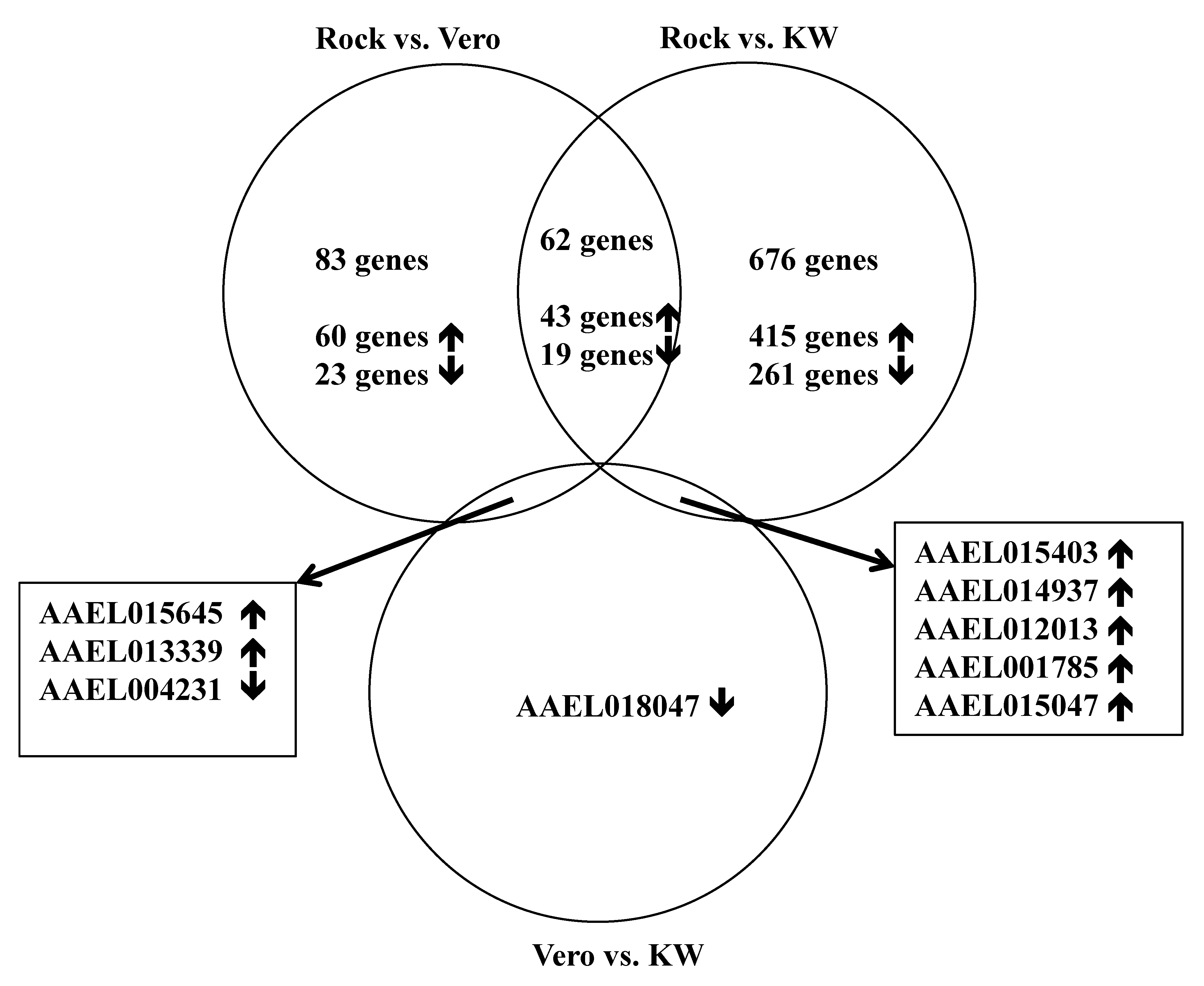

Figure 1. Venn diagram comparing differentially expressed genes among three-paired comparisons from three populations.
Figure 1. Venn diagram comparing differentially expressed genes among three-paired comparisons from three populations.
Viruses 12 00823 g001
Viruses 12 00823 g002 550

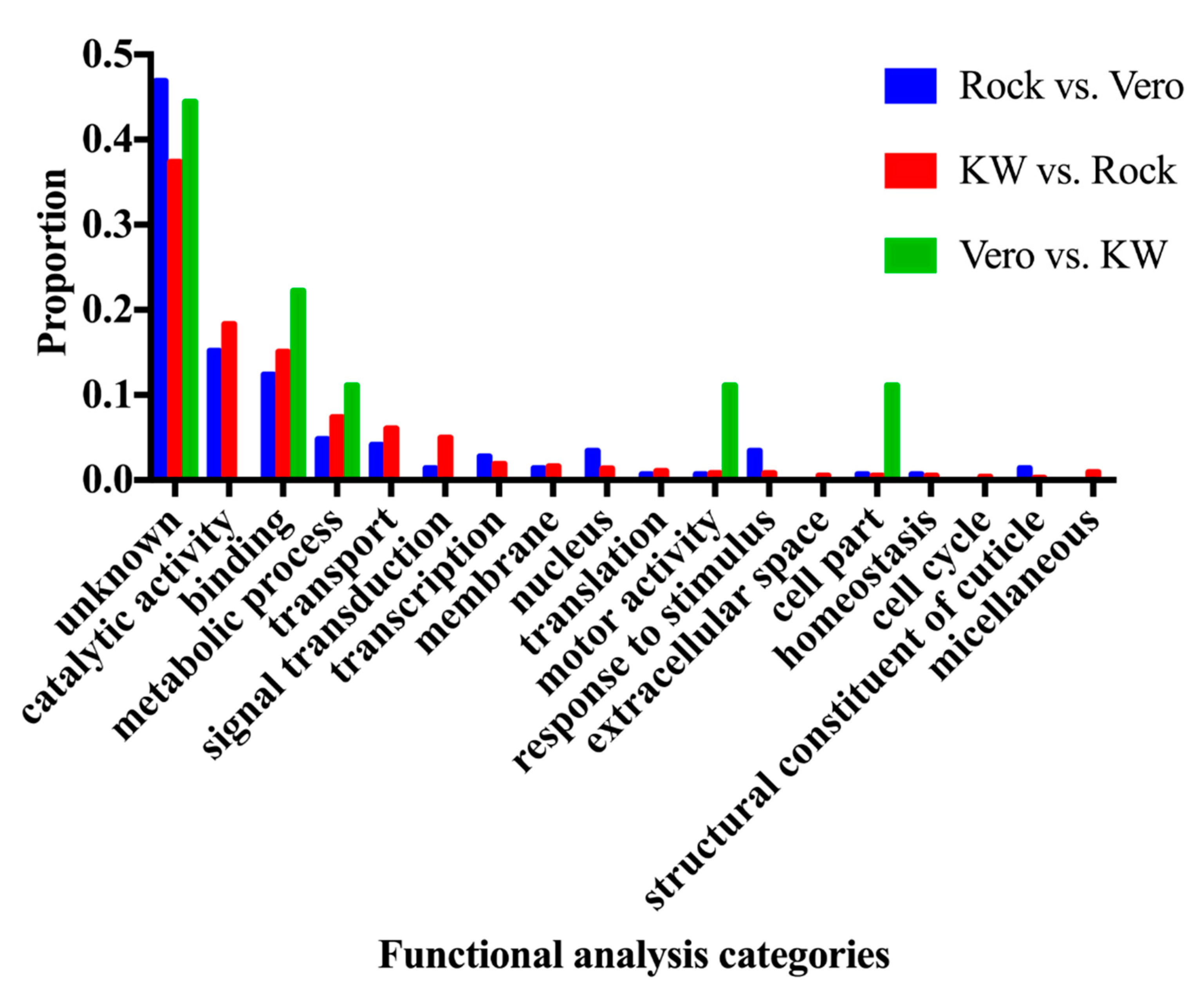

Figure 2. Comparison of three different sets of functional characterizations of significantly differentially expressed transcripts between populations (p < 0.05).
Figure 2. Comparison of three different sets of functional characterizations of significantly differentially expressed transcripts between populations (p < 0.05).
Viruses 12 00823 g002
Viruses 12 00823 g003 550
Figure 3. Enriched functional analysis of the regulated expression of the significantly differentially expressed genes (p < 0.05).
Figure 3. Enriched functional analysis of the regulated expression of the significantly differentially expressed genes (p < 0.05).
Viruses 12 00823 g003
Table
Table 1. Infection and dissemination rate results for Chikungunya virus infection in three different populations.
Table 1. Infection and dissemination rate results for Chikungunya virus infection in three different populations.
Mosquito PopulationInfection Rate–4 dpi Body (No. of Tested Mosquito)Infection Rate–10 dpi Body (No. of Tested Mosquito)Dissemination Rate–10 dpi Legs (No. of Tested Mosquito)
Rockefeller73.3% (11/15)88.4% (38/43)73.7% (28/38)
Vero Beach93.3% (14/15)98.5% (64/65)100% (64/64)
Key West86.6% (13/15)97.3% (73/75)86.3% (63/73)
Table
Table 2. Pearson Chi-square p-value on pairs for CHIKV infection and dissemination rate at ten days post-exposure to chikungunya virus.
Table 2. Pearson Chi-square p-value on pairs for CHIKV infection and dissemination rate at ten days post-exposure to chikungunya virus.
PopulationInfection RateDissemination Rate
ROCKVeroKWROCKVeroKW
ROCK1.00000.02500.04731.0000<00010.0516
Vero0.02501.00000.6457<00011.00000.0021
KW0.04730.64571.00000.05160.00211.0000
Table
Table 3. Titer for mosquito body and legs at ten days post-exposure to Chikungunya virus for each mosquito population tested.
Table 3. Titer for mosquito body and legs at ten days post-exposure to Chikungunya virus for each mosquito population tested.
Mosquito PopulationMean ± SE log10–10 dpi BodyMean ± SE log10–10 dpi Legs
Rockefeller2.07 ± 0.49 a2.06 ± 0.30 a
Vero Beach2.99 ± 1.87 b3.78 ± 1.07 b
Key West3.25 ± 1.57 b3.21 ± 1.33 c
a,b,c Levels not connected by same letter are significantly different.
Table
Table 4. Mapping summary.
Table 4. Mapping summary.
Population-ReplicateNo. of ReadsAverage
Read Length		Uniquely
Mapped Reads		Uniquely
Mapped Reads %		Average
Mapped Length
ROCK- 1183236052351257013768.60%234
ROCK- 2389315142362582414866.33%236.32
ROCK- 3212122062321519546271.64%233.3
Vero- 1238527892341683395770.57%233.39
Vero- 2203928732361419815869.62%235.17
Vero- 3210093102351459241169.46%233.62
KW- 1226774152311560839968.83%232.27
KW- 2242925042311655138168.13%231.31
KW- 3261676122351672457563.91%233.97
Average24095536.44233.8916455403.1168.57%233.71
Table
Table 5. Nine genes differentially expressed between two field populations of Ae. aegypti.
Table 5. Nine genes differentially expressed between two field populations of Ae. aegypti.
Transcript IDDescriptionFold-Change
(log2)		Function
AAEL015403Conserved hypothetical protein6.803267Protein binding
AAEL015645Hypothetical protein4.198290Nucleic acid binding
AAEL013339Lethal (2) essential for life protein l2efl4.573305Multicellular organism development
AAEL014937Hypothetical protein1.519918Not annotated
AAEL012013Hypothetical protein4.487515Chitin metabolic process
AAEL001785Origin recognition complex subunit1.864977Origin recognition complex
AAEL015047Hypothetical protein4.127470Not annotated
AAEL018047Not annotated−2.099707Not annotated
AAEL004231M12 mutant protein precursor 2C putative−2.142678Cell motility
Table
Table 6. Components of Wnt pathway and Notch pathway/neuronal development genes that are differentially expressed in two field populations compared to ROCK population four days after CHIKV infection.
Table 6. Components of Wnt pathway and Notch pathway/neuronal development genes that are differentially expressed in two field populations compared to ROCK population four days after CHIKV infection.
Gene IDFold Change (log2)DescriptionGO IDGO Function Description
KW
Wnt signaling pathway
AAEL0088472.600winglessGO:0016055Wnt signaling pathway
AAEL0049322.320tyrosine-protein kinaseGO:0008543fibroblast growth factor receptor signaling pathway
AAEL001235−1.628palmitoyl-protein thioesteraseGO:0008474palmitoyl-(protein) hydrolase activity
AAEL007828−1.595palmitoyl-protein thioesteraseGO:0008474palmitoyl-(protein) hydrolase activity
AAEL0150382.124palmitoyl-protein thioesteraseGO:0008474palmitoyl-(protein) hydrolase activity
AAEL0116953.224conserved hypothetical proteinGO:0035023regulation of Rho protein signal transduction
AAEL001530−1.835hypothetical proteinGO:0035023regulation of Rho protein signal transduction
AAEL0007342.840hydroxysteroid dehydrogenaseGO:0035023regulation of Rho protein signal transduction
AAEL0098705.880low-density lipoprotein receptor (ldl)GO:0019013viral nucleocapsid
AAEL0003241.870tyrosine-protein kinase drl, Wnt-activated receptorGO:0004713protein tyrosine kinase activity
AAEL0117732.199Calreticulin, Wnt signaling regulatorGO:0005783endoplasmic reticulum; coreceptor for wnt protein
AAEL001074−2.103cadherinGO:0007156homophilic cell adhesion via plasma membrane adhesion molecules
AAEL0065407.155rabGO:0007264small GTPase mediated signal transduction
Notch signaling pathway/neuronal function and development
AAEL0175032.952NAGO:0007219Notch signaling pathway
AAEL0042192.340rap GTPase-activating proteinGO:0051056regulation of small GTPase mediated signal transduction
AAEL0035862.464neuronal cell adhesion moleculeGO:0005515protein binding
AAEL0002432.347leucine-rich transmembrane proteinGO:0005515protein binding
AAEL002307−4.061leucine-rich transmembrane proteinGO:0005515protein binding
AAEL003720−2.366leucine-rich transmembrane proteinGO:0005515protein binding
AAEL0072312.581leucine-rich immune protein (Coil-less)GO:0005515protein binding
AAEL0011062.242von Hippel-Lindau disease tumor suppressor C putativeGO:0042073intraciliary transport
AAEL012001−2.588Galectin, JNK regulatorGO:0030246carbohydrate binding
Notch signaling pathway/neuronal function and development
AAEL0055073.411Inhibitory pou neural developmentGO:0006351transcription, DNA-templated
AAEL0035862.025neuronal cell adhesion moleculeGO:0005515protein binding
AAEL003720−1.878leucine-rich transmembrane proteinGO:0005515protein binding
Table
Table 7. Validation of expression of transcripts in field population compared to a lab population, ROCK, by qRT-PCR (*: p < 0.05, **: p < 0.005).
Table 7. Validation of expression of transcripts in field population compared to a lab population, ROCK, by qRT-PCR (*: p < 0.05, **: p < 0.005).
Accession NumberAAEL000912AAEL008847AAEL015038AAEL007220
qRT-PCR_Field/Rock12.8162 **14.773 **2.42006 *13.9022 *
RNAseq_Field/Rock1.7492.62.1243.183

Share and Cite

MDPI and ACS Style

Shin, D.; Kang, S.; Smartt, C.T. Profiling Transcripts of Vector Competence between Two Different Aedes aegypti Populations in Florida. Viruses 2020, 12, 823. https://doi.org/10.3390/v12080823

AMA Style

Shin D, Kang S, Smartt CT. Profiling Transcripts of Vector Competence between Two Different Aedes aegypti Populations in Florida. Viruses. 2020; 12(8):823. https://doi.org/10.3390/v12080823

Chicago/Turabian Style

Shin, Dongyoung, Seokyoung Kang, and Chelsea T. Smartt. 2020. "Profiling Transcripts of Vector Competence between Two Different Aedes aegypti Populations in Florida" Viruses 12, no. 8: 823. https://doi.org/10.3390/v12080823

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
