Elastic and Strength Properties of Heat-Treated Beech and Birch Wood

Abstract

This paper deals with the impact of heat treatment on the elastic and strength properties of two diffuse porous hardwoods, namely Fagus sylvatica and Betula pendula. Two degrees of the heat treatment were used at temperatures of 165 °C and 210 °C. The dynamic and static elasticity modulus, bending strength, impact toughness, hardness, and density were tested. It is already known that an increase in treatment temperature decreases the mechanical properties and, on the other hand, leads to a better shape and dimensional stability. Higher temperatures of the heat treatment correlated with lower elastic and strength properties. In the case of higher temperature treatments, the decline of tested properties was noticeable as a result of serious changes in the chemical composition of wood. It was confirmed that at higher temperature stages of treatment, there was a more pronounced decrease in beech properties compared to those of the birch, which was the most evident in their bending strength and hardness. Our research confirmed that there is no reason to consider birch wood to be of a lesser quality, although it is regarded by foresters as an inferior tree species. After the heat treatment, the wood properties are almost the same as in the case of beech wood.

1. Introduction

Beech (Fagus sylvatica L.) ranks among the most important European hardwoods and the most important deciduous species for Czech forestry, occupying 8.3% of total forest area [1]. It plays an important role in industry. In contrast, birch (Betula pendula Roth) is regarded as an inferior species in this region and its wood is mostly used as fuel. One of the reasons for this is its low durability and low resistance against biological agents. One of the ways to improve wood properties is thermal treatment, a natural and an environmentally friendly method of wood modification.

In many kinds of processing, wood is exposed to a treatment at elevated temperatures, e.g., drying, pulping, size stabilization, and production of particle- and fiberboard. Due to the fact that temperature influences the physical, structural, and chemical properties of wood, a number of publications are devoted to this topic [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24], etc. The above mentioned processes are carried out at temperatures that usually do not exceed 200 °C because thermal degradation is undesirable.

Wood heating will lead to different processes that always depend on the heating mode used. It is recognized that hemicelluloses are degraded to a greater extent than other macromolecular components, but the relative stability of cellulose and lignin is much more difficult to determine. As is not the case above, when the wood is heated, heat-labile wood polymeric components (hemicelluloses) begin to decompose, resulting in the production of methanol, acid, and various volatile heterocyclic compounds (furans, etc.). In general, the loss of polysaccharide material becomes particularly important at temperatures above 180 °C, which largely depends on the processing conditions. However, changes in the degree of polymerization may appear at lower temperatures (above approx. 150 °C), depending on the heat treatment conditions. The total polyoses (hemicelluloses) containing a large proportion of xylan are oxidized more slowly and consume less oxygen than pure xylan. According to some studies, the decomposition of hardwood xylan begins at a temperature close to 200 °C in a normal atmosphere. Even though lignin is considered to be the thermally most stable component of wood, various changes have been observed even at temperatures below 200 °C. Assessment of lignin content in thermally treated woods indicated the increase of non-hydrolyzable residue with increasing temperature up to 200 °C [9,11].

There are a number of thermal modification methods that can be applied to wood, and the exact method of treatment can have a significant effect on the properties of the thermally modified wood. Major process variables are the following: time and temperature of treatment, treatment atmosphere, pressure, closed vs. open systems, wood species, wet and dry systems, sample dimensions, and use of catalysts. Also, under certain conditions, changes in wood can be observed even at 100 °C [11].

Thermally modified wood has been produced for more than 20 years, mostly in Finland and other countries of Western Europe. It is made of non-durable and less-durable wood species, such as beech, birch, pine, and spruce, etc. ThermoWood^® is produced by a heat treatment process in the presence of steam and is therefore typical hygrothermal treatment. The steam acts as a blanket to reduce the oxidative degradation of wood and there are also further reactions that occur due to the presence of moisture. Because of the presence of steam, the air content in the kiln is limited from 3 to 5% during the heat treatment process [25].

ThermoWood has a lower density and has a reduced bending strength compared to unmodified wood [26,27,28]. The modulus of elasticity does not change significantly by the thermal treatment [29,30]. ThermoWood is not desirable to use for load-bearing applications. Toughness and abrasion resistance are reduced and wood tends to split more [31]. The equilibrium moisture content is about 40–50% lower at a given relative humidity compared to unmodified wood [11]. This wood also exhibits reduced permeability to moisture and greater dimensional stability [32]. There are more positive results due to heat treatment of wood, i.e., reduced thermal conductivity, increased sound absorption coefficient [33], improved fire resistance [34], reduced susceptibility to insect attack [35], and increased durability [36], etc.

Thermally modified wood is an ideal material for interior products such as parquet, tile, panels, kitchen furniture, sauna walls or floors, and some musical instruments. Also, it can be used for entrance doors, windows, exterior cladding, garden furniture, children’s playgrounds, fencing, and so on. This wood has the potential to replace tropical wood species and also to gradually replace wood chemically protected with biocides. However, it should be emphasized that the types of thermally modified wood that have been produced so far have not always been the most suitable material for permanently wet exposures in contact with terrain or water [15,16].

The aim of this study is to compare properties of beech and birch wood and to better explain the effect of thermal treatment on their wood. The results should broaden the information about stiffness and strength characteristics for the thermally modified wood of European beech and European birch, and their mutual comparison, as well as present a comparison with research of Douglas fir and alder woods (see research Borůvka [37]). The aim of this paper is therefore also to verify the negativity of the higher level of heat treatment of deciduous woods against conifers. From the perspective of wood utilization, these characteristics are important to find limiting conditions for the proper application and protection of individual timbers, including the appropriate degree of thermal treatment to guarantee required properties.

2. Materials and Methods

2.1. Materials

The testing material comes from tree stems from the Školní Lesní Podnik (Forest Establishment) of the Czech University of Life Sciences in Kostelec nad Černými Lesy, Czech Republic. For each species, we used wood from the basal part of three trees with diameters of about 40 cm. European beech (Fagus sylvatica L.) and European birch (Betula pendula Roth.) wood were cut into prisms with dimensions of 25 mm × 50 mm × 1000 mm (R × T × L). Six test pieces with dimensions of 20 mm × 20 mm × 300 mm were prepared from each prism to ensure the longitudinal parallelism of the testing samples with the samples prepared for two degrees of the thermal treatment.

Transversal parallelism should make the mutual comparison of two sets of tests possible (always a sample designed for the determination of density, toughness, and hardness, beneath a sample on dynamic elasticity modulus, static elasticity modulus, and bending strength). For more details, see the sampling scheme in Figure 1.

In total, 360 testing samples were used (180 for beech and 180 for birch). The set of samples for each species was divided into thirds (reference, first degree of the treatment, second degree of the treatment). The following defects and irregularities were not allowed for the testing samples: knots, cracks, or reaction wood, as well as an angle of fiber declination in the bending plane larger than 5°.

The testing samples were conditioned to reach the equilibrium moisture content (approx. 12%). We used the Climacell 707 conditioning chamber (BMT Medical Technology Ltd., Brno, Czech Republic) at 20 ± 2 °C and a relative humidity of 65 ± 5%.

One third of the testing samples were subsequently exposed to the first degree of thermal treatment (an air atmosphere at 165 °C), and the second third of the testing samples were heat-treated at 210 °C, following the Finnish technology for the wood heat treatment (Pat. EP-0759137 [25]). The lab high-temperature chamber A type KHT (Katres Ltd., Jihlava, Czech Republic) (Figure 2,

Table 1. Parameters of the Thermal Chamber.

Technical Parameters
Filling capacity of furnace	0.38 m3
Maximum load capacity	150 kg
Maximum reachable temperature	300 °C
Maximum working temperature	250 °C
Power consumption	3 kWh

) was employed to modify both sets of the testing samples.

Figure 3 describes the process of the heat treatment. During the treatment, we used sprinkling, in contrast to the steam used in Finnish technology. We exposed the testing samples to a temperature of 20 ± 2 °C and a relative humidity of 65 ± 5% to stabilize the equilibrium moisture content (Figure 2).

For the purpose of this study, beech and birch woods were chosen deliberately. Both species represent diffuse porous hardwoods with similar densities (

Table 2. Properties of Beech and Birch Woods.

	Wood Species 1
	Beech			Birch
	Min.	Mean	Max.	Min.	Mean	Max.
Density (kg/m3)	540	720	910	510	650	830
Static modulus of elasticity (MPa)	10,000	16,000	18,000	14,500		16,500
Bending strength (MPa)	74	123	210	76	147	155
Impact bending strength (J/cm2)	3.0	10.0	19.0	4.5	10.0	13.0
Hardness LR/LT (MPa)		34		22		27

¹ Moisture content 12–15% [38]. LR = radial plane, LT = tangential plane.

).

2.2. Methods

The impact toughness (breaking power) is defined as the ability of wood to absorb the power of impact bending. The aim of this test was to determine the power consumed for the wood rupture (breaking point) under controlled conditions. Charpy’s hammer (CULS, Prague, Czech Republic) was used for this determination. The hammer impact direction was tangential.

The Equation (1) was used to calculate the impact toughness:

$$A_w=\frac{W}{b·h}$$

(1)

where A_w is the impact toughness at the moisture content during the test time in J·cm⁻², W is the power consumed for the wood rupture in J, and b and h are the wood transversal dimensions in cm.

The wood bending strength is the stress corresponding to the test sample rupture caused by the combined forces with momentum at the plane perpendicular to the cross section. For the action of a single force in the center of the supports, the bending strength was calculated according to the Equation (2):

$${\sigma }_{\mathit{pohw}}=\frac{3·F_{\mathit{max}}·l_0}{2·b·h^2}$$

(2)

where σ_pohw is the bending strength at the moisture content during the test time in MPa; F_max is the force corresponding to the breaking strength in N; l₀ is the distance between supports in mm; and b and h are the width and height dimensions, respectively, in mm. The static bending tests were carried out on a Tira 50 kN testing machine (Tira GmbH, Schalkau, Germany) (Figure 4) with support distances of 240 mm, i.e., 12-fold greater than the sample height.

A theoretical basis for the determination of the bend elasticity modulus is the differential equation of the bending curve, as Equation (3) [39]:

$$\frac{d^{2}y}{{\mathit{dx}}^2}=\frac{M}{E·I}$$

(3)

where M is the bending momentum, E is the elasticity modulus, and I is the inertia moment.

For the action of a single force in the center of the supports, the static elasticity modulus was calculated according to the Equation (4):

$$E_{\mathit{ohw}}=\frac{1}{4}·\frac{\Delta F·l_0^3}{b·h^3·\Delta y}$$

(4)

where E_ohw is the elasticity modulus at the moisture content during the test time in MPa; ∆F is the difference between the forces at maximum and minimum load limits in N; l₀ is the distance between the supports in mm; b and h are the width and height dimensions, respectively, in mm; and ∆y is the test sample deflection in the area of pure bending, equal to the difference between the bending values corresponding to maximum and minimum load limits, in mm.

The dynamic elasticity modulus was calculated Equation (5) [39]:

$$E_d{=c}^2·\rho$$

(5)

where E_d is the dynamic elasticity modulus in MPa, c is the speed of sound in m·s⁻¹, and ρ is the wood density in kg·m⁻³. We used a Fakopp Ultrasonic Timer instrument (Fakopp Enterprise Bt., Ágfalva, Hungary) (Figure 4).

Brinell hardness (BH) was calculated using a hardness tester DuraVision-30 (Struers GmbH, Willich, Germany) according to the Equation (6):

$$H_{\mathit{Bw}}=\frac{2·F}{\pi ·D·(D-\sqrt{D^2{-d}^2})}$$

(6)

where H_Bw is the BH of wood (MPa), F is the maximum load force (N), D is the diameter of the carbide ball (mm), and d is the diameter of the residual indentation (mm). The force of 500 N was applied.

A reading for the wood density determination was taken from each test sample after the experiment (see Figure 1). The density was calculated as Equation (7):

$${\rho }_w=\frac{m_w}{V_w}$$

(7)

where ρ_w is the wood density at the moisture content during the testing time in g·cm⁻³, m_w is the wood mass at the moisture content during the testing time in g, and V_w is the wood volume at the moisture content during the testing time in cm³.

After the tests on density were carried out, the average width of the annual rings was measured on the samples. The cross sections on samples were scanned and evaluated using image analysis software NIS Elements AR (Laboratory Imaging, Prague, Czech Republic). The average width of annual rings was measured for each individual sample in pixels, which was then recalculated to dimensions in millimeters.

After the samples were dried to zero percent moisture in a Binder FD 115 lab kiln (Binder Inc., Tuttlingen, Germany) at 103 ± 2 °C, the wood moisture content was calculated according to the following formula:

$$w_a=\frac{m_w{-m}_0}{m_0}·100$$

(8)

where w_a is the sample’s moisture content in %, m_w is the sample’s mass at a certain moisture content in g, and m₀ is the sample’s dry mass in g.

A so-called specific strength [39,40] was used as another indicator of the effect of the treatment on the quality of the testing material. The specific strength represents the proportion of adequate strength and density (SI unit for specific strength is N·m/kg). This indicator is a better way of informing about the impact of the modification on the practical usability of the material.

The initial equilibrium moisture content for the testing samples of the untreated wood was 12% (standardized conditions with a relative humidity of 65 ± 5% and a temperature of 20 ± 2 °C [19,22]). The heat-treated wood exhibited a lower moisture content under these conditions depending on the degree of the heat treatment. All tests were carried out completely with the testing standards according to the Czech national standardization [41,42,43,44,45,46,47], and the determination of the dynamic elasticity modulus was based on the methodology specified in the Fakopp instrumentation manual [48].

For statistical analysis, analysis of variance ANOVA (two-factors) was used to evaluate the significance of individual factors. The Duncan’s Multiple Range Test was used to compare the properties among the different treatments and species. A linear regression model was used to set the degree of correlation of selected factors. For all analyses, the same significance level of α = 0.01 (alternatively α = 0.05) was used.

3. Results

Table 3. Basic Statistical Analyses of the Properties for Untreated and Heat-Treated Beech Wood.

Properties	Heat Treatment Degree	Minimum	Mean	Maximum	Std.Dev.	Coef.Var. (%)
Density	REF	622	676	729	27	4.0
(kg/m3)	165	615	676	742	33	4.8
	210	579	643	802	53	8.3
Annual	REF	1.1	2.1	3.4	0.4	19.3
ring width	165	1.3	1.9	3.0	0.4	22.2
(mm)	210	1.0	2.0	4.3	0.7	34.1
Dynamic	REF	10,107	12,986	16,583	1639	12.6
modulus of elasticity	165	10,077	13,439	16,959	1878	14.0
(MPa)	210	8779	12,297	18,925	2281	18.5
Static	REF	8735	10,056	11,142	740	7.4
modulus of elasticity	165	8909	10,715	12,703	1070	10.0
(MPa)	210	7007	8830	11,072	1053	11.9
Modulus of rupture-	REF	86.7	102.7	117.3	8.1	7.9
bending strength	165	75.4	108.8	130.2	14.6	13.5
(MPa)	210	27.9	42.0	62.5	9.0	21.5
Toughness-impact	REF	4.1	8.4	16.4	2.7	32.6
bending strength	165	2.5	6.1	10.0	1.9	30.6
(J/cm2)	210	0.3	1.6	3.9	0.9	59.3
Hardness LR	REF	14.5	41.5	60.8	11.0	26.4
(MPa)	165	14.8	40.7	57.3	9.9	24.4
	210	13.3	26.1	53.8	11.4	43.9
Hardness LT	REF	35.8	53.8	61.8	7.3	13.6
(MPa)	165	32.0	55.2	65.5	7.5	13.6
	210	20.3	40.9	64.3	12.2	29.8
Specific strength-	REF	127.8	152.0	168.5	11.5	7.6
MOR/Density	165	110.2	160.7	181.0	18.0	11.2
(kN·m/kg)	210	39.3	65.5	90.6	13.5	20.6
Specific strength-	REF	54.4	79.5	93.8	10.2	12.8
Hardness LT/Density	165	51.4	81.4	92.6	9.5	11.7
(kN·m/kg)	210	32.5	63.3	94.3	16.6	26.2
Moisture content	REF	11.6	12.0	12.4	0.2	1.5
(%)	165	8.3	9.2	11.0	0.5	5.9
	210	4.5	5.9	7.4	0.8	13.0

Valid N = 30 (for all properties), Std.Dev. = Standard Deviation, Coef.Var. = Coefficient of variation, MOR = Modulus of rupture, LR = radial plane, LT = tangential plane, REF = reference, with no treatment, 165 = heat treatment at 165 °C, 210 = heat treatment at 210 °C.

and

Table 4. Basic Statistical Analyses of the Properties for Untreated and Heat-Treated Birch Wood.

Properties	Heat Treatment Degree	Minimum	Mean	Maximum	Std.Dev.	Coef.Var. (%)
Density	REF	493	639	696	42	6.5
(kg/m3)	165	501	634	721	43	6.7
	210	467	588	691	42	7.2
Annual	REF	3.3	7.5	13.6	2.5	33.5
ring width	165	2.1	7.6	14.7	2.8	36.5
(mm)	210	2.7	6.6	10.9	1.9	29.5
Dynamic	REF	4824	9485	17,585	2998	31.6
modulus of elasticity	165	6482	10,676	15,749	2385	22.3
(MPa)	210	3307	10,449	15,997	2764	26.5
Static	REF	1464	6829	10,407	2138	31.3
modulus of elasticity	165	1264	8458	10,965	1956	23.1
(MPa)	210	3178	7487	10,231	1628	21.8
Modulus of rupture-	REF	8.1	67.7	101.2	24.1	35.6
bending strength	165	8.5	85.1	127.0	25.1	29.5
(MPa)	210	8.9	35.9	62.1	10.0	27.8
Toughness-impact	REF	1.6	7.9	13.4	3.6	46.0
bending strength	165	0.3	3.4	7.1	1.8	52.2
(J/cm2)	210	0.5	1.1	2.6	0.5	46.2
Hardness LR	REF	13.2	21.2	44.6	6.1	28.9
(MPa)	165	14.7	28.4	62.3	12.9	45.4
	210	14.2	23.1	41.7	7.4	32.2
Hardness LT	REF	16.2	32.8	52.0	12.7	38.6
(MPa)	165	16.7	36.4	70.6	12.3	33.8
	210	14.2	34.5	65.7	13.9	40.4
Specific strength-	REF	12.3	106.6	150.5	37.9	35.6
MOR/Density	165	12.4	135.1	213.5	40.7	30.1
(kN·m/kg)	210	15.6	61.5	109.3	18.3	29.8
Specific strength-	REF	27.1	50.7	76.7	17.9	35.2
Hardness LT/Density	165	27.2	57.1	103.6	17.7	31.1
(kN·m/kg)	210	28.6	58.1	98.0	21.7	37.3
Moisture content	REF	10.0	12.4	13.5	0.7	5.5
(%)	165	4.9	8.8	10.7	1.1	13.1
	210	3.7	4.4	5.2	0.3	7.5

Valid N = 30 (for all properties).

show the basic statistical characteristics of all tested properties of untreated and heat-treated beech and birch wood.

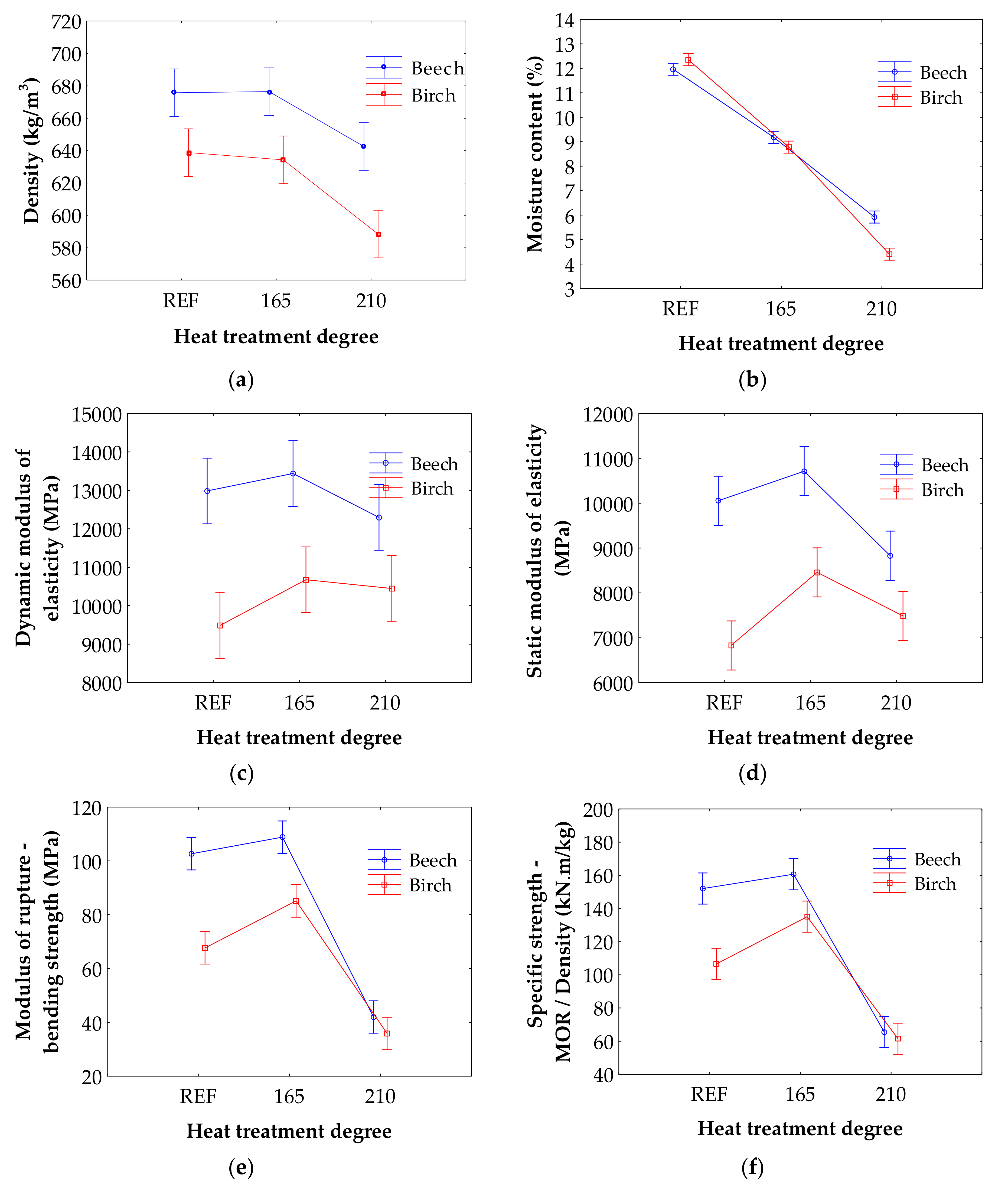

The influence of wood species on a specific property (quantity), at a particular level of treatment (REF = reference, with no treatment, 165 = heat treatment at 165 °C, 210 = heat treatment at 210 °C), is almost always statistically significant (p < 0.01) (see

Table A1. Duncan’s Multiple Range Test for Wood Density.

MS = 1663.7		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.947
Beech	210	0.002 *	0.002 *
Birch	REF	0.001 *	0.001 *	0.720
Birch	165	0.000 *	0.000 *	0.466	0.673
Birch	210	0.000 *	0.000 *	0.000 *	0.000 *	0.000 *

* Significant at p < 0.01; Error: Between MS = mean squares, DF = degrees of freedom.

,

Table A2. Duncan’s Multiple Range Test for Annual Ring Width.

MS = 3.0963		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.705
Beech	210	0.746	0.934
Birch	REF	0.000 *	0.000 *	0.000 *
Birch	165	0.000 *	0.000 *	0.000 *	0.965
Birch	210	0.000 *	0.000 *	0.000 *	0.037	0.043

* Significant at p < 0.01.

,

Table A3. Duncan’s Multiple Range Test for Dynamic Modulus of Elasticity.

MS = 5,622,000		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.459
Beech	210	0.261	0.077
Birch	REF	0.000 *	0.000 *	0.000 *
Birch	165	0.000 *	0.000 *	0.008 *	0.065
Birch	210	0.000 *	0.000 *	0.004 *	0.115	0.711

* Significant at p < 0.01.

,

Table A4. Duncan’s Multiple Range Test for Static Modulus of Elasticity.

MS = 2,308,000		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.093
Beech	210	0.002 *	0.000 *
Birch	REF	0.000 *	0.000 *	0.000 *
Birch	165	0.000 *	0.000 *	0.343	0.000 *
Birch	210	0.000 *	0.000 *	0.001 *	0.093	0.013

* Significant at p < 0.01.

,

Table A5. Duncan’s Multiple Range Test for Modulus of Rupture.

MS = 279.08		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.154
Beech	210	0.000 *	0.000 *
Birch	REF	0.000 *	0.000 *	0.000 *
Birch	165	0.000 *	0.000 *	0.000 *	0.000 *
Birch	210	0.000 *	0.000 *	0.157	0.000 *	0.000 *

* Significant at p < 0.01.

,

Table A6. Duncan’s Multiple Range Test for Toughness.

MS = 4.7429		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.000 *
Beech	210	0.000 *	0.000 *
Birch	REF	0.386	0.001 *	0.000 *
Birch	165	0.000 *	0.000 *	0.001 *	0.000 *
Birch	210	0.000 *	0.000 *	0.444	0.000 *	0.000 *

* Significant at p < 0.01.

,

Table A7. Duncan’s Multiple Range Test for Hardness LR.

MS = 101.28		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.780
Beech	210	0.000 *	0.000 *
Birch	REF	0.000 *	0.000 *	0.074
Birch	165	0.000 *	0.000 *	0.383	0.010 *
Birch	210	0.000 *	0.000 *	0.243	0.470	0.053

* Significant at p < 0.01.

,

Table A8. Duncan’s Multiple Range Test for Hardness LT.

MS = 127.42		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.629
Beech	210	0.000 *	0.000 *
Birch	REF	0.000 *	0.000 *	0.009 *
Birch	165	0.000 *	0.000 *	0.121	0.245
Birch	210	0.000 *	0.000 *	0.036	0.558	0.513

* Significant at p < 0.01.

and

Table A9. Duncan’s Multiple Range Test for Moisture Content.

MS = 0.46655		Beech	Beech	Beech	Birch	Birch	Birch
DF = 174		REF	165	210	REF	165	210
Beech	REF
Beech	165	0.000 *
Beech	210	0.000 *	0.000 *
Birch	REF	0.026	0.000 *	0.000 *
Birch	165	0.000 *	0.024	0.000 *	0.000 *
Birch	210	0.000 *	0.000 *	0.000 *	0.000 *	0.000 *

* Significant at p < 0.01.

). This is not only the logical reason for moisture content in untreated wood (hereinafter REF) and also in treated at a temperature of 165 °C (hereinafter 165). For wood treated at a temperature of 210 °C (hereinafter 210), this difference is significant. Furthermore, there is a statistically insignificant influence of wood on the bending strength “210” and the impact bending strength “REF” and “210”.

Clearly, the resilience of both woods was proved to be particularly evident against dynamic strain (impact bending strength), even at a lower level of heat treatment (decrease towards “REF” by 28% or beech and 56% for birch) and at a higher level by 81% for beech and by 86% for birch (see

Table 5. Changes in Wood Property of Heat-treated Wood in Comparison to the Reference (untreated) Wood in %.

	Heat Treatment Degree	Beech	Birch
Density	165/REF	0	−1
	210/REF	−5	−8
Dynamic modulus of elasticity	165/REF	3	13
	210/REF	−5	10
Static modulus of elasticity	165/REF	7	24
	210/REF	−12	10
Modulus of rupture-bending strength	165/REF	6	26
	210/REF	−59	−47
Toughness-impact bending strength	165/REF	−28	−56
	210/REF	−81	−86
Hardness LR	165/REF	−2	34
	210/REF	−37	9
Hardness LT	165/REF	3	11
	210/REF	−24	5
Moisture content	165/REF	−23	−29
	210/REF	−51	−64

165/REF = heat treatment at 165 °C vs. reference, with no treatment; 210/REF = heat treatment at 210 °C vs. reference, with no treatment.

). On the other hand, the statistical method of this type of load (MOR = bending strength) at a lower level of heat treatment showed an increase of 6% for beech and up to 26% for birch at a lower heat treatment, and there was only a significant decrease at a higher degree of heat treatment, namely 59% for beech and 47% for birch. Regarding the elastic properties (MOE) and hardness, there was only a slight decrease for the beech and an increase for the birch (see Table 5 or Figure 5c,d). Respectively, the above mentioned practically means that the deformation potential in the plastic zone is significantly limited, particularly at a higher degree of heat treatment (above 200 °C).

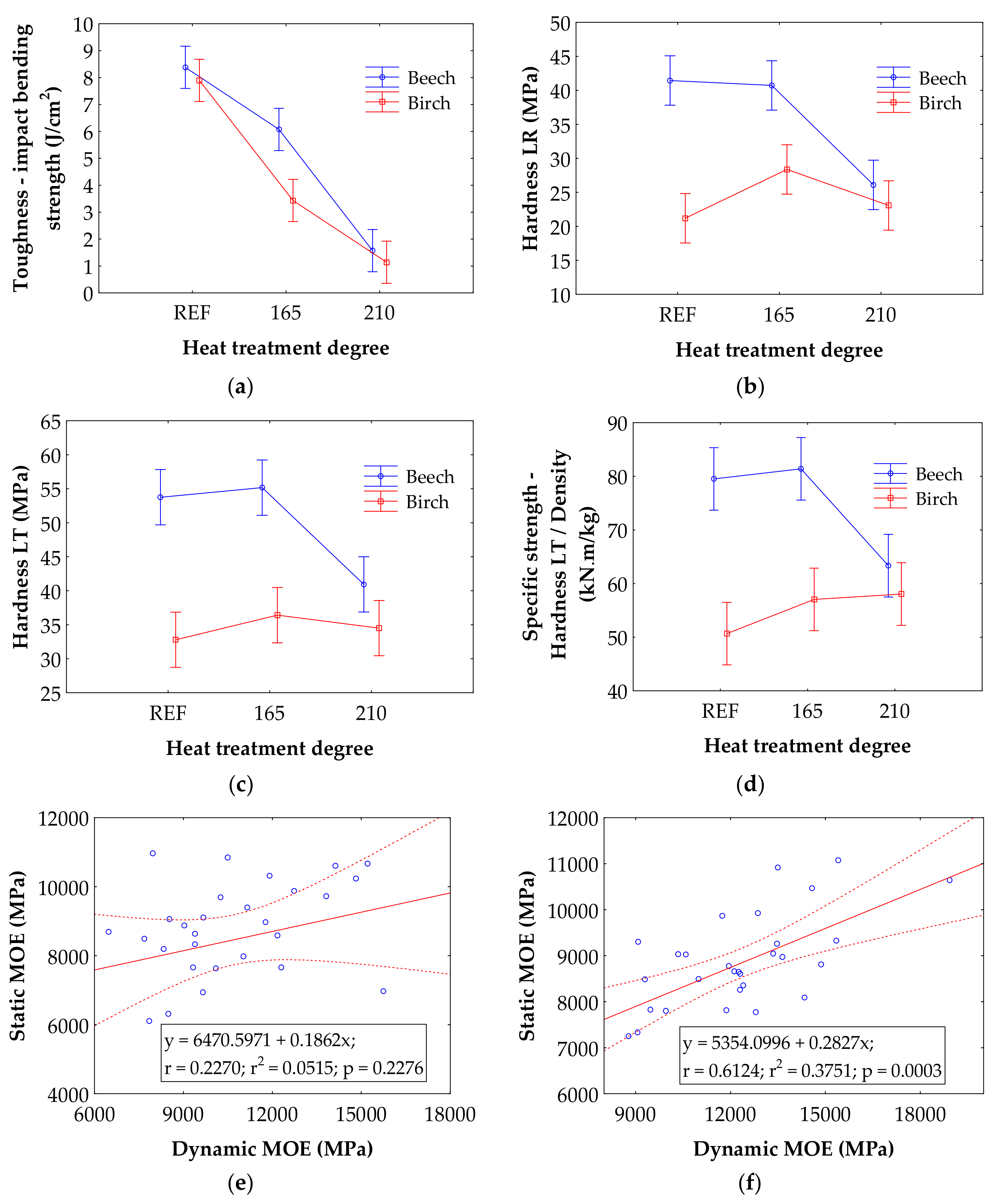

Expected correlation (as stated Dinwoodie [49]) between statistical and dynamical MOEs has proved to be not very significant for possible predictions, especially for heat-treated wood (see Figure 6e,f). The explanation has already been described in detail in research by Borůvka [37], i.e., the different influence of moisture content during the measurement of dynamic and static moduli, as well as the existence of shear stress during the static three-point bending test.

Interestingly, there is a considerable difference in the width of the annual rings between the two trees, with the birch having more than three times the width of the beech, but the density of both trees was more or less standard, within the limits indicated in the literature (Table 2). Specific strength is a part of the results only for a simple material comparison, i.e., the quasi-removal of the effects caused by the density. This characteristic is better for comparison on a different basis, such as wood with metals. In our case, the development trend of the compared properties with the temperature increase proved to be logically similar, without taking into account the density.

4. Discussion

The aim of this study was to compare beech and birch wood and to better explain the effect of thermal treatment on their physical and mechanical properties. The related objective of this paper was primarily to verify the negativity of the higher level of treatment of deciduous woods (“210”) against conifers (see [37]). This hypothesis has been completely confirmed and it is clear that for the mentioned species, the maximum temperature is about 200 °C. Above this temperature, there are already significant changes in the chemical structure, especially the hemicellulose components (see more information in Introduction). Higher values of some properties (e.g., MOE) at the lower level of treatment, i.e., “165”, are more or less related to the fact that the changes in the wood structure are negligible and only the positive effect of the lower moisture is manifested, which at the higher stage “210” is important due to significant changes in the chemical structure, especially the hemicellulose components of the polysaccharide complex [9,10,11,13]. The general trend corresponds with the results specified for the example in the handbook of the International Thermowood Association [50], etc. [28,30,51].

Pentosans prevail among hardwood hemicelluloses, whereas hexosans are predominant in coniferous species. However, hemicelluloses are mainly copolymers of different carbohydrates. Xylans predominate among hemicelluloses in all deciduous species, in particular, glucuronoxylans. Mannane fractions are more skeleton than filling material of wood, having good links with the cellulose (see the representation of selected types of wood in the

Table 6. Percentage Representation of the Major Non-glucosic Units in Hemicelluloses of Selected Wood Species (according to Fengel and Wegener [9]).

Wood Species	Mannans	Xylans
Beech	0.9	19.0
Birch	3.2	24.9
Pine	12.4	7.6
Fir	10.0	5.2

), mainly galactoglucomannans. Following on from this, the results of a comparison of the values of the selected properties of deciduous woods compared to representative of coniferous woods, which are much more resistant, are emerging. This is the same for static and dynamic mechanical loading (see

Table 7. Percentage Decrease in Wood Property of Heat-treated Wood in Comparison to the Reference (untreated) Wood.

	210/REF
	Density	MOR	Toughness
Beech	5	59	81
Birch	8	47	86
Douglas Fir	4	8	34
Alder	10	45	63

210/REF = heat treatment at 210 °C vs. reference, with no treatment; MOR = Modulus of rupture; according to research Borůvka [37].

). The decrease of properties in hardwoods is higher for beech and birch, which have a higher value of reference properties than the alder, but the values at “210”, especially in toughness, are almost identical, which means that the decrease is ultimately stronger.

It is necessary to realize that the variability of most properties [52,53] is not eliminated by the heat treatment, often on the contrary.

From the above mentioned, at the finale, eventually limiting conditions are developed so as to guarantee the appropriate and safe utilization of the relevant type and degree of treatment of the modified wood in terms of its required utility properties. From the achieved results, it is clearly seen that usage of wood, treated with high temperatures, especially wood of deciduous species (i.e., beech and birch), is not suitable for construction purposes, because of the significant decrease of bending strength and toughness.

5. Conclusions

There is a partial increase in the values of most properties at a lower treatment temperature, eventually leading to the preservation of values at the level of untreated wood, for example, for birch, the modulus of rupture increased by 26%, the modulus of elasticity by 24%, and the hardness in the radial plane by 34%. This is related to the fact that chemical changes are not yet significant, and they only case the restriction of the wood’s ability to absorb bound water.

With higher treatment temperatures, there is a decrease in the elastic and especially the strength properties of the heat-treated wood. At higher treatment temperatures, more markedly right above 200 °C, the significant reduction of equilibrium moisture has no such effect as the consequence of more significant changes in the chemical structure of wood and the decrease in properties is significant.

Apparently, wood with a higher hemicellulose content, i.e., a lower overall resistance, exhibits a lower density, static bending strength, and toughness. Therefore, a more significant decrease was observed for the beech and birch woods than for the softwoods at higher treatment temperatures. The decrease of toughness by about 81% for beech wood with treated temperatures of 210 °C was observed in comparison to untreated wood (respectively 86% at birch). Static bending strength at heat treated birch wood decreased by 47% (respectively 59% at beech).

The higher strength resistance (respectively mainly hardness) of birch wood compared to beech in relation to heat treatment has been demonstrated, which is probably due to the higher content of mannan fractions of hemicelluloses.

The existing correlation between static and dynamic modules of elasticity was confirmed, but it was not statistically significant in all cases.

Our research confirmed that although untreated birch wood is not equal to beech wood from the view of wood properties, the heat treatment provides wood of similar properties. The impact of the heat treatment on the wood properties is less pronounced in the case of birch than beech, and the birch is thus more suitable for thermal modification. This simple and environmentally friendly method provides one of the ways to increase the utilization of birch wood in the industry for more valuable products than fuelwood.
