Next Article in Journal
Spatial Patterns of Canopy Disturbance, Structure, and Species Composition in a Multi-Cohort Hardwood Stand
Previous Article in Journal
Phenotypic Plasticity Explains Response Patterns of European Beech (Fagus sylvatica L.) Saplings to Nitrogen Fertilization and Drought Events
Previous Article in Special Issue
Analysing Atmospheric Processes and Climatic Drivers of Tree Defoliation to Determine Forest Vulnerability to Climate Warming
Article

Relationship between Leaf Surface Characteristics and Particle Capturing Capacities of Different Tree Species in Beijing

by 1,2, 2,3 and 2,3,*
1
College of Forestry, Shenyang Agriculture University, Shenyang 110866, China
2
Research Institute of Forest Ecology, Environment and Protection, Chinese Academy of Forestry, Beijing 100091, China
3
Beijing Collaborative Innovation Center for Eco‐Environmental Improvement with Forestry and Fruit Trees, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Forests 2017, 8(3), 92; https://doi.org/10.3390/f8030092
Received: 30 November 2016 / Revised: 12 March 2017 / Accepted: 14 March 2017 / Published: 20 March 2017
(This article belongs to the Special Issue Forest Growth Response to Environmental Stress)

Abstract

Leaf surface is a multifunctional interface between a plant and its environment, which affects both ecological and biological processes. Leaf surface topography directly affects microhabitat availability and ability for deposition. In this study, atomic force microscopy (AFM) and the resuspended particulate matter method were applied to evaluate the adsorptive capacity of the leaf surface. Patterns of particulate‐capturing capacities in different tree species and the effect of leaf surface features on these capacities were explored. Results indicated the following: (1) more total suspended particles (TSP) per unit leaf area were captured by coniferous tree species than by broad‐leaved tree species in a particular order—i.e., Pinus tabuliformis > Pinus bungeana > Salix matsudana > Acer truncatum > Ginkgo biloba > Populus tomentosa; (2) Significant seasonal variation in particulate‐capturing capacities were determined. During the observation period, the broad‐leaved tree species capturing TSP and coarse particulate matter (PM10) clearly exhibited a ∩‐shape pattern— that is, increasing initially and later on decreasing; meanwhile, the ∩‐shape pattern was not clearly shown in P. tabuliformis and P. bungeana. However, no obvious patterns in the absorption of fine particulate matter (PM2.5) were found in the tested tree species; (3) The leaf surface topography, as observed by AFM and scanning electron microscopy, revealed that the broad‐leaved tree exhibits a good correlation between micro‐roughness of leaf surfaces and density of particles settling on leaf surfaces over time. However, the main factors affecting the adsorptive capacities of the leaves in coniferous trees are the number of stomata as well as the amount of epicuticular wax and the properties of the cuticle in different seasons.
Keywords: leaf structure; seasonal changes; AFM; particulate matter; PM10; PM2.5; roughness leaf structure; seasonal changes; AFM; particulate matter; PM10; PM2.5; roughness

1. Introduction

Global industrialization and rapid urbanization have led to an increase in air pollution, which is an urban environmental problem [1,2]. Air pollutants, particularly air particulate matter, present serious hazards to human health. If the amount of particulate matter in the air (PM10 (Dp < 10 μm) or PM2.5 (Dp < 2.5 μm)) increases by 10 μg/m3, the probability of asthma in children aged 1–3 y rises by 1.06% and 1.12%, respectively [3]. Air particulate matter can result from direct emissions or as secondary products, both of which contain natural and anthropogenic sources (Figure 1). Natural sources include ground dust, foam and salt splashed from sea waves, ashes released from volcanic eruption, forest fires, plant pollen, and spores [4,5]. Anthropogenic sources mainly contain soot and dust produced during human activities and fossil fuel combustion, including mixtures of heavy metals and black carbons, polycyclic aromatic hydrocarbons, and other substances [6,7].
The population and number of motor vehicles in Beijing, an international metropolis, have sharply increased with rapid economic development. According to statistics, the resident population of Beijing in 2013 was 21 million and the number of motor vehicles was 5.5 million [8]; the car: resident ratio was 1:4, which led to serious air pollution. In January 2013, incidents of strong haze pollution were reported in Beijing. The average concentration of PM2.5 reached 200 μg·m−3, the total amount of air particulate matter in Beijing was greater than 4000 tons [9]. In February 2014, the PM2.5 concentrations in Beijing increased even further to 900 μg·m−3, presenting certain risks to human health. A strategy to reduce the concentration of air particulate matter and to provide cleaner air needs to be developed. Two main ways of reducing air particulate matter are currently recognized: one method is to control the emission sources of particulate matter, such as by reducing emissions from factories, changing energy utilization, or reducing the number of cars; the other approach is to reduce the concentration of air particulate matter by capturing it, such as by the natural action of forest vegetation [10]. Vegetation can reduce air particulate matter in multiple ways. For example, vegetation can increase the surface roughness of the ground and reduce wind speeds. A lower wind speed can increase concentrations of pollutants owing to limited dispersion, which may lead to increases in the sedimentation rate of air particulate matter. Branches, leaves, and stems can capture air pollutant components (including total suspended particles (TSP), CO, SO2, NOx, O3, PHAs (polycyclic aromatic hydrocarbon), and other organic pollutants), the physical and chemical properties of leaves also provide favorable conditions to allow for the adhesion of particulate matter [11]. Therefore, increasing the surface coverage rate by planting trees can effectively reduce the concentration of air pollutants and help purify air [12,13] The design of vegetation is important because it can either reduce or increase air pollutant concentrations; for example, USA and England have planted trees to reduce air pollution particulate matter by adopting good designs [14]. Nowak et al. [15] applied the i-tree model to estimate and evaluate the amount of PM2.5 removed by trees in ten cities in the United States; they concluded that the total amount of air particulate matter removed by trees varied from 4.7 t to 64.5 t each year. Forest trees and shrubs throughout the United States could remove 21,500 t of PM10 each year. McDonald et al. [16] determined that the PM10 concentration could be reduced effectively by 2%–10% if the tree-planting area in British cities comprised one-quarter of the city area. However, different plants exhibit significantly different dust-retention capacity for air particulate matter. The dust-retention mechanism of plants for PM2.5 and other particulate matter has not been comprehensively evaluated [17].
In the current study, we evaluated particle capturing capacities, including the influencing factors, of leaves from six major tree species in Beijing. The main objectives of the present study were as follows: (1) to investigate the seasonal variation in particle capturing capacity of leaves from six major tree species in Beijing; (2) to observe the morphological features of the leaf surface and correlate them with the amount of collected particles; and (3) to select the optimal plant species to be used to reduce urban air particulate matter and associated chemicals to improve air quality.

2. Materials and Methods

2.1. Study Sites

Beijing Botanical Garden (39°59′54″ N, 116°12′12″ E) is located at the foot of the Western Hills and is very close to 5th Ring Road in Beijing, with a total planned area of 400 hm2. The garden consists of 1.5 million plants, comprehensively integrating plant resource exhibition and protection, scientific research, and recreation. The main vegetation types include Pinus tabuliformis, Pinus bungeana, Platycladus orientalis, Pinus koraiensis, Ginkgo biloba, Robinia pseudoacacia, Buxus megistophylla, Populus tomentosa, and Salix matsudana. The vegetation coverage rate is more than 80%. The species in the park represent typical vegetation types of North China.

2.2. Plant Sampled Species

Samples of P. tabuliformis, P. bungeana, A. truncatum, P. tomentosa, S. matsudana, and G. biloba commonly grown along 5th Ring Road in Beijing were collected. Leaves from thesi x6 sample tree species were selected 2–3 m above the ground from the individual tree, with three 3 replicates. The number of leaves collected was based upon ensuring the same total area for each sample, as shown in Table 1. After cutting, leaf samples were immediately placed into a dust-free paper bag, which can prevent further exposure of the leaves to particles. Then the samples were transported to the laboratory and analyzed. All samples were collected after 10 days without rain. The same leaves were divided into three groups (wind tunnel, atomic force microscopy (AFM), microstructure).
For each species, leaf samples were from 1 April to 31 October 2014. In the sampling period, in order to reduce the impact of environmental factors as far as possible, we ensured that the weather condition patterns (including wind speed, temperature, and humidity) experienced by sampled trees in study site were broadly similar (Table 2).

2.3. Specific Leaf Area Determination

In the case of P. tabuliformis and P. bungeana, 100 g pine needles were sampled and their diameters and lengths were measured. Due to the needle shape, the average surface area of pine needles was calculated assuming a truncated cone, i.e., the average surface area of pine needles (Apine) = (π/2) × (d1 + d2) × ((1/4) × (d2 − d1)2 + l2)1/2, where d1 = the average diameters of pine needles at the upper tip; d2 = the average diameters of pine needles at the lower tip; l = average length. Thus, the total surface area of pine needles used for each experimental run was calculated by counting the number of pine needles and multiplying it by the average surface area of pine needles. The leaves from broad-leaved tree species were scanned by a scanner (Canon LIDE 110, Canon, Tokyo, Japan), the scanned images were converted into black and white images, where the scanned image of each leaf appeared black against a white background. Then, the surface area of each tree leaf was obtained by the Adobe Photoshop CS2 program, by calculating the area of the black image.

2.4. Adsorptive Amount for Dust Per Unit of Leaf Area

The particle removal efficiency was measured in a wind tunnel, which was 0.5 m wide, 0.5 m high, and 1m in length (Figure 2). Several leaves of the sample species were freshly cut on the day of the measurements. The leaves were laid flat and stacked up uniformly to ensure that most of the air stream passed through them. The total length of the wind tunnel occupied by branches was 1 m. The experiment was carried out at a wind speed of 20 m/s. By using 20 m/s wind speed, the potential for each leaf can be determined by dividing the total amount of particulate captured by the number of leaves.
The tunnel was sampling filtered room air. The room air aerosol number concentration was fairly constant (<1 μg/m3) and was around 10 m3. Firstly, sample leaves were placed in the wind tunnel, then the pure air that did not contain the particulate matter was introduced into the wind tunnel through a plenum with several openings. Secondly, a fan carried out at a wind speed of 20 m/s to blow the sample leaves in tunnel. This process continued for about 6–10 min, in order to ensure that all of the particulate matter on the surface of the leaves was suspended in the tunnel air. It has been confirmed that a wind speed of 20 m/s and a duration of 6–10 min can remove >80% particulate matter from leaves [18]. Lastly, the Dustmate (Turnkey, UK) instrument was used to measure the particulate concentration of the tunnel air.
The formula used to calculate the adsorptive amount of the particulate matter per unit of leaf area of different tree species is as follows: [19]
M i = 1 n m i j S i
where M represents the mass of the captured particulate matter by leaf area of different tree species (unit: μg/cm2), i represents different tree species, j represents the types of particulate species, n = 3 different replicates, S represents the leaf areas (unit:cm2), and mij represents the mass of TSP, PM10, and PM2.5 (unit: μg).

2.5. AFM Scanning Features of the Leaves Surface

We brought the leaves back to the laboratory, and removed the moisture on the leaf surface carefully with absorbent paper, and finally selected samples about 5 mm × 5 mm in size. At normal temperature, we scanned and shot the samples using a scanning probe microscope (SPI3800-SPA-400, Seiko Instruments Inc., Kanagawa, Japan) and the maximum scanning range was 100 μm × 100 μm. All AFM images were obtained in height mode and were not processed in any way. The sampled leaf surfaces were examined by AFM (atomic force microscopy), which can determine several parameters, including the arithmetical mean deviation of the profile (Ra), ten-point height of irregularities (Rz), and peak-to-valley value (P-V). Ra is commonly used to characterize the roughness of the surface.

2.6. Microstructure of Leaves

The fresh leaves were cut into 4 × 4 mm small cubes from both sides in the middle of the leaves, and fixed in 2.5% (volume fraction) glutaraldehyde solution. After the samples were sprayed with conductive coating, the surface structures of the leaves were observed with a S-3400 scanning electron microscope (Hitachi, Japan), and the images were taken with appropriate scaling.

2.7. Statistical Analysis

Statistical analysis was performed with SPSS 15.0 software (SPSS software Co., New York, NY, USA). Analyses of variance (ANOVA) were applied to determine if significant differences in leaf PM accumulation and surface roughness occurred among different sampling times for each species and among species. Pearson’s correlation analysis was conducted to test the relationship of the leaf PM retention amounts with leaf roughness. A given effect was assumed significant at p < 0.05.

3. Results and Analysis

3.1. Variation in the Capturing Capacity of Different Tree Species over Time

Figure 3 and Figure 4 show the variation in the capturing capacity of leaves from different tree species over time. The order was as follows: P. tabuliformis > P. bungeana > S. matsudana > A. truncatum > G. biloba > P. tomentosa. During the monitoring period (from April 2014 to October 2014), the capturing capacity of the leaves from needle-leaved tree species was greater than that of the broad-leaved tree species for both coarse (>10 μm) and fine (<2.5 μm) particulate matter. Among the broad-leaved tree species, S. matsudana had the strongest capturing capacity, whereas those of P. tomentosa and G. biloba exhibited the weakest capturing capacity. However, statistical analysis by 2-way ANOVA revealed a significant difference in variation trend between species with TSP over time (p < 0.05). For example, the broad-leaved tree species clearly showed a ∩-shape pattern—initially increasing and eventually decreasing, meanwhile P. tabuliformis and P. bungeana did not clearly exhibit a ∩-shape pattern—initially decreasing and eventually increasing (Figure 3). Capturing capacity reached its maximum from April to May, obtained its lowest from July to August, and gradually increased after October. The capturing capacity for PM10 was basically the same as the absorption capacity for TSP. However, no significant difference in the variation trend with respect to PM2.5 was indicated between species over time (p > 0.05) (Figure 4).

3.2. Surface Morphological Structures of Leaves from Different Trees

Figure 5 presents the surface microstructures of leaves from six tree species. The surface of P. tabuliformis and P. bungeana showed obvious grooves as well as peaks and valleys. The stomatic arrangement density and the epicuticular wax of P. tabuliformis and P. bungeana were higher than those of P. tomentosa, G. biloba, A. truncatum, and P. tomentosa. The stomas of P. tabuliformis (A) are circular and arranged vertically, have higher density, and show irregular particulate matter captured on it. This structure helps position dust particulate matter close to the stomas on the leaf surfaces because of the irregularity of the cell arrangement; thus, the dust becomes concentrated in the stomas. The leaf texture is arranged closely with raised bars as well as rough and irregular surface. P. bungeana (B) has oval stomas that are larger than those of P. tabuliformis. However, P. bungeana leaves are smoother around the stomas, compared with P. tabuliformis, and show less captured particulate matter. P. bungeana leaves exhibit an irregular texture with sheet distribution and no observable pubescence, with waxes on the leaf surface. G. biloba (C) leaves have a smooth surface and a low density of clear and distinct stomas, with neither wax nor epidermal cilium. P. tomentosa (D) leaves have an epidermis that tends to be smooth and stomas that are considerably small, sunk under the corneum, and completely surrounded by the corneum arch covering protuberances, with no secretion. The texture is clear and distinct with shallow mesh ornamentation, no epidermal pubescence and glands, and only a few captured particulate matters on the surface. A. truncatum (E) leaves exhibit a radial and parallel distribution of their stomas, with some shallow ridges and similar mesh and honeycomb trench organizations with clear and distinct but irregular texture. Both the front and back of A. truncatum leaves have folds. S. matsudana (F) leaves have larger and smoother stomata with a lower density and smaller openings and no obvious fluctuation, as such, the leaves show low peaks and valleys and less bulges. Around the stomata, S. matsudana leaves exhibit an intensive and shallow linear decoration and more surface cilia, which are soft and long with short cylindrical forms and arranged sparsely.
The mean value of roughness was measured on the front and back of the leaves from the six tree species. Except for P. tabuliformis and P. bungeana, the roughness of all leaves exhibited a significant correlation with dust absorption. With increased leaf roughness, the absorption of the unit leaf area also increased, as shown in Figure 6. The mean roughness of the front and back sides of the leaves, in descending order, are as follows: S. matsudana (276.52 ± 30.82 nm) > A. truncatum (133.05 ± 23.05 nm) > G. biloba (129.17 ± 35.90 nm) > P. tomentosa (72.65 ± 7.98 nm). This sequence is similar to that of the absorption of the broad-leaved tree species per unit leaf area. Therefore, the roughness of the leaves from broad-leaved tree species exhibits a positive correlation with PM2.5 absorptions in a unit leaf area; however, this does not apply in the leaves of coniferous trees [20].

4. Discussion

In the current study, PM2.5 absorptions by P. tabuliformis and P. bungeana reached their maximum in October (0.93 ± 0.054 μg/cm2 and 0.44 ± 0.032 μg/cm2, respectively) and their minimum in May and August (0.12 ± 0.002 μg/cm2, 0.18 ± 0.001 μg/cm2; and 0.11 ± 0.001 μg/cm2, 0.21 ± 0.002 μg/cm2, respectively). This variation may be attributable to climate. Windier days were observed in Beijing from May to June more than in any other period. Influenced by strong winds, less PM2.5 particulate matter may settle on the leaf surface and be captured. Many rainy days were recorded in August. Similar to the wind, the rain may wash off the particulate matter, resulting in less material for the leaves to capture. The capturing capacity for PM2.5 by the leaves from broad-leaved tree species slightly varied over time, which may be attributed to the morphological structure of the leaf surface [21,22]. Moreover, we observed a significant change in leaf PM accumulation for the six sampled species throughout the growing season [23,24,25].
Throughout the study, we found that the leaves from needle-leaved tree species were perennial, the surface structure of the leaves could change the capturing capacity, and that capturing capacity was less affected by the roughness of the leaves (r = 0.42, 0.41). By contrast, the capturing capacity of the leaves from the broad-leaved tree species was strongly influenced by the roughness of leaves in different seasons. However, for both needle-leaved and broad-leaved tree species, variation in capturing capacity of the leaves for PM2.5 was influenced significantly by structural characteristics, including the stomata, epicuticular wax, cuticle, epidermis, and other surface features of leaves (Table 3). The ridges and grooves of epidermal cells and the density of micro-configurations, such as cell peaks, valleys, and recesses, determined the leaf surface roughness [26,27]. In the current study, the micro-roughness of the leaf surfaces correlates well with the density of particles settling upon leaf surfaces over time in all of the test species except for P. tabuliformis and P. bungeana. As shown in Table 4, the surface roughness of the leaves of broad-leaved tree species is greater than that of the leaves of needle-leaved tree species. However, the dust-retention ability of the leaves of needle-leaved tree species is higher than that of the broad-leaved tree species [28,29]. Thus, for needle-leaved tree species, the main factors affecting particle capturing capacity include epicuticular wax, stomata, and cuticle. The surface roughness of the leaves from the broad-leaved tree species is directly proportional to the capturing capacity of the leaves; this surface roughness and other morphological features significantly contribute to the capturing capacity of the leaves.
Particle retention in leaves is not only affected by leaf related factors but by external conditions as well. These conditions include wind speed and rainfall, among others. However, these factors remain undetermined, and several studies suggest that the amount of particles settling upon leaf surfaces was affected by local rainfall. Rainfall can wash away the particles from the leaf surface; however, the amount of rain that can markedly influence this process remains inconclusive [30,31]. It is also important to consider the potential impacts of particle retention on plant health, as when the particles on the surface of leaves reach a certain amount, the air particles can also affect plant growth, photosynthesis, respiration, and transpiration [32,33,34,35]. More research is needed to explore and discuss these factors in the future.

5. Conclusions

The absorption capacity of leaves from different tree species varied in different growth periods. During the observation period from 1 April 2014 to 31 October 2014, the capturing capacity of P. tabuliformis and P. bungeana leaves for TSP and PM10 initially decreased and then increased over time; however, the PM2.5 capturing capacity was irregular. The TSP and PM10 capturing capacity of the leaves from broad-leaved tree species initially increased and then decreased over time. PM2.5 remained steady except during the leaf-expansion period. Observation of leaf features by AFM and microstructures indicated that the surface roughness and surface structure of leaves affect the capturing capacity of leaves for particulate matter; however, the degree of this effect varies between different tree species. The epicuticular wax, cuticle, and stomata of P. tabuliformis and P. bungeana can more effectively capture particulate matter in air, particularly PM2.5; however, roughness in G. biloba, P. tomentosa, A. truncatum, and S. matsudana is the main factor.

Acknowledgments

This work was financially supported by grants from National Natural Science Foundation of China (Grant No: 31600359), the fundamental Research Funds for CAF (Grant No. CAFBB2016QA007), and the Beijing Municipal Education Commission (CEF-PXM2017_014207_000043).

Author Contributions

B.W. and X.N. conceived of and designed the experiments. W.K.Z. performed the experiments. X.N. and W.K.Z. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Amann, M.; Klimont, Z.; Wagner, F. Regional and global emissions of air pollutants: Recent trends and future scenarios. Annu. Rev. Environ. Resour. 2013, 38, 31–55. [Google Scholar] [CrossRef]
  2. Burtraw, D.A.; Krupnick, K.; Palmer, A.; Paul, M.; Cary, B. Ancillary Benefits of Reduced Air Pollution in the US from Moderate Greenhouse Gas Mitigation Policies in the Electricity Sector. J. Environ. Econ. Manag. 2003, 45, 650–673. [Google Scholar] [CrossRef]
  3. Clark, N.A.; Demers, P.A.; Karr, C.J.; Koehoorn, M.; Lencar, C. Effect of early life exposure to air pollution on development of childhood asthma. Environ. Health Perspect. 2010, 118, 284–290. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, W.; Wang, B.; Niu, X. Study on the adsorption capacities for airborne particulates of landscape plants in different polluted regions in Beijing (China). Environ. Res. Public Health 2015, 12, 9623–9638. [Google Scholar] [CrossRef] [PubMed]
  5. Jing, J.; Gang, W.; Xilong, D.; Yang, H. Evaluation of capturing Haze PM2.5 Fine Particulate Matter with Plants in Beijing-Tianjin-Hebei Region in China. Sci. China Earth Sci. 2013, 43, 694–699. [Google Scholar]
  6. Seinfeld, J.H. Air Pollution Physical and Chemical Fundamentals; McGraw-Hill: New York, NY, USA, 1975; pp. 1–523. [Google Scholar]
  7. Matsuda, K.; Fujimura, Y.; Hayashi, K.; Takahashi, A.; Nakaya, K. Deposition velocity of PM2.5 sulfate in the summer above a deciduous forest in central Japan. Atmos. Environ. 2010, 44, 4582–4587. [Google Scholar]
  8. National Bureau of Statistics of China. China Statistical Yearbook-2014; China Statistics Press: Beijing, China, 2014.
  9. Chen, B.; Lu, S.W.; Li, S.N.; Wang, B. Impact of fine particulate fluctuation and other variables on Beijing’s air quality index. Environ. Sci. Pollut. Res. 2015, 22, 5139–5151. [Google Scholar] [CrossRef] [PubMed]
  10. Hwang, H.J.; Yook, S.J.; Ahn, K.H. Experimental investigation of submicron and ultrafine soot particle removal by tree leaves. Atmos. Environ. 2011, 45, 6987–6994. [Google Scholar] [CrossRef]
  11. Räsänen, J.V.; Holopainen, T.; Joutsensaari, J. Particle capture efficiency of different-aged needles of Norway spruce under moderate and severe drought. Can. J. For. Res. 2014, 44, 831–835. [Google Scholar] [CrossRef]
  12. Beckett, K.P.; Freer Smith, P.H.; Taylor, G. Effective tree species for local air quality management. J. Arboric. 2000, 26, 12–19. [Google Scholar]
  13. Beckett, K.P.; Freer Smith, P.H.; Taylor, G. Particulate pollution capture by urban trees: Effect of species and winds peed. Glob. Chang. Biol. 2000, 6, 995–1003. [Google Scholar] [CrossRef]
  14. Tallis, M.; Taylor, G.; Sinnett, D.; Freer-Smith, P. Estimating the removal of atmospheric particulate pollution by the urban tree canopy of London, under current and future environments. Landsc. Urban Plan. 2011, 103, 129–138. [Google Scholar] [CrossRef]
  15. Nowak, D.J.; Hirabayashi, S.; Bodine, A.; Hoehn, R. Modeled PM2.5 removal by trees in ten US cities and associated health effects. Environ. Pollut. 2013, 178, 395–402. [Google Scholar] [CrossRef] [PubMed]
  16. Mcdonald, A.G.; Bealey, W.J.; Fowler, D.; Dragosits, U.; Skiba, U. Quantifying the effect of urban tree planting on concentrations and depositions of PM10 in two UK conurbations. Atmos. Environ. 2007, 41, 8455–8467. [Google Scholar] [CrossRef]
  17. Lei, W.; Shangyu, G.; Lianyou, L.; Ha, S. Atmospheric particle-retaining capability of eleven garden plant species in Beijing. Chin. J. Appl. Ecol. 2006, 17, 597–601. [Google Scholar]
  18. Yaoyao, F. Quantitative Research on Regional Forest PM-Capturing Capability and Analysis of the Related Leaf Micro-Morphology Impact: A Case Study of Shaanxi Central Plain; Chinese Academy of Forestry: Beijing, China, 2015. [Google Scholar]
  19. Bing, W.; Weikang, Z.; Xiang, N.; Jinsong, W.; Xiaoyan, W. Particulate Matter Adsorption Capacity of 10 Evergreen Species in Beijing. Environ. Sci. 2015, 36, 37–42. [Google Scholar]
  20. Wang, H.; Shi, H.; Li, Y.; Yu, Y.; Zhang, J. Seasonal variations in leaf capturing of particulate matter, surface wettability and micromorphology in urban tree species. Front. Environ. Sci. Eng. 2013, 7, 579–588. [Google Scholar] [CrossRef]
  21. Zheng, M.; Salmon, L.G.; Schauer, J.J.; Zeng, L.; Kiang, C.S. Seasonal Trends in PM2.5 Source Contributions in Beijing, China. Atmos. Environ. 2005, 39, 3967–3976. [Google Scholar] [CrossRef]
  22. Mitchell, R.; Maher, B.A.; Kinnersley, R. Rates of particulate pollution deposition onto leaf surfaces: Temporal and inter-species magnetic analyses. Environ. Pollut. 2010, 158, 1472–1478. [Google Scholar] [CrossRef] [PubMed]
  23. Sæbø, A.; Popek, R.; Nawrot, B.; Hanslin, H.M.; Gawronska, H. Plant species differences in particulate matter accumulation on leaf surfaces. Sci. Total Environ. 2012, 427, 347–354. [Google Scholar] [CrossRef] [PubMed]
  24. Lu, L.; Dongsheng, G.; Yongqin, C. Morphological structure of leaves and dust-retaining capability of common Street tress in Guangzhou Municipality. Acta Ecol. Sin. 2013, 33, 2604–2614. [Google Scholar] [CrossRef]
  25. Terzaghi, E.; Wild, E.; Zacchello, G.; Cerabolini, B.E.L.; Jones, K.C. Forest Filter Effect: Role of leaves in capturing/releasing air particulate matter and its associated PAHs. Atmos. Environ. 2013, 74, 378–384. [Google Scholar] [CrossRef]
  26. Chenxi, Z.; Yujie, W.; Yun-qi, W.; Hui-lan, Z.H. Interactions between fine particulate matter (PM2.5) and vegetation: A review. Chin. J. Ecol. 2013, 32, 2203–2210. [Google Scholar]
  27. Hailong, W.; Xinxiao, Y.; Chen, S.; Yan, Z.H.; Zhenming, Z.H. Advances in the study of PM2.5 characteristic and the regulation of forests to PM2.5. Sci. Soil Water Conserv. 2012, 10, 116–122. [Google Scholar]
  28. Freer-Smith, P.H.; Beckett, K.P.; Taylor, G. Deposition velocities to Sorbus aria, Acer campestre, Populus deltoides × trichocarpa ‘Beaupre’, Pinus nigra and × Cupressocyparis leylandii for coarse, fine and ultra-fine particles in the urban environment. Environ. Pollut. 2005, 133, 157–167. [Google Scholar] [CrossRef] [PubMed]
  29. Shuxin, F.; Hai, Y.; Shimingyue, Q. Dust capturing of twenty-six deciduous broad-leaved trees in Beijing. Chin. J. Plant Ecol. 2015, 39, 736–745. [Google Scholar]
  30. Huixia, W. Mechanisms of Plant Leaves Based on Leaf Surface wettability on rainfall Interception and Dust-Capturing; Xi’an University of Architecture & Technology: Xi’an, China, 2012. [Google Scholar]
  31. Rai, A.; Kulshreshtha, K.; Srivastava, P.K.; Mohanty, C.S. Leaf surface structure alterations due to particulate pollution in some common plants. Environ. Syst. Decis. 2010, 30, 18–23. [Google Scholar] [CrossRef]
  32. Rai, P.K. Impacts of particulate matter pollution on plants: Implications for environmental biomonitoring. Ecotoxicol. Environ. Saf. 2016, 129, 120–136. [Google Scholar] [CrossRef] [PubMed]
  33. Tomašević, M.; Vukmirović, Z.; Rajšić, S.; Tasić, M.; Stevanović, B. Characterization of trace metal particles deposited on some deciduous tree leaves in an urban area. Chemosphere 2005, 61, 753–760. [Google Scholar] [CrossRef] [PubMed]
  34. Huixia, W.; Yanhui, W.; Jia, Y.; Binze, X.; Hui, S. Multi-Scale Comparisons of Particulate Matter and Its Size Fractions Deposited on Leaf Surface of Major Greening Tree Species. Sci. Sylvie Sin. 2015, 51, 9–20. [Google Scholar]
  35. Elena, P.; Tommaso, B.; Gianluca, G.; Pecchioli, L. Air quality impact of an urban park over time. Procedia Environ. Sci. 2011, 4, 10–16. [Google Scholar]

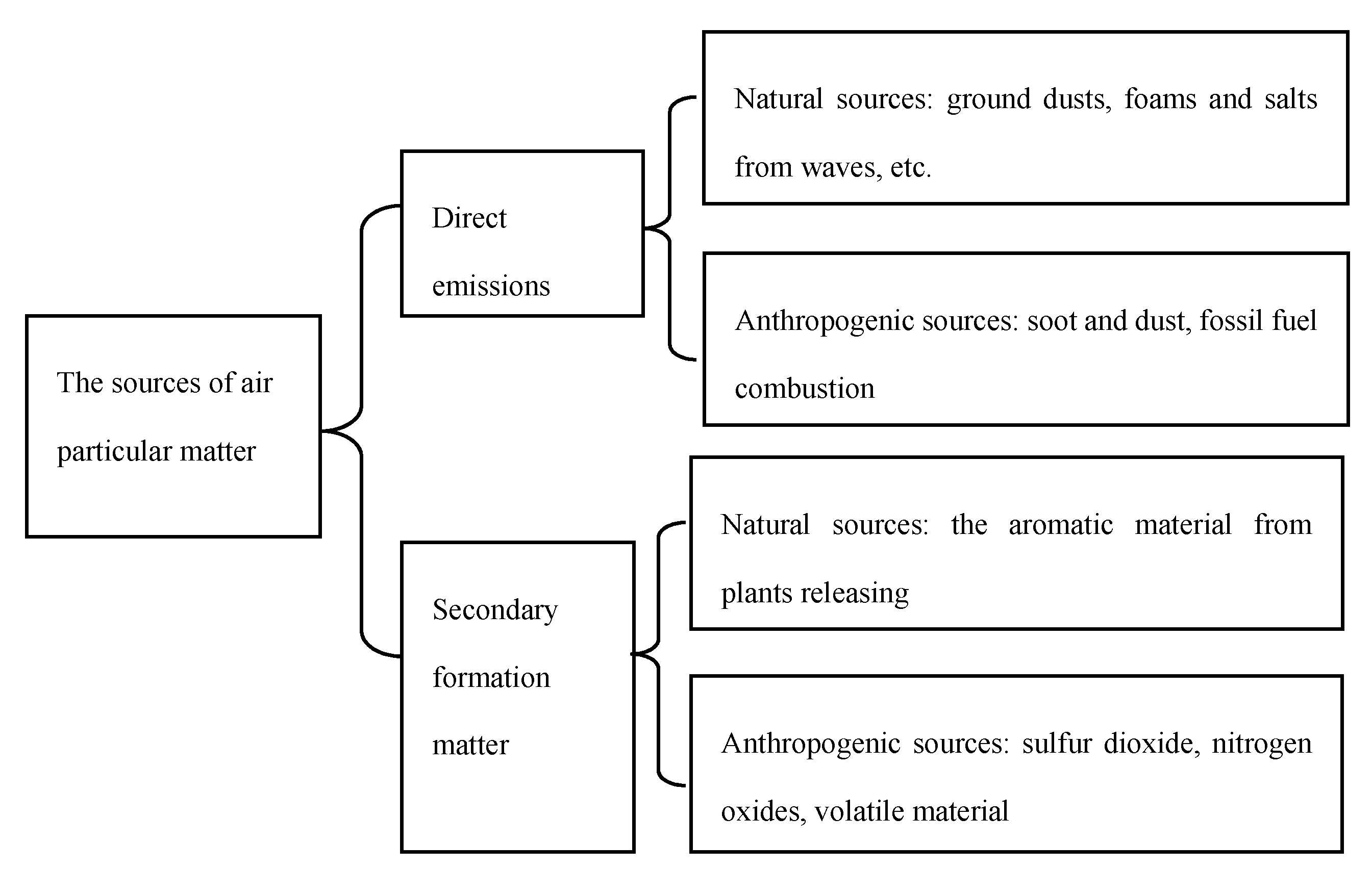

Figure 1. The main sources of air particulate matter.
Figure 1. The main sources of air particulate matter.
Forests 08 00092 g001

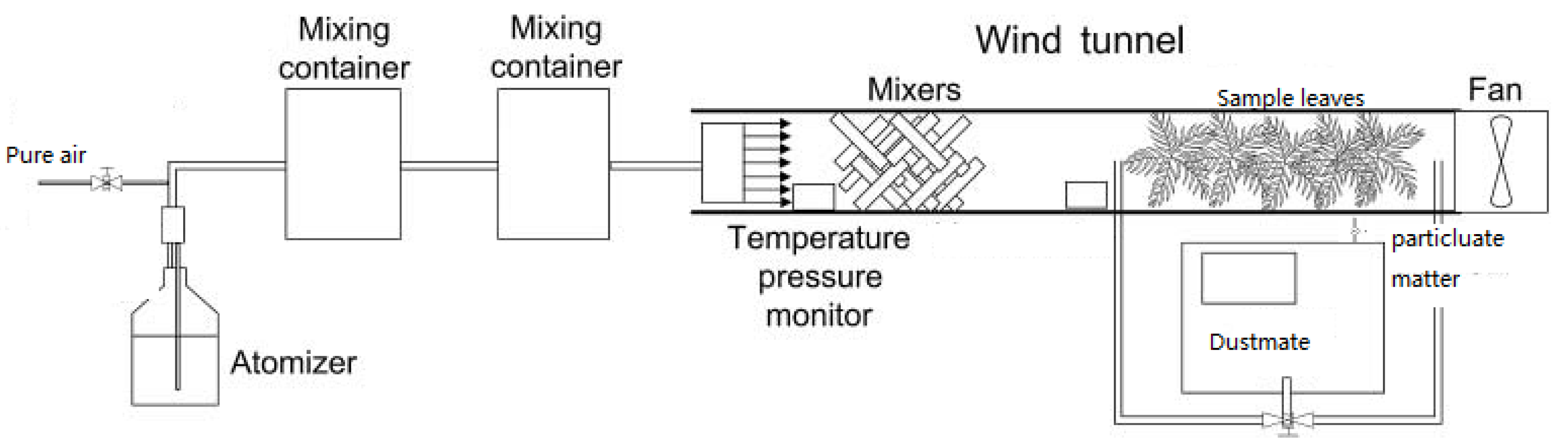

Figure 2. A sketch of the wind tunnel experimental setup.
Figure 2. A sketch of the wind tunnel experimental setup.
Forests 08 00092 g002

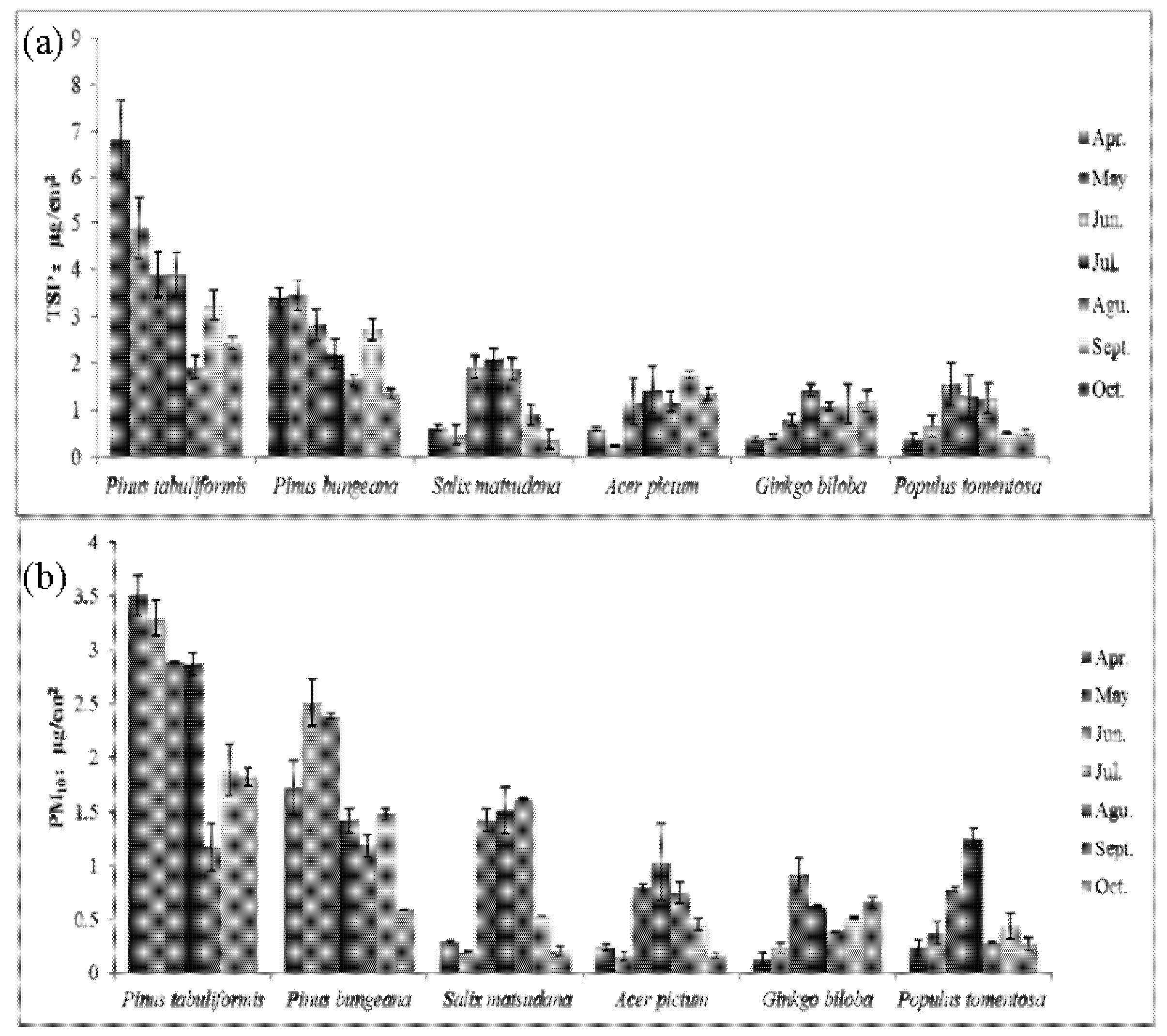

Figure 3. The amount of particulate matter captured by different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between species were significant (p < 0.05), as were differences between variations over time in TSP (a) and PM10 (b) (p < 0.05).
Figure 3. The amount of particulate matter captured by different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between species were significant (p < 0.05), as were differences between variations over time in TSP (a) and PM10 (b) (p < 0.05).
Forests 08 00092 g003

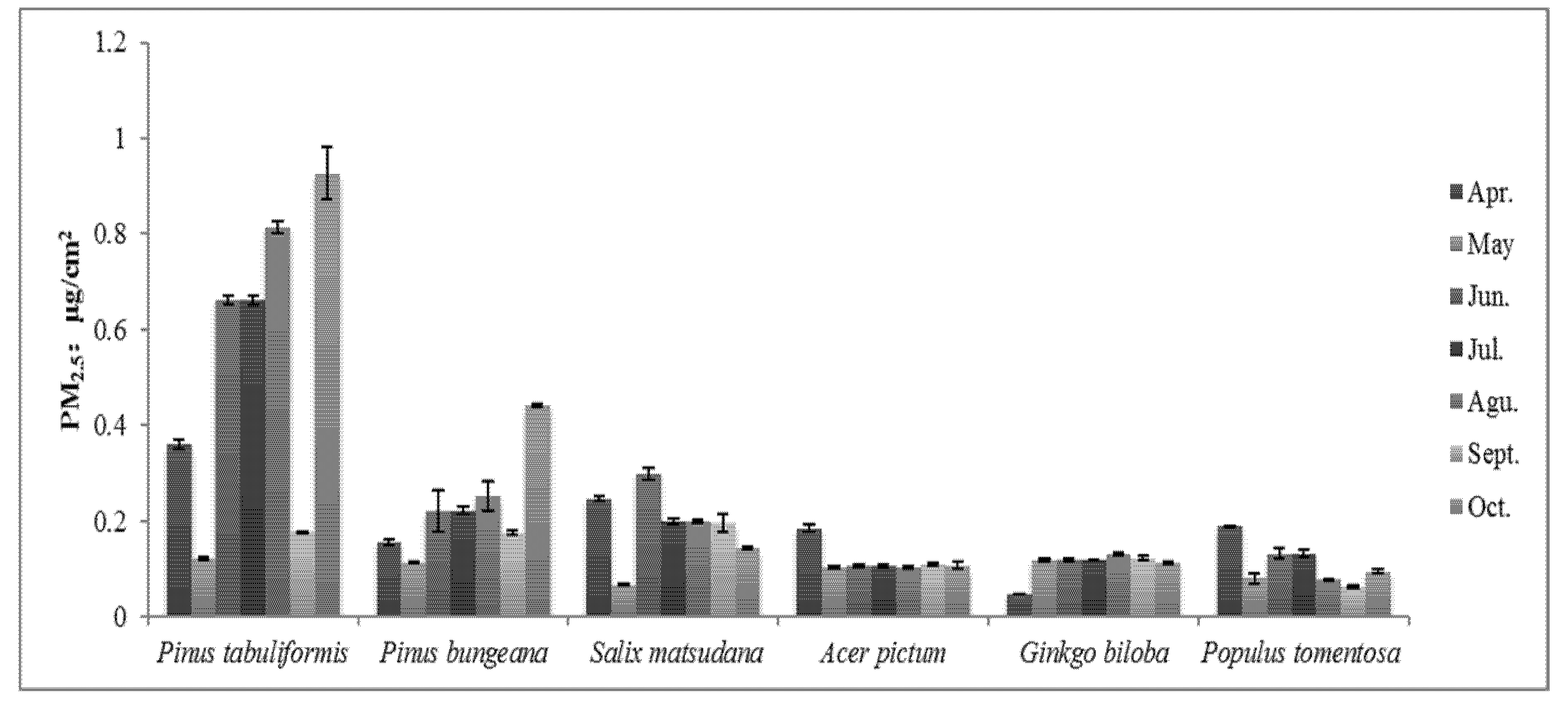

Figure 4. The amount of particulate matter captured by different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between species were significant (p < 0.05). However, differences between variations over time in PM2.5 were not significant.
Figure 4. The amount of particulate matter captured by different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between species were significant (p < 0.05). However, differences between variations over time in PM2.5 were not significant.
Forests 08 00092 g004
Figure 5. Microscopic structure of leaves of different tree species, (A): Pinus tabuliformis; (B): Pinus bungeana; (C): Ginkgo biloba; (D): Populus tomentosa; (E): Acer truncatum; (F): Salix matsudana.
Figure 5. Microscopic structure of leaves of different tree species, (A): Pinus tabuliformis; (B): Pinus bungeana; (C): Ginkgo biloba; (D): Populus tomentosa; (E): Acer truncatum; (F): Salix matsudana.
Forests 08 00092 g005aForests 08 00092 g005b

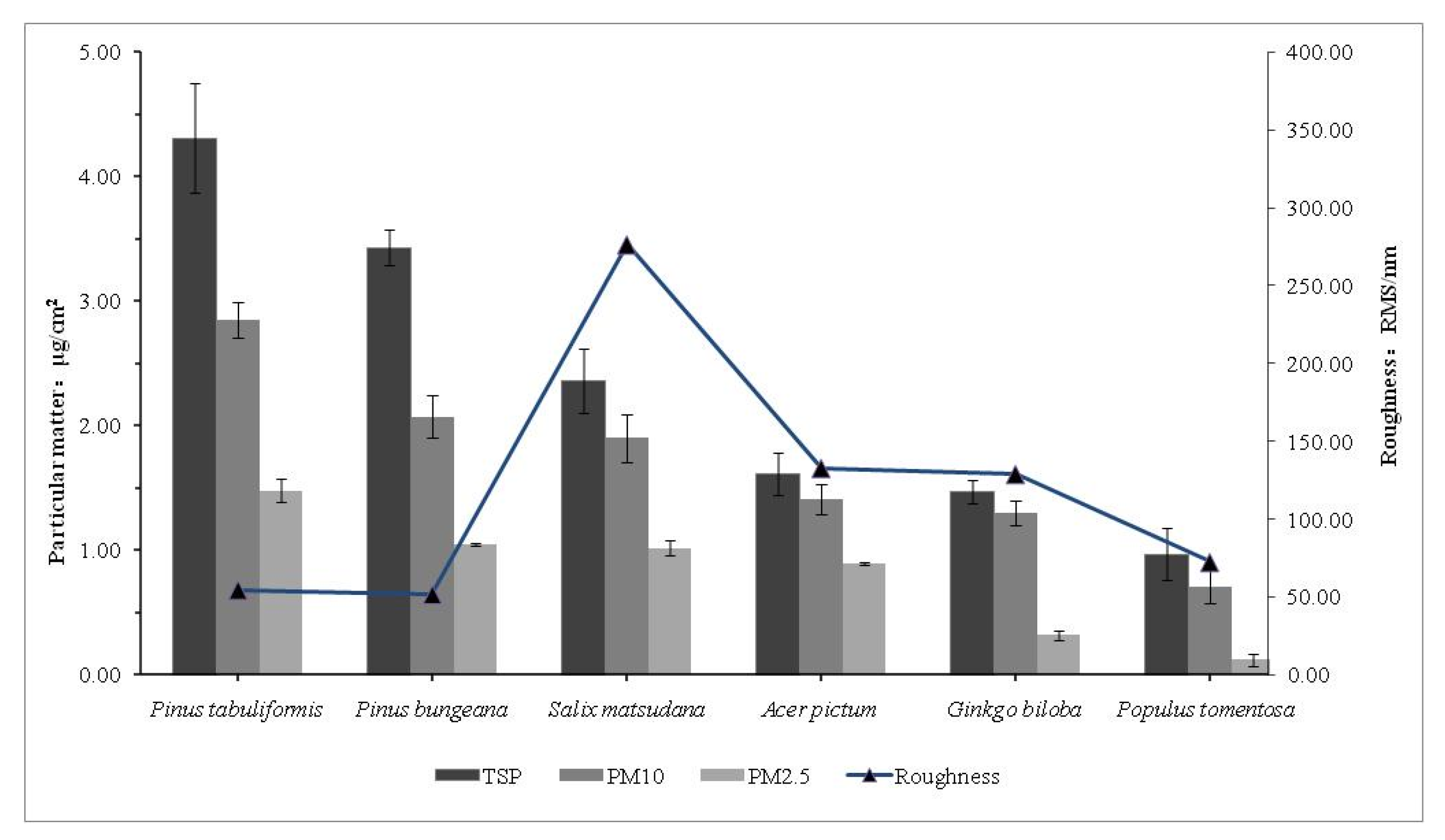

Figure 6. Relationship between the capture ability and roughness of leaves of different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between roughnesses in relation to the amount of particulate captured in Pinus tabuliformis and Pinus bungeana were not significant. However, differences between roughness and Salix matsudana, Ginkgo biloba, Acer truncatum, and Populus tomentosa were significant (p < 0.05).
Figure 6. Relationship between the capture ability and roughness of leaves of different species. Vertical bars represent + standard error; n = 3. Statistical analysis by 2-way ANOVA revealed that differences between roughnesses in relation to the amount of particulate captured in Pinus tabuliformis and Pinus bungeana were not significant. However, differences between roughness and Salix matsudana, Ginkgo biloba, Acer truncatum, and Populus tomentosa were significant (p < 0.05).
Forests 08 00092 g006
Table 1. Height and breast-height diameter as well as amount of sampled leaves of six tree species.
Table 1. Height and breast-height diameter as well as amount of sampled leaves of six tree species.
SpeciesCharacteristic of Species
Height/mDiameter/cmAmount of Sampled Leaves (g)
Pinus tabuliformis5.50 ± 1.0010.15 ± 0.23100
Pinus bungeana5.00 ± 1.5010.22 ± 0.42100
Populus tomentosa15.00 ± 2.0015.5 ± 0.15200
Ginkgo biloba12.50 ± 1.5012.34 ± 0.22150
Acer truncatum6.50 ± 0.5010.67 ± 0.13150
Salix matsudana12.50 ± 1.5013.54 ± 0.08150
Table 2. The weather conditions in Beijing Botanical Garden, 2014. *
Table 2. The weather conditions in Beijing Botanical Garden, 2014. *
Date timeRain (mm)Temp (°C)RH (%)Wind Speed (mph)Wind Direction (°)
1 to 9 April.016.67 ± 4.4436.32 ± 17.931.00 ± 1.33181.08 ± 10.77
12 to 21 May022.59 ± 4.6443.84 ± 17.651.17 ± 1.77171.03 ± 19.83
12 to 21 June023.70 ± 4.4762.12 ± 19.360.59 ± 1.11142.96 ± 14.88
2 to 11 July028.14 ± 3.4065.97 ± 23.110.88 ± 1.47146.59 ± 28.51
15 to 24 August026.42 ± 3.5365.78 ± 17.990.36 ± 0.76130.80 ± 26.99
3 to 12 September024.12 ± 3.4160.99 ± 17.510.35 ± 1.71164.72 ± 4.78
10 to 19 October015.56 ± 3.5755.44 ± 23.180.32 ± 0.26167.33 ± 14.97
* Values are average of 10 days. RH is relative humidity
Table 3. Surface structural properties of the plants over time.
Table 3. Surface structural properties of the plants over time.
Name of PlantSpringSummerAutumn
Epicuticular WaxCuticleEpidermisStomataEpicuticular WaxCuticleEpidermisStomataEpicuticular WaxCuticleEpidermisStomata
Pinus tabuliformisGranularWavyDust ladenHigh frequency and dust filledSparseWavyWall well definedHigh Frequency and not dust filledSparse, finally granulatedWavyDust ladenHigh Frequency and dust filled
Pinus bungeanaGranularWavyDust ladenHigh frequency and dust filledSparseWavyWall well definedHigh Frequency and not dust filledSparse, finally granulatedWavyDust ladenHigh Frequency and dust filled
Salix matsudanaInconspicuousSmoothWall well definedLess stomataInconspicuousWrinkledIrregularly fusedSunkenInconspicuousWrinkledIrregularly fusedLess stomata
Acer truncatumNRStriatedWall well definedSlightly ElevatedInconspicuousDisorganizedSlightly clearSunkenInconspicuousDisorganizedSlightly clearSlightly Elevated
Ginkgo bilobaSparseSmooth, some papillaeWall well definedGlobularDisorganizedSmoothWalls not well definedDeeply sunkenDisorganizedSmoothWalls not well definedDeeply sunken
Populus tomentosaSparseRugoseWall well definedElongated with clear rimsInconspicuousPattern deformedOuter layer brokenBrokenInconspicuousPattern deformedOuter layer brokenBroken
NR, not recorded.
Table 4. Statistics related to correlation between roughness and total particles captured for leaves of different trees. r refers to correlation coefficient. Statistical significance (** p < 0.05) is based on the t-test *.
Table 4. Statistics related to correlation between roughness and total particles captured for leaves of different trees. r refers to correlation coefficient. Statistical significance (** p < 0.05) is based on the t-test *.
SpeciesRoughnessStd. ErrorTotal ParticlesStd. ErrorrSignificance
Pinus tabuliformis54.813.198.640.220.42**
Pinus bungeana51.871.816.550.250.41**
Salix matsudana276.5230.825.280.310.93**
Acer truncatum133.0523.053.910.180.85**
Ginkgo biloba129.1735.903.090.330.87**
Populus tomentosa72.657.981.800.150.82**
* Roughness-nm, Total particles = TSP + PM10 + PM2.5 − μg/cm2.
