Effect of Impregnation with a Low-Concentration Furfuryl Alcohol Aqueous Solution on Hygroscopic Properties of Chinese Fir and Poplar Wood
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods
2.2.1. Preparation of Furfurylated Wood
- (1)
- Drying: The specimens were placed in an oven at 103 °C for a 24 h drying process, and then the oven-dries mass and tangential, radical, and longitudinal directions were measured after cooling in a desiccator with an accuracy of 0.0001 g and 0.01 mm, respectively.
- (2)
- Impregnation (full cell process): The specimens were first treated under a negative pressure of 0.06 MPa for 0.5 h, then kept under a pressure of 0.4 MPa for 2 h, and finally treated under a negative pressure of 0.06 MPa for 0.5 h [23]. After the impregnation was completed, the excess impregnation solution on the surface was wiped away. Meanwhile, in order to more uniformly diffuse the furfuryl alcohol, each specimen was wrapped in aluminum foil and kept at 30 °C for 72 h.
- (3)
- Curing and drying: The samples were cured in an oven at 103 °C for 6 h, and then the aluminum foil was removed. The furfurylated wood mass M1 and dimensions were obtained after drying; the drying process was carried out at 50 °C for 12 h, followed by 70 °C for 12 h, and finally 103 °C for 24 h. According to the weight percentage gain, the furfurylated poplar and Chinese fir wood impregnated with 0%, 10%, 20%, and 30% concentrations were labeled as PW0, PW17, PW35, PW51, SW0, SW23, SW45 and SW75, respectively.
2.2.2. Morphology and Microstructure
2.2.3. EMC and Dimensional Stability of Adsorption
2.2.4. Mercury Intrusion Porosimetry (MIP)
2.2.5. LF-NMR Analysis
2.2.6. Cyclic Water Soaking and Dimensional Stability
2.2.7. Statistical Analysis
3. Results and Discussion
3.1. WPG and BC of Furfurylation, Hygroscopicity and Dimensional Stability

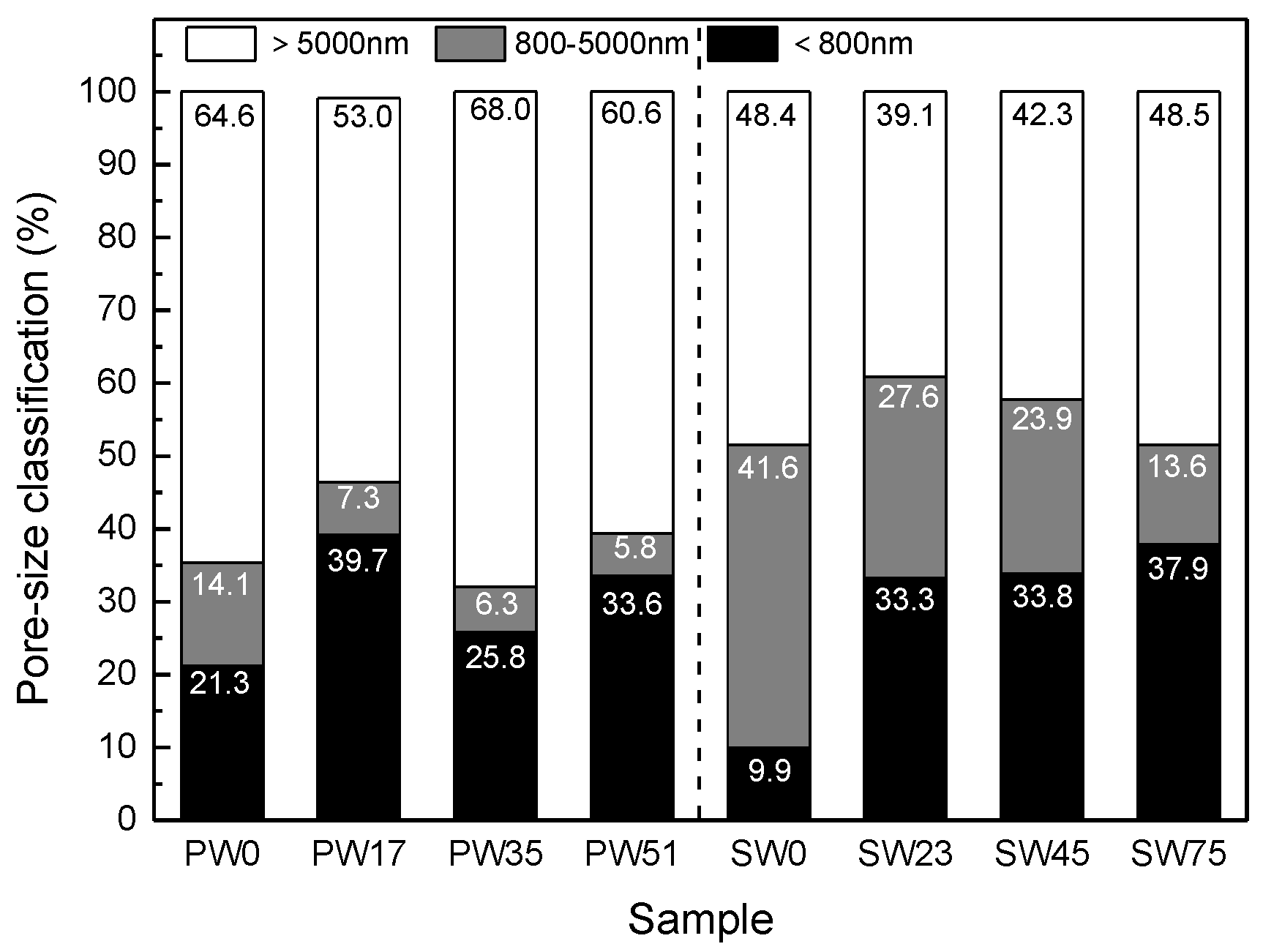

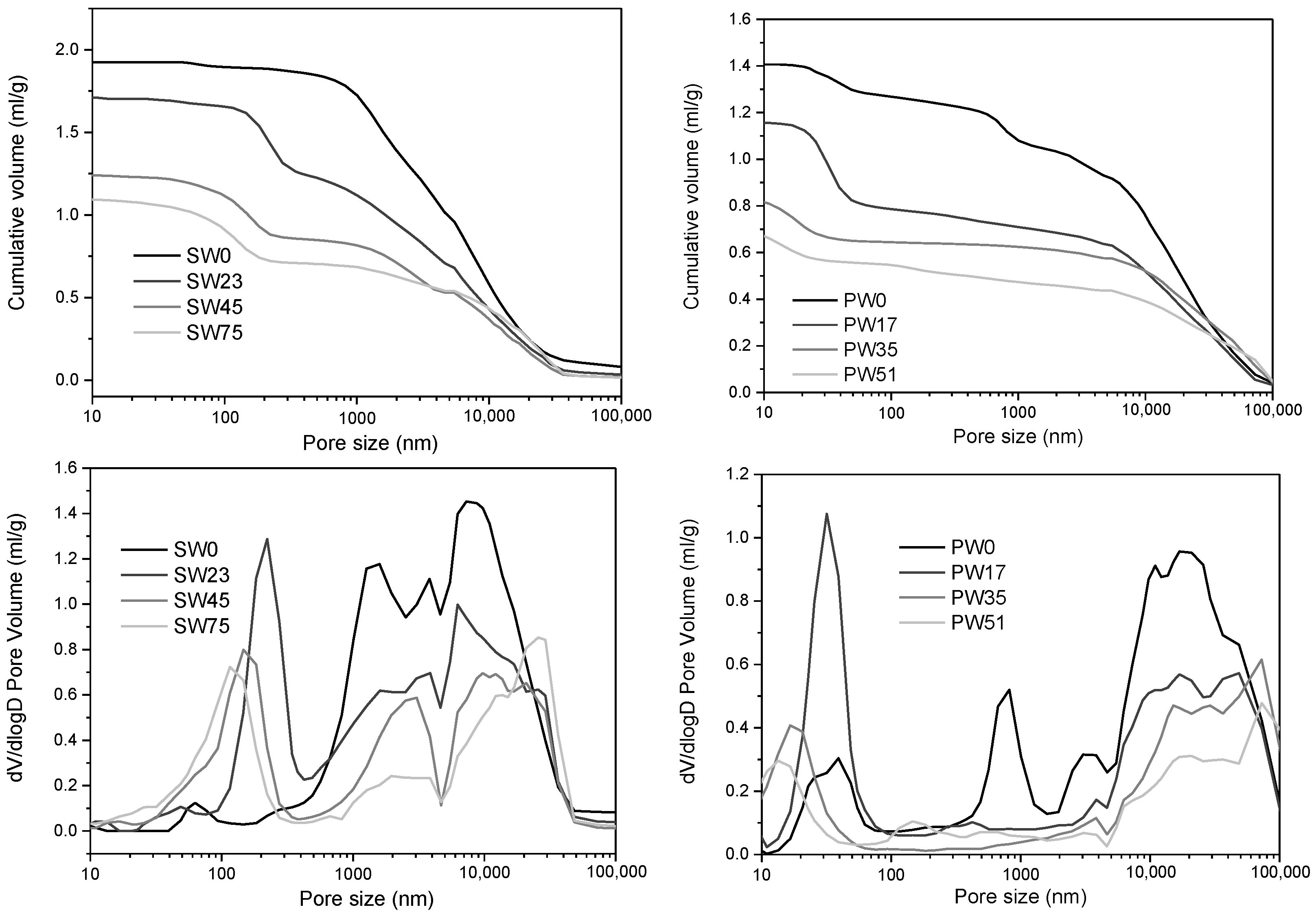

3.2. Mercury Intrusion Porosimetry (MIP)
3.3. Characterization of FA Distribution

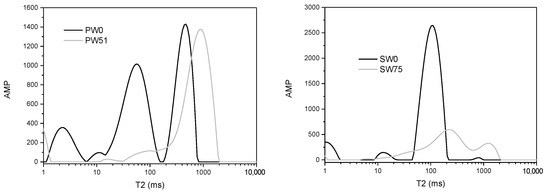

3.4. LF-NMR
3.5. Cyclic Water Soaking and Dimensional Stability
4. Conclusions
- (1)
- Low concentrations of furfuryl alcohol can better enter the cell walls of the Chinese fir than those of poplar. Compared to an FA concentration of 10%–20%, there were no significant increases in the amount of FA entering the cell walls when the FA concentration was increased to 30% in both the Chinese fir and the poplar. Furthermore, the furfurylation of the poplar cell walls was more suitable than those of the Chinese fir cell walls. The FA resin was almost cured in the secondary walls, cell corners, and compound middle lamellae when furfurylated with the 10% concentration. Once the concentration increased to 30%, the amount of FA cured in the cell lumen of the poplar was greater than that of the Chinese fir.
- (2)
- The poplar’s pointed ends of pit chambers and pit apertures (800–1000 nm) and the Chinese fir’s small pores of pit membranes and pit apertures (1–6 μm) were partially infiltrated and deposited by FA resin at the 10%–30% concentrations and formed new pore sizes in the pore size distribution ranges of 80–600 nm and 15–100 nm, respectively. The amount of FA cured in the tracheids of the Chinese fir latewood and poplar wood rays increased along with increasing FA concentrations. The porosity of the poplar was greater than that of the Chinese fir, and the bulk density was lower in the poplar than the fir before and after modification.
- (3)
- Wood impregnation with a low concentration of FA was able to reduce the EMCR and improve the ASE*, but the dimensional stability of the poplar wood was more significantly improved. Additionally, furfurylation effectively reduced water uptake due to the hydrophobicity properties of the furfuryl alcohol resin. Furthermore, with increases in cyclic water soaking times, furfurylation demonstrated significant effects of MCWAR reduction and ASEWS improvement. The MCWAR of the Chinese fir increased by 17%–19% when treated with FA at various concentration in secondary cyclic water soaking, suggesting the loss and leaching of FA resin during the test. In addition, low-field NMR showed that the effects of modification on bound and free water included reductions in the amount of moisture content, tighter bonds between the bound water and wood, and a freer relationship between the free water and wood. It can therefore be concluded that furfurylation is a feasible method by which to extend furfurylated wood applications when using FA at low concentrations.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Hosseinpourpia, R.; Adamopoulos, S.; Mai, C. Dynamic vapour sorption of wood and holocellulose modified with thermosetting resins. Wood Sci. Technol. 2016, 50, 165–178. [Google Scholar] [CrossRef]
- Klüppel, A.; Mai, C. The influence of curing conditions on the chemical distribution in wood modified with thermosetting resins. Wood Sci. Technol. 2013, 47, 643–658. [Google Scholar] [CrossRef] [Green Version]
- Lande, S.; Westin, M.; Schneider, M. Properties of furfurylated wood. Scand. J. For. Res. 2011, 19, 22–30. [Google Scholar] [CrossRef]
- Esteves, B.; Nunes, L.; Pereira, H. Properties of furfurylated wood (Pinus pinaster). Eur. J. Wood Wood Prod. 2011, 69, 521–525. [Google Scholar] [CrossRef]
- Morozovs, A.; Keke, A.; Fisere, L.; Spulle, U. Wood modification with furfuryl alcohol and furfurylated wood durability in water. In Proceedings of the 17th International Scientific Conference Engineering for Rural Development, Jelgava, Latvia, 23–25 May 2018. [Google Scholar]
- Yang, T.; Cao, J.; Ma, E. How does delignification influence the furfurylation of wood? Ind. Crops Prod. 2019, 135, 91–98. [Google Scholar] [CrossRef]
- Herold, N.; Pfriem, A. Impregnation of veneer with furfuryl alcohol for an improved plasticization and moulding. Eur. J. Wood Wood Prod. 2013, 71, 281–282. [Google Scholar] [CrossRef]
- Kong, L.; Guan, H.; Wang, X. In situ polymerization of furfuryl alcohol with ammonium dihydrogen phosphate in poplar wood for improved dimensional stability and flame retardancy. ACS Sustain. Chem. Eng. 2018, 6, 3349–3357. [Google Scholar] [CrossRef]
- Buchelt, B.; Dietrich, T.; Wagenführ, A. Testing of set recovery of unmodified and furfurylated densified wood by means of water storage and alternating climate tests. Holzforschung 2014, 68, 23–28. [Google Scholar] [CrossRef]
- Dong, Y.; Ma, E.; Li, J.; Zhang, S.; Hughes, M. Thermal properties enhancement of poplar wood by substituting poly(furfuryl alcohol) for the matrix. Polym. Compos. 2019, 41, 1066–1073. [Google Scholar] [CrossRef]
- Shen, X.; Guo, D.; Jiang, P.; Yang, S.; Li, G.; Chu, F. Water vapor sorption mechanism of furfurylated wood. J. Mater. Sci. 2021, 56, 11324–11334. [Google Scholar] [CrossRef]
- Deka, H.; Mohanty, A.; Misra, M. Renewable-resource-based green blends from poly(furfuryl alcohol) bioresin and lignin. Macromol. Mater. Eng. 2014, 299, 552–559. [Google Scholar] [CrossRef]
- Lande, S.; Westin, M.; Schneider, M.H. Eco-efficient wood protection: Furfurylated wood as alternative to traditional wood preservation. Manag. Environ. Qual. 2004, 15, 529–540. [Google Scholar] [CrossRef]
- Pilgård, A.; Treu, A.; van Zeeland, A.N.T.; Gosselink, R.J.A.; Westin, M. Toxic hazard and chemical analysis of leachates from furfurylated wood. Environ. Toxicol. Chem. 2010, 29, 1918–1924. [Google Scholar] [CrossRef] [PubMed]
- Pilgård, A.; De Vetter, L.; Van Acker, J.; Westin, M. Toxic hazard of leachates from furfurylated wood: Comparison between two different aquatic organisms. Environ. Toxicol. Chem. 2010, 29, 1067–1071. [Google Scholar] [CrossRef] [PubMed]
- Vetter, L.D.; Pilgård, A.; Treu, A.; Westin, M.; Acker, J.V. Combined evaluation of durability and ecotoxicity: A case study on furfurylated wood. Wood Mater. Sci. Eng. 2009, 4, 30–36. [Google Scholar] [CrossRef]
- Goldstein, I.; Dreher, W. Stable Furfuryl Alcohol Impregnating Solutions. Ind. Eng. Chem. 1960, 52, 57–58. [Google Scholar] [CrossRef]
- Mantanis, G.I. Chemical modification of wood by acetylation or furfurylation: A review of the present scaled-up technologies. Bioresources 2017, 12, 4478–4489. [Google Scholar] [CrossRef] [Green Version]
- Hadi, Y.S.; Nawawi, D.S.; Abdillah, I.B.; Pari, G.; Pari, R. Evaluation of discoloration and subterranean termite resistance of four furfurylated tropical wood species after one-year outdoor exposure. Forests 2021, 12, 900. [Google Scholar] [CrossRef]
- Li, W.; Wang, H.; Ren, D.; Yu, Y. Wood modification with furfuryl alcohol catalysed by a new composite acidic catalyst. Wood Sci. Technol. 2015, 49, 845–856. [Google Scholar] [CrossRef]
- Sedliačiková, M.; Moresová, M.; Aláč, P.; Malá, D. What is the supply and demand for coloured wood products? An empirical study in Slovakian practice. Forests 2021, 12, 530. [Google Scholar] [CrossRef]
- Thygesen, L.G.; Barsberg, S.; Venås, T.M. The fluorescence characteristics of furfurylated wood studied by fluorescence spectroscopy and confocal laser scanning microscopy. Wood Sci. Technol. 2010, 44, 51–65. [Google Scholar] [CrossRef]
- Pu, H.; Chen, T.; Li, Y. Influences of furfurylation modification on the wood properties of rubberwood. J. For. Eng. 2014, 28, 50–53. [Google Scholar]
- Yang, L.; Tian, G.; Yang, S.; Shang, L.; Liu, X.E.; Jiang, Z. Determination of fiber saturation point of rattan (Calamus simplicifolius) using the LF-NMR and two conventional methods. Wood Sci. Technol. 2020, 54, 667–682. [Google Scholar] [CrossRef] [Green Version]
- Zelinka, S.L.; Glass, S.V.; Thybring, E.E. Evaluation of previous measurements of water vapor sorption in wood at multiple temperatures. Wood Sci. Technol. 2020, 54, 769–786. [Google Scholar] [CrossRef]
- Thybring, E.E. The decay resistance of modified wood influenced by moisture exclusion and swelling reduction. Int. Biodeterior. Biodegrad. 2013, 82, 87–95. [Google Scholar] [CrossRef]
- Chen, J.; Wang, Y.; Cao, J.; Wang, W. Improved water repellency and dimensional stability of wood via impregnation with an epoxidized linseed oil and carnauba wax complex emulsion. Forests 2020, 11, 271. [Google Scholar] [CrossRef] [Green Version]
- Chen, T.; Luo, P.; Xu, Z.; Luo, X.; Hu, Z. Effects of furfuryl alcohol impregnation on physical and mechanical properties of densified poplar wood. J. For. Eng. 2016, 1, 21–25. [Google Scholar]
- Boneka, A.S.; Uyup, M.K.A.; Hua, L.S.; Siam, N.A.; Salim, S.; Ashaari, Z. Sorption isotherm and physico-mechanical properties of kedondong (Canarium spp.) wood treated with phenolic resin. Constr. Build. Mater. 2021, 288, 123060. [Google Scholar] [CrossRef]
- Li, W.; Liu, M.; Wang, H.; Ren, D.; Yu, Y. Fabrication of highly stable and durable furfurylated wood materials. Part II: The multi-scale distribution of furfuryl alcohol (FA) resin in wood. Holzforschung 2020, 74, 1147–1155. [Google Scholar] [CrossRef]
- Zauer, M.; Hempel, S.; Pfriem, A.; Mechtcherine, V.; Wagenführ, A. Investigations of the pore-size distribution of wood in the dry and wet state by means of mercury intrusion porosimetry. Wood Sci. Technol. 2014, 48, 1229–1240. [Google Scholar] [CrossRef]
- Li, L.; Wang, X.; Yan, Y.; Ping, L. Pore analysis of thermally compressed Scots pine (Pinus sylvestris L.) By mercury intrusion porosimetry. Holzforschung 2017, 72, 57–63. [Google Scholar] [CrossRef]
- Plötze, M.; Niemz, P. Porosity and pore size distribution of different wood types as determined by mercury intrusion porosimetry. Eur. J. Wood Wood Prod. 2011, 69, 649–657. [Google Scholar] [CrossRef] [Green Version]
- Jansen, S.; Choat, B.; Pletsers, A. Morphological variation of intervessel pit membranes and implications to xylem function in angiosperms. Am. J. Bot. 2009, 96, 409–419. [Google Scholar] [CrossRef]
- Araujo, C.D.; MacKay, A.L.; Whittall, K.P.; Hailey, J.R.T. A diffusion model for spin-spin relaxation of compartmentalized water in wood. J. Magn. Reson. 1993, 101, 248–261. [Google Scholar] [CrossRef]
- Cai, C.; Zhou, F.; Cai, J. Bound water content and pore size distribution of thermally modified wood studied by NMR. Forests 2020, 11, 1279. [Google Scholar] [CrossRef]
- Cox, J.; Mcdonald, P.J.; Gardiner, B.A. A study of water exchange in wood by means of 2D NMR relaxation correlation and exchange. Holzforschung 2010, 64, 259–266. [Google Scholar] [CrossRef] [Green Version]
- Xu, K.; Lu, J.; Gao, Y.; Wu, Y.; Li, X. Determination of moisture content and moisture content profiles in wood during drying by low-field nuclear magnetic resonance. Dry. Technol. 2017, 35, 1909–1918. [Google Scholar] [CrossRef]
- Thybring, E.E.; Digaitis, R.; Nord-Larsen, T.; Beck, G.; Fredriksson, M. How much water can wood cell walls hold? A triangulation approach to determine the maximum cell wall moisture content. PLoS ONE 2020, 15, e0238319. [Google Scholar] [CrossRef]
- Fredriksson, M.; Thygesen, L.G. The states of water in norway spruce (Picea abies (L.) Karst.) Studied by low-field nuclear magnetic resonance (LFNMR) relaxometry: Assignment of free-water populations based on quantitative wood anatomy. Holzforschung 2017, 71, 77–90. [Google Scholar] [CrossRef] [Green Version]
- Almeida, G.; Gagné, S.; Hernández, R.E. A NMR study of water distribution in hardwoods at several equilibrium moisture contents. Wood Sci. Technol. 2007, 41, 293–307. [Google Scholar] [CrossRef]
- Thygesen, L.G.; Elder, T. Moisture in untreated, acetylated, and furfurylated Norway spruce studied during drying using time domain NMR. Wood Fiber Sci. 2008, 40, 309–320. [Google Scholar]
- Thygesen, L.G.; Elder, T. Moisture in untreated, acetylated, and furfurylated Norway spruce monitored during drying below fiber saturation using time domain NMR. Wood Fiber Sci. 2009, 41, 194–200. [Google Scholar]
Sample | FA wt% | WPG | BC | RH/EMCR | RH/ASE* | ||||
---|---|---|---|---|---|---|---|---|---|
33% | 65% | 95% | 33% | 65% | 95% | ||||
SW0 | - | - | - | 5.91 a | 11.23 a | 25.36 a | - | - | - |
(0.42) | (0.02) | (0.69) | |||||||
SW23 | 10 | 23.69 c | 6.22 b | 4.18 b | 9.25 b | 23.55 b | 33.23 | 28.83 | 31.42 |
(1.25) | (0.98) | (0.11) | (0.12) | (0.52) | |||||
SW45 | 20 | 45.80 b | 9.31 a | 4.43 c | 9.14 c | 21.89 b | 30.91 | 41.77 | 37.61 |
(2.52) | (0.93) | (0.14) | (0.29) | (0.79) | |||||
SW75 | 30 | 75.02 a | 9.85 a | 3.83 d | 8.68 d | 22.36 b | 36.42 | 58.24 | 42.80 |
(3.19) | (1.24) | (0.12) | (0.14) | (0.96) | |||||
PW0 | - | - | - | 5.15 a | 11.04 a | 25.22 a | - | - | - |
(0.04) | (0.37) | (0.92) | |||||||
PW17 | 10 | 17.66 c | 11.70 b | 3.83 b | 8.82 b | 22.73 b | 48.45 | 34.94 | 44.98 |
(1.31) | (0.66) | (0.11) | (0.07) | (1.18) | |||||
PW35 | 20 | 35.96 b | 13.73 a | 3.77 c | 8.63 c | 21.49 c | 42.51 | 40.79 | 36.78 |
(3.96) | (0.67) | (0.07) | (0.29) | (0.65) | |||||
PW51 | 30 | 51.07 a | 14.02 a | 3.79 d | 8.53 d | 22.66 c | 77.57 | 51.29 | 55.82 |
(6.07) | (1.16) | (0.07) | (0.62) | (1.10) |
Sample | PW0 | PW17 | PW35 | PW51 | SW23 | SW45 | SW75 |
---|---|---|---|---|---|---|---|
Total intrusion volume mL/g | 1.41 | 1.19 | 0.85 | 0.72 | 1.74 | 1.25 | 1.11 |
Bulk density g/cm3 | 0.47 | 0.52 | 0.64 | 0.68 | 0.40 | 0.47 | 0.52 |
Porosity % | 66.42 | 61.81 | 54.32 | 49.55 | 69.52 | 58.94 | 58.31 |
Sample | Peak | Fully Water-Saturated (%) | T2 Value (ms) | Peak Proportion (%) |
---|---|---|---|---|
SW0 | 1 | 251.7 | 1.1 | 9.9 |
2 | 12.8 | 3.0 | ||
3 | 109.7 | 86.7 | ||
4 | 821.4 | 0.5 | ||
Sum | 100 | |||
SW75 | 1 | 70.0 | 0.6 | 14.6 |
2 | 6.4 | 0.6 | ||
3 | 219.6 | 67.6 | ||
4 | 1245.9 | 17.2 | ||
Sum | 100 | |||
PW0 | 1 | 169.6 | 2.25 | 12.2 |
2 | 11.1 | 2.0 | ||
3 | 54.8 | 44.7 | ||
4 | 471.4 | 41.0 | ||
Sum | 100 | |||
PW51 | 1 | 79.7 | 0.7 | 15.7 |
2 | 15.7 | 0.8 | ||
3 | 102.3 | 5.2 | ||
4 | 880.5 | 78.3 | ||
Sum | 32,528.3 |
Sample | MCWAR (%) | ASEWS (%) | ||||
---|---|---|---|---|---|---|
1st | 2nd | 3rd | 1st | 2nd | 3rd | |
SW0 | 278.57 a | 276.04 a | 277.40 a | |||
(8.85) | 9.94 | (8.85) | ||||
SW23 | 95.80 b | 114.15 b | 120.88 b | 56.56 | 38.42 | 27.40 |
(9.75) | (11.10) | (9.67) | ||||
SW45 | 60.24 c | 70.35 c | 74.20 c | 70.22 | 47.07 | 41.20 |
(1.86) | 2.69 | (50.89) | ||||
SW75 | 57.19 c | 66.70 c | 62.66 d | 70.90 | 51.16 | 42.88 |
(1.39) | 3.29 | (9.21) | ||||
PW0 | 162.22 a | 161.66 a | 160.64 a | |||
(9.65) | (10.31) | (10.97) | ||||
PW17 | 145.17 b | 145.92 b | 147.68 b | 50.48 | 23.32 | 14.90 |
(2.62) | (3.54) | (2.36) | ||||
PW35 | 115.24 c | 118.18 c | 123.04 c | 63.79 | 35.08 | 21.40 |
(8.68) | (10.49) | (9.07) | ||||
PW51 | 89.80 d | 99.15 d | 102.91 d | 72.36 | 45.37 | 23.47 |
(12.08) | (11.74) | (14.34) |
