Comparing Rooting Ability and Physiological Changes of Two Eucommia ulmoides Improved Varieties

by
Gengxin Lv
1,2,3,†,
Jun Qing
1,2,3,†,
Hongyan Du
1,2,3,
Qingxin Du
1,2,3,
Yide Meng
1,2,3,
Feng He
1,2,3,
Panfeng Liu
1,2,3,
Lanying Du
1,2,3 and
Lu Wang
1,2,3,*
1
Paulownia R&D Center of State Forestry and Grassland Administration, Chinese Academy of Forestry (CAF), Zhengzhou 450003, China
2
Key Laboratory of Non-Timber Forest Germplasm Enhancement and Utilization of State Forestry and Grassland Administration, Zhengzhou 450003, China
3
Non-Timber Forest R&D Center, Chinese Academy of Forestry, Zhengzhou 450003, China
*
Author to whom correspondence should be addressed.
†
Gengxin Lv and Jun Qing contributed equally to this work.
Forests 2021, 12(9), 1267; https://doi.org/10.3390/f12091267
Submission received: 23 August 2021 / Revised: 13 September 2021 / Accepted: 14 September 2021 / Published: 17 September 2021
Browse Figures
Versions Notes

Abstract

:
Eucommia ulmoides (E. ulmoides) is a significant national strategic resource in China. It is a natural high quality rubber resource, with great development potential. We found large differences in rooting ability during adventitious root (AR) formation in two E. ulmoides improved varieties. Therefore, we used two improved varieties of E. ulmoides, ‘Huazhong 6’ (H6, with rooting rate 85.3%) and ‘Huazhong 8’ (H8, with rooting rate 22.5%) to explore the cutting rooting mechanism. In this study, we mainly determined the morphological development process of E. ulmoides cutting rooting, and compared the rooting-related indexes of the two improved varieties, and the changes in physiological indexes closely related to rooting, which include endogenous hormones, oxidases and nutrients in the phloem of the basal stem. The results showed that indole–3–acetic acid (IAA), zeatin riboside (ZR), IAA/ZR and indoleacetic acid oxidase (IAAO) were the key factors that caused big differences in rooting ability between the two E. ulmoides improved varieties. The increase in endogenous hormone IAA content and IAA/ZR value were necessary for the formation of AR. The increase in IAA content was beneficial to AR formation. The activity of IAAO was significantly negatively correlated with the rooting ability of the E. ulmoides cuttings. The high IAAO activity of the H8 cuttings led to the consumption of IAA. Although the content of IAA increased, the rooting conditions were not reached. The accumulation of nutrients before rooting also has an important effect on rooting; it is easy for cuttings to root when the carbon–nitrogen ratio (C/N) value is high. This research provides an improved understanding of the cellular and physiological underpinnings of the AR process in woody plants. In addition, it provides a theoretical basis and foundation for subsequent research on E. ulmoides cuttage technology.

1. Introduction

Eucommia ulmoides Oliv (E. ulmoides), a single family, single genus, single species and dioecious, is the unique national strategic reserve resource in China [1]. E. ulmoides is one of the medicinal plants that have had a long history of success in traditional medicine and has special value. Extract preparations from E. ulmoides have had vasodilatory effects, and have been used in antihypertensive pharmacological research [2]. However, difficulties have been encountered in the traditional seed reproduction of E. ulmoides. Being a dioecious species, excellent traits are unstable, leading to prolonged seed dormancy, irregular fruiting, long juvenile periods, etc. Vitro plant regeneration technology could ensure the stable excellent shape of the parents and a high reproduction coefficient, but had drawbacks in actual production, due to complex operation, high technical requirements, etc. [3]. Similarly, the use of grafting reproduction technology also required a lot of labor costs. Cutting propagation had the characteristics of stable genetic characters, a short seedling raising period, simple operation and low cost, so it played a key role in genetic improvement and commercial production of E. ulmoides [4]. The formation of adventitious root (AR) is necessary for the cutting propagation of E. ulmoides, but there are genetic specificities between different cultivators of the same tree species, and the rooting abilities are also quite different [5]. The special rooting agent for E. ulmoides invented by our research group can significantly increase the rooting rate of most E. ulmoides varieties. The rooting rate of H6 cuttings treated with the special rooting agent is stabilized at more than 85%, and the rooting rate of other varieties can reach more than 75%. However, the rooting rate of H8 is only 20–30%; finding the reason is of great significance to the breeding and application of E. ulmoides.
Studies have shown that the content and ratio of plant endogenous hormones have significant roles regulating the formation of ARs [6,7], while auxin has a positive effect on the induction of ARs [8,9]. Peroxidase (POD), polyphenol oxidase (PPO) and indole acetic acid oxidase (IAAO) are considered to be the three oxidases most closely related to the formation of ARs, and their activity changes have obviously promoted or inhibited effects on cutting rooting [4,10,11]. When rooting, cuttings need to consume a lot of nutrients and energy, and sufficient nutrients are a necessary condition for AR formation [11,12]. In general, it is easier for cuttings to take root when the C/N value is higher, otherwise it is difficult [4]. Current studies pay less attention to the rooting mechanism of softwood cuttings such as E. ulmoides, and there are fewer research reports on related physiological indexes in the cutting process of E. ulmoides. According to the compared differences in physiological and biochemical indexes during the rooting process of E. ulmoides cuttings, this result can provide a theoretical basis for the further innovation of cutting propagation technology and the research on the cutting rooting mechanism of E. ulmoides.

2. Materials and Methods

2.1. Test Materials

The cuttings were taken from 3-year-old grafted improved varieties of E. ulmoides, ‘Huazhong 6’ (H6) and ‘Huazhong 8’ (H8), cultivated from the Eucommia Engineering Research Center of State Forestry and Grassland experimental base (34°50′ N, 112°33′ E) located in the Mengzhou, Henan province, China. The semiligninized spring shoots with a length of 10–15 cm were selected as cuttings, and top tender shoots 2~3 mature leaves were retained. The cuttings should be picked manually from the base with no scissors.

2.2. Experimental Design

The cuttings (currently used and prepared) from the two E. ulmoides improved varieties were dipped in the special rooting agent (patent application number: CN202011236585.9) for 10 s, and each variety was inserted into the cutting bed that was disinfected with 40% carbendazim wettable powder 500 times before cutting. The cutting bed was 8 m in length and 1.5 m in width, and coarse river sand to an 0.15 m thickness was spread in the lower part, and covered with an 0.15 m matrix (turfy soil:perlite = 3:1) in the upper. Every two days, 20 cuttings were randomly selected to observe the phenotypic changes, and 3–4 cuttings with the same growth state were selected at the same time. The stem segments with the length of 1–3 cm at the base of cuttings were put into a 70% FAA (Formaldehyde–acetic acid–ethanol fixative) fixation solution and preserved at low temperature without light in the laboratory. The anatomical observation of rooting was carried out, and the rooting was observed by section until rooting. The cuttings which were not treated with the rooting agent were collected as the first sample (0 day). The other samples were collected at 6, 12, 18, 22, 26, 32, 39, 46, 53 days after their insert into the cutting bed and their microscopic morphological changes were observed under stereomicroscope. In order to determine endogenous hormones, oxidase and nutrients, samples were collected 3 times each time and put into 15 mL centrifuge tubes, each test tube sample with a weight of 4–5 g. All treated tissue samples were immediately frozen in liquid nitrogen and stored at −80 °C for subsequent analysis.

2.3. Growth Index Statistics

The morphological changes of the cutting incision and the base of the cutting were observed regularly after insertion. The rooting rate, average number of roots and average root length of cuttings (accurate to 0.01 cm) were calculated after cutting for 60 days.

2.4. Determination of Physiological Index

High performance liquid chromatography–tandem mass spectrometry (HPLC–MS/MS) was used to determine the content of endogenous hormones, including:IAA, gibberellic acid (GA3), abscisic acid (ABA), ZR. The determination parameters were as follows: BEH C18 column (2.1 × 100 mm, 1.8 µm), mobile phase A is 0.1% formic acid aqueous solution, B is acetonitrile, linear gradient elution, flow rate 0.25 mL/min, injection volume 5 µL, column temperature 40 °C. The mass spectrometry conditions are: electrospray ionization source (ESI) is at positive and negative ion ionization mode, the ion source temperature is 500 °C, the ion source voltage is 5 500 V–4 500 V, the curtain gas is 30 psi and the atomization gas and auxiliary gas are both 50 psi. Multireaction monitoring mode (MRM) was used for scanning. For oxidase activity (IAAO, PPO, POD), soluble sugar, soluble protein content determination tests and calculation methods, refer to Li et al. [13]. The total nitrogen content was determined by the Kjeldahl method. Each determination was treated with 3 biological replicates.

2.5. Data Analysis

Microsoft Excel 2016 was used for data collation, SPSS20.0 for Windows SPSS, Chicago, IL, USA was used for the analysis of variance (ANOVA, p ≤ 0.05), and Origin 2020 software was used to make charts.

3. Results

3.1. The Rooting of Softwood Cuttings of E. ulmoides

3.1.1. Morphological changes

In observing the rooting of H6 softwood cuttings, it was found that in E. ulmoides, young AR burst from the cortex within 3 cm above the basal cut. The base of cuttings healed and merged to form a few callus (Figure 1B) after being treated with a special rooting agent for E. ulmoides at about 12 days. The basal cortex of the cuttings showed transparent protrusion (Figure 1C), accompanied with pore cracking, at around 22 days. Cuttings at about a month were forming a visible white AR protruding from the cortex (Figure 1D). A fortnight later, the AR entered the elongation stage (Figure 1E) and gradually formed a complete root.

3.1.2. Microscopic Morphological Changes

The rooting process of E. ulmoides cuttings was observed through a stereomicroscope, and it was found that the root primordium is not consistent, which is shown in Figure 2A–F. It is shown that lenticels at the base of the cuttings gradually cracked, and white AR emerged in Figure 2A–C. However, some AR emerged directly in the cortex. Firstly, dark protuberances were formed in the cortex (Figure 2D), then translucent root tips broke through the cortex (Figure 2E) and the ARs turned white during elongation (Figure 2F). The existence of lenticels relatively reduced the mechanical resistance of ARs protruding from the cortex. The process from lenticel cracking to the AR breaking through the cortex of the cuttings is mostly concentrated to 22–32 days.

3.1.3. Anatomical structure changes

It can be seen from Figure 3 that no latent root primordium was found in the cuttings of E. ulmoides (Figure 3A), so the root primordium of E. ulmoides belongs to the inducible root primordium, which mainly originates from the cambium. Through paraffin section technology, we observed that there were clumps of meristems formed by parenchyma cells with dense cytoplasm and large nuclei in the cambium at 18 days, which is a root primordium initial cell (Figure 3B). Subsequently, the root primordium further developed to form AR, which broke through the cortex (Figure 3C). At about one month, most of the AR has entered the elongation stage (Figure 3D).
Combined with the results of phenotypic changes in the rooting process of cuttings and the anatomical results of paraffin sections, the rooting process of E. ulmoides cuttings were divided into four stages: AR induction period (0~12 days), initiation period (12~22 days), expression period (22~32 days) and elongation period (32~53 days).

3.2. Morphological Comparison of E. ulmoides Cuttings

After 22 days, the basal cortex of H6 cuttings protruded and split, the top of the protuberance was translucent, and the root primordium was induced inside (Figure 4A). However, there were a large number of callus in the incision at the base of H8 cuttings, and the change of the cortex at the base was not obvious (Figure 4D), indicating that callus formation significantly affects the rooting process. After 39 days of cutting, most of the H6 cuttings entered the stage of AR elongation (Figure 4B), some cuttings forming secondary lateral roots, while H8 had a small amount of rooting, most of the callus at the base of cuttings were yellowish brown (Figure 4E), and the base of some cuttings were black and even necrotic. After 53 days, most of the top tips of the cuttings were stretched out and the ARs had accelerated elongation, and the cuttings had basically grown into complete plants (Figure 4C). Although few of the cuttings of H8 formed a complete root, most of the cuttings entered a state of ‘pseudo-death’ after the callus formed, which lead to the serious phenomenon of ‘stunted seedlings’ (Figure 4F).
The statistical rooting results are shown in Table 1. Compared with H8 and the control group, the rooting ability of H6 cuttings treated with the special rooting agent for E. ulmoides was higher. The rooting rate and average rooting number of the H6 group were 85.30% and 25.6, respectively, which was 62.77% and 10.35 higher than H8, respectively. The results showed that the rooting ability of H8 cuttings was low and that it was an improved variety of E. ulmoides which is difficult to root by cuttings.
In this experiment, the rooting rate of H6 cuttings was higher than that of previous years, mainly due to the influence of the epidemic situation of COVID-19, which led to the late start of this cutting experiment, resulting in the overall length of cuttings and the high degree of lignification.

3.3. The Content and Ratio of Endogenous Hormones

3.3.1. Changes in Endogenous Hormone Content

Changes in IAA Content

It can be seen from Figure 5A that the IAA content of the H6 cuttings showed a trend of ‘rising–falling’, while the H8 had two peaks. The IAA content of the cuttings in the two groups increased significantly, and reached a peak at 22 days. Compared with the initial cuttings, the IAA content of H6 and H8 increased by 127.20% and 84.62%, respectively. At this time, a small number of cuttings had grown ARs in H6, while H8 was still forming callus. It shows that the induction of root primordium requires a high content of endogenous IAA to start, and the peak period is often accompanied by the occurrence of ARs. After 22 days, the IAA content of the H6 cuttings decreased continuously, stabilized at the initial level on the 39th day, and a second peak of H8 appeared on the 39th day. This may be because the H6 cuttings had a large number of ARs and a large amount of IAA is consumed in the elongation, which also indicates that a low concentration of IAA is beneficial to the elongation of ARs. Therefore, the low content of IAA in the H8 cuttings made it difficult to induce root primordium formation.

Changes in GA3 Content

It can be seen from Figure 5B that the variation trend of gibberellic acid (GA3) content in the H8 and H6 cuttings was almost the same, both of which were ‘rising–falling–rising’. Until 12 days, the GA3 content in both varieties increased and formed a peak, although the GA3 peak value of the H6 cuttings was higher than the H8 cuttings, and both the GA3 and abscisic acid (ABA) contents of the H6 cuttings showed small peaks on the 12th day (Figure 5B,D), indicating that they may have synergy during this period. After 12 days, the GA3 content in the H6 cuttings was slightly lower than in the H8 cuttings, and both of them rose slightly until 39 days. The variation trend of GA3 content of the two improved varieties is similar, which indicates that GA3 is not the main reason for the difference of rooting ability between the two improved varieties.

Changes in ZR Content

As shown in Figure 5C, the ZR content of cuttings in the H6 group showed a trend of ‘decrease–rise–decrease’. The ZR content of cuttings in the H8 group changed little and decreased continuously from cutting until it increased slightly on the 39th day. Before cutting, the ZR content of H6 cuttings was higher than that of the H8 cuttings. The content of ZR in both varieties decreased continuously during the 0–22 day period. The ZR content of the H6 cuttings significantly increased to the peak at 22–26 days when the lenticels of the H6 cuttings expanded and cracked, and there were obvious protuberances at the base of the cuttings, which was a key stage of AR development, while H8 had no obvious change. All the results showed that a significant increase of endogenous ZR content in cuttings was closely related to the new young AR.

Changes in ABA Content

The abscisic acids (ABA) content of the H6 cuttings showed a ‘rising–decreasing’ trend, and the H8 cuttings showed a ‘declining–rising–declining’ trend (Figure 5D). The ABA content of the H6 cuttings increased until day 12 and then decreased, whereas an opposite trend can be observed in the H8 cuttings. After 22 days, both cuttings (H6 and H8) changed in the same trend. The ABA content of the H6 cuttings increased to the peak at the early rooting stage (0–12 days), which may be due to the increase in ABA content stimulated by the wound caused by cuttings detaching from the mother tree, while the increase in ABA content could reduce the damage of abiotic stress to cuttings. The ABA content of the H8 cuttings only increased from 12 to 22 days, indicating that the response of H8 to injury stimulation lagged behind. After 22 days, the ABA content of cuttings in the two groups decreased rapidly and gradually stabilized at 32 days, indicating that a low ABA content was beneficial to cuttings root elongation.

3.3.2. Changes of Endogenous Hormones Ratio

Changes in IAA/ABA

During the whole rooting process of the cuttings, there was a great difference in the change trend of IAA/ABA values among the different improved varieties (Figure 6A). The IAA/ABA value of the H6 cuttings showed a ‘rising–decreasing’ trend, while H8 showed a double-peak curve, and the two peaks appeared on the 12th and 39th day, respectively, corresponding to the valley value of ABA, and the second peak of IAA in the H8 cuttings, respectively. The IAA/ABA value of H8 fluctuated much more than H6, indicating that a more stable IAA/ABA value was more beneficial to the induction and occurrence of AR in cuttings in the rooting process.

Changes in IAA/ZR Value

The IAA/ZR value and IAA content of the two varieties have a similar changing trend, which also indicates that IAA plays a key role in the rooting of E. ulmoides cuttings (Figure 6B). The peak value of IAA/ZR of the H6 cuttings was higher than that of the H8 cuttings, since the increase range of the IAA content and the decrease range of the ZR content of the H6 cuttings were higher than of the H8 cuttings during the 0~22 day period. The peak value of IAA/ZR appeared in the critical period of rooting, indicating that a higher value of IAA/ZR was beneficial to the rooting of E. ulmoides cuttings. After 22 days, the IAA content of H6 continued to decrease, and the ZR content increased rapidly and then decreased slowly. After 39 days, the IAA content of H8 formed a second peak, while the ZR content formed a valley. Therefore, the IAA/ZR value of H8 formed a second peak on the 39th day, and the IAA/ZR value of H6 decreased more obviously.

3.4. Changes in Oxidase Activity

At the beginning of cutting, the peroxidase (POD) and indoleacetic acid oxidase (IAAO) activity of the H8 cuttings were higher than the H6, and the polyphenol oxidase (PPO) activity was lower than the H6. During the rooting process of E. ulmoides cuttings, the changes in POD and PPO activities of the two improved cuttings were similar, showing a ‘rising–decreasing’ trend (Figure 7A, B). There was no significant difference between them, indicating that POD and PPO were not the main reason for the difference in rooting ability. The IAAO activity of the H6 cuttings decreased significantly, while the H8 decreased and then increased. The large decrease in H6 IAAO activity corresponds to the large increase in IAA content (Figure 7C). During the whole rooting process, the IAAO activity of H8 was higher than that of H6, which indicates that the high IAAO activity of the H8 cuttings resulted in a low IAA content in the process of AR formation, which was disadvantageous to cuttings rooting.

3.5. Changes in Nutrient Content and C/N Value

3.5.1. Changes in Nutrient Content

The content of soluble protein and total nitrogen in the cutting of the two improved varieties showed an ‘increasing–decreasing’ trend, and the soluble sugar content initially decreased slightly, then H8 and H6 increased to the peak on the 22nd and 39th day, respectively(Figure 8). Before cutting, the soluble protein content of the H6 cuttings was higher than the H8, while the soluble sugar content was lower than the H8 and the total nitrogen content were the same. The results showed that there were differences between the soluble protein and soluble sugar before cutting. The induction and initiation of ARs of the H6 were completed in 26 d, which was in the stage of a large number of AR development. At this stage, the content of soluble protein in H6 was higher than in H8, while the content of soluble sugar was significantly lower than in H8. The total nitrogen content of the cuttings in the two improved varieties increased and then decreased and the total nitrogen content in the H6 cuttings was always higher than H8 during the whole rooting process. Nitrogen compounds are the raw materials for the synthesis of soluble proteins. The nitrogen compounds in the H8 cuttings may synthesize soluble protein slowly due to insufficient supply, so the peak value of soluble protein appears later, which may be an important factor for the low rooting rate of the H8 cuttings.

3.5.2. Change in C/N Value

The overall change in the C/N value in both E. ulmoides improved varieties cuttings basically showed same trend, and both increased to varying degrees during the rooting period (Figure 9). During the 6–22 day period, the C/N value level of H8 was always higher than H6, and formed a peak at day 22. This was mainly related to the higher soluble sugar content of H8. After 26 days, the C/N level of H6 was higher than H8, and the cuttings were in the elongation period of rooting. This showed that the increase in C/N value is beneficial to rooting, and the C/N value is positively correlated with the rooting ability of cuttings.

4. Discussion

First of all, we recorded the phenotypic changes by periodic sampling and observed the slice anatomy, thus determining the four key periods of the rooting process of E. ulmoides cuttings, and then determined the sampling period of endogenous hormones, oxidases, nutrients and other indicators for following studies on the low rooting rate of cutting of two improved varieties of E. ulmoides.

4.1. The Endogenous Hormones of Cutting Rooting

Indole–3–acetic acid is a key hormone in the process of plant growth and development. It can not only regulate cell division and promote cell elongation, but also affects the morphology of individual plants and their organs with the concentration gradient of their distribution [14,15,16]. In a study of many tree species, it was found that the content of IAA increased during the critical period of AR formation, which significantly promoted the occurrence of ARs [6,17]. Naoki et al. [18] found that the content of IAA in high rooting rate eucalyptus (Eucalyptus globulus) was twice as much as low rooting rate eucalyptus varieties. The IAA level of apple (Malus domestica) cuttings increased continuously during the induction period (0–72 h) and start-up period (72–120 h), and reached the peak at 120 h. After the elongation period (120–168 h), it decreased steadily [19], which was consistent with the results of this study. The IAA content of the cuttings of the two improved varieties of E. ulmoides increased continuously during the induction and start-up periods (0–22 days), and reached the peak at 22 days. The IAA level of H6, which is an easy-to-root variety, was significantly higher than that of H8, which is a difficult-to-root variety. It is suggested that IAA is the most important endogenous hormone regulating the AR formation, and the content of IAA can be used as one of the important indexes to judge the ability of cutting rooting of improved varieties of E. ulmoides [20].
In recent years, there have been different conclusions about the effect of GA3 on the rooting of cuttings. Some studies suggested that GA3 can reduce the rooting rate by reducing the number and length of ARs in two ways, which are inhibiting the formation of root primordia and hindering the formation of AR [21,22]. However, in a study of Rhododendron (Rhododendron scabrifolium), it was found that an increase in the GA3 content of cuttings was positively correlated with the induction of callus and the formation of AR [23]. In this study, it was found that the GA3 content of cuttings in both varieties increased at the initial stage of cutting (0–12 days), and continued to decrease after 12 days. The results showed that the increase of GA3 content was conducive to the formation of root primordium, and the decrease of GA3 content was beneficial to the growth and development of AR, which was consistent with the results of tree species such as neem (Chukrasia tabularis) and Nanjing Tilia (Tilia miqueliana) [6,17]. During the rooting period, the GA3 content of the two varieties of cuttings changed in the same trend and GA3 may be not the main reason for the difference in rooting ability between improved varieties.
There are also controversies in the current research on the relationship between ZR and cutting rooting [24]. Some studies have suggested that ZR inhibits the rooting of cuttings, low content of ZR is conducive to root primordium differentiation and a high content of ZR promotes AR formation [22]. It is also believed that ZR has no obvious effect on root primordia, but plays an important role in the further growth and development of AR [25]. The results of this study were consistent with the former conclusion. The effect of ZR was different in each rooting stage of the E. ulmoides cuttings. The ZR content decreased continuously in the early stage of rooting (0–22 days), which may be related to the consumption of endogenous ZR in the process of root primordium differentiation and callus formation [26]. In plants, the main synthesis site of ZR is the root tip meristem, which transports it to the above-ground organs through ducts in order to exert its physiological regulatory role while higher concentrations of endogenous ZR are required during the growth and development primordia [27]. Therefore, after the formation of ARs in the H6 cuttings, a large number of young roots synthesized ZR, resulting in a significant increase in endogenous ZR content (22–26 days), and the rapid elongation of ARs in the later stage also consumed a certain amount of ZR, so the ZR content decreased in the later stage. The significant increase of ZR content can also be regarded as a sign that the cuttings of E. ulmoides began to take root in large numbers. The change in ZR content was not obvious because there was no obvious rooting phenomenon in H8. This also shows that a low content of ZR is beneficial to the induction of root primordium, but the expression stage of ARs requires a high content of ZR to participate. This is similar to the results of Sapindus mukorossi, and Acer truncatum [22,28].
Abscisic acid is the major stress hormone that coordinates plant growth, development and abiotic stress responses which can enhance the stress resistance of plants [29]. Abscisic acid has a significant inhibitory effect on the formation of ARs of cuttings [30]. In this study, the ABA content of H6 cuttings increased significantly in the early cutting stage, which was consistent with the results of Carya illinoinensis [31]. The ABA content of H8 cuttings decreased slightly and then increased. The difference in the ABA content of the two varieties of cuttings in the early period may be related to the genetic specificity of the improved varieties. The GA3 and ABA content of H6 cuttings both peaked on the 12th day, indicating that the two may have a synergistic effect in dealing with abiotic stress. Therefore, the increase of GA3 and ABA content may be closely related to plant resistance [6].
Plant cutting rooting results from the interaction of multiple plant hormones, and by studying its ratio one can more comprehensively evaluate the effect endogenous hormones have on AR development of the cutting [32,33]. The value of IAA/ABA is closely related to the rooting ability of cuttings [21,34]. Guo Sujuan et al. [12] found that the regulation of IAA/ABA on cutting rooting is much higher than any single hormone in Pinus bungeana cuttings. In this study, a steady increase in the IAA/ABA value was conducive to the induction and development of the root primordium, while the IAA/ABA value of the H8 cuttings fluctuated greatly, which was not beneficial to rooting. Zeatin riboside inhibited the formation of root primordium, and IAA signaling played a positive role in regulating the complex biological system. Relatively high IAA and low ZR levels are considered to be the prerequisites for inducing and initiating ARs [35,36]. During the AR formation of E. ulmoides cuttings, the IAA/ZR in two group increased during the induction and start-up pried, corresponding to the increase in IAA content and the decrease of ZR content, which is conducive to the formation of ARs, which was consistent with the conclusion of Wang Qing et al. [6]. The peak value of IAA/ZR appeared at the critical period of rooting, and the peak value of IAA/ZR was higher in H6. Comprehensive analysis showed that the IAA/ZR value is more representative of the rooting ability of different E. ulmoides varieties and the stable increase of the IAA/ABA value is conducive to the formation of AR.

4.2. The Oxidase Activity and Rooting of E. ulmoides Cuttings

The rooting of plant cuttings involves complex physiological activities, among which POD, PPO and IAAO are considered to be the three oxidases most closely related to the rooting of plant cuttings, which play a role in different stages [37,38]. In this study, the three oxidase activities had significant differences during rooting, which can be used as an important referential to determine the rooting ability of E. ulmoides, which is similar to the conclusions of the study on the rooting ability of different genotypes of Sorbus (Sorbus pohuashanensis) [39]. At the initial stage of plant cutting, the wood stimulation causes the cuttings to distribute phenolic substances at the wound, which promotes the increase of POD and PPO enzyme activities [28], while exogenous hormone treatment activates the POD and PPO enzyme activities in the cuttings and regulates carbohydrate metabolism [37]. An increase in POD is a sign of the rooting ability of cuttings, is involved in auxin metabolism and is related to the induction and elongation of AR [40]. Polyphenol oxidase can catalyze phenols and IAA to form a rooting cofactor, ‘IAA–phenolic acid complex’, which is beneficial to the root primordium [41]. The changes in POD and PPO activities of the cuttings in the two groups were basically the same and there was no significant difference, so it was considered that they were not the main cause of cuttage rooting among improved varieties, and there were similar conclusions in the study of cuttage rooting of Populustremula×P.tremuloides and grape (Vitis vinifera) [42,43]. Indole–3–acetic acid, which has a key role in the induction of ARs in the cuttings, can be oxidized and adjusted by IAAO; that is to say IAAO activity is closely related to the rooting of the cuttings [44]. Song et al. [45] found that the IAAO activity of easy rooting trees basically showed a downward trend after cutting, while difficult rooting trees changed in the opposite trend. Therefore, the decrease of IAAO activity increased the content of IAA, which could promote root formation. The negative correlation between IAAO activity and endogenous IAA level is also the characteristic of the rooting induction period of many tree species [32]. During the rooting process of E. ulmoides cuttings, the IAAO activity of H6 decreased significantly more than H8, while the increase of IAA content corresponding to H6 was significantly higher than H8, which accounts for the high IAAO activity, and is one of the important factors for the low rooting rate [46].

4.3. The Nutrients and Rooting of E. ulmoides Cuttings

During the rooting process of cuttings, nutrients need to be accumulated before rooting and will be consumed in large quantities for rooting [4]. Nitrogen compounds are the main raw material for the synthesis of soluble protein, and the total nitrogen content of H8 was lower than that of H6, which may lead to the slow accumulation of soluble protein content of H8 and the late peak. Although the content of soluble protein and total nitrogen in H8 was lower than in H6, the content of soluble sugar in H8 was significantly higher than in H6, which may be due to the insufficient content of soluble protein and total nitrogen in the process of rooting [47]. In order to ensure the supply of rooting energy, the transformation and utilization of soluble sugar were increased. In the process of plant cuttings rooting, the carbon source and nitrogen source are closely coordinated to form a balance to meet the needs of plant growth and development. The C/N value can reflect the rooting ability of the cutting; the higher the C/N value, the stronger the rooting ability [48]. The C/N value of H6 was higher than that of H8. The change in C/N value mainly depended on the soluble sugar, indicating that a higher C/N value was beneficial to the rooting of softwood cuttings of E. ulmoides, which is consistent with the study of Chrysanthemum (Chrysanthemum morifolium) [49].

5. Conclusions

The cutting propagation of plants is mainly assessed by the formation of AR, and the complex process of AR formation is regulated by many factors. The morphological comparison of E. ulmoides cuttings showed the rooting rate and root number per shoot in the H6 group were significantly higher than the H8 group. The dynamic change in endogenous hormones including IAA, ZR, ABA content and IAAO activity difference caused the difference in rooting ability of H6 and H8. The increase of endogenous hormone IAA content and the decrease of ZR content were the key factors for AR formation. The value of IAA/ZR and IAA/ABA were positively correlated with the rooting ability of the cuttings. The decreasing of IAAO activity in the rooting process is beneficial to the accumulation of IAA in the early stage, which is conducive to AR formation. However, the IAAO activity of H8 was higher during the rooting process, resulting in excessive consumption of endogenous IAA. Difference in nutritional content also played a primary role on the formation of AR, and H6, with a high C/N value, had a strong rooting ability. There were no obvious differences in the changes of GA3 content, PPO and POD activities during the rooting process of the two E. ulmoides improved varieties of cuttings.

Author Contributions

Conceptualization, H.D. and L.W.; Formal analysis, L.D. and L.W.; Funding acquisition, H.D. and L.W.; Investigation, G.L., Q.D. and Y.M.; Methodology, G.L., J.Q. and L.W.; Resources, G.L., J.Q. and F.H.; Supervision, L.W. and Y.M.; Writing—original draft, G.L. and J.Q.; Writing—review and editing, J.Q., P.L. and L.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Surface Project of Fundamental Research Fund of Central Public Welfare Research Institutes (CAFYBB2021MA009).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank the National Paulownia Research and Development Center of the State Forestry and Grassland Administration, Chinese Academy of Forestry (CAF) for support related to the plant material and greenhouse facilities.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

IAAIndole–3–acetic acid
ABAAbscisic acid
GA3Gibberellic acid
ZRZeatin riboside
PODPeroxidase
PPOPolyphenol oxidase
IAAOIndoleacetic acid oxidase
C/NCarbon–nitrogen ratio
ARAdventitious root

References

  1. Wang, C.Y.; Tang, L.; He, J.W.; Li, J.; Wang, Y.Z. Ethnobotany, phytochemistry and pharmacological properties of Eucommia ulmoides: A review. Am. J. Chin. Med. 2019, 47, 259–300. [Google Scholar] [CrossRef]
  2. Kwan, C.Y.; Zhang, W.B.; Deyama, T.; Nishibe, S. In vitro vascular effects of Eucommia ulmoides Oliv.—A plausible scientific basis for its use in the elimination of blood stagnation in traditional Chinese medicine (Kanpo). Int. Symp. Eucommia Ulmoides 2007, 1, 11–14. [Google Scholar] [CrossRef] [Green Version]
  3. Nakazawa, Y.; Toda, Y. Eucommia ulmoides Oliv. (Eucommiaceae): In Vitro Culture and the Production of Iridoids, Lignans, and Other Secondary Metabolites. Biotechnol. Agric. For. 1995, 1, 215–231. [Google Scholar]
  4. Hou, J.T.; Shen, C.C.; Zhang, Y.F.; Lin, N. Review on rooting mechanism of plant cuttings propagation. J. Anhui Agric. Sci. 2019, 47, 1–3. [Google Scholar]
  5. Wang, Z.M.; Cao, J.; Zhang, Y.P.; Bai, J.; Liu, G.B.; Liao, T.; Zheng, S.Q. Study on cutting propagation of four superior Sabina chinensis varieties and one clone. J. Cent. South Univ. For. Technol. 2019, 39, 62–69. [Google Scholar]
  6. Wang, Q.; Zhang, J.; Zhong, C.L.; Zhang, Y.; Wei, Y.C.; Meng, J.X. Variation of endogenesis hormone and nutritive matter concentration in Chukrasia tabularis cuttings during rooting. J. Cent. South Univ. For. Technol. 2020, 40, 111–119. [Google Scholar]
  7. Ouyang, F.Q.; Fu, G.Z.; Wang, J.H.; Ma, J.H.; An, S.P.; Wang, M.Q.; Li, Y. Qualitative analysis of endogenesis hormone and polyphenol during rooting of cuttings in Norway Spruce (Picea abies). Sci. Silvae Sin. 2015, 51, 155–162. [Google Scholar]
  8. Shang, C.Q.; Yang, H.; Ma, S.; Shen, Q.; Liu, L.; Hou, C.; Cao, X.; Cheng, J.L. Physiological and transcriptomic changes during the early phases of adventitious root formation in mulberry stem hardwood cuttings. Int. J. Mol. Sci. 2019, 20, 3707. [Google Scholar] [CrossRef] [Green Version]
  9. Li, S.W. Molecular bases for the regulation of adventitious root generation in plants. Front. Plant Sci. 2021, 12, 614072. [Google Scholar] [CrossRef]
  10. Zhou, Y.C.; Zhong, Q.P.; Li, Q.P.; Liu, W.F.; Zou, Y.L.; Tian, F.; Ge, X.N.; Cao, L.Q. Study on cutting propagation and rooting mechanism of semi–lignified spring shoots of Vernicia montana. J. Cent. South Univ. For. Technol. 2020, 40, 25–36. [Google Scholar]
  11. Zheng, Q.Q.; Lan, S.R.; Liu, X.D.; Feng, Y.C.; Peng, D.H. Effects of growth regulators on rooting and correlative enzyme activities of Michelia figo ’Xiangfei’ cuttings. J. Cent. South Univ. For. Technol. 2020, 40, 67–76. [Google Scholar]
  12. Guo, S.J.; Ling, H.Q.; Li, F.L. Physiological and biochemical basis of rooting of Pinus bun–geana cuttings. J. Beijing For. Univ. 2004, 2, 43–47. [Google Scholar]
  13. Li, H.S.; Sun, Q.; Zhao, S.J. Principle and Technology of Plant Physiological and Biochemical Experiment; Higher Education Press: Beijing, China, 2000; Volume 164–168, pp. 186–197. [Google Scholar]
  14. Truskina, J.; Han, J.; Chrysanthou, E.; Galvan–Ampudia, C.S.; Laine, S.; Brunoud, G.; Mace, J.; Bellows, S.; Legrand, J.; Bagman, A.M.; et al. A network of transcriptional repressors modulates auxin responses. Nature 2021, 589, 116–119. [Google Scholar] [CrossRef]
  15. Herud–sikimic, O.; Stiel, A.C.; Kolb, M.; Shanmugaratnam, S.; Berendzen, K.W.; Feldhaus, C.; Hocker, B.; Jurgens, G. A biosensor for the direct visualization of auxin. Nature 2021, 592, 768–772. [Google Scholar] [CrossRef] [PubMed]
  16. Marhava, P.; Bassukas, A.; Zourelidou, M.; Kolb, M.; Moret, B.; Fastner, A.; Schulze, W.X.; Cattaneo, P.; Hammes, U.Z.; Schwechheimer, C.; et al. A molecular rheostat adjusts auxin flux to promote root protophloem differentiation. Nature 2018, 558, 297–300. [Google Scholar] [CrossRef]
  17. Shi, F.H.; Zhao, R.; Luo, S.; Zheng, C.; Shen, Y.B. Study on plant hormone changes in soft cuttings of Tilia miqueliana during rooting. J. Cent. South Univ. For. Technol. 2019, 39, 21–26. [Google Scholar]
  18. Naoki, N.; Masatoshi, O.; Akiyoshi, K. Chemical screening for promotion of adventitious root formation in Eucalyptus globulus. BMC Proc. 2011, 5, 139. [Google Scholar]
  19. Guan, L.; Li, Y.; Huang, K.; Cheng, Z.M. Auxin regulation and MdPIN expression during adventitious root initiation in apple cuttings. Hortic. Res. 2020, 7, 143. [Google Scholar] [CrossRef]
  20. Chi, Y.; Hou, Y.J.; Yu, Y.J.; Yu, D.Y.; Feng, B.M.; Yao, Z.A.; Jiang, G.B. Dynamic changes of endogenous hormones contents in mutant of Populus tomentosaand and its relative species in the cutting and rooting procedure. J. Anhui Agric. Sci. 2007, 35, 8438–8439, 8442. [Google Scholar]
  21. Hanno, W.; Gerd, J. Survival of the flexible: Hormonal growth control and adaptation in plant development. Nat. Rev. Genet. 2009, 10, 306–317. [Google Scholar] [CrossRef]
  22. Han, J.H.; Shao, W.H.; Liu, J.F.; Diao, S.F. Content changes of endogenous hormone and polyphenols during hardwood cuttage progress in Sapindus mukorossi. Nonwood For. Res. 2019, 37, 37–43. [Google Scholar]
  23. Zhao, Y.L.; Chen, X.; Li, C.J. Dynamic of physiology and biochemistry during wild Rhododendron scabrifolium cutting propagation. Sci. Silvae Sin. 2013, 49, 45–51. [Google Scholar]
  24. Song, Y.; Chen, P.; Xuan, A.; Bu, C.; Liu, P.; Ingvarsson, P.K.; El–Kassaby, Y.A.; Zhang, D. Integration of genome wide association studies and co–expression networks reveal roles of PtoWRKY 42–PtoUGT76C1–1 in trans–zeatin metabolism and cytokinin sensitivity in poplar. New. Phytol. 2021, 231, 1462–1477. [Google Scholar] [CrossRef] [PubMed]
  25. Kuroha, T.; Kato, H.; Asami, T.; Yoshida, S.; Kamada, H.; Satoh, S. A trans–zeatin riboside in root xylem sap negatively regulates adventitious root formation on cucumber hypocotyls. J. Exp. Bot. 2002, 53, 2193–2200. [Google Scholar] [CrossRef] [Green Version]
  26. Hou, J.W.; Guo, S.J.; Wang, G.Y. Effects of in vitro subculture on the physiological characteristics of adventitious root formation in microshoots of Castanea mollissima cv. ‘yanshanhong’. J. For. Res. 2010, 21, 155–160. [Google Scholar] [CrossRef]
  27. Lomin, S.N.; Krivosheev, D.M.; Steklov, M.Y.; Osolodkin, D.I. Romanov GA. Receptor properties and features of cytokinin signaling. Acta Nat. 2012, 4, 31–45. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, R.M.; Zhu, L.Y.; Chen, Y.; Yao, X.W.; Bai, J.W.; Chen, X.; Zhang, Q.Q.; Cao, F.L. Study on rooting process and rooting mechanism of hardwood cuttings of Ginkgo biloba ’Golden–leaf’. J. Cent. South Univ. For. Technol. 2020, 40, 28–37. [Google Scholar]
  29. Chen, K.; Li, G.J.; Bressan, R.A.; Song, C.P.; Zhu, J.K.; Zhao, Y. Abscisic acid dynamics, signaling, and functions in plants. J. Integr. Plant Biol. 2020, 62, 25–54. [Google Scholar] [CrossRef] [Green Version]
  30. Li, C.; Bian, B.; Gong, T.; Liao, W. Comparative proteomic analysis of key proteins during abscisic acid–hydrogen peroxide–induced adventitious rooting in cucumber (Cucumis sativus L.) under drought stress. J. Plant Physiol. 2018, 229, 185–194. [Google Scholar] [CrossRef]
  31. Wu, W.H.; Cao, F.; Liu, Z.Z.; Peng, F.R.; Liang, Y.W.; Tang, P.P. Effects of NAA treatment on the endogenous hormone changes in cuttings of Carya illinoinensis during rooting. J. Nanjing For. Nat. Sci. Ed. 2016, 40, 191–196. [Google Scholar]
  32. Nag, S.; Saha, K.; Choudhuri, M.A. Role of auxin and polyamines in adventitious root formation in relation to changes in compounds involved in rooting. J. Plant Growth Regul. 2001, 20, 182–194. [Google Scholar] [CrossRef]
  33. Muhammad, Z.M.; Saleem, U.D.; Muhammad, I.; Zhang, Z.J. Transcriptomic and Anatomic Profiling Reveal Etiolation Promotes Adventitious Rooting by Exogenous Application of 1–Naphthalene Acetic Acid in Robinia pseudoacacia L. Forests 2021, 12, 789. [Google Scholar] [CrossRef]
  34. Skoog, F.; Miller, C.O. Chemical regulation of growth and organ formation in plant tissues cultured in vitro. Symp. Soc. Exp. Biol. 1957, 11, 118–130. [Google Scholar] [PubMed]
  35. Li, K.; Liang, Y.; Xing, L.; Mao, J.; Liu, Z.; Dong, F.; Meng, Y.; Han, M.; Zhao, C.; Bao, L.; et al. Transcriptome analysis reveals multiple hormones, wounding and sugar signaling pathways mediate adventitious root formation in apple rootstock. Int. J. Mol. Sci. 2018, 19, 2201. [Google Scholar] [CrossRef] [Green Version]
  36. Mao, J.; Zhang, D.; Meng, Y.; Li, K.; Wang, H.; Han, M. Inhibition of adventitious root development in apple rootstocks by cytokinin is based on its suppression of adventitious root primordia formation. Physiol. Plant. 2019, 166, 663–676. [Google Scholar] [CrossRef]
  37. Shang, W.Q.; Wang, Z.; He, S.L.; He, D.; Dong, N.L.; Guo, Y. Changes of endogenous IAA and related enzyme activities during rooting of Paeonia suffruticosa in vitro. J. Northwest A F Univ. Nat. Sci. Ed. 2021, 49, 129–136. [Google Scholar]
  38. Zhang, W.X.; Fan, J.J.; Tan, Q.Q.; Zhao, M.M.; Zhou, T.; Cao, F.L. The effects of exogenous hormones on rooting process and the activities of key enzymes of Malus hupehensis stem cuttings. PLoS ONE 2017, 12, e0172320. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Du, L.N. Comparison of Rooting Ability of Different Genotypes of Sorbus and Determination of Physiology and Biochemistry; Liaoning Normal University: Dalian, China, 2017. [Google Scholar]
  40. Gyana, R.R. Effect of Auxins on Adventitious Root Development from Single Node Cuttings of Camellia sinensis (L.) Kuntze and Associated Biochemical Changes. Plant Growth Regul. 2006, 48, 111–117. [Google Scholar]
  41. Bassuk, N.L.; Hunter, L.D.; Howard, B.H. The apparent involvement of polyphenol oxidase and phloridzin in the production of apple rooting cofactors. J. Hortic. Sci. 2015, 56, 313–322. [Google Scholar] [CrossRef]
  42. Yan, S.P.; Wu, X.D.; Wang, Q.Y.; Song, X.S.; Yang, R.H. Changes in relevant oxidase activities during the rooting of cuttings of Populus tremula × P. tremuloides and cutting propagation technique. J. Northeast For. Univ. 2011, 39, 5–7. [Google Scholar]
  43. Kose, C.; Erdal, S.; Kaya, O.; Atici, O. Comparative evaluation of oxidative enzyme activities during adventitious rooting in the cuttings of grapevine rootstocks. J. Sci. Food Agric. 2011, 91, 738–741. [Google Scholar] [CrossRef] [PubMed]
  44. Gao, J.; Liu, X.; Yuan, Y. Water cultured propagation of Polygonum multiflorum and dynamic changes of physiological and biochemical characteristics during adventitious roots formation. China J. Chin. Mater. Med. 2011, 36, 375–378. [Google Scholar]
  45. Song, J.Y.; Liu, Y.J.; Song, G.; Wang, G.F.; Wang, H.S. Changes of peroxidase and IAA oxidase activities and phenol content in the cutting root course of several familiar tree species. Jiangsu Agric. Sci. 2007, 6, 115–118. [Google Scholar]
  46. Wang, X.J.; He, W.; Zhang, Q.J.; Wang, N.; Zhu, Y.J.; Zhu, Y.L. Change of nutrient content and oxidase activities during rooting of Catalpa bungei cl. ‘Yu–1’. Sci. Silvae Sin. 2009, 45, 156–161. [Google Scholar]
  47. Shao, F.; Wang, S.; Huang, W.; Liu, Z. Effects of IBA on the rooting of branch cuttings of Chinese jujube (Zizyphus jujuba Mill.) and changes to nutrients and endogenous hormones. J. For. Res. 2018, 29, 1557–1567. [Google Scholar] [CrossRef]
  48. Druege, U.; Hilo, A.; Perez–Perez, J.M.; Klopotek, Y.; Acosta, M.; Shahinnia, F.; Zerche, S.; Franken, P.; Hajirezaei, M.R. Molecular and physiological control of adventitious rooting in cuttings: Phytohormone action meets resource allocation. Ann. Bot. 2019, 123, 929–949. [Google Scholar] [CrossRef] [Green Version]
  49. Yang, X.M.; Fang, W.M.; Chen, F.D.; Chen, S.M. Cuttings rooting process and changes in carbohydrate, nitrogen and endogenous hormone levels during the rooting of two chrysanthemum cultivars. J. Nanjing Agric. Univ. 2010, 33, 19–24. [Google Scholar]
Forests 12 01267 g001 550
Figure 1. Morphological changes of E. ulmoides cuttings in the rooting process. (A–E) The rooting situation of cutting on the 0th, 12th 22nd, 32nd and 46th day of E. ulmoides.
Figure 1. Morphological changes of E. ulmoides cuttings in the rooting process. (A–E) The rooting situation of cutting on the 0th, 12th 22nd, 32nd and 46th day of E. ulmoides.
Forests 12 01267 g001
Forests 12 01267 g002 550
Figure 2. Microscopic morphological changes in the formation of the AR of E. ulmoides cuttings. (A–C) adventitious roots were extended from lenticels. (D–F) adventitious roots were extended from cortex.
Figure 2. Microscopic morphological changes in the formation of the AR of E. ulmoides cuttings. (A–C) adventitious roots were extended from lenticels. (D–F) adventitious roots were extended from cortex.
Forests 12 01267 g002
Forests 12 01267 g003 550
Figure 3. Anatomical changes in the rooting process of E. ulmoides twig cuttings. (A–D) The rooting situation of cutting seedlings on the 0th, 18th, 26th and 32nd day of E. ulmoides. Vc—Vascular cambium; Ph—Phloem; Xy—Xylem; Ve—Vessel; Ep—Epidermis; Co—Cortex; Pz—Perimedullary zone; Pi—Pith; Rpic—Root primordium initial cell; Ar—AR; Vt—Vascular tissue; Rt—Root tip.
Figure 3. Anatomical changes in the rooting process of E. ulmoides twig cuttings. (A–D) The rooting situation of cutting seedlings on the 0th, 18th, 26th and 32nd day of E. ulmoides. Vc—Vascular cambium; Ph—Phloem; Xy—Xylem; Ve—Vessel; Ep—Epidermis; Co—Cortex; Pz—Perimedullary zone; Pi—Pith; Rpic—Root primordium initial cell; Ar—AR; Vt—Vascular tissue; Rt—Root tip.
Forests 12 01267 g003
Forests 12 01267 g004 550
Figure 4. Morphological characteristics in rooting process of E. ulmoides cuttings. (A–C) The rooting situation of cuttings on the 22nd, 39th and 53rd day of E. ulmoides ‘Huazhong 6′. (D–F) The rooting situation of cuttings on the 22nd, 39th and 53rd day of E. ulmoides ‘Huazhong 8′.
Figure 4. Morphological characteristics in rooting process of E. ulmoides cuttings. (A–C) The rooting situation of cuttings on the 22nd, 39th and 53rd day of E. ulmoides ‘Huazhong 6′. (D–F) The rooting situation of cuttings on the 22nd, 39th and 53rd day of E. ulmoides ‘Huazhong 8′.
Forests 12 01267 g004
Forests 12 01267 g005 550

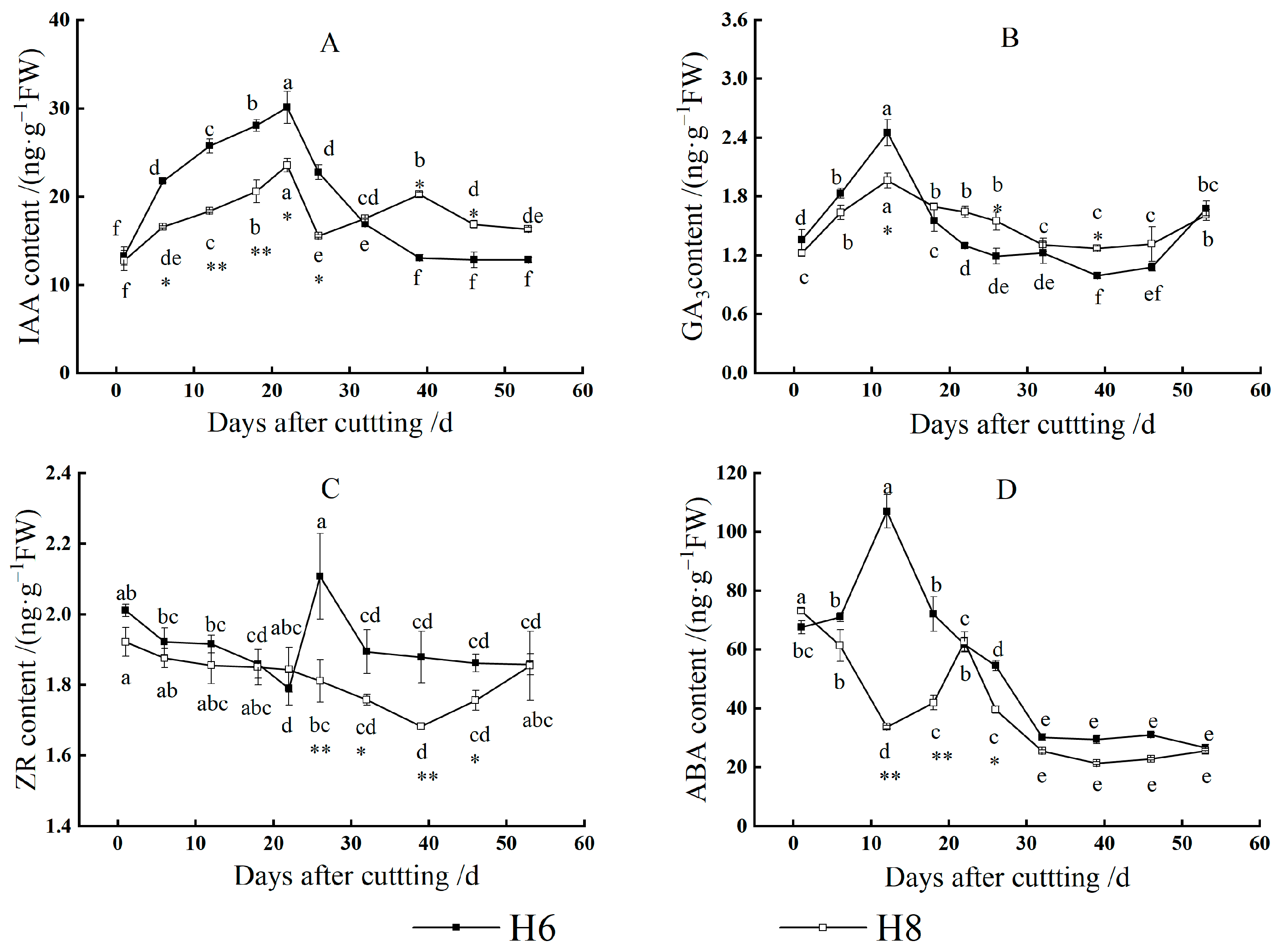

Figure 5. Changes of endogenous hormones in cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in IAA content. (B) Changes in GA3 content. (C) Changes in ZR content. (D) Changes in ABA content. IAA—Indole–3–acetic acid; GA3—Gibberellic acid 3; ZR—Zeatin riboside; ABA—Abscisic acid. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Figure 5. Changes of endogenous hormones in cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in IAA content. (B) Changes in GA3 content. (C) Changes in ZR content. (D) Changes in ABA content. IAA—Indole–3–acetic acid; GA3—Gibberellic acid 3; ZR—Zeatin riboside; ABA—Abscisic acid. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Forests 12 01267 g005
Forests 12 01267 g006 550

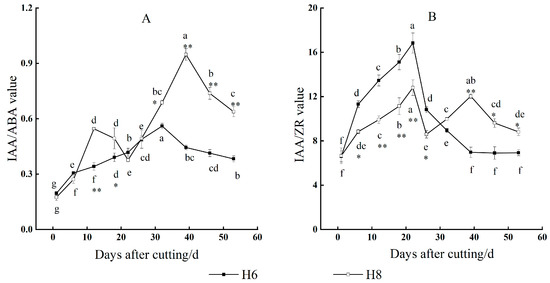

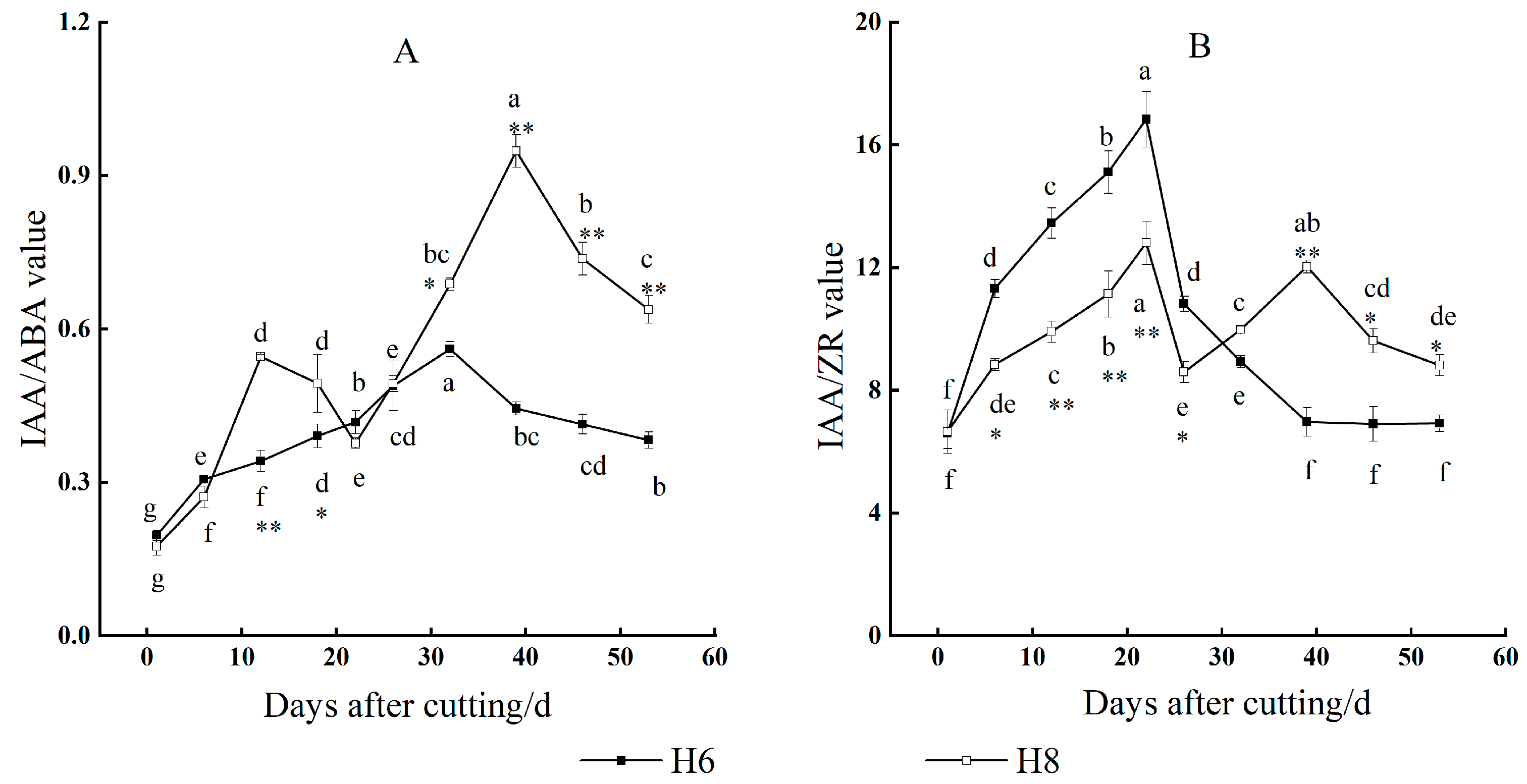

Figure 6. Changes of endogenous hormone content in cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in IAA/ABA. (B) Changes in IAA/ZR. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicates means at the level of 0.05 and 0.01, respectively.
Figure 6. Changes of endogenous hormone content in cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in IAA/ABA. (B) Changes in IAA/ZR. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicates means at the level of 0.05 and 0.01, respectively.
Forests 12 01267 g006
Forests 12 01267 g007 550

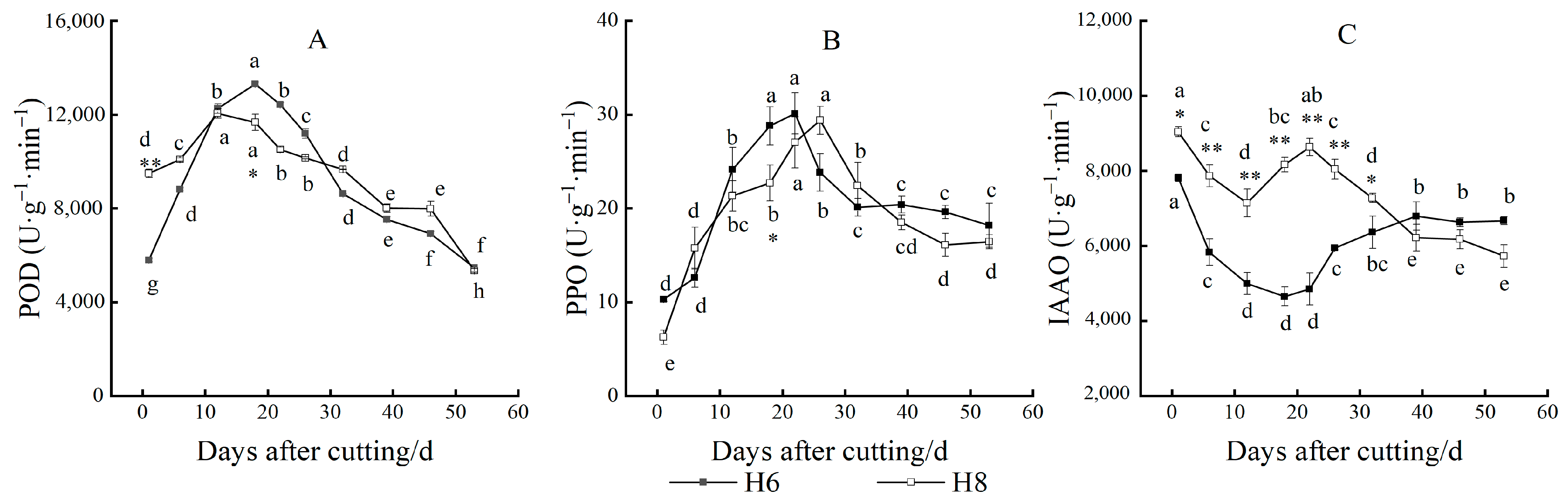

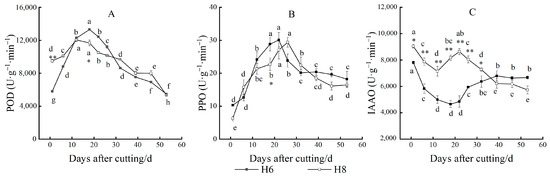

Figure 7. Dynamic changes in oxidase activity during cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in POD activity. (B) Changes in PPO activity. (C) Changes in IAAO activity. POD—Peroxidase; PPO—Polyphenol oxidase; IAAO—Indoleacetic acid oxidase. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Figure 7. Dynamic changes in oxidase activity during cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in POD activity. (B) Changes in PPO activity. (C) Changes in IAAO activity. POD—Peroxidase; PPO—Polyphenol oxidase; IAAO—Indoleacetic acid oxidase. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Forests 12 01267 g007
Forests 12 01267 g008 550

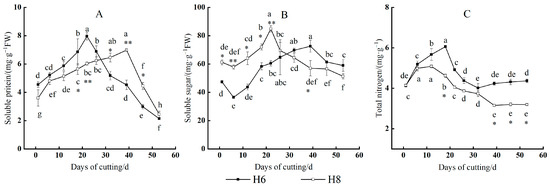

Figure 8. Changes in nutrient content in the cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in soluble protein content. (B) Changes in soluble sugar content. (C) Changes in total nitrogen content. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Figure 8. Changes in nutrient content in the cutting rooting of H6 and H8 in E. ulmoides. (A) Changes in soluble protein content. (B) Changes in soluble sugar content. (C) Changes in total nitrogen content. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicates significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Forests 12 01267 g008
Forests 12 01267 g009 550

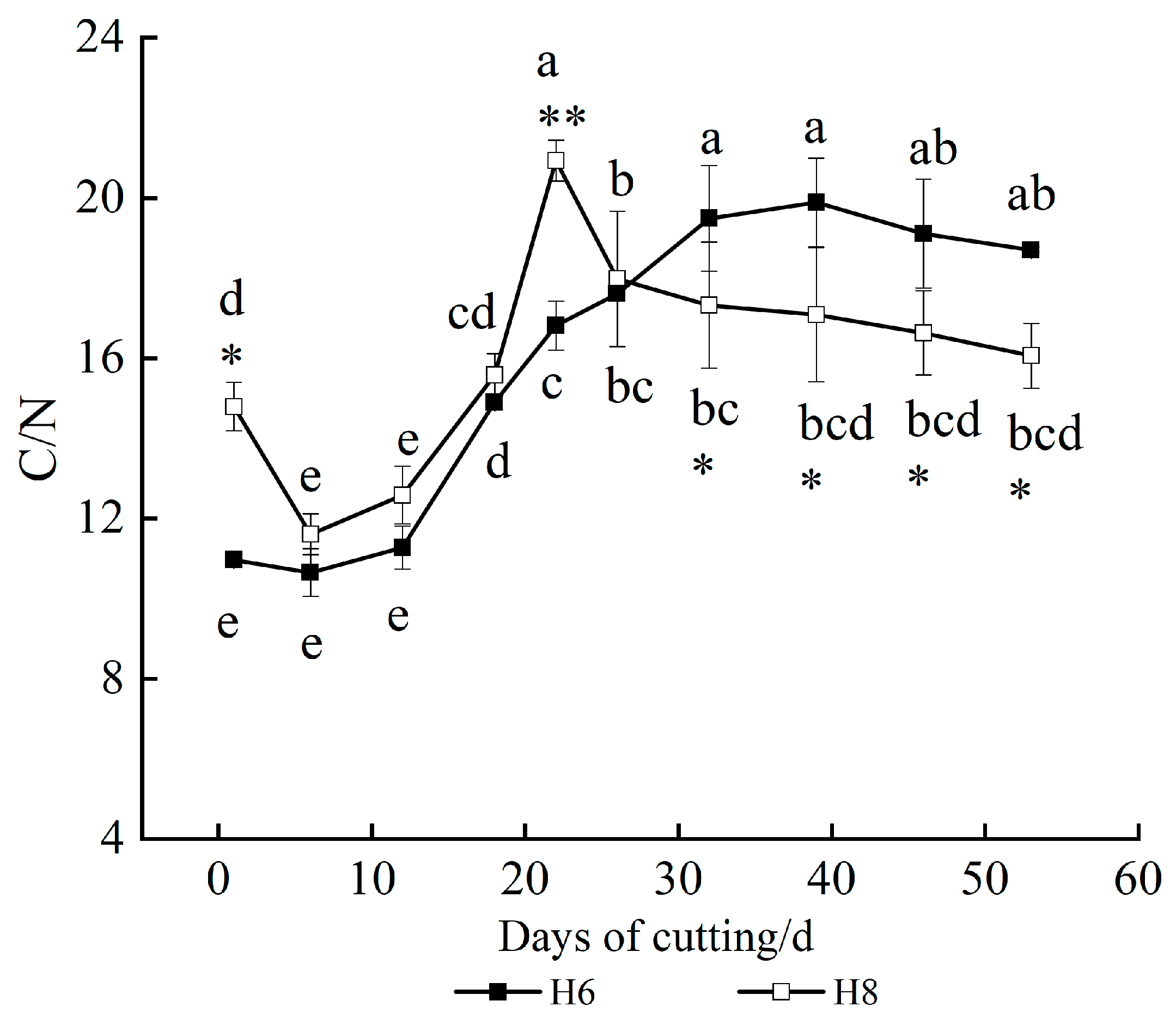

Figure 9. Changes in C/N value in cutting rooting of H6 and H8 in E. ulmoides. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicate significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Figure 9. Changes in C/N value in cutting rooting of H6 and H8 in E. ulmoides. The data are shown as the means ± SEs (n = 3). Means with the same letter are not significantly different in the same group. * indicate significant difference between the H6 group and the H8 group at the same time. * and ** indicate means at the level of 0.05 and 0.01, respectively.
Forests 12 01267 g009
Table
Table 1. Comparison of rooting ability of two E. ulmoides improved varieties 1.
Table 1. Comparison of rooting ability of two E. ulmoides improved varieties 1.
MaterialRooting Rate (%)Average Length of Root (cm)Length of Longest Root (cm)No. of Root per Shoot * Effect of Rooting
H822.53 ± 1.97 a9.55 ± 4.54 a13.75 ± 6.55 a15.25 ± 3.79 a145.64
H685.30 ± 2.52 b8.41 ± 2.57 a13.30 ± 2.36 a25.60 ± 4.01 b215.3
CK21.3 ± 1.53 a4.33 ± 1.17 c8.3 ± 1.76 b5.35 ± 1.68 c23.17
1 The different letters within the same column mean the significance at the 0.05 level. * Effect of rooting = No. of root per shoot × average length of root (cm). H8: ‘Huazhong 8’ treated with the special E. ulmoides rooting agent. H6: ‘Huazhong 6’ treated with the special E. ulmoides rooting agent. CK: ‘Huazhong 6’ treated with water.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lv, G.; Qing, J.; Du, H.; Du, Q.; Meng, Y.; He, F.; Liu, P.; Du, L.; Wang, L. Comparing Rooting Ability and Physiological Changes of Two Eucommia ulmoides Improved Varieties. Forests 2021, 12, 1267. https://doi.org/10.3390/f12091267

AMA Style

Lv G, Qing J, Du H, Du Q, Meng Y, He F, Liu P, Du L, Wang L. Comparing Rooting Ability and Physiological Changes of Two Eucommia ulmoides Improved Varieties. Forests. 2021; 12(9):1267. https://doi.org/10.3390/f12091267

Chicago/Turabian Style

Lv, Gengxin, Jun Qing, Hongyan Du, Qingxin Du, Yide Meng, Feng He, Panfeng Liu, Lanying Du, and Lu Wang. 2021. "Comparing Rooting Ability and Physiological Changes of Two Eucommia ulmoides Improved Varieties" Forests 12, no. 9: 1267. https://doi.org/10.3390/f12091267

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
