Is the Seasonal Variation in Frost Resistance and Plant Performance in Four Oak Species Affected by Changing Temperatures?

by
Maggie Preißer
and
Solveig Franziska Bucher
*
Department of Plant Biodiversity, Institute of Ecology and Evolution with Herbarium Haussknecht and Botanical Garden, Friedrich Schiller University, D-07743 Jena, Germany
*
Author to whom correspondence should be addressed.
Forests 2021, 12(3), 369; https://doi.org/10.3390/f12030369
Submission received: 29 January 2021 / Revised: 10 March 2021 / Accepted: 18 March 2021 / Published: 20 March 2021
(This article belongs to the Special Issue Evolution of Plant Functional Traits Response to Global Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
Research Highlights: We found seasonal variation in frost resistance (FR) and plant performance which were affected by growth temperature. This helps to better understand ecophysiological processes in the light of climate change. Background and Objectives: FR and photosynthesis are important plant characteristics that vary with the season. The aim of this study was to find out whether there is a seasonal variation in FR, photosynthetic CO2 assimilation rates and leaf functional traits associated with performance such as specific leaf area (SLA), leaf dry matter content (LDMC), chlorophyll content, stomatal characteristics and leaf thickness in two evergreen and two deciduous species, and whether this is influenced by different temperature treatments. Additionally, the trade-off between FR and photosynthetic performance, and the influence of leaf functional traits was analyzed. By understanding these processes better, predicting species behavior concerning plant performance and its changes under varying climate regimes can be improved. Materials and Methods: 40 individuals of four oak species were measured weekly over the course of ten months with one half of the trees exposed to frost in winter and the other half protected in the green house. Two of these species were evergreen (Quercus ilex L., Quercus rhysophylla Weath.), and two were deciduous (Quercus palustris L., Quercus rubra L.). We measured FR, the maximum assimilation rate at light saturation under ambient CO2 concentrations (Amax), chlorophyll fluorescence and the leaf functional traits SLA, LDMC, stomatal pore area index (SPI), chlorophyll content (Chl) and leaf thickness. Results: All parameters showed a significant species-specific seasonal variation. There was a difference in all traits investigated between evergreen and deciduous species and between the two temperature treatments. Individuals that were protected from frost in winter showed higher photosynthesis values as well as SLA and Chl, whereas individuals exposed to frost had overall higher FR, LDMC, SPI and leaf thickness. A trade-off between FR and SLA, rather than FR and photosynthetic performance was found.

1. Introduction

Cold temperatures and frost limit the distribution and productivity of plants. Therefore, frost resistance (FR), the ability of a plant to sustain tissue functionality under cold stress alongside photosynthetic CO2 assimilation rate is fundamental for plants to exist and persist in any given environment where frost potentially occurs [1,2,3]. Both processes can differ strongly between species and seasons, mostly influenced by photoperiod and climatic conditions such as temperature [1,4,5,6]. However, during the year plants need to balance between the maintenance of photosynthesis and the investment in FR as both are quite energy demanding. In this vein, a trade-off between these two traits is expected and has been reported previously [1,5,7].
FR can be captured via measuring the effective percentage of electrolyte leakage (Effective PEL, PELeff), which is an easy, cheap, and robust method for measuring high numbers of plant individuals [7,8]. Capturing the photosynthetic performance can be achieved through various methods, such as determining chlorophyll a fluorescence via the JIP-Test [9,10,11,12,13]. There, both the maximum quantum yield of the photosystem II (Fv/Fm) indicating the efficiency of the photosystem II, and the absorption-based performance index (PIabs) is assessed. In addition to that the gas exchange—i.e., the uptake of CO2—can be measured directly [9,14,15,16]. The net CO2 assimilation rate at saturation irradiance and ambient atmospheric CO2 concentrations (Amax) can be used to assess the photosynthetic performance in a quick way and, using these values, the maximum carboxylation rate (Vcmax) can be calculated [9,14,15].
Research focuses increasingly on leaf functional traits capturing different processes of plant performance and adaptations to varying abiotic conditions [17,18,19]. Functional traits are thus expected to be linked to FR and photosynthetic performance. In our study, five traits were selected, namely the specific leaf area (SLA), the leaf dry matter content (LDMC), the chlorophyll content (Chl), the stomata pore area index (SPI) and leaf thickness. SLA (leaf area per leaf dry mass) is positively related to growth rates [18,20]. Due to the higher production of biomass and higher growth rates, the leaves with high SLA are short-lived [20,21,22], making them superior in resource-rich environments [23]. The SLA is also known to scale positively with the mass-based, light-saturated photosynthetic CO2 assimilation rate [18]. LDMC (leaf dry mass per leaf fresh mass) has been shown to negatively correlate with SLA and growth rates and to indicate tougher, long-lived leaves, as it is a representative for the investment in structural compounds [18,20,23]. High LDMC is related to denser leaf tissues. Plants with high LDMC show slower decomposition rates and are more resistant to physical threats [18]. Chl can be used to determine the photosynthetic potential [24,25] and is connected to leaf nitrogen content [26]. A decrease in Chl is proven to indicate early senescence [27,28]. Stomata are the mediators of gas exchange managing the CO2 uptake and water loss due to transpiration [29,30,31]. SPI considers the size of the stomata as well as the density and is known to affect gas exchange in plants [29,32]. In addition, the resource acquisition and resource usage strategy of the plants were measured through leaf thickness [33]. Thicker leaves show a greater amount of tissue per unit area [34], higher longevity [35] and absorb more light [36]. Negative relationships between the leaf thickness and the growth rates and between thickness and metabolic rates have been found [37,38].
FR, photosynthetic performance and leaf functional traits vary significantly in a species-specific manner throughout the year. Photosynthesis usually peaks in summer with maximum values in temperature and irradiation, and FR is greater in colder months in seasonal climates outside the tropics [1,3,4,5,39,40,41,42]. In this study, we analyzed how different abiotic conditions (plants with and without exposure to frost events) influence the previously described seasonal variability of FR, photosynthetic parameters and leaf functional traits (SLA, LDMC, SPI, chlorophyll content, leaf thickness) of four tree species (two evergreen, two deciduous) in order to assess the impact of changing temperatures on these fundamental trade-offs. These life forms differ in resource distribution, longevity of their leaves and their canopy duration in which photosynthesis can take place. FR is a major factor influencing performance also in deciduous trees, as they recover nutrients from senescing leaves before they are shed as these nutrients are stored and used in the next growth season and to protect their newly emerged leaves from late-frost events [2,3,5,43]. As leaves of deciduous trees are shed in winter their need to invest in FR is also different [43]. More precisely, we asked the following questions:
(1)
Is there a difference in seasonal variation in FR, photosynthetic parameters, and leaf functional traits between the four species and between different temperature treatments?
(2)
Is there a trade-off between FR and photosynthetic performance, and does it change under different temperature treatments?
(3)
Are functional traits involved in this trade-off and can they be used to describe it?
By understanding the processes, predictions under changing climate regimes and in species behavior concerning the plant performance can be improved.

2. Materials and Methods

Four woody plant species, namely Quercus ilex L. and Quercus rhysophylla Weath. (evergreen species) as well as Quercus palustris L. and Quercus rubra L. (deciduous species) were selected for this experiment. Ten individuals of each species (around 2.5 m tall) were kept in the Botanical Garden of Jena, half of them experienced outside conditions, the other half was placed in a greenhouse inside the botanical garden without frost exposure, where temperature reached a minimum of 7 °C in winter in the nighttime and was set to a minimum of 9 °C during daytime (for temperatures in the botanical garden, please see Figure S1). Ventilation systems and windows helped to minimize temperature differences otherwise indoor and outdoor. Due to the size of the trees, no additional light was added in the greenhouse. The plants were watered as needed so that drought stress was excluded. All parameters were measured on a weekly basis from the 24th of September until the 3rd of June. During the winter period from December 17th until May 14th, measurements were carried out bi-weekly. Each week, two random sun-leaves were selected on each individual, as some measurements were destructive or left traces on the leaves. On both leaves, the chlorophyll fluorescence, Chl and leaf thickness were measured. One leaf was then used to measure FR, Amax, and SPI. The other leaf was used to measure SLA and LDMC. We chose to measure parameters with leaves still attached to the trees if possible, which could be done for Amax, chlorophyll fluorescence, Chl and thickness. Only after measuring these parameters the leaves were detached and brought to the lab to measure FR, SLA, LDMC and SPI. Leaves of the evergreen species could be measured more frequently, as the deciduous species fully shed their leaves by the 4th/19th of November (outside Q. rubra/Q. palustris) and the 26th of November (greenhouse), respectively. The new leaves of the deciduous species could be measured again starting the 27th of April or 12th of May (outside Q. rubra/Q. palustris) and the 14th of April (greenhouse), respectively.

2.1. Measuring of FR and Photosynthesic Parameters

The PELeff was used to assess frost resistance. As described by [8], six 5 mm-diameter leaf fragments were cut out of every sample and were divided into two treatments (three replicates per treatment). One half was exposed to temperatures of −32 °C to simulate extreme frost (leading to values for PELfrost), the other was kept at room temperature as a control (PELcontrol). All samples were kept in their respective treatments for 14 h in complete darkness. After the treatment, the plant discs were removed from the freezer and allowed to come up to room temperature before conductivity was measured through a LAQUAtwin B-771 (HORIBA Instruments, Piscataway, NJ, USA). To obtain the data for maximum conductivity, the samples were boiled for 15 min at 100 °C. This caused a maximum membrane leakage and death of nearly 100% of the tissue cells. The PEL was then calculated as the quotient of the conductivity before and after boiling the samples for each treatment, thus assessing which percentage of cells were already destroyed through the treatment and was then multiplied by 100. PELeff was then calculated as:
PELeff = PELfrost − PELcontrol.
High values of the effective percentage of electrolyte leakage indicate a low frost resistance. Negative values indicate that plants were less damaged in the freezer than in the control at room temperature.
Chlorophyll fluorescence was recorded using a portable continuous excitation time resolved Chl fluorimeter (PocketPEA, Hansatech Instruments, King’s Lynn, UK). Every leaf was dark-adapted for 30 min using white leaf clips prior to the measurements of Fv/Fm (Fv being the variable fluorescence and Fm the maximum value via the OJIP transient) and PIabs [44]. Fv/Fm indicates the percentage of light quanta which are used in photochemistry, the PIabs gives species-specific information on plant performance which scales well with Amax [9,10,11,12,13]. Amax was measured using the Li-6400XT (LI-COR Bioscience, Lincoln, NE, USA). The block temperature was set to 20 °C to avoid the effect of changing temperatures throughout the year, irradiance was kept constant at 1500 μmol(photon) m–2 s–1 and the CO2 concentration stayed at 400 µL L−1. The ‘one-point method’ was used to calculate Vcmax thereof [14]. Negative values of Amax and Vcmax show that instead of an uptake of CO2, we measured a release of CO2, indicating that respiration was the dominant process over photosynthesis as in fact net-photosynthesis rates are measured via gas exchange.

2.2. Measuring the Leaf Functional Traits

SLA and LDMC were determined using a fine scale (ABJ, Kern & Sohn GmbH, Balingen, Germany) by measuring the dry and fresh mass of the leaf. The leaf area was recorded by scanning the fresh sample (CanoScan LiDE110, Canon, Tokyo, Japan). Both measurements were used to calculate the parameters using R [45] and the package LeafTraits (Bernhardt-Römermann, unpublished). Chl was measured in vivo using the atLeaf PLUS (atLeaf, Wilmington, DE, USA). Stomatal imprints from the abaxial and adaxial side were taken following the clear nail polish method [46]. The stomata of each side of the leaf were counted and the guard cell length was measured with a light microscope (AxioPlan, Zeiss, Jena, Germany). The SPI was calculated following [32]. None of the selected species showed stomata on the adaxial side of the leaf, which was checked on every leaf sample. Imprints could not be obtained for the leaves of Q. ilex. The thickness of each leaf was recorded via a digital caliper (Kunzer GmbH, Forstinning, Germany).

2.3. Statistical Analysis

To analyze whether parameters differed between species and the two temperature treatments, we performed analyses of variances (ANOVAs) followed by a Tukey’s multiple comparisons of means test (Figure S2) using the parameters as dependent variables and the species as well as temperature treatment and the interaction thereof as explanatory variables. Mean values were only compared for the periods in which both life forms had measurable leaves.
Linear models were set up in order to test the seasonal variation of all recorded parameters. The parameters were used as dependent variables and day of the year (doy) as well as it’s quadratic form doy2 were used as the explanatory variables. The species identity, the temperature treatment and the interaction term between species:temperature treatment—as well as the interactions of species and temperature treatment, respectively with doy and doy2—were all taken into account as a means to include species- and temperature treatment-specific responses. The full models were simplified via backward selection [47] to find the minimum adequate model. The interaction of doy:doy2 was removed for all models considering the species were not observed over the full course of the year.
The trade-offs between FR and photosynthetic parameters (Fv/Fm, PIabs, Amax and Vcmax) were analyzed using linear models. FR was used as a dependent variable whereas the species identity, the temperature treatment and the photosynthetic parameter were used as independent variables. Additionally the interaction between species:temperature treatment, species:photosynthetic parameter and temperature treatment:photosynthetic parameter were included as independent variables. The models were simplified as described above.
In addition to that, the multivariate distribution of all parameters investigated was also analyzed using a principal component analysis (PCA). For every species in each temperature treatment, a confidence ellipsis was drawn in the plot to illustrate how species and treatments differed in a multivariate space. The statistical analyses were performed using R(version 4.0.3, Vienna, Austria) [45], the PCA was computed using the ‘vegan’ package [48] and displayed graphically using ‘devtools’ [49] and ‘ggbiplot’ [50].

3. Results

The measured parameters differed between species and between the temperature treatments. For LDMC, SPI and leaf thickness, individuals located outside had higher values than individuals located in the greenhouse (Table 1, Figure S2). The interaction species:temperature treatment was not significant in leaf thickness.
The opposite was true for PELeff, Fv/Fm, PIabs, Amax and Vcmax, SLA and Chl, where individuals located inside had higher values (Table 1, Figure S1). For PELeff and PIabs the interaction species:temperature treatment was not significant.

3.1. Seasonal Variation and Species-Specific Responses

All parameters recorded showed a significant species-specific seasonal variation, yet not all of them were influenced by the temperature treatment in their seasonal variability.
In PELeff, Amax, Vcmax, LDMC and Chl we could not detect a significant interaction between doy:treatment or doy2:treatment, indicating that temperature regimes did not change the seasonal variations in these parameters, just the overall values as indicated. PELeff showed seasonal variation with higher FR in winter (Figure 1A; Table S1). Amax and Vcmax showed significant seasonal variation with deciduous species exhibiting decreasing values of the Amax in autumn and increasing values in spring and evergreen species hardly showing any seasonal changes (Figure 1D,E; Table S1). LDMC showed a similar behavior in both, deciduous species, and evergreen species as for gas exchange measurements with a slightly more pronounced variation in evergreen species, which displayed maximum values in winter (Figure 1G; Table S1). Chl showed similar patterns for deciduous species as well, with evergreen species again reaching maximum values in winter (Figure 1H; Table S1).
On the other hand, Fv/Fm, PIabs, SLA, SPI and leaf thickness differed between the two temperature treatments in their response to seasonal variation (Table S1). Individuals in the greenhouse showed higher values of Fv/Fm and were also maintaining high values at the end of winter and in spring (Figure 1B; Table S1). Deciduous species showed increasing values of PIabs in autumn and decreasing values afterwards. Similar to Fv/Fm, individuals in the greenhouse showed higher values especially in spring (Figure 1C; Table S1). Increasing values of the SLA until the end of the year and decreasing values in spring were found for deciduous species. Similar to chlorophyll fluorescence, the difference between temperature treatments was most noticeable in early spring where individuals in the greenhouse had higher values (Figure 1F; Table S1). The deciduous individuals outside displayed decreasing values of the SPI until they had lost all their leaves, and increasing values in spring, whereas for evergreen individuals the variation in the greenhouse was much higher (Figure 1I; Table S1). A decrease in leaf thickness of the leaves could be observed in all species in autumn and winter. From the beginning of the new year the leaf thickness was increasing again. This variation was less pronounced in the greenhouse (Figure 1J; Table S1).

3.2. Trade-Off between Frost Resistance and Photosynthetic Performance

All relationships between FR and photosynthetic parameters were negative and did not differ in their slopes between the species or the temperature treatment, as the interactions of photosynthetic parameter:species as well as photosynthetic parameter:temperature treatment were not significant. The relationship between PELeff and Fv/Fm was significantly negative (R2 = 0.16, F5,543 = 20.55, p < 0.001; Figure 2A) as was the relationship between PELeff and PIabs (R2 = 0.15, F5,543 = 19.81, p < 0.001; Figure 2B). Significant negative relationships between PELeff and Amax (R2 = 0.16, F5,543 = 20.55, p < 0.001; Figure 2C) as well as between PELeff and Vcmax were also observed (R2 = 0.16, F5,543 = 20.2, p < 0.001; Figure 2D). None of the described relationships were strong.

3.3. Effects of Traits on the Trade-Off between Resistance and Performance

The PCA (Figure 3) displays the distribution of all individuals within the multivariate leaf trait-space. The species were separated from each other as indicated by ellipses mainly on the first axis. The first axis (41.7% explained variance) primarily described the variation in the functional traits (SLA, LDMC, Chl, FR, and thickness as well as SPI (supplementary material Figure S3). Axis 2 (21.9% explained variance) was mainly associated with the photosynthetic performance parameters (Fv/Fm, PIabs, Amax, Vcmax). There was a strong positive relationship of the PELeff i.e., FR with SLA. Higher FR was related to higher LDMC, Chl, SPI and Thickness. The evergreen species are placed on the right-hand side and therefore have high values of FR, LDMC, Chl, SPI and leaf thickness, and lower values of SLA. Within each species, the individuals which were exposed to frost are all located more on the right hand side indicated by the ellipses and display the variation in traits along axis 1 in response to the temperature treatment and just a slight response along the axis 2 with slightly lower values of performance can be observed in the outside individuals.

4. Discussion

All parameters recorded showed a significant difference between the selected species, between the two temperature treatments and showed a profound variation during the year, indicating a trade-off between growth and resistance. However, the PCA revealed that FR is rather associated with easy to measure traits like SLA, LDMC, Chl, leaf thickness and SPI than parameters directly assessing photosynthesis.

4.1. Influence of Temperature on Plant Traits

Plants located outside had higher values of SPI, leaf thickness and LDMC and slightly higher values in FR. Evergreen species showed higher mean values than deciduous species for FR, SPI and leaf thickness. A higher FR was expected for all species located in the outside treatment as they were exposed to frost, especially for the evergreen species which we could partially confirm. When pooled together, deciduous species had lower FR as they shed their leaves during the cold period (Figure S4). Higher FR enables the plant to survive episodic frost events by preventing intracellular ice formation in their leaves [51,52]. For all species except Q. ilex (for Amax and Vcmax also Q. rhysophylla) all photosynthetic performance traits (Fv/Fm, PIabs, Amax and Vcmax) showed significant differences between the two temperature treatments and were often higher in the evergreen than in the deciduous species (Figure S4). As Q. ilex originates from the central-western Mediterranean basin [53], it might be possible that this species did not express a strong trade-off between FR and photosynthetic parameters overall because there is no need for this investment in its climate of origin. A higher photosynthetic performance for the other species might be possible considering the species in the greenhouse did not need to invest, as seen above, into FR which was also found by [1,5,7]. Also, Adams et al. [41] suggest that when temperatures are significantly below freezing no photosynthesis is possible. Again, except for Q. ilex, SLA was significantly different in the two treatments. A higher SLA in warmer temperatures was also detected by [54], yet might also be due to lower light availability in the greenhouse. Due to the positive relation of SLA with growth rates and mass-based, light-saturated photosynthetic rate [18,20] it might be suggested that the individuals kept inside were able to grow faster and maintain higher assimilation rates as shown above. The higher overall SLA values for deciduous species (Figure S4) may be due to the overall larger size of the deciduous leaves investigated and the need to reconstruct leaves in spring [5,6]. As shown by [37,38], growth rates decrease with increasing thickness of the photosynthetic structures, which we can confirm with our results using SLA as a proxy for growth rates. For the evergreen species, significant differences in LDMC values were found between the two temperature treatments which is also reflected in thickness. LDMC was higher in evergreen species (Figure S4). High LDMC values indicate a high resistance to physical hazards [18], which were also more pronounced outside as plants in the greenhouse were sheltered from wind. A higher LDMC also indicates tougher, longer-lived leaves as it is an indicator for the investment in structural compounds [18,20,23]. The higher Chl values of the species in the greenhouse could be attributed to absence of abiotic stress [55] or could be consequence of the lower light availability in the greenhouse. As for the photosynthetic performance parameters, evergreen species also had higher Chl values than the deciduous species (Figure S4), which may be due to the breakdown of chlorophyll during the course of senescence [9,56]. As Chl can be used to determine the photosynthetic potential [24,25], this suggests that evergreen species—and overall the species that were located inside the greenhouse—had a higher photosynthetic potential, which supports our findings for Fv/Fm and PIabs and Amax and Vcmax. All species (Q. ilex not included as no imprints could be taken) showed a significant difference in SPI between the temperature treatments. As SPI is known to have an impact on the gas exchange in plants [29,32], a higher SPI suggests a tighter regulation of gas exchange and higher potential conductivity for CO2 and water vapor. For the species located outside, a stricter gas exchange regulation was needed due to the more rapid environmental changes compared to the greenhouse. As evergreen species had an overall higher leaf thickness, higher SPI could be found there (Figure S4). Quercus rhysophylla and Q. rubra had significant differences in thickness among the different treatments. Thicker leaves are associated with a higher longevity [35] and were associated with higher FR. It should furthermore be taken into consideration that sun leaves are known to be thicker [53,54] which could also explain the thicker leaves outside.

4.2. Seasonal Variation and Species-Specific Responses

Most parameters showed a strong seasonal variation which was influenced by the different temperature treatments in Fv/Fm, PIabs, SLA, SPI and leaf thickness. For phanerophytes the main driving forces of FR are the photoperiod and temperature [2,3] which we could see in a hardening of the plants, yet less pronounced in the greenhouse. An increase in unpredictable episodic frost events [57,58,59] and earlier bud-break [60] are expected due to climate change and regionally rising temperatures. Therefore, species with a high FR—especially during the late spring and the beginning of autumn—would not be as damaged through the suddenly low temperatures, ultimately benefitting by outbalancing the fewer resources that they put into photosynthesis. As already described by [42], Fv/Fm was a good indicator of autumn senescence in deciduous species. The decrease of Fv/Fm over the winter in evergreen species may be connected to the increase in FR and would confirm the hypothesized trade-off between FR and photosynthetic performance, as shown by [1,5,7]. PIabs showed similar responses as Fv/Fm. As for Fv/Fm, species located in the greenhouse showed an overall more linear seasonal trend than the species that experienced outside conditions, perhaps due to more constant temperature conditions, and they performed noticeably better especially in late winter and early spring, where they were sheltered from extreme weather conditions. Evergreen species were fairly constant in their PIabs values in winter and contradict the findings for the other photosynthetic performance parameters, which was also found by [1]. As shown by [1], similar patterns in seasonal variation between Amax and Vcmax were found. Light availability decreases during autumn, explaining lower photosynthetic performance for the evergreen species in this period of time, also found by [4,41,61]. The differences between higher seasonal variation in the fluorescence measurements and lower seasonal variation for the gas exchange measurements might arise due to the fact that only a few cell layers of palisade parenchyma cells are studied in Chl-alpha-fluorescence technique [62]. The temperature treatments did not influence the seasonal variation in photosynthesis indicating a control via photoperiod [63]. Deciduous species showed higher values of SLA at the beginning of the leaf out with decreasing values over the course of the year as they mature and fully develop, whereas evergreen species were fairly constant [1,6,63,64]. Plants in the greenhouse had higher values than individuals outside which was also reflected in chlorophyll fluorescence, indicating that due to the absence of frost plants could perform better mainly in early spring. High LDMC, being negatively correlated with SLA, is connected to the accumulation of non-structural carbohydrates [5,6,65] which accumulate, in the case of the evergreen species, especially in their overwintering leaves [1]. This might relate to the increasing values of FR at the end and beginning of the year. The deciduous species displayed an opposite trend with increasing values of the LDMC from the leaf-out and decreasing LDMC from the beginning of autumn confirming [64,65]. However, there was no impact of temperature treatment, meaning the driving force of seasonal variation may have been the photoperiod, as found for growth related parameters by [66]. The decreasing Chl values in autumn for deciduous species clearly indicated the beginning of senescence when chlorophyll breaks down [28]. Increasing Chl values at the beginning of the growing season were also observed by [67]. A slight opposite trend was recorded for the evergreen species, with slowly increasing Chl values during the winter period and slowly decreasing values at the beginning of summer. Since Chl is used to determine the photosynthetic potential [24,25], this corresponds well with the observations made for the photosynthetic performance parameters. The decreasing SPI values of deciduous species during autumn might be due to the approaching senescence and a loss of turgor, thus also the cell size. Highest value of SPI was observed in winter (also found by [68,69]), where there are frost events associated with drought [70], thus a tighter gas exchange control might be needed. As previously discussed by [29], stomatal size is genetically fixed as it is based on genome sizes so variations in SPI are more driven by changes in stomatal densities and not influenced by our temperature treatments which only affected winter temperatures. Because the amount of light absorbed by a leaf is dependent on leaf thickness [36], the increase in leaf thickness at the beginning of spring potentially enables leaves to acquire more light through additional layers of palisade parenchyma, ultimately being absorbed by the plant. Both, SPI and leaf thickness were more constant in the greenhouse (apart from SPI in Q. rhysophylla), probably due to the fact that abiotic conditions where more stable there. The outside species had more layers of palisade parenchyma as they receive higher radiation values, also reflected in higher LDMC, leading to a higher leaf thickness.

4.3. Effects of Traits on the Trade-Off between Resistance and Performance

A trade-off was found between FR and SLA (strongly negative relation), which would contribute to the plants’ economics spectra [71,72,73] by finding a difference between performance and resistance. However, in a multivariate space, FR was much closer related to structural leaf traits than to photosynthesis traits. The evergreen species showed particularly high values of FR coupled with low SLA due to a conflict of resource investment [51,52]. The evergreen species were again found to have the highest FR and differed in their overall behavior compared to deciduous species. Further, all outside plants show higher FR and lower SLA values than the inside treatments. During winter, leaves of the evergreen species remained photosynthetically active but they seemed to invest the produced assimilates into carbohydrates, which are needed in FR rather than in growth [51]. This could also be due to different drivers as a high FR might be associated with lower temperatures, yet at the same time light levels were higher outside, inducing a lower SLA. Species with a higher LDMC showed higher FR and lower SLA, which was also found by [5]. This is also expected as LDMC is shown to negatively correlate with SLA [18,20,23] and might be linked to the accumulation of non-structural carbohydrates. High FR is related to high photosynthetic potential as Chl can be used to determine the photosynthetic potential [24,25] but not directly the photosynthetic parameters. This might indicate that FR shows a more direct trade-off to parameters of growth (SLA). On the other hand, it might be driven by leaf thickness and also be due to the measurement methodology of FR where thicker leaves take longer until all cells are destroyed, which might be by accident interpreted as high FR. The SPI is also known to be positively related to the net CO2 assimilation rate and stomata conductance [29]. A high SPI, as found by [5], and low SLA can be indicators of high leaf thickness, which also correlates positively with FR in the PCA. In a study by [37], leaf thickness displayed a negative correlation to photosynthesis and respiration rates due to longer diffusion pathways or greater internal self-shading of chloroplasts [18], which could still give a hint of the former suspected trade-off between FR and the photosynthetic performance parameters, as found by [1].

5. Conclusions

The recorded parameters showed significant species-specific variation. There was a significant difference in traits between evergreen and deciduous species. Individuals that were kept inside the greenhouse showed higher values of Fv/Fm, PIabs, Amax, Vcmax as well as SLA and Chl, whereas individuals in outside conditions had overall higher FR, higher values of LDMC, SPI and thickness. The observed evergreen species showed higher mean values of each investigated trait except for SLA. A trade-off between FR and growth-rates (SLA) rather than FR and photosynthetic performance was found. The absence of a relation between FR and any of the photosynthetic performance parameters underlies this finding. Additionally, a positive relation between thickness, LDMC, SPI and the FR was found.
This study provides valuable insights into the seasonal variation and differences in FR, photosynthetic parameters, and leaf functional traits between evergreen and deciduous species, and between different temperature treatments. Further, it gives new insight into the trade-off between performance and resistance. Understanding the seasonal variation of these traits in other life forms besides phanerophytes and the differences between the two lifeforms with the differing temperature treatments—e.g., to fine-tune terrestrial biosphere models [74]—will increase their reliability by taking the trade-off between FR and plant growth into account.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4907/12/3/369/s1, Table S1: Minimum adequate models describing the seasonal variation of all parameters depending on the four species and two temperature regimes. Figure S1: Daily minimum and maximum temperatures in the botanical garden. Figure S2: Graphical representation of differences in all parameters measured between the four species and the two temperature treatments. Figure S3: Principal component analysis of all traits selected without the inclusion of the species Q. ilex. Figure S4: Graphical representation of differences in all parameters measured between the two lifeforms and the two temperature treatments.

Author Contributions

The research was conceptualized by S.F.B. and the data was collected by M.P. M.P. wrote the original draft of the manuscript, both authors discussed the statistical analysis and edited the manuscript. Both authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a research proposal granted to S.F.B. by the University of Jena (DRM/2018-05).

Data Availability Statement

After publications, this dataset will be submitted to the TRY database (http://www.try.org, (accessed on 16 March 2021)).

Acknowledgments

Special thanks to all employees of the Plant Biodiversity working group of the Institute of Ecology and Evolution with Herbarium Haussknecht and Botanical Garden, Friedrich Schiller University Jena, especially Laura Pabon for helping with the data acquisition and provision of lab facilities by Christine Römermann. We also thank the PhenObs project for providing temperature data of the botanical garden, especially Desiree Jakubka and Janin Naumann. Additional thanks to Timothy Brewer for language editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gast, A.; Römermann, C.; Bucher, S.F. Special issue in honour of Prof. Reto J. Strasser—Seasonal variation and trade-off between frost resistance and photosynthetic performance in woody species. Photosynthetica 2020, 58, 331–340. [Google Scholar] [CrossRef] [Green Version]
  2. Larcher, W.; Bauer, H. Ecological significance of resistance to low temperature. In Physiological Plant Ecology I; Lange, O.L., Nobel, P.S., Osmond, C.B., Ziegler, H., Eds.; Springer: Berlin/Heidelberg, Germany, 1981; pp. 403–437. [Google Scholar]
  3. Sakai, A.; Larcher, W. Frost Survival of Plants: Responses and Adaptation to Freezing Stress; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
  4. Öquist, G.; Huner, N.P. Photosynthesis of overwintering evergreen plants. Annu. Rev. Plant Biol. 2003, 54, 329–355. [Google Scholar] [CrossRef] [PubMed]
  5. Bucher, S.F.; Feiler, R.; Buchner, O.; Neuner, G.; Rosbakh, S.; Leiterer, M.; Römermann, C. Temporal and spatial trade-offs between resistance and performance traits in herbaceous plant species. Environ. Exp. Bot. 2018, 157, 187–196. [Google Scholar] [CrossRef]
  6. Römermann, C.; Bucher, S.F.; Hahn, M.; Bernhardt-Römermann, M. Plant functional traits—Fixed facts or variable depending on the season? Folia Geobot. 2016, 51, 143–159. [Google Scholar] [CrossRef]
  7. Bucher, S.F.; Rosbakh, S. Foliar summer frost resistance measured via electrolyte leakage approach as related to plant distribution, community composition and plant traits. Funct. Ecol. 2021. [Google Scholar] [CrossRef]
  8. Gurvich, D.E.; Diaz, S.; Falczuk, V.; Harguindeguy, N.P.; Cabido, M.; Thorpe, P.C. Foliar resistance to simulated extreme temperature events in contrasting plant functional and chorological types. Glob. Chang. Biol. 2002, 8, 1139–1145. [Google Scholar] [CrossRef]
  9. Bucher, S.F.; Bernhardt-Römermann, M.; Römermann, C. Chlorophyll fluorescence and gas exchange measurements in field research: An ecological case study. Photosynthetica 2018, 56, 1161–1170. [Google Scholar] [CrossRef]
  10. Schreiber, U.; Bilger, W.; Neubauer, C. Chlorophyll fluorescence as a nonintrusive indicator for rapid assessment of in vivo photosynthesis. In Ecophysiology of Photosynthesis; Schulze, E.D., Caldwell, M.M., Eds.; Springer: Berlin/Heidelberg, Germany, 1995; pp. 49–70. [Google Scholar]
  11. Strasser, R.J.; Srivastava, A.; Tsimilli-Michael, M. The fluorescence transient as a tool to characterize and screen photosynthetic samples. In Probing Photosynthesis: Mechanisms, Regulation and Adaptation; Yunus, M., Pathre, U., Mohanty, P., Eds.; Taylor & Francis: Bristol, UK, 2000; pp. 445–483. [Google Scholar]
  12. Strasser, R.J.; Srivastava, A. Polyphasic chlorophyll a fluorescence transient in plants and cyanobacteria. Photochem. Photobiol. 1995, 61, 32–42. [Google Scholar] [CrossRef]
  13. Maxwell, K.; Johnson, G.N. Chlorophyll fluorescence—A practical guide. J. Exp. Bot. 2000, 51, 659–668. [Google Scholar] [CrossRef]
  14. De Kauwe, M.G.; Lin, Y.S.; Wright, I.J.; Medlyn, B.E.; Crous, K.Y.; Ellsworth, D.S. A test of the ‘one-point method’ for estimating maximum carboxylation capacity from field-measured, light-saturated photosynthesis. New Phytol. 2016, 210, 1130–1144. [Google Scholar] [CrossRef] [Green Version]
  15. Grassi, G.; Vicinelli, E.; Ponti, F.; Cantoni, L.; Magnani, F. Seasonal and interannual variability of photosynthetic capacity in relation to leaf nitrogen in a deciduous forest plantation in northern Italy. Tree Physiol. 2005, 25, 349–360. [Google Scholar] [CrossRef] [PubMed]
  16. Von Caemmerer, S.V.; Farquhar, G. Some relationships between the biochemistry of photosynthesis and the gas exchange of leaves. Planta 1981, 153, 376–387. [Google Scholar] [CrossRef] [PubMed]
  17. Violle, C.; Navas, M.L.; Vile, D.; Kazakou, E.; Fortunel, C.; Hummel, I.; Garnier, E. Let the concept of trait be functional! Oikos 2007, 116, 882–892. [Google Scholar] [CrossRef]
  18. Pérez-Harguindeguy, N.; Perezharguindeguy, N.; Díaz, S.; Garnier, E.; Lavorel, S.; Poorter, H.; Jaureguiberry, P.; Bret-Harte, M.S.; Cornwell, W.K.; Craine, J.M.; et al. New handbook for standardised measurement of plant functional traits worldwide. Aust. J. Bot. 2013, 61, 167–234. [Google Scholar] [CrossRef]
  19. de Bello, F.; Lavorel, S.; Díaz, S.; Harrington, R.; Cornelissen, J.H.; Bardgett, R.D. Towards an assessment of multiple ecosystem processes and services via functional traits. Biodivers. Conserv. 2010, 19, 2873–2893. [Google Scholar] [CrossRef]
  20. Poorter, H.; Garnier, E. Ecological significance of inherent variation in relative growth rate and its components. In Handbook of Functional Plant Ecology; Pugnaire, F., Valladares, F., Eds.; Marcel Dekker Inc.: Yew York, NY, USA, 1999; pp. 81–120. [Google Scholar]
  21. Grime, J.P.; Cornelissen, J.H.C.; Thompson, K.; Hodgson, J.G. Evidence of a causal connection between anti-herbivore defence and the decomposition rate of leaves. Oikos 1996, 77, 489–494. [Google Scholar] [CrossRef]
  22. Coley, P.D.; Bryant, J.P.; Chapin, F.S. Resource availability and plant antiherbivore defense. Science 1985, 230, 895–899. [Google Scholar] [CrossRef] [Green Version]
  23. Wilson, P.J.; Thompson, K.; Hodgson, J.G. Specific leaf area and leaf dry matter content as alternative predictors of plant strategies. New Phytol. 1999, 143, 155–162. [Google Scholar] [CrossRef]
  24. Curran, P.J.; Windham, W.R.; Gholz, H.L. Exploring the relationship between reflectance red edge and chlorophyll concentration in slash pine leaves. Tree Physiol. 1995, 15, 203–206. [Google Scholar] [CrossRef]
  25. Curran, P.J.; Dungan, J.L.; Gholz, H.L. Exploring the relationship between reflectance red edge and chlorophyll content in slash pine. Tree Physiol. 1990, 7, 33–48. [Google Scholar] [CrossRef]
  26. Filella, I.; Serrano, L.; Serra, J.; Peñuelas, J. Evaluating wheat nitrogen status with canopy reflectance indices and discriminant analysis. Crop Sci. 1995, 35, 1400–1405. [Google Scholar] [CrossRef]
  27. Merzlyak, M.N.; Gitelson, A.A.; Chivkunova, O.B.; Rakitin, V.Y. Non-destructive optical detection of pigment changes during leaf senescence and fruit ripening. Physiol. Plant. 1999, 106, 135–141. [Google Scholar] [CrossRef] [Green Version]
  28. Merzlyak, M.N.; Gitelson, A. Why and what for the leaves are yellow in autumn? On the interpretation of optical spectra of senescing leaves (Acerplatanoides L.). J. Plant Physiol. 1995, 145, 315–320. [Google Scholar]
  29. Bucher, S.F.; Auerswald, K.; Tautenhahn, S.; Geiger, A.; Otto, J.; Müller, A.; Römermann, C. Inter-and intraspecific variation in stomatal pore area index along elevational gradients and its relation to leaf functional traits. Plant Ecol. 2016, 217, 229–240. [Google Scholar] [CrossRef]
  30. Chaerle, L.; Saibo, N.; Van Der Straeten, D. Tuning the pores: Towards engineering plants for improved water use efficiency. Trends Biotechnol. 2005, 23, 308–315. [Google Scholar] [CrossRef] [PubMed]
  31. Roelfsema, M.R.G.; Hedrich, R. In the light of stomatal opening: New insights into ‘the Watergate’. New Phytol. 2005, 167, 665–691. [Google Scholar] [CrossRef] [PubMed]
  32. Sack, L.; Cowan, P.D.; Jaikumar, N.; Holbrook, N.M. The ‘hydrology’ of leaves: Co-ordination of structure and function in temperate woody species. Plant Cell Environ. 2003, 26, 1343–1356. [Google Scholar] [CrossRef] [Green Version]
  33. vile, D.; Garnier, É.; Shipley, B.; Laurent, G.; Navas, M.-L.; Roumet, C.; Lavorel, S.; Díaz, S.; Hodgson, J.G.; Lloret, F.; et al. Specific leaf area and dry matter content estimate thickness in laminar leaves. Ann. Bot. 2005, 96, 1129–1136. [Google Scholar] [CrossRef]
  34. Garnier, E.; Salager, J.-L.; Laurent, G.; Sonie, L. Relationships between photosynthesis, nitrogen and leaf structure in 14 grass species and their dependence on the basis of expression. New Phytol. 1999, 143, 119–129. [Google Scholar] [CrossRef]
  35. Mediavilla, S.; Escudero, A.; Heilmeier, H. Internal leaf anatomy and photosynthetic resource-use efficiency: Interspecific and intraspecific comparisons. Tree Physiol. 2001, 21, 251–259. [Google Scholar] [CrossRef] [Green Version]
  36. Agustí, S.; Enríquez, S.; Frost-Christensen, H.; Sand-Jensen, K.; Duarte, C.M. Light harvesting among photosynthetic organisms. Fun Ecol. 1994, 8, 273–279. [Google Scholar] [CrossRef]
  37. Enríquez, S.; Duarte, C.M.; Sand-Jensen, K.; Nielsen, S.L. Broad-scale comparison of photosynthetic rates across phototrophic organisms. Oecologia 1996, 108, 197–206. [Google Scholar] [CrossRef] [PubMed]
  38. Nielsen, S.L.; Enríquez, S.; Duarte, C.M.; Sand-Jensen, K. Scaling maximum growth rates across photosynthetic organisms. Fun Ecol. 1996, 10, 167–175. [Google Scholar] [CrossRef]
  39. Polgar, C.A.; Primack, R.B. Leaf-out phenology of temperate woody plants: From trees to ecosystems. New Phytol. 2011, 191, 926–941. [Google Scholar] [CrossRef] [PubMed]
  40. Neuner, G.; Pramsohler, M. Freezing and high temperature thresholds of photosystem 2 compared to ice nucleation, frost and heat damage in evergreen subalpine plants. Physiol. Plant. 2006, 126, 196–204. [Google Scholar] [CrossRef]
  41. Adams, W.W.; Zarter, C.R.; Ebbert, V.; Demmig-Adams, B. Photoprotective strategies of overwintering evergreens. Bioscience 2004, 54, 41–49. [Google Scholar] [CrossRef]
  42. Holland, V.; Koller, S.; Brüggemann, W. Insight into the photosynthetic apparatus in evergreen and deciduous European oaks during autumn senescence using OJIP fluorescence transient analysis. Plant Biol. 2014, 16, 801–808. [Google Scholar] [CrossRef] [PubMed]
  43. Kadereit, J.W.; Körner, C.; Kost, B.; Sonnewald, U. Strasburger-Lehrbuch der Pflanzenwissenschaften; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
  44. Clark, A.; Landolt, W.; Bucher, J.; Strasser, R. Beech (Fagus sylvatica) response to ozone exposure assessed with a chlorophyll a fluorescence performance index. Environ. Pollut. 2000, 109, 501–507. [Google Scholar] [CrossRef]
  45. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
  46. Hilu, K.W.; Randall, J.L. Convenient method for studying grass leaf epidermis. Taxon 1984, 33, 413–415. [Google Scholar] [CrossRef]
  47. Crawley, M.J. The R Book; John Wiley & Sons: Chichester, UK, 2012. [Google Scholar]
  48. Oksanen, J.; Kindt, R.; Legendre, P.; O’Hara, B.; Stevens, M.H.H.; Oksanen, M.J.; Suggests, M.A.S.S. The Vegan Package. Community Ecol. Package 2007, 10, 631–637. [Google Scholar]
  49. Wickham, H.; Chang, W. Devtools: Tools to Make Developing R Code Easier, R package version 1.13.3; R Foundation for Statistical Computing: Vienna, Austria, 2017. [Google Scholar]
  50. Vu, V.Q. Ggbiplot: A ggplot2 Based Biplot. 0.55 edn. Available online: http://github.com/vqv/ggbiplot (accessed on 16 March 2021).
  51. Larcher, W. Ökophysiologie der Pflanzen; Eugen Ulmer: Stuttgart, Germany, 1994. [Google Scholar]
  52. Körner, C. Alpine Plant Life: Functional Plant Ecology of High Mountain Ecosystems; with 47 Tables; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2003. [Google Scholar]
  53. de Rigo, D.; Caudullo, G. Quercus ilex in Europe: Distribution, habitat, usage and threats. In European Atlas of Forest Tree Species; San-Miguel-Ayanz, J., de Rigo, D., Caudullo, G., Houston Durrant, T., Mauri, A., Eds.; Publication Office EU: Luxembourg, 2016; pp. 152–153. [Google Scholar]
  54. Rosbakh, S.; Römermann, C.; Poschlod, P. Specific leaf area correlates with temperature: New evidence of trait variation at the population, species and community levels. Alpine Bot. 2015, 125, 79–86. [Google Scholar] [CrossRef]
  55. Agathokleous, E.; Feng, Z.; Peñuelas, J. Chlorophyll hormesis: Are chlorophylls major components of stress biology in higher plants? Sci. Total Environ. 2020, 726, 138637. [Google Scholar] [CrossRef] [PubMed]
  56. Jenkins, G.; Baker, N.; Woolhouse, H. Changes in chlorophyll content and organization during senescence of the primary leaves of Phaseolus vulgaris L. in relation to photosynthetic electron transport. J. Exp. Bot. 1981, 32, 1009–1020. [Google Scholar] [CrossRef]
  57. Hänninen, H. Does climatic warming increase the risk of frost damage in northern trees? Plant Cell Environ. 1991, 14, 449–454. [Google Scholar] [CrossRef]
  58. Murray, M.; Cannell, M.; Smith, R. Date of budburst of fifteen tree species in Britain following climatic warming. J. Appl. Ecol. 1989, 26, 693–700. [Google Scholar] [CrossRef]
  59. Hänninen, H. Effects of climatic warming on northern trees: Testing the frost damage hypothesis with meteorological data from provenance transfer experiments. Scand J. For. Res. 1996, 11, 17–25. [Google Scholar] [CrossRef]
  60. Katz, R.W.; Brown, B.G. Extreme events in a changing climate: Variability is more important than averages. Clim. Chang. 1992, 21, 289–302. [Google Scholar] [CrossRef]
  61. Troeng, E.; Linder, S. Gas exchange in a 20-year-old stand of Scots pine: I. Net photosynthesis of current and one-year-old shoots within and between seasons. Physiol. Plant. 1982, 54, 7–14. [Google Scholar] [CrossRef]
  62. Lichtenthaler, H.; Buschmann, C.; Knapp, M. How to correctly determine the different chlorophyll fluorescence parameters and the chlorophyll fluorescence decrease ratio RFd of leaves with the PAM fluorometer. Photosynthetica 2005, 43, 379–393. [Google Scholar] [CrossRef]
  63. Steer, B. The dynamics of leaf growth and photosynthetic capacity in Capsicum frutescens L. Ann. Bot. 1971, 35, 1003–1015. [Google Scholar] [CrossRef]
  64. Jurik, T.W. Temporal and spatial patterns of specific leaf weight in successional northern hardwood tree species. Am. J. Bot. 1986, 73, 1083–1092. [Google Scholar] [CrossRef]
  65. Palacio, S.; Milla, R.; Albuixech, J.; Pérez-Rontomé, C.; Camarero, J.J.; Maestro, M.; Montserrat-Martí, G. Seasonal variability of dry matter content and its relationship with shoot growth and nonstructural carbohydrates. New Phytol. 2008, 180, 133–142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Heide, O.M. Growth and dormancy in Norway spruce ecotypes (Picea abies) I. Interaction of photoperiod and temperature. Physiol. Plant. 1974, 30, 1–12. [Google Scholar] [CrossRef]
  67. Demarez, V. Seasonal variation of leaf chlorophyll content of a temperate forest. Inversion of the PROSPECT model. Int. J. Remote. Sens. 1999, 20, 879–894. [Google Scholar] [CrossRef]
  68. Gindel, I. Stomatal number and size as related to soil moisture in tree xerophytes in Israel. Ecology 1969, 50, 263–267. [Google Scholar] [CrossRef]
  69. Bucher, S.F.; Auerswald, K.; Grün-Wenzel, C.; Higgins, S.I.; Jorge, J.G.; Römermann, C. Stomatal traits relate to habitat preferences of herbaceous species in a temperate climate. Flora 2017, 229, 107–115. [Google Scholar] [CrossRef]
  70. Sierra-Almeida, A.; Cavieres, L.A. Summer freezing resistance decreased in high-elevation plants exposed to experimental warming in the central Chilean Andes. Oecologia 2010, 163, 267–276. [Google Scholar] [CrossRef] [PubMed]
  71. Wright, I.J.; Reich, P.B.; Westoby, M.; Ackerly, D.; Baruch, Z.; Bongers, F.; Cavender-Bares, J.; Chapin, T.; Cornelissen, J.H.C.; Diemer, M.; et al. The worldwide leaf economics spectrum. Nature 2004, 428, 821–827. [Google Scholar] [CrossRef] [PubMed]
  72. Diaz, S.; Hodgson, J.G.; Thompson, K.; Cabido, M.; Cornelissen, J.H.; Jalili, A. The plant traits that drive ecosystems: Evidence from three continents. J. Veg. Sci. 2004, 15, 295–304. [Google Scholar] [CrossRef]
  73. Reich, P.B. The world-wide ‘fast–slow’ plant economics spectrum: A traits manifesto. J. Ecol. 2014, 102, 275–301. [Google Scholar] [CrossRef]
  74. Friend, A.D.; Stevens, A.K.; Knox, R.G.; Cannell, M.G.R. A process-based, terrestrial biosphere model of ecosystem dynamics (Hybrid v3. 0). Ecol. Model. 1997, 95, 249–287. [Google Scholar] [CrossRef]
Forests 12 00369 g001 550

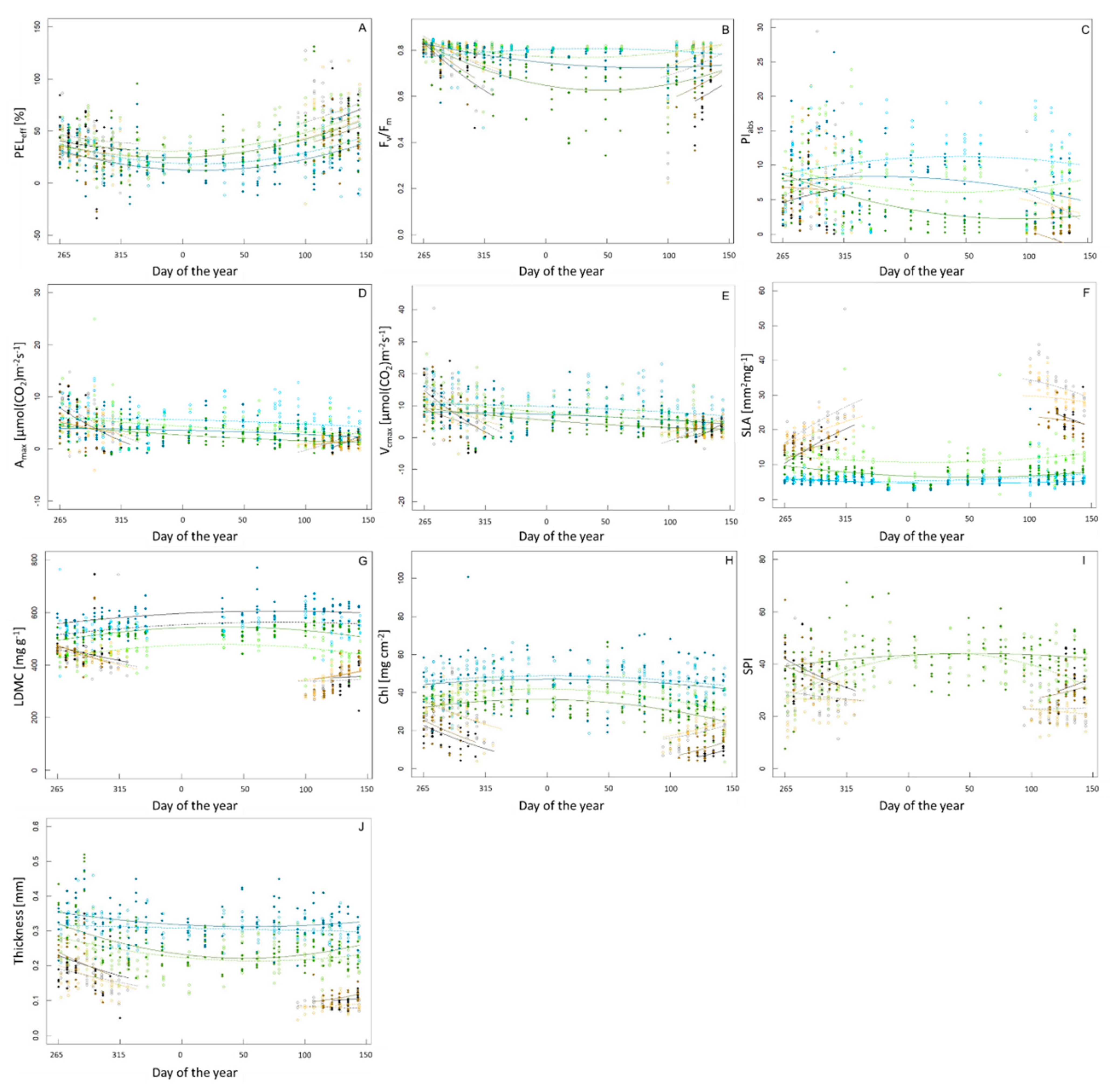

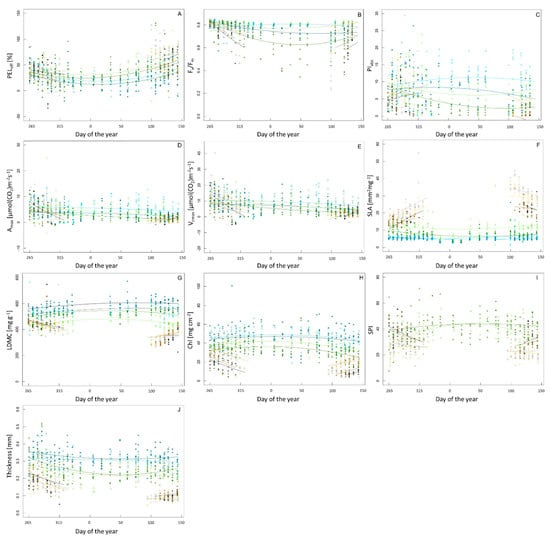

Figure 1. Seasonal variation of parameters recorded, namely (A) frost resistance as effective percentage of electrolyte leakage (PELeff), (B) efficiency of PSII (Fv/Fm), (C) performance index (PIabs), (D) net CO2 assimilation rate (Amax), (E) maximum carboxylation capacity (Vcmax), (F) specific leaf area (SLA), (G) leaf dry matter content (LDMC), (H) stomatal pore area index (SPI), (I) chlorophyll content (Chl) and (J) thickness of the leaf. Species are represented by color, the evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Individuals and species situated in the greenhouse are represented by open circles and a dashed line, individuals and species that experienced outside conditions are represented by a diamond and a continuous line. The regression line was based on the minimum adequate models as described in the text.
Figure 1. Seasonal variation of parameters recorded, namely (A) frost resistance as effective percentage of electrolyte leakage (PELeff), (B) efficiency of PSII (Fv/Fm), (C) performance index (PIabs), (D) net CO2 assimilation rate (Amax), (E) maximum carboxylation capacity (Vcmax), (F) specific leaf area (SLA), (G) leaf dry matter content (LDMC), (H) stomatal pore area index (SPI), (I) chlorophyll content (Chl) and (J) thickness of the leaf. Species are represented by color, the evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Individuals and species situated in the greenhouse are represented by open circles and a dashed line, individuals and species that experienced outside conditions are represented by a diamond and a continuous line. The regression line was based on the minimum adequate models as described in the text.
Forests 12 00369 g001
Forests 12 00369 g002 550

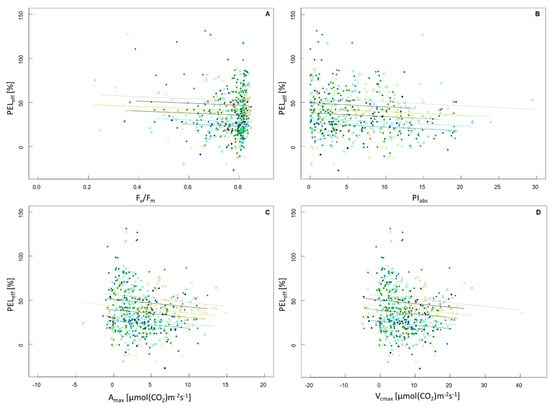

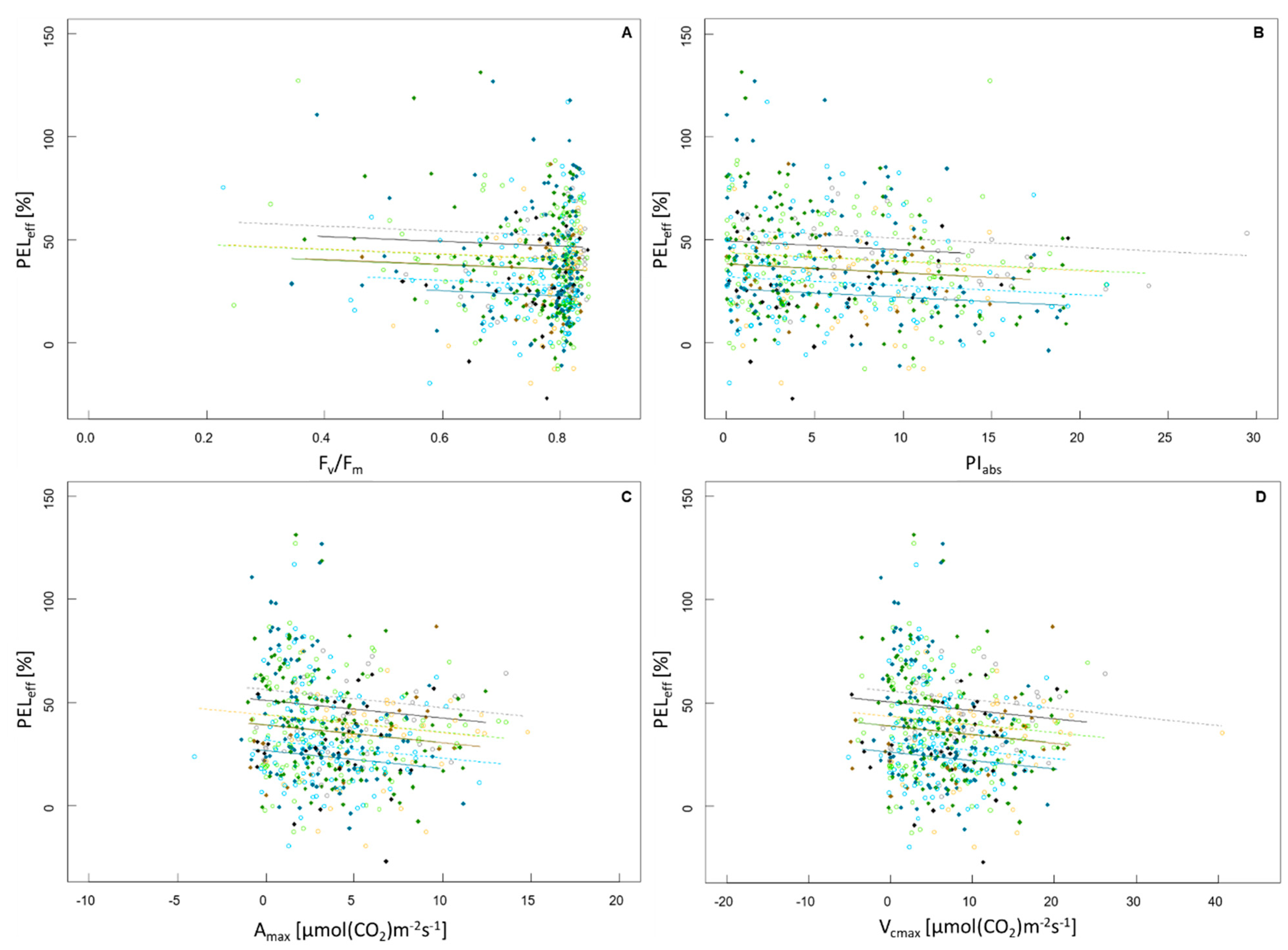

Figure 2. Trade-off between FR and photosynthetic performance represented by the relationship between the frost resistance as effective percentage of electrolyte leakage (PELeff) and (A) efficiency of PSII (Fv/Fm), (B) performance index (PIabs), (C) net CO2 assimilation rate (Amax), (D) maximum carboxylation capacity (Vcmax). Species are represented by color, the evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Individuals and species situated in the greenhouse are represented by open circles and a dashed line, individuals and species that experienced outside conditions are represented by a diamond and a continuous line. The regression line was based on the minimum adequate models.
Figure 2. Trade-off between FR and photosynthetic performance represented by the relationship between the frost resistance as effective percentage of electrolyte leakage (PELeff) and (A) efficiency of PSII (Fv/Fm), (B) performance index (PIabs), (C) net CO2 assimilation rate (Amax), (D) maximum carboxylation capacity (Vcmax). Species are represented by color, the evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Individuals and species situated in the greenhouse are represented by open circles and a dashed line, individuals and species that experienced outside conditions are represented by a diamond and a continuous line. The regression line was based on the minimum adequate models.
Forests 12 00369 g002
Forests 12 00369 g003 550

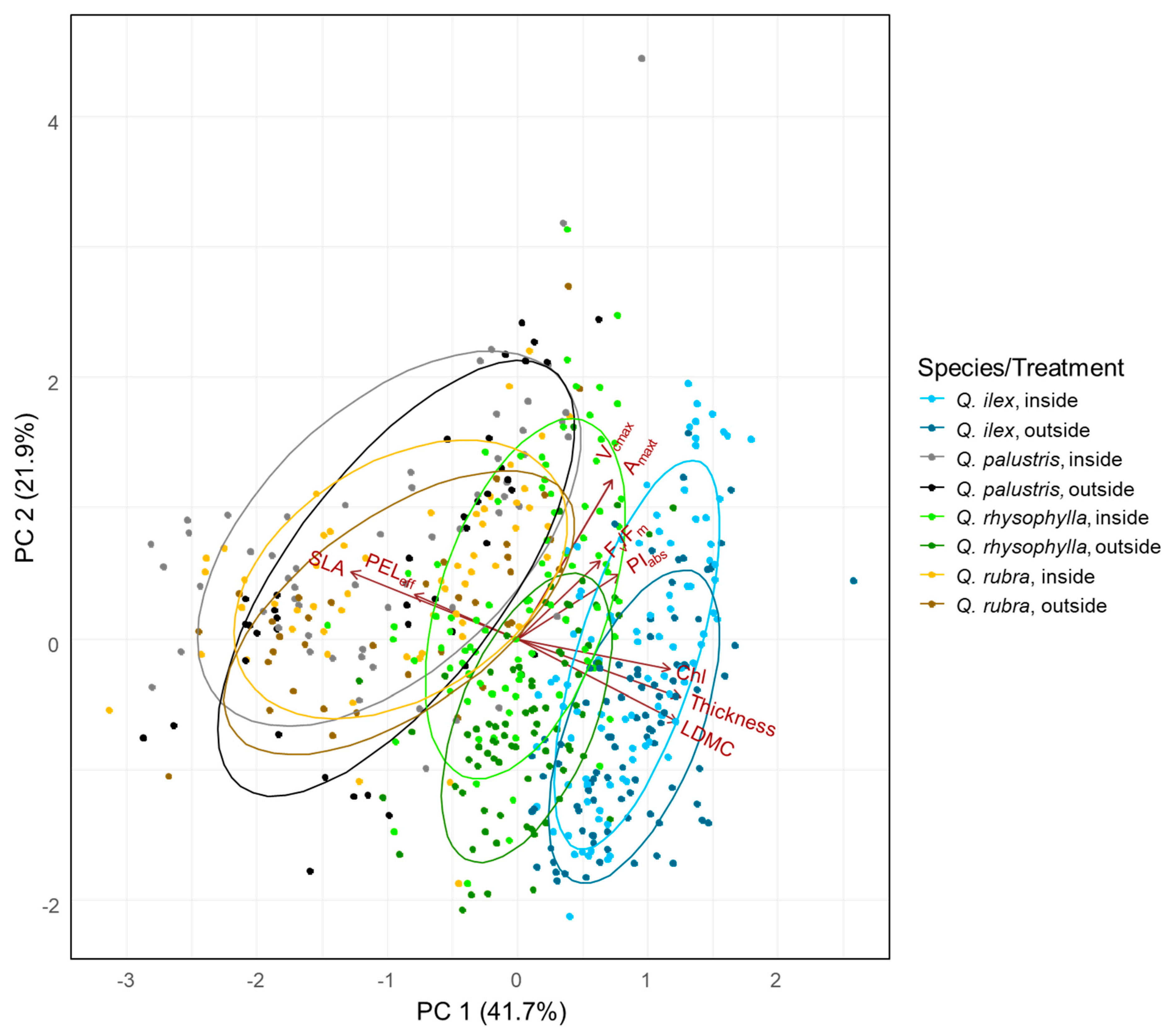

Figure 3. Principal component analysis of all traits, except SPI, and all species selected. Colors represent species and the associated treatment. The evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Given is the frost resistance measured as effective percentage of electrolyte leakage (PELeff), the net CO2 assimilation rate at saturating irradiance and ambient atmospheric CO2 concentrations (Amax), the maximum carboxylation rate (Vcmax), the maximum quantum yield of PSII (Fv/Fm), the absorption based performance index (PIabs), the specific leaf area (SLA), the leaf dry matter content (LDMC), the chlorophyll content (Chl) and leaf thickness (Thickness).
Figure 3. Principal component analysis of all traits, except SPI, and all species selected. Colors represent species and the associated treatment. The evergreen species Q. ilex is displayed in light blue (inside) and dark blue (outside). Q. rhysophylla was colored in light green (inside) and dark green (outside). The deciduous species Q. palustris is shown in light gray (inside) and dark gray (outside) and Q. rubra is displayed in yellow (inside) and brown (outside). Given is the frost resistance measured as effective percentage of electrolyte leakage (PELeff), the net CO2 assimilation rate at saturating irradiance and ambient atmospheric CO2 concentrations (Amax), the maximum carboxylation rate (Vcmax), the maximum quantum yield of PSII (Fv/Fm), the absorption based performance index (PIabs), the specific leaf area (SLA), the leaf dry matter content (LDMC), the chlorophyll content (Chl) and leaf thickness (Thickness).
Forests 12 00369 g003
Table
Table 1. Characterisation of four woody species with respect to their mean and range in measured trait values. Given is the mean value for each species as well as the range, i.e., minimum and maximum values measured, of frost resistance measured as effective percentage of electrolyte leakage (PELeff), net photosynthetic rate at saturating irradiance and ambient atmospheric CO2 concentrations (Amax), maximum carboxylation rate (Vcmax), maximum quantum yield of PSII (Fv/Fm), absorption-based performance index (PIabs), specific leaf area (SLA), leaf dry matter content (LDMC), stomatal pore area index (SPI), chlorophyll content (Chl) and leaf thickness (Thickness). The canopy duration indicates, during which period leaves were displayed on deciduous species. Significance is indicated as ‘***’: p < 0.001.
Table 1. Characterisation of four woody species with respect to their mean and range in measured trait values. Given is the mean value for each species as well as the range, i.e., minimum and maximum values measured, of frost resistance measured as effective percentage of electrolyte leakage (PELeff), net photosynthetic rate at saturating irradiance and ambient atmospheric CO2 concentrations (Amax), maximum carboxylation rate (Vcmax), maximum quantum yield of PSII (Fv/Fm), absorption-based performance index (PIabs), specific leaf area (SLA), leaf dry matter content (LDMC), stomatal pore area index (SPI), chlorophyll content (Chl) and leaf thickness (Thickness). The canopy duration indicates, during which period leaves were displayed on deciduous species. Significance is indicated as ‘***’: p < 0.001.
SpeciesLifeformCanopy Duration [d]PELeff [%]Fv/FmPIabsAmax [µmol(CO2)m−2 s−1]Vcmax [µmol(CO2)m−2 s−1]SLA [mm2 mg−1]LDMC [mg g−1]Chl [mg cm−2]SPIThickness [mm]
ANOVA F4,794 = 38.7 *** R2 = 0.16F7,647 = 15.9 *** R2 = 0.15F4,650 = 30.2 *** R2 = 0.16F7,764 = 10.7 *** R2 = 0.09F7,752 = 8.0 *** R2 = 0.07F7,748 = 289 *** R2 = 0.73F7,688 = 170 *** R2 = 0.63F7,781 = 155.2 *** R2 = 0.58F5,516 = 69.6 *** R2 = 0.40F4,794 = 299.2 *** R2 = 0.60
Q. ilex insideevergreen 27.4 [−13.0; 77.4]0.79 [0.46; 0.85]9.7 [0.03; 21.5]5.3 [−0.38; 13.6]9.4 [−0.34; 23.0]5.8 [1.1; 16.1]545.9 [358.1; 767.6]46.9 [18.5; 66.4]-0.31 [0.21; 0.46]
Q. ilex outsideevergreen 23.2 [−19.8; 76.2]0.76 [0.57; 0.83]8.2 [1.3; 26.4]3.3 [−1.1; 9.9]6.3 [−3.5; 20.6]5.1 [2.6; 26.0]588.2 [491.5; 770.6]45.3 [19.2; 100.8]-0.32 [0.20; 0.48]
Q. rhysophylla insideevergreen 43.3 [−4.2; 118.7]0.80 [0.51; 0.84]8.0 [0.04; 23.9]4.2 [−0.26; 25.0]7.6 [−0.22; 26.2]11.7 [1.4; 37.5]456.2 [320.2; 579.3]38.0 [3.6; 52.1]37.6 [18.6; 56.1]0.23 [0.11; 0.37]
Q. rhysophylla outsideevergreen 34.6 [−1.6; 131.2]0.70 [0.34; 0.85]4.2 [0.12; 18.2]2.5 [−1.3; 9.6]5.1 [−3.9; 19.0]7.5 [3.3; 13.2]522.4 [332.2; 575.2]32.8 [13.7; 66.5]42.1 [7.6; 71.2]0.26 [0.17; 0.52]
Q. palustris insidedeciduous266–331; 105–15553.3 [−9.5; 127.3]0.77 [0.25; 0.84]6.3 [0.31; 29.4]3.5 [−1.4; 14.8]6.5 [−3.5; 40.5]26.4 [14.0; 54.8]391.9 [269.0; 744.8]24.5 [6.9; 52.9]25.5 [11.4; 57.6]0.14 [0.06; 0.33]
Q. palustris outsidedeciduous266–323; 133–15547.8 [−33.7; 110.5]0.72 [0.39; 0.84]3.2 [0.02; 13.6]3.9 [−0.87; 12.4]6.6 [−4.9; 24.0]17.4 [11.6; 32.4]417.4 [226.4; 745.9]14.4 [4.1; 36.2]35.7 [21.0; 55.3]0.16 [0.05; 0.35]
Q. rubra insidedeciduous266–331; 105–15541.1 [−19.9; 117.7]0.78 [0.23; 0.84]6.6 [0.16; 21.5]2.7 [−4.1; 12.1]5.0 [−5.1; 16.4]23.5 [6.8; 39.3]402.4 [274.0; 494.6]25.6 [3.9; 48.7]23.9 [12.0; 42.7]0.13 [0.05; 0.26]
Q. rubra outsidedeciduous266–308; 118–15536.0 [−27.4; 81.3]0.73 [0.37; 0.84]3.4 [0.02; 17.2]2.7 [−0.99; 12.2]5.0 [−1.6; 22.1]18.3 [11.4; 30.7]404.1 [277.6; 656.4]15.7 [4.3; 31.25]33.7 [17.4; 64.5]0.16 [0.08; 0.33]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Preißer, M.; Bucher, S.F. Is the Seasonal Variation in Frost Resistance and Plant Performance in Four Oak Species Affected by Changing Temperatures? Forests 2021, 12, 369. https://doi.org/10.3390/f12030369

AMA Style

Preißer M, Bucher SF. Is the Seasonal Variation in Frost Resistance and Plant Performance in Four Oak Species Affected by Changing Temperatures? Forests. 2021; 12(3):369. https://doi.org/10.3390/f12030369

Chicago/Turabian Style

Preißer, Maggie, and Solveig Franziska Bucher. 2021. "Is the Seasonal Variation in Frost Resistance and Plant Performance in Four Oak Species Affected by Changing Temperatures?" Forests 12, no. 3: 369. https://doi.org/10.3390/f12030369

APA Style

Preißer, M., & Bucher, S. F. (2021). Is the Seasonal Variation in Frost Resistance and Plant Performance in Four Oak Species Affected by Changing Temperatures? Forests, 12(3), 369. https://doi.org/10.3390/f12030369

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
