On the Consequences of Using Moving Window Segmentation to Analyze the Structural Stand Heterogeneity and Debatable Patchiness of Old-Growth Temperate Forests

Abstract

(1) Background: Early research in natural forests on decennia implanted conviction concerning the patchy patterns of their structural heterogeneity. Due to the variety of methodological approaches applied, verification of this fundamental assumption remains open. The aim of this study was to discuss the methodological limitations associated with the use of moving windows with overlap for the delineation of homogeneous patch mosaics in forest ecosystems. (2) Methods: The “patchiness” hypothesis was tested in six old-growth forests formed by Abies alba Mill., Fagus sylvatica L., and Picea abies (L.) H. Karst. localized in Bosnia and Herzegovina and southern Poland. In each stand, the tree diameter at breast height (dbh) was recorded on circular sample plots of 154 m² regularly distributed in a 20 × 20 m lattice over an area of 10 ha. (3) Results: Computer simulations showed that patch classification based on overlapping windows results in apparent patchiness, even for completely randomized tree distributions. Analyses carried out on the empirical data indicated prevalent random patterns of structural heterogeneity. (4) Conclusions: Patchiness is not a universal feature of the investigated forest communities. The size of the moving window and the noise-smoothing procedure exert strong effects on the biasedness of patch classification, the frequency of structural types, and the mean patch size.

1. Introduction

The spatial patterns of plant communities are valuable sources of knowledge of the disturbance history, intraspecific competition, and mechanisms of species coexistence [1,2,3], although the extent to which these processes may be uncovered by analysis has been a subject of debate in ecology for many years [4]. In forest ecosystems, the processes of tree maturation and growth, senescence, renewal, and disturbances create spatial structural heterogeneity and constitute the life cycle of forests [5,6]. Analysis of the spatial distribution of young tree cohorts in relation to dead or live overstory trees can provide valuable information on generation replacement patterns [7,8,9,10] and resilience mechanisms [11,12,13], which are still poorly understood in ecosystems driven by natural dynamics and climate change [14].

Since the pioneering study by Watt [5], the spatial relations between trees representing different size or age cohorts are frequently generalized and depicted in the form of a spatially explicit patch-mosaic model [15,16,17,18,19,20,21,22,23,24]. A central idea inherent to this concept is that the locations of trees and/or their attributes (e.g., size, age, and species) are distributed not purely randomly but are subjected to systematic spatial segregation by ecological processes linked in space and time. The deterministic associations between growth and competition-dependent mortality, growth and unavoidable senescence, and senescence and renewal generate patch-mosaic patterns (patchiness), that is, nonrandom spatial ordering of tree distributions, which manifests in the repulsion or aggregation of tree locations and/or spatial dependence between tree attributes. Although the details of patch classification systems proposed in the literature differ, a general framework involves division into structural types distinguished by the quantitative frequencies of young, mature, or senescent veteran trees [15,16,17,19,25,26].

The seminal papers by Leibundgut [15] and Korpeĺ [16] based on the subjective delineation of patch-mosaic patterns in the natural montane forests of the Balkans and Carpathians caused the concept of spatially explicit developmental stages (phases) of decennia to become in Europe a leading paradigm describing the dynamics of forest communities formed by shade-tolerant species. Intuitive and attractive due to its theoretical elegance, the assumption of patchy patterns of structural stand heterogeneity was not explicitly tested in these early studies. The development of refined numerical methods dedicated to the analyses of spatial patterns [27,28,29,30] and efforts undertaken to collect extensive empirical data in natural forests brought new knowledge to the topic. However, the picture that arises from these newer studies, even when they concern similar site conditions and forest communities, is not coherent and evokes deepening controversy.

On the one side, there is a growing body of literature that indicates that among live and dead canopy trees, the decisive factors affecting the spatial biomass distribution dominate close-to-random distribution patterns, and a major nonrandom component is aggregated patterns of young tree cohorts; however, these dissipate rapidly with increasing sizes of young trees and competition from the overstory [31,32,33,34,35]. From this point of view, close-to-random structural heterogeneity results from the overlap of a variety of ecological processes including external disturbances, which may act in opposite directions and on diverse spatial and temporal scales, disrupting the ontogenetic sequence of maturing–senescence–renewal, even in small stand fragments. Thus, such findings question the presence of patchiness being understood as the nonrandom spatial ordering of tree locations and/or their attributes and therefore impair the patch-mosaic paradigm. It remains symptomatic that results of this kind are reported mostly by studies concerned with the lowest level of stand structure organization; that is, they are based on single tree-oriented analyses that consider the forest structure as the realization of a spatially marked point process [36].

On the other hand, research focused on the structural attributes of tree collectives and patch classification is accumulating [17,18,19,22,24]. Characterizing patchiness requires the explicit delineation of patches. In recent years, a methodology for the delineation of structural types based on the moving windows segmentation that is well known from computer graphics and image processing procedures [37]. In this technique [22], a window of a defined size and shape is moved over a stand, and all trees located within the window section are used to classify the kernel cell of the window into a given structural type according to a predefined classification protocol. Then, noise-smoothing techniques are used to obtain an easy-to-interpret two-dimensional model of the distribution of structural types. In contrast to methods using direct analyses of spatial tree distributions, moving window segmentation is based on the classification of tree collectives within the window sections. The smoothed raster models obtained by this approach usually reveal clear-cut patchy patterns and are interpreted as evidence of structural patchiness in the investigated forest ecosystems [22,38]. Thus, the results obtained using methods based on the classification of tree collectives and on the direct analysis of spatial patterns of tree distributions conducted under similar site conditions and forest communities frequently lead to contrasting findings.

It seems that the main source of the discrepancy between these two approaches is the different definitions of the term patchiness. While in the first, it is used sensu stricto as spatial segregation to express a nonrandom distribution (aggregated or regular) of tree locations and/or a nonrandom labeling of the locations by a given tree attribute (e.g., size, age, and species), in the second, it is extended to include any spatial structural variation, no matter whether this variation has random or nonrandom character. However, this distinction is not irrelevant. It is noteworthy that patchiness sensu largo has acquired a broad, blank meaning because spatial structural variation occurs in all tree populations, except in cases in which all individuals have the same size and are regularly distributed in the space. In contrast, patchiness sensu stricto has a subtler functional sense and links structural stand heterogeneity with the spatial pattern of the developmental pathways of the individual trees. Specifically, this definition introduces a distinction between a “random forest” in which the only level of forest structural organization is formed by individual trees with their unique surroundings and individual development pathways and a “patch-mosaic forest” in which the patches constitute a higher level of forest structural organization defined by the synchronization of developmental trajectories and similar growth patterns of trees representing the same age cohorts within the patches. While in a “random forest”, the structural attributes of forest fragments alternate randomly in space within the boundaries determined by stand-level characteristics, in a “patch-mosaic” forest, they show clear spatial dependence.

The different understanding of the term patchiness has also its methodological consequences. In particular, research focused on patch classification are usually purely explorative, and to my best knowledge there is a lack of papers referring to temperate forests formed by shade-tolerant species that involve statistical inference to evidence that the frequency and spatial ordering of the predefined structural types (phases) indeed differ from these expected for completely random tree distributions. Moreover, the segmentation with overlapping moving windows used for patch delineation artificially generates patchiness itself, and results obtained by this way are difficult to interpret. Therefore, a sound debate is needed to avoid misunderstanding of the patchiness concept and to develop sound methods focused on tree collectives and capable of distinguishing between random structural heterogeneity and patchiness sensu stricto.

The present study has three objectives relevant to this debate. The first is to discuss consequences of using sliding window segmentation for the analysis of structural heterogeneity in multiaged forests. Specifically, the study shows the effects of the moving window size and pattern-smoothing techniques on the frequency, mean patch size, and selected summarizing statistics (basal area, stem density, diameters at breast height (dbh) differentiation) of spatial units representing predefined structural types. The second objective is to evidence that the procedure of moving windows with overlap generates intrinsic autocorrelation, which may lead to misinterpretation of the original random patterns (patchiness sensu largo) as patch mosaics (patchiness sensu stricto). The third objective was to test whether the empirical patterns of structural heterogeneity correspond with the concept of patchiness sensu stricto. In this part, the data from six old-growth Abies-Picea-Fagus forests were analyzed using a robust methodology based on the classification of tree collectives obtained from spatially independent (non-overlapping) samples.

2. Materials and Methods

2.1. Patch Classification

The term “patch” used through this paper is defined as an integral forest fragment with explicitly determined boundaries, which represents a given type of forest structure (phase). The boundaries of the stand patches were delineated using the moving window technique, or, in the part of this study based on empirical data, were explicitly linked with the sample plots. The basic structural criteria used for the patch classification were (1) the local biomass accumulation (herein expressed as the local basal area), (2) the differentiation of tree diameters at breast height (dbh), and (3) the proportion of the local basal area fallen relative to trees of young and mature tree generations. These generations were distinguished based on the stand-level median basal area tree diameter, i.e., the dbh, which divides the cumulative basal areas of trees ordered according to ascending or descending dbh into two equal parts. The trees with dbh values lesser or greater than this reference dbh were regarded as young or mature generations, respectively.

Structural differentiation in the stand patches was expressed as the ratio of the empirical dbh variance to a hypothetical variance of the uniform dbh distribution with a predefined lower and upper bound [39]. To put more emphasis on the dbh differentiation among subcanopy trees, which strongly contributes to vertical stand heterogeneity, instead of the dbh, the natural logarithm of this characteristic was used. The ratio, hereafter termed the index of dbh differentiation (I_d), was calculated as

$$I_d=\frac{S_E^2}{S_U^2},$$

(1)

where S²_E is the empirical variance of the logarithm of the tree dbh and S²_U = (ln dbh_max− ln dbh_min)²/12 is the theoretical variance of the uniform dbh distribution bounded by the minimal and maximal values dbh_min and dbh_max, respectively. The values 7 and 60 cm were assumed as the lower and upper bounds, and in the calculation of the I_d index empirical variance S²_E, the dbh values of all the trees larger than dbh_max were replaced by the value of 60 cm. This transformation was motivated by the need to construct a dbh-based measure that more strongly corresponds to the vertical structural differentiation than to the absolute dbh variation. Depending on the species and site, in the study region, trees with a dbh of approximately 60 cm attain an average height of 32–35 m. This seems to be a sufficient qualification by which to regard them as individuals from the overstory, considering the average heights for maximal tree dbh classes as being in the range between 42 and 47 m. Thus, the cooccurrence of trees with dbh ≥ 60 cm with other under- and midstory individuals provides a satisfying condition for the assignment of such a forest patch to a multistory, plenter-like type of forest structure. In general, the I_d index attains low values for tree collectives with low dbh differentiation, which are values considerably greater than 1 for bimodal dbh distributions, and intermediate values for tree collectives with high dbh differentiation, and the overrepresentation of small trees compared to the uniform distribution. For dbh distributions defined by a geometric sequence

$$n_i=n_1{q}^{\left(i-1\right)},$$

where n_i denotes the stem density in the ith dbh class. In the formula, q is the common ratio, q coefficient values are between 0.7 and 0.9 (for a dbh class width of 4 cm), and basal areas are between 35 and 40 m² ha⁻¹, which are a set of values typical for balanced plenter-like structures and single-tree selection forests in Central Europe, the I_d values are in the range between 0.7 and 1.1.

The classification protocol used in this study distinguishes four types of stand structures (phases): culmination (CU), early accumulation (EA), late accumulation (LA), and steady-state phase (SS) (Figure 1). The patches with the highest basal areas of live trees (here, within the upper quartile of this characteristics) were grouped into the culmination phase. Thus, this phase groups stand patches with the highest proportion of large diameter trees. The absolute value of the upper quartile is scale-dependent, and prior to patch classification, it was determined from empirical data (case studies in the Carpathians and Dinaric Mts.) or simulations (in simulation studies). In the latter case, the randomization of tree locations in the subsequent simulations causes the effect in which even for a fixed threshold value of the local basal area, the frequency of patch assignment to the culmination phase fluctuates. By analogy to the concept of dbh equilibrium well-known from single-tree selection forests, the criteria for the steady-state phase were (1) dbh differentiation typical of plenter-like structures and (2) a moderate basal area level. Specifically, the steady-state phase was assigned when the basal area of live trees was equal to or lower than the overall stand-level average and the I_d index value was between 0.7 and 1.1. Such a definition warrants that for an ecosystem in a state of dynamic equilibrium (which manifests in insignificant fluctuations in the dbh distribution, biomass level, and species composition over time), increasing spatial scale of analysis will result in an increasing proportion of the steady-state phase. The late accumulation or early accumulation phases were represented by patches that fulfilled the criteria of neither the culmination nor steady-state phase and had a majority of trees representing old or young tree generations (i.e., those with dbh greater than or smaller than the stand-level median basal area tree diameter) in the local basal area (Figure 1). It is assumed that all the threshold values used in the classification, i.e., the average and the upper quartile of the basal area of live trees and the median basal area dbh, are determined for an ecosystem in a state of dynamic equilibrium on a sufficiently large area to minimize scale-dependent fluctuations.

2.2. Simulation Study

In the part of this study based on simulations, the same model stand was used. The dbh distribution was obtained as a geometric sequence (de Liocourt’s distribution) with the parameters (minimal dbh = 7 cm, n₁ = 95 stems per ha, and q = 0.811 for 4 cm-width dbh classes) fit to yield a stand basal area of 37 m² ha⁻¹ and stem density of 500 ha⁻¹, i.e., the values approximately corresponding with the empirical parameters found in old-growth stands in the Western Carpathians [35]. In the first step, simulation tests were performed to demonstrate the effect of the size of the filter used in the moving window procedure on the patch classification outcomes. In subsequent simulations (n = 100), the trees representing the model stand were randomly distributed within a plot of 100 m × 100 m, and the marked point patterns obtained (i.e., tree locations labeled with dbh) were subjected to classification into culmination, early accumulation, late accumulation, and steady-state phases, as defined in the classification protocol (Figure 1). In the classification procedure, circular moving windows with diameters of 10, 15, …, 35 m and a moving distance of 1 m were applied. Edge effects were avoided by using toroidal shifts [28]. For each window diameter variant, 95% envelopes for the phase frequencies, mean patch size, and selected summarizing statistics (basal area, stem density, and index of dbh differentiation) were determined. As a result of the strongly skewed patch size distributions with high frequencies of fine patches, the phase-specific mean patch size $\overline{s_j}$ was calculated as a weighted average

$$\overline{s_j}=\frac{{{\displaystyle \sum }}_{i=1}^n{w}_{ij}{s}_{ij}}{{{\displaystyle \sum }}_{i=1}^n{w}_{ij}},$$

(2)

where the summation was conducted over all identified patches and weights $w_{ij}$ ($\sum w_{ij}=1$) to represent the proportion of the stand area occupied by the ith patch of the jth type (phase) and an area $s_{ij}$.

In the second step, the original raster models of patch classification (100 × 100 cells) were subjected to noise smoothing by using a majority filter with kernels of 3 × 3, 5 × 5, or 7 × 7 cells. Before replacement in the filtered pattern can occur, the majority filter must satisfy two criteria: (1) the number of neighboring cells of the same value must be the majority of all the cells within a kernel of defined size, and (2) those cells must be contiguous about the center of the filter kernel to minimize the corruption of the cellular spatial patterns. In the simulations (n = 100), for each single cell (1 × 1 m), the structural type (phase) was assigned based on the tree collectives located within the window section, and then a few runs of the majority filter were conducted until the output raster was stabilized (no further changes occurred), and a smoothed pattern was obtained. Then, 95% simulation envelopes for the phase frequencies, mean patch size, and selected summarizing statistics (dbh distribution, basal area, stem density, and index of dbh differentiation) were determined for the individual phases and compared between the original and filtered (smoothed) patterns.

The third simulation experiment was programmed to illustrate that the moving windows with overlap applied for random spatial patterns of tree distribution artificially generated spatial dependence of phase distributions (patchiness). The intensity of the overlap was defined as the ratio of the window diameter to the moving distance. Under this formulation, the neighboring moving windows did not contain common trees for the ratio equal to 1, and the proportion of shared trees increased for the ratio values greater than 1. In the subsequent simulations (n = 100), random tree distributions of the model stand were generated on a 100 m × 100 m plot (10,000 cells). Then, the patch classification (window size = 15 m) and, as additional variants, smoothing procedures with the kernel sizes of 3 × 3, 5 × 5, or 7 × 7 cells were performed. Within the plot, the cells were selected in a square lattice to produce window diameter: moving distance ratios between 0.5 and 4.0, and the classification outputs for these cells were recorded. Finally, for each overlap ratio and smoothing variant, the proportion of positive indications of spatial dependence (i.e., significant departures from the null hypothesis assuming random labeling of the sample plots with phase qualifiers) was compared. As a measure of spatial dependence, the mark connection function was used [40], which, here, determines the probability that a randomly selected pair of sample plots located at most r distance units apart represent the same phase:

$$p\left(r\right)=N_r{}^{-1}{{\displaystyle \sum }}_{i=1}^{N_r}{n}_r.$$

(3)

In the formula N_r denotes the number of all distinct pairs located at most r distance units apart, maximal r is 50 m, and n_r equals 1 when the sample plots belong to the same phase and 0 otherwise. A Monte Carlo procedure based on 10,000 simulations was applied to test the significance of the departures from the null hypothesis, assuming random labeling. The overall intensity of the positive spatial dependence was expressed as the average positive deviation

$$k_r^{-1}\sum \left[p\left(r\right)-E_r\right]{\left[U_r-E_r\right]}^{-1},$$

(4)

where the summation is applied over k_r, the number of all distance units r so that p(r) > U_r, U_r is the upper simulation envelope, and E_r is the mean value of p(r) for random labeling. All the computations were programmed by the author in the Visual Basic for Applications programming language (VBA).

2.3. Randomness vs. Patchiness—Empirical Examples

The empirical data used herein originated from six strict reserves located in the Dinaric Mountains (Janj, Lom, and Perućica) and Western Carpathians (Baniska, Oszast, and Żarnówka) (

Table 1. Site characteristics of the studied stands.

Characteristics	JA	LO	PE	BA	BG	OS
Location	Dinaric Mts (Bosnia and Herzegovina)			Western Carpathians (Poland)
Reserve	Janj	Lom	Perućica	Baniska	Żarnówka	Oszast
Coordinates	44°08′ N 17°18′ E	44°27′ N 16°29′ E	43°18′ N 18°43′ E	49º27′ N 20º37′ E	49º35′ N 19º33′ E	49°25′ N 19°11′ E
Altitude (m a.s.l.)	1260 –1400	1280 –1360	1420 –1480	900 –1050	930 –1020	1020 –1080
Exposure	W	NE	SW	NW	N	NW
Inclination (º)	0–10	10–25	10–20	10–20	10–20	15–25
Bedrock	Dolomites	Limestones	Limestones	Flysch	Flysch	Flysch
Soils	Cambisols Rendzinas	Cambisols Chernozems Luvisols	Cambisols	Cambisols	Cambisols	Cambisols
Formal protection since (year)	1951	1956	1952	1916	1936	1971

). The strict reserves selected for this study are relic, old-growth forests of the lower montane belt in Europe formed by silver fir Abies alba Mill., European beech Fagus sylvatica L., and Norway spruce Picea abies (L.) H. Karst with no documented history of past forest management. The term “old-growth forests” is used here to underscore that the core zones of the reserves bear no signs of direct human activity (stumps, cut trees, logging trails, under-planting, simplified vertical stand structure). Nevertheless, plunder-like cuttings of single trees may have occurred in the past. The Janj, Lom, and Perućica reserves have been officially strictly protected since the 1950s, but there is also evidence that strict nature protection in these areas goes back to the 19th century during the Austro-Hungarian Empire [41]. Although the periods of formal strict protection differ in the Baniska, Oszast, and Żarnówka reserves (Table 1), this factor cannot be treated as a measure of the human impact on stand dynamics. In all the reserves, the primary reason for protection was the high level of preservation of natural stands, which was probably stemming from terrain inaccessibility, past patterns of extensive forest land utilization, and the economic infeasibility of logging. The study stands certainly belong to the best maintained mixed-species forests in the Dinaric Mts. and Western Carpathians [42].

The Dinaric Mountains harbor one of the most volume-rich mountain primeval forests on the continent, with growing stocks commonly exceeding 1000 m³ per ha. In contrast, in the Western Carpathians, which are the northernmost region of occurrence of such forests, average stand volumes are only half of those reported in the Balkans, which probably is attributable to a more a severe disturbance regime in this region [43]. Thus, the study sites selected for this research characterize a possibly wide range of climatic conditions and disturbance regimes in which the remnants of the former pristine fir–beech–spruce forests still can be found. Data on the location, site conditions, and protection history are summarized in Table 1.

In each of the reserves, one close-to-rectangular research area of approximately 10 ha in size with a minimal length of the narrower side of 160 m was established. The fragments selected for the survey were as homogeneous as possible in terms of site conditions, species composition, and terrain orography and showed no signs of direct human activity. In each research area, between 237 and 259 circular sample plots with a radius of 7 m were localized in a regular lattice of 20 m × 20 m. The dbh and species of all live trees with dbh ≥ 7 cm were registered on the sample plots. In this spatial scale, the mean stem densities were between 4.4 and 10.4 and the 10th percentiles were between 2 and 5 trees, which provided a sufficient basis for the classification of the structural types (phases). On the other hand, the diameter of the sample plots (14.0 m) was considerably larger than the nearest-neighbor distances among trees classified into the old generation (i.e., with dbh greater than the stand-specific median basal area tree diameter) assuming their random distribution (7.5−9.2 m), and close to the nearest-neighbor distance for a hexagonal distribution, i.e., the maximal packing of such trees (14.4−17.6 m). Considering that the crown radii of average canopy trees are less than the radius of the sampling plots, even for very regular distribution patterns, the sampling design warranted the identification of hot spots for generation replacement—that is, stand fragments without trees representing the old generation.

Table 2. Basic characteristics and stand-level threshold values used in the phase classification protocol in six old-growth forests in the Dinaric Mountains and Western Carpathians.

Characteristics			JA	LO	PE	BA	BG	OS
Sample plots			244	255	256	237	259	255
Stem density	Total	N ha−1	569	532	430	682	288	464
	Abies	%	16	27	63	13	16	4
	Fagus	%	72	55	32	84	65	80
	Picea	%	12	18	5	3	19	16
Basal area	Total	m2 ha−1	65.9	56.8	65.2	37.1	36.1	36.7
	Abies	%	45	37	54	33	29	11
	Fagus	%	19	31	38	64	45	39
	Picea	%	36	32	8	3	26	50
Volume		m3 ha−1	1004	903	1134	478	522	574
Id		-	1.67	1.89	1.26	1.10	1.72	1.09
BA75		m2 ha−1	80.6	70.2	82.6	44.3	49.2	48.8
BAss		m2 ha−1	65.9	56.8	65.2	37.1	36.1	36.6
dbhBA		cm	77	69	69	57	65	61

Notes: I_d—dbh differentiation index calculated for the entire stand (see Methods), BA₇₅—75th percentile of the stand basal area (determined on circular plots 154 m²), BAss—threshold maximal basal area for the steady-state phase, dbh_BA—median basal area tree diameter.

contains the basic stand characteristics and stand-specific reference values used in the patch classification (Figure 1)—that is, BA₇₅, BAss, and dbh_BA. Insignificant variation of the reference values within the geographic regions (i.e., Dinaric Mts and Western Carpathians) suggests that they provide reliable estimates for hypothetical steady-state conditions. The dbh distributions and selected characteristics of spatial tree distributions in the studied stands (e.g., the randomness and independence of the distribution across tree size categories and the spatial variation of the basal area and dbh differentiation) were published formerly [35,43,44].

The underlying null hypothesis of random patterns of structural heterogeneity was divided into two hierarchical components: (1) the random assignment of tree dbh to the sample plots and (2) the spatial independence of the distribution of the sample plots representing given structural types (phases). In the first case, the original tree counts on the sample plots were maintained, the trees were randomly assigned to the sample plots, and the sample plots were classified according to the rules defined above. Based on subsequent simulations (n = 10,000), 95% envelopes for the phase frequencies were constructed and compared with the classification outputs based on the empirical sets. Thus, the empirical values lying above/below the simulation envelopes indicate the over/underrepresentation of a given phase compared to the frequency expected for the random assignment.

In the case of testing the spatial independence of the phase distribution, in the simulations, the sample plots were randomly labeled with phase qualifiers (n = 10,000 simulations), and 95% envelopes for the statistics based on the mark connection function p(r) defined above were constructed and compared with the empirical data. In this case, empirical values greater than the upper simulation envelopes indicated a positive spatial correlation (aggregation = patchiness), and values lower than the lower envelopes indicated a negative spatial correlation of the phase distribution (segregation = intermingling stronger than expected from random labeling). The tests were performed for all the phases pooled together (null hypothesis: spatial independence of the phase distribution) and separately for each phase (null hypothesis: spatial independence of the distribution of a given phase). In this latter case, the subsequent tests were not independent (e.g., the aggregation of one phase involves the apparent aggregation of the other). To avoid this linkage, a stepwise procedure was applied. First, the phase showing the largest significant departure from the random labeling hypothesis was found. In subsequent simulations, the labeling of the sample plots representing this phase was preserved but carried out randomly for other plots.

3. Results

3.1. Effect of the Moving Window Size

Applying the technique of the moving windows with overlap (i.e., the moving distance is smaller than the window diameter) for the classification of tree collectives assembled by chance (based on random tree distributions) produced patch-mosaic patterns with clear aggregation of the classification outputs. The moving window diameter had a substantial effect on the patch-mosaic pattern (Figure 2). A general trend was that with increasing window sizes, the patterns changed from fine- to coarse-grained. This tendency emerged for all the phases except for the early accumulation phase in which the average patch area decreased with increasing window diameters (Figure 2 and Figure 3). When the window size was ≤15 m, the largest patches formed the early accumulation phase, but for larger filter sizes, the aggregations of the steady-state phase dominated. Increasing window diameters strongly increased the absolute variation of the average patch area for the steady-state phase and decreased it for the early accumulation phase (Figure 3).

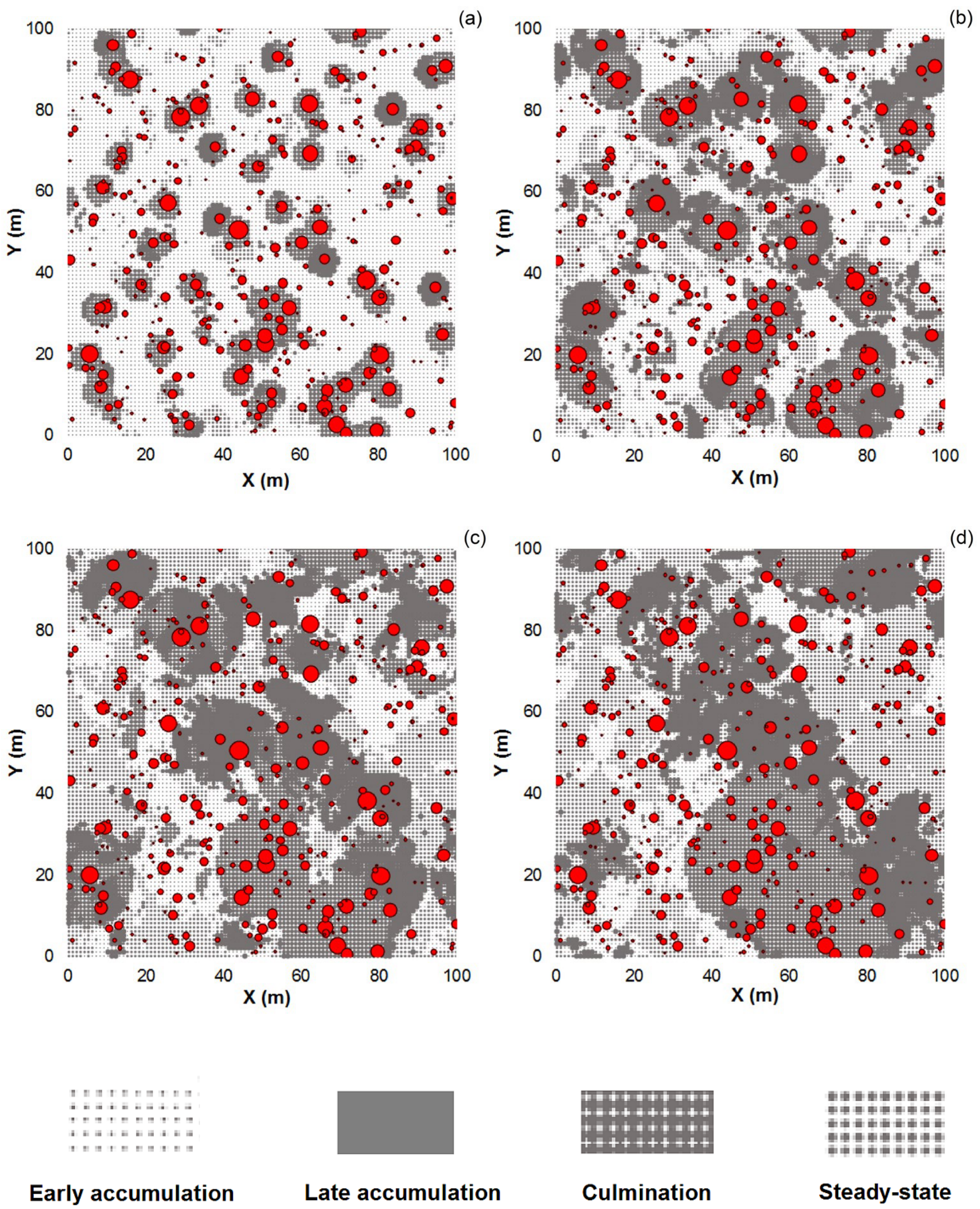

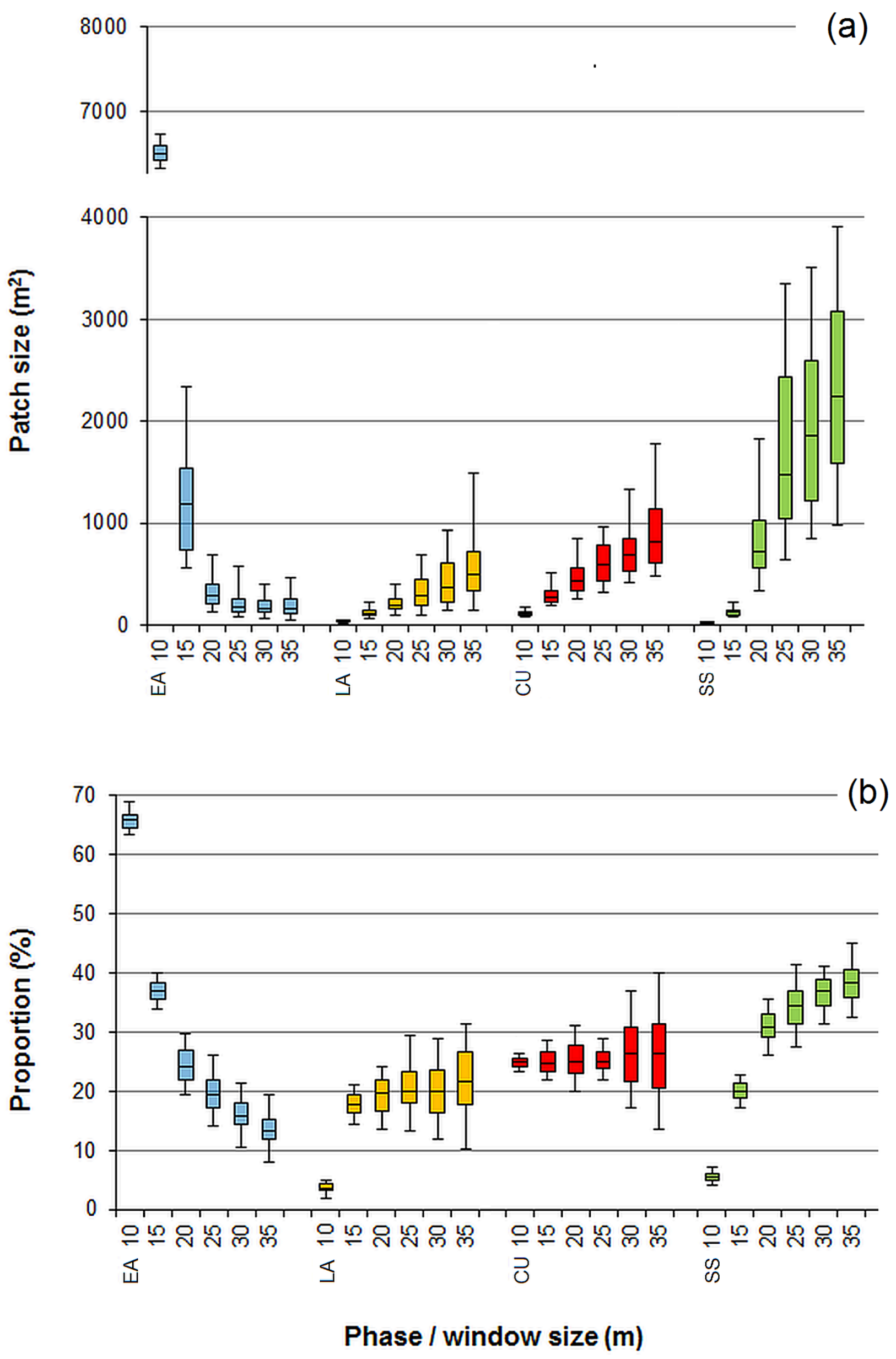

The spatial scale of the neighborhood considered in the classification procedure also strongly influenced the proportions of the area assigned to the structural types (Figure 3). This effect was particularly noticeable in the case of the early accumulation and steady-state phases and less evident in the late accumulation phase. The frequency of the culmination phase remained insensitive, because the fixed value of the local basal area was predefined as a minimal threshold in the classification protocol. The dominant tendency was that the early accumulation phase strongly diminishes and the steady-state phase increases its proportion with the increase in the window diameter. Increasing window diameters tended to increase the absolute variation in the frequencies of the culmination and late accumulation phases but not of the early accumulation and steady-state phases (Figure 3).

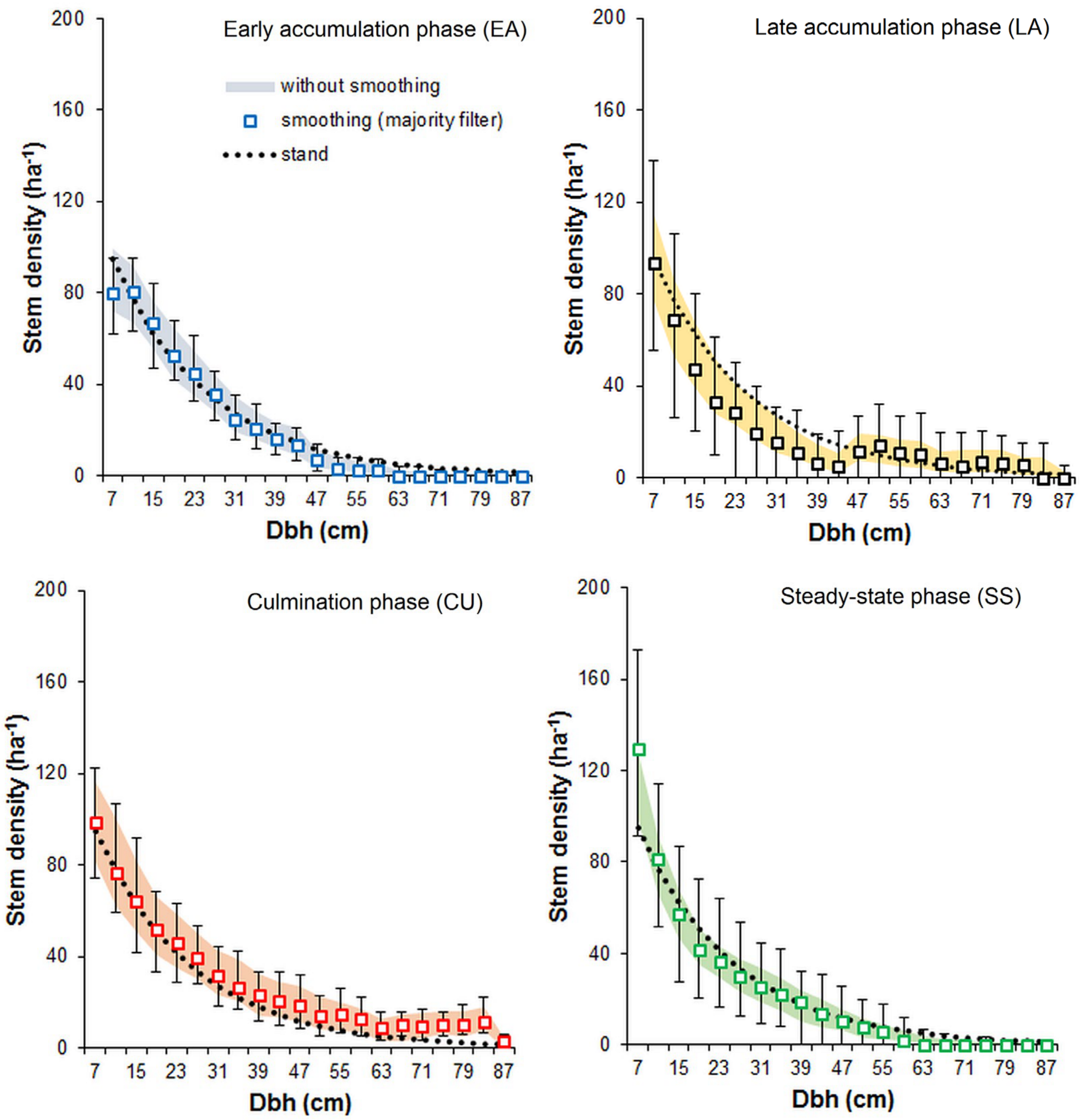

The window diameter affected also the variation in the basal area, stem density, and dbh differentiation between the phases (Figure 4). Except for the smallest filter (10 m), the general tendency was that the between-phase variation diminished with increasing window diameters. Particularly scale-sensitive were the basal area of the culmination and early accumulation phases and the dbh differentiation of the early accumulation phase. The diverging behavior of the summarizing characteristics for the smallest window diameter (10 m) was attributable to differences in variable distributions, which, in opposition to the bell-shaped forms found for larger filters, in this case, was truncated at low values of the variables.

3.2. Effect of Noise Smoothing

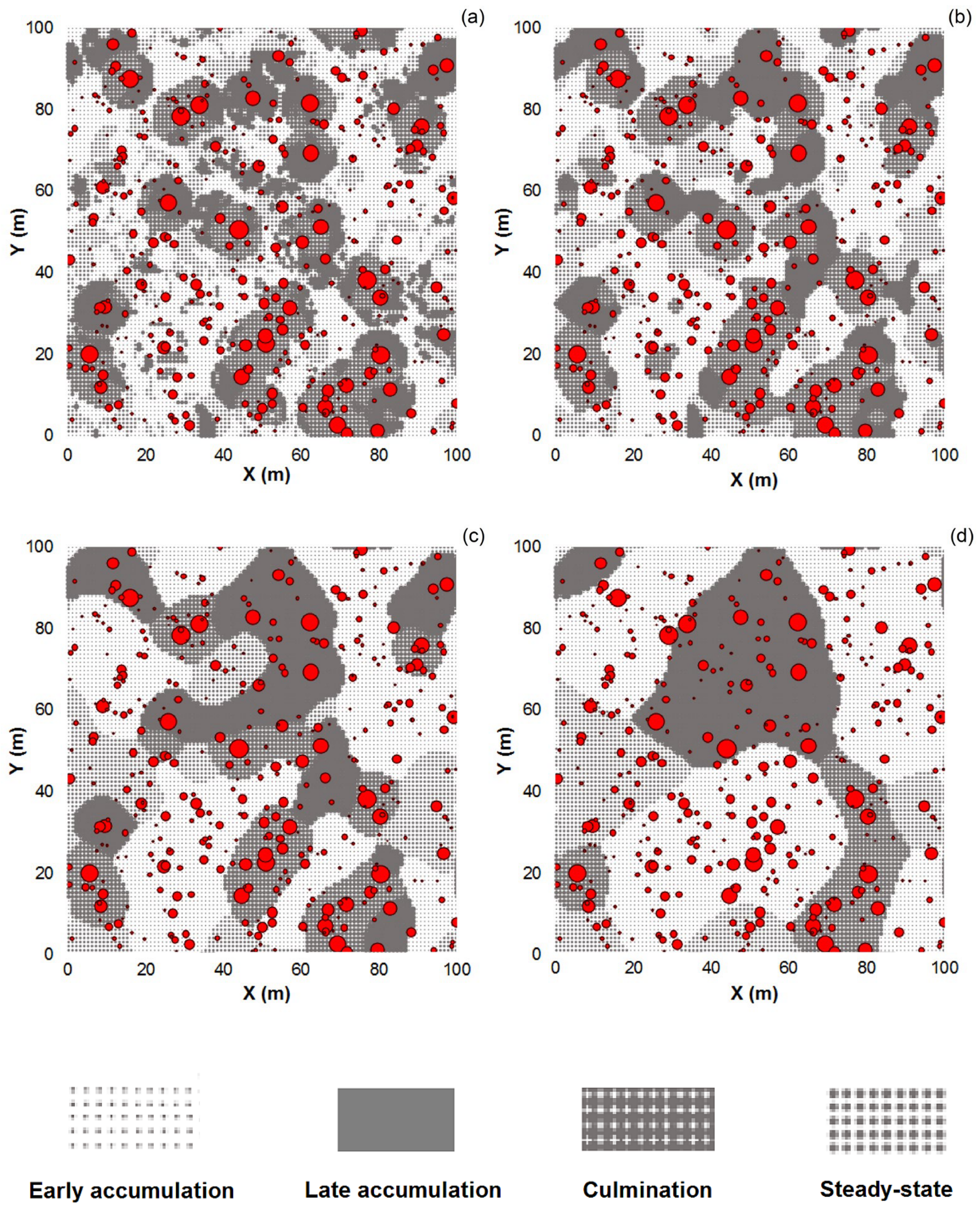

Figure 5 portrays the effects of noise smoothing by using a majority filter algorithm with kernels of 3 × 3, 5 × 5, and 7 × 7 cells (filtered patterns). The smoothing procedure considerably changed the classification outputs of the single cells. The simulations showed that the proportion of altered cell values ranged between 20% and 60% and tended to increase with increasing kernel sizes (Figure 6). The proportion of changes is important, as it may be viewed as a bias introduced by the smoothing procedure.

The pattern attributes derived from the original and filtered patterns differed in terms of both the phase frequency and the average patch size of the individual phases (Figure 7). With increasing kernel sizes, the filtered patterns became more coarse-grained, and the average patch size increased for all the phases. The noise-smoothing procedure also increased the representation of the phases that were more frequent in the original pattern. The phase-specific dbh distributions constructed for the filtered patterns were characterized by a higher variation of tree counts in the dbh classes compared to those derived from the original patterns, particularly in the case of the phases of low frequency (Figure 8).

3.3. Effect of Overlapping Windows on the Spatial Dependence of the Phase Classification Outputs

The tests indicated that the technique of moving windows with overlap artificially produces spatial dependence between classification outputs, even for random tree distributions (Figure 9). For the original raster models of phase classification, the proportions of positive identifications of spatial dependence were 93 and 100% for the overlap ratios of 2.0 and 4.0, respectively. Moreover, noise smoothing using the majority filter additionally intensified the spatial dependence between the neighboring stand patches, and this effect was stronger with larger kernel filter sizes. Noise smoothing evoked spatial correlations, even for spatially independent tree collectives—that is, for nonoverlapping windows. For the overlap ratio of 1 and kernels between 1/5 and 1/2 of the window size, the proportion of positive identifications of spatial correlation was between 16 and 31% (Figure 9). Thus, these results indicate that the spatial correlation found in the phase distribution patterns generated by the procedure of moving windows with overlap should not be directly interpreted as evidence of spatial correlation in the original tree distribution pattern, which, in the simulations used here, was completely random. For unbiased inference, the samples should be spatially independent, or the spatial dependence inherently produced by the spatial overlap of the moving windows should be considered in the testing procedure.

3.4. Randomness vs. Patchiness-Empirical Examples

For testing the spatial dependence in real stands, the datasets from six old-growth Abies–Fagus–Picea forests from the Dinaric Mountains (JA, LO, PE) and Western Carpathians (BA, BG, OS) were used (Table 1 and Table 2). Figure 10 displays the empirical phase frequencies on the backgrounds of the simulation envelopes for the expected frequencies resulting from the random assignment of tree dbh to the sample plots. Except for several cases, the empirical frequencies did not deviate from the values obtained in the simulations. The analyses indicated that the early accumulation phase was significantly underrepresented in one stand (BA; in BG, the null hypothesis was close to rejection) and overrepresented in one stand (OS). The steady-state phase was underrepresented in one stand (OS), and the late accumulation phase was overrepresented in two stands (BA and BG) (Figure 10). Nonetheless, compared to the expected frequencies, represented here by the simulation envelops, the deviations were minor.

The null hypothesis of an independent phase distribution (all phases pooled together) could be rejected in two stands at the scale of 800 m² (BG and OS) and two stands at the scale of 1600 m² (BA and BG). However, the deviations were weak, and in the latter case, they were both positive (BG stand) and negative correlations (BA stand) (

Table 3. Results of testing for the spatial independence of the phase distribution in four (800 m²) and eight (1600 m²) nearest-neighbor cells.

Phase	JA	LO	PE	BA	BG	OS
Spatial Scale 800 m2
All phases	n.s.	n.s.	n.s.	n.s.	A	A
Early accumulation	n.s.	n.s.	n.s.	n.s.	A	A
Late accumulation	n.s.	n.s.	n.s.	n.s.	n.s.	n.s.
Culmination	A	n.s.	A	S	A	n.s.
Steady-state	n.s.	n.s.	A	n.s.	n.s.	n.s.
Spatial Scale 1600 m2
All phases	n.s.	n.s.	n.s.	S	A	n.s.
Early accumulation	n.s.	n.s.	n.s.	n.s.	A	n.s.
Late accumulation	n.s.	n.s.	n.s.	n.s.	n.s.	n.s.
Culmination	A	n.s.	A	n.s.	A	n.s.
Steady-state	n.s.	n.s.	A	n.s.	n.s.	n.s.

Notes: n.s.—no significant departures from random labeling (significance level 0.05), A—positive correlation (aggregation), S—negative correlation (segregation).

). A deepened analysis revealed that in the OS stand, the deviations toward aggregation were mainly attributable to the positive spatial dependence of the early accumulation phase and, in the BG stand, they were mainly attributable to the culmination phase (Figure 11). Significant aggregation was also revealed for the culmination phase in the JA stand and for the culmination and steady-state phases in the PE stand, but these effects were too weak to generate a positive spatial correlation for all the phases pooled together. Compared to a pattern that fulfills the majority criterium used by the smoothing procedure (i.e., half of the neighboring plots represent the same phase as the central plot), in the empirical patterns, the spatial aggregation of the phases was very weak (Figure 11).

4. Discussion

4.1. Remarks on the Phase Classification Protocol

In the literature, several methods of phase classification dedicated to multiaged forests have been proposed. In the classical founding works [15,16,45,46,47], the classification criteria were verbally expressed and associated with anticipated changes in the stand growing stock, canopy closure, vertical stand structure, proportion of individuals representing distinct age cohorts, or the necromass of dead trees. More recently, methods based on quantitative criteria have been developed, which help make the distinction objective and repeatable [17,18,19,22,48]. Nevertheless, different classification systems can lead to largely deviating results [26,48]. In addition, some of these propositions are based on scale-sensitive standards (e.g., the presence/absence of trees from given dbh classes), and the classification outputs strongly depend on the spatial scale being considered [19,22]. Feldmann et al. [26] proposed a scale-independent approach based on the relative frequencies of trees representing three ontogenetic stages [49]. However, it seems that this method circumvented the problem by eliminating from the classification the type of multisized stand structures (here, represented by the steady-state phase), whose proportion usually increases at the expense of other phases along with increasing the spatial scale of the analysis. In this study, the local basal area, the proportion of trees with dbh above the given dbh threshold (median basal area dbh), and the dbh differentiation expressed by the I_d index were used as classification criteria. Unlike other propositions, the structural differentiation was considered explicitly only for the steady-state phase. In addition, the upper boundary for growing stock in this phase was defined to underline the dynamic attributes of this type of structure and its link with the balanced dbh structures known from managed forests under single-tree selection systems. Herein, the threshold value was set arbitrarily as the mean stand basal area, with the consequence that increasing the spatial scale results in increasing the proportion of the steady-state phase, concordantly with J-shaped dbh distributions and the all-aged character of the study stands. This threshold value may be easily adapted to local conditions, depending on the site, species composition, and local knowledge of the dynamics of structured forests [50,51,52]. Nonetheless, neglecting this factor and using only structural diversification as the sole criterion for the steady-state phase may lead to its overrepresentation and discrepancies with the results of classical studies indicating relatively small proportions of this planter-like phase in primeval forests containing European beech, Norway spruce, and silver fir [45,53].

The culmination phase groups stand patches with the highest basal area and therefore is similar to the optimum phase defined in earlier studies [15,16,47]. Nonetheless, in opposition to these classical works, the culmination phase was not linked with a low level of structural differentiation. The sole criterion here was a high level of basal area associated with local overrepresentation of the overstory trees. This seems justified by the results of studies showing that in European natural montane forests formed by shade-tolerant species, multisized structures are dominant, even at small spatial scales [34,35,36,37,38,54,55,56,57], and that stand biomass accumulation at the local scale does not entail simplification of the forest structure. Indeed, the small-scale analyses conducted in the six stands used in this study revealed that even for the highest levels of growing stocks, the stem numbers were evenly distributed among the dbh classes [58].

The classification protocol used in this study passed over dead trees, which are usually regarded as imprints of the past stand dynamics and are frequently included in phase classification systems [16,19,22,48]. However, Král et al. [59] found a dominant role of acyclic transitions between “structural” phases in the natural forests of the temperate zone, which weakens the indicative value of dead trees. In addition, the relationships between the necromass of dead trees and the growing stock of living trees are usually weak [9]. In the stands studied here, the Pearson’s correlation coefficients between these characteristics were in the range between −0.10 and −0.25 [58], no matter whether single plots (with a diameter of 14 m) or larger blocks of neighboring plots were considered. These weak relationships are attributable to the fact that coarse woody debris—especially those from conifer species—are recognizable over several decennia [25,60,61,62,63,64], that is, at the temporal scales upon which substantial changes among live trees usually occur [65,66,67]. On the other hand, recent disturbances resulting in the presence of fresh deadwood also affect the structural attributes of living tree collectives. Thus, information on dead trees seems excessive, and in some situations in which the time since tree death is difficult to determine, it may burden the reconstruction of the local development pathway.

4.2. Limitations of Using Moving Windows with Overlap for Patch Classification

The simulation study clearly demonstrates that in multiaged forests with reversed J-shaped dbh distributions, the frequencies, patch sizes, and variation in phase-specific structural attributes (e.g., basal area, stem density, dbh distributions, etc.) strongly depend on the window size and kernel used in the smoothing procedure and that results obtained using different settings of these parameters should not be compared. The results resemble former findings indicating that phase classification outputs depend on the spatial scale being considered [23,68,69] and that rapidly increasing proportions and average patch sizes of the stand fragments with complex dbh structures close to the overall stand-level distribution are a universal feature of multiaged forests with strongly randomized patterns of structural heterogeneity [18,35,43,56,70,71,72].

Areas between 100 and 500 m² are commonly treated as the basic spatial units in analyses of structural heterogeneity [17,18,19,48,73,74]. The present study shows that increasing window sizes results in more and more smooth patterns of structural heterogeneity, decreases between-patch variation, and leads to losses of information on the local configurations of trees and the patterns of tree generation replacement (single-tree vs. group replacement). On the other hand, areas that are too small involve a risk of overlooking overstory trees growing in the close neighborhood and thus impeding the ingrowth of understory individuals and misinterpreting such fragments as hotspots of generation replacement. From this point of view, a plausible recommendation is to keep the basic window diameter (or plots used for sampling) close to the average area occupied by overstory individuals, assuming their more-or-less regular distribution, as frequently reported by studies of natural forests [31,35,43]. Regarding trees with dbh over the median basal area dbh as a mature generation, the maximal nearest-neighbor distances for their hexagonal distribution in the studied stands were within a relatively narrow range between 14 and 18 m. Under real conditions, such a regular distribution of the canopy trees is unlikely, and the nearest-neighbor distances will certainly be smaller. This range gives an average area per individual of approximately 150−250 m², which corresponds well with the gap area distributions found in close-to-primeval montane forests formed by shade-tolerant species in Europe, indicating the dominance of small gaps caused by the deaths of single trees or small groups of trees [10,17,75,76,77,78,79,80]. Nevertheless, depending on the objective of the analysis (the types of forest structure, growing stock of living or dead trees, stem density, etc.) the optimal plot sizes differ [81,82,83,84].

The original pattern of cell classification (without smoothing) most fully reflects the frequency and phase-specific characteristics. In particular, it provides estimates concordant with these derived from sampling using inventory plots of the same size as the moving window. The smoothing procedure based on the majority filter distorts the original pattern, generally diminishes the proportions of phases underrepresented in the original image, and causes the estimates obtained from hypothetical inventory plots to not converge to those derived from the smoothed pattern. The simulations showed that this biasedness, even for 3 × 3 kernels producing relatively fine-grained patterns with a considerable proportion of very small patches, is between 20 and 30% and strongly increases with the kernel size to an unacceptable level. Thus, patch classification outputs obtained from sampling based on inventory plots (including the rather extreme case of absolute contiguous plots) and moving window procedures with noise smoothing, as a rule, are different, and the level of biasedness may easily exceed the phase frequencies.

The main problem associated with using patterns transformed by the moving window technique is that this procedure inherently produces positive spatial correlations, as overlapping windows, depending on the moving distance and window size, share the same trees. Therefore, such transformed patterns are characterized by patchiness sensu stricto, even for completely random tree distributions. As evidenced by the simulation experiment, the completely randomized patterns transformed by using sliding windows overlapping by one-half of their diameters were falsely classified as patchy in approximately 93% of the cases, and after smoothing, this proportion was 100%. Moreover, the noise smoothing imposed spatial correlations even for independent tree collectives from nonoverlapping windows. Therefore, the technique of moving windows with overlap is helpful for visualizing spatial structural heterogeneity but inappropriate for testing whether this variation is random. For this purpose, spatially independent samples must be used (for example, contiguous windows), or the spatial correlation unavoidably generated by the overlapped samples should be taken into account in the testing procedure. Grabarnik et al. [85] also stressed the importance of considering the spatial dependence in hierarchical multiscale tests in which a range of distances is simultaneously being tested. More recently, an interesting method of patch delineation was proposed [79]. In this method, instead of setting an arbitrary fixed window diameter, the scale was allowed to “float” as a function of the actual spatial positioning of trees, and neighborhood patches were identified through spatial tessellation. Nevertheless, because each tree was a component of several other neighborhoods and the patches overlapped, this approach also seemed to suffer from the spatial dependence problem.

4.3. Randomness vs. Patchiness-Empirical Examples

The analyses based on empirical data indicated that in a majority of the cases, the null hypothesis assuming the random assignment of tree sizes to the sample plots could not be rejected. Similar results provided tests of the spatial independence of the phase distribution. Moreover, in all the empirical stands, the aggregation of the phases was much weaker than in a hypothetical pattern in which the majority of the nearest-neighboring four to eight plots represent the same structural type as the center plot. Although the tree distribution patterns were analyzed here at a discontinuous spatial scale (plots at 154 m² and their neighborhood at 400 and 800 m²), it seems unlikely that this factor could significantly influence the results, since, as shown in the simulations, within the range of spatial scales considered in this analysis, the changes in structural attributes follow a gradual and not erratic manner. The obtained results indicate on the dominance of random components in forming structural heterogeneity and thus contradict the presumption that patchiness sensu stricto is a common and general feature of the studied forest communities.

This conclusion well corresponds with research suggesting that structural heterogeneity occurs primarily in small areas and diminishes rapidly with increasing spatial scales [70,71,81]. Although homogeneously structured patches occur, they cover a smaller proportion of the total forest area than those that are heterogeneously structured [34,35,43,54,55,56,57,86]. Glatthorn et al. [87] concluded that forest development takes place on a continuous scale and that discrimination between development stages splits continuous datasets at selected thresholds. Recently, Zenner et al. [71] proposed a gap-patch reabsorption model that assumes that gaps continuously and stochastically created through individual tree mortality and even intermediate-intensity disturbances are quickly reabsorbed back into the general fabric of the highly heterogeneous background forest matrix in which they are embedded. Therefore, patchiness is predominantly a fine-scale phenomenon, and individual patches are often transient.

The concept of patchiness sensu stricto implies that the stand patches maintain their spatial integrity over time and evolve in a cyclic sequence dependent on the maturing and senescence of trees forming the overstory. However, Christensen et al. [88] and Král et al. [59] showed that over the long term, frequent partial disturbances followed by quick recovery results in highly stochastic connections between different multiaged phases, and the proportion of cyclic transitions is significantly less frequent than that of acyclic transitions along theoretical pathways. Thus, these results also indicate the prevalent role of random mortality among the overstory trees and contradict the concept of patchiness sensu stricto.

The dominance of random components in forming structural heterogeneity does not exclude that some processes generate nonrandom effects. Repulsion or attraction among trees representing different species or size classes is commonly reported by studies concerned with the structural heterogeneity of forest communities and attributed to intraspecific competition [89,90], interspecific facilitation [91,92], environmental heterogeneity [93], dispersal limitations [94], or factors responsible for tree mortality phenomena [95]. The methodology based on the classification of tree collectives also has the potential to provide information concerning spatial relationships between tree subpopulations and underlying ecological processes. It operates on a higher level of structural organization of forest communities and therefore may help solve problems for which statistical models based on spatial point processes become complicated [96]. Nonetheless, passing from description to interpretation necessitates a fundamental distinction between random and nonrandom patterns.

5. Conclusions

This paper aimed to emphasize the distinction between spatial structural heterogeneity (patchiness sensu lato) and patchiness sensu stricto viewed as the spatial ordering of tree attributes differently from a random pattern. While the first is a common feature of all forest stands except those formed by equisized and regularly distributed individuals, the second has functional interpretation and is attributable to working ecological processes that spatially organize the structural heterogeneity of forest communities.

This study showed that the outcome patterns produced by the sliding window with overlap are characterized by inherent spatial correlations and are falsely interpreted as patch mosaics, even for originally completely random tree distributions. Thus, this technique is a useful tool for portraying the spatial structural heterogeneity of forest stands but inappropriate for the assessment of the random or nonrandom character of the observed pattern. In the latter case, the samples must fulfill the criterion of spatial independence, and the windows used for classification of the tree collectives should not overlap. The moving window size strongly affects the patch frequency, mean patch size, and between-patch dbh differentiation, and therefore, the choice of this parameter should consider the aim of the analysis. For studies focusing on the pattern of generation replacement, a starting point would be the window size corresponding to an average area of a single overstory tree.

The analyses carried out in six stands from the Dinaric Mountains and Western Carpathians using a methodology based on spatially independent samples indicated that patchiness sensu stricto is not a general feature of the forest communities formed by silver fir, European beech, and Norway spruce. The study shows that in addition to random patterns of structural heterogeneity, spatial segregation and aggregation of structural types can also occur. A further study is warranted concerning the issue of whether the general pattern of structural heterogeneity changes over time and which processes are behind such possible shifts.
