Investigating the Optimal Location of Potential Forest Industry Clusters to Enhance Domestic Timber Utilization in South Korea

School of Forest Science and Landscape Architecture, College of Agriculture and Life Sciences, Kyungpook National University, Daegu 41566, Korea
Department of Forest Policy and Economics, National Institute of Forest Science, Seoul 02445, Korea
Chungnam Forest Environment Research Institute, 110 Sanrimbakmulgwan-gil, Geumnam-Myeon, Sejong Special Self-Governing City 30085, Korea
Authors to whom correspondence should be addressed.
Forests 2020, 11(9), 936;
Received: 27 July 2020 / Revised: 14 August 2020 / Accepted: 22 August 2020 / Published: 27 August 2020


South Korea has abundant forest resources capable of supplying the domestic wood demand. Despite the extensive forest resources, there is continued uncertainty about the nature, quantity, and quality of the timber contained in any particular forested area. Additionally, some technical, logistic, and economic challenges act as barriers to the expansion of domestic timber utilization. To overcome these limitations and to enhance the domestic timber utilization in South Korea, this study investigated the optimal location of potential forest industry clusters. The potential forest availability was estimated based on localized allometric equations. The integration of the analytical hierarchy process and GIS modeling, including a supply chain that minimizes transportation costs, allowed the identification of optimal forest industry clusters locations that balanced the economic, environmental, and social dimensions within the forest industry supply chain. The study reveals that the estimated potential forest resources availability presented approximately 1 billion m3, including sawlog (474 million m3) and pulpwood grade (541 million m3). Additionally, 45 percent of the sawlogs and 48 percent of the pup grade wood were produced from the Gangwon and Gyeongsangbuk-do regions. Furthermore, the logistic analysis indicates that ten potential forest industry clusters are best aligned with the optimal socio-economic impacts with minimized timber transportation costs. To identify the optimal size and number of potential forest industry clusters, further studies that consider fixed and variable costs for maintaining the forest industry clusters are required.

1. Introduction

The forest industry has faced various challenging issues in the overall forest supply chains [1]. There are issues with the integrated networks composed of raw material suppliers, manufacturing facilities, and transportation providers that work across organizational boundaries to deliver forest products to consumers [2]. Recently, the most developed forest countries in Europe, such as Sweden, Finland, and the Baltic countries, have improved forest supply chains by implementing cost-effective logistics on given facility location [3,4,5]. The forest industry clusters (FIC) concept has been introduced and applied to examine an efficient forest supply chain that minimizes transportation costs in each country [6]. Aiming to optimize the timber value chain, FIC allowed collaboration within the cluster that takes place in the timber supply chain, from timber harvest to final wood utilization [7].
South Korea is well-known for its successful reforestation over the past 50 years, turning barren lands into dense forests across the country [8]. In the 1950s, the average growing stock per hectare in the country was approximately 10 m3. Reforestation efforts have increased the average growing stock to 146 m3 [9], which is above the global average of 129 m3 [10]. Most of South Korea’s land is covered with forests that reach an area of approximately 6.4 milliion ha [11,12]. This forest-cover ratio indicates that South Korea is the fourth-highest forested country among the members of the Organization for Economic Cooperation and Development (OECD) [13].
However, the reforestation intensively planted in the 1960s and 1970s has caused the age distribution of Korea’s forests to be skewed towards forest stands aged 30 years or over [8], which represent approximately 69% of the country’s total forest area (Figure 1). The majority of these stand has already reached to rotation age. It means that the country has now entered a stage of timber production.
Despite the abundant forest resources, South Korea is heavily dependent on imported wood to supply its domestic wood demand [14]. According to the statistical book of forestry in 2019, 85% of the total wood consumption in South Korea was imported [15]. One of the factors that make this imbalance between timber supply and demand in the domestic market, is that South Korea has lower cost competitiveness in the wood industry compared to other countries, such as Austria and Japan, due to its low density of forest roads and low proportion of planted forests for timber production [16]. Although several previous studies have found evidence for potential domestic timber utilization, some technical, logistic, and economic challenges act as barriers to the domestic utilization expansion [6,17,18,19,20].
These challenges point out that: (i) forest sites are highly variable, of unknown timber quality, and widely distributed all over Korea in such a way that it imposes harvesting, processing, and transportation problems that have implications on the economic viability of domestic timber utilization from any specific location; (ii) despite the large volume of forest resources, continued uncertainty exists about the timber nature, quantity, and quality in any particular forest location; (iii) the lack of robust planning prompt concerns about the decreasing profitability of domestic forest entities, highly affected by low productivity and high production cost due to their small business scales [21].
Since transportation is the most critical factor impacting the overall cost of forest supply chains, site selection for FIC in proximity to unutilized forest resources currently available will offer an opportunity to minimize the timber supply cost by providing an optimal location of potential forest industrial areas [22]. Selecting optimal locations of FIC needs to consider environmental and socio-economic constraints that involve determining the cluster number and scale within the geographical network of connected forest resources, processing facilities, and end-markets [23].
GIS modeling is a tool broadly used to investigate forest volume estimation and inventory assessment [24,25,26,27], as well as logistic analysis to identify minimal transportation costs based on the least cost distance matrix [28,29,30]. Additionally, GIS integration with the analytical hierarchy process (AHP) is a preferred approach for investigating the potential location of forest-related facilities and for assessing the relative importance of economic, environmental, and social criteria affecting site selection [30,31,32,33,34,35,36]. The AHP analysis is a specific technique that is applied to estimate the factor weighting [37]. The influencing effect of FIC varies from region to region, and to reflect the regional interests, it is necessary to assign them a different relative weight [38].
This study aims to investigate the optimal locations of prospective FIC in South Korea. Integrated GIS and AHP models with logistics simulations were used to identify the best FIC candidate locations with optimal logistic supply chain cost. The results could contribute to the future Korean FIC planning and investment decisions with high efficiency of domestic timber utilization.

2. Methodology

The overall research process is presented in Figure 2. Forest resources were estimated by the potential grade of product types, such as sawlog and pulp, based on wood grading standards in Korea [39]. The restriction and suitability models were developed to investigate the potential FIC available land areas. In this phase, integrated GIS and AHP were applied to assign a weight to each main and sub-criterion [40]. All GIS and spatial data were collected or provided by the government and industrial partners, including the Korea Forest Service (KFS), National Institute of Forest Science (NIFOS), Ministry of the Interior and Safety, Ministry of Environment, National Geographic Information Institute, and National Transport Information Center. FIC optimal locations were investigated through three analytical phases, including land availability, land suitability, and location-allocation analysis. In the first phase, the restriction area was removed applying developed restriction model. Then, the potential FIC locations were identified using the suitability model according to a set of specific main and sub-criteria. In the last phase, identified potential FIC locations were simulated using network analysis to investigate the minimization of total transportation cost between the FIC candidate locations and forest resources. The following section describes, in detail, the phase of each analysis.

2.1. Forest Resources Availability in South Korea

Table 1 shows the species composition of South Korea’s forests. The potential forest availability was estimated using the forest growth and yield model developed by the NIFOS [41]. The details and key assumptions were described in [41,42,43]. However, estimating the forest resources at the local to regional scales has been hampered by the uncertainty of environmental conditions of the regional forests [44]. To overcome these limitations, the models were developed on local-based forest inventory data, including four major conifer species in the country: Pinus densiflora Siebold & Zucc., Pinus koraiensis Siebold & Zucc., Larix kaempferi (Lamb.) Carr., and Pinus rigida Mill. The developed models are presented in Table 2. Equation (1) presents the model estimation of forest resource availability, where Y is the estimated total volume of forest resources available in the country, X i j is forest stand age for species i in province j, and α i j ,   β i j are parameter values to estimate forest volume for species i in province j (Table 2). The required data for forest resource availability estimation were sourced from the Korean Forest Geospatial Information Service’s database [45].
Y = j i ( α i j · X i j β i j )
Additionally, to account for forest regimes and harvesting efficiency, the estimation of forest resources availability was limited in the diameter at breast height (DBH) and area by the Korean Forest Harvesting Regulation (KFR) [42]. In this research, the DBH over 18 cm was only considered as actual usable forest resource as sawlogs in natural forest and plantation forests. Furthermore, forest areas that are less than 5 ha were not included in the estimation due to the inefficiency of forest harvesting and forest ownership. Most of the small scale of forest lands (less than 5 ha) are owned by private sectors, including individual, company, and corporation. In this context, there are some limitations to manage and access the forest land owned by private owners. For these reasons, this research did not include small scale (less than 5 ha) forest lands. Lastly, estimated forest availability was separated into two types of forest products–sawlogs and pulp. The definitions of those two forest products are presented in Table 3.

2.2. Restriction Model to Identify FIC Available Area

The potential location of FIC needs to consider several criteria and constraints, such as geological and environmental factors, which are imposed by national and/or local government regulations. Primarily, land-use conversion and development of industrial areas are strictly regulated within national land-use conversion development regimes [46]. Thus, we considered the geological and environmental constraints to select the potential locations of FIC. These constraints could identify protected and reserved areas where industrial area construction is not allowed (e.g., Baekdudaegan mountains reserve, national park, forest reserved area, wildlife protection area, and urban natural park areas). Restricted buffer zones were then created through proximity analysis. The potential FIC locations were designed only outside the buffer zone.
To develop a restriction model, a list of GIS datasets is described in Table 4. Each GIS restriction layers combined into one single layer as a restriction map, including specific information of constraint values. The vector layer was converted and reclassified into a binary raster data format (0 or 1 value). Reclassified binary raster data consisted of binary values, thus areas consisted of “zeros” were classified as restricted area, and areas consisted of “ones” were classified as FIC available areas. The final restriction map was generated by multiplying all reclassified binary raster layers using a raster calculation tool in ArcGIS 10.5 [30,47]. The output of the reclassified map was called “restriction map”.

2.3. Developing a Suitability Model Using AHP

The potential locations for FIC candidates were investigated using integrated AHP and GIS techniques to assign the factors a different relative weight [38,40]. To evaluate the relative weighted values, the first step was to construct an AHP hierarchical model consisting of two phases, including the main criteria (economic, environmental, and social), each having three sub-criteria. Nine sub-criteria were considered in the suitability analysis. The selected sub-criteria were categorized according to three different characters of main criteria called “economic”, “Environmental”, and “Social”.
For the main criteria’s economic factor, timber availability, local timber demand, and transport logistics were analyzed. They were regarded as high correlated sub-criteria with economic influence on the FIC construction. It was assumed that the abundant forest resources within an area would have a higher weighted value compared to an area less abundant in forest resources. The areas with a high local demand for forest resources were also given a high weighted value because areas with high demand for forest resources are more likely to attract FICs. The close distance to roads and FICs also led to high weighted value due to the minimum distance to roads, which can reduce logging transportation costs substantially.
To avoid land-use change issues in the estimation of relative weights of sub-criteria included in the environmental factor, it was preferred to locate FICs in available areas that are legally authorized under Korea’s land-use law and regulations to construct FIC. Furthermore, FIC candidate locations closer to industrial areas were preferred because they would have a higher weighted value compared to distant potential FIC candidates. The topographical preference for FIC location was determined to be in a flat area (0 to 3 degree) to avoid landslides or erosion that could occur on steep slopes and sites with easily eroded soils. The local employment rate and population density in the local government area were considered in the weighting assignment by the social criteria. A low employment rate was preferred in the construction of FICs that contribute to the local government job creation. Low and middle population density regions were prioritized for improving local economic development. Overall weights were obtained from 15 forestry experts, consisted of the academic, forest industry, forest research institution, and government officer in KFS.
Once the weights were assigned to GIS layers, they were reclassified into raster format (100 × 100 m cell size), and the corresponding final suitability map was generated by a weighted linear combination of the overall GIS layers [30]. The applied equation was as follow (Equation (2)):
S i = n = 1 p w n C i n
where S i is suitability value in the ith cell at the final grid,   w n is the weight allocated to the nth criterion from the AHP analysis, C i n is the value of the ith cell in the grid of the nth layer, and p is the total criteria number in the suitability analysis [48]. The overall criteria values were standardized before using them in the equation. The estimated values Equation (2) in the final output were reclassified into five-level classes where higher values indicated a more suitable location for the potential FIC location. Computed reclassified raster value cells in levels 5 and 4 were identified as the most suitable FIC candidates for potential FIC construction.

2.4. Identifying the Optimal Location of FIC Using Network Analysis

The optimal location of FIC was identified using the Network Analysis tool in ArcGIS 10.5. The road network, location of forest resources, and location of potential FIC candidates were needed to simulate location-allocation analysis. The location-allocation analysis calculated transportation distances using an actual road network between FIC candidates and forest resources rather than a radius or straight-line distances. The aim of the analysis (p-median problem solver) was to locate n candidate FICs among m potential selected suitable FIC candidates (m > n) while satisfying several constraints; thus, the distances between each forest resource and FIC location were minimized [49]. It automatically identifies the shortest travel distance so that the overall distance between the FIC candidate points s and the set of forest resource points f is minimized (Equation (3)) [48].
m i n s f W f d s f x s f
where wf = weight associated with each forest resource location f, dsf = distance between forest resource point f and the potential FIC location s. xsf = one if forest resource point f is allocated to FIC location s, otherwise equals zero [48]. The location-allocation tool creates the least cost matrix with the shortest travel distances between FIC candidates and the available forest resource points. This tool was developed with multiple techniques to achieve a near-optimal solution, including vertex substitution heuristic and refining metaheuristic [50]. Logistic costs were calculated based on optimal route travel distance derived from the location-allocation analysis (Equation (4)).
C i j = F C i + 2 V C k = 1 M d k
where C i j is the total transportation cost (United States Dollar—USD per green ton) for the optimal route between the FIC candidate j and forest resource point i; FC is the fixed cost related to harvesting cost (USD per dry ton) at forest resource point i; VC is the variable cost associated with traveling distance (USD per ton-km); d k is the distance of the traveled road segment (km), and M is the total number of segments along the optimal pathway between the FIC j and the forest resource point i [30,48]. In this study, the transportation cost from the logging site to the FIC was only considered to investigate the optimal FIC location and numbers. Other cost components, including fixed and variable costs, were kept at the same rate in the whole country due to the uncertainty of the future harvesting operation and cost. Finally, to investigate the most efficient number of potential FIC construction, six scenarios with a different number of optimal FIC locations and transportation limits were simulated using the location-allocation analysis (Table 5).

3. Results and Discussion

3.1. Forest Resources Availability in South Korea

The estimated forest availability indicated that a large amount of forest resources are available in the form of sawlogs and pulp/energy wood to supply FIC in South Korea. The distribution of potential sawlogs and pulp/energy wood availability map is shown in Figure 3. The total estimated sawlog volume is 474,949,000 m3. Pulp/energy wood equals 541,876,000 m3. The largest number of potential forest resources was located in the Gangwon-do region. Gangwon and Gyeongsangbuk-do regions were able to produce about 45% of the sawlogs and 48% of the pulp/energy wood (Figure 4). Forest resources availability analysis shows that most forest resources could be produced in Northeast Korea, including Gangwon-do, Chungcheongbuk-do, and Gyeongsangbuk-do regions (Figure 4). Compared to previous research [41], the estimated total volume of forest availability was not significantly different. However, this research adapted Korean forest harvesting regulation and examined available forest resources as sawlog and pulp grade wood, respectively. In the near future, there is required to investigate forest resource availability considering socio-economic and environmental constraints, a barrier to the harvesting operation.

3.2. Identified Locations of Forest Industry Clusters Candidates in South Korea

As a result of the AHP analysis and pairwise comparison, different weights were given to each main and sub-criteria [30,51]. The estimated weights and the corresponding consistency ratios are presented in Table 6.
The economic factor had the highest weight among the three main criteria. This was most prominent at the second level (sub-criteria), where “Timber availability” was ranked the highest weight (0.289) among all sub-criteria. In the environmental criterion (main criteria level), the “Distance from the industry” was given the highest weight (0.118). Social aspects had the lowest weighted main criterion, and the “Local employment rate” had the highest weight (0.095) compared to “Population density” (0.031) and “Employment rate by age class” (0.035). The consistency ratio showed a high degree of consistency confirming the adequacy of the estimated weight values in Table 6. The AHP results highlighted that the cost-effective timber supply chain is highly required to develop the FIC. Additionally, the role of FIC was expected to create local jobs in the rural area and to revitalize the local economy.
The corresponding weights were adopted in the suitability model development, where the reclassified weights were applied to investigate the final suitability map for the FIC candidates’ potential location. Integrated restriction and suitability maps were then computed from raster calculations, which allowed the investigation of final FIC candidate locations. All identified potential locations of FIC candidates, which had the highest suitability value (≥5), were selected. Figure 5 presents the identified FIC candidate locations. Five hundred and sixty-five points were identified as suitable locations to construct FIC. The excluded areas were mainly protected, reserved, and restricted areas where construction of FIC is not allowed, such as Baedudaegan mountain reserves and a national park. White cells in Figure 5 represent those restricted areas where FICs cannot be established. The number of final FIC candidates by regions are as follows: Gangwon-do regions (n = 393), Jeollabuk-do (n = 52), Gyeongsangnam-do (n = 47), Chungdheongbuk-do (n = 32), Gyeongsangbuk-do (n = 26), Gyeonggi-do (n = 8), Jeollanam-do (n = 5), and Chungcheongnam-do (n = 2).

3.3. Identified Optimal Locations of Potential FIC in South Korea

Figure 6 presents the 12 identified FIC locations that were computed from the candidate locations (565 candidates) by solving the p-median problem that had 164,850 forest resource points. The location-allocation analysis was simulated based on six scenarios, and the detailed information of the scenarios was described in Table 5.
Table 7 shows the simulated transportation costs under different scenarios. Scenario 1 indicated Goesan-gun as the optimal location of FIC. The average transportation distance of this scenario (141 km) was the longest compared to the other scenarios. Furthermore, scenario 1 was able to reach up to 99% of forest resource locations available throughout the country. The transportation cost from forest resource locations to the selected FIC, however, was highest among other scenarios due to long transportation distance. The increase of FIC constructions led to a dramatic decrease in the average transportation distance, thus the associated cost decreased. Scenario 2, in which three FICs with a 200 km transportation radius limit was assumed to be constructed, had a coverage rate reaching approximately 98% of the total forest available resources. The average distance was about 64% (91 km) of that computed in Scenario 1 (141 km). The total transportation cost significantly decreased by adding two more FICs in the timber supply chain of the country (Table 7). The most cost-effective number of FIC in the country is 10. If more than 10 FICs were to be constructed, the transportation costs would increase. This is due to the overall transportation distance connecting forest resources and FIC locations, which increases over 10 FICs, thus decreasing the transportation cost efficiency. As expected, the transportation cost was highly influenced by the distance between the FICs and the location of forest resources.
There have been several previous research studies investigating the optimal location of forest-related industries including biomass facility [22,30,51] and forest industry clusters [6,53]. Especially in South Korea, Koo et al. (2016) investigated the suitable location of FIC using GIS and economic assessment. However, they did not consider logistic cost from potential forest resources to prospect FIC and constraints of FIC constructions. To overcome these limitations, this research provides the optimal location of prospective FIC in South Korea using potential forest resource availability. Integrated GIS and AHP, along with a timber supply chain cost analysis, were developed to identify the optimal location of FIC.
Internationally, Woo et al. (2018) investigated the optimal location of biomass energy facilities in the Tasmania region by integrating MCA and GIS. They investigated the impact of moisture content on transportation costs using local truck costs per tonne and kilometer. Furthermore, Delivand et al. (2015) examined optimal locations of bioenergy facilities with minimized transportation costs and greenhouse gas emissions in South Italy. They simulated greenhouse gas emission along the timber supply chain using location and allocation analysis results. Compared to both cases, a major weakness of this research is that there were no pre-existing data along the timber supply chain, including greenhouse gas emission, moisture contents, and cost of truck transportation in South Korea.
In future studies, considerable efforts in greenhouse gas emission along the timber supply chain and economic assessment of FIC are required to widely investigate the efficiency and impact of FIC for the South Korea conditions. Furthermore, the cost analysis model has a limit because it does not consider the facility investment cost (i.e., construction cost) and FIC capacity that may affect the optimal number and FIC locations. Thus, the construction cost and FIC size need to be taken into account for more practical design of FIC locations in the future.

4. Conclusions

This research investigated the optimal location of FICs in South Korea. It aimed to improve the national forest supply chain and increase the country’s domestic timber value. The potential locations of prospective FICs were investigated using restriction and suitability models. To determine the optimal locations of FICs, an integrated AHP and GIS model were developed. The results show that South Korea has enough forest resources to operate a number of FICs. The scenario-based analysis highlighted that 10 FICs with a 100 km radius was the best option to minimize overall transportation costs from the forest resource to cluster location. From the supply chain perspective, we found that the distance between forest resources and potential FIC locations was identified as the most impacting factor on transportation cost. However, a practical management planning approach considering FIC operation and investment costs, as well as harvesting cost, is further required in future research to adequately quantify the impact of FIC location and number on overall supply chain costs.

Author Contributions

Conceptualization, J.P. and H.W.; methodology, J.P. and H.W.; validation, H.H., B.K. and S.C.; formal analysis, H.W. and G.J.; investigation, H.W.; resources, H.H., J.R., and S.C.; data curation, H.W. and G.J.; writing—original draft preparation, H.W.; writing—review and editing, J.P. and H.H.; visualization, S.C.; supervision, J.P. and H.K.W.; project administration, J.P. and H.K.W.; funding acquisition, J.P. All authors have read and agreed to the published version of the manuscript. Please turn to the CRediT taxonomy for the term explanation. Authorship must be limited to those who have contributed substantially to the work reported.


This research was funded by the Korea Forest Service (Korea Forestry Promotion Institute) [project nos. 2019149C10-2023-0301, 2018112B10-2020-BB01].

Conflicts of Interest

The authors declare no conflict of interest.


  1. Carlsson, D.; Rönnqvist, M. Supply chain management in forestry—Case studies at Södra Cell AB. Eur. J. Oper. Res. 2005, 163, 589–616. [Google Scholar] [CrossRef]
  2. Bettinger, P.; Boston, K.; Siry, J.P.; Grebner, D.L. Forest Management and Planning; Academic Press: Cambridge, MA, USA, 2016. [Google Scholar]
  3. Shapiro, J. Modeling the Supply Chain; Nelson Education: Toronto, ON, Canada, 2006. [Google Scholar]
  4. Tayur, S.; Ganeshan, R.; Magazine, M. Quantitative Models for Supply Chain Management; Springer Science & Business Media: Berlin, Germany, 2012; Volume 17. [Google Scholar]
  5. Zhang, F.; Johnson, D.M.; Sutherland, J.W. A GIS-based method for identifying the optimal location for a facility to convert forest biomass to biofuel. Biomass Bioenergy 2011, 35, 3951–3961. [Google Scholar] [CrossRef]
  6. Koo, J.C. Enhancing Productivity of Domestic Wood through Industrial Clusters; Korea Forest Service, Ed.; Korea Forest Service: Daejeon, Korea, 2016. [Google Scholar]
  7. Sandberg, D.; Vasiri, M.; Trischler, J.; Öhman, M. The role of the wood mechanical industry in the Swedish forest industry cluster. Scand. J. For. Res. 2014, 29, 352–359. [Google Scholar] [CrossRef]
  8. Han, H.; Seol, A.; Jung, Y.; Chung, J. Maintaining long-rotation forestry: A new challenge for sustained yield of timber resources in South Korea. Int. For. Rev. 2018, 20, 199–205. [Google Scholar] [CrossRef]
  9. Korea Forest Service. Statistical Yearbook of Forestry; Korea Forest Service: Daejeon, Korea, 2019. [Google Scholar]
  10. MacDicken, K.G. Global forest resources assessment 2015: What, why and how? For. Ecol. Manag. 2015, 352, 3–8. [Google Scholar] [CrossRef][Green Version]
  11. Lee, D.K.; Lee, Y.K. Roles of Saemaul Undong in reforestation and NGO activities for sustainable forest management in Korea. J. Sustain. For. 2005, 20, 1–16. [Google Scholar] [CrossRef]
  12. Choi, S.-W. Diversity and composition of larger moths in three different forest types of Southern Korea. Ecol. Res. 2008, 23, 503–509. [Google Scholar] [CrossRef]
  13. Korea Forest Service. The 6th Basic Forest Plan; Korea Forest Service: Daejeon, Korea, 2018. [Google Scholar]
  14. Yu, S.; Park, J.; Kim, M.; Kim, H.; Ryu, C.; Lee, Y.; Yang, W.; Jeong, Y.-g. Improving energy density and grindability of wood pellets by dry torrefaction. Energy Fuels 2019, 33, 8632–8639. [Google Scholar] [CrossRef]
  15. Korea Forest Service. Wood Supply Plan; Korea Forest Service: Daejeon, Korea, 2018. [Google Scholar]
  16. Min, K.; Seok, H.D.; Choi, J.Y. Policy Tasks to Improve the Profitability of Forest Management in Korea; Korea Rural Economic Institute, Ed.; Korea Rural Economic Institute: Naju, Korea, 2018. [Google Scholar]
  17. Kim, K.D. A Study on the Policy of Sustainable Domestic Timber Supply Using Delphi Technique and AHP. In Forestry; Kyungpook National University: Daegu, Korea, 2012; p. 133. [Google Scholar]
  18. Korea Forest Service. A Survey on the Actual Condition of Timber Use in South Korea; Korea Forest Service, Ed.; Korea Forest Service: Daejeon, Korea, 2011. [Google Scholar]
  19. Kim, J.; Choi, S.; Kim, C.; Kim, W. Analysis of Wood Distribution Structure; Korea Forest Service, Ed.; Korea Forest Service: Daejeon, Korea, 2005; p. 87. [Google Scholar]
  20. Kim, C.; Park, Y.; Kim, J.; Choi, S. Trends of Wood Industry and Analysis of Impacts on Log Demand and Supply in 2005. J. Korean For. Econ. 2006, 14, 13–22. [Google Scholar]
  21. Woo, H. Forestry Biomass Residue Supply Chains in Tasmania: Developing a Digital Tool and Enhancing Modelling to Improve Data Accuracy, Location Mapping and Impact Assessments for Future Bioenergy; University of Tasmania: Hobart, Australia, 2020. [Google Scholar]
  22. Noon, C.E.; Daly, M.J. GIS-based biomass resource assessment with BRAVO. Biomass Bioenergy 1996, 10, 101–109. [Google Scholar] [CrossRef]
  23. Burak, A.; Harry, C.; David, W.; Kevin, G.; Sujith, S.; Mario, E.; Norman, S. Woody biomass and mill waste utilization opportunities in Alabama: Transportation cost minimization, optimum facility location, economic feasibility, and impact. Environ. Prog. Sustain. Energy 2011, 30, 720–732. [Google Scholar] [CrossRef]
  24. Köhl, M.; Magnussen, S.S.; Marchetti, M. Sampling Methods, Remote Sensing and GIS Multiresource Forest Inventory; Springer Science & Business Media: Berlin, Germany, 2006. [Google Scholar]
  25. Wijaya, A.; Kusnadi, S.; Gloaguen, R.; Heilmeier, H. Improved strategy for estimating stem volume and forest biomass using moderate resolution remote sensing data and GIS. J. For. Res. 2010, 21, 1–12. [Google Scholar] [CrossRef]
  26. Chirici, G.; Barbati, A.; Maselli, F. Modelling of Italian forest net primary productivity by the integration of remotely sensed and GIS data. For. Ecol. Manag. 2007, 246, 285–295. [Google Scholar] [CrossRef]
  27. Yoshioka, T.; Sakai, H. Amount and availability of forest biomass as an energy resource in a mountainous region in Japan: A GIS-based analysis. Croat. J. For. Eng. J. Theory Appl. For. Eng. 2005, 26, 59–70. [Google Scholar]
  28. Devlin, G.J.; McDonnell, K.; Ward, S. Timber haulage routing in Ireland: An analysis using GIS and GPS. J. Transp. Geogr. 2008, 16, 63–72. [Google Scholar] [CrossRef][Green Version]
  29. Dean, D.J. Finding optimal routes for networks of harvest site access roads using GIS-based techniques. Can. J. For. Res. 1997, 27, 11–22. [Google Scholar] [CrossRef]
  30. Woo, H.; Acuna, M.; Moroni, M.; Taskhiri, M.; Turner, P. Optimizing the location of biomass energy facilities by integrating Multi-Criteria Analysis (MCA) and Geographical Information Systems (GIS). Forests 2018, 9, 585. [Google Scholar] [CrossRef][Green Version]
  31. Yue, C.-D.; Yang, G.G.-L. Decision support system for exploiting local renewable energy sources: A case study of the Chigu area of southwestern Taiwan. Energy Policy 2007, 35, 383–394. [Google Scholar] [CrossRef]
  32. Buchholz, T.; Rametsteiner, E.; Volk, T.A.; Luzadis, V.A. Multi criteria analysis for bioenergy systems assessments. Energy Policy 2009, 37, 484–495. [Google Scholar] [CrossRef]
  33. Van Dael, M.; Van Passel, S.; Pelkmans, L.; Guisson, R.; Swinnen, G.; Schreurs, E. Determining potential locations for biomass valorization using a macro screening approach. Biomass Bioenergy 2012, 45, 175–186. [Google Scholar] [CrossRef]
  34. Perpiña, C.; Martínez-Llario, J.C.; Pérez-Navarro, Á. Multicriteria assessment in GIS environments for siting biomass plants. Land Use Policy 2013, 31, 326–335. [Google Scholar] [CrossRef]
  35. Mourmouris, J.; Potolias, C. A multi-criteria methodology for energy planning and developing renewable energy sources at a regional level: A case study Thassos, Greece. Energy Policy 2013, 52, 522–530. [Google Scholar] [CrossRef]
  36. Boggia, A.; Cortina, C. Measuring sustainable development using a multi-criteria model: A case study. J. Environ. Manag. 2010, 91, 2301–2306. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, J.-J.; Jing, Y.-Y.; Zhang, C.-F.; Zhao, J.-H. Review on multi-criteria decision analysis aid in sustainable energy decision-making. Renew. Sustain. Energy Rev. 2009, 13, 2263–2278. [Google Scholar] [CrossRef]
  38. Massimo, M. Optimal plant size and feedstock supply radius: Minimize the production or maximize the profits? In Proceedings of the 20th European Biomass Conference and Exhibition, Milan, Italy, 18–22 June 2012; pp. 1–7. [Google Scholar]
  39. Korea Forest Service. Wood Grade Standard; Korea Forest Service: Daejeon, Korea, 2019; Notice 2017-97. [Google Scholar]
  40. Saaty, T.L. Decision making with the analytic hierarchy process. Int. J. Serv. Sci. 2008, 1, 83–98. [Google Scholar] [CrossRef][Green Version]
  41. Won, H.K.; Jang, K.M.; Kim, Y.H.; Lee, K.H.; Kim, H.H. Estimation of Potential Wood Supply by according to Geographical and Forest Management Conditions in Korea. J. Agric. Life Sci. 2011, 45, 35–41. [Google Scholar]
  42. Yeong-Hwan, K.; Eo-Jin, J.; Yong, S.M.; Il-Bin, C.; Sangtae, L.; Kyungwon, S.; Jungkee, P. A Study on the Baseline Carbon Stock for Major Species in Korea for Conducting Carbon Offset Projects based on Forest Management. J. Korean Soc. For. Sci. 2014, 103. [Google Scholar] [CrossRef][Green Version]
  43. Son, Y.; Kim, R.; Lee, K.; Pyo, J.; Kim, S.; Hwang, J.; Lee, S.; Park, H. Carbon Emission Factors and Biomass Allometric Equations by Species in Korea; Korea Forest Research Institute: Seoul, Korea, 2014; (In Korean with English abstract). [Google Scholar]
  44. Mickler, R.A.; Earnhardt, T.S.; Moore, J.A. Regional estimation of current and future forest biomass. Environ. Pollut. 2002, 116, S7–S16. [Google Scholar] [CrossRef][Green Version]
  45. Korea Forest Service. Forest Geospatial Information System. Available online: (accessed on 3 January 2020).
  46. MOLIT. Enforcement Rules of the Law on Planning and Utilization of National Territory. In 1438; Ministry of Land, Infrastructure and Transport: Seoul, Korea, 2018. [Google Scholar]
  47. Analyst, A.S. Advanced GIS Spatial Analysis Using Raster and Vector Data; Environmental System Research Institute: New York, NY, USA, 2001. [Google Scholar]
  48. Sultana, A.; Kumar, A. Optimal siting and size of bioenergy facilities using geographic information system. Appl. Energy 2012, 94, 192–201. [Google Scholar] [CrossRef]
  49. Daskin, M.S. Network and Discrete Location: Models, Algorithms, and Applications; John Wiley & Sons: NewYork, NY, USA, 2011. [Google Scholar]
  50. ESRI. Algorithm Used by Network Analyst; ESRI: Redlands, CA, USA, 2011. [Google Scholar]
  51. Delivand, M.K.; Cammerino, A.R.B.; Garofalo, P.; Monteleone, M. Optimal locations of bioenergy facilities, biomass spatial availability, logistics costs and GHG (greenhouse gas) emissions: A case study on electricity productions in South Italy. J. Clean. Prod. 2015, 99, 129–139. [Google Scholar] [CrossRef]
  52. Korea Forest Service. The Quarterly Market Prices of Domestic Timber; Korea Forest Service, Ed.; Korea Forestry Promotion Institute (KOFPI): Daejeon, Korea, 2019; pp. 2288–7369. [Google Scholar]
  53. Ogunwusi, A.; Ifeyinwa, O. Enhancing Productivity of Forest Industry through Industrial Clusters Concept. Ind. Eng. Lett. 2012, 2, 19–29. [Google Scholar]

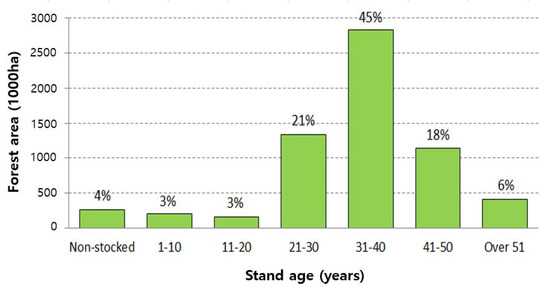

Figure 1. Age distribution of forest stands in South Korea [9]. The “Non-stocked” indicates the areas that include bamboo forests, eroded lands, roads, etc.
Figure 1. Age distribution of forest stands in South Korea [9]. The “Non-stocked” indicates the areas that include bamboo forests, eroded lands, roads, etc.
Forests 11 00936 g001

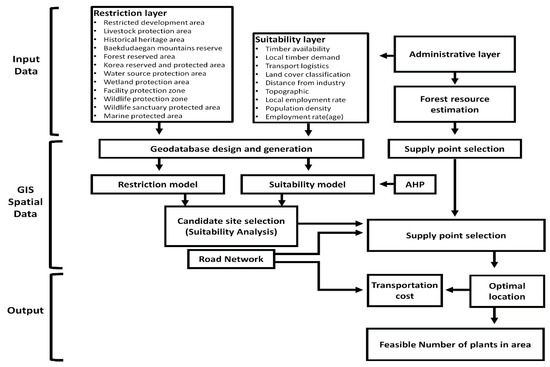

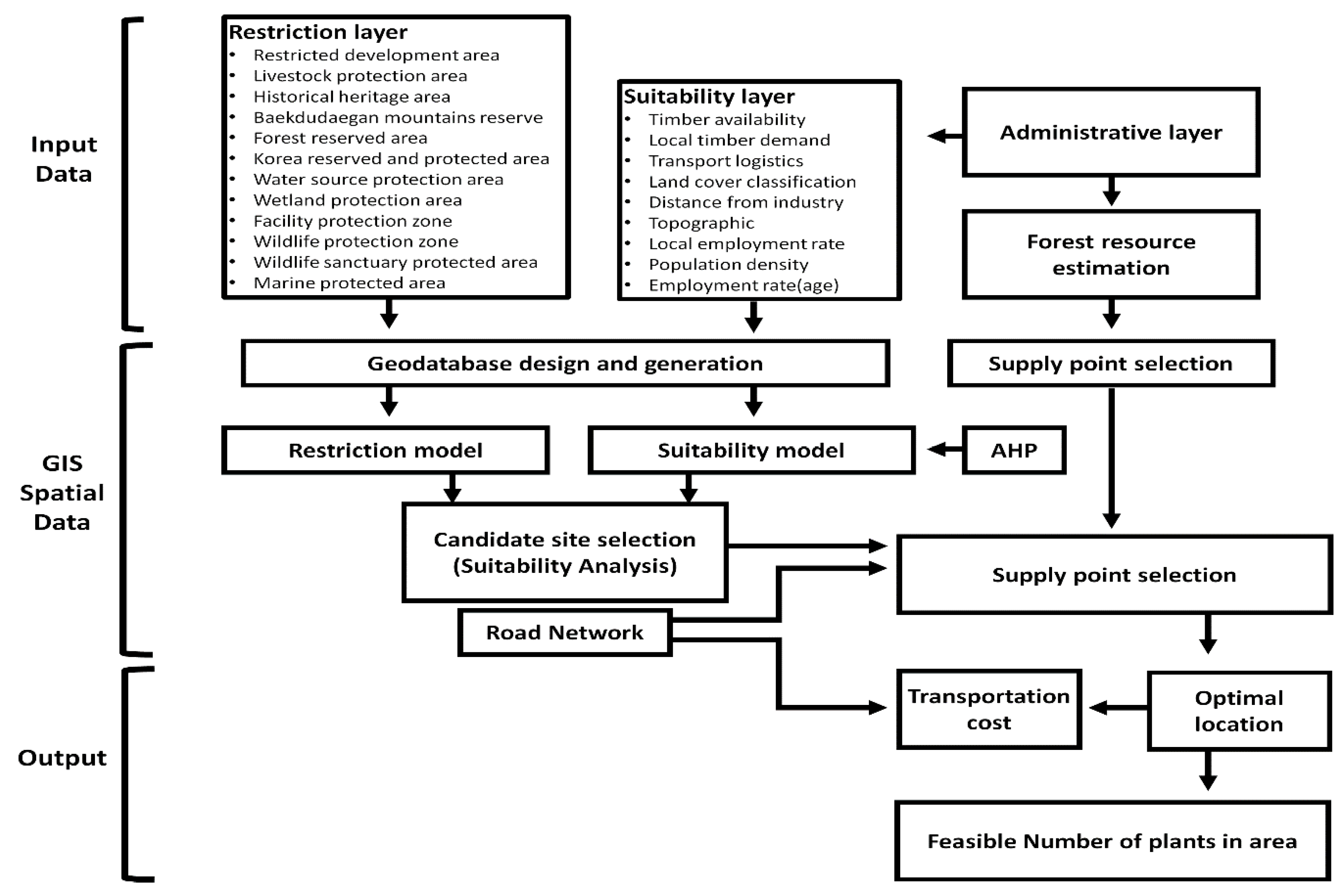

Figure 2. The overall research process in search of optimal locations for potential forest industry clusters areas.
Figure 2. The overall research process in search of optimal locations for potential forest industry clusters areas.
Forests 11 00936 g002

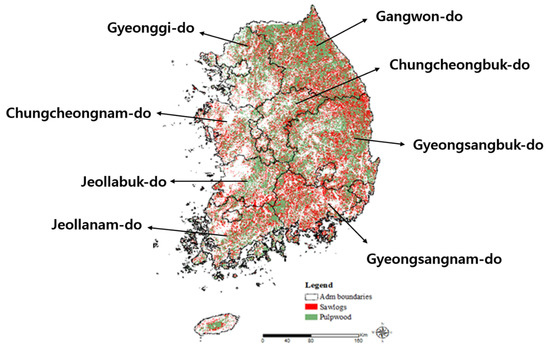

Figure 3. Forecast map of the national-level forest resource availability.
Figure 3. Forecast map of the national-level forest resource availability.
Forests 11 00936 g003

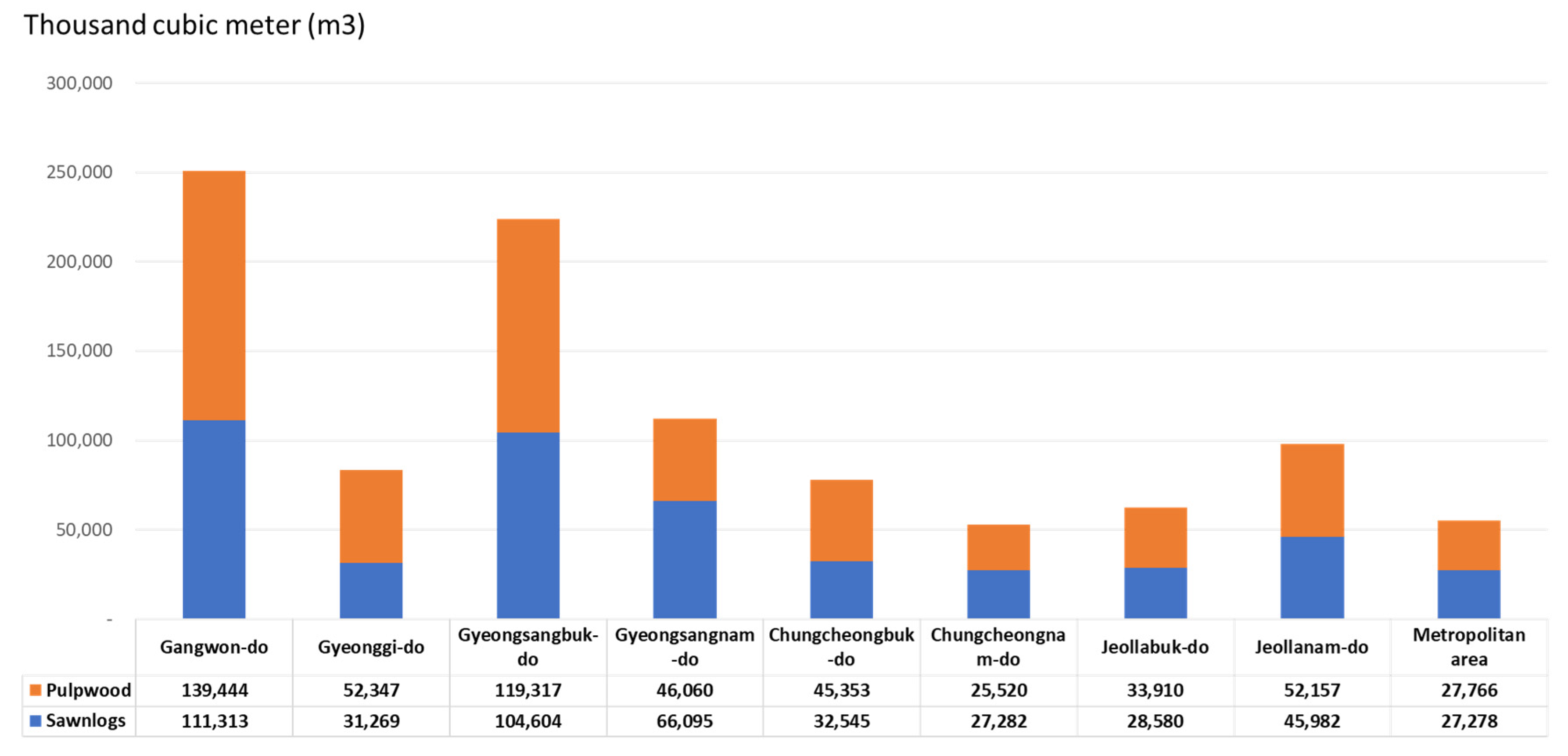

Figure 4. Estimated national-level forest resource availability in thousands of cubic meters.
Figure 4. Estimated national-level forest resource availability in thousands of cubic meters.
Forests 11 00936 g004

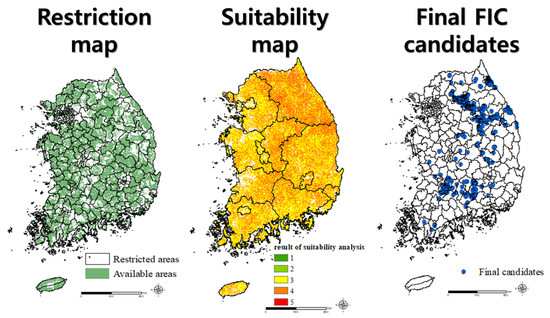

Figure 5. Identified locations of forest industry clusters candidates using developed restriction and suitability models.
Figure 5. Identified locations of forest industry clusters candidates using developed restriction and suitability models.
Forests 11 00936 g005

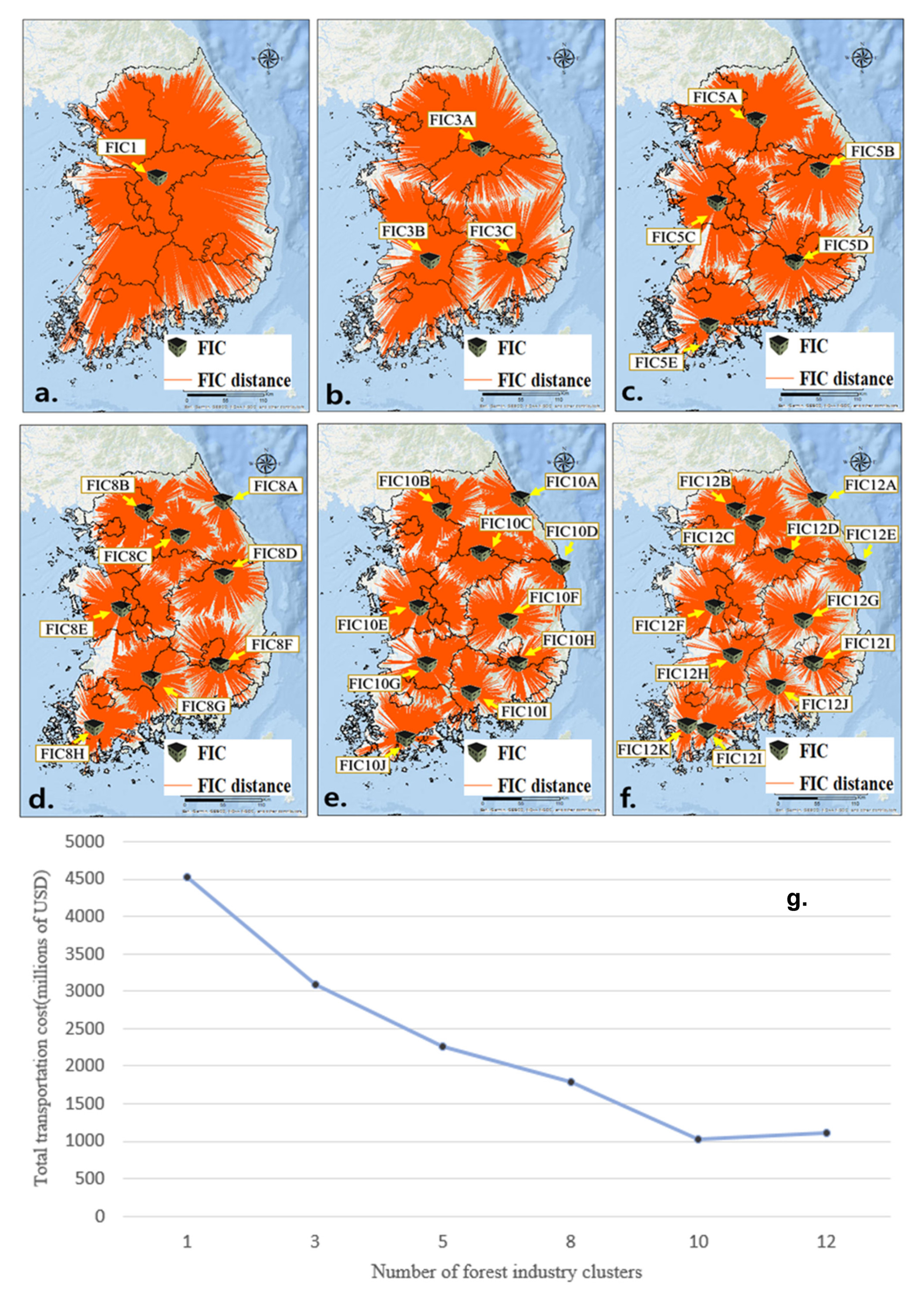

Figure 6. Location and allocation analysis identifying the optimal number and locations for potential forest industry clusters in different scenarios (Each picture indicated the results of Scenario (af) and red lines indicate connections between facilities and location of forest resources, and white boxes represent the location code of each FIC; (g) indicated the variation of total transportation cost with number of plants).
Figure 6. Location and allocation analysis identifying the optimal number and locations for potential forest industry clusters in different scenarios (Each picture indicated the results of Scenario (af) and red lines indicate connections between facilities and location of forest resources, and white boxes represent the location code of each FIC; (g) indicated the variation of total transportation cost with number of plants).
Forests 11 00936 g006
Table 1. Tree species composition of South Korea’s forests [9].
Table 1. Tree species composition of South Korea’s forests [9].
(1000 ha)
The Area by Stand Age (1000 ha)
Table 2. Parameter values for forest volume estimation [41].
Table 2. Parameter values for forest volume estimation [41].
ProvinceSpecies α * β * *
GangwonConiferousPinus densiflora Siebold & Zucc.63.40937.519
Pinus koraiensis Siebold & Zucc.68.68167.668
Larix kaempferi (Lamb.) Carr.50.2612.235
Pinus rigida Mill.60.5773.290
GyeonggiConiferousPinus densiflora51.02018.414
Pinus koraiensis64.85458.107
Larix kaempferi40.858−23.908
Pinus rigida58.09820.300
GyeongnamConiferousPinus densiflora49.43421.596
Pinus koraiensis62.31244.090
Larix kaempferi52.58915.390
Pinus rigida57.76627.816
GyeongbukConiferousPinus densiflora51.75727.696
Pinus koraiensis66.12968.206
Larix kaempferi49.3578.254
Pinus rigida54.48221.319
JeonnamConiferousPinus densiflora49.35817.900
Pinus koraiensis63.65863.331
Larix kaempferi58.85038.981
Pinus rigida66.25647.963
JeonbukConiferousPinus densiflora46.58310.233
Pinus koraiensis65.63052.956
Larix kaempferi50.8804.475
Pinus rigida62.34536.370
ChungnamConiferousPinus densiflora44.1316.237
Pinus koraiensis58.69642.510
Larix kaempferi47.7987.356
Pinus rigida55.15822.320
ChungbukConiferousPinus densiflora48.16716.337
Pinus koraiensis50.38926.762
Larix kaempferi48.7514.898
Pinus rigida60.34128.426
* α i j   and ** β i j : model parameters values to estimate forest volume for species i in province j in Equation (1).
Table 3. Definition of forest product types and associated wood grades [42].
Table 3. Definition of forest product types and associated wood grades [42].
Forest Product TypesSoftwoodHardwood
Diameter (cm)≥18<18>6
Table 4. List of spatial data used to develop the restriction model.
Table 4. List of spatial data used to develop the restriction model.
List of GIS Layers to Generate Restriction Map
Baekdudaegan mountains reserveRiparian buffer zone
Country parkScenic site
Ecosystem and landscape conservation areaSpecial island
Environment conservation marine areaSpecial measure area
Fishery resource conservation areaUrban natural park area
Forest genetic resources reserveWater source protection area
Marine protected areaWetland protected area
Marine protected areaWetland protected area–Tidal flat
National parkWildlife protection area
Natural environment conservation areaWildlife special protection area
Natural monumentCatchment reserve protection area
Nature reserveDisaster prevention reserve
Provincial parkLandscape reserve
Restricted development areaWildlife reserved area
Historical heritage areaNative forest reserved area
Forest reserved areaWater source protection area
Wetland protection areaNative forest reserved area
Facility protection zoneLivestock protection area
Wildlife protection zone
Table 5. Six scenarios analyzed to investigate the most efficient number of potential forest industry clusters (FIC) construction.
Table 5. Six scenarios analyzed to investigate the most efficient number of potential forest industry clusters (FIC) construction.
ScenarioNo. of Optimal LocationsLocation CodeConstraints
11FIC1ANo. of potential location: 1
Transportaion limit (radious): 500 km
23FIC3A, 3B, 3CNo. of potential locations: 3
Transportaion limit (radious): 200 km
35FIC5A, 5B, 5C, 5D, 5ENo. of potential locations: 5
Transportaion limit (radious): 150 km
48FIC8A, 8B, 8C, 8D, 8E, 8F, 8G, 8HNo. of potential locations: 8
Transportaion limit (radious): 100 km
510FIC10A, 10B, 10C, 10D, 10E, 10F, 10G, 10H, 10I, 10JNo. of potential locations: 10
Transportaion limit (radious): 100 km
612FIC12A, 12B, 12C, 12D, 12E, 12F, 12G, 12H, 12I, 12J, 12K, 12LNo. of potential locations: 12
Transportaion limit (radious): 100 km
Table 6. Analytical hierarchy process (AHP) survey weights and preference factors.
Table 6. Analytical hierarchy process (AHP) survey weights and preference factors.
Main CriteriaWeights (Criteria)Second Level: Sub-CriteriaWeights (Sub-Criteria)Total WeightConsistency Ratio
Economic0.59Timber availability0.4890.2890.073
Local timber demand0.2820.166
Transport logistics0.2290.135
Environmental0.249Land cover classification0.3440.0860.009
Distance from industry0.4740.118
Social0.161Local employment rate0.5910.0950.004
Population density0.1940.031
The employment rate (age)0.2150.035
Sum of weights1 31
Table 7. Estimated transportation costs of forest resources depending on the number of FIC locations and their transportation limits.
Table 7. Estimated transportation costs of forest resources depending on the number of FIC locations and their transportation limits.
Location Code aCity NameRadius (km) bDemand (No.) cCoverage Rate(%) dTotal Area (ha)Forest Volume Availability (m3) eAve Distance (km) fUSD/m3/kmTotal Cost (Thous USD) g
a Location code of each scenario shown in Table 5; b Limitation distance from FICs to forest resources in location-allocation analysis; c Total number of allocated forest resource locations into identified FIC; d Forest resource coverage rate of identified FIC (allocated forest resource location/total number of forest resource demand points); e Total available forest resources in the identified FIC; f Average travel distance between identified FIC and forest resource locations; g Assumed truck transportation cost, 0.82 USD/m3/km [52].

Share and Cite

MDPI and ACS Style

Woo, H.; Han, H.; Cho, S.; Jung, G.; Kim, B.; Ryu, J.; Won, H.K.; Park, J. Investigating the Optimal Location of Potential Forest Industry Clusters to Enhance Domestic Timber Utilization in South Korea. Forests 2020, 11, 936.

AMA Style

Woo H, Han H, Cho S, Jung G, Kim B, Ryu J, Won HK, Park J. Investigating the Optimal Location of Potential Forest Industry Clusters to Enhance Domestic Timber Utilization in South Korea. Forests. 2020; 11(9):936.

Chicago/Turabian Style

Woo, Heesung, Hee Han, Seungwan Cho, Geonhwi Jung, Bomi Kim, Jiyeon Ryu, Hyun Kyu Won, and Joowon Park. 2020. "Investigating the Optimal Location of Potential Forest Industry Clusters to Enhance Domestic Timber Utilization in South Korea" Forests 11, no. 9: 936.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
