# Forest Growing Stock Volume Estimation in Subtropical Mountain Areas Using PALSAR-2 L-Band PolSAR Data

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

^{2}value was 0.612. The constructed multi-variable model produced a better inversion result, with a root mean square error (RMSE) of 70.965 m

^{3}/ha, which was improved by 22.08% in comparison to the single-variable models. Finally, the space distribution map of forest GSV was established using the multi-variable model. The range of estimated forest GSV was 0 to 450 m

^{3}/ha, and the mean value was 135.759 m

^{3}/ha. The study expands the application potential of PolSAR data in complex topographic areas; thus, it is helpful and valuable for the estimation of large-scale forest parameters.

## 1. Introduction

^{3}/ha) of the boles or stems of all living trees, and can be converted into above-ground biomass (AGB) by its density factor [2]. Therefore, the accurate quantification of forest biomass or GSV is essential for understanding the spatial distribution of carbon in vegetation areas, which can also provide effective predictions for the change trend of carbon stock [3]. In particular, large-scale forest GSV retrieval has become a research hotspot in recent years.

## 2. Materials

#### 2.1. Study Area

#### 2.2. Field Inventory Data

^{3}/ha to 434.42 m

^{3}/ha, with an average value of 194.75 m

^{3}/ha (Table 1). By random sampling, the plots were divided for the training (n = 44) and validation (n = 16) of models into two groups.

#### 2.3. Polarimetric SAR Data and Pre-Processing

_{3}] was generated and converted into the covariance matrix [C

_{3}], which could represent the full polarimetric data. Then, these data were multi-looked with 7 × 10 in the azimuth and range directions. A Lee filter with a 3 × 3 window was applied to reduce the speckle effects. Geocoding was performed using shuttle radar topography mission (SRTM) elevation data (30-m spatial resolution). Finally, the SAR images were re-sampled to 30-m spatial resolution. PolSARpro software (Version 5.1.3, European Space Agency, Paris, France) was used to pre-process the SAR data. Gamma software was used to perform geocoding and resampling.

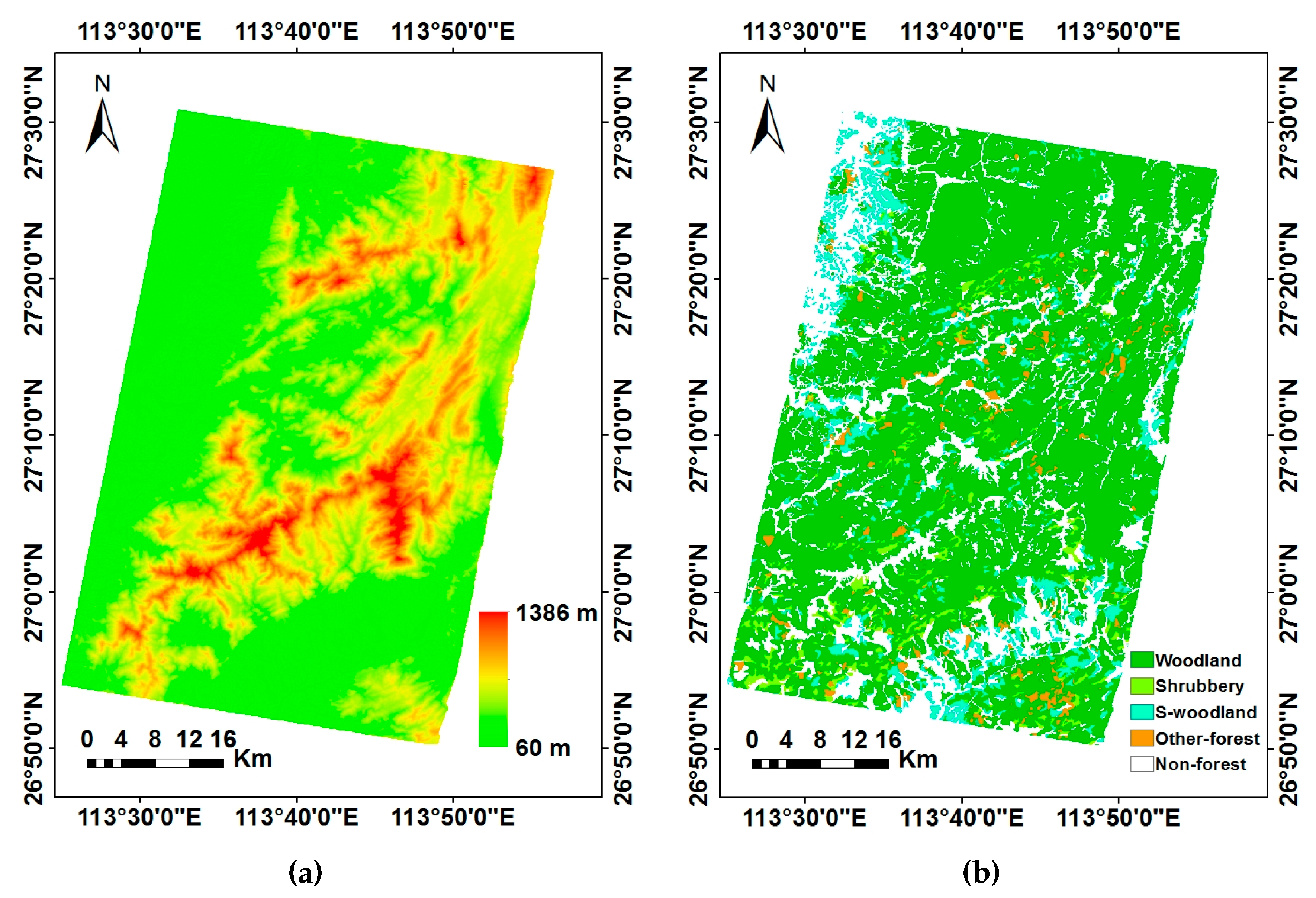

#### 2.4. Ancillary Data

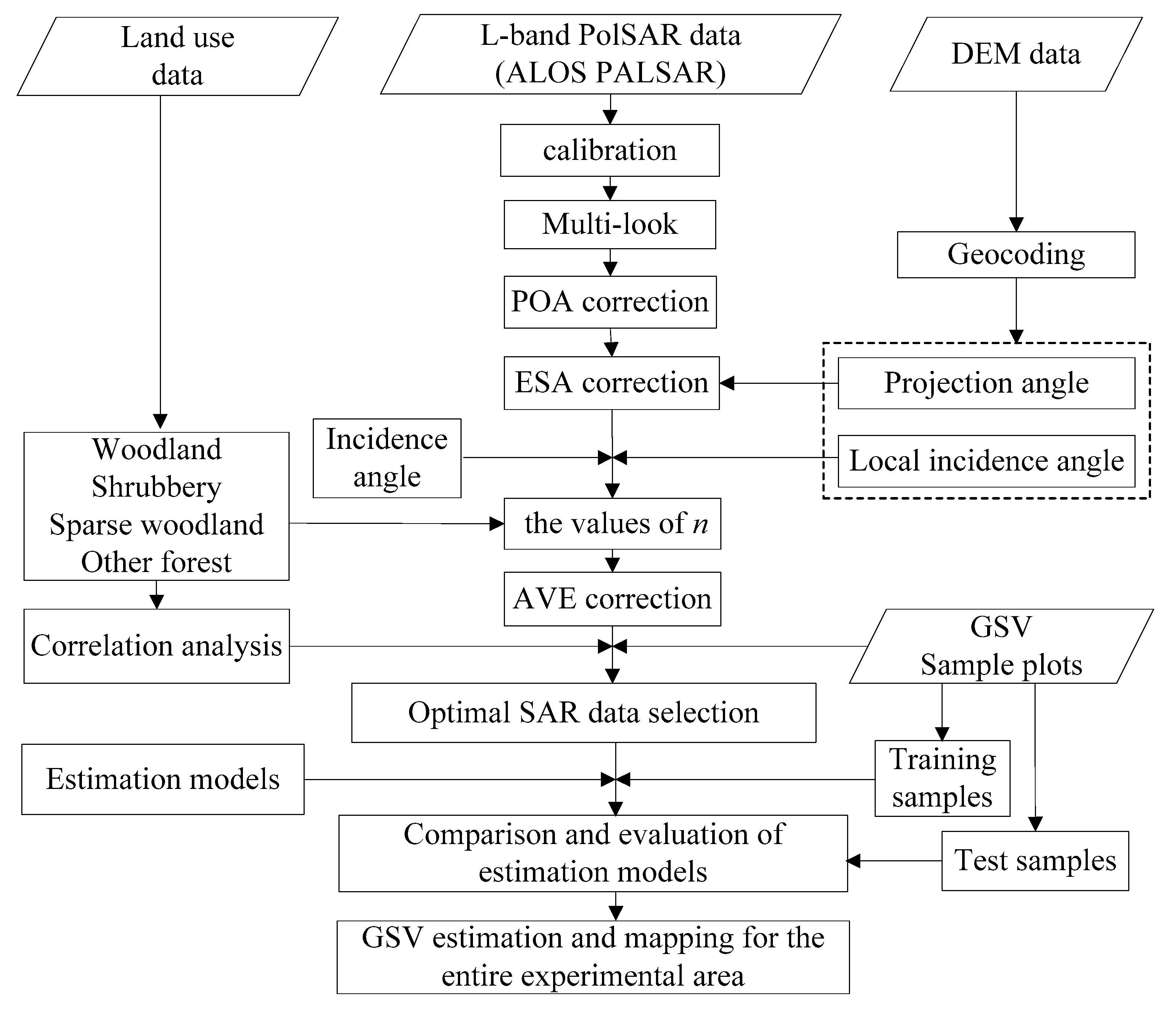

## 3. Methodology

#### 3.1. Terrain Correction

#### 3.1.1. Polarization Orientation Angle Correction

#### 3.1.2. Effective Scattering Area Correction

#### 3.1.3. Angular Variation Effect Correction

_{i}

_{,j}represents the elements of the corrected covariance matrix, z represents the different types of forest cover, and p and q represent different polarization channels. According to Equation (7), only the values of n corresponding to the primary diagonal elements of the covariance matrix need to be obtained. Considering the impact of forest characteristics on terrain correction, we try to calculate n corresponding to different types of forests in this paper in order to effectively reduce the topographic effect. The initial ranges of the n values are from zero to two. In addition, considering the computational complexity and accuracy of the n value, we set the interval of n to 0.01. The optimal n is determined by the absolute value of the correlation.

#### 3.2. Retrieval of GSV

## 4. Results

#### 4.1. Acquisition of Terrain Correction Factors

#### 4.2. Results of Terrain Correction

#### 4.3. Backscatter Sensitivity to Forest GSV

^{3}/ha) still have negative effects on the sensitivity between forest GSV and backscatter at the HH and VV channels.

#### 4.4. GSV Estimation and Mapping

^{2}values are 0.539 (Direct linear model, Figure 9a), 0.601 (Logarithmic model, Figure 9b), 0.603 (Quadratic model, Figure 9c), 0.579 (Exponential model, Figure 9d), and 0.612 (Water-Cloud analysis model, Figure 9e), respectively. The direct linear relationship (Figure 9a) between the backscatter coefficient and forest GSV is weak, but this phenomenon can be improved through the transformation of parameters, such as the natural logarithmic transformation of forest GSV (Figure 9b). In addition, the Water-Cloud analysis model is found to be the most reliable in the capacity of single-variable regression models, as it produces the highest coefficient of determination in the five models. Howeve, from Figure 9e, when the forest GSV is greater than 300 m

^{3}/ha, the change of the fitting curve tends to be gentle, which may limit its ability regarding estimation in higher GSV areas.

^{2}value of 0.417, whose root mean square error (RMSE) is 91.075 m

^{3}/ha. For the multi-variable model, the correlation coefficient R

^{2}value is 0.630, whose RMSE is 70.965 m

^{3}/ha. Obviously, the accuracy of the multi-variable model inversion is higher than that of the Water-Cloud analysis model inversion. Therefore, the multi-variable model is used to estimate the forest GSV for the whole study region. The results are shown in Figure 11. Figure 11a is the schematic diagram for the spatial distribution of the forest GSV at the pixel scale, which shows that the range of the estimated forest GSV is 0 to 450 m

^{3}/ha. Figure 11b is the histogram of the GSV map. The mean and standard deviation of the GSV in the region are 135.759 m

^{3}/ha and 47.255 m

^{3}/ha. Furthermore, we also calculated the GSV of different land-cover types. The mean GSV of woodland, shrubbery, sparse woodland, and other forest were 137.701 m

^{3}/ha, 130.541 m

^{3}/ha, 125.991 m

^{3}/ha, and 113.759 m

^{3}/ha, respectively. The standard deviations were 45.906 m

^{3}/ha, 42.172 m

^{3}/ha, 56.274 m

^{3}/ha, and 62.051 m

^{3}/ha, respectively.

## 5. Discussion

^{2}values of the two models only differ by 0.062, but the former has a higher accuracy of GSV estimation than the latter in the model test. This indicates that co-polarization can also make a certain contribution in GSV estimation. Therefore, our study recommends using the multi-variable model to map the GSV in the study area.

## 6. Conclusions

^{3}/ha. Therefore, our study recommended using the multi-variable model to map the GSV in the study area. The range of estimated forest GSV was 0 to 450 m

^{3}/ha. The mean value and stander deviation were 135.759 m

^{3}/ha and 47.255 m

^{3}/ha, respectively. The study expands the application potential of PolSAR data in complex topographic areas; thus, it is helpful and valuable for the large-scale (e.g., national or global scale) estimation of forest parameters.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Houghton, R.A. Aboveground forest biomass and the global carbon balance. Glob. Chang. Biol.
**2005**, 11, 945–958. [Google Scholar] [CrossRef] - Shvidenko, A.; Schepaschenko, D.; Nilsson, S.; Bouloui, Y. Semi-empirical models for assessing biological productivity of Northern Eurasian forests. Ecol. Model.
**2007**, 204, 163–179. [Google Scholar] [CrossRef] - Santoro, M.; Beaudoin, A.; Beer, C.; Cartus, O.; Fransson, J.E.S.; Hall, R.J.; Pathe, C.; Schmullius, C.; Schepaschenko, D.; Shvidenko, A.; et al. Forest growing stock volume of the northern hemisphere: Spatially explicit estimates for 2010 derived from Envisat ASAR. Remote Sens. Environ.
**2015**, 168, 316–334. [Google Scholar] [CrossRef] - Santoro, M.; Cartus, O. Research pathways of forest above-ground biomass estimation based on SAR backscatter and interferometric SAR observations. Remote Sens.
**2018**, 10, 608. [Google Scholar] [CrossRef] - Chowdhury, T.A.; Thiel, C.; Schmullius, C. Growing stock volume estimation from L-band ALOS PALSAR polarimetric coherence in Siberian forest. Remote Sens. Environ.
**2014**, 155, 129–144. [Google Scholar] [CrossRef] - Song, R.; Lin, H.; Wang, G.; Yan, E.; Ye, Z. Improving selection of spectral variables for vegetation classification of east dongting lake, China, Using a Gaofen-1 image. Remote Sens.
**2018**, 10, 50. [Google Scholar] [CrossRef] - Bilous, A.; Myroniuk, A.; Holiaka, D.; Bilous, S.; See, L.; Schepaschenko, D. Mapping growing stock volume and forest live biomass: A case study of the Polissya region of Ukraine. Environ. Res. Lett.
**2017**, 12, 105001. [Google Scholar] [CrossRef] - Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sens. Environ.
**2002**, 83, 195–213. [Google Scholar] [CrossRef] - Nakaji, T.; Ide, R.; Takagi, K.; Kosugi, Y.; Ohkubo, S.; Nasahara, K.N.; Saigusa, N.; Oguma, H. Utility of spectral vegetation indices for estimation of light conversion efficiency in coniferous forests in Japan. Agric. For. Meteorol.
**2008**, 148, 776–787. [Google Scholar] [CrossRef] [Green Version] - Zheng, S.; Gao, C.; Dang, Y.; Xiang, H.; Zhao, J.; Zhang, Y.; Wang, X.; Guo, H. Retrieval of forest growing stock volume by two different methods using Landsat TM images. Int. J. Remote Sens.
**2014**, 35, 29–43. [Google Scholar] [CrossRef] - Chrysafis, I.; Mallinis, G.; Siachalou, S.; Patias, P. Assessing the relationships between growing stock volume and sentinel-2 imagery in a Mediterranean forest ecosystem. Remote Sens. Lett.
**2017**, 8, 508–517. [Google Scholar] [CrossRef] - Nichol, J.E.; Sarker, M.I.R. Improved biomass estimation using the texture parameters of two high-resolution optical sensors. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 930–948. [Google Scholar] [CrossRef] - Sinha, S.; Jeganathan, C.; Sharma, L.K.; Nathawat, M.S. A review of radar remote sensing for biomass estimation. Int. J. Environ. Sci. Technol.
**2015**, 12, 1779–1792. [Google Scholar] [CrossRef] [Green Version] - Donoghue, D.N.M.; Watt, P.J.; Cox, N.J.; Wilson, J. Remote Sensing of Species Mixtures in Conifer Plantations Using LiDAR Height and Intensity Data. Remote Sens. Environ.
**2007**, 110, 509–522. [Google Scholar] [CrossRef] - Cartus, O.; Kellndorfer, J.; Rombach, M.; Walker, W. Mapping canopy height and growing stock volume using airborne Lidar, ALOS PALSAR and Landsat ETM+. Remote Sens.
**2012**, 4, 3320–3345. [Google Scholar] [CrossRef] - Skowronski, N.S.; Clark, K.L.; Gallagher, M.; Birdsey, R.A.; Hom, J.L. Airborne laser scanner-assisted estimation of aboveground biomass change in a temperate oak-pine forest. Remote Sens. Environ.
**2014**, 151, 166–174. [Google Scholar] [CrossRef] - Lu, D.; Chen, Q.; Wang, G.; Li, G.; Moran, E. A survey of remote sensing- based aboveground biomass estimation methods in forest ecosystems. Int. J. Digit. Earth
**2014**, 9, 63–105. [Google Scholar] [CrossRef] - Le Toan, T.; Quegan, S.; Davidson, M.W.J.; Balzter, H.; Paillou, P.; Papathanassiou, K.; Plummer, S.; Rocca, F.; Saatchi, S.; Shugart, H.; et al. The BIOMASS Mission: Mapping global forest biomass to better understand the terrestrial carbon cycle. Remote Sens. Environ.
**2011**, 115, 2850–2860. [Google Scholar] [CrossRef] - Fu, H.; Zhu, J.; Wang, C.; Wang, H.; Zhao, R. Underlying topography estimation over forest areas using high-resolution P-band Single-baseline PolInSAR data. Remote Sens.
**2017**, 9, 363. [Google Scholar] [CrossRef] - Wang, C.; Cai, J.; Li, Z.; Mao, X.; Feng, G.; Wang, Q. Kinematic parameter inversion of the slumgullion landslide using the time series offset tracking method with UAVSAR data. J. Geophys Res. Solid Earth
**2018**, 10, 1029. [Google Scholar] [CrossRef] - Xie, Q.; Zhu, J.; Lopez-Sanchez, J.M.; Wang, C.; Fu, H. A modified general polarimetric model-based decomposition method with the simplified Neumann volume scattering model. IEEE Geosci. Remote Sens. Lett.
**2018**, 15, 1229–1233. [Google Scholar] [CrossRef] - Gao, H.; Wang, C.; Wang, G.; Zhu, J.; Tang, Y.; Shen, P.; Zhu, Z. A crop classification method integrating GF-3 PolSAR and Sentinel-2A optical data in the Dongting Lake Basin. Sensors
**2018**, 18, 3139. [Google Scholar] [CrossRef] - Sandberg, G.; Ulander, L.M.H.; Fransson, J.E.S.; Holmgren, J.; Le Toan, T. L-and P-band backscatter intensity for biomass retrieval in hemiboreal forest. Remote Sens. Environ.
**2011**, 115, 2874–2886. [Google Scholar] [CrossRef] - Mermoz, S.; Réjou-Méchain, M.; Villard, L.; Le Toan, T.; Rossi, V.; Gourlet-Fleury, S. Decrease of L-band SAR backscatter with biomass of dense forests. Remote Sens. Environ.
**2015**, 159, 307–317. [Google Scholar] [CrossRef] - Wu, C.; Wang, C.; Shen, P.; Zhu, J.; Fu, H.; Gao, H. Forest height estimation using PolInSAR optimal normal matrix constraint and cross-iteration method. IEEE Geosci. Remote Sens. Lett.
**2019**. [Google Scholar] [CrossRef] - Ma, J.; Xiao, X.; Qin, Y.; Chen, B.; Hu, Y.; Li, X.; Zhao, B. Estimating aboveground biomass of broadleaf, needleleaf, and mixed forests in Northeastern China through analysis of 25-m ALOS/PALSAR mosaic data. For. Ecol. Manag.
**2017**, 389, 199–210. [Google Scholar] [CrossRef] - Treuhaft, R.N.; Goncalves, F.G.; Drake, J.B.; Chapman, B.D.; Santos, J.R.D.; Dutra, L.V.; Graca, P.M.L.A.; Purcell, G.H. Biomass estimation in a Tropical Wet forest using Fourier transforms of profiles from lidar or interferometric SAR. Geophys Res. Lett.
**2010**, 37, 225. [Google Scholar] [CrossRef] - Thiel, C.; Schmullius, C. The potential of ALOS PALSAR backscatter and InSAR coherence for forest growing stock volume estimation in Central Siberia. Remote Sens. Environ.
**2016**, 173, 258–273. [Google Scholar] [CrossRef] - Tebaldini, S. Algebraic synthesis of forest scenarios from multibaseline PolInSAR data. IEEE Trans. Geosci. Remote Sens.
**2009**, 47, 4132–4144. [Google Scholar] [CrossRef] - Cloude, S.R. Polarization coherence tomography. Radio Sci.
**2006**, 41, RS4017. [Google Scholar] [CrossRef] - Li, W.; Chen, E.; Li, Z.; Ke, Y.; Zhan, W. Forest aboveground biomass estimation using polarization coherence tomography and PolSAR segmentation. Int. J. Remote Sens.
**2015**, 36, 530–550. [Google Scholar] [CrossRef] - Zhang, H.; Wang, C.; Zhu, J.; Fu, H.; Xie, Q.; Shen, P. Forest above-ground biomass estimation using single-baseline polarization coherence tomography with P-band PolInSAR data. Forests
**2018**, 9, 163. [Google Scholar] [CrossRef] - Minh, D.H.T.; Le Toan, T.; Rocca, F.; Tebaldini, S.; Villard, L.; Réjou-Méchain, M.; Phillips, O.L.; Feldpausch, T.R.; Dubois-Fernandez, P.; Scipal, K.; et al. SAR tomography for the retrieval of forest biomass and height: Cross-validation at two tropical forest sites in French Guiana. Remote Sens. Environ.
**2016**, 175, 138–147. [Google Scholar] [CrossRef] [Green Version] - Peng, X.; Li, X.; Wang, C.; Fu, H.; Du, Y. A maximum likelihood based nonparametric iterative adaptive radar tomography and its application for estimating underlying topography and forest height. Sensors
**2018**, 18, 2459. [Google Scholar] [CrossRef] - Peng, X.; Wang, C.; Li, X.; Du, Y.; Fu, H.; Yang, Z.; Xie, Q. Three-Dimensional structure inversion of buildings with nonparametric iterative adaptive approach using SAR tomography. Remote Sens.
**2018**, 10, 1004. [Google Scholar] [CrossRef] - Lee, J.S.; Pottier, E. Polarimetric Radar Imaging: From Basics to Applications; CRC Press, Taylor & Francis Group: Boca Raton, FL, USA, 2009. [Google Scholar]
- Chowdhury, T.A.; Thiel, C.; Schmullius, C.; Stelmaszczukgórska, M. Polarimetric parameters for growing stock volume estimation using ALOS PALSAR L-band data over Siberian forests. Remote Sens.
**2013**, 5, 5725–5726. [Google Scholar] [CrossRef] - Le Toan, T.; Quegan, S.; Woodward, I.; Lomas, M.; Delbart, N.; Picard, C. Relationg radar remote sensing of biomass to modeling of forest carbon budgets. Clim. Chang.
**2004**, 76, 379–402. [Google Scholar] [CrossRef] - Lucas, R.; Armston, J.; Fairfax, R.; Fensham, R.; Accad, A.; Carreiras, J.; Kelley, J.; Bunting, P.; Clewley, D.; Bray, S.; et al. An evaluation of the ALOS PALSAR L-band backscatter-Above ground biomass relationship Queensland, Australia: Impacts of surface moistrure condition and vegetation structure. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2010**, 3, 576–593. [Google Scholar] [CrossRef] - Wilhelm, S.; Hüttich, C.; Korets, M.; Schmullius, C. Large area mapping of boreal growing stock volume on an annual and multi-temporal level using PALSAR L-band backscatter mosaics. Forests
**2014**, 5, 1999–2015. [Google Scholar] [CrossRef] - Mermoz, S.; Le Toan, T.; Villard, L.; Réjou-méchain, M.; Seifert-Granzin, J. Biomass assessment in the Cameroon savanna using ALOS PALSAR data. Remote Sens. Environ.
**2014**, 155, 109–119. [Google Scholar] [CrossRef] - Urbazaev, M.; Thiel, C.; Mathieu, R.; Naidoo, L.; Levick, S.R.; Smit, I.P.J.; Asner, G.P.; Schmullius, C. Assessment of the mapping of fractional woody cover in southern African savannas using multi-temporal and polarimetric ALOS PALSAR L-band images. Remote Sens. Environ.
**2015**, 166, 138–153. [Google Scholar] [CrossRef] [Green Version] - Antropov, O.; Rauste, Y.; Häme, T.; Praks, J. Polarimetric ALOS PALSAR time series in mapping biomass of boreal forests. Remote Sens.
**2017**, 9, 999. [Google Scholar] [CrossRef] - Zhao, P.P.; Lu, D.S.; Wang, G.X.; Liu, L.J.; Li, D.Q.; Zhu, J.R.; Yu, S.Q. Forest aboveground biomass estimation in Zhejiang province using the integration of Landsat TM and ALOS PALSAR data. Int. J. Appl. Earth Obs.
**2016**, 53, 1–15. [Google Scholar] [CrossRef] - Bouvet, A.; Mermoz, S.; Le Toan, T.; Villard, L.; Mathieu, R.; Naidoo, L.; Asner, G.P. An above-ground biomass map of African savannahs and woodlands at 25m resolution derived from ALOS PALSAR. Remote Sens. Environ.
**2018**, 206, 156–173. [Google Scholar] [CrossRef] - Ningthoujam, R.K.; Joshi, P.K.; Roy, P.S. Retrieval of forest biomass for tropical deciduous mixed forest using ALOS PALSAR mosaic imagery and field plot data. Int. J. Appl. Earth Obs. Geoinform.
**2018**, 69, 206–216. [Google Scholar] [CrossRef] - Lee, J.S.; Ainsworth, T.L. The effect of orientation angle compensation on coherency matrix and polarimetric target decomposition. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 53–64. [Google Scholar] [CrossRef] - Small, D. Flattening gamma: Radiometric terrain correction for SAR imagery. TEEE Trans. Geosci. Remote Sens.
**2011**, 49, 3081–3093. [Google Scholar] [CrossRef] - Castel, T.; Beaudoin, A.; Stach, N.; Le Toan, T.; Durand, P. Sensitivity of space-borne SAR data to forest parameters over sloping terrain. Theory and experiment. Int. J. Remote Sens.
**2001**, 22, 2351–2376. [Google Scholar] [CrossRef] - Zhao, L.; Chen, E.; Li, Z.; Zhang, W.; Gu, X. Three-step semi-empirical radiometric terrain correction approach for PloSAR data applied to forested areas. Remote Sens.
**2017**, 9, 269. [Google Scholar] [CrossRef] - Deng, S.; Katoh, M.; Guan, Q.; Yin, N.; Li, M. Estimating forest aboveground biomass by combining ALOS PALSAR and WorldView-2 data: A case study at purple mountain national park, Nanjing, China. Remote Sens.
**2014**, 6, 7878–7910. [Google Scholar] [CrossRef] - Fang, J.; Liu, G.; Xu, S. Biomass and net production of forest vegetation in China. Acta Ecol. Sin.
**1996**, 16, 497–508. [Google Scholar] - Shimada, M.; Isoguchi, O.; Tadono, T.; Isono, K. PALSAR radiometric and geometric calibration. IEEE Trans. Geosci. Reomte Sens.
**2009**, 47, 3915–3932. [Google Scholar] [CrossRef] - Lee, J.S.; Schuler, D.L.; Ainsworth, T.L. Polarimetric SAR data compensation for terrain azimuth slope variation. IEEE Trans. Geosci. Remote Sens.
**2000**, 38, 2153–2163. [Google Scholar] - Ulander, L.M.H. Radiometric slope correcton of synthetic-aperture radar images. IEEE Trans. Geosci. Rmote Sens.
**1996**, 34, 1115–1122. [Google Scholar] [CrossRef] - Ulaby, F.T.; Moore, R.K.; Fung, A.K. Volume Scattering and Emission Theory. In Microwave Remote Sensing Active and Passive; Artech House: Norwood, MA, USA, 1982; Volume III. [Google Scholar]
- Peregon, A.; Yamagata, Y. The use of ALOS/PALSAR backscatter to estimation above-ground forest biomass: A case study in Western Siberia. Remote Sens. Environ.
**2013**, 137, 139–146. [Google Scholar] [CrossRef] - Pham, T.D.; Yoshino, K. Aboveground biomass estimation of mangrove species using ALOS-2 PALSAR imagery in Hai Phong city, Vietnam. J. Appl. Remote Sens.
**2017**, 11, 026010. [Google Scholar] [CrossRef] - Villard, L.; Le Toan, T. Relating P-band SAR intensity to biomass for tropical dense forests in Hilly terrain: γ0 or t0. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2015**, 8, 214–223. [Google Scholar] [CrossRef] - Cartus, O.; Santoro, M.; Kellndorfer, J. Mapping forest aboveground biomass in the Northeastern United States with ALOS PALSAR dual-polarization L-band. Remote Sens. Environ.
**2012**, 124, 466–478. [Google Scholar] [CrossRef] - Attarchi, S.; Gloaguen, R. Improving the estimation of above ground biomass using dual polarimetric PALSAR and ETM+ data in the Hyrcanian Mountain forest (Iran). Remote Sens.
**2014**, 6, 3693–3715. [Google Scholar] [CrossRef] - Thiel, C.J.; Thiel, C.; Schmullius, C.C. Operational large-area forest monitoring in Siveria using ALOS PALSAR summer intensities and winter coherence. IEEE Trans. Geosci. Remote Sens.
**2009**, 47, 3993–4000. [Google Scholar] [CrossRef] - Kim, C. Quantataive analysis of relationship between ALOS PALSAR backscatter and forest stand volume. J. Mar. Sci. Technol.
**2012**, 20, 624–628. [Google Scholar]

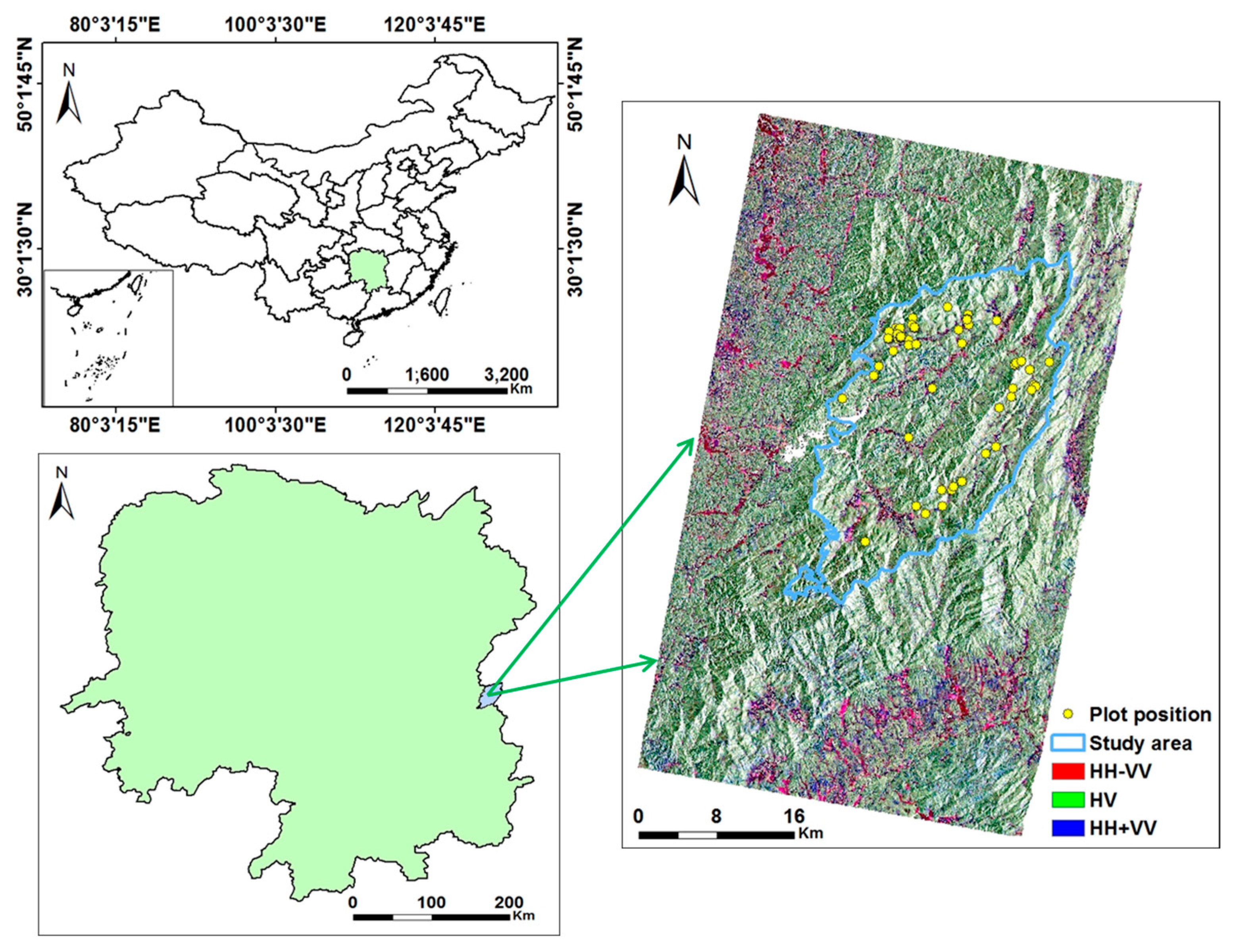

**Figure 1.**The test site: phased array-type L-band synthetic aperture radar (PALSAR-2) image in the Pauli basis. The yellow circles are field sampling plots.

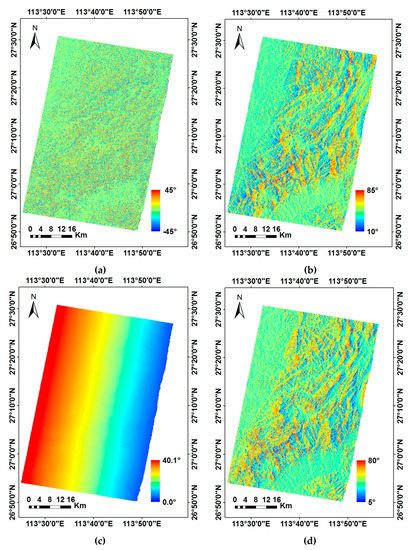

**Figure 4.**The geocoded angular factors for terrain correction. (

**a**) Polarization orientation angle (POA) shift angle; (

**b**) Project angle; (

**c**) Incidence angle; and (

**d**) Local incidence angle.

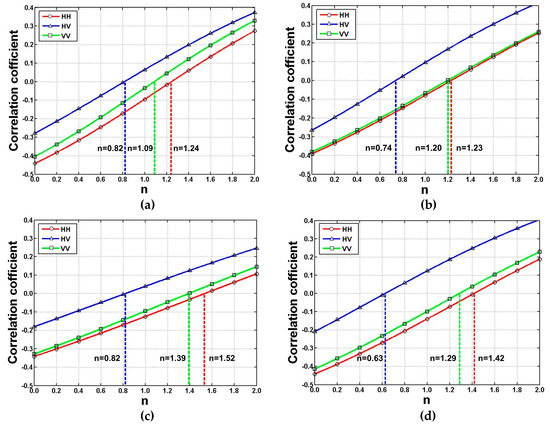

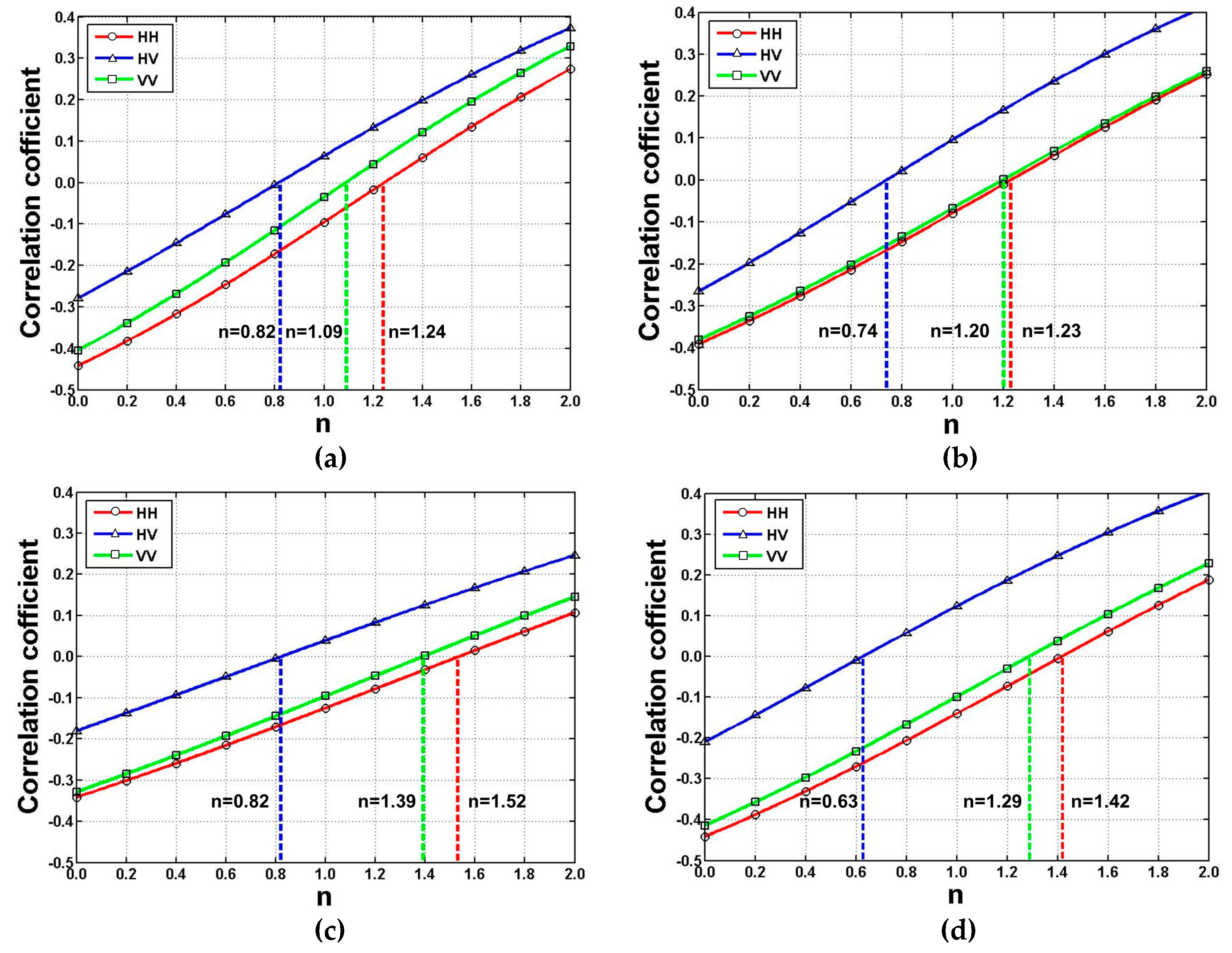

**Figure 5.**Distribution of correlation coefficients for various values of n and the positons of the optimum n values at four forest cover types (based on data obtained on 14 July 2016): (

**a**) Woodland; (

**b**) Shrubbery area; (

**c**) Sparse woodland; and (

**d**) Other forest.

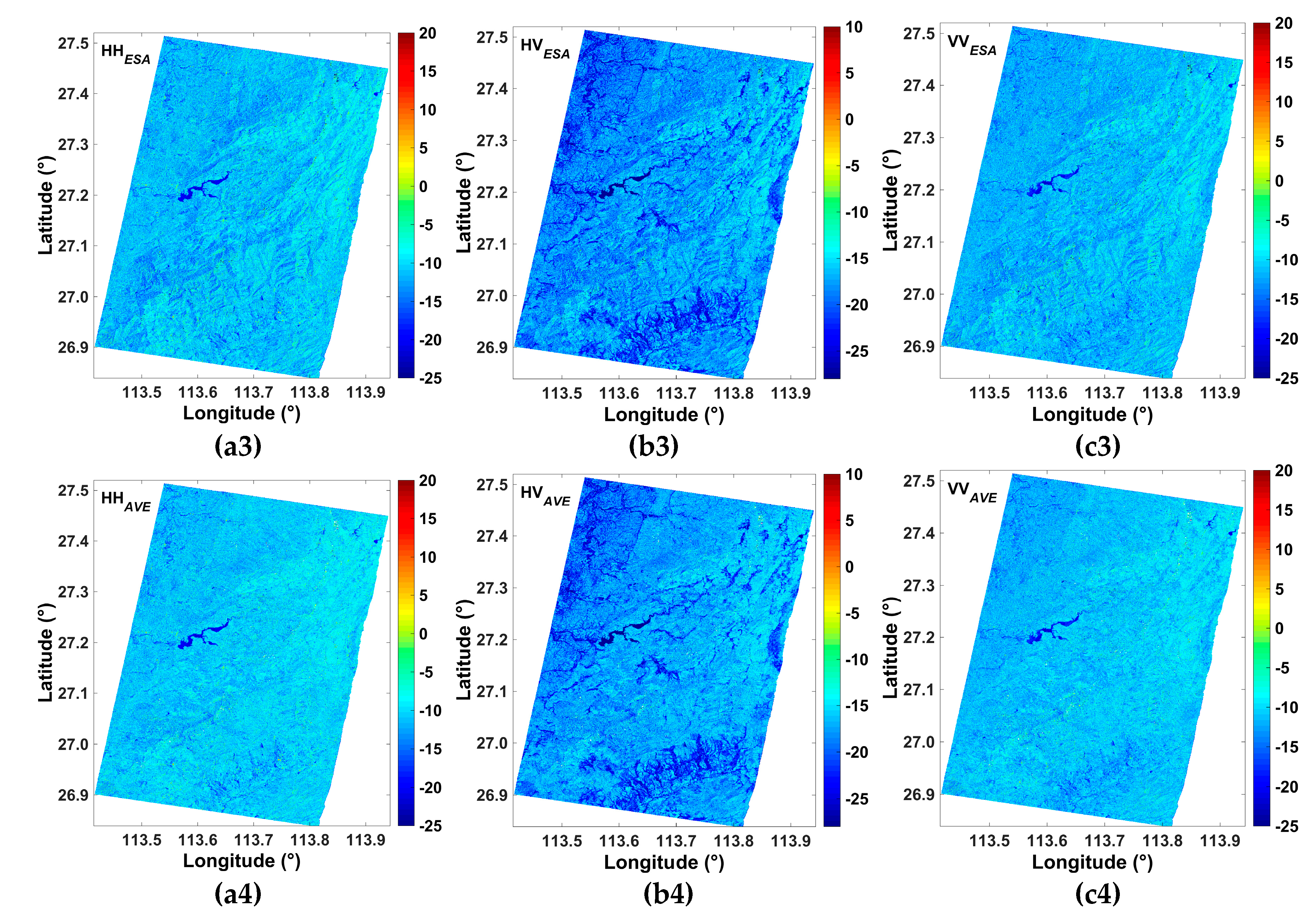

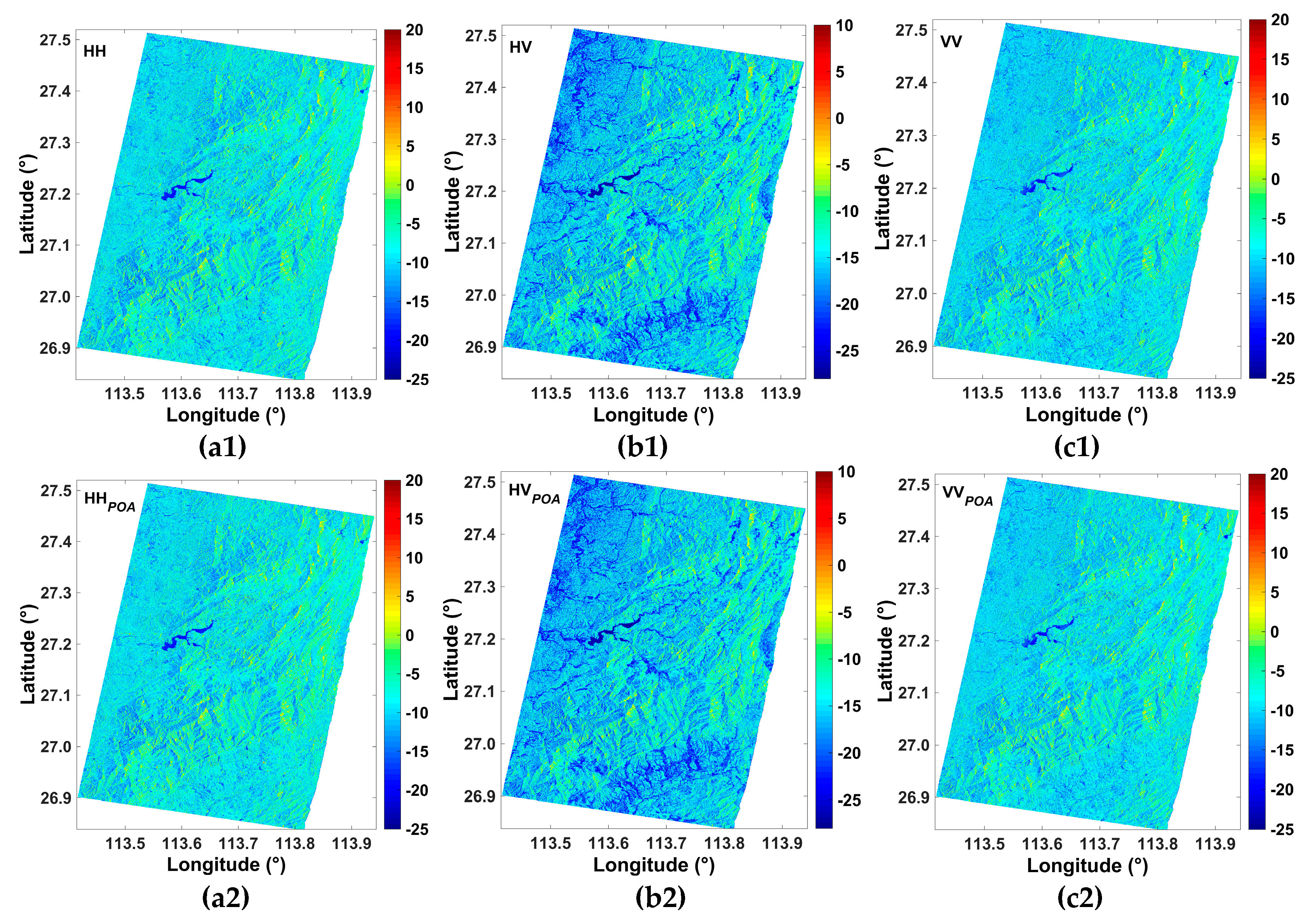

**Figure 6.**Backscatter coefficient variation of the original data and each correction stage in different polarization channels (HH, HV, and VV). Original data:

**a1**,

**b1**,

**c1**; POA correction stage:

**a2**,

**b2**,

**c2**; Effective scattering area (ESA) correction stage:

**a3**,

**b3**,

**c3**; Angular variation effect (AVE) correction stage:

**a4**,

**b4**,

**c4**.

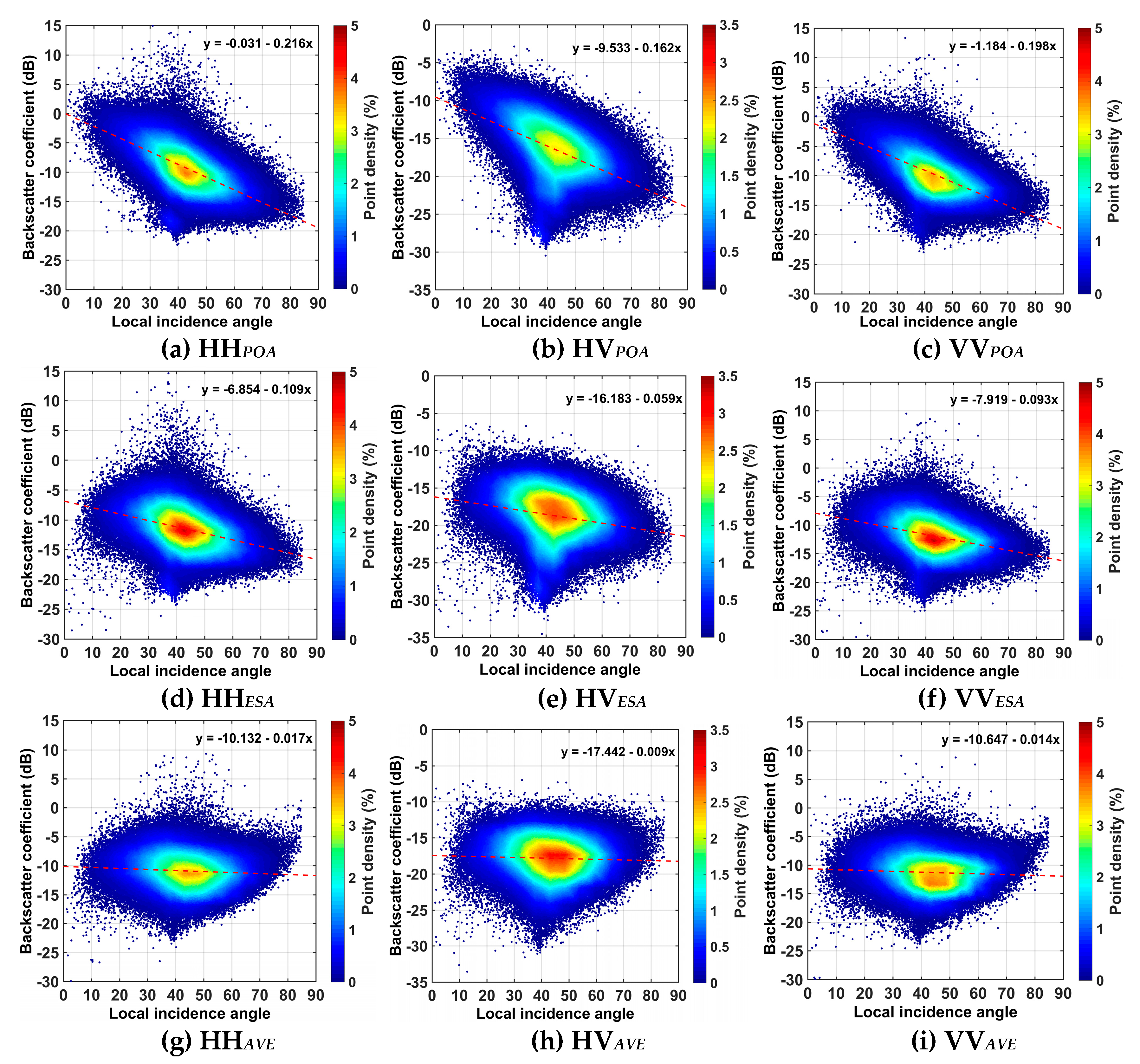

**Figure 7.**The relationship between backscatter coefficients of different polarization channels and local incidence angles at different correction stages: POA correction stage (HH:

**a**, HV:

**b**, VV:

**c**); ESA correction stage (HH:

**d**, HV:

**e**, VV:

**f**); AVE correction stage (HH:

**g**, HV:

**h**, VV:

**i**).

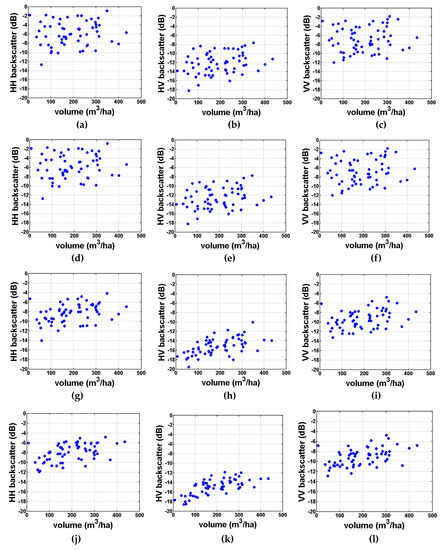

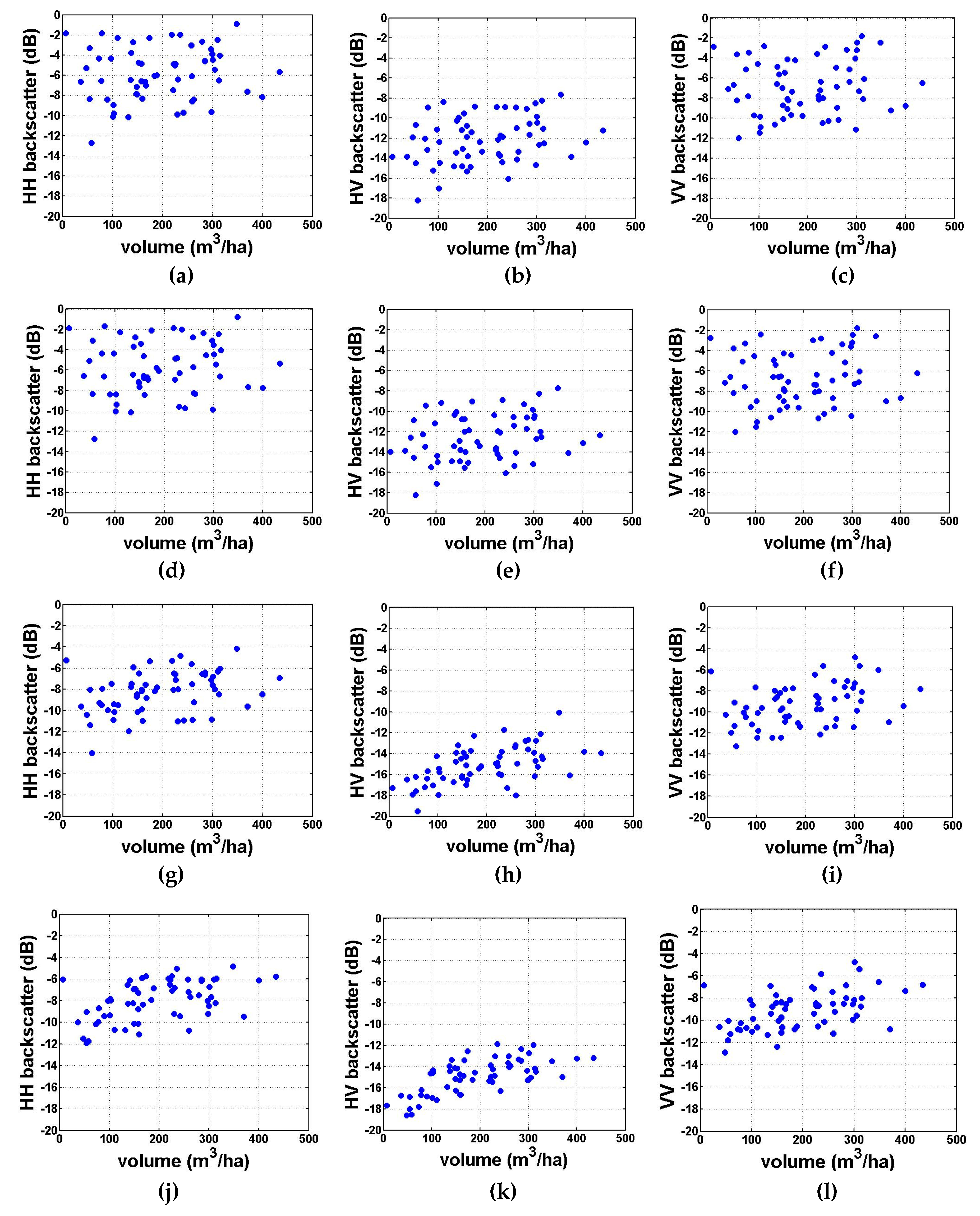

**Figure 8.**The relationship between forest growing stock volume (GSV) and backscatter coefficents of different polarzation channels. Original data: (

**a**) HH, (

**b**) HV, and (

**c**) VV; After POA compensation: (

**d**) HH, (

**e**) HV, and (

**f**) VV. After ESA correction: (

**g**) HH, (

**h**) HV, and (

**i**) VV; After AVE correction: (

**j**) HH, (

**k**) HV, and (

**l**) VV.

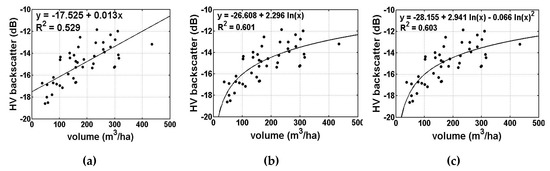

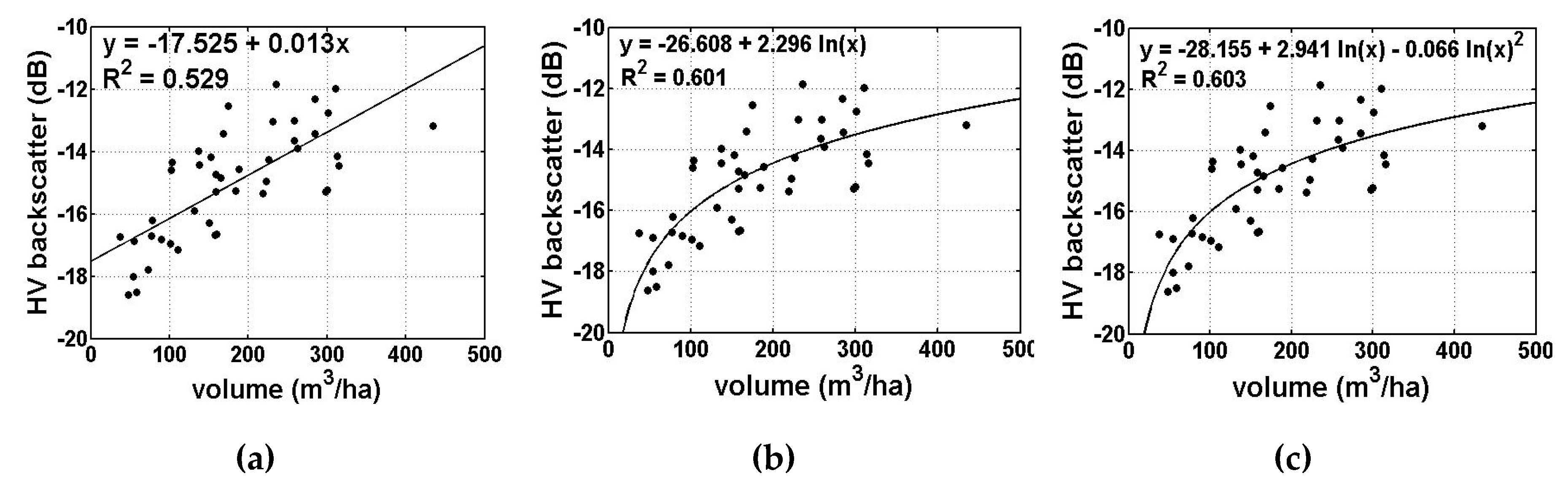

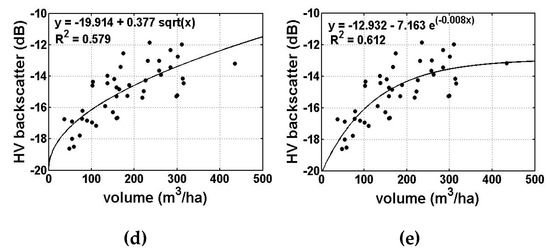

**Figure 9.**Fitting curves of the single-variable models: (

**a**) Direct linear model; (

**b**) Logarithmic model; (

**c**) Quadratic model; (

**d**) Exponential model; and (

**e**) Water-Cloud analysis model.

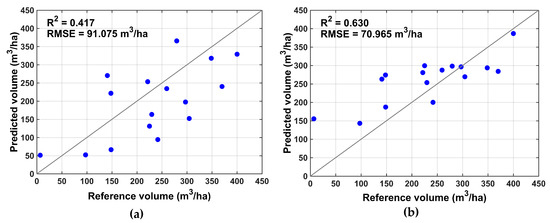

**Figure 10.**The relationship between predicated GSV and reference GSV using test sample dataset: (

**a**) Water-Cloud analysis model; and (

**b**) Multi-variable model.

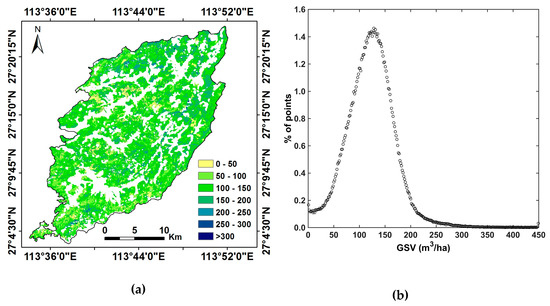

**Figure 11.**Forest GSV estimation results of the whole study region: (

**a**) Spatial distribution of forest GSV at pixel scale; (

**b**) Histogram of GSV map.

Range | Mean | |
---|---|---|

DBH | 4.06 to 30.10 cm | 17.84 cm |

Height | 4.60 to 20.20 m | 13.24 m |

Number of Stems | 30 to 350 | 96 |

Growing Stock Volume | 6.88 to 434.42 m^{3}/ha | 194.75 m^{3}/ha |

Data | Woodland | Shrubbery | S-Woodland | O-Forest | |
---|---|---|---|---|---|

HH | 16 June 2016 | 1.31 | 1.27 | 1.60 | 1.48 |

30 June 2016 | 1.20 | 1.41 | 1.50 | 1.37 | |

14 July 2016 | 1.24 | 1.23 | 1.52 | 1.42 | |

11 August 2016 | 1.11 | 1.09 | 1.30 | 1.22 | |

25 August 2016 | 1.13 | 1.06 | 1.36 | 1.25 | |

22 September 2016 | 1.16 | 1.12 | 1.37 | 1.24 | |

6 October 2016 | 1.32 | 1.35 | 1.58 | 1.46 | |

HV | 16 June 2016 | 0.91 | 0.83 | 0.93 | 0.77 |

30 June 2016 | 0.76 | 0.67 | 0.79 | 0.57 | |

14 July 2016 | 0.82 | 0.74 | 0.82 | 0.63 | |

11 August 2016 | 0.74 | 0.65 | 0.65 | 0.48 | |

25 August 2016 | 0.74 | 0.63 | 0.67 | 0.47 | |

22 September 2016 | 0.70 | 0.56 | 0.65 | 0.44 | |

6 October 2016 | 0.85 | 0.79 | 0.83 | 0.64 | |

VV | 16 June 2016 | 1.14 | 1.24 | 1.44 | 1.38 |

30 June 2016 | 1.04 | 1.14 | 1.36 | 1.26 | |

14 July 2016 | 1.09 | 1.20 | 1.39 | 1.29 | |

11 August 2016 | 1.01 | 1.11 | 1.20 | 1.14 | |

25 August 2016 | 1.01 | 1.06 | 1.22 | 1.11 | |

22 September 2016 | 1.01 | 1.10 | 1.23 | 1.13 | |

6 October 2016 | 1.13 | 1.29 | 1.42 | 1.34 |

Acquisition Time | HH | HV | VV |
---|---|---|---|

16 June 2016 | 0.418 | 0.495 | 0.370 |

30 June 2016 | 0374 | 0.561 | 0.216 |

14 July 2016 | 0.489 | 0.643 | 0.473 |

11 August 2016 | 0.435 | 0.564 | 0.377 |

25 August 2016 | 0.469 | 0.563 | 0.428 |

22 September 2016 | 0.182 | 0.545 | 0.123 |

6 October 2016 | 0.381 | 0.487 | 0.349 |

Model | Regression Equation | R^{2} |
---|---|---|

Direct linear | ${\sigma}_{HV}^{0}=-17.525+0.013GSV$ | 0.529 |

Logarithmic | ${\sigma}_{HV}^{0}=-26.608+2.296ln\left(GSV\right)$ | 0.601 |

Quadratic | ${\sigma}_{HV}^{0}=-28.155+2.941ln\left(GSV\right)-0.066{\left(ln\left(\mathrm{GSV}\right)\right)}^{2}$ | 0.603 |

Exponential | ${\sigma}_{HV}^{0}=-19.914+0.377sqrt\left(GSV\right)$ | 0.579 |

Water-Cloud analysis | ${\sigma}_{HV}^{0}=-12.932-7.163\mathrm{exp}\left(-0.008GSV\right)$ | 0.612 |

Multi-variable | $ln\left(GSV\right)=-2.611+0.531{\sigma}_{HH}^{0}+0.031{\left({\sigma}_{HH}^{0}\right)}^{2}-1.693{\sigma}_{HV}^{0}-0.063{\left({\sigma}_{HV}^{0}\right)}^{2}$ $+0.255{\sigma}_{VV}^{0}+0.01{\left({\sigma}_{VV}^{0}\right)}^{2}$ | 0.674 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zhang, H.; Zhu, J.; Wang, C.; Lin, H.; Long, J.; Zhao, L.; Fu, H.; Liu, Z.
Forest Growing Stock Volume Estimation in Subtropical Mountain Areas Using PALSAR-2 L-Band PolSAR Data. *Forests* **2019**, *10*, 276.
https://doi.org/10.3390/f10030276

**AMA Style**

Zhang H, Zhu J, Wang C, Lin H, Long J, Zhao L, Fu H, Liu Z.
Forest Growing Stock Volume Estimation in Subtropical Mountain Areas Using PALSAR-2 L-Band PolSAR Data. *Forests*. 2019; 10(3):276.
https://doi.org/10.3390/f10030276

**Chicago/Turabian Style**

Zhang, Haibo, Jianjun Zhu, Changcheng Wang, Hui Lin, Jiangping Long, Lei Zhao, Haiqiang Fu, and Zhiwei Liu.
2019. "Forest Growing Stock Volume Estimation in Subtropical Mountain Areas Using PALSAR-2 L-Band PolSAR Data" *Forests* 10, no. 3: 276.
https://doi.org/10.3390/f10030276
