Article

Assessment of Seasonal Variation in Methane Emissions of Mediterranean Buffaloes Using a Laser Methane Detector

1
Facoltà di Medicina Veterinaria, Università degli Studi di Teramo, Piano d’Accio, 64100 Teramo, Italy
2
Animal Breeding and Husbandry in the Tropics and Subtropics, University of Hohenheim, 70599 Stuttgart, Germany
3
Dipartimento di Agraria, Sezione di Scienze Zootecniche, University of Sassari, Viale Italia 39, 07100 Sassari, Italy
4
Istituto Zooprofilattico Sperimentale dell’Abruzzo e del Molise, Campo Boario, 64100 Teramo, Italy
*
Author to whom correspondence should be addressed.
Animals 2022, 12(24), 3487; https://doi.org/10.3390/ani12243487
Submission received: 2 November 2022 / Revised: 2 December 2022 / Accepted: 7 December 2022 / Published: 9 December 2022
(This article belongs to the Special Issue Animal Sustainability of Buffalo: Reproduction, Health and Management)

Abstract

:

Simple Summary

Methane is a powerful greenhouse gas also released by ruminants due to their physiological digestive process. A strong knowledge of the emission level of each species and on the variability, factors is needed to target the best mitigation strategy for the livestock sector. To assess these emissions, non-invasive and feasible technologies, such as Laser Methane Detectors (LMD), are now available. The present study represents the first assessment of methane emissions in Italian Mediterranean buffaloes with LMD and investigates the effect of the season on these emissions. The results obtained showed that the season significantly influenced emissions, since lower values were found in summer when compared to the winter period; therefore, this should be considered when setting up a measurement protocol with LMD.

Abstract

A direct assessment of the methane (CH4) emission level and its variability factors is needed in each animal species in order to target the best mitigation strategy for the livestock sector. Therefore, the present study aimed to (1) test a laser methane detector (LMD) for the first time in Italian Mediterranean buffaloes (IMB), a non-invasive tool to quantify CH4 emissions; (2) test the effect of season on the emissions; and (3) compare the results measured directly with the ones estimated with the existing equations. CH4 emissions of twenty non-productive IMB, under the same feeding regimen, were monitored for 12 days in summer and winter. Significantly higher THI (74.46 ± 1.88 vs. 49.62 ± 4.87; p < 0.001), lower DMI (2.24 ± 0.04 vs. 2.51 ± 0.03% DMI/kg live weight; p < 0.001) and lower emission intensities (0.61 ± 0.15 vs. 0.75 ± 0.13; p < 0.001) were found during the summer period when compared with winter. LMD was found to be a versatile tool to be used in buffaloes, and it was clear that a summer increase in THI could act as a stressor for the animals, influencing their emissions. In addition, measured emissions were significantly higher than when estimated with the existing equations (p < 0.001), suggesting the need for further research in this area.

Graphical Abstract

1. Introduction

In Southern Italy, Mediterranean buffaloes are mainly farmed for milk production to be used for dairy processing into “mozzarella” cheese. The growing interest in the mozzarella cheese induced a growth in the number of farmed dairy buffaloes, which in Italy increased from approximately 100,000 in the 1980s to over 400,000 in 2021 [1,2].
In ruminants, methane (CH4) production is part of the physiological digestive process through enteric fermentation and contributes to global warming. In fact, CH4 is a powerful greenhouse gas with a high global warming potential, both if evaluated with the GWP100 (global warming potential in a 100-year period) [3,4] and with the recent GWP* approach [5]. In November 2021, at the United Nations Climate Change Conference (COP-26), “The Global Methane Pledge” was signed, which commits countries involved to a reduction of 30% in methane emissions deriving from anthropogenic activities [6]. Among the pledge’s objectives for the agricultural sector, together with the Climate and Clean Air Coalition, is the reduction of methane from animal’s enteric fermentation per unit of product [7].
Therefore, given the increasing importance of the buffalo farming industry, evidence-based data are essential to increase the knowledge of the CH4 emission level of this species and to refine breed- and country-specific emission factors to support a more accurate inventory in order to improve the accuracy of IPCC equations for each animal category (i.e., growing, lactating or dry) [8]. In this respect, [9] reported a consistent contribution of growing buffaloes to the overall methane emission of this species.
Metabolic chambers are the “gold standard” for assessing emissions, since they are the most precise and accurate method and provide a controlled environment at the experimental level, although they are expensive, time-consuming, not flexible for on-farm monitoring and the confinement of the animals in the chamber might affect their behaviour and welfare [10,11]. The sulphur hexafluoride (SF6) tracer technique is suitable for measuring methane emissions while maintaining animals in their natural conditions (i.e., grazing), although it is labour-intensive and invasive for the animals since they require the placement of a permeation tube and a bolus with a known SF6 gas released into the reticulorumen [12]. Other methods have been developed that require a short measurement period and that can be used on-farm to record CH4 emissions in a non-invasive way, such as the GreenFeed [13], breath analysers installed in the feeding bin or in the milking systems [14,15,16] and laser-based methods such as laser methane detectors (LMD).
An LMD is a handheld, portable smart tool developed for the detection of gas leaks from a safe distance in gas transmission networks, landfills and other areas. Its use in livestock was first reported by [17], and from there it has been widely applied to several species such as dairy cows [17,18,19,20,21,22,23], beef cattle [24], sheep [24,25] and goats [26,27]. An LMD uses a high selectivity infrared absorption spectroscopy method to detect the CH4 concentration in the breath of animals. It uses a semiconductor laser as a collimated excitation source and employs the second harmonic detection of wavelength-modulation spectroscopy for the measurement. A guiding laser in the visible spectrum helps to direct the invisible measuring laser to the desired target [19,28]. The CH4 concentration between the detector and the target is measured by assessing a fraction of the diffusely reflected laser beam [29]. Infrared spectroscopy techniques, although they have only recently started to be adopted for breath analysis, appear promising since they are less time-consuming than traditional laboratory techniques [19,30]. The possibility of obtaining measurements in real time has important advantages, especially when dealing with animals, as measurements must be made quickly and safely [19].
To date, no studies are available concerning direct measurement of CH4 emissions from Mediterranean buffaloes, while a few authors measured CH4 emissions from buffaloes of Murrah and Bhadawari breeds with the SF6 tracer technique [31,32,33,34,35,36]. Moreover, LMD was never used as a tool to measure CH4 emissions in any of the aforementioned buffalo breeds. Despite the lower accuracy of LMD, when compared with other methods, it represents a flexible and non-invasive technique to compare emissions among different situations [28].
Many factors can influence CH4 emissions, including the thermal comfort of the animal, which is affected by the temperature-humidity index (THI) and can influence the animal’s behaviours and dry matter intake [37,38].
Therefore, the aim of the present study was to (1) test the feasibility of using breath as a medium for quantifying CH4 emissions in Mediterranean buffaloes with an LMD; (2) explore methodological aspects related to the LMD assessment protocol; (3) provide evidence-based on-farm collected data on the CH4 emission of growing buffaloes and compare them with the existing equations of the Intergovernmental Panel on Climate Change (IPCC, 2019); and (4) evaluate the effect of the season on the CH4 emissions of the animals.

2. Materials and Methods

2.1. Animals and Housing

The study was conducted at the experimental farm of the “Istituto Zooprofilattico Sperimentale dell’Abruzzo e del Molise” (Teramo, Italy, 42°41′25.0″ N 13°44′25.1″ E) during two study periods in 2021: four weeks in summer (July) and four weeks in winter (December). In total, 20 growing Italian Mediterranean buffaloes (11 females and 9 males), housed at the experimental farm for other research purposes, were enrolled in the study. The animals were homogeneous in age (18 ± 1.5 months at the beginning of the trial), not pregnant, and not lactating. The animals were group-housed together in the stalls, with access during the morning and early afternoon to an outdoor paddock adjacent to the barn, which was provided with a natural waterhole for wallowing. The stable was equipped with straw bedding that was changed weekly.

2.2. Diet

The animals were fed with ad libitum mixed hay and 3 kg/head/day of commercial concentrate feed, administered twice a day (9 a.m. and 3 p.m.). Water was provided ad libitum in eight linear drinking troughs. During the trial, samples of the hay and concentrate were collected every two weeks and analysed for dry matter content (DM), ash and crude protein (CP) following the official methods of [39]. Neutral detergent fibre (NDF), acid detergent fibre (ADF) and lignin (ADL) were analysed as described by [40]. The results of the feed analysis are reported in Table 1.
The dry matter intake was estimated twice a week for both the summer and winter periods based on the group’s forage and concentrate consumption. This value was then divided by the number of animals in the barn to obtain the individual average DMI and expressed as % of the live weight of the animal (LW). The LW used for this calculation was the average weight of the animals, measured in each trial season.

2.3. Animals’ Weight Estimation

It was not possible to perform a weighing of the animals; hence, an estimation was performed using two different equations: (1) by Riaz et al., 2018 [41] and (2) by Khan et al., 1978 [42], with a measuring tape.
Body   Weight   kg = HG 2 ×   DBL 300 × 0.453592
Body   Weight   kg = 1697.226 + 16.761 ×   height + 23.947 ×   HG + 0.514 ×   DBL × 0.453592
where height indicates height at withers, HG is heart girth and DBL is diagonal body length. All expressed in inches in the equations. Both equations were multiplied by 0.453592 to convert libras into kilograms.
The heart girth was measured using a measuring tape, drawn from a point slightly behind the shoulder blade down to the sixth rib position and under the body behind the elbow [41]. The diagonal body length was taken from the point of the shoulder to the point of the pin bone and the height of the animals was measured at withers.

2.4. Temperature and Humidity Index (THI) Measurements

Three temperature and humidity data loggers (RHT30 model, Extech, Nashua, NH, USA) were placed at the same level as the animals inside the barn, and had a sampling frequency of 10 min during the whole duration of the study. The average of the environmental temperature and relative humidity from the three data loggers was used to calculate the temperature-humidity index (THI) of the 24 h, using the NRC equation (1971) [43]:
THI = 1.8 ×   T + 32 0.55 0.0055 ×   % HR × 1.8 ×   T 26
where T is environmental temperature in °C and %HR is relative humidity.

2.5. CH4 Emissions Evaluation

Methane measurements were performed on three days for four consecutive weeks both in the summer and winter period using a hand-held laser methane detector, “Laser Methane mini™ (LMm)” model (Tokyo Gas Engineering Co., Ltd., Tokyo, Japan). In the first period, measurements were performed in the morning (10:00–12:30), while in the second period, measurements were performed in the morning (10:00–12:30) and evening (16:00–18:30), to evaluate the effect of the time of the day on methane emissions. The measurements were obtained at least 1 h after concentrate feeding since previous studies demonstrated how this variable can influence the measurement [24,44]. The measurements were carried out by the same trained operator pointing the green laser beam of the laser methane detector (LMD) at the nostrils of the buffaloes. The LMD measures the concentration (ppm × m) of CH4 present between the animal and the detector with the principle of infrared spectroscopy with a wavelength set on high selectivity for the band of CH4 absorption. The LMm operates in a temperature range between −17 °C and +50 °C and a humidity range of 30–90%. It can detect CH4 concentrations between 1 and 50,000 ppm × m with a detection accuracy of ±10% and can operate from a distance up to 30 m from the emission source. For all measurements, a fixed distance of one meter was maintained between the buffalo’s muzzle and the device. The distance was controlled using a laser distance meter (DISTO D2 model, LEICA, Heerbrugg, Switzerland); at least six distance measurements were performed during the monitoring of each animal. The measurement was performed with the animals standing idle in a corridor without physical restraint. Measurements were performed with a continuous recording every 0.5 s for a 4-min duration to capture the full eructation cycle, as suggested by previous studies [17,19,45] and confirmed in the recent research by [46]. LMD was connected to a tablet running the GasViewer app via a Bluetooth connection for exporting and storing the data. At the beginning of each measurement session, CH4 emissions from bedding, measured at one meter of distance, were evaluated from three different spots and their average was calculated.
The output of the LMD recording consists of a time series of values of CH4 emissions belonging to a single animal that consists of peaks and troughs representing the inhalation and exhalation of the respiratory cycle. When an eructation event occurs, the individual peaks are much higher, therefore it is necessary to divide them from the respiratory values [17,23,26,28,45]. Mean and standard deviation (s.d.) were calculated for each profile, and one s.d. was used as a cut-off value to discriminate between methane emission from breathing (CH4 breath) and eructation (CH4 peak) as described by [45]. The averages of the CH4 peak, CH4 breath and of the overall CH4 concentrations (CH4 average), were used to perform further analysis. Thereafter, data were converted from ppm–m to kg/year with the equation developed by [17,47] that estimates CH4 emission from the tidal respiratory volume as follows:
CH 4   g min = CH 4   peak   ×   V   ×   R   ×   α ×   β   × 10 6
CH 4   g day = CH 4   g min × 1440
CH 4   kg year = CH 4   g day × 365 1000
where g is grams; CH4 peak is the average of the peak value of emission in ppm–m divided by the distance from the animal (1 m); V is tidal volume, determined as 3800 mL; R is respiratory rate, determined as 20 acts per minutes; α is conversion factor of methane production from mL to gram, which is 0.000667 g/mL; and β is dilution factor, which is ten, to correct for the difference between breath and total methane production.
Thereafter, the emission intensity was calculated and expressed as gCH4/day/kg LW (live weight) by dividing the daily CH4 emissions in g/day by the average weight of the animals.
Moreover, to allow a comparison, Tier 2 method was applied to calculate the methane emissions from individual animals for the two seasons, estimating the DMI as % of LW of the animals, using the following (IPCC, 2019) equation:
GEI MJ day = DMI   × 18.45
CH 4 kg year = GEI × Y m 100 × 365 55.65
where GEI is gross energy intake; DMI is dry matter intake, estimated as % of the live weight of the animal; 18.45 is conversion factor for dietary GE per kg of dry matter; and Ym is methane conversion factor, or the % of GE in feed converted to methane. The value used was 6%, as reported by [48] for sub-adult Mediterranean buffaloes (1–3 years old); 55.65 indicates energy content of methane in MJ/kg CH4.

2.6. Statistical Analysis

Statistical analyses were performed in R version 4.0.4, via the R studio version [49]. Overall and seasonal descriptive statistics are expressed in the paper as mean ± s.d.
Linear models were used to test the effect of season on the DMI (% of LW) and on THI. The correlation between weight estimated with the two different equations was performed with the “rmcorr” package [50], used for repeated measurement. Since a high correlation (r = 0.9) was found between equations, the average weight value was used to test the seasonal differences (ID as a random effect) and those related to the sex of the animals (ID and season as a random effect) using a linear mixed model.
Linear models were used to test the differences in CH4 emissions from bedding between days and to test their effect on CH4 average, CH4 peak and CH4 breath. To test the effect of the time of the recording (morning vs. evening) performed in winter on the CH4 average, CH4 peak and CH4 breath, data were analysed with a mixed model, using the ID of the animals and the day of the recording as a random effect. Since no significant differences were found, a daily average was used to perform further analyses.
Linear mixed models were finally used to assess the effect of LW on CH4 peak, breath and average emissions measured with LMDs, and of the season on the emission intensity (EI), retaining the animal’s ID as a random effect. In addition, a linear mixed model was also used to compare kgCH4/head/year from LMD recording with the individual values estimated with IPCC equations, retaining the animals’ ID as a random effect. Values were considered significant when p < 0.05.

3. Results

This section may be divided by subheadings. It should provide a concise and precise description of the experimental results, their interpretation as well as the experimental conclusions that can be drawn.

3.1. Seasonal Weight, DMI and THI

A strong positive correlation was found between the weight of the animals calculated with the equation by [41] and by [42] (r = 0.99; p < 0.001)l; therefore, the average values of the results obtained with the two estimations were used to conduct further analyses. A significant increase in the body weight of the animals was observed from the summer (398.3 ± 41.4 kg; 18 ± 1.5 months of age) to the winter period (497.3 ± 47.3 kg; p < 0.001; 23 ± 1.5 months of age), while no significant differences were found between the sexes.
The average percentage of dry matter intake on the animal’s body weight was found to be significantly lower during summer (2.24 ± 0.04% DMI/kg live weight) than during winter (2.51 ± 0.03% DMI/kg live weight; p < 0.001).
In addition, the average daily THI was found to be significantly lower during winter trial days (summer: 74.46 ± 1.88; winter: 49.62 ± 4.87; p < 0.001), while no differences between the different days within the seasons were observed (Figure 1).

3.2. CH4 Emissions Evaluation with LMD

There was no significant variation in CH4 concentrations in the bedding over the trial days (14.18 ± 4.83 ppm–m). This was the case in both the summer and the winter period. Moreover, no influence of CH4 bedding was found on CH4 average, CH4 peak and CH4 breath; therefore, those “offset” values were not subtracted from the methane emission data.
During the winter period, no significant differences were noted among the evaluations performed at the different times of the day for CH4 average (morning = 39.8 ± 12.9; evening = 41.4 ± 11.7), CH4 peak (morning = 125.9 ± 56.9; evening = 134.8 ± 55.0) and CH4 breath (morning = 21.2 ± 7.0; evening = 22.0 ± 5.9); therefore, the winter data were averaged for each day of the assessment.
The overall mean, including both seasons, of CH4 peak, CH4 breath and CH4 average measured with LMD was found to be 115.8 ± 56.4 ppm–m, 18.3 ± 7.4 ppm–m and 34.2 ± 14.3 ppm–m, respectively as reported in Table 2. When converting the CH4 peak results from ppm-m into g/day and kg/year the overall mean values of methane emission were found to be 328.6 ± 160.0 g/day and 119.9 ± 58.4 kg/year.
No significant effect of the animal’s body weight was found on CH4 peak, breath and average measured with LMD. To assess the seasonal differences in methane emissions, since the animals were growing, data were expressed as emission intensity (EI, g CH4/day/kg LW), and a significantly higher EI was observed during the winter period (p < 0.001; Table 3).

3.3. CH4 Emissions Estimated with IPCC Equations

The results obtained with the Tier 2 approach suggested by IPCC 2019 are shown in Figure 2. Significantly lower values were found when estimating methane emissions in kg/head/year with the IPCC equations than when recording with LMD (p < 0.001).

4. Discussion

The study presents original results on the assessment of methane emissions in growing Mediterranean buffaloes through the monitoring of the breath using the LMD and proposes an overview of their seasonal variations. LMD was confirmed to be a versatile tool [28,45], easily usable on buffaloes that allows on-farm monitoring in a non-invasive way for the animals.
Regarding the methodological aspects of the LMD assessment protocol, different authors accounted for methane concentrations from bedding or from the environment as a background value that was subtracted from the recording on animals [22,27]. However, from the results of the present study, CH4 from bedding did not influence the recording of the animals when monitoring them from a one-meter distance, as shown by [23].
While [27] described a consistent diurnal pattern in CH4 emissions, the results of the present study collected during the winter period to compare the morning and evening emissions did not demonstrate this difference. Refs. [24,44] demonstrated an effect on CH4 diurnal variation of the distance between feeding and the measurement. Therefore, the absence of differences found herein was probably due to the observance of a fixed amount of elapsed time of 1 h between feeding and recording, both for the morning and evening evaluation. These methodological results can provide an interesting outcome to improve LMD monitoring guidelines for a uniform measurement and data-analysis protocol [28,46].
To our knowledge, there are no studies in the literature where methane emissions are evaluated with LMDs on buffaloes; thus, the comparison can only be performed with data collected from dairy and beef cattle. This comparison should be interpreted with caution, considering the differences in emissions associated with species-specific factors, age, size, feeding regimen and the productive state of the animals [51].
The overall CH4 peak concentration found in the present study (115.8 ± 56.4 ppm–m) was comparable with the results obtained by [23] (129 ppm–m) and [18] (114 ppm–m) in dairy cows and by [24] in beef cattle fed with a forage-based diet (110.7 ± 4.91 ppm–m). Higher values were reported by [17,19] (201 ppm–m and 396 ppm–m, respectively) in dairy cows; this difference could be attributable to the methods used for the LMD data handling performed in the latter studies, i.e., using two standard deviations (instead of one, as used in the present study) to discriminate CH4 peak emissions associated with eructation.
Concerning the measurement of methane emissions in buffaloes, some authors performed the assessment in different breeds with the sulphur hexafluoride (SF6) tracer technique, which was later converted into gCH4/head/day. Most of these studies, as can be seen in Table 4, involved Murrah buffaloes of different ages and weights, with a high variation in the methane emission measured (from 59 to 301 gCH4/head/day), mostly related to the differences in breed, animal weight, DMI and in the diet used. In particular, the results found in the present study (328.6 ± 160.0 gCH4/head/day) are comparable with the results obtained from animals of similar body weight and DMI ([35] for Murrah buffaloes). In this respect, a positive correlation between DMI and CH4 emissions in ruminants is already well-established [44,52,53,54].
On the contrary, the present study did not show an effect of an animal’s weight on CH4 emissions, differently from the findings of [38,55] in cattle, but in agreement with the results of [56], that showed how body weight was not a good CH4 emission predictor for sheep. Further studies should, then, be performed to establish if body weight should be included as a good CH4 emission predictor for Mediterranean buffaloes.
In order to compare CH4 emissions between the summer and winter season, EI (gCH4 day/kg of live weight) was used to normalise the values, because the animals were growing. As in the present study, a significantly higher emission value was observed during winter by [38,57] in bovines and by [58] in buffaloes. On the contrary, [36] did not find any influence of the season on CH4 emissions. According to [57], the increase in environmental temperature during summer causes a reduction in animal activity, which seems to correlate with a reduction in methane emission (r = 0.66). [58] attributed lower values of emissions during the heat stress period to a decrease in thyroid activity, which could be reflected in a reduction in gastrointestinal motility and in a consequent increase in transit time [59]. In addition, [38] showed how animals under heat stress reduce DMI and, consequently, their methane emissions. Considering the classification of [60] for Mediterranean buffaloes, animals start experiencing mild heat stress with a THI ranging from 72 to 78. Therefore, the animals involved in the present study were found to be subjected to mild heat stress for the whole duration of the summer recordings, which can explain the reduction in DMI [61]. Thus, the most important cause of EI reduction during the summer period observed in the present study could be associated with the significant decrease in DMI when compared with the winter period.
The significant difference found comparing our results with those obtained with the IPCC equations for the estimation of CH4 enteric emissions could suggest the need for an improvement for species-specific and possibly season-specific research-based data to implement the currently available emission coefficient for Mediterranean sub-adult buffaloes [48].
However, it should be noted that the present study was conducted on a relatively low number of non-lactating animals, monitored for a short period of time, and the methane emission was assessed only at a specific time of the day with an LMD. In addition, since an LMD measures concentration and gas flux, lower accuracy and precision was evidenced by [28], when compared with other methods tested to monitor direct CH4 from animals. Therefore, it could have limitations in fully representing the fluctuations of methane emissions, and results should be confirmed by further studies.

5. Conclusions

In conclusion, the following study reports, for the first time, data on the CH4 emission of Mediterranean buffaloes obtained directly on-farm with a non-invasive tool such as an LMD. For this species, this device has proven to be a versatile and easy-to-use tool which can be adopted in the future to measure emissions in buffaloes under different productive stages.
No interference of the bedding emissions was found on methane recording and no differences in diurnal monitoring were shown if the assessment was performed at a constant interval from feeding, allowing for the standardisation of the existing protocols for these aspects. Despite the lower precision and accuracy level of an LMD when compared with other methods, it was confirmed to be a suitable tool to compare the emissions of the animals during two different seasons. The seasonal emission assessment, associated with changes in THI, was confirmed as a relevant variable reflected in animal DMI and CH4 emissions. Further studies will be required to deepen the predominant mechanism associated with these variations and to investigate more precisely the effect of heat waves and/or cold spells. In addition, further studies should be addressed at assessing additional sources of emission variations in buffaloes to obtain a more comprehensive overall picture. The differences found in the comparison between the CH4 emissions measured and estimated through the IPCC equations suggest that future research should focus on deepening and refining the existing models for Mediterranean buffaloes from data collected directly on-field. The development of a user-friendly method to monitor emissions and a thorough knowledge of all associated influencing variables could help identify mitigation strategies to reduce emissions from buffaloes and, consequently, from the livestock sector.

Author Contributions

Conceptualization, M.G.G.C., L.L. and G.V.; methodology, A.S.A., I.F., M.C., M.G., M.G.G.C., M.P., L.L. and G.V.; formal analysis, L.L.; investigation, L.L. and G.V.; data curation, I.F. and L.L.; writing—original draft preparation, G.V., I.F., L.L. and M.G.G.C.; writing—review and editing, A.S.A., I.F., M.C., M.G., M.G.G.C., M.P., L.L. and G.V.; visualization, L.L., M.G.G.C. and G.V.; supervision, G.V. and M.G.G.C.; project administration, M.G.G.C. and G.V.; funding acquisition, M.C. and G.V.; All authors have read and agreed to the published version of the manuscript.

Funding

L.L. acknowledges funding from the Project “Demetra” (Dipartimenti di Eccellenza 2018-2022, CUP_C46C18000530001, Italian Ministry for Education, University and Research). M.C. acknowledges funding from the Ministry of University and Research and European Social Fund (PON-AIM1857439–1).

Institutional Review Board Statement

The present study has been approved by the Ethical Commission from the Faculty of Veterinary Medicine, University of Teramo (Prot n° 17962, 13/07/2021) and did not require any authorization under the EU Directive 2010/63.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank Cleo, Doriano, Rossella, Giampaolo, Massimo, Emiliano and all the personnel of the Istituto Zooprofilattico Sperimentale dell’Abruzzo e del Molise who helped with the management of the animals during the experiment.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Banca Dati Nazionale. Anagrafe Zootecnica, Statistiche—Dettaglio Consistenza Bufalini. Available online: https://www.vetinfo.it/j6_statistiche (accessed on 2 May 2022).
  2. Sabia, E.; Gauly, M.; Napolitano, F.; Cifuni, G.F.; Claps, S. The effect of different dietary treatments on volatile organic compounds and aromatic characteristics of buffalo mozzarella cheese. Int. J. Dairy Technol. 2020, 73, 594–603. [Google Scholar] [CrossRef]
  3. Getabalew, M.; Alemneh, T.; Akeberegn, D. Methane production in ruminant animals: Implication for their impact on climate change. Concepts Dairy Vet. Sci. 2019, 2, 8. [Google Scholar]
  4. Stocker, T.F.; Qin, D.; Plattner, G.-K.; Tignor, M.; Allen, S.K.; Boschung, J.; Nauels, A.; Xia, Y.; Bex, B.; Midgley, B. IPCC, 2013: Climate Change 2013: The Physical Science Basis; Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013. [Google Scholar]
  5. Lynch, J.; Cain, M.; Pierrehumbert, R.; Allen, M. Demonstrating GWP*: A means of reporting warming-equivalent emissions that captures the contrasting impacts of short- and long-lived climate pollutants. Environ. Res. Lett. 2020, 15, 044023. [Google Scholar] [CrossRef] [PubMed]
  6. European Commission. Joint EU-US Press Release on the Global Methane Pledge. Available online: https://ec.europa.eu/commission/presscorner/detail/en/IP_21_4785 (accessed on 2 March 2022).
  7. Climate & Clean Air Coalition. Agriculture: Increasing Agricultural Climate Action & Ambition. Available online: https://www.ccacoalition.org/en/initiatives/agriculture (accessed on 5 March 2022).
  8. Ibidhi, R.; Kim, T.-H.; Bharanidharan, R.; Lee, H.-J.; Lee, Y.-K.; Kim, N.-Y.; Kim, K.-H. Developing country-specific methane emission factors and carbon fluxes from enteric fermentation in South Korean dairy cattle production. Sustainability 2021, 13, 9133. [Google Scholar] [CrossRef]
  9. Singhal, K.K.; Mohini, M.; Jha, A.K.; Gupta, P.K. Methane emission estimates from enteric fermentation in Indian livestock: Dry matter intake approach. Curr. Sci. 2005, 88, 119–127. [Google Scholar]
  10. Madsen, J.; Bjerg, B.S.; Hvelplund, T.; Weisbjerg, M.R.; Lund, P. Methane and Carbon dioxide ratio in excreted air for quantification of the methane production from ruminants. Livest. Sci. 2010, 129, 223–227. [Google Scholar] [CrossRef]
  11. Kumari, S.; Fagodiya, R.K.; Hiloidhari, M.; Dahiya, R.P.; Kumar, A. Methane production and estimation from livestock hus-bandry: A mechanistic understanding and emerging mitigation options. Sci. Total Environ. 2020, 709, 136135. [Google Scholar] [CrossRef]
  12. Hammond, K.J.; Crompton, L.A.; Bannink, A.; Dijkstra, J.; Yáñez-Ruiz, D.R.; O’Kiely, P.; Kebreab, E.; Eugène, M.A.; Yu, Z.; Shingfield, K.J.; et al. Review of Current in vivo measurement techniques for quantifying enteric methane emission from ruminants. Anim. Feed. Sci. Technol. 2016, 219, 13–30. [Google Scholar] [CrossRef] [Green Version]
  13. Hristov, A.N.; Oh, J.; Giallongo, F.; Frederick, T.; Weeks, H.; Zimmerman, P.R.; Harper, M.T.; Hristova, R.A.; Zimmerman, R.S.; Branco, A.F. The use of an automated system (GreenFeed) to Monitor enteric methane and carbon dioxide emissions from ruminant animals. JoVE J. Vis. Exp. 2015, 103, e52904. [Google Scholar] [CrossRef] [Green Version]
  14. Hardan, A.; Garnsworthy, P.C.; Bell, M.J. Detection of methane eructation peaks in dairy cows at a robotic milking station using signal processing. Animals 2022, 12, 26. [Google Scholar] [CrossRef]
  15. Lassen, J.; Løvendahl, P.; Madsen, J. Accuracy of noninvasive breath methane measurements using fourier transform infrared methods on individual cows. J. Dairy Sci. 2012, 95, 890–898. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Negussie, E.; de Haas, Y.; Dehareng, F.; Dewhurst, R.J.; Dijkstra, J.; Gengler, N.; Morgavi, D.P.; Soyeurt, H.; van Gastelen, S.; Yan, T.; et al. Invited review: Large-scale indirect measurements for enteric methane emissions in dairy cattle: A review of proxies and their potential for use in management and breeding decisions. J. Dairy Sci. 2017, 100, 2433–2453. [Google Scholar] [CrossRef] [PubMed]
  17. Chagunda, M.G.G.; Ross, D.; Roberts, D.J. On the use of a laser methane detector in dairy cows. Comput. Electron. Agric. 2009, 68, 157–160. [Google Scholar] [CrossRef]
  18. Bruder, T.; Rouille, B.; Yan, T.; Chagunda, M.G.G. Towards a Robust Protocol for Enteric Methane Measurements Using a Hand Held Laser Methane Detector in Ruminants; ICAR Technical Series; ICAR: Rome, Italy, 2017; Volume 22, pp. 27–33. [Google Scholar]
  19. Chagunda, M.G.G.; Ross, D.; Rooke, J.; Yan, T.; Douglas, J.L.; Poret, L.; McEwan, N.R.; Teeranavattanakul, P.; Roberts, D.J. Measurement of enteric methane from ruminants using a hand-held laser methane detector. Acta Agric. Scand. A Anim. Sci. 2013, 63, 68–75. [Google Scholar] [CrossRef]
  20. Chagunda, M.G.G.; Yan, T. Do methane measurements from a laser detector and an indirect open-circuit respiration calorimetric chamber agree sufficiently closely? Anim. Feed. Sci. Technol. 2011, 165, 8–14. [Google Scholar] [CrossRef]
  21. Pickering, N.K.; Chagunda, M.G.G.; Banos, G.; Mrode, R.; McEwan, J.C.; Wall, E. Genetic parameters for predicted methane production and laser methane detector measurements1. J. Anim. Sci. 2015, 93, 11–20. [Google Scholar] [CrossRef] [Green Version]
  22. Sorg, D.; Mühlbach, S.; Rosner, F.; Kuhla, B.; Derno, M.; Meese, S.; Schwarm, A.; Kreuzer, M.; Swalve, H. The agreement between two next-generation laser methane detectors and respiration chamber facilities in recording methane concentrations in the spent air produced by dairy cows. Comput. Electron. Agric. 2017, 143, 262–272. [Google Scholar] [CrossRef]
  23. Sorg, D.; Difford, G.F.; Mühlbach, S.; Kuhla, B.; Swalve, H.H.; Lassen, J.; Strabel, T.; Pszczola, M. Comparison of a laser methane detector with the greenfeed and two breath analysers for on-farm measurements of methane emissions from dairy cows. Comput. Electron. Agric. 2018, 153, 285–294. [Google Scholar] [CrossRef]
  24. Ricci, P.; Chagunda, M.G.G.; Rooke, J.; Houdijk, J.G.M.; Duthie, C.A.; Hyslop, J.; Roehe, R.; Waterhouse, A. Evaluation of the laser methane detector to estimate methane emissions from ewes and steers. J. Anim. Sci. 2014, 92, 5239–5250. [Google Scholar] [CrossRef]
  25. Doran, S. Development of Proxy Indicators of Methane Output by Sheep Using Rapid-Throughput Field and Laboratory Technologies. Ph.D. Thesis, Aberystwyth University, Aberystwyth, UK, 2014. [Google Scholar]
  26. Roessler, R.; Chefor, F.; Schlecht, E. Using a portable laser methane detector in goats to assess diurnal, diet- and position-dependent variations in enteric methane emissions. Comput. Electron. Agric. 2018, 150, 110–117. [Google Scholar] [CrossRef]
  27. Roessler, R.; Schlecht, E. Application of the laser methane detector for measurements in freely grazing goats: Impact on animals’ behaviour and methane emissions. Animal 2021, 15, 100070. [Google Scholar] [CrossRef] [PubMed]
  28. Sorg, D. Measuring livestock CH4 emissions with the laser methane detector: A review. Methane 2022, 1, 38–57. [Google Scholar] [CrossRef]
  29. Iseki, T. A portable remote methane detector using an InGaAsP DFB laser. Environ. Geol. 2004, 46, 1064–1069. [Google Scholar] [CrossRef]
  30. Larios, A.D.; Kaur Brar, S.; Avalos Ramírez, A.; Godbout, S.; Sandoval-Salas, F.; Palacios, J.H. Challenges in the measurement of emissions of nitrous oxide and methane from livestock sector. Rev. Environ. Sci. Biotechnol. 2016, 15, 285–297. [Google Scholar] [CrossRef] [Green Version]
  31. Gupta, S.; Mohini, M.; Malla, B.A.; Mondal, G.; Pandita, S. Effects of monensin feeding on performance, nutrient utilisation and enteric methane production in growing buffalo heifers. Trop. Anim. Health Prod. 2019, 51, 859–866. [Google Scholar] [CrossRef]
  32. Hossain, S.A.; Sherasia, P.L.; Phondba, B.T.; Pathan, F.K.; Garg, M.R. Effect of feeding green fodder based diet in lactating buffaloes: Milk production, economics and methane emission. Indian J. Dairy Sci. 2017, 70, 767–773. [Google Scholar]
  33. Malik, P.K.; Trivedi, S.; Mohapatra, A.; Kolte, A.P.; Sejian, V.; Bhatta, R.; Rahman, H. Comparison of enteric methane yield and diversity of ruminal methanogens in cattle and buffaloes fed on the same diet. PLoS ONE 2021, 16, 1–19. [Google Scholar] [CrossRef]
  34. Prusty, S.; Mohini, M.; Kundu, S.S.; Kumar, A.; Datt, C. Methane emissions from river buffaloes fed on green fodders in relation to the nutriet intake and digestibility. Trop. Anim. Health Prod. 2014, 46, 65–70. [Google Scholar] [CrossRef]
  35. Singh, S.; Kushwaha, B.P.; Mohini, M.; Mishra, A.K.; Nag, S.K.; Singh, A. Methane production from lactating bhadawari and murrah breeds of buffalo fed wheat straw-concentrate diet. Buffalo Bull. 2018, 37, 145–150. [Google Scholar]
  36. Talukdar, P.; Kundu, S.S.; Mondal, G.; Talukdar, P.; Kundu, S.S.; Mondal, G. Quantification of methane emissions from murrah buffaloes fed different energy diets during various temperature humidity index periods in a tropical environment. Anim. Prod. Sci. 2017, 59, 169–176. [Google Scholar] [CrossRef]
  37. D’Urso, P.R.; Arcidiacono, C.; Cascone, G. Environmental and animal-related parameters and the emissions of ammonia and methane from an open-sided free-stall barn in hot Mediterranean climate: A preliminary study. Agronomy 2021, 11, 1772. [Google Scholar] [CrossRef]
  38. Yadav, B.; Singh, G.; Wankar, A.; Dutta, N.; Chaturvedi, V.B.; Verma, M.R. Effect of simulated heat stress on digestibility, methane emission and metabolic adaptability in crossbred cattle. Asian Australas. J. Anim. Sci. 2016, 29, 1585. [Google Scholar] [CrossRef] [PubMed]
  39. AOAC. Official Methods of Analysis; AOAC: Gaithersburg, MD, USA, 1990; Volume 1. [Google Scholar]
  40. Van Soest, P.J.; Robertson, J.B.; Lewis, B.A. Methods for dietary fiber, neutral detergent fiber, and nonstarch polysaccharides in relation to animal nutrition. J. Dairy Sci. 1991, 74, 3583–3597. [Google Scholar] [CrossRef] [PubMed]
  41. Riaz, R.; Tahir, M.; Waseem, M.; Asif, M.; Khan, M. Accuracy of estimates for live body weight using schaeffer’s formula in non-descript cattle (Bos Indicus), Nili Ravi buffaloes (Bubalus Bubalis) and their calves using linear body measurements. Pak. J. Sci. 2018, 70, 225. [Google Scholar]
  42. Khan, B.B.; Azhar, M.; Ahmed, N.; Chudhary, R.A. Estimation of liveweight of buffaloes from body measurements. Pak. J. Agric. Sci. 1978, 15, 89–94. [Google Scholar]
  43. National Research Council. A Guide to Environmental Research on Animals; National Academy of Sciences: Washington, DC, USA, 1971; ISBN 0-309-01869-2. [Google Scholar]
  44. Bell, M.; Craigon, J.; Saunders, N.; Goodman, J.; Garnsworthy, P. Does the diurnal pattern of enteric methane emissions from dairy cows change over time? Animal 2018, 12, 2065–2070. [Google Scholar] [CrossRef]
  45. Chagunda, M.G. Opportunities and challenges in the use of the laser methane detector to monitor enteric methane emissions from ruminants. Anim. Int. J. Anim. Biosci. 2013, 7 (Suppl. 2), 394–400. [Google Scholar] [CrossRef] [Green Version]
  46. Boré, R.; Bruder, T.; El Jabri, M.; March, M.; Hargreaves, P.R.; Rouillé, B.; Dewhurst, R.J.; Chagunda, M.G.G. Measurement duration but not distance, angle, and neighbour-proximity affects precision in enteric methane emissions when using the laser methane detector technique in lactating dairy cows. Animals 2022, 12, 1295. [Google Scholar] [CrossRef]
  47. Wu, L. Measurement Methods to Assess Methane Production of Individual Dairy Cows in a Barn. Ph.D. Thesis, Wageningen University and Research, Wageningen University, Wageningen, The Netherlands, 2016. [Google Scholar]
  48. Cóndor, R.D.; Valli, L.; De Rosa, G.; Di Francia, A.; De Lauretis, R. Estimation of the methane emission factor for the Italian Mediterranean buffalo. Animal 2008, 2, 1247–1253. [Google Scholar] [CrossRef] [Green Version]
  49. R Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing; R Core Team: Vienna, Austria, 2021. [Google Scholar]
  50. Bakdash, J.Z.; Marusich, L.R. Repeated measures correlation. Front. Psychol. 2017, 8, 456. [Google Scholar] [CrossRef] [Green Version]
  51. Broucek, J. Production of methane emissions from ruminant husbandry: A review. J. Environ. Prot. 2014, 5, 1482–1493. [Google Scholar] [CrossRef]
  52. Hristov, A.; Melgar, A. Relationship of dry matter intake with enteric methane emission measured with the greenfeed system in dairy cows receiving a diet without or with 3-nitrooxypropanol. Animal 2020, 14, s484–s490. [Google Scholar] [CrossRef] [PubMed]
  53. Hristov, A.N.; Kebreab, E.; Niu, M.; Oh, J.; Bannink, A.; Bayat, A.R.; Boland, T.M.; Brito, A.F.; Casper, D.P.; Crompton, L.A. Symposium review: Uncertainties in enteric methane inventories, measurement techniques, and prediction models. J. Dairy Sci. 2018, 101, 6655–6674. [Google Scholar] [CrossRef] [PubMed]
  54. Kriss, M. Quantitative relations of the dry matter of the food consumed, the heat production, the gaseous outgo, and the insensible loss in body weight of cattle. J. Agric. Res. 1930, 40, 283–295. [Google Scholar]
  55. Moraes, L.E.; Strathe, A.B.; Fadel, J.G.; Casper, D.P.; Kebreab, E. Prediction of enteric methane emissions from cattle. Glob. Chang. Biol. 2014, 20, 2140–2148. [Google Scholar] [CrossRef] [Green Version]
  56. Moorby, J.M.; Fleming, H.R.; Theobald, V.J.; Fraser, M.D. Can live weight be used as a proxy for enteric methane emissions from pasture-fed sheep? Sci. Rep. 2015, 5, 1–9. [Google Scholar] [CrossRef] [Green Version]
  57. Ngwabie, N.M.; Jeppsson, K.H.; Gustafsson, G.; Nimmermark, S. Effects of animal activity and air temperature on methane and ammonia emissions from a naturally ventilated building for dairy cows. Atmos. Environ. 2011, 45, 6760–6768. [Google Scholar] [CrossRef]
  58. Wankar, A.K.; Singh, G.; Yadav, B. Biochemical profile and methane emission during controlled thermal stress in buffaloes (Bubalus Bubalis). Buffalo Bull. 2017, 36, 35–42. [Google Scholar]
  59. Christopherson, R.; Kennedy, P. Effect of the thermal environment on digestion in ruminants. Can. J. Anim. Sci. 1983, 63, 477–496. [Google Scholar] [CrossRef]
  60. Dash, S.; Chakravarty, A.K.; Singh, A.; Upadhyay, A.; Singh, M.; Yousuf, S. Effect of heat stress on reproductive performances of dairy cattle and buffaloes: A review. Vet. World 2016, 9, 235–244. [Google Scholar] [CrossRef] [Green Version]
  61. Chang-Fung-Martel, J.; Harrison, M.T.; Brown, J.N.; Rawnsley, R.; Smith, A.P.; Meinke, H. Negative Relationship between dry matter intake and the temperature-humidity index with increasing heat stress in cattle: A global meta-analysis. Int. J. Biometeorol. 2021, 65, 2099–2109. [Google Scholar] [CrossRef] [PubMed]

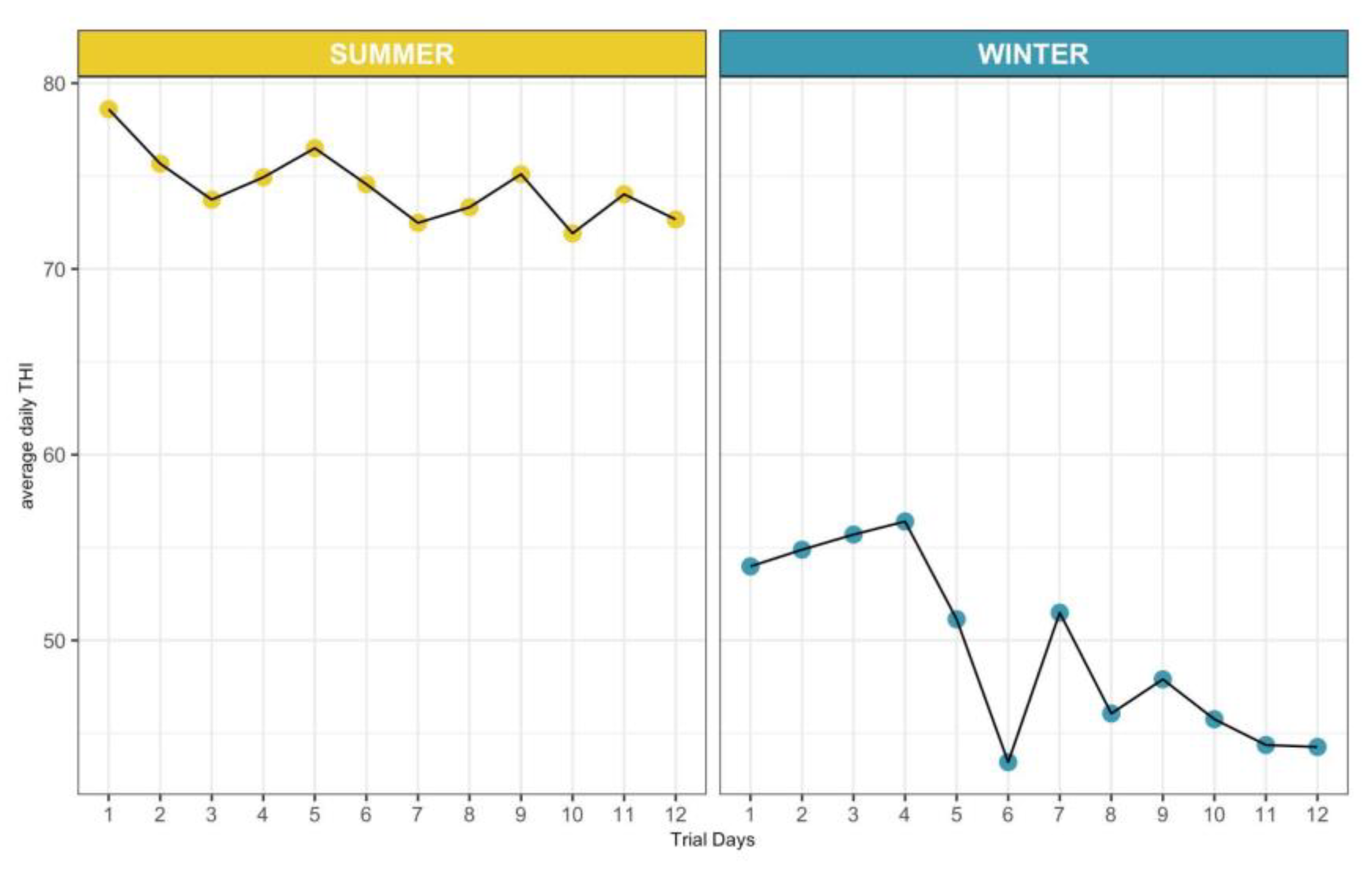

Figure 1. Variation of the average temperature and humidity index in the 12 summer and winter trial days.
Figure 1. Variation of the average temperature and humidity index in the 12 summer and winter trial days.
Animals 12 03487 g001
Figure 2. Seasonal CH4 average values (kg/head/year) estimated with IPCC equation or measured with LMD (*** = p < 0.01 between estimated and measured values).
Figure 2. Seasonal CH4 average values (kg/head/year) estimated with IPCC equation or measured with LMD (*** = p < 0.01 between estimated and measured values).
Animals 12 03487 g002
Table 1. Chemical composition of concentrate and hay (% on a DM basis) used during the trial.
Table 1. Chemical composition of concentrate and hay (% on a DM basis) used during the trial.
Chemical CompositionConcentrateHay
DM89.7391.47
CP18.2513.90
NDF25.8455.10
ADF9.4541.16
ADL2.759.18
Ash7.407.40
CP = crude protein; NDF = neutral detergent fibre; ADF = acid detergent fibre; ADL = acid detergent lignin.
Table 2. Overall average values recorded during the trial, expressed as mean ± s.d.
Table 2. Overall average values recorded during the trial, expressed as mean ± s.d.
VariablesValue
Weight, kg429.9 ± 65.8
DMI (% of LW)2.38 ± 0.14
Methane peak, ppm–m115.8 ± 56.4
Methane breath, ppm–m18.3 ± 7.4
Methane average, ppm–m34.2 ± 14.3
Daily methane emission, gCH4/day328.6 ± 160.0
Yearly methane emissions, kgCH4/year119.9 ± 58.4
Table 3. Seasonal average values (summer and winter) recorded during the trial, expressed as mean ± s.d.
Table 3. Seasonal average values (summer and winter) recorded during the trial, expressed as mean ± s.d.
MeasureSummerWinter
Weight, kg398.3 ± 41.4 B497.3 ± 47.3 A
DMI, % LW2.24 ± 0.04 B2.51 ± 0.03 A
Emission Intensity, gCH4/day/live weight0.61 ± 0.15 B0.75 ± 0.13 A
Means with different superscript (A, B) letters were found statistically different with p < 0.001.
Table 4. Studies on direct CH4 emissions measured with sulphur hexafluoride (SF6) tracer technique on buffaloes.
Table 4. Studies on direct CH4 emissions measured with sulphur hexafluoride (SF6) tracer technique on buffaloes.
AuthorBreedWeight (kg)DMI (%LW)F:CCH4 (g/day)
[31]Murrah135.03.0060:40 59
[32]Surti × Mehasana503.43.0570:30 (Control)257
509.93.0280:20 (Experimental)230
[33]Murrah 284.02.4270:30 93
[34]Murrah 218.51.95 100:070–78
[35]Bhadawari 441.92.0357:43 183
Murrah515.42.3866:34 301
[36]Murrah158.52.35 (S)65:35 (Diet 1)90–100
2.49 (W)
2.40 (S)55:45 (Diet 2)80–90
2.58 (W)
2.21 (S)70:30 (Diet 3)100–115
2.49 (W)
Weight and DMI are expressed as mean values. F:C = forage to concentrate ratio. S = summer; W = winter.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lanzoni, L.; Chagunda, M.G.G.; Fusaro, I.; Chincarini, M.; Giammarco, M.; Atzori, A.S.; Podaliri, M.; Vignola, G. Assessment of Seasonal Variation in Methane Emissions of Mediterranean Buffaloes Using a Laser Methane Detector. Animals 2022, 12, 3487. https://doi.org/10.3390/ani12243487

AMA Style

Lanzoni L, Chagunda MGG, Fusaro I, Chincarini M, Giammarco M, Atzori AS, Podaliri M, Vignola G. Assessment of Seasonal Variation in Methane Emissions of Mediterranean Buffaloes Using a Laser Methane Detector. Animals. 2022; 12(24):3487. https://doi.org/10.3390/ani12243487

Chicago/Turabian Style

Lanzoni, Lydia, Mizeck G. G. Chagunda, Isa Fusaro, Matteo Chincarini, Melania Giammarco, Alberto Stanislao Atzori, Michele Podaliri, and Giorgio Vignola. 2022. "Assessment of Seasonal Variation in Methane Emissions of Mediterranean Buffaloes Using a Laser Methane Detector" Animals 12, no. 24: 3487. https://doi.org/10.3390/ani12243487

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
