Next Article in Journal
Carbon Supported Engineering NiCo2O4 Hybrid Nanofibers with Enhanced Electrocatalytic Activity for Oxygen Reduction Reaction
Previous Article in Journal
Electrospun Polymer Nanofibers Reinforced by Tannic Acid/Fe+++ Complexes
Open AccessArticle

Fabrication of Biomass-Derived Carbon Aerogels with High Adsorption of Oils and Organic Solvents: Effect of Hydrothermal and Post-Pyrolysis Processes

Beijing Key Laboratory of Lignocellulosic Chemistry, Beijing Forestry University, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Jaroslaw W. Drelich
Materials 2016, 9(9), 758; https://doi.org/10.3390/ma9090758
Received: 17 July 2016 / Revised: 31 August 2016 / Accepted: 1 September 2016 / Published: 6 September 2016
(This article belongs to the Section Biomaterials)

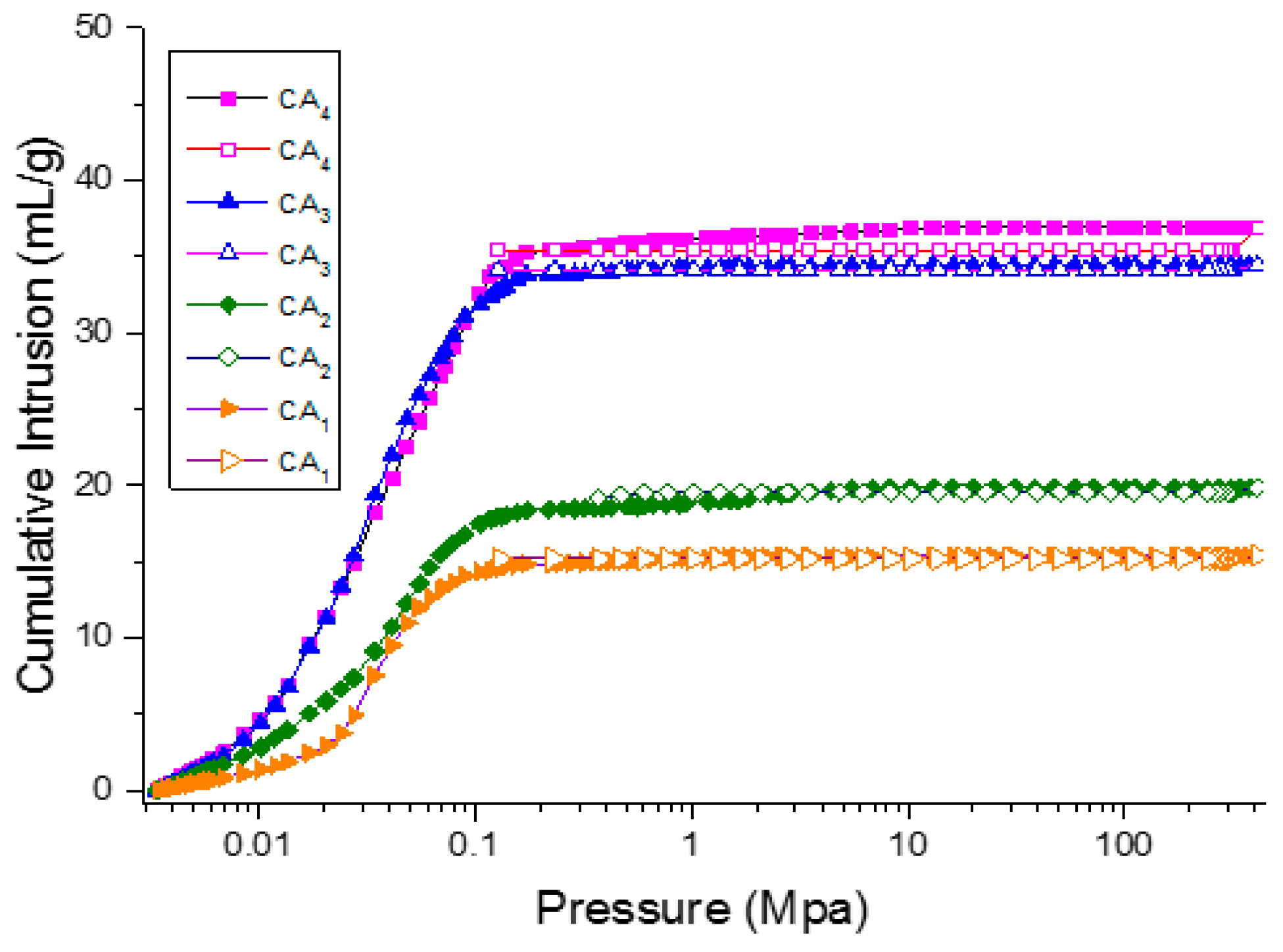

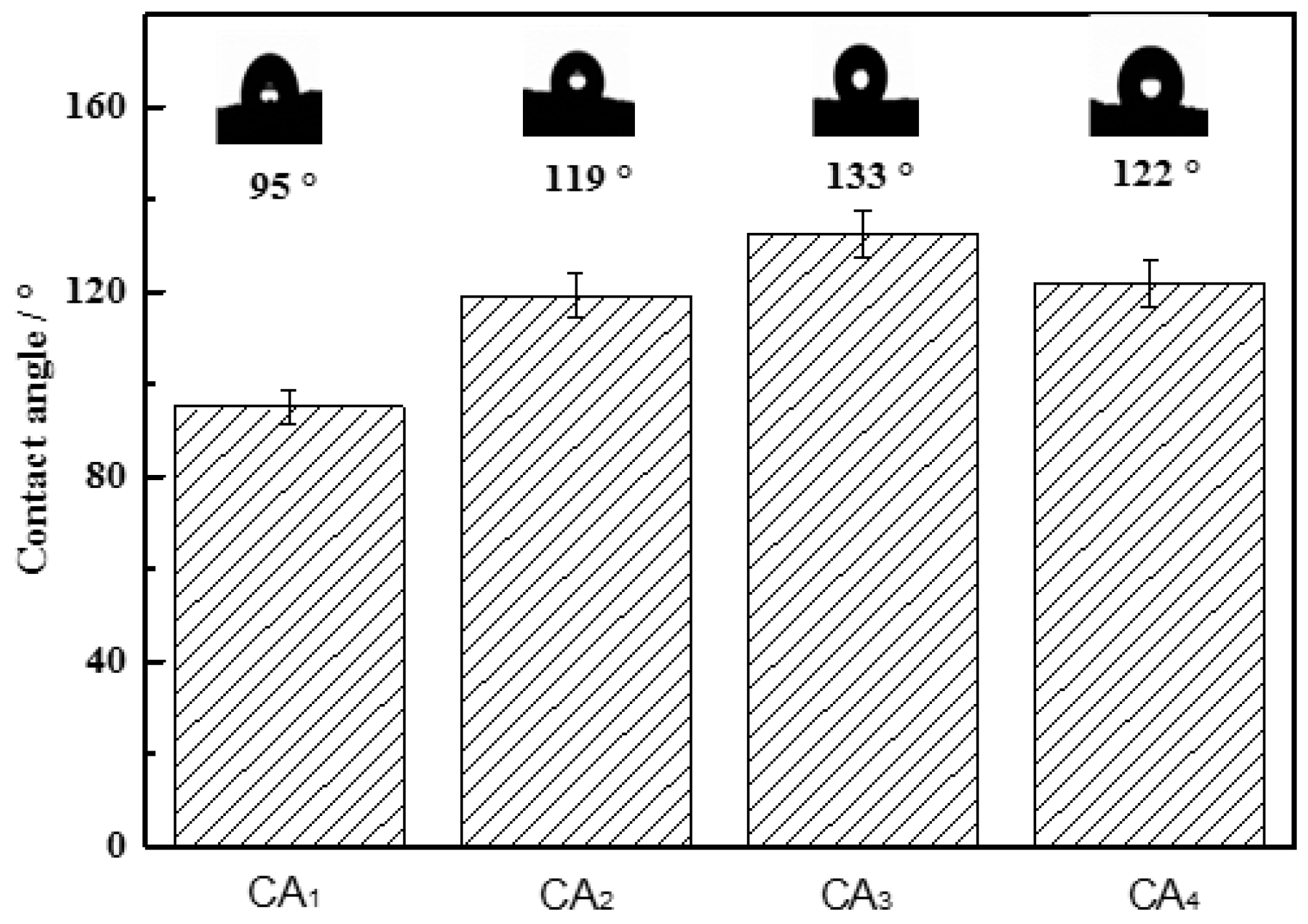

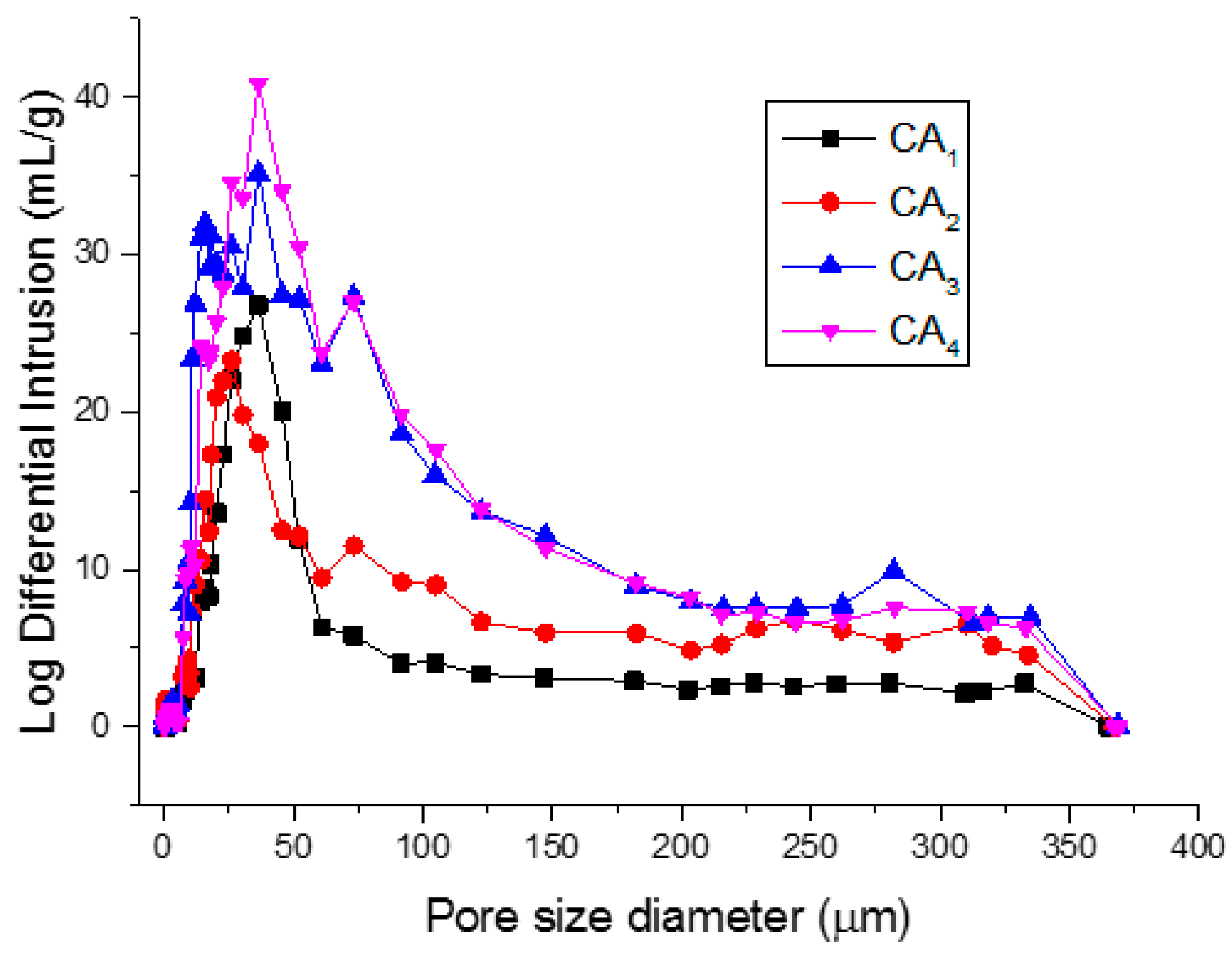

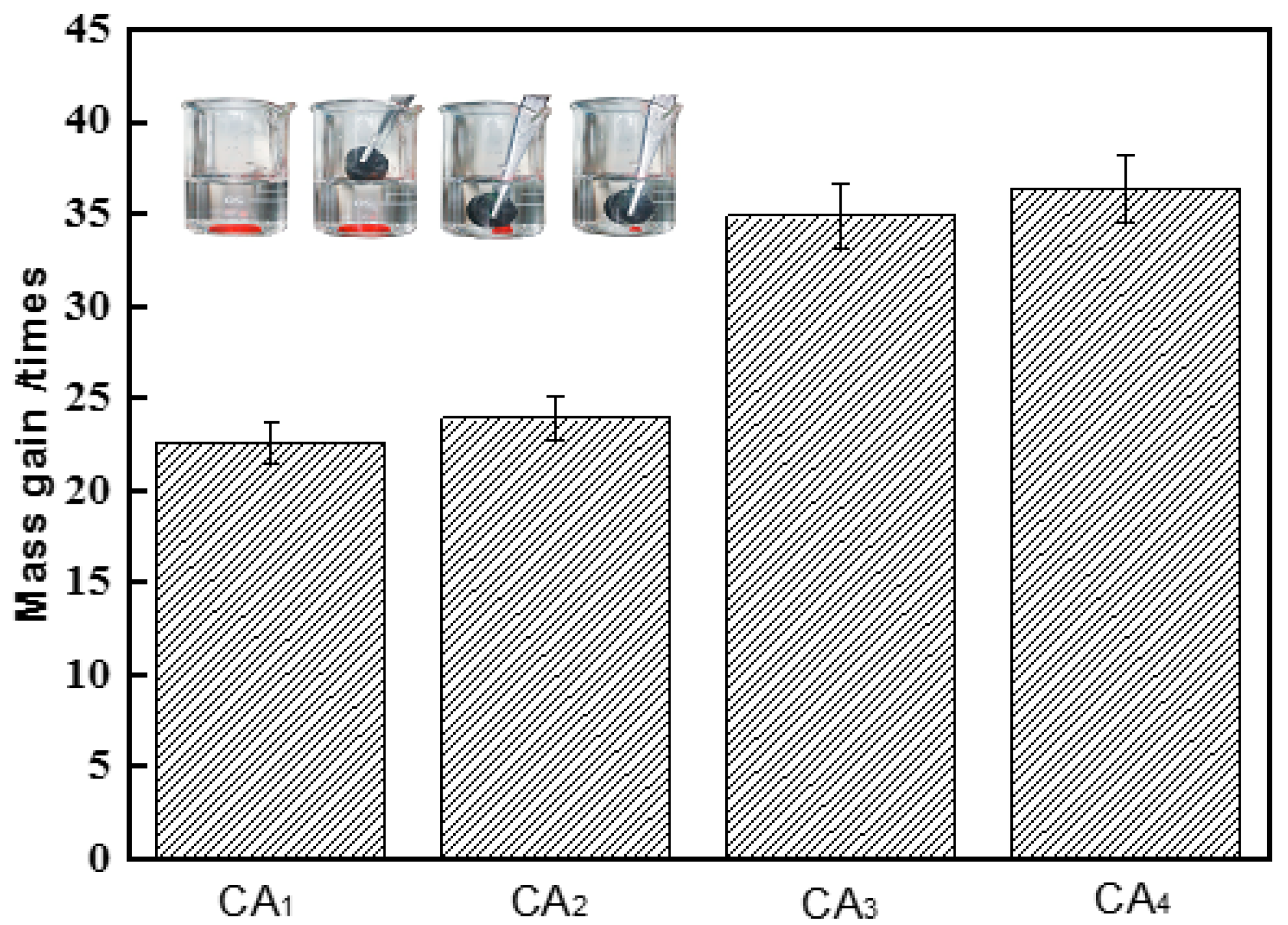

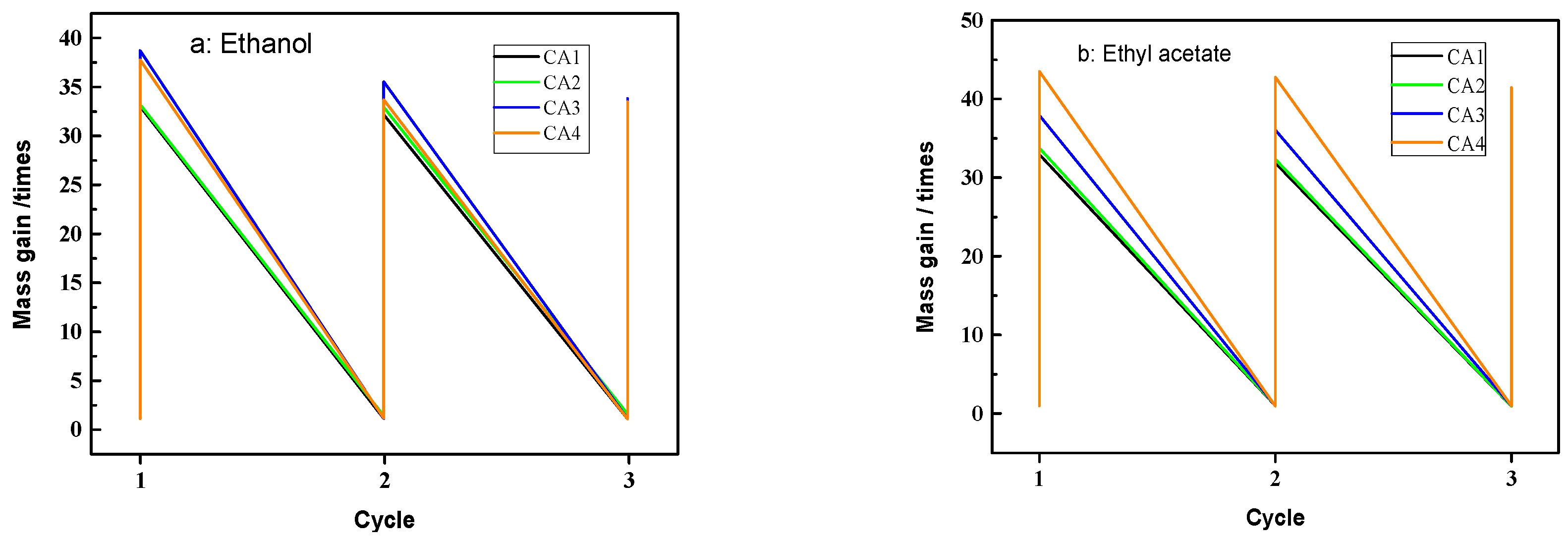

Biomass is the most plentiful and well-utilized renewable carbon resource on the earth. Direct conversion of biomass to carbon aerogel provides a promising approach to develop adsorbent materials. In the present work, the effect of presence of water during hydrothermal treatment and holding temperature during post-pyrolysis process have been investigated for the preparation of carbon aerogels (CAs) using eggplant as raw material. The results showed that the addition of water during hydrothermal treatment was advantageous for the preparation of CA samples with higher surface area and stronger hydrophobicity, resulting in superior adsorption capacities of CAs for both oil and organic solvents compared with that fabricated without the presence of water. The optimized carbon aerogel possessed higher specific surface of 249 m2·g−1 and exhibited excellent hydrophobicity with a water contact angle of 133°. The adsorption capacities of carbon aerogel for oils and organic solvents could reach 35–45 times its own weight. In addition, the adsorbed oil and organic solvents could be recovered by distillation, and the regenerated carbon aerogels samples exhibited the stable performance and outstanding reusability. Therefore, the carbon aerogel has great potential in application of oil recovery and environmental protection. View Full-Text
Keywords: biomass; carbon aerogels; hydrothermal treatment; recyclable; adsorption oil biomass; carbon aerogels; hydrothermal treatment; recyclable; adsorption oil
Show Figures

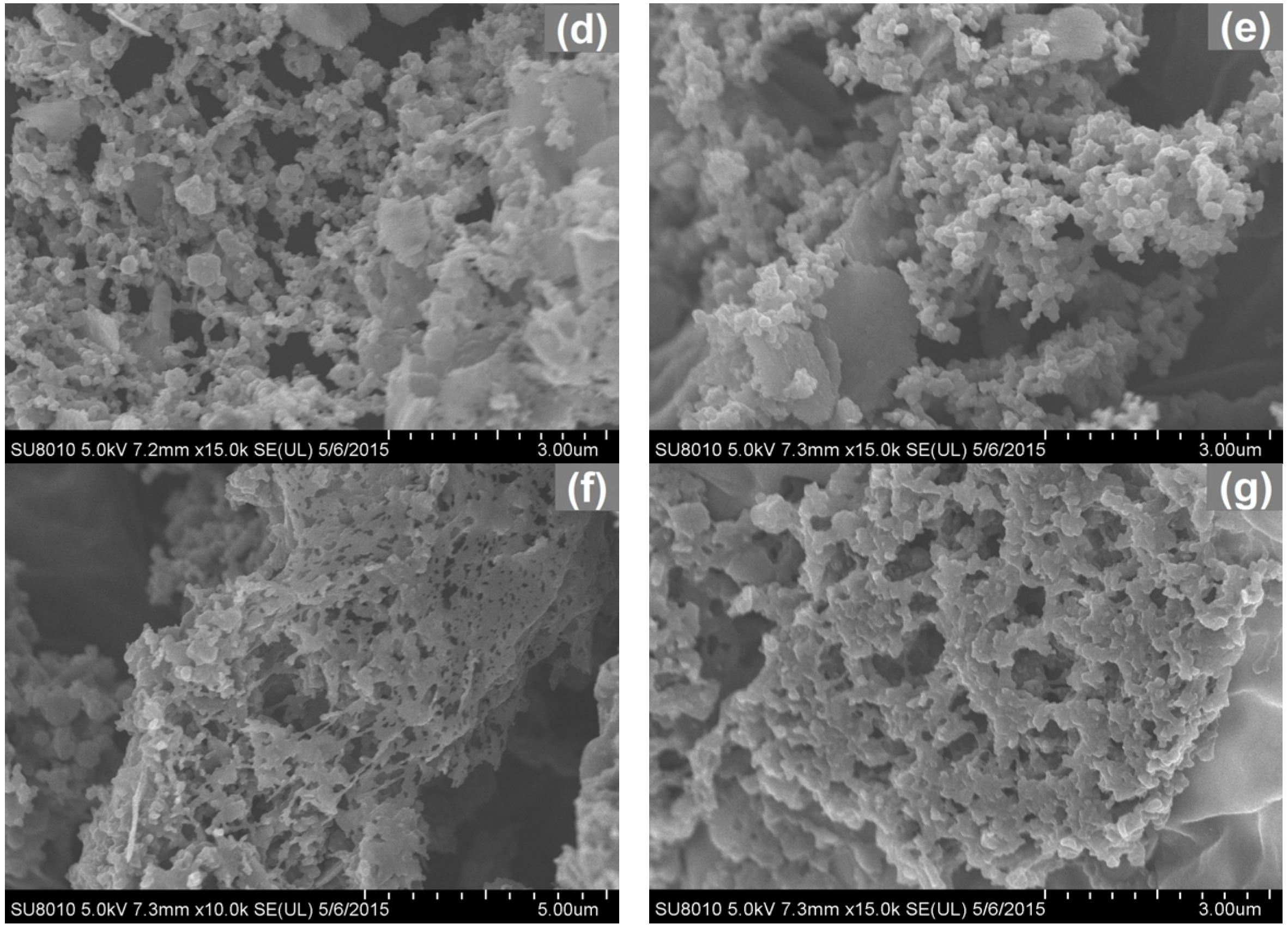

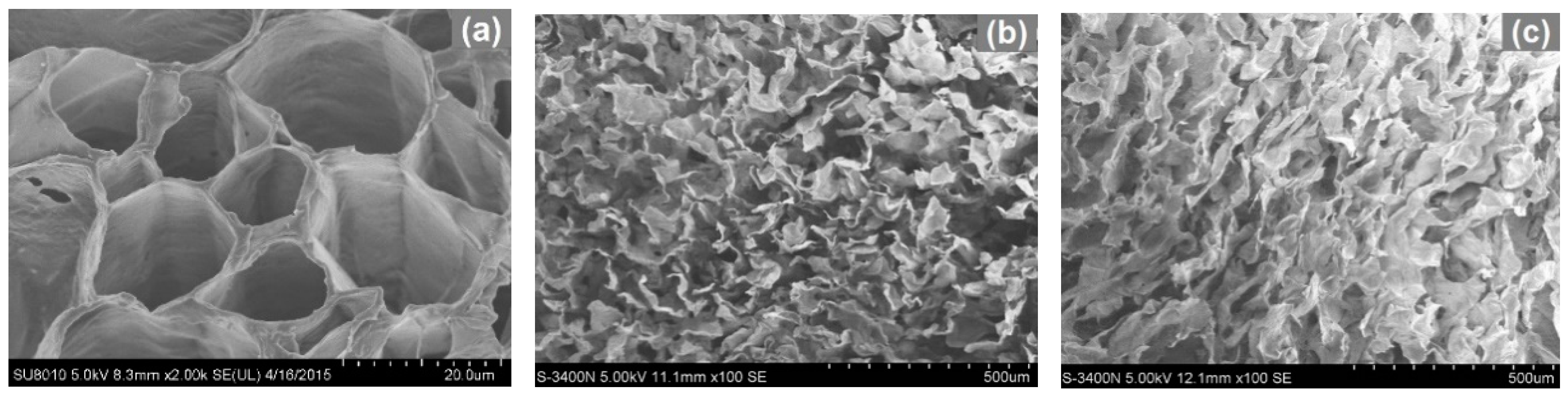

Figure 1

MDPI and ACS Style

Yin, A.; Xu, F.; Zhang, X. Fabrication of Biomass-Derived Carbon Aerogels with High Adsorption of Oils and Organic Solvents: Effect of Hydrothermal and Post-Pyrolysis Processes. Materials 2016, 9, 758.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
