Template-Free Synthesis of Monoclinic BiVO4 with Porous Structure and Its High Photocatalytic Activity

by
Pengyu Dong
1,*,
Xinguo Xi
2,
Xinjiang Zhang
3,
Guihua Hou
1 and
Rongfeng Guan
1
1
Key Laboratory for Advanced Technology in Environmental Protection of Jiangsu Province, Yancheng Institute of Technology, Yancheng 224051, China
2
Jiangsu Collaborative Innovation Center for Ecological Building Materials and Environmental Protection Equipments, Yancheng Institute of Technology, Yancheng 224051, China
3
School of Materials Engineering, Yancheng Institute of Technology, Yancheng 224051, China
*
Author to whom correspondence should be addressed.
Materials 2016, 9(8), 685; https://doi.org/10.3390/ma9080685
Submission received: 10 July 2016 / Revised: 1 August 2016 / Accepted: 5 August 2016 / Published: 11 August 2016
Browse Figures
Versions Notes

Abstract

:
Monoclinic BiVO4 photocatalysts with porous structures were synthesized by a two-step approach without assistance of any templates. The as-prepared samples were characterized by X-ray diffraction pattern (XRD), scanning electron microscopy (SEM), Brunauer–Emmett–Teller (BET), ultraviolet–visible (UV–vis) diffuse reflectance spectroscopy (DRS), photocurrent responses, and electrochemical impedance spectra (EIS). It is found that the as-prepared BiVO4 samples had a porous structure with aperture diameter of 50–300 nm. Moreover, the BET specific surface area of the porous BiVO4-200 °C sample reaches up to 5.69 m2/g, which is much higher than that of the sample of BiVO4 particles without porous structure. Furthermore, a possible formation mechanism of BiVO4 with porous structure was proposed. With methylene blue (MB) as a model compound, the photocatalytic oxidation of organic contaminants in aqueous solution was investigated under visible light irradiation. It is found that the porous BiVO4-200 °C sample exhibits the best photocatalytic activity, and the photocatalytic rate constant is about three times of that of the sample of BiVO4 particles without porous structure. In addition, the photocurrent responses and electrochemical impedance spectra strongly support this conclusion.

Graphical Abstract

1. Introduction

It is widely accepted that photocatalysis is a promising application technology in the fields of air cleaning and water purification [1]. However, the traditional TiO2 photocatalyst could not make use of visible light which accounts for 45% of solar spectrum due to a large band gap (3.2 eV). As a consequence, the development of new and efficient visible-light-driven photocatalysts attracts much attention.
BiVO4 is one of the typical complex oxides with narrow band-gap [2,3]. As an n-type semiconductor with a direct band gap of 2.4 eV [4], BiVO4 could absorb ample visible light and is stable, nontoxic, and relatively cheap [5]. It is generally considered that BiVO4 has three crystal systems of zircon-tetragonal, scheelite tetragonal, and scheelite-monoclinic phases [6]. However, only the monoclinic phase possesses an excellent visible-light photocatalytic property [7,8,9], which has been applied for degradation of various pollutants, e.g., organic dye [8,10], phenol [11], benzene [12], 4-n-alkylphenols [13,14], and so on. In past years, monoclinic BiVO4 with various morphologies, such as nanoparticles [15,16,17], nanorods [18], nanotubes [19], nanosheets [4,20], hierarchical nanostructure [21], has been successfully synthesized. Apart from these nanostructure morphologies, porous structures always show an improvement of the photocatalytic activity due to the large surface area and multiple scattering effects [22,23,24]. In recent years, mesoporous BiVO4 has been prepared by using templates or surfactants, such as silica (KIT-6) [25], silica aerogel [26], colloidal carbon spheres [27] as hard templates, and dodecylamine (DA), oleylamine (OL) or oleic acid (OA) as a surfactant [28], triblock copolymer P123 as a surfactant [11], and so on. Although these templates and surfactants could be removed by NaOH treatment or calcination process, it should be pointed out that the residual templates and surfactants may introduce impurities into the BiVO4 materials and will in any case complicate the separation process of photo-induced electrons and holes. Moreover, the additive of templates and surfactants may increase the cost. However, realization of controlled one-step template-free or surfactant-free fabrication of porous BiVO4 nanostructures remains a great challenge. Therefore, the development of a cheap and template-free method suitable for synthesis of high-purity porous BiVO4 structure is a significant research objective. Recently, Ying et al. reported a template-free approach to fabricate monoclinic BiVO4 hierarchical microtubes self-assembled by several nanowires [29]. Ma et al. prepared monoclinic BiVO4 hollow nanospheres via a template-free method using citric acid as chelating agent [30]. Cheng et al. fabricated monoclinic BiVO4 hollow microspheres by a one-pot template-free hydrothermal method [31]. Li et al. reported a hydrothermal method for synthesizing of monoclinic BiVO4 hollow microspheres from a novel vanadium source K6V10O28·9H2O without any additives but just through adjusting the reaction pH [32].
In this work, monoclinic BiVO4 with porous structure was synthesized through a novel two-step method without assistance of any templates. Compared with other template-free methods for preparing BiVO4 with hollow structure [29,30,31,32], our method is possibly not the best, but it provides a novel approach for the fabrication of monoclinic BiVO4 with porous structure by using the template-free approach. At the same time, the BiVO4 with porous structure prepared by our method exhibited a larger BET surface area compared with the previously reported BiVO4 hierarchical microtubes [29] and BiVO4 hollow microspheres [31]. Moreover, a possible formation mechanism of BiVO4 with porous structure was proposed. Furthermore, the photocatalytic performance of as-prepared monoclinic BiVO4 products with porous structure was evaluated by examining the degradation of methylene blue (MB) under visible light irradiation.

2. Experimental

2.1. Experimental Materials

The following analytically pure chemicals were used: bismuth nitrate (Bi(NO3)3·5H2O, Shanghai Qiangshun Chemical Reagent Co., Ltd., Shanghai, China), urea (Jiangsu Qiangsheng Chemical Co., Ltd., Changshu, China), ammonium metavanadate (NH4VO3, Shanghai Shanpu Chemical Co., Ltd., Shanghai, China), 25% ammonia solution (NH3·H2O, Shanghai pilot Chemical General Co., Shanghai, China), absolute ethanol (Jiangsu Tong Sheng Chemical Reagent Co., Ltd., Yixing, China), and MB dye (Tianjin Guangfu Fine Chemical Research Institute, Tianjin, China).

2.2. Synthesis

Firstly, the precursor was synthesized by a modified homogeneous precipitation method. Typically for the precursor, 0.002 mol of Bi(NO3)3·5H2O was dissolved into 30 mL of deionized water to form solution A, and 0.05 mol of urea was dissolved into 30 mL of deionized water to form solution B. Subsequently, solution B was added into solution A under stirring. After stirring for half an hour, the mixed solution was heated to 90 °C for 2 h in the water bath. The resulting suspension was separated by centrifugation and collected after washing with deionized water three times to obtain the precursor. Secondly, BiVO4 with porous structure was synthesized as follows: the as-obtained precursor was dispersed into 10 mL of deionized water by ultrasonication. Then, 0.002 mol of NH4VO3 was dissolved in deionized water (10 mL) with stirring and heating, and dripped into the above precursor suspension followed by further stirring at 70 °C for half an hour in the water bath. After cooling to room temperature, the final pH value was adjusted to be about 7.5 by ammonia solution. Afterwards, the suspension was transferred into a Teflon-lined autoclave of 50 mL capacity, and kept at various temperatures (i.e., 180, 200, 220 °C) for 12 h followed by cooling to ambient temperature naturally, respectively. The precipitate was separated from the reaction media by centrifugation, and then washed with deionized water and ethanol several times, and finally dried overnight at 80 °C to obtain the BiVO4 product with porous structure. For comparison, BiVO4 particles without porous structure were prepared as follows: 0.002 mol of Bi(NO3)3·5H2O was dissolved into 30 mL of deionized water to form solution A. Then, 0.002 mol of NH4VO3 was dissolved in deionized water (10 mL) with stirring and heating, and dripped into the solution A followed by further stirring at 70 °C for half an hour in the water bath, and the final pH value of the suspension was adjusted to be about 7.5 after cooling to room temperature. Subsequently, the suspension was transferred into a Teflon-lined autoclave and kept at 200 °C for 12 h followed by cooling to ambient temperature naturally. The precipitate was separated by centrifugation, and then washed with deionized water and ethanol several times, and finally dried overnight at 80 °C to obtain the sample of BiVO4 particles.

2.3. Characterization

X-ray diffraction (XRD) measurement was carried out with a D/max-2400 diffractometer (Rigaku, Tokyo, Japan) using Cu–Ka radiation. The morphologies of samples were examined by scanning electron microscopy (SEM, Hitachi S-4800, Hitachi High-Technologies Corp., Tokyo, Japan). The Brunauer-Emmett-Teller (BET) specific surface area and Barrett-Joyner-Halenda (BJH) pore distribution of the samples were measured using a Micromeritics ASAP 2020-M instrument (Micromeritics Instrument Corp., Norcross, GA, USA). Ultraviolet-visible diffuse reflectance spectra (UV-vis DRS) were measured using a Perkin Elmer 950 spectrometer (Perkin Elmer, Norwalk, CT, USA), while BaSO4 was used as a reference. The photocurrent response and electrochemical impedance spectra of as-prepared photocatalysts was measured on an electrochemical analyzer (CHI660E) (Shanghai Chenhua Instruments Co., Ltd., Shanghai, China) in a standard three-compartment cell using 0.5 M Na2SO4 (pH = 6.8) solution as the electrolyte. For the preparation of working electrodes for electrochemical measurements, a homogeneous catalyst ink was first prepared by dispersing 4 mg of catalyst material and 80 μL of a 5 wt % Nafion solution in 2 mL of H2O by ultrasonication, and then 400 μL of catalyst ink dispersions was drop-coated directly onto the precleaned indium tin oxide (ITO) glass surface by microsyringe and placed on a hot plate to speed drying. The surface of working electrode exposed to the electrolyte was a circular film with the geometrical surface areas of 4 cm2. Platinum foil was used as counter electrode and Ag/AgCl electrode as the reference electrode. A 350 W Xe lamp with a cutoff filter of 420 nm was used for excitation. The photo-responses of the photocatalysts as light on and off were measured at 0.0 V, and the electrochemical impedance spectra were measured at 0.0 V. A sinusoidal ac perturbation of 5 mV was applied to the electrode over the frequency range of 10–104 Hz.

2.4. Evaluation of Photocatalytic Activity

The photocatalytic performance of as-prepared samples was evaluated by examining the degradation of MB under visible light irradiation. In a typical photocatalytic degradation process, 20 mg of photocatalyst was suspended in the MB solution (10 mg/L, 90 mL). Before irradiation, the suspensions were stirred magnetically in the dark for 60 min to ensure the establishment of adsorption–desorption equilibrium. A 350 W Xe lamp with a cutoff filter of 420 nm was employed for the visible-light irradiation source and positioned 17 cm away from the reactor to start the photocatalytic reaction under continuous stirring conditions. A certain volume of suspension was withdrawn at selected times for analysis. After recovering the photocatalyst by centrifugation (at 15,000 rpm for 10 min), the concentration of MB solution at some points was analyzed by measuring the light absorption of clear MB solution at 664 nm using a spectrophotometer (UV-2450; Shimadzu, Kyoto, Japan). The percentage of degradation was calculated by C/C0. Here, C is the concentration of remaining MB solution at each irradiated time interval, while C0 is the initial concentration.

3. Results and Discussion

3.1. XRD Analysis

The phase characteristics of the precursor were studied by XRD, as shown in Figure S1 in the Supplementary Materials. The diffraction peaks of the precursor can be indexed as [Bi6O5(OH)3](NO3)5·3H2O, agreeing well with the JCPD Standard card no. 48-0575. Based on the [Bi6O5(OH)3](NO3)5·3H2O precursor, BiVO4 products was synthesized. From Figure 1, it can be seen that all of the XRD patterns of BiVO4 products prepared at hydrothermal temperatures of 180, 200, and 220 °C are in good agreement with the standard data of monoclinic BiVO4 (JCPDS no. 14-0688), with no other characteristic peaks observed. This indicates that monoclinic BiVO4 products with well-crystallized high-purity were successfully obtained via the two-step processes. Moreover, it is found that monoclinic phase was achieved in the sample of BiVO4 particles without porous structure.

3.2. SEM Analysis

From Figure 2a,b, it is observed that the precursor displays a plate-like morphology. Moreover, the as-prepared sample of BiVO4 particles shows particle morphology with particle size of 200–500 nm (Figure 2c). Furthermore, the low magnification SEM image of as-obtained BiVO4 products prepared at the hydrothermal temperatures of 180 °C is presented in Figure S2 in the Supplementary Materials. It could be seen that the obtained BiVO4 product shows a porous structure. Large magnification SEM images of BiVO4 products prepared at the hydrothermal temperatures of 180 °C (Figure 2d), 200 °C (Figure 2e), and 220 °C (Figure 2f) reveal that the all of the BiVO4 products exhibit a porous structure composed of nanoflakes with thicknesses of 50–100 nm, which means that BiVO4 with porous structure was successfully achieved by our two-step method. Further observation indicates that the aperture diameter of the BiVO4 with porous structure is about 50–300 nm, which is near that of previously reported BiVO4 hollow nanospheres (the cavity diameter of 40 nm ) [30] and much smaller than that of BiVO4 hierarchical microtubes (the outer diameter of 1.2–1.5 μm) [29] and BiVO4 hollow microspheres (the diameter of 2–4 μm). [31].

3.3. Formation Mechanism

A possible formation mechanism of as-obtained BiVO4 with porous structure was proposed, as presented in Scheme 1. Firstly, the [Bi6O5(OH)3](NO3)5·3H2O precursor with a plate-like morphology was synthesized in the water bath of 90 °C by a modified homogeneous precipitation method using Bi(NO3)3·5H2O as the raw material, deionized water as the solvent, and urea as the precipitating agent. Then, NH4VO3 was dissolved in deionized water and the pH value was adjusted to be about 7.5 by ammonia solution. In this process, VO3− might react with OH− resulting from ammonia solution to produce VO43− and H+ according to Equation (1). Subsequently, the H+ started to erode the plate-like [Bi6O5(OH)3](NO3)5·3H2O precursor from the surface gradually, giving rise to a large amount of Bi3+ according to Equation (2), which then reacted with the surrounding VO43− to produce a thin layer of BiVO4 on the surface of the plate-like [Bi6O5(OH)3](NO3)5·3H2O precursor (Equation (3)). Finally, in the hydrothermal process, the reaction with a fast diffusion rate of Bi3+ inside this BiVO4 layer and the slow diffusion rate of VO43− outside the BiVO4 layer led to the formation of porous structure. This explanation was called the Kirkendall effect, which deals with the movement of the interface between diffusion couples [33]. A similar Kirkendall phenomenon was reported in the preparation of YVO4 product [34].
VO3− + OH− → VO43− + H+
[Bi6O5(OH)3](NO3)5·3H2O + 13H+ → 6Bi3+ + 11H2O + 5NO3−
Bi3+ + VO43− → BiVO4

3.4. Nitrogen Adsorption–Desorption

The porous structure was further confirmed and characterized as follows. Figure 3 shows the nitrogen adsorption–desorption isotherms of BiVO4 particles and BiVO4 samples prepared at various hydrothermal temperatures. It can be seen that all the as-prepared samples show a type H3 hysteresis loop according to IUPAC classification [35], indicating the presence of slit-shaped pores or voids in the aggregates of plate like particles, which is consistent with the SEM results in Figure 2. Furthermore, the observed hysteresis loops of the as-prepared samples approach P/P0 = 1, suggesting the presence of macropores (>50 nm) [36]. These results suggest that pores are presented in the samples. The inset of Figure 3 shows the corresponding BJH pore size distributions of these samples. It is observed that the porous BiVO4 samples display two peaks around 4 and 60 nm, which could be attributed to the mesopores and macropores, respectively. On the contrary, there is no peak of pore size distribution for the sample of BiVO4 particles, suggesting there is no apparent pore. Table 1 shows the BET specific surface area and BJH pore volume of these samples. It can be seen that the porous BiVO4-200 °C sample shows the largest BJH pore volume and BET specific surface area (5.69 m2/g), which is much higher than that of the sample of BiVO4 particles without porous structure (1.85 m2/g). Moreover, it is found that the BET specific surface area of porous BiVO4-200 °C sample is much higher than that of the previously reported BiVO4 hierarchical microtubes (0.3 m2/g) [29] as well as BiVO4 hollow microspheres (1.05 m2/g) [31] and is near that of BiVO4 hollow spheres (5.85 m2/g) prepared by employing colloidal carbon spheres (CCSs) as hard templates [27]. The higher BET specific surface area is beneficial for the photocatalytic performance. In addition, it is noted that the porous BiVO4-220 °C sample exhibits smaller BET specific surface area compared with porous BiVO4-200 °C sample, which may be due to the higher hydrothermal temperature (i.e., 220 °C) inducing the collapse of porous structures.

3.5. UV-Vis Diffuse Reflectance Spectroscopy

The optical absorption property is a key factor controlling the photocatalytic activity of a catalyst. Figure 4a shows the comparison of UV-vis absorption spectra of the sample of BiVO4 particles and porous BiVO4-200 °C sample. It is obvious that both of these samples exhibit strong absorption in the visible light range. The band gap energy (Eg) of these two samples was calculated from the absorption data using Equation (4) [37]:
α h v = A ( h v − E g ) n
where α is absorption coefficient; A is the absorption constant and n is a constant which depends on the probability of transition; it takes the values 1/2 and 2 for direct allowed and indirect allowed transitions, respectively. Because BiVO4 has an direct band-gap [38], the energy gap (Eg) of the samples was estimated from the intercept of the tangent in the plots of (αhv)2 versus photon energy hv. The calculated Eg values of both samples of BiVO4 particles and porous BiVO4 are 2.41 eV, as shown in Figure 4b. This result indicates that both BiVO4 particles and porous BiVO4 sample possess the same band gap, suggesting the morphology has little or no effect on the band gap of as-prepared samples.

3.6. Photocatalytic Activity and Electrochemical Analysis

Before the photocatalytic reaction, the sample suspension was stirred for 1 h in the dark to reach the adsorption–desorption equilibrium. The adsorption isotherms of MB solutions for as-prepared samples are shown in Figure S3. It is obvious that the porous BiVO4-200 °C sample exhibits higher adsorption ability than other samples, which is in good agreement with the BET specific surface area. The photocatalytic behaviors of these as-prepared samples were then studied for degradation of MB solutions under visible light irradiation at room temperature. As shown in Figure 5a, the photocatalytic degradation efficiency of MB solutions follows the order: porous BiVO4-200 °C > porous BiVO4-220 °C > porous BiVO4-180 °C > BiVO4 particles. The variation of absorption intensity of MB solutions over these samples at different irradiation times is recorded (Figure S4), which strongly supports the above result. Additionally, it is known that the conduction band (ECB) edge and valence band (EVB) edge of BiVO4 were about 0.42 eV and 2.6 eV, respectively, which results in a weak reduction ability and high oxidation ability [31]. Therefore, it is generally considered that the mineralization and degradation of MB were ascribed to the high oxidation ability of BiVO4 [11,30,39]. One of the reasons for higher photocatalytic activity of porous BiVO4 samples is the higher BET specific surface area. It is generally considered that the photocatalytic reactions are typically surface-based processes and the photocatalytic efficiency is closely related to the adsorption property of dyes on the surfaces of a photocatalyst, which largely depends on the BET specific surface area. So, the higher the BET specific surface area, the stronger the adsorption of dyes on the photocatalyst surface, and thus the easier and faster the photocatalytic process [40]. Furthermore, the kinetics of photocatalytic reactions could be described using a first order reaction for low concentrations of MB solutions. The apparent rate constants (k, min−1) are displayed in Figure 5b, which is determined from the slopes of ln(C0/C) versus irradiation time. Remarkably, the photocatalytic rate constant of porous BiVO4-200 °C is about three times of that of the sample of BiVO4 particles for degradation of MB dye solutions. In addition, the correlation coefficient (R2) represents the correlation degree between practical photocatalytic reaction and linear fit. It is found that all of the R2 values are above 0.9, suggesting the data fit the first kinetic model well.
Figure 6a shows the transient photocurrent responses via three ON−OFF cycles that the electrodes deposited under visible light irradiation, which are correlated with the recombination efficiency of the photogenerated carriers [41,42,43]. It is found that the photocurrent efficiency is consistent with the photocatalytic activities, suggesting the separation and transfer of photoinduced electron−hole pairs are more efficient in the case of BiVO4-200 °C. The electrochemical impedance spectra provide further evidence, as shown in Figure 6b. It can been seen that the diameter of the arc radius for the BiVO4-200 °C electrode is smaller than that for the other electrodes, demonstrating it shows an enhanced separation and transfer efficiency of photogenerated e–h pairs because the smaller arc radius implies a higher efficiency of charge transfer.
Therefore, it can be concluded that the high BET specific surface area and effective separation transfer efficiency of photogenerated e–h pairs are the main reasons for the enhanced photocatalytic activity of as-prepared porous BiVO4 samples.

4. Conclusions

In summary, monoclinic BiVO4 photocatalysts with porous structures were successfully prepared by a two-step approach without assistance of any templates. Kirkendall effect was used to explain the formation mechanism of as-obtained BiVO4 with porous structure. Compared with the sample of BiVO4 particles without porous structure, the porous BiVO4 samples exhibit enhanced photocatalytic activity. In particular, the photocatalytic rate constant of porous BiVO4-200 °C sample could reach up to three times of that of the sample of BiVO4 particles. Furthermore, the high BET specific surface area and effective separation transfer efficiency of photogenerated e–h pairs are considered the main reason for the enhanced photocatalytic activity of as-prepared porous BiVO4 samples. Finally, it is anticipated that this synthesis method might be used to prepare other vanadate materials.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/9/8/685/s1. Figure S1: XRD pattern of the precursor, Figure S2: Low magnification SEM image of as-obtained BiVO4 products prepared at the hydrothermal temperatures of 180 °C, Figure S3: The adsorption isotherms of MB in the presence of as-prepared samples under dark conditions, Figure S4: UV–vis absorption spectra of MB solutions separated from the photocatalysts of BiVO4 particles (a); and as-obtained BiVO4 products prepared at the hydrothermal temperatures of 180 °C (b); 200 °C (c); and 220 °C (d) suspensions during illumination.

Acknowledgments

This work is financially supported by the National Natural Science Foundation of China (Grant No. 21403184), National Natural Science Foundation of China (No. 21276220), Natural Science Foundation of the Jiangsu Higher Education Institutions of China (Grant No. 14KJB150025, 15KJA430007, and 14KJB430023), China Postdoctoral Science Foundation (No. 2014M561622), Jiangsu Collaborative Innovation Center for Ecological Building Materials and Environmental Protection Equipments (No. GX2015102, and CP201502), and National Key Research and Development Project of China (2016YFC0209202).

Author Contributions

Xinguo Xi, Xinjiang Zhang and Guihua Hou participated in the experimental work, literature review, data analysis, and manuscript preparation. Pengyu Dong and Rongfeng Guan provided suggestions on the concept, research methodology, as well as participated in data analysis and manuscript preparation. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C 2012, 23, 169–189. [Google Scholar] [CrossRef]
  2. Li, R.; Zhang, F.; Wang, D.; Yang, J.; Li, M.; Zhu, J.; Zhou, X.; Han, H.; Li, C. Spatial separation of photogenerated electrons and holes among {010} and {110} crystal facets of BiVO4. Nat. Commun. 2013, 4. [Google Scholar] [CrossRef] [PubMed]
  3. Cao, S.; Zhou, P.; Yu, J. Recent advances in visible light Bi-based photocatalysts. Chin. J. Catal. 2014, 35, 989–1007. [Google Scholar]
  4. Qu, Z.; Liu, P.; Yang, X.; Wang, F.; Zhang, W.; Fei, C. Microstructure and Characteristic of BiVO4 Prepared under Different pH Values: Photocatalytic Efficiency and Antibacterial Activity. Materials 2016, 9. [Google Scholar] [CrossRef]
  5. Kim, J.H.; Lee, J.S. BiVO4-Based Heterostructured Photocatalysts for Solar Water Splitting: A Review. Energy Environ. Focus 2014, 3, 339–353. [Google Scholar]
  6. Tokunaga, S.; Kato, H.; Kudo, A. Selective preparation of monoclinic and tetragonal BiVO4 with scheelite structure and their photocatalytic properties. Chem. Mater. 2001, 13, 4624–4628. [Google Scholar] [CrossRef]
  7. Zhang, X.; Ai, Z.; Jia, F.; Zhang, L.; Fan, X.; Zou, Z. Selective synthesis and visible-light photocatalytic activities of BiVO4 with different crystalline phases. Mater. Chem. Phys. 2007, 103, 162–167. [Google Scholar] [CrossRef]
  8. Yin, W.; Wang, W.; Zhou, L.; Sun, S.; Zhang, L. CTAB-assisted synthesis of monoclinic BiVO4 photocatalyst and its highly efficient degradation of organic dye under visible-light irradiation. J. Hazard. Mater. 2010, 173, 194–199. [Google Scholar] [CrossRef] [PubMed]
  9. Kudo, A.; Omori, K.; Kato, H. A novel aqueous process for preparation of crystal form-controlled and highly crystalline BiVO4 powder from layered vanadates at room temperature and its photocatalytic and photophysical properties. J. Am. Chem. Soc. 1999, 121, 11459–11467. [Google Scholar] [CrossRef]
  10. Ge, L. Novel visible-light-driven Pt/BiVO4 photocatalyst for efficient degradation of methyl orange. J. Mol. Catal. A Chem. 2008, 282, 62–66. [Google Scholar] [CrossRef]
  11. Jiang, H.; Meng, X.; Dai, H.; Deng, J.; Liu, Y.; Zhang, L.; Zhao, Z.; Zhang, R. High-performance porous spherical or octapod-like single-crystalline BiVO4 photocatalysts for the removal of phenol and methylene blue under visible-light illumination. J. Hazard. Mater. 2012, 217–218, 92–99. [Google Scholar] [CrossRef] [PubMed]
  12. Hu, Y.; Li, D.; Zheng, Y.; Chen, W.; He, Y.; Shao, Y.; Fu, X.; Xiao, G. BiVO4/TiO2 nanocrystalline heterostructure: A wide spectrum responsive photocatalyst towards the highly efficient decomposition of gaseous benzene. Appl. Catal. B 2011, 104, 30–36. [Google Scholar] [CrossRef]
  13. Kohtani, S.; Koshiko, M.; Kudo, A.; Tokumura, K.; Ishigaki, Y.; Toriba, A.; Hayakawa, K.; Nakagaki, R. Photodegradation of 4-alkylphenols using BiVO4 photocatalyst under irradiation with visible light from a solar simulator. Appl. Catal. B 2003, 46, 573–586. [Google Scholar] [CrossRef]
  14. Kohtani, S.; Hiro, J.; Yamamoto, N.; Kudo, A.; Tokumura, K.; Nakagaki, R. Adsorptive and photocatalytic properties of Ag-loaded BiVO4 on the degradation of 4-n-alkylphenols under visible light irradiation. Catal. Commun. 2005, 6, 185–189. [Google Scholar] [CrossRef]
  15. Shang, M.; Wang, W.; Zhou, L.; Sun, S.; Yin, W. Nanosized BiVO4 with high visible-light-induced photocatalytic activity: Ultrasonic-assisted synthesis and protective effect of surfactant. J. Hazard. Mater. 2009, 172, 338–344. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, L.; Wang, W.; Liu, S.; Zhang, L.; Xu, H.; Zhu, W. A sonochemical route to visible-light-driven high-activity BiVO4 photocatalyst. J. Mol. Catal. A Chem. 2006, 252, 120–124. [Google Scholar] [CrossRef]
  17. Zhang, H.M.; Liu, J.B.; Wang, H.; Zhang, W.X.; Yan, H. Rapid microwave-assisted synthesis of phase controlled BiVO4 nanocrystals and research on photocatalytic properties under visible light irradiation. J. Nanopart. Res. 2008, 10, 767–774. [Google Scholar] [CrossRef]
  18. Eda, S.-I.; Fujishima, M.; Tada, H. Low temperature-synthesis of BiVO4 nanorods using polyethylene glycol as a soft template and the visible-light-activity for copper acetylacetonate decomposition. Appl. Catal. B 2012, 125, 288–293. [Google Scholar] [CrossRef]
  19. Ren, L.; Jin, L.; Wang, J.B.; Yang, F.; Qiu, M.Q.; Yu, Y. Template-free synthesis of BiVO4 nanostructures: I. Nanotubes with hexagonal cross sections by oriented attachment and their photocatalytic property for water splitting under visible light. Nanotechnology 2009, 20. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, L.; Chen, D.; Jiao, X. Monoclinic structured BiVO4 nanosheets: Hydrothermal preparation, formation mechanism, and coloristic and photocatalytic properties. J. Phys. Chem. B 2006, 110, 2668–2673. [Google Scholar] [CrossRef] [PubMed]
  21. Shang, M.; Wang, W.; Ren, J.; Sun, S.; Zhang, L. A novel BiVO4 hierarchical nanostructure: Controllable synthesis, growth mechanism, and application in photocatalysis. CrystEngComm 2010, 12, 1754–1758. [Google Scholar] [CrossRef]
  22. Zhang, X.; Du, L.; Wang, H.; Dong, X.; Zhang, X.; Ma, C.; Ma, H. Highly ordered mesoporous BiVO4: Controllable ordering degree and super photocatalytic ability under visible light. Microporous Mesoporous Mater. 2013, 173, 175–180. [Google Scholar] [CrossRef]
  23. Ge, M.; Liu, L.; Chen, W.; Zhou, Z. Sunlight-driven degradation of Rhodamine B by peanut-shaped porous BiVO4 nanostructures in the H2O2-containing system. CrystEngComm 2012, 14, 1038–1044. [Google Scholar] [CrossRef]
  24. Liu, W.; Cao, L.; Su, G.; Liu, H.; Wang, X.; Zhang, L. Ultrasound assisted synthesis of monoclinic structured spindle BiVO4 particles with hollow structure and its photocatalytic property. Ultrason. Sonochem. 2010, 17, 669–674. [Google Scholar] [CrossRef] [PubMed]
  25. Li, G.; Zhang, D.; Yu, J.C. Ordered Mesoporous BiVO4 through Nanocasting: A Superior Visible Light-Driven Photocatalyst. Chem. Mater. 2008, 20, 3983–3992. [Google Scholar] [CrossRef]
  26. Yao, M.; Liu, M.; Gan, L.; Zhao, F.; Fan, X.; Zhu, D.; Xu, Z.; Hao, Z.; Chen, L. Monoclinic mesoporous BiVO4: Synthesis and visible-light-driven photocatalytic property. Colloids Surf. A Physicochem. Eng. Aspects 2013, 433, 132–138. [Google Scholar] [CrossRef]
  27. Yin, W.; Wang, W.; Shang, M.; Zhou, L.; Sun, S.; Wang, L. BiVO4 Hollow Nanospheres: Anchoring Synthesis, Growth Mechanism, and Their Application in Photocatalysis. Eur. J. Inorg. Chem. 2009, 2009, 4379–4384. [Google Scholar] [CrossRef]
  28. Jiang, H.; Dai, H.; Meng, X.; Ji, K.; Zhang, L.; Deng, J. Porous olive-like BiVO4: Alcoho-hydrothermal preparation and excellent visible-light-driven photocatalytic performance for the degradation of phenol. Appl. Catal. B 2011, 105, 326–334. [Google Scholar] [CrossRef]
  29. Ying, Y.; Tao, F.; Hong, T.; Wang, L. Controlled fabrication of bismuth vanadium oxide hierarchical microtubes with enhanced visible light photocatalytic activity. Mater. Sci. Semicond. Process. 2015, 32, 82–89. [Google Scholar] [CrossRef]
  30. Ma, Z.Y.; Yao, B.H. Preparation of BiVO4 Hollow Spheres and its Photocatalytic Degradation of Methylene Blue. Chin. J. Chem. Phys. 2013, 26, 341–346. [Google Scholar] [CrossRef]
  31. Cheng, B.; Wang, W.; Shi, L.; Zhang, J.; Ran, J.; Yu, H. One-Pot Template-Free Hydrothermal Synthesis of Monoclinic BiVO4 Hollow Microspheres and Their Enhanced Visible-Light Photocatalytic Activity. Int. J. Photoenergy 2012, 2012. [Google Scholar] [CrossRef]
  32. Li, F.; Yang, C.; Li, Q.; Cao, W.; Li, T. The pH-controlled morphology transition of BiVO4 photocatalysts from microparticles to hollow microspheres. Mater. Lett. 2015, 145, 52–55. [Google Scholar] [CrossRef]
  33. Yin, Y.; Erdonmez, C.K.; Cabot, A.; Hughes, S.; Alivisatos, A.P. Colloidal Synthesis of Hollow Cobalt Sulfide Nanocrystals. Adv. Funct. Mater. 2006, 16, 1389–1399. [Google Scholar] [CrossRef]
  34. Zhang, J.; Wang, Y.; Xu, Z.; Zhang, H.; Dong, P.; Guo, L.; Li, F.; Xin, S.; Zeng, W. Preparation and drug-delivery properties of hollow YVO4:Ln3+ and mesoporous YVO4:Ln3+@nSiO2@mSiO2 (Ln = Eu, Yb, Er, and Ho). J. Mater. Chem. B 2013, 1, 330–338. [Google Scholar] [CrossRef]
  35. Greg, S.; Sing, K. Adsorption, Surface Area and Porosity; Academic Press: London, UK, 1982. [Google Scholar]
  36. Bavykin, D.; Parmon, V.; Lapkin, A.; Walsh, F. The effect of hydrothermal conditions on the mesoporous structure of TiO2 nanotubes. J. Mater. Chem. 2004, 14, 3370–3377. [Google Scholar] [CrossRef]
  37. Butler, M.A. Photoelectrolysis and physical properties of the semiconducting electrode WO2. J. Appl. Phys. 1977, 48, 1914–1920. [Google Scholar] [CrossRef]
  38. Sun, S.; Wang, W.; Zhou, L.; Xu, H. Efficient Methylene Blue Removal over Hydrothermally Synthesized Starlike BiVO4. Ind. Eng. Chem. Res. 2009, 48, 1735–1739. [Google Scholar] [CrossRef]
  39. Chen, L.; Yin, S.-F.; Huang, R.; Zhang, Q.; Luo, S.-L.; Au, C.-T. Hollow peanut-like m-BiVO4: Facile synthesis and solar-light-induced photocatalytic property. CrystEngComm 2012, 14, 4217–4222. [Google Scholar] [CrossRef]
  40. Tong, H.; Ouyang, S.; Bi, Y.; Umezawa, N.; Oshikiri, M.; Ye, J. Nano-photocatalytic Materials: Possibilities and Challenges. Adv. Mater. 2012, 24, 229–251. [Google Scholar] [CrossRef] [PubMed]
  41. Li, J.; Hao, H.; Zhu, Z. Construction of g-C3N4-WO3-Bi2WO6 double Z-scheme system with enhanced photoelectrochemical performance. Mater. Lett. 2016, 168, 180–183. [Google Scholar] [CrossRef]
  42. Bai, X.; Wang, L.; Wang, Y.; Yao, W.; Zhu, Y. Enhanced oxidation ability of g-C3N4 photocatalyst via C60 modification. Appl. Catal. B 2014, 152–153, 262–270. [Google Scholar] [CrossRef]
  43. Lv, Y.H.; Pan, C.S.; Ma, X.G.; Zong, R.L.; Bai, X.J.; Zhu, Y.F. Production of visible activity and UV performance enhancement of ZnO photocatalyst via vacuum deoxidation. Appl. Catal. B 2013, 138, 26–32. [Google Scholar] [CrossRef]
Materials 09 00685 g001 1024

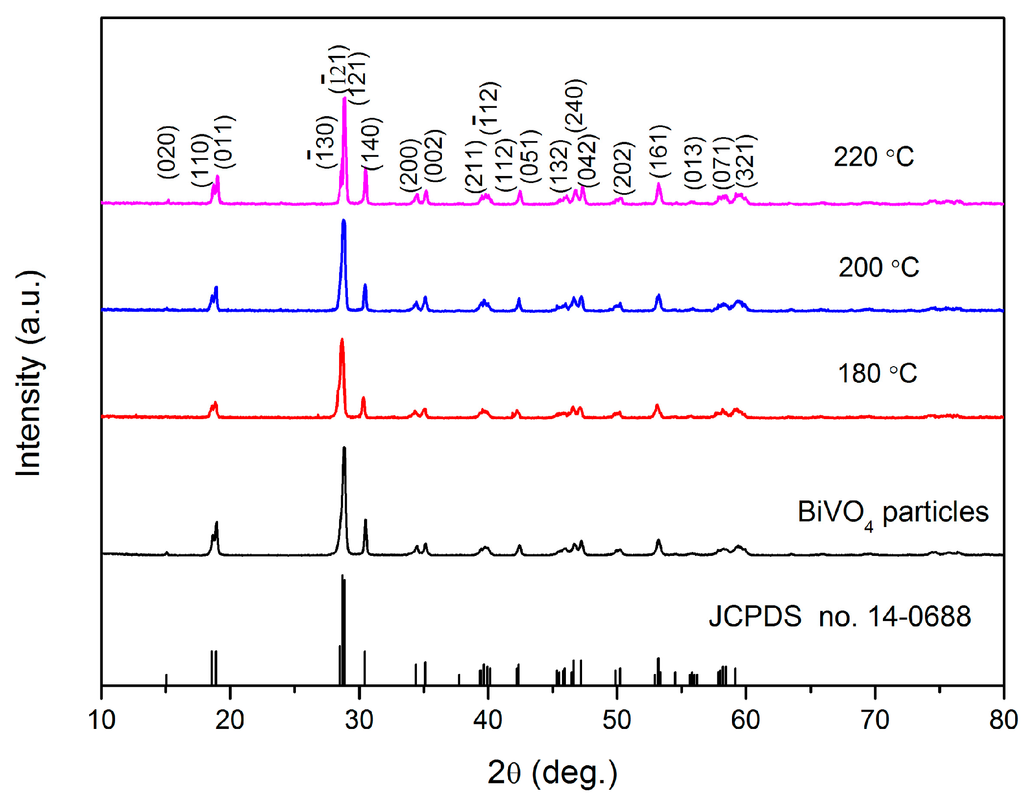

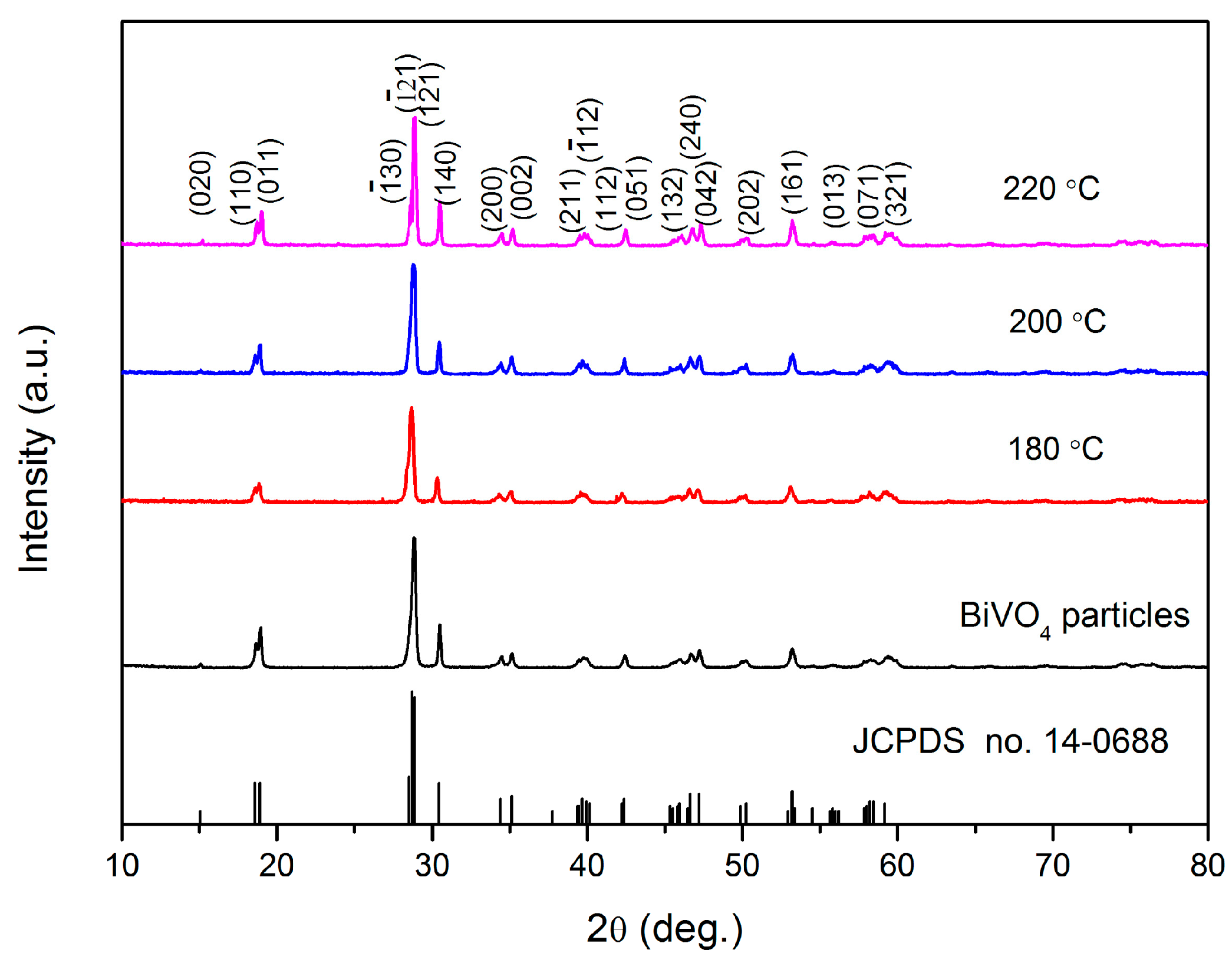

Figure 1. XRD patterns of BiVO4 particles and BiVO4 samples prepared at various hydrothermal temperatures.
Figure 1. XRD patterns of BiVO4 particles and BiVO4 samples prepared at various hydrothermal temperatures.
Materials 09 00685 g001
Materials 09 00685 g002 1024

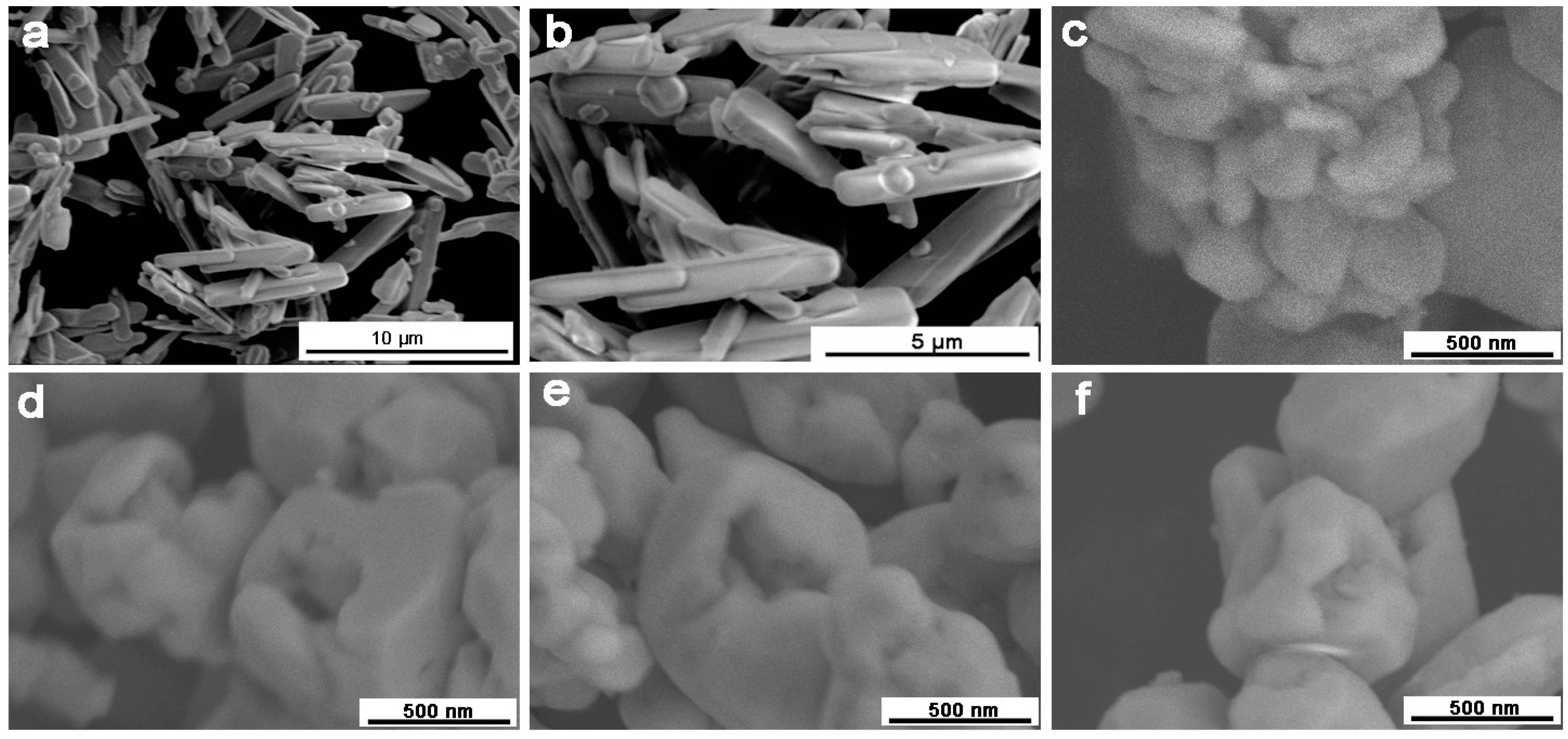

Figure 2. SEM images of the precursor (a,b); BiVO4 particles (c); and as-obtained BiVO4 products prepared at the hydrothermal temperatures of 180 °C (d); 200 °C (e); and 220 °C (f).
Figure 2. SEM images of the precursor (a,b); BiVO4 particles (c); and as-obtained BiVO4 products prepared at the hydrothermal temperatures of 180 °C (d); 200 °C (e); and 220 °C (f).
Materials 09 00685 g002
Materials 09 00685 sch001 1024

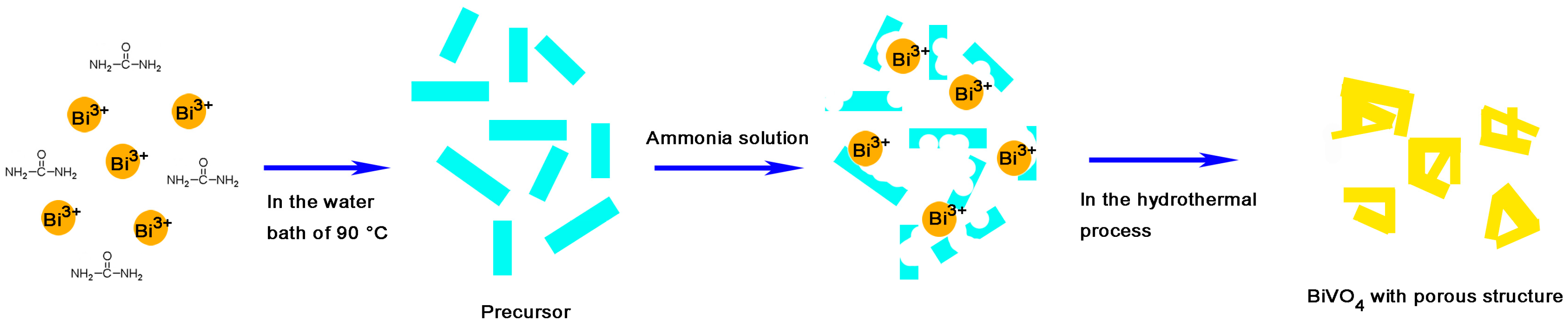

Scheme 1. Schematic illustration for the possible formation mechanism of BiVO4 with porous structure.
Scheme 1. Schematic illustration for the possible formation mechanism of BiVO4 with porous structure.
Materials 09 00685 sch001
Materials 09 00685 g003 1024

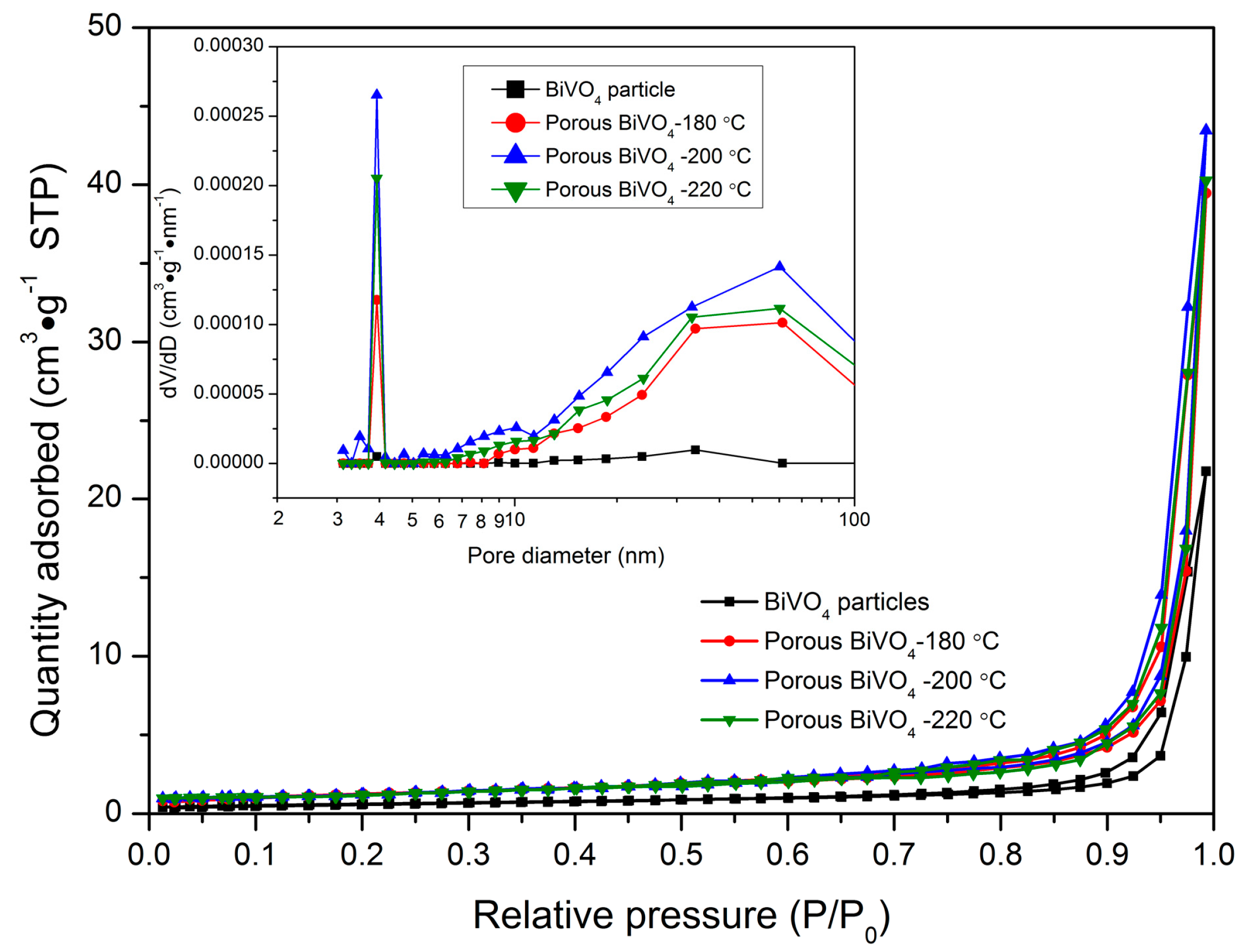

Figure 3. N2 adsorption-desorption isotherms of BiVO4 particles and BiVO4 samples prepared at various hydrothermal temperatures. The inset is the corresponding BJH pore size distributions.
Figure 3. N2 adsorption-desorption isotherms of BiVO4 particles and BiVO4 samples prepared at various hydrothermal temperatures. The inset is the corresponding BJH pore size distributions.
Materials 09 00685 g003
Materials 09 00685 g004 1024

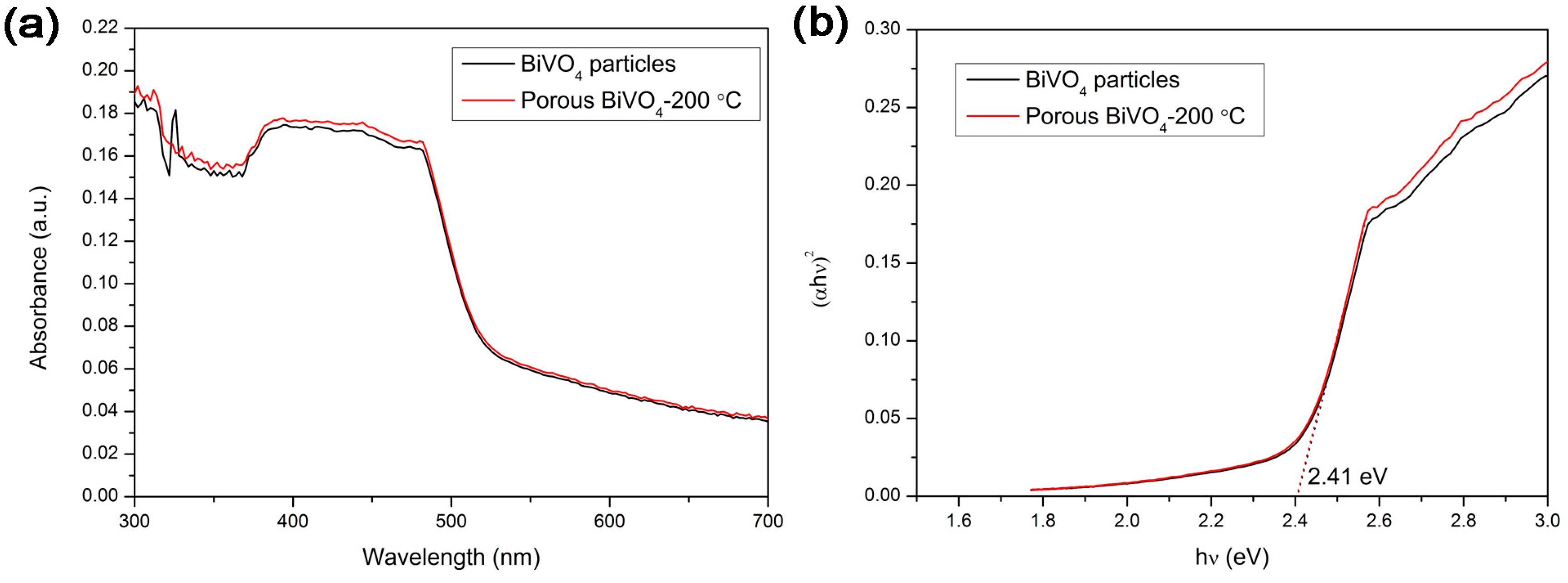

Figure 4. UV–vis diffuse reflection absorption spectra of the sample of BiVO4 particles as well as the porous BiVO4 sample prepared at the hydrothermal temperatures of 200 °C (a); and the plots of (αhv)2 versus photon energy hv of these two samples (b).
Figure 4. UV–vis diffuse reflection absorption spectra of the sample of BiVO4 particles as well as the porous BiVO4 sample prepared at the hydrothermal temperatures of 200 °C (a); and the plots of (αhv)2 versus photon energy hv of these two samples (b).
Materials 09 00685 g004
Materials 09 00685 g005 1024

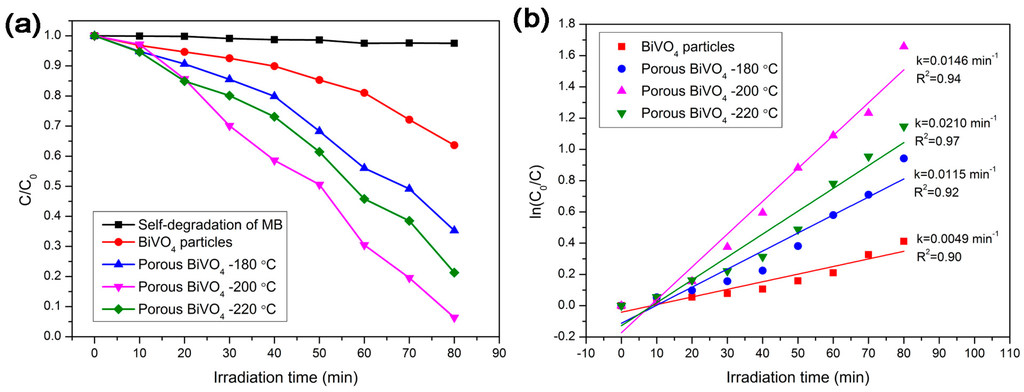

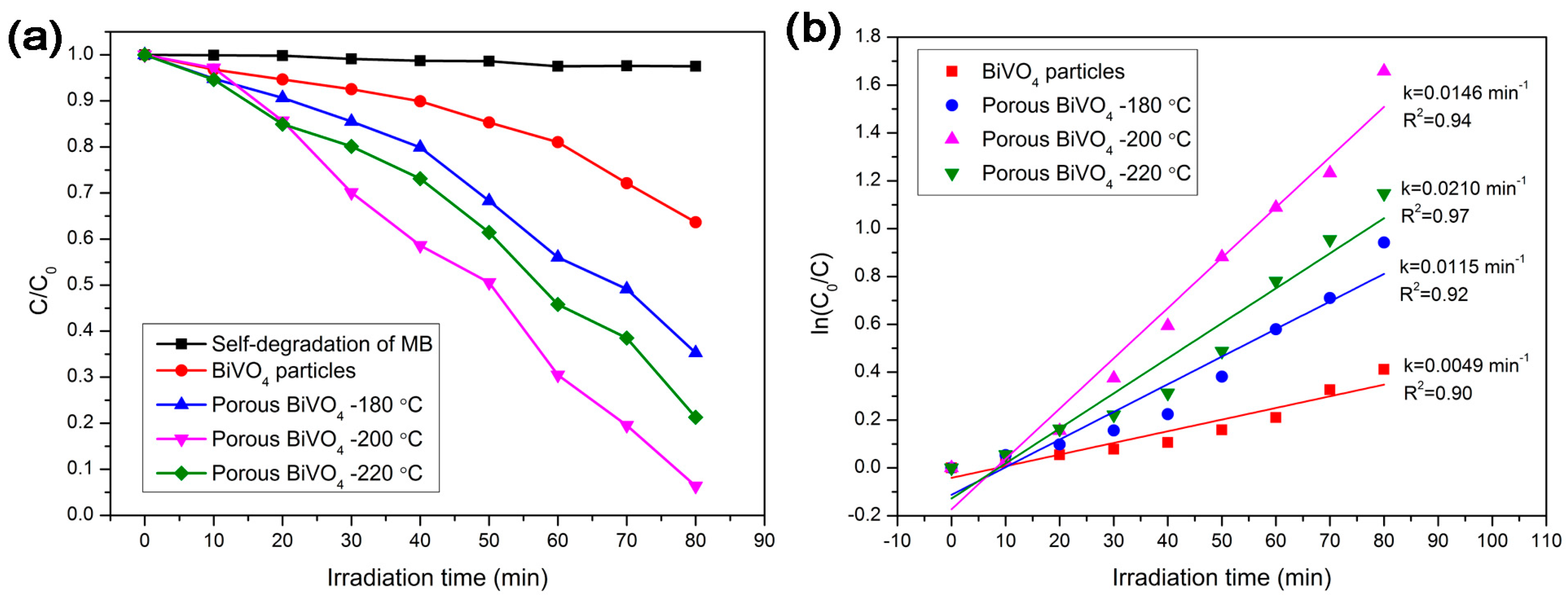

Figure 5. Photocatalytic degradation of MB solution (a) and plots of ln(C0/C) versus irradiation time (b) in the presence of as-prepared samples.
Figure 5. Photocatalytic degradation of MB solution (a) and plots of ln(C0/C) versus irradiation time (b) in the presence of as-prepared samples.
Materials 09 00685 g005
Materials 09 00685 g006 1024

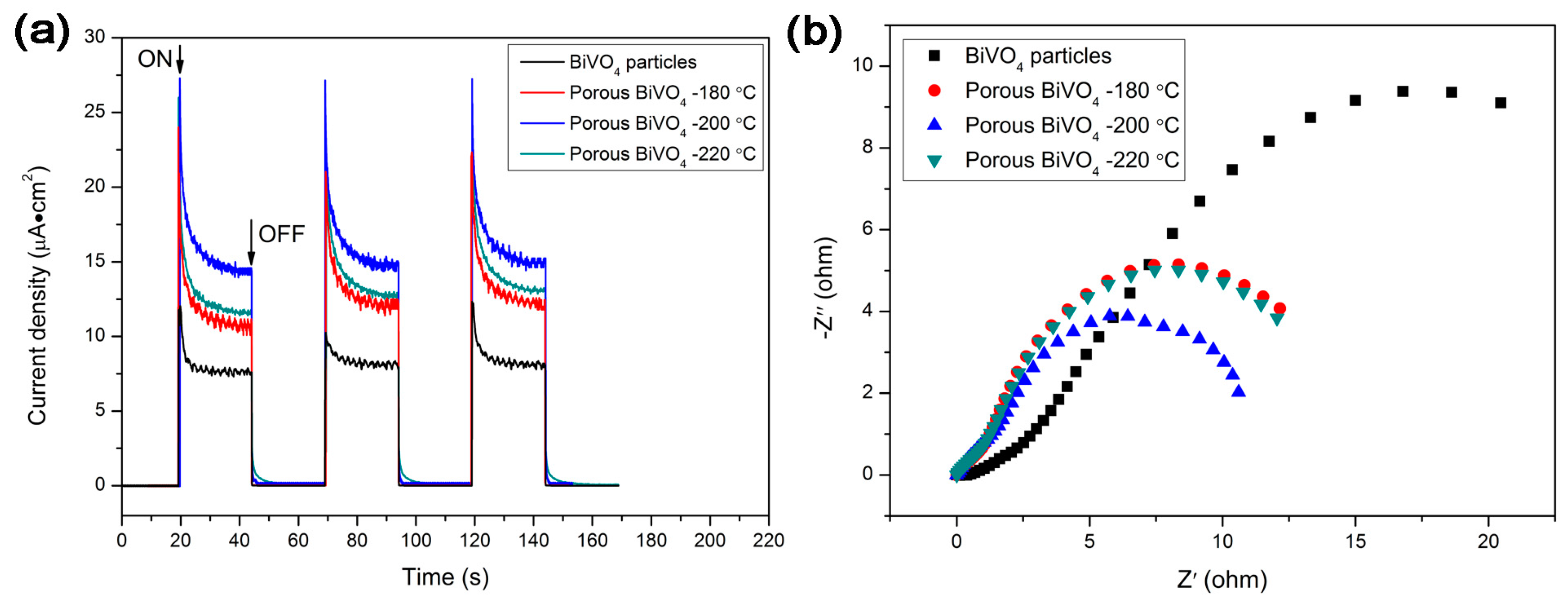

Figure 6. The photo-responses of as-prepared samples under visible light (a) and electrochemical impedance spectra (b) of these samples.
