Review

Current Status and Future Prospects of Copper Oxide Heterojunction Solar Cells

by
Terence K. S. Wong
1,*,
Siarhei Zhuk
1,2,
Saeid Masudy-Panah
2 and
Goutam K. Dalapati
2,*
1
NOVITAS, School of Electrical and Electronic Engineering, Block S2, Nanyang Technological University, Nanyang Avenue, Singapore 639798, Singapore
2
Institute of Materials Research and Engineering, A*STAR (Agency for Science, Technology and Research), 2 Fusionopolis Way, #08-03, Innovis 138634, Singapore
*
Authors to whom correspondence should be addressed.
Materials 2016, 9(4), 271; https://doi.org/10.3390/ma9040271
Submission received: 21 February 2016 / Revised: 30 March 2016 / Accepted: 31 March 2016 / Published: 7 April 2016
(This article belongs to the Section Energy Materials)

Abstract

:
The current state of thin film heterojunction solar cells based on cuprous oxide (Cu2O), cupric oxide (CuO) and copper (III) oxide (Cu4O3) is reviewed. These p-type semiconducting oxides prepared by Cu oxidation, sputtering or electrochemical deposition are non-toxic, sustainable photovoltaic materials with application potential for solar electricity. However, defects at the copper oxide heterojunction and film quality are still major constraining factors for achieving high power conversion efficiency, η. Amongst the Cu2O heterojunction devices, a maximum η of 6.1% has been obtained by using pulsed laser deposition (PLD) of AlxGa1−xO onto thermal Cu2O doped with Na. The performance of CuO/n-Si heterojunction solar cells formed by magnetron sputtering of CuO is presently limited by both native oxide and Cu rich copper oxide layers at the heterointerface. These interfacial layers can be reduced by using a two-step sputtering process. A high η of 2.88% for CuO heterojunction solar cells has been achieved by incorporation of mixed phase CuO/Cu2O nanopowder. CuO/Cu2O heterojunction solar cells fabricated by electrodeposition and electrochemical doping has a maximum efficiency of 0.64% after surface defect passivation and annealing. Finally, early stage study of Cu4O3/GaN deposited on sapphire substrate has shown a photovoltaic effect and an η of ~10−2%.

1. Introduction

When oxidized, copper can form three types of oxides, namely: cuprous oxide (Cu2O, cuprite), cupric oxide (CuO, tenorite) and Cu4O3 (paramelaconite) [1]. All three forms of copper oxides are semiconductors, and Cu2O, in particular, is one of the first semiconductors studied for device applications. In the early 20th century, Cu2O Schottky junctions were intensively investigated for use as rectifiers in radio receivers [2]. A review of the research conducted during this period, including the difficulty of n-type doping, was written by Brattain in 1950 [3]. After the invention of the point contact transistor in 1947 and the metal oxide semiconductor field-effect transistor in 1960, interest in Cu2O declined because of the availability of single crystal silicon and germanium, which can be doped n- and p-type [2]. During the 1970s, there was a resurgence of interest in Cu2O as a semiconductor for photovoltaics (PV) because of the need to develop terrestrial PV devices for solar energy conversion in response to the first oil crisis of 1973. The Cu2O solar cells investigated during this period were Schottky junction PV devices [4,5,6]. Two research projects on these devices supported by the U.S. National Science Foundation were carried out at the Joint Center for Graduate Study [5,6]. This focus on the Schottky junction structure was due to the difficulty of forming p-n homojunctions in Cu2O. Owing to chemical reduction of the Cu2O surface to Cu during sputter deposition, the best η obtained was only of the order of 1% regardless of the metal deposited [6]. Nevertheless, it was recognized that a heterojunction or metal-inuslator-semiconductor structure should improve the performance of Cu2O PV devices. The low η that could be achieved in these Cu2O PV devices eventually led to another waning of interest by the 1980s. A review of the literature on Cu2O Schottky junction devices during this period can be found in [7]. Despite this, research on Cu2O PV devices continued in Japan, Italy and elsewhere after the 1990s. The Cu2O PV research in this recent period is concerned with a search for newer dopants for Cu2O, suitable transparent n-type semiconductors for heterojunction formation and low damage junction formation techniques. As a result, there has been significant improvements in the reported η of Cu2O PV devices. This can be seen from Figure 1, which is based on a compilation of published η values in the PV literature [8]. In 2015, an η value of 6% was reported for a heterojunction PV device based on Cu2O and another n-type semiconductor. This value is exactly triple that of the best η value reported in 2006 for a Cu2O heterojunction PV device (see Section 3). Figure 1 shows that, in addition to Cu2O, there has been growing research interest in CuO PV devices in recent years. The highest reported η as of 2015 for a CuO based PV device is 1.2%.
It is useful to first consider why an old semiconductor such as copper oxide still attracts such a niche interest at a time when many new semiconductors such as the perovskite and organic semiconductors are being studied for PV applications. In the latest solar cell efficiency tables (version 47) [9], there is no listing for copper oxide devices. Textbooks on PV devices usually have no coverage of copper oxide PV devices [10,11]. The main exception is the reference by Fonash, which has brief mention of Cu2O [12]. Sustainability is the main reason for the sustained interest in the copper oxides for PV. Both copper and oxygen are abundant elements like silicon and thus there can be no supply concern in the long run [13]. This is one of the four requirements for a semiconductor to be usable for large scale PV power generation [14]. As discussed extensively in [15,16], a careful sustainability analysis of a large number of semiconductor materials showed that Cu2O and CuO are sustainable PV materials. In addition, all three oxides of copper are non-toxic and can be deposited as thin films relatively simply at low cost. The copper oxides are p-type oxide semiconductors uniquely suitable for PV applications. Although there are a few alternative p-type binary oxides such as tin monoxide (SnO) and nickel oxide (NiO), their energy band gaps of 2.5 eV and 3.6–4.0 eV, respectively, are too wide for PV applications [17]. Hence, at present, these transition metal oxides are mainly used for transparent semiconductors.
This review will focus on recent developments in copper oxide heterojunction solar cells and complements the earlier review by Rakhshani [7]. It is organized into seven sections. In Section 2, we first outline the theory of heterojunction solar cells with emphasis on the copper oxide heterojunction and band diagram. Section 3 and Section 4 review the Cu2O and CuO heterojunction solar cells, respectively. Section 5 describes the electrodeposited Cu2O/CuO heterojunction and its PV properties. Section 6 will briefly discuss preliminary studies on solar cells based on Cu4O3. This is followed by a conclusion and outlook on the remaining challenges in the field of copper oxide solar cells.

2. Heterojunction Solar Cell Device Physics

Before reviewing the copper oxide heterojunction solar cells, it is useful to consider the energy band diagram and the theory of heterojunction solar cells. Cu2O and CuO form type II heterojunctions with another semiconductor such as ZnO or Si in these solar cells. In a type II (or staggered) heterojunction, only one of the band edges (either Ec or Ev) of one semiconductor is situated within the band gap of the other semiconductor forming the heterojunction [12]. Figure 2 illustrates the schematic energy band diagram of a copper oxide n-type semiconductor heterojunction with interface defects to be discussed in the next section. The n-type layer has the wider energy gap in this heterojunction and therefore sun light is incident through this window layer to reach the Cu2O substrate. There is band bending on both sides of this junction and the built-in electric field separates the photo-generated electrons and holes as in a homojunction solar cell. By applying the one-dimensional theory of the semiconductor-semiconductor heterojunction cell in [12], the current density J from the device under illumination can be written as:
J = q [ 0 L + d + W λ G p h ( λ , x ) d λ d x 0 L + d + W R ( x ) d x J S T ( 0 ) J S B ( L + d + W ) J I R ] .
Here, q is the electronic charge; d is the thickness of the neutral p-type layer; W is the depletion layer width and L is the thickness of the neutral n-type layer. The free carrier photogeneration function, Gph is integrated with respect to wavelength over the full spectrum of incident sunlight and over the thickness of the solar cell. R represents the rate of recombination in the neutral bulk regions of the p- and n-type regions of the heterojunction. JST and JSB are the reductions in current density due to recombination in the top and bottom contacts, respectively. The last term JIR on the right hand side of Equation (1) is unique to heterojunction solar cells and accounts for recombination at the heterojunction interface. Although another closed form analytical expression for the current density of the heterojunction solar cell exists [18], the equation given above especially shows clearly the effects of recombination on the current density obtainable from the heterojunction solar cell.
The rate of recombination is characterized by the minority carrier lifetime τn. For a p-type semiconductor with dopant density NA, τn is given by:
τ n 1 = B N A .
Here, B is the radiative recombination coefficient [19]:
B = ( 2 π ) 1 / 2 h q 2 3 ( m 2 c 3 ) 2 ( k T ) 3 / 2 { m m e + m h } 3 / 2 { 1 + m m e + m m h } n E g 2 ,
where h is the Planck constant; k is the Boltzmann constant; T is the absolute temperature and c is the speed of light. m is the free electron mass and me and mh are the electron and hole effective mass, respectively. n is the refractive index and Eg is the energy band gap of the semiconductor. The quadratic dependence of B on Eg shows that a semiconductor with a narrower band gap will have a longer minority carrier lifetime. On the other hand, a lower dopant density can also increase τn.
In addition to the reduction in current density, the main effect of carrier recombination within a heterojunction solar cell is a decrease in the open circuit voltage, Voc. For a p-type layer thickness of w and low level excitation conditions, Voc is given by [20]:
V oc = E g q k T q l n ( q w B N c N v J ph ) ,
where Nc and Nv are the effective density of states for the conduction band and valence band, respectively, and Jph is the photocurrent density. The second term of this equation shows that for both increased B and reduced Jph, the magnitude of Voc is reduced. This shows the crucial impact of recombination on the photovoltaic performance of heterojunction solar cells.

3. Cu2O Thin Film Heterojunction Solar Cells

Cu2O can be formed by thermal oxidation of high purity Cu foils in a furnace [21]. The material properties of Cu2O have been studied in detail and can be found in other reviews [1]. Here, for the sake of completeness, only a summary of those properties of Cu2O relevant to solar cells will be described. Cu2O has a cubic unit cell structure and an energy band gap of 1.7–2 eV depending on the deposition conditions [1]. Since the band gap of Cu2O is direct, the absorption coefficient of Cu2O is relatively high (~105 cm−1) and is comparable to some organic semiconductors. As-deposited undoped Cu2O is a p-type semiconductor with a majority carrier mobility of ~100 cm2/V∙s. The p-type conductivity is due to Cu vacancies in the Cu2O [1]. For extrinsic doping, N and Cl are known to be p-type dopants for Cu2O [22]. The search for n-type dopants for Cu2O has until recently been elusive [3]. However, as will be discussed in Section 4 and Section 5, respectively, methods for preparing n-type CuOx and Cu2O are now available.
Cu2O heterojunction solar cells have a device structure similar to other thin film solar cells (Figure 3a). The Cu2O is both the absorber and a substrate upon which is deposited a thin layer of n-type wide band gap semiconductor. This layer may have a third transparent conducting oxide (TCO) layer deposited on top of it. Ohmic contacts are formed to both the top and bottom of the device. The first published report of Cu2O heterojunction solar cells with this structure was that by Herion et al. in 1980 [23]. These investigators used the sputtering technique to deposit ZnO onto Cu2O sheets. The PV characteristics of this device is tabulated in Table 1 (see Section 5) together with other key devices discussed in this review. Although an η of 0.14% was measured for the ZnO-Cu2O device, the photovoltaic effect was not due to a ZnO-Cu2O heterojunction. Rather, it was due to the Schottky barrier between a thin Cu film formed by reduction of the Cu2O surface during the ZnO sputter deposition. This paper highlights the susceptibility of the Cu2O surface to solid state reaction and hence the need to choose a low energy, low damage deposition method to form a true semiconductor heterojunction with Cu2O.
A more recent example of a thin film p-Cu2O/n-ZnO heterojunction solar cell fabricated on glass substrates by sputtering is the work of Akimoto et al. [24]. In this study, the Cu2O layer was deposited by reactive radio frequency (rf) magnetron sputtering using a Cu target while the ZnO layer was deposited by magnetron sputtering. The sequence of deposition was found to have a major influence on the photovoltaic properties of the heterojunction fabrication. For the glass/Au/p-Cu2O/i-ZnO/n-ZnO (Cu2O first) structure, the reverse leakage current was relatively high and a photovoltaic effect was almost unobservable [24]. On the other hand, the glass/n-ZnO/i-ZnO/p-Cu2O (ZnO first) structure showed much better rectification and an η of 0.4% was obtained [24]. The difference between the two device structures was attributed to the similar atomic arrangements in the crystal structures of ZnO and the Cu2O for the ZnO first structure, which results in fewer interface defects. However, both Voc and short circuit current density Jsc are low because of these defects.
In order to achieve η above 1%, it is necessary to identify suitable n-type semiconductors that can be deposited onto Cu2O [25]. This is because solar cells fabricated from Cu2O substrates tend to have higher efficiency than cells made from Cu2O thin films [7]. In one such study [26], Tanaka et al. deposited several transparent conducting oxides (TCO) thin films, namely In2O3, In2O3:Sn (ITO), ZnO, ZnO:Al (AZO) and ZnO-In2O3 by PLD onto Cu2O sheets. Both In2O3 and ITO gave poorly rectifying heterojunctions and poor PV performance. ZnO-Cu2O formed rectifying junctions and the current voltage characteristics both in the dark and under illumination were found to be affected by the O2 pressure during deposition [26]. The highest η obtained for ZnO-Cu2O was 0.9% under illumination by air mass AM 2 solar spectrum. On the other hand, an η of over 1% can be achieved by using the AZO-Cu2O heterojunction. This is because AZO has a smaller work function than ZnO [26]. For AZO, the critical parameter is the deposition temperature during PLD. By controlling this temperature to the range of 150 °C–200 °C, a rectifying junction and an η of 1.2% under AM2 illumination was obtained. The improvement in η of the AZO-Cu2O junction is attributed to a broader spectral response that results in higher Jsc [26]. The results of refs [25] and [26] show that ZnO and AZO are suitable n-type semiconductors for forming heterojunctions with Cu2O.
Until 2006, the η of Cu2O heterojunction solar cells reported in the literature remained under 2%. Since this is obviously inferior to competing second generation semiconductor solar technologies and much lower than the theoretical limit of Cu2O devices of 20% for the AM1 spectrum [5], systematic studies were carried out to improve the fabrication technique of the Cu2O cells. In one such study, Minami et al. investigated four techniques for depositing the n-type thin film semiconductor on a Cu2O absorber substrate [27]. These include: (i) DC magnetron sputtering; (ii) rf magnetron sputtering; (iii) PLD and (iv) vacuum arc plasma evaporation (VAPE). The VAPE technique involves the use of a low voltage discharge to generate an arc plasma to evaporate the source material [28]. AZO was deposited by DC and RF magnetron sputtering at different substrate temperatures and for different sample orientation and positions in the sputtering system. The film properties of the AZO such as crystallinity, carrier concentration, Hall mobility and resistivity were all strongly dependent on the substrate temperature and sample orientation. Since the properties of the AZO film affect the properties of the AZO/Cu2O junction, the photovoltaic parameters show a similar dependence on deposition conditions. It was concluded that at the optimum substrate temperature and for a sample normal to the target, the improved PV performance was a result of fewer defects at the heterojunction and an improved crystallinity of the AZO [27]. This in turn suggests that magnetron sputtering, DC or RF, may not be the best deposition technique for forming the AZO/Cu2O heterojunction. PLD and VAPE were therefore used to deposit ZnO on Cu2O in addition to DC and RF magnetron sputtering. Both PLD and VAPE do not involve ion bombardment of the Cu2O surface which can generate electronic defects. Furthermore, the absence of reactive oxygen species preclude the oxidation of the Cu2O surface [27]. As a result, the η of ZnO/Cu2O devices fabricated by PLD (1.42%) and by VAPE (1.52%) were both higher than devices fabricated by magnetron sputtering [27]. This is the reason why the highest performance Cu2O heterojunction devices are usually fabricated by PLD nowadays.
A Cu2O heterojunction solar cell with an η above 2% was reported by Mittiga et al. in 2006 [29]. This device has a four layer structure and consists of a thermally oxidized Cu2O substrate, a ZnO n-type layer, an indium doped tin oxide (ITO) window layer and an antireflection MgF2 layer. The oxidation conditions used for the Cu2O layer resulted in a polycrystalline structure with large grain size and high hole mobility. A low resistivity (~1 kΩm) was realized by quenching the Cu2O sheets after cooling to 450 °C in a furnace [29]. The ZnO layer was deposited onto the Cu2O substrate by ion beam sputtering (IBS) followed by a thicker layer of ITO deposited by the same technique. Under AM 1.5G (global) illumination, the Au/Cu2O/ZnO/ITO/MgF2 device has a measured η of 2.01% [29]. This was higher than the reference Au/Cu2O/ITO/MgF2 device as shown by the J-V characteristics in Figure 4. The Voc values for both devices were considered to be influenced by defects at the heterointerface. These cause reduction in the shunt resistance and increased the reverse saturation current. As a result, improvement of interface defects should increase the Voc and η.
The first report of a Cu2O heterojunction solar cell with an η above 3% was reported by the Kanazawa Institute of Technology in 2011. In the first of a series of papers [30,31,32,33], Minami and co-workers demonstrated an improved device architecture for Cu2O devices. In this structure, a polycrystalline Cu2O substrate and absorber was first formed from Cu by using a three step oxidation process [30]. Subsequently, an n-type layer of undoped ZnO and a transparent conductor layer of AZO were deposited sequentially by PLD. The ZnO forms a heterojunction with Cu2O and the AZO acts as a window layer. The back contact consists of an ohmic contact formed from either Au or Cu2S. The photovoltaic parameters Voc, Jsc, fill factor FF and η were studied as a function of the ZnO layer thickness. For a ZnO thickness in the range of 30–50 nm, the η reached a maximum of 3.83% [30]. This was mainly due to improvement in ZnO film properties such as fewer interface defects and reduced resistivity. For a ZnO layer thicker than 50 nm, both Voc and FF decreased because of a short minority carrier lifetime [30]. By comparison, the η of an AZO/Cu2O reference device of ~1.6% was lower than the optimized AZO/ZnO/Cu2O device. This shows that the ZnO buffer layer forms a better quality junction with Cu2O in comparison with AZO. However, both the deposition condition and thickness of the ZnO layer must be carefully controlled to obtain high efficiency.
A more in-depth study of the n+AZO/ZnO/Cu2O device structure was carried out by Nishi et al. [31]. The device fabrication process was similar to that in [30]. The thickness of the ZnO buffer layer was varied between 0 nm and 150 nm where a zero ZnO thickness corresponded to an n+AZO/Cu2O Schottky barrier junction. At the optimum ZnO thickness of 50 nm, an η of 4.08% was measured. Dark current voltage measurements showed that the inserted ZnO buffer layer forms a heterojunction with the Cu2O with a built in potential (or barrier height) that is greater than that of the Schottky junction. The increased barrier height could be related to the higher quality interface obtained when ZnO is deposited at room temperature conditions [31]. In addition, the lower carrier concentration of the undoped ZnO layer results in a finite depletion width in the ZnO that increases the total active layer thickness. This is shown by photovoltage spectral response measurement. When compared with the n+AZO/Cu2O device, the n+AZO/ZnO/Cu2O device has a broader photovoltage spectrum below 460 nm because of the heterojunction formation [31].
A still higher η was obtained by Minami et al. when the undoped ZnO layer was substituted by undoped n-type Ga2O3 in an AZO/Ga2O3/Cu2O/Au device structure [32]. The choice of Ga2O3 was motivated by the fact that the photovoltaic properties of a Cu2O heterojunction cell are determined by the energetics of the heterointerface. For the Ga2O3/Cu2O heterojunction, the conduction band offset (ΔEc) is smaller because the electron affinity χ of Ga2O3 is in between that of Cu2O and ZnO (Figure 5) [32,33]. This smaller ΔEc should lead to a higher device efficiency. The Ga2O3 layer in this device was also deposited by PLD using Ga2O3 pellets in the presence of oxygen. The η and other photovoltaic properties were found to be dependent on the oxygen pressure during PLD and the thickness of the Ga2O3 layer. At optimum conditions, an η of 5.38% was obtained. The photovoltaic parameters (Voc, Jsc, FF) were better than those of a comparable AZO/ZnO/Cu2O/Au device. The high Voc (=0.8 V) was attributed to reduced carrier recombination due to reduced defects at the heterointerface. This was demonstrated using dark current voltage and external quantum efficiency measurements.
The Cu2O heterojunction solar cell with the highest η (as of 2015) was reported by Minami et al. [34]. This cell was fabricated on a Cu2O substrate formed by thermal oxidation of high purity Cu sheets. The Cu2O sheet serves as both the solar absorber and the device substrate. In order to reduce the series resistance of the heterojunction solar cell, the resistivity of the Cu2O substrate was reduced by Na doping [34]. This was carried out by heating the substrate with NaI in an inert atmosphere at 500 °C–1000 °C [34]. The reason for doping by Na is that, unlike other dopants, the Cu2O resistivity decrease is not accompanied by a decrease in the Hall mobility for Na dopants. From their experiments, an optimum resistivity of the Cu2O:Na was found to be ~15 Ωcm. The heterojunction was formed by successive ArF excimer laser PLD of a layer of n-type aluminum gallium oxide (Alx-Ga1-x-O) and a top window layer of AZO. The photovoltaic performance of the device was found to depend strongly on the composition of the AlxGa1-xO. At an optimized Al concentration of 2.5 at% (i.e., Al0.025-Ga0.975-O), the highest η of 5.72% was achieved [34]. This was increased further to 6.1% with the use of MgF2 antireflection layer and an optimized Al0.025-Ga0.975-O layer thickness [34].
The chronological discussion above shows that substantial progress has indeed been accomplished in recent years in polycrystalline Cu2O heterojunction solar cells. This advancement can be attributed to four key developments. The first is the improvement in the thermal oxidation of Cu resulting in Cu2O with improved crystallinity. The second is the use of thin buffer layers and CuO etching prior to n-type semiconductor deposition. This results in an improved interfacial layer with reduced defects. Third, the synthesis of n-type oxide semiconductors with tailored band edge offset with respect to Cu2O can enhance junction properties. Finally, the use of PLD for n-type oxide semiconductor deposition crucially improves the heterojunction interface. However, the PLD process is difficult to be scaled up to large area substrates. This is because the source material is ablated from a point on the target. In this context, we briefly highlight two related process developments.
The first is the photo-metalorganic chemical vapor deposition (MOCVD) of Cu2O by Gupta et al. [13]. In this photo-MOCVD process, an organometallic precursor containing Cu carried by ultra high purity gases into a deposition chamber is used for Cu2O deposition onto p-Si substrates. The deposition at 750 °C is assisted by ultraviolet photons from a Xenon flash lamp. Although structural, optical and electrical characterization of these Cu2O films on p-Si and quartz were performed, no data on PV devices was reported [13].
The second concerns the use of atomic layer deposition (ALD) to control the interface quality of Cu2O heterojunction soloar cells. In a study by Lee et al. [35], an ultra thin buffer layer of amorphous zinc tin oxide (a-ZTO) was deposited by ALD onto electrochemically deposited Cu2O. a-ZTO reduces recombination at the interface by acting as an electron blocking layer. The J-V characteristics for three ZnO:Al/a-ZTS/Cu2O/Au devices with different Zn:Sn cationic ratios in a-ZTS is shown in Figure 6. At optimized composition of a-ZTO, an η of 2.65% was measured for these devices which is higher than the control device without a-ZTO. In a subsequent study [36], it was further demonstrated that the ALD reaction conditions can be used to control the oxidation state of Cu and prevent the formation of an undesirable CuO interfacial layer. When the ALD temperature of the a-ZTO layer was decreased, the Voc of ZnO:Al/a-ZTS/Cu2O/Au devices increased, indicating reduced defects at the a-ZTS/Cu2O interface. The highest η of 3.06% was observed at a deposition temperature of 70 °C. This group also demonstrated that insertion of 20 nm thick extrinsic Cu2O:N between the Cu2O and Au layers can effectively reduce contact resistance of this device structure and improve FF. This is because Cu2O:N acts as a p-type transport layer and facilitates hole transport by tunneling [37]. It should be noted that Cu2O films have also been used as hole transport layers in perovskite solar cells [38].

4. CuO Thin Film Heterojunction Solar Cells

Relatively little is known about the material properties of CuO. CuO has a monoclinic crystal structure. It has a direct energy band gap of ~1.5 eV and the absorption coefficient is also high [1]. Since for a single p-n junction solar cell, the optimum band gap is 1.4 eV, the optical properties of CuO make it a very suitable semiconductor absorber material for solar cell applications [11]. In addition, the electrical properties of CuO such as majority carrier mobility and minority carrier diffusion length are also adequate.
Although the narrower band gap of CuO is a better match to the solar spectrum compared with Cu2O, little research on CuO heterojunction solar cells has been published until recently [39,40,41,42,43,44]. The structure of the CuO heterojunction solar cells reported so far typically involves deposition of the CuO thin films onto a semiconductor substrate such as crystalline Si wafers (Figure 3b). The thermal oxidation method widely used for Cu2O devices has not been used. In 2012, Gao et al. reported a p-CuO/n-Si heterojunction solar cell fabricated by the reactive magnetron sputtering technique [39]. The CuO layer was deposited by using a Cu target and a sputtering plasma consisting of Ar and O2. When the flow rate ratio of O2 to Ar was optimized, the deposited CuO has a nanocrystalline structure with a crystallite size of ~8 nm [39]. The optical band gap of the CuO layer was 1.07 eV and the hole mobility deduced from Hall measurements was ~0.15 cm2/V∙s [39]. Under AM 1.5G illumination, the current density voltage (J-V) characteristic showed a modest photovoltaic effect and an η of 0.41% was measured for a Cu/p-CuO/n-Si/Al device structure [39]. Both Voc and FF were low because the high series resistance of the nanocrystalline CuO layer and defects at the p-CuO/n-Si interface resulted in carrier recombination. The very thin CuO layer (100 nm) and the Cu grid top electrode might have also limited the amount of light absorbed by this device structure.
Another early study of the CuO/Si heterojunction is that by Kumar et al. [40]. These investigators used the RF argon sputtering of a CuO target to deposit CuO onto n-Si(100). After deposition, the polycrystalline CuO films were annealed in nitrogen at 300 °C. The crystalline structure of the film was determined by X-ray diffraction to be predominantly CuO phase for an annealing temperature of 300 °C [40]. Under dark conditions, the CuO/Si heterojunction showed a rectifying J-V characteristic with a rectification ratio of 104 (at +3 V and −3 V) [40]. When illuminated, a photovoltage response was observed [40]. It is also worth noting that there is a presence of interfacial oxide layer between the silicon substrate and p-CuO layer. High resolution transmission electron microscope (HRTEM) analysis reveals that the thickness of the interfacial layer is around 4 nm. Furthermore, a Cu-rich interfacial layer between p-CuO and silicon substrate is also observed and the Cu-rich interface layer significantly depends on the sputtering power, as shown in Figure 7.
A CuO heterojunction solar cell with PCE approaching 1% was reported recently by Masudy-Panah et al. [41]. The heterostructure studied was Al/Ti/n-Si/p-CuO/Ti/Al. The CuO layer was deposited by argon RF sputtering of a CuO target at a fixed power of 150 W and working pressure in the range of 3 to 35 mTorr. After deposition, the CuO film was further annealed at 300 °C from 1 min to 1 h. The CuO film properties are influenced strongly by both the working pressure and annealing time. By using X-ray diffraction and Raman spectroscopy, the CuO phase was found to have improved crystallinity when a higher working pressure was used. In addition, when annealed for a prolonged period, there is a phase transformation from CuO to Cu2O and a mixture of CuO and Cu2O was formed as a result. This phase transformation is corroborated by X-ray photoelectron spectroscopy analysis. The position of the Cu 2p peak shifted from 934.0 eV to 932.4 eV [41]. In the Raman spectrum, the formation of Cu2O is signified by the appearance of peaks between 119 cm−1 and 500 cm−1. In addition, a peak at 1110 cm−1 indicates that elemental Cu is present in the CuO as a Cu rich copper oxide. This Cu rich copper oxide within the CuO was observed by HRTEM to be about ~30 nm thick for a CuO film thickness of 150 nm, as shown in Figure 8 [41]. In between the Cu rich copper oxide and the Si substrate is an amorphous interfacial layer (IL) due to residual oxygen in the sputtering system. Its composition was found by energy dispersive X-ray (EDX) spectroscopy to be comprised of Si, Cu and O [41].
Both the Cu rich copper oxide and the amorphous IL are detrimental to interface quality and thus need to be minimized by controlling the sputtering conditions of the CuO. This was demonstrated by photocurrent voltage characteristics of Al/Ti/p-CuO/n-Si/Ti/Al devices. The Voc of devices with CuO deposited at low working pressure and annealed at 300 °C for 1 min was 380 mV and the η was only 0.14% [41]. When the annealing time was increased, the Voc decreased further due to the thickening of the IL and the Cu rich copper oxide layer. On the other hand, the Voc of the device increased to 509 mV when the CuO layer was deposited at 30 mTorr and annealed at 300 °C for 1 min [41]. This improvement in Voc is due to thinner interfacial layers and better CuO crystallinity. As a result, a higher η of 0.36% was obtained. This study shows that the CuO deposition and annealing conditions play a crucial role in determining the achievable photovoltaic performance of p-CuO/n-Si heterojunction solar cells. Furthermore, through the introduction of highly nitrogen doped CuO thin film in between CuO layer and top metal contact, the fill factor of the device improved significantly and, as a result, efficiency of the device increased to 1%, as shown in Figure 9.
Since the poor photovoltaic performance of p-CuO/n-Si heterojunction solar cells was attributed to native oxide formation and a Cu rich IL during the sputtering process, a comprehensive study on the IL properties was carried out by Masudy-Panah et al. [42]. CuO films were deposited at different RF power (50 W, 100 W and 150 W) onto Si using a stoichiometric CuO target. The composition profile, crystallinity and the structure of the CuO/Si interface was studied by time of flight secondary ion mass spectrometry (TOF-SIMS), Raman spectroscopy, TEM and X-ray diffraction respectively. For an RF power of 50 W, the composition of the CuO layer was quite uniform. When the RF power was increased to 150 W, the Cu rich IL became thicker and the crystalline quality of the CuO improved without compromising the optical band gap of the thin film CuO determined from the Tauc plot of the absorption coefficient α and photon energy (Figure 10). This finding leads to a two-step sputtering process in which a thin layer of CuO is first sputtered at low power (i.e., 50 W) followed by a thicker layer of CuO deposited at 150 W. The resulting CuO can have both good crystallinity and a thin Cu rich IL (Figure 11). In order to demonstrate the improved film properties for the two step process, the photovoltaic performances of several p-CuO/n-Si devices were compared for one-step and two-step deposition of CuO. For the one-step process, the lowest RF power (50 W) led to the highest η of 0.38%. At higher RF power, the increased thickness of the Cu IL alluded to above led to a loss of efficiency. When the two-step process is used instead with the CuO layer deposited at higher power and doped with nitrogen, an η of 1.21% was obtained. This is the first report of a CuO heterojunction solar cell with an η above 1% [42].
Since high sheet resistance and low carrier concentration of a CuO absorber layer are possible reasons of poor photovoltaic performance of copper oxide solar cells, a detailed study on doping of CuO thin films was carried out by Masudy-Panah et al. [43,44]. These investigators report that the impact of nitrogen doping on the crystal quality of CuO thin films significantly depends on its concentration and annealing temperature [43]. Thermal treatment of lightly doped samples with N concentration of 1.5% did not cause significant changes in its crystal structure regardless of annealing temperature. However, CuO-Cu2O mixed phase was formed for the highly doped samples annealed at low temperatures and a dominant Cu2O phase was formed for the highly doped samples annealed at high temperatures.

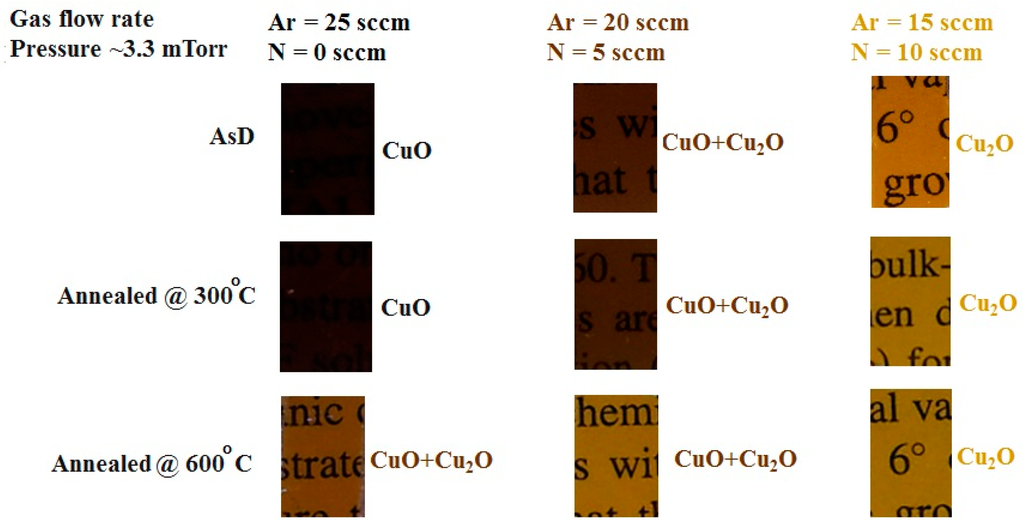

The reflectance and transmittance of N-doped CuO thin films in the wavelength range of 200 nm–1500 nm was found to be increased with increasing nitrogen concentration. It was explained by Masudy-Panah in terms of CuO bandgap widening and the presence of Cu2O phase. It was also shown that by tuning the nitrogen concentration during sputter growth of CuO film (in situ nitrogen doped), the color of the copper oxide film can be tuned for as-deposited and also for the annealed films as shown in Figure 12.
Impact of N-doping on photovoltaic properties of p-CuO(N)/n-Si based heterojunction solar cells was also studied [43]. Voc of doped samples was found to degrade with increasing N doping concentration. According to the investigators, nitridation of Cu-rich interfacial layer and formation of poor quality copper oxide nitride/Si interface could be the reasons of the Voc degradation. Photovoltaic properties of highly doped samples were found to be significantly lower because of CuO bandgap widening and Cu2O formation despite of lower sheet resistance. However, lightly doped samples showed better photovoltaic performance over highly doped samples and control samples. Improvements in Jsc, FF and η were attributed to the reduction of series resistance of N-doped CuO thin films.
In another study, Masudy-Panah et al. showed that, by Ti-doping, it is possible to significantly reduce resistivity of CuO thin films while maintaining its optical properties and structural quality [44]. The crystal structure of Ti-doped CuO thin films maintained good quality when Ti concentration was increased up to 0.099%. Doping with higher Ti concentrations resulted in formation of secondary defect phases which decreased crystalline ordering. The transmittance and reflectance of Ti-doped CuO were found to be independent of Ti dopant concentration. Furthermore, Ti doping has insignificant impact on surface morphology of CuO films.
The p-CuO(Ti)/n-Si heterojunction solar cells with Ti concentration of 0.099% showed better performance over undoped samples and other Ti-doped samples. Both Voc and Jsc improved in comparison with control samples and other Ti-doped samples. Masudy-Panah et al. explained these improvements by reducing of series resistance and enhancing of collection efficiency. When the two-step process was used instead to deposit the Ti-doped CuO absorber layer at high working pressure of 30 mTorr, an η of 1.2% was obtained. However, overall performance of highly doped samples significantly reduced because of high recombination rate with CuO layer.
Dalapati et al. reported that CuO thin films deposited by RF magnetron sputtering at high working pressure of 30 mTorr have better crystal quality than the films deposited at lower working pressure of 3.3 mTorr while optical properties remain the same [45]. Investigators showed that CuO thin films grown at high working pressure exhibit lower defect density and higher carrier concentration.
In the CuO devices discussed thus far, the sputtered CuO layer is always p-type. Recently, however, Lee et al. has observed n-type behavior in nanoscale non-stoichiometric CuOx deposited by reactive magnetron sputtering [46]. The n-type conductivity which was confirmed by Hall effect measurements results from the fact that in the initial stage of deposition, the CuOx is Cu rich and this causes electrons to be majority carriers. By depositing 50 nm of n-CuOx onto intrinsic i-a-Si:H in a heterojunction p-i-n device structure, a maximum η of 3.04% was measured [46]. This can be further increased to 4.79% by inserting a thin n-mc Si:H depletion assisting layer (DAL) between the CuOx and i-a-Si:H layer. The DAL enhances η of the device by increasing Voc.
The performance of CuO heterojunction solar cells can be further enhanced by the use of mixed phase copper oxide nanopowders (NP). This innovative approach to boost light absorption was demonstrated by Bhaumik et al. in 2014 [20]. The device structure studied consists of glass/ITO/ZnO/CuO/NP(Cu2O, CuO) (Figure 3c). This structure is different from all the device structures discussed thus far because sunlight is incident from the transparent substrate rather than from the top of the device. In addition, both ZnO and CuO layers were deposited by PLD from the respective targets using a krypton fluoride (KrF) excimer laser to minimize the defect density at the interface. The mixed phase NP containing both cupric oxide and cuprous oxide was synthesized from CuSO4 and KOH by a hydrothermal process within a sealed autoclave at 80 °C. After synthesis, the mixed phase NP dispersed in toluene was drop cast onto the surface of the CuO thin film and annealed in oxygen for up to two hours. For the device annealed in this manner for two hours, the Jsc under AM1.5 solar illumination was 20.9 mA/cm2 [20]. This is much higher than the Jsc of the control device with only the thin film layers (290 μA/cm2) and another device with commercial copper oxide micro-powder (4.22 mA/cm2). Interestingly, the Voc of the device was also improved by the NP and annealing. After annealing for 2 h, the Voc increased from 0.3 V to 0.4 V. As a result, a high η of 2.88% was achieved. This is the highest reported efficiency for a CuO heterostructure solar device. The high performance was explained in terms of: (i) increased light absorption caused by the copper oxide NP; and (ii) improved diffusion of electrons and holes due to removal of ligands from the NP after annealing. As for Voc, the increase was attributed to the increase in band gap and improved band alignment for the copper oxide layer.
Another copper oxide nanostructure is the nanoleaf (NL). CuO NL can be solution synthesized by a two-step process on crystalline Si subtrates. In [47], CuO NLs were grown on commercial surface textured n+-p Si solar cells without passivation layer. After growth, the NLs have an average length of ~280 nm and width of ~83 nm (Figure 13). The NL layer enhances light absorption in the Si solar cell by acting as a graded index layer, which increases light scattering and trapping across a broad spectral region. In addition, the small CuO/n+Si heterojunction beneath each NL facilitates charge extraction from the device. When the morphology of the NL is optimized, the η of CuO NL/n+-p Si solar cell can reach 11.07%, which is significantly higher than the control device (9.39%) [47]. Very recently, CuO nanoparticles prepared by green synthesis have also been used as counter electrodes of dye sensitized solar cells [48].
In recent years, the photovoltaic behavior of CuO/fullerene (C60) heterojunctions has also been investigated. This inorganic-organic heterojunction structure is motivated by the fact that CuO is a p-type material while fullerene is an n-type (acceptor) material used for both heterojunction and bulk heterojunction organic solar cells. Oku et al. used electrochemical deposition to deposit CuO onto ITO working electrode by using an aqueous electrolyte consisting of CuSO4 and 1-lactic acid at 65 °C [49]. The C60 powder and top Al electrode were deposited on to CuO by vacuum evaporation. The measured η of the device, however, was extremely low (~10−4%) due to low Voc, FF and Jsc.
In summary, the key developments in CuO devices are the RF sputter deposition of both p-type CuO and n-type CuOx. Both oxides form heterojunctions with Si, but DAL is needed for CuOx and control of the interfacial layer is critical. The performance of CuO devices can be enhanced by the incorporation of CuO NP and NL to enhance light absorption.

5. Cu2O/CuO Thin Film Heterojunction Solar Cells

Since CuO has a narrower energy band gap than Cu2O, a heterojunction comprising these two oxides of Cu can be formed from just two chemical elements. One advantage of the CuO/Cu2O heterojunction is that the refractive indices of Cu2O and CuO are quite similar, and, as a result, the reflectance of the CuO/Cu2O interface is relatively small and thus can be beneficial to solar cell performance [50]. In 1986, Siripala et al. used an electrochemical deposition technique to prepare n-Cu2O thin films by using a slightly acidic aqueous electrolyte during the deposition [51]. This technique was adapted by Wijesundera to fabricate p-CuO/n-Cu2O heterojunction PV devices [52]. In this study, a layer of Cu2O was first deposited at potentiostatic conditions at 55 °C using an electrolyte comprising copper (II) acetate monohydrate and sodium acetate. This layer was then completely oxidized to p-CuO by heating in air at 500 °C. A second layer of Cu2O was deposited by the same electrolyte at a higher bias potential to complete the formation of the heterojunction.
Very recently, Jayathilaka et al. demonstrated a simple electrodeposition technique to fabricate p-CuO/n-Cu2O heterojunction solar cells [50]. The first p-CuO layer was deposited onto a Ti substrate at potentiostatic condition in a three electrode electrochemical cell using an alkaline electrolyte comprising lactic acid, copper (II) sulphate and sodium hydroxide. After post-deposition thermal annealing, the second layer of Cu2O was deposited at potentiostatic condition using a mixture of sodium acetate and copper (II) acetate. The conductivity types of the two electrodeposited layers were determined by the photocurrent response of a photoelectrochemical cell (PEC) using the Cu2O and CuO layers as a photocathode [50]. For the CuO photocathode, a negative spectral photocurrent shows that the CuO has p-type conductivity. A positive spectral photocurrent for Cu2O photocathode shows that the Cu2O has n-type conductivity. When the CuO/Cu2O heterojunction was used as photocathode, the spectral photocurrent exhibits opposite signs at different spectral regions. This shows that a p-CuO/n-Cu2O heterojunction has formed with longer wavelength radiation penetrating deeper into the junction. After surface defect passivation treatment of the Cu2O layer by ammounium sulphide (NH4)2S [50], a Ti/p-CuO/n-Cu2O/Au solar cell based on this heterojunction has a measured Voc = 0.19 V, Jsc = 6.4 mA/cm2 and η = 0.52%. The η increased further to 0.64% after annealing at 100 °C for 45 min [50].

6. Cu4O3 Thin Film Heterojunction Solar cells

Thus far, there has only been one report on the application of Cu4O3 in thin film heterojunction solar cells. In [1], Meyer et al. reported preliminary results on a Cu4O3/GaN solar cell that was fabricated on double polished sapphire substrate. The n-type GaN was grown on sapphire and the heterojunction was formed by RF sputtering of Cu4O3 onto GaN. The combined absorber thickness was ~600 nm. Under AM 1.5G illumination, the heterojunction device showed a Jsc = 0.15 mA/cm2, Voc = 0.87 V, FF = 67% and η = 0.009%. All photovoltaic parameters are lower than those of a Cu2O/GaN heterojunction solar cell fabricated for comparison.
Environmentally stable and efficient solar cells are crucial to meet the future demand for rewnewable energy. Thus, materials selection and suitable fabrication methods are essential. Earth abundant low cost material such as metal oxides and nitrides, sulphide based compounds and thin film silicon are very important [53,54,55,56,57,58,59]. As the copper oxides provide the suitable band gaps for single junction and tandem solar cells, it is worthwhile to find n-type materials with suitable band gap. Moreover, the sputter deposition technique is industry compatible and suitable for large scale deployment [60,61,62,63,64].

7. Conclusions

In this paper, the technological development of heterojunction solar cells based on Cu2O, CuO and Cu4O3 has been comprehensively reviewed. Amongst these three oxides of Cu, Cu2O devices are at the most advanced stage of development with the highest reported η. The rapid improvement in the past few years has been due to the use of low damage deposition processes for n-type semiconductors, improved band alignment and improved crystallinity of the junction materials. The main outsanding problems that merit further research are the passivation of electronic defects at the interface between Cu2O and the n-type semiconductor. The studies by Lee et al. using ALD buffer layers can be viewed as a first step in this direction [34]. The nature, energy distribution and mechanism of recombination at these interface states are not well understood at present. A more fundamental understanding of these defects should explain why the η of state of the art Cu2O devices are still well short of the theoretical maximum efficiency of 20% [6]. Deposition of semiconductors over a large area of Cu2O is another challenge that requires further technological development.
For CuO heterojunction solar cells, the best reported η is still much lower than Cu2O devices. In order for further progress to be made, the basic material properties such as crystal structure, electronic structure, optical absorption and electronic properties will need to be determined. As with Cu2O, the control of the interface properties is crucial. Specifically, a low damage deposition process for CuO deposition on n-Si must be developed to avoid the formation of a Cu rich CuOx layer. A deposition process called successive ion layer adsorption and reaction (SILAR) that can deposit Cu2O and CuO at mild solution process conditions without ion bombardment is especially promising [65]. The recent observation of n-type behavior in CuOx suggests that CuO/CuOx junctions should be fabricated by sputtering and investigated for homojunction behavior [46].
Given the current stage of technological development of copper oxide heterojunction solar cells, a plausible near-term application of these earth abundant PV materials may be the mutli-junction, multi-terminal solar cells [14]. These devices consist of silicon cells connected in parallel with heterojunction solar cells based on other semiconductor materials. Unlike conventional tandem cells, each cell can be individually optimized in device design. The wider band gap of both Cu2O and CuO relative to Si can enhance the performance of Si cells, which are already near their theoretical limits by absorbing shorter wavelength photons. This critical review of the recent literature on copper oxide heterojunction solar cells has shown that, far from being an obsolete material system, the copper oxides are a versatile, sustainable PV material of growing interest and importance.

Acknowledgments

Goutam K. Dalapati gratefully acknowledge John Wiley & Sons Inc. for permission to reprint Figure 8 and Figure 9 from Progress in Photovoltaics Research and Applications 2015; 23 637-645 in this paper.

Author Contributions

Terence K. S. Wong and Goutam K. Dalapati conceived the idea of writing this paper. Terence K. S. Wong performed the literature search and wrote Section 1, Section 2 and Section 3, Section 5 and Section 6. Goutam K. Dalapati, Siarhei Zhuk and Saeid Masudy-Panah wrote Section 4 and Section 7.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meyer, B.K.; Polity, A.; Reppin, D.; Becker, M.; Hering, P.; Klar, P.J.; Sander, T.H.; Reindl, C.; Benz, J.; Eickhoff, M.; et al. Binary copper oxide semiconductors: From materials towards devices. Phys. Status Solidi B 2012, 249, 1487–1509. [Google Scholar] [CrossRef]
  2. Riordan, M.; Hoddeson, L. Crystal Fire; Norton: New York, NY, USA, 1997. [Google Scholar]
  3. Brattain, W.H. The copper oxide rectifier. Rev. Mod. Phys. 1951, 23, 203–212. [Google Scholar] [CrossRef]
  4. Drobny, V.F.; Pulfrey, D.L. Properties of reactively-sputtered copper oxide thin films. Thin Solid Films 1979, 61, 89–98. [Google Scholar] [CrossRef]
  5. Olsen, L.C.; Addis, F.W.; Miller, W. Experimental and theoretical studies of Cu2O solar cells. Sol. Cells 1982, 7, 247–279. [Google Scholar] [CrossRef]
  6. Olsen, L.C.; Bohara, R.C.; Urie, M.W. Explanation for low-efficiency Cu2O Schottky-barrier solara cells. Appl. Phys. Lett. 1979, 34, 47–49. [Google Scholar] [CrossRef]
  7. Rakhshani, A.E. Preparation, characterization and photovoltaic properties of cuprous oxide—A review. Solid-State Electr. 1986, 29, 7–17. [Google Scholar] [CrossRef]
  8. Scopus. Available online: http://www.scopus.com (accessed on 18 January 2016).
  9. Green, M.A.; Emery, K.; Hishikawa, Y.; Warta, W.; Dunlop, E.D. Solar cell efficiency tables (version 47). Prog. Photovolt. Res. Appl. 2016, 24, 3–11. [Google Scholar] [CrossRef]
  10. Dittrich, T. Materials Concepts for Solar Cells; Imperial College Press: London, UK, 2014. [Google Scholar]
  11. Nelson, J. The Physics of Solar Cells; Imperial College Press: London, UK, 2005. [Google Scholar]
  12. Fonash, S. Solar Cell Device Physics; Academic Press: New York, NY, USA, 2010. [Google Scholar]
  13. Gupta, N.; Singh, R.; Wu, F.; Narayan, J.; McMillen, C.; Alapatt, G.F.; Poole, K.F.; Hwu, S.J.; Sulejmanovic, D.; Young, M.; et al. Deposition and characterization of nanostructured Cu2O thin-film for potential photovoltaic applications. J. Mater. Res. 2013, 28, 1740–1746. [Google Scholar] [CrossRef]
  14. Singh, R.; Alapatt, G.F.; Kakhtakia, A. Making solar cells a reality in every home: Opportunities and challenges for photovoltaic device design. IEEE J. Electron Dev. Soc. 2013, 1, 129–144. [Google Scholar] [CrossRef]
  15. Wadia, C.; Alivisatos, A.P.; Kammen, D.M. Materials availability expands the opportunity for large-scale photovoltaics deployment. Environ. Sci. Technol. 2009, 43, 2072–2077. [Google Scholar] [CrossRef] [PubMed]
  16. Lee, Y.S.; Berfoni, M.; Chan, M.K.; Ceder, G.; Buonassisi, T. Earth abundant materials for high efficiency heterojunction thin film solar cells. In Proceedings of the 34th IEEE Photovoltaic Specialists Conference, Philadelphia, PA, USA, 7–12 June 2009; pp. 002375–002377.
  17. Barquinha, P.; Martins, R.; Pereira, L.; Fortunato, E. Transparent Oxide Electronics: From Materials to Devices; Wiley: New York, NY, USA, 2012. [Google Scholar]
  18. Sze, S.M. Physics of Semiconductor Devices; Wiley: New York, NY, USA, 1981. [Google Scholar]
  19. Roosbroeck, W.V.; Shockley, W. Photon-radiative recombination of electrons and holes in germanium. Phys. Rev. 1954, 94, 1558–1560. [Google Scholar] [CrossRef]
  20. Bhuamik, A.; Haque, A.; Karnati, P.; Taufique, M.F.N.; Patel, R.; Ghosh, K. Copper oxide based nanostructures for improved solar cell efficiency. Thin Solid Films 2014, 572, 126–133. [Google Scholar] [CrossRef]
  21. De Los Santos Valladares, L.; Hurtado Salinas, D.; Bustamante Dominguez, A.; Acosta Najarro, D.; Khondaker, S.J.; Mitrelias, T.; Barnes, C.H.W.; Albino Aguiar, J.; Majima, Y. Crystallization and electrical resistivity of Cu2O and CuO obtained by thermal oxidation of Cu thin films on SiO2/Si substrates. Thin Solid Films 2012, 520, 6368–6374. [Google Scholar] [CrossRef]
  22. Biccari, F. Defects and doping in Cu2O. Ph.D. Thesis, University of Rome, Rome, Italy, 16 February 2010. [Google Scholar]
  23. Herion, J.; Niekisch, E.A.; Scharl, G. Investigation of metal oxide/cuprous oxide heterojunction solar cells. Sol. Energy Mater. 1980, 4, 101–112. [Google Scholar] [CrossRef]
  24. Akimoto, K.; Ishizuka, S.; Yanagita, M.; Nawa, Y.; Paul, G.K.; Sakurai, T. Thin film deposition of Cu2O and applications for solar cells. Sol. Energy 2006, 80, 715–722. [Google Scholar] [CrossRef]
  25. Minami, T.; Tanaka, H.; Shimakawa, T.; Miyata, T.; Sato, H. High efficiency oxide heterojunction solar cells using Cu2O sheets. Jpn. J. Appl. Phys. 2004, 7A, L917–L919. [Google Scholar] [CrossRef]
  26. Tanaka, H.; Shimakawa, T.; Miyata, T.; Sato, H.; Minami, T. Electrical and optical properties of TCO-Cu2O heterojunction devices. Thin Solid Films 2004, 469–470, 80–85. [Google Scholar] [CrossRef]
  27. Minami, T.; Miyata, T.; Ihara, K.; Minamino, Y.; Tsukada, S. Effect of ZnO film deposition methods on the photovoltaic properties of ZnO-Cu2O heterojunction devices. Thin Solid Films 2006, 494, 47–53. [Google Scholar] [CrossRef]
  28. Minami, T.; Ida, S.; Miyata, T. High rate deposition of transparent conducting oxide thin films by vacuum arc plasma evaporation. Thin Solid Films 2002, 416, 92–96. [Google Scholar] [CrossRef]
  29. Mittiga, A.; Salza, E.; Sarto, F.; Tucci, M.; Vasanthi, R. Heterojunction solar cell with 2% efficiency based on a Cu2O substrate. Appl. Phys. Lett. 2006, 88, 163502. [Google Scholar] [CrossRef]
  30. Minami, T.; Nishi, Y.; Miyata, T.; Nomoto, J-L. High-efficiency oxide solar cells with ZnO/Cu2O heterojunction fabricated on thermally oxidized Cu2O sheets. Appl. Phys. Exp. 2011, 4, 062301. [Google Scholar] [CrossRef]
  31. Nishi, Y.; Miyata, T.; Minami, T. Effect of inserting a thin buffer layer on the efficiency in n-ZnO/p-Cu2O heterojunction solar cells. J. Vac. Sci. Technol. A 2012, 30, 04D103. [Google Scholar] [CrossRef]
  32. Minami, T.; Nishi, Y.; Miyata, T. High efficiency Cu2O-based heterojunction solar cells fabricated using a Ga2O3 thin film as N-type layer. Appl. Phys. Exp. 2013, 6, 044101. [Google Scholar] [CrossRef]
  33. Jacobi, K.; Zwicker, G.; Gutmann, A. Work function, electron affinity and band bending of zinc oxide surfaces. Surf. Sci. 1984, 141, 109–125. [Google Scholar] [CrossRef]
  34. Minami, T.; Nishi, Y.; Miyata, T. Heterojunction solar cell with 6% efficiency based on an n-type aluminum-gallium-oxide thin film and p-type sodium-doped Cu2O sheet. Appl. Phys. Exp. 2015, 8, 022301. [Google Scholar] [CrossRef]
  35. Lee, Y.S.; Heo, J.; Siah, S.C.; Mailoa, J.P.; Brandt, R.E.; Kim, S.B.; Gordon, R.G.; Buonassisi, T. Ultrathin amorphous zinc-tin-oxide buffer layer for enhancing heterojunction interface quality in metal-oxide solar cells. Energy Environ. Sci. 2013, 6, 2112–2117. [Google Scholar] [CrossRef]
  36. Lee, S.W.; Lee, Y.S.; Heo, J.; Siah, S.C.; Chua, D.; Brandt, R.E.; Kim, S.B.; Mailoa, J.P.; Buonassisi, T.; Gordon, R.G. Improved Cu2O-based solar cells using atomic layer deposition to control the Cu oxidation state at the p-n junction. Adv. Energy Mater. 2014, 4, 1301916. [Google Scholar] [CrossRef]
  37. Lee, Y.S.; Heo, J.; Winkler, M.T.; Siah, S.C.; Kim, S.B.; Gordon, R.G.; Buonassisi, T. Nitrogen-doped cuprous oxide as a p-type hole-transporting layer in thin-film solar cells. J. Mater. Chem. A 2013, 1, 15416–15422. [Google Scholar] [CrossRef]
  38. Zuo, C.; Ding, L. Solution-processed Cu2O and CuO as hole transporting materials for efficient perovskite solar cells. Small 2015, 11, 5528–5532. [Google Scholar] [CrossRef] [PubMed]
  39. Gao, F.; Liu, X.J.; Zhang, J.S.; Song, M.Z.; Li, N. Photovoltaic properties of the p-CuO/n-Si heterojunction prepared through reactive magnetron sputtering. J. Appl. Phys. 2012, 111, 084507. [Google Scholar] [CrossRef]
  40. Kumar, V.; Masudy-Panah, S.; Tan, C.C.; Wong, T.K.S.; Chi, D.Z.; Dalapati, G.K. Copper oxide based low cost thin film solar cells. In Proceedings of the IEEE International Nanoelectronics Conference, Singapore, Singapore, 2–4 January 2013; pp. 443–445.
  41. Masudy-Panah, S.; Dalapati, G.K.; Radhakrishnan, K.; Kumar, A.; Tan, H.R.; Kumar, E.N.; Vijila, C.; Tan, C.C.; Chi, D.Z. p-CuO/n-Si heterojunction solar cells with high open circuit voltage and photocurrent through interfacial engineering. Prog. Photovolt. Res. Appl. 2015, 22, 637–645. [Google Scholar] [CrossRef]
  42. Masudy-Panah, S.; Dalapati, G.K.; Radhakrishnan, K.; Kumar, A.; Tan, H.R. Reduction of Cu-rich interfacial layer and improvement of bulk CuO property through two-step sputtering for p-CuO/n-Si heterojunction solar cell. J. Appl. Phys. 2014, 116, 074501. [Google Scholar] [CrossRef]
  43. Masudy-Panah, S.; Radhakrishnan, K.; Kumar, A.; Wong, T.I.; Yi, R.; Dalapati, G.K. Optical band gap widening and phase transformation of nitrogen doped cupric oxide. J. Appl. Phys. 2015, 118, 225301. [Google Scholar] [CrossRef]
  44. Masudy-Panah, S.; Radhakrishnan, K.; Tan, H.R.; Yi, R.; Wong, T.I.; Dalapati, G.K. Titanium doped cupric oxide for photovoltaic application. Sol. Energy Mater. Sol. Cells 2015, 140, 266–274. [Google Scholar] [CrossRef]
  45. Dalapati, G.K.; Kajen, R.S.; Masudy-Panah, S.; Sonar, P. Defect analysis of sputter grown cupric oxide for optical and electronics application. J. Phys. D Appl. Phys. 2015, 48, 495104. [Google Scholar] [CrossRef]
  46. Lee, S.H.; Shin, M.; Yun, S.J.; Lim, J.W. CuOx/a-Si:H heterojunction thin-film solar cell with an n-type μc-Si:H depletion-assisting layer. Prog. Photovolt. Res. Appl. 2015, 23, 1642–1648. [Google Scholar] [CrossRef]
  47. Xia, Y.; Pu, X.; Liu, J.; Liang, J.; Liu, P.; Li, X.; Yu, X. CuO nanoleaves enhance the c-Si solar cell efficiency. J. Mater. Chem. A 2014, 2, 6796–6800. [Google Scholar] [CrossRef]
  48. Sharma, J.K.; Akhtar, M.S.; Ameen, S.; Srivastava, P.; Singh, G. Green synthesis of CuO nanoparticles with leaf extract of Calotropis gigantea and its dye-sensitized solar cells applications. J. Alloys Comp. 2015, 632, 321–325. [Google Scholar] [CrossRef]
  49. Oku, T.; Motoyoshi, R.; Fujimoto, K.; Akiyama, T.; Jeyadevan, B.; Cuya, J. Structures and photovoltaic properties of copper oxide/fullerene solar cells. J. Phys. Chem. Solids 2011, 72, 1206–1211. [Google Scholar] [CrossRef]
  50. Jayathilaka, C.; Kapaklis, V.; Siripala, W.; Jayanetti, S. Improved efficiency of electrodeposited p-CuO/n-Cu2O heterojunction solar cells. Appl. Phys. Exp. 2015, 8, 065503. [Google Scholar] [CrossRef]
  51. Siripala, W.; Jayakody, J.R.P. Observation of n-type photoconducitivty in electrodeposited copper oxide film electrodes in a photoelectrochemical cell. Sol. Energy Mater. 1986, 14, 23–27. [Google Scholar] [CrossRef]
  52. Wijesdundera, R.P. Fabrication of the CuO/Cu2O heterojunction using an electrodeposition technique for solar cell applications. Semicond. Sci. Technol. 2010, 25, 045015. [Google Scholar] [CrossRef]
  53. Yang, M.; Zakutayev, A.; Vidal, J.; Zhang, X.; Ginley, D.S.; DiSalvo, F.J. Strong optical absorption in CuTaN2 nitride delafossite. Energy Environ. Sci. 2013, 6, 2994–2999. [Google Scholar] [CrossRef]
  54. Katagiri, H.; Saitoh, K.; Washio, T.; Shinohara, H.; Kurumadani, T.; Miyajima, S. Development of thin film solar cell based on Cu2ZnSnS4 thin films. Sol. Energy Mater. Sol. Cells 2001, 65, 141–148. [Google Scholar] [CrossRef]
  55. Katagiri, H.; Jimbo, K.; Yamada, S.; Kamimura, T.; Maw, W.S.; Fukano, T.; Ito, T.; Motohiro, T. Enhanced conversion efficiencies of Cu2ZnSnS4-based thin film solar cells. Appl. Phys. Exp. 2008, 1, 041201. [Google Scholar] [CrossRef]
  56. Müller, J.; Recha, B.; Springerb, J.; Vanecekb, M. TCO and light trapping in silicon thin film solar cells. Sol. Energy 2004, 77, 917–930. [Google Scholar] [CrossRef]
  57. Masudy-Panah, S.; Kumar, V.; Tan, C.C.; Radhaknshnan, K.; Chi, D.Z. Impact of metal contact on the performance of cupric oxide based thin film solar cells. In Proceedings of the IEEE 5th International Nanoelectronics Conference, Singapore, 2–4 January 2013; pp. 378–380.
  58. Dalapati, G.K.; Masudy-Panah, S.; Kumar, A.; Tan, C.C.; Tan, H.R.; Chi, D. Aluminium alloyed iron-silicide/silicon solar cells: A simple approach for low cost environmental-friendly photovoltaic technology. Sci. Rep. 2015, 5, 17810. [Google Scholar] [CrossRef] [PubMed]
  59. Dalapati, G.K.; Batabyal, S.K.; Masudy-Panah, S.; Su, Z.; Kushwaha, A.; Wong, T.I.; Liu, H.F.; Bhat, T.; Iskander, A.; Lim, Y.F.; et al. Sputter grown sub-micrometer thick Cu2ZnSnS4 thin film for photovoltaic device application. Mater. Lett. 2015, 160, 45–50. [Google Scholar] [CrossRef]
  60. Dalapati, G.K.; Liew, S.L.; Wong, A.S.W.; Chai, Y.; Chiam, S.Y.; Chi, D.Z. Photovoltaic characteristics of p-β -FeSi2(Al)/n-Si(100) heterojunction solar cells and the effects of interfacial engineering. Appl. Phys. Lett. 2011, 98, 013507. [Google Scholar] [CrossRef]
  61. Dalapati, G.K.; Kumar, A.; Tan, C.C.; Liew, S.L.; Sonar, P.; Seng, H.L.; Hui, H.K.; Tripathi, S.; Chi, D.Z. Impact of Al Passivation and cosputter on the structural property of β-FeSi2 for Al-Doped β -FeSi2/n-Si(100) based solar cells application. ACS Appl. Mater. Interfaces 2013, 5, 5455–5460. [Google Scholar] [CrossRef] [PubMed]
  62. Tan, C.C.; Dalapati, G.K.; Tan, H.R.; Bosman, M.; Hui, H.K.; Tripathy, S.; Chi, D.Z. Crystallization of sputter-deposited amorphous (FeSi2)1–xAlx thin films. Cryst. Growth Des. 2015, 15, 1692–1696. [Google Scholar] [CrossRef]
  63. Masudy-Panah, S.; Moakhar, R.S.; Chua, C.S.; Hui, R.T.; Wong, T.I.; Chi, D.Z.; Dalapati, G.K. Nanocrystal Engineering of Sputter-Grown CuO Photocathode for Visible-Light-Driven Electrochemical Water Splitting. ACS Appl. Mater. Interfaces 2016, 8, 1206–1213. [Google Scholar] [CrossRef] [PubMed]
  64. Dalapati, G.K.; Masudy-Panah, S.; Chua, S.T.; Sharma, M.; Wong, T.I.; Tan, H.R.; Chi, D.Z. Color tunable low cost transparent heat reflector using copper and titanium oxide for energy saving application. Sci. Rep. 2016, 6, 20182. [Google Scholar] [CrossRef] [PubMed]
  65. Chatterjee, S.; Saha, S.K.; Pal, A.J. Formation of all-oxide solar cells in atmospheric condition based on Cu2O thin-films grown through SILAR technique. Sol. Energy Mater. Sol. Cells 2016, 147, 17–26. [Google Scholar] [CrossRef]

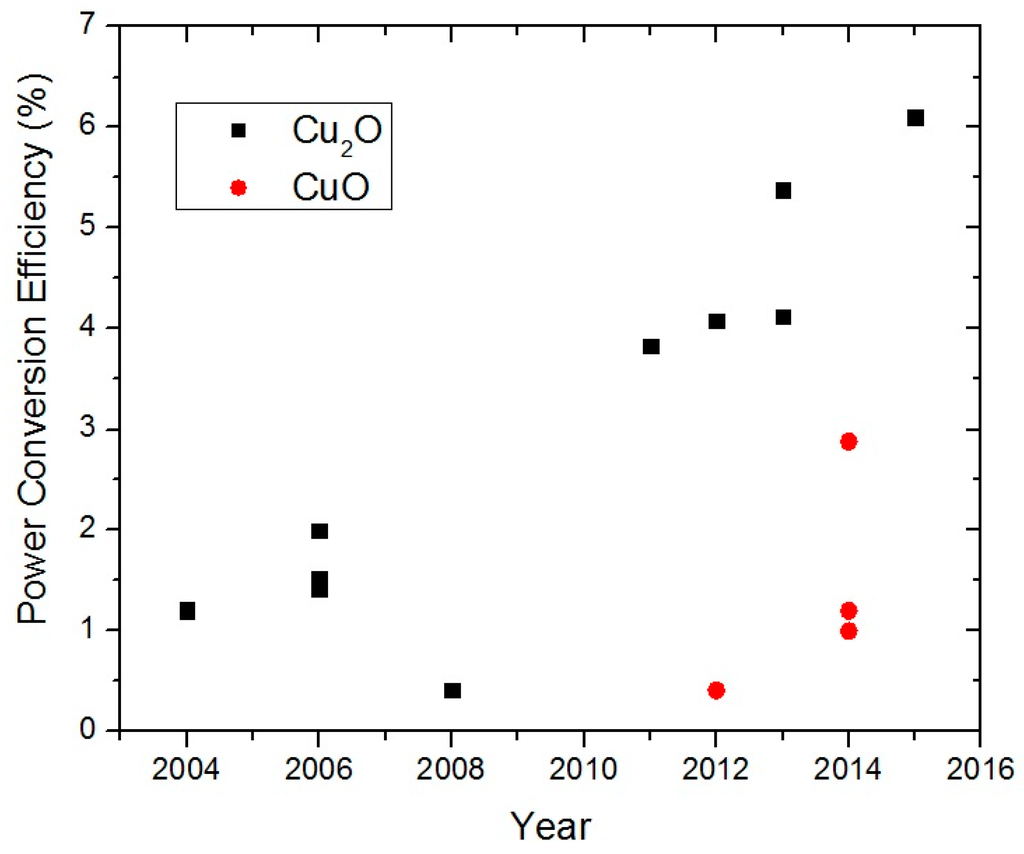

Figure 1. Reported power conversion efficiency of Cu2O and CuO heterojunction solar cells vs. publication year. For Cu2O, the efficiency for 2008 refers to a device prepared by an electrodeposition method instead of the PLD method [8].
Figure 1. Reported power conversion efficiency of Cu2O and CuO heterojunction solar cells vs. publication year. For Cu2O, the efficiency for 2008 refers to a device prepared by an electrodeposition method instead of the PLD method [8].
Materials 09 00271 g001

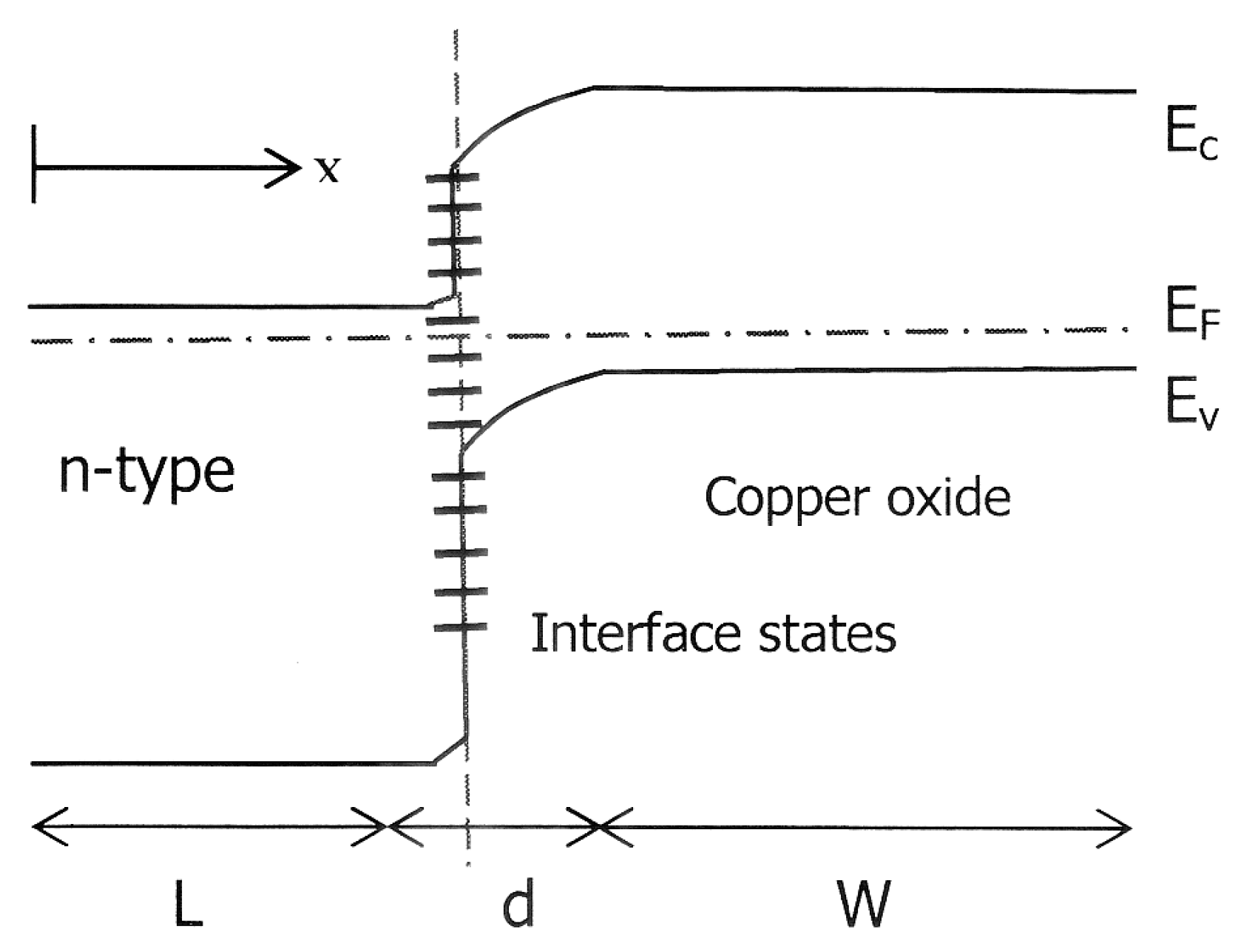

Figure 2. Schematic energy band diagram for heterojunction solar cell of copper oxide and an n-type semiconductor. Interface states are represented by - .
Figure 2. Schematic energy band diagram for heterojunction solar cell of copper oxide and an n-type semiconductor. Interface states are represented by - .
Materials 09 00271 g002

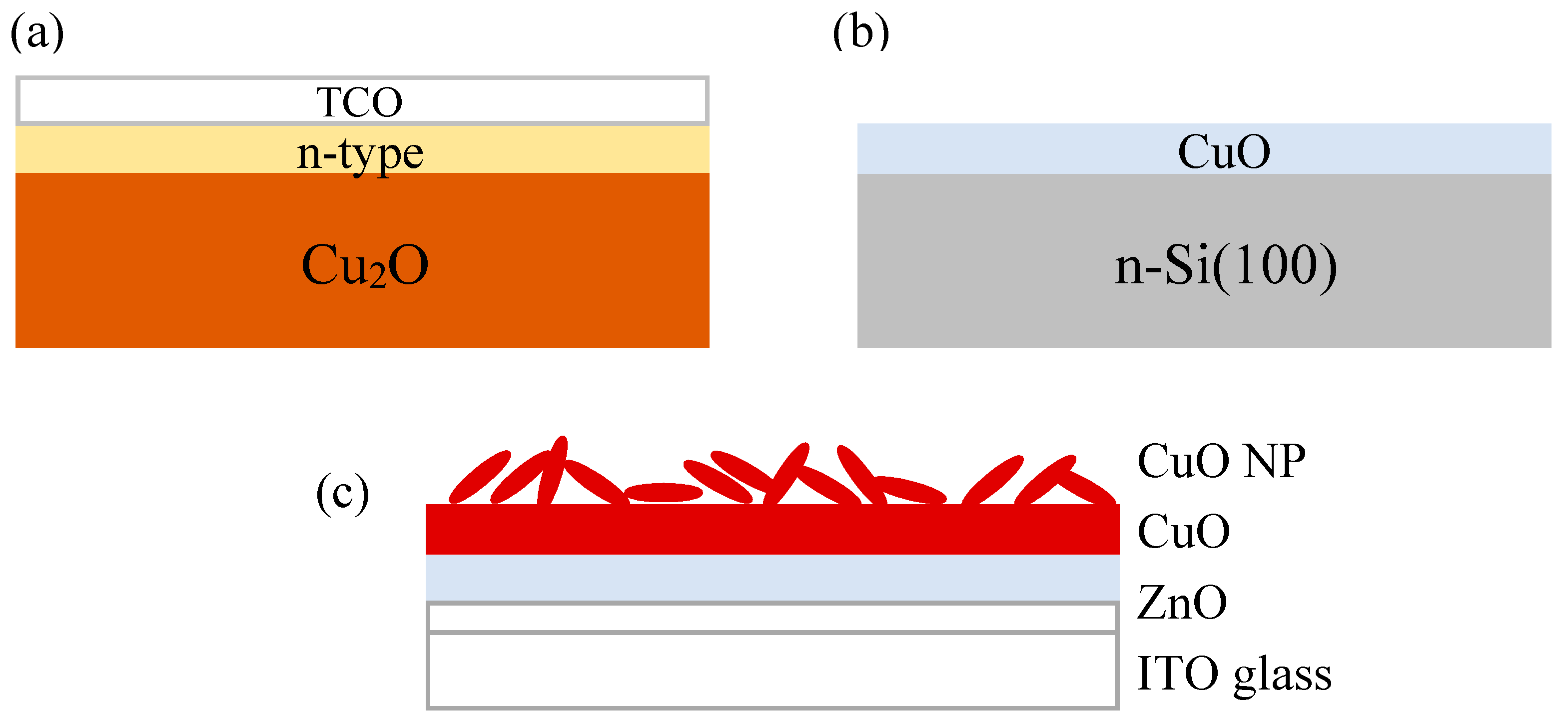

Figure 3. Schematic device structure for (a) Cu2O/ZnO heterojunction solar cell; (b) CuO/n-Si heterojunction solar cell; and (c) CuO/ZnO heterojunction solar cell enhanced by mixed phase CuO/Cu2O nanopowder.
Figure 3. Schematic device structure for (a) Cu2O/ZnO heterojunction solar cell; (b) CuO/n-Si heterojunction solar cell; and (c) CuO/ZnO heterojunction solar cell enhanced by mixed phase CuO/Cu2O nanopowder.
Materials 09 00271 g003

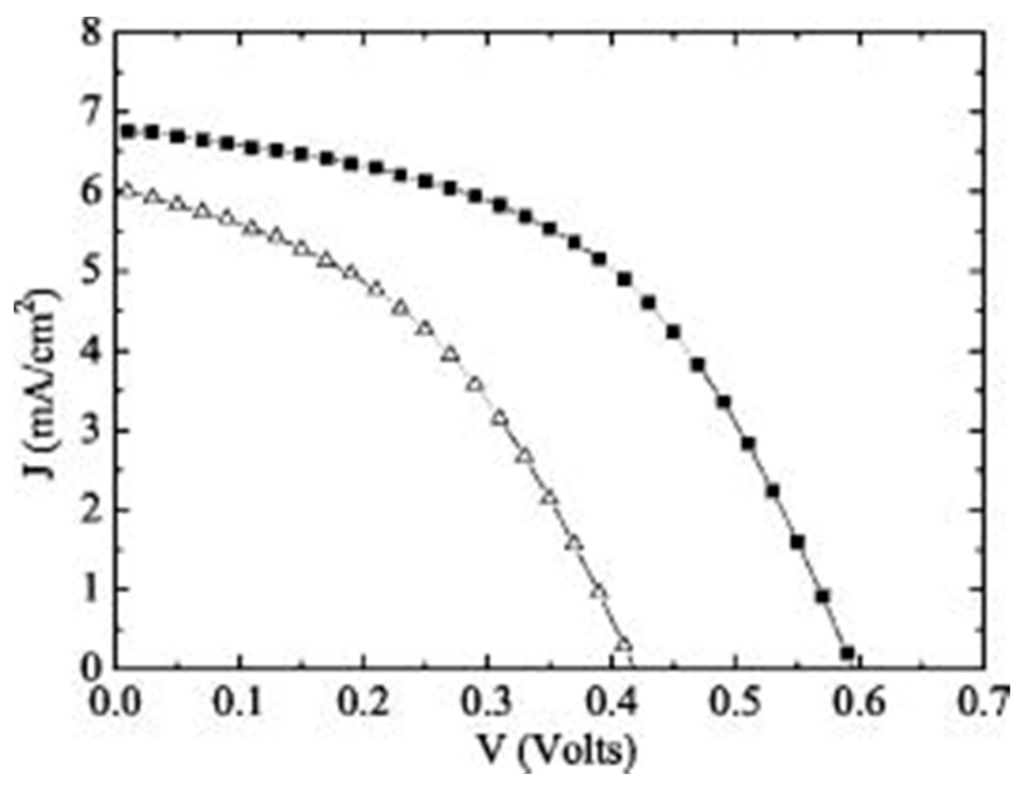

Figure 4. Current density-voltage characteristics of Au/Cu2O/ZnO/ITO/MgF2 device (upper) and Au/Cu2O/ZnO/MgF2 device (lower) under AM 1.5G illumination Reprinted from Applied Physics Letters 88, 163502 (2006) with the permission of AIP Publishing [29].
Figure 4. Current density-voltage characteristics of Au/Cu2O/ZnO/ITO/MgF2 device (upper) and Au/Cu2O/ZnO/MgF2 device (lower) under AM 1.5G illumination Reprinted from Applied Physics Letters 88, 163502 (2006) with the permission of AIP Publishing [29].
Materials 09 00271 g004

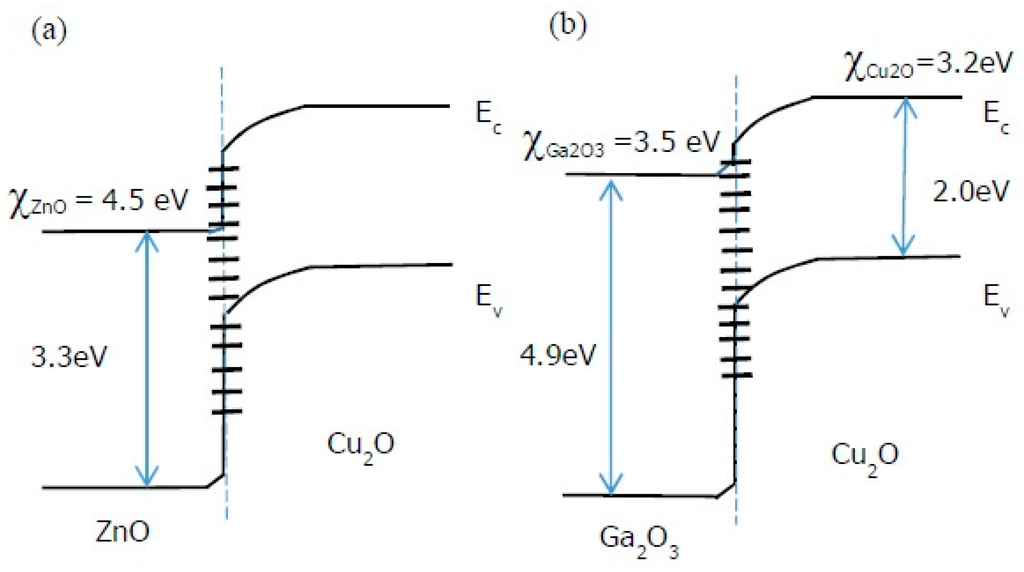

Figure 5. Schematic energy band diagram of (a) ZnO/Cu2O and (b) Ga2O3/Cu2O heterojunction showing difference in conduction band offset. Interface states are represented by - .
Figure 5. Schematic energy band diagram of (a) ZnO/Cu2O and (b) Ga2O3/Cu2O heterojunction showing difference in conduction band offset. Interface states are represented by - .
Materials 09 00271 g005

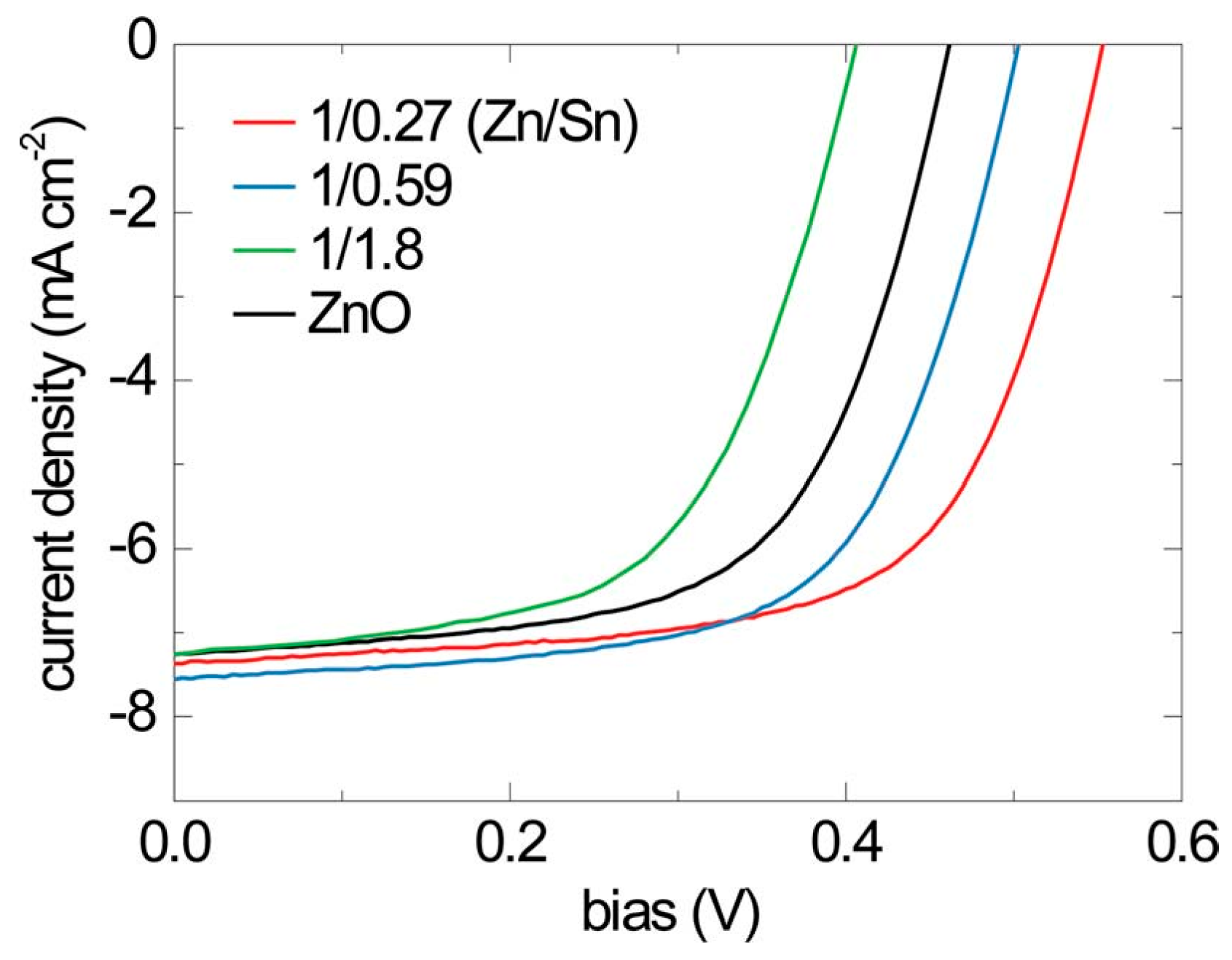

Figure 6. Current density-voltage characteristics of ZnO:Al/a-ZTO/Cu2O devices with different composition of ALD buffer layer and no buffer layer under AM 1.5G illumination. Energy Environ. Sci. 2013, 6, 2112—Published by The Royal Society of Chemistry [35].
Figure 6. Current density-voltage characteristics of ZnO:Al/a-ZTO/Cu2O devices with different composition of ALD buffer layer and no buffer layer under AM 1.5G illumination. Energy Environ. Sci. 2013, 6, 2112—Published by The Royal Society of Chemistry [35].
Materials 09 00271 g006

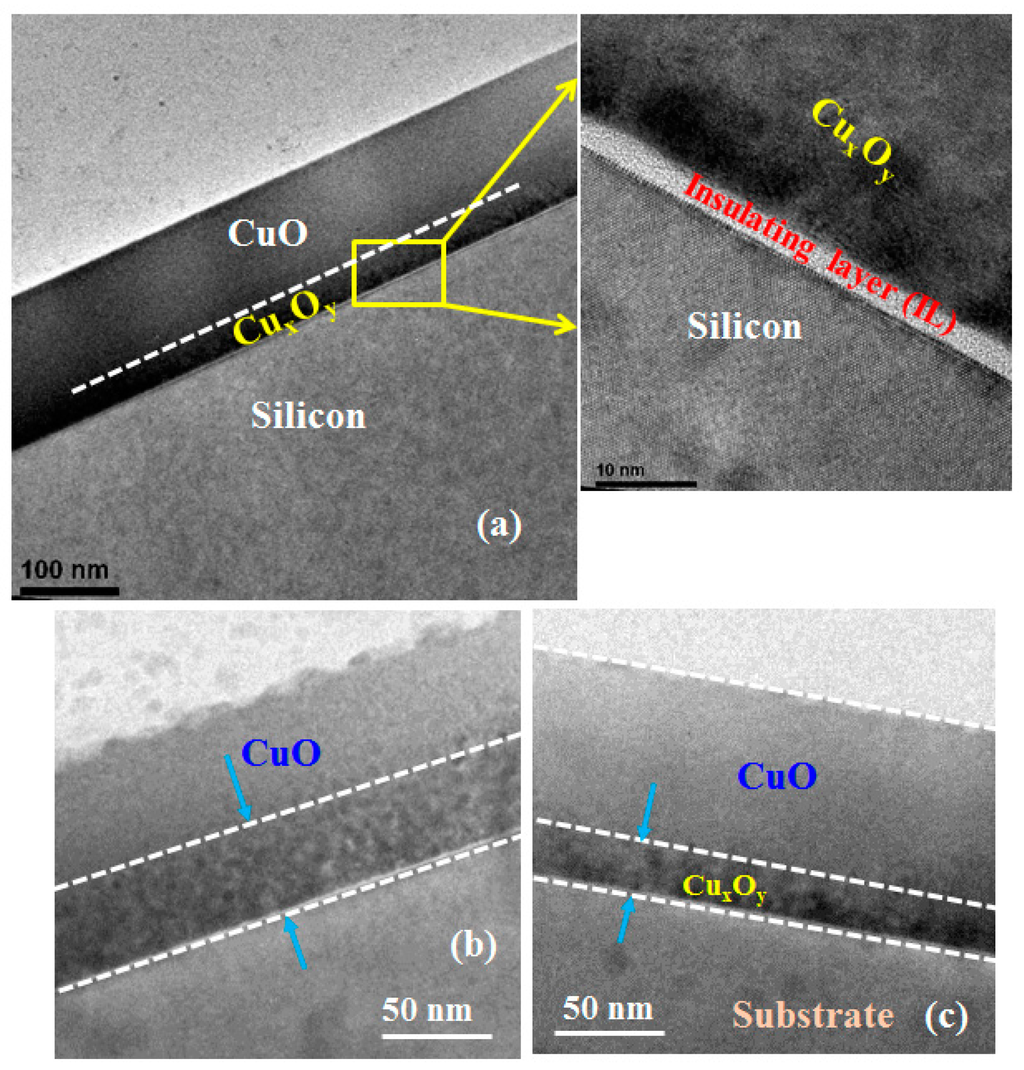

Figure 7. Cross-sectional TEM of p-CuO/n-Si heterostructure. Sputter deposited CuO at 150 W on n-Si substrate for (a) as-deposited; and (b) after thermal treatment at 300 °C for 1 min; (c) CuO deposited at 50 W sputtering power and annealed at 300 °C for 1 min.
Figure 7. Cross-sectional TEM of p-CuO/n-Si heterostructure. Sputter deposited CuO at 150 W on n-Si substrate for (a) as-deposited; and (b) after thermal treatment at 300 °C for 1 min; (c) CuO deposited at 50 W sputtering power and annealed at 300 °C for 1 min.
Materials 09 00271 g007

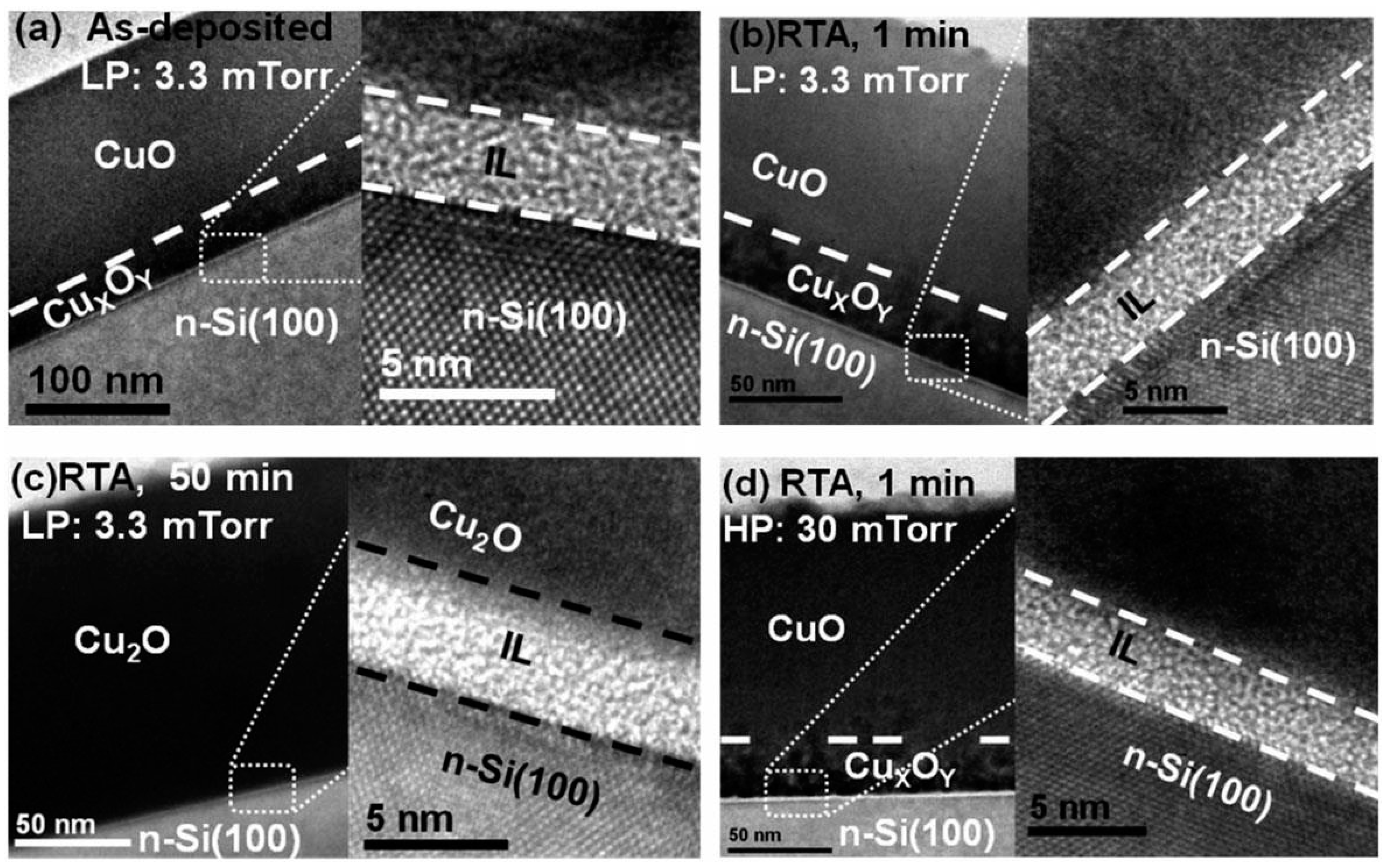

Figure 8. Cross sectional TEM image of 150 nm thick CuO films deposited on n-type Si(100) substrates at a working pressure of 3.3 mTorr: (a) as-deposited; (b) annealed at 300 °C for 1 min; and (c) annealed at 300 °C for 50 min. The same thickness CuO film deposited at a working pressure of 30 mTorr and annealed for 1 min at 300 °C is shown in (d) © 2014 John Wiley & Sons, Ltd. [41].
Figure 8. Cross sectional TEM image of 150 nm thick CuO films deposited on n-type Si(100) substrates at a working pressure of 3.3 mTorr: (a) as-deposited; (b) annealed at 300 °C for 1 min; and (c) annealed at 300 °C for 50 min. The same thickness CuO film deposited at a working pressure of 30 mTorr and annealed for 1 min at 300 °C is shown in (d) © 2014 John Wiley & Sons, Ltd. [41].
Materials 09 00271 g008

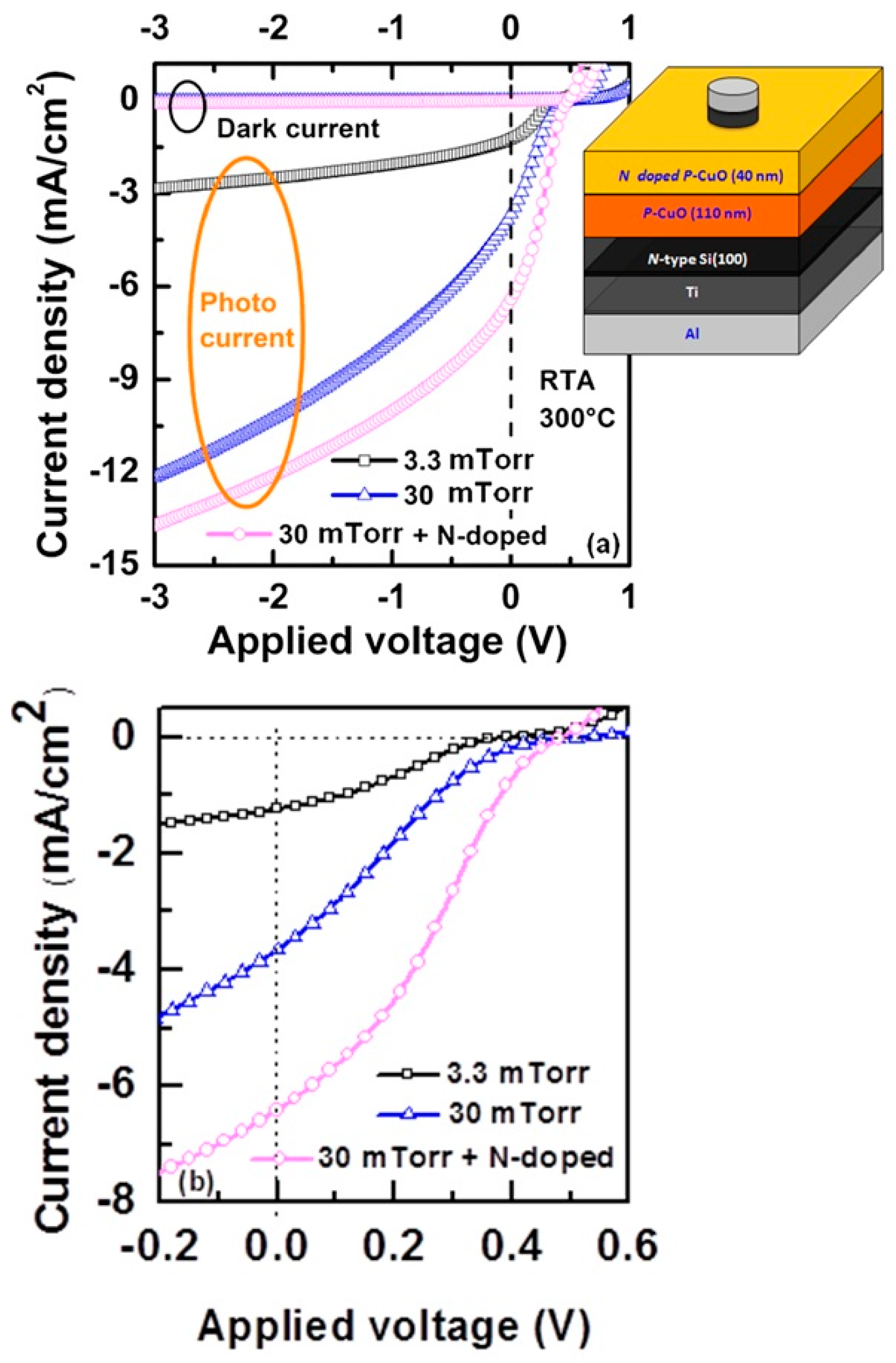

Figure 9. (a) Comparison of dark current and photocurrent densities of p-CuO/n-Si heterojunction solar cells with CuO deposited at 3.3 and 30 mTorr working pressures. The open circuit voltage and photocurrent increased significantly for the sample deposited under high working pressure. Inset of the figure shows schematic diagram of nitrogen-doped CuO device; (b) Variation of open circuit voltage and short circuit current of the solar cells © 2014 John Wiley & Sons, Ltd. [41].
Figure 9. (a) Comparison of dark current and photocurrent densities of p-CuO/n-Si heterojunction solar cells with CuO deposited at 3.3 and 30 mTorr working pressures. The open circuit voltage and photocurrent increased significantly for the sample deposited under high working pressure. Inset of the figure shows schematic diagram of nitrogen-doped CuO device; (b) Variation of open circuit voltage and short circuit current of the solar cells © 2014 John Wiley & Sons, Ltd. [41].
Materials 09 00271 g009

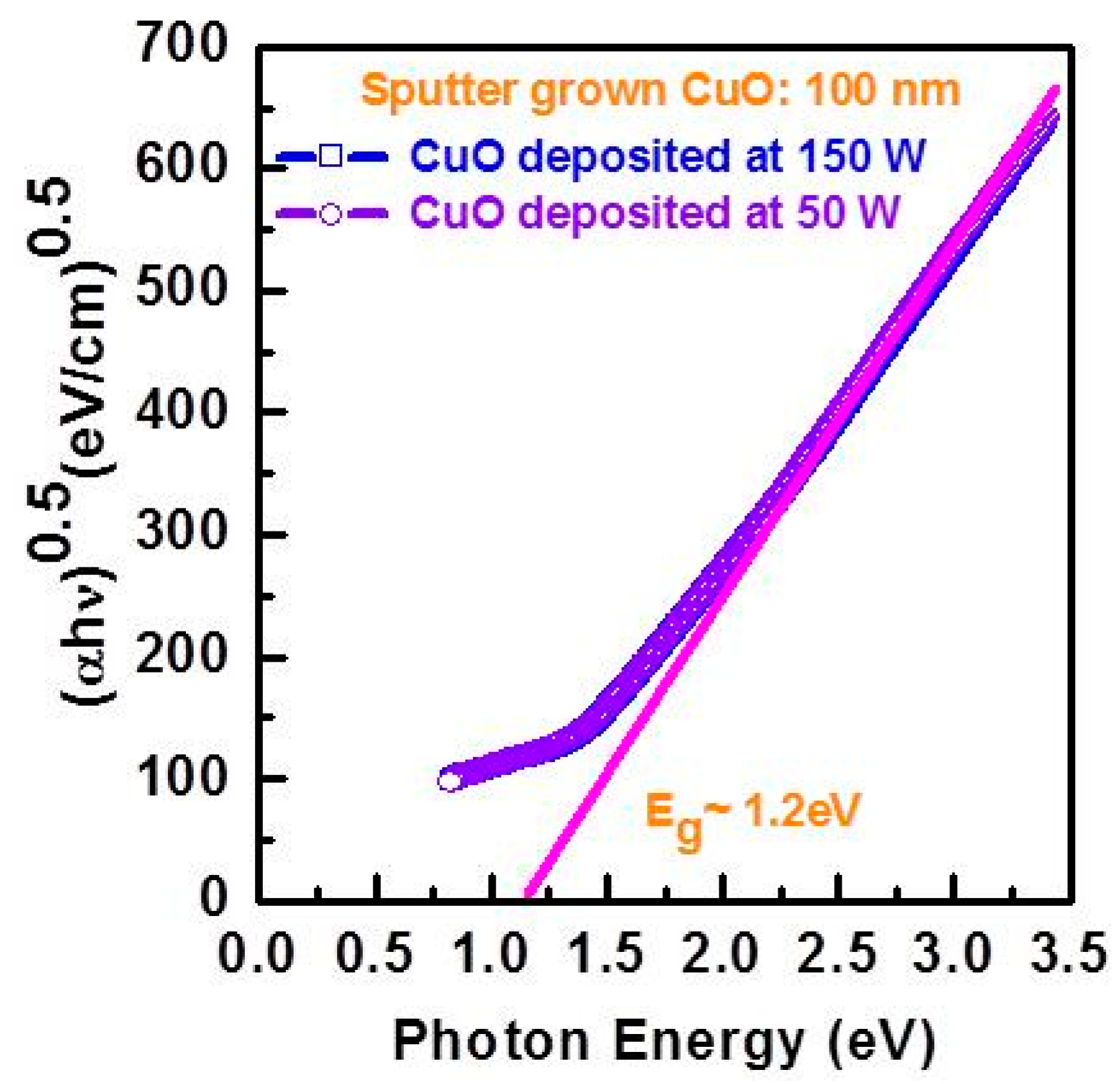

Figure 10. Tauc plot of (αhν)0.5 vs. photon energy of CuO thin film grown at sputtering power of 50 W and 150 W followed by rapid thermal treatment at 300 °C for 1 min. The extrapolated intercept gives the optical band gap of CuO.
Figure 10. Tauc plot of (αhν)0.5 vs. photon energy of CuO thin film grown at sputtering power of 50 W and 150 W followed by rapid thermal treatment at 300 °C for 1 min. The extrapolated intercept gives the optical band gap of CuO.
Materials 09 00271 g010

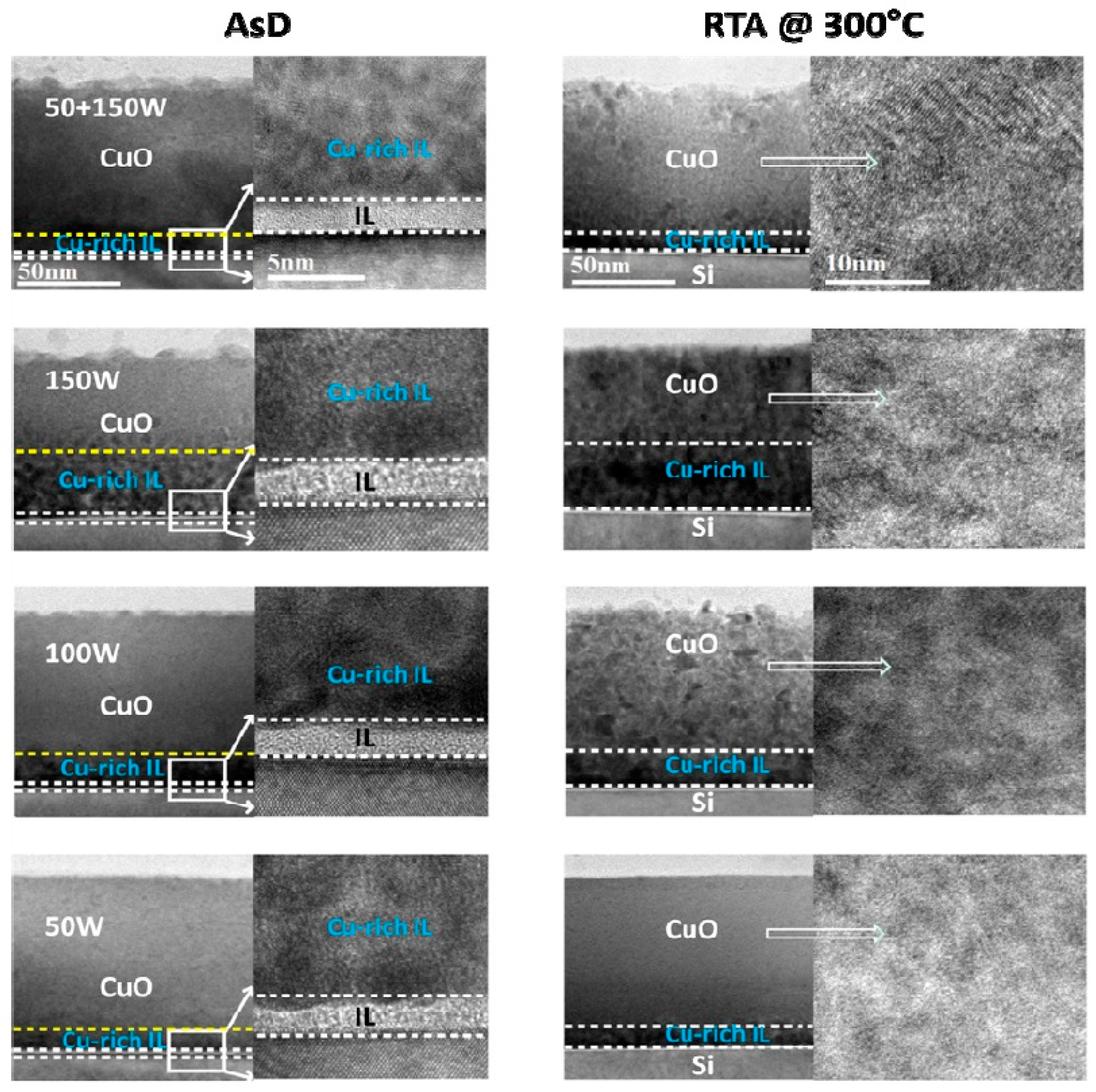

Figure 11. HRTEM image of p-CuO/n-Si hetreojunction. p-CuO was deposited on n-Si using different radio frequency power of 50 W, 100 W, 150 W and by using two-step sputter. There is significant impact of radio frequency power on the material quality and interface properties. Reprinted with permission from Journal of Applied Physics 116, 074501 (2014) Copyright 2014, AIP Publishing LLC [42].
Figure 11. HRTEM image of p-CuO/n-Si hetreojunction. p-CuO was deposited on n-Si using different radio frequency power of 50 W, 100 W, 150 W and by using two-step sputter. There is significant impact of radio frequency power on the material quality and interface properties. Reprinted with permission from Journal of Applied Physics 116, 074501 (2014) Copyright 2014, AIP Publishing LLC [42].
Materials 09 00271 g011
Figure 12. Tuning of film color and optical transmittance through in situ nitrogen doping for sputter grown CuO and Cu2O thin films. For each deposition condition, thermal annealing modifies film color and transmittance. The wider band gap of Cu2O results in higher transmittance as shown by the printed characters beneath these films.
Figure 12. Tuning of film color and optical transmittance through in situ nitrogen doping for sputter grown CuO and Cu2O thin films. For each deposition condition, thermal annealing modifies film color and transmittance. The wider band gap of Cu2O results in higher transmittance as shown by the printed characters beneath these films.
Materials 09 00271 g012

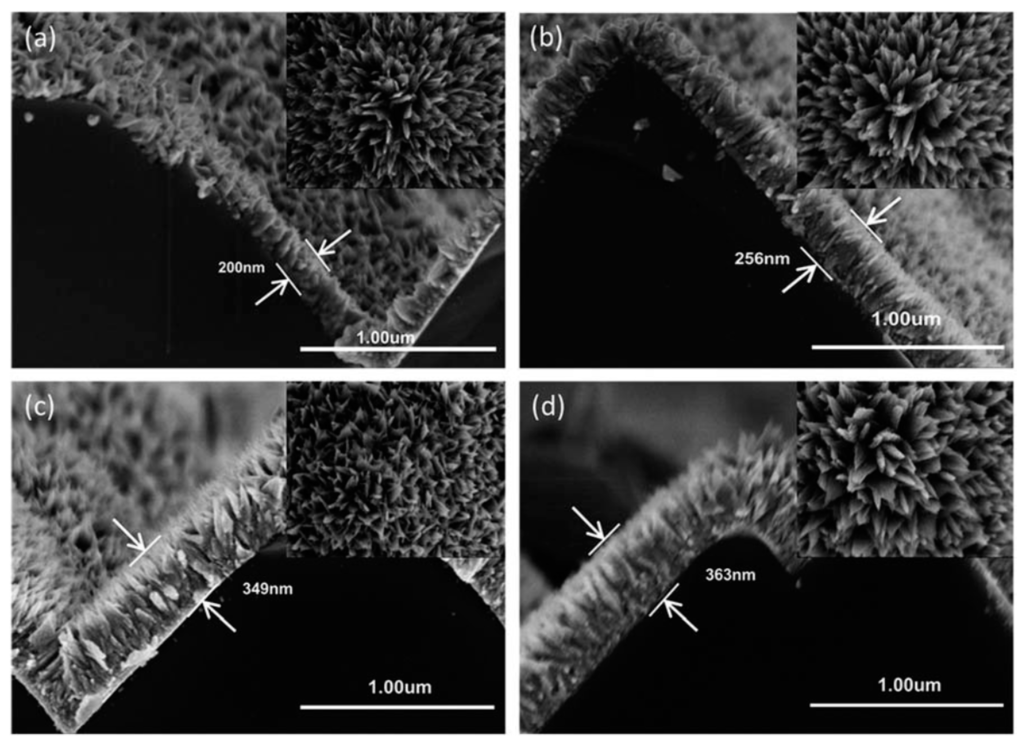

Figure 13. Cross-sectional field emission scanning electron microscope image of CuO NL grown on pyramid-textured Si substrates for (a) 30 min; (b) 45 min; (c) 60 min; and (d) 90 min in a two-step process. Inset of each image shows the corresponding top view. Reproduced in part from J, Mater. Chem. A, 2014, 2, 6796 with permission from The Royal Society of Chemistry [47].
Figure 13. Cross-sectional field emission scanning electron microscope image of CuO NL grown on pyramid-textured Si substrates for (a) 30 min; (b) 45 min; (c) 60 min; and (d) 90 min in a two-step process. Inset of each image shows the corresponding top view. Reproduced in part from J, Mater. Chem. A, 2014, 2, 6796 with permission from The Royal Society of Chemistry [47].
Materials 09 00271 g013
Table 1. Photovoltaic parameters of Cu2O and CuO heterojunction solar cells.
Table 1. Photovoltaic parameters of Cu2O and CuO heterojunction solar cells.
Heterojunction (Deposition Occurs on First Named Semiconductor)Deposition MethodOpen-Circuit Voltage Voc (mV)Short Circuit Current Density Jsc (mA/cm2)Fill Factor FFη (%) at (AM)Ref.
Cu2O/ZnOrf sputtering3422.290.30.14 (–)[23]
Cu2O/ZnO:AlPLD4007.10.41.2 (2)[26]
Cu2O/ZnOIon beam sputtering5956.780.52 (1.5G)[29]
Cu2O/ZnOPLD6900.553.85 (1.5G)[30]
Cu2O/Ga2O3/ZnO:AlPLD8009.990.675.38 (1.5G)[32]
Cu2O:Na/AlxGa1-xO/ ZnO:Al (x = 0.025)PLD84010.950.666.1 (1.5G)[34]
Cu2O/a-ZTO/ZnO:AlAtomic layer deposition5537.370.652.65 (1.5G)[35]
n-Si/CuOrf sputtering3306.270.20.41 (1.5D)[39]
n-Si/CuO:Nrf sputtering4946.40.321.0 (1.5)[41]
p-μc-Si:H/i-a-Si:H/n-CuOxPlasma, reactive sputtering49513.680.4493.04 (1.5)[46]
ZnO/CuO/copper oxide nanopowderPLD, hydrothermal40020.90.3432.88 (1.5)[20]
CuO/Cu2OElectrochemical2206.80.64 (1.5)[50]
GaN/Cu4O3rf sputtering8700.150.670.009 (1.5 G)[1]
D: direct.

Share and Cite

MDPI and ACS Style

Wong, T.K.S.; Zhuk, S.; Masudy-Panah, S.; Dalapati, G.K. Current Status and Future Prospects of Copper Oxide Heterojunction Solar Cells. Materials 2016, 9, 271. https://doi.org/10.3390/ma9040271

AMA Style

Wong TKS, Zhuk S, Masudy-Panah S, Dalapati GK. Current Status and Future Prospects of Copper Oxide Heterojunction Solar Cells. Materials. 2016; 9(4):271. https://doi.org/10.3390/ma9040271

Chicago/Turabian Style

Wong, Terence K. S., Siarhei Zhuk, Saeid Masudy-Panah, and Goutam K. Dalapati. 2016. "Current Status and Future Prospects of Copper Oxide Heterojunction Solar Cells" Materials 9, no. 4: 271. https://doi.org/10.3390/ma9040271

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
