Abstract

This review describes recent research in the development of tank systems based on complex metal hydrides for thermolysis and hydrolysis. Commercial applications using complex metal hydrides are limited, especially for thermolysis-based systems where so far only demonstration projects have been performed. Hydrolysis-based systems find their way in space, naval, military and defense applications due to their compatibility with proton exchange membrane (PEM) fuel cells. Tank design, modeling, and development for thermolysis and hydrolysis systems as well as commercial applications of hydrolysis systems are described in more detail in this review. For thermolysis, mostly sodium aluminum hydride containing tanks were developed, and only a few examples with nitrides, ammonia borane and alane. For hydrolysis, sodium borohydride was the preferred material whereas ammonia borane found less popularity. Recycling of the sodium borohydride spent fuel remains an important part for their commercial viability.
Keywords: hydrogen storage; complex hydrides; modeling; thermolysis; tank design hydrogen storage; complex hydrides; modeling; thermolysis; tank design

1. Introduction

Over the last 15 years complex aluminum and boron hydrides have been investigated as possible hydrogen storage materials [1,2,3]. Although the composition of these materials seems to be similar, the chemical behavior is entirely different. Several complex aluminum hydrides (NaAlH4, KAlH4, Na3AlH6 etc.) can be decomposed at elevated temperatures and rehydrogenation is possible under technically relevant conditions using catalysts [4]. However, the decomposition temperature for complex boron hydrides (LiBH4, NaBH4) is often much higher and reversibility cannot be observed under conditions used for complex aluminum hydrides [5]. Consequently, complex aluminum hydrides can be used for technical applications where rehydrogenation of the hydrogen storage material is an important prerequisite [6]. In contrast, complex boron hydrides are favored for disposal cartridge systems, releasing hydrogen in a hydrolysis reaction at ambient temperatures [7]. These different properties result in completely different engineering as well as technical requirements. This makes the development of suitable tank systems based on aluminum or boron hydride compounds challenging.
This review describes recent research in the development of tank systems based on complex hydrides for thermolysis and hydrolysis. Thermolysis requires a heat input and care must be taken in the design of the storage tank in order to effectively distribute the heat. Hydrolysis, on the other hand, requires not only effective mixing of the complex hydride and water but also separation of the produced hydrogen gas and the slurry consisting of the decomposition product and water. While thermolysis tank systems are developed in demonstration projects, hydrolysis tank systems have already found real life applications. The review is divided into two parts, the first focuses on thermolysis, while the second concerns hydrolysis. Initially, reactor, kinetic and system models will be introduced in each part. Hereafter, specific examples with the most common complex aluminum or boron hydrides are given together with their applications.

2. Thermolysis

2.1. Tank Developments for Thermal Hydrogen Evolution

Development of a hydrogen storage tank based on complex hydrides involves different levels of research. The first level provides a screening of materials at laboratory scale. Once relevant candidates have been selected, a methodology to evaluate their performances must be established. The evaluation is based on two steps. The first one is modeling of the full-scale system and the second one is manufacturing of a prototype to experimentally evaluate the performance of the material and validate the results of the simulation. The Department of Energy (DoE) in the United States of America has given several milestones for the research on the optimal complex hydride/tank design pair (Table 1). All these technical specifications are material dependent, thus the first screening starts with a selection among available complex hydrides. Nevertheless, improvement of the scale-up system through several strategies is still possible. Among all the complex hydrides claimed for hydrogen storage, just a few of them have been chosen to develop a full-scale tank system. Since Bogdanović and Schwickardi discovered that sodium alanate can reversibly store hydrogen using a Ti-based catalyst [4], its hydrogen storage properties have been widely studied. The absorption/desorption mechanism has been found to occur through a two-step process (Equation (1)). Another system based on a mixture of magnesium nitride and lithium hydride (Mg(NH2)2-2LiH), is also reviewed. This system can reversibly store hydrogen following the mechanism described in Equation (2). The last materials studied for tank development are ammonia borane (AB, NH3BH3) and alane (AlH3). They are not reversible by direct hydrogenation but instead need a chemical treatment to be recovered. Nevertheless, they have attracted a lot of attention owing to their high gravimetric hydrogen capacity (19.5 wt % H2 for AB and 10 wt % for AlH3). The decomposition mechanism is described in Equations (3) and (4) for AB and AlH3 respectively.
NaAlH 4 1 1 / 3  Na 3 AlH 6 +   2 / 3  Al  +  H 2 2 NaH  +  Al  +   3 / 2  H 2
2 Mg(NH 2 ) 2 + 4 LiH 1 LiH + LiNH 2 + Li 2 Mg 2 ( NH ) 3 + 3 H 2 2 2 Li 2 Mg(NH) 2 + 4 H 2
NH 3 BH 3   [ NH 2 BH 2 ] n + H 2   [ NHBH ] n + 2H 2  BN+ 3 H 2
AlH 3 Al + 3/2 H 2
In this part, we focus on the optimization of the tank system for thermolysis by reviewing the different strategies based on the aforementioned complex hydrides selected for modeling and manufacture. Firstly, an overview is given of modeling aspects developed in order to simulate tank systems. Secondly, a focus is put on the manufacturing of scaled-up tank systems to experimentally evaluate the effects of optimization parameters and the viability of the system according to the DoE requirements.
Table 1. Department of Energy (DoE) requirements for hydrogen storage system for mobile application [8]. PEM: proton exchange membrane.
Table 1. Department of Energy (DoE) requirements for hydrogen storage system for mobile application [8]. PEM: proton exchange membrane.
System Storage ParameterOriginal 2010 TargetRevised 2010 Target2017 TargetUltimate Target
Gravimetric capacity (kg·H2·kg−1 system)6%4.5%5.5%7.5%
Volumetric capacity (g·H2·L−1 system)45284070
Operational cycle life1000100015001500
Filling time (min for 5 kg)34.23.32.5
Min full flow rate (g·H2·s−1/kW)0.020.020.020.02
Min delivery pressure at 85 °C PEM fuel cell (atm)8543
Fuel purity99.99%99.97%99.97%99.97%

2.2. Modeling of Thermolysis Tank Systems

Lab-scale evaluation of materials for hydrogen storage differs significantly from tank development in the kg scale. In order to avoid unnecessary work in the development and construction of metal hydrides tank systems, modeling is often used as a starting process for tank evolution. Simulations are therefore performed to optimize tank design and operating parameters, but also to allow evaluation of the complete performances. For the modeling of a tank system based on complex hydrides, three sub-processes that occur during hydrogen sorption require implementation in the calculations: (i) hydrogen transport, (ii) chemical reaction and (iii) heat transfer [9]. Hydrogen transport and heat transfer are modeled through mass, momentum and energy balance equations and all simulation are performed using the same assumptions and equations. Chemical reactions are modeled using empirical kinetic models; therefore the next section focuses on the different models found in the literature. After the final model is proposed, parametric studies can be performed to gain insight into the influence of different parameters on the system performance.
The first step in building a kinetics model is determination of the dehydrogenation mechanism of the considered material. Once the mechanism is known, the rate for each step is defined by a general model parameterized using three variables: the temperature T, the conversion α, and the pressure p (Equation (5)) [10]:
dα/dt = (AeEa/RT) × f(p, peq) × g(α)
where Ea is the activation energy, A is a pre-exponential factor, and R is the universal gas constant. The function g(α) and f(p, peq) (peq is the equilibrium pressure) must be determined experimentally at isobaric and isothermal conditions. The choice of the function g(α) is determined by fitting experimental data with a chosen kinetics model. Typically, two models are used: (i) decelerating model (reaction order model) (Equation (6)) and (ii) sigmoidal model described by Johnson-Mehl-Avrami (JMA) equations, (Equation (7)).
f(α) = (1 − α)n; n = reaction order
f(α) = n(1 − α)(−ln(1 − α))(n − 1)/n; n = constant
Once a proper model is chosen, an assumption on the function f(p, peq) has to be made, in order to determine both the activation energy Ea and pre-exponential factor A. Usually f(p, peq) is described by the logarithm ±ln(p/peq) or approximated by its Taylor development. In the literature numerous pressure dependent models have been proposed. Table 2 summarizes all the kinetic models proposed for the materials used in tank modeling.
Table 2. Summary of the main kinetics models with pre-exponential factor A and activation energy Ea.
Table 2. Summary of the main kinetics models with pre-exponential factor A and activation energy Ea.
MaterialReferenceStepg(α)f(p, peq)A (s−1)Ea (kJ·mol−1)
NaAlH4[11]1des1st orderln(peq/p)1.9 × 101185.6
2des1st orderln(peq/p)2.9 × 101088.3
1abs2nd orderln(p/peq)6.2 × 10861.6
2abs1st orderln(p/peq)1.0 × 10856.2
[12]1absJMA n = 1.4ln(p/peq)(p/p0)2.73.6 × 10−154.7
1st orderln(p/peq)(p/p0)1.51.9 × 10362.9
2absJMA n = 1.4(p − peq)/peq2.0 × 1011117.5
1st order((p − peq)/p)1.51.2 × 10886.4
[13]1des2nd order(peqp)/peq4.0 × 105110
2des1st order(peqp)/peq6.0 × 1012110
1abs2nd order(p − peq)/peq1.0 × 10880
2abs1st order(p − peq)/peq1.5 × 10570
[14]1absJMA n = 1.33(p − peq)/peq1.5 × 10991.5
2absJMA n = 1.33(p − peq)/peq2.3 × 10891.7
[15]1des0 order((peqp)/peq)2 + 1.04((peqp)/peq)5.4 × 101°105.8
2des1st order((peq p)/peq)2 + 0.46((peq p)/peq)3.4 × 10891.5
Li2Mg(NH)2[16]1desJMA n = 1.5ln(peq/p)2.3 × 1012131.8
2des0 order1 − (0.001515/0.33wtmax)(p − 1.1)3.0 × 1015161.4
1abs0 order(p − peq)/peq2.7 × 1017164.8
2abs1st order(peqp)/peq4.7 × 1014147.8
des = desorption, abs = absorption; definition of the steps see Equations (1) and (2); wtmax is the maximum weight fraction.

2.3. Simulation of Thermolysis Tank Systems

2.3.1. Simulations on Sodium Alanate

Na Ranong et al., investigated the effects of the outer diameter in a multi tubular tank on refueling time, the heat transfer units and the total weight of the system [17]. The kinetics model from Franzen was used in the calculation [12]. Two 8 kg tank units with a reactor outer diameter of 16 mm and 60 mm were compared. Although the 16 mm reactor showed better results than the 60 mm reactor for both refueling time (290 s (16 mm) vs. 540 s (60 mm)) and heat transfer (610 W·m−1·K−1 (16 mm) vs. 319 W·m−1·K−1 (60 mm)), the 60 mm reactor was chosen for manufacture due to less number of tubes needed within the tank leading to a reduced overall weight (68 kg (16 mm) vs. 38 kg (60 mm)).
Hardy and Anton developed a hierarchical methodology for hydrogen loading process to refine operating parameters [18,19]. The methodology consists of four sub-models: (i) A kinetics scoping model [20]; (ii) A geometry scoping model was developed to refine length scale in a given tank geometry (the geometry is available in [21] and the calculated geometry parameters in [18]); (iii) a heat transfer removal scoping model developed to calculate coolant flowrate and temperature, pressure drop, convection heat coefficients and temperature increases along the cooling channel (the results are described in [19]); and (iv) a 2- and 3-dimensional finite element model built with previous optimized parameters (from (i) to (iii)) as input parameters. The model was used to assess the detailed performances for a NaAlH4 system, but could be also adapted for other systems, if a proper kinetic model would be provided.
Pfeifer et al., investigated the thermal coupling between a high temperature proton exchange membrane (HT-PEM) fuel cell with a 2 kg sodium alanate tank using simulation studies in order to identify the parameters influencing efficiency and start-up during hydrogen discharge [22]. The Luo and Gross kinetic model was used in the simulation [11]. The authors highlighted that the decomposition kinetic was the limiting parameter on the efficiency of the cell. An optimum operating temperature of 185 °C with a fuel cell power of 1 kW was found. The minimum operating temperature was evaluated at 120 °C with a cumulative output of 0.8 kWh.
Bhouri et al., performed optimizations of two different tank configurations: a shell, tube and fin hydride bed system (1) and a multi-tubular reactor equipped with fins (2) [23,24]. The hierarchical methodology developed by Hardy and Anton [18,19] was used with a UTRCTM kinetic model [20]. The purpose for configuration (1) was to optimize the fin thickness and number of heat exchanger on both loading and discharging processes. It was demonstrated that the fin thickness had no influence during the loading process. However, during discharge the rate and amount of hydrogen release were improved by using thicker fins. After all, this decreased the gravimetric and volumetric capacities [23]. The effects of the number, thickness and tip clearance of the fins on hydrogen uptake were evaluated for configuration (2). The authors concluded that an increase in the number of fins and decrease in the tip clearance had a beneficial effect on the loading rate at the expense of hydrogen capacity. The optimized configuration (six fins, 0.1 cm thickness and 0 cm of tips clearance) led to an improvement of the loading rate by 41%. On the contrary, fin thickness had no impact on the loading rate. Thus, optimization of the system was based on a compromise between loading rate and fins contribution to the overall weight [24].
Effects of operating parameters during refueling in a cylindrical bed with longitudinal fins and cooling heat exchanger were reviewed by Raju and Kumar [25]. The geometry of the tank was adopted from Hardy and Anton [18,19]. A sensitivity analysis was performed to estimate the effect of the initial bed temperature, supply pressure, coolant flow rate, coolant temperature and thermal conductivity. The kinetic model was adopted from Luo and Gross [11]. An operating pressure of 15 MPa or above was chosen to keep the temperature in the optimal range 420–450 K and a coolant flow rate of 25 lpm/tube at 380 K was found to be optimal. The best configuration required an increase of 8 W·m−1·K−1 in the thermal conductivity by compaction with an addition of a conductivity enhancer (aluminum or graphite) [25].
Simulation was performed for a multi-tubular tank using the kinetic model from Lozano et al. [14]. Effect of the inner diameter, compaction and addition of expanded natural graphite (ENG) were evaluated according to hydrogen capacity during the loading (here 4.5 kg H2 in 10 min was used as a constraint). The optimized configuration, for a 35 mm inner diameter tank with compacted powder and no ENG addition, was determined at 10 MPa and 130 °C [26]. The effect of graphite addition and the design of the heat exchanger were also studied by Johnson et al. [27]. The simulation was performed using a first principle kinetic model that relied on experimentally determined parameters (full explanation of the model can be found in [20]).
In 2014, a comparative resistance analysis was developed [9], using a kinetic model from Lozano et al. [14,15]. The authors estimated, based on the driving force for each sub-process (hydrogen transport, intrinsic kinetics and heat transfer), the resistance during hydrogen sorption. The authors highlighted that hydrogen transport has a negligible effect (independent of the size of the reactor), the intrinsic kinetics play a decisive role in a small cell (2 mm), and heat transfer is the main resistance during absorption in a scale-up tank. Consequently, improvement of heat transfer is necessary in order to obtain a tank system viable for application.

2.3.2. Simulations on Other Complex Hydrides

Ammonia borane (AB, NH3BH3) has a very high practical gravimetric density of about 16 wt % and both solid and liquid AB have been tested for application purposes [28,29]. Unfortunately, AB requires an off-board refueling system, since chemical treatment is a necessity for regeneration. The off-board regeneration system would be the limiting step in the development of AB storage tanks. A model was developed to estimate the AB efficiency in Auger and slurry reactors [28], together with a set of guidelines for the fluid-phase hydrogen storage properties [29].
The complex hydride (CH) 2LiNH2-1.1MgH2-0.1LiBH4-3 wt % ZrCoH3 and the metal hydride (MH) LaNi4.3Al0.4Mn0.3 were used in tandem for scale-up tank simulation studies [30,31,32]. At first, a new reactor concept was designed by combining advantages of both CH (high hydrogen content) and MH (high reaction rate) [30,31]. The authors used a cylindrical tank heated through the outer wall. The MH bed was positioned in the center of the tank separated from the CH bed by a membrane. In the absorption step, the heat of absorption of the MH bed (low temperature) was transferred to the CH bed (higher temperature). The kinetics for the simulation was based on the model by Bürger et al. [16]. The viability of the concept was demonstrated by comparing the temperature front in a pure CH bed and in a MH/CH combined bed. At 7 MPa and 130 °C, the absorption in the pure CH bed started from the annulus to the core. However, the heat removal (from the outer wall) was difficult when the temperature increased in the core. In the combined MH/CH bed, the MH part started to absorb at 7 MPa and room temperature. When the inner temperature exceeded 200 °C, the heat was transferred from the core to the annulus, which in turn facilitated heat removal from the outside of the tank [30]. In regard to the desorption step, the MH stabilized the pressure in the reactor around the equilibrium pressure of the CH, whereby a pressure drop was avoided during desorption [31]. In conclusion, the MH bed had a beneficial effect on the system by introducing a better temperature management during absorption and a better pressure management during desorption. In a later work, the tank concept was used in simulation studies to optimize operating parameters. The lower loading time was determined for the ratio between the thicknesses of the CH/MH beds; the optimal CH thickness was 12.5 mm. A sensitivity study demonstrated that the limiting parameter on the loading rate was the thermal conductivity of the complex hydride [32].

2.4. Developed Complex Metal Hydride Based Tank Systems

Na Ranong et al. [17] have given a comprehensive overview of design solutions for the different components of metal hydride storage tanks. A higher density of the powdered material can improve the thermal conductivity and volumetric capacity limitations [33,34]. Lozano et al., found that compaction of the material is the most influential factor for the optimization of the hydrogen capacity of the storage system [26]. Some researches and developers have been concentrating their efforts on finding a suitable material and designing a system for onboard vehicular applications [27,35]. Others have focused on increasing the efficiency of the combined heat-power units for the stationary hydrogen storing systems [36,37,38], or on improving different properties and kinetics of the complete system [35,39,40]. Here, a brief overview is presented on hydrogen storage systems that have been published, based on sodium alanate, metal amides, ammonia borane and alane. The research and development efforts are aimed at improving the gravimetric/volumetric capacity, efficiency of the heat management and lowering the overall cost of the systems.

2.4.1. Sodium Alanate Based Tank Systems

Bellosta von Colbe et al., demonstrated the functionality of an 8 kg tank during absorption and desorption with a peak technical absorption time below 10 min, thereby validating the design and simulation work carried out previously [15,41]. The ease of use, speed of charging, and reproducibility of results of the 8 kg sodium alanate tank were highly promising [36]. This has paved the way for the application of complex hydrides based hydrogen storage tanks wherever a source of available waste heat is compatible with the energy needs of the tank (especially regarding the temperature level). This is the case especially in large scale and stationary applications [36].
Utz et al., studied the behavior of a powdered bed containing NaAlH4 doped with 4 mol % CeCl3 in a lab-scale hydrogen storage tank with flow-through mode. The results showed a significant influence of the cooling by excess hydrogen on the flow-directional temperature profiles. The initial thermal conductivity of the bed increased by a factor of 1.3 compared to values reported in literature (0.67 W·m−1·K−1). This caused significantly lower temperature peaks in the center of the reaction bed. The value for the permeability decreased by 50% and led to increase in the pressure drop. No cycling degradation after 36 cycles was observed and a storage capacity of approx. 3.9 wt % H2 was reached with this material [39].
Modularity was a key concept in the design of a General Motors R&D/Sandia National Laboratories hydrogen storage system (Figure 1). The system was designed to be refueled in approximately 10 min and to deliver hydrogen at up to 2.0 g·s−1. A heat amount of 60 MJ had to be removed during refueling by means of a circulating heat transfer fluid. However, for hydrogen delivery, heat must be supplied to the hydrogen storage system in-situ and this was achieved by means of a catalytic heater [27].
Urbanczyk et al., designed a hydrogen storage tank based on 2.7 kg of NaAlH4 doped with 4 mol % TiCl3 that was thermally coupled with a high temperature proton exchange membrane (HT-PEM) fuel cell (Figure 2). The waste heat of the fuel cell was used to heat up the storage tank during dehydrogenation, which was consequently fed into the fuel cell. The desorbed amount of hydrogen gas was enough for 3 h of fuel cell operation and the system produced 940 Wh of cumulative energy [37].
Na3AlH6 doped with 4 mol % TiCl3 was used as a storage material in an Al-alloy tank system developed at IUTA (Institut für Energie- und Umwelttechnik, Germany) and Max-Planck-Institut für Kohlenforschung, in order to decrease the overall weight, (Figure 3). The hexahydride was operated at a lower pressure compared to NaAlH4. The heat transfer was realized through an oil flow in a bayonet heat exchanger, manufactured by extrusion molding from an aluminum alloy. The 0.21 kg hydrogen storage tank released and absorbed 3.6 g (1.7 wt %) of hydrogen at approximately 450 K. A test with 45 cycles (hydrogenation and dehydrogenation) was carried out without any failure of the tank or its components. Operation of the tank under real conditions indicated the possibility for applications with stationary HT-PEM fuel cell systems [38].
The same partners at IUTA and Max-Planck-Institut für Kohlenforschung used Na3AlH6 doped with 4 mol % TiCl3, 8 mol % Al and 8 mol % activated carbon as a hydrogen storage material for a scaled up 1.9 kg Al-alloy storage tank with corrugated heat exchangers. Up to 31 hydrogenation and dehydrogenation cycles were performed without degradation. The aim of the demonstration project was to produce a lightweight system that could be connected to a HT-PEM fuel cell. The system could improve efficiency of a combined heat-power unit for household applications [42].

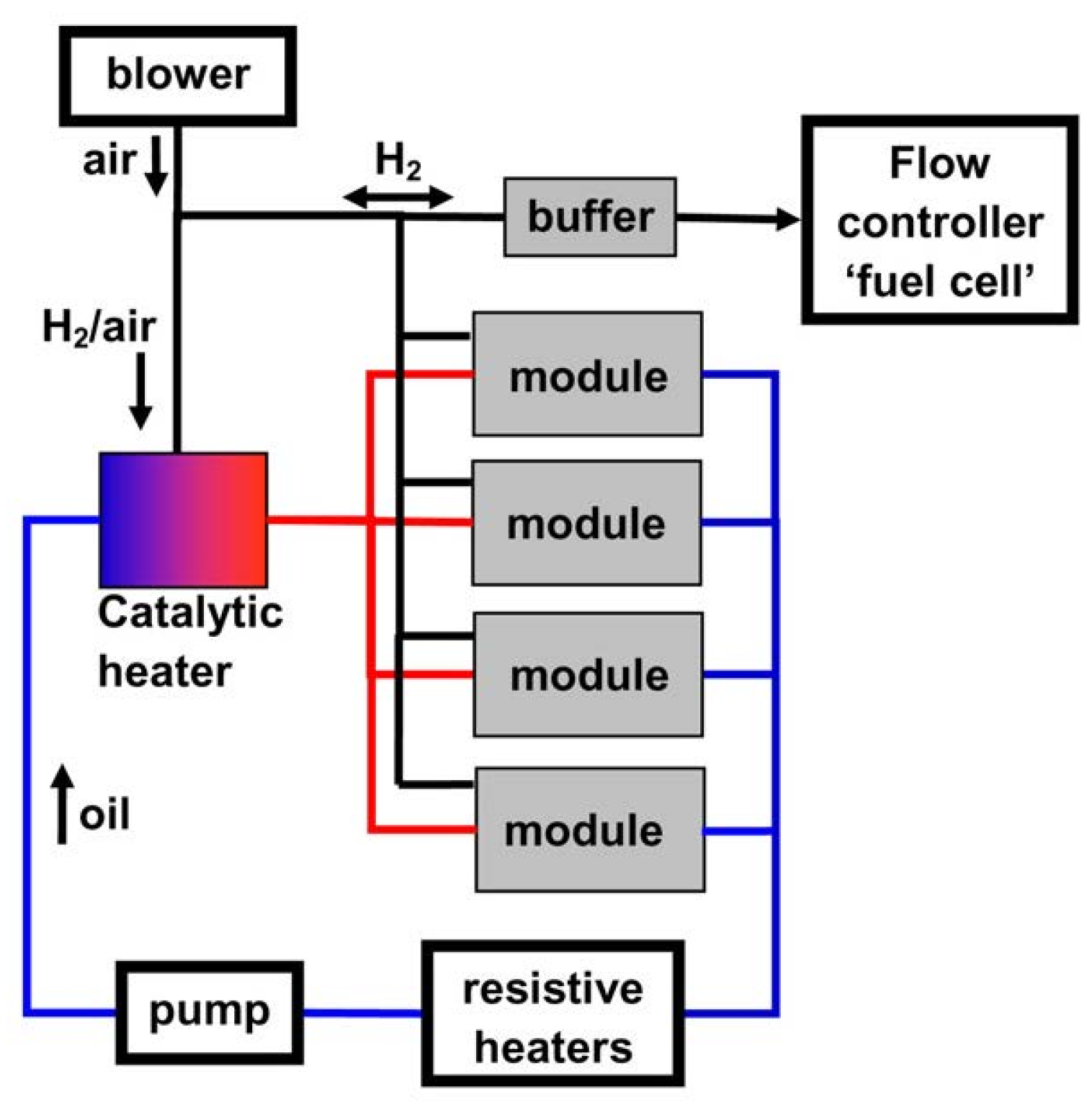

Figure 1. Process flow diagram of General Motors R&D/Sandia National Laboratories hydrogen storage system. Reprinted with permission from reference [27]. Copyright 2012 Elsevier.
Figure 1. Process flow diagram of General Motors R&D/Sandia National Laboratories hydrogen storage system. Reprinted with permission from reference [27]. Copyright 2012 Elsevier.
Materials 08 05280 g001
Figure 2. Sketch of the test rig where the storage tank is coupled with high temperature proton exchange membrane (HT-PEM) fuel cell. Reprinted with permission from reference [37]. Copyright 2011 Wiley.
Figure 2. Sketch of the test rig where the storage tank is coupled with high temperature proton exchange membrane (HT-PEM) fuel cell. Reprinted with permission from reference [37]. Copyright 2011 Wiley.
Materials 08 05280 g002

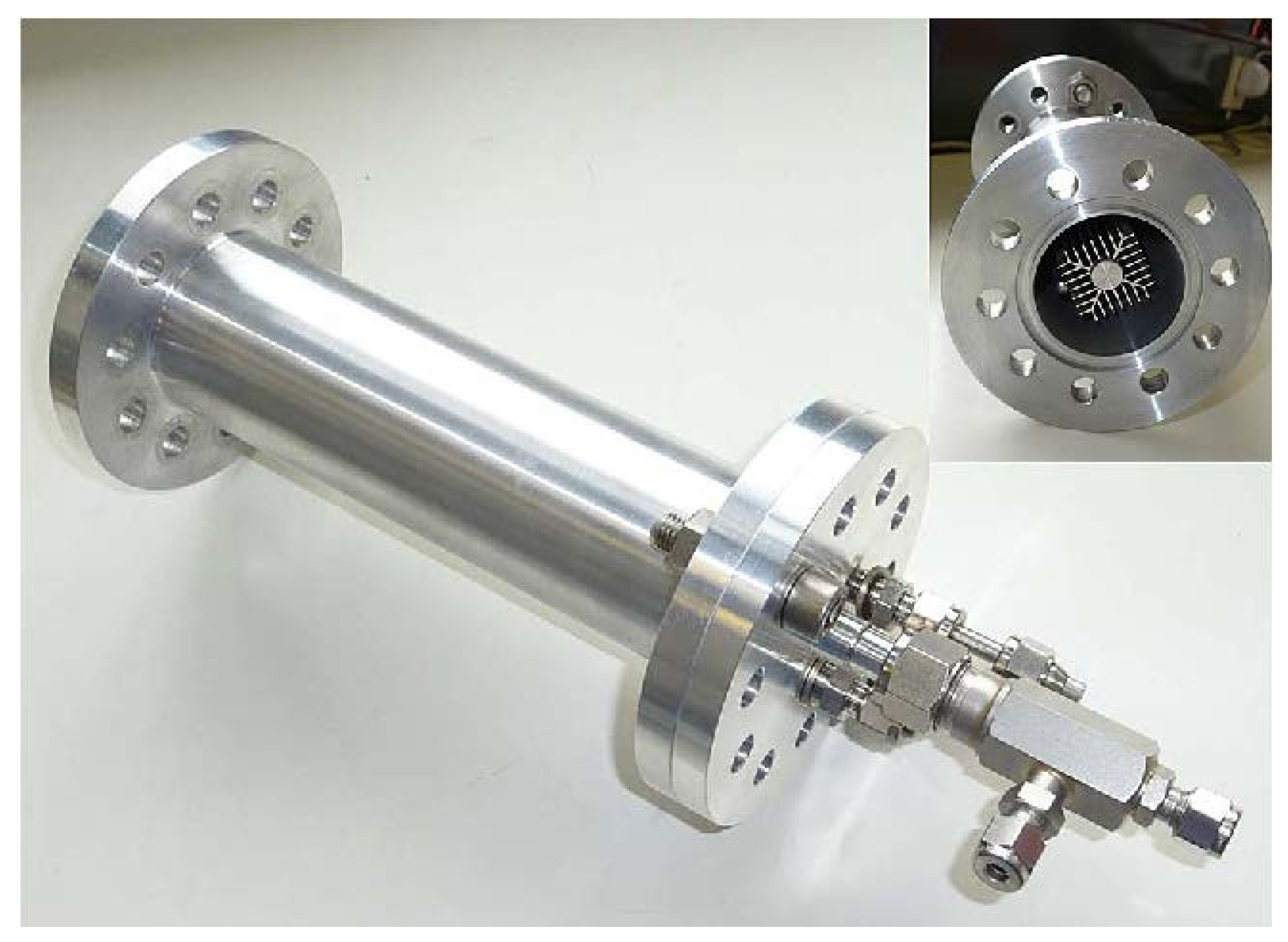

Figure 3. Al-Alloy hydrogen storage tank developed by Institut für Energie- und Umwelttechnik/Max-Planck-Institut für Kohlenforschung (IUTA/MPI). Reprinted with permission from reference [38]. Copyright 2014 Elsevier.
Figure 3. Al-Alloy hydrogen storage tank developed by Institut für Energie- und Umwelttechnik/Max-Planck-Institut für Kohlenforschung (IUTA/MPI). Reprinted with permission from reference [38]. Copyright 2014 Elsevier.
Materials 08 05280 g003
A lightweight tank for hydrogen storage containing 4.4 kg of NaAlH4 doped with TiCl3·1/3AlCl3 and expanded natural graphite (ENG) was designed, built and tested [36]. The tank improved the gravimetric capacity by 83% and the volumetric capacity by 49% compared to a previous tank [36]. Additionally, the heat evolution and temperature spikes during hydrogen absorption were studied and since NaAlH4 has a high specific heat, the material itself acted as a heat sink, aiding in the heat management of the system. The authors also performed the first-ever radiography with fast neutrons on the operational complex-hydride based test tank [43].

2.4.2. Metal Amide Based Tank Systems

Yan et al., demonstrated that changes in the compaction pressure and the graphite content of Mg(NH2)2-2LiH-0.07KOH pellets in a cylindrical lab-scale tank affected the hydrogen storage properties. The addition of up to 9 wt % ENG significantly enhanced the heat transfer in the hydride bed, which resulted in the rise of the central temperature. This improved the hydrogen desorption property of the tank and also increased the hydrogen desorption time at a constant flow rate (Table 3). The volumetric storage density of the composite reached 47 g·L−1 after compression at 365 MPa [40]. The hydrogen permeability decreased with increasing compression pressure, while the entire desorption process only changed slightly. The results indicated that the heat transfer behavior of the hydride bed dominated the hydrogen desorption of the tank [44].
Bürger et al., designed a 600 g lab scale combination reactor where two materials, 2LiNH2-1.1MgH2-0.1LiBH4-3 wt % ZrCoH3 and LaNi4.3Al0.4Mn0.3, are separated by a gas permeable layer. As it was mentioned in the modeling part, the reason for the combined reactor concept was that the fast desorption reaction of the metal hydride stabilizes the pressure of the reactor at the equilibrium pressure of the complex metal hydride. The model was developed and validated by experimental data. This reactor has been developed in order to be coupled with a HT-PEM fuel cell running at technically relevant conditions, i.e., allowing for 2 h operation of 1 kWe fuel cell [31].

2.4.3. Ammonia Borane and Alane Based Tank Systems

Brooks et al., investigated the slurry-based ammonia borane (AB) and alane system for hydrogen storage in light-duty vehicles and developed a lab-scale slurry based reactor. AB was selected because of its promising practical hydrogen storage capacity of approximately 16 wt %, while alane has a practical hydrogen storage capacity of 10 wt % [45]. Once these chemicals have reacted to produce hydrogen, the byproduct must be removed from the system and off-board regenerated before it can be reused. This differs from the previous system described that can be regenerated directly onboard. Although slurries can be difficult to handle, they can be transported on and off the vehicle using a flow-through process [35]. There are several drawbacks in handling these materials. The high densities of both slurries result in need for mixing the feed and product prior to movement. Alane was found to have some advantages over AB, which generates fuel cell impurities (i.e., ammonia, borazine, diborane) that require removal before reaching the fuel cell [46].
A summary of the developed hydrogen storage systems based on thermolysis is shown in Table 3.
Table 3. Summary of the developed hydrogen storage systems.
Table 3. Summary of the developed hydrogen storage systems.
Storage MaterialWeight of Storage Material (kg)DesignCapacity (wt. % H2)T, P Conditions Charging/DischargingKinetic/CyclesPurpose
NaAlH4 doped with 2 mol % (TiCl3-0.3AlCl3), 5 mol % carbon8Tubular reactor with porous sintered metal tube3.7charging: 125 °C, 10 MPa; discharging: 160–175 °C, 0.02–1 MPa1–10 activation cycles after 10 min 80% capacity achievedLarge scale and stationary applications [36].
NaAlH4 doped with 2 mol % CeCl30.087Hydride bed reactor with flow-thru mode3.9charging: 130 °C, 10 MPa; discharging: 180 °C, 0.13 MPa36 experiments; decrease in permeability; increased thermal conductivity λeff = 0.67 W·m−1·K−1To investigate an operational principle, changes in heat transfer, permeability and reaction kinetics [39].
NaAlH4, Al, 10 wt % ENG4 × 21.5Modular system of 12 tubular vessels3.2 in 10 mincharging: 120–150 °C, 5.52–6.89 MPa, oil temperature: 120–140 °C40 absorption/desorption cyclesTo be refueled in 10 min and to deliver H2 up to 2.0 g·s−1 [27].
NaAlH4 doped with 4 mol % TiCl32.7Stainless steel tank with double wounded helical coil heat exchanger2.24charging: 135 °C, 10 MPa; discharging: 120–180 °C, 0.1 MPa7 two or more hour desorption cycles coupled with FC, that supplied 165–240 W powerTo couple with HT-PEM and use waste heat from HT-PEM for desorbing H2 from the tank [37].
Na3AlH6 doped with 4 mol % TiCl30.213Al-alloy tank with bayonet heat exchanger1.7charging: 150–170 °C, 2.5 MPa; discharging: 177–180 °C, 0.65 MPa10 absorption/desorption cyclesTo develop and test lightweight Al-alloy storage tank [38].
Na3AlH6 doped with 4 mol % TiCl3, 8 mol % Al and 8 mol % activated carbon1.9Al-alloy tank with corrugated heat exchanger2.1charging: 160 °C, 2.5 MPa; discharging: 180 °C, 1.6 MPa31 absorption/desorption cyclesTo develop the lightweight Al-tank that is produced by extrusion molding [42].
NaAlH4 doped with 2 mol % (TiCl3-0.3AlCl3) and 5 mol % ENG4.4Ti-alloy tube-and-shell tank system4charging: 124 °C, 10 MPa; discharging: 120–170 °C, 9 MPa (constant flow)33 cycles, 120 min of absorption with restricted H2 flow of 245 Ln·min−1; 200 min desorption 3.7 L·min−1To improve gravimetric and volumetric capacity [43].
Mg(NH2)2-2LiH-0.07KOH with 9 wt % ENG0.098Cylindrical lab-scale hydrogen storage tank with porous sintered metal tube as H2 supplyN/Acharging: 220 °C, 8 MPa; discharging: 220 °C at constant H2 flow rate of 0.6 L·min−1Desorption duration of 79.5 min at 0.6 L·min−1 H2To investigate influence of graphite content and compaction pressure on desorption properties [44].
LiNH2-MgH2-LiBH4 3 wt % ZrCoH3 (in annulus) LaNi4.3Al0.4Mn0.3 (in core)0.6Tubular reactor, two materials separated by a gas permeable layerN/Acharging: 165–170 °C up to 0.17 MPa; discharging at constant and periodic H2 mass flow10% of H2 desorbed in about 30 min; majority of H2 desorbed in about 1 hTo validate a model and study effects of the reactor concept on desorption performance [31].

3. Hydrolysis

Hydrogen release can also occur apart from being subjected to heat via hydrolysis by reaction with water. A considerable amount of work has been invested in experimental testing of hydrolysis systems for complex metal hydrides [47]. Sodium borohydride, NaBH4, is one of the most tested materials for hydrolysis, (Equation (8)) [48,49,50]. NaBH4 was first discovered in 1940 by Schlesinger and Brown, but the work was classified and not published until 1953 [51]. NaBH4 has a hydrogen content of 10.8 wt % and is the only complex hydride that so far has a viable field of applications.
NaBH4 + 2 H2O → NaBO2 + 4 H2
Ammonia borane (NH3BH3, AB) has received considerable interest as a hydrogen storage material owing to its high hydrogen content (19.5 wt %) and the ability to release hydrogen at low temperatures. When in contact with water, ammonia borane releases hydrogen according to Equation (9), which is accelerated in acidic conditions and by the use of metal catalysts [52,53,54,55,56]. Some work has been reported for hydrolysis of other metal hydrides or complex metal hydrides, e.g., LiH, MgH2, CaH2, LiBH4, KBH4 and LiAlH4 [57,58,59,60,61,62,63].
BH3NH3 + 2 H2O → NH4BO2 + 3 H2

3.1. Tank Developments for Hydrolysis Based Reactors

Experimental hydrolysis systems are based on two different reactor designs, a batch or flow reactor. In a batch reactor, the complex boron hydride and the catalyst are mixed together in water and the reactor is refueled by exchanging the entire solution including remaining boron hydride, byproduct and the catalyst [64,65,66,67]. In a flow reactor, the boron hydride solution is passed over or through a solid catalyst bed followed by separation of the produced hydrogen and the byproduct solution [48,68,69]. In both reactor systems, the concentration of the boron hydride solution as well as handling of the waste solution poses problems, e.g., for NaBH4 and NaBO2, since the solubility of NaBH4 in alkaline water solutions is much higher than for NaBO2 [50,70]. The hydrolysis reaction can also occur by a reaction between steam and a solid boron hydride [57,71,72]. The use of steam can possibly reduce the amount of water otherwise used in the boron hydride solutions, thus improving the total energy storage of the system [57].

3.1.1. Flow Reactors

In 2000, a first example of a flow catalyzed hydrolysis reaction was published [48]. The hydrolysis reaction was carried out over resin beads coated with Ru metal. In another study, a conversion close to 100% was achieved with a small reactor filled with an alumina support covered with Ru metal. However, the catalyst was present in excess, which may have enabled the high conversion [73]. High conversion of 95% over 700 h was reported for an auto-thermal fixed-bed reactor using a Ru-based catalyst from Millennium Cell Inc. (Eatontown, NJ, USA) [74]. The reactor used the heat evolved from the exothermic reaction between NaBH4 and water to sustain the hydrolysis reaction [69]. This system was further developed by integrating a heat exchanger to heat up the fuel feed prior to contact with the catalyst bed. The integrated reactor equipped with a heat exchanger gave a more uniform heat distribution over a range of fuel flow rates, which increased the catalyst effectiveness [68].
Recently, a new concept reactor with a magnetic containment of permanent trade magnets to recollect the catalyst made out of a magnetic support coated with Ru particles was described [75]. The reactor should allow better control of the hydrogen production kinetics. The reactor had an efficiency up to 90% and the catalyst showed an increased stability and activity for hydrogen generation [76]. The magnetic reactor was also tested in combination with a fuel cell [77].
The flow reactors discussed so far have a tubular design. Recently, a new π-shaped reactor was proposed [78]. A gas channel was situated above the cavity for the catalytic hydrolysis reaction. The design of the reactor decreased the impact of the hydrogen on the surface of the catalyst, improving the conversion efficiency and allowing for a stable hydrogen generation rate. The hydrogen gas was collected in the gas channel and was quickly moved away from the catalyst. This stopped the reverse flow of the NaBH4 solution and a continuous flow to the catalyst was achieved. The π-reactor improved the conversion with approximately 10% compared to a conventional tubular reactor [78].
Micro-reactors have also been proposed for production of hydrogen from hydrolysis of chemical hydrides for portable customer electronics [79,80,81,82]. The micro reactor described by Kim et al., was made from three layers of photosensitive glass [79]. The catalyst support made of nickel foam was positioned between the glass plates. After assembly of the micro reactor, a Co-P-B catalyst was deposited on the catalyst support by reduction of a solution of 0.4 M CoCl2 and 0.4 M NaH2PO2 by NaBH4. The fuel solution was a mixture between 15 wt % NaBH4 and 5 wt % NaOH and the fuel feeding rate was 30 μL·min−1. The micro reactor had an average conversion efficiency of 93%. The micro reactor was used in combination with a micro fuel cell. The system had a maximum power output of 157 mW at a current of 0.5 A. There was no difference in performance when hydrogen supplied from the micro reactor was exchanged with pure hydrogen, which showed the micro reactor generated enough hydrogen for the fuel cell [79,80].
Zhu et al. introduced a micro reactor system for generating hydrogen from a NH3BH3 solution. The micro reactor employed self-circulation by a micro pumping mechanism, which was made possible by the hydrogen bubbles produced in the hydrolysis reaction [82]. This meant hydrogen was generated without parasitic power consumption. In the system, the dissolved NH3BH3 was feed into the micro reactor from a rechargeable fuel reservoir. The system was made from 375 μm thick silicon wafers using a microfabrication process and the channels were drawn by a reactive ion etching using SF6 and finally etched with a KOH solution. Platinum black was electroplated into the channels to serve as catalyst for the hydrolysis of NH3BH3. A dilute solution of 1 or 5 wt % NH3BH3 was used for hydrogen production and conversions up to ~52% and 57%, respectively, were recorded. A small PEM fuel cell was also used in combination with the micro reactor and allowed the generation of power for micro-scale energy devices [82].

3.1.2. Batch Reactors

Ferreira et al., tested two different batch reactors with a difference in volume and in the shape of the bottom of the reactor. The first reactor had a flat bottom and V = 0.646 L, while second reactor had a conical bottom geometry and V = 0.229 L [64]. Their tests were carried out with the same amount of catalyst in each reactor and the results indicated that a higher pressure in the smallest reactor (psmall = 1.14 MPa, pbig = 0.4 MPa) promoted the hydrolysis reaction. The conical shape of the smallest reactor was thought to increase the hydrogen production rate ( r H 2 ,  small ≈ 0.00077 MPa·s−1, r H 2 ,  big ≈ 0.00036 MPa·s−1) [64]. In a later publication, Ferreira et al., tested three different reactors, a flat bottom reactor with V = 0.646 L, a flat bottom reactor with V = 0.229 L and a conical shape reactor with V = 0.229 L. The conical shaped reactor was shown to be superior and increased both the hydrogen yield and generation time while decreasing the induction time. The better performance of the conical shaped reactor may be attributed to an enhanced contact between the NaBH4 and the catalyst [70].

3.1.3. Reactor Modeling of Hydrolysis Tank Systems

Only limited reports have been published of reactor modeling for hydrolysis purposes. The physical processes inside a hydrolysis reactor are complex and multi-phase flow, heat and mass transfer need to be evaluated. Additionally, the reaction kinetics has to be considered, making the theoretical prediction/description of a reactor a complex task.
Zhang et al., designed, built and tested a 1 kWe NaBH4 hydrogen generation system (Figure 4) [83,84]. Experimental data were first collected and evaluated for a stainless steel packed-bed reactor with a commercial catalyst, 3% 2 mm Ru on carbon extrude and using solutions of NaBH4 with different concentrations. The 15 % concentrated NaBH4 solution gave a 95% chemical conversion with a maximum gravimetric capacity of 3.1 wt % H2. However, above a NaBH4 concentration of 15% the discharge product (NaBO2) would crystallize upon cooling to room temperature making it difficult to be removed from the discharge tank. The ideal NaBH4 concentration was suggested to be between 10% and 15%. Thermal runaway was encountered but could be avoided by continuously cooling the system. The tests also showed that different flow rates had an impact on the temperature profile inside the reactor [83].

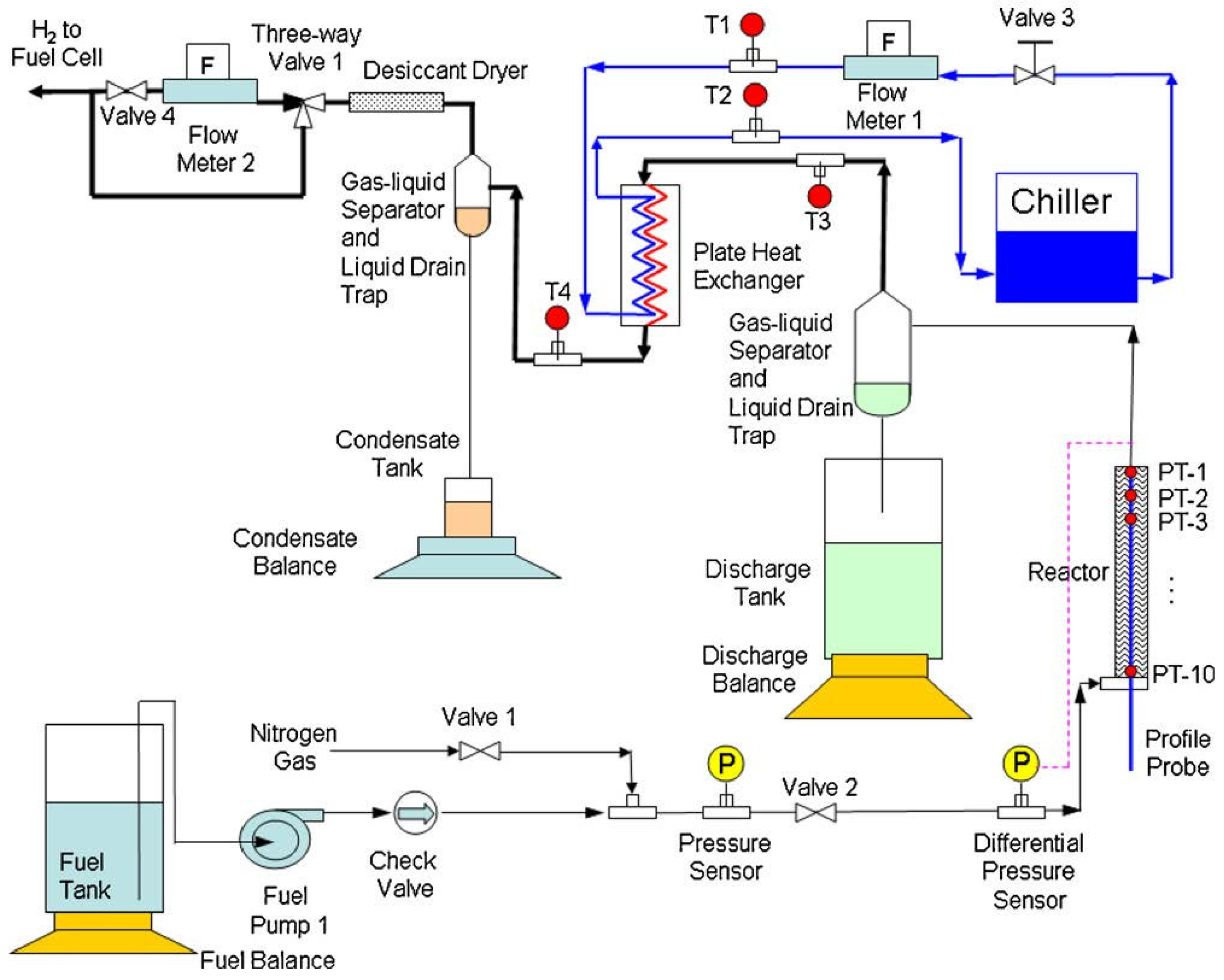

Figure 4. Schematic of the 1 kWe NaBH4 hydrogen generation system. Reprinted with permission from reference [83]. Copyright 2007 Elsevier.
Figure 4. Schematic of the 1 kWe NaBH4 hydrogen generation system. Reprinted with permission from reference [83]. Copyright 2007 Elsevier.
Materials 08 05280 g004
The results from Zhang et al., were further evaluated and used in a one-dimensional numerical reactor model [84]. The model assumed homogeneous catalysis and adiabatic operational conditions. The data used for the geometrical evaluation of the model was the temperature inside the reactor at different positions. The model produced outputs in the form of temperature, chemical conversion, relative humidity and molar flows of hydrogen and water vapor, which all matched the experimental data well at different NaBH4 concentrations. Additionally, the model included two sub-models, which allowed the evaluation of non-isothermal water evaporation processes and the pressure drop of the two-phase flow through the porous catalyst. The model was one-dimensional and therefore the geometrical parameters of the reactor were not evaluated in detail and only in the flow direction. The system was initially built for vehicle applications, but it could have potential for other small portable applications [84].
In 2012, Sousa et al., published theoretical work on a 3-dimensional batch reactor model [85]. Experimental data were collected from a batch reactor at different temperatures with a very dilute alkaline solution of NaBH4 in order to avoid problems with solubility of the hydrolysis reaction product. The data were fitted using three different kinetic models in order to evaluate the kinetics of the hydrolysis reaction. The catalyst used in the reactor was a Ru catalyst supported on Ni-foam. At low temperatures or high NaBH4 concentrations the kinetics followed a zero-order model, while at high temperatures or low NaBH4 concentrations, the reaction depended on the NaBH4 concentration and the kinetics were best described by a first order model. The experimental data were further used in a numerical 3-dimensional non-isothermal model for a pilot scale reactor. This model described the transport phenomena and also included the kinetic model for the hydrolysis reaction. Mechanical stirring in the batch reactor was shown to have an impact on the mass transfer, since NaBH4 was more easily allowed to reach the catalytic sites. Furthermore, the model showed that NaBH4 in the bottom of the reactor was used less efficiently, because the produced hydrogen decreased the stirring in the bottom. The model assumed a single-phase flow during the hydrolysis reaction, which neglected the flow of hydrogen from the catalyst after production. The gas bubbles of hydrogen were responsible for the movement of the fluid and without the incorporated artificial mixing the performance predicted by the model would be extremely low and not compatible with the experimental data obtained with the reactor. In conclusion, the 3-dimensional model was able to simulate the reactor processes and validate the kinetic model [85].
In order to evaluate a two-phase flow inside a batch reactor and better describe the impact of hydrogen formation, a new two-dimensional reactor model was recently described [86]. Data obtained from a previous described experimental setup was reused for the new model [85]. The catalyst was again a Ru catalyst supported on Ni-foam. The previous model only focused on the area, where the reaction took place and the hydrogen storage region was not considered, whereas in the new model this is taken into account [85]. The new model used a two-dimensional plane through three reaction tubes, which enabled the analysis of three regions namely the reactive solution, thermal fluid and the metal walls. Therefore, the model allowed for better description of the impact of hydrogen production (bubbles) from the hydrolysis reaction. The computational methods indicated that even though a porous support (Ni-foam) was used for the catalyst, the hydrolysis reaction occurred mainly on the surface of the catalyst foam. Additionally, the results showed that only 30% of the catalyst was effectively used. Different positions of the catalyst foam as well as a plastic support for the Ni-foam inside the reactor were also studied in order to obtain information about the optimal position for reaching the quickest conversion. The optimal position was in the central region of the reactor chamber. Interestingly, the plastic support seemed to have a positive effect on the mixing during hydrogen production. The best result was obtained for a plastic support with multiple small holes. The authors concluded that a two-phase flow model approach gave a better representation of the real system compared to a single-phase flow model [86].
As mentioned earlier the hydrolysis reaction can also be carried out using steam and solid state NaBH4 with an added catalyst. In one report, the reactor for this type of reaction consisted of brass mesh to contain the solid NaBH4 inside a cobber reactor. The steam was then passed into the reactor, where the hydrolysis reaction occurred [57]. A two-part dissolution-reaction model was proposed for a steam hydrolysis system [72]. The model accounted for deliquescence, solid dissolution and hydrolysis in order to release hydrogen and the model could give reasonable estimates for the kinetic constant and the mass transfer coefficients. However, the model could as such not be used for reactor design.

3.1.4. System Modeling for Hydrolysis Setups

The kinetic model described by Sousa et al., was further used in a model for a PEM fuel cell power system using a NaBH4 batch reactor as hydrogen generator [85,87]. However, the actual model of the reactor was described with molar balance equations (zero dimension model) for the number of moles of NaBH4, H2O and NaBO2. This was possible because the only variable in the reactor was the hydrogen pressure. The Langmuir-Hinshelwood model was selected for describing the kinetics of the hydrogen generation rate over a range of temperatures and in time [85]. The results showed the possibility of using a NaBH4 hydrolysis reaction as the hydrogen source for the PEM fuel cell system. Indeed, this study had a bigger perspective, as a complete NaBH4-PEM fuel cell power system was simulated. The magnetically supported reactor described by Pozio et al., was also simulated with a simple mathematically model. This was used to evaluate the process of catalytic hydrolysis and in a later publication the complete hydrogen generator was simulated [75,76].

3.2. Applications Using Sodium Borohydride

NaBH4 has been given a no-go recommendation as a solid-state hydrogen storage material for automotive applications by the US DoE due to its high decomposition temperature. However, since NaBH4 releases hydrogen by hydrolysis at room temperature and the solution is both stable and non-toxic, NaBH4 has a large potential for defense and civil applications. For application purposes, hydrogen is usually catalytically generated from alkaline NaBH4 solutions. An advantage of using NaBH4 is that no external heat supply is required due to the exothermic hydrolysis reaction. A disadvantage is that the NaBO2 byproduct (although environmentally friendly), needs to be collected in a separate tank in order to be recycled off board into NaBH4. For more information on the role of NaBH4 in the field of hydrogen fueled applications, the reader is referred to more in-depth articles and reviews [7,88,89,90,91].

3.2.1. Small-Unmanned Aerial Vehicles

Small-unmanned aerial vehicles (UAVs) have gained much interest in the fields of defense and security in order to minimize human loses. They have been used for surveillance missions owing to the low noise and heat emissions, minimizing detection by enemies. Instead of internal combustion engines or secondary batteries, which have low thermal efficiencies and face short flight endurance (60–90 min), fuel cell systems are regarded as a more suitable alternative power source. Fuel cell systems show high thermal efficiencies, have an electrochemical reaction rather than a combustion reaction, and silent mode of operation [92].
As fuel cells operate on hydrogen, compressed hydrogen [93], liquefied hydrogen [94,95,96,97], and chemical hydrides [94] have all been used for UAV applications. For example, AeroVironment Inc. (Monrovia, CA, USA) was the first to use liquefied hydrogen for a high-altitude long-endurance (HALE) aircraft vehicle (Global Observer), which operated for over an hour. However, the manufacturers claimed 24 h flight time with a full tank [94]. In the case of compressed hydrogen, Bradley et al., reported 43 min of cruising flight, based on the measured capacity of the on-board hydrogen tank (192 L), which could be increased to 52 min, if the hydrogen utilization was increased to 99% [93]. Since chemical hydrides have high energy densities, the combination with a proton exchange membrane (PEM) fuel cell stack can significantly improve the flight duration of UAVs compared to liquefied or compressed hydrogen [98]. In this section various small UAVs, which use NaBH4 as their hydrogen source, are discussed as to their design, manufacture, and flight tests.
The US Air Force Research Laboratory in conjunction with Small Business Innovation Research partners AeroVironment, Protonex Technology Corporation (Southborough, MA, USA) and Millennium Cell Inc. successfully demonstrated a nearly 5 h flight with Puma, an UAV, operating on a lithium ion battery and a PEM fuel cell system using NaBH4 as a hydrogen source [94]. The flight duration was increased to 9 h through further technological developments, demonstrating the improvement in endurance using chemical hydrides instead of compressed hydrogen [99]. The lithium ion battery provided the power for take-off and maneuvers whereas the fuel cell recharged the battery and provided a continuous power supply for the plane during cruise flight. Weighing only 5.7 kg and with an aerial observation at line-of-sight up to 10 km, the Puma was ideal for military applications [99].
Kim et al., also reported the use of a PEM fuel cell system operating with NaBH4 for UAVs, which consisted of a fuel cell stack, hydrogen generator and a hybrid power management system (Figure 5) [98]. Catalytic hydrolysis resulted in the formation of hydrogen gas and borate by feeding the 15 wt % NaBH4 alkaline solution through the catalytic reactor. The generated hydrogen was purified by a dehumidifier and used to power up the fuel cell stack and Li battery, whereas NaBO2 was separated in a gas-liquid separator where it remained for collection [98].
To ensure a stable performance of the fuel cell system, cooling of the stacks becomes necessary. Kim et al., recommended air-cooling systems opposed to water-cooling systems to reduce complexity and overall bulkiness of the cooling system. Air flowed through the intakes, cooled the stacks and then hot air left through the exits located near the propeller. Additionally, both ground and flight tests were performed, showing a flight endurance of 2.5 h with 360 g of a 15 wt % NaBH4 solution [98]. A flight endurance of 2 h was achieved using 300 g of a 15 wt % NaBH4 aqueous solution, although, the authors claimed a flight endurance of more than 3 h would be achievable based on the energy density of the fuel cell system. However, various problems were encountered during the flight tests, which occurred in the pump, reactor and filters [92]. The design was later improved by replacing the two tank system for a volume-exchange fuel tank where the fuel (NaBH4 solution) and spent fuel (NaBO2) exchange volume within one tank hence minimizing the volumetric density (Figure 6) [100].
Figure 5. Operating principle of fuel cell system equipped in the unmanned aerial vehicle (UAV) platform. Reprinted with permission from reference [98]. Copyright 2011 Elsevier.
Figure 5. Operating principle of fuel cell system equipped in the unmanned aerial vehicle (UAV) platform. Reprinted with permission from reference [98]. Copyright 2011 Elsevier.
Materials 08 05280 g005

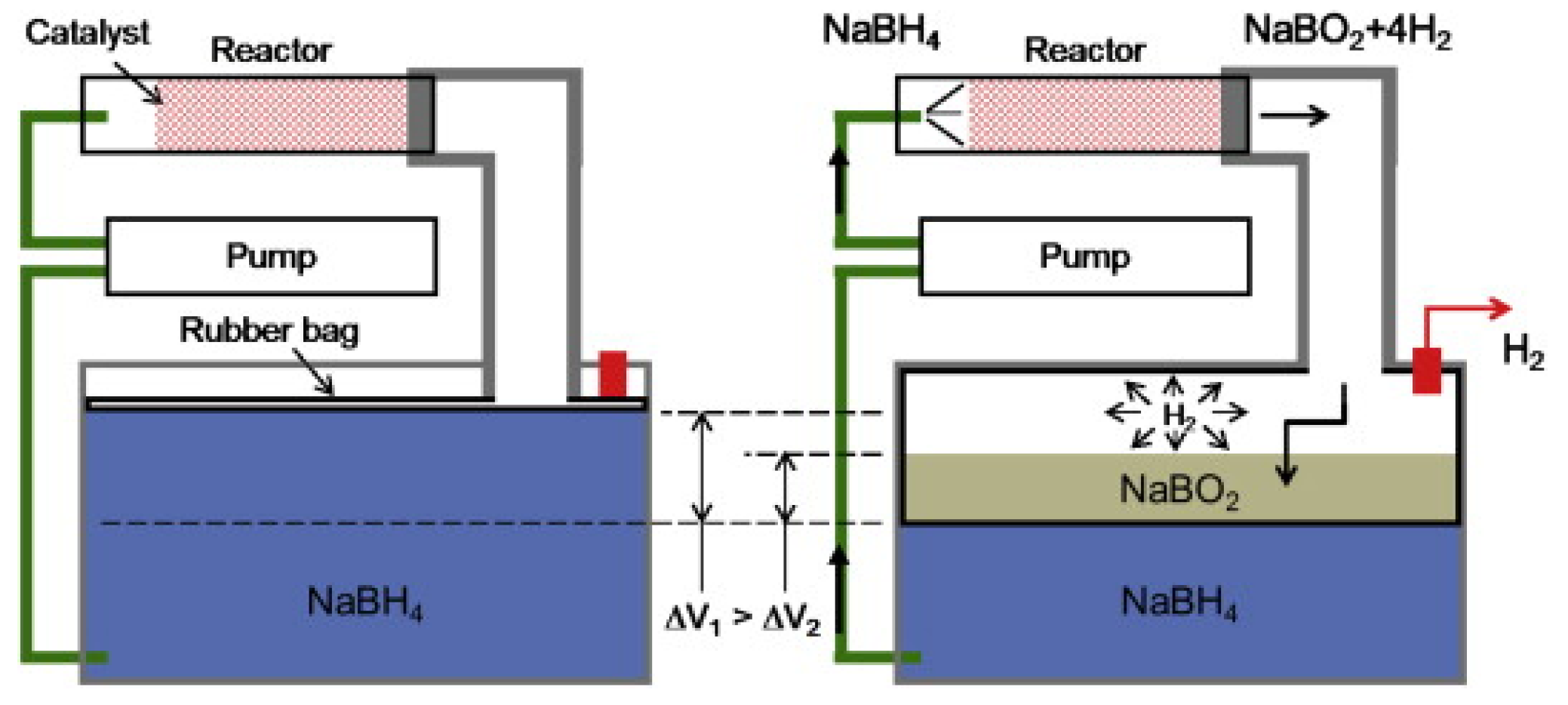

Figure 6. Schematic of a volume-exchange fuel tank. Reprinted with permission from reference [100]. Copyright 2014 Elsevier.
Figure 6. Schematic of a volume-exchange fuel tank. Reprinted with permission from reference [100]. Copyright 2014 Elsevier.
Materials 08 05280 g006
In order to obtain a high gravimetric energy density, the fuel cell stack and hydrogen generator should be ideally reduced to a minimum. However, the weight of the fuel cell stack typically takes up between 43% and 49.6% of the total weight in the fuel cell of the UAV [92,98,100]. Developing new materials to reduce the weight of the graphite bipolar plates incorporated in the fuel cell stacks would increase the flight endurance significantly [92].

3.2.2. Small Portable Applications

Fuel cells as an alternative for lithium-ion batteries for laptops and mobile phone applications have attracted considerable research interest. This is mainly due to the low capacity of the current lithium-ion batteries, resulting in short operating times. Fuel cell technologies are regarded as the most suitable for small portable applications. Although direct methanol fuel cells are typically used, issues regarding fuel crossover and low system volumetric densities remain to be resolved [101]. The direct hydrogen fuel cell systems that use a metal hydride based hydrogen storage tank have gained much attention owing to the high power and volumetric energy densities that could be obtained [102,103]. Unfortunately, their size requirements were too large to surpass current Li-ion secondary batteries and therefore miniaturization of the fuel cells is important to achieve commercial implementation [104].
NaBH4-based refuel devices for laptops and mobile phones have also been reported [105]. For example, Prosini et al., designed a refill device to generate hydrogen from HCl/H2O/NaBH4 solution for a fuel cell powered mobile phone (Figure 7). With a 0.8 V fuel cell, a 1 W hydrogen mass flow was released for over 2.5 h. The refill case was made out of plastic and therefore the refill costs were based on the price of NaBH4 (1.5 g for 9–10 days). The authors claimed an estimated energy density of roughly 720 Wh·kg−1 instead of 170 Wh·kg−1 typically for commercial lithium-ion batteries, making the device competitive with existing batteries [105]. As far as we are aware, no other publications on sodium borohydride based refuel devices for small cellular or laptop applications have been published.

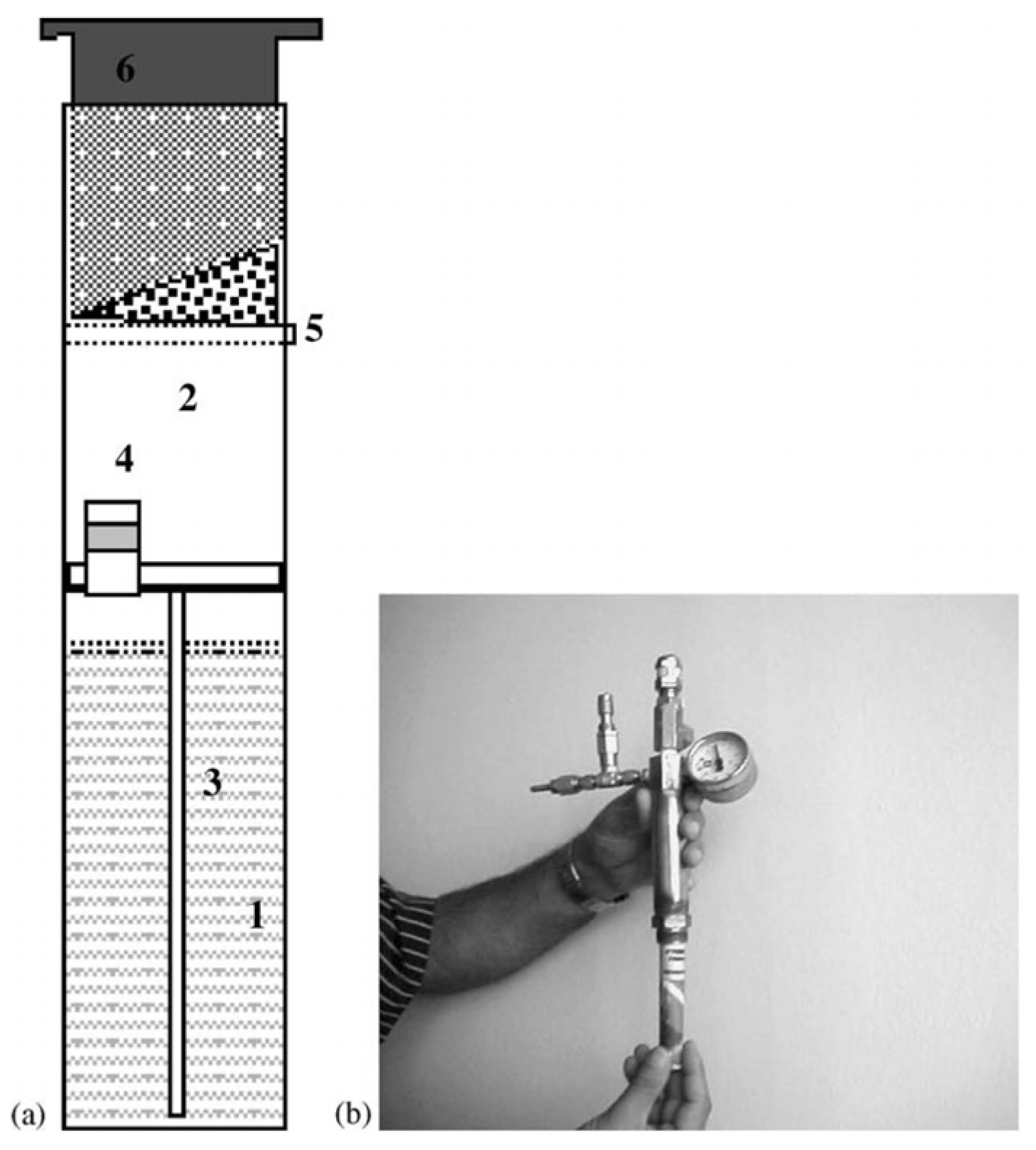

Figure 7. (a) A schematic of the hydrogen producing device: 1, HCl chamber; 2, reaction chamber; 3, connection channel; 4, pressure regulation valve; 5, diaphragm; 6, activation button; and (b) insertion of the device in the reaction chamber. Reprinted with permission from reference [105]. Copyright 2006 Elsevier.
Figure 7. (a) A schematic of the hydrogen producing device: 1, HCl chamber; 2, reaction chamber; 3, connection channel; 4, pressure regulation valve; 5, diaphragm; 6, activation button; and (b) insertion of the device in the reaction chamber. Reprinted with permission from reference [105]. Copyright 2006 Elsevier.
Materials 08 05280 g007

3.2.3. Submarine Applications

Submarines are valuable assets for naval applications owing to their invisibility when submerged under water [106,107]. Unfortunately, most of the submarines are fitted with diesel-electric propulsion resulting in limited submerged time due to the limited capacity of the batteries. In addition, when charging the batteries only a few meters below the surface (snorkeling) the submarine is susceptible to detection. Therefore, the development of air independent propulsion in order to prolong the underwater performance becomes crucial [107,108]. Among the various investigated systems, low temperature PEM fuel cells were shown to be the most promising. A schematic diagram for a conventional battery-based system and fuel cell/battery-based system is shown in Figure 8. NaBH4 allows a higher gravimetric hydrogen storage capacity compared to compressed hydrogen and does not have the safety and reliability constrains of compressed gases [108,109]. Liquid oxygen can be used as the oxidant, although compressed air, which is often used for other purposes on-board, is also considered [108]. System modeling for different fuel cell/battery-based systems showed that the total submerged endurance was substantially enhanced using fuel cells [108]. Furthermore, with the NaBH4/liquid oxygen system the submarine could remain submerged minimally for 6.5 days with a total distance of 3500 km compared to an only 20 h submerged period for the conventional system [107].
Apart for space applications, direct borohydride fuel cells (DBFCs) in combination with H2O2 are also investigated as high-density power sources for autonomous underwater vehicles [110,111,112]. In liquid form, H2O2 is a thousand times denser than oxygen [113]. The US Office of Naval Research (Arlington, VA, USA) and the UK Defence Science and Technology Laboratory (Salisbury, UK) designed a fuel cell operating on the NaBH4/H2O2 system [110]. Protonex is also currently developing an underwater fuel cell power system using the Millennium Cell Inc. hydrogen generation system [114].

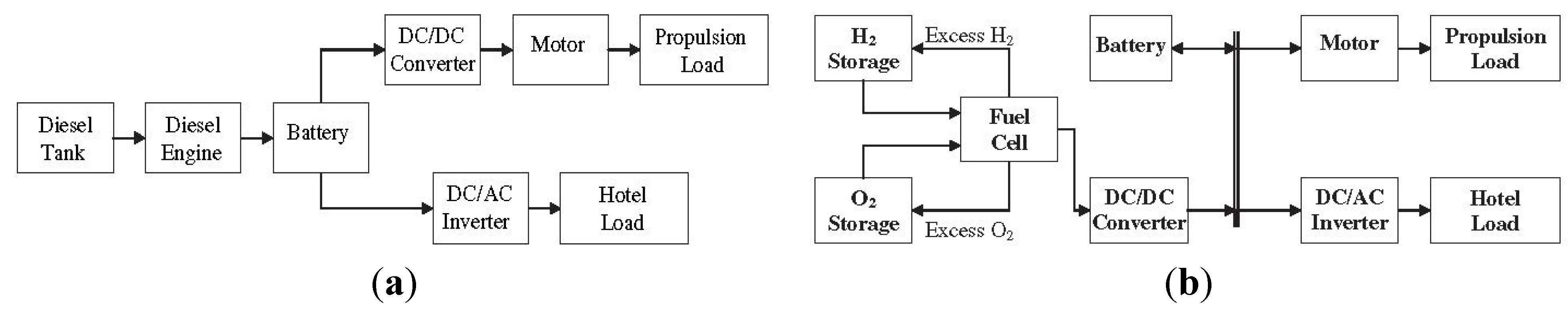

Figure 8. Schematic diagram for the (a) conventional battery based system and (b) fuel cell/battery-based system. Reprinted with permission from reference [107]. Copyright 2011 Elsevier.
Figure 8. Schematic diagram for the (a) conventional battery based system and (b) fuel cell/battery-based system. Reprinted with permission from reference [107]. Copyright 2011 Elsevier.
Materials 08 05280 g008

3.3. Recycling of NaBH4 Spent Fuel

NaBH4 is non-reversible and recycling of the byproduct sodium metaborate (NaBO2) becomes critical. A cheap and efficient route for recycling the spent fuel (NaBO2 dissolved in alkaline aqueous solution) still has to be developed. For NaBH4 decomposed in water solution, its regeneration starts with dry NaBO2. Therefore, the dissolved NaBO2 has to be dried, which is an energy intense process. NaBH4 can be recovered from NaBO2 through ball milling using MgH2/Mg. Here, the small particle size and high surface area increase the yield of the reaction [53,112,115].
For the direct borohydride/peroxide fuel cell, Miley et al., developed a regenerative fuel cell, which can transform the end products back into the reactants, using an aqueous NaBH4 solution and H2O2 [113]. Prevention of the generation of hydrogen and oxygen gas during regeneration is crucial as the regeneration of NaBH4 and H2O2 (Equation (10)), which occurs at 2.23 V, is in competition with the electrolysis reaction (Equation (11)) that occurs at 1.23 V.
NaBO2 + 6 H2O → NaBH4 + 4 H2O2
2 H2O → 2 H2 + O2
The authors circumvented this issue by using high over-potential materials for the electrodes and exploring the formation of perborate that hydrolyze to peroxide at 1.7 V (Equation (12)), greatly reducing the gas evolution.
NaBO3 + H2O → NaBO2 + H2O2
Furthermore, the inhibition of the NaBH4 crossover, a critical issue often faced for DBFCs, can be reduced by improving the membrane electrode assembly or the liquid diffusion layer [112]. In order to further develop NaBH4 hydrolysis systems for portable applications, additional research is needed to reduce the cell volume, increase the gravimetric hydrogen storage capacity and reach efficient recycling of the spent fuel.

3.4. Applications Using Ammonia Borane

The development of a continuous hydrogen generator, using a continuous feeding of ammonia borane as both fuel and spent fuel, has been the focus of many researchers [28,116,117,118]. Unfortunately, high costs and raw material scarcity only allow ammonia borane to be used only for small-scale applications. Seo et al., were the first to report on the design and testing of an ammonia borane hydrogen power-pack, which operated an UAV for 57 min using a 200 W PEM fuel cell. The system was operated by delivering spherical solid ammonia borane beads into a semi-batch type reactor filled with tetraethylene glycol dimethyl ether, a liquid promoter. Hydrogen purification equipment with a high filter capacity and efficient drainage system for spent fuel were also integrated for application purposes. The hydrogen generation system was the heaviest part of the hydrogen power pack taking up 64% of the total weight, whereas the fuel cell stack took up only 17.6% and the ammonia borane beads 4%. Based on the obtained results, the authors proposed an advanced reactor concept (Figure 9). They also suggested optimization for the discharging of liquid/solid spent fuels by using triethylene glycol dimethyl ether as the liquid promoter as it could enhance the fluidity of the spent fuels [116].

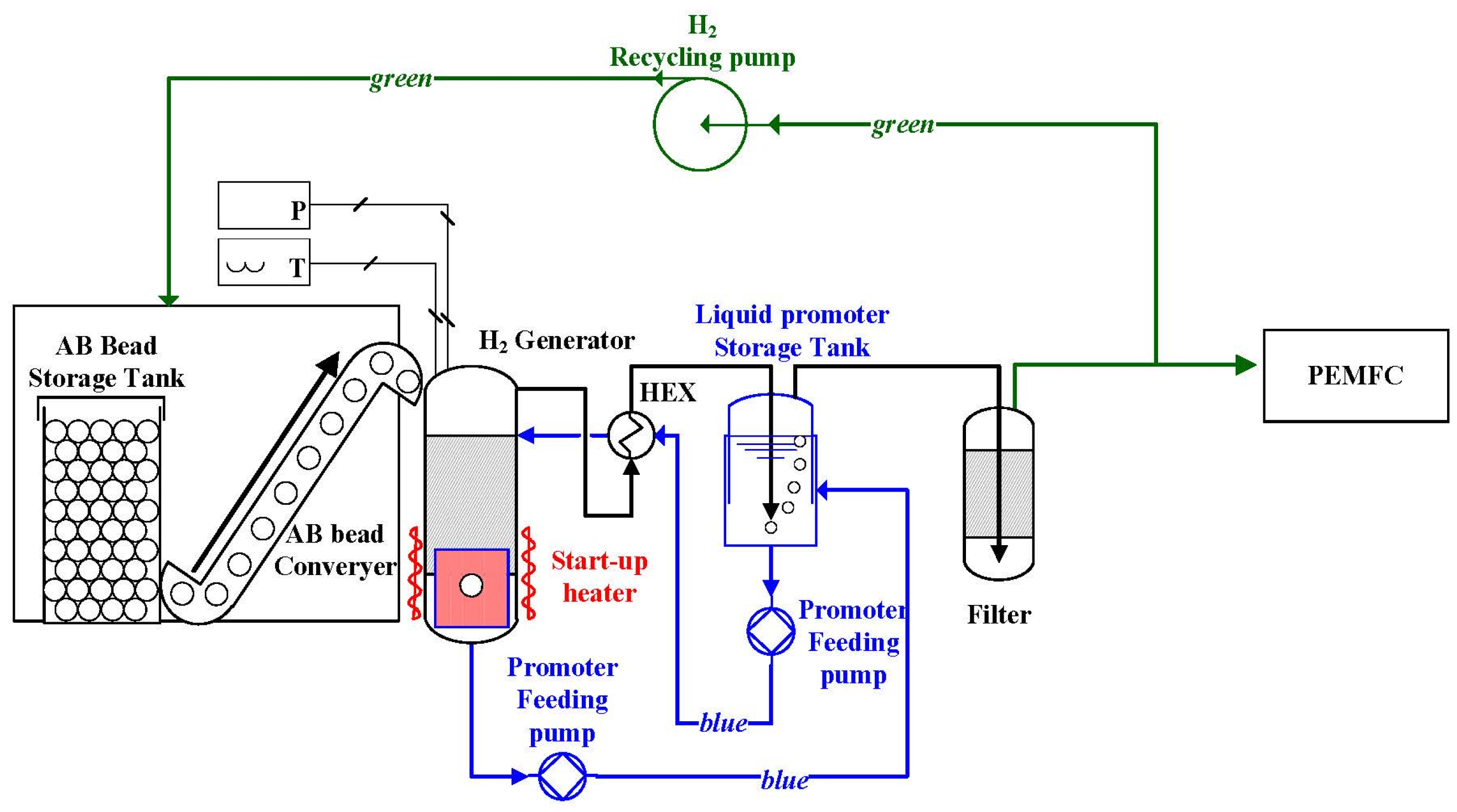

Figure 9. Schematic of the advanced fuel cell system powered by ammonia borane for prolonged operation. Reprinted with permission from reference [116]. Copyright 2014 Elsevier.
Figure 9. Schematic of the advanced fuel cell system powered by ammonia borane for prolonged operation. Reprinted with permission from reference [116]. Copyright 2014 Elsevier.
Materials 08 05280 g009

4. Summary and Outlook

There are several limitations for metal hydride-based onboard storage systems that prevent their implementation: low gravimetric and volumetric capacities, insufficient kinetics within appropriate temperatures and pressure ranges, and high cost of the overall engineering system. Modeling provides a powerful tool for the development of strategies and improvement of full-scale tanks. Several studies on tank modeling for thermolysis have been proposed, mainly based on sodium alanate with few examples of others complex hydrides. The main purpose of these simulations was the optimization of some operating parameters (temperature, pressure, thermal conductivity, coolant flow rate and coolant temperature) as well as the tank design (length scale, geometry and fins content). Optimizations were then proposed on the basis of the simulation results. Several modeling tools have been built on the basis of the hierarchical methodology and resistance analysis in order to estimate performances of the system and the limiting factors. The simulations showed that a good thermal management was necessary for the absorption, whereas the pressure control was important for desorption. Still, differences exist between the simulations, which come from the choice of the kinetic model that is implemented as the governing equation for the simulations. Therefore, precautions have to be taken, since the kinetic model is built through experimental considerations. Heat transfer in the metal hydride tank can be improved using heat exchangers, multi-tubular tank geometries and heat transfer enhancers. However, this will also increase the weight of the system. Hence, optimizations are often a compromise between heat transfer and hydrogen content. The strategy based on CH/MH beds could provide a new step in tank design leading to better temperature and pressure management without decreasing the hydrogen capacity excessively.
Although ample research has been performed with complex metal hydride materials on small-scale laboratory batches, considerably fewer full-scale thermolysis tanks/systems have been developed and analyzed. Improving the ratio between the mass of the complex metal hydride bed to the mass of the tank wall, by screening lighter materials for the tank wall and developing hydrogen storage materials exhibiting both higher gravimetric and volumetric storage properties, should be a goal in order to obtain lightweight storage systems. There are several design principles that must be taken into account while developing a complex metal hydride storage tank, such as packing arrangement of the material, hydrogen supply, heat transfer to the heat transfer medium, effective heat conductivity of the metal hydride bed and volume expansion. Additionally, efficient removal of the reaction heat from the metal hydride tank during refueling and how to provide heat during hydrogen delivery to the fuel cell remain an unsolved problem. Thermolysis of complex metal hydrides has yet to demonstrate the fulfillment of the DoE requirements (Table 1). Especially concerning the gravimetric capacity of approximately 1.5 wt % and refueling time of 10 min.
In hydrolysis, recycling of the spent fuel remains the single biggest challenge. For NaBH4, it requires the recycling of NaBO2 back into NaBH4, either starting from dry NaBO2 or through the use of a regenerative fuel cell. This often means additional costs cannot be avoided. Hence, the use of NaBH4 for portable applications becomes less attractive. As the byproduct from the hydrolysis reaction can decrease the catalyst efficiency, flow reactors holds the biggest potential for reaching commercial applications as these allow to collect the byproduct in a separate tank [98,100] The flow reactor with a π-shape design contained a gas channel for more efficient collection of the hydrogen gas. This design may also improve larger scale systems without sacrificing the overall volume and mass of the system. A batch reactor for hydrolysis is simple and does not allow for major design changes. Indeed, batch reactors are probably best suited for convenient tests of new catalysts and for small systems, where volume constraints do not allow for a second tank for collection of the byproduct. Implementation of a conical bottom in the batch reactor was shown to have a positive effect on the hydrolysis reaction. Tank modeling for hydrolysis systems has only received limited attention and was mainly performed on systems with a batch reactor. The proposed models concern mainly the transport phenomena and kinetics for the reaction in the liquid. Further research in modeling of flow reactors may help to improve systems meant for applications.
Although hydrolysis technology using complex metal hydrides (e.g., NaBH4 and AB) have found its way into UAVs and submarine applications, the majority of these applications are currently still driven by fossil fuels. These application may benefit from the installation of filters to obtain desired the hydrogen purity, efficient drainage of spent fuel, and operation conditions (humidity, vibrations, temperature etc.). All these improvements may affect the fuel cell operation and consequently, the success of the application. Additionally, further research is needed to create a more straightforward hydrolysis system preferably with on-board recycling of the spent fuel and more robustness towards operation conditions. Indeed, the advantages such as silent mode of operation and thermal signature can be quickly overshadowed by disadvantages such as limited space in a UAVs and the weight of both the energy storage system and the auxiliary system (which can easily account for roughly one third of the total weight of the aircraft). Therefore, any weight reduction of the hydrolysis technology that can be achieved will translate directly into an increase in flight duration.

5. Conclusions

After 20 years of intensive research on complex metal hydrides, a widespread commercial penetration of these hydrogen storage materials in technical applications is not in sight for the next years. The research attention over the last years has been given to fundamental understanding of crystal structures, reaction kinetics and thermodynamics of these materials as well as development of materials with high hydrogen content. The development of tank systems and demonstration projects with complex metal hydrides has not always been part of the past research activities because of the challenges that come along with engineering development.
Several technical barriers still exist for successful implementation of solid-state hydrogen storage systems based on thermolysis for stationary and portable applications and remain a significant challenge for transportation applications. Currently available storage tank systems typically require large volume, high weight, and have slow hydrogen charging/discharging rates and high system cost. Long-term research goals for the complex hydride materials should be to improve the gravimetric and volumetric capacities, to obtain sufficient kinetics within appropriate temperatures and pressure ranges and to lower the cost of the overall systems.
It is obvious that commercial success is not only a question of high hydrogen content of hydrogen storage materials. The overall performance of the whole system, consisting of hydrogen storage material, as well as storage tank design and integration of all the components into a technical system, plays a much more important role than one particular property. Taking this into account, engineering developments for the optimization of solid-state hydrogen storage tank systems must be intensified to overcome technical barriers and to construct safe and consumer-friendly system based on renewable energy carriers.

Acknowledgments

The basic funding of the Max-Planck-Society is gratefully acknowledged.

Author Contributions

Morten B. Ley, Mariem Meggouh, Romain Moury, Kateryna Peinecke and Michael Felderhoff contributed equally in writing and correcting the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schlapbach, L.; Züttel, A. Hydrogen-storage materials for mobile applications. Nature 2001, 414, 353–358. [Google Scholar] [CrossRef] [PubMed]
  2. Eberle, U.; Felderhoff, M.; Schüth, F. Chemical and physical solutions for hydrogen storage. Angew. Chem. Int. Ed. 2009, 48, 6608–6630. [Google Scholar] [CrossRef] [PubMed]
  3. Ley, M.B.; Jepsen, L.H.; Lee, Y.-S.; Cho, Y.W.; Bellosta von Colbe, J.M.; Dornheim, M.; Rokni, M.; Jensen, J.O.; Sloth, M.; Filinchuk, Y.; et al. Complex hydrides for hydrogen storage—New perspectives. Mater. Today 2014, 17, 122–128. [Google Scholar] [CrossRef]
  4. Bogdanović, B.; Schwickardi, M. Ti-doped alkali metal aluminium hydrides as potential novel reversible hydrogen storage materials. J. Alloys Compd. 1997, 253–254, 1–9. [Google Scholar] [CrossRef]
  5. Rude, L.H.; Nielsen, T.K.; Ravnsbæk, D.B.; Bösenberg, U.; Ley, M.B.; Richter, B.; Arnbjerg, L.M.; Dornheim, M.; Filinchuk, Y.; Besenbacher, F.; et al. Tailoring properties of borohydrides for hydrogen storage: A review. Phys. Status Solidi A 2011, 208, 1754–1773. [Google Scholar] [CrossRef]
  6. Mosher, D.A.; Arsenault, S.; Tang, X.; Anton, D.L. Design, fabrication and testing of NaAlH4 based hydrogen storage systems. J. Alloys Compd. 2007, 446–447, 707–712. [Google Scholar] [CrossRef]
  7. Demirci, U.B. The hydrogen cycle with the hydrolysis of sodium borohydride: A statistical approach for highlighting the scientific/technical issues to prioritize in the field. Int. J. Hydrogen Energy 2015, 40, 2673–2691. [Google Scholar] [CrossRef]
  8. Technical system targets: Onboard hydrogen storage for light-duty fuel cell vehicles 2012. Available online: http://www1.eere.energy.gov/vehiclesandfuels/pdfs/program/hstt_roadmap_june2013.pdf (accessed on 25 August 2015).
  9. Lozano, G.A.; Bellosta von Colbe, J.M.; Klassen, T.; Dornheim, M. Transport phenomena versus intrinsic kinetics: Hydrogen sorption limiting sub-process in metal hydride beds. Int. J. Hydrogen Energy 2014, 39, 18952–18957. [Google Scholar] [CrossRef]
  10. Vyazovkin, S.; Burnham, A.K.; Criado, J.M.; Pérez-Maqueda, L.A.; Popescu, C.; Sbirrazzuoli, N. Ictac kinetics committee recommendations for performing kinetic computations on thermal analysis data. Thermochim. Acta 2011, 520, 1–19. [Google Scholar] [CrossRef]
  11. Luo, W.; Gross, K.J. A kinetics model of hydrogen absorption and desorption in Ti-doped NaAlH4. J. Alloys Compd. 2004, 385, 224–231. [Google Scholar] [CrossRef]
  12. Franzen, J. Modellierung und Simulation eines Wasserstoffspeichers auf der Basis von Natriumalanat; Hamburg, Techn. Univ.: Hamburg, Germany, 2009. [Google Scholar]
  13. Hardy, B.J. Geometry, heat removal and kinetic scoping models for hydrogen storage systems. Available online: http://www1.eere.energy.gov/hydrogenandfuelcells/pdfs/bruce_hardy_srnl-2007-0043_part1.pdf (accessed on 25 February 2015).
  14. Lozano, G.A.; Ranong, C.N.; Bellosta von Colbe, J.M.; Bormann, R.; Fieg, G.; Hapke, J.; Dornheim, M. Empirical kinetic model of sodium alanate reacting system (I). Hydrogen absorption. Int. J. Hydrogen Energy 2010, 35, 6763–6772. [Google Scholar] [CrossRef]
  15. Lozano, G.A.; Ranong, C.N.; Bellosta von Colbe, J.M.; Bormann, R.; Fieg, G.; Hapke, J.; Dornheim, M. Empirical kinetic model of sodium alanate reacting system (II). Hydrogen desorption. Int. J. Hydrogen Energy 2010, 35, 7539–7546. [Google Scholar] [CrossRef]
  16. Bürger, I.; Hu, J.J.; Vitillo, J.G.; Kalantzopoulos, G.N.; Deledda, S.; Fichtner, M.; Baricco, M.; Linder, M. Material properties and empirical rate equations for hydrogen sorption reactions in 2LiNH2–1.1MgH2–0.1LiBH4–3wt % ZrCoH3. Int. J. Hydrogen Energy 2014, 39, 8283–8292. [Google Scholar] [CrossRef]
  17. Na Ranong, C.; Höhne, M.; Franzen, J.; Hapke, J.; Fieg, G.; Dornheim, M.; Eigen, N.; Bellosta von Colbe, J.M.; Metz, O. Concept, design and manufacture of a prototype hydrogen storage tank based on sodium alanate. Chem. Eng. Technol. 2009, 32, 1154–1163. [Google Scholar] [CrossRef]
  18. Hardy, B.J.; Anton, D.L. Hierarchical methodology for modeling hydrogen storage systems. Part i: Scoping models. Int. J. Hydrogen Energy 2009, 34, 2269–2277. [Google Scholar] [CrossRef]
  19. Hardy, B.J.; Anton, D.L. Hierarchical methodology for modeling hydrogen storage systems. Part ii: Detailed models. Int. J. Hydrogen Energy 2009, 34, 29923004. [Google Scholar] [CrossRef]
  20. Dedrick, D.E.; Kanouff, M.P.; Larson, R.S.; Johnson, T.A.; Jorgensen, S.W. Heat and mass transport in metal hydride based hydrogen storage systems. In Proceeding of the ASME Summer Heat Transfer Conference, San Francisco, CA, USA, 19–23 July 2009; pp. 249–260.
  21. Mosher, D.A.; Tang, X.; Arsenault, S.; Laube, B.; Cao, M.; Brown, R. High density hydrogen storage system demonstration using NaAlH4 complex compound hydrides. Available online: http://www.hydrogen.energy.gov/pdfs/progress05/vi_a_2_anton.pdf (accessed on 22 February 2015).
  22. Pfeifer, P.; Wall, C.; Jensen, O.; Hahn, H.; Fichtner, M. Thermal coupling of a high temperature pem fuel cell with a complex hydride tank. Int. J. Hydrogen Energy 2009, 34, 3457–3466. [Google Scholar] [CrossRef]
  23. Bhouri, M.; Goyette, J.; Hardy, B.J.; Anton, D.L. Sensitivity study of alanate hydride storage system. Int. J. Hydrogen Energy 2011, 36, 621–633. [Google Scholar] [CrossRef]
  24. Bhouri, M.; Goyette, J.; Hardy, B.J.; Anton, D.L. Numerical modeling and performance evaluation of multi-tubular sodium alanate hydride finned reactor. Int. J. Hydrogen Energy 2012, 37, 1551–1567. [Google Scholar] [CrossRef]
  25. Raju, M.; Kumar, S. System simulation modeling and heat transfer in sodium alanate based hydrogen storage systems. Int. J. Hydrogen Energy 2011, 36, 1578–1591. [Google Scholar] [CrossRef]
  26. Lozano, G.A.; Ranong, C.N.; Bellosta von Colbe, J.M.; Bormann, R.; Hapke, J.; Fieg, G.; Klassen, T.; Dornheim, M. Optimization of hydrogen storage tubular tanks based on light weight hydrides. Int. J. Hydrogen Energy 2012, 37, 2825–2834. [Google Scholar] [CrossRef]
  27. Johnson, T.A.; Kanouff, M.P.; Dedrick, D.E.; Evans, G.H.; Jorgensen, S.W. Model-based design of an automotive-scale, metal hydride hydrogen storage system. Int. J. Hydrogen Energy 2012, 37, 2835–2849. [Google Scholar] [CrossRef]
  28. Devarakonda, M.; Brooks, K.; Rönnebro, E.; Rassat, S. Systems modeling, simulation and material operating requirements for chemical hydride based hydrogen storage. Int. J. Hydrogen Energy 2012, 37, 2779–2793. [Google Scholar] [CrossRef]
  29. Semelsberger, T.A.; Brooks, K.P. Chemical hydrogen storage material property guidelines for automotive applications. J. Power Sources 2015, 279, 593–609. [Google Scholar] [CrossRef]
  30. Bürger, I.; Komogowski, L.; Linder, M. Advanced reactor concept for complex hydrides: Hydrogen absorption from room temperature. Int. J. Hydrogen Energy 2014, 39, 7030–7041. [Google Scholar] [CrossRef]
  31. Bürger, I.; Luetto, C.; Linder, M. Advanced reactor concept for complex hydrides: Hydrogen desorption at fuel cell relevant boundary conditions. Int. J. Hydrogen Energy 2014, 39, 7346–7355. [Google Scholar] [CrossRef]
  32. Bhouri, M.; Bürger, I.; Linder, M. Optimization of hydrogen charging process parameters for an advanced complex hydride reactor concept. Int. J. Hydrogen Energy 2014, 39, 17726–17739. [Google Scholar] [CrossRef]
  33. Van Hassel, B.A.; Mosher, D.; Pasini, J.M.; Gorbounov, M.; Holowczak, J.; Tang, X.; Brown, R.; Laube, B.; Pryor, L. Engineering improvement of NaAlH4 system. Int. J. Hydrogen Energy 2012, 37, 2756–2766. [Google Scholar] [CrossRef]
  34. Sulic, M.; Cai, M.; Kumar, S. Cycling and engineering properties of highly compacted sodium alanate pellets. Int. J. Hydrogen Energy 2012, 37, 15187–15195. [Google Scholar] [CrossRef]
  35. Brooks, K.P.; Semelsberger, T.A.; Simmons, K.L.; van Hassel, B. Slurry-based chemical hydrogen storage systems for automotive fuel cell applications. J. Power Sources 2014, 268, 950–959. [Google Scholar] [CrossRef]
  36. Bellosta von Colbe, J.M.; Metz, O.; Lozano, G.A.; Pranzas, P.K.; Schmitz, H.W.; Beckmann, F.; Schreyer, A.; Klassen, T.; Dornheim, M. Behavior of scaled-up sodium alanate hydrogen storage tanks during sorption. Int. J. Hydrogen Energy 2012, 37, 2807–2811. [Google Scholar] [CrossRef]
  37. Urbanczyk, R.; Peil, S.; Bathen, D.; Heßke, C.; Burfeind, J.; Hauschild, K.; Felderhoff, M.; Schüth, F. HT-PEM fuel cell system with integrated complex metal hydride storage tank. Fuel Cells 2011, 11, 911–920. [Google Scholar] [CrossRef]
  38. Urbanczyk, R.; Peinecke, K.; Felderhoff, M.; Hauschild, K.; Kersten, W.; Peil, S.; Bathen, D. Aluminium alloy based hydrogen storage tank operated with sodium aluminium hexahydride Na3AlH6. Int. J. Hydrogen Energy 2014, 39, 17118–17128. [Google Scholar] [CrossRef]
  39. Utz, I.; Linder, M.; Schmidt, N.; Hu, J.J.; Fichtner, M.; Wörner, A. Experimental study of powder bed behavior of sodium alanate in a lab-scale H2 storage tank with flow-through mode. Int. J. Hydrogen Energy 2012, 37, 7645–7653. [Google Scholar] [CrossRef]
  40. Yan, M.-Y.; Sun, F.; Liu, X.-P.; Ye, J.-H. Effects of compaction pressure and graphite content on hydrogen storage properties of Mg(NH2)2–2LiH hydride. Int. J. Hydrogen Energy 2014, 39, 19656–19661. [Google Scholar] [CrossRef]
  41. Eigen, N.; Keller, C.; Dornheim, M.; Klassen, T.; Bormann, R. Industrial production of light metal hydrides for hydrogen storage. Scr. Mater. 2007, 56, 847–851. [Google Scholar] [CrossRef]
  42. Urbanczyk, R.; Peinecke, K.; Meggouh, M.; Felderhoff, M.; Peil, S.; Bathen, D. Solid hydrogen storage realized by doped Na3AlH6 in kg scale charged and operated in an Al alloy tank. 2015; to be published. [Google Scholar]
  43. Bellosta von Colbe, J.M.; Lozano, G.; Metz, O.; Bücherl, T.; Bormann, R.; Klassen, T.; Dornheim, M. Design, sorption behaviour and energy management in a sodium alanate-based lightweight hydrogen storage tank. Int. J. Hydrogen Energy 2015, 40, 2984–2988. [Google Scholar] [CrossRef]
  44. Yan, M.-Y.; Sun, F.; Liu, X.-P.; Ye, J.-H.; Wang, S.-M.; Jiang, L.-J. Effects of graphite content and compaction pressure on hydrogen desorption properties of Mg(NH2)2–2LiH based tank. J. Alloys Compd. 2015, 628, 63–67. [Google Scholar] [CrossRef]
  45. Ismail, I.M.K.; Hawkins, T. Kinetics of thermal decomposition of aluminium hydride: I-non-isothermal decomposition under vacuum and in inert atmosphere (argon). Thermochim. Acta 2005, 439, 32–43. [Google Scholar] [CrossRef]
  46. Nakagawa, T.; Burrell, A.K.; Del Sesto, R.E.; Janicke, M.T.; Nekimken, A.L.; Purdy, G.M.; Paik, B.; Zhong, R.-Q.; Semelsberger, T.A.; Davis, B.L. Physical, structural, and dehydrogenation properties of ammonia borane in ionic liquids. RSC Adv. 2014, 4, 21681–21687. [Google Scholar] [CrossRef]
  47. Sankir, M.; Serin, R.B.; Semiz, L.; Sankir, N.D. Unusual behavior of dynamic hydrogen generation from sodium borohydride. Int. J. Hydrogen Energy 2014, 39, 2608–2613. [Google Scholar] [CrossRef]
  48. Amendola, S.C.; Sharp-Goldman, S.L.; Janjua, M.S.; Kelly, M.T.; Petillo, P.J.; Binder, M. An ultrasafe hydrogen generator: Aqueous, alkaline borohydride solutions and Ru catalyst. J. Power Sources 2000, 85, 186–189. [Google Scholar] [CrossRef]
  49. Liu, B.H.; Li, Z.P. A review: Hydrogen generation from borohydride hydrolysis reaction. J. Power Sources 2009, 187, 527–534. [Google Scholar] [CrossRef]
  50. Demirci, U.B.; Akdim, O.; Andrieux, J.; Hannauer, J.; Chamoun, R.; Miele, P. Sodium borohydride hydrolysis as hydrogen generator: Issues, state of the art and applicability upstream from a fuel cell. Fuel Cells 2010, 10, 335–350. [Google Scholar] [CrossRef]
  51. Schlesinger, H.I.; Brown, H.C.; Hoekstra, H.R.; Rapp, L.R. Reactions of diborane with alkali metal hydrides and their addition compounds. New syntheses of borohydrides. Sodium and potassium borohydrides. J. Am. Chem. Soc. 1953, 75, 199–204. [Google Scholar] [CrossRef]
  52. Demirci, U.B.; Miele, P. Sodium borohydride versus ammonia borane, in hydrogen storage and direct fuel cell applications. Energ. Environ. Sci. 2009, 2, 627–637. [Google Scholar] [CrossRef]
  53. Weidenthaler, C.; Felderhoff, M. Complex hydrides. In Handbook of Hydrogen Storage; Hirscher, M., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2010. [Google Scholar]
  54. Metin, Ö.; Mazumder, V.; Özkar, S.; Sun, S. Monodisperse nickel nanoparticles and their catalysis in hydrolytic dehydrogenation of ammonia borane. J. Am. Chem. Soc. 2010, 132, 1468–1469. [Google Scholar]
  55. Sun, D.; Mazumder, V.; Metin, Ö.; Sun, S. Catalytic hydrolysis of ammonia borane via cobalt palladium nanoparticles. ACS Nano 2011, 5, 6458–6464. [Google Scholar] [CrossRef] [PubMed]
  56. Demirci, U.B.; Miele, P. Cobalt-based catalysts for the hydrolysis of NaBH4 and NH3BH3. Phys. Chem. Chem. Phys. 2014, 16, 6872–6885. [Google Scholar] [CrossRef] [PubMed]
  57. Aiello, R.; Sharp, J.H.; Matthews, M.A. Production of hydrogen from chemical hydrides via hydrolysis with steam. Int. J. Hydrogen Energy 1999, 24, 1123–1130. [Google Scholar] [CrossRef]
  58. Chen, J.; Fu, H.; Xiong, Y.; Xu, J.; Zheng, J.; Li, X. MgCl2 promoted hydrolysis of MgH2 nanoparticles for highly efficient H2 generation. Nano Energy 2014, 10, 337–343. [Google Scholar] [CrossRef]
  59. Kojima, Y.; Kawai, Y.; Kimbara, M.; Nakanishi, H.; Matsumoto, S. Hydrogen generation by hydrolysis reaction of lithium borohydride. Int. J. Hydrogen Energy 2004, 29, 1213–1217. [Google Scholar] [CrossRef]
  60. Kojima, Y.; Suzuki, K.-I.; Kawai, Y. Hydrogen generation by hydrolysis reaction of magnesium hydride. J. Mater. Sci. 2004, 39, 2227–2229. [Google Scholar] [CrossRef]
  61. Kong, V.; Foulkes, F.; Kirk, D.; Hinatsu, J. Development of hydrogen storage for fuel cell generators I: Hydrogen generation using hydrolysis hydrides. Int. J. Hydrogen Energy 1999, 24, 665–675. [Google Scholar] [CrossRef]
  62. Kong, V.; Kirk, D.; Foulkes, F.; Hinatsu, J. Development of hydrogen storage for fuel cell generators II: Utilization of calcium hydride and lithium hydride. Int. J. Hydrogen Energy 2003, 28, 205–214. [Google Scholar] [CrossRef]
  63. Laversenne, L.; Goutaudier, C.; Chiriac, R.; Sigala, C.; Bonnetot, B. Hydrogen storage in borohydrides comparison of hydrolysis conditions of LiBH4, NaBH4 and KBH4. J. Therm. Anal. Calorim. 2008, 94, 785–790. [Google Scholar] [CrossRef]
  64. Ferreira, M.J.F.; Coelho, F.; Rangel, C.M.; Pinto, A.M.F.R. Batch sodium borohydride hydrolysis systems: Effect of sudden valve opening on hydrogen generation rate. Int. J. Hydrogen Energy 2012, 37, 1947–1953. [Google Scholar] [CrossRef]
  65. Ferreira, M.J.F.; Fernandes, V.R.; Gales, L.; Rangel, C.M.; Pinto, A.M.F.R. Effects of the addition of an organic polymer on the hydrolysis of sodium tetrahydroborate in batch reactors. Int. J. Hydrogen Energy 2010, 35, 11456–11469. [Google Scholar] [CrossRef]
  66. Pinto, A.; Falcao, D.; Silva, R.; Rangel, C. Hydrogen generation and storage from hydrolysis of sodium borohydride in batch reactors. Int. J. Hydrogen Energy 2006, 31, 1341–1347. [Google Scholar] [CrossRef]
  67. Pinto, A.M.F.R.; Ferreira, M.J.F.; Fernandes, V.R.; Rangel, C.M. Durability and reutilization capabilities of a Ni–Ru catalyst for the hydrolysis of sodium borohydride in batch reactors. Catal. Today 2011, 170, 40–49. [Google Scholar] [CrossRef]
  68. Zhang, Q.; Smith, G.; Wu, Y. Catalytic hydrolysis of sodium borohydride in an integrated reactor for hydrogen generation. Int. J. Hydrogen Energy 2007, 32, 4731–4735. [Google Scholar] [CrossRef]
  69. Zhang, Q.; Smith, G.; Wu, Y.; Mohring, R. Catalytic hydrolysis of sodium borohydride in an auto-thermal fixed-bed reactor. Int. J. Hydrogen Energy 2006, 31, 961–965. [Google Scholar] [CrossRef]
  70. Ferreira, M.J.F.; Rangel, C.M.; Pinto, A.M.F.R. Water handling challenge on hydrolysis of sodium borohydride in batch reactors. Int. J. Hydrogen Energy 2012, 37, 6985–6994. [Google Scholar] [CrossRef]
  71. Beaird, A.M.; Davis, T.A.; Matthews, M.A. Deliquescence in the hydrolysis of sodium borohydride by water vapor. Ind. Eng. Chem. Res. 2010, 49, 9596–9599. [Google Scholar] [CrossRef]
  72. Yu, L.; Matthews, M.A. A reactor model for hydrogen generation from sodium borohydride and water vapor. Int. J. Hydrogen Energy 2014, 39, 3830–3836. [Google Scholar] [CrossRef]
  73. Gervasio, D.; Tasic, S.; Zenhausern, F. Room temperature micro-hydrogen-generator. J. Power Sources 2005, 149, 15–21. [Google Scholar] [CrossRef]
  74. Amendola, S.C.; Binder, M.; Sharp-Goldman, S.L.; Kelly, M.T.; Petillo, P.J. System for hydrogen generation. US Patent 2003. [Google Scholar]
  75. Pozio, A.; Defrancesco, M.; Monteleone, G.; Oronzio, R.; Galli, S.; Dangelo, C.; Marrucci, M. Apparatus for the production of hydrogen from sodium borohydride in alkaline solution. Int. J. Hydrogen Energy 2008, 33, 51–56. [Google Scholar] [CrossRef]
  76. Oronzio, R.; Monteleone, G.; Pozio, A.; De Francesco, M.; Galli, S. New reactor design for catalytic sodium borohydride hydrolysis. Int. J. Hydrogen Energy 2009, 34, 4555–4560. [Google Scholar] [CrossRef]
  77. Galli, S.; De Francesco, M.; Monteleone, G.; Oronzio, R.; Pozio, A. Development of a compact hydrogen generator from sodium borohydride. Int. J. Hydrogen Energy 2010, 35, 7344–7349. [Google Scholar] [CrossRef]
  78. Li, H.-Y.; Chen, Y.-T.; Lu, M.-T.; Lai, Y.-H.; Yang, J.-T. Design and testing of a novel catalytic reactor to generate hydrogen. Int. J. Hydrogen Energy 2014, 39, 11945–11954. [Google Scholar] [CrossRef]
  79. Kim, T. Hydrogen generation from sodium borohydride using microreactor for micro fuel cells. Int. J. Hydrogen Energy 2011, 36, 1404–1410. [Google Scholar] [CrossRef]
  80. Kim, T. Fully-integrated micro PEM fuel cell system with NaBH4 hydrogen generator. Int. J. Hydrogen Energy 2012, 37, 2440–2446. [Google Scholar] [CrossRef]
  81. Zhu, L.; Meng, D.D.; Kroodsma, N.; Yeom, J.; Shannon, M.A. An integrated microfluidic self-regulating and self-circulating hydrogen generator for fuel cells. In Proceedings of International Solid-State Sensors, Actuators and Microsystems Conference, Denver, CO, USA, 21–25 June 2009; pp. 652–655.
  82. Zhu, L.; Kroodsma, N.; Yeom, J.; Haan, J.L.; Shannon, M.A.; Meng, D.D. An on-demand microfluidic hydrogen generator with self-regulated gas generation and self-circulated reactant exchange with a rechargeable reservoir. Microfluid Nanofluidics 2011, 11, 569–578. [Google Scholar] [CrossRef]
  83. Zhang, J.; Zheng, Y.; Gore, J.P.; Fisher, T.S. 1 kWe sodium borohydride hydrogen generation system: Part I: Experimental study. J. Power Sources 2007, 165, 844–853. [Google Scholar] [CrossRef]
  84. Zhang, J.; Zheng, Y.; Gore, J.P.; Mudawar, I.; Fisher, T.S. 1 kWe sodium borohydride hydrogen generation system: Part II: Reactor modeling. J. Power Sources 2007, 170, 150–159. [Google Scholar] [CrossRef]
  85. Sousa, T.; Fernandes, V.R.; Pinto, P.J.R.; Slavkov, Y.; Bosukov, L.; Rangel, C.M. A sodium borohydride hydrogen generation reactor for stationary applications: Experimental and reactor simulation studies. Chem. Eng. Sci. 2012, 84, 70–79. [Google Scholar] [CrossRef]
  86. Sousa, T.; Rangel, C.M. A dynamic two phase flow model for a pilot scale sodium borohydride hydrogen generation reactor. Int. J. Hydrogen Energy 2014, 39, 5291–5300. [Google Scholar] [CrossRef]
  87. Pinto, P.J.R.; Sousa, T.; Fernandes, V.R.; Pinto, A.M.F.R.; Rangel, C.M. Simulation of a stand-alone residential PEMFC power system with sodium borohydride as hydrogen source. Int. J. Electr. Power Energy Syst. 2013, 49, 57–65. [Google Scholar] [CrossRef]
  88. Lee, C.J.; Kim, T. Hydrogen supply system employing direct decomposition of solid-state NaBH4. Int. J. Hydrogen Energy 2015, 40, 2274–2282. [Google Scholar] [CrossRef]
  89. Ma, J.; Choudhury, N.A.; Sahai, Y. A comprehensive review of direct borohydride fuel cells. Renew. Sustain. Energy Rev. 2010, 14, 183–199. [Google Scholar] [CrossRef]
  90. Merino-Jiménez, I.; de León Ponce, C.; Shah, A.A.; Walsh, F.C. Developments in direct borohydride fuel cells and remaining challenges. J. Power Sources 2012, 219, 339–357. [Google Scholar] [CrossRef]
  91. Jamard, R.; Salomon, J.; Martinent-Beaumont, A.; Coutanceau, C. Life time test in direct borohydride fuel cell system. J. Power Sources 2009, 193, 779–787. [Google Scholar] [CrossRef]
  92. Kim, T.; Kwon, S. Design and development of a fuel cell-powered small unmanned aircraft. Int. J. Hydrogen Energy 2012, 37, 615–622. [Google Scholar] [CrossRef]
  93. Bradley, T.H.; Moffitt, B.A.; Mavris, D.N.; Parekh, D.E. Development and experimental characterization of a fuel cell powered aircraft. J. Power Sources 2007, 171, 793–801. [Google Scholar] [CrossRef]
  94. McConnell, V.P. Military UAVs claiming the skies with fuel cell power. Fuel Cells Bull. 2007, 2007, 12–15. [Google Scholar] [CrossRef]
  95. Stroman, R.O.; Jackson, G.S. Modeling the performance of an ideal NaBH4–H2O2 direct borohydride fuel cell. J. Power Sources 2014, 247, 756–769. [Google Scholar] [CrossRef]
  96. Stroman, R.O.; Jackson, G.S.; Garsany, Y.; Swider-Lyons, K. A calibrated hydrogen-peroxide direct-borohydride fuel cell model. J. Power Sources 2014, 271, 421–430. [Google Scholar] [CrossRef]
  97. Stroman, R.O.; Schuette, M.W.; Swider-Lyons, K.; Rodgers, J.A.; Edwards, D.J. Liquid hydrogen fuel system design and demonstration in a small long endurance air vehicle. Int. J. Hydrogen Energy 2014, 39, 11279–11290. [Google Scholar] [CrossRef]
  98. Kim, K.; Kim, T.; Lee, K.; Kwon, S. Fuel cell system with sodium borohydride as hydrogen source for unmanned aerial vehicles. J. Power Sources 2011, 196, 9069–9075. [Google Scholar] [CrossRef]
  99. AeroVironment. Aerovironment Puma small UAS achieves record flight of over nine hours using fuel cell battery hybrid system. Available online: https://www.avinc.com/public-safety/news-events/article/aerovironment_puma_small_uas_achieves_record_flight (accessed on 25 August 2015).
  100. Kim, T. NaBH4 (sodium borohydride) hydrogen generator with a volume-exchange fuel tank for small unmanned aerial vehicles powered by a PEM (proton exchange membrane) fuel cell. Energy 2014, 69, 721–727. [Google Scholar] [CrossRef]
  101. Liu, J.G.; Zhao, T.S.; Chen, R.; Wong, C.W. The effect of methanol concentration on the performance of a passive DMFC. Electrochem. Commun. 2005, 7, 288–294. [Google Scholar] [CrossRef]
  102. Akiyama, K.; Matsumoto, S.; Miyasaka, A.; Shodai, T. An air-breathing single cell small proton exchange membrane fuel cell system with AB5-type metal hydride and an ultra-low voltage input boost converter. J. Power Sources 2009, 186, 37–44. [Google Scholar] [CrossRef]
  103. Han, H.S.; Cho, C.; Kim, S.Y.; Hyun, J.M. Performance evaluation of a polymer electrolyte membrane fuel cell system for powering portable freezer. Appl. Energy 2013, 105, 125–137. [Google Scholar] [CrossRef]
  104. Kim, S.H.; Miesse, C.M.; Lee, H.B.; Chang, I.W.; Hwang, Y.S.; Jang, J.H.; Cha, S.W. Ultra compact direct hydrogen fuel cell prototype using a metal hydride hydrogen storage tank for a mobile phone. Appl. Energy 2014, 134, 382–391. [Google Scholar] [CrossRef]
  105. Prosini, P.P.; Gislon, P. A hydrogen refill for cellular phone. J. Power Sources 2006, 161, 290–293. [Google Scholar] [CrossRef]
  106. McConnell, V.P. Now, voyager? The increasing marine use of fuel cells. Fuel Cells Bull. 2010, 2010, 12–17. [Google Scholar] [CrossRef]
  107. Ghosh, P.C.; Vasudeva, U. Analysis of 3000 t class submarines equipped with polymer electrolyte fuel cells. Energy 2011, 36, 3138–3147. [Google Scholar] [CrossRef]
  108. Psoma, A.; Sattler, G. Fuel cell systems for submarines: From the first idea to serial production. J. Power Sources 2002, 106, 381–383. [Google Scholar] [CrossRef]
  109. Lakeman, J.B.; Rose, A.; Pointon, K.D.; Browning, D.J.; Lovell, K.V.; Waring, S.C.; Horsfall, J.A. The direct borohydride fuel cell for uuv propulsion power. J. Power Sources 2006, 162, 765–772. [Google Scholar] [CrossRef]
  110. Swider-Lyons, K.E.; Carlin, R.T.; Rosenfeld, R.L.; Nowak, R.J. Technical issues and opportunities for fuel cell development for autonomous underwater vehicles. In Proceedings of the 2002 Workshop on Autonomous Underwater Vehicles, San Antonio, TX, USA, 20–21 June 2002; pp. 61–64.
  111. Luo, N.; Miley, G.H.; Kim, K.-J.; Burton, R.; Huang, X. NaBH4/H2O2 fuel cells for air independent power systems. J. Power Sources 2008, 185, 685–690. [Google Scholar] [CrossRef]
  112. Santos, D.M.F.; Sequeira, C.A.C. Sodium borohydride as a fuel for the future. Renew. Sustain. Energy Rev. 2011, 15, 3980–4001. [Google Scholar] [CrossRef]
  113. Miley, G.H.; Kim, K.J.; Luo, N.; Shrestha, P.J. Advanced NaBH4/H2O2 fuel cell for space applications. AIP Conf. Proc. 2009, 1103, 157–163. [Google Scholar]
  114. Protonex. Underwater applications. Available online: http://www.protonex.com/solutions/underwater-applications/ (accessed on 25 August 2015).
  115. Kojima, Y.; Haga, T. Recycling process of sodium metaborate to sodium borohydride. Int. J. Hydrogen Energy 2003, 28, 989–993. [Google Scholar] [CrossRef]
  116. Seo, J.-E.; Kim, Y.; Kim, Y.; Kim, K.; Lee, J.H.; Lee, D.H.; Kim, Y.; Shin, S.J.; Kim, D.-M.; Kim, S.-Y.; et al. Portable ammonia-borane-based H2 power-pack for unmanned aerial vehicles. J. Power Sources 2014, 254, 329–337. [Google Scholar] [CrossRef]
  117. Nakagawa, T.; Paik, B.; Davis, B.; Semelsberger, T.; Baker, T.; Sneddon, L. Annual merit review, May 17th Los Alamos National Laboratory la-ur 12-20427. Available online: http://www.hydrogen.energy.gov/pdfs/review12/st040_davis_2012_o.pdf (accessed on 21 August 2015).
  118. Semelsberger, T.A.; Davis, B.L.; Rekken, B.D.; Paik, B.; Tafoya, J.I. Chemical hydrogen rate modeling, validation, and system demonstration. In Proceedings of DOE Fuel Cell Technologies Program Annual Merit Review, EERE: Hydrogen, Fuel Cells and Infrastructure Technologies Program, Washington, DC, USA, 13–17 May 2013.
Back to TopTop
