Effect of Ultraviolet Aging on Rheology and Chemistry of LDH-Modified Bitumen
Abstract
:1. Introduction
2. Materials and Test Methods

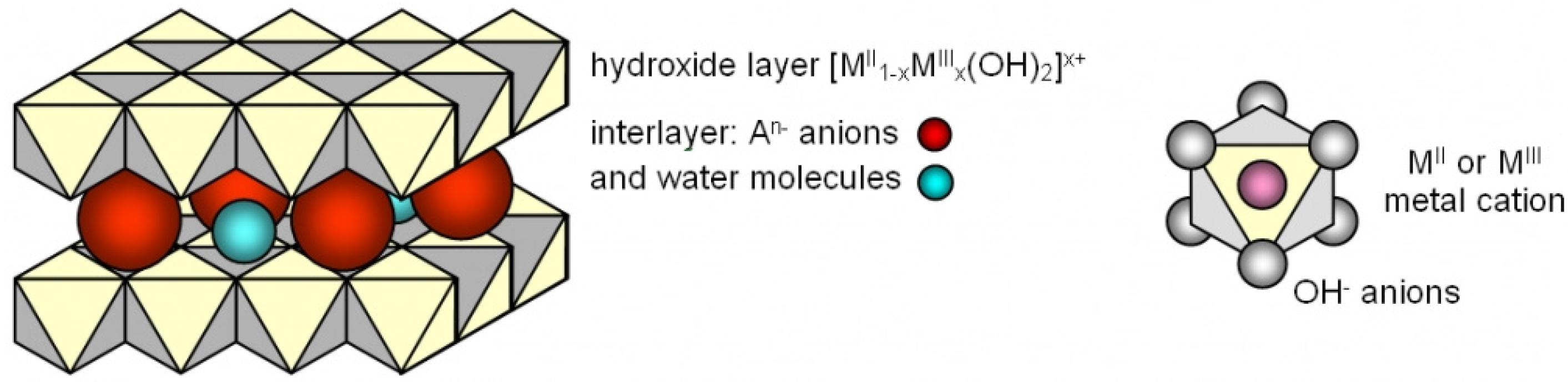

2.1. Materials and Preparation
2.2. Procedure of UV Aging
2.3. Rotational Viscometer and DSR Test
2.4. UV-Vis Test
2.5. TLC-FID Test
2.6. FTIR Test
2.7. Physical Properties Test
3. Results and Discussions

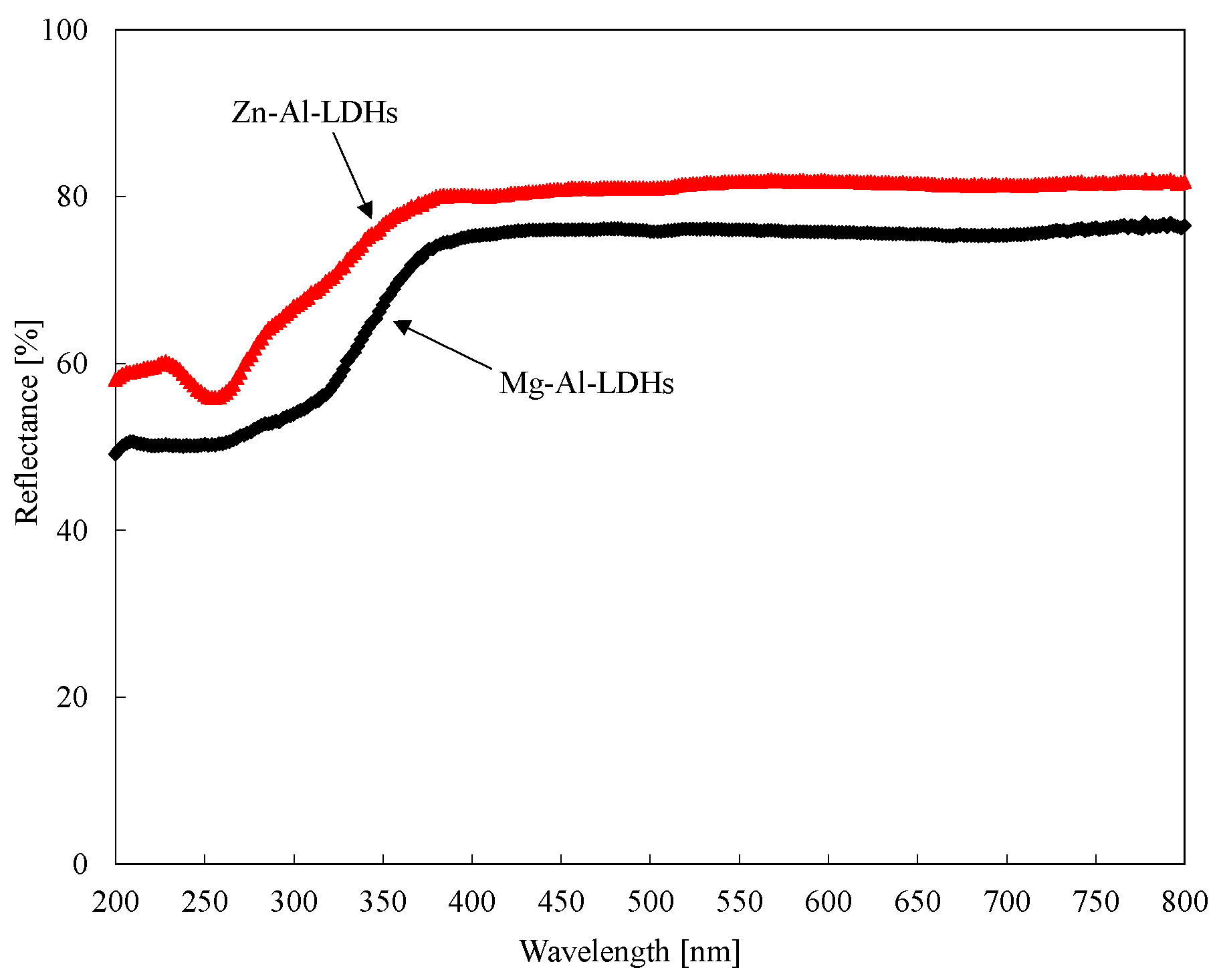

3.1. Reflectance of LDHs
3.2. Effect of UV Aging on Rheology of LDH-Modified Bitumen
3.2.1. Dynamic Viscosity
Type of Bitumen | V1 of Fresh Bitumen (Pa·s) | V2 of Bitumen after UV Aging (Pa·s) | VAI * |
---|---|---|---|
Base | 0.325 ± 0.001 | 2.786 ± 0.002 | 7.6 |
Mg-Al-LDHs + Base | 0.451 ± 0.002 | 1.395 ± 0.002 | 2.1 |
Zn-Al-LDHs + Base | 0.430 ± 0.002 | 1.262 ± 0.002 | 1.9 |
3.2.2. Complex Modulus and Phase Angle
3.3. Effect of UV Aging on Chemistry of LDH-Modified Bitumen
3.3.1. Analysis of TLC-FID
Type of Bitumen | Saturates (%) | Aromatics (%) | Resins (%) | Asphaltenes (%) | Ic |
---|---|---|---|---|---|
Base-fresh | 11.88 | 36.78 | 43.02 | 8.32 | 3.95 |
Mg-Al-LDHs + Base-fresh | 12.53 | 37.20 | 42.99 | 7.28 | 4.05 |
Zn-Al-LDHs + Base-fresh | 12.20 | 35.82 | 44.80 | 7.18 | 4.16 |
Base-UV aging | 12.13 | 25.74 | 41.41 | 20.72 | 2.04 |
Mg-Al-LDHs + Base-UV aging | 11.39 | 30.10 | 40.34 | 19.77 | 2.26 |
Zn-Al-LDHs + Base-UV aging | 10.96 | 26.73 | 43.77 | 18.54 | 2.39 |

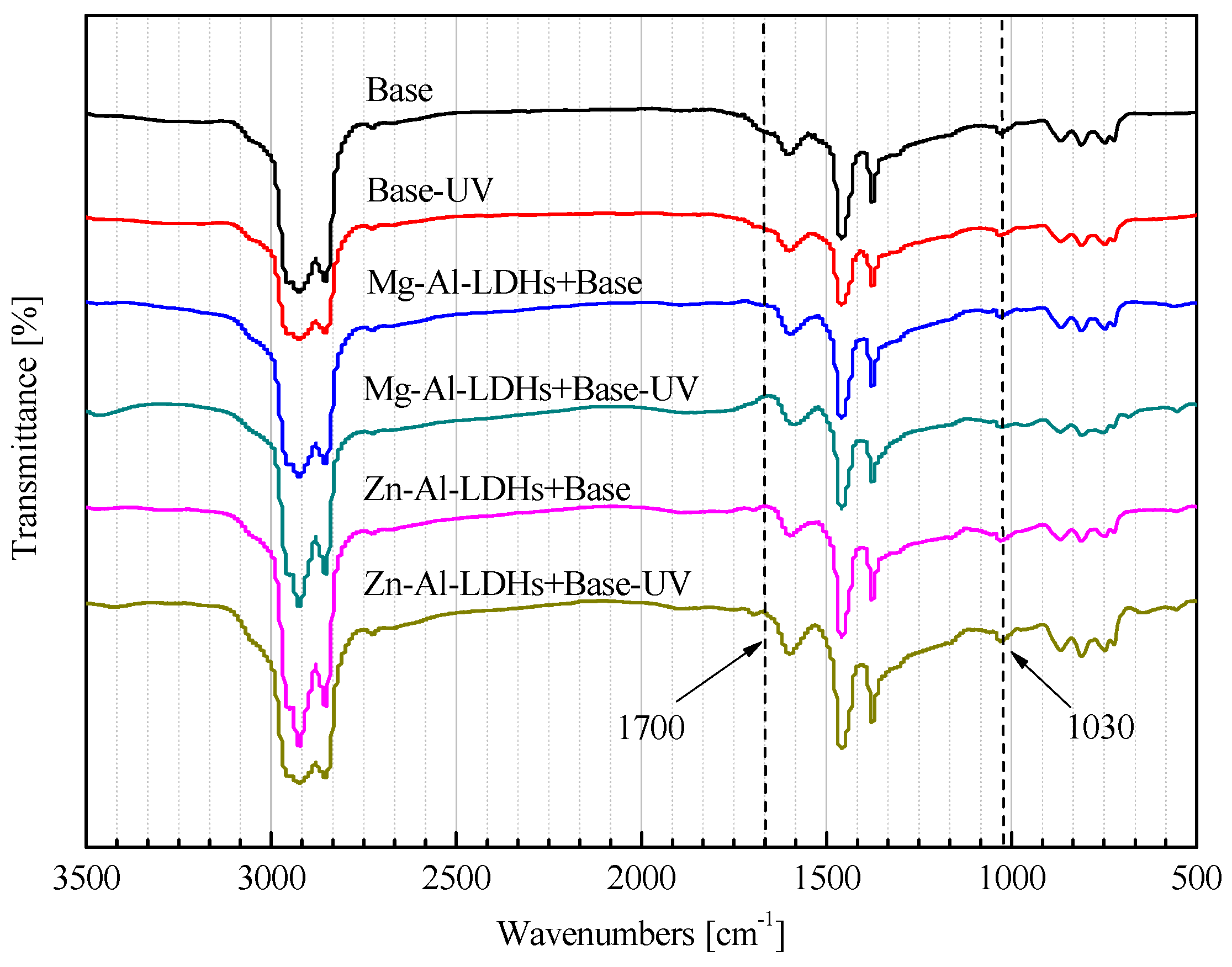

3.3.2. Analysis of FTIR
Sample | Index | Fresh | UV Aging |
---|---|---|---|
Base | IC=O | 0.0036 | 0.0200 |
IS=O | 0.0100 | 0.0440 | |
Mg-Al-LDHs + Base | IC=O | 0.0036 | 0.0179 |
IS=O | 0.0100 | 0.0356 | |
Zn-Al-LDHs + Base | IC=O | 0.0037 | 0.0140 |
IS=O | 0.0100 | 0.0260 |
3.4. Effect of UV Aging on Physical Properties of LDH-Modified Bitumen
Type of Bitumen | Penetration (25 °C, dmm) | PRR * (%) | Softening Point (°C) | SPI * (°C) | ||
---|---|---|---|---|---|---|
Fresh | UV Aging | Fresh | UV Aging | |||
Base | 87 ± 1 | 53 ± 2 | 61 | 49.4 ± 0.2 | 66.9 ± 0.2 | 17.5 |
Mg-Al-LDHs + Base | 68 ± 2 | 56 ± 1 | 82 | 51.8 ± 0.2 | 62.5 ± 0.4 | 10.7 |
Zn-Al-LDHs + Base | 72 ± 1 | 61 ± 2 | 85 | 51.4 ± 0.2 | 59.5 ± 0.2 | 8.1 |
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Liu, G.; Nielsen, E.; Komacka, J.; Leegwater, G.; van de Ven, M. Influence of soft bitumens on the chemical and rheological properties of reclaimed polymer-modified binders from the “old” surface-layer asphalt. Constr. Build. Mater. 2015, 79, 129–135. [Google Scholar] [CrossRef]
- Liu, G.; Nielsen, E.; Komacka, J.; Leegwater, G.; van de Ven, M. Rheological and chemical evaluation on the aging properties of sbs polymer modified bitumen: From the laboratory to the field. Constr. Build. Mater. 2014, 51, 244–248. [Google Scholar] [CrossRef]
- Wu, S.; Pang, L.; Liu, G.; Zhu, J. Laboratory study on ultraviolet radiation aging of bitumen. J. Mater. Civ. Eng. 2010, 22, 767–772. [Google Scholar] [CrossRef]
- Yu, J.Y.; Feng, P.C.; Zhang, H.L.; Wu, S.P. Effect of organo-montmorillonite on aging properties of asphalt. Constr. Build. Mater. 2009, 23, 2636–2640. [Google Scholar] [CrossRef]
- Zhang, H.; Yu, J.; Wang, H.; Xue, L. Investigation of microstructures and ultraviolet aging properties of organo-montmorillonite/sbs modified bitumen. Mater. Chem. Phys. 2011, 129, 769–776. [Google Scholar] [CrossRef]
- Yamaguchi, K.; Sasaki, I.; Nishizaki, I.; Meiarashi, S.; Moriyoshi, A. Effects of film thickness, wavelength, and carbon black on photodegradation of asphalt. J. Jpn. Pet. Inst. 2005, 48, 150–155. [Google Scholar] [CrossRef]
- Yamaguchi, K.; Sasaki, L.; Meiarashi, S. Mechanism of asphalt binder aging by ultraviolet irradiation and aging resistance by adding carbon black. J. Jpn. Pet. Inst. 2004, 47, 266–273. [Google Scholar] [CrossRef]
- Zhang, L.; Lin, Y.; Tuo, Z.; Evans, D.G.; Li, D. Synthesis and uv absorption properties of 5-sulfosalicylate-intercalated Zn–Al layered double hydroxides. J. Solid State Chem. 2007, 180, 1230–1235. [Google Scholar] [CrossRef]
- Feng, Y.; Li, D.; Wang, Y.; Evans, D.G.; Duan, X. Synthesis and characterization of a uv absorbent-intercalated Zn–Al layered double hydroxide. Polym. Degrad. Stab. 2006, 91, 789–794. [Google Scholar] [CrossRef]
- Chai, H.; Xu, X.; Lin, Y.; Evans, D.G.; Li, D. Synthesis and uv absorption properties of 2,3-dihydroxynaphthalene-6-sulfonate anion-intercalated Zn–Al layered double hydroxides. Polym. Degrad. Stab. 2009, 94, 744–749. [Google Scholar] [CrossRef]
- Wang, B.; Zhang, H.; Evans, D.G.; Duan, X. Surface modification of layered double hydroxides and incorporation of hydrophobic organic compounds. Mater. Chem. Phys. 2005, 92, 190–196. [Google Scholar] [CrossRef]
- Ay, A.N.; Zümreoglu-Karan, B.; Temel, A.; Mafra, L. Layered double hydroxides with interlayer borate anions: A critical evaluation of synthesis methodology and ph-independent orientations in nano-galleries. Appl. Clay Sci. 2011, 51, 308–316. [Google Scholar] [CrossRef]
- Xu, S.; Yu, J.; Sun, Y.; Wu, S. Synthesis and characterization of organic intercalated layered double hydroxides and their application in bitumen modification. Mater. Chem. Phys. 2015, 152, 54–61. [Google Scholar] [CrossRef]
- Wu, S.; Han, J.; Pang, L.; Yu, M.; Wang, T. Rheological properties for aged bitumen containing ultraviolate light resistant materials. Constr. Build. Mater. 2012, 33, 133–138. [Google Scholar] [CrossRef]
- Huang, Y.; Feng, Z.; Zhang, H.; Yu, J. Effect of layered double hydroxides (ldhs) on aging properties of bitumen. J. Test. Eval. 2012, 40, 734–739. [Google Scholar] [CrossRef]
- Standard Test Method for Thin Film Oven Test of Bituminous Materials; American Society for Testing Material (ASTM) International: West Conshohocken, PA, USA, 2009; ASTM d1754/D1754M-09.
- Standard Test Method for the Viscosity of Bituminous Materials; American Society for Testing Material (ASTM) International: West Conshohocken, PA, USA, 2006; ASTM D4402-06.
- Standard Test Method for Penetration of Bituminous Materials; American Society for Testing Material (ASTM) International: West Conshohocken, PA, USA, 2006; ASTM D5-06.
- Standard Test Method for Softening Point of Bitumen (Ring-and-Ball Apparatus); American Society for Testing Material (ASTM) International: West Conshohocken, PA, USA, 2009; ASTM D36-09.
- Zhang, X.; Liu, Y.; Zhi, Z.; Zhang, J.; Lu, Y.; Xu, W.; Shen, D.; Zhong, G.; Fan, X.; Kong, X. High intense uv-luminescence of nanocrystalline ZnO thin films prepared by thermal oxidation of ZnS thin films. J. Cryst. Growth 2002, 240, 463–466. [Google Scholar] [CrossRef]
- Wang, S.; Xia, G.; Shao, J.; Fan, Z. Structure and uv emission of nanocrystal zno films by thermal oxidation of zns films. J. Alloy. Compd. 2006, 424, 304–306. [Google Scholar] [CrossRef]
- Gao, X.; Li, X.; Yu, W. Structure and uv photoluminescence of nanocrystalline ZnO films prepared by thermal oxidation of ZnS films. Mater. Sci. Eng. B 2004, 113, 274–278. [Google Scholar] [CrossRef]
- Airey, G.D. Rheological evaluation of ethylene vinyl acetate polymer modified bitumens. Constr. Build. Mater. 2002, 16, 473–487. [Google Scholar] [CrossRef]
- Lu, X.; Isacsson, U. Effect of aging on bitumen chemistry and rheology. Constr. Build. Mater. 2002, 16, 15–22. [Google Scholar] [CrossRef]
- Loeber, L.; Muller, G.; Morel, J.; Sutton, O. Bitumen in colloid science: A chemical, structural and rheological approach. Fuel 1998, 77, 1443–1450. [Google Scholar] [CrossRef]
- Lesueur, D. The colloidal structure of bitumen: Consequences on the rheology and on the mechanisms of bitumen modification. Adv. Colloid Interface Sci. 2009, 145, 42–82. [Google Scholar] [CrossRef] [PubMed]
- Mouillet, V.; Lamontagne, J.; Durrieu, F.; Planche, J.P.; Lapalu, L. Infrared microscopy investigation of oxidation and phase evolution in bitumen modified with polymers. Fuel 2008, 87, 1270–1280. [Google Scholar] [CrossRef]
