Next Article in Journal
Correction: McKinnon M.B. and Stoliarov S.I. Pyrolysis Model Development for a Multilayer Floor Covering. Materials 2015, 8, 6117–6153
Previous Article in Journal
Intelligent Optimization of the Film-to-Fiber Ratio of a Degradable Braided Bicomponent Ureteral Stent
Article Menu

Export Article

Open AccessArticle
Materials 2015, 8(11), 7578-7586;

Experimental Characterization of the Properties of Double-Lap Needled and Hybrid Joints of Carbon/Epoxy Composites

Institute of Polymer Mechanics, University of Latvia, Aizkraukles Str. 23, Riga LV-1006, Latvia
Research Laboratory of Innovative Building Structures, Vilnius Gediminas Technical University (VGTU), Sauletekio Av. 11, Vilnius LT-10223, Lithuania
Author to whom correspondence should be addressed.
Academic Editor: Javier Narciso
Received: 14 August 2015 / Revised: 12 October 2015 / Accepted: 21 October 2015 / Published: 11 November 2015
(This article belongs to the Section Advanced Composites)
Full-Text   |   PDF [5001 KB, uploaded 11 November 2015]   |

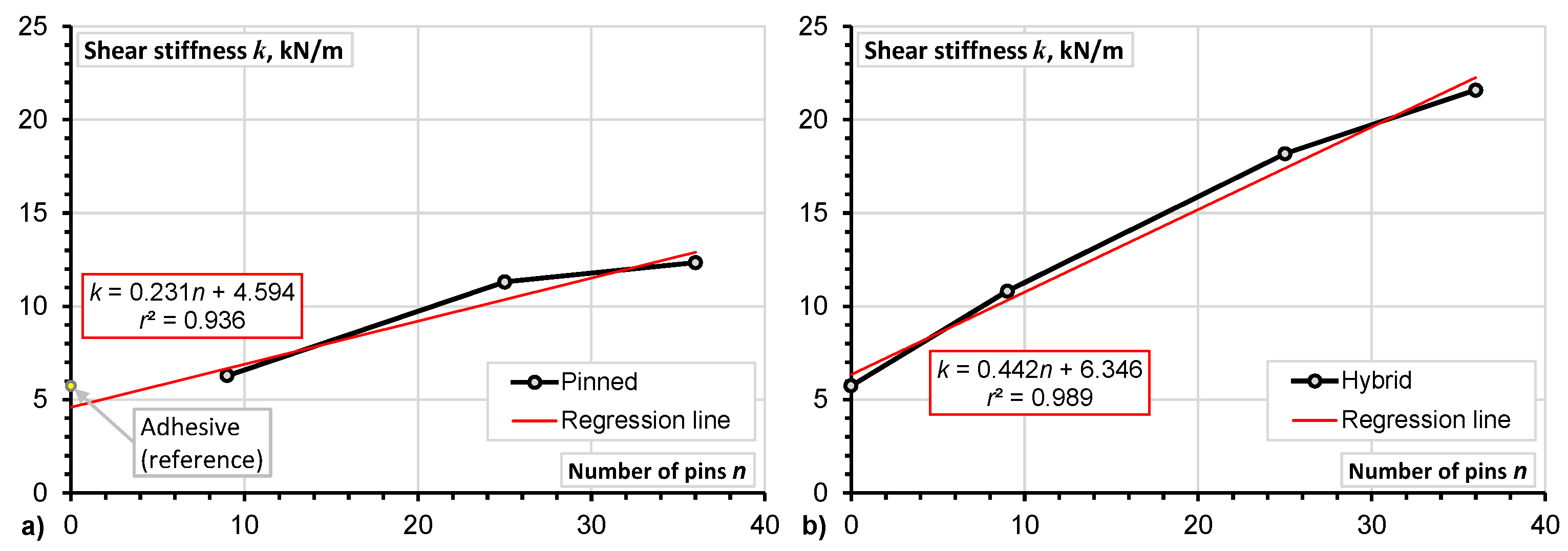

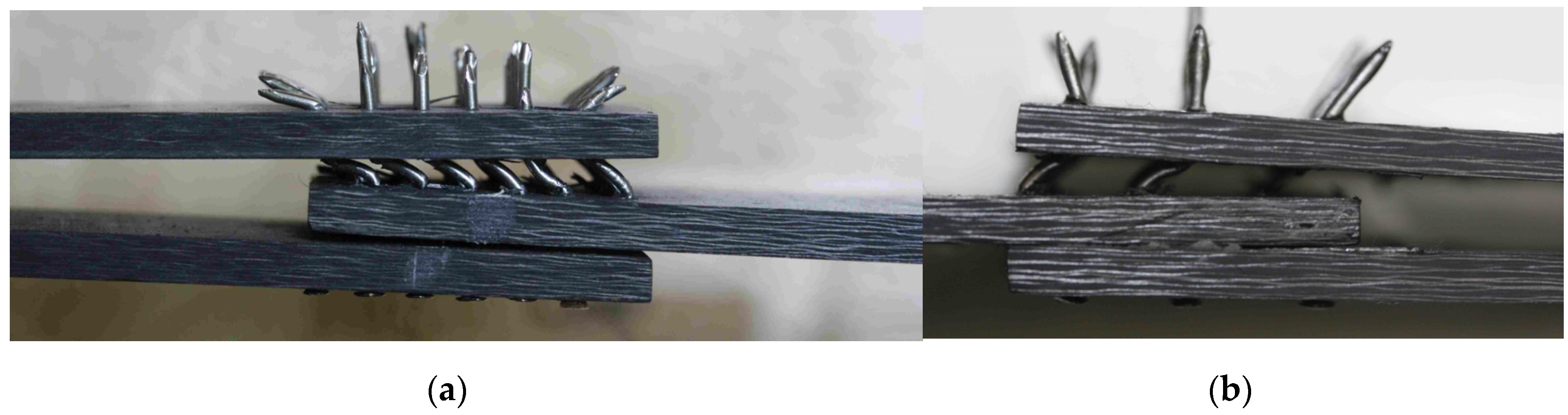

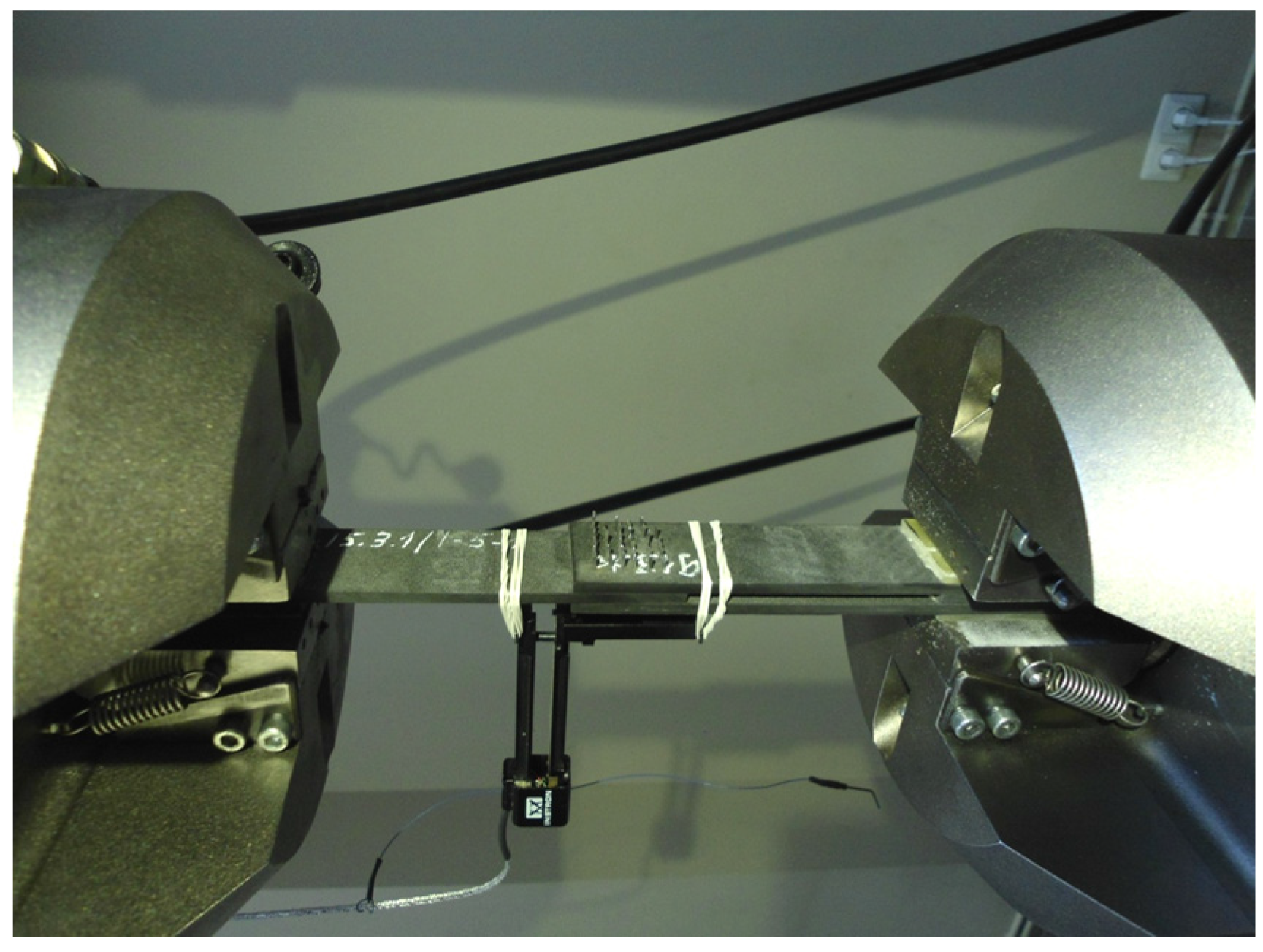

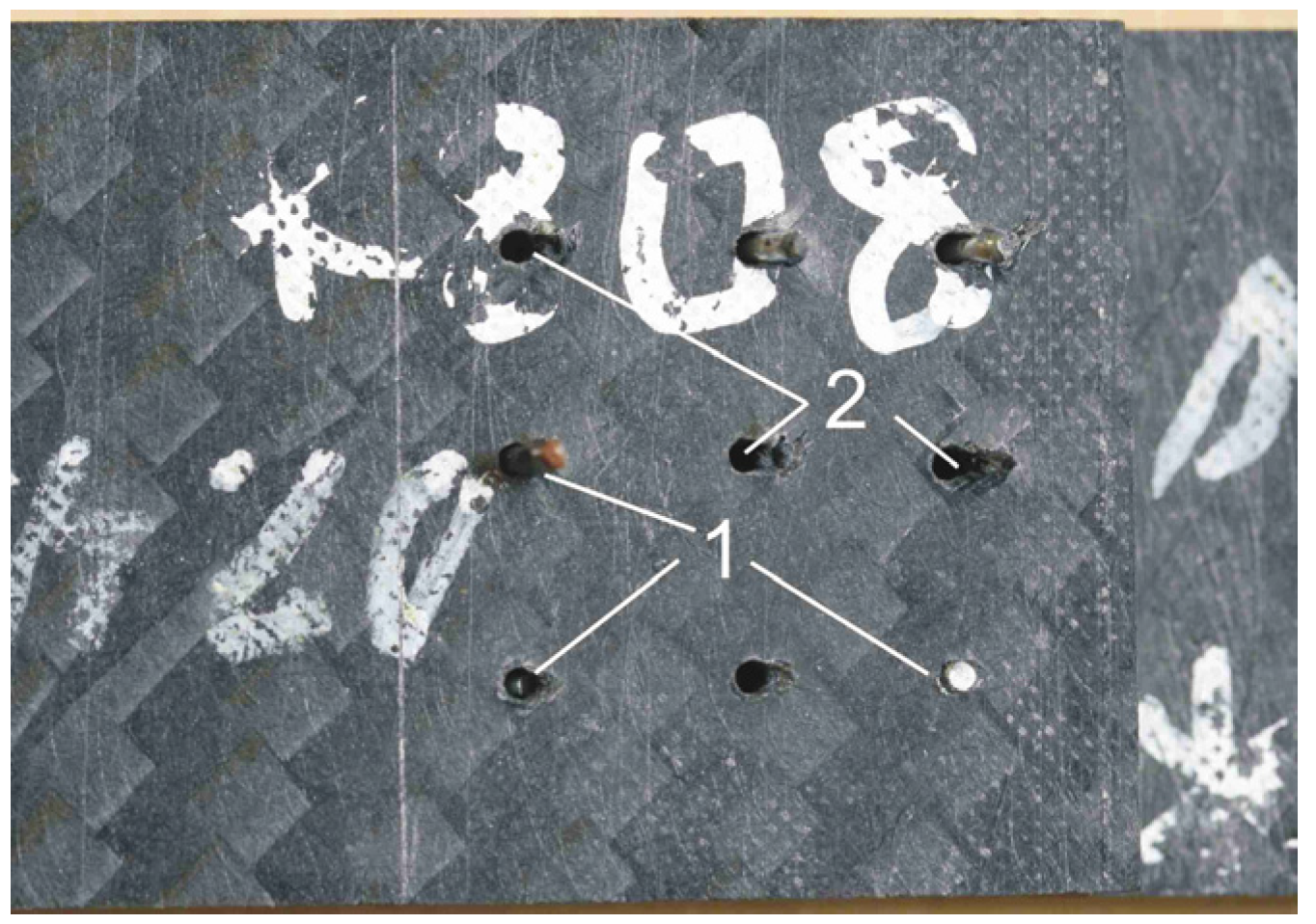

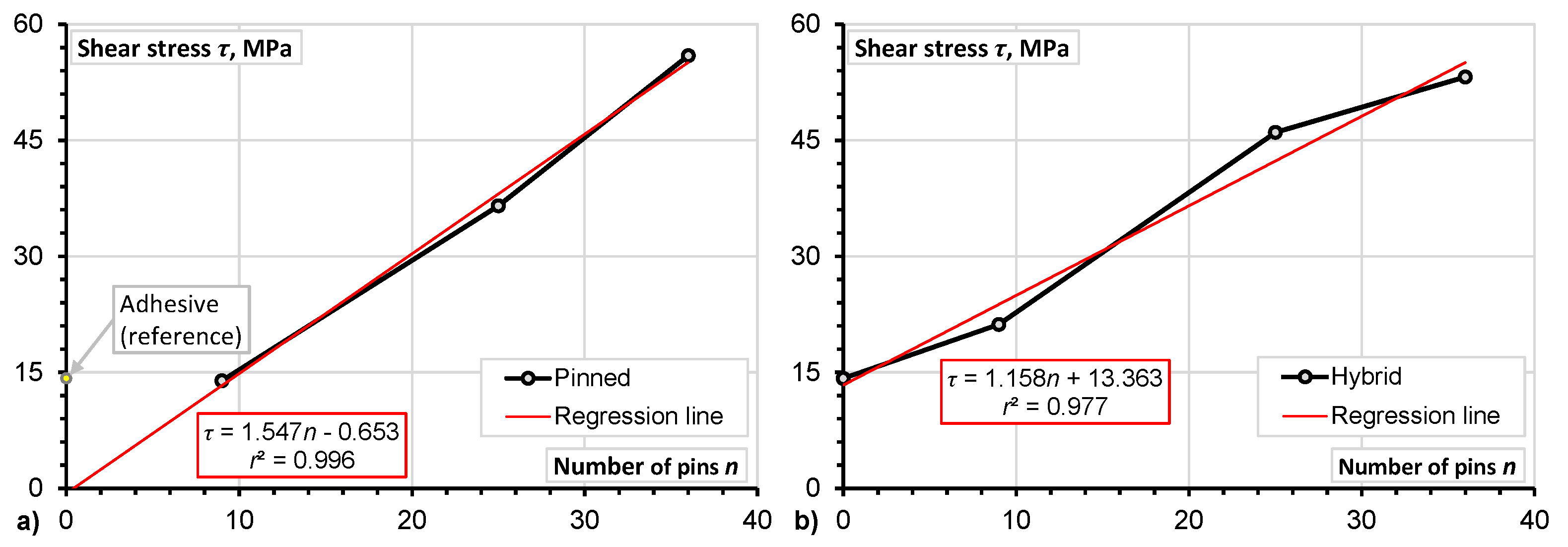

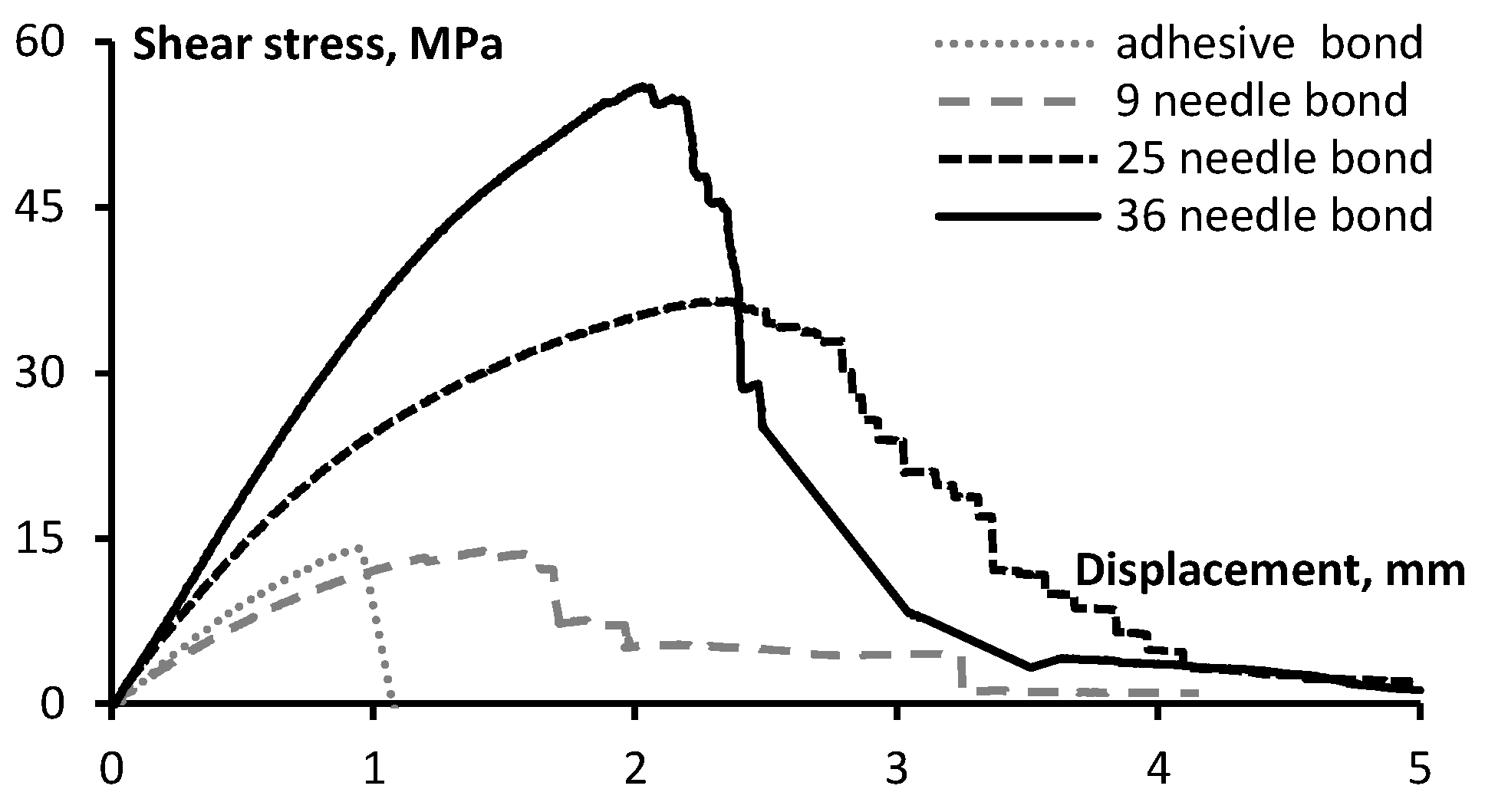

The effect of through-thickness reinforcement by thin 1 mm steel needles (z-pins) on the static tensile strength of double-lap joints of a carbon/epoxy composite was investigated. Two types of joints—z-pinned and hybrid (including glued ones)—were considered. The joints were reinforced in the overlap region with 9, 25, or 36 z-pins. Comparing mechanical properties of the double-lap joints with the corresponding characteristics of their unpinned counterparts, the z-pins were found to be highly effective: the strength and stiffness of the pinned joints increased up to 300% and 280%, respectively. These improvements were due to a transition in the failure mechanism from debonding of the joint in the absence of z-pins to pullout or shear rupture of z-pins or to the tensile failure of laminate adherends, depending on the volume content of the pins. View Full-Text
Keywords: carbon/epoxy composite; mechanical properties; joints; z-pins; hybrid carbon/epoxy composite; mechanical properties; joints; z-pins; hybrid

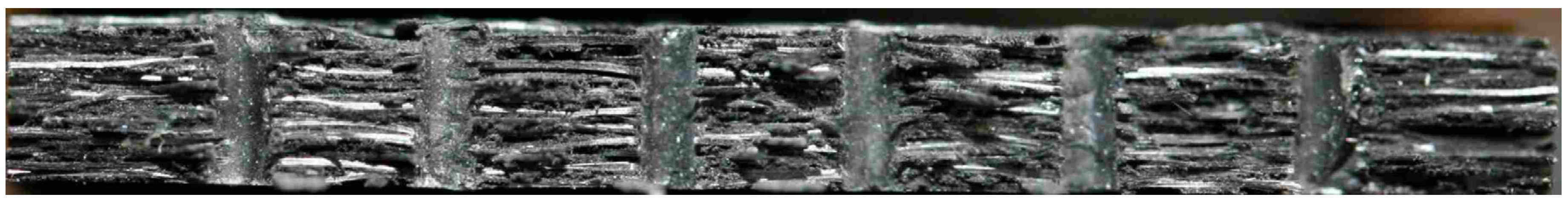

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Arnautov, A.; Nasibullins, A.; Gribniak, V.; Blumbergs, I.; Hauka, M. Experimental Characterization of the Properties of Double-Lap Needled and Hybrid Joints of Carbon/Epoxy Composites. Materials 2015, 8, 7578-7586.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
