Next Article in Journal
A Study of Crystalline Mechanism of Penetration Sealer Materials
Previous Article in Journal
Rapid Growth of Nanostructured Diamond Film on Silicon and Ti–6Al–4V Alloy Substrates
Previous Article in Special Issue
Epoxy/Polycaprolactone Systems with Triple-Shape Memory Effect: Electrospun Nanoweb with and without Graphene Versus Co-Continuous Morphology
Open AccessArticle

Characterization of Thermo-Mechanical and Fracture Behaviors of Thermoplastic Polymers

1
Laboratory of Mechanics and Materials of the Civil Engineering (L2MGC-EA4114), University of Cergy Pontoise, 5 mail Gay-Lussac, Neuville sur Oise, Cergy Pontoise Cedex 95031, France
2
Department of Mechanics Management and Mathematics (DMMM), Politecnico di Bari, Viale Japigia, 182, Bari 70126, Italy
3
Electromechanical Systems Laboratory (LASEM-LR99ES36), National Engineering School of Sfax, University of Sfax, Cité El Habib BP29, Sfax 3052, Tunisia
*
Author to whom correspondence should be addressed.
Materials 2014, 7(1), 375-398; https://doi.org/10.3390/ma7010375
Received: 28 October 2013 / Revised: 14 December 2013 / Accepted: 16 December 2013 / Published: 13 January 2014
(This article belongs to the Special Issue Smart Polymers and Polymeric Structures)

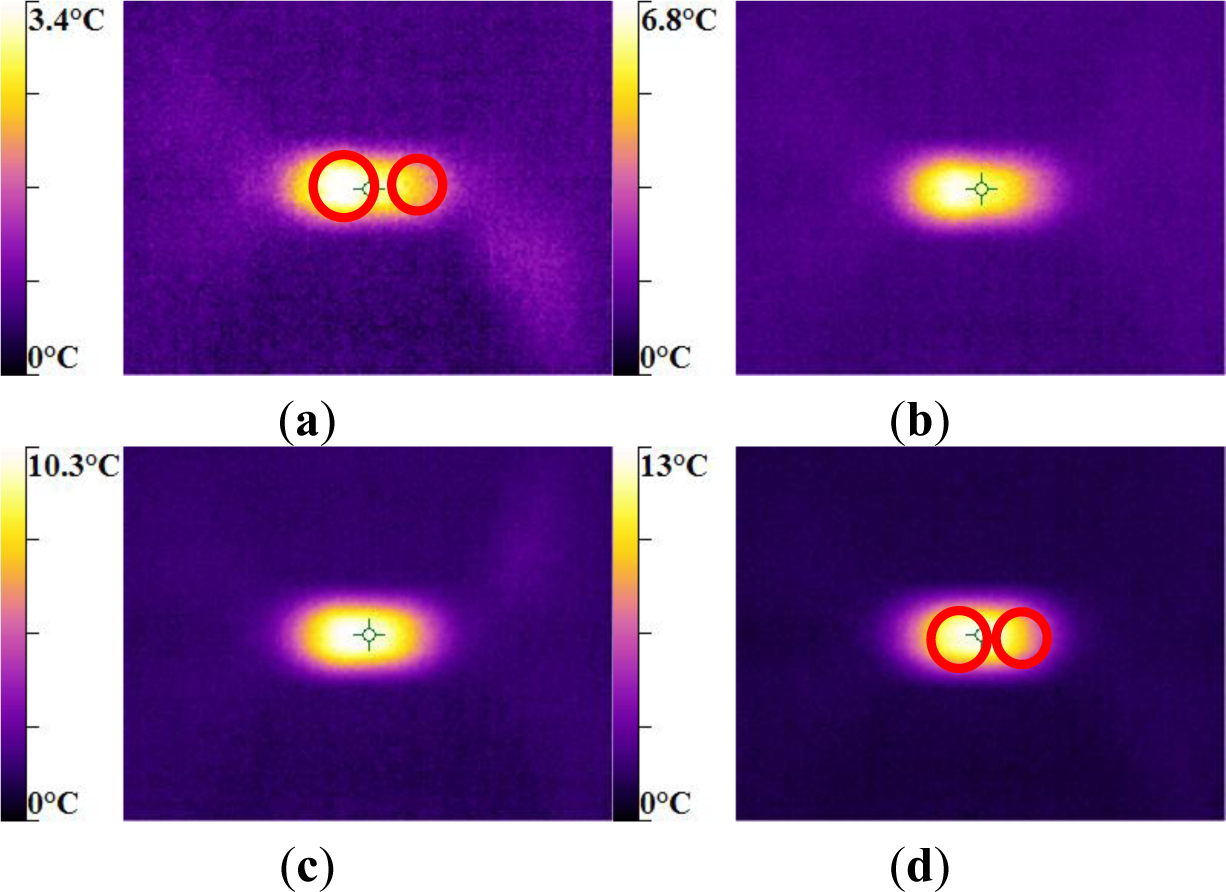

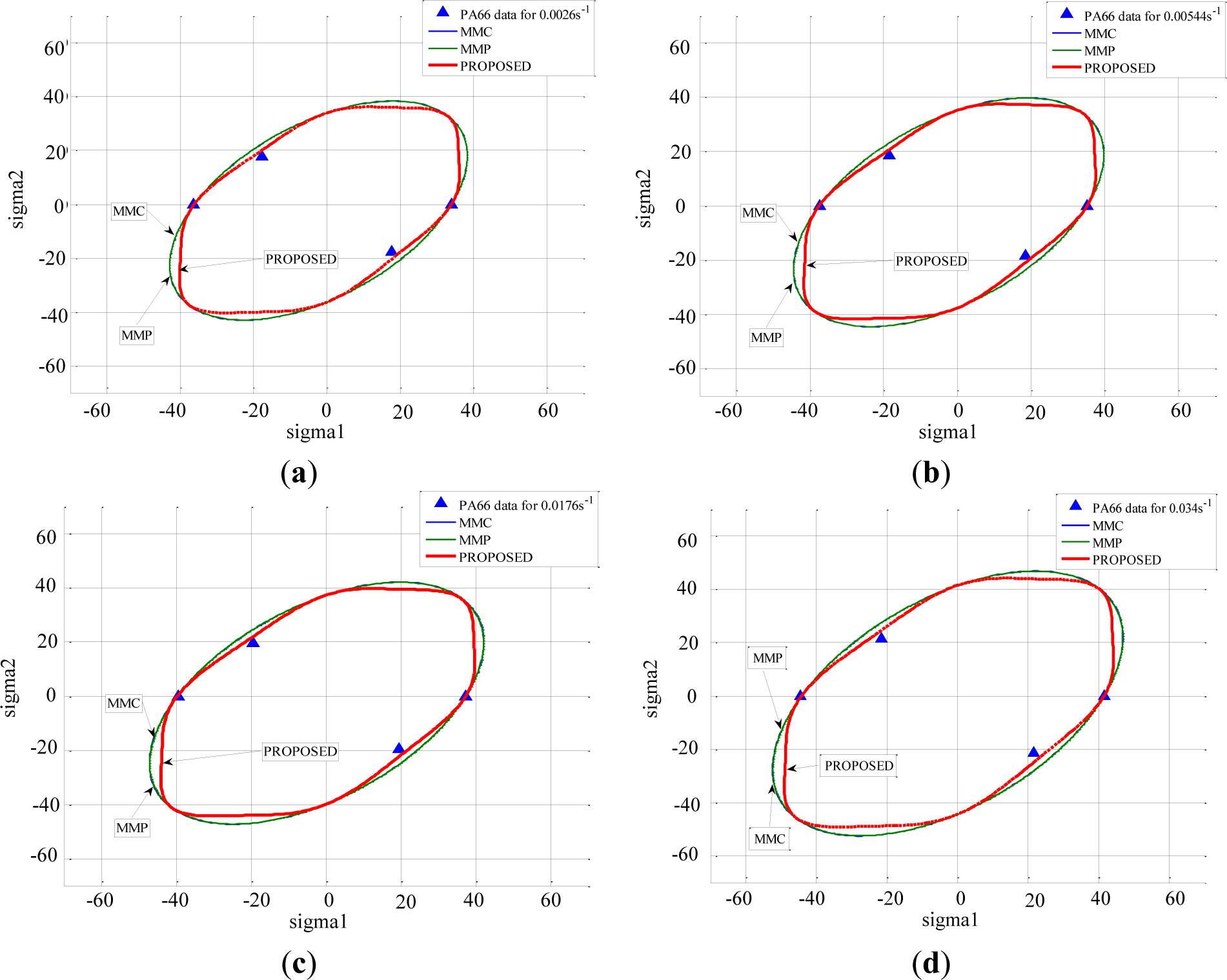

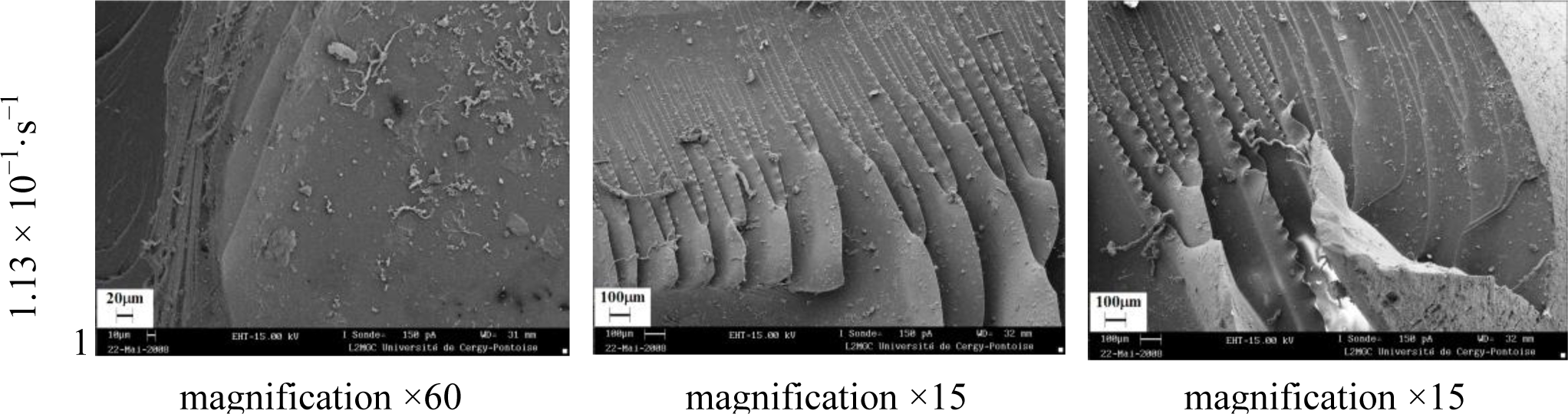

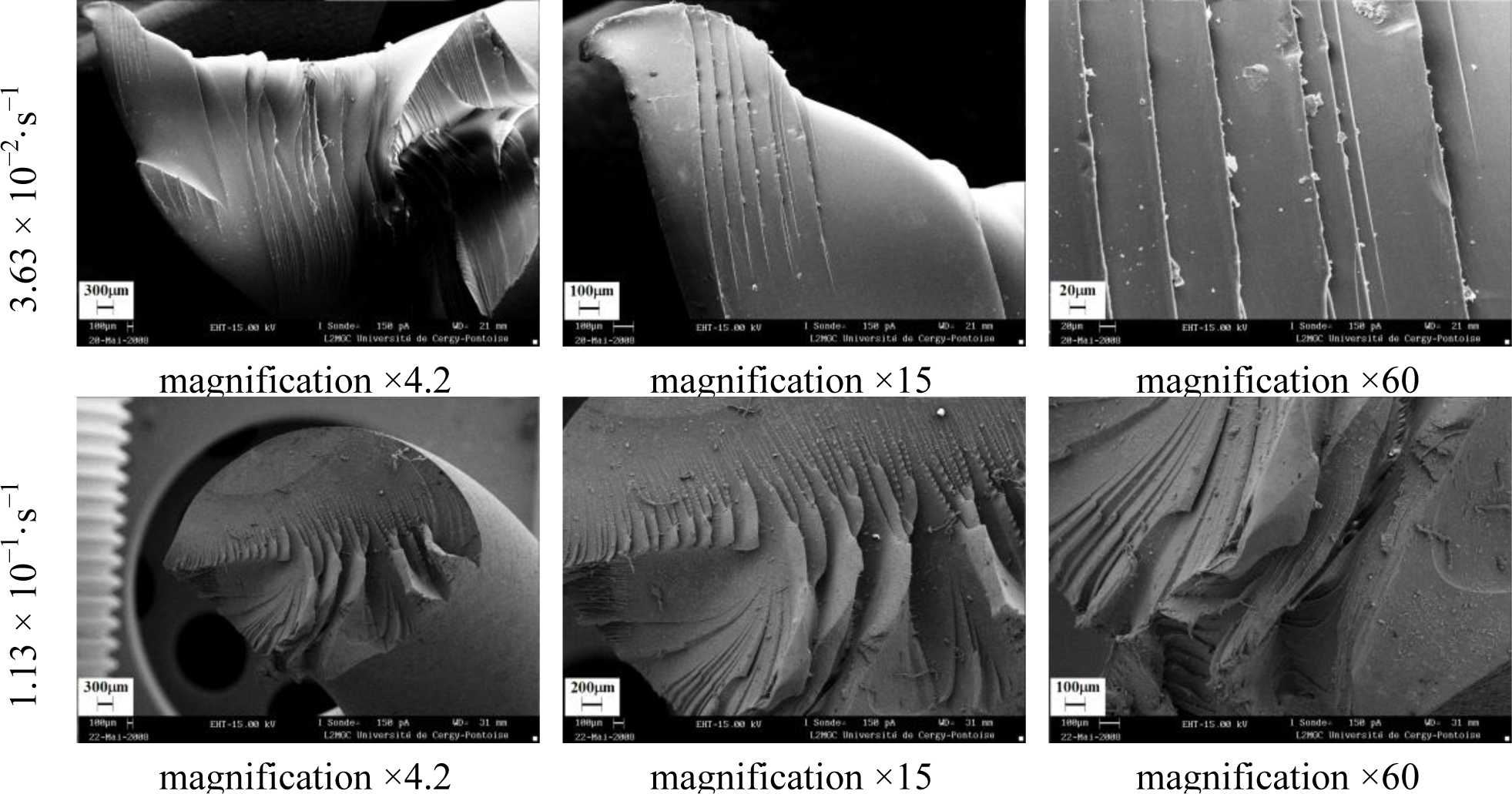

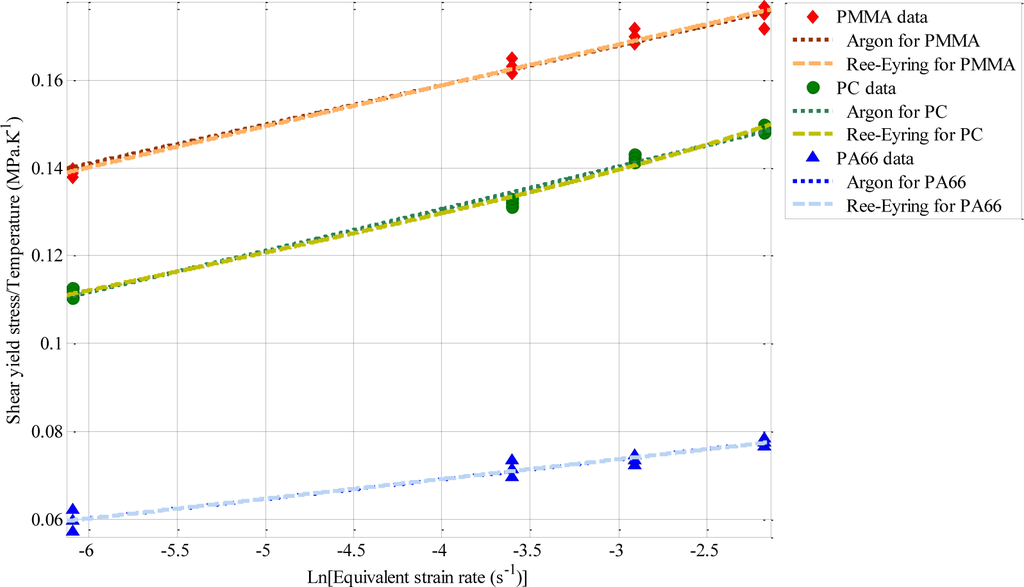

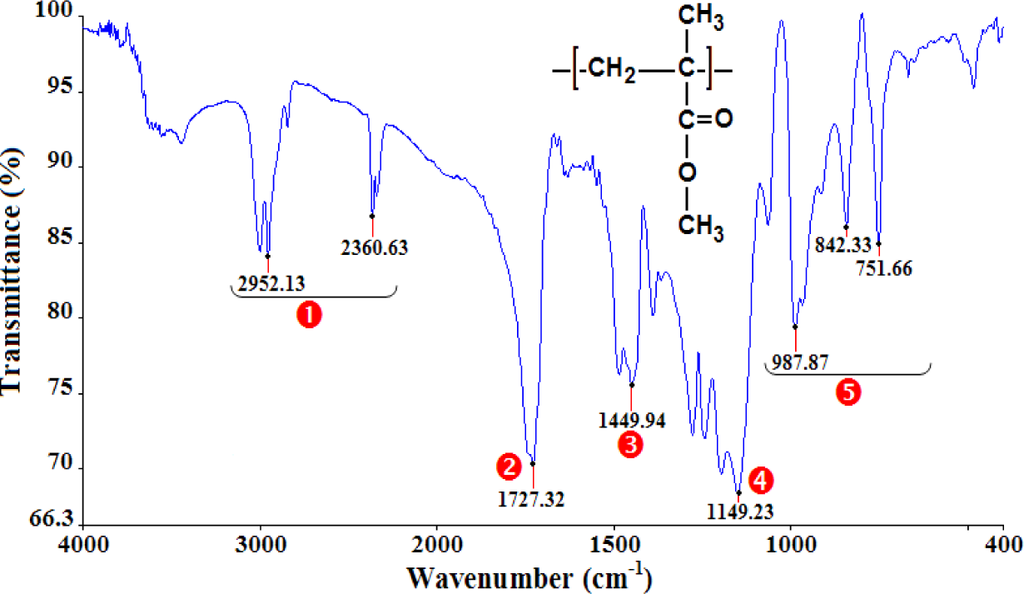

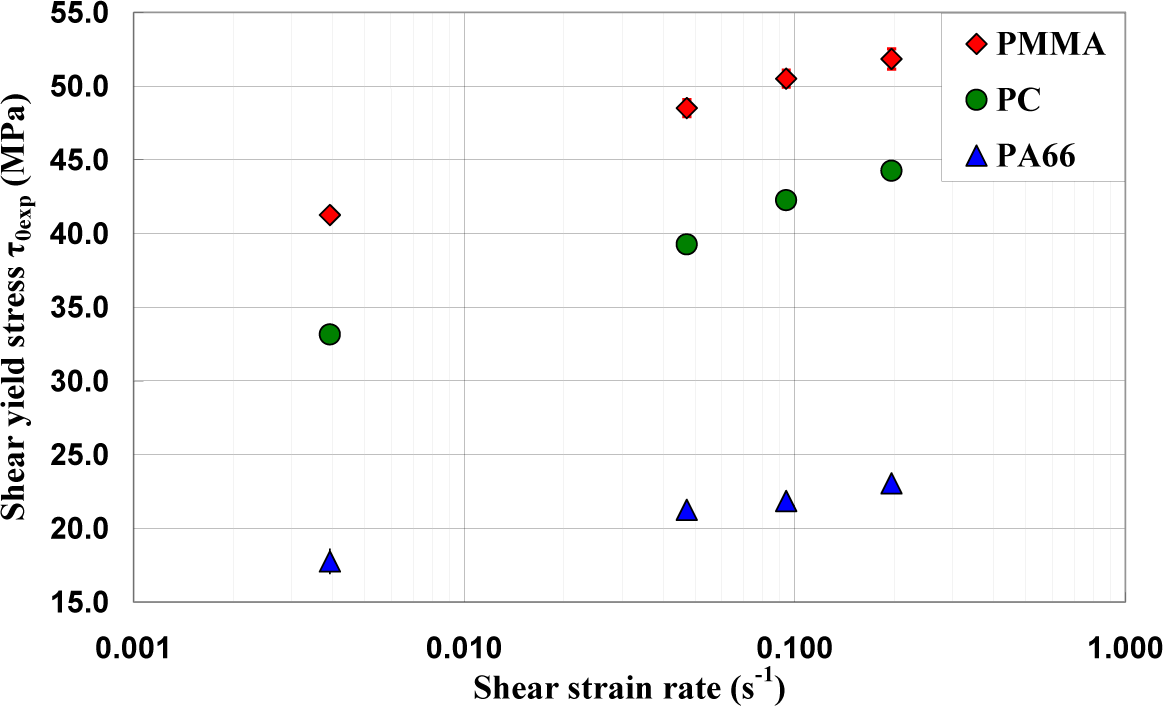

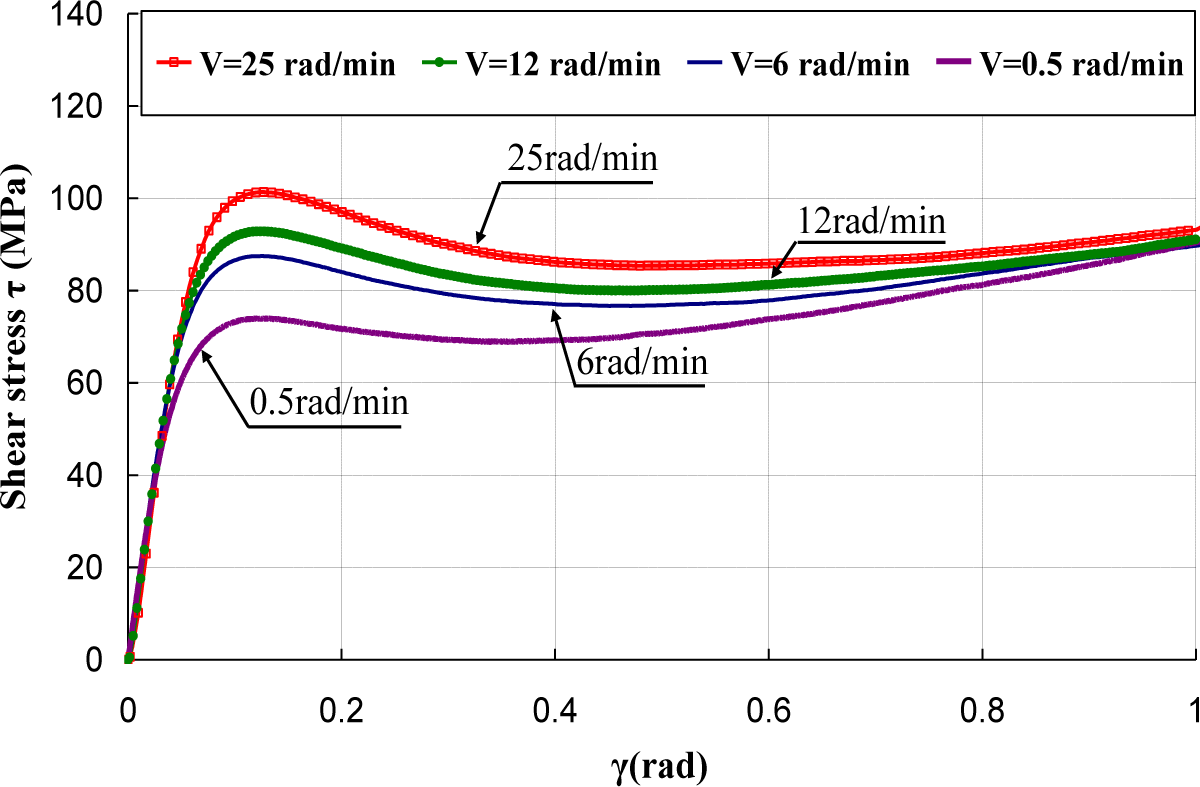

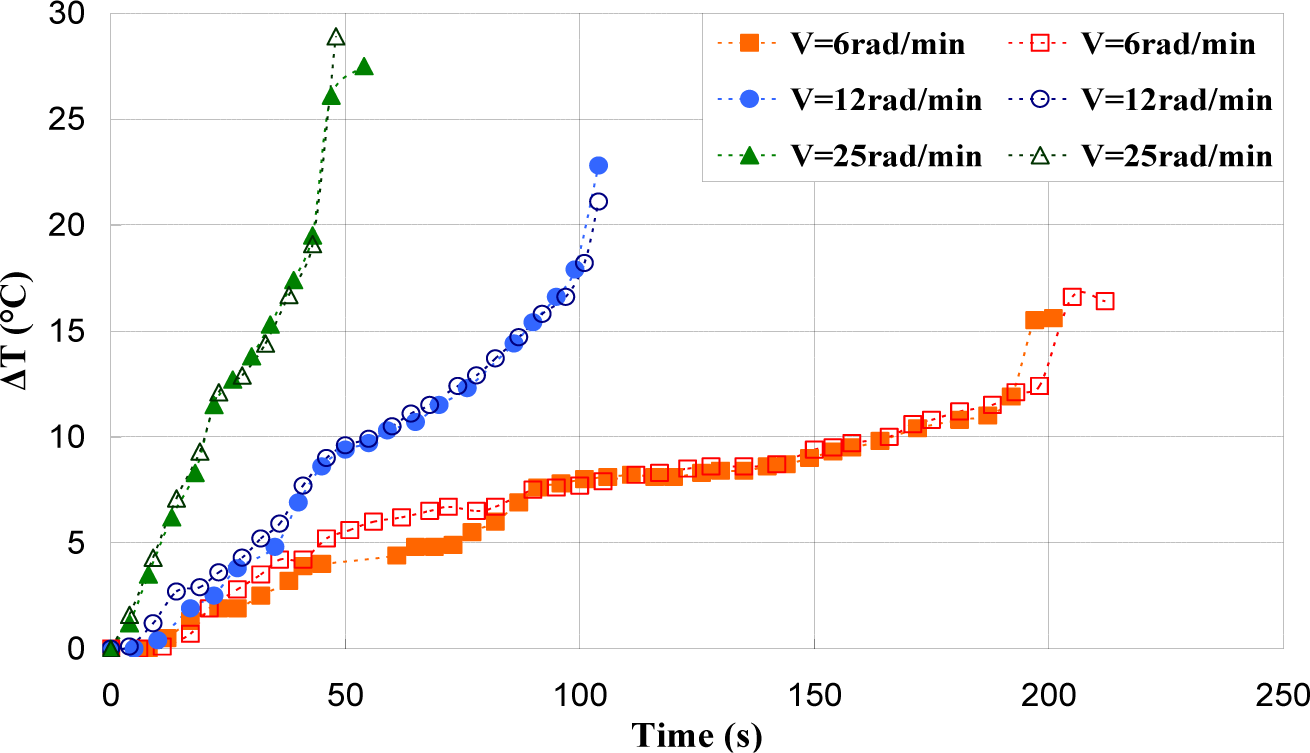

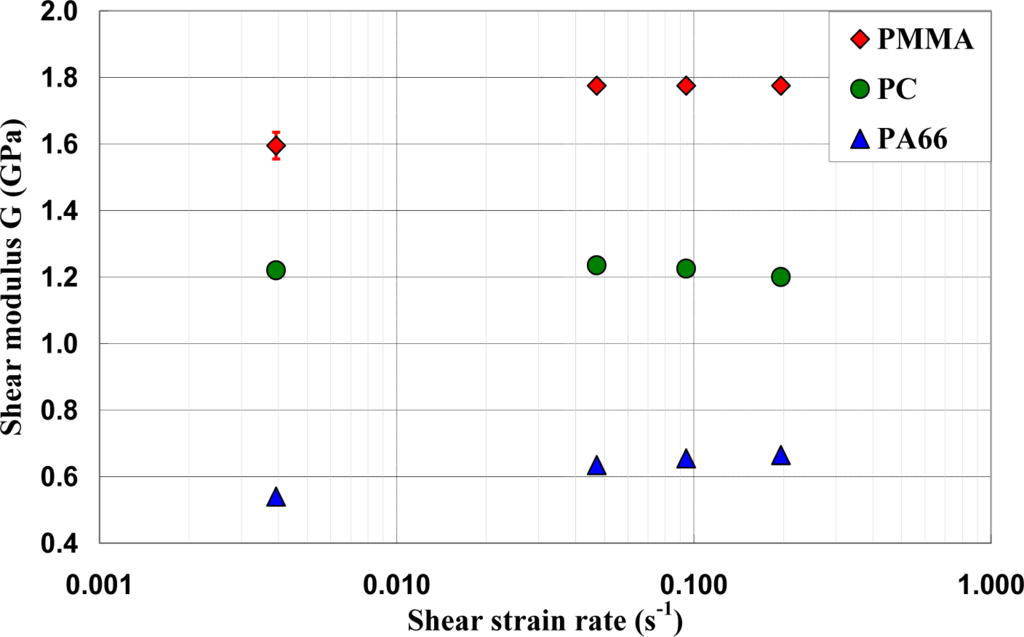

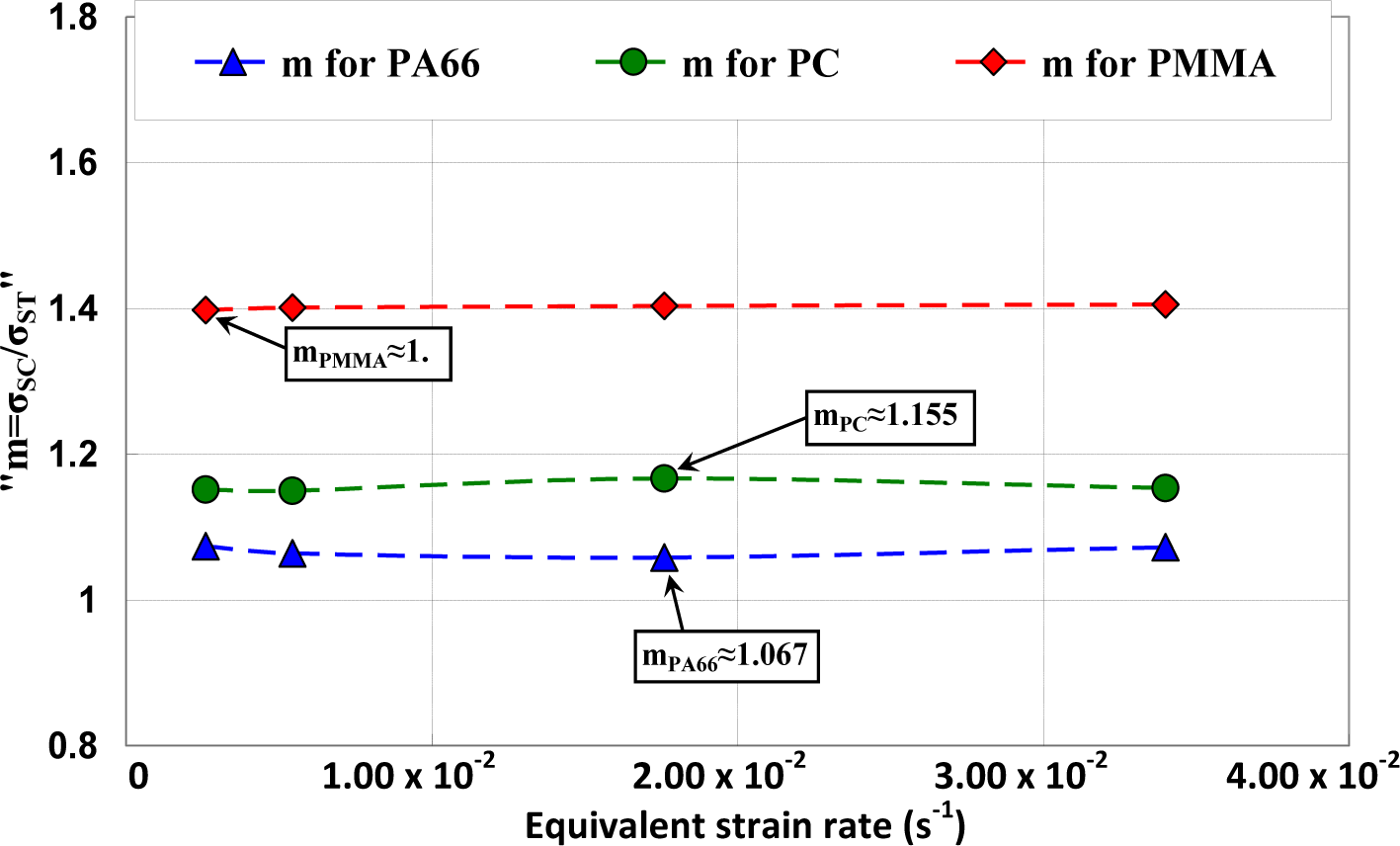

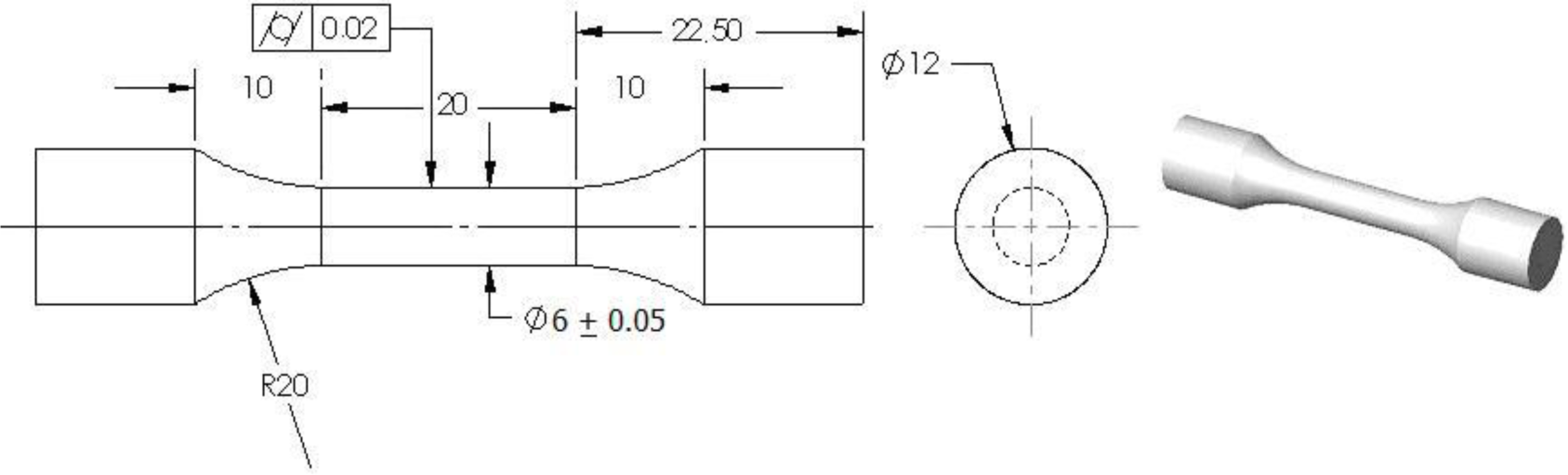

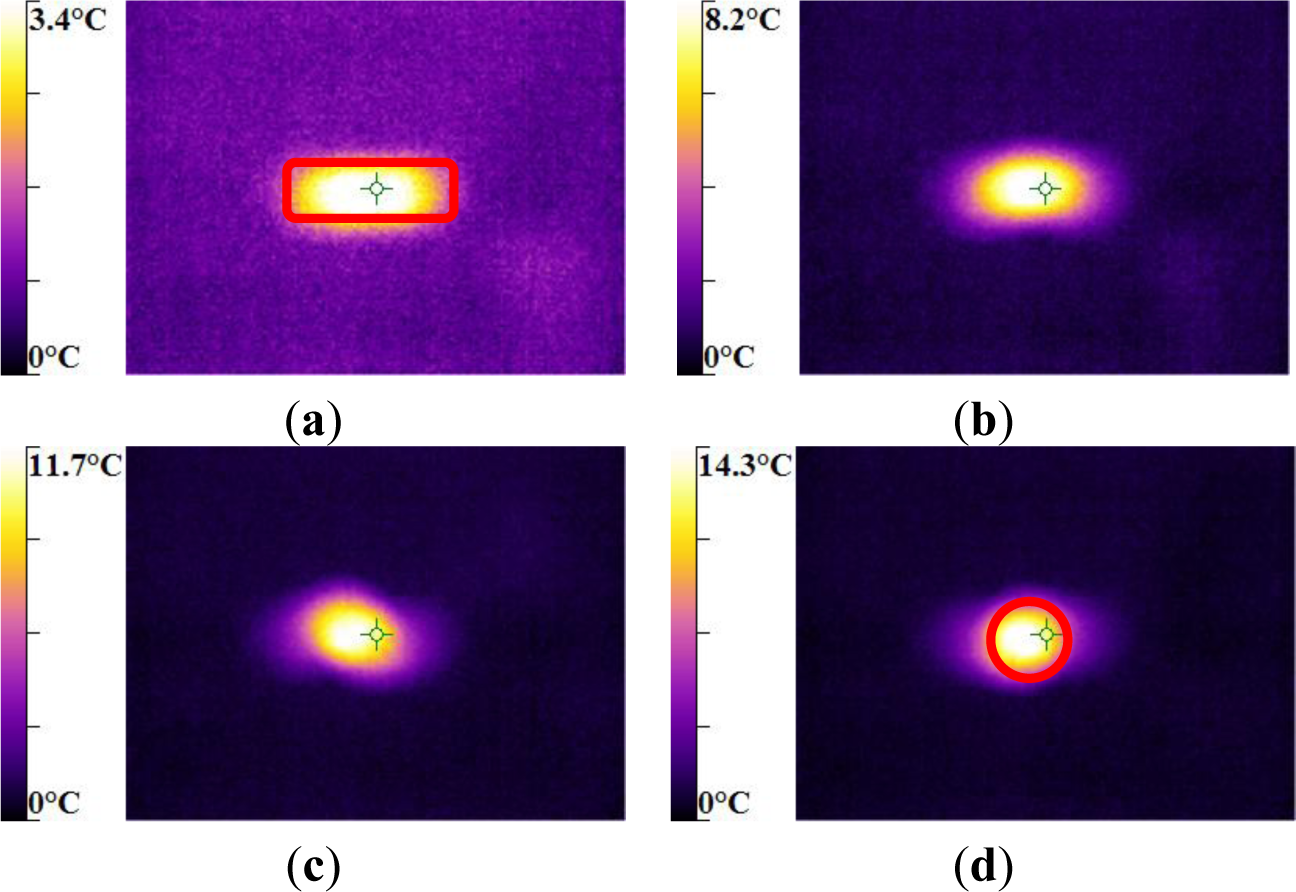

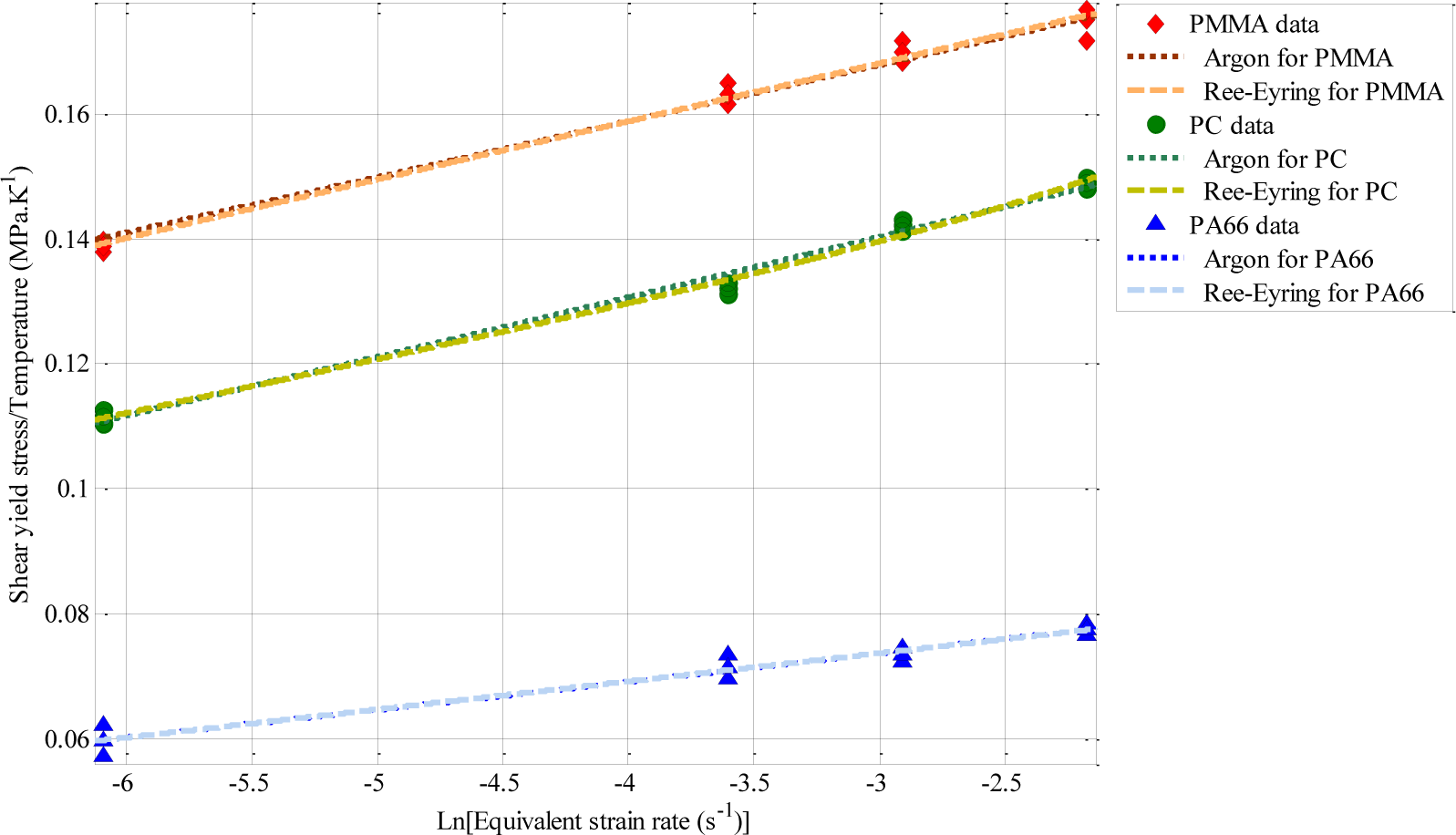

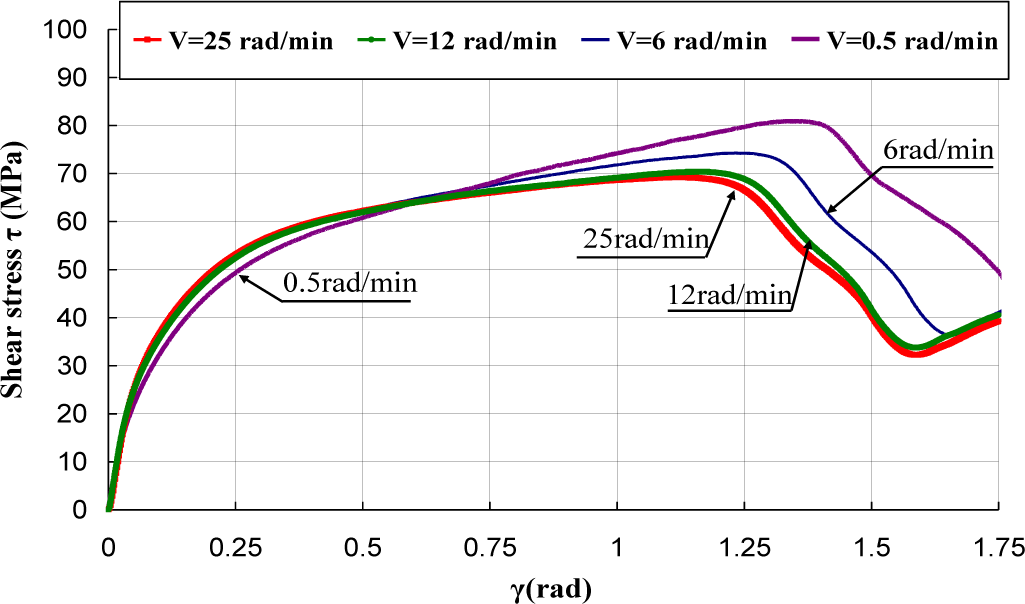

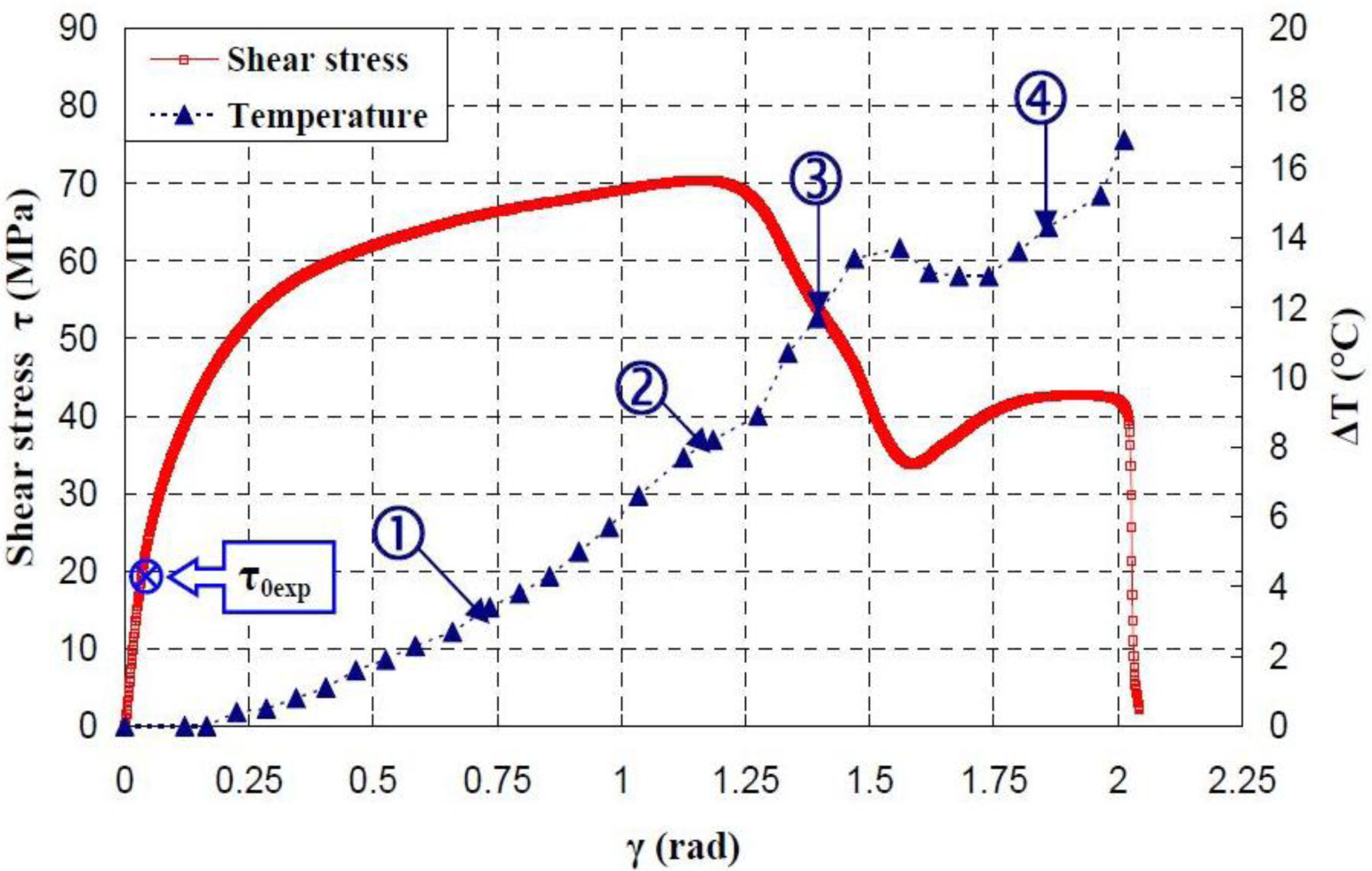

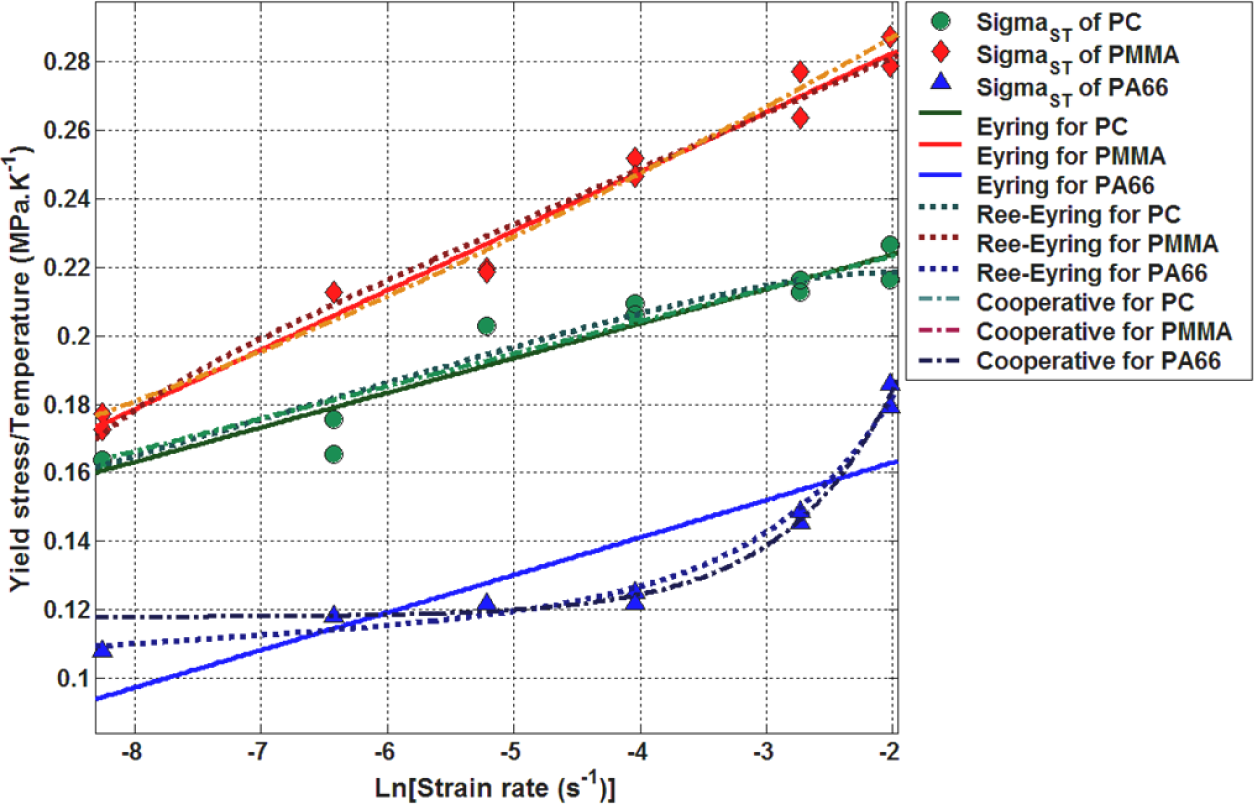

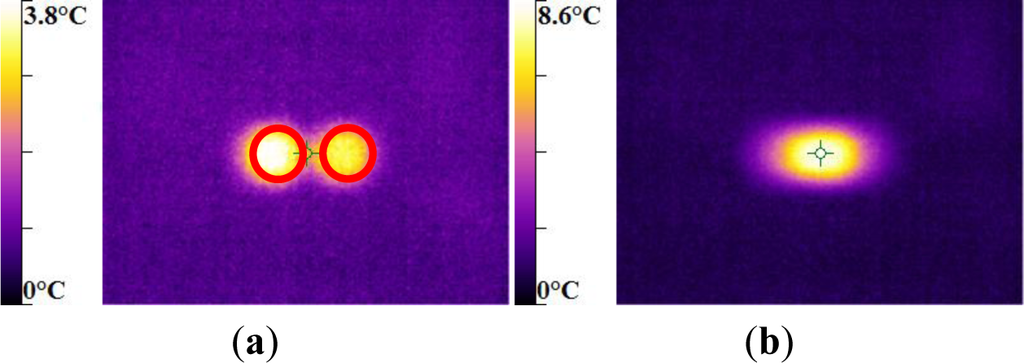

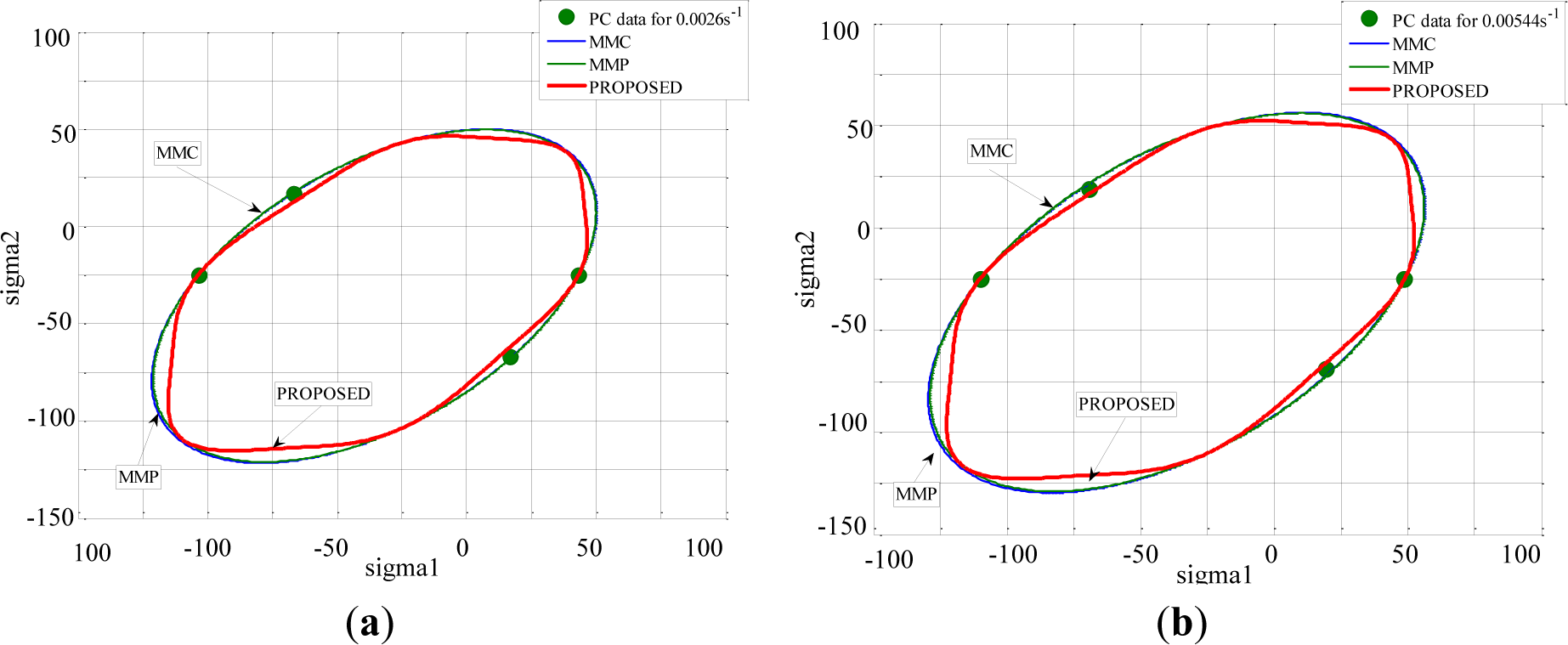

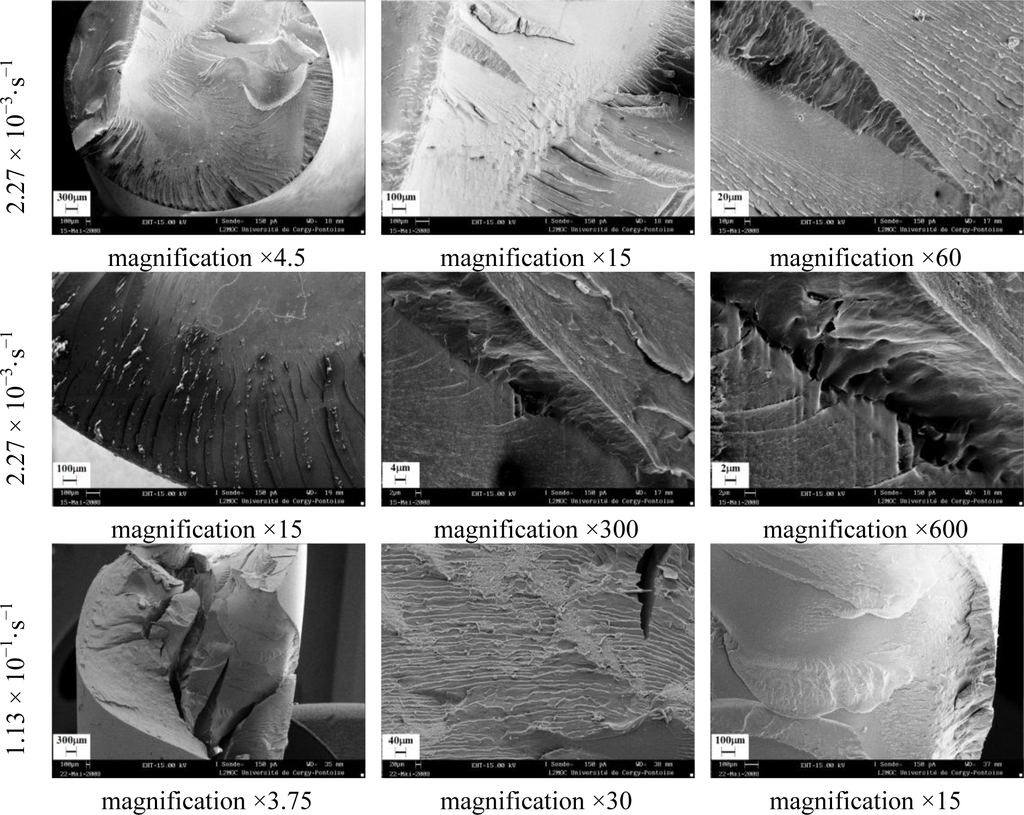

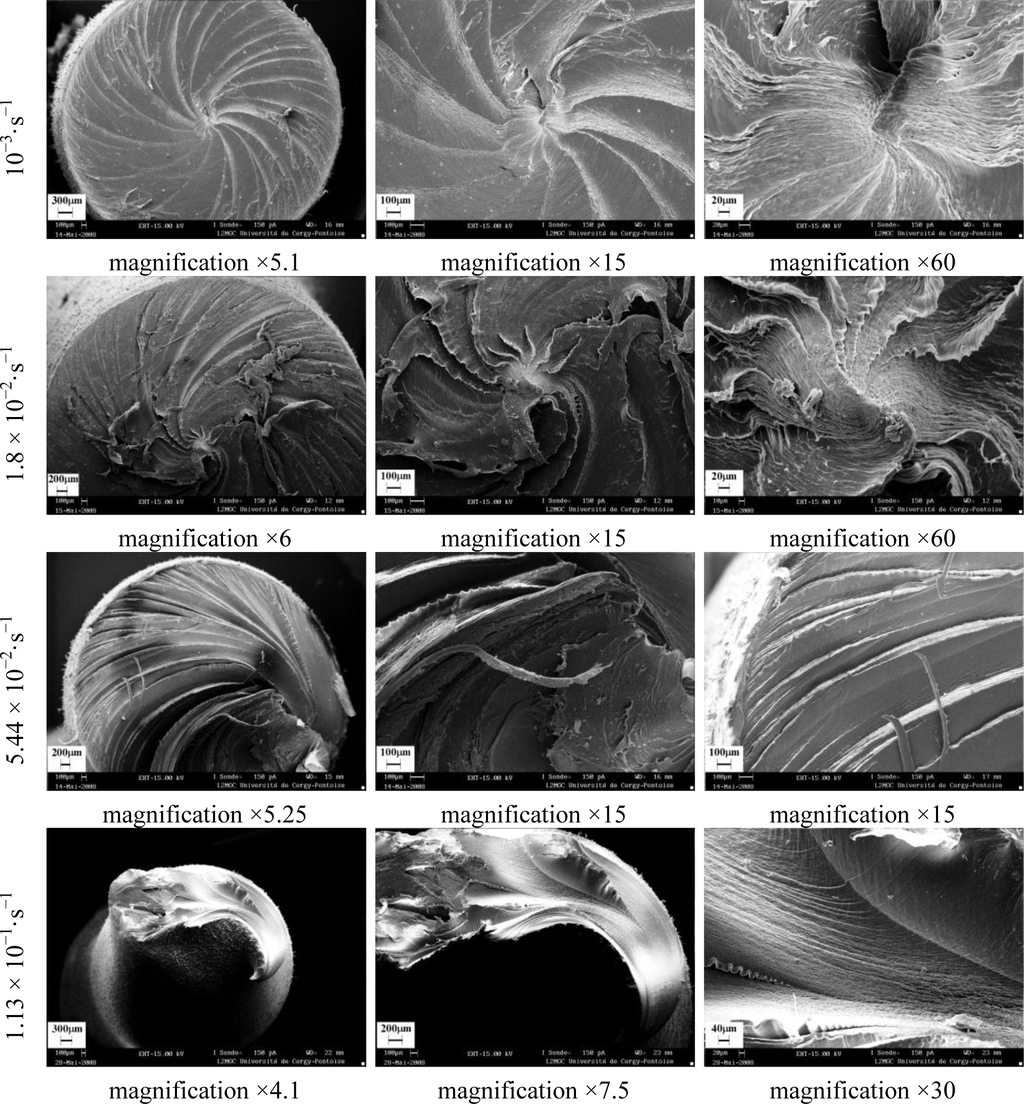

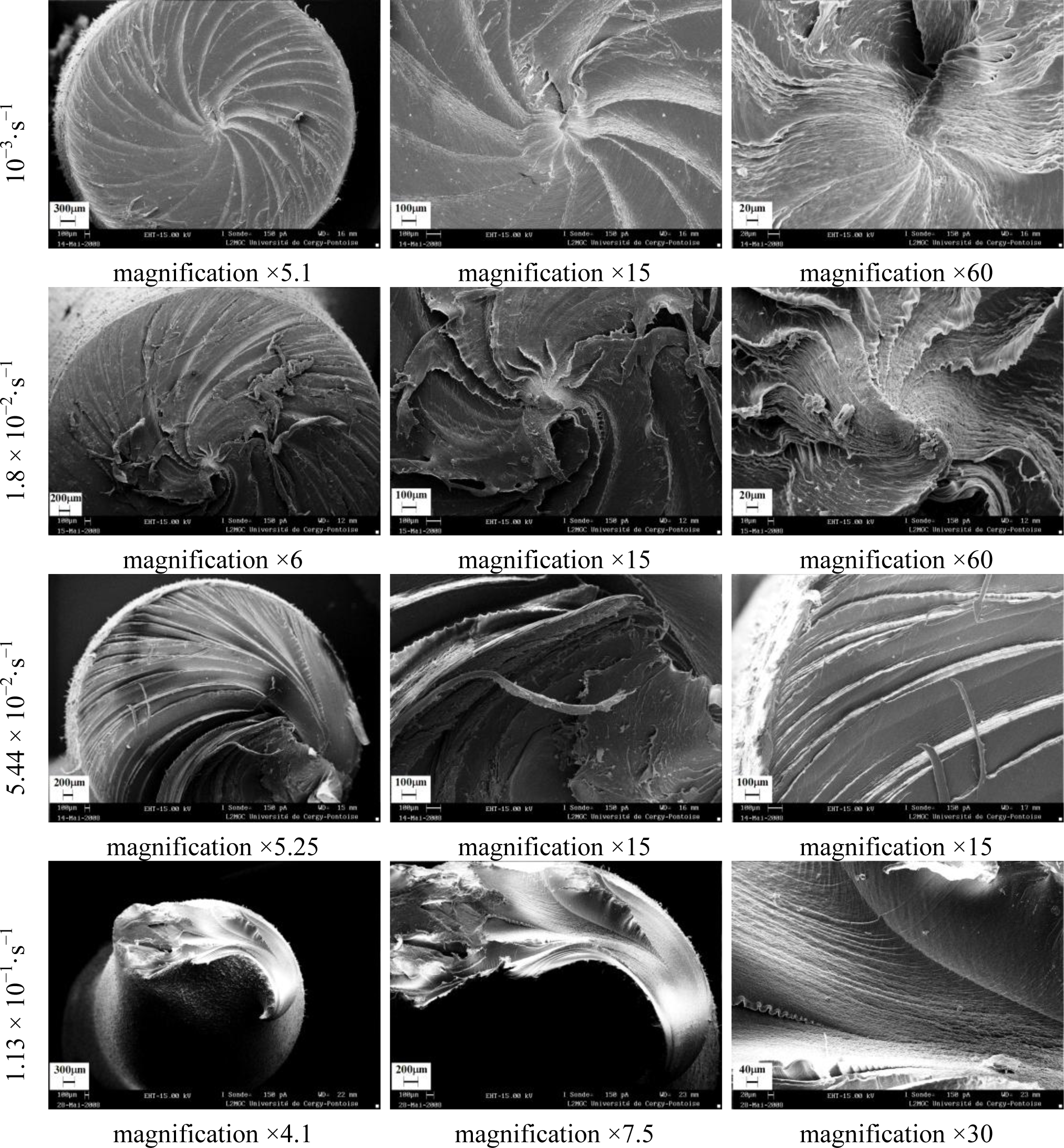

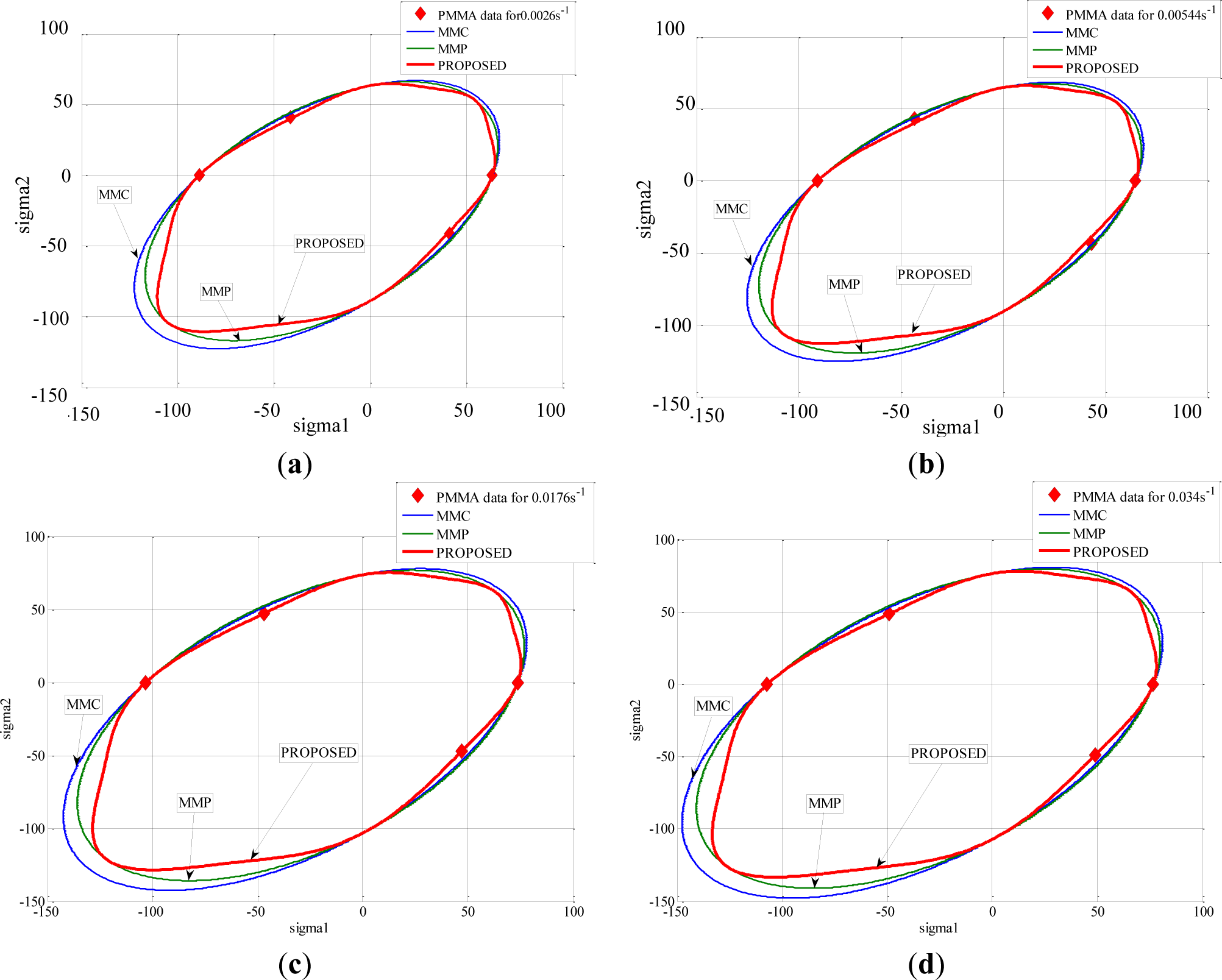

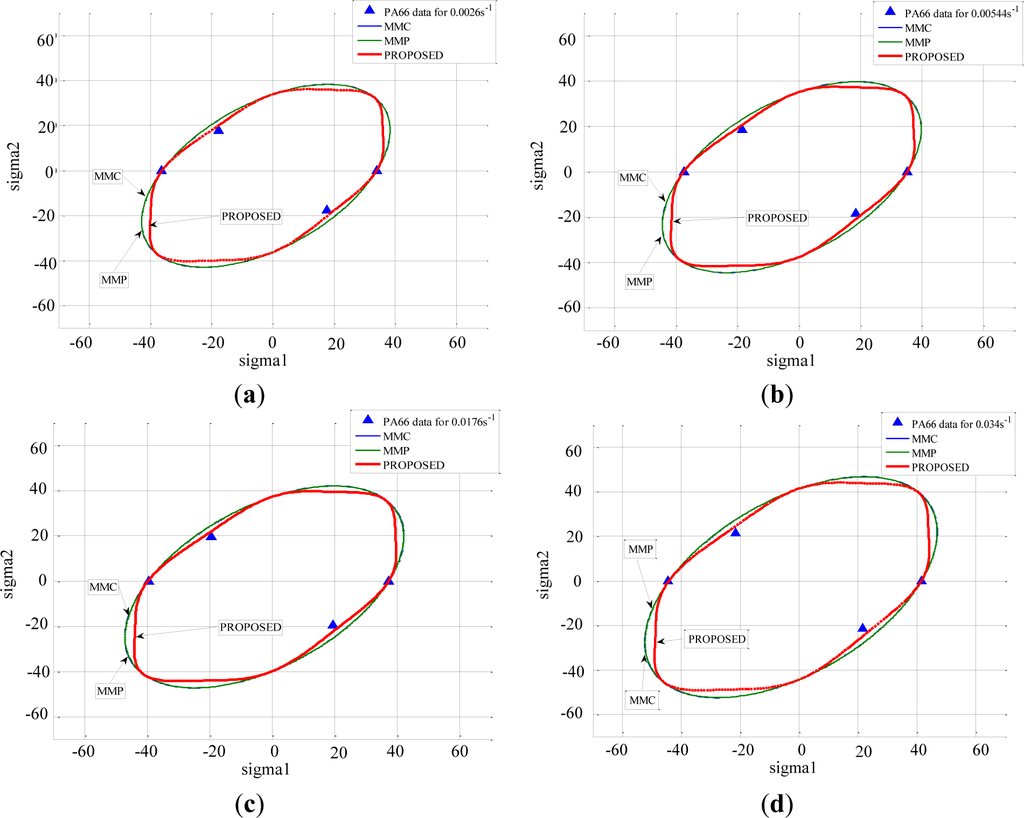

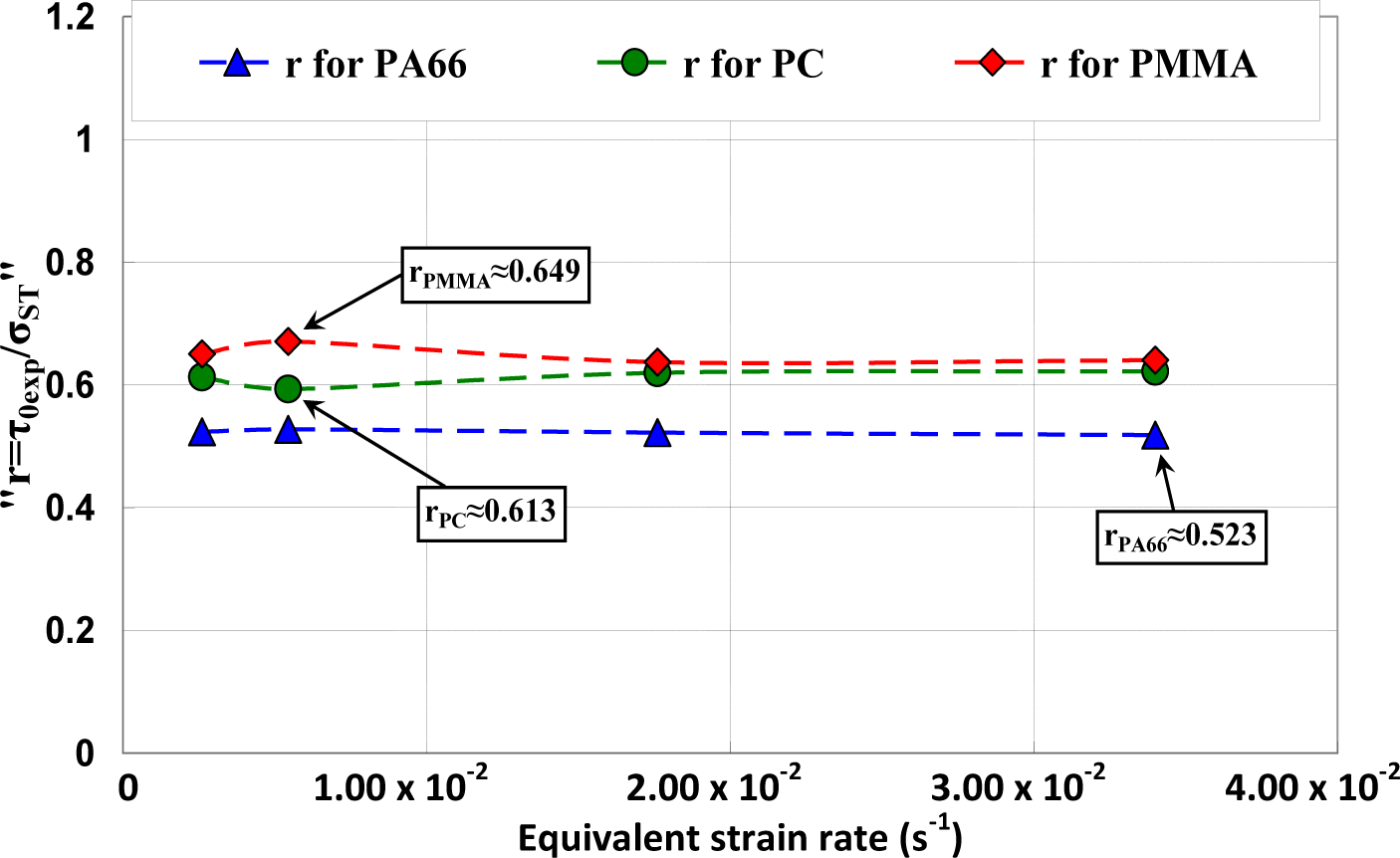

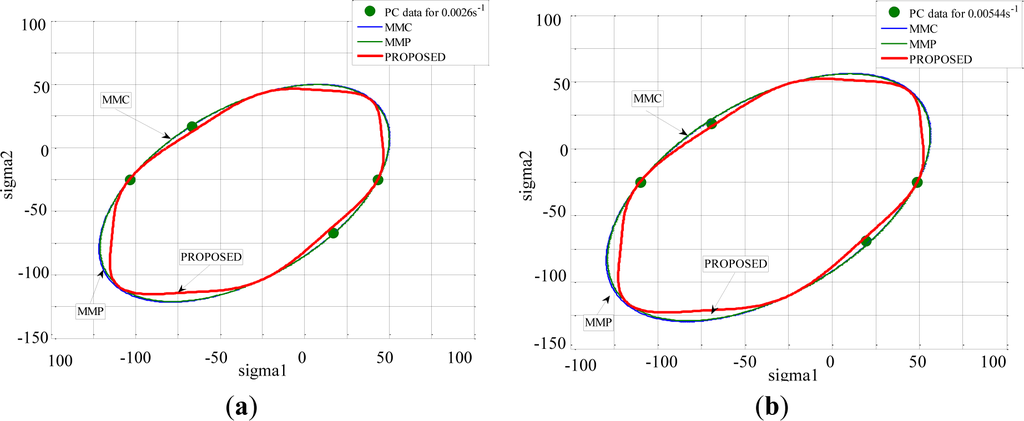

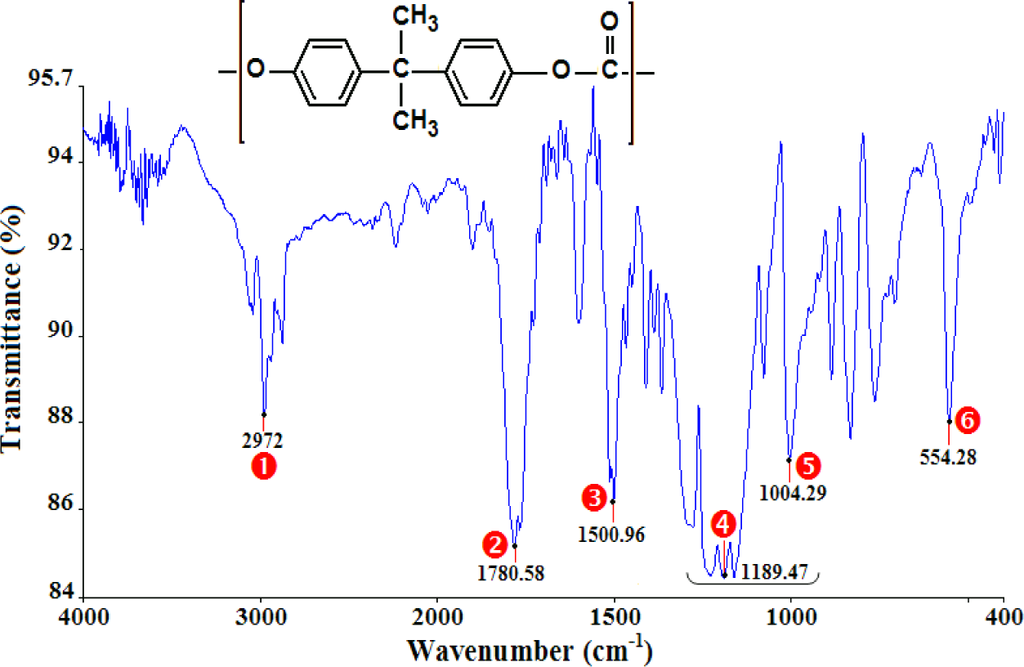

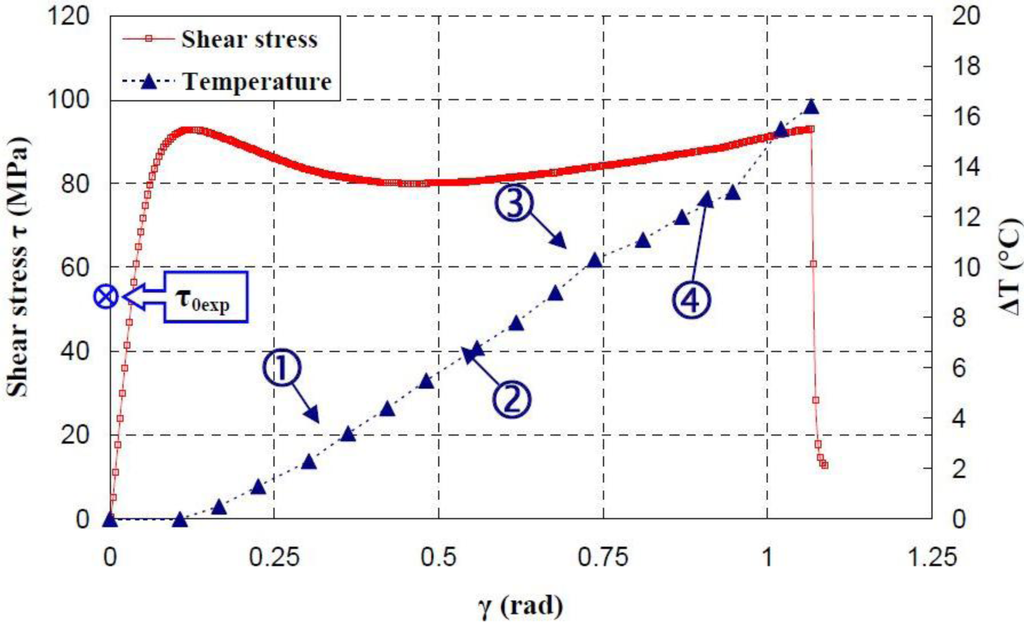

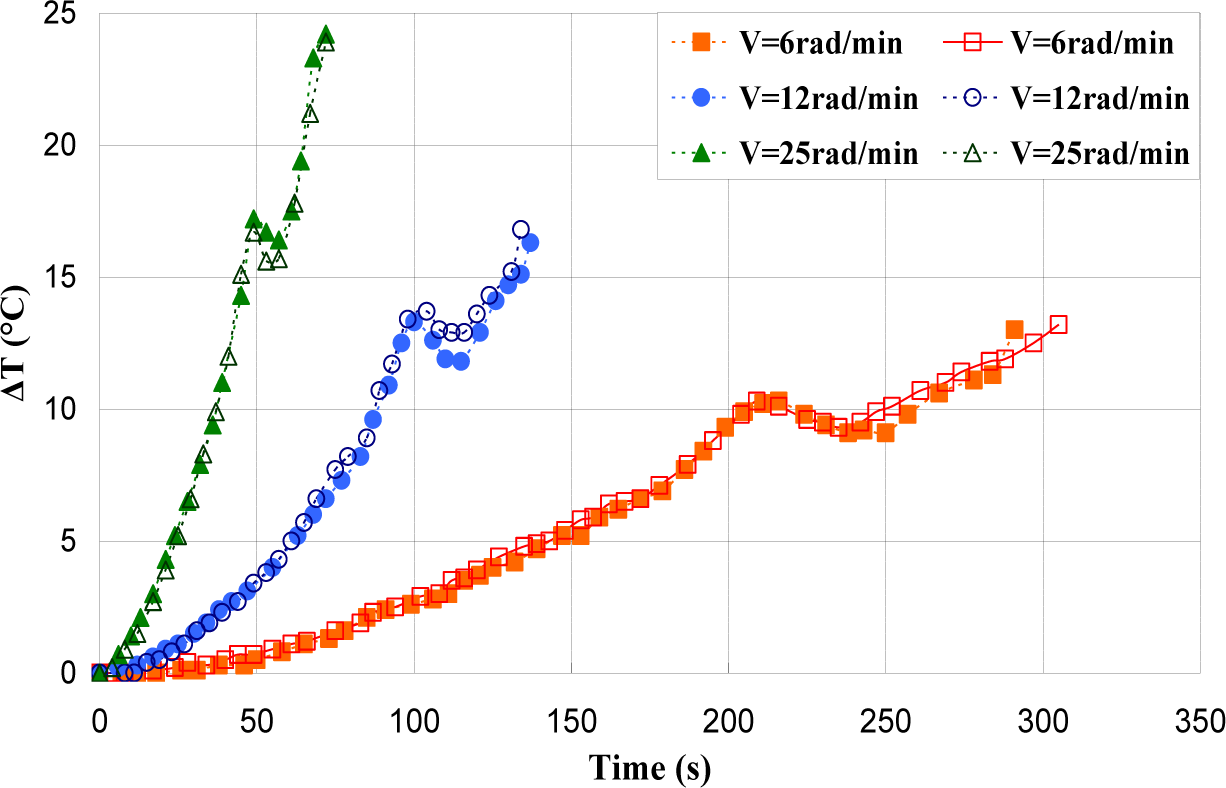

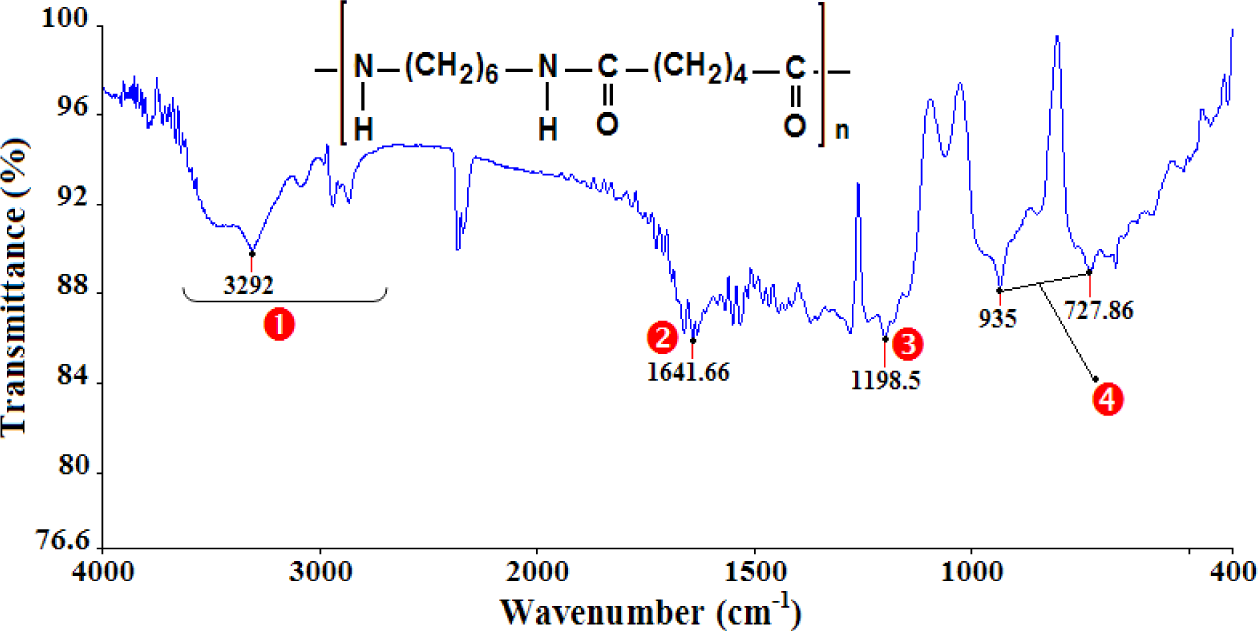

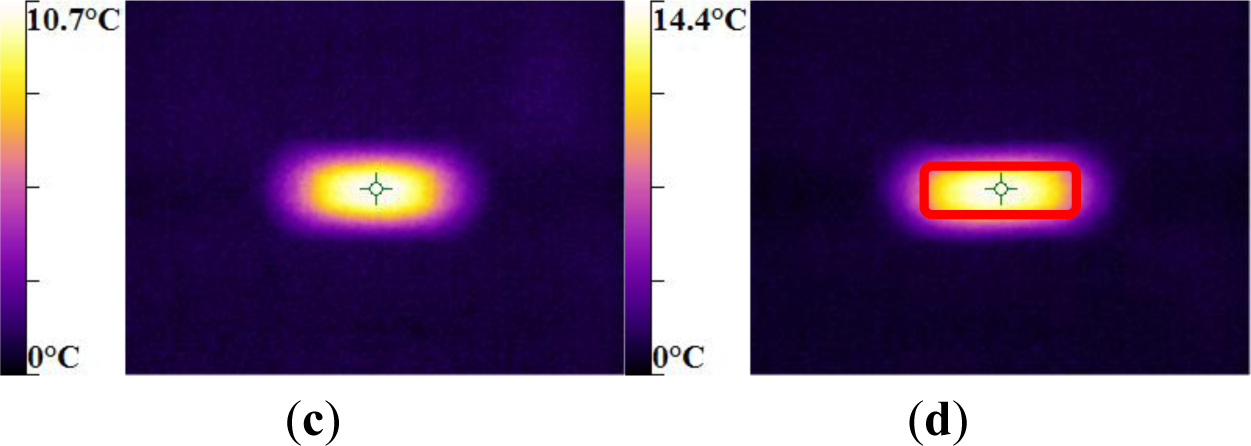

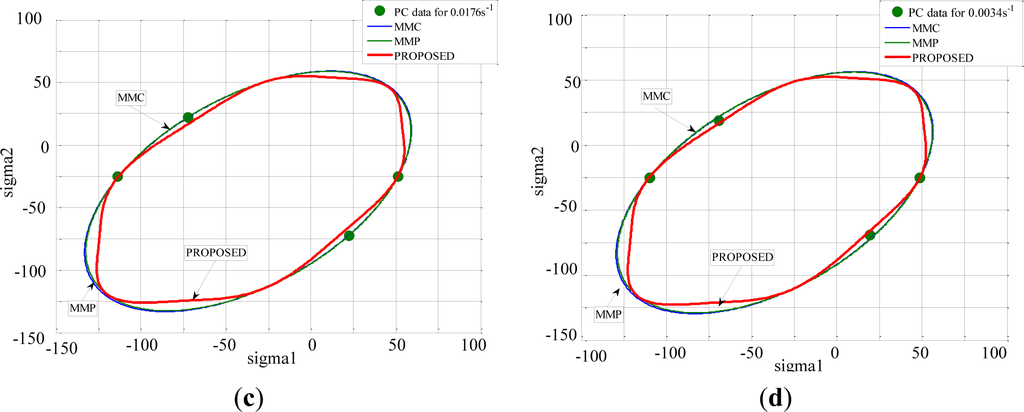

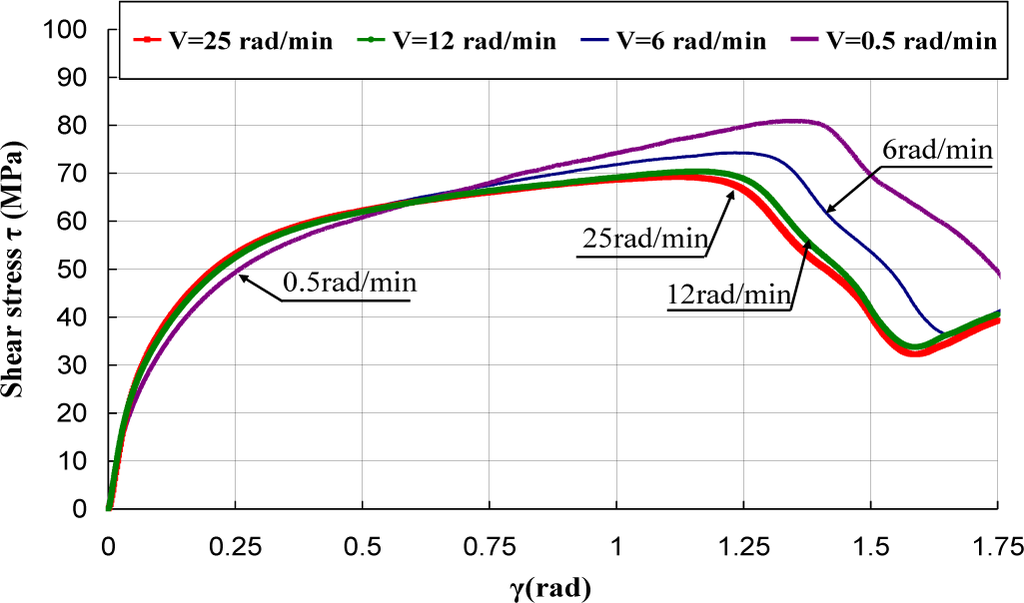

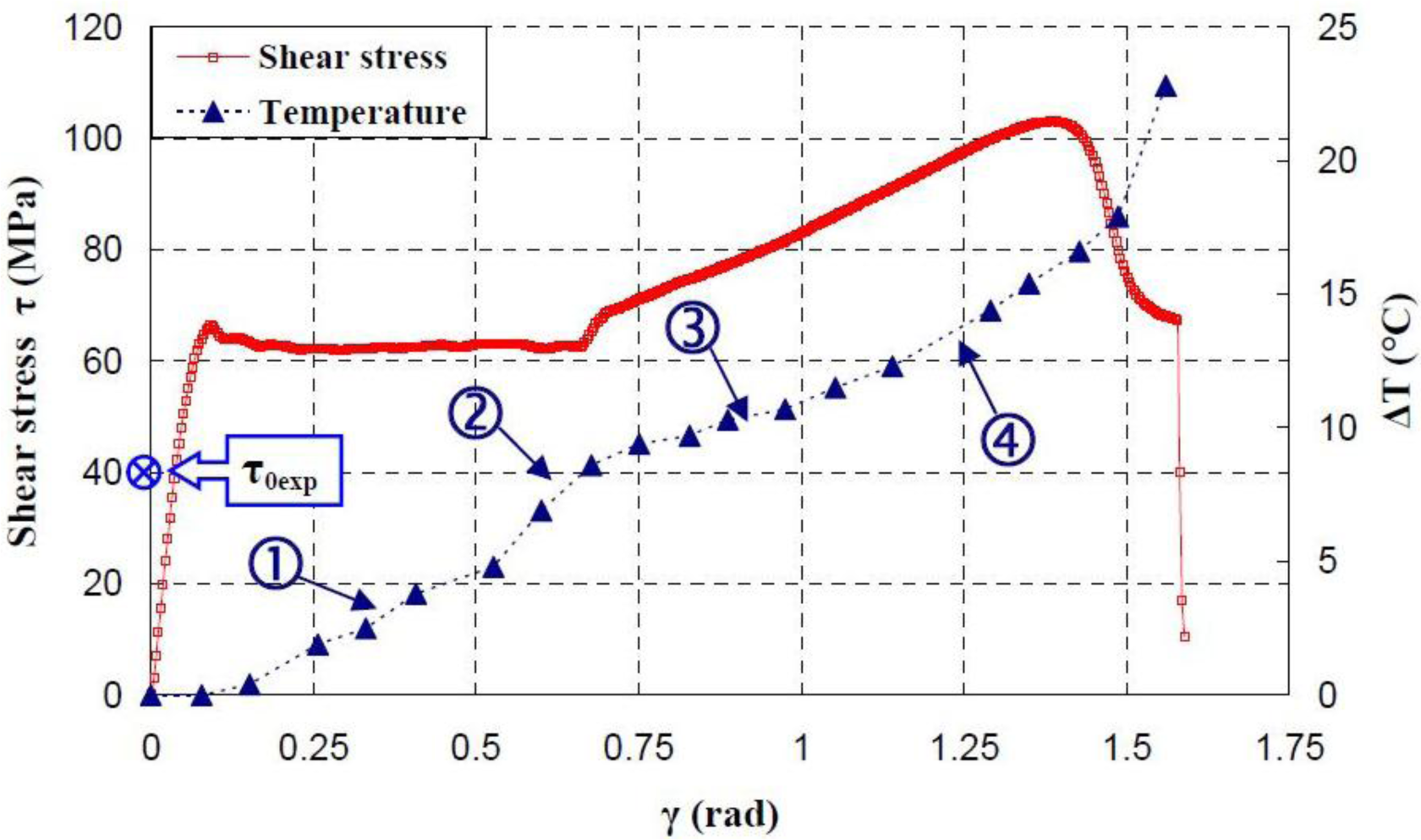

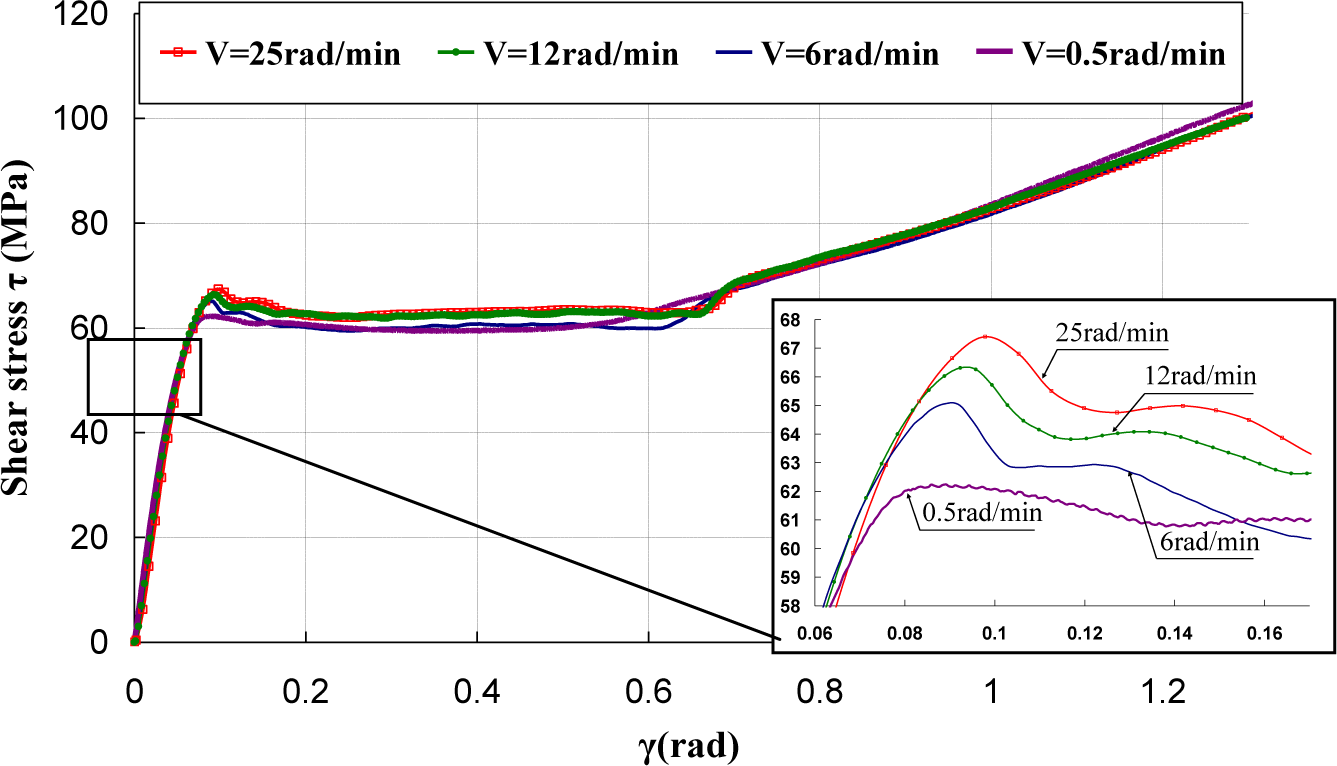

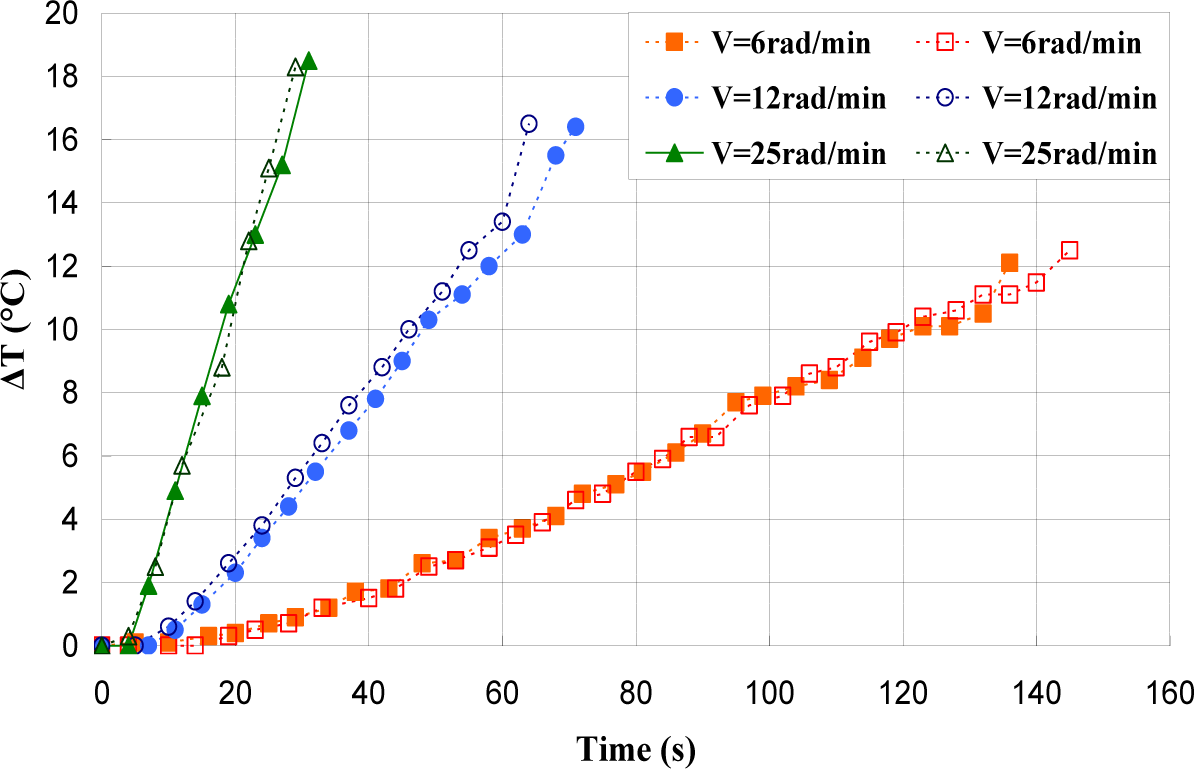

In this paper the effects of the strain rate on the inelastic behavior and the self-heating under load conditions are presented for polymeric materials, such as polymethyl methacrylate (PMMA), polycarbonate (PC), and polyamide (PA66). By a torsion test, it was established that the shear yield stress behavior of PMMA, PC, and PA66 is well-described by the Ree-Eyring theory in the range of the considered strain rates. During the investigation, the surface temperature was monitored using an infrared camera. The heat release appeared at the early stage of the deformation and increased with the strain and strain rate. This suggested that the external work of deformation was dissipated into heat so the torsion tests could not be considered isothermal. Eventually, the effect of the strain rate on the failure modes was analyzed by scanning electron microscopy. View Full-Text
Keywords: polymeric materials; torsion test; infrared camera; self-heating; thermo-mechanical behavior polymeric materials; torsion test; infrared camera; self-heating; thermo-mechanical behavior
MDPI and ACS Style

Ghorbel, E.; Hadriche, I.; Casalino, G.; Masmoudi, N. Characterization of Thermo-Mechanical and Fracture Behaviors of Thermoplastic Polymers. Materials 2014, 7, 375-398.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
