Next Article in Journal
Unified Formulation for a Triaxial Elastoplastic Constitutive Law for Concrete
Previous Article in Journal
Preparation and Morphology Studies of Nano Zinc Oxide Obtained Using Native and Modified Chitosans
Open AccessArticle

Healing of Fatigue Crack by High-Density Electropulsing in Austenitic Stainless Steel Treated with the Surface-Activated Pre-Coating

Department of Mechanical Science and Engineering, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
*
Author to whom correspondence should be addressed.
Materials 2013, 6(9), 4213-4225; https://doi.org/10.3390/ma6094213
Received: 22 August 2013 / Revised: 14 September 2013 / Accepted: 16 September 2013 / Published: 23 September 2013

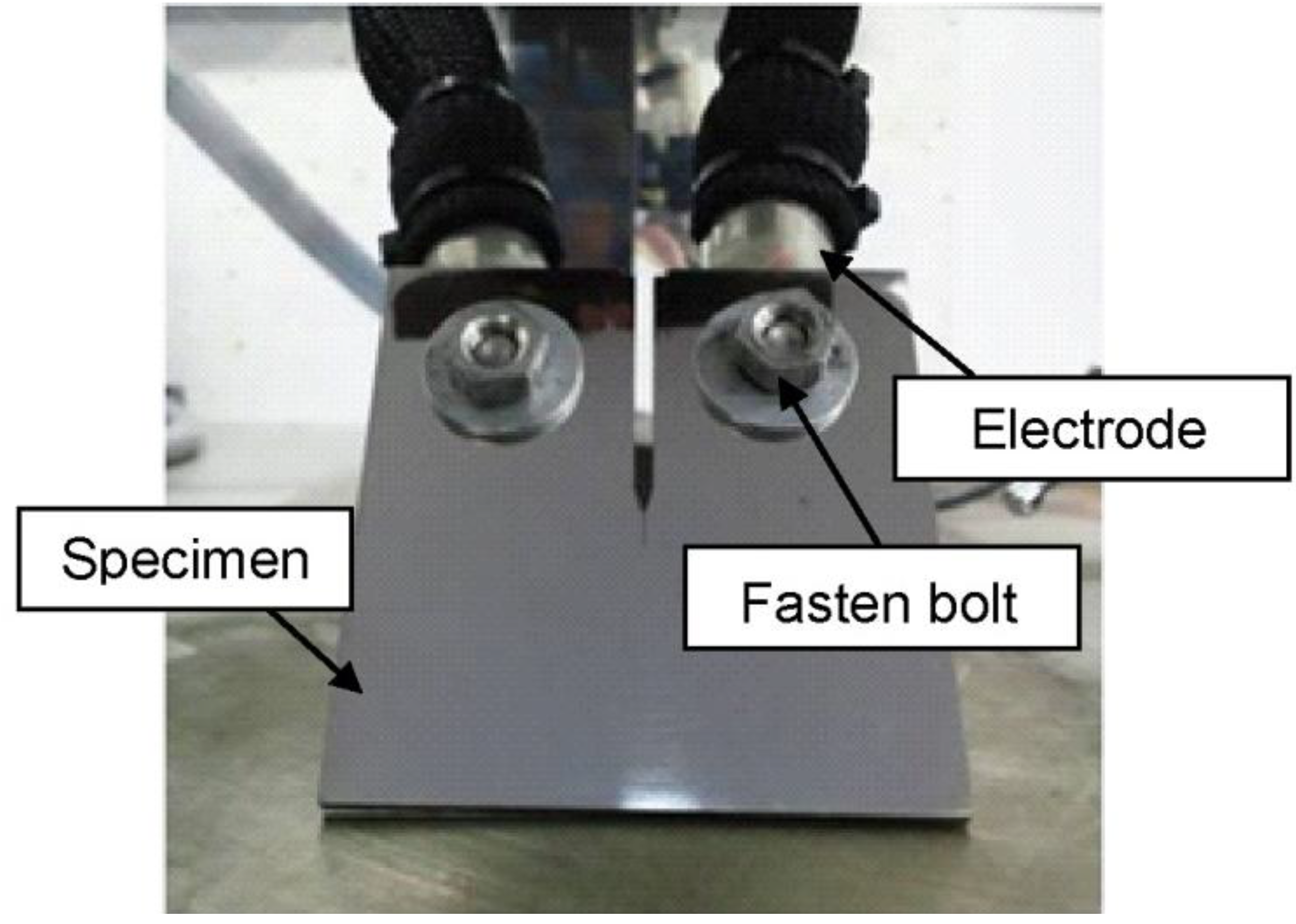

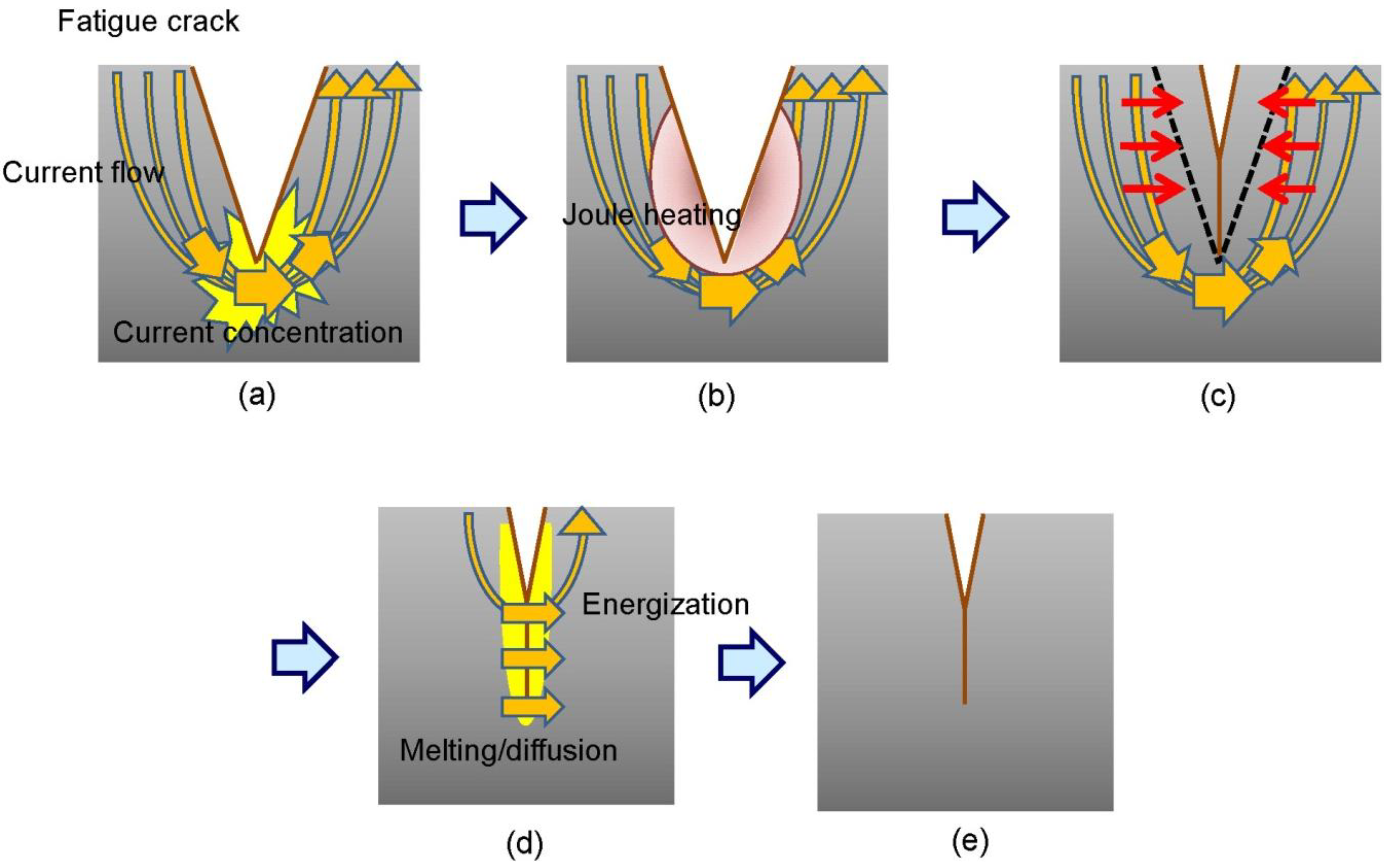

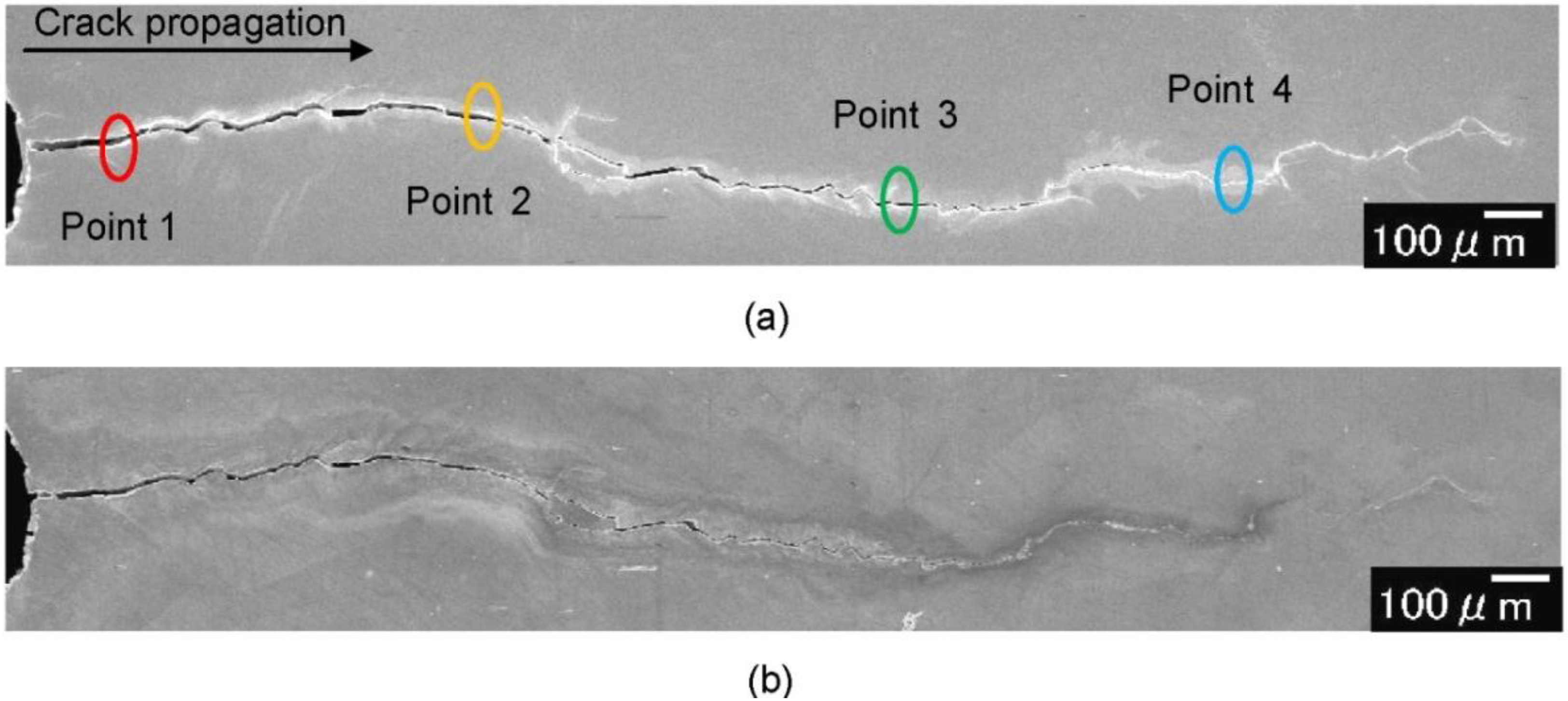

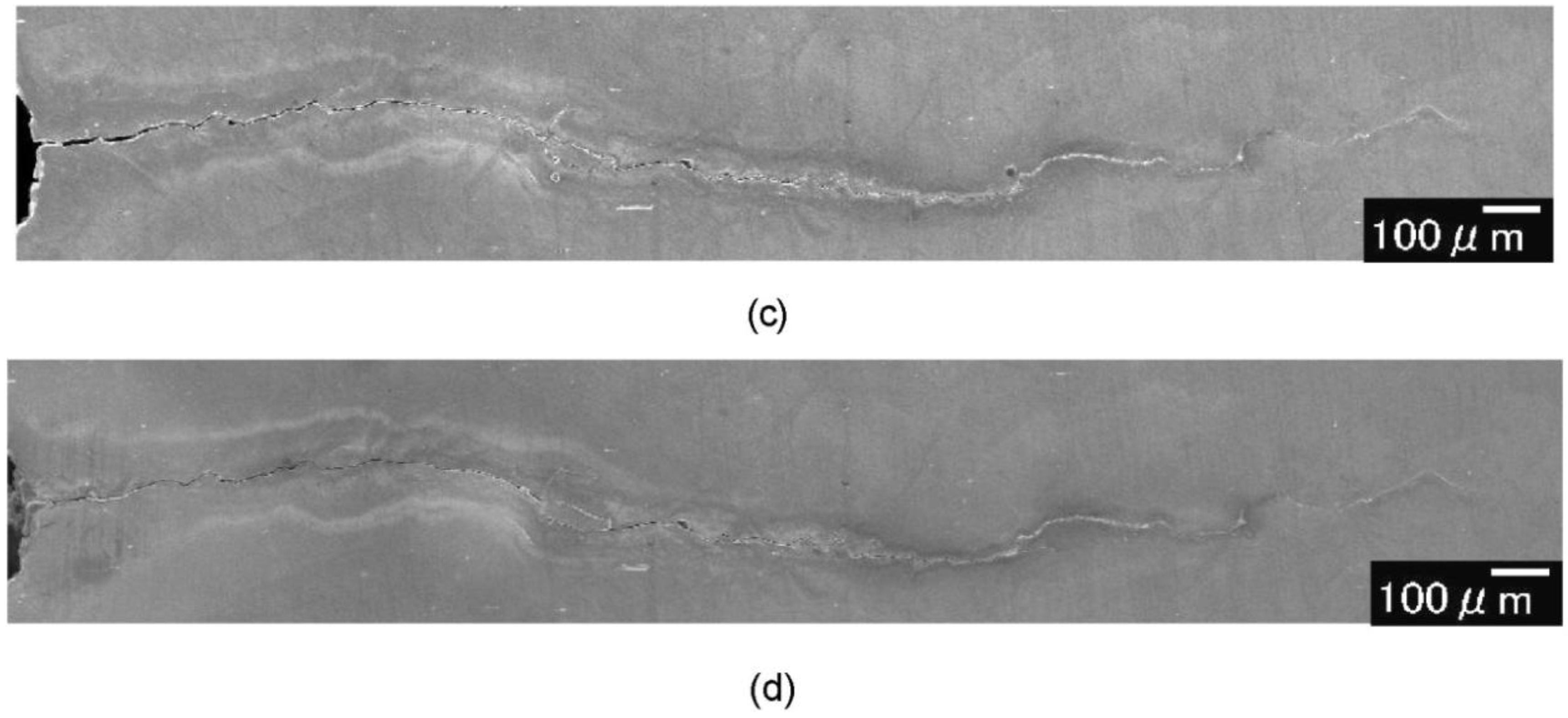

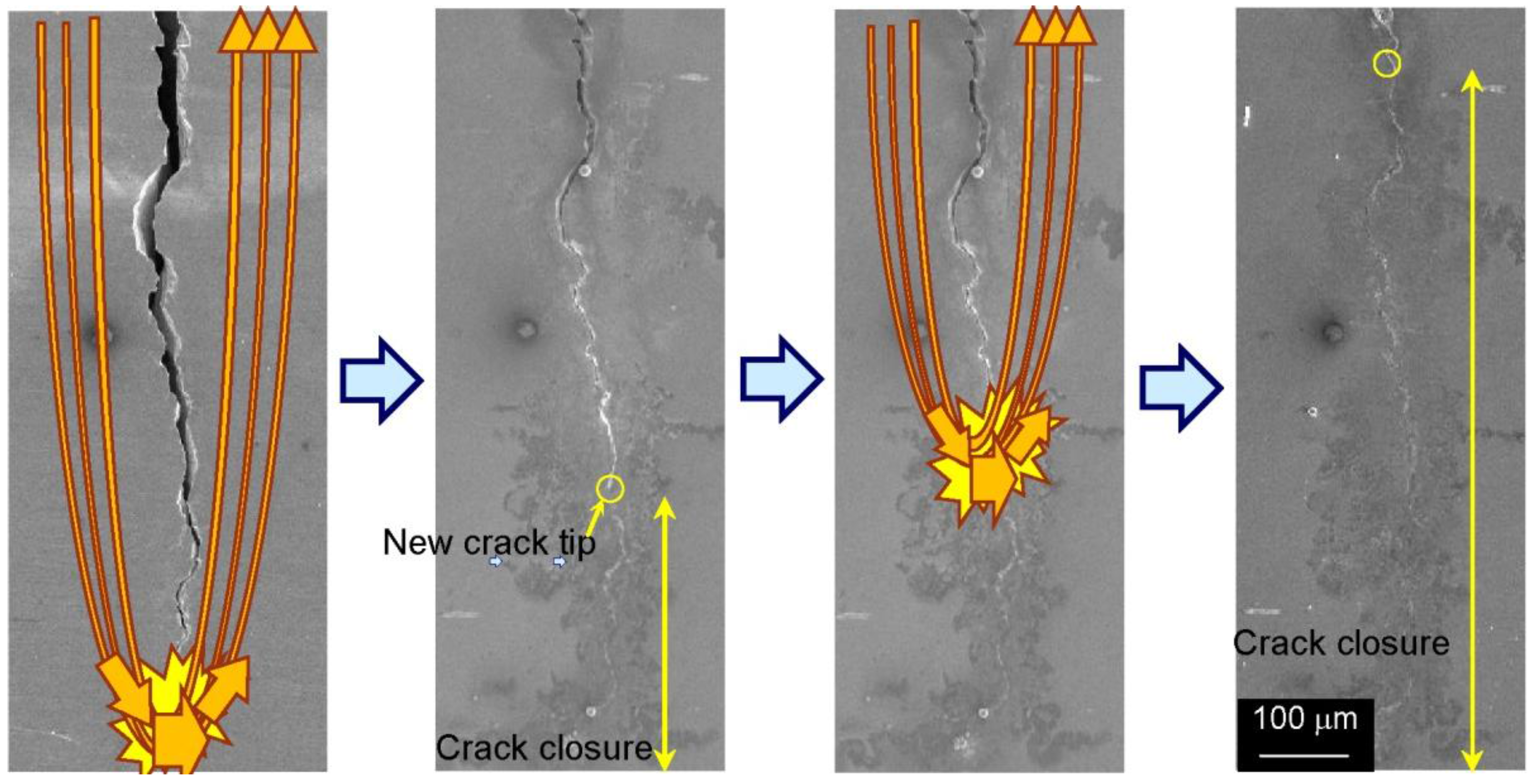

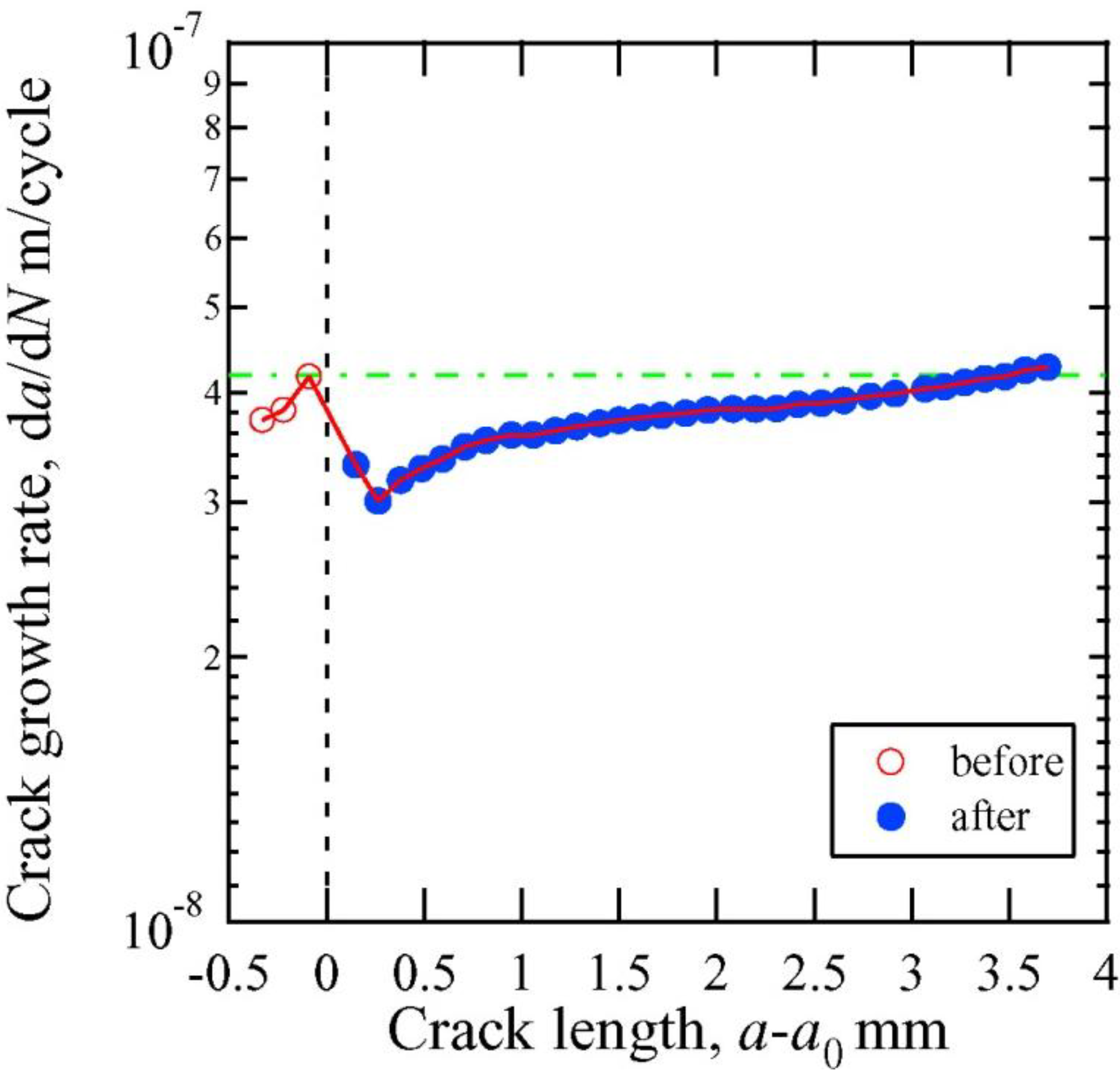

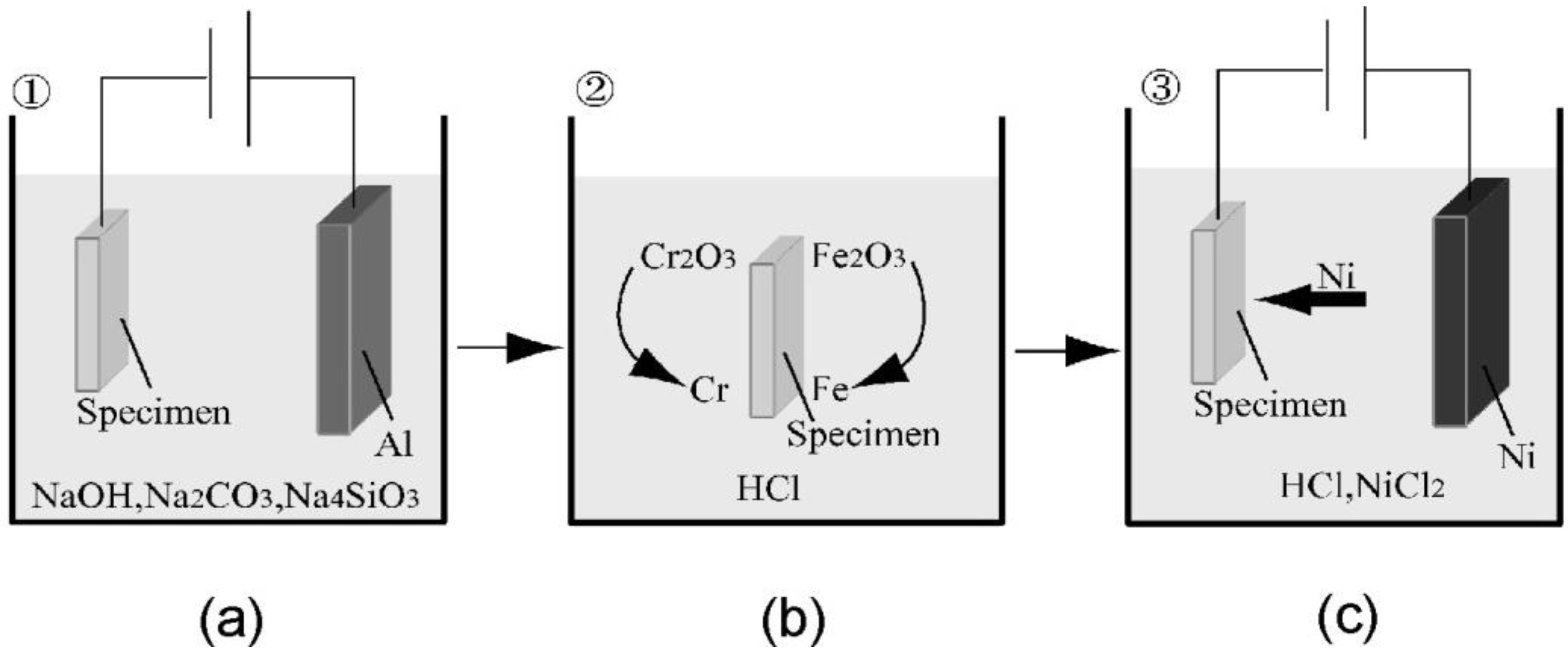

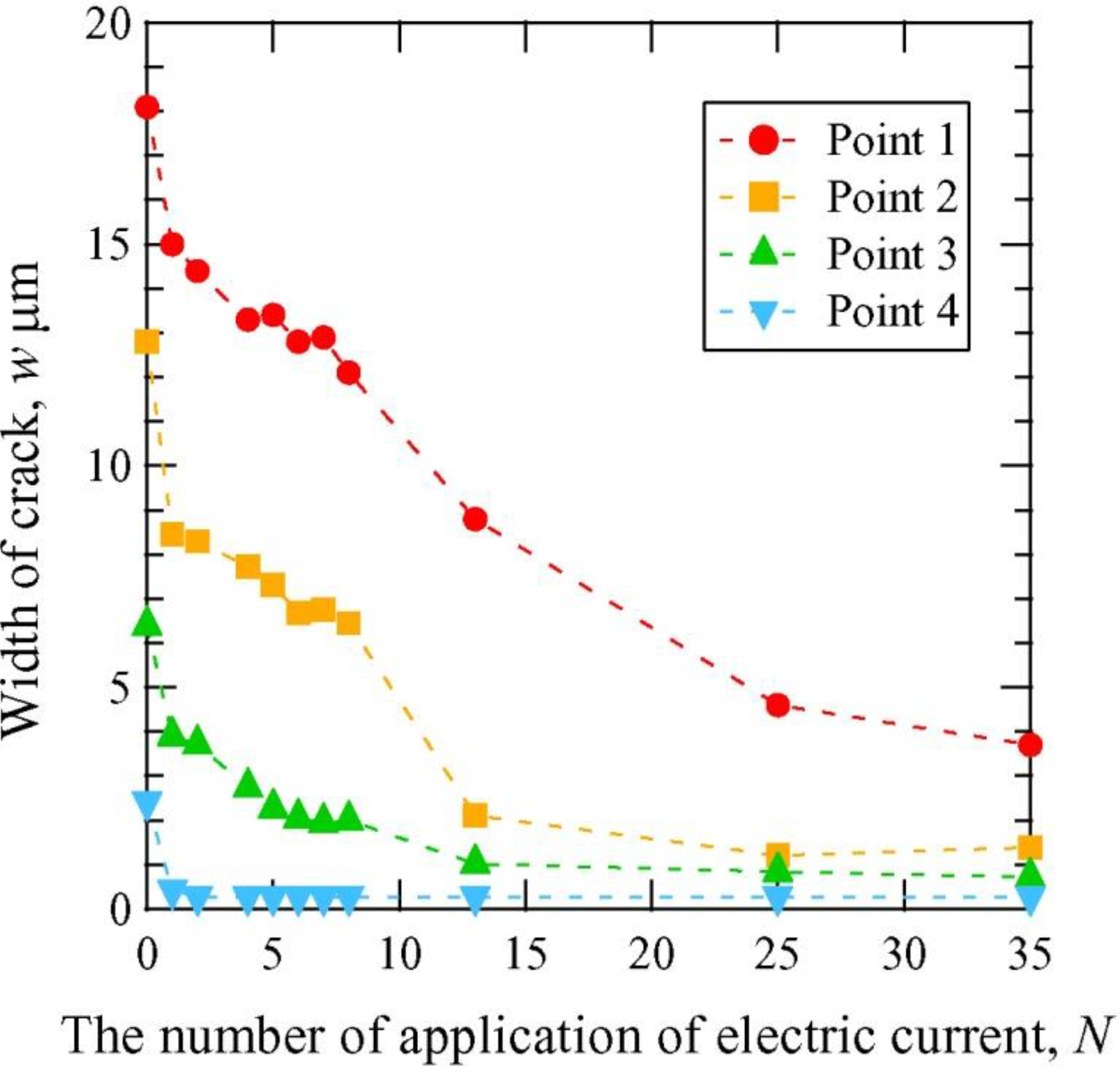

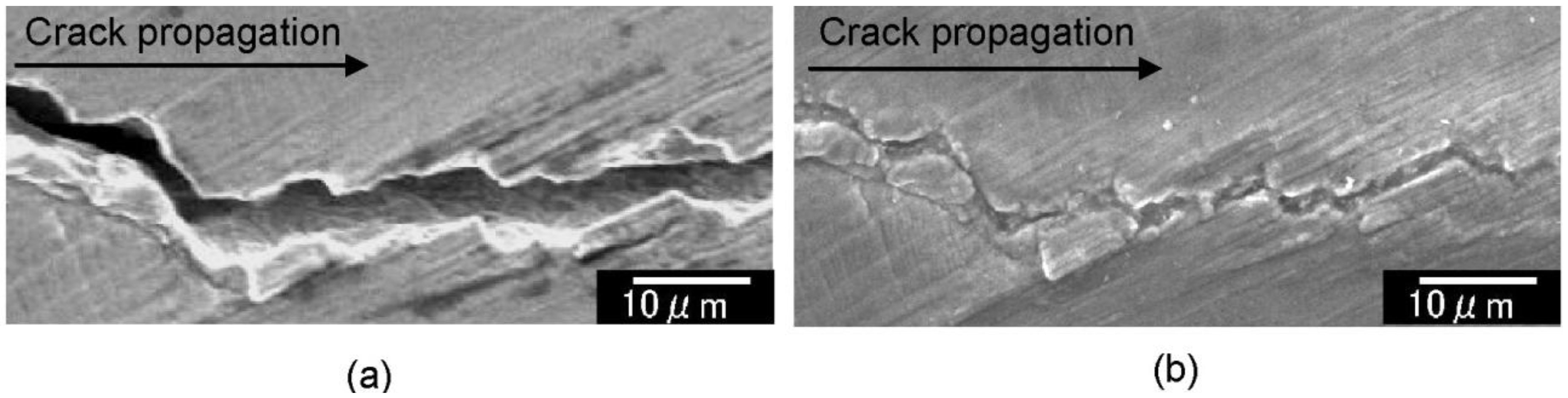

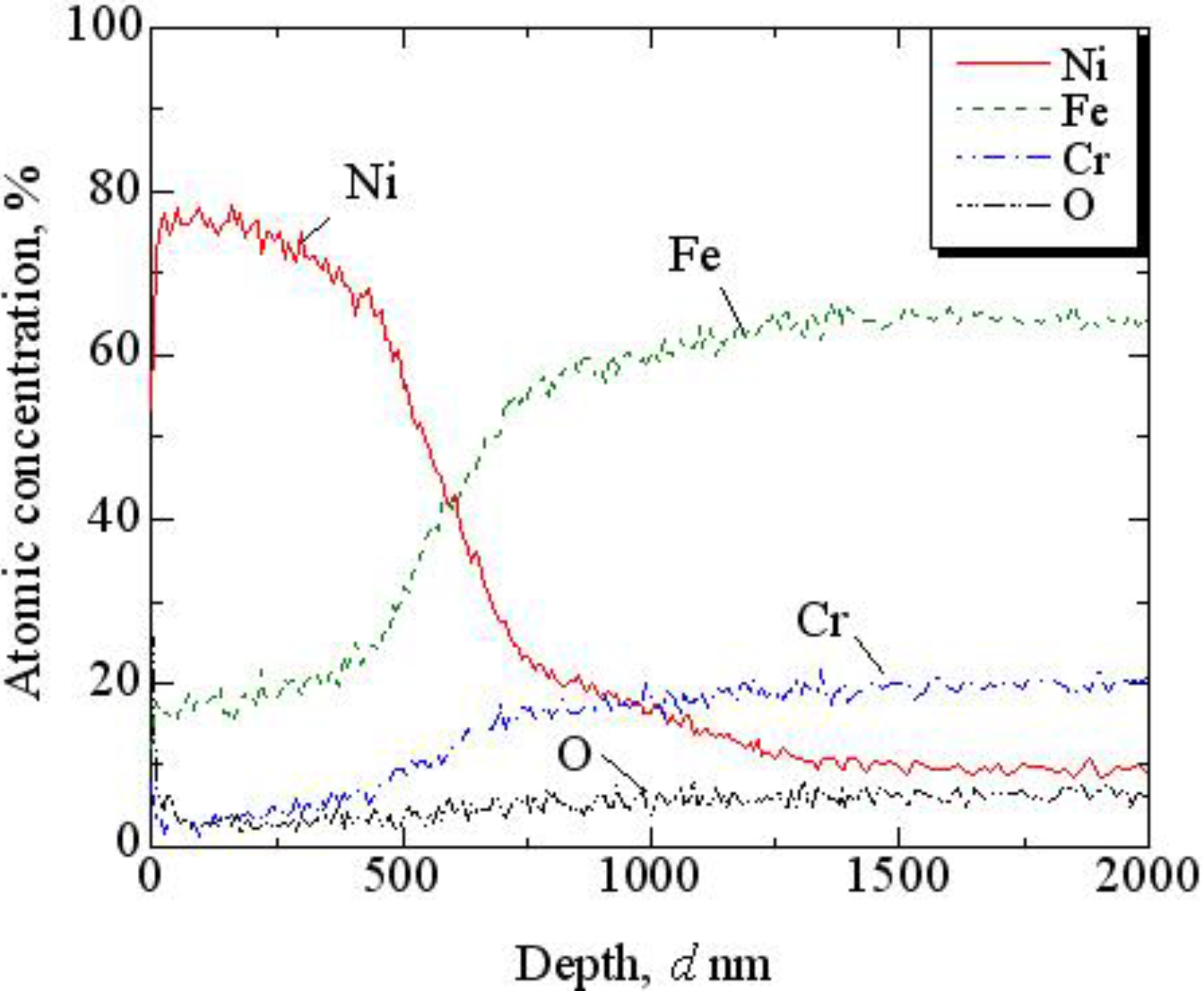

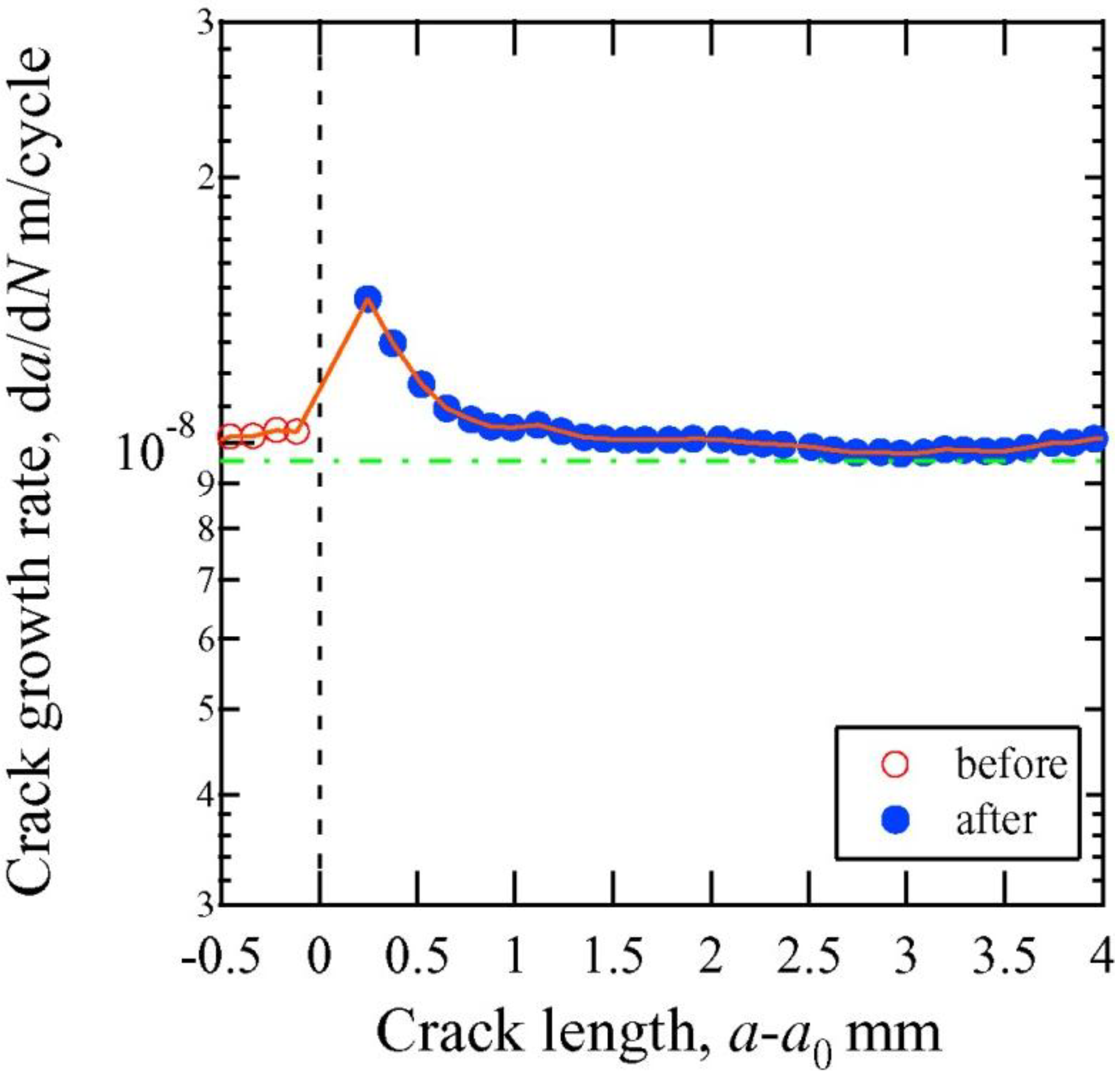

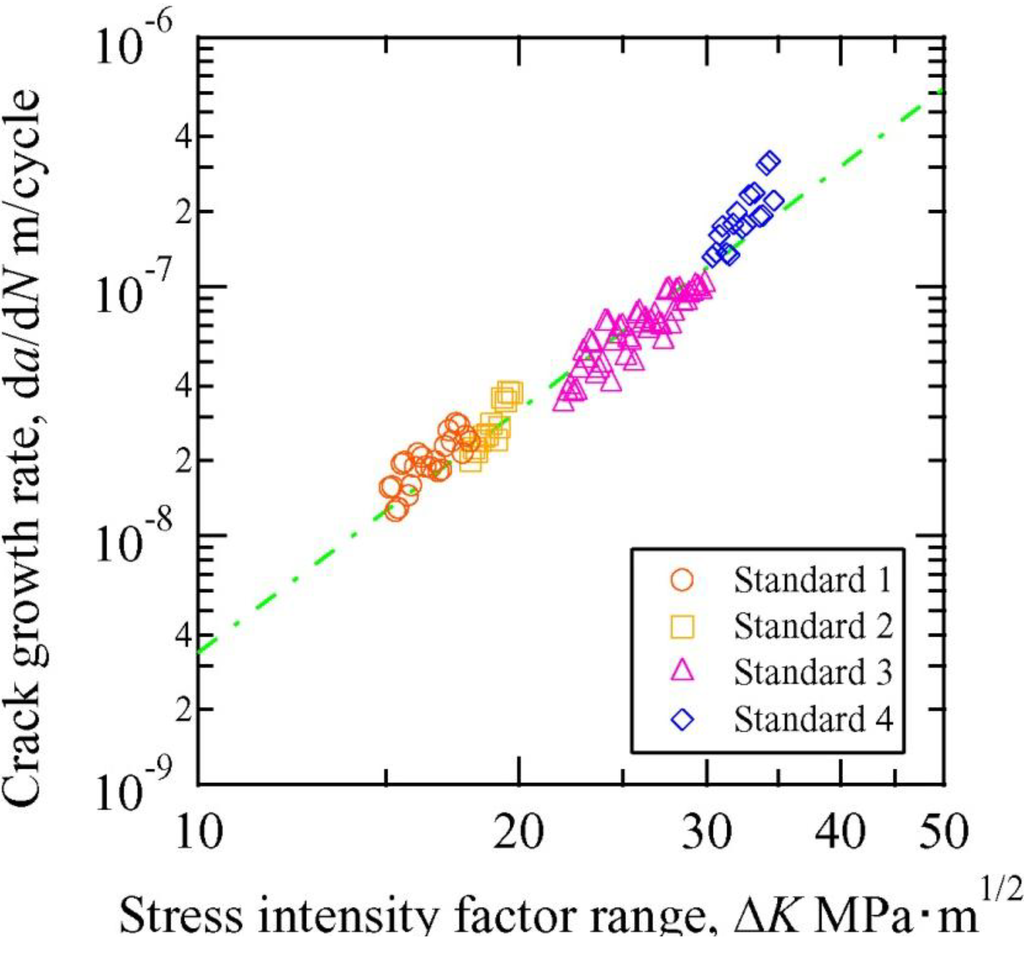

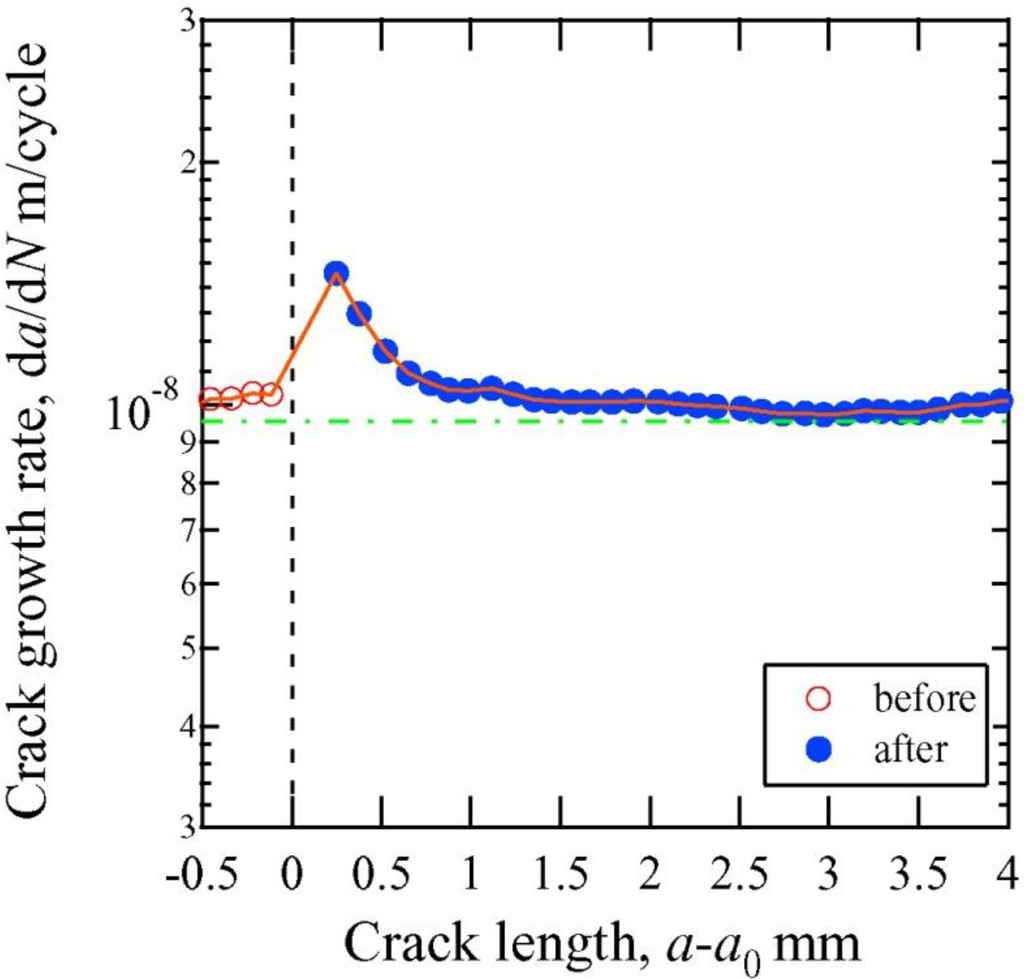

A technique to heal a fatigue crack in austenitic stainless steel SUS316 by applying a controlled, high-density pulsed current was developed. A surface-activated pre-coating (SAPC), which eliminates the oxide layer and coats a Ni film on the crack surface, was used to improve the adhesion between crack surfaces. Cracks were observed by scanning electron microscopy before and after the application of high-density electropulsing. To evaluate the healing effect of the SAPC during crack propagation, fatigue tests were conducted under a constant stress intensity factor. The fatigue crack treated with the SAPC was found to be effectively healed as a result of electropulsing, and also showed a slower rate of crack propagation. View Full-Text
Keywords: healing; crack; fatigue; electropulsing; propagation; coating healing; crack; fatigue; electropulsing; propagation; coating
Show Figures

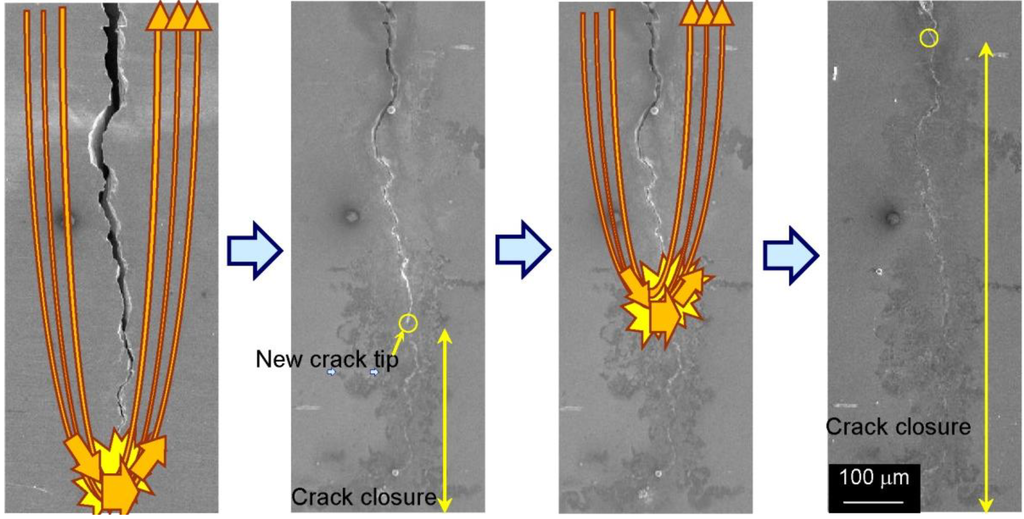

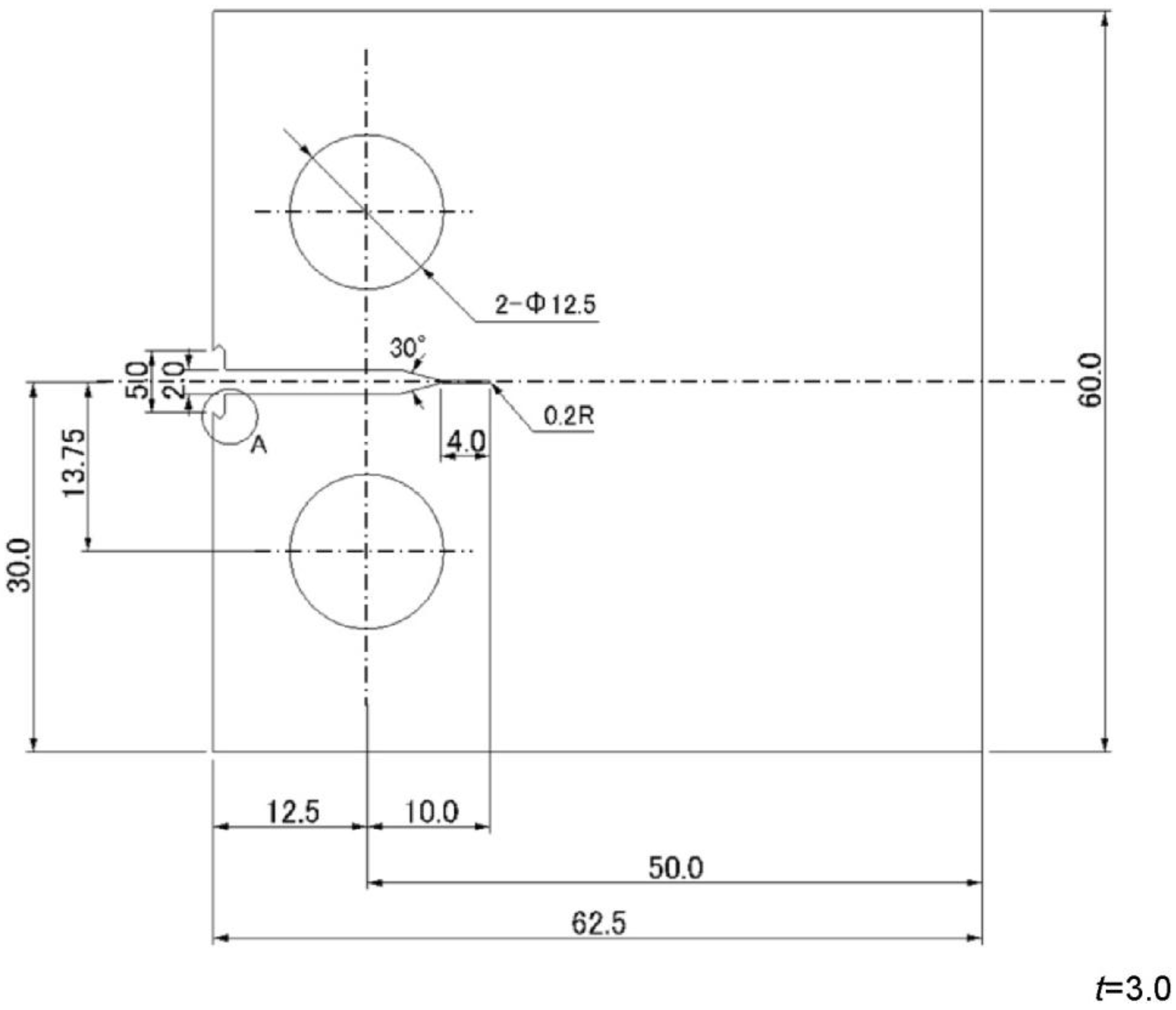

Figure 1

MDPI and ACS Style

Hosoi, A.; Kishi, T.; Ju, Y. Healing of Fatigue Crack by High-Density Electropulsing in Austenitic Stainless Steel Treated with the Surface-Activated Pre-Coating. Materials 2013, 6, 4213-4225.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
