Article

Mechanical and Microstructural Evaluations of Lightweight Aggregate Geopolymer Concrete before and after Exposed to Elevated Temperatures

1
Center of Excellence Geopolymer & Green Technology (CEGeoTech), School of Material Engineering, Universiti Malaysia Perlis (UniMAP), P.O. Box 77, D/A Pejabat Pos Besar, Kangar, Perlis 01000, Malaysia
2
School of Environmental Engineering, Universiti Malaysia Perlis (UniMAP), P.O. Box 77, D/A Pejabat Pos Besar, Kangar, Perlis 01000, Malaysia
3
King Abdul Aziz Science & Technology (KACST), P.O. Box 6086, Riyadh 11442, Saudi Arabia
*
Author to whom correspondence should be addressed.
Materials 2013, 6(10), 4450-4461; https://doi.org/10.3390/ma6104450
Received: 5 September 2013 / Revised: 22 September 2013 / Accepted: 25 September 2013 / Published: 9 October 2013
(This article belongs to the Special Issue Construction Materials)

Abstract

:
This paper presents the mechanical and microstructural characteristics of a lightweight aggregate geopolymer concrete (LWAGC) synthesized by the alkali-activation of a fly ash source (FA) before and after being exposed to elevated temperatures, ranging from 100 to 800 °C. The results show that the LWAGC unexposed to the elevated temperatures possesses a good strength-to-weight ratio compared with other LWAGCs available in the published literature. The unexposed LWAGC also shows an excellent strength development versus aging times, up to 365 days. For the exposed LWAGC to the elevated temperatures of 100 to 800 °C, the results illustrate that the concretes gain compressive strength after being exposed to elevated temperatures of 100, 200 and 300 °C. Afterward, the strength of the LWAGC started to deteriorate and decrease after being exposed to elevated temperatures of 400 °C, and up to 800 °C. Based on the mechanical strength results of the exposed LWAGCs to elevated temperatures of 100 °C to 800 °C, the relationship between the exposure temperature and the obtained residual compressive strength is statistically analyzed and achieved. In addition, the microstructure investigation of the unexposed LWAGC shows a good bonding between aggregate and mortar at the interface transition zone (ITZ). However, this bonding is subjected to deterioration as the LWAGC is exposed to elevated temperatures of 400, 600 and 800 °C by increasing the microcrack content and swelling of the unreacted silicates.

1. Introduction

Globally, it is well-known that the lightweight concrete (LWC) is more advantageous than the normal weight concrete (NWC) by the reduction of the structure’s dead-weight, better thermal insulation for buildings, and less cost for transportation. Lightweight concretes (LWC) are commonly used in the construction of buildings, bridge deck pavements, and in more limited roles, for entire bridge superstructures [1,2,3]. The usage of lightweight aggregates (LWAs) is one of the most common methods used to produce lightweight building materials. Lightweight aggregate concrete (LWAC) has the obvious advantages of high strength-to-weight ratio, good tensile strength, low coefficient of thermal expansion, and superior thermal and acoustic insulation characteristics due to the air voids within its structure [4].
Recently, geopolymer materials attracted a great deal of consideration as a new environmentally-friendly engineering technology for producing supplementary materials to the ordinary Portland cement (OPC) due to their brilliant mechanical and thermal properties. As compared to the OPC, the geopolymer technology can reduce CO2 emission up to 80%–90% [5], and it possesses higher thermal durability in high temperature environments as well [6]. Furthermore, the geopolymer materials have early strength, low permeability, excellent resistance to chemical attacks, good freezing-thawing cycles, and a tendency to immobilize the heavy metal ions in the geopolymeric structure [7,8,9,10,11].
Nevertheless, only few published studies and researches regarding the utilization of LWA in the production of lightweight aggregate geopolymer concrete (LWAGC) has been reported [12]. To our knowledge, there is no other published work yet studying the thermal behavior and thermal durability of these materials at high temperatures. Thus, the first contribution of the current study is to highlight LWAGC preparation using the alkali activation of a locally fly ash (FA) as the only source materials, without any additives. In addition, the main objective of this paper is to experimentally and statistically investigate the mechanical, thermal, and microstructural characteristics of LWAGC materials before and after being exposed to elevated temperatures, ranging from 100 to 800 °C.

2. Results and Discussion

2.1. Mechanical and Physical Properties of the Unexposed LWAGC

Table 1 illustrates the mechanical and physical properties of the resultant LWAGC at 28 days, excluding the slump value of the fresh concrete, which was measured before the casting process. The LWAGC possesses a compressive strength and unit weight of 18.86 MPa and 1438.7 kg/m3, respectively, at 28 days, which permits its classification as a structural LWAC, according to the American Concrete Institute ACI 213R [13]. Furthermore, the resulting LWAGC mechanical strength, with respect to its oven dry (OD)-density is considered as high-quality strength LWAC, when compared with similar structural LWAGCs reported by Yang et al. [6]. According to their results, the LWAGC prepared by alkali-activation of ground granulate blast furnace slag (GGBS), by a powder sodium silicate activator and aggregate combination of normal sand and coarse lightweight expanded clay aggregate (LECA), possessed a compressive strength and OD-density of 19.1 MPa of 1615.1 kg/m3, respectively, at 28 days. Hence, as they used the same aggregate combinations, the alkali-activation of the FA with a liquid activator appears to be better than the alkali-activated GGBS with a powder activator, as it produces almost the same strength, but with about 11% less density.
Table 1. Physical and mechanical strength properties of the resultant lightweight aggregate geopolymer concrete (LWAGC) at 28 days.
Table 1. Physical and mechanical strength properties of the resultant lightweight aggregate geopolymer concrete (LWAGC) at 28 days.
PropertyLWAGC
Compressive (MPa)18.86
OD-Density (kg/m3)1438.7
Water absorption (%)10.7
Fresh Slump (mm)95
Moreover, Figure 1 shows LWAGC strength development versus aging times of 3, 7, 28, 56, 91, 180 and 365 days. It can be seen that the LWAGC gains a high rate of strength, increasing at early times of three and seven days, which are equivalent to about 66% and 81% of the 28-day strength, respectively. This trend is attributed to the fact that the geopolymerization process produces excellent early strength at early ages [14]. However, the strength-developing rates are slightly decreased beyond 28 days until the age of 365 days. Collins and Sanjayan [15] reported that the absorbed water and/or activator liquid by the porous aggregates, during the fresh mixing, may have a favorable effect on the strength-development at the long-term ages, due to the continuous activation of the source material (FA), while the moisture and/or absorbed liquid is released from the saturated aggregate. Therefore, the LWAGC is observed to gain compressive strength until the age of 365 days. The results of this experiment show another advantage of the geopolymeric materials, represented by strength-gaining at long-term ages in addition to the advantage of the high early strength reported as early as three and seven days.

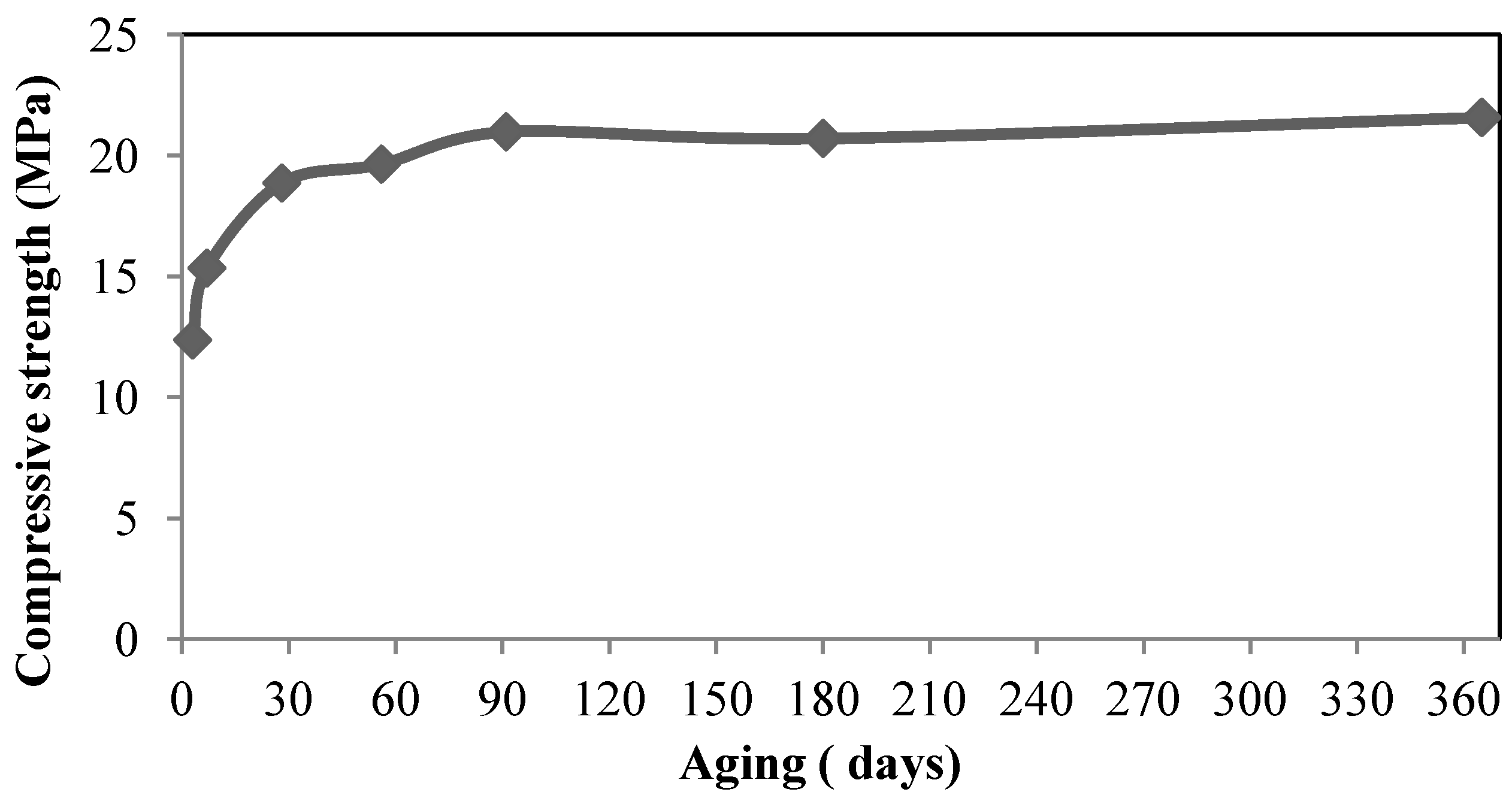

Figure 1. Compressive strength development of the LWAGC versus aging times.
Figure 1. Compressive strength development of the LWAGC versus aging times.
Materials 06 04450 g001

2.2. Properties of LWAGC Exposed to Elevated Temperatures

2.2.1. Residual Compressive Strength

Figure 2 illustrates the residual compressive strength of the LWAGCs exposed to elevated temperatures ranging from 100–800 °C with incremental steps of 100 °C. It can be seen that the compressive strength of the LWAGC increases after exposure to elevated temperatures of 100–300 °C. The LWAGCs exposed to elevated temperatures of 100, 200 and 300 °C attained relative residual compressive strengths of 103.54%, 105.83% and 108.32%, respectively, as compared to the compressive strength of the unexposed LWAGC (Table 1). The strength-gaining of the exposed FA-based geopolymers to elevated temperatures of 100–300 °C has been already reported in previous investigations [16,17].
Subsequently, the compressive strength of the LWAGC is observed to decrease gradually after being exposed to an elevated temperature of 400 °C, and further up to 800 °C (Figure 2). The strength losses of 13%, 16.6%, 26.7%, 34.6% and 39%, respectively, are reported for the LWAGCs exposed to 400, 500, 600, 700 and 800 °C, respectively.
Furthermore, Figure 2 demonstrates the relationship between the exposure temperatures and the residual compressive strength of the LWAGC, based on the results of 48 LWAGC specimens, exposed to elevated temperatures ranging of 100–800 °C, with incremental steps of 100 °C, which can be fitted as:
f c = 0.0135 t + 22.383
where the fc is the residual compressive strength (MPa) and t is the exposure temperature (°C), with a fitting error of (1.1048).

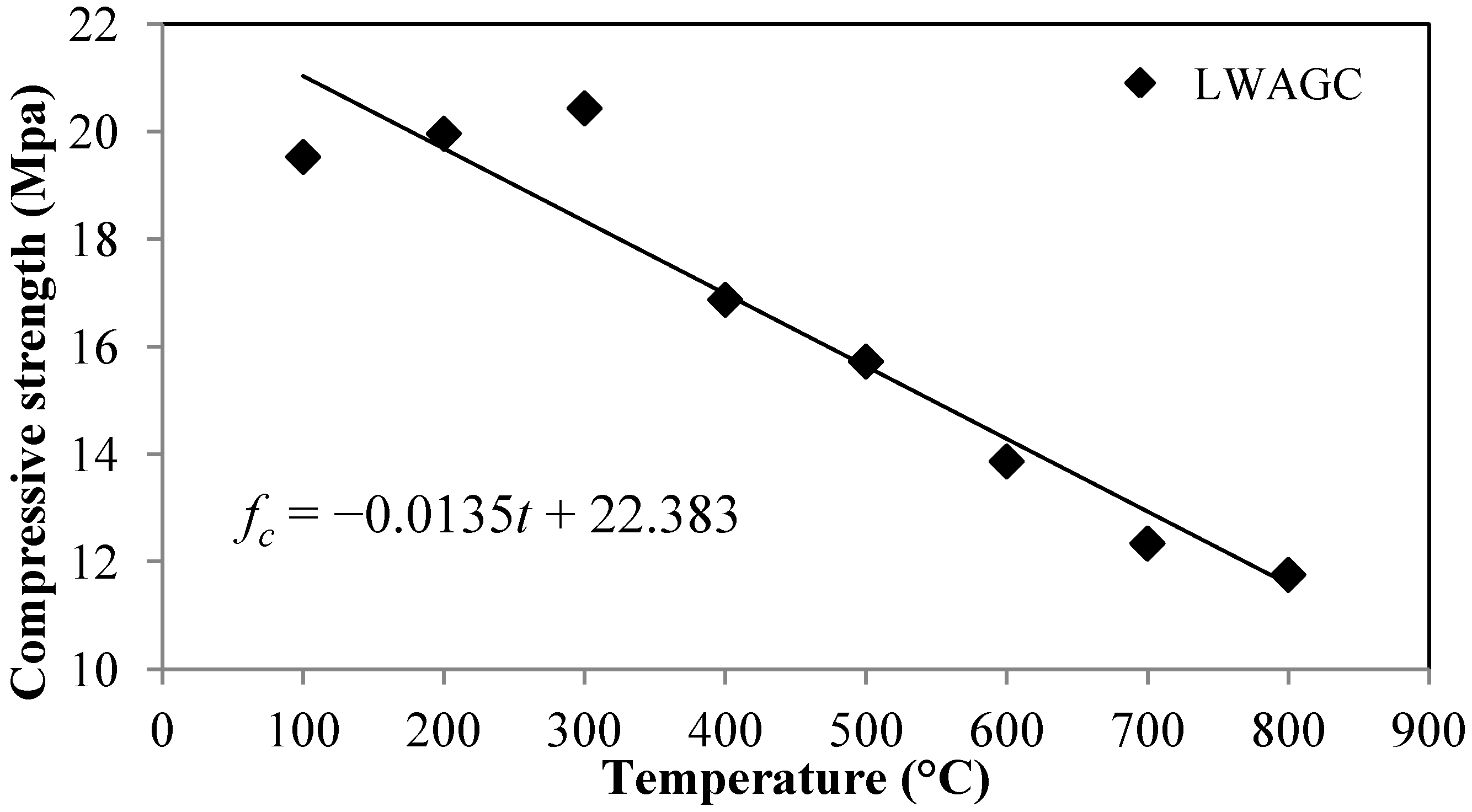

Figure 2. Residual compressive strength of the LWAGCs after being exposing to elevated temperatures of 100 °C to 800 °C.
Figure 2. Residual compressive strength of the LWAGCs after being exposing to elevated temperatures of 100 °C to 800 °C.
Materials 06 04450 g002
The observed strength loss of the LWAGC exposed to elevated temperatures, higher than 300 °C, and up to 800 °C, is attributed to the essential thermal shrinkage resulted by the loss of mass due to the evaporation of the structural water at elevated temperatures. The water in the geopolymer structure is transformed to a water vapor when the geopolymer is heated above 100 °C, and its pressure increases continuously with the increasing heating temperature [18]. Thus, as the water vapor pressure reaches the maximum limit, the dense geopolymeric matrix, with less permeability characteristics, would be unable of restrain the high thermal stresses, which cause intensive thermal cracks that significantly reduce the compressive strength. This phenomenon is known as the “vapor effect” [18]. In addition, the difference in the thermal expansion between the LWA and the geopolymer paste is another reason behind the strength loss observed for the LWAGC exposed to elevated temperatures of 400–800 °C.
Figure 3 illustrates the thermal expansion of the geopolymer paste and LWA used in preparation of the LWAGC of this work, at temperatures between 20 and 800 °C, showing the differences in the thermal expansion behavior between the geopolymer paste and the LWA. For the geopolymer paste, a slight expansion is observed as the temperature increases from 70 to 100 °C. Subsequently, the paste undergoes a sharp thermal shrinkage occurred in the temperature range of 100–700 °C, which is related to the evaporation of the structural water [16]. Furthermore, a significant expansion has been detected in the geopolymer paste, instead of the shrinkage experienced earlier, at a temperature range of 700–800 °C. It is likely that a portion of the activating solution remained unreached, or partially reacted, in the geopolymeric matrix during the geopolymer formation [19]. These unreached, or partially reacted, residual species are composed mainly from silicate [20], which experienced extensive thermal expansion at temperature ranges of 700–800 °C, due to the swelling of the high silicate secondary phases as described in references [19,21].
Whereas, the thermal strain data of the LWA presented in Figure 3 shows that the LWA possesses a minimal thermal expansion up to 800 °C. This low thermal expansion of the LWAs is attributed to their low coefficient of thermal expansion (CTE), as they exposed to a pre-heating process at high temperatures during their formation [22]. As a result, the mismatching in thermal expansion of the geopolymer paste and the LWA leads to induce the formation of micorcracks in the interface transition zone (ITZ), as will be discussed in Section 2.2.2. These microcracks, however, decline the compressive strength of the LWAGC. This phenomenon known as ‘thermal inconsistency of the concrete ingredients’ [23,2425,26].

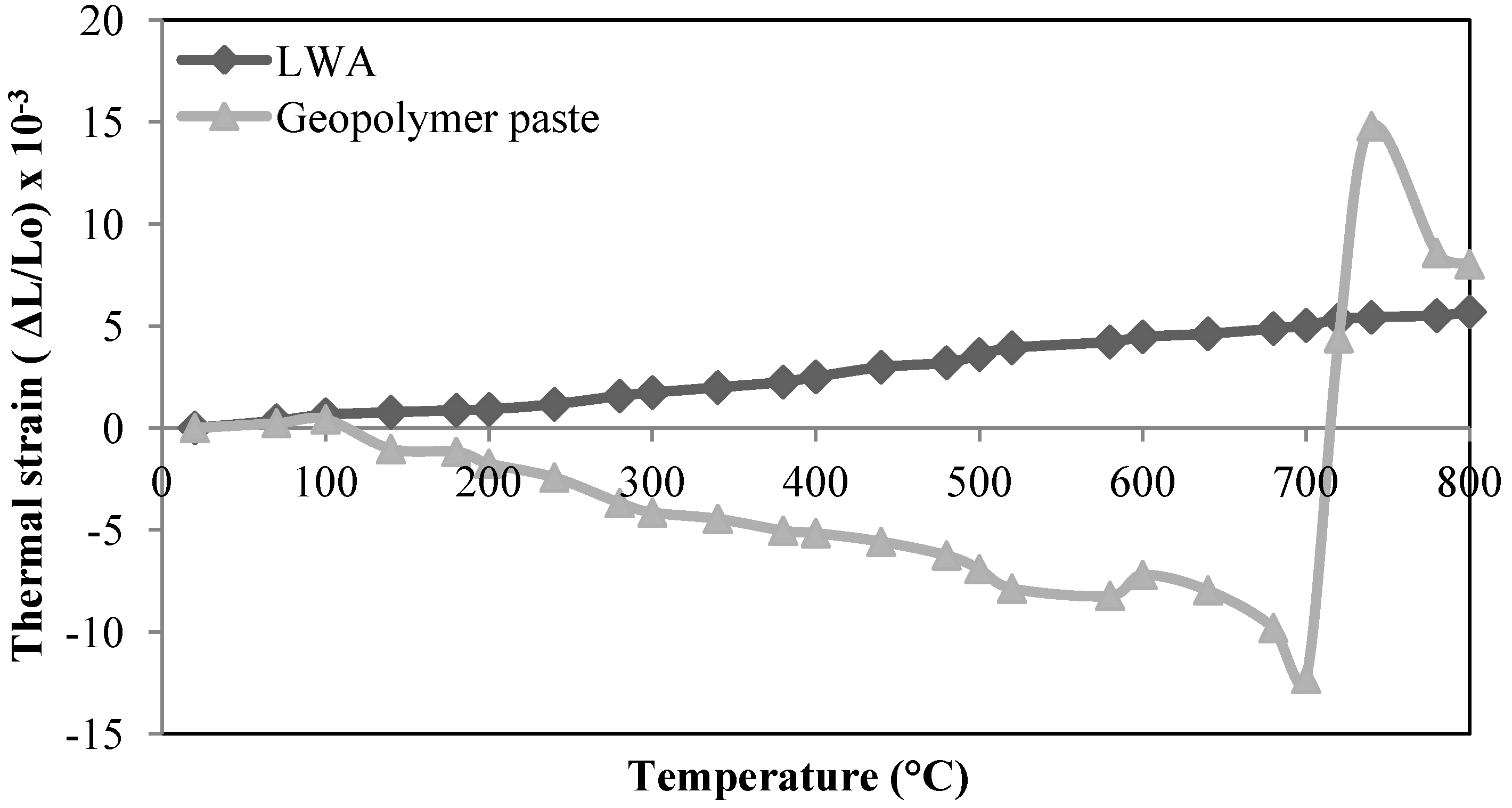

Figure 3. Thermal expansion of lightweight aggregate (LAW) and geopolymer paste.
Figure 3. Thermal expansion of lightweight aggregate (LAW) and geopolymer paste.
Materials 06 04450 g003

2.2.2. Microstructure of the Exposed LWAGC

Figure 4 represents the scanning electron microscope (SEM) micrographs of the unexposed LWAGC, as well as the specimens exposed to the elevated temperatures of 400, 600 and 800 °C. It is observed that the ITZ of the unexposed LWAGC microstructure is indistinct (Figure 4a). This is attributed to the porous nature of the LWAs surfaces, which provides interlocking sites for the geopolymer mortar to form a better interfacial bond between aggregate and mortar at the ITZ [4]. Therefore, it is observed that the geopolymer mortar infiltrates the aggregate surface to a certain depth. This impregnation phenomenon has been also observed by other researchers [25,26].
Moreover, Figure 4b shows the microstructure of the LWAGC exposed to 400 °C. It can be seen that the microstructure appearance does not show many changes from the unexposed concrete (Figure 4a), and appears to be unaffected by this elevated temperature. This can explain the low strength deterioration observed for the LWAGC exposed to 400 °C, shown in Figure 2. On the other hand, the microstructure of the LWAGC exposed to 600 °C, shown in Figure 4c, illustrates the deterioration in the geopolymer mortar due to the high dehydration of the structural water, as well as the formation of microcracks in the ITZ, due to the mismatching in the thermal expansion between the geopolymer paste and LWA. Furthermore, Figure 4d shows the swelling traces of the unreacted silicate phase in the aggregate/mortar bond zone for the LWAGC exposed to 800 °C, as well as the high microcrack content in the aggregate/mortar bond zone.
Figure 4. Scanning electron microscope (SEM) micrographs of LWAGCs: (a) unexposed; (b) exposed to 400 °C; (c) exposed to 600 °C and (d) exposed to 800 °C.
Figure 4. Scanning electron microscope (SEM) micrographs of LWAGCs: (a) unexposed; (b) exposed to 400 °C; (c) exposed to 600 °C and (d) exposed to 800 °C.
Materials 06 04450 g004

3. Experimental Procedure

3.1. Source Materials

The FA used in this work was provided by the Manjung Power Station, Lumut, Perak, Malaysia. The chemical composition of the FA was determined by X-ray fluorescence (XRF) (XRF-Qualitax, Italy) as listed in Table 2. It can be observed that the calcium oxide content is more than 10%; hence it can be classified as Class (C) FA according to ASTM C618-08 [27]. About 90% of FA particles size was smaller than 40 µm, having a specific surface area of 0.463 m2/g. The FA was activated with alkaline activator prepared by mixing a technical grade sodium silicate (Na2SiO3) and sodium hydroxide solution (NaOH). The chemical composition of the Na2SiO3 was SiO2 = 30.1%, Na2O = 9.4%, H2O = 60.5% and the modulus ratio (MS) equal to 2 (where MS = SiO2/Na2O). The NaOH of 12 M was prepared by mixing sodium hydroxide pellets of 97%–99% purity with distilled water. The alkaline activator prepared by mixing the Na2SiO3 and 12 M NaOH solution at a constant mass ratio of 1:1.
Table 2. Chemical composition of fly ash using X-ray fluorescence (XRF).
Table 2. Chemical composition of fly ash using X-ray fluorescence (XRF).
Chemicalwt %
SiO226.4
Al2O39.25
Fe2O330.13
TiO23.07
CaO21.6
MnO0.27
CuO0.14
K2O2.58
P2O50.67
SO31.3
SrO1.57
LOI3.02
The LWA used for the LWAGC preparation was commercial lightweight expanded clay aggregate (LECA). The LWA granules were spherical in shape with closed surfaces, having a slightly rough and porous texture. The physical properties of the LWA are given in Table 3. The fine aggregate was locally available river sand, having water absorption of 2.2% and specific gravity of 2.50. The sieve analysis for the LWA and sand is shown in Table 4. The aggregate particle distribution for the LWA ranged from 4 to 8 mm, and the maximum size of the sand was 2.38 mm having fineness modulus of 2.83.
Table 3. Sieve analysis for the lightweight aggregate (LWA) and river sand.
Table 3. Sieve analysis for the lightweight aggregate (LWA) and river sand.
Sieve (mm)Passing (%) SandPassing (%) LWA
9.5100
6.360
4.7510025
2.3898.750
1.1995
0.5970
0.3040
0.1510
Table 4. Physical properties of LWA.
Table 4. Physical properties of LWA.
PropertyValue
Specific gravity (OD)0.9
Specific gravity (SSD)1.05
Apparent Specific gravity1.07
Density (OD)897.75 (kg/m3)
Density (SSD)1047.37 (kg/m3)
Apparent Density1067 (kg/m3)
Water absorption (%)17.2

3.2. LWAGC Preparation

The mix proportioning of the LWAGC was made according to ACI 211.2 standard [28] and presented in Table 5. The term of water/cement ratio used in the standard was modified to Activator/FA ratio in order to fit the terms used in the geopolymeric technology. In previous work, it has been suggested that the adoption of the proposed Activator/FA ratio of 0.59 by ACI 211.2 standard, produced the optimum preparation and mechanical properties for the LWAGC [12].
Table 5. The mix proportion of the geopolymers (kg/m3).
Table 5. The mix proportion of the geopolymers (kg/m3).
ConstituentsLWAGC
FA341.89
Na2SiO3100.86
NaOH100.86
Activator/FA mass ratio0.59
LWA484
Sand823.39
Extra H2O91.47
The LWAs were prepared in oven-dry condition (OD) by being pre-dried at 105 °C for 24 h in order to remove any residual moisture prior to mixing, due to the highly moisture absorption capability of the LWA. Concurrently, the fine aggregate was prepared in air-dry condition (AD) by firstly washing with a tap water and then drying in shade for 24 h prior to mixing. The absorbed water by the LWAs and fine sand was constrained during mixing by adding extra water, equivalent to the quantity of the water absorption of each aggregate type. In practice, the FA and aggregates (LWA + sand) were mixed in a pan mixer for 3 min. Following, the prepared alkaline activator liquid and the extra water dosages were gradually added to the solid constituents. The wet mixing continued for a further 5 min until the mixture homogenized. Subsequently, the slump of the fresh concrete was measured prior to pouring the mixture into 100 mm × 100 mm × 100 mm cubic plastic molds and compacted in three layers using a steel rod to strike each layer 25 times. The molds were sealed from the ambient to prevent the loss of moisture.

3.3. Curing Regime

All wrapped molds were cured, undisturbed, in an oven at 70 °C for 24 h after casting. Following, the molds were taken out of the furnace and left to cool at room temperature before demolding. The sealed specimens were stored under ambient conditions.

3.4. Elevated Temperatures Exposure Method

Number of LWAGC specimens at 27 days was further exposed to elevated temperatures, ranging from 100 to 800 °C, in increments of 100 °C. The specimens were placed into a furnace and heated at a fixed heating rate of 4.4 °C/min. The geopolymers specimens were kept at each elevated temperatures for 1 h, afterwards, the specimens were left to cool, inside the furnace, to room temperature. Meanwhile, the unexposed specimens were left, undisturbed, at ambient conditions. The compressive strength test for LWAGCs exposed to elevated temperatures of 100 to 800 °C was preformed one day after the heating. Thus, all specimens were left to complete the aging period of 28 days before being tested for their physical and mechanical properties. The density and water absorption of the unexposed geopolymers were preformed according to ASTM C 140-01 [29], and the compressive strength for all specimens was tested according to EN 12390-3 [30]. The density measurements were an average of two specimens, and for the compressive strength, were an average of six specimens.

3.5. Dilatometry Analysis

Dilatometry measurements were carried out in order to measure the thermal expansion of the specimens using a Linseis, L75 Laser dilatometer (Sowards, Italy), at temperatures ranging from 20 to 800 °C, with a constant heating rate of 5 °C/min. The test was performed for both geopolymer paste and LWA specimens, as they can present valuable information for the thermal expansion behavior for concrete at high temperatures, as reported in references [16,31]. The test was carried out on 9 mm in diameter ×3 mm in height pellets for specimens sliced from original LWA grains and from 10 mm in diameter ×15 mm in height for geopolymer paste cylinders. The specimens were pre-dried in an oven at 50 °C until they maintained a constant mass [19] before performing the test according to ASTM E 831-03 [32]. The measurements were an average of two specimens. The linear length change values were calculated within the temperature range of 20–800 °C in accordance with the following equations:
ε = Δ l / l 0
Δ l = α l 0 Δ T
where ε is the thermal strain (mm/mm), α is the coefficient of thermal expansion (1/°C); Δl is the length change (mm); and l0 is the initial length of the specimens; ΔT is the temperature difference, respectively.

3.6. Microstructural Investigation

Scanning electron microscopy (SEM) was performed using SEM JSM-6460 LA Jeol., Tokyo, Japan, in order to investigate the microstructure of the LWAGC, unexposed and exposed, to elevated temperatures. The specimen fragments of the compressive strength tested LWAGCs were mounted in epoxy resin and further vacuumed and coated with a thin layer of platinum using a JFC-1600 auto fine coater Jeol. Japan. The test was carried out using secondary, as well as, backscattered electron (BSE) detectors.

4. Conclusion

This paper presents the mechanical and microstructural characteristics of a lightweight aggregate geopolymer concrete (LWAGC) synthesized by the alkali activation of locally sourced FA, before and after exposure to elevated temperatures, ranging from 100 to 800 °C. The mechanical and physical results of the unexposed LWAGC showed a good strength-to-weight ratio when compared with other LWAGCs available in the published literature. In addition, the mechanical strength of the resulting LWAGC showed the possibility of classifying it as a structural LWC that could be used as construction material. Moreover, the continuous gain in the compressive strength of the unexposed LWAGC, with ages of up to 365 days, has added another advantage to these novel materials.
For the exposed LWAGC, the results of the current paper showed that the concrete gained a compressive strength, even after exposure to elevated temperatures of 100, 200 and 300 °C, which made it an excellent refractory material for application when high strength and thermal durability, up to 300 °C, is desired. The strength of the LWAGC started to deteriorate after being exposed to elevated temperatures of 400–800 °C, due to vapor effects, as well as the differences in the thermal expansion between the aggregate and the geopolymeric paste. It was also observed that the rate of strength deterioration was continuously increased with the increase in temperature.
The microstructural investigation by SEM, for the unexposed LWAGC, showed a good bonding between the aggregate and mortar at the ITZ. This bonding, however, was subjected to a continuous deterioration as the LWAGC was exposed to elevated temperatures of 400, 600 and 800 °C, which explains the strength decrease of the LWAGC exposed to these elevated temperatures.

Acknowledgments

This work was funded by the King Abdul Aziz City Science and Technology (KACST). We would like to extend our appreciation to the Center of Excellence Geopolymer and Green Technology in the School of Materials Engineering at the Universiti Malaysia Perlis (UniMAP).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Swamy, R.N.; Jiang, E.D. Pore structure and carbonation of lightweight concrete after 10 years’ exposure. ACI Spec. Publ. 1993, 136, 377–395. [Google Scholar]
  2. Swamy, R.N.; Lambert, G.H. Mix design and properties of concrete made from PFA coarse aggregates and sand. Int. J. Cem. Compos. Lightweight Concr. 1983, 5, 263–275. [Google Scholar] [CrossRef]
  3. Swamy, R.N.; Lambert, G.H. The microstructure of Lytag aggregate. Int. J. Cem. Compos. Lightweight Concr. 1981, 3, 273–282. [Google Scholar] [CrossRef]
  4. Mouli, M.; Khelafi, H. Performance characteristics of lightweight aggregate concrete containing natural pozzolan. Build. Environ. 2008, 43, 31–36. [Google Scholar] [CrossRef]
  5. Davidovits, J. Chemistry of Geopolymeric Systems, Terminology. In Proceedings of Second International Conference on Geopolymers, Saint-Quentin, France, 28–29 June 1999; pp. 9–40.
  6. Yang, K.; Song, J.; Lee, J. Properties of alkali-activated mortar and concrete using lightweight aggregates. Mater. Struct. 2010, 43, 403–416. [Google Scholar] [CrossRef]
  7. Li, Z.; Ding, Z.; Zhang, Y. Development of Sustainable Cementitious Materials. In Proceedings of International Workshop on Sustainable Development and Concrete Technology, Beijing, China, 20–21 May 2004; pp. 20–21.
  8. Wallah, S.E.; Rangan, B.V. Low-Calcium Fly Ash Based Geopolymer Concrete: Long-Term Properties. In Research Report GC2; Faculty of Engineering, Curtin University of Technology: Perth, Australia, 2006. [Google Scholar]
  9. Gourley, J.; Johnson, G. Developments in Geopolymer Precast Concrete. In Proceedings of Fourth World Congress Geopolymer, Saint- Quentin, France, 1 July 2005; pp. 133–137.
  10. Abdullah, M.M.A.B.; Jamaludin, L.; Hussin, K.; Bnhussain, M.; Ghazali, C.M.R.; Ahmad, M.I. Fly ash porous material using geopolymerization process for high temperature exposure. Int. J. Mol. Sci. 2012, 13, 4388–4395. [Google Scholar] [CrossRef]
  11. Abdullah, M.M.A.B.; Hussin, K.; Bnhussain, M.; Ismail, K.N.; Yahya, Z.; Razak, R.A. Fly ash-based geopolymer lightweight concrete using foaming agent. Int. J. Mol. Sci. 2012, 13, 7186–7198. [Google Scholar] [CrossRef] [PubMed]
  12. Abdulkareem, O.A.; Bakri, A.M.M.A.; Kamarudin, H.; Nizar, I.K. A study on the synthesis of fly ash-based lightweight aggregate geopolymer concrete. Adv. Sci. Lett. 2013, 19, 282–285. [Google Scholar] [CrossRef]
  13. American Concrete Institute Committee. Guide for Structural Lightweight Aggregate Concrete; American Concrete Institute Committee: Farmington Hills, MI, USA, 2003. [Google Scholar]
  14. Hardjito, D.; Rangan, B.V. Development and Properties of Low-Calcium Fly Ash-Based Geopolymer Concrete. In Research Report GC1; Faculty of Engineering, Curtin University of Technology: Perth, Australia, 2005. [Google Scholar]
  15. Collins, F.; Sanjayan, J.G. Strength and shrinkage properties of alkali-activated slag concrete containing porous coarse aggregate. Cem. Concr. Res. 1999, 29, 607–610. [Google Scholar] [CrossRef]
  16. Kong, D.L.Y.; Sanjayan, J.G. Effect of elevated temperatures on geopolymer paste, mortar and concrete. Cem. Concr. Res. 2010, 40, 334–339. [Google Scholar] [CrossRef]
  17. Rashad, A.M.; Zeedan, S.R. The effect of activator concentration on the residual strength of alkali-activated fly ash pastes subjected to thermal load. Contsr. Build. Mater. 2011, 25, 3098–3107. [Google Scholar] [CrossRef]
  18. Hu, S.G.; Wu, J.; Yang, W.; He, Y.J.; Wang, F.Z.; Ding, Q.J. Preparation and properties of geopolymer-lightweight aggregate refractory concrete. J. Cent. South Univ. Technol. 2009, 16, 914–918. [Google Scholar] [CrossRef]
  19. Rickard, W.D.; Temuujin, J.; van Riessen, A. Thermal analysis of geopolymer pastes synthesised from five fly ashes of variable composition. J. Non Cryst. Solids 2012, 358, 1830–1839. [Google Scholar] [CrossRef]
  20. Abdulkareem, O.A.; Bakri, A.M.M.A.; Kamarudin, H.; Nizar, I.K. Alternation in the microstructure of fly ash geopolymers upon exposure to elevated temperatures. Adv. Mater. Res. 2013, 795, 201–205. [Google Scholar] [CrossRef]
  21. Provis, J.L.; Yong, C.Z.; Duxson, P.; van Deventer, J.S.J. Correlating mechanical and thermal properties of sodium silicate-fly ash geopolymers. Colloids Surf. A Physicochem. Eng. Asp. 2009, 336, 57–63. [Google Scholar] [CrossRef]
  22. Uygunoğlu, T.; Topçu, I.B. Thermal expansion of self-consolidating normal and lightweight aggregate concrete at elevated temperature. Contsr. Build. Mater. 2009, 23, 3063–3069. [Google Scholar]
  23. Andiç-Çakır, Ö.; Hizal, S. Influence of elevated temperatures on the mechanical properties and microstructure of self-consolidating lightweight aggregate concrete. Contsr. Build. Mater. 2012, 34, 575–583. [Google Scholar]
  24. Saad, M.; Abo-El-Enein, S.A.; Hanna, G.B.; Kotkata, M.F. Effect of temperature on physical and mechanical properties of concrete containing silica fume. Cem. Concr. Res. 1996, 26, 669–675. [Google Scholar] [CrossRef]
  25. Ke, Y.; Ortola, S.; Beaucour, A.L.; Dumontet, H. Identification of microstructural characteristics in lightweight aggregate concretes by micromechanical modeling including the interfacial transition zone (ITZ). Cem. Concr. Res. 2010, 40, 1590–1600. [Google Scholar] [CrossRef]
  26. Topçu, İ.B.; Uygunoğlu, T. Properties of autoclaved lightweight aggregate concrete. Build. Environ. 2007, 42, 4108–4116. [Google Scholar] [CrossRef]
  27. ASTM (American Society for Testing and Materials). Standard Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete (C618-08); ASTM International: West Conshohocken, PA, USA, 2008. [Google Scholar]
  28. American Concrete Institute Committee. Standard Practice for Selecting Proportions for Structural Lightweight Concrete; American Concrete Institute Committee: Farmington Hills, MI, USA, 1998. [Google Scholar]
  29. ASTM (American Society for Testing and Materials). Standard Test Method for Sampling and Testing Concrete Masonry Units and Related Units (C 140-01); ASTM International: West Conshohocken, PA, USA, 2001. [Google Scholar]
  30. Eurpoean Committee for Standardization. Testing Hardened Concrete—Part 3: Compressive Strength of Testing Specimens; Eurpoean Committee for Standardization: Brussels, Belgium, 2009. [Google Scholar]
  31. Kong, D.L.Y.; Sanjayan, J.G. Damage behavior of geopolymer composites exposed to elevated temperatures. Cem. Concr. Compos. 2008, 30, 986–991. [Google Scholar] [CrossRef]
  32. ASTM (American Society for Testing and Materials). Standard Test Method for Linear Thermal Expansion of Solid Materials by Thermomechanical Analysis (E 831-03); ASTM International: West Conshohocken, PA, USA, 2003. [Google Scholar]
