Persistent Luminescence in Eu2+-Doped Compounds: A Review

Lumilab, Department of Solid State Sciences, Ghent University, Krijgslaan 281S1, 9000 Gent, Belgium
Author to whom correspondence should be addressed.
Materials 2010, 3(4), 2536-2566;
Submission received: 17 January 2001 / Revised: 27 March 2010 / Accepted: 30 March 2010 / Published: 6 April 2010
(This article belongs to the Special Issue Luminescent Materials)


In 1996, Matsuzawa et al. reported on the extremely long-lasting afterglow of SrAl2O4:Eu2+ codoped with Dy3+ ions, which was more than 10-times brighter than the previously widely used ZnS:Cu,Co. Since then, research for stable and efficient persistent phosphors has continuously gained popularity. However, even today - almost 15 years after the discovery of SrAl2O4:Eu2+, Dy3+ - the number of persistent luminescent materials is still relatively low. Furthermore, the mechanism behind this phenomenon is still unclear. Although most authors agree on the general features, such as the existence of long-lived trap levels, many details are still shrouded in mystery. In this review, we present an overview of the important classes of known persistent luminescent materials based on Eu2+-emission and how they were prepared, and we take a closer look at the models and mechanisms that have been suggested to explain bright afterglow in various compounds.

1. Introduction

Persistent luminescence is an optical phenomenon, whereby a material is excited with high energy radiation (typically ultraviolet light, but other forms of energy such as beta rays can also be used) and the resulting visible luminescent emission remains visible for an appreciable time – from seconds to many hours - after the excitation has stopped. The effect is also called phosphorescence, afterglow, or LLP (short for Long Lasting Phosphorescence). As we will discuss further in this review, the long afterglow is governed by the slow liberation of trapped charge carriers by thermal excitation. Therefore, the process can be influenced by changing the temperature. Often, thermoluminescence - measuring the light output following the thermal release of trapped charges as a function of increasing temperature - is used as a diagnostic method for determining trap levels.
The phenomenon of persistent luminescence has been known to mankind for over a thousand years. Descriptions have been found of ancient Chinese paintings that remained visible during the night, by mixing the colors with a special kind of pearl shell [1]. The first scientifically described observation of persistent luminescence dates back to 1602, when shoemaker and alchemist Vincenzo Casciarolo discovered the famous Bologna stone. The curious glow of this stone was described by Fortunius Licetus in the Litheosphorus Sive De Lapide Bononiensi in 1640, and was most probably caused by barium sulfide present in the rock. Natural impurities in the stone were responsible for the long duration of the afterglow [1].
Until the end of the 20th century, very little research was done on the phenomenon of persistent luminescence. For many decades, zinc sulfide (ZnS) doped with copper (and later codoped with cobalt) was the most famous and widely used persistent phosphor [2,3]. It was used in many commercial products including watch dials, luminous paints and glow-in-the-dark toys. However, the brightness and lifetime that could be achieved with this material was rather low for practical purposes. To tackle this problem, traces of radioactive elements such as promethium or tritium were often introduced in the powders to stimulate the brightness and lifetime of the light emission [4]. But even then, a commercial glow-in-the-dark object had to contain a large amount of luminescent material to yield an acceptable afterglow.
In August 1996, Matsuzawa et al. published an article [5] that sent a shockwave through the until then relatively unpopular field of persistent luminescence. By codoping the green-emitting phosphor SrAl2O4:Eu2+ (already showing a relatively strong and long-lasting afterglow by itself [6]) with the rare earth element dysprosium (Dy3+), they were able to create a material that emitted bright light for hours after ending the excitation (simultaneously and independently, Takasaki et al. reported similar results [7]). They found an afterglow with both a far higher initial intensity and a much longer lifetime compared to ZnS:Cu,Co (Figure 1). Their discovery marked the beginning of a renewed search for different and better persistent luminescent materials. Initially, this research was concentrated on alkaline earth aluminates, and it took a few years before other types of compounds came into view. In 2001, Lin et al. reported a bright and long lasting afterglow in Sr2MgSi2O7:Eu2+,Dy3+ [8], and shortly afterwards other doped (di)silicates were found to exhibit an equally long afterglow. Today, almost 15 years after the discovery of SrAl2O4:Eu2+,Dy3+, the research for new persistent luminescent compounds has become increasingly popular (Figure 2). Quite surprisingly, the number of known compounds with a decent afterglow brightness and lifetime is still rather limited. In this review article, we will describe the major discoveries that have taken place during these last 15 years, and we will give an overview of the reported materials. We have limited ourselves to luminescence caused by Eu2+ ions, since these are the most common activators in persistent luminescent compounds. Section 2 of this review gives an overview of the materials studied.

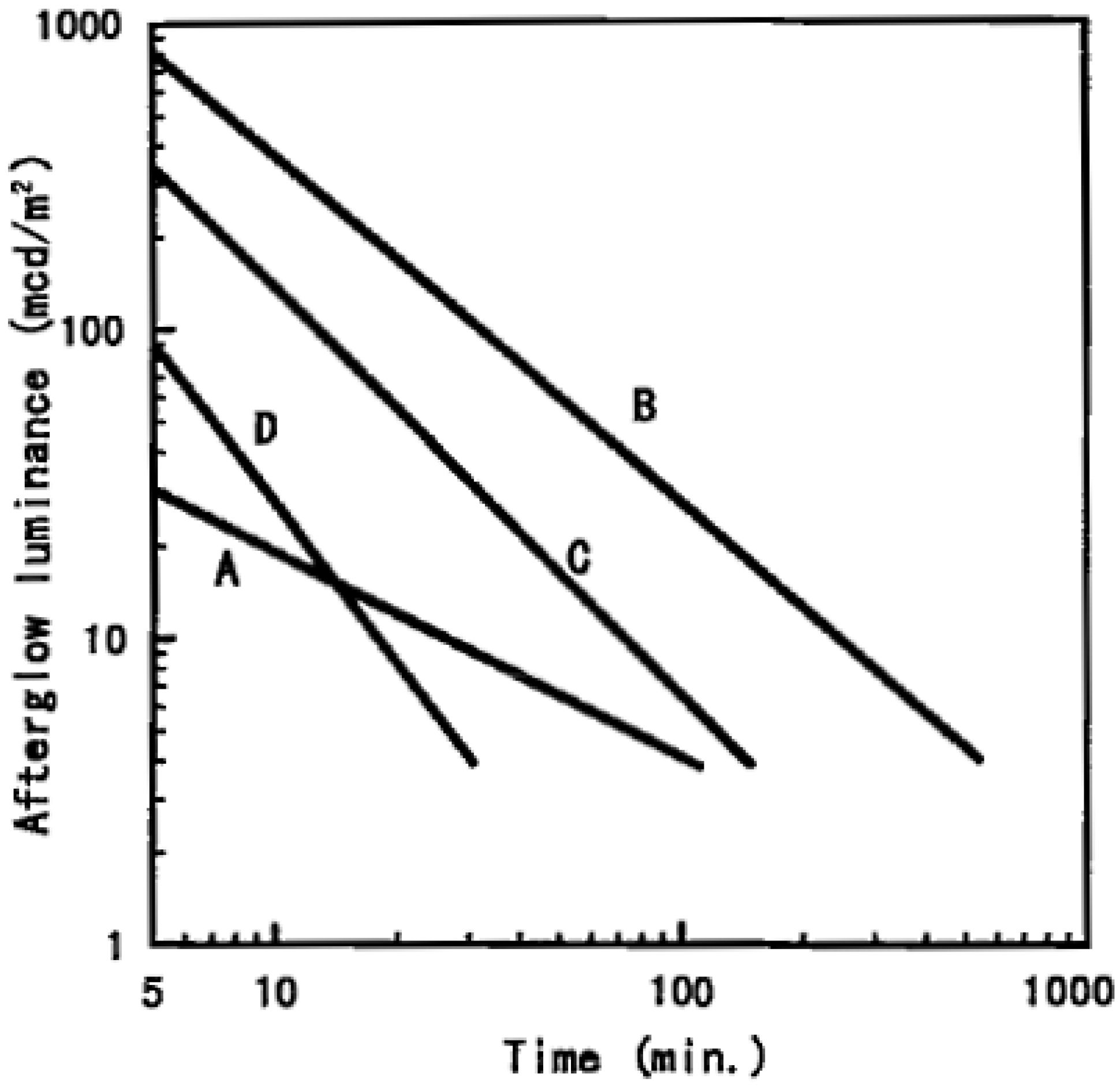

Figure 1. Comparison of afterglow characteristics measured after 10 min exposure to 200 lx of D65 light. A: SrAl2O4:Eu2+, B: SrAl2O4:Eu2+,Dy3+, C: SrAl2O4:Eu2+,Nd3+, D: ZnS:Cu,Co. (Reprinted with permission from [5]. Copyright 1996, The Electrochemical Society).
Figure 1. Comparison of afterglow characteristics measured after 10 min exposure to 200 lx of D65 light. A: SrAl2O4:Eu2+, B: SrAl2O4:Eu2+,Dy3+, C: SrAl2O4:Eu2+,Nd3+, D: ZnS:Cu,Co. (Reprinted with permission from [5]. Copyright 1996, The Electrochemical Society).
Materials 03 02536 g001

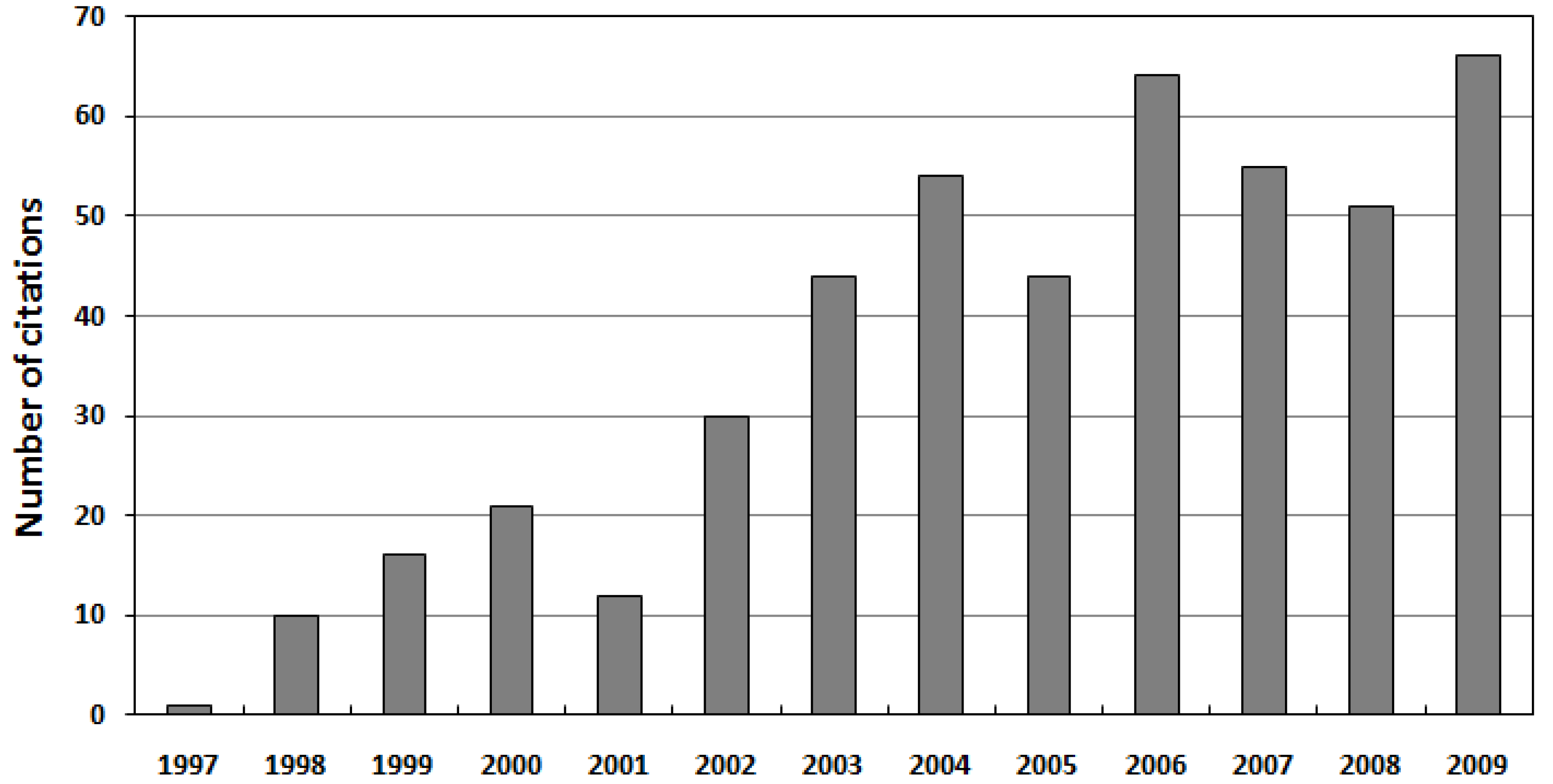

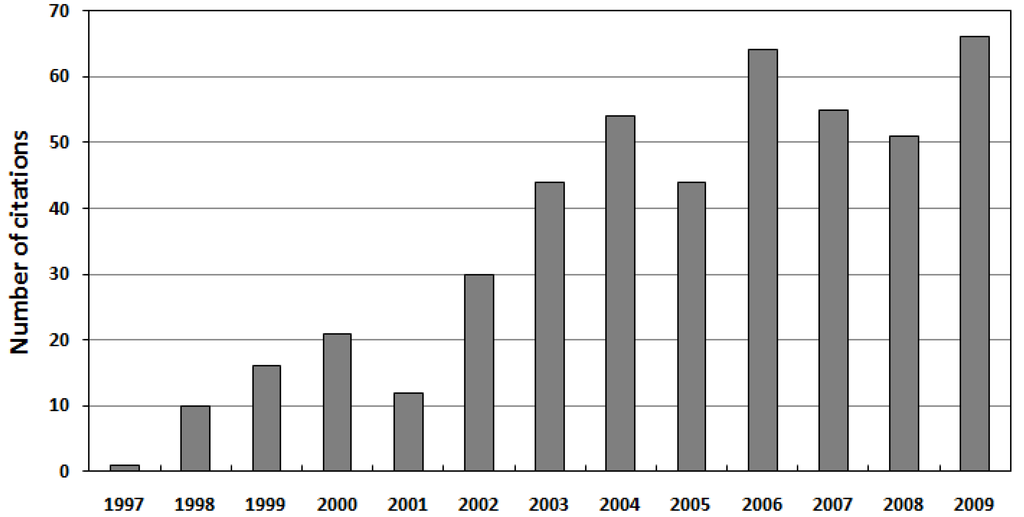

Figure 2. Number of citations of the 1996 paper by Matsuzawa et al. [5] according to the Web of Science.
Figure 2. Number of citations of the 1996 paper by Matsuzawa et al. [5] according to the Web of Science.
Materials 03 02536 g002
Next, a short overview is presented of the most frequently used experimental techniques to estimate trap depths in persistent luminescent materials, by means of glow curve analysis or related methods (section 3).
In their famous article on SrAl2O4, Matsuzawa et al. suggested a mechanism to explain the occurrence of an efficient afterglow. This mechanism was initially accepted by most researchers, but a few others, such as Hölsä [9] and Dorenbos [10], raised questions about its validity. Other more complicated models were developed to tackle these revealed problems. Nowadays, most authors agree on the general idea behind persistent luminescence, but many details have yet to be clarified, and the discussion is ongoing. Therefore, we considered it useful to discuss and compare the different models that have been suggested by various authors. This is the subject of section 4 of the review.

2. Known Compounds

A wide variety of host materials are used as luminescent compounds, but when it comes to persistent luminescence, the number of known hosts is relatively low. The majority of research on this phenomenon is concentrated around the aluminates, with SrAl2O4 as most famous representative, and the silicates, represented by Sr2MgSi2O7. Besides these two main classes of materials, only few host crystals have been found to exhibit persistent luminescence with Eu2+ activators.
In this paragraph, we will give an overview of the compounds where Eu2+-based persistent luminescence has been reported. These materials are often labeled as ‘phosphorescent’, but the definition of phosphorescence is rather ambiguous, since the term is also used for luminescence where a quasi-stable state is involved, causing an increased lifetime of the fluorescence decay. However, even the decay from such a quasi-stable state usually does not last longer than a second [3]. We are interested in materials where the afterglow is caused by the existence of suitable charge carrier traps in the crystal [11], and remains visible for a reasonable amount of time. The borderline between ‘visible’ and ‘invisible’ is not sharply defined, and neither does there exist a consensus on a ‘reasonable amount of time’. In this review, we will focus on materials that have an afterglow decay time longer than several minutes, where the decay time is defined as the time between the end of the excitation and the moment when the light intensity drops below 0.32 mcd/m², roughly 100 times the sensitivity of the dark adapted human eye [12]. This is a definition similar to the one used in the safety signage industry, and by various researchers [13].
The data in the following tables are taken directly from the mentioned references. Only the codopants with the strongest positive influence on the afterglow are listed. Afterglow durations are meant to show the greater picture, and should only be seen as orders of magnitude.
New persistent materials are continuously discovered. The following list therefore does not pretend to be exhaustive, but it does, to the best of our knowledge, include nearly every host material in which a significant Eu2+-based afterglow has been reported.

2.1. Aluminates

Ever since the article by Matsuzawa et al. on SrAl2O4:Eu2+,Dy3+ [5], the aluminates have been the center of attention in persistent luminescent research, with a large number of publications (over 100 entries in the Web of Science up to December 2009). The aluminate compounds that are known to exhibit persistent luminescent properties are listed in Table 1.
The alkaline earth aluminates MAl2O4 (M = Ca,Sr,Ba) are by far the most studied family of persistent luminescent materials. The bright green luminescence of the monoclinic [14] SrAl2O4:Eu2+ was discovered in 1966 [15] and described by Blasse and Bril two years later, together with that of CaAl2O4:Eu2+ and BaAl2O4:Eu2+ [16]. It is interesting to note that, as mentioned before, even the non-codoped SrAl2O4:Eu2+ shows a considerable afterglow, indicating that the presence of codopants is not imperative to obtain persistent luminescence [6].
Table 1. Known Eu2+-based persistent luminescent aluminates.
Table 1. Known Eu2+-based persistent luminescent aluminates.
Host materialDopantsFluorescence maximum (nm)Afterglow maximum (nm)Afterglow durationReferences
SrAl2O4Eu2+,Dy3+520 (green)idem>30 h [5,17]
CaAl2O4Eu2+,Nd3+440 (blue)430 (blue)>5 h [18,19,20]
BaAl2O4Eu2+,Dy3+500 (green)idem>2 h [21,22]
Sr4Al14O25Eu2+,Dy3+490 (blue)idem>20 h [23,24,25]
SrAl4O7Eu2+,Dy3+480 (blue)idem>3 h [26,27]
SrAl12O19Eu2+,Dy3+400 (blue)idem>3 h [26]
Ca12Al14O33Eu2+,Nd3+440 (indigo)idem>10 min [28]
Sr3Al2O6Eu2+,Dy3+510/610 (disputed)idem(disputed) [29,30]
SrMgAl10O17Eu2+,Dy3+460 (blue)515 (green)>3 min [31]
BaMgAl10O17Eu2+,Co3+450 (blue)idem>5 min [32]

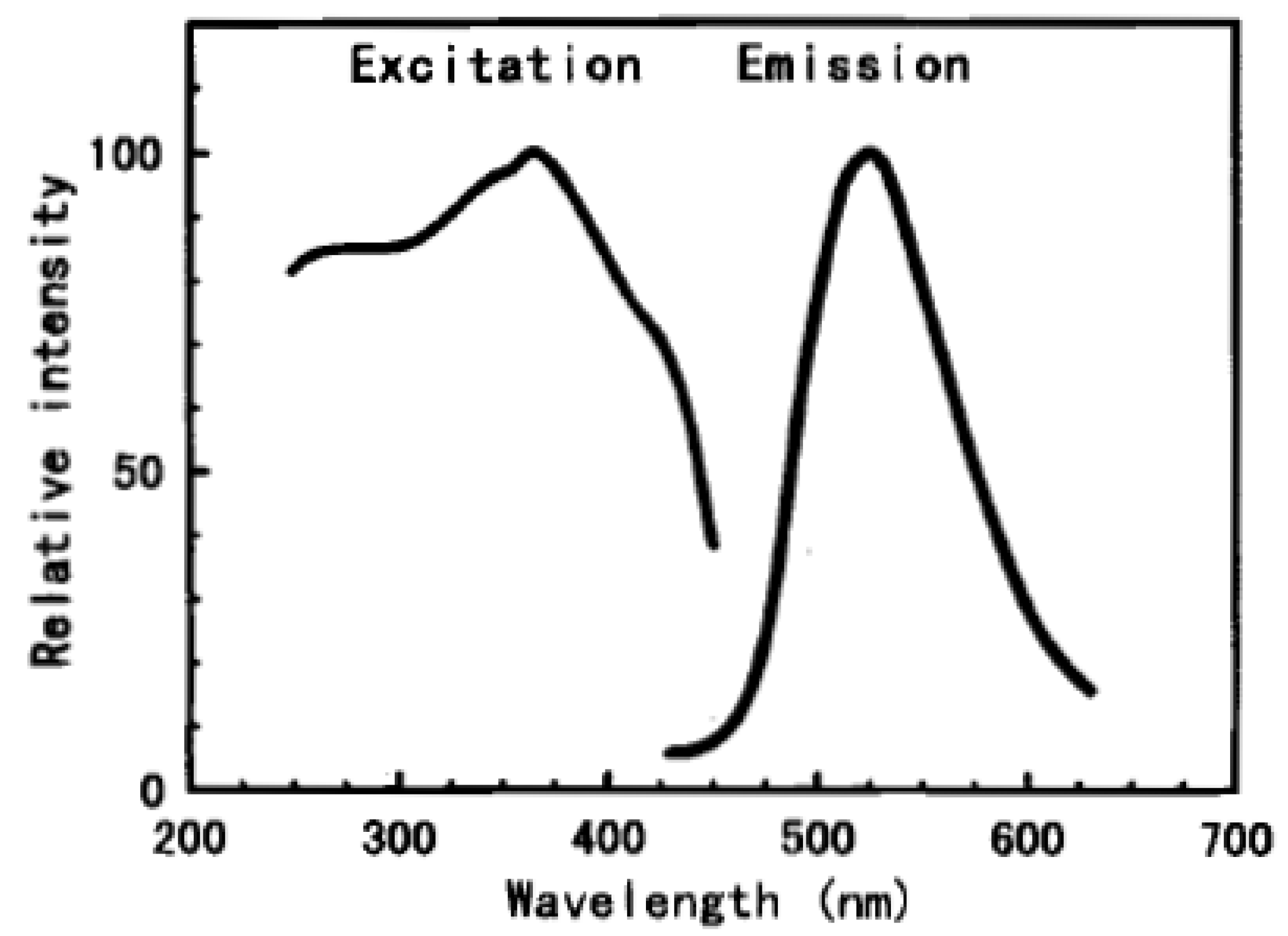

Figure 3. Excitation and emission spectra of SrAl2O4:Eu2+,Dy3+. (Reprinted with permission from [5]. Copyright 1996, The Electrochemical Society) .
Figure 3. Excitation and emission spectra of SrAl2O4:Eu2+,Dy3+. (Reprinted with permission from [5]. Copyright 1996, The Electrochemical Society) .
Materials 03 02536 g003
Different paths were investigated to synthesize codoped MAl2O4:Eu2+ in an efficient, cheap and simple way. A solid-state reaction at 1300–1400 °C is most commonly used to obtain the desired compound, but also combustion [33,34,35,36,37], Pechini [33], microwave [38], laser heated pedestal growth (LHPG) [39] and sol-gel [40,41,42,43] methods were proven to be successful. However, it is worth noting that not all the techniques lead to identical crystallographic and luminescent properties. SrAl2O4:Eu2+,Dy3+ prepared by microwave synthesis shows a decreased initial brightness of the afterglow, together with a small blue shift of the emission spectrum, possibly due to the small grain size [38]. A similar blue shift is reported for sol-gel prepared SrAl2O4:Eu2+,Dy3+ [41,42,43]. During the preparation of CaAl2O4 by combustion or a sol-gel method, Hölsä and coworkers obtained an unusual hexagonal crystal structure instead of the expected monoclinic one [33,40]. Other researchers created grains with orthorombic structure [36]. It is clear that care should be taken when comparing luminescence of compounds prepared with different procedures.
The exact composition of the starting mixture has important consequences for the afterglow behavior. A deficit of alkaline earths usually enhances the afterglow [17], while an excess of barium in BaAl2O4:Eu2+,Dy3+ can annihilate the persistent luminescence completely [22].
Several articles have been published on the influence of the ‘magic ingredient’ borate B2O3 on SrAl2O4:Eu2+,Dy3+. Usually, this material is added to the starting mixture as a flux agent [5], but it has other effects as well. Samples prepared without the addition of borate showed only very weak [41,44] or no persistent luminescence at all [45] (Figure 4), even though perfect SrAl2O4 phase formation was achieved. Apparently, the boron is incorporated in the host as BO4, where it forms substitutional defect complexes with Dy3+ [45]. This decreases the depth of the charge traps in SrAl2O4 from 0.79 eV to 0.65 eV, making it suitable for persistent luminescence at room temperature [44].

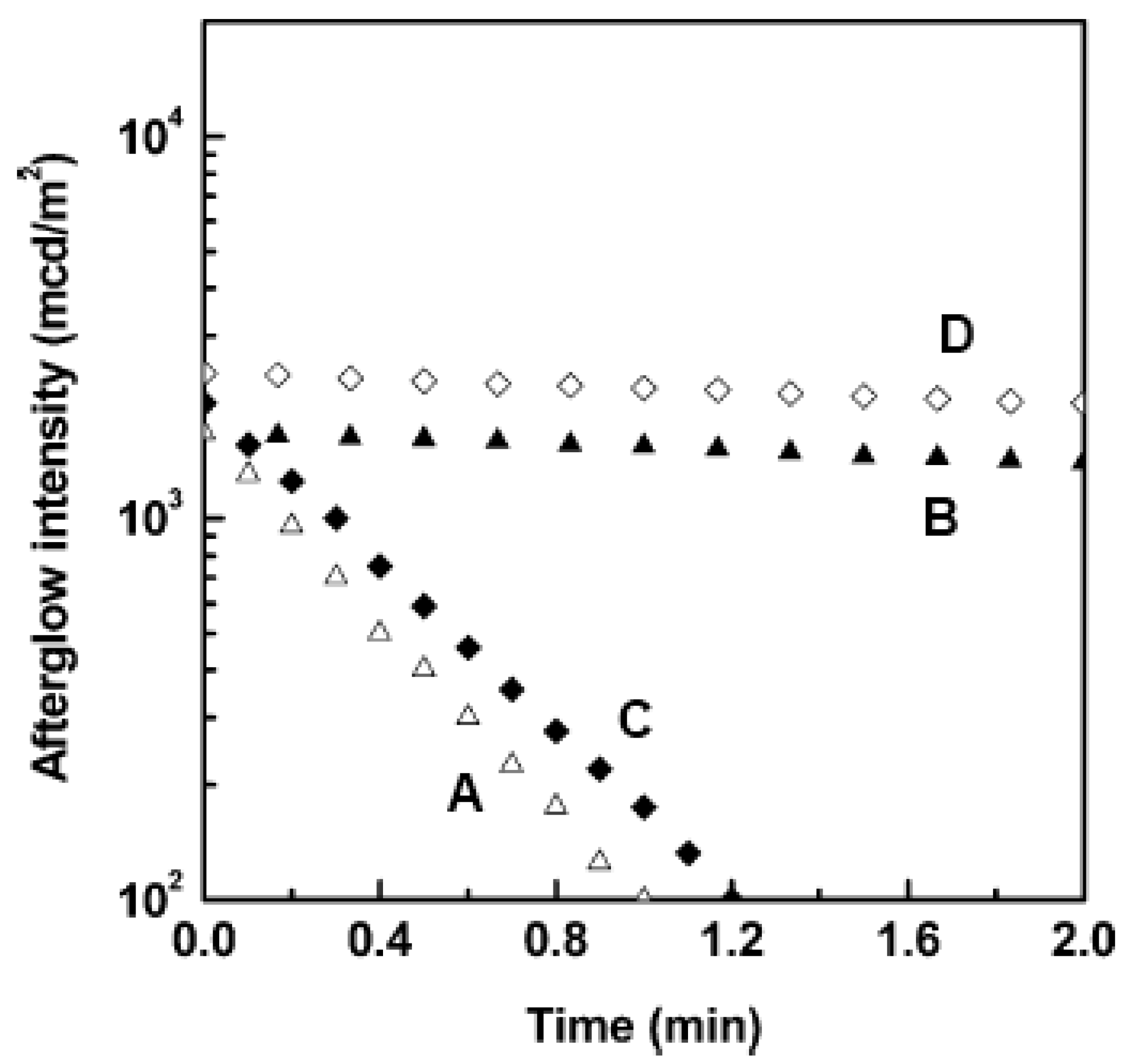

Figure 4. Afterglow decay curves for A: SrAl2O4:Eu2+,Dy3+, B: SrAl2O4:Eu2+,Dy3+ + B2O3, C: Sr4Al14O25:Eu2+,Dy3+ , D: Sr4Al14O25:Eu2+,Dy3+ + B2O3 (Reprinted with permission from [44]).
Figure 4. Afterglow decay curves for A: SrAl2O4:Eu2+,Dy3+, B: SrAl2O4:Eu2+,Dy3+ + B2O3, C: Sr4Al14O25:Eu2+,Dy3+ , D: Sr4Al14O25:Eu2+,Dy3+ + B2O3 (Reprinted with permission from [44]).
Materials 03 02536 g004
Another popular persistent luminescent aluminate is Sr4Al14O25:Eu2+,Dy3+, with a blue emission around 490 nm and an afterglow that remains visible for over 20 hours [23,24]. As in SrAl2O4, a small deficit of strontium enhances the persistent luminescence [46,47], and preparation without borate strongly reduced the afterglow [44] (Figure 4). Adding traces of silver ions (Ag+) increases the trap density and therefore has a positive influence on the afterglow [46].
The emission color of Sr3Al2O6: Eu2+,Dy3+ is indicated as ‘disputed’, because some confusing or contradictory results have been published. In triboluminescence measurements, the emission color is bright green [48] with a spectrum peaking around 510 nm, the same value was found in photoluminescence measurements by Chang et al. [29]. However, another research group reported red Eu2+-emission around 612 nm in the same material when prepared using microwave and sol-gel processes [30,49].

2.2. Silicates

The best known persistent luminescent silicate is Sr2MgSi2O7:Eu2+,Dy3+, first reported by Lin et al. in 2001 [8], but a long afterglow has also been discovered in a number of other silicate compounds (listed in Table 2).
Table 2. Known Eu2+-based persistent luminescent silicates.
Table 2. Known Eu2+-based persistent luminescent silicates.
Host materialDopantsFluorescence maximum (nm)Afterglow maximum (nm)Afterglow durationReferences
Sr2MgSi2O7Eu2+,Dy3+470 (blue)idem>10 h [8,50,51]
Ca2MgSi2O7Eu2+(,Tb3+)515/535 (green)idem>5 h [52,53,54]
Ba2MgSi2O7Eu2+,Tm3+505 (green)idem>5 h [55,56]
Sr3MgSi2O8Eu2+,Dy3+460 (blue)idem>10 h [57,58]
Ca3MgSi2O8Eu2+,Dy3+470 (blue)idem>5 h [57,59]
Ba3MgSi2O8Eu2+,Dy3+440 (blue)idem>1 h [57]
CaMgSi2O6Eu2+,Dy3+445 (blue)idem>4 h [54,60]
Sr3Al10SiO20Eu2+,Ho3+465 (blue)idem>6 h [61,62]
CaAl2Si2O8Eu2+,Dy3+ or Pr3+435 (blue)435/510 (blue)>3 h [63,64]
Sr2Al2SiO7Eu2+,Dy3+485 (blue/green)idem>2 h [65]
Sr2ZnSi2O7Eu2+,Dy3+460 (blue)idem>5 min [66,67]
Sr2SiO4Eu2+,Dy3+480 (green)idem>5 min [68]
The family of materials M2MgSi2O7 (M = Ca,Sr,Ba), also called alkaline earth akermanites, plays a role similar to that of MAl2O4 in the aluminate group. They are often used as an example material when presenting afterglow mechanisms, and they are the most widely studied persistent luminescent silicates.
A solid-state reaction at 1200–1400 °C is the most common way to prepare M2MgSi2O7 samples, but recently sol-gel [69], co-precipitation [70] and combustion methods [71,72] were also applied successfully.
Curiously, Hölsä and coworkers found that the afterglow in Ca2MgSi2O7:Eu2+ was significantly reduced upon addition of trivalent rare earth ions (except for Tb3+, with a weak positive influence, Figure 4) [52]. This is in sharp contrast with the huge enhancement of the afterglow in nearly all other codoped aluminates and silicates. For example, Sr2MgSi2O7:Eu2+,Dy3+ [73] and Ba2MgSi2O7:Eu2+,Tm3+ [55] have a much brighter and longer afterglow than their non-codoped variants.
Another remarkable observation of Ca2MgSi2O7:Eu2+ was a disagreement on the emission spectrum. Blasse [53] and Hölsä [52] found an emission maximum around 535 nm (Figure 5), whereas Mao and coworkers reported an emission band centered around 515 nm when codoping with Dy and Nd [54,74,75].
Before we end this paragraph on silicates, it is worth mentioning a publication by Wang et al. on Sr2ZnSi2O7:Eu2+,Dy3+ prepared with a sol-gel method [67]. By applying different synthesis temperatures, they were able to obtain grains of various sizes, and they showed that a smaller grain size enhanced both the brightness and lifetime of the afterglow.

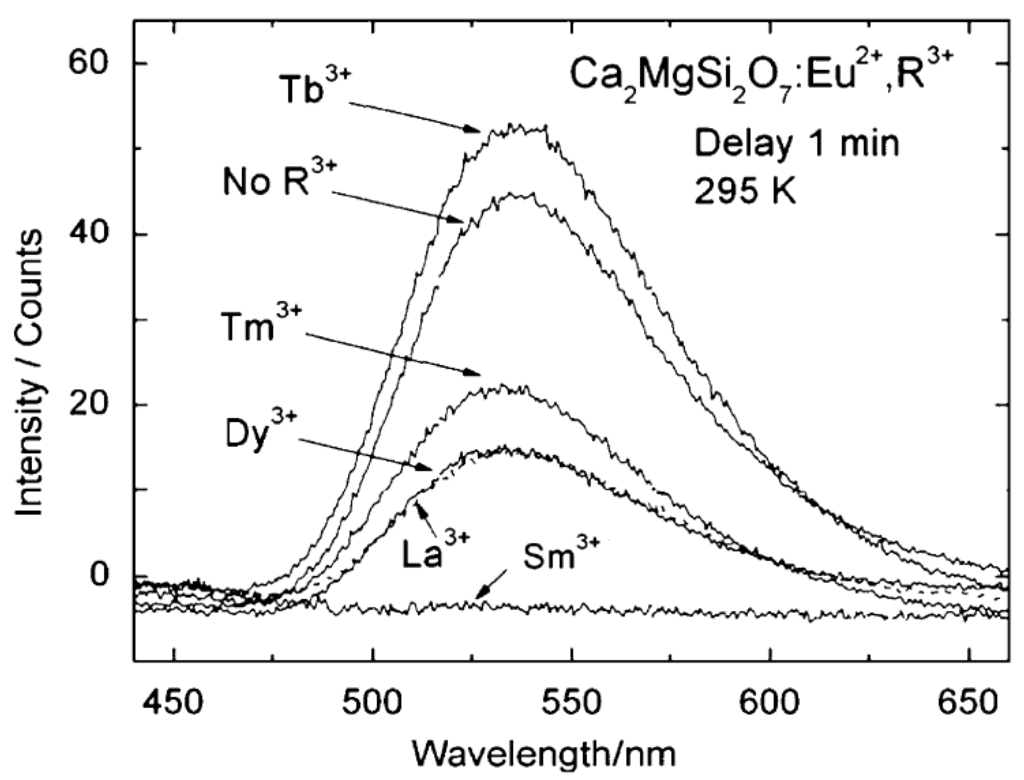

Figure 5. Persistent luminescence spectra of selected Ca2MgSi2O7:Eu2+,R3+ materials at 295 K. (Reprinted with permission from [52]).
Figure 5. Persistent luminescence spectra of selected Ca2MgSi2O7:Eu2+,R3+ materials at 295 K. (Reprinted with permission from [52]).
Materials 03 02536 g005

2.3. Other compounds

In addition to the discussed aluminates and silicates, only few compounds are known to exhibit persistent luminescence (Table 3). Many of these originate from LED research and are also commonly used as conversion phosphors.
Table 3. Other known Eu2+-based persistent luminescent compounds.
Table 3. Other known Eu2+-based persistent luminescent compounds.
Host materialDopantsFluorescence maximum (nm)Afterglow maximum (nm)Afterglow durationReferences
CaSEu2+,Tm3+(,Ce3+)650 (red)idem>1 h [78,79,80]
CaGa2S4Eu2+,Ho3+ or Ce3+555 (yellow)idem>30 min [81,82,83]
Ca2SiS4Eu2+,Nd3+660 (red)idem>30 min [84]
Sr2P2O7Eu2+,Y3+420 (blue)idem>8 h [85]
Ca2P2O7Eu2+,Y3+415 (blue)idem>6 h [86]
SrMg2P2O8Eu2+,Ce3+400 (blue)idem>2 h [87]
Ca2Si5N8Eu2+,Tm3+610 (orange)620 (orange)>1 h [88,89]
CaAl2B2O7Eu2+,Nd3+465 (blue)idem>1 h [90]
SrB2O4Eu2+430 (blue)idemunknown [91]
The first class of materials appearing in this table is the sulfides. These are hygroscopic, and therefore less stable than the aluminates and silicates, but they generally show an increased red shift compared to their oxide counterparts, enabling emission at longer wavelength, in the yellow, orange or red region of the visible spectrum. This increased red shift is mainly determined by a larger centroid shift for sulfides than oxides, which is due to a larger covalency between the anion and the Eu2+ ion [76].
CaS is a well-known phosphor host, and upon doping with Bi3+ blue persistent luminescence is obtained [77]. However, Jia et al. achieved a red afterglow when doping with Eu2+ and Tm3+ [78,79]. Additionally, they proved that traces of Ce3+ further enhanced the lifetime and brightness of the afterglow [80].
Phosphates are another class of materials with the possibility of exhibiting afterglow. Pang et al. recently reported persistent luminescence in two similar orthorhombic pyrophosphate compounds, α-Ca2P2O7:Eu2+ [86] and α-Sr2P2O7:Eu2+ [85], codoped with Y3+ ions. Ca2P2O7:Eu2+,Mn2+ had already drawn some attention as a possible conversion phosphor in white LEDs, due to the presence of both a blue Eu2+-based and an orange Mn2+-based emission band [92]. Pang et al. found that by codoping with Y3+-ions, the blue europium emission remained visible for over six h in Ca2P2O7:Eu2+,Y3+ and over even eight h in Sr2P2O7:Eu2+,Y3+.
The family of alkaline earth nitrido-silicates M2Si5N8:Eu2+ (M = Ca,Sr,Ba) is also widely used in white LED research. They not only have a very broad excitation spectrum extending into the visible part of the spectrum, but also a very efficient yellow (M = Ba), orange (M = Ca) or orange-red (M = Sr) emission [93]. Furthermore, they are very stable against moisture and heat. In 2009, it was shown by Van den Eeckhout et al. that Ca2Si5N8:Eu2+ exhibits a weak intrinsic persistent luminescence that can be greatly enhanced by codoping with different rare earth ions. Codoping with Tm3+ ions yields the best results with a persistent lifetime of over one h [89]. Simultaneously, Miyamoto et al. independently reported the same results. Furthermore, they replaced part of the Ca atoms by Sr to obtain a more reddish color. They concluded that around 10% of the Ca should be substituted by Sr to have an optimal trade-off between emission intensity and color [88].

2.4. Dopant and codopant concentrations

A question that arises when investigating persistent luminescent compounds is the doping rates of Eu2+ and the rare earth codopants that should be applied in order to achieve the longest and most intense afterglow possible. In general, these values differ from the ones in fluorescence. For example, in SrAl2O4, Wang et al. found optimal fluorescence intensity with 6.6% of Eu2+ doping (i.e., 6.6% of the Sr sites in the host crystal is occupied by a Eu2+ ion) [4], while Matsuzawa et al. suggested 1% of Eu2+ and 2% of Dy3+ to obtain the brightest afterglow [5]. Similarly, Zhao et al. reported the brightest persistent luminescence in CaAl2O4 upon doping with 0.5% of Eu2+ and 1% of Nd3+, while the fluorescence of this sample was worse than that of a similar sample with 1% of Eu2+ and 1% of Nd3+ [37].The matter is further complicated by the fact that the optimal doping rates vary for different compounds and different codopants. Upon codoping of SrAl2O4:Eu2+ with Dy3+, around 1% of Eu2+ and 2% of the codopant is preferred, as previously mentioned. The optimal concentration for Nd3+ as a codopant, on the other hand, is around 1%, i.e., the same concentration as the Eu2+ ions [5].
Most authors choose to follow these typical concentrations of 1% Eu2+ and 1 or 2% RE3+, but only rarely is it verified (or at least reported) that these are indeed the optimal values. Lin et al. confirmed the ideal 2/1 ratio of Dy/Eu ions in Sr4Al14O25 [23], and in Ca2MgSi2O7:Eu2+,Dy3+,Nd3+ Jiang et al. found an optimal afterglow at a Dy/Eu ratio of around 20/7 [75]. Some materials show somewhat atypical behavior, for example, Sabbagh Alvani et al. report an optimal Dy/Eu ratio of 1/2 in Sr3MgSiO8:Eu2+,Dy3+ [58].

3. Estimating Trap Depths

Charge carrier traps play a crucial role in all the suggested persistent luminescence mechanisms. One of their main properties is their ‘depth’, the activation energy needed to release a captured charge carrier. Shallow traps (with a depth lower than around 0.4 eV [94]) are fully emptied at low temperatures, and do not actively take part in processes at room temperature. Very deep traps (around 2 eV or deeper [10]), on the other hand, require more energy to be emptied than is available at room temperature. Therefore, charge carriers caught by these traps remain there until the material is sufficiently heated. To observe persistent luminescence at room temperature, the traps should have an appropriate activation energy somewhere between these two extremes (a trap depth around 0.65 eV is considered to be optimal [5]).
In chapter 4, we will see that the nature of the trapped charge carriers (electrons or holes) is still subject of discussion. It is therefore noteworthy that the techniques described in the following paragraphs give an estimate for the trap depth regardless of the charge carrier type.

3.1. Thermoluminescence

The experimental technique of thermoluminescence (TL) was first explored in the beginning of the 20th century [95]. In this method, a material is initially heated or kept in the dark for a sufficiently long time until all traps are emptied. The material is subsequently cooled to liquid nitrogen or helium temperatures, and fully excited by a (usually white) light source for some time. The excitation is switched off, and the temperature is increased linearly, with a heating rate β (in K/s). Meanwhile, the optical emission from the sample is measured and plotted against temperature. The curve obtained in this way is usually denounced as ‘glow curve’ [3,11]. It is customary to also measure the temperature dependence of the fluorescence (by repeating the measurement under constant excitation), in order to compensate for temperature quenching effects [3].
For nearly all materials, the glow curve shows one or more broad, often asymmetrical peaks (an example for SrAl2O4:Eu2+,Dy3+ is given in Figure 6). Each peak is believed to originate from a separate trap or trap distribution. Studying the shape and location of these different peaks can provide insight in the different depths and distributions of the traps present in the sample. These studies are especially popular in the field of geology, where thermoluminescence is used as a dating technique [95], and radiation dosimetry [96]. Thermoluminescence measurements and glow curves are often neglected in the study of persistent luminescence, but also in this field they can be useful to give information on trap depths and distributions.

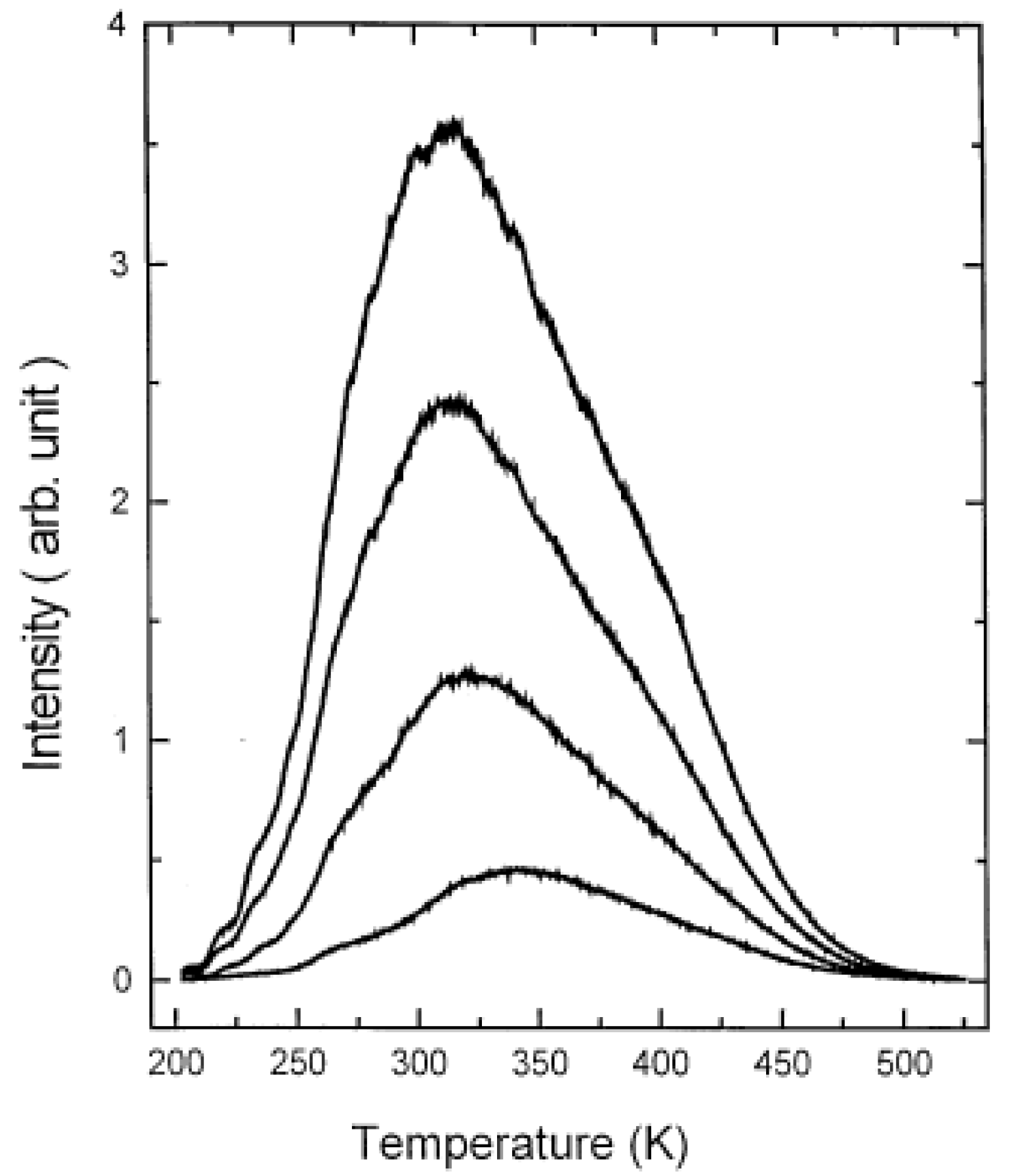

Figure 6. The glow curve for SrAl2O4:Eu2+,Dy3+ after excitation for different periods of time. From bottom to top: 10, 30, 60 and 120 seconds (Reprinted with permission from [39]).
Figure 6. The glow curve for SrAl2O4:Eu2+,Dy3+ after excitation for different periods of time. From bottom to top: 10, 30, 60 and 120 seconds (Reprinted with permission from [39]).
Materials 03 02536 g006
Many authors have tried to develop a method to analyze glow curves in a reliable and consistent way. A full discussion of all these efforts and their theoretical details is beyond the scope of this text, but can be found in, for example, [95]. We will briefly mention those methods that are still used frequently today. The most simple way to estimate trap depths from the location of the glow peak maximum was derived empirically and formulated in 1930 by Urbach [97]. If Tm is the temperature for which the glow curve reaches a maximum, the related trap depth is approximately:
E T = T m / 500
This equation, despite its simplicity, incorporates an important intuitive result: deeper traps (i.e., with a higher activation energy ET) result in glow curve peaks at higher temperature. Indeed, to free charge carriers from deeper traps, a larger thermal energy is required. The trap energy obtained is only approximate, since equation (1) is not based on a theoretical model for the behavior of charge carriers in materials with trap levels. This problem was tackled in a famous series of articles by Randall and Wilkins in 1941 [98,99]. They looked at the simplified situation of a host material with a single trap level in the band gap. It is important to note that although they assumed the charge carriers to be electrons, their results are equally valid in the case of holes. According to their theory, the glow intensity I during heating is found to be proportional to the concentration n, the frequency factor or ‘escape frequency’ s of the trapped charge carriers and an exponential part containing the trap depth (Boltzmann factor):
I s n exp ( E T k T )
where k is Boltzmanns constant. This leads to a transcendental equation for the trap depth:
β E T k T m 2 = s exp ( E T k T m )
where Tm is again the location of the glow curve maximum, and β is the heating rate (in K/s). This linear relationship between glow intensity and trapped charge carrier concentration is generally referred to as “first order kinetics”. This theory assumes that every charge carrier released from a trap recombines in a luminescent center. The possibility of `retrapping, when the charge carrier is caught again by a trap and not by a luminescent center, is assumed to be negligible. However, Randall and Wilkins pointed out that certain experimental results suggested similar probabilities for both processes (retrapping and recombination) [99]. In 1948, Garlick and Gibson (coworkers of Randall and Wilkins) explored this possibility and obtained a “second order kinetics”, with the glow intensity proportional to . They found that this assumption yielded better results for several materials [100]. The effect of the parameters s, T, ET and β on the shape of the glow curve can be found in [101], illustrated for both first and second order kinetics.
Two major obstacles arise when applying the Randall-Wilkins or associated methods. Firstly, the frequency factor s is initially unknown. Very often, s is approximated or assumed comparable to the vibrational frequency of the lattice. The value of s does, however, greatly influence the resulting trap depth. Even worse, the frequency factor itself can (and most probably does) depend on temperature, and therefore changes during the course of the thermoluminescence experiment, as pointed out by for example Chen [102]. The uncertainty on the value of s is bypassed in the Hoogenstraaten method [103]. For this, the thermoluminescence experiment is repeated several times for different heating rates βi. According to equation (3), the exact glow maximum will shift to different temperatures Tmi when the heating rate is varied. For every value of βi, a similar equation can be written down, and the unknown s can thus be eliminated by plotting ln( T m i 2 /βi) versus 1/Tmi and fitting these data points with a straight line. The slope of this line reveals the activation energy of the trap [3].
A second problem is the unknown ‘order’ of the glow curve under investigation. Some glow peaks yield better fitting results when first order kinetics are assumed, some require second order kinetics for a decent fit. This problem can be avoided by looking only at the low-temperature side of the observed glow peaks. Regardless of the order of the peak, the intensity will be proportional to an exponential Boltzmann factor [3]:
I exp ( E T k T )
The estimation of trap depths by fitting the low-temperature end of a glow peak to such an exponential factor is known as the “initial rise” method. In practice, however, it is often very difficult to isolate the initial rising part of a glow peak, making the obtained trap depths less accurate.
Another popular way to avoid the problem of the unknown order was proposed by Chen in 1969 [102] and is known as ‘general order kinetics’. Chen looked more closely at the shape of the glow peak, by taking into account the full width ω at half maximum and its low-temperature and high-temperature halves τ and δ, respectively. He was able to write down several compact formulas to calculate the trap depth in specific cases. Furthermore, he calculated the coefficients necessary for these formulas for many different values of the trap depth (0.1–1.6 eV) and frequency factor (105–1013 s-1) [104]. For example, the activation energy for a peak with first order kinetics and a temperature-independent frequency factor is simply given by:
E T = 2 k T m ( 1.26 T m ω 1 )
All of the mentioned models are still in use today. To simplify glow curve analysis for researchers, specialized software was developed, such as TL Glow Curve Analyzer [105], which makes use of first, second and general order kinetic equations [106].
The analysis of glow curves has fascinated researchers for many decades, but it should be approached with caution. The results obtained by the different techniques described above are not always comparable. This is illustrated by applying several methods on the same glow curve, as was done by for example [107] in the case of cerium and copper doped barium sulfide. In this paper, the Urbach, Randall-Wilkins and Chen methods (among others) were compared. The Randall-Wilkins analysis gives the lowest trap depth (around 0.45 eV), Chens method results in a trap approximately 0.05–0.10 eV higher, and Urbachs formula estimates a trap depth of about 0.75 eV. This indicates that comparing different trap depths should only be done when both glow curves were studied with the same technique. Another problem that often occurs in practice is the overlap between different peaks, which can make decent analysis almost impossible.

3.2. Other methods

Thermoluminescence is the most common way to estimate trap depths, but some other techniques are known that do not rely on the analysis of glow curves. Bube [108] noted that, for first order kinetics, the temperature dependence of the afterglow decay constant is given by:
τ s 1 exp ( E T k T )
By measuring the decay constant for various temperatures and plotting the results in an Arrhenius diagram, a straight line is obtained whose slope is related to the trap depth. Often, the afterglow decay cannot be described by a single decay constant. In that case, multiple exponentials can be fitted to the decay, and for each of these an appropriate trap depth can be estimated. Although this method is sometimes used in binary sulfides [107,109], it is, to the best of our knowledge, never applied in Eu2+-doped materials.
Another technique was proposed by Nakazawa and is frequently called “transient thermoluminescence” (TTL,TRL) [110]. While the sample is heated very slowly, it is repeatedly excited by a light source. The intensity of the afterglow is measured at various delay times td after the termination of the excitation. When this intensity is plotted against the temperature, the location of the peak Tm depends on the delay time in the following way:
t d s 1 exp ( E T k T m )
An advantage of the TTL method is that it is unaffected by thermal quenching, as opposed to normal thermoluminescence [110].
Table 4 shows some approximate values for the best-known persistent luminescent materials, as reported in literature. It should be noted that these are not always exact results. Sometimes the trap is not a single level, but a distribution of energy levels. In that case, a mean value of the trap is cited. All trap levels mentioned in the respective articles are noted, although sometimes they are too shallow or too deep to contribute to the persistent luminescence at room temperature. The numbers in the table demonstrate again that comparing trap depth values estimated with different techniques should be done with caution.
Table 4. Estimated trap depth(s) in some of the best-known persistent luminescent materials.
Table 4. Estimated trap depth(s) in some of the best-known persistent luminescent materials.
PhosphorMethodTrap depths (eV)Reference
SrAl2O4:Eu2+,Dy3+initial rise0.55/0.60/0.65/0.75 [111]
Chen0.30/0.65/0.95/1.20/1.40 [112]
Hoogenstraaten0.65 [5]
TTL1.1 [113]
CaAl2O4:Eu2+,Nd3+initial rise0.55/0.65 [114]
Sr4Al14O25:Eu2+,Dy3+Chen0.72 [47]
Chen0.49 [46]
TTL0.91 [25]
Sr2MgSi2O7:Eu2+,Dy3+Chen0.75 [51]
Sr2MgSi2O7:Eu2+,Nd3+Hoogenstraaten0.08/0.18/0.29/0.23 [115]
Ca2MgSi2O7:Eu2+,Tm3+Chen0.56 [52]

4. Suggested Persistent Luminescence Mechanisms

The discovery of the persistent luminescent properties of SrAl2O4:Eu2+,Dy3+ also marked the beginning of a renewed search for the underlying mechanisms. Until then, relatively little research had been done on this subject. It was generally agreed that after excitation, charge carriers could get caught by so called ‘traps’, energy levels inside the forbidden band gap with a very long lifetime. The charge carriers are only gradually released from these traps, after which they can return to the activators and produce luminescence. Quite some research had been done on thermoluminescence glow curves and how to extract information about trap depth from them. However, details such as the nature and origin of the traps and the charge carriers were still unclear.
However, since 1996, different mechanisms have been suggested, ranging from very basic conceptual models to complex systems with multiple charge traps of various types and depths. In the following paragraphs, we will try to give a brief but adequate overview of the most important ones, how they were conceived and how they were justified or disproved by experimental results.

4.1. The Matsuzawa model

In the same famous article announcing the discovery of SrAl2O4:Eu2+,Dy3+, Matsuzawa et al. tried to explain the origins of the extraordinary persistent luminescence. A schematic picture of their model is shown in Figure 7.
In this model, holes are assumed to be the main charge carriers. This assumption is based on earlier measurements by Abbruscato on non co-doped SrAl2O4:Eu2+, which also shows a weak afterglow. From his results obtained by Hall measurements, Abbruscato concluded that holes in the valence band had to be the main charge carriers [6]. He suspected that Sr2+ vacancies acted as traps for these holes. Additionally, Matsuzawa et al. performed non-uniform illumination photoconductivity measurements, which also suggested that holes are the main charge carriers [5].

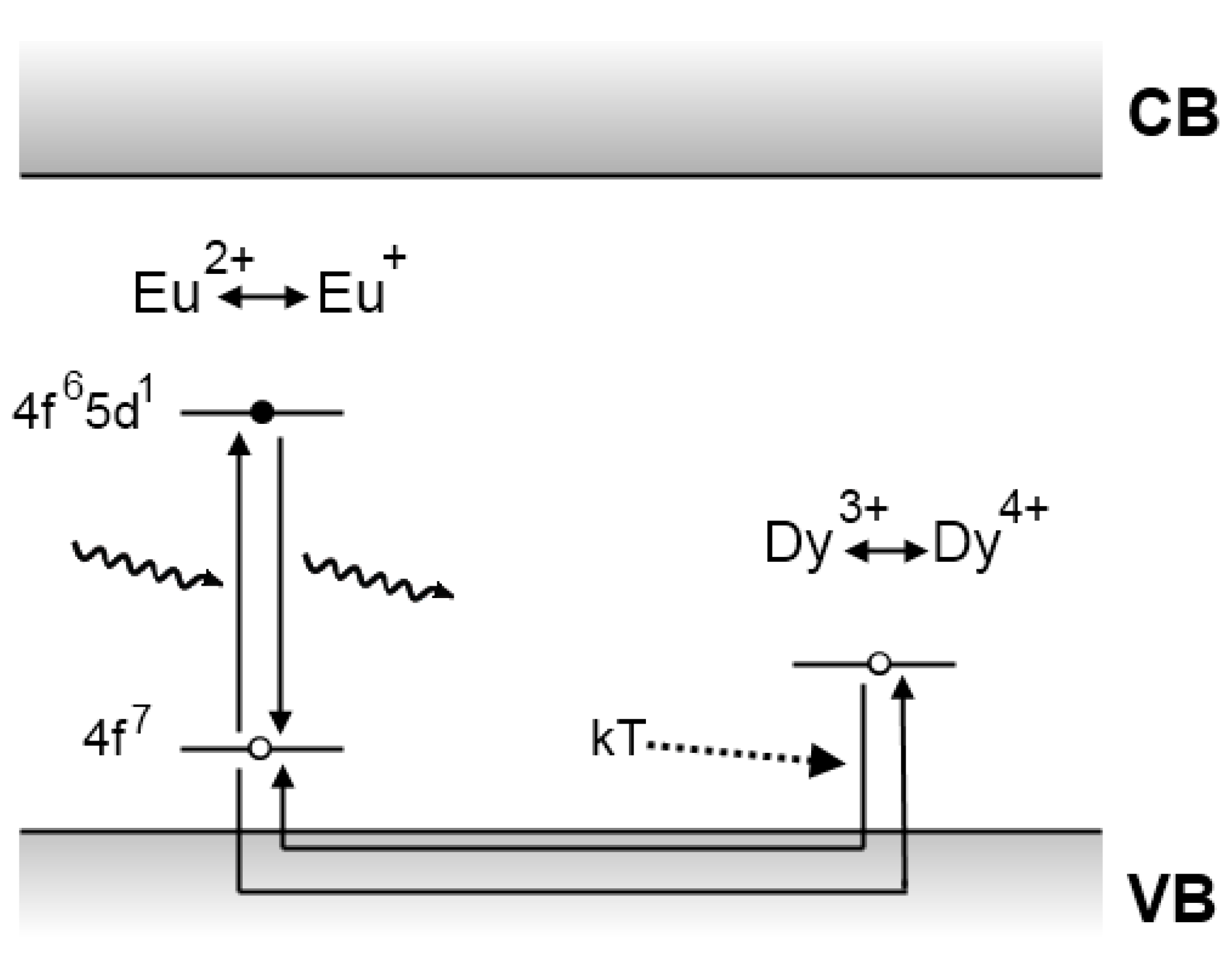

Figure 7. Persistent luminescence mechanism proposed by Matsuzawa et al. for SrAl2O4:Eu2+,Dy3+ [5].
Figure 7. Persistent luminescence mechanism proposed by Matsuzawa et al. for SrAl2O4:Eu2+,Dy3+ [5].
Materials 03 02536 g007
The Matsuzawa model modified Abbruscatos assumptions in order to explain the influence of rare earth codoping. When an Eu2+ ion is excited by an incident photon, there is a possibility that a hole escapes to the valence band, thereby leaving behind a Eu+ ion. The hole is then captured by a trivalent rare earth ion, such as Dy3+, thus creating a Dy4+ ion. After a while, thermal energy causes the trapped hole to be released into the valence band again. From there it can move back to a Eu+ ion, allowing it to return to the Eu2+ ground state with emission of a photon [5].
The Matsuzawa model quickly gained popularity [22,45,116,117,118], and was used frequently to explain observed afterglow in newly discovered compounds [23,54,59]. Various thermoluminescence [39,113,119,120], photoconductivity [118] and electron paramagnetic resonance [121] measurements were performed to confirm the validity of the model. However, the results of these experiments were often inconclusive and no hard evidence for the model could be found. It was inevitable that certain researchers started to raise questions about the Matsuzawa mechanism.

4.2. The Aitasalo model

In 2003, Aitasalo et al. suggested a model that differed considerably from the Matsuzawa model (Figure 8) [122]. In this model, electrons are excited directly from the valence band into trap levels of unspecified origin. The hole that is created in this way migrates towards a calcium vacancy ( V C a in the Kröger-Vink notation [123]) where it is caught. The electron is removed from the trap level by thermal energy and ends up at an oxygen vacancy level. Since the conduction band is located too high above the energy level of the oxygen vacancy trap to enable a thermally assisted transition to the conduction band, they assumed that the energy released on recombination of the electron and the hole was delivered directly to the europium ions, by means of energy transfer. This assumption requires close proximity of the vacancies to the luminescent centers. The transferred energy excites an electron of europium to a 5d level, followed by recombination and emission of the persistent luminescent light [122]. It should be noted that only holes are present as free charge carriers (in the valence band), which explains the previous observations by Abbruscato and Matsuzawa.

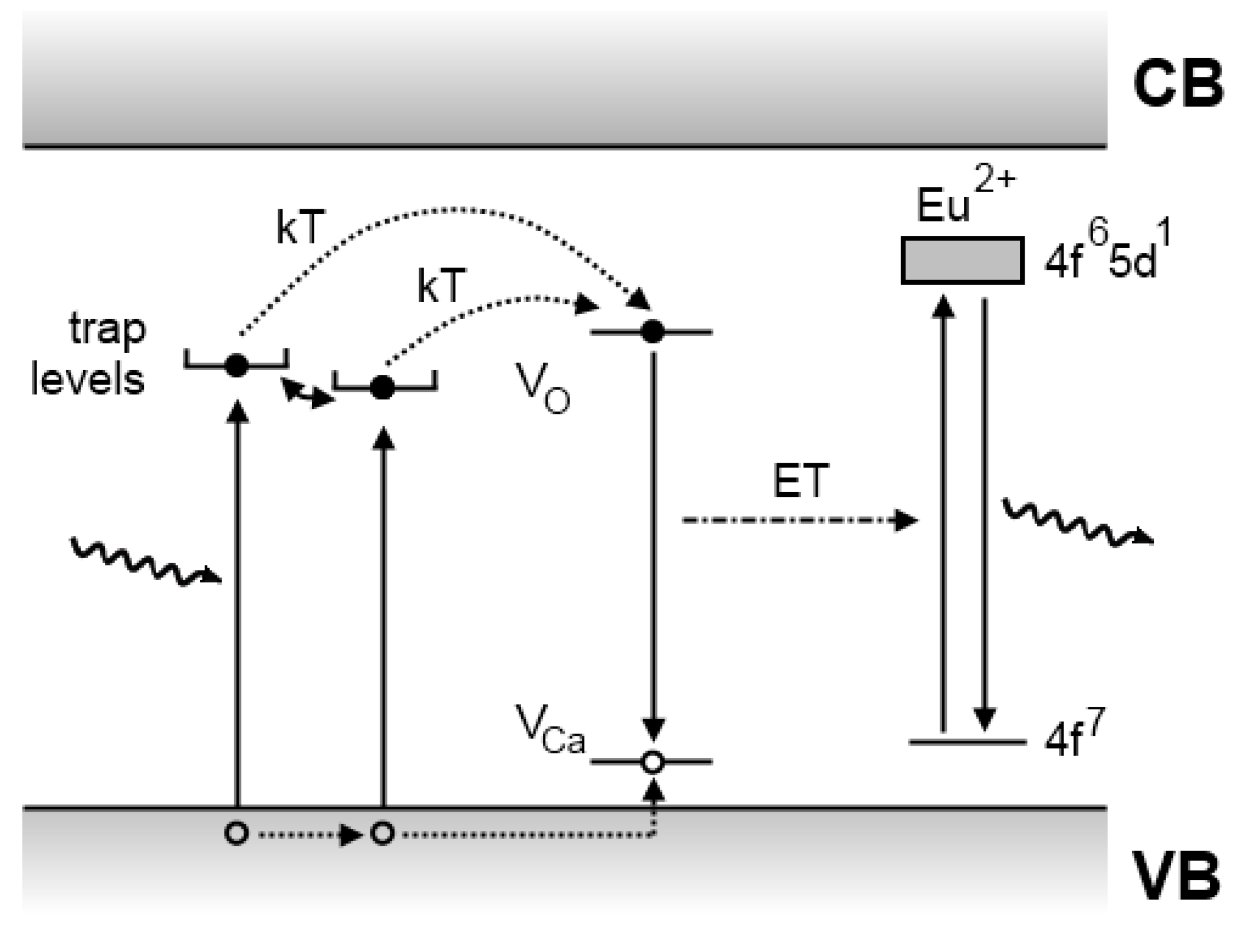

Figure 8. Persistent luminescence mechanism proposed by Aitasalo et al. for CaAl2O4:Eu2+,Dy3+ [122].
Figure 8. Persistent luminescence mechanism proposed by Aitasalo et al. for CaAl2O4:Eu2+,Dy3+ [122].
Materials 03 02536 g008
Hölsä and coworkers introduced this model for several reasons. Firstly, the Matsuzawa model ignored the observed persistent luminescence in non-codoped SrAl2O4:Eu2+ [124]. Therefore, a model that avoided the explicit use of the trivalent rare earth codopants needed to be developed. Aitasalo et al. explained the influence of the codopants by suggesting that they increased the number of lattice defects, because the trivalent lanthanide ions occupy the divalent alkaline earth sites, leading to spontaneous defect creation for charge compensation. This also explains why adding Sm3+ to the material is detrimental for the persistent luminescence, since the Sm3+ is reduced to Sm2+ during preparation, thereby removing the cation vacancies, which act as hole traps [122].
A second reason for rejecting the original Matsuzawa model was the implausibility of the occurrence of monovalent europium and tetravalent dysprosium ions in the material. Aitasalo et al. argued that the reduction of Eu2+ to Eu+ and the oxidation of Dy3+ to Dy4+ would result in chemically unstable ions [122]. This reasoning was later supported by other authors such as Dorenbos [10].
A final observation that encouraged Aitasalo et al. to suggest a new persistent luminescence mechanism was the observation that the 430 nm persistent luminescence of CaAl2O4:Eu2+,Nd3+ could be induced by excitation with wavelengths as large as 530 nm [9]. They concluded that the absorption of two photons had to occur in the process, through direct excitation of an electron from the valence band into a long-lived intermediate trap level, followed by an excited state absorption (ESA). Since the Matsuzawa model assumed that the trapped charge carriers originated from the Eu2+ ions, it could not explain how these could be created with such low-energy photons.

4.3. The Dorenbos model

Dorenbos put great effort into the determination of lanthanide energy levels in inorganic compounds, with applications in scintillator physics and persistent luminescence [125]. As previously mentioned, he agreed with Aitasalo et al. that the existence of Eu+ and Dy4+ in aluminate or silicate compounds is highly improbable [10]. Secondly, he pointed out that the assumed hole on the ground state of Eu2+ after excitation is based on faulty reasoning. The energy levels of the lanthanides are localized, in contrast to the delocalized Bloch states of the valence and conduction band. Therefore, the 4f state of europium after the excitation should not be interpreted as a ‘real hole’ that can accept an electron. He was not convinced by the observation of hole conduction by Abbruscato and Matsuzawa, and noted that more detailed research was required [10].
These problems with the Matsuzawa model encouraged Dorenbos to present a different model in 2005, depicted in Figure 9. As in Matsuzawa’s model, electrons are excited in divalent europium ions. Since the 5d level of divalent europium lies very close to the conduction band [10], these excited electrons can easily be released into the conduction band and subsequently caught by a trivalent rare earth codopant, creating a divalent ion. Thermal energy can then release the trapped electron, after which it recombines upon reaching a luminescent center [10,126]. This mechanism is basically the same as the one suggested by Matsuzawa, but it does not require the existence of Eu+ and RE4+. It can, however, not explain the existence of intrinsic persistent luminescence in non-codoped materials.

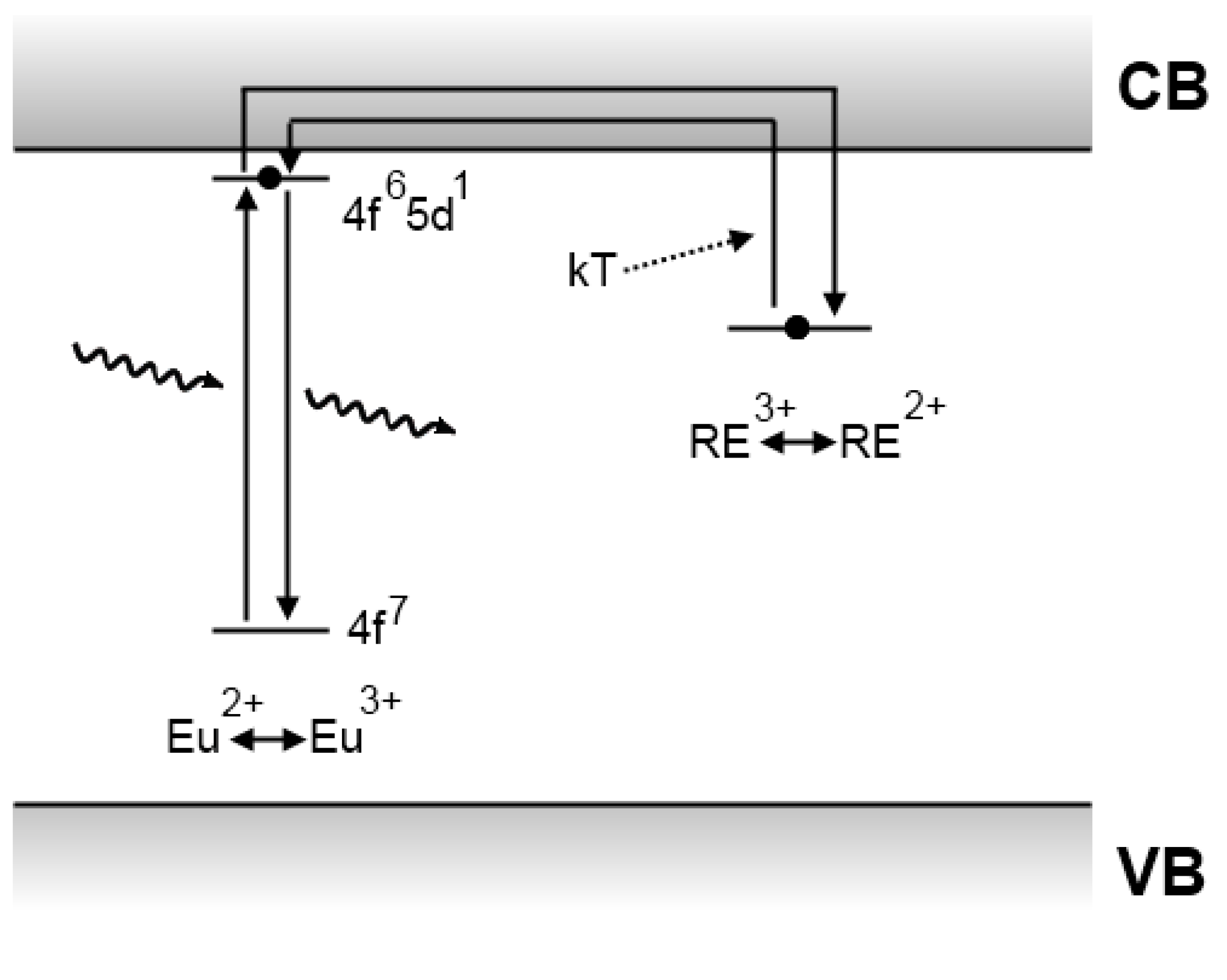

Figure 9. Persistent luminescence mechanism proposed by Dorenbos et al. for aluminate and silicate compounds [10].
Figure 9. Persistent luminescence mechanism proposed by Dorenbos et al. for aluminate and silicate compounds [10].
Materials 03 02536 g009
Based on his previous research on the location of lanthanide levels in inorganic compounds, Dorenbos derived that the energy level of Dy2+ (i.e., Dy3+ after capture of an electron) in SrAl2O4 lies approximately 0.9 eV below the conduction band [10], which is of the same order as the trap depth found in SrAl2O4:Eu2+,Dy3+ [5,111,113]. The Dorenbos model also explains why Sm3+ and Yb3+ strongly reduce the afterglow. Previous work revealed that the relevant levels of Sm2+ and Yb2+ are located much lower than those of the other divalent rare earth ions such as Dy2+ and Nd2+ [127]. This results in traps that are too deep to be emptied at room temperature.

4.4. The Clabau model

Around the same time as Dorenbos, Clabau et al. reviewed the existing mechanisms for persistent luminescence and found that a revision was needed. For the same reasons as Dorenbos, these authors did not accept the Matsuzawa model. Furthermore, they mention EPR measurements that show a decrease in the Eu2+ concentration during excitation, followed by an increase as soon as the excitation is terminated, continuing until the afterglow ends. They concluded that Eu2+ must participate in the trapping process, which contradicted the idea of energy transfer to Eu2+ after the trapping, as suggested by Aitasalo [13,128,129].
The model proposed by Clabau et al. is shown in Figure 10. It is similar to the Dorenbos model, but differs on some important points. Firstly, there is no migration of electrons through the conduction band. The transport of electrons between the traps and the luminescent centers is believed to occur through direct transfer, which requires close proximity between the europium ions and the lattice defects [128]. This assumption is based on measurements of the photoconductivity in SrAl2O4:Eu2+,Dy3+ under UV excitation, which increases up to 250 K, and subsequently enters a plateau phase until 300 K, indicating that no free charge carriers are released around this temperature. However, thermoluminescence measurements around 300 K clearly show the presence of de-trapping processes at this temperature (Figure 6). From this, Clabau et al. concluded that the interaction between the traps and the luminescent centers could not occur via the conduction band.

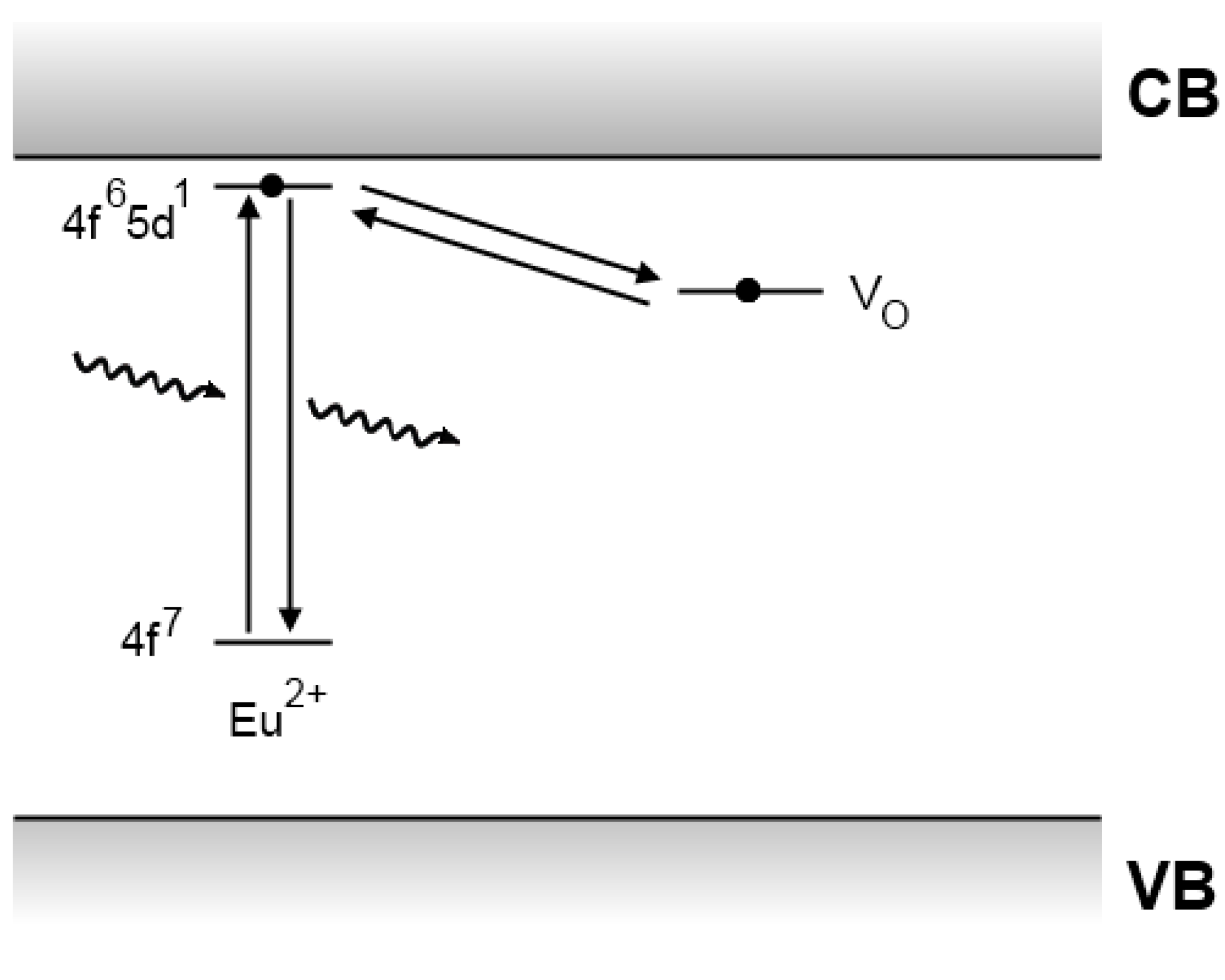

Figure 10. Persistent luminescence mechanism proposed by Clabau et al. for SrAl2O4:Eu2+,Dy3+ [128].
Figure 10. Persistent luminescence mechanism proposed by Clabau et al. for SrAl2O4:Eu2+,Dy3+ [128].
Materials 03 02536 g010
A second difference to the Dorenbos mechanism is the nature of the traps. By comparing glow curves of non-codoped and Dy3+-codoped SrAl2O4:Eu2+, Clabau et al. noticed that the relevant peaks differed in size and location, but were very similar in shape. From this, they concluded that the chemical nature of the trap was not influenced under codoping. This led them to the idea that lattice defects, namely oxygen vacancies, must act as traps in SrAl2O4:Eu2+,RE3+ [13].
The influence of the lanthanides as codopants is explained by their stabilizing influence on the oxygen vacancies. The ionization potentials of the rare earths can be used as a measure for the extent of this stabilization, since a lower ionization potential will cause the codopant to attract oxygen vacancies more strongly, hereby increasing the trap depth [129]. Indeed, when codoping SrAl2O4:Eu2+ with different rare earths with an increasing ionization potential, the duration of the afterglow is shortened [128].

4.5. Recent developments

In 2006, Aitasalo et al. described a mechanism for persistent luminescence that incorporates suggestions from both Clabau and Dorenbos (Figure 11) [114]. Electrons that are excited in the Eu2+ luminescent centers can easily escape into the conduction band. Both oxygen vacancies and trivalent codopant ions introduce trap levels, but the exact nature was not clarified, since these defects can interact with each other and form complex aggregates [114]. When enough thermal energy is available, the captured electrons can escape again into the conduction band and recombine in a luminescent center.

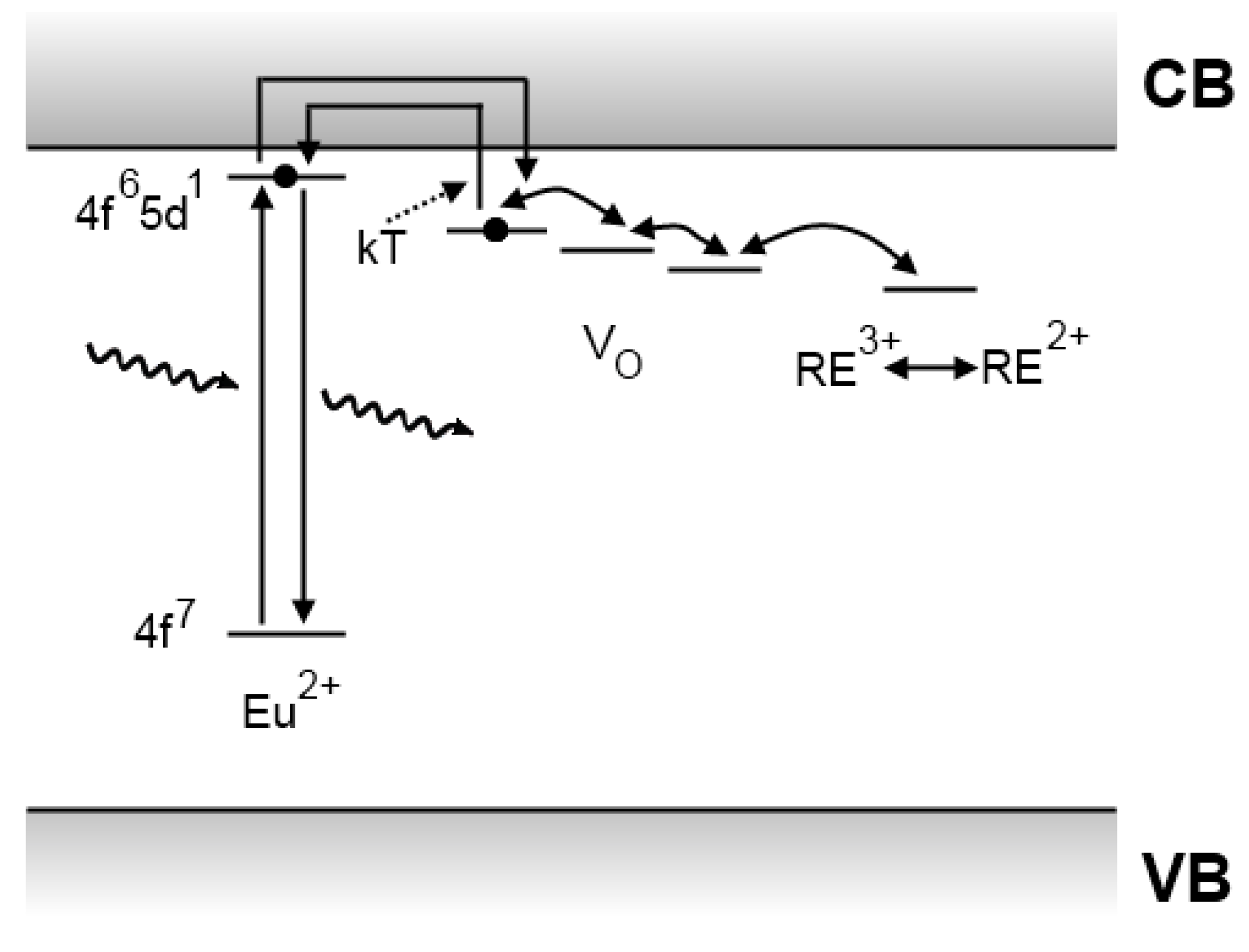

Figure 11. Persistent luminescence mechanism proposed in 2006 by Aitasalo et al. for CaAl2O4:Eu2+,Dy3+ [114].
Figure 11. Persistent luminescence mechanism proposed in 2006 by Aitasalo et al. for CaAl2O4:Eu2+,Dy3+ [114].
Materials 03 02536 g011

4.6. Experimental evidence

Synchrotron radiation measurements offer interesting new ways to study persistent luminescence, and were not always fully appreciated until now. Qiu et al. [130], Qi et al. [131], and recently Carlson et al. [132] performed X-ray absorption near edge structure (XANES) measurements to uncover the valence of the rare earth ions in Sr2MgSi2O7:Eu2+,RE3+. Both divalent and trivalent europium were encountered, but for the rare earth codopants only the trivalent form could be detected. The divalent form predicted by Dorenbos could not be identified. No monovalent europium or tetravalent codopant ions, as would be expected in the Matsuzawa model, were observed. This could indicate that the Matsuzawa and Dorenbos models are not suitable. However, it could also be due to a low concentration of filled trap levels in these materials, which makes it hard to detect these specific valence states. Indeed, none of the models described above gives information about the actual number or concentration of trap levels and trapped charge carriers involved in the afterglow.
Electron paramagnetic resonance (EPR) measurements are another suitable way to study traps in the investigated materials. Hölsä et al. used EPR to prove the existence of electrons in anion vacancies (i.e., F+ colour centers) in non-codoped and even non-Eu2+-doped CaAl2O4 [133].
Dorenbos showed that the 4f levels of the lanthanide series follow a characteristic pattern relative to each other, independent of the host material (Figure 12a) [127]. If the trivalent codopants indeed act as traps, as the Dorenbos model claims, it is reasonable to expect that this pattern can be recognized by studying the trap depth for different codopants. Unfortunately, results on this matter are scarce and rather ambiguous. Aitasalo et al. estimated the trap depth for the entire lanthanide series as codopant, but did not find a clear trend (Figure 12b) [122]. The results obtained by Van den Eeckhout et al. in Ca2Si5N8:Eu2+,RE3+ seem to confirm the Dorenbos trend, but were not yet performed for the entire rare earth series [89].

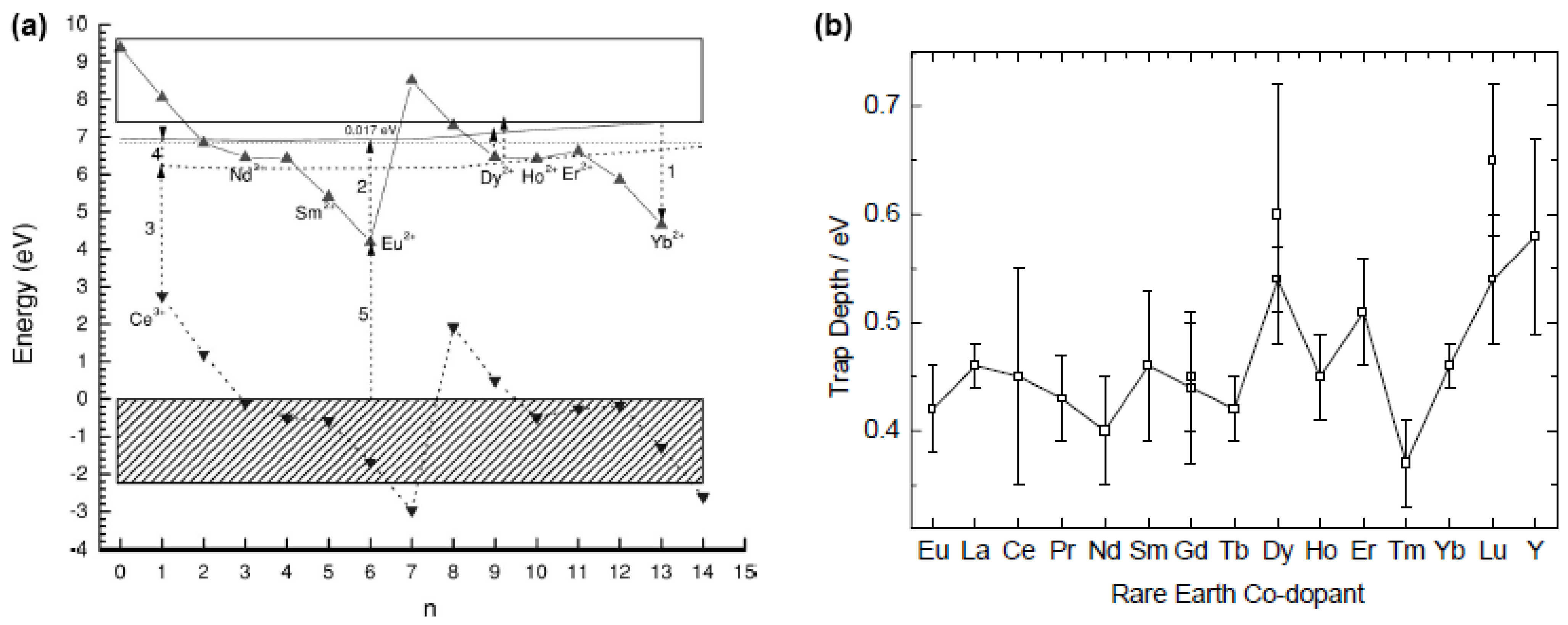

Figure 12. (a) Typical energy level pattern for the lanthanide series (n = number of 4f electrons) in SrAl2O4:Eu2+,RE3+(Reprinted with permission from [10]. Copyright 2005, The Electrochemical Society) (b) Trap depths estimated with the Hoogenstraaten method for different codopants in CaAl2O4:Eu2+,RE3+ (Reprinted with permission from [122])
Figure 12. (a) Typical energy level pattern for the lanthanide series (n = number of 4f electrons) in SrAl2O4:Eu2+,RE3+(Reprinted with permission from [10]. Copyright 2005, The Electrochemical Society) (b) Trap depths estimated with the Hoogenstraaten method for different codopants in CaAl2O4:Eu2+,RE3+ (Reprinted with permission from [122])
Materials 03 02536 g012
For the case of YPO4:Ce3+,RE3+, a material used in thermoluminescence dosimetry, Bos et al. measured glow curves for different lanthanide codopants [134]. The trap depths obtained in this way (estimated using the different analysis techniques discussed earlier) are shown in Figure 13, together with the predicted depth using the energy level scheme by Dorenbos. Although this is not a Eu2+-based compound, these results seem to confirm that the codopant ions play the role of traps in at least some materials.
We can conclude that experimental backup for the different suggested models is very scarce and often indecisive. Further measurements are vital to unravel the mysteries surrounding the persistent luminescence mechanism.

4.7. Concluding remarks

The exact mechanisms governing persistent luminescence in materials have yet to be clarified. Intense research by several groups has produced different models, but none of these have enough experimental backup to be identified as the true afterglow mechanism. Further research, both theoretical and experimental, remains vital. The Matsuzawa model has by now lost a lot of its popularity, because of some flaws pointed out by several authors. The influence of lattice defects such as oxygen vacancies cannot be neglected, given the afterglow in non-codoped compounds, but it remains unclear if a similar reasoning can be used to explain persistent luminescence in other host materials such as the sulfides or nitrides.

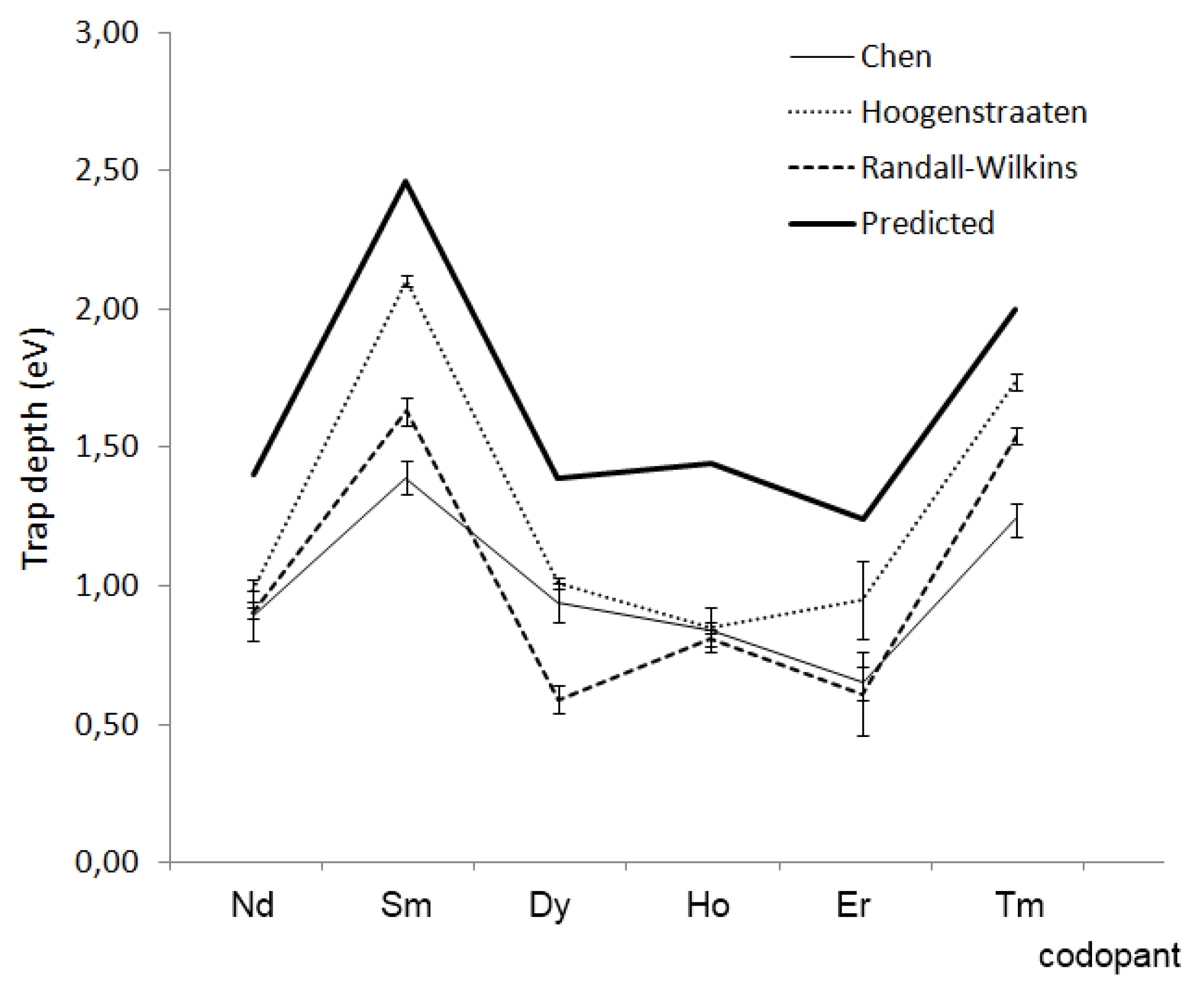

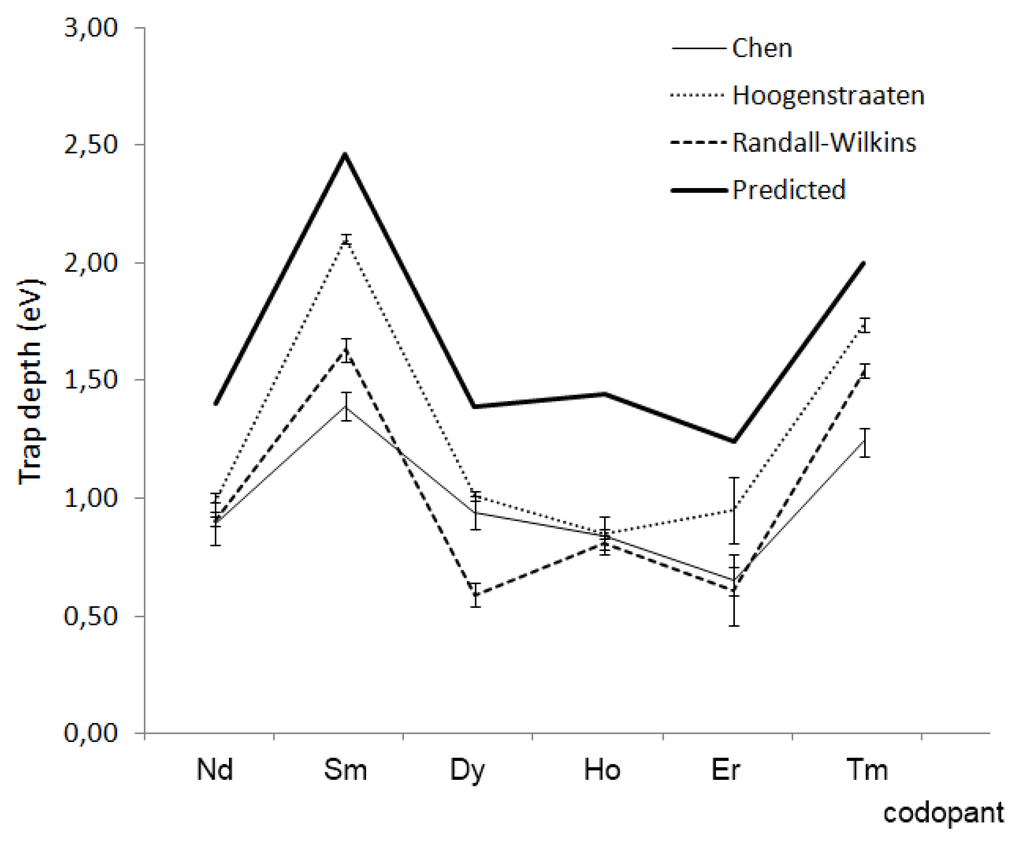

Figure 13. Trap depths in YPO4:Ce3+ codoped with various lanthanides, as predicted by the Dorenbos energy level scheme and estimated from thermoluminescence measurements (data taken from [134]).
Figure 13. Trap depths in YPO4:Ce3+ codoped with various lanthanides, as predicted by the Dorenbos energy level scheme and estimated from thermoluminescence measurements (data taken from [134]).
Materials 03 02536 g013
It is nowadays generally assumed that the main charge carriers are electrons. This is similar to earlier models developed for binary sulfides such as ZnS:Cu [103]. Other sulfides were also interpreted with electron trapping, for example in CaGa2S4:Eu2+,Ce3+ [83] and CaS:Eu2+,Tm3+ [78] (although for the latter a hole trapping mechanism has also been suggested [79]). However, it remains unclear how one should interpret the results found by Abbruscato and Matsuzawa that point in the direction of holes.
One question that still needs to be answered concerns the excitation spectrum of the persistent luminescence. This is not necessarily the same as the excitation spectrum of the fluorescence (see, for example, [84]), however, it is often overlooked in research on persistent luminescent materials. The Aitasalo model, where electrons are excited directly from the valence band into a trap level, leaves room for differences between fluorescence and persistent luminescence excitation spectra. However, in the other models, both should be similar, since the charge carriers are always created in the luminescent europium ions, both for fluorescence and persistent luminescence. For this reason, additional research on persistent luminescence excitation spectra could deliver further insight into the underlying mechanisms [84]. Care should be taken, however, as recording excitation spectra for persistent phosphors is not straightforward [135].

5. Challenges and Perspectives

The discovery of SrAl2O4:Eu2+,Dy3+ and Sr2MgSi2O7:Eu2+,Dy3+ has placed the Eu2+-doped materials in the epicenter of persistent luminescent research. Their brightness and very long lifetime completely overshadows that of their most important predecessor, ZnS:Cu,Co. The quest for new persistent luminescent materials has resulted in several blue and green emitting persistent phosphors that remain visible for many hours or even up to an entire day.
Can we expect the discovery of new and even better persistent luminescent materials in the (near) future? On the one hand, this is doubtful. The past 15 years of intense research have brought us only a handful of phosphors that are bright enough to consider their use in practical applications. Furthermore, these materials almost exclusively fall into two main categories, the aluminates and the silicates, which have already been explored intensely. On the other hand, recent developments on some other material groups, such as the sulfides, phosphates and nitrides, have shown that persistent luminescence is not limited to specific hosts. It is noteworthy that the majority of these ‘special’ new phosphors are originally conversion phosphors for LEDs. The number of known host materials for LED phosphors is large [136,137] and many of these could be promising persistent phosphors. More specifically, codoping some of these LED phosphors with rare earth ions could deliver propitious results.
When looking at the known Eu2+-doped persistent luminescent compounds, earlier in this text, the lack of yellow, orange and red phosphors is striking. This dearth has two major causes. Firstly, it is difficult to obtain a high enough crystal field in oxides for Eu2+ to emit radiation in the red region of the visible spectrum [76]. To deal with this, we can look at other luminescent centers (such as, for example, Eu3+ in the famous red persistent phosphor Y2O2S:Eu3+,Mg2+,Ti4+ [138,139] or Mn2+ in BaMg2Si2O7 [140]) or we can turn to other host materials (such as the aforementioned sulfides or nitrides).
A second major problem with red persistent luminescent materials is the phenomenon known as the Purkinje effect [141]. It is well known that, in daylight, the human eye is most sensitive for green light, and less for red and blue wavelengths. In the dark, this eye sensitivity shifts to shorter wavelengths, thus making it easier to see blue light, but almost impossible to detect dim orange or red light. This shift in the eye sensitivity is maximal for luminous intensities lower than 1 mcd/m² (the scotopic region), but the reduced perception of red light already starts at intensities lower than 1 cd/m² (commonly called the mesopic region [142,143]). As persistent luminescent materials usually operate in this mesopic region, this means that a red phosphor has to be more intense, compared to a blue or green one, to achieve the same perceived brightness [12]. This makes the search for bright red persistent luminescent compounds particularly hard.
At present, the mechanisms responsible for persistent luminescence are not yet fully understood. Most authors agree on the general mechanism of charge carriers getting trapped in long-lived energy levels inside the band gap. Many details, however, remain unclear. For example, it is unknown whether these charge carriers originate from the luminescent centers, or if they are created directly by excitation from the valence or conduction band. Another obscurity is how the energy stored in these traps is conducted to the luminescent centers, by direct energy transfer, or through charge carrier transport in the conduction or valence band. The influence of codopants and lattice defects in the neighborhood of the activators is another unsolved issue. Future experiments are necessary to unravel these mysteries. The most promising techniques are the ones that were, until recently, often overlooked. Synchrotron radiation (such as XANES and EXAFS) and EPR measurements offer insight into the structure, composition, valence states and charge distribution of materials, and could provide an answer to these theoretical questions, answers that cannot be offered by photoluminescence and thermoluminescence experiments only.
Persistent luminescent research has a promising future. The search for new and better materials with Eu2+ ions as activators continues and has recently turned to other host materials, based on the developments in LED conversion phosphors. Additionally, the quest to unravel the mechanism behind the persistent luminescence has entered a new path. Various models have been proposed in the past few decades with only a small amount of experimental backup, but only recently researchers have started applying new and promising techniques that could confirm or disprove these theories. A better understanding of the exact mechanism is crucial for the development of practical applications such as emergency signs [144], traffic signage, dials and displays, textile printing, medical diagnostics [145], and more. Eu2+ activated long-lasting phosphors will play a vital role in the bright future of persistent luminescence.


Koen Van den Eeckhout is supported by the Special Research Fund (BOF) of Ghent University. Philippe F. Smet is a post-doctoral research fellow of FWO-Vlaanderen.


  1. Harvey, E.N. A History of Luminescence from the Earliest Times until 1900; American Philosophical Society: Philadelphia, PA, USA, 1957. [Google Scholar]
  2. Hoogenstraaten, W.; Klasens, H.A. Some properties of zinc sulfide activated with copper and cobalt. J. Electrochem. Soc. 1953, 100, 366–375. [Google Scholar] [CrossRef]
  3. Yen, W.M.; Shionoya, S.; Yamamoto, H. Phosphor Handbook, 2nd ed.; CRC Press/Taylor and Francis: Boca Raton, FL, USA, 2007. [Google Scholar]
  4. Wang, D.; Yin, Q.; Li, Y.; Wang, M. Concentration quenching of Eu2+ in SrO·Al2O3:Eu2+ phosphor. J. Lumines. 2002, 97, 1–6. [Google Scholar] [CrossRef]
  5. Matsuzawa, T.; Aoki, Y.; Takeuchi, N.; Murayama, Y. A new long phosphorescent phosphor with high brightness, SrAl2O4:Eu2+,Dy3+. J. Electrochem. Soc. 1996, 143, 2670–2673. [Google Scholar] [CrossRef]
  6. Abbruscato, V. Optical and electrical properties of SrAl2O4:Eu2+. J. Electrochem. Soc. 1971, 118, 930–933. [Google Scholar] [CrossRef]
  7. Takasaki, H.; Tanabe, S.; Hanada, T. Long-lasting afterglow characteristics of Eu, Dy codoped SrO-Al2O3 phosphor. J. Ceram. Soc. Jpn. 1996, 104, 322–326. [Google Scholar] [CrossRef]
  8. Lin, Y.; Tang, Z.; Zhang, Z.; Wang, X.; Zhang, J. Preparation of a new long afterglow blue-emitting Sr2MgSi2O7-based photoluminescent phosphor. J. Mater. Sci. Lett. 2001, 20, 1505–1506. [Google Scholar] [CrossRef]
  9. Aitasalo, T.; Hölsä, J.; Jungner, H.; Lastusaari, M.; Niittykoski, J. Mechanisms of persistent luminescence in Eu2+, RE3+ doped alkaline earth aluminates. J. Lumines. 2001, 94–95, 59–63. [Google Scholar] [CrossRef]
  10. Dorenbos, P. Mechanism of persistent luminescence in Eu2+ and Dy3+ codoped aluminate and silicate compounds. J. Electrochem. Soc. 2005, 152, H107–H110. [Google Scholar] [CrossRef]
  11. Blasse, G.; Grabmaier, B.C. Luminescent Materials; Springer-Verlag: Berlin, Germany, 1994. [Google Scholar]
  12. Poelman, D.; Avci, N.; Smet, P.F. Measured luminance and visual appearance of multi-color persistent phosphors. Opt. Express 2009, 17, 358–364. [Google Scholar] [CrossRef] [PubMed]
  13. Clabau, F.; Rocquefelte, X.; Jobic, S.; Deniard, P.; Whangbo, M.H.; Garcia, A.; Le Mercier, T. On the phosphorescence mechanism in SrAl2O4:Eu2+ and its codoped derivatives. Solid State Sci. 2007, 9, 608–612. [Google Scholar] [CrossRef]
  14. Schulze, A.R.; Buschbaum, H.M. Zur Verbindungsbildung von MeO: M2O3. IV. Zur Struktur von monoklinem SrAl2O4. Z. Anorg. Allg. Chem. 1981, 475, 205–210. [Google Scholar] [CrossRef]
  15. Lange, H. Luminescent Europium Activated Strontium Aluminate. US patent 3,294,699, 1966. [Google Scholar]
  16. Blasse, G.; Bril, A. Fluorescence of Eu2+-activated alkaline-earth aluminates. Philips Res. Rep. 1968, 23, 201–206. [Google Scholar]
  17. Katsumata, T.; Nabae, T.; Sasajima, K.; Komuro, S.; Morikawa, T. Effects of composition on the long phosphorescent SrAl2O4:Eu2+, Dy3+ phosphor crystals. J. Electrochem. Soc. 1997, 144, L243–L245. [Google Scholar] [CrossRef]
  18. Hölsä, J.; Jungner, H.; Lastusaari, M.; Niittykoski, J. Persistent luminescence of Eu2+ doped alkaline earth aluminates, MAl2O4:Eu2+. J. Alloy. Compd. 2001, 323–324, 326–330. [Google Scholar] [CrossRef]
  19. Katsumata, T.; Nabae, T.; Sasajima, K.; Matsuzawa, T. Growth and characteristics of long persistent SrAl2O4- and CaAl2O4-based phosphor crystals by a floating zone technique. J. Cryst. Growth 1998, 183, 361–365. [Google Scholar] [CrossRef]
  20. Lin, Y.; Tang, Z.; Zhang, Z.; Nan, C. Influence of co-doping different rare earth ions on the luminescence of CaAl2O4-based phosphors. J. Eur. Ceram. Soc. 2003, 23, 175–178. [Google Scholar] [CrossRef]
  21. Lin, Y.; Zhang, Z.; Tang, Z.; Zhang, J.; Zheng, Z.; Lu, X. The characterization and mechanism of long afterglow in alkaline earth aluminates phosphors co-doped by Eu2O3 and Dy2O3. Mater. Chem. Phys. 2001, 70, 156–159. [Google Scholar] [CrossRef]
  22. Sakai, R.; Katsumata, T.; Komuro, S.; Morikawa, T. Effect of composition on the phosphorescence from BaAl2O4: Eu2+, Dy3+ crystals. J. Lumines. 1999, 85, 149–154. [Google Scholar] [CrossRef]
  23. Lin, Y.; Tang, Z.; Zhang, Z. Preparation of long-afterglow Sr4Al14O25-based luminescent material and its optical properties. Mater. Lett. 2001, 51, 14–18. [Google Scholar] [CrossRef]
  24. Lin, Y.; Tang, Z.; Zhang, Z.; Nan, C.W. Anomalous luminescence in Sr4Al14O25:Eu, Dy phosphors. Appl. Phys. Lett. 2002, 81, 996–998. [Google Scholar] [CrossRef]
  25. Nakazawa, E.; Murazaki, Y.; Saito, S. Mechanism of the persistent phosphorescence in Sr4Al14O25:Eu and SrAl2O4:Eu codoped with rare earth ions. J. Appl. Phys. 2006, 100, 113113. [Google Scholar] [CrossRef]
  26. Katsumata, T.; Sasajima, K.; Nabae, T.; Komuro, S.; Morikawa, T. Characteristics of strontium aluminate crystals used for long-duration phosphors. J. Am. Ceram. Soc. 1998, 81, 413–416. [Google Scholar] [CrossRef]
  27. Preethi, K.R.S.; Lu, C.H.; Thirumalai, J.; Jagannathan, R.; Natarajan, T.S.; Nayak, N.U.; Radhakrishna, I.; Jayachandran, M.; Trivedi, D.C. SrAl4O7:Eu2+ nanocrystals: synthesis and fluorescence properties. J. Phys. D-Appl. Phys. 2004, 37, 2664–2669. [Google Scholar] [CrossRef]
  28. Zhang, J.; Zhang, Z.; Wang, T.; Hao, W. Preparation and characterization of a new long afterglow indigo phosphor Ca12Al14O33:Nd,Eu. Mater. Lett. 2003, 57, 4315–4318. [Google Scholar] [CrossRef]
  29. Chang, C.; Li, W.; Huang, X.; Wang, Z.; Chen, X.; Qian, X.; Guo, R.; Ding, Y.; Mao, D. Photoluminescence and afterglow behavior of Eu2+, Dy3+ and Eu3+, Dy3+ in Sr3Al2O6 matrix. J. Lumines. 2010, 130, 347–350. [Google Scholar] [CrossRef]
  30. Zhang, P.; Xu, M.; Zheng, Z.; Sun, B.; Zhang, Y. Rapid formation of red long afterglow phosphor Sr3Al2O6:Eu2+, Dy3+ by microwave irradiation. Mater. Sci. Eng. B Solid State Mater. Adv. Technol. 2007, 136, 159–164. [Google Scholar] [CrossRef]
  31. Wanjun, T.; Donghua, C.; Ming, W. Luminescence studies on SrMgAl10O17:Eu,Dy phosphor crystals. Opt. Laser Technol. 2009, 41, 81–84. [Google Scholar] [CrossRef]
  32. Jüstel, T.; Bechtel, H.; Mayr, W.; Wiechert, D.U. Blue emitting BaMgAl10O17:Eu with a blue body color. J. Lumines. 2003, 104, 137–143. [Google Scholar] [CrossRef]
  33. Aitasalo, T.; Hölsä, J.; Jungner, H.; Lastusaari, M.; Niittykoski, J.; Parkkinen, M.; Valtonen, R. Eu2+ doped calcium aluminates prepared by alternative low temperature routes. Opt. Mater. 2004, 26, 113–116. [Google Scholar] [CrossRef]
  34. Chen, R.; Wang, Y.; Hu, Y.; Hu, Z.; Liu, C. Modification on luminescent properties of SrAl2O4:Eu2+,Dy3+ phosphor by Yb3+ ions doping. J. Lumines. 2008, 128, 1180–1184. [Google Scholar] [CrossRef]
  35. Peng, T.; Yang, H.; Pu, X.; Hu, B.; Jiang, Z.; Yan, C. Combustion synthesis and photoluminescence of SrAl2O4:Eu,Dy phosphor nanoparticles. Mater. Lett. 2004, 58, 352–356. [Google Scholar] [CrossRef]
  36. Qiu, Z.; Zhou, Y.; Lü, M.; Zhang, A.; Ma, Q. Combustion synthesis of long-persistent luminescent MAl2O4: Eu2+, R3+ (M = Sr, Ba, Ca, R = Dy, Nd and La) nanoparticles and luminescence mechanism research. Acta Mater. 2007, 55, 2615–2620. [Google Scholar] [CrossRef]
  37. Zhao, C.; Chen, D. Synthesis of CaAl2O4:Eu,Nd long persistent phosphor by combustion processes and its optical properties. Mater. Lett. 2007, 61, 3673–3675. [Google Scholar] [CrossRef]
  38. Geng, J.; Wu, Z. Synthesis of long afterglow SrAl2O4: Eu2+, Dy3+ phosphors through microwave route. J. Mater. Synth. Proces. 2002, 10, 245–248. [Google Scholar] [CrossRef]
  39. Jia, W.; Yuan, H.; Lu, L.; Liu, H.; Yen, W.M. Crystal growth and characterization of Eu2+, Dy3+ : SrAl2O4 and Eu2+, Nd3+ : CaAl2O4 by the LHPG method. J. Cryst. Growth 1999, 200, 179–184. [Google Scholar] [CrossRef]
  40. Aitasalo, T.; Hölsä, J.; Jungner, H.; Lastusaari, M.; Niittykoski, J. Sol-gel processed Eu2+-doped alkaline earth aluminates. J. Alloy. Compd. 2002, 341, 76–78. [Google Scholar] [CrossRef]
  41. Chen, I.C.; Chen, T.M. Sol-gel synthesis and the effect of boron addition on the phosphorescent properties of SrAl2O4:Eu2+,Dy3+ phosphors. J. Mater. Res. 2001, 16, 644–651. [Google Scholar] [CrossRef]
  42. Peng, T.; Huajun, L.; Yang, H.; Yan, C. Synthesis of SrAl2O4:Eu, Dy phosphor nanometer powders by sol-gel processes and its optical properties. Mater. Chem. Phys. 2004, 85, 68–72. [Google Scholar] [CrossRef]
  43. Tang, Z.; Zhang, F.; Zhang, Z.; Huang, C.; Lin, Y. Luminescent properties of SrAl2O4: Eu, Dy material prepared by the gel method. J. Eur. Ceram. Soc. 2000, 20, 2129–2132. [Google Scholar] [CrossRef]
  44. Nag, A.; Kutty, T.R.N. The mechanism of long phosphorescence of SrAl2-xBxO4 (0 <x <0.2) and Sr4Al14-xBxO25 (0.1 <x <0.4) co-doped with Eu2+ and Dy3+. Mater. Res. Bull. 2004, 39, 331–342. [Google Scholar] [CrossRef]
  45. Nag, A.; Kutty, T.R.N. Role of B2O3 on the phase stability and long phosphorescence of SrAl2O4:Eu, Dy. J. Alloy. Compd. 2003, 354, 221–231. [Google Scholar] [CrossRef]
  46. Suriyamurthy, N.; Panigrahi, B.S. Effects of non-stoichiometry and substitution on photoluminescence and afterglow luminescence of Sr4Al14O25:Eu2+, Dy3+ phosphor. J. Lumines. 2008, 128, 1809–1814. [Google Scholar] [CrossRef]
  47. Yuan, Z.; Chang, C.; Mao, D.; Ying, W. Effect of composition on the luminescent properties of Sr4Al14O25: Eu2+, Dy3+ phosphors. J. Alloy. Compd. 2004, 377, 268–271. [Google Scholar] [CrossRef]
  48. Akiyama, M.; Xu, C.; Nonaka, K.; Watanabe, T. Intense visible light emission from Sr3Al2O6:Eu,Dy. Appl. Phys. Lett. 1998, 73, 3046–3048. [Google Scholar] [CrossRef]
  49. Zhang, P.; Li, L.; Xu, M.; Liu, L. The new red luminescent Sr3Al2O6:Eu2+ phosphor powders synthesized via sol-gel route by microwave-assisted. J. Alloy. Compd. 2008, 456, 216–219. [Google Scholar] [CrossRef]
  50. Lin, Y.; Nan, C.W.; Zhou, X.; Wu, J.; Wang, H.; Chen, D.; Xu, S. Preparation and characterization of long afterglow M2MgSi2O7-based (M: Ca, Sr, Ba) photoluminescent phosphors. Mater. Chem. Phys. 2003, 82, 860–863. [Google Scholar] [CrossRef]
  51. Liu, B.; Shi, C.; Yin, M.; Dong, L.; Xiao, Z. The trap states in the Sr2MgSi2O7 and (Sr,Ca)MgSi2O7 long afterglow phosphor activated by Eu2+ and Dy3+. J. Alloy. Compd. 2005, 387, 65–69. [Google Scholar] [CrossRef]
  52. Aitasalo, T.; Hölsä, J.; Kirm, M.; Laamanen, T.; Lastusaari, M.; Niittykoski, J.; Raud, J.; Valtonen, R. Persistent luminescence and synchrotron radiation study of the Ca2MgSi2O7:Eu2+,R3+ materials. Radiat. Meas. 2007, 42, 644–647. [Google Scholar] [CrossRef]
  53. Blasse, G.; Wanmaker, W.L.; ter Vrugt, J.W.; Bril, A. Fluorescence of Eu2+-activated silicates. Philips Res. Rep. 1968, 23, 189–200. [Google Scholar]
  54. Jiang, L.; Chang, C.; Mao, D. Luminescent properties of CaMgSi2O6 and Ca2MgSi2O7 phosphors activated by Eu2+, Dy3+ and Nd3+. J. Alloy. Compd. 2003, 360, 193–197. [Google Scholar] [CrossRef]
  55. Aitasalo, T.; Hölsä, J.; Laamanen, T.; Lastusaari, M.; Lehto, L.; Niittykoski, J.; Pellé, F. Luminescence properties of Eu2+ doped dibarium magnesium disilicate, Ba2MgSi2O7:Eu2+. Ceram.-Silikáty 2005, 49, 58–62. [Google Scholar]
  56. Aitasalo, T.; Hreniak, D.; Hölsä, J.; Laamanen, T.; Lastusaari, M.; Niittykoski, J.; Pellé, F.; Strek, W. Persistent luminescence of Ba2MgSi2O7:Eu2+. J. Lumines. 2007, 122–123, 110–112. [Google Scholar] [CrossRef]
  57. Lin, Y.; Tang, Z.; Zhang, Z.; Nan, C.W. Luminescence of Eu2+ and Dy3+ activated R3MgSi2O8-based (R = Ca, Sr, Ba) phosphors. J. Alloy. Compd. 2003, 348, 76–79. [Google Scholar] [CrossRef]
  58. Sabbagh Alvani, A.A.; Moztarzadeh, F.; Sarabi, A.A. Effects of dopant concentrations on phosphorescence properties of Eu/Dy-doped Sr3MgSi2O8. J. Lumines. 2005, 114, 131–136. [Google Scholar] [CrossRef]
  59. Lin, Y.; Zhang, Z.; Tang, Z.; Wang, X.; Zhang, J.; Zheng, Z. Luminescent properties of a new long afterglow Eu2+ and Dy3+ activated Ca3MgSi2O8 phosphor. J. Eur. Ceram. Soc. 2001, 21, 683–685. [Google Scholar] [CrossRef]
  60. Jiang, L.; Chang, C.; Mao, D.; Feng, C. Luminescent properties of CaMgSi2O6-based phosphors co-doped with different rare earth ions. J. Alloy. Compd. 2004, 377, 211–215. [Google Scholar] [CrossRef]
  61. Kuang, J.; Liu, Y.; Zhang, J.; Huang, L.; Rong, J.; Yuan, D. Blue-emitting long-lasting phosphor, Sr3Al10SiO20:Eu2+,Ho3+. Solid State Commun. 2005, 136, 6–10. [Google Scholar] [CrossRef]
  62. Kuang, J.Y.; Liu, Y.L.; Zhang, J.X. Effects of RE3+ as a co-dopant in blue-emitting long-lasting phosphors, Sr3Al10SiO20 : Eu2+. J. Mater. Sci. 2006, 41, 5500–5503. [Google Scholar] [CrossRef]
  63. Clabau, F.; Garcia, A.; Bonville, P.; Gonbeau, D.; Le Mercier, T.; Deniard, P.; Jobic, S. Fluorescence and phosphorescence properties of the low temperature forms of the MAl2Si2O8:Eu2+ (M = Ca, Sr, Ba) compounds. J. Solid State Chem. 2008, 181, 1456–1461. [Google Scholar] [CrossRef]
  64. Wang, Y.; Wang, Z.; Zhang, P.; Hong, Z.; Fan, X.; Qian, G. Preparation of Eu2+ and Dy3+ co-activated CaAl2Si2O8-based phosphor and its optical properties. Mater. Lett. 2004, 58, 3308–3311. [Google Scholar] [CrossRef]
  65. Ding, Y.; Zhang, Y.; Wang, Z.; Li, W.; Mao, D.; Han, H.; Chang, C. Photoluminescence of Eu single doped and Eu/Dy codoped Sr2Al2SiO7 phosphors with long persistence. J. Lumines. 2009, 129, 294–299. [Google Scholar] [CrossRef]
  66. Jiang, L.; Chang, C.; Mao, D.; Zhang, B. A new long persistent blue-emitting Sr2ZnSi2O7:Eu2+,Dy3+ prepared by sol-gel method. Mater. Lett. 2004, 58, 1825–1829. [Google Scholar] [CrossRef]
  67. Wang, X.J.; He, Z.Y.; Jia, D.; Strek, W.; Pazik, R.; Hreniak, D.; Yen, W.M. Crystal size dependence of the persistent phosphorescence in Sr2ZnSi2O7:Eu2+,Dy3+. Microelectron. J. 2005, 36, 546–548. [Google Scholar] [CrossRef]
  68. Lakshminarasimhan, N.; Varadaraju, U.V. Luminescence and afterglow in Sr2SiO4:Eu2+,RE3+ [RE = Ce, Nd, Sm and Dy] phosphors—Role of co-dopants in search for afterglow. Mater. Res. Bull. 2008, 43, 2946–2953. [Google Scholar] [CrossRef]
  69. Ji, H.; Xie, G.; Lv, Y.; Lu, H. A new phosphor with flower-like structure and luminescent properties of Sr2MgSi2O7:Eu2+,Dy3+ long afterglow materials by sol–gel method. J. Sol-Gel Sci. Technol. 2007, 44, 133–137. [Google Scholar] [CrossRef]
  70. Pan, W.; Ning, G.; Zhang, X.; Wang, J.; Lin, Y.; Ye, J. Enhanced luminescent properties of long-persistent Sr2MgSi2O7:Eu2+, Dy3+ phosphor prepared by the co-precipitation method. J. Lumines. 2008, 128, 1975–1979. [Google Scholar] [CrossRef]
  71. Song, F.; Donghua, C.; Yuan, Y. Synthesis of Sr2MgSi2O7:Eu, Dy and Sr2MgSi2O7:Eu, Dy, Nd by a modified solid-state reaction and their luminescent properties. J. Alloy. Compd. 2008, 458, 564–568. [Google Scholar] [CrossRef]
  72. Xu, Y.; Chen, D. Combustion synthesis and photoluminescence of Sr2MgSi2O7:Eu,Dy long lasting phosphor nanoparticles. Ceram. Int. 2008, 34, 2117–2120. [Google Scholar] [CrossRef]
  73. Toda, K.; Imanari, Y.; Nonogawa, T.; Miyoshi, J.; Uematsu, K.; Sato, M. Synthesis and characterization of new long persistent phosphor. J. Ceram. Soc. Jpn. 2002, 110, 283–288. [Google Scholar] [CrossRef]
  74. Fei, Q.; Chang, C.; Mao, D. Luminescent properties of Sr2MgSi2O7 and Ca2MgSi2O7 long lasting phosphors activated by Eu2+, Dy3+. J. Alloy. Compd. 2005, 390, 133–137. [Google Scholar] [CrossRef]
  75. Jiang, L.; Chang, C.; Mao, D.; Feng, C. Luminescent properties of Ca2MgSi2O7 phosphor activated by Eu2+, Dy3+ and Nd3+. Opt. Mater. 2004, 27, 51–55. [Google Scholar] [CrossRef]
  76. Dorenbos, P. Energy of the first 4f7-->4f65d transition of Eu2+ in inorganic compounds. J. Lumines. 2003, 104, 239–260. [Google Scholar] [CrossRef]
  77. Jia, D.; Zhu, J.; Wu, B. Improvement of persistent phosphorescence of Ca0.9Sr0.1S : Bi3+ by codoping Tm3+. J. Lumines. 2000, 91, 59–65. [Google Scholar] [CrossRef]
  78. Jia, D.; Jia, W.; Evans, D.R.; Dennis, W.M.; Liu, H.; Zhu, J.; Yen, W.M. Trapping processes in CaS:Eu2+, Tm3+. J. Appl. Phys. 2000, 88, 3402–3407. [Google Scholar] [CrossRef]
  79. Jia, D.; Zhu, J.; Wu, B. Trapping Centers in CaS:Bi3+ and CaS:Eu2+,Tm3+. J. Electrochem. Soc. 2000, 147, 386–389. [Google Scholar] [CrossRef]
  80. Jia, D. Enhancement of long-persistence by Ce co-doping in CaS:Eu2+,Tm3+ red phosphor. J. Electrochem. Soc. 2006, 153, H198–H201. [Google Scholar] [CrossRef]
  81. Guo, C.; Tang, Q.; Huang, D.; Zhang, C.; Su, Q. Influence of co-doping different rare earth ions on CaGa2S4: Eu2+, RE3+ (RE = Ln) phosphors. J. Phys. Chem. Solids 2007, 68, 217–223. [Google Scholar] [CrossRef]
  82. Guo, C.; Zhang, C.; Lü, Y.; Tang, Q.; Su, Q. Luminescent properties of Eu2+ and Ho3+ co-doped CaGa2S4 phosphor. Phys. Status Solidi A-Appl. Mat. 2004, 201, 1588–1593. [Google Scholar] [CrossRef]
  83. Najafov, H.; Kato, A.; Toyota, H.; Iwai, K.; Bayramov, A.; Iida, S. Effect of Ce co-doping on CaGa2S4:Eu phosphor: II. Thermoluminescence. Jpn. J. Appl. Phys. 2002, 41, 2058–2065. [Google Scholar] [CrossRef]
  84. Smet, P.F.; Avci, N.; Poelman, D. Red persistent luminescence in Ca2SiS4:Eu,Nd. J. Electrochem. Soc. 2009, 156, H243–H248. [Google Scholar] [CrossRef]
  85. Pang, R.; Li, C.; Shi, L.; Su, Q. A novel blue-emitting long-lasting proyphosphate phosphor Sr2P2O7:Eu2+,Y3+. J. Phys. Chem. Solids 2009, 70, 303–306. [Google Scholar] [CrossRef]
  86. Pang, R.; Li, C.; Zhang, S.; Su, Q. Luminescent properties of a new blue long-lasting phosphor Ca2P2O7:Eu2+,Y3+. Mater. Chem. Phys. 2009, 113, 215–218. [Google Scholar] [CrossRef]
  87. Liu, L.; Li, C.; Wang, S.; Su, Q. Redshift phenomenon of the excitation light of long life emission phosphor. Appl. Phys. Lett. 2006, 88, 241107. [Google Scholar] [CrossRef]
  88. Miyamoto, Y.; Kato, H.; Honna, Y.; Yamamoto, H.; Ohmi, K. An orange-emitting, long-persistent phosphor, Ca2Si5N8:Eu2+,Tm3+. J. Electrochem. Soc. 2009, 156, J235–J241. [Google Scholar] [CrossRef]
  89. Van den Eeckhout, K.; Smet, P.F.; Poelman, D. Persistent luminescence in rare-earth codoped Ca2Si5N8:Eu2+. J. Lumines. 2009, 129, 1140–1143. [Google Scholar] [CrossRef] [Green Version]
  90. Li, C.; Su, Q. A new blue phosphorescent glass-ceramic: Rare-earth-doped calcium aluminoborate. J. Alloy. Compd. 2006, 408–412, 875–878. [Google Scholar] [CrossRef]
  91. Zhang, L.; Li, C.; Su, Q. Long lasting phosphorescence in Eu2+ and Ce3+ co-doped strontium borate glasses. J. Rare Earths 2006, 24, 196–198. [Google Scholar] [CrossRef]
  92. Hao, Z.; Zhang, J.; Zhang, X.; Sun, X.; Luo, Y.; Lu, S.; Wang, X. White light emitting diode by using α-Ca2P2O7:Eu2+,Mn2+ phosphor. Appl. Phys. Lett. 2007, 90, 261113. [Google Scholar] [CrossRef]
  93. Li, Y.Q.; van Steen, J.E.J.; van Krevel, J.W.H.; Botty, G.; Delsing, A.C.A.; DiSalvo, F.J.; de With, G.; Hintzen, H.T. Luminescence properties of red-emitting M2Si5N8:Eu2+ (M = Ca, Sr, Ba) LED conversion phosphors. J. Alloy. Compd. 2006, 417, 273–279. [Google Scholar] [CrossRef]
  94. Chen, R.; McKeever, S.W.S. Theory of Thermoluminescence and Related Phenomena; World Scientific: Singapore, 1997; Volume xiii, p. 559. [Google Scholar]
  95. McKeever, S.W.S. Thermoluminescence of Solids; Cambridge University Press: Cambridge, UK, 1985. [Google Scholar]
  96. McKeever, S.W.S.; Moscovitch, M.; Townsend, P.D. Thermoluminescence Dosimetry Materials: Properties and Uses; Nuclear Technology Pub.: Ashford, UK, 1995. [Google Scholar]
  97. Urbach, F. Zur Lumineszenz der Alkalihalogenide: II. Messungmethoden. Sitzungsberichte Akademie der Wissenshaften in Wien 1930, 139, 363. [Google Scholar]
  98. Randall, J.T.; Wilkins, M.H.F. Phosphorescence and electron traps. I. The study of trap distributions. P. Roy. Soc. Lond. A 1945, 184, 365–389. [Google Scholar] [CrossRef]
  99. Randall, J.T.; Wilkins, M.H.F. Phosphorescence and electron traps. II. The interpretation of long-period phosphorescence. P. Roy. Soc. Lond. A 1945, 184, 390–407. [Google Scholar] [CrossRef]
  100. Garlick, G.F.J.; Gibson, A.F. The electron trap mechanism of luminescence in sulphide and silicate phosphors. Proc. Phys. Soc. 1948, 60, 574–590. [Google Scholar] [CrossRef]
  101. Bos, A.J.J. Theory of thermoluminescence. Radiat. Meas. 2006, 41, S45–S56. [Google Scholar] [CrossRef]
  102. Chen, R. On the calculation of activation energies and frequency factors from glow curves. J. Appl. Phys. 1969, 40, 570–585. [Google Scholar] [CrossRef]
  103. Hoogenstraaten, W. Electron traps in ZnS phosphors. Philips Res. Rep. 1958, 13, 515–693. [Google Scholar]
  104. Chen, R. Glow curves with general order kinetics. J. Electrochem. Soc. 1969, 116, 1254–1257. [Google Scholar] [CrossRef]
  105. Chung, K.S. TL Glow Curve Analyzer v0.9.6; Korea Atomic Energy Research Institute and Gyeongsang National University: Daejeon, Korea, 2003. [Google Scholar]
  106. Chung, K.S.; Choe, H.S.; Lee, J.I.; Kim, J.L.; Chang, S.Y. A computer program for the deconvolution of thermoluminescence glow curves. Radiat. Prot. Dosim. 2005, 115, 343–349. [Google Scholar] [CrossRef]
  107. Thomas, R.; Nampoori, V.P.N. On the luminescence characteristics of cerium and copper doped barium sulfide phosphor. Solid State Commun. 1988, 68, 821–824. [Google Scholar] [CrossRef]
  108. Bube, R.H. Luminescence and trapping in zinc sulfide phosphors with and without copper activator. Phys. Rev. 1950, 80, 655–666. [Google Scholar] [CrossRef]
  109. Paulose, P.I.; Joseph, J.; Rudra Warrier, M.K.; Jose, G.; Unnikrishnan, N.V. Relaxation kinetics of Sm: Ce-doped CaS phosphors. J. Lumines. 2007, 127, 583–588. [Google Scholar] [CrossRef]
  110. Nakazawa, E. A new method for the characterization of traps in luminescent materials. Jpn. J. Appl. Phys. - Lett. 1984, 23, L755–L757. [Google Scholar] [CrossRef]
  111. Aitasalo, T.; Hölsä, J.; Jungner, H.; Krupa, J.C.; Lastusaari, M.; Legendziewicz, J.; Niittykoski, J. Effect of temperature on the luminescence processes of SrAl2O4:Eu2+. Radiat. Meas. 2004, 38, 727–730. [Google Scholar] [CrossRef]
  112. Arellano-Tánori, O.; Meléndrez, R.; Pedroza-Montero, M.; Castañeda, B.; Chernov, V.; Yen, W.M.; Barboza-Flores, M. Persistent luminescence dosimetric properties of UV-irradiated SrAl2O4:Eu2+, Dy3+ phosphor. J. Lumines. 2008, 128, 173–184. [Google Scholar] [CrossRef]
  113. Nakazawa, E.; Mochida, T. Traps in SrAl2O4:Eu2+ phosphor with rare-earth ion doping. J. Lumines. 1997, 72–74, 236–237. [Google Scholar] [CrossRef]
  114. Aitasalo, T.; Hölsä, J.; Jungner, H.; Lastusaari, M.; Niittykoski, J. Thermoluminescence study of persistent luminescence materials: Eu2+- and R3+-doped calcium aluminates, CaAl2O4:Eu2+,R3+. J. Phys. Chem. B 2006, 110, 4589–4598. [Google Scholar] [CrossRef] [PubMed]
  115. Jia, D.; Jia, W.Y.; Jia, Y. Long persistent alkali-earth silicate phosphors doped with Eu2+,Nd3+. J. Appl. Phys. 2007, 101, 023520. [Google Scholar] [CrossRef]
  116. Jia, W.; Yuan, H.; Holmstrom, S.; Liu, H.; Yen, W.M. Photo-stimulated luminescence in SrAl2O4 : Eu2+,Dy3+ single crystal fibers. J. Lumines. 1999, 83–84, 465–469. [Google Scholar] [CrossRef]
  117. Jia, W.; Yuan, H.; Lu, L.; Liu, H.; Yen, W.M. Phosphorescent dynamics in SrAl2O4: Eu2+, Dy3+ single crystal fibers. J. Lumines. 1998, 76–77, 424–428. [Google Scholar] [CrossRef]
  118. Yuan, H.B.; Jia, W.; Basun, S.A.; Lu, L.; Meltzer, R.S.; Yen, W.M. The long-persistent photoconductivity of SrAl2O4:Eu2+, Dy3+ single crystals. J. Electrochem. Soc. 2000, 147, 3154–3156. [Google Scholar] [CrossRef]
  119. Kato, K.; Tsutai, I.; Kamimura, T.; Kaneko, F.; Shinbo, K.; Ohta, M.; Kawakami, T. Thermoluminescence properties of SrAl2O4:Eu sputtered films with long phosphorescence. J. Lumines. 1999, 82, 213–220. [Google Scholar] [CrossRef]
  120. Yamamoto, H.; Matsuzawa, T. Mechanism of long phosphorescence of SrAl2O4:Eu2+, Dy3+ and CaAl2O4:Eu2+, Nd3+. J. Lumines. 1997, 72–74, 287–289. [Google Scholar] [CrossRef]
  121. Nakamura, T.; Kaiya, K.; Takahashi, N.; Matsuzawa, T.; Ohta, M.; Rowlands, C.C.; Smith, G.M.; Riedi, P.C. High frequency EPR investigations of gadolinium(III)-doped strontium aluminates. Phys. Chem. Chem. Phys. 2001, 3, 1721–1723. [Google Scholar] [CrossRef]
  122. Aitasalo, T.; Deren, P.; Hölsä, J.; Jungner, H.; Krupa, J.C.; Lastusaari, M.; Legendziewicz, J.; Niittykoski, J.; Strek, W. Persistent luminescence phenomena in materials doped with rare earth ions. J. Solid State Chem. 2003, 171, 114–122. [Google Scholar] [CrossRef]
  123. Kröger, F.A.; Vink, H.H. Relations between the concentrations of imperfections in crystalline solids. In Solid State Phys.; Sietz, F., Turnbull, D., Eds.; Academic Press: San Diego, CA, USA, 1956. [Google Scholar]
  124. Palilla, F.C.; Levine, A.K.; Tomkus, M.R. Fluorescent properties of alkaline earth aluminates of the type MAl2O4 activated by divalent europium. J. Electrochem. Soc. 1968, 115, 642–644. [Google Scholar] [CrossRef]
  125. Dorenbos, P. Locating lanthanide impurity levels in the forbidden band of host crystals. J. Lumines. 2004, 108, 301–305. [Google Scholar] [CrossRef]
  126. Dorenbos, P. Mechanism of persistent luminescence in Sr2MgSi2O7:Eu2+;Dy3+. Phys. Status Solidi B-Basic Solid State Phys. 2005, 242, R7–R9. [Google Scholar] [CrossRef]
  127. Dorenbos, P. Systematic behaviour in trivalent lanthanide charge transfer energies. J. Phys.-Condens. Matter 2003, 15, 8417–8434. [Google Scholar] [CrossRef]
  128. Clabau, F.; Rocquefelte, X.; Jobic, S.; Deniard, P.; Whangbo, M.H.; Garcia, A.; Le Mercier, T. Mechanism of phosphorescence appropriate for the long-lasting phosphors Eu2+-doped SrAl2O4 with codopants Dy3+ and B3+. Chem. Mat. 2005, 17, 3904–3912. [Google Scholar] [CrossRef]
  129. Clabau, F.; Rocquefelte, X.; Le Mercier, T.; Deniard, P.; Jobic, S.; Whangbo, M.H. Formulation of phosphorescence mechanisms in inorganic solids based on a new model of defect conglomeration. Chem. Mater. 2006, 18, 3212–3220. [Google Scholar] [CrossRef]
  130. Qiu, J.; Kawasaki, M.; Tanaka, K.; Shimizugawa, Y.; Hirao, K. Phenomenon and mechanism of long-lasting phosphorescence in Eu2+-doped aluminosilicate glasses. J. Phys. Chem. Solids 1998, 59, 1521–1525. [Google Scholar] [CrossRef]
  131. Qi, Z.; Shi, C.; Liu, M.; Zhou, D.; Luo, X.; Zhang, J.; Xie, Y. The valence of rare earth ions in R2MgSi2O7:Eu, Dy (R = Ca, Sr) long-afterglow phosphors. Phys. Status Solidi A-Appl. Mat. 2004, 201, 3109–3112. [Google Scholar] [CrossRef]
  132. Carlson, S.; Hölsä, J.; Laamanen, T.; Lastusaari, M.; Malkamäki, M.; Niittykoski, J.; Valtonen, R. X-ray absorption study of rare earth ions in Sr2MgSi2O7:Eu2+,R3+ persistent luminescence materials. Opt. Mater. 2009, 31, 1877–1879. [Google Scholar] [CrossRef]
  133. Hölsä, J.; Aitasalo, T.; Jungner, H.; Lastusaari, M.; Niittykoski, J.; Spano, G. Role of defect states in persistent luminescence materials. J. Alloy. Compd. 2004, 374, 56–59. [Google Scholar] [CrossRef]
  134. Bos, A.J.J.; Dorenbos, P.; Bessière, A.; Viana, B. Lanthanide energy levels in YPO4. Radiat. Meas. 2008, 43, 222–226. [Google Scholar] [CrossRef]
  135. Jia, D. Charging curves and excitation spectrum of long persistent phosphor SrAl2O4:Eu2+, Dy3+. Opt. Mater. 2003, 22, 65–69. [Google Scholar] [CrossRef]
  136. Höppe, H.A. Recent developments in the field of inorganic phosphors. Angew. Chem. Int. Ed. 2009, 48, 3572–3582. [Google Scholar] [CrossRef]
  137. Schubert, E.F. Light-Emitting Diodes, 2nd ed.; Cambridge University Press: Cambridge, UK, 2006. [Google Scholar]
  138. Hong, Z.; Zhang, P.; Fan, X.; Wang, M. Eu3+ red long afterglow in Y2O2S:Ti, Eu phosphor through afterglow energy transfer. J. Lumines. 2007, 124, 127–132. [Google Scholar] [CrossRef]
  139. Wang, X.; Zhang, Z.; Tang, Z.; Lin, Y. Characterization and properties of a red and orange Y2O2S-based long afterglow phosphor. Mater. Chem. Phys. 2003, 80, 1–5. [Google Scholar] [CrossRef]
  140. Ye, S.; Zhang, J.; Zhang, X.; Wang, X. Mn2+ activated red long persistent phosphors in BaMg2Si2O7. J. Lumines. 2007, 122–123, 914–916. [Google Scholar] [CrossRef]
  141. Born, M.; Wolf, E. Principles of Optics; Electromagnetic Theory of Propagation, Interference, and Diffraction of Light, 2nd ed.; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
  142. Rea, M.S.; Bullough, J.D.; Freyssinier-Nova, J.P.; Bierman, A. A proposed unified system of photometry. Lighting Res. Technol. 2004, 36, 85–109. [Google Scholar] [CrossRef]
  143. Stockman, A.; Sharpe, L.T. Into the twilight zone: the complexities of mesopic vision and luminous efficiency. Opht. Phys. Opt. 2006, 26, 225–239. [Google Scholar] [CrossRef]
  144. Saito, M.; Adachi, N.; Kondo, H. Full-color illumination that needs no electric power. Opt. Express 2007, 15, 1621–1626. [Google Scholar] [CrossRef] [PubMed]
  145. le Masne de Chermont, Q.; Chanéac, C.; Seguin, J.; Pellé, F.; Maîtrejean, S.; Jolivet, J.P.; Gourier, D.; Bessodes, M.; Scherman, D. Nanoprobes with near-infrared persistent luminescence for in vivo imaging. Proc. Nat. Acad. Sci. USA 2007, 104, 9266–9271. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Van den Eeckhout, K.; Smet, P.F.; Poelman, D. Persistent Luminescence in Eu2+-Doped Compounds: A Review. Materials 2010, 3, 2536-2566.

AMA Style

Van den Eeckhout K, Smet PF, Poelman D. Persistent Luminescence in Eu2+-Doped Compounds: A Review. Materials. 2010; 3(4):2536-2566.

Chicago/Turabian Style

Van den Eeckhout, Koen, Philippe F. Smet, and Dirk Poelman. 2010. "Persistent Luminescence in Eu2+-Doped Compounds: A Review" Materials 3, no. 4: 2536-2566.

Article Metrics

Back to TopTop
