Optimal CeO2 Doping for Synergistically Enhanced Mechanical, Tribological, and Thermal Properties in Zirconia Ceramics

1
School of Materials Science and Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China
2
Ganzhou Institute of Tungsten Industrial Technology, Ganzhou 341500, China
3
Key Laboratory of Efficient Exploitation and Utilization of Tungsten Resources of Jiangxi Province, Ganzhou 341000, China
4
Engineering Research Center, Ministry of Education, High Efficiency Development and Application of Tungsten Resources, Jiangxi University of Science and Technology, Ganzhou 341000, China
*
Authors to whom correspondence should be addressed.
Materials 2026, 19(2), 362; https://doi.org/10.3390/ma19020362
Submission received: 19 December 2025 / Revised: 12 January 2026 / Accepted: 13 January 2026 / Published: 16 January 2026
(This article belongs to the Section Advanced and Functional Ceramics and Glasses)

Highlights

What are the main findings?
  • Optimal performance at 15 wt.% CeO2: peak hardness, lowest friction (0.205), and 72.2% lower thermal expansion.
  • Enhancements from solid solution strengthening, grain refinement, and phonon scattering via point defects.
  • Excess doping (>15 wt.%) leads to CeO2 agglomeration, grain coarsening, and increased porosity.
What are the implications of the main findings?
  • Provides a clear compositional guideline (15 wt.% CeO2) for designing high-performance ZrO2 ceramics.
  • Warns against over-doping, emphasizing precise compositional control for optimal microstructure.
  • Enables simultaneous tuning of mechanical strength, wear resistance, and thermal management.

Abstract

CeO2 doping is a well-established strategy for enhancing the properties of zirconia (ZrO2) ceramics, with the prior literature indicating an optimal doping range of around 10–15 wt.% for specific attributes. Building upon this foundation, this study provides a systematic investigation into the concurrent evolution of mechanical, tribological, and thermophysical properties across a broad compositional spectrum (0–20 wt.% CeO2). The primary novelty lies in the holistic correlation of these often separately examined properties, revealing their interdependent trade-offs governed by microstructural development. The 15Ce-ZrO2 composition, consistent with the established optimal range, achieved a synergistic balance: hardness increased by 27.6% to 310 HV1, the friction coefficient was minimized to 0.205, and the wear rate was reduced to 1.81 × 10−3 mm3/(N m). Thermally, it exhibited a 72.2% reduction in the thermal expansion coefficient magnitude at 1200 °C and a low thermal conductivity of 0.612 W/(m·K). The enhancement mechanisms are consistent with solid solution strengthening, grain refinement, and likely enhanced phonon scattering, potentially from point defects such as oxygen vacancies commonly associated with aliovalent doping in oxide ceramics, while performance degradation beyond 15 wt.% is linked to CeO2 agglomeration and duplex microstructure formation. This work provides a relatively comprehensive insight into the dataset and mechanism, which is conducive to the fine design of multifunctional ZrO2 bulk ceramics. It is not limited to determining the optimal doping level, but also aims to clarify the comprehensive performance map, providing reference significance for the development of advanced ceramic materials with synergistically optimized hardness, wear resistance, and thermal properties.

1. Introduction

The thrust-to-weight ratio of an aircraft gas turbine increases with the rise in gas temperature within the turbine. This pushes the engine’s operating temperature to the limits of metallic materials. The use of low-thermal-conductivity materials allows the engine to operate at gas temperatures below the melting point of metals, thereby [1] enhancing engine efficiency and performance. To mitigate this, a release layer is necessary. Zirconia (ZrO2), characterized by its high hardness, wear resistance, thermal insulation, and corrosion resistance [2], has emerged as an ideal release layer material. Studies have further confirmed its effectiveness in inhibiting spalling and crack formation during sintering [3].
ZrO2-based materials find widespread application in fire resistance and high-temperature protection [4,5], owing to their excellent mechanical properties (high strength and toughness) and thermal properties (high melting point, low thermal conductivity), making them a primary choice for high-temperature components. However, challenges include thermal stress arising from poor high-temperature phase stability and thermal expansion coefficient mismatch, as well as diminished thermal insulation performance due to increasing thermal conductivity at elevated temperatures [6]. To address these issues, researchers have pursued modifications such as rare earth doping (e.g., Y2O3, CeO2) [7], composite ceramics (e.g., ZrO2-Al2O3), and nanostructure design, aiming to enhance thermal stability and lower thermal conductivity.
Among these approaches, CeO2 doping has been established as an effective modification method, demonstrating three key advantages: (1) significantly enhancing high-temperature phase stability by delaying the tetragonal-to-monoclinic phase transition [7]; (2) optimizing the thermal expansion coefficient to mitigate thermal stress; and (3) suppressing the temperature-dependent rise in thermal conductivity. Compared to conventional Y2O3-stabilized ZrO2, CeO2-ZrO2 exhibits superior thermal stability, fracture toughness, and oxidation resistance [8]. These properties endow it with significant application potential for graphite boat bulk ceramics and thermal barrier bulk ceramics.
This study investigates the effects of CeO2 doping on the physical properties, tribological behavior, and thermal characteristics of zirconia bulk ceramics. An optimal CeO2 doping concentration was established, achieving the synergistic enhancement of densification, hardness, wear resistance, and thermal stability. The findings provide a material design strategy for engineering high-performance ZrO2-based components that must withstand combined mechanical, frictional, and thermal loads in severe environments, such as in advanced manufacturing, energy conversion, and aerospace systems.

2. Experimental Procedure

2.1. Materials

The primary materials used in this study were ZrO2 powder (AR, 10–20 μm, Shanghai Yaoyi Alloy Materials Co., Ltd., Shanghai, China), CeO2 powder (AR, 5 μm, Shanghai Yaoyi Alloy Materials Co., Ltd., Shanghai, China), anhydrous ethanol (purity >99.7%, Xilong Scientific Co., Ltd., Guangzhou, China), and polyacrylic acid (30% solid content, Shanghai Macklin Biochemical Technology Co., Ltd., Shanghai, China).

2.2. Sample Preparation

In this experiment, ZrO2 was used as the matrix material, and rare earth doped ZrO2 ceramics were prepared by adding different contents of CeO2 (see Table 1). The specific process is as follows: (1) ZrO2 and CeO2 powders were weighed according to the ratio of Table 1, ZrO2 grinding balls were added at a ball-to-powder ratio of 5:1, and ball milling was performed using anhydrous ethanol as the medium and polyacrylic acid (30 wt.%) as the binder; (2) the composite powder was obtained by vacuum drying, grinding and sieving of ball abrasive; (3) a cylindrical green body was prepared by unidirectional molding with cemented carbide mold (YP-20T hydraulic press, holding pressure for 60 s); and (4) pressureless sintering was carried out in a KSL-1700X box furnace (MTI Corporation, Richmond, CA, USA) under air atmosphere: First, the temperature was raised from 25 °C to 330 °C at a heating rate of 3 °C/min and held for 300 min to remove the polyacrylic acid (PAA) from the sample. Second, the temperature was increased to 1600 °C at a heating rate of 5 °C/min and held for 600 min. Finally, it was cooled to 25 °C at a rate of 5 °C/min in the KSL-1700X.

2.3. Characterization

The phase composition of ceramic materials was analyzed by XRD. The X-ray diffraction analysis model used in this experiment was Empyream. The setting parameters of the equipment during the analysis were as follows: the scanning angle was 10–90°, and the scanning speed was 4°/min. Tube voltage: 40 KV, tube current: 40 mA.
The model of the scanning electron microscope used is MLA-650 (Thermo Fisher Scientific, Waltham, MA, USA). It is equipped with energy dispersive spectroscopy (EDS). In order to ensure the clarity of the image, the polished sample is subjected to gold spraying treatment.
In this experiment, the density of rare earth doped ZrO2 ceramic materials was determined based on Archimedes’ principle. In this experiment, the same sample was taken and the experiment was repeated three times to obtain the average value. The experiment used the multifunctional electronic hydrometer AU-600ME (Guangdong Hongtuo Instrument Technology Co., Ltd., Dongguan, China) to weigh the mass of the samples in the air and in the water. Calculate the density of the sample according to Formula (1) [9]:
D 1   =   m 2 ρ m 1 m 2
In Formula (1), D1 is the density of the sample; m1 is the mass of the sample in the air, g; m2 is the mass of the sample in water, g; and ρ is the density of water at room temperature, g/cm3 (usually 1 g/cm3).
Using Formula (2), calculate the porosity for each of the three data points obtained from the same sample, and then find the average porosity, and then understand the porosity of ceramic materials [10]:
d   =   D 1 D 2   ×   100 %
In Equation (2), d is the relative density of the sample, %; D1 is the density of the sample, g/cm3; and D2 is the theoretical density of the sample, g/cm3.
The hardness value of rare earth doped ZrO2 ceramic materials was determined by using the digital Vickers hardness tester THV-50 MDX (Beijing Time Technologies Co., Ltd., Beijing, China), to carry out five hardness tests on the same sample and then take the average value. The parameters were set as pressure load of 1 kg and holding time of 10 s. The value was calculated according to Formula (3) [11]:
HV   =   0.891 P d v 2
In Formula (3), HV is Vickers hardness value, kg/mm2; P is the pressure load, kg; and dv is the length of the indentation diagonal, mm.
The HSR-2M(Beijing Jingmeirui Technology Co., Ltd., Beijing, China) reciprocating friction and wear tester was used to determine the friction and wear characteristics of rare earth doped ZrO2 ceramic materials. The loading force is 10 N, the frequency is 4 Hz, the total friction time is 8 min, and the one-way round-trip length of friction is 5 mm. After the friction experiment lasted for 8 min, the friction curve stabilized. The maximum and minimum values of the friction coefficient during this stage were taken, and their average was calculated to obtain the average friction coefficient.
At the end of the experiment, the 2D profiles of the wear scars on the surface of the material were measured by a grinding mark tester MT500 (Shandong Yingli Shuo Testing Instrument Co., Ltd., Shangdong, China), and the depth and width of the wear scars were determined. Select different areas on the same wear mark of the sample, and conduct three measurements using the MT500, respectively. Take the average of the three results as the average wear amount of the sample. The data obtained can be used to calculate the wear rate of rare earth doped ZrO2 ceramic materials, and the tribological properties of rare earth doped ZrO2 ceramic materials are further analyzed and evaluated by the wear rate. In general, the wear rate is calculated according to Formula (4) [12]:
K V   =   S   ×   l N   ×   L
KV is the wear rate, mm3/(N m); s is the cross-sectional area of the wear scar, mm2; l is the length of the wear scar, mm; n is the load force in the friction and wear experiment, N; L is the friction stroke in the friction and wear experiment, m. In this experiment, L = 9.6 m, N = 10 N, and l = 5 mm.
The thermal diffusivity and specific heat capacity of the bulk ceramic were measured by laser thermal conductivity meter (LFA 42, NETZSCH-Gerätebau GmbH, Selb, Germany). The density of the bulk ceramics was measured by the Archimedes drainage method. The test temperature was 1100 °C. The thermal conductivity and thermal diffusivity of three samples with the same content were measured, respectively, and the average values were calculated based on the measurement results. Finally, the thermal conductivity of the bulk ceramic was obtained by Equations (5) and (6) [13,14]:
λ = αCp·ρ
Cp = 69.2 + 4.3 × 10−3T − 1.3 × 106T−2
Here, CP is the specific heat capacity. ρ is the density of the bulk ceramic, which is determined by Archimedes method. α is the thermal diffusion coefficient of the material. λ is the thermal conductivity of the material.
The linear coefficient of thermal expansion (CTE) in the range of 25–1200 °C was measured by a thermal dilatometer (TMA 403 F3, NETZSCH, Bavaria, Germany). The sample was heated from room temperature (T0 = 25 °C) to T = 1200 °C at a heating rate of 0.1 °C/s. CTE was calculated by Formula (7) [15]:
α   =   Δ L L 0   ×   Δ L
where α is the linear expansion coefficient (unit: K−1); Δ L= L − L: length change caused by temperature change (unit: mm); L0 is the original length at the initial temperature (the unit is consistent with ΔL); and Δ T = T − T0: temperature change (unit: K). Apply Formula (8) to perform relative density-based correction for thermal conductivity:
κ dense   =   κ dense   ×   ρ measured ρ theoretical

3. Results and Discussion

3.1. Phase Composition and Microstructure

Figure 1 presents the XRD patterns and corresponding local magnification for CeO2 doped ZrO2 ceramics with varying CeO2 contents after sintering. Comparison with the reference ZrO2 pattern revealed the emergence of new diffraction peaks at approximately 28.6°, 33.2°, 47.7°, and 56.2°. The intensity of these new peaks was observed to increase with increasing CeO2 content, qualitatively indicating a higher fraction of the secondary CeO2 phase. Identification using the relevant PDF card confirmed that these peaks primarily correspond to CeO2. While ZrO2 exhibits a monoclinic crystal structure at room temperature, CeO2 crystallizes in the cubic fluorite structure. When the doping concentration of CeO2 exceeds its solid solubility limit in the ZrO2 lattice, the excess CeO2 precipitates as a distinct secondary phase. This phase separation gives rise to the distinct diffraction peaks observed, which differ from those of the primary ZrO2 matrix phase. This finding aligns with the observations reported by Karem et al. [16]. Furthermore, Figure 1c indicates a shift in the characteristic ZrO2 peak located near 28.2° towards lower diffraction angles. This shift is attributed to the substitution of Zr4+ ions (ionic radius ≈ 0.84 Å for coordination number 8) by the larger Ce4+ ions (ionic radius ≈ 0.97 Å for coordination number 8). This ionic substitution leads to an expansion of the unit cell parameters of the ZrO2-based solid solution. According to Bragg’s law (nλ = 2 d sin θ, where d is the interplanar spacing, θ is the diffraction angle, λ is the X-ray wavelength, and n is the diffraction order), an increase in d results in a decrease in sin θ (and consequently θ) for a given reflection, manifesting as a peak shift to lower angles [17,18].
Figure 2 and Figure 3 present the SEM and EDS, respectively, for ZrO2 ceramic materials doped with varying CeO2 contents. From the SEM images, it can be observed that as the CeO2 content increases, the grain size gradually decreases. However, when the CeO2 doping level exceeds 15 wt.%, abnormal grain coarsening occurs. This phenomenon can be attributed to two main factors. Firstly, the agglomeration of CeO2 nanoparticles reduces the density of effective nucleation sites, promoting grain coalescence and growth [19]. Secondly, the high concentration of CeO2 alters sintering behavior, enhancing grain boundary diffusion and thereby facilitating grain coarsening. The residual sintering activity or presence of a local liquid phase contributes to the observed gradual increase in grain size [20]. Correspondingly, the pore number density (or porosity) decreases within the 0–15 wt.% CeO2 range, indicating that moderate doping effectively improves microstructural homogeneity and reduces defect density. Conversely, as the CeO2 content increases beyond 15 wt.%, the pore number density increases and pores become more widely distributed. This deterioration is attributed to structural inhomogeneities arising from incomplete mass transfer during sintering, particle coalescence issues, and the formation of agglomerates or secondary phases due to the excess dopant, all of which contribute to increased porosity [21]. The EDS elemental mappings in Figure 3 corroborate these findings. The intensity of the Ce4+ signal progressively increases with the CeO2 doping level. Notably, Figure 3e4 reveals localized Ce4+ agglomeration/clustering at higher doping concentrations (20 wt.%), directly confirming that excessive CeO2 addition promotes particle agglomeration. The O element distribution is uniform across all samples, consistent with the oxide nature of the starting materials. Significantly, the 15Ce-ZrO2 sample exhibits the most homogeneous distribution of Zr4+, Ce4+, and O2- on the material surface, corresponding to its optimal microstructure. At a CeO2 doping level of 20 wt.%, both XRD and SEM/EDS analyses indicate the formation of a dual-phase structure in the material. The characteristic diffraction peaks of CeO2 in the XRD pattern are significantly enhanced, confirming that it has exceeded the solid solubility limit and precipitated as a secondary phase. SEM/EDS further reveals local agglomeration of Ce elements, forming CeO2-rich phase regions, which, together with the ZrO2 matrix, constitute a two-phase coexisting system. This structural transformation directly influences the material’s properties and stands in sharp contrast to the uniform single-phase strengthening mechanism achieved through solid solution strengthening and grain refinement in the 15 wt.% sample.

3.2. Density, Porosity and Relative Density

Figure 4 presents the porosity of ZrO2 ceramics doped with varying CeO2 contents, and Figure 5 presents the bulk density and relative density of ZrO2 ceramics doped with varying CeO2 contents. Analysis combining Figure 4 (porosity) and Figure 5 reveals that both the pore number density (or porosity) of the Ce-doped ZrO2 system exhibit a non-monotonic trend, initially decreasing and subsequently increasing with increasing CeO2 content. The reduction in grain size observed with moderate CeO2 doping (0–15 wt.%) is primarily attributed to grain boundary pinning effects. CeO2 additions interact with the ZrO2 matrix grain boundaries, effectively inhibiting grain boundary migration kinetics by altering the grain boundary chemical potential, thereby suppressing grain growth [22]. Furthermore, the uniform distribution of CeO2 facilitates microstructural refinement through mechanisms including second-phase dispersion strengthening, grain boundary segregation, and heterogeneous nucleation, leading to reduced porosity and finer grains [23,24,25]. As shown, the bulk density increases with increasing CeO2 content. Notably, the rate of density increase diminishes when the CeO2 content reaches 15 wt.%. In contrast, the relative density exhibits a non-monotonic trend, initially increasing to a maximum of 96.1% at 15 wt.% CeO2, and then decreasing at higher dopant levels. The initial increase in relative density (up to 15 wt.% CeO2) can be attributed to two primary factors. (1) Lattice distortion: The significant difference in ionic radius between Ce4+ (≈0.97 Å for CN = 8) and Zr4+ (≈0.84 Å for CN = 8) induces substantial lattice distortion upon substitution into the ZrO2 lattice. This distortion can promote densification mechanisms during sintering [20,26]. (2) Reduced porosity: As discussed in conjunction with Figure 4, the number density of pores decreases within this doping range, directly contributing to the higher relative density. However, when the CeO2 content exceeds 15 wt.%, the relative density declines. This deterioration is mainly due to diminished grain boundary pinning and impeded densification. Firstly, excess CeO2 can compromise its effectiveness as a grain boundary pinning agent. This reduction in pinning force facilitates abnormal grain growth, leading to the development of larger intergranular pores/voids [27,28]. Secondly, high CeO2 concentrations increase the residual oxygen content within the material, which can hinder the final stages of sintering densification. Furthermore, at elevated temperatures, excess CeO2 promotes the coalescence of micropores, further reducing the relative density [28].

3.3. Hardness, Friction and Wear Performance

Figure 6 presents the Vickers hardness (HV1) of ZrO2 ceramics as a function of CeO2 doping content. This HV hardness testing method is feasible, as demonstrated by the tests conducted by Yahui He et al. [2]. The hardness exhibits a non-monotonic dependence on dopant concentration, initially increasing to a maximum value of 310 HV1 at 15 wt.% CeO2, representing a 27.64% enhancement compared to undoped ZrO2, followed by a decrease at higher doping levels. It should be noted that the absolute hardness values obtained in this study (e.g., ~310 HV1 for the optimal 15Ce-ZrO2) are below the typical range reported for fully dense, fine-grained YSZ ceramics (>1000 HV). This is primarily attributed to the residual porosity (~4%) in the present pressureless-sintered samples, as pores act as stress concentrators and significantly degrade load-bearing capacity [29,30].
The mechanisms for hardness enhancement (≤15 wt.% CeO2) contain second-phase dispersion strengthening and grain refinement. Firstly, moderate CeO2 doping effectively inhibits grain growth (as evidenced in Figure 2), leading to grain refinement. This increases the density of grain boundaries, which act as barriers to dislocation motion [29,30]. Secondly, the dissolved Ce4+ ions form a supersaturated solid solution within the ZrO2 lattice. The associated lattice strain fields impede dislocation glide, enhancing hardness [27]. Thirdly, the finely dispersed CeO2 particles exert a pinning effect on grain boundaries, further stabilizing the refined microstructure and contributing to strengthening [27].
The mechanisms for hardness reduction (>15 wt.% CeO2) contain phase separation and stress concentration and increased porosity. Firstly, the excessive CeO2 exceeds its solid solubility limit, leading to secondary phase formation (CeO2 rich precipitates). These phases induce stress concentrations at grain boundaries due to thermal expansion mismatch and/or elastic modulus differences, facilitating crack initiation [31]. Secondly, as shown in Figure 2 and Figure 4, the porosity significantly increases beyond 15 wt.% CeO2. These pores act as stress concentrators and preferential sites for crack propagation, thereby diminishing the material’s load-bearing capacity and measured hardness [32].
Figure 7 presents the friction coefficient curves, average friction coefficients, and corresponding 2D wear scar profiles for ZrO2 ceramics doped with varying CeO2 contents. Complementary quantitative wear scar dimensions (width and depth) are provided in Table 2. As can be seen from Figure 7b, the average friction coefficient of CeO2-doped ZrO2 is the best when the CeO2 content is 15%, which is much lower than the optimal coefficient of 0.5–0.6 measured by Wen Deng et al. for 8YSZ [33]. For undoped ZrO2 (Figure 7a), it exhibits a prolonged friction coefficient stabilization period. This instability primarily arises from abrasive wear induced by surface micro-asperities and adhesive wear due to the absence of a self-lubricating phase [33], For CeO2-doped samples, it demonstrates significantly improved tribological performance. The 15Ce-ZrO2 sample achieves the lowest average friction coefficient (0.205, representing a 52.98% reduction compared to undoped ZrO2) and the shortest stabilization time (4 min). This enhancement is attributed to a synergistic effect. Firstly, CeO2 effectively seals intergranular defects and reduces surface roughness. Secondly, the enhanced hardness via solid solution strengthening and grain boundary pinning improves resistance to deformation and wear [20,25]. Thirdly, the inherent layered structure of CeO2 facilitates the development of a low-shear-strength lubricating transfer film at the sliding interface [20,25]. For excessive doping (>15 wt.% CeO2), the performance deteriorates due to two reasons. On the one hand, the agglomerated CeO2 particles detach, forming hard abrasive debris that accelerates wear. On the other hand, the reduced density and hardness diminish the wear resistance. Through wear scar analysis, the 15Ce-ZrO2 sample exhibits optimal wear resistance, with the smallest wear scar dimensions (width: 2.44 mm, depth: 71.17 μm, representing a 40.2% reduction in depth compared to undoped ZrO2). This is primarily a consequence of grain refinement and increased density, which reduces microcracking and the likelihood of third-body abrasive formation during sliding [34]. Conversely, the 20Ce-ZrO2 sample shows a significant rebound in wear depth (105.18 μm), directly correlating with its degraded density and hardness [33]. Optimal CeO2 doping (15 wt.%) synergistically enhances the tribological properties of ZrO2 ceramics through intergranular defect healing, microstructural strengthening, and effective tribo-film formation, minimizing friction and wear [33,35].
Figure 8 and Figure 9 present the SEM morphology of wear scars, corresponding EDS analysis, and wear rate data for ZrO2 ceramics with varying CeO2 doping contents. SEM wear scar analysis (Figure 8), All samples exhibit wear scars characterized by parallel grooves aligned with the sliding direction, accompanied by brittle delamination pits and debris accumulation. As CeO2 content increases from 0 to 15 wt.%, the severity of wear scars, microcracking density, and debris detachment progressively decrease. The 15Ce-ZrO2 sample demonstrates the smoothest wear surface. This is attributed to CeO2-induced grain refinement, microstructural homogenization, and defect density reduction [36]. Furthermore, the well-distributed CeO2 at grain boundaries effectively impedes dislocation motion and inhibits crack propagation, enhancing cohesive strength [20]. Conversely, the excessive doping (20 wt.% CeO2) promotes CeO2 agglomeration, increased porosity, and reduced hardness. These factors collectively lead to prominent transverse cracking and extensive abrasive debris generation within the wear scar [32]. From Figure 9, the wear rate decreases significantly from 3.33 × 10−3 mm3/(N·m) for undoped ZrO2 to 1.81 × 10−3 mm3/(N·m) for 15Ce-ZrO2, representing a 45.65% reduction. This enhancement correlates with solid solution strengthening and grain boundary pinning, which simultaneously elevate density and hardness. The 20Ce-ZrO2 sample exhibits a rebounded wear rate of 2.46 × 10−3 mm3/(N·m), primarily driven by grain boundary stress concentration (due to agglomeration/secondary phases) and elevated porosity [32].
Figure 10 and Figure 11 present the SEM morphology and corresponding EDS elemental mappings of worn surfaces following tribological testing. From wear scar morphology, all samples exhibit surfaces dominated by parallel grooves aligned with the sliding direction, accompanied by lamellar delamination debris accumulation. The 15Ce-ZrO2 sample demonstrates the narrowest/shallowest wear track and minimal debris accumulation. This correlates with grain boundary strengthening via CeO2 segregation/pinning to form a coherent, low-shear-strength lubricating tribo-film. Distinct Ce/Zr signals (co-localized with Fe/O) confirm adhesive material transfer from the counter-body under shear stress. However, excessive CeO2 (>15 wt.%) promotes hard phase agglomeration, which acts as stress concentrators. This, coupled with reduced hardness and increased porosity, exacerbates abrasive wear and surface fracture, leading to accelerated material removal.

3.4. Thermal Properties

The coefficient of thermal expansion (CTE) is a critical performance parameter for zirconia ceramics, profoundly influencing their thermo-mechanical stability, manufacturability, and service performance in applications involving thermal cycling [37]. In Figure 12, both undoped ZrO2 and CeO2-doped ZrO2 exhibit rapid expansion below ~250 °C (CTE: ~8.818 × 10−6 K−1), followed by a gradual decline to 6.68–7.20 × 10−6 K−1 at 250–950 °C. The high congruence of CTE curves across all compositions in this range confirms that CeO2 doping preserves the intrinsic crystallographic stability of the ZrO2 matrix. CeO2 doping delays the onset of contraction to ≥1000 °C. Local magnification reveals drastically suppressed contraction magnitude in Ce-doped systems at 1120–1200 °C. Specifically, the 15Ce-ZrO2 achieves a 72.21% reduction in absolute CTE value at 1200 °C versus undoped ZrO2, demonstrating effective inhibition of high-temperature shrinkage. This significantly mitigates thermally induced mismatch stresses. The mechanism of shrinkage suppression was Ce4+ substitution (r = 0.97 Å, CN = 8) for Zr4+ (r = 0.84 Å, CN = 8) within the Zr1−xCexO2 solid solution. Firstly, the dilatational lattice strain from the larger Ce4+ ion expands the unit cell and reconstructs local stress fields. Secondly, charge compensation for Ce4+ incorporation is widely reported to promote the formation of oxygen vacancies in similar oxide systems. These vacancies are preferentially ordered along the c-axis, increasing the activation energy barrier for the reconstructive [38].
The relative density-normalized thermal conductivity of 0–20 wt.% CeO2-doped samples is presented in Table 3. The thermal conductivity of ceramics is predominantly governed by phonon-mediated heat transfer [39,40,41,42]. Point defects which are commonly introduced by aliovalent doping, constitute potent sources of phonon scattering, arising from the associated mass defect and the disruption of interatomic bonding [43]. In ZrO2, its unique low thermal conductivity is attributed to lattice distortion and possible enhanced phonon scattering due to oxygen vacancies. These mechanisms reduce the thermal diffusivity, making zirconia an effective thermal barrier material [37]. Figure 13 shows the thermal conductivity of zirconium oxide doped with cerium oxide at a temperature of 1100 °C. At a cerium oxide content of 15% by mass, the lowest value (0.612 watts/(meter·kelvin)) is observed. This initial decrease may be attributed to the enhanced intrinsic phonon scattering caused by lattice strain and point defects associated with the doping of cerium4+ [44]. The subsequent increase in thermal conductivity coincides with a sharp rise in porosity beyond 15 wt.% (Figure 4). While pores scatter phonons, their detrimental impact on the heat conduction pathway can lead to complex effects on the net measured conductivity [45]. Combined with the potential stabilization of higher thermal conductivity phases, the degraded, porous microstructure at 20 wt.% CeO2 explains the observed rebound.

4. Conclusions

Building upon the established optimal doping range (~10–15 wt.% CeO2), this work systematically investigates the composition-dependent evolution of microstructure and mechanical, tribological, and thermal properties in ZrO2 ceramics across 0–20 wt.% CeO2. The 15 wt.% CeO2 composition achieves the best performance balance: hardness increases by 27.6% to 310 HV1, friction coefficient decreases to 0.205, wear rate drops to 1.81 × 10−3 mm3/(N·m), thermal expansion at 1200 °C is reduced by 72.2%, and thermal conductivity reaches 0.612 W/(m·K). These improvements are primarily attributed to solid solution strengthening and grain refinement, while the lowered thermal conductivity is consistent with enhanced phonon scattering, potentially involving point defects such as oxygen vacancies. Beyond 15 wt.%, performance declines due to CeO2 agglomeration, duplex structure formation, and increased porosity. This study thus validates the optimal doping level through systematic evaluation and provides a composition structure property framework to guide the design of multifunctional ZrO2 ceramics.

Author Contributions

Conceptualization, F.C. and Z.T.; methodology, F.C. and Z.T.; formal analysis, F.C., Z.T., Y.L. and X.Z.; investigation, F.C., Z.T., Y.L. and X.Z.; resources, Y.Y. and H.C.; data curation, F.C.; writing—review and editing, F.C.; supervision, Y.Y. and H.C. All authors have read and agreed to the published version of the manuscript.

Funding

The work was financially supported by the Key research and development project of Jiangxi Province (20224BBE510).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Wang, Z.; Du, L.Z. Stabilization of a novel mixed solution precursor used for preparing YSZ abradable sealing coatings. Colloids Surf. A 2024, 562, 354–360. [Google Scholar] [CrossRef]
  2. He, Y.; Zhang, S.; He, Y.; Song, R.; Zhang, Z.; Liu, B.; Li, H.; Shangguan, J. Effects of yttrium-stabilized zirconia (different yttrium content) doping on the structure, corrosion resistance and wear resistance of Ni-P electroless coating. Colloid. Surf. A 2022, 654, 130059. [Google Scholar] [CrossRef]
  3. Wang, S.L.; Li, K.Z.; Li, H.J.; Zhang, Y.L.; Wang, Y.J. Effects of microstructures on the ablation behaviors of ZrC deposited by CVD. Surf. Coat. Tech. 2024, 240, 450–455. [Google Scholar] [CrossRef]
  4. Reddy Channu, V.S.; Kalluru, R.R.; Schlesinger, M.; Mehring, M.; Holze, R. Synthesis and characterization of ZrO2 nanoparticles for optical and electrochemical applications. Colloid. Surf. A 2011, 386, 151–157. [Google Scholar] [CrossRef]
  5. Liu, B.X.; Lin, X.J.; Zhu, L.Y.; Wang, X.Q.; Xu, D. Fabrication of calcium zirconate fibers by the solgel method. Ceram. Int. 2014, 40, 12525–12531. [Google Scholar] [CrossRef]
  6. Wang, J.; Li, H.P.; Stevens, R. Hafnia and hafnia-toughened ceramics. J. Mater. Sci. 1992, 27, 5397–5430. [Google Scholar] [CrossRef]
  7. Lee, H.-S.; Ko, H.; Heo, K.; Lee, H.S.; Lim, H.M. Dispersion control via crystal-phase modulation of yttrium-doped ZrO2 nanoparticle sol. Colloid. Surf. A 2023, 670, 131476. [Google Scholar] [CrossRef]
  8. Duh, J.G.; Dai, H.T.; Chiou, B.S. Sintering, microstructure, hardness, and fracture toughness behavior of Y2O3-CeO2-ZrO2. J. Am. Ceram. Soc. 1988, 71, 813–819. [Google Scholar] [CrossRef]
  9. Tang, Z.Y.; Cheng, C.; Chen, L.Y.; Cheng, X.; Xie, X.L.; Chen, H.; Ye, Y.W. Microstructure and tribological performances of W-Cu-Co-xWC alloys with various WC amounts. Tungsten 2025, 7, 314–326. [Google Scholar] [CrossRef]
  10. Toprak, C.B.; Dogruer, C.U. Neuro-fuzzy modelling methods for relative density prediction of stainless steel 316L metal parts produced by additive manufacturing technique. J. Mech. Sci. Technol. 2023, 37, 107. [Google Scholar] [CrossRef]
  11. Sasan, G.; Hadi, H.; Ebrahim, G.; Taghi, S. Effect of quantitative textural specifications on Vickers hardness of limestones. Bull. Eng. Geol. Environ. 2023, 82, 32. [Google Scholar] [CrossRef]
  12. Deng, W.; Wu, X.; Xu, Z.; Liu, J.; Li, T.; Tang, L. Friction and Wear Behaviors of Perfluoropolyether-Impregnated Plasma-Sprayed Yttria-Stabilized Zirconia Coatings. J. Mater. Eng. Perform. 2024, 33, 1369–1379. [Google Scholar] [CrossRef]
  13. Zhu, S.Y.; Bi, Q.L.; Yang, J. Tribological behavior of Ni3Al alloy at dry friction and under seawater environment. Tribol. Int. 2014, 75, 24–30. [Google Scholar] [CrossRef]
  14. Xie, X.; Guo, H.; Gong, S.; Xu, H. Lanthanum–titanium–aluminum oxide: A novel thermal barrier coating material for applications at 1300 °C. J. Eur. Ceram. Soc. 2011, 31, 1677–1683. [Google Scholar] [CrossRef]
  15. Zhou, F.; Lan, H.; Sun, X.; Zhang, H.; Sun, Y.; Du, L.; Zhang, W. Investigation of phase structure stability and thermal expansion coefficient of ytterbia stabilized hafnia. Chin. J. Process. Eng. 2024, 24, 580–588. [Google Scholar]
  16. Karem, I.K.; Hamdan, S.A. The Influence of CeO2 Concentration on Some Physical Properties of Y2O3 Thin. Iraqi J. Sci. 2022, 63, 2482–2491. [Google Scholar] [CrossRef]
  17. Wen, G.J.; Zhang, K.B.; Yin, D.; Zhang, H.B. Solid-state reaction synthesis and aqueous durability of Ce-doped zirconolite-rich ceramics(Review). J. Nucl. Mater. 2015, 466, 113–119. [Google Scholar] [CrossRef]
  18. Grieshammer, S. Defect Interactions in the CeO2-ZrO2-Y2O3 Solid Solution. J. Phys. Chem. C 2017, 121, 15078–15084. [Google Scholar] [CrossRef]
  19. Li, L.; Sang, S.; Zhu, T.; Li, Y.; Wang, H. Enhancing Hardness and Wear Resistance of MgAl2O4/Fe-Based Laser Cladding Coatings by the Addition of CeO2. Coatings 2024, 14, 550. [Google Scholar] [CrossRef]
  20. Du, Y.; Song, C.; Wei, Y.; Ma, D.; Pan, B.; Sun, M.; Shi, G.; Wang, Z.; Li, Q. Effect of CeO2-Y2O3 sintering aids on the microstructure and properties of corundum-based composite ceramics. J. Asian Ceram. Soc. 2024, 11, 517–525. [Google Scholar] [CrossRef]
  21. Xia, F.; Yan, P.; Ma, C.; Wang, B.; Liu, Y. Effect of different heat-treated temperatures upon structural and abrasive performance of Ni-TiN composite nanocoatings. J. Mater. Res. Technol. 2023, 27, 2874–2881. [Google Scholar] [CrossRef]
  22. Kozlovskiy, A.L.; Zdorovets, M.V.; Shlimas, D.I. Study of the Morphological and Structural Features of Inert Matrices Based on ZrO2–CeO2 Doped with Y2O3 and the Effect of Grain Sizes on the Strength Properties of Ceramics. Metals 2022, 12, 1687. [Google Scholar] [CrossRef]
  23. Liu, Y.; Sun, R.; Zhang, T.; Li, M. Effect of CeO2 content on microstructure and properties of laser cladded self-lubricant coatings. Laser Optoelectron. Prog. 2018, 55, 111401. [Google Scholar]
  24. Gan, X.Z.; Yu, Z.C.; Yuan, K.K.; Xu, C.H.; Zhang, G.H.; Wang, X.Q.; Zhu, L.Y.; Xu, D. Effects of cerium addition on the microstructure, mechanical properties and thermal conductivity of YSZ fibers. Ceram. Int. 2018, 44, 7077–7083. [Google Scholar] [CrossRef]
  25. Ma, C.; Wang, C.; Xia, F.; Wang, Q.; Yan, P.; Zhang, Y. Microstructure, wear and corrosion resistances of Ni–ZrO2–CeO2 nano coatings. Ceram. Int. 2024, 50, 20949–20957. [Google Scholar] [CrossRef]
  26. Lee, G.; Park, T.; Choi, S.; Kim, J.; An, G.; Lee, I.; Oh, Y. Core-shell Structured YSZ/CeO2 Composite Thermal Barrier Coating Fabrication and Properties. Korean J. Met. Mater. 2024, 62, 495–502. [Google Scholar] [CrossRef]
  27. Ye, F.; Shao, W.; Ye, X.; Liu, M.; Xie, Y.; Bian, P.; Wang, X.; Liu, L.; Wu, H. Microstructure and Corrosion Behavior of Laser-Cladding CeO2-Doped Ni-Based Composite Coatings on TC4. J. Chem. 2020, 2020, 8690428. [Google Scholar] [CrossRef]
  28. Schoell, R.; Reyes, A.; Suman, G.; Lam, M.N.; Hamil, J.; Rosenberg, S.G.; Treadwell, L.R.; Hattar, K.; Lang, E. Hot Isostatic Pressing Control of Tungsten-Based Composites. Inorganics 2023, 11, 82. [Google Scholar] [CrossRef]
  29. Lucas, T.J.; Lawson, N.C.; Janowski, G.M.; Burgess, J.O. Effect of grain size on the monoclinic transformation, hardness, roughness, and modulus of aged partially stabilized zirconia. Dent. Mater. 2015, 31, 1487–1492. [Google Scholar] [CrossRef] [PubMed]
  30. Moshtaghioun, B.M.; Gomez-Garcia, D.; Dominguez-Rodriguez, A.; Todd, R.I. Grain size dependence of hardness and fracture toughness in pure near fully-dense boron carbide ceramics. J. Eur. Ceram. Soc. 2016, 36, 1829–1834. [Google Scholar] [CrossRef]
  31. Bijalwan, V.; Tofel, P.; Holcman, V. Grain size dependence of the microstructures and functional properties of (Ba0.85 Ce0.1−x Cex ) (Zr0.1 Ti0.9 ) O3 lead-free piezoelectric ceramics(Article). J. Asian Ceram. Soc. 2018, 6, 384–393. [Google Scholar] [CrossRef]
  32. Venkataraman, R.; Das, G.; Singh, S.R.; Pathak, L.C.; Ghosh, R.N.; Venkataraman, B.; Krishnamurthy, R. Study on influence of porosity, pore size, spatial and topological distribution of pores on microhardness of as plasma sprayed ceramic coatings. Mater. Sci. Eng. 2007, 445, 269–274. [Google Scholar] [CrossRef]
  33. Deng, W.; Tang, L.; Zhang, C.; Qi, H. Tribological behaviours of 8YSZ coating sliding against different counterparts. Surf. Eng. 2021, 37, 111–119. [Google Scholar] [CrossRef]
  34. Shu, D.; Cui, X.; Li, Z.; Sun, J.; Wang, J.; Chen, X.; Dai, S.; Si, W. Effect of the rare earth oxide CeO2 on the microstructure and properties of the Nano-WC-reinforced Ni-based composite coating(Article). Metals 2020, 10, 383. [Google Scholar] [CrossRef]
  35. Shanmugasamy, S.; Balakrishnan, K.; Subasri, A.; Ramalingam, S.; Subramania, A. Development of CeO2 nanorods reinforced electrodeposited nickel nanocomposite coating and its tribological and corrosion resistance properties. J. Rare Earths 2018, 36, 1319–1325. [Google Scholar] [CrossRef]
  36. Sui, X.; Weng, Y.; Zhang, L.; Lu, J.; Huang, X.; Long, F.; Zhang, W. Uncovering the Effect of CeO2 on the Microstructure and Properties of TiAl/WC Coatings on Titanium Alloy. Coatings 2024, 14, 543. [Google Scholar] [CrossRef]
  37. Li, W.; Zhu, Y.; Wang, X.; Zhao, L.; Chu, Y.; Chen, F.; Ge, C.; Fang, S. Preparation and Thermophysical Properties of New Multi-Component Entropy-Stabilized Oxide Ceramics for Thermal Barrier Coatings. Coatings 2023, 13, 937. [Google Scholar] [CrossRef]
  38. Hou, Z.; Yang, W.; Zhan, Y.; Zhang, X.; Zhang, J. Effect of Calcination Temperature on the Microstructure, Composition and Properties of Agglomerated Nanometer CeO2-Y2O3-ZrO2 Powders for Plasma Spray-Physical Vapor Deposition (PS-PVD) and Coatings Thereof. Nanomaterials 2024, 14, 995. [Google Scholar] [CrossRef]
  39. Zhang, H.; Su, J.B.; Duo, S.W.; Zhou, X.; Yuan, J.Y.; Dong, S.J.; Yang, X.; Zeng, J.Y.; Jiang, J.N.; Deng, L.H. Thermal and mechanical properties of Ta2O5 doped La2Ce2O7 thermal barrier coatings prepared by atmospheric plasma spraying. J. Eur. Ceram. Soc. 2019, 39, 2379–2388. [Google Scholar] [CrossRef]
  40. Zhang, S.; Zhang, J.; Li, F.; Du, S.; Chen, Z.; Zhao, S.; Zhao, D.; Fan, B.; Wang, B.; Chen, K.; et al. Yb0.5Ca0.75Si7.5Al4.5O1.5N14.5 α-SiAlON ceramics: A hard material with low thermal conductivity. J. Eur. Ceram. Soc. 2024, 44, 5957–5964. [Google Scholar] [CrossRef]
  41. Che, J.; Huang, W.; Ren, G.; Linghu, J.; Wang, X. Dual-channel phonon transport leads to low thermal conductivity in pyrochlore La2Hf2O7. Ceram. Int. 2024, 50, 22865–22873. [Google Scholar] [CrossRef]
  42. Wang, A.; Li, S.H.; Bao, H. Thermal transport mechanism of electrons and phonons in pristine and defective HfB2. Rare Met. 2023, 42, 3651–3661. [Google Scholar] [CrossRef]
  43. Wang, Y.; Xiao, P.; Yang, F. Role and determining factor of substitutional defects on thermal conductivity: A study of La2(Zr1−xBx)2O7 (B = Hf, Ce, 0 ≤ x ≤ 0.5) pyrochlore solid solutions. Acta Mater. 2014, 68, 106. [Google Scholar] [CrossRef]
  44. Knoblauch, N.; Mechnich, P. A Novel Method for the Preparation of Fibrous CeO2-ZrO2-Y2O3 Compacts for Thermochemical Cycles. Crystals 2021, 11, 885. [Google Scholar] [CrossRef]
  45. Li, Q.S.; Zhang, Y.J.; Gong, H.Y.; Sun, H.B.; Li, T.; Guo, X.; Ai, S.H. Effects of graphene on the thermal conductivity of pressureless-sintered SiC ceramics. Ceram. Int. 2015, 41, 13547–13552. [Google Scholar] [CrossRef]

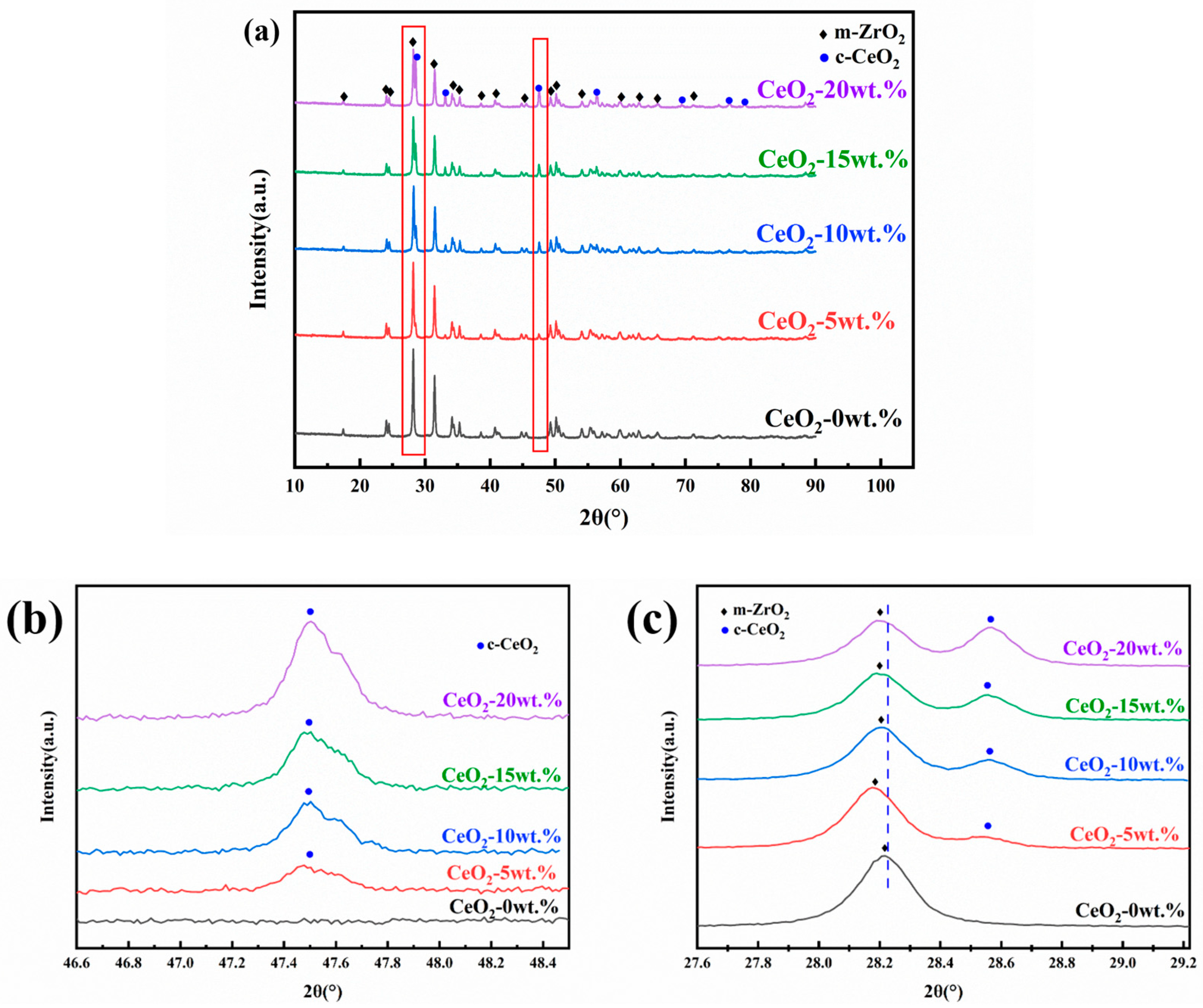

Figure 1. XRD patterns of CeO2-doped ZrO2 ceramics: (a) full range, (b,c) magnified views.
Figure 1. XRD patterns of CeO2-doped ZrO2 ceramics: (a) full range, (b,c) magnified views.
Materials 19 00362 g001

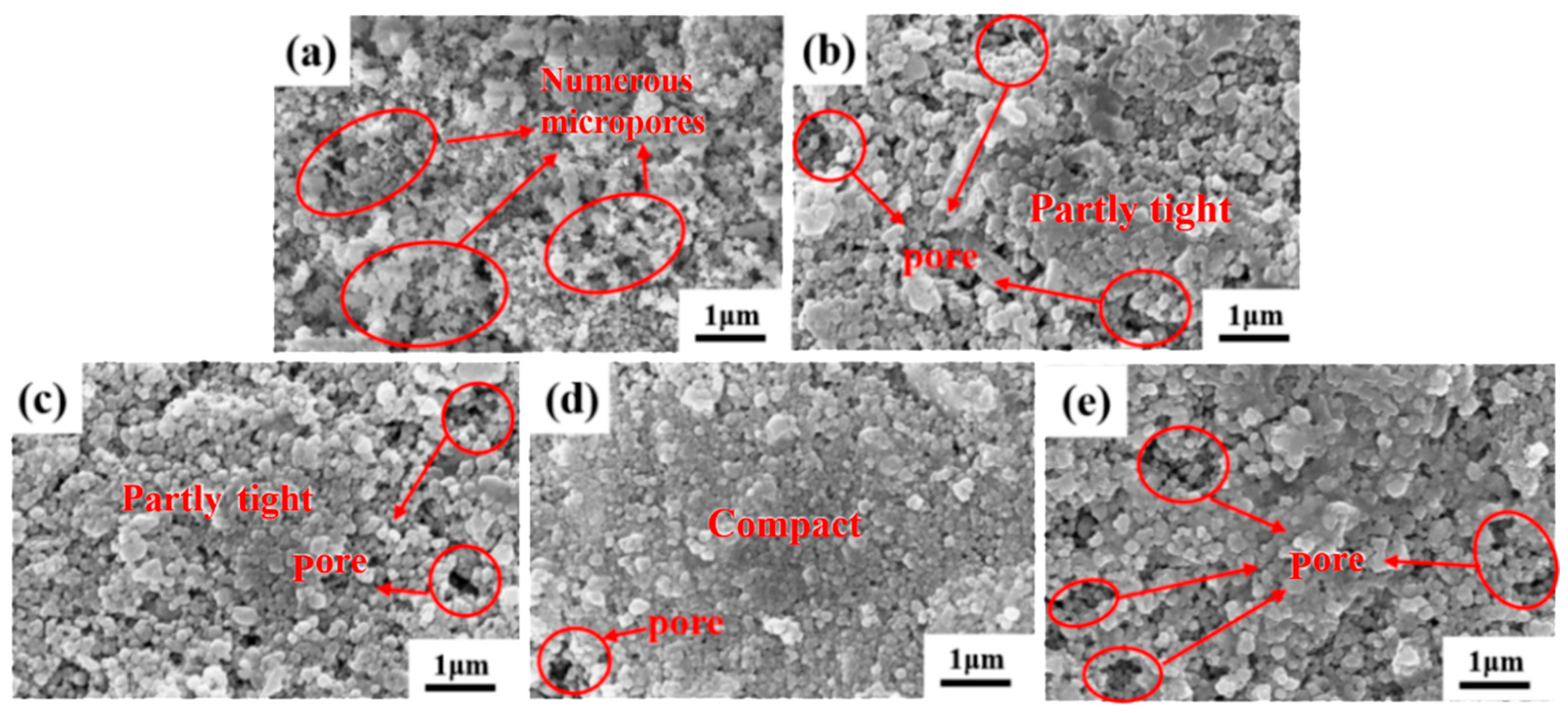

Figure 2. SEM images of CeO2-doped ZrO2 ceramics: (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, (e) 20Ce-ZrO2.
Figure 2. SEM images of CeO2-doped ZrO2 ceramics: (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, (e) 20Ce-ZrO2.
Materials 19 00362 g002

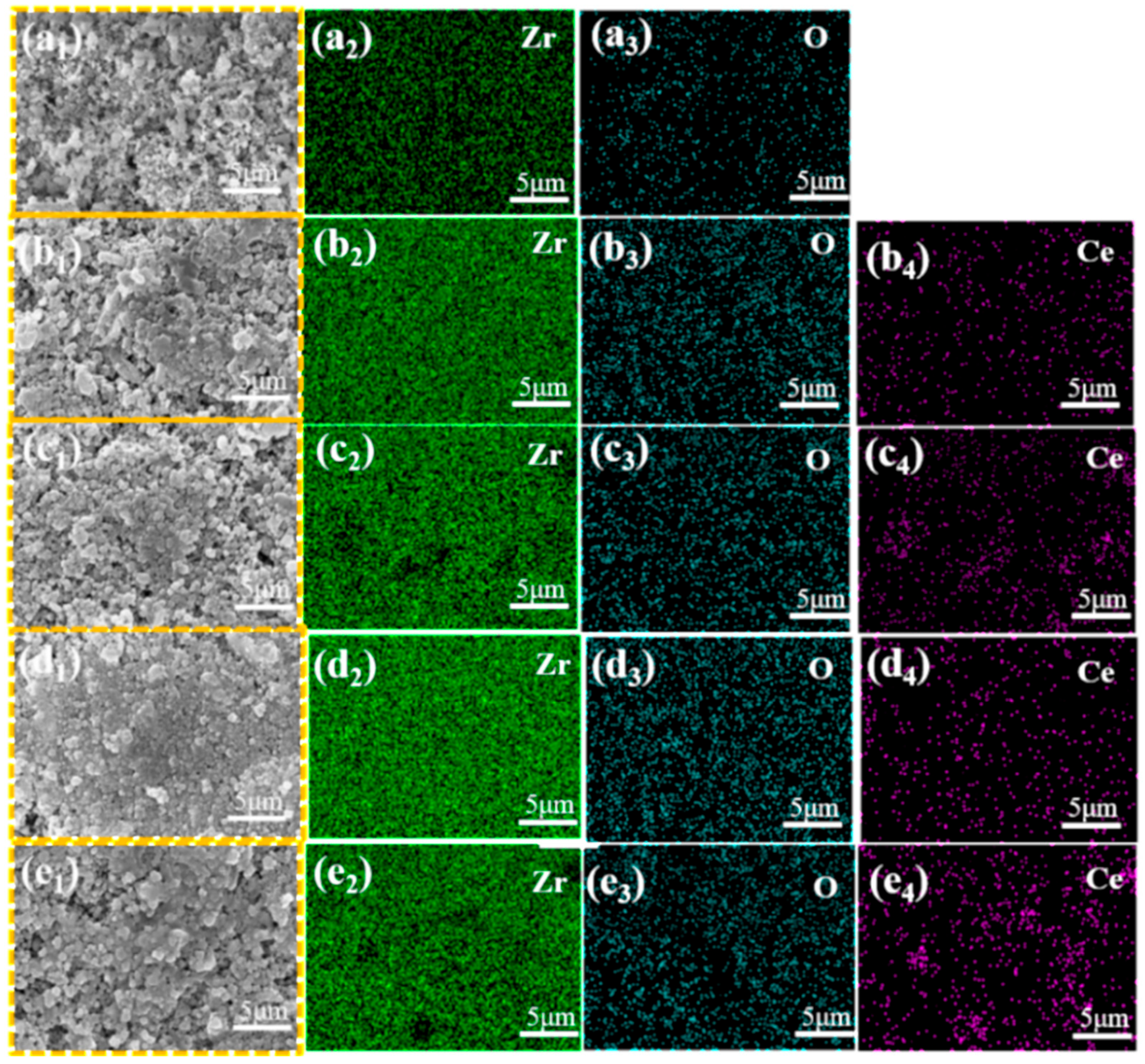

Figure 3. EDS maps of CeO2-doped ZrO2 ceramics. (a1a3) 0Ce-ZrO2 (b1b4) 5Ce- ZrO2 (c1c4) 10Ce- ZrO2 (d1d4) 15Ce- ZrO2 (e1e4) 20Ce-ZrO2.
Figure 3. EDS maps of CeO2-doped ZrO2 ceramics. (a1a3) 0Ce-ZrO2 (b1b4) 5Ce- ZrO2 (c1c4) 10Ce- ZrO2 (d1d4) 15Ce- ZrO2 (e1e4) 20Ce-ZrO2.
Materials 19 00362 g003

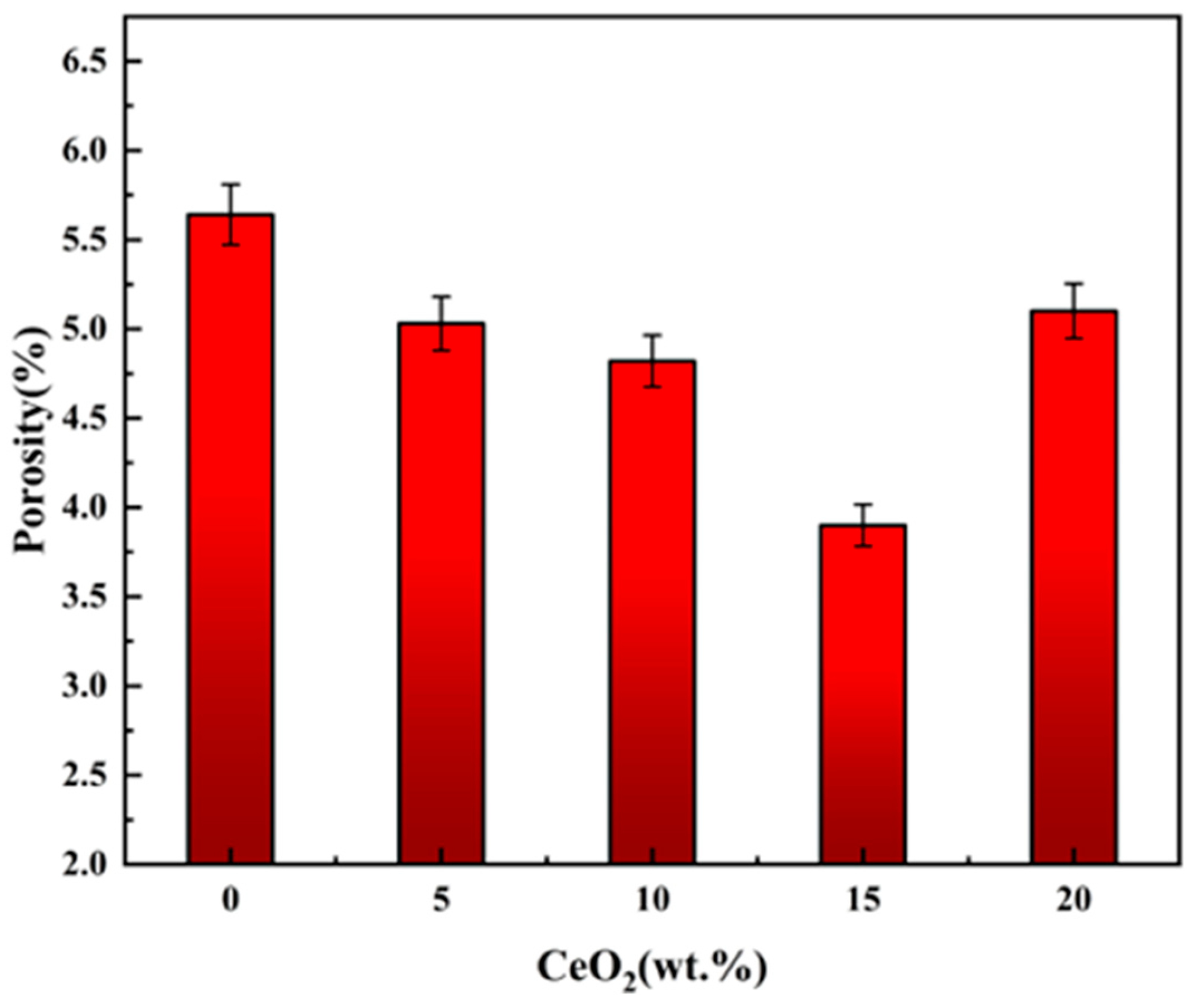

Figure 4. Porosity of CeO2-doped ZrO2 ceramics.
Figure 4. Porosity of CeO2-doped ZrO2 ceramics.
Materials 19 00362 g004

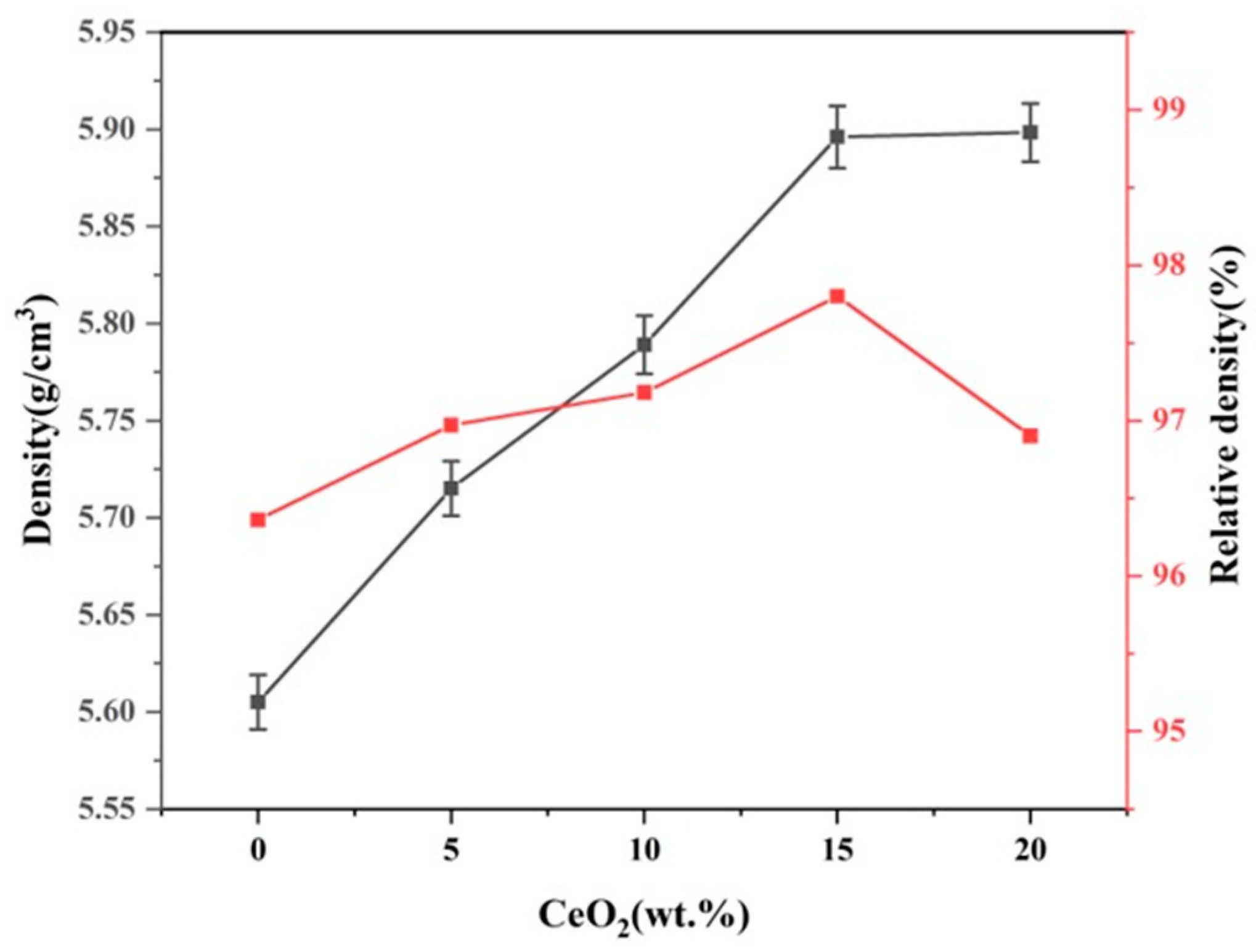

Figure 5. Density and relative density of CeO2-doped ZrO2 ceramics.
Figure 5. Density and relative density of CeO2-doped ZrO2 ceramics.
Materials 19 00362 g005

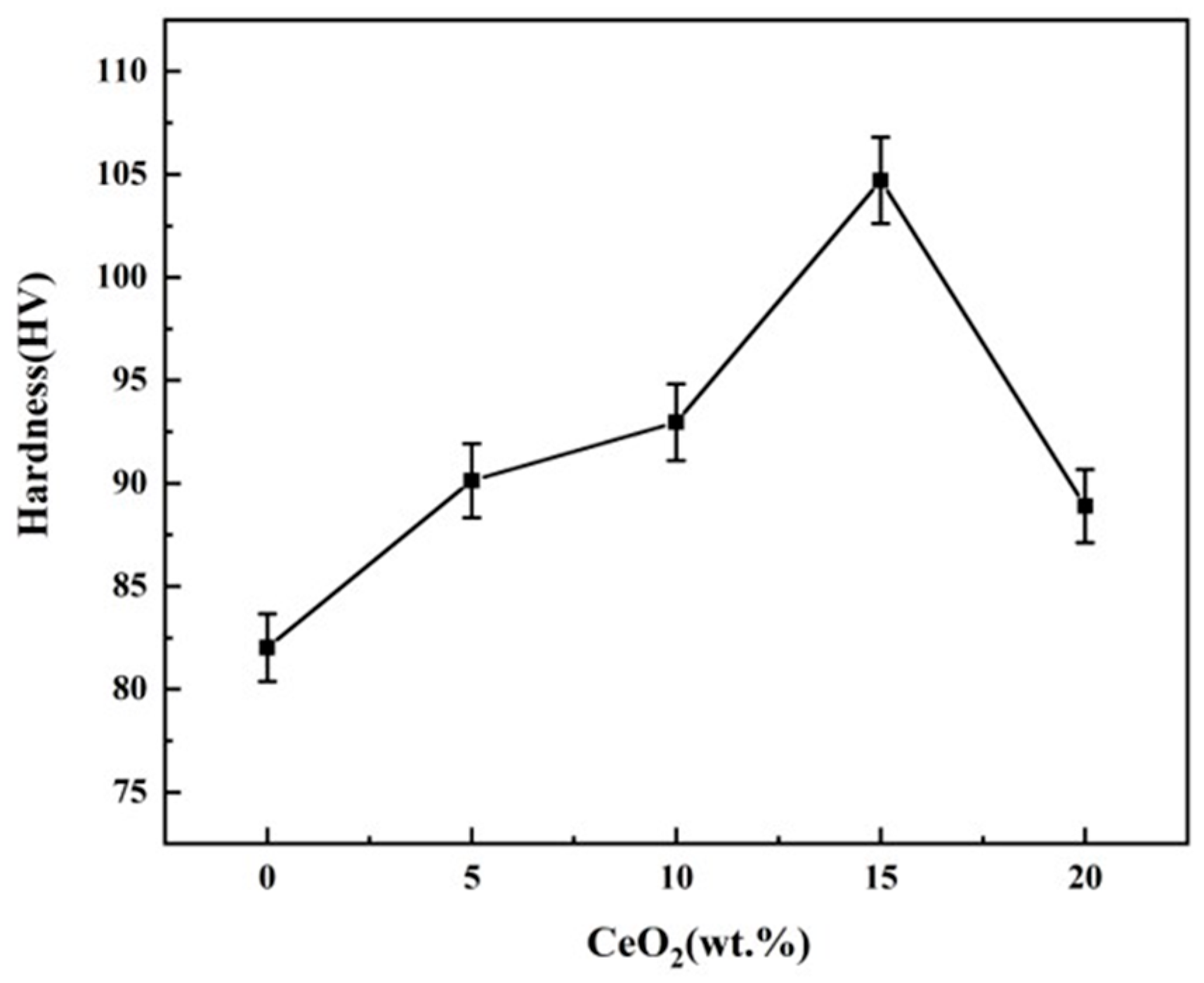

Figure 6. Hardness of CeO2-doped ZrO2 ceramics.
Figure 6. Hardness of CeO2-doped ZrO2 ceramics.
Materials 19 00362 g006
Figure 7. Friction coefficient curves (a), average friction coefficients (b), and 2D wear scar profiles of ZrO2 ceramic materials with different CeO2 doping contents.
Figure 7. Friction coefficient curves (a), average friction coefficients (b), and 2D wear scar profiles of ZrO2 ceramic materials with different CeO2 doping contents.
Materials 19 00362 g007

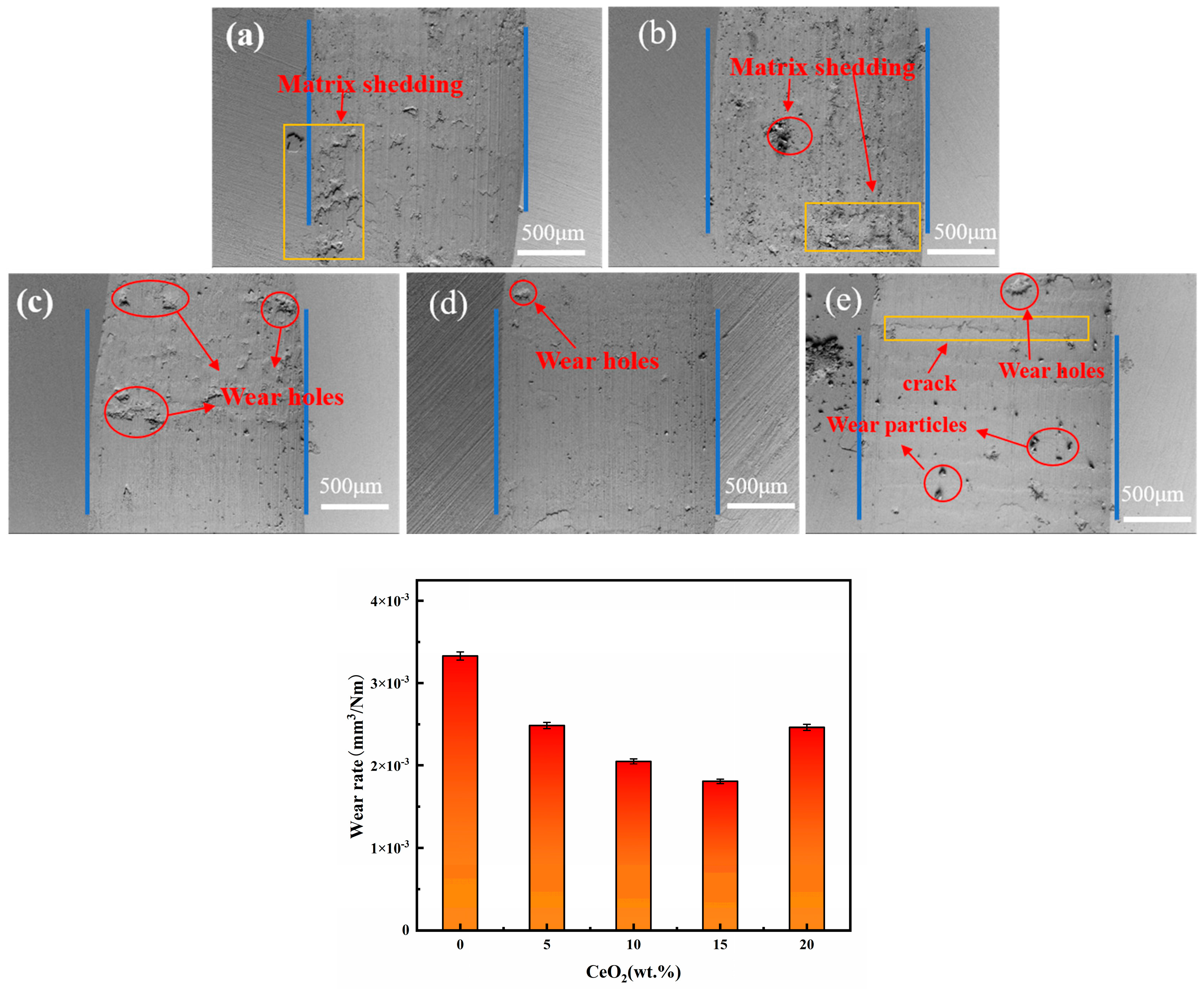

Figure 8. Wear rates and SEM images of wear scars for ZrO2 ceramics with different CeO2 doping contents: (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, and (e) 20Ce-ZrO2.
Figure 8. Wear rates and SEM images of wear scars for ZrO2 ceramics with different CeO2 doping contents: (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, and (e) 20Ce-ZrO2.
Materials 19 00362 g008

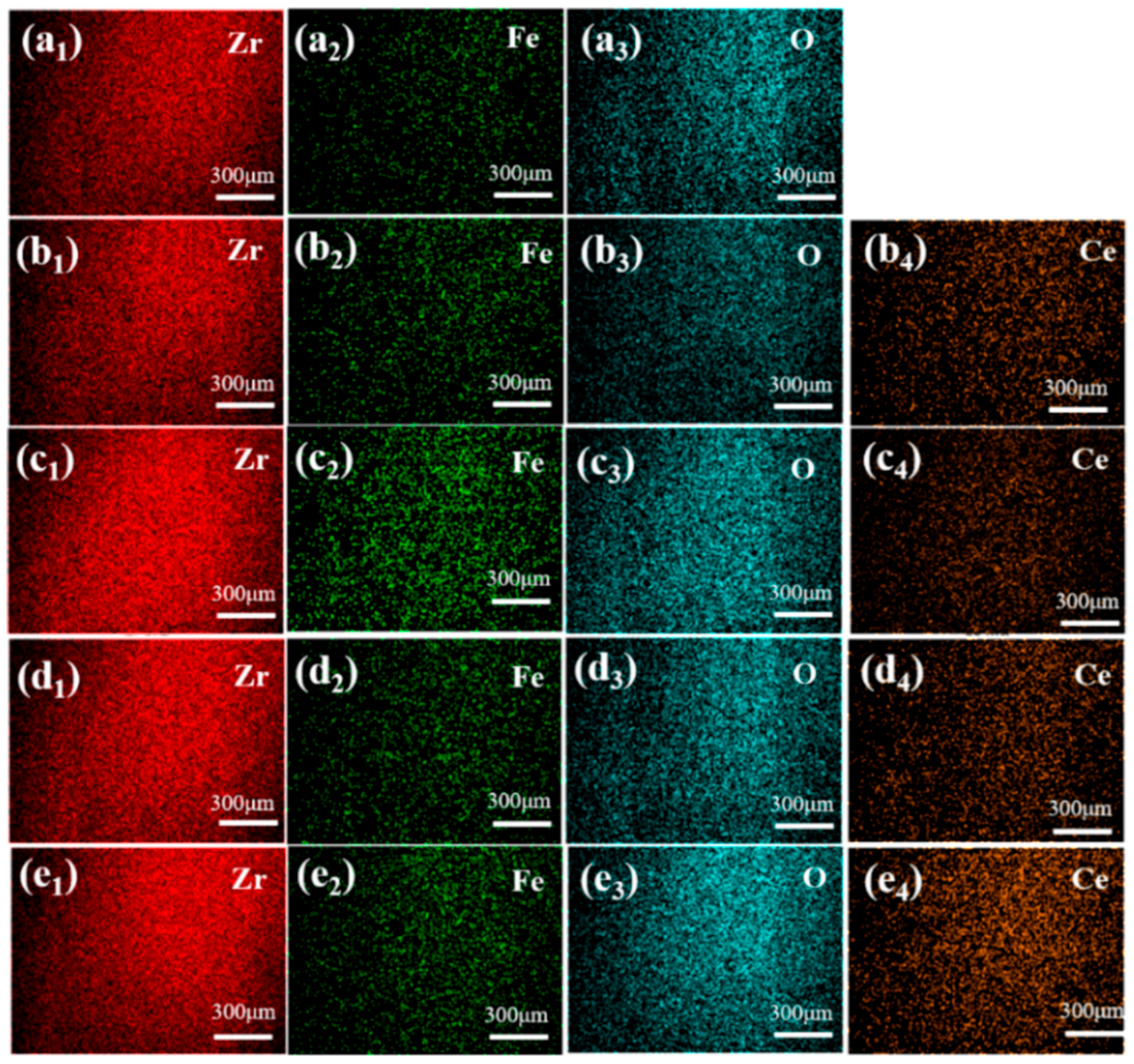

Figure 9. EDS elemental mapping of wear scars on CeO2-doped ZrO2 ceramics: (a1a3) 0Ce-ZrO2, (b1b4) 5Ce-ZrO2, (c1c4) 10Ce-ZrO2, (d1d4) 15Ce-ZrO2, and (e1e4) 20Ce-ZrO2.
Figure 9. EDS elemental mapping of wear scars on CeO2-doped ZrO2 ceramics: (a1a3) 0Ce-ZrO2, (b1b4) 5Ce-ZrO2, (c1c4) 10Ce-ZrO2, (d1d4) 15Ce-ZrO2, and (e1e4) 20Ce-ZrO2.
Materials 19 00362 g009

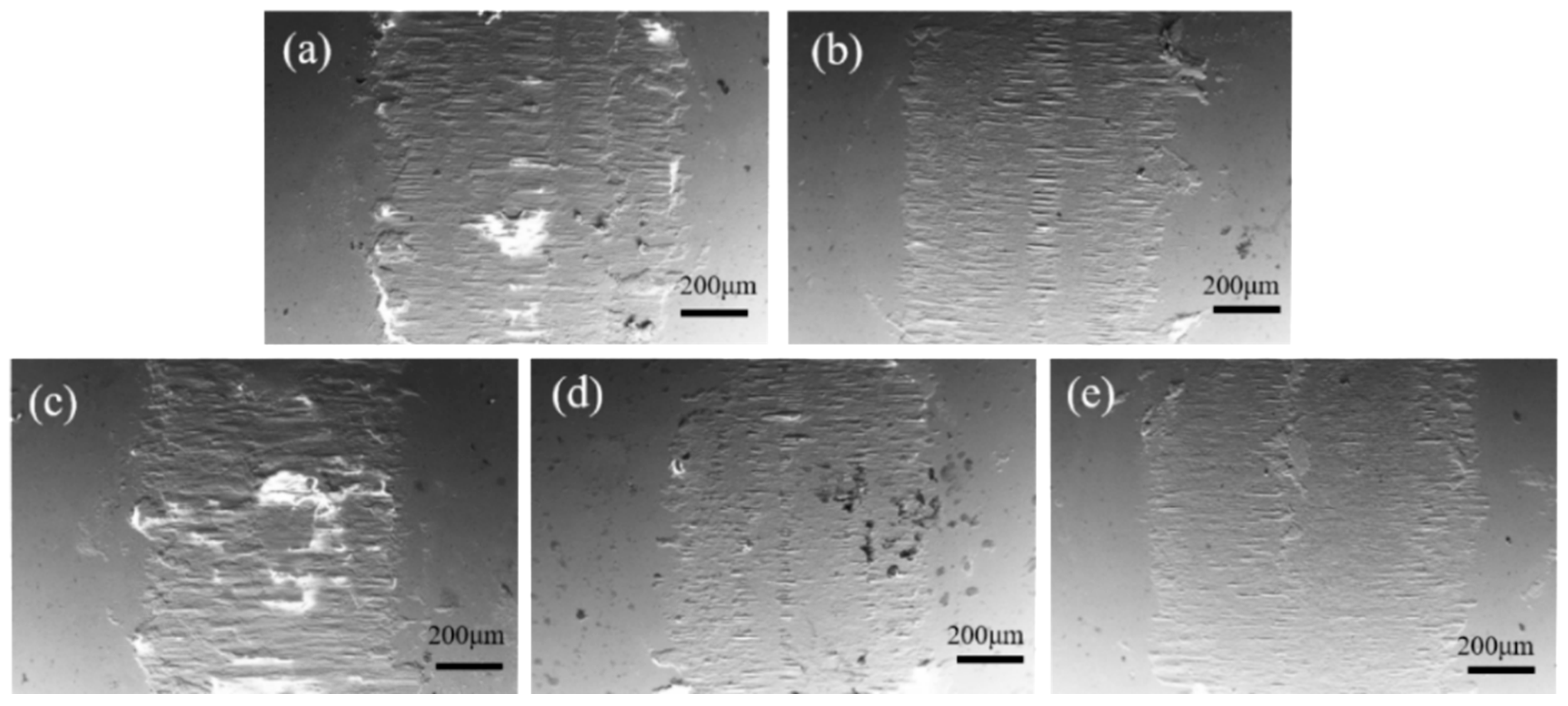

Figure 10. SEM images of wear scars on stainless steel balls’ counterfaces after sliding against (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, and (e) 20Ce-ZrO2.
Figure 10. SEM images of wear scars on stainless steel balls’ counterfaces after sliding against (a) 0Ce-ZrO2, (b) 5Ce-ZrO2, (c) 10Ce-ZrO2, (d) 15Ce-ZrO2, and (e) 20Ce-ZrO2.
Materials 19 00362 g010
Figure 11. EDS diagram of wear marks on stainless steel ball surface: (a1a3) 0Ce-ZrO2, (b1b4) 5Ce-ZrO2, (c1c4) 10Ce-ZrO2, (d1d4) 15Ce-ZrO2, and (e1e4) 20Ce-ZrO2.
Figure 11. EDS diagram of wear marks on stainless steel ball surface: (a1a3) 0Ce-ZrO2, (b1b4) 5Ce-ZrO2, (c1c4) 10Ce-ZrO2, (d1d4) 15Ce-ZrO2, and (e1e4) 20Ce-ZrO2.
Materials 19 00362 g011

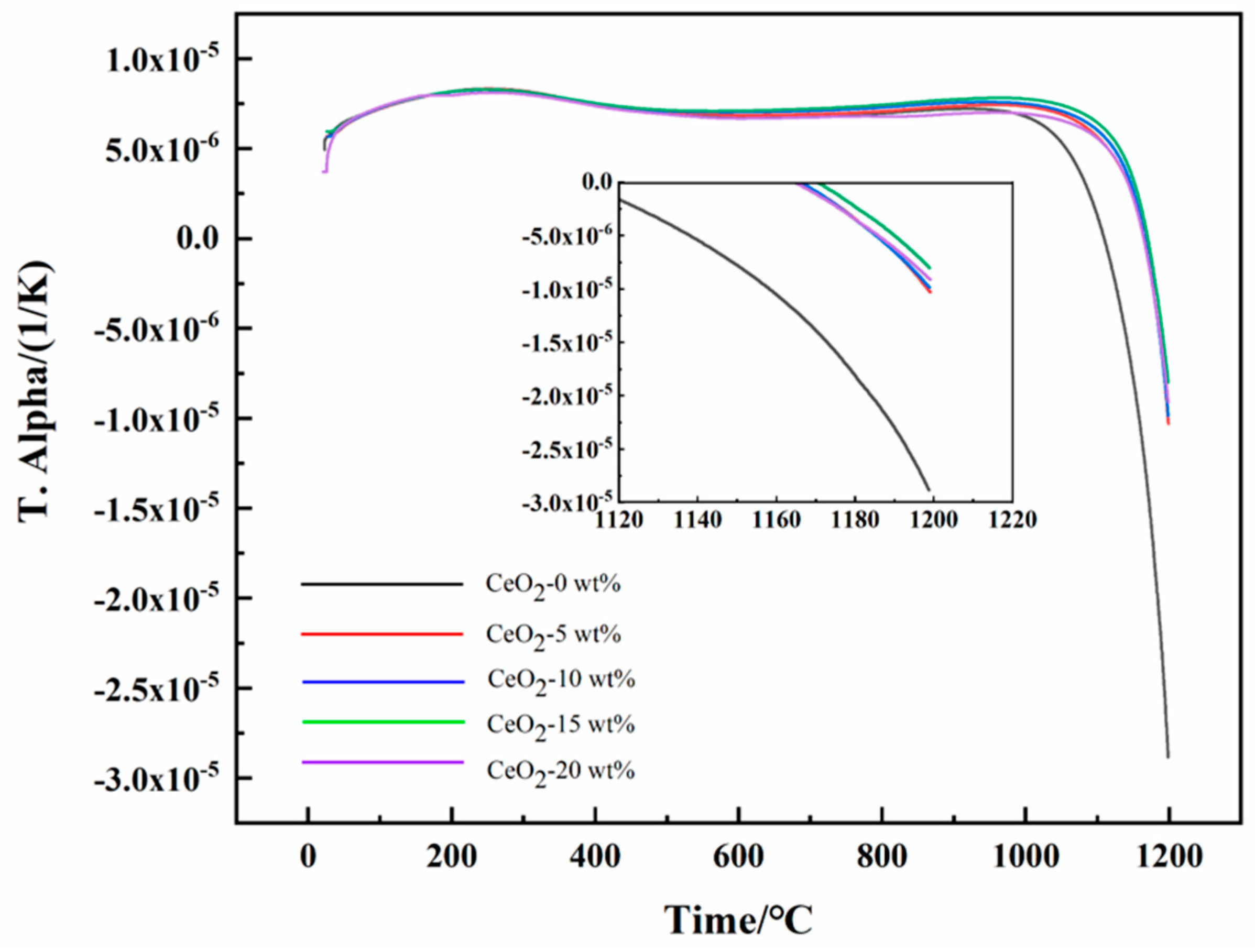

Figure 12. Coefficient of thermal expansion of ZrO2 ceramic materials doped with different contents of CeO2.
Figure 12. Coefficient of thermal expansion of ZrO2 ceramic materials doped with different contents of CeO2.
Materials 19 00362 g012

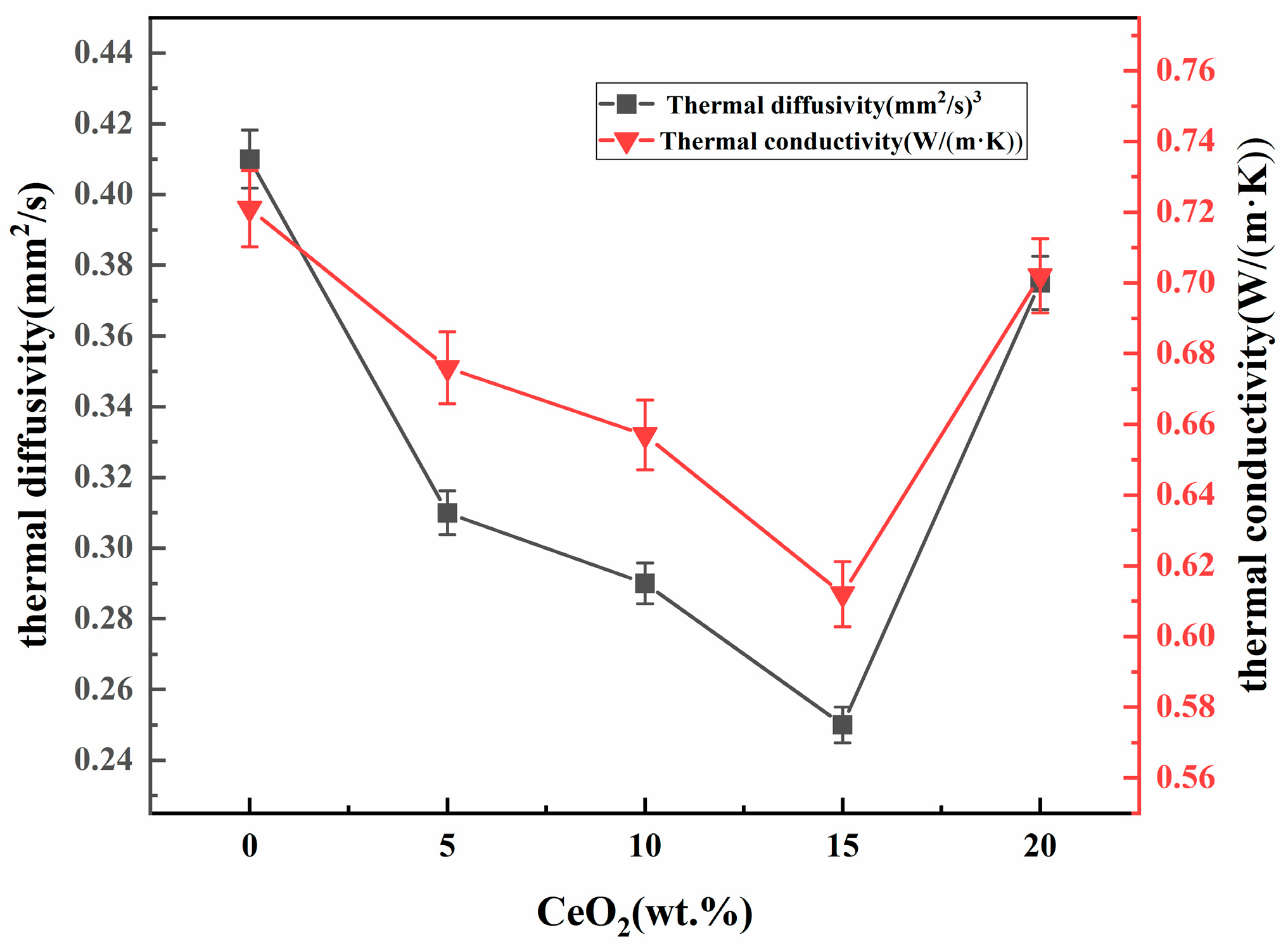

Figure 13. Thermal conductivity and thermal diffusivity of different CeO2-doped ZrO2 ceramics at 1100 °C.
Figure 13. Thermal conductivity and thermal diffusivity of different CeO2-doped ZrO2 ceramics at 1100 °C.
Materials 19 00362 g013
Table 1. Experimental formulations.
Table 1. Experimental formulations.
No.Sample NameZrO2 (wt.%)CeO2 (wt.%)
1ZrO21000
25Ce-ZrO2955
310Ce-ZrO29010
415Ce-ZrO28515
520Ce-ZrO28020
Table 2. Width and depth of wear scars for ZrO2 ceramic materials with different CeO2 doping contents.
Table 2. Width and depth of wear scars for ZrO2 ceramic materials with different CeO2 doping contents.
CeO2 Doping Amount (wt.%)Width (mm)Depth (μm)
02.21132.15
52.8697.26
102.6591.36
152.4471.17
202.72105.18
Table 3. Thermal conductivity of 0–20 wt.% CeO2-doped zirconia after relative density normalization.
Table 3. Thermal conductivity of 0–20 wt.% CeO2-doped zirconia after relative density normalization.
CeO2 (wt.%)05101520
relative density (%)94.495.195.496.194.8
thermal conductivity (W/(m·K))0.7260.6750.6580.6120.702
revised thermal conductivity (W/(m·K))0.6850.6420.6270.5880.665
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, F.; Liu, Y.; Tang, Z.; Zeng, X.; Ye, Y.; Chen, H. Optimal CeO2 Doping for Synergistically Enhanced Mechanical, Tribological, and Thermal Properties in Zirconia Ceramics. Materials 2026, 19, 362. https://doi.org/10.3390/ma19020362

AMA Style

Chen F, Liu Y, Tang Z, Zeng X, Ye Y, Chen H. Optimal CeO2 Doping for Synergistically Enhanced Mechanical, Tribological, and Thermal Properties in Zirconia Ceramics. Materials. 2026; 19(2):362. https://doi.org/10.3390/ma19020362

Chicago/Turabian Style

Chen, Feifan, Yongkang Liu, Zhenye Tang, Xianwen Zeng, Yuwei Ye, and Hao Chen. 2026. "Optimal CeO2 Doping for Synergistically Enhanced Mechanical, Tribological, and Thermal Properties in Zirconia Ceramics" Materials 19, no. 2: 362. https://doi.org/10.3390/ma19020362

APA Style

Chen, F., Liu, Y., Tang, Z., Zeng, X., Ye, Y., & Chen, H. (2026). Optimal CeO2 Doping for Synergistically Enhanced Mechanical, Tribological, and Thermal Properties in Zirconia Ceramics. Materials, 19(2), 362. https://doi.org/10.3390/ma19020362

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
