High-Temperature Oxidation of NbTi-Bearing Refractory Medium- and High-Entropy Alloys

by
Wei-Chih Lin
1,2,3,
Yi-Wen Lien
1,
Louis Etienne Moreau
4,5,
Hideyuki Murakami
4,5,
Kai-Chi Lo
1,3,
Stéphane Gorsse
2,* and
An-Chou Yeh
1,3,*
1
Department of Materials Science and Engineering, National Tsing Hua University, 101, Section 2, Kuang-Fu Road, Hsinchu 300044, Taiwan
2
Centre National de la Recherche Scientifique (CNRS), University Bordeaux, Bordeaux INP, ICMCB, UMR 5026, F-33600 Pessac, France
3
High Entropy Materials Center, National Tsing Hua University, 101, Section 2, Kuang-Fu Road, Hsinchu 300044, Taiwan
4
Research Center for Structural Materials, National Institute for Materials Science, 1-2-1 Sengen, Tsukuba 305-0047, Japan
5
Department of Nanoscience and Nanoengineering, Waseda University, 3-4-1 Okubo, Shinjuku, Tokyo 169-8555, Japan
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(18), 4579; https://doi.org/10.3390/ma17184579
Submission received: 26 July 2024 / Revised: 9 September 2024 / Accepted: 13 September 2024 / Published: 18 September 2024
Browse Figures
Versions Notes

Abstract

:
The oxidation of six NbTi-i refractory medium- and high-entropy alloys (NbTi + Ta, NbTi + CrTa, NbTi + AlTa, NbTi + AlMo, NbTi + AlMoTa and NbTi + AlCrMo) were investigated at 1000 °C for 20 h. According to our observation, increased Cr content promoted the formation of protective CrNbO4 and Cr2O3 oxides in NbTi + CrTa and NbTi + AlCrMo, enhancing oxidation resistance. The addition of Al resulted in the formation of AlTi-rich oxide in NbTi + AlTa. Ta addition resulted in the formation of complex oxides (MoTiTa8O25 and TiTaO4) and decreased oxidation resistance. Meanwhile, Mo’s low oxygen solubility could be beneficial for oxidation resistance while protective Cr2O3/CrNbO4 layers were formed. In NbTi + Ta, NbTi + AlTa and NbTi + CrTa, a considerable quantity of Ti-rich oxide was observed at the interdendritic region. In NbTi + AlCrMo, the enrichment of Cr and Ti at the interdendritic region could fasten the rate of oxidation. Compared to the recent research, NbTi + AlCrMo alloy is a light-weight oxidation-resistant alloy (weight gain of 1.29 mg/cm2 at 1000 °C for 20 h and low density (7.2 g/cm3)).

1. Introduction

Global warming has become a critical issue in recent years due to the extensive usage of fossil fuels, mainly in power plants and engines [1]. Therefore, the engine’s efficiency needs to be improved to reduce the emission of CO2. Better performance and efficiency could be acquired at higher operation temperatures [2]. Ni-base superalloys have been critical materials since the last century due to their excellent high-temperature properties. However, the operating temperature of newly invented turbine engines is over the melting point of Ni and relies on the cooling channel design [3] and thermal barrier coating [4]. If greater efficiency is required, new materials with greater temperature capability need to be developed.
Refractory high-entropy alloys (RHEAs) have been considered as potential candidates for high-temperature applications, such as aerospace engines, gas turbines and nuclear reactors. They were first reported by O.N. Senkov et al. [5]. These alloys are composed of high-melting-temperature elements, which are usually higher than Ni, under the concept of high-entropy alloys, in which the atomic percentage of each element varies from 5% to 35% with more than five elements. The most well-known advantages of RHEAs are their high-temperature mechanical properties [5,6,7,8,9]. However, it is important to note that the development of these alloys is still limited by their poor oxidation resistance [10,11,12]. In order to design RHEAs with improved oxidation resistance, it is important to consider the effects of each element on oxidation properties. Recent studies [13,14,15,16] have demonstrated the potential of oxidation resistance in RHEAs. In Lo’s work [13,14], Cr-17.6Al-20.3Mo-15.2Nb-2.9Si-13.4Ta-5.4Ti with CrTaO4 oxide formation showed only 4 mg/cm2 mass gain at 1100 and 1200 °C for 200 h oxidation. Several studies [17,18,19,20,21,22,23,24,25,26] have elucidated the relationship between some elemental effects and oxidation in RHEAs. In Müller et al. research [25], AlCrMoTaTi, AlCrMoNbTi, AlCrMoTa and AlCrMoNb were fabricated to study the effect of Nb, Ta and Ti. Rutile-type oxides, such as CrNbO4 and CrTaO4, demonstrated protective properties during oxidation. The addition of Ti was found to reduce the formation of Nb2O5 and Ta2O5 and facilitate the formation of rutile-type oxides. AlCrNbTaTiZr was studied to show that Al can reduce the inward diffusion of oxygen, and Zr can suppress the cracking in the oxide scale [18].
To further understand the elemental effects on oxidation in RMEAs and RHEAs, in this work, we fabricated and tested six refractory alloy compositions: one ternary (NbTi + Ta), three quaternary (NbTi + CrTa, NbTi + AlTa, NbTi + AlMo) and two senary (NbTi + AlMoTa, NbTi + AlCrMo). This comprehensive investigation aims to elucidate the interplay between these factors and guide the development of RHEAs with tailored oxidation resistance properties for future applications.

2. Materials and Methods

2.1. Material Design

In this work, NbTi-bearing refractory alloys with different compositions were designed. The choice of elements was based on the most common occurrence in the oxidation research of RHEAs in recent years [7,13,14,15,16,17,19,20,21,22,25,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55] (Figure 1).
To avoid the high-fraction intermetallic phase that induced brittleness and caused fabrication difficulties, alloys were designed with mainly a single BCC phase. The designation of these six alloys are NbTi + Ta, NbTi + CrTa, NbTi + AlTa, NbTi + AlMo, NbTi + AlCrMo and NbTi + AlMoTa, and the actual compositions are presented in the next section.

2.2. Experiment Procedure

The ingots were prepared by vacuum arc melting high-purity materials (>99.99 wt%) on a water-cooled copper mold under the pure argon atmosphere. The button-shaped ingots were flipped and re-melted three times to ensure chemical homogeneity. The compositions of the as-cast samples are shown in Table 1.
All samples were cut by electric discharging machining. The as-cast samples for scanning electron microscope (SEM) observation were polished with 0.05 μm Al2O3 dispersion fluid. The Zeiss Gemini 300 SEM (Zeiss, Oberkochen, Germany) equipped with EDS was utilized to observe the microstructures and chemical compositions of the phases. The X-ray diffraction (XRD) patterns of the as-cast samples were collected with a Bruker D2 Phaser (Bruker, Billerica, MA, USA) equipped with a Cu target. Each measurement was made within an angular range of 2θ = 20–100° with a scanning rate of 5.7° per min. The SearchMatch software 2.1.1.1. with the Powder Diffraction File 2 database was utilized to characterize the XRD result. Thermo-Calc 2024b, a thermodynamic software program utilizing the TCHEA4 database, was employed to elucidate the behavior of phase formation and element segregation.
The samples for thermogravimetric analysis (TGA) were 2.5 × 2.5 × 5.5 mm in dimensions and ground with 1200 grits SiC abrasive paper for all surfaces. The oxidation tests were conducted at 1000 °C for 20 h in laboratory air with a thermogravimetric analyzer (TGA)-SETARAM TAG 24-18S (SETARAM, Caluire, France) simultaneous symmetrical thermoanalyzer. To further examine the microstructure during the oxidation test, isothermal oxidations were performed in a box furnace at 1000 °C for 20 h.
The XRD patterns of oxidized samples were collected with a PANalytical X’pert PRO MPD (Malvern Panalytical, Almelo, The Netherlands) diffractometer in Bragg–Brentano θ–2θ geometry equipped with a secondary monochromator, an X’Celerator multi-strip detector and a 3 × 15 sample exchanger. Each measurement was made within an angular range of 2θ = 8–100° with a scanning rate of 2.1° per min. The Cu-Kα radiation was generated at 45 kV and 40 mA (λ = 0.15418 nm). The samples with clay below were put on sample holders made of aluminum alloy and flattened with a piece of glass. The SearchMatch software with the Powder Diffraction File 2 database was utilized to characterize the XRD result. The oxidized samples for SEM observation were mounted in the epoxy resin and polished with 0.05 μm Al2O3 dispersion fluid. The oxidized microstructure was observed with a Zeiss Gemini 300 SEM equipped with EDS.

3. Results

3.1. As-Cast Microstructure and Segregation Analysis

The XRD analysis of the crystal structure revealed that all fabricated alloys exhibited the BCC phase (Figure 2).
The images (Figure 3) showed that the materials exhibited the typical dendrite and interdendritic structure.
Table 2 provides a summary of the chemical analysis results indicated in the BEI. Al, Cr and Ti are strongly segregated at the interdendritic region, while Mo and Ta are distributed on the dendrites. Nb shows no obvious segregation in NbTi + Ta and NbTi + AlMoTa, but it shows segregation in NbTi + AlTa, NbTi + AlMo, NbTi + CrTa and NbTi + AlCrMo.

3.2. TGA and Oxidized Microstructure

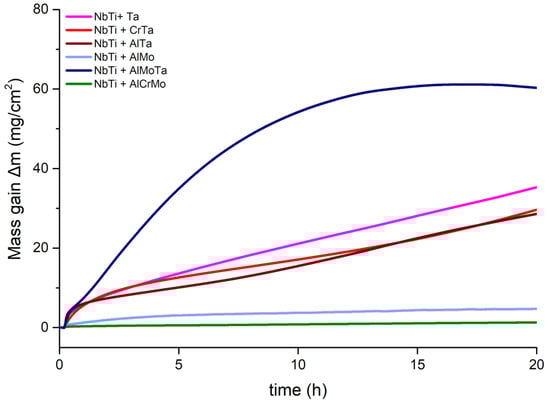

Figure 4 illustrates the mass gain curves of NbTi-bearing RMEAs and RHEAs at 1000 °C up to 20 h.
To further understand the oxidation mass gain behavior of the investigated alloys, the following equation was used:
∆ m = k t n
where ∆ m is the mass gain of each alloy, k is the oxidation rate constant, and n is the time exponent. In this research, most of the alloys exhibited two-stage oxidation behaviors (Table 3), except NbTi + AlMoTa. For the NbTi + AlCrMo, the oxidation behavior was found to obey cubic growth kinetics in the first stage. After 7 h of oxidation, the time exponent (n) increased to 0.59, indicating that the oxidation kinetics were parabolic. The time exponent in the first stage is 0.55, 0.46 and 0.34 for NbTi + Ta, NbTi + CrTa and NbTi + AlTa, respectively. Due to the higher oxidation rate constant (k), the mass gain of these alloys is considerably greater than NbTi + AlCrMo. In the second stage, the time exponent of NbTi + Ta, NbTi + CrTa and NbTi + AlTa increased to 0.89, 1.12 and 0.84, respectively. The oxidation kinetics of NbTi + Ta, NbTi + CrTa and NbTi + AlTa obey the linear growth rate for the second stage. The time exponent for NbTi + AlMo was higher in the first stage than the alloys mentioned above. For NbTi + AlMoTa, the oxidation rate constant was the largest in the first stage.
NbTi + AlCrMo exhibited exceptional oxidation resistance in this work, as it was the only alloy to form an external oxide layer (Figure 5a).
It can be observed that the alloy element diffuses outward and combines with oxygen to form oxides. Microstructure characterization revealed a laminar structure consisting of the Al-Cr-depleted region and Al-rich and Cr-rich oxide layer. The interdendritic area, which contains higher levels of Al, Cr and Ti, was observed to oxidize at a faster rate than the dendritic area located at the border between the external and internal oxide areas. The external oxide layer is composed of at least three types of oxides (Table 4), as characterized by EDS: Al-rich, Cr-rich and Nb-rich. Within the internal oxidation region, two types of particles were identified. The first was needle-shaped and rich in Ti and O, while the second was cuboidal and rich in Ti and N. XRD analysis revealed that the external oxide layer is composed of Cr2O3 and CrNbO4 with a rutile structure (Figure 5d). This type of oxide, which has a continuous morphology, can effectively prevent inward oxygen diffusion. However, it should be noted that at high temperatures, the evaporation of Mo oxide led to the creation of significant porosities in the oxide layer. The EBSD result also showed the main oxides in the external oxidation region are Cr2O3 and CrNbO4, which have 1.8% and 98.2%, respectively (Figure 5e).

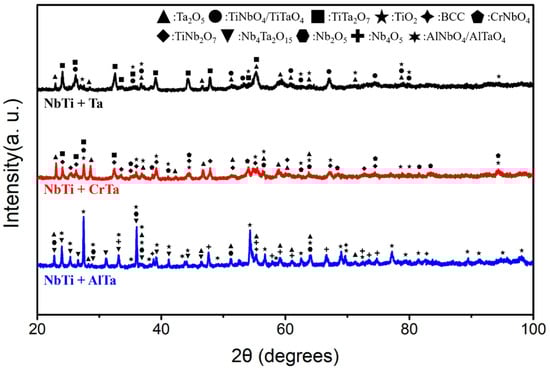

Comparing the XRD results of NbTi + Ta, NbTi + CrTa and NbTi + AlTa, TiO2 and Ta2O5 are the common products among them (Figure 6).
Besides the simple oxides, several complex oxides were also characterized, such as TiTa2O7 in NbTi + Ta and NbTi + CrTa and Nb4Ta2O15 in NbTi + AlTa. In addition, NbTi + CrTa yielded CrNbO4 after 20 h of oxidation. In NbTi + AlTa, there is AlNbO4 oxide characterized by XRD.
A cross-sectional SEM-EDS analysis of NbTi + Ta, NbTi + CrTa and NbTi + AlTa revealed comparable oxidized microstructures following 1000 °C oxidation for 20 h (Figure 7).
The formation mechanism of the oxide layer differs from that observed in NbTi + AlCrMo. In NbTi + Ta, NbTi + CrTa and NbTi + AlTa, the inward diffusion of oxygen atoms is a significant factor in oxide formation. The oxide layer exhibits a dendrite structure similar to the metal part. A significant quantity of Ti-rich oxide was observed in the interdendritic region and inner oxide layers (Regions 1, 3, 5, 6,10 and Table 5). Additionally, NbTa-rich oxide was identified in the dendrite region (Regions 2, 4 and 9). Furthermore, two thin oxide layers, which are rich in Al-Ti and Nb-Ta, respectively, were observed in NbTi + AlTa (Regions 7 and 8). Their microstructures are distinct from the oxide layer below. The thickness of the first oxide layer was found to be 51.2, 56.0 and 81.4 μm for NbTi + Ta, NbTi + CrTa and NbTi + AlTa, respectively. A significant quantity of Ti-rich oxide was observed in the grain boundary and interdendritic region of the inner oxidation layer.

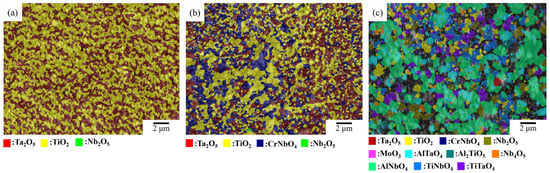

The EBSD characterization (Figure 8 and Table 6) shows a large fraction of TiO2 and Ta2O5 in NbTi + Ta and NbTi + CrTa. In addition, CrNbO4 dispersed in the oxide layer of NbTi + CrTa. However, in contrast to the SEM observation results, CrNbO4 did not form a continuous layer that could protect the alloy. In NbTi + AlTa, the main oxides were AlNbO4, TiNbO4, TiTaO4 and AlTaO4. As with the SEM observation, the oxides also showed an uneven distribution. Al-free oxides accumulated in a specific region, which may have been the original dendrite zone.
The XRD characterization result indicated that TiO2 was the common oxide in NbTi + AlMo and NbTi + AlMoTa (Figure 9).

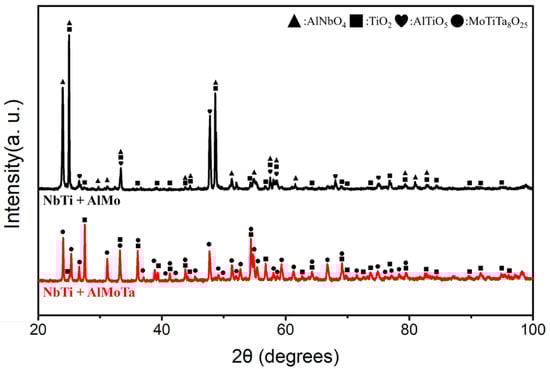

In addition to TiO2, AlNbO4 and Al2TiO5 were yielded in NbTi + AlMo after 1000 °C oxidation for 20 h. In NbTi + AlMoTa, MoTiTa8O25 was identified as another product after oxidation.

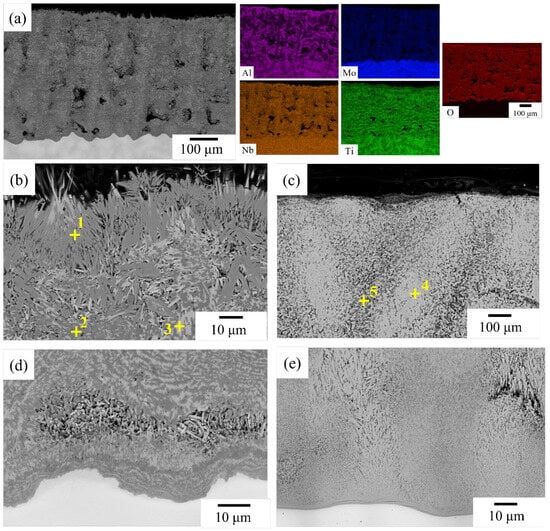

In a cross-sectional SEM image, there is no external oxide layer in NbTi + AlMo and NbTi + AlMoTa. Furthermore, numerous porosities were observed in the oxide layer of NbTi + AlMo following 20 h of oxidation. The thickness of the oxide layer was approximately 471 μm and 2.8 mm in NbTi + AlMo and NbTi + AlMoTa, respectively (Figure 10a).
The EDS mapping of NbTi + AlMo revealed the distribution of elements in the oxide layer. In comparison to the other alloy elements, the content of Mo was found to be significantly lower, and an Al-Nb-rich oxide layer was observed to have formed at the surface of NbTi + AlMo. In the oxide layer, the presence of AlNbO4 was identified at the surface of the oxide layer in NbTi + AlMo (Figure 10b and Table 7).
Inside the oxide layer, the Nb-rich oxide and Ti-rich oxide were identified at the original dendrite and interdendritic region. In NbTi + AlMoTa, the presence of Ta oxide in the original dendrite region and Ti-rich oxide in the interdendritic region was observed in the oxide layer (Figure 10c). At the interface between the oxide layer and the oxygen-affected zone, no Ti-rich oxide was observed in the interdendritic region of these alloys (Figure 10d,e). The internal oxide region is hard to observe in both alloys.

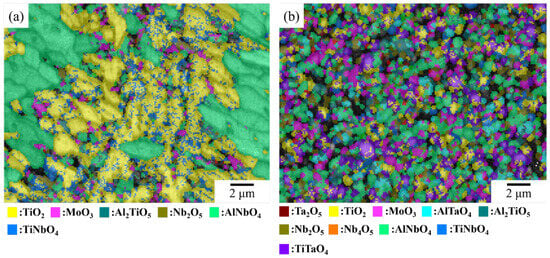

In the EBSD observation, the layer structure in NbTi + AlMo is mainly composed of TiO2 and AlNbO4 (Figure 11a and Table 8). Meanwhile, TiNbO4, Al2TiO5 and MoO3 dispersed in the TiO2 layer. In NbTi + AlMoTa, several complex oxides with MoO3 and TiO2 were found to be dispersed within the oxide layer, along with the presence of large amounts of porosity. This result is in accordance with the SEM and XRD characterization.

4. Discussion

4.1. Elemental Segregation

According to Figure 3 and Figure 7, the samples exhibited visible dendritic microstructure, which indicates a certain degree of chemical segregation. In order to investigate the element distributions, 20 × 20 point metrics were measured, and the composition results were fitted with the Scheil equation, which is shown in the following equation [56].
C s = k   C 0   1 − f s k − 1
where C s is the element concentration, k is the partition coefficient, C 0 is the mean composition, and f s is the volume fraction of the solid. The calculation result is concluded in Table 9.
The element tends to segregate in the dendritic region with a value larger than 1 and vice versa. When the value is equal to 1, the element has the same tendency to distribute in the dendritic and interdendritic regions. Al and Cr tend to segregate in the interdendritic region. The segregation of Mo and Nb in the dendritic region is much stronger in NbTi + AlCrMo. In an alloy containing Al, Cr and Ti, Al and Cr are the main elements that segregate into the interdendritic region as reported in the previous work [55].
It can be identified that both Mo and Ta have a preference for distribution in the dendritic region. A comparison of the NbTi + AlMo, NbTi + AlTa and NbTi + AlMoTa samples reveals that the addition of Mo and Ta has the effect of inducing further segregation of Al and Ti to the interdendritic region. According to the binary phase diagram, it can be observed that Mo, Nb and Ta are fully soluble in each other [57]. However, their solubility toward Al is relatively low [58,59,60]. The mixing enthalpy of the Ti with Nb, Mo and Ta is higher, as shown in Table 10, indicating a repulsive interaction between the elements [61,62].
From this perspective, it can also explain the stronger segregation of Mo in NbTi + AlCrMo compared to NbTi + AlMo. The high mixing enthalpy pushes Cr and Mo into the interdendritic and dendritic regions, respectively.
The activities of alloying elements related to the formation of the oxide have been reported in some research [64,65]. In this work, the activities of each alloying element shown in Table 11 were obtained from Thermo-calc calculation.
Ti exhibits significantly higher activity than other elements within NbTi-bearing RMAS and RHEAs. This elevated activity likely explains the substantial formation of Ti-rich oxides, particularly within the interdendritic regions of NbTi + Ta, NbTi + CrTa and NbTi + AlTa alloys. In the interdendritic region, a considerable quantity of Ti-rich oxide was distributed in the oxygen-affected zone. Ti-rich oxide was also distributed in the dendritic region in the lower-partition-degree alloy, such as NbTi + AlMo. However, this phenomenon is absent in NbTi + AlMoTa. It showed a stronger partition effect, which means Ti has a higher content in the interdendritic region, while Nb and Ta are more prevalent in the dendritic region. During oxidation, several oxides can typically react and form complex oxides [15,23,25,31]. However, the uneven distribution results in a greater yield of Ti-rich oxide in the interdendritic region. TiO2 also has lower formation free energy than Nb2O5 and Ta2O5 [24]. In addition to the interdendritic region, grain boundaries are another location where Ti-rich oxide is distributed. The oxygen has a faster diffusion rate at grain boundaries. Grain boundaries also provide nucleation sites for oxides. Consequently, TiO2 nucleates at the grain boundaries, and the width of TiO2 is thicker when grain boundaries travel across the interdendritic region.
Cr is another element displaying a high activity. Comparing the oxide layers formed on NbTi + CrTa and NbTi + AlCrMo alloys, NbTi + AlCrMo managed to form a protective layer, while NbTi + CrTa oxidized internally with the original dendritic structure and lacks protective qualities. This disparity might be attributed to the differing activities and diffusivities of Nb and Cr. The diffusivities of Cr and Nb in NbTi + CrTa are 4.48 × 10−14 and 1.34 × 10−15 m2/s, respectively. In NbTi + AlCrMo, the diffusivities of Cr and Nb are 4.23 × 10−14 and 3.07 × 10−18 m2/s, respectively. In NbTi + CrTa, Nb’s high diffusivity and activity lead to an increased formation rate of Nb2O5, which possesses a polymorphic structure [24,25,66,67]. This polymorphic phenomenon can induce volume changes in the oxide layer and result in crack formation. Although Cr2O3 can combine with Nb2O5 to form CrNbO4 [28], the limited amount of Cr is insufficient to entirely prevent Nb2O5 formation. Conversely, the low diffusivity of Nb in NbTi + AlCrMo restricts its outward diffusion, thereby reducing the formation rate of Nb2O5.

4.2. The Oxidation Mechanism of NbTi-Bearing Refractory High Entropy

4.2.1. Al-Contained NbTi-Bearing RMEAs and RHEAs

In NbTi + AlTa, NbTi + AlMo and NbTi + AlCrMo, the Al-included complex oxide layers were observed at the surface. NbTi + AlCrMo is the only alloy that formed external oxide layers with protective properties. When comparing the oxides formed in the RHEAs, it was found that Al2O3 and TiO2 have lower standard free energy per mole oxygen [25]. Al and Ti diffused outward and reacted with oxygen at the beginning of oxidation. In NbTi + AlTa, the complex (Al, Ti) oxide layer formed also brought a depletion region, which was enriched in Nb and Ta after Al and Ti had diffused outward. This oxide layer is unable to block the oxygen diffused inward. After the NbTa-rich layer was oxidized, the diffusion of Al and Ti was limited, and the growth of the complex (Al, Ti) oxide layer was stopped. Although the continuous Al2O3 oxide layer can block oxygen and nitrogen diffusion inward to the material during oxidation [68], the formation of the Al2O3 is rarely seen in RHEAs, even with the high amount of Al addition [21,37,55]. In the interdendritic region of NbTi + AlTa, the second layer of the complex (Al, Ti) oxide is observed (Figure 7h). At the interface of the NbTa-rich oxide layer and alloy, the inward-diffused oxygen reacted again with Al and Ti. However, this oxide formation cycle did not proceed in the same manner as the previous cycle. The inward diffusion of O was much faster than the growth rate of the AlTi complex oxide layer, resulting in a significantly reduced thickness of the AlTi complex oxide layer compared to the first external oxide layer.
In contrast to other Al-included RHEAs, NbTi + AlMoTa did not form such Al-rich oxide layers at the surface. As shown in Table 7, among all Al-included RMEAs and RHEAs, NbTi + AlMoTa has the highest partitioning ratio of Al. The greater inhomogeneity of Al makes it more challenging for the alloy to form a homogeneous Al-oxide layer.

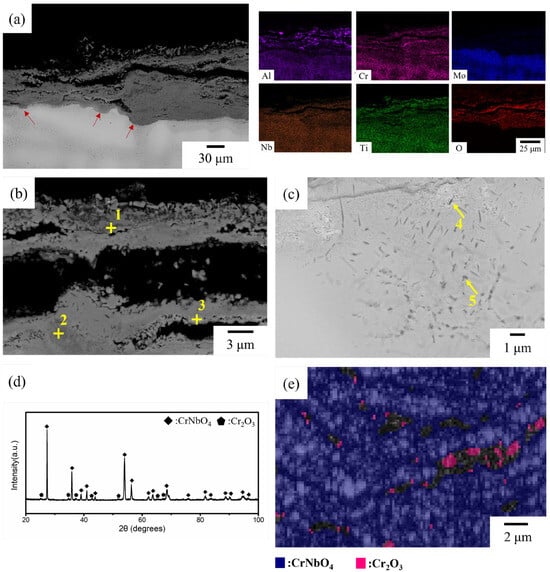

The external oxide layer in NbTi + AlCrMo is a crucial factor in better oxidation resistance. The formation of the external oxide layer in NbTi + AlCrMo occurs through three steps. The first step is Al and Ti outward diffusion and reaction. Once the Al and Ti oxides have diffused outward and reacted with oxygen, the Cr and Nb oxides become the lowest standard free energy in the depletion region [25]. Previous research [13,55] has demonstrated that the principal oxides in the Cr-rich oxide layer, namely CrNbO4 and Cr2O3, exhibit good oxidation resistance. The continuous Cr-oxide layer impedes inward oxygen diffusion. In the final stage, Mo is the sole element present in the depletion region. The EDS result (Figure 10a) indicates that the Mo content at the interface between the external oxide layer and the material is higher than in the inner region. During oxidation, Mo reacts with oxygen to form MoO3. This oxide evaporates at temperatures above 800 °C [69]. The evaporation of Mo resulted in the formation of numerous cracks or voids in the vicinity of the Cr-rich oxide layer. Subsequent to the oxidation of the Mo-rich region and the evaporation of Mo oxide, the oxidation process reverted to the initial stage.

4.2.2. The Oxidation Mechanism Difference between NbTi + Ta, NbTi + AlTa and NbTi + CrTa

Comparing NbTi + Ta, NbTi + AlTa and NbTi + CrTa, NbTi + Ta exhibits the highest mass gain during oxidation. Following the addition of Cr, NbTi + CrTa begins to form CrNbO4. However, the limited amount of Cr is insufficient to create a continuous oxide layer independently. The improvement is not discernible. The more pronounced segregation effect of Cr can be observed with the lower amount of Cr [70]. In this context, Cr oxide is unable to form homogeneously and react with other oxides to form complex oxides with protective properties. The oxidation properties are marginally enhanced in NbTi + AlTa in comparison to NbTi + Ta. Al continues to benefit from the oxidation properties with the low amount of Al addition. However, in previous literature, Cr provided superior oxidation resistance than Al under the equimolar RHEAs [55]. In this study, the oxidation behavior of NbTi + CrTa and NbTi + AlTa was compared. Al addition was found to have a lower segregation effect than the other elements. During oxidation, higher homogeneity resulted in the formation of a thin layer of Al complex oxide and a benefit to the oxidation resistance at the early stage, which was not observed in NbTi + CrTa. Consequently, Al exhibits superior oxidation resistance in NbTi-bearing RHEAs at lower addition amounts, as evidenced by the time exponent between NbTi + CrTa and NbTi + AlTa.

4.2.3. The Elemental Effect of Mo and Ta during the Oxide Layer Formation

In the previous research with the CrNbTaTi system [25], the Ta addition from CrNbTi to CrNbTaTi made the oxide layers change from continuous Cr2O3 and TiO2 to repeating complex oxide layer structure with (Nb,Ta)10O25 and (Cr,Ta,Ti)2O4. The increased complexity of oxides might be induced by the similar formation energy of oxides. Ta also has a high oxygen solubility at 1000 °C [17,71]. In this work, Ta addition has a detrimental effect on the oxidation properties. In NbTi + AlMo, the outmost oxide layer was formed by an Al-related oxide (AlNbO4), which has the capacity to protect the underlying material [30,52,54]. Following the addition of Ta, the external oxidation region of NbTi + AlMoTa was composed solely of Ti-rich oxide and MoTiTa8O25. MoTiTa8O25 has been documented as a porous oxide with strong expansion from the alloy and induces the dispatch from the substrate [55]. Concurrently, the dilution of Al and the addition of Ta inhibited the formation of Al-related oxides.
Mo has relatively low oxygen solubility compared to other refractory elements [17]. During oxidation, Mo reacted with oxygen and formed MoO3. This oxide is volatile at over 800 °C [69]. This phenomenon will leave many porosities inside the oxide layer after evaporation, increase its surface area and make the oxygen penetrate the material quickly [21,38]. In NbTi + AlCrMo, an oxide layer can prevent oxygen from diffusing inward. In this context, the higher content of Mo in the dendrite region benefits the oxidation behavior. The low oxygen solubility results in the alloy absorbing less oxygen in the dendrite region [17,72]. In alloys with Mo, there is no Ti oxide precipitation in the internal oxidation layer. However, the oxygen reacted with Mo without the protective external oxide layer, forming volatile oxide. The continuous porosities formed at the original dendrite region provided an excellent environment to accelerate the oxidation, such as NbTi + AlMo and NbTi + AlMoTa.

4.3. Comparison to the RHEAs Reported Recently

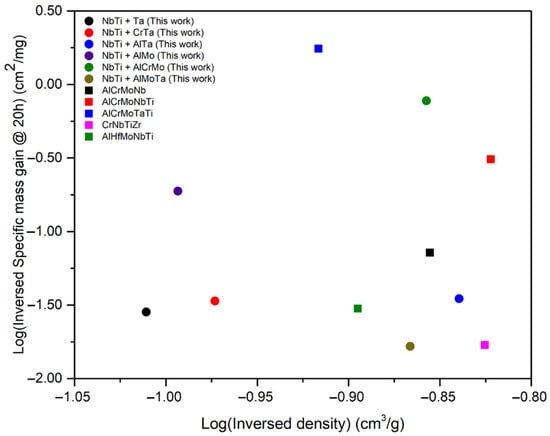

Figure 12 compares the oxidation performance of the NbTi-bearing RMEAs and RHEAs developed in this study with previously reported RHEAs tested under similar conditions (1000 °C for 20 h) [25,28,38].
The density is evaluated from the rule of mixture. Notably, NbTi + AlCrMo exhibits superior oxidation performance compared to compositions reported in the literature with similar elements (AlCrMoNbTi) [25]. This enhanced performance might be attributed to the formation of Laves phases at grain boundaries within the reported alloys. In those alloys, Al2O3 precipitates around the Laves phases, while CrN and TiN form along the grain boundaries. Conversely, the NbTi + AlCrMo developed in this study exhibits a fully single-phase microstructure, eliminating the aforementioned phenomenon.
While NbTi + AlCrMo demonstrates remarkable oxidation resistance, AlCrMoTaTi, reported elsewhere, surpasses its performance. This can be explained by the difference in the behavior of their respective oxides at elevated temperatures. Nb2O5 undergoes polymorphic transitions around 1000 °C, whereas Ta2O5 maintains a stable monoclinic structure up to 1350 °C [66,67]. The polymorphic transformations in Nb2O5 induce volume expansion, which can lead to crack formation within the oxide layer on NbTi + AlCrMo. However, the density of AlCrMoTaTi is much higher than NbTi + AlCrMo (7.2 and 8.25 g/cm3 for NbTi + AlCrMo and AlCrMoTaTi, respectively).

5. Conclusions

In the present study, six types of NbTi-bearing RMEAs and RHEAs were fabricated. The relationship between element effects, oxidation and segregation was discussed among these alloys. A higher content of Cr was beneficial due to the formation of continuous CrNbO4 and Cr2O3. Due to the segregation of Ti, TiO2 was mainly present in the interdendritic region. Mo and Ta segregated to the dendritic region, and Ta exhibited a detrimental effect on oxidation resistance in most cases. The dilution of the protective elements and segregation made the formation of a protective oxide layer during oxidation difficult. The effect of Mo addition on oxidation varied depending on the type of oxide layer present. In the presence of a protective oxide layer, low oxygen solubility could enhance oxidation resistance. However, in the absence of a protective oxide layer, the segregation of Mo could result in the formation of voids due to Mo-oxide evaporation. In this work, NbTi + AlCrMo showed good oxidation at a high temperature and low density. It can be a candidate for next-generation materials for high-temperature applications, such as aerospace and gas turbines.

Author Contributions

Conceptualization, W.-C.L., S.G. and A.-C.Y.; methodology, W.-C.L.; validation, W.-C.L.; formal analysis, W.-C.L.; investigation, W.-C.L., L.E.M. and K.-C.L.; resources, H.M., S.G. and A.-C.Y.; data curation, W.-C.L.; writing—original draft preparation, W.-C.L. and Y.-W.L.; writing—review and editing, K.-C.L., H.M., S.G. and A.-C.Y.; visualization, W.-C.L.; supervision, S.G. and A.-C.Y.; project administration, S.G. and A.-C.Y.; funding acquisition, S.G. and A.-C.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the “High Entropy Materials Center” from The Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) in Taiwan. This work was also supported by the National Science and Technology Council (NSTC) in Taiwan under Grants NSTC 112-2927-I-007-504, NSTC 110-2221-E-007-020-MY3 and NSTC 112-2224-E-007-003.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Dataset available on request from the authors.

Conflicts of Interest

The author declare no conflict of intrest.

References

  1. Dhakal, S.; Minx, J.C.; Toth, F.L.; Abdel-Aziz, A.; Figueroa Meza, M.J.; Hubacek, K.; Jonckheere, I.G.C.; Kim, Y.-G.; Nemet, G.F.; Pachauri, S.; et al. Emissions Trends and Drivers. In IPCC, 2022: Climate Change 2022—Mitigation of Climate Change: Working Group III Contribution to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA; pp. 215–294. [CrossRef]
  2. Saravanamuttoo, H.I.; Rogers, G.F.C.; Cohen, H. Gas Turbine Theory; Pearson Education: London, UK, 2001. [Google Scholar]
  3. Chowdhury, T.S.; Mohsin, F.T.; Tonni, M.M.; Mita, M.N.H.; Ehsan, M.M. A critical review on gas turbine cooling performance and failure analysis of turbine blades. Int. J. Thermofluids 2023, 18, 100329. [Google Scholar] [CrossRef]
  4. Sivakumar, R.; Mordike, B.L. High temperature coatings for gas turbine blades: A review. Surf. Coat. Technol. 1989, 37, 139–160. [Google Scholar] [CrossRef]
  5. Senkov, O.N.; Wilks, G.B.; Miracle, D.B.; Chuang, C.P.; Liaw, P.K. Refractory high-entropy alloys. Intermetallics 2010, 18, 1758–1765. [Google Scholar] [CrossRef]
  6. Miracle, D.B.; Senkov, O.N. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
  7. Senkov, O.N.; Senkova, S.V.; Dimiduk, D.M.; Woodward, C.; Miracle, D.B. Oxidation behavior of a refractory NbCrMo0.5Ta0.5TiZr alloy. J. Mater. Sci. 2012, 47, 6522–6534. [Google Scholar] [CrossRef]
  8. Senkov, O.N.; Wilks, G.B.; Scott, J.M.; Miracle, D.B. Mechanical properties of Nb25Mo25Ta25W25 and V20Nb20Mo20Ta20W20 refractory high entropy alloys. Intermetallics 2011, 19, 698–706. [Google Scholar] [CrossRef]
  9. Wan, Y.; Mo, J.; Wang, X.; Zhang, Z.; Shen, B.; Liang, X. Mechanical Properties and Phase Stability of WTaMoNbTi Refractory High-Entropy Alloy at Elevated Temperatures. Acta Met. Sin. Engl. Lett. 2021, 34, 1585–1590. [Google Scholar] [CrossRef]
  10. Anne, B.R.; Shaik, S.; Tanaka, M.; Basu, A. A crucial review on recent updates of oxidation behavior in high entropy alloys. SN Appl. Sci. 2021, 3, 366. [Google Scholar] [CrossRef]
  11. Veselkov, S.; Samoilova, O.; Shaburova, N.; Trofimov, E. High-Temperature Oxidation of High-Entropic Alloys: A Review. Materials 2021, 14, 2595. [Google Scholar] [CrossRef]
  12. Senkov, O.N.; Miracle, D.B.; Chaput, K.J.; Couzinie, J.-P. Development and exploration of refractory high entropy alloys—A review. J. Mater. Res. 2018, 33, 3092–3128. [Google Scholar] [CrossRef]
  13. Lo, K.-C.; Chang, Y.-J.; Murakami, H.; Yeh, J.-W.; Yeh, A.-C. An oxidation resistant refractory high entropy alloy protected by CrTaO4-based oxide. Sci. Rep. 2019, 9, 7266. [Google Scholar] [CrossRef]
  14. Lo, K.-C.; Murakami, H.; Yeh, J.-W.; Yeh, A.-C. Oxidation behaviour of a novel refractory high entropy alloy at elevated temperatures. Intermetallics 2020, 119, 106711. [Google Scholar] [CrossRef]
  15. Müller, F.; Gorr, B.; Christ, H.-J.; Chen, H.; Kauffmann, A.; Heilmaier, M. Effect of microalloying with silicon on high temperature oxidation resistance of novel refractory high-entropy alloy Ta-Mo-Cr-Ti-Al. Mater. High. Temp. 2018, 35, 168–176. [Google Scholar] [CrossRef]
  16. Yurchenko, N.; Panina, E.; Zherebtsov, S.; Stepanov, N. Oxidation behaviour of eutectic refractory high-entropy alloys at 800–1000 °C. Corros. Sci. 2022, 205, 110464. [Google Scholar] [CrossRef]
  17. Gorr, B.; Müller, F.; Azim, M.; Christ, H.-J.; Müller, T.; Chen, H.; Kauffmann, A.; Heilmaier, M. High-Temperature Oxidation Behavior of Refractory High-Entropy Alloys: Effect of Alloy Composition. Oxid. Met. 2017, 88, 339–349. [Google Scholar] [CrossRef]
  18. Sheikh, S.; Gan, L.; Ikeda, A.; Murakami, H.; Guo, S. Alloying effect on the oxidation behavior of a ductile Al0.5Cr0.25Nb0.5Ta0.5Ti1.5 refractory high-entropy alloy. Mater. Today Adv. 2020, 7, 100104. [Google Scholar] [CrossRef]
  19. Waseem, O.A.; Ryu, H.J. Combinatorial synthesis and analysis of AlxTayVz-Cr20Mo20Nb20Ti20Zr10 and Al10CrMoxNbTiZr10 refractory high-entropy alloys: Oxidation behavior. J. Alloys Compd. 2020, 828, 154427. [Google Scholar] [CrossRef]
  20. Liu, C.M.; Wang, H.M.; Zhang, S.Q.; Tang, H.B.; Zhang, A.L. Microstructure and oxidation behavior of new refractory high entropy alloys. J. Alloys Compd. 2014, 583, 162–169. [Google Scholar] [CrossRef]
  21. Cao, Y.-K.; Liu, Y.; Liu, B.; Zhang, W.-D.; Wang, J.-W.; Du, M. Effects of Al and Mo on high temperature oxidation behavior of refractory high entropy alloys. Trans. Nonferrous Met. Soc. China 2019, 29, 1476–1483. [Google Scholar] [CrossRef]
  22. Butler, T.; Senkov, O.; Daboiku, T.; Velez, M.; Schroader, H.; Ware, L.; Titus, M. Oxidation behaviors of CrNb, CrNbTi, and CrNbTaTi concentrated refractory alloys. Intermetallics 2022, 140, 107374. [Google Scholar] [CrossRef]
  23. Lo, K.-C.; Murakami, H.; Glatzel, U.; Yeh, J.-W.; Gorsse, S.; Yeh, A.-C. Elemental effects on the oxidation of refractory compositionally complex alloys. Int. J. Refract. Met. Hard Mater. 2022, 108, 105918. [Google Scholar] [CrossRef]
  24. Gorr, B.; Schellert, S.; Müller, F.; Christ, H.-J.; Kauffmann, A.; Heilmaier, M. Current Status of Research on the Oxidation Behavior of Refractory High Entropy Alloys. Adv. Eng. Mater. 2021, 23, 2001047. [Google Scholar] [CrossRef]
  25. Müller, F.; Gorr, B.; Christ, H.-J.; Müller, J.; Butz, B.; Chen, H.; Kauffmann, A.; Heilmaier, M. On the oxidation mechanism of refractory high entropy alloys. Corros. Sci. 2019, 159, 108161. [Google Scholar] [CrossRef]
  26. Cui, D.; Liu, X.; Yang, Z.; Guo, B.; Wang, Z.; Li, J.; Wang, J.; He, F. Uniting superior mechanical properties with oxidation resistance in a refractory high-entropy alloy via Cr and Al alloying. Scr. Mater. 2024, 244, 116031. [Google Scholar] [CrossRef]
  27. Gorr, B.; Mueller, F.; Christ, H.-J.; Mueller, T.; Chen, H.; Kauffmann, A.; Heilmaier, M. High temperature oxidation behavior of an equimolar refractory metal-based alloy 20Nb 20Mo 20Cr 20Ti 20Al with and without Si addition. J. Alloys Compd. 2016, 688, 468–477. [Google Scholar] [CrossRef]
  28. Butler, T.; Chaput, K.; Dietrich, J.; Senkov, O. High temperature oxidation behaviors of equimolar NbTiZrV and NbTiZrCr refractory complex concentrated alloys (RCCAs). J. Alloys Compd. 2017, 729, 1004–1019. [Google Scholar] [CrossRef]
  29. Butler, T.; Chaput, K. Native oxidation resistance of Al20Nb30Ta10Ti30Zr10 refractory complex concentrated alloy (RCCA). J. Alloys Compd. 2019, 787, 606–617. [Google Scholar] [CrossRef]
  30. Zhang, P.; Li, Y.; Chen, Z.; Zhang, J.; Shen, B. Oxidation response of a vacuum arc melted NbZrTiCrAl refractory high entropy alloy at 800–1200 °C. Vacuum 2019, 162, 20–27. [Google Scholar] [CrossRef]
  31. Senkov, O.; Gild, J.; Butler, T. Microstructure, mechanical properties and oxidation behavior of NbTaTi and NbTaZr refractory alloys. J. Alloys Compd. 2021, 862, 158003. [Google Scholar] [CrossRef]
  32. Gawel, R.; Rogal, Ł.; Przybylski, K. Oxidation Resistance of Ti-Al-Cr-Nb-Based High-Entropy Alloys in Air at 1073 K. J. Mater. Eng. Perform. 2019, 28, 4163–4170. [Google Scholar] [CrossRef]
  33. Pilone, D.; Felli, F.; Brotzu, A. High temperature oxidation behaviour of TiAl–Cr–Nb–Mo alloys. Intermetallics 2013, 43, 131–137. [Google Scholar] [CrossRef]
  34. Schellert, S.; Gorr, B.; Christ, H.J.; Pritzel, C.; Laube, S.; Kauffmann, A.; Heilmaier, M. The Effect of Al on the Formation of a CrTaO4 Layer in Refractory High Entropy Alloys Ta-Mo-Cr-Ti-xAl. Oxid. Met. 2021, 96, 333–345. [Google Scholar] [CrossRef]
  35. Li, Y.; Gan, B.; Bi, Z.; Yu, H.; Zhou, C.; Sha, J. Improvement of “pest” oxidation resistance of Nb-Mo-W-Zr solid- solution alloy at 800 °C by gas nitridation. Corros. Sci. 2021, 187, 109513. [Google Scholar] [CrossRef]
  36. Chang, C.; Titus, M.S.; Yeh, J. Oxidation Behavior between 700 and 1300 °C of Refractory TiZrNbHfTa High-Entropy Alloys Containing Aluminum. Adv. Eng. Mater. 2018, 20, 1700948. [Google Scholar] [CrossRef]
  37. Yurchenko, N.; Panina, E.; Zherebtsov, S.; Salishchev, G.; Stepanov, N. Oxidation Behavior of Refractory AlNbTiVZr0.25 High-Entropy Alloy. Materials 2018, 11, 2526. [Google Scholar] [CrossRef]
  38. Yang, X.; An, Z.; Zhai, Y.; Wang, X.; Chen, Y.; Mao, S.; Han, X. Effect of Al content on the thermal oxidation behaviour of AlHfMoNbTi high-entropy alloys analysed by in situ environmental TEM. Corros. Sci. 2021, 191, 109711. [Google Scholar] [CrossRef]
  39. Qiao, D.; Liang, H.; Wu, S.; He, J.; Cao, Z.; Lu, Y.; Li, T. The mechanical and oxidation properties of novel B2-ordered Ti2ZrHf0.5VNb0.5Alx refractory high-entropy alloys. Mater. Charact. 2021, 178, 111287. [Google Scholar] [CrossRef]
  40. An, Z.; Mao, S.; Yang, T.; Liu, Y.; Chen, Y.; Yang, X.; Liu, S.; Wang, X.; Deng, Q.; Zhang, Z.; et al. Simultaneously enhanced oxidation resistance and mechanical properties in a novel lightweight Ti2VZrNb0.5Al0.5 high-entropy alloy. Sci. China Mater. 2022, 65, 2842–2849. [Google Scholar] [CrossRef]
  41. Lu, S.; Li, X.; Liang, X.; He, J.; Shao, W.; Li, K.; Chen, J. Effect of Y additions on the oxidation behavior of vacuum arc melted refractory high-entropy alloy AlMo0.5NbTa0.5TiZr at elevated temperatures. Vacuum 2022, 201, 111069. [Google Scholar] [CrossRef]
  42. Lin, Y.; Guo, Y.; Dong, Q.; Huang, R.; Tan, J. Effects of vanadium content on the high temperature oxidation behavior of NbTiZrAlV refractory complex concentrated alloys. J. Alloys Compd. 2022, 905, 164180. [Google Scholar] [CrossRef]
  43. Welch, N.J.; Quintana, M.J.; Butler, T.M.; Collins, P.C. High-temperature oxidation behavior of TaTiCr, Ta4Ti3Cr, Ta2TiCr, and Ta4TiCr3 concentrated refractory alloys. J. Alloys Compd. 2023, 941, 169000. [Google Scholar] [CrossRef]
  44. Zhang, S.; Li, R.; Xu, Y. Zr alloying effects on the microstructure, compression performance and oxidation resistance of refractory high entropy alloys. Mater. Res. Express 2022, 9, 096510. [Google Scholar] [CrossRef]
  45. Li, X.; Li, H.; Li, Q.; Jin, C.; Hua, K.; Wang, H. The determining role of Al addition on tribology properties and oxidation behavior at elevated temperatures of TiZrHfNb refractory high-entropy alloy. Mater. Charact. 2022, 189, 111921. [Google Scholar] [CrossRef]
  46. Ouyang, D.; Chen, Z.-J.; Yu, H.-B.; Chan, K.; Liu, L. Oxidation behavior of the Ti38V15Nb23Hf24 refractory high-entropy alloy at elevated temperatures. Corros. Sci. 2022, 198, 110153. [Google Scholar] [CrossRef]
  47. Zhang, H.; Du, Y.; Lai, L.; Guo, N.; Li, N.; Guo, S. The as-cast AlxCrTaTi refractory medium entropy alloys with good room-temperature mechanical properties and high-temperature oxidation resistance. J. Alloys Compd. 2023, 932, 167675. [Google Scholar] [CrossRef]
  48. Lu, S.; Li, X.; Liang, X.; Shao, W.; Yang, W.; Chen, J. Effect of Al content on the oxidation behavior of refractory high-entropy alloy AlMo0.5NbTa0.5TiZr at elevated temperatures. Int. J. Refract. Met. Hard Mater. 2022, 105, 105812. [Google Scholar] [CrossRef]
  49. Schellert, S.; Weber, M.; Christ, H.; Wiktor, C.; Butz, B.; Galetz, M.; Laube, S.; Kauffmann, A.; Heilmaier, M.; Gorr, B. Formation of rutile (Cr,Ta,Ti)O2 oxides during oxidation of refractory high entropy alloys in Ta-Mo-Cr-Ti-Al system. Corros. Sci. 2023, 211, 110885. [Google Scholar] [CrossRef]
  50. Yan, Y.; McGarrity, K.A.; Delia, D.J.; Fekety, C.; Wang, K. The oxidation-resistance mechanism of WTaNbTiAl refractory high entropy alloy. Corros. Sci. 2022, 204, 110377. [Google Scholar] [CrossRef]
  51. Du, Y.; Ding, D.; Lai, L.; Xiao, S.; Guo, N.; Song, B.; Guo, S. Effect of Y on the high-temperature oxidation behavior of CrMoTaTi refractory high entropy alloy. Int. J. Refract. Met. Hard Mater. 2022, 103, 105755. [Google Scholar] [CrossRef]
  52. Jayaraj, J.; Thirathipviwat, P.; Han, J.; Gebert, A. Microstructure, mechanical and thermal oxidation behavior of AlNbTiZr high entropy alloy. Intermetallics 2018, 100, 9–19. [Google Scholar] [CrossRef]
  53. Zhang, R.; Meng, J.; Han, J.; Tulugan, K.; Zhang, R. Oxidation resistance properties of refractory high-entropy alloys with varied AlxCrTiMo content. J. Mater. Sci. 2021, 56, 3551–3561. [Google Scholar] [CrossRef]
  54. Waseem, O.A.; Auyeskhan, U.; Lee, H.M.; Ryu, H.J. A combinatorial approach for the synthesis and analysis of AlxCryMozNbTiZr high-entropy alloys: Oxidation behavior. J. Mater. Res. 2018, 33, 3226–3234. [Google Scholar] [CrossRef]
  55. Li, L.-C.; Li, M.-X.; Liu, M.; Sun, B.-Y.; Wang, C.; Huo, J.-T.; Wang, W.-H.; Liu, Y.-H. Enhanced oxidation resistance of MoTaTiCrAl high entropy alloys by removal of Al. Sci. China Mater. 2021, 64, 223–231. [Google Scholar] [CrossRef]
  56. Gungor, M.N. A statistically significant experimental technique for investigating microsegregation in cast alloys. Met. Trans. A 1989, 20, 2529–2533. [Google Scholar] [CrossRef]
  57. Xiong, W.; Du, Y.; Liu, Y.; Huang, B.; Xu, H.; Chen, H.; Pan, Z. Thermodynamic assessment of the Mo–Nb–Ta system. Calphad 2004, 28, 133–140. [Google Scholar] [CrossRef]
  58. Okamoto, H. Al-Mo (Aluminum-Molybdenum). J. Phase Equilibria Diffus. 2010, 31, 492–493. [Google Scholar] [CrossRef]
  59. Elliott, R.P.; Shunk, F.A. The Al−Nb system (Aluminum-Niobium). Bull. Alloy. Phase Diagr. 1981, 2, 75–81. [Google Scholar] [CrossRef]
  60. Kaufman, L. Calculation of multicomponent tantalum based phase diagrams. Calphad 1991, 15, 261–282. [Google Scholar] [CrossRef]
  61. Lu, Y.; Jiang, H.; Guo, S.; Wang, T.; Cao, Z.; Li, T. A new strategy to design eutectic high-entropy alloys using mixing enthalpy. Intermetallics 2017, 91, 124–128. [Google Scholar] [CrossRef]
  62. Krapivka, N.A.; Firstov, S.A.; Karpets, M.V.; Myslivchenko, A.N.; Gorban’, V.F. Features of phase and structure formation in high-entropy alloys of the AlCrFeCoNiCu x system (x = 0, 0.5, 1.0, 2.0, 3.0). Phys. Met. Met. 2015, 116, 467–474. [Google Scholar] [CrossRef]
  63. Takeuchi, A.; Inoue, A. Classification of bulk metallic glasses by atomic size difference, heat of mixing and period of constituent elements and its application to characterization of the main alloying element. Mater. Trans. 2005, 46, 2817–2829. [Google Scholar] [CrossRef]
  64. Eckert, M.; Bencze, L.; Kath, D.; Nickel, H.; Hilpert, K. Thermodynamic Activities in the Alloys of the Ti-Al System. Berichte Der Bunsenges. Für Phys. Chem. 1996, 100, 418–424. [Google Scholar] [CrossRef]
  65. Luthra, K.L. Stability of protective oxide films on Ti-base alloys. Oxid. Met. 1991, 36, 475–490. [Google Scholar] [CrossRef]
  66. Schäfer, H.; Gruehn, R.; Schulte, F. The Modifications of Niobium Pentoxide. Angew. Chem. Int. Ed. Engl. 1966, 5, 40–52. [Google Scholar] [CrossRef]
  67. Spyridelis, J.; Delavignette, P.; Amelinckx, S. On the Superstructures of Ta2O5 and Nb2O5. Phys. Status Solidi (b) 1967, 19, 683–704. [Google Scholar] [CrossRef]
  68. Li, M.; Sun, X.; Jin, T.; Guan, H.; Hu, Z. Oxidation Behavior of a Single-Crystal Ni-Base Superalloy in Air—II: At 1000, 1100, and 1150 °C. Oxid. Met. 2003, 60, 195–210. [Google Scholar] [CrossRef]
  69. Gulbransen, E.A.; Andrew, K.F.; Brassart, F.A. Oxidation of Molybdenum 550° to 1700°C. J. Electrochem. Soc. 1963, 110, 952–959. [Google Scholar] [CrossRef]
  70. Zhang, B.; Gao, M.; Zhang, Y.; Guo, S. Senary refractory high-entropy alloy Crx MoNbTaVW. Calphad 2015, 51, 193–201. [Google Scholar] [CrossRef]
  71. Jehn, H.; Olzi, E. High temperature solid-solubility limit and phase studies in the system tantalum-oxygen. J. Less Common. Met. 1972, 27, 297–309. [Google Scholar] [CrossRef]
  72. Gorr, B.; Azim, M.; Christ, H.-J.; Mueller, T.; Schliephake, D.; Heilmaier, M. Phase equilibria, microstructure, and high temperature oxidation resistance of novel refractory high-entropy alloys. J. Alloys Compd. 2015, 624, 270–278. [Google Scholar] [CrossRef]
Materials 17 04579 g001

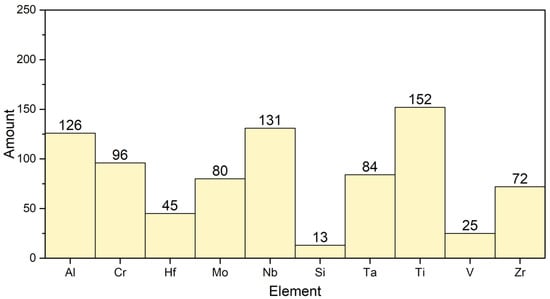

Figure 1. The statistics of element presence in RHEAs from the literature collection [7,13,14,15,16,17,19,20,21,22,25,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55].
Figure 1. The statistics of element presence in RHEAs from the literature collection [7,13,14,15,16,17,19,20,21,22,25,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55].
Materials 17 04579 g001
Materials 17 04579 g002

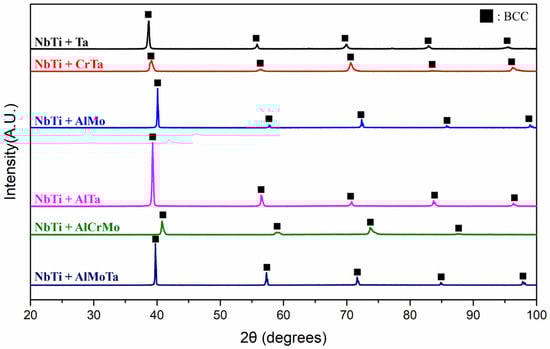

Figure 2. The XRD patterns of NbTi-bearing RMEAs and RHEAs.
Figure 2. The XRD patterns of NbTi-bearing RMEAs and RHEAs.
Materials 17 04579 g002
Materials 17 04579 g003
Figure 3. The as-cast microstructure of (a) NbTi + Ta, (b) NbTi + CrTa, (c) NbTi + AlMo, (d) NbTi + AlTa, (e) NbTi + AlCrMo and (f) NbTi + AlMoTa near the surface area.
Figure 3. The as-cast microstructure of (a) NbTi + Ta, (b) NbTi + CrTa, (c) NbTi + AlMo, (d) NbTi + AlTa, (e) NbTi + AlCrMo and (f) NbTi + AlMoTa near the surface area.
Materials 17 04579 g003
Materials 17 04579 g004
Figure 4. The oxidation mass gain curve tested at 1000 °C for 20 h.
Figure 4. The oxidation mass gain curve tested at 1000 °C for 20 h.
Materials 17 04579 g004
Materials 17 04579 g005
Figure 5. The oxidized NbTi + AlCrMo for 20 h at 1000 °C: (a) a general view of the oxide layer with EDS mapping, the magnified SEM image of (b) the external oxidation region and (c) the internal oxidation region and (d) the XRD pattern of the oxide layer. (e) The EBSD image with the band contrast and phase characterization of the external oxide region. The red arrows in (a) indicates the oxidation of the interdendritic region. The compositions of the indicated regions in (b,c) are listed in Table 4.
Figure 5. The oxidized NbTi + AlCrMo for 20 h at 1000 °C: (a) a general view of the oxide layer with EDS mapping, the magnified SEM image of (b) the external oxidation region and (c) the internal oxidation region and (d) the XRD pattern of the oxide layer. (e) The EBSD image with the band contrast and phase characterization of the external oxide region. The red arrows in (a) indicates the oxidation of the interdendritic region. The compositions of the indicated regions in (b,c) are listed in Table 4.
Materials 17 04579 g005
Materials 17 04579 g006
Figure 6. The XRD patterns of NbTi + Ta, NbTi + CrTa and NbTi + AlTa after oxidation at 1000 °C for 20 h.
Figure 6. The XRD patterns of NbTi + Ta, NbTi + CrTa and NbTi + AlTa after oxidation at 1000 °C for 20 h.
Materials 17 04579 g006
Materials 17 04579 g007
Figure 7. The BEI images after oxidation at 1000 °C for 20 h: a general view of the oxide layer of (a) NbTi + Ta, (d) NbTi + CrTa and (g) NbTi + AlTa, the magnified SEM image of the external oxidation region of (b) NbTi + Ta, (e) NbTi + CrTa and (h) NbTi + AlTa and the internal oxidation region of (c) NbTi + Ta, (f) NbTi + CrTa and (i) NbTi + AlTa. The compositions of the indicated regions in (b,c,e–h) are listed in Table 5.
Figure 7. The BEI images after oxidation at 1000 °C for 20 h: a general view of the oxide layer of (a) NbTi + Ta, (d) NbTi + CrTa and (g) NbTi + AlTa, the magnified SEM image of the external oxidation region of (b) NbTi + Ta, (e) NbTi + CrTa and (h) NbTi + AlTa and the internal oxidation region of (c) NbTi + Ta, (f) NbTi + CrTa and (i) NbTi + AlTa. The compositions of the indicated regions in (b,c,e–h) are listed in Table 5.
Materials 17 04579 g007
Materials 17 04579 g008
Figure 8. The EBSD band contrast and phase characterization images of (a) NbTi + Ta, (b) NbTi + CrTa and (c) NbTi + AlTa.
Figure 8. The EBSD band contrast and phase characterization images of (a) NbTi + Ta, (b) NbTi + CrTa and (c) NbTi + AlTa.
Materials 17 04579 g008
Materials 17 04579 g009
Figure 9. The XRD patterns of NbTi + AlMo and NbTi + AlMoTa after oxidation at 1000 °C for 20 h.
Figure 9. The XRD patterns of NbTi + AlMo and NbTi + AlMoTa after oxidation at 1000 °C for 20 h.
Materials 17 04579 g009
Materials 17 04579 g010
Figure 10. (a) The oxide layer BEI with EDS mapping and (b) the magnified image of NbTi + AlMo after 1000 °C oxidation for 20 h. (c) The oxide layer BEI of NbTi + AlMoTa after 1000 °C oxidation for 20 h. The BEI of the interface between the oxide layer and oxygen-affected zone for (d) NbTi + AlMo and (e) NbTi + AlMoTa after 1000 °C oxidation for 20 h. The compositions of the indicated regions in (b,c) are listed in Table 7.
Figure 10. (a) The oxide layer BEI with EDS mapping and (b) the magnified image of NbTi + AlMo after 1000 °C oxidation for 20 h. (c) The oxide layer BEI of NbTi + AlMoTa after 1000 °C oxidation for 20 h. The BEI of the interface between the oxide layer and oxygen-affected zone for (d) NbTi + AlMo and (e) NbTi + AlMoTa after 1000 °C oxidation for 20 h. The compositions of the indicated regions in (b,c) are listed in Table 7.
Materials 17 04579 g010
Materials 17 04579 g011
Figure 11. The EBSD band contrast and phase characterization images of (a) NbTi + AlMo and (b) NbTi + AlMoTa.
Figure 11. The EBSD band contrast and phase characterization images of (a) NbTi + AlMo and (b) NbTi + AlMoTa.
Materials 17 04579 g011
Materials 17 04579 g012
Figure 12. The comparison of the specific mass gain tested at 1000 °C for 20 h among NbTi-bearing RMEAs and RHEAs from this work, AlCrMo + Nb/NbTi/TaTi [25], CrNbTiZr [28] and AlHfMoNbTi [38] from the literature.
Figure 12. The comparison of the specific mass gain tested at 1000 °C for 20 h among NbTi-bearing RMEAs and RHEAs from this work, AlCrMo + Nb/NbTi/TaTi [25], CrNbTiZr [28] and AlHfMoNbTi [38] from the literature.
Materials 17 04579 g012
Table 1. The compositions of the fabricated alloy measured by EDS (in at%).
Table 1. The compositions of the fabricated alloy measured by EDS (in at%).
AlloyAlCrMoNbTaTi
NbTi + Ta---33.1 ± 0.536.2 ± 0.330.7 ± 0.3
NbTi + CrTa-10.9 ± 0.5-27.1 ± 0.128.8 ± 0.233.2 ± 0.4
NbTi + AlMo15.2 ± 0.4-26.9 ± 0.728.1 ± 0.2-29.8 ± 0.5
NbTi + AlTa8.6 ± 0.4--30.1 ± 0.435.2 ± 1.226.1 ± 2.0
NbTi + AlCrMo10.3 ± 0.321.0 ± 0.923.9 ± 1.023.4 ± 0.9-21.5 ± 0.7
NbTi + AlMoTa5.1 ± 0.2-23.5 ± 0.925.0 ± 0.925.3 ± 0.921.1 ± 0.4
Table 2. Chemical compositions (in at %) of dendrite (D) and interdendritic (ID) region in six NbTi-bearing RMEA and RHEAs.
Table 2. Chemical compositions (in at %) of dendrite (D) and interdendritic (ID) region in six NbTi-bearing RMEA and RHEAs.
AlloyRegionAlCrMoNbTaTi
NbTi + Ta D---32.2 ± 0.437.8 ± 0.830.1 ± 0.4
ID---32.2 ± 0.728.0 ± 0.339.8 ± 2.0
NbTi + CrTaD-7.7 ± 1.4-29.8 ± 0.536.4 ± 1.226.2 ± 0.2
ID-18.9 ± 0.1-20.3 ± 0.513.3 ± 0.647.4 ± 0.9
NbTi + AlMoD13.8 ± 0.7-31.0 ± 0.730.3 ± 0.3-24.8 ± 0.0
ID18.3 ± 0.2-23.9 ± 0.427.0 ± 0.1-30.8 ± 0.3
NbTi + AlTaD8.6 ± 0.0--31.3 ± 0.634.7 ± 0.325.5 ± 0.3
ID14.9 ± 0.7--27.7 ± 0.121.9 ± 1.635.5 ± 1.0
NbTi + AlCrMoD9.3 ± 0.116.7 ± 0.228.3 ± 0.224.6 ± 0.3-21.1 ± 0.4
ID15.3 ± 0.831.3 ± 0.48.8 ± 1.417.7 ± 0.7-26.9 ± 1.0
NbTi + AlMoTaD3.3 ± 0.1-25.0 ± 0.224.8 ± 0.129.2 ± 0.217.8 ± 0.1
ID12.2 ± 1.5-17.2 ± 1.222.7 ± 0.412.3 ± 2.035.6 ± 2.0
Table 3. The oxidation rate constant and time exponent of NbTi-bearing RMEAs and RHEAs.
Table 3. The oxidation rate constant and time exponent of NbTi-bearing RMEAs and RHEAs.
Alloy Name k1n1Periodk2n2Period
NbTi + Ta 5.620.551–9 h2.450.899–20 h
NbTi + CrTa 5.880.461–14 h1.051.1214–20 h
NbTi + AlTa 5.790.341–7 h2.190.847–20 h
NbTi + AlMo 1.270.571–4 h1.770.324–20 h
NbTi + AlCrMo 0.330.341–7 h0.210.597–20 h
NbTi + AlMoTa 9.120.761–15 h
Table 4. Chemical compositions (in at %) of the indicated regions in Figure 5.
Table 4. Chemical compositions (in at %) of the indicated regions in Figure 5.
RegionAlCrMoNbTiO
117.7 ± 1.09.8 ± 3.70.2 ± 0.12.8 ± 0.35.3 ± 1.064.2 ± 2.8
25.1 ± 0.325.0 ± 4.30.3 ± 0.22.4 ± 0.54.5 ± 1.762.7 ± 2.2
32.7 ± 0.23.3 ± 0.11.7 ± 0.117.8 ± 0.18.7 ± 0.366.0 ± 0.4
46.6 ± 0.417.0 ± 5.39.8 ± 1.712.3 ± 0.924.7 ± 3.3(N)29.7 ± 3.0
56.8 ± 0.322.7 ± 1.29.0 ± 0.113.9 ± 0.329.7 ± 1.818.1 ± 0.1
Table 5. Chemical compositions (in at %) of the indicated regions in Figure 7.
Table 5. Chemical compositions (in at %) of the indicated regions in Figure 7.
RegionAlCrNbTaTiO
1--2.1 ± 0.62.4 ± 0.730.7 ± 3.164.8 ± 3.9
2--10.5 ± 0.614.4 ± 0.68.5 ± 2.366.6 ± 1.7
3--4.0 ± 0.34.1 ± 0.438.6 ± 0.153.4 ± 0.7
4-1.6 ± 0.310.4 ± 0.413.6 ± 0.77.2 ± 0.963.2 ± 6.5
5-3.3 ± 0.47.7 ± 0.76.4 ± 0.419.3 ± 0.563.3 ± 0.3
6-3.2 ± 1.03.2 ± 0.44.7 ± 1.338.3 ± 0.150.8 ± 0.6
77.3 ± 0.3-4.1 ± 0.24.9 ± 0.215.0 ± 0.768.7 ± 1.4
80.2 ± 0.1-14.2 ± 0.912.5 ± 0.74.0 ± 0.269.0 ± 0.2
92.8 ± 0.5-9.5 ± 0.611.9 ± 0.59.8 ± 1.866.1 ± 1.4
105.3 ± 0.2-4.7 ± 0.95.8 ± 1.120.1 ± 2.264.1 ± 0.1
118.9 ± 0.3-3.3 ± 0.95.0 ± 0.223.7 ± 1.259.2 ± 0.8
Table 6. The fractions of oxides (in %) shown in Figure 8.
Table 6. The fractions of oxides (in %) shown in Figure 8.
AlloyTa2O5TiO2AlTaO4Al2TiO5Nb2O5Nb4O5AlNbO4TiNbO4TiTaO4CrNbO4
NbTi + Ta41.857.6--0.6-----
NbTi + CrTa29.5241.02--0.04----29.42
NbTi + AlTa7.99.810.12.77.61.438.711.610.3-
Table 7. Chemical compositions (in at %) of the indicated regions in Figure 10.
Table 7. Chemical compositions (in at %) of the indicated regions in Figure 10.
RegionAlMoNbTaTiO
113.6 ± 0.30.0 ± 0.013.1 ± 0.3-9.7 ± 0.563.7 ± 0.1
27.0 ± 0.30.4 ± 0.28.6 ± 0.6-19.2 ± 0.364.8 ± 0.7
31.3 ± 0.42.7 ± 0.424.9 ± 4.2-5.7 ± 1.165.4 ± 3.8
40.4 ± 0.14.0 ± 0.29.2 ± 0.312.1 ± 0.14.9 ± 0.169.3 ± 0.1
52.7 ± 0.71.9 ± 0.56.8 ± 1.18.1 ± 0.812.5 ± 2.368.0 ± 0.6
Table 8. The fractions of oxides (in %) shown in Figure 11.
Table 8. The fractions of oxides (in %) shown in Figure 11.
AlloyTa2O5TiO2MoO3AlTaO4Al2TiO5Nb2O5AlNbO4TiNbO4TiTaO4
NbTi + AlMo-434-2.52.237.211.1-
NbTi + AlMoTa2.114.112.35.99.110.724.95.515.3
Table 9. The partition coefficient of each element in NbTi-bearing RMEAs and RHEAs.
Table 9. The partition coefficient of each element in NbTi-bearing RMEAs and RHEAs.
AlloyAlCrMoNbTaTi
NbTi + Ta---1.011.090.9
NbTi + CrTa-0.71-1.051.130.87
NbTi + AlMo0.86-1.091.04-0.93
NbTi + AlTa0.73--1.041.190.84
NbTi + AlCrMo0.830.731.321.11-0.93
NbTi + AlMoTa0.75-1.051.021.140.86
Table 10. The mixing enthalpies (kJ/mol) for the atomic pairs with each element in this work [63].
Table 10. The mixing enthalpies (kJ/mol) for the atomic pairs with each element in this work [63].
AlCrMoNbTaTi
Al −10−5−18−19−30
Cr−10 0−7−7−7
Mo−50 −6−5−4
Nb−18−7−6 02
Ta−19−7−50 1
Ti−30−7−421
Table 11. The activity of alloying elements based on the composition in the dendritic (D) and interdendritic (ID) regions.
Table 11. The activity of alloying elements based on the composition in the dendritic (D) and interdendritic (ID) regions.
AlloyRegionAlCrMoNbTaTi
NbTi + Ta D---5.73 × 10−4 ± 8.53 × 10−63.06 × 10−4 ± 6.03 × 10−61.30 × 10−3 ± 1.01 × 10−5
ID---6.03 × 10−4 ± 2.08 × 10−62.61 × 10−4 ± 8.70 × 10−61.45 × 10−3 ± 3.33 × 10−5
NbTi + CrTaD-2.27 × 10−3 ± 5.86 × 10−6-5.31 × 10−4 ± 5.69 × 10−63.18 × 10−4 ± 5.46 × 10−61.14 × 10−3 ± 1.65 × 10−5
ID-2.49 × 10−3 ± 1.21 × 10−5-5.56 × 10−4 ± 6.18 × 10−61.83 × 10−4 ± 5.38 × 10−61.54 × 10−3 ± 1.15 × 10−5
NbTi + AlMoD7.55 × 10−6 ± 1.01 × 10−6-6.06 × 10−4 ± 2.80 × 10−52.78 × 10−4 ± 6.79 × 10−6-2.24 × 10−4 ± 7.36 × 10−6
ID1.49 × 10−5 ± 4.64 × 10−7-3.48 × 10−4 ± 1.13 × 10−52.80 × 10−4 ± 3.21 × 10−6-2.65 × 10−4 ± 6.74 × 10−6
NbTi + AlTaD9.13 × 10−7 ± 4.14 × 10−9--6.28 × 10−4 ± 8.56 × 10−63.39 × 10−4 ± 3.67 × 10−66.85 × 10−4 ± 2.09 × 10−6
ID1.36 × 10−6 ± 9.96 × 10−8--6.68 × 10−4 ± 4.18 × 10−62.30 × 10−4 ± 1.77 × 10−57.98 × 10−4 ± 1.37 × 10−5
NbTi + AlCrMoD2.34 × 10−6 ± 6.77 × 10−84.14 × 10−3 ± 3.08 × 10−58.65 × 10−4 ± 1.44 × 10−51.91 × 10−4 ± 3.84 × 10−6-2.72 × 10−4 ± 7.10 × 10−6
ID3.50 × 10−6 ± 3.08 × 10−73.23 × 10−3 ± 1.72 × 10−43.62 × 10−4 ± 6.96 × 10−51.81 × 10−4 ± 8.17 × 10−7-5.71 × 10−4 ± 4.94 × 10−5
NbTi + AlMoTaD8.92 × 10−7 ± 1.11 × 10−8-2.28 × 10−4 ± 4.03 × 10−62.96 × 10−4 ± 2.99 × 10−61.97 × 10−4 ± 1.84 × 10−63.66 × 10−4 ± 2.41 × 10−6
ID2.63 × 10−6 ± 6.24 × 10−7-1.47 × 10−4 ± 1.44 × 10−53.37 × 10−4 ± 1.24 × 10−71.11 × 10−4 ± 1.52 × 10−55.41 × 10−4 ± 1.85 × 10−5
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lin, W.-C.; Lien, Y.-W.; Moreau, L.E.; Murakami, H.; Lo, K.-C.; Gorsse, S.; Yeh, A.-C. High-Temperature Oxidation of NbTi-Bearing Refractory Medium- and High-Entropy Alloys. Materials 2024, 17, 4579. https://doi.org/10.3390/ma17184579

AMA Style

Lin W-C, Lien Y-W, Moreau LE, Murakami H, Lo K-C, Gorsse S, Yeh A-C. High-Temperature Oxidation of NbTi-Bearing Refractory Medium- and High-Entropy Alloys. Materials. 2024; 17(18):4579. https://doi.org/10.3390/ma17184579

Chicago/Turabian Style

Lin, Wei-Chih, Yi-Wen Lien, Louis Etienne Moreau, Hideyuki Murakami, Kai-Chi Lo, Stéphane Gorsse, and An-Chou Yeh. 2024. "High-Temperature Oxidation of NbTi-Bearing Refractory Medium- and High-Entropy Alloys" Materials 17, no. 18: 4579. https://doi.org/10.3390/ma17184579

APA Style

Lin, W.-C., Lien, Y.-W., Moreau, L. E., Murakami, H., Lo, K.-C., Gorsse, S., & Yeh, A.-C. (2024). High-Temperature Oxidation of NbTi-Bearing Refractory Medium- and High-Entropy Alloys. Materials, 17(18), 4579. https://doi.org/10.3390/ma17184579

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
