Article

Effect of Si and Holding Time on Ti2Al20La Phase in Al-Ti-La Intermediate Alloy

by
Hu Da
1,
Xudong Tian
2,3,
Jiazhi An
2,3,
Wanwu Ding
2,3,*,
Jianchao Chen
2,3,
Haicun Yu
2,3 and
Haixia Zhang
2,3
1
Gansu Computing Center, Lanzhou 730050, China
2
School of Materials Science and Engineering, Lanzhou University of Technology, Lanzhou 730050, China
3
State Key Laboratory of Advanced Processing and Reuse of Non-Ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(13), 3134; https://doi.org/10.3390/ma17133134
Submission received: 20 May 2024 / Revised: 8 June 2024 / Accepted: 12 June 2024 / Published: 26 June 2024
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
The effects of holding time and Si on the content, shape size and structure of Ti2Al20La phase in Al-Ti-La intermediate alloy were investigated by an X-ray diffractometer, scanning electron microscope and transmission electron microscope. The results show that the volume fraction and aspect ratio of Ti2Al20La phase in Al-Ti-La intermediate alloy decrease significantly, from 21% and 2.3 without Si addition to 4% and 2.0 with the addition of 2.3 wt.% Si at a holding time of 15 min at 750 °C, respectively. The Si element will attach to the Ti2Al20La phase and form La-Si binary phase at the grain boundary of α-Al. With the increase of holding time from 15 min to 60 min, the content of Ti2Al20La phase in the alloy gradually decreases and the size decreases significantly. Meanwhile, Al11La3 will dissolve and disappear, while the content of La-Si binary phase increases, and part of Ti2Al20La phase transforms into Ti2(Al20−x,Six)La phase.

1. Introduction

Al-Si alloy is widely used in automotive, aerospace and other industries because of its excellent casting performance, high strength and easy processing [1,2,3,4,5]. However, the coarse α-Al phase and non-uniform distribution of needle sheet eutectic silicon in the as-cast condition of conventional Al-Si alloy will cause stress concentration, thereby significantly reducing the mechanical properties of the alloy. Grain refinement and eutectic Si modification are effective ways to improve the comprehensive mechanical properties of hypoeutectic Al-Si alloys. Research has shown that adding refiners and modifiers to aluminum melt is the most economical method, including Al-Ti-B [6], Al-Ti-C [7] and Al-B [8], and the metamorphic agents include Na [9], Sr [10] and RE [11], etc. In actual production, refiners and metamorphic agents are often added to aluminum melt in batches, which is not only complicated in process, but also unsatisfactory in the refining and metamorphic effect due to the “Si poisoning effect” [12].
In recent years, many scholars have developed novel intermediate alloys with both refining and modification effects [13,14,15,16]. Cui et al. [17] prepared a new Al-3B-5Sr intermediate alloy by in situ synthesis of aluminum melt. By adding 0.5 wt.% Al-3B-5Sr alloy to A356 alloy, the morphology of eutectic Si can be changed from needle/plate to fiber/ball. The size of α-Al grain is reduced from 1000 μm to 300 μm. Qiu et al. [18] indicated that adding 0.5 wt% Al-6Sr-7La intermediate alloy to A356 alloy, which is composed of α-Al, Al4Sr and Al4La phases, can reduce the secondary dendrite arm spacing of α-Al and transform sheet eutectic Si into fiber. The Al4La phase can be used as an effective hetero-nucleation substrate for α-Al and can exist stably at high temperatures, while the rare earth La reacts with Si to form La-Si intermetallic compounds. Zhao et al. [19] showed that adding 0.5% Al-Ti-C-Sr intermediate alloy to A356 alloy could reduce the secondary dendrite arm spacing of α-Al from 40 μm to 32.7 μm, and the eutectic Si changed from acicular/flake to fibrous/spherical. Wang et al. [20] found that Ti2Al20RE (RE = La/Ce) has a good lattice matching relationship with α-Al, which can promote the nucleation of α-Al in Al-7.0 Si-0.55Mg alloy. Quan et al. [21] showed that Ti2Al20RE (RE = Ce, La) has dynamic stability and excellent thermodynamic properties at high temperatures. Xu et al. [22] showed that Ti2Al20RE had higher hetero-nucleation ability than Al3Ti. However, the evolvement mechanism of these novel intermediate alloys after adding the Al-Si alloys, for example Ti2Al20RE (RE = Ce, La), is also not clear, especially how to avoid the “Si poisoning effect”.
The research group have prepared a new Al-3Ti-4.35La intermediate alloy rich in Ti2Al20La phase [23]. The preliminary results [23] show that the α-Al can be refined from 1116 μm to 105 μm by adding 0.2 wt.% Al-3Ti-4.35La to Al-7Si alloy. The morphology of eutectic silicon changes from coarse sheet to short rod and granular. It is concluded that Ti2Al20La plays an important role in refining and modifying eutectic Si, and the refining and modification effect of Al-Ti-La master alloy is obviously different due to the different shape, size and melt treatment process of Ti2Al20La. However, the relevant mechanism is still unclear. Based on this, this paper will deeply explore the microstructure evolution of Ti2Al20La phase in the Si alloy melt, which can provide a theoretical and experimental basis for the study of the refinement and metamorphism mechanism of Al-3Ti-4.35La intermediate alloy.

2. Experiment

Al-Ti-La intermediate alloy was prepared by in situ reaction of aluminum melt. First, Al powder (99.0 wt.%, 80–100 µm) and Ti powder (99.0 wt.%, 45–65 µm) were mixed at a molar ratio of Al:Ti = 3:1 and mechanically mixed at a speed of 170 r/min by a Pulaerisett-5 (Thermo Fisher Scientific, Waltham, MA, USA) high-speed planetary ball mill for 4 h. Then, the mixed powder was uniformly pressed into cylindrical preforms (density 50%, size: 25 × 50 mm) by WDW-100D universal test drawing machine (Jinan Testing Equipment Co., Ltd., Jinan, China). The preforms and lanthanum blocks were wrapped in aluminum foil and placed in DGG-9416A type electric thermostatic air drying oven (Dongguan Bell Experiment Equipment Co., Ltd., Dongguan, China) at 200 °C for 2 h for use. Proper amount of industrial pure aluminum (99.7 wt.%) was loaded into the clay crucible and heated in the silicon carbon rod resistance furnace to 1150 °C. Then, the precast and lanthanum blocks were pressed into the melt at the same time, stirred and kept warm for 4 min. After cooling to 860 °C, they were poured into the ring steel mold (size: inner diameter 45 mm, outer diameter 70 mm, height 70 mm) to obtain Al-Ti-La intermediate alloy.
The Al-3Ti-4.35La intermediate alloy and Al-7Si alloy were put into a graphite crucible with a certain mass ratio and heated in a silicon carbon rod resistance furnace to melt at 750 °C. After fully mixing and mixing, the alloy was kept warm for 15 min, 30min and 60 min, respectively, and then 1 wt.% C2Cl6 was added to the melt for refining and degaging. After slagging, the obtained alloy melt was cast at 720 °C into a steel mold (outer diameter 140 mm, inner diameter 120 mm, outer height 210 mm) with a preheating temperature of 200 °C to prepare the Al-Ti-La-Si alloy sample. The experimental process is shown in Figure 1.
The chemical composition of Al-Ti-La alloy and Al-Ti-La-Si alloy was determined by X-ray fluorescence spectrometer (Panako Zetium, Breda, The Netherlands), and the results are given in Table 1. Al-Ti-La intermediate alloys and Al-Ti-La-Si alloys were characterized by Thermo ARL X-ray diffractometer (XRD, Thermo Fisher Scientific, Waltham, MA, USA) and monochromatic Cu Kα radiation at 2 θ angles ranging from 20 to 90°. The microstructure of the alloy was analyzed by Tescan Mira4 SEM and xplore 30 (Tescan, Brno, Czech Republic). The volume fraction and size of the second phase in the alloy were counted by Image Pro Plus 6.0, and 20 alloy topography images were analyzed. Talos F200X G2 transmission electron microscopy (TEM, Thermo Fisher Scientific, Waltham, MA, USA) with selected electron diffraction (SAED, Thermo Fisher Scientific, Waltham, MA, USA) was used to confirm the crystal structure, and samples for TEM observation were thinned by double-jet electrodeposition using a mixture of nitric acid.

3. Results and Discussion

3.1. Analysis of Al-Ti-La Intermediate Alloys

Figure 2 shows the XRD pattern of Al-Ti-La intermediate alloy. It can be seen from the figure that the main phases in the alloy are α-Al and Ti2Al20La phases, while a small amount of Al3Ti and Al11La3 phases exist. The author’s previous research results show that [23]: The content of Ti2Al20La in Al-Ti-La intermediate alloy has an important influence on its refining and metamorphic effect, and the higher the content of Ti2Al20La in the intermediate alloy, the better the refining and metamorphic effect. According to the intensity of the diffraction peak of Ti2Al20La, it is preliminatively determined that the intermediate alloy prepared in this paper is rich in Ti2Al20La.
Figure 3 shows the SEM and EDS analysis results of Al-Ti-La intermediate alloy. As can be seen from Figure 3a, a large number of white blocky structures are distributed in the alloy matrix, some of the white blocky structures are wrapped with striped gray phases and irregular fibrous white structures are uniformly distributed in the matrix. Figure 3b–k shows EDS analysis of three different tissues. It can be seen from the figure that Al, Ti and La elements are evenly distributed in the white massive tissue, and EDS analysis results at Point 1 indicate that the ratio of Al:Ti:La elements is close to 20:2:1. The gray phase wrapped with strips in the white massive structure is enriched with Ti element, and the EDS analysis shows that the ratio of Al:Ti element is close to 3:1. In the fibrous white structure, only Al and La elements are distributed, and the EDS point analysis shows that the element ratio of Al:La in this phase is close to 11:3. Combined with the XRD analysis results in Figure 2, the white bulk structure, gray phase and fibrous white structure in Al-Ti-La intermediate alloy are Ti2Al20La, Al3Ti and Al11La3 phases, respectively.
Figure 4 shows the statistical distribution of the volume fraction and aspect ratio of Ti2Al20La phase in Al-Ti-La intermediate alloy. It can be seen that the volume fraction of Ti2Al20La phase in Al-Ti-La intermediate alloy is 21%, the size distribution of Ti2Al20La phase is relatively uniform and the aspect ratio is about 2.3. Previous studies have shown [23] that when the relative content of Ti2Al20La in the intermediate alloy is high and the form is massive, the refining and metamorphism effect of Al-7Si alloy is the best. Therefore, the effect of Si element on the evolution behavior and stability of Ti2Al20La phase in melt can be effectively observed by adding Si element to this intermediate alloy for study.

3.2. Analysis of Al-Ti-La-Si Alloy under Different Holding Time

Figure 5 shows the XRD pattern of Al-Ti-La-Si alloy at different holding times. It can be seen that the main phases of Al-Ti-La intermediate alloy are still α-Al, Ti2Al20La and Al3Ti phases after Si element is added and the holding time is different, but the peak strength corresponding to Ti2Al20La significantly decreases with the extension of the holding time, and some peaks disappear. At the same time, the peak corresponding to the Al11La3 phase disappeared, and the La5Si3 phase and LaSi phase appeared. After extending the holding time, the Ti2Al20La phase content decreased, which may be due to the dissolution of a large amount of Ti2Al20La, which produced free [La], so that [La] and [Si] had more time to diffuse, so that more La-Si binary phases were formed. In addition, compared with Ti2Al20La on the standard PDF card, the diffraction peak of Ti2Al20La phase is found at the dotted line in Figure 5, and the offset distance gradually increases with the extension of holding time. It has been shown [24] that the Si element in Al-Si alloy will replace some Al atoms in Al compounds to form (Al, Si) intercompounds. Therefore, this study suggests that the peaks at 31.89° and 37.52° angles in Figure 5 may be Ti2(Al20−x,Six)La formed by partial substitution of Al atoms in the Ti2Al20La phase by Si atoms.
Figure 6 shows the SEM and EDS results analysis of Al-Ti-La-Si alloy held for 15 min. It can be seen from Figure 6a that white massive structures are distributed in the alloy matrix, while irregular rod-like white structures and gray structures are distributed at the grain boundaries. Combined with the EDS quantitative analysis of different tissues as shown in Figure 6b–f and Table 2, and XRD analysis as shown in Figure 5, it can be determined that the white massive tissue is Ti2Al20La phase. Figure 6g is a magnified image of the fibrous structure in region 1 of Figure 6a. It can be seen from the figure that the fibrous structure is mainly composed of white rod-like and granular structures, while some small gray rod-like structures are distributed in the matrix. Combined with EDS analysis in Figure 6h–l and XRD analysis in Figure 5, the white rod-like structure is judged to be La5Si3 phase. Considering that the existing form of Si in Al-Si alloy is mainly eutectic Si, which does not produce Al-Si binary phase 25, the white granular structure and gray rod-like structure in Figure 6g are eutectic Si.
Figure 7a shows the volume fraction of Ti2Al20La phase in Al-Ti-La-Si alloy held for 15 min, and its value is 4%, which is significantly lower than 21% before Si element is added. In addition, it can be seen from Figure 7b that the average aspect ratio of Ti2Al20La phase is 2.0, which is also lower than 2.3 when Si element is not added.
In order to determine the distribution of elements after dissolution of Ti2Al20La, EPMA analysis was carried out, as shown in Figure 8. As can be seen from Figure 8a, after 15 min of heat preservation, the sharp edges and corners of the original block of Ti2Al20La become more rounded, indicating that Ti2Al20La has dissolved from its edge, and there has been segregation of Ti element at the edge of Ti2Al20La (as shown in Figure 8c). And part of the free [Ti] begins to diffuse around. In addition, it can be seen from Figure 8d,e that the distribution of rare earth elements La and Si has a strong correlation, which indicates that [La] produced by dissolution mainly combines with Si to form La-Si intermetallic compounds, while excessive Si elements precipitate at the grain boundaries in the form of eutectic Si.
Figure 9 shows the TEM analysis of the interface between Ti2Al20La phase and eutectic Si in Al-Ti-La-Si alloy held for 15 min. Combined with EDS analysis Figure 9a–c,f, it is obvious that there is an enrichment region of Si elements between α-Al and Ti2Al20La. The phase relationship between Si and Ti2Al20La was further analyzed. High-resolution analysis was performed on region 2 in Figure 9d, as shown in Figure 9e. The analysis showed that the width of the rich region was about 16 nm. Region 3, region 4 and region 5 corresponding to α-Al, eutectic Si and Ti2Al20La were analyzed by inverse Fourier transform to analyze their lattice spacing and phase relationships, as shown in Figure 9g–i. The analysis shows that: The lattice spacing of α-Al, eutectic Si and Ti2Al20La is 0.1 nm, 0.17 nm and 0.39 nm, respectively, and the lattice is arranged neatly, and there is no obvious atomic distortion region, that is, the eutectic Si is only attached to the Ti2Al20La phase, but it will not have a significant impact on the structure of Ti2Al20La phase.
Figure 10 shows TEM and EDS analysis of other phases in Al-Ti-La-Si alloy held for 15 min. It can be seen that the white phases in Figure 10a,d,e are La5Si3 phase, La5Si4 phase and LaSi phase, respectively, and the corresponding SAED analysis further confirms the existence of these phases.
From the above analysis, it can be seen that after Si element is added to Al-Ti-La alloy, new rare earth phases La5Si3, La5Si4 and LaSi are formed, among which La5Si4 phase is not found in XRD and SEM analysis of Al-Ti-La-Si alloy. In order to analyze this reason, the formation energies of rare earth phases La5Si3, La5Si4 and LaSi were calculated. The formation energies of La5Si3, La5Si4 and LaSi were −0.679 eV, −0.772 eV and 0.001 eV, respectively, indicating that La5Si3 and LaSi could exist stably. La5Si4 is not stable. Studies have shown [25] that the space group where La5Si4 phase resides is P41212, which is in metastable state and tends to decompose into La5Si3 and LaSi. Therefore, La5Si3 and LaSi phases are the main phases that can exist stably in large quantities at room temperature.
Figure 11 shows the SEM and EDS analysis of Al-Ti-La-Si alloy held for 30 min. It can be seen from the figure that the phase shape of Ti2Al20La becomes more rounded and smaller. The region 1 in Figure 11a is enlarged as shown in Figure 11b. Combined with the surface scanning results (Figure 11c–f), it is shown that some Si elements are distributed around the Ti2Al20La phase. In particular, it can be seen from the EDS scanning results of Point 1, Figure 11g, that there is a small amount of Si elements in the Ti2Al20La phase. And the atomic ratio of (Al, Si): Ti: La is close to 20:2:1, which is mainly due to the similar atomic radius of Al and Si atoms. Si atoms will replace part of Al atoms in Ti2Al20La, resulting in a decrease in the proportion of Al atoms [26]. A small number of Si atoms (1.96 At.%) exist in the matrix of Ti2Al20La, forming the Ti2(Al20−x,Six)La phase with the same structure as Ti2Al20La. As shown in Figure 11h,i of EDS point scan results at Points 2 and 3, the white rod-like structure is La-Si binary phase and the gray structure is eutectic Si.
Figure 12 shows the SEM and EDS analysis of Al-Ti-La-Si alloy held for 60 min. It can be seen from the figure that the size of Ti2Al20La phase after holding for 60 min is smaller than that after holding for 30 min. The region 1 in Figure 12a was enlarged, as shown in Figure 12b, and the element surface scanning analysis of Figure 12b showed that the aggregation distribution of Si elements was more obvious around the Ti2Al20La phase, and the EDS point scanning results at the junction Point 1 showed that the ratio of Si elements in the Ti2Al20La phase increases to 2.89At. %, but the ratio of (Al, Si):Ti:La atoms is still close to 20:2:1, indicating that the trend of Si atoms replacing Al atoms is more obvious. As shown in Figure 12h,i of EDS point scan results at Points 2 and 3, the white rod-like structure is La-Si binary phase and the gray structure is eutectic Si.
Figure 13 shows the interfacial relationship analysis between Ti2(Al20−x,Six)La phase and eutectic Si in Al-Ti-La-Si alloy held for 60 min. Combined with EDS surface scanning and line scanning, it is found that Si elements exist at the boundary and inside of rare earth phase Ti2Al20La. In order to further analyze the orientation relationship between Si and Ti2(Al20−x,Six)La phase, high-resolution analysis, inverse Fourier transform analysis and diffraction spot calibration of the interface were carried out, as shown in Figure 13b–d. The results show that the atoms at the interface of Si and Ti2(Al20−x,Six)La phase are arranged neatly without obvious lattice distortion. Due to the existence of atomic distortion in the process of Si replacing Al atom, the internal lattice fringe of Ti2(Al20−x,Six)La is locally deformed and distorted [27]. Ti2(Al20−x,Six)La and Ti2Al20La belong to the same face-centered cubic structure. The comparison between the theoretical standard diffraction spots of Ti2Al20La and the actual diffraction spots of Ti2(Al20−x,Six)La is shown in the illustration in Figure 13d. The black dots in the figure represent the crystal face existing in the theoretical Ti2Al20La. The black circles are diffraction spots resulting from extinction on a particular crystal plane, and the red dots are the actual diffraction spots of Ti2(Al20−x,Six)La. Due to the action of Si, superlattice diffraction spots reappear at (100), (200), (300) and (400) crystal planes, indicating that the Ti2(Al20−x,Six)La has a long-period structure. Due to the transition of the crystal structure of Ti2(Al20−x,Six)La from disorder to order [28], its period is four times that of Ti2Al20La and its lattice structure is similar to that of Ti2Al20La. Ti2(Al20−x,Six)La crystal face spacing d = 0.238 nm is lower than Ti2Al20La’s d = 0.39 nm. This shows that Si does not react directly with Ti2Al20La to form the Ti2(Al20−x,Six)La phase, but forms the Ti2(Al20−x,Six)La phase by diffusing into the lattice of Ti2Al20La to replace Al atoms in certain positions.
Crystalmaker 11 software was used to draw the atomic structure model of Ti2(Al20−x,Six)La, as shown in Figure 14. The atomic radii of Al, Si, Ti and La were 1.25 nm, 1.11 nm, 1.9 nm and 1.95 nm, respectively [29], in which the atomic radii of Al and Si were similar. The atomic radius of Si, Ti and La atoms differs greatly. Therefore, Si will replace the positions of some low-energy Al atoms in Ti2Al20La, forming Ti2(Al20−x,Six)La phase, which has a similar structure to Ti2Al20La. Due to the small radius of Si atom, the lattice spacing of Ti2(Al20−x,Six)La phase after replacement is smaller than Ti2Al20La.

4. Conclusions

The content, shape size and structure of Ti2Al20La phase in Al-Ti-La intermediate alloy with Si addition under different holding times were studied. The main conclusions of this paper are as follows:
(1)
The aspect ratio of Ti2Al20La phase in Al-3Ti-4.35 intermediate alloy with a holding time of 15 min at 750 °C is 2.0 (with 2.3 wt% Si addition), which has the efficient refining and modification effects, although the volume fraction of Ti2Al20La phase decreased significantly from 21% (without Si addition) to 4% (with 2.3 wt% Si addition), respectively.
(2)
The Si in the Al-Ti-La intermediate alloy will attach to the Ti2Al20La phase, which is the main reason for the avoidance of the “Si poisoning effect” with the addition of Al-Ti-La alloy to Al-7Si alloy. Meanwhile, some new rare earth phases La5Si3, La5Si4 and LaSi will form and distribute in the grain boundary of α-Al.
(3)
With the increase of holding time from 15 min to 60 min, Si will replace the positions of some low-energy Al atoms in Ti2Al20La, forming Ti2(Al20−x,Six)La phase, which has a similar structure to Ti2Al20La and has refining and modification effects.

Author Contributions

Conceptualization, H.D.; Resources, X.T., H.Y. and J.A.; Data curation, J.A., H.D., H.Y. and X.T.; Investigation W.D., X.T. and J.A.; Methodology, H.D., J.C. and X.T.; Writing—original draft preparation, H.Y. and H.Z.; Writing—review and editing, W.D. and J.A.; Supervision, W.D. and J.C.; Project administration, W.D., H.Z. and J.C; Funding acquisition, W.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China [grant number 52161006]. Industrial Support Plan Project of Gansu Provincial Department of Education (2021CYZC-23). Central Guidance for Local Scientific and Technological Development Funding Projects (23ZYQB309). Gansu Provincial Science and Technology Major Project (22ZD6GB019).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Conflicts of Interest

Author Hu Da was employed by the Gansu Computing Center. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Petrov, I.; Shlyaptseva, A.; Ryakhovsky, A.; Medvedeva, E.; Tcherdyntsev, V. Effect of Rubidium on Solidification Parameters, Structure and Operational Characteristics of Eutectic Al-Si Alloy. Metals 2023, 13, 1398. [Google Scholar] [CrossRef]
  2. Dash, S.; Chen, D. A Review on Processing-Microstructure-Property Relationships of Al-Si Alloys: Recent Advances in Deformation Behavior. Metals 2023, 13, 609. [Google Scholar] [CrossRef]
  3. Pammer, M.; Pölzl, J.; Li, J. Silicon Poisoning and Effects of Tantalum on Al-Si Alloys. Metals 2023, 12, 1917. [Google Scholar] [CrossRef]
  4. Callegari, B.; Tiago, N.; Rodrigo, S. The Influence of Alloying Elements on the Microstructure and Properties of Al-Si-Based Casting Alloys: A Review. Metals 2023, 13, 1174. [Google Scholar] [CrossRef]
  5. Shlyaptseva, A.; Petrov, I.; Ryakhovsky, A.; Medvedeva, E.; Tcherdyntsev, V. Complex Structure Modification and Improvement of Properties of Aluminium Casting Alloys with Various Silicon Content. Metals 2021, 11, 1946. [Google Scholar] [CrossRef]
  6. Wang, Y.; Que, Z.; Hashimoto, T.; Zhou, X.; Fan, Z. Mechanism for Si poisoning of Al-Ti-B grain refiners in Al alloys. Metall. Mater. Trans. A 2020, 51, 5743. [Google Scholar] [CrossRef]
  7. Banerji, A.; Reif, W.; Feng, Q. Metallographic investigation of TiC nucleants in the newly developed Al-Ti-C grain refiner. J. Mater. Sci. 1994, 29, 1958. [Google Scholar] [CrossRef]
  8. Uludağ, M. Influence of Al-B grain refiner on porosity formation of directionally solidified Al-Si alloys. China Foundry 2020, 17, 372. [Google Scholar] [CrossRef]
  9. Powell, G.; Colligan, G.A. Silicon morphology in sodium modified Al-Si eutectic alloys. Mater. Res. Bull. 1970, 5, 431. [Google Scholar] [CrossRef]
  10. Huang, C.; Liu, Z.; Li, J. Influence of alloying element mg on Na and Sr modifying Al-7Si hypoeutectic alloy. Materials 2022, 15, 1537. [Google Scholar] [CrossRef]
  11. Elgallad, E.M.; Ibranhim, M.F.; Doty, H.W. Microstructural characterisation of Al-Si cast alloys containing rare earth additions. Philos. Mag. 2018, 98, 1337. [Google Scholar] [CrossRef]
  12. Li, Y.; Jiang, Y.; Hu, B. Novel Al-Ti-Nb-B Grain Refiners with Superior Efficiency for Al-Si Alloys. Scr. Mater. 2020, 187, 262–267. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Ye, C.; Shen, Y.; Chang, W. Grain refinement of hypoeutectic Al-7wt.% Si alloy induced by an Al-V-B master alloy. J. Alloys Compd. 2020, 812, 152022. [Google Scholar] [CrossRef]
  14. Zhang, H.; Chen, G.; Zhang, Z.; Zhao, Y.; Mu, S. Study on the grain refinement of A356 alloy by Al-3wt.%VN master alloy. Mater. Sci. Technol. 2020, 36, 819. [Google Scholar] [CrossRef]
  15. Jiang, B.; Jiang, B.; Yang, W.; Wang, Y.; Xu, H. Efficient modification eutectic Si of Al-10Si alloy with Mg-Gd master alloy addition. Mater. Lett. 2024, 361, 136071. [Google Scholar] [CrossRef]
  16. Pozdniakov, A.V.; Glavatskikh, M.V.; Makhov, S.V.; Napalkov, V.L. The synthesis of novel powder master alloys for the modification of primary and eutectic silicon crystals. Mater. Lett. 2014, 128, 325. [Google Scholar] [CrossRef]
  17. Cui, X.; Wu, Y.; Gao, T.; Liu, X. Preparation of a Novel Al–3B–5SR Master Alloy and Its Modification and Refinement Performance on A356 Alloy. J. Alloy. Compd. 2014, 615, 906–911. [Google Scholar] [CrossRef]
  18. Qiu, C.; Miao, S.; Li, X.; Xia, X.; Ding, J.; Wang, Y.; Zhao, W. Effect of Sr and La on the Microstructure and Mechanical Properties of A356.2 Alloy. Mater Des. 2017, 114, 563–571. [Google Scholar] [CrossRef]
  19. Zhao, H.; Bai, H.; Wang, J.; Guan, S. Preparation of Al-Ti-C-Sr Master Alloys and Their Refining Efficiency on A356 Alloy. Mater. Charact. 2009, 5, 377–383. [Google Scholar] [CrossRef]
  20. Wang, X.; Xu, C.; Muhammad, A.; Hanada, S.; Yamagata, H.; Wang, W.; Ma, C. Effects of Al-Ti-B-Re Grain Refiner on Microstructure and Mechanical Properties of al-7.0si-0.55mg Alloy. Trans. Nonferrous Met. Soc. 2014, 7, 22–50. [Google Scholar] [CrossRef]
  21. Quan, S.; Liu, C.; Jiang, W.; Zhang, X. First-Principles Investigation of the Mechanical, Anisotropic and Thermodynamic Properties of RET2AL20 (Re = La, Ce, Gd, T = Ti, V). Phys. B 2019, 554, 64–71. [Google Scholar] [CrossRef]
  22. Xu, C.; Xiao, W.; Zhao, W.; Wang, W.; Hanada, S.; Yamagata, H.; Ma, C. Microstructure and Formation Mechanism of Grain-Refining Particles in Al-Ti-C-Re Grain Refiners. J. Rare Earth. 2015, 5, 53–60. [Google Scholar] [CrossRef]
  23. Ding, W.; Gou, L.; Hu, L.; Zhang, H.; Zhao, W.; Ma, J.; Qiao, J.; Li, X. Modification of Eutectic Si in Hypoeutectic Al-Si Alloy with Novel Al-3Ti-4.35La Master Alloy. J. Alloy. Compd. 2022, 929, 167350. [Google Scholar] [CrossRef]
  24. Pandee, P.; Uthaisangsuk, S. Structure-Mechanical Property Relationships of In-Situ A356/Al3Zr Composites. Mater. Sci. Eng. 2023, 886, 144673. [Google Scholar] [CrossRef]
  25. Li, C.; Pan, Y.; Lu, T.; Jiang, L.; Pi, J. Effects of Ti and La Additions on the Microstructures and Mechanical Properties of B-Refined and SR-Modified Al-11Si Alloys. Metal. Mater. Int. 2018, 5, 1133–1142. [Google Scholar] [CrossRef]
  26. Jain, A.; Ong, S.; Hautier, G.; Chen, W. Commentary: The Materials Project: A Materials Genome Approach to Accelerating Materials Innovation. APL Mater. 2013, 1, 2–11. [Google Scholar] [CrossRef]
  27. Jian, W.; Xie, Z.; Xu, S.; Su, Y.; Yao, X.; Beyerlein, I. Effects of Lattice Distortion and Chemical Short-Range Order on the Mechanisms of Deformation in Medium Entropy Alloy CoCrNi. Acta Mater. 2020, 199, 352–369. [Google Scholar] [CrossRef]
  28. Chen, H.; Benedetti, T.; Gonçales, V.; Bedford, N.; Scott, R.; Webster, R.; Cheong, S.; Gooding, J.; Tilley, R. Preserving the Exposed Facets of Pt3Sn Intermetallic Nanocubes during an Order to Disorder Transition Allows the Elucidation of the Effect of the Degree of Alloy Ordering on Electrocatalysis. J. Am. Chem. Soc. 2020, 6, 3231–3239. [Google Scholar] [CrossRef] [PubMed]
  29. National Center for Biotechnology Information. Atomic Radius in the Periodic Table of Elements. 2024. Available online: https://pubchem.ncbi.nlm.nih.gov/periodic-table/atomic-radius (accessed on 5 April 2024).
Materials 17 03134 g001

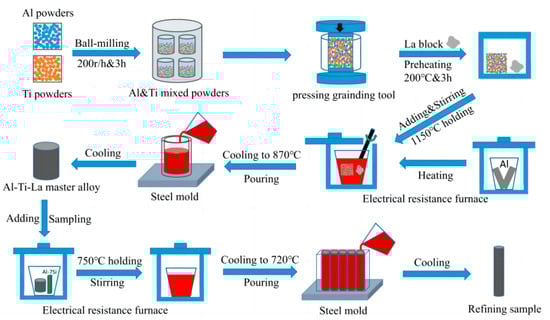

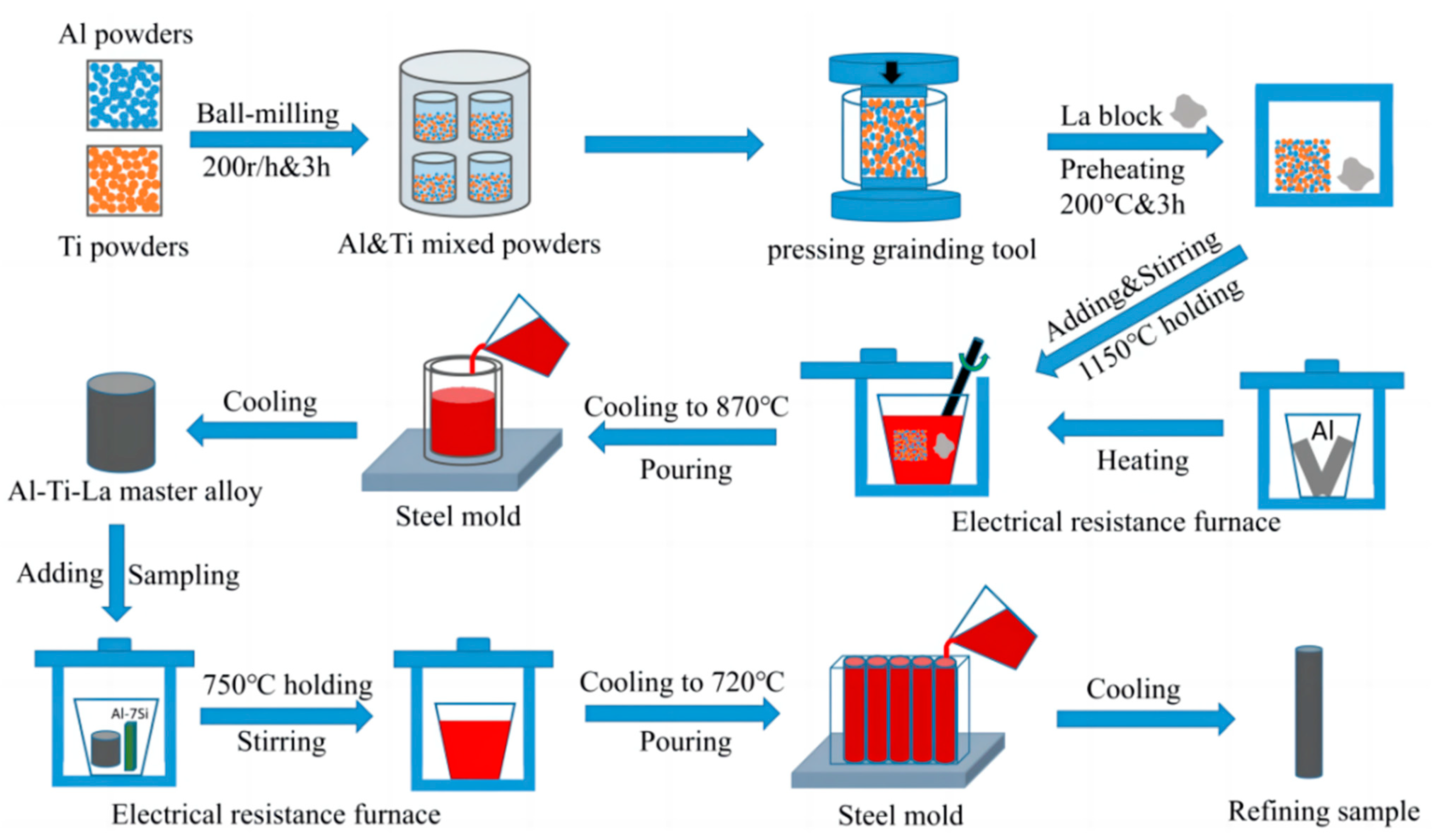

Figure 1. Experimental flow chart.
Figure 1. Experimental flow chart.
Materials 17 03134 g001
Materials 17 03134 g002

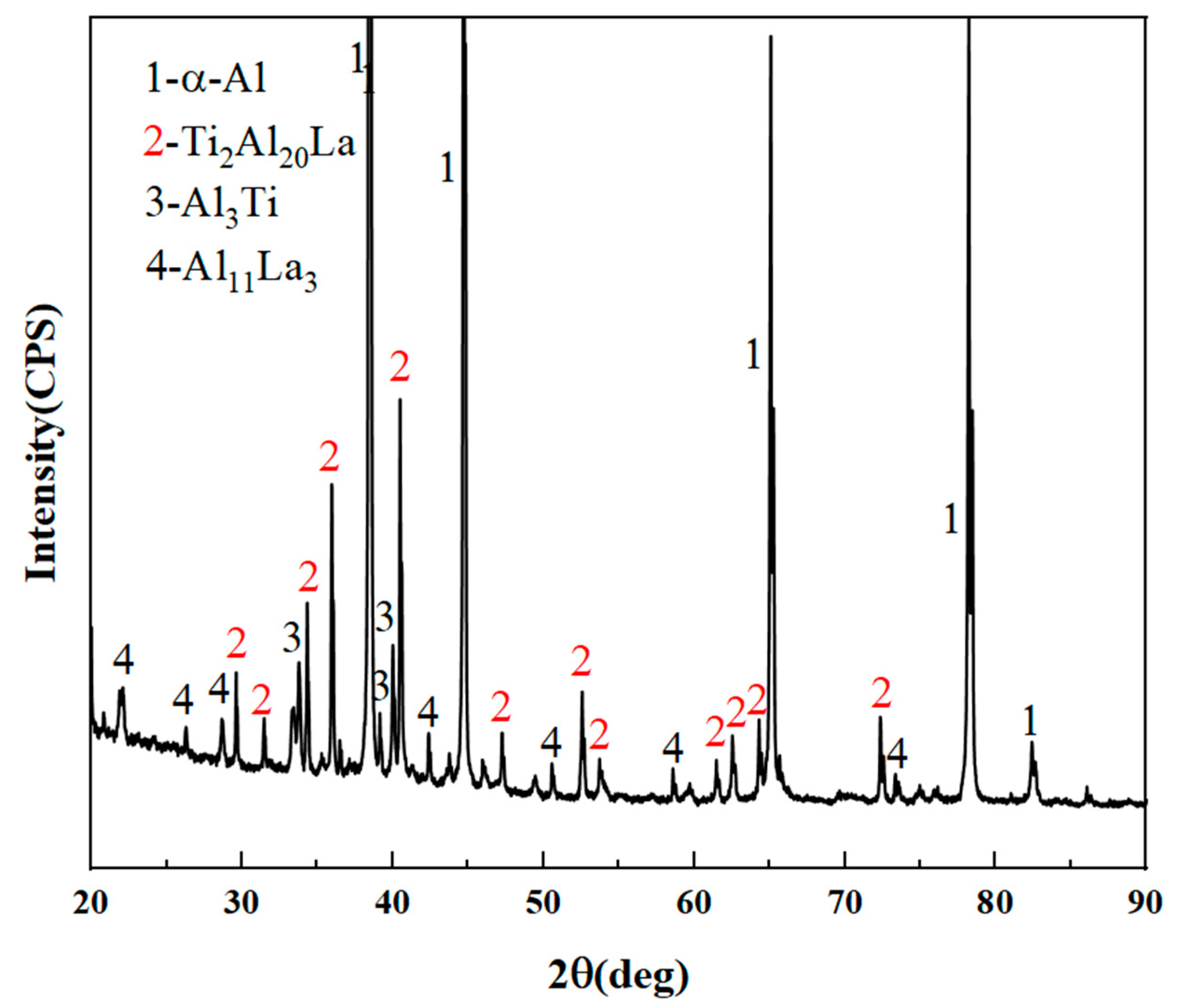

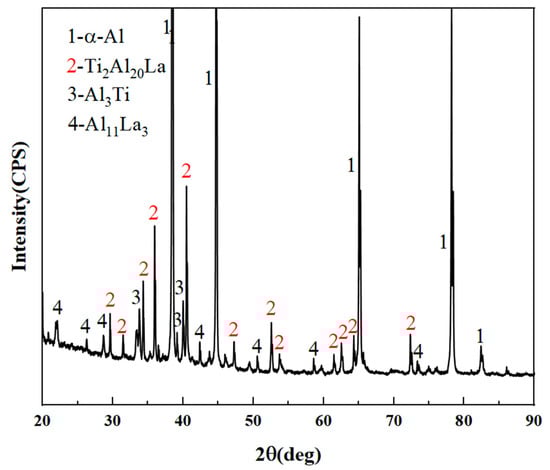

Figure 2. XRD pattern of Al-Ti-La intermediate alloy.
Figure 2. XRD pattern of Al-Ti-La intermediate alloy.
Materials 17 03134 g002
Materials 17 03134 g003

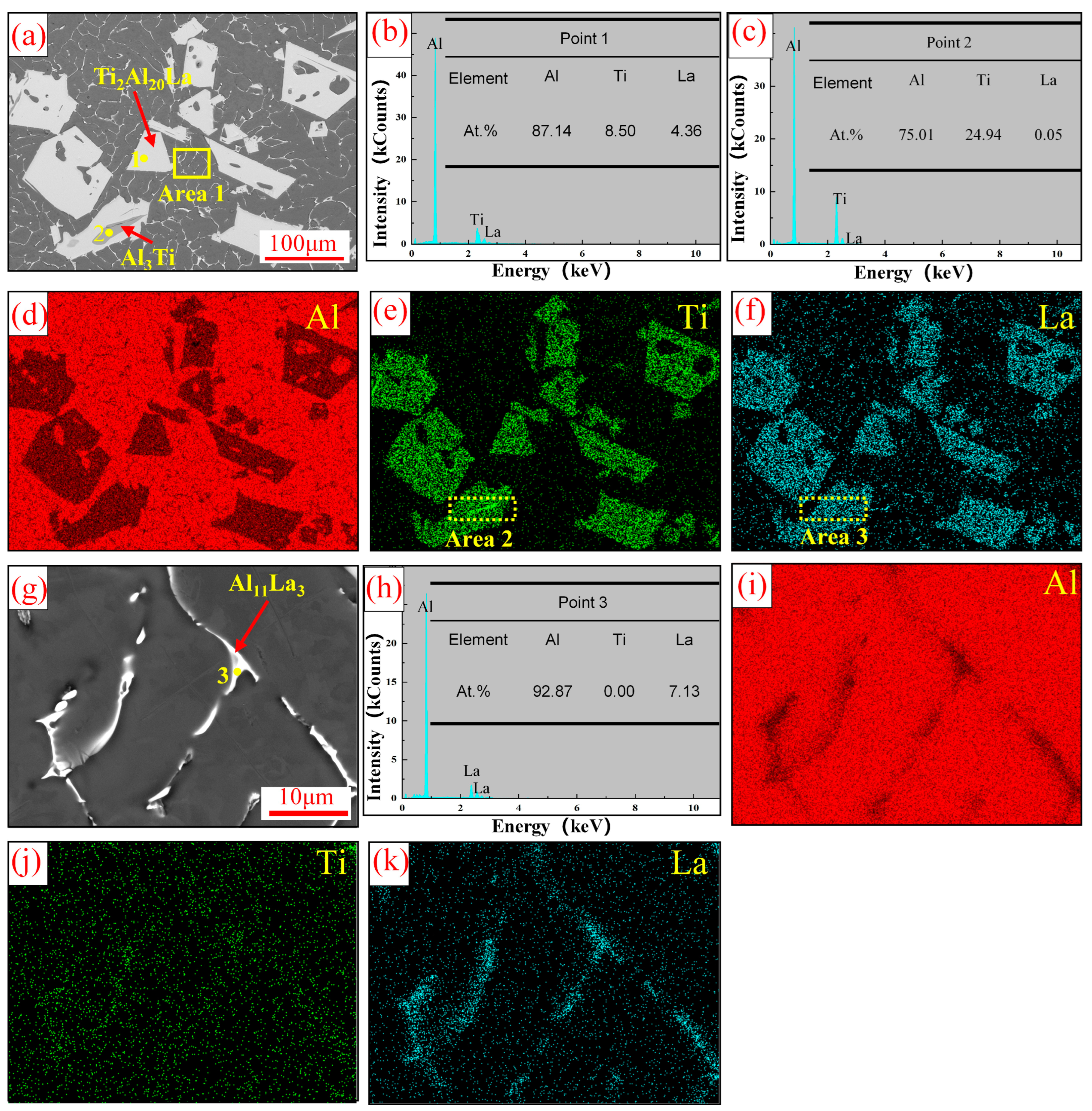

Figure 3. SEM and EDS results of Al-Ti-La intermediate alloy: (a) SEM; (b,c) are EDS point analysis results at Points 1 and 2 in (a); (d–f) shows the face scanning distribution of Al, Ti and La elements in (a); (g) The enlarged area of Area 1 in (a); (h) The EDS point analysis results at Point 3 in (g) are shown. (i–k) is the mapping of Al, Ti and La elements in (g).
Figure 3. SEM and EDS results of Al-Ti-La intermediate alloy: (a) SEM; (b,c) are EDS point analysis results at Points 1 and 2 in (a); (d–f) shows the face scanning distribution of Al, Ti and La elements in (a); (g) The enlarged area of Area 1 in (a); (h) The EDS point analysis results at Point 3 in (g) are shown. (i–k) is the mapping of Al, Ti and La elements in (g).
Materials 17 03134 g003
Materials 17 03134 g004

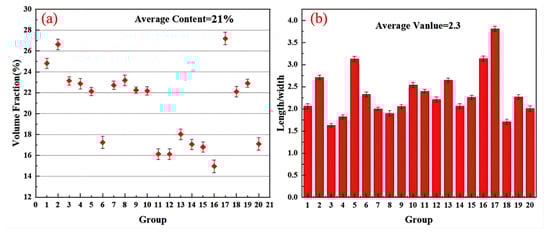

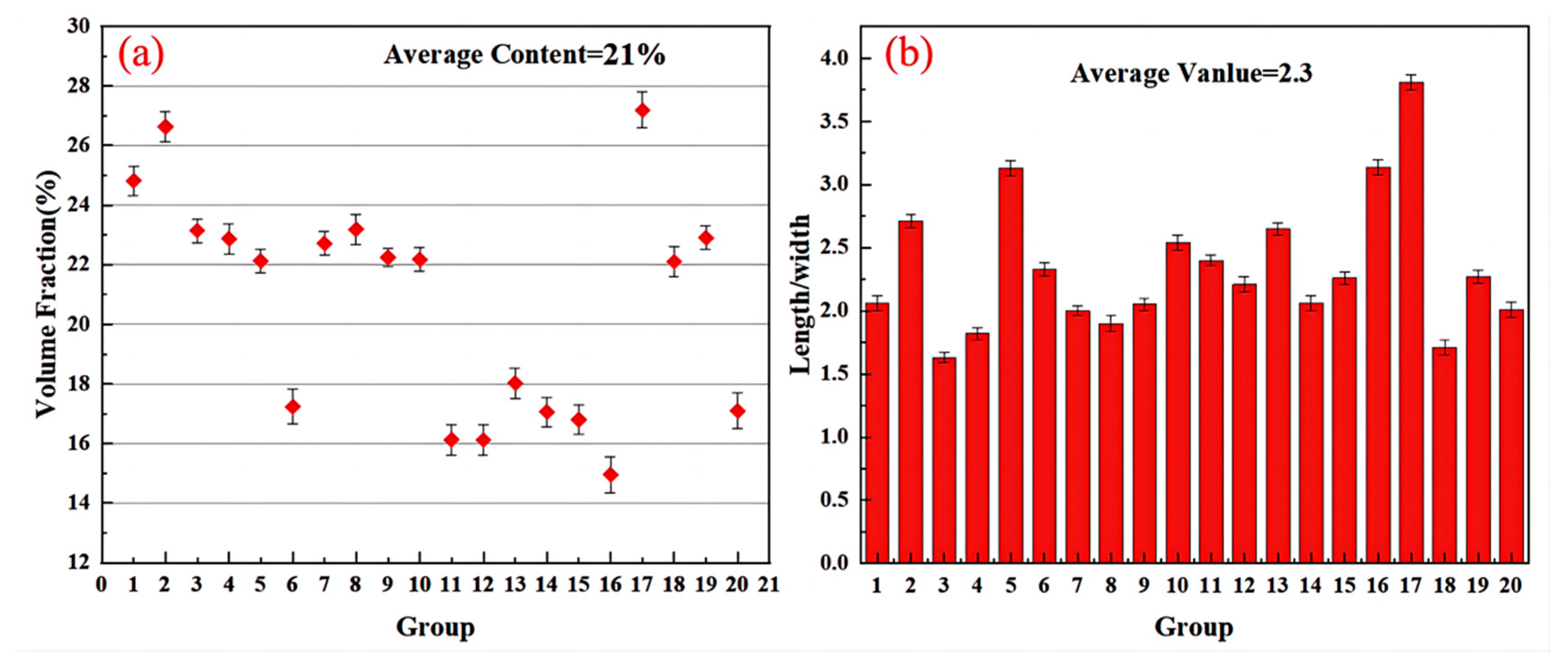

Figure 4. Volume fraction and size distribution of Ti2Al20La phase in Al-Ti-La alloy: (a) Ti2Al20La phase volume fraction diagram; (b) Ti2Al20La phase width ratio layout.
Figure 4. Volume fraction and size distribution of Ti2Al20La phase in Al-Ti-La alloy: (a) Ti2Al20La phase volume fraction diagram; (b) Ti2Al20La phase width ratio layout.
Materials 17 03134 g004
Materials 17 03134 g005

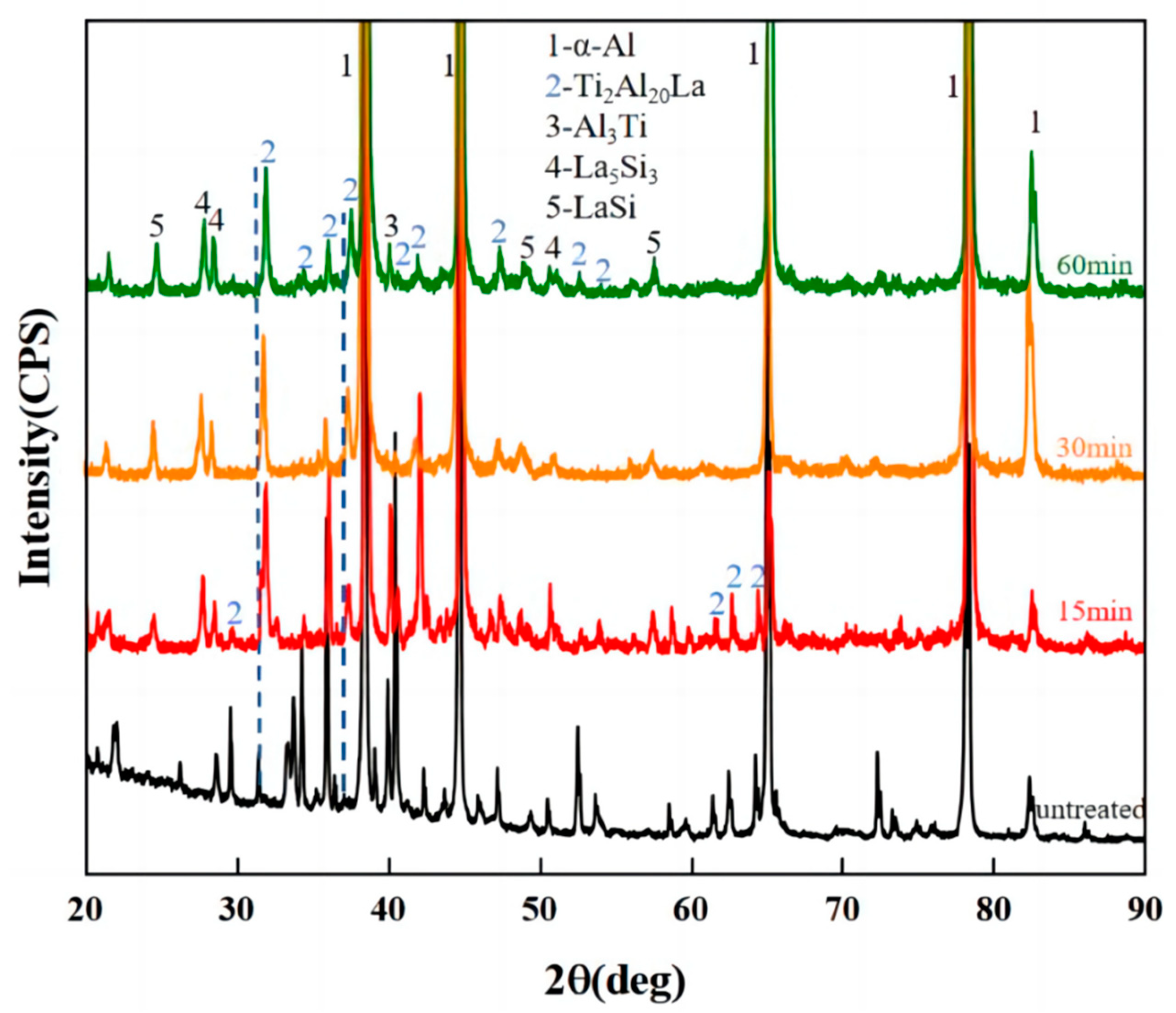

Figure 5. XRD pattern of Al-Ti-La-Si alloy at different holding times.
Figure 5. XRD pattern of Al-Ti-La-Si alloy at different holding times.
Materials 17 03134 g005
Materials 17 03134 g006

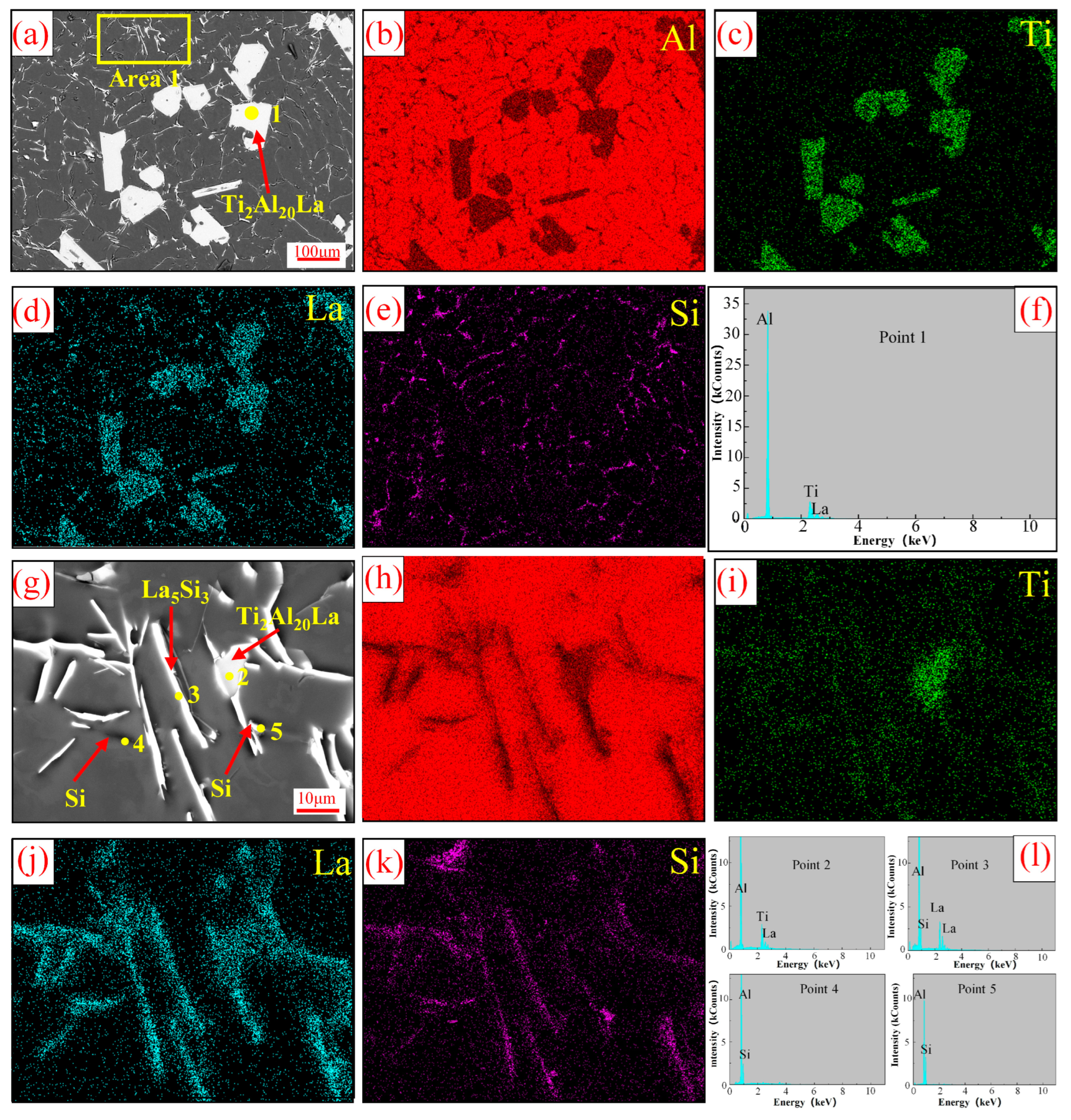

Figure 6. SEM and EDS results of Al-Ti-La-Si alloy held for 15 min: (a) SEM; (b–e) face scan distribution of Al, Ti, La and Si elements in (a); (f) EDS point analysis results at Point 1 in (a); (g) the enlarged area of Area 1 (a); (h–k) mapping of Al, Ti, La and Si elements in (g); (l) EDS point analysis spectra of Point 2, Point 3, Point 4 and Point 5 in (g).
Figure 6. SEM and EDS results of Al-Ti-La-Si alloy held for 15 min: (a) SEM; (b–e) face scan distribution of Al, Ti, La and Si elements in (a); (f) EDS point analysis results at Point 1 in (a); (g) the enlarged area of Area 1 (a); (h–k) mapping of Al, Ti, La and Si elements in (g); (l) EDS point analysis spectra of Point 2, Point 3, Point 4 and Point 5 in (g).
Materials 17 03134 g006
Materials 17 03134 g007

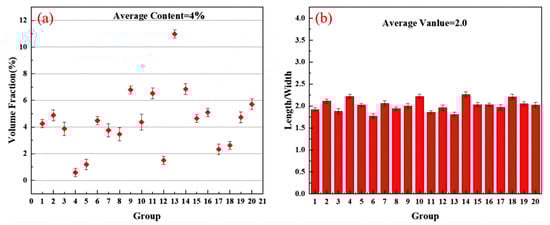

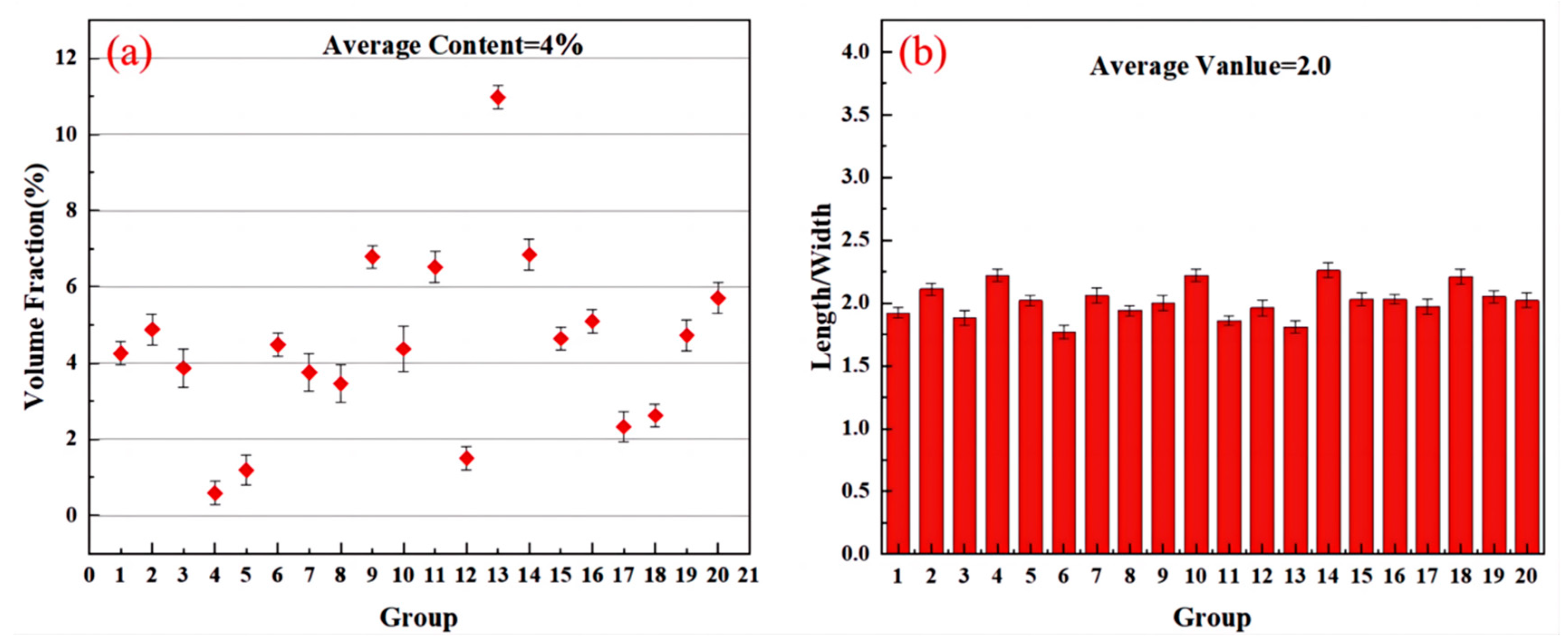

Figure 7. Volume fraction and size distribution of Ti2Al20La in Al-Ti-La-Si held for 15 min: (a) second phase volume fraction diagram; (b) second phase length and width ratio of the layout.
Figure 7. Volume fraction and size distribution of Ti2Al20La in Al-Ti-La-Si held for 15 min: (a) second phase volume fraction diagram; (b) second phase length and width ratio of the layout.
Materials 17 03134 g007
Materials 17 03134 g008

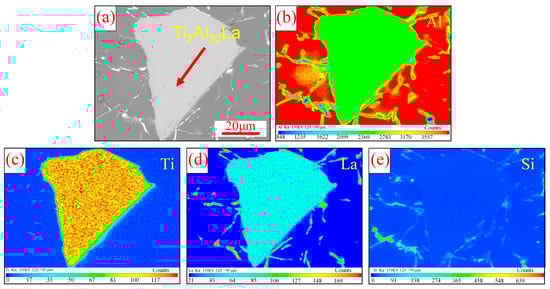

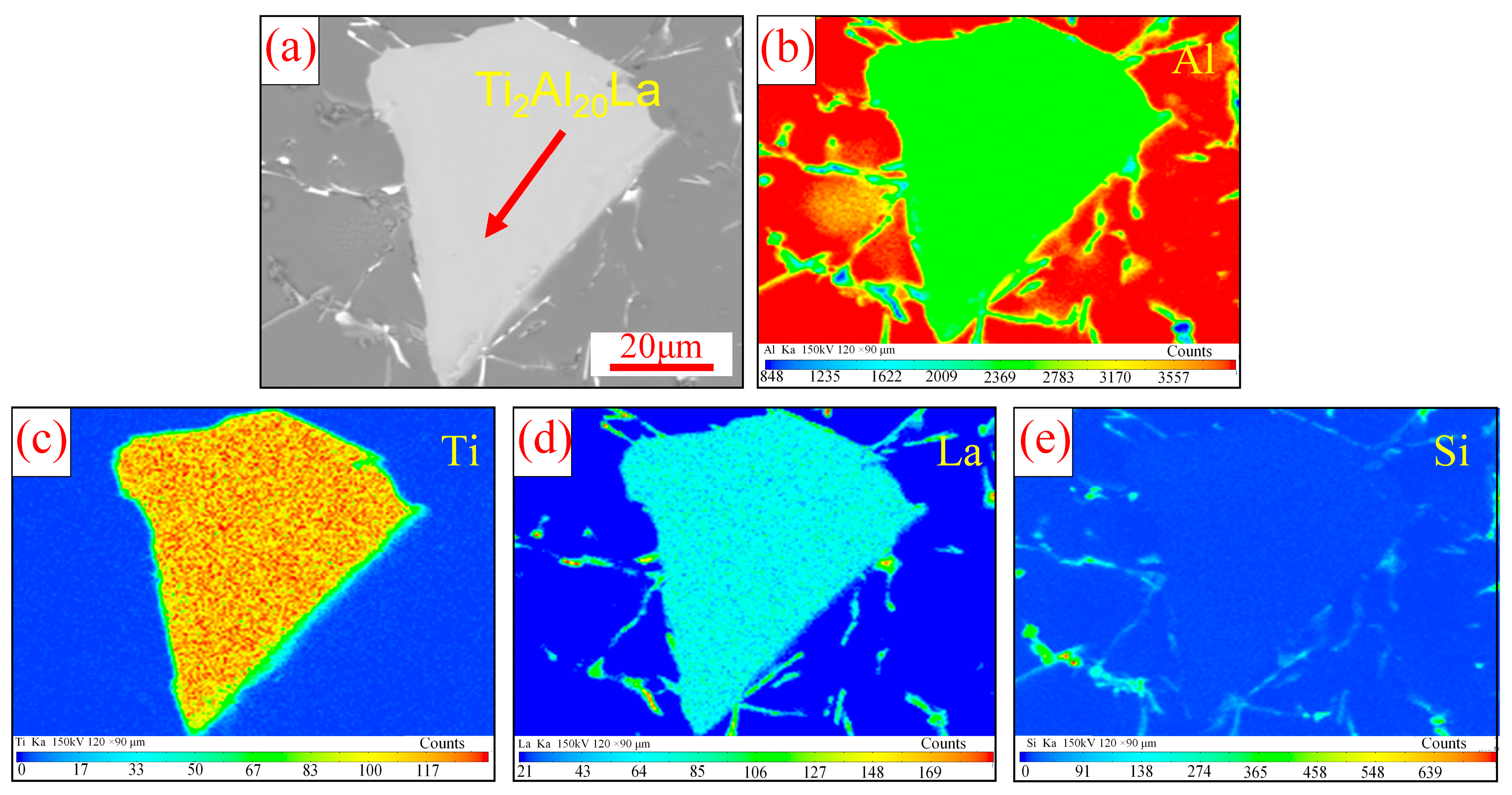

Figure 8. EPMA analysis of Ti2Al20La in Al-Ti-La-Si alloy held for 15 min: (a) SEM image of Ti2Al20La; (b–e) mapping of Al, Ti, La and Si elements in Figure 8.
Figure 8. EPMA analysis of Ti2Al20La in Al-Ti-La-Si alloy held for 15 min: (a) SEM image of Ti2Al20La; (b–e) mapping of Al, Ti, La and Si elements in Figure 8.
Materials 17 03134 g008
Materials 17 03134 g009

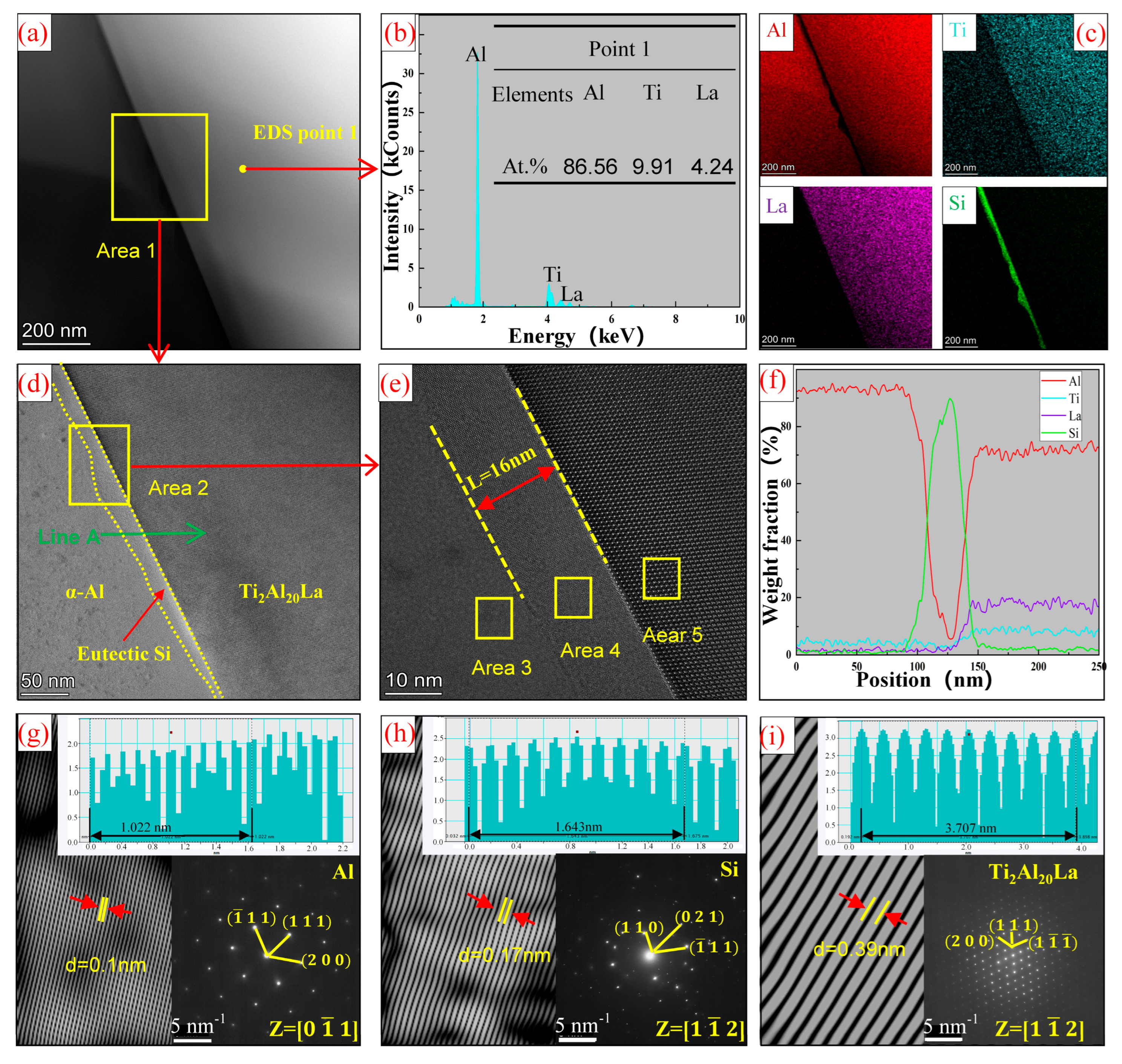

Figure 9. (a) Bright field image of Ti2Al20La phase in Al-Ti-La-Si alloy held for 15 min; (b) EDS point analysis energy spectrum at Point 1 in (a); (c) mapping of Al, Ti, La and Si elements in (a); (d) enlarged Area 1 of the interface between Ti2Al20La phase and eutectic Si in (a); (e) High-resolution HAADF diagram of Area 2 in (d); (f) scan results of Line A in (d); (g–i) are the inverse Fourier transform graphs in Area 3, Area 4 and Area 5 in (e), respectively.
Figure 9. (a) Bright field image of Ti2Al20La phase in Al-Ti-La-Si alloy held for 15 min; (b) EDS point analysis energy spectrum at Point 1 in (a); (c) mapping of Al, Ti, La and Si elements in (a); (d) enlarged Area 1 of the interface between Ti2Al20La phase and eutectic Si in (a); (e) High-resolution HAADF diagram of Area 2 in (d); (f) scan results of Line A in (d); (g–i) are the inverse Fourier transform graphs in Area 3, Area 4 and Area 5 in (e), respectively.
Materials 17 03134 g009
Materials 17 03134 g010

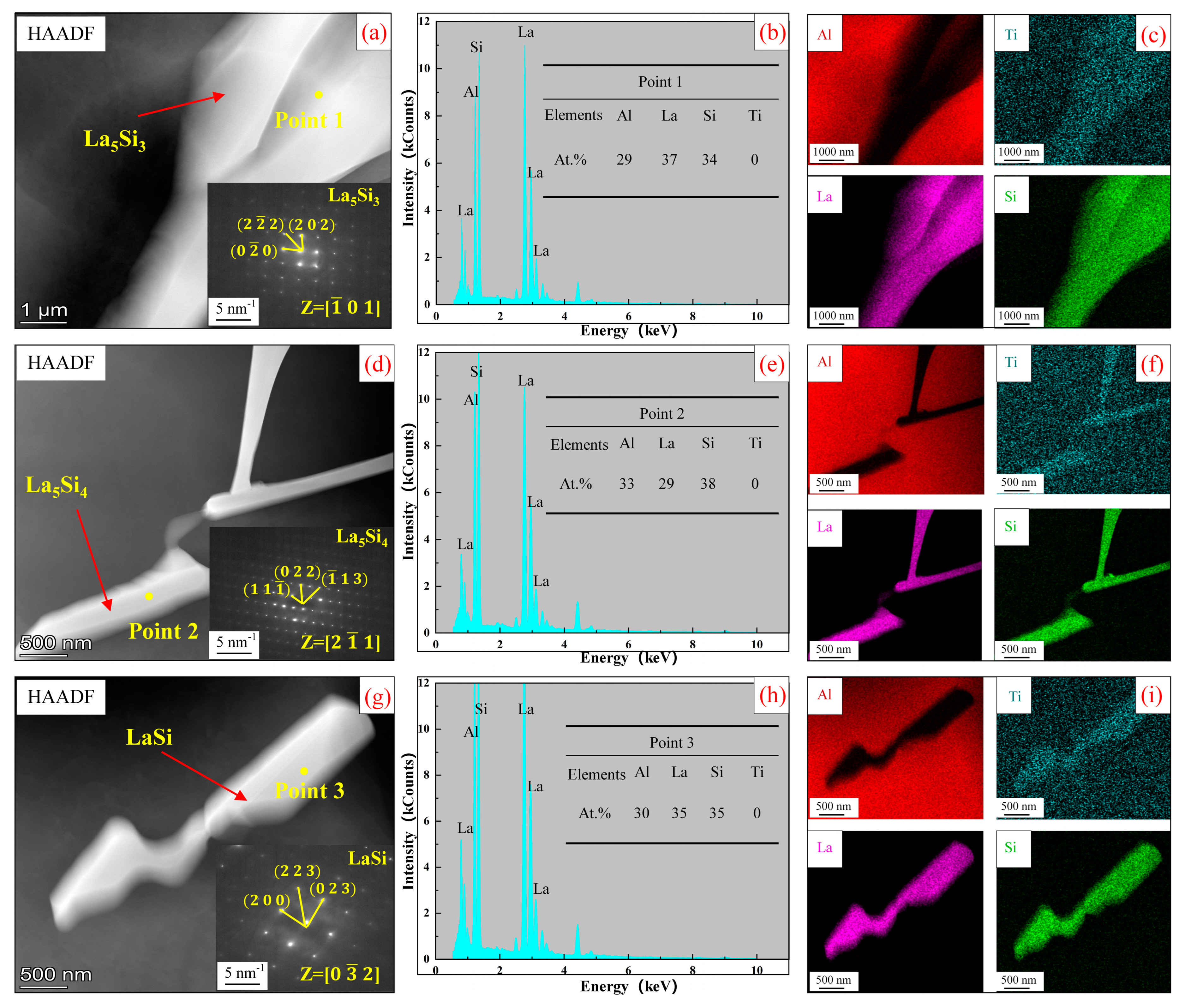

Figure 10. (a,d,g) are HAADF images of other rare earth phases in Al-Ti-La-Si alloy held for 15 min. (b,e,h) EDS point analysis energy spectra of Point 1, Point 2 and Point 3 in (a,d,g); (c,f,i) mapping of Al, Ti, La and Si elements in (a,d,g).
Figure 10. (a,d,g) are HAADF images of other rare earth phases in Al-Ti-La-Si alloy held for 15 min. (b,e,h) EDS point analysis energy spectra of Point 1, Point 2 and Point 3 in (a,d,g); (c,f,i) mapping of Al, Ti, La and Si elements in (a,d,g).
Materials 17 03134 g010
Materials 17 03134 g011

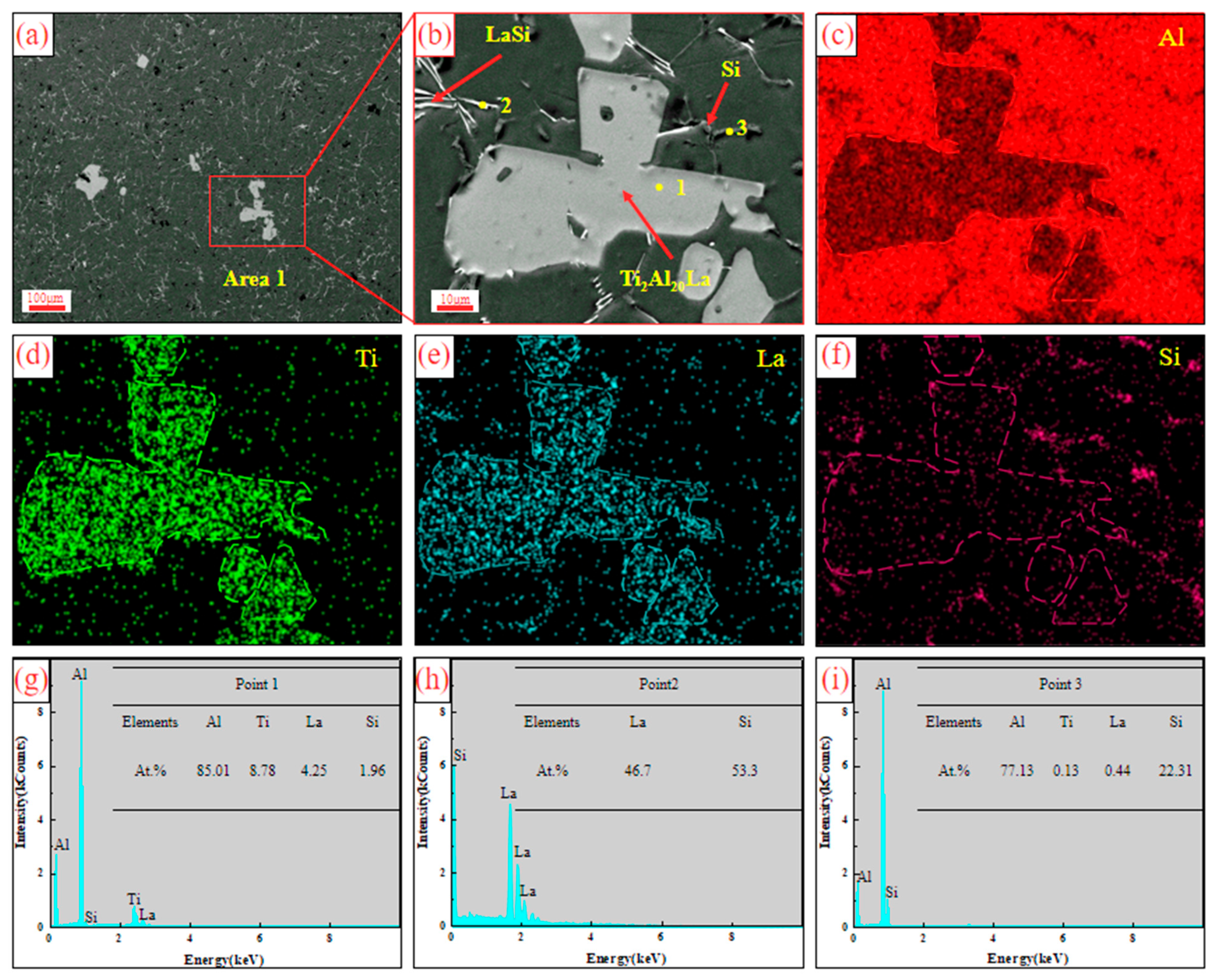

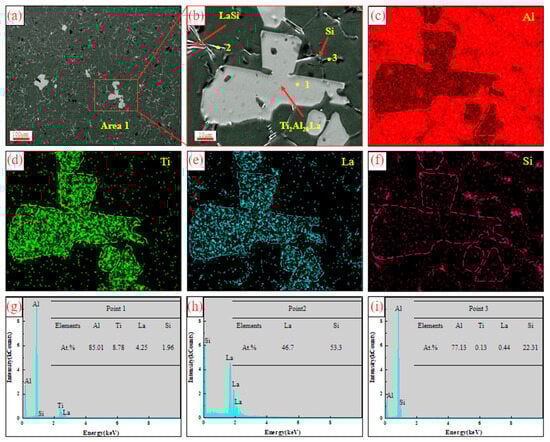

Figure 11. SEM and EDS results of Al-Ti-La-Si alloy held for 30 min: (a) SEM; (b) enlarged view of Area 1 in (a); (c–f) is the mapping of Al, Ti, La and Si elements in (b); (g–i) is the EDS point analysis energy spectrum of Point 1, Point 2 and Point 3 in (b).
Figure 11. SEM and EDS results of Al-Ti-La-Si alloy held for 30 min: (a) SEM; (b) enlarged view of Area 1 in (a); (c–f) is the mapping of Al, Ti, La and Si elements in (b); (g–i) is the EDS point analysis energy spectrum of Point 1, Point 2 and Point 3 in (b).
Materials 17 03134 g011
Materials 17 03134 g012

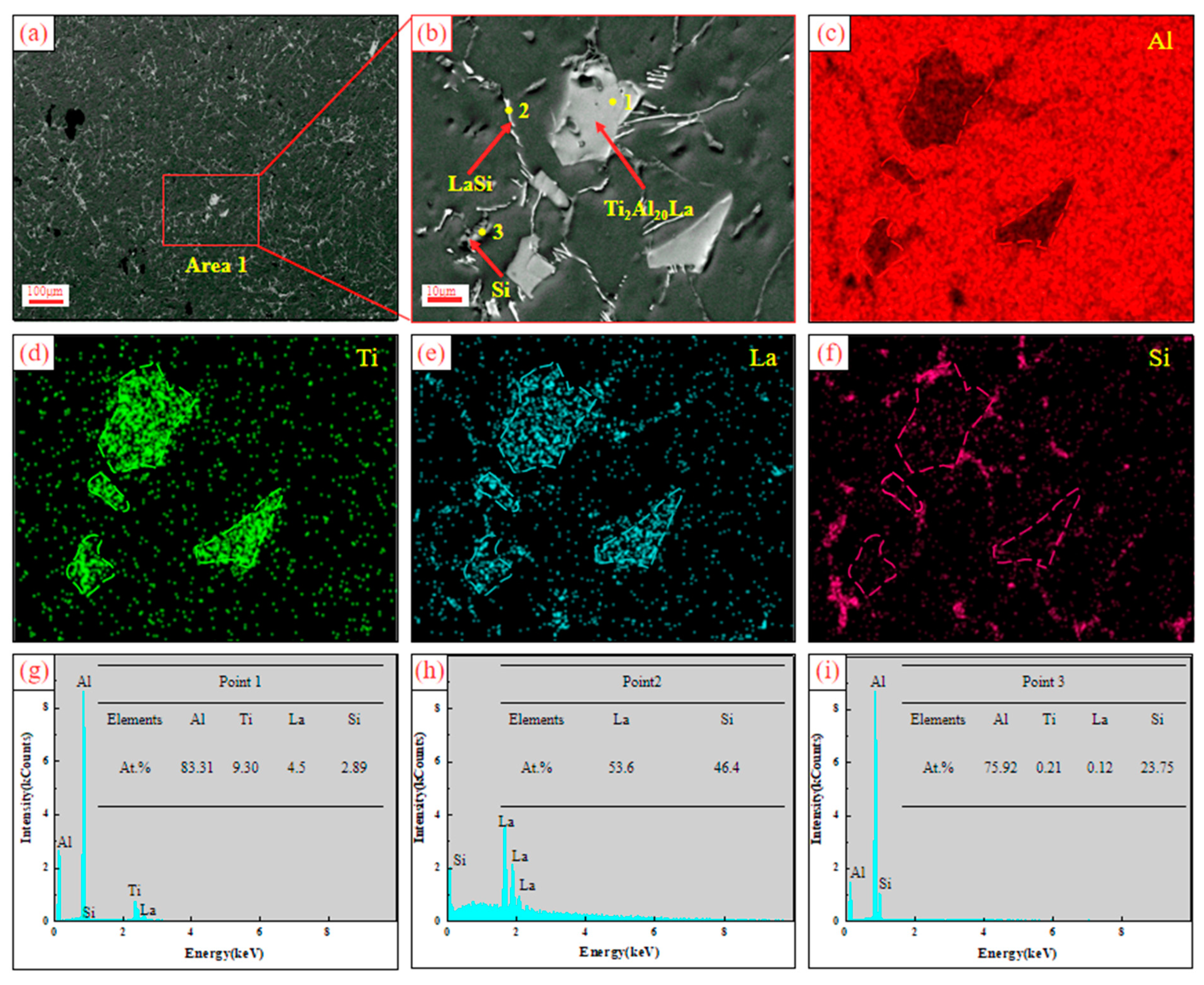

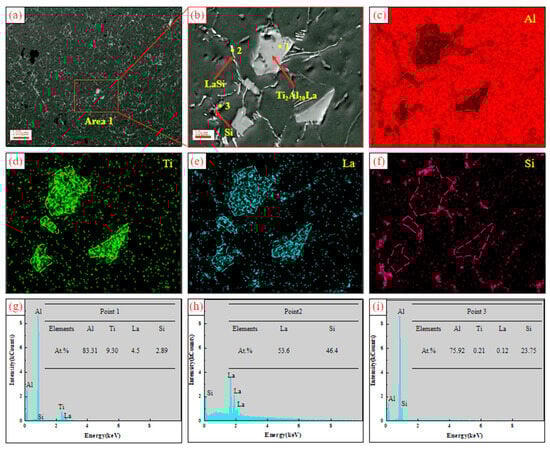

Figure 12. SEM and EDS results of Al-Ti-La-Si alloy held for 60 min: (a) SEM; (b) enlarged view of Area 1 in (a); (c–f) mapping of Al, Ti, La and Si elements in (b); (g–i) EDS point analysis energy spectra of Point 1, Point 2 and Point 3 in (b).
Figure 12. SEM and EDS results of Al-Ti-La-Si alloy held for 60 min: (a) SEM; (b) enlarged view of Area 1 in (a); (c–f) mapping of Al, Ti, La and Si elements in (b); (g–i) EDS point analysis energy spectra of Point 1, Point 2 and Point 3 in (b).
Materials 17 03134 g012
Materials 17 03134 g013

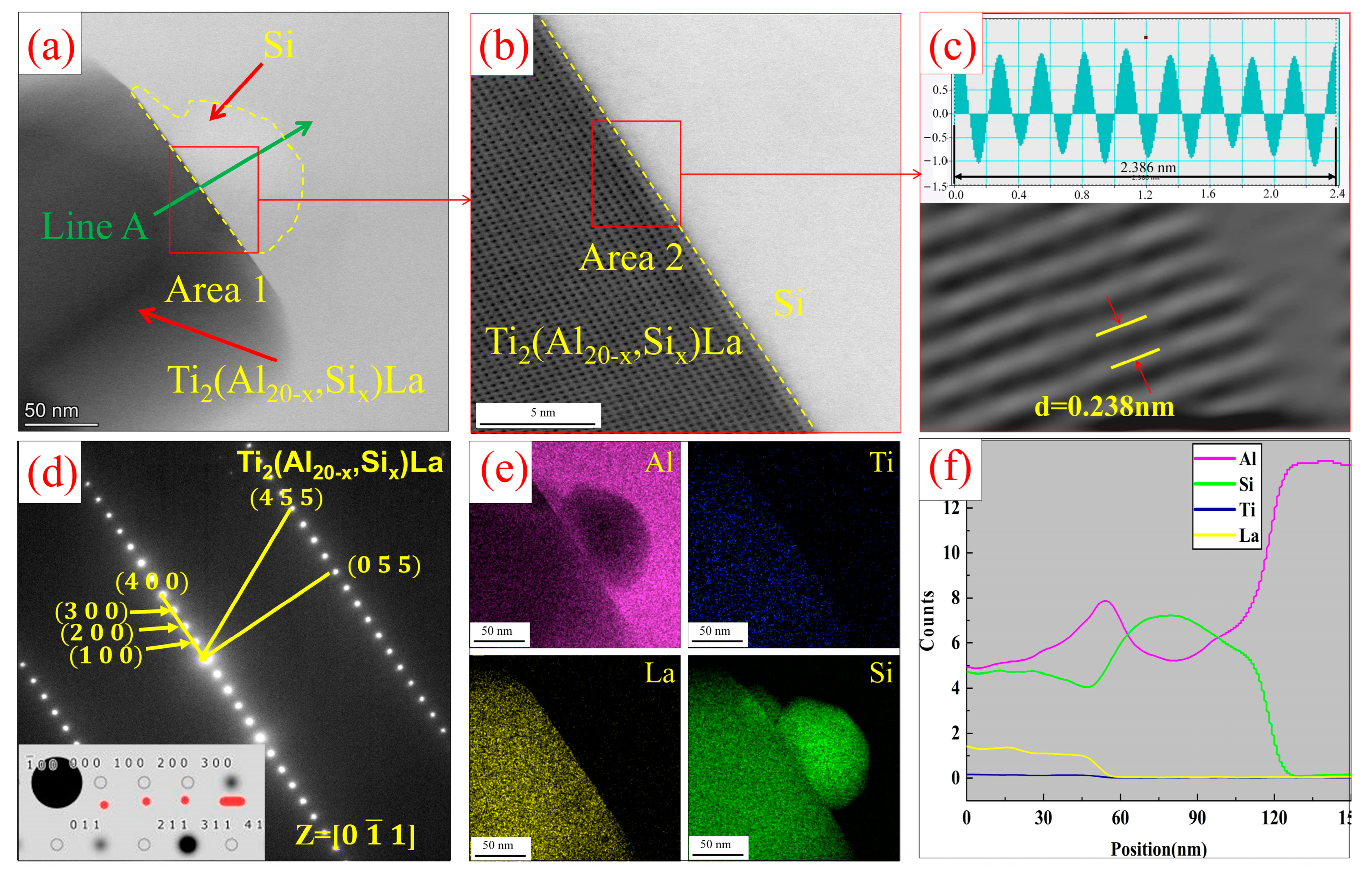

Figure 13. TEM analysis of Al-Ti-La-Si alloy held for 60 min: (a) TEM bright field images of Ti2(Al20−x,Six)La and Si; (b) high-resolution map of Area 1 in (a); (c) Fourier transform diagram of Area 2 in (b); (d) diffraction spots of Ti2(Al20−x,Six)La La; (e) mapping of Al, Ti, La and Si elements in (a); (f) EDS line scan results of Line A in (a).
Figure 13. TEM analysis of Al-Ti-La-Si alloy held for 60 min: (a) TEM bright field images of Ti2(Al20−x,Six)La and Si; (b) high-resolution map of Area 1 in (a); (c) Fourier transform diagram of Area 2 in (b); (d) diffraction spots of Ti2(Al20−x,Six)La La; (e) mapping of Al, Ti, La and Si elements in (a); (f) EDS line scan results of Line A in (a).
Materials 17 03134 g013
Materials 17 03134 g014

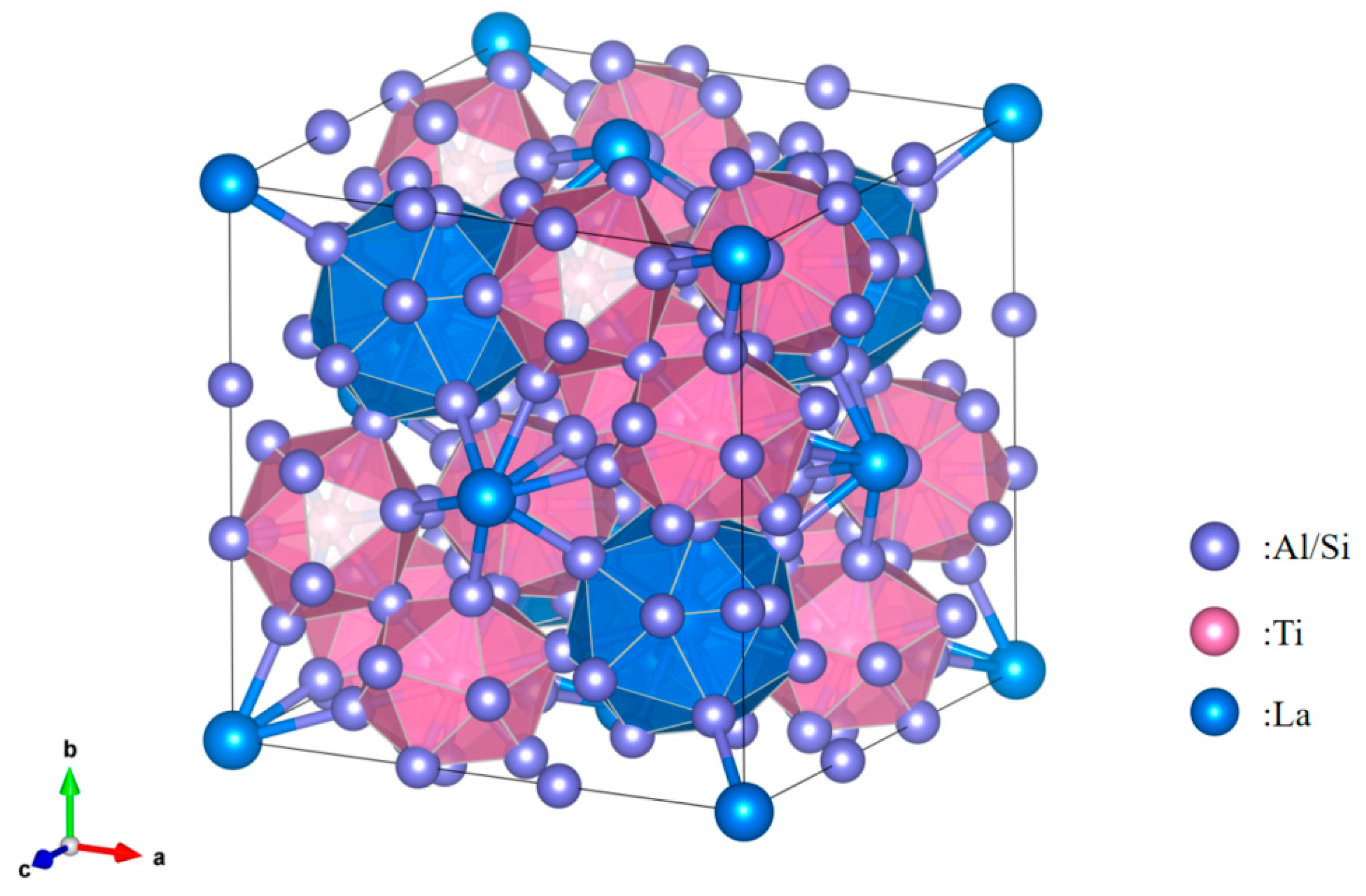

Figure 14. Atomic structure model of Ti2(Al20−x,Six)La.
Figure 14. Atomic structure model of Ti2(Al20−x,Six)La.
Materials 17 03134 g014
Table 1. Composition of Al-Ti-La and Al-Ti-La-Si (%).
Table 1. Composition of Al-Ti-La and Al-Ti-La-Si (%).
ElementsTiLaSiClZnFeAl
Al-Ti-La2.8834.2770.0190.0380.0350.037Bal.
Al-Ti-La-Si1.8742.8752.3010.0720.0390.095Bal.
Table 2. Element content of each point in Figure 6.
Table 2. Element content of each point in Figure 6.
PointElements At.%
AlTiLaSi
184.878.814.581.74
285.298.214.681.82
381.440.008.949.62
483.550.000.8015.66
562.370.050.9636.62
