1. Introduction
In marine engineering, the materials of mechanical components need to have service reliability in extremely harsh working environments, that is, on the basis of excellent high-temperature mechanical properties, they must also have the ability to resist the erosion of oxygen or corrosive media in high-temperature environments. The oxidation, friction and corrosion of the materials of power components are the process of chemical or electrochemical reactions between the materials and the medium in the surrounding environment, which leads to the failure of the materials. Therefore, the development of protective coatings and the study of the effect of thermal shock on the performance of protective coatings are particularly important.
Since the study of high-entropy alloy (HEA), its excellent properties have attracted extensive attention [
1]. HEA film, as a low-dimensional material of HEA, has a more uniform element distribution and is superior to bulk HEA in many properties [
2,
3]. According to the research, through the rational design of an alloy system, HEA films can exhibit many excellent properties in terms of wear resistance [
4,
5], corrosion resistance [
6] and high temperature oxidation [
7]. Therefore, as a breakthrough in the field of traditional alloys, HEA films have broad application prospects [
8,
9]. The development of HEAs is rapid, but it is still in the stage of basic research. The research on HEA films mainly focuses on the preparation of HEA nitride, oxide and carbide films and the influence of process parameters on the film properties. The mechanism research, functional design and process optimization of HEA films still need to be further explored. However, the experimental preparation of HEA films has been a challenge. Magnetron sputtering provides an opportunity for the research of HEA films [
10,
11,
12]. But the high cost, low ionization rate and uncontrollable composition caused by the preparation technology are the problems restricting the optimization of HEA thin films. Therefore, the improvement of the preparation process is crucial for the development of HEA films.
Filter cathode vacuum arc deposition (FCVAD) has sufficient advantages to obtain multi-component films due to its characteristics of magnetic filtration, high ionization rate (100%) and controllable ion types and ion energy. Co-filter cathode vacuum arc deposition (Co-FCVAD) is obtained by designing a multi-channel for particle transport based on FCVAD, which significantly improves the defects of uncontrollable composition and poor quality in the preparation of HEA films [
13,
14].
Thus, in order to improve the performance of mechanical components in extreme service environments, the AlCrTiZrMo film system is determined by selecting elements with a large atomic radius difference and excellent corrosion and high temperature performance. In this work, the AlCrTiZrMo HEA film is prepared based on Co-FCVAD. The synergistic interaction between elements at a high temperature in air is discussed, and the changes in microstructure, mechanical properties and tribocorrosion properties of the film after annealing at different temperatures are studied, so as to analyze the protection mechanisms of AlCrTiZrMo HEA films in the simulated scenario of thermal shock.
2. Experimental Details
AlCrTiZrMo HEA film was prepared on 304 stainless steel (20 × 20 × 2 mm) and silicon wafer (20 × 20 × 0.5 mm) by Co-FCVAD (

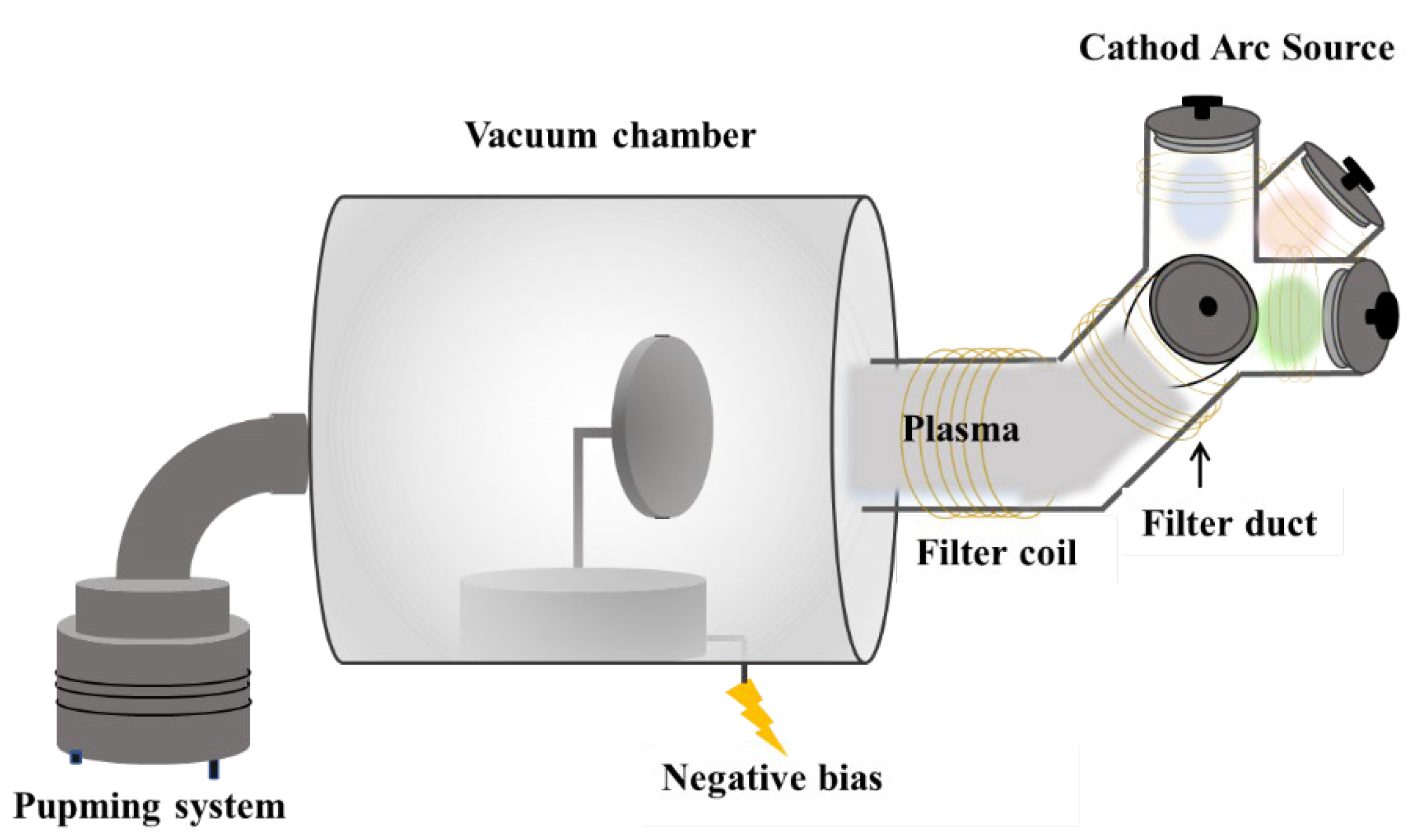

Figure 1). Four metal targets of 99.99% purity Ti50Mo50, pure Al, Cr and Zr were ionized at the same time for co-deposition of AlCrTiZrMo HEA films. Surface stains were removed by washing the substrate successively in acetone and ethanol for 5 min. Prior to deposition, the substrate was sputtered sequentially for 45 s at negative bias voltages of −800, −600 and −400 V. Detailed process parameters are shown in
Table 1.
In this work, the microstructural characterization of the films was evaluated using a scanning electron microscope (SEM) of Hitachi S-4800, an energy dispersive spectrometer (EDS) of EMAX-350 and a high-resolution transmission electron microscope (HRTEM) of FEI-Tecnai G20. The phase structure of the film was detected by X-ray diffraction (XRD, SmartLab S2). The hardness and Young’s modulus of the film were measured using a Nanoindenter G200 (Keysight Technologies). High temperature oxidation in an air environment was carried out through a tube furnace with a heating rate of 10 °C/min during the test.
The tribocorrosion mechanism of the film was analyzed by a linear reciprocating friction machine configured with three electrodes. Si3N4 ceramic grinding balls (Φ 6 mm) were slid for 30 min at a load of 5 N and a frequency of 1 Hz. Prior to formal testing, the sample was immersed in the electrolytic cell with the corrosion solution until the surface potential was stable. The changes in open circuit potential (OCP) and coefficient of friction (COF) were collected in real time throughout the experiment. The wear rate was obtained by the formula w = V/F × S. And the meanings of each physical quantity are as follows: V (mm3) represents wear volume, F (N) represents applied load and S (m) represents sliding distance.
3. Results and Discussion
3.1. Composition and Structural Characteristics
As shown in
Table 2, the relative contents of Al, Cr, Ti, Zr and Mo in AlCrTiZrMo films are 15.82 at.%, 22.86 at.%, 19.49 at.%, 24.74 at.% and 17.09 at.%, respectively, which do not deviate from the 5–35 at.% element rule defined by HEA. It can be observed from

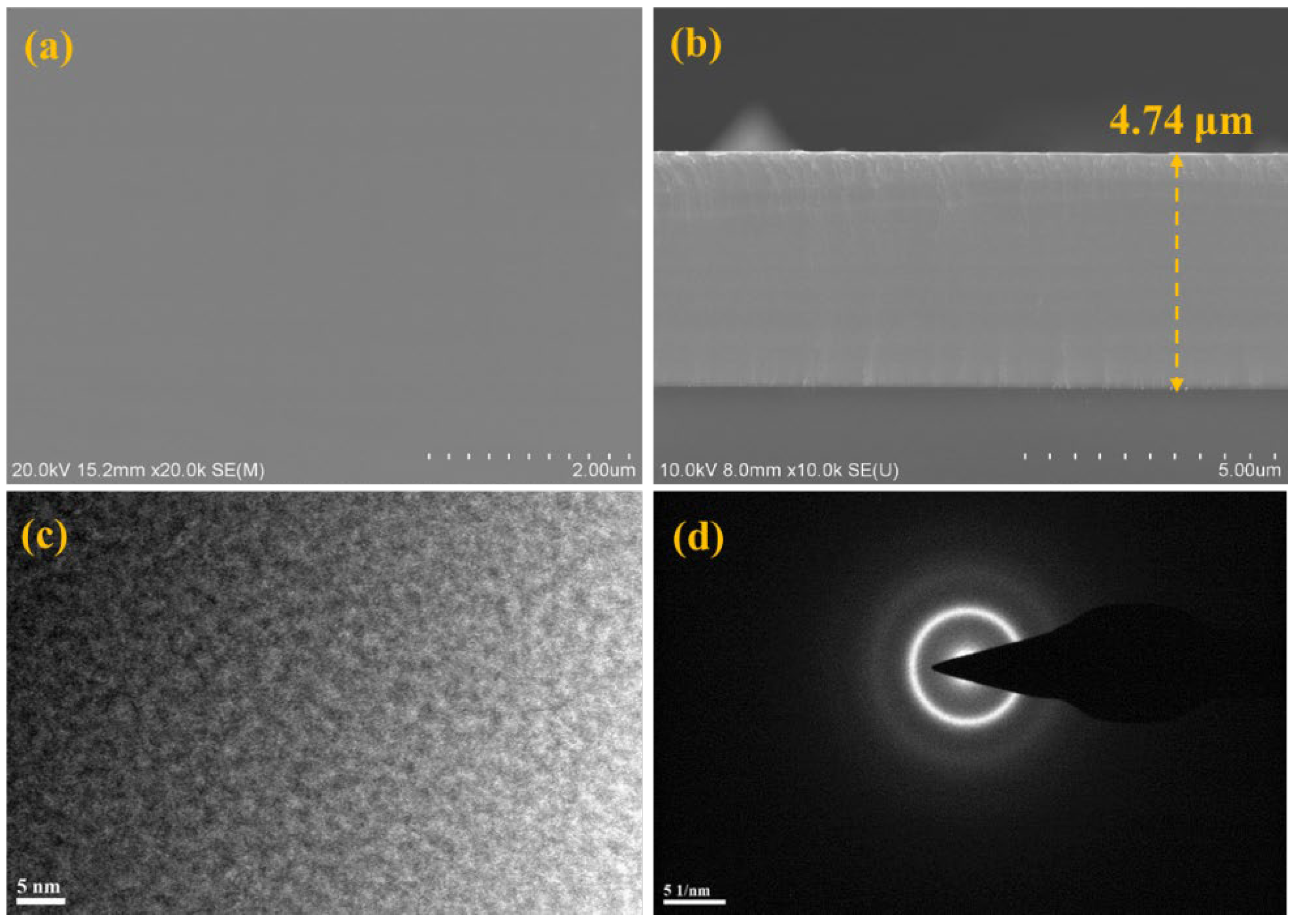

Figure 2a,b that AlCrTiZrMo HEA film is uniform and dense. From the XRD pattern shown in

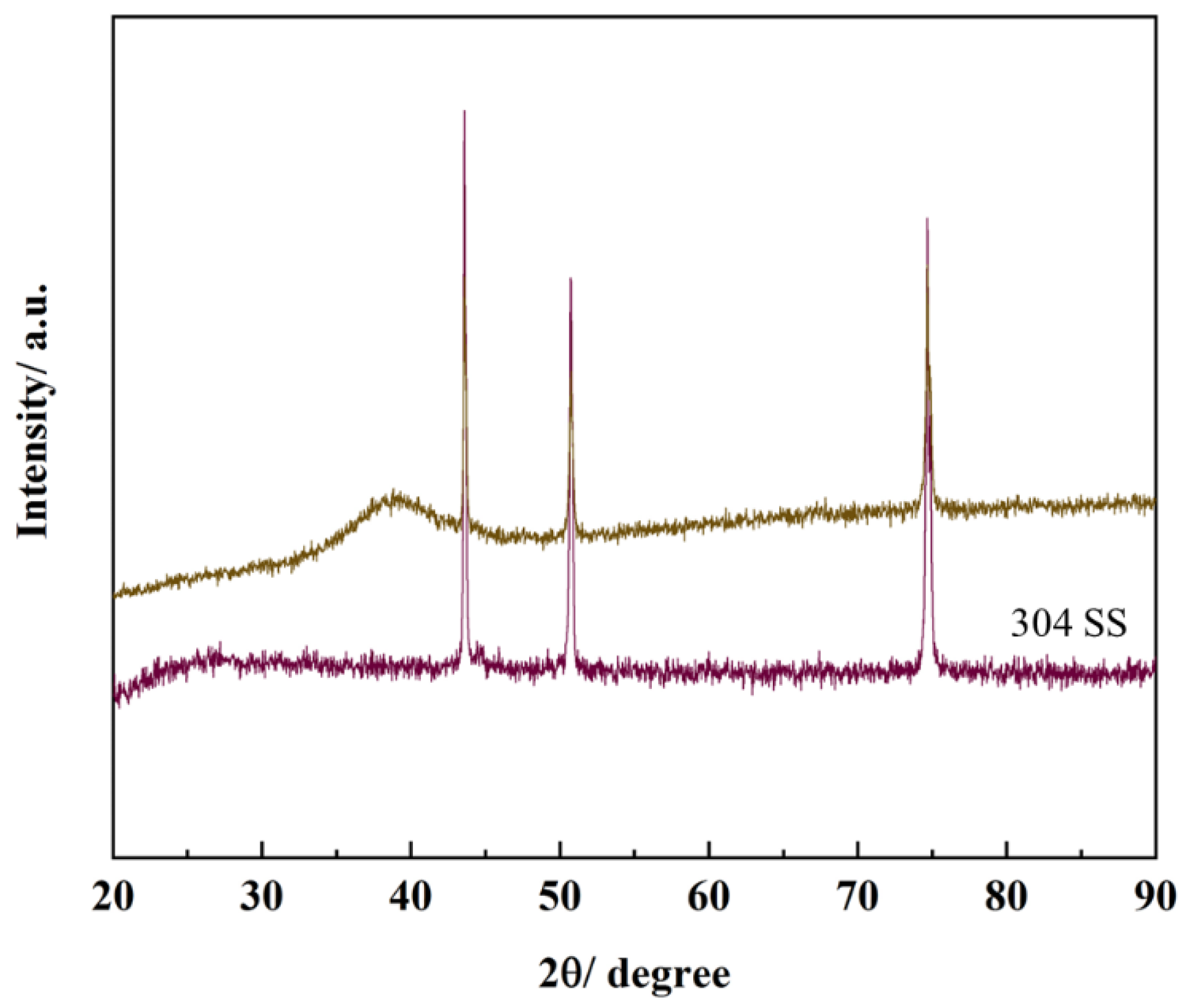

Figure 3, except for the diffraction peak of the substrate, only the broad diffraction peak with amorphous characteristics appears. In addition, the results of TEM analysis show that the AlCrTiZrMo HEA film exhibits strong amorphization, the disorder microstructure exists in the film and the diffraction rings are weaker and broader (
Figure 2c,d).
Many researchers have concluded through a large number of experiments that the amorphous phase is easy to form for HEA in the region of
6.6%, −49 <
< −5.5 kJ/mol, 7 <
< 16 J/(K·mol), where δ is the atomic size polydispersity [
15,
16,
17,
18], Δ
Hmix is the mixing enthalpy [
19,
20] and Δ
Sconf is the configurational entropy [
21].
where
,
and
are the atomic percentage and atomic radius of the
ith element, and
n is the number of alloying elements.
where
; here,
denotes the enthalpy of the mixing of binary alloy CD.
where
R is gas constant. The mixing enthalpy between binary alloys in AlCrTiZrMo is summarized by reference, as shown in

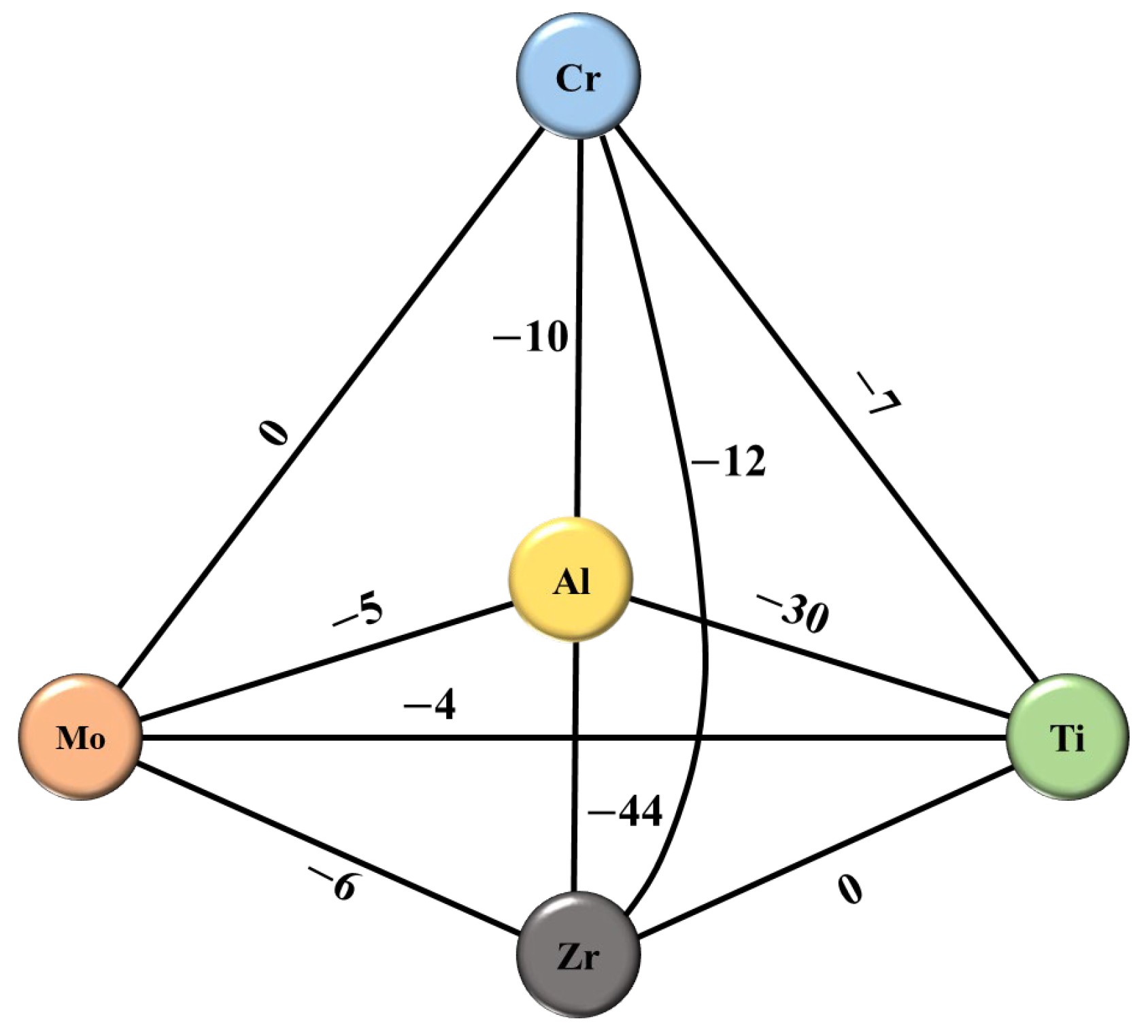

Figure 4 [
19]. The values of
δ, Δ
Hmix and Δ
Sconf of the AlCrTiZrMo system are 0.077, −18.40 kJ/mol and 13.55 J/(K·mol), respectively, indicating that AlCrTiZrMo HEA films are easy to form amorphous structures. The above XRD and HRTEM results confirm the strong amorphization structural characteristics of the AlCrTiZrMo HEA film.
3.2. High-Temperature Annealing in Air Environment
The effect of thermal shock on AlCrTiZrMo HEA films can lead to differences in properties, so it is crucial to study the details of the high temperature oxidation of AlCrTiZrMo HEA films. The AlCrTiZrMo HEA films were annealed at 400 °C, 600 °C and 800 °C for 1 h in an air environment for analysis. It can be observed from

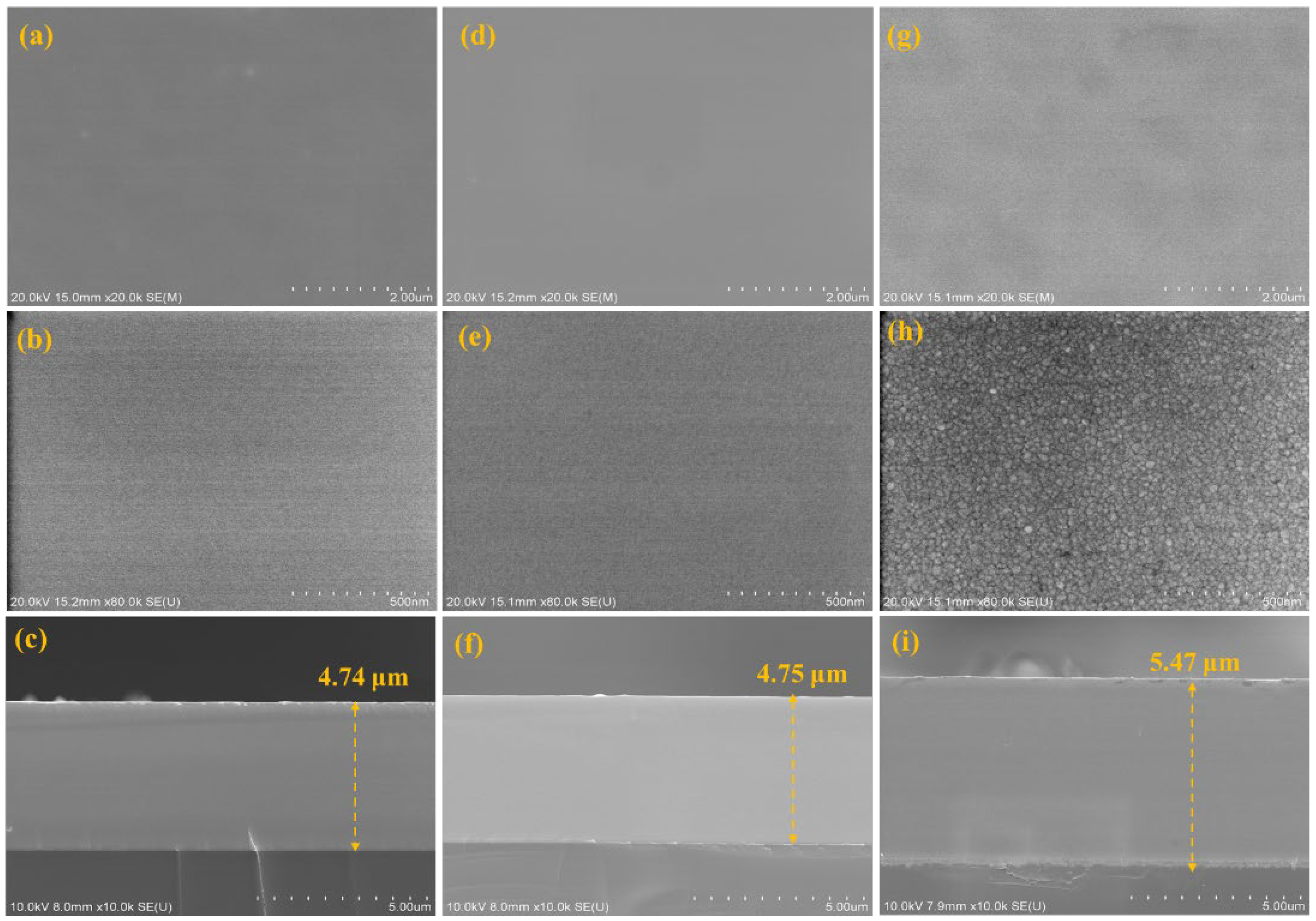

Figure 5 that the AlCrTiZrMo HEA film still maintains a dense and uniform morphology after annealing at 400 °C and 600 °C, and no oxide particles appear. The thickness of the film does not change significantly. In addition, it can be seen from the XRD patterns that no crystallization peak appears in the respective pattern except for the diffraction peaks of the substrate. The slow diffusion effect of the AlCrTiZrMo HEA film and the amorphous phase in the structure make the diffusion of oxygen elements difficult, so the film does not demonstrate obvious oxidation after annealing at 600 °C, exhibiting excellent oxidation resistance. When the AlCrTiZrMo HEA film is annealed at 800 °C, it can be found in the enlarged surface morphology that the surface is covered by fine oxides (
Figure 5h), and the thickness is increased to 5.47 μm (
Figure 5i). At this time, the content of O element in the film increases to 20.50 at.% (

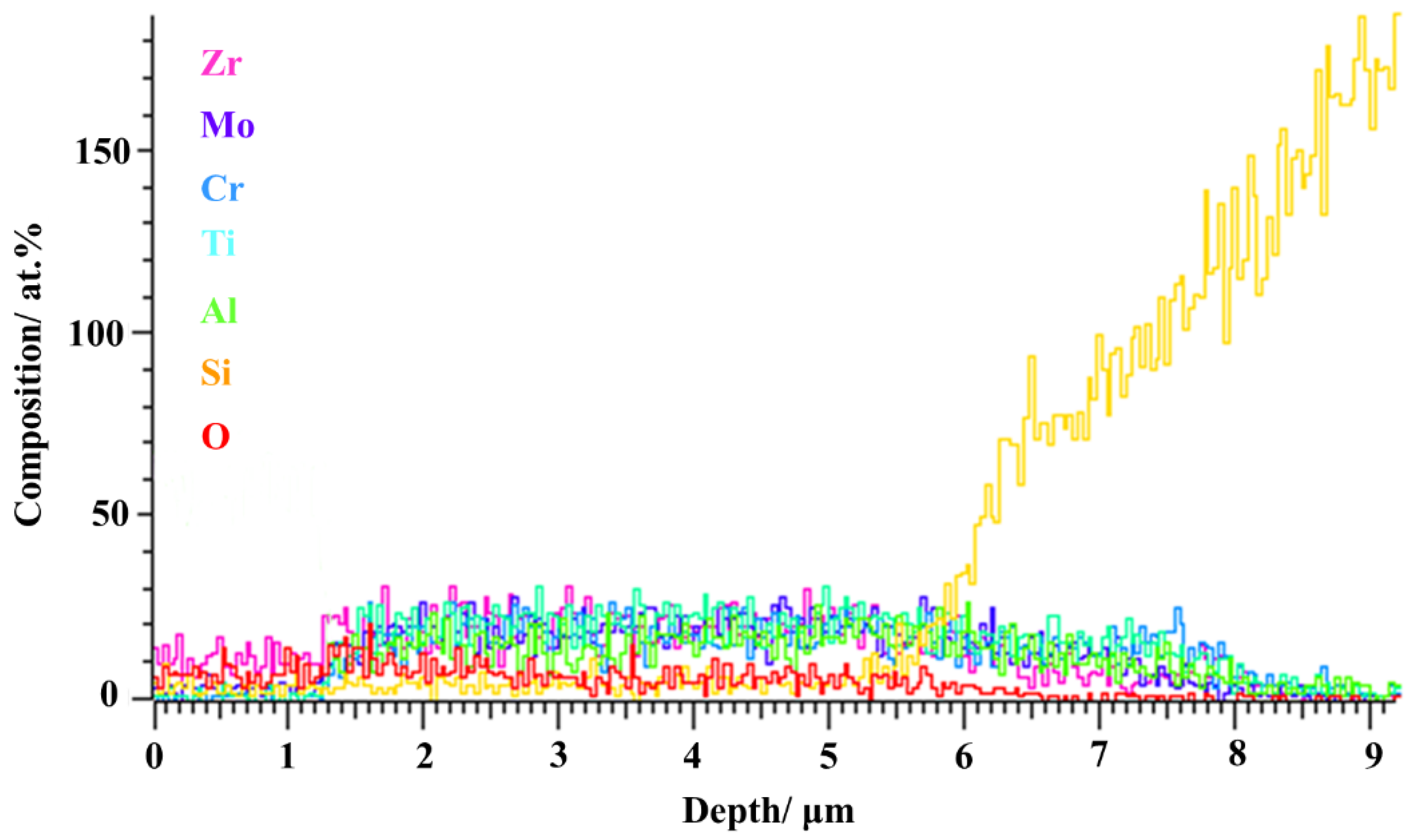

Table 3). From the element distribution of the cross section in
Figure 6 and the XRD pattern in
Figure 7, it can be seen that the oxide is composed of the composite oxide ZrTiO
4 [
22,
23,
24,
25].
As shown in
Table 4, the oxidation thermodynamics of elemental Al, Cr, Ti, Zr and Mo indicate that the order of Gibbs free energy of oxide formation of each element at 800 °C is ZrO
2 < Al
2O
3 < TiO
2 < Cr
2O
3 < MoO
2, illustrating the preferential oxidation of Zr [
26]. Although the oxidation of Al is preferred to that of Ti in terms of oxidation thermodynamics, the difference in oxidation kinetics resulting from higher Ti content than Al leads to the preferential oxidation of Ti [
27].

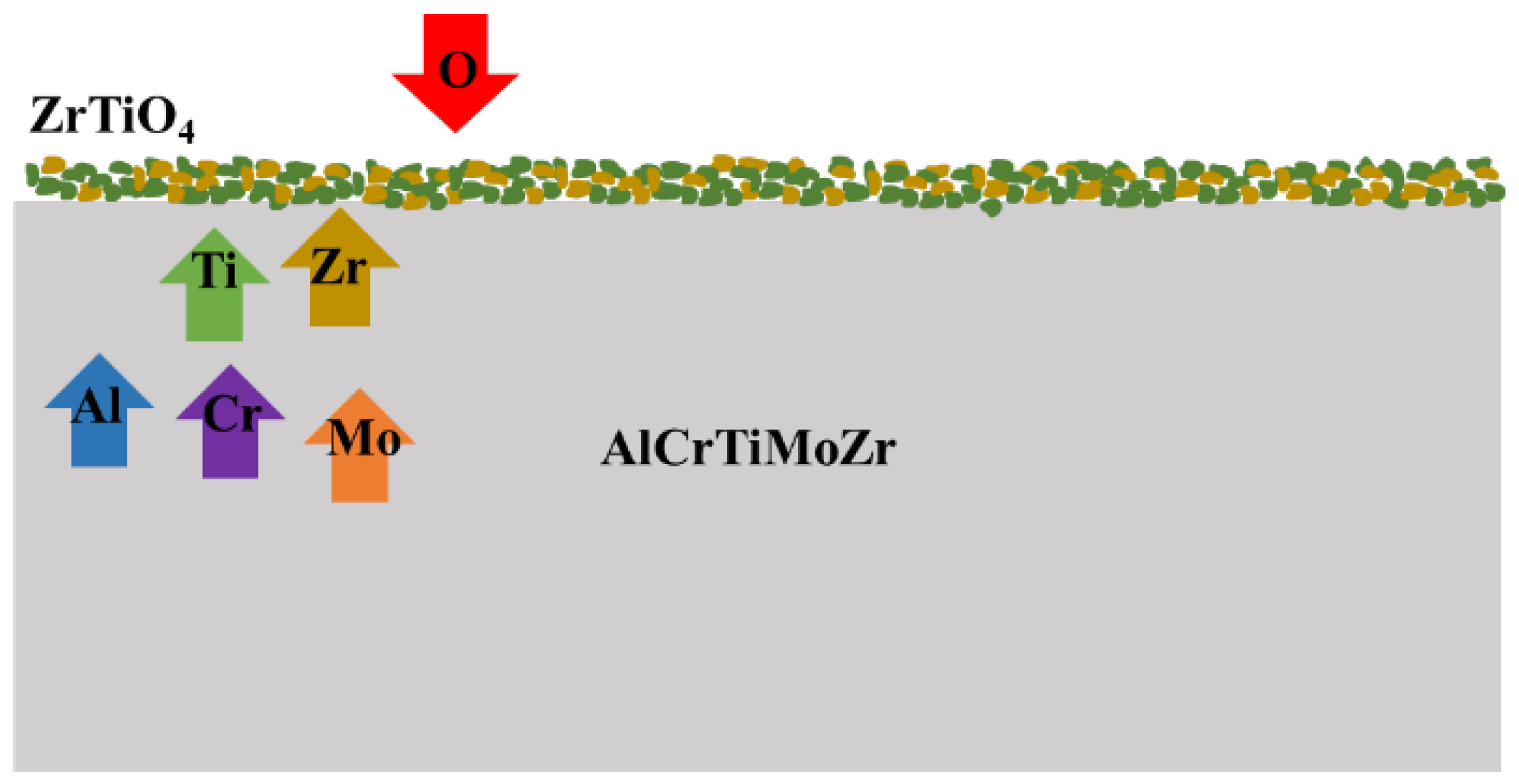

Figure 8 shows the schematic diagram of the oxidation mechanism of the AlCrTiZrMo HEA film at 800 °C for 1 h. Zr and Ti elements are preferentially oxidized to form ZrO
2 and TiO
2. Meanwhile, metal elements that form low free energy oxides can undergo reduction reactions with oxides with high free energy. Thus, accompanied by the oxidation reaction, the TiO
2 oxide will be reduced by the Zr element [
28].
The continuous competitive oxidation and reduction reactions between the Zr and Ti elements increase the accumulation of ZrO
2 and TiO
2 oxides, and the coarse oxides are gradually decomposed into fine oxide particles. With the process of high temperature oxidation, the ZrO
2 and TiO
2 oxides seek a decrease in free energy at the interface with each other and polymerize to form spinel ZrTiO
4.
The value of the Gibbs free energy of formation for ZrTiO
4 is very low, indicating that it is a stable substance. Therefore, ZrTiO
4 is continuously generated and polymerized along the periphery of TiO
2 particles, and finally forms a dense oxide layer on the surface. The XRD pattern in
Figure 7 shows that the ZrTiO
4 phase appears and no other oxides are found after annealing at 800 °C for 1 h, indicating that the dense ZrTiO
4 composite oxide layer formed on the surface effectively prevents the oxidation from continuing, which means that the AlCrTiZrMo HEA film still shows excellent oxidation resistance at 800 °C for 1 h in an air environment.
3.3. Mechanical Properties after Annealing in Air Environment
After annealing at 400 °C for 1 h, there are no significant changes in the hardness (H) and elastic modulus (E), which are 11.99 GPa and 142.2 GPa, respectively (
Figure 9). After annealing at 600 °C, due to the relaxation of the amorphous structure, the hardness and elastic modulus increase to 14.97 GPa and 176.1 GPa, respectively [
29]. After annealing at 800 °C, the fine oxide particles precipitated have the effect of dispersion strengthening [
30,
31], resulting in the H and E of the film reaching 20.88 GPa and 220.2 GPa, respectively.

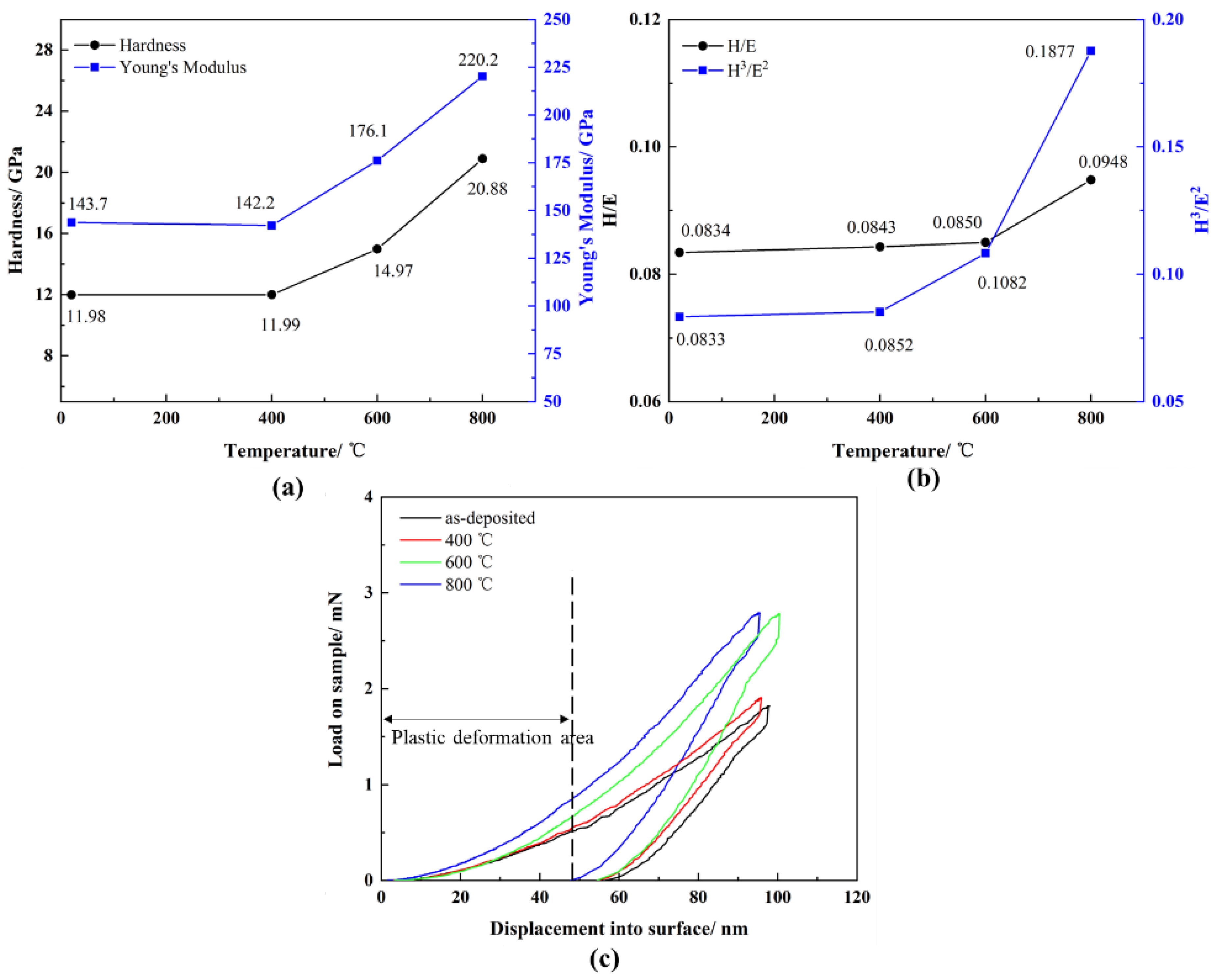

The load-displacement curves of the AlCrTiZrMo HEA film after annealing at different temperatures in air are described in
Figure 9c. It can be found that the plastic deformation area of the film after annealing at 800 °C is narrower, indicating that it has excellent resistance to plastic deformation [
32]. Moreover, it can be seen from
Figure 9b that the H/E and H
3/E
2 of the AlCrTiZrMo HEA film annealed at 800 °C increase to their maximum values, which are 0.0948 and 0.1877, respectively. It is generally believed that the higher the H/E of the material, the better the crack resistance and wear resistance, and the higher the H
3/E
2, the better the resistance to plastic deformation [
33,
34].
3.4. Tribocorrosion Performance after Annealing in Air Environment
The influence of thermal shock on the tribocorrosion properties of AlCrTiZrMo HEA films is analyzed by monitoring the fluctuation of the OCP and COF of films in the coupled environment of friction and corrosion, as shown in
Figure 10. The fluctuation of the OCP and COF of the AlCrTiZrMo HEA film and the AlCrTiZrMo HEA film annealed at 400 °C, 600 °C and 800 °C for 1 h in air are monitored in real time. In the preparation stage, the samples were completely immersed in a 3.5 wt.% NaCl solution for 1 h to obtain a stable surface potential. The duration of the whole experiment is 50 min. During the no-load phase of 0–10 min, both the OCP and COF curves remain stable. During the 10–40 min loading stage, the appearance of the activation region causes the OCP curve to drop sharply, then fluctuate around a constant value. During the 40–50 min no-loading stage, the lack of load causes re-passivation within the wear track, and the OCP curve gradually returns to stability. Therefore, OCP can be used as a mixed potential to monitor the passivation state within the wear track [
35,
36,
37].
From
Figure 10, the OCP curves of the AlCrTiZrMo HEA film and the film annealed at 400 °C have similar changes with ΔOCP values of 0.453 and 0.461, respectively. During the rapid sliding, the two curves remain stable due to the dynamic balance between activation and passivation within the wear track [
38,
39]. Additionally, the two COFs are 0.13 and 0.09, respectively (
Table 5). As shown in
Figure 11a,b, many adhesions and furrows are found on the abrasion track of the AlCrTiZrMo HEA film and the film annealed for 400 °C.
The dense microstructure of the AlCrTiZrMo HEA film after annealing at 600 °C and the increased H and E improve the resistance to external damage, resulting in a reduction in ΔOCP, COF and wear rate. The ΔOCP, COF and wear rate of the AlCrTiZrMo HEA film annealed at 800 °C are minimized to 0.055, 0.04 and 1.34 × 10
−6 mm
−3·N
−1·m
−1, respectively, and no obvious wear characteristics appear in the abrasion track, which means that the film is not destroyed. The AlCrTiZrMo HEA film annealed at 800 °C still has a stable and dense micromorphology, as well as high H and H/E, which makes it significantly resist corrosive media and mechanical damage, showing excellent tribocorrosion resistance [
40,
41].
4. Conclusions
In general, this work prepared the AlCrTiZrMo HEA film with strong amorphization by the novel Co-FCVAD. The effects of thermal shock on the microstructure, mechanical properties and tribocorrosion properties of the films are analyzed. The slow diffusion effect of the AlCrTiZrMo HEA film and the amorphous phase in the structure make the diffusion of oxygen elements difficult. When the AlCrTiZrMo HEA film is annealed at 800 °C for 1 h in air, the dense ZrTiO4 composite oxide layer formed on the surface effectively prevents the oxidation from continuing. In addition, the H and E of the film reach the maximum values of 20.88 GPa and 220.2 GPa, respectively. The stable dense microstructure and excellent mechanical properties of the AlCrTiZrMo HEA film annealed at 800 °C for 1 h shows the best tribocorrosion resistance with the smallest ΔOCP, COF and wear rate values of 0.055, 0.04 and 1.34 × 10−6 mm−3·N−1·m−1, respectively.
Author Contributions
Conceptualization, S.C.; Methodology, S.C., W.Y. and B.L.; Validation, X.O. (Xiao Ouyang) and J.C.; Formal analysis, W.Y., Y.Z. and B.L.; Investigation, S.C., X.O. (Xiao Ouyang) and J.C.; Resources, L.C.; Data curation, S.C. and Y.Z.; Writing—review & editing, S.C.; Visualization, X.O. (Xiaoping Ouyang) and B.L.; Supervision, S.C. and B.L.; Funding acquisition, L.C., X.O. (Xiaoping Ouyang) and X.O. (Xiao Ouyang). All authors have read and agreed to the published version of the manuscript.
Funding
This work is partly supported by the Fundamentals Research Funds for the Central Universities (China) (Grant No. 2021NTST14) and China Postdoctoral Science Foundation (Grant No. 2022M710415).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Takeuchi, A.; Gao, M.C.; Qiao, J.; Widom, M. High-Entropy Metallic Glasses; Springer: Cham, Switzerland, 2016; pp. 445–468. [Google Scholar]
- Khan, N.A.; Akhavan, B.; Zhou, H.R.; Chang, L.; Wang, Y.; Sun, L.X.; Bilek, M.; Liu, Z.W. High entropy alloy thin films of AlCoCrCu0.5FeNi with controlled microstructure. Appl. Surf. Sci. 2019, 495, 143560. [Google Scholar] [CrossRef]
- Alvi, S.; Jarzabek, D.M.; Kohan, M.G. Synthesis and Mechanical Characterization of a CuMoTaWV High-Entropy Film by Magnetron Sputtering. ACS Appl. Mater. Interfaces 2020, 12, 21070–21079. [Google Scholar] [CrossRef] [PubMed]
- Du, L.M.; Lan, L.W.; Zhu, S.; Yang, H.J.; Shi, X.H.; Liaw, P.K.; Qiao, J.W. Effects of temperature on the tribological behavior of Al0.25CoCrFeNi high-entropy alloy. J. Mater. Sci. Technol. 2019, 35, 917–925. [Google Scholar] [CrossRef]
- Li, J.Y.; Dong, L.G.; Dong, X.W.; Zhao, W.H.; Liu, J.H.; Xiong, J.X.; Xu, C.Y. Study on wear behavior of FeNiCrCoCu high entropy alloy coating on Cu substrate based on molecular dynamics. Appl. Surf. Sci. 2021, 570, 151236. [Google Scholar] [CrossRef]
- Song, B.R.; Hua, Y.; Zhou, C.Z.; Li, Y.H.; Yang, L.Q.; Song, Z.X. Fabrication and anticorrosion behavior of a bi-phase TaNbHfZr/CoCrNi multilayer coating through magnetron sputtering. Corros. Sci. 2022, 196, 110020. [Google Scholar] [CrossRef]
- Li, Y.H.; Meng, F.P.; Ge, F.F.; Huang, F. Improved oxidation resistance through an in-situ formed diffusion barrier: Oxidation behavior of amorphous multi-component FeCrAlMoSiY-coated Zr in high-temperature steam. Corros. Sci. 2021, 189, 109566. [Google Scholar] [CrossRef]
- Zhang, C.X.; Lu, X.L.; Wang, C.; Sui, X.D.; Wang, Y.F.; Zhou, H.B.; Hao, J.Y. Tailoring the microstructure, mechanical and tribocorrosion performance of (CrNbTiAlV)Nx high entropy nitride films by controlling nitrogen flow. J. Mater. Sci. Technol. 2022, 107, 172–182. [Google Scholar] [CrossRef]
- Luo, D.; Zhou, Q.; Ye, W.T.; Greiner, C. Design and Characterization of Self-Lubricating Refractory High Entropy Alloy-Based Multilayered Films. ACS Appl. Mater. Interfaces 2021, 13, 55712–55725. [Google Scholar] [CrossRef]
- Liang, S.; Tsai, D.; Chang, Z.; Sung, H.; Lin, Y.; Yeh, Y.; Deng, M.; Shieu, F. Structural and mechanical properties of multi-element (TiVCrZrHf)N coatings by reactive magnetron sputtering. Appl. Surf. Sci. 2011, 258, 399–403. [Google Scholar] [CrossRef]
- Tsai, D.; Huang, Y.; Lin, S.; Liang, S.; Shieu, F. Effect of nitrogen flow ratios on the structure and mechanical properties of (TiVCrZrY)N coatings prepared by reactive magnetron sputtering. Appl. Surf. Sci. 2010, 257, 1361–1367. [Google Scholar] [CrossRef]
- Chen, T.K.; Shun, T.T.; Yeh, J.W.; Wong, M.S. Nanostructured nitride films of multielement high-entropy alloys by reactive DC sputtering. Surf. Coat. Technol. 2004, 188–189, 193–200. [Google Scholar] [CrossRef]
- Chen, S.N.; Zhang, Y.F.; Zhao, Y.M.; Yan, W.Q.; Wu, S.; Chen, L.; Pang, P.; Liao, B.; Wu, X.Y.; Ouyang, X.P. Preparation and regulation of AlCrNiTiSi high entropy alloy coating by a multiarc magnetic filter cathode vacuum arc system. Surf. Interfaces 2021, 26, 101400. [Google Scholar] [CrossRef]
- Chen, S.N.; Yan, W.Q.; Zhao, Y.M.; Li, Q.; Chen, L.; Ouyang, X.; Hua, Q.S.; Wu, X.Y.; Zhang, Y.F.; Liao, B.; et al. Strong amorphization of AlCrNiTiV high-entropy alloy films deposited by cofilter cathode vacuum arc deposition. App. Surf. Sci. 2022, 592, 153318. [Google Scholar] [CrossRef]
- Guo, S.; Liu, C.T. Phase stability in high entropy alloys: Formation of solid-solution phase or amorphous phase. Prog. Nat. Sci. 2011, 21, 433–446. [Google Scholar] [CrossRef] [Green Version]
- Zhang, Y.; Zhou, Y.J.; Lin, J.P.; Chen, G.L.; Liaw, P.K. Solid-solution phase formation rules for multi-component alloys. Adv. Eng. Mater. 2008, 10, 534–538. [Google Scholar] [CrossRef]
- Zhang, Y.; Yang, X.; Liaw, P.K. Alloy design and properties optimization of high entropy alloys. JOM 2012, 64, 830–838. [Google Scholar] [CrossRef]
- Yang, X.; Zhang, Y. Prediction of high-entropy stabilized solid-solution in multi-component alloys. Mater. Chem. Phys. 2012, 132, 233–238. [Google Scholar]
- Takeuchi, A.; Inoue, A. Calculations of mixing enthalpy and mismatch entropy for ternary amorphous alloys. Mater. Trans. 2000, 41, 1372–1378. [Google Scholar] [CrossRef] [Green Version]
- Boer, F.R.; Boom, R.; Mattens, W.C.M.; Miedema, A.R.; Niessen, A.K. Cohesion in Metals: Transition Metal Alloys; North-Holland: Amsterdam, The Netherlands, 1988. [Google Scholar]
- Guo, S.; Hu, Q.; Ng, C.; Liu, C.T. More than entropy in high-entropy alloys: Forming solid solutions or amorphous phase. Intermetallics 2013, 41, 96–103. [Google Scholar] [CrossRef]
- Minagar, S.; Berndt, C.C.; Gengenbach, T.; Wen, C. Fabrication and characterization of TiO2-ZrO2-ZrTiO4 nanotubes on TiZr alloy manufactured via anodization. J. Mater. Chem. B 2014, 2, 71–83. [Google Scholar] [CrossRef]
- Hsu, C.H.; Lin, S.Y. Characterizaiton of ZrTiO4 thin films prepared by sol-gel method. Mat. Sci. Semicond. Proc. 2013, 16, 1262–1266. [Google Scholar] [CrossRef]
- López, E.L.; Baudín, C.; Moreno, R.; Santacruz, I.; Leon-Reina, L.; Aranda, M.A.G. Structural characterization of bulk ZrTiO4 and its potential for thermal shock applications. J. Eur. Ceram. Soc. 2012, 32, 299–306. [Google Scholar] [CrossRef]
- Vittayakorn, N. Synthesis and a crystal structural study of microwave dielectric Zirconium Titanate (ZrTiO4) powders via a mixed oxide synthesis route. J. Ceram. Process. Res. 2006, 7, 288–291. [Google Scholar]
- Kubaschewski, O.; Alcock, C.B.; Spencer, P.J. Materials Thermochemistry; Pergamon Press: Oxford, UK, 1993. [Google Scholar]
- Welsh, G.; Kahveci, A.J. Oxidation of High Temperature Intermetallics; The Minerals, Metals and Materials Society: Warrendale, PA, USA, 1989; p. 207. [Google Scholar]
- Agren, J. Thermodynamics and Diffusion Coupling in Alloys—Application-Driven Science. Metall. Mater. Trans. A 2011, 43A, 3454–3461. Available online: https://link.springer.com/content/pdf/10.1007/s11661-011-0863-0.pdf (accessed on 30 May 2023).
- Angel, C.A. Relaxation in glass forming liquids and amorphous solid. J. Appl. Phys. 2000, 88, 3113–3157. [Google Scholar] [CrossRef]
- Bolelli, G.; Candeli, A.; Lusvarghi, L.; Ravaux, A.; Cazes, K.; Denoirjean, A.; Valerre, S.; Chazelas, C.; Meillot, E.; Bianchi, L. Tribology of NiCrAlY + Al2O3 composite coatings by plasma spraying with hybrid feeding of dry powder + suspension. Wear 2000, 344–345, 69–85. [Google Scholar] [CrossRef]
- Bolelli, G.; Vorkötter, C.; Lusvarghi, L.; Morelli, S.; Testa, V.; Vaßen, R. Performance of wear resistant MCrAlY coatings with oxide dispersion strengthening. Wear 2020, 444–445, 203116. [Google Scholar] [CrossRef]
- Krishna, S.R.; Brama, Y.L.; Sun, Y. Thick rutile layer on titanium for tribological applications. Tribol. Int. 2007, 40, 329–334. [Google Scholar] [CrossRef]
- Fu, Y.Q.; Zhou, F.; Wang, Q.Z.; Zhang, M.D.; Zhou, Z.F.; Kwok, L.; Li, Y. The influence of Mo target current on the microstructure, mechanical and tribological properties of CrMoSiCN coatings in artificial seawater. J. Alloy. Compd. 2019, 791, 800–813. [Google Scholar] [CrossRef]
- Niu, Y.S.; Wei, J.; Yu, Z.M. Mocrostructure and tribological behaviour of multi-layered CrN coating by arc ion plating. Surf. Coat. Technol. 2015, 275, 332–340. [Google Scholar] [CrossRef]
- Celis, J.P.; Ponthiaux, P.; Wenger, F. Tribo-corrosion of materials: Interplay between chemical, electrochemical, and mechanical reactivity of surfaces. Wear 2006, 261, 939–946. [Google Scholar] [CrossRef]
- Ponthiaux, P.; Wenger, F.; Drees, D.; Celis, J.P. Electrochemical techniques for studying tribocorrosion processes. Wear 2004, 256, 459–468. [Google Scholar] [CrossRef]
- Chen, S.N.; Zhao, Y.M.; Zhang, Y.F.; Chen, L.; Liao, B.; Zhang, X.; Ouyang, X.P. Influence of carbon content on the structure and tribocorrosion properties of TiAlCN/TiAlN/TiAl multilayer composite coatings. Surf. Coat. Technol. 2021, 411, 126886. [Google Scholar] [CrossRef]
- Fu, Y.Q.; Zhou, F.; Wang, Q.Z.; Zhang, M.D.; Zhou, Z.F. Electrochemical and tribocorrosion perforfances of CrMoSiCN coating on Ti-6Al-4V titanium alloy in artificial seawater. Corros. Sci. 2020, 165, 108385. [Google Scholar] [CrossRef]
- Hatem, A.; Lin, J.L.; Wei, R.H.; Torres, R.D.; Laurindo, C.; Souza, G.B.D.; Soares, P. Tribocorrosion behaviour of low friction TiSiCN nanocomposite coatings deposited on titanium alloy for biomedical applications. Surf. Coat. Technol. 2018, 347, 1–12. [Google Scholar] [CrossRef]
- Hassani, S.; Raeissi, K.; Azzi, M.; Li, D.; Golozar, M.A.; Szpunar, J.A. Improving the corrosion and tribocorrosion resistance of Ni-Co nanocrystalline coatings in NaOH solution. Corros. Sci. 2009, 51, 2371–2379. [Google Scholar] [CrossRef]
- Kato, K. Wear in relation to friction—A review. Wear 2000, 241, 151–157. [Google Scholar] [CrossRef]
Figure 1.
Schematic diagram of the Co-FCVAD system.
Figure 1.
Schematic diagram of the Co-FCVAD system.
Figure 2.
(a) SEM surface morphology, (b) SEM cross-section morphology, (c) HRTEM image and (d) the corresponding selected area electron diffraction (SAED) pattern of AlCrTiZrMo HEA film.
Figure 2.
(a) SEM surface morphology, (b) SEM cross-section morphology, (c) HRTEM image and (d) the corresponding selected area electron diffraction (SAED) pattern of AlCrTiZrMo HEA film.
Figure 3.
XRD pattern of AlCrTiZrMo HEA film.
Figure 3.
XRD pattern of AlCrTiZrMo HEA film.
Figure 4.
Mixing enthalpy (kJ/mol) of a binary alloy formed between the metal elements Al, Cr, Ti, Zr and Mo.
Figure 4.
Mixing enthalpy (kJ/mol) of a binary alloy formed between the metal elements Al, Cr, Ti, Zr and Mo.
Figure 5.
SEM surface and cross-section images of AlCrTiZrMo HEA film after annealing at 400 °C (a–c), 600 °C (d–f) and 800 °C (g–i) in an air environment.
Figure 5.
SEM surface and cross-section images of AlCrTiZrMo HEA film after annealing at 400 °C (a–c), 600 °C (d–f) and 800 °C (g–i) in an air environment.
Figure 6.
Cross-section EDS profiles of AlCrTiZrMo HEA film after annealing in air at 800 °C.
Figure 6.
Cross-section EDS profiles of AlCrTiZrMo HEA film after annealing in air at 800 °C.

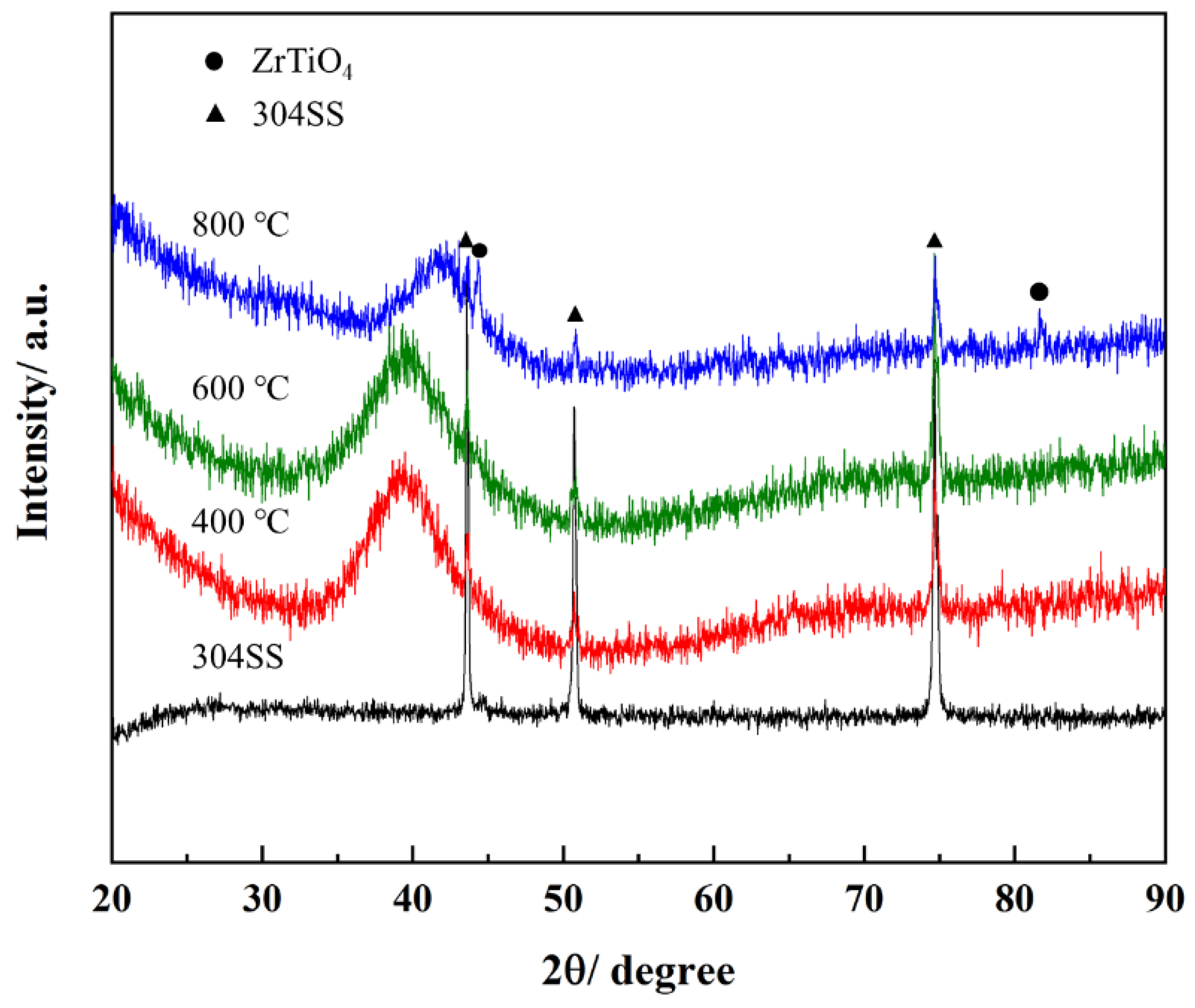

Figure 7.
XRD patterns of AlCrTiZrMo HEA film after annealing in air at different temperatures of 400 °C, 600 °C and 800 °C.
Figure 7.
XRD patterns of AlCrTiZrMo HEA film after annealing in air at different temperatures of 400 °C, 600 °C and 800 °C.
Figure 8.
The schematic diagram of oxidation mechanism of AlCrTiZrMo HEA film after annealing at 800 °C in air.
Figure 8.
The schematic diagram of oxidation mechanism of AlCrTiZrMo HEA film after annealing at 800 °C in air.
Figure 9.
(a) H and E, (b) H/E and H3/E2 and (c) nanoindentation depth-load curves of AlCrTiZrMo HEA film after annealing in air at different temperatures of RT, 400 °C, 600 °C and 800 °C for 1 h.
Figure 9.
(a) H and E, (b) H/E and H3/E2 and (c) nanoindentation depth-load curves of AlCrTiZrMo HEA film after annealing in air at different temperatures of RT, 400 °C, 600 °C and 800 °C for 1 h.

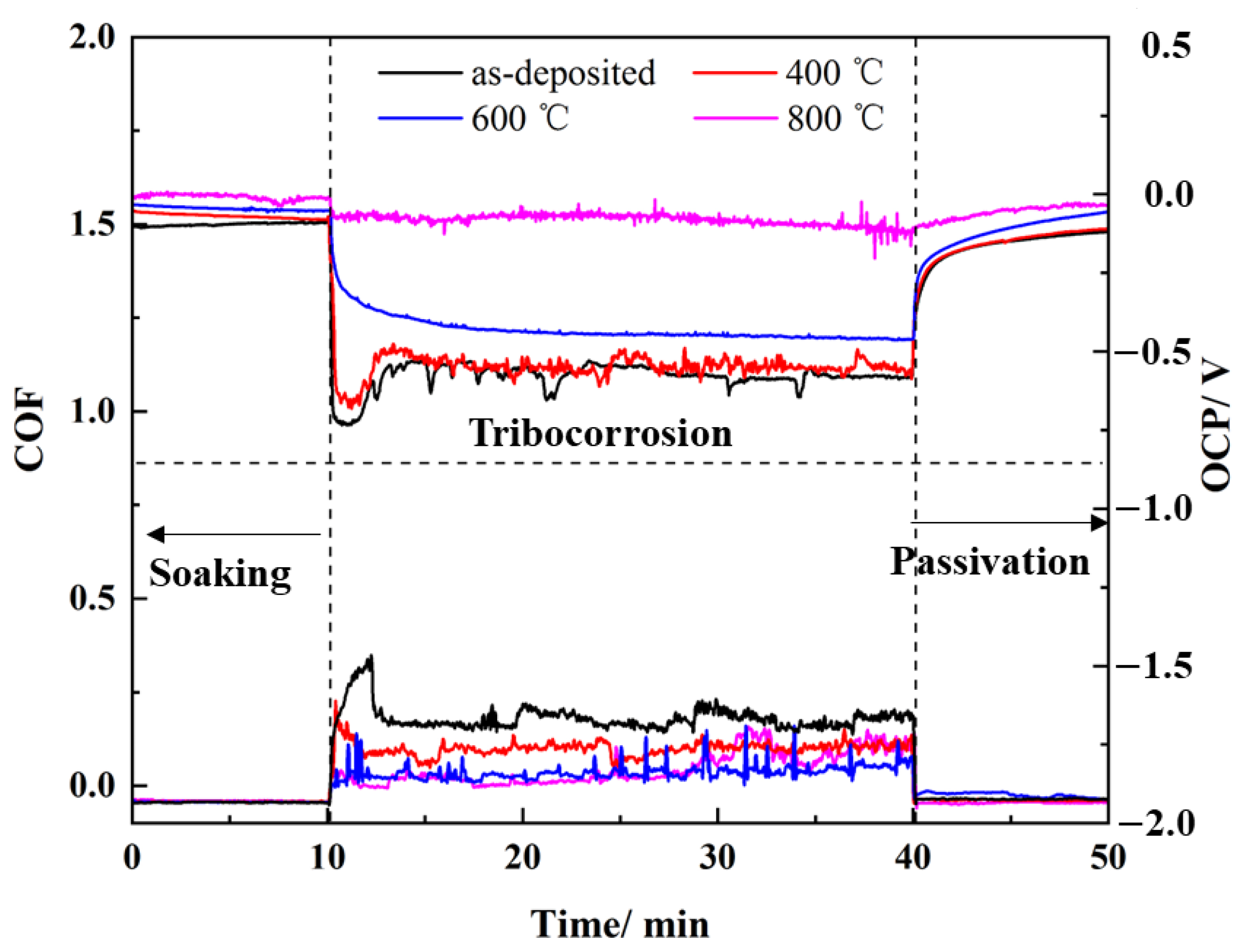

Figure 10.
The COF and OCP curves of AlCrTiZrMo HEA film after annealing for 1 h in air at different temperatures of RT, 400 °C, 600 °C and 800 °C in 3.5wt.% NaCl solution.
Figure 10.
The COF and OCP curves of AlCrTiZrMo HEA film after annealing for 1 h in air at different temperatures of RT, 400 °C, 600 °C and 800 °C in 3.5wt.% NaCl solution.

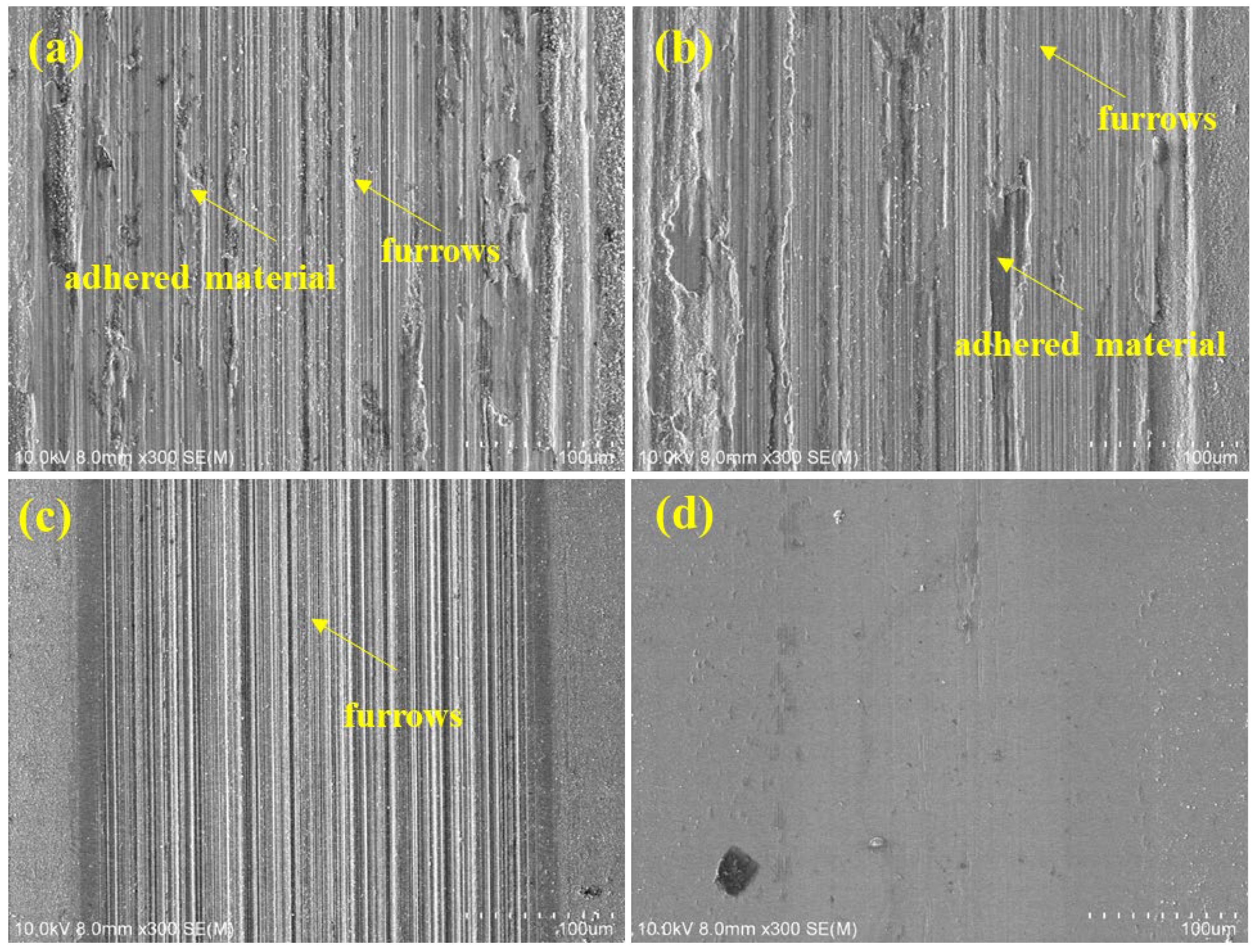

Figure 11.
SEM morphology of wear tracks of AlCrTiZrMo HEA film after annealing in air at (a) RT, (b) 400 °C, (c) 600 °C and (d) 800 °C for 1 h in 3.5wt.% NaCl.
Figure 11.
SEM morphology of wear tracks of AlCrTiZrMo HEA film after annealing in air at (a) RT, (b) 400 °C, (c) 600 °C and (d) 800 °C for 1 h in 3.5wt.% NaCl.
Table 1.
Process parameters for AlCrTiZrMo HEA films.
Table 1.
Process parameters for AlCrTiZrMo HEA films.
Parameter | Value |
---|
Target | Ti0.5Mo0.5/Al/Cr/Zr |
Cathode current (A) | 130/110/110/110 |
Filter coil current (A) | 2 |
Positive bias voltage (V) | 24 |
Duty cycle (%) | 100 |
Negative bias voltage (V) | −100 |
Base pressure (Pa) | 3 × 10−3 |
Table 2.
Crystal structures and contents of the constituent elements in the AlCrTiZrMo HEA film and the values of δ, ∆Hmix and ∆Sconf.
Table 2.
Crystal structures and contents of the constituent elements in the AlCrTiZrMo HEA film and the values of δ, ∆Hmix and ∆Sconf.
| Al | Cr | Ti | Zr | Mo |
---|
Content/at.% | 15.82 | 22.86 | 19.49 | 24.74 | 17.09 |
Radius/Å | 1.43 | 1.27 | 1.45 | 1.60 | 1.40 |
Structure | FCC | BCC | HCP | HCP | BCC |
| 0.077 |
/kJ/mol | −18.40 |
/J/(K·mol) | 13.55 |
Table 3.
Chemical compositions of AlCrTiZrMo HEA film after annealing in air at different temperatures of RT, 400 °C, 600 °C and 800 °C.
Table 3.
Chemical compositions of AlCrTiZrMo HEA film after annealing in air at different temperatures of RT, 400 °C, 600 °C and 800 °C.
Temperature (°C) | Composition (at.%) |
---|
Al | Cr | Ti | Zr | Mo | O |
---|
RT | 15.82 | 22.86 | 19.49 | 24.74 | 17.09 | -- |
400 | 15.71 | 22.56 | 18.34 | 24.37 | 17.01 | 2.01 |
600 | 14.64 | 21.05 | 17.95 | 23.95 | 16.89 | 5.52 |
800 | 11.74 | 18.78 | 13.08 | 21.67 | 14.23 | 20.50 |
Table 4.
Gibbs free energy for oxides of different elements.
Table 4.
Gibbs free energy for oxides of different elements.
Element | ΔGθT/kJ/mol |
---|
Al | −1120.48 + 0.21422T |
Cr | −746.840 + 0.17029T |
Ti | −943.490 + 0.17908T |
Zr | −1096.210 + 0.18912T |
Mo | −505.080 + 0.16862T |
Table 5.
Characterization results of tribocorrosion of AlCrTiZrMo HEA film annealed at different temperatures in 3.5wt.% NaCl solution.
Table 5.
Characterization results of tribocorrosion of AlCrTiZrMo HEA film annealed at different temperatures in 3.5wt.% NaCl solution.
Sample | ΔOCP(V) | COF | Wear Rate (10−6 mm−3·N−1·m−1) |
---|
As-deposited | 0.453 | 0.13 | 7.12 |
400 °C | 0.461 | 0.09 | 7.01 |
600 °C | 0.393 | 0.05 | 6.22 |
800 °C | 0.055 | 0.04 | 1.34 |
| Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
