Electrochemical Performance of Corn Waste Derived Carbon Electrodes Based on the Intrinsic Biomass Properties

by
Kunhan Xie
1,†,
Wen Zhang
1,†,
Kai Ren
1,
Enze Zhu
1,
Jianyi Lu
1,
Jingyang Chen
1,
Penggang Yin
2,
Liu Yang
1,*,
Xiaohui Guan
1,* and
Guangsheng Wang
2
1
Jilin Provincial Science and Technology Innovation Center of Clean Conversion and High-Valued Utilization of Biomass, School of Chemical Engineering, Northeast Electric Power University, Jilin 132012, China
2
School of Chemistry, Beihang University, Beijing 100191, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2023, 16(14), 5022; https://doi.org/10.3390/ma16145022
Submission received: 13 May 2023 / Revised: 29 June 2023 / Accepted: 5 July 2023 / Published: 15 July 2023
(This article belongs to the Special Issue New insights into Energy Storage Materials)
Browse Figures
Versions Notes

Abstract

:
The exploration of cost-effective and sustainable biomass-derived carbon materials as electrodes for energy conversion and storage has gained extensive attention in recent research studies. However, the selection of the biomass and the electrochemical performance regulation of the derived biochar, as well as their interrelationship still remain challenging for practical application. Herein, corn wastes with high carbon content (>40%), corn cob and corn silk, were selected as precursors for the preparation of high value-added and high yield carbon materials via a modified synthetic process. Uniquely, this work put emphasis on the theoretical and experimental investigations of how the biomass properties influence the composition and nanostructure regulation, the electrolyte ion adsorption free energy, and the electrical conductivity of the derived carbon materials as well as their electrochemical performance optimization. Owing to the favorable specific surface area, the hierarchical porous structure, and the diverse elemental distribution, corn cob and corn silk derived carbon materials (CBC and SBC) present great potential as promising electrodes for alkaline aqueous zinc batteries and supercapacitors. The assembled CBC//Zn and SBC//Zn zinc batteries deliver high energy densities of 63.0 Wh kg−1 and 39.1 Wh kg−1 at a power density of 575 W kg−1, with excellent cycling performance of 91.1% and 84.3% capacitance retention after 10,000 cycles. As for the assembled symmetric supercapacitors, high energy densities of 14.9 Wh kg−1 and 13.6 Wh kg−1, and superior long-term cycling stability of 99.3% and 96.6% capacitance retention after 20,000 cycles could be achieved. This study highlights the advantages of utilizing corn cob and corn silk as carbon sources on the designed synthesis of carbon electrodes, and presents a meaningful perspective in the investigation of biomass-derived carbon materials and their potential applications in rechargeable devices.

1. Introduction

The development and utilization of renewable energy sources have gained increasing attention due to the rapid depletion of fossil fuels and the associated severe environmental pollution problems [1,2]. As a result, the optimization of high-performance energy storage devices has become a top priority to realize the application of clean energy in particular fields [3]. Among numerous energy conversion and storage devices, zinc batteries and supercapacitors have attracted considerable attention in addressing energy demands and environmental concerns [4,5,6,7,8], while the development of high-performance electrode materials has been shown to be a feasible and effective method to control and regulate the charge storage capability of the rechargeable devices.
Various carbon materials, such as biochar [9,10], carbon nanotube [11,12], graphene [13,14], and activated carbon [15,16,17], have been explored as electrode materials. Generally, they have characteristics of great rate performance and cycling stability [18,19]. However, their electrochemical performance is still quite different, resulting from the differences among their nanostructures and compositions. Considering the charge storage mechanism, the accessible specific surface area, suitable pore structure, and abundant active sites become the chief characteristics for an ideal carbon electrode [20,21,22]. Biochar is derived from the carbonization or graphitization of biomass, which is widely available and environmentally friendly [23,24]. Recently, the research studies on converting biomass into various functional carbon materials for energy storage have received great attention [25,26]. Ma et al. prepared porous biochar by a typical pyrolysis method combined with chemical activation using tea saponin as the precursor. With the rational modulation of the KOH dosage, the as-prepared carbon material exhibited desirable nanostructure and interface properties, which led to a high specific capacitance of 278 F g−1 and excellent cycling stability [27]. After proper treatment, the obtained biochar with rich pore structure and heteroatom doping could provide sufficient space and active sites for the free migration and adsorption of electrolyte ions, and ultimately effectively improve the charge storage capacity of materials [28,29,30]. In addition, it is crucial to select suitable biomass for the preparation of biochar-based electrode materials [31], and as such more and more agricultural wastes have been employed as precursors [32,33]. For example, Purkait T et al. proposed a scalable mechanical exfoliation method to prepare few-layer graphene-like nanosheets from peanut shell, the obtained electrode exhibited a high specific capacitance of 186 F g−1 in H2SO4 electrolyte (1 mol L−1) [34]. Ma et al. employed sorghum stalk as raw material to produce porous carbon via a universal carbonization method. The derived carbon electrode showed a high specific capacitance of 216.5 F g−1 at 0.5 A g−1 and excellent cyclic stability with 92% capacitance retention after 5000 cycles. Specifically, the doping of N and O atoms greatly increased the electrochemical active sites of the electrode material, which were beneficial for the optimization of its holistic electrochemical performance [35].
Among the numerous crops, corn, as one of the largest grain species in the world, produces numerous biomass wastes every year. Although they are biodegradable, the superior management of the wastes into high-valued products is desirable [36]. In this research, the corn wastes, corn cob and corn silk were selected as the precursors to synthesize high-performance porous carbon materials, which were labeled as CBC and SBC, respectively. With a mild and feasible chemical activation method, the yield of the products could be guaranteed, and the as-prepared CBC and SBC deliver high specific capacitances of 283.8 F g−1 and 266.0 F g−1 at the current density of 1 A g−1, and superior cycle stability of 85.3% and 86.1% after 10,000 cycles, respectively. In addition, the high-performance CBC and SBC were used as the positive electrodes in zinc batteries and supercapacitors, which possess obviously higher energy and power density, as well as cycling stability than most reported biochar electrode based rechargeable devices. Furthermore, the influences of the biomass properties on the composition and nanostructure regulation of the derived carbon materials and their electrochemical performance optimization were also investigated. This study fully proved the advantages of utilizing corn cob and corn silk as precursors to controllably synthesize high-valued carbon-based electrodes, which are expected to become commercial on a large scale. The prepared biochar-based electrodes were used creatively in the zinc batteries and proved to have great potential.

2. Experimental Section

2.1. Materials

All the chemicals were of analytical grade and used as received without any further purification. The water used in this research was ultrapure water.

2.2. Synthesis of the CBC and SBC Materials

Corn cob and corn silk derived carbon materials with hierarchical porous structure were prepared via a pyrolysis process with KOH as the activating agent. The crushed corn cob and corn silk were first screened through 65 mesh sieves, respectively. Then, approximately 5 g of corn cob or corn silk powders were transferred into 30 mL of KOH solution (6 mol L−1) with stirring for 12 h. The mixture obtained was washed with ultrapure water to eliminate the redundant KOH, to ensure the yield of the products. The above samples were dried at 60 °C for 24 h under vacuum, and further pyrolyzed in a tubular furnace at 700 °C for 2 h with a heating rate of 2 °C min−1 in a nitrogen atmosphere. Finally, the products, named as CBC and SBC, were washed with HCl (1 mol L−1) to remove impurities, and then washed with ultrapure water repeatedly until pH neutral, and dried at 60 °C under vacuum for 12 h.

2.3. Characterization

The morphology and structure of CBC and SBC were observed by field-emission scanning electron microscopy (FE-SEM) using a Zeiss Sigma 300 microscope (Oberkochen, Germany) with an XFlash 6130 instrument for the X-ray energy dispersive spectrometer (EDS). The phase and crystalline structure were characterized by X-ray diffraction (XRD) measured on a Shimadzu XRD-7000 (Kyoto, Japan) X-ray powder diffractometer with Cu Kα radiation (λ = 1.5406 Å). The Raman spectra were obtained from a LabRAM HR-800 Laser (HORIBA Jobin Yvon Co., Paris, France). X-ray photoelectron spectroscopy (XPS) was carried out to further analyze the elemental species and their chemical states using an ESCALAB 250Xi (Thermo Fisher Scientific, Waltham, MA, USA) apparatus. Nitrogen adsorption–desorption isotherms were performed on an ASAP 2020 V4.01 system to analyze the specific surface area and pore structure. Elemental analysis was performed on a Euro Vector EA3000 elemental analyzer (Redavalle, Italy). The S element content was determined on a sulfur determination device (Sundy SDS516, Changsha, China).

2.4. Electrochemical Characterization

To evaluate the electrochemical performance of the prepared materials, cyclic voltammetry (CV), galvanostatic charge-discharge (GCD) measurements and electrochemical impedance spectroscopy (EIS) were implemented on a CHI660E electrochemical workstation (Shanghai, China) in a classical three-electrode configuration. The obtained products were firstlfabricated as working electrode by mixing with acetylene black and polytetrafluorethylene (PTFE) in a mass ratio of 8:1:1, loading on a piece of pretreated nickel foam (current collector) with size of 1 cm × 1 cm under pressure of 10 MPa for 30 s, and ultimately drying at 50 °C for 12 h in a vacuum oven. The mass loading of the electrode was about 1.0–1.5 mg. In the three-electrode system, platinum foil and a saturated calomel electrode were used as the counter electrode and reference electrode, respectively, and KOH solution (2 mol L−1) was utilized as the electrolyte. The specific capacitance of the materials was calculated according to the GCD test results, following Formula (1):
C = I × Δ t m × Δ V
where C (F g−1) denoted the specific capacitance, I (A) referred to the charging/discharging current, Δt (s) represented the discharging time, m (g) was the mass loading of the active material on the working electrode, and ΔV (V) was the applied voltage window.
For the two-electrode system, Zn foil was directly utilized as the anode, and the mixed solution of KOH (2 mol L−1) and Zn(Ac)2 (0.02 mol L−1) was used as the electrolyte. In order to fully study the electrochemical performance of the CBC and SBC electrodes, the area of the Zn foil in this work was larger than that of the cathode. The CV tests were performed on the CHI660E electrochemical workstation, and the GCD tests were carried out on the Land 3002A battery test system. The specific capacity (C, mAh g−1) was determined according to the following equation:
C = I × Δ t 3.6 × m
where I (mA) was the charging/discharging current, Δt (s) represented the discharging time, m (g) was the total mass loading of the material.
The CBC//CBC and SBC//SBC symmetric supercapacitors were assembled with identical activated porous carbon materials as the positive and negative electrodes, with KOH aqueous solution (6 mol L−1) as the electrolyte. The CV and GCD tests were conducted on the electrochemical workstation (CHI660E, Shanghai, China), and the long-term cycling performance was studied on the Land 3002A battery test system (Wuhan, China).
The energy density (E, Wh kg−1) and power density (P, W kg−1) of the rechargeable devices were calculated by the following equations:
E = 1 2 × 3.6 × C × Δ V 2
P = E × 3600 Δ t
where C (F g−1) was the specific capacitance of the assembled devices, ΔV (V) was the applied voltage window, and Δt (s) represented the discharging time.

2.5. Computation Methods

Theoretical research studies were conducted to clarify the effects of diverse heteroatom doping on the electrochemical performance regulation of the carbon materials. All the calculations were based on density functional theory (DFT) as implemented in the Vienna ab initio simulation package (VASP) [37,38]. The ion–electron interactions were described utilizing the projector augmented wave (PAW) method [39]. The generalized gradient approximation was adopted in the Perdew–Burke–Ernzerhof (PBE) function [40,41], and the cut-off energy of the plane-wave basis was 500 eV. Prevention of the interactions between the periodic images along the z-direction was also considered in the DFT calculations by setting the vacuum as 15 Å. The Brillouin zone was sampled with the Monkhorst-Pack 3 × 3 × 1 and 7 × 7 × 1 k-point grids for geometry and electronic structure calculations, respectively. The energy and force convergence thresholds for the iteration in self-consistent field (SCF) were set as 10−5 eV and 0.02 eV Å−1, respectively. The van der Waals (vdW) interactions between the adsorbates and carbon materials were depicted by using Grimme’s semi-empirical DFT-D3 scheme [42]. In this study, the model of pure carbon material was constructed as the structure of graphene, where a single layer of well-ordered carbon atoms was selected. The adsorption capabilities of K* and OH* on the carbon materials were evaluated, and the adsorption energies (ΔE) were calculated according to the following equations:
ΔEK = Etotal − Egraphene − EK
ΔEOH = Etotal − Egraphene − (EH2O − 1/2EH2)
in which Etotal was the total energy of K* or OH* adsorbed on the grapheme, Egraphene was the total energy of the clean graphene without any adsorbates, and EK, EH2, and EH2O were the total energies of K, H2, and H2O free molecules in vacuum.

3. Results and Discussion

The elemental analysis and proximate analysis were performed to illustrate the potential of the corn cob and corn silk utilized as precursors to synthesize carbon materials. The elemental analysis results (Table S1) indicate that the corn cob and corn silk raw materials contain 42.8% and 41.1% carbon (C), respectively, which are higher than that of most other biomass [43]. Furthermore, they also contain a moderate amount of heteroatoms, which could be retained after carbonization treatment and are favorable for the improvement of the electrochemical activity of the prepared carbon materials. The corresponding results for CBC and SBC also verify that the derived carbon materials possess high carbon content and a slight amount of heteroatom doping. Meanwhile, as could be seen from the proximate analysis results in Table S2, the relatively low ash contents (2.0%) indicate the small amounts of minerals existing in the biomass, and consequently only a small quantity of derived impurities would be generated in the final calcined products. In addition, the high volatile matter contents imply large amounts of combustible substances in the raw materials, such as C, H, O, N, and S elements, which are beneficial for the uniform doping of the heteroatoms. The above results demonstrate that the selected corn wastes are suitable precursors for the synthesis of high-valued heteroatom-doped carbon materials.
The schematic illustrations for the preparation of CBC and SBC are depicted in Figure 1. The controlled synthetic processes of CBC and SBC mainly include two steps, pretreatment and carbonization. First of all, the raw corn cob and corn silk are cleaned, crushed, and screened into manageable sizes, which facilitates the permeation of the activator and the subsequent complete carbonization and activation of the materials. The gentle and long-time soaking allows the corn cob and corn silk powder to adsorb adequate KOH for activation treatment, while the consequent washing treatment with ultrapure water eliminates the redundant KOH activator and efficiently guarantees the high yield of products. Then the above samples are pyrolyzed under N2 atmosphere. With the release of moisture and volatile components, and the activation of KOH, a large number of micro-/meso-/macro-pores are generated. As the intrinsic properties of the biomass are different, the corn cob with relatively dense and robust structure tends to be transformed into porous carbon material with intact pore structures.
SEM characterization is performed to identify the morphology and structure of the corn cob, corn silk, CBC, and SBC. As shown in Figure 2a,d, the microstructures of the raw materials are uniform, exhibiting no impurities. Obvious hierarchical structures could be observed resulting from the transport of nutrients in the plants [44], which are suitable for the synthesis of porous biochar materials. However, compared to the corn silk with the presence of aligned channels, the corn cob mainly presents a thicker stacked texture, which could provide a more stable skeleton for harsh carbonization and activation treatments. Furthermore, the two quite different microstructures of the corn cob and corn silk make it possible to investigate the effects of the raw material properties on the pore structure regulation of the derived carbon materials and the optimization of the synthetic process. After activation and carbonization, both the CBC and SBC are rich in micropores and mesopores, as well as a certain portion of macropores, which can be seen clearly in Figure 2b,c,e,f. Comparatively speaking, the CBC possesses a porous cheese-like interconnected carbon framework with uniformly distribution of circular pores, and the SBC reveals a disorganized porous morphology with broken pore structures. Such distinctions could be attributed to the different structural characteristics of the two raw materials and the synthetic mechanism. Specifically, the formation of various pore structures is due to the fact that the KOH comes into the channels and adsorbs on the surface of the corn cob and silk during immersion, and triggers a series of redox reactions in the subsequent high-temperature carbonization process. In contrast to the relatively robust plate-like structure of corn cob, which is beneficial for the retention of intact microstructures after the harsh treatments, the formation of numerous pores results in the channel structure of corn silk becoming fragile and being more prone to collapse, eventually destroying the original regular structure. The above SEM results show that the structure features of the biomass could be utilized to adjust and control the hierarchical pore structures of the biochar.
The elemental composition and distribution of CBC and SBC are revealed based on the EDS results. The elemental mapping images in Figure 2(c1–c5,f1–f5) depict that the carbon (C), nitrogen (N), oxygen (O), phosphorus (P), and sulfur (S) elements are uniformly distributed in the whole framework, demonstrating the successful preparation of the multi-heteroatom doped carbon materials derived from corn wastes. The elemental composition and contents of CBC and SBC are confirmed by the EDS spectra. The spectra in Figure 3a indicate that the two carbon materials are composed of C, N, O, P, and S elements, all derived from the raw biomass materials. As shown in the corresponding Table, the element contents in CBC and SBC are quite different. The carbon content of CBC is clearly higher than that of SBC, and the nitrogen, oxygen, and phosphorus contents of CBC are lower than those of SBC. The results of the elemental analysis and the EDS exhibit similar patterns. It can be seen that even both of the precursors are obtained from corn wastes, but the element contents of the derived carbon have obvious distinctions, demonstrating that the properties of the biomass could greatly influence the composition of the derived carbon materials and their electrochemical performance as a result.
According to the SEM and EDS results, it could be reasonably deduced that the essential properties of the biomass have inevitable influences on the structure and composition design of the derived carbon materials and could dramatically affect the electrochemical performance as a consequence. Additionally, for different biomass with distinct properties, appropriate synthesis methods and conditions should be adopted and regulated. In this case, corn cob is suitable for harsh treatments with high pyrolysis temperature and strong activation of highly concentrated KOH, but corn silk with a relatively loose and unstable structure could produce porous carbon material via more gentle activation conditions. Moreover, as for the heteroatom-doping modulation of biochar materials, the intrinsic heteroatom contents of the biomass could not be neglected. Thus, the selection of suitable biomass precursors could be of great importance for the designed synthesis of the derived carbon materials.
N2 adsorption–desorption measurements were employed to assess the specific surface area and porous structure of the two as-prepared products and the results are shown in Figure 3b,c. Obviously, the isotherms of both CBC and SBC (Figure 3b) with the typical hysteresis loops at the p/p0 range of 0.4 to 0.8 are in accordance with the type IV isotherm, implying the hierarchical porous structure of the two samples [45,46]. Meanwhile, there is a sharp rise in the low relative pressure range (0–0.2), which proves the presence of a large number of micropores in the two materials. Combined with Figure 2c the pore size distribution curves show a sharp peak at about 2 nm and a narrow hump centered around 4 nm, suggesting the existence of abundant mesopores in the two structures, which is consistent with the SEM results. Thanks to the effective combination of KOH activation and high temperature carbonization treatments, the obtained CBC achieved a high specific surface area of 1149.8 m2 g−1 and a pore volume of 0.54 cm3 g−1, both of which are slightly higher than those of SBC (1083.6 m2 g−1 and 0.39 cm3 g−1). The increasing specific surface area and pore volume can accommodate more charges and shorten the ion diffusion distance during the charging–discharging process, and greatly contribute to the electrochemical performance enhancement of CBC and SBC.
XRD analysis was used to further confirm the composition and crystalline structure of the obtained materials. As shown in Figure 3d the XRD patterns of CBC and SBC possess two obvious and broad diffraction peaks at approximately 24° and 42°, corresponding to the typical (002) and (100) crystal planes of graphite carbon, respectively [47]. The peak centered at about 24° could be assigned to the formation of stacked graphite layer, and the peak sited at about 42° indicates the existence of ordered hexagonal graphite [48,49]. In addition, the XRD patterns of the two biochar materials show obvious upward warping at the 2θ range of 5°–10°, suggesting that both CBC and SBC possess abundant micropores, which are beneficial for the improvement of their electrochemical performance [50].
As displayed in Figure 3e the graphitic characteristics of the two samples were further examined through Raman scattering spectroscopy measurements. The two distinctive peaks in the Raman spectra correspond to the D and G bands, respectively, which are the two characteristic peaks of carbon materials. The D band at about 1350 cm−1 is related to the defective or disordered features of the graphite structure, while the G band at about 1590 cm−1 originates from the internal vibration of sp2-bonded carbon, relating to the well-ordered graphitic structures [51,52]. It is well known that the intensity ratio of the G band to D band (IG/ID) indicates the graphitization degree of carbon materials [53]. The values of IG/ID of CBC and SBC were calculated to be 1.03 and 0.99, respectively, indicating the presence of both ordered graphitic structures and defects in the graphitic carbon structures. For CBC, the IG/ID value is slightly higher than that of SBC, revealing a relatively higher degree of graphitization, which might increase the electrical conductivity and stability of the carbon material [53,54].
XPS analysis was employed to reveal the surface chemical composition and different bonding states of the CBC and SBC samples. As depicted in Figure 4a, two main strong characteristic peaks namely C 1s and O 1s, and some weak peaks like N 1s, P 2p, and S 2p could be observed, which indicates the presence of O, N, P, and S heteroatoms in the as-prepared carbon materials, deriving from the original corn cob and corn silk precursors. According to previous reports, the heteroatom doping could effectively increase the defects and active sites of the carbon materials, which might be favorable for the improvement of their electrochemical activity [22,55]. The high-resolution C 1s spectra (Figure 4b) for CBC and SBC can be fitted into four individual peaks, representing the sp2-bonded carbon, sp3-bonded carbon, C=O, and O-C=O, respectively [56]. Those functional groups indicate the existence of the abundant conjugated systems, which are conducive to improving the conductivity of the porous carbon [57,58,59]. As shown in Figure 4c, the O 1s spectra of both CBC and SBC could be divided into three peaks, which are assigned to the adsorbed oxygen, O-C=O, and C=O (carbonyl oxygen of quinone), respectively [51,60,61]. The high-resolution N 1s spectra of CBC and SBC are deconvoluted into four individual peaks (Figure 4d), corresponding to the pyridinic N, pyrrolic N, quaternary N, and oxidized N-oxide species [56,62,63]. Combined with previous studies, negatively charged pyridinic N and pyrrolic N could stimulate pseudo-capacitance behavior, and positively charged quaternary N and oxidized N are believed to be beneficial to improving the electronic conductivity of materials, eventually leading to the enhancement of the electrochemical performance [63,64]. Deconvolution of the P 2p spectra reveals the presence of P-C and P-O bonds in the structure (Figure 4e) [22,56]. The high-resolution S 2p spectra of CBC and SBC can be divided into two peaks corresponding to C-S-C (Figure 4f) [22].
The electrochemical performance of CBC and SBC were evaluated in a classical three-electrode configuration. The CV curves of the two carbon materials at different scan rates are shown in Figure 5a,c. Obviously, all CV curves show rectangular-like shapes in the potential window of −1.0–0 V, exhibiting typical electric double layer capacitance behavior with quick electrochemical response [65]. Meanwhile, partial contribution of pseudo-capacitance could be seen from the slight bulge, which may have resulted from the doped heteroatoms. As can be seen from the curves, the slight deviation of the rectangular shape at high scanning rates is due to the response delay arising from insufficient electrolyte ion diffusion [66]. The shapes of the CV curves at different scan rates are similar without noticeable changes, revealing the excellent rate performance and high coulombic efficiency of the two samples [67]. As shown in Figure 5b,d, the GCD measurement was carried out at current densities of 1–20 A g−1 to further evaluate the capacitance and rate performance of CBC and SBC. The GCD curves for both CBC and SBC display typical linear and symmetrical triangular shapes, representing classical double-layer capacitance behavior, which is consistent with the CV results. Specifically, the specific capacitances of CBC were evaluated as 283.8, 255.6, 233.0, 216.0, and 188.0 F g−1 at the current densities of 1, 2, 5, 10, and 20 A g−1, respectively, while SBC exhibited specific capacitances of 266.0, 246.8, 225.0, 204.0, and 176.0 F g−1 at the corresponding current densities. The corresponding specific capacitances as a function of current densities are shown in Figure 5e. The results indicate that CBC and SBC have desirable specific capacitances and the great charge storage capability could still be retained at relatively high current density. Moreover, as the current density increases, the decrease of the specific capacitances is mainly due to a polarization phenomenon [53].
EIS measurement was carried out to further analyze the impedance and capacitive behavior of the electrodes. The tests were conducted at a frequency range of 0.01–100,000 Hz at open circuit potential with a current amplitude of 5 mV. According to the Nyquist impedance plots (Figure 5f), both CBC and SBC exhibit a small semicircle at high frequency and a nearly straight line at low frequency, indicating a fast charge transfer rate and an ideal capacitive behavior [68]. In the high frequency area, the value of equivalent series resistance (Rs) is equal to the intercept at the x-axis, which involves the interface contact resistance, the inherent resistance of electrode materials, and the ionic transportation resistance of the electrolyte [69]. What is more, the diameter of the semicircle is related to the charge transfer resistance (Rct), and the slope of the slanted line at low frequency is relevant to the Warburg impedance (Wz), arising from the dispersion of electrolyte ions in the active materials [70,71]. It can be clearly seen from the image that the Rs values of CBC and SBC are 0.58 and 0.57 Ω, indicating that both electrodes possess low intrinsic resistance and interface contact resistance. In addition, the plot for CBC has a relatively smaller semicircle diameter and larger slope, demonstrating the lower transportation resistance of electron and electrolyte ion during the charge storage process. Figure 5g shows the Bode plots of impedance phase angle versus frequency for the CBC and SBC. The phase angle of nearly 90° could be observed from the plots at a frequency of 0.01 Hz, revealing the ideal capacitive behavior of the two samples. Meanwhile, the values of characteristic frequency (f0) of CBC and SBC at −45° are 1.35 and 0.68 Hz, corresponding to the relaxation time constant τ0 of 0.74 and 1.47 s, respectively, which represents the faster charge migration of CBC compared to SBC [56].
The cycling performances of CBC and SBC were also evaluated by calculating the initial specific capacitance retention after 10,000 cycles. As shown in Figure 5h, the specific capacitances of CBC and SBC could maintain 85.3% and 86.1%, respectively, highlighting the superior charge–discharge stability of the two porous carbon electrodes. Considering the electrical double-layer capacitance behavior of CBC and SBC, the excellent stability of the two carbon materials could be attributed to their high specific surface area and desired pore size distribution, which could accommodate the migration and adsorption of electrolyte ions. All the above electrochemical results reveal that the structure and composition strengths of the carbon materials prepared in this work greatly regulated their electrochemical performance.
In order to further elucidate the enhanced electrochemical properties of CBC and SBC, the effects of different heteroatom doping on their electrochemical performance were investigated by adopting density functional theory (DFT) calculations. Based on the EDS and XPS characterizations, the N, O, P, and S doped carbon models were constructed individually, and for comparison, a pure carbon model was also designed. The top view optimized models are shown in Figure S1. Considering the double electric layer charge storage mechanism, the carbon-based materials store energy is mainly based on the adsorption/desorption of electrolyte ions and since the adsorption energies of K* and OH* are relevant to the reaction kinetics during the charge–discharge process [55], the adsorption energy of the electrolyte ions (K* and OH*) on the carbon materials with different heteroatom doping was calculated. The optimized models for the adsorption of K* and OH* and the specific adsorption free energies are shown in Figure 6a. As can be seen, the adsorption energies of K* on the P or S doped carbon materials are lower than that on the pure carbon, especially for the P doped carbon, which has the most superior K* adsorption ability. The lower adsorption energies indicate that the materials have a higher affinity for K* [72]. Meanwhile, the adsorption energies of OH* on the materials doped with N, O, P, or S atoms are 2.10, −0.54, −0.91, and 1.56 eV, respectively, which are lower than that on the pure carbon material (2.66 eV). The electrical conductivity of the pure carbon and the heteroatom doped carbon materials was also evaluated, and the results are shown in Figure 6b. It is obvious that the doping of heteroatoms could greatly optimize the conductivity of the materials, and the P and S doping could lead to a noticeably more positive effect. These results reaffirm that heteroatom doping contributes to additional active sites on the materials and could effectively improve the electrical conductivity and the affinity of the prepared materials for electrolyte ions, which have been proven to be more favorable for the improvement of the electrochemical properties [73]. In addition, the biochar materials synthesized in this work were multi-heteroatom doped, which might have had a synergistic promotion effect on their electrochemical performance regulation.
Zinc batteries generally suffer from poor rate performance and cycling stability. In this work, we utilized creatively biochar-based cathodes to solve the above problems. The electrochemical performance of the CBC and SBC cathodes was evaluated in a two-electrode system using a Zn anode and an alkaline-based electrolyte. As shown in Figure 7a,b, the CV curve (at 5 mV s−1) of the CBC//Zn has a slightly larger integrated area compared to that of the SBC//Zn, and the GCD curve (at 2 A g−1) of the CBC//Zn also exhibits the longer discharging time, both of which indicate that the CBC cathode presents higher specific capacity. As can be seen in Figure 7c,e, the CV curves of the CBC//Zn and the SBC//Zn are mainly rectangular shapes, which implies the primary capacitive contribution during the charge storage process. In Figure 7d,f, the CBC//Zn delivers high specific capacities of 109.6, 83.2, 72.8, 67.2, 63.1, 61.7, 58.3, and 56.7 mAh g−1 at 1, 2, 3, 5, 8, 10, 15, and 20 A g−1, respectively while the SBC//Zn shows specific capacities of 67.9, 59.6, 56.5, 53.9, 51.6, 50.6, 49.2, and 46.7 mAh g−1 at the same current densities. The above results reveal that the CBC has relatively higher specific capacities, and both of the two cathodes show desirable rate performance. In Figure 7g, it is remarkable that both of the two zinc batteries present superior cycling stability with 91.1% and 84.3% specific capacity retention after 10,000 cycles, respectively, which highly demonstrates the great merits of using the CBC and SBC biochar-based materials as the zinc battery electrodes. The rate performance of the two cathodes was further studied and the results are shown in Figure 7h. The CBC delivers a higher specific capacity at 1 A g−1, but relatively lower capacity retention at 20 A g−1 compared with that of the SBC. However, the capacities of the CBC undergo slight decreases from 2 A g−1 to 20 A g−1, which also manifests the great rate performance of the cathode. For the SBC cathode, the specific capacity could be retained about 68.3% at a high current density of 20 A g−1, and the capacity also became stable from 2 A g−1 to higher current densities. Moreover, as the current density was set back to 1 A g−1, the specific capacities of CBC//Zn and SBC//Zn could be almost maintained at the same level compared with those in the initial stage. The excellent cycling stability and rate performance of the CBC and SBC cathodes could be attributed to the primary capacitive contribution during the charging–discharging process. Biochar-based materials have been rarely reported as being used as zinc battery cathodes, but in this work, the as-prepared CBC and SBC showed excellent charge storage capability, which also provides a new perspective in the development of high-performance rechargeable devices.
In order to further assess the electrochemical performance and practical application of the prepared materials, CBC and SBC were employed as electrodes to fabricate symmetric supercapacitors (CBC//CBC and SBC//SBC), and the schematic illustration of the symmetric supercapacitors is shown in Figure 8a. According to the equation, E = 1/2CV2, it is evident that high potential value is of great significance for the improvement of the energy density of the supercapacitors [74]. The CV curves of the above devices performing under different voltage windows (0.8–1.8 V) are shown in Figure S2. To minimize the effects of polarization during the tests, the operating voltage of the supercapacitors was finally set as 1.6 V. Figure 8b,d displays the CV curves of the two supercapacitors at scan rates ranging from 30 to 200 mV s−1. Obviously, all the CV curves reveal ideal capacitive behavior with symmetrical rectangular shapes. It is noteworthy that satisfactory rectangular curves can still be observed at the high scan rate of 200 mV s−1, implying the rapid charge transfer capability and great rate performance of the assembled supercapacitors. Furthermore, Figure 8c,e displays the GCD curves of the assembled supercapacitors at diverse current densities of 1, 2, 5, 10, and 20 A g−1, and the corresponding specific capacitances of CBC//CBC are 41.9, 40.2, 37.5, 29.4, and 25.1 F g−1, respectively. While the SBC//SBC possesses specific capacitances of 38.1, 35, 26.3, 23.8, and 20 F g−1.
Figure 8f summarizes the energy densities and power densities of CBC//Zn, SBC//Zn, CBC//CBC, SBC//SBC, and some previously reported devices in the form of Ragone plots. It is evident that the zinc batteries show much higher energy densities than those of the supercapacitors. The energy densities of the CBC//Zn and the SBC//Zn are 63.0 and 39.1 Wh kg−1 at a power density of 575 W kg−1, respectively. At a much higher power density of 4600 W kg−1, their energy densities could still be retained at 36.3 and 29.7 Wh kg−1. As for the supercapacitors, the CBC//CBC achieves a high energy density of 14.9 Wh kg−1 at a power density of 800 W kg−1, and the SBC//SBC delivers an energy density of 13.6 Wh kg−1. Even at the high-power density of 16,000 W kg−1, the CBC//CBC and SBC//SBC can maintain energy density of 8.9 Wh kg−1 and 7.1 Wh kg−1, respectively. It is noticeable that the energy densities of the as-assembled rechargeable devices in this work are higher than the commercial carbon-based supercapacitors (4–6 Wh kg−1) and most of the other reported biochar-based devices [56,62,68,75,76,77,78,79,80,81,82,83,84,85]. The cycling stability of the symmetric supercapacitors was also assessed and the results are shown in Figure 8g. Remarkably, the specific capacitances of CBC//CBC and SBC//SBC still maintain 99.3% and 96.6% after cycling for 20,000 times with almost no capacitance decay, suggesting the outstanding long-term cycling stability, superb reversibility, and high practical application potential of the assembled supercapacitors. In summary, the above electrochemical test results fully verified the superior electrochemical performance of the obtained electrodes and their corresponding fabricated rechargeable devices. As shown in Figure 8h the excellent electrochemical performance of CBC and SBC could be mainly attributed to their hierarchical porous structure and the multi-heteroatom doped composition features. The hierarchical porous structure could highly facilitate the electrolyte ion transportation and expose more accessible surface area for the electrostatic adsorption of charged ions. Additionally, the doped heteroatoms inherited from the raw corn wastes could dramatically optimize the adsorption energies for the K* and OH* and the electrical conductivity of the prepared biochar materials, which could provide more active sites than the pure carbon materials and efficiently enhance their electrochemical activity as a consequence.

4. Conclusions

In this work, corn wastes were adopted to synthesize controllably high-performance porous and multi-heteroatom doped carbon materials in high yield. These were also utilized as high-performance cathodes in rechargeable devices, especially being used creatively in zinc batteries. The experimental and theoretical investigation results revealed that the essential properties of the biomass had negligible influences on the composition and nanostructure regulation of the derived carbon materials and their electrochemical performance. Additionally, the multi-heteroatoms doping of the carbon materials could efficiently optimize the adsorption energies of K* and OH*, and noticeably increase the electrical conductivity, which proved to be of great significance for their electrochemical performance improvement. The assembled CBC//Zn and SBC//Zn zinc batteries deliver high energy densities of 63.0 Wh kg−1 and 39.1 Wh kg−1 at a power density of 575 W kg−1, and excellent cycling performance of 91.0% and 84.3% capacitance retention after 10,000 cycles. The symmetric supercapacitors also possess relatively desirable energy and power densities, as well as superior long-term cycling stability. This study has provided a facile and economical way to produce high value-added corn waste derived electrode materials with excellent electrochemical performance. Furthermore, the investigation method laying emphasis on the effects of biomass properties on the electrode performance modulation has a guiding significance for the design and application of other biochar electrodes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16145022/s1, Figure S1: The optimized top view models of the pure carbon and the heteroatom doped carbon materials, in which the brown, gray, red, light pink and yellow balls represent C, N, O, P and S atoms, respectively. Figure S2: The CV plots of (a) CBC//CBC and (b) SBC//SBC under different potential windows at a scan rate of 80 mV s−1; Table S1. Elemental analysis for CBC, SBC, corn cob and corn silk. Table S2: Proximate analysis for the corn cob and corn silk.

Author Contributions

Conceptualization, L.Y. and X.G.; Methodology, X.G., K.X. and W.Z.; Formal Analysis, K.X., W.Z., E.Z. and P.Y.; Resources, X.G. and L.Y.; Investigation, W.Z., K.X., K.R., J.L. and E.Z.; Data Curation, G.W., K.X., W.Z., K.R., J.L. and J.C.; Validation, W.Z., K.X., K.R., J.L., E.Z. and L.Y.; Writing—Original Draft Preparation, W.Z., L.Y. and K.X.; Writing—Review and Editing, X.G. and L.Y.; Supervision, L.Y. and X.G.; Project Administration, X.G., L.Y. and G.W.; Funding Acquisition, X.G. and L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the funding support from the National Natural Science Foundation of China (51972049, 52202217), the Project of Jilin Province Development and Reform Commission (2021C040-4), and the Science and Technology Research Project of Jilin Education Department (JJKH20210104KJ).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author, upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pomerantseva, E.; Bonaccorso, F.; Feng, X.; Cui, Y.; Gogotsi, Y. Energy storage: The future enabled by nanomaterials. Science 2019, 366, 6468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wang, C.; Zhao, S.; Song, X.; Wang, N.; Peng, H.; Su, J.; Zeng, S.; Xu, X.; Yang, J. Suppressed dissolution and enhanced desolvation in core-shell MoO3@TiO2 nanorods as a high-rate and long-life anode material for proton batteries. Adv. Energy Mater. 2022, 12, 2200157. [Google Scholar] [CrossRef]
  3. Wang, J.; Yang, L.; Fu, Y.; Yin, P.; Guan, X.; Wang, G. Delicate control of crystallographic Cu2O derived Ni-Co amorphous double hydroxide nanocages for high-performance hybrid supercapacitors: An experimental and computational investigation. Nanoscale 2021, 13, 8562–8574. [Google Scholar] [CrossRef]
  4. Zhang, S.; Hao, J.; Luo, D.; Zhang, P.; Zhang, B.; Davey, K.; Lin, Z.; Qin, S. Dual-function electrolyte additive for highly reversible Zn anode. Adv. Energy Mater. 2021, 11, 2102010. [Google Scholar] [CrossRef]
  5. Yang, L.; Lu, X.; Wang, S.; Wang, J.; Guan, X.; Guan, X.; Wang, G. Designed synthesis of nickel-cobalt-based electrode materials for high-performance solid-state hybrid supercapacitors. Nanoscale 2020, 12, 1921–1938. [Google Scholar] [CrossRef] [PubMed]
  6. Qian, L.; Yao, W.; Yao, R.; Sui, Y.; Zhu, H.; Wang, F.; Zhao, J.; Zhi, C.; Yang, C. Cations coordination-regulated reversibility enhancement for aqueous Zn-ion battery. Adv. Funct. Mater. 2021, 31, 2105736. [Google Scholar] [CrossRef]
  7. Shao, Y.; El-Kady, M.F.; Sun, J.; Li, Y.; Zhang, Q.; Zhu, M.; Wang, H.; Dunn, B.; Kaner, R.B. Design and mechanisms of asymmetric supercapacitors. Chem. Rev. 2018, 118, 9233–9280. [Google Scholar] [CrossRef] [PubMed]
  8. Song, M.; Tan, H.; Chao, D.; Fan, H. Recent advances in Zn-ion batteries. Adv. Funct. Mater. 2018, 28, 1802564. [Google Scholar] [CrossRef]
  9. Wei, T.; Wei, X.; Gao, Y.; Li, H. Large scale production of biomass-derived nitrogen-doped porous carbon materials for supercapacitors. Electrochim. Acta 2015, 169, 186–194. [Google Scholar] [CrossRef]
  10. Kang, D.; Liu, Q.; Gu, J.; Su, Y.; Zhang, W.; Zhang, D. “Egg-box”-assisted fabrication of porous carbon with small mesopores for high-rate electric double layer capacitors. ACS Nano 2015, 9, 11225–11233. [Google Scholar] [CrossRef]
  11. Zhang, W.; Yang, W.; Zhou, H.; Zhang, Z.; Zhao, M.; Liu, Q.; Yang, J.; Lu, X. Self-discharge of supercapacitors based on carbon nanotubes with different diameters. Electrochim. Acta 2020, 357, 136855. [Google Scholar] [CrossRef]
  12. Gao, X.; Zhang, C.; Dai, Y.; Zhao, S.; Hu, X.; Zhao, F.; Zhang, W.; Chen, R.; Zong, W.; Du, Z.; et al. Three-dimensional manganese oxide@carbon networks as free-standing, high-loading cathodes for high-performance zinc-ion batteries. Small Struct. 2022, 4, 2200316. [Google Scholar] [CrossRef]
  13. Zhang, H.; Yang, D.; Lau, A.; Ma, T.; Lin, H.; Jia, B. Hybridized graphene for supercapacitors: Beyond the limitation of pure graphene. Small 2021, 17, 2007311. [Google Scholar] [CrossRef] [PubMed]
  14. Li, S.; Liu, Y.; Zhao, X.; Shen, Q.; Zhao, W.; Tan, Q.; Zhang, N.; Li, P.; Jiao, L.; Qu, X. Sandwich-like heterostructures of MoS2/graphene with enlarged interlayer spacing and enhanced hydrophilicity as high-performance cathodes for aqueous zinc-ion batteries. Adv. Mater. 2021, 33, 2007480. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, X.; Yin, C.; Zhang, M.; Xie, Y.; Hu, J.; Long, R.; Wu, X.; Wu, X. The intercalation cathode of MOFs-driven vanadium-based composite embedded in N-doped carbon for aqueous zinc ion batteries. Chem. Eng. J. 2023, 452, 139573. [Google Scholar] [CrossRef]
  16. Yu, L.; Hu, L.; Anasori, B.; Liu, Y.-T.; Zhu, Q.; Zhang, P.; Gogotsi, Y.; Xu, B. MXene-bonded activated carbon as a flexible electrode for high-performance supercapacitors. ACS Energy Lett. 2018, 3, 1597–1603. [Google Scholar] [CrossRef]
  17. Huo, Y.; Teng, Y.; Cai, K.; Chen, H. Honeycomb ZnO/N/C obtained from cornsilk and ZIF-8 dual induced method for long life aqueous zinc-ion batteries. J. Alloys Compd. 2021, 855, 157398. [Google Scholar] [CrossRef]
  18. Li, Y.; Xu, L.; Jia, M.; Cui, L.; Gao, J.; Jin, X.-J. Hydrothermal synthesis and characterization of litchi-like NiCo2Se4@carbon microspheres for asymmetric supercapacitors with high energy density. J. Electrochem. Soc. 2018, 165, E303. [Google Scholar] [CrossRef]
  19. Xie, L.; Su, F.; Xie, L.; Guo, X.; Wang, Z.; Kong, Q.; Sun, G.; Ahmad, A.; Li, X.; Yi, Z.; et al. Effect of pore structure and doping species on charge storage mechanisms in porous carbon-based supercapacitors. Mater. Chem. Front. 2020, 4, 2610–2634. [Google Scholar] [CrossRef]
  20. Wang, H.; Zhu, H.; Li, Y.; Qi, D.; Wang, S.; Shen, K. Hierarchical porous carbon derived from carboxylated coal-tar pitch for electrical double-layer capacitors. RSC Adv. 2019, 9, 29131–29140. [Google Scholar] [CrossRef]
  21. Hou, J.; Cao, C.; Idrees, F.; Ma, X. Hierarchical porous nitrogen-doped carbon nanosheets derived from silk for ultrahigh-capacity battery anodes and supercapacitors. ACS Nano 2015, 9, 2556–2564. [Google Scholar] [CrossRef] [PubMed]
  22. Deng, Y.; Ji, Y.; Wu, H.; Chen, F. Enhanced electrochemical performance and high voltage window for supercapacitor based on multi-heteroatom modified porous carbon materials. Chem. Commun. 2019, 55, 1486–1489. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, L.; Wang, J.; Wang, S.; Guan, X.; Guan, X.; Wang, G. Biomass-derived multi-heteroatom-doped carbon materials for high-performance solid-state symmetric supercapacitors with superior long-term cycling stability. Ionics 2020, 26, 4141–4151. [Google Scholar] [CrossRef]
  24. Liu, W.-J.; Jiang, H.; Yu, H.-Q. Emerging applications of biochar-based materials for energy storage and conversion. Energy Environ. Sci. 2019, 12, 1751–1779. [Google Scholar] [CrossRef]
  25. Gao, M.; Wang, W.-K.; Zheng, Y.-M.; Zhao, Q.-B.; Yu, H.-Q. Hierarchically porous biochar for supercapacitor and electrochemical H2O2 production. Chem. Eng. J. 2020, 402, 126171. [Google Scholar] [CrossRef]
  26. Liu, X.; Shen, X.; Chen, T.; Xu, Q. The spinel MnFe2O4 grown in biomass-derived porous carbons materials for high-performance cathode materials of aqueous zinc-ion batteries. J. Alloys Compd. 2022, 904, 164002. [Google Scholar] [CrossRef]
  27. Ma, Z.-W.; Liu, H.-Q.; Lü, Q.-F. Porous biochar derived from tea saponin for supercapacitor electrode: Effect of preparation technique. J. Energy Storage 2021, 40, 102773. [Google Scholar] [CrossRef]
  28. Fu, M.; Chen, W.; Ding, J.; Zhu, X.; Liu, Q. Biomass waste derived multi-hierarchical porous carbon combined with CoFe2O4 as advanced electrode materials for supercapacitors. J. Alloys Compd. 2019, 782, 952–960. [Google Scholar] [CrossRef]
  29. Dehkhoda, A.M.; Gyenge, E.; Ellis, N. A novel method to tailor the porous structure of KOH-activated biochar and its application in capacitive deionization and energy storage. Biomass Bioenergy 2016, 87, 107–121. [Google Scholar] [CrossRef] [Green Version]
  30. Cuong, D.V.; Matsagar, B.M.; Lee, M.; Hossain, M.S.A.; Yamauchi, Y.; Vithanage, M.; Sarkar, B.; Ok, Y.S.; Wu, K.; Hou, C.-H. A critical review on biochar-based engineered hierarchical porous carbon for capacitive charge storage. Renew. Sustain. Energy Rev. 2021, 145, 111029. [Google Scholar] [CrossRef]
  31. Zou, K.; Guan, Z.; Deng, Y.; Chen, G. Nitrogen-rich porous carbon in ultra-high yield derived from activation of biomass waste by a novel eutectic salt for high performance Li-ion capacitors. Carbon 2020, 161, 25–35. [Google Scholar] [CrossRef]
  32. Ma, G.; Yang, Q.; Sun, K.; Peng, H.; Ran, F.; Zhao, X.; Lei, Z. Nitrogen-doped porous carbon derived from biomass waste for high-performance supercapacitor. Bioresour. Technol. 2015, 197, 137–142. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, C.; Wang, H.; Dang, B.; Wang, Z.; Shen, X.; Li, C.; Sun, Q. Ultrahigh yield of nitrogen doped porous carbon from biomass waste for supercapacitor. Renew. Energy 2020, 156, 370–376. [Google Scholar] [CrossRef]
  34. Purkait, T.; Singh, G.; Singh, M.; Kumar, D.; Dey, R.S. Large area few-layer graphene with scalable preparation from waste biomass for high-performance supercapacitor. Sci. Rep. 2017, 7, 15239. [Google Scholar] [CrossRef] [Green Version]
  35. Ma, G.; Hua, F.; Sun, K.; Zhang, Z.; Feng, E.; Peng, H.; Lei, Z. Porous carbon derived from sorghum stalk for symmetric supercapacitors. RSC Adv. 2016, 6, 103508–103516. [Google Scholar] [CrossRef]
  36. Han, J.; Cao, R.; Zhou, X.; Xu, Y. An integrated biorefinery process for adding values to corncob in co-production of xylooligosaccharides and glucose starting from pretreatment with gluconic acid. Bioresour. Technol. 2020, 307, 123200. [Google Scholar] [CrossRef]
  37. Kresse, G.; Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  38. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef]
  39. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [Green Version]
  40. Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B 1992, 46, 6671–6687. [Google Scholar] [CrossRef]
  41. Perdew, J.P.; Wang, Y. Accurate and simple analytic representation of the electron-gas correlation energy. Phys. Rev. B 1992, 45, 13244–13249. [Google Scholar] [CrossRef] [PubMed]
  42. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Biswas, B.; Pandey, N.; Bisht, Y.; Singh, R.; Kumar, J.; Bhaskar, T. Pyrolysis of agricultural biomass residues: Comparative study of corn cob, wheat straw, rice straw and rice husk. Bioresour. Technol. 2017, 237, 57–63. [Google Scholar] [CrossRef] [PubMed]
  44. Tang, Q.; Chen, X.; Zhou, D.; Liu, C. Biomass-derived hierarchical porous carbon/silicon carbide composite for electrochemical supercapacitor. Colloids Surf. A 2021, 620, 126567. [Google Scholar] [CrossRef]
  45. Tan, I.A.W.; Ahmad, A.L.; Hameed, B.H. Adsorption isotherms, kinetics, thermodynamics and desorption studies of 2,4,6-trichlorophenol on oil palm empty fruit bunch-based activated carbon. J. Hazard. Mater. 2009, 164, 473–482. [Google Scholar] [CrossRef]
  46. Wang, Y.-L.; Wang, G.-S.; Zhang, X.-J.; Gao, C. Porous carbon polyhedrons coupled with bimetallic CoNi alloys for frequency selective wave absorption at ultralow filler loading. J. Mater. Sci. Technol. 2022, 103, 34–41. [Google Scholar] [CrossRef]
  47. Zhang, Q.; Han, K.; Li, S.; Li, M.; Li, J.; Ren, K. Synthesis of garlic skin-derived 3D hierarchical porous carbon for high-performance supercapacitors. Nanoscale 2018, 10, 2427–2437. [Google Scholar] [CrossRef] [Green Version]
  48. Tian, W.; Gao, Q.; Tan, Y.; Li, Z. Unusual interconnected graphitized carbon nanosheets as the electrode of high-rate ionic liquid-based supercapacitor. Carbon 2017, 119, 287–295. [Google Scholar] [CrossRef] [Green Version]
  49. Tian, W.; Gao, Q.; Tan, Y.; Yang, K.; Zhu, L.; Yang, C.; Zhang, H. Bio-inspired beehive-like hierarchical nanoporous carbon derived from bamboo-based industrial by-product as a high performance supercapacitor electrode material. J. Mater. Chem. A 2015, 3, 5656–5664. [Google Scholar] [CrossRef]
  50. Chin, S.F.; Pang, S.C.; Anderson, M.A. Self-assembled manganese dioxide nanowires as electrode materials for electrochemical capacitors. Mater. Lett. 2010, 64, 2670–2672. [Google Scholar] [CrossRef]
  51. Wu, F.; Gao, J.; Zhai, X.; Xie, M.; Sun, Y.; Kang, H.; Tian, Q.; Qiu, H. Hierarchical porous carbon microrods derived from albizia flowers for high performance supercapacitors. Carbon 2019, 147, 242–251. [Google Scholar] [CrossRef]
  52. Sankar, S.; Ahmed, A.T.A.; Inamdar, A.I.; Im, K.; Im, Y.B.; Lee, Y.; Kim, D.Y.; Lee, S. Biomass-derived ultrathin mesoporous graphitic carbon nanoflakes as stable electrode material for high-performance supercapacitors. Mater. Des. 2019, 169, 107688. [Google Scholar] [CrossRef]
  53. Li, J.; Gao, Y.; Han, K.; Qi, J.; Li, M.; Teng, Z. High performance hierarchical porous carbon derived from distinctive plant tissue for supercapacitor. Sci. Rep. 2019, 9, 17270. [Google Scholar] [CrossRef] [Green Version]
  54. Wang, D.-W.; Li, F.; Liu, M.; Lu, G.Q.; Cheng, H.-M. 3D aperiodic hierarchical porous graphitic carbon material for high-rate electrochemical capacitive energy storage. Angew. Chem. Int. Ed. 2010, 47, 1525. [Google Scholar]
  55. Zhang, J.; Li, Y.; Liang, X.; Liu, Q.; Chen, Q.; Chen, M. Sulfur vacancies-engineered Ni3S4−x hollow microspheres with optimized anionic adsorption energy for high-performance supercapacitor. Small 2022, 18, 2106074. [Google Scholar] [CrossRef]
  56. Jia, H.; Sun, J.; Xie, X.; Yin, K.; Sun, L. Cicada slough-derived heteroatom incorporated porous carbon for supercapacitor: Ultra-high gravimetric capacitance. Carbon 2019, 143, 309–317. [Google Scholar] [CrossRef]
  57. Liu, Z.; Jiang, L.; Sheng, L.; Zhou, Q.; Wei, T.; Zhang, B.; Fan, Z. Oxygen clusters distributed in graphene with “paddy land” structure: Ultrahigh capacitance and rate performance for supercapacitors. Adv. Funct. Mater. 2017, 28, 1705258. [Google Scholar] [CrossRef]
  58. Komolov, A.S.; Zhukov, Y.M.; Lazneva, E.F.; Aleshin, A.N.; Pshenichnyuk, S.A.; Gerasimova, N.B.; Panina, Y.A.; Zashikhin, G.D.; Baramygin, A.V. Thermally induced modification of the graphene oxide film on the tantalum surface. Mater. Des. 2017, 113, 319–325. [Google Scholar] [CrossRef]
  59. Komolov, A.S.; Lazneva, E.F.; Gerasimova, N.B.; Panina, Y.A.; Sobolev, V.S.; Koroleva, A.V.; Pshenichnyuk, S.A.; Asfandiarov, N.L.; Modelli, A.; Handke, B.; et al. Conduction band electronic states of ultrathin layers of thiophene/phenylene co-oligomers on an oxidized silicon surface. J. Electron Spectrosc. Relat. Phenom. 2019, 235, 40–45. [Google Scholar] [CrossRef]
  60. Luo, Z.; Lin, N.; Sun, M.; Wang, Y.; Zhu, X. Synthesis of 3D-interconnected hierarchical porous carbon from heavy fraction of bio-oil using crayfish shell as the biological template for high-performance supercapacitors. Carbon 2021, 173, 910–917. [Google Scholar] [CrossRef]
  61. Zhu, Y.; Chen, M.; Zhang, Y.; Zhao, W.; Wang, C. A biomass-derived nitrogen-doped porous carbon for high-energy supercapacitor. Carbon 2018, 140, 404–412. [Google Scholar] [CrossRef]
  62. Tyagi, A.; Sinha, P.; Kar, K.K.; Yokoi, H. Acid-directed preparation of micro/mesoporous heteroatom doped defective graphitic carbon as bifunctional electroactive material: Evaluation of trace metal impurity. J. Colloid Interface Sci. 2021, 604, 227–238. [Google Scholar] [CrossRef] [PubMed]
  63. Zhou, L.; Cao, H.; Zhu, S.; Hou, L.; Yuan, C. Hierarchical micro-/mesoporous N- and O-enriched carbon derived from disposable cashmere: A competitive cost-effective material for high-performance electrochemical capacitors. Green Chem. 2015, 17, 2373–2382. [Google Scholar] [CrossRef]
  64. Hulicova-Jurcakova, D.; Seredych, M.; Lu, G.Q.; Bandosz, T.J. Combined effect of nitrogen- and oxygen-containing functional groups of microporous activated carbon on its electrochemical performance in supercapacitors. Adv. Funct. Mater. 2009, 19, 438–447. [Google Scholar] [CrossRef]
  65. Costentin, C.; Porter, T.R.; Savéant, J.-M. How do pseudocapacitors store energy? Theoretical analysis and experimental illustration. ACS Appl. Mater. Interfaces 2017, 9, 8649–8658. [Google Scholar] [CrossRef]
  66. Sheng, Z.; Lin, X.; Wei, H.; Zhang, Y.; Tian, Z.; Wang, C.; Xu, D.; Wang, Y. Green synthesis of nitrogen-doped hierarchical porous carbon nanosheets derived from polyvinyl chloride towards high-performance supercapacitor. J. Power Sources 2021, 515, 230629. [Google Scholar] [CrossRef]
  67. Hou, L.; Yang, W.; Li, Y.; Wang, P.; Jiang, B.; Xu, C.; Zhang, C.; Huang, G.; Yang, F.; Li, Y. Dual-template endowing N, O co-doped hierarchically porous carbon from potassium citrate with high capacitance and rate capability for supercapacitors. Chem. Eng. J. 2021, 417, 129289. [Google Scholar] [CrossRef]
  68. Qu, W.-H.; Xu, Y.-Y.; Lu, A.-H.; Zhang, X.-Q.; Li, W.-C. Converting biowaste corncob residue into high value added porous carbon for supercapacitor electrodes. Bioresour. Technol. 2015, 189, 285–291. [Google Scholar] [CrossRef]
  69. Zhai, S.; Jin, K.; Zhou, M.; Fan, Z.; Zhao, H.; Zhao, Y.; Li, X.; Cai, Z. In-situ growth of flower-like CuS microsphere on carbonized cotton for high-performance flexible supercapacitor. Colloids Surf. A 2019, 575, 75–83. [Google Scholar] [CrossRef]
  70. Shi, S.; Wan, G.; Wu, L.; He, Z.; Wang, K.; Tang, Y.; Xu, X.; Wang, G. Ultrathin manganese oxide nanosheets uniformly coating on carbon nanocoils as high-performance asymmetric supercapacitor electrodes. J. Colloid Interface Sci. 2019, 537, 142–150. [Google Scholar] [CrossRef]
  71. Zhu, L.; Peh, C.K.N.; Zhu, T.; Lim, Y.-F.; Ho, G.W. Bifunctional 2D-on-2D MoO3 nanobelt/Ni (OH)2 nanosheets for supercapacitor-driven electrochromic energy storage. J. Mater. Chem. A 2017, 5, 8343–8351. [Google Scholar] [CrossRef] [Green Version]
  72. Huang, H.; Xu, R.; Feng, Y.; Zeng, S.; Jiang, Y.; Wang, H.; Luo, W.; Yu, Y. Sodium/potassium-ion batteries: Boosting the rate capability and cycle life by combining morphology, defect and structure engineering. Adv. Mater. 2020, 32, 1904320. [Google Scholar] [CrossRef] [PubMed]
  73. Lai, F.; Feng, J.; Yan, R.; Wang, G.-C.; Antonietti, M.; Oschatz, M. Breaking the limits of ionic liquid-based supercapacitors: Mesoporous carbon electrodes functionalized with manganese oxide nanosplotches for dense, stable, and wide-temperature energy storage. Adv. Funct. Mater. 2018, 28, 1801298. [Google Scholar] [CrossRef]
  74. Selvaraj, A.R.; Muthusamy, A.; Inho, C.; Kim, H.-J.; Senthil, K.; Prabakar, K. Ultrahigh surface area biomass derived 3D hierarchical porous carbon nanosheet electrodes for high energy density supercapacitors. Carbon 2021, 174, 463–474. [Google Scholar] [CrossRef]
  75. Liu, M.; Zhang, K.; Si, M.; Wang, H.; Chai, L.; Shi, Y. Three-dimensional carbon nanosheets derived from micro-morphologically regulated biomass for ultrahigh-performance supercapacitors. Carbon 2019, 153, 707–716. [Google Scholar] [CrossRef]
  76. Gong, C.; Wang, X.; Ma, D.; Chen, H.; Zhang, S.; Liao, Z. Microporous carbon from a biological waste-stiff silkworm for capacitive energy storage. Electrochim. Acta 2016, 220, 331–339. [Google Scholar] [CrossRef]
  77. Raj, C.J.; Rajesh, M.; Manikandan, R.; Yu, K.H.; Anusha, J.R.; Ahn, J.H.; Kim, D.-W.; Park, S.Y.; Kim, B.C. High electrochemical capacitor performance of oxygen and nitrogen enriched activated carbon derived from the pyrolysis and activation of squid gladius chitin. J. Power Sources 2018, 386, 66–76. [Google Scholar] [CrossRef]
  78. Guan, T.; Li, K.; Zhao, J.; Zhao, R.; Zhang, G.; Zhang, D.; Wang, J. Template-free preparation of layer-stacked hierarchical porous carbons from coal tar pitch for high performance all-solid-state supercapacitors. J. Mater. Chem. A 2017, 5, 15869–15878. [Google Scholar] [CrossRef]
  79. Díez, N.; Mysyk, R.; Zhang, W.; Goikolea, E.; Carriazo, D. One-pot synthesis of highly activated carbons from melamine and terephthalaldehyde as electrodes for high energy aqueous supercapacitors. J. Mater. Chem. A 2017, 5, 14619–14629. [Google Scholar] [CrossRef]
  80. Wu, J.; Xia, M.; Zhang, X.; Chen, Y.; Sun, F.; Wang, X.; Yang, H.; Chen, H. Hierarchical porous carbon derived from wood tar using crab as the template: Performance on supercapacitor. J. Power Sources 2020, 455, 227982. [Google Scholar] [CrossRef]
  81. Shao, J.; Ma, F.; Wu, G.; Dai, C.; Geng, W.; Song, S.; Wan, J. In-situ MgO (CaCO3) templating coupled with KOH activation strategy for high yield preparation of various porous carbons as supercapacitor electrode materials. Chem. Eng. J. 2017, 321, 301–313. [Google Scholar] [CrossRef]
  82. Niu, Q.; Gao, K.; Tang, Q.; Wang, L.; Han, L.; Fang, H.; Zhang, Y.; Wang, S.; Wang, L. Large-size graphene-like porous carbon nanosheets with controllable N-doped surface derived from sugarcane bagasse pith/chitosan for high performance supercapacitors. Carbon 2017, 123, 290–298. [Google Scholar] [CrossRef]
  83. Liu, B.; Yang, M.; Chen, H.; Liu, Y.; Yang, D.; Li, H. Graphene-like porous carbon nanosheets derived from salvia splendens for high-rate performance supercapacitors. J. Power Sources 2018, 397, 1–10. [Google Scholar] [CrossRef]
  84. He, X.; Li, R.; Qiu, J.; Xie, K.; Ling, P.; Yu, M.; Zhang, X.; Zheng, M. Synthesis of mesoporous carbons for supercapacitors from coal tar pitch by coupling microwave-assisted KOH activation with a MgO template. Carbon 2012, 50, 4911–4921. [Google Scholar] [CrossRef]
  85. Li, Z.; Wu, D.; Liang, Y.; Fu, R.; Matyjaszewski, K. Synthesis of well-defined microporous carbons by molecular-scale templating with polyhedral oligomeric silsesquioxane moieties. J. Am. Chem. Soc. 2014, 136, 4805–4808. [Google Scholar] [CrossRef] [PubMed]
Materials 16 05022 g001 550

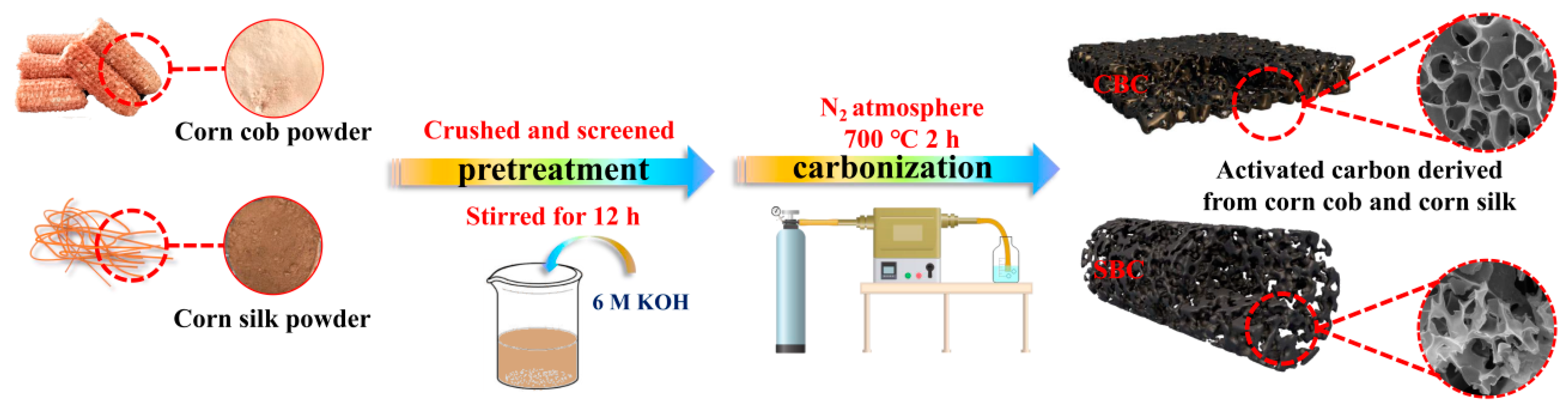

Figure 1. The schematic illustrations for the preparation of CBC and SBC.
Figure 1. The schematic illustrations for the preparation of CBC and SBC.
Materials 16 05022 g001
Materials 16 05022 g002 550

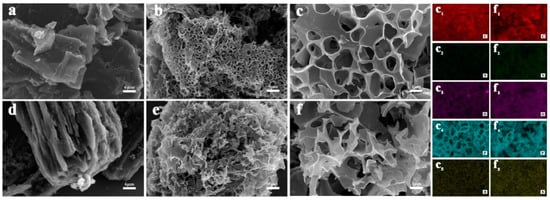

Figure 2. SEM images of (a) corn cob, (b) corn silk, (c,d) CBC, and (e,f) SBC. The corresponding EDS mapping results of (c1–c5) CBC and (f1–f5) SBC.
Figure 2. SEM images of (a) corn cob, (b) corn silk, (c,d) CBC, and (e,f) SBC. The corresponding EDS mapping results of (c1–c5) CBC and (f1–f5) SBC.
Materials 16 05022 g002
Materials 16 05022 g003 550

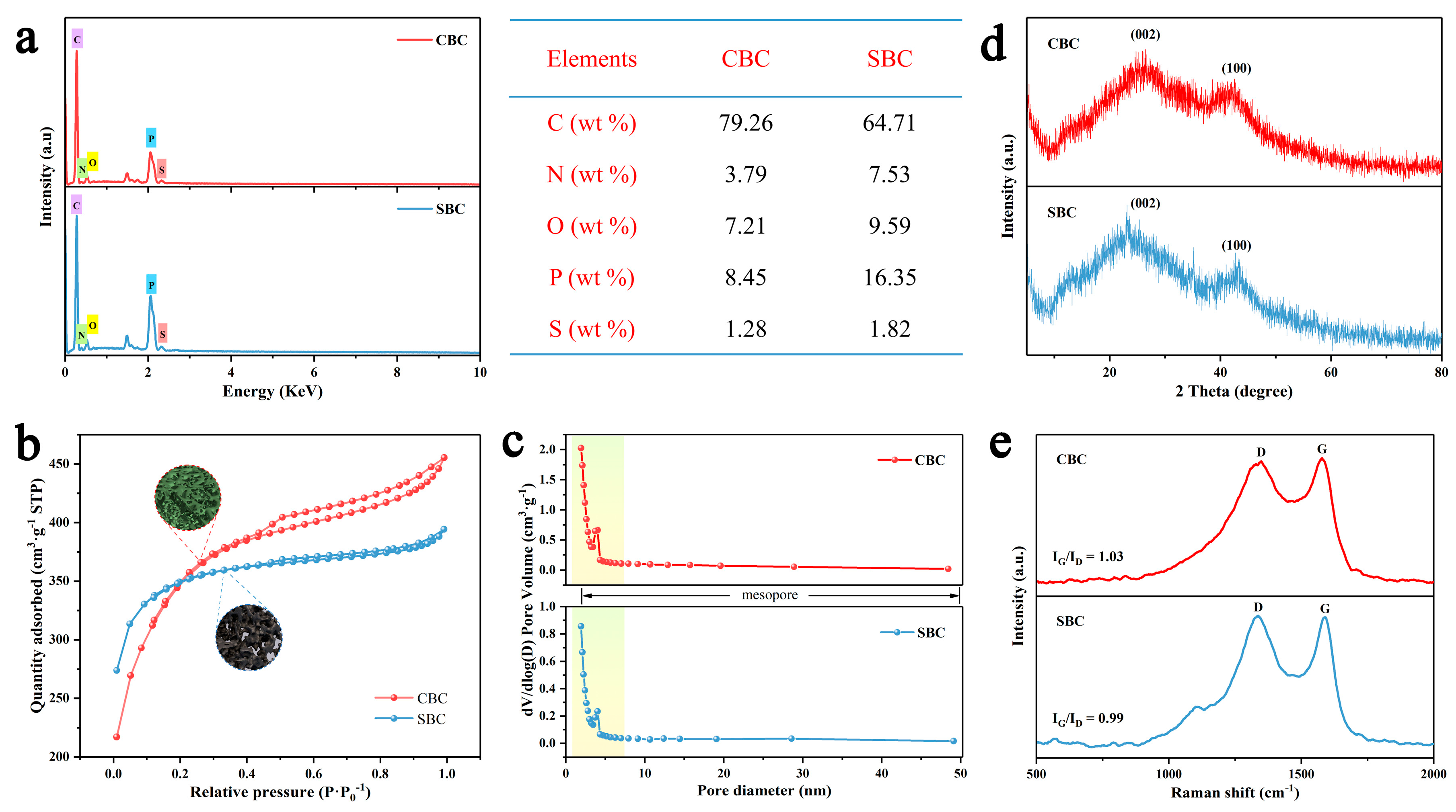

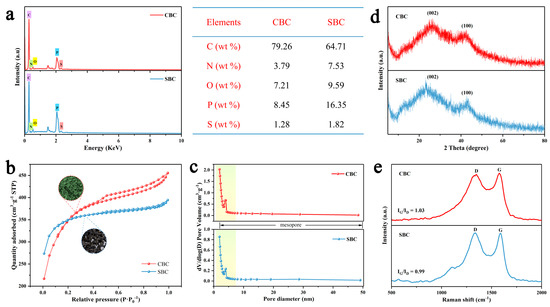

Figure 3. (a) EDS spectra, (b,c) N2 adsorption–desorption isotherms and BJH pore size distribution, (d) XRD patterns, and (e) Raman spectra of CBC and SBC.
Figure 3. (a) EDS spectra, (b,c) N2 adsorption–desorption isotherms and BJH pore size distribution, (d) XRD patterns, and (e) Raman spectra of CBC and SBC.
Materials 16 05022 g003
Materials 16 05022 g004 550

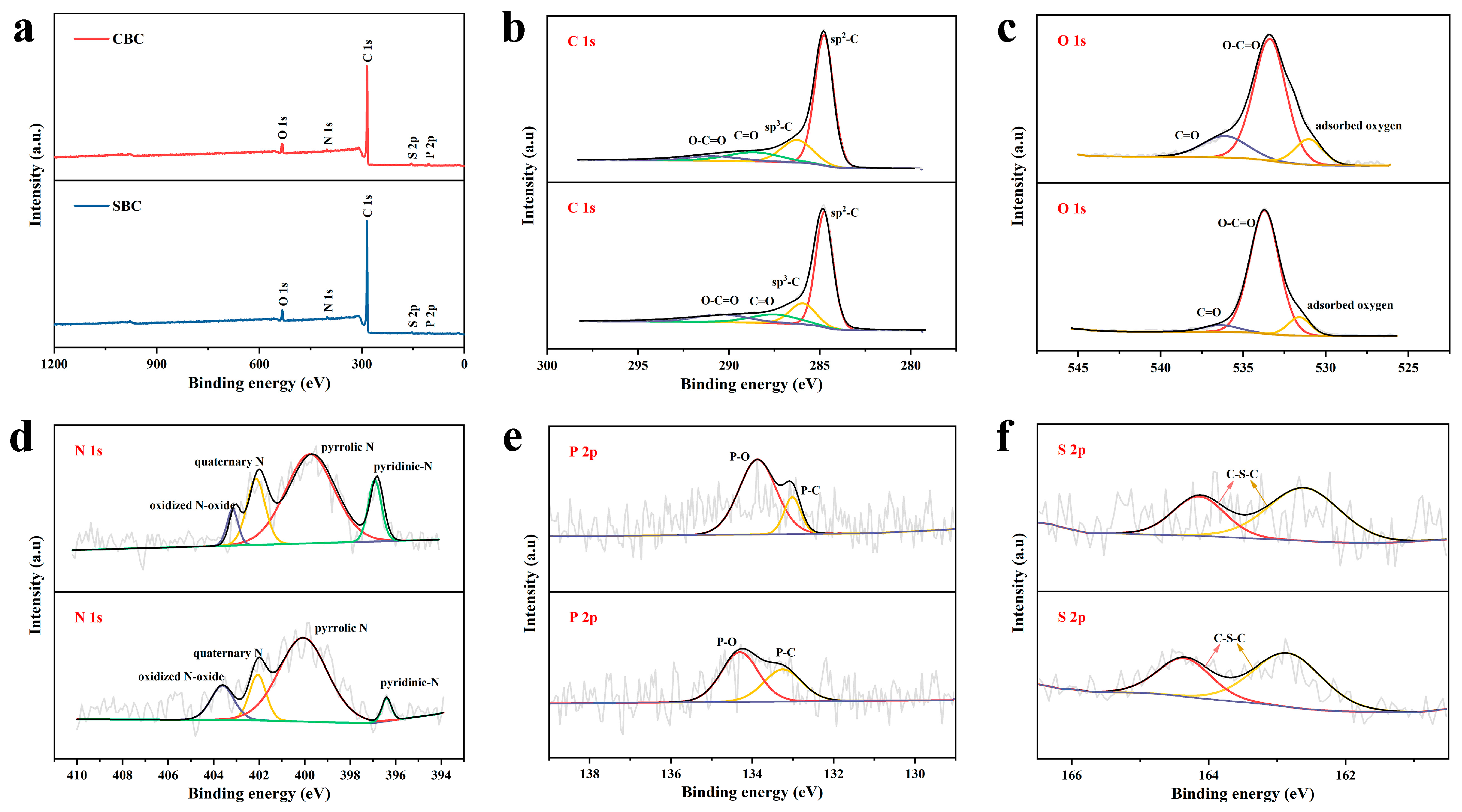

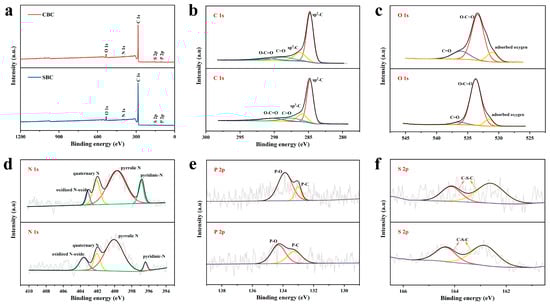

Figure 4. XPS spectra of CBC and SBC: (a) survey spectra; (b) C 1s; (c) O 1s; (d) N 1s; (e) P 2p; (f) S 2p.
Figure 4. XPS spectra of CBC and SBC: (a) survey spectra; (b) C 1s; (c) O 1s; (d) N 1s; (e) P 2p; (f) S 2p.
Materials 16 05022 g004
Materials 16 05022 g005 550

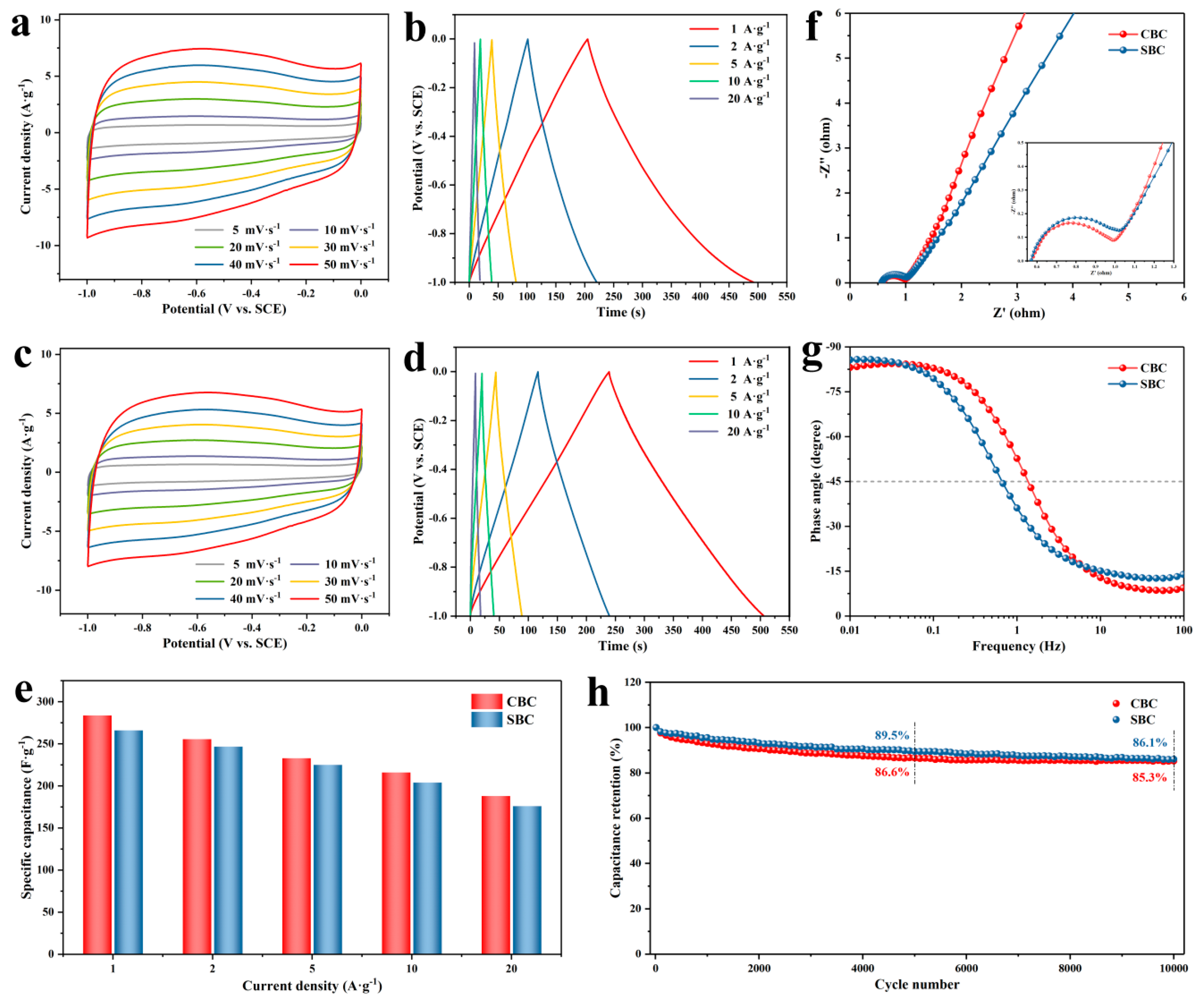

Figure 5. (a,b) CV and GCD curves of CBC. (c,d) CV and GCD curves of SBC. (e) The specific capacitances versus different current densities. (f,g) The Nyquist plots and the impedance phase angle versus frequency. (h) Cycling stability of CBC and SBC.
Figure 5. (a,b) CV and GCD curves of CBC. (c,d) CV and GCD curves of SBC. (e) The specific capacitances versus different current densities. (f,g) The Nyquist plots and the impedance phase angle versus frequency. (h) Cycling stability of CBC and SBC.
Materials 16 05022 g005
Materials 16 05022 g006 550

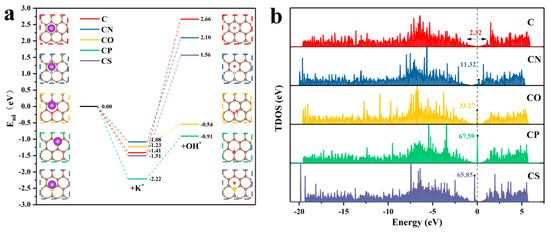

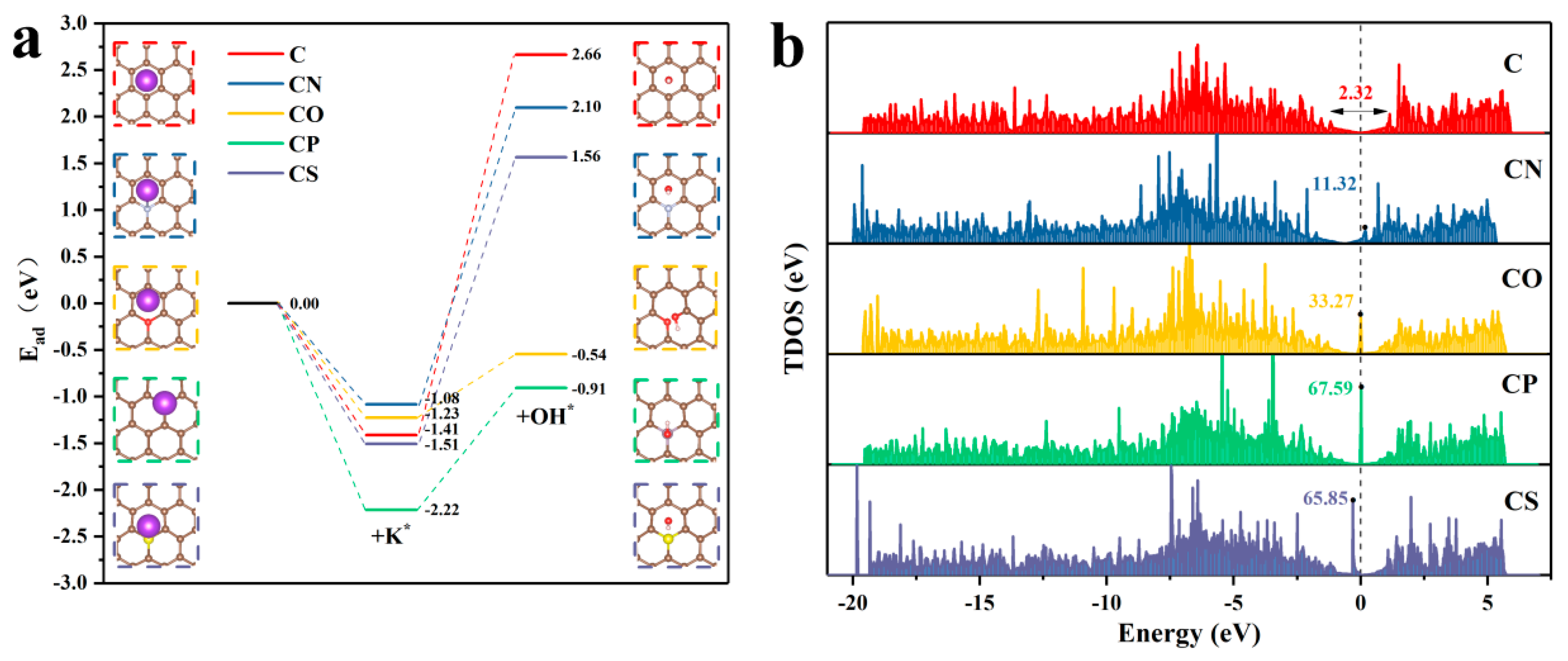

Figure 6. (a) Adsorption ability of K* and OH* on pure carbon and heteroatom doped carbon materials. The brown, gray, red, light pink, yellow, purple, and light red balls represent C, N, O, P, S, K, and H atoms, respectively. (b) TDOS diagrams of the pure carbon and the heteroatom doped carbon materials.
Figure 6. (a) Adsorption ability of K* and OH* on pure carbon and heteroatom doped carbon materials. The brown, gray, red, light pink, yellow, purple, and light red balls represent C, N, O, P, S, K, and H atoms, respectively. (b) TDOS diagrams of the pure carbon and the heteroatom doped carbon materials.
Materials 16 05022 g006
Materials 16 05022 g007 550

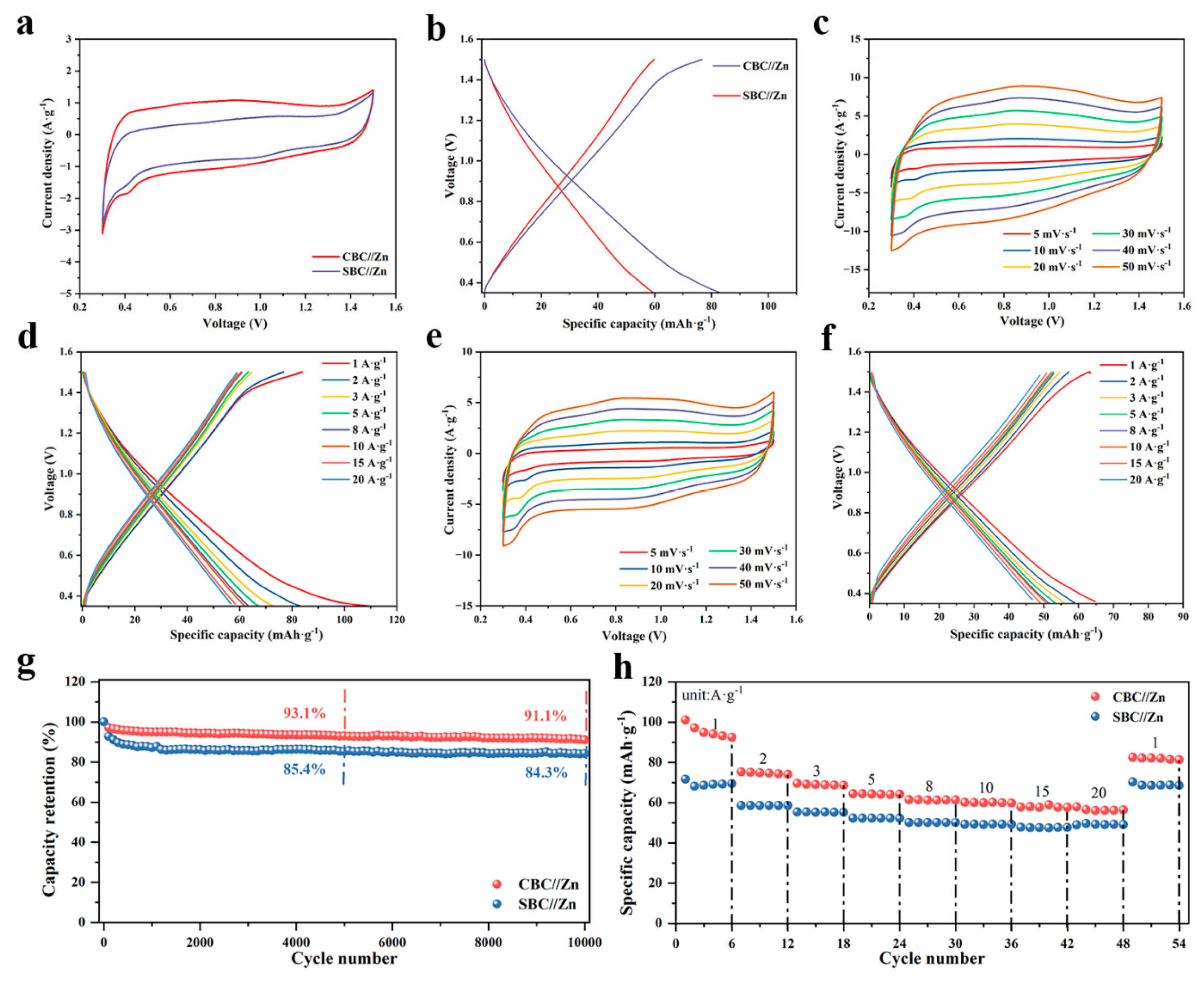

Figure 7. (a,b) The CV and GCD comparisons of the CBC//Zn and the SBC//Zn. (c,d) The CV and GCD curves of the CBC//Zn. (e,f) The CV and GCD curves of the SBC//Zn. (g,h) The cycling performance and rate performance of the CBC//Zn and the SBC//Zn.
Figure 7. (a,b) The CV and GCD comparisons of the CBC//Zn and the SBC//Zn. (c,d) The CV and GCD curves of the CBC//Zn. (e,f) The CV and GCD curves of the SBC//Zn. (g,h) The cycling performance and rate performance of the CBC//Zn and the SBC//Zn.
Materials 16 05022 g007
Materials 16 05022 g008 550

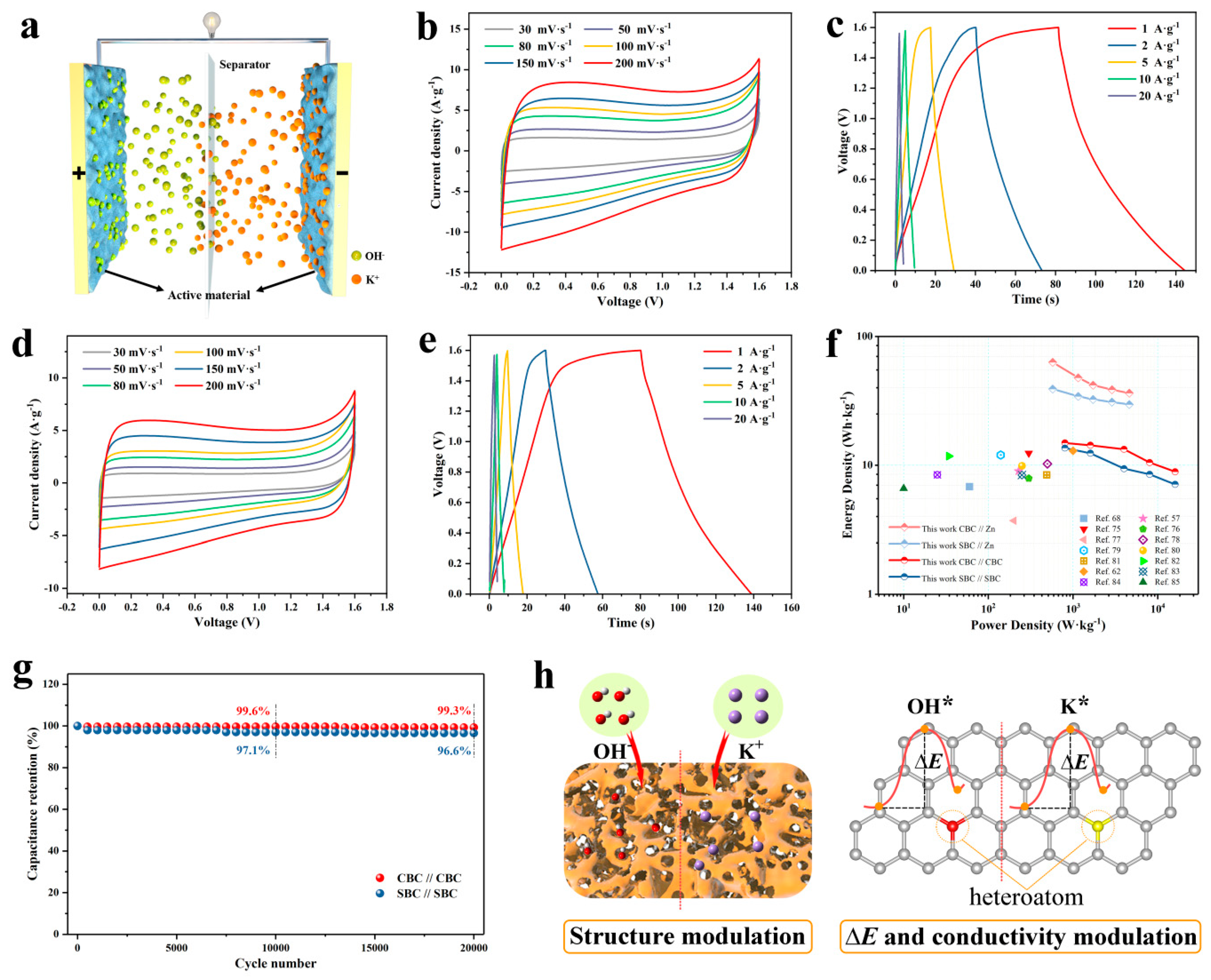

Figure 8. (a) Schematic illustration of the symmetric supercapacitors. (b,c) CV and GCD curves of CBC//CBC. (d,e) CV and GCD curves of SBC//SBC. (f) Ragone plots of the symmetric supercapacitors. (g) Cycling performance of the symmetric supercapacitors. (h) Schematic illustration of the charge storage process of CBC and SCB.
Figure 8. (a) Schematic illustration of the symmetric supercapacitors. (b,c) CV and GCD curves of CBC//CBC. (d,e) CV and GCD curves of SBC//SBC. (f) Ragone plots of the symmetric supercapacitors. (g) Cycling performance of the symmetric supercapacitors. (h) Schematic illustration of the charge storage process of CBC and SCB.
Materials 16 05022 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xie, K.; Zhang, W.; Ren, K.; Zhu, E.; Lu, J.; Chen, J.; Yin, P.; Yang, L.; Guan, X.; Wang, G. Electrochemical Performance of Corn Waste Derived Carbon Electrodes Based on the Intrinsic Biomass Properties. Materials 2023, 16, 5022. https://doi.org/10.3390/ma16145022

AMA Style

Xie K, Zhang W, Ren K, Zhu E, Lu J, Chen J, Yin P, Yang L, Guan X, Wang G. Electrochemical Performance of Corn Waste Derived Carbon Electrodes Based on the Intrinsic Biomass Properties. Materials. 2023; 16(14):5022. https://doi.org/10.3390/ma16145022

Chicago/Turabian Style

Xie, Kunhan, Wen Zhang, Kai Ren, Enze Zhu, Jianyi Lu, Jingyang Chen, Penggang Yin, Liu Yang, Xiaohui Guan, and Guangsheng Wang. 2023. "Electrochemical Performance of Corn Waste Derived Carbon Electrodes Based on the Intrinsic Biomass Properties" Materials 16, no. 14: 5022. https://doi.org/10.3390/ma16145022

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
