Lately, there is a growing interest in organic photovoltaic (OPV) cells due to the organic materials’ properties and compatibility with various types of substrates. However, their efficiencies are low relative to the silicon ones; therefore, other ways (i.e., electrode micron/nanostructuring, synthesis of new organic materials, use of additives) to improve their performances are still being sought. In this context, we studied the behavior of the common organic bulk heterojunction (P3HT:PC70BM) deposited by matrix-assisted pulsed laser evaporation (MAPLE) with/without 0.3% of 1,8-diiodooctane (DIO) additive on flat and micro-patterned ITO substrates. The obtained results showed that in the MAPLE process, a small quantity of additive can modify the morphology of the organic films and decrease their roughness. Besides the use of the additive, the micro-patterning of the electrode leads to a greater increase in the absorption of the studied photovoltaic structures. The inferred values of the filling factors for the measured cells in ambient conditions range from 19% for the photovoltaic structures with no additive and without substrate patterning to 27% for the counterpart structures with patterning and a small quantity of additive.

1. Introduction

Lately, there is an increasing demand to develop systems that are able to efficiently collect renewable energy. From the available green energy sources, solar is the most promising, being practically inexhaustible [1,2]. Although silicon-based solar cells dominate the photovoltaics market, many studies have focused on fabricating solar cells based on III–V compounds, perovskites, chalcogenide thin films, dye-sensitized, and organic films [3,4,5,6,7,8,9,10,11,12]. Hence, great interest has been given to solar cells based on organic films (small molecules, polymers) due to such features as the diversity of compounds, absorption properties of the organic semiconductors, the requirement of a small quantity of organic material to obtain a thin film, and the possibility to build cheap and eco-friendly light-weight organic photovoltaic (OPV) cells [13,14]. Moreover, different types of applications, such as shading elements or heat shielding for windows, power-generating windows in buildings, photovoltaic green houses, or power-generating displays in mobile phones can be targeted considering the design versatility of the OPV cells [15,16,17,18,19,20,21,22].
In order to become competitive with the inorganic solar cells characterized by high efficiencies (as those based on silicon or gallium arsenide), various approaches have been applied to enhance the electrical parameters of the OPV cells [23,24,25,26]. Thus, a large variety of materials and cells architectures have been studied, and efficiencies over 18% were recently reported [27,28]. However, many efforts are still being made in order to identify (i) high-performance photovoltaic organic materials, (ii) favorable solar cell configurations, (iii) adequate thin film deposition methods, and (iv) patterning designs for electrodes or active layers to improve light harvesting, exciton dissociation, film morphology, and the transport and collection of the charge carriers [29,30,31,32,33,34,35]. In principle, efficient devices can be obtained by optimizing more than one single aspect of the organic solar cell [36].
By definition, an organic photovoltaic cell can be single-layer (one layer of organic compound), dual-layer (two layers: donor and acceptor organic materials as the active layer), or bulk heterojunction (BHJ, dispersed heterojunction blend). It is supposed that the BHJ organic cells combine the advantages of both single- and dual-layer OPV cells by mixing small regions of electron donors and electron acceptors, increasing the interfacial area between them and thus shortening the diffusion length of the exciton. Considered the best way to increase the efficiency of photovoltaic cells, BHJ faces certain problems, such as structural traps, isolated domain formations, and natural demixing due to the fact that it is usually fabricated by blending two components, with different types of molecules in terms of dimension and surface energy, in the same solvent. Usually, the solution is cast onto the transparent electrode by spin coating, which determines an inefficient transport of the charge carriers [37]. Moreover, because of the material loss in both (i) solution preparation (10 to 20 mg/mL of organic material is necessary) and (ii) deposition (by spinning, a significant part of the prepared solution is ejected from the substrate by centrifugal forces), and also due to the limitations of the solvent (low-evaporation-rate solvents cannot be used), different deposition methods have been proposed, such as doctor Blade printing, spray coating, push coating, slot-die, or laser-based techniques like matrix-assisted pulsed laser evaporation (MAPLE) [38,39,40,41,42,43]. Between them, MAPLE does not require highly concentrated solutions (3 mg/mL) and can be used also for water or low-evaporation-rate-solvent-based solutions [44,45].
In order to improve the morphology after the deposition process, various methods are applied, such as thermal treatment or solvent vapor annealing [46,47]. Recently, there is a particular interest in the use of common solvents as additives in the mixture, with the aim of modifying the morphology of the thin film during the deposition step [48]. This small volume of solvent (less than 10%), such as 1,8-diiodooctane (DIO), 1,8-octanedithiol, chloronapthalene, diphenyl ether, or 1-phenylnaphthalene, added to the blend-casting solution is chosen in order to have a large influence on the drying and film formation process to obtain a well-controlled morphology [47,49,50,51]. Usually, they are added in the blends in order to achieve an almost ideal phase separation in the bulk heterojunctions [52,53]. Between them, DIO can increase the carrier’s generation rate, reducing simultaneously the geminate and biomolecular recombination and in this way, enhancing electron mobility [53,54]. Furthermore, in poly(3-hexylthiophene-2,5-diyl (P3HT) and fullerene mixtures, this additive acts as a swelling agent for the P3HT, delaying film solidification due to its low vapor pressure, thereby allowing to the fullerene to enter between the created spaces [52].
An enhancement in light absorption can be achieved by increasing the active layer thickness. However, due to the low mobility of the organic compounds, there are losses associated to the charge recombination, which further decrease the efficiency of the cell structures [55]. Strategies to trap the light and improve the photon absorption involve the use of metallic nanoparticles (NPs), periodically nanostructured electrodes (metallic or transparent), active layers, or antireflection coatings [56,57,58,59]. Between the techniques that can be used for patterning, UV nanoimprint lithography (UV-NIL) is a straightforward texturing technique which can be applied on different rigid or flexible substrates, resulting in a wide range of pattern shapes and sizes over a large area [60,61,62,63].
The purpose of the paper is to investigate, for the first time to our knowledge, the effect of the micro-patterned (pyramidal shape) transparent electrode and DIO additive on the properties of photovoltaic structures based on P3HT: [6,6]-Phenyl-C71-butyric acid methyl ester (PC70BM) thin films deposited by MAPLE.
The choice of the organic materials was based on the fact that, from the available polymers, P3HT and PC70BM (or PC71BM) are the most studied [9,52,56,64,65]. The donor P3HT is characterized by a high mobility (0.1 cm2 V−1 s−1) and a reduced band gap (1.9 eV) [55,66]. On the other hand, fullerene and fullerene derivatives have been frequently used as acceptors due to their mobility, specifically PC60BM, which was used frequently in combination with P3HT [64,67,68,69]. However, as a consequence of its poor absorbance in the visible part of the solar spectrum, PC60BM was replaced with PC70BM [18,39,55,67,70,71,72]. Additionally, toluene was used as solvent in order to compare the results with the only ones reported in the literature referring to both P3HT and fullerene coatings for photovoltaics solar cells using MAPLE [43]. Furthermore, toluene is a non-halogenated solvent, like xylene or 1,2,4-trimethylbenzene, which in combination with 0.5% DIO additive, gives the best performances, similar to those obtained for chloroform, a solvent from the halogenated family [73].

2. Materials and Methods

The organic materials, the regioregular P3HT donor (RR 97.3%-M1010), and the fullerene electron acceptor PC70BM (purity 99%-M114) were acquired from Ossila Ltd. (Sheffield, UK). The 1,8-diiodooctane (DIO) additive, with 98% purity and copper stabilizer, and the toluene solvent were purchased from Sigma-Aldrich (St. Louis, MO, USA). The primer and photoresist are provided by EVGroup (St. Florian, Austria). All chemicals were used without further purification.

2.1. Preparation of the Photovoltaic Cell Structures on Flat and Micro-Patterned Glass Substrates

A schematic representation of the photovoltaic cell structues fabricated on flat and micro-patterned glass substrates is shown in Figure 1. The processes involved in their fabrication are described below.

2.1.1. Micro-Patterning Substrates by UV-NIL

The glass micro-patterned substrates were fabricated by the UV-NIL technique. The detailed process from master until stamp fabrication was described in our previous paper focused on the transfer of the patterns on silicon p-type substrates [74]. In the present study, the same working stamp was used in order to fabricate pyramids on glass substrates. Hence, the glass substrates were cleaned and coated with the primer EVG PrimKRD prior to the deposition of the resist. The primer, consisting of a sub-10 nm layer, ensures a strong adhesion in order to avoid the delamination of the imprint when the stamp is removed. An EVG UV-A2, 300 nm resist was used as negative photoresist, a layer thickness of 276 nm being deposited at 2000 rpm for 60 s. The residual layer was ~20 nm in thickness after the imprint process. The nanoimprint process was performed with an EVG® 7200 automated UV Nanoimprint System using for resist curing a 365 nm wavelength LED lamp at 300 mW/cm2 for 60 s.
The final shape and characteristics of the pyramids imprinted onto the resist are presented in Figure 1c,d. The pyramids have a base width (w) of 2.04 μm and a height (h) of 885 nm, the distance between the centers of the two neighboring pyramids being 2.5 μm.

2.1.2. Transparent Electrode Deposition by Pulsed Laser Deposition (PLD)

The indium thin oxide (ITO) transparent conductive electrode was deposited on flat and micro-patterned glass substrates by the Pulsed Laser Deposition (PLD) technique using a KrF* excimer laser source (ComplexPro 205, λ = 248 nm, τFWHM = 25 ns from Coherent Inc., Santa Clara, CA, USA) and an ITO (In2O3:SnO2 = 90%:10% wt.) solid target (SCI Engineered Materials Inc., Columbus, OH, USA).
The experimental parameters, 1.2 J/cm2 laser fluence, 7000 laser pulses, 1.5 Pa oxygen 6.0 pressure inside the deposition chamber, and a 5 cm distance between the target and the substrate, were chosen according to our previous studies in order to obtain a working thickness of the ITO layers of about 340 nm [75,76,77].

2.1.3. Active Layer Deposition by MAPLE

The active layer was deposited by MAPLE, a laser-based deposition technique that uses a frozen target made of organic compound dissolved in a solvent, which can absorb the radiation of the laser involved in the organic layer deposition. In our case, the frozen target was made from P3HT:PC70BM (at different concentrations) dissolved in toluene or in a toluene: DIO mixture, as mentioned in Table 1. Reference solutions containing only P3HT or PC70BM were also prepared. The DIO quantity was chosen based on the study focused on the slot-die deposition [42], which emphasized that the charge transport to the electrodes is hindered at concentrations higher than 0.5% DIO, the best improvements being achieved at 0.25% DIO concentration. In the present study, the choice was also justified by the fact that at higher DIO concentrations, some traces of additive can remain laser-transferred in the active layer due to its high boiling point (332.5 °C) and low vapor pressure (0.375 × 10 3 mbar). These traces can affect the OPV cell stability [37].
For all the targets used in the MAPLE deposition, the total solution (blend) composition was kept at 3 mg/mL. The blend compositions were chosen in such a manner that the amount of P3HT reaches the threshold of its solubility in toluene, i.e., 1.4 mg/mL in the case of P3HT: PC70BM at a 1:0.7 ratio.
The organic layers were deposited on the substrates placed at a 5 cm distance from the target by irradiating the frozen solution with a KrF* excimer laser (the same as for the PLD) at 5 × 10−4 mbar pressure inside the chamber and room temperature. The laser energy distribution in the beam cross-section was improved by means of a laser beam homogenizer. As a result, a rectangular spot with an area of 26 mm2 and pulse energy of 65 mJ assured a laser fluence of 250 mJ/cm2. For all MAPLE depositions, the coatings were deposited by applying 50,000 pulses at a laser frequency of 20 Hz.
In the same MAPLE deposition cycle, besides ITO substrates, the organic layers were also deposited on silicon and glass substrates for different investigations. Furthermore, from each solution involved in the preparation of the frozen targets, organic layers were deposited on silicon substrates by the drop-cast method in order to be used as reference in the FTIR measurements. The thickness of the films was obtained as the average value of scans in four different points by using an Ambios Technology XP 100 profilometer (Ambios Technology Inc., Santa Cruz, CA, USA).

2.1.4. Top Metallic Electrode Deposition by Vacuum Thermal Evaporation (VTE)

The photovoltaic cell structures were finalized by depositing a top metallic electrode consisting of a thin layer of 1.5 nm lithium fluoride (LiF) and a layer of 100 nm aluminum (Al) by VTE using a Tecuum AG, VCM600-V3-80 (Winterthur, Switzerland) at a residual pressure of 1.6 × 10−6 mbar using a shadow mask with holes having 28 mm2.
The samples investigated in the present study were labeled depending on the composition of the solution, the deposition technique, and the type of the substrate, as specified in Table 2. Furthermore, for comparison reasons, the references consisting of P3HT and PC70BM films deposited on silicon and glass substrates were assessed.

2.2. Characterization Techniques

2.2.1. Fourier Transform Infrared Spectroscopy (FTIR)

Each organic material has a vibrational “fingerprint” that can be highlighted through FTIR measurements. Thus, in order to evaluate if the chemical structure of the organic compounds was preserved during the MAPLE deposition, a set of measurements on silicon substrates was performed using an IRTracer-100 (Shimadzu, Kyoto, Japan) spectrometer, working in transmission mode, in the range 450–3100 cm−1 with 4 cm−1 resolution.

2.2.2. Atomic Force Microscopy (AFM) and Field Emission Scanning Electron Microscopy (SEM)

The roughness of the deposited organic thin films was evaluated by AFM using a MultiView 4000 system (Nanonics Imaging Ltd., Jerusalem, Israel) with a scan area of 40 × 40 μm.
The morphology of the organic layers deposited on flat and patterned substrates was evaluated using an ApreoS instrument (Thermo Fisher Scientific, Waltham, MA, USA), working in high vacuum and with an acceleration voltage of 10 kV.

2.2.3. Spectroscopic Ellipsometry Measurements

Specular reflectance measurements at different incidence angles were performed using a variable angle spectroscopic ellipsometer (Woollam V-VASE). The reflectance data were acquired in the 500–1000 nm range with 0.1 step, at two different angles: 35 and 45°, having the polarizer angle set at 45°.

2.2.4. UV-VIS and Photoluminescence (PL) Spectroscopy Measurements

The optical properties of the organic layers were investigated by UV–VIS spectroscopy using an Evolution 220 UV-VIS spectrophotometer equipped with Insight software (Thermo Scientific, Schwerte, Germany). The UV-VIS measurements were performed in absorption and transmission modes, in the 190–1100 nm range with 0.2 s integration time and with a scan speed of 300 nm/min.
The PL measurements were performed using an Edinburgh Instruments spectrometer with a 450 W Xe lamp. The PL spectra were recorded in the 450–850 nm range, at 435 nm excitation wavelength.

2.2.5. Current Density-Voltage (J-V) and External Quantum Efficiency (EQE) Measurements

The electrical characteristics (J-V) and (EQE) of the organic heterostructures were acquired in dark and solar simulation conditions (AM 1.5, incident power density 100 mW/cm2) using a home-made set-up composed of a Keithley SourceMeter 2400 model, a Newport Oriel monochromator, and a Newport Oriel solar simulator controlled by a computer through a LabVIEW interface.

3. Results and Discussion

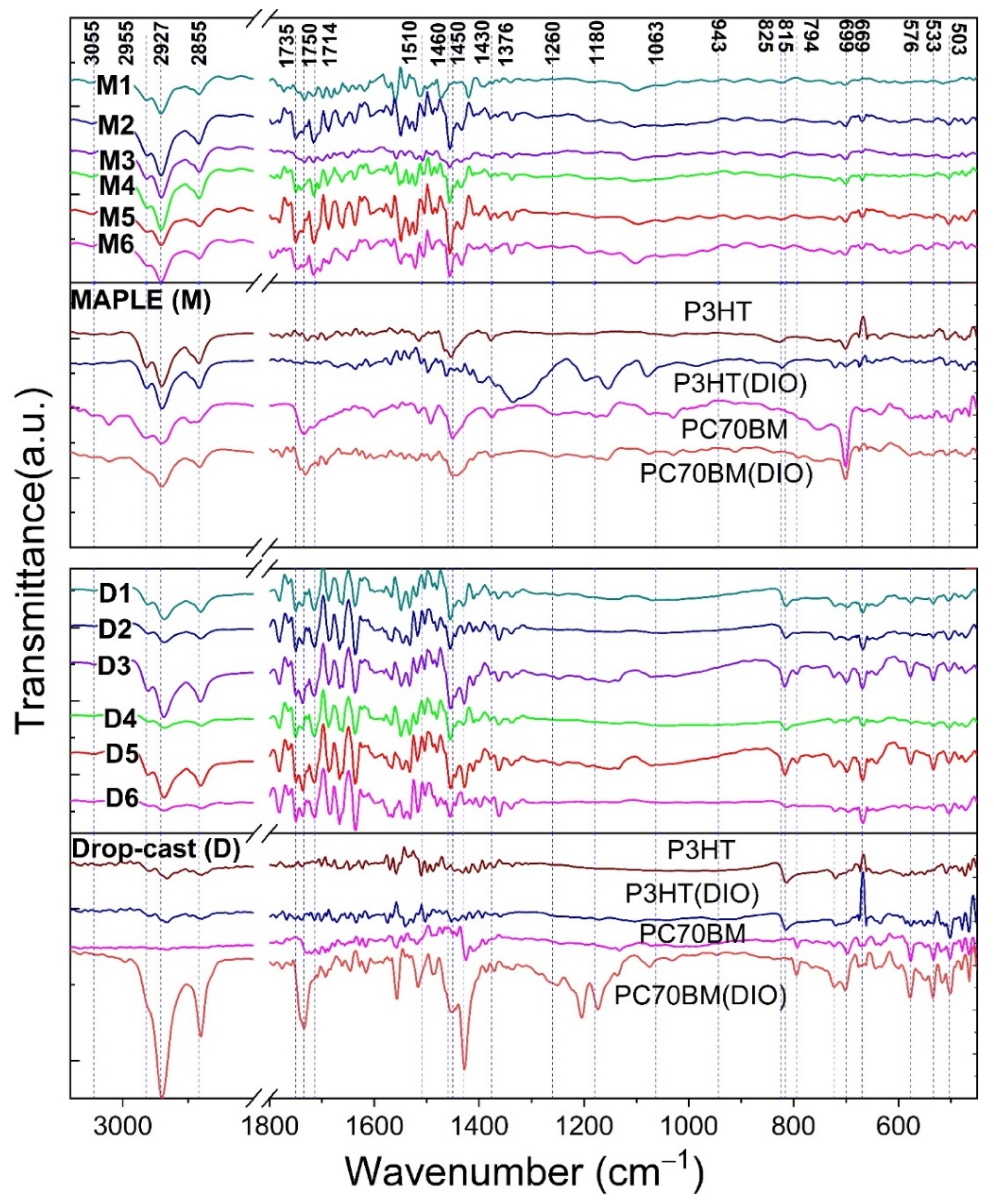

The preservation of the chemical structure of the organic compounds used in the MAPLE deposition of P3HT:PC70BM thin films was evaluated by FTIR analysis. Thus, in Figure 2 are presented FTIR spectra of the MAPLE organic thin films as a mixture and as single component versus drop-cast organic layers deposited on silicon substrates.
In the 2960–2700 cm−1 region, the absorptions are usually assigned to C-H stretching vibration from methylene and methyl of the alkyl chains from the thiophene rings of P3HT [77,78]. Thus, the drop-cast and MAPLE mixed layers present the antisymmetric CH3 stretching mode at around 2955 cm−1 and the antisymmetric CH2 stretching around 2927 cm−1, similar to the ones noted in the FTIR spectra of the P3HT and PC70BM reference thin films. The C-H stretching vibration corresponding to the symmetric CH2 stretching mode is observed at around 2855 cm−1. The very weak band at around 3055 cm−1, barely noted in the MAPLE films but broader in the drop-cast ones, corresponds to =CH stretching vibration [79].
The intensity of the band located at 1735 cm−1 associated to the C=O stretch of the ester bond of PC70BM is decreased in comparison to the FTIR spectra of the pristine fullerene reported in the literature as a consequence of the formation of a hydrogen bond. Furthermore, the absorption bands from 1750 and 1714 cm−1 can be related to the formation of the photodegradation products in the air, as was reported for the spin-coated layers [80,81]. The characteristic peaks of PC70BM can be observed at 1430 cm−1 (CH2 bending vibration) and 1180 cm−1 (O-C single bond vibration), the former missing completely in our “blend coatings” deposited by drop-cast and MAPLE on silicon substrates [71,82]. In the case of the absorption bands of P3HT, the principal ones correspond to -CH3 vibration of the end groups noted at 1376 cm−1, to C=C thiophene at 1460 cm−1, and to antisymmetric C=C stretching of the backbone at 1510 cm−1 [78,82]. The presence of the small absorption band near 1260 cm−1 assigned to the epoxy group (C-O-C) in the reference drop-cast films justifies the degradation of the film due to the residual additive. The absence of this absorption band for the FTIR spectra of the MAPLE-deposited films demonstrates that the additive molecules are not trapped inside during the MAPLE process [37].
In the 1000–400 cm−1 region, the characteristic absorption bands linked to the functional groups of both organic compounds can be identified. In the case of P3HT, the absorption band associated to C-H out-of-plane deformation vibration is observed at 815 cm−1 for all drop-cast samples and at 825 cm−1 for the MAPLE samples, broader in the case of MAPLE films in comparison to the drop-cast layers [83,84,85]. The absorption band is more intense for the drop-cast films deposited from the solutions without DIO, the miscibility of the two organic compounds being lower than that obtained in the solutions containing DIO as additive. Moreover, at 722 cm−1 can be observed the band associated to the CH3 rocking vibration [85] or to the characteristic absorption of the sulfur atom on the polythiophene ring [81], and at 533 cm−1 the band due to the vibrations in the fullerene cage [86].
The topography and the morphology were analyzed for the samples that presented a similar thickness of the organic layer (I3, I3nano, I2, and I2nano samples) by AFM and SEM. The thickness of the organic layers deposited onto ITO and ITO micro-patterned electrodes is shown in Table 3. The thickness of the organic layers deposited by MAPLE on glass and silicon substrates is similar to the thickness of the corresponding organic layer deposited onto the ITO flat electrode (I1–I6) of the same target solution, since they were deposited in the same deposition process.

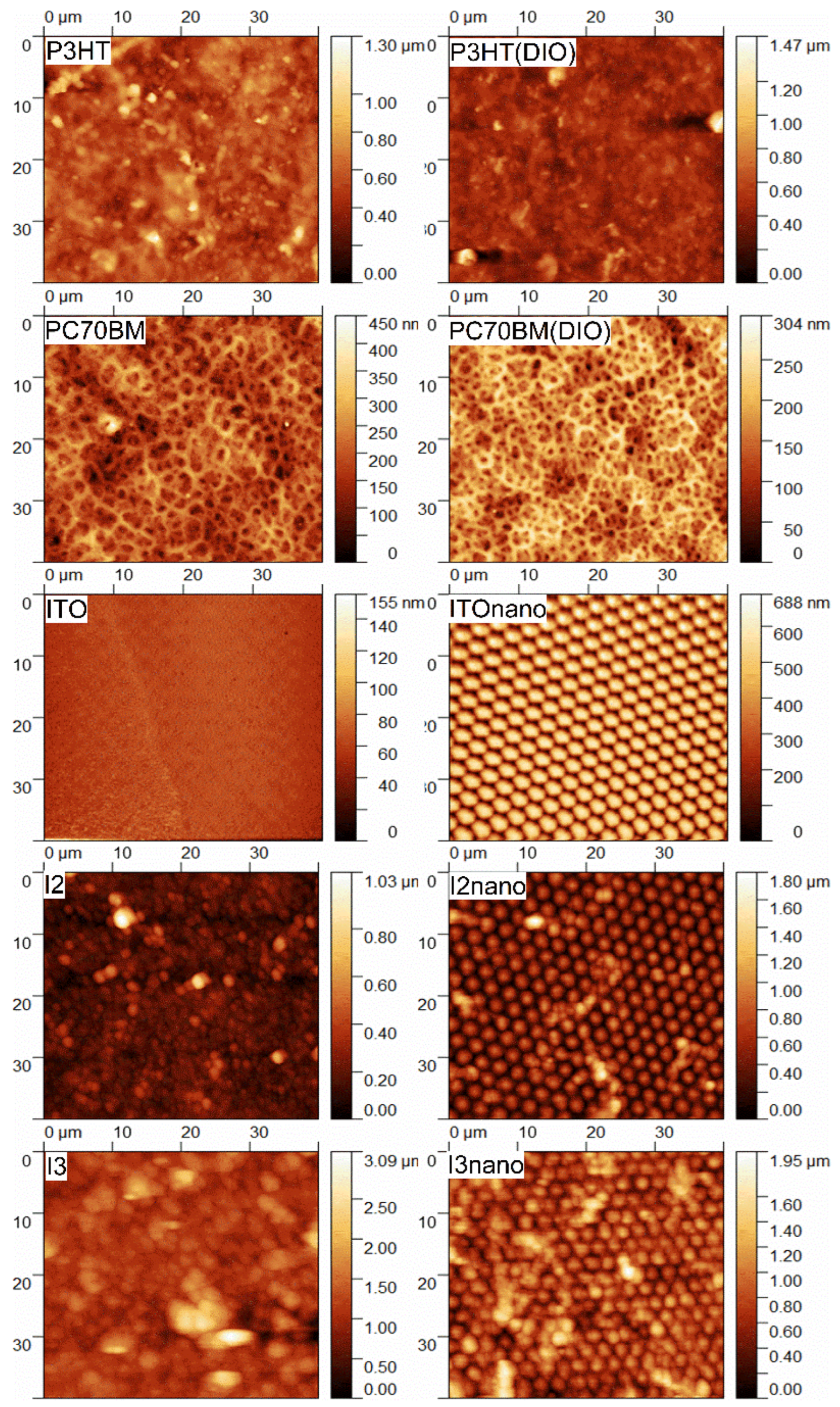

The AFM images (Figure 3) of the P3HT films prepared from the targets with/without additive show that the molecular aggregation effect in the films is lower when a quantity of 0.3% DIO is added.
This result is in conformity with the values obtained for the root mean square roughness (RMS) and roughness average (Ra) parameters, which decrease from 112 nm to 105 nm and from 84 nm to 70 nm, respectively, as can be seen in Table 4. The additive also prevents the P3HT from drying faster than the fullerene during the deposition process, acting as a swelling agent and therefore facilitating the charge separation [52,87]. The PC70BM films deposited by MAPLE from toluene solution have a spongious topography that is also preserved when the additive is added in the solution. The only difference is the fact that PC70BM(DIO) films present a more packed morphology, reflected also by the reduction in the RMS value from 49 nm to 44 nm and of the Ra value form 39 nm to 36, as reported in Table 4.
The active layer deposited on flat substrate (I3 sample (P3HT:PC70BM (1:1)) is characterized by a rugosity given by the presence of large grains, a similar result being reported for PC70BM deposited by vacuum evaporation [72]. For the I2 sample (P3HT:PC70BM (0.7:1) with DIO), the AFM image (Figure 3) confirms that the addition of the DIO additive in the blends suppresses the formation of large fullerene domains, which are critical for harvesting excitons. Thus, the use of a small concentration of additive improves the RMS and Ra parameters of the organic thin films deposited by the MAPLE technique (Table 4).

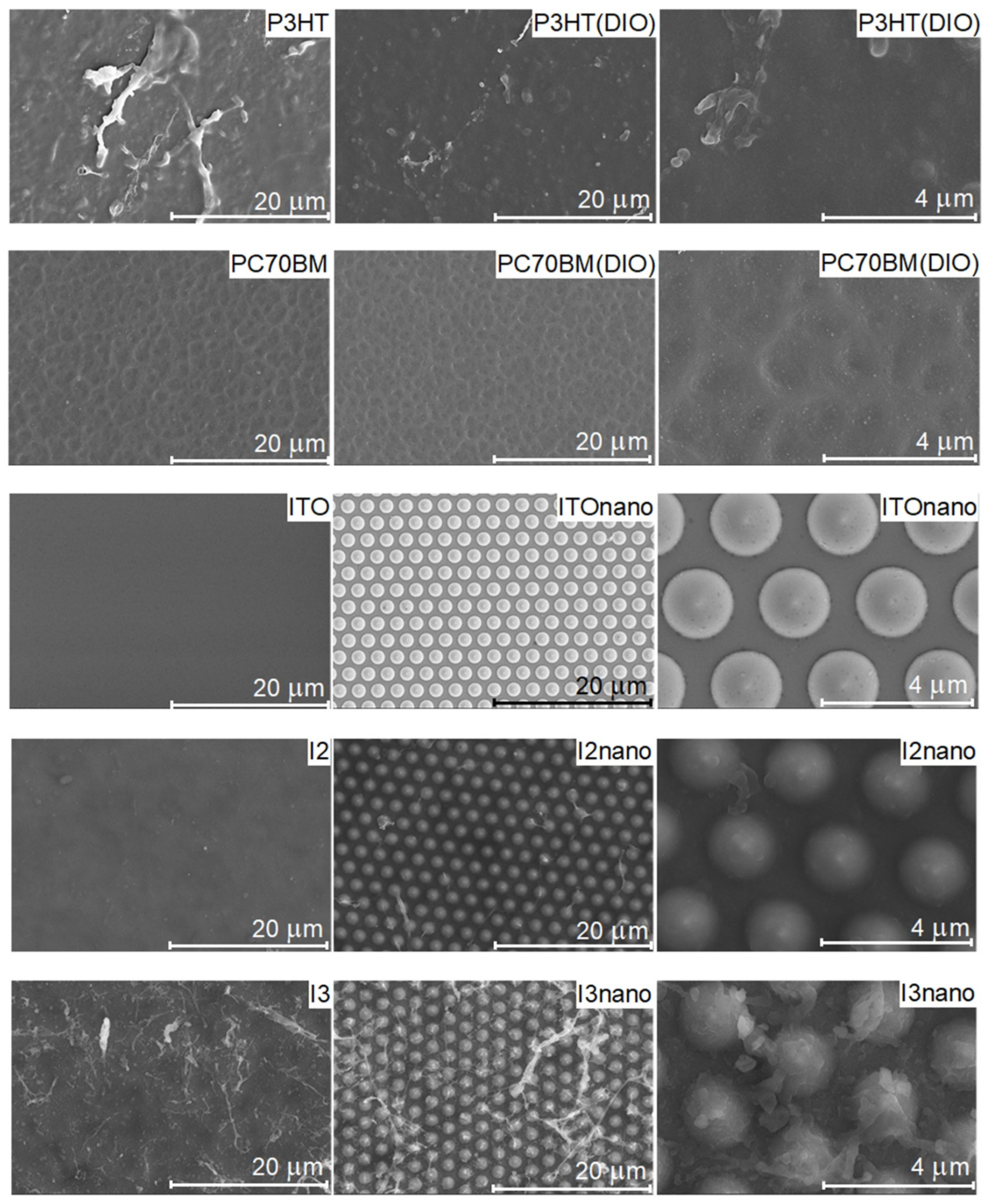

The SEM images (Figure 4) evidenced that the samples prepared from targets without DIO (I3, I3nano samples) present fibrillar nanocrystals of P3HT similar to the ones noted in the case of P3HT film. Less widespread nanocrystals have also been observed in the samples with DIO (I2, I2nano samples). Furthermore, the SEM images of the mixed films deposited from the target with DIO additive reveal a combination of the morphology of both organic compounds, suggesting that the PC70BM is intercalated within P3HT. As for the films without DIO, the P3HT fibrils are visible on the surface. In the case of the films deposited onto the micro-patterned substrate, the pattern’s topography is maintained.
Hence, the SEM images and AFM analysis prove that the use of DIO as an additive shrinks the fullerene dispersion without altering composition.

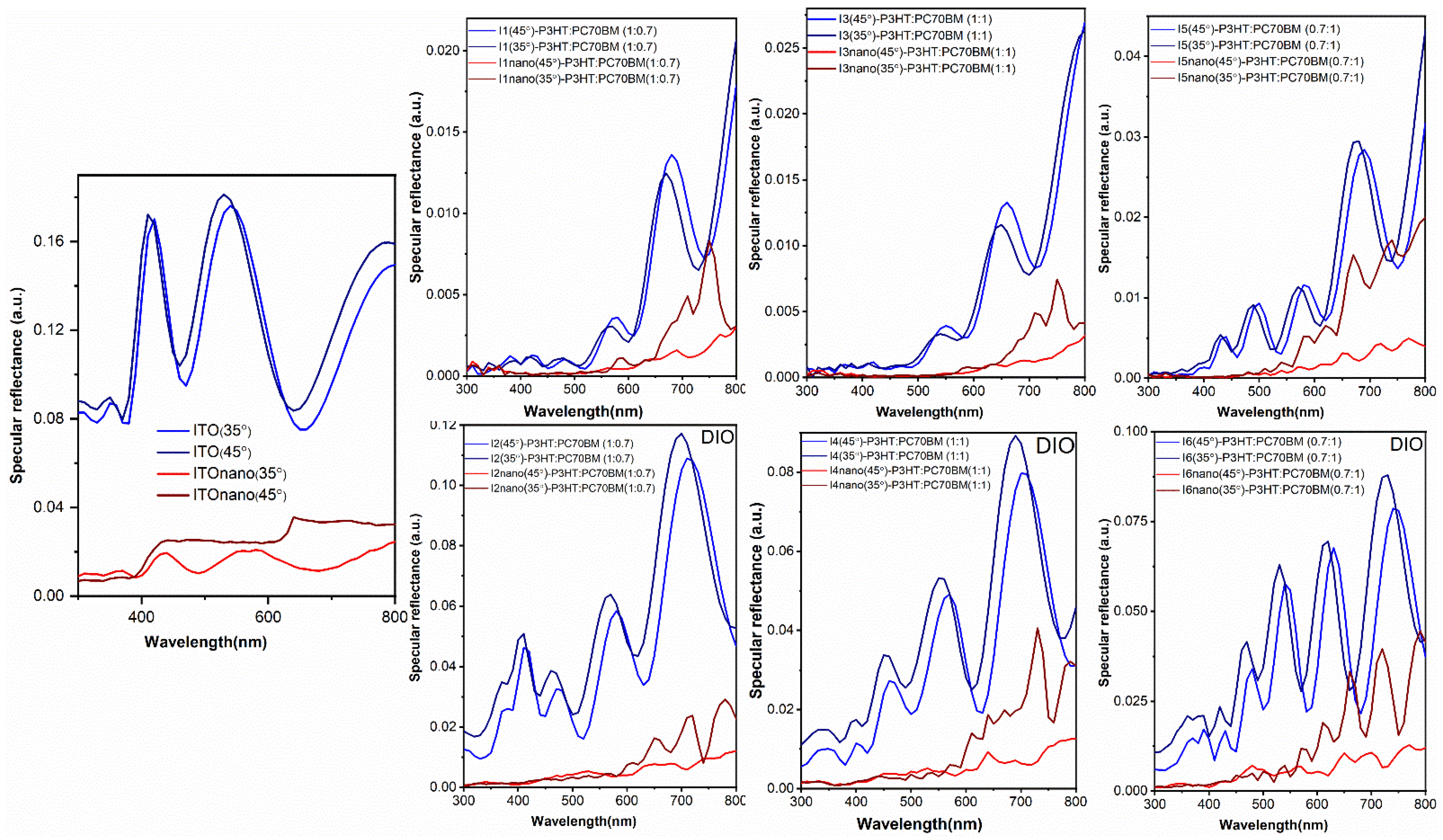

In order to see the influence of the micro-patterns’ specular reflectance, measurements were carried out at two different angles on the flat and patterned electrodes and on the organic heterostructures fabricated on them (Figure 5).
From the specular reflectance curves of the flat and patterned ITO electrode can be seen that the micro-patterns induce lower specular reflectance compared to the flat surface electrode. The shape of the specular curves of the ITO flat electrode is almost independent for the two incident angles. Furthermore, the interference fringes of the flat electrode are given by the thickness of the ITO deposited onto the glass substrate. Interference fringes are also visible in the case of the micro-patterned ITO electrode for the specular reflectance curve obtained at 35°, but they are missing or distorted in the specular reflectance curve recorded at 45°. Therefore, the specular reflectance of the micro-patterned structures is dependent of the incidence angle of the radiation. The reduction in the specular reflectance in the case of the ITO micro-patterned electrode is due to the fact that the incident light is reflected not only from the top and bottom surface of the pyramids, but also by the lateral walls. Therefore, additional reflections and scattering are taking place in the case of the micro-patterned electrode, which induce reflection reduction and increased absorbance.
The discussion regarding the reduction in the specular reflectance due to micro-patterns is also valid for all the analyzed organic films. Furthermore, the organic films deposited by targets containing DIO (I2, I4, I6 samples) are characterized by higher reflectance compared to the organic films deposited from frozen solution without DIO (I1, I3, I5 samples). This can be linked to the increased thickness and rugosity of the samples deposited from the solutions without additive, as was confirmed by the AFM analysis (Table 4). Higher values of these parameters are due to the molecular aggregation of the P3HT polymer and to the large fullerene domains, as was confirmed by SEM analysis (Figure 4). Regarding the P3HT concentration, it can be noted that higher concentration lowers the film reflectance. The result can be explained by the tendency of the P3HT to create films with higher rugosity when deposited by MAPLE from targets with toluene as solvent, compared to the PC70BM (see Table 4).
The optical properties of each organic component were analyzed in order to evaluate their contribution to the optical features of the mixed layers (Figure 6 and Figure 7). The absorbance spectra of the pristine P3HT and PC70BM layers deposited by MAPLE (with and without DIO) are given in Figure 6a. Usually, P3HT features a large absorption band with three maxima at 510, 550, and 600 nm [54,57]. However, the P3HT films deposited by MAPLE are characterized in the visible domain by a wide band between 330 to 650 nm. The addition of 0.3% DIO additive decreases the P3HT films’ absorbance. The fullerene film is characterized by a stronger absorbance between 300 to 600 nm, with the maximum in the UV light range (300 nm), owing to the highest occupied molecular orbital (HOMO)–lowest unoccupied molecular orbital (LUMO) transitions [88]. Therefore, it is important not to neglect the photocurrent generated by the light absorbed by the PC70BM in the discussion regarding the performances of the photovoltaic structures. In the case of PC70BM, the addition of the DIO additive does not influence the absorbance spectra; the only change observed is a slight narrowing of the domain.

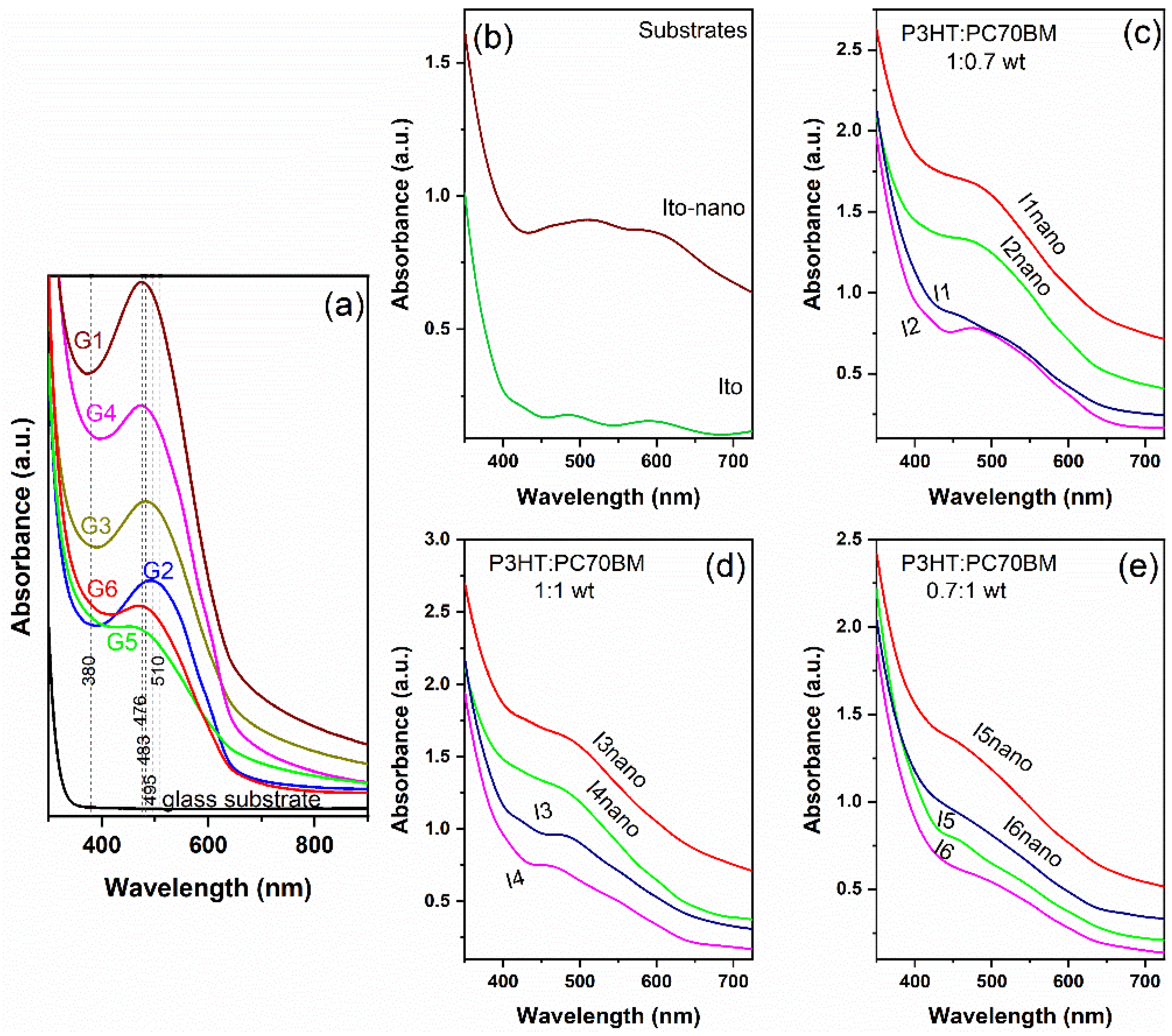

The absorption spectra of P3HT:PC70BM films with different weight ratios deposited by MAPLE on glass substrates (G1:G6) are shown in Figure 7a. Hence, the absorption range of the deposited films is situated between the absorbance ranges of the two organic components, at around 500 nm, near the maxima attributed to the π-π* transition. The absorbance spectra of the P3HT:PC70BM films maintain the shape of the absorbance spectra of the P3HT film. The influence of the fullerene addition is highlighted by the tendency to increase the absorbance towards smaller wavelengths. The absence of the 550 and 600 nm shoulders characteristic of P3HT in the pristine and mixed films deposited by MAPLE can imply the alteration of the degree of the interchain order [89].
In the case of samples with the quantity of P3HT equal to or lower than that of fullerene, prepared using DIO as additive (G4 and G6), the absorption is higher than that of the samples prepared without DIO (G3, G5). This can be explained by the fact that the PC70BM contribution, which is not strongly affected by the additive addition in its absorbance, is higher compared to the films with a higher concentration of P3HT (G1, G2) due to the π-π* interactions [90]. Furthermore, when the quantity of P3HT exceeds the quantity of PC70BM, the absorbance of the films without DIO is higher than the absorbance of the films with DIO. This result reinforces the statement made after the FTIR analysis that the addition of DIO as additive increases the solubility of fullerene and decreases the absorbance of the P3HT films.
Considering that the MAPLE organic layers will be integrated in structures with patterned electrodes in order to increase the efficiency of the photovoltaic heterostructures, the UV-VIS spectra of flat and patterned ITO substrates were analyzed (Figure 5). As expected, the spectra highlighted the fact that the absorption is higher in the case of the patterned substrate, due to the multiple reflections on the pyramid patterns walls, in agreement to the specular reflectance data (Figure 5). The same tendency remains for all heterostructures deposited on the micro-patterned ITO substrates. All the UV-VIS spectra preserve the shape of the used substrate and the visible absorption features of the P3HT:PC70BM blends, meaning a large absorption band between 400–600 nm as a sum of the individual P3HT and PC70BM absorptions reported in [43]. In terms of the fullerene composition, it can be observed that on the ITO substrates the 1:1 ratio mixed film (I3, I3nano, I4, I4nano samples) presents the maximum absorbance. In accordance with the FTIR data (Figure 2), the results confirm that no damaging phenomena concerning the chemical structures of the organic compounds occur during their MAPLE deposition [83].

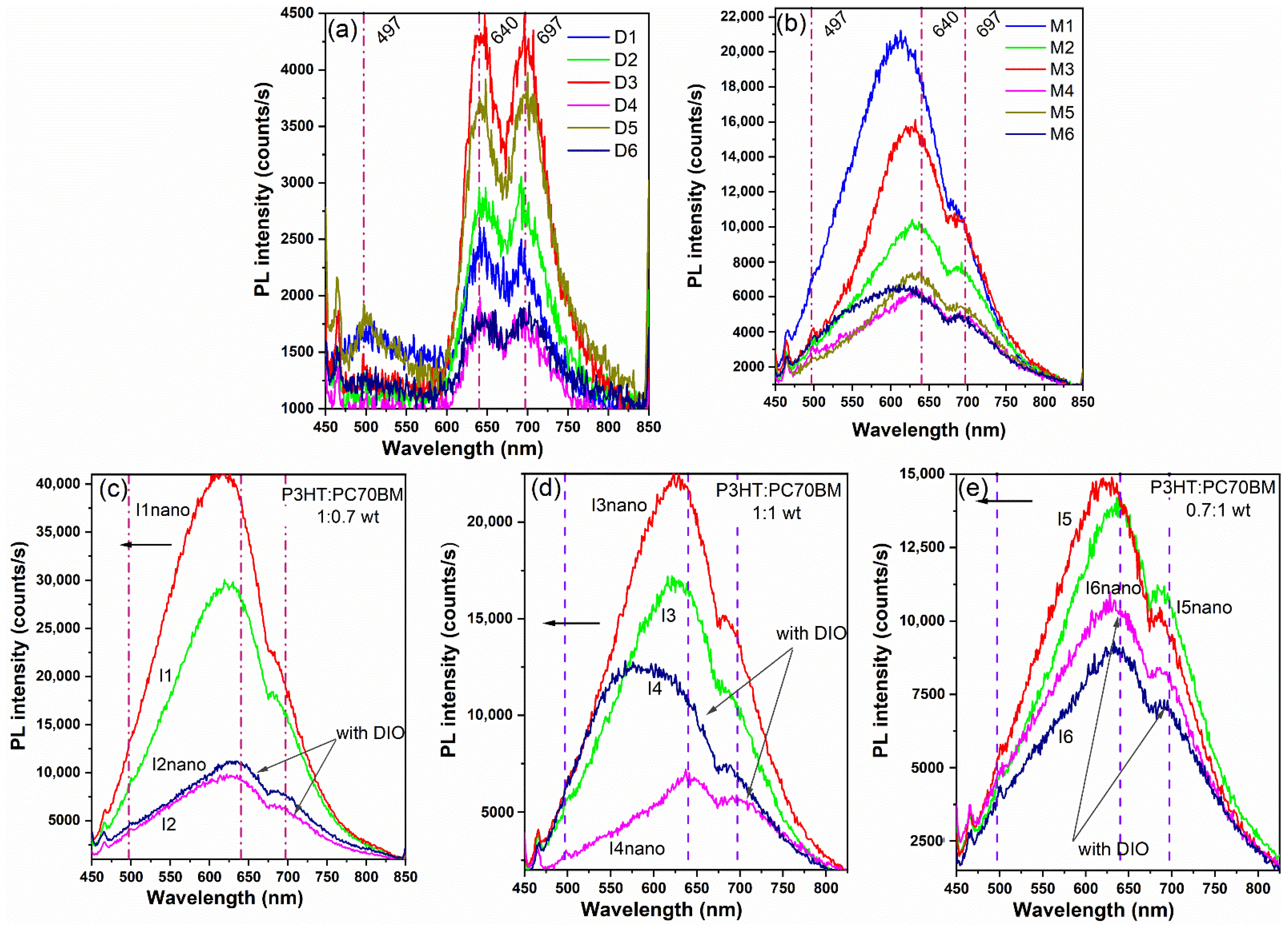

In order to analyze the influence of both the deposition method and the additive on the emission properties of the organic blends, firstly the PL spectra of the pristine P3HT and PC70BM films deposited by MAPLE from targets with and without DIO were analyzed in comparison with those obtained by drop-cast (Figure 6b–f).
The P3HT polymer film presents a strong red emission peaking at 667 and 697 nm when it is deposited by drop-cast (without DIO additive). The addition of DIO results in a strong quenching of the P3HT film emission and a slight shift of the position of the peak from 667 nm to 651 nm (Figure 6b). It can be noted that the emission of the P3HT film deposited by MAPLE is higher than that of the film deposited by drop-cast. Moreover, the peaks are shifted to lower wavelengths at 647 and 685 nm (Figure 6c–d). The shape of P3HT film deposited by MAPLE mirrors the shape of the drop-cast film. The quenching observed due to the DIO addition is stronger in the case of the MAPLE deposition.
The pristine PC70BM films deposited by both drop-cast and MAPLE technique (Figure 6e,f) are characterized by a low intensity emission band centred at 711 nm, because of the low quantum yields of the almost spherical fullerene molecules [91]. The emission intensity seems to decrease slightly for the films deposited by MAPLE (Figure 6f). Furthermore, the quenching resulting by the addition of the DIO additive is not as strong as in the case of P3HT films.
The PL spectra of the mixed films with and without DIO deposited by drop-cast on silicon substrates (D1–D6) show red emission with peaks at 640 and 697 nm, attributed to P3HT [83]. Compared to the pristine P3HT film, the maximum from 667 nm is shifted by 27 nm to lower wavelengths. Moreover, the photoluminescence emission intensity is slightly higher than that of the pristine PC70BM film deposited by drop-cast and significantly weaker than that of the pristine P3HT film. This is a consequence of the fast dissociation of excitons to free charges at the interfaces of the donor and acceptor domains [92]. Since the PC70BM has the emission peak at around 711 nm, the 697 nm emission peak from the drop-cast samples can be a combination of the maxima of both P3HT and PC70BM compounds [45,93].
In the PL spectra of the films deposited by MAPLE on silicon substrates (M1–M6), it can be observed that the emission bands become larger; the dominant emission peaks are still visible, but slightly shifted for the samples obtained using an equal or higher quantity of P3HT without DIO additive (M1, M3). This can be explained by the fact that usually the emission is strongly quenched by the addition of fullerene [70]. Moreover, the structures prepared using DIO reveal higher PL quenching compared to the heterostructures without DIO, implying usually a better charge transfer, as can be noted in I2, I2nano; I4, I4nano; and I6, I6nano samples [53].
The PL spectra of the sample deposited onto the flat and patterned ITO electrodes presented in Figure 8c–e reveal similar emission features to those of the layers deposited by MAPLE on silicon substrates. Furthermore, the emission intensity of the films is proportional with the quantity of the P3HT, meaning a higher PL signal at higher P3HT concentration. Moreover, it can be observed that the patterns slightly increase the PL intensity for the sample with a higher concentration of P3HT.

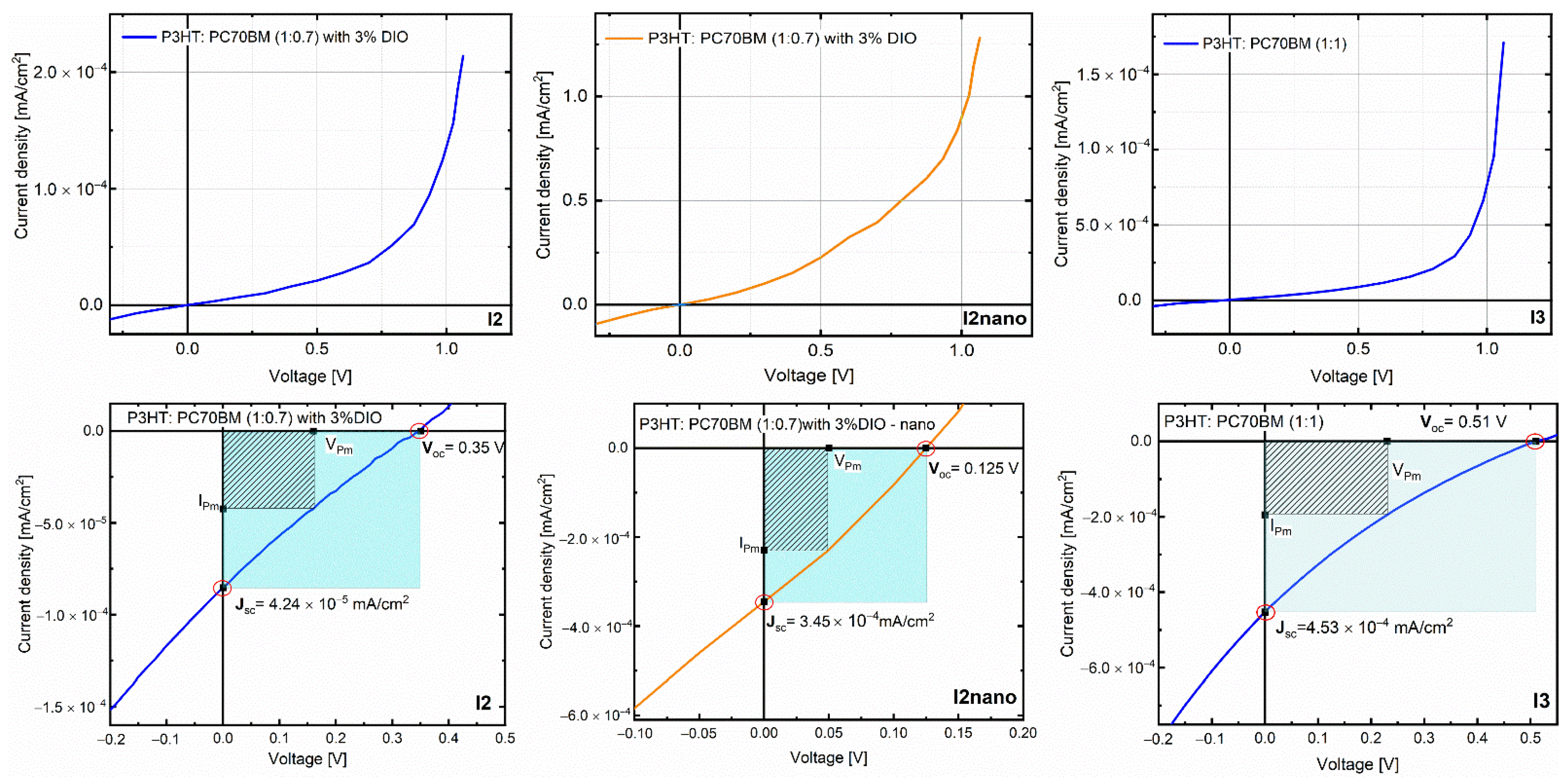

The current–voltage characteristics (I–V) in the dark of the evaluated samples were drawn at room temperature, using the same experimental set-up as for the standard AM 1.5 condition measurements. It can be noted the non-linear behavior of all structures, which is specific to the diodes with not very high rectification factors and relative asymmetry.

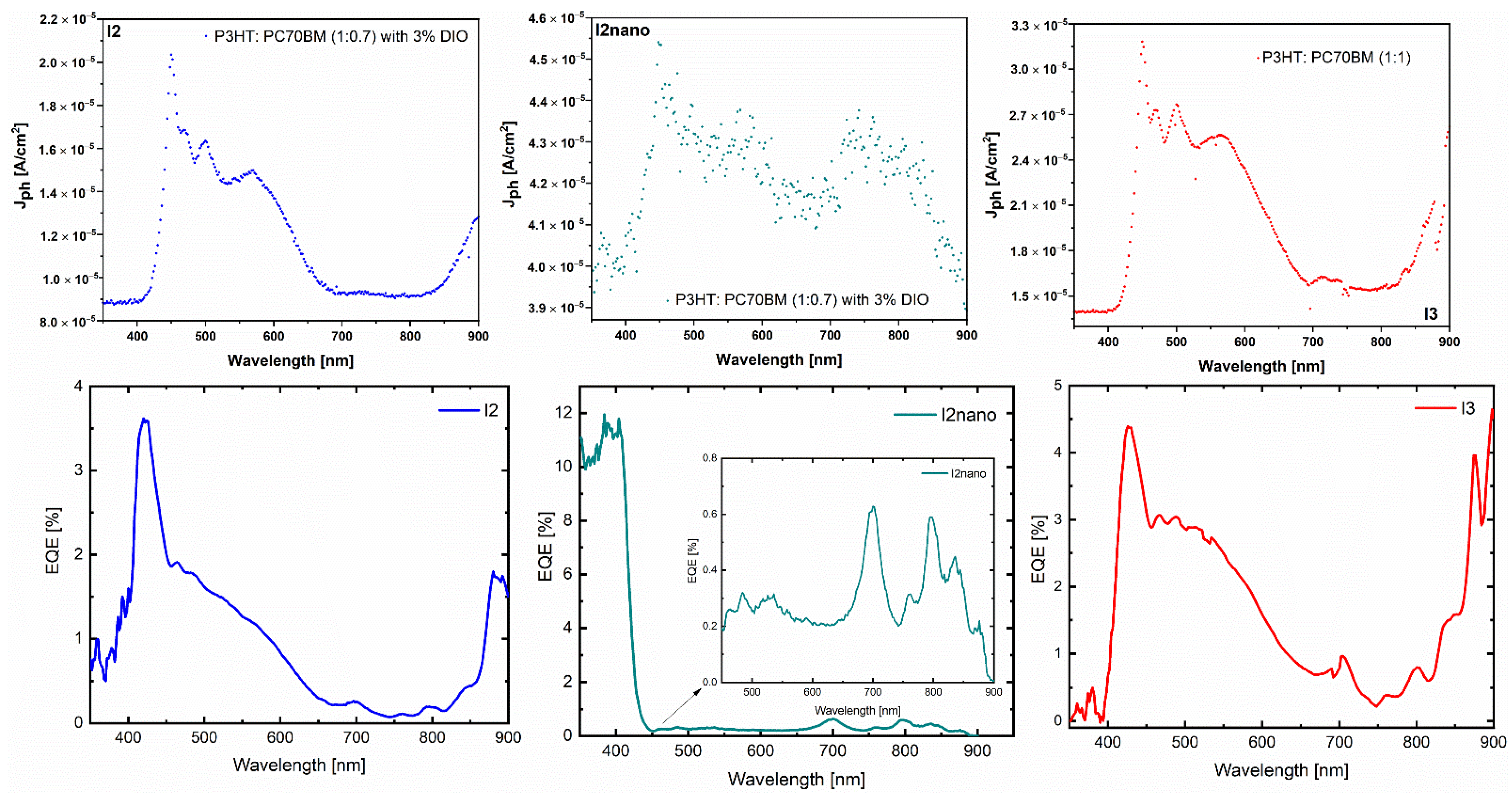

The photo-electrical response of the prepared samples was analyzed by current–voltage curves in the solar simulator conditions, AM 1.5, Pin = 100 mW/cm2 (Figure 9, bottom part). One may see that the photo-generated current density in short-circuit for the sample with a larger quantity of P3HT and DIO deposited on micro-patterned ITO substrates has similar values as for the conventional devices based on P3HT and PC70BM, 1:1 wt.%, and improved performance compared to similar devices obtained on flat substrates. Considering that the optical results showed an improved absorption for the samples without DIO when the P3HT quantity was larger than the PC70BM one, a possible explanation could be related to a better charge collection to electrodes. It can be assumed that for the micro-patterned ITO substrates, which have a highly arranged morphology, the transportation paths of photo-generated charge carriers are well defined, so the leakage ways are reduced. On the other hand, the open-circuit voltage Voc demonstrates the opposite behavior; it has higher values for the structures deposited on flat substrates. The open-circuit voltage strongly depends on the saturation current, which is a measure of the recombination. Thus, most probably the cause of the decrease in Voc is the high recombination due to an increased number of interfaces for the micro-patterned devices. This assumption is supported by the action spectra, which are the dependence of the external quantum efficiency (EQE) on the incident wavelength. Furthermore, it was demonstrated that by adding DIO, the structure usually exhibits lower open-circuit voltages, but higher photocurrents and fill factors compared to the cells without additive or thermal treatment [68]. In our case, the values of the fill factors (FF) for the structures are FFI2 = 23%, FFI2nano = 27%, and FFI3 = 19%, in agreement with the results published in [43,68,89]. The differences are not so notable in the case of the lower quantity of the DIO additive, but it is expected that the improvements will be more visible by increasing the additive concentration [68]. As a general observation, the J-V characteristics under illumination show a very low photovoltaic effect, whereas DIO additive and the use of a micro-patterned substrate have a positive influence on the properties of the investigated films.
The general definition of the EQE is the ratio between the number of collected photo-generated charge carriers and the number of incident photons for a given wavelength. Comparing the obtained results for I2, I2nano, and I3 samples (Figure 10, bottom part), it can be clearly noted that large and well-defined maxima in the EQE spectrum are related to good values of Voc, i.e., 0.51 V for I3, which reinforce the idea of low recombination at the interface. In order to identify more easily the signature of P3HT, in the manuscript we plot and add generated photocurrent vs. wavelength graphs (Figure 10, upper part). For the conventional P3HT:PC70BM (1:1) sample without DIO, the specific broad absorption range of the active layer between 400–600 nm is observed. The PC70BM maximum at 380 nm and P3HT peaks around 510 nm and 550 nm and the shoulder at 600 nm can also be easily seen. The addition of DIO narrows the specific absorption range by flattening the maxima assigned to P3HT. Again, the observation made asserts the FTIR results.
Comparing the structure I3 with the one reported in [89] fabricated by the spin-coating method and using fluorine-doped tin oxide (FTO) and poly(3,4-ethylenedioxythiophene)-poly(styrenesulfonate) (PEDOT:PSS) as a transparent electrode, the value of the fill factor for the ratio 1:1 P3HT:PCBM is almost similar, 17%, with that obtained in our study, 19%, for the same weight ratio. In terms of the same deposition technique for the organic films, MAPLE, there is a reported value for the FF equal to 28% for the P3HT:PCBM bilayer structure [43], similar to that obtained in our study, 27%, when a small amount of DIO additive was added and a micro-patterned substrate was used as an electrode.

4. Conclusions

Thin films based on P3HT:PC70BM with different organic composition (with or without DIO as an additive in the blend solution) were deposited by MAPLE (for the first time, to our knowledge) on flat and pyramidal-patterned substrates in order to evaluate their potential application in OPV cells. The FTIR analysis confirms that the chemical structure of organic compounds is preserved during the overall process (formation of the blend solution, frozen target fabrication, and laser evaporation process) and that the DIO additive molecules are not trapped inside the organic film.
The UV-VIS and PL spectra of all investigated organic films deposited by MAPLE reveal the typical absorption and emission bands of both components (P3HT and PC70BM). Moreover, the PL spectra of films deposited by MAPLE evidenced a change in their shape together with a slightly shifted position of emission maxima in comparison to those of films prepared by drop-cast. Regarding the influence of DIO additive and micro-patterned ITO electrodes on the optical properties of the deposited organic films, the following aspects must be emphasized: (i) the UV-VIS spectra show that both increase the absorption in the visible domain; (ii) the addition of 0.3% DIO results in a strong quenching of the P3HT emission and in a lower influence on PC70BM emission; (iii) the ITO micro-patterning increases the emission of the films with a higher or equal concentration of P3HT; (iv) the specular reflectance spectra reveal that the addition of DIO increases the reflectance of the blend films, while the electrode micro-patterning decreases it.
Although the photovoltaic response was very low, the preliminary J-V characteristics of the organic structures recorded under illumination show that the addition of DIO additive in the blend solution decreases the open-circuit voltage (VOC), while the value of the short-circuit current density (JSC) is comparable for all the investigated structures. The photovoltaic structures fabricated involving both DIO additive and micro-patterned ITO substrates emphasized the highest filling factor. Therefore, it is expected that by optimizing the MAPLE deposition parameters in order to decrease both the thickness and the rugosity of the active layer, as well as by structure encapsulation, an enhancement of the performances of the OPV cell may be achieved.

Author Contributions

Conceptualization, M.S. and O.R.; methodology, C.T., M.S., O.R., G.S. and G.P.-P.; validation, A.S. (Anca Stanculescu), N.P. and S.I.; investigation, C.T., G.S., C.B., S.I., N.P., G.P., G.P.-P., A.S. (Andrei Stochioiu) and I.S.; writing—original draft preparation, M.S., O.R. and S.I.; writing—review and editing, O.R., A.S. (Anca Stanculescu), N.P., G.S. and S.I.; supervision, O.R. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Romanian Ministry of Research, Innovation and Digitalization, CNCS-UEFISCDI, project number PN-III-P4-ID-PCE-2020-1691, contract no. 66/2021, within PNCD III.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
